Transcription-factor-dependent enhancer transcription defines a gene regulatory network for cardiac rhythm

Research Article
  • Cited 2
  • Views 1,639
  • Annotations
Cite as: eLife 2017;6:e31683 doi: 10.7554/eLife.31683

Abstract

The noncoding genome is pervasively transcribed. Noncoding RNAs (ncRNAs) generated from enhancers have been proposed as a general facet of enhancer function and some have been shown to be required for enhancer activity. Here we examine the transcription-factor-(TF)-dependence of ncRNA expression to define enhancers and enhancer-associated ncRNAs that are involved in a TF-dependent regulatory network. TBX5, a cardiac TF, regulates a network of cardiac channel genes to maintain cardiac rhythm. We deep sequenced wildtype and Tbx5-mutant mouse atria, identifying ~2600 novel Tbx5-dependent ncRNAs. Tbx5-dependent ncRNAs were enriched for tissue-specific marks of active enhancers genome-wide. Tbx5-dependent ncRNAs emanated from regions that are enriched for TBX5-binding and that demonstrated Tbx5-dependent enhancer activity. Tbx5-dependent ncRNA transcription provided a quantitative metric of Tbx5-dependent enhancer activity, correlating with target gene expression. We identified RACER, a novel Tbx5-dependent long noncoding RNA (lncRNA) required for the expression of the calcium-handling gene Ryr2. We illustrate that TF-dependent enhancer transcription can illuminate components of TF-dependent gene regulatory networks.

https://doi.org/10.7554/eLife.31683.001

Introduction

Cardiac rhythm is under tight transcriptional control (e.g. Nadadur et al., 2016). Mendelian and genome-wide association genetic studies have implicated cardiac ion channels and transcription factors (TFs) in cardiac conduction and arrhythmias (Tucker and Ellinor, 2014). These genes form components of an implied cardiac gene regulatory network, in which TFs drive downstream effectors to maintain normal electrical conduction. Molecular understanding of cardiac rhythm control requires analysis of the essential TF-driven enhancers that modulate the expression of channel genes, and these regulatory elements are not yet described. TBX5 is a central component of cardiac gene regulatory networks and is required for normal cardiac rhythm (Nadadur et al., 2016). For example, we previously demonstrated that TBX5 modulates atrial gene expression to prevent atrial fibrillation (Nadadur et al., 2016). In the work described in this paper, we sought to define the essential components of the TBX5-driven gene regulatory network for atrial rhythm.

We attempted to identify TBX5-dependent enhancers by combining datasets for tissue-specific enhancer markers and TBX5 chromatin localization (TBX5 ChIP-seq) in cardiomyocytes (He et al., 2011). Previously published datasets describing regions with accessible chromatin defined by DNase I hypersensitivity (Stergachis et al., 2014) and the genomic enhancer marker Histone 3 Lysine 27 Acetylation (H3K27Ac) (Stamatoyannopoulos et al., 2012) from the whole adult mouse heart were intersected with TBX5 occupancy in the atrial cell line HL-1 (Claycomb et al., 1998) (Figure 1A). Over 15,000 common genomic locations were identified. We also performed ATAC-seq in HL-1 cells, and intersection with this more limited dataset (with 16,000 accessible regions) identified over 7500 common genomic locations. The high concordance between these datasets suggested a lack of specificity for functional TBX5-dependent enhancers, consistent with observations that genomic enhancer marks and TF ChIP lack specificity or quantitative resolution of enhancer strength (Zentner and Scacheri, 2012) and that only a small percentage of these candidate TF-dependent enhancers will prove to be functional in-vivo (Visel et al., 2007; Cusanovich et al., 2014; Danko et al., 2015).

Figure 1 with 4 supplements see all
TF-dependent noncoding transcription defines regulatory elements.

(A) Venn-diagram of peak call overlaps for HL-1 ATAC-sequencing (ATAC.HL1), histone 3 lysine 27 acetylation in mouse heart (H3K27ac.Heart, GSE52123), DNase hypersensitivity in mouse heart (DNase.heart, ENCODE) and TBX5 ChIP-seq (TBX5.HL1, GSE21529). (B) Workflow for identifying TF-dependent ncRNAs. Total noncoding transcripts from mouse left atrium were narrowed to Tbx5-dependent distal intergenic ncRNAs, defined as >1 kbp away from the known transcriptional start sites of known coding genes (GENCODE mm10), and narrowed again to coherent changes with nearby Tbx5-dependent genes within a 2-Mbp window. (C). Heatmap of identified Tbx5-dependent ncRNAs in Tbx5fl/fl;R26CreERt2 (red, left) and corresponding R26CreERt2 control (blue, right) in left atrial tissue. The hierarchical cluster analysis is based on the Euclidean distances of normalized sequencing counts. 1577 Tbx5-activated ncRNAs were downregulated after Tbx5 deletion and 1490 Tbx5-repressed ncRNAs were upregulated after Tbx5 deletion across n = 5 and n = 3 resp. (D) Volcano-plot of significantly misregulated TF-dependent ncRNAs, select identifications were labeled by nearest TBX5-dependent gene. Plot of log2 fold-change of ncRNAs in Tbx5fl/fl;R26CreERt2 compared to R26CreERt2 vs –log10 false discovery rate (FDR) for the same comparison (FDR < 0.05, |FC| > 2). The ncRNAs within 2 Mb of coherently mis-expressed TBX5-dependent genes are red or blue for activated and repressed, respectively. Gray dots represent those ncRNAs without coherently mis-expressed coding genes in the 2-Mb window. (E, F) Example genomic views of two of the most significantly TF-dependent ncRNAs, adjacent to the Atp2a2 (E) and Ryr2 (F) genes, respectively. Top track is chromosomal location, followed by the ncRNA read density from R26CreErt2control and Tbx5fl/fl;R26CreERt2. Below is ATAC-Seq peak call in HL-1 cells, cardiac DNase hypersensitivity (ENCODE), TBX5 ChIP-seq (GSE21529) and cardiac H3k27 acetylation (GSE52123). The identified differential ncRNA is marked in the red box, and the putative regulatory element, as defined by the enhancer marks above, is marked in the gray box.

https://doi.org/10.7554/eLife.31683.002

The noncoding genome is pervasively transcribed, and a fraction of ncRNAs emanate from enhancers. The relationship between enhancer transcription, enhancer function, and target gene expression has become the subject of vigorous investigation. Recent work indicates that enhancer transcription may be a functional requirement of active enhancers (Danko et al., 2015; Lam et al., 2014; Li et al., 2013, 2016). The level of eRNA expression at enhancers positively correlates with the level of mRNA synthesis at nearby genes, suggesting that eRNA synthesis may occur specifically at enhancers that are actively engaged in promoting mRNA synthesis (Kim et al., 2010). Activation of enhancer networks has been linked to the increased transcription of enhancers, suggesting that context-dependent changes in enhancer function may be accompanied by concomitant changes in enhancer transcription (Wang et al., 2011). Tissue-specific eRNA expression is a feature of some validated in-vivo enhancers, and eRNA expression signatures can be used to predict tissue-specific enhancers independently of known epigenomic enhancer marks (Wu et al., 2014). Separate from the functionality of enhancer-borne RNAs, these and other observations indicate that enhancer and target gene transcription are correlated and that differential enhancer transcription may provide a useful approach for the identification of context-dependent enhancers.

Results

Tbx5-dependent ncRNA profiling

We hypothesized that tissue-specific TF-dependent enhancers could be identified by defining TF-dependent ncRNA enhancer transcripts. To identify TBX5-dependent noncoding RNAs (ncRNAs), we sequenced non-polyadenylated RNA from the atrium of control (R26CreERt2; n = 3) and Tbx5 mutant (Tbx5fl/fl;R26CreERt2; n = 4) adult mice, as enhancer-associated RNAs are canonically under poly-adenylated (Kim et al., 2010). Approximately 40.5 k noncoding transcripts were identified by de novo transcript assembly (Figure 1B). Of these, 3610 noncoding transcripts were Tbx5-dependent intergenic ncRNAs (FDR < 0.05, FC > 1.5, located at least 1 kbp away from known coding-gene transcription start sites (TSSs) (ENCODE mm10; Figure 1B) (Rosenbloom et al., 2015). Tbx5-dependent ncRNA expression was robust across biological replicates, distinguishing Tbx5fl/fl;R26CreERt2 samples from R26CreERt2 controls (Figure 1C). 3067 (85%) Tbx5-dependent ncRNA transcripts were located within 2 Mbp upstream or downstream of 2383 Tbx5-dependent protein-coding genes, as defined by the RNA-seq of polyA transcripts from the same samples, that is, within the known distance parameters of enhancer–gene-target pairs (Figure 1D) (Nadadur et al., 2016).

We analyzed the genomic features of Tbx5-dependent ncRNAs (Figure 1B, Figure 1—figure supplement 1A). The vast majority were de novo ncRNAs (>85% were previously unannotated transcripts, based on intersection with the mouse transcriptome [GENECODE, mm10]), with a small number previously annotated as long ncRNAs (lncRNAs, 5%), antisense transcripts (2%), or other predicted noncoding transcripts. This observation is consistent with the observation that ncRNAs are highly tissue-specific and that global ncRNA discovery has not been previously reported in the atrium of the heart (Figure 1—figure supplement 1A) (Quinn and Chang, 2016). Tbx5-dependent ncRNAs showed a bimodal length-distribution, with relative enrichments at ~500 bp and at ~2000 bp (Figure 1—figure supplement 1B), similar to the distribution of GENCODE-annotated lncRNAs (Figure 1—figure supplement 1B). The 40.5 k ncRNA background and Tbx5-dependent ncRNAs both show a preponderance of unidirectional (transcribed from one DNA strand) versus bidirectional transcripts (Figure 1—figure supplement 1D). Sequence conservation indicated average Phastcon30 scores of between 0 and 0.2 for the majority of Tbx5-dependent ncRNAs, with a distribution similar to those of known lncRNAs and lower than those of promoters (Figure 1—figure supplement 1D).

Tbx5-dependent ncRNAs define Tbx5-dependent enhancers

We hypothesized that Tbx5-dependent ncRNAs marked Tbx5-dependent enhancers. Tbx5-dependent ncRNAs were generated from locations enriched for enhancer marks genome-wide (Figure 1E–F, Figure 1—figure supplement 2A). Specifically, we observed enrichment between the 3067 Tbx5-dependent ncRNAs and (1) DNAse hypersensitivity in the adult mouse heart, (2) open chromatin (ATAC-sequencing) in HL1 cardiomyocytes, and (3) H3K27Ac in the adult mouse heart (Figure 1E–F, Figure 1—figure supplement 2A) (He et al., 2011, 2014; Wamstad et al., 2012). Furthermore, Tbx5-dependent ncRNAs defined locations that are enriched genome-wide for TBX5 occupancy in HL-1 cells (He et al., 2011) (Figure 2A). We further hypothesized that the intersection between Tbx5-dependent ncRNAs and regions of open chromatin, a global feature of enhancers (Andersson et al., 2014), would mark Tbx5-dependent enhancers. We overlapped differential ncRNA expression with cardiac DNAse hypersensitivity (Stamatoyannopoulos et al., 2012) and defined chromatin-accessible Tbx5-dependent noncoding transcripts as those within a 1-kbp window from DNAse peak-centers. 1703 candidate regulatory elements, from a set of 28,393 TBX5-bound DNAse regions, were identified by this intersection (Figure 2B).

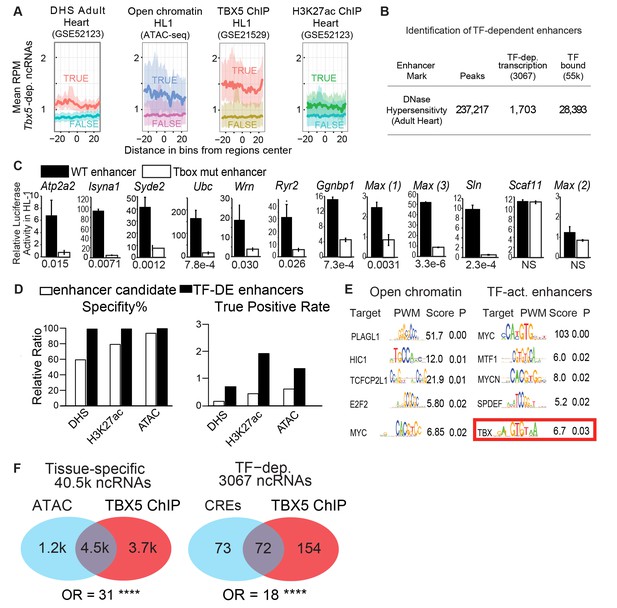

TF-dependent ncRNAs predict functional enhancers.

(A) Meta-gene plot showing reads per million (RPM) of Tbx5-dependent ncRNAs, being divided by enhancer makers DNase Hypersensitivity (DHS), ATAC Sequencing in HL-1 cells, TBX5 ChIP-Seq, and H3K27Ac, respectively. Each subpanel is centered around all Tbx5-dependent ncRNAs, the averaged RPM of the ncRNAs hold an enhancer mark (top line, TRUE) vs those ncRNAs that do not (bottom line, FALSE). (B) Identification TF-dependent ncRNAs associated with cis-regulatory elements (CREs) by overlap with accessible chromatin defined by DNase hypersensitivity. Overlap of ncRNAs ("TF-dep transcription") and TF ChIP ("TF bound"), respectively. (C) Relative luciferase activity of select enhancers identified in HL-1 cardiomyocytes, labeled by nearest TBX5-dependent gene. Activity of wildtype enhancers (black) and T-box mutant enhancers (white) are shown. P-values for statistical comparisons of wildtype vs mutant enhancers are given below each graph. n = 3 each, activity normalized to co-transfected Renilla vector, and to vector with scrambled insert. (D) Predictive specificity and True Positive Rate of enhancer marks alone (white) and when combined with Tbx5-dependent ncRNA (black). Defined enhancers were identified and compared against 240 cardiac and 1162 non-cardiac enhancers reported in the VISTA database. The enhancers were defined by DNase hypersensitivity (DHS), H3K27 acetylation, and open chromatin by ATAC-seq. (E) Motif analysis showing enriched motifs in HL-1 open chromatin (ATAC, left) and ncRNA-defined TBX5-dependent enhancers (right). Motif patterns are presented as position weight matrix (PWM) with enrichment statistics. Enrichment scores >1.5 and p-value <0.05 were considered significant, and the top five most-significant motifs are reported here. (F) Venn diagram of ATAC-seq and TBX5 ChIP-seq in background of ncRNAs (left) and TF-dependent elements overlapped with open chromatin in a background of TF-dep ncRNAs (right). Odds ratios (OR) are given for each background. **** indicates p<1e-10.

https://doi.org/10.7554/eLife.31683.007

We functionally interrogated candidate regulatory elements identified by Tbx5-dependent ncRNA transcription for enhancer activity. On the basis of our previous work on the role of TBX5 in the adult atrium (Nadadur et al., 2016), we selected a number of regulatory elements near genes that are critical for cardiac physiology and that harbor at least one canonical TBX5-binding motif. These included candidates near the TBX5-dependent calcium-handling genes Atp2a2, Ryr2, and Sln. 11 of the 12 candidate enhancers demonstrated robust cis-activity in HL-1 cardiomyocytes, indicative of cardiac enhancer function (P-values from 3.3e-6 to 0.03 [t-test, corrected for multiple comparisons], Figure 2C). Overall, these enhancers demonstrated unusually strong cis-activation, with nine driving reporter expression more than 10-fold and three more than 50-fold. These enhancers were strongly TBX5-dependent, as the activity of 10 of the 11 enhancers was significantly diminished by mutation of their canonical T-box sites (Figure 2C).

We asked whether differential ncRNA expression could discern functional TF-dependent enhancers from candidates marked by TF-ChIP or other marks of active regulatory elements. We examined the predictive power of TF-dependent ncRNA expression to identify accurately tissue-specific enhancers genome-wide, comparing the precision and specificity of Tbx5-dependent ncRNA-defined enhancers against those of 240 cardiac and 1162 non-cardiac enhancers from the VISTA database tested by mouse transient transgenic reporter assays invivo (Visel et al., 2007). Tbx5-dependent transcription increased the predictive power of DNAse hypersensitivity (DHS), H3K27 acetylation, and open chromatin by ATAC-Seq (>2 fold for precision, with similar specificity, Figure 2D), suggesting that TF-dependent ncRNA expression can improve functional enhancer identification.

To further define atrial-specific TBX5-dependent enhancers, we overlapped Tbx5-dependent ncRNAs with open chromatin in the mouse atrium, defined by ATAC-Seq. From 16,000 open regions, we identified 145 local Tbx5-dependent ncRNAs marking 152 candidate Tbx5-dependent enhancers (empirical p<0.0001, Figure 1—figure supplement 4). We compared TF-motif enrichment between enhancers defined by Tbx5-dependent ncRNA versus all atrial open chromatin regions. Atrial open chromatin showed enrichment for motifs of TF families, such as MYC and E2F, that provide non-tissue-specific transcriptional functions (Figure 2E). By contrast, Tbx5-activated enhancers showed significant enrichment for the T-box motif itself (enrichment score = 6.7, p=0.03, PWMEnrich [Frith et al., 2004]). Furthermore, TBX5 occupancy by ChIP-seq in atrial HL-1 cells (He et al., 2011) was highly enriched at open atrial locations that contained Tbx5-dependent ncRNAs (72 of the 152 locations, OR = 18, p<2e-16; Fisher Exact Test, Figure 2F). Together, these observations provide evidence that TF-dependent enhancer transcription may be used to identify the locations of TF binding.

The candidate enhancers that were marked by differential transcription but not by TBX5 binding represent either indirect Tbx5-dependent elements or false negatives from ChIP. A candidate enhancer located at the Sln locus is one example: the region did not demonstrate TBX5 localization in ChIP-seq in HL-1 cells (He et al., 2011), but did show Tbx5-dependent ncRNA transcription. We interrogated this region by ChIP-qPCR and observed TBX5-occupancy (p=0.03 vs control Gapdh locus, two-tailed unequal variance t-test) (Figure 3—figure supplement 1). The element demonstrated robust TBX5-dependent activity in HL-1 cardiomyocytes in vitro as determined by luciferase assay (p = 2.3E-4 WT vs T-box Mutant [two-tailed unequal variance t-test], Figure 2C). Thus, we conclude that a regulatory element at the Sln locus, not previously identified by genomic approaches, is a direct TBX5-dependent enhancer, that has been identified by ncRNA Seq and validated by Chip-PCR.

A quantitative relationship between Tbx5-dependent ncRNA and gene expression

We sought to define the gene regulatory networks that are controlled by Tbx5-dependent enhancer transcription and therefore examined enhancer–target gene interactions. We postulated a quantitative correlation between TF-dependent enhancer transcription and TF-dependent target gene expression. We observed that the direction of altered transcription of Tbx5-dependent ncRNAs and local polyA transcripts was most often coherent: 86% of downregulated (1577/1841; empirical p<0.001) and 66% of upregulated (1490/1769; empirical p=0.003) Tbx5-dependent ncRNAs were local to downregulated and upregulated Tbx5-dependent coding-genes, respectively (Figure 1D,F, Figure 1—figure supplement 3B). This significant directional coherence suggested a functional relationship between Tbx5-dependent enhancer function and local Tbx5-dependent transcription. Targeted chromosome conformation capture analysis (4C-Seq) (van de Werken et al., 2012) was performed to identify enhancer–promoter contacts for four enhancers identified by differential ncRNA expression and validated in vitro. 4C-Seq in the atrial HL-1 cardiomyocyte cell line demonstrated significant interactions between the enhancers defined by Tbx5-dependent transcription and local Tbx5-dependent genes located within topological associated domains at the genetic locations of Ryr2, Atp2a2, Ubc, and Wrn (Figure 3A). 81 out of 93 enhancers with Tbx5-activated transcription showed quantitative directional coherence with the expression of the nearest Tbx5-dependent gene (by Pi-score [Xiao et al., 2014]) (Figure 3B), consistent with cis-regulation of the nearest TBX5-dependent target gene. We analyzed the fold-changes of Tbx5-dependent enhancer transcription with that of adjacent Tbx5-dependent genes and observed a significant correlation between their direction and magnitude (coefficient = 0.58, p<2e-16 by Pearson Correlation test; Figure 3B). This positive correlation suggested that Tbx5-dependent enhancer transcription represents a quantitative metric describing Tbx5-dependent enhancer activity.

Figure 3 with 1 supplement see all
Enhancer transcription mediates target gene expression.

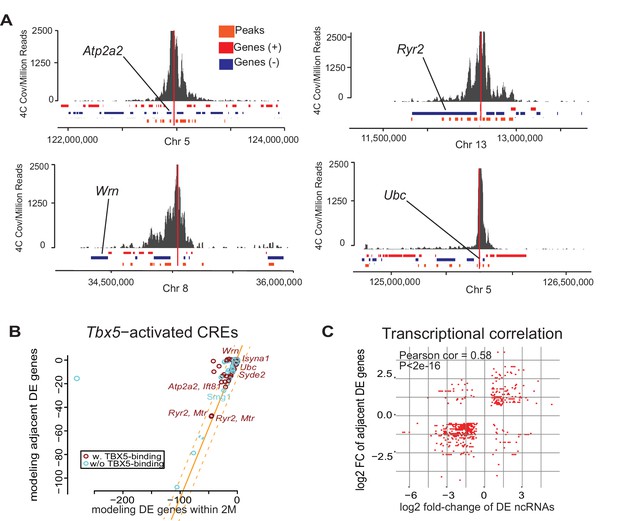

(A) Genomic loci showing circularized chromatin conformation capture (4C) from the viewpoint of four identified regulatory elements (near Atp2a2, Wrn, Ryr2, and Ubc). Total reads (top) and significant contacts (bottom, orange) are plotted. Annotated genes are shown in blue and red (sense and antisense, respectively). The viewpoint is with a dashed red line and the nearest TBX5-dependent target is labeled. (B) Sparse scatterplot for combined Pi-scores calculated from Tbx5-activated enhancers and Tbx5-activated genes. The X-axis is the pi-score using the ‘nearest’ Tbx5-dependent gene, and the Y-axis is the pi-score using all potential TF-dependent gene targets within a 2-Mbp window. The orange line indicates y = x. The dashed lines mark the standard deviations. Example enhancers were labeled with the names of their nearest Tbx5-dependent gene. Red indicates enhancers with TBX5 occupancy, and blue indicates enhancers without TBX5 occupancy as determined by ChIP-seq. (C) Scatterplot in hexagonal binning for the 3067 identified TF-dependent ncRNAs. The X-axis is the differential expression fold change on a log2 scale of these ncRNAs, and the Y-axis is the differential expression fold change on log2 scale of any nearest gene targets. The fold change with the maximum absolute value is used when both neighbor genes are TF-dependent.

https://doi.org/10.7554/eLife.31683.008

A Tbx5-dependent ncRNA-defined enhancer at Ryr2

We hypothesized that Tbx5-dependent enhancer-associated lncRNAs may be functionally required for local Tbx5-dependent gene expression. To reveal functional gene sets within the identified cis-regulatory network, we performed Gene Ontology (GO) enrichment analysis (Wang et al., 2015) on the putative targets of enhancers that demonstrated Tbx5-activated transcription (Figure 4A). We found enrichment for two statistically significant terms, ‘Calcium ion-related biological process’ and ‘Calcium ion transmembrane transport,’ remarkably consistent with previous work demonstrating that Tbx5 controls atrial rhythm by driving calcium-handling physiology and gene expression (Nadadur et al., 2016).

Figure 4 with 2 supplements see all

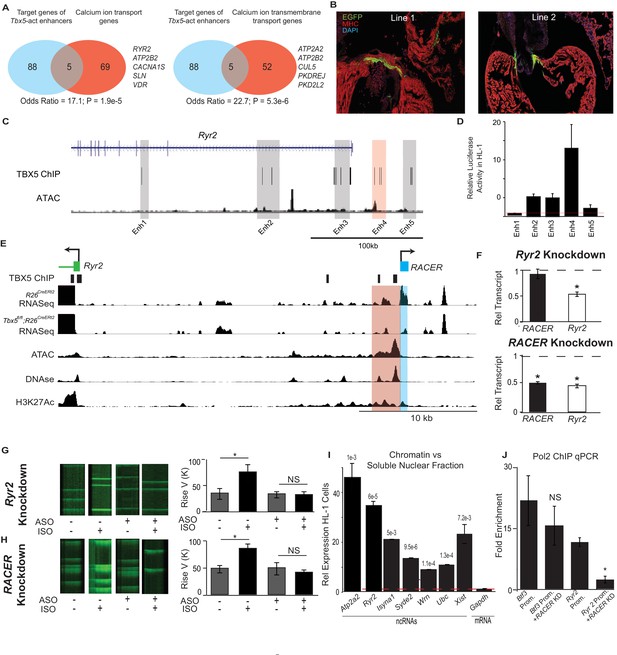

Enhancer-associated ncRNAs at Ryr2 and Atp2a2 are necessary for calcium-handling gene expression and cellular phenotype.

(A) Gene Ontology functional enrichment for gene targets within a 2-Mb window of the TBX5-activated enhancers. Odds Ratio (OR) and P-value of overlap with GO terms ‘Calcium Ion Transport Genes’ and ‘Calcium Ion Transmembrane Transport Genes’. (B) Representative 3 days post fertilization (Dpf) zebrafish embryos injected with a reporter construct containing the wildtype Ryr2 enhancer reporter, showing cardiac EGFP expression. One Representative embryos from two stable lines are also shown (Line 1 and Line 2, one embryo each). Stable lines display EGFP fluorescence in the heart in addition to other tissues (see Supplement). (C) Genomic view of the Ryr2 locus showing four candidate TBX5-dependent regulatory elements identified by TBX5 ChIP-seq (gray) and by RACER expression (Enh 4, red). (D) Relative luciferase activity in HL-1 cardiomyocytes of candidate Ryr2 enhancers, normalized to co-transfected Renilla vector and to a vector with a scrambled insert (n > 3 replicates). (E) Genomic view of the Ryr2 locus, showing identified noncoding RNA Ryr2 Associated Cis- Element RNA (RACER) in blue. A putative regulatory element associated with ncRNA is marked in red. Tracks show TBX5 ChIP (GSE21529), RNASeq from R26CreERt2 and Tbx5fl/fl;R26CreERt2, ATAC-Seq in HL-1 cardiomyocytes, DNASe hypersensitivity (ENCODE), and H3K27 acetylation (GSE52123). (F) Gene expression of Ryr2 mRNA and the RACER transcript after knockdown of Ryr2 mRNA (top) and knockdown of RACER (below). Relative transcript expression (RTE) after mRNA knockdown: 0.52 ± 0.03, p = 5.3E-5, for mRNA; RTE 0.92 ± 0.09, p = 0.43, and 0.82 for RACER. For ncRNA knockdown: RTE 0.44 ± 0.03 for mRNA and 0.45 ± 0.02 for RACER, p = 5.64E-6 and 0.04, respectively. (G, H) Representative calcium transient line scans from control (left) and ASO knockdown (right) HL-1 cardiomyocytes in the presence or absence of isopropteranol (+ISO, –ISO resp) after knockdown of Ryr2 mRNA (top) or RACER (bottom) with antisense oligonucleotides (ASO). Quantification of rise velocity under control and isoproterenol treatments (right). (I) Relative transcript expression of chromatin enriched vs soluble nuclear fractions in HL1 cardiomyocyte cells of several ncRNAs and (as controls) Xist and the Gapdh-coding mRNA transcript. Expression was normalized to 18S ribosomal RNA. P values compared the relative expression in soluble vs nuclear fractions of the ncRNAs and Xist to that of GAPDH mRNA, and were less than Bonferroni corrected p<6e-3 for all ncRNAs. (J) Fold-enrichment of RNA Polymerase 2 (Pol2) occupancy by ChIP at housekeeping gene Btf3 promoter (prom.) and at the Ryr2 promoter in the control (left) and after antisense oligonucleotide knockdown of Ryr2 enhancer ncRNA (ASO, right). Normalized to a control locus near the Gapdh gene.

https://doi.org/10.7554/eLife.31683.010

We next examined the enhancer at Ryr2, an essential calcium-handling gene component of the Tbx5-dependent calcium-handling GO term, for in-vivo activity in zebrafish (Figure 4B). Ryr2 directed cardiac expression of an EGFP reporter in zebrafish lines with a stably integrated transgene (Figure 4B, Figure 4—figure supplement 2A–B). Adult hearts displayed EGFP expression in cardiomyocytes lining the atrio- and bulbo-ventricular canals. To test whether expression activity was facilitated by T-box motifs, we mutated the seven canonical TBX5-binding sites located within the enhancer, which diminished the frequency of cardiac expression in F0 zebrafish microinjected with the transgene construct (67/166 positive for wildtype vs 20/84 positive in the mutant and 5/95 for the Fos minimal promoter alone; p = 0.011, OR = 0.46 vs wildtype RACER, Fisher's Exact Test) (Figure 4—figure supplement 2A–B). Together, these results indicate that the enhancer at Ryr2 is sufficient to drive expression in some cardiomyocytes in vivo and is promoted by TBX5.

We examined the relationship between Tbx5-dependent ncRNA abundance and enhancer activity at the Ryr2 locus in more detail. We asked whether Tbx5-dependent ncRNA abundance could discern Tbx5-dependent enhancers among all candidate enhancers marked by TBX5-ChIP at Ryr2. Five candidate enhancers were defined by TBX5 ChIP at the Ryr2 gene, which encodes the cardiac ryanodine receptor, a TBX5-dependent target that is critical for cardiac rhythm (Nadadur et al., 2016) (Figure 4C). The single candidate enhancer marked by significant Tbx5-dependent ncRNA abundance showed strong cardiac activity as determined by luciferase assay (Figures 2C and 4D, p = 0.05, two-tailed unequal variance t-test). In contrast, the other candidates showed weaker or no activity in HL-1 cardiomyocytes (Figure 4C,D, p = 0.06, 0.39, 0.02 and 0.002 for Enhancers 1, 2, 3 and 5, respectively; two-tailed unequal variance t-test). This observation suggested that TF-dependent ncRNAs may improve the predictive performance of TF-occupancy-based regulatory element identification.

RACER, a Tbx5-dependent lncRNA, is required for Ryr2 expression

We examined the novel Tbx5-dependent lncRNA generated from the Tbx5-dependent enhancer at Ryr2. We refer to this lncRNA, located 25 kb upstream of the Ryr2 locus, as Ryr2 Associated Cis-Element RNA (mm9 chr13:12226210–12226916, RACER, Figure 4E). We examined the functional requirement of RACER for Ryr2 gene expression. We compared antisense-mediated knockdown of the enhancer-associated lncRNAs versus that of the mRNA in HL-1 cardiomyocytes (Li et al., 2013; Ploner et al., 2009). Control knockdown of the Ryr2 mRNA caused a 50% reduction in Ryr2 mRNA abundance. Enhancer ncRNA expression was unchanged (Figure 4F). By contrast, knockdown of the Ryr2-enhancer-associated ncRNAs (chr13:12226210–12226916 mm9) caused a 55% decrease in enhancer-associated ncRNA expression and, importantly, a corresponding 50% decrease in Ryr2 mRNA abundance (Figure 4F). Knockdown of the control Hprt mRNA resulted in no significant change in the expression of Ryr2 mRNA or RACER (Figure 4—figure supplement 1).

We examined the requirement for RACER for cardiomyocyte calcium kinetics. We measured the rate of calcium concentration increase using the calcium-sensitive dye Fluo4AM in spontaneously beating HL-1 cardiomyocytes. Calcium increase time represents a measure of RYR2 activity. In untransfected HL-1 cells, β-adrenergic stimulus (1 nM isoproterenol, ISO) caused a dramatic increase in the increase rate of cytosolic calcium transients (rate change from 33.3 ± 7.4 to 84.8 ± 9.9, p<0.05, two-tailed unequal variance t-test). HL-1 cardiomyocytes were transfected with antisense oligonucleotides (ASOs) specific to the Ryr2 gene, or the RACER ncRNA, as described above. Control Ryr2-mRNA-knockdown blunted the effect of β-adrenergic stimulus (increase rate change from 34. 8 ± 5.9 to 33.3 ± 7.4 p = NS, Fisher's Exact Test) (Figure 4G,H). Knockdown of RACER blocked the effect of ISO, mimicking the effect of direct Ryr2 knockdown. (increase rate change 49.3 ± 11.3 to 41.0 ± 6.1; p = NS, Fisher's Exact Test) (Figure 4G,H). We conclude that RACER, a Tbx5-dependent lncRNA at the Ryr2 locus, is necessary for Ryr2 gene expression and for normal Ryr2-dependent calcium kinetics, a cellular phenotype that is dependent on the Tbx5-driven gene regulatory network (Nadadur et al., 2016).

Tbx5-dependent ncRNAs are chromatin-enriched

Enhancer-transcribed ncRNAs may function to stabilize enhancer–promoter contacts by association with chromatin (Li et al., 2016). We therefore determined the sub-nuclear localization of six Tbx5-dependent enhancer lncRNAs, including RACER, using analyses that compared the chromatin and soluble compartments from nuclear fractionation in HL-1 cardiomyocytes (Werner and Ruthenburg, 2015). We found that the Tbx5-dependent lncRNAs were all significantly enriched in the chromatin versus the soluble nuclear fraction (qPCR p<6e-3, n = 3 two-tailed unequal variance t-test) (Figure 4I). By contrast, control RNA from the Gapdh-coding region showed no chromatin enrichment. Xist, a canonical chromatin-binding ncRNA, served as a positive control and demonstrated a degree of chromatin enrichment similar to that of the examined Tbx5-dependent ncRNAs (Figure 4I). Thus, Tbx5-dependent enhancer-associated lncRNAs, and notably RACER, were tightly localized to chromatin, suggesting a possible direct role in the regulation of their target genes (Li et al., 2013; Lai et al., 2013).

We examined the necessity of RACER for RNA Polymerase 2 (Pol2) occupancy at the Ryr2 promoter as a possible mechanism for its requirement for Ryr2 gene expression. Knockdown of RACER caused a quantitatively significant fall in Pol2 occupancy at the Ryr2 promoter, suggesting that this enhancer-bourne lncRNA is necessary for recruiting or stabilizing Pol2 at the target gene (Pol2 ChIP enriched vs ctrl locus 8.7 ± 0.79 fold vs 1.6 ± 0.20 fold in knockdown, p = 0.02, two-tailed unequal variance t-test, Figure 4J). There was no change in Pol2 occupancy at the housekeeping gene Btf3 after RACER knockdown (21.3 ± 5.99 fold vs 14.3 ± 4.85 fold, p = 0.46, two-tailed unequal variance t-test, Figure 4J).

Discussion

TF-dependent enhancer ncRNAs define a TF-dependent gene regulatory network

Defining TF-dependent gene regulatory networks (GRNs) that include TF-dependent enhancers in health and disease remains a fundamental challenge. Here, we analyze Tbx5-dependent ncRNAs to define Tbx5-dependent enhancers in a sensitive, quantitative manner. Taken in context, this work contributes to the concepts that enhancer-bourne ncRNAs (1) mark active cis-regulatory elements and (2) are essential for cis-regulatory element function (Figure 5). Even though we are unsure of the precise mechanism, this phenomenon may be used as a reliable metric of active enhancers. The differential ncRNA approach appears to provide non-redundant data when compared with other current state-of-the-art methods that attempt to define enhancers by proxy, using genomic accessibility (e.g. DNAse-seq or ATAC-seq) or histone status (e.g. H3K27ac). The quantitative correlation between the RNA abundance of the enhancer and that of the target promoter that we observed (Figure 3C) suggests that differential TF-dependent ncRNA-seq may provide a direct readout of differential enhancer function (Figure 5). The quantitative relationship between enhancer ncRNA and target promoter mRNA abundance may have been underestimated, based on the assumption that Tbx5-dependent enhancer ncRNAs function at the nearest Tbx5-dependent promoters. Future integration of chromosome architecture for the resolution of enhancer-promoter contacts may improve this relationship. Furthermore, efforts to define the mechanisms of action of enhancer-generated ncRNAs will more precisely define the quantitative relationship between the transcriptional output of enhancers and that of their target promoter.

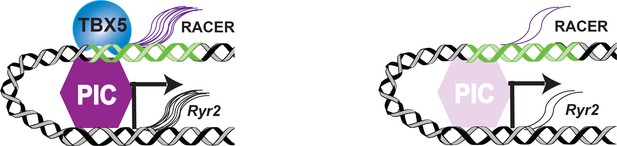

TF-dependent transcription of regulatory elements.

mRNA and enhancer transcription occur in the presence of transcription factor (TBX5) through the Transcription Preinitiation Complex (PIC) (left). Loss of the TBX5 results in decreased PIC complex, leading to decreased enhancer ncRNA (RACER) and mRNA (Ryr2) transcription (right).

https://doi.org/10.7554/eLife.31683.013

The mechanism of action of TF-dependent enhancer ncRNAs

TF-dependent lncRNAs such as RACER may be functionally required components of the TF-driven gene regulatory network. The Tbx5-dependent enhancer-associated lncRNA RACER is required for Ryr2 expression, tightly associated with chromatin, and required for the recruitment or stabilization of Pol2 binding at the Ryr2 promoter (Figure 4I). Several lncRNAshave been shown to promote the transcriptional activation of coding genes at a distance, and the mechanisms by which lncRNAs achieve their implicated roles has become a central question (Wang et al., 2011; Rinn et al., 2007; Davidovich and Cech, 2015; Engreitz et al., 2016). Chromatin associated RNAs (cheRNAs) are a recently described class of lncRNAs that are biochemically defined by tight chromatin-engagement as a consequence of their ongoing transcription (Werner and Ruthenburg, 2015). We observed that all validated Tbx5-dependent ncRNAs were also cheRNAs (Figure 4I). CheRNAs have been shown to act locally to promote proximal gene transcription in a tissue-specific fashion (Werner and Ruthenburg, 2015; Werner et al., 2017), consistent with the correlation between Tbx5-dependent CRE-associated ncRNA expression and Tbx5-dependent nearest gene expression. The dependence of target gene transcription on enhancer transcription may be a fundamental aspect of TF-driven cis-regulatory networks (Figure 5).

Tbx5-dependent ncRNA-defined enhancers: a new class of enhancers for cardiac rhythm

Genome-wide approaches to defining gene regulatory networks are essential for the interpretation of human genetic analysis using whole genome sequencing or genome-wide association studies (GWAS). In both cases, ascertaining the functional impact of noncoding single nucleotide polymorphisms (SNPs) is challenging. Novel approaches for the discovery of functionally relevant enhancers on a genome-wide scale are necessary, and recently described approaches have made strides in this arena (Arnold et al., 2013; Kwasnieski et al., 2012; Patwardhan et al., 2012). We applied TF-dependent ncRNA-sequencing to define TBX5-driven enhancers, based on a priori knowledge that TBX5 drives a gene regulatory network for cardiac rhythm homeostasis (Nadadur et al., 2016). We expected that the TBX5-driven enhancers that we identified would help to define a cardiac rhythm network, and consistently, Tbx5-dependent ncRNA-defined enhancer targets were highly enriched in GO terms critical for cardiac rhythm (Figure 4). Future efforts will determine whether arrhythmia-associated SNPs are enriched in human enhancers identified by TF-dependent ncRNAs. This approach may contribute to efforts to define the genomic locations and mechanisms underlying noncoding human genetic signals.

Materials and methods

Identifying open chromatin

ATAC-seq library preparation and sequencing

We cultured HL-1 cardiomyocytes according to published protocols (Neilan et al., 2000). ATAC (assay for transposase-accessible chromatin) protocol was performed as previously described (Buenrostro et al., 2015). Briefly, nuclei were isolated according to published protocols, transposed, and libraries were amplified and normalized with the Illumina Nextera DNA Library prep kit (FC-121–1031) according to the manufacturer's protocols and the methods published by Buenrostro et al. (2015). Libraries were quantitated by the Agilent Bio-analyzer, pooled in equimolar amounts, and sequenced with 50-bp single-end reads on the HiSeq2500 following the manufacturer's protocols.

Data analysis

The 50-bp reads were examined by FastQC. About 30–70 million high-quality reads (quality score >30) were sequenced for each sample. All reads for each sample were aligned to the UCSC mouse genome mm9 with Bowtie (v1.0.0) using default settings except (-v 1 -q -m 1). Duplicates, low-quality (Q < 30), and chrM reads were removed, and an index was added by samtools (v 0.1.18). Between 12 million and 26 million high-quality reads per sample that mapped to genomic DNA were retained. Peaks were called for each sample using MACS2 (Zhang et al., 2008) with the parameters ‘--nomodel --bw 200 --bdg’. Overlap peaks identified from three replicates were generated for the downstream analysis. Peaks that mapped to the ENCODE blacklist regions were excluded from the identification. Peak annotation was performed using the Bioconductor package seq2pathway (Wang et al., 2015). All sequencing tracks were viewed using the Bioconductor package Gviz (Hahne and Ivanek, 2016).

Differentially expressed coding genes identified from RNA-seq analysis

Mouse model

Mice were raised according to university protocols (protocol # 71737). A tamoxifen-inducible Cre recombinase driven by the ubiquitous R26 promoter was used to excise exon 3 of Tbx5 as previously described (Arnolds et al., 2012). Excision of Tbx5 was induced by IP tamoxifen for 3 days, 0.167 mg tamoxifen/day. Mice were sacrificed at 1 week post tamoxifen and right and left atrial appendages were dissected.

RNA extraction

The left atria of these 6‐8 weeks old mice were mechanically homogenized in TRIzol Reagent (Invitrogen), chloroform was added, the aqueous phase was isolated, ethanol was added, and then RNA was isolated using RNeasy Mini Column (Qiagen).

RNA-Seq library preparation

Libraries were prepared from this RNA starting with 1 g per sample and using the mRNA‐seq Sample Prep Kit (Illumina) as per recommended instructions. After Ribozero purification and removing only ribosomal RNA, barcoded libraries were prepared according to Illumina's instructions (2013) accompanying the TruSeq RNA Sample prep kit v2 (Part# RS‐122‐2001). Libraries were quantitated using the Agilent Bio‐analyzer (model 2100) and pooled in equimolar amounts. The pooled libraries were sequenced with stranded 50-bp single-end reads on the HiSeq2500 in Rapid Run Mode following the manufacturer's protocols (2013).

Data analysis

The left 3 bp of the sequencing reads were trimmed due to their unexpected lowest quality score among all the 50 bp reads. About 62–72 million high-quality reads (quality score >30) for each sample were obtained. Fastq files were aligned to build GRCm38.p3 of the mouse genome provided by the GENCODE Consortium (mm10). Transcript alignment was performed using TopHat (version 2.0.10, using the parameters --segment-length 24 --segment-mismatches 2 --no-coverage-search). Reads mapping to the mitochondrial genome were excluded. Between 43 million and 48 million successfully mapped reads were analyzed for differential expression using the R package DESeq (Anders et al., 2013). Significance was considered when FDR was <0.05 and fold change was >1.5. To ensure cardiac expression, we additionally required a normalized mean value in the widetype group >1.

Differentially expressed noncoding RNAs identified from RNA-Seq analysis

RNA-Seq library preparation

Total RNA was extracted by TRIzol Reagent (Invitrogen), followed by ribosomal and polyA depletion. After RiboZero purification and oligo-dT depletion, RNA Barcoded Libraries were prepared according to Illumina's instructions (2013) accompanying the TruSeQ RNA Sample prep kit v2 (Part# RS‐122‐2001). Libraries were quantitated using the Agilent Bio‐analyzer (model 2100) and pooled in equimolar amounts. The pooled libraries were sequenced with 50-bp stranded single-end reads on the HiSEQ4000 in Rapid Run Mode following the manufacturer's protocols (2013).

Data analysis

The left 3 bp of the fastq sequencing reads were trimmed due to their unexpected lowest quality score among all of the 50-bp reads. About 92–135 million high-quality reads (quality score >30)reads for each sample were obtained. Fastq files were aligned to build GRCm38.p3 of the mouse genome provided by the GENCODE Consortium (mm10). Transcript alignment was performed using TopHat (version 2.0.10) as previously described (Trapnell et al., 2009) and between 89 million and 129 million reads were successfully mapped. De novo assembly was performed by Cufflinks (version 2.2.1, with parameters –g --frag-bias-correct --multi-read-correct --upper-quartile-norm), as it can recover transcripts that are transcribed from segments of the genome that are missing from the current genome assembly. Featurecount was performed using Rsubread. Analysis of differential expression was performed using a count-based differential expression analysis strategy for RNA sequencing and normalized using the R package DESeq (Anders et al., 2013). False discovery rate (FDR) was calculated after removing the coding-gene counts. Significance was considered to have been reached when FDR was <0.05 and fold change was >1.5. We defined unidirectional transcripts as those transcribed from one strand and bi-directional transcripts as those transcribed from both strands. The mm10 genomic coordinates of identified noncoding transcripts were lifted over to the mouse mm9 genome when overlay with identifeid or published enhancer regions.

Associating ncRNAs and regulatory elements

We observed that around half of the identified TF-dependent ncRNAs were contiguous to rather than directly overlapping with called open chromatin regions. To capture these ncRNAs, we expanded the definition of 'co-localization’ of ncRNAs and enhancers to include sequences that reside with less than 1 kb between their centers of regions. Compared to edge-to-edge distance control, this strategy counts two adjacent short regions but excludes two adjacent long regions. As longer regions have more chance to overlap with each other directly, this strategy adjusted the bias introduced by the width of the called peaks.

Simulation study on ncRNAs local to coding genes that were TF-dependent

The null hypothesis is that TF-dependent ncRNAs and genes are randomly localized across the whole genome. To test this hypothesis, we ran n = 1000 simulations. In each simulation run i, we randomly sampled x ncRNAs from the 40.5K noncoding transcript background and y genes from the mouse genome, termed set {X} and set {Y}, respectively. We then counted the number of ncRNAs in the set {X} within the 2-Mb window of any genes within set {Y}, and recorded it as ai. A is the observed count of TF-dependent ncRNAs within the 2-Mb window of TF-dependent genes. An empirical p-value was estimated for TF-activated and TF-repressed ncRNAs, respectively (Equation 1), let the expression marked by |.| be the total number of counts meeting a given criteria.

(1) P value=i=0n|aiA|n

Simulation study on open chromatin regions that were TF-dependent

To test the 3067 TBX5-dependent ncRNAs for enrichment in chromatin open regions, we randomly sampled 3067 regions from the background of total identified chromatin open loci from atrial HL-1 cells (16,000). We estimated how many regions would be Tbx5-dependent enhancers (k) by chance alone. We repeated the simulation n (10,000) times, and each time, k estimated from the simulation (range from 13 to 68) was far less than the observed value A (161, Figure 1—figure supplement 4). This provided an empirical p-value of p<0.0001(Equation 2).

(2) P value=i=0n|kiA|n

Specifically in this simulation, we allowed a separation of 500 bp between the ATAC peak and noncoding transcripts to define overlap. We observed 161 candidate Tbx5-dependent enhancers (using the R function subsetByOverlaps). Note that in rest of this study, we overlapped chromatin accessible regions (DNAse or ATAC) with noncoding transcripts as those within a 1-kb windowfrom peak-centers (using an in-house Python script), which reported 152 Tbx5-dependent enhancers. The subsetByOverlapsends function with a separation of 500 bp found all of the regions that the peak-centers strategy found, but the subsetByOverlapsends function is more friendly to perform and thus was applied for these simulations.

Combined Pi-score to quantify significance of differential expression

To prioritize differentially expressed genes together with their cis-regulatory elements, we designed a computational method called a ‘combined Pi-score’. Previously, the Pi-score has been proposed to improve the prioritization of differentially expressed genes by combining expression fold-change and statistical significance (i.e. the p-value) (Xiao et al., 2014). We modified the original Pi-score to fit the current data distribution (Equation 2).

(3) πi=φi-log10Pi

where side effect φi was either the fold-change when fold-change is finite, or was an assigned value ±X representing the edging values of all finite fold-changes when fold-change is infinite. Here, we averaged the Pi-score of a ncRNA i and the Pi-score of its gene target to calculate the combined Pi-score (Equation 3). In this study, different strategies to select the target genes of an ncRNA were compared.

(4) cπi=[πncRNAi+max(πtargeti)]/2

Briefly, we calculated the Pi-score for both the noncoding transcriptome and the coding transcriptome and compared the combined Pi-scores of two models of ncRNA targeting. The ‘nearest mapping’ model assumes that ncRNAs identify enhancers that regulate the nearest target gene, the ‘broader mapping’ model assumed that all potential TBX5-dependent target genes within a window of 2 Mb could be the targets of an enhancer.

Motif enrichment analysis

We tested the motif enrichment for the identified enhancers as well the whole set of chromatin-accessible regions in HL1 cells. 637 pre-compiled threshold-free position weight matrices (PWM) for mouse from the Bioconductor package MotifDb were downloaded for testing. Motif enrichment was calculated using the threshold-free affinity scoring algorithm with a lognormal distribution background (Frith et al., 2004). Significance was considered when p<0.05 and the enrichment score was >1.

Functional enrichment of gene targets of enhancers

A background corrected Fisher’s Exact test was performed using the Bioconductor package Seq2pathway (Wang et al., 2015). The functional enrichment test was examined against 253 Gene Ontology Biological Process (BP) terms that have directevidence and are annotated to less than 1000 gene members. Significance was considered when FDR was <0.05 and the score of the odds ratio was >1.

Landscape for mouse heart enhancer marks

The genome-wide landscape of H3K27Ac in whole mouse adult heart was called by macs2 and shared by the authors (GSE52123) (He et al., 2014). Two biological replicates and 44,707 regions were commonly marked by H3K27Ac. The footprinting for DNase I hypersensitive sites in whole mouse adult heart was downloaded from ENCODE/University of Washington (Stergachis et al., 2014). Transcription factor and P300 landscapes in HL1 cardiomyocytes were downloaded from GEO (GSE21529) (He et al., 2011).

Retrieving phastCons sequence conservation scores

The phastCons30 sequence conservation scores were retrieved by querying against the UCSC Table Browser using the Bioconductor package rtracklayer (Lawrence et al., 2009). An average score was calculated for each selected region, removing the NA values. For certain large classes of genomic regions, such as lincRNAs or open chromatin regions, we randomly sampled 2000 regions first, and then retrieved the conservation scores for each sampled region to represent the features of the whole class.

Meta-gene analysis

To compare the accessibility of chromatin at selected regions for groups of features (Figure 1A), meta-gene analysis was performed using the Bioconductor package metagene (v 2.2.1). Multiple combinations of groups of features were compared in a single analysis, and BAM files instead of the peaks produced by peak callers were used to increase the sensitivity. Briefly, four steps were performed for meta-gene analysis. (1) The read coverages of all selected regions were extracted from BAM files and normalized to reads per million aligned (RPM). (2) We binned the position of each selected region with a size parameter of 50 bp, and calculated the averaged RPM within each bin. (3) We estimated the confidence interval of each binned position using bootstrapping. (4) And finally, we plotted the mean value as a line and the estimation as a ribbon.

The same analysis was also performed to compare the TF-dependent expression at selected regions for groups of features (Figure 3A).

4C experiments

4C-seq was performed as described previously (van de Werken et al., 2012). In short, HL-1 cardiomyocytes were collected and cross-linked with 1% formaldehyde in PBS with 10% FCS for 10 min at room temperature, nuclei were isolated and cross-linked DNA was digested with a primary restriction enzyme recognizing a 4-bp restriction site (DpnII), followed by proximity ligation. Cross-links were removed and a secondary restriction enzyme digestion (Csp6I) initiated, followed again by proximity ligation. For all experiments, 200 ng of the resulting 4C template was used for the subsequent PCR reaction, of which 8 samples (total: 1.6 µg of 4C template) were pooled and purified for next-generation sequencing.

Sequencing reads were aligned using bowtie2 (v2.2.5 with parameter -q set to 1) and processed as described previously (van de Werken et al., 2012). In short, reads are mapped to a restricted mouse reference genome (mm9), consisting of sequences directly flanking the 4C primary restriction enzyme site (DpnII), called 4C frag-ends. Non-unique frag-ends are discarded in subsequent analysis. After mapping, the highest-covered frag-end was removed from the dataset in the normalization process and data were read-depth normalized to 1 million aligned intrachromosomal reads. 4C-Seq coverage profiles were calculated as ‘running means’, i.e. coverage averages of 21 consecutive 4C frag-ends.

Nuclear fractionation for assessing chromatin enrichment

Fraction of HL-1 nuclei was performed as previously described Werner and Ruthenburg, 2015. In short, ~15 million cells from three different populations were lysed with 0.1% Triton X-100 and nuclei were pelleted 1300 x g for 12 min, 4°. Nuclei were re-suspended in 250 µl NRB (20 mM HEPES pH 7.5, 50% glycerol, 75 mM NaCl, 1 mM DTT, 1 x protease inhibitor cocktail), and then an equal volume of NUN buffer (20 mM HEPES, 300 mM NaCl, 1 M Urea, 1% NP-40 substitute, 10 mM MgCl2, 1 mM DTT) was added and cells were incubated for 5 min on ice. After centrifugation (1200 x g, 5 min, 4°C), RNA from the supernatant (soluble nuclear extract) and chromatin (pellet) were extracted using Trizole, purified on Zymo RNA Clean and Concentrator columns, and then converted to cDNA using random hexamer primers and High Performance MMLV Reverse Transcriptase from Epicentre. qPCR was then performed using SYBR green master mix (Life Technologies), with 18S rRNA (F primer: CGCAGCTAGGAATAATGGAATAGG, R primer: GCCTCAGTTCCGAAAACCAA) as an internal standard for both fractions.

Quantitative PCR was performed using the Power SYBR Green master mix (Life Technologies) on a CFX384 Touch Real-Time PCR Detection System (BIO-RAD). qPCR data were analyzed using the ΔΔCt method. Averages (arithmetic mean) of target noncoding RNA Ct values from three or more technical replicates were normalized to the geometric mean of the reference genes eEF2, LRC8, and eIF3 subunit 5 (Kouadjo et al., 2007). For each independent sample, the resulting ΔCt values were used to compute fold-changes between the chromatin-enriched and soluble nuclear fractions (ΔΔCt). Error bars correspond to uncertainty in the chromatin pellet extract ΔCt values used for fold chromatin enrichment calculation, reflecting the only variance from qPCR technical replicates, calculated as the quadrature sum of the target noncoding RNA Ct values’ standard deviation and uncertainty in the normalization reference value. This latter uncertainty was calculated as the quadrature sum of the standard error of each reference gene’s raw Ct value distribution across qPCR technical replicates.

Relative luciferase activity

Luciferase response assays were performed as previously described (Nadadur et al., 2016). Candidate regulatory elements were amplified from C57/B6 mouse genomic DNA or synthesized via Gibson Assembly. Sequence was verified and then cloned into the pGL4.23 enhancer luciferase response vector with a minimal promoter. HL-1 cardiomyocytes were co-transfected with luciferase response vector and a pRL control using Lipofectamine 3000, cultured for 48 hr after transfection, then lysed and assayed using the Dual-Luciferase Reporter Assay system (Promega).

Transgenic zebrafish

Mouse RACER-associated sequences were cloned upstream of the mouse minimal c-fos promoter and EGFP. Fertilized one-cell zebrafish embryos were microinjected with DNA and Isce I as described previously (Goldman et al., 2017). To test whether expression patterns were due to insertional effects, we analyzed two independent stable lines, finding that they had similar expression patterns. The full name of the transgenic lines are Tg(mRyrENfos:EGFP-L1)pd305 and Tg(mRyrENfos:EGFP-L2)pd306. For predicted TBX5-binding sites, we compared wildtype enhancers or enhancers with the seven T-box motifs mutated with a construct containing the minimal promoter driving EGFP alone. Fluorescence was assessed in (F0) after microinjection at 3 days post fertilization (dpf).

Antisense-mediated knockdown

Custom antisense oligonucleotides (ASOs) were designed and synthesized by IDT. Pooled ASOs were transfected with Lipofectamine 3000 into HL-1 cardiomyocytes at a concentration of 10 nM. Cells were sorted into transfected and non-transfected populations by flow cytometry based on co-transfection with a vector encoding mCherry. ncRNA expression, Ryr2 coding transcript, and calcium kinetics were measured. ASOs against the Ryr2 lncRNA were: 5'-CCCTTCATATCACGTTGGAA-3', 5'-ATCACCTGCCCTGGTTCTTT-3', 5'-TATGATCACCTGCCCTGGTT-3' and 5'-CTTCATGCTTATCTGACAAG-3'. Antisense oligos against the Ryr2 mRNA were 5'-CGATGTCCTTGGCAGGCTCA-3', 5'-CATCGTCCATGTGGCCTTCG-3', 5'-ATTCATCCATGTGCCCATGC-3', 5'- GTCTGTCCCACTGGCCTTTG −3', and 5'- ATGTCTGGCGTGTCACCATC −3'.

Calcium transient measurement

Cytosolic [Ca2+]i was measured with the high-affinity Ca2+ indicator Fluo-4 (Molecular Probes/Invitrogen) using a laser-scanning confocal microscope (Zeiss LSM 510) equipped with a × 63/1.40 NA oil-immersion objective lens. HL-1 cells were sorted and plated on coated coverslips and incubated at room temperature with 10 µM Fluo-4/AM for 15 min in normal Tyrode’s solution containing: 140 mM NaCl, 4 mM KCl, 10 mM glucose, 10 mM HEPES, and 1 mM MgCl2, 1 mM CaCl2, with pH 7.4 using NaOH, followed by a 10 min perfusion wash with Tyrode (at 37 ˚C) without Fluo-4 before recording. Fluo-4 was excited with the 488 nm line of an argon laser and fluorescence was measured at >515 nm. Spontaneous Ca2+ transients were acquired in line-scan mode (3 ms per scan; pixel size 0.12 µm). Ca2+ transients are presented as total fluorescence intensity normalized to resting fluorescence (F/F0) during steady-state conditions before field stimulation. Cells were recorded at baseline, then isopropteranol was perfused to a final concentration of 1 nM and calcium transients were recorded again.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45

Decision letter

  1. Richard P Harvey
    Reviewing Editor; Victor Chang Cardiac Research Institute, Australia

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Tbx5-dependent enhancer transcription defines a gene regulatory network for cardiac rhythm" for consideration by eLife. Your article has been favorably evaluated by Didier Stainier (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The following individual involved in review of your submission has agreed to reveal his identity: Philip Grote (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This is an excellent paper both conceptually and technically, and contributes to our general understanding of the role of ncRNAs in enhancer function, and more specifically how individual TFs can control a set of TF-dependent ncRNAs that define enhancers functioning in a cell-specific network. The manuscript describes their work to refine the TBX5 dependent gene regulatory network, required to maintain atrial cardiac rhythm. The make use of a diverse mixture of published datasets (TBX5 ChIP, H3K27Ac ChIP, DNaseI HS) and complement them with their own, new datasets (ATAC-seq, RNA-seq). They go on and show that the expression of eRNAs (enhancer RNAs) improves the predictions of functionally relevant atrial TBX5 dependent enhancers. Moreover, they show the functional relevance of some of the newly discovered eRNAs in regulating nearby genes.

The concept that the eRNAs participate in regulating neighboring genes and the TFs such as TBX5 are actively involved in driving eRNAs is not novel. However, some aspects of their work provides further insight (ncRNA-mRNA correlation in expression strength) and the comprehensive identification of functionally relevant TBX5 enhancers is interesting to the cardiovascular community. The novel approach outlined for identifying functional enhancers and associated ncRNAs could see broad utility in systems biology. However, there are some major issues to address as detailed below:

Essential revisions:

1) The manuscript style is very compact. It may help more general readers to expand explanation of methods and graphical approaches. The first part of the paper (text and Figures 1 and 2) is especially difficult to follow and some work (perhaps from the biologist) is needed. We would recommend that the paper be structured around the series of results and clearly relate how one observation leads on to subsequent analyses and results.

2) Main text, third paragraph: regarding hypothesis: presumably the authors mean active enhancers (those functioning in a specific tissue).

3) Main text, third paragraph: please define de novo? Do the authors mean previously unannotated?

4) Main text, fourth paragraph: please clarify uni-directional and bi-directional?

5) Main text, sixth paragraph: how were candidate regulatory elements chosen for transcriptional analysis. Were they chosen from among those with highest number of Tbx5 canonical sites? Please declare.

6) Main text, eighth paragraph:. The story about Sln is confusing. The text might read as though the Sln regulatory element does not contain Tbx5 binding sites as the prelude refers to those that lack Tbx5 binding. But in fact it does (Figure 2C). What about the category of elements that do not contain Tbx5 sites. What did they show by Tbx5 ChIPseq and were any analysed by Tbx5 ChIP PCR?

7) Please explain the line scans in Figure 4E, F.

8) Since the experiment was performed using a single knockdown reagent, Figure 4A could benefit from other specificity controls. E.g. was Tbx5 or signalling or metabolic genes (not those highly expressed like GAPDH) unaffected.

9) Main text, fourteenth paragraph and Figure 4D. The authors should be very clear about the results of the zebrafish enhancer analysis. As it reads, 67 of 166 embryos showed cardiac expression driven by the RACER-associated enhancer (40%). Mutation of the 7 T-box sites reduced this to 20/84 (23%). This is not a compelling argument for identification of RACER as a Tbx5-dependent element or the function of Tbx5 on this element. While the p value is significant the use of an odds ratio seems rather unusual for this sort of analysis. The assay is poorly quantitative and each injection will lead to a different integration site. Spatial specificity (e.g. atrial) was not scored. I think this should be strengthened or deleted. It would be more compelling to delete the natural enhancer and analyses Ryr2 expression by qRT-PCR.

10) Please explain the line scans in Figure 4E, F. Please correct references to Figure 4 panels in Legends. Check all.

11) Main text, sixteenth paragraph: chromatin enrichment assay. What does this mean? A ncRNA that does not associate with chromatin in the way suggested but, e.g. is a structural component of a TF or splicing complex, may also appear enriched in chromatin. Furthermore, GAPDH seems an inappropriate control. One could use NEAT or another known ncRNA that does not appear to define an enhancer.

12) In the end, the mechanistic link between TF-dependent ncRNA function in transcription of the adjacent genes is not strong. The Pol2 occupancy data is interesting but self-fulfilling. Would knockdown of the RACER change the chromatin landscape around Ryr2 by 4C?

13) It is not clear to the reader why the authors combine H3K27ac and DNAseI HS sites from the whole adult heart with atria specific data (TBX5 ChIP, ATAC, RNA-seq). It should be clearly stated that H3K27Ac and DNaseI HS marks putative, open (active) enhancers in the whole heart, including the atria. Combining ATAC-seq and TBX5 ChIP-seq data are from the HL1 atrial cardiomyocyte cell line and RNA-seq from atrium from cKO mice provide the atria specific data. Please explain in more detail, why you used all the comparison with whole heart data.

14) In the Materials and methods it is mentioned that P300 ChIP-seq data from He et al. was downloaded. Please explain why you didn't use these data for your work? Was it removed? I think could be an interesting addition to see, how the functionally relevant ncRNA regions correlate (or not?) with P300 occupancy.

15) A critical concern is the interpretation of statistical evidence for various enrichment and differential expression analyses. In a number of instances, it appears from the manuscript that significance was determined at a nominal significance of p<0.05 even when a large number of tests were conducted. Was significance determined based on a multiple-testing adjusted p-value?

Throughout the manuscript evidence is often presented in a qualitative manner, making it difficult to judge what weight should be placed on it, and difficult to evaluate the conclusions drawn from it. For example, 'we observed enrichment between…'. It would be helpful to know what level of enrichment and what scale that is on. Also an empirical p-value for said enrichment. Likewise 'we functionally interrogated candidate regulatory elements..' what does functionally interrogate mean? 11/12 have p<0.05, but no correction for that fact that 12 elements tested, so threshold needs to be adjusted. This occurs throughout the manuscript.

I believe that this paper would benefit significantly from using an empirical random-sampling strategy to determine significance of any enrichment. For example, when testing your n TBX5-dependent ncRNAs for enrichment in the 16,000 open regions, randomly sample n regions, determine how many are also candidate Tbx5-dependent enhancers (this value can be called k). Repeat 10,000 times. The position of your observed overlap in the ranked k gives an empirical p-value.

16) In any instance where a p-value is given, you should also provide the test used to estimate it.

https://doi.org/10.7554/eLife.31683.020

Author response

Essential revisions:

1) The manuscript style is very compact. It may help more general readers to expand explanation of methods and graphical approaches. The first part of the paper (text and Figures 1 and 2) is especially difficult to follow and some work (perhaps from the biologist) is needed. We would recommend that the paper be structured around the series of results and clearly relate how one observation leads on to subsequent analyses and results.

We agree with the reviewer’s critique and have reorganized and rewritten the manuscript to improve its accessibility. We have made the following changes to the manuscript: 1) We have expanded the methods explanation, Introduction and Discussion as suggested; 2) To clarify the experimental design and results, we have included a bioinformatic pipeline as Figure 1B; 3) We have reordered some of the data presentation to be more intuitive; 4) We have including a formal Introduction and Discussion; 5) We have added transitions to each section to clarify the flow of each result to the next; and 6) We have added section breaks to the manuscript.

2) Main text, third paragraph: regarding hypothesis: presumably the authors mean active enhancers (those functioning in a specific tissue).

We appreciate the comment and have clarified this sentence. We have edited the text to read "We hypothesized that transcription factor dependent tissue-specific active enhancers could be identified with this approach".

3) Main text, third paragraph: please define de novo? Do the authors mean previously unannotated?

We appreciate the comment and have clarified this sentence. We now define the term ‘de novo’ as follows: “The vast majority were de novo ncRNAs (>85%), previously annotated transcripts based on intersection with the mouse transcriptome (GENECODE, mm10).”

4) Main text, fourth paragraph: please clarify uni-directional and bi-directional?

We have clarified the definition of uni-directional and bi-directional transcripts. We defined unidirectional ncRNAs as those transcribed from one strand and bi-directional as those transcribed from both strands, and have now clarified this in the text and the Materials and methods sections.

5) Main text, sixth paragraph: how were candidate regulatory elements chosen for transcriptional analysis. Were they chosen from among those with highest number of Tbx5 canonical sites? Please declare.

We previously characterized the requirement for TBX5 in the adult heart for atrial rhythm control and defined several direct TBX5 targets required for cellular and whole animal physiology (Nadadur et al. 2016). Based on this work, we selected TBX5-dependent enhancers near genes we believe may be critical to cardiac physiology. All selected regulatory elements contain at least 1 canonical TBX5 binding motif. We have now explicitly described this approach in the text.

6) Main text, eighth paragraph:. The story about Sln is confusing. The text might read as though the Sln regulatory element does not contain Tbx5 binding sites as the prelude refers to those that lack Tbx5 binding. But in fact it does (Figure 2C). What about the category of elements that do not contain Tbx5 sites. What did they show by Tbx5 ChIPseq and were any analysed by Tbx5 ChIP PCR?

We appreciate the comment and have clarified the analysis of the Sln element. This locus is as an example in which the ncRNA approach defined a Tbx5-dependent enhancer that did not show TBX5 binding by ChIP-seq. The primary sequence of the putative enhancer at the Sln locus harbors canonical TBX5 binding motifs. However, genome-wide ChIP-seq (He et al. 2011) did not identify TBX5 localization at this locus. The enhancer generated a Tbx5-dependent ncRNA and the enhancer showed TBX5-dependent activity in-vitro. We then performed locus-specific ChIP qPCR and found that TBX5 bound this enhancer in HL-1 cardiomyocytes. This provided an example of a region categorized as a false negative by ChIP-seq, resolved as a true positive Tbx5-bound and Tbx5 driven enhancer by the ncRNA approach and subsequent validation. We have edited the text to clarify this series of experiments and results.

7) Please explain the line scans in Figure 4E, F.

The line scans represent a visual analogue of free intracellular calcium. Time to upstroke, or rate of rise of intracellular calcium, is dependent on the function of the ryanodine receptor encoded by Ryr2. We examined the effect of knockdown of the ncRNA RACER on calcium handling by HL-1 cells using the line-scan analysis. Specifically, HL-1 cardiomyocytes were transfected with antisense oligonucleotides (ASOs) specific to the Ryr2 gene, or the RACER ncRNA. Time to upstroke, a measure of global Ryr2 activity, was diminished after Ryr2 knockdown and after RACER knockdown. We have modified the text to clarify this series of experiments and results.

8) Since the experiment was performed using a single knockdown reagent, Figure 4A could benefit from other specificity controls. E.g. was Tbx5 or signalling or metabolic genes (not those highly expressed like GAPDH) unaffected.

We agree with this reviewer critique and have added a control knockdown experiment as requested. Specifically, we have performed antisense oligonucleotides against housekeeping gene Hprt (New Figure 4—figure supplement 1). Knockdown of the Hprt mRNA results in no change in Ryr2 or RACER expression compared to untransfected controls.

9) Main text, fourteenth paragraph and Figure 4D. The authors should be very clear about the results of the zebrafish enhancer analysis. As it reads, 67 of 166 embryos showed cardiac expression driven by the RACER-associated enhancer (40%). Mutation of the 7 T-box sites reduced this to 20/84 (23%). This is not a compelling argument for identification of RACER as a Tbx5-dependent element or the function of Tbx5 on this element. While the p value is significant the use of an odds ratio seems rather unusual for this sort of analysis. The assay is poorly quantitative and each injection will lead to a different integration site. Spatial specificity (e.g. atrial) was not scored. I think this should be strengthened or deleted. It would be more compelling to delete the natural enhancer and analyses Ryr2 expression by qRT-PCR.

The reviewer is correct to suggest that expression of transgenic reporters to test enhancer activity in individual microinjected zebrafish embryos (F0) is mosaic and impacted by insertion site. As an additional experiment, we have now selected independent stable lines (F1) which demonstrate cardiac expression domains overlapping with Myosin Heavy Chain expression (Figure 4B, Figure 4—figure supplement 2), providing further evidence that RACER can direct gene expression in the zebrafish myocardium.

Close comparison of the activities of a wild-type enhancer and its mutated form can be challenging even using stable lines. Knockout of an endogenous candidate enhancer is a good experiment, although this would require several months to complete. Furthermore, a negative result in these knockouts would not exclude that a sequence has enhancer activity; for example, there may be compensation by shadow enhancers. Here, using microinjected embryos, we acquire high numbers necessary to provide an estimate of enhancer activity. We now include a negative control to make this point more clearly – injection of the minimal promoter driving GFP on its own only yields detectable fluorescence in only 5 of 95 embryos. This suggests that insertional effects account for little of the observed cardiac EGFP, and that removal of Tbx5 binding sites reduces efficiency of the reporter in a statistically significant manner.

10) Please explain the line scans in Figure 4E, F. Please correct references to Figure 4 panels in Legends. Check all.

We have clarified the line scans as described above. Please see response to comment #7.

11) Main text, sixteenth paragraph: chromatin enrichment assay. What does this mean? A ncRNA that does not associate with chromatin in the way suggested but, e.g. is a structural component of a TF or splicing complex, may also appear enriched in chromatin. Furthermore, GAPDH seems an inappropriate control. One could use NEAT or another known ncRNA that does not appear to define an enhancer.

We appreciate the comment and have clarified the chromatin enrichment assay in the text. Specifically, nuclei from HL-1 cardiomyocytes were isolated and fractionated into soluble and chromatin enriched fractions as previously described (Werner and Ruthenburg, 2015; Werner et al. 2017). Chromatin enriched is defined as a transcript that was found at a statistically greater degree in the chromatin vs. soluble nuclear fractions (see Materials and methods for details). While we agree that the precise mechanism of attachment that gives rise to chromatin enrichment is not clear from the experiment presented, the observation that RACER and several other TBX5-dependent noncoding RNA are tightly chromatin associated is evident.

We appreciate the reviewer suggestion for additional controls, including chromatin-enriched ncRNA. It is not immediately clear to us why a coding transcript as a negative control is inappropriate. GAPDH displays high steady state transcription so some portion of it will be associated with chromatin, yet the bulk of the nuclear pool in four different cell types we have worked with is strongly nucleoplasmic (this manuscript, Werner and Ruthenburg, 2015; Werner et al. 2017). We have now added a positive control, XIST, a noncoding RNA that is tightly associated with chromatin, but not merely at its site of production (Engreitz et al., Science, 2013). We have now found that Xist demonstrates chromatin enrichment in HL-1 cardiomyocytes, and included this in the revised manuscript (Figure 4). We have performed sequencing on these two sub-nuclear fractions of RNA in several other cell types and found these to be very effective negative and positive controls for chromatin association (Werner and Ruthenburg. 2015; Werner et al. 2017). It should be noted that neither of these RNAs defines an enhancer.

12) In the end, the mechanistic link between TF-dependent ncRNA function in transcription of the adjacent genes is not strong. The Pol2 occupancy data is interesting but self-fulfilling. Would knockdown of the RACER change the chromatin landscape around Ryr2 by 4C?

The precise mechanism by which enhancer-generated ncRNAs participate in transcriptional regulation is a controversial topic, and in the context of TF-dependent ncRNAs is worthy of its own manuscript. The question of whether RACER participates in chromatin architecture around Ryr2 is an interesting one. It is fair to say that the architectural model presented suggested by the reviewer is a reasonable inference from the available data: 1) RACER is highly chromatin immobilized; 2) targeting RACER at the RNA level with antisense oligonucleotides reveals Ryr2 transcriptional deficits, indicating that the RNA molecule of RACER plays a critical role in potentiating Ryr transcription; 3) Other chromatin enriched RNAs are largely immobilized by the act of transcription (Werner and Ruthenburg, 2015; Schlackow et al., Mol Cell 2017); 4) Other similar chromatin immobilized lncRNA display similar architectural properties [Werner et al. (2017); Lai et al. Nature, 494: 497–501 (2013).; Lai et al. Nature, 525: 399–403 (2015); Yang et al. Nature, 500: 598–602 (2013); Li et al. Nature Biotech 35: 940–950 (2017)]. However, 4C results, regardless of their outcome in this case, would not alter the major conclusions of our manuscript. We will pursue such studies in the context of ongoing investigations into the mechanism of action of enhancer-generated TF-dependent ncRNAs.

13) It is not clear to the reader why the authors combine H3K27ac and DNAseI HS sites from the whole adult heart with atria specific data (TBX5 ChIP, ATAC, RNA-seq). It should be clearly stated that H3K27Ac and DNaseI HS marks putative, open (active) enhancers in the whole heart, including the atria. Combining ATAC-seq and TBX5 ChIP-seq data are from the HL1 atrial cardiomyocyte cell line and RNA-seq from atrium from cKO mice provide the atria specific data. Please explain in more detail, why you used all the comparison with whole heart data.

We appreciate the comment and acknowledge that where there are distinctions in the tissue source for the genomic dataset they should be clearly identified. We have rectified this oversight in our revised manuscript. We mined the existing literature for published genomic datasets to assist in identifying atrial regulatory elements. When possible, we utilized atrial specific datasets. However, there are no published atrial specific datasets for some enhancer marks, such as H3K27Ac or DNaseI. Given the concordance between HL1, whole heart, and in vivo atrial data when available (Figure 1A), we independently mined these datasets in conjunction with atrial-specific Tbx5-dependant ncRNA-seq to identify candidate TBX5-dependent elements.

14) In the Materials and methods it is mentioned that P300 ChIP-seq data from He et al. was downloaded. Please explain why you didn't use these data for your work? Was it removed? I think could be an interesting addition to see, how the functionally relevant ncRNA regions correlate (or not?) with P300 occupancy.

Utilizing P300 occupancy in conjunction with the other enhancer marks to identify regulatory elements is an excellent suggestion. The P300 ChIP-seq was downloaded as part of the larger GSE21529 dataset from which we utilized TBX5 ChIP (He et al. 2011). However, we found that the cardiac P300 ChIP-seq dataset was too stringent for our purposes. The very small number of peaks called (n=1491) caused the overlap with Tbx5-dependent ncRNAs to be too small for meaningful analysis.

15) A critical concern is the interpretation of statistical evidence for various enrichment and differential expression analyses. In a number of instances, it appears from the manuscript that significance was determined at a nominal significance of p<0.05 even when a large number of tests were conducted. Was significance determined based on a multiple-testing adjusted p-value?

We agree wholeheartedly with this critique, applied stringent standards for multiple testing corrections in our analysis, and acknowledge that we did not make our efforts explicit in the original submission. For all tests of significance using genomic datasets (RNASeq, ChIPSeq, etc) we utilized FDR or corrected p-values in accordance with ENCODE published standards (Consortium, E.P. An integrated encyclopedia of DNA elements in the human genome. Nature 489, 57-74, 2012). We have specified "corrected p-value" or "FDR" in the text wherever appropriate, and have stated this explicitly in the Materials and methods statistics discussion.

Throughout the manuscript evidence is often presented in a qualitative manner, making it difficult to judge what weight should be placed on it, and difficult to evaluate the conclusions drawn from it. For example, 'we observed enrichment between…'. It would be helpful to know what level of enrichment and what scale that is on. Also an empirical p-value for said enrichment.

We agree that quantitation and statistical testing of the comparisons is critical to interpreting the data. In the interest of allowing easier reading, we specified the numerical p-values in the figures, figure legends, or supplementary data explicitly. As suggested, we have now specified these values in the text and estimated the empirical p-values for the enrichment between open chromatin and Tbx5-dependent ncRNAs (Figure 1—figure supplement 4), and also between the Tbx5-dependent ncRNAs and the adjacent Tbx5-dependent genes (Figure 1—figure supplement 3B). Please see our fourth response to #15 below.

Likewise 'we functionally interrogated candidate regulatory elements..' what does functionally interrogate mean? 11/12 have p<0.05, but no correction for that fact that 12 elements tested, so threshold needs to be adjusted. This occurs throughout the manuscript.

We cloned regulatory elements upstream of a luciferase reporter vector and tested them for activity in HL-1 cardiomyocytes, as previously described (Nadadur et al. 2016). For the p-values stated on the figure, each regulatory element was tested for significant activity against its corresponding T-box mutant element. As such, each experiment is an independent comparison using DNA elements unique to the comparison, multiple testing correction was not applied.

I believe that this paper would benefit significantly from using an empirical random-sampling strategy to determine significance of any enrichment. For example, when testing your n TBX5-dependent ncRNAs for enrichment in the 16,000 open regions, randomly sample n regions, determine how many are also candidate Tbx5-dependent enhancers (this value can be called k). Repeat 10,000 times. The position of your observed overlap in the ranked k gives an empirical p-value.

We thank the reviewer for this insightful suggestion. We have performed and added an empirical random-sampling test for the enrichment between Tbx5-dependent ncRNAs and chromatin open regions and for the enrichment between Tbx5-dependent ncRNAs and Tbx5-dependent genes.

We have provided a description of this simulation in the supplementary methods, as follows:

“Simulation study on open chromatin regions that were TF-

To test the 3067 TBX5-dependent ncRNAs for enrichment in chromatin open regions, we randomly sampled 3067 regions from the background of total identified chromatin open loci from atrial HL-1 cells (16,000). […] This provided an empirical p-value of P<0.0001 (Equation 2).”

We revised our manuscript describing the enrichment between Tbx5-dependent ncRNAs and chromatin open regions to read “From 16,000 open regions, 145 local Tbx5-dependent ncRNAs marked 152 candidate Tbx5-dependent enhancers (empirical P<0.001, Figure 1—figure supplement 4)” and for the enrichment between Tbx5-dependent ncRNAs and Tbx5-dependent genes to read “Tbx5-dependent ncRNAs were local to down-regulatedand up-regulated Tbx5-dependent coding-genes, respectively (Figures 1D, FA, Figure 1—figure supplement 3B, empirical P< 0.005).”

16) In any instance where a p-value is given, you should also provide the test used to estimate it.

We thank the reviewer for noting this oversight. We have now included the test used to analyze for significance in each case on the text.
