Distinct ‘safe zones’ at the nuclear envelope ensure robust replication of heterochromatic chromosome regions

  1. Hani Ebrahimi
  2. Hirohisa Masuda
  3. Devanshi Jain
  4. Julia Promisel Cooper  Is a corresponding author
  1. National Cancer Institute, United States
Research Article
  • Cited 9
  • Views 1,552
  • Annotations
Cite this article as: eLife 2018;7:e32911 doi: 10.7554/eLife.32911

Abstract

Chromosome replication and transcription occur within a complex nuclear milieu whose functional subdomains are beginning to be mapped out. Here we delineate distinct domains of the fission yeast nuclear envelope (NE), focusing on regions enriched for the inner NE protein, Bqt4, or the lamin interacting domain protein, Lem2. Bqt4 is relatively mobile around the NE and acts in two capacities. First, Bqt4 tethers chromosome termini and the mat locus to the NE specifically while these regions are replicating. This positioning is required for accurate heterochromatin replication. Second, Bqt4 mobilizes a subset of Lem2 molecules around the NE to promote pericentric heterochromatin maintenance. Opposing Bqt4-dependent Lem2 mobility are factors that stabilize Lem2 beneath the centrosome, where Lem2 plays a crucial role in kinetochore maintenance. Our data prompt a model in which Bqt4-rich nuclear subdomains are ‘safe zones’ in which collisions between transcription and replication are averted and heterochromatin is reassembled faithfully.

https://doi.org/10.7554/eLife.32911.001

Introduction

Within the nucleus, specific chromosome regions tend to localize to the periphery where they contact components of the nuclear envelope (NE) (Bickmore, 2013). Peripherally positioned chromatin tends to be enriched with repressive histone modifications associated with transcriptional silencing, while actively transcribing gene-rich regions tend to reside at internal positions within the nucleus. However, nuclear pore complexes (NPCs) at the periphery transiently host transcriptionally active regions (Capelson et al., 2010; Ishii et al., 2002; Lemaître and Bickmore, 2015). Therefore, the NE appears to harbor at least two functionally distinct domain types.

Heterochromatic regions generally contain hypoacetylated nucleosomes with relatively low turnover rates, and histone H3 that is di- or tri-methylated at Lysine 9 (H3K9me) (Aygün et al., 2013; Rea et al., 2000). Chromatin regions enriched with H3K9me recruit protein complexes that suppress gene transcription; crucial to this network are histone deacetylases (HDACs). Studies in the fission yeast S. pombe have been seminal to our understanding of conserved mechanisms underlying heterochromatin formation and function (Allshire and Ekwall, 2015; Grewal and Jia, 2007; Martienssen and Moazed, 2015; Motamedi et al., 2008; Woolcock et al., 2011). Clr4 is the sole histone S. pombe H3K9 methyltransferase and is critical for establishment of heterochromatin (Nakayama et al., 2001; Ragunathan et al., 2015). H3K9me-containing nucleosomes provide a binding platform for HP1 family chromodomain proteins, including Swi6. HP1-mediated recruitment of SHREC, which harbors both a HDAC and a Snf2-like nucleosome remodeler (Sugiyama et al., 2007), creates a positive feedback loop to ensure recursive H3K9 methylation, recruitment of HP1 and spreading of SHREC along the silenced DNA region (Motamedi et al., 2008; Zhang et al., 2008). The conserved JmjC protein Epe1 prevents repressive marks from spreading beyond the limits of the heterochromatic domain (Shimada et al., 2009; Trewick et al., 2007; Zofall and Grewal, 2006).

The nuclear RNAi pathway triggers heterochromatin assembly at several loci. Transcripts of such loci are converted to dsRNA by the RNA dependent RNA polymerase or convergent transcription, creating substrates for the Dicer (Dcr1) ribonuclease, which cleaves dsRNA to produce siRNAs. Once loaded into the Argonaute complex (RITS), these siRNAs target RITS to the chromosome via homology to nascent transcripts, eliciting H3K9 methylation, HP1 binding and transcriptional silencing. Dicer also acts to evict RNA polymerase II (RNAP2) from highly transcribed regions and from repetitive DNA regions like the tDNA, rDNA and pericentric repeats. Dicer-mediated release of RNAP2 promotes genome stability by limiting collisions between the transcription and replication machineries (Castel et al., 2014; Kloc et al., 2008; Zaratiegui et al., 2011).

Centromeres are among the most prominent heterochromatic regions. The centromeric central core, upon which the kinetochore is assembled, is flanked by heterochromatic repeats comprising the innermost repeats (imr) and the outer repeats (otr) (Takahashi et al., 1992; Steiner et al., 1993; Wood et al., 2002). This organization, in which a core platform for kinetochore assembly is flanked by heterochromatic repeats, is conserved in vertebrates (Kniola et al., 2001). HP1-containing pericentric heterochromatin recruits cohesin to the outer repeats (Nonaka et al., 2002), thereby ensuring faithful chromosome segregation (Bernard et al., 2001). Pericentric heterochromatin also plays a crucial role in the de novo assembly of functional CenpA-containing centromeres capable of kinetochore assembly (Folco et al., 2008). Once a functional centromere is assembled, however, heterochromatin becomes dispensable for kinetochore maintenance.

Heterochromatin also extends inwards from chromosomal termini, for ~30 kb in S. pombe. Reporter genes inserted at these terminal regions are transcriptionally silenced (Cooper et al., 1997; Kanoh et al., 2005). Telomeric DNA, consisting of double-stranded (ds) G-rich repeats with a terminal single-stranded (ss) G-rich 3’ overhang, provides the platform for a sextet of proteins known collectively as shelterin (de Lange, 2009), which regulates telomerase activity and prevents chromosome ends from being treated as DNA double strand breaks. Heterochromatin is not required for these crucial telomere functions (Khair et al., 2010; Tuzon et al., 2004). However, in survivors of telomerase loss, heterochromatin is critical for either protecting chromosome ends via ‘HAATI’ (Jain et al., 2010) or conversely, for inhibiting the ‘ALT’ pathway of continual break induced replication characterized in telomerase-negative cancers (Benetti et al., 2008; Benetti et al., 2007). The fission yeast shelterin component Taz1 (ortholog of human TRF1 and TRF2) binds directly to telomeric dsDNA; Rap1 binds Taz1 (and, at least in the absence of Taz1, weakly binds other shelterin proteins) and directly interacts with the inner NE protein Bqt4 (Chikashige et al., 2009), promoting telomere localization to the NE. Telomere tethering is also promoted in a Bqt4 independent manner by the conserved Fun30 chromatin remodeler Fft3 (Steglich et al., 2015). Nonetheless, telomeres are not always tethered; for instance, dislodgment of telomeres from the NE prior to mitosis appears to contribute to accurate chromosome segregation (Fujita et al., 2012).

In addition to Bqt4 and the NPCs, other key fission yeast NE complexes include the ‘linker of nucleoskeleton and cytoskeleton complex’ (LINC) and the Lap2/Emerin/Man1 (LEM) family of lamin-associated proteins (Gonzalez et al., 2012). LINC comprises the conserved SUN- (Sad1) and KASH-domain (Kms1/Kms2) proteins that form a trans-NE link from nucleoplasm to cytoplasm. Kms2 interacts with the centrosome (the spindle pole body or SPB), which resides on the outer surface of the NE. The nucleoplasmic extension of LINC (Sad1) interacts with centromeres, which are clustered at the NE beneath the SPB (Fernández-Álvarez et al., 2016; Hagan and Yanagida, 1995; Scherthan et al., 2011). Two LEM proteins, Lem2 and Man1, fulfill lamin-like functions despite the absence of canonical nuclear lamina in fission yeast (Cai et al., 2001; Gonzalez et al., 2012; Lee et al., 2001). Man1 has been shown to interact with regions 50–100 Kb from telomeres (Steglich et al., 2012), while Lem2 appears to be sequestered near centromeres (Hiraoka et al., 2011). Recent studies have identified Lem2 as a regulator of heterochromatin silencing at pericentric regions (Barrales et al., 2016; Tange et al., 2016).

Notwithstanding the tendencies of specific chromatin regions to associate with the NE, the functions of this association in most instances remain to be elucidated. We identified Bqt4 in a screen (to be described elsewhere) for genes involved in maintaining the HAATI mode of telomerase-negative survival (Jain et al., 2010), in which heterochromatic rDNA repeats translocate to all chromosome ends and acquire end protection capacity. In exploring the function of Bqt4 in wild type (wt) cells, we uncovered two classes of roles for Bqt4, one in directly regulating a subset of chromatin regions specifically during S phase, and another in mobilizing Lem2, which in turn has distinct roles in maintenance of the pericentric heterochromatin and the centromeric central core. Along with the S-phase specificity of Bqt4’s role in chromatin localization, we report several bqt4Δ phenotypes and genetic interactions that implicate Bqt4-rich microdomains as specialized ‘safe zones’ that prevent collisions between transcription and replication machineries, and thereby confer accurate maintenance of the heterochromatic state through successive generations.

Results

NE proteins organize into distinct domains

To chart the organization of key proteins at the NE, we used super-resolution fluorescence imaging (the OMX system) (Dobbie et al., 2011) to view endogenously tagged Bqt4, Man1 and Lem2 (see Materials and methods). Consistent with previously described electron microscopy images (Chikashige et al., 2009), we observe that Bqt4 does not uniformly distribute around the NE but rather appears in puncta, indicating spatial heterogeneity in NE composition (Figure 1A). To address the composition of regions that lack detectable Bqt4 (dark areas in Figure 1A), we simultaneously imaged Bqt4 and Man1 (Figure 1B) or Bqt4 and Lem2 (Figure 1C). Bqt4 and Man1 signals occasionally overlap but more often, they do not (Figure 1C, Figure 1—figure supplement 1A). Domain partitioning is also seen when simultaneously viewing Bqt4 and Lem2 (Figure 1C, Figure 1—figure supplement 1A).

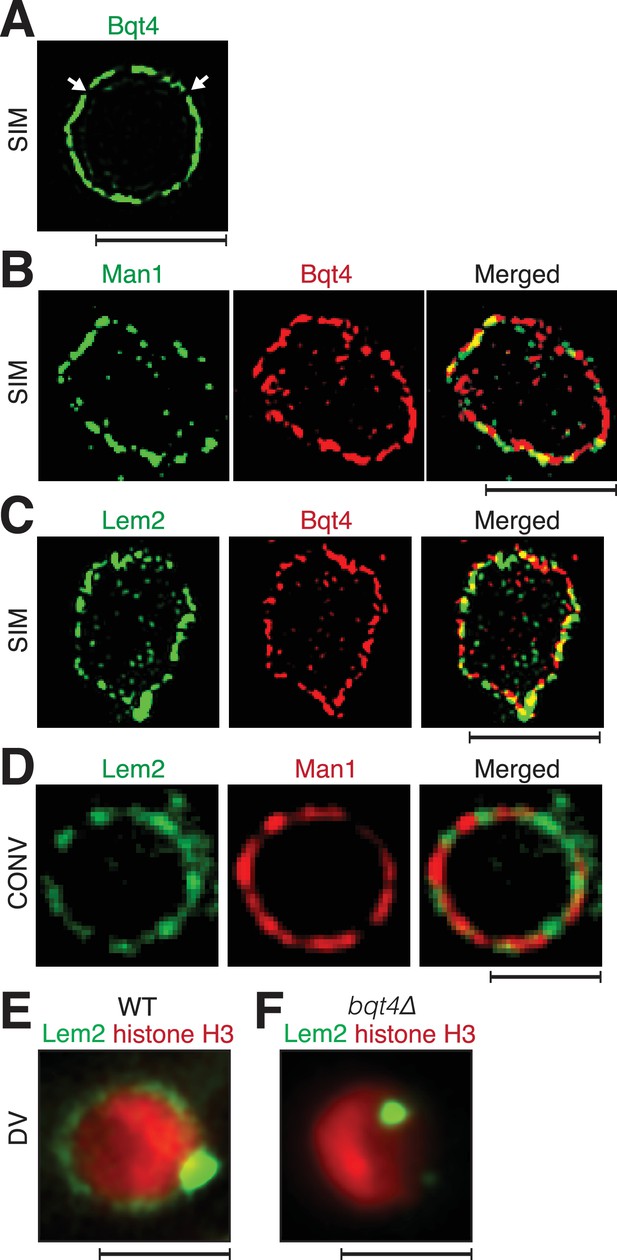

Figure 1 with 2 supplements see all
Inner NE proteins are sequestered into distinct microdomains.

(A) Representative super-resolution microscopy (structured illumination, SIM) image of a live cell harboring Bqt4-GFP. Lateral resolution is 120–150 nm. Arrows indicate regions with relatively low abundance of detectable fluorophore. Scale bars represent 2 µm in all images. (B) SIM images of representative fixed cells expressing Man1-GFP and Bqt4-mCherry, and (C) Lem2-GFP and Bqt4-mCherry. Colocalization quantitations and procedures are described in Figure 1—figure supplement 1A. (D) DeltaVision deconvolution fluorescence imaging of live cells harboring Lem2-GFP and Man1-tdTomato. Quantitation is shown in Figure 1—figure supplement 1C. (E) A representative single z-plane image of a live wt cell expressing Lem2-GFP and histone H3-mCherry. Lem2-GFP is detectable around the NE with an intense dot beneath the SPB. (F) In the absence of Bqt4, Lem2 fails to encircle the NE but remains beneath the SPB. Lateral resolution for (E–F) ~300 nm.

https://doi.org/10.7554/eLife.32911.002

The most intense Lem2 pool appears just beneath the SPB, while a less prominent subset of Lem2 molecules localizes to a ring around NE (Figure 1E). Remarkably, the ring of Lem2 is diminished to near-invisibility in cells lacking Bqt4, while a single Lem2 focus remains (Figure 1E and Figure 1—figure supplement 2A), colocalizing with the SPB component Pcp1 (Figure 1—figure supplement 2A) (Gonzalez et al., 2012). In contrast, the localization patterns of the NPC protein Nup107 (Baï et al., 2004), the NE component Cut11 (West et al., 1998), and Man1 are all independent of Bqt4 (Figure 1—figure supplement 2B). Hence, Bqt4 is specifically required for distribution of Lem2 around the NE.

Bqt4 is highly mobile within the NE

The distinct localization patterns for Bqt4, Man1 and Lem2, along with the observation that Bqt4 controls the mobility of Lem2 around the NE, suggest that protein dynamics differ among these NE components and in different NE regions. Indeed, variable levels of dynamicity have previously been reported for NE proteins (Ellenberg et al., 1997; Rabut et al., 2004). To explore this, we used fluorescence recovery after photobleaching (FRAP) to assess turnover rates. Figure 2A shows a representative nucleus harboring Bqt4-GFP. After capturing a reference ‘pre-bleach’ image, we photobleached a region of interest (ROI) encompassing a segment of the NE (Figure 2A). Bqt4-GFP signal inside the photobleached window recovers within ~12 s (Figure 2B; half-life 5.029 s). Moreover, the reappearance of Bqt4-GFP signal within the ROI consistently shows a distinct recovery pattern; rather than uniformly recovering throughout the bleached NE segment, the signal appears progressively from the flanking NE edges to the center of the bleached region (Figure 2A), suggesting that dissociated Bqt4-GFP is replenished by movement around the NE. While Bqt4 in the unbleached portion of the NE may be continually replenished from nucleoplasmic pools, the described recovery pattern cannot be explained by exchange with a non-membrane bound pool of Bqt4.

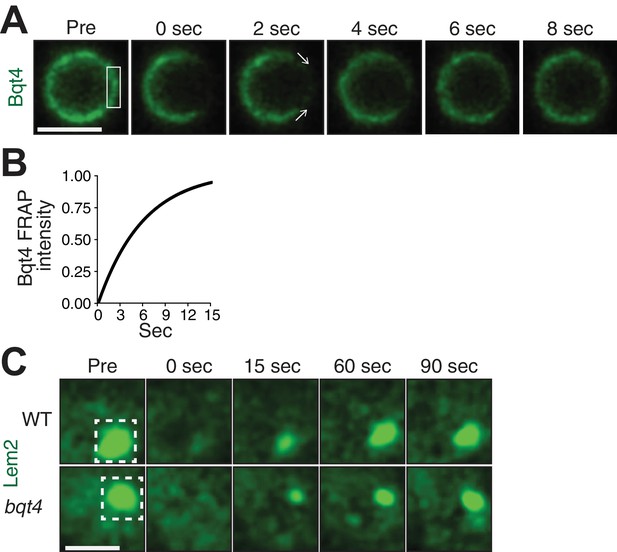

Bqt4 mobilizes Lem2 around the NE.

(A) Representative time-lapse series of a FRAP experiment. ‘Pre’ shows a control image captured immediately prior to photo-bleaching. The white box indicates the ROI targeted for photobleaching. Time 0 is taken immediately after photo-bleaching. Images were captured every 2 s. Quantitation was performed by measuring sum of pixel values inside ROI, deducting background signal (a region next to the nucleus with the same size as the ROI), and dividing by ROI signal in ‘Pre’ image. Scale bars here and in (C) represent two microns. (B) The normalized fluorescence intensities (described in A) from the imaged cells were averaged for each corresponding timepoint, and a curve fit was plotted using Prism (GraphPad Software). The y-axis indicates normalized intensities relative to ‘Pre’ intensity set to 1.0 (half-life 5.03 s, n = 13). (C) Cells expressing Lem2-GFP were subjected to FRAP as in A, except that the time-lapse interval was increased to 15 s. The ROI (dashed box in ‘Pre’) was drawn around a region covering the visible Lem2-GFP dot. The Lem2-GFP ring around the nucleus, visible by other imaging systems (Figure 1E,F), was not detectable with the specific FRAP system and settings used here. Quantitations are shown in Figure 3C.

https://doi.org/10.7554/eLife.32911.005

The substantial reduction in Lem2-GFP levels encircling the NE in bqt4Δ cells prevents the robust use of FRAP for measuring Lem2 turnover around the NE in this setting. However, we were able to measure the turnover rate of Lem2-GFP localized beneath the SPB in both wt and bqt4∆ cells. At this site, the half life of Lem2 residency remains unaffected upon Bqt4 loss (Figure 2C; Half life, wt: 23.11 s, bqt4∆: 23.99 s). Hence, the two distinct pools of Lem2, beneath the SPB and around the NE, are controlled by different mechanisms, with Bqt4 controlling the pool of Lem2 that is distributed away from the SPB region around the NE.

Lem2 localization beneath the SPB is regulated by the LINC-interacting protein Csi1

As Lem2 concentrates beneath the SPB, we conjectured that the LINC complex controls Lem2 accumulation at this site. Csi1 (chromosome segregation impaired protein 1) associates with Sad1 and promotes the robust association of centromeres with the LINC complex (Hou et al., 2012), making Csi1 a candidate regulator of Lem2 localization to this region. While the intense Lem2 focus colocalizes with the SPB component Sid4 in wt cells (Chang and Gould, 2000), this colocalization is abolished in 85% of csi1∆ cells as evinced by the absence of a Lem2-GFP dot beneath the SPB (Figure 3A). Notably, however, the ring of Lem2-GFP around the NE remains in csi1∆ cells. Therefore, Csi1 either recruits or stabilizes Lem2 beneath the SPB.

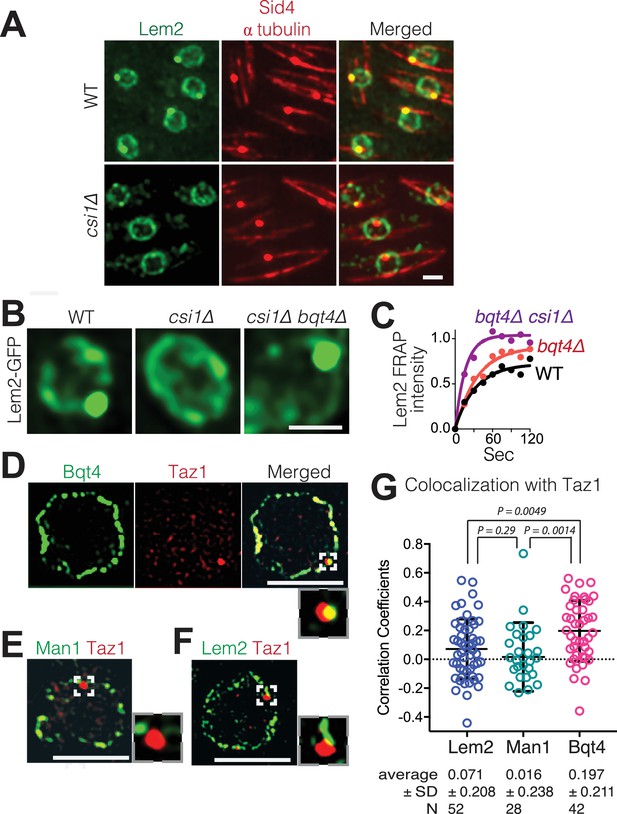

Figure 3 with 1 supplement see all
Csi1 stabilizes Lem2 beneath the SPB while Bqt4 moves Lem2 around the NE.

(A) High-resolution images (~300 nm lateral resolution) show that Lem2 localization beneath the SPB requires Csi1. Lem2-GFP and Sid4-mRFP overlap in all WT cells, but fail to overlap in 85% of csi1Δ cells. Scale bars represent two microns in all images. (B) Deletion of bqt4+ restores detectable Lem2-GFP dot at the SPB in csi1Δ cells. (C) FRAP of the visible Lem2-GFP dot as described in Figure 2C. Non-linear fit of the fluorescence recoveries for the indicated strains show curtailed half-life for Lem2-GFP at the SPB in the bqt4Δ csi1Δ double deletion strains. Half-lives: WT 23.11 s, n = 12; bqt4Δ half-life 23.99 s, n = 10; bqt4Δ csi1Δ half-life 11.24 s, n = 18. Mobile fraction (plateau) for WT: 72%, bqt4∆: 91%, bqt4∆csi1∆: 100%. Goodness of fit (R2) for WT: 0.961, bqt4∆: 0.974, bqt4∆csi1∆: 0.956. FRAP could not be performed in the csi1Δ background due to lack of visible Lem2 at the SPB. (D) SIM (120–150 nm lateral resolution) images of representative fixed cells expressing Bqt4-GFP and Taz1-mCherry, (E) Man1-GFP and Taz1-mCherry, and (F) Lem2-GFP and Taz1-mCherry. Insets show magnifications of boxed regions. (G) Co-localization between Taz1 and the indicated proteins was quantified as Pearson correlation coefficients, using the Applied Biosystems softWorX software.

https://doi.org/10.7554/eLife.32911.006

As Bqt4 promotes the distribution of Lem2 around NE while Csi1 concentrates Lem2 beneath the SPB, we wondered where Lem2 would localize when both these factors are missing. In cells lacking both Bqt4 and Csi1, Lem2-GFP is greatly diminished from the ring around the NE but still strongly detectable beneath the SPB (Figure 3B). However, FRAP analysis reveals that the Lem2 turnover rate is substantially increased in csi1∆ bqt4∆ cells relative to wt or bqt4∆ cells (Figure 3C). Hence, while the initial Lem2 recruitment to the LINC region beneath the SPB is controlled independently of Bqt4 and Csi1, Csi1 is required to stabilize Lem2 at this region; this stabilization is required to counterbalance the Bqt4-dependent mobilization of Lem2 away from the LINC region.

Bqt4 tethers telomeres and the mat locus specifically while they are replicating

Bqt4 has been implicated in the interphase positioning of telomeres, which form two to three clusters at the NE (Funabiki et al., 1993; Chikashige et al., 2009). To assess whether telomeres localize specifically to Bqt4-containing regions, we visualized telomeres in cells harboring the various tagged NE proteins (Figure 3D–F). Consistent with previous observations (Dehé et al., 2012; Funabiki et al., 1993), we observe two to three Taz1 foci in each nucleus. Figure 3D shows a single focal plane that contains a single Taz1 focus; this telomeric focus colocalizes with Bqt4-GFP (Figure 3D). In contrast, telomeres show markedly lower degrees of colocalization with Man1 or Lem2 (Figure 3E–G, Figure 3—figure supplement 1). Therefore, telomeres have a higher propensity to localize to Bqt4-rich than Man1- or Lem2-rich NE domains.

Centromeres localize to the NE during interphase, forming a cluster beneath the SPB (Funabiki et al., 1993). The intense focus of Lem2 detectable in this region (Figure 4A) is consistent with ChIP experiments showing an interaction between Lem2 and centromeres (Barrales et al., 2016; Tange et al., 2016). To investigate the exclusivity of centromere-Lem2 colocalization, we visualized endogenously mCherry-tagged Mis6, an inner kinetochore component (Takahashi et al., 2000). Consistent with previous observations (Hiraoka et al., 2011), Mis6 sequesters within a Lem2-enriched domain beneath the SPB (Figure 4A, Figure 4—figure supplement 1). In contrast, Mis6 does not colocalize with Man1 (Figure 4B, quantified in Figure 4—figure supplement 1B). To observe the centromeric DNA sequences immediately surrounding the kinetochore region, we imaged cells that contain mCherry-tagged tet repressor (tetR-mCherry) and an array of tetracycline operators (tetO) inserted within the imr of centromere I. The marked imr and the SPB (Sid4-GFP) colocalize in 100% of cells (Figure 4—figure supplement 1C). We also imaged cells that contain LacI-CFP and an array of Lac operators (LacO) integrated ~10 Kb away from the otr of centromere III (Ding et al., 2004). In contrast to the central imr, this distal otr region colocalizes with the SPB in only 12% of cells (Figure 4—figure supplement 1C); in the majority of cells, otr appears adjacent to, rather than superimposed upon, the SPB. Hence, the central core region and imr localize exclusively to the SPB region, while the pericentric otr sequences associate with NE regions away from the SPB. Collectively, these observations reveal a NE with distinct microdomains that are exclusively enriched with Man1, Lem2 or Bqt4, and interact with distinct chromosomal regions.

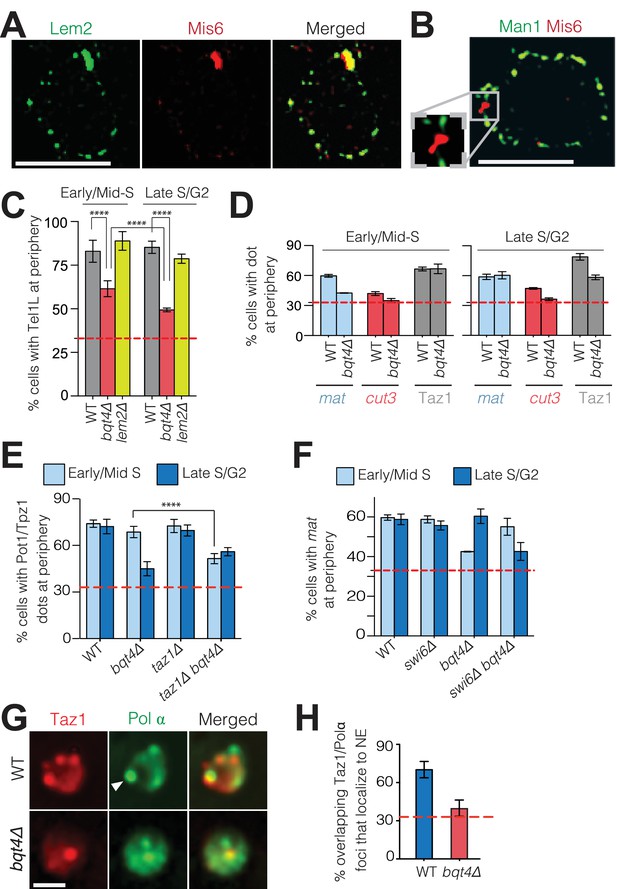

Figure 4 with 1 supplement see all
Bqt4 tethers telomeres and the mat locus when undergoing DNA replication.

(A) SIM images of representative fixed cells expressing Lem2-GFP and Mis6-mCherry, and (B) Man1-GFP and Mis6-mCherry. Inset in (B) shows magnification of the boxed region. (C) Bqt4 regulates telomere positioning while Lem2 does not. Snapshots of live cells harboring Tel1L-lacO/I-GFP and Cut3-mCherry (to mark the NE) were captured, the distance between the telomere and NE measured, and distances categorized based on the nuclear zoning assay (see Materials and methods) in which the outer third of the nuclear volume is considered the periphery. Dashed red line indicates the level of peripheral zoning expected for random localization within the nucleus (33%). The Y-axis indicates percent of imaged cells in which telomere-NE distance is categorized as Zone I (the most peripheral zone with a maximum distance of ~0.22 µm from the NE). Table 1 shows statistics for the data here and in (D–F). Error bars indicate SD. **** indicates p≤0.0001 as determined by a Student’s t-test. (D) Imaging, quantitation and plotting as in C. The mat locus and cut3 gene were visualized via lacO/I arrays inserted <40 kb away; telomere clusters were visualized via Taz1-mCherry. (E–F) Imaging and quantitation as described in A (n > 80). (G) Colocalization of Taz1-mCherry and Pol α-GFP in the indicated strains was assessed using automated image-analysis on 800–1000 cells, utilizing a MATLAB script that uses a constant threshold level for detecting dots and assigning colocalization, and measures distance to the edge of the nucleus. Arrowhead indicates a site of Polα/telomere colocalization. (H) Data from G were plotted as described in C.

https://doi.org/10.7554/eLife.32911.008
Table 1
Statistical significance of chromosomal localization data in Figure 4.

n1 and n2 denote total number of scored loci in cells from two biological replicates (independent strains). P values, from two-tailed Student’s t-tests, indicate the significance of the difference between the observed number of loci in Zone one and the expected random distribution.

https://doi.org/10.7554/eLife.32911.010
Locus genotypeEarly/Mid-sLate S/G
Tel 1L
WT
n1 = 112,, n2 = 93
p<0.000001
n1 = 151, n2 = 180
p<0.000001
Tel 1L
bqt4Δ
n1 = 110, n2 = 103
p<0.000001
n1 = 143, n2 = 112
p=0.00986
Tel 1L
lem2 Δ
n1 = 110, n2 = 86
p<0.000001
n1 = 96, n2 = 160
p<0.000001
mat
WT
n1 = 55, n2 = 49
p=5.0 × 10−5
n1 = 85, n2 = 95
p=1.0 × 10−5
mat
bqt4Δ
n1 = 70, n2 = 52
p=0.79551
n1 = 91, n2 = 90
p<0.0001
cut3
WT
n1 = 86, n2 = 73
p=0.0459
n1 = 57, n2 = 113
p=0.97412
cut3
bqt4Δ
n1 = 94, n2 = 90
p=0.99545
n1 = 78, n2 = 125
p=0.99801
Taz1
WT
n1 = 51, n2 = 74
p<0.000001
n1 = 85, n2 = 87
p<0.000001
Taz1
bqt4Δ
n1 = 67, n2 = 93
p<0.000001
n1 = 88, n2 = 86
p=5.0 × 10−5
Pot1
WT
n1 = 79, n2 = 65
p<0.000001
n1 = 54, n2 = 68
p<0.000001
Pot1
bqt4Δ
n1 = 64, n2 = 96
p<0.000001
n1 = 59, n2 = 81
p=0.0293
Pot1
taz1Δ
n1 = 60, n2 = 63
p<0.000001
n1 = 88, n2 = 96
p<0.000001
Pot1
taz1Δ bqt4Δ
n1 = 65, n2 = 100
p=0.00025
n1 = 64, n2 = 149
p=2.0 × 10−5
mat
swi6Δ
n1 = 72, n2 = 60
p=1.0 × 10−5
n1 = 103, n2 = 120
p=2.0 × 10−5
mat
swi6Δ bqt4Δ
n1 = 77, n2 = 75
p=0.0002
n1 = 100, n2 = 59
p=0.0459

The specificity of Bqt4-mediated NE localization for telomeres might be envisioned to stem from their heterochromatic nature (Cooper et al., 1997). However, H3K9me-containing heterochromatin is dispensable for telomeric tethering to the NE, as Tel1L is not dislodged from the NE in clr4Δ cells (Figure 4—figure supplement 1D). Hence, although clr4+ deletion was reported to delocalize the mat locus (Alfredsson-Timmins et al., 2007), telomeres are tethered to the NE in a H3K9me-independent manner. This is consistent with the observation that taz1Δ telomeres, in which silencing and H3K9 methylation are vastly reduced, nonetheless retain NE localization (Zaaijer et al., 2016).

The distinct localization patterns of telomeres and centromeres with respect to Bqt4 and Lem2 prompted us to explore the functional significance of Bqt4- and Lem2-microdomains. First, we examined telomere positioning as a function of cell cycle stage using cell shape as indicator. Soon after mitotic nuclear division, fission yeast cells undergo S-phase, before cytokinesis is complete; therefore, binucleate cells are in early/mid S-phase. As cells progress from late S phase to G2, cytokinesis gives rise to the two mononucleate daughter cells. Accordingly, we scored interphase binucleate cells as early/mid-S phase and mononucleate cells as late S/G2. Telomere 1-left (Tel1L) was visualized by a LacO array integrated at the sod2+ locus (Ding et al., 2004) in the centromere-proximal subtelomeric region (~50 Kb from chromosome end) in cells expressing LacI-GFP (Ding et al., 2004), hereafter referred to as Tel1L lacO/I-GFP. The NE was viewed by tagging the NE protein Cut11 with mCherry to allow measurement of the distance between Tel1L-lacO/I-GFP and the NE. The peripheral zone was defined as the outer third of the nuclear volume; a randomly positioned sequence will localize to this zone in ~33% of cells (Meister et al., 2010); statistics for all measurements are shown in Table 1. In 80% of wt settings, Tel1L localizes to the nuclear periphery (Figure 4C) whether early/mid S-phase or late S/G2. This localization is disrupted in a cell cycle dependent manner in bqt4∆ cells. While Tel1L is at the periphery in ~60% of early/mid-S phase bqt4∆ cells, dislodgement is substantial in late S/G2 phase, with only ~48% localization at the NE (Figure 4C). Hence, the role of Bqt4 in localizing telomeres to the NE is more pronounced during late S/G2 than in early S phase.

As Lem2 is lost from SPB-distal regions of the NE in a bqt4Δ setting, we examined telomere positioning in lem2∆ cells. In contrast to bqt4Δ cells, Tel1L remains at the periphery throughout the cell cycle in lem2Δ cells (Figure 4C). Hence, loss of tethering in a bqt4Δ setting is not a function of losing Lem2 from telomeric tethering sites. Centromeres remain localized beneath the SPB in the absence of either Bqt4 or Lem2 (data not shown). Therefore, any role of Lem2 in tethering chromosomal loci is redundant with other mechanisms (Barrales et al., 2016).

To determine whether the rules governing Tel1L localization are shared by all telomeres, we monitored endogenously tagged and functional Taz1-GFP, which binds directly to all telomeres. Taz1 localizes strongly to the periphery and is delocalized only during late S/G2 in the absence of Bqt4 (Figure 4D). The mating type locus (mat) is another prominent genomic region that positions at the NE (Alfredsson-Timmins et al., 2007; Noma et al., 2006). To determine whether this localization requires Bqt4, we utilized a strain in which the lacO/I array is inserted at mat. While peripheral localization was observed during both S and G2-phase in wt cells, mat is dislodged from the NE in early/mid-S phase in bqt4Δ cells (Figure 4D). This dislodgment is transient, as mat re-localizes to the NE in late S/G2. In contrast, a control strain harboring a lacO/I array adjacent to a euchromatic locus (cut3) on the left arm of chromosome II (Chr II) (Ding et al., 2004) shows random positioning throughout the nucleus in both wt and bqt4∆ settings (Figure 4D).

The mat locus replicates in early S phase, while telomeres replicate in late S phase (Hayano et al., 2012; Hayashi et al., 2009; Kim et al., 2003). This temporal discord in the replication of telomeres versus the mat locus correlates with the temporal discord in dislodgment of these loci from the nuclear periphery in a bqt4∆ setting. Hence, we postulated that Bqt4 is necessary for tethering these loci specifically while they undergo DNA replication. To assess this possibility, we abolished the late specificity of telomere replication by deleting the gene encoding Taz1; in a taz1Δ background, telomeres replicate throughout the cell cycle (Dehé et al., 2012; Tazumi et al., 2012). We visualized taz1Δ telomeres by GFP tagging the shelterin components Pot1 or Tpz1, which bind the ss telomeric overhang and retain telomere localization in the absence of Taz1 (Baumann and Cech, 2001; Miyoshi et al., 2008). In a taz1+ background, Pot1-GFP foci localize to the NE in both early S and late S/G2 (Figure 4E) and become dislodged in late S/G2 upon bqt4 deletion. In contrast, in a bqt4∆ taz1∆ setting in which telomere replication timing is deregulated, telomere dislodgement occurs throughout all stages monitored (Figure 4E). The more pronounced late S/G2-dependency of Taz1 delocalization (Figure 4D) versus Tel1L delocalization (Figure 4C) in the absence of Bqt4 likely reflects the distance separating Tel1L from the extreme chromosome terminus; Tel1L likely tends to replicate slightly earlier than the termini. Taz1 also promotes the passage of replication forks through the repetitive telomeric DNA (Miller et al., 2006); hence, while absence of Taz1 advances the initiation of telomere replication, it also hinders completion of replication (Miller et al., 2006). Consistently, telomeres remain dislodged throughout S/G2 phase in a bqt4∆ taz1∆ background.

Swi6 binds heterochromatic DNA at the mat locus, and causes early replication by promoting the recruitment of the replication initiation factor Sld3 (Hayashi et al., 2009). While Swi6 also binds telomeric heterochromatin, the replication timing of telomeres is set by Taz1 independently of heterochromatin/Swi6. The specific effect of Swi6 allowed us to examine the correlation between tethering of the mat locus and its replication status. In swi6∆ cells, mat remains tethered to the NE (Figure 4F), eliminating the possibility that Swi6 itself may affect tethering. However, in swi6∆ bqt4∆ cells, the mat locus is dislodged later, during late S/G2 phase (Figure 4F). Thus, Bqt4 is necessary for tethering of telomeres and the mat locus while these tethered loci are replicated.

The subnuclear positioning of replicating DNA has been visualized via tagged replication factors, such as the catalytic subunit of DNA polymerase α (Polα) (Meister et al., 2007; Natsume et al., 2008), which localizes to foci proposed to be the sites of active DNA replication. One or two such replication foci are observed at the NE during late S/G2 (Meister et al., 2007; Natsume et al., 2008). To examine whether telomeres colocalize with these late replication foci, we used cells expressing both Taz1-mCherry and Polα-GFP. Figure 4G shows a representative nucleus in late S/G2. Three Taz1 foci of similar intensity are visible in the shown z-plane; a fourth Taz1 focus is less intense as it represents an out-of-focus telomere in a different z-plane. Using the fluorescence background in the nucleus to approximate its boundary, we scored the position of the colocalized dots relative to the nuclear periphery (Figure 4H). Consistent with published data (Meister et al., 2007), we observe significant colocalization between telomeres and replication foci at the NE in wt cells. In contrast, while Taz1 and Polα show colocalization in the absence of Bqt4, this colocalization does not occur at the NE (Figure 4H), again indicating that the tendency of telomeres to replicate at the periphery requires Bqt4-mediated tethering.

Bqt4 is required for resistance to DNA damaging agents during S-phase

The role of Bqt4 in localizing replicating telomeres and mat to the NE raises the question of whether such localization is important for their replication. To address this, we examined the effects of bqt4+ deletion on DNA replication-related processes. Bqt4 is required for cellular resistance to agents that induce DNA damage during S-phase, as bqt4Δ cells are hypersensitive to both hydroxyurea (HU) and methyl methanesulfonate (MMS; Figure 5A); in contrast, Bqt4 is dispensible for resistance to bleomycin, which induces DNA damage independently of DNA replication (Manolis et al., 2001), and to the microtubule destabilizing agent thiabendazole (Figure 5B, Figure 5—figure supplement 1A). These results demonstrate a requirement for either Bqt4 per se and/or Bqt4-mediated NE tethering for robust DNA replication. To delineate these possibilities, we utilized strains harboring a deletion of the transmembrane domain of Bqt4 (Bqt4-TM); Bqt4ΔTM has been shown to delocalize from the NE and diffuse throughout the nuclear interior (Chikashige et al., 2009). GFP-Bqt4-ΔTM confers similar MMS hypersensitivity to that of bqt4+ deletion while GFP-Bqt4 alone does not (Figure 5—figure supplement 1B), indicating that the NE localization of Bqt4 is required for resistance to MMS.

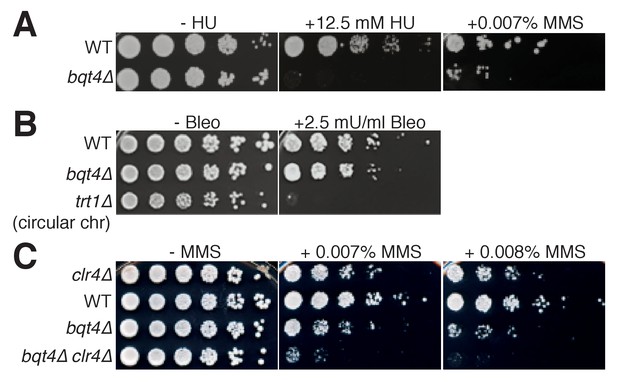

Figure 5 with 1 supplement see all
Bqt4 is required for resistance to agents that damage DNA during replication.

(A–C) Five-fold serial dilutions of log-phase cultures of the indicated strains were stamped onto media containing HU, MMS, or Bleomycin (see Materials and methods). To control for the effectiveness of Bleomycin, we used telomerase-deficient survivals that have circular chromosomes, previously shown to be bleomycin hypersensitive (Jain et al., 2010).

https://doi.org/10.7554/eLife.32911.011

We wondered if the DNA damage sensitivity of bqt4Δ cells stems from the heterochromatic nature of Bqt4-tethered regions, in which case the abolition of H3K9 methylation conferred by clr4+ deletion would suppress the damage sensitivity. However, clr4Δ confers synthetic lethality with bqt4Δ on MMS (Figure 5C). Therefore, Bqt4 and Clr4 play separate, redundant roles in controlling MMS resistance. This suggests a scenario in which localization becomes particularly crucial when Bqt4-interacting chromosome regions are transcriptionally derepressed; enhanced transcription at these difficult-to-replicate regions may lead to excessive transcription/replication conflicts, causing severe MMS hypersensitivity.

Bqt4 and Lem2 microenvironments regulate telomeric and centromeric heterochromatin

The hypersensitivity of bqt4Δ cells to agents that challenge DNA replication, along with the heterochromatic nature of the Bqt4-tethered chromosome regions, raised the question of whether heterochromatin is altered by Bqt4 loss. To assess this, we created strains in which chromatin was induced to position away from both the Lem2 and Bqt4 microdomains. Given our observation that Lem2 concentrates beneath the SPB while Man1 and Bqt4 occupy distinct and largely non-overlapping positions around the NE, we sought to move replicating chromatin to Man1-enriched regions. An ectopic tethering system was achieved by fusing the C-terminus of Man1 with the GFP-binding protein (GBP) (Dodgson et al., 2013), which was in turn fused to mCherry. Man1-GBP-mCherry localizes around the NE (Figure 6A), as does unmodified Man1. To tether replicating DNA to Man1-GBP-mCherry, we utilized Polα-GFP (Damagnez et al., 1991), which fully complements wt Pol α function (Meister et al., 2007) (Figure 6—figure supplement 1). In cells lacking GBP, Polα-GFP shows diffuse localization throughout the nucleus during early S-phase (Figure 6B). In contrast, Polα-GFP accumulates around the NE in S-phase cells harboring Man1-GBP (Figure 6A). To examine the location of active DNA replication, we visualized the single-strand DNA binding RPA (replication protein A) component Rad11, which localizes to replication forks (as well as DNA damage sites). In cells lacking GBP, multiple Rad11 foci are visible throughout the nucleus during S phase while Rad11 signal is diffuse in nonreplicating cells (Figure 6—figure supplement 2A) (Zaaijer et al., 2016). By contrast, in nearly all Man1-GBP/Pol α-GFP cells, the Rad11 foci colocalize with peripherally localized Polα-GFP (Figure 6—figure supplement 2B), suggesting that the bulk of DNA replication takes place at the Man1 microdomains; Taz1-Man1 colocalization can also be seen to increase in a Man1-GBP background when Polα-GFP is introduced (Figure 6—figure supplement 2C–E), suggesting the telomere replication is moved from Bqt4 microdomains to Man1-domains. Hence, this approach enabled us investigate the effect of inducing the bulk of DNA replication to occur at the periphery at sites distinct from those rich in Lem2 and Bqt4.

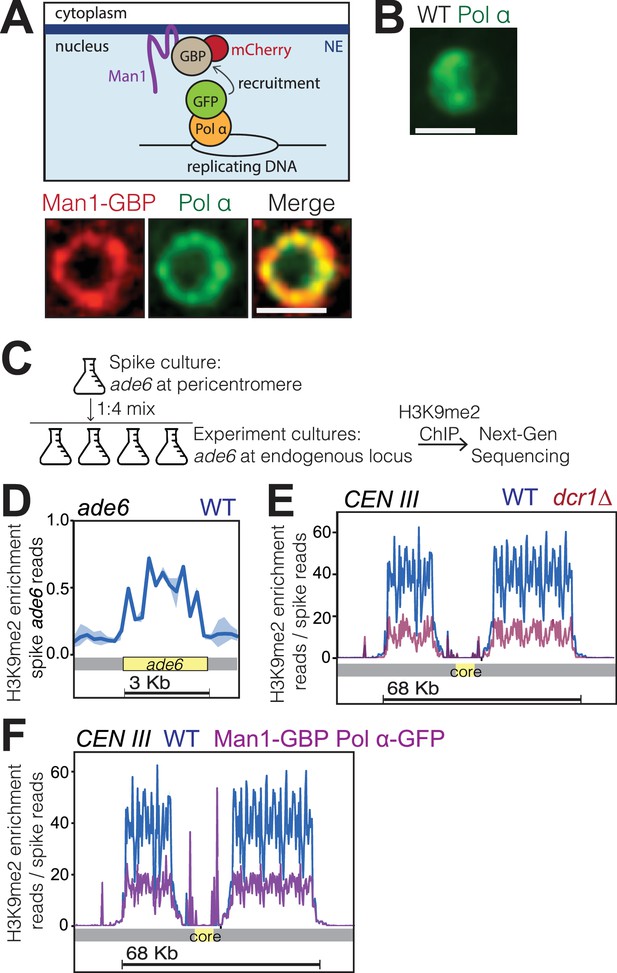

Figure 6 with 2 supplements see all
Bqt4-rich domains ensure faithful inheritance of heterochromatin.

(A) Schematic of system designed to move replication forks to the NE. Coexpression of Polα-GFP and Man1-GBP recruits Polα-associated (replicating) chromatin to Man1-rich subdomains of the NE. Images below schematic show remobilization of Pol α-GFP to colocalize with Man1-GBP-mCherry encircling the nucleus. (B) In cells lacking Man1-GBP, Polα-GFP shows diffuse localization within the nuclear interior. (C) ChIP-seq experiments were performed as described in text and Methods, using H3K9Me2 antibody (ab1220, Abcam). (D) Ribbon line-plot of enrichment of H3K9Me over the ade6+ locus in three independent WT isolates. The solid blue line indicates median; width of the ribbon indicates range of enrichment levels among the three isolates. (E–F) Ribbon line-plot of enrichment of H3K9Me2 at centromere of Chr III. The central core region is indicated by the yellow box. The sharp peaks flanking the core region (F) align to small repetitive regions (~25 bp) present in multiple regions across the genome; it is therefore not possible to determine their source.

https://doi.org/10.7554/eLife.32911.013

To detect changes in heterochromatin enriched with H3K9me2, we used a modified ChIP-Seq protocol that entails spiking every sample with chromatin from a strain in which the endogenous ade6+ gene has been deleted and ectopically inserted within the pericentric heterochromatin of centromere I. As all the experimental strains used contain only the single endogenous copy of ade6+, which lies in a euchromatic region (Cam et al., 2005), the signal emanating from ectopic ade6+ serves as a constant reference. This approach for normalization of H3K9me2 enrichment levels is similar to the previously described ChIP-Rx method (Orlando et al., 2014). We mixed a liquid culture of the reference (spike) strain at 1:4 ratio with each sample of the experimental cultures (Figure 6C). The resulting spiked samples were then cross-linked and processed for ChIP. Figure 6D shows the enrichment of H3K9me2 over the ade6 open reading frame, confirming our ability to detect the spike reads at the indicated spike ratio. To validate this normalization approach, we compared three independent wt strains with three independent dcr1Δ strains known to have vastly reduced levels of pericentric H3K9me2 (Hall et al., 2002; Volpe et al., 2002). After normalizing to the reads obtained at the ade6 locus (no normalization to input), the number of reads covering the heterochromatic pericentromeres showed no significant variation among the wt strains (Figure 6E). In contrast, the strains lacking Dicer (Hall et al., 2002; Volpe et al., 2002) are similar to each other but show substantially reduced read coverage relative to wt at the pericentromeric regions (Figure 6E). Hence, normalization to the spike is sufficient to eliminate technical variations introduced across multiple samples.

Cells harboring Man1-GBP and Polα-GFP were subjected to ChIP-Seq as described above. The read coverage for all pericentromeric regions was substantially reduced in Man1-GBP Polα-GFP cells relative to wt (Figure 6F). Hence, centromeric heterochromatin maintenance is compromised by inducing centromeres to replicate at Man1 regions, away from the Lem2 microdomains. In addition to reinforcing previous observations of a role for Lem2 in pericentric heterochromatin maintenance, these data are consistent with our observation that Man1 microdomains are spatially distinct from Lem2 microdomains.

To assess the effect of NE-proximal replication on subtelomeric heterochromatin, we performed ChIP-Seq on three independent bqt4Δ isolates. In a wt background, the 35 Kb region near the left end of Chr I is enriched with H3K9me2 (Figure 7A). In the absence of Bqt4, H3K9me2 levels are increased over this subtelomeric region (Figure 7A); subtelomere 2L also shows increased H3K9me2 enrichment in the bqt4∆ setting (Figure 7B). Moreover, while a sharp decrease in H3K9me2 enrichment is noticeable at the boundary between telomeric heterochromatin and the euchromatic chromosome arm in wt cells, this distinct H3K9me2 transition zone is not observed in bqt4Δ cells, in which additional H3K9me2 peaks extend into adjacent, normally euchromatic, regions. Telomere proximal regions at other chromosome ends also display defective H3K9me2 organization (Figure 7—figure supplement 1A). However, non-telomeric heterochromatic regions, such as that surrounding the mei4 gene (1.4 Mb from Tel2L) (Zofall et al., 2012), show normal H3K9me2 profiles in the absence of Bqt4 (Figure 7—figure supplement 1B). In contrast to subtelomeres, pericentric H3K9me2 enrichment is slightly reduced by bqt4+ deletion (Figure 7—figure supplement 1A) and H3K9me2 enrichment at the mat locus is substantially reduced (Figure 7—figure supplement 2A).

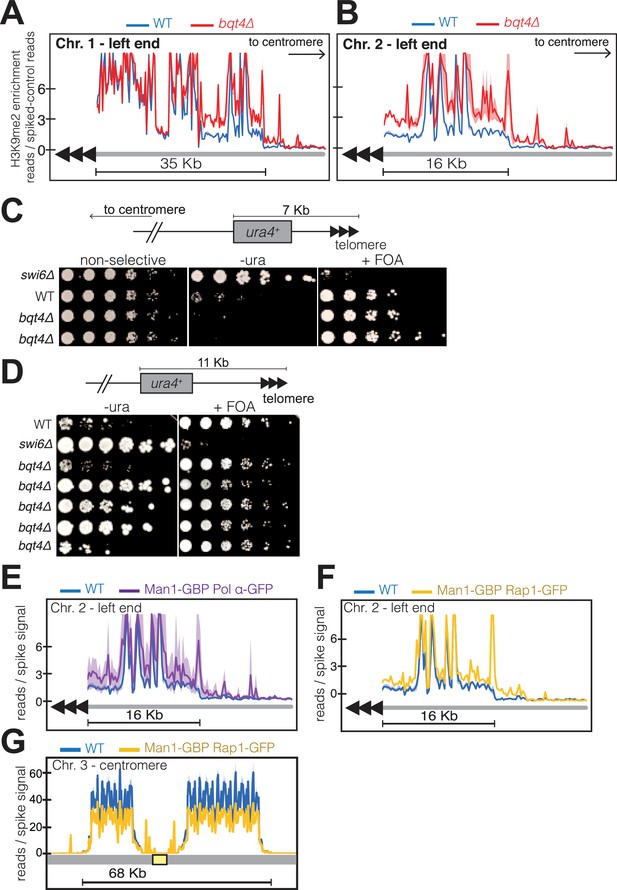

Figure 7 with 2 supplements see all
Bqt4 ensures proper heterochromatin maintenance at subtelomeric regions.

(A–B) ChIP-seq experiments (H3K9Me2) with three independent isolates of each genotype. Plot annotation as described in Figure 6D. (C) Five-fold dilutions of cells harboring the indicated genotypes and ura4+ gene inserted~7 kb from the right end of chromosome II. The two bqt4Δ rows contain cultures of two independent isolates. (D) Experiment performed as described in C, with five independent bqt4Δ isolates. (E–F) ChIP-Seq data covering the left end of Chr II is plotted as described in Figure 6D. (G) ChIP-seq data for centromeric region of Chr III.

https://doi.org/10.7554/eLife.32911.016

To probe our ChIP-seq observations with a physiological assay, we utilized a strain harboring a ura4 reporter gene inserted 7 Kb from the chromosome end (Figure 7C). This ectopic ura4 gene is known to be transcriptionally repressed and bound by Swi6 in wt cells (Kanoh et al., 2005), conferring poor growth on media lacking uracil (-ura). The same wt strain shows robust growth on media containing uracil and 5-Fluoroorotic acid (FOA), which is toxic to cells expressing ura4. This is largely true in a bqt4Δ setting as well, while cells lacking Swi6 show the expected derepression of ura4. However, a subtle but noticeable difference emerges when comparing the growth of wt and bqt4∆ strains on -ura; the bqt4∆ strains grow more poorly, indicating stronger repression of ura4 expression. In a similar experiment using cells with ura4 inserted 11 Kb from the chromosome end (Figure 7D), we found ura4 repression, consistent with previous observations (Kanoh et al., 2005). However, substantial growth variability emerged among five bqt4∆ isolates, with one showing similar growth to wt (poor on -ura and robust on FOA) and three bqt4∆ isolates (Figure 7D, rows 4–6) showing robust growth on both -ura and FOA, indicating enhanced variegation. Hence, the more centromere-proximal ura4 reporter is repressed in the absence of Bqt4, but can be derepressed under selection for ura4 prototrophy. Therefore, Bqt4 is dispensable for subtelomeric silencing, but the extent and robustness of subtelomeric silencing are both limited by the presence of Bqt4. In contrast to the subtelomeres, Bqt4 does not appear to regulate silencing at the telomeric regions (~500 bp from chromosome end; Figure 7—figure supplement 2B).

To determine whether the effect of Bqt4 on telomeric heterochromatin is mediated by tethering to the Bqt4-adjacent microenvironment, we examined H3K9me2 enrichment at telomeres in the induced tethering strains harboring Man1-GBP and Polα-GFP. In these strains, Bqt4 is present but DNA replication is induced to take place away from the Bqt4 microdomain. At Tel2L, the amplitudes of H3K9me2 peaks are elevated in the’ induced tethering’ background relative to wt (Figure 7E); this held true for other subtelomeres as well. Furthermore, the boundary regions appear to be affected in a manner resembling that of the bqt4Δ setting. Therefore, telomere replication in Man1-adjacent, rather than Bqt4-adjacent, microdomains leads to mis-regulated H3K9me2 maintenance.

As induced replication near Man1 affects both subtelomeric and centromeric H3K9me2, we sought to address the possibility that decreased levels of centromeric H3K9me2 result from the increase at subtelomeres. To tether telomeric regions to Man1 without altering pericentric localization, we performed ChIP-seq in cells expressing Rap1-GFP and Man1-GBP; in this scenario, the Rap1-bound telomeres will localize to Man1 domains while centromere replication is unaffected. In Man1-GBP/Rap1-GFP cells, subtelomeric H3K9me2 increases in Man1-GBP/Rap1-GFP cells to an extent similar to that seen in Man1-GBP/Polα-GFP cells (Figure 7F). Centromeric H3K9me2 peak amplitudes are modestly reduced in this scenario, but this reduction is minor compared with the reduction seen in Man1-GBP/Polα-GFP scenarios (compare Figure 6F with Figure 7G). Hence, we suspect that while titration effects due to increased subtelomeric H3K9me2 levels contribute modestly to the pericentric effect of inducing replication near Man1, the Bqt4-microdomain that is at least partially vacated in the Man1-GBP/Polα-GFP scenario regulates pericentric replication directly.

Lem2 and Bqt4 become crucial for viability in the absence of Dcr1

The foregoing results outline heterochromatin replication and assembly functions of Lem2- and Bqt4-adjacent microdomains, but also demonstrate that Bqt4 regulates Lem2 itself. To gain insight into the mechanisms underlying Lem2- and Bqt4-mediated chromatin regulation, we examined a series of genetic interactions by constructing doubly and triply mutated strains.

The lem2∆ and dcr1∆ single mutant cells show moderately (~5 fold) reduced growth relative to wt (Figure 8A). Loss of the anti-silencing factor Epe1 restores wt levels of viability to dcr1Δ but not lem2Δ cells, indicating that Lem2 acts in a pathway independent of heterochromatin maintenance to promote viability. Moreover, the double deletion lem2Δ dcr1Δ shows markedly reduced viability, demonstrating that Lem2 acts in a pathway separate from (and redundant with) Dicer-mediated pathways to promote viability. Accordingly, deletion of epe1 confers suppression of the lem2Δ dcr1Δ inviability, but not to the level of an epe1Δ dcr1Δ strain (Figure 8A). As discussed below, these results, along with our ChIP-seq and localization data, suggest that Lem2 functions both in pericentric heterochromatin maintenance and in centromere/kinetochore maintenance, which when compromised will make Dicer essential (Folco et al., 2008; Klutstein et al., 2015). Consistent with this idea, we find that we cannot obtain cells harboring lem2+ deletion along with a temperature sensitive allele of Cenp-A (cnp1-1) at any temperature (Takahashi et al., 2000). Overexpression of the Cenp-A loading factor Ams2 has been shown to rescue the temperature sensitivity of cnp1-1 (Figure 8B) (Chen et al., 2003), and introduction of overexpressed Ams2 does confer limited (though vastly reduced relative to lem2+) viability to lem2Δ cnp1-1 cells at permissive temperature (32°C, Figure 8B). However, lem2+ deletion abolishes suppression of cnp1-1 temperature sensitivity by overexpressed Ams2 (Figure 8B).

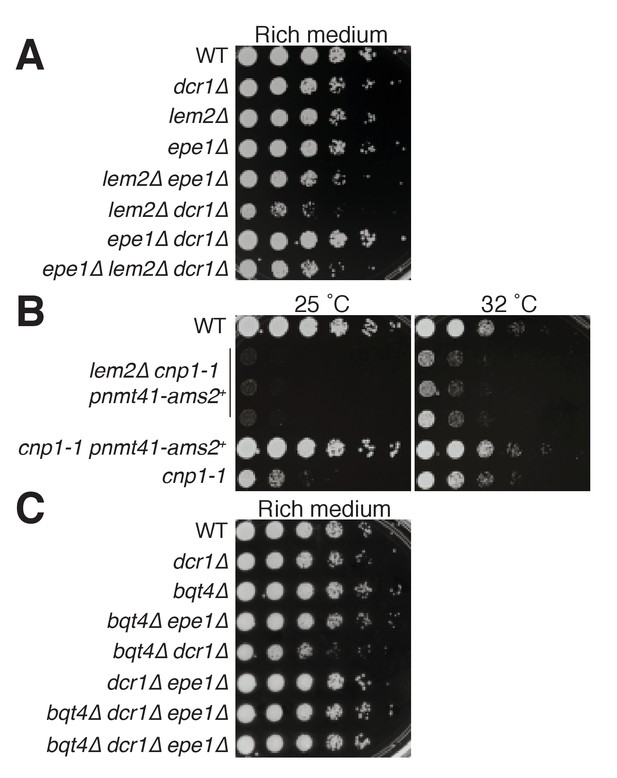

Genetic analysis shows roles of Bqt4 and Lem2 in promoting cellular viability.

(A) Five-fold serially diluted cultures of the indicated strains were plated on rich media (YE5S) at 32°C. (B) Growth of cells harboring a temperature sensitive allele of cnp1+ (cnp1-1) with and without overexpressed (nmt41-controlled) Ams2 was assessed with five-fold serially diluted cultures incubated at 25°C and 32°C. (C) Viability assay was performed as described in (A).

https://doi.org/10.7554/eLife.32911.019

In contrast to Lem2 or Dcr1, the loss of Bqt4 alone does not compromise growth under unperturbed conditions (Figure 8C). However, bqt4Δ and dcr1Δ are synthetically sick and bqt4Δ lem2Δ cells are inviable (data not shown) (Tange et al., 2016). Hence, in the absence of Lem2 or Dcr1, Bqt4 becomes crucial for viability. Below we propose a model in which Bqt4 defines domains that confer viability in the face of transcription/replication collisions (which are exacerbated in dcr1Δ; (Kloc et al., 2008; Zaratiegui et al., 2011) while Lem2 plays roles in kinetochore maintenance. Dicer intersects with both of these processes by promoting RNAP2 dislodgement as well as heterochromatin formation.

Discussion

Here we delineate biochemically distinct microenvironments at the nuclear periphery, with distinct capacities to regulate centromeric and telomeric chromatin replication (Figure 9). In addition to the Lem2-rich domain beneath the SPB, these microenvironments comprise Man1-rich domains and separate Bqt4-rich domains. Bqt4 regulates the replication of specific chromosome regions via two separable modes: First, by tethering specific heterochromatic regions, Bqt4-microdomains promote the fidelity of DNA replication and reassembly of heterochromatin in the wake of the replication fork. Second, Bqt4 mobilizes Lem2 to sites around the NE to promote pericentric heterochromatin maintenance. Our results suggest separable roles for Lem2 as well; the subset of Lem2 molecules sequestered beneath the SPB influences CenpA loading and kinetochore maintenance, while the Bqt4-mobilized subset of Lem2 molecules promotes pericentric heterochromatin maintenance. Collectively, our data suggest a model in which the central function of Bqt4 is to provide a ‘safe zone’ within the nucleus in which duplication of difficult-to-replicate repeats, as well as their underlying chromatin, is facilitated.

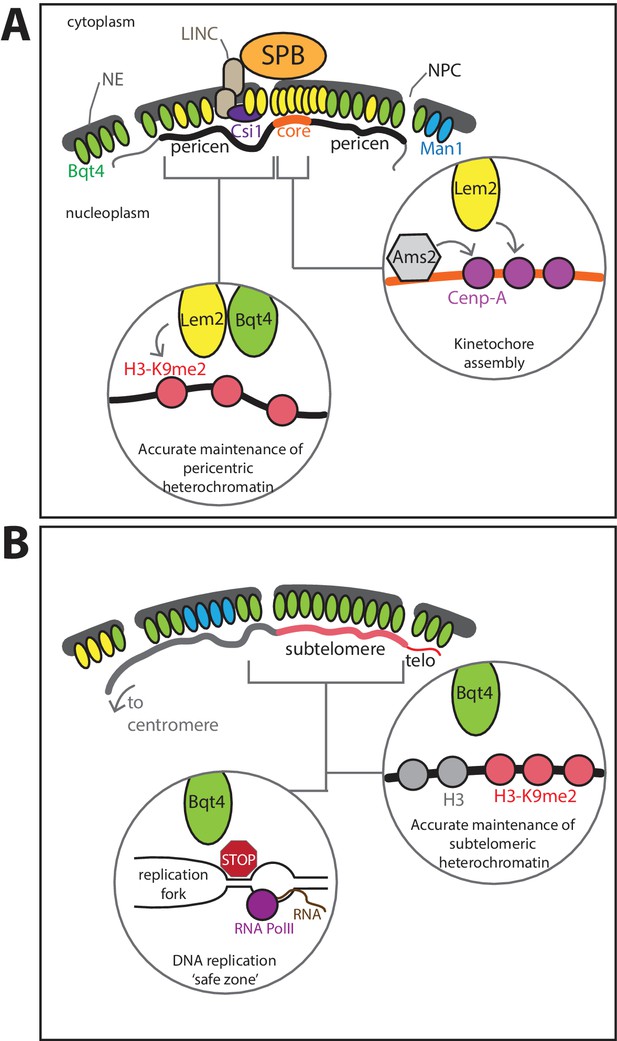

Model for roles of Lem2- and Bqt4-microdomains.

(A) Lem2 (yellow ovals) exists in two populations, the most concentrated fraction localizing beneath the SPB, where Lem2 is stabilized by Csi1. This Lem2 fraction promotes kinetochore maintenance (right insert) at the central core of the centromere (core). Lem2 is also mobilized by Bqt4 (green ovals) to sites away from the SPB (left inset), where it functions in pericentric replication and silencing. (B) Bqt4 localizes to distinct sites around the NE, some of which overlap with Lem2 and some of which do not; Bqt4 rarely if ever overlaps with Man1 (blue ovals). Bqt4-microdomains are ‘safe zones’ in which repetitive heterochromatic sequences, pericentromeres (in the Lem2-overlapping regions), telomeres and mat locus (in the non-Lem2 overlapping regions), can be replicated without suffering excessive replication/transcription collisions, perhaps by excluding RNAP2 or concentrating Pfh1 helicase (red stop sign, left insert); these safe zones also promote the high fidelity maintenance of pericentric, subtelomeric and mat heterochromatin (right inset).

https://doi.org/10.7554/eLife.32911.020

Although Bqt4 has been known to tether telomeres to the NE, we find that this tethering role is specific to telomeres undergoing replication; redundant pathways are clearly capable of tethering nonreplicating telomeres to the NE. Conceivably, the relatively high mobility of Bqt4 along the NE allows the flexibility to keep contact with telomeres as they unwind and accommodate the replisome. As Bqt4 also tethers the mat locus while it is replicating, we infer that multiple loci, perhaps all of them repetitive and/or heterochromatic, are regulated in this manner. Nevertheless, it is clear that not all loci come under such Bqt4 control, as the euchromatic arm locus we studied (cut3+) shows neither NE enrichment nor Bqt4 dependent localization. The specificity of Bqt4 interaction with non-telomeric loci may be determined via its N-terminal DNA-binding domain, which shows homology to a family of fungal transcription factors; alternatively, by analogy with the telomeric Taz1-Rap1-Bqt4 interaction, Bqt4 may contact mat via other DNA binding proteins.

Bqt4-microdomains are important for cellular resistance to agents that cause DNA damage during replication. We propose a model in which this sensitivity stems from damage specifically to the chromatin regions (eg, telomeres) that are tethered by Bqt4 to the NE. Indeed, these repetitive regions are particularly challenging for the replication machinery (Miller et al., 2006), and HU or MMS likely exacerbate the level of stalled and/or collapsed forks in these regions. In particular, we suggest that Bqt4-rich domains are specialized microenvironments in which collisions between replication and transcription machineries are robustly handled or avoided. Such collisions are a known danger at the telomere-adjacent rDNA regions, and become more likely at all regions undergoing high levels of transcription and/or stalled replication. The synthetic lethality of bqt4+ and clr4+ on MMS suggests that when H3K9me-containing heterochromatin is abolished, the resulting transcriptional increase heightens the danger of collisions with the replisome, in turn heightening the need for Bqt4-mediated tethering. Consistently, Bqt4 becomes crucial for viability even in unperturbed conditions when Dicer, which has been shown to promote transcriptional termination at sites of replication stress via eviction of RNAP2, is missing. The notion that Bqt4-microdomains are ‘safe zones’ for replication of repetitive regions can explain our initial observation that Bqt4 becomes important in HAATI cells, in which rDNA repeats form all chromosomal termini, leading cells to harbor on average six-fold more rDNA than wt cells.

The properties of Bqt4-rich regions that make them suitable for averting replication/transcription collisions remain to be determined. These regions may exclude RNAP2 or concentrate the Pif1 helicase, which allows replication to negotiate the transcription machinery (Sabouri et al., 2012). The accumulation of telomeric transcripts (TERRA) is reduced specifically during telomere replication (Azzalin and Lingner, 2015); conceivably, this reduction depends on localization to the Bqt4-rich domain.

Our microscopy shows distinct localization patterns for centromere cores and pericentric regions; centromeric cores colocalize with Lem2 beneath the SPB while pericentromeres localize up to a micron away, potentially colocalizing with non-SPB-adjacent, Bqt4-dependent Lem2 sites. Hence, the effect of Bqt4 on pericentric heterochromatin maintenance likely stems from loss of Lem2 from these SPB-distal sites. However, as Bqt4 and Lem2 are synthetically lethal (data not shown and (Tange et al., 2016), they are clearly required for additional pathways uniquely regulated by either protein. The strong synthetic interactions we observe between lem2Δ and cnp1-1 suggest that Lem2 regulates Cnp1 maintenance at the centromeric core. Compromised Cnp1 maintenance would necessitate robust pericentric heterochromatin, which is required for establishment of Cnp1 at centromere sequences (Folco et al., 2008); this establishment function is likely compromised when the replication ‘safe zone’ conferred by Bqt4 is lost. The potential for replication/transcription collision is severe at pericentromeres, where RNAi-mediated release of RNAP2 is required to prevent stalled forks and thereby promote heterochromatin inheritance (Kloc et al., 2008; Zaratiegui et al., 2011). Hence, we propose that in a lem2Δ dcr1Δ double mutant, a ‘perfect storm’ of factors severely confounds viability; Cnp1 maintenance is compromised, replication of the region is highly problematic, and pericentric heterochromatin is abolished, disallowing both kinetochore establishment and kinetochore maintenance. Such considerations may also underlie the complete inviability of lem2Δbqt4Δ cells (data not shown) (Tange et al., 2016).

Similar replication challenges may alter heterochromatin reassembly at bqt4Δ subtelomeres; furthermore, by releasing limiting heterochromatin factors, compromised pericentric heterochromatin may contribute to the increased H3K9me2 levels at bqt4Δ subtelomeres (Tadeo et al., 2013). We note that the effects of bqt4+ deletion on pericentric and subtelomeric H3K9me2 levels are subtle. Likewise, Bqt4 loss fails to confer appreciable sensitivity to the microtubule depolymerizing agent thiabendazole (TBZ, Figure 5—figure supplement 1A) in contrast with Dcr1 loss, which confers TBZ hypersensitivity due to loss of pericentric heterochromatin (Provost et al., 2002). Hence, while pericentric heterochromatin levels are reduced by loss of Bqt4, they are high enough to prevent pericentric cohesin levels from dropping beneath the critical threshold that governs TBZ sensitivity.

While our work has revealed roles of a specific pair of microdomains in regulating distinct chromatin regions, we hypothesize that this reflects a wider role for distinct NE subdomains in influencing chromatin structure and function at other loci. The orderly formation of nuclear microenvironments is even more critical in mammalian genomes with their higher proportion of repetitive sequences and diverse range of chromatin types found along the length of a chromosome (Akhtar et al., 2013; Gerhardt et al., 2016; Simonis et al., 2006; Zullo et al., 2012). For difficult-to-replicate chromatin regions, the presence of distinct nuclear subdomains, with specific molecular compositions tailored to interactions with distinct chromatin subtypes, may coordinate the fidelity of replication of each subtype, ensuring that entire chromosomes are inherited with both genetic and epigenetic information intact.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSourceIdentifiersAdditional information
Chemical compoundThiabenzadoleSigma-AldrichCat#T8904
Chemical compoundMethyl methanesulfonateSigma-AldrichCat#66-27-3
Chemical compound5-Fluoroorotic AcidUS BiologicalCat#207291-8-4
Chemical compoundnourseothricin dihydrogen sulfateUS BiologicalCat#N5374-74
Chemical compoundG418 sulfate (Geneticin)InvitrogenCat#11811031
Chemical compoundHygromycin BInvitrogenCat#10687010
Chemical compoundHydroxyureaSigma-AldrichCat#H8627
Reagent for microscopyglass-bottom dishMatTekCat#P35G-1.5–14 C
Reagent for microscopyGFP booster_ATTO488ChromotekCat#gba488-100
Reagent for microscopyRFP booster_ATTO594ChromotekCat#rba594-100
Reagent for microscopyVectashieldVector LabsCat#H-1000
Reagent for microscopy16% Paraformaldehyde aqueousElectron Microscopy SciencesCat#15710
Reagent for microscopy8% glutaraldehydeElectron Microscopy SciencesCat#16019
Reagent for microscopyZymolyase-100TMP BiomedicalsCat#320932
Reagent for ChIPanti-H3K9Me2 ChIP GradeAbcamCat#mAbcam1220
Reagent for ChIPComplete, EDTA-free Protease inhibitor cocktail (Roche)Sigma-AldrichCat#11873580001
Reagent for ChIPPhenylmethylsulfonyl fluorideSigma-AldrichCat#P7626
Reagent for ChIPZirconium beads, 0.7 mm diameterBioSpec ProductsCat#11079107zx
Reagent for ChIPDynabeads Protein GInvitrogenCat#10003D
Reagent for ChIPChIP Elute KitClontechCat#634887
Reagent for ChIPmilliTUBE 1 ml AFA FiberCovarisCat#520130
Reagent for ChIPDNA SMART ChIP-Seq KitClontechCat#634865
Reagent for ChIPAgencourt AMPure XPBeckman CoulterCat#A63880
Reagent for ChIPNEBNext Library Quant KitNew England BioLabsCat#E7630S
Strain
(Schizosaccharomyces pombe)
h+ ade6 M216 his3-D1 leu1-32 ura4-D18Lab stockJCF109
Strain (Schizosaccharomyces pombe)h- ade6-M210 leu1-32 ura4-D18 lys1+::GFP-bqt4This studyJCF11923Plasmid pCSS18 (Chikashige et al., 2009) was integrated at lys1 locus.
Strain (Schizosaccharomyces pombe)h90 man1-GFP-kanMX6 aur1R-mCherry-bqt4 bqt4Δ: :natMX6 leu1-32 ura4-D18This studyJCF1266
Strain (Schizosaccharomyces pombe)h90 lem2-GFP-kanMX6 aur1R-mCherry-bqt4 bqt4Δ: :natMX6 ura4-D18This studyJCF1268
Strain (Schizosaccharomyces pombe)lem2-GFP-kanMX6 man1-tdTomato-hygMX6 leu1-32 ura4-D18This studyJCF18885
Strain (Schizosaccharomyces pombe)lem2-GFP-kanMX6 hht1-mRFP-hygMX6This studyJCF12191
Strain (Schizosaccharomyces pombe)lem2-GFP-kanMX6 hht1-mRFP-hygMX6 bqt4::natMX6This studyJCF12201
Strain (Schizosaccharomyces pombe)ura4-D18 lem2-GFP-KanMX6This studyJCF12148
Strain (Schizosaccharomyces pombe)ura4-D18 lem2-GFP-KanMX6 bqt4::natThis studyJCF12157
Strain (Schizosaccharomyces pombe)lem2-GFP-kanMX6 sid4-mCherry-natMX6 aur1R-Pnda3-mCherry-atb2This studyJCF14537
Strain (Schizosaccharomyces pombe)lem2-GFP-kanMX6 sid4-mCherry-natMX6 aur1R-Pnda3-mCherry-atb2 csi1::his3+This studyJCF14540
Strain (Schizosaccharomyces pombe)lem2-GFP-kanMX6 bqt4::natMX6 csi1::ura4+This studyJCF14573
Strain (Schizosaccharomyces pombe)lem2-GFP-kanMX6 taz1-mCherry-natMX6 csi1::his3+This studyJCF14535
Strain (Schizosaccharomyces pombe)h- taz1-mCherry-natMX6 lys1+::GFP-bqt4This studyJCF14578
Strain (Schizosaccharomyces pombe)h- taz1-mCherry-natMX6 man1-GFP-KanMX6This studyJCF14565
Strain (Schizosaccharomyces pombe)h+ taz1-mCherry-natMX6 lem2-GFP-KanMX6This studyJCF14532
Strain (Schizosaccharomyces pombe)h+ mis6-mCherry-hygMX6 lem2-GFP-KanMX6This studyJCF14543
Strain (Schizosaccharomyces pombe)h+ mis6-mCherry-hygMX6 man1-GFP-KanMX6This studyJCF14533
Strain (Schizosaccharomyces pombe)ade6-210 leu1-32 lys1-131 ura4-D18 sod2::kanr-ura4+-lacOp his7+::lacI-GFP cut11-RFP-hygMX6This studyJCF10756
Strain (Schizosaccharomyces pombe)ade6-210 leu1-32 lys1 + ura4- D18 sod2::kanr-ura4+-lacOp his7+::lacI-GFP cut11-RFP-hyg bqt4::natThis studyJCF10771
Strain (Schizosaccharomyces pombe)ade6-210 leu1-32 lys1-131 ura4-D18 sod2::kanr-ura4+-lacOp his7+::lacI-GFP cut11-RFP-hyg lem2::natThis studyJCF12202
Strain (Schizosaccharomyces pombe)his2::kanMX6-ura4+-lacOp his7+::lacI-GFP cut11-RFP-hygMX6This studyJCF10732
Strain (Schizosaccharomyces pombe)his2::kanMX6-ura4+-lacOp his7+::lacI-GFP cut11-RFP-hygMX6 bqt4::natMX6This studyJCF10740
Strain (Schizosaccharomyces pombe)cut3+::lacOp his7+::lacI-GFP cut11-RFP-hygMX6This studyJCF10755
Strain (Schizosaccharomyces pombe)cut3+::lacOp his7+::lacI-GFP cut11-RFP-hygMX6 bqt4::natThis studyJCF11930
Strain (Schizosaccharomyces pombe)taz1-mCherry-nat pLT1-2 (nmt1:Ish1-GFP-LEU2)This studyJCF10701
Strain (Schizosaccharomyces pombe)taz1-mCherry-nat bqt4::hygMX6 pLT1-2 (nmt1:Ish1-GFP-LEU2)This studyJCF10723
Strain (Schizosaccharomyces pombe)pot1-mRFP:kanMX6 cut11-3xPK-GFP:ura4 + leu1-32 ura4-D18 (WT)Lab stockJCF3649
Strain (Schizosaccharomyces pombe)cut11-RFP-hyg tpz1-GFP-Kan taz1::ura4+This studyJCF12293
Strain (Schizosaccharomyces pombe)cut11-RFP-hyg tpz1-GFP-Kan bqt4::natThis studyJCF12291
Strain (Schizosaccharomyces pombe)cut11-RFP-hygMX6 tpz1-GFP:kanMX6 bqt4::nat taz1::ura4+This studyJCF12290
Strain (Schizosaccharomyces pombe)his2::kanMX6-ura4+-lacOp his7+::lacI-GFP cut11-RFP-hyg bqt4::nat swi6::leu2+This studyJCF10807
Strain (Schizosaccharomyces pombe)his2::kanMX6-ura4+-lacOp his7+::lacI-GFP cut11-RFP-hyg swi6::leu2+This studyJCF 12279
Strain (Schizosaccharomyces pombe)h- swi7-GFP::kanMX6 taz1-mCherry-natMX6This studyJCF11905
Strain (Schizosaccharomyces pombe)swi7-GFP::kanMX6 taz1-mCherry-nat bqt4::hygMX6This studyJCF14504
Strain (Schizosaccharomyces pombe)h- bqt4::nat ade6-M210 his3-D1 leu1-32 ura4-D18This studyJCF11933
Strain (Schizosaccharomyces pombe)h+ ade6 M216 trt1::hygMX6Jain et al. (2010)JCF6858Circular survivor
Strain (Schizosaccharomyces pombe)h+ ade6 M210 clr4::kanMX6Lab stockJCF3113
Strain (Schizosaccharomyces pombe)h- clr4::kanMX6 bqt4::hygMX6This studyJCF10795
Strain (Schizosaccharomyces pombe)h+ swi7-GFP-kanMX6 man1-GBP-mCherry-hphThis studyJCF11950GBP plasmids were gifts from Masamitsu Sato, University of Tokyo
Strain (Schizosaccharomyces pombe)h- swi7-GFP-kanMX6Natsume et al. (2008)JCF10835
Strain (Schizosaccharomyces pombe)h+ swi7-GFP-kanMX6 man1-GBP-mCherry-hph bqt4::naMX6This studyJCF14517
Strain (Schizosaccharomyces pombe)h90 otr1R::ade6 tel1L::his3 tel2L::ura4 ade6-210 his3-D1 leu1-32 ura4-D18Nimmo et al., 1998JCF6712Spike strain in ChIP-seq experiments. Used for telomere silencing assay
Strain (Schizosaccharomyces pombe)h- dcr1::ura4+This studyJCF12179
Strain (Schizosaccharomyces pombe)h+ ade6 M216 his3-D1 leu1-32 ura4-D18 bqt4::natMX6This studyJCF14512
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 T2R1-4137::ura4+Kanoh et al. (2005)JCF10833
Strain (Schizosaccharomyces pombe)h- swi6::LEU2 leu1-32 ura4-D18 T2R1-4137::ura4+Kanoh et al. (2005)JCF10830
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 T2R1-4137::ura4 + bqt4::natMX6This studyJCF10833, 10834
Strain (Schizosaccharomyces pombe)h- swi6::LEU2 leu1-32 ura4-D18 T2R1-7921::ura4+Kanoh et al. (2005)JCF10829
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 T2R1-7921::ura4 + bqt4::natMX6This studyJCF11998-12002
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 T2R1-7921::ura4+Kanoh et al. (2005)JCF10832
Strain (Schizosaccharomyces pombe)h+ lem2::kanMX6This studyJCF12178
Strain (Schizosaccharomyces pombe)h90 epe1::natMX6This studyJCF10787
Strain (Schizosaccharomyces pombe)epe1::natMX6 lem2::kanMX6This studyJCF12204
Strain (Schizosaccharomyces pombe)h+ lem2::kanMX6 dcr1::ura4This studyJCF12182
Strain (Schizosaccharomyces pombe)h- epe1::naMX6t dcr1::ura4This studyJCF12209
Strain (Schizosaccharomyces pombe)epe1::natMX6 dcr1::ura4 lem2::kanMX6This studyJCF12211
Strain (Schizosaccharomyces pombe)h+ cnp1-1 leu1 Rep41-ams2+[leu1+]NBPRJCF14580Yeast Genetic Resource
Center (YGRC), Graduate
School of Science, Osaka
City University
Strain (Schizosaccharomyces pombe)lem2::natMX6 cnp1-1 leu1 Rep41-ams2+[leu1+]This studyJCF14588
Strain (Schizosaccharomyces pombe)h+ cnp1-1::ura4 + ura4-D18NBPRJCF10266Yeast Genetic Resource
Center (YGRC), Graduate
School of Science, Osaka
City University
Strain (Schizosaccharomyces pombe)h- bqt4::nat leu1-32 ura4-D18 his3-D1 ade6-M210This studyJCF11933, 11934
Strain (Schizosaccharomyces pombe)epe1::natMX6 dcr1::ura4 +
bqt4::hygMX6
This studyJCF12240
Strain (Schizosaccharomyces pombe)h- bqt4::hygMX6 epe1::natMX6This studyJCF10811
Strain (Schizosaccharomyces pombe)h+ bqt4::hygMX6 dcr1::ura4+This studyJCF12180
Strain (Schizosaccharomyces pombe)h- ade6-M210 leu1-32 ura4-D18 his3-D1 sid4-GFP-kanMX6 dh1L-tetO-ura+tetR-mCherry-natThis studyJCF14534
Strain (Schizosaccharomyces pombe)h- his7+::adh13pr-lacI-CFP C12::kanR-ura4+-lacOp sid4-mRFP-natR ade6-210 leu1-32 ura4-D18 lys1-131This studyJCF18924
Strain (Schizosaccharomyces pombe)ade6-210 leu1-32 lys1-131 ura4-D18 sod2::kanr-ura4+-lacOp his7+::lacI-GFP cut11-RFP-hyg clr4::natThis studyJCF11961
Strain (Schizosaccharomyces pombe)lem2-GFP-Kan bqt4::nat pcp1-RFP-hphThis studyJCF12189
Strain (Schizosaccharomyces pombe)lem2-GFP-Kan pcp1-RFP-hphThis studyJCF12190
Strain (Schizosaccharomyces pombe)man1-GFP-kan ura4-D18This studyJCF12153
Strain (Schizosaccharomyces pombe)h+ man1 GFP-kan bqt4::nat
ura4-D18
This studyJCF12163
Strain (Schizosaccharomyces pombe)h- ade6-M210 his3-D1 leu1-32 ura4-D18 nup107-GFP:ura4+This studyJCF11770
Strain (Schizosaccharomyces pombe)nup107-GFP:ura4 + bqt4::natThis studyJCF12177
Strain (Schizosaccharomyces pombe)cut11-3xPK-GFP:ura4 + leu1-32 ura4-D18Lab stock
(from Nurse lab)
JCF2924
Strain (Schizosaccharomyces pombe)h+ cut11 GFP-kan bqt4::nat ura4-D18This studyJCF12176
Strain (Schizosaccharomyces pombe)h- bqt4::nat leu1-32 ura4-D18 his3-D1 ade6-M210 aur1R-GFP-bqt4ΔTMThis studyJCF12048, 12049
Strain (Schizosaccharomyces pombe)lys1+-GFP-bqt4 bqt4::nat ura4-D18 ade6-M210This studyJCF11958
Strain (Schizosaccharomyces pombe)imr1R(Nco1)::ura4 + swi7 GFP-kanR ura4-D18 leu1-32 ade6-M216This studyJCF18888
Strain (Schizosaccharomyces pombe)imr1R(Nco1)::ura4 + swi7 GFP-kanR ura4-D18 leu1-32This studyJCF18890
Strain (Schizosaccharomyces pombe)imr1R(Nco1)::ura4 + ura4-D18 leu1-32 ade6-M216This studyJCF18892
Strain (Schizosaccharomyces pombe)imr1R(Nco1)::ura4 + ura4-D18 leu1-32This studyJCF18893
Strain (Schizosaccharomyces pombe)h+ his3D1leu1-32 ade6Lab stockJCF901
Strain (Schizosaccharomyces pombe)h- rad11-mCherry-kanR leu1-32 ura4-D18 ade6Lab stockJCF1234
Strain (Schizosaccharomyces pombe)swi7-GFP::kanMX6 man1-GBP-mCherry-hph rad11-mCherry-KanThis studyJCF14598
Strain (Schizosaccharomyces pombe)taz1-mTurquoise2-natR man1-GBP-mCh-hphR ura4-D18 his3-D1 ade6This studyJCF18936
Strain (Schizosaccharomyces pombe)taz1-mTurquoise2-natR swi7-GFP-kanR man1-GBP-mCh-hphR ura4-D18 his3-D1 ade6This studyJCF18939
Strain (Schizosaccharomyces pombe)h90 otr1R::ade6 + tel1L::his3 + tel2L::ura4 + ade6-210 his3-D1 leu1-32 ura4-D18Lab stockJCF6712
Strain (Schizosaccharomyces pombe)h90 otr1R::ade6 + tel1L::his3 + tel2L::ura4 + clr4::kanMX ade6-210 his3-D1 leu1-32
ura4-D18
Lab stockJCF6715
Strain (Schizosaccharomyces pombe)h90 otr1R::ade6 + tel1L::his + 3 tel2L::ura + 4 bqt4::nat ade6-210 his3-D1 leu1-32 ura4-D18This studyJCF10763
OtherYES225Sunrise Science
Products
Cat#2011–500
OtherPMGSunrise Science
Products
Cat#2060–500
OtherEMMSunrise Science
Products
Cat#2005–500

Yeast strains and media

Request a detailed protocol

Strains used in this study are described in the Key Resources Table. All media used were previously established (Moreno et al., 1991). Gene deletions and fluorophore-tag insertions were performed by the one-step gene replacement method, using appropriate plasmid templates (pFA6a-kanMX6, -hygMX6, and -NatMX6 selection cassettes) as described previously (Klutstein et al., 2015). Functionality was tested for each tagged protein: Bqt4 function was checked by monitoring meiosis and telomere-NE localization, which were unaltered; however, GFP-Bqt4 containing cells show mild HU sensitivity (data not shown), suggesting that GFP-Bqt4 is a partial hypomorph. Lem2 functionality was tested by rescue of the thiabendazole sensitivity of lem2Δ cells (Banday et al., 2016), and Man1 by localization to the NE. Strain mating and random sporulation were used to combine multiple genetic mutations. Viability assays were performed by adding HU, MMS, and bleomycin at indicated concentrations to molten agar-containing rich yeast-extract media (YE5S; Sunrise Science Products, San Diego, CA) pre-cooled to 55°C. Overnight mid-log phase cell cultures (OD600 ~0.5) were serially diluted 5-fold, and stamped onto the plates containing media with the DNA damaging agents. Gene silencing assays were performed by stamping serially diluted cultures onto plates containing minimal medium (PMG, Sunrise Science Products) supplemented with appropriate amino acids and lacking the indicated nutrients.

Live microscopy

Request a detailed protocol

Strain cultures were grown overnight at 32°C in 50 ml rich media to mid-log phase. After washing with EMM, cultures were diluted to original volume and the pellet from 1 ml of sample was resuspended in 20 µl of the imaging medium (1:2 YE5S-EMM). The resuspended cells (3 µl) were mounted on an agarose pad formed on a glass slide as described previously (Hiraga et al., 2006). Cells were imaged on a wide-field inverted DeltaVision (GE Healthcare) microscope with a 100X oil immersion objective (NA 1.42) and a Xenon lamp excitation source. Imaging was performed at 22–25°C. Images were captured and analyzed using SoftWoRx (GE Healthcare). Cells were imaged by capturing single time-point Z-stacks consisting of 25 images, with 0.25 μm between each Z-plane. The approach for analyzing positioning of the lacO/I dot within the nuclear zones was described previously (Hediger et al., 2002). To capture time-lapse images, cells were adhered to the bottom of a 35 mm glass bottom culture dishes (MatTek) as described previously (Klutstein et al., 2015), except that imaging was performed at 22–25°C and time-lapse intervals are indicated in the appropriate figure legends. The FRAP experiments were performed using a Zeiss LSM 710 Confocal system (Carl Zeiss Inc, Thornwood, NY) with a Zeiss Axiovert microscope, a 25 mW Argon 488 nm laser, and a 100x Plan-Neofluar 1.3 NA oil immersion objective. Digital images were 512 × 512 pixels and 12 bit. For FRAP, three laser lines of the Argon laser (458, 488, 514 nm) were used to bleach areas of the cell at 100% transmission and 10 iterations. The bleach was started after one acquisition scan and images were acquired at the indicated intervals.

Super-resolution microscopy

Request a detailed protocol

SIM images were obtained with an Applied Precision OMX (GE Healthcare) using a 60 × 1.42 NA Olympus Plan Apo oil objective, and front illuminated sCMOS cameras (6.45 um pixel size). All SIM microscopy was performed at 22–23°C. Excitation sources consisted of a 488 nm laser (for GFP) or a 561 nm laser (for mCherry), and images were captured by alternating excitation using standard filters (FITC/AF488 and AF568/Texas Red). SIM reconstruction was done with SoftWorX, with a Wiener filter of 0.003. SIM images shown are single Z slices, digitally zoomed with bilinear interpolation using Fiji ImageJ (National Institutes of Health). To prepare cells for imaging, overnight cell cultures were grown (10 mL at OD595 ~ 0.5) and treated with 3.2% formaldehyde for 1 min before adding 0.1% Glutaraldehyde and incubating for 12 min at 25°C. The fixed cells were washed and treated with 0.6 mg/mL Zymolyase 100T at 36°C for 45 min, before treating with 1% Triton X-100 for 5 min at room temperature. Cells were washed and resuspended in 1 ml wash buffer (100 mM PIPES, 1 mM EGTA, 1 mM MgSO4 pH 6.9). To minimize photo-bleaching and amplify fluorescent signals, GFP and RFP boosters (ChromoTek, Germany) were added to 200 µl of the cells resuspended in wash buffer with added 1% BSA and 100 mM lysine hydrochloride. After incubation for 1 hr at room temperature, cells were washed and resuspended in 10 µl Vectashield (Vector Labs, Burlingame, CA). The cells (1 µl) were placed on a glass slide, covered with an acid washed coverslip, and sealed by nail polish before imaging.

Chromatin immunoprecipitation

Request a detailed protocol

Cultures were grown overnight in 120 ml YE5S medium to mid-log phase and treated with formaldehyde (1% final conc.) for 10 min at room temperature with occasional swirling. As described in Figure 6C, 37.5 ml of the spike culture was mixed with 112.5 ml of each sample before treating with formaldehyde. Treated cells were washed with 50 mL refrigerated Milli-Q (Millipore) water. Cells were centrifuged at 2000 rpm for 2 min, resuspended in 1 ml water and centrifuged before adding 1 ml Zirconium beads to the pellet. The pellet and beads mixture was flash frozen in liquid nitrogen and stored at −80°C in 2 ml screw-cap shatter proof tubes. The frozen pellet was resuspended in 500 µl lysis buffer: 50 mM Hepes pH 7.4, 140 mM NaCl, 1 mM EDTA, 1% Triton X-100, 0.1% Sodium Deoxycholate, 1% PMSF and EDTA-free protease inhibitor cocktail (Roch) and lysed using FastPrep (MP Biomedical; setting: 5 × 30 s cycles at 4.5 m/s). Each lysate was recovered in a 5 ml snap-cap tube by centrifugation at 1500 rpm for 3 min and sonicated using the Covaris E210 instrument. Sonication settings used were: 20%, 8 intensity, 200 cycles per burst for 12 min. The sonicated lysates were clarified by centrifugation at 14000 rpm for 10 min. For input DNA, 20 µl of the clarified lysate was set aside. The lysates were incubated with 5 µg H3K9me2 (abcam #1220) antibody overnight at 4°C. Magnetic protein-G beads (Invitrogen, Waltham, MA) were added to the lysate/antibody mixture and incubated for 4 hr before washing and eluting the immunoprecipitate from the beads. Elution by boiling and reverse cross-linking was performed using the ChIP Elute Kit (Clontech) to obtain ssDNA templates for Next-Gen library preparation.

Next-Generation sequencing

Request a detailed protocol

The ssDNA samples prepared above were quantified using the Quibit ssDNA Assay Kit (molecular probes, life technologies), and 5–10 ng of each sample was used for library preparation. Libraries were prepared using DNA SMART ChIP-Seq Kit (Clontech) and Illumina indexed oligomers. Following PCR amplifications (15 cycles), libraries were size selected and purified using Agencourt AMPure XP beads (200–400 bp range). Each library was validated using Quibit 2.0 Fluorometer for concentration, Agilent 2100 Bioanalyzer for fragment size, and NEBNext Library Quant Kit (New England BioLabs) for adaptor presence. Typical library yield was 10–40 ng with average size of 400 bp. Finally, libraries from 12 samples were pooled in equimolar ratio (10 nM) and submitted for sequencing using Illumina HiSeq2500 Rapid Run mode (GENEWIZ, South Plainfield, NJ). A total of ~140 million 50 bp reads were obtained per pooled sample. The reads for each sample in the pool were separated per the corresponding Illumina indexes (% of >= Q30 bases: 97.85; mean quality score: 38.63), before subjecting to bioinformatics analysis.

Bioinformatic analysis

Request a detailed protocol

As required by the library construction procedure, three bases at the 5’ ends of the reads were trimmed. The 47 bp post-trimmed reads were aligned to the reference genome using bowtie2, allowing for 50 alignments per repetitive region. The original reference sequence for Chr II contains a partially deleted sequence of the mat locus; therefore, we customized the reference genome by replacing the deleted mat region with a contig of the h90 configuration of the mat2P-mat3M region (as described on ‘http://www.pombase.org/status/mating-type-region’; accessed July.2017). Before normalization, the resulting aligned SAM files were converted to sorted and indexed BAM files. Normalization was performed using a Python script that sequentially executed: 1- Get the number of total aligned reads, reads covering ade6 locus (chr III: 1316291–1318035), and reads covering a euchromatin region adjacent to ade6 locus (chr III: 1304000,1380000); 2- Calculate a normalization scale factor: 10 / (median of reads covering each base within the ade6 locus – median of reads covering each base in the neighboring euchromatic region); 3- Apply the scale factor to the aligned genomic reads (BAM files) using the genomecov function of the BEDTools suit to produce a bedgraph file. To generate the ribbon-line coverage plots shown in the above figures, an R script was created that imports the bedgraph files and, using a 250 bp sliding window, calculates the median, maximum and minimum of reads from strains with identical genotypes. The scripts used for this study have been deposited at ‘https://www.elucidaid.com/repository/ebrahimih17'.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
    Distinct functional domains in emerin bind lamin A and DNA-bridging protein BAF
    1. KK Lee
    2. T Haraguchi
    3. RS Lee
    4. T Koujin
    5. Y Hiraoka
    6. KL Wilson
    (2001)
    Journal of Cell Science 114:4567–4573.
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99

Decision letter

  1. Raymund Wellinger
    Reviewing Editor; Université de Sherbrooke, Canada

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Distinct 'safe zones' at the nuclear envelope ensure robust replication of heterochromatic chromosome regions" for consideration by eLife. Your article has been favorably evaluated by Jessica Tyler (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The following individuals involved in review of your submission have agreed to reveal their identity: Marc R Gartenberg (Reviewer #2); Mikel Zaratiegui (Reviewer #3).

After a productive online discussion, a very positive and coherent view of the paper has emerged. The text below should guide you to prepare a revised submission.

All three reviewers were impressed by the experiments documenting non-overlapping domains near the nuclear envelope. Also, the functional importance of these separate domains for efficient replication of heterochromatic areas was, by and large, considered an important advance in our knowledge in this area. The new pol α tethering system in particular was mentioned to be creative and inspiring, allowing for completely new angles to be explored. These major points, taken together, make for a very strong and important contribution to the field. In fact, many researchers in annexed fields will be interested in these studies as well and therefore a very high level of interest is expected. For these reasons, the reviewers felt that your paper may be of the level expected at eLife and, with the few revisions added as noted below, could become acceptable.

Essential points requiring new experiments for re-submission:

1) Please verify for co-imaging localization of Lem2 vs. Man1 areas with this setup. This would add important weight to the core argument of specific areas under the NE.

2) The authors show that the chimeric Man1-GBP-mCherry causes pol α to localize to the nuclear periphery. They do not show that any specific telomere or centromere moves to a Man1 micro-domain and out of its respective Lem2 and Bqt4 micro-domain. This seems doable. It would show that they actually have forced relocalization of specific heterochromatin domains, and not just bulk pol α.

3) Figure 6F. The correct comparison is Pol α-GFP/Man1+ Vs Pol α-GFP/Man1GBP. From what the text says, it seems like the sample labeled as WT is pol α+/Man1-GBP. But the tag more likely to affect heterochromatin by itself is Pol α-GFP; Pol α was originally identified in pombe as swi7 because its mutation impairs mating type switching (Singh and Klar 1993 PMID 8423854) and was later recognized as a suppressor of variegation (Nakayama and Grewal 2001 PMID 11387218). I could not find a PEV test in the paper where this swi7-GFP allele is described (Natsume at al 2008 PMID 18493607). A simple RTPCR for centromeric transcripts showing that they are not upregulated in the swi7-GFP strain would be sufficient to exclude the possibility of an effect of the tag.

Other possibilities, more labor intensive but also more convincing, would be a PEV assay (with a ura4+ reporter in otr or imr) or an H3K9me2 ChIP. However, if these alternatives take more than two months to complete, they would not be essential for the paper.

4) The correct control was not done for Figure 5—figure supplement 1A. They omitted wt GFP-Bqt4.

Next here I list a number of issues and requests that the reviewers mentioned and that can easily be addressed by editorial changes. In other words, we do not expect more experimental evidence for these points, but the manuscript text hopefully will be adjusted to reflect the raised issues:

1) All three reviewers felt that the Discussion loses its punch by going on so long. In their opinion, the whole manuscript and the Discussion is overly focused on the notion of replication/transcription conflicts, which were not extensively examined experimentally. Given that obtaining direct experimental evidence for such conflicts may be unreasonably labour- and time-intensive, they suggest toning that discussion down accordingly and shortening the Discussion overall.

2) Some places would benefit from a better quantitative description:

- The Bqt4 dependent Lem2 spreading in the FRET assays

- In the first paragraph of the subsection “Bqt4 tethers telomeres and the mat locus specifically while they are replicating”, it is said that Taz1 – Bqt4 interaction is better than Taz1 – Lem2. The Bqt4-Taz1 colocalization should be quantified, like that presented of Mis6 and Lem2 in Figure 4—figure supplement 1B.

3) Why the different behavior/localization of Telo1L vs. Taz1 (which also paints telomeres). Compare: Figure 4C early/mid S: significant drop of NE localization WT vs. bqt4- to: Figure 4D early/mid S: No difference in NE localization WT vs. bqt4-.

4) Figure 5—figure supplement 1A: although mentioned in the text, there is no MMS panel presented.

5) Figure 7G has no scale and therefore is difficult to compare to Figure 6F.

6) There is no Figure 9 (Model), but it is discussed in the Discussion. The reviewers actually would like to see that figure included.

7) Centromeres colocalize with Lem2 spot under the SPB (Figure 4A). Pericentric heterochromatin (spanning 100kb around Cen3) often localizes beyond the massive Lem2 spot (Figure 4—figure supplement 1C). I think the authors are implying pericentric heterochromatin interacts with micro-domains of Lem2 that are distinct from the massive Lem2 spot. This seems at odds with the sentence: "The intense focus of Lem2 detectable in this region (Figure 4A) is consistent with ChIP experiments showing an interaction between Lem2 and pericentric heterochromatin (Barrales et al., 2016; Tange et al., 2016)." Moreover, I think the Barrales and Tange papers showed Lem2 association with CenpA chromatin but not broader pericentric heterochromatin.

8) "Our microscopy shows distinct localization patterns for centromere cores and pericentric regions, with the centromeric cores colocalizing with Lem2 beneath the SPB and the pericentromeres colocalizing with non-SPB-adjacent Lem2." To my knowledge, the authors never showed this. They showed in Figure 4—figure supplement 1C that the pericentromeres were not at the SPB. They did not show that this chromatin abutted non-SPB-adjacent Lem2.

9) The description of the cell cycle in the fourth paragraph of the subsection “Bqt4 tethers telomeres and the mat locus specifically while they are replicating” will confuse readers not familiar with pombe. Make this description accessible to a broad readership.

10) This is only a minor comment but it is actually quite important. Throughout, the authors refer to H3K9me. However, their experiments are done with an antibody against H3K9me2. They should make this clear, because while H3K9me2 remains a good indicator of heterochromatin formation and RNAi activity, there are clear functional differences between H3K9me2 and H3K9me3 that were recently described (Jih et al. 2017, Moazed lab PMID 28682306).

11) Throughout, the microscopy images have no sizing bars.

12) Throughout, most comparisons are not statistically analyzed. This may affect interpretation of some conclusions, like in Figure 4C and D. Is Telomere peripheric localization in early/midS vs. lateS/G2 in bqt4D significant? Bqt4D vs. WT in early/midS significant?

13) Figure 5—figure supplement 1A. Is the GFP-bqt4+ strain not sensitive to HU? This would rule out an effect of the GFP tag on Bqt4.

14) Subsection “Bqt4 and Lem2 microenvironments regulate telomeric and centromeric heterochromatin”, end of fourth paragraph: The pericentric H3K9me data is presented in Figure 7—figure supplement 1C, not 1A.

15) Figure 8B, in subsection “Lem2 and Bqt4 become crucial for viability in the absence of Dcr1”, first paragraph: lem2+ deletion greatly reduces the viability of cen1-1 ts. I can't find the lem1D/cen1-1 data in this figure or in the supplemental, only the lem1D/cen1-1/pnmt41-AMS and cen1-1/pnmt41-AMS.

16) "[…] cause extra trouble in HU or MMS". As much as I appreciate the colloquial phrasing, this is too vague. Please be more specific about how the authors propose that MMS or HU in combination with bqt4Δ could lead to an untenable situation. Are the DNA repair pathways overwhelmed by exacerbated endogenous replication stress (in bqt4Δ) along with that caused by exogenous agents (HU/MMS)?

17) Introduction, third paragraph. Here please cite Castel et al., 2014, which is the one showing evidence of Dcr1 releasing RNAPol II from tDNA and rDNA.

https://doi.org/10.7554/eLife.32911.023

Author response

Essential points requiring new experiments for re-submission:

1) Please verify for co-imaging localization of Lem2 vs. Man1 areas with this setup. This would add important weight to the core argument of specific areas under the NE.

We agree that simultaneous Lem2/Man1 localization is important for completing the picture and have added this data to the new Figure 1. This new data had to be captured via conventional DeltaVision imaging rather than SIM, since the amplified td-tomato tag, the brightest we could obtain for Man1, gave insufficient SIM signal (probably due to the fixation needed for SIM). Nonetheless, the Man1-tdTomato/Lem2-GFP combination is easily visible by live analysis, which shows a clear separation of Lem2 and Man1 domains. We have now quantified the colocalization of all pairwise combinations of visualized proteins (Figure 1—figure supplement 1).

2) The authors show that the chimeric Man1-GBP-mCherry causes pol α to localize to the nuclear periphery. They do not show that any specific telomere or centromere moves to a Man1 micro-domain and out of its respective Lem2 and Bqt4 micro-domain. This seems doable. It would show that they actually have forced relocalization of specific heterochromatin domains, and not just bulk pol α.

We agree, and had tried with limited success to visualize telomeres and centromeres in Man1-GBP-Cherry settings with and without Polα-GFP. The tagging combinations made this experiment difficult. Now, by tagging Taz1 with mTurquoise and using the mCherry tag on Man1-GBP, we have been able to do this experiment – both representative images and a graph of the results are now shown in Figure 6—figure supplement 2C-E. The data show clearly that the Man1-GBP/Polα-GFP combination moves telomeres from Man1-poor regions to Man1-rich regions. The effect is modest as expected (since this relocalization only occurs transiently, while a given telomere replicates) but significant.

3) Figure 6F. The correct comparison is Pol α-GFP/Man1+ vs. Pol α-GFP/Man1GBP. From what the text says, it seems like the sample labeled as WT is pol α+/Man1-GBP. But the tag more likely to affect heterochromatin by itself is Pol α-GFP; Pol α was originally identified in pombe as swi7 because its mutation impairs mating type switching (Singh and Klar 1993 PMID 8423854) and was later recognized as a suppressor of variegation (Nakayama and Grewal 2001 PMID 11387218). I could not find a PEV test in the paper where this swi7-GFP allele is described (Natsume at al 2008 PMID 18493607). A simple RTPCR for centromeric transcripts showing that they are not upregulated in the swi7-GFP strain would be sufficient to exclude the possibility of an effect of the tag.

Other possibilities, more labor intensive but also more convincing, would be a PEV assay (with a ura4+ reporter in otr or imr) or an H3K9me2 ChIP. However, if these alternatives take more than two months to complete, they would not be essential for the paper.

Good point – we have addressed this by assessing the effect of the Polα-GFP tag on silencing in the imr region of the centromere (where an inserted ura4+ marker is silenced). The results are very clear in showing that the tag has no impact on silencing at imr, which is completely intact, as shown in the new Figure 6—figure supplement 1.

4) The correct control was not done for Figure 5—figure supplement 1A. They omitted wt GFP-Bqt4.

Thank you for catching this. We have repeated the experiment with wt GFP-Bqt4 and present the new data in Figure 5—figure supplement 1. The GFP-Bqt4 rescues the MMS sensitivity of bqt4Δ cells but not the HU sensitivity, suggesting that GFP-Bqt4 is a partial hypomorph. This was a surprise as the Hiraoka lab had found that while C-terminal tags on Bqt4 abolish function, the N-terminally tagged Bqt4 we are using conferred no phenotype. We have now altered the Materials and methods section to reflect this HU sensitivity, and removed the ΔTM data for HU.

Next here I list a number of issues and requests that the reviewers mentioned and that can easily be addressed by editorial changes. In other words, we do not expect more experimental evidence for these points, but the manuscript text hopefully will be adjusted to reflect the raised issues:

1) All three reviewers felt that the Discussion loses its punch by going on so long. In their opinion, the whole manuscript and the Discussion is overly focused on the notion of replication/transcription conflicts, which were not extensively examined experimentally. Given that obtaining direct experimental evidence for such conflicts may be unreasonably labour- and time-intensive, they suggest toning that discussion down accordingly and shortening the Discussion overall.

We agree. We have shortened the Discussion significantly and tried to streamline and clarify.

2) Some places would benefit from a better quantitative description:

- The Bqt4 dependent Lem2 spreading in the FRET assays

The Lem2 FRAP data was quantified in Figure 3C, but note that FRAP cannot be performed on signals as weak as the peripheral (i.e., not SPB-adjacent) Lem2 signals. Therefore, we are not confident in quantifying spreading around the periphery and prefer to stick with a qualitative description of this (hopefully I have not misunderstood your point).

- In the first paragraph of the subsection “Bqt4 tethers telomeres and the mat locus specifically while they are replicating”, it is said that Taz1 – Bqt4 interaction is better than Taz1 – Lem2. The Bqt4-Taz1 colocalization should be quantified, like that presented of Mis6 and Lem2 in Figure 4—figure supplement 1B.

We have quantified these colocalizations in the new Figure 3G.

3) Why the different behavior/localization of Telo1L vs. Taz1 (which also paints telomeres). Compare: Figure 4C early/mid S: significant drop of NE localization WT vs. bqt4- to: Figure 4D early/mid S: No difference in NE localization WT vs. bqt4-.

Thank you for asking us to clarify this. The Tel1L marker (a lacO/I array at the sod2+ locus) is over 50kb in from the telomere and may often replicate earlier than the actual telomeres (to which Taz1 binds). We have clarified this in the text.

4) Figure 5—figure supplement 1A: although mentioned in the text, there is no MMS panel presented.

We apologize for this omission – we have fixed it (please see point 4 above as well).

5) Figure 7G has no scale and therefore is difficult to compare to Figure 6F.

We have added the scale values.

6) There is no Figure 9 (Model), but it is discussed in the Discussion. The reviewers actually would like to see that figure included.

We apologize for this omission We have added the model figure that we prepared for the original manuscript (Figure 9).

7) Centromeres colocalize with Lem2 spot under the SPB (Figure 4A). Pericentric heterochromatin (spanning 100kb around Cen3) often localizes beyond the massive Lem2 spot (Figure 4—figure supplement 1C). I think the authors are implying pericentric heterochromatin interacts with micro-domains of Lem2 that are distinct from the massive Lem2 spot. This seems at odds with the sentence: "The intense focus of Lem2 detectable in this region (Figure 4A) is consistent with ChIP experiments showing an interaction between Lem2 and pericentric heterochromatin (Barrales et al., 2016; Tange et al., 2016)." Moreover, I think the Barrales and Tange papers showed Lem2 association with CenpA chromatin but not broader pericentric heterochromatin.

In the Barrales et al. paper, Lem2 was identified as a silencing factor for the imr region, but also shown to regulate silencing at the cen-dg repeats which are more distal; these effects of Lem2 on silencing were small. The Tange paper also shows reduced H3K9me2 at both dg/dh repeats and imr::ura4 in the absence of Lem2. At the same time, both papers show Lem2 binding specifically to the central core. Our work is consistent with these observations in showing a role for Lem2 in CenpA loading at the central core (independent of the Bqt4-dependent mobilization of Lem2 away from the SPB) as well as a modest effect on pericentric silencing, likely mediated by transient (S-phase) Lem2-pericentromere associations that were not picked up by the ChIP experiments of the previous papers. We have corrected our sentence to say “consistent with ChIP experiments showing an interaction between Lem2 and centromeres”

8) "Our microscopy shows distinct localization patterns for centromere cores and pericentric regions, with the centromeric cores colocalizing with Lem2 beneath the SPB and the pericentromeres colocalizing with non-SPB-adjacent Lem2." To my knowledge, the authors never showed this. They showed in Figure 4—figure supplement 1C that the pericentromeres were not at the SPB. They did not show that this chromatin abutted non-SPB-adjacent Lem2.

We have altered the text to clarify that the idea of colocalization between pericentromeres and non-SPB-localized Lem2 is an inference rather than a result.

9) The description of the cell cycle in the fourth paragraph of the subsection “Bqt4 tethers telomeres and the mat locus specifically while they are replicating” will confuse readers not familiar with pombe. Make this description accessible to a broad readership.

We have simplified this description.

10) This is only a minor comment but it is actually quite important. Throughout, the authors refer to H3K9me. However, their experiments are done with an antibody against H3K9me2. They should make this clear, because while H3K9me2 remains a good indicator of heterochromatin formation and RNAi activity, there are clear functional differences between H3K9me2 and H3K9me3 that were recently described (Jih et al. 2017, Moazed lab PMID 28682306).

We have altered the text to use ‘H3K9me’ for instances in which we refer to me2 and me3 collectively, while we specify H3K9me2 for experiments using the corresponding antibody. In our original Introduction, we specified that H3K9me refers to both me2 and me3.

11) Throughout, the microscopy images have no sizing bars.

We have added scale bars throughout.

12) Throughout, most comparisons are not statistically analyzed. This may affect interpretation of some conclusions, like in Figure 4C and D. Is Telomere peripheric localization in early/midS vs. lateS/G2 in bqt4D significant? Bqt4D vs. WT in early/midS significant?

Thank you for flagging this up – we have added the relevant p values to Figure 4 and a statistics table (Figure 4—table supplement 1).

13) Figure 5—figure supplement 1A. Is the GFP-bqt4+ strain not sensitive to HU? This would rule out an effect of the GFP tag on Bqt4.

Please see point 4 above. Our new experiments show that GFP-bqt4+ is insensitive to MMS but mildly sensitive to HU.

14) Subsection “Bqt4 and Lem2 microenvironments regulate telomeric and centromeric heterochromatin”, end of fourth paragraph: The pericentric H3K9me data is presented in Figure 7—figure supplement 1C, not 1A.

Thank you – fixed.

15) Figure 8B, in subsection “Lem2 and Bqt4 become crucial for viability in the absence of Dcr1”, first paragraph: lem2+ deletion greatly reduces the viability of cen1-1 ts. I can't find the lem1D/cen1-1 data in this figure or in the supplemental, only the lem1D/cen1-1/pnmt41-AMS and cen1-1/pnmt41-AMS.

Thank you for prompting us to clarify this. We cannot obtain double mutant lem2 cnp1-1 cells; only upon Ams2 overexpression can this mutant combination be grown at all. We have altered the text to explain this.

16) "[...] cause extra trouble in HU or MMS". As much as I appreciate the colloquial phrasing, this is too vague. Please be more specific about how the authors propose that MMS or HU in combination with bqt4Δ could lead to an untenable situation. Are the DNA repair pathways overwhelmed by exacerbated endogenous replication stress (in bqt4Δ) along with that caused by exogenous agents (HU/MMS)?

We have altered this text, to suggest that repetitive regions with a tendency to stall replication (likely due to spurious secondary structure formation on unwinding) are more vulnerable to the replication stress conferred by HU and MMS. This could be due to the enhanced lifetime of the unwound region, to overwhelming of the DNA repair machinery as suggested by the reviewer, or to the collapse of forks already stalled by repetitive sequences.

17) Introduction, third paragraph. Here please cite Castel et al., 2014, which is the one showing evidence of Dcr1 releasing RNAPol II from tDNA and rDNA.

Done. We had intended to include Castel et al. from the outset – thank you for catching that.

https://doi.org/10.7554/eLife.32911.024

Article and author information

Author details

  1. Hani Ebrahimi

    Telomere Biology Section, Laboratory of Biochemistry and Molecular Biology, Center for Cancer Research, National Cancer Institute, Bethesda, United States
    Contribution
    Conceptualization, Methodology, Investigation, Writing—original draft, Software, Data curation
    Contributed equally with
    Hirohisa Masuda
    Competing interests
    No competing interests declared
  2. Hirohisa Masuda

    Telomere Biology Section, Laboratory of Biochemistry and Molecular Biology, Center for Cancer Research, National Cancer Institute, Bethesda, United States
    Contribution
    Conceptualization, Investigation, Methodology, Writing—reviewing and editing, Data curation
    Contributed equally with
    Hani Ebrahimi
    Competing interests
    No competing interests declared
  3. Devanshi Jain

    Telomere Biology Section, Laboratory of Biochemistry and Molecular Biology, Center for Cancer Research, National Cancer Institute, Bethesda, United States
    Present address
    Memorial Sloan Kettering Cancer Center, New York, United States
    Contribution
    Conceptualization, Methodology, Investigation, Performed the initial screen that identified Bqt4 as required for HAATI maintenance, and analyzed viability and damage sensitivity of cells lacking Bqt4
    Competing interests
    No competing interests declared
  4. Julia Promisel Cooper

    Telomere Biology Section, Laboratory of Biochemistry and Molecular Biology, Center for Cancer Research, National Cancer Institute, Bethesda, United States
    Contribution
    Conceptualization, Investigation, Methodology, Writing- original draft, Writing—review and editing, Funding acquisition, Formal analysis
    For correspondence
    julie.cooper@nih.gov
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2171-2587

Funding

National Cancer Institute (Intramural funding)

  • Hani Ebrahimi
  • Hirohisa Masuda
  • Julia Promisel Cooper

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Michael Lichten, Shiv Grewal and our laboratory members for discussions; Robin Allshire, Yasushi Hiraoka and Masamitsu Sato for generous gifts of strains and reagents; Yoshiyuki Wakabayashi for help with design of the ChIP-Seq protocol; Susan Garfield for help with the confocal microscopy/FRAP experiments; and Patrina Pellett for help with OMX imaging setup.

Reviewing Editor

  1. Raymund Wellinger, Université de Sherbrooke, Canada

Publication history

  1. Received: October 18, 2017
  2. Accepted: March 30, 2018
  3. Version of Record published: May 3, 2018 (version 1)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 1,552
    Page views
  • 256
    Downloads
  • 9
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Chromosomes and Gene Expression
    Tatsuhisa Tsuboi et al.
    Research Article

    Mitochondria are dynamic organelles that must precisely control their protein composition according to cellular energy demand. Although nuclear-encoded mRNAs can be localized to the mitochondrial surface, the importance of this localization is unclear. As yeast switch to respiratory metabolism, there is an increase in the fraction of the cytoplasm that is mitochondrial. Our data point to this change in mitochondrial volume fraction increasing the localization of certain nuclear-encoded mRNAs to the surface of the mitochondria. We show that mitochondrial mRNA localization is necessary and sufficient to increase protein production to levels required during respiratory growth. Furthermore, we find that ribosome stalling impacts mRNA sensitivity to mitochondrial volume fraction and counterintuitively leads to enhanced protein synthesis by increasing mRNA localization to mitochondria. This points to a mechanism by which cells are able to use translation elongation and the geometric constraints of the cell to fine-tune organelle-specific gene expression through mRNA localization.

    1. Chromosomes and Gene Expression
    Juan Lafuente-Barquero et al.
    Research Article

    DNA:RNA hybrids constitute a well-known source of recombinogenic DNA damage. The current literature is in agreement with DNA:RNA hybrids being produced co-transcriptionally by the invasion of the nascent RNA molecule produced in cis with its DNA template. However, it has also been suggested that recombinogenic DNA:RNA hybrids could be facilitated by the invasion of RNA molecules produced in trans in a Rad51-mediated reaction. Here, we tested the possibility that such DNA:RNA hybrids constitute a source of recombinogenic DNA damage taking advantage of Rad51-independent single-strand annealing (SSA) assays in the yeast Saccharomyces cerevisiae. For this, we used new constructs designed to induce expression of mRNA transcripts in trans with respect to the SSA system. We show that unscheduled and recombinogenic DNA:RNA hybrids that trigger the SSA event are formed in cis during transcription and in a Rad51-independent manner. We found no evidence that such hybrids form in trans and in a Rad51-dependent manner.
