Vibrator and PI4KIIIα govern neuroblast polarity by anchoring non-muscle myosin II

  1. Chwee Tat Koe
  2. Ye Sing Tan
  3. Max Lönnfors
  4. Seong Kwon Hur
  5. Christine Siok Lan Low
  6. Yingjie Zhang
  7. Pakorn Kanchanawong
  8. Vytas A Bankaitis
  9. Hongyan Wang  Is a corresponding author
  1. Duke-NUS Medical School, Singapore
  2. Texas A&M University Health Science Center, United States
  3. National University of Singapore, Singapore
Research Article
Cite this article as: eLife 2018;7:e33555 doi: 10.7554/eLife.33555
8 figures, 1 table and 1 additional file

Figures

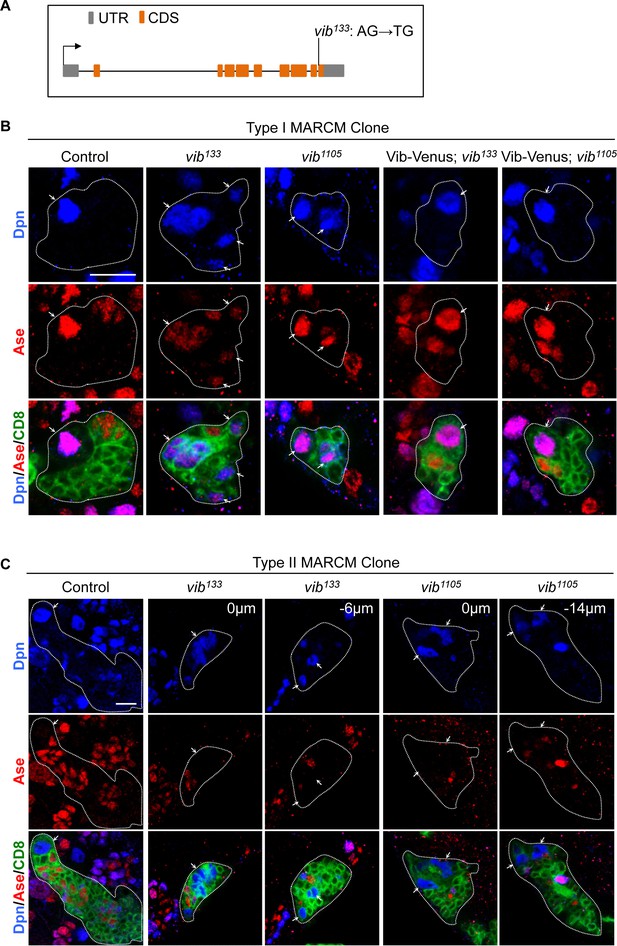

Figure 1 with 2 supplements
Vibrator regulates homeostasis of larval brain neuroblasts.

(A) A schematic showing the mutation in vib133 allele. (B) Type I MARCM clones of control (FRT82B), vib133, vib1105, UAS-Vib-Venus; vib133 and UAS-Vib-Venus; vib1105 were labeled with Dpn (blue), Ase (red) and CD8::GFP (green). Note that the signal of Vib-Venus in MARCM clones was masked by intense CD8::GFP signal. (C) Type II MARCM clones of control (FRT82B), vib133 and vib1105 were labeled with Dpn (blue), Ase (red) and CD8::GFP (green). Arrows indicate neuroblasts. Clones are marked by CD8::GFP and indicated by white dotted lines. Scale bars, 10 µm.

https://doi.org/10.7554/eLife.33555.003
Figure 1—figure supplement 1

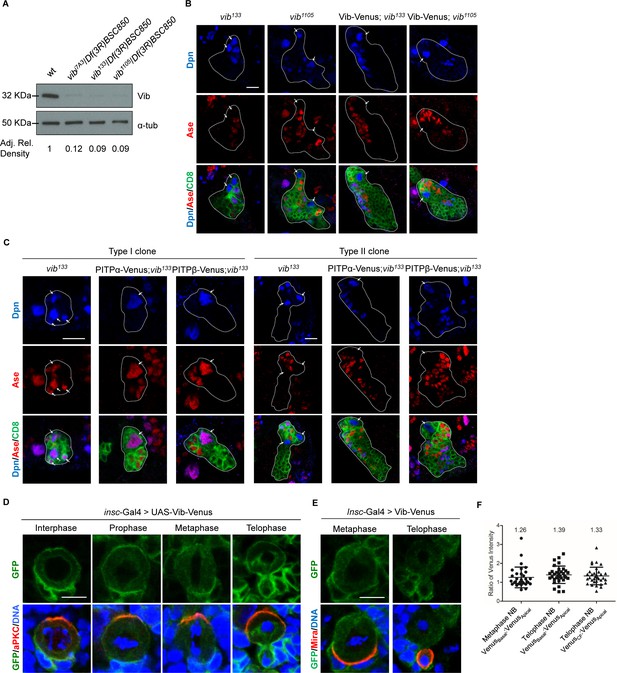

Mammalian PITPs rescue vib defects in neuroblast homeostasis.

(A) Western blot of endogenous Vib in larval brain lysate from wild-type (WT), vibj7A3/Df(3R)BSC850, vib133/Df(3R)BSC850 and vib1105/Df(3R)BSC850 hemizygotes. α-tubulin was used as a loading control. Adjusted relative density of Vib in each genotype was shown right below the blot (n = 2). (B) Type II MARCM clones of vib133, vib1105, UAS-Vib-Venus; vib133 and UAS-Vib-Venus; vib1105 were labeled with Dpn (blue), Ase (red) and CD8::GFP (green). (C) Type I and type II MARCM clones of vib133, UAS-PITPα-Venus; vib133 and UAS-PITPβ-Venus; vib133 were labeled with Dpn (blue), Ase (red) and CD8::GFP (green). Note that the signal of Vib-Venus, PITPα-Venus and PITPβ-Venus in MARCM clones is masked by CD8::GFP signal. Clones were marked by CD8::GFP and indicated by white dotted line. (D) Neuroblasts of Venus-tagged Vib driven by insc-Gal4 were labeled with GFP (green), aPKC (red) and DNA (blue). (E) Neuroblasts of Venus-tagged Vib driven by insc-Gal4 were labeled with GFP (green), Mira (red) and DNA (blue). (F) Quantification of the ratio of Venus intensity in metaphase and telophase neuroblasts in (E). VenusBasal:VenusApical represents the ratio of Venus intensity at the basal cortex compared with that of the apical cortex. VenusCF:VenusApical is the ratio of Venus intensity (at the cleavage furrow (CF) compared with that of the apical cortex in telophase neuroblasts. Scale bar, 10 μm (B–C), 5 μm (D–E).

https://doi.org/10.7554/eLife.33555.004
Figure 1—figure supplement 2

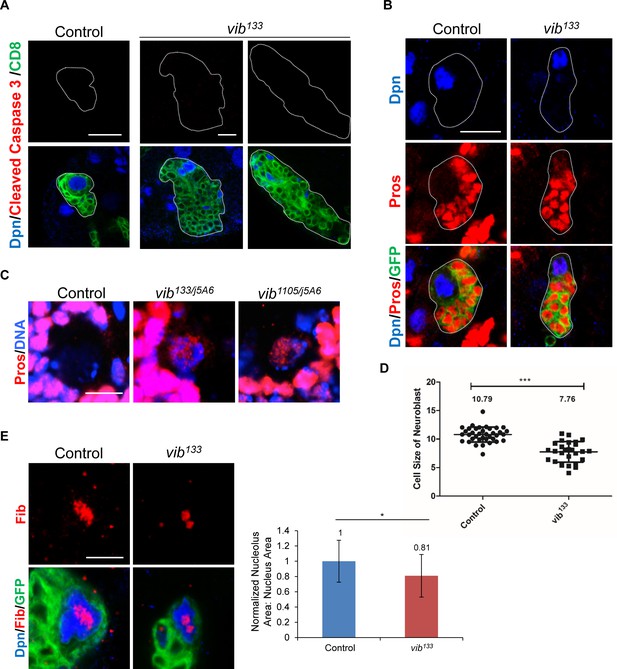

Loss-of-neuroblast in vib mutants is due to premature differentiation, but not apoptosis.

(A) MARCM clones of control (FRT82B) and vib133 were labeled with Dpn (blue), Cleaved Caspase 3 (red) and CD8::GFP (green). Two different clones were shown for vib133 with one of them containing a neuroblast and the other losing the neuroblast. Note that there is no active Caspase staining in both clones. (B) Type I MARCM clones of control (FRT82B) and vib133 were labeled with Dpn (blue), Pros (red) and GFP (green). Clones were marked by CD8::GFP and indicated by white dotted lines. Only type I clones were analyzed since type II neuroblasts do not express Pros. (C) Interphase neuroblasts of wild-type control, vib133/j5A6 and vib1105/j5A6 were labeled with Pros (red) and DNA (blue). (D) Quantification of the average cell size of neuroblasts in control and vib133 MARCM clones. (E) MARCM clones of control (FRT82B) and vib133 were labeled with Dpn (blue), Fibrillarian (Fib, red) and GFP (green). The graph (to the right) shows the normalized ratio of nucleolus area to nucleus area of neuroblast in MARCM clones of control and vib133. Scale bar, 10 μm (A–B), 5 μm (C, E). *p-value<0.05, ***p-value<0.001.

https://doi.org/10.7554/eLife.33555.005

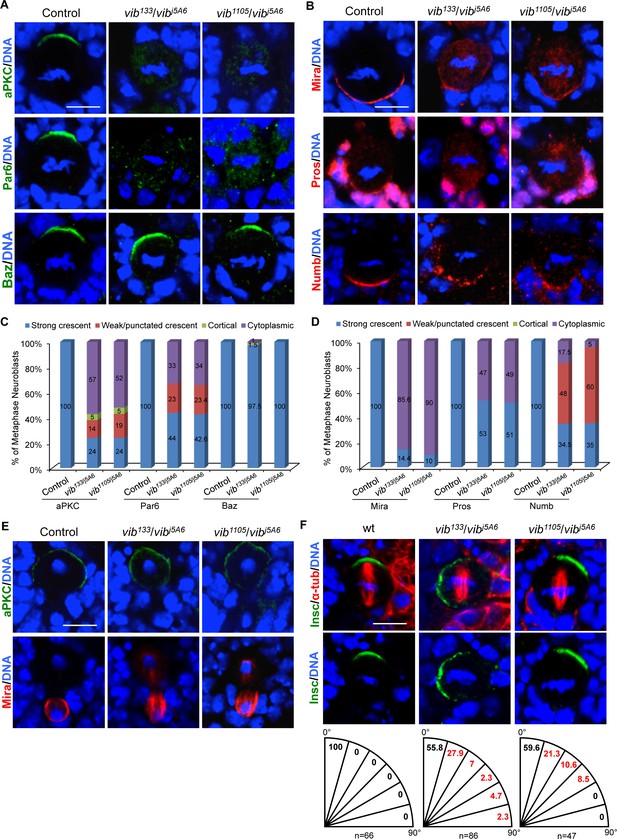

Figure 2 with 1 supplement
Vib regulates asymmetric cell division of neuroblasts.

(A) Metaphase neuroblasts of wild-type control, vib133/vibj5A6 and vib1105/vibj5A6 were labeled with aPKC, Par-6 or Baz (green) and DNA (blue). (B) Metaphase neuroblasts of control, vib133/vibj5A6 and vib1105/vibj5A6 were labeled with Mira, Pros or Numb (red) and DNA (blue). (C) Quantification of aPKC, Par-6 and Baz localization in metaphase neuroblasts for (A). (D) Quantification of Mira, Pros and Numb localization in metaphase neuroblasts for (B). (E) Telophase neuroblasts of control, vib133/vibj5A6 and vib1105/vibj5A6 were labeled with aPKC (green), Mira (red) and DNA (blue). (F) Metaphase neuroblasts of wild-type control, vib133/vibj5A6 and vib1105/vibj5A6 were labeled with Insc (green), α-tubulin (red) and DNA (blue). Spindle orientation was determined by the angle between apical-basal axis inferred by the Insc crescent and the mitotic spindle axis indicated by α-tubulin. Quantification of spindle orientation in control, vib133/vibj5A6 and vib1105/vibj5A6 are shown below the images. Scale bars, 5 µm.

https://doi.org/10.7554/eLife.33555.006
Figure 2—figure supplement 1
Vib is required for asymmetric protein localization in neuroblasts.

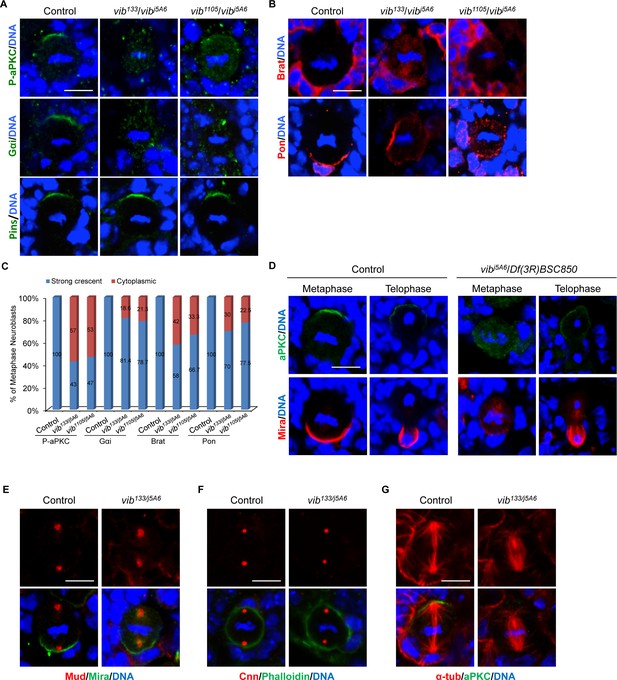

(A) Metaphase neuroblasts of wild-type control, vib133/vibj5A6 and vib1105/vibj5A6 were labeled with autophospho-aPKC, Gαi or Pins (green) and DNA (blue). (B) Metaphase neuroblasts of wild-type control, vib133/vibj5A6 and vib1105/vibj5A6 were labeled with Brat or Pon (red) and DNA (blue). (C) Quantification of autophospho-aPKC, Gαi, Brat and Pon localization in metaphase neuroblasts for A-B. (D) Neuroblasts of wild-type control and vibj5A6/Df(3R)BSC850 hemizygotes were labeled with aPKC (green), Mira (red) and DNA (blue). (E) Metaphase neuroblasts of wild-type control and vib133/j5A6 were labeled with Mud (red), Mira (green) and DNA (blue). (F) Metaphase neuroblasts of wild-type control and vib133/j5A6 were labeled with Centrosomin (Cnn, red), Phalloidin (green) and DNA (blue). (G) Metaphase neuroblasts of wild-type control and vib133/j5A6 were labeled with α-tubulin (red), aPKC (green) and DNA (blue). Scale bars, 5 μm.

https://doi.org/10.7554/eLife.33555.007
Figure 3 with 1 supplement

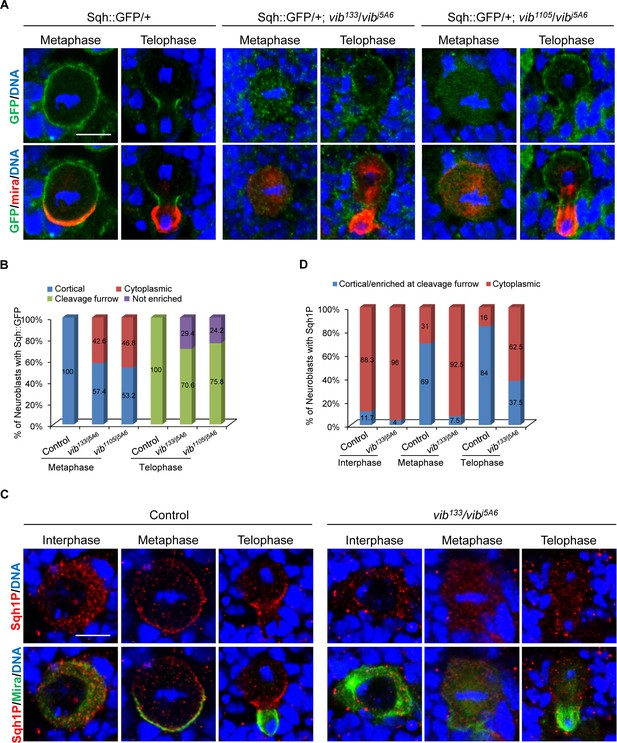

Vib anchors non-muscle myosin II regulatory light chain Sqh to neuroblast cortex.

(A) Neuroblasts of control, vib133/vibj5A6 and vib1105/vibj5A6 each expressing one copy of Sqh::GFP were labeled with GFP (green), Mira (red) and DNA (blue). (B) Quantification of Sqh::GFP localization in neuroblasts for (A). ‘Not enriched’ in quantification legend refers to no enriched localization at cleavage furrow. (C) Neuroblasts of control and vib133/vibj5A6 were labeled with Mira (green), Sqh1P (red) and DNA (blue). (D) Quantification for Sqh1P localization in neuroblasts for (C). Scale bars, 5 µm.

https://doi.org/10.7554/eLife.33555.008

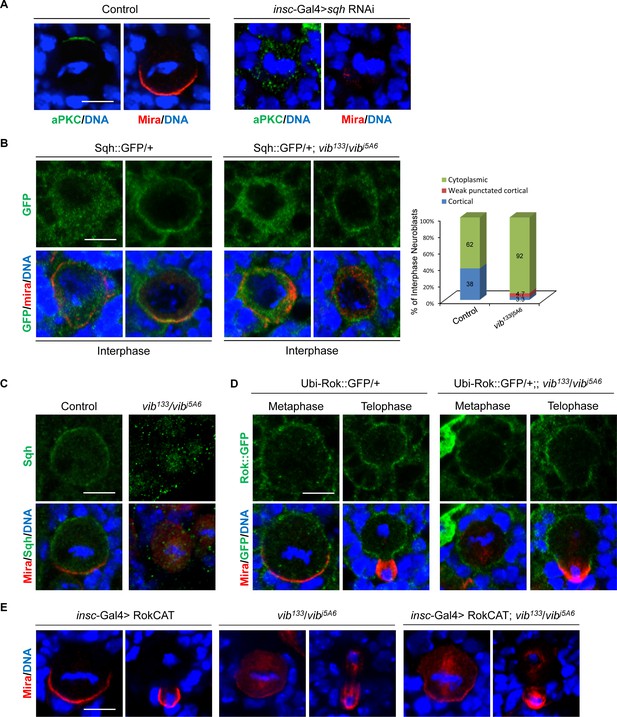

Figure 3—figure supplement 1
Sqh localization is disrupted in vib mutant neuroblasts.

(A) Metaphase neuroblasts of control (insc-Gal4/+) and sqh RNAi knockdown (BDSC#33892) under insc-Gal4 driver were labeled with aPKC (green), Mira (red) and DNA (blue). (B) Interphase neuroblasts of control (Sqh::GFP/+) and vib133/j5A6 each containing one copy of Sqh::GFP were labeled with GFP (green), Mira (red) and DNA (blue). Quantification of Sqh::GFP localization in interphase neuroblasts of control and vib133/j5A6 is shown beside the images. (C) Metaphase neuroblasts of control and vib133/vibj5A6 were labeled with Sqh (green), Mira (red) and DNA (blue). (D) Neuroblasts of control (Ubi-Rok-GFP/+) and vib133/j5A6 each containing one copy of Ubi-Rok-GFP were labeled with GFP (green), Mira (red) and DNA (blue). (E) Neuroblasts of RokCAT over-expression under insc-Gal4 driver, vib133/j5A6 and RokCAT over-expression in vib133/j5A6 were labeled with Mira (red) and DNA (blue). Scale bars, 5 μm.

https://doi.org/10.7554/eLife.33555.009

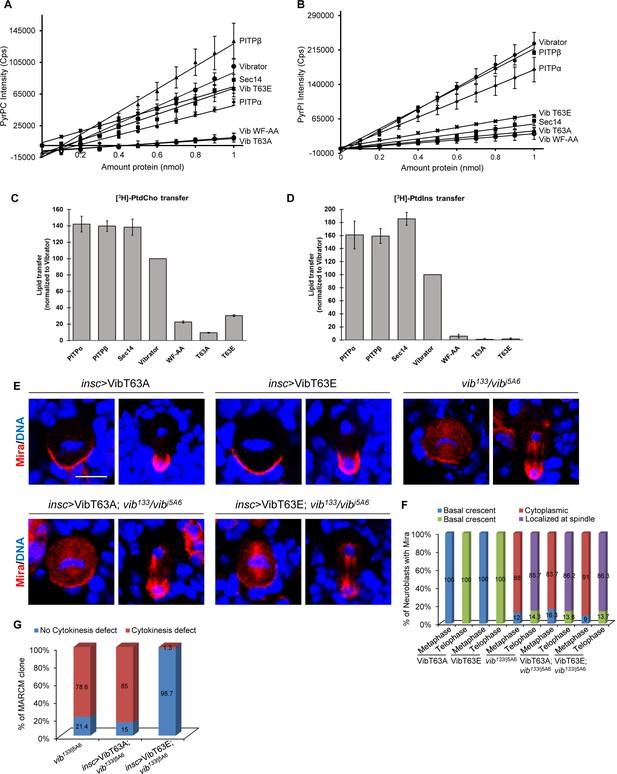

Figure 4 with 3 supplements
Lipid transfer activity of Vib is important for asymmetric cell division.

(A) Fluorescence intensity measured at 378 nm of PyrPtdCho as a function of protein amount. An increase in intensity represents binding events when the fluorophore is removed from its quenched environment. Lines represent linear equation trend lines were shown. For the error bars, n = 2. (B) Fluorescence intensity measured at 378 nm of PyrPtdIns as a function of protein amount. An increase in intensity represents binding events when the fluorophore is removed from its quenched environment. Lines represent linear equation trend lines were shown. For the error bars, n = 2. (C) Endpoint PtdCho transfer assays. Indicated recombinant proteins (10 µg/assay) were assayed for [3 hr]-PtdCho transfer. Transfer efficiencies of Vibrator were set at 100% (n = 3), and transfer of all other proteins are normalized relative to Vibrator activity values obtained from the same experiments. (D) Endpoint PtdIns transfer assays. Indicated recombinant proteins (10 µg/assay) were assayed for [3 hr]-PtdIns. Transfer efficiencies of Vibrator were set at 100% (n = 3), and transfer of all other proteins are normalized relative to Vibrator activity values obtained from the same experiments. (E) Neuroblasts of insc >VibT63A, insc >VibT63E, vib133/vibj5A6, insc >VibT63A in vib133/vibj5A6 and insc >VibT63A in vib133/vibj5A6 were labeled with Mira (red) and DNA (blue). (F) Quantification for Mira localization in neuroblasts for (E). ‘Localized at Spindle’ refers to the delocalization of Pros at the mitotic spindle in addition to basal crescent in telophase neuroblasts. (G) Quantification showing the percentage of MARCM clones of vib133/j5A6, insc >VibT63A; vib133/j5A6 and insc >VibT63E; vib133/j5A6 that exhibited cytokinesis defects. Scale bars, 5 µm.

https://doi.org/10.7554/eLife.33555.010
Figure 4—figure supplement 1
Lipid transfer activity of Vib is required for neuroblast homeostasis.

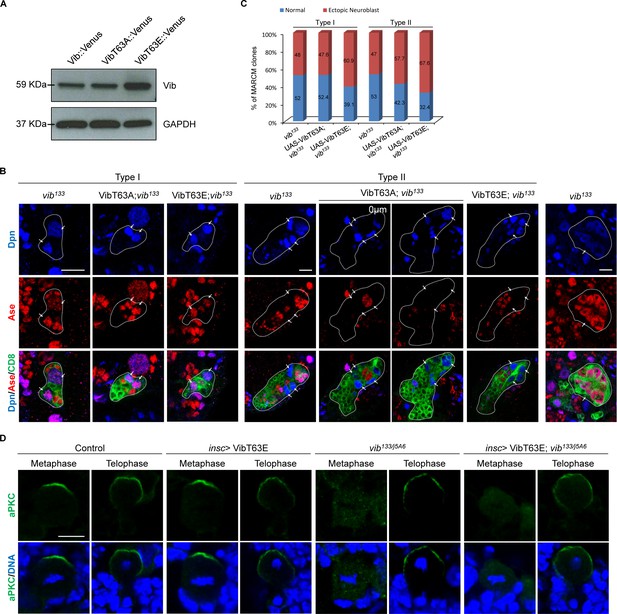

(A) Western blot of Vib protein in larval brain lysate from Vib::Venus, VibT63A::Venus and VibT63E::Venus expression under the elav-Gal4 driver. GAPDH was used as a loading control. (B) Type I and type II MARCM clones of vib133, UAS-VibT63A::Venus; vib133 and UAS-VibT63E::Venus; vib133 were labeled with Dpn (blue), Ase (red) and CD8 (green). The last clone on the right shows a cytokinesis defect. Clones were marked by CD8::GFP and indicated by white dotted line. Note that in VibT63E::Venus; vib133, no cytokinesis defects were observed. The signal of VibT63A-Venus and VibT63E-Venus in MARCM clones is masked by CD8::GFP signal. (C) Quantification of clones with ectopic neuroblasts phenotype in (B). Analysis was performed based on those clones that did not exhibit obvious cytokinesis defect. (D) Neuroblasts of wild-type controls, insc-Gal4 >VibT63E, vib133/vibj5A6 and insc-Gal4 >VibT63E in vib133/vibj5A6 were labeled with aPKC (green) and DNA (blue). aPKC was asymmetrically localized in the following genotypes: wild-type control metaphase neuroblasts, 100%, n = 22; control telophase neuroblasts, 100%, n = 39; insc >VibT63E::Venus metaphase neuroblasts, 100%, n = 51; insc >VibT63E::Venus telophase neuroblasts, 100%, n = 45; vib133/j5A6 metaphase neuroblasts, 53%, n = 49; vib133/j5A6 telophase neuroblasts, 100%, n = 44; insc> VibT63E::Venus; vib133/j5A6 metaphase neuroblasts, 49%, n = 90; insc> VibT63E::Venus; vib133/j5A6 telophase neuroblasts, 100%, n = 47. Scale bars, 10 µm (B), 5 µm (D).

https://doi.org/10.7554/eLife.33555.011

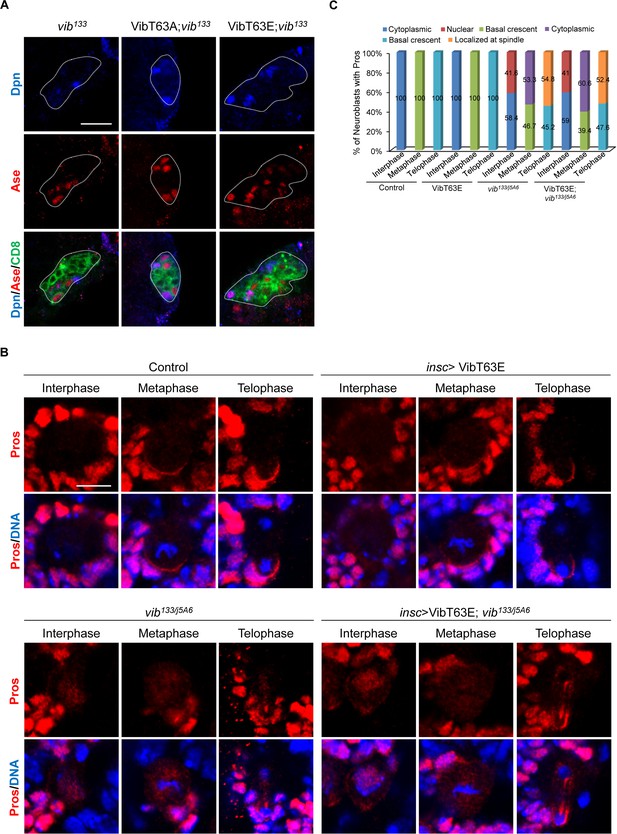

Figure 4—figure supplement 2
Lipid binding and transfer activity of Vib is required for the localization of Pros in neuroblasts.

(A) MARCM clones of vib133, UAS-VibT63A::Venus; vib133 and UAS-VibT63E::Venus; vib133 were labeled with Dpn (blue), Ase (red) and CD8 (green). Clones were marked by CD8::GFP and indicated by white dotted line. Note that none of the clones contains primary neuroblast (Z-stack not shown). (B) Neuroblasts of wild-type controls, insc-Gal4 >VibT63E, vib133/vibj5A6 and insc-Gal4 >VibT63E in vib133/vibj5A6 were labeled with Pros (red) and DNA (blue). (C) Quantification of Pros localization in neuroblasts for (B). Percentage of neuroblasts with various localization patterns of Pros was labeled on the column of each genotype. ‘Localized at spindle’ in quantification legend refers to the ectopic localization of Pros at the central spindle in addition to basal crescent in telophase neuroblasts. Scale bar, 10 μm (A), 5 μm (B).

https://doi.org/10.7554/eLife.33555.012
Figure 4—figure supplement 3

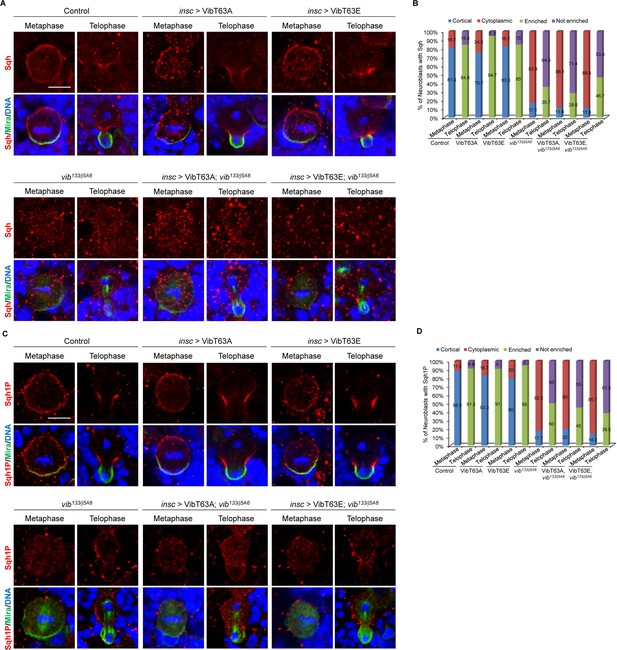

Lipid binding and transfer activity of Vib is required for the localization of Sqh in neuroblasts.

(A) Neuroblasts of wild-type controls, insc-Gal4 >VibT63A, insc-Gal4 >VibT63E, vib133/vibj5A6, insc-Gal4 >VibT63A in vib133/vibj5A6 and insc-Gal4 >VibT63E in vib133/vibj5A6 were labeled with Mira (green) DNA (blue) and Sqh (red). (B) Quantification of Sqh localization in neuroblasts for (A). Percentage of neuroblasts with various localization patterns of Sqh was labeled on the column of each genotype. Sample sizes: wild-type control metaphase neuroblasts, n = 32; control telophase neuroblasts, n = 13; insc >VibT63A::Venus metaphase neuroblasts, n = 37; insc >VibT63A::Venus telophase neuroblasts, n = 19; insc> VibT63E::Venus metaphase neuroblasts, n = 36; insc> VibT63E::Venus telophase neuroblasts, n = 20; vib133/j5A6 metaphase neuroblasts, n = 41; vib133/j5A6 telophase neuroblasts, n = 14; insc> VibT63A::Venus; vib133/j5A6 metaphase neuroblasts, n = 59; insc> VibT63A::Venus; vib133/j5A6 telophase neuroblasts, n = 21; insc> VibT63E::Venus; vib133/j5A6 metaphase neuroblasts, n = 43; insc> VibT63E::Venus; vib133/j5A6 telophase neuroblasts, n = 15. (C) Sqh1P (red), Mira (green) and DNA (blue) were labeled in neuroblasts of various genotypes. (D) Quantification of Sqh1P localization in neuroblasts for (C). Percentage of neuroblasts with various localization patterns of Sqh1P was labeled on the column of each genotype. Sample sizes: control metaphase neuroblasts, n = 87; control telophase neuroblasts, n = 34; insc >VibT63A::Venus metaphase neuroblasts, n = 54; insc >VibT63A::Venus telophase neuroblasts, n = 22; insc >VibT63E::Venus metaphase neuroblasts, n = 45; and insc >VibT63E::Venus telophase neuroblasts, n = 21. vib133/j5A6 metaphase neuroblasts, n = 62; vib133/j5A6 telophase neuroblasts, n = 20; insc >VibT63A::Venus; vib133/j5A6, metaphase neuroblasts, n = 65; insc >VibT63A::Venus; vib133/j5A6 telophase neuroblasts, n = 20; insc >VibT63E::Venus; vib133/j5A6 metaphase neuroblasts, n = 70; insc >VibT63E::Venus; vib133/j5A6 telophase neuroblasts, n = 26. ‘Enriched’ in quantification legend refers to enriched localization at cleavage furrow, while ‘not enriched’ indicates no enrichment at cleavage furrow. Scale bar, 5 μm.

https://doi.org/10.7554/eLife.33555.013
Figure 5 with 1 supplement

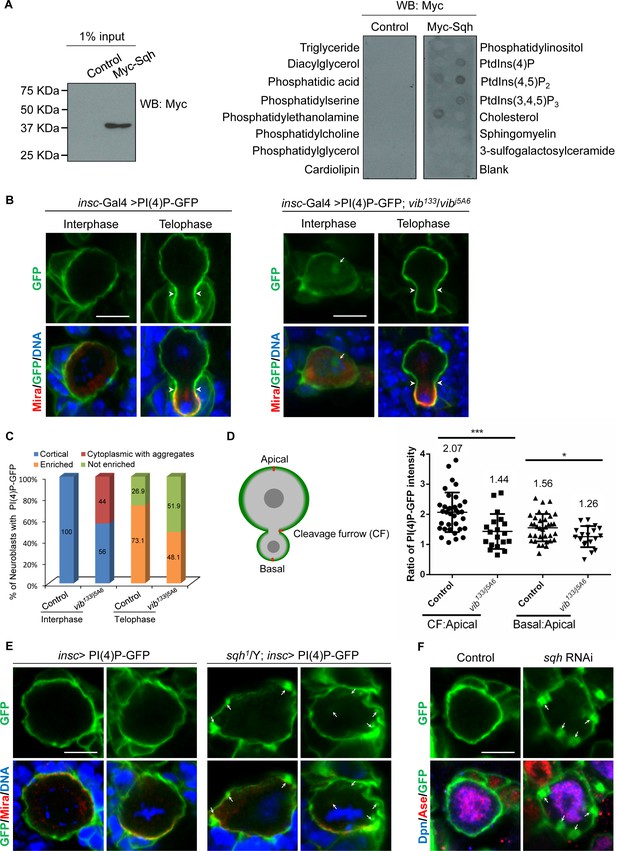

Sqh binds to phosphoinositide PI(4)P and localizes it to cell cortex in neuroblasts.

(A) Control (empty Myc vector) and Myc-Sqh lysates from S2 cells were used for lipid-binding assay with lipid strips. Lipid strips were blotted with Myc antibody. 1% of lysate input used for lipid-binding assay is shown in the left panel. (B) Neuroblasts of PI(4)P-GFP (2xOsh2PH::GFP, PI(4)P reporter) driven by insc-Gal4 were labeled with GFP (green), Mira (red) and DNA (blue). Neuroblasts of insc-Gal4 driven PI(4)P reporter in vib133/vibj5A6 were labeled with GFP (green), Mira (red) and DNA (blue). (C) Quantification of PI(4)P reporter localization in neuroblasts for (B). ‘Enriched’ in quantification legend refers to enriched localization at cleavage furrow, while ‘not enriched’ indicates no enrichment at cleavage furrow. (D) A schematic representation of measurement of the PI(4)P-GFP intensity for telophase neuroblasts shown in B. The red line shows the site where the measurement was taken in neuroblasts. The graph (to the right) shows the ratio of PI(4)P-GFP intensity at cleavage furrow (CF) or basal cortex to apical cortex in control and vib133/vibj5A6 expressing PI(4)P-GFP. (E) Neuroblasts of control and sqh1/Y hemizygotes expressing PI(4)P-GFP driven by insc-Gal4 were labeled with Mira (red), GFP (green) and DNA (blue). (F) Neuroblasts of control (PI(4)P-GFP driven by insc-Gal4) and sqh knockdown with PI(4)P-GFP expression driven by insc-Gal4 were labelled with Dpn (blue), Ase (red) and GFP (green). Arrowheads indicate position of cleavage furrow and arrows indicate PI(4)P-GFP aggregates. Scale bars, 5 µm.

https://doi.org/10.7554/eLife.33555.014
Figure 5—figure supplement 1

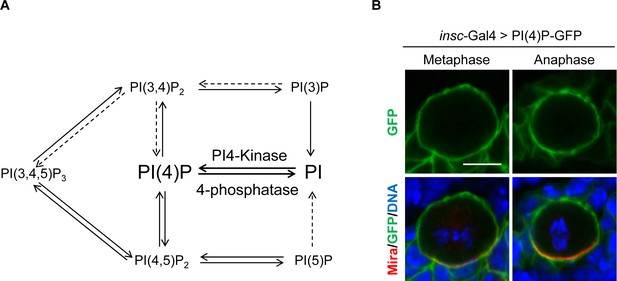

PI(4)P is localized to cell cortex in neuroblasts.

(A) A schematic diagram showing phosphoinositides metabolism. (B) Neuroblasts of PI(4)P-GFP (insc >2xOsh2PH::GFP, PI(4)P reporter) were labeled with GFP (green), Mira (red) and DNA (blue). Scale bar, 5 μm.

https://doi.org/10.7554/eLife.33555.015

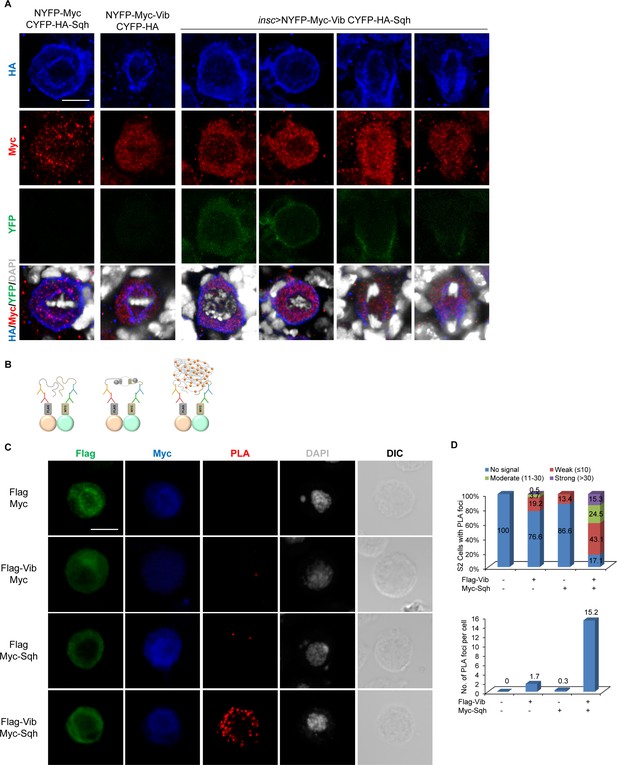

Figure 6 with 1 supplement
Vib interacts with Sqh in larval brain neuroblasts.

(A) In vivo BiFC assay between Vib and Sqh. NYFP-Myc-Vib and CYFP-HA-Sqh were co-expressed in neuroblasts by insc-Gal4, stained with HA (red), Myc (red) and DAPI (grey), and detected for YFP fluorescence (green). Controls were NYFP-Myc-Vib with CYFP-HA control and CYFP-HA-Sqh with NYFP-Myc Control. Scale bars, 5 µm. (B) Schematic representation of proximity ligation assay performed on S2 cells (refer to Materials and methods). (C) In situ PLA assay between Flag-Vib and Myc-Sqh in S2 cells. S2 cells transfected with the indicated plasmids were stained with Flag (green), Myc (blue) and DAPI (grey) and detected for PLA signal (red). Cell outline was shown by differential interference contrast (DIC) images. Scale bar, 5 µm. (D) Graph showing the percentage of S2 cells that expressed no PLA signal, weak (≤10 foci), moderate (11–30 foci) and strong (>30 foci) PLA signals for (C). Quantification for the average number of PLA foci per cell in (C).

https://doi.org/10.7554/eLife.33555.016
Figure 6—figure supplement 1

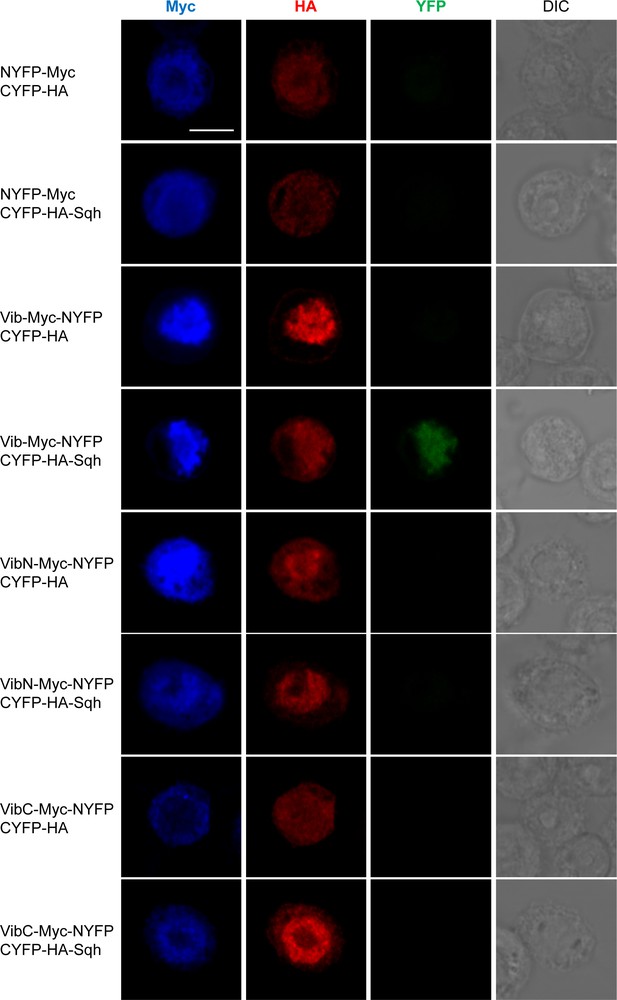

Vib interacts with Sqh in Bimolecular fluorescence complementation.

S2 cells that were triple transfected with actin-Gal4, UAS-NYFP-Myc-Vib and UAS-CFYP-HA-Sqh or various control combinations were stained with Myc (blue), HA (red) and detected for YFP fluorescence (green). Cell outline was shown by Differential interference contrast (DIC) images. Scale bar, 5 µm. Empty control: act-Gal4, UAS-NYFP-Myc and UAS-CYFP-HA. NYFP-Myc and CYFP-HA-Sqh: act-Gal4, UAS-NYFP-Myc and UAS-CYFP-HA-Sqh. Vib-Myc-NYFP and CYFP-HA: act-Gal4, UAS-Vib-Myc-NYFP and UAS-CYFP-HA. Vib-Myc-NYFP and CYFP-HA-Sqh: act-Gal4, UAS-Vib-Myc-NYFP and UAS-CYFP-HA-Sqh. VibN-Myc-NYFP and CYFP-HA: act-Gal4, UAS-VibN-Myc-NYFP and UAS-CYFP-HA. VibN-Myc-NYFP and CYFP-HA-Sqh: act-Gal4, UAS-VibN-Myc-NYFP and UAS-CYFP-HA-Sqh. VibC-Myc-NYFP and CYFP-HA: act-Gal4, UAS-VibC-Myc-NYFP and UAS-CYFP-HA. VibC-Myc-NYFP and CYFP-HA-Sqh: act-Gal4, UAS-VibC-Myc-NYFP and UAS-CYFP-HA-Sqh.

https://doi.org/10.7554/eLife.33555.017
Figure 7 with 2 supplements

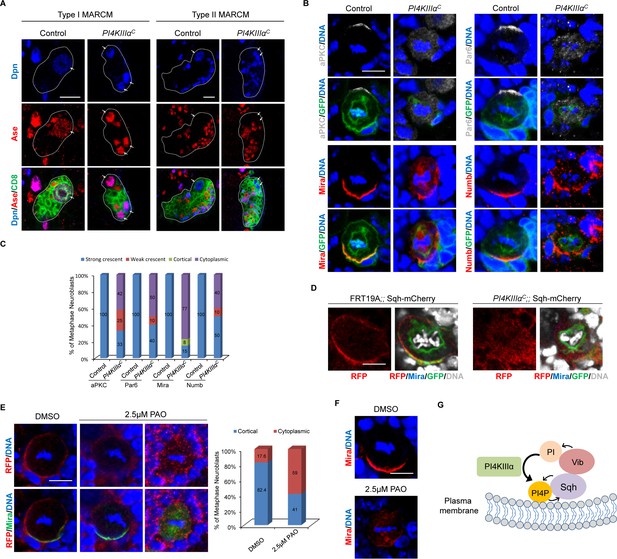

Loss of PI4KIIIα perturbs neuroblast homeostasis and asymmetric cell division of neuroblasts.

(A) MARCM clones of control (FRT19A) and PI4KIIIαC were labeled with Dpn (blue), Ase (red) and CD8 (green). Arrows indicate neuroblasts. Clones were marked by CD8::GFP and indicated by white dotted line. (B) Neuroblasts of control and PI4KIIIαC MARCM clones were labeled with aPKC or Par-6 (grey), Mira or Numb (red), GFP (green) and DNA (blue). (C) Quantification for (B). (D) Neuroblasts of control (FRT19A;; Sqh::mCherry) and PI4KIIIαC;; Sqh::mCherry MARCM clones were labeled with RFP (red), Mira (blue), GFP (green) and DAPI (grey). (E) Neuroblasts of Sqh::mCherry treated with mock (DMSO) or 2.5 μM PAO in DMSO were stained with RFP (red), Mira (green) and DNA. Quantification was shown next to images. (F) Neuroblasts treated with mock or 2.5 μM PAO in DMSO were stained with Mira (red) and DNA (blue). (G) A working model. Scale bars, 10 μm (A); 5 µm (B, D–F).

https://doi.org/10.7554/eLife.33555.018

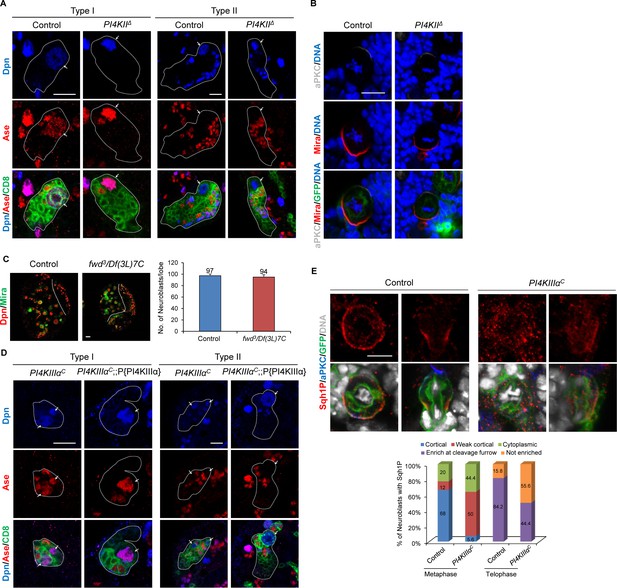

Figure 7—figure supplement 1
PI4KIIIα, but not PI4KIIIβ or PI4KIIα regulates neuroblast asymmetric division and homeostasis.

(A) Type I and type II MARCM clones of control and PI4KIIΔ were labeled with Dpn (blue), Ase (red) and CD8 (green). Arrows indicate neuroblasts. Clones were marked by CD8::GFP and indicated by white dotted line. (B) Neuroblasts of control and PI4KIIΔ MARCM clones were labeled with aPKC (grey), Mira (red), GFP (green) and DNA (blue). (C) Larval brains of control and fwd3/Df(3L)7C hemizygotes were labeled with Dpn (red) and Mira (green). Quantification of neuroblast number per brain hemisphere for control and fwd3 hemizygotes is shown beside the images. (D) Type I and type II MARCM clones of PI4KIIIαC and PI4KIIIαC;; P{w+, PI4KIIIα} (genomic PI4KIIIα) were labeled with Dpn (blue), Ase (red) and CD8 (green). Arrows indicate neuroblasts. Clones were marked by CD8::GFP and indicated by white dotted line. (E) Neuroblasts of control and PI4KIIIαC MARCM clones were labeled with Sqh1P (red), aPKC (blue), GFP (green) and DAPI (grey). Quantification for Sqh1P localization is shown right below the images. ‘Not enriched’ in quantification legend refers to no enriched localization at cleavage furrow. Scale bars, 10 µm (A–D), 5 µm (E).

https://doi.org/10.7554/eLife.33555.019

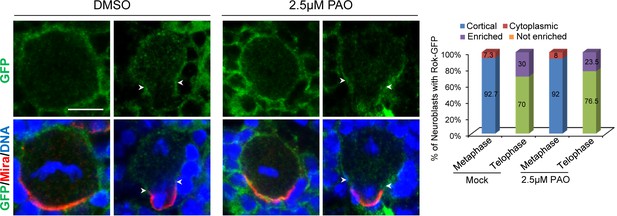

Figure 7—figure supplement 2
PI4KIIIα does not regulate Rok localization in neuroblasts.

Neuroblasts expressing Ubi-Rok::GFP were treated with mock (DMSO) or 2.5 μM PAO in DMSO and were labeled with GFP (green), Mira (green) and DNA (blue). Both metaphase and telophase neuroblasts were shown. Arrowheads indicate position of cleavage furrow. Percentage of neuroblasts with various localization patterns of Rok-GFP was labeled on the column of each genotype. Sample sizes: mock metaphase neuroblasts, n = 55; mock telophase neuroblasts, n = 20; PAO treated metaphase neuroblasts, n = 112; PAO-treated telophase, n = 17. ‘Enriched’ in quantification legend refers to enriched localization at cleavage furrow, whereas ‘Not enriched’ refers to no enriched localization at cleavage furrow. Scale bar, 5 µm.

https://doi.org/10.7554/eLife.33555.020

Tables

Table 1
List of primers used
https://doi.org/10.7554/eLife.33555.021
Primer namePrimer sequence (5'−3')Purpose
Vib pENTR FCACC ATG CAG ATC AAA GAA TTC CGT GTGGenerate Vib pENTR
Vib pENTR RTTA ATC GGC ATC CGC GCG C
Vib pENTR CT RATC GGC ATC CGC GCG CATGenerate Vib pENTR without stop codon
Vib T63A FTAC AAT TCC GGT CAA TAT GCC TAT AAGGenerate T63A mutation
Vib T63A RCTT ATA GGC ATA TTG ACC GGA ATT GTA
Vib T63E FTAC AAT TCC GGT CAA TAT GAG TAT AAGGenerate T63E mutation
Vib T63E RCTT ATA CTC ATA TTG ACC GGA ATT GTA
Sqh pENTR FCACC ATG TCA TCC CGT AAG ACC GCGenerate Sqh pENTR
Sqh pENTR RTTA CTG CTC ATC CTT GTC CTT GG
PITPα pENTR FCACC ATG GTG CTG CTC AAG GAA TAGenerate PITPα pENTR
PITPα pENTR RGTC ATC TGC TGT CAT TCC TTT CA
PITPβ pENTR FCACC ATG GTG CTG ATT AAG GAA TTC CGGenerate PITPβ pENTR
PITPβ pENTR RGGC ATC AGC AGC CGA CGT GC
Modifier pD221 FGGGG ACAAGTTTGTACAAAAAAGCAGGCTTC
GGTACCGCTGAAACGAAGTTAAACTTTGAGGTGTACGG
GTAAGTATTAGAAAGCAGGACTAAACG
Modify pDONR221 to remove RfB cassette from BiFC constructs
Modifier pD221 RGGGG ACCACTTTGTACAAGAAAGCTGGGTC
AAGCTTCTATTCAATGGTCCGGCGGCCGACGACATGAGG
ATATGGTCGTTTAGTCCTGCTTTCTAA
