An automated high-resolution in vivo screen in zebrafish to identify chemical regulators of myelination

  1. Jason J Early
  2. Katy LH Marshall-Phelps
  3. Jill M Williamson
  4. Matthew Swire
  5. Hari Kamadurai
  6. Marc Muskavitch
  7. David A Lyons  Is a corresponding author
  1. University of Edinburgh, United Kingdom
  2. MRC Centre for Regenerative Medicine, United Kingdom
  3. Biogen, United States
9 figures, 6 videos, 2 tables and 5 additional files

Figures

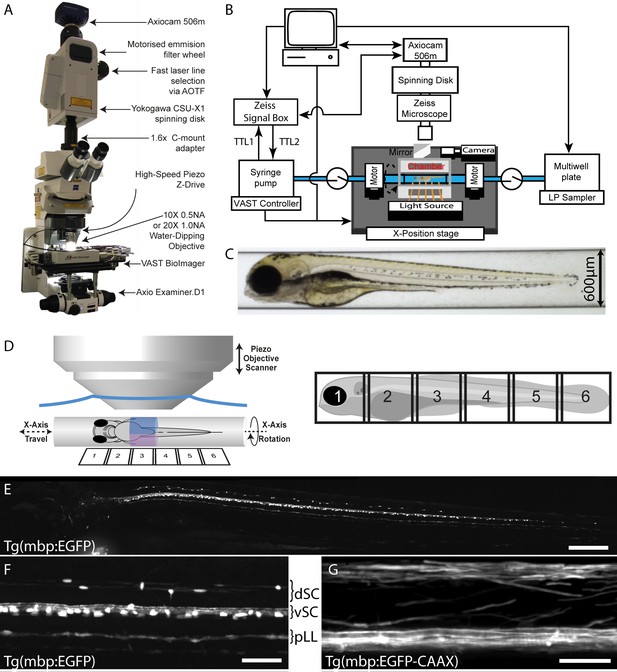

VAST-SDCM setup for rapid, automated image acquisition at subcellular resolution.

(A) Overview of custom VAST BioImager and spinning-disk microscope setup, highlighting key components. (B) Schematic representation of hardware interaction between Zeiss SDCM, VAST BioImager and LP Sampler. (C) Representative brightfield image produced by VAST BioImager, showing a 4 dpf zebrafish embryo in a 600 µm glass capillary. (D) Illustration of relative setup of microscope objective and capillary. Note that the piezo range (400 µm) requires for two stacks (blue and magenta) to be acquired per tile of fish (6-tiles with 10% overlap required to image entire 4 dpf larva). (E) Maximum intensity projection of images of Tg(mbp:EGFP) zebrafish, following tiled merging of 6 z-stacks. Scale bar = 200 µm. (F) and G) Example images of mid-trunk region of Tg(mbp:EGFP) and Tg(mbp:EGFP-CAAX) fish imaged with 10 × 0.5 NA (3 × 3 binning) and 20 × 1 NA (1 × 1 binning) objectives respectively. Scale bars = 50 and 25 µm respectively). dSC = dorsal spinal cord, vSC = ventral spinal cord and pLL = posterior lateral line.

https://doi.org/10.7554/eLife.35136.002
Figure 2 with 3 supplements

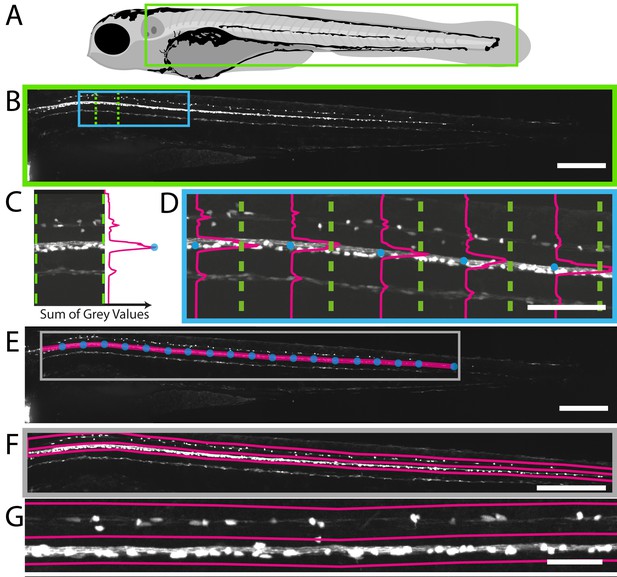

Fully automated ROI specification in Tg(mbp:EGFP) larval zebrafish.

(A) Schematic overview of 4 dpf larvae, illustrating the region (green rectangle) of Tg(mbp:EGFP) animal imaged using VAST-SDCM (B). (C) Example fluorescence intensity profile from region demarcated by green dashed lines in B. Each point on the profile is a sum of the grey values in X for a given Y position between the green dashed lines. (D) Along the length of the spinal cord, each point of peak fluorescence is marked by a blue circle. The points identified in this way delineate the ventral spinal cord (E). This line was then used to set regions of interest for dorsal and ventral spinal cord (F) and higher magnification view in G). Scale bars B, E and F = 250 µm, D = 100 µm, and G = 50 µm.

https://doi.org/10.7554/eLife.35136.006
Figure 2—figure supplement 1

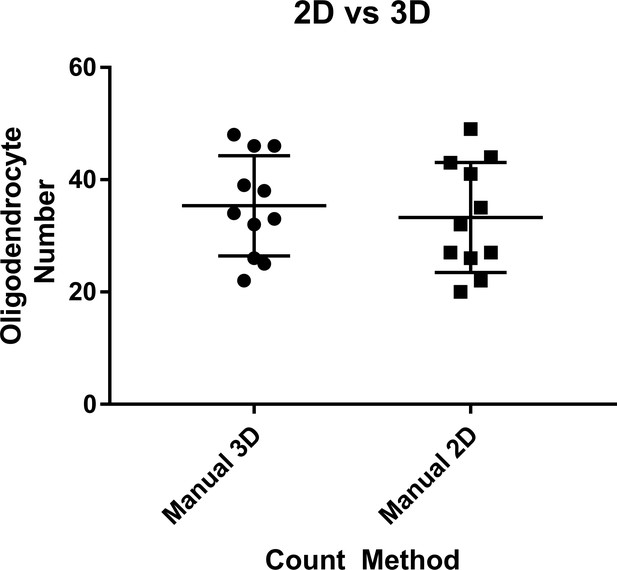

Comparison of manual 3D vs manual 2D cell counting methods.

All dorsal oligodendrocytes in the spinal cord of 11 animals treated with 1% DMSO were counted using a manual 3D stereological counting method, or by manual 2D assessment of a maximum intensity projection of the same 3D dataset.

https://doi.org/10.7554/eLife.35136.007
Figure 2—figure supplement 2

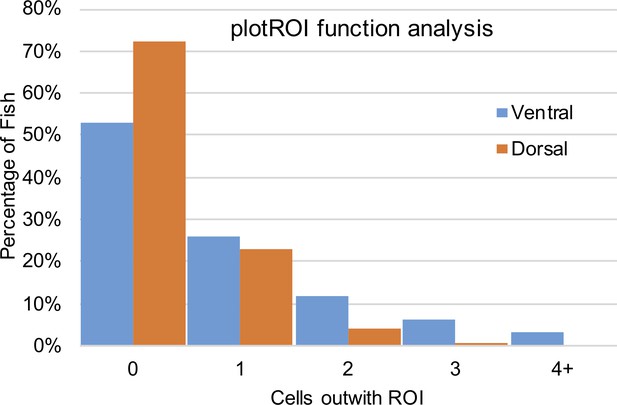

Analysis of plotROI function.

The automatic region of interest function was used to analyse 196 fish, and the above graph shows the distribution of cells found outwith their appropriate ROI. Over the 196 fish, the macro failed to include an average of 1.2 cells per fish (236 cells/ 196 animals) in their appropriate ROI.

https://doi.org/10.7554/eLife.35136.008
Figure 2—figure supplement 3

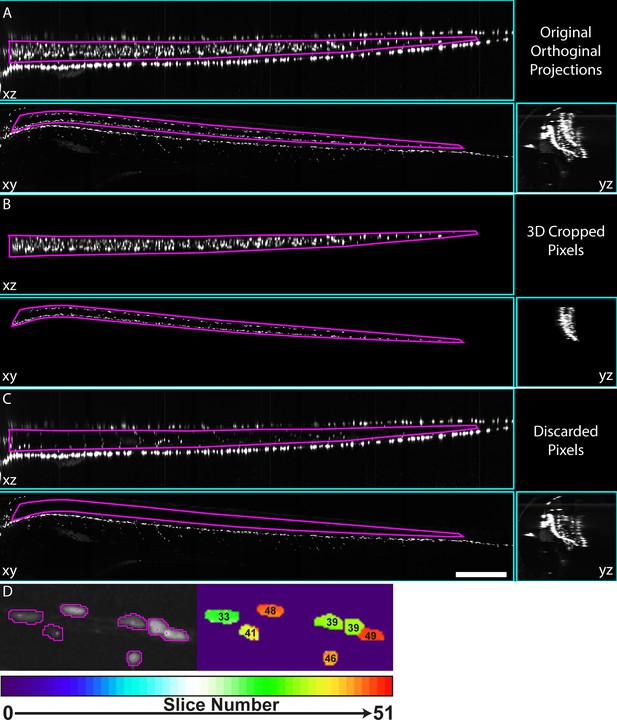

3D-Cropping of images of complex transgenic animal.

(A) xz, xy, and yx maximum intensity projections of a 4 dpf Tg(mbp:nls-EGFP) animal, as presented to user for selection of ROI to be cropped in 3D. Magenta ROIs in xz and xy views show the user defined ROIs used for 3D crop. (B) and (C) Orthogonal maximum intensity projection views of pixels from within or outwith 3D ROI defined in A, for B and C respectively. Scale bar A-C = 250 µm. (D) Illustration of depth mapped image (right panel), where processCells selections are used to mask a maximum intensity depth projection, giving addition spatial information in absence of original 3D data.

https://doi.org/10.7554/eLife.35136.009

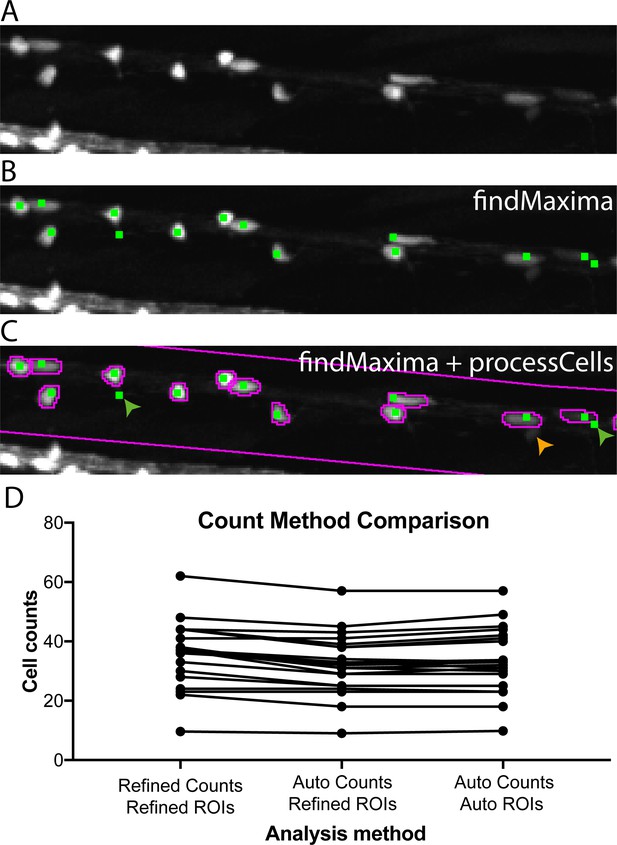

Automated cell counting allows for effective quantification of oligodendrocyte cell number.

(A) Crop of dorsal spinal cord of 4 dpf Tg(mbp:EGFP) zebrafish larva acquired on VAST-SDCM. (B) Output of ImageJ’s findMaxima function (green dots), note that whilst not every cell is identified (e.g. the small dim cell indicated by orange arrow in C), some cells are identified multiple times (green arrows in C). (C) Output of findMaxima plus processCells function allows assessment of cell likeness, and removal of false positives, for example green arrows. (D) Comparison of count methods for individual fish, with ROIs and cell counts verified and corrected by a human, ROIs corrected by a human with automatic cell counts, and fully automated ROIs and cell counts.

https://doi.org/10.7554/eLife.35136.012
Figure 4 with 1 supplement
Validation of automated image analysis to identify changes in myelinating cell number induced by chemical hit.

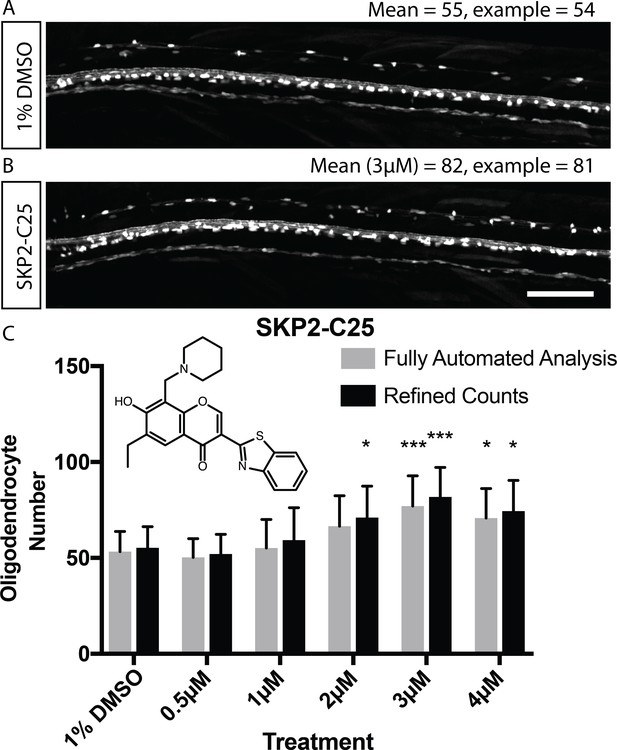

(AB) Confocal images of Tg(mbp:EGFP) control (A) and SKP2-C25-treated (B) animals reflecting mean cell number per treatment (numbers refer to entire dorsal spinal cord, not magnified area of same animals). Scale bar = 100 µm. (C) Quantitation of cell number in control and SKP2-C25 treated animals using fully automated (grey bars) and refined counts, auto ROIs (black bars). Two-way ANOVA followed by Dunnett’s multiple comparison test was used to assess statistical significance, with multiple comparison adjusted P value presented as *p<0.05, ***p<0.001. Error bars represent means ± s.d.

https://doi.org/10.7554/eLife.35136.015
Figure 4—figure supplement 1
SKP2-C25 increases proliferation of OPCs in the dorsal spinal cord.

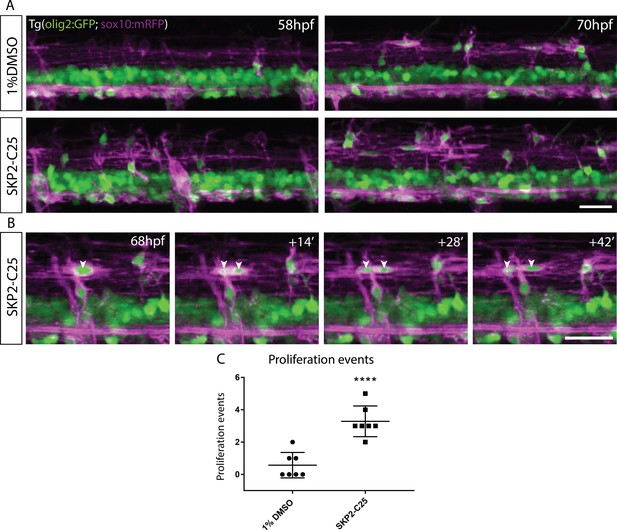

(A) Frames from time-lapse movies of Tg(Olig2:GFP), Tg(sox10:mRFP) double transgenic control (top) and SKP-C25-treated (bottom) embryos imaged between 58 hpf (left) and 70 hpf (right) Scale bar, 20 μm. (B) Frames from a time-lapse movie of a SKP2-C25-treated animal showing an individual OPC dividing to form two daughter cells (indicated by arrowheads). Scale bar, 20 μm. (C) Analyses of the time-lapse data showed that OPC proliferation events were significantly increased in SKP2-C25 treated animals.

https://doi.org/10.7554/eLife.35136.016
Figure 5 with 1 supplement

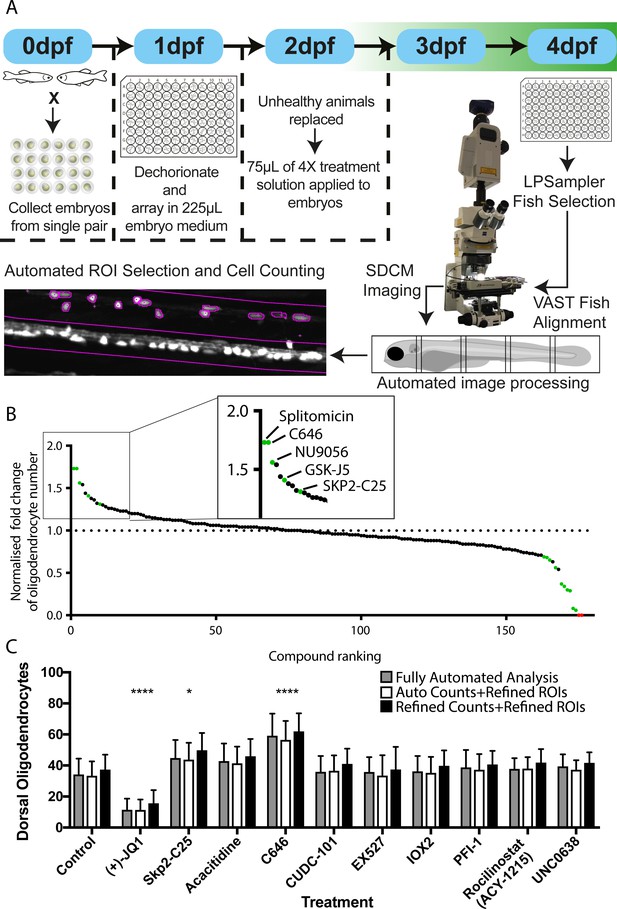

Automated chemical screening pipeline in zebrafish identifies novel regulators of oligodendrocyte development.

(A) Schematic of chemical screening pipeline. (B) Results of primary screen displayed as normalised fold change in oligodendrocyte number relative to matched DMSO-treated controls and ranked by cell increase for all 183 treatments (146 unique compounds) with hit compounds that increase or decrease cell number marked in green and toxic compounds in red. Inset shows ranking of compounds that significantly increased oligodendrocyte cell number. See also Table 2 and Supplementary file 1 (C) Quantification of dorsal oligodendrocyte number from a single screening session showing comparison of different analysis methods. *p<0.05, ****p<0.0001. Error bars represent means ± s.d.

https://doi.org/10.7554/eLife.35136.017
Figure 5—figure supplement 1

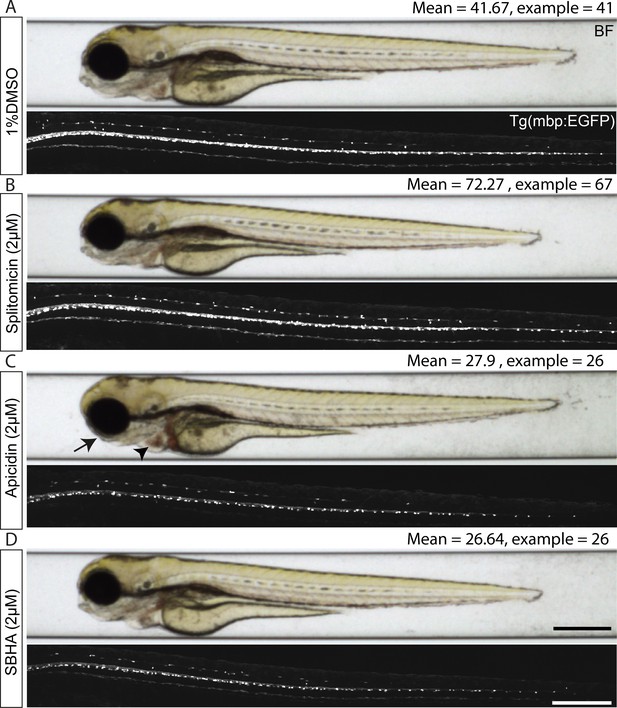

Example hits identified from our primary screen as regulators of oligodendrocyte development.

(A-D) (upper panels) Representative brightfield images of the Tg(mbp:EGFP) screening line following treatment with control (1%DMSO) (A), our top hit compound splitomicin (B) and two HDAC inhibitors, apicidin (C) and suberohydroxamic acid (SBHA) (D), that significantly decreased oligodendrocyte number in our screen. (B) Apicidin treatment disrupted morphological development of the jaw (indicated by arrow) and heart (indicated by arrowhead). Scale bar, 400 μm. (lower panels) Whole spinal cord images in the Tg(mbp:EGFP) line showing the effect of splitomicin, apicidin and SBHA on oligodendrocyte cell number. Mean numbers of dorsal oligodendrocytes quantified in the screen and in the example images shown are provided above each corresponding image. Scale bar, 200 μm.

https://doi.org/10.7554/eLife.35136.018

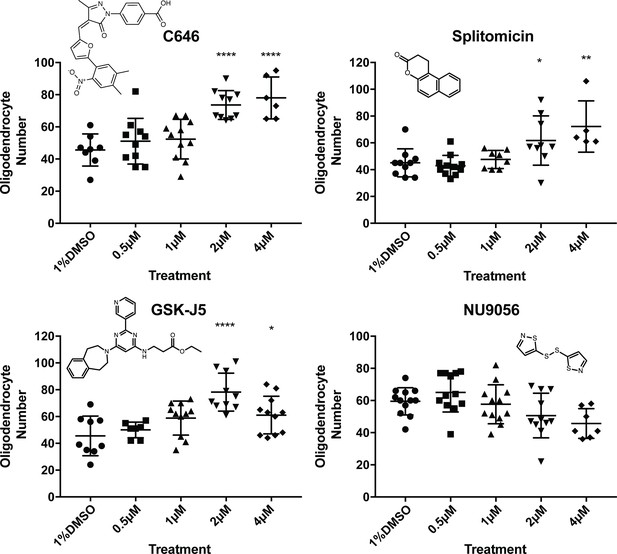

Concentration series and chemical structures of hit compounds from screen.

For each hit identified in the primary screen, repeat treatments were carried out as before (12 fish treated from 2-4dpf), with either 1% DMSO, 0.5 µM, 1 µM, 2 µM, 4 µM, 10 µM or 20 µM of the hit treatment. For all compounds, the 10 and 20 µM treatments were fatal and are not shown on the above graphs. Chemical structures of each hit are displayed in respective graphs. One-way ANOVA followed by Dunnett’s multiple comparison test was used to assess statistical significance, with multiple comparison adjusted P value presented as *p<0.05, **p<0.01, ****p<0.0001. Error bars represent means ±s.d.

https://doi.org/10.7554/eLife.35136.020
Automated region-specific analyses of identified hit compounds.

(A) Representative single tile images of 4 dpf Tg(mbp:EGFP) larvae following treatment with the five hit compounds that increased oligodendrocyte number in our screen. Scale bar, 100 μm. Mean numbers of dorsal oligodendrocytes quantified for each treatment and in the examples shown are indicated above each corresponding image. (B) Plot of the anterior-posterior distribution of dorsal oligodendrocytes along the spinal cord demonstrates region-specific effects with NU9056 and GSK-J5 treatment, whereas C646, SKP2-C25 and splitomicin exhibit more consistent increases in cell number along the A-P axis (D). (C) Quantification of oligodendrocyte number throughout the entire dorsal region shows lower sensitivity for identifying compounds with region-specific effects compared with quantification within one tile region (second of five tiles) (E). *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001. Error bars represent means ± s.d.

https://doi.org/10.7554/eLife.35136.021
Figure 8 with 1 supplement

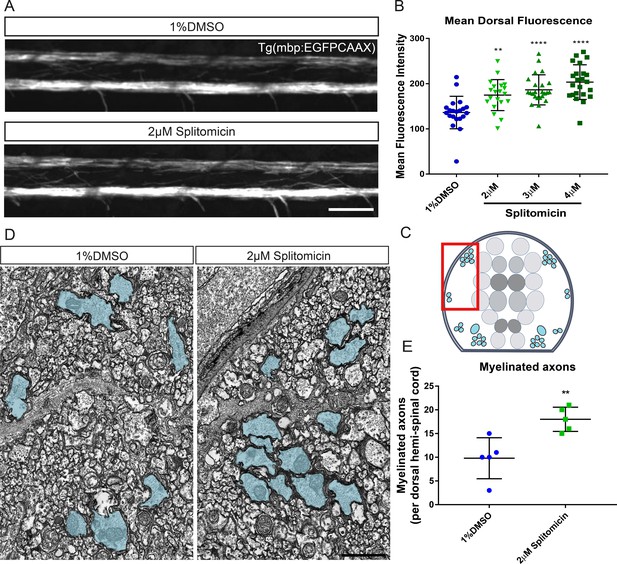

Treatment with splitomicin increases spinal cord myelination in vivo.

(A) Representative images of myelin within the spinal cord of control (top) and splitomicin-treated (bottom) Tg(mbp:EGFP-CAAX) larvae. Scale bar, 50 μm (B) Quantification of mean fluorescence intensity throughout the entire dorsal spinal cord demonstrates a significant increase following 2–4 μM splitomicin treatment from 2-4 dpf. (C) Schematic of a transverse section through the zebrafish spinal cord shows the position of myelinated axons (blue) in relation to the gray matter (neuronal cell bodies are coloured in grey). Red box indicates approximate area shown in (D) in which myelinated axon number was quantified. (D): Transmission electron micrographs of control (left) and splitomicin-treated (right) larvae at 4 dpf with myelinated axons pseudo-coloured in blue. Scale bar, 1 μm (E) Numbers of myelinated axons in the dorsal spinal cord are significantly increased following 2–4 dpf treatment with 2 μM splitomicin. **p<0.01, ****p<0.0001. Error bars represent means ± s.d.

https://doi.org/10.7554/eLife.35136.022
Figure 8—figure supplement 1

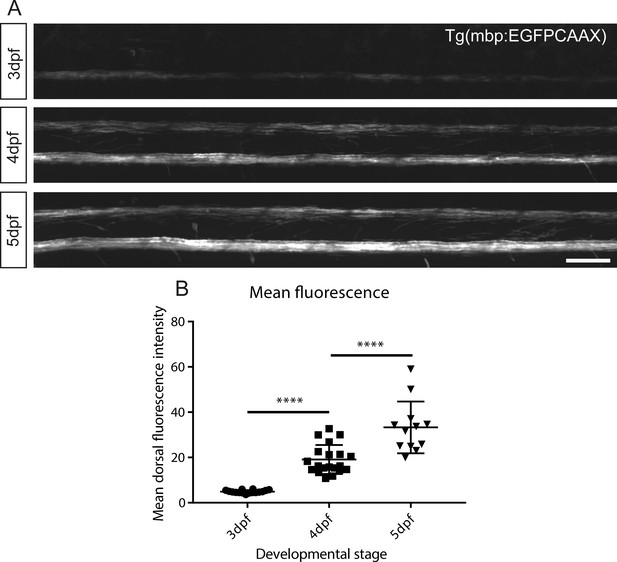

Automated fluorescent quantification of myelin during development.

(A) Representative lateral views of the spinal cord in Tg(mbp:EGFP-CAAX) larvae, where EGFP is targeted to the membrane of oligodendrocytes, demonstrating a developmental increase in myelinated structures from 3 to 5 dpf in vivo. Scale bar, 50 μm. (B) Automated quantification of the mean fluorescence intensity within the dorsal region shows a significant increase from 3 to 4 dpf and from 4 to 5 dpf (One-way ANOVA with Tukey’s multiple comparisons test, p<0.0001 average fluorescent intensity (AU) from 3 to 4 dpf and 4–5 dpf). Error bars represent means ± s.d.

https://doi.org/10.7554/eLife.35136.023

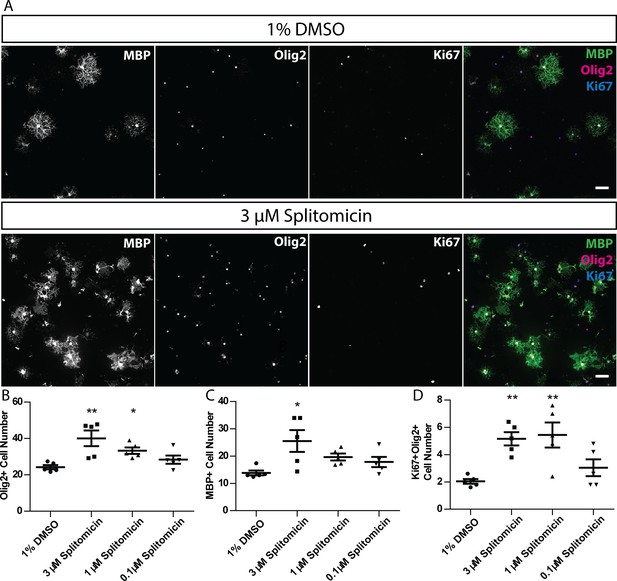

Splitomicin enhances mammalian oligodendrocyte generation in vitro.

(A) Representative images of rat oligodendrocyte cultures treated with 1% DMSO or 3 µM splitomicin, stained for antibodies that recognise MBP, Olig2 and Ki67. Scale bar = 50 µm. (BD) Quantification of Olig2+ cell number (B), MBP+ cell number (C) and Ki67+ Olig2+ cell number (D). Shapiro-Wilk normality test determined that datasets were not normally distributed. Therefore, a Kruskal-Wallis test was followed by Dunn’s multiple comparison test to test statistical significance between conditions. *p<0.05, **p<0.01. Error bars represent means ± s.e.m.

https://doi.org/10.7554/eLife.35136.024

Videos

Video 1
Movie of 4 dpf zebrafish larva in the VAST BioImager capillary, showing the x-axis 360° rotational capacity.

Refers to Figure 1.

https://doi.org/10.7554/eLife.35136.003
Video 2
Movie of maximum intensity projection of stitched confocal stacks showing a 4 dpf Tg(mbp:EGFP) animal demonstrating the ability of the VAST-SDCM system to image myelinating glia at subcellular resolution throughout the whole animal.

Images acquired at 10X, using 3 × 3 binning, pixel size 849 nm. Refers to Figure 1.

https://doi.org/10.7554/eLife.35136.005
Video 3
Movie showing the automated process by which fluorescent intensity profiles are calculated at defined positions along the spinal cord of a 4 dpf Tg(mbp:EGFP) animal to plot the position of the ventral spinal cord.

Refers to Figure 2.

https://doi.org/10.7554/eLife.35136.010
Video 4
Movie showing the principle of the 3D cropping macro, starting with travelling through the z planes of a 3D dataset acquired on the VAST-SDCM of a 4dpf Tg(mbp:nls-EGFP) animal.

This is followed by a maximum intensity projection through the Z-axis, with the region to be kept highlighted in cyan. The projection is then rotated through 90 degrees, to give the Y-axis maximum intensity projection, which then has the region to be retained highlighted in cyan. The macro then removes any pixels not contained within both regions to give the final 3D dataset, which is then rotated back to the original orientation. Refers to Figure 2—figure supplement 3.

https://doi.org/10.7554/eLife.35136.011
Video 5
Movie showing circa real-time speed of automated ventral spinal cord demarcation, dorsal spinal cord ROI selection and cell counting per animal.

Refers to Figures 13.

https://doi.org/10.7554/eLife.35136.013
Video 6
Time-lapse movies of Tg(Olig2:GFP), Tg(sox10:mRFP) double transgenic control (top) and SKP-C25-treated (bottom) embryos imaged between 58 hpf and 70 hpf.
https://doi.org/10.7554/eLife.35136.014

Tables

Table 1
Imaging and Screening Statistics.

Exemplar resolution and imaging times for given pixel binning levels, using a 10 × 0.5 NA objective and imaging our Tg(mbp:EGFP) reporter line. Fish loading times by LP Sampler to VAST BioImager based on three fish per well (experiment averages 52 s for first fish and 17 s for subsequent two per well). Combined loading and imaging rates per fish for different imaging parameters.

https://doi.org/10.7554/eLife.35136.004
Pixel binning1 × 12 × 23 × 3
Pixel Size (nm)283566849
Exposure (ms)1804520
Approximate Imaging Time (s/fish)2608060
Fish loading time (s/fish)303030
Load and Image Rate (fish/hour) 5 tiles123340
Load and Image Rate (fish/hour) 1 tiles437885
Table 2
Significant Hits From Screen.

Fold change in oligodendrocyte number induced by individual hit compounds normalised to DMSO treated controls in appropriate treatment plate. For complete list of compound effects and putative targets, see Supplementary file 1.

https://doi.org/10.7554/eLife.35136.019
CompoundFold change (Treated/Control)P value
Splitomicin1.730.0001
C6461.730.0001
NU90561.560.0128
GSK-J5 (hydrochloride)1.410.0031
SKP2-C251.310.0404
Zebularine0.690.0498
Apicidin0.680.0139
Suberohydroxamic Acid0.650.0043
IOX10.560.0003
CUDC-9070.370.009
PI3K/HDAC Inhibitor I0.300.0006
(+)-JQ10.290.0001
JIB-04 (NSC693627)0.080.0001
Trichostatin A0.060.0001

Additional files

Supplementary file 1

Spreadsheet documenting the effect of all screened compounds, with their putative targets, on myelinating oligodendrocyte number, arranged by effect size.

Mean cell number effect size is normalized to DMSO-treated sibling controls, per screening session. Dunnett’s multiple comparison test was used to assess statistical significance, with multiple comparison adjusted P value presented.

https://doi.org/10.7554/eLife.35136.025
Supplementary file 2

Detailed spreadsheet documenting the effect of all screened compounds, with their putative targets, and raw data of compound effect on myelinating oligodendrocyte number, n numbers per compound screened, standard deviations and statistical analyses.

As per Supplementary file 1, mean cell number effect size is normalized to DMSO-treated sibling controls, per screening session. Dunnett’s multiple comparison test was used to assess statistical significance, with multiple comparison adjusted P value presented.

https://doi.org/10.7554/eLife.35136.026
Supplementary file 3

Overview of statistical tests carried out as per corresponding figure panel.

https://doi.org/10.7554/eLife.35136.027
Supplementary file 4

Overview of statistical significance for Dunnett’s multiple comparison test with P values adjusted for multiple comparisons when data from Supplementary file 1 is analysed with all samples, the first 6 or 3 samples from each treatment.

Results are only shown for treatments where at least one test was found to be significant. *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001 and ns = not significant (p>=0.05).

https://doi.org/10.7554/eLife.35136.028
Transparent reporting form
https://doi.org/10.7554/eLife.35136.029
