Bim escapes displacement by BH3-mimetic anti-cancer drugs by double-bolt locking both Bcl-XL and Bcl-2

  1. Qian Liu
  2. Elizabeth J Osterlund
  3. Xiaoke Chi
  4. Justin Pogmore
  5. Brian Leber
  6. David William Andrews  Is a corresponding author
  1. Sunnybrook Research Institute, Canada
  2. University of Toronto, Canada
  3. McMaster University, Canada
Research Article
  • Cited 5
  • Views 973
  • Annotations
Cite this article as: eLife 2019;8:e37689 doi: 10.7554/eLife.37689

Abstract

Tumor initiation, progression and resistance to chemotherapy rely on cancer cells bypassing programmed cell death by apoptosis. We report that unlike other pro-apoptotic proteins, Bim contains two distinct binding sites for the anti-apoptotic proteins Bcl-XL and Bcl-2. These include the BH3 sequence shared with other pro-apoptotic proteins and an unexpected sequence located near the Bim carboxyl-terminus (residues 181–192). Using automated Fluorescence Lifetime Imaging Microscopy - Fluorescence Resonance Energy Transfer (FLIM-FRET) we show that the two binding interfaces enable Bim to double-bolt lock Bcl-XL and Bcl-2 in complexes resistant to displacement by BH3-mimetic drugs currently in use or being evaluated for cancer therapy. Quantifying in live cells the contributions of individual amino acids revealed that residue L185 previously thought involved in binding Bim to membranes, instead contributes to binding to anti-apoptotic proteins. This double-bolt lock mechanism has profound implications for the utility of BH3-mimetics as drugs. ​

https://doi.org/10.7554/eLife.37689.001

eLife digest

The body can get rid of cells that are unnecessary, infected or damaged by instructing them to go through a process known as apoptosis, which results in the cell killing itself. These orders are given in the form of pro-death molecules, such as the BH3 proteins, which kick start apoptosis.

In order to survive and multiply, cancer cells can increase the levels of anti-death proteins which bind and ‘trap’ BH3 proteins, preventing them from triggering apoptosis. At the molecular level, the process involves the anti-death proteins recognizing and attaching to a specific ‘BH3 sequence’ in the pro-death signals.

A new type of anti-cancer treatment works by tricking the anti-death proteins into binding a drug rather than BH3 proteins, which are then free to induce apoptosis. These decoy drugs mimic the BH3 sequences that the anti-death proteins recognize and attach to. However, studies have shown that the BH3-protein Bim stays bound to the body’s anti-death proteins rather than being displaced by the drugs. In patients, this means that the cancer cells may resist and survive the treatment.

Here, Liu et al. try to understand why Bim keeps on attaching to anti-death proteins by developing an advanced microscopy technique to dissect the interactions between the two types of molecules. This revealed that Bim has a second sequence for binding to anti-death proteins, which is located far away from the ‘normal’ BH3 sequence. Together, the two sequences allow Bim to double-bolt lock to anti-death proteins, which explains why it cannot be displaced by drugs that mimic only the BH3 sequence.

In the future, the new binding sequence may serve as a target for anti-cancer drugs. The microscopy technique developed by Liu et al. can also be used to study other pairs of interacting proteins.

https://doi.org/10.7554/eLife.37689.002

Introduction

A major function of apoptosis is to inhibit tumor initiation and progression while its inhibition can result in cancer cell survival and resistance to chemotherapy (Kirkin et al., 2004). Bcl-2 family proteins regulate intrinsic apoptosis and mitochondrial integrity through direct physical interactions between the anti-apoptotic proteins (Bcl-2, Bcl-XL and Mcl-1), the pro-apoptotic proteins (Bax, Bak) and the BH3-proteins (Bad, Bid and Bim) (Liu et al., 2013; Shamas-Din et al., 2013; Youle and Strasser, 2008). In cancer cells, pro-apoptotic BH3 proteins and activated Bax and Bak are sequestered by anti-apoptotic proteins, thereby the cell is protected at the same time as it is primed for death. Such cells can be efficiently killed by BH3-mimetic drugs that release bound pro-apoptotic proteins, as shown by the clinical success of the Bcl-2 specific BH3-mimetics venetoclax (ABT-199) and navitoclax (ABT-263).

It is commonly accepted that BH3 proteins bind to anti-apoptotic proteins exclusively through a conserved BH3 region (Chen et al., 2005). ABT-263 is an orally available inhibitor with nanomolar affinity for the BH3-binding sites in Bcl-XL and Bcl-2 that is currently undergoing clinical trials in humans. In vitro ABT-263 displaces BH3 peptides derived from different BH3-proteins including Bim (Tse et al., 2008) from Bcl-2 and Bcl-XL. However a discrepancy between this data and the activities of the drugs in live cells was observed independently in three studies. 1) Increased expression of Bcl-XL in human non-Hodgkin lymphomas led to resistance to ABT-737 (an analogue of ABT-263) despite enhanced Bim expression (Mérino et al., 2012). 2) Fluorescent Lifetime Imaging Microscopy (FLIM) – Förster Resonance Energy Transfer (FRET) demonstrated that ABT-263 displaced full-length Bad and tBid (activated Bid protein) but not the major isoforms of Bim (BimEL, BimL and BimS) from binding to Bcl-XL and Bcl-2 (Aranovich et al., 2012; Liu et al., 2012). 3) ABT-263 resistant binding of Bim to Bcl-XL was observed using bioluminescence resonance energy transfer (Pécot et al., 2016). However, the molecular mechanism of resistance is not well established.

Among the Bcl-2 family, Bim is the only BH3-protein that binds all anti-apoptotic proteins with high affinities and that can directly activate Bax and Bak to initiate apoptosis (Chen et al., 2005; Letai et al., 2002). Therefore the surprising lack of activity for BH3 mimetics on displacement of Bim could significantly reduce their efficacy in some cancer cells (Pécot et al., 2016). Understanding this mechanism of resistance may also suggest ways to release specific sequestered BH3-proteins from Bcl-XL and Bcl-2 to kill cancer cells more selectively than broadly inhibiting anti-apoptotic proteins (Goldsmith et al., 2006; Ni Chonghaile and Letai, 2008).

Here we identify the specific residues in Bim responsible for binding to Bcl-XL and Bcl-2 and that confer resistance of the complexes to BH3-mimetic drugs. We discovered an unanticipated interaction between the C-terminal sequence (CTS) of Bim and both Bcl-XL and Bcl-2. Our data further demonstrate dual yet independent roles for the Bim CTS in binding to Bcl-XL and to membranes. Together the two anti-apoptotic protein binding sequences in Bim confer resistance of complexes to the dual Bcl-2, Bcl-XL inhibitor ABT-263 and to the new generation Bcl-XL inhibitors in clinical development. Because the CTS of Bim also functions to activate the pro-apoptotic proteins Bax and Bak, (Chi et al., 2019) our results suggest that BH3-mimetics may have unpredictable results in cells depending on the Bcl-2 family proteins expressed and that targeting both binding sites on Bcl-XL and/or Bcl-2 may be required to kill some cancer cells that have bypassed apoptosis by inhibiting Bim.

Results

ABT-263 displaces Bad and tBid but not Bim from Bcl-XL and Bcl-2

New instrumentation for automated time correlated single photon counting (TCSPC) from two fluorescence proteins simultaneously enabled automation of FLIM-FRET measurements to evaluate the effects of drugs on the binding of Bcl-2 family proteins fused to mCerulean3 (mCer3) and Venus fluorescence proteins. The nomenclature used here indicates proteins fused with a fluorescence protein by a superscripted c for mCer3 and a superscripted v for Venus. The superscripted letters precede the protein names for amino-terminal, and follow them for carboxyl-terminal fusions. VBH3-proteins were expressed by transient transfection of MCF-7 cells stably over-expressing CBcl-XL or CBcl-2 (Figure 1). Transient expression of VBH3-proteins ensured that there was a large enough range of expression levels within the population of cells to collect the data needed to generate binding curves (Aranovich et al., 2012; Kale et al., 2012; Liu et al., 2012). The expressed fluorescent fusion proteins retained their expected anti- or pro-apoptotic properties (see below). To generate quantitative binding curves, TCSPC data were collected for CBcl-XL (FRET donor) and VBH3-proteins (FRET acceptor), within regions of interest (ROIs) automatically identified in cells based on mCer3 signal intensity (Figure 1A). For each ROI the TCSPC data were used to determine the average fluorescence lifetime of the mCer3 donor and the fluorescence intensities of both the donor (mCer3) and the acceptor (Venus). Data from more than 8,500 ROIs were binned according to the ratio of Venus to mCer3 intensities and together with the corresponding lifetime data used to generate binding curves (Figure 1B).

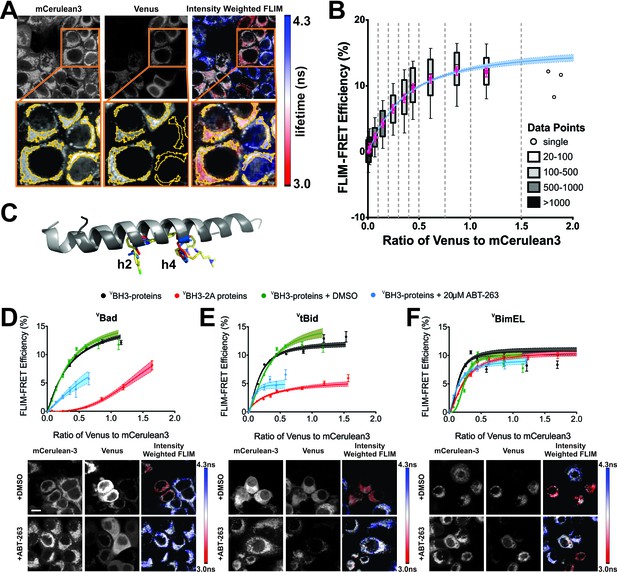

ABT-263 does not displace Bim from binding to Bcl-XL.

(A) Live cell images of mCer3 and Venus intensities and intensity weighted FLIM images from FLIM-FRET measurements for the interaction between CBcl-XL and VBad. Higher magnification views are shown below with automatically identified Regions Of Interest (ROIs) outlined in yellow. Fluorescence lifetime images are presented in a continuous pseudo-color scale ranging from 3.0 to 4.3 ns. Intensity weighted fluorescence lifetime images were generated using ImageJ, both the contrast and gamma of the intensity image were adjusted so that the mitochondrial area can be easily visualized. Intensity weighted images are used only as an interpretive guide and were not used for any of the calculations reported. (B) Generation of binding curves. Data from more than 8,500 ROIs were binned according to the ratio of Venus to mCer3 intensities; mean (magenta dot) FLIM-FRET efficiency values for each bin were plotted versus the ratio of Venus to mCer3 intensity. The box encloses 50% of the data (25-75th percentiles), lines extend to the 10th and 90th percentiles and the number of ROIs in each bin (minimum 20) is indicated according to the scale at the right. The first bin is at zero and subsequent bins are separated by dotted lines. The means were fitted to a binding curve with a Hill slope for the interaction between CBcl-XL and VBad (blue line) with the 95% confidence interval for the optimal fit of the model to the data using GraphPad Prism shown (blue shaded area). (C) Structural alignment of ABT-263 with BH3 peptides (grey with h2 and h4 residues colored) from the complexes: Bcl-XL:Bim-BH3 (1PQ1, blue), Bcl-XL:Bad-BH3 (2BZW, red), and Bcl-XL:ABT-263 (4QNQ, yellow). ABT-263 and side chains of the key hydrophobic residues (h2 and h4) in the BH3 peptides are shown. (D–F) ABT-263 or mutation of h2 and h4 displaced VBad, VtBid but not VBimEL from CBcl-XL in MCF-7 cells. Binding curves for CBcl-XL and VBH3-proteins: (D) VBad, (E) VtBid, (F) VBimEL. The samples were untreated (black), DMSO solvent control (green), 20 μM ABT-263 (cyan), or BH3-2A mutation in the BH3-protein (red). Representative images are shown below as labeled. Scale bar 10 μm. Curves were generated by fitting the data to a Hill equation; line width shading indicates 95% confidence interval for the fit. Individual points are the average FLIM-FRET efficiencies in corresponding bins (n ranges from 20 to 3000 in each bin combined from three independent experiments as in (B). Cyan lines are truncated because at higher ratios of Venus to mCer3 there is sufficient free BH3-protein to kill the cells. In all figures FLIM-FRET binding curves as shown in Figure 1D–F and figure supplements were fitted from data pooled from three independent experiments. Individual points in FLIM-FRET binding curves indicate the average FLIM-FRET efficiencies in corresponding bins (the number of data points ranges from 20 to 3000 in each bin), the error bars indicate standard error of the mean, and the dotted shadowed area for each curve represents the 95% confidence interval for the fit of the binding curve with a Hill slope to the data as in (b).Truncation of some of the curves is due to a lack of sufficient data at high expression levels of the acceptor proteins. This can be due to induction of apoptosis by the expressed protein or to limited expression of the exogenous protein in the transient transfections.

https://doi.org/10.7554/eLife.37689.003

The impact of BH3 sequence mutations and small-molecule inhibitors on the interactions between anti-apoptotic proteins and BH3 only pro-apoptotic proteins

BH3-proteins engage the hydrophobic pocket of anti-apoptotic proteins through four conserved hydrophobic residues (h1-h4) within the BH3 region (Chen et al., 2005). ABT-263 prevents BH3-protein binding by competing for the binding of residues h2 and h4 to Bcl-XL (Figure 1C) (Tse et al., 2008). To quantify the importance of these residues in live cells, we expressed wild-type and mutant VBH3-proteins with alanine mutations in the h2 and h4 positions (BH3-2A) and measured binding to CBcl-XL. As expected, BH3-2A mutations in VBad and VtBid reduced binding to CBcl-XL dramatically (Figure 1D–E, compare black and red). However the BH3-2A mutant of VBimEL bound to CBcl-XL similarly to wild-type VBimEL (Figure 1F, compare black and red), suggesting interactions with other residues contribute to binding Bim to Bcl-XL. Consistent with this result ABT-263 displaced both VBad and VtBid, but not VBimEL from CBcl-XL (Figure 1D–F, compare green and cyan).

To quantify the impact of ABT-263 on VBH3-proteins binding to CBcl-XL and CBcl-2, and maximize the dynamic range of the assay we estimated the FLIM-FRET efficiency from the fitted binding curves at intensity ratios of Venus to mCer3 of 0.5 and 0.25, respectively. The FRET signal from the non-binding mutant VBad4E (in which h1, h2, h3 and h4 in the BH3 region were mutated to glutamic acid) served as a negative control for FRET due to random collisions rather than binding, and was subtracted as background (Figure 2A). The percentage of the FRET signal remaining in the presence of ABT-263 is defined here as Resistance to displacement by ABT-263 (RABT-263, Figure 2A). The effects of mutations on the binding of BH3-proteins can be calculated similarly and for the BH3-2A mutation is reported as RBH3-2A. RABT-263 and RBH3-2A values for all of the mutants analyzed are provided in Table 1.

Figure 2 with 4 supplements see all

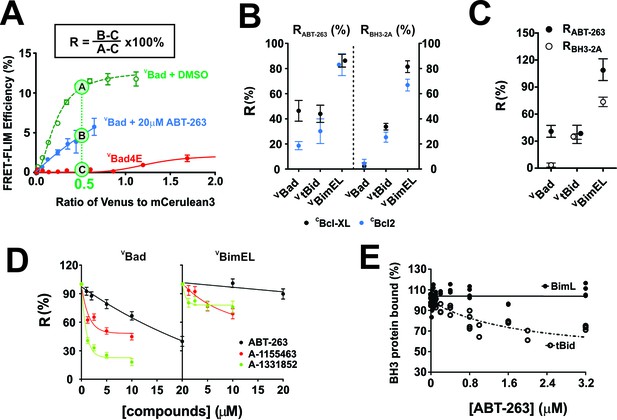

with four supplements: The impact of small-molecule inhibitors and BH3-sequence mutations on the interactions between anti-apoptotic proteins and BH3-only pro-apoptotic proteins.

(A) Values of R can be used to define binding interactions from FLIM-FRET data. Sample calculation of RABT-263 for CBcl-XL:VBad binding in MCF-7 cells. To maximize the accuracy and dynamic range of the assay to quantify the impact of ABT-263 on the VBH3-proteins binding to CBcl-XL, we interpolated the FLIM-FRET efficiency from the fitted binding curves at an intensity ratio of Venus to mCer3 of 0.5 (points A, (B and C). The non-binding mutant VBad4E, in which h1, h2, h3 and h4 in the BH3 region were all mutated to glutamic acid, served as a control for FRET due to random collisions (red line, point C) and was subtracted from A and B as background. The signal remaining after the addition of ABT-263 (cyan line, point B) expressed as a percentage of the signal with DMSO added instead of the drug (green line, point A) is defined as RABT-263. (B) RABT-263 and RBH3-2A for binding of the indicated VBH3-proteins to CBcl-XL (black) from binding curves in shown in Figure 1and CBcl-2 (blue) in MCF-7 cells. RBH3-2A is calculated similarly to RABT-263 except the FLIM-FRET efficiency of the mutant is substituted for the value after adding ABT-263. Binned data, binding curves and sample images for Bcl-2 are shown in Figure 2—figure supplement 1. (C) The RABT-263 and RBH3-2A values for CBcl-XL:VBH3 proteins interactions in BMK-DKO cells. Binned data, binding curves and sample images are shown in Figure 2—figure supplement 2. Control experiments showing that the morphology changes that accompany cell death do not change the lifetime values determined by FLIM are shown in Figure 2—figure supplement 3. (D) Bcl-XL inhibitors displace VBad efficiently but VBimEL poorly from CBcl-XL in live cells. The dose-dependent inhibition curves due to the indicated concentrations of ABT-263 (black), and the Bcl-XL inhibitors A-1155463 (red) and A-1331852 (green) shown for CBcl-XL:VBad (left) and CBcl-XL:VBimEL (right) complexes in live MCF-7 cells. R values are ±95% confidence intervals from binned data and binding curves shown in Figure 2—figure supplement 4 (E) ABT-263 displaces tBid (10 nM) but not Bim (10 nM) from Bcl-XL (40 nM) in vitro. Percent of BH3 protein bound to Bcl-XL (BH3 bound %) measured by loss of FRET for Bcl-XL:tBid and Bcl-XL:Bim quantified for purified full-length dye labeled proteins incubated with liposomes and the indicated concentrations of drug. Data are from three experimental replicates, not all points are visible due to overlap. In all figures RABT-263 and RBH3-2A data points for Bcl-XL and Bcl-2 are black and blue respectively.

https://doi.org/10.7554/eLife.37689.005
Table 1
Values of RBH3-2A and RABT-263 for all reported interactions.
https://doi.org/10.7554/eLife.37689.014
Cell lines
Constructs
cBcl-XLcBcl-2
RBH3-2ARABT-263RBH3-2ARABT-263
Value95% CIValue95% CIValue95% CIValue95% CI
vBad2.442.5046.368.234.333.4818.633.24
vtBid33.702.6043.956.8425.333.9830.169.82
vBimEL81.434.6586.265.1066.854.7083.068.69
vBad-Bim70.194.0397.966.4554.913.9265.467.40
vBimEL-dN101.874.3790.817.0182.574.2790.4710.25
vBimEL-Bad26.122.7060.554.4332.745.8065.756.36
vBimEL-dCTS15.083.1769.054.5713.602.2160.026.73
vBimEL-Bad-dCTS10.614.2640.255.6711.954.0712.516.60
vBad-Bim-WAANDND78.515.81NDND50.157.22
vBad-Bim-I146Y46.563.2083.245.3426.784.2153.175.43
vBad-Bim-Q148R74.454.2489.826.2156.945.4653.467.33
vBad-Bim-I153M96.534.6092.786.00102.308.9468.517.51
vBad-Bim-I146Y-Q148R50.463.4690.187.5937.733.8861.777.54
vBad-Bim-I146Y-I153M56.803.2788.976.1242.594.3369.077.73
vBimEL-I146Y70.997.5888.6610.8554.173.4965.328.72
vBimEL-I146Y-dCTS12.292.8938.458.318.574.0352.866.02
vBimEL-L185E26.683.6241.8510.2416.093.8751.0212.29
vBimEL-I146Y-L185E19.444.1040.018.075.799.8136.858.81
vBimEL-CTS2A77.994.4388.796.2460.243.7780.6911.40
vBimEL-I181E49.1950.2363.866.1647.202.9673.2610.45
vBimEL-L185E26.683.6241.8510.2416.093.8751.0212.29
vBimEL-I188E67.175.1450.967.6647.473.3663.048.04
vBimEL-V192E52.5753.5970.147.6454.503.5664.849.70
vBimEL-L185A159.1014.88
vBimEL-L185D20.315.29
vBimEL-L185E26.163.57
vBimEL-L185F99.995.15
vBimEL-L185G86.827.91
vBimEL-L185H49.104.50
vBimEL-L185M89.984.42
vBimEL-L185P58.953.61
vBimEL-L185R48.083.33
vBimEL-L185S73.494.67
vBimEL-L185stop26.874.94
BimELv89.415.80

Plotting RABT-263 for different interactions indicated that >80% of CBcl-XL:VBimEL and CBcl-2:VBimEL complexes were resistant to the addition of ABT-263 (Figure 2B). In contrast, CBcl-XL:VBad and CBcl-XL:VtBid complexes were less than 50% resistant to the drug (Figure 2B-left, black) while the corresponding Bcl-2 complexes were less than 40% resistant (Figure 2B-left, blue, Figure 2—figure supplement 1). Calculated similarly, RBH3-2A values reflect the minimal effect of BH3-2A mutations on complexes of CBcl-XL and CBcl-2 with VBimEL (RBH3-2A ~ 80%) compared to VBad (RBH3-2A ~ 2%) and VtBid (RBH3-2A ~30%) complexes (Figure 1D–F, Figure 2B, and Figure 2—figure supplement 1).

To test the generality of these results in a different cell line that is resistant to the induction of cell death by BH3 proteins, complex formation was also assessed in Baby Mouse Kidney (BMK) cells in which the genes for expression of Bax and Bak were knocked out (DKO). These cells do not undergo apoptosis in response to expression of BH3-proteins and therefore retain normal cellular morphology. As expected, the RABT-263 and RBH3-2A values obtained in BMK-DKO cells for CBcl-XL and VBH3-protein complexes were similar to those observed for MCF-7 cells (CBcl-XL (Black) in Figure 2B compared with Figure 2C, Figure 1D–F and Figure 2—figure supplement 2). Similar to the results in MCF-7 cells, the resulting RABT-263 and RBH3-2A values measured for CBcl-XL:VBad and CBcl-XL:VtBid complexes ranged from 40% to 70% lower than those of CBcl-XL:VBimEL complexes confirming that the unusual stability of CBcl-XL:VBim complexes is neither cell line-specific nor a result of molecular crowding that may occur when cells undergo apoptosis (Figure 2c). As an additional control to address this latter point directly lifetime measurements were compared for manually selected images of fully adherent MCF-7 cells expressing CBcl-XL and VBim-Bad that retained relatively normal morphology (alive cells) from the bottom of the imaging well. Images of cells with a more condensed morphology (dying cells) were subsequently recorded from a higher imaging plane. The distributions of lifetimes measured for the both sets of cells were very similar confirming that the changes in dying cells do not affect the lifetime measurements (Figure 2—figure supplement 3).

Compared to ABT-263 (IC50 >10 μM), the Bcl-XL specific inhibitors A-1155463 and A-1331852 more potently disrupted CBcl-XL:VBad complexes with R values of ~45% and 20% respectively, corresponding to an IC50 <1.25 μM for these compounds (Figure 2D and Figure 2—figure supplement 4). Nevertheless, their impact on CBcl-XL:VBimEL complexes was limited, confirming the high stability of CBcl-XL:VBimEL complexes. Results for displacement of BH3 proteins from Bcl-2 using the specific inhibitor venetoclax were uninterpretable due to interference with the FLIM measurements that resulted from the broad spectrum fluorescence of the drug. As a dual inhibitor, ABT-263 enables comparison of the effects of mutations for both CBcl-XL:VBimEL and CBcl-2:VBimEL complexes and was therefore used for subsequent experiments.

To confirm that the stability of the complexes measured in live cells was due to direct interactions, FRET was measured for donor-fluorophore-labeled recombinant BimL or tBid with acceptor-fluorophore-labeled Bcl-XL in a cell free liposome based system. In this assay BimL was used instead of BimEL due to the difficulty in purifying BimEL and the BH3-proteins were added at amounts predetermined to result in complete binding of BimL or tBid to Bcl-XL. ABT-263 was then titrated into the samples to compete with the BH3-proteins. As expected, a concentration of ABT-263 ~10 fold higher than that of Bcl-XL displaced tBid from Bcl-XL (IC50 ~400 nM) yet had little effect on the interaction between Bcl-XL and BimL (stable at >3 μM) (Figure 2E). Thus similar to what was seen in cells by FLIM FRET, direct binding of Bim to Bcl-XL is more resistant to ABT-263 than is binding of tBid to Bcl-XL.

To test the functional consequences of this we measured protein binding and liposome permeabilization at the same time. Under conditions that support measurement of both, the IC50 for ABT-263 for FRET between cBid and Bim with Bcl-XL was 212 ± 43 and>700 nM, respectively while for liposome permeabilization the corresponding EC50’s were 65 ± 9 nM and 150 ± 16 nM, n = 3 independent duplicates,±standard error. Thus, the change in binding affinity results in a corresponding change in membrane permeabilization.

Regulation of apoptosis by fluorescent fusion proteins in live cells

The functional properties of the fusion proteins used in FLIM-FRET experiments were examined using multiple assays in MCF-7 cells. Transient transfection by the requisite plasmids demonstrated that expression of VBim and VtBid killed MCF-7 cells as assessed morphologically for both cell and nuclear condensation and mitochondrial transmembrane potential (Figure 3A). In contrast, expression of VBad had little effect on cell death in this cell line suggesting that inhibition of Bcl-2 and Bcl-XL is not sufficient to induce apoptosis in MCF-7 cells.

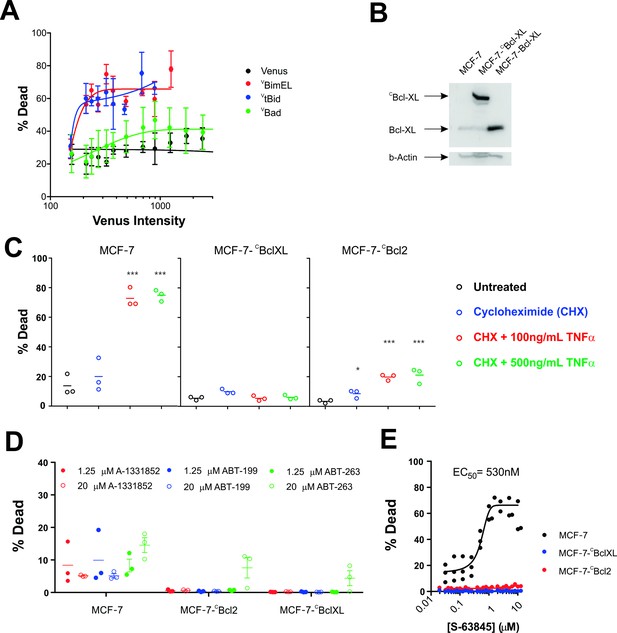

MCF-7 cells are killed by transient expression of BimEL or Bid, are protected by stably expressed Bcl-XL or Bcl-2 and depend on MCL-1 for survival.

(A) Transient expression of exogenous VtBid (blue) and VBimEL (red) killed MCF-7 cells. MCF-7 cells were largely resistant to expression of VBad (green) as the resulting cell death was similar to expression of the control protein Venus (black). Images of individual cells were assessed for apoptosis based on staining with TMRE and the nuclear dye DRAQ five using a multiparametric linear classifier. An increase in the percentage of cells scored as dead or dying (% Dead) as a function of Venus intensity demonstrated that the VtBid and VBimEL fusion proteins retain pro-apoptotic activity. Error bars indicate standard error for three independent replicates. At least 30 cells were analyzed at each point representing a Venus intensity bin. (B) Immunoblotting of lysates from MCF-7 cells (lane 1) and MCF-7 cells expressing exogenous CBcl-XL (lane 2) or Bcl-XL (Lane 3) with an antibody to Bcl-XL demonstrated that the exogenous proteins are at least 20-fold over-expressed compared to endogenous Bcl-XL. The same blot was probed for β-actin as a loading control. (C) Cells classified as dead or dying (% Dead) for 3 cell lines (MCF-7 and MCF-7 expressing either CBcl-XL or CBcl-2), treated with 2 µg/ml cyclohexamide (CHX), or CHX plus TNFα (250 ng/ml and 500 ng/ml) for 24 hr. Data (% Dead) for three independent replicates (circles) and the mean of the replicates (line) are plotted. A one-way ANOVA test was performed with a Dunnett's Multiple Comparison post-test (Graphpad Prism), to compare all treated wells with untreated controls for each cell line. (D) Overexpression of CBcl-2 and CBcl-XL protected cells from BH3-mimetics. Points represent the average percentage of cells classified as dead or dying (% Dead) for individual replicates, with the mean of the replicates indicated by a line. MCF-7 cells and MCF-7 cells expressing either Bcl-2 or Bcl-XL were treated with 1.25 µM (dot) and 20 µM (circle) ABT-199, A-1331852 or ABT-263 as indicated above. Neither selective nor dual inhibition of Bcl-2 and Bcl-XL induced substantial cell death in MCF-7 cell lines (all below 20% Dead) demonstrating these cells are not highly dependent on expression of either of these anti-apoptotic proteins. Nevertheless expression of Bcl-2 or Bcl-XL reduced cell death to barely detectable levels. (E) The MCL-1 inhibitor, S-63845 (Servier) kills MCF-7 (black), but does not kill MCF-7 CBcl-XL (blue) and MCF-7 CBcl-2 (red) cells. An EC50 value of 530 ± 6 nM, was calculated for MCF-7 cells in GraphPad Prism using a non-linear fit of normalized data on a log scale (log(agonist) verses response, and variable slope (four parameters)).

https://doi.org/10.7554/eLife.37689.015

To examine the effect of expression of exogenous CBcl-XL (confirmed by immunoblotting in Figure 3B) apoptosis was triggered with TNFα and cycloheximide (CHX) in the same cell clones used for FLIM-FRET above. Untreated and cells treated with only CHX were used as negative controls. As expected, untransfected MCF-7 cells were efficiently killed while cells expressing either CBcl-XL or CBcl-2 were highly resistant to this well-established method for the induction of apoptosis (Figure 3C).

To determine the importance of other anti-apoptotic proteins expressed endogenously in these cells, they were treated with specific small molecule inhibitors. Consistent with the results demonstrating resistance to Bad, MCF-7 cells were largely resistant to inhibition of Bcl-2 and/or Bcl-XL (Figure 3D). Neither selective nor dual inhibition of Bcl-2 and Bcl-XL induced substantial cell death in MCF-7 cell lines (all below 20% Dead) demonstrating these cells are not highly dependent on expression of either of these anti-apoptotic proteins. Nevertheless, expression of CBcl-2 or CBcl-XL reduced cell death further (Figure 3D).

In contrast, MCF-7 cells were sensitive to inhibition of MCL-1 (Figure 3E). Moreover, overexpression of CBcl-XL or CBcl-2 protected MCF-7 cells from the MCL-1 inhibitor S-63845, likely by inhibiting pro-apoptotic proteins displaced by the BH3-mimetic from MCL-1 (Figure 3E). Taken together the data demonstrate that MCF-7 cells are primarily dependent on expression of MCL-1 for survival and that the exogenously expressed fluorescence protein fusions function as predicted in this cell line.

The Bim BH3 and Bim CTS both contribute to resistance to ABT-263

It is commonly accepted that the only stable binding interaction between Bim and anti-apoptotic proteins is via the BH3-region of Bim (Bim BH3) binding in the hydrophobic groove formed by the BH3 1–2 regions of the anti-apoptotic proteins (Liu et al., 2010; Sattler et al., 1997). However, resistance to ABT-263 suggests that in the context of the whole protein either the Bim BH3 region binds differently than BH3-peptides to Bcl-XL or a region not included in previous in vitro experiments, such as the N-terminal and C-terminal sequences shared by all three isoforms, contains sequences conferring ABT-263 resistant binding. To test these sequences, mutants harboring deletions in VBimEL and mutants in which the BH3-regions were exchanged between BimEL and Bad (Figure 4A) were assayed by FLIM-FRET for resistance to ABT-263 and to the BH3-2A mutation (Figure 4B–C and Figure 4—figure supplement 1).

Figure 4 with 1 supplement see all

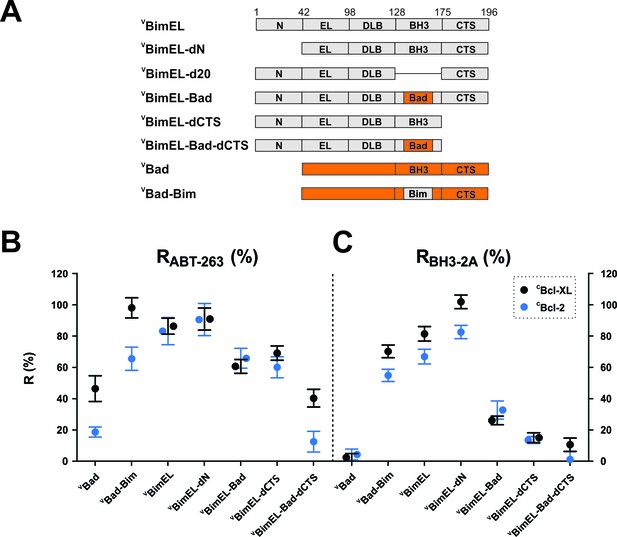

Resistance of CBcl-XL:VBimEL and CBcl-2:VBimEL complexes to ABT-263 is dependent on both the Bim BH3 and the Bim CTS.

(A) Stick diagrams for the different VBimEL constructs expressed in cells. (B) RABT-263 for CBcl-XL:VBH3-protein complexes (black) and CBcl-2:VBH3-protein complexes (blue). (C) RBH3-2A of CBcl-XL:VBH3-protein complexes (black) and CBcl-2:VBH3-protein complexes (blue). Data in (B) and (C) are mean ±95% confidence intervals calculated as in Figure 2 from FLIM-FRET binding curves shown in Figure 4—figure supplement 1. Data for VBad and VBimEL from Figure 2 are included to facilitate direct visual comparisons. All binding data are from Table 1.

https://doi.org/10.7554/eLife.37689.017

The trends observed for binding of the mutants to CBcl-XL and CBcl-2 were remarkably similar. Truncation of the N-terminus of BimEL (VBimEL-dN) had little impact on Bim binding (Table 1), but replacing the BH3 region in Bad with that in BimEL (VBad-BimEL) increased RABT-263 compared with VBad. Consistent with this result, binding of the reciprocal mutant (VBimEL-Bad) to either CBcl-XL or CBcl-2 was more sensitive to the drug and the BH3-2A mutation (RABT-263 ~60–65%, Figure 4B RBH3-2A ~30% Figure 4C, black and blue) respectively, compared to VBimEL (both R values ~ 80%, Table 1). As expected, deletion of the entire BH3 region (BimEL-d20, Figure 4A) reduced the interactions with Bcl-XL and Bcl-2 to a level similar to random collisions in the membrane (Rd20 ~25%, Figure 4—figure supplement 1F and L). Unexpectedly, deletion of the C-terminal sequence (CTS) resulted in significant decreases in RABT-263 and RBH3-2A (Figure 4B–C and Table 1). Combining deletion of the Bim CTS with replacement of the Bim BH3 region by that of Bad (VBimEL-Bad-dCTS), reduced the values of RABT-263 and RBH3-2A to that of VBad (Figure 4B–C and Table 1). Thus, both BH3 and CTS sequences contribute to Bim binding anti-apoptotic proteins.

The CTS of Bim contributes to pro-apoptotic activity

To examine the functional importance of the Bim CTS further, the pro-apoptotic activities of selected Bim mutants were examined in MCF-7 cells with and without exogenously-expressed Bcl-XL or Bcl-2. Expression of CBcl-XL or CBcl-2 efficiently protected cells from lower levels of expression of VBimEL and VBimEL-dCTS (<1000 units of Venus intensity) however, in neither case was the protection complete at higher levels of expression (Figure 5A).

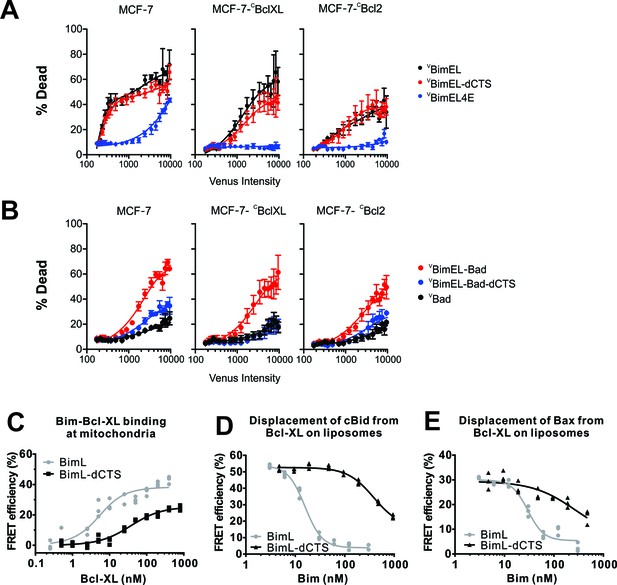

The CTS contributes to Bim mediated inhibition of Bcl-XL and Bcl-2.

The BH3-proteins indicated to the right of the panels were expressed by transient transfection in MCF-7 cells and MCF-7 cells stably expressing either CBcl-XL or CBcl-2, as indicated. Commitment to cell death (% Dead) was assessed for individual cells using a linear classifier trained on both cell and nuclear morphology and TMRE intensity. Venus intensity was used to estimate for individual cells the relative BH3 protein expression and to divide them into bins with similar expression levels. For each bin, the % of cells classified as dead or dying (% Dead) is represented by the means from three replicates (colored dots); bars indicate standard error of the means. (A) Transient expression of pro-apoptotic BH3 proteins killed MCF-7 cells in an expression level dependent manner that was inhibited by exogenous expression of CBcl-XL and CBcl-2 (black lines). Deletion of the CTS of BimEL did not inhibit induction of cell death resulting from expression of BimEL in all 3 cell lines (red lines). High level expression of BimEL-4E killed MCF-7 cells in a manner completely inhibited by exogenous expression of either anti-apoptotic protein (navy blue lines). (B) The BH3 protein VBimEL-Bad that is unable to bind MCL-1 has reduced cell killing activity in MCF-7 cells that depends on the BIM CTS sequence and is poorly inhibited by exogenous expression of Bcl-XL or Bcl-2. Expression level dependent cell death was equivalent for VBimEL-Bad-dCTS and Bad consistent with MCF-7 cells being protected by endogenous MCL-1. (C–E) Interactions of Bcl-XL with BimL, BimL-dCTS, tBid and Bax measured using FRET. Data from three independent experiments are shown as individual points, some of which are not visible due to overlap. (C) The CTS of BimL increases its affinity for Bcl-XL. Binding of 4 nM Alexa568-labeled BimL or BimL-dCTS to the indicated amounts of Alexa647-labeled Bcl-XL was measured by FRET in samples containing mouse liver mitochondria. The resultant apparent Kd values for binding to Bcl-XL by BimL and BimL-dCTS, 3 ± 1 nM and 35 ± 5 nM, respectively are both well below the concentrations of the proteins expressed in cells. (D) The CTS of BimL increases displacement of Bid from Bcl-XL. Binding of cBid to membranes displaces the N-terminal region and the remaining tBid portion containing the BH3 region binds to membranes and anti-apoptotic proteins. Complexes of Alexa568-labeled cBid (4 nM) and Alexa647-labeled Bcl-XL (10 nM) were formed in incubations containing 2.9 nM liposomes. Displacement of cBid from Bcl-XL was measured by loss of FRET between Alexa568-labeled cBid and Alexa647-labeled Bcl-XL upon addition of the indicated concentrations of BimL or BimL-dCTS. (E) The CTS of BimL increases displacement of Bax from Bcl-XL. Bim mediated displacement of Bax from Bcl-XL was measured as in (d) except that complexes between Bcl-XL and Bax were assembled from Alexa568-labeled Bax (10 nM), a Bid mutant that activates Bax but does not bind Bcl-XL (10 nM cBidmt1), Alexa647-labeled Bcl-XL (30 nM), 2.9 nM liposomes and the indicated concentrations of BimL or BimL-dCTS. Because in these reactions 30 nM Bcl-XL was required to bind 10 nM Bax saturably as opposed to the 10 nM Bcl-XL used in (d) the concentrations of BimL and BimL-dCTS needed to displace Bax are higher than for displacement of tBid in experiments with added cBid. The curves are further complicated because the displaced Bax can also bind to BimL and BimL-dCTS. Thus while these data demonstrate that both BimL and BimL-dCTS displace Bax from Bcl-XL the curves are difficult to interpret in terms of binding constants.

https://doi.org/10.7554/eLife.37689.021

Unexpectedly, in MCF-7 cells there was no significant difference in induction of cell death by removing the CTS from BimEL (Figure 5A). There are two factors that are likely contributing to this result. First. Bim not only inhibits anti-apoptotic proteins it also activates the executioner proteins Bax and Bak, potentially confounding analysis. As this mechanism may be relevant in multiple cell lines it is examined in more detail elsewhere (Chi et al., 2019). Second, MCF-7 cells depend on MCL-1 for survival (Figure 3E).

To avoid the contribution to cell death by inhibition of MCL-1 we made use of the Bim mutant with the Bad BH3 region (VBimEL-Bad) as it is not expected to inhibit Mcl-1. Consistent with expectation, VBimEL-Bad was less effective than VBimEL in killing MCF-7 cells (Figure 5B). Deletion of the CTS from VBimEL-Bad resulted in a further loss of pro-apoptotic activity suggesting that in VBimEL the effect of the CTS was masked by VBimEL binding to and inhibiting MCL-1 (Figures 5A and 3b). Consistent with the results for VBimEL, inhibition of VBimEL-Bad by Bcl-2 and Bcl-XL was limited. While this result is also consistent with a role for MCL-1 in binding pro-apoptotic proteins displaced from Bcl-2 and Bcl-XL by VBimEL-Bad there are other possible explanations that will be the subject of future investigations.

To examine potential molecular mechanisms underlying the effects of deletion of the CTS from Bim in a more controlled system we examined BimL and BimL-dCTS binding to Bcl-XL and displacement of BH3 proteins from Bcl-XL using purified proteins and the FRET based assays similar to those described above (Figure 2E). When assayed directly, in incubations containing mitochondria, deletion of the CTS from BimL reduced the apparent affinity for binding to Bcl-XL (Figure 5C). As predicted from the reduced affinity of this interaction, BimL-dCTS was also less effective at displacing tBid and activated Bax from Bcl-XL (Figure 5D and E, respectively. Control FRET measurements indicated that at the concentrations used binding of cBid by Bcl-XL was saturated and that all of the proteins other than BimL-dCTS were bound to liposome membranes. Moreover, the interactions take place on the membrane surface as both tBid and activated Bax very efficiently bind to liposomes (Kale et al., 2014).

Multiple residues in the Bim BH3 contribute to ABT-263 resistance

There are five hydrophobic residues/groups named h0-h4 on the hydrophobic side of the BH3 α-helix in pro-apoptotic BH3-proteins hypothesized to mediate BH3-protein binding to anti-apoptotic proteins (Figure 6A). To quantify the binding due to each of these residues without potential interference from the additional binding site within the Bim CTS, mutations were introduced into a chimeric fusion protein composed of the Bad sequence with the Bim BH3 region (VBad-Bim in Figure 4A). The introduced mutations substitute residues in the Bim BH3 sequence at positions h0, h1, h1 +2 (an R between h1 and h2), and h3 with the corresponding residues in Bad (Figure 6A). When measured by FLIM-FRET, the relative effects of most of the individual mutations on the RABT-263 and RBH3-2A values for VBad-Bim binding to CBcl-XL (black) and CBcl-2 (blue) reduced binding by 10–20% (Figure 6B, Figure 6—figure supplement 1 and Table 1). Among these the h0 and h1 residues contributed to Bim binding to Bcl-2 and Bcl-XL the most. Substitution of the h0 sequence with WAA reduced RABT-263 for VBad-Bim to CBcl-XL from 98% (95% Confidence Interval (CI) 6%) to 79% (CI 6%). Similarly, substitution of I146 with Y decreased RABT-263 for VBad-Bim to 83% (CI 5%). The reductions in RABT-263 for VBad-Bim to Bcl-2 were similar (Table 1). However, the RABT-263 for VBad-Bim binding to both Bcl-XL and Bcl-2 was unexpectedly high. As Bad also has a CTS sequence that binds to membranes and may have other as yet uncharacterized functions we examined the effect of the I146Y mutation in BimEL-dCTS. The RABT-263 for Bcl-XL for this mutant (BimEL-I146Y-dCTS) was 38% (CI 8%) compared to 69% (CI 5%) for VBimEL-dCTS binding to CBcl-XL suggesting a role for I146 in BimEL binding to Bcl-XL (Figure 6C). Although a reduction was also seen for CBcl-2 the confidence intervals overlapped suggesting there are subtle differences in Bim binding to Bcl-XL and Bcl-2. The small differences observed for substitutions at other positions within Bim-BH3 suggest either we have reached the limit of sensitivity for the FLIM-FRET assay or they may augment but individually are not critical for ABT-263 resistant binding of Bim to Bcl-XL and Bcl-2.

Figure 6 with 1 supplement see all

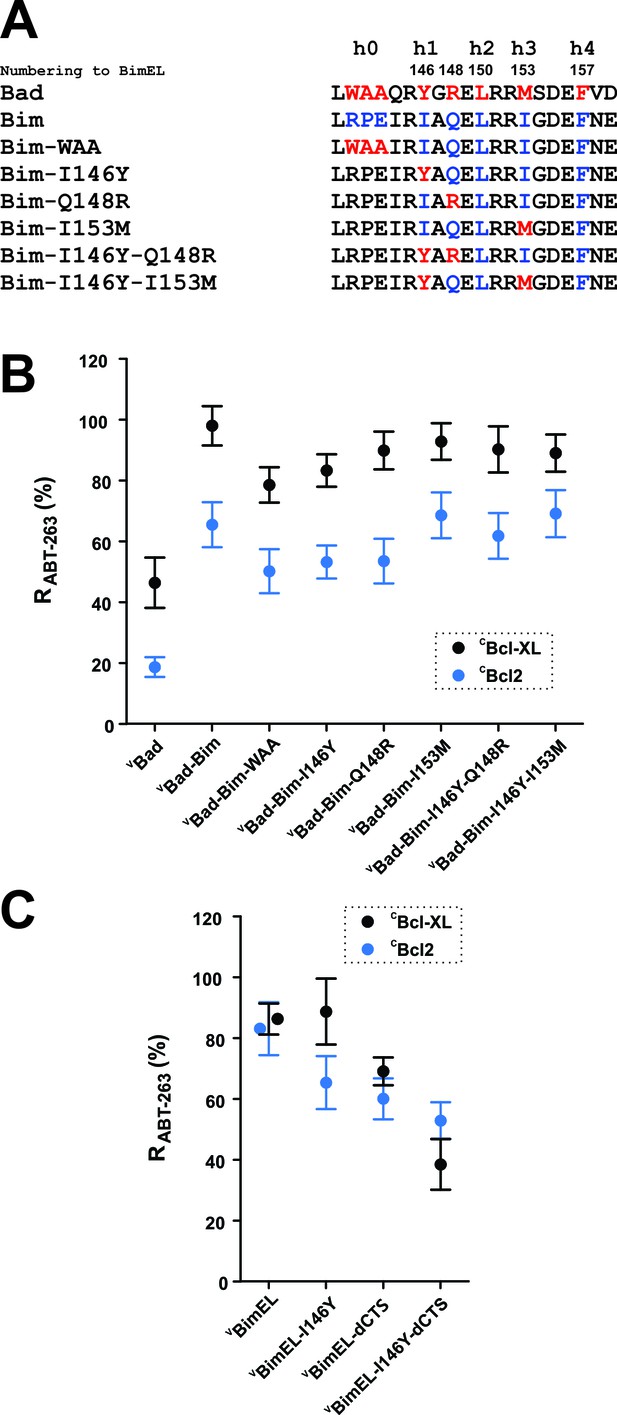

h0 and h1 residues in the Bim BH3 contribute to the resistance of Bcl-XL:Bim complexes to ABT-263.

(A) Sequence alignment of the BH3 regions of Bad and Bim and the sequences of VBad-Bim mutants, residues from Bad (red), Bim (blue). (B) Identification of conserved hydrophobic residues in the Bim BH3 that contributed to RABT-263 for CBcl-XL:VBad-Bim (black) and CBcl-2:VBad-Bim (blue) complexes. The RABT-263 values of CBcl-XL:VBad-Bim and CBcl-2:VBad-Bim complexes from Figure 4b and Table 1 were included to facilitate direct comparison. (C) The BH3 h1 residue I146 contributes to Bim binding to Bcl-2 and Bcl-XL. Substitution of I146 with the corresponding residue from Bad (BimEL-I146Y) decreased RABT-263 for CBcl-XL: VBimEL/VBimEL-dCTS (black) and CBcl-2:VBimEL/VBimEL-dCTS (blue) complexes. Data are mean ±95% confidence intervals calculated from FLIM-FRET binding curves shown in Figure 6—figure supplement 1.

https://doi.org/10.7554/eLife.37689.023

The Bim CTS increased Bim binding to Bcl-XL and Bcl-2 independent of Bim binding membranes

Deletion of the Bim CTS has been shown to abrogate binding to membranes (O'Connor et al., 1998). We therefore hypothesized that the membrane binding function of this region might affect the resistance of Bcl-XL/Bim and Bcl-2/Bim complexes to either ABT-263 treatment or BH3-2A mutations by increasing the local concentration of the proteins on mitochondria. However, instead of an uninterrupted hydrophobic sequence of more than 15 residues typical of tail-anchor proteins, the Bim CTS consists of two short hydrophobic sequences and includes multiple positively charged Arg residues, two of which are near the center of the sequence (Figure 7A, green).

Figure 7 with 1 supplement see all

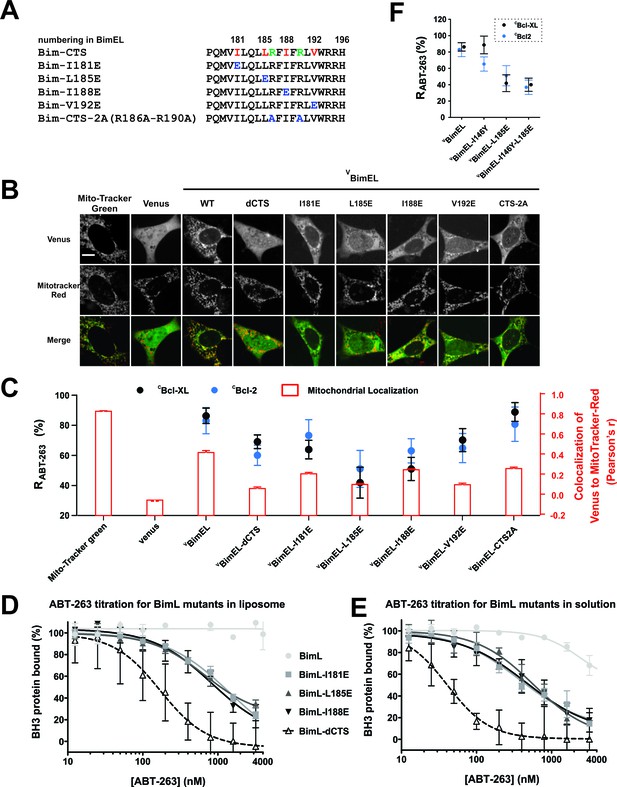

The Bim CTS binds to Bcl-XL and Bcl-2 independent of binding to membranes (A) Sequence alignment for the Bim CTS and mutants.

Bim h1-h4, red; arginine residues within the CTS, green; substitutions, blue; numbering is for BimEL. (B) Selected images showing sub-cellular localization of VBimEL-mutants compared to MitoTracker. The scale bar represents 10 μm. (C) Bim binding to Bcl-XL and mitochondria by the Bim CTS are independent. Co-localization (Pearson’s r) for Venus and MitoTracker-Red signals (Red bars), where average ±SEM was calculated using mean Pearson’s r values determined in three independent replicates. At least 150 transiently transfected cells were analyzed across replicates. RABT-263 of CBcl-XL:VBimEL-mutant complexes (black) or CBcl-2:VBimEL-mutant complexes (blue). Data are mean ±95% confidence intervals calculated from FLIM-FRET binding curves shown in Figure 7—figure supplement 1. VBimEL (from Figure 1) and VBim-CTS2A mutant complexes have similar high RABT-263 values although mitochondrial localization for VBim-CTS2A is impaired. VBimEL-L185E, VBimEL-I188E, VBimEL-V192E and VBim-CTS2A are all poorly localized at mitochondria yet have increasing RABT-263 values. (D–E) BimL binding to Bcl-XL is improved by binding to membranes but most resistance to ABT-263 is due to Bim CTS dependent binding to Bcl-XL. Purified Bcl-XL and BimL protein binding in the presence of different concentrations of ABT-263 quantified in vitro using purified full-length proteins with (D) and without (E) liposomes. Control experiments demonstrating efficient binding of BimL to liposomes and Bcl-XL binding data for the Bim mutants are presented in the companion paper (Chi et al., 2019). Data are mean ±SD (n = 3 independent experiments). (F) Mutation of BimEL-L185 to E reduced RABT-263 for CBcl-XL:VBimEL (black) and CBcl-2:VBimEL (blue) complexes. However, additional mutation of I146 did not further reduce RABT-263. Data are mean ±95% confidence intervals calculated from FLIM-FRET binding curves shown in Figure 7—figure supplement 1.

https://doi.org/10.7554/eLife.37689.027

To examine the importance of sequences within the Bim CTS for ABT-263 resistant binding of VBimEL to CBcl-XL and CBcl-2, mutants were generated in which hydrophobic (I181, L185, I188 and V192) and hydrophilic (R186 and R190) residues of Bim were substituted with the negatively charged amino acid Glutimate (E) or the hydrophobic residue Alanine (CTS-2A), respectively (Figure 7A). The impact of these mutations on both the subcellular localization of VBimEL at mitochondria (measured by the Pearson’s r with MitoTracker) and RABT-263 values were quantified for binding to CBcl-XL and CBcl-2. Compared to VBimEL (Pearson’s r ~ 0.4) mitochondrial localization of all of the mutants was similarly poor (Pearson’s r 0.1–0.3) (Figure 7B–C), and only slightly greater than the Pearson’s r measured for the cytoplasmic Venus control. However, the mutants displayed different binding properties to the anti-apoptotic proteins (Figure 7C and Figure 7—figure supplement 1). For example, even though localization at mitochondria for the VBim-CTS2A mutant was impaired, it bound to both anti-apoptotic proteins in an ABT-263 resistant fashion (RABT-263 ~89%, CI 6% and 81%, CI 11%, for CBcl-XL and CBcl-2, respectively) similar to VBimEL (85%, CI 5% and 83%, CI 9%; Table 1 and Figure 7C). In contrast, RABT-263 for VBimEL mutants L185E (42%, CI 10%), I188E (51%, CI 8%) and V192E (70%, CI 8%) exhibited gradually increasing binding to CBcl-XL (Table 1) without a corresponding increase in binding to mitochondria (Figure 7C). When all of the data were analyzed in aggregate using Spearman’s rank-order correlation to include relationships that might not be linear the result was no correlation between localization for Bcl-XL and a weak correlation for Bcl-2. We suspect the latter may be due to the fact that Bcl-2 is constitutively membrane bound while Bcl-XL is located in both the cytoplasm and on the membrane. Thus in cells, localization to mitochondria and binding to anti-apoptotic proteins are independent functions of the Bim CTS.

The effect of the Bim CTS on binding to membranes and Bcl-XL was also assessed directly using purified proteins and liposome membranes. As above, binding of BimL and BimL-mutants to Bcl-XL was measured by FRET for incubations with and without liposomes. Displacement from Bcl-XL of the BimL mutants I181E, L185E, I188E and dCTS (numbered according to the BimEL sequence to facilitate comparison) were measured for different concentrations of ABT-263 (Figure 7D). Consistent with our observations in live cells, the binding of BimL-dCTS to Bcl-XL was much more sensitive to ABT-263 (IC50 ≈ 200 nM) compared to BimL (IC50 >>4 µM). These IC50 values are difficult to compare directly with RABT-263 values because the protein concentrations are different. Nevertheless, in this cell free assay using purified BimL and Bcl-XL, mutation of I181, L185 and L188 in the CTS region all resulted in increased sensitivity to displacement by ABT-263 (Figure 7D). As expected (Pécot et al., 2016), BimL binding to Bcl-XL in the absence of membranes was more easily displaced by ABT-263, but still required drug concentrations greater than 1 μM (compare Figure 7D with E). In solution, the mutations further decreased resistance of Bcl-XL/BimL complexes to ABT-263 (Figure 7E) confirming they augment binding of BimL to Bcl-XL independently of binding to membranes. The simplest explanation for ABT-263 resistant binding is a direct interaction between the Bim CTS and Bcl-XL in the context of the full length Bim protein.

Mutation of the BH3 residue I146 to Y slightly exacerbated the effect of deletion of the entire CTS from Bcl-XL on RABT-263 (Figure 6C). However, when the I146Y mutation was combined with mutation of L185E we were unable to record a decrease in RABT-263 (Figure 7F) suggesting that the effects of the individual point mutants are not additive. Alternatively the effect size may be too small to measure by FLIM-FRET, a result consistent with the L185E mutation having less effect on RABT-263 than deletion of the CTS (Table 1).

The Bim CTS interacts with Bcl-XL through hydrophobic residues

A direct interaction between the Bim CTS and Bcl-XL is incompatible with current assumptions that the Bim CTS inserts into lipid bilayers as a transmembrane helix similar to other tail-anchor proteins (Petros et al., 2004). Therefore, we expressed a version of BimEL with Venus fused to the C-terminus (BimELV) to prevent the Bim CTS from adopting a transmembrane topology. Distance constraints mean that this protein can only undergo FRET with Bcl-XL if the Venus protein is located on the cytoplasmic side of the membrane.

Fusion of Venus to the C-terminus of BimEL did not abolish localization of BimELV at mitochondria (Figure 8A and C, red bars) and did not impair ABT-263 resistant binding to CBcl-XL (Figure 8B–C). Moreover, the FLIM-FRET efficiency observed was higher for BimELV than for VBimEL binding to CBcl-XL (Figure 8B) a result inconsistent with a transmembrane topology for the Bim CTS, as it suggests that Venus on the C-terminus of Bim is closer than Venus on the N-terminus of Bim to the mCer3 on the N-terminus of Bcl-XL. These results not only confirm the two independent functions of the Bim CTS, but also suggest that when bound to membranes the residues within the Bim CTS that bind CBcl-XL, for example L185, are on the cytoplasmic side of the membrane.

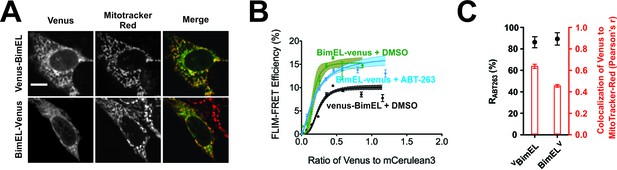

Bim CTS binds with non-transmembrane topology to cellular membranes.

(A) Selected images for sub-cellular localization of VBimEL and BimELV in BMK-DKO cells compared to MitoTracker. The scale bar represents 10 µm. (B) In live cells CBcl-XL binding to BimELV is resistant to ABT-263. FLIM-FRET binding curves for the interactions between CBcl-XL and BimELV in ABT-263 (blue) or DMSO (green) treated BMK-DKO cells expressing CBcl-XL. Binding of CBcl-XL to VBimEL (black) measured in the same three experiments is shown for comparison. Data from ROIs from three independent experiments were combined and used to generate binding curves with 95% confidence intervals as in Figures 1 and 2. (C) Sub-cellular localization of BimELV is impaired compared to VBimEL but ABT-263 resistant binding to CBcl-XL (RABT-263) is unchanged. Colocalization for Venus and MitoTracker-Red was measured in this experiment for manually selected regions of interest from transiently transfected cells expressing VBimEL or BimELV (Pearson’s r, red); Error bars, SEM, n > 30 cells. RABT-263 of CBcl-XL:VBimEL or CBcl-XL:BimELV complexes, black dots. Data are mean ±95% confidence intervals calculated from FLIM-FRET binding curves shown in panel b.

https://doi.org/10.7554/eLife.37689.031

To examine the topography and Bcl-XL binding of the Bim CTS in solution and membrane bound states directly, we used a well-established procedure in which an environment sensitive fluorescent dye N,N0-dimethyl-N-(Iodoacetyl)-N0-(7-nitrobenz-2-oxa-1,3-diazol-4-yl) ethylenediamine (NBD) was attached to recombinant BimL at specific sites and the environment of the dye was measured by fluorescence spectroscopy (Kale et al., 2014). A series of mutants were generated in which individual residues across the Bim CTS were replaced with cysteine to enable NBD-labeling. As a solvent exposed control, a Bim mutant was prepared with a cysteine located at position 41. The fluorescence intensities of the dye labeled mutants were then recorded in the absence or presence of liposomes, Bcl-XL, and/or the aqueous quencher iodide.

The fluorescence of NBD increases when the dye inserts into a lipid bilayer or becomes deeply buried in the interior of a protein (Johnson, 2005). When Bim bound to Bcl-XL in solution there were no significant changes in hydrophobicity at any of the positions of the probe suggesting that during complex formation these residues do not become sufficiently buried to be protected from water (Figure 9A, diagrammed in 9C). In contrast, when BimL bound to liposomes the NBD fluorescence increased at positions 179–182 and 191–195 suggesting that these two regions anchor the CTS to the lipid bilayer (Figure 9D, diagrammed in 9F). Complex formation with Bcl-XL on the membrane did not markedly change the pattern of which amino acids increased in hydrophobicity, suggesting that complex formation does not change the way the Bim CTS interacts with membranes substantially (Figure 9G diagrammed in 9I).

Figure 9 with 2 supplements see all

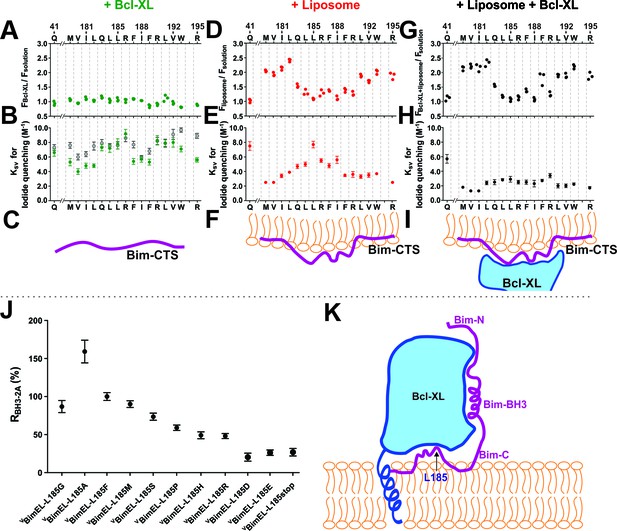

The Bim CTS binds to the cytoplasmic surface of membranes enabling concomitant binding to Bcl-XL (A–I) Interaction of the Bim CTS with liposomes and Bcl-XL measured using purified recombinant BimL protein.

The amino-acids and positions above the panels indicate the residues in BimL exchanged for single-cysteines for labeling with NBD (numbering for BimEL, subtract 56 for BimL numbering). Top row, (A,D,G) NBD fluorescence changes in response to the addition of (A) Bcl-XL (green), (D) liposomes (red), (G) Bcl-XL and liposomes (black). Larger numbers indicate increased hydrophobicity of the environment of the NBD dye. Middle row, (B,E,H) iodide quenching constants (KSV) for the same mutants and binding partners as above. Smaller KSV values indicate protection from iodide. Data are mean ±95% confidence intervals for linear fitting of the data as shown for exemplar raw quenching data, in Figure 9—figure supplement 1. Lower row, (C,F,I) illustrations of possible interactions of the Bim CTS based on the data above each. (J) Substitution of the L at position185 of BimEL with a charged residue abolishes resistance to ABT-263 while hydrophobic residues are tolerated. RBH3-2A for CBcl-XL:VBimEL complexes from FLIM-FRET binding curves shown in Figure 9—figure supplement 2 were calculated as in Figure 2. Data are mean ±95% confidence intervals for fit of the binding model. (K) Schematic model of the double-bolt locked Bcl-XL:Bim:membrane complex. Bcl-XL, cyan; Bim, purple; membrane, orange. The BH3 region of Bim engages the hydrophobic groove of Bcl-XL. The Bim CTS adopts a conformation in which the two ends bind to the membrane and the central region, particularly residue 185, binds to Bcl-XL. The C-terminus of Bcl-XL also interacts with the membrane (Yao et al., 2015).

https://doi.org/10.7554/eLife.37689.033

Iodide quenching was used to identify residues protected by protein-protein interactions in addition to those protected by binding to membranes. Due to the relatively large size of iodide, residues involved in protein-protein interactions are often protected from quenching by iodide but unlike residues interacting with lipids the NBD fluorescence does not increase substantially because there is no protection from water (Johnson, 2005).

When Bim was incubated with Bcl-XL in solution, comparison with the control position 41 revealed that the NBD probes in the Bim CTS were not protected from iodide (Figure 9B–C, Figure 9—figure supplement 1), suggesting a relatively low affinity interaction between the Bim CTS and Bcl-XL in solution. As expected, when bound to membranes the residues at both ends of the Bim CTS that interact with the membrane were protected from iodide (Figure 9E compare residues 179–182 and 191–195). However, residues in the middle of the sequence surrounding residue 185 exhibited variable levels of protection from iodide with the NBD located at position 185 as accessible to iodide as the soluble control residue 41 (Figure 9E, Figure 9—figure supplement 1). Thus, in membrane bound Bim, the region between the two membrane binding sites in the Bim CTS remains on the surface of the membrane where it is accessible to iodide (diagrammed in Figure 9F). In contrast, when both Bcl-XL and liposomes were added the entire Bim CTS was protected from iodide (Figure 9H, Figure 9—figure supplement 1) strongly suggesting that on membranes Bcl-XL binds to or at least covers-up the central region of the Bim CTS (diagrammed in Figure 9I).

As position L185 was shown to have the largest effect on binding of BimEL to both CBcl-XL and CBcl-2 (largest decrease in RABT-263, Figure 7C), and is central to the region protected from iodide when BimL bound to Bcl-XL (compare Figure 9E and H) we made a series of mutations at this location for VBimEL-BH3-2A. In general, exchanging L185 with other amino acids with hydrophobic or polar non-charged side-chains (G, F, M, and S) did not affect the response of CBcl-XL:VBimEL-mutant complexes to BH3-2A mutations significantly, except for the L185A mutant that displayed increased binding affinity (increased RBH3-2A) (Figure 9J and Figure 9—figure supplement 2). For Bim-L185P, RBH3-2A decreased by about 20%, possibly due to a change in the structure or rigidity of the Bim CTS. However, replacing L185 with hydrophilic residues (H, R, D or E) decreased RBH3-2A, by ~30–60%, comparable to truncation of the CTS at position 185 (L185stop) or deletion of the entire CTS region (VBimEL-dCTS, Figure 4C). These results strongly suggest that L185 interacts with Bcl-XL through hydrophobic interactions.

Overall our data suggest a revised view of the Bcl-XL:Bim interaction (diagrammed in Figure 9K). Because Bim is bound to Bcl-XL by two different regions, the Bim BH3 and Bim CTS, the proteins are effectively double-bolt locked together.

Discussion

Using FLIM-FRET and full-length proteins in live cells and in biochemical assays with mitochondria and liposomes, we discovered that the binding interactions between Bcl-XL and Bim are more extensive and result in a much higher affinity interaction than measured previously using peptides or protein fragments (Chen et al., 2005). Although previous results ascribed an increased apparent affinity to binding to membranes (Pécot et al., 2016) our results demonstrate that the increased binding affinity of Bim compared to Bad for Bcl-XL is primarily due to the combined effect of interactions with both the Bim BH3 region (residues 140–160) and the central hydrophobic region of the Bim CTS (residues 184–190). While our data also confirm that the interaction occurs optimally at the membrane, the increase in affinity due to binding to membranes is relatively small (Figure 7D–E). Together the two Bcl-XL binding sites in Bim confer resistance to the inhibitors ABT-263, A-1155463 and A-1331852 (Figure 2D) and to mutation of Bim BH3 residues at h2 and h4 that we confirmed as the major anti-apoptotic protein binding residues for both tBid and Bad in live cells (Figure 1D–E, and Figure 2B–C).

The importance of residues within the BH3-region of Bim other than those at the h2 and h4 positions in binding to Bcl-XL and Bcl-2 (Figure 6) was not detected in previous studies using BH3 peptides. Moreover, it was not possible to detect the Bcl-XL binding function of the Bim CTS using pull-down strategies, most likely because the required detergents disrupt hydrophobic interactions. Therefore, to determine the effect of mutations and drugs on interactions we used an automated system to collect the data required to generate large numbers of FLIM-FRET binding curves each requiring minimally hundreds, but typically made up of thousands of measurements from at least three independent experiments.

Substitution of candidate residues within the h0-h4 region of the Bim BH3 sequence with the ones in the Bad BH3 revealed that in live cells the h0 group WAA and h1 residue I146 contribute to the binding of Bim to both Bcl-XL and Bcl-2 (Table 1). Because the residues at h2 and h4 are the same in Bad and Bim, the residues at h0 and h1 account for part of the increased affinity of binding of anti-apoptotic proteins by Bim compared to Bad.

In sum the additional interactions of the Bim BH3 region and the BIM CTS contributed roughly equally to the affinity of the interaction between Bim and Bcl-XL (Figure 4B, compare VBimEL-Bad and VBimEL-dCTS). Together deletion of the Bim CTS and mutation of h2 and h4 in the BH3 region of Bim almost eliminated binding to both Bcl-XL and Bcl-2 (Figure 4C). Moreover, the Bim CTS directly contributes to interactions with Bcl-XL (Figure 5 and Figure 7D–E) and much of this interaction is due to residue L185 (Figure 9). Consistent with this interpretation weak crosslinking was observed between this region of Bim and Bcl-XL (Chi et al., 2019). Thus unlike conventional lock and key models, the interaction of Bim with Bcl-XL and Bcl-2 is more reminiscent of a double-bolt lock with binding mediated by two distant interacting surfaces (separated by ~40 residues) working together. The affinity of the CTS region alone for Bcl-XL is low as shown by replacing the BH3 region in Bim with a mutant BH3 region from Bad that does not bind Bcl-XL, (Figure 4C, BimEL-Bad, RBH3-2A ~26%). However, even in this construct it appears that the CTS contributes to binding as removing the CTS (BimEL-Bad-dCTS) further reduced binding (RBH3-2A ~10%). Moreover, double-bolt lock binding even with a reduced affinity BH3 sequence results in a very stable interaction (BimEL RBH3-2A ~80%). This mechanism also explains how Bim differs from Bad and tBid, which can be displaced from Bcl-XL and Bcl-2 by ABT-263. Unlike what was concluded from cell free assays using partial proteins, a double-bolt lock model predicts that in cells displacement of Bim from anti-apoptotic proteins will require novel strategies targeting both interacting sites.

Our re-evaluation of the Bim CTS not only challenges the conventional belief that the sequence only functions to bring and keep Bim at the outer mitochondrial membrane (O'Connor et al., 1998; Terrones et al., 2008) but suggests that the Bim CTS does not adopt the previously proposed transmembrane topology (Petros et al., 2004). Instead, the CTS is pinned to the membrane by hydrophobic sequences at either end while the middle is exposed to the cytoplasmic environment (Figure 9D–F). We speculate that this topology allows the central region of the Bim CTS to bind to the membrane surface electrostatically via two Arg residues (Figure 7B–C and Figure 7—figure supplement 1). This hypothesis is consistent with our demonstration that substitution of these Arg residues with Ala decreased localization of the protein to membranes (Figure 7B–C) and may explain why there is no correlation between Bim mitochondrial localization and the translocase complex on the outer membrane despite colocalization (Frank et al., 2015). Binding of this region via hydrophobic residues at each end and electrostatically via arginine side chains is an arrangement that may facilitate Bim CTS binding to Bcl-XL through hydrophobic interactions including residue L185 (Figure 9J). This insight suggests the Bim CTS functions as an entirely new type of membrane binding domain. Moreover, the nature of the interactions with Bcl-XL and the observation that in healthy cells Bim is not bound to anti-apoptotic proteins suggest it may be possible to generate a pair of small molecules that selectively kill cancer cells by efficiently releasing Bim from or preventing Bim binding to Bcl-2 and Bcl-XL. However, given that Bim also activates both Bax and Bak and functional assays in cells demonstrating the importance of MCL-1 in MCF-7 cells (Figure 3E), our data strongly suggest that the effects of BH3 mimetics may be difficult to predict for different cell and tissue types.

Materials and methods

Key resources table
Reagent
type (species)
or resource
DesignationSource
or reference
IdentifiersAdditional
information
Antibodyantibody to Bcl-XL (Rabbit polyclonal)PMID: 14681679(1:10,000), human, mouse reactivity
Antibodyantibody to Beta-actin (Mouse monoclonal)AbgentCat. #: 8H10D10(1:5000), human, rat, mouse reactivity
AntibodyDonkey anti-rabbit (polyclonal)Jackson Immuno Research LaboratoriesCat. #: 711-035-150(1:10,000)
AntibodyDonkey anti-mouse (polyclonal)Jackson Immuno Research LaboratoriesCat. #: 711-035-152(1:10,000)
Cell line (H.sapiens)MCF-7PMID: 3790748Dr. Ronald N. Buick (University of Toronto)
Cell line (M. musculus)Baby Mouse Kidney(BMK)-DKO (Bax and Bak knockout) cellsPMID: 11836241Dr. Eileen White (Rutgers University)
Chemical compound, drugNavitoclax; ABT-263SelleckchemCat. #: S1001in DMSO
Chemical compound, drugA-1155463ChemietekCat #: CT-A115in DMSO
Chemical compound, drugA-1331852ChemietekCat. #: CT-A115in DMSO
Chemical compound, drugS-63845ChemietekCat. #: 1799633-27-4in DMSO
Chemical compound, drugVenetoclax; ABT-199ChemietekCat. #: CT-A199in DMSO
Chemical compound, drugTMREThermoFisher ScientificCat. #: T669
Chemical compound, drugDRAQ5Biostatus, UKCat. #: DR05500
Chemical compound, drugMitoTracker RedThermoFisher ScientificCat. #: M22425
Chemical compound, drugMitoTracker GreenThermoFisher ScientificCat. #: M7514
Chemical compound, drugAlexa 647-maleimideThermoFisher Scientific, Molecular probesCat. #: A20347
Chemical compound, drugAlexa568-maleimideThermoFisher Scientific, Molecular probesCat. #. A20341
Chemical compound, drugNBDMolecular ProbesCat. #: D-2004
Chemical compound, drugPC (L-α-phosphatidylcholine)Avanti Polar LipidsCat. #:840051Cfor making liposomes, used 48% PC
Chemical compound, drugDOPS (1,2-dioleoyl-sn-glycero-3-phospho-L-serine)Avanti Polar LipidsCat. #: 840035Cfor making liposomes, used 10% DOPS
Chemical compound, drugPI (L-α-phosphatidylinositol)Avanti Polar LipidsCat. #:840042Cfor making liposomes, used 10% PI
Chemical compound, drugPE (L-α-phosphatidylethanolamine)Avanti Polar LipidsCat. #: 841118Cfor making liposomes, used 28% PE
Chemical compound, drugTOCL, (18:1 Cardiolipin)Avanti Polar LipidsCat. #: 710335Cfor making liposomes, used 4% TOCL
Commercial assay or kitFugene HDPromegaCat. #: E2311
Commercial assay or kitTransIT-X2MirusCat. #: Mir 6003
Gene (H. sapiens)BaxPMID: 14522999,GI: L22473.1For recombinant protein
Gene (H. sapiens)Bcl-XLPMID: 18547146GI: Z23115.1For recombinant protein
Gene (H. sapiens)Bcl-2PMID: 22464442GI: M14745.1For expression of CBcl-2 in cells
Gene (H. sapiens)BadPMID: 22464442GI: AB451254.1For expression of VBad in cells
Gene (H. sapiens)Bcl-XLPMID: 22464442GI: NM_138578.3For expression of CBcl-XL in cells
Gene (M. musculus)BidPMID: 16642033,
PMID: 19062087
GI: NM_007544.4For recombinant protein
Gene (M. musculus)BimLthis paperGI: AAD26594.1This lab, plasmid # 2187, for recombinant BimL purification
Gene
(M. musculus)
tBidPMID: 22464442GI: NM_007544.4for expression of VtBid in cells
Gene (M. musculus)BimELPMID: 22464442GI: XM_006498614.3for expression of VBimEL in cells
OtherCell Carrier-384, UltraPerkinElmerCat. #: 6057300for live cell imaging
OtherNon-binding surface, 96-well plate, black with clear bottomCorningCat. #: 3881For recombinant protein and liposome assays critical to use non-binding plate
OtherOpera PhenixPerkinElmerCat. #: HH14000000
OtherISS-AlbaPMID: 25631031Custom built by ISS for DWA lab
Software, algorithmGraphPad PrismSan Diego, CaliforniaVersion 6Scientific graphing program, used to perform statistical analysis
Software, algorithmImageJPMID: 17936939MBF - ImageJ for microscopy, Dr. Tony Collins (McMaster University)FLIM-FRET analysis Macro, in this paper: https://github.com/DWALab/Liu_et_al_2018_eLife
Software, algorithmCellProfilerPMID: 17269487Colocalization analysis, in this paper: https://github.com/DWALab/Liu_et_al_2018_eLife
Transfected ConstructmVenus-pEGFP-C1otherGI: KU341334.1Dr. Ray Truant (McMaster University). Backbone EGFP-C1 (Clonetech)
Transfected ConstructmCerulean3-pEGFP-C1PMID: 21479270Dr. Mark A Rizzo (University of Maryland). Backbone EGFP-C1 (Clonetech)
Transfected ConstructpSPUTKStratagene Santa Clara CACat. #: CB4278654Cotransfected to reduce overexpression in live cells

Constructs and compounds for assays in live cells

Request a detailed protocol

Plasmids encoding the mCerulean3 (mCer3), or Venus fluorescence proteins in place of the EGFP coding region in pEGFP-C1 (Clontech) were kind gifts from Mark A. Rizzo (University of Maryland) and Ray Truant (McMaster University) respectively. To generate plasmids encoding the fusion proteins the required coding regions were amplified by PCR and inserted into the plasmids encoding the appropriate fluorescence protein. All of the plasmids included coding sequences for a GGS linker sequence between the coding regions except for VBad (linker sequence, SGLRSRGG) and BimELV (linker sequence, SRGGGPVAT). All the swapping and site-directed mutants were obtained through PCR-based mutagenesis using oligonucleotides from Integrated DNA Technologies and Phusion DNA polymerase from New England Biolabs. ABT-263 was purchased from Selleckchem, A-1155463,A-1331852 and ABT-199 were from Chemietek.

Cells, culture conditions and transfections

Request a detailed protocol

The MCF-7 human breast cancer cell line was cultured in Dulbecco's Modified Eagle Medium (DMEM, ThermoFisher) supplemented with 10% of fetal bovine serum (HyClone) and non-essential amino acids (NEAA, ThermoFisher). Transfections were performed using Fugene HD reagent according to the manufacturer’s standard protocol (Promega). MCF-7 cell clones stably transfected with vectors encoding mCer3, CBcl-XL or CBcl-2 were selected in DMEM supplemented with 10% fetal bovine serum, non-essential amino acids (NEAA, ThermoFisher) and 500 μg/ml neomycin. After 3 weeks colonies were isolated and cultured as above. The baby mouse kidney (BMK) cell line in which the genes for Bax and Bak have been deleted (BMK-DKO) was a kind gift from the originator Eileen White and was cultured as above. The two originating cell lines used in the studies reported here (MCF-7 and Baby Mouse Kidney cells with both Bax and Bak knocked out) and all stably transfected clones were shown to be free of mycoplasma using a PCR based test. The MCF-7 cells were authenticated by the hospital for Sick Children facility in Toronto. Clones that stably express mCer3 or CBcl-XL were selected and cultured with 5 μg/mL Blasticidin S. For microscopy, cells were seeded in 384-well imaging plates (PerkinElmer) and cultured as above for 24 hr prior to transient transfection. Cells treated with ABT-263, A-1155463 or A-1331852 were incubated at 37°C for 18–24 hr in a fresh media containing 20 μM drug before imaging unless indicated otherwise.

Image based cell death assay

Request a detailed protocol

MCF-7 cells grown in a 384 well plate (Cell Carrier Ultra) were transfected, using the TransIT-X2(Mirus) reagent and manufacturer’s protocol, with plasmids encoding Venus protein alone, or Venus protein fused to BimEL (VBimEL), tBid (VtBid) or Bad (VBad). Media was changed 3 hr later, and cells were incubated 24 hr. Prior to imaging, cells were stained with 10 nM tetramethylrhodamine (TMRE, to stain mitochondria transmembrane potential, Life Technologies) and 5 µM DRAQ 5 (to stain nucleic acids, Biostatus, UK) and incubated for at least 30 mins at 37°C, 5% CO2. Micrographs of the cells were acquired on an OPERA Phenix (PerkinElmer), using the 20x water immersion lens (NA 1.0). Data were acquired within 2 hr after staining and during imaging the cells were maintained at 37°C, 5% CO2. Four channels were collected simultaneously: mCer3 (Ex 425 nm, Em 435–480 nm), Venus (Ex 488 nm, Em 500–550 nm), TMRE (Ex 561, Em 570–630), DRAQ 5 (Ex 640 nm, Em 650–760 nm). Acquisition was automated and acquisition settings were identical between wells and for each independent replicate (n = 3). Acquisition settings were different for Figures 3 and 5 therefore, the X-axis is not comparable. For the data in Figure 5 the cloning vector, pSPUTK (Stratagene Santa Clara CA) was used to dilute the plasmid encoding the VBH3 proteins, to reduce overexpression of Venus-tagged protein while ensuring consistent transfection efficiencies.

Cell images recorded on the OPERA Phenix were imported into Harmony high-content analysis software (PerkinElmer). The seven step pipeline built to identify live and dead cells was as follows: 1) Nuclear and total cell areas for each cell were identified using DRAQ five intensity data and a Harmony segmentation algorithm. 2) The cytoplasmic area was obtained by subtracting the nuclear area from the total cell area. 3) Cell images that extended to or beyond the any edge of the micrograph were removed from the analysis as the total area is uncertain. 4) The total intensity of TMRE within each cell image was calculated. 5) Nuclear area and morphology features (e.g. roundness) were calculated. 6) Cell area and morphology features were calculated. As positive and negative controls,>100 cells treated with 500 ng/ml TNFα and cycloheximide (apoptotic cells) and >100 untreated cells, respectively were analyzed similarly for each experiment. 7) The intensity of Venus and mCerulean3 was measured for all selected cells. Data from the control cells were used to train a linear classifier in the Harmony software. Each cell death curve represents measurements for at least 1000 cells for each of three replicates.

To confirm that the linear classifier reported data similar to manual analysis a subset of the data was reanalyzed with manual thresholds to score cells as, ‘TMRE negative’ (TMRE intensity at least two standard deviations lower than the average in an untreated well) or ‘small nuclear area’ (Nuclear area at least two standard deviations lower than the average in an untreated well).

Cell death was also measured as a function of the amount of the transiently expressed protein, such as VBimEL, in cells. For this analysis individual cells were classified as alive or dead and then results were binned by Venus intensity. For these experiments the Venus intensity serves as an estimate of the amount of the BH3 protein produced in the cell. The range of intensities within each bin was kept consistent for each transfectant, for all three independent replicates. Mean % Dead and standard error was plotted for each intensity bin.

Fluorescence lifetime measurements

Request a detailed protocol

Steady-state fluorescence images and fluorescence lifetime images were both acquired using a custom-built Alba confocal microscope from ISS (Champagne, Illinois), which measures fluorescence lifetime by time correlated single photon counting (TCSPC). Channels of mCer3 and Venus were acquired simultaneously using 445 nm and 514 nm pulse interleaved excitation (PIE) through a 442/512/561 multiband filter and emission split by a 520nm-longpass filter was collected through 459–499 nm and 528–555 nm bandpass filters, respectively. All images were acquired as 256 pixels x 256 pixels at 25°C using a 60 × 1.3 NA PlanApo water immersion objective and laser powers set to minimize photobleaching and photon pileup during acquisition with 0.1 ms per pixel dwell time and 5-frame repeat. TCSPC-data were processed using VistaVision software (ISS) and the average lifetime for each pixel was obtained by fitting FLIM pixels binned to ensure a total photon count >1000 for each set of binned pixels analyzed. The lifetime and photon count for each pixel in both channels were exported for additional analysis using ImageJ.

Measuring protein:protein interactions in cells by FLIM-FRET

Request a detailed protocol

For Bcl-2 family proteins the problem of measuring protein:protein interactions in live cells (Herce et al., 2013) is particularly acute as the proteins often function differently at membranes therefore, assays using cell extracts do not capture either the correct or the complete set of activities (Lovell et al., 2008). Moreover, solubilizing membranes requires detergents artificially increase and decrease Bcl-2 family protein:protein interactions (Lovell et al., 2008). The use of purified proteins and cell free assays has provided much useful information, however, due to the difficulty of purifying full-length Bcl-2 family proteins, many assays in vitro are based on truncated proteins or peptides and the environment does not well represent that of an intact cell.

We used FLIM-FRET in live cells using fluorescent protein tagged full-length proteins to quantitatively study protein:protein interactions for Bcl-2 family proteins and to assess the impact of small-molecule inhibitors on these interactions (Aranovich et al., 2012; Kale et al., 2012; Liu et al., 2012). This technique removes the disadvantages of biochemical methods, but has its own limitations. For example the over-expression of a fusion protein with a fluorescent protein may result in protein concentrations within cells that are above the Kds for the interactions, affecting the relative Kds measured. For these reasons it is difficult to compare interactions between different pairs of proteins, instead the method is best suited to comparing the effects of small molecules and mutations on interactions.

In our application of FLIM-FRET the ratio of Venus to mCer3 intensities was used as an estimate of the relative amounts of the proteins to plot binding curves. Stable expression of mCer3 and using measurements from cells with little variation in amount of mCer3 allows ratio intensities to serve as a reasonable approximation for generating binding curves, but distorts the meaning of the Hill coefficients obtained. Moreover, in some cells high expression of Venus reduces the expression of mCer3 and for the some of the proteins analyzed this effect can dominate at high ratios of Venus to mCer3. As a result, in some experiments the data at ratios of Venus to mCer3 greater than 0.5 are not well described by a standard binding curve (e.g. Figure 2—figure supplement 1, panel C, black). For this reason quantitative comparisons were restricted to those regions of the curves that are fit using a standard binding curve with a Hill slope. For VtBid and VBad it was not possible to measure binding to CBcl-XL at ratios of Venus to mCer3 intensities greater than ~0.7 in the presence of ABT-263 because the released VBH3-proteins killed the cells.

Another complication with using any kind of FRET in live cells is the impact of collisions that can generate false positive signals. Fortunately, the latter can be distinguished by measuring binding curves using FLIM-FRET. Collisions vary directly with protein concentration and therefore generate straight lines rather than curves that saturate (e.g. Figure 4—figure supplement 1E, red).

To limit the effect of compounds or mutagenesis potentially changing both the binding affinity and the maximum FRET efficiency to different extents and still generate a single descriptor that can be used to describe the interactions, we introduced the concept of Resistance (R) of a complex to a specific compound (RABT-263) or mutation (RBH3-2A) (Figure 2A). Quantitative analysis based on values of R allows comparison between multiple samples each that results in a unique binding curve and that was generated from measurements of thousands of different intracellular ROIs that would be hard to compare otherwise. R values cannot replace the original binding curves for detailed determination of how the interaction is disturbed. Binding curves for CBcl-XL and VBad-Bim-I146Y with and without the BH3-2A mutation allowed quantification of the decrease in binding affinity due to the I146Y mutation (Figure 6).

To generate binding curves, ROIs containing mitochondria were selected, and the corresponding intensities in both mCer3 and Venus channels and the average lifetime for mCer3 were extracted from the original TCSPC data using a customized ImageJ script. ROIs were automatically discarded from the analysis if the CBclXL signal was too low and therefore noisy, or close to saturated, or the Venus signal was close to saturated. The ratio of Venus to mCer3 was calculated using the intensities of each channel. FLIM-FRET efficiency (E%) was calculated for each ROI as: E%=(1-τi/τ0)×100%, where τi is the mean lifetime for that ROI and τ0 is the average lifetime for mCer3 for all ROIs not expressing detectable Venus. FLIM-FRET efficiency was then distributed into bins of the same size according to Venus:mCer3 intensity ratio (bin size 0.1 for ratios lower than 0.5, 0.25 for ratios between 0.5 and 1.25, 0.5 for ratios higher than 1.25) and plotted (±se) against Venus:mCer3 ratio. The binding curves were fitted using GraphPad Prism version 5.0d for Macintosh (GraphPad Software, San Diego California USA, www.graphpad.com) with the function: E% = Emax × (IVenus÷ImCerulean3)h/[Kdh+(IVenus÷ImCerulean3)h]. Emax is the maximum FLIM-FRET efficiency corresponding to saturation of donor binding sites by an acceptor; ImCerulean3 and IVenus are intensities of mCer3 and Venus, respectively; Kd is the relative equilibrium dissociation constant; h is the Hill slope.

Cellular localization analysis

Request a detailed protocol

BMK-DKO cells transiently expressing Venus-tagged constructs of interest were stained with 5 µM DRAQ 5 (BioStatus) to stain nucleic acids, and 500 nM MitoTracker-Red to stain mitochondria, (Life Technologies) in DMEM at 37°C and 5% CO2, 30 min. One positive control well was additionally stained with 500 nM MitoTracker-Green (to stain mitochondria, Life Technologies). Cells were incubated at 37°C, 5% CO2 during sample imaging. For each well, 60 images at 256 × 256 pixels resolution were recorded using a 40x water immersion (NA 1.1) lens on an Opera Phenix confocal microscope. DRAQ 5 (Ex 640 nm, Em 650–760 nm), Venus (Ex 488 nm, Em 500–550 nm) and MitoTracker-Red (Ex 561 nm Em 570–630 nm) channels were acquired sequentially, automatically switching between channels at each field of view.

An analysis pipeline was created in Cell Profiler 2.2.0. In this pipeline, the DRAQ five channel was used to identify nuclei, and total cell area with smoothing to ensure the entire cell is selected as one region. Cells that extend to the border of the image were rejected from, the analysis. The cytoplasm for each cell was identified as an object (Cytoplasm = ‘Total cell area’ – ‘nuclear area’). Objects suitable for analysis were identified by mean Venus intensity to identify cells expressing appropriate levels of the Venus-tagged proteins of interest. A median Venus intensity (low threshold) was used to discard any cells that passed the mean Venus filter due to improper segmentation (ie. overlap between an untransfected cell and a bright transfected cell). Objects were further selected by mean MitoTracker-Red intensity (high and low threshold), to ensure appropriate staining. A size filter was used to remove small dead cells or debris and any abnormally large (possibly improperly segmented) cells. Background was subtracted for each image and a Pearson’s correlation coefficient (Pearson’s r) between Venus and MitoTracker-Red signals was calculated for all remaining objects. In each replicate, a minimum of 20 cells were identified per protein of interest and mean Pearson’s r was calculated. In sum, at least 150 cells were analyzed per sample. The average and standard error of the mean Pearson’s r values determined for the three replicates was plotted using GraphPad Prism.

Recombinant protein purification and labeling

Request a detailed protocol

Full length and single cysteine mutants of Bcl-XL and tBid were purified as described previously (Kale et al., 2014). For Bim, the cDNA encoding full-length wild-type murine BimL was introduced into pBluescript II KS(+) vector (Stratagene, Santa Clara CA). Sequences encoding a polyhistidine tag followed by a TEV protease recognition site (MHHHHHHGGSGGTGGSENLYFQGT) were added to create an in-frame fusion to the N-terminus of BimL. BimL-dCTS was constructed by introducing a stop codon (TAA) after position P121 to delete the entire CTS. Single cysteine mutants were generated by PCR-based mutagenesis using oligonucleotides from Integrated DNA Technologies and Phusion DNA polymerase from New England Biolabs.

The recombinant proteins were expressed in Arabinose Induced (AI) Escherichia coli strain (Life Tech, Carlsbad, CA). E. coli cells were lysed by mechanical disruption with a French press. The cell lysate was separated on a Nickel-NTA column (Qiagen, Valencia CA) to bind the recombinant His-tag fused proteins and after washing a buffer containing 300 mM imidazole was applied to elute the proteins. This elution was then adjusted to 150 mM NaCl and applied to a High Performance Phenyl Sepharose (HPPS) column. BimL was eluted with a no salt buffer and dialyzed against a buffer containing 10 mM HEPES pH7.0, 20% Glycerol, and then flash-frozen and stored at −80°C.

Single cysteine mutants of Bcl-XL and tBid were labeled with the indicated maleimide-linked fluorescent dyes as described previously (Kale et al., 2014; Lovell et al., 2008). Single cysteine mutants of BimL were labeled with the same protocol as tBid with the exception that the labeling buffer also contained 4M urea.

FRET measurements of interactions between recombinant proteins

Request a detailed protocol

Single cysteine mutants of BimL (41C) and tBid (126C) were purified and labeled with Alexa 568-maleimide. A single cysteine mutant of Bcl-XL (152C) was purified and labeled with Alexa 647-maleimide. Alexa568 labeled BimL or tBid was incubated with either Alexa647-labeled or as a control unlabeled Bcl-XL along with the indicated concentrations of ABT-263. The intensity of Alexa568 fluorescence with unlabeled or Alexa647-labeled Bcl-XL was measured as Funlabeled or Flabeled respectively. FRET, indicating protein-protein interaction, was quantified using the decrease of Alexa568 fluorescence when BimL or tBid bound to Alexa647-labeled Bcl-XL compared to unlabeled Bcl-XL. FRET efficiency was calculated as: FRET efficiency (%)= (1-Flabeled/Funlabeled)*100% as described previously for cBid-Bcl-XL. Binding was measured after incubation at 37°C for 1 hr.

To compare the inhibitory effect of ABT-263 on different BimL mutants or tBid binding to Bcl-XL, ABT-263 was titrated into a solution containing 10 nM BH3 protein (BimL or tBid) and 40 nM Bcl-XL. At these concentrations BH3 protein binding to Bcl-XL had saturated (BH3 protein bound = 100%) and represents the maximum FRET efficiency (Fmax). Inhibition of BH3 protein binding to Bcl-XL by ABT-263 was measured based on the decrease of FRET (BH3 protein bound = F/Fmax*100%). Data were fitted to a standard inhibitor dose response equation with a Hill slope using GraphPad Prism (V6.02). For BH3 proteins in which binding was poorly inhibited (BimL (Figure 2E and Figure 7D–E), BH3 protein bound was assumed to be 0% at an infinite concentration of ABT-263. Loss of protein on the cuvettes and other surfaces at low concentrations required use of protein at concentrations higher than the Kds of binding. For this reason the dissociation constant is not independent of protein concentration and the data in Figure 2E, Figure 7D–E report relative displacements comparable between figures rather than absolute affinity.

NBD fluorescence assay and iodide quenching

Request a detailed protocol

The single cysteine mutants of Bim were purified and labeled with NBD (N,N0-dimethyl-N-(Iodoacetyl)-N0-(7-nitrobenz-2-oxa-1,3-diazol-4-yl) ethylenediamine; Molecular Probes, Cat. #: D-2004). The NBD fluorescence assay and iodide quenching of NBD-labeled Bim mutants was performed as described previously for Bax (Kale et al., 2014), with the exception that the assays were performed in 100 ul volume in low protein binding 96-well plates and fluorescence was measured using a plate reader (Tecan M1000). In the experiments reported here, 20 nM NBD-labeled Bim alone or 20 nM Bim plus 50 nM of Bcl-XL were incubated with 0.2 mg/mL (final lipid concentration) of liposomes. For the ‘In solution’ control, the protein(s) were incubated with an equal volume of assay buffer instead of liposomes.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
    The role of Bcl-2 family members in tumorigenesis
    1. V Kirkin
    2. S Joos
    3. M Zörnig
    (2004)
    Biochimica Et Biophysica Acta (BBA) - Molecular Cell Research 1644:229–249.
    https://doi.org/10.1016/j.bbamcr.2003.08.009
  11. 11
  12. 12
  13. 13
  14. 14
    Cell Death
    1. Q Liu
    2. X Chi
    3. B Leber
    4. DW Andrews
    (2013)
    Bcl-2 Family and Their Therapeutic Potential, Cell Death, Springer.
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26

Decision letter

  1. Volker Dötsch
    Reviewing Editor; Goethe University, Germany
  2. Philip A Cole
    Senior Editor; Harvard Medical School, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Bim escapes displacement by BH3-mimetic anti-cancer drugs by double-bolt locking both Bcl-XL and Bcl-2" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Volker Dötsch as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Philip Cole as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript by Andrews and colleagues applies a series of sophisticated in-cell protein interaction monitoring analyses, with correlative biochemical studies, to evaluate the susceptibility of BH3-only/anti-apoptotic complexes to pharmacologic dissociation by small molecule inhibitors. The conclusion is that complexes involving BIM are stronger owing to a previously unappreciated secondary binding interface between the BIM C-terminus and anti-apoptotic Bcl-XL/Bcl-2. Although some of the data are not as definitive as the expressed interpretations, the general concepts are reasonably well demonstrated and the capacity to conduct such studies in live cells to better vet the state of these medically-relevant interactions is certainly appreciated.

Essential revisions:

1) The authors should demonstrate a functional relationship between the observed differences in protein complex dissociation and phenotypic outcome (i.e. apoptotic cell death). The recommended trio of treatments is ABT-263 (dual inhibitor), a selective Bcl-XL inhibitor and, importantly, the selective Bcl-2 inhibitor ABT-199. The latter agent is the most clinically-relevant (the only FDA-approved drug) and should be included in the study. The two selective inhibitors would also serve as ideal controls for each other and better validate the specificity of this live-cell protein interaction system.

2) The authors need to demonstrate the functional relevance of the double-bolt lock binding concept in cells. Although the authors indicate that the double-bolt lock mechanism has "profound implications for the utility of BH3-mimetics as drugs," the manuscript lacks the experimentation to support this conclusion. A straightforward experiment to address this key point would be to transiently express and compare the influence of wild-type, BH3 mutant, CTS mutant (e.g. a loss-of-function L185 mutation), and a double mutant on apoptosis induction/cell death and relative resistance to the anti-apoptotic inhibitors. Does eliminating the CTS component of the BimEL binding interaction increase the sensitivity to the anti-apoptotic inhibitors of Bcl-2 and Bcl-XL as the title/article suggests? What is the relative functional contribution of the BH3 and CTS binding components?

3) Measuring the release of cationic lipophilic dyes in many cases do not reflect MOMP or cell death. For instance, cultured cells can survive in the presence of protonophores for days in culture. Has cell death been evaluated with other measurements?

4) Figure 4—figure supplement 1, Figure 7—figure supplement 1, Figure 6—figure supplement 1 and Figure 9—figure supplement 2: for the various black/blue/red/green curves, it is unclear why the endpoints are variable (with respect to the x axis). As an example, it's not clear why sometimes the curves end at <1.0 on the x axis (as in the Bcl-2 column of Figure 6—figure supplement 3J-L), but other times not (Bcl-XL column of Figure 6—figure supplement 1D-F). This variation occurs within an individual subpanel and across datasets as well. If this relates to cell death due to transient BH3 protein expression and drug treatment, how do such differences in cell death induction under the various conditions influence the analyses?

5) Figure 2: for the constructs depicted in part A, is the CTS for Bad and Bad-Bim the native BAD CTS or the BIM CTS? Presumably it's the former, but based on the similar coloring it can be misinterpreted as the latter. For this figure, the data for all of the constructs depicted in A, should be plotted in parts B and C to allow for careful comparison (i.e. add back BimEL, BimEL-d20, Bad, Bad-Bim). Why does replacing the BAD BH3 sequence with BIM BH3 sequence restore vBad-Bim/Bcl-XL binding to BimEL levels? This suggests that the BIM CTS is not needed for the complete rescue. The R% value for vBad-Bim/Bcl-XL has a large error bar, making it unclear whether the vBimEL-Bad-dCTS construct fully abrogates Bcl-XL interaction upon ABT-263 treatment (as proposed) or not; this is an important experimental condition, so the result for this condition should be repeated/clarified.

6) Figure 4: with respect to dissociating the membrane targeting vs. Bcl-XL binding functionalities of the BIM-CTS, the authors indicate that, in Figure 4C, "the mitochondrial localization of all of the mutants was similarly poor" and conclude that the differences seen in R% are unrelated to membrane binding. However, the data in 4C could be equally interpreted (based on inspection alone) as showing a reasonable trend between mitochondrial localization and influence on R%, particularly since the data range is relatively narrow (40-70%). The authors' interpretation requires further statistical consideration. The potential similarities between the data in 4D with regard to aqueous vs. liposomal conditions would be very appealing (and supportive of the authors' conclusion regarding the BIM-CTS), although the authors do not demonstrate that BimL is membrane-localized in the liposomal condition. The presence and extent of added BimL at the liposomal membrane should be documented (e.g. western blot of aqueous phase vs. liposomal pellet), since it is important to determine whether the two panels are truly reflecting the different conditions of aqueous BimL vs. liposomal BimL.

7) Mutational analysis was performed only on the BH3 proteins, not on Bcl-2 or Bcl-XL. Usually, binding models are confirmed by mutations on both binding partners and amino acid exchanges. This would also identify binding sites on the Bcl-2 family proteins.

https://doi.org/10.7554/eLife.37689.041

Author response

Summary:

The manuscript by Andrews and colleagues applies a series of sophisticated in-cell protein interaction monitoring analyses, with correlative biochemical studies, to evaluate the susceptibility of BH3-only/anti-apoptotic complexes to pharmacologic dissociation by small molecule inhibitors. The conclusion is that complexes involving BIM are stronger owing to a previously unappreciated secondary binding interface between the BIM C-terminus and anti-apoptotic Bcl-XL/Bcl-2. Although some of the data are not as definitive as the expressed interpretations, the general concepts are reasonably well demonstrated and the capacity to conduct such studies in live cells to better vet the state of these medically-relevant interactions is certainly appreciated.

We greatly appreciate the positive comments from the reviewers and the thoughtful, constructive ideas/suggestions made. In response we have attempted to address each of these as thoroughly as possible. As a result not only has this manuscript been significantly improved by the addition of new functional data, a number of additional changes have been made that improve the clarity of the way the data is presented.

Figure 3, Figure 5 and Figure 2—figure supplement 3 report new data. Additional images illustrating that the morphology changes do not alter our results have been added in response to a reviewer query. To confirm that a similar range of morphologies is present in all the data representative images of the FLIM-FRET data were also added to Figures 1, 2 and Figure 2 supplements. The colocalization data in Figure 7C was replaced with new data and analysis with a Cell Profiler pipeline to permit analysis for a larger number of images.

To improve the presentation and take advantage of the eLife format some figures were split (e.g. the original Figure 1 is now Figures 1 and 2) and the figure supplements for Figure 2 and Figure 9 were broken up into individual supplements. In the methods section, what was previously called "Cell viability and membrane potential measurements" has been replaced by “Image based cell death assay” because the membrane potential measurements made previously have been replaced with analyses using a validated trained linear classifier that integrates cell and nuclear morphology and TMRE data to classify cells as alive or dead/dying.

To address the functional consequences in live cells of the new binding site we discovered in Bim we provide a better description of the original data and have uploaded a new paper by Chi et al., entitled “The carboxyl-terminal sequence of Bim enables Bax activation and killing of unprimed cells” that we have submitted for potential co- or linked publication.

To generate a more easily viewed version of the required comparison between the original and the resubmitted manuscripts the figures were removed from the previous version prior to generating the comparison.

Finally, the software scripts have been uploaded to Github including a Powerpoint based description for the colocalization analysis.

Essential revisions:

1) The authors should demonstrate a functional relationship between the observed differences in protein complex dissociation and phenotypic outcome (i.e. apoptotic cell death). The recommended trio of treatments is ABT-263 (dual inhibitor), a selective Bcl-XL inhibitor and, importantly, the selective Bcl-2 inhibitor ABT-199. The latter agent is the most clinically-relevant (the only FDA-approved drug) and should be included in the study. The two selective inhibitors would also serve as ideal controls for each other and better validate the specificity of this live-cell protein interaction system.

2) The authors need to demonstrate the functional relevance of the double-bolt lock binding concept in cells. Although the authors indicate that the double-bolt lock mechanism has "profound implications for the utility of BH3-mimetics as drugs," the manuscript lacks the experimentation to support this conclusion. A straightforward experiment to address this key point would be to transiently express and compare the influence of wild-type, BH3 mutant, CTS mutant (e.g. a loss-of-function L185 mutation), and a double mutant on apoptosis induction/cell death and relative resistance to the anti-apoptotic inhibitors.

While we agree with the reviewer that this sort of data would be of significant interest addressing it is much more complicated than it appears. The result predicted from point 1 can be seen in Figure 1 in which in the presence of ABT-263 MCF-7 cells overexpressing Bcl-XL tolerate higher relative levels of BimEL expression than that of Bad or tBid (the truncation in the cyan curves). In the new version we have further clarified this in the text. However, for reasons outlined below this is difficult to quantify and due to the vagaries of transient transfection not obvious in all of the data in the manuscript. The trio of experiments shown in Figure 1 served as controls for many of the other experiments and have been repeated many times therefore we are very certain of our interpretation for this data. As described in detail in response to point 3, ABT-199 is fluorescent preventing FLIM FRET analysis (this now stated in the subsection “The impact of BH3 sequence mutations and small-molecule inhibitors on the interactions between anti-apoptotic proteins and BH3 only pro-apoptotic proteins”, fifth paragraph). Nevertheless, the functional data added for venetoclax in the new Figure 3D suggests the major inhibitor of apoptosis in MCF-7 cells is MCL-1 (Figure 3D-E) confounding use of venetoclax to demonstrate direct relevance of the double-bolt lock in live cells.

As this is an important issue, we have also added data to address the functional relationships to several figures. The basic idea is that BimEL should be more active than BimEL-dCTS to inhibit Bcl-XL and Bc-2 since the latter is lacking the second binding site. However, BimEL-dCTS efficiently inhibits MCL-1 and the MCF7 cells used for all of our experiments are highly dependent on MCL-1 for survival (new Figure 3E). Indeed we now show that the only inhibitor that killed MCF-7 cells efficiently was the MCL-1 inhibitor. The inhibitors to Bcl-2 and/or Bcl-XL resulted in minimal kill that was fully suppressed by expression of exogenous Bcl-XL or Bcl-2 (new Figure 3D-E). Therefore, while we demonstrated that the CBcl-XL and CBcl-2 constructs protect against TNFα and cycloheximide (well established to induce apoptosis), the protection offered by both anti-apoptotic proteins is equivalent in response to expression of BimEL and BimEL-dCTS (new Figure 5A). This result is due in part to the induction of cell death due to the Bim-BH3 binding to MCL-1 (new Figure 3E). To circumvent this problem we replaced the BH3 region in both Bim and Bim-dCTS with that of Bad. These hybrid molecules retain efficient binding to Bcl-XL and Bcl-2 but no longer bind Mcl-1. When the hybrid proteins are expressed in MCF-7 cells, the full length protein is now more efficient at killing MCF-7 cells than the version lacking the CTS (new Figure 5B) as predicted by the reviewers. These new results are presented in a subsection entitled “The CTS of Bim contributes to pro-apoptotic activity”. As described however, the results are complicated because the CTS of Bim not only increased the affinity of Bim for Bcl-XL and Bcl-2 but enables Bim to efficiently activate Bax. This function of the Bim CTS is addressed in cell lines and primary cells and the molecular mechanism is delineated in our new paper by Chi et al. that we have submitted for co-publication.

Thus, the only way we can address the biological effects of deletion of the CTS directly is using purified proteins. Therefore, we have also added data showing that in incubations with mitochondria deletion of the Bim CTS reduces the affinity for binding to Bcl-XL (new Figure 5C). However, as we point out the measured affinity is well below the expression level in cells. As a result the expectation would be that even at endogenous levels of Bim, BimEL-dCTS would bind and inhibit Bcl-XL in cells. In addition, we show that without the CTS, Bim is less effective at displacing tBid and activated Bax from Bcl-XL (new Figure 5D-E). Therefore, the biological outcome in cells of releasing or not releasing Bim from Bcl-2 and Bcl-XL is further complicated by both the activity of the anti-apoptotic protein and the functions of its binding partners including the released protein.

The same complications exist for the mutants that vary in resistance to the inhibitors of Bcl-XL and Bcl-2. The mutations that reduce binding affinity for Bcl-XL lead to a loss in activation of Bax and therefore, the data generated are difficult to interpret. In the new co-submitted manuscript by Chi et al. we examine the effects of the new binding site in Bim in multiple cell lines as suggested by the reviewer. We find that the different dependencies of different cell lines on the various anti-apoptotic proteins compared to susceptibility to activation of Bax means that the results of these kinds of experiments are at present unpredictable. Indeed we state in the attached new manuscript that the response of primary cortical neurons changes over time in culture (Chi et al.). It is for these reasons that we have been careful in the text of this paper to always state that the main consequence of the second binding site in Bim that we characterize is to make the effects likely to be obtained with small molecule BH3-mimetics unpredictable. We have now repeated that statement in the Discussion and feel that the data shown in the two papers more than adequately demonstrates this.

Does eliminating the CTS component of the BimEL binding interaction increase the sensitivity to the anti-apoptotic inhibitors of Bcl-2 and Bcl-XL as the title/article suggests?

The title of the paper indicates only that the second binding site enables Bim to not be displaced from Bcl-XL and Bcl-2 in cancer cells. We show that binding is resistant for both proteins for the main inhibitors of multi-domain anti-apoptotic proteins Bcl-XL and Bcl-2 and that Bim CTS mutants are displaced by the drugs in live cells. The one exception is ABT-199 (Venetoclax) which the reviewers correctly point out is the only inhibitor in clinical use. Although ABT-263 is in human clinical trials, ABT-199 is of obvious interest and importance and we have attempted to measure the effect of ABT-199 on displacement of BH3 proteins from Bcl-2 using FLIM-FRET. The difficulty is that ABT-199 is fluorescent. This is now stated in the fifth paragraph of the subsection “The impact of BH3 sequence mutations and small-molecule inhibitors on the interactions between anti-apoptotic proteins and BH3 only pro-apoptotic proteins”. Moreover, the fluorescence of ABT-199 is spectrally broad and it can undergo FRET with mCer3 tagged Bcl-2 (see data below). As a result Bcl-2 proteins not bound to a BH3 protein bind ABT-199 and there is a corresponding change in donor lifetime due to drug binding. Since we need to fit a biding curve to unambiguously differentiate collisions from authentic binding we need to measure FLIM at sub-saturating concentrations of the acceptor BH3-protein. As the amount of BH3-protein goes down (low ratios of venus to cerulean) the FRET between ABT-199 and Bcl-2 increases. Fitting a triple exponential model plays havoc with the analysis as reported by others (Garcia et al., 2007; Sun et al., 2011) and in the attempted experiments we obtained apparent dose response curves for ABT-199 ‘displacement’ of BH3 proteins that made no sense and did not fit a Hill equation at all. Unfortunately that means that FLIM FRET is not useful for measuring the effects of ABT-199. To get around this problem we have been attempting to generate a far-red pair of fluorescence proteins for FLIM use but to date the fluorescence lifetime of the donor proteins is too short to make reliable measurements of binding (Canty et al., 2018).

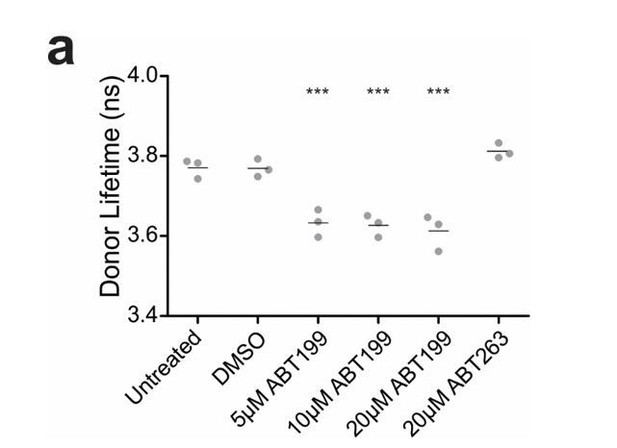

Author response image 1
ABT199 significantly affects the lifetime of CBcl2.

BMKd3 cells expressing CBcl2 were incubated 24 hours in DMEM media alone (untreated) or media plus DMSO, ABT199 or ABT263. FLIM data was collected on the ISS-Alba, each point represents average lifetime of 10 images collected per replicate (n=3). A one-way ANOVA test was performed in GraphPad Prism, with a Dunnett's Multiple Comparison post-test to compare to the untreated control (*** is p value < 0.0001).

As described above, eliminating the CTS or introducing point mutations in the CTS have unpredictable consequences in cells whether drug treated or not depending on the extent to which changes in inhibition of not just Bcl-2 and Bcl-XL but also Mcl-1 and activation of Bax impact cell viability. The issue is further complicated by differences in the extent of loading of Bcl-2 and Bcl-XL in the cell lines. Thus, the only way that we can address this interesting point is in vitro using purified proteins. Data demonstrating that mutations in the BimCTS increase the sensitivity to ABT-263 in vitro was included in the original manuscript (new Figure 7D-E). Thus, we have established in live cells that the extra binding site in Bim that we have discovered can have significant yet unpredictable effects on sensitivity and resistance of cells to different pro-apoptotic stimuli.

What is the relative functional contribution of the BH3 and CTS binding components?

This is another excellent question. In the new manuscript attached (Chi et al. submitted) we have measured the contribution of the BH3 and CTS binding components to Bax and Bcl-XL quantitatively and report the changes in Kd associated with each for binding to Bax. We are unable to measure changes in the affinity for Bcl-XL because all of the affinities are so high that the Kds are less than 1 nM. Thus the Kds for binding Bcl-XL are so low that the mutations in the CTS will not affect binding to Bcl-XL in a biologically relevant way unless a BH3 mimetic is added or another BH3 protein competes for binding. (new Figure 3C-E). Moreover, as shown in the new manuscript (Chi et al. submitted) we demonstrate that at physiological concentrations in cells, BOTH the BH3 and CTS sequences are necessary for BimEL to activate Bax. As predicted from the Kd measurements the BH3 region alone is sufficient to inhibit Bcl-XL, Bcl-2 and MCl-1 in multiple live cells. Therefore, Bim-dCTS kills cells that are ‘primed’ i.e. dependent on the expression of anti-apoptotic proteins because it can bind and inhibit all of the anti-apoptotic proteins. But full length Bim including the CTS is required to kill ‘unprimed’ cells (Chi et al.).

3) Measuring the release of cationic lipophilic dyes in many cases do not reflect MOMP or cell death. For instance, cultured cells can survive in the presence of protonophores for days in culture. Has cell death been evaluated with other measurements?

We agree with the reviewers that the release of cationic lipophilic dyes is not always sufficient to infer MOMP or cell death. However, when loss of mitochondrial transmembrane potential is the result of activation of Bax or Bak (as in the experiments reported here) cells do not recover and eventually die. Nevertheless, release of cationic lipophilic dyes is not the most accurate way to measure impending cell death. For this reason we have replaced loss of TMRE with a cell death score based on a multiparametric linear classifier based on nuclear condensation, cell shrinkage and loss of TMRE staining (described in the first paragraph of the subsection “Regulation of apoptosis by fluorescent fusion proteins in live cells” and Figure 3A). The classifier was trained on cells treated with TNFα and cycloheximide, a well-known method for induction of apoptosis. As all three events are common in cells undergoing apoptosis we feel that it is reasonable to conclude that the classifier identifies cells that have undergone or are undergoing apoptosis. We have explained this process in detail in the Materials and methods and provide references to the use of this approach with MCF-7 cells, other cell lines and primary cells. Our experience is that any cell classified as dead using this assay is committed to dying and will not survive even if the death stimulus is removed. The sensitivity of detection of apoptosis was improved using this approach as can be seen in the new cell death assays data presented in new Figures 3 and 5.

4) Figure 4—figure supplement 1, Figure 7—figure supplement 1, Figure 6—figure supplement 1 and Figure 9—figure supplement 2: for the various black/blue/red/green curves, it is unclear why the endpoints are variable (with respect to the x axis). As an example, it's not clear why sometimes the curves end at <1.0 on the x axis (as in the Bcl-2 column of Figure 6—figure supplement 3J-L), but other times not (Bcl-XL column of Figure 6—figure supplement 1D-F). This variation occurs within an individual subpanel and across datasets as well. If this relates to cell death due to transient BH3 protein expression and drug treatment, how do such differences in cell death induction under the various conditions influence the analyses?

There is variation in the amount of each acceptor protein that is produced in cells. Even though we have transfected with the same ratio of DNA to reagent, the amount of protein produced varies from construct to construct and between transfections. We assume that the amount of fluorescent mutant-protein generated depends on many factors including protein size, rate of folding, rate of degradation and whether that protein (or protein + treatment) kills the cell. As stated in the original manuscript one diagnostic of toxicity resulting in lower intensity levels (variable endpoints) is that the control curves will extend to higher ratios of venus to cerulean (mCer3) than when ABT-263 is added. This data remains in Figure 1 where we show that in the presence of ABT-263 the cell will tolerate production of more Bim than tBid or Bad. While it is tempting to ascribe this to the double bolt lock preventing displacement of BimEL (as a response to questions 1-2 above) the complications we describe above prevent us from doing so.

The question raised about how differences in cell death induction influence the analysis is a good one. We apologize for not being clear about our explicit controls in the original version of the manuscript. We stated only that we used a minimum and maximum threshold on the mCer3 (donor) channel prior to binning and plotting these curves. The minimum threshold ensures the Regions of Interest (ROIs) have sufficient counts for fitting the data properly. The maximum threshold excludes dead cells, because a condensed cell can have much higher counts (due to condensation and increased autofluorescence), than the average in a stable cell line. To demonstrate the morphology of the cells analyzed we have added images to Figure 1 and figure supplements for Figure 2. To ensure that we used appropriate thresholds we examined the data manually. We have now provided some sample data of the type we used to ensure that we had set the thresholds appropriately (described in paragraph four of subsection “The impact of BH3 sequence mutations and small-molecule inhibitors on the interactions between anti-apoptotic proteins and BH3 only pro-apoptotic proteins”, data shown in new Figure 2—figure supplement 3). These images have numbered ROIs and a corresponding table of lifetime measurements to demonstrate that we get the same range of values in cells with relatively normal and dying morphologies. Hopefully together with the expanded explanation in the methods section this will answer the question to the satisfaction of the reviewer. We appreciate the opportunity to provide this kind of information regarding our method that would typically be very difficult for us to publish. It is a real advantage to eLife as a journal.

5) Figure 2: for the constructs depicted in part A, is the CTS for Bad and Bad-Bim the native BAD CTS or the BIM CTS? Presumably it's the former, but based on the similar coloring it can be misinterpreted as the latter.

We apologize for the confusion. The supposition by the reviewer is correct. We have changed the coloring in the figure (now Figure 4) to make it more clear what the composition is of the different mutants.

For this figure, the data for all of the constructs depicted in A, should be plotted in parts B and C to allow for careful comparison (i.e. add back BimEL, BimEL-d20, Bad, Bad-Bim).

This was a point of discussion amongst the authors for the original manuscript. We agree that the data is more easily interpretable when all on the same axes and that the graphical display is easier to interpret than the table of all of the data. Therefore we modified the figure (now Figure 4) as requested. However, to ensure that we have not misrepresented it as new data we have added an explanatory note to the figure caption.

Why does replacing the BAD BH3 sequence with BIM BH3 sequence restore vBad-Bim/Bcl-XL binding to BimEL levels? This suggests that the BIM CTS is not needed for the complete rescue.

It is not clear why replacing the BAD BH3 with the BIM BH3 generates a mutant that resisted displacement. Similar to Bim both BAD and PUMA have unusual membrane binding domains at the C-terminus therefore it is possible that the BAD CTS contributes to the interaction in some way. We plan to examine this in more detail sometime in the future. It suggests that there may indeed be more than one sequence that can increase binding to Bcl-XL. However, the BAD BH3 does not bind to Bcl-XL tightly enough for the BAD CTS to confer resistance to BH3 mimetics. Resistance therefore, requires the BIM BH3 and the BAD CTS. This will be an interesting area for future investigation. We have addressed this observation in the subsection “Multiple residues in the Bim BH3 contribute to ABT-263 resistance”.

The R% value for vBad-Bim/Bcl-XL has a large error bar, making it unclear whether the vBimEL-Bad-dCTS construct fully abrogates Bcl-XL interaction upon ABT-263 treatment (as proposed) or not; this is an important experimental condition, so the result for this condition should be repeated/clarified.

We agree completely with the reviewer. The large error bar was due to a relatively small number of transfected cells that were analyzed due to low transfection efficiency with that plasmid. The experiment was repeated and the transfections were more successful and the number of images acquired was increased greatly increasing the number of cells that could be analyzed. As a result the error bar is much smaller now (now in Figure 4).

6) Figure 4: with respect to dissociating the membrane targeting vs. Bcl-XL binding functionalities of the BIM-CTS, the authors indicate that, in Figure 4C, "the mitochondrial localization of all of the mutants was similarly poor" and conclude that the differences seen in R% are unrelated to membrane binding. However, the data in 4C could be equally interpreted (based on inspection alone) as showing a reasonable trend between mitochondrial localization and influence on R%, particularly since the data range is relatively narrow (40-70%). The authors' interpretation requires further statistical consideration.

The extent to which membrane binding contributes to the increased affinity is an interesting question that we have put much thought into and attempted to address experimentally. In the original manuscript the Pearson’s correlation values were measured for multiple cells using manually defined regions of interest. In an attempt to make the data less subjective and to reduce the size of the error bars new images were acquired and used for the automated assessment of Pearson’s R (now in Figure 7). The algorithm used is included in CellProfiler Analyst. All of the correlations decreased due to inclusion of larger cytoplasmic areas yet to our surprise the answer obtained was almost identical even though more than ten times as many cells were analyzed. Visual inspection suggested to us that the mutants are similarly impaired for targeting to mitochondria (mitotracker) with co-localizations between 0.1 and 0.3. In contrast the R% seemed more variable particularly comparing residues 185, 188, 192. However, as requested by the reviewer all of the data was analyzed in aggregate using Spearmans rank-order correlation to include relationships that might not be linear. The result was no correlation between localization for Bcl-XL and a weak correlation for Bcl-2. We suspect the latter may be due to the fact that Bcl-2 is constitutively membrane bound while Bcl-XL is located in both the cytoplasm and on the membrane. We now report this data and statistical analysis in the second paragraph of the subsection “The Bim CTS increased Bim binding to Bcl-XL and Bcl-2 independent of Bim binding membranes”.

The potential similarities between the data in 4D with regard to aqueous vs. liposomal conditions would be very appealing (and supportive of the authors' conclusion regarding the BIM-CTS), although the authors do not demonstrate that BimL is membrane-localized in the liposomal condition. The presence and extent of added BimL at the liposomal membrane should be documented (e.g. western blot of aqueous phase vs. liposomal pellet), since it is important to determine whether the two panels are truly reflecting the different conditions of aqueous BimL vs. liposomal BimL.

We agree that this is an important control for the experiment presented and one that we had already performed in setting up the assay. We did not include this data in the original manuscript because it was generated as a standard part of optimizing the assay. The experiments showing efficient binding to liposomes of BimL and the differences in efficiencies for the mutants are included the new paper (Chi et al., submitted, copy included for reviewers) because they complete the table of binding constants in that paper and are important for showing that CTS binding to liposomes does not require the residues involved in activating Bax. That BimL binds efficiently to liposomes and that mutants also bind liposomes is now referred to in the current paper in the caption for the new Figure 7.

7) Mutational analysis was performed only on the BH3 proteins, not on Bcl-2 or Bcl-XL. Usually, binding models are confirmed by mutations on both binding partners and amino acid exchanges. This would also identify binding sites on the Bcl-2 family proteins.

While we agree this data would be satisfying it doesn’t impact the major observation that the individual residues we identify in CTS of Bim are responsible for resistance to BH3 mimetics and that the mechanism is increased binding affinity for anti-apoptotic proteins.

The mutagenesis experiments required to find the new binding site in Bim took 3 years. Mutants that do not fold properly are uninformative but take a lot of time to rule out and can cause one to miss the real binding site. NMR experiments by us and others were unsuccessful due to peak broadening when Bim or Bim peptides were added to Bax. There are no crystal structures that include the membrane binding domains of any of the Bcl-2 family proteins. Without any guide mutagenesis of Bcl-2 or Bcl-XL is not feasible. As a result we have been using crosslinking to attempt to find the binding site. This approach is giving good results for Bax and weak crosslinks to Bcl-XL (see data in new paper by Chi et al. submitted). However, determining the precise site is still a long way off. The crosslinks we have obtained to Bcl-XL are not efficient enough to pursue currently. Thus, it is likely we will have to infer the location on Bcl-XL from the site that we eventually identify for Bax. Therefore, identifying the binding site on the multi-domain anti-apoptotic proteins will have to remain a future endeavor.

https://doi.org/10.7554/eLife.37689.042

Article and author information

Author details

  1. Qian Liu

    Biological Sciences, Sunnybrook Research Institute, Toronto, Canada
    Contribution
    Conceptualization, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  2. Elizabeth J Osterlund

    1. Biological Sciences, Sunnybrook Research Institute, Toronto, Canada
    2. Department of Biochemistry, University of Toronto, Toronto, Canada
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Xiaoke Chi

    Department of Biochemistry and Biomedical Sciences, McMaster University, Hamilton, Canada
    Contribution
    Software, Formal analysis, Validation, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5269-8389
  4. Justin Pogmore

    Department of Biochemistry, University of Toronto, Toronto, Canada
    Contribution
    Formal analysis, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Brian Leber

    Department of Medicine, McMaster University, Hamilton, Canada
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Writing—original draft
    Competing interests
    No competing interests declared
  6. David William Andrews

    Department of Biochemistry, University of Toronto, Toronto, Canada
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Methodology, Writing—original draft, Writing—review and editing
    For correspondence
    david.andrews@sri.utoronto.ca
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9266-7157

Funding

Canadian Institutes of Health Research (FDN143312)

  • David William Andrews

Canada Research Chairs (Tier 1)

  • David William Andrews

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Jarkko Ylanko provided invaluable assistance in running the Opera and analyzing the data generated. Nehad Hirmiz developed the Cell Profiler Script used to analyze the colocalization data. Funding was provided by grant FDN 143312 from the Canadian Institutes of Health Research. DWA holds the Tier 1 Canada Research Chair in Membrane Biogenesis.

Senior Editor

  1. Philip A Cole, Harvard Medical School, United States

Reviewing Editor

  1. Volker Dötsch, Goethe University, Germany

Publication history

  1. Received: April 19, 2018
  2. Accepted: January 16, 2019
  3. Version of Record published: March 12, 2019 (version 1)
  4. Version of Record updated: June 7, 2019 (version 2)

Copyright

© 2019, Liu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 973
    Page views
  • 152
    Downloads
  • 5
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
