Identification of cryptic subunits from an apicomplexan ATP synthase

  1. Diego Huet
  2. Esther Rajendran
  3. Giel G van Dooren
  4. Sebastian Lourido  Is a corresponding author
  1. Whitehead Institute for Biomedical Research, United States
  2. Australian National University, Australia
  3. Massachusetts Institute of Technology, Massachusetts, United States
Research Article
Cite this article as: eLife 2018;7:e38097 doi: 10.7554/eLife.38097
6 figures, 1 table, 1 data set and 3 additional files

Figures

Figure 1 with 1 supplement
ICAP2 is a conserved apicomplexan protein with structural similarity to ATP synthase b subunits.

(A) Schematic of the Bos taurus ATP synthase b subunit (BtATPb) and ICAP2 showing the mitochondrial targeting signal (MTS), transmembrane domains (TM), and the putative Ca2+-binding domain of ICAP2. The position of the region of similarity (dark blue) is numbered according to the amino acid sequence. (B) Percent identity plot of the aligned ICAP2 homologs from diverse apicomplexans (shown in Figure 1—figure supplement 1). Mean identity within a rolling window of ten residues is plotted. Domains are colored according to the schematic (A) following the positions of the T. gondii residues in the alignment. (C) Neighbor-joining tree showing the phylogenetic relationships of ICAP2 homologs analyzed in (B). Bootstrap values for 10,000 trials are displayed. (D) Immunoblot showing expression of Ty-tagged ICAP2 from its endogenous locus in the ICAP2-Ty strain. ALD serves as a loading control. (E) Intracellular parasites from the parental and ICAP2-Ty strains fixed and stained for Ty (green), HSP70 (red), and DAPI (blue). Scale bar is 10 µm.

https://doi.org/10.7554/eLife.38097.002
Figure 1—figure supplement 1

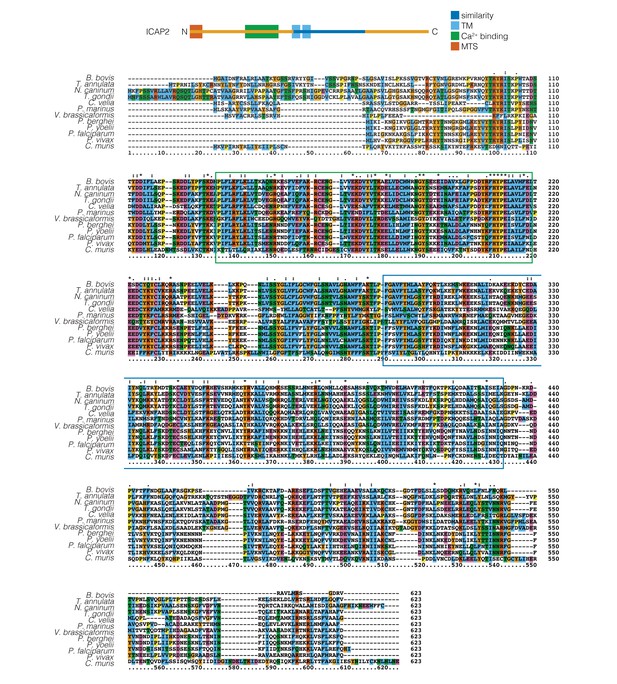

Alignment of ICAP2 and its homologs in different apicomplexan and other alveolate species.

The putative Ca2+-binding domain (green) and the region structurally similar to BtATPb (blue) found in Residues that are identical to or chemically similar to the consensus amino acid are shown in a colored background.

https://doi.org/10.7554/eLife.38097.003
Figure 2 with 1 supplement
ICAP2 associates with known components of the ATP synthase.

(A) Immunoprecipitation of Ty from the parental and ICAP2-Ty strains. Immunoblot for Ty, F1β, and ALD in the input, unbound, and eluted fractions. (B) Following Ty immunoprecipitation, the ICAP2-Ty eluted fraction was separated by SDS-PAGE and proteins were visualized by silver staining. The eight gel fractions analyzed by mass spectrometry are labeled according to the known ATP synthase subunits identified in them, along with ICAP2 and ICAP18. Asterisks indicate bands where no known ATP synthase subunits could be identified. (C) Schematic representation of the Bos taurus ATP synthase d subunit (BtATPd) and ICAP18 showing the MTS, TMs, and the region of similarity (dark blue). (D) Percent identity plot of the aligned ICAP18 homologs from diverse apicomplexans (shown in Figure 2—figure supplement 1). Mean identity within a rolling window of ten residues is plotted. Domains are colored according to the diagram (C), and numbered according to the positions of the T. gondii residues in the alignment. (E) Neighbor-joining tree showing the phylogenetic relationships of the ICAP18 homologs analyzed in (D). Bootstrap values for 10,000 trials are displayed. (F) Intracellular parasites from parental and ICAP18-Ty strains fixed and stained for Ty (green), HSP70 (red), and DAPI (blue). Scale bar is 10 µm.

https://doi.org/10.7554/eLife.38097.004
Figure 2—figure supplement 1

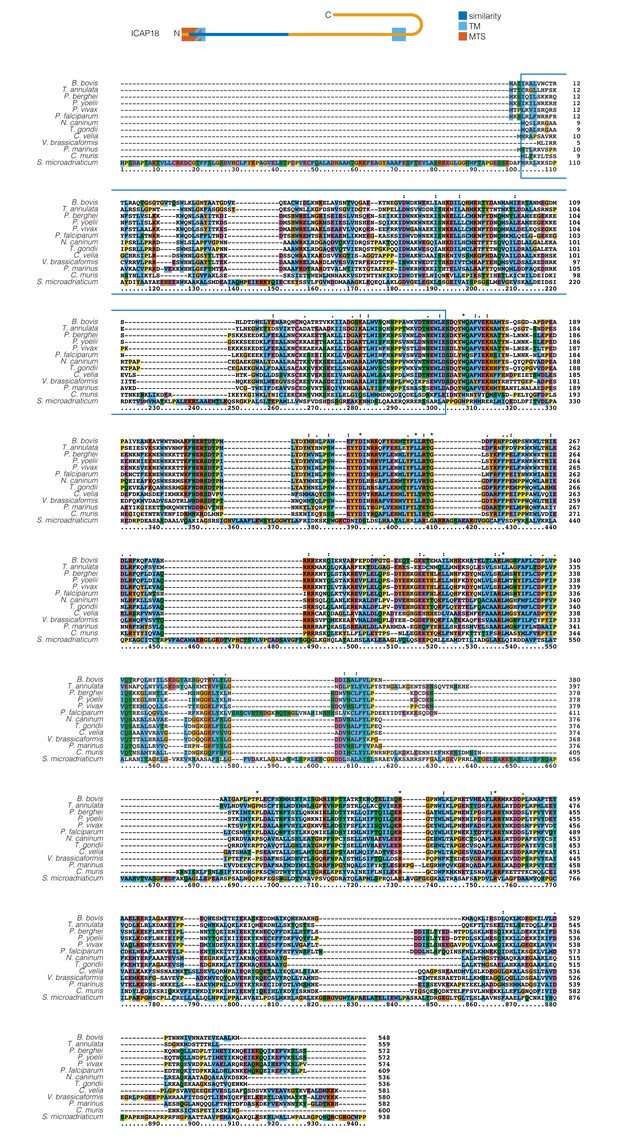

Alignment of ICAP18 and its homologs found in different apicomplexans and other alveolates.

The region sharing structural similarity between BtATPd, and ICAP18 is highlighted in blue. Residues that are identical to or chemically similar to the consensus amino acid are shown with a colored background.

https://doi.org/10.7554/eLife.38097.005
Figure 3 with 2 supplements
The T. gondii ATP synthase associates with proteins conserved among apicomplexans.

(A) Immunoprecipitation of Ty from the ICAP18-Ty strain. Immunoblot for Ty, F1β, and ALD in the input, unbound, and eluted fractions. (B) Following Ty immunoprecipitation, the eluates of the parental, ICAP2-Ty and ICAP18-Ty strains were separated by SDS-PAGE and visualized by silver staining. (C) Table showing the known and novel ATP synthase subunits, including ICAP2 (red) and ICAP18 (green). The table lists the proposed annotation of each gene and the number of times each protein was identified in the MS experiments. Proteins in grey represent candidates that did not meet the analysis criteria, or were clear contaminants. The homology indicates the BLAST expected value (E value) between each T. gondii protein sequence and that of its closest match in Plasmodium falciparum (Pf), Cryptosporidium muris (Cm), Cryptosporidium parvum (Cp), or Chromera velia (Cv). Cases in which a close match could not be identified (E value <0.0001) are indicated in black. The predicted subcellular localization (‘M’ for mitochondrial or ‘–’ for another location) was determined using TargetP and iPSORT. (D) Relative expression pattern of known ATP synthase subunits (blue), ICAP2 (red), ICAP18 (green), and other novel associated proteins (yellow). Proteins that did not meet the analysis criteria are colored grey. The dotted line represents the mean relative expression of the known ATP synthase subunits. Cell-cycle stages are indicated above the plot. (E) Model of the ATP synthase including the known subunits (blue) and the predicted position of ICAP2 (red), ICAP18 (green), and the putative a subunit (orange). See also Figure 3—source data 1.

https://doi.org/10.7554/eLife.38097.006
Figure 3—source data 1

This file contains the source data used to make the graph presented in Figure 3.

R was utilized to visually represent the quantitative data.

https://doi.org/10.7554/eLife.38097.009
Figure 3—figure supplement 1

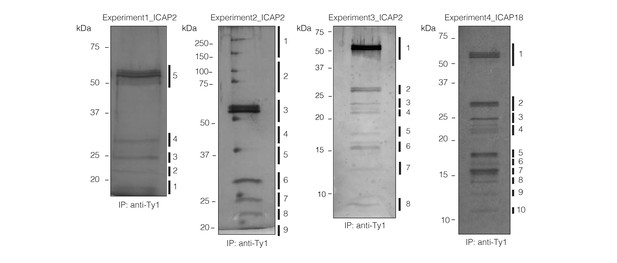

Co-immunoprecipitations of ICAP2 and ICAP18.

Eluted fractions from Ty immunoprecipitation experiments using the ICAP2Ty and ICAP18Ty strains separated by SDS-PAGE and visualized by silver stain. The four experiments (three with ICAP2Ty, one with ICAP18Ty) along the excised bands used for MS analysis found in Supplementary file 1 are indicated.

https://doi.org/10.7554/eLife.38097.007
Figure 3—figure supplement 2

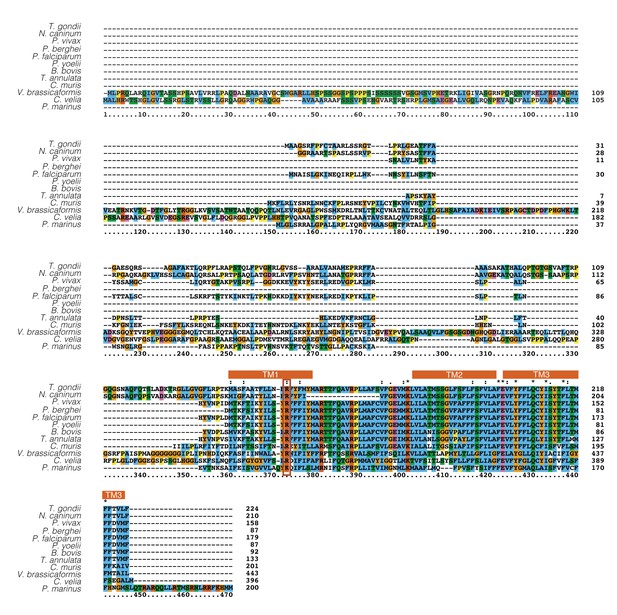

Alignment of putative a subunit and its homologs found in different apicomplexans and other alveolates.

The predicted TM domains and conserved arginine residue are highlighted. Residues that are identical to or chemically similar to the consensus amino acid are shown with a colored background.

https://doi.org/10.7554/eLife.38097.008
Functional characterization of ICAP2.

(A) Schematic of the ICAP2 locus in the ICAP2-Ty cKD strain indicating the U1-mediated mRNA degradation following the rearrangement caused by a brief pulse of rapamycin (rapa). (B) Immunoblot of the ICAP2-Ty cKD strain monitoring degradation of ICAP2-Ty at different time points following a 2 hr pulse with rapa. ALD serves as a loading control. (C) At different time points following treatment with rapa or vehicle (N.T.), intracellular ICAP2-Ty cKD parasites were fixed and stained for Ty (green), ALD (red), and DAPI (blue). Scale bar is 10 µm. (D) Plaque assay of the parental and ICAP2-Ty cKD strains after treatment with rapa or a vehicle control (DMSO). (E) The parental and ICAP2-Ty cKD strains were pulsed with rapa or a vehicle control 24 hr prior to passaging. Samples were fixed 24 or 48 hr post infection (hpi) and stained for Ty and ALD. The distribution of parasites per vacuole was determined. Bars represent mean ± SD for n = 2 independent biological replicates. At least 150 vacuoles were counted per condition in 2 or more technical replicates. See also Figure 4—source data 1.

https://doi.org/10.7554/eLife.38097.010
Figure 4—source data 1

This file contains the source data used to make the graph presented in Figure 4.

GraphPad Prism was utilized to visually represent the quantitative data.

https://doi.org/10.7554/eLife.38097.011
ICAP2 depletion alters mitochondrial morphology.

(A) Mitochondrial morphology in the ICAP2-Ty cKD parasites visualized by staining for HSP70 (red), ICAP2-Ty (green), and DAPI (blue), at various time points following a 2 hr pulse with rapa. Scale bar is10 µm. (B–C) Changes in mitochondrial volume following ICAP2 depletion. Representative panels displaying the maximum intensity projections and mitochondrial volume from ICAP2-Ty cKD parasites expressing SOD2-GFP and IMC1-TdTomato (B). Live intracellular parasites were imaged following the various treatments. Scale bar is 10 µm. The experiment consisted of two biological replicates, and at least 100 vacuoles from three technical replicates were analyzed per condition (C). Boxplot, *p≤0.05; Student's t-test. (D–F) Electron micrographs of ICAP2-Ty cKD parasites 48 hr after a rapa pulse or treatment with a vehicle control. Insets show representative mitochondria. Scale bars are 500 nm. Blinded analysis of measured mitochondrial area and the number of cristae per µm2 within those areas. Mean ± SD, n.s. p>0.05, ***p<0.0001 by a Mann-Whitney test. See also Figure 5—source data 1.

https://doi.org/10.7554/eLife.38097.012
Figure 5—source data 1

This file contains the source data used to make the graphs presented in Figure 5.

GraphPad Prism was utilized to visually represent the quantitative data.

https://doi.org/10.7554/eLife.38097.013
Figure 6 with 1 supplement
Loss of ICAP2 affects the function and integrity of ATP synthase.

(A–B) Mitochondrial oxygen consumption (mOCR in pmol/min/1.5 × 106 parasites) was determined for the parental and ICAP2-Ty cKD strains at various time points following a 2 hr pulse with vehicle (–) or rapa. Basal mOCR (A) was compared to the maximum mOCR obtained after treating with the uncoupling agent FCCP to calculate the spare capacity (B). Data represent mean ± SEM for n = 4 independent experiments: **p<0.005; ****p<0.0001; n.s. not significant; one-way ANOVA followed by Tukey’s test. (C) Relative ATP concentration for the parental and cKD strain cultured for 72 hr following a 2 hr pulse with vehicle (–) or rapa. ATP concentrations were measured following a 1 hr treatment with the indicated compounds and carbon sources and normalized to the initial ATP concentration of each strain (100%). Data represent mean ± SEM for n = 3 independent experiments for all treatments except glucose, which was only repeated twice; n.s. not significant; *p≤0.05; Student's t-test. (D–E) Lysates from the parental and ICAP2-Ty cKD strains were prepared at various time points following a 2 hr rapa pulse. Lysates were resolved by SDS-PAGE (C) or blue native PAGE (BN-PAGE) and blotted to probe for Ty, F1β, ALD, or TUB1. See also Figure 6—source data 1.

https://doi.org/10.7554/eLife.38097.014
Figure 6—source data 1

This file contains the source data used to make the graphs presented in Figure 6.

GraphPad Prism was utilized to visually represent the quantitative data.

https://doi.org/10.7554/eLife.38097.016
Figure 6—figure supplement 1

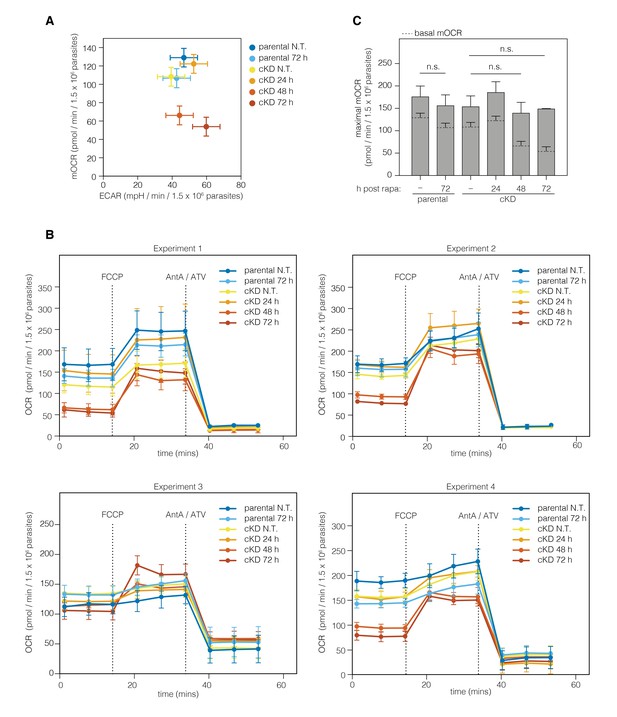

ECAR and OCR following downregulation of ICAP2.

(A) Comparison of mOCR (pmol/min/1.5 × 106 parasites) and ECAR (mpH/min/1.5 × 106 parasites) for parental and cKD strains following the indicated times after a 2 hr rapa pulse. (B) OCR measurements of the four independent experiments for Figure 6 with the parental and cKD strains following the indicated times after a 2 hr rapa pulse. Dotted lines represent the FCCP and antimycin A/atovaquone (AntA/ATV) treatments. (C) Maximal mOCR obtained after treating each strain with the uncoupling agent FCCP. Data represent mean ±SEM in (A, C), n = 4 independent experiments, and mean ± SD in (B): n.s. not significant; one-way ANOVA followed by Tukey’s test.

https://doi.org/10.7554/eLife.38097.015

Tables

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Strain, strain
background
(Toxplasma gondii)
Parental (in Figures 1, 2 and 3)PMID: 22144892TATi∆KU80
Strain, strain
background (T. gondii)
ICAP2-TyThis paperTATi∆KU80 ICAP2-Ty
Strain, strain
background (T. gondii)
ICAP18-TyThis paperTATi∆KU80 ICAP18-Ty
Strain, strain
background (T. gondii)
Parental in Figures 4 and 5 and 6PMID: 26090798DiCre∆KU80
Strain, strain
background (T. gondii)
ICAP2-Ty cKDThis paperDiCre∆KU80 ICAP2-Ty cKD
Strain, strain
background (T. gondii)
Parental strain (expressing
GFP fused to the
mitochondrial targeting signal
of SOD2 and expressing
the A3:E11 membrane complex
protein IMC1 fused to TdTomato)
This paperDiCre∆KU80 SOD2-GFP IMC1-TdT
Strain, strain
background (T. gondii)
ICAP2-Ty (cKD strain
expressing GFP fused to the
mitochondrial targeting signal of
SOD2 and expressing the
A3:E11 membrane complex
protein IMC1 fused to TdTomato)
This paperDiCre∆KU80 ICAP2-Ty cKD SOD2-GFP IMC1-TdT
Cell line
(Homo sapiens)
Human Foreskin Fibroblasts (HFFs)ATCCSCRC-1041
AntibodyMouse monoclonal
anti-Ty1 (clone BB2)
PMID: 8813669Dilutions: IFA: 1/1000, WB: 1/10000
AntibodyMouse monoclonal
anti-TUB1 (clone 12G10)
Developmental
Studies Hybridoma
Bank at the University of Iowa
RRID: AB_1157911Dilution: WB 1/5000
AntibodyRabbit polyclonal anti-HSP70PMID: 17784785Dilutions: IFA: 1/1000, WB: 1/10000
AntibodyRabbit polyclonal anti-ALDPMID: 19380114Dilutions: IFA: 1/1000, WB: 1/10000
AntibodyRabbit polyclonal anti-F1βAgriseraAgrisera:AS05085Dilution: WB 1/5000
AntibodyGoat anti-Mouse IgG (H + L)
Secondary Antibody,
DyLight 488 conjugate
Thermo FisherThermo-Fisher:35502Dilutions: IFA: 1/1000
AntibodyGoat anti-Rabbit IgG (H + L)
Secondary Antibody,
DyLight 594 conjugate
Thermo FisherThermo-Fisher:35560Dilutions: IFA: 1/1000
AntibodyPeroxidase AffiniPure
Goat Anti-Rabbit IgG (H + L)
Jackson ImmunoResearchJackson ImmunoResearch:111-035-144Dilution: WB 1/10000
Chemical
compound, drug
HoechstSanta CruzSanta Cruz:sc-394039Dilutions: IFA: 1/20000
Chemical
compound, drug
Prolong DiamondThermo FisherThermo-Fisher:P36965
Chemical
compound, drug
GentamicinThermo FisherThermo-Fisher:15710072
Chemical
compound, drug
XanthineSigma-AldrichSigma-Aldrich:X4002
Chemical
compound, drug
Mycophenolic AcidSigma-AldrichSigma-Aldrich:M3536
Chemical
compound, drug
RapamycinEMD MilliporeEMD Millipore:553210
Chemical
compound, drug
Carbonyl cyanide 4-
(trifluoromethoxy)
phenylhydrazone (FCCP)
Sigma-AldrichSigma-Aldrich:C2920
Chemical
compound, drug
Antimycin ASigma-AldrichSigma-Aldrich:A8674
Chemical
compound, drug
AtovaquoneSigma-AldrichSigma-Aldrich:A7986
Chemical
compound, drug
OligomycinEMD MiliporeEMD Millipore:495455
Chemical
compound, drug
2-Deoxy-D-glucose (2-DG)Sigma-AldrichSigma-Aldrich:D6134
Chemical
compound, drug
D-glucoseThermo FisherThermo-Fisher:15023021
Chemical
compound, drug
GlutamineSigma-AldrichSigma-Aldrich:G8540
Sequence-
based reagent
All primers and oligonucleotides
used in this study are
listed in Supplementary file 2
This paper
Recombinant
DNA reagent
pU6-UniversalAddgeneAddgene:52694
Recombinant
DNA reagent
pT8mycSOD2(SPTP)
GFPmycHX
PMID: 17784785
Recombinant
DNA reagent
TubIMC1TdTomato-CATPMID: 26845335
Recombinant
DNA reagent
pG152-Lic-HA-FLAG-LoxP-3’UTRSag1-HXGPRT-LoxP-U1PMID: 26090798
Recombinant
DNA reagent
pG152-ICAP2-HAThis paper
Peptide,
recombinant protein
Ty peptideThis paper
Commercial
assay or kit
Gibson Assembly Cloning KitNew England BiolabsNEB:E5510S
Commercial
assay or kit
NucleoBond Xtra MidiMacherey NagelMacherey Nagel:740412.50
Commercial
assay or kit
CellTiter-Glo
Luminescent Cell
Viability Assay
PromegaPromega:15023021
OtherPierce Protein G
Magnetic Beads
Thermo FisherThermo-Fisher:88847
Otherglucose and
glutamine-free DMEM
Sigma-AldrichSilga-Aldrich:D5030
OtherFluoroBrite DMEMThermo FisherThermo-Fisher:A1896701
OtherHalt protease
inhibitor
Thermo FisherThermo-Fisher:862209
OtherCellTak
cell adhesive
In Vitro TechnologiesIn Vitro Technologies
:FAL354240
Software,
algorithm
HHPREDPMID: 29258817
Software,
algorithm
ClustalXPMID: 17846036
Software,
algorithm
Mascot, version 2.6.1Matrix Science
Software,
algorithm
Scaffold, version 4.8.3Proteome Software
Software,
algorithm
Prism, version 7Graphpad
Software,
algorithm
R, version 3.2.3R Foundation
for Statistical
Computing
Software,
algorithm
MitoGraphPMID: 25640425
Gene (T. gondii)ICAP2N/AToxoDB:TGME49_231410
Gene
(T. gondii)
ICAP18N/AToxoDB:TGME49_268830

Data availability

Proteomics data have been deposited in ProteomeXchange Consortium via the PRIDE partner repository with the dataset identifier PXD009799 and 10.6019/PXD009799. All other data are included in the manuscript and supporting files.

The following data sets were generated
  1. 1
    ICAP2 Immunoprecipitation results
    1. Diego Huet
    (2018)
    Publicly available at ProteomeXchange (accession no. PXD009799).

Additional files

Supplementary file 1

Summary of mass spectrometry data showing proteins identified in ICAP2-Ty and ICAP18-Ty immunoprecipitations.

https://doi.org/10.7554/eLife.38097.017
Supplementary file 2

Primers and oligonucleotides used in this study.

https://doi.org/10.7554/eLife.38097.018
