Feedback regulation of cytoneme-mediated transport shapes a tissue-specific FGF morphogen gradient

  1. Lijuan Du
  2. Alex Sohr
  3. Ge Yan
  4. Sougata Roy  Is a corresponding author
  1. University of Maryland, United States
Research Article
  • Cited 0
  • Views 1,211
  • Annotations
Cite this article as: eLife 2018;7:e38137 doi: 10.7554/eLife.38137

Abstract

Gradients of signaling proteins are essential for inducing tissue morphogenesis. However, mechanisms of gradient formation remain controversial. Here we characterized the distribution of fluorescently-tagged signaling proteins, FGF and FGFR, expressed at physiological levels from the genomic knock-in alleles in Drosophila. FGF produced in the larval wing imaginal-disc moves to the air-sac-primordium (ASP) through FGFR-containing cytonemes that extend from the ASP to contact the wing-disc source. The number of FGF-receiving cytonemes extended by ASP cells decreases gradually with increasing distance from the source, generating a recipient-specific FGF gradient. Acting as a morphogen in the ASP, FGF activates concentration-dependent gene expression, inducing pointed-P1 at higher and cut at lower levels. The transcription-factors Pointed-P1 and Cut antagonize each other and differentially regulate formation of FGFR-containing cytonemes, creating regions with higher-to-lower numbers of FGF-receiving cytonemes. These results reveal a robust mechanism where morphogens self-generate precise tissue-specific gradient contours through feedback regulation of cytoneme-mediated dispersion.

https://doi.org/10.7554/eLife.38137.001

eLife digest

When an embryo develops, its cells must work together and ‘talk’ with each other so they can build the tissues and organs of the body. A cell can communicate with its neighbors by producing a signal, also known as a morphogen, which will tell the receiving cells what to do. Once outside the cell, a morphogen spreads through the surrounding tissue and forms a gradient: there is more of the molecule closer to the signaling cells and less further away. The cells that receive the message respond differently depending on how much morphogen they get, and therefore on where they are placed in the embryo.

How morphogens move in tissues to create gradients is still poorly understood. One hypothesis is that, once released, they spread passively through the space between cells. Instead, recent research has shown that some morphogens travel through long, thin cellular extensions known as cytonemes. These structures directly connect the cells that produce a morphogen with the ones that receive the molecule. Yet, it is still unclear how cytonemes can help to form gradients.

Du et al. aimed to resolve this question by following a morphogen called Branchless as it traveled through fruit fly embryos. Branchless is important for sculpting the embryonic airway tissue into a delicate network of branched tubes which supply oxygen to the cells of an adult fly. However, no one knew how cells communicate Branchless, whether or not Branchless formed a gradient, and if it did, how this gradient was created to set up the plan to form airway tubes. It was assumed that the molecule would diffuse passively to reach airway cells – but this is not what the experiments by Du et al. showed.

To directly observe how Branchless moves among cells, insects were genetically engineered to produce Branchless molecules attached to a fluorescent ‘tag’. Microscopy experiments using these flies revealed that Branchless did not diffuse passively; instead, airway cells used cytonemes to ‘reach’ towards the cells that produced the molecule, collecting the signal directly from its source. The gradient was created because the airway cells near the cells that make Branchless had more cytonemes, and therefore received more of the molecule compared to the cells that were placed further away. Genetic analysis of the airway tissue showed that Branchless acts as a morphogen to switch on different genes in the receiving cells placed in different locations. The target genes activated by the gradient instruct the receiving cells on how many cytonemes need to be extended, which helps the gradient to maintain itself over time.

Du et al. demonstrate for the first time how cytonemes can relay a signal to establish a gradient in a developing tissue. Dissecting how cells exchange information to create an organism could help to understand how this communication fails and leads to disorders.

https://doi.org/10.7554/eLife.38137.002

Introduction

Diverse tissue shapes and patterns are created by conserved paracrine signaling proteins such as Transforming Growth Factor β (TGFβ), Hedgehog (Hh), Wingless (Wg/WNT), Epidermal Growth Factor (EGF) and Fibroblast growth factor (FGF). Irrespective of the diversity of the functions and forms created, a universal mode by which these signals coordinate responses in a large population of cells involves the generation of concentration gradients. For instance, morphogen gradients induce concentration-dependent gene activities that regulate tissue growth and patterning (reviewed in (Bier and De Robertis, 2015; Christian, 2012; Restrepo et al., 2014; Rogers and Schier, 2011; Wolpert, 2016)). Similarly, growth factor and chemokine gradients are thought to control cell migration during vasculogenesis, neurogenesis, wound healing, and immune responses (Cai and Montell, 2014; Majumdar et al., 2014). Despite advances in our understanding of signal transduction pathways, how signals disperse and how the dispersion mechanism is dynamically modulated to shape gradients in three-dimensional tissue structures are poorly understood. Moreover, the formation of signal gradients is unexplored in most morphogenetic contexts, so we do not know how dispersion of the signals through extracellular space can generate the required diversity in gradient shapes and contours for a multitude of tissue architectures.

Several models primarily based on free/restricted/facilitated extracellular diffusion of signals were proposed previously to explain the establishment of signal gradients, but the proposed mechanisms are highly controversial (Majumdar et al., 2014; Müller et al., 2013; Wolpert, 2016). Recent advancements in live imaging technology facilitated the discovery of a radically different mechanism of signal dispersion, where signals move directly from producing to recipient cells through actin-based specialized filopodia or cytonemes (Bischoff et al., 2013; Eom and Parichy, 2017; Roy et al., 2011b; Roy et al., 2014; Sanders et al., 2013; Stanganello and Scholpp, 2016). Cytonemes and cytoneme-like projections are now known to be required for cell-cell communication mediated by many families of signaling proteins (Kornberg, 2014). For instance, a cytoneme-dependent mechanism was shown to be essential for generating concentration-dependent signaling responses to the Hh and Dpp morphogens (Bischoff et al., 2013; Chen et al., 2017; Roy et al., 2014). However, how local cytoneme-mediated cell-to-cell communication might create long-range signal gradients to regulate tissue morphogenesis was unknown.

In this study, we aimed to address these fundamental questions by characterizing gradient formation of a Drosophila FGF family protein, Branchless (Bnl). In Drosophila, Bnl is the primary signal that guides the branching morphogenesis of tracheal epithelial tubes (Sutherland et al., 1996). At the third instar larval stage, Bnl produced from a restricted group of wing imaginal disc cells induces budding and growth of a wing disc-associated tracheal branch, the air-sac primordium (ASP), from the disc-associated transverse connective (TC) (Figure 1A) (Sato and Kornberg, 2002). ASP tracheoblast cells are precursors of adult air-sac, an organ that is analogous to the vertebrate lung. Traditionally, all paracrine signals such as FGF family proteins are thought to function as diffusible signals and form a gradient by passive extracellular dispersion. In accordance with the same line of thinking, one hypothesis predicts that Drosophila Bnl diffuses from its source to form an extracellular gradient and that the gradient guides directional migration of the tracheal branches such as the ASP (Horowitz and Simons, 2008; Ochoa-Espinosa and Affolter, 2012) (Figure 1A’). However, whether Bnl forms a gradient and if so, how Bnl is transported and modulated in the extracellular space to form a gradient remain unexplored. Moreover, all tracheal cells express the Bnl receptor, Breathless (Btl), and develop under the guidance of the same Bnl signal, but different embryonic and larval tracheal branches adopt different developmental stage-specific morphologies (Sato and Kornberg, 2002; Sutherland et al., 1996). We do not understand whether and how the shape of a Bnl gradient can dynamically adapt to diverse tissue morphologies.

Figure 1 with 2 supplements see all
A concentration gradient of Bnl:GFP adopts precise morphologies of the recipient ASP.

(A) Drawings depicting budding and directed growth of the third instar larval ASP (red, btl expression) regulated by Bnl produced in a restricted group of cells in the wing disc (green); Bnl source spatiotemporally changes position ahead of the growing ASP; TC, transverse connective. (A’) Drawing depicting hypothetical chemotactic gradient of secreted Bnl (green) that was predicted to guide the directed ASP (red) growth toward the Bnl expressing cells (green circle). (A’’) Drawing depicting a cross-section of the late third instar larval ASP and wing disc, showing their epithelial contours, relative position in X-Z-Y dimension, putative Bnl- responsive cells (red), and disc bnl-expressing cells (green); upper/lower Z. (B) A schematic map of bnl:gfpendo knock-in allele; grey box, non-coding exons; orange box, coding exons; line, introns. (C–D’) Z-projected images showing that Bnl:GFP, produced at physiological level from the bnl:gfpendo allele, moved from the disc bnl-source to the ASP and distributed along the distal to proximal direction of the recipient tissue; (C,C’) bnl-source marked by CherryCAAX expression (bnl-LexA, lexO-CherryCAAX/bnl:gfpendo); (D,D’) recipient ASP marked by CD8:Cherry expression (btl-Gal4,UAS-CD8:Cherry/+; bnl:gfpendo); (C,D) merged red and green channels; (C’,D’) only the green channel; arrows, Bnl:GFP signal detected specifically in the wing disc source and recipient ASP. (E) Graph showing the Bnl:GFP concentration gradient along the ASP D-P axis in late third instar larvae (N = 4 independent samples). (F) Coordination of Bnl:GFP gradient formation with the ASP growth; time points, hours (h) after third instar larval molt; relative position of bnl-source marked by dashed-line. (G) Narrow range of Bnl:GFP gradient in shorter ASPs from early third instar larvae (N = 3 independent samples). (E,G) Red line graph, trend-line of the X-Y scatter plot with exponential fit from the averaged value; Cmax, maximum average Y value (Bnl:GFP intensity); (H) Negative correlation of the ASP D-P axis length and the slope (Cmax to C1/2max) of the Bnl:GFP gradient; each coordinate represents a single disc-ASP tissue; upper panels, Bnl:GFP distribution in three examples of ASPs with different lengths of D-P axis (the cropped region). (I) A 3D sagittal view showing a continuous long-range Bnl:GFP distribution across the entire recipient ASP epithelium adopting its tubular contour; expression of a target gene reporter of Bnl signaling, pntP1-lacZ (red, anti-βGal) showing corresponding signaling response; (I’,I’’) Intensity plots of Bnl:GFP (green) and pntP1-lacZ (red) (I’’) across the entire ASP epithelium derived from the digitally straightening ASP epithelium shown in I’. (J) Drawing of a cross section of the ASP-wing disc, summarizing the observations from C,D,I. (C–I’) Fixed samples, Z-projection, except I-I’; AU, arbitrary unit; dashed line, ASP or wing disc outline. Scale bars, 30 μm.

https://doi.org/10.7554/eLife.38137.003

To investigate these important gaps in knowledge, we chose to focus on the Drosophila larval ASP because of its unique features. In this system, the wing disc bnl-source is spatially separated from the recipient ASP epithelium (Figure 1A”). Bnl signals exclusively to the ASP because the wing disc cells and myoblasts located between the disc and the ASP do not express its receptor, Btl. Moreover, the two additional Drosophila FGF family proteins, Pyramus and Thisbe, do not share receptors with Bnl (Sato and Kornberg, 2002; Stathopoulos et al., 2004). This system where there is a clear inter-organ communication path and a single Bnl-specific receptor exclusively expressed in the ASP is ideal for an unbiased interpretation of the extracellular route of Bnl transport and gradient formation. Genome-edited Bnl:GFP and Btl:Cherry constructs generated in this study revealed Bnl distribution with high sensitivity and precision, allowing direct visualization of an endogenous signal and signaling gradient. We showed that Bnl moves target-specifically from the producing cells to the ASP through cytonemes and forms a long-range concentration gradient by dynamically adopting the recipient ASP-specific shapes and contours. We also demonstrated that Bnl functions as a morphogen and, most importantly, we uncovered a novel self-regulatory mechanism of cytoneme-mediated signaling by which the Bnl morphogen gradient forms. Thus, these findings showed an example of morphogenesis in which cytoneme-dependent signaling can provide precision and adaptability in shaping long-range positional gradients and tissue architectures in space and time.

Results

A concentration gradient of Bnl:GFP adopts the recipient ASP-specific contour

To visualize Bnl dispersion without affecting normal tracheal morphogenesis, we employed the CRISPR/Cas9-based genome-editing technique to generate flies that harbor an in-frame insertion of a superfolder-GFP (sfGFP) sequence within the third coding exon of the bnl gene (Figure 1B; Figure 1—figure supplement 1A–C; Materials and methods). Animals that harbored the bnl:gfpendo knock-in allele were homozygous viable, had normal tissue morphology, and the expected gene expression patterns (Du et al., 2017; Sato and Kornberg, 2002). Under sensitive confocal microscopy (see Materials and methods), endogenous Bnl:GFP molecules were visualized as fluorescent puncta (Figure 1C,C’). The distribution patterns of these Bnl:GFP puncta revealed several unexpected features. In the wing disc source cells that were marked by CherryCAAX expression, Bnl:GFP puncta were faint, hardly detectable, and homogeneously distributed (Figure 1C–D’). As a paracrine signal, Bnl was expected to disperse and form a continuous gradient surrounding the wing disc source (Figure 1A’). However, all of the detectable bright fluorescent Bnl:GFP puncta outside of the source cells were asymmetrically distributed only in the recipient ASP cells (Figure 1C–D’). Thus, although Bnl:GFP moved from the wing disc source to the ASP, the punctate signal did not localize in the non-specific wing disc cells surrounding the signal source or in the myoblast cells located between the disc source and the ASP (Videos 1 and 2).

Video 1
Asymmetric distribution of Bnl:GFP produced from the wing disc source.

Serial Z-stacks of the CD8:Cherry-marked ASP and underlying wing disc Bnl:GFP producing cells shown from lower to upper optical sections; only the green channel is shown to highlight asymmetric Bnl:GFP localization; genotype: btl-Gal4, UAS-CD8:Cherry/+; bnl:gfpendo.

https://doi.org/10.7554/eLife.38137.010
Video 2
A recipient ASP-specific Bnl:GFP distribution.

Same sample and Z-stacks of the CD8:Cherry-marked ASP as shown in Video 1, but now with both red and green channels to highlight that the asymmetric Bnl:GFP distribution was due to dispersion of Bnl:GFP only in the recipient ASP epithelium; genotype: btl-Gal4, UAS-CD8:Cherry/+; bnl:gfpendo.

https://doi.org/10.7554/eLife.38137.011

To ensure that the GFP-marked puncta in the ASP were actual Bnl molecules, we performed an immunohistochemistry assay (IHC) with αBnl antibody on the homozygous bnl:gfpendo larval tissues. The Bnl antibody recognized all of the Bnl:GFP puncta in the larval ASP, confirming that they represent the Bnl protein (Figure 1—figure supplement 2A,A’). To further validate whether the Bnl:GFP distribution in the ASP represented a functional distribution of the ligand, we knocked-down bnl:gfpendo expression in the wing disc source. Since Bnl is essential for tracheal/ASP growth (Sutherland et al., 1996; Sato and Kornberg, 2002), loss of a functional Bnl:GFP distribution was expected to abrogate ASP development. As expected, overexpression of bnlRNAi from the disc bnl-source in the bnl:gfpendo larvae knocked down both Bnl:GFP expression and ASP growth in most samples, indicating that the tagged signaling protein is functional (Figure 1—figure supplement 2B–C). However, due to incomplete RNAi-mediated knock-down of bnl:gfpendo, a few samples still contained low levels of Bnl:GFP. Importantly, these samples also had small, stunted ASPs with a shallow range of Bnl:GFP distribution. This correlation between Bnl:GFP levels/distribution and ASP growth suggested that the levels and distribution of Bnl:GFP in the ASP have a significant developmental role (Figure 1—figure supplement 2B–C).

Contrary to what was predicted earlier (Figure 1A’; (Horowitz and Simons, 2008; Ochoa-Espinosa and Affolter, 2012)), our imaging results (Figure 1C–D’) suggested that a pre-existing Bnl:GFP gradient surrounding the wing disc signal source was not formed. Instead, the Bnl:GFP puncta appeared to distribute in a graded pattern along the distal-to-proximal (D-P) axis of the recipient ASP (Figure 1D,D’). Measurement of Bnl:GFP intensities along the longest D-P axis of the late third instar larval ASPs revealed a long-range exponential gradient spanning ~100–120 μm in range. The distal ASP tip, which is nearest to the disc bnl-source, received the highest levels of Bnl:GFP (Figure 1E). The signal concentration decreased exponentially toward the proximal ASP stalk as the distance from the source increased. Thus, although Bnl:GFP is produced in the wing disc, its gradient is formed in the recipient ASP.

The Bnl:GFP gradient shapes were variable, and developed concomitantly with the growth of the recipient ASP (Figure 1F). In the early third instar larval stage (18–26 hr after third instar larval molt), the ASP was hardly detectable. At this stage, only a few TC cells proximal to the bnl-source had received Bnl:GFP. In the later stages, as the ASP budded from the TC and then elongated, the Bnl:GFP gradient shapes adopted the variable shapes of the recipient ASP. These results suggested that the shape of the Bnl:GFP gradient is adaptable and its formation is coordinated with growth of the recipient ASP. We further examined the relationship of the slope of the Bnl:GFP gradient with the length of the D-P axis of the recipient ASP. In the shorter early third instar larval ASPs (~35–40 hr after third instar larval molt), Bnl:GFP formed relatively steeper and narrower gradients (slope of a straight line joining Cmax to C1/2max =~3.14) compared to the larger/longer late-stage ASPs (slope =~0.71) (Figure 1E,G). A strong negative correlation of the gradient slopes with the length of the ASP D-P axis was also observed in a population of randomly harvested wandering third instar larval ASPs, which showed natural developmental variations in size (Figure 1H). These results showed that the range and slope of the Bnl:GFP gradients are dependent on the ASP morphology and that the gradient did not pre-exist, but instead developed dynamically in coordination with the recipient tissue morphogenesis.

Although 2D Z-projected images were sufficient to visualize the gradient in the X-Y plane, the ASP epithelium has a complex three-dimensional tubular morphology. As shown in the cross-section diagram of the ASP and wing disc in Figure 1A”, the relative distance of the ASP cells from the disc source can be measured along the D-P axis as well as in the upper and lower layers across the vertical Z-axis. Across the Z-axis, most of the cells in the upper ASP layer (ventral face) were situated away from the underlying bnl-source. In spite of the physical distances, Bnl:GFP distribution was not restricted to the ASP cells that were immediately juxtaposed to the bnl-source. Instead, Bnl:GFP distributed in both layers formed a continuous long-range gradient, adopting the complex 3D tubular contour of the epithelium (~300 μm long, equivalent to 30 cells in just a single medial cross-section) (Figure 1I–I”). When we probed for the expression of a Bnl-signaling target gene pntP1, an ETS family transcription factor (Sutherland et al., 1996), overlapping signal and signaling gradients were revealed (Figure 1I–J, Figure 1—figure supplement 2D–E”). Interestingly, in a digitally straightened continuous epithelium, the signal and signaling gradients had a bilateral symmetric distribution, where the positions with highest concentrations corresponded to the ASP cells nearest to the disc bnl-source (Figure 1I’,I”,J). Tubular contours of the ASP epithelium were variable among different samples, but irrespective of the differences in 3D morphologies, the Bnl:GFP distribution consistently adopted the recipient ASP-specific contours (Figure 1—figure supplement 2D–E”). Collectively, these results showed that formation of the Bnl gradient depends on the ASP growth, and that the shapes of the gradient can dynamically adapt to the changing morphologies of the growing tissues.

A trachea-specific Bnl:GFP gradient might reflect a receptor-bound signal distribution. To examine this possibility, we created animals harboring a btl:cherryendo knock-in allele using genome-editing technology (Figure 2A; Figure 2—figure supplement 1A–C; Materials and methods). As expected, Btl:Cherry expressed at physiological levels marked all tracheal cells, but formed a concentration gradient along the D-P axis of the ASP (Figure 2B; Figure 2—figure supplement 1D). This observation is consistent with an earlier report describing activation of btl transcription by Bnl signaling (Ohshiro et al., 2002). In trans-heterozygous btl:cherryendo/bnl:gfpendo animals, all the Bnl:GFP puncta in the ASP colocalized with Btl:Cherry and the receptor gradient coincided with that of the ligand gradient (Figure 2C–D; Figure 2—figure supplement 1E,E’). Most of the colocalized receptor-ligand puncta were compartmentalized apically in early- (αRab5 IF; ~76% of total puncta/ASP examined) and late- (αRab7 IF; ~90% of total puncta/ASP) endosomes, but not in recycling endosomes or lysosomes (Figure 2E–E”’; Figure 2—figure supplement 2A–C). These results suggested that the branch-specific Bnl:GFP gradient is receptor-bound, and mostly intracellular. Notably, a small number of receptor-ligand puncta were found at the basal side of ASP cells (arrows in Figure 2C,E). They were located mostly at the distal ASP tip cells and did not colocalize with any of the endosomal markers we examined (Figure 2E). These puncta on the exposed basal side of the ASP might represent Btl:Cherry-bound Bnl:GFP molecules prior to their receptor-mediated endocytosis.

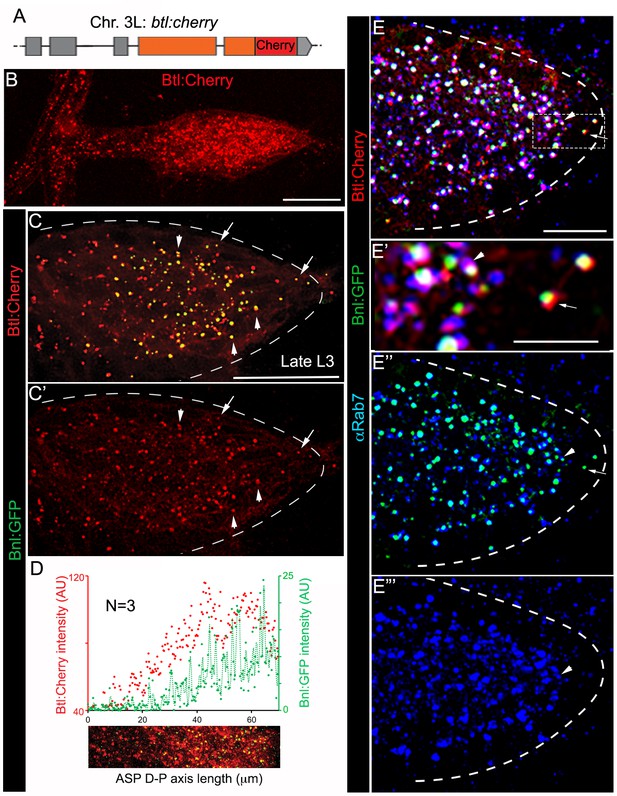

Figure 2 with 2 supplements see all
A receptor-bound Bnl:GFP gradient.

(A) A schematic map of btl:cherryendo knock-in allele; orange box, coding exon; grey box, non-coding exon; line, introns. (B) Btl:Cherry, expressed at physiological levels from the btl:cherryendo allele, was detected as densely packed puncta marking the ASP cell membrane. (C,C’) Bright colocalized Bnl:GFP-Btl:Cherry puncta visible at low exposure imaging, 100% of the Bnl:GFP puncta in the ASP are Btl:Cherry bound; (C’) only red channel shown. (D) Graded Btl:Cherry expression and distribution in the ASP coincided with the Bnl:GFP gradient in the ASP; N = 3 independent samples; lower panel, an example of the region of ASP used for generating the intensity plot in the upper panel; AU, arbitrary unit. (E-E’’’) About 90 ± 1.6% colocalized Bnl:GFP-Btl:Cherry puncta in the ASP also localized in αRab7-marked endosomes (arrowhead); (E) merged colors; (E’) zoomed in region marked by dashed box in E; (E’’) only green and blue channels showing endosome localized Bnl:GFP in the ASP; (E’) only blue channel. (C,C’,E-E’’’) arrow, basally localized Bnl:GFP-Btl:Cherry puncta that were not in the endosomes; arrowhead, apically localized receptor-ligand puncta that were also in the endosomes; all images, Z-projection of 5–6 selected optical planes; dashed line, ASP outline. (C–E’’’) bnl:gfpendo/btl:cherryendo larvae. (B–E’’’) fixed samples. (B,D) Z-projection of 30–40 optical planes. Scale bars, 30 μm; 10 μm (E); 5 μm (E’).

https://doi.org/10.7554/eLife.38137.012

Cytonemes mediate target-specific dispersion of Bnl:GFP

Bnl molecules were expected to move through the extracellular space from the wing disc source to the ASP. To clearly visualize the extracellular distribution pattern of post-secretory Bnl:GFP prior to their endocytosis in the ASP, we employed a standard detergent-free immunofluorescence (EIF) protocol (see Materials and methods). This protocol was specifically developed for detecting extracellular dispersion profiles of morphogens (Schwank et al., 2011; Strigini and Cohen, 2000). An αGFP EIF assay identified a distinct steady-state surface-bound extracellular/externalized pool of Bnl:GFP molecules (Figure 3A; henceforth referred as Bnl:GFPex). Interestingly, even though we used a highly sensitive Gallium arsenide phosphide detector for imaging (see Materials and methods), endogenous levels of EIF-stained Bnl:GFPex puncta appeared to emit very weak GFP-fluorescence, which was rapidly quenched during high magnification (40X) imaging. However, this property of GFP-tagged molecules enabled us to estimate the levels of externalized/extracellular Bnl:GFP (Bnl:GFPex), distinguishing them from the brightly fluorescent but non-EIF stained intracellular Bnl:GFP puncta in the ASP (henceforth referred as Bnl:GFPin) (Figure 3A).

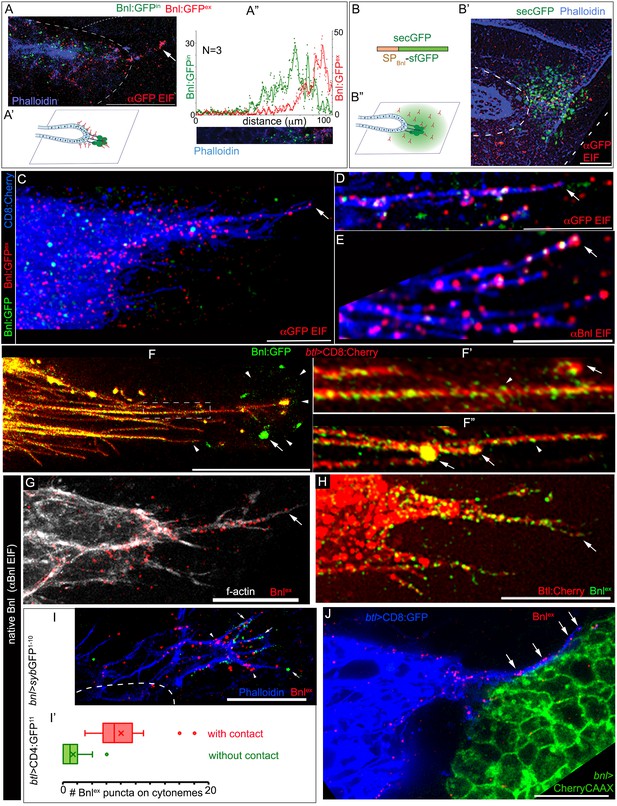

Figure 3 with 3 supplements see all
ASP cells receive Bnl:GFP through Btl-containing cytonemes.

(A-A’’) An αGFP-based EIF assay under the detergent-free conditions (Materials and methods), identified externalized Bnl:GFP (red, Bnl:GFPex) that localized specifically on the surfaces of the ASP, actin-rich ASP protrusion (arrow), and, at a low level, on wing disc signal producing cells (area within the dotted line); (A’) concentration gradient of surface-localized Bnl:GFPex similar to that of the intracellular Bnl:GFPin along the D-P axis of the ASP (N = 3 independent samples); bright Bnl:GFPin puncta were unrecognized by the EIF method; EIF-stained Bnl:GFPex puncta (red) emitted poor GFP fluorescence. (B-B’’) Control experiment for (A), showing random non-specific distribution (red, αGFP EIF) of extracellular secreted-GFP (secGFP; drawing in B; Materials and methods) when expressed from the disc bnl-source (green; see Figure 3—figure supplement 1A); (A’,B’’) drawings explaining distribution patterns in A,B’ respectively; (A,B’) blue, phalloidin-Alexa-647 staining of f-actin marked cell outlines. (C–E) Bnl:GFPex puncta (red; arrow) localized on the surface of CD8:Cherry-marked cytonemes (blue) emanated from the ASP (btl-Gal4, UAS-CD8:Cherry/+; bnl:gfpendo); (C,D) αGFP-EIF; (E) αBnl-EIF. (F-F’) Enhanced-gain super-resolution images (Materials and methods), showing a sub-resolution distribution of faint Bnl:GFP molecules (nanopuncta) in live CD8:Cherry-marked ASP and ASP cytonemes (see Figure 3—figure supplement 2A–B’); genotype: btl-Gal4, UAS-CD8:Cherry/+; bnl:gfpendo; (F’) zoomed-in area indicated by the ROI box in (F); (F’’) cytonemes from a different sample showing difference of nano-puncta (arrowheads) and large puncta representing clusters (arrow) of nano-puncta. (G) An αBnl EIF showing biased distribution of the native externalized Bnl puncta (Bnlex, arrow) in wild type (w-) background; grey, phalloidin-Alexa-647. (H) Bnlex puncta colocalized with endogenous Btl:Cherry on cytonemes extended from the btl:cherryendo ASP. (I,I’) Comparison of Bnlex (αBnl EIF, red; arrowhead) localization on the actin-rich ASP cytonemes (blue, phalloidin-Alexa 647) with and without a direct contact (green dots, arrow) with the disc bnl-source; genotype: btl-Gal4/lexO-nsyb:GFP1-10, UAS-CD4:GFP11; bnl-LexA/+; (I’) a graph showing the comparative numbers; N = 14 ASP; p<0.0001 (two-tailed t-test). (J) A high-resolution image showing contacts between the ASP cytronemes (blue) and wing disc source (green) and enrichment of native externalized Bnl (red; Bnlex, detected with αBnl EIF) at these contact points; genotype: btl-Gal4, UAS-CD8:GFP/+; bnl-LexA, lexO-CherryCAAX/+. Scale bars, 20 μm.

https://doi.org/10.7554/eLife.38137.018

Most importantly, this experiment showed that although the EIF-stained Bnl:GFPex molecules represented secreted signals in the extracellular space, they did not disperse randomly in all directions. Instead, they were asymmetrically localized and only detected on the surfaces of signal producing cells and of the recipient ASP (Figure 3A,A’). Bnl:GFPex were highly enriched on the ASP and appeared to form a gradient on the recipient surface, in exactly the same way as the endocytosed Bnl:GFPin molecules (Figure 3A”). In contrast to the asymmetric Bnl:GFPex distribution, a secreted-GFP construct containing a sfGFP tag and an N-terminal signal peptide derived from the Bnl sequence (secGFP; see Materials and methods) randomly dispersed in the extracellular space surrounding the disc bnl-source (Figure 3B–B”; Figure 3—figure supplement 1A). These results showed that Bnl:GFP moved target-specifically in polarized fashion.

The polarized distribution pattern of Bnl:GFPex was consistent with a potential cytoneme-mediated direct transport of the molecules. Previous studies showed that ASP cells project receptor-containing cytonemes to establish direct membrane contacts with the wing disc Bnl source. These cytonemes were shown to be essential for induction of pMAPK signaling in the ASP (Roy et al., 2014). However, Bnl transport through cytonemes was never visualized before. To examine if Bnl:GFPex molecules localized on the surface of the ASP cytonemes, we carried out EIF assays with either αGFP or αBnl antibody on CD8:Cherry-marked ASPs of bnl:gfpendo homozygous larvae. These assays showed that the EIF-stained Bnl:GFPex puncta were highly enriched on cytonemes emanating from the distal ASP tip (N > 50 ASP, Figure 3C–E; Figure 3—figure supplement 1B–B”).

However, as observed earlier, many of these puncta were poorly fluorescent under standard confocal fluorescence imaging conditions. Therefore, to clearly visualize the endogenous Bnl:GFP molecules on cytonemes, we employed an enhanced gain super-resolution detection method (see Materials and methods). This imaging method revealed that the surfaces of the ASP and ASP cytonemes were densely populated with a high concentration of Bnl:GFP molecules, which appeared as small sub-resolution-sized puncta of <200 nm in diameter (henceforth referred as nanopuncta due to their sub-resolution size; arrowheads in Figure 3F–F”, Figure 3—figure supplement 2A–A”’). These nanopuncta were also enriched on the source cells, especially around the bouton-like sites of contact between the cytonemes and the source (Figure 3F). An αGFP EIF staining assay in combination with super-resolution imaging showed that these Bnl:GFP nanopuncta included both surface-bound molecules (EIF-stained) and intracellular molecules (non-EIF stained) (Figure 3—figure supplement 2B,B’). Occasionally, several nanopuncta aggregated to form bright punctal clusters on the cytonemes, the fluorescence of which was likely to be easily detectable under our standard confocal fluorescence imaging conditions (arrows in Figure 3F’,F”). Although the molecular and cellular nature of the nanopuncta and their clusters on the cytonemes are unclear, these results provided substantial evidence for a selective distribution of Bnl:GFP molecules along the surface of cytonemes.

Native, untagged Bnl could also be detected on cytoneme surfaces using the αBnl antibody. The αBnl EIF assay showed that a high concentration of externalized Bnl (Bnlex) molecules selectively decorate actin-rich ASP cytonemes and the ASP surface of w- wild-type larvae (Figure 3G). The distribution of Bnlex was asymmetrical, exactly as observed for Bnl:GFP on CD8:Cherry-marked ASPs (Figure 3C). These results suggested that Bnl molecules, irrespective of the presence or absence of fluorescent tags, specifically localize on the surface of the ASP cytonemes for inter-organ transport. Since efficient inter-tissue movement of Bnl molecules along the surface of the recipient cytonemes might require receptor binding, we imaged ASP cytonemes in btl:cherryendo larvae. Densely packed Btl:Cherry molecules were visualized on the surface of the ASP cytonemes (Figure 3—figure supplement 3A). An αBnl-EIF assay in btl:cherryendo larvae showed that the native Bnlex puncta colocalized with the Btl:Cherry puncta on the cytonemes and on ASP surfaces (Figure 3H). Receptor-bound Bnl:GFP puncta were also observed on cytonemes during live imaging (Figure 3—figure supplement 3B–C’; N = 30). Thus, Bnl is transported by cytonemes from the source to the ASP in a receptor-bound state.

Cytonemes exchange signals by establishing direct physical contacts between the source and recipient cells (Chen et al., 2017; González-Méndez et al., 2017; Huang and Kornberg, 2015; Roy et al., 2014). These signaling contacts between the ASP and the bnl source were originally discovered using a membrane GFP-reconstitution method (GFP reconstitution across synaptic partners, GRASP) (Huang and Kornberg, 2015; Roy et al., 2014). As shown in Video 3, an improved GRASP technique, ‘Synaptobrevin-GFP-reconstitution-across-synaptic-partners (syb-GRASP)’ revealed multiple functional contact sites between each of the ASP cytonemes and the bnl-source. To estimate the contact-dependency of the cytoneme-mediated Bnl reception, we combined the syb-GRASP experiment with the αBnl EIF assay. This experiment showed that the actin-rich (phalloidin-stained) ASP cytonemes that contacted the disc bnl-source received a significantly higher number of Bnlex puncta in comparison to the non-contacting cytonemes (Figure 3I,I’). These observations, together with the previous reports on the effect of loss of cytoneme contacts on pMAPK signaling in the ASP (Roy et al., 2014), provided substantial evidence that cytoneme-mediated Bnl exchange is contact-dependent.

Video 3
3D rendered views of the CD8:Cherry-marked ASP showing that each of the ASP cytonemes established multiple physical contacts (green dots) with the underlying wing disc bnl source (unmarked).

Cytoneme contact sites were marked by sybGRASP, a GFP-reconstitution method, where the ASP expressed CD4:GFP11 and the wing disc bnl-source expressed syb:GFP1-10; genotype: btl-Gal4, UAS-CD8:Cherry/LexO-syb:GFP1-10, UAS-CD4:GFP11; bnl-LexA/+.

https://doi.org/10.7554/eLife.38137.024

Molecular reconstitution of split GFP between ASP cytonemes and source cells suggested that the signaling contacts between the cytoneme and source cell membranes juxtapose within a 20 nm gap distance (Kornberg and Roy, 2014). To directly visualize and resolve Bnl exchange at these cytoneme contacts, an αBnl EIF assay was combined with super-resolution imaging (see Materials and methods) of the tissues that had both the source and recipient ASP cells marked with distinct membrane-tagged proteins (Figure 3J). The images revealed that ASP cytonemes traverse along the surface of the source cells, with each cytoneme establishing contacts with multiple signal-producing cells. Although the producing cells occupy a large area, the externalized Bnl proteins were specifically enriched at the cytoneme contact sites. This observation suggests that the producing cells selectively release Bnl at these contact sites. These ASP cytonemes also localized Bnlex puncta on their shafts, suggesting that the signal might be transported from the contact sites to the ASP along the surface of the cytonemes. A similar retrograde movement of Dpp was previously observed through ASP cytonemes (Roy et al., 2014).

Cytoneme-mediated transport is essential for generation of the Bnl gradient

To examine whether cytoneme-mediated reception of Bnl:GFP is essential for generating the long-range Bnl:GFP gradient in the ASP, we generated mosaics of marked cytoneme-deficient mutant clones within the ASP of bnl:gfpendo larvae by knocking down several known cytoneme-regulator genes such as diaphanous (dia), a formin homolog, neuroglian (nrg), an L1-cell adhesion molecule (Roy et al., 2014), and singed (sn), a Fascin homolog and a regulator of tracheal filopodia (Okenve-Ramos and Llimargas, 2014). To assess Bnl reception in the mutant clones, we compared Bnl:GFP levels within the mutant area (inside of the clone) with that in the wild-type (WT) neighboring areas at an equivalent position (outside of the clone) in the same ASP. The ratios of Bnl:GFP concentration outside to inside of the marked wild-type (WT) control clones were ~1, suggesting no significant differences in the signal uptake within the marked (inside) and unmarked (outside of the clone) WT areas (Figure 4A,E). However, knockdown of cytoneme-regulator genes in clones of cells significantly decreased Bnl:GFP levels in the mutant cells, but not in the neighboring WT cells (Figure 4B–E; Figure 4—figure supplement 1A). Consequently, the ratio of Bnl:GFP concentration outside (WT area) to inside (cytoneme deficient) of the mutant clones increased significantly compared to the WT control condition (Figure 4E). These results showed that cytonemes are essential for the ASP cells to receive Bnl:GFP from the wing disc source.

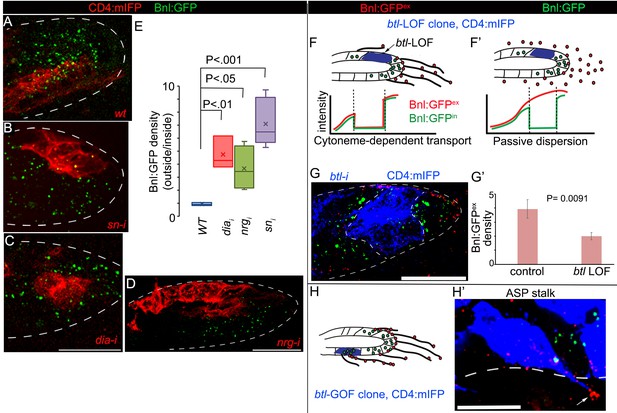

Figure 4 with 1 supplement see all
Cytonemes are essential for tissue-specific Bnl:GFP gradient profile.

(A-D) Representative images of Bnl:GFP uptake in CD4:mIFP-marked (red) clones in the ASP: (A) wt; (B) snRNAi, (C) diaRNAi; (D) nrgRNAi. (E) A box plot comparing the ratios of Bnl:GFP concentration outside (unmarked WT area) to inside (marked mutant area) of the CD4:mIFP-marked cytoneme-deficient mutant clones, expressing either diaRNAi (N = 3), nrgRNAi (N = 4), or snRNAi (N = 6) with that of the control marked WT clones (N = 3); P values, two-tailed t-test. (F,F’) Schematic models predicting differences expected in distribution patterns of EIF-stained Bnl:GFPex (red) on btl LOF clones (blue) either in diffusion-based (F’) or cytoneme-dependent (F) Bnl:GFP transport mechanism. Intracellular Bnl:GFP (green, Bnl:GFPin) level is expected to be reduced in both modes of signal transport. (G) Representative image showing autonomous loss of distribution of Bnl:GFPex (red, αGFP EIF-stained) in CD4:mIFP-marked (blue) btl LOF (btlRNAi) clone. (G’) Plot comparing relative Bnl:GFPex (red) density inside (mutant area) versus outside (WT area, control) of btl LOF clones (N = 3 independent ASPs); P values, two-tailed t-test. (H,H’) Representative image showing enrichment of αGFP EIF stained Bnl:GFPex (red) on long cytonemes (arrow) projected from btlGOF clones in the ASP stalk. Genotypes: hs-FLP/+; btl>y+>Gal4/+; UAS-CD4:mIFP, bnl:gfpendo/+ (A) or UAS-‘x’-RNAi (B–G) or UAS-btl (H’). Scale bars, 30 μm.

https://doi.org/10.7554/eLife.38137.025

The distribution profile of Bnl:GFP in btl-LOF clones further suggested that cytonemes are the only major routes for Bnl gradient formation. As illustrated in Figure 4F,F’, a cytoneme-mediated mechanism of dispersion, which is receptor-dependent, would create cell-autonomous loss of receptor-bound Bnl:GFPex on the surface of a btl-LOF clone. This predicted distribution pattern is different from that of a passive extracellular Bnl:GFP diffusion, which would be expected to result in unperturbed levels of the extracellular EIF-stained Bnl:GFPex on the receptor-LOF clone. Indeed, RNAi-mediated knockdown of btl in clones of ASP cells led to a significant reduction of Bnl:GFPex on the mutant clonal areas compared to the WT neighboring cells (Figure 4G,G’). Clearly, the distribution pattern of Bnl:GFPex was consistent with a cytoneme-dependent mechanism of gradient formation. Note that an autonomous reduction in intracellular Bnl:GFP (non-EIF stained) was also observed in the mutant clones, but such reduction in intracellular Bnl:GFP levels was expected irrespective of the mechanism of signal dispersion, and did not affect our conclusions. Furthermore, in the ASP stalk, where normal levels of Btl are low, generation of btl overexpressing (btl-GOF, gain of function) clones induced extension of long polarized cytonemes that projected toward the underlying disc bnl-source. These cytonemes were enriched with EIF-stained Bnl:GFPex on their surfaces (Figure 4H,H’) and the mutant clones had a higher concentration of Bnl:GFPex than their neighbors (Figure 4—figure supplement 1B). This result provided direct evidence that the induction of cytonemes in ASP cells increased cell-autonomous contact-dependent Bnl:GFP uptake.

Signaling through a graded number of cytonemes generates the Bnl:GFP gradient in the ASP

How might cytoneme-mediated local signaling in each ASP cell generate a long-range signal gradient across the entire ASP epithelium? One possibility is that tracheal cells, relative to their distances from the bnl-source, produce different numbers of Bnl-specific cytonemes and/or establish variable numbers of signaling contacts with the disc bnl-source. To examine this possibility, we live imaged randomly generated CD8:GFP-marked clones in different positions of the ASP and analyzed the orientation and number of cytonemes with different lengths they extend (Figure 5A–A”). In addition, to compare the frequency of signaling contacts among cytonemes emanating from different regions of the ASP, we devised a mosaic analysis method for generation of clonal syb-GRASP. We expressed syb-GFP1-10 in the bnl-source and induced small (~1–4 cells) randomly localized CD8:RFP-marked clones across the ASP epithelium that also expressed CD4:GFP11 (Figure 5D,D’; see Materials and methods). In this technique, when cytonemes emanating from the clones in different parts of the ASP established contact with the disc bnl-source, GFP was reconstituted at their contact sites. For assessing the steady-state number of contacts established by different parts of the ASP with the signal source, ASPs containing only 1–2 small clones were considered.

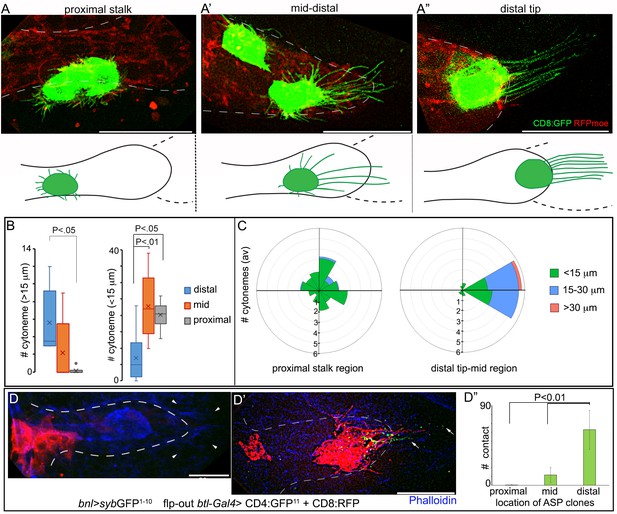

Figure 5 with 1 supplement see all
A graded pattern of cytoneme formation in the ASP.

(A-C) Live images of ASPs showing variability in the number of long, oriented cytonemes emanating from the CD8:GFP-marked clones located in different ASP zones: (A) proximal stalk (>7th cells from distal tip of 12 cell long D-P axis); (A’) mid-region (4th-7th cells along the D-P axis); (A’’) distal tip (1st-3rd cells along D-P axis); red, btl>RFPmoe; lower panels, drawing showing approximate location of the clones and the corresponding cytoneme patterns, dashed line, bnl-source; (B) graphs comparing the number of long (>15 μm) and short (<15 μm) cytonemes from clones in the distal tip (N = 8), mid (N = 5), and proximal (N = 6) regions in the ASP; (C) rose plots comparing number and orientation of cytonemes of different lengths emanated from CD8:GFP-marked clones at distal tip-to-mid region (1st-7th cell along D-P; N = 7) and proximal stalk (>7 cells away from distal tip along D-P axis; N = 11) of the ASP; genotype: hs-FLP/+; UAS-mCD8:GFP/+; btl>y+>Gal4, btl-mRFP1moe/+. (D-D’’) Clones of cells expressing CD8:RFP and CD4:GFP11 from tip-, mid-, and stalk- region of the ASP established variable number of contacts with sybGFP1-10 expressing disc bnl-source; green puncta, GFP-reconstitution signal representing contact sites between the ASP cells and the source; (D’’) plots comparing the number of contacts established by cells from different regions of the ASP with the disc bnl source; blue, phalloidin-Alexa 647; genotype: hs-FLP/+; btl>y+>Gal4/lexO-nsyb:GFP1-10, UAS-CD4:GFP11; bnl-LexA/UAS-CD8:RFP. All panels except D-D’’, live imaging. Scale bars, 30 μm.

https://doi.org/10.7554/eLife.38137.030

These experiments showed that the stalk region of a third instar larval ASP, beyond 7 cell-distances along the D-P axis (~12 cells long) from the ASP tip (Figure 1A”), produced only randomly oriented short cytonemes. These cytonemes rarely contacted the bnl-source (Figures 5A,B,C,D–D”). This region also received lower levels of Bnl:GFP (Figure 1A”,E). The number of long polarized cytonemes that oriented toward the bnl-source and established direct contacts with the source increased gradually in the mid (4th-7th cells from the ASP tip along the D-P axis) and the distal tip cells (1–3 cells from the tip along the D-P axis) (Figure 5A’,A”,B,C,D',D"; Figure 5—figure supplement 1A–A’’). Thus, long oriented cytonemes that could establish contacts with the Bnl source were produced in a graded fashion across the length of the ASP. A similar gradient in the number of signaling contacts was also observed from cytonemes produced across the vertical axis of the tubular tissue. In a syb-GRASP experiment between the disc and ASP, ASP cells in the lower layer that is proximal to the bnl-source had a higher frequency of cytoneme contacts compared to the upper cell layer (Figure 5—figure supplement 1B; Videos 3, 4 and 5). These results suggested that differential levels of signal uptake through a graded number of cytonemes give rise to the tissue-specific shapes of the Bnl:GFP gradient.

Video 4
3D rendered views of the ASP and wing disc showing that the CD8:RFP- marked clones of cells in the ASP tip had higher number of cytoneme-mediated contacts (green) with the bnl-source than the clones in the ASP stalk; ASP outline was marked by phalloidin (blue); CD8:RFP marked clones of ASP cells at different positions expressed CD4:GFP11 and disc bnl-source (unmarked) expressed sybGFP1-10.

GFP-reconstitution indicated physical contacts between the wing disc source and the clonal part of the ASP; genotype: hs-FLP/+; btl>y+>Gal4/lexO-nsyb:GFP1-10, UAS-CD4:GFP11; bnl-LexA/UAS-CD8:RFP.

https://doi.org/10.7554/eLife.38137.035
Video 5
3D rendered views of the CD8:Cherry-marked ASP showing the differences in the number of cytoneme contacts with the disc bnl-source from the upper and lower layers of ASP cells; cytonemes from the lower layer ASP cells, which are proximal to the underlying disc source (unmarked) have higher number of contacts than the upper layer ASP cells; cytoneme contact sites (green) were marked by sybGRASP; genotype: btl-Gal4, UAS-CD8:Cherry/LexO-syb:GFP1-10, UAS-CD4:GFP11; bnl-LexA/+.
https://doi.org/10.7554/eLife.38137.036

Bnl induces concentration-dependent differential gene expression in the ASP

How does a steady state pattern of cytonemes across the ASP epithelium develop? The gradient of numbers of Bnl-receiving cytonemes correlated with the spatial gradient of Bnl (Figures 5A–B;1E,I; 2D). Thus, the zones of variable numbers of ASP cytonemes might reflect differential target gene activities in response to the Bnl gradient. Therefore, we examined the correlation of the Bnl:GFP gradient with the spatial expression domains of several known Bnl target genes, including pntP1 and sprouty (sty) (Hacohen et al., 1998; Ohshiro et al., 2002). We also examined expression of the Ets family transcriptional repressor yan, which is suppressed by Ras/MAPK signaling (Ohshiro et al., 2002), and of cut, a homeodomain transcription repressor. Although cut is not known to be a target of Ras/MAPK signaling, this gene was shown to be expressed in the larval spiracular branch and in the ASP (Ohshiro et al., 2002; Pitsouli and Perrimon, 2013; Rao et al., 2015).

The D-P axis of a third instar larval ASP consists of ~12 cells. We found that ASP cells within a three-cell diameter domain from the distal tip along the D-P axis, which received the highest concentration of Bnl:GFP, expressed sty (Figure 6A,E; Figure 6—figure supplement 1AFigure 6—figure supplement 2A,B). A broader zone of ~6–7 cell-diameters from the tip along the D-P axis received high-to-moderate levels of Bnl:GFP and induced pntP1 (Figure 6B,E; Figure 6—figure supplement 1AFigure 6—figure supplement 2C, D). In contrast, the proximal stalk of the ASP from the 7th to 12th cell away from the tip along the D-P axis received negligible levels of Bnl:GFP. In this ASP domain, cut and yan expression gradually increased with increasing distance from the source (Figure 6C–E; Figure 6—figure supplement 1A; Figure 6—figure supplement 2E-H). Thus, the gradients of cut and yan expression had the exact opposite pattern as the pntP1 and Bnl:GFP gradients. This concentration-dependent activity was also observed across the Z-axis (Figure 1A”). ASP cells in the lower Z-sections that are proximal to the underlying bnl-source expressed higher levels of sty and pntP1 relative to the upper layer cells situated away from the disc source (Figure 6F; Figure 6—figure supplement 1B,C). Thus, across the recipient ASP epithelium, high levels of Bnl:GFP correlated with sty expression, and gradually decreasing levels of Bnl:GFP further away from the source correlated with the expression zones of pntP1, cut, and yan, respectively (Figure 6E,F). Similar spatial patterning in the gene-expression zones of sty and different ETS family proteins is known to be induced by the vertebrate FGF8 morphogen in mouse neuroectoderm (Toyoda et al., 2010).

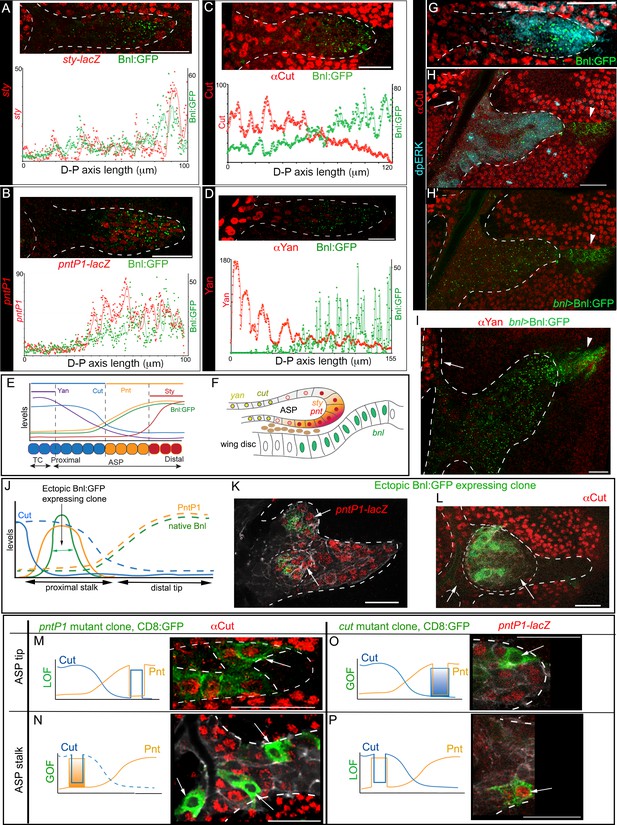

Figure 6 with 2 supplements see all
Bnl:GFP acts as a morphogen to activate concentration-dependent gene expression.

(A-D) Representative images showing correlation of the Bnl:GFP gradient with spatial expression domains (red) of sty (A; sty-lacZ), pntP1 (B; pntP1-lacZ), cut (C; αCut), and yan (D; αYan); lower panels, intensity plots along the D-P axis of the ASP. (E) Drawing depicting the expression domains of sty, pntP1, cut, and yan within 1st-3rd, 1st-7th, 7th-14th, and 11th-14th cells, respectively, from the distal tip of a 14 cell long D-P axis of ASP including TC (2 cell wide). (F) Drawing of a sagittal section of an ASP depicting relative gene expression domains in Z axis (see Figure 6—figure supplement 1C). (G) Correlation of spatial range of endogenous Bnl:GFP gradient with induction of pMAPK signaling (α-dpERK, blue) and Cut expression (α-Cut, red). (H–I) Overexpression of Bnl:GFP from the disc bnl-source (arrowhead) expanded the range of Bnl:GFP and pMAPK signaling (H,H’) to the ASP stalk, suppressing/retracting the cut (H, arrow) and yan (I, arrow) domains to the farthest part that received little or no Bnl:GFP (arrow; red). (J) A hypothetical expression pattern (solid lines) of PntP1 (orange) and Cut (blue) induced by an ectopic Bnl:GFP (green) expressing clone in the ASP stalk; dashed lines, original native Bnl, PntP1, and Cut expression pattern. (K,L) Small Bnl:GFP overexpressing clones (green) at the ASP stalk non-autonomously suppressed cut (L; red; arrow), induced pntP1 (K; red; arrow), and organized the surrounding cells to induce ectopic branch (dashed outlines); genetic crosses: hs-FLP; btl>y+>Gal4, btl-mRFP1moe X UAS-Bnl:GFP (L), or UAS-Bnl:GFP; pntP1-lacZ/TM6 (K). (M–P) Cut and PntP1 reciprocally antagonized each other’s expression (red); GOF/LOF, Gain/Loss of function; (M,N) hs-FLP; UAS-mCD8GFP; btl>y+>Gal4,btl-mRFP1moe X UAS-pntRNAi (M), or UAS-PntP1 (N); (O) hs-FLP; btl>y+>Gal4,btl-mRFP1moe X UAS-Cut, UAS-CD8:GFP; pntP1-lacZ/TM6; (P) hs-FLP; UAS-mCD8GFP; btl >y+>Gal4, btl-mRFP1moe X UAS-cutRNAi, pntP1-lacZ/TM6. (M,O) ASP tip/mid-region; (N,P) ASP stalk/TC region; LOF, RNAi-mediated knockdown; arrows, the intended GOF/LOF clones. (A–P) white dashed line, ASP or clone outlines. (C,G,H,H’,L,M,N) αCut; (A,B,K,O,P) anti-βGal for pntP1-lacZ (B,K,O,P) and sty-lacZ (A). Genotypes, see Materials and methods. Scale bars, 30 μm.

https://doi.org/10.7554/eLife.38137.037

Previously Bnl was considered to be a chemoattractant (Lebreton and Casanova, 2016; Ochoa-Espinosa and Affolter, 2012), which can only elicit a binary signaling response. In contrast, our results suggested that Bnl activated multiple target genes at its various concentrations similar to a morphogen. To further examine whether the target genes were differentially expressed in response to different Bnl concentrations, we overexpressed cDNA-derived Bnl constructs either from the wing disc bnl-source or from small clones of cells within the recipient ASP. Remarkably, even while highly expressed from the wing disc source, Bnl:GFP moved only target-specifically from the disc source to the ASP (Figure 6H,H’). In comparison to the normal range of endogenous Bnl:GFP distribution and Bnl (pMAPK) signaling (Figure 6G), the spatial range of the overexpressed signal and the signaling expanded to all parts of the ASP, including the stalk (Figure 6H). The expanded range of signal led to retraction of the Cut and Yan expressing zone from within the stalk to only the farthest region in the TC, which received little or no Bnl:GFP from the disc source (Figure 6H–I). Moreover, ectopic clones of either Bnl:GFP or Bnl in the ASP stalk non-autonomously induced sty and pntP1 and suppressed cut in the surrounding cells (Figure 6J,K,L; Figure 6—figure supplement 1D). These results showed that Bnl acts as a morphogen to induce concentration-dependent expression of different genes.

It was previously reported that PntP1 and Yan antagonize each other’s expression (Ohshiro et al., 2002). To examine whether Cut and PntP1 also antagonize each other, we induced ectopic pntP1 and cut mutant clones in the ASP. Reduction of PntP1 levels in the mutant pntP1 LOF (pntP1 RNAi) clones in the ASP tip autonomously upregulated Cut expression within the clones, whereas overexpression of PntP1 in the ectopic pntP1 GOF clones in the ASP stalk suppressed cut in the mutant cells (Figure 6M,N). On the other hand, ectopic cut GOF clones in the ASP tip suppressed pntP1 and cut LOF clones (cut RNAi) in the proximal ASP stalk induced pntP1 within the mutant cells (Figure 6O,P). Thus, PntP1 and Cut reciprocally inhibit each other’s expression. Notably, although PntP1 is a known inducer of btl, pntP1 GOF/LOF clones showed only cell-autonomous effects on cut. The btl GOF clones in the ASP showed a similar autonomous signaling effect (Figure 6—figure supplement 1E). In contrast, each Bnl:GFP GOF clone in the ASP induced non-autonomous effects and organized the surrounding cells to form a new branch (N = 35; Figure 6K,L). All these results provided evidence that Bnl acts as a classical morphogen to induce sty at a high level and pntP1, cut, and yan gradually at lower levels in the ASP (Figure 6E,F).

Target genes of Bnl signaling differentially feedback regulate cytoneme numbers

To examine whether the different target genes of Bnl signaling may regulate cytoneme formation, we focused on pntP1 and cut, the two transcription factors that formed counteracting gradients from two opposing poles of the ASP and antagonized each other’s expression (Figures 6B,C,E,M–P). When we induced ectopic cut GOF clones in the distal tip/mid-ASP regions, the mutant cells produced significantly fewer long and oriented cytonemes compared to the wt clones at an equivalent position (Figure 7A,A’ versus Figure 5A’’,C). This cytoneme deficiency in the cut GOF clones correlated with the autonomous reduction of Bnl:GFP uptake in the mutant clones from the mid/tip of the ASP (Figure 7A–B’). On the other hand, the orientation and number of cytonemes from the ASP stalk cells, which generally had high levels of Cut and produced randomly oriented short cytonemes, remained unaffected by cut GOF (Figure 7A’). Thus, high levels of Cut negatively regulate the formation of cytonemes that orient specifically toward the bnl-source. In addition to this finding, Cut was also known to be a suppressor of btl in the larval spiracular branch (Pitsouli and Perrimon, 2013). Therefore, high levels of Cut elicit negative feedback on Bnl signaling by suppressing both the Bnl-receiving cytonemes and Btl synthesis (Figure 8A,A’). A similar inhibitory effect on cytonemes was observed for Yan, which was a known antagonist for PntP1 and embryonic tracheal filopodia formation (Okenve-Ramos and Llimargas, 2014) (Figure 7—supplement figure 1A-B’; Figure 8A’). Collectively, these results showed that cut and yan, the two genes that are expressed in the ASP stalk in response to lower Bnl levels, suppress cytoneme-formation and Btl expression.

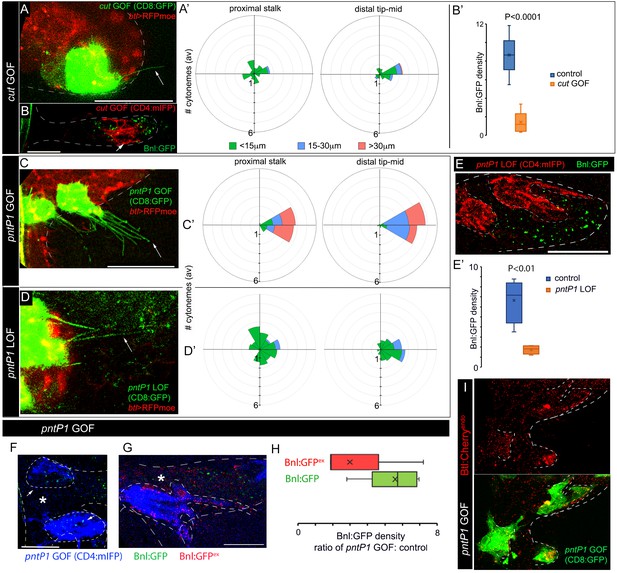

Figure 7 with 1 supplement see all
Positive and negative feedback regulations of cytoneme formation by differential levels of Bnl signaling.

(A,A’) CD8:GFP-marked cut-GOF clones at the ASP tip suppressed long oriented cytoneme (arrow) formation; A’, rose plots showing number and orientation of cytonemes of different lengths from distal tip (N = 12) and proximal stalk (N = 6) regions of the ASP. (B,B’) A cut-GOF clone (red, CD4:mIFP) suppressed Bnl:GFP uptake cell-autonomously; B’, A graph comparing Bnl:GFP concentration in cut-GOF clones and corresponding neighboring control area in the ASP (N = 6); p value, two-tailed t-test. (C,C’) pntP1-GOF clones induced long oriented cytonemes (arrow) at the ASP stalk; C’, rose plots showing number and orientation of cytonemes of different lengths from proximal (N = 5) and distal tip (N = 8) clones in the ASP. (D,D’) pntP1-LOF clones suppressed long oriented cytonemes (arrow) at the ASP tip; D’, rose plots showing number and orientation of cytonemes of different lengths from proximal stalk (N = 6) and distal tip (N = 11) clones in the ASP. (A,A’,C,C’,D,D’) see control in Figure 5A–C. (E,E’) A CD4:mIFP-marked pntP1-LOF clone at the ASP tip suppressed Bnl:GFP uptake; E’, plot comparing Bnl:GFP uptake in the pntP1 LOF clone and corresponding neighboring control area in the ASP (N = 4). (F) pnt-P1 GOF clones in the ASP stalk showed higher levels of Bnl:GFP in the clones compared to the WT neighboring area. (G) αGFP EIF showed high Bnl:GFPex on cytonemes and the clonal cell body on pnt-P1 GOF clones in the ASP stalk; (F,G) *, wt neighboring area. (H) A graph showing fold difference of Bnl:GFP and Bnl:GFPex density inside to outside (WT control area) of the pntP1 GOF clones (N = 5 each). (I) pntP1 GOF clones induced btl:cherryendo expression and polarized graded organization of Btl:Cherry molecules. Genotypes: (A,A’,C-D’) hs-FLP/+; UAS-mCD8:GFP/+; btl>y+>Gal4, btl-mRFP1moe/UAS-cut or -pntP1 or -pntRNAi; (B,B’,E-H) hs-FLP/+; btl>y+>Gal4/+; UAS-CD4:mIFP, bnl:gfpendo/UAS-cut or -pntRNAi or pntP1; (I) hs-FLP/+; btl>y+>Gal4/+; btl:cherryendo/UAS-pntP1, UAS-mCD8:GFP. Scale bars, 30 μm.

https://doi.org/10.7554/eLife.38137.047

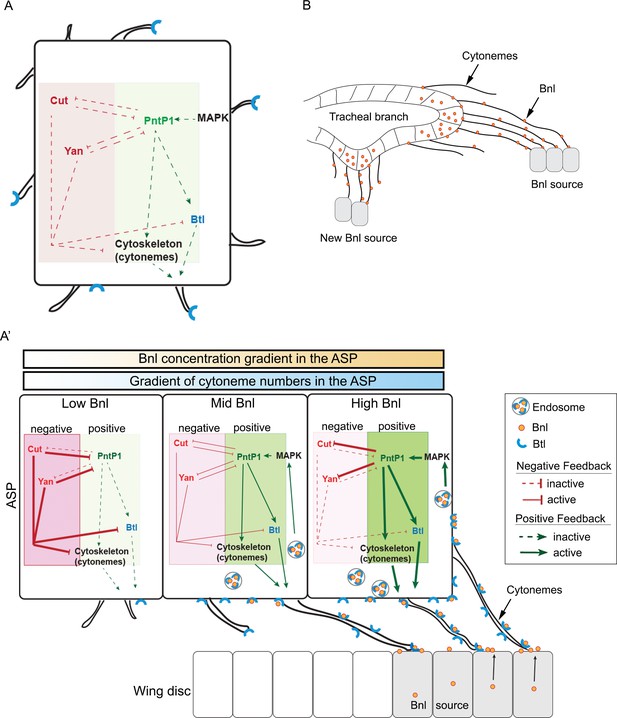

Feedback mechanisms regulating cytoneme-mediated Bnl gradient formation.

(A) A hypothetical state of an isolated tracheal epithelial cell projecting cytonemes in random orientation prior to its establishment of cytoneme-mediated contact with a bnl source; Each recipient cell is endowed with a PntP1-dependent positive (green area) and Cut/Yan-dependent negative (red area) feedback, controlling the number of cytonemes and Btl (blue). (A’) Gradient formation is initiated when one or few tracheal cell(s) establish contact with a Bnl source. The ASP cells projecting Btl-containing cytonemes contact the bnl-source and directly receive Bnl signal (orange circles). Receptor-bound Bnl ligands move along the cytoneme surface and are endocytosed in the ASP cell to activate concentration-dependent gene activities: PntP1 at high-moderate levels, and Cut and Yan at gradually lower levels. PntP1 elicits positive feedback while Cut and Yan elicit negative feedback on production of Btl and cytonemes in tracheal cells, creating a steady-state graded pattern of Bnl-receiving cytonemes. Signaling through these cytonemes generates and reinforces the Bnl gradient. The positive (PntP1) and negative (Cut/Yan) feedback also inhibit each other, and thereby can shape the gradient following recipient tissue-specific morphology. (B) When few tracheal cells from a pre-existing branch establish contacts with a new proximal source, this mechanism can initiate a new local gradient and a new epithelial branch organization.

https://doi.org/10.7554/eLife.38137.054

Generally, high-to-mid levels of Bnl signaling induced pntP1 in the distal tip-mid ASP region (Figure 6B,E). When ectopic pntP1 GOF clones were generated in the ASP stalk, the mutant cells extended significantly more long (>30 μm) cytonemes oriented toward the underlying disc bnl-source than the WT clones (Figure 7C,C’, compared to Figure 5A,C). In contrast, pntP1-LOF clones at the ASP tip extended a significantly fewer number of long oriented cytonemes from the tip cells than the WT clones (Figure 7D,D’, compared to Figure 5A’’,C). Loss of cytonemes in the pntP1 LOF clones correlated with the suppression of Bnl:GFP uptake in the mutant ASP cells, and an increase in the number of cytonemes in the pntP1 GOF cells increased the levels of Bnl:GFP in them (Figure 7E–H). An αGFP EIF assay revealed that the long cytonemes projecting from the pntP1 GOF clones in the ASP stalk were enriched in EIF-stained Bnl:GFPex, suggesting that the cells received signal by extending cytonemes (Figure 7G,H). In addition, PntP1 was known to induce btl transcription in embryonic trachea (Ohshiro et al., 2002). When we generated small (1–4 cells) pntP1 GOF clones in the stalk of the ASP in btl:cherryendo larvae, the PntP1 overexpression increased the levels of Btl:Cherry in the clones. Strikingly, the newly synthesized Btl:Cherry molecules also formed local concentration gradients within each of the pntP1 GOF clones (Figure 7I). These results showed that PntP1 elicits positive-feedback on Btl synthesis and Bnl-receiving cytoneme production (Figure 8A’). Interestingly, PntP1 and Cut (Figure 6M–P) or PntP1 and Yan (Ohshiro et al., 2002) can reciprocally inhibit each other’s expression. Therefore, a ratio of the levels of PntP1 to Cut or to Yan could determine the number of cytonemes and Btl receptors in a cell. Based on our results, we propose that the counteracting activities of PntP1 and Cut/Yan and their expression from two opposite poles in response to the high-to-low Bnl levels in the ASP establish a steady-state gradient of numbers of Btl-containing cytonemes. Signaling through these cytonemes would self-generate the shape of a robust signal and signaling gradient (Figure 8A’).

Discussion

Dynamic, recipient tissue-specific shapes of an FGF morphogen gradient

Prior to this study, branching morphogenesis of tissues such as vertebrate lung or vasculature was proposed to be induced by exogenous, diffusible signal gradients. For instance, a mesenchymal FGF10 gradient induces branching in the vertebrate lung, and a Vascular Endothelial Growth Factor/VEGF gradient induces vascular sprouting (Affolter et al., 2009; Spurlin and Nelson, 2017). Although the paracrine functions of these signals were well characterized, our demonstration and detailed characterization of the Bnl gradient represents the first example of an inductive gradient for branching morphogenesis. In contrast to the traditional idea of a preexisting diffusible gradient, we showed that the shapes of the inductive Bnl gradient are dynamic, adaptable, and form only in a receptor-bound state within the recipient tissue. Moreover, we showed that the Bnl gradient self-generates its variable recipient branch-specific shapes by regulating its cytoneme-mediated transport. Self-generation of tissue-specific gradients may be a common and essential strategy for sustaining the robust, yet variable gradient shapes in dynamically migrating tissues. Consistent with this view, the chemokine Cxcl12a also forms a self-generating gradient to regulate dynamic migration of the Zebrafish lateral line (Donà et al., 2013). Notably, inductive signals such as Bnl or VEGF were previously thought to induce chemotactic migration by inducing binary signaling responses in the recipient cells (Ochoa-Espinosa and Affolter, 2012). Therefore, identification of an organizer-like morphogenetic role of Bnl brings a critical shift to our understanding of branching morphogenesis.

Cytoneme-mediated, tissue-specific Bnl dispersion

Several earlier reports, including biophysical analyses of vertebrate FGF8 and its distribution patterns in tissues, proposed a free or restricted diffusion-based dispersion mechanism for gradient formation (Bökel and Brand, 2013; Toyoda et al., 2010; Yu et al., 2009). An alternative model proposed that the FGF8 morphogen gradient is also formed by gradual decay of fgf8 mRNA and its translation in a growing vertebrate embryo (Dubrulle and Pourquié, 2004). In contrast, all of our genetic analyses and direct imaging results show that the Bnl gradient is formed by cytoneme-mediated direct transport. An earlier study showed that ASP cells project Btl-containing cytonemes to establish contact with the disc Bnl source, and fail to induce pMAPK signaling without these cytoneme-mediated contacts (Roy et al., 2014). In this study we extended those initial findings. By generating endo-tagged Bnl:GFP and Btl:Cherry constructs expressed at physiological levels, utilizing an EIF assay to detect externalized Bnl molecules, and by applying high resolution visualization techniques, we obtained reliable and unbiased evidence for Bnl dispersion via cytonemes. We showed that ASP cytonemes receive Bnl molecules by establishing direct membrane synapses with the signal producing cells. Super-resolution imaging of membrane-marked ASP and source cells documented these synaptic sites and showed a selective enrichment of externalized Bnl molecules only at these signaling contacts (Figure 3J). At this point, we do not know why and how Bnl is released from producing cells only at cytoneme-source membrane contact sites. Understanding the mechanisms underlying this process is an important new direction for future investigations.

Antibody-based EIF analysis under detergent-free conditions and super-resolution imaging of endogenously expressed Bnl:GFP showed that at a steady state, a high concentration of the signal moves along the surface of the cytonemes in receptor-bound forms (Figure 3C–H). It is likely that receptor-bound Bnl ligands move along the surface of the cytonemes by an energy-dependent motor transport and are endocytosed when they reach the ASP cell body. Super-resolution imaging also revealed a previously uncharacterized sub-resolution distribution of Bnl:GFP nanopuncta (Figure 3F–F’’; Figure 3—supplement figure 2), suggesting the existence of novel cellular and molecular events that regulate the cytoneme-mediated signaling process. Each of these individual cellular and molecular mechanisms would influence the levels of Bnl signaling in a cell and thereby would contribute to the essential feedback mechanisms by which the cytoneme and the morphogen gradients are formed.

Contact-dependent Bnl exchange implies that the ASP cells can interpret the direction from where (and from whom) they receive the Bnl signal, in addition to its levels. We do not know how ASP cytonemes find the bnl-source and establish the signaling contacts. A recent study had shown an important regulatory role of the components of the extracellular matrix, which interact with the signal-specific cytonemes and stabilize their directionality (Huang and Kornberg, 2016). Another possible mechanism could be that the cells in the disc Bnl source extend Bnl-containing cytonemes to establish an initial contact with the recipient cytonemes to provide them the necessary pathfinding information. In fact, Hh is known to be delivered by the source cytonemes to the recipient cytonemes in Drosophila wing disc and vertebrate limb buds (Chen et al., 2017; González-Méndez et al., 2017; Sanders et al., 2013). However, the imaging conditions used in this study could not detect Bnl-containing source cytonemes. Future live imaging analyses are required to elucidate the mechanisms of cytoneme pathfinding.

A self-regulatory mechanism for gradient formation

How morphogen gradients are produced in tissues is a long-standing central question. Based on our experimental results, we propose a model for the mechanism by which cytonemes can create and maintain a morphogen gradient (Figure 8A’). We uncovered that ASP epithelial cells extend a graded number of cytonemes that reach out and contact the disc bnl source to receive the signal (Figure 5A–D’’). Recipient cells close to the source have many long polarized cytonemes, but their numbers gradually reduced as the distance from the source increases. Clonal GFP-reconstitution analyses suggested that the number of cytoneme-contacts an ASP cell makes is inversely proportional to its distance from the signal source (Figure 5D–D”). Since reception of Bnl is contact-dependent (Figure 3I,I’), these features of patterned cytoneme formation in the recipient ASP explain how cytoneme-mediated signal reception can generate the recipient tissue-specific shapes of the gradient. These observations led us to address a very important question: how are the cytoneme patterns developed and maintained in the tissue? Answering this question was expected to provide the basis by which cytonemes create and regulate gradient shapes and tissue patterns.

A key finding providing insight into this question came from our analysis of the spatial domains of targets of Bnl signaling in the ASP. One of the target genes, pntP1, is induced by high Bnl levels in the distal region of the ASP and positively regulates the formation of cytonemes and Btl synthesis (Figure 6B,E). On the other hand, surprisingly, the target gene cut, which is induced by gradually lower levels of Bnl in the ASP stalk region away from the source, negatively controls cytoneme formation (Figure 6C,E; 7A,A’; 8A') and Btl synthesis (Pitsouli and Perrimon, 2013). Moreover, the transcription factors Cut and PntP1 feedback-inhibit each other’s expression to maintain their zones of expression in response to Bnl levels (Figure 6M–P). The consequence is a regulatory loop that controls the generation and reinforcement of different numbers of cytonemes and levels of Bnl signaling, making the contours of the Bnl gradient robust, precisely tissue-specific, and self-sustaining.

The roles of these target genes might also explain how variable shapes of Bnl gradients are sculpted in coordination with the growth and development of recipient tissues. One current morphogen model proposes that the signal gradients are generated and scaled to the size of the recipient tissue by the ratio of two diffusible molecules, a morphogen and a contractor/expander, which emanate from opposite poles of the tissue and elicit non-autonomous global feedback to control each other’s distribution (Barkai and Shilo, 2009; Ben-Zvi et al., 2011; Restrepo and Basler, 2011; Shilo and Barkai, 2017). Although Cut and PntP1 are intracellular transcription factors that function cell autonomously, their counteracting feedback activities, regulating where and when signal-specific cytonemes are made as a function of the levels of signal received, can self-generate gradients adopting any recipient-specific shape (Figures 1F; 8A').

This mechanism implies an interesting systemic feedback where the gradient shape is a result of the growth and patterning of the recipient tissue, which it controls. However, this mechanism also implies that to initiate such a self-sustaining gradient, initial physical contact of a part of the recipient epithelium with the signal source is required. In fact, each tracheal cell is capable of inducing either PntP1 or Cut/Yan expression irrespective of its position within the recipient epithelium (Figure 8A). Thus, an ectopic new bnl source near a pre-existing tracheal branch can initiate a local gradient of cytoneme contacts leading to polarized signal and signaling gradient formation as well as neo-branch organization (Figure 8B). In agreement with this view, spatiotemporal expression of Bnl surrounding the embryonic tracheal placode is known to induce new branches (Sutherland et al., 1996). Moreover, if the Bnl response genes are not the same or are not regulated in the same manner at all sites and at all times, different patterns of cytoneme formation can be generated leading to changes in spatial patterns of signal distribution and tissue morphology. Given the commonality of fundamental signaling events mediated by conserved signaling proteins, feedback regulation of cytoneme-mediated transport may offer an explanation for why signal gradients are so precise, yet adaptable and for how diverse tissue morphologies can result from just one signal transduction pathway.

Materials and methods

Key resources table
Reagent type
(species) or
Resource
DesignationSource or referenceIdentifiersAdditional information
Antibodymouse anti-Discs largeDSHBDSHB:4F3
RRID:AB_528203
IHC (1:100)
Antibodyrabbit anti-dpERK
(Phospho-p44/42 MAPK
(Erk1/2) (Thr202/Tyr204)
Rabbit mAb
Cell signaling TechnologyCell signaling
Technology:4370
RRID:AB_11207064
IHC (1:100)
Antibodymouse anti-CutDSHBDSHB:2B10
RRID:AB_528186
IHC (1:50)
Antibodymouse anti-
beta-galactosidase
DSHBDSHB:40-1a
RRID:AB_528100
IHC (1:50)
Antibodyrabbit anti-Rab5AbcamAbcam:ab31261
RRID:AB_882240
IHC (1:10000)
Antibodyrabbit anti-Rab7(Tanaka and Nakamura, 2008)N/AIHC (1:3000)
Antibodyrabbit anti-Rab11(Tanaka and Nakamura, 2008)N/AIHC (1:8000)
Antibodyrabbit anti-Lamp1AbcamAbcam:ab30687
RRID:AB_775973
IHC (1:10000)
Antibodymouse anti-YanDSHBDSHB:8B12H9
RRID:AB_531807
IHC (1:200)
Antibodyrabbit anti-BnlThis paperN/AIHC (1:1000),
EIF (1:500)
Antibodyrabbit anti-GFPAbcamAbcam:ab6556
RRID:AB_305564
EIF (1:3000)
Chemical
compound, drug
Alexa Fluor 647 PhalloidinThermo Fisher ScientificCat. #: A22287
RRID:AB_2620155
(1:1000)
Genetic
reagent (Drosophila
melanogaster)
{nos-Cas9}ZH-2ABloomington Drosophila
stock center
RRID:BDSC_54591
Genetic
reagent (Drosophila
melanogaster)
UAS-CD8:GFPBloomington Drosophila
stock center
RRID:BDSC_5137
Genetic
reagent (Drosophila
melanogaster)
UAS-nlsGFPBloomington Drosophila
stock center
RRID:BDSC_4776
Genetic
reagent (Drosophila
melanogaster)
UAS-CD8:RFPBloomington Drosophila
stock center
RRID:BDSC_32218
Genetic
reagent (Drosophila
melanogaster)
UAS-CD4:mIFPBloomington Drosophila
stock center
RRID:BDSC_64182
Genetic
reagent (Drosophila
melanogaster)
lexO-nsyb:GFP1-10,
UAS-CD4:GFP11
Bloomington Drosophila
stock center
RRID:BDSC_64315
Genetic
reagent (Drosophila
melanogaster)
UAS-BtlDN(Reichman-Fried and Shilo, 1995)N/A
Genetic
reagent (Drosophila
melanogaster)
UAS-bnlRNAiBloomington Drosophila
stock center
RRID:BDSC_34572
Genetic
reagent (Drosophila
melanogaster)
UAS-pntRNAiBloomington Drosophila
stock center
RRID:BDSC_35038
Genetic
reagent (Drosophila
melanogaster)
UAS-cutRNAiBloomington Drosophila
stock center
RRID:BDSC_33967
Genetic
reagent (Drosophila
melanogaster)
UAS-btlRNAiBloomington Drosophila
stock center
RRID:BDSC_40871
Genetic
reagent (Drosophila
melanogaster)
UAS-diaRNAiBloomington Drosophila
stock center
RRID:BDSC_33424
Genetic
reagent (Drosophila
melanogaster)
UAS-nrgRNAiBloomington Drosophila
stock center
RRID:BDSC_37496
Genetic
reagent (Drosophila
melanogaster)
UAS-snRNAiBloomington Drosophila
stock center
RRID:BDSC_42615
Genetic
reagent (Drosophila
melanogaster)
pnt-lacZ[07825]Bloomington Drosophila
stock center
RRID:BDSC_11724
Genetic
reagent (Drosophila
melanogaster)
sty-lacZBloomington Drosophila
stock center
RRID:BDSC_11735
Genetic
reagent (Drosophila
melanogaster)
bnl-LexA(Du et al., 2017)
Genetic
reagent (Drosophila
melanogaster)
bnl-Gal4Bloomington Drosophila
stock center
RRID:BDSC_112825
Genetic
reagent (Drosophila
melanogaster)
btl-Gal4(Sato and Kornberg, 2002)N/A
Genetic
reagent (Drosophila
melanogaster)
btl-LHG(Roy et al., 2014)N/A
Genetic
reagent (Drosophila
melanogaster)
UAS-Btl(Roy et al., 2011a)N/A
Genetic
reagent (Drosophila
melanogaster)
UAS-CD8:Cherry(Roy et al., 2011a)N/A
Genetic
reagent (Drosophila
melanogaster)
lexO-CD2:GFP(Yagi et al., 2010)N/A
Genetic
reagent (Drosophila
melanogaster)
hs-FLP; btl>y+>Gal4,
btl-mRFP1moe
(Cabernard and Affolter, 2005)N/A
Genetic
reagent (Drosophila
melanogaster)
hs-FLP; btl>y+>Gal4;
btl-mRFP1moe
(Cabernard and Affolter, 2005)N/A
Genetic
reagent (Drosophila
melanogaster)
bnl:gfpendoThis paperN/AFunctional genomic
knock-in allele by
CRISPR
Genetic
reagent (Drosophila
melanogaster)
btl:cherryendoThis paperN/AFunctional genomic
knock-in allele
by CRISPR
Genetic
reagent (Drosophila
melanogaster)
UAS-secGFPThis paperN/ASecreted GFP
overexpression
construct
Sequence-based
reagent
5’-GTCGGGG
CCAATCGCGTCAAGCA-3’
This paperN/AGuide RNA-1 for
bnl:gfpendo
Sequence-based
reagent
5’-AAACTGCT
TGACGCGATTGGCCC-3’
This paperN/AGuide RNA-1 for
bnl:gfpendo
Sequence-based
reagent
5’-GTCGATAT
TAGCAGTAGCCTTAG-3’
This paperN/AGuide RNA-2 for
bnl:gfpendo
Sequence-based
reagent
5’-AAACCTAA
GGCTACTGCTAATAT-3’
This paperN/AGuide RNA-2 for
bnl:gfpendo
Sequence-based
reagent
5’-GTCGCAT
CACGGAGACGGTGCCGC-3’
This paperN/AGuide RNA-3 for
bnl:gfpendo
Sequence-based
reagent
5’-AAACGCGG
CACCGTCTCCGTGATG-3’
This paperN/AGuide RNA-3 for
bnl:gfpendo
Sequence-based
reagent
5’-GTCGAGG
TGTACTGATATCTAAG-3’
This paperN/AGuide RNA-1 for
btl:cherryendo
Sequence-based
reagent
5’-AAACCTTA
GATATCAGTACACCT-3’
This paperN/AGuide RNA-1 for
btl:cherryendo
Sequence-based
reagent
5’-GTCGCGG
CATCGAAAGGTCCAGAT-3’
This paperN/AGuide RNA-2 for
btl:cherryendo
Sequence-based
reagent
5’-AAACATCT
GGACCTTTCGATGCCG-3’
This paperN/AGuide RNA-2 for
btl:cherryendo
Sequence-based
reagent
5’-CGTATGGG
ATTCCGATTGTGTG-3’
This paperN/APrimer to amplify N
fragment of HDR
donor for bnl:gfpendo
Sequence-based
reagent
5’-CAGCTCCT
CGCCCTTGGACATAGTG
TTGCTGCTGCAATGTGGCGG-3’
This paperN/APrimer to amplify N
fragment of HDR
donor for bnl:gfpendo
Sequence-based
reagent
5’-CCGCCACA
TTGCAGCAGCAACACTA
TGTCCAAGGGCGAGGAGCT-3’
This paperN/APrimer to amplify mid
fragment of HDR
donor for bnl:gfpendo
Sequence-based
reagent
5’-CTGCTGA
TGCTGCTGCTGCTGCCAC
TCTTGTACAGCTCATC
CATGCCCAG-3’
This paperN/APrimer to amplify mid
fragment of HDR
donor for bnl:gfpendo
Sequence-based
reagent
5’-CTGGGCA
TGGATGAGCTGTACAAG
AGTGGCAGCAGCAGCA
GCATCAGCAG-3’
This paperN/APrimer to amplify C
fragment of HDR
donor for bnl:gfpendo
Sequence-based
reagent
5’-GGCTTGA
GAGGTTCTTATAAAA
TACTCGAG-3’
This paperN/APrimer to amplify C
fragment of HDR
donor for bnl:gfpendo
Sequence-based
reagent
5’-CTCAACTT
CACCGTGACGAATGAC-3’
This paperN/APrimer to amplify N
fragment of HDR
donor for btl:cherryendo
Sequence-based
reagent
5’-GTTTCTCC
ATGCGCTGACCCGT
AATCAG-3’
This paperN/APrimer to amplify N
fragment of HDR
donor for btl:cherryendo
Sequence-based
reagent
5’-CTGATTAC
GGGTCAGCGCATG
GAGAAAC-3’
This paperN/APrimer to amplify mid
fragment of HDR
donor for btl:cherryendo
Sequence-based
reagent
5’-GGAATTCT
TTTTGGTCTCCTTAT
ACTACGAA-3’
This paperN/APrimer to amplify mid
fragment of HDR
donor for btl:cherryendo
Sequence-based
reagent
5’-TTCGTAGT
ATAAGGAGACCAAA
AAGAATTCC-3’
This paperN/APrimer to amplify
C fragment of HDR
donor for btl:cherryendo
Sequence-based
reagent
5’-GGTTCCTC
TTCCATCCAAGGTTG-3’
This paperN/APrimer to amplify C
fragment of HDR
donor for btl:cherryendo
Sequence-based
reagent
5’-TTTTGGG
GCCAATCGTGTGAAGC
ACGGCGTGCGG-3’
This paperN/APrimer to introduce
synonymous mutation
at bnl-gRNA-1 recognition
site in HDR donor
Sequence-based
reagent
5’-CCGCACG
CCGTGCTTCACACGAT
TGGCCCCAAAA-3’
This paperN/APrimer to introduce
synonymous mutation
at bnl-gRNA-1 recognition
site in HDR donor
Sequence-based
reagent
5’-CCATATTA
GCAGTAGTCTGAGCGG
TAGCAGTAAC-3’
This paperN/APrimer to introduce
synonymous mutation
at bnl-gRNA-2 recognition
site in HDR donor
Sequence-based
reagent
5’-GTTACTGC
TACCGCTCAGACTACT
GCTAATATGG-3’
This paperN/APrimer to introduce
synonymous mutation
at bnl-gRNA-2 recognition
site in HDR donor
Sequence-based
reagent
5’-GGAGACG
GTGCCGCAAGAGCGG
GTCGAGCAG-3’
This paperN/APrimer to introduce
synonymous mutation
at bnl-gRNA-3
recognition site in HDR donor
Sequence-based
reagent
5’-CTGCTCG
ACCCGCTCTTGCGGC
ACCGTCTCC-3’
This paperN/APrimer to introduce
synonymous mutation
at bnl-gRNA-3 recognition
site in HDR donor
Sequence-based
reagent
5’-CCGGGAA
ACGTCCCCGCTGAGGT
ATCAGTACACCTATAAG-3’
This paperN/APrimer to introduce
synonymous mutation
at btl-gRNA-1 recognition
site in HDR donor
Sequence-based
reagent
5’-CTTATAGG
TGTACTGATACCTCAG
CGGGGACGTTTCCCGG-3’
This paperN/APrimer to introduce
synonymous mutation
at btl-gRNA-1 recognition
site in HDR donor
sequence-based
reagent
5’-GTAGCAAT
CCAAACGATGCGTAT
CTGGACCTTTCGATGC-3’
This paperN/APrimer to introduce
synonymous mutation
at btl-gRNA-2 recognition
site in HDR donor
Sequence-based
reagent
5’-GCATCGA
AAGGTCCAGATACGCA
TCGTTTGGATTGCTAC-3’
This paperN/APrimer to introduce
synonymous mutation
at btl-gRNA-2 recognition
site in HDR donor
Sequence-based
reagent
5’-GTCCTGTT
TAGGGGCGATAAGTGG-3’
This paperN/APrimer for bnl:gfpendo
HDR screening and
sequencing
Sequence-based
reagent
5’-GTGTTGCG
TAAGGTTAGGGCTTCG-3’
This paperN/APrimer for bnl:gfpendo
HDR screening and
sequencing
Sequence-based
reagent
5’-GAAGCAG
CACGATTTCTTCAAGAGCG-3’
This paperN/APrimer for bnl:gfpendo
HDR screening and
sequencing
Sequence-based
reagent
5’-CGCTCTTG
AAGAAATCGTGCTGCTTC-3’
This paperN/APrimer for bnl:gfpendo
HDR screening and
sequencing
Sequence-based
reagent
5’-CGCCAGC
CAGGCAAT-3’
This paperN/APrimer for bnl:gfpendo
HDR screening and
sequencing
Sequence-based
reagent
5’-GTCCTCAA
GAATGCCTCCTTGGAC-3’
This paperN/APrimer for btl:cherryendo
HDR screening and
sequencing
Sequence-based
reagent
5’-GTCTATGA
TACCTCTGACAGCTTC-3’
This paperN/APrimer for btl:cherryendo
HDR screening and
sequencing
Sequence-based
reagent
5’-CTTCCCC
GAGGGCTTCAAGTG-3’
This paperN/APrimer for btl:cherryendo
HDR screening and
sequencing
Sequence-based
reagent
5’-CACTTGAA
GCCCTCGGGGAAG-3’
This paperN/APrimer for btl:cherryendo
HDR screening and
sequencing
Sequence-based
reagent
5’-GTTTCTCC
ATGCGCTGACCCG
TAATCAG-3’
This paperN/APrimer for btl:cherryendo
HDR screening and
sequencing
Sequence-based
reagent
5’-AATTCGAG
CTCGGTACAGATCTA
TGCGAAGAAACCTGCGC-3’
This paperN/APrimer for
UAS-SPBnl-sfGFP
cloning
Sequence-based
reagent
5’-CCTCGCCC
TTGGACATCATCGCA
GATACAAGGCCCC-3’
This paperN/APrimer for
UAS-SPBnl-sfGFP
cloning
Sequence-based
reagent
5’-GGCCTTGT
ATCTGCGATGATGTC
CAAGGGCGAGGAG-3’
This paperN/APrimer for
UAS-SPBnl-sfGFP
cloning
Sequence-based
reagent
5’-GCCAAGC
TTGCATGCCGGTACCT
TACTTGTACAGCTC
ATCCATGCCC-3’
This paperN/APrimer for
UAS-SPBnl-sfGFP
cloning
Recombinant DNA
reagent
pCR4Blunt-TOPOThermo Fisher
Scientific
N/A
Recombinant DNA
reagent
pUC19AddgeneAddgene:50005
Recombinant DNA
reagent
pUASTDrosophila
Genomics
Resource center
DGRC:1000
Recombinant DNA
reagent
pCFD3(Port et al., 2014)N/A
Recombinant DNA
reagent
pCFD3-bnl_gRNA-1This paperN/APlasmid for generation
of bnl_gRNA-1 flies
Recombinant DNA
reagent
pCFD3-bnl_gRNA-2This paperN/APlasmid for generation
of bnl_gRNA-2 flies
Recombinant DNA
reagent
pCFD3-bnl_gRNA-3This paperN/APlasmid for generation
of bnl_gRNA-3 flies
Recombinant DNA
reagent
pCFD3-btl_gRNA-1This paperN/APlasmid for generation
of btl_gRNA-1 flies
Recombinant DNA
reagent
pCFD3-btl_gRNA-2This paperN/APlasmid for generation
of btl_gRNA-2 flies
Recombinant DNA
reagent
pCR4Blunt-TOPO
-bnl:GFP-1
This paperN/AHDR donor for making
bnl:gfpendo flies
Recombinant DNA
reagent
pCR4Blunt-TOPO
-bnl:GFP-2
This paperN/AHDR donor for making
bnl:gfpendo flies
Recombinant DNA
reagent
pCR4Blunt-TOPO
-bnl:GFP-3
This paperN/AHDR donor for making
bnl:gfpendo flies
Recombinant DNA
reagent
pCR4Blunt-TOPO-
btl:Cherry-1
This paperN/AHDR donor for
making btl:cherryendo
flies
Recombinant DNA
reagent
pCR4Blunt-TOPO
-btl:Cherry-2
This paperN/AHDR donor for
making btl:cherryendo
flies
Recombinant DNA
reagent
pUAST-SPBnl-sfGFPThis paperN/APlasmid for generation
of UAS-secGFP flies
Software, algorithmFiji (ImageJ v2.0)(Schindelin et al., 2012)RRID:SCR_002285
Software, algorithmAdobe PhotoshopAdobeRRID:SCR_014199
Software, algorithmMicrosoft ExcelMicrosoftRRID:SCR_016137
Software, algorithmSnapGenesnapgene.comRRID:SCR_015052
Software, algorithmVassarStatsvassarstats.netRRID:SCR_010263
Software, algorithmRr-project.orgRRID:SCR_001905

CRISPR/Cas9-based genome-editing

The bnl:gfpendo and btl:cherryendo alleles were generated following CRISPR/Cas9 based genome editing method described earlier (Du et al., 2017) (Figures 1B and 2A; Figure 1—figure supplement 1A–C; Figure 2—figure supplement 1A–C). The bnl:gfpendo knock-in allele expressed a chimeric Bnl:GFP protein containing a superfolder-GFP (sfGFP) fused in-frame at ~53 amino acid downstream to the conserved FGF domain (247 to 376 amino-acid) (Figure 1B). Due to its high solubility and efficient folding kinetics in extracellular environment (Pédelacq et al., 2006), we selected sfGFP for tagging Bnl. The btl:cherryendo knock-in allele expressed Btl:Cherry containing in-frame C-terminal fusion of mCherry (Figure 2A).

Multiple gRNA binding sites with variable efficiency were selected for independent parallel genome-editing experiments to achieve the highest probability of obtaining the intended chimeras and identify the most consistent patterns of Bnl:GFP and Btl:Cherry distribution in tissues among various lines. The gRNA expression constructs were cloned by ligating the annealed complementary oligos (Key resources table) as described in (Du et al., 2017). The gRNAs (PAM sequence underlined) used for generating bnl:gfpendo and btl:cherryendo were:

BnlGFP_gRNA-1: GGGCCAATCGCGTCAAGCACGG

BnlGFP_gRNA-2: ATATTAGCAGTAGCCTTAGCGG

BnlGFP_gRNA-3: CATCACGGAGACGGTGCCGCAGG

BtlCherry_gRNA-1: AGGTGTACTGATATCTAAGCGG

BtlCherry_gRNA-2: CGGCATCGAAAGGTCCAGATAGG

Replacement donors, pDonor-bnl:GFP, and pDonor-btl:Cherry were designed and generated following (Du et al., 2017). For efficient ‘Homology-Directed Repair’ (HDR), these constructs contained the tag sequence flanked by ~1.5 to 1.7 kb long gene-specific 5’- and 3’- homology arms (Figure 1—figure supplement 1A; Figure 2—figure supplement 1A; Key resources table). Both 5’- and 3’- homology arms were PCR-amplified from the genomic DNA from nos-cas9 parent fly, sequence verified, and were fused together with the sfgfp or mCherry sequence by overlap extension PCR. To avoid retargeting of the gRNA to the engineered locus, synonymous mutations were introduced into or near the PAM sequence of the homology arms via the primers used for their amplification (Key resources table). The clones were fully sequenced before being used for genomic replacement.

Transgenic flies harboring gRNA vectors at the attP40 landing site (y1 v1 nos-phiC31; attP40 host) were generated following (Kondo and Ueda, 2013). Males harboring a specific U6:3-gRNA were crossed to nos-Cas9 (nos-Cas9 ZH2A, BL# 54591) females to obtain nos-cas9/+; U6:3-gRNA/+embryos. For each genome-editing experiment, the corresponding replacement donor plasmid was injected into the germline of these embryos. A step-wise crossing strategy, as described earlier (Du et al., 2017), was followed to obtain the G0-F2 progenies and establish individual fly lines for screening. The correct ‘ends-out’ HDR was screened by a PCR based strategy (Du et al., 2017), followed by the analyses of tissue-specific expression patterns of the tagged-genes under a confocal microscope (Figure 1—figure supplement 1A–C; Figure 2—figure supplement 1A–C).

Amplification products obtained using PCR primers fwd1-rev2 and fwd2-rev1 confirmed knock-in positive lines, whereas amplification by the M13F and rev3 primers indicated unintended ‘ends-in’ HDR. Finally, a correct sized PCR product obtained using primers fwd1-rev1 confirmed the ends-out HDR (Figure 1—figure supplement 1A–B’’’; Figure 2—figure supplement 1A–B’’’). All GFP or mCherry positive, sequence verified lines were outcrossed to remove unintended mutations (if any), and any putative non-specific off-target sites were further sequence confirmed to be free of genome-editing. The homozygous btl:cherryendo, and bnl:gfpendo fly lines with accurate genomic sequences had a normal tissue morphology, and expected expression/distribution patterns (Figure 1C–D’, Figure 1—figure supplement 1C; Figure 2B; Figure 2—figure supplement 1C). We used one BnlGFP_gRNA-3 (c26-9), and a Btl:Cherry_gRNA-1 (a21-10) line for all analyses.

Molecular cloning

For secGFP, the N-terminal 32 amino-acid (96 nucleotides) long signal peptide sequence of Bnl was cloned in-frame upstream of a sfgfp sequence into pUC19 using Gibson Assembly (Key resources table). The product was sub-cloned into the BglII, Acc651 sites of the pUAST for P-element mediated germline transformation in Drosophila. A transgenic fly was generated that harbored an overexpression UAS-Bnl:GFP construct derived from bnl cDNA (DGRC).

Genetic crosses

All crosses were incubated at 25°C unless specified otherwise.

For nsybGRASP labeling of cytoneme contacts (Figure 3I,I’; Videos 3 and 5): btl-Gal4,UAS-CD8:Cherry; bnl-LexA/TM6 virgin females were crossed to lexO-nsyb:GFP1-10,UAS-CD4:GFP11 males.

Flip-out clones of specific genotype were generated by 8–15 min 37°C heat shock of the early 3rd instar larvae followed by 25°C incubation until they reached the late 3rd instar stages (~24 hr).

  1. To induce clones of a specific genotype in the ASP and check for Bnl:GFP uptake into the clones (Figure 4A–H’; Figure 4—figure supplement 1A,B; Figure 7B,B’,E-H), hs-FLP; btl>y+>Gal4; bnl:gfpendo,UAS-CD4:mIFP flies were crossed to either w1118 (control) or UAS-X (X- pntP1,pntRNAi, cut, btl, btlRNAi, diaRNAi, nrgRNAi, or snRNAi). CD4:mIFP did not efficiently localize in cytonemes compared to CD8:GFP or CD8:RFP, CD8:Cherry or CherryCAAX.

  2. To count the number of cytonemes emanating from the clones in the ASP (Figure 5A–C; 7A,A',C-D'; Figure 7—figure supplement 1A–B’), hs-FLP; UAS-mCD8:GFP; btl>y+>Gal4, btl-mRFP1moe flies were crossed to either w1118 (control), or UAS-X (X- pntP1, pntRNAi, cut, btl, btlRNAi, or yan).

  3. To obtain CD8:RFP-marked clones expressing CD4:GFP11 in random positions of ASP and document the GRASP labeled cytoneme-contacts (Figure 5D–D’’; Figure 5—figure supplement 1A–A”; Video 4), hs-FLP; btl>y+>Gal4; bnl-LexA/TM6 females were crossed to lexO-nsyb:GFP1-10,UAS-CD4:GFP11; UAS-CD8:RFP males. Phalloidin staining was used to mark f-actin enriched cytonemes and the cell cortex.

  4. To obtain bnl GOF clones in the ASP and check pntP1 expression (Figure 6K): hs-FLP; btl>y+>Gal4,btl-mRFP1moe females were crossed to UAS-bnl:GFP; pntP1-lacZ/TM6 males.

  5. To obtain bnl GOF clones in the ASP and check sty expression (Figure 6—figure supplement 1D): hs-FLP; UAS-CD8:GFP; btl>y+>Gal4, btl-mRFP1moe females were crossed to UAS-bnl; sty-lacZ/TM6 males.

  6. For Figure 6L: bnl GOF clones in the ASP were obtained by crossing hs-FLP; btl>y+>Gal4,btl-mRFP1moe females with UAS-bnl:GFP males.

  7. To obtain pntP1 LOF (Figure 6M) and GOF (Figure 6N) clones in the ASP and observe cut expression, hs-FLP; UAS-mCD8GFP; btl>y+>Gal4,btl-mRFP1moe females were crossed to UAS-pntRNAi or UAS-pntP1, respectively.

  8. To obtain cut GOF clones in the ASP and observe pntP1 expression (Figure 6O), hs-FLP; btl>y+>Gal4,btl-mRFP1moe females were crossed to UAS-cut,UAS-CD8:GFP; pntP1-lacZ/TM6 males.

  9. To obtain cut LOF clones in the ASP and check pntP1 expression (Figure 6P), hs-FLP; UAS-mCD8GFP; btl>y+>Gal4,btl-mRFP1moe females were crossed to UAS-cutRNAi,pntP1-lacZ/TM6 males.

  10. To induce pntP1 GOF clones in the ASP and check for Btl:Cherry distribution (Figure 7I), hs-FLP; btl>y+>Gal4; btl:cherryendo females were crossed to UAS-pntP1,UAS-CD8:GFP males.

Immunohistochemistry

A standard immunostaining protocol was used following (Du et al., 2017; Roy et al., 2014). To detect the surface exposed/localized Bnl:GFPex or Bnlex, standard detergent-free live immunostaining protocol (EIF) was used following (Schwank et al., 2011; Strigini and Cohen, 2000), except the live tissues were incubated with αBnl or αGFP antibody in optimized WM1 medium (Du et al., 2017). Alexa Fluor-conjugated secondary antibodies (1:1000 from Molecular Probes) were used for immunofluorescence detection.

Generation of anti-Bnl antibody

Affinity-purified rabbit anti-Bnl antibody was generated from YenZym Antibodies, LLC against a peptide containing amino acid residues from 699 to 717 region of the Bnl protein.

Microscopic imaging

For live imaging, wing imaginal discs and their associated trachea were prepared following (Roy et al., 2014). The imaging systems used in this study included Leica SP5X confocal microscope equipped with an ultrasensitive Hybrid Detector, an Andor spinning disc confocal equipped with iXon 897 EMCCD camera, Perkin Elmer UltraVIEW Vox with an EMCCD camera, and a ZeissLSM 800 with Airyscan. Super-resolution images of the Airyscan detector resolved poorly fluorescent and densely populated Bnl:GFP nano-puncta on the ASP/disc cell surface (Figure 3F–F’’; Figure 3—figure supplement 2). The images were processed and analyzed with Fiji. For 3D-rendering, Andor iQ3 software was used. To visualize the faint signals, brightness/intensities of the images were digitally increased following (Roy et al., 2014; Roy et al., 2011b). For most images, maximum intensity projections of at least 30 optical sections were shown.

Quantitative analysis of signal gradient

The Intensity profiles of Bnl:GFP, Btl:Cherry, pntP1, cut, sty and yan gradients were derived from the maximum intensity projections along the D-P axis of the ASPs. For Figure 1I–I’’, Figure 1—figure supplement 2D–E”, the intensity profiles were derived across the entire digitally straightened epithelium following (Long et al., 2009). A ~ 40 pixels wide line was fitted following the curved tracheal/ASP epithelium. For quantification of Bnl:GFP and Bnl:GFPex uptake in mutant clones, total GFP or EIF (red, anti-GFP) intensities were measured from selected areas in mutant clones and neighboring wt cells and normalized with the selected area (Figure 4; Figure 4—figure supplement 1; Figure 7B,B’,E–H).

Quantitative analyses of number and orientation of cytonemes

For Figure 5A–C, Figure 7A,A’,C–D’, Figure 7—figure supplement 1, cytonemes were manually counted and were grouped by length (<15 μm, 15–30 μm, and >30 μm) as reported in (Roy et al., 2011b). Cytonemes emanating from each clone were captured over ~30–40 μm Z-sections with 0.35 μm step size. The R program was used to generate R plots from at least five preparations of each genotype to analyze cytoneme orientation and number.

Statistical analyses

Statistical significance was determined with a two-tailed t-test (Figure 3I'; 4E,G’; 7B’,E’), or a one-way ANOVA (Figure 5B,D’’) followed by Tukey honestly significant different (HSD) test. For all the numerical data analyses, the amount of variation from the mean is indicated by the standard deviation.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
    Cytonemes and the dispersion of morphogens
    1. TB Kornberg
    (2014)
    Wiley Interdisciplinary Reviews: Developmental Biology 3:445–463.
    https://doi.org/10.1002/wdev.151
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55

Decision letter

  1. Naama Barkai
    Senior Editor; Weizmann Institute of Science, Israel
  2. Bruce Edgar
    Reviewing Editor; University of Utah, United States
  3. Bruce Edgar
    Reviewer; University of Utah, United States
  4. Isabel Guerrero
    Reviewer; Centro de Biología Molecular Severo Ochoa (CSIC-UAM), Universidad Autónoma de Madrid, Spain

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Feedback regulation of cytoneme-mediated transport self-generates a tissue-specific FGF morphogen gradient" for consideration by eLife. Your article has been reviewed by two peer reviewers, including Bruce Edgar as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Naama Barkai as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission. The reviews in full are appended below. While it is not necessary to address all these comments, many are simply editorial and should be straightforward to address. Indeed both reviewers felt that the manuscript and figures were more complex, and more difficult to read than necessary, so you should spend some time simplifying it according to their suggestions. In addition, reviewer #2 felt that it was quite important that you state the ambivalences concerning the Bnl ligand solubility, and noted that the data you present suggest direct ligand uptake from producer cell membranes, rather than uptake from freely dispersed molecules within the extracellular matrix. GRASP experiments using cell membrane markers from both producer and receiving cells could further clarify this issue, and would be a strong addition to the paper.

Reviewer #1:

In this paper, Du et al. describe inter-organ signaling between the Drosophila wing disc and the air-sac, a tracheal tissue. They generate flies with GFP and RFP tagged Bnl and Btl, FGF and FGFR homologs used in tracheal morphogenesis, and use these to visualize how Bnl from the disc signals to Btl in the air sac via cytonemes from the air sac cells. The tagged proteins prove to be very informative, and careful imaging shows that there is a gradient of Bnl signaling to the airsac that depends on graded cytoneme density from the airsac cells, which in turn depends upon the response of the cells to Bnl, mediated by the transcription factors Cut and PntP1. The imaging in the paper is done at a very high level (cytonemes are small, dynamic, and tough to fix) and is quite convincing, and a requisite number of genetic tests are included to support the gradient model convincingly. The paper is well written and thoroughly referenced, though somewhat complex. A very interesting aspect of the Bnl signaling gradient is that, through the feedback interactions of its components, it is self-reinforcing. I found the paper quite elegant and have only two general comments.

First, even though the paper is well organized and written, with clear logical conclusions, it is nevertheless complex and difficult to digest. This is in part just because the model, despite its elegance, is unavoidably complex, as are the experiments supporting it. Nevertheless I think the authors should strive to simplify and clarify their delivery as much as is possible. More self-explanatory labels in the figures, and any other possible simplifications should help the reader.

Second, regarding the gradient model, it is easy to understand how it maintains itself (more cytonemes give more Bnl:Btl signaling, more signaling causes more cytonemes), but it is not so clear how it is set up in the first place. The authors' Discussion suggests that they believe they understand gradient establishment (during its development) but how this works was not at all clear to me from the tests shown, or from the summary diagram in Figure 7. It seems there may be more to it, for instance pre-exisiting positional information in the air sac, or direct interactions between the air sac cells, that influence the relative activities of Cut and PntP1 and consequently establish the gradient. Alternatively, maybe the initial guiding factor is just physics – cells closer to the Bnl source get more signaling from the start, even before the graded distributions of Cut, PntP1, Btl, and cytonemes arise. Although it is not necessary for the authors to resolve this issue with more data here, I feel they should discuss the issue of gradient formation more adequately, and perhaps indicate what is possible in their summary figure. In addition, if they can't really explain how the gradient initially forms (as opposed to sustaining itself), then they should change their title.

Reviewer #2:

The manuscript by Lijuan Du et al. certainly presents innovative concepts to the field of morphogen function and regulation during tissue organization in development. First, it experimentally establishes in Drosophila the existence of a concentration gradient of the FGF molecule Bnl, able to determine the differential activation of target genes in a morphogen-like manner and with direct developmental outcomes. Second, it describes the mechanisms that sustain the establishment of the gradient, which include the involvement of cytonemes. These structures have been increasingly gaining strength as a mechanism for the spatially regulated distribution of signalling molecules. Third, it also initiates the study of cytoneme formation by determining a self-founded positive and negative feedback from the pathway targets towards the regulation of Bnl loaded cytonemes, which in turn regulates target activation. In general the manuscript is well written and presents a coherent development of ideas sustained by experimental work. However, there are a number of major points that could help to clarify the manuscript.

1) It is important to clarify if the ligand Bnl is a soluble molecule or not. The authors should state the ambivalences of the published data in the field concerning solubility of the molecule. The present manuscript and the experimental data presented suggest an uptake of ligand directly from producer cell membranes, rather than an uptake from freely dispersed molecules in the extracellular matrix. Also the authors should attempt to clarify their interpretation regarding the different size of the visualised puncta (<≈2μm and <200nm).

2) The use of the GRASP technique mediated by the Snare protein Syb to illuminate contact points also strongly suggests membrane-membrane contact. The authors fail to discuss this point that would go against the stated solubility of the ligand. The GRASP technique has indeed been reported to mark membrane-to-membrane contact points for the reception of morphogen Hedgehog (González-Méndez et al., 2017; Chen et al., 2017).

3) Finally the understanding of this contact mechanisms, signal transfer and transport of the ligand would benefit from additional experimental data regarding whether cytonemes from the producer cells at the wing disc matter at all. 1) Additional imaging of membranes from ligand-producer cells would aid this crucial point. 2) Cytoneme disruption experiments in the wing disc might clarify this point if no change in distribution is observed. 3) An experiment using the Syb-GRASP technique but reversing the components at each side (producer and receptor sides); or equally one where each half of the molecule GFP is attached to a membrane marker (CD4) on both sides would also clarify this point.

4) In general, presentation of figures needs a more logical arrangement to help with their interpretation. The manuscript would really benefit if figures always included a control beside images and data of mutants. Further labelling is also needed, especially in all the supplementary figures where labelling of different antibodies and reporters within the photo panels would really help their interpretation. In addition, most fluorescent intensity profiles presented don't include information about the sample size used.

5) Particularly the section and corresponding figure regarding the analysis of extracellular and intracellular Bnl ligand (Figure 4 and Figure 4—Figure supplements 1-4) is very confusing. Sometimes contradictory data are presented without further discussion (e.g. lack of Bnl signal-GFP during in vivo imaging).

6) Data comparison between the different mutant conditions that authors intend to correlate not always follow the same parameters; e.g. in Figure 4I and K' data for BnlGFP density is presented for LOF of cytoneme cytoskeleton regulators while density of extracellular Bnl versus intracellular Bnl is presented for Btl GOF. Clarity of the work would be improved if same or equivalent parameters are presented.

https://doi.org/10.7554/eLife.38137.058

Author response

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission. The reviews in full are appended below. While it is not necessary to address all these comments, many are simply editorial and should be straightforward to address. Indeed both reviewers felt that the manuscript and figures were more complex, and more difficult to read than necessary, so you should spend some time simplifying it according to their suggestions. In addition, reviewer #2 felt that it was quite important that you state the ambivalences concerning the Bnl ligand solubility, and noted that the data you present suggest direct ligand uptake from producer cell membranes, rather than uptake from freely dispersed molecules within the extracellular matrix. GRASP experiments using cell membrane markers from both producer and receiving cells could further clarify this issue, and would be a strong addition to the paper.

Thank you for these important suggestions! We rewrote most of the parts of the manuscript and simplified the figures and descriptions of the results as suggested by the reviewers.

We agree that contact-dependent Bnl signaling and its regulation is the key to the mechanism of FGF gradient formation by cytonemes. To further strengthen and clarify this point with experiments, we now show selective localization of the native externalized Bnl at the sites where the ASP cytonemes established direct contacts with the source cells (Figure 3J). In this experiment, super-resolution imaging of the source and recipient cells both labeled with membrane-tethered fluorescent proteins provided an unprecedented resolution of the sites of intimate membrane contact. Amazingly, although the source cells cover a large tissue area compared to the 200 nm thin cytonemes, externalized Bnl puncta were selectively enriched only at the cytoneme contact sites. This experiment shows that Bnl is selectively released at the sites of cytoneme contacts.

We chose to demonstrate this point in this manner instead of using the GRASP technique, because this is a relatively unbiased experimental approach that allows us to preserve the natural membrane affinity and composition of the contact sites while answering the main question – whether Bnl is externalized/released from the source only at these contact points. The syb-GRASP or membrane-GRASP is an excellent technique to map and quantify the steady-state number of contact sites. But GFP-reconstitution is also an irreversible reaction, which may (or may not) bias the molecular/signaling composition of the cell/cytoneme membranes at the contact sites. In this context, the experimental results shown in Figure 3J is significant and confirms the GRASP results.

We also provided a quantitative analysis showing that the cytonemes that had stable GRASP contacts with the signal source received higher levels of Bnl than the other cytonemes from the same ASP that did not touch the source. In an earlier paper (Roy et al., 2014), GFP-reconstitution technique was used in the ASP system to thoroughly map the signaling contacts established between the ASP cytonemes and the wing disc bnl or dpp sources. This study also demonstrated that the cytoneme contacts are essential for both Bnl and Dpp signaling. Several genetic conditions, that removed either the cytonemes or the cytoneme contacts without affecting cytoneme formation from the btl-expressing tracheal cells, reduced pMAPK signaling in the mutant ASP cells. However, Bnl dispersion through cytonemes was not visualized earlier, which limited our understanding of the mechanism of Bnl transport and gradient formation. Now, collectively, the results from previous and current work provide substantial evidence that the Bnl exchange is contact-dependent.

We elaborated on the contact-dependence of Bnl signal exchange in our revised Discussion.

Reviewer #1:

[…] I found the paper quite elegant and have only two general comments.

First, even though the paper is well organized and written, with clear logical conclusions, it is nevertheless complex and difficult to digest. This is in part just because the model, despite its elegance, is unavoidably complex, as are the experiments supporting it. Nevertheless I think the authors should strive to simplify and clarify their delivery as much as is possible. More self-explanatory labels in the figures, and any other possible simplifications should help the reader.

Thank you for the suggestion! In the revised manuscript, we tried our best to simplify the figures, added self-explanatory labels, and clarified the description of the experimental results as much as we could.

Second, regarding the gradient model, it is easy to understand how it maintains itself (more cytonemes give more Bnl:Btl signaling, more signaling causes more cytonemes), but it is not so clear how it is set up in the first place. The authors' Discussion suggests that they believe they understand gradient establishment (during its development) but how this works was not at all clear to me from the tests shown, or from the summary diagram in Figure 7. It seems there may be more to it, for instance pre-exisiting positional information in the air sac, or direct interactions between the air sac cells, that influence the relative activities of Cut and PntP1 and consequently establish the gradient. Alternatively, maybe the initial guiding factor is just physics – cells closer to the Bnl source get more signaling from the start, even before the graded distributions of Cut, PntP1, Btl, and cytonemes arise. Although it is not necessary for the authors to resolve this issue with more data here, I feel they should discuss the issue of gradient formation more adequately, and perhaps indicate what is possible in their summary figure. In addition, if they can't really explain how the gradient initially forms (as opposed to sustaining itself), then they should change their title.

Thank you for this important point. We provided more explanation in the Discussion and in the summary figure (Figure 8). Previously, it was known that the Bnl source remains close to the growing tip of a tracheal branch, and the source changes its position concomitantly with the growing tip. An earlier paper (Du et al., 2017) showed that Bnl sources in the embryo co-migrate in synchrony with the growing tracheal tips. Based on this prior knowledge, we predicted that it is the close association of the source and the recipient cells that provides the initial positional information.

In brief, the feedback mechanisms that we found to regulate the cytonemes operate within a single cell, autonomously. We predict that this mechanism provides a modular control and an interesting mechanism of gradient formation in coordination with the growth and patterning of the ASP. At an early stage prior to ASP budding, a few cells in a preexisting tracheal branch (the disc-associated TC) that are juxtaposed to the Bnl-source could establish cytoneme-contacts with the signal source to induce signaling feedback (PntP1). The TC cells at increasing distance from the source will upregulate Cut or Yan. Thus, the signal and signaling gradients we observed in the ASP could be formed, but their shapes and dimensions are very different and TC specific. With ASP budding and increase in cell number in the growing ASP, as well as with movement of the bnl-source, the dimensions of the signal and signaling gradient change. The gradient shape becomes more ASP-specific.

This mechanism implies an interesting systemic feedback where the gradient shape is a result of growth and patterning of the recipient tissue, which it controls. Following the same line of thinking, although it is apparent that an initial physical association is required to initiate the signaling feedback and the gradient, our data might also imply for a self-sustaining feedback between the physical contacts and chemical signaling. Physical contacts of cytonemes are needed for exchange of the chemical signals, whereas the chemical signaling increases the physical connections through feedback on cytoneme formation.

Reviewer #2:

[…] In general the manuscript is well written and presents a coherent development of ideas sustained by experimental work. However, there are a number of major points that could help to clarify the manuscript.

1) It is important to clarify if the ligand Bnl is a soluble molecule or not. The authors should state the ambivalences of the published data in the field concerning solubility of the molecule. The present manuscript and the experimental data presented suggest an uptake of ligand directly from producer cell membranes, rather than an uptake from freely dispersed molecules in the extracellular matrix. Also the authors should attempt to clarify their interpretation regarding the different size of the visualised puncta (<≈2μm and <200nm).

Thank you for these important suggestions! We emphasized this point in Results and Discussion. FGF proteins are considered to be biochemically soluble/diffusible. However, all our experiments showed that Bnl exchange is contact-dependent, and we characterized how a contact-dependent direct communication is essential for creating a long-range gradient.

Sorry for the confusion! The interpretations of different sized puncta visualized by various imaging methods are now clarified.

2) The use of the GRASP technique mediated by the Snare protein Syb to illuminate contact points also strongly suggests membrane-membrane contact. The authors fail to discuss this point that would go against the stated solubility of the ligand. The GRASP technique has indeed been reported to mark membrane-to-membrane contact points for the reception of morphogen Hedgehog (González-Méndez et al., 2017; Chen et al., 2017).

We added discussion on this important point.

3) Finally the understanding of this contact mechanisms, signal transfer and transport of the ligand would benefit from additional experimental data regarding whether cytonemes from the producer cells at the wing disc matter at all. 1) Additional imaging of membranes from ligand-producer cells would aid this crucial point. 2) Cytoneme disruption experiments in the wing disc might clarify this point if no change in distribution is observed. 3) An experiment using the Syb-GRASP technique but reversing the components at each side (producer and receptor sides); or equally one where each half of the molecule GFP is attached to a membrane marker (CD4) on both sides would also clarify this point.

Thank you for this suggestion! As described earlier, we added new experimental results (new Figure 3J) that show selective localization of Bnl at the sites where ASP cytonemes contact the source cells. We also showed that the cytonemes from the ASP that contacted the source received significantly more signal than the ones that did not contact the source. These experiments, along with previous results published in Roy et al., 2014, provide clear evidence that Bnl exchange is contact-dependent.

For comments 1) and 2): the focus of our study was to characterize the mechanisms for formation of the shapes of the Bnl morphogen gradient, which is recipient tissue-specific, dynamic and adaptive. Our source and recipient membrane-marked images showed that the ASP cytonemes directly contact the source cell surface and exchange the signal. We could not visualize the source cytonemes under the imaging conditions we used. Therefore, we did not perform the experiments involving removal of the source cytonemes. We would like to investigate the possibility of source cytonemes and their roles in the future. We added a discussion on cytoneme-mediated signaling mechanisms.

Although we did not perform this experiment, all our experiments suggest that signaling through a gradient of number of cytonemes across the recipient ASP epithelium and their spatial regulation by two counteracting feedback of Bnl signaling generate recipient tissue-specific shapes of the morphogen gradient. In this study, we identified only a small set of molecules and events that might regulate these core feedback processes. We anticipate additional unknown cellular and molecular events that feed into the central feedback loops. Unknown mechanisms might be involved in guiding the recipient cytonemes to find the target and establish contact with the source, assisting in signal exchange and transport via motor proteins, or endocytosing/exocytosing the signal. An example of such cellular and molecular event could be the source cytonemes, which might deliver Bnl to the recipient cytonemes. According to this hypothesis, a mechanism of cytoneme-mediated signal delivery directly to the recipient cytonemes would contribute to the levels of Bnl in recipient ASP cells, and thereby to the feedback processes inducing/suppressing cytoneme formation and signal uptake. A loss of source cytonemes would jeopardize the whole feedback response mechanism that creates the gradient, and is expected to yield an effect similar to the bnl knockdown experiment, leading to a simultaneous loss of both the ASP-specific gradient and the ASP development (Figure 1—figure supplement 2B-C). We would like to test this possibility in the future.

4) In general, presentation of figures needs a more logical arrangement to help with their interpretation. The manuscript would really benefit if figures always included a control beside images and data of mutants. Further labelling is also needed, especially in all the supplementary figures where labelling of different antibodies and reporters within the photo panels would really help their interpretation. In addition, most fluorescent intensity profiles presented don't include information about the sample size used.

Thank you for the suggestion! We reorganized the figures, included controls whenever necessary, and added more labeling to facilitate figure interpretation. Also, we added information about the sample size whenever applicable.

5) Particularly the section and corresponding figure regarding the analysis of extracellular and intracellular Bnl ligand (Figure 4 and Figure 4—figure supplements 1-4) is very confusing. Sometimes contradictory data are presented without further discussion (e.g. lack of Bnl signal-GFP during in vivo imaging).

Sorry for the confusion and thanks for this helpful comment! We now simplified the text and clarified all these points in the Results and Discussion. We reorganized the figures in this section, and added one figure panel (new Figure 3—figure supplement 2B, B’) to further clarify the externalized and intracellular Bnl ligands. Note that the original Figure 4 is now Figure 3 in the revised manuscript.

Bnl:GFP is expressed at a low level from the endogenous locus. To detect Bnl:GFP molecules, we imaged Bnl:GFP distribution using various technologies such as super-resolution imaging as well as detergent-free immunostaining (EIF) to identify the population of post-secretion Bnl:GFP. Using standard confocal imaging in combination with the EIF assay, we found that a large amount of Bnl:GFP is localized on the surface of the ASP and on the ASP cytonemes. However, the externalized molecules present on the cytonemes were hard to detect only with GFP fluorescence due to the low levels of the fluorescence emitted from endogenous signal. With a high-gain super-resolution imaging we overcame this technical challenge. All experimental results supported cytoneme-mediated transport.

6) Data comparison between the different mutant conditions that authors intend to correlate not always follow the same parameters; e.g. in Figure 4I and K' data for BnlGFP density is presented for LOF of cytoneme cytoskeleton regulators while density of extracellular Bnl versus intracellular Bnl is presented for Btl GOF. Clarity of the work would be improved if same or equivalent parameters are presented.

Thanks for the suggestion! We reorganized the related figures (new Figure 4) to make them easier to follow. Same equivalent parameters were used to measure in the clonal analyses. We now explained the graphs thoroughly in the text (now Figure 4E).

Figure 4K’ (now Figure 4G’): We aimed to display the autonomous loss of the surface-localized Bnl:GFP (Bnl:GFPex) observed in receptor-LOF clones. In receptor-LOF clones, intracellular levels of Bnl:GFP is expected to get reduced irrespective of how Bnl:GFP travels in extracellular space. Since, most Bnl:GFP puncta in the ASP detected under standard confocal imaging were representing intracellular endocytosed signal (Figures 2 and 3), we did not combine the btl-LOF data with cytoneme-regulators. However, an EIF-stained Bnl:GFPex levels on the LOF clones could clearly distinguish between the cytoneme-mediated dispersion versus a passive diffusion mechanism (Figure 4F-G). Therefore, we compared the levels of Bnl;GFPex inside and outside of the mutant clones. We now explained the results and simplified the figure and relevant texts to clarify this point.

https://doi.org/10.7554/eLife.38137.059

Article and author information

Author details

  1. Lijuan Du

    Department of Cell Biology and Molecular Genetics, University of Maryland, Maryland, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5335-8872
  2. Alex Sohr

    Department of Cell Biology and Molecular Genetics, University of Maryland, Maryland, United States
    Contribution
    Formal analysis, Investigation, Visualization, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Ge Yan

    Department of Cell Biology and Molecular Genetics, University of Maryland, Maryland, United States
    Contribution
    Software, Formal analysis, Methodology
    Competing interests
    No competing interests declared
  4. Sougata Roy

    Department of Cell Biology and Molecular Genetics, University of Maryland, Maryland, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Writing—original draft, Writing—review and editing
    For correspondence
    sougata@umd.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2236-9277

Funding

National Institute of General Medical Sciences (R35GM124878)

  • Sougata Roy

National Heart, Lung, and Blood Institute (R00HL114867)

  • Sougata Roy

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. N Andrews, Dr. TB Kornberg and Dr. L Pick for reading and comments on the manuscript; Akshay Patel, Amy Zhou for technical help; Dr. F Port, Dr. K O’Connor-Giles, and Dr. S Feng for discussions on CRISPR strategy; Dr. TB Kornberg, Dr. M Affolter, Dr. M Krasnow, Dr. A Nakamura, Dr. H Bellen, the Bloomington Stock Center, and the Developmental Studies Hybridoma Bank for reagents; Dr. AE Beaven for the UMD imaging core facility; and funding from NIH: R00HL114867 and R35GM124878 to SR.

Senior Editor

  1. Naama Barkai, Weizmann Institute of Science, Israel

Reviewing Editor

  1. Bruce Edgar, University of Utah, United States

Reviewers

  1. Bruce Edgar, University of Utah, United States
  2. Isabel Guerrero, Centro de Biología Molecular Severo Ochoa (CSIC-UAM), Universidad Autónoma de Madrid, Spain

Publication history

  1. Received: May 8, 2018
  2. Accepted: October 16, 2018
  3. Accepted Manuscript published: October 17, 2018 (version 1)
  4. Version of Record published: November 8, 2018 (version 2)
  5. Version of Record updated: November 14, 2018 (version 3)

Copyright

© 2018, Du et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,211
    Page views
  • 213
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Developmental Biology
    Ehsan Sadeghipour et al.
    Research Article
    1. Developmental Biology
    2. Stem Cells and Regenerative Medicine
    Anna Yoney et al.
    Research Article Updated
