Importance of miRNA stability and alternative primary miRNA isoforms in gene regulation during Drosophila development

  1. Li Zhou
  2. Mandy Yu Theng Lim
  3. Prameet Kaur
  4. Abil Saj
  5. Diane Bortolamiol-Becet
  6. Vikneswaran Gopal
  7. Nicholas Tolwinski
  8. Greg Tucker-Kellogg
  9. Katsutomo Okamura  Is a corresponding author
  1. Temasek Life Sciences Laboratory, Singapore
  2. National University of Singapore, Singapore
  3. Nanyang Technological University, Singapore
  4. Yale-NUS College, Singapore
  5. Genome Institute of Singapore, Singapore
  6. Sloan-Kettering Institute, United States
Research Article
  • Cited 0
  • Views 935
  • Annotations
Cite this article as: eLife 2018;7:e38389 doi: 10.7554/eLife.38389

Abstract

Mature microRNAs (miRNAs) are processed from primary transcripts (pri-miRNAs), and their expression is controlled at transcriptional and post-transcriptional levels. However, how regulation at multiple levels achieves precise control remains elusive. Using published and new datasets, we profile a time course of mature and pri-miRNAs in Drosophila embryos and reveal the dynamics of miRNA production and degradation as well as dynamic changes in pri-miRNA isoform selection. We found that 5’ nucleotides influence stability of mature miRNAs. Furthermore, distinct half-lives of miRNAs from the mir-309 cluster shape their temporal expression patterns, and the importance of rapid degradation of the miRNAs in gene regulation is detected as distinct evolutionary signatures at the target sites in the transcriptome. Finally, we show that rapid degradation of miR-3/–309 may be important for regulation of the planar cell polarity pathway component Vang. Altogether, the results suggest that complex mechanisms regulate miRNA expression to support normal development.

https://doi.org/10.7554/eLife.38389.001

eLife digest

Cells produce proteins by feeding molecules that contain temporary copies of the gene for that protein through a complex structure called a ribosome. The ribosome follows the coded instructions in these molecules to build the protein. These temporary copies of the code are reusable. Even if the cell stops copying a gene it will continue to produce the protein for a short time.

MicroRNAs (often shortened to just miRNAs) can switch protein production off. These are short molecules that stick to the code of the protein-producing molecules. This renders the molecules unreadable to ribosomes, and also makes it a target for destruction by enzymes. Different miRNAs have different targets, helping to fine-tune the timing and amount of protein production.

There are two stages to the production of miRNAs. First, the cell copies the gene into primary transcripts (pri-miRNAs). Then, it turns these molecules into mature miRNAs. The cell can vary the number of pri-miRNAs made, control how and when they mature, and change the lifespan of the mature miRNAs. But, it is unclear how these processes all work together to achieve fine control of protein production.

Recent studies have revealed when, where and how much miRNA is present in developing organisms. So, scientists are now at the point where they can start to understand how cells control miRNA levels. Here, Zhou, Lim et al. created small RNA libraries at eight time windows during the development of fruit fly embryos. The libraries contained the mature miRNAs present at each developmental stage. Fruit fly embryos develop quickly, taking only 24 hours to make a larva from a single fertilized egg, and its genes must respond quickly.

When combined with existing datasets, the new data revealed how mature and pri-miRNAs change as fly embryos develop. Many miRNA genes sit close together, forming clusters in the fruit fly genome. Yet rather than make them all at once, the fly embryos often copied them in sets. So, as development progressed, different groups of miRNAs came into use. To achieve this, the cells copied different parts of the cluster at different times, and altered the way they processed the pri-miRNAs. The miRNAs from the same cluster lasted for different lengths of time, and the cells rapidly destroyed unwanted mature miRNAs. Together, these mechanisms shaped the timing and composition of each distinct set of miRNAs.

Understanding the control of miRNAs is an essential step in understanding how the cell regulates its genes. There are thousands of miRNA genes in the human genome, and a failure to control them can contribute to human diseases, including cancer. Future studies could extend this work by sampling other tissues of the fly, or tissues of other organisms, including humans.

https://doi.org/10.7554/eLife.38389.002

Introduction

Gene expression is regulated at multiple levels involving transcriptional and post-transcriptional mechanisms. Small RNAs including microRNAs (miRNAs) play central roles in post-transcriptional regulation of protein-coding genes. Typically, miRNAs are transcribed as primary transcripts (pri-miRNAs) by RNA polymerase II and their molecular architectures resemble those of mRNAs (Kim et al., 2009). The majority of miRNAs are processed from pri-miRNAs by a two-step cleavage mechanism involving two RNase III-class enzymes, Drosha and Dicer (Okamura, 2012). The resulting 21-23nt miRNA duplexes are loaded onto Argonaute family proteins and subsequently unwound to form mature effector complexes that regulate expression of target mRNAs.

Analogous to regulation of protein-coding genes, expression of miRNAs is regulated at both transcriptional and post-transcriptional levels (Ha and Kim, 2014). Transcription of pri-miRNAs is developmentally regulated as shown by in situ hybridization and transcriptome analysis in Drosophila (Aboobaker et al., 2005; Graveley et al., 2011; Brown et al., 2014; Liu et al., 2017). On the other hand, recent studies also revealed a variety of mechanisms post-transcriptionally regulating miRNA processing in a gene-specific or global manner. Sequence-specific RNA binding proteins can positively or negatively regulate miRNA processing through binding to pri- or pre-miRNAs (Newman et al., 2008; Rybak et al., 2008; Heo et al., 2008; Viswanathan et al., 2008; Davis et al., 2008; Suzuki et al., 2009; Trabucchi et al., 2009; Guil and Cáceres, 2007; Treiber et al., 2017). Furthermore, global miRNA processing activity can be altered depending on the expression level of the core miRNA processing factors and/or the status of post-translational modifications of miRNA processing factors (Tang et al., 2010; Tang et al., 2013; Paroo et al., 2009; Herbert et al., 2013; Wan et al., 2013; Wada et al., 2012). miRNAs are also generally destabilized in neuronal cells (Krol et al., 2010). As expected for important gene regulators, dysregulation of miRNA activity is often implicated in diseases. For example, aberrant expression levels of miRNA processing factors are observed in various cancers, and proteins that are involved in neurological disorders often have miRNA-related functions (Adams et al., 2014; Emde and Hornstein, 2014).

Although individual post-transcriptional mechanisms that regulate miRNA processing have been studied under some cellular conditions, the extent to which these mechanisms contribute to miRNA expression profiles during natural development is not understood (Rüegger and Großhans, 2012). In addition, expression of alternative pri-miRNA isoforms was shown to be important for differential regulation of individual members of clustered miRNAs using cell lines, but its biological significance remains unknown (Chang et al., 2015; de Rie et al., 2017). A previous study performed genome-wide analysis using a panel of small RNA libraries focusing on clustered miRNAs to detect effects of post-transcriptional regulation with a limited time resolution led to identification of candidate genes that are post-transcriptionally regulated (Ryazansky et al., 2011).

Here, we use fly embryogenesis as a model system to study regulation of miRNA biogenesis during development. We generated small RNA libraries from 8- time windows that cover the entire fly embryogenesis and quantified mature miRNA levels. Using integrated analysis of this set of small RNA libraries and total RNA-seq libraries published by modENCODE (Westholm et al., 2014; Duff et al., 2015), we found that mature miRNA expression changes can be predicted relatively precisely based on the transcriptional activity after taking degradation of mature miRNAs into account. Our results suggested that processing efficiency and mature miRNA half-lives stay generally constant throughout embryogenesis except for very early stages. However, some individual miRNAs show distinct half-lives, and miRNA stability plays a significant role in shaping the miRNA expression profile and in turn influences evolution of target sites in 3’UTRs. Our results also indicate that transcriptional start/termination sites (TSSs/TTSs) are flexibly used to express distinct sets of miRNAs from a single cluster and selection of alternative pri-miRNA isoforms is regulated in a developmental stage and signaling dependent manner.

These results provide insight into miRNA regulation in developmental processes at the global level and reveal complex mechanisms that support precise regulation of miRNA expression.

Results

Global changes in the bulk miRNA abundance during embryogenesis

To understand how the miRNA expression profile changes during fly embryogenesis, we prepared small RNA libraries in 2 hr windows from 0 to 12 hr after egg laying (hAEL) and 6 hr windows from 12-24hAEL. We prepared libraries in biological triplicate, each of which contained 9.8–23.8 million reads perfectly mapping to the Drosophila melanogaster genome (Supplementary file 1 Sheet 1). To study the composition of the small RNA population, small RNA reads were first grouped under four categories: (1) miRNA, (2) endo-siRNA + piRNA, (3) reads from abundant non-coding RNAs (rRNAs and tRNAs etc.) and (4) other (Figure 1A; Supplementary file 1 Sheet 2). In 0-2hAEL embryos, category two small RNAs constituted >50% of the small RNA population, consistent with the large amount of maternally deposited piwi-interacting RNAs (piRNAs) produced from various transposons (Brennecke et al., 2008). The fraction of category two small RNAs continuously declined until 12-18hAEL, with a concomitant increase of the miRNA fraction. In 18-24hAEL, we observed a reproducible increase of small RNAs derived from abundant ncRNAs. Closer inspection revealed that these small RNAs were mainly derived from rRNAs, and no specific size peaks were observed with this category of small RNAs in this time window (Figure 1—figure supplement 1). These results suggested that rRNA-derived small RNAs may be degradation intermediates with no functionality, but the reason for this rapid increase of these fragments in this developmental stage is not known.

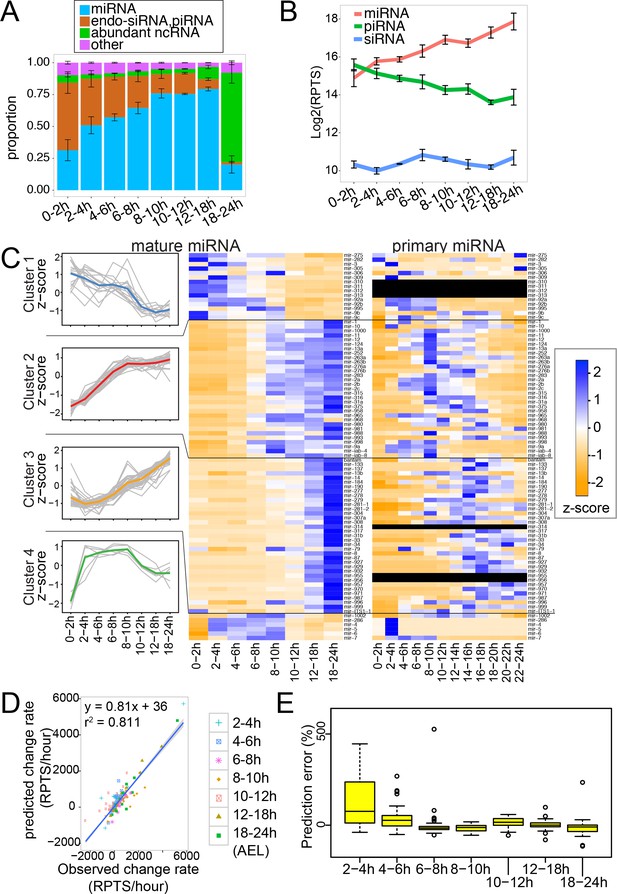

Figure 1 with 3 supplements see all
Mature and pri-miRNA profiles revealed by RNA-seq analysis.

(A) Composition of small RNA libraries. Small RNA reads were grouped into four categories, and their fractions in the library were plotted. The average and standard error of mean of three replicate libraries are shown. (B) Changes in the global levels of small RNA classes. The averages of total read counts of miRNAs (red), piRNAs (green) and siRNAs (blue) were plotted. Error bars indicate standard error of mean. Small RNA read counts were normalized against the spike-in count of each library and expressed as reads per thousand spike-in reads (RPTS). (C) miRNA genes were grouped into four clusters by k-means clustering (k = 4) and expression z-scores of individual miRNAs are shown in the left panel (gray lines). The average z-score for each cluster is shown as a colored line. Expression profiles of mature miRNAs (middle) or pri-miRNAs (right) in staged fly embryos are shown in the heatmap. The heatmap was color-coded according to the z-score calculated across the 8 or 12 time-windows for each miRNA gene. The pri-miRNA level was determined as the read density in the 100nt window immediately upstream of the miRNA hairpin. (D) The mature miRNA change rates predicted by multiple regression analysis were plotted against observed values. (E) Error rates estimation for each time window. Error rates were determined by the following formula. Error rates = (predicted - observed miRNA change rate) * (window size) * 100 / (mature miRNA level). Distributions of prediction error rates were plotted. Four outliers in the 2–4 hr time window (1402.5, 972.8, 954.3 and 739.9%) are not shown. Genes with at least 10 RPTS in the time window were used for this analysis.

https://doi.org/10.7554/eLife.38389.003

To account for the change in the total small RNA population size, we used external standards for read count normalization (Locati et al., 2015). The levels of small RNA species were estimated by dividing the read counts by the number of reads matching to the spike-in oligo sequences introduced to the RNA sample (see Materials and methods; Supplementary file 1, Sheet 3). The normalized values were expressed as reads per thousand spike-in reads (RPTS). We believe that this normalization scheme permits more accurate comparisons of the miRNA levels in different libraries as compared to conventional normalization methods. The conventional approach using the total counts of mappable reads assumes that the total amount of small RNAs stays constant in different samples, but such assumptions might not be appropriate for certain analyses. For example, the large number of rRNA reads in 18-24hAEL (Figure 1A; Figure 1—figure supplement 1) could strongly affect normalization factors of the conventional methods.

We first analyzed the overall abundance of miRNAs after normalizing read counts against the spike-in counts (Figure 1B; Supplementary file 1 Sheet 2). We observed a continuous increase of the total mature miRNA abundance throughout embryogenesis. This may be consistent with the notion that early embryos generally show relatively low miRNA activity and differentiated cells rely more strongly on miRNA-mediated mechanisms for gene regulation (Lu et al., 2005; Kumar et al., 2007; Kumar et al., 2009; Suh et al., 2010; Ohnishi et al., 2010). On the other hand, we observed a gradual decrease of the piRNA population (Figure 1B; Supplementary file 1 Sheet 2). This was also consistent with expression patterns of mRNAs encoding the piRNA pathway components with high levels in early embryos (Figure 1—figure supplement 2) and largely restricted to gonads in late stages (Ishizu et al., 2012).

We analyzed individual miRNA levels in more detail (Figure 1C, middle). To test the accuracy of our library-based miRNA profiling, we performed Northern blotting analysis for seven randomly chosen miRNAs (Figure 2). The normalized miRNA expression values estimated by library analysis generally showed good agreement with our Northern blotting results (Figure 2, Figure 2—figure supplement 1 and Supplementary file 2), indicating that our sequencing analysis accurately estimated levels of miRNA expression relative to the amount of total RNA. We found that the amount of total RNA per embryo stayed relatively constant throughout embryogenesis (Figure 1—figure supplement 3A). Therefore, we believe that our library analysis results using spike-in normalization reflect the relative abundance of each miRNA species per embryo (Figure 1B).

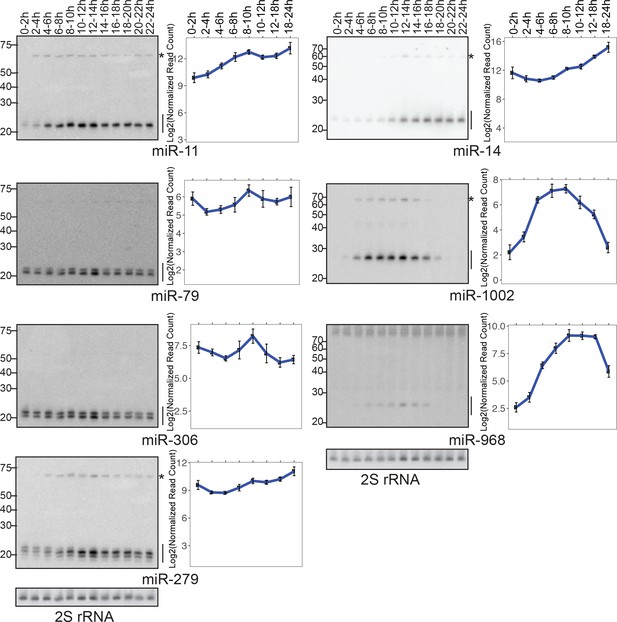

Figure 2 with 1 supplement see all
Verification of expression data by Northern blotting.

(Left panels) RNA samples from staged embryos were resolved by 15% denaturing PAGE and probed for the mature species of the indicated miRNA gene. Mature miRNA and precursor species are indicated by lines and asterisks respectively. (Right panels) Mature miRNA quantification using small RNA library data. Average values of triplicates are shown. Error bars indicate the standard error of mean.

https://doi.org/10.7554/eLife.38389.007

Having confirmed the accuracy of normalized values, we further analyzed changes of individual miRNA levels. For each of the 87 miRNAs whose expression levels satisfied our cutoff (>50 RPTS), we calculated relative expression levels in the eight time windows, and grouped the miRNA genes into four clusters using the k-means clustering method (Hartigan and Wong, 1979) (Figure 1C, left). Cluster 1 included 15 miRNAs that showed the highest expression levels in early stages. The majority of miRNA genes in this group were maternally deposited miRNAs with weak zygotic expression (Lee et al., 2014; Marco, 2015). The rapid decrease of maternal mature miRNA species was consistent with Wispy-mediated degradation of maternal miRNAs as reported previously (Lee et al., 2014). Cluster 4 included 6 genes and showed detectable decrease in late stages. This observation suggested that these miRNAs are relatively unstable, and the small number of genes in this category was consistent with the conclusion in previous cell culture-based studies that a small subset of miRNAs is degraded relatively quickly (Duffy et al., 2015; Marzi et al., 2016).

The majority (75.8%; 66 out of 87 genes) of genes belonged to clusters 2 and 3 that showed increasing trends throughout embryogenesis. This indicated that the increase in the expression level is a general trend for many miRNA genes in fly embryos, and that the increase in the bulk miRNA abundance was not caused by a small number of miRNA species. Coincidentally, the AGO1 protein level was also lower in very early embryos (Figure 1—figure supplements 3B, 0–2h and 2–4h lanes). This may suggest that the AGO1 protein level may be a limiting factor that determines the bulk miRNA abundance. Alternatively, the lower level of mature miRNAs may trigger degradation of apo-AGO1, as observed in tissues depleted of miRNA processing factors (Smibert et al., 2013).

These results confirmed distinct behaviors of small RNA families during fly embryogenesis, reflecting their distinct biological functions. The large difference of the total miRNA levels (eight times increase from 0-2hAEL to 18-24hAEL) estimated by our method underscores the importance of the selection of normalization methods, as the conventional RPM (reads per million) normalization method generally disregards the change in the size of small RNA population.

Transcription levels of individual pri-miRNAs estimated by total RNA-seq analysis

To profile transcription levels of individual miRNA genes on a genome-wide scale, we reanalyzed ribosomal RNA-depleted, stranded total RNA-seq data from fly embryos on a similar time course that were generated by the modENCODE consortium (Westholm et al., 2014; Duff et al., 2015). The expression level of each miRNA gene was estimated using the density of total RNA-seq reads in the 100-nucleotide window immediately upstream of the pre-miRNA hairpin (Figure 1C, right; Supplementary file 3).

Pri-miRNA species (or introns in the case of miRNAs residing in introns of protein-coding mRNAs) are believed to have much shorter half-lives compared to mature mRNAs or mature miRNAs (Gaidatzis et al., 2015; Chang et al., 2015; Nojima et al., 2015). Consistent with this notion, transient peaks of the pri-miRNA levels were often observed, suggesting that miRNA transcription is activated generally in short time-windows (Figure 1C, right). For example, even for the miRNAs in clusters 2 and 3 that showed the highest mature miRNA levels in the last time window, their corresponding primary miRNAs generally exhibited expression peaks in earlier time windows while mature miRNA remained present for at least several hours.

The change rate of mature miRNA level per unit of time (hereafter ‘miRNA change rate’) should be determined by two factors: new synthesis and degradation. We sought to test how well the miRNA change rate could be predicted by taking only these two factors into consideration. For simplicity, we approximated the model based on the following two assumptions: the level of transcription would be the primary determinant of the miRNA synthesis rate and the amount of mature miRNA that is degraded at a given moment would be proportional to the amount of miRNA products present at the moment. Based on these assumptions, we performed multiple linear regression analysis to obtain coefficients by fitting the quantified values of mature and primary miRNAs to the following equation: z ~ ax+ by +c, where z = change rate of mature miRNA, x = initial miRNA level, and y = upstream density (Supplementary file 4, see Materials and methods for details). When we tested the correlation between the predicted and observed change rates for all time windows of all miRNAs, we found that the change rates could be generally accurately predicted (r2 = 0.81; Figure 1D). This suggested that, for the majority of miRNAs, the production rate per pri-miRNA molecule as well as the degradation rate of mature miRNAs were relatively constant throughout embryogenesis. Nevertheless, when we analyzed the prediction accuracy in each window, we observed a trend where the predicted change rate tended to be higher than the observed data in early time windows (Figure 1E). This may mean that mature miRNAs were less efficiently processed from pri-miRNAs in early embryos. It is also possible that pri-miRNA degradation might be slower in these windows, leading to an overestimation of transcriptional activity. Although we excluded miRNAs that are deposited as maternal miRNAs at high levels from this analysis, the small amount of maternal miRNAs and their rapid degradation (Lee et al., 2014) might also contribute to this inaccurate prediction in this window. In other time windows, the distribution of prediction errors did not show clear trends, suggesting that the kinetics of miRNA production/degradation stayed relatively constant in these windows (Figure 1E).

Our integrated analysis of mature and primary miRNAs confirmed the general assumption that transcription level is important for determining the expression patterns of mature miRNAs and suggested that global miRNA production and degradation rates are relatively constant during embryogenesis except for early embryos. However, we note that individual predicted values may not be accurate due to the inaccuracy of sequence-based quantification and the relatively low time-resolution of our time course. In addition, it is also possible that there are a small number of individual miRNAs that are regulated post-transcriptionally in a time-window specific manner in embryos.

Influences of the 5’ nucleotides on mature miRNA stability

While production of miRNAs would be the major determinant of miRNA expression profiles, degradation of mature miRNAs should also play a role. The identity of 5’ end nucleotide of the guide RNA influences the interactions between the guide RNA and the MID domain of Argonaute with 5’-uridine (5’-U) showing the highest affinity among the four nucleotides (Frank et al., 2010). Since mature miRNAs are believed to be protected by Argonaute proteins from degradation, we wondered if the identity of the 5’ nucleotide could also influence the stability of miRNAs.

We asked whether our results of multiple linear regression analysis (Supplementary file 4) could be used to estimate miRNA degradation rates. Our analysis relies on the assumption that the mature miRNA change rate is determined by the miRNA production rate that is proportional to the level of transcription and the miRNA degradation rate that is proportional to the level of the mature miRNA abundance. In theory, the slopes associated with the mature miRNA abundance values should be negative because we expect the values to reflect the degradation rates per mature miRNA molecule per unit of time (Column ‘Coef_mature_Level’ in Supplementary file 4), while the coefficients for pri-miRNA abundance (Column ‘Coef_Updensity’ in Supplementary file 4) were expected to be positive values because they would reflect processing efficiency. However, we found that some individual miRNAs showed poor correlation (Column ‘r2’ in Supplementary file 4; 12 out of 45 genes showed r2 < 0.5) when data points were fitted to a linear plane. In addition, many of the coefficients for the mature miRNA levels were unexpectedly positive, suggesting that there were large errors in the estimated coefficients. Nevertheless, when the values were compared between groups of miRNAs with 5’-U and other 5’-nucleotides, we observed a trend whereby the coefficient values associated with the mature miRNA abundance were generally higher with mature miRNAs carrying 5’-U than those carrying other 5’-nucleotides (p=0.01, one-tailed Kolmogorov-Smirnov test; mean5’U=-0.0016, meannon-5’U=-0.088; median5’U=0.013, mediannon-5’U= -0.087) (Figure 3—figure supplement 1). One may expect this trend if miRNAs with 5’-U are more stable than miRNAs with other nucleotides at the 5’ end. However, due to the observed inaccuracy in estimating relative degradation rates by our genome-wide analysis, which even resulted in the unexpected positive median of the coefficient values for 5’-U species, we were unable to make a confident conclusion.

Inspired by the observations above, we experimentally tested the hypothesis that 5’ nucleotides influence miRNA stability by mutating a mature miRNA carrying a non-5’-U. For this test, we chose miR-283, which has an adenine (A) at the 5’ end, as a model miRNA and generated a construct to express a miR-283 mutant carrying a 5’-U (A-to-U mutant). The strand selection of this miRNA is highly asymmetric with a strong bias for 5p accumulation, and introducing a 5’-U to the 5p-5’ end is not expected to change the strand selection (Kozomara and Griffiths-Jones, 2014). The wild-type and mutant plasmids were transfected to S2-R+ cells and expression was induced by CuSO4 for 24 hr, followed by the termination of induction by replacing the medium with a new medium containing the CuSO4 chelator (Djuranovic et al., 2012). RNA was extracted on a time course after removal of the inducer, and the reduction kinetics of the mature miR-283 species was analyzed by Northern blotting (Figure 3B and C). We observed a slight (~20%) but reproducible stabilization of the mutated miR-283 with average half-lives of 14.9 and 18.3 hr for wild-type and A-to-U mutant, respectively (p<0.02, paired one-tailed t-test).

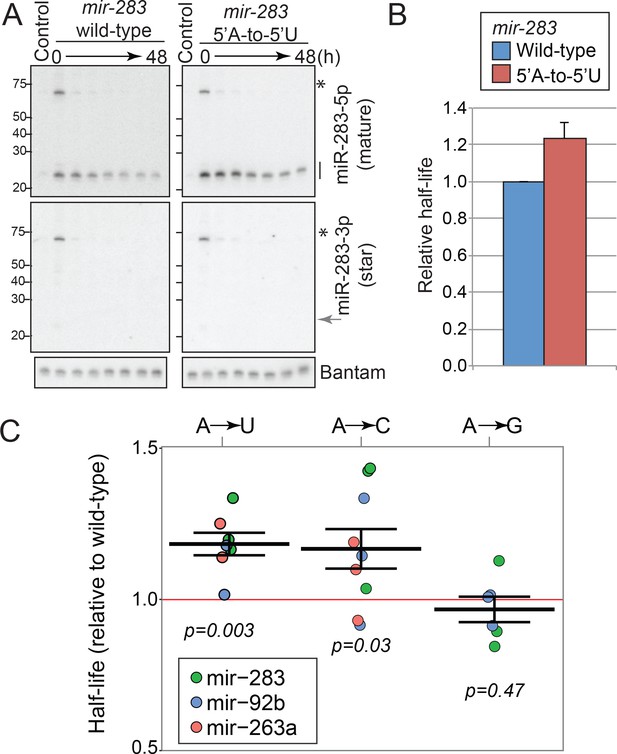

Figure 3 with 2 supplements see all
Effects of the 5’ nucleotide on miRNA stability.

(A) Experimental validation of the role for miRNA 5’ nucleotides in mature miRNA stability. A genomic DNA fragment containing mir-283-cluster locus was cloned in a CuSO4-inducible plasmid (mir-283 wild-type). The 5’-nucleotide mutation was introduced by site-directed mutagenesis to generate the mutant plasmid (mir-283 A-to-U) and the plasmids were used for transfection of S2-R+ cells. Transfected cells were cultured for 24 hr in the presence of CuSO4 to induce the expression, and the expression was terminated by replacing with medium containing the CuSO4 chelator (time 0). The time intervals after the withdrawal of the inducer are: 0, 6, 12, 24, 30, 36 and 48 hr. For control lanes, cells were transfected with the same plasmid but CuSO4 induction was omitted. RNA samples were prepared for Northern blotting analysis at the indicated time points to monitor the reduction rates of mature miRNA species. Asterisks and lines indicate the positions of precursor and mature miR-283 signals, respectively. A representative figure of three attempts is shown. The miR-283 star strand was present at very low levels compared to the mature strand, confirming that the miRNA stability measurements reflect the half-lives of mature miRNAs that are already loaded to the Argonaute complex. Endogenous bantam was detected and used as a loading control. (B) Quantification of the triplicates of miR-283 mutant analysis shown in (A). The relative miRNA half-life for miR-283 (A–to–U) was normalized by that from the corresponding wild-type result in the same replicate. The average and the standard deviation are shown. The miR-283 A-to-U mutant exhibited a slightly extended half-life (p=0.018, one-tailed paired t-test, N = 3). (C) Mature miRNA stability of mutant miRNAs. 5’ ends of the mature strands were mutated to indicated nucleotides and the time course experiment was done using S2-R+ cells expressing the wild-type or mutant miRNAs under the CuSO4-inducible promoter, similar to Figure 6B and C. The relative half-life of the mutant miRNA was determined for each replicate, and individual values (dots) and means ±standard errors (lines) are shown. The colors of dots indicate the miRNA backbone used for mutagenesis. Student’s t-test p-values are shown in the chart. Representative images can be found in Figure 6—figure supplement 2. Raw data can be found in Figure 3C—source data 1.

https://doi.org/10.7554/eLife.38389.009

It was formally possible that our experiments might be measuring half-lives of a mixed population containing miRNA duplexes before loading to Argonautes and mature miRNAs loaded in Argonaute complexes. However, the miR-283 star strand was almost undetectable even in the first time window after the termination of mir-283 expression from the plasmid (Figure 3B). Given that unwinding of miRNA duplex occurs during loading to Argonautes (Kawamata and Tomari, 2010), this result excluded the possible contribution of diced miRNA strands in the duplex form before Argonaute loading to our half-life measurements.

To test whether this is specific to miR-283 and whether other nucleotides have effects on mature miRNA stability, we generated additional mutants (Figure 3D, Figure 3—figure supplement 2). When we changed the 5’-As of two other miRNAs to 5’-Us, we observed stabilizing effects similar to the miR-283 A-to-U mutant. On the other hand, mutating 5’-A to 5’-G did not significantly affect the stability. We also observed significant stabilization when the mature miRNA 5’ ends were changed to 5’-C, which is the preferred 5’ nucleotide by the Drosophila siRNA Argonaute AGO2 (Figure 3D, Figure 3—figure supplement 2) (Ghildiyal et al., 2010; Czech et al., 2009).

The results revealed the importance of 5’ nucleotides in stabilizing mature miRNAs, in addition to their previously characterized roles in miRNA loading to Argonautes (Meister, 2013; Frank et al., 2010).

Analysis of clustered miRNAs uncovers the complexity of miRNA regulation

miRNA genes often form clusters in the genome and those clustered miRNAs are believed to be co-transcribed as polycistronic units. Therefore, if the level of transcription is the major determinant of the miRNA expression levels, miRNAs within a cluster should show similar changes in their expression levels. Nevertheless, we observed several time windows where miRNA cluster members showed distinct expression patterns (Figure 4).

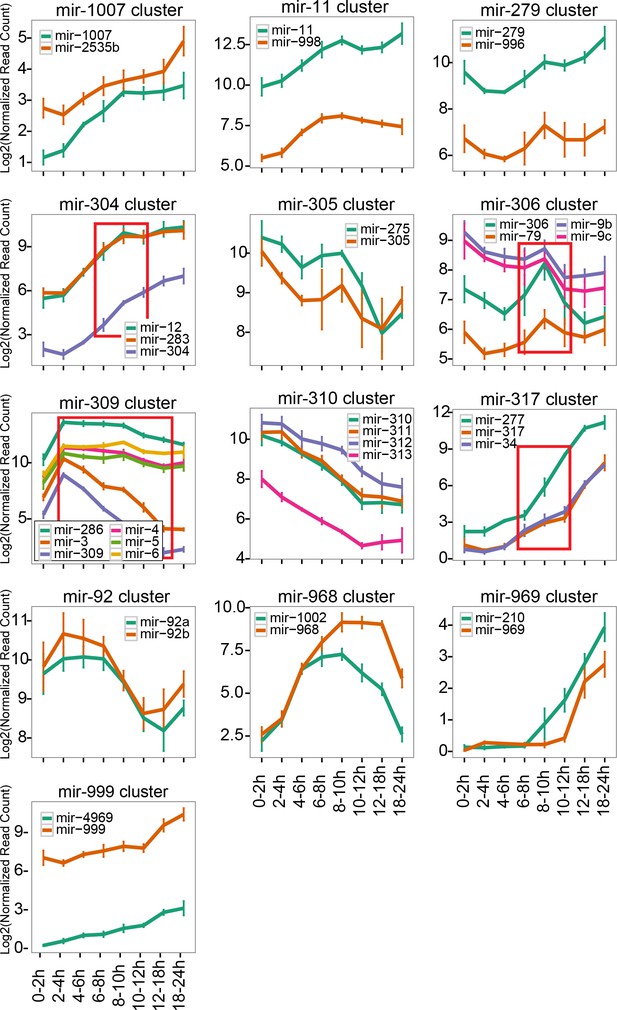

Expression changes of clustered miRNAs.

Normalized read counts of individual miRNA clusters were plotted. The lines and error bars indicate the averages and standard error of mean respectively. The time windows showing significant expression changes are indicated by red rectangles (ANOVA p<0.01, N = 3, p-values are shown in Supplementary file 5).

https://doi.org/10.7554/eLife.38389.013

Overall, from the 21 miRNA clusters in the D. melanogaster genome (Kozomara and Griffiths-Jones, 2014), we could detect 52 mature miRNA species derived from 13 miRNA clusters after removing multi-copy genes (i.e. families with the same mature sequence) (Figure 4). As expected, the majority of mature miRNA species from a single cluster showed similar expression patterns (adjusted p>0.01, one-way ANOVA analysis). However, four clusters exhibited significant differences in at least one time window (Figure 4, highlighted by red rectangles, Supplementary file 5).

These results observed with clustered miRNAs suggested that a small number of miRNAs are regulated by additional mechanisms rather than simple regulation of transcriptional activity. In the following sections, we describe two potential mechanisms that may underlie the observed differences in expression changes between cluster members.

Primary miRNA isoforms produce distinct sets of miRNAs from a miRNA cluster

We sought to understand the molecular basis of distinct expression patterns seen with the mir-317 cluster miRNAs (Figure 4). This cluster consists of three miRNAs (miR-317, miR-34 and miR-277) and plays important roles during fly aging through multiple mechanisms including modulation of ecdysone signaling and branched-chain amino acid catabolism via the actions of miR-34 and miR-277, respectively (Liu et al., 2012; Esslinger et al., 2013; Xiong et al., 2016). However, previous studies reported seemingly inconsistent results on their expression levels, which showed up-regulation of miR-34 and down-regulation of miR-277 during aging (Liu et al., 2012; Esslinger et al., 2013). Our primary miRNA analysis suggested a potential mechanism that may explain the distinct expression patterns of these miRNAs.

We were able to identify five major primary miRNA isoforms with combinations of alternative TSSs and TTSs in this locus (Figure 5A). Interestingly, one of the isoforms only covered the mir-277 hairpin, starting in downstream of the mir-317 hairpin and ending in upstream of the mir-34 hairpin. This short isoform was the main isoform expressed in embryos and its expression peak was seen at ~14–18 hAEL (Figure 5—figure supplement 1A), coinciding with the time window where the significant difference between miR-277 and miR-317/–34 expression changes was observed (Figure 4). Further analysis of total and small RNA-seq data in other tissues and developmental stages revealed a more dramatic difference in the relative levels of these miRNAs (Figure 5A and Figure 5—figure supplement 1B). In contrast to embryos, adult tissues use the long isoforms as the main primary mir-317 isoform. Consistent with the long isoform expression, relative levels of miR-317/–34 compared to that of miR-277 in ovaries and testes were much higher than those in embryos (Figure 5A). The higher expression levels of miR-317 and −34 may imply that these two miRNA hairpins are more efficiently processed from pri-miRNAs than miR-277. Supporting the idea that the alternative pri-miRNA isoforms were derived from alternative TSSs, we observed consistent changes in the histone modification status at these sites (Figure 5—figure supplement 2). Although we do not formally exclude the possibility that the observed pri-miRNA isoforms may represent processing intermediates as seen in previous studies (Du et al., 2015), we favor the hypothesis that the relative levels of mir-317 cluster miRNAs could be altered by the selection of alternative TSS and TTS.

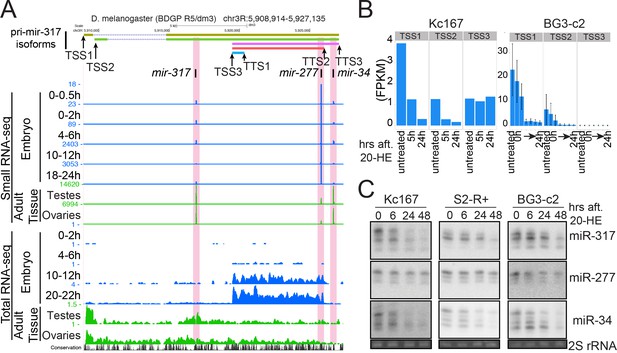

Figure 5 with 3 supplements see all
Distinct miRNA subsets are produced from the mir-317 cluster by alternative pri-miRNA isoforms.

(A) UCSC genome browser snapshot of the mir-317 cluster locus. Small RNA-seq (upper) and total RNA-seq (lower) data are shown. In embryos (blue) miR-277 expression is higher than the other two miRNAs, and even higher in late embryos, which is consistent with the high expression of pri-miRNA isoform starting from TSS3 in embryos. In testes and ovaries, long isoforms starting from TSS1 and 2 are dominant, and the miR-277 level is lower than miR-317 and miR-34. In all tissues and embryonic stages, the ratios between miR-317 and miR-34 remain similar. (B) Reanalysis of published total RNA-seq data from cultured cells treated with ecdysone. The sum of FPKMs of the isoforms sharing the same TSS was plotted. (C) Northern blotting analysis of mature miR-317,–277 and −34 levels after 20-HE (hydroxyecdysone) addition in Kc167, S2-R+ and BG3-c2 cells. Cells were treated with 20-HE for the indicated time and total RNA was separated on a 15% denaturing acrylamide gel. miR-317 and miR-34 were decreased after 20-HE addition in Kc167 and S2-R+ cells, while the decrease of miR-277 was much weaker in these cell lines. In contrast, miR-277 was also decreased in BG3-c2 cells, in which the level of the mir-277 specific short isoform was very low even in the absence of 20-HE (Panel B, TSS3). See Figure 5—figure supplement 3for the quantified results of tripricates.

https://doi.org/10.7554/eLife.38389.014

Expression of the mir-317 cluster miRNAs is controlled by the insect steroid hormone ecdysone (Sempere et al., 2003; Ameres et al., 2010; Xiong et al., 2016). We were interested in testing if ecdysone has differential effects on individual pri-mir-317/–277/−34 isoforms. In the embryonic Kc167 cells, we found that both long (starting at TSS1/2) and short (starting at TSS3) pri-miRNA isoforms were expressed in the absence of ecdysone and showed intermediate ratios of mature miR-277 and mature miR-34/–317 levels compared to embryos (high miR-277) and adult tissues (low miR-277) (Figure 5A and B). When Kc167 cells were treated with 20-hydroxyecdysone (20-HE), only the long transcripts starting at TSS1/2 were strongly down-regulated (Figure 5B). Consistent with the differential effects of ecdysone on the pri-mir-317-cluster isoforms, miR-317 and miR-34 decreased more strongly than miR-277 in Kc167 cells (Figure 5C, Figure 5—figure supplement 3). We observed a similar trend in another embryonic cell line, S2-R+ (Figure 5C, Figure 5—figure supplement 3). In contrast, BG3-c2, a cell line derived from larval nervous system (Ui et al., 1994), only expressed the long isoforms at detectable levels (Figure 5B). The three miRNAs decreased similarly in BG3-c2 cells when 20-HE was added to the medium (Figure 4C, Figure 5—figure supplement 3). These results using cell lines validated the principle that the transcriptional control through multiple promoters can influence the usage of TSS and TTS, resulting in differential regulation of individual miRNAs within a cluster.

These results provide a possible explanation for the distinct expression changes of the mir-317 cluster miRNAs seen during aging (Liu et al., 2012; Esslinger et al., 2013). The flexible use of alternative TSSs/TTSs allows complex regulation of biological processes by up- or down-regulating subsets of miRNAs within individual clusters in response to stimuli, including hormones.

Roles of miRNA degradation rates in shaping miRNA expression profiles

The mir-309 cluster is another cluster whose members showed distinct expression patterns (Figure 4). This locus is transcribed at a very early embryonic stage, and its transcription ceases shortly after the activation of zygotic transcription (Aboobaker et al., 2005; Graveley et al., 2011). This cluster is essential for normal maternal-to-zygotic transition, although the exact roles of individual miRNAs in the cluster are not well understood (Bushati et al., 2008). The modENCODE RNA-seq library set confirmed the transient activation of transcription of this cluster in a very short time window (Figure 5A)(Graveley et al., 2011; Aboobaker et al., 2005). We were interested in looking at the changes in the expression levels of individual miRNAs in this cluster. We assumed that the decrease rate of the mature miRNA level after 2-4hAEL would reflect the degradation rate of each miRNA species, since there is no evidence for new miRNA synthesis from this cluster after this time window.

When we plotted expression levels of the mir-309 cluster miRNAs in the eight time windows, we noticed that these miRNAs exhibited distinct rates of decrease (Figure 4). The results with elbow plot and k-means clustering analyses suggested that expression changes of miRNAs in this cluster could be divided into two groups, with one group consisting of miR-3 and miR-309 and the other containing miR-4, –5, −6 and −286 (Figure 6—figure supplement 1). We calculated the half-lives of these miRNAs and miR-3/–309 showed ~3–10 times faster degradation rates compared to those of miR-4, –5, −6 and −286 (Figure 6B). The faster disappearance of miR-3 and miR-309 was confirmed by Northern blotting analysis, excluding the possibility of sequencing artifacts (Figure 6C and D). It was possible that the unstable miRNAs were not loaded to the Argonaute complex hence more susceptible to degradation by ribonucleases. Therefore, we examined whether the miRNAs were properly loaded to the major miRNA Argonaute AGO1 (Okamura et al., 2004), by precipitating the AGO1 complex from two time windows (Figure 6E, Figure 6—figure supplement 2). We observed no obvious difference in the loading efficiency between stable (miR-4, –5, −6 and −286) and unstable (miR-3 and −309) miRNAs from this cluster. Furthermore, clear reduction of the mature miRNA species in the supernatant samples suggested that a large fraction of all the examined mature miRNAs were properly loaded to AGO1 (Figure 6E charts). Therefore, we concluded the difference in the reduction rate reflected the difference in the mature miRNA stability in the Argonaute complex.

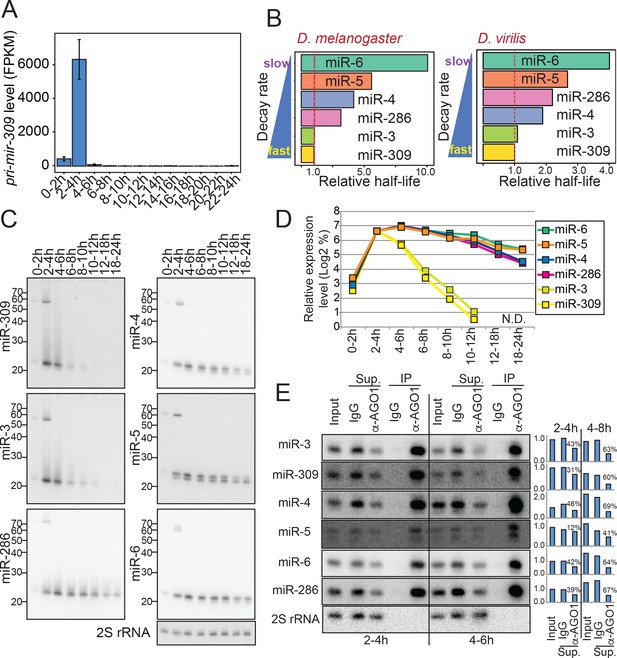

Figure 6 with 2 supplements see all
Differential mature miRNA half-lives for the mir-309 cluster genes.

(A) Levels of pri-mir-309 during embryogenesis. Transcript levels were quantified using the total RNA-seq libraries and normalized by the FPKM (Fragment Per Kilobase of transcripts per Million mapped reads) method. Pri-mir-309 is transiently expressed in 2–4 hr embryos. Error bars indicate the 95% confidence intervals. (B) Evolutionary conservation of the differential miRNA half-lives of mir-309 cluster miRNAs. Estimated relative half-lives in D. melanogaster (this study) and D. virilis based on a published dataset (Ninova et al., 2014) are shown. The values are normalized by the half-life of miR-309. Note that D. virilis libraries did not include the spike-in oligos, and the TMM (Trimmed Mean of M-values) normalization was used (Robinson and Oshlack, 2010). The D. melanogaster data were normalized by the spike-in counts. (C) Northern blotting analysis was performed with the RNA samples extracted from embryos in the indicated time windows and using the probes detecting the indicated mature miRNA species. (D) Quantification of panel (C). The expression value of each miRNA in 0–2 hr sample was set as 100% and relative levels in each time window was calculated. The Y-axis shows log2 of % expression values. (E) Mature miRNA species from the mir-309 cluster are efficiently loaded in the AGO1 complex. Lysates were prepared from 2-4 hr and 4–6 hr old embryos, and the AGO1 complex was precipitated using anti-AGO1 antibody. Rabbit IgG was used as a negative control. Efficient precipitation was confirmed by the enrichment of mature miRNA species in the AGO1-IP lane, and the depletion of the mature miRNA species in the AGO1-IP supernatant (Sup.) lane. The mature miRNA signals were quantified and normalized by the corresponding 2S rRNA signals in input and supernatant lanes. The input signal intensity at the 2–4 hr time window was used for further normalization for each miRNA species. Normalized values were plotted in the bar charts. The percentages in the charts indicate the degrees of mature miRNA depletion in the supernatant after AGO1-IP compared to the IgG control supernatant. We did not observe a correlation between miRNA stability and the degree of depletion by AGO1-IP, excluding the possibility that the differential half-lives of mature miRNAs from this cluster was caused by differential loading efficiencies of the miRNAs.

https://doi.org/10.7554/eLife.38389.019

Biological importance of miR-3/–309 family miRNAs

We were interested in asking whether quick degradation of mature miR-3/–309 species is biologically important. Supporting the biological importance of distinct degradation rates, reanalysis of published small RNA library data from staged D. virilis embryos revealed a similar trend in the relative half-lives of the orthologous miRNAs (Ninova et al., 2014), suggesting that rapid down-regulation of miR-3/–309 miRNAs has evolutionarily conserved roles (Figure 6B).

miR-3 and miR-309 share the same seed sequence and are predicted to regulate largely overlapping sets of target mRNAs (Figure 7A)(Bartel, 2009). A plausible explanation is that down-regulation of some miR-3/–309 target mRNAs in early embryos is beneficial whereas high activity of miR-3/–309 in late embryos is detrimental to fly embryogenesis. Interestingly, a genome-wide overexpression screen showed that overexpression of miR-3 caused embryonic/early larval lethality, whereas none of the other members of this cluster caused early lethality when miRNAs in this cluster were individually overexpressed in embryos by the ubiquitous daughterless-Gal4 driver (Bejarano et al., 2012).

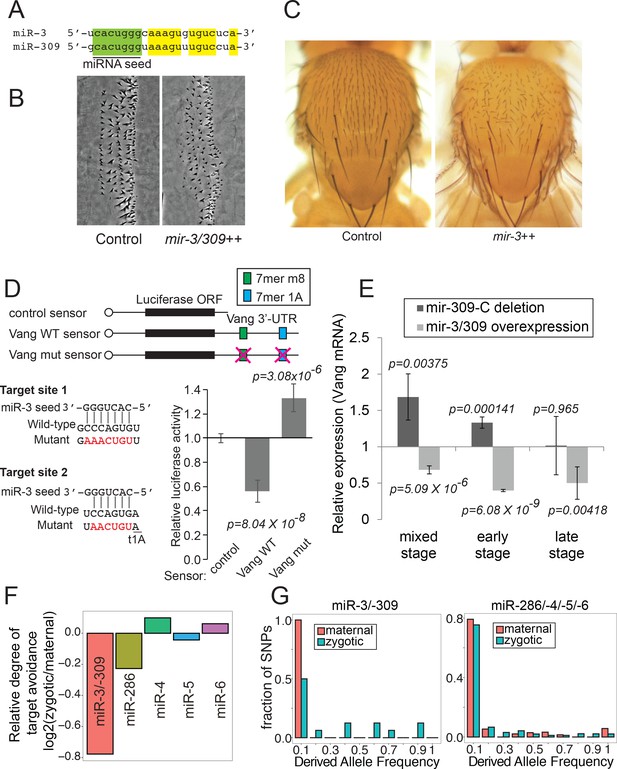

Figure 7 with 3 supplements see all
Biological activity of miR-3/–309.

(A) Sequences of mature miR-3 and miR-309. Note that their seed sequences are identical. (B) Embryonic denticles in control and embryos overexpressing miR-3/–309 (da-gal4 - > UAS-mir-3/–309). Misorientation of denticles was observed in embryos overexpressing miR-3/–309. (C) Misorientation of adult sensory bristles on the adult notum by miR-3 overexpression (eq-gal4 - > UAS-mir-3). (D) Luciferase sensor assays. S2-R+ cells were transfected with plasmids carrying a luciferase sensor containing the Vang 3’ UTR sequence along with a plasmid to overexpress miR-3 or a negative control empty vector. The averages and standard deviations of normalized Luciferase activity are shown (N = 8). The p-values were calculated by t-test. Vang 3’ UTR contains two predicted miR-3 family target sites. Removal of these predicted target sites abolished down-regulation of the Vang sensor by overexpressed miR-3. Raw data can be found in Figure 7D-source data 1. (E) Expression levels of Vang mRNA determined by quantitative RT-PCR. Values were normalized against RpL32. Embryos were collected at three time windows (mixed: 0–24 hr, early:0–12 hr or late:12–24 hr) using control, a deletion mutant lacking the mir-309 cluster (mir-309-C) miRNAs (dark gray) and a transgenic line overexpressing miR-3/–309 (light gray). The average relative expression ±standard deviation and p-values are shown (t-test). Vang mRNA is up-regulated in the deletion mutant whereas down-regulated in embryos overexpressing miR-3/–309 in the mixed stage samples. Note that derepression of Vang was not significant in null mutant embryos in the late stage consistent with the low level of miR-3/–309 in late embryos due to quick degradation. (F) To calculate relative target avoidance, the fractions of polymorphic target sites with target allele frequencies < 0.1 were computed for maternal and zygotic mRNAs. The ratio of fractions (Fractionzygotic/Fractionmaternal) was defined as relative degree of target avoidance. miR-3/–309 polymorphic target sites found in zygotically expressed mRNAs showed a weaker degree of target avoidance compared to those in maternal mRNAs, while much smaller differences were seen in the degree of target avoidance for target sites of other members of mir-309 cluster miRNAs. (G) Distributions of derived target allele frequencies (DAF) on maternal and zygotic genes for miR-3/–309 targets (left) or miR-286/–4/−5/–6 (right) were plotted. The zygotic DAF distribution for miR-3/–309 targets was shifted to the right compared to that of maternal genes (D = 0.56, p=0.046, Nmaternal = 7, Nzygotic = 16; one-tailed Kolmogorov-Smirnov test). The difference was less significant for the miR-286/–4/−5/–6 target set (D = 0.18, p=0.078, Nmaternal = 52, Nzygotic = 131). Raw data for (F) and (G) are reported in Supplementary file 6.

https://doi.org/10.7554/eLife.38389.022

To gain further insight, we looked closely at the phenotypes of late embryos, and noticed that embryos overexpressing miR-3/–309 exhibited defects in denticle organization (Figure 7B). This phenotype is seen when the planar cell polarity (PCP) is affected, suggesting that overexpression of miR-3/–309 could cause PCP defects (Donoughe and DiNardo, 2011). To verify the PCP defects in a more established setting, we overexpressed miR-3 in the developing notum, where the polarity of sensory bristles serves as a faithful readout of PCP (Lawrence et al., 2007). Indeed, misexpression of miR-3 resulted in misorientation of bristles in the adult notum, demonstrating its biological activity in PCP in vivo (Figure 7C).

To investigate the underlying molecular mechanisms, we looked for potential targets using TargetScan (Ruby et al., 2007). Among predicted candidates that were expressed in embryos (Westholm et al., 2014; Duff et al., 2015), the target sites residing in the Van Gogh (Vang) 3’ UTR caught our attention. Vang encodes a transmembrane protein that is integral to the Frizzled-mediated PCP pathway in various epithelial tissues (Wolff and Rubin, 1998; Taylor et al., 1998; Marcinkevicius and Zallen, 2013). To test whether Vang mRNA is a target of miR-3/–309 family miRNAs, we constructed a luciferase sensor by fusing the 3’UTR sequence of Vang downstream of the luciferase gene (Figure 7D). Expression of this sensor could be significantly repressed by co-overexpression of miR-3 (Figure 7D; wild-type sensor). This repression was dependent on the predicted target sites, because mutations at the predicted target sites abolished the repression (Figure 7D; mutant sensor). These results verified that Vang 3’UTR is a bona fide target of miR-3.

The hypothesis that rapid degradation of miR-3/–309 plays important biological roles implies the existence of miR-3/–309 target mRNAs that satisfy the following criteria: (1) up-regulated in the mir-309 cluster mutant embryos only in early stages, (2) down-regulated in late embryos overexpressing miR-3 or miR-309. Having established the miRNA-target relationship between miR-3 and Vang, we were interested in testing whether Vang satisfies these conditions. To this end, we quantified the levels of Vang mRNA in wild-type and the mir-309 cluster null mutant (Bushati et al., 2008) embryos, as well as in embryos overexpressing miR-3/–309 (Suh et al., 2015) (Figure 7E). Consistent with the sensor results (Figure 7D), Vang mRNA was up-regulated in the null mutant and down-regulated upon overexpression of miR-3/–309 when mixed stage embryos were used (Figure 7E left). As predicted, Vang mRNA expression was not significantly altered in mutant embryos in late stages where miR-3 and miR-309 were undetectable due to quick degradation (Figures 5C and 7E right). Furthermore, Vang mRNA expression could be repressed in late embryos when miR-3/–309 was overexpressed (Figure 7E right).

We further verified that the levels of overexpressed miR-3/–309 products did not exceed the natural levels of these miRNAs at the expression peaks (Figure 7—figure supplement 1), confirming that the level of overexpression was within the physiological range. Reanalysis of RNA-seq data indicated that the reduction of miR-3/–309 preceded the increase of Vang mRNA, consistent with our hypothesis (Figure 7—figure supplement 2). Taken together, these observations support the notion that rapid degradation of miR-3/–309 is biologically important.

Effects of miRNA stability on target site evolution

Due to the regulatory activity of miRNAs against 3’UTRs harboring seed target sites, 3’UTRs tend to avoid seed target sequences of miRNAs that are expressed in the same tissue (Stark et al., 2005; Farh et al., 2005). In turn, this target avoidance leaves evolutionary signatures that could be detected by population genetics analysis (Chen and Rajewsky, 2006; Marco, 2015).

Since miR-3 and miR-309 share the same seed sequence and are present at very low levels in late embryos, we hypothesized that miR-3/–309 target sites would be less strongly selected against in 3’UTRs of zygotically expressed genes compared to those of the other cluster members. We analyzed the D. melanogaster SNP (single nucleotide polymorphism) data generated from 205 inbred lines (DGRP: D. melanogaster Genetic Reference Panel) (Mackay et al., 2012; Huang et al., 2014). We tested whether miRNA target sites on 3’UTRs of maternally and zygotically expressed genes show distinct behaviors. Maternally and zygotically expressed mRNAs were defined in a previous study (Paris et al., 2015). We first plotted distributions of allele frequencies of polymorphic miRNA target sites for each miRNA seed sequence (Figure 7—figure supplement 3). Due to random selection in the fly population, two alleles with neutral effects are predicted to show a symmetric ‘U-shaped’ distribution of allele frequencies with most individuals homozygous for each allele (Marco, 2015). Selective pressure for or against an allele would shift the U-shaped distribution to the right or left, respectively.

To estimate the relative selective pressure against miRNA target sites in 3’UTRs between maternal and zygotic genes, the ratios of fractions of the target alleles in the 0–0.1 bin between zygotic and maternal mRNAs were calculated (Figure 7F, Figure 7—figure supplement 3 and Supplementary file 6). The ratio between zygotic/maternal target allele fractions showed lower values with miR-3/–309 target sites compared to the other four seed sequences, consistent with our hypothesis that zygotic genes would avoid miR-3/–309 target sites less strongly compared to seed target sites of the other miRNAs from this cluster. To verify that this is a result of the selective pressure against target sites, we turned to DAF (Derived Allele Frequency) analysis. We first identified derived miRNA target sites that are non-target sites in the ancestral state, and plotted the allele frequency. We found that the DAF was generally lower for maternal mRNAs than zygotic mRNAs for miR-3/–309 target sites, whereas target sites for the other four miRNAs in maternal and zygotic gene sets showed more similar DAF distributions (Figure 7G, Supplementary file 6).

These results demonstrate that miRNA stability has detectable effects on target site evolution in the transcriptome. Together with the experimental evidence suggesting the significance of rapid degradation of miR-3 and miR-309 in target regulation in embryos (Figure 7B–C), our results highlight the importance of miRNA degradation rates in shaping gene regulatory networks and their evolution.

Discussion

Dynamic changes of the total miRNA abundance during fly embryogenesis

Spike-in normalization of small RNA library data allowed us to understand changes in the total abundance of small RNA families during embryogenesis (Figure 1B). As expected, piRNA reads gradually decreased during embryogenesis, consistent with previous reports (Brennecke et al., 2008). This was associated with concomitant decrease of the mRNA levels of piwi-clade Argonaute genes (Figure 1—figure supplement 2). On the other hand, the total abundance of miRNAs kept increasing (Figure 1B). This trend with lower miRNA abundance in the fertilized eggs and continuous increase during embryogenesis appears to be conserved broadly including mammals (Ohnishi et al., 2010). However, mRNA levels of the miRNA processing factors were relatively low in late embryos (Figure 1—figure supplement 2). It is unclear how embryos can support the dramatic (~8-fold) increase of total miRNA level. One possibility is that general miRNA processing activity is not a rate-limiting factor, and transcription activity of individual miRNA genes largely determines the levels of mature miRNAs. This is consistent with our results that miRNA expression changes could be predicted by the level of transcription and the level of mature miRNA at a given moment, which suggested that miRNA production rate per pri-miRNA molecule and degradation rate generally stayed constant during fly embryogenesis (Figure 1D,E).

Expression of miRNAs from polycistronic genes

miRNAs often form gene clusters and miRNA hairpins within a cluster are generally co-transcribed. Although it is unclear why miRNA genes are often clustered, recent biochemical studies provide some clues. Some miRNA cluster transcripts form intramolecular structures that interfere with processing of miRNA hairpins by Drosha, and in some cases, additional processing steps are required to resolve the structures (Du et al., 2015; Chaulk et al., 2014b; Chaulk et al., 2014a; Chaulk et al., 2011). In addition, a recent study suggests that processing efficiency of clustered miRNAs show a positive correlation with the distance from TSS, potentially due to interaction between the microprocessor complex and the transcription machinery in a manner dependent on phosphorylation status of the Pol II-CTD (C-Terminal Domain) (Church et al., 2017). Therefore, the clustered configuration of miRNA genes likely adds another layer of regulation to miRNA processing.

Due to the lack of sensitive in situ detection methods of mature miRNA species in fly embryos and tissues, spatial expression patterns were mainly studied by in situ hybridization against primary miRNAs or detecting reporter genes fused with the regulatory elements of miRNA genes (Aboobaker et al., 2005; Brennecke et al., 2003). Our study suggested that the transcriptional activity of the miRNA locus is an important determinant of miRNA gene expression (Figure 1), supporting the validity of such pri-miRNA analyses for understanding miRNA expression. However, results of these approaches need to be carefully interpreted considering several factors: (1) alternative pri-miRNA isoforms: miRNA genes can utilize multiple TSSs and TTSs to generate alternative pri-miRNA isoforms (Chang et al., 2015; de Rie et al., 2017). Depending on the probe design for pri-miRNA detection, only subsets of pri-miRNA isoforms may be detectable. (2) miRNA stability: pri-miRNAs are often transiently expressed (Figure 1C) and mature miRNA stability has significant effects on the mature miRNA steady state level.

The mir-317 cluster provides an interesting example. In Drosophila, expression of mir-34 is induced in aged flies compared to young adults, and mir-34 null mutant exhibits shortened lifespan with evidence for progressive neurodegeneration in the central nervous system (Liu et al., 2012). The function of miR-34 in regulating longevity is at least in part mediated by down-regulation of Eip74EF, a transcription factor that mediates down-regulation of ecdysone-repressed genes (Shlyueva et al., 2014). Therefore, a plausible possibility is that mir-34 and the ecdysone pathway form a double negative feedback loop to create a bistable switch by using the promoter at the upstream TSS of the mir-317 cluster as speculated previously (Liu et al., 2012; Sempere et al., 2002; Xiong et al., 2016). This hypothesis is supported by our observation that ecdysone treatment leads to a decrease in the miR-34 level, favoring the use of TSS3 for the transcription and maturation of miR-277 alone (Figure 5B,C, Figure 5—figure supplement 3). Besides its well-known roles in metamorphosis, the ecdysone pathway plays a role in regulation of longevity (Simon et al., 2003), and the miR-34/Eip74EF axis may be an upstream regulatory mechanism of this pathway.

Another cluster member miR-277 appears to play roles in longevity in a different way. Alteration of miR-277 activity resulted in short lifespans by indirectly modulating the activity of TOR (target of Rapamycin) signaling (Esslinger et al., 2013). Notably, the level of miR-277 expression was reduced in aged flies compared to young adults, in contrast to the level of miR-34. The independent TSS for mir-277 specific pri-miRNA isoform could enable the independent regulation of miRNAs in a single cluster. The biological significance of the gene organization remains unclear, however, the organization of the homologous mir-317 cluster is conserved in Capitella, which is estimated to have split from the Ecdysozoan branch >600 million years ago (Peterson et al., 2009). This may suggest that the gene arrangement is essential for proper regulation of individual genes in the cluster. Similarly, alternative selection of TSS in miRNA clusters has been noted in mammalian systems for the let-7 cluster miRNAs, which is another deeply conserved miRNA cluster whose gene order is also generally conserved (Chang et al., 2015). Complex cis-regulatory elements embedded in miRNA clusters may impose evolutionary constraints that maintain the gene order, and may explain why the miRNA cluster configuration is often preserved during evolution.

Mature miRNA degradation and its importance in gene regulation

The mir-309 cluster is known to be a fast-evolving miRNA cluster with frequent gene duplications and rearrangements leading to gains or losses of individual cluster member homologs during insect evolution (Ninova et al., 2014; Mohammed et al., 2013). Homologs of the mir-309 cluster members show similar expression patterns in Drosophilids, but in mosquitoes, the gene organization and apparent functions are different. In Aedes aegypti, expression of miR-309 is transiently upregulated in the ovary after blood feeding that triggers oocyte maturation in mosquitoes (Zhang et al., 2016). The level of miR-309 peaks at 36 hr post blood-meal (hPBM) and sharply decreases by 48hPBM. This suggests that the short half-life of miR-309 is conserved in other dipteran insects and in different tissues, even though the biological functions have diverged. Its short half-life may be suitable for gene regulation during fast processes like oogenesis and early embryogenesis.

The evolutionary patterns of miR-3/–309 target sites and misregulation of Vang in late embryos upon miR-3 overexpression suggest the importance of rapid degradation of these two miRNAs (Figure 7). There are known sequence-specific miRNA destabilization phenomena although the underlying mechanisms are not completely understood (Rüegger and Großhans, 2012). Future studies should aim to elucidate molecular mechanisms of miR-3/–309 destabilization and identification of such factors will allow us to experimentally study the effects of miR-3/–309 destabilization.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Genetic reagent
(D. melanogaster)
Eq-Gal4Bloomington Drosophila
Stock Center
BDSC:43659FlyBase symbol:
P{GAL4-Hsp70.PB}l(3)Eq1Eq1
Genetic reagent
(D. melanogaster)
Da-Gal4Bloomington Drosophila
Stock Center
BDSC:55851FlyBase symbol:
P{GAL4-da.G32}UH1
Genetic reagent
(D. melanogaster)
UAS-mir-3PMID: 22745315
Genetic reagent
(D. melanogaster)
UAS-mir-3/–309PMID: 26138755
Genetic reagent
(D. melanogaster)
mir-309-C delta 1PMID: 18394895
Cell line
(D. melanogaster)
S2-R+PMID: 9822716DGRC Cat# 150;
RRID:CVCL_Z831
S2-R + cells maintained in
the Lai and Okamura labs
Cell line
(D. melanogaster)
Kc167Drosophila Genomics
Resource Center
DGRC Cat# 1;
RRID:CVCL_Z834
Cell line
(D. melanogaster)
BG3-c2Drosophila Genomics
Resource Center
DGRC Cat# 6;,
RRID:CVCL_Z728
AntibodyAnti-AGO1
(rabbit polyclonal)
AbcamAbcam Cat#
ab5070;
RRID:AB_2277644
1:1000 in TBST
AntibodyAnti-alpha-tubulin
(mouse monoclonal
clone DM1A)
SigmaSigma-Aldrich
Cat# T9026;
RRID:AB_477593
1:1000 in TBST
Recombinant
DNA reagent
psiCHECK2
(modified MCS)
PMID:17599402SalI-SacI-NotI-XbaI-SalI-EcoRI-
EcoRV-XhoI-SpeI sites were
inserted in the SalI/NotI sites
of psiCHECK2 (Promega)
Recombinant
DNA reagent
psiCHECK-Vang
wild-type
This studyVang 3'UTR was amplified
from genomc DNA using
NotI_Vang_2128 and XhoI
_Vang_3492 primers
Recombinant
DNA reagent
psiCHECK-Vang mutantThis studyThe two mir-3 target sites were
mutated by overlap PCR
using Vang_t1_mut_F, Vang_t1
_mut_R, Vang_t2_mut_F and
Vang_t2_mut_R and the cloning
primers used for cloning of the
wild-type sensor
Recombinant
DNA reagent
pUAST-DsRed-mir-3PMID: 22745315
Recombinant
DNA reagent
pUAST-DsRedPMID: 12679032
Recombinant
DNA reagent
pRmHa-mir-283-CThis studyGenomic DNA fragment amplified
by EcoRI_dme_mir283c_F and
SalI_dme_mir283c_R inserted
to pRmHa3 (DGRC: 1145).
Recombinant
DNA reagent
pRmHa-mir-283 A-to-UThis studySite directed mutagenesis of
pRmHa-mir-283-C using
dme_mir283_5pAtoU_F and
dme_mir283_5pAtoU_R
Recombinant
DNA reagent
pRmHa-mir-283 A-to-GThis studySite directed mutagenesis of
pRmHa-mir-283-C using
dme_mir283_5pAtoG_F and
dme_mir283_5pAtoG_R
Recombinant
DNA reagent
pRmHa-mir-283 A-to-CThis studySite directed mutagenesis of
pRmHa-mir-283-C using
dme_mir283_5pAtoC_F and
dme_mir283_5pAtoC_R
Recombinant
DNA reagent
pRmHa-mir-92bThis studyGenomic DNA fragment amplified
by mir92b_genespecificF and
mir92b_genespecificR inserted
to pRmHa3 (DGRC: 1145)
Recombinant
DNA reagent
pRmHa-mir-92b A-to-UThis studySite directed mutagenesis of
pRmHa-mir-92b using
dme_mir92b_5pAtoU_F and
dme_mir92b_5pAtoU_R
Recombinant
DNA reagent
pRmHa-mir-92b A-to-GThis studySite directed mutagenesis of
pRmHa-mir-92b using
dme_mir92b_5pAtoG_F and
dme_mir92b_5pAtoG_R
Recombinant
DNA reagent
pRmHa-mir-92b A-to-CThis studySite directed mutagenesis of
pRmHa-mir-92b using
dme_mir92b_5pAtoC_F and
dme_mir92b_5pAtoC_R
Recombinant
DNA reagent
pRmHa-mir-263aThis studyGenomic DNA fragment amplified
by mir263a_genespecifiF and
mir263a_genespecifiR inserted
to pRmHa3 (DGRC: 1145)
Recombinant
DNA reagent
pRmHa-mir-263a A-to-UThis studySite directed mutagenesis of
pRmHa-mir-263a using
dme_mir263a_5pAtoU_F and
dme_mir263a_5pAtoU_R
Recombinant
DNA reagent
pRmHa-mir-263a A-to-CThis studySite directed mutagenesis of
pRmHa-mir-263a using
dme_mir263a_5pAtoC_F and
dme_mir263a_5pAtoC_R
Commercial
assay or kit
Dual-Glo Luciferase Assay SystemPromegaPromega:E2940
Commercial
assay or kit
EffecteneQIAGENQIAGEN: 301427
Chemical
compound, drug
20-HydroxyecdysoneSigmaSigma: H5142
Chemical
compound, drug
Bathocuproinedisulfonic
acid disodium salt
SigmaSigma: B1125
Software,
algorithm
FASTX-toolkitHannon Labhttp://hannonlab.cshl.edu/fastx_toolkit
Software,
algorithm
Bowtie1.1.2PMID: 19261174
Software,
algorithm
STARPMID: 23104886
Software,
algorithm
Cufflinks suite toolsPMID: 20436464
Software,
algorithm
UCSC liftOverUCSC Genome Browserhttps://genome.ucsc.edu/cgi-bin/hgLiftOver

Small RNA library construction and bioinformatics analysis

For small RNA library construction, we prepared RNA samples from staged embryos in biological triplicate. Two sets of libraries were prepared and sequenced together, while the other replicate was prepared independently from the first two sets. Small RNA libraries were prepared as previously described (Lim et al., 2016), and sequenced at Duke-NUS Genomics facility or BGI on Hiseq2000 or Hiseq4000. The spike-in sequences are shown in Supplementary file 7. After the read quality was checked by FastQC (http://www.bioinformatics.babraham.ac.uk/projects/fastqc), the adaptor sequence was trimmed off by FASTX-toolkit (http://hannonlab.cshl.edu/fastx_toolkit) and 18-30nt reads were mapped to dm3 genome using Bowtie 1.1.2 with no mismatch allowed (Langmead et al., 2009). Reads corresponding to 2S rRNA were removed prior to genome mapping. Reads corresponding to four categories (abundant ncRNA, miRNA, siRNA/piRNA and other genome mapping reads) were identified sequentially by mapping reads to the reference sequences without double counting as described previously (Chak et al., 2015). Spike-in reads and reads mapping to miRNA arms were identified and counted by mapping small RNA reads to the spike-in sequences (Supplementary file 7) and miRNA sequences defined in (Lim et al., 2016), respectively. Spike-in read counts were used as a normalizer and normalized values were expressed in RPTS (Reads per thousand spike-in reads). To quantify TE-siRNAs and TE-piRNAs, we defined 21nt reads and 23-30nt reads as siRNAs and piRNAs, respectively. D. virilis miRNA read counts were previously published and values were normalized by the TMM (Trimmed Mean of M-values) method (Robinson and Oshlack, 2010; Ninova et al., 2014). miRNA half-lives were estimated by fitting the normalized read count values to the log-linear model. To detect time windows with distinct expression change rates between cluster members, we first calculated the change rates in every two consecutive time windows followed by ANOVA test. The P values for multiple comparisons were further adjusted by the Benjamini-Hochberg method to control the false discovery rate (Benjamini and Hochberg, 1995). For the charts in Figure 3, miRNA genes were removed if (1) miRNAs with average RPTS from all time windows is <5 or (2) the origin of mature miRNA reads could not be determined due to gene duplication. For miRNA paralogs from the same cluster like mir-6–1/−2/–3, the average value was used. According to these cutoffs, the following miRNAs were excluded from the analyses: mir-281–1/−281–2 cluster, mir-13a/−13b-1/–2 c cluster, mir-2a-1/−2a-2/−2b-2 cluster, mir-2499/–4966/−972 ~ 979 cluster, mir-959 ~964 cluster, let-7/mir-100/–125 cluster, mir-318/–994 cluster, mir-303/–982 ~ 984 cluster, mir-992/–991/−2498 from mir-310 cluster.

Computational analysis of total RNA-seq libraries

Published modENCODE total RNA-seq libraries (Brown et al., 2014; Westholm et al., 2014; Duff et al., 2015) were downloaded from NCBI. The accession numbers are listed in Supplementary file 1. We first removed reads matching to the rDNA sequence (NCBI accession number M21017.1) and mapped remaining reads to the dm3 genome using STAR alignment tool (Dobin et al., 2013). We used the following setting for genome mapping: ‘--outFilterMismatchNoverLmax 0.02 --alignIntronMin 20 --alignIntronMax 200000’. We used Flybase 6.06 gene annotation for the definition of pri-miRNA sequences (Attrill et al., 2016). For quantification of pri-miRNA isoforms, we constructed a mini-genome containing 50 kb each up- and downstream genomic sequences of the miRNA hairpin and mapping reads were quantified by cufflinks with the following setting: ‘--library-type fr-firststrand --min-intron-length 20 --max-intron-length 200000’ and other cufflinks suite tools (Trapnell et al., 2010). When unannotated pri-miRNAs spanning miRNA hairpins were present in the miRNA genomic loci, we manually modified gene models or added new isoforms based on the transcripts in the merged mapping data using all embryo libraries with cuffmerge from the tuxedo suite (Trapnell et al., 2010). Manually added pri-miRNA isoforms are listed in Supplementary file 8.

Multiple regression analysis

For each data point of each miRNA gene, three values were calculated from two consecutive time windows using the following definitions. x is the initial miRNA level, which is the mature miRNA level for the first of the two time windows. z is the miRNA change rate, which is the difference in the mature miRNA level between the two windows (second window – first window). y is the upstream density, which is the pri-miRNA read density in the 100nt region immediately upstream of the miRNA hairpin in the second window of the total RNA-seq libraries. For calculation of the pri-miRNA read density in 12–18 hr and 18–24 hr windows, we used the averages of total RNA-seq data from the three 2 hr time windows. Shown are genes that satisfy the following criteria: normalized read abundance in 0-2hAEL constitute >30% of the sum of RPTS from all windows, upstream read density >1 in>=1 time windows and mature miRNA >10 RPTS in >= 5 time windows. We also removed miRNA genes when > 20% reads mapped to multiple genomic positions, to avoid artifacts due to incorrect assignment of the gene origin. Coefficients a, b and c were obtained by fitting the x, y and z values of mature and primary miRNAs to the following equation: z ~ ax + by +c For the analysis shown in Figure 3—figure supplement 1, the coefficient values associated with mature miRNA level (Column ‘Coef_mature_Level’ in Supplementary file 4) were used.

miRNA target and population genetics analyses

The protocol is similar to that used in Marco (2015) . In brief, the single-nucleotide polymorphisms (SNPs) data from Drosophila Genetic Reference Panel (Mackay et al., 2012; Huang et al., 2014) were mapped against 3’ UTR sequences of Drosophila melanogaster release 5.57 from FlyBase. 18 non-target variants for each miRNA (hexamer sequences that are different from the miRNA seed target sequence by one nucleotide) were computationally constructed according to the previously established method (Marco, 2015). SNPs that are from any of the 18 non-target variants for each miRNA were kept. SNPs that are overlapped with protein-coding sequences were discarded. For each polymorphic target site, the allele frequency was calculated as the proportion of the target allele within the sampled population (Ntarget_allele / (Nnon-target_allele + Ntarget_allele)). Maternal gene set was defined by a previous study (Paris et al., 2015), and the remaining genes were used as zygotic genes. The expression levels of genes were quantified by cufflinks (Trapnell et al., 2010) using the total RNA-seq data (Westholm et al., 2014; Duff et al., 2015) and genes with maximum FPKM >0.1 were considered for further analyses. To study the derived allele frequencies (DAFs), the coordinates of polymorphic target sites from D. melanogaster genome were first lifted to Drosophila sechellia by UCSC liftOver (https://genome.ucsc.edu/cgi-bin/hgLiftOver). The polymorphic target sites whose counterparts in D. sechellia are non-targets were considered as derived target sites.

RNA extraction, Northern blotting and immunoprecipitation

Canton S embryos were collected on grape juice plates supplemented with yeast paste and RNA was extracted at the indicated time window. Northern blotting was performed as previously described (Okamura et al., 2007). A pre-stained ladder (BioDynamics) or a radioactive ladder (Ambion) was run concurrently with the RNA samples on denaturing polyacrylamide gels.10 µg total RNA was loaded on each lane and membranes were hybridized with the probes listed in (Supplementary file 7). Immunoprecipitation was performed according to the protocol published previously using 5 µg anti-AGO1 antibody (AbCam) immobilized on 32 µl Dynabeads (Invitrogen) and 400 µl total lysate prepared from 2–4 hr or 4–6 hr old embryos using RIPA buffer (1x PBS pH 7.4, 0.1% SDS, 0.5% deoxycholate, 0.5% NP40) (Okamura et al., 2007). Extracted RNA was separated by denatured PAGE and probed with the indicated probes. Probe sequences or LNA probe product numbers are summarized in Supplementary file 7. For analysis of total RNA or AGO1 protein abundance per embryo, 100 or 50 embryos were collected and homogenized in 100 ul Trizol or 25 ul 2xSDS-PAGE buffer, respectively, without dechorionation.

Plasmid construction, mutagenesis and transfection

The mir-92b, mir-263a, or mir-283 genomic fragment was cloned into a plasmid driven by a copper sulphate inducible metallothionein promoter. 5’A-to-U, 5’A-to-5’C, or 5’A-to-5’G mutants were generated by PCR followed by DpnI digestion or by overlap PCR. S2-R+ cells were seeded at 1 × 10^6 cells/ml on T75 flasks and transfected with either 5.625 µg of wild type or 5’ mutant plasmid using Effectene (Qiagen). Cells were washed thrice with fresh medium and plated onto new flasks 24 hr following transfection. 1.5 mM CuSO4 was added to induce expression or 50 µM bathocuproinedisulfonic acid disodium salt (BCS) was added (for control). 24 hr after induction, cells were washed twice with fresh medium containing 500 µM BCS and re-suspended in medium containing 50 µM BCS. Cells were washed with 1 x PBS prior to RNA extraction using Trizol (Invitrogen) at indicated time points after BCS addition. Northern blotting was performed as described above. Oligos and probes used are summarized in Supplementary file 7.

Cell culture and 20-HE stimulation

Cell culture was done according to the protocols established by the DGRC (Drosophila Genome Resource Center). S2-R+ cells were grown in Schneider’s Drosophila medium (Invitrogen) supplemented with 10% heat-inactivated Fetal Bovine Serum (FBS) and 1% Penicillin-Streptomycin. Kc167 cells were grown in Shields and Sang M3 insect medium (Sigma) supplemented with 0.25% Bacto Peptone, 0.1% Yeast Extract, and 10% FBS. BG3-c2 cells were grown in Shields and Sang M3 medium (Sigma) supplemented with 10% FBS and 20 µg/ml insulin (Sigma). 20-hydroxyecdysone (20-HE) stimulation was done by adding 20-HE at the final concentration of 5 µM and incubating cells for the indicated times. The presence of mycoplasma in the cell lines used in this study (S2-R+, Kc167 and BG3-c2) was tested by Universal Mycoplasma Detection Kit (ATCC, #30-1012K) and no mycoplasma contamination was detected.

Luciferase sensor assays

To construct the wild-type Vang sensor, we amplified the 3’UTR of Vang using the PCR primers (NotI_Vang_2128 and XhoI_Vang_3492, Supplementary file 4) and genomic DNA as a template, and the fragment was inserted to the Not I and Xho I sites of the modified psiCHECK2 plasmid (Okamura et al., 2007). The mutant sensor was constructed by overlapping PCR using the mutagenesis primers shown in Supplementary file 4. Luciferase assays were performed using S2-R+ cells according to the previously published protocol (Okamura et al., 2007). Briefly, S2-R+ cells were seeded at 1 × 10^6 cells/ml in a 96-well plate, and cells were transfected using Effectene (Qiagen). 25 ng of the sensor plasmid, 25 ng of the miRNA expression plasmid and 12.5 ng of the Ub-Gal4 plasimid was used for each well. Dual-Luciferase Reporter (DLR) assay (Promega, USA) was carried out to quantitate the effects of miR-3 overexpression on the respective Vang sensors. The assay was performed according to the manufacturer's protocol. Assays were performed in quadruplicate at each time, and repeated twice on different days. The two sets of data were combined to draw the charts.

Overexpression of miR-3 in the notum and embryo

Overexpression of miRNAs in the developing adult notum was performed according to the previous study using eq-gal4 as a driver (Bejarano et al., 2012). For overexpression of miR-3/–309 in embryos, the UAS-mir-3/mir-309 line (Suh et al., 2015) was crossed with da-gal4 and aged embryos were used for RNA extraction and cuticle analysis. Total RNA was extracted for each experimental condition using the RNeasy Mini Kit (Qiagen) as per the manufacturer’s protocol. Total RNA concentration was measured using NanoDrop ND-2000 Spectrophotometer and the purity of the samples was determined by the OD ratios, A260/A280. One µg of total RNA was reverse transcribed in a 20 µl reaction volume using the QuantiTect reverse transcription kit (Qiagen) according to the manufacturer's protocol. Quantitation of mRNA was performed using SYBR Green Assay (Thermo Fisher Scientific) on the PikoReal Real-Time PCR System (Thermo Fisher Scientific) and a PCR product dissociation curve was generated to ensure specificity of amplification. RpL32 was used as an endogenous control and relative quantitation was performed using relative quantification (2−ΔΔCT). Results were generated from three technical replicates. The average relative expression ± standard deviation (SD) was determined and two-sample t-test was carried out to determine statistical significance. Primers used for qPCR reactions are summarized in Supplementary file 7.

Accession number

The small RNA library data produced for this study are deposited at NCBI SRA under SRP109269.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
    Controlling the false discovery rate: a practical and powerful approach to multiple testing
    1. Y Benjamini
    2. Y Hochberg
    (1995)
    Journal of the Royal Statistical Society. Series B  57:280–300.
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
    Regulation of microRNA biogenesis
    1. M Ha
    2. VN Kim
    (2014)
    Nature Reviews Molecular Cell Biology 15:509–524.
    https://doi.org/10.1038/nrm3838
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
    Selection against maternal microRNA target sites in maternal transcripts
    1. A Marco
    (2015)
    G3: Genes|Genomes|Genetics 5:2199–2207.
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
    Van Gogh: a new Drosophila tissue polarity gene
    1. J Taylor
    2. N Abramova
    3. J Charlton
    4. PN Adler
    (1998)
    Genetics 150:199–210.
  90. 90
  91. 91
  92. 92
  93. 93
    Newly established cell lines from Drosophila larval CNS express neural specific characteristics
    1. K Ui
    2. S Nishihara
    3. M Sakuma
    4. S Togashi
    5. R Ueda
    6. Y Miyata
    7. T Miyake
    (1994)
    In Vitro Cellular & Developmental Biology. Animal 30A:209–216.
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
    Strabismus, a novel gene that regulates tissue polarity and cell fate decisions in Drosophila
    1. T Wolff
    2. GM Rubin
    (1998)
    Development 125:1149–1159.
  99. 99
  100. 100

Decision letter

  1. Timothy W Nilsen
    Reviewing Editor; Case Western Reserve University, United States
  2. James L. Manley
    Senior Editor; Columbia University, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The first decision letter after peer review is shown below.]

Thank you for submitting your work entitled "Importance of miRNA stability and alternative primary miRNA isoforms in gene regulation during Drosophila development" for consideration by eLife. Your article has been reviewed by a three reviewers, and the evaluation has been overseen by Timothy Nilsen (Reviewing Editor) and a Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Hervé Seitz (Reviewer #2).

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

The reviewers felt that the manuscript was potentially quite interesting, but each raised a number of concerns, some of which need to be addressed via further experiments. We are declining the manuscript but encourage resubmission if and when these issues have been thoroughly addressed.

Reviewer #1:

Importance of miRNA stability and alternative primary miRNA isoforms in gene regulation during Drosophila development.

In this study, the authors have used miRNA sequencing of different Drosophila developmental stages. Generally, they find global changes during embryogenesis and miRNAs can be grouped according to their expression levels. The sequencing data is confirmed by Northern blotting of a number of selected miRNAs. In order to compare miRNA abundance with transcription rates, the authors analyzed publicly available total RNAseq data from different Drosophila developmental stages. Overall, transcription levels correlate with the abundance of mature miRNAs and thus they conclude that transcription is one important aspect of shaping miRNA profiles. Closer examination of cluster miRNAs reveals that these miRNAs are not equally expressed. In fact, the authors identify different isoforms of pri-miRNAs with different TSS or TTS explaining differential expression of several of the cluster miRNAs. Another important aspect of miRNA profile determination is miRNA stability and turn over. As an example, they analyzed the miR-309 cluster, which is transcribed at early stages. Nevertheless, some of the mature miRNAs are still present at late stages while others are rapidly degraded. Genome-wide analyses revealed that the presence of a 5' U is a major determinant of miRNA stability. Finally, they validate Vang as a target of miR-3 and miR-309 and show that regulation of miRNA stability is functionally important for embryogenesis.

The authors present a comprehensive analysis of features that determine mature miRNA expression profiles during different stages of Drosophila embryogenesis. The manuscript is well written, and the results are presented clearly. Several of the findings are not entirely new but are combined into a comprehensive analysis. Nevertheless, there are a number of points that need clarification.

1) Figure 4C: The authors claim in the text that all three miRNAs are equally degraded in the BG3-c2 cell line. This is not obvious from Figure 4C. There is not much difference between of miR-277 between the left (Kc167) and the right panel (BG3-c2). Maybe it would be clearer if the signals of the Northern blots were quantified.

2) One main claim of the study is that uridines (Us) at the 5' end determine the half-lives of miRNAs. The authors mutate a miRNA that contains an A at the 5' position to a U and find that this change mildly stabilizes the miRNA. This is not new since structural work has demonstrated that Us are better bound by the MID domain than other nucleotides. The authors should analyze these finding more systematically. They should mutate miR-283 to all four nucleotides at the 5' end and analyze decay rates. Which of the miRNAs shown in Figure 5 contain Us at the 5' end? Is this consistent with the overall finding that Us increase stability?

3) The authors should also test whether the dwelling time on AGO1 is changed when Us or other terminal nucleotides are present at the 5' end. This would mechanistically explain the observed effects.

4) It has been reported that primary transcripts of clustered miRNAs can fold into specific structures with limited Drosha accessibility for some of the miRNAs. Is folding relevant here as well? Folding could also be dynamic allowing for differential Drosha processing during Drosophila embryogenesis.

5) It has been shown recently that specific human primary miRNAs can be cleaved into two intermediate pri-miRNAs independently of the microprocessor (Du et al., 2015). Since the authors only look at transcript levels, shorter variants could also derive from such cleavage events rather than differential TSS or TTS.

6) The RNAseq data that is used to model transcription rates only detects primary transcripts. It could be possible that pre-miRNAs are not cloned and sequenced in these data sets because adaptor ligation might be difficult or at least inefficient for double-stranded RNAs. Thus, pre-miRNA molecules would not be present in the entire analysis. Some of the conclusions might be difficult without knowing anything about pre-miRNA levels. The authors should check whether this is relevant for the conclusions that have been made in this manuscript.

Reviewer #2:

In this manuscript, Zhou and colleagues use a replicated Small RNA-Seq time-course analysis of small RNAs in Drosophila embryos to measure the dynamics of miRNA abundance during embryonic development. Comparing their small RNA data to published RNA-seq libraries (which can inform them on the abundance of pri-miRNAs), they can then use a simplified mathematical model to describe steady-state miRNA accumulation by a first-order processing of pri-miRNAs, and a first-order decay of mature miRNAs. The authors conclude that, for most miRNAs, both pri-miRNA processing and mature miRNA decay are rather constant during embryogenesis (meaning that mature miRNA accumulation is mostly governed by the pri-miRNA transcription rate), but that modeling analysis is very poorly detailed, and the accuracy of its results appears fragile (see below). The authors then perform a comparison of the dynamics of miRNAs expressed from clustered genes (which are often assumed to be co-transcribed) and propose explanations for the reasons why the expression of clustered miRNAs can appear uncoordinated (dynamic regulation of alternative transcription initiation and termination; differential stability of the mature miRNA). They finally interrogate the biological functionality of such differential miRNA stability, but the conclusions are not very clear (see below).

Overall, this could be a very interesting article (not much is known about the control of the kinetics of miRNA expression in vivo), but several important issues have to be solved.

Essential revisions:

1) Normalization is always an issue in RNA-Seq, and the authors are rightfully concerned about it. But their claim that spike-in normalization is "robust and reliable" (subsection “Global changes in the bulk miRNA abundance during embryogenesis) is not rigorously supported by the data. It is important to realize that spike-in normalization is formally equivalent to a normalization to the amount of total RNA. When spike-ins are introduced in the RNA sample prior to library preparation, they are introduced in proportion to the quantity of total RNA (e.g., X fmol of oligos per microgram of RNA). Normalizing to spike-ins is thus equivalent to normalizing to total RNAs or (almost equivalently) to full-length ribosomal RNAs (because they constitute most of the cellular pool of RNA). That normalization scheme does not account for potential changes in total intracellular RNA (e.g., after the onset of zygotic transcription). Please note, too, that the Northern blots shown on Figure 2 were loaded with a fixed amount of total RNA (10 μg RNA per lane) so it is no surprise that spike-in-normalized Small RNA-Seq and Northern blots are in good agreement. I would recommend defining precisely what are the expected features of a "robust and reliable" normalization (should the values be proportional to the intracellular concentration of the RNA of interest? to its fraction in total RNA? to its fraction in the small RNA population? etc.) before concluding anything about the robustness and reliability of this particular normalization scheme. As a matter of fact, I do think that spike-in normalization is good (i.e.: it makes sense to quantify RNAs by their fraction in total RNA), but this has to be explained explicitly, and Northern blots loaded with a fixed amount of total RNA cannot be seen as an independent validation.

2) The so-called "3D linear model" is very imprecisely explained. At the very least, the equation of the model should be presented, and the meaning of these mysterious symbols in Supplementary PDF 1 should be explained (what are the red crosses, squares, and circles? What is the black grid?). I am assuming that "upstream density" is the title of the y-axis (but please write it parallel to the axis, and centered on the axis); if it is not, then I am completely lost. My understanding of the strange figures shown on Supplementary PDF 1 is that the authors are representing graphically a linear relationship with two variables (changes in steady state miRNA level as a function of the initial miRNA level and of the density of pri-miRNA reads, which is assumed to be proportional to pri-miRNA abundance). The authors expect a linear relationship because pri-miRNA processing and mature miRNA decay are assumed to be first-order reactions. Hence, on these tridimensional plots shown in Supplementary PDF 1, the possible solutions of the equation would fall on a plane. Maybe the black grids represent these expected planes, but then I would expect a negative slope for the variable "initial miRNA level" (and a positive slope for "upstream density"). For many miRNAs (see bantam, miR-, miR-14 …), the slope for "initial miRNA level" is positive. It is possible that I completely misunderstood that whole analysis (the absence of details in the manuscript didn't help); or there is clearly something that needs to be discussed by the authors. One obvious possibility is that RNA-Seq measurements in embryos may not be precise enough for such an analysis, and these slopes are just heavily contaminated by some technical noise (which could even turn them positive). But if precision really is so bad, then there's not much to be concluded from that analysis (the main text should then be modified accordingly (subsection “Transcription levels of individual pri-miRNAs estimated by total RNA-seq analysis” and subsection “Genome-wide analysis of miRNA stability”).

3) The functional assessment of the destabilization of miR-3 (subsection “Biological importance of miR-3/-309 family miRNAs”) is not fully convincing. The authors want to know whether the regulated decay of miR-3 in late embryos triggers some phenotypes. But they assess it by over-expressing miR-3/-309 under an eq-gal4 driver, and nothing indicates that the magnitude of the resulting over-expression is the same than what would be observed in the absence of a regulated miRNA decay (which could be approximated by simply looking at the miRNA level in earlier embryos, and assuming it would remain unchanged in the absence of a regulated decay). Here, the observed bristle phenotype may simply be due to an exceedingly large, non-physiological over-expression of the miRNAs. For that experiment, it is important to measure how much the miRNAs have been over-expressed under the eq-gal4 driver (and use a weaker driver if they were too strongly over-expressed). I also have to report that the identification of Vang as a relevant target is somewhat deceiving. It is merely based on the fact that Vang is a TargetScan-predicted target, with a known role in the PCP pathway. But the luciferase assay is hardly meaningful (co-expressing an artificial reporter with an over-expressed Drosophila miRNA in human cells); it does not add much to the simple fact that Vang is a TargetScan-predicted target (once we know the 3´ UTR has a perfect seed match to the miRNA, it is quite obvious that an artificial co-expression of both would result in miRNA binding). The in vivo test (quantifying Vang expression in mir-309 cluster mutant embryos, over-expressing embryos, and wt embryos) is less artificial, but the results were also expected, given that Vang is a TargetScan-predicted target. A real, convincing assessment of the role of the miR-3/Vang interaction in the bristle phenotype would consist in the mutagenesis of the miR-3 binding sites in the Vang UTR in vivo, followed by an analysis of the bristle phenotype. This is quite some work, I am not sure it would fall in the scope of this manuscript, but in the absence of such an analysis, the whole Vang story appears a bit gratuitous and unjustified.

Reviewer #3:

The manuscript by Zhou et al., describes how the expression of miRNAs are regulated and they chose Drosophila embryogenesis as a system. They obtained miRNA expression profiles of embryo at different time windows by their own sequencing, and also obtained pri-miRNA profiles from modENCODE project. Their miRNA sequence analyses revealed several different patterns of changes in expression profiles through embryogenesis. Their pri-miRNA analysis suggested that transcription levels of miRNA gene (levels of pri-miRNAs) are involved in determination of miRNA expression levels. In addition to that, the authors raised regulated expression of precursor RNA isoforms and miRNA stability (degradation rate) as additional mechanism for regulation of miRNA expression levels, and finally, they showed functional significance of the regulated miRNA expression. The manuscript contains interesting insights into miRNA biology, and the following points would improve the manuscript.

1) There are some inconsistencies between Figure 5D and 5C. For example, miR-3 "input" bands look similar between 2-4h and 4-6h in Figure 5D, but their intensities are very different in Figure 5C. Northern blots for 2-4h and 4-6h in Figure 5D should be done in the same membrane to accurately compare.

2) In Figure 5D, "input" bands between 2-4h and 4-6h looked similar, but the amounts of each miRNA loaded onto AGO1 were very different (much more abundant in 2-4h than in 4-6h). Although the authors focused on "reduction rate", can’t the results suggest different efficiency of AGO1-loading? Also, purified AGO1 protein levels in the immunoprecipitates should be examined by Western blot.

3) In Figure 6A, I am curious how the other three nucleotides (5'A, 5'G, and 5'C) affect miRNA levels. It would be better not to collectively show "other 5'-nucleotide" but to show the data for each four nucleotides.

4) In Figure 6B, only one example (analyses of only miR-283) is not enough to say the effect of 5'-U in miRNA stability, because the expression of miRNA can cause many things in the cells. I would suggest that the analyses of at least 3-5 different miRNAs are required to confirm their hypothesis.

5) Figure 7 suggested regulation of Vang mRNA by miR-3/309. Because these miRNAs were drastically decreased through embryogenesis (Figure 3), it would be great if the authors quantify Vang mRNA levels through embryogenesis and observe anti-correlation of their expression profiles to further confirm that Vang mRNA is regulated by the miRNAs.

6) AGO1 protein level was not investigated, but it should be a factor involving in miRNA expression levels and stabilities. It would be great if AGO1 Western blot data at various time windows of Drosophila embryos were added.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for submitting your article "Importance of miRNA stability and alternative primary miRNA isoforms in gene regulation during Drosophila development" for consideration by eLife. Your article has been reviewed by Timothy Nilsen as Reviewing Editor and James Manley as the Senior Editor and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Hervé Seitz (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

This resubmitted manuscript is a significant improvement over the previous submission. The only remaining issue is the presentation of the 3D lineal model. Because this model is only presented in supplementary material, it is strongly suggested that the authors remove it from the manuscript. If they do so, the manuscript would be acceptable for eLife.

Reviewer #1:

In this new submission of a previously-reviewed manuscript, L. Zhou and colleagues quantify mature miRNAs and pri-miRNA precursors during Drosophila development, to derive molecular rules governing miRNA abundance in that dynamic process. The modified manuscript addresses most of my previous concerns, and it has been clearly improved. One of my main concerns remains though: the provided data suggest that the "3D lineal model" predicts mature miRNA abundance very poorly, most probably because of quantification inaccuracies (which may very well be impossible to improve with the current technologies). A precise description of that model is (still) desperately needed in the main text, as well as an estimation of the fitted coefficients' precision. The provided data suggest that precision is too low to permit the analyses that the authors perform – if so, then I would simply suggest to remove that modeling analysis (it would be mostly describing technical noise).

Once that issue is fixed, I think the manuscript will be a very good candidate for publication in eLife.

Essential revisions:

1) Regarding the "3D linear model" whose results are presented in Supplementary PDF 1: I appreciate the authors' clarification, but they mostly appear in their point-by-point response to the referees, and the readers themselves are left without much information. As I said in my evaluation of the first submission, it is important to write down the model's equation (please do that in the main text and write explicitly that the coefficient for "initial miRNA level" is expected to be negative, while the coefficient for "upstream density" is expected to be positive – and explain why, in each case). Without this, the reader will be completely lost. As for the accuracy of the estimation of coefficients by this model: the added sentence ("However, we note that this analysis has a caveat […]") is an improvement, but it lacks rigor. The fact that not every point falls on the plane is not a surprise (nothing is perfect in experimental science); the fact that they fall "far away" from the plane would be a problem, but for this we need to know how far is "far away". The authors' current formulation is deceiving ("significant" has a very precise meaning: it means that a statistical test was performed, and the null hypothesis was rejected with a given p-value cutoff). Here it looks like the authors use "significant" as a synonym for "large" (without defining how large is "large"), which it is not. Even more problematic, the fact that many slopes for "initial miRNA level" appear to be positive is not discussed. Honestly, from what I see, it looks like these measurements are extremely imprecise, and they cannot be used to conclude anything regarding the miRNA turnover rate. The fact that "5´ U" values end up begin mostly larger than "other 5´ nucleotide" values seems to be pure luck (with another, similarly imprecise RNA-Seq-based quantification, the values may have very well fallen in the opposite order). In their Point-by-point response, the authors say that the global analysis of every miRNA is certainly more precise than each individual measurement, which is certainly true – but whether this improvement is sufficient in order to perform an analysis like the one shown in Figure 6A remains to be demonstrated. For this, the authors need to evaluate the accuracy of their modeled coefficients (a linear modeling analysis does not only compute the fitted coefficients, it also provides an estimate of its precision; simply giving the coefficient without giving the precision is pointless). Given the aspect of the 3D graphs and given the dispersion of the points on Figure 6A (with the median for "5´ U" values being positive while their mean is negative), I expect precision to be too bad to allow a meaningful comparison of 5´ U miRNAs and 5´ non-U miRNAs (note that Figure 1D does not show that the model "worked reasonably well": most points fall next to the origin, with a high relative error). If indeed it is the case, then I recommend dropping the "3D linear model" analysis (which would be too noisy to be informative), and simply find another way to explain why the authors wanted to perform the analyses shown in Figure 6. (on a side note: Figure 6—figure supplement 1 is useless: if the authors wanted to compare 5´ U miRNAs to 5´ non-U miRNAs, they just had to compare the two datasets shown in Figure 6A, and they did not have to stratify "5´ non U" into "5´ A", "5´ C" and "5´ G" as shown in that supplement).

Reviewer #2:

The authors responded well to the raised points in the first review with additional experimental results. I believe the current version of the manuscript is suitable for publication.

Reviewer #3:

In this revised version of their manuscript, the authors have adequately addressed all points that I had raised on the previous version. They have added extra experimental data and discussed it appropriately. I am satisfied with the response to my comments.

https://doi.org/10.7554/eLife.38389.047

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

The reviewers felt that the manuscript was potentially quite interesting, but each raised a number of concerns, some of which need to be addressed via further experiments. We are declining the manuscript but encourage resubmission if and when these issues have been thoroughly addressed.

Reviewer #1:.

[…] 1) Figure 4C: The authors claim in the text that all three miRNAs are equally degraded in the BG3-c2 cell line. This is not obvious from Figure 4C. There is not much difference between of miR-277 between the left (Kc167) and the right panel (BG3-c2). Maybe it would be clearer if the signals of the Northern blots were quantified.

The experiments were repeated three times and the quantification results have been added as Figure 4—figure supplement 3. This analysis supported our conclusion that miR-277 expression was better correlated with miR-34 and miR-317 in BG3-c2 cells than in Kc167 and S2-R+ cells.

2) One main claim of the study is that uridines (Us) at the 5' end determine the half-lives of miRNAs. The authors mutate a miRNA that contains an A at the 5' position to a U and find that this change mildly stabilizes the miRNA. This is not new since structural work has demonstrated that Us are better bound by the MID domain than other nucleotides. The authors should analyze these finding more systematically. They should mutate miR-283 to all four nucleotides at the 5' end and analyze decay rates. Which of the miRNAs shown in Figure 5 contain Us at the 5' end? Is this consistent with the overall finding that Us increase stability?

To clarify, we do not believe the 5’ nucleotide is the sole determinant of miRNA stability. Based on our observations, we concluded that the 5’ nucleotides can influence miRNA stability and would be among a number of factors that determine half-lives. Therefore, if we compare the groups of miRNAs according to the 5’ nucleotides, we observe some trends as seen in Figure 6A. If we compare half-lives of a small number of miRNAs individually, the trend may not be obvious. In fact, if we only look at the mir-309 cluster miRNAs, the trend is not clear (Figure 5, Mir-309: G, Mir-3: U, Mir-286: U, Mir4: A, Mir-5: U, Mir-6: U). In particular, we believe that the instability of mir-3/309 is mediated by other mechanisms because the accelerated degradation rate cannot be explained by the effect of 5’ nucleotides that can only cause mild changes of stability as shown by the targeted mutagenesis (~20%, Figure 6D).

To further support our conclusion regarding the effects of miRNA 5’ nucleotides on mature miRNA stability, we made additional mutants by changing the 5’ end to all three possible nucleotides. This experiment is not as simple as it may sound. We needed to find miRNAs whose strand selection and the cleavage sites by Drosha/Dicer were not altered by the 5’ nucleotide changes. Through careful selection of miRNAs and experimental verification, we managed to find two additional miRNAs that were suitable for this analysis, and almost all possible mutants could be made (except the AtoG mutant of miR-263a, whose Drosha cleavage site was altered by the mutation). Unexpectedly, we observed stabilizing effects of 5’-C, in addition to the expected effect by 5’-U mutations. We added these results as Figure 6D and Figure 6—figure supplement 2. Taken together, we report a role for 5’ nucleotides in determining the mature miRNA half-lives.

3) The authors should also test whether the dwelling time on AGO1 is changed when Us or other terminal nucleotides are present at the 5' end. This would mechanistically explain the observed effects.

To our best knowledge, Drosophila AGO1 has not been used for single molecule imaging analysis potentially due to the low abundance of empty AGO1 in the fly system. The rapid degradation of empty AGO1 may be the cause of this (Smibert et al., 2013). The detailed single-molecule analysis is certainly an interesting direction, but precise mechanisms and dynamics of Argonaute-guide RNA interactions are beyond the scope of this manuscript. We plan to follow up this mechanism in the future as better tools are developed.

4) It has been reported that primary transcripts of clustered miRNAs can fold into specific structures with limited Drosha accessibility for some of the miRNAs. Is folding relevant here as well? Folding could also be dynamic allowing for differential Drosha processing during Drosophila embryogenesis.

It has been reported that the mammalian mir-17-92 cluster transcript is folded into globular structures, which reduces processing efficiency of miRNA hairpins that are located in the core of the structure (Chaulk et al., 2014; Chaulk et al., 2017). As the same reviewer points out below, the same cluster has been reported to undergo post-transcriptional regulation via the action of the endonuclease CPSF3 to cleave the pri-miRNA to generate “pro-miRNA” in which all hairpins in this cluster can be efficiently processed by Drosha (Du et al., 2015). There is certainly additional complexity observed with processing of clustered miRNAs as also highlighted by recent reports. Therefore, we added more information in the Discussion section to highlight these studies further. We believe that the disparity we detected with expression changes between members of certain clusters may reflect some aspects of complex post-transcriptional regulation of clustered miRNA processing.

5) It has been shown recently that specific human primary miRNAs can be cleaved into two intermediate pri-miRNAs independently of the microprocessor (Du et al. Cell, 2015). Since the authors only look at transcript levels, shorter variants could also derive from such cleavage events rather than differential TSS or TTS.

While we do not exclude this possibility pointed out by the reviewer, we found that histone modification marks support the hypothesis of alternative TSSs in this cluster (New Figure 4—figure supplement 2). We added this information and mentioned both possibilities in the main text.

6) The RNAseq data that is used to model transcription rates only detects primary transcripts. It could be possible that pre-miRNAs are not cloned and sequenced in these data sets because adaptor ligation might be difficult or at least inefficient for double-stranded RNAs. Thus, pre-miRNA molecules would not be present in the entire analysis. Some of the conclusions might be difficult without knowing anything about pre-miRNA levels. The authors should check whether this is relevant for the conclusions that have been made in this manuscript.

We agree with the reviewer that the total RNA libraries (that are generally selective for >200nt species) are devoid of pre-miRNAs. While there are protocols for pre-miRNA expression profiling, those experiments are not straightforward and accurately measuring pre-miRNA levels remains a challenge. Therefore, we decided to make conclusions based on the levels of pri-miRNAs and cognate mature miRNAs. We believe that the lack of pre-miRNA information does not affect our conclusions (Usage of TSS/TTS, the stability of mir-309 cluster miRNAs and roles of 5’ nucleotide in loaded mature miRNAs).

Reviewer #2:

[…] 1) Normalization is always an issue in RNA-Seq, and the authors are rightfully concerned about it. But their claim that spike-in normalization is "robust and reliable" (p. 6) is not rigorously supported by the data. It is important to realize that spike-in normalization is formally equivalent to a normalization to the amount of total RNA. When spike-ins are introduced in the RNA sample prior to library preparation, they are introduced in proportion to the quantity of total RNA (e.g., X fmol of oligos per microgram of RNA). Normalizing to spike-ins is thus equivalent to normalizing to total RNAs or (almost equivalently) to full-length ribosomal RNAs (because they constitute most of the cellular pool of RNA). That normalization scheme does not account for potential changes in total intracellular RNA (e.g., after the onset of zygotic transcription). Please note, too, that the Northern blots shown on Figure 2 were loaded with a fixed amount of total RNA (10 μg RNA per lane) so it is no surprise that spike-in-normalized Small RNA-Seq and Northern blots are in good agreement. I would recommend defining precisely what are the expected features of a "robust and reliable" normalization (should the values be proportional to the intracellular concentration of the RNA of interest? to its fraction in total RNA? to its fraction in the small RNA population? etc.) before concluding anything about the robustness and reliability of this particular normalization scheme. As a matter of fact, I do think that spike-in normalization is good (i.e.: it makes sense to quantify RNAs by their fraction in total RNA), but this has to be explained explicitly, and Northern blots loaded with a fixed amount of total RNA cannot be seen as an independent validation.

The reviewer points out potential issues with normalization methods and interpretation of the results. We decided to use the normalization method that is based on the assumption that the amount of total RNA per embryo stays constant. However, we could not find a study explicitly testing the amount of total RNA per embryo in different stages of development. We attempted to estimate the amounts of total RNA per embryo at different time windows, and the results suggested that the total RNA per embryo stayed roughly at the same level. Therefore, we decided to adhere to the spikein-based normalization for miRNA analysis. We also clarified in the main text that Northern blotting is to verify the sequence-based quantification results that relies on the same assumption.

2) The so-called "3D linear model" is very imprecisely explained. At the very least, the equation of the model should be presented, and the meaning of these mysterious symbols in Supplementary PDF 1 should be explained (what are the red crosses, squares, and circles? what is the black grid?). I am assuming that "upstream density" is the title of the y-axis (but please write it parallel to the axis, and centered on the axis); if it is not, then I am completely lost. My understanding of the strange figures shown on Supplementary PDF 1 is that the authors are representing graphically a linear relationship with two variables (changes in steady state miRNA level as a function of the initial miRNA level and of the density of pri-miRNA reads, which is assumed to be proportional to pri-miRNA abundance). The authors expect a linear relationship because pri-miRNA processing and mature miRNA decay are assumed to be first-order reactions. Hence, on these tridimensional plots shown in Supplementary PDF 1, the possible solutions of the equation would fall on a plane. Maybe the black grids represent these expected planes, but then I would expect a negative slope for the variable "initial miRNA level" (and a positive slope for "upstream density"). For many miRNAs (see bantam, miR-, miR-14 …), the slope for "initial miRNA level" is positive. It is possible that I completely misunderstood that whole analysis (the absence of details in the manuscript didn't help); or there is clearly something that needs to be discussed by the authors. One obvious possibility is that RNA-Seq measurements in embryos may not be precise enough for such an analysis, and these slopes are just heavily contaminated by some technical noise (which could even turn them positive). But if really precision is so bad, then there's not much to be concluded from that analysis (the main text should then be modified accordingly subsection “Transcription levels of individual pri-miRNAs estimated by total RNA-seq analysis” and subsection “Genome-wide analysis of miRNA stability”).

We apologize for the poor presentation of the charts and inadequate descriptions in this file, and we appreciate the reviewer’s effort to correctly interpret the results. As the reviewer describes, we meant to present the linear relationship between the initial miRNA level, the density of pri-miRNA reads and the change rate of the mature miRNA. This equation worked reasonably well in predicting the overall change rate as shown in Figure 1D. However, the slope for “initial miRNA level” was variable and some genes even showed positive slope in contrast to our expectation, as correctly pointed out by the reviewer. We believe that this is due to the high variation of the estimated values and slow degradation of mature miRNA species. Therefore, we decided not to overly interpret the slope for each miRNA. However, when the values were considered in groups of larger number of genes, we believe the distributions of slope values carry meaningful information. For example, the means of slopes were negative values (mean5’U=-0.0016, meannon-5’U=-0.088). Although we recognize the fluctuation of the estimation of individual degradation rates, the accuracy was high enough to detect the difference in the mature miRNA stability of 5’U- and non-5’U-species (Figure 6A). This led to the finding that 5’ nucleotides may affect mature miRNA stability, and this hypothesis could be verified experimentally by using individual miRNA constructs mutating 5’ nucleotides (Figure 6B-D). Therefore, we believe that this analysis could provide meaningful information depending on how we interpret it. We modified the main text to clarify these points.

3) The functional assessment of the destabilization of miR-3 (subsection “Biological importance of miR-3/-309 family miRNAs”) is not fully convincing. The authors want to know whether the regulated decay of miR-3 in late embryos triggers some phenotypes. But they assess it by over-expressing miR-3/-309 under an eq-gal4 driver, and nothing indicates that the magnitude of the resulting over-expression is the same than what would be observed in the absence of a regulated miRNA decay (which could be approximated by simply looking at the miRNA level in earlier embryos, and assuming it would remain unchanged in the absence of a regulated decay). Here, the observed bristle phenotype may simply be due to an exceedingly large, non-physiological over-expression of the miRNAs. For that experiment, it is important to measure how much the miRNAs have been over-expressed under the eq-gal4 driver (and use a weaker driver if they were too strongly over-expressed). I also have to report that the identification of Vang as a relevant target is somewhat deceiving. It is merely based on the fact that Vang is a TargetScan-predicted target, with a known role in the PCP pathway. But the luciferase assay is hardly meaningful (co-expressing an artificial reporter with an over-expressed Drosophila miRNA in human cells); it does not add much to the simple fact that Vang is a TargetScan-predicted target (once we know the 3´ UTR has a perfect seed match to the miRNA, it is quite obvious that an artificial co-expression of both would result in miRNA binding). The in vivo test (quantifying Vang expression in mir-309 cluster mutant embryos, over-expressing embryos, and wt embryos) is less artificial, but the results were also expected, given that Vang is a TargetScan-predicted target. A real, convincing assessment of the role of the miR-3/Vang interaction in the bristle phenotype would consist in the mutagenesis of the miR-3 binding sites in the Vang UTR in vivo, followed by an analysis of the bristle phenotype. This is quite some work, I am not sure it would fall in the scope of this manuscript, but in the absence of such an analysis, the whole Vang story appears a bit gratuitous and unjustified.

We redid the sensor assays in S2 cells and obtained similar results (Figure 7D), supporting our conclusion. Our point is that rapid degradation of miR-3 may have biological significance, and regulation of Vang could be part of it as ectopic expression of miR-3 causes detectable phenotypes that are consistent with Vang misregulation (Figure 7B and C). We agree with the reviewer’s comments regarding the level of overexpression because, if the level of overexpressed miRNAs exceed the highest level of natural miR-3/-309 expression, the phenotypes we are seeing may simply be artifacts due to the unnatural levels of overexpression. To test this, we decided to focus on the embryonic phenotypes and used the RNA samples that were used for Vang mRNA quantification with mir-3/-309 overexpression (Figure 7E). The levels of overexpressed miR-3/-309 were compared with the levels of those miRNAs at the highest expression peaks (Figure 7—figure supplement 1). For this analysis, we only used embryos overexpressing miR-3/-309 by the ubiquitous da-Gal4 because it is difficult to measure the expression levels for miR-3/-309 driven by eq-Gal4, which activates transcription only in a part of the wing disc (Tang and Sun, 2002). We found that the levels of overexpressed miR-3/-309 driven by da-Gal4 reached only <50% of the levels of endogenous miR-3/-309 at 3.5-4h embryos. Because the mir-309 cluster is known to be transcribed broadly in the somatic cells (doi: 10.1073 pnas.0507817102, 10.1073 pnas.0508823102), we believe that our experiment mimics a situation where the miR-3/-309 mature products were not degraded quickly.

The strictest experiment to demonstrate this is to identify the elements that make miR-3/-309 unstable, generate a mutant that has the same target specificity as the wild-type miR-3/-309, and analyze the organismal phenotype. We have started experiments to identify the destabilizing elements of miR-3/-309 and successful identification of the mechanisms would allow us to design the stricter experiments to study biological effects of miR-3/-309 degradation. However, we believe that identification of mechanisms and generation of mutants are beyond the scope of the current manuscript. In the revised manuscript, we added the results testing the levels of overexpressed miR-3/-309 (Figure 7—figure supplement 1) and discussed this point further.

Reviewer #3:

[…] 1) There are some inconsistencies between Figure 5D and 5C. For example, miR-3 "input" bands look similar between 2-4h and 4-6h in Figure 5D, but their intensities are very different in Figure 5C. Northern blots for 2-4h and 4-6h in Figure 5D should be done in the same membrane to accurately compare.

In our previous Figure 5D, we did not adjust figures to show the differences between 2-4h and 4-6h input lanes, because the main point was to show that the loading efficiencies were similar between mir-309 cluster members. In the new manuscript, we added quantified results and Figure 5D and E charts show similar trends between the two time windows: decrease of miR-3/-309 and increase of the other miRNAs from the cluster.

2) In Figure 5D, "input" bands between 2-4h and 4-6h looked similar, but the amounts of each miRNA loaded onto AGO1 were very different (much more abundant in 2-4h than in 4-6h). Although the authors focused on "reduction rate", can’t the results suggest different efficiency of AGO1-loading? Also, purified AGO1 protein levels in the immunoprecipitates should be examined by Western blot.

The difference in the original result stems from the difference in experimental conditions including the concentrations of the lysate and the amounts of antibody used. We repeated the experiment with a standardized experimental condition. To provide more quantitative information, we added normalized quantified values (Signal intensity was normalized to the intensity of the signal in the input lane of 2–4 hour samples for each miRNA species). We also added Western blotting results as Figure 5—figure supplement 2.

3) In Figure 6A, I am curious how the other three nucleotides (5'A, 5'G, and 5'C) affect miRNA levels. It would be better not to collectively show "other 5'-nucleotide" but to show the data for each four nucleotides.

We added the figure as Figure 6—figure supplement 1. The three groups of miRNAs that had other 5’ nucleotides (5'A, 5'G, and 5'C) showed generally lower values compared with those for the 5’U species. However, due to the small number of miRNAs that satisfied expression criteria (3-9 miRNA species could be used for each 5’-nucleotide group), we did not perform statistical tests as we felt that it is difficult to make a meaningful conclusion with such small numbers of genes.

4) In Figure 6B, only one example (analyses of only miR-283) is not enough to say the effect of 5'-U in miRNA stability, because the expression of miRNA can cause many things in the cells. I would suggest that the analyses of at least 3-5 different miRNAs are required to confirm their hypothesis.

Similar comments were made by reviewer 1 as well. To further support our conclusion regarding the effects of miRNA 5’ nucleotides on mature miRNA stability, we made additional mutants by changing the 5’ end to all three possible nucleotides. This experiment is not as simple as it may sound. We needed to find miRNAs whose strand-selection and the cleavage sites by Drosha/Dicer were not altered by the 5’ nucleotide changes. Through careful selection of miRNAs and experimental verification, we managed to find two additional miRNAs that were suitable for this analysis, and almost all possible mutants could be made (except the A-to-G mutant of miR-263a, whose Drosha cleavage site was altered by the mutation). Unexpectedly, we observed stabilizing effects of 5’-C, in addition to the expected effect by 5’-U mutations. We added these results as Figure 6D and Figure 6—figure supplement 2. Taken together, we report a role for 5’ nucleotides in determining the mature miRNA half-lives.

5) Figure 7 suggested regulation of Vang mRNA by miR-3/309. Because these miRNAs were drastically decreased through embryogenesis (Figure 3), it would be great if the authors quantify Vang mRNA levels through embryogenesis and observe anti-correlation of their expression profiles to further confirm that Vang mRNA is regulated by the miRNAs.

We added this analysis as Figure 7—figure supplement 2. Indeed, the decrease of miR-3/-309 preceded the increase of Vang mRNA.

6) AGO1 protein level was not investigated, but it should be a factor involving in miRNA expression levels and stabilities. It would be great if AGO1 Western blot data at various time windows of Drosophila embryos were added.

The results are added as Figure 1—figure supplement 3. We observed a correlation between the AGO1 protein level and the total miRNA levels. However, because the mutual dependence of AGO1 and mature miRNAs for their stability (Smibert et al., 2013), this result itself did not allow us to conclude whether the level of AGO1 protein is limiting the amount of bulk mature miRNAs. This has to be further studied perhaps when researchers find the mechanism of empty AGO1 degradation and generate mutants of AGO1 whose stability does not rely on loaded guide RNAs. We discussed the Western blotting results in the main text.

[Editors' note: the author responses to the re-review follow.]

This resubmitted manuscript is a significant improvement over the previous submission. The only remaining issue is the presentation of the 3D lineal model. Because this model is only presented in supplementary material, it is strongly suggested that the authors remove it from the manuscript. If they do so, the manuscript would be acceptable for eLife.

Thank you for the opportunity to resubmit this revised version of the manuscript. As suggested by the editors, we removed the Supplementary PDF, which the reviewers and editors appeared to find confusing rather than useful. We also changed the order figures for a better flow. In addition, we made changes to address specific points that were raised by reviewer 1.

Reviewer #1:

[…] 1) Regarding the "3D linear model" whose results are presented in Supplementary PDF1: I appreciate the authors' clarification, but they mostly appear in their Point-by-point response to the referees, and the readers themselves are left without much information. Given the aspect of the 3D graphs and given the dispersion of the points on Figure 6A (with the median for "5´ U" values being positive while their mean is negative), I expect precision to be too bad to allow a meaningful comparison of 5´ U miRNAs and 5´ non-U miRNAs (note that Figure 1D does not show that the model "worked reasonably well": most points fall next to the origin, with a high relative error). If indeed it is the case, then I recommend dropping the "3D linear model" analysis (which would be too noisy to be informative), and simply find another way to explain why the authors wanted to perform the analyses shown in Figure 6. (on a side note: Figure 6—figure supplement 1 is useless: if the authors wanted to compare 5´ U miRNAs to 5´ non-U miRNAs, they just had to compare the two datasets shown in Figure 6A, and they did not have to stratify "5´ non U" into "5´ A", "5´ C" and "5´ G" as shown in that supplement).

As suggested by the reviewer, we edited the main text to more clearly explain the model and the assumptions used. The reviewer is also concerned about the inaccuracy of the results that were previously shown as Figure 6A to present the predicted relative degradation rates of 5’-U and non-5’-U species. Although it is not surprising that some coefficients show positive values when the true value is expected to be very close to zero (as mature miRNAs are generally stable) and the statistical test indicated a small p-value with a widely used method (p=0.01, Kolmogorov-Smirnov test) when the values for the 5’-U and non-5’-U groups were compared, we recognize the risk of using noisy data for making conclusions. According to the reviewer’s comments, we made it clear that this analysis did not allow us to make a confident conclusion regarding the miRNA degradation rates by explicitly explaining the observed fluctuations and highlighting the unexpected positive median value for the 5’-U group. However, we kept the chart (previously main Figure 6A) as a figure supplement (now Figure 3—figure supplement 1) to explain what prompted us to mutate the 5’ nucleotides of the model miRNAs. It was difficult to explain this in another way. We performed these mutagenesis experiments only because we observed the difference in the distribution of coefficients between the 5’-U and non-5’-U groups as described in the manuscript.

https://doi.org/10.7554/eLife.38389.048

Article and author information

Author details

  1. Li Zhou

    1. Temasek Life Sciences Laboratory, Singapore, Singapore
    2. Department of Biological Sciences, Faculty of Science, National University of Singapore, Singapore, Singapore
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing—review and editing
    Contributed equally with
    Mandy Yu Theng Lim
    Competing interests
    No competing interests declared
  2. Mandy Yu Theng Lim

    1. Temasek Life Sciences Laboratory, Singapore, Singapore
    2. School of Biological Sciences, Nanyang Technological University, Singapore, Singapore
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing—review and editing
    Contributed equally with
    Li Zhou
    Competing interests
    No competing interests declared
  3. Prameet Kaur

    Division of Science, Yale-NUS College, Singapore, Singapore
    Contribution
    Resources, Data curation, Formal analysis, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Abil Saj

    Cancer Therapeutics and Stratified Oncology, Genome Institute of Singapore, Singapore, Singapore
    Contribution
    Conceptualization, Data curation, Supervision, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Diane Bortolamiol-Becet

    Department of Developmental Biology, Sloan-Kettering Institute, New York, United States
    Present address
    CNRS Architecture et Réactivité de l’ARN, Université de Strasbourg, Strasbourg, France
    Contribution
    Resources, Data curation, Formal analysis, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Vikneswaran Gopal

    Department of Statistics and Applied Probability, Faculty of Science, National University of Singapore, Singapore, Singapore
    Contribution
    Data curation, Formal analysis, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  7. Nicholas Tolwinski

    1. Department of Biological Sciences, Faculty of Science, National University of Singapore, Singapore, Singapore
    2. Division of Science, Yale-NUS College, Singapore, Singapore
    Contribution
    Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Writing—review and editing
    Competing interests
    No competing interests declared
  8. Greg Tucker-Kellogg

    Department of Biological Sciences, Faculty of Science, National University of Singapore, Singapore, Singapore
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Writing—review and editing
    Competing interests
    No competing interests declared
  9. Katsutomo Okamura

    1. Temasek Life Sciences Laboratory, Singapore, Singapore
    2. School of Biological Sciences, Nanyang Technological University, Singapore, Singapore
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Visualization, Writing—original draft
    For correspondence
    okamurak@tll.org.sg
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8316-0960

Funding

National Research Foundation Singapore (NRF2011NRF-NRFF001-042)

  • Li Zhou
  • Mandy Yu Theng Lim
  • Katsutomo Okamura

National Institutes of Health (R01-GM083300)

  • Diane Bortolamiol-Becet

Ministry of Education - Singapore (MOE2014-T2-2-039)

  • Nicholas Tolwinski

National University of Singapore (R-154-000-536-133)

  • Greg Tucker-Kellogg

National Institutes of Health (R01-NS083833)

  • Diane Bortolamiol-Becet

National University of Singapore (R-154-000-562-112)

  • Greg Tucker-Kellogg

National University of Singapore (R-154-000-582-651)

  • Greg Tucker-Kellogg

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors are grateful to members of KO and GT-K laboratories for discussion. We thank Li-Ling Chak for her help with initial small RNA library analysis and Duke-NUS Genomics facility and BGI for Illumina sequencing. We thank DGRC (Drosophila Genome Resource Center) for cell lines, Dr. Walton Jones at KAIST for the UAS-mir-3/–309 lines and Dr. Stephen Cohen for the mir-309-C mutant. We thank the modENCODE consortium, the Trudy FC Mackay and Sam Griffiths-Jones labs for their genomics data, and Drosophila Genomics Resource Center (supported by NIH grant 2P40OD010949) for BG3-C2 and Kc167 cells. We are grateful to Ramanuj DasGupta for supporting AS in his lab. The miRNA overexpression study was initiated in Eric C Lai’s lab at Sloan-Kettering Institute and was supported by the National Institutes of Health R01-GM083300 and R01-NS083833 to ECL. The authors appreciate generous support by ECL. Research in KO’s group was supported by the National Research Foundation, Prime Minister’s Office, Singapore under its NRF Fellowship Programme (NRF2011NRF-NRFF001-042) and Temasek Life Sciences Laboratory core funding. Research in GT-K's group was supported by NUS Faculty of Science startup grant R-154-000-536-133, AcRF grant R-154-000-562-112, and Lee Hiok Kwee fund grant R-154-000-582-651. Work in NST’s laboratory was supported by an Academic Research Fund (AcRF) grant (MOE2014-T2-2-039). The content is solely the responsibility of the authors and does not necessarily represent the official views of these agencies.

Senior Editor

  1. James L. Manley, Columbia University, United States

Reviewing Editor

  1. Timothy W Nilsen, Case Western Reserve University, United States

Publication history

  1. Received: May 16, 2018
  2. Accepted: July 4, 2018
  3. Accepted Manuscript published: July 19, 2018 (version 1)
  4. Version of Record published: July 30, 2018 (version 2)

Copyright

© 2018, Zhou et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 935
    Page views
  • 213
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    Margarita V Meer et al.
    Tools and Resources Updated
    1. Biochemistry and Chemical Biology
    2. Chromosomes and Gene Expression
    Jeremy G Bird et al.
    Research Article
