Ryanodine receptor dispersion disrupts Ca2+ release in failing cardiac myocytes

  1. Terje R Kolstad
  2. Jonas van den Brink
  3. Niall MacQuaide
  4. Per Kristian Lunde
  5. Michael Frisk
  6. Jan Magnus Aronsen
  7. Einar S Norden
  8. Alessandro Cataliotti
  9. Ivar Sjaastad
  10. Ole M Sejersted
  11. Andrew G Edwards
  12. Glenn Terje Lines
  13. William E Louch  Is a corresponding author
  1. Oslo University Hospital and University of Oslo, Norway
  2. University of Oslo, Norway
  3. Simula Research Laboratory, Norway
  4. University of Glasgow, United Kingdom
  5. Bjørknes College, Norway
Research Article
Cite this article as: eLife 2018;7:e39427 doi: 10.7554/eLife.39427
7 figures, 1 table and 3 additional files

Figures

dSTORM imaging enables quantification of RyR localization within Ca2+ release units (CRUs).

RyR imaging was performed with antibody labelling of isolated and fixed rat ventricular cardiomyocytes. (A). Imaging of RyRs with confocal microscopy (left panel) or Structured Illumination Microscopy (SIM, centre panel) revealed a predominantly striated pattern of RyR localization across cells, but individual CRUs could not be discerned (magnified regions in lower panels). dSTORM imaging provided markedly improved spatial resolution enabling identification of RyR clusters (scale bars = 5 µm). (B). Quantification of RyR localization was performed by fitting raw images to a 30 × 30 nm grid (Baddeley et al., 2009), and performing thresholding to create binary images; an RyR was counted as present if > half the area of a 30 nm square was suprathreshold. CRUs were defined as collections of RyR clusters with an edge-to-edge distance < 150 nm (Macquaide et al., 2015) (red boundaries) or < 100 nm (Baddeley et al., 2009; Hou et al., 2015). (Scale bar = 2 µm).

https://doi.org/10.7554/eLife.39427.003
Figure 2 with 1 supplement
RyRs are dispersed in failing cardiomyocytes.

Alterations in nanoscale RyR organization were examined in cardiomyocytes from rats with post-infarction heart failure (HF). Representative images show that macroscale organization of RyRs was similar in HF and Sham-operated controls (A), upper panels). However, nanoscale examination revealed that RyR clusters were broken apart in HF. For the magnified regions in (A), conversion from raw dSTORM to binary images is shown in the middle and lower panels (saturation levels indicated by high-low look-up table). Mean measurements showed fewer RyRs per cluster in failing cells, with an increased fraction of small clusters (B). Dispersion of RyR clusters into smaller fragments resulted in an increased overall number of clusters (D), reduced inter-cluster distances (E) and inclusion of more clusters in each CRU (F). Overall CRU composition became less solid in failing cells ((G), assessed by convex-hull analysis), as the average CRU contained fewer RyRs (C). See Figure 2—source data 1 for analysis of 100 nm vs 150 nm CRU inclusion criterion (ncells = 46, 50 in Sham, HF; *=P < 0.05 vs Sham).

https://doi.org/10.7554/eLife.39427.004
Figure 2—source data 1

Quantification of RyR organization using 150 vs 100 nm CRU inclusion criteria.

RyR cluster and CRU data were compared in Sham and HF myocytes, with data cumulated across cells or animals. Two CRU definitions were also compared, with maximum edge-to-edge distances of 150 nm or 100 nm. Significant differences within data cumulated across cells were determined by t-test, while data cumulated across animals were tested with linear mixed effects models (Lindstrom and Bates, 1988).

https://doi.org/10.7554/eLife.39427.006
Figure 2—figure supplement 1

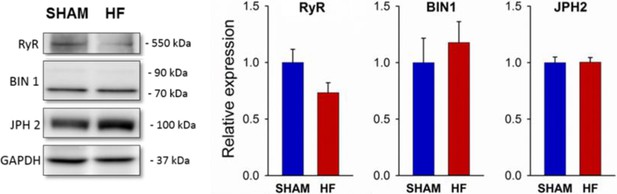

HF in post-infarction rats is not associated with altered expression of RyR, BIN1, or Junctophilin-2.

Western blotting was performed on homogenates of left ventricles from post-MI HF rats and Sham-operated controls. Representative immunoblots are shown at left, with mean values at right, normalized to Sham. (JPH2 = junctophilin 2; nhearts = 5, 5 in Sham, HF; P = NS).

https://doi.org/10.7554/eLife.39427.005
Failing cardiomyocytes exhibit increased ‘silent’ RyR leak.

Total RyR-mediated Ca2+ leak was assessed in SR microsomes using fura-2 fluorescence (A). Vesicular Ca2+ uptake was initiated by addition of ATP, and halted by addition of thapsigargin. SR Ca2+ leak was estimated as the thapsigargin-induced rate of rise of [Ca2+], normalized to releasable SR content (rise in [Ca2+] induced by the RyR opener 4-chloro-m-cresol, CMC). While the rate of SR Ca2+ uptake was reduced in HF relative to Sham (B), total RyR leak was increased (C) even with a slight reduction in the releasable Ca2+ store (D). (n = 8 from 3 Sham hearts, 7 from 3 HF hearts; *=P < 0.05 vs Sham). To assess whether elevated SR leak in failing cells could be attributed to Ca2+ sparks, line-scan confocal imaging of resting cardiomyocytes was employed (E). Ca2+ spark mass was increased in HF relative to Sham (F), due to augmented spark geometry (Figure 5B). However, since spark frequency tended to be reduced (G), overall Ca2+ spark-mediated leak was similar in Sham and HF (H). These results are consistent with increased ‘silent’ non-spark-mediated SR leak in HF cardiomyocytes. (FWHM = full width at half maximum, FDHM = full duration at half maximum; ncells = 43 in Sham, 50 in HF; *=P < 0.05 vs Sham).

https://doi.org/10.7554/eLife.39427.007
Figure 4 with 1 supplement
CRU dispersion provides the structural basis for silent RyR leak in HF.

A mathematical model of the dyad was employed to examine the effects of CRU dispersion on Ca2+ sparks and non-spark mediated RyR leak. (A). As dSTORM imaging indicated an increased fraction of small CRUs in HF (Figure 2C), small idealized CRUs were initially modelled with as few as 4 RyRs. Simulated Ca2+ sparks (300 consecutive simulations) were never detected for the smallest CRUs, based on an experimentally determined spark detection threshold of ΔF/F0 = 0.4. Higher probability of visible spark generation (fidelity) was observed for larger CRUs. (B). Real CRU geometries obtained by dSTORM imaging were employed to simulate sparks from larger dyads. Four configurations were modelled with varying numbers of constituent RyR clusters, but similar total RyR number (≈55). While the single-cluster CRU exhibited high Ca2+ spark fidelity, lower probability of spark generation was observed in dispersed, multi-cluster CRUs (fidelity indicated by colour scale). These data support that CRU rearrangement during HF promotes silent RyR leak, due to an increased fraction of both small CRUs as well as larger CRUs with dispersed, irregular configurations.

https://doi.org/10.7554/eLife.39427.008
Figure 4—source data 1

Morphological characteristics for the 4 dSTORM-generated geometries.

https://doi.org/10.7554/eLife.39427.010
Figure 4—figure supplement 1

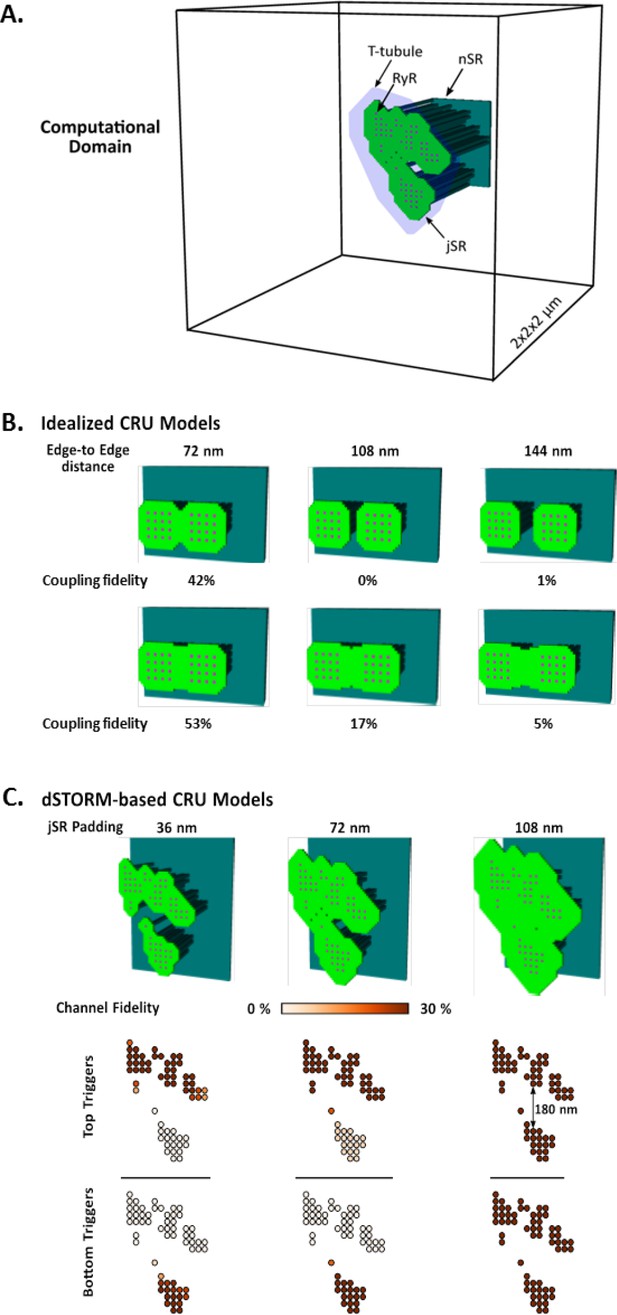

Development and characterization of the mathematical dyadic model.

(A) Graphical representation of the computational domain of the model. The junctional SR (jSR) was shaped to encompass idealized RyR geometries or dSTORM-based CRU contours. (B) To understand the role of the jSR geometry in determining the maximum inter-cluster distance permissive of functional coupling, and thus CRU definition, we spread two square 16-RyR clusters at variable distances up to 144 nm edge-to-edge (i.e. 4 RyR lengths). Coupling could occur at distances up to ~ 150 nm but only when the jSR was contiguous between clusters. (C) Similar effects could be observed in the realistic 7-cluster geometry, where a fully contiguous jSR was sufficient to functionally couple clusters at distances between 100 and 150 nm.

https://doi.org/10.7554/eLife.39427.009
Ca2+ spark kinetics are slowed in HF.

(A) Representative line-scan images of Ca2+ sparks in Sham and HF, selected from the cell-wide scans presented in Figure 3E. Temporal profiles (right panels) show that spark kinetics were generally tightly constrained in Sham, with low values for both time to peak (TTP) and duration (full duration at half maximum, FDHM). Although many sparks were also brief in HF cells, a subset of sparks exhibited slowed kinetics. (B) Distributions of measurements for TTP and FDHM were right-shifted in HF, and mean values were significantly increased. Spark magnitudes tended to be larger in HF than Sham. (nsparks = 130, 100 from 75, 72 cells in Sham, HF; *=P < 0.05 vs Sham).

https://doi.org/10.7554/eLife.39427.011
Figure 6 with 1 supplement
RyR dispersion during HF results in slowing of Ca2+ sparks.

To examine whether altered CRU morphology could slow Ca2+ spark kinetics in HF, spark profiles were simulated for a variety of dSTORM-derived RyR configurations. (A) Sparks were triggered by opening a single RyR (circled) which was randomly placed in consecutive simulations (example RyR opening trajectories are shown in the upper panels, with a family of spark time-courses illustrated below). Time to opening was registered for each RyR in the CRU, and the resultant time course of the Ca2+ spark was plotted until the final RyR closure, at which point the simulation was stopped for computational efficiency. Opening times were similar for individual RyRs within a solid, single cluster CRU, and the overall temporal profile of elicited sparks showed rapid kinetics which were rather consistent between consecutive simulations. By contrast, delayed and variable opening times were observed for individual RyRs in multi-cluster CRUs. This resulted in variable and slowed Ca2+ spark kinetics with these CRU configurations, as indicated by temporal spark profiles (A), a right-shifted distribution of time-to-peak measurements (B) and mean data (C). (*=P < 0.05 vs single-cluster CRU).

https://doi.org/10.7554/eLife.39427.012
Figure 6—source data 1

CRU size has little effect on Ca2+spark characteristics in the reported range.

Clusters smaller than 15 – 20 RyR exhibit early spark termination due to stochastic attrition, whereas larger clusters are more capable of supporting regenerative release, for which spark termination becomes relatively consistent in time and dependent on depletion of the releasable Ca2+ store. The simulations were started with all RyRs in the open state and allowed to proceed stochastically. For each RyR number, 50 simulations were performed. The plot shows the mean time from the start of the simulation until all RyRs close. Error bars are standard deviations.

https://doi.org/10.7554/eLife.39427.014
Figure 6—figure supplement 1

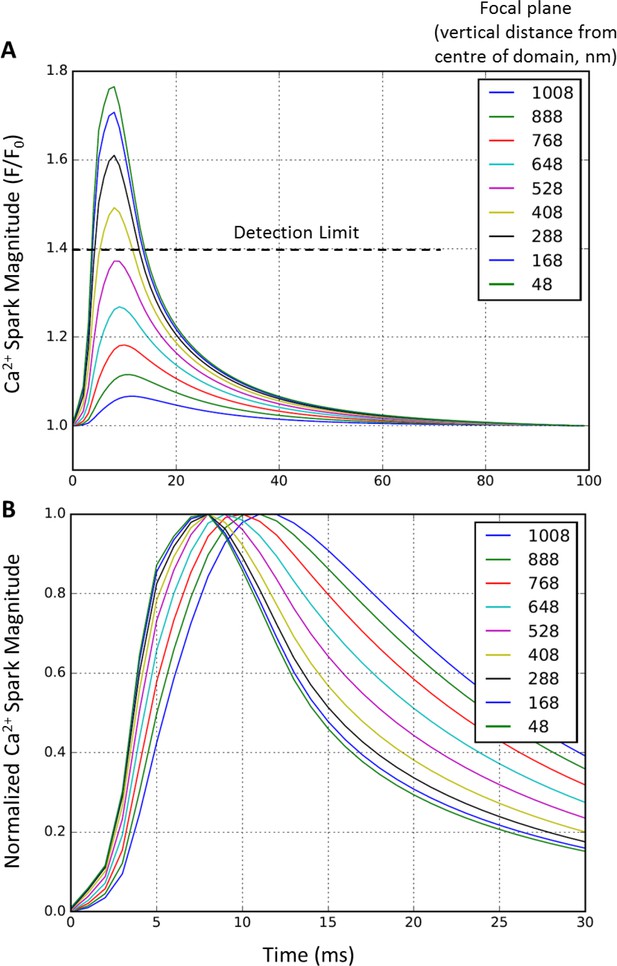

Effect of focal plane on Ca2+ spark detection and kinetics.

To examine whether out-of-focus Ca2+ release events could artefactually alter assessment of Ca2+ spark parameters, simulated Ca2+ release profiles were compared in ‘linescans’ collected at various depths of the 2 × 2 µm computational domain (54 RyR single cluster model). Vertical, stepwise displacement from the central plane resulted in a rapid decrease in measured spark amplitude (A). Indeed, events > 0.5 µm displaced from the focal plan were undetectable. While displacement of the focal plane also slowed apparent Ca2+ spark kinetics, such effects were negligible within the range where sparks were detectable (B).

https://doi.org/10.7554/eLife.39427.013
Figure 7 with 1 supplement
Slow Ca2+ sparks promote slow, desynchronized Ca2+ transients in HF.

(A) Representative confocal linescan images of Ca2+ transients in field-stimulated cells (stimulus illustrated as a horizontal line). The overall Ca2+ transient was slowed in HF compared to Sham, as indicated by plots of spatially-averaged Ca2+ transients ((A), right panel), and measurements of half rise time (TTF50, (B)) and time to peak (C). Slowed Ca2+ transient kinetics included de-synchronization of Ca2+ release across HF cells, as indicated by profiles of local TTF50 (lower panels in A). The standard deviation of these values, defined as the dyssynchrony index (Louch et al., 2006), showed a right-shifted distribution in HF compared to Sham (D). To examine the relationship between slowed Ca2+ spark kinetics and de-synchronized Ca2+ transients in HF, local Ca2+ transients were examined within 2 µm regions of the linescan centered at the location of recorded sparks. Paired representative recordings of sparks and local Ca2+ transients are shown in (E and F), respectively, corresponding to indicated positions in A) (vertical arrows). Local Ca2+ release at ‘slow’ spark locations (rise time > 13 ms) was protracted during the action potential, in comparison with local transients with ‘fast’ sparks in both HF and Sham (F). This association is demonstrated by clustering of locations with slow Ca2+ spark and local transient kinetics in ‘heat maps’ (G), and links slowing of Ca2+ release kinetics at the level of the single CRU and whole cell. (Ca2+ transients: ncells = 43 in Sham, 57 in HF; nfast sparks= 18 in Sham, 19 in HF; nslow sparks= 18 in HF; *=P < 0.05 vs Sham).

https://doi.org/10.7554/eLife.39427.015
Figure 7—figure supplement 1
T-tubule structure is disrupted during HF.

Isolated cardiomyocytes were stained with di-8-ANEPPS and examined by confocal microscopy (A). Zoomed regions enlarged in (B). In agreement with previous work employing the same post-infarction rat model (Frisk et al., 2016), we observed marked remodeling of t-tubular structure in HF. Skeletonized images (C, D) indicate that this reorganization included a loss of transverse t-tubule elements (colored white) and the appearance of additional longitudinal tubules running in the axial, perpendicular orientation (colored red). Scale bar = 5 µm.

https://doi.org/10.7554/eLife.39427.016

Tables

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Strain, strain background
(Rattus norvegicus, M)
Male Wistar-
Hannover rats
Janvier-labsRjHan: WI;
RGD: 13792727
AntibodyMouse-anti-RyR2
primary antibody
ThermoFischer
Scientific
Cat# MA3-916;
RRID:AB_2183054
IHC, 1:100;
WB, 1:1000
AntibodyAlexa Fluo 647
conjugated
goat-anti-mouse secondary Ab
Molecular
Probes/Invitrogen
Cat# A-21237;
RRID:AB_2535806
IHC, 1:200
AntibodyAnti-goat IgG-HRP
linked whole antibody
R and D SystemsCat# HAF109;
RRID:AB_357236
WB, 1:3000
AntibodyMouse IgG HRP
linked Whole Ab
GE HealthcareCat# NA931V;
RRID:AB_772210
WB, 1:3000
AntibodyRabbit IgG HRP
linked Whole Ab
GE HealthcareCat# NA934V;
RRID: AB_772206
WB, 1:3000
AntibodyGoat Anti-GAPDH
Polyclonal antibody
Santa Cruz
Biotechnology
Cat# sc-20357;
RRID:AB_641107
WB, 1:500
AntibodyGoat Anti-
Junctophilin-2
Polyclonal Antibody
Santa Cruz
Biotechnology
Cat# sc-51313;
RRID:AB_2296391
WB, 1:1000
AntibodyBIN1
(Amphiphysin
II (2F11)
Antibody)
Santa Cruz
Biotechnology
Cat# sc-23918;
RRID:AB_667901
WB, 1:500
Software,
algorithm
Dense Stochastic
Sampling Imaging
(DSSI) algorithm
SoftWoRx,
GE Healthcare
Software,
algorithm
dSTORM image
post-processing
algorithm
PMID: 26490742Described in the
Github repository
(Kolstad, 2018; copy archived at https://github.com/elifesciences-publications/Ryanodine_Receptor_Dispersion_during_Heart_Failure)
Software,
algorithm
Mathematical
Model
PMID: 22495592;
PMID: 23708355;
this paper
Described in the
Github repository
(Kolstad, 2018; copy archived at https://github.com/elifesciences-publications/Ryanodine_Receptor_Dispersion_during_Heart_Failure)
Software,
algorithm
SigmaPlotSigmaPlotRRID:SCR_003210

Data availability

Source data files have been provided for Figures 2, 4 and 6. All raw data acquired and analyzed in this study are publicly available in the following repository: https://github.com/TerjePrivate/Ryanodine_Receptor_Dispersion_during_Heart_Failure (copy archived at https://github.com/elifesciences-publications/Ryanodine_Receptor_Dispersion_during_Heart_Failure).
