Meta-Research: Incidences of problematic cell lines are lower in papers that use RRIDs to identify cell lines

  1. Zeljana Babic
  2. Amanda Capes-Davis
  3. Maryann E Martone
  4. Amos Bairoch
  5. I Burak Ozyurt
  6. Thomas H Gillespie
  7. Anita E Bandrowski  Is a corresponding author
  1. University of California, San Diego, United States
  2. University of Sydney, Australia
  3. University of California, United States
  4. SciCrunch Inc, United States
  5. Swiss Institute of Bioinformatics, Switzerland
  6. University of Geneva, Switzerland

Abstract

The use of misidentified and contaminated cell lines continues to be a problem in biomedical research. Research Resource Identifiers (RRIDs) should reduce the prevalence of misidentified and contaminated cell lines in the literature by alerting researchers to cell lines that are on the list of problematic cell lines, which is maintained by the International Cell Line Authentication Committee (ICLAC) and the Cellosaurus database. To test this assertion, we text-mined the methods sections of about two million papers in PubMed Central, identifying 305,161 unique cell-line names in 150,459 articles. We estimate that 8.6% of these cell lines were on the list of problematic cell lines, whereas only 3.3% of the cell lines in the 634 papers that included RRIDs were on the problematic list. This suggests that the use of RRIDs is associated with a lower reported use of problematic cell lines.

https://doi.org/10.7554/eLife.41676.001

Introduction

Cell lines are widely used in the biological sciences, partly because they are able to multiply indefinitely. This property means that scientists can, in theory, exactly replicate previous studies and then build on these results (American Type Culture Collection Standards Development Organization Workgroup ASN-0002, 2010). However, mislabeling or mishandling can result in misidentification, contamination or distribution of problematic cell lines which, in turn, can affect the validity of research data. Despite this, testing for contamination and misidentification is commonly not performed and, therefore, a laboratory could obtain contaminated cell lines and spend significant resources pursuing research based on faulty premises (Drexler et al., 2017). A particular problem is the contamination of a cell line by a cancer cell line such as HeLa (Capes-Davis et al., 2010) because cancer cells tend to grow more rapidly than normal cells.

In 2012, a group of scientists established an organization called the International Cell Line Authentication Committee (ICLAC) to create a register of contaminated and misidentified cell lines, increase awareness of the problem, and propose approaches to decrease the use of such cell lines (Masters, 2012). ICLAC and other expert groups (such as the American Type Culture Collections: ATCC) propose that one of the most practical ways to detect contamination is to make use of a DNA-based technique called short-tandem-repeat profiling to authenticate human cell lines (American Type Culture Collection Standards Development Organization Workgroup ASN-0002, 2010). Additionally, the Cellosaurus database, housed at the Swiss Institute of Bioinformatics, contains extensive information on more than 100,000 cell lines (Bairoch, 2018), including information about cell line misidentification and other problems (such as incorrect tissue origin, which is not detected by short-tandem-repeat profiling).

Despite the availability of the ICLAC register, the overall rate of misidentified cell line use has not fallen across the literature (Horbach and Halffman, 2017). It has been shown that publishers checking the manuscript during submission for misidentified cell lines can eliminate their use, although such a process requires significant time and cost (Fusenig et al., 2017). We believe that the continued use of misidentified cell lines in published studies is due, in part, to researchers not checking the lists of misidentified cell lines consistently.

Research Resource Identifiers (RRIDs) are unique identifiers that can be included in the methods section of a research paper to define the cell line, antibody, transgenic organism or software used (Bandrowski et al., 2016; Bandrowski and Martone, 2016). These identifiers were introduced largely because antibodies are a known source of variation in experiments, yet researchers did not include enough metadata to identify which antibody they used (Vasilevsky et al., 2013). RRIDs are slowly becoming more common in the literature, especially in some disciplines such as neuroscience. They are issued by the naming authority for a particular type of resource (for example, stock centers and model-organism databases issue RRIDs for organisms; Cellosaurus issues RRIDs for cell lines; the antibody registry issues RRIDs for antibodies; and the SciCrunch registry issues RRIDs for software and other digital resources).

RRIDs for cell lines were first incorporated into the RRID portal in 2016, and journals often require researchers to look up each antibody, animal or cell line on this website (which is synchronized with the Cellosaurus database, and therefore contains information about cell line contamination or misidentification). This requirement creates a natural experiment to address the question: if researchers are alerted about the misidentification of a cell line before they publish, will they still report data from such a cell line?

Results

In this study, we used text mining to identify papers that included RRIDs and papers that listed cell lines, and then compared the prevalence of misidentified cell lines in these two samples. It should be stressed that the use of cell lines on the problematic list does not automatically mean that a given cell line is being employed improperly. For example, the problematic list includes cases where a cell line is ‘partially contaminated’, which does not affect cells purchased from, say, a stock center. The list also includes cell lines that have been labeled with the wrong type of cancer, but these may still be safely used if the researchers know the true identity of the line. We must, therefore, exercise caution when interpreting these results. More information about the problematic list please is given in the discussion section and Supplementary file 2.

Text mining corpus

To derive a dataset of reported cell lines from the general literature, we used text mining of the PubMed Central open access subset. This task requires the use of natural language processing, as cell-line names are not unique strings. For example, looking for a set of characters, such as ‘H2’, may reveal papers where H2 denotes a cell line, gene, protein, antibody or a figure. We used the SciScore tool, a ‘Named Entity Recognition-based algorithm’ specialized for scientific resources, which can in principle recognize the H2 cell line and can ignore its mentions referring to something other than a cell line.

The algorithm was taught to consider features around the recognized term that are associated with cell lines. SciScore was trained using 1,457 annotations made by a curator as well as a complete list of cell lines and synonyms from Cellosaurus as a set of seed data. We split the data into 90% training, and 10% testing of random sets ten times, and obtained an average precision of 87.3% (+/- sd 4.65%), recall 61.9% (+/-sd 7.01%) with an overall F1 mean of 72.2% (+/- sd 5.39%).

This algorithm was then deployed on the ~2 million articles in the open access subset of PubMed Central. It recognized 305,161 unique cell-line names from a total of 150,459 unique articles (Figure 1), which we treated as our population of cell lines that was considered for further analysis. These data were then provided to Cellosaurus curators, allowing them to create entries for 22 cell lines that had been so far overlooked, and to add 18 synonyms and eight misspellings for existing entries, making Cellosaurus a more complete resource.

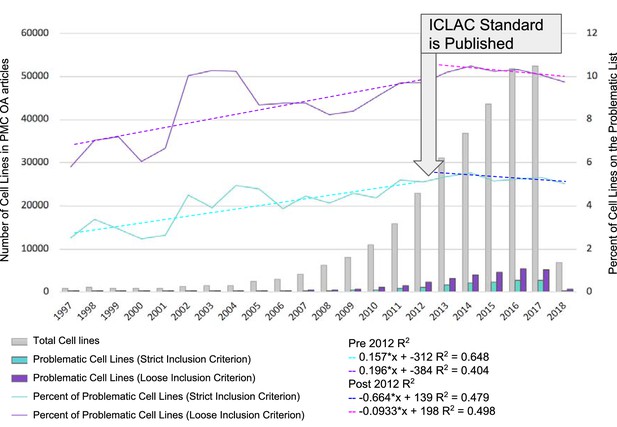

Identification of misidentified cell lines.

The number of cell lines used in PubMed Central articles available for text mining is shown as a function of year. The names of cell lines were matched using two criteria, strict and loose. The strict criterion constitutes an exact match where the name used by the researchers and detected by SciScore is on the list of ICLAC register of misidentified cell lines. The loose criterion was calculated by adding a wild-card character (*) to the end of all names found by SciScore, and matching the names and synonyms on the ICLAC list. The graph is divided into two sections: before and after 2012. 2012 was chosen as the year to break the graph because the publication of the authentication standard and the formation of ICLAC occurred that year (Masters, 2012).

https://doi.org/10.7554/eLife.41676.002

As cell-line names are not standardized in most papers, we used three different approaches to estimate the percentage of problematic cell lines in the general literature. First, to obtain a lower boundary, we determined whether the cell line name, as stated by the researcher, matched exactly a name or synonym of a problematic cell line in Cellosaurus, as this is the most stringent criterion (Supplementary file 2).

To determine an upper boundary, we used the cell line name and a wild-card character, so HeLa became HeLa*. In this loose condition, if researchers were to report "CF-1 mouse embryonic fibroblasts", which was recognized as the entity by SciScore, then the loose criterion would match this to CF-1. However, under the strict criterion, those would be considered different.

The edit distance was also employed to come up with another estimate intermediate between the two. In this condition, an edit distance of 0 was set when the letters and numbers of the cell line matched exactly, and the hyphens, spaces and other special characters were omitted. If a researcher uses CF1 or CF-1, for example, the edit distance metric would consider these the same cell line. However, the "CF-10", "CAF-1" or "CF-1 mouse embryonic fibroblasts" would be an edit distance of more than 0, and therefore, would not match.

We first considered the reporting of problematic cell lines as a function of the publication year (Figure 1). We did not take into account data prior to 1997, since there were very few papers in the open access PubMed Central corpus that contained cell lines (<25 per year) (See Figure 1—source data 1 for data including years prior to 1997). We split the data from 1997 to 2012 and 2013 to 2018, as the consensus recommendations for authentication of human cell lines were published in 2012 (ATCC, 2011; Masters, 2012).

Awareness of misidentified cell lines and authentication testing also received a boost with the establishment of the ICLAC in 2012. Ever since, the ICLAC has been providing a focus for change. Thus, although there is certainly a long history of reporting of cell line problems, 2012 can be viewed as the seminal breakpoint. Both the strict and loose criteria were considered as a function of year as the lower and upper bounds of contamination rates, and the R2 calculation was used to assess whether there is a trend in the percentage of problematic cell lines used by year. From 1997 to 2012, the percent of reported cell lines on the problematic list appears to be increasing, although the R2 shows a rather weak correlation (0.648 strict criterion or 0.404 loose criterion). In the period between 2013 and 2018, the slope is reversed, although still a rather weak correlation (0.479 strict and 0.498 loose), suggesting that there may indeed be a trend to decrease the use of problematic cell lines.

To assess the number of studies that used problematic cell lines, we asked what percentage of papers contain one or more cell lines where the name detected by SciScore matches a cell line on the problematic list. For this and all subsequent analyses, we used the edit distance criterion, as it is the measure between the strict and loose criteria and therefore a reasonable compromise. The number of cell lines that could be found on the problematic list was 8.7% (26,418 out of 305,161) of total cell lines, corresponding to 16.1% of papers (Figure 2).

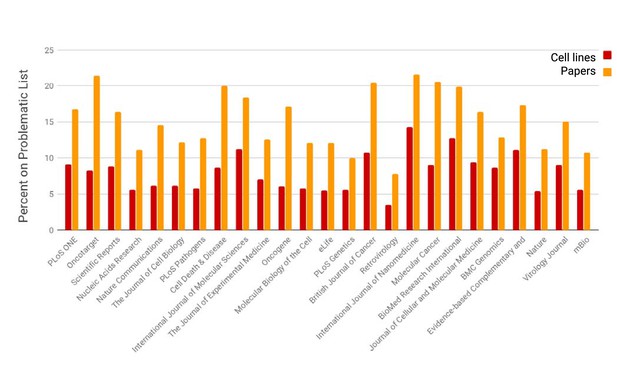

The prevalence of open access papers containing one or more cell lines found on the problematic list.

Journals are sorted from left to right by the number of cell lines detected by SciScore (only the top 25 journals are shown for presentation purposes; data for all journals is given in Figure 2—source data 1). Each bar represents the percent of cell lines (red) or papers (orange) that are on the problematic cell-line list. Cell line presence on the misidentified list is scored by the edit distance metric, which skips all special characters such as spaces and dashes and assumes that any string that contains the same letters and numbers is an edit distance of 0 (e.g., EF 1 = EF-1). Journals that published papers under a license not allowing text mining are not represented here.

https://doi.org/10.7554/eLife.41676.004
Figure 2—source data 1

Data on problematic cell lines for all journals.

https://doi.org/10.7554/eLife.41676.005

The smallest number of cell lines on the problematic list is found in virology and botany related journals, while the largest is in cancer journals. This general observation is consistent with the identity of the problematic list, which has a high proportion of human cancer cell lines. Because of this composition and the aggressive growth of cancer cell lines taking over other cell lines, we expect that cell lines used in cancer journals would be over-represented, while cell lines from model organism would be underrepresented.

To determine the quality of SciScore annotations beyond the training set, we used a single journal, Scientific Reports, that is fully open access (to be read and to be accessed by algorithms). Furthermore, it has a relatively large number of cell line papers as a percentage of the total papers published. To address the issue of false positives and false negatives, we created a manual set of 1,000 papers by first retrieving the subset of Scientific Reports papers via PubMed that span the time frame covered by SciScore, and then selecting every 65th paper, for a total of 1,004 papers. One paper was rejected from the analysis because it was an erratum, leaving 1,003 papers. This method, while not completely random, does sample papers without assuming that the paper will have cell lines. Every methods section was read, and the curator noted the presence or absence of cell lines.

Of the 1,003 papers, both the curator and SciScore did not find any cell lines in 815 papers, but identified cell lines in 138. In total, there was agreement between the algorithm and curator in 953 out of 1003 papers, or 95.01% agreement. Therefore, we did not seek to tune parameters further for SciScore. We assumed that if both curator and SciScore agree about the presence of cell lines in the paper, then the answer is correct and did not look more deeply into these data. We examined the 50 papers with a disagreement to determine whether the algorithm or the curator were incorrect in each case. The curator found 33 papers, which were not found by SciScore, while SciScore found 17 papers that the curator did not.

To look at the false positive rate for SciScore, we examined more closely the 17 papers identified by SciScore but not the curator (Figure 3). Of these, the curator was incorrect in 11 out of the 17 cases where SciScore correctly identified a cell line in the paper. For the six cases that were real false positives, the breakdown is as follows: one X-ray crystallography parameter, two reagents, two bacterial strains, and one plant cell line. Thus, the false positive rate was 4% (6/138). The false negatives, or 33 papers that were found by the curator, contained 14 curator errors and 19 legitimate cell lines (Supplementary file 3). The overall accuracy of the curator in a cell-line finding task in 1003 papers was: 11 and 14 mistakes out of 1,003, while the algorithm accuracy on the same task was: 6 and 19 mistakes out of 1,003 papers.

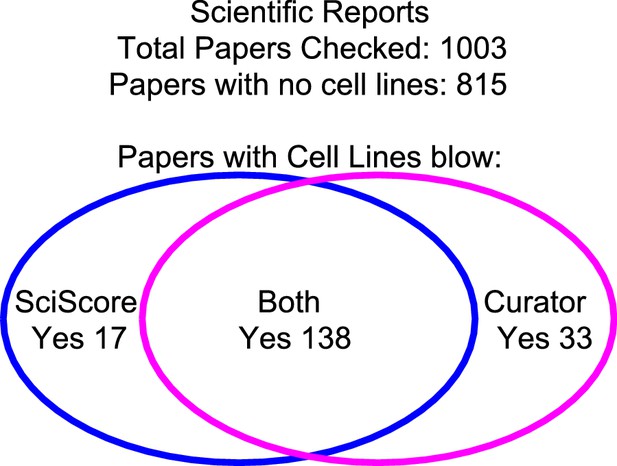

The integrity of SciScore for finding papers with cell lines.

A manual review of 1,003 papers from the journal Scientific Reports showed a 95% agreement between the curator and the SciScore algorithm. Both the curator and SciScore detected a cell line in 138 articles, and no cell line in 822. Of 1,003 papers, 50 represent a disagreement (false positives and false negatives).

https://doi.org/10.7554/eLife.41676.006

Cell lines identified by RRID

Researchers that publish using the RRID syntax must look up the RRID in a central database (Figure 4). This database carries a set of warning messages including the ICLAC warning, echoing the language from Cellosaurus.

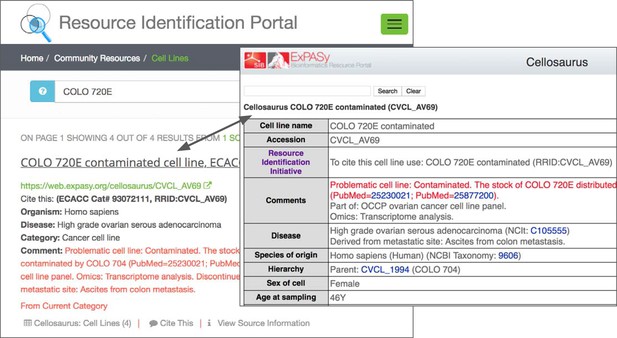

The warning message on the RRID portal and the Cellosaurus database present a misidentified cell line, COLO 720E.

However, this warning does not originate at either the Cellosaurus (the naming resource for problematic cell lines) or the RRID sites; it simply reflects the information available at ICLAC.org. ICLAC members examine publications and test data to reach a conclusion, and then disseminate this on their website via a spreadsheet available to everyone for download. The Cellosaurus database picks up these data, working closely with ICLAC, and updates their entries. The data are then passed to the RRID portal, where it is displayed for researchers searching for cell lines, among other resources. Cellosaurus and the RRID portal strive to make all new data available as quickly as possible.

https://doi.org/10.7554/eLife.41676.008

We assessed the number of cell lines that were identified by researchers using the RRID syntax, by examining all papers from 2016 to 2017 that contain the term "RRID". Each RRID containing paper was annotated by SciBot, as described in the methods (Figure 5). SciBot and/or the curator found and verified 1,554 RRIDs that marked cell lines in 686 papers, 635 of which were associated with a PMID (the unique identifier number used in PubMed). In the list of RRID records, we included those in which the syntax used (e.g., an extra underline or comma) was incorrect, but where the identifier was correct. However, we did not include records where RRIDs were supplied by the curator and not the researcher. We further trimmed the 1,554 records if the paper was not associated with a PubMed identifier, leaving 1,502 cell lines where researchers used the RRID syntax, published between the year 2016 and 2018.

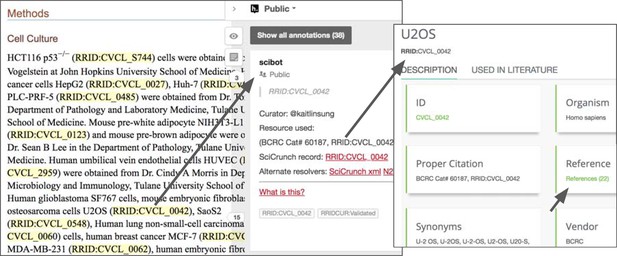

An example of a public annotation using the hypothes.is platform.

Note, all data made in the public channel, such as RRID resolution data, are ported daily to the CrossRef Event database for developers, providing additional ways of making these data FAIR (that is, findable, accessible, interoperable and reusable). Information about this cell line is accessible to readers with one click, including papers that use the cell line and original reference. For journals like eLife, which typeset the RRIDs with live links, hypothesis is not necessary to access the information about cell lines. Based on the paper Liao et al., 2017 using the hypothes.is platform.

https://doi.org/10.7554/eLife.41676.009

The number of cell lines identified by RRIDs that matched the list of problematic cell lines obtained from Cellosaurus was 50 out of the 1,502 total cell lines, or 3.3% (Figure 6). This 3.3% is significantly lower than 8.7% obtained by the edit distance criterion for all papers (population proportion z test, p<0.00001, z=7.3353). Furthermore, it is also significantly lower than the strict match criterion shown in Figure 1 (total cell lines 305,130; total strict matches 15,615; or 5.12%; p<0.001, z=3.1406). Limiting the range of dates for the strict criterion to 2016, 2017, and 2018 did not change the average percent of cell lines on the problematic list (total cell lines detected between 2016-18: 110,997; strict problematic: 5,830; 5.25%; p<0.001, z=3.327).

Percentages of papers with cell lines found on the problematic list.

The "auto.detect.cell" lines data come from the edit distance metric, same as Figure 2; n=305,161; the RRID cell lines are based on 1,502 cell lines. The "auto.detect" papers percentage is based on n=150,459 unique papers, where the problematic cell-line list is detected based on the edit distance metric. The RRID papers percentage is based on n=634 papers.

https://doi.org/10.7554/eLife.41676.010
Figure 6—source data 1

Data on number of misidentified cell lines per year.

https://doi.org/10.7554/eLife.41676.011

The edit distance, total strict, and the 2016-2018 strict numbers, all are greater than 3.3% at the p<0.01 significance level. This percentage is also lower than that calculated for any of the individual journals in the top 100 journals (Figure 6—source data 1) except 4, including Frontiers in Plant Science (5 cell lines on the problematic list of 399 detected cell lines), Breast Cancer Research: BCR (8 of 423), Nature Structural and Molecular Biology (14 of 253), Cell Reports (12 of 386), and Nature Chemical Biology (17 of 523). These journals may have higher editorial oversight or may predominantly use cell lines that are not listed on the problematic list. This may be especially true for Frontiers in Plant Sciences and Nature Chemical Biology because Cellosaurus and the ICLAC list is skewed toward human cancer cell lines, since the original problem addressed by ICLAC centers on human cancer cell lines.

Considerations in comparing RRID and open access subsets of literature

PubMed Central currently contains roughly four million papers, and about two million of those are available under a ‘text mining is allowed’ license. Papers that contain RRIDs are under many different licenses, and only some are available for text mining, so we need to be careful in our comparisons of the RRID literature and the text-minable literature, because these are partially overlapping, but different subsets of the total literature.

We considered if there was a difference in the percentage of cell lines on the problematic list, as we were sampling two different populations of journals. Some journals have higher, and some journals have lower numbers of papers using cell lines on the problematic list (Figure 2). We tested the possibility that journals that participate in the RRID initiative have lower rates of use of cells on the problematic list by calculating the weighted average of the journals that have RRID papers and their rate of cell lines present on the problematic list (Figure 6—source data 1).

The rate of contamination was gathered from the data underlying Figure 3 (Figure 3—source data 1). Briefly, the edit distance metric is used to match whether the cell line matches a cell line on the problematic list and the data are provided as percentages by journal. Eighty-eight journals contained cell line RRIDs and eight of these journals and a total of 37 papers did not have matching data in the open access set. The latter include 30 papers from The Journal of Neuroscience and seven papers from various journals that are not open to text mining.

We used a weighted average to determine what the rate of possible cell line contamination for each journal and found that the average was 17.1%, a value slightly larger than the overall average of 16.1%. Therefore, we do not believe that the journals using RRIDs are simply better than others in terms of cell line authentication. In fact, inclusion of an RRID is a more likely due to an intervention than a journal policy that reduces the overall use of cell lines on the problematic list.

However, the presence of a cell line on the misidentified list in a paper does not mean that the statements or conclusions of the paper are questionable. In fact, many of the cell lines that are on the problematic list are explained by a mix up between cells originating from patients suffering from the same disease as the patient who was supposed to be the donor of the contaminated cell line, which is not something that should impact the conclusions of a study. Indeed, researchers may knowingly use a hepatocarcinoma cell line even if it may have been mislabeled as a hepatoblastoma, because their experiment calls for a hepatocarcinoma cell.

Moreover, sometimes, it may not be necessary to know the exact origin of the cell line as their experiment simply calls for mammalian cells, especially when a cell line is only used as a vector for (over)expressing a specific gene. While it is not practical to look at thousands of papers to determine if the researchers knew that they were working with a misidentified cell line, it was practical to look at the 50 cell lines used in the RRID literature because presumably, they should have been alerted of a potential problem with their cell line.

Here, we found that one out of the of 50 cell lines on the list where an RRID was included by the researchers was a typo – they clearly used an uncontaminated cell line, but transposed the Cellosaurus number incorrectly. But 13 carry the ‘partially contaminated’ label, because the SH-SY5Y cell line (RRID:CVCL_0019) was contaminated in a laboratory separate to the originating laboratory, and several other laboratories who obtained the cell line used the contaminated version.

Of these 13 papers, 11 clearly state that the cell line was obtained directly from a stock center such as ATCC, which contains an authentic version of the cell line. Ten papers used the U-87MG ATCC cell line (RRID:CVCL_0022) originally published as a glioblastoma cell line established in 1968 at the University of Uppsala, but this cell line is most likely a glioblastoma cell line of unknown origin. Therefore, as far as we can tell there is no cause for concern in these studies.

The cell line Hep-G2 was used in 11 papers. Hep-G2 was originally thought to be a hepatocellular carcinoma cell line, but they are now confirmed to be hepatoblastoma cells. In these papers, four papers assert they used a hepatocellular carcinoma cell, while the other seven used more generic terminology, such as "liver cancer cell line", suggesting that the cell line origin was relatively irrelevant to the conclusions.

The remaining cell lines break down into many classes, and in roughly half of the cases, the researchers seem to be using terminology consistent with the true identity of the cell. In the other half, they refer to the cell line as the original, now known to be an untrue cell line (see Supplementary file 4 for a detailed account). Overall, only about 10 of the cell lines warrant a more in-depth look to see whether they affected the conclusions of the paper.

Discussion

Despite high-profile articles detailing the problem with cell contamination and misidentification, papers using cell lines on the ICLAC register of misidentified cell lines continue to be published (Horbach and Halffman, 2017). Scientists do not yet routinely use short-tandem-repeat profiling to test for contamination. Such practices are one reason why in 2015, the National Institutes of Health (NIH) adopted stricter guidelines for authenticating key biological reagents, including cell lines (NIH, 2015). In this study, we presented data suggesting that the efforts of ICLAC to make information about misidentified cell lines more easily accessible, appear to be having an effect on the trajectory of the use of misidentified cell lines. Moreover, adding RRID syntax into an unpublished manuscript and forcing researchers to look at the database record for that cell line, is correlated with a decrease in the reporting of problematic cell lines.

It is also linked to less reports of the use of problematic cell lines in our sample of over 1,500 cell lines from over 600 papers. The RRID portal, to which researchers are directed by their journal, carries a warning message for all problematic cell lines, which we recently turned red to make it more obvious (Figure 4). To obtain the RRID, scientists can look at this entry either on the RRID portal or on the Cellosaurus portal, both of which show the same warning about the cell line. It stands to reason that researchers, who see this warning are likely to consider the implications for their study and act in good faith. However, it is also possible that they may simply copy the RRID from another paper, and therefore, would not see the warning. While we are unable to determine what percentage finds their RRIDs this way, we consider it an important problem.

Our assessment of the problematic cell-line use is based on whether the culture shows up on the ICLAC register of misidentified cell lines or as problematic on the Cellosaurus database. Although the ICLAC list can alert researchers to the true identity of a cell line, it cannot provide a value judgment regarding the use of that cell line in their study. Scientists may use a cell line that was once thought to be a hepatoblastoma, but is now known to be a hepatocarcinoma in an experiment to test hepatocarcinoma cells, i.e., the proper use of this cell line, or they may discuss the cell line as a hepatoblastoma, the wrong use. They may also be testing a general property of cancer cell lines and the conclusions are not affected by the specific subtype of cancer, and just refer to them as "liver cells". Therefore, the current estimates for the use of problematic cell lines are not a definitive statement that 8.6% of cell lines from 16.1% of papers are in need of being reviewed, as many of these may be using the cell lines properly. However, this estimate is better than previous attempts based on literature search strategies.

The frequency of misidentified cell lines in the research community depends on its source and whether it has been authenticated; cell lines from primary sources (originator or reference repository) are less likely to be misidentified compared to secondary sources (Drexler et al., 2017). Estimates of misidentified cell lines in the research community vary from around 10% (Liang-Chu et al., 2015) to close to 50% (Schweppe et al., 2008; Huang et al., 2017). It has been suggested that tens of thousands of cell line papers should be revisited as a result of the likely use of misidentified cell lines (Neimark, 2015; Zhao et al., 2011; Masters, 2012). Estimates of affected publications are largely based on search strategies using PubMed or PubMed Central (Vaughan et al., 2017; Horbach and Halffman, 2017). The number of total papers is so large that looking at each case manually would be a daunting task.

However, while search strategies are a great way to help identify papers that use misidentified cell lines, they have several limitations. Many names, especially those for the oldest and thus most established experimental cell lines, are short (e.g., "KB"), use generic words (e.g., "Chang liver"), or are provided in abbreviated form. It can be difficult to know if the name is referring to a gene or a part of a figure as opposed to a cell line. Here, we describe our use of text mining to look for sentences in the methods sections of open access papers that describe cell lines, based on sentence patterns and text features around the cell line name.

Our approach for finding cell lines using automated detection in the PubMed Central corpus has significant limitations. Importantly, an uneven number of papers per year, including a partial year (2018), is likely to affect the accuracy of counts, especially in the older literature, where there are simply fewer papers per year. We report data as a percentage of total, yet this decision in a sense, hides the fact that the numbers of papers per year is different. Indeed, we see a larger variability year to year in early years as opposed to later years (Figure 1).

Older papers – especially those before the year 2000 – which were entered into PubMed Central in a more one-off or manual manner from years prior to the creation of this data base, may be subject to more errors than current papers that are processed at the publishers and sent as structured data. We have no good estimate about the proportion of errors in newer or older literature. While issues with character recognition would presumably creep into the subset of manually handled papers more frequently, SciScore should still recognize the word as a cell line, regardless of whether the word matches a particular cell line name. However, if a character error creeps into the cell line name, it would be less likely to match a problematic cell line, given our fairly stringent criteria for problematic cell line identification.

Our understanding of cell lines continues to change, and this must be taken into consideration alongside the RRID. Inclusion in the ICLAC register of misidentified cell lines is based on published data, available samples, and existing test methods. New data may lead to cell lines being added or removed from the register, based on a discovery of authentic material or a new finding of misidentification. Similarly, information on problematic cell lines in Cellosaurus is based on available evidence and may change over time. Because RRIDs make it possible to search easily for papers that mention a particular cell line, it may be possible to use literature annotation tools like Hypothes.is to provide updated information on a published paper when new information becomes available.

It is important to review the evidence on which these findings are based and make a considered judgment regarding their impact on published work. Cell line resources, such as Cellosaurus and the ICLAC register of misidentified cell lines, have been developed to improve awareness of cell line information. The inclusion of RRIDs will result in improved use of these resources and better reporting of cell lines and other research materials in publications.

Methods

Text mining for cell line mentions in the open access subset of PubMed Central

Request a detailed protocol

To extract mentions of cell lines in papers, we utilized SciScore, under development by SciCrunch Inc (RRID:SCR_016251). SciScore is a text analysis tool suite that uses Named Entity Recognition to extract words or named entities from text documents. Here, we focused on words indicating cell lines. A word like HeLa is relatively unambiguous, however this is not the case for many other cell-line names. Therefore, the SciScore algorithm works only partially by recognizing these names, and mainly identifies them based on the sentence context of the word. SciScore is thus capable of finding new cell-line names that it was never specifically trained to recognize. This approach has been described previously (Ozyurt et al., 2016).

In the current experiments, SciScore was instructed to extract the methods section of each paper, and then find names of cell lines within (Box 1). This way, SciScore searches for papers that are more likely to have used a cell line as opposed to papers that simply discuss a cell line. To create a training dataset for SciScore, 1,457 cell lines were annotated by two human curators, with a high inter-curator agreement (over 90%). The human-curated data were split into datasets for training (90%) and testing (10%). SciScore was trained on ten different 90/10 splits. The average values for precision, recall, and the harmonic mean of precision and recall (F1-score) are reported. The detected values were calculated according to standard definitions from the text mining literature, also described in the statistics section, below.

Box 1.

Example sentences containing cell lines detected by the SciScore algorithm.

The following two sentences were annotated both by curators and by SciScore. The highlighted text corresponds to the words that represent cell lines found by curators or by SciScore. Example results of SciScore are shown in parantheses (correct annotations, false positive: incorrectly identified a plasmid as a cell line, false negative: failed to find a cell line that the curator found).

Sentence 1 (methods sentence line 353; PMID:26012578)

For luciferase activity assays, HeLa (correct annotation) or HCN-A94 (correct annotation) cells were grown in 24 well plates and transfected with 0.1 μg phRL-TK-10BOXB (false positive) plasmid, 0.1 μg of pGL3 promoter plasmid and with 0.7 μg of one of the six pCl- λN-HA-tagged UPF3B expression constructs.

Sentence 2 (methods sentence line 125; PMID:28638484)

For cellular uptake kinetics study, HeLa (false negative) or RAW264.7 (correct annotation) cells were seeded into 96-well plates and allowed to attach for 24h.

https://doi.org/10.7554/eLife.41676.012

SciScore ran on the open access subset of PubMed Central (RRID:SCR_004166), retrieved on [3/23/2018], which constituted 1,950,740 total papers published between January 1975 and March 2018. SciScore identified 673,272 cell-line names in the methods section of 150,459 unique papers. According to this analysis, 7.7% of papers in the open-access subset of PubMed Central use cell lines. In those, we found 305,161 unique cell-line names in total. Therefore, in our sample of about 150,000 papers, each methods section describes an average of two cell lines and each cell line is mentioned twice.

To determine SciScore performance in finding cell-line papers, we tested SciScore against an independent human-curated set of data. We anticipated that we would need about 100 examples of papers that contained cell lines, but the sample of all papers shows that cell-line papers represent a relatively low proportion of all papers (~7.7%). To improve our chances of finding 100 or more exemplary papers, we selected Scientific Reports, a journal that publishes many cell line papers and also is fully open access. The curator searched PubMed and downloaded the basic metadata (author names, dates and title for each paper in Scientific Reports published between the available dates 06/14/2011 and 04/01/2018) were chosen. The curator was blinded to the output of the algorithm while curating papers.

Briefly, after searching PubMed for all papers published in Scientific Reports, we downloaded a CSV file from PubMed containing the basic metadata for all these papers. Review and non-research papers lacking an abstract were removed, resulting in a total of 65,085 articles for analysis. Of these, every 65th paper, by date of publication, was selected for curatorial review, leaving 1,004 papers to be reviewed for cell line presence. Each of the these was then manually reviewed by a curator to determine if cell lines had been used and if so, which ones. One record was an erratum and was removed from this final list, leaving 1,003 papers to examine.

The problematic cell-line list

Request a detailed protocol

We extracted a list of problematic cell lines from Cellosaurus database Version 25 (March 2018), and copied the 810 cell line identifiers, 1,811 names and synonyms into a document (Supplementary file 2). The composition of this list is described in the Cellosaurus Frequently Asked Questions section and contains cell lines from the ICLAC Register of Misidentified Cell Lines (both approved cell lines and those submitted for ICLAC review) and additional problematic cell lines reported by other sources. For the purposes of our primary analysis, we did not distinguish between different categories of cell line problems. However, we considered the differences in a subsample of the RRID papers, where it was important to determine whether the researchers knowingly used a misidentified cell line and if so, if they knew the identity of it.

To determine if cell-line names were highlighted in Cellosaurus as misidentified or otherwise problematic, we matched the data we obtained from SciScore, with the extracted list using three methods: strict, loose, and edit distance. The strict method involves loading the data into excel and using the "vertical lookup" function in Excel (VLOOKUP) to match whether the exact name for a cell line found by SciScore was one of the names or synonyms. For the loose method, we added an asterisk * to the end of each cell line name to match additional possibilities. The strict and loose methods for matching names represent what we consider the outer boundaries as percentages for a cell-line presence on the problematic list. Excel treats matches in a case-insensitive manner, so "HeLa" and "HELA" would both be considered a match.

The third method used was the edit distance method to solve the string-to-string correction problem (Wagner and Fischer, 1974). The minimum edit distance is the minimum number of character deletion, addition and substitution operations necessary to make two strings equal. We have used weighted edit distance where the deletion or addition of certain special characters had 0 weight, other deletion and additions had a weight of 1. Substitutions had a weight of 2 (a deletion and addition). The match was considered valid if the edit distance was less than 1.

Corpus of papers containing RRIDs

Request a detailed protocol

We searched for all papers that contain RRIDs by monitoring Google Scholar, ScienceDirect (Elsevier), Wiley and PubMed Central every week for four years for mentions of the string RRID. Each paper that contained the term "RRID" was opened by a curator and listed in our database. For the past two years, each paper was examined by our semi-automated tool, SciBot (Gillespie and Udell, 2018; RRID:SCR_016250; copy archived at https://github.com/elifesciences-publications/scibot) for RRID mentions. SciBot is an annotation-based curation workflow that works with the Hypothesis annotation tool (Hypothes.is; RRID:SCR_000430). The curation workflow comprises the following steps:

  1. Document identification: for each paper, SciBot first identifies the digital object identifier (DOI) and the PubMed identifier (PMID) by locating the DOI on the html webpage and then querying the PubMed application programming interface to respond with a PMID for the specified DOI. These identifiers are attached to the document URL through the Hypothesis annotation service. If the automated methods fail, the curator fills in the PMID using the Hypothesis annotation client.

  2. RRID recognition and resolution: SciBot then scans the text of the paper and finds all places in the document that appear to be RRIDs by searching for the string "RRID". The text directly after the RRID and before the next break, such as a comma, space or period, is then submitted to the Scicrunch resolving service, the results of which are then provided to the curator as a linked annotation viewable in Hypothesis (Figure 5). If there is no RRID record, SciBot returns an annotation "Unresolved" tag. If the RRID is resolved, the curator verifies whether the researcher and the database record agree or disagree. Curators also note whether there are any errors, such as incorrect records, and note whether resources are referenced that should have received an RRID that did not ("Missing").

  3. Data export: The data from SciBot are stored as a JSON file in Hypothesis and are then extracted to the SciCrunch annotation database, where the paper is assigned to each RRID that it references, along with the assigned curation tags (e.g., "Verified").

RRID Dataset: The RRID dataset as of March 2018 included over 2,000 cell line annotations. RRIDs that were supplied by the curator ("Missing") were excluded from this data set, leaving 1,554 cell lines where the researcher had added the RRID. Of the 1,554 cell-line RRIDs, 1,502 cell lines were found in papers associated with a PMID. The data set as of 4/01/2018 contains 686 unique papers; 634 of these were associated with a PMID. Papers without a PMID were not considered in the paper-level analysis, as we could not guarantee that they were unique.

Statistics

To determine if the RRID literature and the general literature represent distinct populations, we used the population proportion z-score statistic to deal with the difference between the total number of cell lines reported in papers and the cell lines reported via RRID (Social Science Statistics online calculator, RRID:SCR_016762). We made the one-tailed assumption as we assumed that researchers would only decrease their use of problematic cell lines and no longer publish data generated using problematic cell lines.

For SciScore, we used standard measures for classification performance: precision P, recall R, and harmonic mean of precision and recall F1. These are defined by the following formulas: the number (#) of correctly recognized labels refers to the number of words that are recognized as cell lines, which were also a cell line according to the curators. The number (#) of true good labels refers to the total number of cell lines according to the curators. P, R, and F1 are calculated on each 10% test set.

P= (# of correctly recognized good labels) / (# of recognized good labels)

R= (# of correctly recognized good labels) / (# of true good labels)

F1=(2*P*R) / (P+R)

Data availability

The data underlying the figures and discussions is available as a set of supplementary files to this manuscript. However, as this project is ongoing the data from this manuscript and subsequently curated data is available from scicrunch.org for individual records (human readable example https://scicrunch.org/resolver/RRID:CVCL_0058; machine readable example https://scicrunch.org/resolver/RRID:CVCL_0058.xml ) and from Crossref's Event database in bulk (example query https://api.eventdata.crossref.org/v1/events?rows=10000&source=hypothesis&obj-id.prefix=10.1016 ).

References

Decision letter

  1. Helga Groll
    Reviewing Editor; eLife, United Kingdom
  2. Peter A Rodgers
    Senior Editor; eLife, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Incidences of problematic cell lines are lower in papers that use RRIDs to identify cell lines" to eLife for consideration as a Feature Article. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by two staff editors. The following individuals involved in review of your submission have agreed to reveal their identity: Malcolm R MacLeod (Reviewer #1) and Christopher Korch (Reviewer #3). Reviewer #2 remains anonymous.

We invite you to submit a revised version of your manuscript that addresses the points made by the reviewers (which are summarised below).

Summary:

Using misidentified cell lines for biomedical research is a problem that has persisted long after it was identified in the 1960s and highlighted by the work of Stanley Gartler, Walter Nelson-Rees, many others. The frequency of misidentified cell lines in various collections of cell lines ranges between 10% -100%, depending on the sample size and the origin of the tissue. This persisting problem probably causes many irreproducible results.

This article describes a large-scale survey of the scientific literature and aims to see if using Resource Reference Identification tags (RRIDs) to describe cell lines in research articles has reduced the use of misidentified cell lines, for which no known authentic samples exist. The authors found that using RRIDs reduced the incidence of misidentified cell lines to about 40%, compared to articles that did not use RRIDs. This major decrease illustrates a hopeful approach to tackling the use of known misidentified cell lines.

Essential revisions:

a) Materials and Methods section: Was the study design articulated in a study protocol, and is a dated version of this available? That is, can the authors demonstrate that their primary measures of interest and statistical analysis plan were articulated prior to data collection? If not, can you give some indication of any other analyses that were performed but are not reported? It might be worth listing these (if there are any).

b) Results section: Please report the results of all analyses in the Results section – it is not sufficient to state that "all are different".

c) The ICLAC register of misidentified cell lines consists of two lists. Table 1 is a list of misidentified cell lines for which there does not exist any known authentic samples. Table 2 is a list of misidentified cell lines, but for which there exist authentic samples. Please clarify which subset of the ICLAC register was used in this study?

d) The Discussion section does not cover some important aspects of the study, such as:

- The inclusion of a partial calendar year (2018) in the analysis and how this may have affected the results.

- The predictably low use of cell lines (in a searchable format) in older papers and how this may have affected the resultant correlation coefficient.

- The 14% miss rate (false negatives – subsection “Text mining corpus”) – this seems a rather high number given the human assessment is presented as the standard against which the automated search is compared.

- There is a rather large assumption that researchers check the cell database early in a project and would cease to use problematic cells if a warning is seen (subsection “Cell Lines identified by RRIDW”, Discussion section). Evidence to support this assumption is missing.

- Was the potential for older scanned papers to not be of sufficient resolution/ quality for text mining considered? If so, how could this have affected the results?

e) Discussion section. In this paragraph the authors mention the range of 15-30%. It seems that they do not understand that in the two references to which they refer for these values, these numbers are the range of frequencies of misidentified or cross-contaminated cell lines in collections, but are not frequencies of the number of publications using misidentified cell lines. Moreover, the Masters, 2012 reference is a letter to Nature that refers to an editorial in Nature from 2009, and not to a study that actually determined these values. This frequency information is used incorrectly in the context of this paragraph that discusses search strategies for identifying published articles that have used misidentified cell lines.

Furthermore, the frequency of misidentified cell lines ranges more broadly, between 10% and 100%, depending on the sample size and type of cell lines. For the frequency of misidentified cell lines in collections of cell lines I would suggest referring to instead Drexler et al., 2003 (18-36%) and Zhao et al., 2011 (30%). Perhaps one could also include more recent studies that show higher frequencies, some close to 50% (Schweppe et al., 2008, 48% of thyroid lines; Huang et al., 2017, 46% of various lines). At the lower end, there is Liang-Chu et al., 2015, who observed in a large collection a frequency of 9.6% in which they compared many different cell lines. Based on these ranges, a more meaningful range of the frequency of cross-contaminated or misidentified cell lines in collections would be 10% to 48%.

This information could be used as the first sentence in the paragraph to say how frequently misidentified cell lines are found. Then followed by referring to the Neimark, 2015 reference, and followed by a reference to other recent studies. For references to published articles that have examined the frequency that misidentified cell lines have been used in published studies (which would be more appropriate for this paragraph), I suggest weaving in the story of KB cells by Vaughn et al., 2017 and the findings of Horbach and Halffman, 2017. These authors used different strategies for identifying publications that used misidentified cell lines, which is the topic of this paragraph.

f) Supplementary data: It's not clear whether the Supplementary data are a summary (it appears to be) or the entire dataset. I know that the entire dataset is evolving and available, but if what is presented here is a summary then I'd prefer that you deposited a snapshot of the data at the time the analysis was done, to allow attempted replication using the exact same dataset. But I may have got this wrong.

g) Although beyond the scope of this study, the use of RRIDs does not verify that a cell line used for a study is indeed the claimed cell line. That would require each lab to authenticate the samples of the cell lines they are using by STR or SNP genotyping. If journals and funding agencies would enforce this, it may help to prevent misidentified cell lines from being unknowingly used in biomedical research. Please consider adding a sentence or two on this topic.

https://doi.org/10.7554/eLife.41676.020

Author response

Essential revisions:

a) Materials and Methods section: Was the study design articulated in a study protocol, and is a dated version of this available? That is, can the authors demonstrate that their primary measures of interest and statistical analysis plan were articulated prior to data collection? If not, can you give some indication of any other analyses that were performed but are not reported? It might be worth listing these (if there are any).

We certainly should have registered this study and failed to do so. This was a mistake. However, the idea originated in this Blog, published on May 11, 2017: https://elifesciences.org/inside-eLife/ff683ecc/rrids-how-did-we-get-here-and-where-are-we-going

At the time of the blog, there were only about 100 papers using RRIDs to tag the cell lines used in the paper and we had two examples of problematic lines in that set, a percentage that seemed quite small. We did not write a full paper because the data set was preliminary and no comprehensive set of data existed for use of misidentified or contaminated cell lines in the broader literature. We subsequently created a larger data set in the course of creating text mining algorithms to identify research resources in the literature (this work was not undertaken to conduct this study, but to create a tool for editors, which we are currently β testing). When the algorithm training was performing sufficiently for our needs, we ran it once over the total biomedical literature, which we routinely parse for other reasons, to gather the data for this paper. Within a day of the algorithm run, we took all RRID data and put it into a file to analyze and did not re-curate or fix any of it. The papers described in this manuscript as lacking a PubMedIDs are almost guaranteed to now have those in our systems, and the RRID data today (11/8/2018) includes 4,018 cell lines because this is a rapidly growing data set. The use of the population proportions z test statistic was done after consulting with a UCSD statistician, Dr. Anthony C. Gamst, to make sure that we were not making a mistake regarding the type of statistical test that we used. We did no analysis on these data other than what is reported in the paper. We did retest after review, using an online social statistics calculator (now cited) to verify the z scores in a place easily accessible to readers.

b) Results section: Please report the results of all analyses in the Results section – it is not sufficient to state that "all are different".

We have added the following language in subsection “Considerations in comparing RRID and open access subsets of literature”, which includes an online calculator where the numbers can be plugged in to verify our claims and the exact z score obtained:

“This 3.3% is significantly lower than 8.7% obtained by the edit distance criterion for all papers (population proportion z test, https://www.socscistatistics.com/tests/ztest/Default2.aspx, p<0.00001, z=7.3353). Furthermore, it is also significantly lower than the strict match criterion shown in Figure 1 (total cell lines 305,130; total strict matches 15,615; or 5.12%; p<0.001, z=3.1406). Limiting the range of dates for the strict criterion to 2016, 2017, and 2018 did not change the average percent of cell lines on the problematic list (total cell lines detected 2016-18: 110,997; strict problematic: 5,830; 5.25%; p<0.001, z=3.327). Whether we consider the edit distance, total strict, or the 2016-2018 strict numbers, all are different from 3.3% at the p<0.01 significance level.”

- We note that the statistical calculator actually states that “The Z-Score is 7.3353. The p-value is 0.” for the edit distance metric, however we did not think that it would be wise to say that our p is zero, we therefore used the p<0.00001 as an approximation.

c) The ICLAC register of misidentified cell lines consists of two lists. Table 1 is a list of misidentified cell lines for which there does not exist any known authentic samples. Table 2 is a list of misidentified cell lines, but for which there exist authentic samples. Please clarify which subset of the ICLAC register was used in this study?

We updated the Discussion section to address this question. In short, the list of cell lines which were flagged as problematic in this paper are the ones that have a "CC" comment line "Problematic cell line" in the Cellosaurus. The text now reflects the link to Cellosaurus database FAQ and the paragraph copied below:

“We extracted a list of problematic cell lines from Cellosaurus version Version 25 (March 2018), and copied the 810 cell line identifiers, 1,811 names, and synonyms, into a document (Figure.Data file, worksheet “Problematic.List”). The composition of this list is described in the Cellosaurus Frequently Asked Questions section (https://web.expasy.org/cgi-bin/cellosaurus/faq#Q17) and contains misidentified cell lines from the ICLAC Register of Misidentified Cell Lines, and cell lines as well as additional problematic cell lines reported by other sources. It must be noted that this list contains both ICLAC approved cell lines and those that have been submitted for ICLAC review.”

d) The Discussion section does not cover some important aspects of the study, such as:

We have added a paragraph in the Discussion section to address some of these points. We also address specific concerns here.

- The inclusion of a partial calendar year (2018) in the analysis and how this may have affected the results.

It is relatively unlikely that the inclusion of the partial calendar year has seriously affected the results. While the absolute number of papers for 2018 is indeed smaller than 2017, it is still larger than most of the early data prior to 2012. There is no valid reason that we can think of to suggest that papers published early in a year would use more or less problematic cell lines.

- The predictably low use of cell lines (in a searchable format) in older papers and how this may have affected the resultant correlation coefficient.

PubMed Central started around the year 2000 so there are few papers in the years prior to 2000 as shown in figure 1 and in the data file. We therefore can be less confident of the total number of cell lines used in earlier literature because our sample is much smaller. However, the open access subset of the literature, as it is added to PMC, is consistently coded in JATS XML format by the National Library of Medicine staff as the papers are processed, which is true for new and early papers. Papers, regardless of age, that are only available as PDFs are not visible to our robots therefore are excluded from our sample. Therefore, it is highly unlikely that recognition of cell lines is substantially different in the older vs more recent literature. Typographical errors can always creep in, but we do not use optical character recognition or any other mechanism to gather papers that are not formatted by professionals

- The 14% miss rate (false negatives – subsection “Text mining corpus”) – this seems a rather high number given the human assessment is presented as the standard against which the automated search is compared.

We believe that this point was unclear in our writing and we have added the percent error into the relevant text. The curator did make 14 errors out of the total 1003 papers or 1.4%, which is certainly far from perfect, but not 14%. Subsection “Cell lines identified by RRID” was updated to include the percentage.

- There is a rather large assumption that researchers check the cell database early in a project and would cease to use problematic cells if a warning is seen (subsection “Cell Lines identified by RRIDW”, Discussion section). Evidence to support this assumption is missing.

We thank the reviewer for pointing this out, we have removed some of the excessive “hand waving” language from the Discussion section. We have no evidence for why authors report fewer cell lines. We also changed the sentence structure in subsection “Considerations in comparing RRID and open access subsets of literature” to ensure that the only thing we know is that the author must find the number at some point during the study and the journals instructions direct them to the RRID portal.

- Was the potential for older scanned papers to not be of sufficient resolution/ quality for text mining considered? If so, how could this have affected the results?

The text mining algorithm uses the data in xml format directly from PubMed Central, and while it was certainly seeded with the names of all cell lines, it is not bound to only recognize those names. The algorithm recognizes the context of the cell line in the sentence, including the most significant sentence features such as other noun phrases surrounding the putative cell line and the structure of the sentence. This allowed the algorithm to find cell lines that are not in the Cellosaurus database, and the more commonly found cell lines detected by the algorithm were subsequently added to Cellosaurus. It is certainly possible that transcription errors from PDF files submitted to the National Library of Medicine are present and many more of these would be expected in the older literature, however the detection of cell lines should not be affected. If errors did creep into the core documents, we would expect that cell lines that were on the problematic list would likely be affected because while a single character change should still trigger the algorithm to detect the cell line, but our analysis of how close the cell lines are to the list of problematic cell lines would be potentially no longer a “zero” edit distance from a problematic cell line.

e) Discussion section. In this paragraph the authors mention the range of 15-30%. It seems that they do not understand that in the two references to which they refer for these values, these numbers are the range of frequencies of misidentified or cross-contaminated cell lines in collections, but are not frequencies of the number of publications using misidentified cell lines. Moreover, the Masters, 2012 reference is a letter to Nature that refers to an editorial in Nature from 2009, and not to a study that actually determined these values. This frequency information is used incorrectly in the context of this paragraph that discusses search strategies for identifying published articles that have used misidentified cell lines.

Furthermore, the frequency of misidentified cell lines ranges more broadly, between 10% and 100%, depending on the sample size and type of cell lines. For the frequency of misidentified cell lines in collections of cell lines I would suggest referring to instead Drexler et al., 2003 (18-36%) and Zhao et al., 2011 (30%). Perhaps one could also include more recent studies that show higher frequencies, some close to 50% (Schweppe et al., 2008, 48% of thyroid lines; Huang et al., 2017, 46% of various lines). At the lower end, there is Liang-Chu et al., 2015, who observed in a large collection a frequency of 9.6% in which they compared many different cell lines. Based on these ranges, a more meaningful range of the frequency of cross-contaminated or misidentified cell lines in collections would be 10% to 48%.

This information could be used as the first sentence in the paragraph to say how frequently misidentified cell lines are found. Then followed by referring to the Neimark, 2015 reference, and followed by a reference to other recent studies. For references to published articles that have examined the frequency that misidentified cell lines have been used in published studies (which would be more appropriate for this paragraph), I suggest weaving in the story of KB cells by Vaughn et al., 2017 and the findings of Horbach and Halffman, 2017. These authors used different strategies for identifying publications that used misidentified cell lines, which is the topic of this paragraph.

We thank the reviewers for such a thorough evaluation of the background material and the many helpful suggestions about more appropriate references. We have made changes to the manuscript to reflect this more accurate language and references.

f) Supplementary data: It's not clear whether the Supplementary data are a summary (it appears to be) or the entire dataset. I know that the entire dataset is evolving and available, but if what is presented here is a summary then I'd prefer that you deposited a snapshot of the data at the time the analysis was done, to allow attempted replication using the exact same dataset. But I may have got this wrong.

We have added an additional set of data to the Figure.Data worksheet, which includes the snapshot of the raw RRID data. We have also added text to the figure legend for the Supplementary data stating that the included data snapshot is rather out of date and that far more data is available via SciCrunch and CrossRef, which are regularly updated.

g) Although beyond the scope of this study, the use of RRIDs does not verify that a cell line used for a study is indeed the claimed cell line. That would require each lab to authenticate the samples of the cell lines they are using by STR or SNP genotyping. If journals and funding agencies would enforce this, it may help to prevent misidentified cell lines from being unknowingly used in biomedical research. Please consider adding a sentence or two on this topic.

SNP profiling is critical for authenticating cell lines in the literature, we have added text (subsection “Example sentences containing cell lines detected by the SciScore algorithm”) to strengthen our position on this point. However, as the reviewer rightly points out, the presence or absence of genetic profiling of cell lines is not currently in scope for RRIDs or this paper. One heartening point may be that we have begun to train the SciScore algorithm to detect STR profiling sentences. In the future, we would expect that the tool would be able to provide to reviewers a note about STR profiling presence in any paper where cell lines are used. If it works and is used, the tool would act as a check for not only cell line identity, but also authenticity.

https://doi.org/10.7554/eLife.41676.021

Article and author information

Author details

  1. Zeljana Babic

    Zeljana Babic is in the Center for Research in Biological Systems, University of California, San Diego, United States

    Contribution
    Data curation, Validation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  2. Amanda Capes-Davis

    Amanda Capes-Davis is in the Children's Medical Research Institute, University of Sydney, Westmead, Australia

    Contribution
    Resources, Validation, Writing—review and editing
    Competing interests
    is a CellBank Australia Honorary Scientist and Chair of ICLAC, both on a voluntary basis.
  3. Maryann E Martone

    Maryann E Martone is in the Department of Neuroscience, University of California, San Diego, United States and SciCrunch Inc., San Diego, United States

    Contribution
    Resources, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    heads the RRID project, and founded SciCrunch, a company that supports the RRID project.
  4. Amos Bairoch

    Amos Bairoch is in the Computer and Laboratory Investigation of Proteins of Human Origin, Swiss Institute of Bioinformatics and the Department of Microbiology and Molecular Medicine, University of Geneva, Geneva, Switzerland

    Contribution
    Resources, Data curation, Validation, Writing—review and editing
    Competing interests
    develops the Cellosaurus database.
  5. I Burak Ozyurt

    I Burak Ozyurt is in the Center for Research in Biological Systems, University of California, San Diego, United States

    Contribution
    Software, Visualization, Methodology, Writing—review and editing
    Competing interests
    works as a consultant for SciCrunch.
  6. Thomas H Gillespie

    Thomas H Gillespie is in the Neurosciences Graduate Program, University of California, San Diego, United States

    Contribution
    Conceptualization, Software, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7509-4801
  7. Anita E Bandrowski

    Anita E Bandrowski is in the Center for Research in Biological Systems, University of California, San Diego, United States and SciCrunch Inc., San Diego, United States

    Contribution
    Conceptualization, Supervision, Funding acquisition, Validation, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    abandrowski@ncmir.ucsd.edu
    Competing interests
    heads the RRID project, and founded SciCrunch, a company that supports the RRID project.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5497-0243

Funding

NIH Office of the Director (OD024432)

  • Anita E Bandrowski

NIH Blueprint for Neuroscience Research (DA039832)

  • Maryann E Martone

National Institute of Diabetes and Digestive and Kidney Diseases (DK097771)

  • Maryann E Martone

National Institutes of Health (MH119094)

  • Maryann E Martone
  • Anita E Bandrowski

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the following individuals for their contribution to this work: Joseph Menke, who worked tirelessly in curating cell lines and RRIDs in the published literature; Jon Udel, who wrote the original SciBot and continues to have the vision to bring the future into the present; Edyta Vieth, who works with the RRID literature and contributed helpful insights in conceiving this manuscript. We also thank Dr Anthony C. Gamst for checking our statistical assumptions. Moreover, we thank the many journal editors and editorial staff who continually work to improve the research integrity by augmenting their workflow to include RRIDs.

Publication history

  1. Received: September 3, 2018
  2. Accepted: January 8, 2019
  3. Version of Record published: January 29, 2019 (version 1)

Copyright

© 2019, Babic et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,945
    Page views
  • 214
    Downloads
  • 20
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Zeljana Babic
  2. Amanda Capes-Davis
  3. Maryann E Martone
  4. Amos Bairoch
  5. I Burak Ozyurt
  6. Thomas H Gillespie
  7. Anita E Bandrowski
(2019)
Meta-Research: Incidences of problematic cell lines are lower in papers that use RRIDs to identify cell lines
eLife 8:e41676.
https://doi.org/10.7554/eLife.41676
  1. Further reading

Further reading

  1. About 16% of papers report the results of experiments performed with contaminated or mislabelled cell lines.

    1. Computational and Systems Biology
    2. Immunology and Inflammation
    Alain Pulfer, Diego Ulisse Pizzagalli ... Santiago Fernandez Gonzalez
    Tools and Resources

    Intravital microscopy has revolutionized live-cell imaging by allowing the study of spatial–temporal cell dynamics in living animals. However, the complexity of the data generated by this technology has limited the development of effective computational tools to identify and quantify cell processes. Amongst them, apoptosis is a crucial form of regulated cell death involved in tissue homeostasis and host defense. Live-cell imaging enabled the study of apoptosis at the cellular level, enhancing our understanding of its spatial–temporal regulation. However, at present, no computational method can deliver robust detection of apoptosis in microscopy timelapses. To overcome this limitation, we developed ADeS, a deep learning-based apoptosis detection system that employs the principle of activity recognition. We trained ADeS on extensive datasets containing more than 10,000 apoptotic instances collected both in vitro and in vivo, achieving a classification accuracy above 98% and outperforming state-of-the-art solutions. ADeS is the first method capable of detecting the location and duration of multiple apoptotic events in full microscopy timelapses, surpassing human performance in the same task. We demonstrated the effectiveness and robustness of ADeS across various imaging modalities, cell types, and staining techniques. Finally, we employed ADeS to quantify cell survival in vitro and tissue damage in mice, demonstrating its potential application in toxicity assays, treatment evaluation, and inflammatory dynamics. Our findings suggest that ADeS is a valuable tool for the accurate detection and quantification of apoptosis in live-cell imaging and, in particular, intravital microscopy data, providing insights into the complex spatial–temporal regulation of this process.
