Quorum sensing controls Vibrio cholerae multicellular aggregate formation

  1. Matthew Jemielita
  2. Ned S Wingreen
  3. Bonnie L Bassler  Is a corresponding author
  1. Princeton University, United States
  2. Howard Hughes Medical Institute, United States
Research Article
  • Cited 1
  • Views 2,036
  • Annotations
Cite this article as: eLife 2018;7:e42057 doi: 10.7554/eLife.42057

Abstract

Bacteria communicate and collectively regulate gene expression using a process called quorum sensing (QS). QS relies on group-wide responses to signal molecules called autoinducers. Here, we show that QS activates a new program of multicellularity in Vibrio cholerae. This program, which we term aggregation, is distinct from the canonical surface-biofilm formation program, which QS represses. Aggregation is induced by autoinducers, occurs rapidly in cell suspensions, and does not require cell division, features strikingly dissimilar from those characteristic of V. cholerae biofilm formation. Extracellular DNA limits aggregate size, but is not sufficient to drive aggregation. A mutagenesis screen identifies genes required for aggregate formation, revealing proteins involved in V. cholerae intestinal colonization, stress response, and a protein that distinguishes the current V. cholerae pandemic strain from earlier pandemic strains. We suggest that QS-controlled aggregate formation is important for V. cholerae to successfully transit between the marine niche and the human host.

https://doi.org/10.7554/eLife.42057.001

Introduction

Quorum sensing (QS) is a cell–cell communication process that bacteria use to orchestrate collective behaviors. QS relies on the production, release, and group-level detection of molecules called autoinducers (reviewed in Papenfort and Bassler, 2016). At low cell density (LCD), when autoinducer concentration is low, QS promotes gene expression programs that benefit individual bacteria. At high cell density (HCD), when autoinducer concentration exceeds the threshold required for detection, QS drives gene expression programs beneficial to the community.

Vibrio cholerae is the etiological agent of the disease cholera. In V. cholerae, QS controls virulence factor production and biofilm formation (Hammer and Bassler, 2003; Miller et al., 2002; Papenfort and Bassler, 2016; Zhu and Mekalanos, 2003; Zhu et al., 2002) (Figure 1). V. cholerae relies on two major autoinducers: CAI-1, an intra-genus-specific autoinducer (Higgins et al., 2007; Kelly et al., 2009; Miller et al., 2002), and AI-2, an autoinducer broadly conserved across bacteria and used for inter-species communication (Chen et al., 2002; Schauder et al., 2001). The CAI-1 and AI-2 receptors are CqsS and LuxPQ, respectively (Bassler et al., 1994; Miller et al., 2002; Neiditch et al., 2005). In the absence of autoinducer, CqsS and LuxPQ act as kinases funneling phosphate through an integrator protein, LuxU, to LuxO, the shared response regulator protein (Freeman and Bassler, 1999). Phosphorylated LuxO activates transcription of genes encoding four small RNAs: Qrr-1 to Qrr-4 (Lenz et al., 2004). Qrr1-4 activate translation of AphA and repress translation of HapR; respectively the master LCD and master HCD QS regulators (Lenz et al., 2004; Rutherford et al., 2011). Thus, at LCD, AphA is made and HapR is not, and V. cholerae cells act as individuals (Figure 1A). When bound to their cognate autoinducers, which occurs at HCD, CqsS and LuxPQ switch from acting as kinases to acting as phosphatases, dephosphorylating LuxO, via LuxU. Dephosphorylated LuxO is inactive, so transcription of qrr1-4 does not occur. In the absence of the Qrr sRNAs, activation of AphA translation ceases and HapR translation is no longer repressed. Thus, HapR is made and AphA is not, and V. cholerae cells engage in group behaviors (Figure 1B). Two other QS receptors, CqsR and VpsS, with unknown ligands, also convey information into the QS circuit via LuxU (Jung et al., 2015; Shikuma et al., 2009).

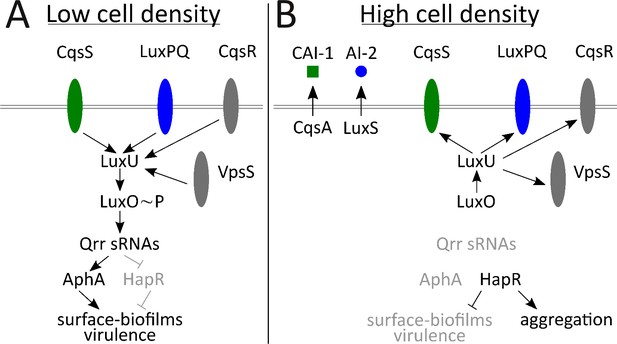

Simplified V. cholerae quorum-sensing circuit.

(A) At low cell density (LCD), when autoinducer concentration is low, the transmembrane receptors CqsS (green) and LuxPQ (blue) act as kinases and funnel phosphate to LuxO through the intermediary protein LuxU. Phospho-LuxO activates transcription of genes encoding regulatory RNAs called the Qrr sRNAs. The Qrr sRNAs activate translation of AphA and repress translation of HapR. This condition promotes the LCD QS program, which includes expression of genes encoding virulence factors and surface-biofilm formation. (B) At high cell density (HCD), when autoinducers have accumulated, CAI-1 (green squares) and AI-2 (blue circles) bind to their respective cognate receptors, CqsS and LuxPQ. Autoinducer binding converts the receptors into phosphatases that dephosphorylate and inactivate LuxO. Therefore, the Qrr sRNAs are not produced. In the absence of the Qrr sRNAs, AphA translation is not activated and HapR translation is not repressed. HapR represses the surface-biofilm and virulence programs. HapR activates the aggregation process that occurs in liquid. Two other QS receptors, VpsS and CqsR (both depicted in gray), with unknown ligands, also transduce QS information through LuxU.

https://doi.org/10.7554/eLife.42057.002

In V. cholerae, QS controls the formation of surface-bound multicellular communities called biofilms (Hammer and Bassler, 2003; Teschler et al., 2015; Zhu and Mekalanos, 2003). Specifically, AphA promotes and HapR represses the production of four components required for biofilm formation: vibrio polysaccharide (VPS) and three matrix proteins, RbmA, Bap1, and RbmC (Hammer and Bassler, 2003; Yang et al., 2010; Yildiz et al., 2001). The result of this regulatory arrangement is that V. cholerae forms biofilms at LCD and disperses from them at HCD (Miller et al., 2002; Singh et al., 2017; Teschler et al., 2015). Extracellular DNA (eDNA) also contributes to V. cholerae biofilm formation (Seper et al., 2011). eDNA levels are regulated by the activity of two extracellular nucleases: Xds and Dns, the latter of which is repressed at HCD by HapR (Blokesch and Schoolnik, 2008).

The lifecycle of V. cholerae requires transitions between the marine environment and the human host (Almagro-Moreno et al., 2015). In both niches, biofilm formation and dispersal appear to occur. Specifically, in the marine environment, V. cholerae associates with chitin, a major component of transient nutrient sources such as marine snow (Huq et al., 1983; Pruzzo et al., 2008; Yawata et al., 2014). To successfully adapt to the disappearance of marine snow upon consumption, V. cholerae must be able to transition between the surface-associated state and the planktonic state. Infections in humans occur when contaminated water or food containing planktonic and/or aggregates of V. cholerae cells is ingested. Early in human infection, V. cholerae cells, after passaging through the stomach, transit from the lumen of the small intestine through the mucosal layer to the epithelial surface (Almagro-Moreno et al., 2015). Both motility and chemotaxis are reported to play roles in this process suggesting that cells exist in the planktonic state as they make this transition (Butler and Camilli, 2005; Liu et al., 2008). At the epithelial surface, V. cholerae represses motility, forms surface microcolonies, and activates its virulence program (Almagro-Moreno et al., 2015; Matson et al., 2007; Millet et al., 2014; Watnick et al., 1999). Virulence factors, including the toxin-coregulated pilus (TCP) and cholera toxin (CT), are produced at LCD. CT causes severe diarrhea characteristic of the disease cholera (Matson et al., 2007). Later in infection, at HCD, HapR represses virulence factor production (Miller et al., 2002; Zhu et al., 2002), and HapR, together with RpoS, launches a mucosal escape program (Nielsen et al., 2006). Specifically in the case of QS, HapR activates expression of hapA, encoding the HapA mucinase, reported to contribute to the host-escape process (Booth et al., 1983; Silva et al., 2003; Zhu et al., 2002). V. cholerae is shed back into the environment either as planktonic cells or as multicellular aggregates (Faruque et al., 2006; Nelson et al., 2007).

Elegant work has defined the mechanisms underlying V. cholerae biofilm formation on surfaces (Absalon et al., 2011; Berk et al., 2012; Fong et al., 2017; Fong et al., 2010; Watnick et al., 1999; Yan et al., 2016), however, relatively little attention has been paid to whether V. cholerae forms communities in the absence of surfaces. To our knowledge, two exceptions are studies of pilus-mediated autoagglutination by either TCP in the classical biotype of V. cholerae or by the DNA-uptake pilus (or, chitin-regulated pilus, ChiRP) in strain A1552 of the El Tor V. cholerae biotype (Adams et al., 2018; Kirn et al., 2000; Taylor et al., 1987). Given that the known lifecycle of V. cholerae includes stages in which the bacteria are not surface-associated, we explored whether V. cholerae forms communities in the absence of a surface with a focus on the role of QS in the process. We find that V. cholerae indeed forms communities in liquid. We call these non-surface-associated V. cholerae communities ‘aggregates’ to distinguish them from the familiar V. cholerae biofilms which grow on surfaces.

Mutant analyses demonstrate that components required for V. cholerae surface-associated biofilm formation are not required for aggregate formation. Moreover, aggregates form in the HCD QS-state, require the HCD master regulator HapR, and can be driven by the addition of exogenous QS autoinducers. By contrast, surface-associated biofilm formation occurs in the LCD QS-state, is repressed by HapR, and the HCD QS-state is anti-correlated with surface-biofilm formation (Hammer and Bassler, 2003; Singh et al., 2017). We show that aggregation occurs independently of cell growth, again distinguishing this process from surface-associated biofilm formation. We demonstrate that eDNA plays a structural role in aggregate formation, but that eDNA alone is not sufficient to induce aggregation. A genetic screen to identify components required for V. cholerae aggregate formation revealed genes including ones involved in stress response to nutrient limitation, phosphate acquisition from eDNA, and, notably, a gene unique to the current pandemic strain of V. cholerae. Combined, these results suggest that aggregation may be a strategy employed by V. cholerae to survive under starvation conditions, and this program may also contribute to the pandemic potential of the current V. cholerae biotype. Investigating V. cholerae aggregation may provide insight into how the bacterium successfully transitions between its different niches as well as reveal general mechanisms underlying non-surface-dependent multicellular community formation.

Results

V. cholerae forms multicellular aggregates in the HCD QS-state

As part of its natural lifecycle, V. cholerae must repeatedly transition between surfaces and the liquid phase. We wondered if, analogous to what occurs on surfaces, V. cholerae forms multicellular communities in liquid and, if so, what role QS plays, if any. To explore these possibilities, cultures of wild-type (WT), LCD QS-locked (LCD-locked), and HCD QS-locked (HCD-locked) V. cholerae strains were grown overnight under conditions of gentle shear in lysogeny broth (LB) supplemented with 10 mM of Ca2+ to approximate the oceanic calcium concentration (Kierek and Watnick, 2003a). We generated strains ‘locked’ in the LCD and HCD QS modes by introducing single amino acid substitutions in LuxO at residue 61, the site of phosphorylation (Freeman and Bassler, 1999; Hurley and Bassler, 2017). LuxO D61E is a phosphomimetic and LuxO D61A cannot be phosphorylated. Thus, V. cholerae cells carrying luxO D61E and luxO D61A are locked in the LCD and HCD QS-states, respectively. For imaging purposes, we introduced constitutively expressed fluorescent reporter constructs onto the chromosomes of these strains and the strains described below. The fluorescent proteins are: mKO, mKate2, and mTFP1.

The LCD-locked strain formed clusters in liquid at 22 h (Figure 2A). We anticipated this result because LCD-locked V. cholerae cells are in a constitutive biofilm-forming state (Hammer and Bassler, 2003). However, to our surprise, the HCD-locked strain also formed multicellular communities in liquid. Moreover, these aggregates were larger and morphologically distinct from the LCD-locked clusters (Figure 2B). The WT strain produced aggregates morphologically similar to those formed by the HCD-locked strain (Figure 2C). Our finding that multicellular communities are produced by WT V. cholerae at HCD and by the HCD-locked QS strain is unexpected because on surfaces, HCD-locked V. cholerae cells do not form biofilms (Hammer and Bassler, 2003). For the remainder of this text, we refer to the communities that form in the LCD QS-state in liquid as clusters, the large multicellular communities that form in the HCD QS-state in liquid as aggregates, and communities that form on surfaces as surface-biofilms. The terms aggregates and biofilms are both used, sometimes interchangeably, in the literature. Other terms are used to describe more specific examples of bacterial aggregation (e.g., flocculation, co-aggregation, auto-aggregation, and autoagglutination) (Bieber et al., 1998; Chiang et al., 1995; Flemming and Wingender, 2010; Rickard et al., 2003). We emphasize that we are using the term ‘aggregates’ simply to distinguish this program from the V. cholerae surface-biofilm program.

Figure 2 with 7 supplements see all

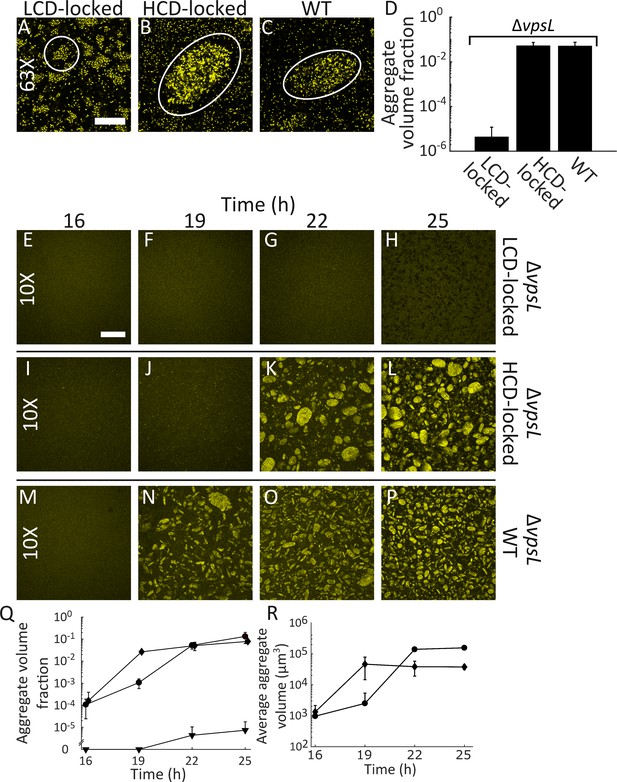

Quorum sensing controls rapid, VpsL-independent aggregation of V. cholerae in liquid.

Aggregate formation of the LCD QS-locked (LCD-locked) (A), HCD QS-locked (HCD-locked) (B), and wild-type (WT) (C) V. cholerae strains after 22 h of growth. Shown are representative cross-sections through samples (A–C). The approximate extents of individual aggregates are indicated with white outlines. Magnification: 63X; scale bar: 50 μM. (D) Quantitation of total volume fraction, the total volume of the imaged region that is occupied by aggregates (Materials and methods) within the imaged region for ΔvpsL LCD-locked, ΔvpsL HCD-locked, and ΔvpsL WT strains after 22 h of growth. Representative cross-sections through the ΔvpsL LCD-locked (E–H), ΔvpsL HCD-locked (I–L), and ΔvpsL WT (M–P) V. cholerae strains at 16, 19, 22, and 25 h. (E–P) Magnification: 10X; scale bar: 250 μm. (Q) Quantitation of aggregate volume fraction. The data for T = 22 h are the same as those shown in Figure 2D. Triangle: ΔvpsL LCD-locked, circle: ΔvpsL HCD-locked, and diamond: ΔvpsL WT. (R) Average cluster volume over time for the ΔvpsL HCD-locked (circle) and ΔvpsL WT (diamond) strains. (D,Q,R) Quantitation of mean ± standard deviation (SD; N=3 biological replicates). Mean and SD were calculated using the untransformed data, not the log-transformed data, which results in asymmetric error bars. All strains in all panels harbor the fluorescent mKO reporter constitutively expressed from the chromosome.

https://doi.org/10.7554/eLife.42057.003

HCD-QS aggregates are VpsL-independent

Essential for formation of V. cholerae surface-biofilms is VPS, a component of the extracellular matrix (Fong et al., 2010; Teschler et al., 2015). We assessed whether VPS is also required for the formation of aggregates by deleting vpsL, a gene required for VPS production (Fong et al., 2010). The ΔvpsL LCD-locked V. cholerae strain failed to form clusters (Figure 2D), demonstrating that VPS, in addition to driving the formation of surface-biofilms, also contributes to cluster formation in liquid. However, the ΔvpsL HCD-locked strain and the ΔvpsL WT strain formed aggregates similar to those made by the two parent strains possessing vpsL (Figure 2D). Thus, VPS is dispensable for aggregate formation in liquid. In the remainder of the experiments reported here, unless explicitly stated otherwise, all strains harbor the ΔvpsL mutation in order to distinguish aggregate formation from the VpsL-dependent surface-biofilm program. Aggregate formation does not require initial growth on a surface nor is it a consequence of our sampling protocol (Figure 2—figure supplement 1), and aggregates are finite sized (Figure 2—figure supplement 2, Video 1).

Video 1
ΔvpsL HCD-locked V. cholerae aggregates.

z-scan through a representative sample of aggregates formed by a ΔvpsL HCD-locked strain at T = 22 h. Data are the same as shown in Figure 2K. Magnification: 10X; scale bar: 250 μm. Strain harbors mKO constitutively expressed from the chromosome.

https://doi.org/10.7554/eLife.42057.015

VPS-independent biofilms have been reported previously in V. cholerae O139 strain M010. Specifically, in medium supplemented with oceanic Ca2+ levels, genes related to O-antigen synthesis (wbfF and wbfR) were found to be involved in development of VPS-independent surface-biofilms (Kierek and Watnick, 2003b; Kierek and Watnick, 2003a). The strain we use here, V. cholerae El Tor O1 C6706str2, belongs to a different serogroup than V. cholerae O139 strain M010 (Blokesch and Schoolnik, 2007; Thelin and Taylor, 1996). The growth conditions that we use for aggregate formation include oceanic Ca2+ levels, so we examined whether wbfF and wbfR played any role in the process we are studying. We deleted the homologs of wbfF (vpsN, vc0936, 29% amino acid similarity) and wbfR (asnB, vc0991, 26% amino acid similarity). Figure 2—figure supplement 3 shows that both the ΔvpsL ΔvpsN HCD-locked and the ΔvpsL ΔasnB HCD-locked mutants form aggregates as effectively as the ΔvpsL HCD-locked strain. Thus, vpsN and asnB do not contribute to the aggregation process we report here. We also note that V. cholerae O139 strain M010 is a natural variant that is locked in a LCD QS-state because of a mutation in hapR (Joelsson et al., 2006). Again, this feature is consistent with our current finding that it is the HCD-locked strain, not the LCD-locked strain, that forms the aggregates we are investigating. We also considered the possibility that Ca2+ ions could play a signaling role in aggregate formation. To investigate this notion, we deleted carR, which encodes the Ca2+ responsive two-component response regulator, CarR (Bilecen and Yildiz, 2009). Removal of carR had no effect on aggregate formation in the ΔvpsL HCD-locked strain (Figure 2—figure supplement 3). Lastly, the type IV TCP and the chitin-regulated ChiRP, respectively, contribute to autoagglutination in liquid in classical V. cholerae strains and to autoaggregation in El Tor V. cholerae strain A1552 (Adams et al., 2018; Kirn et al., 2000). There is one additional known type IV pilus in V. cholerae, the mannose-sensitive haemagglutinin (MSHA) pilus (Watnick et al., 1999), although no role associated with autoagglutination has been reported. Nonetheless, to be thorough, we deleted the major pilin subunits for all three pili. Specifically, we deleted tcpA, pilA, and mshA for TCP, ChiRP, and MSHA, respectively, all in the ΔvpsL HCD-locked strain. No loss of aggregation occurred in any case (Figure 2—figure supplement 4). Thus, the aggregate formation process that we are studying here does not require these major components identified previously to control formation of multicellular communities of V. cholerae either on surfaces or in liquid.

Aggregation dynamics are rapid

We explored the kinetics of aggregate formation to compare the process to cell-division-driven surface-biofilm formation (Yan et al., 2016). Starting 16 h after inoculation, we sampled and imaged liquid suspensions containing the V. cholerae strains used in Figure 2D. We selected the 16 h time point to begin the analysis because prior to that time point all strains under study existed largely as planktonic cells. We sampled at 3 h intervals for 9 additional hours. The ΔvpsL LCD-locked strain showed no aggregation for the entire 25 h of analysis (Figure 2E–H,Q). At 16 h, both the ΔvpsL WT and the ΔvpsL HCD-locked strains consisted of planktonic single cells and some small clusters. However, there were no aggregates (Figure 2I,M,Q,R). Aggregation occurred by 19 h in the ΔvpsL WT strain and there was up to a 3 h delay in aggregation for the ΔvpsL HCD-locked strain. In both cases, once initiated, aggregation occurred rapidly before reaching a steady state (Figure 2J–L,N–P). Indeed, quantitation shows that, following the rapid onset of aggregation (at T = 19 h for the ΔvpsL WT strain and at T = 22 h for the ΔvpsL HCD-locked strain), only modest changes occur in volume fraction occupied by aggregates (Figure 2Q) and in aggregate size distribution (Figure 2R) from T = 22–25 h. As a control, we show that WT cells exhibit similar aggregation kinetics as the ΔvpsL WT strain (Figure 2—figure supplement 5).

To more precisely define the timing of aggregate development, we imaged the ΔvpsL HCD-locked strain every 30 min during the key 19–22 h window (Figure 2—figure supplement 6). We found that onset to completion of aggregation occurs within a 30 min period. Importantly, the rapidity of aggregate formation precludes a process in which cell division drives aggregate growth. Rather, aggregation must be driven by a change that causes existing cells to adhere and form aggregates. In support of this view, growth of a mixture of equal numbers of the ΔvpsL HCD-locked strain constitutively expressing either mKate2 or mTFP1 resulted in aggregates containing both red- and teal-colored cells (Figure 2—figure supplement 7). Again, in line with our argument that this is a new community formation process, the non-clonal nature of aggregate formation is distinct from the well-established, strictly-clonal V. cholerae surface-biofilm formation program (Nadell et al., 2015).

Exogenous supplementation of QS autoinducers induces aggregation

Our finding that aggregation occurs in the ΔvpsL HCD-locked strain but not in the ΔvpsL LCD-locked strain implies that the process is QS-controlled. Thus, we predicted that the accumulation of QS autoinducers, which occurs as V. cholerae naturally transitions from the LCD to the HCD QS-state, should induce aggregation. To test this prediction, we required strains that only detect one specific autoinducer and that cannot produce that autoinducer. In such strains, the autoinducer can be supplied exogenously and the response quantified. Based on this logic, we constructed two different strains (see Figure 1). One strain lacks the CAI-1 synthase, CqsA, and the AI-2 receptor, LuxQ, and thus responds exclusively to CAI-1. The second strain lacks the AI-2 synthase, LuxS, and the CAI-1 receptor, CqsS, and thus responds exclusively to AI-2. As noted in the Introduction, V. cholerae has two other QS receptors, VpsS and CqsR, which funnel information into the QS circuit, and which detect unknown autoinducers (Jung et al., 2015; Shikuma et al., 2009). To ensure that none of the effects we measured is a consequence of the two unknown ligands, we deleted the cqsR and vpsS genes encoding their receptors. Our CAI-1-responsive strain is ΔcqsA ΔluxQ ΔvpsS ΔcqsR ΔvpsL. Our AI-2-responsive strain is ΔluxS ΔcqsS ΔvpsS ΔcqsR ΔvpsL.

At T = 0 h, we added CAI-1 (5 μM) to the CAI-1-responsive strain and AI-2 (1 μM together with 100 μM boric acid) to the AI-2-responsive strain. These are saturating concentrations for each autoinducer. We assessed aggregation formation at 22 h. Administration of either CAI-1 or AI-2 to the respective autoinducer-responsive strain drove aggregation, whereas no aggregation occurred in samples to which a solvent control was supplied (Figure 3A). Additionally, autoinducer driven aggregation should require the cognate receptor to be present to transduce the QS information into the cell. Indeed, the autoinducers had no effect on aggregation if the strain to which CAI-1 or AI-2 was added lacked CqsS or LuxQ, respectively (Figure 3—figure supplement 1). Lastly, the presence or absence of vpsL, vpsS, and cqsR did not influence responsiveness to exogenously supplied autoinducers (Figure 3—figure supplement 2).

Figure 3 with 4 supplements see all

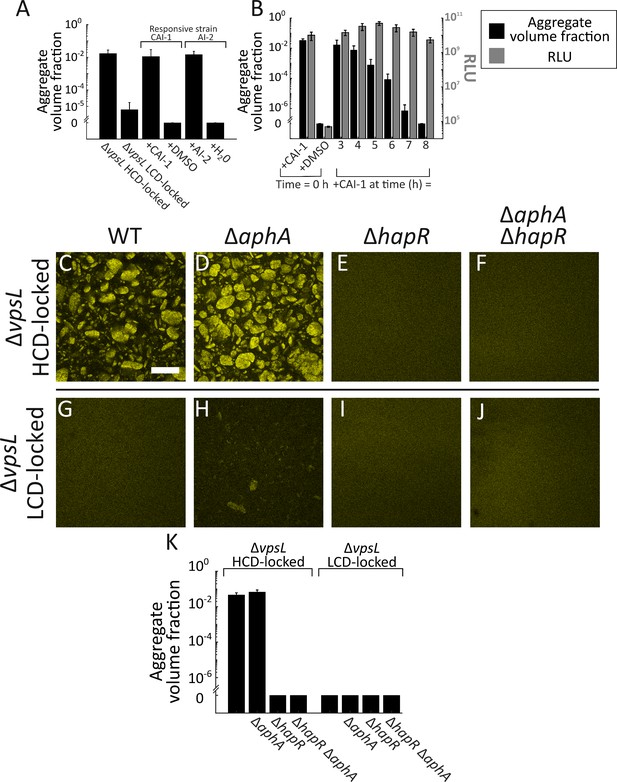

Exogenous autoinducers drive V. cholerae aggregation and HapR is required.

Quantitation of aggregate volume fraction at 22 h for the ΔvpsL HCD QS-locked (HCD-locked), ΔvpsL LCD QS-locked (LCD-locked), CAI-1-responsive (± CAI-1), and AI-2-responsive (± AI-2 and boric acid) V. cholerae strains (A). Autoinducers or solvent controls were added at the time of inoculation. Concentrations used: CAI-1: 5 μM, AI-2: 1 μM, and boric acid: 100 μM. (B) Quantitation of aggregate volume fraction (black bars) and bioluminescence (gray bars) at 22 h for the CAI-1-responsive strain to which CAI-1 was added at T = 0 h and from 3 to 8 h at 1 h intervals. Also shown is bioluminescence quantified in a CAI-1-responsive strain harboring the cosmid pBB1 which carries the luxCDABE genes. RLU denotes relative lights units, defined as counts/min mL−1 per OD600. In A and B aggregate volume fraction was quantified in a strain harboring mKO constitutively expressed from the chromosome; quantitation of mean ± standard deviation (SD) (N=3 biological replicates). Representative cross-sections of the ΔvpsL HCD-locked (C), ΔvpsL ΔaphA HCD-locked (D), ΔvpsL ΔhapR HCD-locked (E), ΔvpsL ΔaphA ΔhapR HCD-locked (F), ΔvpsL LCD-locked (G), ΔvpsL ΔaphA LCD-locked (H), ΔvpsL ΔhapR LCD-locked (I), and ΔvpsL ΔaphA ΔhapR LCD-locked (J) V. cholerae strains following 22 h of growth. (C–J) Magnification: 10X; scale bar: 250 μm. All strains harbor mKO constitutively expressed from the chromosome. (K) Quantitation of aggregate volume fraction for samples in C–J. Shown are mean ± SD (N=3 biological replicates). The ΔvpsL ΔaphA LCD-locked strain appears to exhibit modest aggregation (H), possibly due to AphA repression of hapR transcription (Rutherford et al., 2011), but the level of aggregation is below the detection threshold employed in the segmenting analysis (K).

https://doi.org/10.7554/eLife.42057.016

To define the temporal response window for autoinducers to trigger aggregation, we used the above CAI-1-responsive strain as our test case. We focused on the role of CAI-1 because it is the stronger of the two V. cholerae autoinducers (Miller et al., 2002). Pilot experiments showed that CAI-1 supplementation at or after 16 h could not promote aggregation. Thus, we supplemented cultures with 5 μM CAI-1 at one-hour intervals from 3 to 8 h. At T = 22 h, we measured aggregation (Figure 3B, black bars). CAI-1 addition between 3–6 h promoted aggregation, whereas from 7 h onward, CAI-1 had no effect on aggregation. Addition of CAI-1 at late times did not simply delay the onset of aggregation: at T = 46 h, cultures to which CAI-1 had been added at 7–8 h still showed no aggregation (Figure 3—figure supplement 3). Importantly, cells in our analyses remain capable of detecting and controlling established QS-regulated genes in response to late-time CAI-1 supplementation. Specifically, the CAI-1-responsive strain harboring the QS-controlled luciferase genes produced maximal light at T = 22 h, independent of the time point (0 h, 3–8 h) at which CAI-1 was supplied (Figure 3B, gray bars). Combined, these data show that extracellular autoinducers trigger aggregation in V. cholerae, albeit only within a specific temporal window, while canonical autoinducer-triggered QS-behaviors are not subject to such temporal restriction. Under our growth conditions, T = 7 h, after which the aggregation phenotype becomes impervious to autoinducer supplementation, roughly corresponds to when the cells enter stationary phase. We consider stationary-phase-specific factors that could play roles in aggregation in the Discussion.

Aggregation is HapR dependent

The architecture of the V. cholerae QS circuit predicts three possible mechanisms by which QS could promote aggregation at HCD: AphA could repress aggregation at LCD, HapR could promote aggregation at HCD, or the Qrr sRNAs could control aggregation independently of AphA and HapR (Figure 1). To define the QS path to aggregate formation, we constructed strains lacking hapR and/or aphA in both the ΔvpsL LCD-locked and ΔvpsL HCD-locked strains and measured aggregation at 22 h.

There was no difference in aggregation between the ΔvpsL HCD-locked strain and the ΔvpsL ΔaphA HCD-locked strain (Figure 3C,D,K). Thus, AphA does not control aggregate formation, eliminating the first possibility. By contrast, deletion of hapR in the ΔvpsL HCD-locked strain led to a complete loss of aggregation (Figure 3E,K), with levels of aggregation comparable to a ΔvpsL LCD-locked strain (Figure 3G,K). Thus, HapR is required for aggregation, showing that the second possibility is correct. Indeed, epistasis analysis demonstrates that the phenotype of the ΔvpsL ΔaphA ΔhapR HCD-locked mutant strain was identical to that of the ΔvpsL ΔhapR HCD-locked mutant (Figure 3E,F,K).

We performed the analogous experiments in the ΔvpsL LCD-locked set of strains. When hapR was absent, no aggregation occurred (Figure 3I,K). We note that deletion of aphA in the ΔvpsL LCD-locked strain led to a modest increase in aggregation (Figure 3H), but one that remains below the threshold for detection by our segmentation protocol (Figure 3K). AphA represses transcription of hapR (Rutherford et al., 2011). Thus, the ΔvpsL ΔaphA LCD-locked strain has elevated HapR levels, and our genetic analysis above shows that HapR promotes aggregation. AphA regulation of hapR could account for the minor increase in aggregation evident in Figure 3H. Aggregation does not occur in the ΔvpsL ΔaphA ΔhapR LCD-locked strain (Figure 3J,K), which is consistent with any AphA regulation of aggregation occurring through HapR. To confirm the role of HapR in aggregation, we complemented the ΔvpsL ΔhapR HCD-locked strain with a chromosomal copy of hapR that we introduced at the lacZ locus. At T = 22 h, the ΔvpsL ΔhapR lacZ:PhapR-hapR HCD-locked strain exhibited a comparable level of aggregation to the ΔvpsL HCD-locked strain (Figure 3—figure supplement 4). We conclude that HapR is the main QS activator of aggregation. Above, we mentioned that a third regulatory possibility was that the Qrr sRNAs control aggregation independently of AphA and HapR. Our experiments here show that HapR is essential for aggregation, eliminating this final option.

eDNA contributes to aggregation

To determine structural components of aggregates, we first took a candidate approach using the logic that genes encoding such components must be regulated by HapR at HCD. A promising candidate is Dns, one of two V. cholerae extracellular nucleases. HapR represses dns at HCD (Blokesch and Schoolnik, 2008). The other extracellular nuclease, Xds, is not known to be HapR-controlled. Both nucleases contribute to the surface-biofilm program (Seper et al., 2011). We reasoned that at HCD, HapR repression of dns, coupled with low or no Xds activity, would promote eDNA production potentially contributing to aggregation.

To explore the role of eDNA in aggregate formation, we constructed mutants lacking both xds and dns in ΔvpsL LCD-locked and ΔvpsL HCD-locked strains. We analyzed these two strains, along with the parent ΔvpsL LCD-locked and ΔvpsL HCD-locked strains over time. At 16 and 19 h, as discussed above, the ΔvpsL HCD-locked strain consisted primarily of planktonic cells and a small number of clusters (Figure 4A). All other strains consisted of exclusively planktonic cells (Figure 4A). At 22 h, both the ΔvpsL HCD-locked and the ΔvpsL Δxds Δdns HCD-locked strains formed aggregates (Figure 4A,B,D), however the average aggregate size was larger in the ΔvpsL Δxds Δdns HCD-locked strain than in the ΔvpsL HCD-locked strain (Figure 4F). Because the ΔvpsL Δxds Δdns HCD-locked strain formed aggregates that were larger than the imaging field of view used for the above experiments, in panel 4F, we estimated the aggregate size of these strains by computing the cross-sectional area of all aggregates within an entire microtiter dish. The ΔvpsL LCD-locked and ΔvpsL Δxds Δdns LCD-locked strains exhibited no aggregation (Figure 4A,C,E). Individual deletion of xds or dns in the ΔvpsL HCD-locked strain also resulted in aggregation (Figure 4—figure supplement 1A), with Dns contributing more than Xds to overall aggregate size (Figure 4—figure supplement 1B). These relative effects parallel those reported for Xds and Dns in surface-biofilm formation (Seper et al., 2011). Unlike for the ΔvpsL HCD-locked strain, aggregates of the ΔvpsL Δxds Δdns HCD-locked strain continued to enlarge, precluding an accurate assessment of aggregate size after T = 22 h. To verify the role of extracellular nucleases, we complemented the ΔvpsL Δxds Δdns HCD-locked strain by introducing a chromosomal copy of dns at the lacZ locus to restore the stronger of the two extracellular nucleases. The ΔvpsL Δxds Δdns lacZ:Pdns-dns HCD-locked strain produced smaller aggregates than the ΔvpsL Δxds Δdns HCD-locked strain (Figure 4—figure supplement 2). We conclude that extracellular nucleases function to limit overall aggregate size but they do not control aggregation timing.

Figure 4 with 3 supplements see all

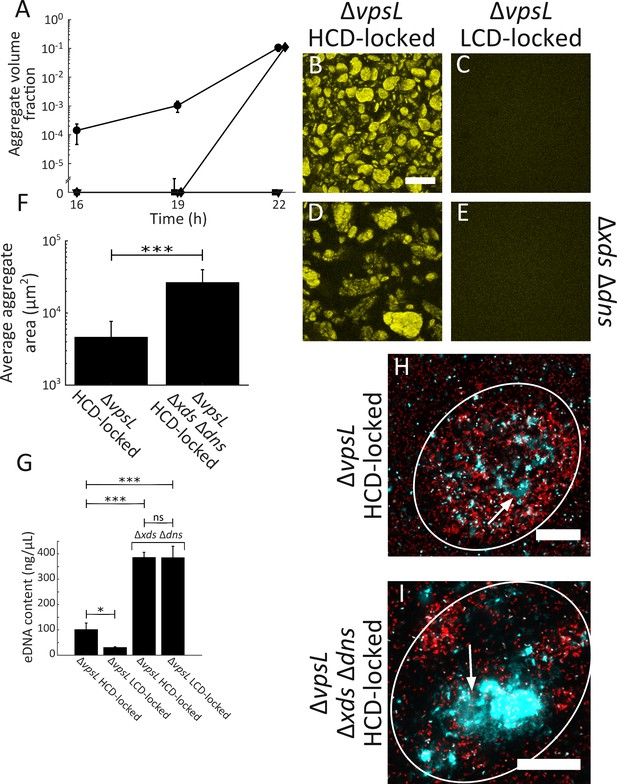

Extracellular DNA contributes to V. cholerae aggregation.

(A) Quantitation of aggregate volume fraction over time. Circle: ΔvpsL HCD QS-locked (HCD-locked), triangle: ΔvpsL LCD QS-locked (LCD-locked), diamond: ΔvpsL Δxds Δdns HCD-locked, and square: ΔvpsL Δxds Δdns LCD-locked. Representative cross-sections of the ΔvpsL HCD-locked (B), ΔvpsL LCD-locked (C), ΔvpsL Δxds Δdns HCD-locked (D), ΔvpsL Δxds Δdns LCD-locked (E) V. cholerae strains following 22 h of growth. Magnification: 10X; scale bar: 250 μm. (F) Average aggregate cross-sectional area at T = 22 h for the ΔvpsL HCD-locked and ΔvpsL Δxds Δdns HCD-locked strains. Statistical significance was determined with a two-sample Kolmogorov–Smirnov test on pooled data (***= p<0.0005). (A–F) All strains harbor mKO constitutively expressed from the chromosome. (G) Quantitation of total bulk eDNA content in ΔvpsL HCD-locked, ΔvpsL LCD-locked, ΔvpsL Δxds Δdns HCD-locked, and ΔvpsL Δxds Δdns LCD-locked strains following 22 h of growth. Statistical significance was determined with a two-sample t-test (*= p<0.05, ***= p<0.0005, ns = not significant). (H) Cross-section through a representative culture of the ΔvpsL HCD-locked strain (red) to which the eDNA stain TOTO-1 (cyan) was added following 22 h of growth. (I) Cross-section through a representative culture of the ΔvpsL Δxds Δdns HCD-locked strain (red) to which the eDNA stain TOTO-1 (cyan) was added following 22 h of growth. In (H,I), white arrows indicate regions of eDNA. Strains harbor mKate2 constitutively expressed from the chromosome. Magnification: 63X; scale bar: 25 μm. Samples are representative of 3 biological replicates. (A,F,G) Quantitation of mean ± standard deviation (N=3 biological replicates).

https://doi.org/10.7554/eLife.42057.026

Curiously, no aggregation occurred in the ΔvpsL Δxds Δdns LCD-locked strain. We expected eDNA levels to be elevated in this strain because it lacks extracellular nucleases responsible for eDNA degradation, and, based on the above results with the ΔvpsL Δxds Δdns HCD-locked strain, the presence of eDNA influences aggregation. We measured the eDNA content in all four strains at 22 h, and indeed, the concentrations of eDNA in the ΔvpsL Δxds Δdns LCD-locked and ΔvpsL Δxds Δdns HCD-locked strains are equivalent and, moreover, elevated ~4-fold and 10-fold compared to the ΔvpsL HCD-locked and ΔvpsL LCD-locked strains, respectively (Figure 4G). These data show that, by itself, accumulation of eDNA is not sufficient to drive aggregation.

We confirmed that eDNA is present in aggregates by imaging the ΔvpsL HCD-locked, and ΔvpsL Δxds Δdns HCD-locked strains grown to 22 h followed by addition of the cell-impermeant nucleic acid stain TOTO-1. In the ΔvpsL HCD-locked strain, patches of eDNA were present in aggregates (Figure 4H, arrow; Video 2) and a stronger eDNA signal could be visualized in the ΔvpsL Δxds Δdns HCD-locked strain (Figure 4I, arrow; Video 3). In both strains, we also identified dead cells (Figure 4H,I; Videos 23). To further test the contribution of eDNA, we supplied 100 Kunitz units/mL DNase I to strains at T = 0 h. Because the quantity of DNAse I required for experiments such as those in Figure 4A, which are in carried out in 2 mL volumes, is prohibitive, we modified our protocol for this analysis to enable use of small volumes. DNase I treatment reduced aggregation in the ΔvpsL Δxds Δdns HCD-locked strain but had little effect on the ΔvpsL HCD-locked strain (Figure 4—figure supplement 3). The timing of aggregation was altered in microtiter-dish-grown cells, hence the difference in the assayed time point. This result supports the conclusion from above that eDNA contributes to, but is not sufficient for, aggregate formation. Combined, the data in Figure 4 show that eDNA levels are modulated through the activity of two extracellular nucleases, and eDNA, in turn, plays a role in V. cholerae aggregate formation in the HCD QS-mode. However, the lack of aggregate formation in the ΔvpsL Δxds Δdns LCD-locked strain, in the face of elevated eDNA levels, coupled with the finding that complete loss of aggregation does not occur upon complementation with dns or exogenous DNase I supplementation, argues that there must be additional components required for V. cholerae aggregate formation.

Video 2
eDNA in the ΔvpsL HCD-locked V. cholerae aggregate.

z-scan through a representative aggregate of the ΔvpsL HCD-locked strain (red) to which the eDNA stain TOTO-1 (cyan) was added following 22 h of growth. The strain harbors mKate2 constitutively expressed from the chromosome. Magnification: 63X; scale bar: 25 μm. Contrast independently adjusted in Videos 2 and 3 to highlight different eDNA features.

https://doi.org/10.7554/eLife.42057.034
Video 3
eDNA in the ΔvpsL Δxds Δdns HCD-locked V. cholerae aggregate.

z-scan through a representative aggregate of the ΔvpsL Δxds Δdns HCD-locked strain (red) to which the eDNA stain TOTO-1 (cyan) was added following 22 h of growth. The strain harbors mKate2 constitutively expressed from the chromosome. Magnification: 63X; scale bar: 25 μm. Contrast independently adjusted in Videos 2 and 3 to highlight different eDNA features.

https://doi.org/10.7554/eLife.42057.035

A genetic screen to identify components required for V. cholerae aggregation

We developed a screen to uncover genes involved in V. cholerae aggregate formation by exploiting a readily assayable plate-based phenotype that correlated with aggregation in liquid. On agar plates, ΔvpsL HCD-locked and ΔvpsL LCD-locked colonies formed opaque and translucent colonies, respectively (Figure 5A,B). Variability in V. cholerae colony opacity has been previously reported (Finkelstein et al., 1992; Finkelstein et al., 1997; Lankford, 1960), but, to our knowledge, has not been linked to aggregation. Analogous colony phenotypes are well known in other species of Vibrio, including V. parahaemolyticus and V. alginolyticus, and in those organisms, opacity/translucence are QS-regulated and related to capsule synthesis (Chang et al., 2009; Enos-Berlage and McCarter, 2000; Enos-Berlage et al., 2005). Germane to our study is that the ΔvpsL HCD-locked V. cholerae strain, which is proficient for aggregation, forms opaque colonies, while deletion of hapR results in translucent colonies, which correlates with the loss of the ability to aggregate (Figure 5C).

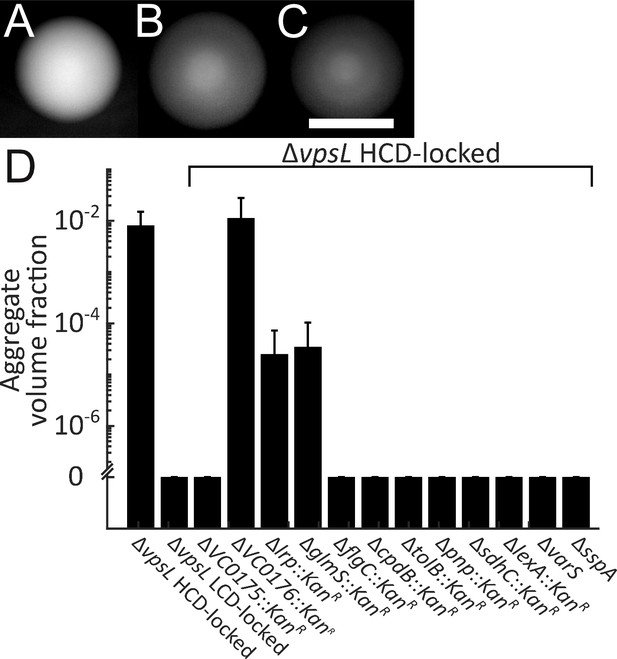

Genes required for V. cholerae aggregation.

Representative ΔvpsL HCD QS-locked (HCD-locked) (A, opaque), ΔvpsL LCD QS-locked (LCD-locked) (B, translucent), and ΔvpsL ΔhapR HCD-locked (C, translucent) colonies grown on LB agar plates at 37°C for 24 h. (A–C) Scale bar: 5 mm. (D) Quantitation of aggregate volume fraction for ΔvpsL HCD-locked, ΔvpsL LCD-locked, and ΔvpsL HCD-locked strains carrying deletions in each of the genes identified in the screen (Table 1). Samples were stained with the nucleic acid stain SYTO-9. Quantitation of mean ± standard deviation (N≥3 biological replicates) after 22 h of growth.

https://doi.org/10.7554/eLife.42057.036

We reasoned that mutagenesis of the ΔvpsL HCD-locked V. cholerae strain followed by screening for translucent colonies could reveal genes involved in aggregation. We used Tn5 to randomly mutagenize the ΔvpsL HCD-locked strain as well as a ΔvpsL lacZ:PhapR-hapR HCD-locked strain. We used the hapR merodiploid to avoid identifying insertions in hapR, which we knew would cause a translucent phenotype. Our rationale for also screening in the strain with only a single copy of hapR was because, although we were attracted to the idea of eliminating hapR mutants, we were concerned that as QS is involved in aggregate formation, overproduction of HapR could mask potential phenotypes. We screened ~25 000 mutants in each case. Both screens were successful and yielded overlapping sets of genes. In the strain containing only a single copy of hapR, we used polymerase chain reaction (PCR) to identify and eliminate from analysis mutants with transposon insertions in hapR. Following this procedure, we identified a total of 49 colonies exhibiting translucent phenotypes (from both screens). We successfully identified the transposon insertion locations in 45 of the mutants, revealing 18 unique loci. We carried out a secondary screen to determine whether disruption of the candidate genes, beyond conferring the translucent phenotype, altered aggregation in liquid. Mutations in 12 of the 18 identified loci led to strains displaying greatly diminished aggregation (Table 1 reports all of the genes and from which screen they were obtained). We validated these observations by engineering deletions of the candidate genes in the ΔvpsL HCD-locked strain and assaying for defects in aggregation at 22 h, a time point by which the ΔvpsL HCD-locked parent strain consistently formed aggregates. We confirmed that aggregation is diminished or eliminated in all of the mutant strains (Figure 5D). We identified multiple insertions in the operons encoding components of the TCA cycle – the succinate and 2-oxoglutarate dehydrogenase complexes (vc2091-vc2087; sdhC, sdhD, sdhA, sdhB, and sucA) and the flagellar basal body (vc2200-vc2198; flgBCD). We deleted one representative gene (sdhC and flgC) to confirm the phenotype. Additionally, two of the insertions identified in our screen are located in intergenic regions between divergently transcribed operons (vca0125/vca0127 and vca0175/vca0176). Our attempts to delete the vca0125/vca0127 region were unsuccessful so we could not verify the role in aggregation. In the case of the vca0175/vca0176 region, we individually deleted vca0175 and vca0176, and determined that vca0175, which has no known function, is the gene responsible for the aggregation defect. While investigating the mechanisms by which the genes identified in our screen regulate aggregation is beyond the scope of this work, we lay out possible roles below.

Table 1
Genes that contribute to aggregation in V. cholerae
https://doi.org/10.7554/eLife.42057.038
Gene locusAnnotationhapR merodiploid/haploid
vc0092LexA transcriptional
repressor (lexA)
Merodiploid
vc0175Deoxycytidylate
deaminase-like
protein, putative
Merodiploid
vc0487Glucosamine-fructose-6-phosphate aminotransferase (glmS)Merodiploid
vc0576Stringent starvation
protein A (sspA)
Merodiploid
vc0647Polyribonucleotide
nucleotidyltransferase (pnp)
Both
vc1836Translocation protein (tolB)Haploid
vc1904Leucine-responsive
transcriptional
regulator (lrpA)
Merodiploid
vc2091-vc2087Succinate and
2-oxoglutarate
dehydrogenases
(TCA cycle) (sdhC, sdhD,
sdhA, sdhB, and sucA)
Both
vc2200-vc2198Flagellar basal-body
rod proteins (flgBCD)
Both
vc2453Hybrid sensor histidine
kinase VarS (varS)
Merodiploid
vc25622′3′cyclic phosphodiesterase (cpdB)Haploid

Discussion

Here, we demonstrate the existence of an aggregation process in V. cholerae that is independent of the known surface-biofilm program. Aggregation occurs in liquid and is rapid, suggesting that cell division is not required. Aggregate formation occurs when V. cholerae cells are in a HCD QS-state, a QS-regulation pattern opposite to that for surface-biofilm formation which occurs when cells are in a LCD QS-state (Hammer and Bassler, 2003; Zhu and Mekalanos, 2003). Aggregate formation is promoted by exogenous autoinducers, although only during a limited temporal window. HapR, the master regulator of HCD QS-behavior, is required for aggregate formation. eDNA is present in aggregates, contributes to overall aggregate size, and two extracellular nucleases, Xds and Dns, are involved. eDNA is not, however, sufficient to drive aggregate formation. For aggregate formation to occur, genes involved in stress response, phosphate uptake from eDNA, genes of unknown function (including a gene, vc0175, that distinguishes the current seventh pandemic El Tor biotype from the previous classical biotype) are required. The identification of cpdB, which is involved in phosphate acquisition from eDNA (McDonough et al., 2016), and our demonstration of Xds- and Dns-driven regulation of eDNA production in aggregates, suggests that eDNA acquisition from the environment may be important for aggregate-associated cells.

There is a growing recognition that bacteria form multicellular aggregates in liquid, a state that, relative to individual planktonic cells, can confer fitness benefits including increased antibiotic resistance and improved surface-colonization relative to planktonic cells (Kragh et al., 2016; Kragh et al., 2018; Schleheck et al., 2009). Bacterial aggregation can be modulated by factors including QS-state, eDNA, ions, and cationic polymers (Chandler et al., 2009; Das et al., 2014; Laganenka et al., 2016; Perez-Soto et al., 2018). Combined, these findings begin to argue that bacteria exhibit multicellular behaviors in the liquid-phase that are not captured by studies of surface-bound bacterial communities.

We propose a model for how aggregate formation could be instrumental in the two major V. cholerae habitats—the human host and the marine environment—as well as during transitions between them. We consider each niche in turn. First, V. cholerae aggregation during infection: formation of multicellular communities occurs during human infection (Teschler et al., 2015). Filtration that removes aggregates and copepod-associated bacteria, but not planktonic cells, reduced the efficacy of V. cholerae human infections (Colwell et al., 2003; Huq et al., 2010). Deletion of vps genes, which eliminates surface-biofilm formation in vitro, also reduced colonization in a mouse model of cholera disease (Fong et al., 2010). V. cholerae exists as planktonic cells and in debris-attached aggregates in stool samples obtained from human subjects (Faruque et al., 2006; Nelson et al., 2007). These observations suggest that the ability of V. cholerae to form multicellular communities (in liquid and on surfaces) is part of its infection and dispersal process. During infection, following colonization of the surface of the intestinal epithelium, V. cholerae grows to abundance, enters stationary phase, and then triggers a mucosal escape program, which depends on both the stationary-phase alternative sigma factor RpoS and the HCD QS-master regulator HapR (Nielsen et al., 2006). These steps enable re-entry of V. cholerae cells into the intestinal lumen. We propose that it is in this final stage of the infection cycle, after cells re-enter the intestinal lumen, that aggregation occurs because two conditions are met: the cells are in stationary phase and in the HCD QS-state. We speculate that formation of aggregates allows V. cholerae a superior mechanism (possibly by protecting aggregate-associated cells from chemical insults or by increasing intestinal transit rates) to survive passage through the small intestine and re-entry into the marine environment, where V. cholerae is immediately faced with a limited nutrient supply (Kamp et al., 2013). Moreover, aggregates may determine the rate at which V. cholerae passages through the intestine: work in larval zebrafish, a model amenable to live imaging, has shown that bacterial aggregates are commonly found in the intestinal lumen and increased aggregation is correlated with elevated rates of bacterial expulsion from the intestine (Jemielita et al., 2014; Logan et al., 2018; Wiles et al., 2016).

In support of this model, we note that half of the genes (flgC, varS, sdhC, tolB, sspA, and pnp) identified here as required for aggregation have previously been shown to be involved in V. cholerae colonization, mucosal penetration, or dissemination from the host (Kamp et al., 2013; Liu et al., 2008; Merrell et al., 2002). Live imaging in mice also shows that multicellular V. cholerae communities are present on epithelial surfaces and, moreover, these communities are clonal, while non-clonal aggregates are found in the intestinal lumen (Millet et al., 2014). This finding is consistent with the observation that VPS-dependent surface-biofilms are clonal (Nadell et al., 2015), while we show here that aggregates are non-clonal (Figure 2—figure supplement 7). Additionally, our screen identified that the vc0175 gene, located within the VSP-I region, is required for aggregate formation. VSP-I and VSP-II are two genomic islands that distinguish the currently dominant biotype, El Tor, from the classical biotype (Dziejman et al., 2002). The El Tor biotype has supplanted the classical biotype as the primary cause of the pandemic disease cholera. Prior to the acquisition of these genomic islands, along with the El Tor CTX prophage and several additional point mutations, the El Tor V. cholerae biotype caused infections in humans, but lacked pandemic potential (Hu et al., 2016). Possibly, the ability to robustly form aggregates contributes to the current dominance of the El Tor biotype by making either host infection or host dispersal more productive or by increasing environmental persistence. Future work in animal models is required to test these hypotheses.

Now we turn to V. cholerae aggregation in its other habitat: the marine environment. Aggregation could promote environmental persistence of V. cholerae by providing a mechanism for the rapid formation of multicellular communities under conditions of nutrient deprivation. Supporting this idea, our screen identified genes (sspA, varS, sdhC, lexA, lrp, pnp) with known roles in stress response or response to changes in carbon metabolism (Brinkman et al., 2003; Butala et al., 2009; Lenz et al., 2005; Merrell et al., 2002; Romeo, 1998; Tsou et al., 2011). With respect to the environment, aggregate formation might provide insight into conditionally viable environmental cells (CVEC; related to viable but not culturable cells (VBNC)) which are clumps of dormant environmental V. cholerae isolates that resist culturing except under very specific conditions (Alam et al., 2007; Faruque et al., 2006; Kamruzzaman et al., 2010). Non-clonal aggregate formation (Figure 2—figure supplement 7) may also provide V. cholerae a multicellular lifestyle amenable to horizontal gene transfer (HGT). The VPS-dependent surface-biofilm program likely cannot foster genetic diversity because, as mentioned above, V. cholerae surface-biofilms are clonal (Nadell et al., 2015). Expression of the genes encoding the competence machinery required for HGT is activated at HCD and in the presence of chitin (Blokesch and Schoolnik, 2008; Meibom et al., 2005). We suggest that aggregation could aid in the colonization of chitin surfaces and/or provide an alternative route to HGT. Finally, formation of V. cholerae aggregates during stationary phase has parallels to the spore-formation program in Myxococcus xanthus (Shimkets, 1999). Specifically, both processes occur under conditions of starvation and require population-level collective behavior to foster community-level benefits. Additionally, in the case of V. cholerae, aggregation might provide ecological advantages such as promoting environmental dissemination and concentrating biomass, for example, by altering the buoyancy of the community which could aid in movement through the water column. To reap these putative environmental benefits, V. cholerae must successfully confront associated challenges such as the emergence of cheaters that do not contribute to aggregate formation but nonetheless obtain the public good(s) the aggregate provides. We speculate that aggregation is driven by surface adhesins that additionally serve in self/non-self kin-recognition (Smukalla et al., 2008), which can defend communities against free-riders. Kin-recognition in V. cholerae can occur via the pilins TcpA and PilA (Adams et al., 2018; Kirn et al., 2000; Taylor et al., 1987). While the aggregation process that we report does not depend on either of these pili (Figure 2—figure supplement 4), V. cholerae may deploy additional, as-yet undiscovered, kin-recognition systems to control its community diversity in aggregates. Curiously, our screen identified genes required for aggregate formation, but it did not yield genes that encode obvious structural components required for V. cholerae aggregation. We are currently focused on identifying structural genes and on defining the mechanism underlying aggregate assembly. We anticipate that deeper understanding will provide insight into whether the aggregation program is specific to V. cholerae or is more broadly conserved among bacteria. Specifically, structural genes involved in V. cholerae aggregation could play analogous roles in other bacterial species. Additional studies in species known to aggregate should reveal if this is the case.

We have identified three relevant timescales for the aggregation program: the time at which V. cholerae commits to the aggregation program (7 h), the time by which aggregate formation occurs (by 22 h), and the timeframe over which aggregation occurs (<30 min). We discuss these three timescales in turn.

  1. At 7 h, a time shortly before V. cholerae cultures enter stationary phase under our conditions, V. cholerae cells become refractory to the addition of autoinducers and commit to one of two developmental programs: the formation of aggregates, following a subsequent long delay, or to continuation as planktonic cells. We argue that this timepoint serves as a developmental checkpoint employed by V. cholerae to verify the execution of the optimal, cell-density-dependent, strategy for survival during stationary phase. For example, aggregation, a process whose kinetics must necessarily be driven by the encounter rate between bacteria in solution, will progress more efficiently when the cell density is high compared to when cell density is low.

  2. By 22 h, V. cholerae undergoes the entire process of aggregation. Strikingly, the time by which aggregation occurs (22 h) is 15 h after the timepoint at which, from the context of QS signals, the cells have committed to this program. This quiescent period may provide V. cholerae a temporal window in which it can abort the aggregation program if, for example, new nutrient sources become available. The genes that we identified in our screen were assayed for their contributions to aggregate formation at T = 22 h, and thus the possibility exists that they affect aggregation kinetics by delaying the onset of aggregate formation.

  3. The process of aggregation occurs within 30 min. This timeframe is far more rapid than the formation of mature V. cholerae surface-biofilms, a process that can take up to 20 h under laboratory conditions (Yan et al., 2016). The rapidity of the aggregation process indicates that the underlying mechanism may be analogous to mechanisms driving aggregation in colloidal systems. For example, changes in the zeta potential on the cell surface may lead to aggregation (Babick, 2016). Alternatively, surface-exposed molecules may act as polymer brushes hindering aggregation until changes in the extracellular environment cause adjacent surfaces to entangle (Chen et al., 2017). By exploiting such physical processes, V. cholerae may be able to form aggregates in a rapid and metabolically efficient manner.

In conclusion, we have demonstrated a QS-controlled program of aggregation in V. cholerae that occurs in liquid and is independent of the surface-biofilm program. Further study of the formation of these multicellular communities may yield insight into the natural lifecycle of V. cholerae, cooperative strategies employed by V. cholerae to survive in its markedly different environmental niches, and broader mechanistic principles employed by bacteria that enable rapid multicellular community building to defend against predators or other harmful environmental factors, or that enable the collective to survive starvation.

Materials and methods

Bacterial strains and reagents

All V. cholerae strains used here were derived from a streptomycin-resistant variant of the WT O1 El Tor biotype C6706str2 (Thelin and Taylor, 1996). Escherichia coli strain S17-1λpir was used for cloning. Antibiotics, when appropriate, were used at the following concentrations: ampicillin, 100 mg/L; kanamycin 100 mg/L; polymyxin B, 50 u/L; streptomycin, 500 mg/L. Tetracycline was used at 10 mg/L for strain construction and at 1 mg/L for plasmid maintenance. X-Gal was used at 50 mg/L. Chemical syntheses of CAI-1 and AI-2 have been previously described (Higgins et al., 2007; Semmelhack et al., 2005). Strains are listed in Supplementary file 1.

DNA manipulation and strain construction

Standard molecular cloning techniques were used for plasmid construction (Sambrook et al., 1989). Primers are listed in Supplementary file 2. Chromosomal alterations in V. cholerae were performed using allelic exchange with pKAS32 (Skorupski and Taylor, 1996) or MuGENT (multiplex genome editing by natural transformation) (Dalia et al., 2014a). When using pKAS32, DNA fragments > 1 kB upstream and downstream of the genomic region to be deleted were amplified via PCR, fused using overlap extension PCR (OE-PCR) (Ho et al., 1989), and subsequently inserted into pKAS32 using ligation or Gibson assembly (Gibson et al., 2009). For MuGENT, approximately 3 kB regions upstream and downstream of the genomic region to be deleted were amplified via PCR. OE-PCR was subsequently used to fuse these fragments upstream and downstream of a DNA fragment encoding a KanR cassette. The resulting product was provided to naturally competent V. cholerae cells grown on shrimp shells, as previously described (Dalia et al., 2014b; Dalia et al., 2014a). Following selection and isolation of colonies on LB plates containing both kanamycin and polymyxin B, the deletion was verified by PCR. For experiments in Figure 4—figure supplement 2, we used MuGENT for mutagenesis and co-transformed cells with a selectable marker at a neutral locus, vc1807:KanR, and a DNA fragment containing lacZ:Pdns-dns. Transformants were selected on LB plates containing kanamycin, polymyxin B, and X-Gal. mKate2 (Shcherbo et al., 2007), mTFP1 (Ai et al., 2006), or mKO (Karasawa et al., 2004) genes, each driven by pTac, were inserted onto the V. cholerae chromosome at the lacZ site, as previously described (Nadell et al., 2015).

Aggregate formation

All growth media were filter sterilized (pore size: 0.22 μm). V. cholerae strains were grown overnight in LB (Fisher BioReagents, Pittsburgh, PA; Tryptone 10 g/L, yeast extract 5 g/L, and NaCl 10 g/L) at 37°C with shaking (250 rpm). Cultures were back-diluted 1:100 in LB supplemented with 10 mM CaCl2 (Kierek and Watnick, 2003b), and incubated at 37°C with shaking (250 rpm). After 1 h (approximate OD600: 0.04), cultures were diluted 1:20 into 2 mL of LB +10 mM Ca2+ in 20 mL Pyrex test tubes. Samples were incubated in the outer ring of a rolling drum (New Brunswick, Edison, NJ; model # M1053-4004; 1 Hz) at 30°C. At designated time points, 150 μL samples were removed from a fixed height within the culture and deposited into wells of a No. 1.5 coverslip 96-well microtiter dish (MatTek, Ashland, MA; part # P96G-1.5–5 F). The samples were dispensed into the microtiter wells using a single-channel electronic pipette (Eppendorf, Hamburg, Germany; Xplorer) set at the lowest possible aspiration and dispensation speed (172 μL/s). For aggregate formation in plastic-bottomed 24-well microtiter dishes, microplates were mounted on an orbital shaker (IKA, Staufen im Breisgau, Germany; KS 260 Basic; 250 rpm) and the samples were grown for 48 h at 30°C. The low surface-attachment assays used plastic-bottomed Corning Costar 24-well microtiter dishes (Corning, Corning, NY). Biological replicates are defined as aggregates derived from an isolated, individual colony. Technical replicates refer to samples taken from independent bacterial cultures.

A genetic screen for factors promoting aggregation

ΔvpsL HCD-locked and ΔvpsL lacZ:PhapR-hapR HCD-locked V. cholerae strains were mutagenized with Tn5 as previously described (Miller et al., 2002). Mutants were isolated on LB plates containing kanamycin and polymyxin B (<200 colonies per plate). The colonies were grown at 37°C for ~16 h to ensure that differences in colony opacity could be observed. Approximately 25 000 colonies were assessed in each of the two mutagenesis screens. Changes in colony opacity were determined by comparing the opacity of individual colonies to adjacent colonies on the same plate. All mutants exhibiting alterations in colony opacity were purified and isolated by restreaking on plates containing kanamycin and polymixin B. Aggregate formation was subsequently assayed at 22 h, using the protocol described above. No antibiotics were present in the growth medium for the aggregation assays. Transposon insertion sites were determined using arbitrary PCR (Saavedra et al., 2017). Images of colony opacity were obtained after 24 h of growth of colonies on LB plates at 37°C using a stereomicroscope (Leica, Wetzlar, Germany; M125; 20X zoom) equipped with a Leica MC170 HD camera and using a gooseneck light source to provide oblique sample illumination.

Bioluminescence assay

V. cholerae cultures were grown using the above aggregate formation protocol and sampled at the indicated time points. Bioluminescence and OD600 were respectively measured using a Tri-Carb 2810 TR scintillation counter (PerkinElmer, Waltham, MA) and a DU800 spectrophotometer (Beckman Coulter, Brea, CA). Prior to measuring OD600, 1 mL of each culture was transferred to a 1.5 mL Eppendorf tube containing small acid-washed glass beads (Sigma-Aldrich, St. Louis, MO; model # G8772; 425–600 μm) and samples were vigorously shaken for 10 min on a vortex mixer to break apart aggregates.

Microscopy and image analysis

Images were acquired with a Leica SP-8 point scanning confocal microscope equipped with a tunable white-light laser (Leica; model # WLL2; excitation window = 470–670 nm). mTFP1 was excited with a 442 nm continuous wave laser (Leica) and all other fluorophores were excited using the tunable white-light laser. Emitted light was detected using hybrid GaAsP spectral detectors (Leica, HyD SP) and timed gate detection was employed to minimize background signal. Aggregates were imaged using either a 10X air objective (Leica, HC PL FLUOTAR; NA: 0.30) or a 63X water immersion objective (Leica, HC PL APO CS2; NA: 1.20). All samples, unless specified otherwise, were imaged in the approximate center of the microtiter well.

Aggregate number and size were quantified using the 10X air objective with a field of view of 1163 × 1163 μm2 (2048 × 2048 pixels2). A total sample volume of 100 μm with a 2 μm step size was imaged, starting just above the coverslip surface. Resulting images were analyzed using custom software written in MATLAB, which is provided in a code repository (https://github.com/jemielita/aggregation.git; copy archived at https://github.com/elifesciences-publications/aggregation). In brief, to obtain segmented images using the 10X air objective, an intensity-based segmentation algorithm was applied to the 3D image stack followed by a minimum object size cutoff. To overcome sporadic under-segmentation of adjacent aggregates, the convexity of aggregates was exploited. For all objects identified in a single plane, the root-mean-squared deviation (RMSD) between the area and convex area of the objects was computed. Subsequently, for all objects whose RMSD exceeded a cutoff, the shortest line across opposite quadrants of the object was computed and used to bisect the initially over-segmented object into two discrete objects. Following this procedure, 3D reconstructions of each aggregate were assembled by connecting overlapping 2D regions. As necessary, the results of this segmentation protocol were manually corrected. Within a given experiment, all parameters of the segmentation protocol were kept fixed. An exception was made for the analysis of the ΔvpsL Δxds Δdns HCD-locked strain for which the intensity threshold employed was lowered to properly segment the low-intensity distal (with respect to the objective) side of large aggregates. All quantitative imaging data reported in this manuscript were collected with the 10X air objective, with the exception of two datasets in Figure 3—figure supplement 2, which were collected with the 63X water objective. The 63X water objective was used to quantify cluster formation over a field of view of 1984 × 1984 μm2 (1984 × 1984 pixels2). A total sample volume of 50 μm with a 1 μm step size was imaged, starting just above the coverslip surface. To segment images obtained with the 63X water immersion objective, analogous to what we describe above, an intensity-based segmentation algorithm was used, followed by the application of an upper cluster size cutoff.

For experiments in which the cross-sectional aggregate area was measured, subregions of the microtiter dish were imaged using the Leica Tile Scan module and an image of the full microtiter well was computationally assembled. As above, an intensity-based segmentation algorithm was applied to the resulting image, followed by a minimum object size cutoff.

We define the aggregate volume fraction as the sum of the volume of aggregates identified in the imaged volume normalized by the total volume imaged. We define the average aggregate volume as the effective average aggregate volume in which a bacterium is found:

i=1Nvi×vii=1Nvi

where v is the volume of an individual aggregate and N is the total number of aggregates identified within a sample. An identical approach was used to define the average cluster size obtained using the 63X water objective and for computing the average cross-sectional area. To compare the distribution of aggregate volumes or cross-sectional areas generated by different strains, we used a two-sample Kolmogorov–Smirnov test on the distribution of data pooled from all biological replicates. Aggregate volume fraction and average aggregate size are reported as the mean ± standard deviation (SD) for a minimum of three biological replicates.

eDNA quantification and staining

To quantify bulk eDNA levels, 1 mL of cultures were transferred to 1.5 mL Eppendorf tubes containing small acid-washed glass beads (Sigma-Aldrich, catalog # G8772; 425–600 μm). Samples were vigorously shaken for 10 min on a vortex mixer followed by centrifugation for 1 min at 15 000 rpm. The clarified supernatants were filter sterilized (pore size: 0.22 μm), and DNA was extracted using the standard ethanol precipitation technique (Ausubel et al., 2002; Seper et al., 2011). Phase lock gel (Sigma-Aldrich, Dow Corning high-vacuum grease, catalog # Z273554) was used during phenol extraction. eDNA content was subsequently quantified using a NanoDrop OneC (ThermoFisher, Waltham, MA; catalog # ND-ONE-W).

In DNase I supplementation experiments, cultures were prepared as described above and aliquoted into a glass-bottom 96-well microtiter dish (MatTek) to a final volume of 100 μL. The cultures were grown in the microtiter dish at 30°C on an orbital shaker (IKA, KS260; 350 rpm). DNase I (Sigma-Aldrich, catalog # D5025) was added to samples at T = 0 h at a concentration of 100 Kunitz units/mL (Turnbull et al., 2016). Staining of eDNA was accomplished using the nucleic acid stain TOTO-1 iodide (ThermoFisher, catalog # T3600; final concentration: 1 μM). Staining of the samples in Figure 5D and Figure 3—figure supplement 4 was accomplished using SYTO-9 (ThermoFisher, catalog # S34854; final concentration: 2.2 μM). When using either stain, samples were deposited, as above, into wells of a No. 1.5 coverslip 96-well microtiter dish to which the appropriate stain was subsequently added and gently mixed.

References

  1. 1
  2. 2
    DNA-uptake pilus of Vibrio cholerae capable of kin-discriminated auto-aggregation
    1. DW Adams
    2. S Stutzmann
    3. C Stoudmann
    4. M Blokesch
    (2018)
    bioRxiv, 10.1101/354878.
  3. 3
  4. 4
  5. 5
  6. 6
    Short Protocols in Molecular Biology (5)
    1. F Ausubel
    2. R Brent
    3. R Kingston
    4. DD Moore
    5. JG Seidman
    6. JA Smith
    7. K Struhl
    (2002)
    Wiley.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
    Vibrio cholerae soluble hemagglutinin/protease is a metalloenzyme
    1. BA Booth
    2. M Boesman-Finkelstein
    3. RA Finkelstein
    (1983)
    Infection and Immunity 42:639–644.
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
    Vibrio cholerae hemagglutinin/protease, colonial variation, virulence, and detachment
    1. RA Finkelstein
    2. M Boesman-Finkelstein
    3. Y Chang
    4. CC Häse
    (1992)
    Infection and Immunity 60:472–478.
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
    Ecological relationships between Vibrio cholerae and planktonic crustacean copepods
    1. A Huq
    2. EB Small
    3. PA West
    4. MI Huq
    5. R Rahman
    6. RR Colwell
    (1983)
    Applied and Environmental Microbiology 45:275–283.
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
    Molecular Cloning: A Laboratory Manual
    1. J Sambrook
    2. EF Fritsch
    3. T Maniatis
    (1989)
    Cold Spring Harbor Laboratory Press.
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
    Toxin-coregulated pilus, but not mannose-sensitive hemagglutinin, is required for colonization by Vibrio cholerae O1 El Tor biotype and O139 strains
    1. KH Thelin
    2. RK Taylor
    (1996)
    Infection and Immunity 64:2853–2856.
  95. 95
  96. 96
  97. 97
    A role for the mannose-sensitive hemagglutinin in biofilm formation by Vibrio cholerae El Tor
    1. PI Watnick
    2. KJ Fullner
    3. R Kolter
    (1999)
    Journal of Bacteriology 181:3606–3609.
  98. 98
  99. 99
  100. 100
  101. 101
  102. 102
  103. 103
  104. 104

Decision letter

  1. Gisela Storz
    Senior and Reviewing Editor; National Institute of Child Health and Human Development, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Quorum sensing controls Vibrio cholerae multicellular aggregate formation" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Gisela Storz as the Senior and Reviewing Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Kim Orth (Reviewer #1); Camille Danne (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing and Senior Editors have drafted this decision to help you prepare a revised submission.

Summary:

This manuscript examines programs of multicellularity in the bacterial pathogen Vibrio cholerae that are activated by quorum sensing. The authors study quorum sensing in two modes of multicellularity: non-surface-associated aggregates and surface-associated biofilms. The authors report that genes essential for surface-associated biofilm formation are not required for aggregate formation and that the quorum sensing master regulator HapR is essential for aggregation to occur. This is in contrast to surface-associated biofilm formation where HapR suppresses biofilm formation. The authors go on to show that extracellular DNA plays a role in aggregate formation. It is interesting that the authors observe that aggregates form from pre-existing cells whereas surface-associated biofilms are typically assembled through mechanisms that require clonal expansion. Finally, the authors performed a genetic screen to identify a small number of genes required for aggregation, although how these genes function to promote aggregation remains unknown. The authors discuss their observations in terms of the V. cholerae lifecycle and pathogenesis. They suggest that aggregated V. cholerae might be better able to survive re-entry into the environment and/or promote re-infection of a new host. Collectively, this work was well done and contributes to an alternative perspective on a long-standing question in the field: "What is a biofilm?"

Major comments:

Experimental:

1) None of the mutants tested have been complemented. The authors should at least show that the "aggregation" phenotype is restored once HapR is reintroduced in the ΔhapR strain, as the main message of the paper relies on this finding: aggregation is QS-dependent but relies on a different QS-circuit compared to surface-biofilm formation.

2) None of the graphs show statistical analysis. Even with low N numbers, the authors should use non-parametric tests to test the differences they observe.

3) Figure 4: The study would benefit from exploring the individual contributions of Xds and Dns DNases, particularly as only the latter has been shown to be regulated by HapR signaling, which this paper implicates in aggregate formation. To more clearly establish the contribution of eDNA to aggregate size and average aggregate volume, genetic complements of the deleted DNases, or biochemical complementation via application of exogenous DNase targeting eDNA, should also be conducted.

4) If feasible within a reasonable time frame (2-3 months), the authors should test their mutants in a zebrafish model to support their hypothesis about niche adaptation, for example comparing the colonization capacity of the wildtype strain versus the ΔhapR mutant strain. We realize that this experiment may be more involved, but experiments showing non-surface-associated aggregates affect pathogenesis would significantly increase the novelty of this study.

Editorial:

5) The authors should be better about putting their work in context of what has already been published.

- The work is reminiscent of existing studies – the authors do not really define a new program of multicellularity – the authors should soften such statements (as in the Abstract).

- Figure 2—figure supplement 6: Others have observed that aggregated bacteria are able to recruit single cells (Kragh et al., 2018), similar to what the authors describe.

- Figure 4: The authors show that eDNA is important for aggregation. This has been observed by others (for example, Schleheck et al., 2009).

- Figure 3: Another paper examined quorum-regulated self-aggregation in B. thailandensis upon exposure to nutrient-limiting conditions (Chandler et al., 2009). In that paper, quorum mutants did not aggregate, but aggregation could be restored upon addition of exogenous autoinducer.

6) Nomenclature: Engineers argue that aggregation is a general term that can and should be further defined (flocculation agglutination, coagulation, agglomeration…). Furthermore, the term aggregate is widespread in the biofilm literature (for example, see Thomas Bjarnsholt's work) and linking a new definition to the term aggregate will likely cause confusion in the field. Thus, it would be better if the authors did not associate an additional term with aggregation, especially when the underlying mechanism is unknown.

7) Discussion:

- The authors thoroughly described the relevance of the aggregation phenotype in V. cholerae and reference a similar phenomenon in Myxococcus xanthus. Because this suggests conservation of the aggregation phenotype across bacterial species, it would strengthen the paper to discuss in more detail whether and how aggregation and the proteins mediating it are conserved across Gram-negative bacteria.

- The authors illuminate multiple layers of temporal regulation underlying the aggregation phenotype: that QS autoinducers must be present by 7 hours for aggregation to occur, that aggregation occurs within a 30-minute timespan, and that aggregation begins after ~19.5-20 hours of growth. Because genes were assessed for their role in aggregate formation only at 22 hours, we suggest noting that the genes implicated in aggregate formation may also contribute to aggregation kinetics, as their deletion may have delayed aggregate formation instead of abrogating it entirely.

- A suggested addition to the outline for future work would be to explore possible redundancies in the molecular mechanisms underlying aggregation, which are to be expected particularly if aggregation is common to many Gram-negative bacteria and is important for the bacterial life cycle.

8) Other editorial suggestions:

- Briefly explain how "aggregate volume fraction" is measured/calculated.

- "VPS is dispensable for aggregate formation in liquid. In the remainder of the experiments reported here, unless explicitly stated otherwise, all strains harbor the ΔvpsL mutation." Explain why this was done.

- In the figure legends, it is mentioned "All strains harbor mKO constitutively expressed from the chromosome." Explain why this was done, particularly for readers who are not familiar with V. cholerae.

- Figure 2—figure supplement 2 legend: What are the genes mKO, mKate2, mTFP? What is the staining procedure used here? To what do the three colors correspond?

- The conclusion "aggregates are finite sized" is not supported by the Figure 2—figure supplement 2, or if it is the case, please clarify.

- "We deleted homologs of wbfF and wbfR, the genes implicated in the former study": Implicated in what? Not clear for readers who are not familiar with this former study.

- Subsection “Extracellular DNA contributes to aggregation”, second paragraph: Figure 4F shows a bigger difference between ΔvpsL HCD-locked and ΔvpsL Δxds Δdns HCD-locked than in Figure 4—figure supplement 1B. Why?

- Discussion, second paragraph: The authors talk about "aggregation" in the intestinal lumen. How can they be sure which in vitro phenotype it corresponds to? Could it not be "biofilm formation"?

9) Figure modifications:

- Figure 2: Include a series of images at 16, 19, 22, and 25 hours of true wild-type V. cholerae (with vpsL) to demonstrate that deletion of vpsL does not significantly alter aggregate formation. Though not integral to the message conveyed in Figure 2, inclusion of a supplemental figure of images at 16, 19, 22, and 25 hours of vpsL-complemented strains would elucidate whether deletion of vpsL, and not polar effects, caused the loss of small cluster formation in LCD-locked V. cholerae. This is especially pertinent when contrasting the mechanisms underlying LCD clustering and HCD aggregation.

- Figure 3: Add colored boxes (black and gray) to y-axis of graph in 3B, designating clearly what each colored bar is measuring.

https://doi.org/10.7554/eLife.42057.043

Author response

Major comments:

Experimental:

1) None of the mutants tested have been complemented. The authors should at least show that the "aggregation" phenotype is restored once HapR is reintroduced in the ΔhapR strain, as the main message of the paper relies on this finding: aggregation is QS-dependent but relies on a different QS-circuit compared to surface-biofilm formation.

As suggested, in the revised work we have complemented the ∆vpsLhapR HCD-lockedstrain by introducing a chromosomal copy of hapR at the lacZ locus. Figure 3—figure supplement 4 shows that the introduction of hapR restores the aggregation phenotype. The experiment and result are now described in the last paragraph of the subsection “Aggregation is HapR dependent”.

2) None of the graphs show statistical analysis. Even with low N numbers, the authors should use non-parametric tests to test the differences they observe.

We included summary statistics (mean and standard deviation) for all presented quantitative data in the original figure legends. Inspired by this feedback, we have now also included statistical analyses in the relevant places. In Figure 4G, in which we quantify eDNA content across strains, we apply a t-test to our data. In Figure 4F, Figure 4—figure supplement 2, and Figure 4—figure supplement 3, in which we compare the average aggregate sizes between ∆vpsL HCD-locked, and the ∆vpsLxdsdns HCD-locked strains, we have now applied a Kolmogorov-Smirnov test to compare the size distributions in the different strains. Additionally, for these data sets, we realized that our initial approach to quantify aggregate volume within a given field of view was inadequate in specific cases. In particular, since the ∆vpsLxdsdns HCD-locked strain produces aggregates of size comparable to that of the imaged region, our original approach could have provided a biased estimate of the average aggregate volume. To overcome this issue, in the revised manuscript, we have computed the average cross-sectional area for all aggregates within the microtiter well. This approach is laid out in the second paragraph of the subsection “Extracellular DNA contributes to aggregation”.

With due respect, we believe that it is not appropriate to employ the above statistical tests to compare our aggregating/non-aggregating conditions. Specifically, in cases in which the cells do not aggregate, we cannot measure the distribution of aggregate size, which would be a requirement for the application of statistical analysis to determine if other, aggregating samples differ from non-aggregating samples. However, to alleviate any concerns, in the revised manuscript, we now provide the data for individual aggregate volumes, rather than simply the summary statistics.

3) Figure 4: The study would benefit from exploring the individual contributions of Xds and Dns DNases, particularly as only the latter has been shown to be regulated by HapR signaling, which this paper implicates in aggregate formation. To more clearly establish the contribution of eDNA to aggregate size and average aggregate volume, genetic complements of the deleted DNases, or biochemical complementation via application of exogenous DNase targeting eDNA, should also be conducted.

The studies exploring the individual contributions of Xds and Dns were included in the submitted manuscript as Figure 4—figure supplement 1. These data show that the contribution of Dns to the increase in aggregate size is larger than that of Xds, and that the simultaneous deletion of both nucleases leads to the formation of even larger aggregation.

We thank the reviewers for suggesting these additional informative experiments that further support our conclusions. We performed both requested experiments and included the results in the revised manuscript.

Biochemical complementation with DNase I: Supplementation with DNase I at 100 Kunitz units per mL (a concentration previously used in the literature) reduced aggregation in the ∆vpsLxdsdns HCD-locked strain to level of the ∆vpsL HCD-locked strain. Importantly, DNase I supplementation did not alter aggregation in the ∆vpsL HCD-locked strain. These data verify that eDNA contributes to, but is not essential for, aggregation. We discuss our new DNase I experiments in the subsection “Extracellular DNA contributes to aggregation", amended our Materials and methods subsection “Microscopy and image analysis”, and include a new figure as Figure 4—figure supplement 3.

Complementation of the ∆vpsLxdsdns HCD-lockedstrain with exonuclease gene: Dns plays the major role in aggregation and Xds plays only a minor role (see Figure 4—figure supplement 1). For that reason, we focused our complementation efforts on Dns. We introduced a chromosomal copy of dns at the lacZ locus. Reintroduction of dns suppresses aggregation. New text explaining the experiment and the result is in the second paragraph of the subsection “Extracellular DNA contributes to aggregation” and the data are reported in new Figure 4—figure supplement 2.

Thus, both biochemical and genetic complementation restores the wild-type phenotype.

4) If feasible within a reasonable time frame (2-3 months), the authors should test their mutants in a zebrafish model to support their hypothesis about niche adaptation, for example comparing the colonization capacity of the wild-type strain versus the ΔhapR mutant strain. We realize that this experiment may be more involved, but experiments showing non-surface-associated aggregates affect pathogenesis would significantly increase the novelty of this study.

While we agree that these experiments would be valuable, we are unfortunately unable to carry them out. My lab has never worked with zebrafish so we have no expertise, we have no facilities or animals, nor do we have an existing collaboration in this area. Establishing such a model in larval zebrafish, could take years. We hope the Editor and reviewers can appreciate that such an effort is beyond the scope of this manuscript.

Editorial:

5) The authors should be better about putting their work in context of what has already been published.

- The work is reminiscent of existing studies – the authors do not really define a new program of multicellularity – the authors should soften such statements (as in the Abstract).

- Figure 2—figure supplement 6: Others have observed that aggregated bacteria are able to recruit single cells (Kragh et al., 2018), similar to what the authors describe.

- Figure 4: The authors show that eDNA is important for aggregation. This has been observed by others (for example, Schleheck et al., 2009).

- Figure 3: Another paper examined quorum-regulated self-aggregation in B. thailandensis upon exposure to nutrient-limiting conditions (Chandler et al., 2009). In that paper, quorum mutants did not aggregate, but aggregation could be restored upon addition of exogenous autoinducer.

We thank the reviewers for bringing this literature to our attention. During the preparation of this manuscript we focused on placing our findings within the context of the V. cholerae literature, not within the full literature on bacterial aggregation. We now realize that this approach gave the impression that we were claiming to have discovered an entirely new bacterial multicellular program, rather than a program specific to V. cholerae. Therefore, in the revised work, we have modified our Abstract to make it clearer that we are describing only a program in V. cholerae. Likewise, in the Discussion, first paragraph, we include new text to place our findings in the context of studies of aggregation in other bacterial species.

6) Nomenclature: Engineers argue that aggregation is a general term that can and should be further defined (flocculation agglutination, coagulation, agglomeration…). Furthermore, the term aggregate is widespread in the biofilm literature (for example, see Thomas Bjarnsholt's work) and linking a new definition to the term aggregate will likely cause confusion in the field. Thus, it would be better if the authors did not associate an additional term with aggregation, especially when the underlying mechanism is unknown.

We respectfully disagree that the use of the term “aggregation” is not specific enough and would increase confusion in the literature. We specifically chose the term aggregation because it is used to describe different processes that lead to the adherence of cells to one another. We do not currently have another word that more accurately describes the process we are studying.

We do agree that the term we assign to the phenotype studied here should not conflict with the terms used for other multicellular programs in V. cholerae. To the best of our knowledge, the multicellular programs reported in V. cholerae are surface-biofilm formation, Ca2+-dependent biofilm formation, autoagglutination, and auto-aggregation.

In the last paragraph of the subsection “V. cholerae forms multicellular aggregates in the HCD QS-state”, we have carefully laid out why we are using the term “aggregation” to describe the phenotype we have discovered and we contrast it to surface-biofilm formation, Ca2+-dependent biofilm formation, autoagglutination, and autoaggregation.

7) Discussion:

- The authors thoroughly described the relevance of the aggregation phenotype in V. cholerae and reference a similar phenomenon in Myxococcus xanthus. Because this suggests conservation of the aggregation phenotype across bacterial species, it would strengthen the paper to discuss in more detail whether and how aggregation and the proteins mediating it are conserved across Gram-negative bacteria.

Our intention in comparing the aggregation phenotype in V. cholerae and fruiting body formation in Myxococcus xanthus was to outline two strategies bacteria employ to collectively cope with conditions of starvation and other ecological challenges. We did not intend to claim that the V. cholerae aggregation program is conserved among Gram-negative bacteria. To clarify, we now lay out specific parallels between V. cholerae aggregation and the M. xanthus developmental program (Discussion, fifth paragraph). Also, we emphasize that because we have not yet identified the structural genes underlying aggregate formation, we do not yet know whether this new V. cholerae program is broadly conserved in bacteria.

- The authors illuminate multiple layers of temporal regulation underlying the aggregation phenotype: that QS autoinducers must be present by 7 hours for aggregation to occur, that aggregation occurs within a 30-minute timespan, and that aggregation begins after ~19.5-20 hours of growth. Because genes were assessed for their role in aggregate formation only at 22 hours, we suggest noting that the genes implicated in aggregate formation may also contribute to aggregation kinetics, as their deletion may have delayed aggregate formation instead of abrogating it entirely.

We thank the reviewers for this suggestion. We have modified the Discussion accordingly.

- A suggested addition to the outline for future work would be to explore possible redundancies in the molecular mechanisms underlying aggregation, which are to be expected particularly if aggregation is common to many Gram-negative bacteria and is important for the bacterial life cycle.

We have added text to the fifth paragraph of the Discussion, to bring up the possibility that genes involved in aggregation in V. cholerae could have analogous roles in other bacterial species and that additional studies in species known to aggregate could determine whether this is the case.

8) Other editorial suggestions:

- Briefly explain how "aggregate volume fraction" is measured/calculated.

A more specific definition of aggregate volume fraction is now provided in the manuscript on the last paragraph of the subsection “Microscopy and image analysis”. To further aid readers in understanding this definition, in the revised text we have also provided a brief definition at the first mention of aggregate volume fraction, in Figure 2. In the Figure 2 legend, we also now direct the reader to the Materials and methods section for the full description of how our analyses were performed.

- "VPS is dispensable for aggregate formation in liquid. In the remainder of the experiments reported here, unless explicitly stated otherwise, all strains harbor the ΔvpsL mutation." Explain why this was done.

We show early in the manuscript that VPS is not required for the aggregation process we study. Therefore, using strains that are ΔvpsL allows us to distinguish aggregation from the surface-biofilm program, for which VPS is essential. We have amended the text in the last paragraph of the subsection “V. cholerae forms multicellular aggregates in the HCD QS-state”, to better lay out this logic.

- In the figure legends, it is mentioned "All strains harbor mKO constitutively expressed from the chromosome." Explain why this was done, particularly for readers who are not familiar with V. cholerae.

We agree that the strategy we used for imaging should have been made clearer in the text. mKO is a fluorescent protein. We engineered our V. cholerae strains to constitutively express this protein to enable confocal imaging. We have modified the sentence in the Figure 3 legend to make this strategy clear. Additionally, in the first paragraph of the subsection “V. cholerae forms multicellular aggregates in the HCD QS-state”, we now state that we are using constitutive fluorescent proteins to visualize V. cholerae cells.

- Figure 2—figure supplement 2 legend: What are the genes mKO, mKate2, mTFP? What is the staining procedure used here? To what do the three colors correspond?

mKO, mKate2, mTFP are fluorescent proteins that, respectively, emit yellow, red, and blue light. No staining is used in this figure. We now specifically state this in the Figure 2—figure supplement 2 legend. Additionally, in the two locations in the manuscript where staining was exclusively used, Figure 5 and Figure 4—figure supplement 2, this approach has been noted.

- The conclusion "aggregates are finite sized" is not supported by the Figure 2—figure supplement 2, or if it is the case, please clarify.

We show in Figure 2—figure supplement 2 the results of experiments in which we independently grew cells harboring different fluorescent proteins, then, after aggregate formation, we mixed the samples together. Images of these mixed cultures show aggregates of only one color. The size (and morphology) of each aggregate is comparable, and moreover, comparable to those formed from a strain expressing only a single fluorescent protein. If aggregates had exhibited large variations in size we would have observed different-sized patches of single colors in the experiment shown in Figure 2 rather than discrete, single-color regions. We have clarified this observation in the figure legend to Figure 2—figure supplement 2. Also, we now include further support for this argument by providing, as Video 1 a z-scan through a culture containing aggregates, which demonstrates the extent of individual aggregates.

- "We deleted homologs of wbfF and wbfR, the genes implicated in the former study": Implicated in what? Not clear for readers who are not familiar with this former study.

In the last paragraph of the subsection “HCD-QS aggregates are VpsL-independent”, we have clarified the discussion of this previous study and the roles of the wbfF and wbfR genes.

- Subsection “Extracellular DNA contributes to aggregation”, second paragraph: Figure 4F shows a bigger difference between ΔvpsL HCD-locked and ΔvpsL Δxds Δdns HCD-locked than in Figure 4—figure supplement 1B. Why?

The experiments in Figure 4F and Figure 4—figure supplement 1B are independent experiments performed on different days. We attribute the difference to variation in the sample aggregate volume fraction between biological replicates.

- Discussion, second paragraph: The authors talk about "aggregation" in the intestinal lumen. How can they be sure which in vitro phenotype it corresponds to? Could it not be "biofilm formation"?

In the V. cholerae literature, biofilm formation is used to describe bacterial communities bound to surfaces, such as the intestinal epithelium. We are proposing a scenario whereby non-surface-associated aggregation contributes to the V. cholerae infection cycle, particularly, dispersal from the host back into the environment. Our reasoning relies on our demonstration that V. cholerae forms aggregates in the absence of surfaces coupled with our identification of genes required for this aggregation process having previously documented essential roles in intestinal colonization/dispersal.

9) Figure modifications:

- Figure 2: Include a series of images at 16, 19, 22, and 25 hours of true wild-type V. cholerae (with vpsL) to demonstrate that deletion of vpsL does not significantly alter aggregate formation. Though not integral to the message conveyed in Figure 2, inclusion of a supplemental figure of images at 16, 19, 22, and 25 hours of vpsL-complemented strains would elucidate whether deletion of vpsL, and not polar effects, caused the loss of small cluster formation in LCD-locked V. cholerae. This is especially pertinent when contrasting the mechanisms underlying LCD clustering and HCD aggregation.

We thank the reviewers for suggesting this important control. A series of images of aggregation over time in wild-type V. cholerae has now been included as Figure 2—figure supplement 5. Wild-type V. cholerae exhibits similar patterns of aggregation as a ∆vpsL strain. Text has been updated in the first paragraph of the subsection “Aggregation dynamics are rapid”.

vpsL is one of 18 genes, located in two operons that are required for production of vibrio polysaccharide (VPS). The ΔvpsL mutation in our strain is certainly polar on the 6 genes that lie downstream of it in operon II. Thus, one cannot simply add back vpsL and restore VPS production. The biosynthetic pathway that produces VPS has never been determined, and to the best of our knowledge no one has successfully constructed a strain with vpsL in trans that restores biofilm formation. Presumably, this is the result of issues arising from complex regulation of VPS production, feedback loops, and difficulty in ensuring the correctly-balanced production of biosynthetic components, which preclude simple complementation studies.

- Figure 3: Add colored boxes (black and gray) to y-axis of graph in 3B, designating clearly what each colored bar is measuring.

A colored box has been added to Figure 3B as suggested.

https://doi.org/10.7554/eLife.42057.044

Article and author information

Author details

  1. Matthew Jemielita

    Department of Molecular Biology, Princeton University, Princeton, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Validation, Investigation, Methodology, Writing—original draft, Project administration
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9469-4087
  2. Ned S Wingreen

    Department of Molecular Biology, Princeton University, Princeton, United States
    Contribution
    Conceptualization, Supervision, Validation, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7384-2821
  3. Bonnie L Bassler

    1. Department of Molecular Biology, Princeton University, Princeton, United States
    2. Howard Hughes Medical Institute, Chevy Chase, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Writing—original draft, Project administration
    For correspondence
    bbassler@princeton.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0043-746X

Funding

Howard Hughes Medical Institute

  • Bonnie L Bassler

National Institute of General Medical Sciences (R01GM082938)

  • Ned S Wingreen

Alexander von Humboldt-Stiftung

  • Bonnie L Bassler

National Science Foundation (MCB-1713731)

  • Bonnie L Bassler

National Institute of General Medical Sciences (2R37GM065859)

  • Bonnie L Bassler

National Science Foundation (PHY-1734030)

  • Matthew Jemielita

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank all members of the Bassler group and Howard Stone for fruitful discussions and critical feedback. We particularly thank Jing Yan for providing plasmids and Amanda Hurley for assistance with plasmid and strain construction. This work was supported by the Howard Hughes Medical Institute, the Max Planck Society-Alexander von Humboldt Foundation, NSF Grant MCB-1713731, NIH Grant 2R37GM065859 (BLB), NIH Grant R01GM082938 (NSW), and NSF Grant PHY-1734030 (MJ).

Senior and Reviewing Editor

  1. Gisela Storz, National Institute of Child Health and Human Development, United States

Publication history

  1. Received: September 16, 2018
  2. Accepted: December 23, 2018
  3. Accepted Manuscript published: December 24, 2018 (version 1)
  4. Version of Record published: January 29, 2019 (version 2)

Copyright

© 2018, Jemielita et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,036
    Page views
  • 528
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Microbiology and Infectious Disease
    2. Structural Biology and Molecular Biophysics
    Nancy L Meyer et al.
    Research Article
    1. Cell Biology
    2. Microbiology and Infectious Disease
    Snježana Mikuličić et al.
    Research Article
