Light-activated Frizzled7 reveals a permissive role of non-canonical wnt signaling in mesendoderm cell migration

  1. Daniel Čapek
  2. Michael Smutny
  3. Alexandra-Madelaine Tichy
  4. Maurizio Morri
  5. Harald Janovjak
  6. Carl-Philipp Heisenberg  Is a corresponding author
  1. Institute of Science and Technology Austria, Austria
  2. University of Warwick, United Kingdom
  3. Monash University, Australia
Research Article
  • Cited 2
  • Views 1,815
  • Annotations
Cite this article as: eLife 2019;8:e42093 doi: 10.7554/eLife.42093

Abstract

Non-canonical Wnt signaling plays a central role for coordinated cell polarization and directed migration in metazoan development. While spatiotemporally restricted activation of non-canonical Wnt-signaling drives cell polarization in epithelial tissues, it remains unclear whether such instructive activity is also critical for directed mesenchymal cell migration. Here, we developed a light-activated version of the non-canonical Wnt receptor Frizzled 7 (Fz7) to analyze how restricted activation of non-canonical Wnt signaling affects directed anterior axial mesendoderm (prechordal plate, ppl) cell migration within the zebrafish gastrula. We found that Fz7 signaling is required for ppl cell protrusion formation and migration and that spatiotemporally restricted ectopic activation is capable of redirecting their migration. Finally, we show that uniform activation of Fz7 signaling in ppl cells fully rescues defective directed cell migration in fz7 mutant embryos. Together, our findings reveal that in contrast to the situation in epithelial cells, non-canonical Wnt signaling functions permissively rather than instructively in directed mesenchymal cell migration during gastrulation.

https://doi.org/10.7554/eLife.42093.001

Introduction

Non-canonical Wnt-Frizzled (Fz)/planar cell polarity (PCP) signaling plays a decisive role in cell polarization and coordinated tissue morphogenesis in metazoan development (Gray et al., 2011; Singh and Mlodzik, 2012). Initially, core components of the Wnt-Fz/PCP signaling module were identified in Drosophila to determine coordinated planar polarity of epithelial cells (Gubb and García-Bellido, 1982; Lawrence and Shelton, 1975; Vinson and Adler, 1987; Seifert and Mlodzik, 2007). Subsequently, vertebrate orthologs of key Wnt-Fz/PCP signaling components were shown to be required for both epithelial planar cell polarity and coordinated mesenchymal cell polarization, migration and intercalation (Gray et al., 2011; Singh and Mlodzik, 2012). Notably, signaling molecules and mechanisms determining epithelial cell polarity are largely conserved between vertebrate and invertebrate organisms indicating the general importance of Wnt-Fz/PCP in animal development (Yang and Mlodzik, 2015; Seifert and Mlodzik, 2007).

The key feature of Wnt-Fz/PCP signaling to achieve epithelial cell polarization is the polarized subcellular distribution of Wnt-Fz/PCP components in a tissue-wide and coordinated manner (Strutt, 2001; Feiguin et al., 2001; Tree et al., 2002). This polarized distribution and activation of Wnt-Fz/PCP components is thought to trigger spatially confined changes in the cytoskeletal architecture of epithelial cells leading to their morphological recognizable polarization (Strutt and Warrington, 2008; Ségalen et al., 2010; Strutt et al., 2011; Butler and Wallingford, 2018). In contrast, much less is known about how Wnt-Fz/PCP signaling controls mesenchymal cell polarization and movement (Shindo and Wallingford, 2014).

Previous studies on non-canonical Wnt signaling in mesenchymal cells have demonstrated that Wnt-Fz/PCP signaling components with a known function in epithelial PCP are required for proper cell polarization and intercalation (Gray et al., 2011). Moreover, the Wnt-Fz/PCP core components Prickle (Pk) and Dishevelled (Dsh) have been shown to localize preferentially to the anterior or posterior site of mesenchymal cells, respectively, pointing to the possibility that localized activity of these components triggers mesenchymal cell polarization (Ciruna et al., 2006; Yin et al., 2008). Likewise, studies on the role of non-canonical Wnt signaling in mesenchymal myoblast cells provided evidence for the capacity of graded Wnt11 signals in directing myoblast cell elongation (Gros et al., 2009). These data suggest that non-canonical Wnt signaling instructively polarizes mesenchymal cells similar to its function in epithelial cells (Figure 1A). In contrast, the observation that uniform overexpression of non-canonical Wnt signaling ligands can rescue defective mesenchymal cell polarization in Wnt-Fz/PCP mutant embryos (Heisenberg et al., 2000) points to a permissive function of Wnt-Fz/PCP signaling in this process (Figure 1A). While these overexpression and localization studies suggest both a permissive and instructive role for Wnt-Fz/PCP signaling in mesenchymal cell polarization and intercalation, direct evidence for non-canonical Wnt signaling exerting either of these functions is still lacking.

Figure 1 with 1 supplement see all

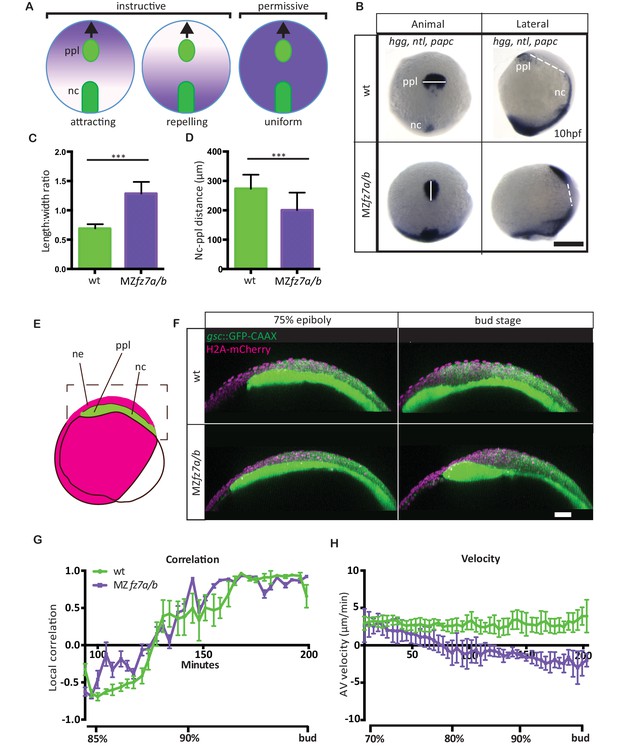

MZfz7a/b prechordal plate phenotype.

(A) Possible modes of Wnt-Fz/PCP function in ppl migration. The direction of ppl (green) migration (black arrows) could be influenced by an attracting or repellent gradient of Wnt-Fz/PCP signaling (purple), which polarizes ppl cells, and thus directs their migration instructively. Alternatively, uniform Wnt-Fz/PCP signaling could operate in a permissive mode, allowing ppl cells to undergo directed migration by for example controlling general cell motility. (B) Animal (left column) and lateral (right column) views of the notochord (nc) and prechordal plate (ppl) in wt (upper row) and MZfz7a/b mutant (lower row) embryos at the end of gastrulation (bud stage, 10hpf) labeled by in situ hybridization for hgg (ppl), ntl (nc), and papc (paraxial mesoderm). Scale bar, 250 μm. (C,D) Length-to-width ratio of the ppl (C) and distance between the anterior end of the nc and the posterior end of the ppl (D) in wt (green) and MZfz7a/b mutant (purple) embryos. Error bars are standard deviations; N = 23 (wt), 17 (MZfz7a/b), ***p<0.001 (Student’s t-test). (E) Schematic of embryo orientation used for imaging ppl and overlying neurectoderm (ne) movements in (F). Neurectoderm, magenta; ppl and nc, green; boxed area corresponds to the imaged area in (F). (F) Confocal microscopy images of wt (upper row) and MZfz7a/b mutant (lower row) embryos at mid (left, 75% epiboly) and late (right, bud stage) gastrulation. Nuclei are marked by H2A-mCherry expression, and ppl and nc are marked by gsc:GFP-CAAX expression. Scale bar, 50 μm. (G) Local correlation between leading edge ppl cells and overlying ectodermal cells in wt (green) and MZfz7a/b mutant (purple) embryos. X-axis, time (min, stage); y-axis, order parameter of local correlation; error bars are standard error of mean; N = 3 per genotype. (H) Velocities of ppl leading edge cells in wt (green) and MZfz7a/b mutant (purple) embryos. X-axis, time (min, stage); y-axis, velocity in vegetal to animal pole direction; error bars are standard error of mean; N = 3 per genotype.

https://doi.org/10.7554/eLife.42093.002

In zebrafish, Wnt-Fz/PCP signaling is required for directed migration of mesenchymal mesendoderm progenitors during gastrulation. Specifically, migration directionality and coordination of anterior axial mesendoderm, the so-called prechordal plate (ppl) progenitors, is diminished in loss-of-function mutants for the Wnt-Fz/PCP ligand wnt11 (Ulrich et al., 2003; Ulrich et al., 2005). Ppl progenitors are specified at the dorsal germ ring margin at the onset of gastrulation (Warga and Kimmel, 1990; Kimmel et al., 1995; Montero et al., 2005). Upon specification, ppl progenitors internalize by coordinated ingression and then migrate as a coherent cluster of cells in a straight path from the germ ring margin towards the animal pole of the gastrula (Warga and Kimmel, 1990; Montero et al., 2005). Recent work showed that migration of ppl progenitors between the yolk cell and the overlying ectoderm can generate frictional forces, which modulate ectoderm cell movements during gastrulation (Smutny et al., 2017).

We reasoned that instructive and permissive functions of non-canonical Wnt signaling in mesenchymal cell polarization and migration could be distinguished using an approach that allows uniform activation of Wnt-Fz/PCP signaling within the entire cell population. If the ppl was indeed guided by an instructive mechanism, uniform activation should not be able to rescue the ppl cell migration defect in Wnt-Fz/PCP signaling defective embryos. Uniformly activating Wnt-Fz/PCP signaling requires cells to be non-responsive to endogenous Wnt ligands. To achieve ligand-independent uniform activation, we have developed a light-activated version of the Wnt-Fz/PCP receptor Fz7, allowing us to trigger Fz7/PCP signaling in a spatiotemporally controlled manner directly at the receptor level. Using this Opto-Fz7 receptor in fz7 mutant embryos, we show that localized Fz7 signaling has the potential to direct ppl cell migration. Unexpectedly, however, uniform activation of Fz7 signaling was also sufficient to rescue defective ppl cell migration in fz7 mutant embryos. This suggests that endogenous Fz7/PCP signaling has a permissive rather than instructive function in directed ppl cell migration during gastrulation.

Results

For analyzing how Wnt-Fz/PCP signaling functions in directed mesenchymal cell migration, we turned to zebrafish embryos, which have previously been shown to require Wnt-Fz/PCP signaling for directed migration of mesendoderm progenitor cells during gastrulation (Topczewski et al., 2001; Jessen et al., 2002; Ulrich et al., 2003; Dumortier et al., 2012). Specifically, we determined how directed migration of ppl progenitors is affected in mutant embryos for the Wnt11 receptor Fz7 (Djiane et al., 2000; Witzel et al., 2006), which display strongly impaired gastrulation movements (Quesada-Hernández et al., 2010). Our analysis showed that in MZfz7a/b double mutants, beside the previously reported dorsal convergence defects (Quesada-Hernández et al., 2010) (Figure 1—figure supplement 1, Figure 1—source data 1), the ppl was elongated and placed closer to the anterior end of the notochord at the end of gastrulation (bud stage, 10 hrs post-fertilization, hpf) (Figure 1B–D, Figure 1—source data 1). This phenotype points to the possibility that Fz7 is required for directed ppl cell migration in zebrafish.

To investigate this possibility, we determined how the movement velocity of ppl progenitors towards the animal pole of the gastrula and their movement coordination with the overlying ectoderm are affected in MZfz7a/b mutants compared to wild type (wt) embryos. Consistent with previous observations (Smutny et al., 2017), we found that wt ppl progenitors migrated with a velocity of 2–3 μm/min towards the animal pole, and that at late gastrulation (90% epiboly) this movement was highly correlated with the movement of overlying ectoderm progenitors (Figure 1G&H, Video 1, Figure 1—source data 1). In comparison, ppl progenitors in MZfz7a/b mutant embryos slowed down their animal pole directed movement during gastrulation, and eventually even moved backwards towards the vegetal pole from mid-gastrulation on (Figure 1F&H, Video 1, Figure 1—source data 1). Interestingly, movement coordination between ppl and ectoderm progenitors remained unchanged in MZfz7a/b mutant embryos (Figure 1G, Figure 1—source data 1), arguing against a previously suggested function of Fz7 in controlling the interaction between ppl and overlying ectoderm (Winklbauer et al., 2001; Montero et al., 2005).

Video 1
Ppl and overlying neurectoderm cell movements in MZfz7a/b mutant and wt Tg(gsc:GFP-CAAX) embryos from 7 to 10 hpf.

Ppl cells are marked by gsc:GFP-CAAX expression (green) and all nuclei are stained by H2A-mCherry (magenta). Lateral view with animal pole to the left. Arrows point at ppl leading edge at the time the mutant ppl stops moving forward. Scale bar, 50 μm.

https://doi.org/10.7554/eLife.42093.005

To test whether Fz7 is cell-autonomously required for ppl progenitor cell migration, we transplanted ppl cells between wt and MZfz7a/b mutant embryos at the onset of gastrulation (shield stage, 6 hpf). As controls, we performed homotypic transplantations from wt donor into wt host and from mutant donor into mutant host embryos. When wt cells were transplanted into the ppl of MZfz7a/b mutant embryos, these cells typically moved to the leading edge of the ppl and showed lower movement correlation with their neighboring host cells when compared to transplanted mutant cells in mutant embryos (Figure 2A&D, Video 2, Figure 2—source data 1). Conversely, mutant ppl progenitors transplanted into the ppl of wt embryos typically ended up closer to the posterior end of the ppl and showed reduced movement correlation with their wt neighboring cells when compared to transplanted wt cells in wt embryos (Figure 2A&C, Video 2, Figure 2—source data 1). Together, these transplantation experiments suggest that Fz7 functions cell-autonomously in ppl progenitors by determining their ability for undergoing directed migration.

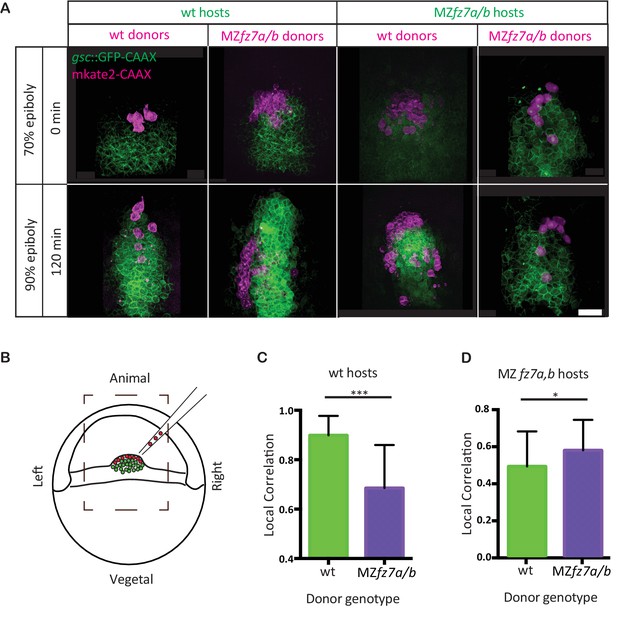

MZfz7a/b prechordal plate progenitor migration.

(A) 2-photon microscopy images of the transplanted ppl at early (70% epiboly; upper row) and late (90% epiboly, lower row) gastrulation. Dorsal views with animal to the top. Donor cells are marked by mkate2-CAAX expression (magenta) and host cells are marked by gsc:GFP-CAAX expression (green). Scale bar, 50 μm. (B) Schematic of the experimental setup of the transplantation experiments in (A). Cells from donor embryos consisting of ppl progenitors cells (magenta) were transplanted to the leading edge of the ppl (green) of a Tg(gsc:GFP-CAAX) or MZfz7a/b; Tg(gsc:GFP-CAAX) host embryo. Boxed area outlines the field of view in (A). (C,D) Local correlation between host and donor cells within the transplanted ppl for wt (C) and MZfz7a/b mutant (D) hosts. Error bars are standard deviations; N = 3 embryos for wt and MZfz7a/b hosts each, ***p<0.001 and *p<0.05 (Student’s t-test).

https://doi.org/10.7554/eLife.42093.006
Video 2
Movement of MZfz7a/b mutant and wt donor ppl cells (magenta) transplanted into the ppl of wt Tg(gsc:GFP-CAAX) host embryos.

Transplanted cells are marked by mkate2-CAAX expression (magenta) and donor cells express gsc:GFP-CAAX (green). Scale bar, 50 μm.

https://doi.org/10.7554/eLife.42093.008

To identify the cellular effector processes by which signaling through the Fz7 receptor affects directed ppl cell migration, we first took a reductionist approach and cultured isolated ppl progenitor cells in small clusters on Fibronectin-coated substrates and analyzed their protrusive behavior in vitro. We found that after 4 hrs in culture wt progenitors at the margin of these clusters showed pronounced substrate spreading and formed multiple protrusions, resembling lamellipodia (54% of cells on the margin of clusters; Figure 3A&B). Ppl progenitors from MZfz7a/b mutant embryos, in contrast, formed significantly less lamellipodia-like protrusions (27% of marginal cells; Figure 3A&B). This suggests that Fz7 is required for the formation of lamellipodia in ppl progenitors during substrate spreading. To assess the relevance of this in vitro observation for the situation in vivo, we compared protrusion formation of ppl cells in wt and MZfz7a/b mutant embryos between 75% and 90% epiboly stage (8–9 hpf). Consistent with our in vitro observations, ppl cells formed significantly less protrusions resembling lamellipodia or pseudopodia in MZfz7a/b mutants (0.14 ± 0.059 protrusions/cell/minute) compared to wt embryos (0.33 ± 0.075 protrusions/cell/minute), while the number of blebs increased and of protrusions resembling filopodia remained largely unchanged (Figure 3C–F, Video 3). Importantly, the preferential orientation of these different protrusion types in the direction of ppl progenitor cell migration towards the animal pole was indistinguishable between MZfz7a/b and wt embryos (Figure 3G, Figure 3—source data 1). Together, this suggests that Fz7 is required for the type but not orientation of protrusions formed in leading edge ppl cells.

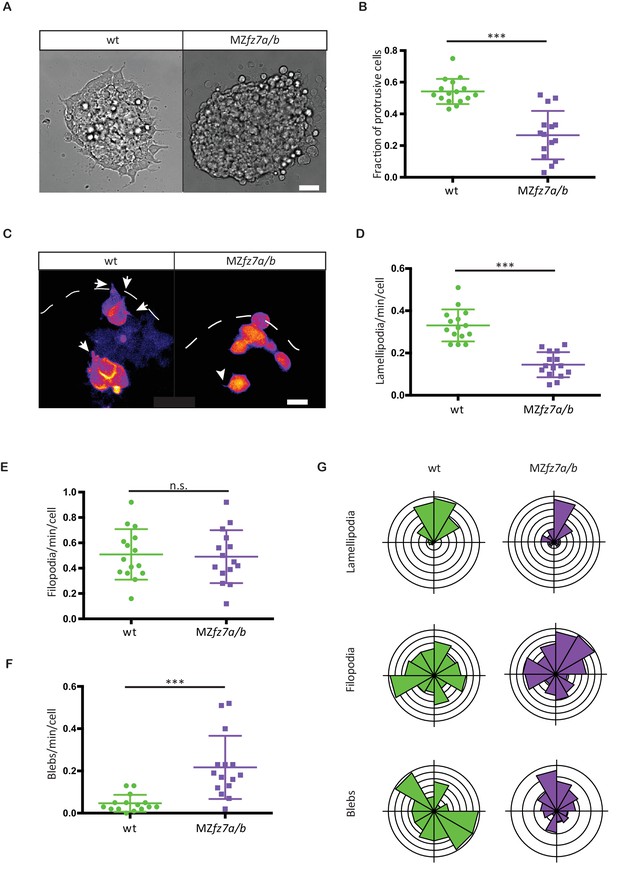

MZfz7a/b prechordal plate progenitor protrusion formation.

(A) Bright-field images of explants of wt (left) and MZfz7a/b mutant (right) ppl tissue. Scale bar, 40 μm. (B) Fraction of cells at the explant margin displaying lamellipodia-like protrusions after 4 hrs in culture. Scatter plot with mean and standard deviation. N = 12 explants per genotype; ***p<0.001 (Mann-Whitney test). (C) Confocal images of transplanted wt donor ppl cells in wt host embryos (left) and MZfz7a/b donor cells in MZfz7a/b mutant host embryos (right). Transplanted cells are marked by mkate2-CAAX expression. Dashed white line marks the anterior edge of the ppl. Arrows point at lamellipodia-like protrusions, arrowheads at filopodia. Scale bar, 20 μm. (D–F) Number (calculated per cell and minute) of different types of protrusions in the transplanted cells shown in (C). Scatter plot with mean and standard deviation. N = 15 cells from five embryos per genotype. ***p<0.001, n.s., non significant (Student’s t-test). (G) Orientation of different protrusion types in the transplanted cells shown in (C) (rose plots with animal top and vegetal bottom).

https://doi.org/10.7554/eLife.42093.009
Video 3
MZfz7a/b mutant and wt donor ppl cells (magenta) transplanted into the ppl of a Tg(gsc:GFP-CAAX) host embryo with the same genotype (homotypic transplantations).

Donor cells are marked by mkate2-CAAX expression. Only donor cells are shown. Yellow arrowheads point to filopodia, white arrowheads to larger lamellipodia/pseudopodia-like protrusions. Scale bar, 30 μm.

https://doi.org/10.7554/eLife.42093.011

To investigate whether spatially restricted activation of Fz7 signaling has the potential to drive ppl cell polarization and direct their migration, we developed a light-activated version of Fz7. The rationale underlying our protein engineering approach was that the functional domains of seven-pass transmembrane (TM) receptors can be delineated in their canonical topology (Airan et al., 2009; Siuda et al., 2015; Li et al., 2015; Gunaydin et al., 2014; Barish et al., 2013; van Wyk et al., 2015; Morri et al., 2018). In particular, the N-terminus, three extracellular loops and seven TM domains are typically associated with ligand binding and receptor activation, whereas the three intracellular loops (ICL; ICL 1–3) and the C-terminus are typically associated with downstream signal transmission. Following this rationale, we substituted the intracellular domains of the light-sensitive receptor rhodopsin with the corresponding domains of fz7 (Figure 4A, Figure 4—figure supplement 1). We identified these domains in rhodopsin and fz7 sequences based on previous domain shuffling experiments of Class A and Class F GPCRs and mutagenesis analysis of frizzled receptors (Liu et al., 2001; Kim et al., 2005; Tauriello et al., 2012). We generated two receptor variants (Figure 4A, Figure 4—figure supplement 1). In the first variant, all intracellular elements of Rhodopsin were substituted by those of Fz7. In the second variant, taking into account that all known Dsh-binding domains of Fz are found in ICL3 and the C-terminus (Wong et al., 2003; Schulte and Bryja, 2007; Tauriello et al., 2012), the ICL1 and ICL2 of rhodopsin were retained to minimize perturbations to the original Rhodopsin fold. Because chimeric receptors of Rhodopsin and members of the more distantly related Class F GPCRs have never been generated, we applied molecular modeling to evaluate receptor compatibility. We found that the inactive and active state conformations of Rhodopsin and Smoothened (Smo), a surrogate receptor for Fz7 and the sole Class F GPCR for which inactive and active state structures are available, can be superimposed revealing a conserved arrangement of the TM helices (Figure 4—figure supplement 2; RMSD 2.8 and 2.6 Å for the inactive and active states, respectively). In addition, analysis of non-covalent contact networks (Venkatakrishnan et al., 2016; Kayikci et al., 2018) revealed similar numbers of inter-helical contacts that stabilize these receptors again in both receptor states (inactive state: 223 and 217 contacts for Rhodopsin and Smo; active state: 197 and 173 contacts for Rhodopsin and Smo). These contacts were distributed in a similar manner with ~70% of contacts occurring between helices TM1 and TM2, TM2 and TM3, TM3 and TM4/5, TM5 and TM6, and TM6 and TM7 in both receptors. Collectively, these results suggest structural similarities toward the design of chimeric proteins that are non-responsive to endogenous ligands and, instead, can be activated by light.

Figure 4 with 5 supplements see all

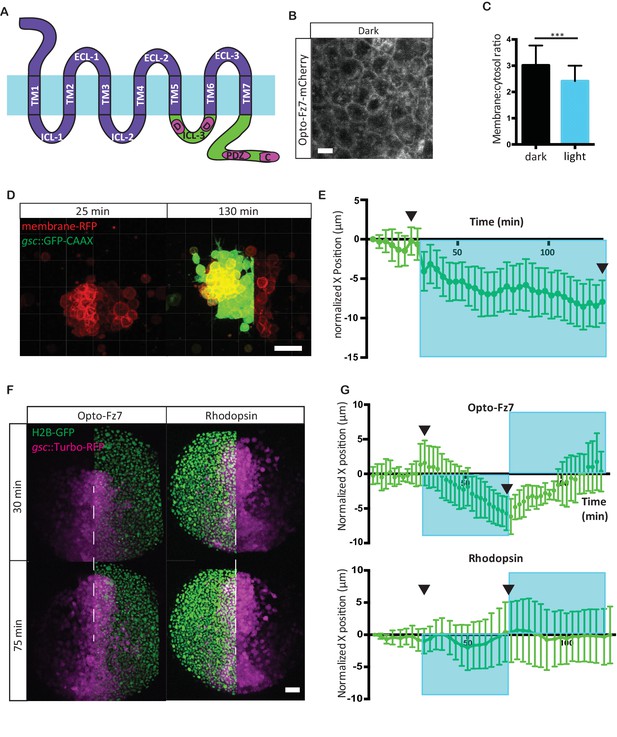

Photo-activation of Fz7 signaling in prechordal plate tissues in vitro and in vivo using Opto-Fz7.

(A) Schematic of the Opto-Fz7 receptor. Light blue bar symbolizes the plasma membrane with extracellular space above and intracellular space below the bar. Rhodopsin parts are shown in purple and Fz7 parts in green. TM1-7, transmembrane domains 1–7; ECL 1–3, extracellular loops 1–3, ICL 1–3, intracellular loops 1–3. Fz7 domains contain two Dshbinding sites in ICL3 (D1, D2), a PDZ domain-binding site (PDZ) near the C-terminus, and the last four amino acids (ETTV), which also have Dsh-binding function. (B) Confocal image of Opto-Fz7 subcellular localization in embryos injected with opto-Fz7-mcherry mRNA and 9-cis-retinal at 70% epiboly kept in dark. Scale bar, 20 μm. (C) Cytosol to membrane fluorescence intensity ratios of Opto-Fz7 shown in (B). Error bars are standard deviations; N = 67 cells from 10 embryos in the dark group, and 108 cells from 12 embryos in the light group, ***p<0.001 (Student’s t-test). (D) Explants of ppl tissue from MZfz7a/b;Tg(gsc:GFP-CAAX) mutant embryos expressing membrane-RFP, Opto-Fz7 and injected with 9-cis-retinal. Opto-Fz7 is photoactivated using a 488 nm laser in the left half of the explant (shown by GFP signal). Left panel, directly before activation; right panel, 130 min after activation. Note that the explant has moved into the activated region. Scale bar, 50 μm. (E) Movement of the explant along the x-axis. The x-position at the start of the experiment is used as x = 0 position. Blue box marks the time-interval of Opto-Fz7 photoactivation in (D). Arrows mark the time points when the images in (D) were taken. Eerror bars are standard error of mean; N = 15 explants from 2 experiments. (F) Confocal images of the ppl in MZfz7a/b;Tg(gsc:TurboRFP) embryos at 80% epiboly stage with animal to the top. Only one half of the ppl is exposed to 488 nm light to activate Opto-Fz7 signaling. Embryos were injected with 9-cis-retinal, and all nuclei in the right half of the ppl embryo are marked by H2B-GFP expression (to outline the initial photoactivation domain). Experimental embryos express Opto-Fz7 (left column) and control embryos Rhodopsin (right column). Upper panels are at the start of photoactivation (30 min after the experiment started), lower panels after 45 min of photoactivation (75 min after the experiment started). Dashed lines mark the ppl midline at the start of photactivation. Scale bar, 50 μm. (G) Ppl movement along the x-axis of the ppl. The x-position atthe time of photoactivation is used as x = 0 position. Error bars are standard deviations. Blue boxes outline time intervals of photoactivation in (F). Arrows mark the time points when the images in (F) were taken. N = 6 embryos per condition.

https://doi.org/10.7554/eLife.42093.012

To test whether these receptors can be used for spatiotemporally controlled ligand-independent activation of Fz7 signaling within the ppl, we first determined the subcellular localization of the two receptor-variants within progenitor cells. Following ectopic expression by mRNA injection at the one-cell stage, the second receptor variant containing the ICL3 and C-terminal intracellular domains of Fz7 showed clear and uniform localization at the plasma membrane of all progenitor cell types analyzed within the gastrulating embryo at 70% epiboly stage, including ppl, epiblast, nc and paraxial mesendoderm cells (7 hpf; Figure 4B, Figure 4—figure supplement 3A–C, Figure 4—source data 1). The first variant containing all four intracellular domains of Fz7, in contrast, did not clearly localize to the plasma membrane (Figure 4—figure supplement 1B), and we thus decided to solely focus on the second variant (termed Opto-Fz7) for the remainder of our study.

Next, we asked whether Opto-Fz7 is internalized upon light activation, given previous observations that non-canonical Fz receptor activation is followed by receptor internalization (Onishi et al., 2013). We found Opto-Fz7 to re-localize from the plasma membrane to intracellular vesicles upon light exposure (Figure 4C, Figure 4—figure supplement 3A, Figure 4—source data 1), suggesting that Opto-Fz7 signaling is activated by light. Next, we tested whether OptoFz7 specifically triggers non-canonical Wnt signaling, as suggested for Fz7 in zebrafish (Quesada-Hernández et al., 2010). To this end, we analyzed how the subcellular distribution of Dvl and β-catenin change upon Opto-Fz7 activation, previously suggested to be sensitive to non-canonical (Dvl) and canonical Wnt signaling (β-catenin), respectively (Park et al., 2005; Witzel et al., 2006), Yu et al., 2007, Kim et al., 2008a; Gao and Chen, 2010). We found that zebrafish Dvl2-GFP co-localized with Opto-Fz7-mCherry at the plasma membrane, and that Dvl, much like Opto-Fz7, was endocytosed upon light activation (Figure 4—figure supplement 4A&B, Figure 1—source data 1). In contrast, we detected no recognizable changes in nuclear β-catenin localization upon light activation of Opto-Fz7 in embryos at 5.5 hpf, while uniform overexpression of the canonical Wnt ligand Wnt8 elicited nuclear accumulation of β-catenin throughout the embryo (Figure 4—figure supplement 4C–F, Figure 4 – source data; Brunet et al., 2013). Together, these findings indicate that Opto-Fz7 can be used for spatiotemporally controlled activation of non-canonical Fz7 signaling within the ppl.

Next, we asked whether spatially restricted activation of Fz7 signaling could affect ppl progenitor cell migration. To this end, we cultured small clusters of MZfz7a/b mutant ppl progenitor cells expressing Opto-Fz7 on Fibronectin-coated substrates and determined how local activation of Fz7 by light in approximately half of the cluster would affect cluster protrusion formation and movement. We found that local activation of Opto-Fz7 in these clusters triggered movement of the entire cell cluster in the direction of the activated region within the cluster (Figure 4D&E, Video 4, Figure 4—source data 1). This cluster movement was accompanied by increased protrusion formation at the light-exposed side of the explant (Figure 4—figure supplement 5A&B, Figure 4 – source data, Video 4), suggesting that localized stimulation of cell motility by unilateral Opto-Fz7 activation triggers this movement. To test how this in vitro observation relates to the situation in vivo, we expressed Opto-Fz7 in MZfz7a/b mutant embryos and activated Fz7 in one half of the ppl. We then asked whether Fz7 activation of half of the ppl would redirect ppl cell movements. Strikingly, we found that the ppl motion was biased to the direction of the activated side (Figure 4F&G, Figure 4—figure supplement 5E&F, Figure 4 – source data, Video 5), an effect that could be effectively reverted by switching the activation of Fz7 to the initially non-activated side of the ppl (Figure 4G, Figure 4 – source data, Video 5). Furthermore, comparing protrusion formation at the leading edge of the activated versus non-activated side of the ppl showed a higher number of lamellipodia-like protrusions at the activated side (Figure 4—figure supplement 5C&D, Figure 4—source data 1), suggesting that Fz7 redirects ppl migration by triggering protrusion formation locally within the ppl. In contrast, control MZfz7a/b mutant embryos expressing Rhodopsin instead of Opto-Fz7 did not show any redirection of ppl cell migration upon half-sided light stimulation (Figure 4F&G, Figure 4—figure supplement 5E&F, Figure 4—source data 1). Collectively, these findings suggest that locally restricted activation of Fz7 has the capability of redirecting ppl cell migration.

Video 4
Cultured ppl explant from MZfz7a/b;Tg(gsc:GFP-CAAX) mutant embryos expressing membrane-RFP and Opto-Fz7 and injected with 9-cis-retinal.

Upon photoactivation of Opto-Fz7 in half of the explant (shown by GFP excitation), the explant begins to move into the light-exposed area. Scale bar, 30 μm.

https://doi.org/10.7554/eLife.42093.019
Video 5
Ppl movement in a MZfz7a/b; Tg(gsc:Turbo-RFP) embryo expressing H2B-GFP (marking all nuclei, green) and Opto-Fz7 and injected with 9-cis-retinal.

Ppl cells are marked by expression of gsc:Turbo-RFP (magenta). Upon photoactivation of Opto-Fz7 in half of the ppl, the explant begins to move into the light-exposed area. Nuclei are only shown in the light-activated side of the ppl to outline the activation domain. Scale bar, 70 μm.

https://doi.org/10.7554/eLife.42093.020

Our data so far demonstrate that exogenous Fz7 activation can control the migration direction of ppl progenitor cells, pointing to the possibility that localized endogenous Fz7 activation may direct ppl progenitor cell protrusion formation and migration. To address this possibility, we sought to uniformly activate Fz7signaling in ppl progenitors both in vitro and in vivo and determine whether such uniform activation is compatible with ppl cell protrusion formation and directed migration. We reasoned that in case localized endogenous Fz7 activation directs ppl progenitor cell protrusion formation and migration, then uniform activation in MZfz7a/b mutants would be insufficient to restore these processes. First, we asked whether reduced protrusion formation at the margin of small clusters of MZfz7a/b mutant ppl progenitors in culture could be restored by uniform activation of Fz7 signaling. Protrusion formation was fully rescued in cultured clusters of MZfz7a/b mutant ppl progenitors upon uniform light activation of Opto-Fz7 in these cells (Figure 5A&B, Figure 5—source data 1). Moreover, uniform over-activation of Fz7signaling in wt ppl cell clusters by uniform light activation of Opto-Fz7 led to reduced protrusion formation (Figure 5A&B, Figure 5—source data 1), consistent with previous observations that over-activation of Wnt-Fz/PCP signaling mimics the loss-of-function phenotype (Heisenberg et al., 2000; Kilian et al., 2003). This points to the possibility that Fz7 signaling has a mere permissive function in ppl cell protrusion formation. To further test this possibility, we also attempted to rescue the ppl cell movement phenotype in MZfz7a/b mutant embryos by uniform activation of Opto-Fz7. Strikingly, we found that uniform activation of Fz7 signaling in MZfz7a/b mutant embryos expressing Opto-Fz7 fully rescued ppl movement as judged by ppl shape and distance to the anterior tip of the notochord (Figure 5C–E, Figure 5—source data 1). This clearly argues against a critical requirement of localized Fz7 activation for directed ppl cell migration. Likewise, we found that uniform activation of Fz7 in ppl cells could fully rescue their cell-autonomous migration and protrusion formation defects when transplanted into the ppl of a wt embryo (Figure 5F–I, Figure 5—figure supplement 1, Video 6 and 7, Figure 5—source data 1). In contrast, no such rescue activity was detected in control conditions (absence of light, Rhodopsin overexpression together with 9-cis-retinal injection, and 9-cis-retinal injection alone; Figure 5C–E, Figure 5—figure supplement 2, Figure 5—source data 1). Together, these findings suggest that Fz7 signaling has a permissive function in ppl cell protrusion formation and directed migration during gastrulation.

Figure 5 with 4 supplements see all

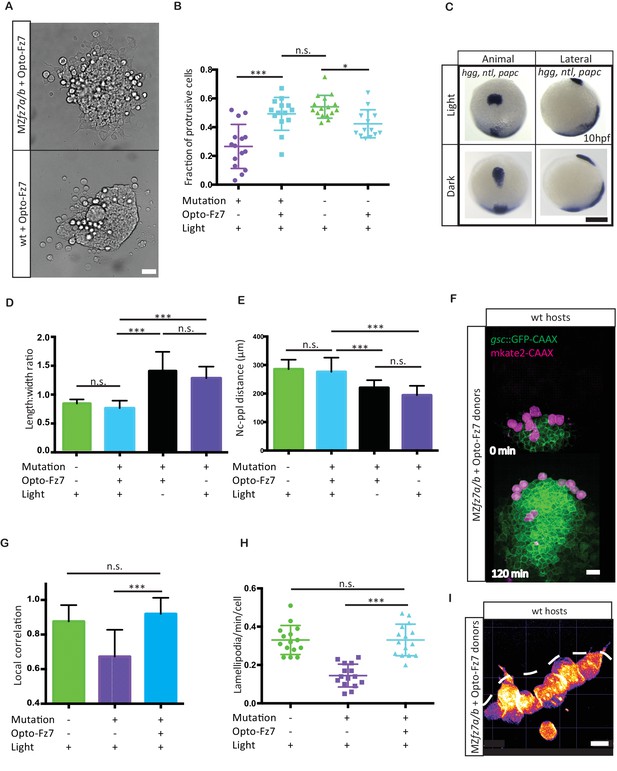

Uniform activation of Opto-Fz7 signaling in MZfz7a/b mutants.

(A) Bright-field images of ppl explants from wt and MZfz7a/b mutant embryos both expressing Opto-Fz7 and injected with 9-cis-retinal. Scale bar, 40 μm. (B) Fraction of ppl cells at the edge of the explants shown in (A) displaying lamellipodia-like protrusions after 4 hrs in culture. Opto-Fz7 expressing explants were compared to MZfz7a/b and wt explants shown in Figure 3B. N = 12 explants per genotype, ***p<0.001, *p<0.05, and n.s., non significant (ANOVA followed by Tukey’s multiple comparison test). (C) Animal (left column) and lateral (right column) views of the notochord (nc) and prechordal plate (ppl) in MZfz7a/b mutant embryos expressing Opto-Fz7 and injected with 9-cis-retinal at the end of gastrulation (bud stage, 10hpf) labeled by in situ hybridization for hgg (ppl), ntl (nc), and papc (paraxial mesoderm). Embryos were either exposed to light (upper row) or kept in the dark (lower row). Scale bar, 250 μm. (D,E) Length-to-width ratio of the ppl (D) and distance between the anterior end of the nc and the posterior end of the ppl (E) in MZfz7a/b mutant embryos expressing Opto-Fz7 and injected with 9-cis-retinal either exposed to light (blue) or kept in the dark (black). Wt (green) and untreated MZfz7a/b mutant (purple) embryos were included as controls. Error bars are standard deviations. N = 25 (wt), 24 (MZfz7a/b), 36 (Opto-Fz7, light), 36 (Opto-Fz7, dark), ***p<0.001, and n.s., non significant (Kruskal-Wallis test followed by Dunn’s multiple comparison test). (F) Confocal images of the ppl in wt host embryos containing transplanted MZfz7a/b mutant donor cells (magenta) expressing Opto-Fz7 and mkate2-CAAX and injected with 9-cis-retinal. Dorsal views with animal pole to the top. Host cells are marked by gsc:GFP-CAAX expression (green). Scale bar, 40 μm. (G) Local correlation between host and donor ppl cell movements shown in (F), compared to MZfz7a/b and wt ppl donor cells shown in Figure 2C. Error bars are standard deviations. N = 22 (wt), 36 (mutants), and 35 (mutants expressing Opto-Fz7) binned sectors from 3 embryos each, ***p<0.001, and n.s., non significant (Kruskal-Wallis test followed by Dunn’s multiple comparison test). (H) Number of lamellipodia-like protrusions per cell and minute in the transplanted donor cells shown in (I), compared to MZfz7a/b and wt ppl donor cells shown in Figure 3D. N = 15 cells per genotype, ***p<0.001, and n.s., non significant (ANOVA followed by Tukey’s multiple comparison test). (I) Confocal images of transplanted MZfz7a/b mutant donor ppl cells expressing OptoFz7 and mkate2-CAAX and injected with 9-cis-retinal within the ppl of a wt host embryo (anterior edge outlined by dashed white line). Scale bar, 20 μm.

https://doi.org/10.7554/eLife.42093.021
Video 6
MZfz7a/b donor cells expressing Opto-Fz7 and injected with 9-cis-retinal transplanted into the ppl of a wt Tg(gsc:GFP-CAAX) host ppl.

Transplanted cells are marked by mkate2-CAAX expression (magenta) and donor cells express gsc:GFP-CAAX (green). Scale bar, 50 μm.

https://doi.org/10.7554/eLife.42093.027
Video 7
Movement of MZfz7a/b mutant donor ppl cells expressing Opto-Fz7, injected with 9-cis-retinal and transplanted into the ppl of a wt Tg(gsc:GFP-CAAX) host.

Transplanted cells are marked by mkate2-CAAX expression (magenta) and donor cells express gsc:GFP-CAAX (green). Yellow arrowheads point to filopodia, white arrowheads to larger lamelipodia/pseudopodia-like protrusions. Scale bar, 30 μm.

https://doi.org/10.7554/eLife.42093.028

Discussion

The mechanisms by which non-canonical Wnt-Fz/PCP signaling affects mesenchymal cell polarization, directed migration, and intercalation are still debated. There is increasing evidence that non-canonical Wnt-ligands, including Wnt11, are required for directed cell migration, and that gradients of exogenous Wnt11 can direct elongation of myogenic cells. However, whether and how endogenous Wnt11 directs cell migration remains unclear.

To control Wnt-Fz/PCP signaling in a ligand-independent manner, we developed Opto-Fz7, a light-activated variant of the Wnt receptor Fz7, which permits spatio-temporally controlled and ligand-independent Wnt-Fz/PCP signaling activation. The advantage of Opto-Fz7 over, for example, constitutive active versions of this receptor is not only that Opto-Fz7 allows spatiotemporally restricted activation, but also that Opto-Fz7 is entirely insensitive to activation by endogenous Wnt ligands within the embryo. This excludes any potential polarizing influence of endogenous Wnt ligands on Fz7 signaling activity and thus permits truly uniform signaling activation to distinguish between instructive versus permissive functions of Fz7 signaling within the embryo. Our results highlight how this light-activated receptor in the context of the transparent zebrafish model system can be used to determine how signals shape cellular processes during development (Sako et al., 2016; Johnson et al., 2017; Izquierdo et al., 2018).

Our findings that Wnt11 and Fz7 are required for directed ppl cell migration, and that uniform activation of Fz7 signaling in ppl cells is sufficient for their directed migration, suggest that any potentially instructive function of Fz7 signaling in directing ppl cell migration is dispensable. These results are consistent with recent suggestions that polarization of chondrocytes within the developing mouse limb bud is achieved by the combination of permissive Wnt5 and instructive FGF signals (Gao et al., 2018), although direct evidence for the purely permissive nature of Wnt5 signaling is still missing.

While our findings clearly show that Fz7-mediated Wnt-Fz/PCP signaling is required permissively for ppl cell migration, they do not exclude the possibility of any other receptor activating Wnt-Fz/PCP signaling in ppl cells, which as such, might still have an instructive function in directing ppl cell migration. For instance, the receptor-tyrosine kinases Ror2, Ryk and Ptk7 have previously been shown to functionally interact with Wnt11 and/or Fz7 in regulating non-canonical Wnt signaling (Kim et al., 2008b; Gao et al., 2011; Yen et al., 2009; Hayes et al., 2013; Brinkmann et al., 2016), pointing to the possibility that they might also be involved in mediating Wnt11 signaling within the ppl. Also, uniform activation of Fz7 could not rescue the convergence phenotypes of the notochord and the paraxial mesoderm (Figure 5—figure supplement 3, Figure 5—source data 1), suggesting that the mode of Fz7 function might be context-dependent.

While our data exclude a direct function of localized Fz7 signaling in polarizing ppl cell migration, Fz7 signaling in ppl cells is still essential for this process. Our finding that Fz7 signaling is required for the formation of actin-rich lamellipodia-like protrusions in ppl cells, suggests that Fz7 enables directed ppl cell migration by promoting protrusion formation. How Fz7 regulates this process is yet unclear, but previous findings, suggesting that non-canonical Wnt-Fz/PCP signaling can activate small Rho GTPases known to control protrusion formation during migration (Marlow et al., 2002; Eaton et al., 1996), point to Rho GTPases as potential downstream effectors of Fz7 in this process.

A core mechanism by which Wnt-Fz/PCP signaling polarizes epithelial cells is the polarized distribution of different Wnt-Fz/PCP components along the polarization axis (Collu and Mlodzik, 2015). While this is well documented in epithelial cells, it is less clear whether there is any polarized subcellular distribution of Wnt-Fz/PCP components in mesenchymal cells (Roszko et al., 2015; Jussila and Ciruna, 2017). Studies in zebrafish suggest that in neurectoderm progenitor cells, the core Wnt-Fz/PCP component Pk accumulates at the anterior side, while the Wnt-Fz/PCP signaling mediator Dsh localizes to the posterior side of these cells (Ciruna et al., 2006; Yin et al., 2008). In contrast, we found no evidence for a clearly recognizable polarized subcellular distribution of Fz7 or any other Wnt-Fz/PCP components in ppl cells (Figure 4B, Figure 5—figure supplement 4, Figure 5—source data 1), suggesting that endogenous Wnt-Fz/PCP signaling might be uniform rather than polarized in these cells. Yet, local variations in PCP component turnover could contribute to dynamic changes in polarized distribution of PCP components (Strutt et al., 2011; Chien et al., 2015; Shi et al., 2016) that may not have been detected here.

Notably, while our data suggest that Wnt11/Fz7 signaling is required for directed ppl cell migration, ppl cells do not endogenously express Wnt11. However, Wnt11 is expressed in the anterior paraxial mesendoderm close to the ppl (Heisenberg et al., 2000; Kilian et al., 2003), pointing to the possibility that Wnt11 secreted by the anterior paraxial mesendoderm acts on adjacent ppl cells, thereby promoting protrusion formation and directed migration of these cells. Moreover, it is conceivable that Fz7 is not exclusively functioning as a receptor for Wnt11, and that other non-canonical Wnt ligands expressed within the ppl activate Fz7 signaling there.

Non-canonical Wnt-Fz/PCP signaling has long been thought to function as a prime signal polarizing cells in development (Yang and Mlodzik, 2015; Collu and Mlodzik, 2015). While such function has been well established in epithelial cells (Dabdoub et al., 2003; Wu et al., 2013; Chu and Sokol, 2016), the role of non-canonical Wnt-Fz/PCP signaling in mesenchymal cells is less understood. Our findings show that signaling through the Wnt receptor Fz7, although being required for mesenchymal cell polarization and directed migration, has no direct function in polarizing those cells; it rather promotes protrusion formation, allowing the cells to undergo directed migration. This suggests that non-canonical Wnt-Fz/PCP signaling can have very different functions depending on the specific cellular context in which it acts.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Experimental modelZebrafish:
Tg(gsc::EGFP-CAAX)
Smutny et al., 2017NA
Experimental modelZebrafish:
Tg(gsc::Turbo-RFP)
Sako et al. (2016)ZDB-ALT-
161005–1
Experimental modelZebrafish:
MZfz7a/b
Quesada-Hernández et al. (2010)ZDB-FISH-
150901–19586
Experimental modelZebrafish:
MZfz7a/b;Tg
(gsc::EGFP-CAAX)
this paperNA
Experimental modelZebrafish:
MZfz7a/b;Tg
(gsc::Turbo-RFP)
this paperNA
Oligonucleotidescasanova
morpholino
GCATCCGGTCGAGATACATGCTGTT
Gene ToolsZDB-MRPHLNO
-050818–2
Recombinant
DNA reagent
pcDNA 3.1-Opto-Fz7
plasmid for mRNA synthesis
this paperNA
Recombinant
DNA reagent
pcDNA
3.1-Opto-Fz7-mCherry
plasmid for mRNA synthesis
This paperNA
Recombinant
DNA reagent
pCS2-Ndr2 plasmid
for mRNA synthesis
Rebagliati et al., 1998NM_139133.1
Recombinant
DNA reagent
pCS2-Wnt11-3xmCherrythis paperNM_001144804.1
Recombinant
DNA reagent
pCS2-Fz7a-mNeongreenthis paperNM_131139.2
Recombinant
DNA reagent
pCS2-Pk1-venusCarreira-Barbosa et al., 2003NM_183342.2
Recombinant
DNA reagent
pCS2-Dvl2-eGFPotherNM_212648.1courtesy of
Masazumi Tada
Antibodyß-catenin clone 15B6SigmaC7207,
RRID:AB_476865
AntibodyAlexa Fluor 568
Goat Anti-Mouse
IgG (H + L) Antibody
Molecular ProbesA11004,
RRID: AB_141371
AntibodyGFP mAb3E6Molecular ProbesA11120,
RRID:AB_221568
AntibodyAlexa Fluor 488 Goat
Anti-Mouse IgG
(H + L) Antibody
Molecular ProbesA11001
chemical
compound
9-cis-retinalSigmaR5754
Cell culture
reagent
DMEM/F12SigmaDF-041-B

Opto-Fz7 construct

Opto-Fz7 was designed based on zebrafish Fz7 (NCBI NM_131139.1) and bovine Rhodopsin (NCBI NM_001014890.2). The transmembrane domains of Rhodopsin and the intracellular domains of Fz7 were predicted based on published data of chimeric proteins (Liu et al., 2001; Kim et al., 2005; Airan et al., 2009). ICL3 was modified according to a mutational study of Fz proteins (Tauriello et al., 2012). Cloning was performed using the golden gate method (Engler and Marillonnet, 2014; Engler et al., 2009).

Structural analysis of GPCRs

The coordinates for the crystal structures of bovine Rhodopsin and human and Xenopus Smo were obtained from the Protein Data Bank (PDB; http://www.rcsb.org). The structures corresponded to either inactive (Rho: 1U19, Smo: 4JKV) or active (Rhodopsin: 3PQR, Smo: 6D32) states (Okada et al., 2004; Choe et al., 2011; Wang et al., 2013; Huang et al., 2018). Visualization of protein structures, structural superimpositions, and structure-based sequence alignments were performed using UCSF Chimera (Pettersen et al., 2004). Residue contacts within each structure were obtained using the Protein Contacts Atlas (Kayikci et al., 2018). Only contacts mediated by residues between TM1-7 or helix eight according to GPCRdb (Isberg et al., 2015) numbering scheme were considered. Contact distribution was calculated as the number of contacts for each helix pair compared to the total number of contacts found in each receptor. Contact distributions were compared between GPCRs of the same activation state.

Fish lines and husbandry

Zebrafish handling was carried out as described (Westerfield, 2000). Embryos were raised at 28–31° and staged according to Kimmel et al. (1995). The following fish lines were used: Wild type ABxTL hybrids, Tg(gsc::GFP-CAAX) (Smutny et al., 2017), Tg(gsc::TurboRFP) (Sako et al., 2016; Barone et al., 2017), MZfz7a/b -/- (Quesada-Hernández et al., 2010), MZfz7a/b -/-; Tg(gsc::GFP-CAAX), and MZfz7a/b -/-; Tg(gsc::TurboRFP). Mutant transgenic lines were generated by crossing transgenic lines to the MZfz7a/b -/- line.

Whole mount in situ hybridization (WMISH)

WMISHs were performed as described (Smutny et al., 2017). RNA antisense probes were synthesized from partial sequences of cDNA using mMessage mMachine kits (ThermoFisher AM1344) with a Roche Dig-labeling mix (Sigma 11277073910). Images were taken using a stereo-microscope (Olympus SZX 12) equipped with a QImaging Micropublisher 5.0 camera.

Whole mount antibody staining

Antibody stainings were performed as previously described (Compagnon et al., 2014), except that an extra step of permeabilization by 100% MeOH (60 min at −20°C) was introduced. Anti β-catenin (Sigma C7207) antibody was used at 1:250 dilution, anti GFP (Molecular Probes A11120) at 1:50.

Injection of mRNA and morpholino antisense oligonucelotides

Embryos consisting of ppl progenitors only were obtained by injecting 100 pg ndr2 (cyclops) mRNA and 2 ng sox32 (casanova) morpholino into 1-cell stage wt or MZfz7a/b embryos as described (Krieg et al., 2008). For visualization of plasma membrane and nuclei, 100 pg mkate2-CAAX mRNA and 50 pg of H2A-mCherry or H2B-BFP mRNA, respectively, were injected at the 1-cell stage. For the protrusion quantification experiments, the plasma membrane was labeled by injection of 250 pg of mkate2-CAAX mRNA at the 1-cell stage. For optogenetic activation of the Wnt/PCP pathway, 20 pg of opto-Ffz7 mRNA was injected. For analyzing Opto-Fz7 subcellular localization, 200 pg Opto-Fz7-mcherry mRNA was injected at the 1-cell stage. Opto-fz7 mRNA injections were generally combined with injection of 140 pg of 9-cis-retinal. For determining the subcellular localization of Wnt-Fz/PCP pathway components, embryos were injected with 60 pg wnt11-3x-mCherry, 25 pg pk1-venus, 100 pg fz7a-mNeongreen, or 100 pg dvl2-GFP mRNA. mRNAs were synthesized using SP6 mMessage mMachine kit (ThermoFisher AM1340) from linearized DNA templates.

Ppl explant cultures

The in vitro cell and explant assays were performed as described (Ruprecht et al., 2015; Krens et al., 2017). Embryos consisting of only ppl progenitors were induced as described above. Glass bottom dishes (CellView Cell Culture Dishes, Glass Bottom, four compartement, Greiner 627975) were plasma-cleaned (2 min, maximum level) and coated with Fibronectin (Sigma F1141). For coating, 50 μl of a diluted Fibronectin stock (1:4 in distilled water) was applied to the dish and allowed to dry. When uninjected control embryos were at dome stage, the ppl-induced embryos were transferred to glass dishes containing Danieus medium (58 mM, 0.7 mM KCl, 0.4 mM MgSO4, 0.6 mM Ca(NO3)2, 5 mM HEPES, pH 7.6). After dechorionation, ppl explants were prepared from ppl-induced embryos by removing the blastoderm from the yolk, transferring it to glass dishes with pre-warmed DMEM cell culture medium (stock diluted with 10% distilled water, Sigma D6434) and cutting it into smaller pieces consisting of ≈ 50 cells. The dissected explants were then transferred to the Fibronectin-coated glass bottom dishes, incubated in culture medium at 28°C for 2 hrs and subsequently imaged using a Visitron TIRF/FRAP epifluorescence microscope with bright-field and 475 nm illumination.

Cell transplantations

For transplantation experiments, donor embryos consisting of ppl cells only were induced as described above. As host embryos, MZfz7a/b; Tg(gsc:GFP-CAAX) or Tg(gsc:GFP-CAAX) embryos were used. At 5 hpf, host and donor embryos were dechorionated in E3 buffer (5 mM NaCl, 0.17 mM KCl, 0.33 mM CaCl2 × 2 H2O, 0.33 mM MgSO4 × 7 H2O, pH 6.5) in glass dishes. At 6 hpf, donor and host embryos were aligned in small grooves in agarose-coated dish containing E3 buffer. For transplantations, groups of 5–20 cells were typically aspirated from the donor embryos using a transplantation needle (20 μm diameter, with spike, Biomedical instruments) and then transplanted to the leading edge of the ppl of host embryos.

Confocal and 2-photon imaging

Embryos were dechorionated and then mounted in 0.5% low melting point agarose in E3 buffer within 2% agarose molds inside a petri dish. Imaging of live samples was performed using a LaVision Trim 2-photon microscope equipped with a Zeiss Plan-Apochromat 20x/1.0 water immersion objective and Ti:Sa laser (Chameleon, Coherent) set at 810 nm and OPO laser set at 1150 nm. Fixed samples were mounted in agarose as described for live samples (except that PBS was used as buffer) and imaged using a Zeiss LSM 880 or 800 upright microscope equipped with a Zeiss Plan-Apochromat 20x/1.0 water immersion objective.

Optogenetic procedures

For embryo rescue experiments, embryos were injected with 20 pg of opto-fz7 mRNA at the 1 cell stage. The injected embryo batch was split into two groups of equal size and kept in E3 buffer. The control batch was put into a plastic box and wrapped in aluminum foil to block light exposure. Both batches were incubated together from the 2-cell stage onwards at 28 or 31°C in an incubator equipped with 500 nm light emitting diodes (LEDs) with an intensity of 3 μW/mm2. At bud stage (10 hpf), the samples were fixed in 4% PFA. For analyzing Opto-Fz7 subcellular localization, embryos were processed as described above and then fixed at 70% epiboly. For localized Opto-Fz7-activation, injected embryos were protected from light and incubated until the desired stage. Subsequent embryo mounting and imaging were performed under red light illumination to avoid premature activation of Opto-Fz7. Local Opto-Fz7 activation experiments were performed on a Leica SP5 upright microscope using the Live Data Mode plugin and a 25x/0.95 NA water-dipping lens at a radiant exposure of 0.013nj/μm2. General imaging of these experiments was performed using a 561 nm laser to avoid Opto-Fz7 activation (Xu et al., 2014), and local activation of Opto-Fz7 was performed with a 488 nm laser. For general imaging and local Opto-Fz7 activation in cultured explants, an inverted Leica SP5 microscope equipped with a 20x/0.7 NA air objective at a radiant exposure of 0.009 nj/μm2 was used. For ubiquitous activation of Opto-Fz7 in vitro, explants were prepared and incubated as described above and then imaged using a Visitron TIRF/FRAP epifluorescence microscope with brightfield and 475 nm illumination at a radiant exposure of 0.018nj/μm2. For imaging of the ubiquitous activation in vivo experiments, a LaVision Trim 2-photon microscope with 800 nm, 830 nm and 1100 nm illumination at a radiant exposure of 0.044 nj/μm2 was used.

Statistics

Statistical analysis was done using GraphPad Prism 6. Rose diagrams were done using R. Statistical details of experiments are reported in the figures and figure legends. Sample size is reported in the figure legends and no statistical test was used to determine sample size. The biological replicate is defined as the number of embryos or independent batches of embryos, as stated in the figure legends. No inclusion/exclusion or randomization criteria were used and all analysed samples are included. To test for normality of a sample, a D'Agostino and Pearson omnibus normality test was used. In case two samples were compared and normal distribution was assumed, an unpaired t-test was performed. If two samples were not normally distributed, a Mann-Whitney test was performed, instead. In case more than two normally distributed samples were compared, an ANOVA was performed followed by Tukey’s multiple comparison test. If no normal distribution could be assumed, a Kruskal-Wallis test followed by Dunn’s multiple comparison test was used. No blind allocations were used during the experiments or in the analysis

Image processing

Images acquired by multiphoton or confocal microscopy were imported to Imaris (Bitplane) to 3D-visualize the recorded channels for further analysis. For correlation analysis, Imaris 9 was used to orient all embryos along the AV axis at the dorsal side, which was identified by the gsc:GFP-CAAX signal. Ppl nuclei were separated from other nuclei by surface masking of the gsc:GFP channel, and neuroectoderm nuclei were identified by negative surface masking and position relative to the ppl. Nuclei positions of ppl progenitors and neuroectoderm cells in xyz-dimensions were exported for each time point and used for the correlation analysis. For the analysis of protrusive behavior in vivo, images were processed using Imaris 9, and the reconstructed movies were exported as tiff-stacks and further analyzed in Fiji. β-catenin data were analyzed by masking the nuclear signal based on an additional DAPI channel and measuring the mean intensity of the channel.

Correlation analysis

Local movement correlation between ppl and neurectoderm cells was determined as described (Smutny et al., 2017). In brief, 3D velocity vectors were averaged in sectors of 50 by 50 μm in xy planes and the full z direction for every time point. The sectors were arranged in a grid that covered the whole imaged area and was centered on the leading edge of the ppl. To quantify the correlation between the ppl and the overlying ectoderm, the directional correlation of the two was calculated for every sector of the grid. The correlation could adopt values from 1 (ppl and the neuroectoderm move in the same direction) to −1 (ppl and neurectoderm move in opposite directions).

Analysis of protrusion frequency and orientation

In the in vivo experiments, the number of each type of protrusion per cell was counted in movies of 1–2 hrs and normalized to the length of the movie, yielding the metric of protrusions per cell and minute. The orientation of protrusions was measured using the Fiji angle tool with the animal pole direction set to 0°. The fraction of marginal cells displaying protrusions in cell culture experiments was determined by counting the number of cells with or without protrusions and plotting the ratio of these numbers.

Fiji analysis of in situ hybridized embryos, cell culture experiments, and subcellular localization of fluorecently tagged proteins

To quantify the expression domains of marker genes in in situ hybridized embryos in a semi-automated fashion, we used two custom-made Fiji scripts (Gabriel Krens, IST Austria Imaging Facility, source code files ppl2notochord and ppl_LW-ratio). For measuring the distance between notochord and prechordal plate, a region of interest (ROI) was selected in lateral images that contained the posterior end of the ppl (marked by hgg expression) and the anterior end of the notochord (marked by ntl expression), with the pixel size normalized to a scale bar that was added during image acquisition. The script then automatically measured the distance between the two expression domains. For measuring the length to width ratio (LWR) of the ppl, the script automatically measured the length of longest axis of the ppl (marked by hgg expression) and of the axis perpendicular to the longest axis, and then calculated the ratio of the two axis lengths. The membrane to cytosol ratio in the protein localization experiments was done by drawing a line over several cells, measuring the fluorescence intensity of the membranes using the peak finder function, and normalizing it to the average background intensity.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    Role of frizzled 7 in the regulation of convergent extension movements during gastrulation in xenopus laevis
    1. A Djiane
    2. J Riou
    3. M Umbhauer
    4. J Boucaut
    5. D Shi
    (2000)
    Development 127:3091–3100.
  16. 16
  17. 17
  18. 18
  19. 19
    DNA Cloning and Assembly Methods
    1. C Engler
    2. S Marillonnet
    (2014)
    V. alla Svein, R. ahmi Lale, editors. Totowa, United States: Springer.
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
    A genetic analysis of the determination of cuticular polarity during development in Drosophila melanogaster
    1. D Gubb
    2. A García-Bellido
    (1982)
    Journal of Embryology and Experimental Morphology 68:37–57.
  27. 27
  28. 28
  29. 29
  30. 30
    Structural basis of smoothened activation in hedgehog signaling
    1. P Huang
    2. S Zheng
    3. BM Wierbowski
    4. Y Kim
    5. D Nedelcu
    6. L Aravena
    7. J Liu
    8. AC Kruse
    9. A Salic
    (2018)
    Cell, 16, 10.1016/j.cell.2018.04.029.
  31. 31
  32. 32
  33. 33
  34. 34
    The spatiotemporal limits of developmental erk signaling
    1. HE Johnson
    2. Y Goyal
    3. NL Pannucci
    4. T Schüpbach
    5. SY Shvartsman
    6. JE Toettcher
    (2017)
    Developmental Cell, 92, 10.1016/j.devcel.2016.12.002.
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
    The determination of polarity in the developing insect retina
    1. PA Lawrence
    2. PM Shelton
    (1975)
    Journal of Embryology and Experimental Morphology 33:471–486.
  45. 45
    Optogenetic activation of intracellular adenosine A2A receptor signaling in the hippocampus is sufficient to trigger CREB phosphorylation and impair memory
    1. P Li
    2. D Rial
    3. PM Canas
    4. J-H Yoo
    5. W Li
    6. X Zhou
    7. Y Wang
    (2015)
    Molecular Psychiatry, 10.1038/mp.2015.43.
  46. 46
  47. 47
  48. 48
  49. 49
    Optical functionalization of human class A orphan G-protein-coupled receptors
    1. M Morri
    2. I Sanchez-Romero
    3. AM Tichy
    4. S Kainrath
    5. EJ Gerrard
    6. PP Hirschfeld
    7. J Schwarz
    8. H Janovjak
    (2018)
    Nature Communications, 9, 10.1038/s41467-018-04342-1, 29769519.
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
    Cell movements during epiboly and gastrulation in zebrafish
    1. RM Warga
    2. CB Kimmel
    (1990)
    Development 108:569–580.
  80. 80
    The Zebrafish Book. a Guide for the Laboratory Use of Zebrafish (Danio Rerio)
    1. M Westerfield
    (2000)
    Eugene, United States: Oregon Press.
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89

Decision letter

  1. Didier Y Stainier
    Senior and Reviewing Editor; Max Planck Institute for Heart and Lung Research, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Optogenetic Frizzled7 reveals a permissive role of non-canonical Wnt signaling in mesendoderm cell migration" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Didier Stainier as the Senior and Reviewing Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

In this manuscript, Capek and coworkers analyzed the requirement of non-canonical Wnt signaling in mesenchymal migration during zebrafish gastrulation. While it is well-established that Wnt/PCP signaling through the Frizzled receptor 7 (Fz7) controls epithelial polarized movement, it remains unclear whether this particular signaling system provides an instructive or a permissive role during mesenchyme migration. To address this question, the authors developed an optogenetic Fz7 construct (Opto-Fz7) and used it to study the impact of localized vs. global activation of the pathway in directing mesendodermal migration. The authors carefully quantify the polarized protrusions that drive ppl cell migration both in vitro and in vivo, and show that these are defective in Fz7 mutants; they further show that these defects can be rescued by uniform illumination (and thus activation) of Opto-Fz7. These data lead the authors to conclude that Fz7 plays only a permissive role, rather than an instructive or polarizing role.

To fully support the authors' claims and to strengthen the conclusions, the following points should be addressed:

1) Activity of Opto-Fz7a) The demonstration that Opto-Fz7 is active is based on the internalization of the receptor upon light exposure and changes in cell morphology. As this is the first report describing such a tool, it would be essential to directly demonstrate pathway activation with a more precise approach (e.g. changes in GFP-Dsh localization upon Opto-Fz7 activation).

b) To further validate the experiments, the authors should show the results for a Rhodopsin control in Figure 5—figure supplement 2.

c) As a control, the authors should assess how this tool affects Wnt signaling.

2) Distribution of Opto-Fz7a) The conclusions depend on the assumption that the distribution of injected Opto-Fz7 is uniform throughout the embryo, but only small tissue regions are shown in Figure 4 and Figure 4—figure supplement 1. To strengthen the conclusions, the authors should provide data on the distribution of Opto-Fz7-mKate2 throughout the embryo.

b) The authors state that they "found no evidence for a clearly recognizable polarized subcellular distribution of Fz7 or any other Wnt-Fz/PCP components in ppl cells (Figure 4B and not shown)". Please show the full data set or modify this claim.

c) Planar polarized turnover of PCP proteins is central to their function (see papers from Strutt), and a recent paper from the Kintner lab (Chien, Current Biology) shows that while Vangl2 has a polarized turnover and polarized activity, the protein is uniformly localized. While FRAP analysis to analyze the dynamics of the artificial Opto-Fz7 construct is beyond the scope of this manuscript, the authors should at least acknowledge this caveat in the text.

3) Cell migration induced by Opto-Fz7a) Video 4 shows a sudden movement of the cell aggregate, which is difficult to reconcile with a direct migration process. In this respect, it is unclear how a global activation of the illuminated cells in half of the tissue should result in a directed movement of the tissue towards the illuminated area. If cells are activated globally, why would they move towards the area of illumination? The authors should clarify the logic underlying these data or remove them.

b) In Figure 4G, please show single traces for Opto-Fz7 to facilitate the comparison with the highly variable Rhodopsin control. To strengthen the conclusions, a similar number of traces should be provided for both the Rhodopsin control and the OptoFz7 experiment (ideally 6 or more in both cases).

4) Data duplication

The data used to generate the graphs presented in Figure 1C, D seem to be reused in Figure 5D, E. The data presented in Figure 2C, D are reused in Figure 5G. The data presented in Figure 3B are reused in Figure 5B and Figure 5—figure supplement 2C. The image in Figure 1—figure supplement 1A is reused in Figure 5—figure supplement 3A. The authors should therefore restructure the figures to avoid this "data recycling" throughout the manuscript or at least clearly point out in the figure legends which data points are reused.

5) Manuscript organizationa) Please correct the following inaccuracies.Shindo and Wallingford 2010 is cited in a statement about epithelial cells, but that paper studies gastrula mesenchyme cells. Sepich et al., 2000 is cited, but that work on trilobite preceded identification of the locus as Vangl2. Jessen et al. 2002 should be included. Introduction, last paragraph: The statement that Wnt/PCP is required for directed migration of the prechordal plate should include "in zebrafish," as it is not required in Xenopus and there is no evidence for such a requirement in mice.

b) Many references are missing (e.g. Winklbauer et al., 2001, Gao et al., 2018, Marlow et al., 2002), and the bibliography contains several incorrect references (e.g. Ciruna et al., 2006 was published in Nature, not in Nature Cell Biology). Please correct this throughout the manuscript.

c) The supplementary source data files mostly show cumulative data, but for better transparency please organize the data by independent experiments rather than cumulatively.

d) Figure 5B: Please sort the data as in Figure 5D+E to enhance readability.

e) The authors might consider simply not abbreviating Rhodopsin, as the word is not used very often and "Rho" may be confusing given the tight links between PCP and Rho GTPases.

https://doi.org/10.7554/eLife.42093.031

Author response

[…] To fully support the authors' claims and to strengthen the conclusions, the following points should be addressed:

1) Activity of Opto-Fz7a) The demonstration that Opto-Fz7 is active is based on the internalization of the receptor upon light exposure and changes in cell morphology. As this is the first report describing such a tool, it would be essential to directly demonstrate pathway activation with a more precise approach (e.g. changes in GFP-Dsh localization upon Opto-Fz7 activation).

We have now co-expressed zebrafish Dvl2-GFP together with Opto-Fz7- mcherry and compared their localization in light and dark samples at the animal pole. We found that OptoFz7 recruited Dvl to the membrane, and that the membrane-to-cytosol ratio of Dvl decreased upon light exposure. This suggests that light activation of OptoFz7 triggers Fz7/Dvl endocytosis, previously shown to be required for Wnt/PCP signaling (Yu et al., 2007, Kim et al., 2008).

b) To further validate the experiments, the authors should show the results for a Rhodopsin control in Figure 5—figure supplement 2.

We have now added Rhodopsin controls to both the in vitro explant (uniform activation) and mutant embryo rescue (uniform activation) experiments.

c) As a control, the authors should assess how this tool affects Wnt signaling.

To rule out that canonical Wnt signaling is activated by Opto-Fz7 stimulation, we have now analyzed nuclear β-catenin localization as readout of canonical Wnt signaling in embryos exposed to either Opto-Fz7 or Wnt8 signaling (positive control) and compared them to un-injected wild type embryos (negative control). While Opto-Fz7-activated embryos, much like their wild type counterparts, displayed a higher intensity of nuclear β-catenin signal at the margin than at the animal pole, β-catenin localized to the nucleus both at the margin and animal pole in Wnt8 overexpressing embryos. This suggests that Opto-Fz7 activation does not trigger canonical Wnt signaling.

2) Distribution of Opto-Fz7a) The conclusions depend on the assumption that the distribution of injected Opto-Fz7 is uniform throughout the embryo, but only small tissue regions are shown in Figure 4 and Figure 4—figure supplement 1. To strengthen the conclusions, the authors should provide data on the distribution of Opto-Fz7-mKate2 throughout the embryo.

We have now expressed Opto-Fz7-mCherry in MZfz7a/b;gsc::GFP-CAAX embryos, and analyzed its subcellular localization in different tissues of the gastrulating embryo. We found that Opto-Fz7-mCherry was uniformly distributed not only in prechordal plate cells (as shown in the original version of our manuscript) but also in epiblast, paraxial mesoderm, and notochord cells.

b) The authors state that they "found no evidence for a clearly recognizable polarized subcellular distribution of Fz7 or any other Wnt-Fz/PCP components in ppl cells (Figure 4B and not shown)". Please show the full data set or modify this claim.

We have now analyzed Wnt11-3x-mCherry, Pk1-venus, Dvl2-GFP, and Fz7a- mNeongreen subcellular distribution in prechordal plate cells, showing no evidence for a clearly recognizable polarized distribution.

c) Planar polarized turnover of PCP proteins is central to their function (see papers from Strutt), and a recent paper from the Kintner lab (Chien, Current Biology) shows that while Vangl2 has a polarized turnover and polarized activity, the protein is uniformly localized. While FRAP analysis to analyze the dynamics of the artificial Opto-Fz7 construct is beyond the scope of this manuscript, the authors should at least acknowledge this caveat in the text.

We have now acknowledged this caveat in the text.

3) Cell migration induced by Opto-Fz7a) Video 4 shows a sudden movement of the cell aggregate, which is difficult to reconcile with a direct migration process. In this respect, it is unclear how a global activation of the illuminated cells in half of the tissue should result in a directed movement of the tissue towards the illuminated area. If cells are activated globally, why would they move towards the area of illumination? The authors should clarify the logic underlying these data or remove them.

We have now repeated these experiments with an additional membrane marker and found that upon light activation cells on the activated side of the cluster are more protrusive than on the non-activated side. This suggests that cluster movement is caused by increased cell motility on the activated side.

b) In Figure 4G, please show single traces for Opto-Fz7 to facilitate the comparison with the highly variable Rhodopsin control. To strengthen the conclusions, a similar number of traces should be provided for both the Rhodopsin control and the OptoFz7 experiment (ideally 6 or more in both cases).

We have added more data, now showing six tracks per condition. These data are shown as mean with error bars in the main figure and as single tracks in a new supplementary figure.

4) Data duplication

The data used to generate the graphs presented in Figure 1C, D seem to be reused in Figure 5D, E. The data presented in Figure 2C, D are reused in Figure 5G. The data presented in Figure 3B are reused in Figure 5B and Figure 5—figure supplement 2C. The image in Figure 1—figure supplement 1A is reused in Figure 5—figure supplement 3A. The authors should therefore restructure the figures to avoid this "data recycling" throughout the manuscript or at least clearly point out in the figure legends which data points are reused.

We repeated experiments to avoid data recycling where it was feasible (i.e. for the in situ-based experiments). Otherwise, we have now more clearly stated in the figure legends that results are compared to data already shown earlier.

5) Manuscript organizationa) Please correct the following inaccuracies.Shindo and Wallingford 2010 is cited in a statement about epithelial cells, but that paper studies gastrula mesenchyme cells. Sepich et al., 2000 is cited, but that work on trilobite preceded identification of the locus as Vangl2. Jessen et al. 2002 should be included. Introduction, last paragraph: The statement that Wnt/PCP is required for directed migration of the prechordal plate should include "in zebrafish," as it is not required in Xenopus and there is no evidence for such a requirement in mice.

We have now corrected this.

b) Many references are missing (e.g. Winklbauer et al., 2001, Gao et al., 2018, Marlow et al., 2002), and the bibliography contains several incorrect references (e.g. Ciruna et al., 2006 was published in Nature, not in Nature Cell Biology). Please correct this throughout the manuscript.

We have now corrected this.

c) The supplementary source data files mostly show cumulative data, but for better transparency please organize the data by independent experiments rather than cumulatively.

We have reorganized these data files.

d) Figure 5B: Please sort the data as in Figure 5D+E to enhance readability.

In Figure 5B, we show a gain-of-function experiment in wt and a rescue experiment in mutant, and we compare the treated groups to the respective untreated ones. In 5D and E, in contrast, we compare the rescued mutant under light condition to the wt, and the dark condition to the un- injected mutant. Since the data sets of the two experiments are different, we would prefer to keep these figures organized as they currently are.

e) The authors might consider simply not abbreviating Rhodopsin, as the word is not used very often and "Rho" may be confusing given the tight links between PCP and Rho GTPases.

This has been done.

https://doi.org/10.7554/eLife.42093.032

Article and author information

Author details

  1. Daniel Čapek

    Institute of Science and Technology Austria, Klosterneuburg, Austria
    Contribution
    Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5199-9940
  2. Michael Smutny

    1. Institute of Science and Technology Austria, Klosterneuburg, Austria
    2. Centre for Mechanochemical Cell Biology and Division of Biomedical Sciences, Warwick Medical School, University of Warwick, Coventry, United Kingdom
    Contribution
    Formal analysis, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5920-9090
  3. Alexandra-Madelaine Tichy

    1. Australian Regenerative Medicine Institute (ARMI), Faculty of Medicine, Nursing and Health Sciences, Monash University, Clayton, Australia
    2. European Molecular Biology Laboratory Australia (EMBL Australia), Monash University, Clayton, Australia
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  4. Maurizio Morri

    Institute of Science and Technology Austria, Klosterneuburg, Austria
    Present address
    Chan Zuckerberg Biohub, San Francisco, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
  5. Harald Janovjak

    1. Institute of Science and Technology Austria, Klosterneuburg, Austria
    2. Australian Regenerative Medicine Institute (ARMI), Faculty of Medicine, Nursing and Health Sciences, Monash University, Clayton, Australia
    3. European Molecular Biology Laboratory Australia (EMBL Australia), Monash University, Clayton, Australia
    Contribution
    Conceptualization, Resources, Funding acquisition, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Carl-Philipp Heisenberg

    Institute of Science and Technology Austria, Klosterneuburg, Austria
    Contribution
    Conceptualization, Funding acquisition, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    heisenberg@ist.ac.at
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0912-4566

Funding

European Research Council (742573)

  • Carl-Philipp Heisenberg

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank SF Gabriel Krens, Jana Slováková, Shayan Shamipour, and Keisuke Sako for help with experimental design and data analysis, as well as the Heisenberg and Janovjak groups for discussion and feedback. We also thank Masazumi Tada and Daria Siekhaus for plasmids, and the Bioimaging and Zebrafish facilities of IST Austria for continuous support. This work was supported by an ERC Advanced Grant (MECSPEC) to C-PH. The Australian Regenerative Medicine Institute is supported by grants from the State Government of Victoria and the Australian Government. The EMBL Australia Partnership Laboratory (EMBL Australia) is supported by the National Collaborative Research Infrastructure Strategy (NCRIS) of the Australian Government.

Ethics

Animal experimentation: Experiments involving zebrafish reported in this study included the creation and maintenance of transgenic mutant lines of zebrafish. In my role as Ethics Officer at IST Austria, I herewith confirm that the use of animals for experimental purposes within the scope of this study does not require the approval of the Ethics Committee at IST Austria. In line with EU directive 2010/63/EU on the protection of animals used for scientific purposes, Austrian legislation requires that the use of animals for scientific purposes has to be approved by the respective unit at the Federal Ministry of Education, Science, and Research. This process includes an ethical evaluation of the planned experiments as part of the harm-benefit analysis. Beyond that no further approval by the Ethics Committee at IST Austria is required. The respective approval number that covers the experiments that were performed is 66.018/0010-WF/II/3b/2014. Yours sincerely, Dr. Verena Seiboth Ethics Officer

Senior and Reviewing Editor

  1. Didier Y Stainier, Max Planck Institute for Heart and Lung Research, Germany

Publication history

  1. Received: September 17, 2018
  2. Accepted: January 14, 2019
  3. Accepted Manuscript published: January 16, 2019 (version 1)
  4. Version of Record published: February 6, 2019 (version 2)

Copyright

© 2019, Čapek et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,815
    Page views
  • 382
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Developmental Biology
    Péter Lőrincz et al.
    Research Advance
    1. Cell Biology
    2. Plant Biology
    Andreas S Richter et al.
    Research Article
