Integrin alpha11 is an Osteolectin receptor and is required for the maintenance of adult skeletal bone mass

  1. Bo Shen
  2. Kristy Vardy
  3. Payton Hughes
  4. Alpaslan Tasdogan
  5. Zhiyu Zhao
  6. Rui Yue
  7. Genevieve M Crane
  8. Sean J Morrison  Is a corresponding author
  1. University of Texas Southwestern Medical Center, United States
  2. Tongji University, China
  3. Howard Hughes Medical Institute, University of Texas Southwestern Medical Center, United States
7 figures, 2 tables and 2 additional files

Figures

Osteolectin contains conserved integrin binding motifs and binds with high affinity to integrin α11β1.

(A, B) The human (A) and mouse (B) Osteolectin proteins contain RGD and LDT sequences. (C) Alignment of Osteolectin amino acid sequences shows that the RGD and LDT domains are evolutionarily …

https://doi.org/10.7554/eLife.42274.003
Osteolectin activates Wnt pathway signaling in skeletal stem/progenitor cells.

(A) Western blot of cell culture supernatant from parental or Osteolectin deficient MC3T3-E1 cells and human bone marrow stromal cells (hBMSC#1 and hBMSC#2 cells) (this blot is representative of …

https://doi.org/10.7554/eLife.42274.005
Osteogenic differentiation in response to Osteolectin requires β-catenin.

(A and B) MC3T3-E1 cells, hBMSC#1 cells, and hBMSC#2 cells were transferred into osteogenic differentiation medium with PBS or 30 ng/ml recombinant mouse Osteolectin, as well as DMSO or 200 nM of …

https://doi.org/10.7554/eLife.42274.007
Integrin α11 is required for osteogenic differentiation and Wnt pathway activation in response to Osteolectin but exogenous collagen does not activate Wnt pathway signaling.

(A) Osteogenic differentiation in culture of parental or Itga11 deficient MC3T3-E1 cells, hBMSC#1 cells, and hBMSC#2 cells with PBS or recombinant mouse Osteolectin (n = 3 independent experiments). …

https://doi.org/10.7554/eLife.42274.009
Figure 5 with 1 supplement
Conditional Itga11 deletion from LepR+cells accelerates the loss of trabecular bone during aging.

(A) Lepr-Cre; Itga11fl/fl mice were grossly normal and indistinguishable from littermate controls. (B – D) Body length (B), body mass (C) and femur length (D) did not significantly differ between Lep…

https://doi.org/10.7554/eLife.42274.011

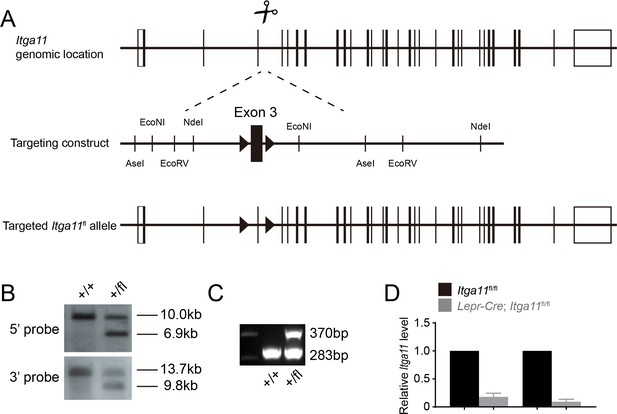

Figure 5—figure supplement 1
Generation of an Itga11 floxed mice.

(A) DNA surrounding Itga11 exon3 was used as homologous arms for recombineering. The recombineering plasmid was modified by inserting loxP sites flanking exon3. Deletion of exon three leads to a …

https://doi.org/10.7554/eLife.42274.013
Conditional Itga11 deletion from LepR+cells reduces cortical bone formation in adult mice.

(A) Representative microCT images of cortical bone in the mid-femur diaphysis of male Lepr-Cre; Itga11fl/fl mice and littermate controls at 2, 6, and 12 months of age. (B–F) microCT analysis of the …

https://doi.org/10.7554/eLife.42274.015
Figure 7 with 1 supplement
Integrin α11 is required by bone marrow stromal cells to undergo osteogenesis in response to Osteolectin.

(A) CFU-F frequency and (B) cells per CFU-F colony formed by bone marrow cells from Lepr-Cre; Itga11fl/fl mice and littermate controls at 2 and 6 months of age (n = 6–8 mice per genotype per time …

https://doi.org/10.7554/eLife.42274.017

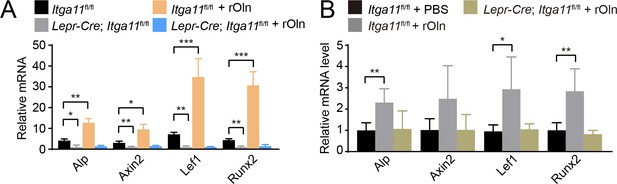

Figure 7—figure supplement 1
Osteolectin promotes Wnt target gene transcription in mouse bone marrow stromal cells in an integrin α11-dependent manner.

(A) Bone marrow stromal cells from Lepr-Cre; Itga11fl/fl mice and sex-matched littermates at 2 months of age were cultured in osteogenic differentiation medium supplemented with PBS (control) or 30 …

https://doi.org/10.7554/eLife.42274.019

Tables

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Genetic reagent(M.musculus)Osteolectin-/-PMID: 27976999
Genetic reagent (M.musculus)Lepr-CrePMID: 11283374JAX Stock (008320)
Antibodyrabbit polyclonal anti-phospho-PI3 KinaseCell Signaling4228S(1:1000)
Antibodyrabbit polyclonal anti-phospho-Akt (Ser473)Cell Signaling4060S(1:1000)
Antibodyrabbit polyclonal anti-phospho-GSK-3α/βCell Signaling9331S(1:1000)
Antibodyrabbit polyclonal anti-β-CateninCell Signaling8480S(1:1000)
Antibodyrabbit polyclonal anti-anti-β-ActinCell Signaling8457S(1:10000)
Antibodyrabbit polyclonal anti-GSK-3bCell Signaling9315S(1:1000)
Antibodygoat polyclonal anti-rabbit IgG, HRP-linked antibodyCell Signaling7074S(1:5000)
Antibodyhorse polyclonal anti-mouse IgG, HRP-linked antibodyCell Signaling7076S(1:5000)
Antibodydonkey polyclonal anti-sheep IgG, HRP-linked antibodyR and D SystemsHAF016(1:5000)
Antibodyrabbit polyclonal anti-phospho-FAK (Y397)Cell Signaling3283S(1:1000)
Antibodyrabbit polyclonal anti-Histone H3Cell Signaling4499S(1:5000)
Antibodygoat polyclonal anti-mouse OsteolectinR and D SystemsAF3729(1:1000)
Antibodysheep polyclonal anti-human OsteolectinR and D SystemsAF1904(1:1000)
Antibodyrabbit polyclonal anti-AdiponectinAbcamab181699(1:1000)
Antibodyrabbit polyclonal anti-Integrin α11Abcamab198826(1:1000)
Antibodyrabbit polyclonal anti-FAKCell Signaling3285P(1:1000)
Antibodymouse monoclonal anti-6x-His Tag antibodyThermo Fisher ScientificMA1-135(1:1000)
Antibodyrat polyclonal anti-CD45-APCTonbo20–0451(1:200)
Antibodyrat polyclonal anti-Ter119-APCTonbo20–5921(1:200)
Antibodyrat polyclonal anti-CD31-APCBiolegend102410(1:200)
Antibodygoat polyclonal anti-Mouse Leptin R, BiotinR and D SystemsAF497(1:200)
Antibodymouse monoclonal anti-Streptavidin PEBiolegend410504(1:500)
Peptide, recombinant proteinBovine serum albuminSigma-AldrichA3156
Peptide, recombinant proteinrecombinant human pro-Collagen I α1R and D Systems6220 CL
Peptide, recombinant proteinrecombinant human osteolectinPMID: 27976999
Peptide, recombinant proteinrecombinant mouse osteolectinPMID: 27976999
Peptide, recombinant proteinrecombiant Integrin α11β1 proteinR and D Systems6357-AB
Peptide, recombinant proteinrecombiant Integrin α10β1 proteinR and D Systems5895-AB
Peptide, recombinant proteinrecombiant Integrin αVβ3 proteinR and D Systems3050-AV
Peptide, recombinant proteinrecombiant Integrin αVβ1 ProteinR and D Systems6579-AV
Peptide, recombinant proteinrecombiant Integrin α4β1 proteinR and D Systems5668-A4
Peptide, recombinant proteinrecombiant Integrin α9β1 proteinR and D Systems5438-A9
Peptide, recombinant proteinrecombiant Integrin αIIbβ3 ProteinR and D Systems7148-A2
Peptide, recombinant proteinrecombiant Integrin αMβ2 ProteinR and D Systems4047-AM
Chemical compound,drugDAPILife TechnologiesD1306
Chemical compound, drugTRIzol LS ReagentInvitrogen10296028
Chemical cmpound,drugCollagenase, Type 1WorthingtonLS004196
Chemical compound, drugDispase IIRoche DiagnosticD4693
Chemical compound, drugDNase ISigma-Aldrich10 104 159 001
Chemical compound, drugIWR-1-endoSigma-Aldrich681669
Chemical compound, drugAZD2858SelleckS7253
Chemical compound, drugY-27632 Rock inhibitorSelleckS1049
Chemical compound, drug4% paraformaldehyde in PBSThermo Fisher ScientificJ19943-K2
Cell lines (M.musculus)MC3T3-E1, subclone 4ATCCCRL-2593
Cell lines (H.sapiens)hBMSC#1ATCCPCS-500–012
Cell lines (H.sapiens)hBMSC#2LonzaPT-2501
Commercial assay or kitCell Culture Contamination Detection KitMolecular ProbesC-7028
Commercial assay or kitTMB stop solutionKPL95059–198
Commercial assay or kitSureBlue TMB Microwell Peroxidase SubstrateKPL95059–282
Commercial assay or kitHBSS, without Calcium and MagnesiumCorning21022CV
Commercial assay or kitHBSS, with Calcium and MagnesiumCorning21023CV
Commercial assay or kitCleanCap Cas9 mRNATriLinkL-7206
Commercial assay or kitMEGAshortscript T7 Transcription KitAmbionAM1354
Commercial assay or kitMEGAclear Transcription Clean-Up KitAmbionAM1908
Commercial assay or kitEDTA-free Protease Inhibitor CocktailSigma-Aldrich11 836 170 001
Commercial assay or kitECL Western Blotting SubstratePierce32106
Commercial assay or kitSuperScript III Reverse TranscriptaseInvitrogen18080044
Commercial assay or kitStemPro Osteogenesis Differentiation KitGibcoA1007201
Commercial assay or kitStemPro Adipogenesis Differentiation KitGibcoA1007001
Commercial assay or kitStemPro Chondrogenesis Differentiation KitGibcoA1007101
Commercial assay or kitMicroVue DPD ELISA KitQuidel8007
Commercial assay or kitMicroVue Creatinine Assay KitQuidel8009
Commercial assay or kitRat/Mouse PINP ELISA kitImmunodiagnostic SystemsAC-33F1
Commercial assay or kitNuclear/Cytosol Fractionation KitBiovisionK266
OtherFetal bovine serumSigma-AldrichF2442
OtherPenicillin Streptomycin 100x solutionHyCloneSV3001
OtherDMEM, low glucoseGibco11885084
OtherDMEM, high glucoseGibcoD5671
Author response table 1
RNA-seq analysis of LepR+ cells from non-irradiated bone marrow as well as hematopoietic cells and unfractionated cells from irradiated bone marrow (which are high in adipocytes).

Itga11 is poorly expressed in adipocyte-rich bone marrow cells after irradiation (all data represent average FPKM values from multiple replicates).

https://doi.org/10.7554/eLife.42274.024
Cell typeAdipoq Fabp4 Plin1 Itga11 Osteolectin
LepR+ cells from bone marrow835231.23437
Hematopoietic cells from irradiated bone marrow1.8130.30.10.2
Whole bone marrow cells after irradiation (high in adipocytes)921016682.22.8

Additional files

Supplementary file 1

Markers used for the flow cytometric isolation of bone marrow cell populations.

Stem and progenitor cell populations were isolated from mouse bone marrow by flow cytometry using the listed markers. Lineage (Lin) markers used to isolate Lineage negative cell populations were CD2, CD3, CD5, CD8, Ter119, Gr-1, and B220.

https://doi.org/10.7554/eLife.42274.021
Transparent reporting form
https://doi.org/10.7554/eLife.42274.022
