Presenilin/γ-secretase-dependent EphA3 processing mediates axon elongation through non-muscle myosin IIA

  1. Míriam Javier-Torrent
  2. Sergi Marco
  3. Daniel Rocandio
  4. Maria Pons-Vizcarra
  5. Peter W Janes
  6. Martin Lackmann
  7. Joaquim Egea
  8. Carlos A Saura  Is a corresponding author
  1. Universitat Autònoma de Barcelona, Spain
  2. Universitat de Lleida, Spain
  3. Monash University, Australia
Research Article
  • Cited 0
  • Views 633
  • Annotations
Cite this article as: eLife 2019;8:e43646 doi: 10.7554/eLife.43646

Abstract

EphA/ephrin signaling regulates axon growth and guidance of neurons, but whether this process occurs also independently of ephrins is unclear. We show that presenilin-1 (PS1)/γ-secretase is required for axon growth in the developing mouse brain. PS1/γ-secretase mediates axon growth by inhibiting RhoA signaling and cleaving EphA3 independently of ligand to generate an intracellular domain (ICD) fragment that reverses axon defects in PS1/γ-secretase- and EphA3-deficient hippocampal neurons. Proteomic analysis revealed that EphA3 ICD binds to non-muscle myosin IIA (NMIIA) and increases its phosphorylation (Ser1943), which promotes NMIIA filament disassembly and cytoskeleton rearrangement. PS1/γ-secretase-deficient neurons show decreased phosphorylated NMIIA and NMIIA/actin colocalization. Moreover, pharmacological NMII inhibition reverses axon retraction in PS-deficient neurons suggesting that NMIIA mediates PS/EphA3-dependent axon elongation. In conclusion, PS/γ-secretase-dependent EphA3 cleavage mediates axon growth by regulating filament assembly through RhoA signaling and NMIIA, suggesting opposite roles of EphA3 on inhibiting (ligand-dependent) and promoting (receptor processing) axon growth in developing neurons.

https://doi.org/10.7554/eLife.43646.001

Introduction

Growth of axons towards their targets is a critical event during the establishment of neuronal connections in the developing nervous system. Growth, guidance and collapse of axons require the constant reorganization of the actin cytoskeleton at the growth cone and axons. Several signaling receptors regulate axon growth and guidance by affecting Rho family of GTPases (Patel and Van Vactor, 2002). Rho plays a critical role in the regulation of axon initiation, elongation, guidance and collapse by regulating the assembly, disassembly and rearrangement of the actin and microtubule cytoskeleton (Hall and Lalli, 2010). Rho promotes or inhibits axon elongation through its effectors mDia and Rho-associated protein kinase (ROCK), respectively. RhoA regulates negatively axon growth by activating ROCK, whereas the Rho members Rac and Cdc42 promote axon growth in hippocampal neurons (Wang et al., 2007). ROCK inhibits axon growth by blocking depolymerization of actin filaments indirectly by activating LIM kinase that phosphorylates ADF/cofilin, and directly by increasing phosphorylation and activating myosin II light chain (MLC) resulting in contraction of actin fibers (Da Silva et al., 2003; Govek et al., 2005). In neurons, non-muscle myosin IIA (NMIIA)/myosin-9 promotes neurite retraction caused by repulsive signals (Wylie and Chantler, 2003; Kubo et al., 2008). Phosphorylation of NMIIA heavy chain by several kinases, including protein kinase C (PKC) or casein kinase 2 (CKII), prevents formation and/or disassembles myosin filaments (Breckenridge et al., 2009; Dulyaninova and Bresnick, 2013), although the role of NMIIA phosphorylation in axodendritic morphology is unknown.

The Eph family of receptor tyrosine kinases and their cell-attached ephrin ligands inhibit axon growth by mediating growth cone collapse through regulation of Ras and Rho GTPases (Noren and Pasquale, 2004). Binding of ephrins to EphA or EphB receptors of opposing cells triggers Eph phosphorylation and recruitment of cytoplasmic proteins, such as CrkII, resulting in cell-cell repulsive signals. For instance, binding of ephrinA1 to EphA4 induces Rho GEF ephexin-1 binding, which triggers RhoA activation and consequently induces growth cone collapse in hippocampal neurons (Shamah et al., 2001). Binding of ephrin-A5 to EphA induces growth cone collapse in a RhoA/ROCK-dependent manner (Gao et al., 1999; Wahl et al., 2000). EphA3 signaling, a relevant regulator of cell migration and neurite and axon outgrowth (Shi et al., 2010), regulates elongation and navigation of axons and trajectories and assembly of spinal motor neuron axons (Marquardt et al., 2005; Gallarda et al., 2008; Nishikimi et al., 2011).

Eph/ephrin-mediated repulsive signals in developing neurons are largely limited to cell-cell contacts during axon guidance. At present, it is unclear whether Eph receptors regulate axon elongation independently of classical ephrin signaling, but a mechanism involving shedding of ephrin ligands and receptors was recently shown to regulate EphA signaling (Egea and Klein, 2007). EphA activation triggers ADAM10-mediated ephrinA2 cleavage to regulate cell-cell contacts (Hattori et al., 2000), whereas binding of ephrinA5 to EphA3 induces an ADAM10-induced trans cleavage of the ligand (Janes et al., 2005). Notably, several Eph receptors and ephrin ligands are cleaved by presenilins (PS: PS1 and PS2), the catalytic component of γ-secretase involved in the pathogenesis of Alzheimer’s disease (AD) (Lleó and Saura, 2011). EphB2 and ephrinB2 undergo sequential cleavages by metalloproteases and PS/γ-secretase, and the ephrinB2 intracellular domain (ICD) resulting from this latter cleavage regulates RhoA through Src kinase in endothelial cells (Georgakopoulos et al., 2006; Litterst et al., 2007). In addition, γ-secretase-dependent EphA4 cleavage regulates dendritic spine morphology by affecting Rac signaling (Inoue et al., 2009). These findings suggest that cleavage of Eph receptors regulates actin cytoskeleton through alternative mechanisms different from the classical Eph-ephrin signaling. The physiological contribution of Eph receptor shedding on axon growth and whether this event occurs independently of cell-attached ephrins remain still unclear. Here, we found that PS/γ-secretase-dependent EphA3 cleavage mediates axon elongation independently of cell-attached ephrins by promoting filament disassembly and cytoskeleton rearrangement.

Results

Presenilin-1/γ-secretase is essential for axon elongation in vitro and in vivo

Presenilin-1 (PS1; Psen1), the catalytic component of the γ-secretase complex, is mutated in most of familial Alzheimer’s disease (AD) cases (De Strooper and Annaert, 2010). PS1 is essential for brain development as revealed by abundant brain hemorrhages, enlarged ventricles and neuron migration defects in Psen1-/- mouse embryos (Shen et al., 1997; Hartmann et al., 1999). To investigate the molecular mechanisms by which PS1/γ-secretase regulates neuron cytoskeleton in the developing brain we first performed morphological analysis of control (Psen1+/+) and Psen1-/- mouse brains at embryonic day 15.5 (E15.5) using markers of axons, including neurofilament (SMI312) and tau, and intermediate neurofilaments (nestin). Immunolabeling and confocal microscope analysis revealed reduced staining of neurofilament- and tau-stained axons and nestin filaments in the outer layer of the hippocampus and ventricular zone of Psen1-/- embryos (Figure 1A,B). Axon length defects in Psen1-/- brains were confirmed by retrograde DiI labeling (Figure 1B). Notably, neurofilament staining is largely absent in processes and restricted to the cytoplasm of doublecortin-positive immature neurons in Psen1-/- hippocampus (Figure 1C). The axon length defects are unlikely due to global changes on the abundance of doublecortin-positive immature neurons since number of these cells are unchanged in Psen1-/- brains (Handler et al., 2000). In agreement with the in vivo results, axon length was significantly reduced (~50%) in 4 days in vitro (DIV) cultured hippocampal neurons from Psen1-/- embryos, but not Psen2-/- embryos, or treated with the γ-secretase inhibitors DAPT or the broad-spectrum ADAM/matrix metalloproteinase inhibitor GM6001 (p<0.05; Figure 1D). These results strongly indicate that PS/γ-secretase and metalloprotease activities are required for axon growth in hippocampal neurons.

Figure 1 with 1 supplement see all

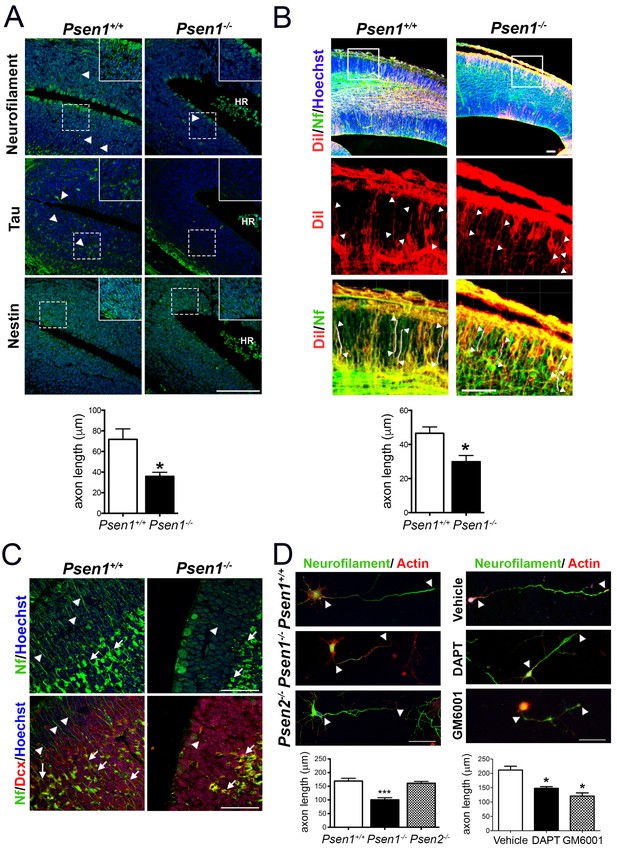

PS1/γ-secretase is required for axon growth in the developing brain.

(A) Reduced axon length in embryonic Psen1-/- mouse brains. Confocal microscope images showing reduced axon length in the ventricular zone of Psen1-/- mouse brains (E15.5). Axons (green) are labeled with neurofilament (SM312 staining) and tau, intermediate neurofilaments with nestin, and nucleus (Hoechst) staining is shown in blue. Insets show magnified regions marked by dotted lines. Psen1-/- mouse brains show enlarged ventricles and brain hemorrhages (HR; grouped blood cells are evident). Multiple neurofilament-stained axons (n = 5/section; 10–15 sections/animal) were analyzed and quantified. Scale bar, 50 μm. Data are mean ± SEM (n = 3–4 animals/genotype). Unpaired two-tailed Student’s t test: *p<0.05, compared to Psen1+/+. (B) DiI labeling of axons in embryonic Psen1+/+ and Psen1-/- mouse brains. Top images: confocal images showing DiI (red), neurofilament (Nf, 2H3; green) and Hoescht (blue) stainings. Insets in the top images are magnified in the middle (DiI, red) and bottom (DiI/Nf, yellow) images. Middle/bottom images: length of DiI/Nf-stained axons (in white) indicated with white arrowheads was quantified in the cortical plate of Psen1+/+ and Psen1-/- embryos (E13.5; n = 3–4/group). Scale bar, 50 μm. Unpaired two-tailed Student’s t test: *p<0.05, compared to Psen1+/+. (C) Reduced axon staining in doublecortin immature neurons in the developing hippocampus of Psen1-/- embryos. Psen1+/+ and Psen1-/- brain sections (E15.5) were immunostained for neurofilament (Nf, SMI321; green) and doublecortin, a marker of immature neurons (red). Confocal images show reduced axon length in doublecortin immature neurons in the inner (arrows) and outer (arrowheads) layers of Psen1-/- hippocampus. Scale bar, 50 μm. (D) Reduced axon length in primary hippocampal neurons from Psen1-/- mouse embryos. Cultured neurons (4 DIV) from control (Psen1/2+/+), Psen1-/- and Psen2-/- embryos (E15.5) or neurons treated with a γ-secretase inhibitor (DAPT) or a broad spectrum metalloprotease inhibitor (GM6001) were stained with neurofilament (Nf, SMI321: green) and actin (phalloidin, red). The length of axons is indicated with white arrowheads. Multiple axons (n = 25–30/coverslip) were analyzed and quantified. Scale bars: 50 μm. Data are mean ± SEM (n = 3 experiments). One-way ANOVA followed by Bonferroni post hoc test: *p<0.05, compared to vehicle or control.

https://doi.org/10.7554/eLife.43646.002

Presenilin-1/γ-secretase-dependent EphA3 cleavage

To uncover the mechanisms responsible for PS1/γ-secretase-dependent axon elongation, we focused on EphA receptors due to its relevance in axon guidance in the developing brain (Kania and Klein, 2016). Quantitative real-time PCR (qRT-PCR) revealed differential expression of multiple EphA transcripts in cultured hippocampal neurons. Interestingly, Epha3, 4, 7 and 8 mRNAs decrease significantly coinciding with last stages of axon elongation (4–7 DIV; Figure 1—figure supplement 1A). We focused specifically on EphA3 since: (1) EphA3 is highly expressed in axons where it regulates axon growth of hippocampal neurons in the developing brain (Yue et al., 2002; Kudo et al., 2005), (2) EphA3 protein is elevated at initial stages of axon polarization and elongation (2–4 DIV) and then it significantly decreases (Figure 1—figure supplement 1B), and (3) binding of ephrin-A5 to EphA3 induces the interaction of the metalloproteinase ADAM10 causing the cleavage in trans of ephrin-A5 (Janes et al., 2005). Notably, EphA3 is expressed as a punctuate pattern at the actin-enriched growth cones and filopodia, and along axons in hippocampal neurons, where it highly colocalizes with PS1 (~50%) (Figure 1—figure supplement 1C). Notably, coimmunoprecipitation assays revealed binding of PS1 to EphA3 in brain extracts of postnatal mouse brains, as well as in HEK293 cells overexpressing both proteins but not PS1 alone (Figure 1—figure supplement 1D,E). These results suggested binding of PS1 to EphA3 warranting investigation of EphA3 processing by PS1/γ-secretase.

To examine for a possible processing of EphA3 by PS/γ-secretase we next performed biochemical analyses using multiple anti-EphA3 antibodies in mouse brain, cultured neurons and heterologous mammalian cells. Biochemical analysis using polyclonal (C-19) and monoclonal (5E11F2) anti-C-terminal EphA3 antibodies revealed accumulation of an endogenous EphA3 C-terminal derived fragment (CTF,~49 kDa) in PS1-/- embryonic mouse brains and cultured neurons (Figure 2A,B). This suggests that this fragment could be a PS/γ-secretase substrate. DAPT increases EphA3 CTFs in EphA3-HA expressing HEK293 cells, as detected with an anti-HA antibody (Figure 2C). EphA3 CTFs were also present in lysates of EphA3-transfected Psen1-/-/Psen2-/-mouse embryonic fibroblasts (MEF) but not in control (Psen1+/+/Psen2+/+) or non-transfected Psen1-/-/Psen2-/- MEFs (Figure 2D). In all cases, γ-secretase inactivation was confirmed by accumulation of N-cadherin and APP CTFs. To test for a possible metalloprotease-mediated EphA3 shedding before γ-secretase cleavage, we used the ADAM/matrix metalloproteinase inhibitors MMP9/13, GM6001 and 1,10-phenanthroline (1,10-PNT). These compounds reduced significantly accumulation of EphA3 CTFs in HEK293 cells treated with the γ-secretase inhibitors DAPT or L-685,458 indicating EphA3 shedding by metalloprotease/ADAM (Figure 2E,F). Furthermore, an EphA3 N-terminal derived fragment (NTF,~75 kDa) was significantly reduced in conditioned media in the presence of the MMP9/13 inhibitor (Figure 2E). An in vitro γ-secretase assay regularly used for studying APP processing was applied for detecting the EphA3 intracellular domain (ICD) (Sastre et al., 2001). Biochemical analysis revealed generation of EphA3 ICD (~47–49 kDa) in a time- and DAPT-dependent manner in the soluble (S100) fraction of transfected HEK293 cells, and the presence of endogenous EphA3 ICD in mouse brain lysates (Figure 2G).

Figure 2 with 1 supplement see all

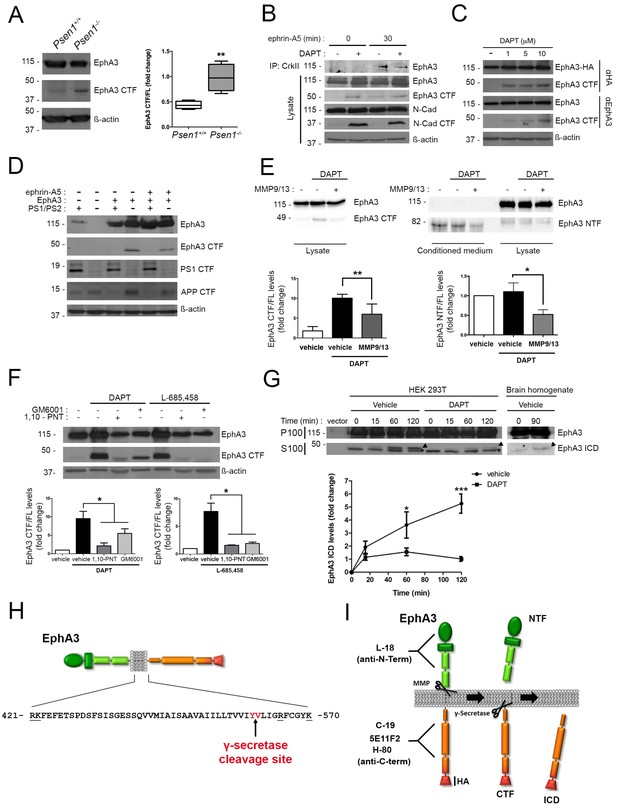

PS1/γ-secretase mediates EphA3 processing in mammalian cells.

(A) Accumulation of EphA3 CTFs in Psen1-/- mouse brains. Western blot analysis of brain lysates from Psen1+/+ and Psen1-/- mouse embryos (E15.5). Values represent mean ± SEM (n = 4); Unpaired two-tailed Student’s t test: **p<0.01. (B) EphA3 CTFs accumulate in hippocampal neurons deficient in γ-secretase. Western blot analysis of EphA3 CTF (polyclonal C-19 antibody) in hippocampal neurons (4DIV) treated with γ-secretase inhibitor (DAPT) and/or ephrin-A5. (C) Accumulation of EphA3 CTFs in HEK293 cells treated with γ-secretase inhibitor. Western blot analysis of HEK293 cells expressing EphA3-HA (monoclonal anti-HA, top; 5E11F2 antibody, bottom) treated with increasing concentrations of DAPT. (D) Impaired EphA3 cleavage in PS/γ-secretase-deficient mouse embryonic fibroblasts (MEFs). Western blot analysis of EphA3 in Psen1+/+/2+/+ (PS1/PS2: +) or Psen1-/-/2-/- (PS1/PS2: -) MEFs non-transfected (EphA3-) or transfected (EphA3+) with EphA3 in the presence or absence of clustered ephrin-A5. Reduced PS1 and accumulated APP CTFs are used as controls of decreased PS1 expression and γ-secretase-deficiency, respectively. (E) Reduced EphA3 NTFs levels in HEK293 cells treated with MMP9/13. MMP9/13 reduces significantly EphA3 CTF accumulation induced by DAPT in lysates (5E11F2 antibody; left image) and EphA3 NTFs in conditioned medium (L-18 antibody) of EphA3-overexpressing HEK293 cells (n = 5). (F) The ADAM/metalloprotease inhibitors GM6001 and 1,10-PNT abrogated EphA3 CTF accumulation induced by DAPT or L-685,458 (C-19 antibody) in HEK293 cells. (G) In vitro EphA3 ICD generation. Cell-free γ-secretase assay showing time-dependent generation of EphA3 ICD (arrowheads) in the soluble fraction (S100) of HEK293 cells transfected with EphA3 (left) and mouse brains (P2) (right). Full-length EphA3 is present only in the pellet (P100). *Indicates a degradation band that appears independently of time and treatment. In E–G), data are mean ± SD (n = 3–5 experiments). One-way ANOVA followed by Bonferroni post hoc test: *p<0.05, **p<0.01, ***p<0.0001, compared to vehicle or control or the indicated group. (H) Identification of the PS/γ-secretase cleavage site in EphA3. LC-MS/MS analysis of trypsin-digested gel-in samples of the EpA3 ICD band generated in vitro using the γ-secretase assay of transfected HEK293 cells identified the VLIGR peptide, demonstrating that EphA3 is cleaved at Y560 (indicated in red). Trypsin target residues are underlined. (I) Model of PS/γ-secretase-dependent EphA3 processing. EphA3 structural domains (colored boxes) and epitopes detected by antibodies used in this study. MMP, matrix metalloproteinase protein; CTF, C-terminal fragment; ICD, Intracellular Domain.

https://doi.org/10.7554/eLife.43646.004

To identify the PS/γ-secretase cleavage site in EphA3, the EphA3 ICD fragment was generated in vitro by using the γ-secretase assay and sequenced using liquid chromatography-mass spectrometry (LC-MS/MS). Proteomic analysis of trypsin-digested gel samples (~47–49 kDa band) revealed the presence of a major VLIGR peptide, corresponding to EphA3 (aa 561–565) indicating that the γ-secretase cleavage occurs at aminoacid Y560 (Figure 2H; Supplementary file 1). We detected a C-terminal peptide (NILINSNLVcK) but not a N-terminal peptide (QFAAVSITTNQAAPSPVLTIK) from that site confirming the presence of C-terminal EphA3 protein. Bioinformatic prediction of this cleavage site was also confirmed by protein sequence alignment of EPHA3 and well-established PS1/γ-secretase substrates (EPHB2, APLP1, NRXN1, CADH1, PVRL1, NOTCH1 and CD44) using ClustalW2-EMBL (http://www.ebi.ac.uk). These results demonstrate sequential cleavage of EphA3 by metalloprotease/ADAM and PS1/γ-secretase in neurons (Figure 2I).

EphA3 cleavage by PS1/γ-secretase mediates axon elongation

Next, we examined the contribution of PS/γ-secretase-mediated EphA3 cleavage on regulating axon growth in hippocampal neurons. Based on the peptide sequencing analysis (Figure 2H,I), we generated EphA3 ICD and ΔICD mutants comprising or lacking aminoacids 561–983, respectively, and specific shRNAs to inactivate endogenous Epha3 (Figure 2—figure supplement 1). EphA3 ICD-HA, ΔICD-HA and full-length were transiently expressed in vehicle or DAPT-treated Psen1+/+ or Psen1-/- hippocampal neurons. Confocal imaging analysis shows that EphA3 ICD, but not EphA3 full-length or ΔICD, reversed axon length defects in Psen1-/- and/or DAPT-treated hippocampal neurons (Figure 3A,B), suggesting that PS1/γ-secretase-dependent EphA3 ICD generation is sufficient for axon growth. Moreover, EphA3 ICD recovered axon length in vehicle- or DAPT-treated EphA3-deficient neurons and reduced significantly the percentage of collapsed growth cones in Psen1-/- neurons (Figure 3C; Figure 3—figure supplement 1). In utero electroporation assays showed a significant decrease of axon length in the ventricular zone of Psen1-/- embryos (E16.5; p<0.0001; Figure 3D). Notably, no significant differences in axon length in EphA3 ICD expressing Psen1+/+ and Psen1-/- brains were found (p=0.61). These results strongly support the relevance of EphA3 ICD in mediating axon growth in the developing brain. Together, these results indicate that PS/γ-secretase regulates axon elongation through EphA3 processing.

Figure 3 with 1 supplement see all

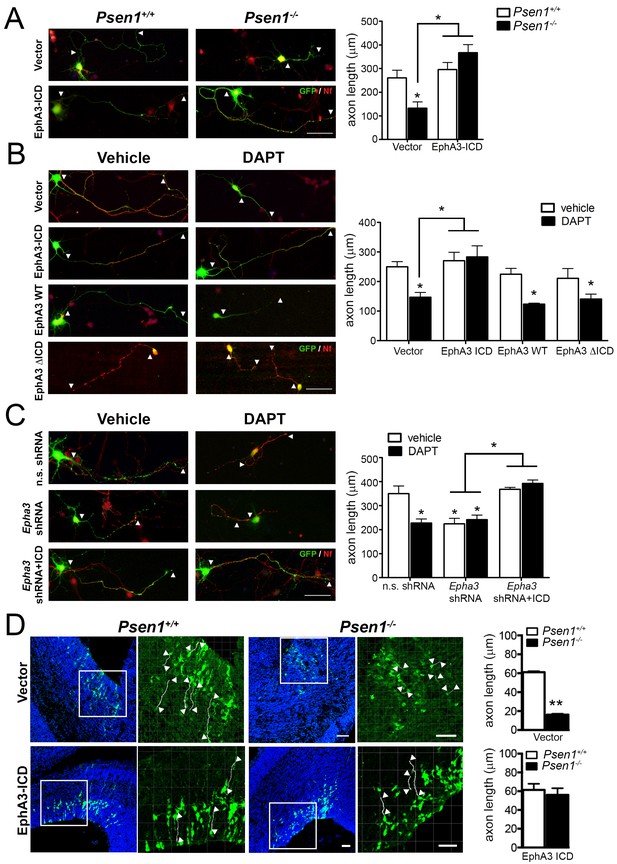

EphA3 ICD reverses axon defects in PS/γ-secretase- and EphA3-deficient neurons.

(A) EphA3 ICD reverses axon growth defects in Psen1-/- hippocampal neurons. Immunofluorescence staining (left) and quantitative analysis (right) of axon length (indicated by arrowheads) in PS/γ-secretase-deficient neurons expressing vector or EphA3 ICD (SMI312, red; GFP, green). (B) EphA3 ICD reverses axon growth defects in PS/γ-secretase-deficient hippocampal neurons. EphA3 ICD (GFP, green), but not EphA3 WT or ΔICD, reverses axon growth defects in DAPT-treated hippocampal neurons. Axons were visualized with SMI312 (red). (C) EphA3 ICD reverses axon defects in Epha3-deficient neurons. EphA3 ICD (GFP, green) reverses defects in axon length (SMI312, red) both in Epha3 ShRNA- or DAPT-treated hippocampal neurons. n.s. shRNA: non-specific scramble shRNAs. (D) In utero electroporation assays in Psen1+/+ and Psen1-/- embryos. Confocal microscope images showing mCherry (red color converted to green color; top) or GFP (green; bottom) and Hoescht (blue) stainings in Psen1+/+ and Psen1-/- mouse brains (E16.5) transduced with empty (mCherry; top) and EphA3 ICD (GFP; bottom) vectors. Marked square regions in the ventricular zone are magnified in the right images. Arrowheads indicate representative stained axons (white) quantified in the bar diagrams. Scale bar, 50 μm. Data in A–C) represent mean ± SEM of at least three experiments (3–6 coverslips, n = 30 neurons/coverslips). In D), data represent mean ± SEM of different sections (n = 3–9) of multiple mice. Statistics were analyzed by two-way ANOVA followed by Bonferroni post hoc test (A–C) or unpaired two-tailed t Student (D). **p<0.05, **p<0.0001 compared to vehicle (control), Psen1+/+ or the indicated group.

https://doi.org/10.7554/eLife.43646.006

Ligand-independent EphA3 processing mediates axon elongation

To examine whether PS1/γ-secretase-dependent EphA3 cleavage was dependent on ligand binding, hippocampal neurons were cultured in the presence of vehicle or DAPT plus ephrin-A5, a high affinity EphA3 ligand (Janes et al., 2005). As previously shown (Lawrenson et al., 2002), ephrin-A5 efficiently enhanced EphA3 phosphorylation (Tyr779) and binding to the downstream effector CrkII (Figures 2B and 4A). Notably, DAPT did not affect significantly EphA3 phosphorylation, whereas ephrin-A5 increased EphA3 signaling without major changes on EphA3 CTFs in hippocampal neurons or HEK293 (Figures 2D and 4A). In agreement with previous reports (Nishikimi et al., 2011), ephrin-A5 reduced axon length by triggering EphA3 signaling in hippocampal neurons (Figure 4B). Ephrin-A5 did not cause additional effects in Epha3 shRNA- or DAPT-treated neurons suggesting that ephrin-A5 regulates negatively axon growth through EphA3 signaling (Figure 4B). Epha3 knockdown mimicked and occluded the effect of PS/γ-secretase inhibition on axon elongation in the presence or absence of ephrin-A5 (Figure 4B). Human EphA3 full-length, but not mutants lacking the ligand-binding (ΔLBD) or PDZ (ΔPDZ) domains, recovered axon length defects in Epha3-deficient hippocampal neurons (Figure 4C,D; and data not shown). These results strongly suggest that PS1/γ-secretase mediates axon growth through ligand-independent EphA3 signaling.

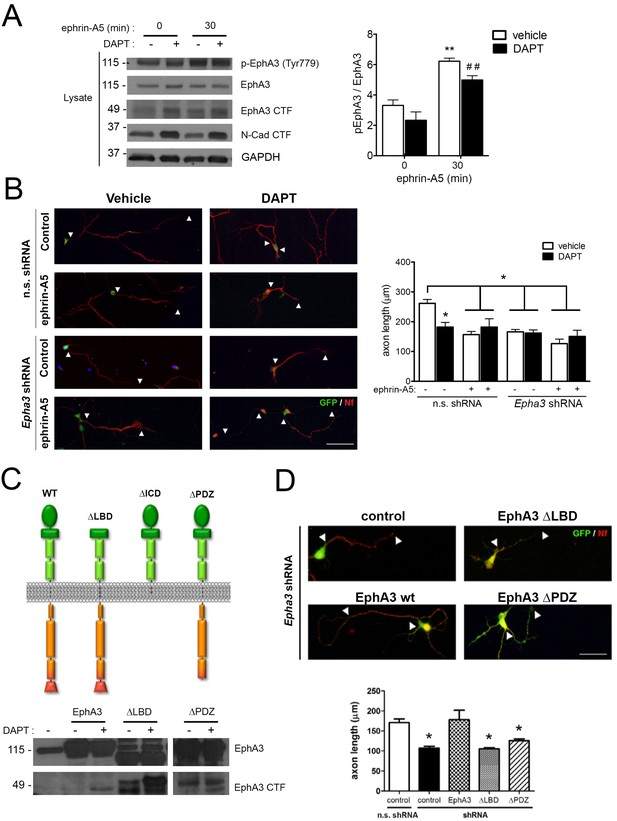

PS1/γ-secretase regulates axon growth independently of EphA3-ephrin signaling.

(A) Inhibition of PS1/γ-secretase does not affect EphA3 phosphorylation. Biochemical analysis of total and phosphorylated (Tyr779) EphA3 and EphA3 CTFs in hippocampal cultured neurons (4 DIV) treated with vehicle (-) or the γ-secretase inhibitor DAPT (+) in the absence or presence of clustered ephrin-A5 (normalized to GAPDH). Data are mean pEphA3/EphA3 fold ± SEM (n = 3–5 experiments). Two-way ANOVA followed by Bonferroni post hoc test: **p<0.01, compared with control (non-stimulated) and, ##p<0.01, compared to DAPT (non-stimulated). (B) EphA3 is required for axon elongation and ephrin-A5-mediated axon retraction. Representative immunofluorescence images (left) and quantification (right) of neurofilament-positive axons (SMI312: red) of hippocampal neurons (4 DIV) transduced with non-specific (n.s.) scramble and Epha3 shRNAs (GFP positive, green) and treated with DAPT and/or clustered ephrin-A5. Length of axons is indicated by arrowheads. Scale bar, 50 μm. Data represent mean ± SD (n = 3 experiments; n = 30–40 cells/condition/experiment). Two-way ANOVA followed by Bonferroni post hoc test: *p<0.05, compared with vehicle control. (C) Biochemical analysis of EphA3 mutants (left) in mammalian cells. Overexpression of EphA3 WT, ΔLBD and ΔPDZ mutants in HEK293 cells. (D) Effect of EphA3 deleted mutants on axon growth. Immunofluorescence images (left) and quantification (right) of neurofilament-positive axons (SMI312: red; arrowheads) of hippocampal neurons (4 DIV) transduced with murine-specific Epha3 shRNAs and the indicated EphA3 construct (GFP positive, green). Scale bar, 50 μm. Data represent mean ± SD (n = 3 experiments; n = 30–40 cells/condition/experiment). One-way ANOVA followed by Bonferroni post hoc test: *p<0.05, compared with vehicle control.

https://doi.org/10.7554/eLife.43646.008

EphA3 cleavage mediates axon elongation partially by inhibiting RhoA signaling

Since EphA signaling induces growth cone collapse in a RhoA/ROCK-dependent manner (Wahl et al., 2000), we next hypothesized that PS/γ-secretase-mediated EphA3 processing could regulate axon growth through RhoA signaling. To address this possibility, we examined the effects of pharmacological and genetic inactivation of RhoA signaling in axon morphology in Psen1+/+ and Psen1-/- hippocampal neurons. The Rho-kinase inhibitor Y27632 induced an overall significant increase on axon growth in Psen1+/+/Psen1-/- (p<0.0002) and Veh/DAPT-treated (p<0.0066) hippocampal neurons (Figure 5A,B). However, post-hoc analysis revealed no significant differences (p>0.05) between vehicle and Y27632 treatments in control neurons likely because RhoA signaling is inhibited during axon growth (Ahmed et al., 2009). Importantly, Y27632 and a dominant-negative RhoA mutant (RhoA T19N) efficiently reversed axon length defects in Psen1- and γ-secretase activity-deficient neurons (Figure 5A–C). EphA3-ICD was not able to rescue axon defects in DAPT-treated hippocampal neurons in the presence of the constitutive active RhoA mutant (RhoA Q63L), which suggests that EphA3 acts upstream of RhoA (Figure 5D). We next investigated the possibility that PS/γ-secretase-dependent EphA3 processing could mediate axon growth by inhibiting RhoA signaling. EphA3-ICD expression significantly reduced RhoA activity in SK-N-AS neuronal cells although it did not apparently affect RhoA activity in primary neurons in these experimental conditions (Figure 5E,F). Lipopolysaccharide acid (LPA) was used as a positive control because it causes growth cone collapse and neurite retraction by elevating RhoA signaling (Hirose et al., 1998). As previously shown in cancer cells (Lawrenson et al., 2002), ephrin-A5 increased RhoA activity in hippocampal neurons, whereas DAPT significantly increased and caused a synergistic effect on RhoA activation (Figure 5F). These results suggest that PS/γ-secretase-dependent EphA3 cleavage is unlikely to mediate axon elongation by affecting only RhoA signaling.

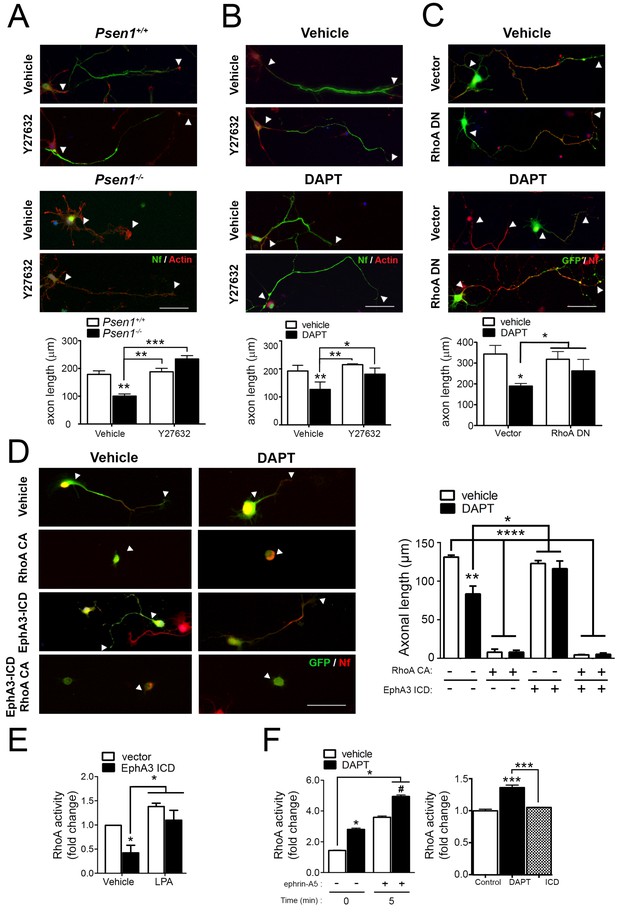

PS/γ-secretase-dependent EphA3 cleavage mediates axon elongation partially through RhoA signaling.

(A) ROCK inhibition reverses axon length deficits in Psen1-/- neurons. Immunofluorescence images of hippocampal neurons from Psen1+/+ and Psen1-/- embryos treated with vehicle or the RhoA inhibitor Y27632. Neurons were stained for neurofilament (SMI312: green; arrowheads) and β-actin (red). Scale bar, 50 μm. Arrowheads indicate axon length. Data represent mean ± SEM of three independent experiments (3–6 coverslips, n = 30 neurons/coverslip). **p<0.01, ***p<0.001, (B) ROCK inhibition reverses axon length deficits in γ-secretase-deficient neurons. Images of cultured hippocampal neurons treated with vehicle or DAPT and/or the RhoA inhibitor Y27632. Neurons were stained for neurofilament (SMI312: green; arrowheads) and β-actin (red). Scale bar, 50 μm. Data represent mean ± SEM of three independent experiments (3–6 coverslips, n = 30 neurons/coverslip). *p<0.05, **p<0.01. (C) RhoA inhibition reverses axon length deficits γ-secretase-deficient neurons. Immunofluorescence images of hippocampal neurons stained for GFP (green) or neurofilament (SMI312, red). Neurons were transfected with GFP (vector) alone or with a RhoA dominant negative (DN) mutant (RhoA T19N) in the presence of vehicle or DAPT. Scale bar, 50 μm. Data represent mean ± SEM of at least three experiments (3–6 coverslips, n = 30 neurons/coverslip). *p<0.05. (D) Constitutively active RhoA affects negatively axon growth of hippocampal neurons. Neurons were transfected with GFP (vector), EphA3-ICD-GFP (EphA3 ICD) and/or a RhoA constitutive active (CA) mutant (RhoA Q63L) in the presence of vehicle or DAPT. Immunofluorescence images of hippocampal neurons stained for GFP (green) and neurofilament (SMI312, red). Scale bar, 50 μm. Data are mean ± SD of three experiments (n = 40–80 neurons/group). *p<0.05, **p<0.01, ****p<0.0001. (E) RhoA activity in SK-N-AS neuronal cells transfected with vector or EphA3 ICD. LPA: Lipopolysaccharide acid. Data represent mean ± SEM (n = 3–4 independent cultures). *p<0.05. (F) Differential effect of DAPT and EphA3 ICD in RhoA activity in cultured neurons. RhoA activity in neurons treated with vehicle or DAPT plus clustered ephrin-A5, or transduced with EphA3 ICD. Data represent mean ± SEM (n = 3). *p<0.05, ***p<0.001. Statistical analysis was performed by two-way ANOVA followed by Bonferroni post hoc test.

https://doi.org/10.7554/eLife.43646.009

EphA3 cleavage mediates axon growth via non-muscle myosin IIA

To identify EphA3 ICD binding proteins relevant for axon outgrowth, we used a proteomic approach based on anti-flag co-immunoprecipitation assays in vector- and EphA3-ICD-flag-expressing HEK293 cells. Immunoprecipitated proteins were resolved by gel electrophoresis and identified by MALDI-TOF mass spectroscopy as described (Free et al., 2009). Interestingly, we identified three specific prominent protein bands of ~85,~200 and~250 kDa corresponding to heat shock protein (HSP), clathrin heavy chain one and non-muscle myosin IIA heavy chain (NMIIA), respectively (Figure 6A; Supplementary file 2). We specifically focused on NMIIA/myosin 9, a protein that regulates cytoskeleton actin filament assembly and contractile forces in a variety of cell types (Pecci et al., 2018). In addition, casein kinase II-mediated phosphorylation (Ser1943) of NMIIA heavy chain promotes cytoskeleton rearrangement by inhibiting assembly and/or promoting disassembling of myosin/F-actin/microtubule filaments and cell motility (Dulyaninova and Bresnick, 2013). The physiological role of this phosphorylation in neurons is still unknown. Biochemical assays revealed that EphA3 ICD interacts with NMIIA heavy chain, and elevates axonal phosphorylated (Ser1943) NMIIA heavy chain especially in Psen1-/- hippocampal neurons (Figure 6B,C). Indeed, γ-secretase-deficient hippocampal neurons show decreased total phosphorylated NMIIA and phosphorylated NMIIA/actin colocalization in axons (Figure 6D; Figure 6—figure supplement 1), suggesting that γ-secretase inhibition could stabilize membrane cytoskeleton-associated NMIIA resulting in assembly or blocking disassembly of filaments. In support of this, biochemical assays show a significant decrease of soluble, increase of insoluble and unchanged total NMIIA levels in DAPT-treated hippocampal neurons (Figure 6D, and not shown). Indeed, a non-phosphorylated S1943A NMIIA mutant decreased significantly axon length in hippocampal neurons (Figure 6—figure supplement 2). We finally tested whether NMIIA function was required for axon retraction caused by PS/γ-secretase deficiency. Interestingly, blebbistatin, a specific inhibitor that binds to the myosin-ADP-Pi complex maintaining NMII in an actin-detached state (Kovács et al., 2004), increased axon length and occluded the effect of EphA3-ICD in DAPT-treated hippocampal neurons (Figure 6E). By contrast, an inactive blebbistatin enantiomer had not significant effects (Figure 6E). These results strongly suggest that EphA3 acts upstream of NMIIA to promote disassembly or to prevent assembly of NMIIA/actin filaments in axons.

Figure 6 with 2 supplements see all

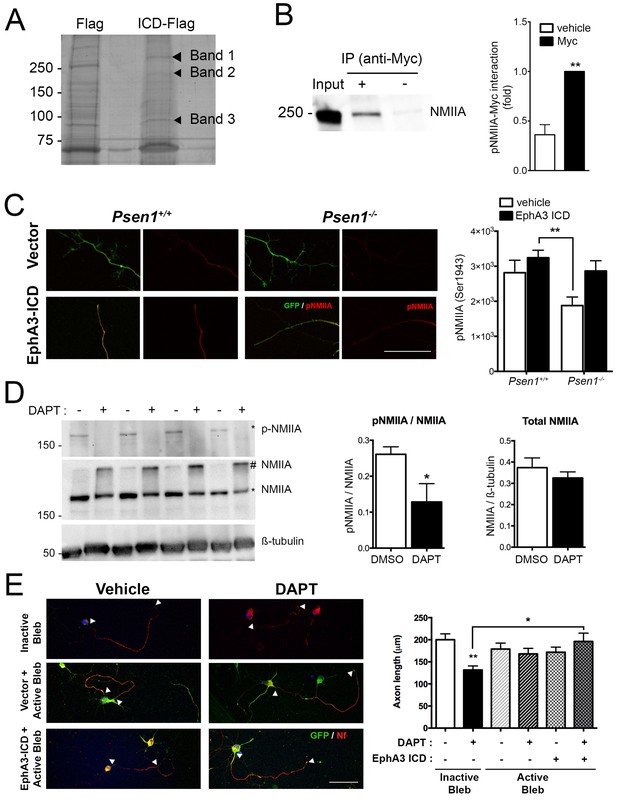

EphA3 ICD interacts with non-muscle myosin IIA and regulates its phosphorylation levels.

(A) Proteomic analysis of EphA3 interacting proteins. HEK293 cells overexpressing vector (Flag) or EphA3 ICD-Flag (ICD-Flag) were immunoprecipitated with anti-Flag antibody, and proteins were resolved by SDS-PAGE and stained with Coomassie Blue. Specific proteins (Band 1, 2 and 3) were identified by MALDI-TOF/TOF mass spectrometry. Band one corresponds to NMIIA. (B) Binding of EphA3 ICD-myc to NMIIA/myosin 9. Coimmunoprecipitation (IP) of endogenous NMIIA and EphA3 ICD-myc in HEK293 cells. Data are mean ± SEM of three experiments. Unpaired two-tailed Student’s t test: **p<0.01. (C) Reduced pNMIIA in axons of Psen1-/- neurons. Immunofluorescence staining (left) and quantitative analysis (right) of phosphorylated NMIIA heavy chain (S1943) (pNMIIA: red) in axons of Psen1+/+ and Psen1-/- neurons. Psen1-deficient neurons show reduced axonal pNMIIA intensity that is reversed by expressing EphA3 ICD (GFP, green) Scale bar, 50 μm. Data are mean ± SEM of 3 experiments (n = 25–33 neurons/group). Two-way ANOVA followed by Bonferroni post hoc test: **p<0.01. (D) Pharmacological PS/γ-secretase inhibition reduces phosphorylated NMIIA levels. DAPT treated hippocampal neurons show reduced pNMIIA (S1943) and soluble NMIIA (indicated with *), and increased insoluble/aggregated NMIIA (indicated with #). Multiple independent cultures are shown. Data are mean ± SD of four independent neuronal cultures. Unpaired two-tailed Student’s t test: *p=0.05. (E) Pharmacological inhibition of NMII by blebbistatin rescues the defects in axon length in DAPT-treated hippocampal neurons. Immunofluorescence images of hippocampal neurons stained for GFP (EphA3-ICD or vector-positive neurons; green) and neurofilament (SMI312, red). Scale bar, 50 μm. Data are mean ± SEM of 3 experiments (n = 44–56 neurons/group). Two-way ANOVA indicates a significant DAPT treatment x ICD/blebbistatin interaction. *p<0.05, **p<0.01.

https://doi.org/10.7554/eLife.43646.010

Discussion

EphA/ephrin signaling regulates guidance and projections of axons to proper targets by mediating cell-cell contact repulsive signals (Kania and Klein, 2016). Particularly, EphA3/ephrin-A5 signaling inhibits axon growth and regulates navigation of axons in developing neurons (Gao et al., 1999; Marquardt et al., 2005; Nishikimi et al., 2011). This is consistent with our finding that this pathway affects negatively axon growth in hippocampal neurons. However, in contrast with the established role of EphA forward signaling in growth cone collapse (Egea and Klein, 2007), our study provides the first evidence for a novel ligand-independent EphA3 mechanism that facilitates axon growth in neurons (Figure 7). First, PS1/γ-secretase-mediated EphA3 cleavage is largely independent of ligand and mediates constitutive axon growth of neurons in the developing brain. Second, Epha3 knockdown mimicked and occluded the effect of PS/γ-secretase inhibition on axon elongation. Third, EphA3 ICD interacts with and increases phosphorylation of NMIIA heavy chain preventing assembly and/or promoting disassembly of cytoskeleton filaments in axons. These results reinforce the current view that tyrosine kinase receptor proteolytic cleavage regulates alternative intracellular signaling pathways (Song et al., 2013).

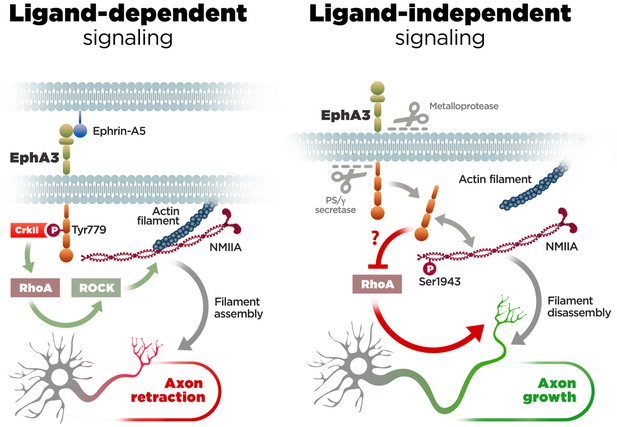

Molecular mechanisms of axon growth mediated by ephrin-dependent and -independent EphA3 signaling.

Proposed model of ligand-dependent and -independent EphA3 signaling regulating axon growth in neurons. Left: Ephrin-A5 induces EphA3 phosphorylation (Tyr779), CrkII binding and activation of RhoA/ROCK, resulting in actin/NMIIA filament assembly and axon retraction in hippocampal neurons (Figure 4). Right: EphA3 ICD, generated by sequential cleavage of EphA3 by matrix metalloproteinase/ADAM and PS/γ-secretase proteases, promotes axon growth possibly by inhibiting RhoA signaling, and binding to and increasing phosphorylation (Ser1943) of NMIIA heavy chain in axons (Figures 2, 3, 5 and 6). Inactivation of PS/γ-secretase decreases phosphorylated NMIIA and NMIIA/actin colocalization in axons, which stabilizes membrane cytoskeleton-associated NMIIA resulting in assembly or blocking disassembly of filaments, and leads to inhibition of axon growth (Figure 1).

https://doi.org/10.7554/eLife.43646.013

Our results provide evidences for a previously unappreciated role of PS in regulating axon growth. PS1 binds to and colocalizes with EphA3 in axons and growth cones of hippocampal neurons, which may explain the axonal, neuronal migration and cortical lamination defects observed in Psen1-/- embryos [(Handler et al., 2000); this study]. Indeed, Psen1-/- mice die after birth likely due to respiratory failures caused by incomplete lung expansion, which resembles the phenotype of Epha3 null mice (Shen et al., 1997; Vaidya et al., 2003). Embryonic Epha3 inactivation results in axon misrouting of callosal neurons, although no motor axon targeting abnormalities are observed in Epha3-/- mice (Vaidya et al., 2003; Nishikimi et al., 2011). By contrast, Epha3/Epha4 deletion causes disturbances in motor axon guidance and sensory-motor neuron assemblies (Gallarda et al., 2008). Similarly, it is well established that PS1 regulates axon guidance and kinesin-mediated axonal transport of motor neurons (Kamal et al., 2001; Bai et al., 2011). Loss of function mutations in the presenilin genes sel-12 and hop-1 result in abnormal axonal projections in C. elegans, an effect attributed to altered Notch signaling (Wittenburg et al., 2000). While our study indicates that PS1 promotes axonal growth, a recent study demonstrates that loss of PS1 function results in neurite outgrowth by increasing APP intracellular fragments and activating CREB signaling (Deyts et al., 2016). Interestingly, inactivation of β-secretase (BACE1), which is involved in APP processing, also causes axon guidance defects mediated by altered processing of the neural cell adhesion molecule close homolog of L1 (CHL1) (Hitt et al., 2012). Moreover, proteolytic processing of neuregulin-1 by BACE and ADAM17 proteases mediates myelination of axons in the peripheral nervous system (Hu et al., 2006; Willem et al., 2006). Of interest, familial-AD linked PS1 mutations, acting through a partial loss of function mechanism (De Strooper, 2007; Shen and Kelleher, 2007), cause aberrant APP-dependent axodendritic growth in cultured neurons (Pigino et al., 2001; Deyts et al., 2016). Despite these evidences, the PS1/γ-secretase-dependent mechanisms mediating cytoskeleton rearrangement during axon growth have been elusive.

Our results reveal that PS1/γ-secretase-dependent EphA3 cleavage mediates axon elongation. PS1/γ-secretase-regulated EphA3 processing is essential for constitutive axon elongation as suggested by the mimicking and occluding effects of Epha3 inactivation on axon elongation in PS-deficient neurons. Indeed, EphA3 ICD expression recovered axon defects of PS1-deficient neurons in vitro (cultured neurons) and in vivo (embryonic brain). PS1/γ-secretase/EphA3-dependent axon growth contrasts with the classical role of ligand-induced EphA3 signaling in axon retraction. In agreement, both ligand-induced signaling and blocking ligand-independent EphA3 cleavage (e.g Epha3 silencing) inhibit axon growth suggesting that both mechanisms occur in cellular conditions. It is puzzling that not only deletion of the EphA3 C-terminal but also removal of the PDZ or LBD impair recovery of axon length in EphA3- and/or PS1/γ-secretase-deficient neurons, suggesting that the EphA3 structural conformation is important for mediating axon growth. Whereas the role of specific EphA3 domains on regulation of cytoskeleton assembly is still unclear, PS1/γ-secretase-dependent axon growth is independent of classical EphA3 signaling. Ephrin-A5 does not affect EphA3 processing nor cause additional defects on axon morphology in EphA3- and PS/γ-secretase-deficient neurons. In contrast, both ligand and neuronal activity regulate PS1/γ-secretase-dependent processing of EphB2 and EphA4 (Litterst et al., 2007; Inoue et al., 2009). We cannot rule out the possibility that metalloprotease-mediated ephrinA shedding or other intracellular EphA3 effectors mediate PS-dependent axon elongation (Hattori et al., 2000; Janes et al., 2009; Mohamed et al., 2012). It is also plausible that EphA3 ICD could mediate axon growth by acting through transcriptional mechanisms as described for APP and Notch ICDs (Lleó and Saura, 2011).

The PS/γ-secretase/EphA3-dependent mechanism mediating axon elongation involves RhoA signaling, a pathway implicated in growth cone collapse (Noren and Pasquale, 2004; Hall and Lalli, 2010). PS1/γ-secretase-deficient neurons show increased RhoA activity, whereas EphA3 ICD inhibits RhoA and reverses axon growth defects. By contrast, a constitutive active RhoA mutant causes the opposite effect, that is, prevents EphA3 ICD-induced recovery of axon growth. Importantly, proteomic analyses revealed that EphA3 ICD interacts with NMIIA heavy chain, a cytoskeleton protein that promotes neurite retraction (Wylie and Chantler, 2003; Gallo, 2006; Kubo et al., 2008). PS1/γ-secretase-deficient neurons show increased insoluble NMIIA and reduced NMIIA phosphorylation (Ser1943), a form that dissociates or prevents cytoskeleton assembly of myosin filaments (Breckenridge et al., 2009; Dulyaninova and Bresnick, 2013). Future investigations are needed to uncover the mechanism by which EphA3 ICD enhances NMIIA phosphorylation. It is possible that EphA3 ICD could affect activity and/or localization of protein kinase C and casein kinase II, the main kinases that phosphorylate NMIIA heavy chain (Breckenridge et al., 2009). Interestingly, TGF-β increases NMIIA Ser1943 phosphorylation during epithelial-mesenchymal transition (Beach et al., 2011). Since TGF-β plays essential roles during neuron specification and activates RhoA-dependent signaling another possibility is that EphA3 ICD could regulate TGF-β signaling affecting RhoA and NMIIA phosphorylation. Nonetheless, our results suggest that PS1/γ-secretase promotes disassembly or inhibits formation of stable filaments leading to F-actin-mediated axon extension. This idea is consistent with previous findings indicating that myosin inhibition induces extension of growth cones and filopodia by reducing retrograde F-actin flow (Lin et al., 1996). On the contrary, EphA3 ICD elevates phosphorylated NMIIA heavy chain and enhances NMIIA/actin colocalization in PS-deficient axons, indicating that it induces axon growth by promoting filament disassembly. Since pharmacological inhibition of NMIIA filament assembly reverses axon growth defects in PS/γ-secretase-deficient neurons, and it does not cause additional effects in the presence of EphA3 ICD, we conclude that PS1/γ-secretase/EphA3 signaling mediates axon growth by promoting disassembly or preventing assembly of axonal NMIIA/actin filaments (Figure 7).

The knowledge of NMIIA function in the nervous system is still very limited. Our results may pave the way for future investigations on EphA3/NMIIA function in brain development and degeneration. Our findings are also relevant for memory-related diseases in which disrupted axon morphology occurs in some cerebral pathological conditions. Specifically, loss-of-function Psen1 mutations cause dramatic changes in tau-related axon morphology and transport and synapses, which are early events in the pathogenesis of AD (Stokin et al., 2005; Peethumnongsin et al., 2010). PS/γ-secretase inactivation in neurons increases tau pathology and axonal transport deficits leading to synaptic plasticity and memory deficits and neurodegeneration (Saura et al., 2004; Peethumnongsin et al., 2010). Since EphA3/ephrin-A5 regulates synaptogenesis and septohippocampal projections in the limbic system (Yue et al., 2002; Otal et al., 2006), a brain circuit essential for learning, memory and emotional responses, our findings may be relevant for synaptic dysfunction in AD. Nonetheless, septohippocampal projections are severely damaged at early AD stages (Riekkinen et al., 1987), whereas altered γ-secretase-dependent EphA4 processing was recently associated with synapse pathology in AD brains (Matsui et al., 2012). Since myosin NMIIB regulates synaptic actin dynamics during synaptic plasticity and memory (Rex et al., 2010), it will be interesting to study whether NMIIA regulates the function of PS1/γ-secretase on synapses. Considering the experimental therapies targeting Eph and myosin in nerve regeneration and cancer pathologies (Boyd et al., 2014), it is conceivable that a better understanding of the PS/γ-secretase/EphA3/NMIIA crosstalk may provide new perspectives on common mechanisms regulating human brain development and diseases.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional information
Cell line (H. sapiens)HEK293 (Human embryonic kidney293 cells)American Type Culture Collection
Cell line (M. musculus)PS1/PS2-/- MEF (mouse embryonic fibroblast cells)B. De Strooper (Katholieke Universiteit Leuven, Belgium)
Strain (M. musculus)Psen1+/+; Psen1-/-; Psen2-/-J. Shen (Brigham and Women Hospital, USA)MGI: 1202717 PMID: 9160754
Antibodyanti-EphA3 C19 (rabbit polyclonal)Santa Cruz BiotechnologyCat. #: sc-919
RRID: AB_2099221
WB (1:1000)
Antibodyanti-EphA3 H80Santa Cruz BiotechnologyCat. #: sc-25456
RRID: AB_2099214
ICC (1:200)
IHC (1:200)
Antibodyanti-EphA3 L18 (rabbit polyclonal)Santa Cruz BiotechnologyCat. #: sc-920
RRID: AB_2099218
WB (1:1000)
Antibodyanti-EphA3 (mouse monoclonal)ThermoFisher ScientificCat. #: 5E11F2
RRID: AB_10104885
WB (1:1000)
IP (5 μg)
Antibodyanti-CrkIIBD BiosciencesCat. #: 610035
RRID: AB_397451
WB (1:5000)
IP (5 μl)
Antibodyanti-Neurofilament; SMI312 (mouse monoclonal)CovanceCat. #: SMI-312R
RRID: AB_2314906
ICC (1:1000)
Antibodyanti-tau; TNT-1 (mouse monoclonal)Merck MilliporeCat. #: MAB3420
RRID: AB_94855
IHC (1:400)
Antibodyanti-Nestin; rat-401 (mouse monoclonal)AbcamCat. #: ab11306
RRID: AB_1640723
IHC (1:200)
Antibodyanti-NeuN (mouse monoclonal)Merck MilliporeCat. #: MAB377
RRID: AB_2298772
IHC (1:1000)
Antibodyanti-MAP2 (mouse monoclonal)Sigma-AldrichCat. #: M9942
RRID: AB_477256
ICC (1:300)
IHC (1:800)
Antibodyanti-Doublecortin (rabbit polyclonal)AbcamCat. #: ab18723
RRID: AB_732011
IHC (1:1000)
AntibodyPS1; APS11 (mouse monoclonal)AbcamCat. #: ab15456
RRID: AB_301867
ICC (1:200)
IHC (1:200)
AntibodyPS1 loop (rabbit polyclonal)Merck MilliporeCat. #: AB5308
RRID: AB_91785
WB (1:4000)
AntibodyAPP C-terminal Saeko (rabbit polyclonal; serum)M. Shoji (Gunma Univ School Medicine, Japan)-WB (1:7500)
Antibodyß-actin [AC-15] (mouse monoclonal)Sigma-AldrichCat. #: A1978
RRID: AB_476692
WB (1:60000)
Antibodyanti-Flag [FG4R] (mouse monoclonal)AbcamCat. #: ab127420
RRID: AB_11157374
IP (10 μl)
Antibodyanti-HA (mouse monoclonal)Cell Signaling TechnologyCat. #: 2362WB (1:1000)
AntibodyAlexaFluor 594-phalloidinThermoFisher ScientificCat. #: A12381
RRID: AB_2315633
ICC (1:50)
AntibodyGFP (chicken polyclonal)AbcamCat. #: 13970
RRID: AB_371416
ICC (1:1000)
Recombinant DNA reagentEphA3-GFPP. W. Janes (Monash University, Australia)
Recombinant DNA reagentEphA3-HAThis study
Recombinant DNA reagentEphA3-∆ICDP. W. Janes (Monash University, Australia)
Recombinant DNA reagentEphA3-∆LBDP. W. Janes (Monash University, Australia)
Recombinant DNA reagentEphA3-∆PDZP. W. Janes (Monash University, Australia)
Recombinant DNA reagentEphA3-ICDThis study
Recombinant DNA reagentEphA3-ICD-FlagThis study
Recombinant DNA reagentEphA3-ICD-pCAGIGThis study
Recombinant DNA reagentRhoA T19NX. R. Bustelo (Centro Investigación del Cáncer, CSIC, Spain)
Recombinant DNA reagentRhoA Q63LP. Crespo (IBBTEC, Santander, Spain)
Recombinant DNA reagentNMIIA WTA. Bresnick (Albert Einstein College Medicine, NY, USA)
Recombinant DNA reagentNMIIA S1943AA. Bresnick (Albert Einstein College of Medicine, NY, USA)
Sequenced-based reagentEpha3 ShRNAThis study
Sequenced-based reagentRT-qPCR primersThis studySee Materials and methods
Peptide, recombinant proteinephrin-A5 Fc chimeraR and D SystemsCat. #: 374-EA
Commercial assay or kitRhoA G-LISA Activation Assay KitCytoskeleton IncCat. #: BK124
Commercial assay or kitRnease Mini kitQiagenCat. #: 74106
Chemical compound, drugDAPTSigma-AldrichCat. #: D59425 μM
Chemical compound, drugL685,458TocrisCat. #: 26275 μM
Chemical compound, drugGM6001EnzoCat. #: BML-EI300-000125 μM
Chemical compound, drug1,10-PNTSigmaCat. #: 13137783 μM
Chemical compound, drugMMP9/13CalbiochemCat. #: 44425210 μM
Chemical compound, drugY27632; ROCK-1 inhibitorCalbiochemCat. #: 68800010 μM
Software, algorithmGraphPad PrismGraphPad Prism (https://www.graphpad.com/)RRID:SCR_015807Version 6
Software, algorithmImageJImageJ (https://imagej.nih.gov/ij/)RRID:SCR_003070
Software, algorithmImarisImaris (https://imaris.oxinst.com/)RRID:SCR_007370Version 8

DNA and viral constructs

Request a detailed protocol

Human EPHA3 (EphA3), -GFP tagged and cytoplasmic-truncated ΔICD, ΔLBD and ΔPDZ were generated and cloned in BstX1/NotI sites of the pEFBos vector as previously described Janes et al. (2005). To generate EphA3 C-terminal hemagglutinin (HA) tag, the EphA3-GFP plasmid was digested with XmaI and BamHI to remove GFP and ligated to complementary 5´-XmaI/3´-BamHI (underlined) oligonucleotides containing a hemagglutinin (HA) sequence (in bold): 5´-CCGGGGGTGGTGGATCCTACCCTTACGACGTTCCTGATTACGCTAGCCTCGAATTCTAATAG-3´and 5´-GATCCCTATTAGAATTCGAGGCTAGCGTAATCAGGAACGTCGTAAGGGTAGGATCCACCACCC-3´. Bioinformatic prediction of EphA3 ICD was obtained by protein sequence alignment of EPHA3 and known PS1/γ-secretase substrates (EPHB2, APLP1, NRXN1, CADH1, PVRL1, NOTCH1 and CD44) using ClustalW2-EMBL (http://www.ebi.ac.uk). Theoretical molecular weight was obtained with ExPASy and Protein Molecular Weight Bioinformatic tools. The EphA3-ICD fragment (aa 561–983) was generated from hEPHA3 by PCR cloning with the following forward and reverse primers (underlined 3´EcoRI and 5´KpnI recognition sequences; human EphA3 sequence in bold): 5’-CCGGAATTCCCGTATGTTTTGATTGGGAGGTTCTGTGG-3’ and 5’-CGGGGTACCCCGTTACACGGGAACTGGGCCAT-3’ inserted in pCMV-HA (N-terminal; Clontech PT3283-5) and cloned into EcoRI/ApaI pcDNA3-3xFLAG vector (ThermoFisher Scientific,Whaltham, MA, USA). For in vivo in utero electroporation, EphA3 ICD was subcloned into a pCAGIG vector containing the internal ribosomal entry site (IRES)-GFP cassette. Complementary oligonucleotides for mouse Epha3 shRNA were as follows: Sh-Epha3 forward: 5’-gatccccGGGAATGCTCCGTGGGATAttcaagagaTATCCCACGGAGCA- TTCCCttttt-3’; Sh-Epha3 reverse: 5’-agctaaaaaGGGAATGCTCCGTGGGATAtctcttg- aaTATCCCACGGAGCATTCCCggg-3’. The scramble control oligonucleotides used were as follows: forward, 5’-gatcCCCGGAGAGCGTAGCGACTGTTttcaagagaAACA- GTCGCTACGCTCTCCttttt-3’ and reverse, 5’-agctaaaaaGGAGAGCGTAGCGACTG- TTtctcttgaaAACAGTCGCTACGCTCTCCGGG-3’. Oligonucleotides were cloned into BglII/HindIII sites of the pSUPER.retro vector. Lentiviral vectors were obtained by digesting EcoRI-ClaI sites from pSUPER-shRNA and the resulting insert was subcloned into pLVTHM lentiviral vector. Lentiviral particles were generated in HEK293T cells transfected with pLVTHM-Sh, pSPAX2, and pM2G vectors. Dominant negative mutant RhoA T19N was cloned in pCEFL-AU5 (gift of X. Bustelo, CSIC, Universidad de Salamanca, Spain) and RhoA Q63L cloned in pCEFL-HA was from P. Crespo (IBBTEC, Santander, Spain). NMIIA WT and S1943A, cloned into HindIII and SAlI sites of pEGFP-C3, were previously described (Dulyaninova et al., 2007).

The following antibodies were used: rabbit anti-EphA3 C19 (sc-919), H80 (sc-25456) and L-18 (sc-920) from Santa Cruz Biotechnology (Dallas, TX, USA); mouse anti-EphA3 (5E11F2, ThermoFisher Scientific); CrkII (BD Biosciences, Franklin Lakes, NJ, USA); neurofilament (SMI312), doublecortin, PS1 (APS11) and anti-Flag (FG4R) from Abcam (Cambridge, UK); tau (TNT-1), nestin (rat-401), NeuN and PS1 loop from Merck Millipore (Burlington, Massachusetts, USA); MAP2 and β-actin from Sigma-Aldrich (Saint Louis, MO, USA); anti-HA (#2362, Cell Signaling Technology Danvers, MA, USA) and AlexaFluor 594-phalloidin (ThermoFisher Scientific).

Quantitative Real-Time RT-PCR

Request a detailed protocol

Mouse hippocampal neurons were cultured for 7 DIV and RNA was isolated using RNeasy Mini Kit (Qiagen) according to the manufacturer’s instructions. Purified RNA (500 ng) was reverse-transcribed and amplified using Power SYBR Green PCR Master Mix (Cat. #4367659; ThermoFisher Scientific) in a 7500 Fast System (Applied Biosystems, Waltham, MA, USA). Data analysis was performed by the comparative Ct method using the Ct values and the average value of PCR efficiencies obtained from LinRegPCR software. Gene expression was normalized to Gapdh and hypoxanthine guanine phosphoribosyl transferase (Hprt1). Primers used were as follows: Epha1 forward, 5’- CACCAGTTTCCAGAAGCCTG-3’, reverse, 5’-CATAAATCCCGATCAGCAGAGC-3’; Epha2 forward, 5’-TCCAAGTCAGAACAACTAAAGC-3’, reverse, 5’-GGTCTTCGTAAGTGTGAGGA-3’; Epha3 forward, 5’-CTAGCCCAGACTCTTTCTCC-3’; reverse, 5’-CGGAAATAGCAATCATCACCA-3’; Epha4 forward, 5’-GAGAGTTCCAGACCAAACAC, reverse, 5’-ACTACAGCAGAGAATTCAGGG-3’; Epha5 forward, 5’-TCCGCACACTTATGAAGATCC-3’, reverse, 5’-TCACCAAATTCACCTGCTCC-3’; Epha6 forward, 5’-TGATCCAGACACCTATGAAGAC-3’, reverse, 5’-CAAATTCACCTGCTCCAATCAC-3’; Epha7 forward, 5’-GCATTTCTCAGGAAACACGA-3’, reverse, 5’-ACCTCTCAACATTCCTACCA-3’; Epha8 forward, 5’-TCTAGCCTATGGTGAACGAC-3’, reverse, 5’-CTGATGACATCCTGGTTGGT-3’; Epha10 forward, 5’-TCCTGAGACTCTACAGTTTGG-3’, reverse, 5’-GCCTTGATTACATCTTGTCCAG-3’.

Cell lines and biochemical analyses

Request a detailed protocol

We used HEK 293 T cells (source: American Type Culture Collection) and immortalized PS1/PS2 mouse embryonic fibroblasts (provided by B. de Strooper, KU Leuven, Belgium) free of mycoplasma and authenticated using Short Tandem Repeat and PCR standard methods. Cells were lysed in lysis buffer (50 mM Tris HCl, pH 7.4, 150 mM NaCl, 2 mM EDTA, 1% NP40, 1 mM PMSF) containing protease and phosphatase inhibitors (Roche, Basel, Switzerland). Lysates were pre-cleared by centrifugation (10,000 x g, 10 min, 4°C). Proteins were quantified with the BCA protein assay kit (ThermoFisher Scientific), resolved on 8–12.5% SDS-polyacrylamide gel electrophoresis and detected by Western blotting (España et al., 2010). For co-immunoprecipitation, cells were washed in PBS and lysed in cold immunoprecipitation buffer (50 mM Tris HCl, pH 7.4, 150 mM NaCl, 2 mM EDTA, 1% NP40, 1 mM PMSF, phosphatase and protease inhibitors). Fresh cell lysates (300–500 μg protein) were precleared with Protein G and incubated with PS1 antibody (APS11; Abcam) and Protein G (ThermoFisher Scientific) at 4°C before extensive washes and analysis by Western blotting as described (Saura et al., 1999). For brain co-immunoprecipitation, cortex was homogenized in cold Tris 50 mM buffer (pH 7.4), and nucleus and tissue debris were discarded (1000 x g, 10 min, 4°C). Membrane extracts were centrifugated twice (12,000 x g, 30 min, 4°C) and resuspended in RIPA buffer (50 mM Tris-HCl pH 7.4, 100 mM NaCl, 1% Triton-X100, 0.5% sodium deoxycholate, 0.2% SDS, 1 mM EDTA and phosphatase and protease inhibitors). Supernatants were incubated overnight with PS1 NT antibody (#529591; Merck Millipore) and Dynabeads protein G (ThermoFisher Scientific). For ectoshedding studies, conditioned media were recollected after 48 hr of EphA3 transfection. The protease inhibitor PMSF (100X) was added upon conditioned media before cells were removed by centrifugation (1,000 rpm, 5 min, room temperature). Then, proteins in conditioned media were concentrated using Amicon Ultra 10K filters (Merck Millipore), resolved on 10% SDS-polyacrylamide gel electrophoresis and analysed by Western blotting with 5E11F2 and L18 antibodies.

Neuronal culture and pharmacological treatments

Request a detailed protocol

Psen1+/+, Psen1-/- and Psen2-/- mouse embryos (C57/BL6 background) were obtained from Psen1+/- x Psen1+/- or Psen2+/- x Psen2+/- crossings as described (Shen et al., 1997). Mouse hippocampal neurons (E15.5) were cultured for four days in vitro (DIV) at a density of 1.6·104 cells/cm2 or 4.5·104 cells/cm2 in poly-D-lysine coated 24-well or 60 mm dishes, respectively (España et al., 2010) and. Neurons were treated with DAPT (250 nM; Sigma-Aldrich), GM6001 (4 µM; Merck Millipore) or transduced with ShRNA lentiviral vectors at 0 DIV, and/or transfected at 2 DIV with EphA3 cDNAs, RhoA DN, RhoA CA and/or EGFP plasmids with LipofectAMINE 2000 (ThermoFisher Scientific) or treated with Y27632 (10 µM; Merck Millipore). For blebbistatin experiments, hippocampal neurons were transduced with EphA3-ICD lentiviral vectors at 1 DIV, treated at 2 DIV with active or inactive blebbistatin (20 µM) and DAPT (250 nM; Sigma-Aldrich). Neurons were transfected with NMIIA WT or S1943A at 2 DIV, treated with DAPT (250 nM; Sigma-Aldrich). For ephrin-A5 activation, human ephrin-A5 Fc chimera (R and D Systems, Minneapolis,MN, USA) clusterized (1:10 molar ratio) with anti-human IgG Fc (Jackson ImmunoResearch, Cambridge, UK) was incubated at 0.18 ng/mm2 as described (Lawrenson et al., 2002). HEK 293 T cells (5·104 cells/cm2) were cultured in DMEM (Sigma) supplemented with 10% fetal bovine serum (ThermoFisher Scientific) and transfected with LipofectAMINE 2000. Cells were treated with DAPT (5 µM; Sigma-Aldrich), L685,458 (R and D Systems) or metalloprotease inhibitors GM6001 (25 µM; Merck Millipore), 1,10-phenanthroline (50 µM; Sigma-Aldrich) or MMP9/13 (10 µM; Merck Millipore). Animal experimental procedures were conducted following the European Union guidelines for animal care and use (2010/63/EU) according to the approved Animal and Human Ethical Committee (CEEAH) protocol (CEEAH 2896; DMAH 8787) of the Universitat Autònoma de Barcelona.

γ-secretase and RhoA activity assays

Request a detailed protocol

In vitro γ-secretase assay was performed as described (Sastre et al., 2001). Briefly, EphA3- transfected HEK293 cells or embryonic brains were lysed in hypotonic buffer (10 mM MOPS, pH 7.0, 10 mM KCl, protease inhibitors). Samples were centrifuged (1000 x g, 15 min, 4°C) and the postnuclear supernatant was recentrifuged (16,000 x g, 20 min). Pellets were resuspended in assay buffer (150 mM sodium citrate, pH 6.4) containing vehicle or DAPT at 37°C for the indicated time. Supernatant (S100) and pellet (P100) were collected after centrifugation (100,000 x g, 1 hr) and analysed by SDS-PAGE and immunoblotting with C19 or 5E11F2 antibodies. For RhoA activity assays, 4 DIV neurons cultured in the presence of vehicle or DAPT and treated with ephrin-A5 for the indicated time or SK-N-AS cells transfected with EphA3-ICD for 48 hr were incubated with vehicle or lysophosphatidic acid (10 µM; Sigma-Aldrich) for 5 min. RhoA activity was measured in freshly prepared cell lysates using the RhoA G-LISA Activation Assay Kit (Cytoskeleton Inc, Denver,CO, USA).

Immunohistochemical and DiI staining

Request a detailed protocol

Mouse embryos (E15.5) were perfused intracardially with 4% formaldehyde/PBS solution prior to paraffin embedding. Coronal brain sections (5 μm) were deparaffinized in xylene, rehydrated and microwave-heated with sodium citrate (10 mM; Sigma) for antigen retrieval (Saura et al., 2004). Sections were incubated with antibodies against neurofilament (SMI312; 1:500), tau (1:400), nestin (1:200), doublecortin (1:1,000) and secondary AlexaFluor-488/555-conjugated goat IgGs (1:400) and Hoechst (1:10,000; ThermoFisher Scientific). Images were obtained with a Zeiss LSM700 laser scanning microscope (20x). For axonal quantification in tissue, a 3D reconstruction picture of ventricular zone and cortical plate was generated from multiple stacks of each section. Axons were semi automatically tracked by using Filament Tracer (Imaris, Bitplane Inc).

For Dil tracing, embryonic brains at E13.5 were dissected and fixed overnight with 4% PFA in PBS. Then, a small crystal of DiI probe [1,1'-Dioctadecyl-3,3,3',3'-Tetramethylindocarbocyanine Perchlorate ('DiI'; DiIC18(3)] (ThermoFisher Scientific, D282) was placed in the dorsal part of the somatosensory region of the cortex and the brains were incubated in 4% PFA/PBS for 10 days at 37°C to let the probe to diffuse. Brains were embedded in 1% agarose/PBS and sectioned (80 μm thickness) with a Vibratome (Leica Microsystems, Wetzlar, Germany). Sections were blocked with 5% BSA in PBS and immunostained with an anti-neurofilament antibody (2H3, Developmental Studies Hybridoma Bank, Iowa City, IA, USA) and the appropriate secondary antibody coupled to Cy2 (Jackson ImmunoResearch). Samples were counterstained with DAPI for nuclear staining. Finally, sections were collected on slides with PBS/1% glycerol and visualized with a confocal microscope (Olympus FV1000, Shinjuku, Japan). Axonal length measurements were done with FilamentTracer tool (AutoPath method) from Imaris 8.1 Software (Bitplane). Axons were tracked following DiI (in red) and neurofilament (in green) stainings.

Axon length imaging analysis

Request a detailed protocol

Hippocampal neurons (4 DIV) were fixed with 4% paraformaldehyde in PBS, permeabilized with 0.02% saponin and blocked with 10 mM glycine and 5% BSA in TBS. Staining was performed with mouse anti-SMI312 (1:500; Abcam), chicken anti-GFP (1:1000; Abcam) and/or phalloidin-Alexa594 (1:40; ThermoFisher Scientific) and detected with anti-mouse AlexaFluor488 or 594 secondary antibodies (1:400; ThermoFisher Scientific) and Hoechst 33258. Images were captured with a Nikon i90 fluorescence microscope and analyzed with Image J (NIH, USA) and Metamorph (Molecular Devices, Sunnyvale, CA, USA) softwares. Axons were manually tracked by following the neurofilament staining from the cell body to the actin neurite tip or GFP staining. Axon length was obtained from at least three independent experiments counting three-six independent coverslips (n = 30 neurons/coverslip) per condition. For axonal length imaging using NMIIA mutants, images were captured with a Zeiss LSM700 laser scanning microscope and analyzed with FilamentTracer tool from Imaris 8.1 Software (Bitplane AG, Zurich, Switzerland).

Colocalization analysis

Request a detailed protocol

Hippocampal neurons (4 DIV) were fixed with 4% paraformaldehyde in PBS, permeabilized with 0.02% saponin and blocked with 10 mM glycine and 5% BSA in TBS. Neurons were stained with monoclonal PS1 (APS11; 1:200) and rabbit polyclonal EphA3 (H-80; 1:200) antibodies. Image stacks (0.5 μm; 20 stacks/condition) were obtained with a Zeiss LSM700 laser scanning microscope. Colocalization imaging quantification was performed by analysing pixel by pixel each channel in 3 to 5 regions of interest in the central slices of each stack by using the colocalization highlighter plugin of ImageJ software (Institute Jacques Monod, Service Imagerie). Results were expressed as percentage of colocalized pixels relative to total pixels of each channel.

In utero electroporation assays

Request a detailed protocol

Pregnant Psen1+/- females (E14.5) from Psen1+/- x Psen1+/- intercrosses were deeply anesthetized during the whole experimental procedure. Females were administrated intraperitoneally with the muscle relaxant Ritodrine (Sigma-Aldrich) and subcutaneously with the analgesic buprenorphine (Buprex). After abdominal laparotomy the uterine horns were carefully exposed and lubricated continuously with saline (NaCl 0.9%). Two to four μg (2–4 μl) of purified control (mCherry) or EphA3ICD pCAGIG-IRES-GFP plasmids diluted in PBS containing 0.025% Fast Green (Sigma-Aldrich) were injected through the uterine wall in the brain lateral ventricle using a glass capillary sharpened with a glass puller (P-97, Sutter Instrument, Novato, CA, USA). Platinum electrodes were placed around the head of the injected embryos and five electric pulses (30 mV and 50 ms, each) with 950 ms interval were applied with and electroporation system. After electroporation, the uterine horns were placed back in the abdominal cavity and the abdomen of the pregnant female was sutured. Twenty-four hours later, the embryos were collected and the brains were dissected and fixed for 4 hr in 4% PFA/PBS, washed, cryoprotected with 30% sucrose/PBS and embedded in tissue freezing medium. Sections (20 μm) were obtained in a cryostat (Leica) and collected on Superfrost Plus slides (ThermoFisher Scientific). Slides were washed with PBS, permeabilized with PBS+0.1% Triton X-100 (PBT), block with 5% BSA and 5% donkey serum in PBT and immunostained with an anti-GFP antibody (600-101-215; Rockland Immunochemicals, Limerick, PA, USA) and the appropriate secondary antibody coupled to Cy2 (Jackson ImmunoResearch). Samples were counterstained with DAPI for nuclear staining. Finally, samples were visualized with a confocal microscope (Olympus FV1000). Axonal length analyses of GFP labeling were performed with FilamentTracer tool (AutoPath method) from Imaris 8.1 Software (Bitplane).

Morphological analysis of growth cones

Request a detailed protocol

Hippocampal neurons (4 DIV) were fixed with 4% paraformaldehyde in PBS, permeabilized with 0.02% saponin and blocked with 10 mM glycine and 5% BSA in TBS. Staining was performed with rabbit polyclonal pNMIIA (AB2974; 1:100), chicken polyclonal anti-GFP (1:1000; Abcam) and phalloidin-Alexa594 (1:50; ThermoFisher Scientific) diluted in 1% normal goat serum in TBS, and detected with anti-mouse AlexaFluor488 or 594 secondary antibodies (1:300; ThermoFisher Scientific) and Hoechst 33258. Images were captured with a Zeiss LSM700 laser scanning microscope. Axon growth cones were manually classified as collapsed, those that have no lamellipodia and no more than two filopodia or as non-collapsed (the remaining). Quantitative immunofluorescence of pNMIIA of the axon was measured by ImageJ software (Institute Jacques Monod, Service Imagerie, France) and expressed as area integrated intensity. Colocalization between pNMIIA and F-actin was determined using the tool ImarisColoc from Imaris 8.1 Software (Bitplane). Colocalization spots are indicated in pink (pNMIIA vs F-actin spots) and purple (F-actin vs pNMIIA spots). Results are expressed as percentage of colocalized spots (pink and purple) relative to total spots.

Proteomic approaches

Request a detailed protocol

PS/γ-secretase-mediated cleavage site in EphA3 was identified by LC-MS/MS analysis. In addition, the cleaving site was also simultaneously predicted by sequence alignment of EPHA3 and well-established PS1/γ-secretase substrates (EPHB2, APLP1, NRXN1, CADH1, PVRL1, NOTCH1 and CD44) using ClustalW2-EMBL (http://www.ebi.ac.uk). Briefly, an in vitro γ-secretase assay in EphA3 overexpressing HEK2993 cells was performed as described in the Materials and methods section. Soluble (S100) samples were resolved on 8.5% SDS-PAGE and stained using silver staining. Bands were excised and in-gel digested with trypsin automatically (DigestPro MS; Bioanalytical Instruments, New York, NY, USA), and peptides were extracted in MeOH/H2O (2:1), 0.1% TFA. Samples were evaporated and reconstituted in 5 µl of 5% MeOH, 0.5% TFA and loaded into the chromatographic system. The LTQ XL Orbitrap was operated in the positive ion mode with a spray voltage of 1.8 kV. The spectrometric analysis was performed in a data dependent mode, acquiring a full scan followed by 5 LC-MS/MS scans of the five most intense signals from an inclusion list. The inclusion list included all the theoretical peptides generated after MS-digestion (ProteinProspector). The obtained mass spectrometry spectra of the identified VLIGR peptide is shown in Supplementary file 1.

We used a well established protocol to identify EphA3-ICD interacting proteins (Free et al., 2009). Briefly, Flag-ICD-transfected HEK293 cells were incubated with EBSS supplemented with 5 mM EDTA for 10 min at 37°C and 5% CO2 and centrifuged at 200 x g, 10 min. Cells were lysed in low-detergent buffer (50 mM Tris HCl, pH 7.4, 150 mM NaCl, 2 mM EDTA, 1% NP40, 1 mM PMSF, protease and phosphatase inhibitors). Samples were solubilized for 1 hr at 37°C in an orbital shaker and centrifuged (20,000 x g, 40 min, 4°C) and supernatant was used for the next steps. Supernatants were pre-cleared with Protein-G for 3 hr on a rocking platform and incubated with Flag antibody (FG4R; Abcam) and Protein G (ThermoFisher Scientific) before extensive washes. Immunoprecipitated proteins were denatured at 95°C for 5 min, resolved on 8.5% SDS-PAGE and stained by Colloidal Coomassie reagent. Samples were in-gel digested with trypsin. Resulting peptides were analyzed by an Ultraflex MALDI-TOF/TOF mass spectrometer (Bruker, Billerica, MA, USA) and analysed by the database search (Mascot, Matrix Science) with a significance threshold of the MOWSE score of p<0.05 and then manually validated. SwissProt database restricted to Homo sapiens taxonomy was used for peptide identification.

Statistical analysis

Request a detailed protocol

Statistical analysis was performed essentially by one- or two-way analysis of variance (ANOVA) followed by Bonferroni post hoc test or Student’s t test using GraphPad Prism (GraphPad Software, La Jolla, USA). Values identified as outliers by Grubbs’ test were not included in the analysis (p<0.05). Each experiment was performed using, at least, three independent experiments. When differences among groups did not reach statistical significance, sample size was calculated by a power analysis test. Values represent mean ± SD or SEM. Value differences were considered significant when p<0.05.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
    Presenilin-1 regulates neuronal differentiation during neurogenesis
    1. M Handler
    2. X Yang
    3. J Shen
    (2000)
    Development 127:2593–2606.
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    Ephrin-A5 induces rounding, Blebbing and de-adhesion of EphA3-expressing 293T and melanoma cells by CrkII and Rho-mediated signalling
    1. ID Lawrenson
    2. SH Wimmer-Kleikamp
    3. P Lock
    4. SM Schoenwaelder
    5. M Down
    6. AW Boyd
    7. PF Alewood
    8. M Lackmann
    (2002)
    Journal of Cell Science 115:1059–1072.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
    Recent progress in the research of Alzheimer's disease
    1. PJ Riekkinen
    2. V Laulumaa
    3. J Sirviö
    4. H Soininen
    5. EL Helkala
    (1987)
    Medical Biology 65:83–88.
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66

Decision letter

  1. Huda Y Zoghbi
    Senior Editor; Texas Children's Hospital, United States
  2. Fadel Tissir
    Reviewing Editor; Université Catholique de Louvain, Belgium

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: this article was originally rejected after discussions between the reviewers, but the authors were invited to resubmit after an appeal against the decision.]

Thank you for submitting your work entitled "Presenilin/γ-secretase-dependent EphA3 processing mediates axon elongation through non-muscle myosin IIA" for consideration by eLife. Your article has been reviewed by three peer reviewers and has been overseen by a Reviewing Editor and a Senior Editor. The reviewers have opted to remain anonymous.

While the reviewers found the work interesting, the number of substantive questions raised was such that we feel we must reject it. In particular, the reviewers felt that the in vivo data relating to the specific role of EphA3 ICD in axon growth is lacking. See the comments (below) that provide more details with respect to this issue as well as other concerns raised by reviewers.

Addressing these issues would likely require more than the typical time allowed for a standard eLife revision. We would be happy to consider the manuscript at a more distant date, should you consider to pursue the work along the suggestions of reviewers.

Reviewer #1:

The authors report that the receptor EphA3 is cleaved by presenilin-1 in a ligand- (ephrinA) independent manner and that, the resulting intracellular domain promotes axon growth by phosphorylating non-muscle myosin IIA. Presenilin-1 was previously shown to interact with, and to cleave another axon guidance player, namely the netrin receptor DCC; a process that increases the fidelity of commissural axons pathfinding (Bai et al., 2011). Hence, this manuscript adds to our understanding of the mechanisms by which presenilin-1 regulates directional growth of axons.

Technically, the study is well conducted, the results are convincing, and the conclusions are supported by the findings. However, in vivo evidence is lacking as most experiments were performed in vitro. Authors may at least discuss better and stress axon defect similarities, overlaps, and differences between presenilins and EphA3/ephrinAs mutant mice.

Reviewer #2:

The present manuscript shows the potential role of presenilin/γ-secretase cleavage on axon elongation, indicating that the mechanism mediating this effect is the cleavage of EphA3/ephrin. The study demonstrates that the formation of the intracellular domain (ICD) seems to inhibit Rho signalling and interact with non-muscle myosin IIA (NMIIA), affecting filament assembly. The findings are new and interesting and the study is very well designed, however some points need to be further clarified:

1) The authors have only demonstrated the role of PS1 using PS1 knockout cells, although DAPT could also affect PS2 activity. Perhaps it would be interesting to use PS2 knockout cells or cells transfected with siRNA for PS2.

2) The study has been done in embryonic brains, are there also differences in axonal length/white matter density in older PS1 knockout mice?

3) Although this study points to the interaction of the ICD with Rho signalling and NMIIA, it should also be ruled out that the effect is not mediated by transcriptional related mechanisms, as it occurs with other intracellular fragments resulting from PS1 cleavage, such as NICD and AICD.

4) In Figure 5A-C the use of a Rho-kinase inhibitor does not seem to have any effect on axonal length in PS1 wild-type cells, by looking at the quantification shown in the graphs. Is this the case? What could be the interpretation? The sentence in subsection “EphA3 cleavage mediates axon elongation by inhibiting RhoA signalling” is a bit confusing and could be changed to "dominant-negative RhoA mutant (RhoA T19N) efficiently reversed axon length defects in PS1- and γ-secretase activity-deficient neurons".

5) The authors should propose a potential mechanism whereby the ICD affects NMIIA phosphorylation.

Reviewer #3:

The manuscript by Javier-Torrent and coworkers proposes a new mechanism by which presenilin-1/γ-secretase regulates axon growth. PS1 induces EphA3 cleavage generating an intracellular domain (ICD) fragment that is sufficient to promote axon growth, inhibit RhoA signaling, and modulate non-muscle myosin IIA serine phosphorylation. These results suggest that axon growth can be regulated by EphA3 in two ways: a ligand (ephrin)-dependent way that results in growth inhibition (as previously published), and a ligand-independent, EphA3 processing-dependent way that results in accelerated growth.

The presented data is generally of high technical quality and largely convincing. The topic is interesting, and the story quite well presented. However, several essential experiments are missing, and others could be improved. Moreover, in some cases, the conclusions are overstated.

Essential revisions:

1) The requirement of PS1 for axonal growth in vivo is not well documented. Determination of axon length based on neurofilament (NF) immunostaining of brain sections is not optimal. NF staining intensity appears to be reduced in immature neurons (Figure 1B). Hence, the reduction in NF staining in PS1-/- tissue may let the axons appear shorter. A better approach would be length measurements of DiI-traced axons.

2) In Figure 2, the authors demonstrate the presence of an EphA3 CTF in PS1-/- brains and take this as indirect evidence for lack of PS1 activity. The presence of the EphA3 ICD is not shown in vivo. Neither is the presence of the EphA3 ICD shown in cultured neurons. The only evidence for the generation of the EphA3 ICD is in EphA3-expressing HEK cells. This is a serious deficiency.

3) In Figure 3, overexpression of EphA3 ICD rescues axon growth defects in PS1-/- neurons. The authors conclude that these results suggest that PS1-dependent "EphA3 ICD generation is required for axon growth" (subsection “EphA3 cleavage by PS1/γ-secretase mediates axon elongation”). This is wrong. These are gain-of-function experiments that demonstrate sufficiency, not necessity. I would argue that the authors should compare (in the same experiment) overexpression in PS1-/- neurons of EphA3 ICD versus full-length EphA3, to make the point that the EphA3 ICD signals differently from full-length EphA3. Using PS1-/- neurons is the better experiment than using DAPT. I would also request that the EphA3 shRNA knock down experiment includes the rescue with full-length EphA3 (panel E). It is expected that full-length EphA3 rescues the knock down of EphA3, but not, according to the authors' hypothesis, the lack of PS1.

4) In Figure 4, both EphA3 activation by ephrin-A5 and EphA3 knock down induce growth inhibition (panel B) to a similar extent. This is contradictory and should be discussed.

5) In Figure 5, EphA3 cleavage is proposed to mediate axon growth by inhibiting RhoA activity. The evidence is not strong. PS1 inhibition increases RhoA activity (panel E), reduces axon length and this effect can be rescued by Rho-kinase inhibitor (panel B). The authors fail to implicate EphA3 ICD in this process. They should demonstrate that the axon growth defect caused by PS1 inhibition is rescued by overexpression of EphA3 ICD, and that this brings RhoA activity down to normal levels. As control, the axon growth defect caused by PS1 inhibition is not rescued by overexpression of full-length EphA3, and this keeps RhoA activity high.

6) In Figure 6, EphA3 cleavage is proposed to mediate axon growth by regulating the phosphorylation of non-muscle myosin IIA. I find this part rather preliminary and not well connected to the rest of the story. Open questions are: How does EphA3 ICD increase serine phosphorylation of NMIIA? Is tyrosine kinase activity of EphA3 ICD required? How does RhoA activity tie in with NMIIA phosphorylation?

7) I find it unsatisfying that no attempts were made to provide in vivo evidence for this pathway. For example, could overexpression of EphA3 ICD by in utero electroporation of PS1-/- embryos rescue the axon/neurite growth defects?

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for resubmitting your work entitled "Presenilin/γ-secretase-dependent EphA3 processing mediates axon elongation through non-muscle myosin IIA" for further consideration at eLife. Your revised article has been favorably evaluated by Huda Zoghbi (Senior Editor), a Reviewing Editor, and two reviewers.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

Reviewer #1:

The authors satisfactorily addressed all my points. The revised manuscript has still however one point that needs some clarification:

In the in utero electroporation assays (Figure 3 D), the authors are supposed to measure the length of GFP-labelled axons (white). Can they ascertain that these are indeed axons and not leading processes of migrating cells?

Reviewer #2:

The authors have addressed all the queries and the paper should be accepted for publication.

Reviewer #3:

The authors have done a reasonable job in responding to my questions. The new results have confirmed their conclusions and I am almost satisfied.

There is, however, one remaining problem. The in utero electroporation assays were not done properly (although I agree they look promising). GFP-labeled axons were quantified at E16.5 in EphA3 ICD electroporated wild-type and Psen1-/- embryos. There is no evidence that, at this stage and in these experimental conditions, Psen1 mutant axons are shorter than wild-type axons. This needs to be shown.

The authors should first establish that there is a phenotype at this stage of development, by quantifying control GFP electroporated axons from wild-type and Psen1 mutants, then compare axon length between control GFP and EphA3 ICD-IRES-GFP electroporated Psen1 mutants. The authors need to quantify a minimum of n=3 embryos per group.

https://doi.org/10.7554/eLife.43646.018

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

Reviewer #1:

[…] However, in vivo evidence is lacking as most experiments were performed in vitro. Authors may at least discuss better and stress axon defect similarities, overlaps, and differences between presenilins and EphA3/ephrinAs mutant mice.

We thank the reviewer for these helpful comments. We have now added evidence for in vivo relevance of PS/secretase-dependent EphA3 cleavage in axon growth by performing DiI labeling and in utero electroporation assays in Psen1+/+ and Psen1-/- embryos (Figure 3D; subsection “EphA3 cleavage by PS1/γ-secretase mediates axon elongation”; see response to point 7 of reviewer #3).

We have now described similarities and differences in axon morphology in Psen1-/- and Epha3/ephrinA mutant mice in the Discussion section as follows:

Psen1-/- micedie after birth likely due to respiratory failures caused by incomplete lung expansion, which resembles the phenotype of Epha3 null mice (Shen et al., 1997; Vaidya et al., 2003). Embryonic Epha3 inactivation results in axon misrouting of callosal neurons, although no motor axon targeting abnormalities are observed in Epha3-/- mice (Vaidya et al., 2003; Nishikimi et al., 2011). By contrast, Epha3/Epha4 deletion causes disturbances in motor axon guidance and sensory-motor neuron assemblies (Gallarda et al., 2008).

Reviewer #2:

[…]

1) The authors have only demonstrated the role of PS1 using PS1 knockout cells, although DAPT could also affect PS2 activity. Perhaps it would be interesting to use PS2 knockout cells or cells transfected with siRNA for PS2.

To examine the role of PS2 in axon growth, we analyzed axon length in wild-type (control) and Psen2-/- neurons. As shown in Figure 1D, genetic Psen2 knock-down does not affect axon length in cultured hippocampal neurons (subsection “Presenilin-1/γ-secretase is essential for axon elongation in vitro and in vivo”).

2) The study has been done in embryonic brains, are there also differences in axonal length/white matter density in older PS1 knockout mice?

This is a very intriguing and interesting question. Psen1-/- mice die just after birth due to respiratory defects and Psen1/2 double knockout mice show early embryonic lethality (Shen et al., 1997; Wong et al., 1997). The early postnatal lethality of Psen1-/- mice precludes investigation of axon length/white matter density in older Psen1-/- mice.

3) Although this study points to the interaction of the ICD with Rho signalling and NMIIA, it should also be ruled out that the effect is not mediated by transcriptional related mechanisms, as it occurs with other intracellular fragments resulting from PS1 cleavage, such as NICD and AICD.

We thank the reviewer for this relevant observation. It is well-established that PS1/γ-secretase-generated intracellular fragments, including those of APP, Notch1 or ErbB4, are localized at the nucleus where they act as transcriptional regulators (Carpenter, 2003; Lleó and Saura, 2011). It is possible that EphA3 ICD may affect transcriptional mechanisms during axon growth. This is a very interesting question that will obviously require further studies in the future. We sincerely believe that this is far from the scope of the present study but since this issue is very relevant we added a comment in the Discussion section as follows:

“It is also plausible that EphA3 ICD could mediate axon growth by acting through transcriptional mechanisms as described for APP and Notch ICDs (Lleó and Saura, 2011)”.

4) In Figure 5A-C the use of a Rho-kinase inhibitor does not seem to have any effect on axonal length in PS1 wild-type cells, by looking at the quantification shown in the graphs. Is this the case? What could be the interpretation? The sentence in subsection “EphA3 cleavage mediates axon elongation by inhibiting RhoA signalling” is a bit confusing and could be changed to "dominant-negative RhoA mutant (RhoA T19N) efficiently reversed axon length defects in PS1- and γ-secretase activity-deficient neurons".

This is a very interesting comment. Statistical analysis shows that there was an overall significant effect of Y27632 on axon growth in Psen1+/+/-/- neurons (F(1,10)=33.82, P < 0.0002; Figure 5A) and Veh/DAPTtreated neurons (F(1,10)=11.64, P < 0.0066; Figure 5B). However, Bonferroni post-hoc analysis revealed no significant differences between vehicle and Y27632 treatments in control neurons (P > 0.05). This result including the interpretation is described in subsection “EphA3 cleavage mediates axon elongation partially by inhibiting RhoA signalling”.

Subsection “Ligand-independent EphA3 processing mediates axon elongation” has been modified.

5) The authors should propose a potential mechanism whereby the ICD affects NMIIA phosphorylation.

We have added a brief comment in the Discussion section suggesting that EphA3 ICD could affect NMIIA phosphorylation at Ser1943 by affecting activity and/or localization of the main NMIIA heavy chain kinases casein kinase II or PKC as follows:

“Future investigations are needed to uncover the mechanism by which EphA3 ICD enhances NMIIA phosphorylation. It is possible that EphA3 ICD could affect activity and/or localization of protein kinase C and casein kinase II, the main kinases that phosphorylates NMIIA heavy chain (Breckenridge et al., 2009). Interestingly, TGF-β increases NMIIA Ser1943 phosphorylation during epithelial-mesenchymal transition (Beach et al., 2011). Since TGF-β plays essential roles during neuron specification and activates RhoA-dependent signaling another possibility is that EphA3 ICD could regulate TGF-β signaling affecting RhoA and NMIIA phosphorylation”.

Reviewer #3:

[…]

Essential revisions:

1) The requirement of PS1 for axonal growth in vivo is not well documented. Determination of axon length based on neurofilament (NF) immunostaining of brain sections is not optimal. NF staining intensity appears to be reduced in immature neurons (Figure 1B). Hence, the reduction in NF staining in PS1-/- tissue may let the axons appear shorter. A better approach would be length measurements of DiI-traced axons.

We have performed retrograde DiI tracing in Psen1+/+ and Psen1-/- brain sections. Quantitative analysis of DiI/neurofilament axons shows significant reduction of axons in Psen1-/- mouse brains. The new results are shown in Figure 1B and described in Results section (subsection “Presenilin-1/γ-secretase is essential for axon elongation in vitro and in vivo”) and the Figure 1 legend.

2) In Figure 2, the authors demonstrate the presence of an EphA3 CTF in PS1-/- brains and take this as indirect evidence for lack of PS1 activity. The presence of the EphA3 ICD is not shown in vivo. Neither is the presence of the EphA3 ICD shown in cultured neurons. The only evidence for the generation of the EphA3 ICD is in EphA3-expressing HEK cells. This is a serious deficiency.

We thank the reviewer for this comment. Our results indicate that EphA3 is a putative PS/γ-secretase substrate as revealed by increased EphA3 CTF levels in Psen1-/- brains and DAPT-treated Psen1+/+ neurons (Figure 2A,B). Biochemical detection of endogenous ICDs has been a difficult task for most of PS/γ-secretase substrates, even for the classical ones APP and Notch1 since these cleaved fragments are rapidly degraded o transported to the nucleus. For detecting intracellular fragments, γ-secretase in vitro assays were developed and extensively employed by different laboratories (Sastre et al., 2001). We used this approach to detect, purify and identify, by using mass spectrometry sequencing, the EphA3 ICD from EphA3expressing HEK2913 cells (Figure 2G,H; subsection “Presenilin-1/γ-secretase-dependent EphA3 cleavage”third paragraph).

We repeated the γ-secretase in vitro assay using embryonic (E17.5) mouse brains. Biochemical analysis shows the presence of EphA3 ICD (90 min) in the soluble fraction (S100) and EphA3 CTF in the pellet membrane fraction (P100) of brain lysates (see Author response image 1). This new result is shown in now shown in Figure 2G and Results section (subsection “Presenilin-1/γ-secretase-dependent EphA3 cleavage”).

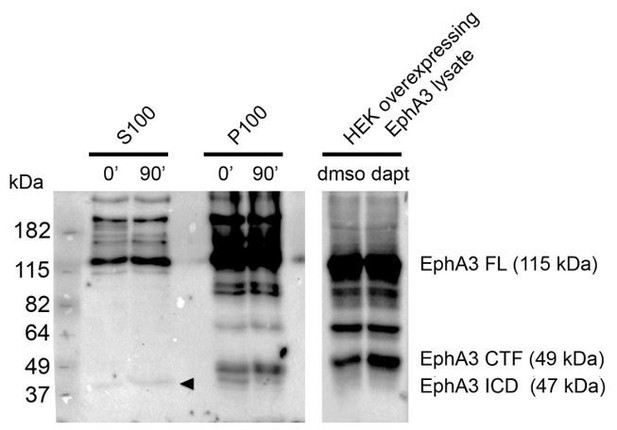

Author response image 1
Detection of EphA3 ICD in mouse brains in vivo.

PS/γ-secretase-mediated EphA3 processing in mouse brain. In vitro γ-secretase activity assay in brain lysates of embryonic mouse brains (E17.5). Biochemical analysis shows generation of EphA3 ICD (90 min, arrowhead) in the soluble fraction (S100) and EphA3 CTF in the pellet fraction (P100). Mass spectrometry sequencing revealed the identity of this fragment as EphA3 ICD (Figure 2H).

3) In Figure 3, overexpression of EphA3 ICD rescues axon growth defects in PS1-/- neurons. The authors conclude that these results suggest that PS1-dependent "EphA3 ICD generation is required for axon growth" (subsection “EphA3 cleavage by PS1/γ-secretase mediates axon elongation”). This is wrong. These are gain-of-function experiments that demonstrate sufficiency, not necessity. I would argue that the authors should compare (in the same experiment) overexpression in PS1-/- neurons of EphA3 ICD versus full-length EphA3, to make the point that the EphA3 ICD signals differently from full-length EphA3. Using PS1-/- neurons is the better experiment than using DAPT. I would also request that the EphA3 shRNA knock down experiment includes the rescue with full-length EphA3 (panel E). It is expected that full-length EphA3 rescues the knock down of EphA3, but not, according to the authors' hypothesis, the lack of PS1.

1) Sufficiency: As suggested by the reviewer, we modified this sentence as follows (subsection “EphA3 cleavage by PS1/γ-secretase mediates axon elongation”): “…suggesting that PS1/γ-secretase-dependent generation of EphA3 ICD is sufficient for axon growth”.

2) EphA3 ICD in Psen1-/- neurons: We agree that experiments in Psen1-/- neurons could be a better genetic assay than pharmacological inhibition. Since similar experiments were done in DAPT-treated neurons (Figure 3B) and due to the low number of available Psen1-/- embryos in the lab (embryonic lethality, low availability of Psen1+/- mice for crossings…), we prioritized the in vivo staining experiments suggested by the reviewer (DiI and in utero electroporation). Indeed, in utero electroporation assays revealed similar axon length in EphA3 ICD-transduced Psen1+/+ and Psen1-/- brains after in utero electroporation assays (see below, Figure 3D).

3) Rescue with full-length EphA3: A rescue experiment with EphA3 fl and deletion mutants in Epha3 shRNA neurons is shown in Figure 4D. Full-length EphA3, but not EphA3 deletion mutants, rescues axon defects in Epha3 shRNA-transduced neurons (Figure 4D). Notably, EphA3 ICD, but not EphA3 fl or ΔICD, reversed axon length defects in PS/γ-secretase-deficient neurons (Figure 3B), which suggests that the effect of PS/γ-secretase on axon growth is mediated by EphA3 cleavage.

4) In Figure 4, both EphA3 activation by ephrin-A5 and EphA3 knock down induce growth inhibition (panel B) to a similar extent. This is contradictory and should be discussed.

Ephrin-A5 treatment inhibits axon growth by activating the classical ligand-EphA3 signaling pathway(Nishikimi et al., 2011), whereas Epha3 silencing, which is expected to disrupt both the ligand dependent axon retraction and the ligand-independent PS/γ-secretase-mediated axon growth, causes an overall axon growth inhibition (Figure 4A,B,D). Interestingly, Epha3 shRNA-induced axon defects are reversed by EphA3 ICD expression in hippocampal neurons (Figure 3C). These two alternative ligand-dependent and -independent pathways are illustrated in the summary scheme (Figure 7). We have now described these apparent contradictory results in the Discussion section as follows:

“…PS1/γ-secretase/EphA3-dependent axon growth contrasts with the classical role of ligand-induced EphA3 signaling in axon retraction. In agreement, both ligand-induced signaling and blocking ligand-independent EphA3 cleavage (e.g. Epha3 silencing) inhibit axon growth suggesting that these two mechanisms occur in cellular conditions”.

5) In Figure 5, EphA3 cleavage is proposed to mediate axon growth by inhibiting RhoA activity. The evidence is not strong. PS1 inhibition increases RhoA activity (panel E), reduces axon length and this effect can be rescued by Rho-kinase inhibitor (panel B). The authors fail to implicate EphA3 ICD in this process. They should demonstrate that the axon growth defect caused by PS1 inhibition is rescued by overexpression of EphA3 ICD, and that this brings RhoA activity down to normal levels. As control, the axon growth defect caused by PS1 inhibition is not rescued by overexpression of full-length EphA3, and this keeps RhoA activity high.

To examine the role of PS1/γ-secretase and ICD on RhoA activity, we performed additional RhoA activity assays in primary neurons. These new results are described in subsection “EphA3 cleavage mediates axon elongation partially by inhibiting RhoA signalling”.

In agreement with a role of PS1/γ-secretase on axon growth through RhoA, DAPT increases RhoA activity in cultured neurons (Figure 5F) whereas pharmacological Rho inhibition (Y27632) reverses axon length defects in PS-deficient neurons (Figure 5A). By contrast, EphA3 ICD decreases RhoA activity in SK-N-AS neuronal cells (Figure 5E) and it rescues axon growth defects in Psen1-/- and DAPT-treated neurons (Figure 3A, 3B, 5D). In primary neurons, however EphA3 ICD did not apparently affect RhoA activity in these experimental conditions (Figure 5F, right panel). This suggests that EphA3 ICD may affect RhoA activity differentially depending on the cell type or experimental conditions. We conclude that ¨ PS/γ-secretase-dependent EphA3 cleavage is unlikely to mediate axon elongation by affecting only RhoA signaling¨ (subsection “EphA3 cleavage mediates axon elongation partially by inhibiting RhoA signalling”).

6) In Figure 6, EphA3 cleavage is proposed to mediate axon growth by regulating the phosphorylation of non-muscle myosin IIA. I find this part rather preliminary and not well connected to the rest of the story. Open questions are: How does EphA3 ICD increase serine phosphorylation of NMIIA? Is tyrosine kinase activity of EphA3 ICD required? How does RhoA activity tie in with NMIIA phosphorylation?

See also reviewer #2 comment 5.

We agree that the molecular mechanism(s) linking EphA3 ICD with NMIIA heavy chain phosphorylation (Ser1943) is still an open question that should be addressed in future studies. Interestingly, a possible feedback loop between RhoA and NMIIA may exist in other cellular types (Hays et al., 2014), and NMIIA Ser1943 phosphorylation is up-regulated during TGF-β-induced epithelial-mesenchymal transition (Beach et al., 2011). We have now described this point in the Discussion section.

7) I find it unsatisfying that no attempts were made to provide in vivo evidence for this pathway. For example, could overexpression of EphA3 ICD by in utero electroporation of PS1-/- embryos rescue the axon/neurite growth defects?

See also response to reviewer #1.

To study the in vivo relevance of PS/γ-secretase-dependent EphA3 signaling, we performed in utero electroporation assays by transducing EphA3 ICD-IRES-GFP vector in Psen1+/+ and Psen1-/- mouse embryos. Our new results show no significant differences on axon length between EphA3 ICD-transduced Psen1+/+ and Psen1-/- neurons (Figure 3D; P = 0.83; see subsection “EphA3 cleavage by PS1/γ-secretase mediates axon elongation”)

[Editors’ note: the author responses to the first round of peer review follow.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

Reviewer #1:

The authors satisfactorily addressed all my points. The revised manuscript has still however one point that needs some clarification:

In the in utero electroporation assays (Figure 3 D), the authors are supposed to measure the length of GFP-labelled axons (white). Can they ascertain that these are indeed axons and not leading processes of migrating cells?

We thank the reviewer for this comment. As shown in Figure 1A-C using multiple axonal markers the neuronal processes affected by loss of Psen1 in the ventricular zone, the same region analyzed in Figure 3D, are axons.

Reviewer #3:

The authors have done a reasonable job in responding to my questions. The new results have confirmed their conclusions and I am almost satisfied.

There is, however, one remaining problem. The in utero electroporation assays were not done properly (although I agree they look promising). GFP-labeled axons were quantified at E16.5 in EphA3 ICD electroporated wild-type and Psen1-/- embryos. There is no evidence that, at this stage and in these experimental conditions, Psen1 mutant axons are shorter than wild-type axons. This needs to be shown.

The authors should first establish that there is a phenotype at this stage of development, by quantifying control GFP electroporated axons from wild-type and Psen1 mutants, then compare axon length between control GFP and EphA3 ICD-IRES-GFP electroporated Psen1 mutants. The authors need to quantify a minimum of n=3 embryos per group.

We thank the reviewer for this important comment. As suggested by the reviewer we have performed in utero electroporation assays using control (mCherry) or EphA3ICD IRES-GFP vectors in multiple sections of Psen1+/+ and Psen1-/- embryos. Embryonic brain sections (E16.5) were stained, imaged using laser confocal microscopy and stained processes were quantified. The new results (Figure 3D, subsection “EphA3 cleavage by PS1/γ-secretase mediates axon elongation”) reveal statistical significant differences (P < 0.0001) in axon length in Psen1-/- embryos compared to Psen1+/+ at E16.5 stage. Moreover, EphA3 ICD efficiently reversed axon length defects in Psen1-/- brains (EphA3 ICD: Psen1-/- vs. Psen1+/+, P = 0.61).

https://doi.org/10.7554/eLife.43646.019

Article and author information

Author details

  1. Míriam Javier-Torrent

    Institut de Neurociències, Department de Bioquímica i Biologia Molecular, Facultat de Medicina, Centro de Investigación Biomédica en Red Enfermedades Neurodegenerativas (CIBERNED), Universitat Autònoma de Barcelona, Barcelona, Spain
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Methodology, Writing—original draft
    Contributed equally with
    Sergi Marco
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6437-2829
  2. Sergi Marco

    Institut de Neurociències, Department de Bioquímica i Biologia Molecular, Facultat de Medicina, Centro de Investigación Biomédica en Red Enfermedades Neurodegenerativas (CIBERNED), Universitat Autònoma de Barcelona, Barcelona, Spain
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Validation, Investigation, Methodology
    Contributed equally with
    Míriam Javier-Torrent
    Competing interests
    No competing interests declared
  3. Daniel Rocandio

    Institut de Recerca Biomédica de Lleida, Universitat de Lleida, Lleida, Spain
    Contribution
    Resources, Data curation, Formal analysis, Methodology
    Competing interests
    No competing interests declared
  4. Maria Pons-Vizcarra

    Institut de Neurociències, Department de Bioquímica i Biologia Molecular, Facultat de Medicina, Centro de Investigación Biomédica en Red Enfermedades Neurodegenerativas (CIBERNED), Universitat Autònoma de Barcelona, Barcelona, Spain
    Contribution
    Formal analysis, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5008-5741
  5. Peter W Janes

    Department of Biochemistry and Molecular Biology, Monash University, Victoria, Australia
    Present address
    Tumour Targeting Program, Olivia Newton-John Cancer Research Institute, Heidelberg, Australia
    Contribution
    Conceptualization, Resources, Supervision, Methodology
    Competing interests
    No competing interests declared
  6. Martin Lackmann (deceased)

    Department of Biochemistry and Molecular Biology, Monash University, Victoria, Australia
    Contribution
    Conceptualization, Resources, Methodology, Writing—original draft
    Competing interests
    No competing interests declared
  7. Joaquim Egea

    Institut de Recerca Biomédica de Lleida, Universitat de Lleida, Lleida, Spain
    Contribution
    Conceptualization, Resources, Supervision, Investigation
    Competing interests
    No competing interests declared
  8. Carlos A Saura

    Institut de Neurociències, Department de Bioquímica i Biologia Molecular, Facultat de Medicina, Centro de Investigación Biomédica en Red Enfermedades Neurodegenerativas (CIBERNED), Universitat Autònoma de Barcelona, Barcelona, Spain
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Writing—original draft, Writing—review and editing
    For correspondence
    carlos.saura@uab.es
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3692-5657

Funding

Ministerio de Economía y Competitividad (SAF2013-43900-R)

  • Carlos A Saura

Ministerio de Economía y Competitividad (SAF2016-80027-R)

  • Carlos A Saura

Ministerio de Economía y Competitividad (CIBERNED CB06/05/0042)

  • Carlos A Saura

Generalitat de Catalunya (ICREA Academia)

  • Carlos A Saura

Generalitat de Catalunya (2017 SGR749)

  • Carlos A Saura

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank J Shen (Harvard Medical School, Boston, USA) for providing the Psen1-/- mice, B De Strooper (Katholieke Universiteit Leuven, Belgium) for providing the Psen1+/+/2+/+ and Psen1-/-/2-/-mouse embryonic fibroblasts, A Bresnick (Albert Einstein College of Medicine, NY, USA) for kindly providing the NMIIA constructs, X R Bustelo (Centro Investigación del Cáncer, CSIC, Spain) for RhoT19N plasmid and P Crespo (IBBTEC, Santander, Spain) for RhoA Q63L plasmid. We are grateful to Silvia Ginés for critical review of the manuscript, and M Sastre for technical advise on the γ-secretase assays. We thank Núria Barba and Mar Castillo from the Servei de Microscopia i Histologia Units, Institut de Neurociències and Marta Cosín and Gisela Esquerda for technical assistance. We thank the animal house facilities of Universitat de Lleida and Universitat Autònoma de Barcelona for their expert technical assistance. We thank the UAB Proteomic facility and LP-CSIC/UAB (PT17/0019/0008), a member of ProteoRed network, for proteomic analyses. This study was funded by grants from the Ministerio de Economía y Competitividad (SAF2013-43900-R, SAF2016-80027-R and CIBERNED CB06/05/0042) and Generalitat de Cataluña (ICREA Academia and 2017 SGR749).

Ethics

Animal experimentation: Animal experimental procedures were conducted following the European Union guidelines for animal care and use (2010/63/EU) according to the approved Animal and Human Ethical Committee (CEEAH) protocol (CEEAH 2896; DMAH 8787) of the Universitat Autònoma de Barcelona.

Senior Editor

  1. Huda Y Zoghbi, Texas Children's Hospital, United States

Reviewing Editor

  1. Fadel Tissir, Université Catholique de Louvain, Belgium

Publication history

  1. Received: November 14, 2018
  2. Accepted: September 18, 2019
  3. Version of Record published: October 2, 2019 (version 1)

Copyright

© 2019, Javier-Torrent et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 633
    Page views
  • 109
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading
