A non-archaeopterygid avialan theropod from the Late Jurassic of southern Germany

  1. Oliver WM Rauhut  Is a corresponding author
  2. Helmut Tischlinger
  3. Christian Foth
  1. Bayerische Staatssammlung für Paläontologie und Geologie, Germany
  2. Ludwig-Maximilians-Universität, Germany
  3. Tannenweg 16, Germany
  4. Université de Fribourg, Switzerland

Abstract

The Late Jurassic ‘Solnhofen Limestones’ are famous for their exceptionally preserved fossils, including the urvogel Archaeopteryx, which has played a pivotal role in the discussion of bird origins. Here we describe a new, non-archaeopterygid avialan from the Lower Tithonian Mörnsheim Formation of the Solnhofen Archipelago, Alcmonavis poeschli gen. et sp. nov. Represented by a right wing, Alcmonavis shows several derived characters, including a pronounced attachment for the pectoralis muscle, a pronounced tuberculum bicipitale radii, and a robust second manual digit, indicating that it is a more derived avialan than Archaeopteryx. Several modifications, especially in muscle attachments of muscles that in modern birds are related to the downstroke of the wing, indicate an increased adaptation of the forelimb for active flapping flight in the early evolution of birds. This discovery indicates higher avialan diversity in the Late Jurassic than previously recognized.

https://doi.org/10.7554/eLife.43789.001

eLife digest

The origin of birds and their flight has been heavily debated in the field of evolutionary biology since the late nineteenth century. Birds are the only living descendants of dinosaurs and, for paleontologists, the famous Archaeopteryx has played a pivotal role in this discussion. Living during the Jurassic period about 150 million years ago in what is now southern Germany, Archaeopteryx is generally accepted as the oldest known flying bird. Yet, with the discovery of other bird-like dinosaurs from the same period, a question has arisen as to whether Archaeopteryx is the only flying bird from the Jurassic.

To answer this question, Rauhut et al. carefully examined a fossil of an isolated wing skeleton that was recently discovered in the same region of Germany where Archaeopteryx was found. The new specimen shows several characteristics that are otherwise only found in modern birds and not seen in Archaeopteryx. As such, this fossil represents a new species and the most bird-like bird discovered from the Jurassic. Rauhut et al. named the species Alcmonavis poeschli, after the ancient name for a river that flows near the discovery site, the Greek word for bird, and Roland Pöschl – the collector who found the specimen.

The wing of Alcmonavis also shows several features related to the attachment of flight muscles that suggest it was better adapted for flapping flight than Archaeopteryx. Together these findings are mostly consistent with the hypothesis that birds first started flying by flapping their wings rather than starting from a gliding stage. However, more detailed studies of the anatomy of primitive birds and their close relatives are needed to further test this hypothesis.

https://doi.org/10.7554/eLife.43789.002

Introduction

The so-called ‘Solnhofen limestones’ of southern Germany have long been known for their exceptionally preserved fossils (see Arratia et al., 2015). Historically, most fossils reported from these rocks come from the Altmühltal Formation (sensu Niebuhr and Pürner, 2014; see that publication for a clarification of the confusing history of naming the Late Jurassic limestone units of the Franconian Alb), as these were subject to intensive quarrying for several commercial purposes, from construction to lithography, probably since Roman times (Neumeyer, 2015). However, fossils have been known from the underlying Torleite and the overlying Mörnsheim formations for a long time (see e.g. Tischlinger, 2001), and more recent work in these units has shown that they are, at least at some localities, actually more fossiliferous than the Altmühltal Formation (see e.g. Viohl and Zapp, 2007; Heyng et al., 2011; Heyng et al., 2015; Albersdörfer and Häckel, 2015; Viohl, 2015).

Arguably the historically most important fossil taxon from the ‘Solnhofen limestones’ is the famous 'urvogel' Archaeopteryx, which has played a crucial role in the debate about the origin of birds (e.g. Huxley, 1868; Heilmann, 1926; Ostrom, 1976a; Wellnhofer, 2008; Wellnhofer, 2009). This taxon is so far only known from the lower Tithonian of Bavaria, Germany, with the vast majority of specimens (nine out of eleven) being derived from the Altmühltal Formation (Rauhut et al., 2018). Only one specimen (the 12th specimen; see comments on numbering of specimens below) comes from the Kimmeridgian/Tithonian boundary in the lowermost part of the Painten Formation (Rauhut et al., 2018), and a single, fragmentary skeleton was reported from the Mörnsheim Formation (Figure 1), which overlies the Altmühltal Formation (Mäuser, 1997; Tischlinger, 2009), and was recently made the type of a new species of this genus, Archaeopteryx albersdoerferi Kundrát et al., 2019). In total, the genus Archaeopteryx seems to span some 700,000 to one million years, and notable variation between the different specimens might indicate evolutionary changes over this time (Rauhut et al., 2018).

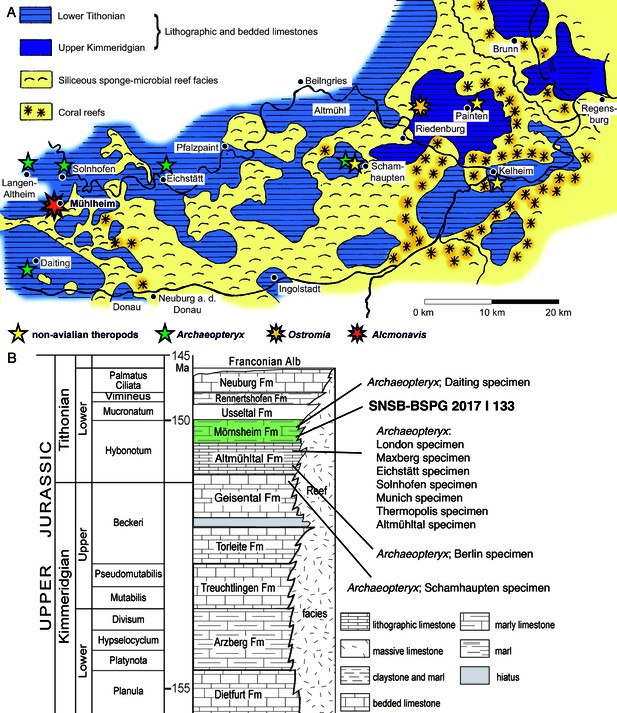

Geographic and stratigraphic provenance of the new avialan specimen.

(A) Map of the southern Franconian Alb with the palaeogeographic settings indicated and showing the localities of theropod specimens from the Solnhofen Archipelago (modified from Foth and Rauhut, 2017). (B) Stratigraphic position of the new specimen, SNSB-BSPG 2017 I 133, within the ‘Solnhofen limestones’ and in comparison to known specimens of Archaeopteryx (modified from Rauhut et al., 2012).

https://doi.org/10.7554/eLife.43789.003

For more than 150 years, Archaeopteryx was the only Jurassic representative known of the Paraves, the clade of theropod dinosaurs that includes birds (Avialae; see Gauthier, 1986) and their closest relatives, dromaeosaurids and troodontids, which are united in a monophyletic clade, Deinonychosauria, in most phylogenetic analyses. However, the discovery of a diverse fauna of paravian theropods from slightly older rocks in China in the last decades (e.g. Godefroit et al., 2013a; Godefroit et al., 2013b; Sullivan et al., 2014; Xu et al., 2015; Lefèvre et al., 2017), and the identification of the ‘Haarlem specimen of Archaeopteryx’ as a separate taxon, Ostromia crassipes (von Meyer, 1857), representing a different clade of paravians, the Anchiornithidae (Foth and Rauhut, 2017), highlight the complexity of paravian evolution, diversity and distribution in the Late Jurassic, and make a careful re-evaluation of all maniraptoran specimens from the Late Jurassic plattenkalks of southern Germany necessary.

Here we report on a new paravian specimen from the Lower Tithonian Mörnsheim Formation, representing the second theropod specimen from this unit, which overlies the Altmühltal Formation. The new specimen represents the largest avialan theropod yet recorded from the Jurassic and provides further evidence on the forelimb anatomy and the origin of flapping flight in basal avialans.

Geological and palaeontological context

The Mörnsheim Formation is a unit of the southern German Weißjura Group, a package of mainly calcareous marine sediments that is widely distributed in Bavaria and Baden-Württemberg. In the southern Franconian Alp in Bavaria, the Weißjura Group in the region between Weißenburg and Regensburg is famous for often laminated, very fine-grained limestones of late Kimmeridgian to early Tithonian age, often collectively called ‘Solnhofen limestones’, and the fossils from these rocks are accordingly referred to as ‘Solnhofen fossils’. A large number of often local or regional names have been proposed for the different units that make up the ‘Solnhofen limestones’, but a recent overview of the lithostratigraphy of the area helped to clarify the nomenclature and correlations of the formations (Niebuhr and Pürner, 2014). Thus, the ‘Solnhofen limestones’ sensu stricto are now included in the Altmühltal Formation and restricted to the area northwest of Ingolstadt, whereas more eastern occurrences of contemporaneous plattenkalks are included in the Painten Formation. Both of these formations underly the Mörnsheim Formation. Biostratigraphic dating with the help of ammonites has furthermore shown that the Altmühltal Formation spans from the uppermost horizon of the Beckeri zone of the latest Kimmeridgian over five ammonite horizons to the rueppelianus horizon of the Hybonotum zone of the Early Tithonian, and that the lithographic limestones within this formation in the areas of Solnhofen and Eichstätt are not synchronous, but the Eichstätt Member is somewhat older (Schweigert, 2007; Schweigert, 2015; Niebuhr and Pürner, 2014). Furthermore, in more eastern areas, important vertebrate fossils have also been found in the upper part of the Torleite Formation, which underlies the Painten Formation. In the light of this geological and stratigraphic complexity, the traditional habit to talk about all the fossils from these diverse units as the ‘fauna of the Solnhofen limestones’ has been abandoned in favour of the expression ‘fauna of the Solnhofen Archipelago’ in recent years, to distinguish the regional palaeoecological setting from the concrete geological unit that the different fossils are derived from (e.g. Röper, 2005; López-Arbarello and Schröder, 2014; Rauhut et al., 2017).

The Mörnsheim Formation has its best outcrops in the areas between Mörnsheim, Solnhofen, Monheim, and Daiting (Figure 1). Lithologically, the Mörnsheim Formation differs from the Altmühltal Formation in the considerably higher amount of silicified limestones (‘Kieselplattenkalke’), especially in its lower part. Biostratigraphically, this unit represents the uppermost horizon of the Hybonotum zone, the moernsheimensis horizon, and is thus slightly younger than the Upper Solnhofen Member of the Altmühltal Formation. Fossils have been known for a long time from the Mörnsheim Formation, mainly from the locality of Daiting (Tischlinger, 2001), but the fauna of this formation has only partially been explored so far, mainly due to the fact that this formation has not been quarried extensively.

The specimen described here comes from the Schaudiberg, near Mühlheim, close to Mörnsheim (Figure 1A). Two quarries are currently exposed at the Schaudiberg, both owned by the Grundstücksgemeinschaft Pöschl/Leonhardt, a public quarry for fossil collectors, and the Old Schöpfel Quarry, which is being systematically excavated for fossils (see Heyng et al., 2015). The lower part of the Mörnsheim Formation has a total thickness of approximately 50 m at the Schaudiberg, but only parts of this are exposed in the two quarries. Some 8 m of the lowermost Mörnsheim Formation are exposed in the Old Schöpfel Quarry, with the boundary to the underlying Altmühltal Formation at the base of the section being currently covered. Thus, the currently exposed section starts some 4 m above this boundary with silicified laminated limestones and intercalated thick layers of massive limestones and silicified limestones (Heyng et al., 2015). In the higher part of the profile and the visitors quarry, the section becomes more dominated by laminated limestones and intercalations of laminated marly limestones and clays. The new urvogel specimen comes from a thin marly intercalation within the lowermost 2.5 m of the section in the Old Schöpfel Quarry. It was found in 2017 by Roland Pöschl, who leads the systematic excavations in this quarry. The Mörnsheim Formation at the Schaudiberg is very fossiliferous, with the most common fossils being strongly compressed ammonites, and a rich invertebrate and vertebrate fauna is present, but remains largely unstudied so far. In contrast to the underlying Altmühltal Formation, most vertebrate fossils in the Mörnsheim Formation are at least partially disarticulated and often fragmentary. In the Schaudiberg quarries, fishes are represented by chondrichthyans, including well-preserved specimens of Asteracanthus (Pfeil, 2011), actinopterygians (e.g. Schröder and López-Arbarello, 2013), and mainly isolated remains of coelacanths. Tetrapods are represented by unstudied turtles, rhynchocephalians, marine crocodiles, and pterosaurs (Heyng et al., 2011; Heyng et al., 2015; Rauhut et al., 2011; Rauhut et al., 2012; Moser and Rauhut, 2011; Rauhut, 2012), with the only formally studied taxon being the unusual rhynchocephalian Oenosaurus muehlheimensis Rauhut et al., 2012, so far. As noted above, the only theropod specimen reported from the Mörnsheim Formation so far is the fragmentary holotype of Archaeopteryx albersdoerferi, which comes from the outcrop area of Daiting (Tischlinger, 2009; Kundrát et al., 2019).

Comments on the numbering and naming of avialan specimens from the Solnhofen Archipelago

Traditionally, the different specimens found in the Kimmeridgian-Tithonian limestones of Bavaria have been numbered according to the time they were first described as Archaeopteryx (see Wellnhofer, 2008; Wellnhofer, 2009; Rauhut and Tischlinger, 2015). Thus, the London specimen is usually called the first skeletal specimen, the Berlin specimen the second and so on. Accordingly, more recently, Foth et al., 2014 described a new specimen that is hitherto simply known as the 11th specimen, and Rauhut et al., 2018 described the 12th specimen. However, the story becomes more complicated if one accepts that some specimens might actually not belong to the genus Archaeopteryx, such as the Solnhofen specimen, which was argued to represent a distinct genus, Wellnhoferia (Elzanowski, 2001; Elzanowski, 2002; though see Mayr et al., 2007, and Wellnhofer, 2008, Wellnhofer, 2009), or the Haarlem specimen, which was recently referred to a distinct genus of anchiornithids, Ostromia (Foth and Rauhut, 2017). Thus, in this case, theoretically, the numbering of Archaeopteryx specimens would need to be revised, with the 11th specimen becoming the 10th specimen and so forth. However, we propose to retain the original numbering of specimens, even if one accepts the different generic assignments, in order to avoid confusion between the recent and older literature. Given the gradual assembly of the avialan body plan (Brusatte et al., 2014; Cau et al., 2015) and the general similarity of the basalmost members of this clade, it might be justified to simply talk about 'urvogel specimens' instead of using the generic name Archaeopteryx, to thus accommodate the taxonomic uncertainty. Accordingly, the specimen described here should be regarded as the 13th urvogel specimen from the Solnhofen Archipelago.

Apart from the numbers, most specimens also have informal, but widely used names, usually based on their repository (‘London specimen’, ‘Berlin specimen’, ‘Eichstätt specimen’, etc.). In contrast to many other fossil taxa, it is these names, often in combination with the numbering outlined above, rather than specimen numbers that are usually used to identify the different specimens of Archaeopteryx and possible other basal avialans from the Kimmeridgian/Tithonian of Bavaria, even in the technical scientific literature (e.g. Elzanowski, 2002; Mayr et al., 2007; Wellnhofer, 2008; Wellnhofer, 2009; Rauhut et al., 2018). Unfortunately, however, the most recently described specimens have so far only been identified by their numbers, and no names have been proposed. Thus, in order to facilitate communication about the specimens, we here propose the following names for specimens 11 to 13:

11th specimen: This specimen represents an almost complete postcranial skeleton and parts of the skull of Archaeopteryx, preserved in articulation and with exceptionally detailed feather impressions (Foth et al., 2014). The specimen most probably comes from Upper Eichstätt Member of the Altmühltal Formation of the Schernfeld/Blumenberg area, close to Eichstätt (M. Röper, pers. com. to OR, 05.2018) and is currently on exhibition at the Museum Solnhofen. However, as neither the exact provenance nor the final repository of this specimen are certain by now, we propose to refer to it as the ‘Altmühl specimen’, referring to both its general area of provenance close to the Altmühl river and the geological unit it is derived from.

12th specimen: This specimen is an almost complete, although partially poorly preserved, largely articulated skeleton of Archaeopteryx (Rauhut et al., 2018). It comes from the lowermost parts of the Painten Formation of the Gerstner Quarry in Schamhaupten and is currently on exhibition at the Dinosaurierpark Altmühltal in Denkendorf. Due to its provenance, we propose to name this specimen the ‘Schamhaupten specimen’.

13th specimen: This specimen is described here. It comprises an associated right wing of a large basal avialan from the Mörnsheim Formation of Mühlheim, close to Mörnsheim, Bavaria. The specimen belongs to the collections of the Bayerische Staatssammlung für Paläontologie und Geologie in Munich. As there already is a ‘Munich specimen’, we propose to refer to this specimen as the ‘Mühlheim specimen’.

Institutional abbreviations

AMNH, American Museum of Natural History, New York, USA; IGM, Institute of Geology, Ulan Bataar, Mongolia; IVPP, Institute of Vertebrate Paleontology and Paleoanthropology, Beijing, China; JME, Jura-Museum Eichstätt, Germany; JZT, Jizantang Paleontological Museum, Chaoyang City, China; MCF, Museo Carmen Funes, Plaza Hiuncul, Argentina; SNSB-BSPG, Staatliche naturwissenschaftliche Sammlungen Bayerns, Bayerische Staatssammlung für Paläontologie und Geologie, Munich, Germany.

Description

Preservation

The new specimen, SNSB-BSPG 2017 I 133, consists of the partially disarticulated, but associated skeleton of the right wing of an avialan theropod (Figure 2). The humerus is rotated and slightly displaced from the remains of the arm, and radius and ulna are disarticulated, but preserved in close proximity. The manus is disarticulated from the radius and ulna and the metacarpus overlies the distal ulna. The digits of the hand are mainly preserved in articulation, with only phalanx I-1 forming an unnatural angle with its respective metacarpal, and the ungual of digit I being displaced, lying at the distal end of the ulna.

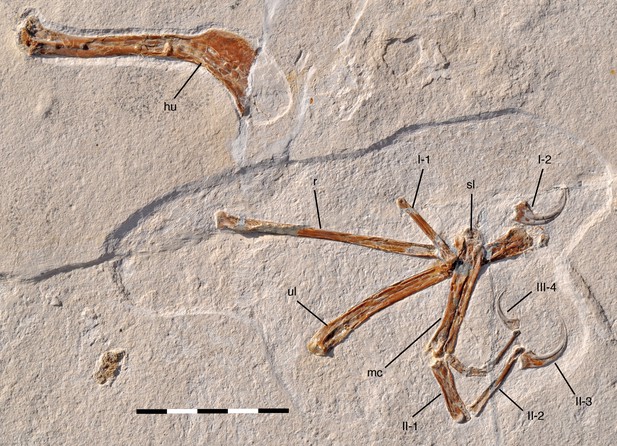

Overview photograph of holotype specimen of Alcmonavis poeschli gen.

et sp. nov., SNSB-BSPG 2017 I 133. Abbreviations: hu, humerus; mc, metacarpus; r, radius; sl, semilunate carpal; ul, ulna; Roman numerals indicate digits and Arabic numerals indicate phalanges of digits. Scale bar is 5 cm.

https://doi.org/10.7554/eLife.43789.004

The head of the humerus is not preserved, as it lay in a mud-filled crack within the rock (U. Leonhardt, pers. com. to OR, 10.2017) and the proximal shaft of the radius is partially reconstructed. The bone preservation is generally rather poor, with all longbones being compressed, collapsing the shafts, and fractured, and the entepicondyle of the humerus is largely lost, as is the distal end of metacarpal I. However, the phosphatized remains of the original keratinous sheath of the unguals are rather nicely preserved, as it is often the case in theropod specimens from the Late Jurassic plattenkalks of southern Germany.

Humerus

The right humerus is exposed in anteromedial view (Figure 3). As noted above, the bone is missing its proximal end, so its exact length cannot be established (the apparent outline of the bone in the sediment is an artefact of preparation, as the outline has been sculpted in the matrix used to fill the crack). However, the medial edge preserves the distal end of the internal tuberosity, indicating that only a small portion of the proximal end is missing, so that the complete length can be estimated to be approximately 90 mm (±2.5 mm; length as preserved: 81.4 mm). As in all maniraptoran theropods (Rauhut, 2003), the internal tuberosity was obviously proximodistally elongate and rectangular in outline, with approximately its distal third being preserved. Distally, it fades into the relatively sharp medial edge of the shaft in an oblique step. On the anterolateral side of the humerus, the distal half of the large, rectangular deltopectoral crest is preserved. Whereas the anterolateral edge of the proximal part of the crest seems to be rather sharp-edged, the distalmost c. 11 mm show an elongate oval facet for the insertion of the m. pectoralis (Figure 3). This facet is inclined anteromedially and reaches a maximal transverse width of 2.2 mm. A similar facet is also developed in Sapeornis (Provini et al., 2009; pers. obs. by CF on specimen JZT-DB 0047), Jeholornis (Lefèvre et al., 2014), Jixiangornis (Chiappe and Meng, 2016), Confuciusornis (e.g. JME 1997/1; Chiappe et al., 1999), but it is absent in Archaeopteryx, anchiornithids and non-avian theropods (see discussion). Distal to this insertion, the deltopectoral crest fades into the anterolateral side of the shaft in an oblique, slightly concave step. As in all specimens of Archaeopteryx, other basal avialans like Confuciusornis (Chiappe et al., 1999), and, to a lesser degree, in non-avialan maniraptorans (e.g. Ostrom, 1969; Clark et al., 1999; Pei et al., 2014), the proximal part of the humerus that houses the deltopectoral crest is angled posteriorly in respect to the central shaft, with its posteromedial edge (excluding the internal tuberosity) forming an angle of approximately 38° towards the long axis of the shaft. This angle is larger than in non-avialan Paraves and Anchiornis (e.g., Ostrom, 1969; Burnham, 2004; Pei et al., 2014; Pei et al., 2017). In Archaeopteryx, the angle varies between 30° (Daiting specimen) and 33° (Maxberg and Ottman and Steil specimens), while it is similarly increased in more derived avialans (see discussion).

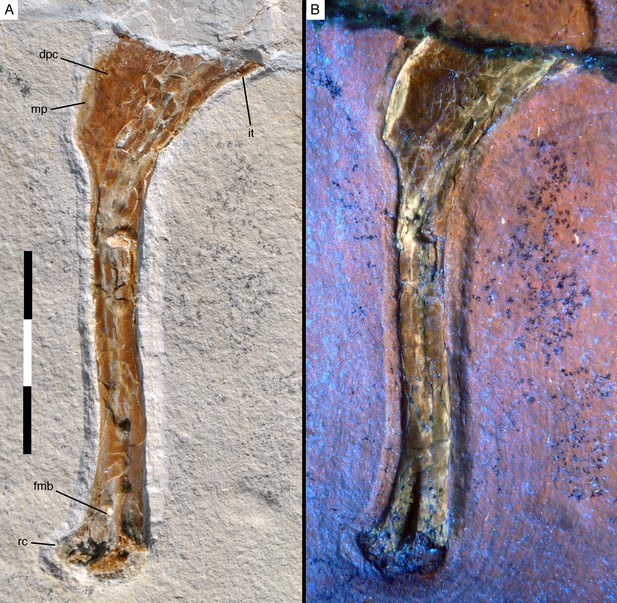

Right humerus of Alcmonavis poeschli in (A) normal and (B) ultraviolet light.

Abbreviations: dpc, deltopectoral crest; fmb, fossa musculus brachialis; it, internal tuberosity; mp, attachment facet for m. pectoralis; rc, radial condyle. Scale bar is 3 cm.

https://doi.org/10.7554/eLife.43789.005

The length of the humerus distal to the deltopectoral crest is 64.8 mm as measured from the distalmost edge of the apex of the crest and c. 60 mm from the point where the distal end of the crest fades into the shaft. The humeral shaft distal to the deltopectoral crest is very slightly sigmoidal, with the proximal c. 30 mm being slightly convex anteriorly and concave posteriorly, whereas the distal end is slightly flexed anteriorly. Although the compaction of the shaft makes secure interpretation difficult, it seems that it was wider transversely than anteroposteriorly over its entire length. The minimal width of the shaft is c. 6.5 mm (all measurements should be seen with caution due to the compaction of the bones). The distal end gradually expands transversely to approximately 200% of the minimal shaft width (as far as this can be established; 13 mm as preserved) and the distal condyles expand anteriorly. A large, deep, triangular groove is present proximal to and between the condyles on the anterior side of the humerus (Figure 3). Although this groove might be somewhat exaggerated by the compaction of the bone, it nonetheless seems to be a genuine character of the bone. The medial rim of the groove is formed by a broad longitudinal ridge that is slightly offset laterally from the medial margin of the distal humerus and fades into the shaft some 15 mm proximal to the distal end. This groove and ridge have not been described for Archaeopteryx so far (due to the fact that the anterior side of the distal humerus is not exposed in any of the specimens referred to this genus), but they are also present in the humeri of the dromaeosaurids Deinonychus (Ostrom, 1969), and Bambiraptor (Burnham, 2004), in Balaur (Brusatte et al., 2013) and the basal avialans Confuciusornis (Chiappe et al., 1999) and Sapeornis (Provini et al., 2009). In modern birds, a depression in a similar position serves as the attachment of the brachialis muscle, the fossa musculi brachialis (Baumel and Witmer, 1993), and this might be a likely identification in these paravian theropods as well. The entepicondyle (ulnar condyle or condyles dorsalis) is largely missing, but its impression in the rock indicates that it was anteriorly expanded and posteromedially rounded. The ectepicondyle (radial condyle or condyles ventralis) is considerably expanded anteriorly and has a well-developed, anterodistally facing, transversely concave roller joint, similar to the condition in Deinonychus (Ostrom, 1969).

Ulna

The ulna is a slender element (Figure 4) and, with a length of 82 mm, slightly shorter than the estimated length of the humerus, as in Archaeopteryx (Wellnhofer, 2008; Wellnhofer, 2009; Foth et al., 2014; Rauhut et al., 2018), non-avialan maniraptorans, Confuciusornis (e.g. Chiappe et al., 1999), and Apsaravis (Clarke and Norell, 2002), whereas both elements are of subequal length in Sapeornis (e.g. Zhou and Zhang, 2003a; Provini et al., 2009), and the ulna is longer than the humerus in many more derived avialans (e.g. Hu et al., 2014; Wang et al., 2016). It is exposed in anteromedial view. As in many other maniraptoran theropods (Gauthier, 1986), the proximal half of the ulna is slightly bowed, being convex posteriorly. The proximal end of the ulna is only slightly expanded from the shaft, and the olecranon process is poorly developed (Figure 5), as in most maniraptorans, including birds (Rauhut, 2003). The proximal articular surface shows a small, almost round, proximally and very slightly anteriorly facing concavity anteriorly, and a smaller convexity posteriorly. Thus, in contrast to Deinonychus (Ostrom, 1969), other dromaeosaurids (Norell and Makovicky, 1999; Hwang et al., 2002; Burnham, 2004), and Balaur (Brusatte et al., 2013), but similar to Jeholornis (Lefèvre et al., 2014; Chiappe and Meng, 2016) the proximal end is oval rather than triangular in outline in proximal view.

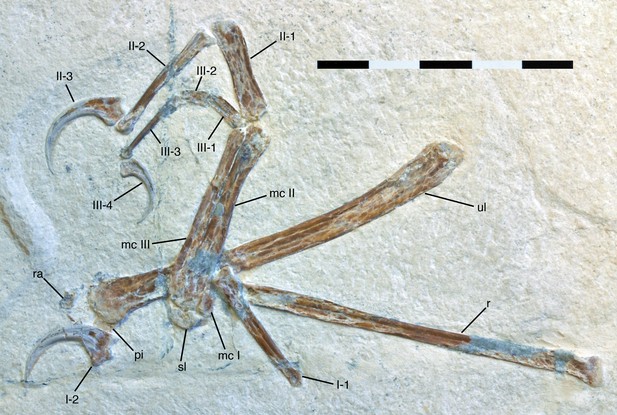

Antebrachium and manus of Alcmonavis poeschli.

Abbreviations as in Figure 1, and: pi, pisiforme; ra, radiale. Scale bar is 5 cm.

https://doi.org/10.7554/eLife.43789.006

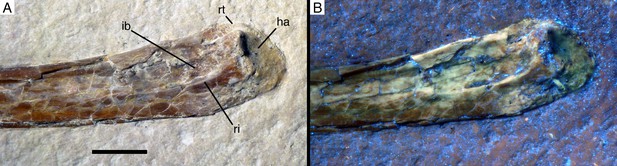

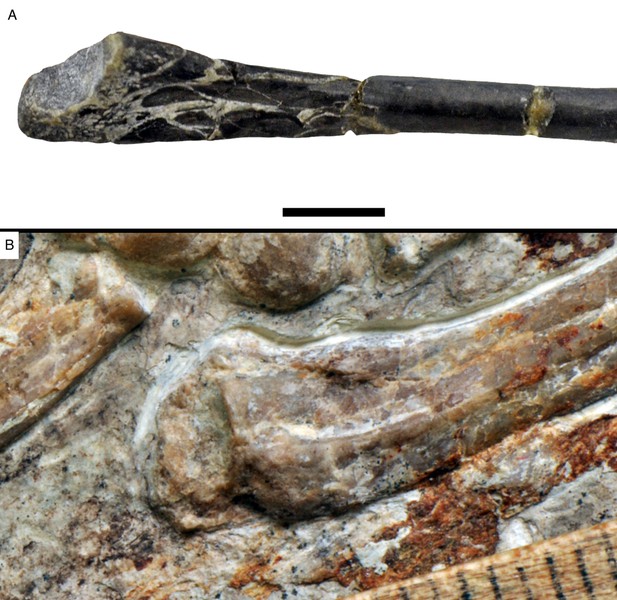

Proximal end of ulna of Alcmonavis poeschli in (A) normal and (B) ultraviolet light.

Abbreviations: ha, humeral articulation; ib, impressio brachialis; ri, ridge bordering the impressio brachialis; rt, radial tubercle (cotylus dorsalis). Scale bar is 5 mm.

https://doi.org/10.7554/eLife.43789.007

Below the proximal articular surface, a small, but sharply defined longitudinal ridge is present on the anteromedial side of the ulna (Figure 5). This ridge extends from the anteromedial edge of the proximal articular surface, is slightly offset from the medial side of the bone and fades into the shaft some 9 mm below the articular surface. A very similar ridge is present in the 12th specimen of Archaeopteryx (Rauhut et al., 2018: fig. 22), Confuciusornis (JM 1997/1), Ichthyornis (Clarke, 2004: fig. 52C) and many modern birds, where it marks the margin of the impressio brachialis (Baumel and Witmer, 1993), but such a ridge is absent in non-avialan theropods. Laterally, a small lateral tubercle is present proximally, defining the posterior border of the radial fossa and rapidly disappearing into the ulnar shaft distally. The tubercle is offset from the ulnar articular surface by a ridge, but its proximal surface is convex and does not show an additional articular surface, as it is the case in the cotyla dorsalis of modern birds. A pronounced tubercle for the insertion of the biceps muscle cannot be identified, but the bone is strongly crushed in the area where this tubercle would be expected.

The shaft is slender and narrows gradually, but only slightly from approximately 7 mm at the proximal end to approximately 5 mm at its mid-length. From there, it expands again towards the distal end, which seems to be anteroposteriorly flattened and expanded transversely (Figure 6), as in for example the dromaeosaurid Bambiraptor (Burnham, 2004), the enantiornithine Rapaxavis (O'Connor et al., 2011) or the ornithuromorphs Archaeorhynchus (Zhou et al., 2013) or Gansus (Wang et al., 2016). Whereas the lateral expansion is more gradual, the medial side has an abrupt, rounded expansion that starts some 6 mm proximal to the distal end forming a dorsal ulnar condyle (in Rapaxavis and Archaeorhynchus the distal end of the ulna has a gradual medial expansion and an abrupt lateral expansion; O'Connor et al., 2011; Zhou et al., 2013). In contrast, the distal ulna of Archaeopteryx seems to be less abruptly and more symmetrically expanded. The proximal end of the condylus dorsalis forms a small, anteromedially directed ridge, whereas the expansion flexes gradually into the distal side distally. The general shape of the distal ulna resembles that of the Late Cretaceous ornithurine Ichthyornis (Clarke, 2004: Figure 52C) and the posterior side of the ulna in modern birds, but it differs from the latter in the absence of a tuberculum carpale (Baumel and Witmer, 1993). The maximal distal expansion is 9 mm as preserved. The distal articular surface is gently rounded transversely, flexing higher proximally on the medial than on the lateral side (Figure 6). However, it is rather poorly preserved, so nothing can be said about its details.

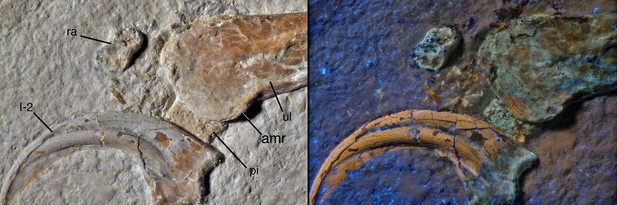

Distal end of ulna and proximal carpals of Alcmonavis poeschli in (A) normal and (B) ultraviolet light.

Abbreviations as in Figures 2 and 4 and: amr, anteromedial ridge. Scale bar is 5 mm.

https://doi.org/10.7554/eLife.43789.008

Radius

As in all theropods, the radius is more slender than the ulna (Figure 4), its minimal shaft width being 3 mm. The bone is straight, and its length cannot be established precisely, as the distal end is overlain by the metacarpus, but it is approximately 80–82 mm. The radius seems to be mainly exposed in medial view.

Although the shaft generally widens gently proximally, the proximal end is rather rapidly expanded to an anteroposterior width of c. 6 mm, with this abrupt expansion starting some 4 mm below the proximal end (Figure 7A). In contrast to the situation in Bambiraptor (Burnham, 2004), Anchiornis (Pei et al., 2017), Balaur (Brusatte et al., 2013), and Confuciusornis (Chiappe et al., 1999), but similar to Deinonychus (Ostrom, 1969), the anterior and posterior sides are almost equally expanded. The proximal articular end extends slightly more proximally posteriorly, where the articular surface is slightly convex and gradually curves into the posterior side of the shaft, whereas the anterior two thirds of the articular surface are gently concave.

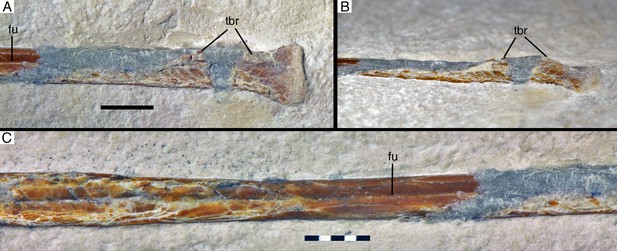

Radius of Alcmonavis poeschli.

(A) Proximal end as exposed in medial view. (B) Proximal end in oblique posteromedial view. (C) mid-shaft in medial view. Abbreviations: fu, longitudinal furrow; tbr, tuberculum bicipitale radii. Scale bars are 5 mm.

https://doi.org/10.7554/eLife.43789.009

An unusual feature of the proximal radius is a raised, medially directed crest on the anteromedial side of the shaft Figure 7A,B). This crest expands abruptly medially some 3.5 mm distal to the proximal articular surface and extends for at least 9 mm distally, before it obliquely disappears into the shaft (although the crest is damaged in parts, enough is preserved to establish its approximately shape and extent; Figure 7B). At its highest section, the crest extends at least 1.5 mm from the shaft medially. In position and general appearance, this crest corresponds to the tuberculum bicipitale radii of birds (Baumel and Witmer, 1993), and we thus interpret it as the insertion of the M. biceps brachii. In basal paravian theropods, a similar crest on the proximal radius has so far only been described in Bambiraptor (Burnham, 2004), but it is absent in Deinonychus (Ostrom, 1969), Pyroraptor (Allain and Taquet, 2000), Anchiornis (Pei et al., 2017), and Balaur (Brusatte et al., 2013). In Confuciusornis (Chiappe et al., 1999) and at least some specimens of Archaeopteryx (pers. obs.), a small tuberculum bicipitale radii is present, but it is triangular in shape and less pronounced than in SNSB- BSPG 2017 I 133 (see below).

The midsection of the radial shaft is more or less intact, showing a longitudinal groove running along the medial side of the shaft (Figure 7C). Such a groove is absent in Archaeopteryx, but has been described for some species of Enantiornithes (e.g., Chiappe and Walker, 2002; Sanz et al., 2002; Hu et al., 2015). A similar groove was also described for Jeholornis, but interpreted as the result of crushing (Lefèvre et al., 2014). However, as such groove is also present in other specimens of Jeholornis, including the holotype (Chiappe and Meng, 2016): 32, 36), this structure might be authentic. The shaft has its minimal width at about mid-length, from where it again gradually expands distally to a width of 4 mm at the point where the radius is overlain by the metacarpus. Nothing can be said about the morphology of the distal end of the bone, as it suffered severe damage.

Carpus

The carpus is represented by the semilunate carpal that is preserved in articulation with the metacarpus (Figure 4), two small bones preserved below the distal end of the ulna (Figures 6 and 8), and a very small element preserved in articulation with the proximal end of metacarpal III (Figures 8 and 9). In agreement with Botelho et al., 2014, the small element articulated with metacarpal III is interpreted as distal carpal 3. The other two carpals are poorly preserved, but probably represent the radiale, preserved a small distance away below the lateral side of the distal ulna, and the pisiforme (=ulnare; see Botelho et al., 2014), which is preserved directly below the medial side of the ulna and is partially covered by the first manual ungual.

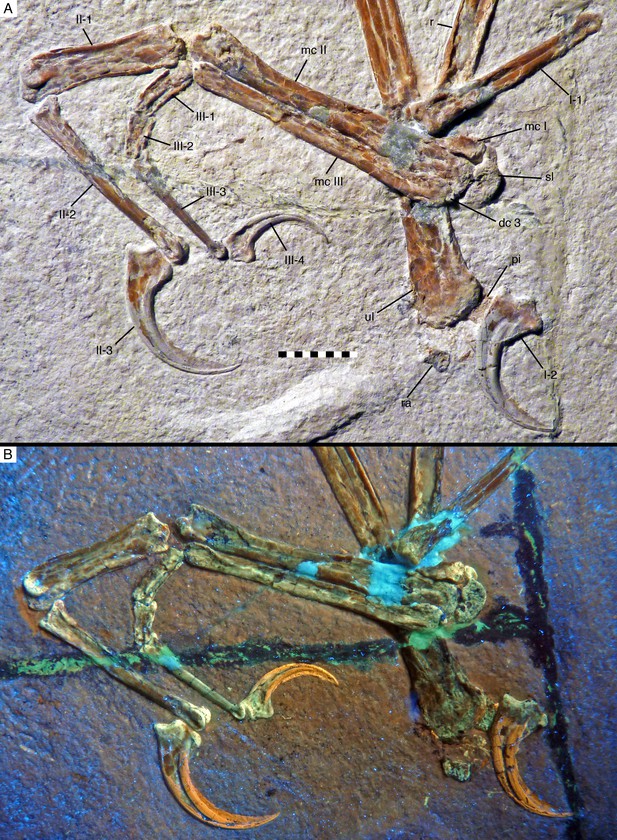

Manus of Alcmonavis poeschli in (A) normal and (B) ultraviolet light.

Abbreviations as in Figures 2 and 4, and: dc, distal carpal. Scale bar is 10 mm.

https://doi.org/10.7554/eLife.43789.010

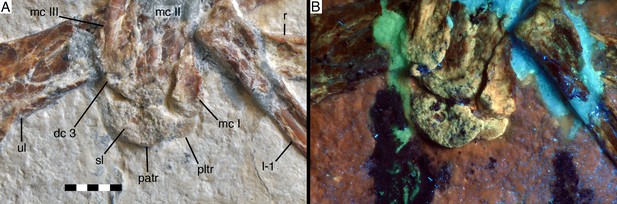

Distal carpals and bases of metacarpals of Alcmonavis poeschli in (A) normal and (B) ultraviolet light.

Abbreviations as in Figures 2, 4 and 8, and: patr, palmar trochlear ridge; pltr, plantar trochlear ridge. Scale bar is 5 mm.

https://doi.org/10.7554/eLife.43789.011

Both proximal carpals have a rather poorly defined, granular bone surface, probably indicating incomplete ossification (Figure 6). The radiale is a small element, maximally 4.3 mm wide and 2.8 mm deep. It is roughly trapezoidal in outline, has rounded edges, is slightly waisted, and tapers towards its medial(?) side. The exposed (distal?) surface is subdivided by an oblique ridge into two slightly angled facets, a larger, concave lateral(?) facet, presumably for the articulation with the trochlea of the semilunate carpal, and a smaller, triangular lateral facet towards the tapering edge, which might represent the attachment of a propatagial tendon (see Wang et al., 2017, for the presence of propatagia in maniraptoran theropods).

The pisiforme is slightly larger, being approximately 4.8 mm wide transversely (Figure 6). It is poorly preserved and partially overlapped by the distal ulna and the manual ungual I, so nothing can be said about its exact shape. However, the bone seems to have a triangular, posteroproximally tapering process at its posteroproximal corner, possibly for the attachment of the m. flexor carpi ulnaris (see Vazquez, 1994).

The semilunate carpal is considerably larger (Figures 8 and 9), being 6.4 mm wide transversely, and maximally 3.7 mm deep proximodistally on the palmar side. It is preserved in articulation with metacarpal II, but is separated from the latter by a clear sutural line and even slightly detached from metacarpal I on the palmar side, and was thus not fused into a carpometacarpus, similar to the situation found in non-avian Pennaraptora (Botelho et al., 2014), and other basal avialans like Archaeopteryx (Wellnhofer, 2009), Sapeornis (Zhou and Zhang, 2003a; Botelho et al., 2014) and Confuciusornis (Chiappe et al., 1999). The proximal articular surface is strongly convex transversely, with the medial side being more strongly convex than the lateral, so that the proximalmost point of the carpal is slightly placed medial to its mid-width (Figure 9). The distal side of the carpal is subdivided into a larger, gently concave lateral facet for the contact with metacarpal II and a much smaller, more strongly concave facet for metacarpal I. The plantar side of the semilunate carpal is exposed below the medial side of metacarpal I. It extends further medially than the palmar side, bordering the entire plantar medial expansion of the proximal articular surface of metacarpal I, as in Archaeopteryx and more basal paravians. Assuming a similar lateral expansion as the palmar side of the carpal, the plantar side is approximately 9.5 mm wide, but only 2.3 mm deep proximodistally at the point where the exposed section disappears below the palmar trochlea. The palmar ridge of the articular trochlea of the semilunate carpal is thus shorter and more strongly convex than the plantar ridge of the trochlea (Figure 9), as in other paravian theropods, such as Deinonychus (Ostrom, 1969), Bambiraptor (Burnham, 2004) and other taxa (see Xu et al., 2014). Plantar and palmar trochlear ridges seem to be separated by a deep transverse groove on the proximal articular surface. The lateral edge of the semilunate carpal overlaps half of the area of the proximal end of distal carpal three and metacarpal III, although the latter are offset distally from the carpus.

Distal carpal three is a very small, round nubbin of bone some 1 mm wide transversely and slightly less deep proximodistally, which is attached to the proximal end of metacarpal III.

Metacarpus

As in all maniraptorans, the metacarpus consists of three elements (Figure 8), which are here identified as metacarpals I-III, in agreement with the vast majority of works on theropods (but see Xu et al., 2009, for an alternative interpretation). The metacarpus is preserved in articulation and exposed in palmar view. Metacarpal II is notably more robust than either metacarpal I or III (Figure 8), with the width of its proximal shaft (c. 5 mm) being approximately twice that of metacarpal III (2.5 mm) and more than 185% of the width of the proximal articular surface of metacarpal I (2.7 mm). This differs from the more equal widths of metacarpal I and II in Archaeopteryx (e.g. Wellnhofer, 1974; Wellnhofer, 2008; Mayr et al., 2007), but also the less marked difference in other basal avialans, such as Sapeornis (Zhou and Zhang, 2003a) and Confuciusornis (Chiappe et al., 1999). In contrast, these proportions resemble the condition found in Jeholornis (Zhou and Zhang, 2002; Lefèvre et al., 2014).

Metacarpal I is unfortunately incompletely preserved, so that its exact length and maximum width cannot be established (Figures 8 and 9). However, the position of the proximal end of phalanx I-1 might indicate the distal end of this metacarpal, in which case it would have been little more than 7 mm long, or about 17–17.5% of the length of metacarpal II and thus relatively much shorter than in Archaeopteryx (25–31%). The proximal articular surface of metacarpal I is 3 mm wide transversely and semilunate in outline, with a plantar-palmarly expanded lateral side and a transversely expanded plantar side (Figure 9). As the plantar side is embedded in the sediment, it cannot be said whether a plantar process is present laterally, as it is the case in the dromaeosaurids Deinonychus (Ostrom, 1969) and Bambiraptor (Burnham, 2004). The mediopalmar side of the proximal end shows a notable depression, distal to which the medial margin seems to have been somewhat expanded, but is broken off. The lateral side of metacarpal I is closely appressed to metacarpal II over its entire preserved length, and the proximal part of the palmar side forms a small lateral flange that overlaps the mediopalmar edge of metacarpal II (Figure 9). The distal condyles are broken off, so nothing can be said about the structure of the distal articulation.

Metacarpal II is massive, apparently subrectangular in cross-section and largely straight, with only the distal articular end being very slightly flexed (Figure 8). The exact width of the proximal end is difficult to measure, as its palmar side is partially overlapped by flanges of metacarpals I and III, but it is approximately 5.8 mm. From there, the bone gradually tapers over its proximal two thirds to a minimal width of 3.2 mm some 25 mm from the proximal end, distal to which it expands again slightly. The distal end is slightly flexed medially and exposed somewhat obliquely, and has a maximal width of approximately 4.7 mm. The palmar surface of the distal end is collapsed, but the distal articulation was obviously strongly ginglymoidal, with a lateral condyle that is slightly wider and more distally expanded lateral than the medial condyle, which are separated by a marked, broad groove (Figure 10A,B). A shallow collateral extensor depression is present on the obliquely exposed lateral side of the distal end.

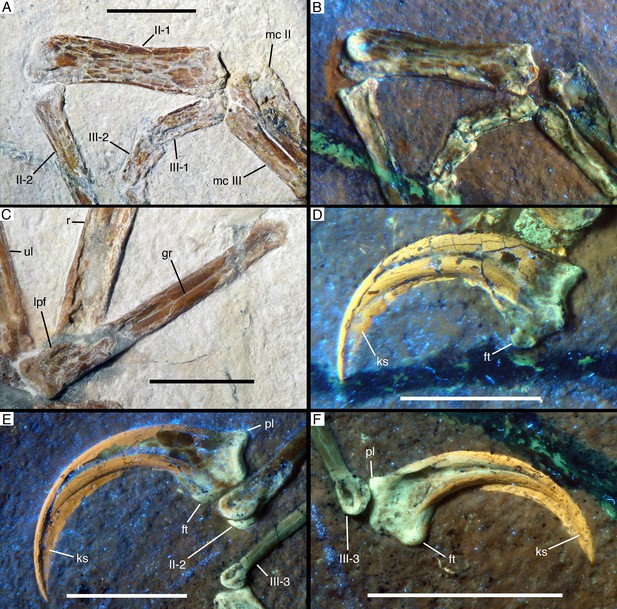

Manual phalanges of Alcmonavis poeschli.

(A) and (B) Distal ends of metacarpals II and III and proximal phalanges of digits II and III in normal (A) and ultraviolet (B) light. (C) First phalanx of first digit in medial view. (D) Ungual phalanx of digit I in medial view under ultraviolet light. (E) Ungual phalanx of digit II in medial view under ultraviolet light. (F) Ungual phalanx of digit III in lateral view under ultraviolet light. Abbreviations as in Figure 2, and: ft, flexor tubercle; gr, groove; ks, keratinous sheath; lpf, lateropalmar flange; pl, proximal lip. Scale bars are 1 cm.

https://doi.org/10.7554/eLife.43789.012

Metacarpal III is slender and slightly shorter than metacarpal II. The bone is straight and closely appressed to metacarpal II over its entire length (Figure 8), as in most basal paravian theropods, but unlike the flexed third metacarpal with a well-developed spatium intermetacarpale in most modern birds and some basal avialans, such as Jeholornis (Zhou and Zhang, 2002; Zhou and Zhang, 2003b; Lefèvre et al., 2014). The proximal end is displaced distally by slightly more than 1 mm from the level of the proximal end of metacarpal I and II, as in oviraptorids (Longrich et al., 2010; Balanoff and Norell, 2012), dromaeosaurids (Lü and Brusatte, 2015), Archaeopteryx (Elzanowski, 2002; Mayr et al., 2007), confuciusornithids (e.g. Zhang et al., 2008), enantiornithines (e.g. Zhang et al., 2013), and more derived birds. The proximal end has a medially flared, rounded flange that overlaps the lateropalmar edge of metacarpal II and thus reaches a maximal transverse width of 4 mm (Figure 9). The flange disappears into the shaft some 4 mm from the proximal end, distal to which the shaft is 2.7 mm wide. The shaft remains of subequal width over most of its length, tapering only very slightly and reaching a minimal width of 2.4 mm some 5 mm from the distal end. Distally, the bone expands slightly again, mainly due to a rounded mediopalmar flange, to a maximal distal width of 2.9 mm. The distal articular surface is not ginglymoidal, but convex transversely, with a palmar depression between the slightly more massive lateral side of the articular surface and the mediopalmar flange (Figure 10A,B).

Digits

The hand of the new specimen shows the typical theropodan phalangeal formula of 2-3-4 (Figure 8), with digit II being by far the longest of the three digits, followed by the subequal digit I (65% of the length of digit II) and digit III (64% of the length of digit II). Considering isolated phalanges, phalanx I-1 is the longest manual phalanx, being only very slightly longer (28.5 mm) than phalanx II-2 (28 mm).

Phalanx I-1 is long, slender, and slightly bowed, being convex plantarly (Figure 10C). The phalanx seems to be higher than wide (although this might be exaggerated by compression), and its length is approximately 6.5 times its proximal height. The proximal articular end is poorly preserved, but it seems to have been narrow and weakly ginglymoidal. On the palmar side of the proximal end a notable round tubercle probably marks the insertion of a flexor tendon. Directly distal to the proximal articular end, a short, but stout lateropalmar flange seems to have been present (Figure 10C). At mid-shaft, the phalanx seems to have a shallow longitudinal lateral groove, similar to, but less developed than in Ostromia (Foth and Rauhut, 2017); however, as this groove is only apparent in the mid-section of the shaft, and the bone has generally suffered from strong compression, collapsing both the proximal and distal part, some uncertainty remains if this groove represents an original feature or an artefact of preservation. Interestingly, however, such a groove is not present in any of the other manual phalanges, but a similar structure is present in the also apparently uncrushed mid-shaft of the radius, and we thus tentatively regard this feature as a true character of this phalanx. The distal articular end of phalanx I- one is ginglymoidal, with the palmar side of the articular facet extending considerably further proximally than the plantar side. A well-developed collateral ligament pit is present and displaced plantarly from the mid-height of the distal end.

The ungual of the first digit (Figure 10D) is slightly smaller than the ungual of digit II, as in Anchiornis (Hu et al., 2009) and Archaeopteryx (Wellnhofer, 2008; Wellnhofer, 2009), whereas ungual I is larger than that of the second digit in more basal tetanurans (e.g. Allosaurus: Gilmore, 1920; oviraptorosaurs: Clark et al., 1999; Balanoff and Norell, 2012; Deinonychus: Ostrom, 1969), but also in Sapeornis (Zhou and Zhang, 2003a) and Confuciusornis (Chiappe et al., 1999). The ungual of the first digit is strongly curved, with the tip of the bony claw being placed approximately 5.6 mm below the proximal articular facet, when the latter is oriented perpendicular. The proximal end has a maximal height of 7.2 mm, of which 3.9 mm are accounted for by the proximal articular facet, whereas the rest forms the very strongly developed flexor tubercle. The latter expands downwards from the articular surface to form a rounded palmar tubercle, the distopalmar extremity of which is expanded transversely into a small, triangular lateral tubercle. Distally, the flexor tubercle fades into the palmar margin of the ungual. When the proximal articular end is oriented perpendicular, the plantar margin of the ungual arches slightly upwards in its proximal part, as in most coelurosaurs, but in contrast to more basal theropods. A plantar lip at the proximal end of the ungual is absent. The ungual has a single, more or less centrally placed claw groove, palmar to which the bone is considerably wider transversely than on the plantar side. The palmar margin of the bony ungual is notably flattened, with the claw showing its greatest transverse width where the lateral side flexes into the palmar side, and tapering slightly towards the claw groove. The keratinous sheath of the claw is well preserved and largely hides the distal end of the bony ungual. It extends the length of the claw for approximately one third of the length of the bony element (measuring the maximum straight length of the ungual) and follows the curvature of the latter, so that the distal end of the sheath is placed approximately 9.5 mm below the proximal articular facet when the latter is oriented vertically.

In the second digit, the first phalanx is shorter (c. 81%) than the second phalanx, as in all theropods. However, the first phalanx of the second digit, which is exposed in palmar view, is strikingly robust, being by far the most robust phalanx of the manus (Figures 8 and 10A,B), as it is the case in Sapeornis (Provini et al., 2009; Gao et al., 2012), Confuciusornis (Chiappe et al., 1999) and more derived avialans, whereas this phalanx is only slightly more robust than phalanx II-2 in Archaeopteryx (Mayr et al., 2007; Wellnhofer, 2008; Wellnhofer, 2009) and more basal theropods. Thus, with a maximal transverse width of 5.5 mm, the proximal end of phalanx II-1 is more robust than the distal end of its respective metacarpal, and the bone narrows only slightly to a minimal width of 4.4 mm just distal to its mid-length. Although the phalanx is compressed, the preserved width seems to reflect the true width of the element, as indicated by the fitting articulation with metacarpal II. In contrast to the condition in more derived birds, but as in Sapeornis (Provini et al., 2009) and Confuciusornis (Chiappe et al., 1999), the phalanx is not flattened but seems to have been rather robust, although it is largely collapsed. The proximal end of the phalanx has two well-developed, concave articular facets separated by a median ridge, fitting with the ginglymoidal distal articular end of the second metacarpal (Figure 10A,B). In the shaft, the medial side of the bone is gently concave over its entire length, whereas the lateral side is slightly bulbously convex over its proximal third and becomes only slightly concave distally. The distal articular end of this phalanx is ginglymoidal, being somewhat twisted so that the palmar condyles face slightly lateropalmarly (Figure 10A,B), which is furthermore slightly exaggerated by compression. The articular end thus consists of two well-rounded condyles separated by a notable groove. A shallow collateral ligament depression is present on the medial side of the end, being slightly displaced palmarly from the mid-height of the bone.

Phalanx II-2 is long, slender, and slightly flexed, being convex on the plantar side; it is exposed in medial view. The proximal end is 4.4 mm high plantar-palmarly and seems to have been narrow transversely, although this is certainly exaggerated by compression. The proximal articular end is concave. The height of the bone diminishes rapidly directly distal to the articular end, and then more gradually to a minimal value of 2.7 mm approximately two-thirds of the length of the bone from the proximal end. From here, the bone expands slightly again towards the strongly ginglymoidal distal articular end. The latter is very similar to the distal articular end of phalanx I-1 in extending further proximally on the palmar side and having a well-developed, plantarly displaced collateral ligament pit (Figure 10E).

The ungual of the second digit (Figure 10E) is slightly longer proximodistally than the ungula of digit I, but less strongly curved, so that the distal tip of the bony ungual is placed 5.5 mm below the articular facet. The flexor tubercle is slightly more offset distally from the proximal end than in the first ungual and accounts for c. 3 mm of the maximal proximal height of 6.6. mm. Furthermore, in contrast to ungual I this element shows a well-developed proximal lip on the plantar surface. Otherwise the ungual is similar to that of digit I, in having a transverse expansion of the palmar extremity of the flexor tubercle and a flattened palmar margin. The dorsal margin arches upwards from the articular end before the claw flexes downward again, as in the first ungual. The ungual sheath is also well preserved and extends to c. 13 mm below the proximal articular surface.

In digit III, the proximal two phalanges are shorter, taken together, than phalanx III-3 (Figure 8), as in maniraptoriforms generally (Rauhut, 2003). Of the two proximal phalanges, phalanx II-1 is considerably longer (c. 150%) than phalanx II-2, but both are poorly preserved (Figure 10A,B). Both phalanges are strongly compressed and collapsed, but the transverse width of phalanx III-1 can be estimated to be approximately 1.5 mm, or only about 25–30% that of the maximal width of phalanx II-1. Both phalanges seem to have been ginglymoidal, but nothing can be said about any morphological details. Phalanx III-3 is long and slender but straight, not flexed as it is the case in phalanges I-1 and II-2. The proximal end is poorly preserved but was approximately 2.5 mm high plantar-palmarly. From this end, the phalanx gradually tapers to a minimal height of 0.9 mm just proximal to the expansion of the ginglymoidal distal articular end. The latter is again generally similar to the distal ends of phalanges I-1 and II-2, being more narrow on the plantar than on the palmar side (Figure 10E).

The ungual of digit III (Figure 10F) is by far the smallest of the manual unguals, as in most theropods. It is also less markedly curved than the other unguals, with the tip of the bone being placed approximately 2.4 mm below the articular facet. The flexor tubercle is proximally placed and similarly pronounced as in the first ungual and accounts for c. 2.2 mm of the maximal proximal height of 4.6 mm of the bone. In other characters, such as the upward arching proximal flexure of the claw, the singly claw groove, and the flattened palmar margin, the ungual is similar to the other manual unguals. This is also true for a transverse expansion of the distopalmar extremity of the flexor tubercle, further indicating that this represents the original condition and does not stem from compression or deformation. As in the other unguals, the sheath extends the ungual for slightly more than one third of the length of the bony element, and its tip is placed c. 5.2 mm below the proximal articular facet.

Discussion

Taxonomic identification of SNSB-BSPG 2017 I 133

Traditionally, all paravian specimens from the late Kimmeridgian - early Tithonian laminated limestones of southern Germany have been identified as Archaeopteryx, and this would thus be an obvious identification for the new specimen as well. However, as noted in the introduction, recent discoveries of basal paravian and even avialan theropods, also from the Jurassic, have made the distinction of Archaeopteryx from other basal avialans (and some small, more basal paravians, such as Microraptor) difficult, and there is no reason for an a priori assumption that all paravian specimens from this area should represent a single genus or even a single lineage (Foth and Rauhut, 2017). Unfortunately, neither the recent diagnosis of the genus Archaeopteryx by Rauhut et al. (2018) nor that by Kundrát et al. (2019) includes any forelimb characters, and due to the great similarity of the forelimbs of many non-ornithothoracan paravians, detailed comparisons are necessary to approach the taxonomic identity of SNSB-BSPG 2017 I 133. These comparisons are further complicated by the fact that the forelimb bones in almost all specimens of Archaeopteryx, and many other relevant taxa known from flattened specimens in matrix slabs, are exposed in dorsal view, while they are exposed in ventral view in the current specimen.

Another problem in comparing the new specimen with specimens of Archaeopteryx is that it is considerably larger in size than any of the other specimens (Table 1, see Mayr et al., 2007 and Rauhut et al., 2018 for comparison). Thus, based on comparisons of the length of the ulna, the only long bone that can be measured with certainty, the new urvogel specimen is more than 220% of the size of the smallest known Archaeopteryx, the Eichstätt specimen, and still c. 111% the size of the largest specimen, the Solnhofen specimen. Compared with the only Archaeopteryx known from the Mörnsheim Formation, the ulna of SNSB-BSPG 2017 I 133 is almost 175% of this specimen. Thus, possible allometric and/or ontogenetic changes have also to be taken into account. This is not only true for proportions, as muscle insertion areas often also become more conspicuous with age and size in vertebrates (e.g. Hübner, 2010).

Table 1
Measurements of the right forelimb of Alcmonavis poeschli.

All measurements in millimetres. Length of unguals is given as maximal length measured in a straight line from proximal articulation to tip.

https://doi.org/10.7554/eLife.43789.013
ElementLengthElementLength
Humerus90 (estimated)Phalanx II-122.8
Ulna82Phalanx II-228
Metacarpal I7.1 (estimated)Ungual II17.5
Metacarpal II40.9Phalanx III-18.8
Metacarpal III36.8Phalanx III-25.9
Phalanx I-128.5Phalanx III-317.9
Ungual I16Ungual III11

As far as proportions can be evaluated, the new specimen is generally closely comparable to specimens that can certainly be identified as Archaeopteryx, especially in the ratio of the (estimated) length of humerus versus ulna, ulna versus maximal length of metacarpus, and metacarpal II versus length of various phalanges. However, the significance of this similarity is unclear, as these proportions are also comparable in a wide variety of other basal paravians, including Anchiornis, Sapeornis, and, at least for several of these ratios, also Microraptor (Hwang et al., 2002; Pei et al., 2014). Interestingly, however, differences in proportions are found in a few ratios (see Table 2), most notably in the length of the manual unguals. When compared to the ulna length, manual unguals are relatively smaller than in specimens of Archaeopteryx. This is most marked in comparison with unguals I and III of the largest specimen of Archaeopteryx, the Solnhofen specimen: although, as noted above, the ulna of this specimen is about 10% shorter than that of SNSB-BSPG 2017 I 133, its unguals I and III are even slightly longer than in the new specimen.

Table 2
Comparison of skeletal proportions of specimens of Archaeopteryx and the new Mühlheim specimen (bold).
https://doi.org/10.7554/eLife.43789.014
SpecimenPI-1/UlnaPiii-1/PI-1Pii-1/PI-1Pii-2/PI-1Digit I/Digit IIUI/UlnaUii/PII-1PIII-2/UlnaPiii-2/PIII-1
 Eichstätt*0.4220.2460.6560.942NANANA0.0600.458
 Thermopolis0.3830.2500.6560.9540.6990.2100.9220.0830.875
 Munich0.3770.2980.6250.9000.7510.2040.8400.0750.800
 Berlin0.383NA0.7120.9020.6820.2080.9150.0710.625
 LondonNA0.282NANANANANANANA
 Solnhofen0.3780.3120.6790.9640.7130.2260.8790.0820.772
 Daiting0.382NANANANANANANANA
 Altmühl0.3730.2750.7980.8410.7050.2270.8060.0850.828
 SchamhauptenNANANANANANANANANA
 Maxberg0.4030.2800.7600.880NANANA0.0810.714
 Ottmann and Steil0.3630.2800.7330.933NANANA0.0810.794
 Mühlheim0.3480.3090.8000.9820.6520.1950.7680.0720.670
T value*6.323−3.996−4.684−4.598NANANA1.7831.330
p value*0.0000.0050.0020.002NANANA0.1180.225
T value8.038−3.642−3.988−4.3735.0684.1704.7224.1463.324
p value0.0000.0110.0070.0050.0070.0140.0090.0060.016

Based on a one-sample t test (see Table 2), the new specimen differs significantly from Archaeopteryx in the following ratios: manual phalanx I-1 vs. ulna, manual phalanx II-1 vs. manual phalanx I-1, manual phalanx II-2 vs. manual phalanx I-1, manual phalanx III-1 vs. manual phalanx I-1, manual ungual II vs. manual phalanx II-1, and manual digit I vs. manual digit II. When the juvenile Eichstätt specimen is excluded the ratios of manual phalanx III-2 vs. ulna, and manual phalanx III-2 vs. manual phalanx III-1 are also significant different from each other. A further significant difference from specimens of Archaeopteryx might be the length of metacarpal I, which seems to be considerably shorter in the new specimen, under the assumption that the position of the proximal end of the first manual phalanx indicates the length of this bone. However, as the distal end of metacarpal I is not preserved, this cannot be established with any certainty.

Likewise difficult to establish are probable differences in relative robusticity of structures in comparison with Archaeopteryx, mainly because of the strong compression of the new specimen. One striking feature of the new specimen is the width of the deltopectoral crest of the humerus, which seems to considerably exceed the width of the humeral shaft, similar to Confuciusornis (Chiappe et al., 1999) and Ichthyornis (Clarke, 2004). This is an unusual feature not seen in specimens of Archaeopteryx, but some uncertainty remains due to the strong compression of the bone. Also unusual in the humerus is the angle at which the proximal part that bears the deltopectoral crest is offset from the distal shaft (Figure 11). This angle is below 30° in dromaeosaurids, such as Microraptor (Hwang et al., 2002; Pei et al., 2014), Zhenyuanlong (Lü and Brusatte, 2015), and Deinonychus (Ostrom, 1969), and most specimens of Anchiornis (Hu et al., 2009; Pei et al., 2017), and varies between 30° and 33° in specimens of Archaeopteryx (Figure 11B–D; see Wellnhofer, 2008, Wellnhofer, 2009). However, this angle is 38° in the Mühlheim specimen, which is close to Confuciusornis (36°: SNSB-BSPG 1999 I 15; 38°: JME 1996/15, 1997/1; Figure 11H) and some other more derived avialans such as Sulcavis (O’Connor et al., 2013), Archaeorhynchus (e.g. Zhou et al., 2013), Yanornis (Zhou and Zhang, 2001) or Gansus (Wang et al., 2016).

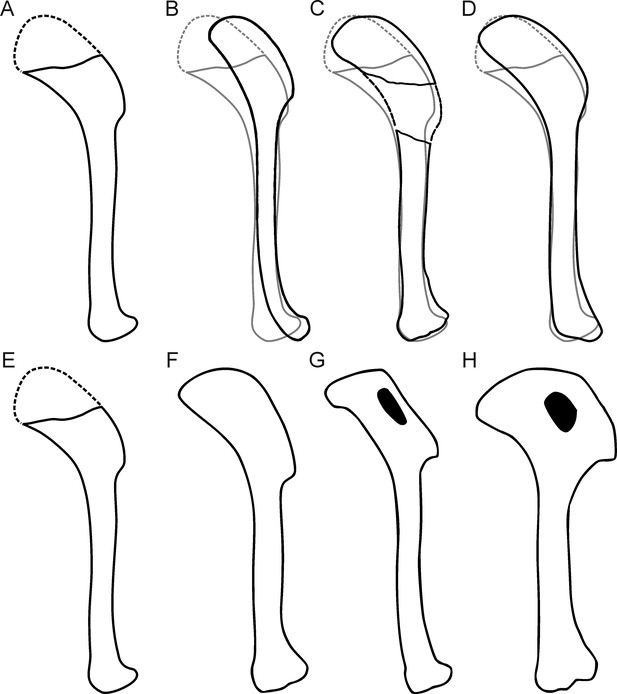

Comparison of humeral shape in some Mesozoic birds.

(A, E) Alcmonavis. (B–D) Archaeopteryx with humeral shape of Alcmonavis shown in grey. (B) Berlin specimen. (C) Solnhofen specimen. (D) Daiting specimen. (F) Jeholornis. (G) Sapeornis. (H) Confuciusornis. (B, C) modified after Wellnhofer, 2008. (F–H) modified after Wang et al., 2016.

https://doi.org/10.7554/eLife.43789.015

In the manus, the extreme robusticity of metacarpal II in comparison with the other metacarpals is striking. As noted in the description, the proximal part of this metacarpal is almost twice as wide as the proximal articular surface of metacarpal I. However, this metacarpal is not only robust in comparison to the other metacarpals, but also in itself: whereas the length of metacarpal II exceeds ten times the maximal width of the bone in specimens of Archaeopteryx, it is only around 8.2 times the maximal width of this element in SNSB-BSPG 2017 I 133 (see Figure 12C,E). As the metacarpus is preserved in articulation, it seems very unlikely that this robusticity of metacarpal II is entirely due to preservation, and thus probably represents a true difference of the new specimen from specimens of Archaeopteryx (Figure 12). On the other hand, this feature resembles the condition of many basal birds from the Jehol Group, for example Jeholornis (Zhou and Zhang, 2002; Lefèvre et al., 2014) and Archaeorhynchus (Zhou et al., 2013), which highlight the transition of an individual metacarpal II to the major element of the fused capometacarpus of modern birds.

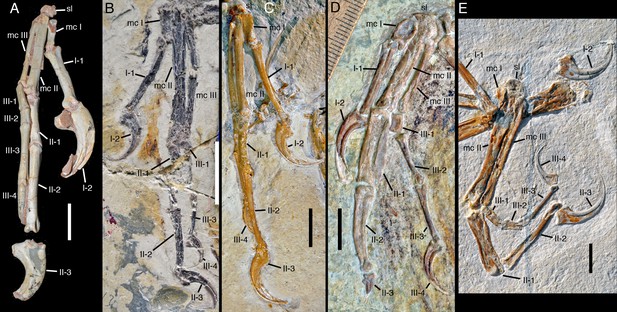

Mani of several paravian theropods for comparison with Alcmonavis.

(A) Right manus of Velociraptor mongoliensis (IGM 100/982) in plantar view. (B) Left manus of Microraptor gui (IVPP V 13352) in plantar view. (C) Right manus of the Thermopolis specimen of Archaeopteryx in planto-medial view. (D) Left manus of Confuciusornis sanctus (JME 2005/1) in palmar view. (E) Right manus of Alcmonavis poeschli in palmar view. Abbreviations as in Figure 2. Scale bars are 20 mm (A) and 10 mm (B–E).

https://doi.org/10.7554/eLife.43789.016

Another element in the manus that is remarkably robust is the first phalanx of the second digit. In non-avialan paravians and specimens that can securely be referred to Archaeopteryx (e.g. Figure 12A–C), this phalanx is only slightly more robust than phalanx II-2 or III-1 (e.g. 1.25 times the width of phalanx II-2 at the proximal shaft in the Berlin specimen), but it is more than 1.7 times the width of the widest part of phalanx II-2 and more than twice the width of phalanx II-1 in the Mühlheim specimen. This pronounced robusticity of phalanx II-1 in comparison with Archaeopteryx (and more basal paravians) probably represents an apomorphic character shared by SNSB-BSPG 2017 I 133 and more derived avialans, as a widened phalanx proximalis digiti majoris is a general character of avialans more derived than Archaeopteryx, and is present e.g. in basal forms, such as Jeholornis (Lefèvre et al., 2014), Sapeornis (Yuan, 2008; Provini et al., 2009), Chongmingia (Wang et al., 2016), and Confuciusornis (Figure 12D; Chiappe et al., 1999). The phalanx in the Mühlheim specimen is plesiomorhic in comparison to most more derived avialans (i.e., Ornithothoraces) in that it is not dorsoventrally flattened, but seems to be rather robust also in this plane. In this respect it is similar to the robust phalanx in Jeholornis (Lefèvre et al., 2014), Sapeornis (Yuan, 2008; Provini et al., 2009) and Confuciusornis. In the latter, this element is dorsoventrally robust at least along its anterior edge, whereas the posterior edge is somewhat flattened (Figure 12D; SNSB-BSPG 1999 I 15, JME 1997/1, 2005/1).

Apart from these morphometric differences, there are also several qualitative characters that differ between the new specimen and specimens of Archaeopteryx. One of these characters concerns the insertion of the m. pectoralis on the deltopectoral crest of the humerus. This facet is not especially marked, or only indicated by slight thickening of the apex of the crest in most non-avialan theropods. In Archaeopteryx, the anterior side of the deltopectoral crest is only exposed in the London, Thermopolis and, partially, the Maxberg specimens (pers. obs.; see de Beer, 1954; Heller, 1959; Mayr et al., 2007; Wellnhofer, 2008; Wellnhofer, 2009). Although the edge of the deltopectoral crest is slightly damaged in the London and Thermopolis specimens, it can be established that these specimens follow the general theropodan condition of not showing a marked facet (Figure 13). In contrast, SNSB-BSPG 2017 I 133 shows a well-developed, anteromedially inclined, elongate oval facet for the insertion of the m. pectoralis on the deltopectoral crest (Figure 3). Again, this character is present in many basal avialans from the Jehol group (e.g. Figure 14) and seems to be a derived character in comparison with Archaeopteryx (see below).

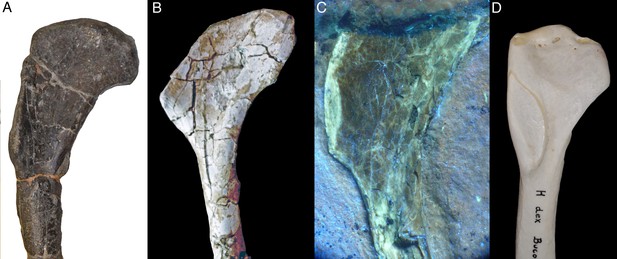

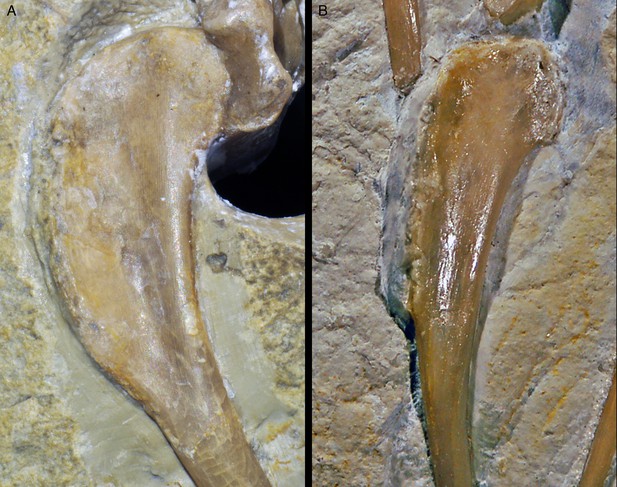

Proximal part of the humerus of specimens of Archaeopteryx in anteromedial view, showing the lack of a pronounced facet for the pectoralis muscle in this taxon.

(A) London specimen. (B) Thermopolis specimen.

https://doi.org/10.7554/eLife.43789.017
Shoulder region and proximal ends of both humeri of Sapeornis (JZT-DB 0047), showing the enlarged and medially inclined facet for the insertion of m.

pectoralis (arrows).

https://doi.org/10.7554/eLife.43789.018

Another striking feature of SNSB-BSPG 2017 I 133 is the development of the tuberculum bicipitale radii as a raised crest on the proximal radius. However, due to preservation the exact development of this tuberculum in specimens of Archaeopteryx is difficult to establish. Several specimens, including the Munich, Altmühltal and Ottmann and Steil ("chicken wing“) specimens show that this tuberculum is present in this taxon. Although a direct comparison of this structure is difficult due to preservation, these specimens seem to show a rounded to triangular expansion that is different from the crest-like, more rectangular tubercle in the new specimen. In those avialan specimens from the Jehol Group where this characters can be evaluated it varies between a triangular and crest-like state (Chiappe et al., 1999; Provini et al., 2009; Zhou et al., 2013).

If the interpretation of longitudinal furrows on the radius and phalanx I-1 as original features is correct, these are further differences from Archaeopteryx. As noted above, such furrows are observed in some other paravian theropods in variable elements (see e.g. Chiappe and Walker, 2002; Sanz et al., 2002; Hu et al., 2015; Foth and Rauhut, 2017; Xu et al., 2017), but the combination of such furrows in the radius and only one manual phalanx might be unique for SNSB-BSPG 2017 I 133. However, as such features might be easily overlooked, more studies of these morphologies are needed.

Finally, apart from being relatively smaller, the manual unguals also show differences from those of specimens of Archaeopteryx. Especially the shape, position and prominence of the flexor tubercle seems to differ. In general the flexor tubercles in the new specimen seem to be placed slightly more proximally than in specimens of Archaeopteryx and the tubercles are more pointed, that is the angle between their proximal and distal margin are sharper; this is especially marked in manual ungual II. Likewise, the transverse distopalmar expansion of the flexor tubercle, which is present in all three unguals of the Mühlheim specimen, is not present in specimens of Archaeopteryx.

The comparison with the anchiornithid Ostromia (Foth and Rauhut, 2017) is more difficult due to the fragmentary nature of both specimens. Most of the forelimb bones of Ostromia are actually preserved as imprints, so that only parts of the manus can be used for comparison. Like Ostromia, SNSB-BSPG 2017 I 133 seems to possess a longitudinal furrow along the manual phalanx I-1, a character that is also shared with Sinornithosaurus and Jianianhualong (Foth and Rauhut, 2017; Xu et al., 2017). However, Ostromia shows similar grooves also in manual phalanx III-3, while the corresponding element is smooth in Alcmonavis. Striking differences between Alcmonavis and Ostromia are present in the size and shape of the manual unguals. When compared to the length of the manual phalanx I-1, the first ungual of Ostromia is much smaller than that of Alcmonavis. In contrast, the third ungual is much smaller in Alcmonavis when compared to the size of the first ungual, while in Ostromia they almost have the same size. While some basal avialans like Jeholornis and Sapeornis from the Jehol Group show enlarged manual unguals, they also show a clear size reduction from manual ungual I to III (Zhou and Zhang, 2002; Zhou and Zhang, 2003a; Provini et al., 2009; Gao et al., 2012). The flexor tubercles of the manual unguals in Ostromia are much more distally displaced than in SNSB-BSPG 2017 I 133 (but also Archaeopteryx). As described above, the flexor tubercles of SNSB-BSPG 2017 I 133 are very prominent and pointed ventrally, while in Ostromia they are relatively low, forming a plateau-like ventral apex (see Wellnhofer, 2008: Figure 5.79B, C; Foth and Rauhut, 2017: Figures 3B and 4). Furthermore, like Archaeopteryx, Ostromia lacks the transverse distopalmar expansion of the flexor tubercle and a notably flattened palmar margin of the bony ungual. While the manual unguals of Confuciusornis, Jeholornis and Sapeornis still bear prominent flexor tubercles (Chiappe et al., 1999; Zhou and Zhang, 2002; Zhou and Zhang, 2003b), they become reduced within Ornithothoraces (e.g., Zhou et al., 2013).

In summary, despite the overall similarity and very similar proportions, the new specimen shows numerous small differences from Archaeopteryx, precluding a referral to this taxon. Several characters, including the markedly concave proximal articular surface of the ulna, the very massive phalanx II-1 and the marked, anteromedially inclined facet for the attachment of the m. pectoralis in the humerus, are shared with more derived avialans, and indicate that the Mühlheim specimen represents a third, phylogenetically slightly more crownward taxon of avialans from the Tithonian limestones of southern Germany. From the description and comparisons of the specimen it is furthermore clear that SNSB-BSPG 2017 I 133 also cannot be referred to Ostromia or to any other known theropod taxon. We thus opt to describe this rather incomplete specimen as a new genus and species of 'Urvogel'.

Systematic palaeontology

Theropoda Marsh, 1881

Maniraptora Gauthier, 1986

Avialae Gauthier, 1986

Alcmonavis poeschli gen. et sp. nov.

urn:lsid:zoobank.org:act:668F42B6-5BDC-4ADF-B271-36C6A43C7DB3

Etymology

From Alcmona, the old Celtic name of the Altmühl River, which flows through the principal region in which the famous ‘Solnhofen limestones’ are exposed, and avis, from the Greek ‘aves’ for bird. The species name honours Roland Pöschl, who leads the excavations at the Schaudiberg and found the specimen.

Holotype

SNSB-BSPG 2017 I 133, an almost complete, partly disarticulated skeleton of the right wing (Figure 2, see Tab. 1 for measurements of SNSB-BSPG 2017 I 133).

Locality and horizon

Old Schöpfel Quarry at the Schaudiberg, Mühlheim, close to Mörnsheim, Bavaria. Mörnsheim Formation, moernsheimensis ammonite horizon of the Hybonotum zone of the Early Tithonian. The specimen comes from a thin layer of marly laminated limestone some 6 m above the contact with the underlying Altmühltal Formation.

Differential diagnosis

Alcmonavis poeschli differs from all other theropods (including birds) in the following combination of characters: humerus with large deltopectoral crest, with a maximal expansion that exceeds the width of the humeral shaft; proximal part of humerus strongly angled at approximately 38° in respect to distal shaft; ulna with well-defined, single, oval, concave proximal cotyla and small lateral tubercle; distal end of ulna slightly asymmetrically expanded; large, crest-like biceps tubercle on the proximal radius; longitudinal groove along the medial side of the radial shaft; metacarpal II considerably more robust than metacarpal I and III; phalanx I-1 with longitudinal groove; phalanx II-1 very robust, but with rounded, rather than flattened cross-section; phalanx II-1 slightly twisted; manual unguals with strongly developed and palmarly transversely expanded flexor tubercles.

Phylogenetic position of Alcmonavis

The phylogenetic analysis (see Materials and methods) resulted in more than 99,999 trees with a length of 2690 steps. The strict consensus (Figure 15—figure supplement 1) is rather well resolved and includes monophyletic Maniraptora, Paraves and Avialae with equivalent taxonomic contents to other recent analyses. Areas with lack of resolution include a polytomy between therizinosauroids, oviraptorosaurs and paravians, two larger polytomies at the base of Deinonychosauria, and a polytomy at the base of Ornithothoraces, as well as minor polytomies in the higher nodes or Alvarezsauridae, Oviraptorosauria, and Dromaeosauridae. Reduced consensus methods recovered a number of problematic taxa (Albinykus, Byronosaurus, Balaur, Citipati, Hesperonychus, Jinfengopteryx, Pyroraptor, Xixiasaurus, Yixianosaurus, and a Vorona-Liaoningornis clade), the a postiori pruning of which further increased resolution. In contrast to other recent iterations of this matrix (Foth et al., 2014; Foth and Rauhut, 2017), oviraptorosaurs and therizinosaurs were found in a monophyletic clade in the reduced consensus tree (Figure 15, Figure 15—figure supplement 1), as in several earlier phylogenetic analyses (e.g. Makovicky and Sues, 1998; Holtz, 2000; Rauhut, 2003; Turner et al., 2011), and the analysis recovered a monophyletic Deinonychosauria, including Troodontidae and Dromaeosauridae as sister groups, as in most analyses of coelurosaur interrelationships. Epidexipteryx, often considered to be a basal paravian (e.g. Turner et al., 2012; Godefroit et al., 2013a; Godefroit et al., 2013b; Xu et al., 2015) or even avialan theropod (e.g. Xu et al., 2011; Foth et al., 2014) is here recovered as a basal oviraptorosaur, as in Agnolín and Novas, 2013. As originally proposed by Csiki et al., 2010, Turner et al., 2012 and Brusatte et al., 2013, Balaur is placed within Dromaeosauridae in the current analyses and not at the base of Avialae (see Godefroit et al., 2013a; Foth et al., 2014; Cau, 2018; Foth and Rauhut, 2017). The controversial Late Jurassic paravians Anchiornis, Xiaotingia, Eosinopteryx, Pedopenna, and Ostromia were found as basal avialans (as in Godefroit et al., 2013b; Foth et al., 2014; Foth and Rauhut, 2017) but a monophyletic Anchiornithidae (as defined by Xu et al., 2016; see also Foth and Rauhut, 2017) is restricted to the genera Eosinopteryx, Ostromia and Anchiornis, whereas Pedopenna and Xiaotingia form sister taxa just basal to Archaeopteryx. The new taxon, Alcmonavis, was found crownwards to Archaeopteryx, thus representing the most derived avialan known from the Jurassic so far. The phylogenetic position of Alcmonavis is supported by four synapomorphic characters: char. 217, the distal humeral condyles are positioned on anterior surface (1); char. 562, the attachment for m. pectoralis on the deltopectoral crest of the humerus is marked as an elongate oval, anteromedially inclined facet on the mediodistal surface of the deltopectoral crest (1); char. 563, the proximal articular surface of the ulna is developed as an oval concavity with slightly raised rims (1); and char. 565, manual phalanx II-1 is strongly broadened, more than 1.5 times the width of phalanx II-2 and phalanges of digit III (1).

Figure 15 with 3 supplements see all

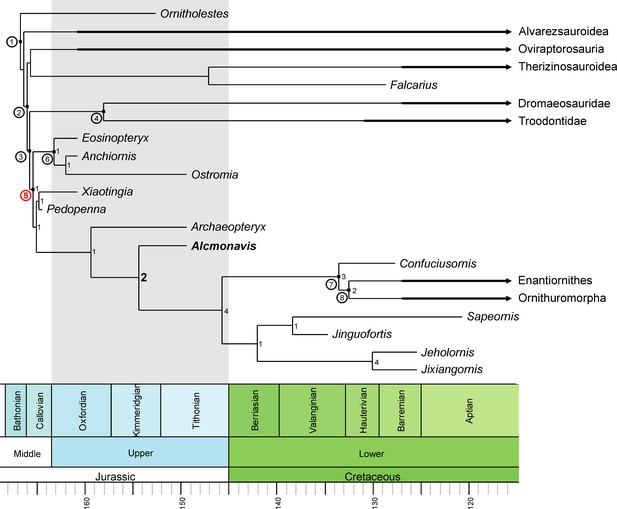

Phylogenetic position of Alcmonavis poeschli.

Time-calibrated, simplified reduced consensus tree resulting from an analysis of 136 taxa scored for 565 characters under equally-weighted parsimony (see text and supplementary material for details). Nodes with circuit numbers: 1, Maniraptora; 2, Pennaraptora; 3, Paraves; 4, Deinonychosauria; 5, Avialae; 6, Anchiornithidae; 7, Pygostylia; 8, Ornithothoraces. Bremer supports are shown for the clade Avialae.

https://doi.org/10.7554/eLife.43789.019

Clade support is low for most clades, as is expected in a matrix with numerous very incomplete taxa and an average amount of missing codings of c. 60%. However, whereas most clades have Bremer support values of 1, the phylogenetic position of Alcmonavis is supported by a Bremer value of 2 (Figure 15, 15—figure supplement 1). In order to evaluate support for some of the results relevant to the question of bird origins, we ran several constrained analyses. Both the monophyly of Anchiornithidae as proposed by Foth and Rauhut, 2017 and a position of troodontids closer to Avialae than to dromaeosaurids only requires one additional step, so neither of these possibilities can currently be excluded. Placing anchiornithids in Troodontidae, as argued by Hu et al., 2009 and subsequent authors, requires at least 10 additional steps, and placing both anchiornithids and Archaeopteryx in Deinonychosauria, as proposed by Xu et al., 2011 leads to trees that are 21 steps longer than the most parsimonious trees, making this arrangement rather unlikely. Concerning the phylogenetic position of Alcmonavis, both a placement below Archaeopteryx, and as sister taxon to the latter require four additional steps. Given that only 79 of 565 characters (less than 14%) can be coded for the new taxon, this difference indicates that the position retrieved for Alcmonavis is rather robust.

The implied weight analysis retrieved 405 equally parsimonious trees with a score of 114.762. The general results of this weighted analysis are similar to those obtained from the analysis under equal weights (Figure 15—figure supplement 3), with one notable exception: therizinosaurs are here recovered as the most basal clade of maniraptorans, followed by alvarezsaurids and then oviraptorosaurs, as in Senter, 2007. Most importantly, however, the weighted analysis supports the relationships between anchiornithids, Archaeopteryx, and Alcmonavis.

Implications for the early evolution of the avian wing

Alcmonavis shows several notable characters that might help to elucidate the early steps of the osteological evolution of the bird wing. Current discussions of the evolution of flight capabilities have focused on feather evolution and arrangement (e.g. Clarke et al., 2006; Chiappe et al., 2014; Foth et al., 2014; O'Connor et al., 2013; O'Connor et al., 2016; O’Connor and Chang, 2015; Sullivan et al., 2017; Saitta et al., 2018), whereas the flight musculature and its osteological correlates has received comparatively little attention recently, with the exception of the study of the shoulder girdle and supracoracoideus muscle of Mesozoic birds by Mayr, 2017.

The identification of several muscle attachment areas in the forelimb bones of Alcmonavis has implications for our understanding of the early evolution of avialan flight musculature. In recent birds, the most important flight muscles are the m. pectoralis (also named m. pectoralis major or m. pectoralis superficialis), which is the main muscle in the downstroke of the wing, and the m. supracoracoideus (m. pectoralis minor; m. pectoralis profundus), which lifts the forelimb and has an important role in the rotation of the humerus (Dial, 1992; Ostrom et al., 1999; Baier et al., 2007; Biewener, 2011; Tobalske, 2016). The supracoracoideus muscle attaches on the anterodorsal edge of the proximal humerus (on the tuberculum dorsale; Baumel and Witmer, 1993; see also Jasinoski et al., 2006); as this part of the humerus is not preserved in Alcmonavis, nothing can be said about this muscle in this taxon. More general discussions of the evolution of the supracoracoideus muscles can be found in Ostrom, 1976b, Ostrom et al., 1999, Baier et al., 2007 and Mayr, 2017. The deltopectoral crest and attachment area for the pectoralis muscle, is, however, generally well-preserved in the new taxon.

Dinosaurs in general are noteworthy for having a well-developed deltopectoral crest on anterolateral side of the proximal end of the humerus. This crest serves as attachment site for several proximal forelimb muscles that extend from the shoulder girdle to the humerus. In crocodiles, these muscles are mainly the m. coracobrachialis brevis, which attaches on a large area on the medial side of the crest, the m. deltoideus clavicularis, the attachment of which covers most of the lateral side of the crest, and the m. supracoracoideus, which attaches on the apex of the crest, whereas the m. pectoralis only has a rather small attachment on the mediodistal side of the crest, just below the apex (Meers, 2003). This general arrangement seems to have been retained in sauropodomorphs (Remes, 2008; Otero, 2018) and basal theropods (Burch, 2014). In more derived theropods, the attachment site of the pectoralis muscle is enlarged, but not specifically marked on the medial side of the deltopectoral crest (Jasinoski et al., 2006), whereas the apex of the crest, potentially still serving for the attachment of the supracoracoides muscle, might be slightly expanded transversely, as in Ornitholestes (pers. obs. on AMNH 619 by CF and OR; Figure 16A) and the basal paravian Mei (IVPP V 12733). In most basal paravians (Figure 16B) and Archaeopteryx, the deltopectoral crest is large, but thin, and lacks an enlarged and marked attachment area for the pectoralis muscle (London, Maxberg and Thermopolis specimens; Figure 13). In contrast, later avialans, such as Sapeornis (Figure 14; Provini et al., 2009), Jeholornis (Lefèvre et al., 2014), Jixiangornis (Chiappe and Meng, 2016), Confuciusornis (e.g. JME 1997/1; Chiappe et al., 1999), Enantiornithes (Walker et al., 2007), Ichthyornis (Clarke, 2004), and many modern birds (Figure 16D) have a well-developed, anteromedially facing facet for the insertion of this most important flight muscle on the mediodistal part of the deltopectoral crest. Alcmonavis also shows such a marked facet on the medial side of the deltopectoral crest (Figures 3 and 16C), which is smaller than in many modern birds, but comparable in development to the facet seen in Confuciusornis, Jeholornis, Jixiangornis and Sapeornis. This indicates an increase in importance of the pectoralis muscle in avialan evolution after Archaeopteryx.

Development of the deltopectoral crest and the facet for the pectoralis muscle in several theropods.

(A) Right humerus of the basal maniraptoriform Ornitholestes hermani (AMNH 619). (B) Left humerus (reversed for comparison) of the dromaeosaurid Unenlagia comahuensis (MCF PVPH 78). (C) Right humerus of Alcmonavis poeschli (under ultraviolet light; SNSB-BSPG 2017 I 133). (D) Right humerus of Bucorvus abyssinicus (northern ground hornbill; SNSB-BSPG unnumbered).

https://doi.org/10.7554/eLife.43789.023

Another marked muscle attachment in Alcmonavis is the tuberculum bicipitale radii on the proximal radius. This tubercle is the attachment site of one of the branches of the m. biceps brachii, which extends from its origin on the coracoid (and anterior side of the proximal humerus in many groups) to insert on the proximal ends of radius and ulna in amniotes generally (Remes, 2008). In most dinosaurs, the insertion of the m. biceps brachii on the proximal radius is only noted by a rugose patch, but no marked tubercle is present. In contrast, birds usually have a well-developed tubercle on the anteromedial side of the proximal radius, as it is also present in Alcmonavis (Figure 7A,B) and other Mesozoic birds (e.g. Confuciusornis, SNSB-BSPG 1999 I 15, Figure 15C; Sapeornis, Provini et al., 2009; Archaeorhynchus, Zhou et al., 2013). Although this structure has not been described in Archaeopteryx, a small, triangular tubercle can actually be identified in several specimens, including the Munich (Figure 17A), Altmühltal and Ottmann and Steil (Figure 17B) specimens. We could not identify this structure in any specimen of Anchiornis we have seen or that is illustrated in the literature, nor in any other anchiornithid. Outside avialans, a marked tuberculum bicipitale radii is only present in Microraptor (IVPP V 13352) and, apparently in hypertrophied form, in Bambiraptor (Burnham, 2004). Thus, with the exception of Bambiraptor, a marked tubercle for the insertion of m. biceps brachii seems only to be present in volant forms.

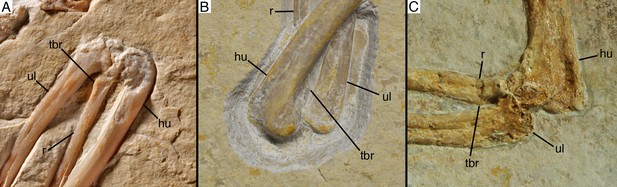

Development of the tuberculum bicipitale radii in basal avialan theropods.

(A) Right elbow joint of Archaeopteryx (Munich specimen). (B) Right elbow joint of the Ottmann and Steil specimen (probably Archaeopteryx). (C) Left elbow joint of Confuciusornis sanctus (SNSB-BSPG 1999 I 15). Abbreviations: hu, humerus; r, radius; tbr, tuberculum bicipitale radii; ul, ulna.

https://doi.org/10.7554/eLife.43789.024

Both the presence of a marked attachment area for the pectoralis muscle and the well-developed tubercle for the insertion of m. biceps brachii might thus have implications for the early evolution of flight. Whereas the role of the pectoralis muscle as the main downstroke muscle has been rather well studied, the function of other forelimb muscles, such as the m. biceps brachii, are less well understood (Biewener, 2011; Tobalske, 2016). As for the latter muscle, its primary function is usually considered to be the flexion of the forearm and the stabilization of the elbow joint, especially during the downstroke (Dial, 1992; Biewener, 2011; Robertson and Biewener, 2012). However, a recent study of muscle activity during flight in pigeons (Robertson and Biewener, 2012) also shows that this muscle has its highest activity patterns during take-off, indicating that it might be important for flapping take-off in modern birds in general.

The development of a pronounced tubercle for the insertion of the m. biceps brachii on the radius in volant basal avialans is thus consistent with the idea that these animals used a primitive form of flapping flight (Carney, 2016; Heers and Carney, 2017), probably starting as burst fliers, as recently suggested for Archaeopteryx by Voeten et al., 2018, based on cross-sectional geometry of the long bones of the forelimb. Thus, although a potential flight performance of the most basal avialans like Anchiornis is controversial (Evangelista et al., 2014; Dececchi et al., 2016; Pan et al., 2019), active flapping flight might have originated early within the lineage (see also Meseguer et al., 2012; Dececchi et al., 2016). If this primitive flapping flight was preceded by an intermediate gliding stage cannot be evaluated for the moment and requires more detailed studies on the ecology and life style of Anchiornis and its closest relatives. However, the appearance of a pronounced attachment site for the m. pectoralis and m. biceps brachii in Alcmonavis (in comparison with Archaeopteryx), a phylogenetically next step in the evolution towards modern birds, then possibly indicates an early improvement in flapping flight capabilities already in the Late Jurassic. This is also in accordance with the increased robusticity of metacarpal II and phalanx II-1, which form the digitus majoris in more derived birds, which serves as the attachment for the flight primaries.

Materials and methods

Materials

The primary specimen described here, SNSB-BSPG 2017 I 133, was discovered in the old Schöpfel Quarry at the Schaudiberg, near Mühlheim, by R. Pöschl in 2017. The specimen was mechanically prepared by U. Leonhardt and subsequently purchased by the State of Bavaria, where it will be permanently stored at the Bayerische Staatssammlung für Paläontologie und Geologie in Munich. Numerous specimens of paravian theropods were studied for comparison, including all other urvogel specimens from the Solnhofen Archipelago (the currently missing Maxberg specimen could only be studied on the basis of a high quality cast at the BSPG) and several specimens of anchiornithids and basal avialans from China.

Nomenclatural acts

Request a detailed protocol

The electronic edition of this article conforms to the requirements of the amended International Code of Zoological Nomenclature, and hence the new names contained herein are available under that Code from the electronic edition of this article. This published work and the nomenclatural acts it contains have been registered in ZooBank, the online registration system for the ICZN. The ZooBank LSIDs (Life Science Identifiers) can be resolved and the associated information viewed through any standard web browser by appending the LSID to the prefix ‘http://zoobank.org/”. The LSID for this publication is: urn:lsid:zoobank.org:act:668F42B6-5BDC-4ADF-B271-36C6A43C7DB3. The electronic edition of this work was published in a journal with an ISSN.

Anatomical nomenclature

Request a detailed protocol

In accordance with Wilson, 2006, we generally use the anatomical terms and orientation of bones as commonly used in the palaeontological literature on dinosaurs, rather than rigorously applying the skeletal terms proposed in the Nomina Anatomica Avium (Baumel and Witmer, 1993). However, the latter are used in respect to anatomical features that are typical for birds, but not present in non-avialan dinosaurs. Thus, we prefer the terms 'anterior' and 'posterior' over 'cranial' and 'caudal' (as the latter might be confused with anatomical regions of the skeleton), and refer to the different sides of long bones according to their orientation in the resting pose in a theropod dinosaur.

UV imaging of Alcmonavis poeschli

Request a detailed protocol

Many fossils from the Upper Jurassic plattenkalks of southern Germany are fluorescent under artificial ultraviolet light (UV) which allows a more precise investigation of morphological details of skeletal remains as well as of soft parts. Since each fossil fluoresces slightly differently, a variety of filters and high performance UV-A lamps is required for investigation and imaging (Tischlinger and Arratia, 2013; Tischlinger, 2015). For our investigation of the 13th urvogel we used different UV-lamps with wavelengths of 312 nanometers (UV-B) and 365–366 nm (UV-A).

During the UV pictorial documentation of the 13th urvogel best results were obtained with a wavelength of 365–366 nanometers (long-wave radiation, UV-A). The following UV lamps were used:

3 Benda UV lamps: type N, 16 Watt, UV-A, 366 nanometers (size of filter 200 mm x 50 mm);

1 Labino UV lamp: UV-Spotlight S135, 35 Watt, UV-A, peak at 365 nm: spotlight (>50.000 microwatts per cm² at 30 cm distance) plus midlight reflector replacement (>8.000 microwatts per cm² at 30 cm distance).

The visibility of details under UV was enhanced considerably by an established filtering technique, crucial for the photographic documentation. The application of different filters allowed a selective visualisation of peculiar fine structures. Color compensation filters (yellow, cyan and magenta of different types and densities) were adjusted in front of the camera lens or under the microscope objective lens (if pictures were taken through the microscope). The optimum number and specification of the compensation filters was tested in a series of experiments. The predominant color of luminescence was of minor importance. In fact, the crucial decision on the amount of filtering was the optimal visibility of details and their differentiation from surrounding structures and the matrix (Tischlinger and Arratia, 2013).

Phylogenetic analysis

Request a detailed protocol

In order to test the phylogenetic position of the new taxon, we included it in a modified version of the phylogenetic data matrix used in Foth and Rauhut, 2017. We furthermore checked codings for several taxa, added the recently described dromaeosaurid Zhenyuanlong (Lü and Brusatte, 2015), the troodontid Jianianhuanlong (Xu et al., 2017) and the avialan Jinguofortis (Wang et al., 2018) and four new characters. These characters are:

Character 562. Attachment for m. pectoralis on deltopectoral crest of humerus: not specifically marked, distal edge of deltopectoral crest might be slightly expanded (0); marked as an elongate oval, anteromedially inclined facet on the mediodistal surface of the deltopectoral crest (1). See discussion of this character above and Figures 14 and 16.

Character 563. Proximal articular surface of ulna: anteroposteriorly concave and flat or slightly convex transversely (0); developed as a round to oval concavity with slightly raised rims (1). In basal theropods and basal coelurosaurs, the ulna has a single proximal articular surface that is developed as an anteroposteriorly concave and transversely slightly convex to flat facet, in which the margins of the articular surface are not specifically marked (Figure 18A). Although the proximal end of the ulna is poorly exposed in the available specimens of Archaeopteryx, this also seems to be the condition in this taxon. In contrast, in birds, including Alcmonavis and other Mesozoic birds, such as Confuciusornis, there is a pronounced, round to oval concavity with slightly raised margins for the articulation with the ulnar condyle of the humerus (Figure 18B).

Proximal end of theropod ulnae, demonstrating character states for character 563.

(A) Left ulna of Coelurus fragilis (YPM 2010). (B) Left ulna of Confuciusornis sanctus (JME 1997/1) Scale bar is 10 mm in (A) and in mm in (B).

https://doi.org/10.7554/eLife.43789.025

Character 564. Tuberculum bicipitale radii on the proximal radius: absent or indistinct (0); pronounced as a marked tubercle or crest (1). See discussion of this character above and Figure 17.

Character 565. Manual phalanx II-1: not significantly broadened when compared to other manual phalanges (0); strongly broadened, more than 1.5 times the width of phalanx II-2 and phalanges of digit III (1). See discussion of this character above and Figure 12.

The complete matrix had 136 taxa scored for 565 characters (see supplementary files). The matrix was analysed using the software TNT 1.5 (Goloboff et al., 2008; Goloboff and Catalano, 2016) under equally weighted parsimony through a heuristic search of 10,000 replicates of Wagner trees followed by TBR branch swapping.

In order to further test the position of the new taxon, we ran a second analysis using implied weights (K = 12; Goloboff et al., 2018). This analysis was also carried out using TNT with 1000 replicates of Wagner trees followed by TBR branch swapping.

Statistics

In order to statistically evaluate the significance of differences in proportions, we performed one sample parametric t-test (all samples show normal distribution) for the ratios of metacarpal III/metacarpal II, manual phalanx I-1/ulna, manual ungual I/ulna, manual phalanx II-1/manual phalanx I-1, manual phalanx II-1/manual ungual II, manual phalanx II-2/manual phalanx I-1, manual phalanx III-1/manual phalanx I-1, manual phalanx III-2/ulna, manual phalanx III-2/manual phalanx III-1, manual phalanx III-3/manual phalanx III-2, and manual digit I/manual digit II, testing the Mühlheim specimen against those specimens that can be classified as Archaeopteryx based on the diagnosis provided by Rauhut et al., 2018. Ratios including metacarpal I were not included due to uncertainties in the length of the bone. The one sample t-test compares the value in question with the range of the comparative statistical population of Archaeopteryx to evaluate the probability that this value represents the same population. The test was performed with help of the software PAST 3.21 (Hammer et al., 2001).

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files.

The following previously published data sets were used
    1. Foth C
    2. Rauhut OWM
    (2017) MorphoBank
    Re-evaluation of the Haarlem Archaeopteryx and the radiation of maniraptoran theropod dinosaurs.

References

  1. Book
    1. Agnolín FL
    2. Novas FE
    (2013)
    Avian Ancestors. A review of the phylogenetic relationships of the theropods Unenlagiidae, Microraptoria, Anchiornis and Scansoriopterygidae
    Springer: Dordrecht.
  2. Book
    1. Albersdörfer R
    2. Häckel W
    (2015)
    Die Kieselplattenkalke von Painten
    In: Arratia G, Schultze H. -P, Tischlinger H, Viohl G, editors. Solnhofen – Ein Fenster in die Jurazeit. München: Verlag Dr. Friedrich Pfeil. pp. 126–133.
  3. Book
    1. Arratia G
    2. Schultze H-P
    3. Tischlinger H
    4. Viohl G
    (2015)
    Solnhofen – Ein Fenster in die Jurazeit
    München: Verlag Dr. Friedrich Pfeil.
  4. Book
    1. Baumel JJ
    2. Witmer LM
    (1993)
    Osteologia
    In: Baumel J. J, King A. S, Breazile J. E, Evans H. E, Vanden Berge J. C, editors. Handbook of Avian Anatomy (Second Edition). Cambridge: Nuttall Ornithological Club. pp. 45–132.
    1. Biewener AA
    (2011) Muscle function in avian flight: achieving power and control
    Philosophical Transactions of the Royal Society B: Biological Sciences 366:1496–1506.
    https://doi.org/10.1098/rstb.2010.0353
  5. Book
    1. Burnham DA
    (2004)
    New information on Bambiraptor feinbergi (Theropoda: Dromaeosauridae) from the Late Cretaceous of Montana
    In: Currie P. J, Koppelhus E. B, Shugar M. A, Wright J. L, editors. Feathered Dragons. Bloomington: Indiana University Press. pp. 67–111.
    1. Carney RM
    (2016)
    Evolution of the archosaurian shoulder joint and the flight stroke of Archaeopteryx
    Journal of Vertebrate Paleontology, Program and Abstracts 2016:110.
    1. Cau A
    (2018)
    The assembly of the avian body plan: a 160-million-year long process
    Bollettino Della Societa Paleontologica Italiana 57:1–25.
    1. Chiappe LM
    2. Ji S
    3. Ji Q
    4. Norell MA
    (1999)
    Anatomy and systematics of the Confuciusornithidae (Theropoda: Aves) from the late Mesozoic of northeastern China
    Bulletin of the American Museum of Natural History 242:1–89.
  6. Book
    1. Chiappe LM
    2. Walker CA
    (2002)
    Skeletal morphology and systematics of the Cretaceous Euenantiornithes (Ornithoraces: Enantiornithes
    In: Chiappe L. M, Witmer L. M, editors. Mesozoic Birds: Above the Heads of Dinosaurs. Berkeley: University of California Press. pp. 240–267.
  7. Book
    1. Chiappe LM
    2. Meng Q
    (2016)
    Birds of Stone
    Baltimore: Johns Hopkins University Press.
    1. Clark JM
    2. Norell MA
    3. Chiappe LM
    (1999)
    An oviraptorid skeleton from the Late Cretaceous of Ukhaa Tolgod, Mongolia, preserved in an avianlike brooding position over an oviraptorid nest
    American Museum Novitates 3265:1–36.
  8. Book
    1. de Beer GR
    (1954)
    Archaeopteryx lithographica: a study based upon the British Museum specimen
    London: The Trustees of the British Museum.
    1. Elzanowski A
    (2001)
    A new genus and species for the largest specimen of Archaeopteryx
    Acta Palaeontologica Polonica 46:519–532.
  9. Book
    1. Elzanowski A
    (2002)
    Archaeopterygidae (Upper Jurassic of Germany)
    In: Chiappe L. M, Witmer L. M, editors. Mesozoic Birds: Above the Heads of Dinosaurs. Berkeley: University of California Press. pp. 129–159.
    1. Gauthier JA
    (1986)
    Saurischian monophyly and the origin of birds
    Memoirs of the Californian Academy of Science 8:1–55.
    1. Gilmore GW
    (1920)
    Osteology of the carnivorous Dinosauria in the United States National Museum, with special reference to the genera Antrodemus (Allosaurus) and Ceratosaurus
    Bulletin of the United States National Museum 110:1–159.
    1. Hammer O
    2. Harper DAT
    3. Ryan PD
    (2001)
    PAST: paleontological statistics software package for education and data analysis
    Palaeontologia electronica 4:1–9.
    1. Heers A
    2. Carney RM
    (2017)
    Building a bird: a musculoskeletal model of the Archaeopteryx fligth apparatus
    Journal of Vertebrate Paleontology, Program and Abstracts 2017:127.
  10. Book
    1. Heilmann G
    (1926)
    The Origin of Birds
    London: H.F. & G. Witherby.
    1. Heller F
    (1959)
    Ein dritter Archaeopteryx-Fund aus den Solnhofener Plattenkalken von Langenaltheim/Mfr
    Erlanger Geologische Abhandlungen 31:1–25.
    1. Heyng AM
    2. Leonardt U
    3. Krautworst U
    4. Pöschl R
    (2011)
    Fossilien der Mörnsheim-Formation am Schaudiberg
    Fossilien Sonderheft 2011:22–35.
  11. Book
    1. Heyng AM
    2. Leonardt U
    3. Krautworst U
    4. Pöschl R
    (2015)
    Die Mörnsheimer Schichten am Schaudiberg
    In: Arratia G, Schultze H. -P, Tischlinger H, Viohl G, editors. Solnhofen – Ein Fenster in die Jurazeit. München: Verlag Dr. Friedrich Pfeil. pp. 137–152.
    1. Holtz TRJ
    (2000)
    A new phylogeny of the carnivorous dinosaurs
    Gaia 15:5–61.
    1. Hu H
    2. Zhou Z
    3. O’Connor JK
    (2014)
    A subadult specimen of Pengornis and character evolution in Enantiornithes
    Vertebrata Palasiatica 52:77–97.
    1. Hübner T
    (2010)
    Ontogeny in dysalotosaurus lettowvorbecki
    Unpublished PhD Thesis, Ludwig Maximilian University, Munich.
    1. Huxley TH
    (1868)
    On the animals which are most nearly intermediate between birds and reptiles
    Annals and Magazin of Natural History 4:66–75.
    1. Makovicky PJ
    2. Sues H-D
    (1998)
    Anatomy and phylogenetic relationships of the theropod dinosaur Microvenator celer from the Lower Cretaceous of Montana
    American Museum Novitates 3240:1–27.
    1. Mäuser M
    (1997)
    Der achte Archaeopteryx
    Fossilien 14:156–157.
    1. Meseguer J
    2. Chiappe LM
    3. Sanz JL
    4. Ortega F
    5. Sanz-Andrés A
    6. Pérez-Grande I
    7. Franchini S
    (2012)
    Lift devices in the flight of Archaeopteryx
    Spanish Journal of Palaeontology 27:125–130.
    1. Moser M
    2. Rauhut OWM
    (2011)
    Der Reusengebiss-Flugsaurier Ctenochasma
    Fossilien Sonderheft 2011:47–48.
  12. Book
    1. Neumeyer O
    (2015)
    Solnhofener Naturstein als Werkstoff: Geschichte, Abbau und Verwendung
    In: Arratia G, Schultze H. -P, Tischlinger H, Viohl G, editors. Solnhofen – Ein Fenster in die Jurazeit. München: Verlag Dr. Friedrich Pfeil. pp. 19–27.
    1. Niebuhr B
    2. Pürner T
    (2014)
    Plattenkalk und Frankendolomit – Lithostratigraphie der Weißjura-Gruppe der Frankenalb (außeralpiner Oberjura, Bayern)
    Schriftenreihe der Deutschen Gesellschaft für Geowissenschaften 83:5–72.
    1. Norell MA
    2. Makovicky PJ
    (1999)
    Important features of the dromaeosaurid skeleton II: information from newly collected specimens of Velociraptor mongoliensis
    American Museum Novitates 3282:1–45.
    1. Ostrom JH
    (1969)
    Osteology of Deinonychus antirrhopus, an unusual theropod from the Lower Cretaceous of Montana
    Peabody Museum of Natural History Bulletin 30:1–165.
    1. Ostrom JH
    (1976b)
    Some hypothetical anatomical stages in the evolution of avian flight
    Smithsonian Contributions to Paleobiology 27:1–21.
  13. Book
    1. Ostrom JH
    2. Poore SO
    3. Goslow GE
    (1999)
    Humeral rotation and wrist supination: important functional complex for the evolution of powered flight in birds?
    In: Olson S. L, editors. Avian Paleontology at the Close of the 20th Century: Proceedings of the 4th International Meeting of the Society of Avian Paleontology and Evolution, Washington, D.C, 4-7 June 1996. Smithsonian Contributions of Paleobiology. pp. 301–309.
    1. Pfeil FH
    (2011)
    Ein neues Asteracanthus-Gebiss aus den Kieselplattenkalken (Oberjura, Tithonium, Malm Zeta 3, Mörnsheim Formation) des Besuchersteinbruch in Mühlheim
    Freunde der Bayerischen Staatssammlung für Paläontologie und Historischer Geologie eV, Jahresbericht und Mitteilungen 39:36–60.
    1. Provini P
    2. Zhou Z
    3. Zhang F
    (2009)
    A new species of the basal bird Sapeornis from the Early Cretaceous of Liaoning, China
    Vertebrata Palasiatica 47:194–207.
    1. Rauhut OWM
    (2003)
    The interrelationships and evolution of basal theropod dinosaurs
    Special Papers in Palaeontology 69:1–213.
    1. Rauhut OWM
    2. Heyng AM
    3. Leonhardt U
    (2011)
    Neue Reptilfunde aus der Mörnsheim-Formation von Mühlheim
    Freunde der Bayerischen Staatssammlung für Paläontologie und Historische Geologie eV, Jahresbericht und Mitteilungen 39:61–71.
    1. Rauhut OWM
    (2012)
    Ein »Rhamphodactylus« aus der Mörnsheim-Formation von Mühlheim
    Freunde der Bayerischen Staatssammlung für Paläontologie und Historische Geologie eV, Jahresbericht und Mitteilungen 40:69–74.
  14. Book
    1. Rauhut OWM
    2. Tischlinger H
    (2015)
    Archaeopteryx
    In: Arratia G, Schultze H. P, Tischlinger H, Viohl G, editors. Solnhofen – Ein Fenster in Die Jurazeit. München: Verlag Dr. Friedrich Pfeil. pp. 491–507.
    1. Rauhut OWM
    2. López-Arbarello A
    3. Röper M
    4. Rothgaenger M
    (2017)
    Vertebrate fossils from the Kimmeridgian of Brunn: the oldest fauna from the Solnhofen Archipelago (Late Jurassic, Bavaria, Germany)
    Zitteliana 89:305–329.
  15. Book
    1. Remes K
    (2008)
    Evolution of the pectoral girdle and forelimb in Sauropodomorpha (Dinosauria, Saurischia): osteology, myology and function
    München: Ludwig-Maximilians-Universität.
    1. Röper M
    (2005)
    East Bavarian plattenkalk – Different types of Upper Kimmeridgian to Lower Tithonian Plattenkalk deposits and facies
    Zitteliana B 26:57–70.
  16. Book
    1. Sanz JL
    2. Pérez-Moreno BP
    3. Chiappe LM
    4. Buscalioni AD
    (2002)
    The birds from the Lower Cretaceous of Las Hoyas (Province of Cuenca, Spain)
    In: Chiappe L. M, Witmer L. M, editors. Mesozoic Birds: Above the Heads of Dinosaurs. Berkeley: University of California Press. pp. 209–267.
    1. Schröder KM
    2. López-Arbarello A
    (2013)
    Der schnabelfisch aspidorhynchus aus den plattenkalken süddeutschlands
    Freunde Der Bayerischen Staatssammlung Für Paläontologie Und Historische Geologie eV, Jahresbericht Und Mitteilungen 41:42–54.
  17. Book
    1. Schweigert G
    (2015)
    Biostratigraphie der Plattenkalke der Südlichen Frankenalb
    In: Arratia G, Schultze H. -P, Tischlinger H, Viohl G, editors. Solnhofen – Ein Fenster in die Jurazeit. München: Verlag Dr. Friedrich Pfeil. pp. 63–66.
  18. Book
    1. Tischlinger H
    (2001)
    Die oberjurassischen Plattenkalke von Daiting
    In: Weidert W. K, editors. Klassische Fundstellen Der Paläontologie, Bd. IV. Korb: Goldschneck Verlag. pp. 139–151.
    1. Tischlinger H
    (2009)
    Der achte Archaeopteryx - das Daitinger Exemplar
    Archaeopteryx 27:1–20.
  19. Book
    1. Tischlinger H
    2. Arratia G
    (2013)
    Ultraviolet light as a tool for investigating Mesozoic fishes, with a focus on the ichthyofauna of the Solnhofen archipelago
    In: Arratia G, Schultze H. -P, Wilson M. V. H, editors. Mesozoic Fishes Vol. 5: Global Diversity and Evolution. München: Verlag Dr. Friedrich Pfeil. pp. 549–560.
  20. Book
    1. Tischlinger H
    (2015)
    Arbeiten mit ultravioletem Licht (UV)
    In: Arratia G, Schultze H. -P, Tischlinger H, Viohl G, editors. Solnhofen – Ein Fenster in die Jurazeit. München: Verlag Dr. Friedrich Pfeil. pp. 109–113.
    1. Tobalske BW
    (2016) Evolution of avian flight: muscles and constraints on performance
    Philosophical Transactions of the Royal Society B: Biological Sciences 371:20150383.
    https://doi.org/10.1098/rstb.2015.0383
  21. Book
    1. Viohl G
    (2015)
    Die Grabung in Schamhaupten
    In: Arratia G, Schultze H. -P, Tischlinger H, Viohl G, editors. Solnhofen – Ein Fenster in die Jurazeit. München: Verlag Dr. Friedrich Pfeil. pp. 119–125.
    1. von Meyer H
    (1857)
    Beiträge zur näheren Kenntnis fossiler Reptilien
    Neues Jahrbuch für Mineralogie, Geognosie, Geologie und Petrefaktenkunde 1857:532–543.
    1. Wellnhofer P
    (1974)
    Das fünfte Skelettexemplar von Archaeopteryx
    Palaeontographica Abt A 147:169–216.
  22. Book
    1. Wellnhofer P
    (2008)
    Archaeopteryx: Der Urvogel von Solnhofen
    München: Verlag Dr. Friedrich Pfeil.
  23. Book
    1. Wellnhofer P
    (2009)
    Archaeopteryx: The Icon of Evolution
    München: Verlag Dr. Friedrich Pfeil.
    1. Yuan C
    (2008)
    A new genus and species of Sapeornithidae from Lower Cretaceous in western Liaoning, China
    Acta Geologica Sinica 82:48–55.

Decision letter

  1. Trevor Worthy
    Reviewing Editor; Flinders University, Australia
  2. Diethard Tautz
    Senior Editor; Max-Planck Institute for Evolutionary Biology, Germany
  3. Trevor Worthy
    Reviewer; Flinders University, Australia
  4. Jingmai Oconnor
    Reviewer; Institute of Vertebrate Paleontology and Paleoanthropology, Chinese Academy of Sciences Beijing China, China

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "A non-archaeopterygid bird (Dinosauria; Theropoda; Avialiae) from the Late Jurassic of southern Germany" for consideration by eLife. Your article has been reviewed by four peer reviewers, including Trevor Worthy as Guest Editor and Reviewer #2, and the evaluation has been overseen by Diethard Tautz as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Jingmai Oconnor (Reviewer #4).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This manuscript describes a new fossil, the thirteenth urvogel from the Solnhofen archipelago (where Archaeopteryx derives from), showing that it represents a second avialan taxon that is slightly more derived than Archaeopteryx. The conclusion that follows is that some flight adaptations and the transition towards Aves evolved earlier than previously thought. This is a major discovery - if substantiated - and thus one that requires extraordinary justification. You provide an excellent morphological description of an important new specimen, in a well written manuscript supplied with wonderful photographs in both normal and UV light. However, while it reveals some new anatomical details, the specimen is fragmentary, with only wing bones, and some of the key conclusions of the manuscript are rather poorly supported by the actual data as presented. In addition, some speculative ideas are presented as too definitive in the abstract and conclusion. Added comparisons and attention to the points raised below may possibly overcome these obstacles; hence a revision is invited.

Essential revisions:

1) Adequate Diagnosis from Archaeopteryx

Two reviewers have strong reservations as to whether the fossil is adequately diagnosed as distinct from Archaeopteryx and more ancestral avialan. There is also concern how well the erection of a new genus name for the fossil is substantiated. In the diagnosis, the authors differentiate the fossil from "all other theropods", but what would be needed is an explicit differentiation from Archaeopteryx and the newly erected "Ostromia".

Does the phrase "all theropods" in the diagnosis include birds as well? If it does, some of the features, such as a "large deltopectoral crest", are erroneously listed, as these do occur in avians (or "avialans" sensu the authors). One reviewer was not convinced by the diagnosis distinguishing it from other theropods, noting that the phalanges seem very mobile (whereas the digits are typically preserved straight indicating more rigidity (which would be necessary for flight) in Archaeopteryx; also the morphology of the semilunate is more non-avian than avian, and the same seems possible with regards to the distal humerus, and the proportions of the claws relative to their digits (not including horny sheath). We think a stronger diagnosis is therefore required. Throughout the description, anywhere comparison is only made with avians, non-avians should be added (and vice versa).

2) Comments on specific morphologies

There are reservations concerning the interpretation of the humerus that need addressing.

Some of the alleged differences between the new fossil and previously described specimens are controversial. For example, one of the key features listed by the authors, the alleged presence of an impression for musculus pectoralis, cannot be established with certainty in some other Archaeopteryx fossils, such as the London specimen, in which the deltopectoral crest appears to be abraded in the corresponding region (see Figure 12 of the manuscript). This facet in the new fossil does not appear to be substantially different from that found in Mei long (Figure 14B), and certainly it is much less developed than the corresponding muscular impression in more crownward birds. Reviewer Oconnor noted that the attachment for the pectoralis on the distal end of the deltopectoral crest has not been widely described, at least not in non-ornithothoracine Early Cretaceous birds (it is mentioned in Martinavis; Walker et al., 2007), so taxa that have this feature should be listed together with citations (be careful, although it may appear present from a figure, if it wasn't described, its appearance in a photograph is possibly an artefact of preservation/photography, e.g., Sapeornis IVPP V13396 – Provini et al., 2008, or the holotype of Jeholornis. It is not mentioned in any of the papers cited, and in Oconnor's experience with basal Jehol birds is not common and so must have been independently evolved in Alcomavis, or perhaps only appears in the most ontogenetically mature specimens of Archaeopteryx (and potentially other Mesozoic birds).

It is not accurate to estimate the length of the humerus as it is incomplete and to do so based on assumptions about the size of the internal tuberosity. Better to just state its minimal length (and not use this element for ratios and comparison). Which other taxa show elongate oval facet for the insertion of the m. pectoralis (make sure to check non-avians)?

With regards to the angle of the proximal portion of the humerus relative to the shaft the authors say to a lesser degree in non-avians but this seems a bit misleading – it is also strongly angled in a number of non-avian paravians, especially it seems in dromaeosaurids (Ji et al., 2000 – Sinornithosaurus; Microraptor, any number of references) but also present in Anchiornis (this is another reason why line drawing reconstructions of the forelimb in 4-5 key taxa would be really helpful). Reviewer Worthy suggested that the shaft angle (Subsection “Humerus”, etc) is perhaps increased by inclusion of the bicipital crest. The bicipital crest can be seen to join the shaft roughly co-level with the distal end of the deltopectoral crest, and thus the bicipital crest adds width to the ventral (here posteromedial) side of the shaft. Exclusion of the bicipital crest would lead to a lesser angle of the proximal section of the shaft relative to that more distally. Thus, using the ventral shaft margin as a proxy for shaft angle is not homologous between taxa that have a definite and enlarged bicipital crest and those that do not. A revision of definition of this metric would avoid this issue. Applies to the Discussion section as well.

Ulna – since the humerus is not fully preserved, it is not accurate to compare an estimated length and then derive comparisons. Compare proximal end of ulna to Anchiornis. Although caution is mentioned often, the distal ulna seems pretty crushed flat but still described heavily. The features described are only present in Archaeorhynchus or also present in other stem birds? Label the anteromedially directed ridge in Figure 6.

Radius – compare longitudinal groove to that in enantiornithines.

Carpals – MC I seems to be broken and it was unlikely it was as short as described. MC II is thicker than I and III in Microraptor as well; also, Mc III is slightly offset proximally.

Digits – Digit I ungual largest in Anchiornis (see Pei et al., 2017); digit II phalanx 1 is certainly robust but it appears strongly exaggerated as preserved, as two surfaces are exposed and flattened so it appears to be a single exposed surface of a hyper-robust phalanx. If this is taken into account, then the proximal articular surface of the phalanx is slightly narrower than the matching articular surface on metacarpal II. I do not see this described convexity on the plantar surface of phalanx II-2. The flexed morphology described in the penultimate phalanges of digits I and II is very subtle, at best, and should be described as so.

Unguals – it is stated (Discussion section) that the unguals are larger (proportionately) in Archaeopteryx but if the ungual (not including horny sheaths which may or may not be complete or in situ) is compared to the length of the penultimate phalanx, they are proportionately larger in Alcomavis. A table of ratios would be helpful to further help illustrate differences between this specimen and other urvogels and closely related taxa. Confuciusornis does not show a reduction in manual claws from I to III (II is smallest). Since this specimen is larger than other Archaeopteryx specimens, the pronounced muscle attachments could be explained by ontogeny (as suggested by the authors themselves somewhat), especially given that the difference between these taxa is pretty minor if the robustness of phalanx II-1 is taken out.

3) Advisability of creating a new nomen

Even if the new specimen can be shown to differ from other Archaeopteryx fossils in some features, it is contentious, and some would say not advisable to assign a name to these fragmentary remains. The past years have seen an inflation in new and rather poorly diagnosed Archaeopteryx-like avians from the Solnhofen limestone, and in light of the very fragmentary preservation of the fossil, the manuscript would be scientifically more rigorous if the authors opted against naming a new taxon.

4) Phylogenetic analysis

The phylogenetic analysis is presented in rather a cursory way. It is unacceptable not to have support values in the presented phylogenetic trees. For example, it is misrepresentative to say the strict consensus is well resolved (subsection “Phylogenetic position of Alcmonavis”) yet not show the evidence that there is in fact very weak support for such resolution. At the very least Bremner support values should be given so that readers can see which of these clades has any semblance of support – one assumes that as no values are given and given the statement, that clade support is very low indeed – but readers deserve to be shown this, not have these data occluded. Ideally bootstrap values over 50% should be shown because anything less shows the clades are highly unstable and probably are not real in terms of evolutionary history. As presented, the placement of Alcmonavis is discussed as an afterthought in this section. Surely the focus should be on the new taxon and then use known taxa secondly to validate the tree.

Given it is well established that missing data drive a taxon to the base of the clade in which it would otherwise reside (e.g., Sansom, 2015), some comment on the placement of the new taxon is warranted; why, what character evidence precludes that, for example, the new taxon really lies within Jelholornithidae or another slightly more derived position, than the node it appears in the tree? Character evidence for the critical nodes should be discussed, identifying the derived characters that place the new fossil in a more crownward position than Archaeopteryx.

Sansom, 2015.

The phylogenetic analyses should state which multistate characters were ordered (if any).

Major clade names, including all Family names used in text, should be shown on the trees in the Supplementary file.

5) Improvement of figures

While the currently presented figures are excellent, some more are needed. Key to demonstrating the distinction from Archaeopteryx, are photos and or line drawings of the important elements of the new fossil in direct comparison with those of "Archaeopteryx" that explicitly show the differences in morphology and proportions. It is also desirable to add some figures, at least in Supplementary file, of key features of the new fossil directly compared with a meaningful selection of stem birds and non-avian maniraptorans to aid with comparison.

6) Tabular presentation of key data to facilitate comparison

Use of two more tables might facilitate comparisons better. For example, the section on Comments on the numbering and naming of avialan specimens from the Solnhofen Archipelago is useful, but quite long. Perhaps include the data in a table listing all 13 specimens, their current taxonomy, their numbers and correlative 'names' and institution, and include just a couple sentences to justify the new names for the eleventh to thirteenth specimens. If length is an issue then it could be in Supplementary file, but it is of more use to the audience in the main text, i.e. not lost/invisible in the Supplementary file.

Similarly, a table with comparative key measurements for the 12 Archaeopteryx specimens including ratios should also be provided, so demonstrating how similar this specimen is to other urvogel specimens.

7) Discussion on possible flight mode of the fossil

This section is entirely speculative and not well substantiated. Various authors have detailed that flapping flight capabilities are unlikely for Archaeopteryx. The different morphology of the supracoracoideus muscle is just one argument contra flapping flight capabilities of Archaeopteryx, and the anatomy of Archaeopteryx does not show any evidence that this animal was capable of take-off through flapping flight (comparisons with extant pigeons certainly are not appropriate, as the latter have a completely different skeletal morphology than any Jurassic avians). Even though Voeten et al. recently proposed flapping flight capabilities of Archaeopteryx, their arguments based on the thickness of the bone cortex are far from compelling. Likewise, it is not clear why the presence of a tubercle for musculus biceps brachii on the radius would indicate flapping flight capabilities (so much the more as the presence/absence of this feature in other Archaeopteryx specimens is difficult to assess). Given the speculative nature of this interpretation, to include in the abstract a sentence like "Several modifications, especially in muscle attachments related to the downstroke of the wing, indicate a rapid adaptation of the forelimb for active flapping flight in the early evolution of birds" is not justified by the data (so much the more as the discussion is far less definitive).

Given the great similarities of the general skeletal architecture of this fragmentary wing to the known Archaeopteryx remains (three unfused metacarpals with large ungual phalanges, similar phalangeal proportions etc.), it is highly unlikely that substantial differences in flight mode to Archaeopteryx existed. The speculative nature of this discussion and interpretation should be addressed.

8) Biogeographic interpretations.

These speculations towards the end of the manuscript should be deleted altogether.

https://doi.org/10.7554/eLife.43789.032

Author response

Essential revisions:

1) Adequate Diagnosis from Archaeopteryx

Two reviewers have strong reservations as to whether the fossil is adequately diagnosed as distinct from Archaeopteryx and more ancestral avialan. There is also concern how well the erection of a new genus name for the fossil is substantiated. In the diagnosis, the authors differentiate the fossil from "all other theropods", but what would be needed is an explicit differentiation from Archaeopteryx and the newly erected "Ostromia".

The explicit differentiation of Alcmonavis to Archaeopteryx and Ostromia was already provided in the first part of the Discussion section of the previous manuscript. To avoid confusion, we rearranged the manuscript and put the diagnosis after the description and discussion of the differences so that the reader already has this information before the new taxon is defined.

We extended the comparison between Alcmonavis to Archaeopteryx and Ostromia by including statistical analyses on various limb proportions.

Does the phrase "all theropods" in the diagnosis include birds as well? If it does, some of the features, such as a "large deltopectoral crest", are erroneously listed, as these do occur in avians (or "avialans" sensu the authors). One reviewer was not convinced by the diagnosis distinguishing it from other theropods, noting that the phalanges seem very mobile (whereas the digits are typically preserved straight indicating more rigidity (which would be necessary for flight) in Archaeopteryx; also the morphology of the semilunate is more non-avian than avian, and the same seems possible with regards to the distal humerus, and the proportions of the claws relative to their digits (not including horny sheath). We think a stronger diagnosis is therefore required. Throughout the description, anywhere comparison is only made with avians, non-avians should be added (and vice versa).

As stated in the text, Alcomonavis is diagnosed based on a combination of characters, i.e., single characters listed in the diagnosis do not have to be unique. Of course, large deltopectoral crests are typical for many basal birds, but in its extension the deltopectoral crest of Alcmonavis is larger than in Archaeopteryx, anchiornithids and other non-avian theropod dinosaurs.

The reviewer is correct that in many pygostylian birds, the digits are rigid, especially in Ornithothoraces. This also seems to be the case in most Archaopteryx specimens, but also in Anchiornis or Microraptor. However, we believe that the preservation of the phalanges in Alcmonavis is not an indicator of missing rigidity, but a taphonomic artefact caused by an advanced stage of decay; indeed, fossils of the Mörnsheim Formation tend to be more strongly disarticulated and disrupted than those of the underlying Altmühltal Formation, which has yielded the vast majority of specimens of Archaeopteryx. Moreover, some specimens of Archaeopteryx, including the "chicken wings" and the twelfth specimen, also show strongly flexed phalanges. Indeed, similar “mobile” preservations can be also found in Sapeornis (IVPP V13396), Pengornis (IVPP V15336), Gansus (BMNHC-PH1392) and many specimens of Confuciusornis (DNHM-D2454, IVPP V10928, IVPP V12352, IVPP V13156 or JME 1997-1) (see e.g., Falk et al., 2016; Wang et al., 2019 or Chiappe and Meng, 2016), so we consider this simply to be an artefact of preservation.

We already stated that the morphology of the semilunate carpal of Alcomonavis resembles that of non-avian theropods like Deinonychus, being not fused to the metacarpus. However, the latter situation is also not present in other basal birds, including Jeholornis, Sapeornis or Confuciusornis. In fact, a fusion of carpal and metacarpal bones happens first time within Ornithothoraces, like in Archaeorhynchus (see e.g., Botehlo et al., 2014). However, even this partial fusion in Archaeorhynchus seem to be occur very late in ontogeny (Wang and Zhou, 2017). Despite the fact that we did not include any diagnostic character from the carpal region, we added a comparison to the description.

All measurements of the unguals based on the bony element. The sheath was not taken into account. Our statistical analyses shows that UI is significant smaller when compared to the ulna length and UII when compared to the length of manual phalanx II-1.

Concerning the diagnosis we don't see how the "strength" of the diagnosis depends on how bird-like or not the new taxon is – although no clear autapomorphic characters can currently be identified, the combination of characters seen in this wing skeleton is unique within both non-avialan and avialan theropods.

We have added comparisons with derived maniraptoran theropod dinosaurs.

2) Comments on specific morphologies

There are reservations concerning the interpretation of the humerus that need addressing.

Some of the alleged differences between the new fossil and previously described specimens are controversial. For example, one of the key features listed by the authors, the alleged presence of an impression for musculus pectoralis, cannot be established with certainty in some other Archaeopteryx fossils, such as the London specimen, in which the deltopectoral crest appears to be abraded in the corresponding region (see Figure 12 of the manuscript). This facet in the new fossil does not appear to be substantially different from that found in Mei long (Figure 14B), and certainly it is much less developed than the corresponding muscular impression in more crownward birds. Reviewer Oconnor noted that the attachment for the pectoralis on the distal end of the deltopectoral crest has not been widely described, at least not in non-ornithothoracine Early Cretaceous birds (it is mentioned in Martinavis; Walker et al., 2007), so taxa that have this feature should be listed together with citations (be careful, although it may appear present from a figure, if it wasn't described, its appearance in a photograph is possibly an artefact of preservation/photography, e.g., Sapeornis IVPP V13396 – Provini et al., 2008, or the holotype of Jeholornis. It is not mentioned in any of the papers cited, and in Oconnor's experience with basal Jehol birds is not common and so must have been independently evolved in Alcomavis, or perhaps only appears in the most ontogenetically mature specimens of Archaeopteryx (and potentially other Mesozoic birds).

The reviewer is right that the margin of the deltopectoral crest in London specimens is slightly abraded, increasing towards proximal. More distal the margin of the crest is still intact so that the presence of a facet can be ruled out (pers. obs. by OR). Furthermore, the crest is partially preserved also in the Thermopolis and Maxberg specimen (cast of the latter at the BSPG), none of which shows any sign of such a facet. To strengthen our case, we added a photo of the right humerus of the Thermopolis specimen, which shows the same situation to Figure 12. Furthermore, we added another photo showing the same region in Alcmonavis for comparison.

Based on the figure we provided in the previous version, it appears that Mei long possesses such a facet, but actually the photo shows the margin of the crest, which faces anterior (in many theropods the deltopectoral crest is not flat but slightly curved). Like in Ornitholestes (discussed in the manuscript) the margin is slightly expanded transversally. We changed the relevant sections in the manuscript accordingly.

We do not follow the argumentation that the appearance of undescribed structures in photographs are artefacts of preservation/photography. We believe that the illustration of anatomical details is part of a description, and it becomes even more essential, when the written part is rather brief (which is often the case, unfortunately). In this context, the documentation of preservational artefacts is also necessary to avoid misinterpretations. Nevertheless, the presence of the facet in Sapeornis is confirmed by pers. obs. of CF, and in Confuciusornis by pers. obs. of OR. The structure of the respective specimen is now illustrated in Figure 14. As it is not properly figured, we did not cite the holotype of Jeholornis, but a referred specimen, which was described by Lefèvre et al., (2014).

Although muscle attachments often become more conspicuous during ontogeny, the London specimen, which, as shown, does not have such as facet, is certainly not a young individual, and is not so much smaller than the new specimen. Thus, this specimen should show some sort of pronounced facet, which is not the case.

It is not accurate to estimate the length of the humerus as it is incomplete and to do so based on assumptions about the size of the internal tuberosity. Better to just state its minimal length (and not use this element for ratios and comparison). Which other taxa show elongate oval facet for the insertion of the m. pectoralis (make sure to check non-avians)?

We now added the actual length of the humerus as preserved. However, as fossils often suffered damage during the preservation or excavation process it is common in palaeontology to provide estimated length for respective elements. The estimation of the humerus length is based on ratios of complete elements known from other paravians. Nevertheless, as the correct length of the element is not known, the humerus length was not considered for statistical comparisons.

In the previous version, taxa with an oval facet were listed in the Discussion section. For comparison, we added taxa to the description and made a reference to the discussion.

With regards to the angle of the proximal portion of the humerus relative to the shaft the authors say to a lesser degree in non-avians but this seems a bit misleading – it is also strongly angled in a number of non-avian paravians, especially it seems in dromaeosaurids (Ji et al., 2000 – Sinornithosaurus; Microraptor, any number of references) but also present in Anchiornis (this is another reason why line drawing reconstructions of the forelimb in 4-5 key taxa would be really helpful). Reviewer Worthy suggested that the shaft angle (Subsection “Humerus”, etc) is perhaps increased by inclusion of the bicipital crest. The bicipital crest can be seen to join the shaft roughly co-level with the distal end of the deltopectoral crest, and thus the bicipital crest adds width to the ventral (here posteromedial) side of the shaft. Exclusion of the bicipital crest would lead to a lesser angle of the proximal section of the shaft relative to that more distally. Thus, using the ventral shaft margin as a proxy for shaft angle is not homologous between taxa that have a definite and enlarged bicipital crest and those that do not. A revision of definition of this metric would avoid this issue. Applies to the Discussion section as well.

The reviewer is correct that the proximal ends of the humeri of Anchiornis, Sinornithosaurus and Microraptor are angled, but less than 30 percent. We already provided these values for Dromaeosauridae and Anchiornis in the Discussion section of the previous version. We added this comparison also to the description.

The bicipital crest (internal tuberosity in non-avialan theropods) is usually included in this measurement, so the values should be comparable.

Ulna – since the humerus is not fully preserved, it is not accurate to compare an estimated length and then derive comparisons. Compare proximal end of ulna to Anchiornis. Although caution is mentioned often, the distal ulna seems pretty crushed flat but still described heavily. The features described are only present in Archaeorhynchus or also present in other stem birds? Label the anteromedially directed ridge in Figure 6.

The most detailed description of Anchiornis (including photos) was provided by Pei et al., 2017. Unfortunately, they describe only a minor expansion and a reduced olecranon process, which is a common morphology in Maniraptora. Nothing is stated concerning the cotylae. Neither the figures in Pei et al., 2017 nor personal photos of various Anchiornis specimens taken by CF can help to add more comparison.

The distal expansion of the ulna is more common in Avialae, so we added more comparisons. It is also present in Archaeopteryx, but is less pronounced and more symmetrically shaped.

We have only described features of the distal ulna that can be established despite the crushing of the bone.

The ridge was labelled in the figure.

Radius – compare longitudinal groove to that in enantiornithines.

We added a comparison into the description section and also discussed the presence of this character in the Discussion section.

Carpals – MC I seems to be broken and it was unlikely it was as short as described. MC II is thicker than I and III in Microraptor as well; also, Mc III is slightly offset proximally.

We noted in the description that Mc I is incomplete. How short this element was is everybody's guess; we only say that IF the position of the first phalanx indicates the distal end of this metacarpal (which is the case in several other similarly preserved theropod specimens), this element was very short. However, we did not use the possible length of this metacarpal for any formal analysis.

Unfortunately, we cannot evaluate this based on the scientific literature. Personal observations of several specimens by CF shows that the proximal end of MCI is strongly expanded in Microraptor (see also measurements provided by Hwang et al., 2002), while it becomes thinner distally. However, this is not the exact situation we found in Alcmonavis and Jeholornis. Generally, Mc II seems to be less robust in Microraptor than in Alcmonavis.

Because the metacarpus of Alcmonavis shows no signs of disarticulation, the offset position of Mc III most likely represents the actual situation. As already stated in the text, this morphology is present in many other Avialae, but also in several oviraptorids and dromaeosaurids (these comparisons were added to the text).

Digits – Digit I ungual largest in Anchiornis (see Pei et al., 2017);

The measurements provided for Anchiornis by Hu et al., 2009; Pei et al., 2017 and Guo et al., 2018 all show that the ungual of digit II is slightly longer than that of digit I. Personal observation of the holotype by CF confirms this.

digit II phalanx 1 is certainly robust but it appears strongly exaggerated as preserved, as two surfaces are exposed and flattened so it appears to be a single exposed surface of a hyper-robust phalanx. If this is taken into account, then the proximal articular surface of the phalanx is slightly narrower than the matching articular surface on metacarpal II. I do not see this described convexity on the plantar surface of phalanx II-2. The flexed morphology described in the penultimate phalanges of digits I and II is very subtle, at best, and should be described as so.

We gave this character a lot of thought and scrutiny of the actual fossil. Although the phalanx might give the impression of two surfaces being exposed, this does not seem to be the case; especially at the proximal end we are confident that this is the true width of the phalanx, whereas the distal end seems to show some internal twist in the phalanx, giving the impression that both palmar and lateral surface are exposed. Again, however, detailed investigation of the specimen indicate that this is not due to compression, but largely reflects the true morphology (although some compression is evident, as stated in the description), with the distal articular surface being slightly twisted. We added a sentence on the preservation in the description.

Concerning the flexed morphology of the penultimate phalanges, we noted in the description that these elements are "slightly bowed" or "slightly flexed". Furthermore, their morphology can be seen in the figure.

Unguals – it is stated (Discussion section) that the unguals are larger (proportionately) in Archaeopteryx but if the ungual (not including horny sheaths which may or may not be complete or in situ) is compared to the length of the penultimate phalanx, they are proportionately larger in Alcomavis. A table of ratios would be helpful to further help illustrate differences between this specimen and other urvogels and closely related taxa. Confuciusornis does not show a reduction in manual claws from I to III (II is smallest). Since this specimen is larger than other Archaeopteryx specimens, the pronounced muscle attachments could be explained by ontogeny (as suggested by the authors themselves somewhat), especially given that the difference between these taxa is pretty minor if the robustness of phalanx II-1 is taken out.

Statistical comparisons with Archaeopteryx reveal that UI of the Altmühl specimen is relatively smaller compared to the Ulna, while UII is relatively smaller compared to the preungular phalanx, both on a significant level. In contrast, UI is not relatively smaller compared to PI-1, because the latter element is relatively shortened, too.

We corrected the observation concerning the claw reduction in Confuciusornis.

As morphology and relative size of the relevant muscle attachments sites on humerus and radius do not really vary throughout the different specimens of Archaeopteryx, ontogenetic variation would imply drastic morphological changes in the final phase of ontogeny. However, as growth curves of tetrapods usually have a logarithmic, inverted exponential or logistic shape (Karkach, 2006), significant shape changes are rather expected in the phase of early ontogeny. Therefore, we consider the differences as interspecific.

3) Advisability of creating a new nomen

Even if the new specimen can be shown to differ from other Archaeopteryx fossils in some features, it is contentious, and some would say not advisable to assign a name to these fragmentary remains. The past years have seen an inflation in new and rather poorly diagnosed Archaeopteryx-like avians from the Solnhofen limestone, and in light of the very fragmentary preservation of the fossil, the manuscript would be scientifically more rigorous if the authors opted against naming a new taxon.

We disagree with the reviewer that there is "an inflation in new and rather poorly diagnosed Archaeopteryx-like avians from the Solnhofen limestone" – on the contrary, there rather is a problem with the assumption that all avialian theropods from the Solnhofen Archipelago (please see the manuscript for why we prefer not to talk about the "Solnhofen limestone") should be Archaeopteryx, as we now know that other, bird-like theropods were around in the Late Jurassic, as outlined by Rauhut et al., (2018) and in the current manuscript. Thus, in an attempt to better diagnose the genus Archaeopteryx, we realized that some specimens cannot be referred to this genus with certainty, and that one specimen, in particular (the Haarlem specimen), showed significant differences. As a species name was already available for this specimen, we thus proposed a new genus name, Ostromia (Foth and Rauhut 2017). However, this is the only non-archaeopterygid paravian theropod named from the Solnhofen Archipelago (and, as outlined, we only provided a new generic name for an existing species that can be shown to not fit in the genus Archaeopteryx), so this is hardly "an inflation in new and rather poorly diagnosed Archaeopteryx-like avians".

Regarding the new specimen, we approached its study with the same premise: First we tried to clarify if the specimen can be referred to Archaeopteryx with any certainty. Apart from the general proportions – which, as outlined in the manuscript, do also not differ significantly from several other paravians and basal avialans – there is no reason to refer this specimen to the genus Archaeopteryx. As our detailed study of the specimen revealed several differences to all other specimens of Archaeopteryx, the character combination shown by this specimen is unique in theropods in general, and a phylogenetic analysis found this specimen in an intermediate position between Archaeopteryx and later avialans, we opted to create a new taxon, after considering alternative options for almost a year.

Fragmentary preservation is not in itself an argument against naming new taxa, as demonstrated by literally thousands of fossil vertebrate species (especially in palaeoornithology it is not unusual that new species are based even on single bones) – what matters is if a new taxon can be adequately diagnosed. As the character combination demonstrated by the new specimen is unique within theropods (as also supported by the phylogenetic analysis), we argue that this is the case for Alcmonavis.

4) Phylogenetic analysis

The phylogenetic analysis is presented in rather a cursory way. It is unacceptable not to have support values in the presented phylogenetic trees. For example, it is misrepresentative to say the strict consensus is well resolved (subsection “Phylogenetic position of Alcmonavis”) yet not show the evidence that there is in fact very weak support for such resolution. At the very least Bremner support values should be given so that readers can see which of these clades has any semblance of support – one assumes that as no values are given and given the statement, that clade support is very low indeed – but readers deserve to be shown this, not have these data occluded. Ideally bootstrap values over 50% should be shown because anything less shows the clades are highly unstable and probably are not real in terms of evolutionary history. As presented, the placement of Alcmonavis is discussed as an afterthought in this section. Surely the focus should be on the new taxon and then use known taxa secondly to validate the tree.

We estimated bootstrap and Bremer support values for each node. Bootstrap values are generally low. For the equal-weight parsimony analysis, the phylogenetic position of Alcmonavis is supported by a Bremer support of 2, which is higher than for most other clades, including the phylogenetic position of Archaeopteryx (implied-weight parsimony leads to similar results). The support values for each node are shown for the strict consensus trees in the Supplementary file. The updated version of Figure 15. shows now the Bremer support values for the Avialae.

Given it is well established that missing data drive a taxon to the base of the clade in which it would otherwise reside (e.g., Sansom, 2015), some comment on the placement of the new taxon is warranted; why, what character evidence precludes that, for example, the new taxon really lies within Jelholornithidae or another slightly more derived position, than the node it appears in the tree? Character evidence for the critical nodes should be discussed, identifying the derived characters that place the new fossil in a more crownward position than Archaeopteryx.

In the Discussion section of the phylogeny, we listed the characters that support the more crownward position than Archaeopteryx.

We agree that it could be possible that the missing data places Alcmonavis closer to the base of Avialae. As the autapomorphies for the more derived position of Jeholornis, Sapeornis and co. are based mainly on forelimb characters, we believe that the phylogenetic position of Alcmonavis is robust.

Sansom, 2015.

The phylogenetic analyses should state which multistate characters were ordered (if any).

We provided a character list in the previous version. Ordered characters were labelled as Ordered.

Major clade names, including all Family names used in text, should be shown on the trees in the Supplementary file.

For the two reduced consensus trees we added the most important taxa names that are also mentioned in the text at the relevant nodes.

5) Improvement of figures

While the currently presented figures are excellent, some more are needed. Key to demonstrating the distinction from Archaeopteryx, are photos and or line drawings of the important elements of the new fossil in direct comparison with those of "Archaeopteryx" that explicitly show the differences in morphology and proportions. It is also desirable to add some figures, at least in Supplementary file, of key features of the new fossil directly compared with a meaningful selection of stem birds and non-avian maniraptorans to aid with comparison.

We added a figure comparing the outlines of humeri of several avialan theropods for comparison, plus a figure showing an actual specimen of Sapeornis in the taxonomic Discussion section. We furthermore added several basal paravian and basal avialan mani in the figure showing the manus of Archaeopteryx and changed part of the figure comparing the attachment area of the pectoralis muscle.

6) Tabular presentation of key data to facilitate comparison

Use of two more tables might facilitate comparisons better. For example, the section on Comments on the numbering and naming of avialan specimens from the Solnhofen Archipelago is useful, but quite long. Perhaps include the data in a table listing all 13 specimens, their current taxonomy, their numbers and correlative 'names' and institution, and include just a couple sentences to justify the new names for the eleventh to thirteenth specimens. If length is an issue then it could be in Supplementary file, but it is of more use to the audience in the main text, i.e. not lost/invisible in the Supplementary file.

As one of the peculiarities of Archaeopteryx is the use of the numbers of finds and colloquial names rather than the specimens numbers, even in the scientific literature, we think it to be important to clarify both the numbering and the colloquial names used. Tables with lists of specimens (up to the twelfth specimen) can be found in other publications (e.g. Rauhut et al., 2018), so simply adding three names to these lists seems rather redundant. It is furthermore important to point out that especially the numbering of specimens should be fixed, as current developments of taxonomic identifications or uncertainty make the numbering of Archaeopteryx specimens somewhat ambiguous (e.g. the twelfth specimen has been called eleventh specimen in the popular press in some cases, following the identification of the Haarlem specimen as a separate taxon).

Similarly, a table with comparative key measurements for the 12 Archaeopteryx specimens including ratios should also be provided, so demonstrating how similar this specimen is to other urvogel specimens.

Tables, showing the measurements of various are Archaeopteryx specimens are already available in Mayr et al., 2007 or Wellnhofer, 2009. However, we agree that for comparison it is useful to show those ratios, where Alcmonavis differs from Archaeopteryx, including T and p values. These values are shown in Table 2.

7) Discussion on possible flight mode of the fossil

This section is entirely speculative and not well substantiated. Various authors have detailed that flapping flight capabilities are unlikely for Archaeopteryx. The different morphology of the supracoracoideus muscle is just one argument contra flapping flight capabilities of Archaeopteryx, and the anatomy of Archaeopteryx does not show any evidence that this animal was capable of take-off through flapping flight (comparisons with extant pigeons certainly are not appropriate, as the latter have a completely different skeletal morphology than any Jurassic avians). Even though Voeten et al. recently proposed flapping flight capabilities of Archaeopteryx, their arguments based on the thickness of the bone cortex are far from compelling. Likewise, it is not clear why the presence of a tubercle for musculus biceps brachii on the radius would indicate flapping flight capabilities (so much the more as the presence/absence of this feature in other Archaeopteryx specimens is difficult to assess). Given the speculative nature of this interpretation, to include in the abstract a sentence like "Several modifications, especially in muscle attachments related to the downstroke of the wing, indicate a rapid adaptation of the forelimb for active flapping flight in the early evolution of birds" is not justified by the data (so much the more as the discussion is far less definitive).

We are aware that the flight mode of Archaeopteryx is still highly debated and many scientists favour a gliding flight as it costs less energy. Being familiar with the environment of the Solnhofen Archipelago, we would like to point out that the habitat of Archaeopteryx and Co. was an arid bush land with only a few small trees. Consequently, we find an arboreal life style with passive gliding flight for Archaeopteryx as often suggested rather unlikely.

The mentioned studies on the musculature of the pectoral girdle just show that the configuration was different in Archaeopteryx compared to modern volant birds (it was probably more similar to that of ostriches). If these differences really prevent flapping movements in Archaeopteryx is speculative (ostriches are still able to flap their forelimbs). 3D reconstructions of the shoulder girdle and forelimb of Archaeopteryx, based on a synchrotron scan of the well-preserved Thermopolis specimen, indicate that Archaeopteryx was actually able to perform a wing stroke (Carney, 2016; Heers and Carney, 2017). Due to different muscle configurations the flight stroke was certainly not as well “optimized” than in modern volant birds, but already possible. In the revised version, we cite a couple of recent studies supporting our case.

Showing the presence of the tuberculum bicipitale radii in three specimens of Archaeopteryx, we do not know why this character is controversial for Archaeopteryx. In other specimens the structure is simply not visible due to the orientation of the radius or overlap of matrix or other bones.

To avoid confusion, we never compared the flight performance of Archaeopteryx or Alcmonavis with that of pigeons. We cited the relevant study, because it shows, which muscles are active during different phases of a wing stroke in modern volant birds. Using this as an analogue, we hypothesize that the presence of tuberculum bicipitale radii indicates a stronger m. biceps brachii. We believe that this is related to active movements during flight, because for gliding the wing just need to act as passive airfoil and does not require such modifications in the elbow.

Given the great similarities of the general skeletal architecture of this fragmentary wing to the known Archaeopteryx remains (three unfused metacarpals with large ungual phalanges, similar phalangeal proportions etc.), it is highly unlikely that substantial differences in flight mode to Archaeopteryx existed. The speculative nature of this discussion and interpretation should be addressed.

We already made a very detailed comparison to Archaeopteryx regarding the enlarged muscle attachment sites present in Alcmonavis. Assuming that these areas are associated with stronger muscles, an improvement of the flight ability is likely. Please note, that we never claimed that the flight mode of Alcmonavis is substantially different from Archaeopteryx (we apologize if the term “rapid” may has caused this impression).

Applying the logic of the argument, no improvement for the flight ability of Confuciusornis is to be expected either, as it has three unfused metacarpals with large ungual phalanges, and more or less similar phalangeal proportions.

8) Biogeographic interpretations.

These speculations towards the end of the manuscript should be deleted altogether.

We deleted the Conclusions section.

https://doi.org/10.7554/eLife.43789.033

Article and author information

Author details

  1. Oliver WM Rauhut

    1. Staatliche naturwissenschaftliche Sammlungen Bayerns (SNSB), Bayerische Staatssammlung für Paläontologie und Geologie, München, Germany
    2. Department for Earth and Environmental Sciences, Palaeontology and Geobiology, Ludwig-Maximilians-Universität, München, Germany
    3. GeoBioCenter, Ludwig-Maximilians-Universität, München, Germany
    Contribution
    Conceptualization, Data curation, Software, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Christian Foth
    For correspondence
    o.rauhut@lrz.uni-muenchen.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3958-603X
  2. Helmut Tischlinger

    Tannenweg 16, Stammham, Germany
    Contribution
    Resources, Visualization, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Christian Foth

    Department of Geosciences, Université de Fribourg, Fribourg, Switzerland
    Contribution
    Formal analysis, Funding acquisition, Validation, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Oliver WM Rauhut
    Competing interests
    No competing interests declared

Funding

Volkswagen Foundation (I/84 640)

  • Oliver WM Rauhut

Schweizerischer Nationalfonds zur Förderung der Wissenschaftlichen Forschung (PZ00P2_174040)

  • Christian Foth

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Thanks are due to Roland Pöschl, who found the fossil, and Uli Leonhardt, who prepared the specimen and made it available for study. Martin Röper provided access to specimens and helped with discussions on localities within the Solnhofen Archipelago. Adriana López-Arbarello is thanked for helpful discussions, and Jingmai O'Connor, Trevor Worthy and two anonymous reviewers provided valuable comments that greatly helped to improve the paper. Numerous colleagues allowed access to paravian theropod specimens under their care; all this help is greatly appreciated. Judith Braukämper is thanked for additional technical support and the Generaldirektion der Staatlichen naturwissenschaftlichen Sammlungen Bayerns as well as the Bayerisches Staatsministerium für Wissenschaft und Kunst are acknowledged for their rapid and unbureaucratic action in providing the funds to secure the specimen for the BSPG. This work was supported by the Volkswagen Foundation under grant I/84 640 (to OR) and the Swiss National Science Fond under grant PZ00P2_174040 (to CF).

Senior Editor

  1. Diethard Tautz, Max-Planck Institute for Evolutionary Biology, Germany

Reviewing Editor

  1. Trevor Worthy, Flinders University, Australia

Reviewers

  1. Trevor Worthy, Flinders University, Australia
  2. Jingmai Oconnor, Institute of Vertebrate Paleontology and Paleoanthropology, Chinese Academy of Sciences Beijing China, China

Version history

  1. Received: November 20, 2018
  2. Accepted: April 10, 2019
  3. Version of Record published: May 14, 2019 (version 1)

Copyright

© 2019, Rauhut et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 7,238
    Page views
  • 767
    Downloads
  • 11
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Oliver WM Rauhut
  2. Helmut Tischlinger
  3. Christian Foth
(2019)
A non-archaeopterygid avialan theropod from the Late Jurassic of southern Germany
eLife 8:e43789.
https://doi.org/10.7554/eLife.43789

Further reading

    1. Evolutionary Biology
    2. Neuroscience
    Amélie Beaudet, Edwin de Jager
    Short Report

    Because brain tissues rarely fossilize, pinpointing when and how modern human cerebral traits emerged in the hominin lineage is particularly challenging. The fragmentary nature of the fossil material, coupled with the difficulty of characterizing such a complex organ, has been the source of long-standing debates. Prominent among them are the uncertainties around the derived or primitive state of the brain organization in the earliest representatives of the genus Homo, more particularly in key regions such as the Broca’s area. By revisiting a particularly well-preserved fossil endocast from the Turkana basin (Kenya), here we confirm that early Homo in Africa had a primitive organization of the Broca’s area ca. 1.9 million years ago. Additionally, our description of KNM-ER 3732 adds further information about the variation pattern of the inferior frontal gyrus in fossil hominins, with implications for early Homo taxic diversity (i.e. one or two Homo species at Koobi Fora) and the nature of the mechanisms involved in the emergence of derived cerebral traits.

    1. Evolutionary Biology
    Andrzej S Wolniewicz, Yuefeng Shen ... Jun Liu
    Research Article Updated

    Sauropterygia was a taxonomically and ecomorphologically diverse clade of Mesozoic marine reptiles spanning the Early Triassic to the Late Cretaceous. Sauropterygians are traditionally divided into two groups representing two markedly different body plans – the short-necked, durophagous Placodontia and the long-necked Eosauropterygia – whereas Saurosphargidae, a small clade of armoured marine reptiles, is generally considered as the sauropterygian sister-group. However, the early evolutionary history of sauropterygians and their phylogenetic relationships with other groups within Diapsida are still incompletely understood. Here, we report a new saurosphargid from the Early Triassic (Olenekian) of South China – Prosaurosphargis yingzishanensis gen. et sp. nov. – representing the earliest known occurrence of the clade. An updated phylogenetic analysis focussing on the interrelationships among diapsid reptiles recovers saurosphargids as nested within sauropterygians, forming a clade with eosauropterygians to the exclusion of placodonts. Furthermore, a clade comprising Eusaurosphargis and Palatodonta is recovered as the sauropterygian sister-group within Sauropterygomorpha tax. nov. The phylogenetic position of several Early and Middle Triassic sauropterygians of previously uncertain phylogenetic affinity, such as Atopodentatus, Hanosaurus, Majiashanosaurus, and Corosaurus, is also clarified, elucidating the early evolutionary assembly of the sauropterygian body plan. Finally, our phylogenetic analysis supports the placement of Testudines and Archosauromorpha within Archelosauria, a result strongly corroborated by molecular data, but only recently recovered in a phylogenetic analysis using a morphology-only dataset. Our study provides evidence for the rapid diversification of sauropterygians in the aftermath of the Permo-Triassic mass extinction event and emphasises the importance of broad taxonomic sampling in reconstructing phylogenetic relationships among extinct taxa.
