Megakaryocyte emperipolesis mediates membrane transfer from intracytoplasmic neutrophils to platelets

  1. Pierre Cunin
  2. Rim Bouslama
  3. Kellie R Machlus
  4. Marta Martínez-Bonet
  5. Pui Y Lee
  6. Alexandra Wactor
  7. Nathan Nelson-Maney
  8. Allyn Morris
  9. Li Guo
  10. Andrew Weyrich
  11. Martha Sola-Visner
  12. Eric Boilard
  13. Joseph E Italiano
  14. Peter A Nigrovic  Is a corresponding author
  1. Brigham and Women’s Hospital, Harvard Medical School, United States
  2. Brigham and Women's Hospital and Harvard Medical School, United States
  3. Boston Children’s Hospital, Harvard Medical School, United States
  4. University of Utah, United States
  5. Centre de Recherche du Centre Hospitalier Universitaire de Québec, Faculté de Médecine de l’Université Laval, Canada
Research Article
  • Cited 6
  • Views 2,091
  • Annotations
Cite this article as: eLife 2019;8:e44031 doi: 10.7554/eLife.44031

Abstract

Bone marrow megakaryocytes engulf neutrophils in a phenomenon termed emperipolesis. We show here that emperipolesis is a dynamic process mediated actively by both lineages, in part through the β2-integrin/ICAM-1/ezrin pathway. Tethered neutrophils enter in membrane-bound vesicles before penetrating into the megakaryocyte cytoplasm. Intracytoplasmic neutrophils develop membrane contiguity with the demarcation membrane system, thereby transferring membrane to the megakaryocyte and to daughter platelets. This phenomenon occurs in otherwise unmanipulated murine marrow in vivo, resulting in circulating platelets that bear membrane from non-megakaryocytic hematopoietic donors. Transit through megakaryocytes can be completed as rapidly as minutes, after which neutrophils egress intact. Emperipolesis is amplified in models of murine inflammation associated with platelet overproduction, contributing to platelet production in vitro and in vivo. These findings identify emperipolesis as a new cell-in-cell interaction that enables neutrophils and potentially other cells passing through the megakaryocyte cytoplasm to modulate the production and membrane content of platelets.

https://doi.org/10.7554/eLife.44031.001

Introduction

Megakaryocytes (MKs) are the cellular source of platelets. Derived from hematopoietic stem cells, developing MKs undergo multiple rounds of endomitosis to become highly-polyploid cells averaging 20 to 100 μm in size (Levine et al., 1982; Machlus and Italiano, 2013). Mature MKs develop a complex network of intracytoplasmic membrane, termed the demarcation membrane system (DMS), that provides a membrane reservoir to enable platelet generation (Schulze et al., 2006). MKs then protrude pseudopodial extensions of this membrane via the marrow sinusoids into the bloodstream, where shear stress releases fragments that become the mature platelets required for hemostasis (Junt et al., 2007).

Representing less than 0.3% of hematopoietic cells in bone marrow (Levine et al., 1982; Machlus and Italiano, 2013; Winter et al., 2010), MKs interact with other hematopoietic lineages. MKs provide a niche for plasma cells (Winter et al., 2010), promote neutrophil egress via production of CXCR2 ligand (Köhler et al., 2011), and regulate hematopoietic stem cell homeostasis (Bruns et al., 2014; Zhao et al., 2014). Almost 50 years ago, it was observed that MKs can engulf other hematopoietic cells, most commonly neutrophils (Larsen, 1970). Examination of fresh aspirates revealed movement of these cells within MKs, giving rise to the name emperipolesis from the Greek, em inside, peri around, polemai wander about (Humble et al., 1956; Larsen, 1970). Emperipolesis is observed in healthy marrow and increases with hematopoietic stress, including in myelodysplastic and myeloproliferative disorders (Cashell and Buss, 1992; Mangi and Mufti, 1992), myelofibrosis (Centurione et al., 2004; Schmitt et al., 2002; Spangrude et al., 2016), gray platelet syndrome (Di Buduo et al., 2016; Larocca et al., 2015; Monteferrario et al., 2014), essential thrombocythemia (Cashell and Buss, 1992), and blood loss or hemorrhagic shock (Dziecioł et al., 1995; Sahebekhitiari and Tavassoli, 1976; Tavassoli, 1986). Its mechanism and significance remain unknown. It has been speculated that MKs could represent a sanctuary for neutrophils in an unfavorable marrow environment, or a route for neutrophils to exit the bone marrow, but more typically emperipolesis is regarded as a curiosity without physiological significance (Lee, 1989; Sahebekhitiari and Tavassoli, 1976; Tavassoli, 1986).

Recently, we identified evidence for a direct role for MKs in systemic inflammation, highlighting the potential importance of the interaction of MKs with immune lineages (Cunin and Nigrovic, 2019; Cunin et al., 2017). Whereas the preservation of emperipolesis in monkeys (Stahl et al., 1991), mice (Centurione et al., 2004), rats (Tanaka et al., 1996), and cats and dogs (Scott and Friedrichs, 2009) implies evolutionary conservation, we sought to model this process in vitro and in vivo to begin to understand its biology and function. We show here that emperipolesis is a tightly-regulated process mediated actively by both MKs and neutrophils via pathways reminiscent of leukocyte transendothelial migration. Neutrophils enter MKs within membrane-bound vesicles but then penetrate into the cell cytoplasm, where they develop membrane continuity with the demarcation membrane system (DMS) to transfer membrane to MKs and thereby to platelets, accelerating platelet production. Neutrophils then emerge intact, carrying MK components with them. Together, these data identify emperipolesis as a previously unrecognized type of cell-in-cell interaction that mediates a novel form of material transfer between immune and hematopoietic lineages.

Results

In vitro modeling of emperipolesis reveals a rapid multi-stage process

Whole-mount 3-dimensional (3D) immunofluorescence imaging of healthy C57Bl/6 murine marrow revealed that ~6% of MKs contain at least one neutrophil, and occasionally other bone marrow cells (Figure 1A and Video 1). Emperipolesis was similarly evident upon confocal imaging of unmanipulated human marrow (Figure 1B). To model this process, we incubated cultured murine or human MKs with fresh bone marrow cells or peripheral blood neutrophils, respectively (Figure 1C and D). Murine MKs, derived either from bone marrow or fetal liver cells, were efficient at emperipolesis (~20–40% of MKs). Neutrophils were by far the most common participants, although B220+ B cells, CD115+ monocytes, and occasional CD3+ T cells and NK1.1+ NK cells were also observed within MKs (Figure 1—figure supplement 1A). Emperipolesis was less efficient in human cultured MKs (2–5% of MKs), which are typically smaller than murine MKs, and was observed in MKs cultured from marrow CD34+ cells but not from the even smaller MKs derived from cord blood CD34+ cells (Figure 1D and not shown). We elected to continue our mechanistic studies in murine MKs, principally cultured from marrow.

Figure 1 with 1 supplement see all
Visualization of murine and human emperipolesis by confocal microscopy.

(A) Whole-mount images of mouse bone marrow stained with anti-CD41 (green), anti-Ly6G (red) and anti-CD31/CD144 (white). Arrowheads show internalized neutrophils or other Ly6Gneg bone marrow cells (right image). Three-dimensional reconstitutions and confirmation of cell internalization are shown in Video 1. (B) Cells from human bone marrow aspirate were stained with anti-CD41 (green) and anti-CD66b (red). (C) Murine MKs were co-cultured with marrow cells overnight. Cells were stained with anti-CD41 (green) and anti-CD18 (red). (D) Human MKs generated from marrow CD34+ cells were co-cultured with circulating neutrophils overnight. Cells were stained with anti-CD41 (green) and anti-CD15 (red). (A-D) DNA was visualized with Draq5 or Hoechst (blue), arrowheads represent internalized neutrophils, scale bars represent 20μm, representative of at least 3 independent experiments.

https://doi.org/10.7554/eLife.44031.002
Video 1
Emperipolesis within murine bone marrow.

Three-dimensional reconstitution of murine marrow, showing MKs (green) neutrophils (red), bone marrow sinusoids (white), and DNA (blue). Green, red or blue fluorescence are removed occasionally to visualize neutrophils inside MK or MK tethers. The three animations correspond to the three images shown in Figure 1A.

https://doi.org/10.7554/eLife.44031.004

Neutrophils engaged in emperipolesis penetrate into the MK cytoplasm

Confocal microscopy revealed four distinct steps. First, neutrophils become adherent to the MK surface (Figure 2A and Video 2 and 3), including to membrane protrusions we term MK tethers (Figure 1—figure supplement 1B and Video 3). Second, neutrophils enter MKs within membrane-bound vacuoles, hereafter termed emperisomes, bearing the MK surface marker CD41+ (Figure 2A and Video 3). Third, the emperisome undergoes transformation such that CD41 is no longer evident surrounding the neutrophil (Figure 2A and Video 4). While most MKs engaged in emperipolesis contained only one or two neutrophils, some resembled ‘reservoirs’ containing dozens of neutrophils in stages 2 and 3 (Figure 1—figure supplement 1C), an appearance recognized in human marrow as well (Cashell and Buss, 1992; Larsen, 1970; Monteferrario et al., 2014; Thiele et al., 1984) (Figure 1—figure supplement 1D). Fourth, neutrophils exited MKs, returning to the extracellular milieu as viable motile cells (Figure 2A, Figure 1—figure supplement 1D and Videos 35). Live cell imaging of murine MKs co-incubated with fresh bone marrow cells showed that neutrophil transit was of variable duration, in some cases lasting only a few minutes (Figure 1—figure supplement 1EFigure 4—figure supplement 1D and Videos 2, 3 and 5) and in others more than one hour (Video 6).

In vitro modeling of emperipolesis reveals a rapid multi-stage process.

(A) Confocal images showing different steps of emperipolesis. Green: CD41, Red: CD18, Blue: DNA. Scale bars represent 20μm. (B-E) Cells were stained with OsO4 after emperipolesis assay for electron microscopy observation. (B) Neutrophils inside MK vacuoles. Some neutrophil surface protrusions make contact with the emperisome membrane (arrowhead). (C-D) Close interaction between neutrophil and emperisome membrane forming a two-membrane leaflet structure. (C) Protrusions from neutrophils that extend inside the MK cytoplasm (arrowheads). (D) Demarcation between emperisome membrane and neutrophil membrane disappears (arrowheads). (E) Neutrophil and MK are separated by a single membrane (arrowheads). (B-E) Scale bars in nm, representative of at least 3 independent experiments.

https://doi.org/10.7554/eLife.44031.005
Video 2
Neutrophil enters megakaryocyte - formation of a trans-megakaryocyte cup.

MKs stained with PKH67 (green) were co-cultured with marrow cells stained with PKH26 (red) in the presence of Draq5 (DNA, blue). Video shows the formation of a transcellular cup on the MK surface allowing neutrophil entry.

https://doi.org/10.7554/eLife.44031.006
Video 3
Megakaryocyte tethers and neutrophil entry into a CD41+ vacuole.

MKs stained with anti-CD41 (green) were co-cultured with marrow cells from mT/mG mice (red) in the presence of Draq5 (DNA, blue). Video shows a neutrophil on the MK surface, attached by MK tethers, followed by a rapid entry through a CD41+ membrane. A few minutes after its entry, the neutrophil exits at the bottom of the field of view.

https://doi.org/10.7554/eLife.44031.007
Video 4
Neutrophil exits megakaryocyte.

MKs stained with anti-CD41 (green) were co-cultured with marrow cells from mT/mG mice (red) in the presence of Draq5 (DNA, blue). A neutrophil is present inside MK, but without interposed CD41+ membrane. Neutrophil exits MK and remains attached on its surface. Video obtained with a laser scanning confocal microscope.

https://doi.org/10.7554/eLife.44031.008
Video 5
Transfer of membrane during rapid emperipolesis.

MKs stained with PKH67 (green) were co-cultured with marrow cells stained with PKH26 (red) in the presence of Draq5 (DNA, blue). Video shows a neutrophil entering and rapidly transiting through a MK, leaving green membrane behind. Green or red fluorescence is removed at some time points to visualize bi-directional membrane transfer.

https://doi.org/10.7554/eLife.44031.009
Video 6
Transfer of membrane during long-lasting emperipolesis.

MKs stained with PKH67 (green) were co-cultured with marrow cells stained with PKH26 (red) in the presence of Draq5 (DNA, blue). Video shows a neutrophil residing within an MK. Green or red fluorescence is removed at some time points to visualize bi-directional membrane transfer.

https://doi.org/10.7554/eLife.44031.010

To better understand the stages of emperipolesis, we employed electron microscopy (EM). After neutrophil uptake into the emperisome (Figure 2B), the vacuolar space between neutrophil and MK was resorbed such that neutrophil and MK membranes became closely apposed, resulting in a structure composed of two membrane leaflets surrounding the neutrophil (Figure 2C and D). This structure was often associated with the appearance of neutrophilic protrusions deeper into the host MK (Figure 2C). Areas in which the membranes approximated very closely, becoming indistinct for short stretches, were sometimes observed (Figure 2D). Subsequently, only a single bilipid membrane came to separate the neutrophil cytoplasm from the MK cytoplasm, a finding that echoed the loss of CD41 staining observed by immunofluorescence, confirming dissolution of the emperisome and thereby translocation of the neutrophil to an intracytoplasmic location (Figure 2E). Whereas CD18 and Ly6G but not CD41 were preserved (Figure 2A above), this remaining membrane is most likely primarily of neutrophil origin.

Emperipolesis is mediated by active actin cytoskeleton rearrangement in both megakaryocyte and neutrophil

To assess the cytoskeletal processes underlying this intriguing cell-in-cell interaction, we employed targeted inhibitors. The microtubule polymerization inhibitor nocodazole showed a negligible effect, but emperipolesis was dramatically curtailed by inhibitors of actin polymerization, cytochalasin D and latrunculin A (Figure 3A). This effect was observed when either MKs or marrow cells were exposed to these inhibitors, confirming obligate active cytoskeletal engagement by both participants (Figure 3B, controls of actin inhibition in Figure 3—figure supplement 1A). Consistent with these results, neutrophils entering MKs exhibited a polarized appearance, while MKs developed a transcellular cup similar to that observed in endothelial cells during transendothelial migration of leukocytes (Carman and Springer, 2004; Ley et al., 2007) (Figure 1—figure supplement 1E, Figure 3—figure supplement 1B, and Video 2). In agreement with inhibitor findings, actin but not microtubules localized to the interface between MKs and extracellular neutrophils and was observed to encase neutrophil-containing CD41+ vacuoles (Figure 3D and Figure 3—figure supplement 1C); by contrast, actin was not observed surrounding neutrophils that were no longer delimited by CD41-expressing membrane (Figure 3C). These observations demonstrate that emperipolesis is an active process mediated by actin cytoskeletal rearrangement of both MKs and neutrophils.

Figure 3 with 2 supplements see all

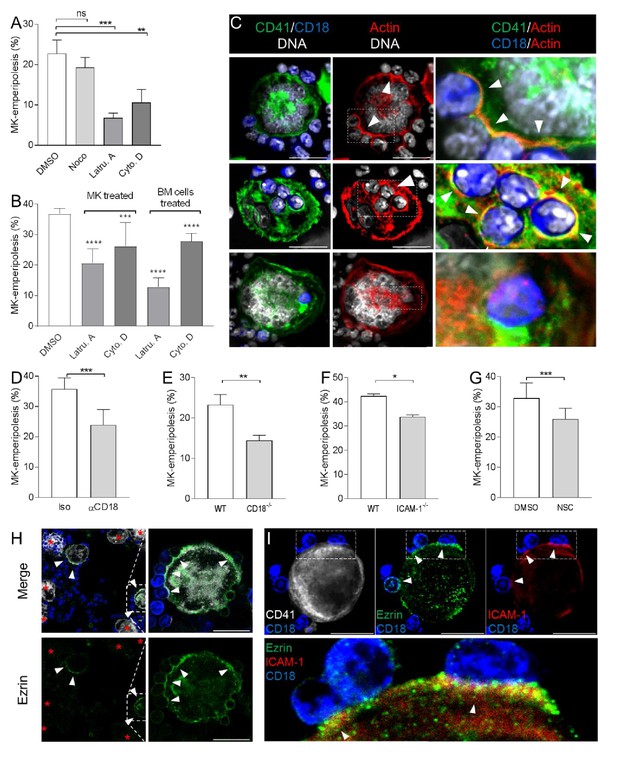

Emperipolesis is mediated by active actin cytoskeleton rearrangement and in part through β2-integrin/ICAM-1/ezrin.

(A) MKs and marrow cells were co-cultured in the presence of 1μM nocodazole, latrunculin A, cytochalasin D, or control vehicle. (B) MKs or marrow cells were treated with latrunculin A or cytochalasin D for two hours. After thorough washings, cells were co-cultured with untreated marrow cells or MKs, respectively. (A-B) Cells are stained with anti-CD41, -CD18 or -Ly6G and Draq5, and observed by confocal microscopy. Histograms show percentages of MKs containing at least one neutrophil. At least 150 (A) or 500 (B) MKs per condition were counted; pool of 3 independent experiments (See Figure 3—source data 1) (C) Cells are stained with anti-CD41 (green), anti-CD18 (blue) and phalloidin (red). DNA is visualized with Hoechst (gray). Images show F-actin on MK surface where neutrophils are attached (upper photos), around neutrophils encapsulated in CD41+ vacuoles (middle photos) or free within MKs (lower photos). (D-G) Emperipolesis assay was performed (A) in the presence of 10μg/ml anti-CD18 or corresponding isotype control rat IgG1 (B) using marrow cells from WT versus CD18-deficient mice or (C) using MKs from WT versus ICAM-1-deficient mice, or (D) in the presence of 1μM of ezrin inhibitor NSC668394. (A-D) Histograms show percentages of MKs containing at least one neutrophil. At least 350 MKs per condition were counted; pool of 2 (F), 3 (E), or 4 (D and G) independent experiments. (See Figure 3—source data 1) H. After co-culture, cells are stained with anti-CD41 (white), anti-ezrin (green) and anti-Ly6G (blue). Arrows show ezrin clustering on the MK surface. Red asterisks show MKs without detectable ezrin. (I) Cells are stained with anti-CD41 (gray), -ezrin (green), -ICAM-1 (red), -Ly6G (blue). Arrows show ICAM-1/ezrin co-localization on the MK surface. Lower photo is a magnification of the dashed white region. (Hand I). Scale bars represent 20μm, representative of at least 3 independent experiments.

https://doi.org/10.7554/eLife.44031.011

Emperipolesis is mediated in part through β2-integrin/ICAM-1/ezrin

To define how MKs and neutrophils interact, we tested several candidate ligand/receptors pathways. Blocking antibodies targeting P-selectin, glycoprotein VI (GPVI), PECAM-1, CD44, and CXCR2 had no effect (not shown). However, blockade of the β2 integrin CD18, expressed by neutrophils but not MKs, strongly impaired emperipolesis (Figure 3D). Correspondingly, CD18-deficient bone marrow cells exhibited reduced emperipolesis into WT MKs (Figure 3E), despite the heightened proportion and density of neutrophils in these marrows (Horwitz et al., 2001).

β2 integrins bind ICAM-1, among other targets (Ley et al., 2007). Confocal microscopy showed that ICAM-1 is expressed by a population of human and murine MKs (Figure 3—figure supplement 2A–D). In agreement with previous observations in rat (Tanaka et al., 1997), emperipolesis by ICAM-1-deficient MKs was significantly impaired (Figure 3F). In further support of this mechanism, we evaluated the role of ezrin, which mediates the attachment of the intracellular tail of ICAM-1 to the actin cytoskeleton (Heiska et al., 1998; Ley et al., 2007). Inhibition of ezrin phosphorylation impaired emperipolesis (Figure 3G, controls of ezrin inhibition in Figure 3—figure supplement 2E). By confocal microscopy, ezrin could be detected only at sites of MK contact with tethered neutrophils, where it co-localized strongly with ICAM-1, consistent with its role as a bridge to the cytoskeleton (Figure 3H and I). By contrast, ezrin could not be visualized in MKs not tethered to leukocytes, or with only internalized leukocytes (Figure 3H). Together, these data show that emperipolesis is mediated in part by an interaction between neutrophil β2 integrins and MK ICAM-1/ezrin during neutrophil entry. However, absence or blockade of these factors resulted in only partial impairment of emperipolesis, indicating a role for alternate mechanisms not yet defined.

Emperipolesis mediates membrane transfer from neutrophil to megakaryocyte

As observed by others (Centurione et al., 2004; Thiele et al., 1984), neutrophils engaged in emperipolesis frequently localized to the DMS, the intracytoplasmic membrane network implicated in platelet production (Figure 4A). Close examination of this interaction demonstrated membrane contiguity between the neutrophil and the DMS, suggesting that neutrophils might be able to serve as membrane donors to MKs and potentially to platelets (Figure 4A). To test this possibility, we employed membrane labeling. Marrow cells were stained with the lipophilic dye CellVue maroon and then co-cultured with unstained MKs. Confocal microscopy showed substantial loss of CellVue maroon staining in neutrophils inside but not outside MKs (Figure 4B). Similar loss of fluorescence was observed with the lipid stains Bodipy and PKH67, excluding a non-specific chemical interaction (Figure 4—figure supplement 1A and B). Further, some cells exhibited diffusion of lipid stain within the MK (Figure 4B and Figure 4—figure supplement 1C), consistent with the membrane transfer implied by EM. Finally, time-lapse spinning disk confocal microscopy confirmed transfer of neutrophil membrane to MKs from this intracellular location (Figure 4—figure supplement 1D and Videos 5 and 6). Of note, membrane transfer during emperipolesis was not associated with phosphatidylserine externalization onto the neutrophil surface (Figure 4—figure supplement 1E–F).

Figure 4 with 1 supplement see all
Emperipolesis mediates membrane transfer from neutrophil to megakaryocyte.

(A) Cells were stained with OsO4 after emperipolesis assay for electron microscopy observation. Images show a membrane continuity between neutrophil and DMS (arrowheads). (B) Bone marrow cells were stained with CellVue Maroon prior to co-culture with MKs. Confocal microscopy shows a loss of CellVue Maroon fluorescence in neutrophils engaged in emperipolesis (blue asterisks). Lower photos show details for the two neutrophils (1) and (2) on the upper right photo (transfer of CellVue Maroon inside MKs, blue arrowheads). (C) MKs and marrow cells were co-cultured with 1μM latrunculin A or DMSO. Left panels: marrow cells are previously stained with PKH67, dot plots show PKH67 fluorescence on CD41+ MKs. Right panels: MKs are previously stained with PKH67, dot plots show PKH67 fluorescence on Ly6G+ neutrophils. (D) Surface proteins of marrow cells were biotinylated prior to emperipolesis assay. After fixation, cells were incubated with AF594-streptavidin (red). Asterisks show the presence of biotinylated proteins on MK surface and DMS. B and D: Scale bars represents 20µm, representative of at least 3 independent experiments.

https://doi.org/10.7554/eLife.44031.015

To assess reciprocal membrane transfer from MKs to neutrophils, we stained MKs with lipid stains as above and co-cultured these with unstained marrow cells. MK-derived lipids strongly co-localized with neutrophil membrane during emperipolesis (Figure 4—figure supplement 1G–I), while time-lapse spinning disk microscopy also confirmed reciprocal membrane exchange (Figure 4—figure supplement 1D and Video 5 and 6).

While lipid exchange from neutrophils to MKs was strongly inhibited by latrunculin A, transfer from MKs to neutrophils was not (Figure 4C), suggesting that this reciprocal transfer was not mediated primarily by emperipolesis. MKs produce microparticles in great abundance (Cunin et al., 2017; Flaumenhaft et al., 2009), and PKH67-stained MKs were observed to release many PKH67 +microparticles in a latrunculin A-independent manner that could transfer membrane fluorescence to neutrophils in the absence of intact MKs (Figure 4—figure supplement 1J). By contrast, no fluorescence was detected on MKs cultured with supernatant from PKH67-stained marrow cells, rendering unlikely a role of marrow cell-derived microparticles, exosomes or apoptotic bodies in membrane transfer from neutrophils to MKs (Figure 4—figure supplement 1K). Thus, neutrophils transfer plasma membrane to MKs via emperipolesis, while reciprocal membrane exchange from MKs to neutrophils likely occurs primarily via MK microparticles, a phenomenon of interest not explored further here.

We then sought to determine whether membrane transfer mediates exchange of surface proteins. We performed surface biotinylation of MKs and marrow cells, and then co-cultured these cells with unstained marrow cells or MKs, respectively. Using streptavidin, we could not detect biotin on neutrophils incubated with biotinylated MKs, suggesting the absence of bulk surface protein transfer from MKs to neutrophils (not shown). However, surface biotin could be detected on some MKs after incubation with biotinylated marrow cells (Figure 4D), confirming that membrane exchange from neutrophils to MK transfers proteins. The nature of these proteins remains to be determined since MKs remained negative for hallmark neutrophil proteins such as CD18 and Ly6G (not shown).

Neutrophil membranes transferred in emperipolesis emerge on circulating platelets

Platelets are generated by MKs via the DMS network, an impressively extended network of membrane whose biogenesis remains incompletely understood (Eckly et al., 2014; Schulze et al., 2006). EM had demonstrated membrane continuity between cytoplasmic neutrophils and the DMS. We therefore tested whether emperipolesis could transfer neutrophil membrane to platelets. MKs require shear stress for physiological platelet biogenesis, rendering the in vivo context most suitable for these studies. MKs stained with the cytoplasmic dye Green-CMFDA were incubated with marrow cells stained with the lipid marker CellVue Maroon and then engrafted intravenously into congenic recipient mice, in which production of CMFDA+ platelets was monitored by serial phlebotomy (Cunin et al., 2017; Fuentes et al., 2010; Zhang et al., 2016) and Figure 5—figure supplement 1A). Remarkably, most platelets produced by donor MKs (i.e. CMFDA+) were also positive for CellVue Maroon, indicating a high frequency of incorporation of donor leukocyte membrane (Figure 5A). The intensity of CellVue Maroon staining remained constant over time, suggesting that donor membrane was employed continuously over an extended period (Figure 5B). Similar findings were obtained with lipid stainer PKH67 (Figure 5—figure supplement 1B). To exclude experimental artifact related to lipid stains, we employed donor marrow from mT/mG mice bearing membrane fluorescence mediated by fluorochrome associated with the inner membrane leaflet. Confocal imaging confirmed that membrane fluorescence from mT/mG marrow cells efficiently transferred into MKs in vitro (Figure 5—figure supplement 1C). Membrane fluorescence was also detected on platelets produced in vivo by WT MKs incubated with mT/mG marrow donors, albeit with weaker signal since membrane fluorescence is less intense that with lipid stains (Figure 5—figure supplement 1D). We similarly investigated transfer of intracellular or surface protein. Marrow cells were stained with the intracellular protein stain CellTrace Violet and then co-cultured with CMFDA +MKs. Interestingly, platelets emerging in vivo contained CellTrace violet, consistent with cytoplasmic protein transfer (Figure 5C and D). Together, these results demonstrate that lipids and intracellular proteins are transferred from marrow cells not only to MKs but also to their daughter platelets. Of note, we could not detect biotin on emerging platelet when MKs were previously co-cultured with surface-biotinylated marrow cells (Figure 5—figure supplement 1E). Moreover, platelets were negative for neutrophil surface proteins Ly6G, CD11b, CD18 and CD88 (not shown). We cannot exclude the possibility that other surface proteins not directly assessed may still transfer in quantities too modest to be detected by bulk biotin-streptavidin staining.

Figure 5 with 1 supplement see all

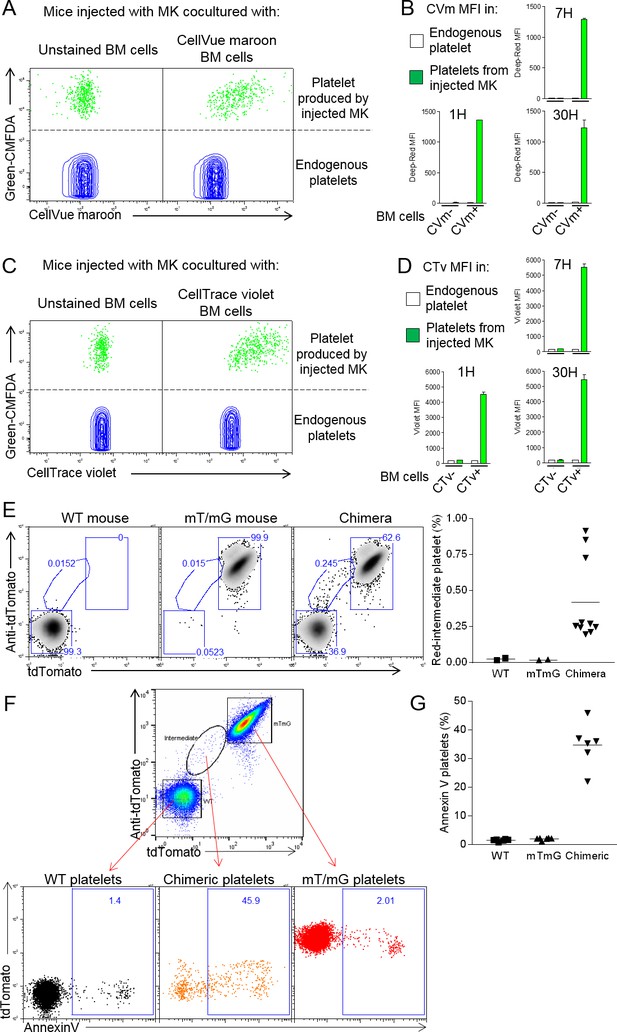

Neutrophil membranes transferred in emperipolesis emerge on circulating platelets.

(A) CMFDA+ MKs are co-cultured with either CellVue maroon (CVm) or unstained marrow cells, and injected i.v. (Figure 5—figure supplement 1A). Circulating CD41+ platelets were analyzed serially by flow cytometry. Dot plots show CVm MFI among CMFDA- platelets (endogenous) and CMFDA+ platelets (produced by injected MKs). (B) CellVue maroon MFI on endogenous platelets versus platelets produced by injected MKs over time. (C-D) Same as (B-C) but marrow cells were stained with the protein stain CellTrace violet (CTv) prior to co-culture with CMFDA+ MKs. (E-F) CD45.1 mice were lethally irradiated and engrafted for 4 weeks with a mix of WT and mT/mG marrow. Circulating platelets were fixed, permeabilized and stained with anti-tdTomato. (E) Left: representative dot plots of tdTomato and anti-tdTomato MFI in circulating platelets from WT, mT/mG, and chimera mice. Right: frequency of the red-intermediate population among total platelets, representative of 3 independent experiments. Note that this population underestimates the true post-emperipolesis population because it detects only mT/mG→WT events, not WT→WT, mT/mG→mT/mG, and WT→mT/mG. (F) Annexin V MFI in WT, mT/mG, and chimeric platelets (control for binding specificity in Figure 5—figure supplement 1G). (G) Frequency of Annexin V positive events among WT, mTmG and chimeric platelets. (F-G) Representative of 3 experiments.

https://doi.org/10.7554/eLife.44031.017

We sought to exclude the possibility that this membrane transfer reflected an artifact of ex vivo MK generation and co-culture. To this end, we generated mice chimeric for WT and mT/mG marrow, allowing us to seek platelets resulting from mT/mG→WT membrane transfer in a fully native environment. Indeed, platelets with the expected intermediate fluorescent phenotype were observed (Figure 5E), albeit only in relatively small numbers, potentially because of the weak fluorescence in the mT/mG system and because WT→WT, mT/mG→mT/mG, and WT→mT/mG transfer events remain undetectable. Examination of BM MKs identified examples of fluorescent neutrophils contributing membrane to non-fluorescent MKs from an intracellular location (Figure 5—figure supplement 1F). We conclude that intracellular neutrophils transfer membrane to MKs and thereby to platelets via emperipolesis in vivo. Of note, we observed an important fraction of the ‘red-intermediate’ platelets in the mT/mG/WT chimeric mice expressing phosphatidylserine (Figure 5F and G; control for Annexin V staining in Figure 5—figure supplement 1G), while we observe normal levels of CD62P and a marginal band of β1-tubulin by microscopy (Figure 5—figure supplement 1H–I), excluding an abnormal activation phenotype (Moskalensky et al., 2018; Sadoul, 2015). Surface phosphatidylserine creates a scaffold for clotting factors and is a hallmark of pro-coagulant platelets (Heemskerk et al., 2013; Nagata et al., 2016). This result suggests the possibility that emperipolesis-derived platelets could be functionally distinct, potentially including enhanced thrombogenic capacity.

Emperipolesis enhances platelet production

As a bidirectional interaction between MKs and leukocytes, emperipolesis is likely to have multiple cellular effects. Among these, we elected to explore its impact on thrombocytogenesis. Recognizing the association of emperipolesis in humans with hematopoietic disease (Cashell and Buss, 1992; Centurione et al., 2004; Larsen, 1970; Mangi and Mufti, 1992; Stahl et al., 1991; Thiele et al., 1984), we exposed mice to several models of stress-induced platelet over-production by MKs, intraperitoneal LPS injection and IgG-mediated thrombocytopenia. The proportion of MKs containing at least one neutrophil was assessed in two-dimensional marrow sections. In each case, emperipolesis increased from a baseline of ~2–5% in control mice to ~6–10% under stress (Figure 6A–C). These figures represent a minimal estimate of the ‘snapshot’ prevalence of emperipolesis, since they sample only 5 μm sections of MKs with a typical diameter of 20–100 μm, but nevertheless confirm that emperipolesis is common and strongly induced under physiological stress. Interestingly, an enhanced drive for platelet production was not sufficient to augment emperipolesis, because accelerated platelet production following administration of thrombopoietin, or platelet depletion by anti-CD41 was unaccompanied by an increase in emperipolesis (Figure 6—figure supplement 1A and B). One possible explanation is that neutrophil activation may also be required, consistent with the role of neutrophil β2 integrins defined above.

Figure 6 with 1 supplement see all

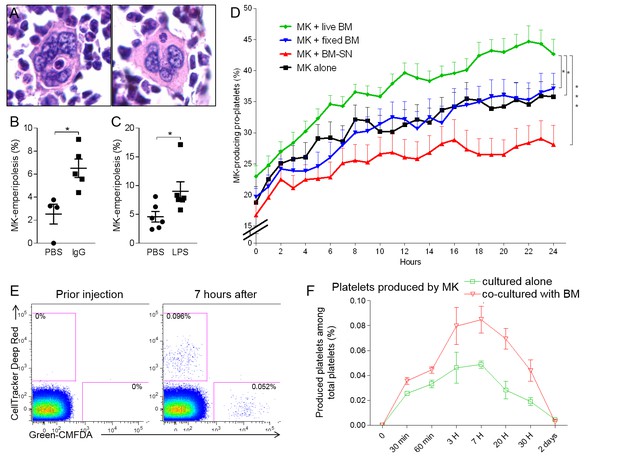

Emperipolesis contributes to platelet production.

(A) Bone sections stained with H and E showing MK containing one neutrophil in an emperiosome (left) or without evident vacuole (right). (B) Tg-FcγR2a mice are treated with HA-IgG for 7 days. Percentage of MKs containing at least one neutrophil was calculated in bone sections, n=4-5 mice per group (See Figure 6—source data 1). (C) Mice were treated with PBS or 25μg LPS i.p. After 3 days, the percentage of MKs containing at least one neutrophil is calculated in bone sections, n=6 mice per group (See Figure 6—source data 1). (D) MKs were cultured alone (black line) or with SN from marrow cell culture (red line), fixed marrow cells (blue line) or live marrow cells (green line). MKs were then enriched and cultured in TPO medium. MKs producing pro-platelets over time were quantitated using IncuCyte. None vs. live marrow: p=0.015; marrow-SN vs. live marrow: p=0.0002; fixed marrow vs. live marrow: p=0.014. Pooled from 5 independent experiments (See Figure 6—source data 1). (E-F) MKs stained with Green-CMFDA or CellTracker Deep Red are either co-cultured or not with marrow cells, mixed together 1:1 and injected i.v. (Figure 6—figure supplement 1C). After different time points, circulating platelets positive for Green-CMFDA or CellTracker Deep Red are detected by flow cytometry. (E) Representative dot plots of green vs. red staining on CD41+ platelets. (F) Frequency of green vs. red population of platelets over time, n=3 mice per group, representative of 4 independent experiments (See Figure 6—source data 1).

https://doi.org/10.7554/eLife.44031.019

To quantitate the impact of emperipolesis on thrombocytopoiesis, we employed IncuCyte high-content live-cell microscopy (Thon et al., 2012), comparing pro-platelet generation by MKs cultured alone or together with marrow cells. These studies employed fetal liver MKs because of their superior ability to generate pro-platelets in vitro. To assess the role of cell-cell contact and bone marrow cell-derived soluble factors, including microparticles, we cultured MKs with marrow cell supernatant or with paraformaldehyde-fixed marrow cells. Co-culture with living marrow cells markedly enhanced pro-platelet production (Figure 6D). By contrast, MKs cultured with fixed cells or cell supernatants produced fewer pro-platelets than those cultured alone, weighing against a role for contact and soluble factors and implicating emperipolesis directly (Figure 6D).

Finally, we tested the effect of emperipolesis on platelet production in vivo via adoptive transfer. MKs were labeled either with Green-CMFDA or with CellTracker Deep Red, and one population or the other (varied across experiments) was cultured together with marrow cells. MKs were mixed 1:1 and engrafted IV into recipient animals for serial parallel quantitation of green and red platelets (Figure 6—figure supplement 1C). As predicted by the IncuCyte findings, MKs cultured with marrow cells were more efficient at producing platelets (Figure 6E and F), consistent with promotion of thrombocytogenesis by emperipolesis.

Discussion

Megakaryocytes anchor hemostasis via elaboration of platelets. Platelet production can occur in a cell-intrinsic manner, as for example by MKs cultured in isolation ex vivo. However, physiological platelet generation proceeds in a complex multicellular environment. The present studies establish a pathway through which this cellular context modulates thrombocytogenesis. During emperipolesis, neutrophils and other hematopoietic lineages penetrate into the MK cytoplasm, a process mediated actively by both host and donor. This process is distinct from phagocytosis since the neutrophil actively penetrates into the MK and survives to exit intact. Cytoplasmic neutrophils transfer membrane and cytosolic contents to MKs and to platelets, thereby enhancing platelet production. Donor neutrophils receive membrane in turn before they exit intact (Figure 7). Thus, emperipolesis represents a previously unrecognized pathway through which neutrophils and other hematopoietic cells engage with MKs to modulate the composition and production of circulating platelets.

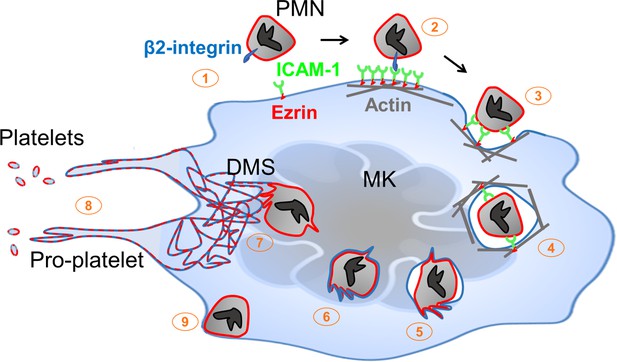

Neutrophil transit through megakaryocytes in emperipolesis mediates membrane transfer and enhanced platelet production – proposed model.

(1) Neutrophils expressing β2 integrin and MKs expressing ICAM-1 are positioned to engage, including via MK tethers. (2) ICAM-1 ligation by neutrophil β2-integrins induces ICAM-1/ezrin pair translocation and clustering, as in transendothelial migration (Ley et al., 2007). (3) Formation of a trans-MK cup in an actin-dependent manner. (4) Neutrophil entry into MK vacuole (“emperisome”). (5-6) Neutrophil and emperisome membranes become closely apposed. Neutrophil and emperisome membranes may merge at some locations. Emperisome membrane disappears, enabling neutrophil entry into the MK cytoplasm. (7) Neutrophil translocates to DMS where membrane fusion occurs, transferring neutrophil membrane and protein. (8) Production of platelets containing neutrophil membrane. (9) Egress of viable neutrophil from MK.

https://doi.org/10.7554/eLife.44031.022

We identified β2 integrins and MK ICAM-1/ezrin as contributors to emperipolesis. These proteins also mediate another form of transcellular passage, the migration of neutrophils through the cell bodies of endothelial cells (Ley et al., 2007). Unlike emperipolesis, endothelial transcellular migration is not known to involve penetration into the host cytoplasm. It remains unknown whether other mechanisms are shared between emperipolesis and transendothelial migration, such as fusion of caveolin vesicles to create an intracellular channel for passage (Ley et al., 2007; Millán et al., 2006). Tavassoli and colleagues had previously postulated that emperipolesis could represent a pathway of neutrophil egress from the bone marrow (Dziecioł et al., 1995; Tavassoli, 1986). Transit of some neutrophils through MKs over the course of just a few minutes lends plausibility to this hypothesis. Our data do not exclude the possibility that some neutrophils pass through MKs without a cytoplasmic ‘detour,’ thereby resembling endothelial transcellular migration even more closely.

Mechanisms of MK-emperipolesis have remained entirely obscure for almost 50 years (Larsen, 1970). Electron microscopy observations previously raised the possibility that neutrophils are not internalized by MKs but rather enter directly through the DMS, which is continuous with the cell surface (Eckly et al., 2014), to reside within DMS dilated cavities (Breton-Gorius and Reyes, 1976; Thiele et al., 1984). Consistent with these observations, myeloid cells are often found at the cell surface entrance of the DMS (Thiele et al., 1984), and increased emperipolesis has been reported in models with dilated and enlarged DMS or after pharmacological modification of the DMS (Overholtzer and Brugge, 2008). However, our confocal and electron microscopy images demonstrate that neutrophils enter MKs directly, through a vacuole, ultimately taking up residence inside the MK cytoplasm. Emperipolesis is nevertheless strikingly heterogeneous. For example, emperipolesis can be observed in MKs of all sizes and can last just minutes to over an hour. MKs may enclose a single neutrophil or encompass as many as 50 neutrophils (Figure 1—figure supplement 1C). These observations strongly suggest that there may be different types of emperipolesis, involving different molecular pathways and serving distinct functions that remain to be defined.

Because the mechanistic pathways identified in our study are not specific to emperipolesis (e.g. β2 integrin binding, actin polymerization), we have so far been unable to interrupt this phenomenon with selectivity in vivo. To address its function, we employed a combination of approaches, focused here on platelet production. This focus is justified by the enhanced frequency of emperipolesis in diseases associated with high platelet count, including essential thrombocythemia, polycythemia vera (Cashell and Buss, 1992; Vytrva et al., 2014), or with high platelet demand (gray platelet syndrome, blood loss or hemorrhagic shock [Di Buduo et al., 2016; Dziecioł et al., 1995; Larocca et al., 2015; Monteferrario et al., 2014; Sahebekhitiari and Tavassoli, 1976; Tavassoli, 1986]). Further, enhanced emperipolesis in chronic myeloproliferative disorders positively correlates with the peripheral platelet count (Thiele et al., 1984). We establish that emperipolesis accelerates platelet production both in vitro and in vivo. The quantitative importance of this contribution, and whether it reflects enhanced access to lipid membrane or some other mechanism, remains to be established.

Since platelets generated through emperipolesis bear donor membrane as well as parent MK membrane, it is likely that they will be different in function. Consistent with this possibility, we found enhanced expression of surface phosphatidylserine on emperipolesis-derived platelets in our chimeric WT-mT/mG mice (Figure 5F and G). Given the role of β2 integrins in emperipolesis, it is plausible to suspect that activated neutrophils will preferentially engage in emperipolesis, suggesting the possibility that ‘angry neutrophils make angry platelets’. The identity of lipids and proteins transferred from neutrophils and other cells to MKs and platelets, and the resulting changes in cell function, will be important topics for future study.

The impact of emperipolesis is unlikely to be restricted to MKs and platelets. Our videomicroscopy data confirm that exiting neutrophils can carry MK membrane with them (Figure 4—figure supplement 1D), potentially translating into altered function. These effects are more difficult to study in vitro because of the capacity we identified for MKs to transfer membrane to nearby cells via MK microparticles (Figure 4—figure supplement 1H). Our prior work had identified MK microparticles as potent pro-inflammatory vectors implicated in the delivery of IL-1 during systemic inflammatory disease (Cunin et al., 2017). The present findings thus extend the understanding of MK microparticles as signaling vectors. Further, by establishing transfer of membrane not only from donor cell to MK but also reciprocally, followed by release of viable cells back into the intercellular milieu, these studies identify emperipolesis as a mechanism through which MKs may be able to ‘groom’ neutrophils and other immune lineages.

We are unable at present to define conclusively the proportion of circulating platelets that bear neutrophil membrane. The mT/mG chimera experiments will not accurately reflect this fraction, because only one of 4 possible donor-host pairs yields detectable platelets (mT/mG neutrophil→WT MK) and because mT/mG fluorescence is weak, such that transfer events will likely often be invisible. We note that many platelets released by MKs co-cultured with membrane-labeled marrow donors expressed membrane label (Figure 5). Given the speed with which cells enter and exit MKs, a snapshot prevalence of 6% is compatible with the possibility that many or even most MKs, and many neutrophils, experience emperipolesis over time, perhaps repeatedly. If this is the case, and labeling experiments accurately reflect the efficiency of membrane transfer, then emperipolesis-derived membrane could be common in circulating platelets. Alternately, if transfer were inefficient, and/or only a subset of MKs engaged in emperipolesis, then emperipolesis-modulated platelets could represent simply a small (but potentially still functionally important) subset of the circulating pool.

We recognize other limitations to these studies. Unique functional contributions of emperipolesis-derived platelets remain to be established. The mechanisms through which neutrophils escape emperisomes to enter the cytoplasm, home intracellularly to the DMS, and then egress without violating MK outer membrane integrity remain to be defined. Cells deficient in β2 integrins retain the capacity to enter MKs, albeit with reduced efficiency, revealing that other ligand/receptor pairs can mediate entry. The signals driving enhanced emperipolesis in the setting of experimental stress, during hemorrhagic shock, and in aberrant marrow environments such as in hematopoietic malignancies, remain to be established. Despite these limitations, the current studies identify emperipolesis as a novel cell-in-cell interaction that mediates reciprocal transfer of membrane and other cellular components, defining thereby a new mechanism of interchange between immune and hematopoietic systems.

Materials and methods

Mice

Request a detailed protocol

C57Bl/6, CD45.1 B6 mice, cd18-/- mice, mT/mG mice and Tg-FcγRIIA mice were purchased from The Jackson Laboratory. LyzM-GFP mice transgenic for FcγRIIA (Tg-FcγRIIA) mice were backcrossed 10 times in the C57BL/6J background. Unless stated, all experiments employed male mice aged 8–12 weeks. All procedures were approved by the local animal care committee.

Antibodies

Anti-CD61 (2C9.G2), -CD42d (1C2), -CD11a (M17/4), -CD11b (M1/70), CD62P (RMP-1), CD31 (MEC13.3, all from Biolegend), -Ly6G (1A8, BioXCell), -GPVI (Jaq1, Emfret), and anti-CD18 (clone GAME-46, BD biosciences) were used in blocking experiments. Antibodies used for flow cytometry and microscopy staining were anti mouse-CD41 (MWReg30), -ICAM (YN1/1.7.4), -CD18 (M18/2), -Ly6G (1A8), -CD31 (MEC13.3), CD144 (BV13), -Tubulin (10D8 all from Biolegend), -Ezrin and -phospho-Ezrin (rabbit polyclonal, Cell Signaling), and anti-human-CD41 (HIP8), -CD15 (W6D3), CD66b (G10F5), and -ICAM-1 (HA58). Fluorescent-conjugated secondary antibodies were purchased from Jackson Immunoresearch.

Chemicals and reagents

Request a detailed protocol

Latrunculin A and Cytochalasin D were purchased from Cayman Chemical. Ezrin inhibitor NSC668394 was from Calbiochem. Lipids cells strainers PKH67 and PKH26 were from Sigma. Protein strainers Green CMFDA, CellTracker Deep Red and Cell Trace Violet were from Molecular probes. Surface protein biotinylation kit was purchased from Pierce.

Cell generation

Request a detailed protocol

Marrow cell generation: marrow was flushed from the bone marrow cavity using PBS and cells were filtered via a 40 μm cell strainer to remove spicules and clumps. After centrifugation, erythrocytes were lysed and then cells were resuspended in complete RPMI medium supplemented with 1% supernatant from the TPO-producing fibroblast cell line GP122 (hereafter called TPO medium) (Villeval et al., 1997). Murine MK generation: Bone marrow cells were cultured in TPO medium for 4–5 days. MKs were separated from marrow cells using a two-step albumin gradient as described (Schulze, 2016; Shivdasani and Schulze, 2005). Fetal liver-derived MKs were generated as described (Machlus et al., 2017). Human MK generation: mobilized peripheral blood or BM CD34 +stem/progenitor cells were purchased from AllCells. 1 × 105 cells were cultured in StemSpan medium supplemented with a MK expansion supplement, both from StemCell for 12–14 days, as described (Liu et al., 2011). Human neutrophils were obtained from blood from healthy donors. Neutrophil were enriched using a dextran density gradient sedimentation as described (Cunin et al., 2016). Contaminating red blood cells were lysed by hypo-osmotic shock.

Emperipolesis assay

Request a detailed protocol

2 × 104 murine MKs with 2 × 106 murine marrow cells in TPO medium, or 2 × × 104 human MKs with 2 × 106 human neutrophil in StemSpan medium were co-cultured overnight in P96 round bottom wells.

Confocal microscopy

Request a detailed protocol

Cells were fixed in PFA 2% for 30 min at RT. After washing, cells were suspended in PBS supplemented with 0.1% saponin and 3% FCS (permeabilization buffer) and incubated 2 hr at RT or overnight at 4C with 10 μg/ml primary antibodies. After washing in permeabilization buffer, secondary antibodies diluted 1:200 were added for 1 hr. When indicated, Phalloidin (Molecular Probe), Draq5 (eBioscience) or Hoechst (ThermoFisher) were added for the 15 last minutes, prior washing with PBS and cytospin. Cells were mounted on slides using FluorSave mounting medium (Calbiochem). Microscopy was performed using a Nikon C1 Plus Confocal Laser Scanner confocal or a Zeiss LSM 710 or 800 Multiphoton Laser scanner confocal microscope.

Spinning disk confocal microscopy

Request a detailed protocol

MKs stained with PKH26 and marrow cells stained with PKH67 were co-cultured in P96 round bottom wells for at least 1 hr prior to spinning disk imaging. Cells were then resuspended in TPO medium without red phenol and supplemented with Draq5, and cultured in a micro insert 4-well dish for time lapse imaging. Movies were obtained using a YokogawaCSU-X1 or an Olympus DSU inverted spinning disk confocal microscope. Images were acquired every 4 min on 12 different Z-stacks, 1 μm per stack. Movies were analyzed using EZ element software or Volocity software.

Imaging of whole-mount bone marrow

Request a detailed protocol

Whole-mount-tissue preparation, immunofluorescence staining and imaging of the bone marrows were performed as described previously (Kunisaki et al., 2013). Briefly, mice were intravenously injected with AF647-labelled anti-CD31 and anti-CD144 and perfused with PBS and 4% PFA15 min after. Femurs and tibias were harvested, PFA-fixed, frozen in OCT, and shaved on a cryostat to expose the marrow. Bones were incubated in PBS containing 10% FCS and 0.5% Triton X-100, with AF594 anti-Ly6G, AF488 anti-CD41 and Hoechst for 2 days. Images were acquired using a Zeiss LSM 800 Multiphoton Laser scanner confocal microscope and reconstructed in 3D with Imaris software.

Electron microscopy

Request a detailed protocol

Cells were fixed using 2% PFA and 0.1% glutaraldehyde for 1 hr RT. After washings, cells were incubated with 0.1% OsO4 for 30 min prior to sectioning. 50 nm sections were observed with a JEOL 1200EX electron microscope.

In vitro pro-platelet production

Request a detailed protocol

MKs were co-cultured overnight without or with PKH67-stained marrow cells. Marrow cells were separated from MKs using BSA-gradient sedimentation, and cells were transferred to a P24 well plate and imaged using the IncuCyte HD system (Essen BioScience). Frames were captured every hour. Rates and extent of proplatelet production were measured in ImageJ software using investigator-coded software (Thon et al., 2012).

In vivo platelet production

Request a detailed protocol

2 × 105 MKs, previously stained with Green CMFDA or CellTracker Deep Red (Molecular probes) and co-cultured or not with marrow cells, were injected i.v. in 200 μl PBS. Blood was harvested by tail vein sampling at indicated time points using heparinized capillary tubes. 1 μl was blood is diluted in 500 μl PBS in the presence of an anti-CD41 antibody. Presence of green CMFDA or CellTracker Deep Red on circulating CD41+ platelets was evaluated by flow cytometry.

Emperipolesis in marrow sections

Request a detailed protocol

Bones were fixed in PFA 4% for 2 days prior to decalcification in Kristensen solution for 2 days prior to paraffin-embedding. Percentages of marrow MKs containing at least one neutrophil were determined on 6 μm paraffin-embedded sections stained with H and E.

Platelet overproduction models

Request a detailed protocol

LPS treatment: WT C57Bl/6J mice were treated i.p. with PBS or 25 μg LPS in 200 μl PBS. Bones were harvested 3 days later. FcγRIIA transgenic mice: Tg-FcγRIIA mice were treated i.v. with PBS or 500 µg heat-agglutinated IgG. Bones were harvested 7 days later. TPO administration: WT mice were treated daily with 0.5 μg rmTPO (Peprotech) or PBS i.v. for 3 days (Kirito et al., 2002). Bones were harvested 7 days later. Immune thrombocytopenia: WT mice were treated i.v. with 5 μg anti-CD41 (clone MWReg30) or isotype control (Rat IgG1 clone RTK2071) (Hitchcock et al., 2008). Bones were harvested 2 days later. Circulating CD41+ platelet were quantified by flow cytometry using 1 µm counting beads (Polysciences, Inc).

Statistics

Statistical significance in emperipolesis between two conditions was determined using the Chi-square test. Number of MKs counted per sample is reported in Figure legends. To compare emperipolesis in 2 groups of mice we used the Two-tailed Mann-Whitney test. In vitro pro-platelet production (IncuCyte experiment) and in vivo platelet production over time were analyzed with the two-way analysis of variance (ANOVA). All statistical analysis were done using Prism software, *p<0.05, **p<0.01 ***p<0.001.

References

  1. 1
    Ultrastructure of human bone marrow cell maturation
    1. J Breton-Gorius
    2. F Reyes
    (1976)
    International Review of Cytology 46:251–321.
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
    Megakaryocytes in the acute stage of experimental hemorrhagic shock. Part II. Megakaryocytic regulation of cell release from the bone marrow
    1. J Dziecioł
    2. W Debek
    3. L Chyczewski
    4. B Szynaka
    5. W Kisielewski
    6. S Sulkowski
    (1995)
    Roczniki Akademii Medycznej w Bialymstoku 40:94–98.
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    Association of Ezrin with intercellular adhesion molecule-1 and -2 (ICAM-1 and ICAM-2). Regulation by phosphatidylinositol 4, 5-bisphosphate
    1. L Heiska
    2. K Alfthan
    3. M Grönholm
    4. P Vilja
    5. A Vaheri
    6. O Carpén
    (1998)
    The Journal of Biological Chemistry 273:21893–21900.
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
    The significance of megakaryocyte size
    1. RF Levine
    2. KC Hazzard
    3. JD Lamberg
    (1982)
    Blood 60:1122–1131.
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
    Primary myelodysplastic syndromes: diagnostic and prognostic significance of immunohistochemical assessment of bone marrow biopsies
    1. MH Mangi
    2. GJ Mufti
    (1992)
    Blood 79:198–205.
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
    Effects of human interleukin-6 on megakaryocyte development and thrombocytopoiesis in primates
    1. CP Stahl
    2. D Zucker-Franklin
    3. BL Evatt
    4. EF Winton
    (1991)
    Blood 78:1467–1475.
  48. 48
  49. 49
  50. 50
    Modulation of megakaryocyte emperipolesis by phlebotomy: megakaryocytes as a component of marrow-blood barrier
    1. M Tavassoli
    (1986)
    Blood cells 12:205–216.
  51. 51
  52. 52
  53. 53
    High thrombopoietin production by hematopoietic cells induces a fatal myeloproliferative syndrome in mice
    1. JL Villeval
    2. K Cohen-Solal
    3. M Tulliez
    4. S Giraudier
    5. J Guichard
    6. SA Burstein
    7. EM Cramer
    8. W Vainchenker
    9. F Wendling
    (1997)
    Blood 90:4369–4383.
  54. 54
  55. 55
  56. 56
  57. 57

Decision letter

  1. Reinhard Fässler
    Reviewing Editor; Max Planck Institute of Biochemistry, Germany
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands
  3. Reinhard Fässler
    Reviewer; Max Planck Institute of Biochemistry, Germany
  4. Markus Sperandio
    Reviewer; Ludwig Maximilian University of Munich, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Megakaryocyte emperipolesis mediates membrane transfer from intracytoplasmic neutrophils to platelets" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Reinhard Fässler as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Ivan Dikic as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Markus Sperandio (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript reports on the mechanism and significance of emperipolesis, a phenomenon by which megakaryocytes (MKs) engulf neutrophils or, to a lesser extent, other hematopoietic cells. The authors established in vitro cultures, with which they define a series of events demonstrating that neutrophils are taken up by MKs in membrane-bound vesicles, are then released into the cytoplasm where they form a membrane continuity with the MK demarcation membrane system, which leads to membrane transfer from neutrophils to MK-derived platelets and to an acceleration of platelet production (shown in inflammation models, LPS treatment and IgG-mediated thrombocytopenia). Furthermore, the authors also demonstrate that there is a reciprocal membrane transfer from MKs to engulfed neutrophils.

Essential revisions:

1) It is not clear from the results whether emperipolesis affects the function(s) of platelets and/or neutrophils. This should be addressed in studying functional aspects of platelets (activation, aggregation, release of cytokines, etc.) from MK cells without neutrophils co-culture or from MK cells co-cultured with neutrophils. Furthermore, we propose to test for neutrophil proteins on platelets by FACS instead of the staining method used in the paper.

2) The cytochalasin D and latrunculin experiments should be better controlled: a positive control (that both drugs effectively disrupt F-actin), quantified by microscopy or FACS, and inactive structural analogs as negative controls.

3) The authors should demonstrate that the neutrophil membrane transfer does not result in an inside-out orientation, which would expose, among other molecules, phospatidylserine and potentially mark the cells for apoptotic uptake by macrophages.

https://doi.org/10.7554/eLife.44031.025

Author response

Essential revisions:

1) It is not clear from the results whether emperipolesis affects the function(s) of platelets and/or neutrophils. This should be addressed in studying functional aspects of platelets (activation, aggregation, release of cytokines, etc.) from MK cells without neutrophils co-culture or from MK cells co-cultured with neutrophils. Furthermore, we propose to test for neutrophil proteins on platelets by FACS instead of the staining method used in the paper.

The principal findings of our paper are that it demonstrates, for the first time, two common yet previously unrecognized processes in cell biology:

1) The passage of a mammalian cell through the cytoplasm of another cell from the same organism, in a manner driven actively by both lineages.

2) The transfer of membrane from one lineage to another from an intracellular location, a topologically unique process that explains why neutrophils must assume cytoplasmic residence.

The reviewers raise key questions of the impact of this interaction for the function of platelets and neutrophils. These are important questions, raised also in our Discussion, and we anticipate that they will occupy the lab for better part of the next decade. We agree that the present manuscript will be strengthened by data showing that there is likely to be such impact.

Accordingly, we have now added data reporting the phenotype of hybrid platelets generated in our chimeric WT/mTmG mouse. We show that these platelets express normal levels of the activation marker CD62P (new Figure 5—figure supplement 1H) and show a marginal band of β1-tubulin coil (new Figure 5—figure supplement 1I) excluding an abnormal activation phenotype (Moskalensky et al., 2018; Sadoul, 2015). However they express substantially higher levels of phosphatidylserine, as reflected in Annexin V staining (new Figure 5F and G, control of Annexin V staining specificity in new Figure 5—figure supplement 1G). Surface phosphatidylserine creates a scaffold for clotting factors and is a hallmark of pro-coagulant platelets (Heemskerk et al., 2013; Nagata et al., 2016). This result thereby supports the possibility that emperipolesis-derived platelets are functionally distinct, and potentially pro-thrombogenic, motivating future studies in this direction.

Studies of platelet function, as outlined by the reviewers, will require development of a whole new set of experimental systems. In particular, the WT/mTmG hybrid platelets are identified using a permeabilization strategy to recognize the Tomato stain on the inner membrane leaflet, and so are not suitable for functional work. We are currently experimenting with novel platelet bioreactor systems that will enable generation of platelets in quantities sufficient for studies of activation to diverse ligands, aggregation, and cytokine release. These studies are very important but, we suggest, not essential to the impact of the present paper which focuses on emperipolesis as a novel cell biological phenomenon.

We added the findings related to hybrid platelets phenotype in the Results section as follows:

“Of note, we observed an important fraction of the “red-intermediate” platelets in the mT/mG / WT chimeric mice expressing phosphatidylserine (Figure 5F and G; control for Annexin V staining in Figure 5—figure supplement 1G), while we observe normal levels of CD62P and a marginal band of β1-tubulin by microscopy (Figure 5—figure supplement 1H-I), excluding an abnormal activation phenotype (Moskalensky et al., 2018; Sadoul, 2015). […] This result suggests the possibility that emperipolesis-derived platelets could be functionally distinct, potentially including enhanced thrombogenic capacity.”

We modified the Figure 5 and Figure 5—figure supplement 1 legends accordingly:

Figure 5: “F. Annexin V MFI in WT, mT/mG, and chimeric platelets (control for binding specificity in Figure 5—figure supplement 1G). G. Frequency of Annexin V positive events among WT, mTmG and chimeric platelets. F-G. Representative of 3 experiments.”

Figure 5—figure supplement 1: “E. MKs stained with Cell Tracker Deep Red and co-cultured with surface-biotinylated BM cells were injected i.v. After 1 hour, circulating platelets are stained with Dylight 488-streptavidin. […] I. Platelets from chimeric mice were sorted basted on tdTomato expression and stained with anti-CD41 (green) an anti-β1 tubulin (blue). Representative of 2 experiments. Scale bars represents 1µm.”

We have to date observed no evidence by flow cytometry for neutrophil surface proteins on platelets generated via EP, as determined in platelets generated from MKs engrafted into mice after undergoing this process (not shown). This is in fact the expected result because platelets are generally negative for markers such as CD18, Ly6G, and CD45. Further, studies of emperipolesis of surface-biotintylated bone marrow cells, not included in the original submission but added here in revision, showed that neutrophil surface proteins emerge on MKs but not platelets as determined by streptavidin staining (new Figure 5—figure supplement 1E). Note that these studies do not exclude the possibility that some proteins not studied specifically may still transfer from neutrophils to platelets, and are planning proteomic studies that will specifically address this question.

We report the absence of neutrophil surface proteins on emerging platelets in the Results section as follows:

“We similarly investigated transfer of intracellular or surface protein. Marrow cells were stained with the intracellular protein stain CellTrace Violet and then co-cultured with CMFDA+ MKs. […] Moreover, platelets were negative for neutrophil surface proteins Ly6G, CD11b, CD18 and CD88 (not shown), although we cannot exclude the possibility that other surface proteins not directly assessed may still transfer from marrow cells to platelets in quantities too modest to be detected by bulk biotin-streptavidin staining.”

2) The cytochalasinD and latrunculin experiments should be better controlled: a positive control (that both drugs effectively disrupt F-actin), quantified by microscopy or FACS, and inactive structural analogs as negative controls.

Cytochalasin D (CD) and latrunculin A (LA) are commonly-used reagents that alter the state of actin polymerization by different mechanisms. LA binds actin monomers and prevents them from polymerizing, while also accelerating actin depolymerization (Fujiwara et al., 2018a; Fujiwara et al., 2018b). CD binds actin filaments and blocks their elongation (Brieher, 2013; Cooper, 1987). Both products are cell-permeable and can be used on living cells, and their potential to disrupt the actin cytoskeleton has been established for decades (Cooper, 1987; Lin et al., 1980). While we agree that caution is always appropriate when applying chemical inhibitors, we highlight that the original submission had already featured such an experiment. Specifically, Figure 3—figure supplement 1A showed the efficiency of LA and CD on cytoskeleton disruption using labelled phalloidin, which binds F-actin. This experiment strongly supports the well-established use of these compounds in the way that we have employed them here. Regrettably, we are unaware of inactive structural analogs for LA and CD, though we do not consider this necessarily a limitation of our experimental design given the negative and positive controls already incorporated in our experiments.

In Figure 3—figure supplement 1A, we had chosen to confirm LA and CD efficiency by microscopy using phalloidin because flow cytometry provides information only on the overall quantity of F-actin, which may fail to reflect the true extent of cytoskeleton impairment. For example, cell treatment with CD induces an increase in F-actin signal because CD inhibits F-actin polymerization at a lower rate than it inhibits F-actin depolymerization (Rao et al., 1992; Shoji et al., 2012). However, to address the reviewer request, we repeated the experiment in Figure 3—figure supplement 1A but used flow cytometry to monitor F-actin. As expected, we found that F-actin signal is reduced with LA, while CD induces an increase of F-actin signal (Author response image 1A and B). Our preference is to include this information for the reviewers only, rather than in the manuscript itself, because we believe that the existing Figure 3—figure supplement 1A better reflects the biologic impact of these inhibitors.

Author response image 1
Marrow cells were treated with 1µM latrunculin A, cytochalasin D, or DMSO.

Inhibitors were either left in culture (A), or thoroughly washed after 2 hours (B). After overnight incubation, cells were permeabilized and stained with labelled phalloidin. Left: Phalloidin MFI on Ly6G+ neutrophils, representative of 3 experiments. Right: Phalloidin MFI expressed as a percentage of control (DMSO condition), n=3.

We emphasize further that our evidence for the importance of actin in emperipolesis is not based only on the use of chemical inhibitors. The observation of neutrophil polarization during entry into MK (e.g. Video 2), and the formation of a transmembrane cup on MK surface (e.g. Videos 2 and 5) had strongly implicated both MK actin and neutrophil actin in emperipolesis. Further, confocal microscopy demonstrated particularly prominent actin polymerization at the MK surface where neutrophils are attached, as well as around “emperisomes” containing neutrophils (Figure 3C) where F-actin colocalized strikingly with the CD41 marker that delineates this vacuole (Figure 3C and Figure 3—figure supplement 1C). Taken together, we suggest that these data conclusively establish the role of actin in emperipolesis.

3) The authors should demonstrate that the neutrophil membrane transfer does not result in an inside-out orientation, which would expose, among other molecules, phospatidylserine and potentially mark the cells for apoptotic uptake by macrophages.

We are grateful for this intriguing question. To our estimation, the topology of emperipolesis would not particularly favor inversion of the neutrophil membrane during either cytoplasmic entry or membrane fusion with the demarcation membrane zone. Similarly, we observed no visible alterations in neutrophils following their exit from MKs. In particular, these neutrophils retain a normal nucleus shape and continue to diapedese freely among the other bone marrow cells in the culture. Thus none of our data to date suggest a role of emperipolesis in neutrophil clearance, though our data also do not formally exclude this possibility, and we remain very intrigued by the ways that trans-MK passage alters neutrophil function and fate.

We therefore sought to address the question experimentally. We labeled marrow cell with the membrane dye CellVue maroon to track membrane transferred during emperipolesis. Bone marrow cells were then co-cultured with MKs in the presence of FITC-labelled lactadherin (also known as MFGE8), an opsonin that binds specifically to phosphatidylserine in a Ca2+-independent manner (Hanayama et al., 2002). While we could again demonstrate membrane transfer to the MK DMS, we failed to observe lactadherin binding to these membranes, confirming that the transfer of membrane does not result in phosphatidylserine exteriorization (Author response image 2 and new Figure 4—figure supplement 1E). Moreover, neutrophils do not overexpress phosphatidylserine when co-cultured with MKs, as evidenced by the absence of Annexin V signal on their surface by flow cytometry (New Figure 4—figure supplement 1F). Thus, while we cannot yet exclude that MK passage labels neutrophils for accelerated clearance via phagocytes, we do not observe any evidence cells are so labeled via enhanced phosphatidyserine exposure.

Author response image 2
Bone marrowcells were stained with CellVue Maroon prior to co-culture with MKs, as in Figure 4B.

2µM of labelled lactadherin (LD, also known as MFGE8) was added in the culture. Confocal microscopy show a transfer of CellVue maroon (white) in the MK DMS (green). The absence of LD binding (blue) demonstrates that phosphatidylserine is not externalized during the process. LD positive cell is shown in Figure 4—figure supplement 1E. Representative of 2 experiments.

Text was added to the Results section as follows:

“Of note, membrane transfer during emperipolesis was not associated with phosphatidylserine externalization onto the neutrophil surface (Figure 4—figure supplement 1E-F).”

We modified the Figure 4—figure supplement 1 legend accordingly:

“E.Bone marrowcells were stained with CellVue Maroon prior to co-culture with MKs, as in Figure 4B. […] Representative of 2 experiments.”

https://doi.org/10.7554/eLife.44031.026

Article and author information

Author details

  1. Pierre Cunin

    Department of Medicine, Division of Rheumatology, Immunology and Allergy, Brigham and Women’s Hospital, Harvard Medical School, Boston, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8550-2306
  2. Rim Bouslama

    Department of Medicine, Division of Rheumatology, Immunology and Allergy, Brigham and Women’s Hospital, Harvard Medical School, Boston, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2767-6759
  3. Kellie R Machlus

    Department of Medicine, Hematology Division, Brigham and Women's Hospital and Harvard Medical School, Boston, United States
    Contribution
    Conceptualization, Resources, Software, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  4. Marta Martínez-Bonet

    Department of Medicine, Division of Rheumatology, Immunology and Allergy, Brigham and Women’s Hospital, Harvard Medical School, Boston, United States
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Pui Y Lee

    1. Department of Medicine, Division of Rheumatology, Immunology and Allergy, Brigham and Women’s Hospital, Harvard Medical School, Boston, United States
    2. Department of Medicine, Division of Immunology, Boston Children’s Hospital, Harvard Medical School, Boston, United States
    Contribution
    Conceptualization, Data curation, Methodology
    Competing interests
    No competing interests declared
  6. Alexandra Wactor

    Department of Medicine, Division of Rheumatology, Immunology and Allergy, Brigham and Women’s Hospital, Harvard Medical School, Boston, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  7. Nathan Nelson-Maney

    Department of Medicine, Division of Rheumatology, Immunology and Allergy, Brigham and Women’s Hospital, Harvard Medical School, Boston, United States
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
  8. Allyn Morris

    Department of Medicine, Division of Rheumatology, Immunology and Allergy, Brigham and Women’s Hospital, Harvard Medical School, Boston, United States
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
  9. Li Guo

    Program in Molecular Medicine and Department of Internal Medicine, University of Utah, Salt Lake City, United States
    Contribution
    Resources, Validation
    Competing interests
    No competing interests declared
  10. Andrew Weyrich

    Program in Molecular Medicine and Department of Internal Medicine, University of Utah, Salt Lake City, United States
    Contribution
    Resources, Validation
    Competing interests
    No competing interests declared
  11. Martha Sola-Visner

    Department of Neonatology, Boston Children’s Hospital, Harvard Medical School, Boston, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
  12. Eric Boilard

    Centre de Recherche en Rhumatologie et Immunologie, Centre de Recherche du Centre Hospitalier Universitaire de Québec, Faculté de Médecine de l’Université Laval, Québec, Canada
    Contribution
    Resources, Formal analysis
    Competing interests
    No competing interests declared
  13. Joseph E Italiano

    1. Department of Medicine, Hematology Division, Brigham and Women's Hospital and Harvard Medical School, Boston, United States
    2. Vascular Biology Program, Department of Surgery, Boston Children’s Hospital, Harvard Medical School, Boston, United States
    Contribution
    Resources, Formal analysis
    Competing interests
    Is a founder of and has financial interest in Platelet BioGenesis, a company that aims to produce donor-independent human platelets from human induced pluripotent stem cells at scale. JEI's interests were reviewed and are managed by the Brigham and Women's Hospital and Partners HealthCare, in accordance with their conflict-of-interest policies.
  14. Peter A Nigrovic

    1. Department of Medicine, Division of Rheumatology, Immunology and Allergy, Brigham and Women’s Hospital, Harvard Medical School, Boston, United States
    2. Department of Medicine, Division of Immunology, Boston Children’s Hospital, Harvard Medical School, Boston, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing—original draft, Writing—review and editing
    For correspondence
    pnigrovic@bwh.harvard.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2126-3702

Funding

Arthritis National Research Foundation

  • Pierre Cunin

National Institutes of Health (5F32HL118865)

  • Kellie R Machlus

National Institutes of Health (K01DK111515)

  • Kellie R Machlus

American Heart Association (16SDG29090007)

  • Kellie R Machlus

American Society of Hematology (Scholar Award)

  • Kellie R Machlus

National Institutes of Health (R01H168130)

  • Joseph E Italiano

National Institutes of Health (R21AR062328)

  • Peter A Nigrovic

National Institutes of Health (R01AR065538)

  • Peter A Nigrovic

National Institutes of Health (P30AR070253)

  • Peter A Nigrovic

Cogan Family Foundation

  • Peter A Nigrovic

Fundación Bechara

  • Peter A Nigrovic

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the Arthritis National Research Foundation (to PC); NIH awards 5F32HL118865, K01DK111515, and American Heart Association 16SDG29090007 (to KRM); NIH award R01H168130 (to JEI); and NIH awards R21AR062328, R01AR065538, and P30AR070253, the Cogan Family Foundation, and the Fundación Bechara (to PAN). KRM is an American Society of Hematology Scholar.

Ethics

Human subjects: Human marrow was obtained with informed consent under protocol IRB-P00005723 approved by the Institutional Review Board of Boston Children's Hospital.

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All animals were handled according to approved institutional animal care and use committee (IACUC) protocols (Dana-Farber Cancer Institute #03-028 and Brigham and Women's Hospital #2016N0005350).

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Reinhard Fässler, Max Planck Institute of Biochemistry, Germany

Reviewers

  1. Reinhard Fässler, Max Planck Institute of Biochemistry, Germany
  2. Markus Sperandio, Ludwig Maximilian University of Munich, Germany

Publication history

  1. Received: November 30, 2018
  2. Accepted: April 12, 2019
  3. Version of Record published: May 1, 2019 (version 1)

Copyright

© 2019, Cunin et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,091
    Page views
  • 242
    Downloads
  • 6
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Niladri K Sinha et al.
    Research Article

    Translation of aberrant mRNAs induces ribosomal collisions, thereby triggering pathways for mRNA and nascent peptide degradation and ribosomal rescue. Here we use sucrose gradient fractionation combined with quantitative proteomics to systematically identify proteins associated with collided ribosomes. This approach identified Endothelial differentiation-related factor 1 (EDF1) as a novel protein recruited to collided ribosomes during translational distress. Cryo-electron microscopic analyses of EDF1 and its yeast homolog Mbf1 revealed a conserved 40S ribosomal subunit binding site at the mRNA entry channel near the collision interface. EDF1 recruits the translational repressors GIGYF2 and EIF4E2 to collided ribosomes to initiate a negative-feedback loop that prevents new ribosomes from translating defective mRNAs. Further, EDF1 regulates an immediate-early transcriptional response to ribosomal collisions. Our results uncover mechanisms through which EDF1 coordinates multiple responses of the ribosome-mediated quality control pathway and provide novel insights into the intersection of ribosome-mediated quality control with global transcriptional regulation.

    1. Cell Biology
    2. Microbiology and Infectious Disease
    Mark S Ladinsky et al.
    Research Article Updated

    Fusion of HIV-1 with the membrane of its target cell, an obligate first step in virus infectivity, is mediated by binding of the viral envelope (Env) spike protein to its receptors, CD4 and CCR5/CXCR4, on the cell surface. The process of viral fusion appears to be fast compared with viral egress and has not been visualized by EM. To capture fusion events, the process must be curtailed by trapping Env-receptor binding at an intermediate stage. We have used fusion inhibitors to trap HIV-1 virions attached to target cells by Envs in an extended pre-hairpin intermediate state. Electron tomography revealed HIV-1 virions bound to TZM-bl cells by 2–4 narrow spokes, with slightly more spokes present when evaluated with mutant virions that lacked the Env cytoplasmic tail. These results represent the first direct visualization of the hypothesized pre-hairpin intermediate of HIV-1 Env and improve our understanding of Env-mediated HIV-1 fusion and infection of host cells.
