The African ape-like foot of Ardipithecus ramidus and its implications for the origin of bipedalism

  1. Thomas Cody Prang  Is a corresponding author
  1. New York University, United states
  2. New York Consortium in Evolutionary Primatology (NYCEP), United States
Research Article
  • Cited 0
  • Views 1,596
  • Annotations
Cite this article as: eLife 2019;8:e44433 doi: 10.7554/eLife.44433

Abstract

The ancestral condition from which humans evolved is critical for understanding the adaptive origin of bipedal locomotion. The 4.4 million-year-old hominin partial skeleton attributed to Ardipithecus ramidus preserves a foot that purportedly shares morphometric affinities with monkeys, but this interpretation remains controversial. Here I show that the foot of Ar. ramidus is most similar to living chimpanzee and gorilla species among a large sample of anthropoid primates. The foot morphology of Ar. ramidus suggests that the evolutionary precursor of hominin bipedalism was African ape-like terrestrial quadrupedalism and climbing. The elongation of the midfoot and phalangeal reduction in Ar. ramidus relative to the African apes is consistent with hypotheses of increased propulsive capabilities associated with an early form of bipedalism. This study provides evidence that the modern human foot was derived from an ancestral form adapted to terrestrial plantigrade quadrupedalism.

https://doi.org/10.7554/eLife.44433.001

eLife digest

Walking on two legs is considered to be one of the first steps towards becoming human. While some animals are also able to walk on two legs, such as kangaroos, birds, and some rodents, the way they move is nevertheless quite distinct to the way humans walk.

How animals evolve traits is influenced by the characteristics of their ancestors. But what exactly was the common ancestor of humans and chimpanzees like? Most primates are suited for a life in the trees. But some also have skeletal characteristics associated with living on the ground. For example, the feet of chimpanzees and gorillas show adaptations that suit life on the ground, such as walking on the sole of the foot with a heel first foot posture. So far, it was unclear whether the ancestor of humans and chimpanzees was primarily adapted to living on the ground or in the trees.

To investigate this further, Prang studied the oldest-known fossil foot (4.4 million years) attributed to the hominin Ardipithecus ramidus. This involved using evolutionary models to evaluate the relationship between foot bone proportions and the locomotory behaviour of monkeys and apes. The results revealed that humans evolved from an ancestor that had a foot similar to living chimpanzees and gorillas. The African ape foot is uniquely suited to life on the ground, including shorter toe bones, but also shows some adaptations to life in the trees, such as an elongated, grasping big toe. Therefore, the locomotion of our common ancestor probably bore a strong resemblance to these two ape species. Moreover, if the last common ancestor already had ground-living characteristics, the first step of the evolution of human bipedalism did not involve descending from the trees to the ground, as our ancestors had already achieved this milestone in some form and frequency.

This is an important discovery. If this ancestor already had adaptations for life on the ground, why did only humans evolve to walk upright despite the retention of climbing capabilities in the earliest human relatives? A next step could be to investigate what selective pressures favored upright walking in a partly ground-living African ape. This may provide us with more insight into our own evolutionary story as well as the ways in which living primates evolve adaptations in an ecological context.

https://doi.org/10.7554/eLife.44433.002

Introduction

Terrestrial bipedalism is widely regarded as a shared-derived characteristic of the hominin clade and understanding its evolution is one of the central foci of biological anthropology (Darwin, 1871; Wasburn, 1967; Fleagle et al., 1981; Richmond et al., 2001; Gebo, 1996; Begun, 2004; Lovejoy et al., 2009a; White et al., 2015). There are numerous adaptive explanations for the origin of bipedalism (Darwin, 1871; Hewes, 1961; Lovejoy, 1981; Rose, 1991; Washburn, 1960; Hunt, 1996) that are inherently difficult to test directly (Smith and Wood, 2017), but each of them depends on alternative hypothetical models for the morphology and locomotor behavior of the human-chimpanzee last common ancestor (LCA; Richmond et al., 2001). Hypotheses for the locomotor behavior of the LCA include vertical climbing (Stern, 1975; Prost, 1980; Fleagle et al., 1981), terrestrial knuckle-walking (Wasburn, 1967; Gebo, 1992; Gebo, 1996; Pilbeam, 1996; Richmond and Strait, 2000; Richmond et al., 2001; Begun, 2004; Inouye and Shea, 2004), below-branch suspension (Keith, 1923; Tuttle, 1969; Young et al., 2015), arboreal bipedality (Thorpe et al., 2007), and more generalized quadrupedalism with slow, deliberate climbing (Lovejoy et al., 2009a; White et al., 2009; White et al., 2015). These behavioral hypotheses make different assumptions about whether the LCA was adapted to arboreality or terrestriality (Wasburn, 1967; Gebo, 1996; Gebo, 1992; Schmitt, 2003; Crompton et al., 2010). No matter the specific elements of the proposed behavioral hypothesis for the Homo-Pan LCA, hominin bipedalism is either the result of an initial evolutionary shift towards terrestriality from an arboreal ancestor (Schmitt, 2003; Lovejoy et al., 2009a; Lovejoy et al., 2009b; Lovejoy et al., 2009c; White et al., 2009; Crompton et al., 2010; White et al., 2015) or, alternatively, a secondary shift from a semi-terrestrial quadrupedal ancestor (Figure 1; Wasburn, 1967; Gebo, 1992; Gebo, 1996; Pilbeam, 1996; Richmond and Strait, 2000; Richmond et al., 2001; Inouye and Shea, 2004).

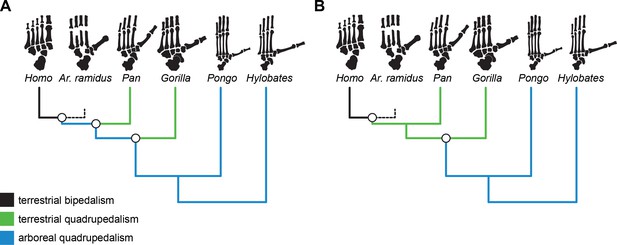

Alternative evolutionary scenarios for the origin of hominin bipedalism.

Black = terrestrial bipedalism, green = terrestrial quadrupedalism, blue = arboreal quadrupedalism. (A) Bipedalism is principally a terrestrial adaptation derived from a more exclusively arboreal ancestor, which is consistent with the original interpretation of the Ar. ramidus foot. (B) Alternative scenario in which bipedalism originates from an ancestor with terrestrial quadrupedal adaptations, which would be predicted based on the comparative anatomy of living apes and humans. Here, whether a taxon is considered arboreal or terrestrial is based on their reported frequency of arboreality in the wild.

https://doi.org/10.7554/eLife.44433.003

The partial skeleton of the early hominin Ardipithecus ramidus purportedly lacks postcranial specializations associated with hominoid-like orthogrady, vertical climbing, and suspension (Lovejoy et al., 2009a; Lovejoy et al., 2009b; Lovejoy et al., 2009c; White et al., 2009; White et al., 2015), which challenges conventional understandings of ape and human ancestry (Darwin, 1871; Keith, 1923; Morton, 1922; Wasburn, 1967; Gebo, 1992; Gebo, 1996; Williams, 2012). In particular, the foot of Ar. ramidus was argued to possess monkey-like midfoot stabilizing and propulsive morphologies that were inferred to be primitive for great apes (Lovejoy et al., 2009a). Lovejoy and colleagues (Lovejoy et al., 2009a; White et al., 2015) suggested that the Ar. ramidus foot was consistent with ‘above branch plantigrady’ and a form of locomotion termed ‘arboreal multigrady’ (White et al., 2015). The African apes are viewed as ‘adaptive cul-de-sacs’ (Lovejoy et al., 2009b: pg. 104) that independently evolved adaptations for vertical climbing given the purported lack of ‘the peculiar substrate-conforming, hand-like grasping foot of living African apes’ (White et al., 2015: pg. 4883) in Ar. ramidus and in White and colleagues’ reconstruction of the Homo-Pan LCA. This interpretation of the Ar. ramidus foot is consistent with hominin bipedalism emerging from a more generalized, exclusively arboreal, quadrupedal ancestor (Straus, 1949; Schmitt, 2003; Lovejoy et al., 2009a; Lovejoy et al., 2009b; Crompton et al., 2010).

Foot proportions (e.g., tarsal, metatarsal, and phalangeal lengths) are hypothesized to reflect variation in locomotor behavior among anthropoid primates (Midlo, 1934; Schultz, 1963a; Schultz, 1963b; Jolly, 1967; Strasser, 1992; Strasser, 1994). Furthermore, the modern human foot has been highly modified in response to the biomechanical constraints of terrestrial bipedalism (Morton, 1922; Gebo, 1992; Harcourt-Smith and Aiello, 2004). Foot proportions may therefore provide insight into long-standing debates about alternative models for the Homo-Pan LCA (Keith, 1923; Wasburn, 1967; Stern, 1975; Prost, 1980; Fleagle et al., 1981; Gebo, 1992; Gebo, 1996; Richmond et al., 2001; Schmitt, 2003; Lovejoy et al., 2009b; Crompton et al., 2010; White et al., 2015). The locomotor behavior of the earliest hominins significantly alters inferences about the paleobiology of the Homo-Pan LCA and our understanding of how bipedalism evolved. This study utilizes recent methodological advances to (1) test alternative hypotheses about the relationship between foot proportions and locomotor behavior among extant anthropoid primates, (2) characterize the morphometric affinities of the Ar. ramidus foot (ARA-VP-6/500) on the basis of foot proportions, and (3) estimate the foot proportions of the Homo-Pan LCA. Specifically, this study uses a combination of evolutionary modeling (Hansen, 1997; Butler and King, 2004; Ingram and Mahler, 2013) and ancestral state estimation (Elliot and Mooers, 2014) methods to make inferences about the evolutionary history of foot proportions in the anthropoid clade and its implications for the adaptive origin of hominin bipedal locomotion.

Results

Morphometric affinities

The morphometric affinities of the Ar. ramidus foot were evaluated by constructing a morphospace based on six geometric mean-standardized variables that are preserved in the ARA-VP-6/500 foot skeleton using Principal Components Analysis (PCA, Figure 2). The first three principal components account for 96% of the total variance in the sample and clearly separate taxonomic groups along previously hypothesized axes of morphological variation (Schultz, 1963a; Schultz, 1963b; Jolly, 1967; Strasser, 1992; Strasser, 1994). The first principal component accounts for 63% of the variance and is positively loaded by the lengths of the fifth metatarsal and fourth proximal phalanx. The second principal component accounts for 18% of the variance and is positively loaded by the lengths of the first metatarsal and fourth proximal phalanx, and negatively loaded by the length of the fifth metatarsal. The third principal component, which represents 15% of the variance, is positively loaded by the length of the first metatarsal (Table 1).

Figure 2 with 2 supplements see all

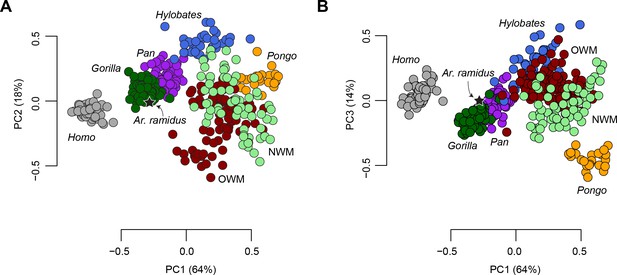

Principal Components Analysis (PCA) on six geometric mean-standardized variables.

(A) The first two principal components representing 82% of the variance. (B) The first and third principal components representing 76% of the variance. Star = Ar. ramidus, Grey = Homo, green = Gorilla, purple = Pan, orange = Pongo, blue = Hylobates, red = Old World monkeys, light green = New World monkeys. Note the placement of Ar. ramidus with the African apes.

https://doi.org/10.7554/eLife.44433.004
Table 1
Principal Components Analysis (PCA).
https://doi.org/10.7554/eLife.44433.007
PC1PC2PC3
Eigenvalue0.170.050.04
Percent variance64.617.814.1
MT1 length−0.010.340.91
MT5 length0.64−0.670.30
PP4 length0.680.63−0.18
Talar trochlea length−0.290.04−0.06
Talar neck length−0.08−0.07−0.21
Cuboid length−0.19−0.170.06

The distribution of anthropoid taxa in the PCA is consistent with predictions based on locomotor behavior. For example, the more terrestrial taxa fall at the negative end (Homo, Pan, Gorilla, Theropithecus, Papio, and Erythrocebus) with shorter metatarsals and phalanges, whereas the most arboreal, suspensory, taxa fall at the positive end of PC1 (e.g., Pongo and Ateles). The terrestrial taxa are sort into those that are heel-strike plantigrade (Homo, Pan, and Gorilla) and those that are digitigrade (Theropithecus, Papio, Erythrocebus). Hylobatids, atelids, and Pongo are distinguished from other arboreal taxa along the same axis that separates terrestrial heel-strike plantigrade taxa from terrestrial digitigrade taxa. A UPGMA cluster analysis (cophenetic correlation coefficient = 0.82) shows that of the 44 extant taxa presented here Ar. ramidus is most similar to Pan and Gorilla (Figure 2—figure supplement 1). Univariate comparisons show that Ar. ramidus possesses a cuboid that is only slightly elongated relative to African apes (Figure 2—figure supplement 2A), a relatively short fourth proximal phalanx (Figure 2—figure supplement 2B), and an intrinsically elongated first metatarsal like African apes and atelids (Figure 2—figure supplement 2C).

The scaling of various tarsals, metatarsals, and phalanges with body mass was investigated using phylogenetic generalized least squares regression (pGLS) to account for the statistical non-independence of the data due to phylogenetic relationships. The parameters for each of the pGLS models include the intercepts and slopes of the variables regressed on log body mass, their standard error (s.e.), T, and the p-value (Supplementary file 1). All variables scale with slight negative allometry in that larger species tend to have relatively shorter metatarsals, phalanges, and tarsals. The only exception is the length of the talar trochlea, which scales isometrically with body mass. Pagel’s lambda (λ) is a parameter commonly estimated in pGLS regression analyses as a measure of phylogenetic signal that can be used to transform the branches of the phylogenetic tree to improve model fit (Pagel, 1999; Revell, 2010). A λ value of 1 would be consistent with expectations under a Brownian motion evolutionary model. The tarsal measurements show departure from Brownian motion (λ = 0.574 or less), whereas the higher λ values of the metatarsal and phalangeal variables are consistent with a Brownian motion model. Several of the λ values are not significantly different from either 0 or 1, which suggests the true λ for these models is uncertain. The PC scores used in the evolutionary analyses are not correlated with body mass (pGLS p = 0.08 or higher), which suggests that body mass is not responsible for driving the differences in intrinsic foot proportions among anthropoid groups.

Evolutionary modeling

The adaptive implications of an African ape-like morphology in Ar. ramidus (Figure 2) were evaluated using evolutionary modeling. The input data include the first three principal components from the PCA described above. This approach was chosen to reduce the dimensionality of the dataset for evolutionary modeling and ancestral state estimation. Alternative a priori evolutionary hypotheses were constructed and include a Brownian motion, single-optimum Ornstein-Uhlenbeck (OU), and several multi-optima OU models (Butler and King, 2004) (Figure 3—figure supplement 1). Alternative multi-optima OU models were constructed using different selective regimes associated with locomotion in extant taxa. The evolutionary models differ in increasing complexity where each model includes additional phenotypic optima in a hierarchical manner. Model comparisons using multiple criteria (AIC, AICc, SIC) show that the multi-optima OU models are a better fit to the data than a Brownian or single-optimum OU model (Supplementary file 2), which suggests there are multiple adaptive peaks associated with foot proportions among anthropoid primates. An additional evolutionary model was constructed without identifying selective regimes a priori and resulted in a similar pattern of selective regimes compared to the best fitting a priori hypothesis (Figure 3). The evolutionary hypothesis with the most favorable AICc value is the most complex and includes selective regimes associated with bipedalism, terrestrial plantigrady, terrestrial semiplantigrady, arboreal quadrupedalism, arboreal quadrupedalism with increased frequency of hindlimb-assisted suspension, and arboreal quadrupedalism with increased frequency of climbing. Simulations show that there is adequate power to distinguish between alternative models and provides support for the a priori model selection results obtained using AICc (Figure 3—figure supplements 12).

Figure 3 with 2 supplements see all

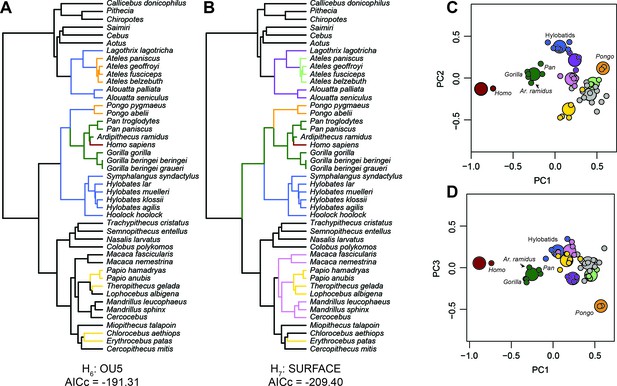

Evolutionary modeling.

Best fitting evolutionary models. (A) Best fitting a priori evolutionary hypothesis according to OUCH. (B) Arrangement of selective regimes fit by SURFACE. (C) The first two principal components with phenotypic optima estimated by SURFACE. (D) The first and third principal components with phenotypic optima estimated by SURFACE. Note the tight fit of species means (small dots) around their optima (large dots) as well as the placement of Ar. ramidus near the African ape phenotypic optimum. The colors in C and D correspond to the selective regimes painted onto the phylogeny in B.

https://doi.org/10.7554/eLife.44433.008

LCA reconstructions

A molecular consensus phylogeny with branch lengths proportional to elapsed time was superimposed on the multivariate data and ancestral values were estimated using a Markov chain Monte Carlo (MCMC) method. This approach relaxes assumptions of neutrality and gradualism and therefore minimizes the effect of exceptional lineage divergences on the estimation of ancestral values. The estimated value for the Homo-Pan LCA is nearest to the African apes and highly distinct from all other taxa (Figure 4). The 95% credibility intervals for the PC scores of the node representing the Homo-Pan LCA are relatively narrow and include the mean values for Pan paniscus and Gorilla gorilla. The estimated ancestral values for both hominids and hominoids are nearest to Alouatta and Lagothrix, which is consistent with prior suggestions based on the comparative morphology of the foot in extant and fossil taxa (Gebo, 1996; Sarmiento, 1983; Langdon, 1985; Harrison, 1986).

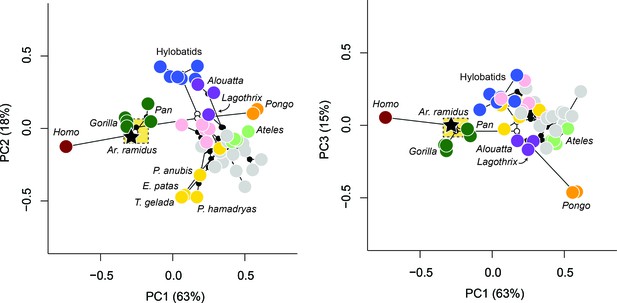

Phylomorphospace.

Phylomorphospace plots describing the evolution of the anthropoid foot. Internal nodes are represented by black dots with exception for the nodes corresponding to the ancestral values for hominins, hominids, and hominoids which are white. The stitched gold box refers to the 95% credibility intervals for the Homo-Pan ancestral state. Note the placement of Ar. ramidus with the African apes as well as the separation of taxa according to known differences in locomotion (e.g., more terrestrial taxa are represented by lower values of PC1 whereas more arboreal taxa are represented by higher values of PC1, taxa that engage in active climbing are represented by higher values of PC2). The estimated ancestral morphology for hominins is African ape-like and for both hominids and hominoids it is nearest to Alouatta and Lagothrix.

https://doi.org/10.7554/eLife.44433.011

Discussion

The multivariate evolutionary modeling analyses presented here confirms that among anthropoid primates intrinsic foot proportions are linked to locomotor behavior (Midlo, 1934; Schultz, 1963a; Schultz, 1963b; Jolly, 1967; Strasser, 1992; Strasser, 1994). The combination of evolutionary modeling with ancestral estimations provides evidence for homoplasy in the evolution of anthropoid foot proportions, which strengthens hypotheses about the link between morphology and behavior. For example, Erythrocebus probably evolved a terrestrially adapted, digitigrade foot characterized by short phalanges, a short hallux, and long non-hallucal metatarsals independently of Theropithecus and Papio. These terrestrial monkeys also tend to have a longer midfoot, which increases the pedal load arm and enhances propulsive capabilities. Although most anthropoids sampled here are highly arboreal, the foot of Alouatta, Lagothrix, and hylobatids converge on similar foot proportions associated with arboreal climbing (though the upper limb of hylobatids is highly autapomorphic), such as a long hallux, relatively shorter metatarsals, and longer phalanges derived from a more generalized anthropoid ancestral condition. The more suspensory anthropoids Ateles and Pongo may have independently evolved towards the part of the morphospace associated with pedal elongation.

African apes and Ar. ramidus occupy a distinct phenotypic optimum characterized by short phalanges, short metatarsals, moderately elongated tarsals, and a long hallux. Although the more terrestrial hominines (Homo, Ardipithecus, Pan, Gorilla) and cercopithecines (Papio, Theropithecus, Erythrocebus) probably evolved short phalanges in parallel (Figures 1 and 2), the hominines retain an intrinsically elongated hallux and short non-hallucal metatarsals while the terrestrial cercopithecines display the opposite configuration (Schultz, 1963a; Schultz, 1963b). The difference in foot proportions between terrestrially adapted apes and monkeys are similar to the differences between plantigrade and digitigrade carnivorans (Taylor, 1976). The long metatarsals of digitigrade quadrupeds increase the range of plantarflexion at the talocrural joint at the expense of decreasing the effective mechanical advantage of the ankle plantar-flexors (Biewener, 1989). African apes and Ar. ramidus are separated from terrestrial monkeys along the same axis that distinguishes generalized arboreal anthropoids (e.g., Cercopithecus) from hallux-elongated taxa associated with behaviors variously described as ‘climbing’ (Hylobatids, Alouatta, Lagothrix). The unique combination of these traits in the hominine foot supports the hypothesis that such feet are adapted to both terrestrial heel-strike plantigrade (rather than digitigrade) quadrupedalism and vertical climbing, which is consistent with previous suggestions based on comparative anatomy and behavioral observations (Fleagle et al., 1981; Gebo, 1996; Prost, 1980; Gebo, 1992; DeSilva, 2009; Prang, 2015). If Ar. ramidus and the Homo-Pan LCA were adapted to more generalized quadrupedalism and climbing as originally suggested (Lovejoy et al., 2009a; White et al., 2009) or ‘arboreal multigrady’ as later revised (White et al., 2015); see also Fernández et al., 2018), then the Ar. ramidus foot skeleton should not have been placed in the same selective regime as the African apes (Figure 3).

The ancestral estimations provide support for the hypothesis that modern humans evolved from an ancestor with African ape-like foot proportions. Modern humans have the longest cuboids of any of the anthropoid primates sampled here (Figure 2), which reflects a biomechanical strategy for lengthening the foot’s load arm to enhance aspects of propulsion (i.e., range of motion) while simultaneously restricting metatarsal length to minimize bending moments associated with plantigrady (Lovejoy et al., 2009a). Although the cuboid elongation of Ar. ramidus from the estimated LCA is more modest than previously reported (Lovejoy et al., 2009a), it is more parsimoniously interpreted to be derived in the direction of modern humans from an African ape-like ancestor with a short midfoot, rather than an ancestral retention from a more monkey-like great ape ancestor (Lovejoy et al., 2009a; Lovejoy et al., 2009b; White et al., 2015; McNutt et al., 2018). Midfoot elongation is consistent with the functional hypothesis of increased propulsive capabilities associated with the form of bipedalism practiced by Ar. ramidus (Lovejoy et al., 2009a; White et al., 2015; Suwa et al., 2009; Kimbel et al., 2014; Kozma et al., 2018; Fernández et al., 2018). These analyses show that the origin of bipedalism cannot be explained as an initial shift toward terrestriality from a more exclusively arboreal ancestor (Figure 3). Instead, early hominins, including Ar. ramidus, evolved from an ancestor with an African ape-like foot adapted to terrestrial plantigrade quadrupedalism (Morton, 1922; Wasburn, 1967; Gebo, 1992; Gebo, 1996).

Evidence for terrestrial plantigrade quadrupedalism in the Homo-Pan LCA raises the question of whether or not purported knuckle-walking traits in hominines might be homologies (Richmond et al., 2001; Gebo, 1996; Begun, 2004; Inouye and Shea, 2004) rather than homoplasies (Dainton and Macho, 1999; Dainton, 2001; White et al., 2015; Lovejoy et al., 2009b; Kivell and Schmitt, 2009). The knuckle-walking hand posture of African apes is hypothesized to be a secondary adaptation to terrestriality in taxa that retain long hands in association with below-branch forelimb suspension (Tuttle, 1969). However, there is no special relationship between plantigrade foot postures and knuckle-walking hand postures (e.g., plantigrade non-primate mammals do not have a knuckle-walking hand posture). Whether or not modern humans evolved from a knuckle-walking ancestor relies on the analysis of the hand and wrist (Tuttle, 1969; Gebo, 1996; Dainton, 2001; Begun, 2004; Inouye and Shea, 2004; Dainton and Macho, 1999; Kivell and Schmitt, 2009; Almécija et al., 2015). The hand of Ar. ramidus was argued not to display traits associated with forelimb suspension in extant taxa or show evidence of a knuckle-walking ancestry (White et al., 2015; Lovejoy et al., 2009b; Almécija et al., 2015), but many of those observations have not yet been independently validated. The terrestrial specializations of the hominine foot are likely to be homologous because they are present in Ar. ramidus and they are consistent with model-based ancestral estimations. Critically, they carry a similar set of implications for the origin of bipedalism regardless of the terrestrial hand posture of the Homo-Pan LCA.

This study provides evidence that modern humans evolved from an ancestor with an African ape-like foot associated with terrestrial plantigrady and vertical climbing. Hominin upright walking therefore likely emerged in the context of semi-terrestrial quadrupedalism. Explaining the adaptive origin of hominin bipedalism (i.e., ‘why’ bipedalism evolved) will continue to be a challenging endeavor (Smith and Wood, 2017). However, the comparative and fossil material provides evidence for patterns of evolution (i.e., ‘how’ bipedalism evolved) and strongly suggests that hypotheses of a non-African ape-like morphology for the foot of the Homo-Pan LCA (Lovejoy et al., 2009a; White et al., 2015; Lovejoy et al., 2009b) are inconsistent with the results from this study. The Ar. ramidus ARA-VP-6/500 partial skeleton is remarkable for its preservation of multiple areas of anatomy (Lovejoy et al., 2009a; White et al., 2009; White et al., 2015). This study provides evidence that intrinsic foot proportions reflect locomotor diversity among anthropoid primates, but it will be important to consider other regions in future comparative studies. The hypothesis that hominins evolved from a semi-terrestrial quadrupedal ancestor could be tested with detailed quantitative analyses of other aspects of Ar. ramidus postcranial morphology.

Materials and methods

Extant and fossil sample

The extant sample is composed 385 individuals representing 45 taxa: Homo sapiens, Ardipithecus ramidus, Pan troglodytes, Pan paniscus, Gorilla beringei beringei, Gorilla beringei graueri, Gorilla gorilla, Pongo pygmaeus, Pongo abelii, Hylobates lar, Hylobates muelleri, Hylobates klossii, Hylobates agilis, Hoolock hoolock, Symphalangus syndactylus, Macaca fascicularis, Macaca nemestrina, Papio anubis, Papio hamadryas, Theropithecus gelada, Lophocebus albigena, Mandrillus sphinx, Mandrillus leucophaeus, Cercocebus spp., Erythrocebus patas, Chlorocebus aethiops, Cercopithecus mitis, Miopithecus talapoin, Nasalis larvatus, Colobus polykomos, Trachypithecus cristatus, Semnopithecus entellus, Ateles geoffroyi, Ateles fusciceps, Ateles paniscus, Ateles belzebuth, Alouatta palliata, Alouatta seniculus, Lagothrix lagotricha, Cebus spp., Saimiri spp., Aotus spp., Pithecia spp., Chiropotes spp., and Callicebus donicophilus. These specimens are housed at the following collections: American Museum of Natural History (AMNH), Cleveland Museum of Natural History (CMNH), Harvard Museum of Comparative Zoology (MCZ), United States National Museum of National History, Smithsonian Institution (USNM), Field Museum (FM), Berkeley Museum of Vertebrate Zoology (MVZ), Human Evolution Research Center (HERC) at the University of California, Berkeley, and the Royal Museum for Central Africa (RMCA). The modern human sample is composed of recent modern individuals of European and African ancestry housed at the Hamann-Todd Collection at the CMNH as well as a Native American population from California housed at the Phoebe A. Hearst Museum of Anthropology (PAHMA) at the University of California, Berkeley. Measurements of Ardipithecus ramidus (ARA-VP-6/500) were initially taken on casts at the University of California, Berkeley. Observations were then made on the original fossils at the National Museum of Ethiopia (NME) and measurements confirmed by T. White.

Data acquisition

Six measurements were taken on the foot of each individual using Mitutoyo digital calipers: maximum talar articular length, talar trochlea length, cuboid length, first metatarsal (MT1) length, fifth metatarsal length (MT5), and fourth proximal phalanx (PP4) length. Talar neck length was derived by subtracting the talar trochlea length from maximum talar articular length. Maximum talar articular length is defined as the maximum proximodistal distance between the most proximal margin of the talar trochlea and the most distal point on the talar head. Talar trochlea length is defined as the maximum proximodistal distance between the most proximal margin of the talar trochlea and the most distal point of the talar trochlea. Cuboid length is defined as the proximodistal distance between the dorsal margin of the calcaneal facet and the most distal point of the tarsometatarsal joint, taken in dorsal view in approximate anatomical orientation. The purpose of measuring cuboid length in this manner is to explicitly avoid the cuboid beak or calcaneal process since it varies extensively among great apes (Lewis, 1983) and because it confounds the cuboid length measurement as a representation of midfoot length since it is articular and housed within a corresponding concavity on the cuboid facet of the calcaneus. MT1 length is defined as the maximum proximodistal distance between the most proximal points on the metatarsal base (with calipers held flush) and the most distal point of the metatarsal head. MT5 length is defined as the proximodistal distance between the most proximal point of the cuboid-MT4 articular margin and the most distal point on the metatarsal head. PP4 length is defined as maximum proximodistal distance between the most proximal point of the phalangeal base and the most distal point of the trochlea. The MT5 was chosen to represent non-hallucal metatarsal length because it is preserved in the ARA-VP-6/500 foot. The fossil is missing most of its metatarsal head and its length was estimated by Lovejoy et al. (2009a) using a combination of anatomical and statistical estimation. There is a nearly complete third metatarsal of Ar. ramidus, but it derives from a different locality and is therefore associated with a different individual. There is a partially preserved second metatarsal of Ar. ramidus also from a different individual (Lovejoy et al., 2009a). Therefore, for this study, the metrics are based on the preserved elements of the ARA-VP-6/500 foot of Ar. ramidus.

The individual elements of the bony foot skeleton contribute to the production of three movements used in various forms of primate locomotor behavior that are hypothesized to be reflected in intrinsic foot proportions: hallucal adduction and flexion, non-hallucal digital flexion, and plantarflexion at the talocrural joint. Increasing the length of the first metatarsal should increase the moment arm of the intrinsic adductor musculature such as the m. adductor hallucis across a range of hallucal abduction angles, and therefore should increase the hallucal adduction force during grasping in non-human primates (Cartmill, 1979). Increasing hallucal metatarsal and non-hallucal phalangeal lengths also contributes to increasing the span of the pedal grasp in taxa with a mobile hallux, which also helps to maintain a friction grip in pedal grasping (Cartmill, 1979). Previous studies have modeled the foot skeleton as a second-class lever, where the fulcrum is at the metatarsophalangeal joints, the load passes through the talocrural joint at the rearfoot, and the force is produced by the plantarflexor muscles. The load arm is the distance between the fulcrum and the load, whereas the effort arm (or ‘power arm’) is the distance between the insertion of the ankle plantarflexors on the calcaneal tuberosity and the talocrural joint (Schultz, 1963a; Schultz, 1963b; Strasser, 1992). Increasing the effort arm of the foot relative to the load arm increases the mechanical advantage of the foot skeleton as a lever (Schultz, 1963a; Schultz, 1963b; Strasser, 1992). However, increasing the load arm increases the range of motion for a given amount of plantarflexor contraction (Schultz, 1963a; Schultz, 1963b). The length of the effort arm of the Ar. ramidus foot is unknown because its calcaneus is not well preserved (Lovejoy et al., 2009a). There are multiple anatomical strategies for increasing the length of the foot skeleton’s load arm. The length of the load arm can be increased by lengthening the metatarsals, tarsals (e.g., the talus and/or cuboid), or any combination of these elements. Increasing the length of the metatarsals subjects them to greater bending moments during stance phase, and therefore increases the possibility of injury, so humans achieve a longer load arm by instead increasing the length of the tarsals. As such, in a bipedal heel-strike plantigrade foot, the load arm is increased by lengthening the cuboid and other midtarsal elements. In contrast, in quadrupedal semiplantigrade or digitigrade primates, and indeed other terrestrial cursorial mammals (Taylor, 1976), the load arm is lengthened by increasing the length of the metatarsals. One implication of these differing anatomical arrangements (e.g., increasing metatarsal versus tarsal lengths), is that foot proportions may also be a correlate of foot postures (plantigrady and digitigrady or semiplantigrady), which is one of the hypotheses tested by this study using evolutionary modeling.

Statistical analysis

To correct for differences in scale among species, each measurement was divided by the geometric mean of all six measurements per individual (Jungers et al., 1995). Morphometric affinities were evaluated using an unweighted pair-group with arithmetic mean (UPGMA) cluster analysis on Euclidean distances. The cophenetic correlation coefficient was used to assess the degree to which the resulting dendrogram represented the true pairwise distances between taxa (Sokal and Rohlf, 1962). Principal Components Analysis (PCA) on all six geometric mean-standardized variables was used to reduce, ordinate, and visualize the multivariate data. All evolutionary modeling and ancestral state estimation analyses use the first three principal components (PCs) derived from the PCA. The PC scores were used instead of the original data to avoid analytical problems surrounding correlations among variables (Clavel et al., 2015) and to maximize statistical power (Boettiger et al., 2012). Ardipithecus ramidus was added to a molecular phylogenetic tree from 10 k trees (Arnold et al., 2010) as a stem hominin (Strait and Grine, 2004; White et al., 2009; Dembo et al., 2015) with a branch length of 1.4 million years in accordance with first and last appearance data for the genus (5.8–4.4 Ma (Haile-Selassie, 2001; WoldeGabriel et al., 2001)) using Mesquite software (Maddison and Maddison, 2017). The branch length for Homo sapiens was reduced in order to improve estimation of phenotypic optima in evolutionary analyses (Butler and King, 2004; Ingram and Mahler, 2013). The scaling of individual foot elements with body mass among extant taxa (Smith and Jungers, 1997) was conducted using phylogenetic generalized least squares regression (Grafen, 1989) with the ‘caper’ package (Orme, 2013) in R (R Core Team, 2017). To increase the fit of the evolutionary model to the data, branch lengths were transformed using Pagel’s lambda (Pagel, 1999), which was estimated with maximum likelihood as a measure of phylogenetic signal in the residual error of each pGLS model (Revell, 2010).

A phylomorphospace was constructed by superimposing the phylogenetic tree on the average principal component (PC) scores for each taxon and ancestral values were estimated using a Markov chain Monte Carlo method (MCMC) that relaxes assumptions of neutrality and gradualism (Elliot and Mooers, 2014). Ancestral values estimated under constant rate Brownian motion are affected by taxa that are exceptionally phenotypically derived compared to their close relatives because it is assumed that all branches have evolved at the same rate (Elliot and Mooers, 2014). The assumption of a constant evolutionary rate therefore results in an ‘averaging effect’ of ancestral values (Schluter et al., 1997; Elliot and Mooers, 2014). Therefore, estimates of ancestral values for continuous traits that assume a constant evolutionary rate are potentially biased in the direction of more derived branches characterized by higher phenotypic evolutionary rates. Since this study is focused on estimating ancestral values for humans, great apes, and hominoids, the stable model (Elliot and Mooers, 2014) was specifically chosen in light of evidence for molecular and morphological evolutionary rate differences in hominoids relative to other anthropoids (Steiper et al., 2004) and in Homo relative to Pan (Weaver and Stringer, 2015).

Ancestral states (PC scores) were estimated under a constant rate Brownian motion model and a stable model using StableTraits software version 1.5 (Elliot and Mooers, 2014). Two independent Markov chains were run with 2,000,000 iterations at a thinning rate of 200, resulting in 10,000 samples each. Priors on evolutionary rate were set to the default settings as implemented in StableTraits and which prevent rates from approaching zero. The two chains converged after 500,000 iterations as evidenced by a proportional scale reduction factor (PSRF) value approaching 1 (Brooks and Gelman, 1998). Therefore, the first 600,000 iterations for each of the two chains were discarded as burn in. The stable model returns a list of median ancestral values for internal nodes along with their 95% credibility interval (Elliot and Mooers, 2014). The constant rate Brownian motion model was compared to the stable model using the Bayesian predictive information criterion (BPIC), which is analogous to Akaike’s Information Criterion (AIC) in a Maximum Likelihood framework (Ando and Tsay, 2010). A vector of median ancestral values of the PC scores was supplied for internal nodes and a phylomorphospace was constructed given the topology of the molecular phylogenetic tree using the ‘phytools’ package (Revell, 2012) in R (R Core Team, 2017).

A model-based approach was used to evaluate alternative evolutionary hypotheses: Brownian motion, single-optimum Ornstein-Uhlenbeck (OU), and multi-optimum OU. Prior to evolutionary model comparison, a multivariate extension (Adams, 2014) of Blomberg’s K statistic (Blomberg et al., 2003) was computed to estimate the phylogenetic signal in the first three principal components using the ‘geomorph’ package (Adams et al., 2017) in R (R Core Team, 2017). The Brownian motion model, which is commonly used in phylogenetic comparative analyses, is defined by the stochastic differential equation (SDE): dX(t) = σdB(t) where X is the trait value, t is time, dB(t) is random white noise, and σ is the magnitude of random fluctuations in the evolutionary process. Under Brownian motion all trait changes are independent of previous ones, as well as those on other branches, and trait variance is proportional to time (i.e., branch lengths). Alternatively, the OU process was quantitatively formalized by Hansen (1997) to model stabilizing selection as the stochastic differential equation (SDE): dX(t) = α(θ – X(t))dt + σdB(t) where θ is the trait optimum and α is the strength of the ‘restraining force’ acting on a trait around an optimum. Brownian motion is therefore a special case of OU when α = 0.

Hansen (1997) views phenotypic optima (θ) as peaks in an adaptive landscape, which are a compromise among the many possibly conflicting selective demands acting on a trait at any given time. Multi-optima Hansen models reflect adaptive hypotheses based on observations of extant primate posture and locomotion culled from the literature and quantitatively formalized as alternative arrangements of hypothetical phenotypic optima (θ) following the methodology of Butler and King (2004). Species means represent local optima surrounding a global optimum (θ) which correspond to a selective regime (Hansen, 1997). As such, individual species may differ significantly from one another while simultaneously occupying the same global phenotypic optimum, possibly due to other factors such as drift or pleiotropy (Hansen, 1997). Therefore, in evolutionary model comparison, the focus is on the number and arrangement of global phenotypic optima (θ) and their surrounding local optima (i.e., species means) rather than on individuals within species. Several recent studies have used modeling methods to test evolutionary hypotheses in paleoanthropology (Almécija et al., 2015; Grabowski and Jungers, 2017; Fernández et al., 2018).

Evolutionary hypotheses

The evolutionary hypotheses for the link between foot proportions and behavior are informed by observations of locomotor behavior in the wild reported in the literature. The first evolutionary hypothesis is a Brownian motion model (H1). The second evolutionary hypothesis is the first Hansen model and it reflects a single global phenotypic optimum (H2). Support for these hypotheses would suggest that there are no major adaptive differences in foot proportions between anthropoid primate groups. Subsequent hypotheses represent multi-optima OU models of increasing complexity (i.e., number of phenotypic optima). The second Hansen model has three selective regimes associated with advanced bipedalism (Homo), mostly terrestrial quadrupedal locomotion (Pan, Gorilla, Papio, Theropithecus, Erythrocebus, Chlorocebus aethiops) and mostly arboreal quadrupedal locomotion in all other taxa (H3). African apes are competent climbers and possess foot adaptations related to this form of locomotion (DeSilva, 2009). However, observations from the wild show them to be highly terrestrial. Papio, Theropithecus, Erythrocebus, and Chlorocebus aethiops are the most terrestrial among the cercopithecoids. Previous studies suggest there may be effects of arboreality and terrestriality on foot proportions (Schultz, 1963a; Jolly, 1967).

The third Hansen model is an elaboration of the previous one that splits the terrestrial regime into two: terrestrial heel-strike plantigrady in Pan, and Gorilla, and terrestrial semiplantigrady in Papio, Theropithecus, Erythrocebus, and Chlorocebus aethiops (H4). Semiplantigrady is defined as any habitual foot posture in which some, but not all, tarsals are in contact with the substrate during stance phase. Heel-strike plantigrady is defined as a foot posture in which the tarsals, principally the calcaneus and its proximal tuberosity, contact the substrate at the beginning of stance phase. Several studies have suggested that African ape tarsal morphology reflects their heel-strike plantigrade foot posture (Gebo, 1992; Gebo, 1996). Previous work on mammalian foot proportions implies that foot proportions may reflect foot posture (Taylor, 1976).

The fourth Hansen model separates the arboreal taxa from the previous model into mostly arboreal taxa that engage in little climbing and hindlimb-assisted suspension versus mostly arboreal taxa that engage in climbing and hindlimb-assisted suspension more frequently (i.e., Pongo abelii, Pongo pygmaeus, Ateles, Alouatta, Lagothrix, H5). Numerous studies have shown that suspensory locomotion is correlated with limb and joint morpology (Fleagle et al., 1981; Gebo, 1996). The majority of these studies have been focused on the upper limb and shoulder (Fleagle et al., 1981; Gebo, 1996; Hunt, 1996; Young et al., 2015). The fifth Hansen model further separates mostly arboreal taxa into those that frequently engage in active climbing (i.e., Hylobates, Symphalangus, Alouatta) from the more hindlimb-assisted suspensory taxa such as Pongo and Ateles (H6). This model attempts to distinguish between possible effects of hindlimb-assisted suspension versus active climbing (Sarmiento, 1983; Langdon, 1985; Harrison, 1986). Standard model selection criteria (AICc) were used to evaluate alternatives and to choose the model that best fit the data. Alternative adaptive hypotheses were evaluated using the ‘OUCH’ package (Butler and King, 2004) in R (R Core Team, 2017).

An additional method was used to identify phenotypic optima without a priori information using the SURFACE method, which stands for SURFACE Uses Regime Fitting with Akaike Information Criterion to model Convergent Evolution (Ingram and Mahler, 2013). The purpose of SURFACE is to estimate the macroevolutionary adaptive landscape (i.e., the number and arrangement of phenotypic optima) using only a data set and a phylogeny. SURFACE uses a stepwise AIC algorithm to fit a series of Hansen models in two phases: a forward phase in which selective regimes are added, and a backward phase, in which selective regimes are collapsed. The original intent of the SURFACE method was to test for convergence in a clade while minimizing potential biases in the identification of hypothetically convergent ecomorphs a priori (Ingram and Mahler, 2013). These analyses were carried out using the ‘SURFACE’ package (Ingram and Mahler, 2013) in R (R Core Team, 2017). Comparison of the model identified by SURFACE (H7) with the a priori models was conducted using the ‘OUCH’ package (Butler and King, 2004) in R (R Core Team, 2017). Therefore, a total of seven evolutionary hypotheses describing the evolution of the anthropoid foot were tested. Model comparison offers a powerful method for testing evolutionary hypotheses, but several researchers have noted the importance of conducting simulations to evaluate statistical power in model selection (Boettiger et al., 2012; Cooper et al., 2016).

Simulations were conducted using a Monte Carlo method in order to evaluate statistical power in model selection closely following the approach outlined in Boettiger and colleagues (Boettiger et al., 2012). The purpose of this approach is to determine whether alternative evolutionary models can be distinguished from one another given the data set and phylogeny, and if so, which of the models is best (Boettiger et al., 2012; Lst and Ané, 2014). It is therefore an alternative to other model selection criteria such as Akaike’s Information Criterion (AIC). First, parameters (e.g., log-likelihood) were estimated from the data (i.e., the first three principal components) under models A and B (e.g, Brownian motion versus single optimum Ornstein-Uhlenbeck). Second, 1000 data sets were simulated under the estimated parameters for each of the two models. Third, models A and B were both re-fit to each of the two 1000 simulated data sets, producing four sets of 1000 log-likelihoods. Finally, the likelihood ratio statistic, which is defined as δ = −2(logL0 – logL1), where logL0 is the log-likelihood of model A and logL1 is the log-likelihood of model B, was calculated, resulting in two distributions of 1000 values for the likelihood ratio statistic under both models. The difference between the distributions reflects statistical power and the proximity of the empirical likelihood ratio statistic to the distributions indicates which of the two models is best. The following simulations were conducted to compare models of increasing complexity: Brownian motion vs. OU1, OU2 vs. OU3, OU3 vs. OU4, and OU4 vs. OU5. These simulations were conducted using R (R Core Team, 2017).

References

  1. 1
  2. 2
    Geomorph
    1. DC Adams
    2. ML Collyer
    3. A Kaliontzopoulou
    4. E Sherratt
    (2017)
    Software for Geometric Morphometric Analyses.
  3. 3
  4. 4
  5. 5
  6. 6
    From Biped to Strider: The Emergence of Modern Human Walking, Running, and Resource
    1. DR Begun
    (2004)
    Knuckle-walking and the origin of human bipedalism, From Biped to Strider: The Emergence of Modern Human Walking, Running, and Resource, New York, Kluwer Academic/Plenum Publishers.
  7. 7
  8. 8
    Testing for phylogenetic signal in comparative data
    1. SP Blomberg
    2. T Garland
    3. AR Ives
    (2003)
    Evolution 57:717–745.
  9. 9
  10. 10
    General methods for monitoring convergence of iterative simulations
    1. SP Brooks
    2. A Gelman
    (1998)
    Journal of Computational and Graphical Statistics 7:434–455.
  11. 11
  12. 12
  13. 13
    Mv morph : an R package for fitting multivariate evolutionary models to morphometric data
    1. J Clavel
    2. G Escarguel
    3. G Merceron
    (2015)
    Methods in Ecology and Evolution 6:1311–1319.
  14. 14
  15. 15
    Terrestriality, and bipedalism
    1. RH Crompton
    2. WI Sellers
    3. T Arboreality
    (2010)
    Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences 365:3301–3314.
  16. 16
  17. 17
  18. 18
    The Descent of Man
    1. C Darwin
    (1871)
    Reprinted in Penguin Classics Series 2004.
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
    Climbing: a biomechanical link with brachiation and with bipedalism
    1. JG Fleagle
    2. JT Stern
    3. WL Jungers
    4. RL Susman
    5. AK Vangor
    6. JP Wells
    (1981)
    Symp. Zool. Soc. Lond 48:359–375.
  24. 24
  25. 25
  26. 26
  27. 27
    The phylogenetic regression
    1. A Grafen
    (1989)
    Philosophical Transactions of the Royal Society B: Biological Sciences 326:119–157.
    https://doi.org/10.1098/rstb.1989.0106
  28. 28
  29. 29
    Stabilizing selection and the comparative analysis of adaptation
    1. TF Hansen
    (1997)
    Evolution 51:1341–1351.
  30. 30
  31. 31
  32. 32
  33. 33
    The postural feeding hypothesis: an ecological model for the evolution of bipedalism
    1. KD Hunt
    (1996)
    South African Journal of Science 92:77–90.
  34. 34
  35. 35
    The implications of variation in knuckle-walking features for models of african hominoid locomotor evolution
    1. SE Inouye
    2. BT Shea
    (2004)
    Journal of Anthropological Sciences = Rivista Di Antropologia : JASS 82:67–88.
  36. 36
    The Baboon in Medical Research
    1. CJ Jolly
    (1967)
    The Evolution of the Baboons, The Baboon in Medical Research, Austin & London, University of Texas Press.
  37. 37
  38. 38
    Man’s posture: Its evolution and disorders
    1. A Keith
    (1923)
    British Medical Journal 1:669–672.
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
    Joints of the evolving foot
    1. OJ Lewis
    (1983)
    Journal of Anatomy 130:833–857.
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
    Mesquite: a modular system for evolutionaryanalysis
    1. WP Maddison
    2. DR Maddison
    (2017)
    Mesquite: a modular system for evolutionaryanalysis, 1.0, http://mesquiteproject.org.
  50. 50
    The evolution of the human foot
    1. EJ McNutt
    2. B Zipfel
    3. JM DeSilva
    (2018)
    Evolutionary Anthropology: Issues, News, and Reviews 27:197–217.
    https://doi.org/10.1002/evan.21713
  51. 51
    Form of hand and foot in primates
    1. C Midlo
    (1934)
    American Journal of Physical Anthropology 19:337–389.
    https://doi.org/10.1002/ajpa.1330190314
  52. 52
    Evolution of the human foot
    1. DJ Morton
    (1922)
    American Journal of Physical Anthropology 5:305–336.
    https://doi.org/10.1002/ajpa.1330050409
  53. 53
    Comparative analysis of phylogenetics and evolution in R
    1. D Orme
    (2013)
    The Caper Package.
  54. 54
  55. 55
  56. 56
  57. 57
    Origin of bipedalism
    1. JH Prost
    (1980)
    American Journal of Physical Anthropology 52:175–189.
    https://doi.org/10.1002/ajpa.1330520204
  58. 58
    R: A language and environment for statistical computing
    1. R Core Team
    (2017)
    R Foundation for Statistical Computing, Vienna, Austria.
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
    The process of bipedalization in hominids
    1. MD Rose
    (1991)
    In: Y Coppens, B Senut, editors. Origines De La Bipédie Chez Les Hominidés. Paris:  Editions du CNRS. pp. 37–48.
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
    In Symposia of the Zoological Society of London
    1. AH Schultz
    (1963)
    199–206, The relative lengths of the foot skeleton and its main parts in primates, In Symposia of the Zoological Society of London, 1, Oxford University Press (OUP).
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
    Before bipedality
    1. JT Stern
    (1975)
    Yearbook of Physical Anthropology 19:59–68.
  74. 74
  75. 75
  76. 76
  77. 77
    The riddle of man's ancestry
    1. WL Straus
    (1949)
    The Quarterly Review of Biology 24:200–223.
    https://doi.org/10.1086/397067
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
    Behaviour and the origin of man
    1. SL Wasburn
    (1967)
    Proc. R. Anthropol. Inst. Gr. Br. Ire 3:21–27.
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89

Decision letter

  1. Min Zhu
    Reviewing Editor; Chinese Academy of Sciences, China
  2. Diethard Tautz
    Senior Editor; Max-Planck Institute for Evolutionary Biology, Germany
  3. Campbell Rolian
    Reviewer

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "The African ape-like foot of Ardipithecus ramidus and its implications for the origin of bipedalism" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Diethard Tautz as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Campbell Rolian (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Ardipithecus ramidus plays a pivotal role in the understanding of homonin evolution and the origin of bipedal locomotion, thanks to the exceptional preservation of its postcranial skeleton. Using the morphometric methods with six variables relating to the foot, Prang tests explicit competing hypotheses of the Homo-Pan LCA and demonstrates that: (1) anthropoid foot proportions represented in Ardipithecus are consistent with adaptive optima associated with generally-accepted functional types, (2) Ardipithecus shares a number of traits that together closely link it to African apes, and (3) the most parsimonious evolutionary reconstruction of the LCA is African ape-like in proportions, implying that humans and chimps evolved from a semi-terrestrial quadruped. The logic in this manuscript is acceptable but the key conclusion needs more collaboration, as it might raise more debates on the transition close the Homo-Pan LCA node.

Essential revisions:

1) The author used only 6 variables to establish the morphospace of homonin foot. Are these six variables enough to reflect the foot morphospace? Shall the addition of any other variable impact the morphometric affinity between Ar. ramidus and Pan plus Gorrilla? The LCA estimation methods should be described in a few more details. Specifically, these methods are known to encounter estimation problems when the multivariate dataset are strongly correlated. It would be good to explain why the PCs are used in lieu of the original 6 GM-corrected variables, and to remind the reader throughout that the input vales are PCs, not original data.

2) A paragraph or a few sentences to remind readers that this is only one small part of the morphology of the LCA, which, although it does support the hypothesis that it may have evolved from plantigrade quadruped resembling African apes, other parts of its morphology, e.g., forelimb, axial skeleton, may show other features that align it more closely to other taxa/morphologies, and on the whole the LCA may still look significantly different from an African ape (much as some colleagues like the ape-like model of LCA, this would be the more cautious approach that would allow for as yet unknown hybrid/mosaic features to emerge from future similar work with other parts of the skeleton).

3) Lovejoy and colleagues have shown their evidences to suggest the 'above branch plantigrady' or 'arboreal multigrady' for Ar. ramidus. It looks like the author needs more discussions on their evidences or arguments.

4) The Hansen models could be better described, both in the Results and in the Materials and methods, in particular whether they are hierarchical models that go from simplest to most complex, where complexity is simply the number of optima, or whether each locomotor mode is treated separately and in turn, then each combination of the modes until the full optimum model is achieved.

https://doi.org/10.7554/eLife.44433.018

Author response

Essential revisions:

1) The author used only 6 variables to establish the morphospace of homonin foot. Are these six variables enough to reflect the foot morphospace? Shall the addition of any other variable impact the morphometric affinity between Ar. ramudus and Pan plus Gorrilla? The LCA estimation methods should be described in a few more details. Specifically, these methods are known to encounter estimation problems when the multivariate dataset are strongly correlated. It would be good to explain why the PCs are used in lieu of the original 6 GM-corrected variables, and to remind the reader throughout that the input vales are PCs, not original data.

Thank you for asking this question. I conducted a multivariate analysis on 40 geometric mean-standardized variables (first metatarsal distances, fifth metatarsal length, fourth proximal phalanx distances, talus distances, cuboid distances). I collected these data on casts of the ARA-VP-6/500 Ardipithecus ramidus foot fossils and they were confirmed on the original fossils at the National Museum of Ethiopia. The Ar. ramidus fossil still clusters with the African apes to the exclusion of all other anthropoids. For this study I used fewer variables because it is specifically focused on intrinsic foot (length) proportions and my hypotheses linking morphology and behavior are rooted in the functional morphology of these proportions. The evolutionary modeling and ancestral state estimation analyses were carried out on PC scores to avoid analytical problems associated with correlated variables and to increase statistical power. I added this text: “All evolutionary modeling and ancestral state estimation analyses use the first three principal components (PCs) derived from the PCA. The PC scores were used instead of the original data to avoid analytical problems surrounding correlations among variables (Clavel et al., 2015) and to maximize statistical power (Boettiger et al., 2012).”

2) A paragraph or a few sentences to remind readers that this is only one small part of the morphology of the LCA, which, although it does support the hypothesis that it may have evolved from plantigrade quadruped resembling African apes, other parts of its morphology, e.g., forelimb, axial skeleton, may show other features that align it more closely to other taxa/morphologies, and on the whole the LCA may still look significantly different from an African ape (much as some colleagues like the ape-like model of LCA, this would be the more cautious approach that would allow for as yet unknown hybrid/mosaic features to emerge from future similar work with other parts of the skeleton).

Thank you for raising this point. I added this text: “The Ar. ramidus ARA-VP-6/500 partial skeleton is remarkable for its preservation of multiple areas of anatomy (Lovejoy et al., 2009a; White et al., 2009; White et al., 2015). This study provides evidence that intrinsic foot proportions reflect locomotor diversity among anthropoid primates, but it will be important to consider other regions in future comparative studies. The hypothesis that hominins evolved from a semi-terrestrial quadrupedal ancestor could be tested with detailed quantitative analyses of other aspects of Ar. ramidus postcranial morphology.”

3) Lovejoy and colleagues have shown their evidences to suggest the 'above branch plantigrady' or 'arboreal multigrady' for Ar. ramidus. It looks like the author needs more discussions on their evidences or arguments.

Thank you. I added this text: “If Ar. ramidus and the Homo-Pan LCA were adapted to more generalized quadrupedalism and climbing as originally suggested (Lovejoy et al., 2009a; White et al., 2009) or “arboreal multigrady” as later revised (White et al., 2015), then the Ar. ramidus foot skeleton should not have been placed in the same regime as the African apes (Figure 3).” Different forms of arboreal quadrupedalism were detected via the evolutionary modeling analyses. For example, Alouatta and Lagothrix taxa were assigned to their own selective regime among anthropoids. These taxa are arboreal quadrupeds, but they engage in more frequent climbing and suspension than other anthropoids. More generalized quadrupeds were placed into a different regime and include taxa such as Cercopithecus, Miopithecus, and Cebus (among others). I expected Ar. ramidus to be more similar to these kinds of arboreal quadrupeds than to the African apes given what was originally suggested. However, my analyses show that not to be the case.

4) The Hansen models could be better described, both in the Results and in the Materials and methods, in particular whether they are hierarchical models that go from simplest to most complex, where complexity is simply the number of optima, or whether each locomotor mode is treated separately and in turn, then each combination of the modes until the full optimum model is achieved.

Thank you for this suggestion. I added some text in the Materials and methods and throughout the manuscript to make these suggested changes. Here are some examples of the added text: “Subsequent hypotheses represent multi-optima OU models of increasing complexity (i.e., number of phenotypic optima).” and “The evolutionary models differ in increasing complexity where each model includes additional phenotypic optima in a hierarchical manner.”

Author response image 1
PCA on 40 geometric mean standardized variables (MT1, MT5, PP4, talus, cuboid).
https://doi.org/10.7554/eLife.44433.019

Article and author information

Author details

  1. Thomas Cody Prang

    1. Department of Anthropology, Center for the Study of Human Origins (CSHO), New York University, New York, United states
    2. New York Consortium in Evolutionary Primatology (NYCEP), New York, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Visualization, Methodology, Writing—original draft
    For correspondence
    cody.prang@nyu.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3032-8309

Funding

Wenner-Gren Foundation (Dissertation Fieldwork Grant)

  • Thomas Cody Prang

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

I thank Y Assefa, D Abebaw, the Ethiopian Authority for Research and Conservation of Cultural Heritage (ARCCH), T White, G Suwa, O Lovejoy, and B Asfaw for facilitating access to the fossil specimens of Ardipithecus ramidus used in this study. E Westwig (American Museum of Natural History), D Lunde (United States National Museum of National History), and L Jellema (Cleveland Museum of Natural History), JChupasko (Harvard Museum of Comparative Zoology), curatorial staff at the Field Museum, T White (Human Evolution Research Center at the University of California, Berkeley), H Taboada (Center for the Study of Human Origins), C Conroy (Museum of Vertebrate Zoology at Berkeley), W Wendelen and E Gilissen (Royal Museum for Central Africa), M Black and N Johnson (Pheobe A Hearst Museum of Anthropology at the University of California, Berkeley) provided access to museum specimens. S Williams, T Harrison, D Gebo, J DeSilva, and B Wood provided comments that improved this manuscript. C Rolian and two anonymous reviewers provided feedback that improved this manuscript.

Senior Editor

  1. Diethard Tautz, Max-Planck Institute for Evolutionary Biology, Germany

Reviewing Editor

  1. Min Zhu, Chinese Academy of Sciences, China

Reviewer

  1. Campbell Rolian

Publication history

  1. Received: December 15, 2018
  2. Accepted: March 25, 2019
  3. Version of Record published: April 30, 2019 (version 1)

Copyright

© 2019, Prang

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,596
    Page views
  • 254
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Ecology
    Andreas P Modlmeier et al.
    Short Report
    1. Ecology
    Meike Anika Hahn et al.
    Research Article
