1. Structural Biology and Molecular Biophysics

Binding and transport of D-aspartate by the glutamate transporter homolog GltTk

  1. Valentina Arkhipova
  2. Gianluca Trinco
  3. Thijs W Ettema
  4. Sonja Jensen
  5. Dirk J Slotboom  Is a corresponding author
  6. Albert Guskov  Is a corresponding author
  1. University of Groningen, The Netherlands
https://doi.org/10.7554/eLife.45286
Share this article
Cite this article
  1. Valentina Arkhipova
  2. Gianluca Trinco
  3. Thijs W Ettema
  4. Sonja Jensen
  5. Dirk J Slotboom
  6. Albert Guskov
(2019)
Binding and transport of D-aspartate by the glutamate transporter homolog GltTk
eLife 8:e45286.
https://doi.org/10.7554/eLife.45286
  2. Download BibTeX
  3. Download .RIS

Abstract

Mammalian glutamate transporters are crucial players in neuronal communication as they perform neurotransmitter reuptake from the synaptic cleft. Besides L-glutamate and L-aspartate, they also recognize D-aspartate, which might participate in mammalian neurotransmission and/or neuromodulation. Much of the mechanistic insight in glutamate transport comes from studies of the archeal homologs GltPh from Pyrococcus horikoshii and GltTk from Thermococcus kodakarensis. Here, we show that GltTk transports D-aspartate with identical Na+: substrate coupling stoichiometry as L-aspartate, and that the affinities (Kd and Km) for the two substrates are similar. We determined a crystal structure of GltTk with bound D-aspartate at 2.8 Å resolution. Comparison of the L- and D-aspartate bound GltTk structures revealed that D-aspartate is accommodated with only minor rearrangements in the structure of the binding site. The structure explains how the geometrically different molecules L- and D-aspartate are recognized and transported by the protein in the same way.

https://doi.org/10.7554/eLife.45286.001

Introduction

Mammalian excitatory amino acid transporters (EAATs) are responsible for clearing the neurotransmitter glutamate from the synaptic cleft (for review see Grewer et al., 2014; Takahashi et al., 2015; Vandenberg and Ryan, 2013). EAATs are secondary transporters that couple glutamate uptake to co-transport of three sodium ions and one proton and counter-transport of one potassium ion (Levy et al., 1998; Owe et al., 2006; Zerangue and Kavanaugh, 1996). EAATs transport L-glutamate, L- and D-aspartate with similar affinity (Arriza et al., 1994).

D-aspartate is considered as a putative mammalian neurotransmitter and/or neuromodulator (Brown et al., 2007; D'Aniello et al., 2011; Spinelli et al., 2006) (reviewed in D'Aniello, 2007; Genchi, 2017; Ota et al., 2012). Such a role is also proposed for L-aspartate (Cavallero et al., 2009), however this is still a matter of debate (Herring et al., 2015). Both stereoisomers bind to and activate N-methyl-D-aspartate receptors (NMDARs) (Patneau and Mayer, 1990) and might be involved in learning and memory processes (reviewed in Errico et al., 2018; Errico and Usiello, 2017; Katane and Homma, 2011; Ota et al., 2012).

Although it is well established that EAATs take up D-aspartate (Arriza et al., 1994; Gundersen et al., 1993), structural insight in the binding mode of the enantiomer is lacking. The best structurally characterized members of the glutamate transporter family are the archeal homologs GltPh and GltTk (Akyuz et al., 2015; Boudker et al., 2007; Guskov et al., 2016; Jensen et al., 2013; Reyes et al., 2013; Reyes et al., 2009; Scopelliti et al., 2018; Verdon et al., 2014; Verdon and Boudker, 2012; Yernool et al., 2004), which share 32–36% sequence identity with eukaryotic EAATs (Jensen et al., 2013; Slotboom et al., 1999; Yernool et al., 2004). In contrast to EAATs, GltPh and GltTk are highly selective for aspartate over glutamate, and couple uptake only to co-transport of three sodium ions (Boudker et al., 2007; Groeneveld and Slotboom, 2010; Guskov et al., 2016). Despite these differences, the amino acid residues in the substrate-binding sites of mammalian and prokaryotic glutamate transporters are highly conserved (Boudker et al., 2007; Jensen et al., 2013). The first structures of human members of the glutamate transporter family (Canul-Tec et al., 2017; Garaeva et al., 2018), showed that the substrate-binding sites are indeed highly similar among homologs (Figure 2—figure supplement 1).

Here, we present the structure of GltTk with the enantiomeric substrate D-aspartate. The crystal structure was obtained in the outward-facing state with the substrate oriented in a very similar mode as L-aspartate, showing that the two enantiomers bind almost identically regardless of the mirrored spatial arrangement of functional groups around the chiral Cα atom.

Results

Affinity of D-aspartate and stoichiometry of sodium binding to GltTk

Using Isothermal Titration Calorimetry (ITC), we determined the binding affinities of D-aspartate to GltTk in the presence of varying concentrations of sodium ions (Figure 1A, Table 1). The affinity of the transporter for D-aspartate was strongly dependent on the concentration of sodium, similar to what has been reported for L-aspartate binding to GltPh and GltTk (Boudker et al., 2007; Hänelt et al., 2015; Jensen et al., 2013; Reyes et al., 2013). At high sodium concentration (500 mM), the Kd values of GltTk for D- and L-aspartate binding level off to 374 ± 30 nM and 62 ± 3 nM, respectively. The ΔH values for binding of both substrates were favorable, with a more negative value of ~1 kcal mol−1 for L-aspartate, indicating a better binding geometry for L- than for D-aspartate. For both substrates, the ΔS contribution was unfavorable (Table 1). When plotting the observed Kd values for L- and D-aspartate against the sodium concentration (on logarithmic scales), the slopes of both curves in the lower limit of the sodium concentration are close to −3, indicating that binding of both compounds is coupled to the binding of three sodium ions (Boudker et al., 2007; Lolkema and Slotboom, 2015) (Figure 1B).

Figure 1
Download asset Open asset
Binding and transport of D-aspartate by GltTk.

(A) ITC analysis of D-aspartate binding to GltTk in presence of 300 mM NaCl (Kd of 0.47 ± 0.17 µM). Insets show no D-aspartate binding in absence of NaCl. (B) Sodium and aspartate binding stoichiometry. Logarithmic plot of Kd values (nM) for L-aspartate (black squares; slope is −2.8 ± 0.4; taken for reference from Guskov et al., 2016) and D-aspartate (gray circles; slope is −2.9 ± 0.2) against logarithm of NaCl concentration (mM). The negative slope of the double logarithmic plot (red line) in the limit of low sodium concentrations indicates the number of sodium ions that bind together with aspartate. Error bars represent the ±SD from at least three independent measurements. (C) GltTk transport rate of D-aspartate in presence of 100 mM NaCl. The solid line reports the fit of the Michaelis-Menten model to the data revealing a Km value of 1.1 ± 0.11 µM. Error bars represent the ±SD from duplicate experiments. (D) Determination of Na+ : aspartate coupling stoichiometry in GltTk using equilibrium potential measurement. The uptake or efflux of radiolabeled aspartate was determined by comparing the lumenal radioactivity associated with the liposomes after 2 min of incubation with the radioactivity initially present (Δcpm). Gray circles and black squares show the measurements for D- and L-aspartate, respectively. The solid and dashed lines are the best linear regression for the D- and L-aspartate data, respectively. The 95% confidence interval for D-aspartate is displayed by gray curves. Numbers in parentheses are the coupling stoichiometries expected to give zero flux conditions for each membrane voltage. Error bars represent the ± SD obtained in five replicates.

https://doi.org/10.7554/eLife.45286.002
Figure 1—source data 1

Final concentrations of internal and external buffer used in each reversal potential experiment after diluting the proteoliposomes.

Proteoliposomes were loaded with 20 mM HEPES/Tris, pH 7.5, 200 mM NaCl, 10 μM L- or D-aspartate, 50 mM KCl and diluted 20 fold in buffer containing 20 mM HEPES/Tris, pH 7.5, 200 mM NaCl, 35.0/26.4/19.2 mM CholineCl, 0/11.1/18.4 mM KCl in the presence of 3 µM valinomycin.

https://doi.org/10.7554/eLife.45286.003
Table 1
Thermodynamic parameters of D- and L-aspartate binding at high (300 mM) and low (75 mM) Na+ concentration.
https://doi.org/10.7554/eLife.45286.004
Substrate/ Na+Kd (µM)ΔH (cal mol−1)ΔS (cal mol−1 K−1)
L-aspartate/300 mM NaCl0.12 ± 0.04−1.61 (±0.08) x 104−22.1 ± 2.2
D-aspartate/300 mM NaCl0.47 ± 0.17−1.48 (±0.11) x 104−20.6 ± 3.6
L-aspartate/75 mM NaCl1.04 ± 0.39−1.22 (±0.13) x 104−13.2 ± 5.2
D-aspartate/75 mM NaCl5.66 ± 1.59−1.14 (±0.41) x 104−14.3 ± 14.3*

  1. *At low Na+ concentrations high errors prevented accurate measuring of ΔS values.

To test whether D-aspartate is a transported substrate, purified GltTk was reconstituted into proteoliposomes and uptake of [3H]-D-aspartate was assayed. GltTk catalyzed transport of the radiolabeled substrate into the proteoliposomes. The Km for transport was 1.1 ± 0.11 μM at a sodium concentration of 100 mM (Figure 1C). This value is comparable to the Km for L-aspartate uptake under the same conditions (0.75 ± 0.17 μM). The stoichiometry Na+: D-aspartate was determined by flux measurements of radiolabeled D-aspartate at different membrane voltages (Fitzgerald et al., 2017). Depending on the concentrations of Na+ and D-aspartate on either side of the membrane, the imposed voltages either lead to flux of radiolabeled D-aspartate across the membrane (accumulation into or depletion from the lumen), or does not cause net flux (when the voltage equals the equilibrium potential) (Fitzgerald et al., 2017). The equilibrium potentials for different possible stoichiometries are calculated by:

Erev=−60mVnm−1(nmlog[Na+]in[Na+]out+log[S]in[S]out)

where n and m are the stoichiometric coefficients for Na+ and substrate S, respectively. Membrane voltages were chosen that would match the equilibrium potential for stoichiometries of 2:1 (−78 mV), 3:1 (−39 mV) or 4:1 (−26 mV), and flux of radiolabeled D-aspartate was measured (Figure 1D). At −78 mV D-aspartate was taken up into the lumen; at −26 mV it was released from the liposomes; and at −39 mV there was little flux. From these data, we conclude that D-aspartate is most likely symported with three sodium ions. However, the flux was not exactly zero at the calculated equilibrium potential of −39 mV for 3:1 stoichiometry. This small deviation could be caused by systematic experimental errors, or by leakage or slippage (Parker et al., 2014; Shlosman et al., 2018). To exclude that it was caused specifically by D-aspartate, we repeated the experiment using radiolabeled L-aspartate. The equilibrium potentials for the experiments using D- and L-aspartate were identical, showing that the two stereoisomers use the same coupling stoichiometry.

Similar mode of enantiomers binding

We determined a crystal structure of GltTk in complex with D-aspartate at 2.8 Å resolution (Figure 2A,B). The obtained structure is highly similar to the previously described GltTk and GltPh structures with the transport domains in the outward-oriented occluded state. Comparison of the GltTk structures in complex with L- and D-aspartate revealed a highly similar binding mode of the substrates with analogous orientation of amino and carboxyl groups. Despite the impossibility to superimpose two enantiomers, D- and L-aspartate are capable of forming almost identical hydrogen bonding networks with conserved amino acid residues of the substrate-binding site (Figure 2C). There are only small changes in the positions of the Cα atoms and Cβ carboxyl groups due to the constitutional differences. However, this divergence leads to only minor changes in the interaction network, consistent with the comparable Kd and ΔH values determined by ITC (Table 1).

Figure 2 with 3 supplements see all
Download asset Open asset

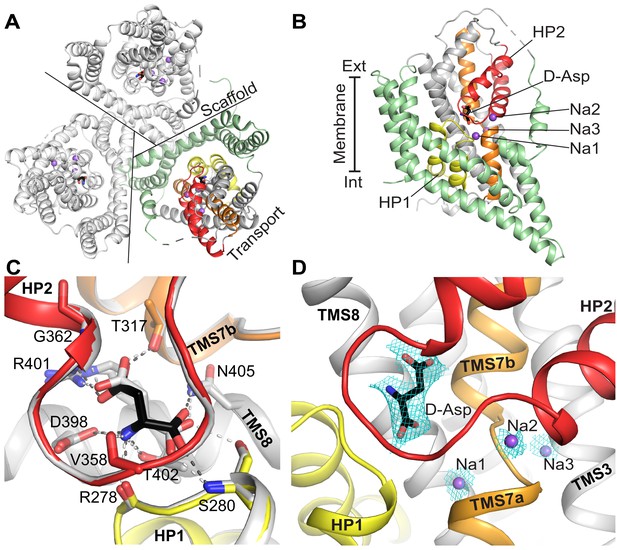

The crystal structure of GltTk with D-aspartate.

The model contains one protein molecule in the asymmetric unit with the substrate present in each protomer of the homotrimer. (A) Cartoon representation of the homotrimer viewed from the extracellular side of the membrane. Lines separate protomers. Each protomer consists of the scaffold domain (pale green) and the transport domain. In the transport domain HP1 (yellow), HP2 (red), TMS7 (orange) are shown. D-aspartate is shown as black sticks and Na+ ions as purple spheres. Like in most GltPh structures a part of the long flexible loop 3–4 between the transport and scaffold domain is not visible. It is indicated by a dashed connection. (B) A single protomer is shown in the membrane plane. (C) Comparison of the substrate-binding site of GltTk in complex with L-aspartate (gray; PDB code 5E9S) and D-aspartate (black). Cartoon representation; substrates and contacting amino acid residues are shown as sticks; hydrogen bonds are shown as dashed lines. The GltTk structures with D- and L-aspartate can be aligned with Cα-RMSD = 0.38 Å for the three transport domains. (D) Composite omit map (cyan mesh) for D-aspartate (contoured at 1σ) and sodium ions (2σ) calculated using simulated annealing protocol in Phenix (Terwilliger et al., 2008). Color coding in all panels is the same.

https://doi.org/10.7554/eLife.45286.005

Three peaks of electron density (Figure 2D; Figure 2—figure supplement 2) located at the same positions as three sodium ions in the GltTk complex with L-aspartate (Guskov et al., 2016) most probably correspond to sodium ions, consistent with a 3:1 Na+: D-aspartate coupling stoichiometry (Figure 1B,D).

Discussion

Most proteins selectively bind a single stereoisomer of their substrates (for a review see Nguyen et al., 2006). On the other hand, some proteins are able to bind different stereoisomers of a ligand, which is believed to be possible due to different binding modes, because enantiomers cannot be superimposed in the three-dimensional space and thus cannot interact with the binding site identically.

Based on three- and four-point attachment models (Easson and Stedman, 1933; Mesecar and Koshland, 2000; Ogston, 1948) it has been suggested that stereoisomers can bind in the same site but with significant differences. This hypothesis was supported by crystal structures of enzymes with different enantiomeric substrates (Brem et al., 2016; Sabini et al., 2008), including enantiomeric amino acids (Aghaiypour et al., 2001; Bharath et al., 2012; Driggers et al., 2016; Temperini et al., 2006). In contrast, the binding poses of enantiomers in some other enzymes are remarkably similar, for instance in aspartate/glutamate racemase EcL-DER, where active site forms pseudo-mirror symmetry (Liu et al., 2016).

To our knowledge GltTk is the first amino acid transporter for which the binding of enantiomeric substrates has been characterized. The only other transporter for which structures have been determined in the presence of D- and L-substrates is the sodium-alanine symporter AgcS. However, in that case, limited resolution prevented determination of the absolute orientation of bound enantiomers (Ma et al., 2019). In the substrate-binding site of GltTk, L- and D-aspartate take similar poses leading to almost identical networks of contacts. Since mirror imaged substrates inevitably have differences in angles between donors and acceptors of hydrogen bonds, the binding affinities are not identical, with 4–6 times higher Kd of the GltTk-D-aspartate complex in comparison with L-aspartate (Table 1). Similar differences in binding affinities between these enantiomers were also found for the GltPh homologue (Boudker et al., 2007). The higher Kd values for the D-aspartate enantiomer might be explained by a higher dissociation rate (koff) in comparison with L-aspartate, that was shown in kinetic studies of sodium and aspartate binding on GltPh (Ewers et al., 2013; Hänelt et al., 2015). GltTk couples binding and transport of three sodium ions to one D-aspartate molecule (Figure 1B,D), the same number as for L-aspartate. Although the affinity for D-aspartate is lower than for L-aspartate, the binding of D-aspartate is not accompanied by a loss of sodium binding sites, which is in line with the observation that none of the sodium binding sites are directly coordinated by the substrate L-aspartate. In the crystal structure of GltTk with D-aspartate peaks of density were resolved at positions corresponding to the three sodium ions in the L-aspartate bound GltTk structure (Figure 2D) (Guskov et al., 2016). Altogether our data suggest that the mechanism of D- and L-aspartate transport in GltTk is most probably identical.

Mammalian glutamate transporters take up D-aspartate, L-glutamate and L-aspartate with similar micromolar affinity, but have significantly lower affinity (millimolar) for D-glutamate (Arriza et al., 1997; Arriza et al., 1994). In the absence of the structures of human SLC1A transporters with different stereoisomeric substrates, one can only speculate why EAATs can readily bind and transport both L- and D-aspartate, but only L-glutamate. It seems that the extra methylene group in D-glutamate compared to D-aspartate could cause sterical clashes within the binding site (Figure 2— Figure 2—figure supplement 3), which might affect affinity of binding.

Materials and methods

Key resources table
Reagent type
(species) or resource		DesignationSource or referenceIdentifiersAdditional
information
GeneTK0986UniProt databaseQ5JID0
Strain, strain background (E. coli)MC1061Casadaban and Cohen, 1980
Biological sample
(Thermococcus kodakarensis KOD1)		ATCC BAA-918/JCM 12380/KOD1
Recombinant DNA reagentpBAD24-GltTk-His8Jensen et al., 2013Expression plasmid for C-terminally His8-tagged GltTk.
Chemical compoundD-AspSigma-Aldrich219096–25GReagentPlus99%
SoftwareOrigin 8OriginLab
OtherGltTk-D-aspartate coordinate file and structural factorsThis paperaccession number
PDB ID code 6R7R		Crystal structure of the glutamate transporter homologue GltTk in complex with D-aspartate

Protein purification and crystallization

Request a detailed protocol

GltTk was expressed and purified as described previously (Guskov et al., 2016). It was shown that L-aspartate binds to GltTk only if sodium ions are present, and the protein purified in absence of sodium ions is in the apo state (Jensen et al., 2013). For crystallization with D-aspartate the apo protein was purified by size exclusion chromatography (SEC) on a Superdex 200 10/300 GL (GE Healthcare) column equilibrated with buffer containing 10 mM Hepes KOH, pH 8.0, 100 mM KCl, 0.15% DM. Crystals of GltTk with D-aspartate were obtained in presence of 300 mM NaCl, 300 µM D-aspartate (Sigma-Aldrich, 99%) by the vapour diffusion technique (hanging drop) at 5°C by mixing equal volumes of protein (7 mg ml−1) and reservoir solution (20% glycerol, 10% PEG 4000, 100 mM Tris/bicine, pH 8.0, 60 mM CaCl2, 60 mM MgCl2, 0.75% n-octyl-b-D-glucopyranoside (OG)).

Data collection and structure determination

Request a detailed protocol

Crystals were flash-frozen without any additional cryo protection and data sets were collected at 100K at the beamline ID23-1 (ESRF, Grenoble). The data were indexed, integrated and scaled in XDS (Kabsch, 2010) and the structure was solved by Molecular Replacement with Phaser (McCoy et al., 2007) using structure of GltTk (PDB ID 5E9S) as a search model. Manual model rebuilding and refinement were carried out in COOT (Emsley et al., 2010) and Phenix refine (Afonine et al., 2012). Data collection and refinement statistics are summarized in Table 2. Coordinates and structure factors for GltTk have been deposited in the Protein Data Bank under accession codes PDB 6R7R. All structural figures were produced with an open-source version of PyMol.

Table 2
Data collection and refinement statistics.
https://doi.org/10.7554/eLife.45286.009
GltTk D-Asp
Data collection
Space groupP3221
Cell dimensions
a, b, c (Å)116.55, 116.55, 314.77
α, β, γ (°)90.00, 90.00 120.00
Resolution (Å)48.06-2.80 (2.87-2.80)*
Rmeas0.11 (>1)
CC1/299.9 (11.7)
I / σI8.40 (0.98)
Completeness (%)99.3 (98.9)
Redundancy5 (4)
Refinement
Resolution (Å)2.80
No. reflections301,077
Rwork/Rfree (%)s23.4/27.2
No. of atom
 Protein9262
 PEG/detergent181/33
 Ligand/ion27/9
 Water-
B-factors
 Protein127
 PEG/detergent147/174
 Ligand/ion114/117
 Water-
R.m.s. deviations
 Bond lengths (Å)0.008
 Bond angles (°)1.162

  1. *Values in parentheses are for the highest-resolution shell.

Isothermal titration calorimetry

Request a detailed protocol

ITC experiments were performed at a constant temperature of 25°C using an ITC200 calorimeter (MicroCal). Varying concentrations of the indicated substrates (in 10 mM Hepes KOH, pH 8.0, 100 mM KCl, 0.15% DM and indicated sodium concentrations) were titrated into a thermally equilibrated ITC cell filled with 250 μl of 3–20 μM GltTk supplemented with 0 to 1000 mM NaCl. Data were analyzed using the ORIGIN-based software provided by MicroCal.

Reconstitution into proteoliposomes

Request a detailed protocol

A solution of E. coli total lipid extract (20 mg ml−1 in 50 mM KPi, pH 7.0) was extruded with a 400-nm-diameter polycarbonate filter (Avestin, 11 passages) and diluted with the same buffer to a final concentration of 4 mg ml−1. The lipid mixture was destabilized with 10% Triton-X100. Purified GltTk and the destabilized lipids were mixed in a ratio of 1:1600 or 1:250 (protein: lipid) and incubated at room temperature for 30 min. Bio-beads were added four times (25 mg ml−1, 15 mg ml−1, 19 mg ml−1, 4 mg ml−1 lipid solution) after 0.5 hr, 1 hr, overnight and 2 hr incubation, respectively, on a rocking platform at 4°C. The Bio-beads were removed by passage over an empty Poly-Prep column (Bio-Rad). The proteoliposomes were collected by centrifugation (20 min, 298,906 g, 4°C), subsequently resuspended in 50 mM KPi, pH 7.0 to the concentration of the protein 33.4 µg ml−1 and freeze-thawed for four cycles. The proteoliposomes were stored in liquid nitrogen until subsequent experiments.

Uptake assay

Request a detailed protocol

Stored proteoliposomes with reconstitution ratio of 1:1600 were thawed and collected by centrifugation (20 min, 298,906 g, 4°C), the supernatant was discarded and the proteoliposomes were resuspended in buffer containing 10 mM KPi, pH 7.5, 300 mM KCl. The internal buffer was exchanged by three cycles of freezing in liquid nitrogen and thawing, and finally extruded through a polycarbonate filter with 400 nm pore size (Avestin, 11 passages). The proteoliposomes were finally pelleted by centrifugation (20 min, 298,906 g, 4°C) and resuspended to the concentration of the protein 625 ng µl−1. 2 µl of proteoliposomes were diluted 100 times in reaction buffer containing 10 mM KPi, pH 7.5, 100 mM NaCl, 200 mM Choline-Cl, 3 µM valinomycin and 0.2–15 µM D-aspartate (each concentration point contained 0.2 µM [3H]-D-aspartate). After 15 s the reaction was quenched by adding 2 ml of ice-cold buffer (10 mM KPi, pH 7.5, 300 mM KCl) and immediately filtered on nitrocellulose filter (Protran BA 85-Whatman filter), finally the filter was washed with 2 ml of quenching buffer. The filters were dissolved in scintillation cocktail and the radioactivity was measured with a PerkinElmer Tri-Carb 2800RT liquid scintillation counter.

 Measuring transporter equilibrium potentials

Request a detailed protocol

Stored proteoliposomes with reconstitution ratio of 1:250 were thawed and collected by centrifugation (20 min, 298,906 g, 4°C), the supernatant was discarded and the proteoliposomes were resuspended to a concentration of 10 mg ml−1 of lipids in buffer containing 20 mM Hepes/Tris, pH 7.5, 200 mM NaCl, 50 mM KCl, 10 μM D-aspartate (containing 1 μM [3H]-D-aspartate). The internal buffer was exchanged by freeze-thawing and extrusion as described above. The experiment was started by diluting the proteoliposomes 20 times into a buffer containing 20 mM Hepes/Tris, pH 7.5, 200 mM NaCl, 3 μM valinomycin, varying concentrations of KCl and Choline Cl were added in order to obtain the desired membrane potential as shown in (Figure 1—source data 1).

After 1, 2 and 3 min the reaction was quenched with ice-cold quenching buffer containing 20 mM Hepes/Tris, pH 7.5, 250 mM Choline Cl and immediately filtered on nitrocellulose filter (Protran BA 85-Whatman filter), finally the filter was washed with 2 ml of quenching buffer. The initial amount of radiolabeled aspartate was measured by filtering the proteoliposomes immediately after diluting them in quenching buffer. The filters were dissolved in scintillation cocktail and the radioactivity was measured with a PerkinElmer Tri-Carb 2800RT liquid scintillation counter. The equilibrium, or reversal, potential, Erev, for each condition was calculated as described in Fitzgerald et al. (2017).

Data availability

Diffraction data and the derived model have been deposited in PDB under accession number 6R7R.

The following data sets were generated
    1. Arkhipova V
    2. Dirk Slotboom
    (2019) Protein Data Bank
    ID 6R7R. Diffraction data and the derived model.
    https://www.rcsb.org/structure/6R7R

References

    1. Emsley P
    2. Lohkamp B
    3. Scott WG
    4. Cowtan K
    (2010) Features and development of coot
    Acta Crystallographica. Section D, Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
    1. Grewer C
    2. Gameiro A
    3. Rauen T
    (2014) SLC1 glutamate transporters
    Pflügers Archiv - European Journal of Physiology 466:3–24.
    https://doi.org/10.1007/s00424-013-1397-7
    1. Nguyen LA
    2. He H
    3. Pham-Huy C
    (2006)
    Chiral drugs: an overview
    International Journal of Biomedical Science : IJBS 2:85–100.
    1. Slotboom DJ
    2. Konings WN
    3. Lolkema JS
    (1999)
    Structural features of the glutamate transporter family
    Microbiology and Molecular Biology Reviews : MMBR 63:293–307.

Decision letter

  1. José D Faraldo-Gómez
    Reviewing Editor; National Heart, Lung and Blood Institute, National Institutes of Health, United States
  2. Richard Aldrich
    Senior Editor; The University of Texas at Austin, United States
  3. Simon Newstead
    Reviewer; University of Oxford, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Binding and transport of D-aspartate by the glutamate transporter homologue GltTk" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by José D Faraldo-Gómez as Reviewing Editor and Richard Aldrich as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Simon Newstead (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission. Based on this evaluation, we have decided to invite you submit a revised version of your manuscript, in the form of a Short Report.

Summary:

The manuscript by Arkhipova et al. presents a detailed functional and structural analysis of enantiomeric substrate recognition and transport by GltTk, an archaeal Na+-driven aspartate transporter and a model system for mammalian EAATs, which are responsible for the clearing of glutamate from the synaptic cleft. The importance of these transporters in regulating neuronal signaling motivates molecular-level studies such as this. Indeed, D-aspartate is a potential modulator of neuronal signaling; Arkhipova et al. seek to elucidate how these kind of transporters recognize and translocate both the L- and D- forms of the amino acid. EAATs, as well as GltPh (another archaeal member of the same family) have been shown previously to transport both L- and D-aspartate with comparable affinity, suggesting a similar mechanism of recognition and/or transport for the two enantiomers. To gain further insights into these processes, the authors determine the crystal structure of GltTk in complex with D-aspartate at 2.8 A resolution, and compare its binding-site configuration to that of the L-aspartate-bound transporter. They find, indeed, that the two structures are virtually identical; the substrates adopt a highly similar binding mode, and the three peaks of electron density tentatively assigned to Na+ ions coincide with the positions of Na+ binding sites in the L-aspartate structure. This result is further supported by functional experiments that quantify thermodynamic and kinetic parameters of D-aspartate transport. D-aspartate is found to bind GltTk with comparable affinity, and to be transported with the same rate and 3:1 Na+:D-Asp stoichiometry as L-aspartate, confirming similar transport mechanism for the two enantiomers.

All reviewers agree that the manuscript presents a careful, self-consistent and highly quantitative investigation. The experimental work is thorough and of high quality, and the underlying research question and the authors' findings are of interest to multiple segments of the readership of eLife.

Essential revisions:

1) The reviewers agree that manuscript is at times insufficiently detailed or imprecise, both in the presentation of the data, its explanation and conclusions:

The Kd values for L- and D-aspartate are substantially different, 62 vs. 380 nM (the standard deviation for these measurements should be shown). The authors argue that the "higher Kd values for the D-aspartate enantiomer might be explained by a higher dissociation rate (koff) in comparison with L-aspartate, that was shown in kinetic studies of sodium and aspartate binding on GltPh (Ewers et al., 2013; Hänelt et al., 2015)." Can the authors not undertake a similar analysis and show whether a difference in the kon or Koff does explain the difference, as proposed? Given that explaining the mechanism for enantiomeric selection/recognition (or lack thereof) is the key aim of this study, the manuscript would be strengthen if the reason for this difference was established more conclusively.

The rationale and interpretation of the experiments reported in Figure 3 ought to be described and discussed in greater detail, if necessary using supplementary materials. For example, the mathematical framework underlying the design of the experiments and the interpretation of the data would be informative for non-specialists. In addition, how do the authors interpret that the zero-flux condition is not observed at the predicted membrane voltage values, but at -48 mV? In their view, does this result reflect a variable transport stoichiometry or the occurrence of uncoupled transport? Or does it owe to experimental error/uncertainty? If the latter is more plausible, what are the possible sources of error? Recent studies that include similar assays (for example J Gen Physiol. 2018 Jan 2; 150(1): 51-65) may be used as a reference for additional analysis or discussion.

2) Notwithstanding the quality of the experimental work, as it stands the study appears to be largely confirmative. It would be important that the authors illustrate better the broader physiological or mechanistic significance of their findings.

For example, the authors seem to propose that their results shed light on the general recognition mechanism of L- and D-aspartate by their respective targets, and on how promiscuity and/or selectivity for these stereoisomers are established on the structural level. The authors might consider discussing in greater detail how the binding site configuration of GltTk compares to/is distinct from those of both highly selective and non-selective enzymes (e.g. L-asparaginase, mentioned in the Discussion).

Alternatively, the authors could elaborate on how their study fits in the context of substrate recognition and physiology of mammalian EAAT transporters. They draw attention to the fact that their result explains the "surprising" finding that the EAATs recognize and transport both L- and D-aspartate. What might be an even 'curiouser' observation is that the EAATs are unable to distinguish between L- and D-aspartate, yet transport L-glutamate preferentially over D-glutamate. It would be of interest to compare how transporters of this family recognize aspartate vs. glutamate, and establish what structural features allow enantiomeric promiscuity for aspartate, but not for glutamate, a substrate that is different only by one -CH2 group.

https://doi.org/10.7554/eLife.45286.014

Author response

Essential revisions:

1) The reviewers agree that manuscript is at times insufficiently detailed or imprecise, both in the presentation of the data, its explanation and conclusions:

The Kd values for L- and D-aspartate are substantially different, 62 vs. 380 nM (the standard deviation for these measurements should be shown).

The standard deviations of Kd values are added (subsection “Affinity of D-aspartate and stoichiometry of sodium binding to GltTk”, first paragraph).

The authors argue that the "higher Kd values for the D-aspartate enantiomer might be explained by a higher dissociation rate (koff) in comparison with L-aspartate, that was shown in kinetic studies of sodium and aspartate binding on GltPh (Ewers et al., 2013; Hänelt et al., 2015)." Can the authors not undertake a similar analysis and show whether a difference in the kon or Koff does explain the difference, as proposed? Given that explaining the mechanism for enantiomeric selection/recognition (or lack thereof) is the key aim of this study, the manuscript would be strengthen if the reason for this difference was established more conclusively.

We performed similar experiments with GltTk using tryptophan fluorescence measurements. Unfortunately, whereas fluorescence of the GltPh mutant (GltPh F273W) was quenched by binding of L-aspartate to the Na+-bound protein (Hänelt et al., 2015), the corresponding GltTk mutant F275W/W428F did not show a change in fluorescence upon addition of L-aspartate (Author response image 1). Apparently, minor differences in the environment of the engineered tryptophans in the two proteins lead to differences in the fluorescence quenching properties. Since the quenching is essential for the stopped-flow kinetic measurements, we could not establish that the kon and koff values are similarly affected in GltTk and GltPh. Nonetheless, the overall similarity in structure and transport mechanism of GltTk and GltPh justifies the speculation that a difference in koff between L- and D-aspartate dissociation is the most likely cause of the differences in Kd values.

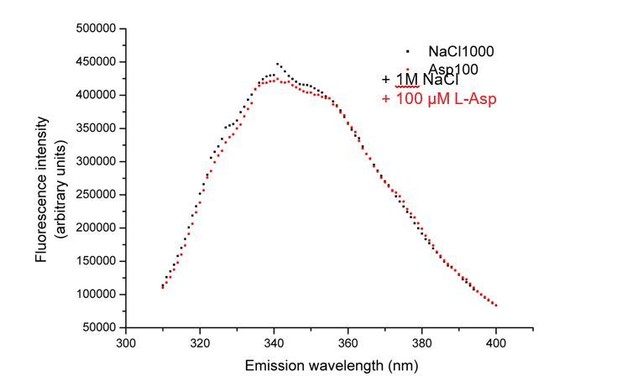

Author response image 1
Download asset Open asset
No change in tryptophan fluorescence of GltTk double mutant F275W/W428F observed upon addition of L-aspartate.

Fluorescence emission spectra of the protein after the addition of addition of 1M NaCl (black squares) followed by 100 µM L-aspartate (red circles).

The rationale and interpretation of the experiments reported in Figure 3 ought to be described and discussed in greater detail, if necessary using supplementary materials. For example, the mathematical framework underlying the design of the experiments and the interpretation of the data would be informative for non-specialists. In addition, how do the authors interpret that the zero-flux condition is not observed at the predicted membrane voltage values, but at -48 mV? In their view, does this result reflect a variable transport stoichiometry or the occurrence of uncoupled transport? Or does it owe to experimental error/uncertainty? If the latter is more plausible, what are the possible sources of error? Recent studies that include similar assays (for example J Gen Physiol. 2018 Jan 2; 150(1): 51-65) may be used as a reference for additional analysis or discussion.

We have extended the section on rationale and interpretation of the reversal potential measurements in the last paragraph of the subsection “Affinity of D-aspartate and stoichiometry of sodium binding to GltTk”. We also mention possible causes of the slight deviation of the reversal potential from the predicted value for 3:1 stoichiometry, and include references. In addition, we have included 95% confidence intervals for the regression shown in new Figure 1D. This analysis shows that the predicted value of the reversal potential for 3:1 stoichiometry falls within the interval. Nonetheless, we do not know why the zero-flux condition is not observed exactly at the predicted membrane voltage. However, for our conclusions, the more important question is whether there is a difference between L- and D-aspartate. Therefore, we have performed the same reversal potential measurements with L-aspartate as substrate (included in new Figure 1D). The reversal potentials for measurements using L- and D- aspartate are identical.

2) Notwithstanding the quality of the experimental work, as it stands the study appears to be largely confirmative. It would be important that the authors illustrate better the broader physiological or mechanistic significance of their findings.

For example, the authors seem to propose that their results shed light on the general recognition mechanism of L- and D-aspartate by their respective targets, and on how promiscuity and/or selectivity for these stereoisomers are established on the structural level. The authors might consider discussing in greater detail how the binding site configuration of GltTk compares to/is distinct from those of both highly selective and non-selective enzymes (e.g. L-asparaginase, mentioned in the Discussion).

In the light of the shortening of the manuscript to a Short Report, as requested by the editor, we have rewritten, the paragraph on the comparison for clarity, but have not extended the Discussion.

Alternatively, the authors could elaborate on how their study fits in the context of substrate recognition and physiology of mammalian EAAT transporters. They draw attention to the fact that their result explains the "surprising" finding that the EAATs recognize and transport both L- and D-aspartate. What might be an even 'curiouser' observation is that the EAATs are unable to distinguish between L- and D-aspartate, yet transport L-glutamate preferentially over D-glutamate. It would be of interest to compare how transporters of this family recognize aspartate vs. glutamate, and establish what structural features allow enantiomeric promiscuity for aspartate, but not for glutamate, a substrate that is different only by one -CH2 group.

We decided to discuss in greater details EAAT transporters (rather than L- and D-selective enzymes), because it is more relevant for our conclusions (Introduction, third paragraph and Discussion, last paragraph). We emphasize that this discussion is still highly speculative and gives only hints of an explanation (steric hindrance) for the ‘curiouser’ observation. We have added Figure 2—figure supplement 1, where we show a comparison of the EAAT1 and GltTk substrate-binding sites, and Figure 2—figure supplement 3 where we modeled both L- and D- glutamate in the EAAT1 substrate binding site.

https://doi.org/10.7554/eLife.45286.015
