Silencing cryptic specialized metabolism in Streptomyces by the nucleoid-associated protein Lsr2
- McMaster University, Canada
- University of Toronto, Canada
- Indiana University, United States
- Dartmouth College, United States
- University of Minnesota, United States
Abstract
Lsr2 is a nucleoid-associated protein conserved throughout the actinobacteria, including the antibiotic-producing Streptomyces. Streptomyces species encode paralogous Lsr2 proteins (Lsr2 and Lsr2-like, or LsrL), and we show here that of the two, Lsr2 has greater functional significance. We found that Lsr2 binds AT-rich sequences throughout the chromosome, and broadly represses gene expression. Strikingly, specialized metabolic clusters were over-represented amongst its targets, and the cryptic nature of many of these clusters appears to stem from Lsr2-mediated repression. Manipulating Lsr2 activity in model species and uncharacterized isolates resulted in the production of new metabolites not seen in wild type strains. Our results suggest that the transcriptional silencing of biosynthetic clusters by Lsr2 may protect Streptomyces from the inappropriate expression of specialized metabolites, and provide global control over Streptomyces’ arsenal of signaling and antagonistic compounds.
https://doi.org/10.7554/eLife.47691.001Introduction
Chromosomes are remarkably dynamic molecules. In eukaryotes, chromosome structure is governed largely by histones, while in bacteria, organization is provided by the nucleoid-associated proteins. Collectively, these proteins function both in architectural capacities and in regulatory roles. Chromosome evolution in bacteria can be driven by mutation, genome rearrangement, and horizontal gene transfer, and work over the last decade has revealed that many bacteria have co-opted nucleoid-associated proteins to additionally serve as ‘genome sentinels’, suppressing the inappropriate expression of newly acquired DNA (Dorman, 2007; Dorman, 2014). This is thought to maximize competitive fitness by repressing the expression of foreign DNA until it is either incorporated into the existing regulatory networks of the host, or decays to a point that it is lost from the chromosome (Navarre et al., 2007).
Different bacteria employ distinct nucleoid-associated proteins as xenogeneic silencers, including H-NS in the proteobacteria, MvaT/MvaU in the pseudomonads (Castang et al., 2008), Rok in Bacillus species (Smits and Grossman, 2010), and Lsr2 in the actinobacteria (Gordon et al., 2008). None of these proteins share sequence or structural homology, but all act by binding to AT-rich regions within the chromosome (Navarre et al., 2006; Castang et al., 2008; Gordon et al., 2010; Smits and Grossman, 2010). H-NS has been the best-studied of these proteins. In Escherichia coli and Salmonella, H-NS represses the expression of pathogenicity islands, endogenous phage genes, as well as other genes needed to respond to environmental changes (Lucchini et al., 2006; Navarre et al., 2006). H-NS binds DNA as a dimer, and can either polymerize along the DNA to form a rigid filament (Liu et al., 2010), or bridge DNA to facilitate chromosome compaction (Dame et al., 2000; Dame et al., 2006); both activities can limit the activity of RNA polymerase. Lsr2 is thought to function similarly to H-NS. To date, its study has been confined to the mycobacteria, where Lsr2 specifically binds and represses the expression of horizontally transferred genomic islands and AT-rich regions, including major virulence factor-encoding genes (Gordon et al., 2010).
In contrast to many of the pathogens in which chromosome organization and genome silencing have been explored, the streptomycetes are largely benign, sporulating soil bacteria (Flärdh and Buttner, 2009) that are instead renowned for their ability to produce a wide array of specialized metabolites (Hopwood, 2007; Barka et al., 2016). Notably, the metabolic output of this actinobacterial genus includes the majority of naturally-derived antibiotics used to treat bacterial infections. The streptomycetes encode two Lsr2 paralogs, unlike their mycobacterial relatives who possess a single lsr2 gene. Streptomyces are additionally unusual in that they have linear chromosomes, where the majority of the genes required for viability are clustered in the chromosome core, and more species-specific and laterally-acquired genes are located in the flanking chromosome arms (Bentley et al., 2002). It is within these arm regions that most of the specialized metabolic clusters are found. Recent work has revealed that specialized metabolic clusters are over-represented as horizontally-transferred elements in the streptomycetes (McDonald and Currie, 2017), and that in the closely-related Salinospora, lateral gene transfer is a major driver of specialized metabolism (Ziemert et al., 2014).
Specialized metabolic gene clusters are subject to complex, hierarchical regulatory control (van Wezel and McDowall, 2011; Liu et al., 2013). Most Streptomyces clusters contain dedicated pathway-specific regulators, which in turn are controlled by a suite of more globally-acting transcription factors. Interestingly, however, most clusters are poorly expressed under normal laboratory conditions, and in many cases their associated metabolites remain uncharacterized. This is also the case for the filamentous fungi, many of whom have a broad, untapped specialized metabolic repertoire, courtesy of transcriptional silencing by histones (Pfannenstiel and Keller, 2019). Significant efforts are being made to stimulate the production of these ‘cryptic’ metabolites in both bacteria and fungi, as they are widely regarded as productive sources of new natural products (Craney et al., 2013; Ochi and Hosaka, 2013; Scharf and Brakhage, 2013; Yoon and Nodwell, 2014; Daniel-Ivad et al., 2017; Onaka, 2017).
We sought to investigate the role of the nucleoid-associated proteins Lsr2 and LsrL in gene regulation in Streptomyces. We found that deleting lsr2 from the chromosome of Streptomyces venezuelae had minor effects on S. venezuelae growth and development and major effects on metabolism. In contrast, deleting lsrL had no detectable impact on development, and only a minor effect on metabolism. Focussing on Lsr2, we determined that it bound AT-rich regions, generally repressed the expression of prophage genes and other genes unique to S. venezuelae (presumably acquired by lateral gene transfer), and suppressed antisense gene expression. The most profound effect of lsr2 deletion, however, was the large-scale activation of specialized metabolic cluster gene expression. Lsr2 directly repressed the transcription of many cryptic clusters in a way that is analogous to Lsr2- and H-NS-mediated repression of pathogenicity islands in other bacteria, and histone-mediated cluster silencing in fungi. Unexpectedly, Lsr2 also controlled the expression of well-characterized and highly-conserved clusters, suggesting that Lsr2 control has been broadly integrated into the regulatory cascades governing specialized metabolism. Our results suggest that Lsr2 functions as a metabolic gatekeeper in the streptomycetes, playing a critical role in the metabolic circuitry of these organisms, and that bacteria, like fungi, employ chromosome structuring elements to control specialized metabolism. Finally, we have manipulated Lsr2 activity using dominant negative variants, and successfully promoted the production of otherwise cryptic metabolites in a wide range of Streptomyces species.
Results
Lsr2 and Lsr2-like (LsrL) in Streptomyces venezuelae
All Streptomyces species possess two lsr2 homologs (Chandra and Chater, 2014). We examined these gene products and found that within any given species, the homologs shared ~50% end-to-end amino acid identity and 60–65% sequence similarity. One homolog shared both genomic synteny and greater sequence similarity when compared with Lsr2 from M. tuberculosis (Figure 1—figure supplement 1). We termed this protein Lsr2 (SVEN_3225 in S. venezuelae), and its more divergent homolog LsrL, for Lsr2-like (SVEN_3832 in S. venezuelae).
To determine the biological role of these two genes and their products, we constructed single and double mutants in S. venezuelae. Deleting lsr2 had no observable effect on S. venezuelae growth in liquid culture (Figure 1A). Sporulation was, however, reproducibly delayed in the mutant (Figure 1A,B), and the ‘exploration’ capabilities of the mutant (Jones et al., 2017) were altered compared with wild type (Figure 1—figure supplement 2). Metabolism was also affected, with the mutant strain producing enhanced levels of melanin compared with its wild type parent (Figure 1B). Melanin over-production and the delay in sporulation could be partially complemented through the in trans expression of lsr2 (Figure 1—figure supplement 2). In contrast, deleting lsrL had no discernable effect on S. venezuelae growth or development, while a double lsr2 lsrL mutant strain most closely resembled the lsr2 single mutant (Figure 1).

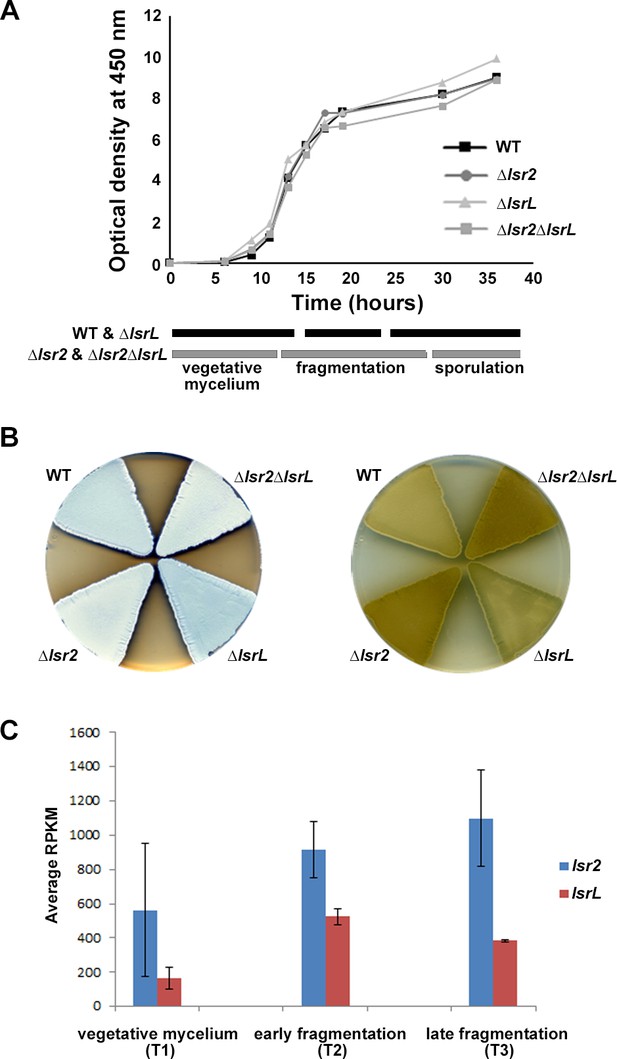

Figure 1 with 2 supplements see all
Expression and phenotypic analyses of lsr2 and lsrL in S. venezuelae.
(A) Growth curves and developmental stages (as determined using light microscopy) of wild type (WT), and the three different lsr2/lsrL mutants, over a 40 hr time course in MYM liquid medium. (B) Comparing development (left) and melanin/brown pigment production (right – underside of plate) of wild type (WT), versus single (Δlsr2 and ΔlsrL) and double (Δlsr2ΔlsrL) mutant strains after 2 d growth on MYM agar medium. The white color of the lsr2-containing mutants reflects aerial hyphae formation, while the darker color associated with the wild type and lsrL mutant strains indicates culture sporulation. (C) Comparative transcript levels (RPKM = reads per kilobase per million) for lsr2 and lsrL at three time points [T1, T2, T3, representing the three developmental stages indicated in (A)] in liquid MYM medium, as assessed using RNA-sequencing data. Data are presented as mean ± standard deviation (n = 2).
We examined the expression of lsr2 and lsrL throughout the S. venezuelae life cycle using RNA sequencing data collected at three time points, and found lsr2 transcripts reached maximal levels during the later stages of liquid culture growth (Figure 1C). In comparison, lsrL levels were lower and peaked earlier (Figure 1C). We focussed our subsequent investigations on Lsr2, given its higher transcript levels and more pronounced mutant phenotype.
Lsr2 represses the expression of horizontally acquired and specialized metabolic genes in S. venezuelae
To begin understanding the effect of Lsr2 on Streptomyces growth and metabolism, we isolated RNA samples from wild type and lsr2 mutant strains (see above), and compared transcript levels for the two strains using RNA-sequencing. The most striking differences were seen at the final growth stage (third time point), coinciding with the timing of maximal lsr2 expression (Figure 1C). Using a stringent cut-off (>4 fold change, with a q value < 0.01), we found that 484 genes has significantly altered expression in the lsr2 mutant relative to wild type (Supplementary file 1). This represented ~6% of genes in the chromosome, and for the vast majority (>90%) of these genes, expression was up-regulated. These differentially expressed genes included many horizontally acquired genes:~10% were phage-related (43 of 484), and an additional 10% (47 genes) were unique to S. venezuelae, relative to the other Streptomyces genomes available in StrepDB (strepdb.streptomyces.org.uk/) (Figure 2A; Supplementary file 1). We also observed increased antisense expression in a number of instances, suggesting that like its H-NS counterpart in E. coli, Lsr2 can also suppress intragenic transcription (Singh et al., 2014) (Figure 2—figure supplement 1).

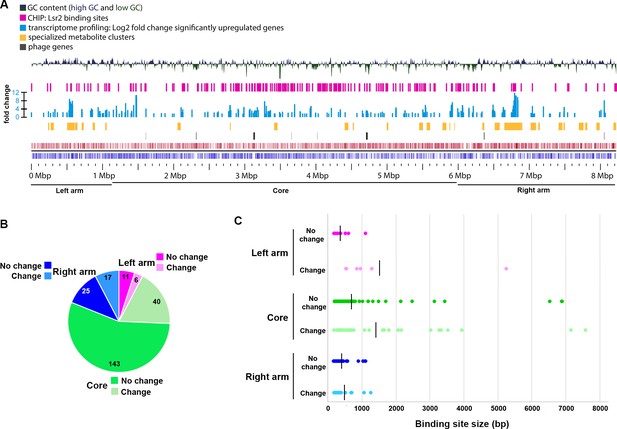

Figure 2 with 1 supplement see all
Composition of S. venezuelae chromosome in relation to Lsr2 binding sites and differentially affected genes.
(A) Panels are described from the bottom up. Bottom panels: coding sequences and relative strand organization (forward orientation shown in red; reverse orientation shown in blue) across the S. venezuelae chromosome, with left arm, core and right arm regions indicated. Above that, the regions shown with black bars indicate the relative position of predicted phage genes, while those in yellow indicate the location of specialized metabolic clusters. The light blue bars represent genes whose expression is significantly upregulated in the lsr2 mutant (fold change indicated), while the pink bars indicate Lsr2 binding sites, as determined by ChIP-seq. The top panel depicts the GC content of the chromosome, relative to the average percentage (72.4%). The peaks above the middle line indicate a GC content above 72.4%, while those below indicate a GC content below 72.4%. Image was generated using GView (Petkau et al., 2010). (B) Binding sites within the left arm (pink), core (green) or right arm (blue), and relative proportion of sites associated with transcriptional changes (no change in transcription = darker color; change in transcription = lighter color). Shown within each segment is the number of binding sites associated with that region. (C) Size of binding sites (in base pairs, bp) in each of the chromosome regions, separated into those associated with altered transcription (change), versus not (no change). Color scheme is as described in (B). The average binding site size for each group is indicated by the vertical black line.
We noted that lsrL expression was significantly increased relative to wild type (Supplementary file 1). There was, however, no significant change in the expression of any of the well-characterized developmental genes in the lsr2 mutant (Supplementary file 1). In contrast, specialized metabolic genes were significantly and disproportionately affected by Lsr2, with 155 of 484 differentially impacted genes (Supplementary file 1) localized to specialized metabolic clusters; this corresponded to ~15% of all predicted specialized metabolic genes in the chromosome, compared with altered expression for <5% of all others (non-specialized metabolic genes) (binomial test, p<0.00001). Consistent with the enhanced brown pigmentation observed for the lsr2 mutant, we observed increased expression for genes in one of the predicted melanin biosynthetic clusters (Table 1; Supplementary file 1). Overall, deleting lsr2 led to altered expression for genes within 21 of 30 predicted or characterized specialized metabolic clusters, with increased expression (ranging from 4 to ~900×) observed for genes in 18 of these clusters (Table 1; Supplementary file 1). Indeed, for six clusters, more than one-third of their genes were significantly upregulated (Table 1; Supplementary file 1); predicted cluster boundaries are typically very generous (e.g. the chloramphenicol cluster is predicted to extend from sven_0902–0945, while the experimentally validated cluster encompasses sven_0913–0928), and as a result we anticipate that the relevant proportion of upregulated genes in these clusters is actually much higher. Importantly, of these six clusters, five were largely transcriptionally silent in the wild type strain (Figure 3), with an average RPKM for the differentially affected genes being <10 in the wild type, compared with an average of >190 in the lsr2 mutant (Supplementary file 1).

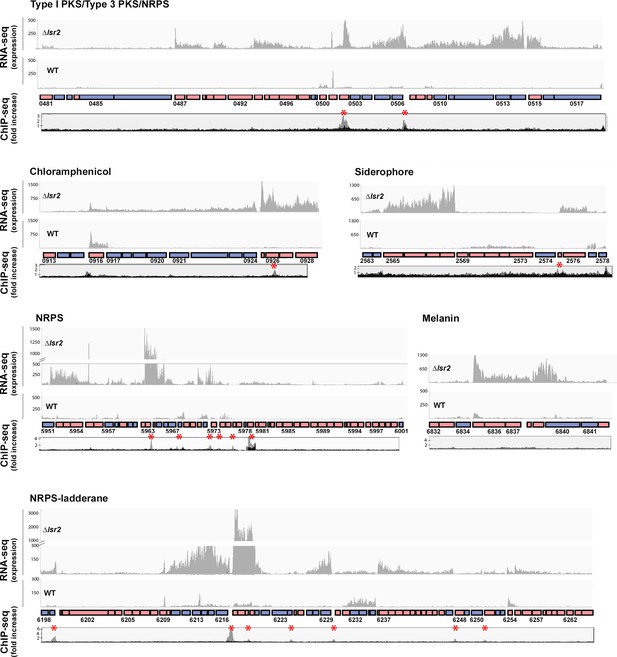

Figure 3 with 4 supplements see all
Lsr2 binding sites and expression analysis of select Lsr2-regulated specialized metabolic clusters.
For each of the six specialized metabolic clusters shown, genes oriented in the forward direction are shown as pink boxes, while those in the reverse direction are shown as blue boxes. Select genes are labeled with their corresponding sven numbers (e.g. 0481). RNA-sequencing results are shown above each cluster, with graphs depicting expression levels. For each, the lsr2 read profile is shown on the top, while the wild type profile is shown on the bottom. The ChIP-seq profiles (below the gene cluster) are shown as ‘fold increase’, with the gray profiles indicating regions associated with 3× FLAG tagged Lsr2 (where an anti-FLAG antibody was used for the immunoprecipitation), and the black profile representing the negative control (strain expressing a non-FLAG-tagged Lsr2 variant). Lsr2−3× FLAG binding sites are indicated with a red asterisk.
Table 1
Specialized metabolic clusters and their control by Lsr2.
https://doi.org/10.7554/eLife.47691.012| Predicted specialized metabolic gene cluster# (characterized product) | 1st gene | Last gene | Number of upregulated genes (q-value < 0.01; >4 fold change) | % of upregulated genes in each cluster | Number of Lsr2- associated sites (q-value < 0.01) |
|---|---|---|---|---|---|
| Ectoine | SVEN_0223 | SVEN_0234 | 1 | 8.33 | 0 |
| Terpene | SVEN_0261 | SVEN_0306 | 1 | 0 | 0 |
| T1PKS-T3PKS-NRPS (venemycin/watasemycin/thiazostatin) | SVEN_0463 | SVEN_0531 | 28 | 42.65 | 2 (SVEN_0502*, 506) |
| Lantipeptide – terpene | SVEN_0540 | SVEN_0561 | 0 | 0 | 1 (SVEN_0557) |
| Lantipeptide (venezuelin) | SVEN_0612 | SVEN_0630 | 3 (1 repressed) | 16.67 | 0 |
| Indole (acryriaflavin) | SVEN_0755 | SVEN_0772 | 0 | 0 | 0 |
| Chloramphenicol | SVEN_0913 | SVEN_0928 | 14 | 93.33 | 1 (SVEN_0926) |
| Other | SVEN_1844 | SVEN_1884 | 0 | 0 | 0 |
| Siderophore (desferrioxamine-like) | SVEN_2566 | SVEN_2577 | 5 | 41.67 | 1 (SVEN_2576) |
| Lassopeptide | SVEN_3103 | SVEN_3132 | 2 | 6.90 | 1 (SVEN_3116*−7) |
| Other | SVEN_4061 | SVEN_4110 | 1 | 2.04 | 1 (SVEN_4069–70) |
| Butyrolactone (gaburedin) | SVEN_4179 | SVEN_4189 | 0 | 0 | 0 |
| Melanin | SVEN_4620 | SVEN_4662 | 0 | 0 | 4 (SVEN_4629–30, 4632, 4634–5, 4651) |
| Butyrolactone | SVEN_5076 | SVEN_5111 | 3 | 11.54 | 2 (SVEN_5091–92, 5106*−07) |
| Thiopeptide | SVEN_5119 | SVEN_5145 | 3 | 11.54 | 3 (SVEN_5127–8, 5129–31, 5132–3) |
| T3pks | SVEN_5351 | SVEN_5383 | 0 | 0 | 0 |
| Siderophore | SVEN_5413 | SVEN_5426 | 0 | 0 | 0 |
| Siderophore | SVEN_5471 | SVEN_5482 | (1 repressed) | 9.09 | 0 |
| Bacteriocin | SVEN_5817 | SVEN_5840 | 3 | 15.15 | 1 (SVEN_5817*) |
| Butyrolactone – T2PKS | SVEN_5951 | SVEN_6002 | 19 | 45.10 | 6 (SVEN_5963*−4, 5968*−9, 5972–3, 5974, 5975–6, 5979) |
| Other | SVEN_6112 | SVEN_6204 | 3 (1 repressed) | 3.26 | 1 (SVEN_6199) |
| NRPS-ladderane | SVEN_6134 | SVEN_6282 | 50 | 36.49 | 7 (SVEN_6199, 6216–7, 6219–20, 6225*, 6230, 6247–8, 6251) |
| Terpene | SVEN_6436 | SVEN_6490 | 6 | 16.67 | 1 (SVEN_6458) |
| Bacteriocin | SVEN_6527 | SVEN_6535 | (1 repressed) | 0 | 0 |
| T2PKS | SVEN_6767 | SVEN_6814 | 2 | 4.26 | 0 |
| Melanin | SVEN_6833 | SVEN_6842 | 4 | 44.44 | 0 |
| NRPS | SVEN_7032 | SVEN_7080 | 0 | 0 | 0 |
| Terpene | SVEN_7101 | SVEN_7119 | (two repressed) | 0 | 1 (SVEN_7109–10*) |
| T3PKS | SVEN_7223 | SVEN_7259 | 1 | 2.78 | 2 (SVEN_7235, 7237*−8) |
| Terpene-NRPS | SVEN_7417 | SVEN_7452 | 0 | 0 | 4 (SVEN_7427–8, 7440,7447–9, 7449–50) |
-
#:Cluster prediction by antiSMASH; * Asterisks indicate regulatory genes bound by Lsr2
Bold: clusters containing an Lsr2 binding site
-
Gray shading: clusters containing differentially expressed genes
We experimentally validated our RNA sequencing results using reverse transcription-PCR, focussing on select genes from clusters specifying a range of predicted products (polyketides, thiopeptides, butyrolactones, and non-ribosomal peptides). In each case, transcripts were only reproducibly detected in the lsr2 null mutant (Figure 3—figure supplement 1). This suggested that Lsr2 functions as a principal regulator for the majority of specialized metabolites in S. venezuelae, repressing the activity of these clusters under laboratory conditions.
Lsr2 directly controls specialized metabolite cluster expression
To determine whether the effects observed in our transcription profiling experiments stemmed from direct or indirect control by Lsr2, we examined our RNA-seq data for significant changes in the expression of any known global antibiotic regulators. Unexpectedly, none were affected by the loss of Lsr2 (Supplementary file 2), suggesting that Lsr2 may directly impact specialized metabolic cluster expression. We next conducted chromatin-immunoprecipitation (ChIP) sequencing experiments to identify Lsr2-associated DNA sequences using a functional Lsr2−3× FLAG fusion-expressing strain (Figure 1—figure supplement 2). We isolated immunoprecipitated DNA from FLAG-tagged and control (untagged Lsr2-expressing) strains late during liquid culture growth, at a developmental stage corresponding to the third time point in our transcriptional analyses. Using a stringent filter (q value < 0.01), we identified 223 Lsr2 binding sites distributed throughout the chromosome (Figure 2A; Supplementary file 3). These included sites within 17 specialized metabolic clusters (Table 1), with 14 of these clusters showing altered transcriptional profiles in the lsr2 mutant compared with the wild type strain (e.g. Figure 3).
The effect of Lsr2 on specialized metabolism, and the lack of association with other characterized global regulators, collectively suggested that Lsr2 activity may represent a new level in the regulatory cascades governing specialized metabolism. As most globally acting antibiotic regulators exert their effects by controlling the expression of pathway-specific regulators (e.g. McKenzie and Nodwell, 2007; Rigali et al., 2008; Gao et al., 2012; Wang et al., 2013), we tested whether this was also the case for Lsr2. For the 14 clusters that were bound directly by Lsr2 and had altered transcription profiles, we examined where Lsr2 bound, relative to any potential cluster-specific regulators. For approximately half (8 of 14), Lsr2 binding was associated with a regulatory gene (Table 1). For the others, Lsr2 bound elsewhere in the cluster, suggesting an independent mechanism of regulation.
Trends in Lsr2 binding and regulatory control
To better understand how Lsr2 exerted its repressive effects, we undertook a more comprehensive investigation into its binding and regulatory impacts. We first validated the specificity of Lsr2 binding using electrophoretic mobility shift assays (EMSAs). We tested five ChIP-associated sequences, and found that each of these effectively out-competed non-specific DNA probes for binding by Lsr2. This indicated that Lsr2 preferentially bound the DNA regions identified in our ChIP assays (Figure 3—figure supplement 2).
Our ChIP-seq results suggested that Lsr2 bound to 223 sites across the chromosome. Interestingly, these sites were not concentrated in the arm regions where more of the species-specific (and presumably laterally-acquired) sequences were located, but instead were enriched in the ‘core’ region of the chromosome (as defined by Bentley et al., 2002) (Figure 2B; Supplementary file 3). When considering all Lsr2 binding sites,~25% of the associated genes (where Lsr2 bound immediately upstream and/or overlapping with their coding sequences) had altered transcriptional profiles, and of these, more than 30% were in specialized metabolic clusters (19 of 63) (Table 1; Supplementary file 3).
We assessed whether there was any correlation between binding site position and regulatory impact. We found that binding sites within the arm regions were more likely to have transcriptional ramifications compared with those in the core [35% (left arm), 40% (right arm), 25% (core)] (Figure 2B). Binding sites associated with transcriptional changes were also, on average, larger than those that had no direct effect on transcription, at least for the left and core regions (Supplementary file 3; Figure 2C), although there were a number of large sites within the core region that had no direct effect on transcription.
We next sought to understand whether there was any specificity to Lsr2 binding in the chromosome. We analyzed the in vitro-confirmed Lsr2 binding sites (from Figure 3—figure supplement 2) using the MEME server (Bailey et al., 2009); however, no consensus motif could be identified. In examining the cluster-associated binding sites more broadly, we found these sequences had an average GC-content of 62.9%. When all Lsr2 binding sites were considered, an average GC-content of 65% was observed (Supplementary file 3), well below the chromosome average of 72.4%.
Previous in vitro analyses of binding preferences for Lsr2 from M. tuberculosis, had defined an eight nucleotide AT-rich sequence as being optimal (Gordon et al., 2011). We analyzed both the S. venezuelae genome, and our identified Lsr2 binding sites, for either AT-rich 20 nt segments (>50% A/T), or AT-rich ‘core’ sequences (defined as 5 of 6 consecutive nucleotides being A/T). To first determine the relative AT density in the S. venezuelae chromosome, we assessed the number of 20 nt AT-rich stretches in 30 randomly selected sequences – 15 that were 500 bp and 15 that were 1000 bp in length (Supplementary file 4). We found that 7/15 of the shorter sequences lacked any AT-rich stretch (with the number of stretches ranging from 0 to 20, with an average of 5), compared with 2/15 of the longer sequences (with numbers ranging from 0 to 36, and an average of 10). In contrast, the vast majority (222/223) of Lsr2 target sequences possessed at least one AT-rich 20 nt stretch: shorter target sequences (<500 bp) contained anywhere from 0 to 27 non-overlapping stretches (average of 7), while longer sequences (>750 bp) contained between 8 and 291 (average of 64) (Supplementary file 4).
We next assessed the presence of AT-rich core sequences within both the random genome sequences, and the Lsr2-bound sites (Supplementary file 4). For the random segments, 11/15 of the 500 bp sequences lacked an AT-rich core (with numbers ranging from 0 to 10, with an average <1). This closely mirrored the absence of an AT-rich core in 10/15 of the 1000 bp sequences (range of 0–8, with an average of 1.5). This is in stark contrast to the Lsr2 target binding sequences: only 9 of 223 target sequences lacked an AT-rich core, with shorter sequences (<500 bp) averaging three core sites (ranging from 0 to 11), and larger sequences (>750 bp) averaging 25 (ranging from 1 to 124). This collectively suggested that while the presence of an AT-rich core sequence and multiple AT-rich segments may not be sufficient to promote Lsr2 binding, they appear to be near universal characteristics of Lsr2-bound sequences.
To experimentally assess the importance of these AT-rich sequences for Lsr2 binding, we focussed our attention on the Lsr2 binding site located in the intergenic region between the divergently expressed sven_5106 and sven_5107 genes within the predicted butyrolactone biosynthetic cluster (Table 1; Figure 3—figure supplement 3). Using EMSAs, we compared Lsr2 binding to the wild type sequence (58% GC), with binding to mutant sequences having increasing GC content (63%, 64% and 70%). Lsr2 bound the AT-rich sequences with much higher affinity than the more GC-rich sequences, with very little binding observed for the 70% GC-containing probe (Figure 3—figure supplement 4). Notably, there was little difference in binding seen for sequences in which an AT-rich core was disrupted (64% GC), versus when the overall AT-content was changed (63% GC) (Figure 3—figure supplements 3 and 4). To determine whether the Lsr2 preference for more AT-rich DNA was also observed in vivo, we introduced these altered sequences in place of the wild type, within a larger DNA fragment (spanning 9 kb and encompassing sven_5105–07) on an integrating plasmid vector, and introduced these variants into the Lsr2−3× FLAG expressing strain. We conducted ChIP experiments for each strain, and quantified the amount of DNA specific for this region using quantitative PCR. We observed far higher levels of the wild type sequence compared with any of the mutant sequences (>80% less), presumably reflecting greater Lsr2 affinity for the wild type, AT-rich sequence (Figure 3—figure supplement 4). We also assessed the expression of the flanking genes in each case, and observed little expression from the wild type sequence, while increased expression was associated with the mutant sequences. This indicated that decreased binding by Lsr2 led to increased transcription of the flanking genes (Figure 3—figure supplement 4).
Lsr2 activity is not specific for newly acquired biosynthetic clusters
Given that Lsr2 is predicted to be functionally equivalent to H-NS in E. coli, where H-NS inhibits the expression of laterally-acquired DNA sequences, we wanted to determine whether Lsr2 preferentially bound and repressed the expression of recently acquired (poorly conserved) biosynthetic clusters in S. venezuelae. To investigate cluster conservation, we subjected the sequence of each of the 30 S. venezuelae specialized metabolic clusters to BLAST searches. We focussed our attention on eight phylogenetically divergent Streptomyces species, alongside three strains of S. venezuelae, and assessed the conservation of each cluster within these streptomycetes (Figure 4; Table 1). As expected, we found that Lsr2 bound and repressed the expression of genes in many poorly conserved/recently acquired clusters. However, not all S. venezuelae-specific clusters were controlled by Lsr2, and several of the best conserved clusters (e.g. siderophore/desferrioxamine-encoding biosynthetic cluster and bacteriocin-encoding clusters) were under direct Lsr2 control (Figure 4; Table 1). This suggested that Lsr2 may function both as a silencer of newly acquired clusters, and as a central regulator within the hierarchy governing specialized metabolic cluster expression.

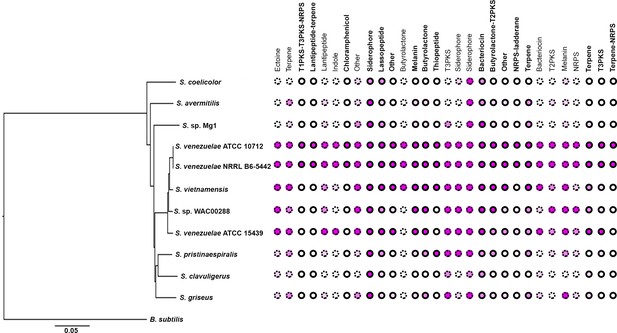

Figure 4
Conservation of specialized metabolic clusters in diverse streptomycetes.
Phylogenetic tree of diverse Streptomyces species, with the relative conservation of each specialized metabolic cluster from S. venezuelae shown in the right. Conservation is based on BLAST analyses, with <20% (white), 20% (light pink), 40% (medium pink) and 60% (dark pink) indicating query coverage and overall degree of cluster conservation. Clusters bound by Lsr2 are indicated with bolded names and solid circles, while those not bound by Lsr2 are depicted with dotted circles.
Deleting Lsr2 reprograms specialized metabolism and yields novel compounds
Given the abundance of specialized metabolic genes affected by Lsr2, we examined the antibiotic production capabilities of the lsr2 mutant. Crude methanol extracts from wild type and lsr2 mutant cultures were initially tested against the Gram-positive indicator bacterium Micrococcus luteus. We observed a significant increase in growth inhibition for extracts from the lsr2 mutant relative to the wild type strain (Figure 5A). Using activity guided fractionation and purification coupled with LC/MS analyses, we identified chloramphenicol as being the major inhibitory molecule (Figure 5B). Chloramphenicol is a well-known antibiotic, but it is not expressed at appreciable levels by S. venezuelae under normal laboratory conditions (Figure 5B) (Fernández-Martínez et al., 2014).

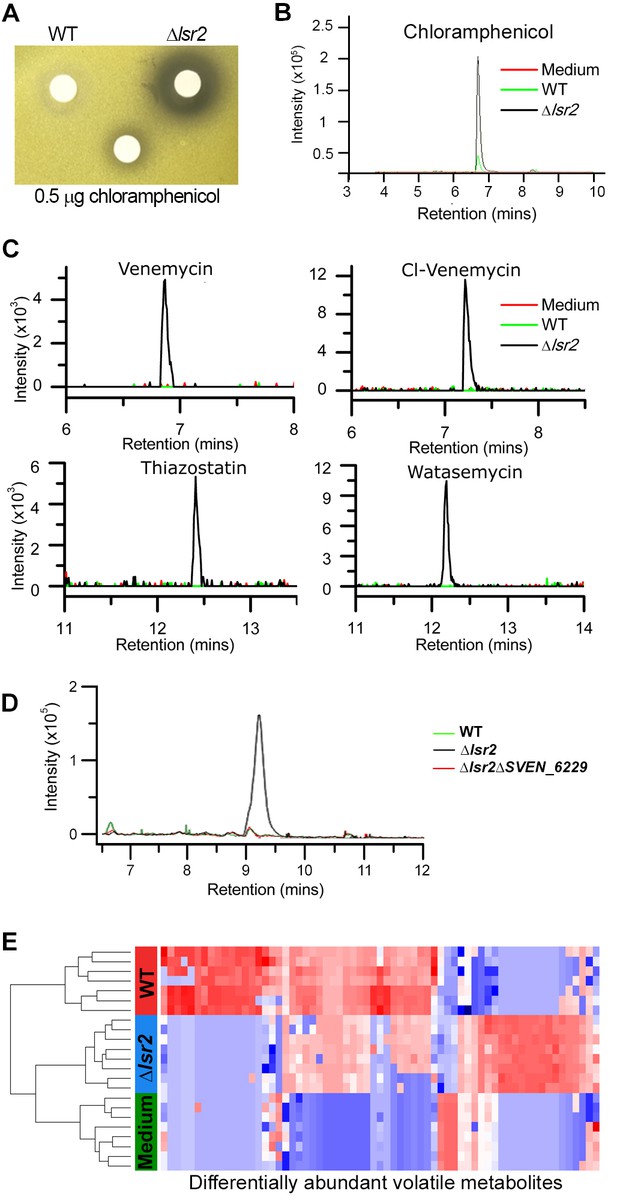

Figure 5 with 3 supplements see all
Specialized and volatile metabolite comparisons between wild type and lsr2 mutant strains.
(A) Bioactivity of S. venezuelae extracts against Micrococcus luteus. Wild type and lsr2 mutant strains were cultured for 18 hr prior to extraction in methanol and reconstitution in DMSO. Extracts were applied to Whatman filter discs, alongside a chloramphenicol positive control. (B) Extracted ion chromatogram for chloramphenicol (m/z 321.005), from LC/MS analysis of methanol extracts from wild type and lsr2 mutant cultures grown in MYM liquid medium for 3 d, alongside a medium (MYM) control. (C) Extracted ion chromatograms of [M-H]−=219.040 (venemycin); [M-H]−=252.992 (chlorinated venemycin); [M + H]+ = 353.099 (watasemycin); and [M + H]+ = 339.083 (thiazostatin), from LC/MS analyses of methanol extracts of wild type and lsr2 mutant strains grown for 3 d in MYM liquid medium. (D) Extracted ion chromatogram of m/z 281.068, from LC/MS analysis of methanol extracts of wild type, lsr2 mutant and double lsr2 sven_6229 mutant strains, grown in MYM liquid medium for 3 d. (E) Heat map depicting the 65 volatile compounds (columns) that were significantly different in relative abundance (p<0.05 after BH correction) between wild type (WT, red) and lsr2 mutant (Δlsr2, blue) strains. Sterile media (Media, green) is included for comparison. Cell color corresponds to relative compound abundance after log10-transformation, mean-centering, and unit-scaling, ranging from low abundance (blue) to high abundance (red). Dendrogram (left) was constructed using Euclidean distance as the distance metric.
We next compared the soluble metabolites produced by wild type and lsr2 mutant strains, and found each had a unique metabolic profile. We further tested the metabolic effects of deleting lsrL, and lsr2 in conjunction with lsrL, as the increased lsrL expression observed in the lsr2 mutant suggested that a double mutant may have more profound metabolic consequences than the lsr2 mutation alone. Comparing the metabolic profiles of these four strains revealed that the greatest effect stemmed from the loss of lsr2, although the loss of lsrL (on its own, and in conjunction with lsr2) led to minor changes in metabolic output (Figure 5—figure supplement 1). In comparing the production of individual metabolites in a wild type and lsr2 mutant strain, we first focussed our attention on compounds produced after 3 days of growth in liquid MYM medium. We observed unique peaks in the lsr2 mutant for venemycin, a chlorinated venemycin derivative, as well as thiazostatin and watasemycin (Figure 5C). These compounds have all been described recently; however, this is the first time they have been shown to be produced in S. venezuelae, as their previous characterization required expression in a heterologous Streptomyces host (Thanapipatsiri et al., 2016; Inahashi et al., 2017).
Further examination of the soluble metabolites of 3, 4 and 5 day cultures grown in MYM medium yielded ESI(+) (electrospray ionization) metabolome profiles that were compared using XCMS, a tool to identify, quantify, and compare metabolite profiles across samples (Smith et al., 2006). While there were a multitude of new and enriched metabolites produced by the lsr2 mutant, we focussed our attention on the most abundant compounds (intensities greater than 105). Within these highly abundant metabolites, we identified six unique molecules produced only by the lsr2 mutant (excluding isotopes, adducts, chemical noise and irreproducible peaks across replicates). An additional five compounds were significantly (>5×) more abundant in the lsr2 mutant than wild type (Supplementary file 5). Of these new and enhanced compounds, only one was a known molecule (ferrioxamine), produced by a well-conserved cluster under Lsr2 control (Table 1).
Included amongst the unique compounds was a novel peak of m/z 281 in the lsr2 mutant (Figure 5D). Based on fragmentation analysis, this compound was predicted to be N-acetyl-7-chloro-L-tryptophan. To determine the gene cluster responsible for producing this compound, we searched for halogenase-encoding genes. We identified sven_6229 as a reasonable candidate, as it was dramatically (>200×) upregulated in an lsr2 mutant (Supplementary file 1). It was also part of a large, otherwise transcriptionally silent specialized metabolic gene cluster (the ‘NRPS-ladderane’ cluster in Figure 3 and Table 1). We mutated sven_6229, and found the m/z 281 peak disappeared (Figure 5D). A close homolog of SVEN_6229, PrnA, catalyzes the conversion of L-tryptophan to 7-chloro-L-tryptophan (Dong et al., 2005), and mutant PrnA variants can yield 5-chloro-L-tryptophan (Lang et al., 2011). We predicted that an acetylated form of one of these two chlorinated tryptophan molecules most likely corresponded to the novel m/z 281 molecule identified in the lsr2 mutant. We synthesized the two analogs, and confirmed the identity of the unknown compound as being N-acetyl-chlorotryptophan, by virtue of the near identical MS/MS spectra of the synthetic candidates (Figure 5—figure supplement 2). Interestingly, however, co-elution studies with the synthetic standards clearly demonstrated that the unknown species was neither the 5-chloro, nor the 7-chloro isomer (Figure 5—figure supplement 2). We predict that this compound is a new tryptophan-derived precursor, that is likely incorporated into the m/z 668.2 compound that appeared at 4 days (Supplementary file 5), as this larger molecule also disappeared when sven_6229 was mutated (Figure 5—figure supplement 3).
Lsr2 alters the volatile metabolome of S. venezuelae
As S. venezuelae also produces volatile compounds with important biological roles (Jones et al., 2017), we compared the volatile molecules produced by wild type and lsr2 mutant strains. After eliminating peaks associated with the growth medium, 742 discrete peaks were detected for both strains. Of these, 65 were reproducibly differentially expressed, with 38 being more abundant in the wild type, and 27 more abundant in the lsr2 mutant (Figure 5E; Supplementary file 6), suggesting that volatile metabolites may not be subject to the same regulatory controls as other specialized metabolites. Generally, those compounds present at higher levels in the wild type had terpene-like properties. Notably, a terpene-encoding cluster (sven_7101–7117) was amongst a handful of metabolic clusters whose expression decreased in the absence of Lsr2 (Table 1; Supplementary file 1). In contrast, the volatile metabolites that were more abundant in the lsr2 mutant appeared to be enriched for by-products of specialized metabolic precursors (e.g. derivatives of pyruvate and acetyl-CoA).
Modulating Lsr2 activity stimulates new metabolite production in diverse Streptomyces species
The dramatic increase in metabolic production by the lsr2 mutant in S. venezuelae prompted us to test whether it was possible to exploit this activity and stimulate new metabolite production in other streptomycetes. In M. tuberculosis, a dominant negative allele of lsr2 has been reported, in which a conserved Arg residue in the C-terminal DNA-binding domain is changed to an Ala residue (Gordon et al., 2008). We constructed an equivalent Streptomyces variant (R82A mutant). Using EMSAs, we confirmed that this protein was defective in its ability to bind DNA, and that it interfered with DNA binding by the wild type protein (Figure 6—figure supplement 1). We also cloned this dominant negative allele behind a highly active, constitutive (ermE*) promoter on an integrating plasmid vector (Figure 6A), and introduced this ‘Lsr2 knockdown’ construct into wild type S. venezuelae to test whether it was able to phenocopy the lsr2 mutant. Using a bioassay, we detected increased antibiotic production for this strain, relative to one carrying an empty plasmid vector (Figure 6—figure supplement 1). We also introduced the construct into the well-studied S. coelicolor strain, and observed copious production of the blue pigmented metabolite actinorhodin when grown on a medium where this compound is not typically produced (Figure 6B). Finally, we tested the construct in a small library of wild Streptomyces isolates. We screened for new metabolite production using a bioassay to assess antibiotic production. We first introduced the Lsr2 knockdown construct into strain WAC4718. This led to a significant increase in growth inhibition of M. luteus, and new growth inhibition of B. subtilis, relative to the plasmid-alone control strain (Figure 6C). We next introduced the knockdown and control constructs into four additional wild isolates (Figure 6D), and tested their antibiotic production capabilities against the indicator strain M. luteus. We observed new and/or increased antibiotic production for two strains (WAC7072 and WAC7520), no change in growth inhibition for one strain (WAC5514), and reduced activity in the final strain (WAC6377). Notably, these strains did not grow appreciably differently compared with their empty plasmid-containing parent strain (e.g. Figure 6—figure supplement 2). These results suggested our construct had the ability to downregulate Lsr2 activity in a wide range of streptomycetes, and could serve as a broadly applicable means of stimulating antibiotic production in these bacteria.

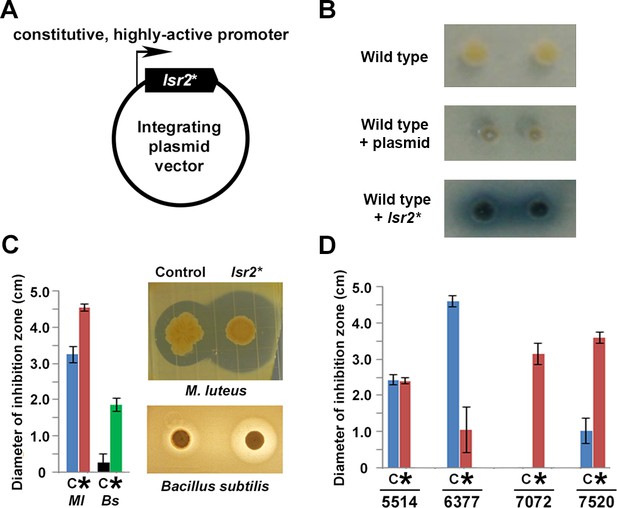

Figure 6 with 2 supplements see all
Manipulating Lsr2 activity can stimulate new antibiotic production in diverse Streptomyces.
(A) Lsr2 activity ‘knockdown’ construct, where a DNA-binding defective variant of Lsr2 (lsr2*) is under the control of a constitutive (ermE*) promoter, and is on a plasmid vector bearing an apramycin resistance marker, that is capable of integrating into the chromosomes of most, if not all, streptomycetes. (B) Growth of single Streptomyces coelicolor colonies on Difco nutrient agar. Top: wild type; middle: wild type carrying the empty plasmid; bottom: wild type carrying the plasmid with dominant negative lsr2* variant. (C) Antibiotic bioassay using the wild Streptomyces strain WAC4718, bearing either the control (empty) plasmid (C), or the Lsr2 knockdown construct (*), tested against the indicator strains M. luteus (Ml) or Bacillus subtilis (Bs). Bars indicate standard error (n = 4). (D) Antibiotic bioassay using four different wild Streptomyces strains (WAC5514, WAC6377, WAC7072, and WAC7520), carrying either empty plasmid (C) or the Lsr2 knockdown construct (*), tested against M. luteus as an indicator strain. Bars indicate standard error (n = 4).
Discussion
The nucleoid-associated protein Lsr2 has been tied to virulence and environmental adaptation in Mycobacterium, and like H-NS in E. coli, it has been proposed to function to repress the expression of ‘foreign’ DNA (Gordon et al., 2010; Gordon et al., 2011). Here, we demonstrate a role for Lsr2 in repressing the expression of laterally acquired sequences in Streptomyces, as well as in suppressing the expression of antisense RNA, as has also been observed for H-NS. Uniquely in Streptomyces, however, it appears that Lsr2 function has been co-opted for the control of specialized metabolism, and that the cryptic/silent nature of many of these metabolic clusters is due to direct Lsr2 repression.
Mechanism of Lsr2-mediated repression
Previous work on Lsr2 from the mycobacteria has shown Lsr2 preferentially binds AT-rich DNA (Gordon et al., 2010; Gordon et al., 2011), and our findings suggest that this is also the case in the streptomycetes. Unlike more conventional transcription factors, we found that Lsr2 binding sites in S. venezuelae tended to be quite broad, centring on AT-rich sequences, extending hundreds (or thousands) of base-pairs, and frequently encompassing promoter regions (Supplementary file 3). In the proteobacteria, H-NS can polymerize along the chromosome (Liu et al., 2010; Lim et al., 2012; Will et al., 2018), repressing transcription by shielding the DNA from binding by transcription factors or RNA polymerase. It can also bridge disparate DNA segments (van der Valk et al., 2017), repressing gene expression by trapping RNA polymerase, and/or changing the local DNA architecture. Lsr2 repression in S. venezuelae is consistent with both polymerization and bridging mechanisms. The larger binding sites, often associated with transcriptional changes, could be the result of Lsr2 filamentation along the chromosome in those regions. We also identified multiple specialized metabolic clusters having more than one Lsr2 binding site (see Figure 3). This was particularly notable within the right arm of the chromosome (Table 1). These sites were often smaller (Supplementary file 3), and it is possible that gene repression is achieved through bridging between these sites.
Many of the Lsr2 binding sites identified here, however, were not associated with altered transcription of their flanking genes. It is conceivable that these sites serve more of an architectural role, with Lsr2 binding promoting chromosome organization and compaction. Binding at these sites may also exert indirect effects on transcription, as a result of altered DNA structure and accessibility.
In this study, we focussed our attention on the DNA-binding activity of Lsr2, but it is worth noting that post-transcriptional regulatory roles have been identified for related proteins. In particular, H-NS can also bind RNA (Park et al., 2010), where it stabilizes target transcripts and promotes their translation. Notably, within the differentially expressed genes identified here, Lsr2 enhanced the expression of 10% of these genes. Their activation by Lsr2 (whether it be by binding their transcripts, or some other means) makes them interesting candidates for future investigations aimed at understanding alternative regulatory roles for Lsr2.
Role for Lsr2 repression
Our results suggest that Lsr2 functions both as a ‘genome sentinel’, and as a central governor of specialized metabolism. It represses the expression of many genes that seem to have been recently acquired based on conservation analysis. However, it also controls the expression of many well-conserved clusters in S. venezuelae. It is not clear how Streptomyces species acquire their specialized metabolic clusters. The clustered nature of specialized metabolic genes makes them amenable to transfer between species through conjugation or transduction (Streptomyces are not naturally competent for DNA transformation), although genomic studies have suggested that the transfer and maintenance of entire clusters is relatively uncommon (McDonald and Currie, 2017). In many clusters, the pathway-specific regulators (Williamson et al., 2006; Fernández-Martínez et al., 2014) and/or resistance determinants (e.g. Flatt and Mahmud, 2007; Thaker et al., 2013; Mak et al., 2014) are encoded near the ends of the cluster. Loss of either of these genetic elements during cluster transfer to a recipient could lead to inappropriate cluster expression in the absence of a fail-safe mechanism provided by proteins like Lsr2.
Within S. venezuelae, seven clusters lack an obvious pathway-specific regulator, and of these, five are under Lsr2 control. Similarly, six of nine clusters lacking an associated transporter are affected by Lsr2 (although resistance can be conferred by means other than transport, and not all specialized metabolites function extracellularly). In the streptomycetes, Lsr2 may therefore act to protect the cell from the toxic products of newly acquired clusters, until they are either integrated into existing regulatory networks or are lost from the cell. Widely conserved clusters controlled by Lsr2 (e.g. siderophore/desferrioxamine and bacteriocin) likely represent instances of successful integration, where Lsr2 control has evolved such that its repression can be alleviated under appropriate conditions. However, not all specialized metabolic clusters are under Lsr2 control. The products of Lsr2-independent clusters may be important for growth under laboratory conditions (and thus any Lsr2-mediated repression may have been alleviated under our experimental conditions), or they may be largely benign and/or have a low fitness cost associated with their production. On the other end of the spectrum are the volatile compounds, many of which required Lsr2 for their production. It appears that the synthesis of these molecules may be subject to different regulatory constraints than those of the specialized metabolites.
Control of Lsr2 expression and activity
As Lsr2 governs the expression of the majority of specialized metabolic clusters in S. venezuelae, it is critical to understand how its expression and activity are controlled. In the proteobacteria, factors that impact H-NS expression and activity have been extensively studied; however, far less is known about what affects Lsr2 levels and function in the actinobacteria.
In the proteobacteria, hns expression is activated by multiple transcription factors (Falconi et al., 1996; La Teana et al., 1991), and is negatively regulated by both small RNAs and H-NS itself (Falconi et al., 1993; Lalaouna et al., 2015). In the actinobacteria, there is currently nothing known about the transcriptional regulation of lsr2, although it likely governs its own expression: there is a large Lsr2 binding site that overlaps the lsr2 promoter (Supplementary file 3), suggesting that, like H-NS, it negatively regulates its own expression. How lsr2 expression is activated, and whether it is also subject to post-transcriptional regulation remains to be seen.
At a protein level, H-NS activity can be modulated by interaction with a multitude of proteins, including association with paralogous proteins like StpA (Müller et al., 2010). Intriguingly, all streptomycetes encode a paralogous Lsr2-like protein, termed LsrL. Our data suggest that there exists regulatory interplay between these proteins, with Lsr2 repressing lsrL expression. It will be interesting to see whether LsrL associates with Lsr2 to form hetero-oligomers, and whether such an association alters Lsr2 activity. Deleting lsrL did not have profound phenotypic consequences, at least under the conditions we tested, so understanding its biological role in Streptomyces will require additional investigation. Unlike the streptomycetes, the mycobacteria do not encode additional Lsr2-like proteins. However, recent work in M. tuberculosis has suggested that Lsr2 can associate with the unrelated nucleoid-associated protein HU (Datta et al., 2019); whether an equivalent interaction occurs in Streptomyces has yet to be determined. Lsr2 also appears to be subject to post-translational modification, having been identified in several phospho-proteome screens conducted in Streptomyces coelicolor (Parker et al., 2010; Manteca et al., 2011), although how phosphorylation affects Lsr2 activity is currently unclear.
H-NS-mediated repression can be alleviated through competition for binding to similar sequences by other transcription factors (Will et al., 2015). Equivalent ‘counter-silencing’ mechanisms have been reported for Lsr2 in the mycobacteria (Kurthkoti et al., 2015). Given that at least a subset of the Lsr2-controlled specialized metabolic clusters are expressed under particular growth conditions in S. venezuelae (e.g. desferrioxamine, melanin), there must exist mechanisms to relieve Lsr2 repression in the streptomycetes as well. Intriguing candidates for this could include global antibiotic regulators, or cluster-situated regulators, and revealing how Lsr2 is integrated into the larger regulatory networks governing specialized metabolism will be a major priority.
Chromosome organization and the regulation of specialized metabolism
Lsr2 is one of multiple nucleoid-associated proteins encoded by the streptomycetes, including sIHF (Swiercz et al., 2013), the HU proteins HupA and HupS (Salerno et al., 2009), and BldC (Bush et al., 2019). To date, only BldC binding and regulation has been thoroughly characterized, but unlike Lsr2, its primary regulatory targets are developmental determinants, not specialized metabolic clusters. Phenotypic analyses of sIHF and hupS mutants in S. coelicolor revealed major sporulation defects, in contrast to the modest developmental delay observed for the lsr2 mutant (Salerno et al., 2009; Swiercz et al., 2013). Both mutations also impacted metabolism, with the sIHF mutant exhibiting both enhanced and reduced production of pigmented antibiotics, depending on media conditions, and the hupS mutant failing to produce the brown spore pigment in S. coelicolor. While a comprehensive analysis remains to be conducted, neither sIHF nor HupS appear to function like Lsr2 in exerting global control over specialized metabolism.
In the fungi, chromosome organization is governed by the histones which, like the nucleoid-associated proteins in bacteria, function to both compact the chromosome and control gene expression. Like Streptomyces, fungi possess a multitude of cryptic secondary metabolic clusters, and many of these are silenced as a result of histone activity (Keller, 2019). Successful cluster activation has been achieved by manipulating histone activity through altered acetylation or methylation (Pfannenstiel and Keller, 2019).
Given the broad conservation of Lsr2 across the streptomycetes, and its significant impact on specialized metabolism in these bacteria, Lsr2 is an attractive candidate for activity modulation, like the histones in fungi. Deleting lsr2 may not be feasible in all Streptomyces, given recent studies suggesting that it is an essential gene in some species (Najah et al., 2019). However, our work here suggests that downregulating Lsr2 activity may offer an effective approach to alleviating metabolic repression, and can profoundly alter the metabolic output of a wide range of streptomycetes. Collectively, it may provide a new avenue for accessing otherwise cryptic natural products in these metabolically gifted bacteria, facilitating both our understanding of the chemical ecology associated with microbial signalling and interactions, and our ability to identify new compounds for clinical development.
Materials and methods
Bacterial strains, plasmids, oligonucleotides and culture conditions
Request a detailed protocolAll strains and plasmids/cosmids are outlined in Supplementary file 7, while oligonucleotide information is provided in Supplementary file 8. S. venezuelae strains were grown at 30°C on MS (soy flour-mannitol) agar, MYM (maltose-yeast extract-mannitol) agar, YPD (yeast-peptone-dextrose) agar, and YP (yeast-peptone) agar, or in liquid MYM medium prepared as described previously (Kieser et al., 2000; Jones et al., 2017). S. coelicolor strains were grown on Difco nutrient agar plates, while wild Streptomyces isolates were grown on ISP4 medium (Difco) supplemented with maltose (1 g/L), mannitol (1 g/L), sucrose (1 g/L) and glycerol (1 g/L), or in Bennet’s medium. E. coli strains were grown at 37°C on or in LB (Luria-Bertani) medium or in liquid SOB (Super Optimal Broth) (Kieser et al., 2000).
Strain and plasmid construction
Request a detailed protocolAn in-frame deletion of lsr2 (sven_3225) was created using the ReDirect PCR targeting method (Gust et al., 2003). The lsr2 coding region was replaced with the aac(3)IV-oriT resistance cassette, which was subsequently excised using the yeast FLP recombinase to leave an 81 bp scar. The aac(3)IV-oriT cassette was amplified from pIJ773 using the primer pair Sven3225disruptF and Sven3225disruptR2 to generate an extended resistance cassette (oligonucleotide sequences listed in Supplementary file 8). Cosmid 1-C1 (http://strepdb.streptomyces.org.uk/) was introduced into E. coli BW25113 containing pIJ790, and the lsr2 coding region was replaced with the extended resistance cassette. Cosmid 1-C1∆lsr2::aac(3)IV-oriT was confirmed both via PCR using the flanking primers sven3225F2 and sven3225R2, and through a diagnostic restriction digest. The modified cosmid was then introduced into S. venezuelae by conjugation. Two representative apramycin-resistant, kanamycin-sensitive null mutants were selected for morphological analysis. Cosmid 1-C1∆lsr2::aac(3)IV-oriT was introduced into E. coli BT340 in which the FLP recombinase was induced to excise the aac(3)IV-oriT cassette from the cosmid. The cosmid backbone was then targeted to replace bla with the hyg-oriT cassette from pIJ10701 (Gust et al., 2004). The resulting cosmid was checked using PCR (Supplementary file 8) and restriction digest, prior to being mobilised into S. venezuelae ∆lsr2::aac(3)IV-oriT. Hygromycin-resistant exconjugants were selected, and then screened for a double cross-over event resulting in aparamycin-sensitive, hygromycin-sensitive scarred mutants that were confirmed by PCR (Supplementary file 8).
S. venezuelae ∆lsr2 was complemented through cloning lsr2, together with 257 bp upstream and 293 bp downstream flanking sequences, into the EcoRV-digested integrative plasmid pIJ82. Gene synthesis (GenScript) was used to generate a C-terminal triple FLAG-tagged variant (DYKDHDGDYKDHDIDYKDDDDK, separated from the Lsr2 sequence by a triple glycine linker) bearing the same upstream and downstream sequences as the native complementation construct. This synthesized sequence was flanked by BglII sites, which facilitated subcloning into the BamHI site of the integrative plasmid pIJ10706 (pIJ82 and pIJ10706 are identical except that pIJ10706 uses the aac(3)IV promoter to drive expression of hyg). Both lsr2-carrying plasmids were introduced individually into the lsr2 mutant and assessed for their ability to complement the developmental delay observed on solid MYM.
An in-frame deletion of lsrL (sven_3832) was created using the ReDirect PCR targeting method (Gust et al., 2003) described above. The lsrL coding region was replaced with the aac(3)IV-oriT resistance cassette in cosmid 4E19 and conjugated from the non-methylating E. coli strain ET12567 (MacNeil et al., 1992) containing pUZ8002 (Paget et al., 1999) into S. venezuelae. Two representative apramycin-resistant, kanamycin-sensitive null mutants were confirmed by PCR (Supplementary file 8) and were subjected to morphological and metabolic analyses.
To mutate sven_6229, CRISPR-Cas-mediated mutagenesis was used (Cobb et al., 2015), with minor alterations to the published protocol. Briefly, a 32 nucleotide deletion, along with an in-frame stop codon, was introduced into sven_6229. The guide RNA sequence was cloned into the BsbI site of pCRISPomyces2, following the annealing of the overlapping oligonucleotides Sven6229 GuideF and Sven6229 GuideR (Supplementary file 8). The editing template was generated by first amplifying fragments upstream (Sven6229 UpF/R) and downstream (Sven6229 DownF/R) of the guide RNA sequences. These sequences were then joined by overlap extension PCR, before being digested and cloned into the XbaI site of the guide RNA-carrying pCRISPomyces vector. Sequence integrity of both the guide RNA and editing template was confirmed by sequencing. The resulting plasmid was conjugated into the lsr2 mutant (Supplementary file 7), and exconjugants were selected for using apramycin and nalidixic acid. Colonies were then streaked on MS agar plates without antibiotic supplementation, and were screened for the desired deletion using the Sven6229 GuideF and Sven6229 DownR primers. Candidate deletion mutants were subjected to a final PCR check, using Sven6229 UpR and Sven6229 ConR, and the resulting product was sequenced to confirm the mutation.
To investigate the effects of AT-content on Lsr2 binding and gene expression, we focussed on a validated Lsr2 binding site between sven_5106 and sven_5107, where the expression of these genes was increased upon loss of Lsr2, suggesting Lsr2 repression. To clone a ~9 kb DNA fragment spanning sven_5105–5107, the TOPO TA cloning kit was used as per the manufacture’s instructions. Briefly, the fragment was amplified using the Phusion proofreading polymerase (New England Biolabs) with oligonucleotides Sven5105_5107F and Sven5105_5107R (Supplementary file 8), a 72°C annealing temperature, and cosmid Sv-3-D04 (Supplementary file 7) as template. The amplified product was purified by gel extraction, and was then incubated with Taq polymerase and dATP at 72°C for 15 min. Four microlitres of the resulting A-tailed product were mixed with salt solution and pCR2.1-TOPO vector provided in the cloning kit, before being introduced into Subcloning Efficiency DH5α competent cells (ThermoFisher Scientific). The sven_5105–5107 containing plasmid was verified using restriction enzyme digestion and sequencing. To create mutant variants, synthetic gene fragments were generated and amplified using oligonucleotides Sven5106_5107F and Sven5106_5107R (Supplementary file 8). The amplified products were cloned between unique NheI and AvrII sites within the sven5105-07 sequences. The designed mutations were confirmed by restriction digestion and sequencing. All validated sven_5105–5107 variants (wild type and mutants) were excised from the TOPO vector using XbaI and SpeI, and cloned into the SpeI site of pRT801. Constructs were then conjugated into wild type S. venezuelae and Δlsr2 mutant strains (for expression analysis), and the Δlsr2 mutant strains complemented with either lsr2 or lsr2−3× FLAG (for ChIP analyses).
Streptomyces cell extract preparation, SDS-PAGE, and immunoblotting
Request a detailed protocolCell extracts were prepared from a 1 mL aliquot of S. venezuelae cells grown in liquid MYM medium. The protein extracts were separated using 15% SDS-PAGE and were stained with Coomassie brilliant blue R-250. Equivalent amounts of total protein were loaded onto a second 15% SDS-PAG, and following transfer to PVDF membranes, were subjected to immunoblotting with anti-FLAG antibodies (1:1,500; Sigma) and anti-rabbit IgG horseradish peroxidase (HRP)-conjugated secondary antibodies (1:3,000; Cell Signaling).
Lsr2 overexpression, purification and electrophoretic mobility shift assays (EMSAs)
Request a detailed protocollsr2 amplified using primers NdeISven3225F and BamHISven3225R (Supplementary file 8) was digested and the product cloned into the similarly digested pET15b (Supplementary file 8). After sequencing, this construct was introduced into E. coli Rosetta cells (Supplementary file 8). Overexpression of 6× His-lsr2 was achieved by growing cultures at 37 ˚C to an OD600 of 0.5, and then adding 0.5 mM IPTG (isopropyl β- D-1-thiogalactopyranoside). Cells were grown for a further 3 hr at 30 ˚C before harvesting and resuspending in binding buffer (50 mM NaH2PO4, 300 mM NaCl and 10 mM imidazole, pH 8.0) containing 1 mg/mL lysozyme and one complete mini EDTA-free protease inhibitor pellet (Roche). Cell suspensions were incubated on ice for 20 min before sonication. 6× His-Lsr2 was purified by binding to 1 mL Ni-NTA agarose (Invitrogen), after which the resin was collected and the bound protein was washed with binding buffer supplemented with increasing concentrations of imidazole. Purified proteins were ultimately eluted using 500 mM imidazole. Purified protein was exchanged into storage buffer (20 mM Tris-HCl, pH 8, 150 mM NaCl, 25% glycerol and 1.4 mM β-mercaptoethanol) using an Amicon Ultra-15 Centrifugal Filter with a 3 kDa cut-off. Bradford assays were conducted to measure protein concentrations.
EMSAs were performed using 124–280 bp probes amplified by PCR and 5’-end-labeled with [γ-32P]dATP (primers prefixed ‘emsa’ are listed in Supplementary file 8). Increasing concentrations of Lsr2 (0–5 µM) were combined with either 1 or 10 nM probe, 1 mg/mL bovine serum albumin (BSA) and binding buffer (10 mM Tris, pH 7.8, 5 mM MgCl2, 60 mM KCl and 10% glycerol). Each reaction was incubated for 10 min at room temperature, followed by 30 min on ice prior to adding a glycerol-based loading dye and running on a 12% native polyacrylamide gel. To test binding specificity, competition assays were established in which increasing concentrations (0–160 nM) of unlabeled probe were added together with 4 nM labeled probe and 1 µM Lsr2, to the EMSA reactions described above. Gels were exposed to a phosphor plate for 1 hr, before being visualized using a phosphorimager (Typhoon FLA 9500).
RNA isolation and RT-(q)PCR
Request a detailed protocolWild type S. venezuelae and the Δlsr2 mutant strain were grown in 300 mL MYM cultures in duplicate. After 8 hr (vegetative growth), 12 hr (early mycelial fragmentation) and 18 hr (late mycelial fragmentation/sporulation), density at OD450 was measured, and a 60–90 mL sample was harvested. Subsequent experiments involved growing wild type and Δlsr2 mutant strains carrying sven_5105-sven_5107 variants on an integrating plasmid. These strains were grown in duplicate, in 50 mL MYM liquid medium for 18 hr. In all cases, RNA was isolated as described in Moody et al. (Moody et al., 2013), using a modified guanidium thiocyanate protocol (Chomczynski and Sacchi, 1987). Primers HrdBF and HrdBR, or SVEN4987F/SVEN4987R (Supplementary file 8) were used for PCR checks, alongside a quantified chromosomal DNA control, to confirm any DNA contamination was <0.005%.
Reverse transcription (RT) reactions were performed as described previously (Haiser et al., 2009; Moody et al., 2013). In brief, gene-specific reverse primers (Supplementary file 7), or random oligonucleotides were annealed to 1 μg of total RNA prior to cDNA synthesis using SuperScript III reverse transcriptase (Invitrogen) (wild type and mutant) or Lunascript RT (New England Biolabs) (sven5105-5107 variants), respectively.
To validate RNA-sequencing results, two microlitres of the resulting cDNA were used as template DNA for PCR, with a 58°C annealing temperature. The number of cycles was optimized to ensure that amplification was occurring within the linear range of the reaction (33 cycles for sven_0514, sven_6216, sven_6264 and hrdB, and 30 cycles for sven_0493 and sven_5135). Negative control reactions were run to confirm the absence of genomic DNA contamination in the RNA samples, and involved adding an equivalent volume of a reverse transcription reaction in which nuclease free water had been added in place of reverse transcriptase. All reverse transcription reactions and PCR amplifications were carried out in duplicate, using RNA isolated from two independent cultures.
For the sven_5105–5107 variant-containing strains, 2.5 μL of cDNA (1:4) were used as template for qPCR. Primers 5106F/5106R were used to amplify target gene from cDNA with a 55°C annealing temperature. ‘No RT’ samples were run to confirm no DNA contamination. All samples were assessed in biological duplicate and technical triplicate. qPCR data were normalized to rpoB and were analyzed using a relative quantification method (2-DDCT) (Livak and Schmittgen, 2001).
RNA-seq sample preparation and data analysis
Request a detailed protocolLibrary construction and sequencing were performed by the Farncombe Metagenomics Facility, McMaster University, Hamilton, Canada. Total RNA (1.7 µg) from each sample was subjected to rRNA depletion using RiboZero (Epicentre), as per the manufacturer’s instructions. Library preparation was performed using the NEBNext Ultra Directional RNA Library Prep Kit (NEB), including double-AMPure bead (Beckman Coulter) size selection. Following quality control, libraries were pooled in equimolar amounts and sequenced over two lanes of the HiSeq 1500 using the TruSeq Rapid (v1) chemistry with onboard cluster generation and a 1 × 75 bp protocol.
Raw sequencing reads were trimmed to remove low-quality 3’ ends using PrinSeq (Schmieder and Edwards, 2011). Trimmed reads were checked for quality using FastQC (www.bioinformatics.babraham.ac.uk/projects/fastqc/) and aligned to the S. venezuelae ATCC 10712 genome sequence using Bowtie2 (Langmead et al., 2009).
The resultant SAM files were converted to BAM format, sorted by genomic position and indexed to create BAI files (Li et al., 2009). The BAM files were analyzed both visually using Integrated Genomics Viewer (Version 2.3.60) (Robinson et al., 2011), and using Rockhopper2 (Tjaden, 2015). We assigned a cut-off for significance using a p-value adjusted for multiple testing that was less than 0.01 (q-value), and filtered for genes displaying a fold change greater than four.
Chromatin immunoprecipitation
Request a detailed protocolS. venezuelae ∆lsr2 was complemented using an integrating plasmid (pIJ10706/pIJ82) carrying either wild type lsr2 or lsr2−3 × FLAG (Supplementary file 7). Each culture was then grown in 300 mL MYM cultures in duplicate. After 18 hr, the density at OD450 was measured and the developmental progression of each strain was monitored by light microscopy. A 1 mL sample was then taken for immunoblot analysis, and an 80 mL sample was transferred to a sterile flask. Formaldehyde was added to a final concentration of 1% (vol/vol) to cross-link protein to DNA, after which cultures were incubated for a further 30 min. Glycine was then added to a final concentration of 125 mM. Immunoprecipitation was carried out as described in Bush et al. (Bush et al., 2013), using Anti-FLAG (DYKDDDDK) affinity gel (BioTools). Immunoprecipitation, and subsequent sequencing, were done in duplicate.
Library construction and sequencing were performed by the Farncombe Metagenomics Facility, McMaster University, Hamilton, Canada. The NEBNext Ultra DNA Library Prep Kit was used for library preparation, starting with 10 ng of the sheared ChIP DNA and including a double-AMPure bead (Beckman Coulter) size selection. Following quality control, libraries were pooled in equimolar amounts and sequenced on one MiSeq run using a 2 × 75 bp (v3) configuration.
ChIP-seq data analysis
Request a detailed protocolThe reads in the fastq files were first checked for quality using FastQC (www.bioinformatics.babraham.ac.uk/projects/fastqc/), then aligned to the S. venezuelae ATCC 10712 genome (GenBank accession number NC_018750) using Bowtie2 (Langmead et al., 2009). The resultant SAM files were converted to BAM format, sorted by genomic position and indexed to create BAI files (Li et al., 2009). The BAM files were visualized using Integrated Genomics Viewer (Version 2.3.60) (Robinson et al., 2011), and were subjected to quantitative analysis.
MACS2 was run from the command line to normalize all lsr2 and the lsr2−3 × FLAG samples against total DNA with the mappable genome size set at 7.92 × 106 (90% of the S. venezuelae genome) to generate BED files (Zhang et al., 2008). The BED files were in turn used to generate a CSV sample sheet that was read into the R package for statistical computing (R Development Core Team, 2013) using the read function of the DiffBind package (Stark and Brown, 2011). The dba.count function of the DiffBind package was used to calculate a binding matrix with scores based on read counts for each sample. The dba.contrast function of the DiffBind package was then used to compare the lsr2 (negative control) samples with the lsr2−3 × FLAG samples. The dba.analyze function of the DiffBind package was used to run an edgeR analysis that identified sites that were significantly differentially bound [having a p-value adjusted for multiple testing that was less than 0.01 (q-value)]. These differentially bound sites were retrieved using the dba.report function.
ChIP-quantitative PCR
Request a detailed protocolStrains were grown in 10 mL of MYM medium overnight, before being subcultured in duplicate into 50 mL of MYM medium. After incubating for 18 hr, formaldehyde was added to a final concentration of 1% (v/v) to cross-link protein to DNA. The cultures were incubated for an additional 30 min, at which time glycine was added to a final concentration of 125 mM. Immunoprecipitation was performed as described above, only using the FLAG M2 antibody (Sigma).
To quantify the abundance of target genes of interest in the ChIP DNA, 20 μL qPCR reactions were prepared using Luna Universal qPCR Master Mix (New England Biolabs) and 2.5 μL of ChIP DNA (1:10) as template. Primers 0926F/0926R and 5105F/5105R (Supplementary file 8) were used to amplify target genes from ChIP DNA with a 55°C annealing temperature. qPCR data were then analyzed using DART-PCR (Peirson, 2003).
Phylogenetic analysis of Streptomyces species
Request a detailed protocolPhylogenetic analysis was conducted based on the concatenated protein sequences encoded by selected single-copy phylogenetic marker genes serS, rpoB, secY, and rplB. These sequences were extracted from the complete genome sequences of the different streptomycetes, as well as from an outgroup (Bacillus subtilis), all of which were accessed using the NCBI database. Alignments were generated using ClustalX2 (Larkin et al., 2007) using a neighbor joining cluster algorithm, with iteration at each alignment step and 1000 bootstrap replications. The phylogenetic tree was visualized using FigTree v1.4 (http://tree.bio.ed.ac.uk/software/figtree).
Specialized metabolite extraction and analysis
Request a detailed protocolS. venezuelae WT and ∆lsr2 strains were grown in triplicate as a lawn on MYM agar over a timecourse of 3, 5 and 7 days. The entirety of each plate (as well as an MYM agar control) was macerated in 25 mL n-butanol, sonicated for 5 min in a Branson 2520 tabletop ultrasonic cleaner and shaken overnight at 4°C. The agar was removed by passing through a milk filter, then Whatman filter paper, after which the solvent was split into two aliquots and dried down in a GeneVac. The residue was reconstituted in either 500 μL 50% methanol for bioassays, or 1 mL of 1:1 MeCN:H2O for LC-MS analysis.
LC-MS analysis was performed on a Waters Alliance Acquity UPLC system coupled to a Xevo G2S-QTof. A 10 µL aliquot was taken and diluted with 90 μL 1:1 MeCN:H2O, and 10 µL of this diluted solution were injected onto a Phenomenex Kinetex Biphenyl column (1.7 μm, 2.1 × 100 mm).
The samples were separated using a gradient of 5% to 95% acetonitrile (0.1% [vol/vol] formic acid) at 40°C over 25 min, with a flow rate of 0.4 mL/min. Positive electrospray ionization was performed and the ions were scanned over a mass range of 100 to 1200 Da. Data were analyzed using MZmine 2 software (Pluskal et al., 2010).
For soluble metabolites, and quantitation of the known metabolites shown in Figure 5C, cultures grown in MYM liquid medium for 3, 4, or 5 days were centrifuged, and the supernatant lyophilized. The lyophile was redissolved in 10 mL of 50:50 acetonitrile/water and shaken on a rotary shaker for 1 hr. After centrifugation to remove particulates, samples were analyzed on an Agilent UPLC-QTOF. Injections of 2 μL were separated on Zorbax Eclipse plus C18 column (2.1 mm x 50 mm) and a gradient of 0–1 min isocratic 100% A, 1–17 min gradient from 100–0% A, and 17–20 min isocratic 100% B, where A is 98% water, 2% methanol, 0.1% formic acid and B is 100% methanol, 0.1% formic acid, at a flow rate of 0.4 mL/min. Samples were measured in positive and negative ionization modes to gain the greatest coverage. Samples were analyzed in technical triplicates and key features were assessed in biological duplicates. Fragmentation analysis of features of interest was performed with a collision energy of 25 V.
For the soluble metabolites shown in Figure 5D, cultures were grown in MYM liquid medium for 3 days, after which Diaion HP-20 resin (3% w/v) was added into the cultures and shaken for 8 hr. The resin was washed using distilled water, separated from the supernatant using filter paper, and dried overnight. Metabolites were eluted from the resin using 5 mL methanol. The eluates were dried in vacuo and resuspended in 250 μL methanol. After centrifugation to remove particulates, the crude extracts were analyzed using an Agilent 1200 LC coupled to a Bruker micrOTOF II (ESI-MS). Injections of 5–10 μL sample were separated on a Zorbax Eclipse XDB C18 column (100 mm×2.1 mm× 3.5 μm) at a flow rate of 0.4 mL/min for 30 min. A gradient of 0–21 min from 95% to 5% solvent A, 21–26 min isocratic 5% A, and a gradient of 26–30 min from 5% to 95% A, where A is water with 0.1% formic acid and B is 100% methanol with 0.1% formic acid. At least two biological duplicates were measured in positive or negative ionization modes.
Antibiotic bioassays were performed by testing methanol extracts of S. venezuelae grown for 1 to 3 days against Micrococcus luteus. Twenty microliters of each extract was applied to a Whatman antibiotic assay disc and applied to a lawn of LB inoculated with a 25-fold dilution of the M. luteus indicator strain grown to mid-exponential phase. The plates were incubated overnight at 30°C before measuring the size of the zone of clearing. Bioassays for wild Streptomyces were performed by growing isolates (knockdown- and plasmid-control containing) on ISP4 supplemented medium for 6 days at 30°C. Overnight cultures of indicator strains (M. luteus or B. subtilis) were mixed with 1% soft nutrient agar, which was allowed to solidify before being overlaid atop the wild Streptomyces strains, after which the cultures were incubated overnight at 37°C.
Synthesis of N-acetyl-chloro-tryptophan standards
Request a detailed protocolSynthesis of N-acetyl-5-chloro-L-tryptophan was achieved using Wang resin (50 mg, 1 mmol/g loading), which was swollen in anhydrous dimethylformamide (DMF). Fmoc-5-chloro-L-Trp-OH (57.5 mg, 0.125 mmol, 2.5 eq.) was dissolved in 5 mL 9:1 DMF:dichloromethane (DCM) and cooled to 0°C. Diisopropylcarbodiimide (DIC) (6.3 mg, 0.050 mmol, one eq.) was added in minimal DCM. The reaction was stirred for 30 min at 0°C, in a flask fitted with a drying tube. The anhydride mixture was added to the swollen resin, after which DMAP (0.6 mg, 5 µmol, 0.1 eq.) was added, and the flask was then periodically agitated at room temperature for 2 hr. The resin was washed in 3 × 10 mL DMF, followed by 3 × 10 mL DCM. The Fmoc group was removed by the addition of 10 mL 20% (V/V) piperidine in DMF, after which the suspension was agitated for 20 min. The resin was washed as above, before acetylation was carried out with the addition of acetic anhydride (5.0 µL, 0.05 mmol, one eq.) and diisopropylethylamine (DIPEA) (1 µL, 5 µmol, 0.1 eq.) in 5 mL DMF. The resulting suspension was agitated for 30 min at room temperature. The resin was washed as above, prior to cleavage being carried out with 10 mL 95% TFA, 2.5% triethylsilane, 2.5% DCM for 30 min. The eluent was then collected and evaporated to dryness. Analysis by LC-MS was completed without any further purification.
To synthesize N-acetyl-7-chloro-L-tryptophan, 7-chloro-L-Trp-OH (24 mg, 0.1 mmol) was dissolved in 20 µL 50 mM ammonium bicarbonate. Fifty microliters of an acetylation mixture (20 µL acetic anhydride, 60 µL methanol) were added to the amino acid, after which the mixture was agitated for 1 hr at room temperature. The solvent was evaporated to dryness and the resulting product was analyzed without additional purification.
Analysis of volatile metabolites
Request a detailed protocolVolatile metabolites in the headspace of culture supernatants were concentrated, analyzed, and relatively quantified using headspace solid-phase microextraction coupled to two-dimensional gas chromatography time-of-flight mass spectrometry (HS-SPME-GC×GC TOFMS), as described previously (Jones et al., 2017). Four milliliters of culture supernatants were transferred to 20 mL air-tight headspace vials and sealed with a PTFE/silicone cap (Sigma-Aldrich). A 2 cm triphasic solid-phase microextraction (SPME) fiber consisting of polydimethylsiloxane, divinylbenzene, and carboxen (Supelco) was suspended in the headspace of the supernatant for 30 min at 37°C with 250 rpm shaking.
The SPME fiber was injected into the inlet of a Pegasus 4D (LECO Corp.) GC×GC TOFMS equipped with a rail autosampler (Gerstel), and fitted with a two-dimensional column set consisting of an Rxi-624Sil [60 m×250 μm×1.4 μm (length×internal diameter×film thickness)] first column and Stabilwax (Crossbond Carbowax polyethylene glycol; 1 m×250 μm×0.5 μm) second column (Restek). A splitless injection was performed, with the front inlet set to 270°C. The main oven containing column one was held at 35°C for 30 s, and then ramped at 3.5°C/min to a final temperature of 230°C. The secondary oven containing column two and cryogenic modulator were heated in-step with the main over with +5°C and +30°C offsets, respectively. The modulation period was set at 2.0 s, with hot- and cold-pulses alternating every 0.5 s. The transfer line temperature was set at 250°C. Mass spectra were collected over a range of 30–500 m/z, with an acquisition rate of 200 spectra/s, an ion source temperature of 200°C, and a detector voltage offset of +50 V.
Alignment of peaks across chromatograms was performed using the Statistical Compare feature of ChromaTOF (LECO Corp.). An inter-chromatogram mass spectral match score ≥600 (out of 1000) and maximum first and second dimension retention time deviations of 6 s and 0.15 s, respectively, were required for peak alignment. Only peaks detected at a signal-to-noise ratio of ≥50:1 in one or more chromatogram were considered for subsequent analyses. Mass spectra were compared with the National Institute of Standards and Technology (NIST) 2011 mass spectral library, and a forward match score ≥700 (out of 1000) was required for putative compound identification. When possible, putative identifications were affirmed by comparing experimentally-determined linear retention indices (using C6 to C15 straight-chain alkanes, Sigma-Aldrich) with previously-reported values for both polar and non-polar column configurations.
Relative compound abundances (measured in total ion chromatogram (TIC)) were log10-transformed, mean-centered, and unit scaled prior to statistical analysis. The non-parametric Mann-Whitney U-test (Mann and Whitney, 1947) with Benjamini-Hochberg correction (Benjamini and Hochberg, 1995) was used to identify volatile metabolites that were significantly different in relative compound abundance (p<0.05 after correction) between WT and Δlsr2 strains.
Generation of an Lsr2 knockdown construct
Request a detailed protocolWe created the dominant negative R82A point mutant variant of Lsr2 using overlap extension PCR. Briefly, two products were generated using primers sven3225F/R82Asven3225R and R82Asven3225F/sven3225R (Supplementary file 8). The resulting products were gel purified, before being mixed together in a 1:1 molar ratio for subsequent stitching together and amplification. Amplification was achieved using phosphorylated oligonucleotides sven3225F and sven3225R. The resulting product was purified and cloned into pIJ82, and construct integrity was confirmed by sequencing. The R82A mutant variant was then re-amplified using NdeI3225F and PacI3225R (to remove its native promoter, which is subject to negative autoregulation), digested with NdeI and PacI, and cloned into the same restriction enzyme sites in pIJ12551, downstream of the constitutive, highly active ermE* promoter (Supplementary files 7 and 8). Construct integrity was confirmed by sequencing before being introduced by conjugation into S. venezuelae, S. coelicolor, and five different wild Streptomyces isolates from the Wright actinomycete collection (WAC4718, WAC5514, WAC6377, WAC7072, and WAC7520).
Data availability
Sequencing data (RNA-seq and ChIP-seq) have been deposited in GEO under the accession code GSE115439.
-
NCBI Gene Expression OmnibusID GSE115439. Lsr2 binding sites and gene expression of wild type and lsr2 mutants of Streptomyces venezuelae during late development in liquid culture.
References
-
MEME SUITE: tools for motif discovery and searchingNucleic Acids Research 37:W202–W208.https://doi.org/10.1093/nar/gkp335
-
Taxonomy, physiology, and natural products of actinobacteriaMicrobiology and Molecular Biology Reviews 80:1–43.https://doi.org/10.1128/MMBR.00019-15
-
Controlling the false discovery rate: a practical and powerful approach to multiple testingJournal of the Royal Statistical Society: Series B 57:289–300.
-
antiSMASH 4.0—improvements in chemistry prediction and gene cluster boundary identificationNucleic Acids Research 45:W36–W41.https://doi.org/10.1093/nar/gkx319
-
Developmental biology of Streptomyces from the perspective of 100 actinobacterial genome sequencesFEMS Microbiology Reviews 38:345–379.https://doi.org/10.1111/1574-6976.12047
-
Single-step method of RNA isolation by acid guanidinium thiocyanate-phenol-chloroform extractionAnalytical Biochemistry 162:156–159.https://doi.org/10.1016/0003-2697(87)90021-2
-
Towards a new science of secondary metabolismThe Journal of Antibiotics 66:387–400.https://doi.org/10.1038/ja.2013.25
-
H-NS mediated compaction of DNA visualised by atomic force microscopyNucleic Acids Research 28:3504–3510.https://doi.org/10.1093/nar/28.18.3504
-
H-NS, the genome sentinelNature Reviews Microbiology 5:157–161.https://doi.org/10.1038/nrmicro1598
-
New insights into chloramphenicol biosynthesis in Streptomyces venezuelae ATCC 10712Antimicrobial Agents and Chemotherapy 58:7441–7450.https://doi.org/10.1128/AAC.04272-14
-
Streptomyces morphogenetics: dissecting differentiation in a filamentous bacteriumNature Reviews Microbiology 7:36–49.https://doi.org/10.1038/nrmicro1968
-
Lsr2 of Mycobacterium represents a novel class of H-NS-like proteinsJournal of Bacteriology 190:7052–7059.https://doi.org/10.1128/JB.00733-08
-
Lambda red-mediated genetic manipulation of antibiotic-producing StreptomycesAdvances in Applied Microbiology 54:107–128.https://doi.org/10.1016/S0065-2164(04)54004-2
-
Cell wall hydrolases affect germination, vegetative growth, and sporulation in Streptomyces coelicolorJournal of Bacteriology 191:6501–6512.https://doi.org/10.1128/JB.00767-09
-
BookStreptomyces in Nature and Medicine: The Antibiotic MakersOxford University Press.
-
Fungal secondary metabolism: regulation, function and drug discoveryNature Reviews Microbiology 17:167–180.https://doi.org/10.1038/s41579-018-0121-1
-
Changing the regioselectivity of the tryptophan 7-halogenase PrnA by site-directed mutagenesisAngewandte Chemie International Edition 50:2951–2953.https://doi.org/10.1002/anie.201007896
-
Clustal W and clustal X version 2.0Bioinformatics 23:2947–2948.https://doi.org/10.1093/bioinformatics/btm404
-
The sequence alignment/Map format and SAMtoolsBioinformatics 25:2078–2079.https://doi.org/10.1093/bioinformatics/btp352
-
Molecular regulation of antibiotic biosynthesis in StreptomycesMicrobiology and Molecular Biology Reviews 77:112–143.https://doi.org/10.1128/MMBR.00054-12
-
The expression of antibiotic resistance genes in antibiotic-producing bacteriaMolecular Microbiology 93:391–402.https://doi.org/10.1111/mmi.12689
-
On a test of whether one of two random variables is stochastically larger than the otherThe Annals of Mathematical Statistics 18:50–60.https://doi.org/10.1214/aoms/1177730491
-
New strategies for drug discovery: activation of silent or weakly expressed microbial gene clustersApplied Microbiology and Biotechnology 97:87–98.https://doi.org/10.1007/s00253-012-4551-9
-
Novel antibiotic screening methods to awaken silent or cryptic secondary metabolic pathways in actinomycetesThe Journal of Antibiotics 70:865–870.https://doi.org/10.1038/ja.2017.51
-
Evidence that the extracytoplasmic function sigma factor sigmaE is required for normal cell wall structure in Streptomyces coelicolor A3(2)Journal of Bacteriology 181:204–211.
-
Interactive microbial genome visualization with GViewBioinformatics 26:3125–3126.https://doi.org/10.1093/bioinformatics/btq588
-
On top of biosynthetic gene clusters: how epigenetic machinery influences secondary metabolism in fungiBiotechnology Advances 9750:30012–30016.https://doi.org/10.1016/j.biotechadv.2019.02.001
-
SoftwareR: A language and environment for statistical computingR Foundation for Statistical Computing, Vienna, Austria.
-
Engineering fungal secondary metabolism: a roadmap to novel compoundsJournal of Biotechnology 163:179–183.https://doi.org/10.1016/j.jbiotec.2012.06.027
-
Widespread suppression of intragenic transcription initiation by H-NSGenes & Development 28:214–219.https://doi.org/10.1101/gad.234336.113
-
A novel nucleoid-associated protein specific to the actinobacteriaNucleic Acids Research 41:4171–4184.https://doi.org/10.1093/nar/gkt095
-
Identifying producers of antibacterial compounds by screening for antibiotic resistanceNature Biotechnology 31:922–927.https://doi.org/10.1038/nbt.2685
-
The regulation of the secondary metabolism of Streptomyces: new links and experimental advancesNatural Product Reports 28:1311–1333.https://doi.org/10.1039/c1np00003a
-
Integrated circuits: how transcriptional silencing and counter-silencing facilitate bacterial evolutionCurrent Opinion in Microbiology 23:8–13.https://doi.org/10.1016/j.mib.2014.10.005
-
Modulation of H-NS transcriptional silencing by magnesiumNucleic Acids Research 46:5717–5725.https://doi.org/10.1093/nar/gky387
-
The biosynthesis and regulation of bacterial prodigininesNature Reviews Microbiology 4:887–899.https://doi.org/10.1038/nrmicro1531
-
Activating secondary metabolism with stress and chemicalsJournal of Industrial Microbiology & Biotechnology 41:415–424.https://doi.org/10.1007/s10295-013-1387-y
-
Model-based analysis of ChIP-Seq (MACS)Genome Biology 9:R137.https://doi.org/10.1186/gb-2008-9-9-r137
Decision letter
-
Gisela StorzSenior Editor; National Institute of Child Health and Human Development, United States
-
Michael T LaubReviewing Editor; Massachusetts Institute of Technology, United States
-
Matthew F TraxlerReviewer; University of California, Berkeley, United States
In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.
[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The first decision letter after peer review is shown below.]
Thank you for submitting your work entitled "Repressing cryptic specialized metabolism in Streptomyces by the xenogeneic silencer Lsr2" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Senior Editor. The reviewers have opted to remain anonymous.
Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.
The reviewers were all enthusiastic about the general topic and the identification of Lsr2 as a potential regulator of many, normally silent gene clusters that are responsible for producing a variety of specialized metabolites in Streptomyces. The identification of a dominant negative variant of Lsr2 that could potentially be used throughout this genus to induce the production of useful small molecules was also met with excitement. However, the reviewers also had concerns about the novelty of finding a NAP that globally controls such gene clusters given prior work on HU and BldM. There were also significant concerns raised about the depth of the study in terms of elucidating the mechanism(s) by which Lsr2 regulates various gene clusters and even whether it functions directly or indirectly at the loci of interest. In discussion, the reviewers agreed that the paper was not suitable for eLife as it stands now, but potentially could be, with significant revision and addition of mechanistic depth (as detailed in the individual reviews below). That said, the reviewers also recognized that such work is quite involved and could take a considerable amount of time, in which case it may be best to pursue publication elsewhere; the reviewers felt that with more modest revision, e.g. improvement of the statistical treatment of the global data-sets, the paper could be ready for publication in another journal in short order. In that vein, you may want to consider the peer review transfer process noted below.
Reviewer #1:
This manuscript seeks to characterize the role of a nucleoid-associated protein, Lsr2 from Streptomyces venezuelae, as a regulator of xenogenic DNA and specialized metabolic gene clusters. The authors use RNA-seq to determine how a deletion in Lsr2 in Streptomyces venezuelae impacts gene expression genome-wide, and they try to correlate this to DNA-binding sites of Lsr2 identified using ChIP-seq. Deletion of Lsr2 leads to widespread differential gene expression (primarily upregulation) of many specialized metabolic cluster genes, with some possibly directly regulated. Using a dominant negative form of Lsr2, the authors demonstrate that disruption of native Lsr2 in various isolates of Streptomyces potentially leads to production of previously-silenced specialized metabolites. The authors propose that this may be a new method for producing novel metabolites not normally made in laboratory conditions. Although generally clear and easy to follow, the genome-wide studies presented needed better quantification and analysis to substantiate some of the claims made. I was also somewhat disappointed by the lack of mechanistic insight into how Lsr2 associates with certain regions of DNA and how it regulates gene expression. The primary advance seems to be the demonstration that deleting Lsr2 leads to expression of specialized metabolic gene clusters and their consequent production. It wasn't clear to me whether this was a major conceptual advance for the Streptomyces field.
1) Subsection “Lsr2 represses the expression of horizontally acquired and specialized metabolic genes in S. venezuelae”, second paragraph: The authors argue that specialized metabolism genes are disproportionately affected in the lsr2 mutant. Are there data for another NAP to compare against to support this claim? Maybe all NAPs yield such changes? Also, proper statistical testing is needed to assess whether specialized metabolic gene clusters are really disproportionately affected.
2) Nearly 75% of the sites Lsr2 is associated with by ChIP-seq don't show changes in expression – why not?
3) The authors state that there is a "good correlation" between Lsr2 binding and AT-content, but this conclusion wasn't substantiated rigorously or backed up with a quantitative analysis of the correlation. And the overall GC content of Lsr2 bound sites was only slightly less than that of the genome as a whole. So although the framework being applied here is H-NS, it seems like Lsr2 might not behave as "cleanly" with respect to binding AT-rich DNA. In the same vein, could AT-content be more systematically tested by EMSA?
4) The mechanism(s) by which Lsr2 regulates specialized metabolism gene cluster expression is not well characterized. It is suggested that for some it might bind and repress a regulatory gene, but this hypothesis is not tested, e.g. if the presumed Lsr2 binding site near a regulatory gene is mutated, does the corresponding metabolic gene cluster get upregulated?
5) Lsr2 binds near 14 specialized metabolism gene clusters. But 21 had expression changes. What explains the others? And is it true that the 14 are a subset of the 21?
6) Does Lsr2 bind to more recently acquired gene clusters? Phylogenetic studies could have substantially elevated the impact of the paper by directly addressing the hypothesis that Lsr2 binds and regulates foreign DNA. On a related note: is the idea that something of benefit over time loses Lsr2 regulation to become expressed and useful to the host? If so, is there any evidence that this is happening?
7) Is there a condition in which Lsr2 mutants show a disadvantage relative to the wild-type because they express "foreign" DNA and perhaps some of the gene clusters of interest here?
Reviewer #2:
Gehrke et al., 2018 discovered the nucleoid-associated protein Lsr2 in Streptomyces venezuelae and proposed that Lsr2 directly represses the expression of genes in the majority of specialized metabolic clusters in this antibiotic-producing organism. The authors exploited these knowledge to manipulate the Lsr2 activity in the model Streptomyces species as well as uncharacterized isolates to improve the production of new secondary metabolites. The work was done rigorously and most of the claims were experimentally validated, however the novelty of this work might be limited. Lsr2 was first discovered and characterized in Mycobacterium, and was shown to be a transcriptional repressor. Gehrke et al., 2018 has not gone further in understanding the molecular mechanism of this repressor than in the previous works in Mycobacterium. Furthermore, deletions of global transcription factors/nucleoid-associated proteins in Streptomyces spp. very often affects the expression of biosynthetic clusters. Some of the examples are: Salerno et al., 2009: a deletion of an HU-encoding gene affected Streptomyces spore pigmentation, Som et al., 2017: a global transcription regulator MtrA controls the expression of the actinorhodin and undecylprodigiosin biosynthetic clusters in Streptomyces, or Thanapipatsiri et al., 2016: BldM, a transcriptional regulator of Streptomyces development, controls the expression of the venemycin biosynthetic cluster.
Reviewer #3:
The paper by Gehrke and colleagues describes the effects of loss of Lsr2 activity on secondary metabolite production in Streptomyces venezuelae, the organism that produces chloramphenicol. The loss of Lsr2 not only results in dysregulation of known metabolites but also the production of novel ones. The paper also maps the binding sites of Lsr2 in the genome and reports the membership of its transcriptome. The findings are novel and will be of interest in both the basic science and the biotechnology spheres. However, there is scope to improve the scholarship in the article and to address anomalies around some of the data and to improve the presentation of some of the data.
Streptomyces venezuelae expresses both Lsr2 and LsrL. Although the authors study mutants deficient in LsrL expression, this protein is absent from the Introduction and is not mentioned in the Abstract (it first appears in the Results subsection “Lsr2 and Lsr2-like (LsrL) in Streptomyces venezuelae”). After Figure 1 (and Figure 1—figure supplement 1) it disappears from the paper, not even appearing in the Discussion. Do the authors consider LsrL to be the counterpart of StpA, a paralogue of H-NS that is expressed in E. coli and related Gram-negative bacteria? Given that they have invested effort in investigating LsrL, it would be useful to give some thought to its physiological role. Like the LsrL-deficient mutant in this study, stpA knockout mutants of Gram-negative bacteria have few phenotypes, but they do have some: see PMID: 11029695 and PMID: 19843227. This point seems to deserve some consideration, otherwise why include the LsrL data?
When considering the impact of Lsr2 on gene expression in S. venezuelae, do the authors consider it as acting exclusively at the level of transcription silencing? H-NS and its paralogues have excellent RNA binding activity and well-characterised effects on translation. This point also has relevance for the LsrL/StpA issue that was raised above. What is known about Lsr2 and posttranscriptional control in Streptomyces (and in Mycobacteria)? Some commentary on this possibility would deepen the scholarly aspect of the study.
The distribution of Lsr2 binding sites along the linear chromosome shown in Figure 2 seems to be non-random. There is dense clustering of the sites in the mid-section with noticeable thinning at the left and right portions. Is this significant, perhaps in terms of chromosome organisation?
There is a presentational difficulty in panels B, C and D of Figure 4. Although the peaks associated with the lsr2 mutants are easy to see, the other data are much less discernable. For example, the WT intensity of chloramphenicol (shown by a red trace) in panel B is only visible around 6.25 minutes. Also, the inconsistency in the use of colour between panels doesn't help the reader to follow the story: WT is represented by red (panel B), blue (C) and green (D). Can these panels be re-scaled to make the messages easier to appreciate?
The use of the dominant negative Lsr2* protein (Figures 5 and Figure 6—figure supplement 1) is an interesting approach. Do the authors consider Lsr2* as acting on Lsr2 directly by forming defective dimers or defective higher oligomers, by analogy with H-NS and its protein-protein interactions? The DNA binding assay shown in Figure 6—figure supplement 1 is not wholly convincing because the free probe is only barely restored at the highest concentration of Lsr2* used and the shifted complex is still obvious at that Lsr2* concentration (representing a 4:1 ratio of Lsr2* to Lsr2). Are these protein concentrations in the physiological range?
In Figure 5B, the presence of the empty vector is not neutral: the colony morphology in the top-right quadrant of the figure is completely different to that shown by the WT in the top left quadrant. This deserves some discussion. The plasmid is described as an 'integrating' vector, so presumably it enters the chromosome through a single crossover event and remains in place in the strains expressing Lsr2*? What are the implications for the interpretation of the data from the knockdown experiments if the vector itself is altering the physiology of the bacterium (and so is not truly a 'negative' control)?
https://doi.org/10.7554/eLife.47691.033Author response
[Editors’ note: the author responses to the first round of peer review follow.]
Reviewer #1:
[…] Although generally clear and easy to follow, the genome-wide studies presented needed better quantification and analysis to substantiate some of the claims made. I was also somewhat disappointed by the lack of mechanistic insight into how Lsr2 associates with certain regions of DNA and how it regulates gene expression.
As described below, we have performed additional experiments and conducted additional analyses, to better support our genome-wide studies, and to provide greater insight into the mechanism by which Lsr2 associates with DNA and impacts gene expression. In particular, we have:
i) Investigated the distribution of Lsr2 binding sites, and correlated binding in the arm regions of the chromosome, with greater transcriptional effects.
ii) Correlated direct transcriptional effects with Lsr2 binding site size (larger) and relative AT-content (higher).
iii) Demonstrated that Lsr2 from S. venezuelae preferentially associates with AT-rich sequences both in vitro and in vivo, and showed that Lsr2 binding to these AT-rich sequences can directly influence the transcription of the flanking genes.
iv) Determined that Lsr2 does not solely associate with newly acquired biosynthetic clusters, and thus functions as more than just a genome sentinel in shutting down the expression of heterologously acquired sequences and in controlling specialized metabolism.
v) Expanded our analyses of LsrL, including identifying a regulatory connection with Lsr2, and undertaking a broad metabolomic profiling of both an lsrL and double lsr2/lsrL mutant strain.
The primary advance seems to be the demonstration that deleting Lsr2 leads to expression of specialized metabolic gene clusters and their consequent production. It wasn't clear to me whether this was a major conceptual advance for the Streptomyces field.
There is tremendous interest in identifying ways to stimulate cryptic specialized metabolites in the Streptomyces, and other metabolically rich bacteria and fungi, as evidenced by the many reviews in this area in recent years:
1) Davies, J. (2011) How to discover new antibiotics: harvesting the parvome. Curr. Opin, Chem. Biol. 15: 5-10.
2) Antoraz, S., Santamaria, R.I., Diaz, M., Sanz, D., Rodrigues, H. (2015) Toward a new focus in antibiotic and drug discovery from the Streptomyces arsenal. Front. Microbiol. 6:461.
3) Katz, L., Baltz, R.H. (2016) Natural product discovery: past, present, and future. J. Ind. Microbiol. Biotechnol. 43: 155-176.
4) Onaka, 2017.
5) Mao, D., Okada, B.K., Wu, Y., Xu, F., Seyedsayamdost, M.R. (2018) Recent advances in activating silent biosynthetic gene clusters in bacteria. Curr. Opin. Microbiol. 45: 156-163.
Importantly, why so many of these clusters are not expressed in laboratory environments has been a complete mystery, particularly for the Streptomyces. With Lsr2, we provide a mechanistic reason for their repression – and with it, an avenue to promote the expression of these clusters. Furthermore, we show that Lsr2 controls the expression of these clusters independently of any characterized global regulators. This means that Lsr2 represents an important new level in the regulatory hierarchy governing specialized metabolism in the streptomycetes.
We have modified our manuscript throughout, to ensure that the importance of this study is clear to readers.
1) Subsection “Lsr2 represses the expression of horizontally acquired and specialized metabolic genes in S. venezuelae”, second paragraph: The authors argue that specialized metabolism genes are disproportionately affected in the lsr2 mutant. Are there data for another NAP to compare against to support this claim? Maybe all NAPs yield such changes? Also, proper statistical testing is needed to assess whether specialized metabolic gene clusters are really disproportionately affected.
We agree with the reviewer that many NAPs may indeed impact specialized metabolism. However, there is little in the way of published data that either support or refute this possibility, as few equivalent genome-wide analyses are available for other NAPs in the streptomycetes. Gene deletion experiments have been performed for sIHF (the functional equivalent of the E. coli IHF protein) and for HU in Streptomyces coelicolor. However, no ChIP or transcriptional analyses (RNA-seq or microarray assays) have been published for either of these proteins, and consequently their binding sites remain elusive, as do their genome-wide effects on transcription. Phenotypic investigations into the effects of their gene deletions focussed more heavily on the developmental consequences stemming from deletion, where sporulation was profoundly affected in each case; this has not been observed for Lsr2.
Recent work published by Bush et al., 2019, has also suggested that BldC functions as a nucleoid associated protein. Notably, this protein preferentially impacted the expression of developmental genes, not specialized metabolic genes.
Collectively, this would suggest that not all nucleoid-associated proteins have the same effect as Lsr2.
Regarding the disproportionate impact of lsr2 deletion on specialized metabolic clusters, we have now included the proportion of specialized metabolic cluster genes that are impacted, relative to all other genes. The difference is striking: ~15% (155/1031) of genes in specialized metabolic clusters show significantly altered transcription profiles, compared with 4.9% of non-specialized metabolic cluster genes (329/6680). This information can be found in the second paragraph of the subsection “Lsr2 represses the expression of horizontally acquired and specialized metabolic genes in S. venezuelae”.
2) Nearly 75% of the sites Lsr2 is associated with by ChIP-seq don't show changes in expression – why not?
There are many possible reasons to explain this observation. A likely explanation, given the chromosome architectural role ascribed to Lsr2-related proteins, is that these Lsr2 binding sites may have architectural functions as opposed to regulatory ones (although at a gross chromosomal level, we did not detect any significant changes in chromosome compaction in the lsr2 mutant, relative to the wild type strain). We have now added this possibility into our Discussion in the second paragraph of the subsection “Mechanism of Lsr2-mediated repression”. We have also compared the characteristics of those sites associated with expression changes, with those that have no effect, and have identified a number of features that are more commonly associated with transcriptional changes (larger binding sites; greater AT-content). This information can be found in the second and third paragraphs of the subsection “Trends in Lsr2 binding and regulatory control” and in new Figure 2B and 2C.
3) The authors state that there is a "good correlation" between Lsr2 binding and AT-content, but this conclusion wasn't substantiated rigorously or backed up with a quantitative analysis of the correlation. And the overall GC content of Lsr2 bound sites was only slightly less than that of the genome as a whole. So although the framework being applied here is H-NS, it seems like Lsr2 might not behave as "cleanly" with respect to binding AT-rich DNA. In the same vein, could AT-content be more systematically tested by EMSA?
We have undertaken a more comprehensive analysis of Lsr2 binding site composition, relative to that of the general chromosome, with respect to AT-rich ‘core’ binding sites (5 out of 6 AT residues), and AT-rich stretches of 20 bp (>50% AT), and have shown that while not all sequences with these features are Lsr2 targets, the vast majority of Lsr2 targets possess these sequences.
We have also systematically tested Lsr2 binding to a sequence modified to have a range of GC contents (58%-70%), both in vitroand in vivo. We found that Lsr2 binding is enhanced with increasing ATcontent, with little binding observed when the probe was 70% GC (new Figure 3—figure supplements 3 and 4). in vivo, we altered the AT-content of previously defined binding sites (the same sequences tested in the in vitroEMSA experiments described above), and observed greater Lsr2 binding to the AT-rich sequences than the GC-rich ones (new Figure 3—figure supplement 3). We also observed an inverse correlation between flanking gene expression and Lsr2 binding: as less Lsr2 bound, more transcription was observed, confirming that Lsr2 binding to AT-rich sequences served to repress gene expression.
These experiments are all detailed in a new Results section (subsection “Trends in Lsr2 binding and regulatory control”).
4) The mechanism(s) by which Lsr2 regulates specialized metabolism gene cluster expression is not well characterized. It is suggested that for some it might bind and repress a regulatory gene, but this hypothesis is not tested, e.g. if the presumed Lsr2 binding site near a regulatory gene is mutated, does the corresponding metabolic gene cluster get upregulated?
Many of the Lsr2 binding sites associated with regulatory genes overlap or are within the coding sequences of their associated regulatory genes, making it challenging to mutate these sites without changing the coding sequence of the associated gene, or significantly altering the codon usage of these genes. However, we identified one candidate binding site that was ideally positioned for testing this hypothesis, in that it was both upstream of a regulatory gene (sven_5106), and the expression of this regulatory gene was altered in an lsr2 mutant background.
We introduced this region into a plasmid vector, and compared the expression of genes flanking the Lsr2 binding site bearing either the native (AT-rich) sequence, or more GC-rich variants, where the ChIP-identified AT-rich binding core sequence had been altered (taking care not to mutate either promoter sequence within this region). These altered sequences (and the corresponding wild type) were the ones described in point 3, and were tested in vitroand in vivofor Lsr2 binding (binding was strongest to the wild type, or most AT-rich, and was weakest to the sequence with the highest GCcontent).
We found that increasing GC-content (and decreasing Lsr2-binding) led to increased expression of the flanking genes, as determined using RT-qPCR. These data are presented in Figure 3—figure supplements 3 and 4, and are described in the last paragraph of the subsection “Trends in Lsr2 binding and regulatory control”.
5) Lsr2 binds near 14 specialized metabolism gene clusters. But 21 had expression changes. What explains the others? And is it true that the 14 are a subset of the 21?
Lsr2 binds within 17 specialized metabolic gene clusters, and there are expression changes associated with genes in 14 of these clusters. These 14 are indeed a subset of the 21 clusters having changed expression patterns – please see Table 1 for a complete summary of this information. For the 7 clusters that had transcriptional changes but no direct Lsr2 binding, we predict that these transcriptional effects are indirect. These may be mediated by other transcription factors under the control of Lsr2, or by alterations in the local DNA architecture stemming from the loss of Lsr2 binding. We have now elaborated upon these possibilities in our Discussion (subsection “Mechanism of Lsr2-mediated repression”).
6) Does Lsr2 bind to more recently acquired gene clusters? Phylogenetic studies could have substantially elevated the impact of the paper by directly addressing the hypothesis that Lsr2 binds and regulates foreign DNA. On a related note: is the idea that something of benefit over time loses Lsr2 regulation to become expressed and useful to the host? If so, is there any evidence that this is happening?
We have conducted phylogenetic analyses of each cluster, to determine whether Lsr2 preferentially associated with newly acquired (not conserved/unique to S. venezuelae) clusters, and to our surprise, found that while Lsr2 often bound to poorly conserved clusters, it also associated with (and affected the expression of) several of the most conserved clusters (see new Figure 4). This suggested that Lsr2’s function in controlling specialized metabolism extends beyond simply repressing the expression of foreign/newly acquired genes, and indicates that it also represents an important level in the regulatory cascades governing specialized metabolism in general. We have added in a new section addressing this point within our Results (subsection “Lsr2 activity is not specific for newly acquired biosynthetic clusters”, first paragraph), and have expanded upon it in our Discussion (subsection " Role for Lsr2 repression”).
7) Is there a condition in which Lsr2 mutants show a disadvantage relative to the wild-type because they express "foreign" DNA and perhaps some of the gene clusters of interest here?
While we have not conducted a comprehensive survey of growth conditions, we have yet to determine conditions in which loss of Lsr2 is deleterious to the growth of S. venezuelae, apart from the delay in reproductive growth observed on and in MYM medium. We have now compared the growth of wild type S. venezuelae and the lsr2 mutant in MYM, R2 and minimal media, and in all cases, the lsr2 mutant grew similarly to the wild type (see Figure 1 in the manuscript, and Author response image 1). We also compared the growth of the wild isolates carrying the empty plasmid, with those containing the Lsr2 knock-down construct, and again, observed similar growth profiles in all cases. These results are now included in Figure 6—figure supplement 2.
Author response image 1
We would note, however, that there is some evidence that lsr2 is an essential gene in some streptomycetes (Najah et al., 2019). This also seems to be the case for Streptomyces coelicolor in our hands (unpublished data). Whether this is because of uncontrolled metabolite expression, or some other reason, is not known at this stage. However, our knock-down construct was effectively tolerated in S. coelicolor, and thus in strains where Lsr2 is required for viability, this construct may help to circumvent the deleterious consequences associated with complete loss of lsr2, while at the same time providing access to new metabolites.
Reviewer #2:
[…] The work was done rigorously and most of the claims were experimentally validated, however the novelty of this work might be limited. Lsr2 was first discovered and characterized in Mycobacterium, and was shown to be a transcriptional repressor. Gehrke et al., 2018 has not gone further in understanding the molecular mechanism of this repressor than in the previous works in Mycobacterium.
To further our understanding of the molecular mechanisms underlying Lsr2 function in the streptomycetes, we have now undertaken a more comprehensive analysis of our data, that including integrating our ChIP binding data with our transcriptional analyses. We have also systematically probed the AT-requirements for both Lsr2 binding (in vitroand in vivo), and the effect of this on transcription in vivo. Specifically, and as summarized above, we have:
i) Investigated the distribution of Lsr2 binding sites, and correlated binding in the arm regions of the chromosome, with greater transcriptional effects.
ii) Correlated direct transcriptional effects with Lsr2 binding site size (larger) and relative ATcontent (higher).
iii) Demonstrated that Lsr2 from S. venezuelae preferentially associates with AT-rich sequences both in vitro and in vivo, and showed that Lsr2 binding to these AT-rich sequences can directly influence the transcription of the flanking genes.
iv) Determined that Lsr2 does not solely associate with newly acquired biosynthetic clusters, and thus functions as more than just a genome sentinel in shutting down the expression of heterologously acquired sequences and in controlling specialized metabolism.
v) Expanded our analyses of LsrL, including identifying a regulatory connection with Lsr2, and undertaking a broad metabolomic profiling of both an lsrL and double lsr2/lsrL mutant strain.
In addition to expanding on our mechanistic understanding of Lsr2 activity, our work has revealed Lsr2 to be one of the major reasons that specialized metabolic clusters are not expressed in laboratory environments – the reasons for this have been entirely unknown to this point. Our findings therefore will provide the field with strategies to stimulate the expression of these clusters (deleting lsr2 or down-regulating Lsr2 activity). Intriguingly, Lsr2 also controlled the expression of a number of well conserved clusters that are known to be expressed under specific conditions (e.g. the siderophore desferrioxamine under low iron conditions), suggesting that Lsr2 occupies a unique niche in the regulatory hierarchy governing specialized metabolism.
Furthermore, deletions of global transcription factors/nucleoid-associated proteins in Streptomyces spp. very often affects the expression of biosynthetic clusters. Some of the examples are: Salerno et al., 2009: a deletion of an HU-encoding gene affected Streptomyces spore pigmentation, Som et al., 2017: a global transcription regulator MtrA controls the expression of the actinorhodin and undecylprodigiosin biosynthetic clusters in Streptomyces, or Thanapipatsiri et al., 2016: BldM, a transcriptional regulator of Streptomyces development, controls the expression of the venemycin biosynthetic cluster.
There have been many very nice studies into the effects of DNA binding proteins on both Streptomyces development and specialized metabolism, and we agree that many global transcription factors and nucleoid-associated proteins affect specialized metabolism. Considering the specific protein examples raised by the reviewer:
HU: in Salerno et al., a single specialized metabolite was identified as being affected by the loss of this protein (spore pigment), and there are no data available for its binding sites within the chromosome
MtrA: is an actinobacterial-specific two-component regulator whose activity affects characterized clusters in S. coelicolor and S. venezuelae; its effect on cryptic clusters is entirely unknown at this point.
BldM: is best known as a developmental regulator, and its effect on specialized metabolism in S. venezuelae was examined only at the transcriptional level. It is not clear if the BldM effect on venemycin was a direct or an indirect regulatory effect, nor whether this strain has additional mutations that may have been responsible for the effects observed (no complementation of the increased venemycin phenotype was performed).
Recent work on BldC (Bush et al., 2019) has suggested that BldC may function as a nucleoid-associated protein; however, its effect is largely confined to development, and not specialized metabolism. This would suggest that not all nucleoid associated proteins affect specialized metabolism in a similar way as Lsr2.
Here: Lsr2 is shown to directly regulate nearly half of all specialized metabolic clusters in S. venezuelae, and to directly or indirectly affect the transcription of 2/3 of these clusters. Notably, many of these are cryptic clusters that are not expressed in the wild type strain (unlike the situation with MtrA, based on publications to date). Such comprehensive control of specialized metabolism has not been demonstrated for any regulator in the streptomycetes to date.
Reviewer #3:
The paper by Gehrke and colleagues describes the effects of loss of Lsr2 activity on secondary metabolite production in Streptomyces venezuelae, the organism that produces chloramphenicol. The loss of Lsr2 not only results in dysregulation of known metabolites but also the production of novel ones. The paper also maps the binding sites of Lsr2 in the genome and reports the membership of its transcriptome. The findings are novel and will be of interest in both the basic science and the biotechnology spheres. However, there is scope to improve the scholarship in the article and to address anomalies around some of the data and to improve the presentation of some of the data.
We have worked to improve the scholarship through more systematic and comprehensive analyses and discussion, have performed additional experiments to help resolve any anomalies in the data, and have improved the data presentation, as detailed above and below.
Streptomyces venezuelae expresses both Lsr2 and LsrL. Although the authors study mutants deficient in LsrL expression, this protein is absent from the Introduction and is not mentioned in the Abstract (it first appears in the Results subsection “Lsr2 and Lsr2-like (LsrL) in Streptomyces venezuelae”). After Figure 1 (and Figure 1—figure supplement 1) it disappears from the paper, not even appearing in the Discussion. Do the authors consider LsrL to be the counterpart of StpA, a paralogue of H-NS that is expressed in E. coli and related Gram-negative bacteria? Given that they have invested effort in investigating LsrL, it would be useful to give some thought to its physiological role. Like the LsrL-deficient mutant in this study, stpA knockout mutants of Gram-negative bacteria have few phenotypes, but they do have some: see PMID: 11029695 and PMID: 19843227. This point seems to deserve some consideration, otherwise why include the LsrL data?
While we do not currently have any data to support an StpA-like role for LsrL, we consider this to be an appealing possibility. We would note, however, that there is evidence for regulatory interplay between these two genes/proteins, with lsrL being directly repressed by Lsr2, similar to what has been observed for H-NS and StpA. We have now incorporated this observation, alongside metabolic analyses of the lsrL and lsr2 lsrL double mutant, in our Results section (subsection “Lsr2 represses the expression of horizontally acquired and specialized metabolic genesin S. venezuelae”, second paragraph and subsection “Deleting Lsr2 reprograms specialized metabolism and yields novel compounds”, second paragraph, plus new Figure 5—figure supplement 1), and have provided additional commentary on functional possibilities for LsrL, into our Discussion (subsection “Control of Lsr2 expression and activity”, third paragraph).
When considering the impact of Lsr2 on gene expression in S. venezuelae, do the authors consider it as acting exclusively at the level of transcription silencing? H-NS and its paralogues have excellent RNA binding activity and well-characterised effects on translation. This point also has relevance for the LsrL/StpA issue that was raised above. What is known about Lsr2 and posttranscriptional control in Streptomyces (and in Mycobacteria)? Some commentary on this possibility would deepen the scholarly aspect of the study.
We do not currently have any evidence for Lsr2 activity beyond that of a DNA-binding protein and transcriptional regulator. The possibility of broader effects (e.g. RNA stability and translation) is intriguing, and we have now added in additional discussion of these possibilities in the last paragraph of the subsection “Mechanism of Lsr2-mediated repression”. Beyond discussing possible post-transcriptional activities for Lsr2, we also now address possible mechanisms by which Lsr2 activity and expression could be controlled (subsection “Control of Lsr2 expression and activity”).
The distribution of Lsr2 binding sites along the linear chromosome shown in Figure 2 seems to be non-random. There is dense clustering of the sites in the mid-section with noticeable thinning at the left and right portions. Is this significant, perhaps in terms of chromosome organisation?
While we are not yet certain as to the significance of the Lsr2 binding distribution, we would agree that it may well have an effect on chromosome organization, and now raise this point in our Discussion (subsection “Mechanism of Lsr2-mediated repression”, second paragraph). A more thorough analysis of our data led us to determine that there is indeed clustering of Lsr2 binding in the ‘core’ region of the chromosome. Interestingly, binding within this central part of the chromosome is less often associated with transcriptional changes than binding to sites in the flanking ‘arm’ regions of the chromosome. We have added in this information as part of a new Results section (subsection “Trends in Lsr2 binding and regulatory control”).
There is a presentational difficulty in panels B, C and D of Figure 4. Although the peaks associated with the lsr2 mutants are easy to see, the other data are much less discernable. For example, the WT intensity of chloramphenicol (shown by a red trace) in panel B is only visible around 6.25 minutes. Also, the inconsistency in the use of colour between panels doesn't help the reader to follow the story: WT is represented by red (panel B), blue (C) and green (D). Can these panels be re-scaled to make the messages easier to appreciate?
We have adjusted the data presented in panels B, C and D (now Figure 5), to ensure that they are consistently coloured, and are hopefully easier for readers to interpret.
The use of the dominant negative Lsr2* protein (Figures 5 and Figure 6—figure supplement 1) is an interesting approach. Do the authors consider Lsr2* as acting on Lsr2 directly by forming defective dimers or defective higher oligomers, by analogy with H-NS and its protein-protein interactions? The DNA binding assay shown in Figure 6—figure supplement 1 is not wholly convincing because the free probe is only barely restored at the highest concentration of Lsr2* used and the shifted complex is still obvious at that Lsr2* concentration (representing a 4:1 ratio of Lsr2* to Lsr2). Are these protein concentrations in the physiological range?
We are not able to quantify the levels of Lsr2* reached within S. venezuelae, as we do not have antibodies to Lsr2 (our western blots for Lsr2 were conducted using a FLAG-tag-specific antibody). To evaluate the effect of Lsr2* in more physiologically relevant conditions, we assessed its impact on Lsr2 in vivo. We quantified wild type Lsr2-3×FLAG binding to a target sequence (sven_0926), when Lsr2* was being overexpressed, versus in the absence of Lsr2* (new Figure 5—figure supplement 2C). We found that Lsr2 binding to this sequence decreased by ~40% in the presence of Lsr2*. At this point, it is difficult to determine whether this is a result of defective dimer or defective oligomer formation.
Work from other groups is suggesting that lsr2 can be an essential gene in some Streptomyces (Najah et al., 2019), so retaining some level of Lsr2 activity, as we show here, could therefore be critical in these cases.
In Figure 5B, the presence of the empty vector is not neutral: the colony morphology in the top-right quadrant of the figure is completely different to that shown by the WT in the top left quadrant. This deserves some discussion. The plasmid is described as an 'integrating' vector, so presumably it enters the chromosome through a single crossover event and remains in place in the strains expressing Lsr2*? What are the implications for the interpretation of the data from the knockdown experiments if the vector itself is altering the physiology of the bacterium (and so is not truly a 'negative' control)?
Integrating plasmid vectors in Streptomyces are indeed incorporated into the chromosome through a single recombination event, and are stably inherited in the absence of antibiotic selection. It is well established that the integration of these vectors can impact development and antibiotic production. Because of this, all comparisons of our Lsr2 knock-down strains were made to plasmid alone containing strains. While the plasmid-alone control may not be the ideal ‘negative’ control, it allows us to differentiate between metabolic changes resulting from plasmid integration, versus those resulting from Lsr2* knockdown activity.
https://doi.org/10.7554/eLife.47691.034Article and author information
Author details
Funding
Cystic Fibrosis Canada
- Justin R Nodwell
- Marie A Elliot
Boris Family Foundation
- Marie A Elliot
Canadian Institutes of Health Research
- Marie A Elliot
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
We wish to thank Michael Hewak, Talha Qureshi, Dan Seale, Lilian Raphael, and Christine Pham for technical assistance, Stephen Miller for computational/data mining expertise, and Gerry Wright for access to his library of wild Streptomyces species. We are also grateful to Mervyn Bibb, Mark Buttner and Govind Chandra (John Innes Centre), Ben Evans (McMaster University), and Will Navarre and Jun Liu (University of Toronto) for helpful discussions. This work was supported by Cystic Fibrosis Canada (to JN and MAE), the Canadian Institutes of Health Research (to MAE) and the Boris Family Foundation (to MAE). EJG was supported by a Department of Foreign Affairs and International Trade fellowship, and the Drug Safety and Efficacy Cross-disciplinary Training program from the Canadian Institutes of Health Research.
Senior Editor
- Gisela Storz, National Institute of Child Health and Human Development, United States
Reviewing Editor
- Michael T Laub, Massachusetts Institute of Technology, United States
Reviewer
- Matthew F Traxler, University of California, Berkeley, United States
Publication history
- Received: April 14, 2019
- Accepted: June 4, 2019
- Version of Record published: June 19, 2019 (version 1)
Copyright
© 2019, Gehrke et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 2,671
- Page views
-
- 359
- Downloads
-
- 30
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.
Download links
A two-part list of links to download the article, or parts of the article, in various formats.
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Silencing cryptic specialized metabolism in Streptomyces by the nucleoid-associated protein Lsr2
eLife 8:e47691.
https://doi.org/10.7554/eLife.47691
Further reading
-
- Cell Biology
- Microbiology and Infectious Disease
African trypanosomes proliferate as bloodstream forms (BSFs) and procyclic forms in the mammal and tsetse fly midgut, respectively. This allows them to colonise the host environment upon infection and ensure life cycle progression. Yet, understanding of the mechanisms that regulate and drive the cell replication cycle of these forms is limited. Using single-cell transcriptomics on unsynchronised cell populations, we have obtained high resolution cell cycle regulated (CCR) transcriptomes of both procyclic and slender BSF Trypanosoma brucei without prior cell sorting or synchronisation. Additionally, we describe an efficient freeze–thawing protocol that allows single-cell transcriptomic analysis of cryopreserved T. brucei. Computational reconstruction of the cell cycle using periodic pseudotime inference allowed the dynamic expression patterns of cycling genes to be profiled for both life cycle forms. Comparative analyses identify a core cycling transcriptome highly conserved between forms, as well as several genes where transcript levels dynamics are form specific. Comparing transcript expression patterns with protein abundance revealed that the majority of genes with periodic cycling transcript and protein levels exhibit a relative delay between peak transcript and protein expression. This work reveals novel detail of the CCR transcriptomes of both forms, which are available for further interrogation via an interactive webtool.
-
- Epidemiology and Global Health
- Microbiology and Infectious Disease
Background:
Dog-mediated rabies is endemic across Africa causing thousands of human deaths annually. A One Health approach to rabies is advocated, comprising emergency post-exposure vaccination of bite victims and mass dog vaccination to break the transmission cycle. However, the impacts and cost-effectiveness of these components are difficult to disentangle.
Methods:
We combined contact tracing with whole-genome sequencing to track rabies transmission in the animal reservoir and spillover risk to humans from 2010-2020, investigating how the components of a One Health approach reduced the disease burden and eliminated rabies from Pemba Island, Tanzania. With the resulting high-resolution spatiotemporal and genomic data we inferred transmission chains and estimated case detection. Using a decision tree model we quantified the public health burden and evaluated the impact and cost-effectiveness of interventions over a ten-year time horizon.
Results:
We resolved five transmission chains co-circulating on Pemba from 2010 that were all eliminated by May 2014. During this period, rabid dogs, human rabies exposures and deaths all progressively declined following initiation and improved implementation of annual islandwide dog vaccination. We identified two introductions to Pemba in late 2016 that seeded re-emergence after dog vaccination had lapsed. The ensuing outbreak was eliminated in October 2018 through reinstated islandwide dog vaccination. While post-exposure vaccines were projected to be highly cost-effective ($256 per death averted), only dog vaccination interrupts transmission. A combined One Health approach of routine annual dog vaccination together with free post-exposure vaccines for bite victims, rapidly eliminates rabies, is highly cost-effective ($1657 per death averted) and by maintaining rabies freedom prevents over 30 families from suffering traumatic rabid dog bites annually on Pemba island.
Conclusions:
A One Health approach underpinned by dog vaccination is an efficient, cost-effective, equitable and feasible approach to rabies elimination, but needs scaling up across connected populations to sustain the benefits of elimination, as seen on Pemba, and for similar progress to be achieved elsewhere.
Funding:
Wellcome [207569/Z/17/Z, 095787/Z/11/Z, 103270/Z/13/Z], the UBS Optimus Foundation, the Department of Health and Human Services of the National Institutes of Health [R01AI141712] and the DELTAS Africa Initiative [Afrique One-ASPIRE/DEL-15-008] comprising a donor consortium of the African Academy of Sciences (AAS), Alliance for Accelerating Excellence in Science in Africa (AESA), the New Partnership for Africa's Development Planning and Coordinating (NEPAD) Agency, Wellcome [107753/A/15/Z], Royal Society of Tropical Medicine and Hygiene Small Grant 2017 [GR000892] and the UK government. The rabies elimination demonstration project from 2010-2015 was supported by the Bill & Melinda Gates Foundation [OPP49679]. Whole-genome sequencing was partially supported from APHA by funding from the UK Department for Environment, Food and Rural Affairs (Defra), Scottish government and Welsh government under projects SEV3500 & SE0421.
