Adjusting for age improves identification of gut microbiome alterations in multiple diseases

  1. Tarini S Ghosh
  2. Mrinmoy Das
  3. Ian B Jeffery
  4. Paul W O'Toole  Is a corresponding author
  1. APC Microbiome Ireland, University College Cork, Ireland
  2. School of Microbiology, University College Cork, Ireland
Research Article
Cite this article as: eLife 2020;9:e50240 doi: 10.7554/eLife.50240
6 figures, 3 tables, 2 data sets and 5 additional files

Figures

Figure 1 with 3 supplements
Age influences microbiome composition as well as microbiome-disease signatures.

(A) Bar plots showing the effect (denoted by R2 values computed using PERMANOVA after adjusting for the DNA extraction technique as the confounder) of host factors with microbiome composition in the ExperimentHub repository. Only metadata available for at least 30% of the samples are shown. The p-values for the significance of association are also indicated as ****: p<0.0001; ***: p<0.001, **: p<0.01, *: p<0.05. (B) Principal Co-ordinate Analysis (PCoA) plots of the species profiles of the ‘control’ samples grouped into three age ranges, Young (20–39 years), Middle (40–59 years) and Elderly (60 years and above). The significance (p-value) of the differences between the three groups, computed using PERMANOVA (adonis) after considering the country-specific differences and the DNA extraction technique, is also indicated. The boxplots on the top show the variation of the top three PCoA coordinates for the samples belonging to the three age-groups. The elderly harboured a significantly different microbiome compared to the young/middle-aged. (C) Barplots of PERMANOVA R2 values showing the variation of microbiome with disease (adjusting for age-group) and age-group (adjusting for disease status) in the five disease cohorts. The Cohort-specific analyses ensured that the variations observed were not due to country-specific regional differences in microbiome composition. However, within each cohort, there were skews in the representation of diseased and control samples from different age-groups (as seen in Table 1). Furthermore, in four out of the eight cohorts, there were significant differences in the age variation of control and diseased individuals, as shown by the beanplots in D.

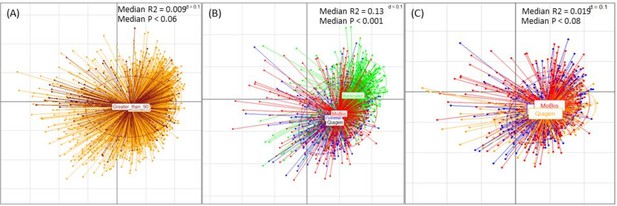

Figure 1—figure supplement 1
Effect of median read length and DNA extraction techniques on the microbiome variation.

(A) PCoA Plot showing the relatedness of the microbiome profiles of the ExperimentHub datasets of different median read length ranges. The different read length categories (into which the datasets were grouped) were’ 30 to 90’ (base pairs) and ‘Greater than 90’ (base pairs). The R-squared value and P-value of the association obtained using bootstrapped envfit iterations (sub-sample size = 200 and number of iterations: 25) are indicated. (B) PCoA analysis of the effects of the DNA extraction methods on the microbiome profiles, indicating that the samples extracted using the method tagged as ‘Illuminakit’ (shown in Green) (used by SchirmerC_201635), had a profile significantly different from those used by other methods (‘Gnome’, ‘Mobio’ and ‘Qiagen’) (bootstrapped envfit median R-squared: 0.13 and median p-value<0.001). Removing these samples in (C) indicated that the rest of the samples had only a marginal effect on the profiles (p<0.08; R-squared = 0.019).

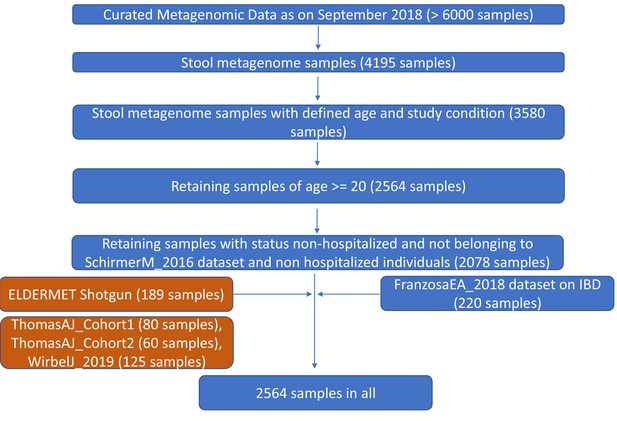

Figure 1—figure supplement 2
Pictorial summary describing the workflow used for preparing a core set of around 2564 gut metagenomic datasets derived from the publicly available datasets (curatedMetagenomicData9 and Franzosa et al 20188) and the ELDERMET repository.

While the datasets used in the core-analysis are highlighted in blue, the validation cohorts including the ELDERMET are highlighted in brown.

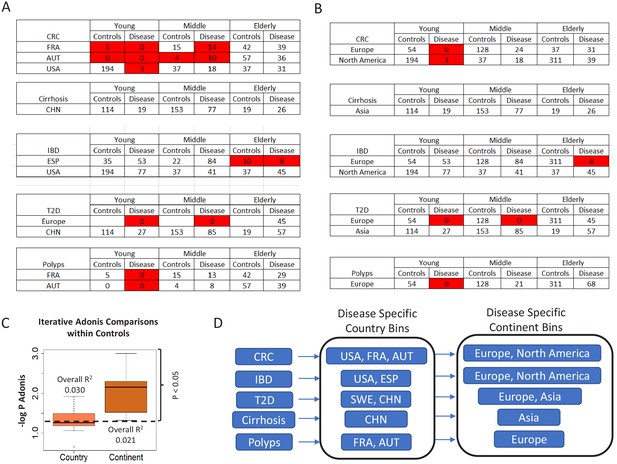

Figure 1—figure supplement 3
Number of control and diseased individuals belonging to the different age-groups present in (A) country-specific and (B) continent-specific groups pertaining to each disease.

Age-groups where the number of control/diseased samples are less than 15 are highlighted in red. The shortened notations for the different country used are ESP: Spain; USA: United States, CHN: China, SWE: Sweden, AUT: Austria, FRA: France (C) Boxplots comparing the PERMANOVA -log P-values obtained for the effects of the geographical factors, country and continent, by taking repeated subsets of control samples (n = 25, subset size = 20%). The overall R2 value obtained for the PERMANOVA is also indicated. While R2 was higher for country, the p-values obtained for continent was significantly lower as compared to country, indicating that the effect of continent is much more significant than the country. The results indicated that country and continent had similar effects on the microbiome. (D) The country and continent specific cohorts within which the analyses were restricted for each disease, to take into account the regional variations.

Figure 2 with 2 supplements
Microbiome-disease signatures display specific age group centric trends.

Boxplots showing the variation of disease-classification area under the curve (AUCs) when classifiers trained on one age-group were tested on either the same (denoted as SameAge or Same Age-group classification) or different age-groups (denoted as DiffAge or Different Age-group classification) for (A) IBD (B) T2D (C) CRC (D) Polyps and (E) Cirrhosis. Each point denotes the median AUC (of 20 iterations) obtained using each of the 100 sub-sample based Random Forest classifier models when tested on samples from the Same Age-group (in blue) or Different Age-groups (in red). Median AUC values obtained for the same classifier for Same Age-group and Different Age-group classification are joined by grey lines. Scenarios where in the Same Age-group classification had a significant increase of classification AUC as compared to the Different Age-group are indicated (using the P-values of significance). The Wilcoxon signed rank test p-values of significance, after correction using Holm method, are indicated as ***: p<0.001, **: p<0.01, *: p<0.05.

Figure 2—source data 1

Number of disease and control samples in different age-groups obtained by collating samples from datasets from the same (A) Countries and (B) Continents as the disease-specific datasets.

For the disease-specific country bins, the minimum number of diseased samples across any age-groups are indicated. For the Random Forest (RF) based analysis, the training and testing subset sizes (fixed for each disease as 50% of the above number). The shortened notations for the different country used are ESP: Spain; USA: United States, CHN: China, SWE: Sweden, AUT: Austria, FRA: France.

https://cdn.elifesciences.org/articles/50240/elife-50240-fig2-data1-v1.xlsx

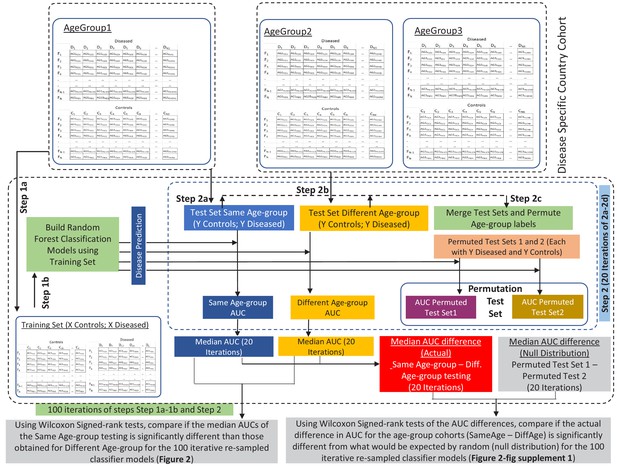

Figure 2—figure supplement 1
Schematic workflow of the methodology adopted for comparing the performance of disease-specific random forest classifiers trained on one age-group when applied to test samples from the same (Same Age-group classification) or different age-groups (Different Age-group classification) using Wilcoxon Signed Rank tests.

Workflow also describes the permutation test based strategy adopted to investigate whether the observed differences in classification AUCs (Same Age-group classification – Different Age-group classification) are significantly high than would be expected at random (Null distribution). The training set and test set sub-sample sizes are X and Y, respectively (refer to Figure 2—source data 1). A similar strategy was adopted for all the three age-groups and all the five diseases (refer to the Materials and methods for the detailed description).

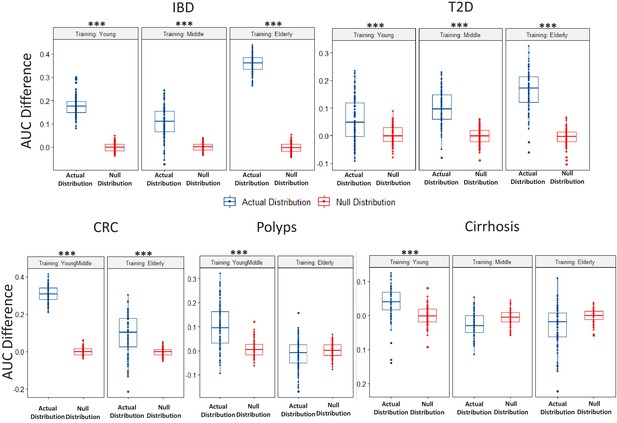

Figure 2—figure supplement 2
Boxplots comparing the actual AUC differences (that is, median AUC for same age-group classification – median AUC for the different age-group classification) obtained for classifiers (in each disease-age-group scenario) with the null distribution of AUC differences obtained between two permuted sets (as obtained in the Permutation tests).

While the blue points denote the actual increase of the median AUCs obtained for the Same Age-group classification with respect to that obtained for the different age-group classification, the red points denote the differences of the AUCs observed between the permuted test sets. Scenarios where in the actual difference of AUC are significantly higher than would be expected by random (in the null distributions) are indicated (using the P-values of significance). The Wilcoxon signed rank test p-values of significance, after correction using Holm method, are indicated as ***: p<0.001, **: p<0.01, *: p<0.05.

Figure 3 with 4 supplements
Specific taxa show age-group linked trends of disease association.

Heatmaps showing the marker scores for the list of taxa that are differentially associated with the indicated disease across the age-groups (Y: Young; M: Middle-aged and E: Elderly). For each disease, this list of species was selected as those which were among the top 85 percentile features in at least one age-group and which displayed significant variation in their feature importance scores across at least two age-groups. These taxa were further validated using a linear regression approach to ensure that their age-group specific association with disease was significant even after accounting for the independent changes associated with ageing. The font colors of the species indicate whether the species were reported in the original studies as being associated with the given disease (Dark blue: Associated Previously; Black: Not Associated). For each disease, heatplots (adjoining on the right side of the corresponding heatmap) shows the different taxa were identified within the top 85 percentile markers for each age-group (in blue color).

Figure 3—source data 1

Marker scores for the top 85-percentile markers (detected across at least one of the age-groups) for the five diseases, along with the P-values of the comparisons of these scores across age-groups.

https://cdn.elifesciences.org/articles/50240/elife-50240-fig3-data1-v1.xlsx
Figure 3—source data 2

Linear model based validation results to deconvolute the effect of ageing on age-group specific disease markers for (A) IBD (B) Cirrhosis (C) T2D (D) CRC and (E) Polyps.

Model one corresponds to Log(Species)~Country + Disease + Age group. Model two corresponds to Log(Species)~Disease:Age group. The AIC values for the two models along with the one sided Log Likelihood Ratio test P-value.

https://cdn.elifesciences.org/articles/50240/elife-50240-fig3-data2-v1.xlsx
Figure 3—source data 3

Markers identified in the original datasets for (A) T2D, (B) IBD, (C) Cirrhosis, (D) CRC, and (E) Polyps as either significantly different between the diseased and control cohorts or having discriminatory power for the classification of diseased samples from microbiome composition.

https://cdn.elifesciences.org/articles/50240/elife-50240-fig3-data3-v1.xlsx

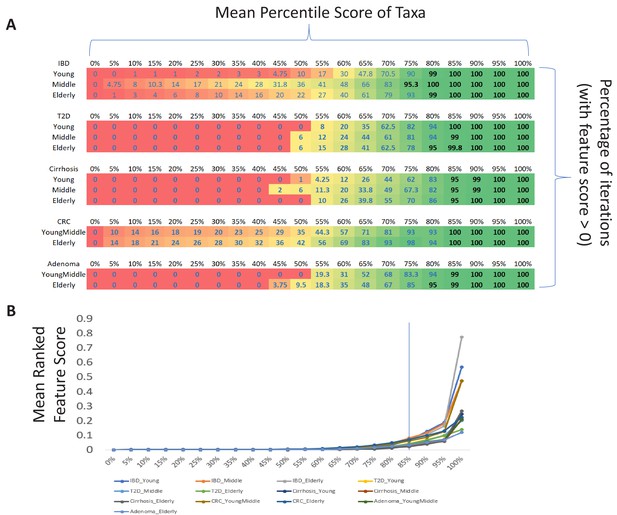

Figure 3—figure supplement 1
Variation of feature importance scores of the taxa across the iterative Random Forest models.

(A) Frequency at which taxa with feature importance scores in different percentile were identified as markers (Mean Decrease of GINI > 0) in the iterative RF models for each of the 13 disease – age-group scenario. For all the 13 disease-age-group scenario, taxa features with scores above 85 percentile were identified as markers in at least 95% of the iterations. (B) Variation of the mean feature importance scores of taxa in various percentiles. For most of the 13 scenarios, the mean feature importance scores remain stable and low till the 80% mark and start increasing only after that. Given these two observations, the percentile threshold of 85 was identified to filter the top disease associated features.

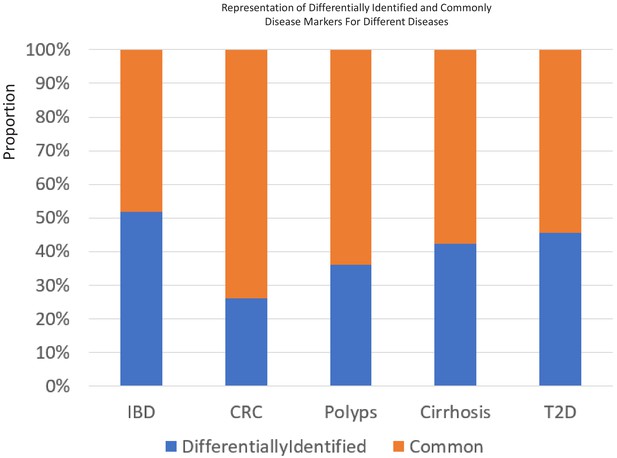

Figure 3—figure supplement 2
The percentage of 85 percentile taxa that were detected as common or specific to certain age-groups for the five different diseases.

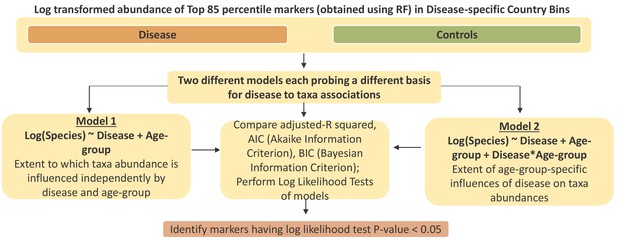

Figure 3—figure supplement 3
Schematic workflow describing the linear regression-based strategy to deconvolute the effect of ageing from age-specific disease association.

The objective was to identify a core subset of differentially associated taxa whose age-group specific association was not a simple consequence of its abundance changing with ageing.

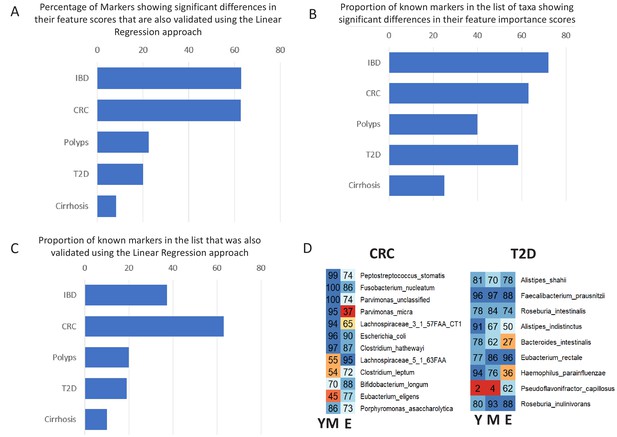

Figure 3—figure supplement 4
Validation of age-specific trends using Linear Regression approach and the effect of these trends on the known markers for the various diseases.

(A) Percentage of taxa showing significant differences in their feature importance scores that are also validated in the Linear regression-based approach. (B) Percentage of known markers (that is those reported in previous studies) that were also identified in the list of taxa showing significant differences in their feature importance scores (C) Percentage of known markers that were also validated in the Linear regression approach. (D) Heatplots showing the age-group-specific variability in the association patterns of the known markers for CRC and T2D (that also showed differential associations with disease across age-groups). For each disease-age-group scenario, the value for a marker indicates the number of times (out of the 100 iterations) it was identified with feature rank score of greater than 85 percentile. Y: Young, M: Middle, E: Elderly.

Figure 4 with 1 supplement
Age-dependent CRC-specific markers are reproducible across multiple cohorts and ageing-associated changes make the elderly gut microbiome disease-like.

(A) The boxplot on the top panel shows the distribution of AUC values obtained when classifiers trained on different age-groups (YM: Young/Middle-aged; E: Elderly) in three cohorts of the curatedMetagenomicData (Training_Set1: ZellerG_2014, FengQ_2015 and VogtmannE_2016) are tested on the three datasets of the validation cohort (ThomasAJ_Cohort1, ThomasAJ_Cohort2 and WirbelJ_2019). The lower panel shows the same, but with age-group specific classifiers trained from within the validation cohort (Training_Set2). Both the classification models generated the same trends of classification, indicating age-group specific reproducibility of the disease signatures. The description of the point colors is the same as for Figure 2. (B) Age-group dependent associations of the known CRC markers in the two independent cohorts, namely Training_Set1 (curatedMetagenomicData) and Training_Set2 (Validation Cohort). Shades of blue indicate higher feature importance scores in the young/middle-aged and red indicates higher feature importance scores in the elderly. FDR p<0.15 indicates features identified as being high either in elderly of young/middle with Benjamini-Hochberg corrected Mann-Whitney test p-value<0.15. FDR p<0.25 indicates features identified as being high either in elderly of young/middle with Mann-Whitney test p-value<0.25. Out of the 19 known and validated CRC-markers (obtained from Thomas et al., 2019), 13 showed significant differences in their feature importance scores across the two age-groups (in the curatedMetagenomicData cohorts). For nine of these 13 markers, the pattern of associations could be reproduced in the Validation cohort, further indicating the replicability of the obtained results. The feature ranks of the top 10 markers obtained in Thomas et al. (2019) are also shown. Six of the top 10 markers show increased association, but only within the young/middle-aged. Only one of the markers associated with the elderly. This indicates a loss of disease-signature in the elderly. (C) Across cohort Spearman distances of feature rank profiles obtained for the disease classifiers trained on the different age-groups (See Materials and methods). A stable disease signature would result in reproducible species rank profiles across cohort and consequently lower Spearman distances. While this is the case for young/middle-aged, the elderly signatures obtained for the different cohorts show significantly high Spearman distances (showing significant variations and lack of disease signature). (D) The log ratios of the prevalence rates of the top six CRC-associated markers in elderly controls with respect to the young/middle-aged controls (in both the curatedMetagenomicData and CRC-specific cohorts). A positive value indicates higher prevalence rates in elderly controls. The significance of the increase is also indicated (p-values of fishers’ exact test combined using Fisher method) as ***: p<0.001, **: p<0.01, *: p<0.05. The increase in the elderly is characterized by a significant decrease in the effect-size differences between the controls and diseased in elderly, leading to masked signatures.

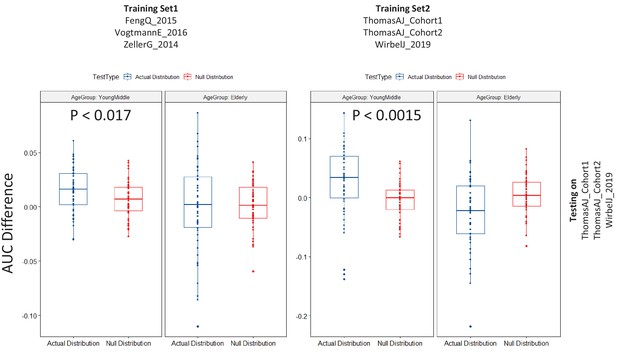

Figure 4—figure supplement 1
Results of the permutation test (as described in Figure 2—figure supplement 1) applied for the testing of the CRC Validation datasets using the different training cohorts as indicated in the Figure.

The color of the points are as indicated previously (Figure 2—figure supplement 2). Scenarios where in the actual difference of AUC are significantly higher than would be expected by random (in the null distributions) are indicated (using the P-values of significance).

Figure 5 with 2 supplements
Age-related microbiome changes affect taxon abundance alterations for specific diseases, as well as the microbiome response shared by multiple diseases.

(A) Comparison of the relative proportions of more abundant and less abundant disease-specific marker taxa across the young, middle-aged and elderly age-groups for the five diseases. For each disease-age-group scenario, we checked for the directionality (increased abundance in disease v/s decreased in disease) of association of the corresponding top disease-predictors by comparing their abundance trends in the control and diseased samples belonging to the specific age-groups (See Materials and methods). To ensure that the results thus obtained were not affected by regional variations in microbiome composition, we again restricted these comparisons to the disease-specific continent cohorts. (B) Comparison of the disease prediction AUCs, the disease classification sensitivity and control classification specificity of generic disease prediction models obtained for the elderly and young/middle-aged groups. Overall, the generic disease classifiers had a significant decrease in performance in the elderly age groups, indicating that shared microbiome response may be reduced in the elderly. Moreover, the loss of performance was especially significant with respect to the discrimination of control samples from disease (C) Heatmap of marker species showing consistent trends of either increase or decrease in at least two diseases in the elderly and young/middle-aged groups. Blue indicates consistent increase in two or more diseases, red indicates decrease in two or more diseases. Based on their patterns of increase or decrease across the two age-groups, the taxa could be classified into six groups, namely G1-G3 and L1-L3.

Figure 5—source data 1

List of markers having significant increase (gain) or decrease (loss) of abundance with disease across the various age-groups.

1: Increased −1: Decreased. Identified using Mann-Whitney U test with FDR corrected P-values less than 0.1.

https://cdn.elifesciences.org/articles/50240/elife-50240-fig5-data1-v1.xlsx

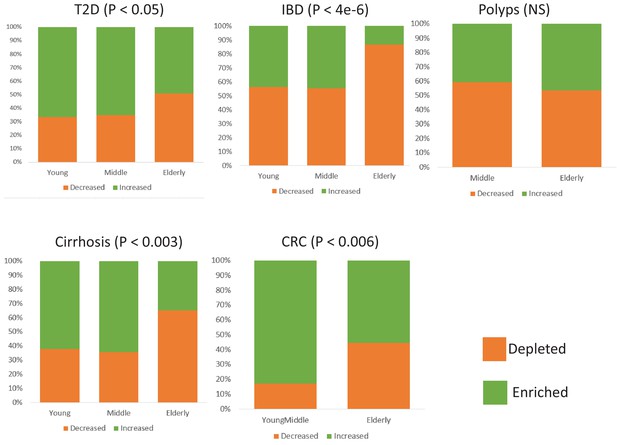

Figure 5—figure supplement 1
Comparison of the relative proportions of taxa increased and decreased in disease across the young, middle-aged and elderly age-groups for the five diseases.

For each disease-age-group scenario, we checked for the directionality (increased abundance in disease v/s decreased in disease) of association of the corresponding top disease-predictors by comparing their abundance trends in the control and diseased samples belonging to the specific age-groups (Mann-Whitney Tests p<0.05; See Materials and methods). To ensure that the results thus obtained were not affected by regional variations in microbiome composition, we again restricted these comparisons to the study matched controls and diseased samples.

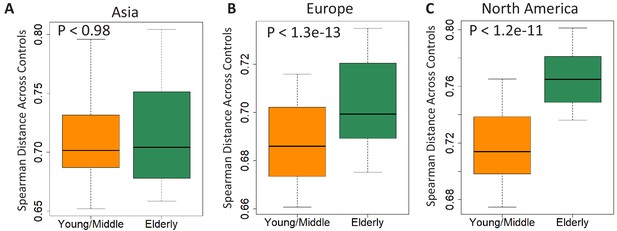

Figure 5—figure supplement 2
Comparison of beta diversity (measured as spearman distances) within the gut microbiome of controls from the young/middle and elderly age-groups from (A) Asia (B) Europe and (C) North America.
Figure 6 with 3 supplements
Frailty-associated markers have shared positive associations across multiple diseases in both age groups and have a specific metabolic signature.

(A) Actual FIM values versus FIMs predicted by Random forest of microbiome features of the elderly individuals of the ELDERMET cohort living in Community or Residential care (Longstay). (B) Mean ranks of the various taxonomic groups (identified in Figure 3) for the prediction of FIM (an inverse measure of frailty) in the ELDERMET cohort. (C) Variable Importance Scores of the eight markers with the highest predictive power in the Random Forest models for prediction of FIM. A comparison of the abundance of markers between HighFIM and LowFIM individuals indicated that all of these markers were associated with frailty state. (D) The network in the central panel indicates the 13 metabolite profiles significantly associated with the top markers. Taxon markers are indicated in the center. Consumption profiles are in the upper half (in pink octagons) and Production profiles are on the lower panel (in yellow octagons). Edges indicate presence. Second from the left in top panel are the correlations between predicted and actual FIM values obtained for iterative bootstrapped Random Forest models (training on 20% and testing on the rest 80%) using only the 13 metabolite profile markers of (D), all metabolite profiles and all metabolite profiles removing the 13 metabolite markers. Top and bottom panels show the validation (indicated by arrows) obtained for the predicted metabolite markers using either the measured metabolites, dietary consumption profiles, specific microbial pathway abundances as well as the CutC gene family abundances identified using humann2 (shown either as boxplot comparing the profiles between Frail and Non-Frail individuals or scatterplots showing correlations between the measured metabolite level and the FIM value of the individuals). A total of 11 of the 13 metabolites could be validated using either of these strategies.

Figure 6—source data 1

Top 17 predictive features for (A) FIM and (B) Barthel Score in the ELDERMET cohort.

The direction of association is obtained by performing a wilcox test of the abundance of each feature in the Low Frailty (HighFIM or HighBarthel) and the High Frailty (LowFIM or Low Barthel) individuals. −1 indicates increase with frailty and +1 indicates decrease with frailty. For each measure, the association of the measure with respect to the abundance of each marker species after taking into account the medication type (computed using Envfit) is also shown, indicating that the association of the markers with either of the measures is significant even after taking account the medication. (C) Top 15 markers of FIM prediction in the Elderly individuals with High Medication Usage and Low Medication Usage. The top markers for Frailty predictions across the entire dataset are highlighted in Green.

https://cdn.elifesciences.org/articles/50240/elife-50240-fig6-data1-v1.xlsx
Figure 6—source data 2

Predicted metabolite map of species in this study based on combined pathway-taxon associations from Noronha et al. (2018) and Sung et al. (2017).

https://cdn.elifesciences.org/articles/50240/elife-50240-fig6-data2-v1.xlsx
Figure 6—figure supplement 1
Frailty-prediction using Random Forest models and the identification of the topfrailty-predictive taxonomic features.

(A) Log Root Mean Squared Error of Random Forest prediction of Barthel Score (with five-fold cross validation) from microbiome species profile (obtained with different number of species arranged in decreasing order of their variable importance scores) (B) Scatterplot showing correlation between the Random Forest predicted Barthel and actual Barthel for Community + Longstay (C). Log Root Mean Squared Error of Random Forest prediction of FIM (with five-fold cross validation) from microbiome species profile (obtained with different number of species arranged in decreasing order of their variable importance scores). (D) Correlation values between Barthel Score and FIM and different number of top features.

Figure 6—figure supplement 2
Violin plots showing the Metabolite consumption and production profiles that were significantly associated with FIM scores (with Spearman Rho FDR < 0.25).

The X axis shows the Spearman rhos and the Y-axis shows the -Log of FDR (with base 10).

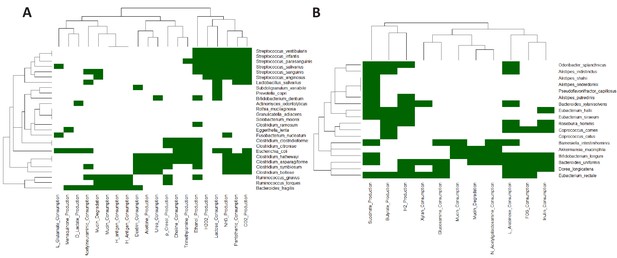

Figure 6—figure supplement 3
Heatmap based representation of the metabolic signatures associated with taxa gain/loss groups defined in main text Figure 4C: (A) G1-G3 (B) L1-L3.

Tables

Table 1
Number of control and diseased individuals belonging to the different age-groups present in the continent-specific groups pertaining to each disease.

Age-groups where the number of control/diseased samples are less than 15 are highlighted in red. The shortened notations for the different country used are ESP: Spain; USA: United States, CHN: China, SWE: Sweden, AUT: Austria, FRA: France.

CRC CohortsCountryYoungMiddleElderly
ControlDiseaseControlDiseaseControlDisease
ZellerG_2014FRA5015143331
FengQ_2015AUT004105736
VogtmannE_2016USA2317184139
Cirrhosis CohortsCountryYoungMiddleElderly
ControlDiseaseControlDiseaseControlDisease
QinN_2014CHN64194577526
IBDCountryYoungMiddleElderly
ControlDiseaseControlDiseaseControlDisease
FranzosaCA_2018USA367716414514
NielsenHB_2014ESP35532284128
T2D CohortsCountryYoungMiddleElderly
ControlDiseaseControlDiseaseControlDisease
KarlssonFH_2013SWE00004353
QinJ_2012CHN692789851057
Polyps CohortsCountryYoungMiddleElderly
ControlDiseaseControlDiseaseControlDisease
Feng_2015AUT004848
ZellerG_2014FRA5015134129
Table 2
Results of PERMANOVA analysis investigating the effect of the interaction between disease signatures and age-group, after adjusting for the effects of country (within the continent cohorts) and the independent effects of disease and age-group.
AdonisT2DIBDCRCPolypsCirrhosis
F.ModelR-SquaredP-ValueF.ModelR-SquaredP-ValueF.ModelR-SquaredP-ValueF.ModelR-SquaredP-ValueF.ModelR-SquaredP-Value
Country16.690.0290.00111.340.0170.0017.630.0270.0014.650.0220.001NANANA
Disease4.810.0080.00115.790.0230.0014.700.0080.0011.250.0060.02812.1070.0290.001
Age-Group1.380.0050.0012.510.0070.0013.800.0070.0011.000.0040.4081.2390.0060.016
Disease:Age-Group1.120.0040.082.730.0080.0013.570.0060.0011.380.0060.0111.0350.0050.290
Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Software/AlgorithmcuratedMetagenomic-DataPasolli et al., 2017
Available as a R-library
Version as in Oct, 2018
Software/AlgorithmR packages:
1. randomForest
2. pROC
3. lmtest
4. ade4
5. vegan
6. dunn.test
Availabe as R packages from CRAN.Latest versions as on Oct, 2018

Data availability

The present study is a meta-analysis of previously published cohorts. The details of the datasets used in the current study have been uploaded as Supplementary Files 1 and 2. The datasets were obtained from the curatedMetagenomicData repository and the ELDERMET cohort. Source codes for the key analyses protocols have been provided as Supplementary File 4. The shotgun data of the ELDERMET is available for download from the ELDERMET website at http://eldermet.ucc.ie/temp1/eldermet_shotgun_data_filtered_all_sample.tar. The shotgun data for the ELDERMET has also been uploaded at the European Nucleotide Archive (ENA) with the project accession number PRJEB37017.

The following data sets were generated
  1. 1
    EBI European Nucleotide Archive
    1. TS Ghosh
    (2020)
    ID PRJEB37017. Identifying frailty-associated markers in Elderly Irish Individuals.
The following previously published data sets were used
  1. 1

Additional files

Supplementary file 1

Details of the samples in (A) the curatedMetagenomicData repository, FranzosaEA_2018 (Franzosa et al., 2018) dataset and (B) WirbelJ_2019 (Wirbel et al., 2019) and ThomasAJ_Cohort1 and ThomasAJ_Cohort2 (Thomas et al., 2019), used in the current study.

https://cdn.elifesciences.org/articles/50240/elife-50240-supp1-v1.xlsx
Supplementary file 2

(A) Clinical Metadata of the ELDERMET Subjects (Code for Stratification: 1 = Community; 2 = DayHospital; 3 = Rehab; 4 = Longstay) and (B) Taxa abundance of each subject obtained using Metaphlan2.

https://cdn.elifesciences.org/articles/50240/elife-50240-supp2-v1.xlsx
Supplementary file 3

Comparison of the abundances of the G1-G3 and L1-L3 markers in patients (of the FranzosaEA_2018 cohort) with and without different medication intakes as: (A) For patients with and without Mesalamine (B) For patients with and without Immunosuppressants (C) For patients with and without Steroids.

https://cdn.elifesciences.org/articles/50240/elife-50240-supp3-v1.xlsx
Supplementary file 4

Codes and RData files for the key meta-analyses performed in this study, along with the corresponding Readme file.

https://cdn.elifesciences.org/articles/50240/elife-50240-supp4-v1.zip
