Sensing of nutrients by CPT1C regulates late endosome/lysosome anterograde transport and axon growth

  1. Marta Palomo-Guerrero
  2. Rut Fadó
  3. Maria Casas
  4. Marta Pérez-Montero
  5. Miguel Baena
  6. Patrick O Helmer
  7. José Luis Domínguez
  8. Aina Roig
  9. Dolors Serra
  10. Heiko Hayen
  11. Harald Stenmark
  12. Camilla Raiborg
  13. Núria Casals  Is a corresponding author
  1. Universitat Internacional de Catalunya, Spain
  2. University of Münster, Germany
  3. Universitat de Barcelona, Spain
  4. Instituto de Salud Carlos III, Spain
  5. University of Oslo, Norway
  6. Oslo University Hospital, The Norwegian Radium Hospital, Norway
Research Article
Cite this article as: eLife 2019;8:e51063 doi: 10.7554/eLife.51063
10 figures, 1 table and 1 additional file

Figures

Figure 1 with 1 supplement
CPT1C is necessary for proper axon growth.

(A) Primary cortical neurons derived from WT and Cpt1c KO E16 mouse embryos were cultured and fixed at 4DIV. Then, axons were labeled with a specific marker (SMI-312; in green) and nuclei were detected with Hoechst staining (blue). CPT1C absence in KO cultures was corroborated by western blot. Axonal length was analyzed from three independent experiments performed in biological triplicates. Right graph shows the percentage of cells with axons of a certain length (intervals of 50 µm), while in left graph the mean ± SEM of all axons is shown (n = 100 cells per genotype; Student’s t test; ***p<0.001). (B) Cpt1c KO neurons were infected at 1DIV with lentiviral vectors that codified for mouse CPT1C or the mutated forms M589S (MS) or R37C (RC). At 4DIV, cells were fixed and axon was identified as described above. GFP was used to detect infected cells. Immunoblotting was performed to confirm CPT1C and M589S expression in infected KO neurons. Graph shows the mean axonal length ± SEM of 2 independent experiments performed in biological duplicates (n = 50 cells per condition; One-way ANOVA followed by Bonferroni’s comparison test; ***p<0.001 versus WT + EV and #p<0.05, ##p<0.01 and ###p<0.001 versus KO + CPT1C). (C) Effect of M589S overexpression in WT cells. Graph shows the mean axonal length ± SEM of 2 independent experiments performed in biological duplicates (n = 50 cells per condition; One-way ANOVA followed by Bonferroni’s comparison test; **p<0.01 versus WT + EV). Scale bar, 20 µm.

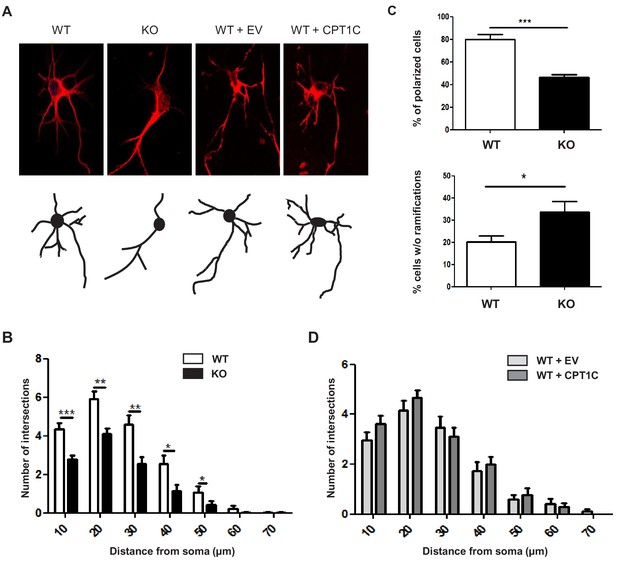

Figure 1—figure supplement 1
Dendritic arborization of Cpt1c KO cortical neurons.

WT or Cpt1c KO neurons were seeded and infected as explained in Figure 1. Dendritic arborization was analyzed using the Sholl method. (A) Representative images are shown. (B) Number of dendritic intersections with concentric circles of different radius (distance to some) in WT and KO neurons. Results are the mean ± SEM of 3 independent experiments performed in biological triplicates (n = 100 cells per genotype; Two-way ANOVA followed by Bonferroni’s comparison test; *p<0.05, **p<0.01 and ***p<0.001). (C) Percentage of polarized cells (above) and percentage of cells without ramifications (below). Values are the mean ± SEM of 3 independent experiments performed in biological triplicates (n = 100 cells per genotype; Student’s t test; *p<0.05 and ***p<0.001). (D) Number of dendritic intersections with concentric circles of different radius (distance to some) in CPT1C-overexpressing neurons. Values are the mean ± SEM of 3 independent experiments performed in biological triplicates (n = 100 cells per condition; Two-way ANOVA followed by Bonferroni’s comparison test; p>0.05). Scale bar, 10 µm.

Metabolic stress decreases axon growth through CPT1C.

3DIV primary cortical neurons derived from WT and KO CPT1C embryos were incubated with DMEM medium with (25 mM) or without glucose (2 hr), treated with AICAR (1.5 hr at 2.5 mM), TOFA (1.5 hr at 20 µg/mL) or vehicle (DMSO 1:500). At the end of the treatment, the medium was replaced by Neurobasal + B27 conditioned medium. 24 hr later (at 4DIV), cells were fixed and processed by immunostaining with anti-SMI-312. (A) ACC phosphorylation (inhibition) by glucose depletion or AICAR treatment in WT and Cpt1c KO neurons was corroborated by Western blot. For quantification, the ratio between pACC and total ACC levels was used. Results are the mean ± SD of biological triplicates (n = 3 samples per condition; Two-way ANOVA followed by Bonferroni’s multiple comparison test; *p<0.05, **p<0.01 and ***p<0.001 versus control treatment within the same genotype). (B) Mean axon length quantification. The neurofilament marker SMI-312R was used as axon marker. Results are shown as the mean ± SEM of 3 independent experiment performed in biological duplicates (n = 35–60 cells per condition; Two-way ANOVA followed by Bonferroni’s multiple comparison test; ***p<0.001 versus control treatment and ###p<0.001 versus WT within the same treatment).

Figure 2—source data 1

Source data for pACC/ACC analysis (panel A of the figure).

https://cdn.elifesciences.org/articles/51063/elife-51063-fig2-data1-v1.xlsx
CPT1C-protrudin interaction.

(A) CPT1C-protrudin binding was analyzed in HeLa cells by co-immunoprecipitation (co-IP). HeLa cells were co-transfected with mCitrine-protrudin or mCitrine-ER-5 (Citrine-KDEL) and MYC-CPT1C. 36 hr later, citrine-containing proteins were immunoprecipitated with the GFP-Trap assay, and the indicated proteins were detected by immunoblot in whole lysate (input) and immunoprecipitated samples (IP). The co-IP was performed in biological triplicates. A representative image of the experiment is shown. (B–C) Binding evaluation by FRET assay in HEK293 cells. Percentage of FRET was measured by the increase of donor intensity after photobleaching. mTurquoise-ER (KDEL), mTurquoise-calnexin and Tubulin-mTurquoise2 (TUB) with CPT1C-SYFP2 were used as negative interactions, while Atlastin1-mTurquoise2 (ATL1) with protrudin-SYFP2 and atlastin-1-mTurquoise2 with CPT1C-SYFP2, as positive controls. Representative images of transfected cells with proteins fused to mTurquoise2 (donor; red) or SYFP2 (acceptor; green) are shown in B. Scale bar, 20 µm. Values are shown in C as mean ± SD of 2 independent experiments performed in biological duplicates (n = 5–11 cells per condition were analyzed; One-way ANOVA followed by Bonferroni’s multiple comparison test; **p<0.001 and ***p<0.001 vs KDEL control). (D) ACC phosphorylation after 4 hr of glucose deprivation in HEK293 cells was confirmed by Western blot. Graph shows the mean ± SD of biological triplicates (n = 3 samples per condition; Mann-Whitney U test; *p=0.05). (E–F) CPT1C-protrudin interactions under metabolic stress conditions. In E, HEK293 cells were incubated in complete medium (25 mM of glucose) or with a medium without glucose (4 hr) and CPT1C-protrudin interaction was analyzed by FRET assay. Results are given as mean ± SD of 2 independent experiments performed in biological duplicates (n = 9–10 cells per condition; Student’s t test; p=0.4315). In F, CPT1C stably expressing HeLa cells, were transfected with mCitrine-protrudin for 24 hr and treated with TOFA (1 hr at 20 µg/mL). Immunoprecipitation was used to analyze CPT1C-protrudin binding. Results are given as mean ± SD of 2 independent experiments performed in biological quadruplicates or quintuplicates (n = 9 samples per condition; Student’s t test; p=0.1142).

Figure 3—source data 1

Percentage of FRET between different donor and acceptor proteins (panel C of the figure).

https://cdn.elifesciences.org/articles/51063/elife-51063-fig3-data1-v1.xlsx
Figure 3—source data 2

Source data for pACC/ACC analysis (panel D of the figure).

https://cdn.elifesciences.org/articles/51063/elife-51063-fig3-data2-v1.xlsx
Figure 3—source data 3

Source data for co-immunoprecipitation analysis (panel E of the figure).

https://cdn.elifesciences.org/articles/51063/elife-51063-fig3-data3-v1.xlsx
Figure 3—source data 4

Source data for co-immunoprecipitation analysis (panel F of the figure).

https://cdn.elifesciences.org/articles/51063/elife-51063-fig3-data4-v1.xlsx
CPT1C overexpression promotes the peripheral localization of Lamp1-positive vesicles depending on malonyl-CoA levels.

(A) Intracellular malonyl-CoA levels decrease after TOFA treatment. HeLa cells stably expressing empty vector, CPT1C or CPT1CM589S were treated with TOFA (1 hr at 20 µg/mL) or the vehicle (DMSO; 1:500). Then, cells were collected and processed as explained in Materials and methods section for malonyl-CoA levels determination. Raw data are the mean of technical duplicates. Results are the mean ± SD of 2 independent experiments performed in biological triplicates (n = 4–6 total samples; Two-way ANOVA followed by Bonferroni’s multiple comparison test; *p<0.05, **p<0.01 and ***p<0.001). (B) Representative images of HeLa cells transfected with CPT1C-mTuquoise2, CPT1CM589S-mTurquoise2 or mTurquoise-ER (shown in green) and immunostained with anti-Lamp1 (in red). Scale bar, 20 µm. White arrows show the accumulation of Lamp1-positive vesicles. (C) Percentages of cells with peripheral localization of Lamp1. (D) Quantification of cellular circularity. Values in C and D are shown as mean ± SEM of 5 independent experiments performed in biological duplicates (n = 100 cells per condition were analyzed; One-way ANOVA, followed by Bonferroni’s comparison test; *p<0.05 and ***p<0.001).

Figure 4—source data 1

Source data for malonyl-CoA analysis in cells (panel A of the figure).

https://cdn.elifesciences.org/articles/51063/elife-51063-fig4-data1-v1.xlsx
Figure 5 with 6 supplements
CPT1C regulates the anterograde transport of LEs depending on malonyl-CoA levels.

HeLa cells were co-transfected with mTurquoise-ER, CPT1C-mTurquoise2 or CPT1CM589S-mTurquoise2, and mCherry-FYCO1. After 48 hr, cells were treated with TOFA (1 hr at 20 µg/mL) or vehicle (control, DMSO 1:500) for 1 hr. Trajectories of mCherry-FYCO1 vesicles were analyzed. Representative videos are shown in Figure 5—videos 16. (A) Movement pattern of individual mCherry-FYCO1 vesicles in two dimensions. (B) Total distance traveled in anterograde and retrograde directions. (C) Quantification of vesicle velocity. (D) Scheme for the direction quantification. The random movement of the vesicles was considered value 0, and the directional movement value 1. (E) Analysis of vesicle directionality. Results are shown as mean ± SEM of 3 independent experiments performed in biological duplicates (n = 30–40 vesicles per condition were analyzed; Two-way ANOVA followed by Bonferroni’s comparison test; *p<0.05, **p<0.01 and ***p<0.001).

Figure 5—video 1
Representative video of FYCO-positive vesicles in a control HeLa cell.

Cells were transfected, treated and processed as explained in Figure 5. Representative video of a cell co-transfected with mTurquoise-ER and mCherry-FYCO. Trajectories of single mCherry-FYCO1 vesicles appear colored.

Figure 5—video 2
Representative video of FYCO-positive vesicles in a control HeLa cell treated with TOFA.

Cells were transfected, treated and processed as explained in Figure 5. Representative video of a cell co-transfected with mTurquoise-ER and mCherry-FYCO. Trajectories of single mCherry-FYCO1 vesicles appear colored.

Figure 5—video 3
Representative video of FYCO-positive vesicles in a HeLa cell over-expressing CPT1C.

Cells were transfected, treated and processed as explained in Figure 5. Representative video of a cell co-transfected with CPT1C-mTurquoise2 and mCherry-FYCO. Trajectories of single mCherry-FYCO1 vesicles appear colored.

Figure 5—video 4
Representative video of FYCO-positive vesicles in a HeLa cell over-expressing CPT1C, after TOFA treatment.

Cells were transfected, treated and processed as explained in Figure 5. Representative video of a cell co-transfected with CPT1C-mTurquoise2 and mCherry-FYCO. Trajectories of single mCherry-FYCO1 vesicles appear colored.

Figure 5—video 5
Representative video of FYCO-positive vesicles in a HeLa cell over-expressing CPT1CM589S.

Cells were transfected, treated and processed as explained in Figure 5. Representative video of a cell co-transfected with CPT1CM589S-mTurquoise2 and mCherry-FYCO. Trajectories of single mCherry-FYCO1 vesicles appear colored.

Figure 5—video 6
Representative video of FYCO-positive vesicles in a HeLa cell over-expressing CPT1CM589S, after TOFA treatment.

Cells were transfected, treated and processed as explained in Figure 5. Representative video of a cell co-transfected with CPT1CM589S-mTurquoise2 and mCherry-FYCO. Trajectories of single mCherry-FYCO1 vesicles appear colored.

CPT1C is an ER protein localizing to ER-LE/Ly contact sites.

HeLa cells were transfected with the plasmids indicated, fixed in 3% FA, stained with the indicated antibodies and analyzed by confocal microscopy. (A) Myc-CPT1C colocalizes with the ER resident protein VAPA. (B) CPT1C-mTurq2 colocalizes with the ER protein protrudin in ER-LE/Ly contact sites, but is not enriched in contact sites, contrary to protrudin (intensity line plot).

Figure 7 with 1 supplement
CPT1C regulates the protrudin-mediated transfer of kinesin-1 to LE/Lys in a malonyl-CoA-dependent manner.

(A) Plasmids for protrudin silencing and CPT1C overexpression were transfected in HeLa cells at the same time. A scrambled sequence was used as a negative control of protrudin silencing, and an empty vector (Myc) was used as negative control of CPT1C overexpression. 72 hr later, Lamp1 localization was analysed by immunostaining. Results are shown as the percentage of cells with peripheral Lamp1 and given as mean ± SEM of 3 independent experiments performed in biological duplicates (n = 100 cells per condition were analyzed; Two-way ANOVA followed by Bonferroni’s comparison test; ***p<0.001). (B) Percentage of cells with peripheral Lamp1 under TOFA treatment. Cells processed as in A were treated with TOFA (1 hr at 20 µg/mL) or vehicle (control, DMSO 1:500). Values are the mean ± SEM of 2 independent experiments performed in biological duplicates (n = 100 cells per condition were analyzed; Two-way ANOVA followed by Bonferroni’s comparison test; ***p<0.001). (C) Fraction of Lamp1 overlapping with protrudin. Cells were transfected with mTurquoise-ER, CPT1C-mTurquoise2 or CPT1CM589S -mTurquoise2 and 48 hr later treated with TOFA for 1 hr. Then, a double immunostaining was achieved to detect protrudin and Lamp1 by confocal microscopy. Representative images (left) and quantification results (right) are shown. Results are given as Manders overlap coefficient M1 (the fraction of Lamp1 in compartments containing protrudin). Values are the mean ± SEM of 3 independent experiments performed in biological duplicates (n = 30 cells per condition; One-way ANOVA followed by Bonferroni’s comparison test; p>0.05). (D) KIF5B recruitment by protrudin. EV, CPT1C or M589S stably expressing cells were transfected with mCitrine-protrudin. 24 hr later, mCitrine-protrudin was immunoprecipitated. The expression of protrudin, KIF5B and CPT1C was evaluated by Western blot in whole lysates (input) and immunoprecipitated samples (IP). Results are given as the mean ± SD of 3 independent experiments performed in biological duplicates, triplicates or quadruplicates (n = 9–10 samples per condition; One-way ANOVA followed by Bonferroni’s multiple comparison test; EV vs CPT1C: **p<0.01, and EV vs M589S: p>0.05). (E) Relative mean intensity of KIF5B at Lamp1-positive vesicles. Cells transfected and treated as in C were immunostained with anti-Lamp1 (in red) and anti-KIF5B (in green). Insets show magnification of a part of the region analyzed. Values are the mean ± SEM of 4 independent experiments performed in biological duplicates (n = 40 cells per condition; One-way ANOVA followed by Bonferroni’s comparison test; ***p<0.001). White arrows in C and E show colocalization dots. Scale bar, 10 µm.

Figure 7—source data 1

Source data for co-immunoprecipitation analysis (panel D of the figure).

https://cdn.elifesciences.org/articles/51063/elife-51063-fig7-data1-v1.xlsx

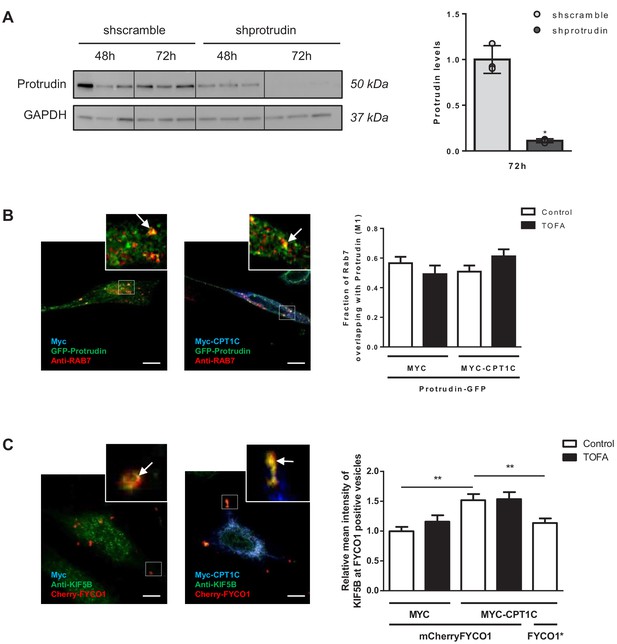

Figure 7—figure supplement 1
CPT1C effects on protrudin-Rab7 colocalization and FYCO1-recruitment of kinesin-1.

(A) Protrudin silencing in HeLa cells. Protrudin protein levels were analyzed by Western blot 48 or 72 hr after transfection with shprotrudin or shscramble. GAPDH was used as a loading control. After 72 hr, protrudin silencing was higher than 90%. Values are the mean ± SD of biological triplicates (n = 3 samples per condition; Mann-Whitney U test; *p=0.05). (B) Fraction of Rab7 overlapping with protrudin. Hela cells were transfected with an empty vector (Myc) or Myc-CPT1C and GFP-protrudin and fixed 48 hr later. Rab7 and Myc were labeled with anti-Rab7 and anti-Myc, respectively. Results are given as Manders overlap coefficient M1 (the fraction of Rab7 in compartments containing protrudin). Results are shown as mean ± SEM of 2 independent experiments performed in biological duplicates (n = 30 cells per condition; Two-way ANOVA followed by Bonferroni’s comparison test; p>0.05). (C) Relative mean intensity of KIF5B at FYCO1-positive vesicles. MCherry-FYCO1 or mCherry-FYCO1∆735-773 (FYCO*) were transfected together with Myc-CPT1C or Myc alone. 36 hr later, cells were treated with TOFA for 1 hr and then double immunostaining against Myc and KIF5B. Results are shown as mean ± SEM of 2 independent experiments performed in biological duplicates (n = 30 cells per condition; One-way ANOVA followed by Bonferroni’s comparison test; **p<0.01). White arrows show colocalization dots. Scale bar, 10 µm.

Figure 7—figure supplement 1—source data 1

Source data for protrudin expression levels (panel A of the figure).

https://cdn.elifesciences.org/articles/51063/elife-51063-fig7-figsupp1-data1-v1.xlsx
Figure 8 with 1 supplement
Metabolic stress reduces Lamp1 in axon terminals through CPT1C.

3DIV primary cortical neurons derived from WT and Cpt1c KO embryos were treated as in Figure 2. 24 hr later (at 4DIV), cells were fixed and processed by immunostaining with anti-Lamp1 and anti-SMI-321 (axon marker). (A) Representative images of the Lamp1 staining at the axon terminal. The region of interest (ROI) selected for the analysis is shown in the amplified square. (B) Lamp1 mean intensity at the axon terminal. The same threshold was used in all the samples. Results are shown as the mean ± SEM of 3 independent experiment performed in biological duplicates (n = 35–60 cells per condition; Two-way ANOVA followed by Bonferroni’s multiple comparison test; ***p<0.001 versus control treatment and ###p<0.001 versus WT within the same treatment). (C) Lamp1 linear intensity profile. The sum intensity histograms from Z-projection images were analyzed. Due to different axon lengths between groups, only the last 50 µm from the axon terminal to the soma was measured. The graph shows the values of the mean fluorescence intensity measured every 0.1 µm from one representative experiment out of 14–19 cells per condition.

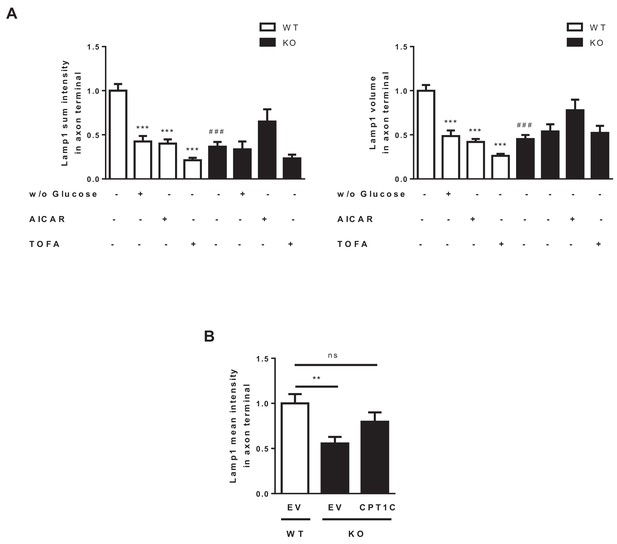

Figure 8—figure supplement 1
Metabolic stress decreases lamp1 in axon terminals through CPT1C.

(A) Lamp1 sum intensity and the volume of Lamp1 vesicles in axon terminal were quantified. Cells were treated and processed as in Figure 7. Results and the mean ± SEM of 2 independent experiments performed in biological duplicates (n = 19–130 cells per condition; Two-way ANOVA followed by Bonferroni’s multiple comparison test; **p<0.01 and ***p<0.001 versus control treatment and ##p<0.01 versus WT within the same treatment). (B) CPT1C re-expression rescues Lamp1 intensity in axon terminals of KO neurons. Cortical neurons infected as in Figure 1B were stained with Lamp1. Results are the mean intensity of Lamp1 in axon terminal ± SEM of 2 independent experiments performed in biological duplicates (n = 50 cells per condition; One-way ANOVA followed by Bonferroni’s comparison test; **p<0.01 versus WT + EV).

Malonyl-CoA partially rescues the effects of metabolic stress on axonal length and LE/Lys localization.

(A) Intracellular malonyl-CoA levels. HeLa cells were treated with exogenous malonyl-CoA (200 µM) for 2 hr and washed 3 times with PBS, collected and processed to determine intracellular levels of malonyl-CoA. Raw data are the mean of technical duplicates. Values are the mean ± SD of triplicates (n = 3 samples per condition; Mann-Whitney U test; p=0.05). (B–C) Effect of malonyl-CoA treatment in Lamp1 intensity at the axon terminal and in axonal length. Cultured cortical neurons were treated simultaneously with malonyl-CoA (2 hr at 200 µM) and the same conditions used in Figure 2. Lamp1 mean intensity at axon terminal and mean axonal length are shown in B and C, respectively. Results are given as the mean ± SEM of 2 independent experiment performed in biological duplicates (n = 40 cells per condition). Two-way ANOVA followed by Bonferroni’s comparison test was used to compare WT in control conditions versus each treatment (*p<0.01 and ***p<0.001 versus WT in control conditions); Student’s t test was applied to compare each treatment with or without malonyl-CoA (#p<0.05 versus the same condition without malonyl-CoA).

Figure 9—source data 1

Source data for malonyl-CoA analysis in cells (panel A of the figure).

https://cdn.elifesciences.org/articles/51063/elife-51063-fig9-data1-v1.xlsx
Figure 10 with 1 supplement
Model for the role of CPT1C in LE/Lys anterograde transport and axon growth.

In normal nutrient conditions, CPT1C is bound to malonyl-CoA and its N-terminal domain acquires the folded conformation (Nα), which enhances the transfer of kinesin-1 (KIF5) from protrudin to FYCO1, which promotes the plus-end transport of LE/Lys and axon growth. However, under energy stress, such as glucose depletion or the activation of AMPK pathway, N-regulatory domain of CPT1C switches to its extended conformation (Nβ). In this state, CPT1C does not enhance the transfer of kinesin-1 to FYCO1, and in consequence, the anterograde transport of LE/Lys is not promoted and axon growth arrested. CPT1C and protrudin are bound in both situations, but the way they interact with each other changes with metabolic stress.

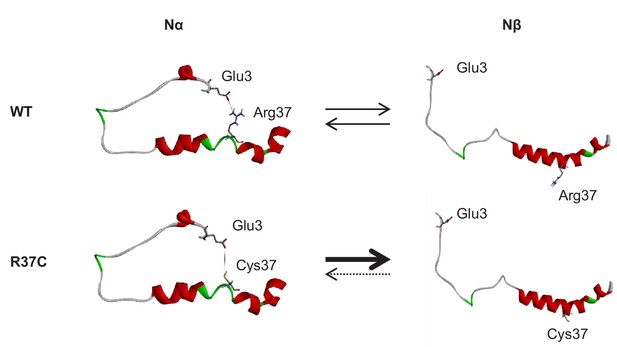

Figure 10—figure supplement 1
Effect of R37C mutation on the N-terminal domain of CPT1C.

N-terminal NMR structure of CPT1C was available at PDB (accession code 2M76) (Samanta et al., 2014). Top: In WT sequence, there is equilibrium between Nα (folded) and Nβ (extended) structural states. Bottom: R37C mutation causes N-terminal region of CPT1C to be preferentially in the Nβ state. Cys37 side chain is too short and lacks a positive charge to mimic the stabilizing electrostatic interaction observed in the WT protein.

Tables

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional information
Cell line (Homo sapiens)HeLaInstitute Curie, Paris, France
Cell line (Homo sapiens)HEK293TATCCCRL-1168
Strain, strain background (Mus musculus)WTJackson LaboratoryC57BL/6JProvided by UAB animal facility
Strain, strain background (Mus musculus)Cpt1c KODOI:10.1074/jbc.M111.337493B6129SvEv/C57BL/6J Cpt1c-/-Exons deleted: 12–15. Generated at
UAB-CBATEG. 8 times backcrossed to C57BL/6J
Transfected construct (M. musculus)EVAddgene#12254; pWPI-IRES-GFPEmpty vector. Lentiviral construct
Transfected construct (M. musculus)CPT1CDOI:10.1016/j.molmet.2018.10.010pWPI-CPT1C-IRES-GFP
Transfected construct (M. musculus)CPT1CM589SDOI: 10.1016/j.molmet.2018.10.010pWPI-CPT1CM589S-IRES-GFP
Transfected construct (M. musculus)CPT1CR37CThis paperpWPI-CPT1CR37C-IRES-GFP;Lentiviral construct to express mutated CPT1CR37C (c.109C > T).
Transfected construct (M. musculus)shProtrudinTebu-BioPsi-LVRU6MP-shProtrudinCloned sequence: 5’-agaatgaggtgctgcgcag-3’
Transfected construct (H. sapiens)EGFP-FYCO1DOI: 10.1038/nature14359pDEST-EGFP-FYCO1 (AmpR)
Transfected construct (H. sapiens)CPT1C-mTurquoise2otherEmpty vector: #54843Vector from Addgene. Clonning at D Serra’s lab
Transfected construct (H. sapiens)mTurquoise-calnexinAddgene#55539
Transfected constructmTurquoise-ERAddgene#55550
Transfected constructmCitrine-ER-5Addgene#56557
Transfected construct (H. sapiens)mCherry-FYCO1otherpDestmCherry-C1-FYCO1From T Johansen’s lab
Transfected plasmid (H. sapiens)mCitrine-ProtrudinDOI: 10.1074/jbc.M112.419127From WD Heo’s lab
Transfected plasmid (R. norvegicus)Myc-CPT1CThis paperpCDNA3.1-Myc-His-CPT1CEmpty vector from ThermoFisher:V80020
AntibodyAnti LAMP1 (rabbit polyclonal)SigmaL1418IF: (1:250)
AntibodyAnti Myc (mouse monoclonal)ATCC9E10IF: (1:50)
West: (1:80)
AntibodyAnti KIF5B
(rabbit monoclonal)
AbcamERP10277B; ab167429IF: (1:100)
West (1:500)
AntibodyAnti GFP (rabbit monoclonal)Cell Signaling#2956West: (1:500)
AntibodyAnti protrudin (rabbit polyclonal)PTG12680–1-APIF: (1:300)
AntibodyAnti Rab7 (rabbit monoclonal)Cell SignalingD95F2;9367IF: (1:60)
AntibodyAnti CPT1C
(rabbit polyclonal)
DOI: 10.1074/jbc.M707965200West: (1:2000)
AntibodyAnti pACC (rabbit polyclonal)Cell Signaling#3661West: (1:1000)
Against Ser79
AntibodyAnti ACC (rabbit monoclonal)Cell Signaling#3676West: (1:1000)
AntibodyAnti SMI312
(mouse monoclonal)
Convance# SMI312RIF: (1:1000)
SoftwareImarisBitplaneBPA-IM91-CLImaris 9.1 for Cell Biologists

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 2A, 3C, 3D, 3E, 3F, 4A, 7D, 9A and Figure 7—figure supplement 1A.
