Initially, gramicidin perforated patch-clamp recordings from L4-L5 MNs were used to obtain Rin and Cm values for individual MNs. SOD MN values for Rin and Cm were 148.2 ± 13.5 MΩ, n = 21 and 105.6 ± 5.9 pF, n = 21, N = 16, respectively, and were significantly different (p<0.05, Mann Whitney test) from WT MNs values (104.9 ± 10.8 MΩ, n = 16 and 143.7 ± 14.2 pF, n = 16, N = 10) (Table 1). These values corresponded to the previously reported differences between WT and SOD MNs (Martin et al., 2013).

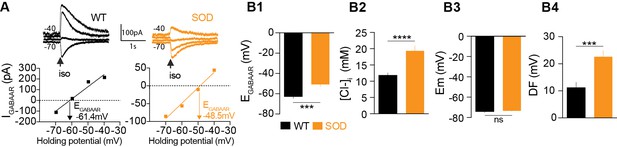

Puff application of the GABA_AR agonist isoguvacine allowed us to measure the reversal potential of GABA_AR (E_GABAAR) in individual SOD and WT MNs (Figure 1A), while our pooled data indicated that mean E_GABAAR was significantly different in SOD MNs (−50.5 ± 2.4 mV, n = 25, N = 18) and WT MNs (−62.0 ± 2.0 mV, n = 24, N = 17) (p<0.001, Mann Whitney test) (Figure 1B1). From these E_GABAAR values, and because Cl^- ions are mainly involved in GABA_AR currents in fetal MNs (Bormann et al., 1987; Gao and Ziskind-Conhaim, 1995), we calculated the intracellular chloride concentration [Cl^-]_i as being 19.5 ± 1.5 mM and 12.2 ± 0.9 mM in SOD and WT MNs, respectively (p<0.001, Mann Whitney test) (Figure 1B2). Interestingly, [Cl^-]_i values reported in E17.5 WT MNs are in agreement with those previously reported, i.e., 12 mM (Delpy et al., 2008). The resting membrane potential (E_m) was not significantly different between SOD and WT MNs (−73.1 ± 0.5 mV in SOD and −74.1 ± 1.0 mV in WT MNs (p>0.05, Mann Whitney test MNs) (Figure 1B3), in contrast to the mean driving force (DF = E_m - E_GABAAR), which was 22.6 ± 2.3 mV and 12.1 ± 2.2 mV in SOD and WT MNs, respectively (p<0.001, Mann Whitney test) (Figure 1B4).

Figure 1 with 1 supplement see all

Download asset Open asset

The dissipation of an elevated intracellular Cl^- concentration is mediated by the activation of the neuronal K⁺/Cl⁻ co-transporter type 2 (KCC2) (Payne et al., 1996; Rivera et al., 1999). This protein, which extrudes Cl^-, is expressed at early stages in the embryonic SC (Delpy et al., 2008). The [Cl^-]_i is also related to the Na⁺-K⁺−2Cl^- co-transporter NKCC1, which intrudes chloride ions (Russell, 2000; Delpy et al., 2008). Therefore, in order to identify the cellular mechanisms underlying the higher [Cl^-]_i in SOD MNs, we firstly assessed the amount of KCC2 and NKCC1 in lumbar SCs using WB. Our data showed that KCC2 was reduced by ~19% in SOD lumbar SCs compared to WT (p<0.05, Mann Whitney test) (Figure 2A1) whereas NKCC1 was unchanged (Figure 2A2). When analyzed in the MN area (Hb9-eGFP), the KCC2 staining appeared as significantly reduced in SOD SCs (181.5 ± 16.2 arbitrary unit (AU), n = 43, N = 4) compared to WT (395.0 ± 20.3 AU, n = 42, N = 4) (p<0.001, Mann Whitney test) (Figure 2B1–B2 and B5). At the level of the MN membrane, the KCC2 density was also significantly reduced in SOD SCs (5.8 ± 0.6 AU, n = 81, N = 4) compared to WT SCs (8.5 ± 0.6 AU, n = 116, N = 4) (p<0.01, Mann Whitney test) (Figure 2B3–B4 and B6). Functionally, we found that the KCC2 efficacy, assessed using indirect measurements, was reduced in SOD MNs: E_GABAAR reached a maximum of −43.8 ± 0.8 mV (n = 19, N = 16) in SOD MNs and −46.5 ± 0.7 mV (n = 24, N = 17) in WT (p<0.05, Mann Whitney test) after 30 s isoguvacine pressure ejection (Figure 2C) and returned to control values: −49.3 ± 1.2 mV (n = 19) in SOD MNs and −54.8 ± 1.0 mV (n = 24) in WT (p<0.001, Mann Whitney test) after a 4 min isoguvacine washout (Figure 2C). This difference was absent when the specific KCC2 blocker VU0240551 was applied (Figure 2C).

Figure 2

Download asset Open asset

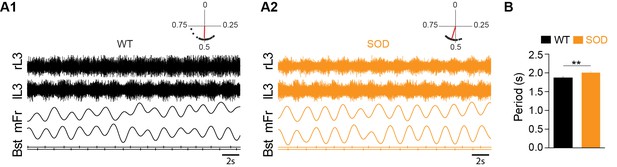

In order to assess whether the alteration of chloride homeostasis in SOD MNs could affect the left-right alternation in locomotor-like activity expressed by E17.5 mouse spinal lumbar networks due to half-centers organization and commissural inhibition (Branchereau et al., 2000), we recorded this activity in L3-L5 ventral roots after exogenous application of 5-HT/NMDA/DA. As illustrated in Figure 3A1, this cocktail evoked stable bilateral segmental alternation between left and right ventral roots in WT SC preparations. Chemically-activated locomotor-like activity was also expressed in the ventral roots of SOD SCs (Figure 3A2), although analysis (Rayleigh's test) revealed a slower rhythm period in SOD SCs (2.01 ± 0.03 s, n = 8, N = 5) compared to WT controls where bursts recurred with a period of 1.88 ± 0.03 s (n = 9, N = 7) (p<0.01, Mann Whitney test) (Figure 3B). However, the rhythm phase relationship between left and right sides was close to anti-phase in both genotypes (0.49 ± 0.003 and 0.52 ± 0.004 in SOD and WT SCs, respectively) (see polar plots in Figure 3A1–A2). Therefore, surprisingly, alteration of chloride homeostasis in SOD MNs has limited consequences on the locomotor-like activity and therefore little physiological consequences. Could compensatory mechanisms in the SOD spinal synaptic network explain this result?

Figure 3

Download asset Open asset

In order to gain information about the synaptic inputs from the premotor inhibitory neuronal networks that underlies this MN activity, we then compared the occurrence and properties of GABA-/glycinergic synaptic events in SOD and WT E17.5 MNs in the absence of rhythmic fictive locomotion. We found that miniature GABAergic/glycinergic inhibitory synaptic currents (mIPSCs), which persisted in the presence of TTX, were significantly (p<0.001; K–S test) less frequent in SOD: the mean inter-event interval (IEI) was 887 ± 30 ms (n = 19, N = 9, 1589 events) for SOD MNs and 838 ± 33 ms (n = 15, N = 7, 1366 events) for WT MNs from the same littermate (p<0.001, Mann Whitney test) (Figure 4A1,A2). The mIPSCs of SOD MNs were also slightly smaller (52.8 ± 0.9 pA) compared to WT MNs (57.9 ± 1.2 pA) (p<0.05, Mann Whitney test) (Figure 4A3). Tau_rise was not significantly different between SOD MNs (1.25 ± 0.03 ms) and WT MNs (1.11 ± 0.02 ms) (p>0.05, Mann Whitney test), whereas tau_decay was strongly significantly larger in SOD MNs (20.53 ± 0.08 ms) compared to WT MNs (16.11 ± 0.40 ms) (p<0.0001, Mann Whitney test) (Figure 4A4, see inset traces). The total charge of mIPSCs, calculated for best-fitted (R > 0.98) mIPSCs, was similar in SOD MNs (−1.14 ± 0.04 pA.s, n = 841, N = 9) and WT MNs (−1.18 ± 0.04 pA.s, n = 901, N = 7) (p>0.05, Mann Whitney test), indicating that the longer relaxation for SOD mIPSCs likely compensated their reduced amplitude. The development of synaptic inhibition in spinal MNs involves a functional switch between GABA to glycine events (Gao et al., 2001). We therefore focused on pharmacologically dissected GABA and glycine mIPSCs, isolated using strychnine and GABAzine, respectively. Interestingly, strychnine application revealed a tonic glycine current in 5/7 SOD MNs and 4/6 WT MNs (Figure 4A5) without any significant difference in amplitude between SOD MNs (11.72 ± 3.34 pA, n = 5, N = 5) and WT MNs (11.15 ± 2.36 pA, n = 4, N = 4) (p>0.05, Mann Whitney test). We found a tonic GABA current in only 3/8 SOD MNs and 2/7 WT MNs, this tonic current being comparable in both genotypes: 15.03 ± 1.09 pA (n = 3, N = 3) for SOD MNs and 10.40 ± 0.60 pA (n = 2, N = 2) for WT MNs (p>0.05, Mann Whitney test). This tonic glycine and GABA current likely favors tonic shunting effect as previously demonstrated (Branchereau et al., 2016; Song et al., 2011).

Figure 4

Download asset Open asset

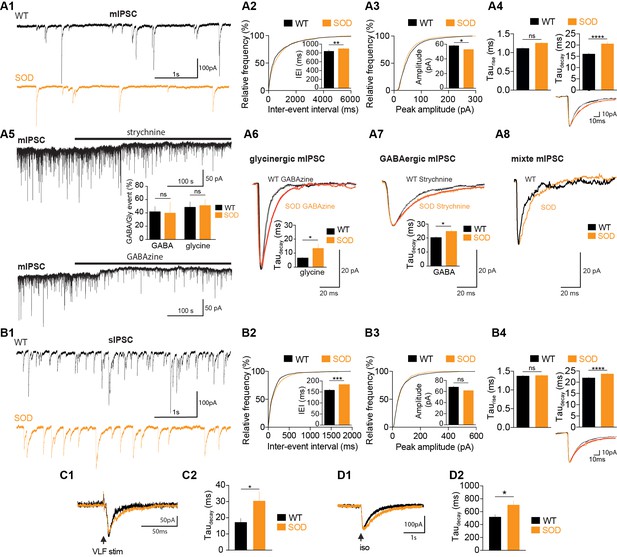

The pharmacological dissection revealed that mIPSCs were ~50% pure glycine,~40% pure GABA, the remaining events ~ 10% being mixed (see Figure 4A6–A8). No difference was found between SOD MNs (48.43 ± 8.26% glycine, n = 5, N = 5; 39.65 ± 16.77% GABA, n = 3, N = 3) and WT MNs (51.46 ± 9.41% glycine, n = 3, N = 3; 41.79 ± 7.97% GABA, n = 5, N = 5) (p>0.05, Mann Whitney test). Interestingly, E17.5 SOD MNs, recorded at a holding potential of −70 mV with E_Cl set at ~0 mV displayed pure glycine and GABA mIPSCs with a longer relaxation than E17.5 WT animals from the same littermate. Tau_decay of pure glycine mIPSCs was 13.35 ± 3.14 ms (n = 3, N = 3) in SOD MNs and 6.53 ± 0.44 ms in WT MNs (n = 5, N = 5) (p<0.05, Mann Whitney test) (Figure 4A6) whereas tau_rise were similar in both genotypes (1.24 ± 0.12 ms for SOD and 1.18 ± 0.07 ms for WT, p>0.05, Mann Whitney test). Tau_decay of pure GABA mIPSCs was also larger in SOD MNs (24.69 ± 1.18 ms, n = 5, N = 5) compared to WT MNs (19.51 ± 0.56 ms, n = 3, N = 3) (p<0.05, Mann Whitney test) (Figure 4A7) whereas tau_rise were similar in both genotypes (3.02 ± 0.24 ms for SOD and 2.12 ± 0.52 ms for WT, p>0.05, Mann Whitney test).

Most of the differences found between SOD and WT mIPSCs were also observed in spontaneous GABAergic/glycinergic inhibitory synaptic currents (sIPSCs). An increase in IEI was found for sIPSCs (p<0.001; K–S test): mean IEI was 182.3 ± 5.9 ms (n = 14, N = 10, 1499 events) and 157.9 ± 5.6 ms (n = 17, N = 11, 1685 events) in SOD and WT MNs, respectively (p<0.001, Mann Whitney test) (Figure 4B1–B2). No difference was found in the amplitude of sIPSCs (p>0.05; K-S test): 68.0 ± 1.8 pA in SOD MNs and 61.7 ± 1.4 pA in WT MNs (p>0.05, Mann Whitney test) (Figure 4B3). Again the tau_rise was not significantly different between SOD MNs (1.38 ± 0.02 ms) and WT MNs (1.37 ± 0.02 ms) (p>0.05, Mann Whitney test), whereas tau_decay was again strikingly larger in SOD MNs compared to WT MNs: 21.89 ± 0.42 ms in WT MNs and 23.58 ± 0.53 ms in SOD MNs (p<0.0001, Mann Whitney test) (Figure 4B4, see inset traces). VLF (ventro-lateral funiculus)-evoked IPSCs (eIPSCs) recorded in MNs at a holding potential −70 mV with an imposed E_Cl of −45 mV also revealed a longer tau_decay (30.3 ± 5.7 ms, n = 6, N = 3) in SOD MNs compared to WT MNs (18.3 ± 2.7, n = 10, N = 4) (p<0.05, Mann Whitney test) (Figure 4C1–C2), the amplitude and tau_rise of eIPSCs being not significantly different (62.4 ± 16.6 pA, 2.8 ± 0.5 ms in SOD, n = 6 and 72.1 ± 13.2 pA, 2.3 ± 0.3 ms in WT, n = 10). This was in agreement with our data showing a reduced efficacy of KCC2 (Figure 2C) leading to a higher [Cl^-]_i in SOD MNs compared to WT and therefore a slower relaxation of IPSCs (Pitt et al., 2008; Houston et al., 2009). Finally, tau_decay of puff-evoked GABA_AR current was also affected in the same way: 707.8 ± 57.8 ms (n = 21, N = 16) in SOD MNs versus 521.3 ± 33.3 ms (n = 16, N = 10) in WT (p<0.05, Mann Whitney test) (Figure 4D1–D2), the amplitude and tau_rise of evoked IPSCs (eIPSCs) being not significantly different (49.3 ± 5.9 pA, 34.9 ± 3.6 ms in SOD, n = 21 and 58.1 ± 8.6 pA, 43.3 ± 5.8 ms, n = 16).

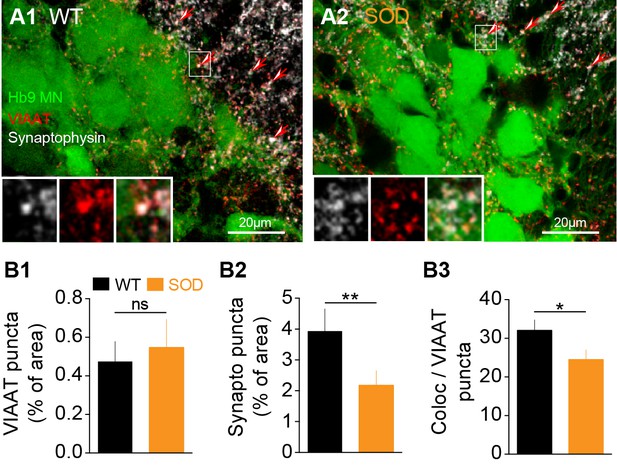

The transport of GABA/glycine (GABA/Gly) into synaptic vesicles is mediated by VIAAT transporters. Therefore, in order to seek for anatomical correlates of our electrophysiological findings, we performed an immunohistochemical analysis of GABAergic/glycinergic (VIAAT positive) synaptic puncta (Figure 5A, red) in the lumbar MN area identified by the presence of Hb9-eGFP neurons (Figure 5A, green). Synaptic terminals were identified using double staining for the synaptic vesicle protein synaptophysin (Figure 5A, white) that is ubiquitously expressed in the marginal zone of the SC in close proximity of Hb9 somata. We did not detect any significant difference in the percentage of VIAAT puncta between SOD and WT SCs: 0.47 ± 0.10% of analyzed area in SOD (n = 5, N = 4) and 0.54 ± 0.14% in WT (n = 6, N = 5) (p>0.05, Mann Whitney test) (Figure 5B1–B2). Synaptophysin staining in SOD SCs was decreased by 44% compared to WT: 2.17 ± 0.47% of area in SOD and 3.93 ± 0.72% of area in WT (p<0.01, Mann Whitney test) (Figure 5B3). We then calculated the percentage of the synaptophysin surface colocalized with VIAAT and found a ~ 23% decrease in this percentage of colocalization in SOD SCs compared to WT: 24.50 ± 2.55% and 32.05 ± 2.73% for SOD and WT, respectively (p<0.001, Mann Whitney test) (Figure 5B4).

Figure 5

Download asset Open asset

Our electrophysiological data indicated a clear alteration in the frequency and shape of miniature and spontaneous synaptic currents in SOD MNs, with IPSCs being less frequent in SOD animals. This reduced basal network activity was therefore consistent with the anatomical labeling of GABAergic/glycinergic synaptic terminals. Prenatal SOD MNs also exhibited a more depolarized E_GABAAR than WT MNs, which would in turn impinge on the efficacy of GABA/Gly inhibition (Branchereau et al., 2016). In SOD MNs E_GABAAR was 10 mV more depolarized, which could preclude efficient inhibition. Surprisingly on the other hand, well-coordinated locomotor-like activity was still elicited in SOD SCs (Figure 3A), indicating the presence of putative compensatory mechanisms. In this respect, the slower decay times of both IPSCs and puff-evoked GABA_AR currents recorded in SOD MNs could be one of such mechanisms. Therefore, in order to test this idea further, we conducted a series of computer simulations of SOD-like and WT-like E17.5 spinal MNs in which the effect of tau_decay on the strength of GABA/Gly inhibition was assessed.

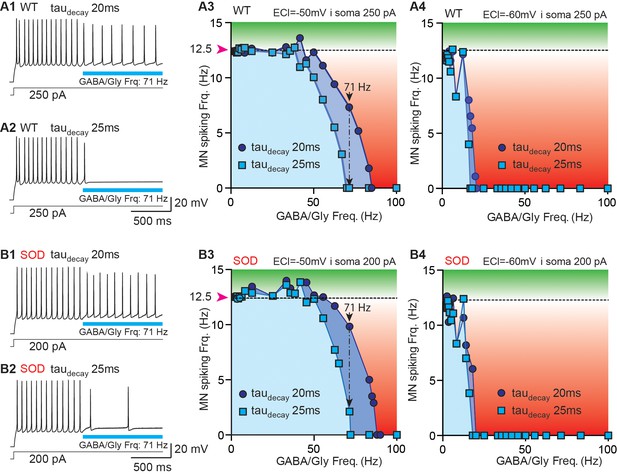

The impact of synaptic current shape on MN activity was assessed using numerical simulations of WT-like and SOD-like MNs with a NEURON simulation environment (Carnevale and Hines, 2006). The topology and morphometry of canonical WT and SOD E17 MNs were issued from Martin et al. (2013). The two MN types differed only in the length of their terminal dendrites, being shorter in SOD-like MNs (i.e. 60% of WT-like MNs) (Figure 6—figure supplement 1A-B). As a result, the SOD-like MNs are more excitable (Martin et al., 2013). A continuous depolarizing current was injected into the somata of both the WT-like (250 pA) and SOD-like MNs (200 pA) (Figure 6—figure supplement 1C) to produce a spiking discharge of ~12.5 Hz (Figure 6A1, B1). This spike frequency in E17.5 MNs was reached during bursts of activity occurring during fictive locomotion (Figure 6—figure supplement 2A, B). During this MN discharge, a train of GABA/Gly synaptic events was delivered to the MN soma. Various frequencies of GABA/Gly synaptic events were tested to assess the frequency (cut-off frequency) needed to totally block the ongoing MN discharge. When E_GABAAR was set to −50 mV (the value measured in biological SOD MNs), increasing the GABA/Gly tau_decay from 20 ms to 25 ms drastically increased its inhibitory effect on the MN discharge (Figure 6): whereas a 71 Hz GABA/Gly synaptic event train with a tau_decay of 20 ms slowed down the WT model MNs’ discharge from 12 Hz to 8–10 Hz, the same train totally blocked spike activity with a GABA/Gly tau_decay of 25 ms (Figure 6A1–A2) and almost blocked it in a SOD MN (Figure 6B1–B2). We then repeated these simulations for a set of synaptic frequencies ranging from 0 Hz to 100 Hz for the two tau_decay values (20 and 25 ms), with an E_GABAAR set at −50 or −60 mV for the WT (Figure 6A3–A4) and SOD MNs (Figure 6B3–B4). The value of E_GABAAR was determinant for the inhibitory effect of GABA/Gly events because in the WT-like MN, as in the SOD-like MN, the efficacy of the inhibitory train was much stronger when E_GABAAR was set to −60 mV rather than −50 mV. Indeed, with E_GABAAR = −60 mV, a 15 Hz GABA/Gly event train totally blocked the discharge in both MN types (Figure 6A4–B4), with little or no difference occurring between the two (tau_decay of 20 and 25 ms) event/firing rate curves. By contrast, the corresponding curves differed significantly when E_GABAAR was set to −50 mV (Figure 6, compare A3 with B3).

Figure 6 with 2 supplements see all

Download asset Open asset

Significantly, the morphology of the MNs also played a role in the inhibitory effect of the 71 Hz GABA/Gly train on their activity with a tau_decay set to 20 ms: the inhibition was stronger in the WT-like MN (discharge reduction from 12.5 Hz to 7.33 Hz, Figure 6A3) than in the SOD-like MN (reduction from 12.5 Hz to only 9.83 Hz, Figure 6B3). The effect of morphology was also evident in the difference (frequency shift) between the two curves (tau_decay of 20 and 25 ms) being more pronounced in the SOD- (17 Hz) than in the WT-like MN (14 Hz). A final influence of MN morphology was observed for a GABA/Gly synaptic frequency below 50 Hz: in the SOD-like MN with E_GABAAR = -50 mV, the GABA/Gly synaptic trains produced excitatory effects (Figure 6B3), although these effects were much smaller (if at all) in the WT-like MN (Figure 6A3). This excitatory action of GABA/Gly synapses was not observed when E_GABAAR = −60 mV (Figure 6A4–B4).

We chose a firing frequency of 12.5 Hz for the model MNs since this corresponded to the mean value measured during locomotor-like activity in E17 WT embryos (Figure 6—figure supplement 2A-B). Together our results from computer simulations thus indicate that an increase of tau_decay from 20 to 25 ms may constitute a partial compensatory mechanism contributing to reinforcing the inhibitory strength of GABA/Gly synaptic events that are dramatically reduced in SOD-type MNs mainly because of their more depolarized E_GABAAR (−50 mV instead of −60 mV).

In a final step, we wished to assess the functional consequence of increasing tau_decay during ongoing locomotor activity. To this end, a simplified computer simulation of two half-centers driving antagonistic MNs was employed (Figure 7A). Pacemaker activity was obtained using a simplified model (see Appendix 1) based on previous physiological observations on the fundamental role played by I_NaP and I_KCa in pacemaker activity (Tazerart et al., 2008). Interestingly, increasing tau_decay slowed-down the locomotor rhythm when E_GABAAR was set to −60 mV (WT MN value) and g_GABA/Gly was set to 0.04 µS (Figure 7A1, A2). This slow-down of the locomotor rhythm was also observed when g_GABA/Gly was increased to 0.2 µS with E_GABAAR = −60 mV (Figure 7B1). When E_GABAAR was set to −50 mV with a g_GABA/Gly of 0.2 µS, increasing tau_decay still slowed down the locomotor rhythm, but the effect was much smaller (Figure 7B2). This result was in agreement with our findings that the pharmacologically-evoked locomotor rhythm in SOD SCs was slower than in WT SCs (Figure 3B). Again, although this slight change in the locomotor rhythm observed in SOD SCs has likely no physiological consequences, it reveals one side effect of increasing tau_decay of GABA/Gly synaptic events.

Figure 7

Download asset Open asset

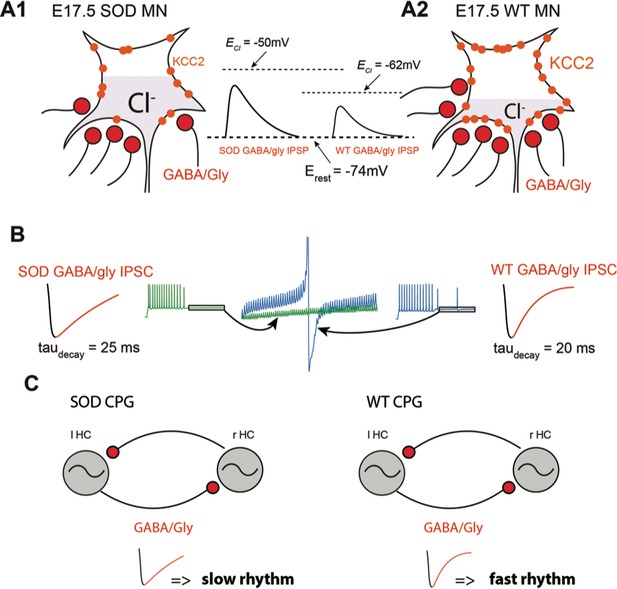

In our study we show that frequency of inhibitory synaptic inputs is reduced in SOD MNs. This conclusion was supported by both physiological and anatomical observations. Firstly, SOD MNs displayed less frequent mIPSCs (~6%) (Figure 4A2), which correlates with the finding that VIAAT/synaptophysin co-localization was diminished (~23%) in these mice (Figure 5B3). Second, the amplitudes of the mIPSCs were slightly smaller in SOD1 MNs than in WT, especially for large events (Figure 4A3) and sIPSC events also exhibited this tendency (Figure 4B3). These main features of SOD IPSCs compared to WT are summarized in the schematic representation of Figure 8A1–A2.

Figure 8

Download asset Open asset

The reduced degree of synaptic input to mouse prenatal SOD MNs assessed by VIAAT/synaptophysin staining is reminiscent of anatomical data from adult human ALS patients in which a reduction of synaptophysin was also identified (Ikemoto et al., 2002). It cannot be explained by a reduced SOD MN size (i.e., smaller cells can host fewer synapses) because we have shown in a previous article that soma perimeters and soma surface of WT MNs and SOD MNs are comparable (Martin et al., 2013). Even though the reduced degree of synaptic input might reflect a developmental delay in the maturation of SOD SCs compared to WT, data from the literature seems to indicate that this reduction persists with time. In fact, MNs cultured from other ALS patients were shown to progressively lose their synaptic activity (Devlin et al., 2015), as was also shown in pre-symptomatic (P60-P120) adult SOD mice (Zang et al., 2005).

The mixed GABA/Glycine IPSCs recorded in our study are likely to reflect a major contribution of GlyR because of the fast tau_decay (Gao et al., 2001; Muller et al., 2006). Therefore, IPSCs, which were slightly reduced in amplitude in our recordings in SOD MNs, represent glycinergic events whereas GABAergic IPSCs amplitude remained unaffected. This hypothesis is supported by the fact that the ratio gGABA_AR/Cm measured in our perforated patch-clamp recordings did not differ between SOD and WT MNs (Table 1). Interestingly, a reduction in amplitude of glycinergic synaptic events but not GABAergic events was described in SOD1^G93A lumbar MNs maintained in culture (Chang and Martin, 2011). Less frequent and smaller amplitude IPSCs convey a reduced inhibitory drive onto prenatal SOD1 MNs. Measurements of IPSC amplitudes derived from CsCl medium-based whole-cell recordings in which E_GABAAR approached 0 mV. Therefore, WT and SOD MNs shared the same artificial driving force for chloride and so the observed reduction of IPSC amplitude in SOD MNs was likely to be related to a change in post-synaptic GlyR as described in cultured SOD1^G93A MNs (Chang and Martin, 2011).

Our data revealed a noticeable increase of tau_decay in both SOD1 mIPSCs and sIPSCs. We found a mean tau_decay of around 20–25 ms, which is in the same range as that previously described for mIPSCs during perinatal stages in rat lumbar MNs (Gao et al., 1998). Because a part of our study did not differentiate unequivocally between GABA_AR-mediated versus GlyR-mediated mIPSCs, we pharmacologically dissected GABA_AR-mediated versus GlyR-mediated mIPSCs. This confirmed that the mean tau_decay is between tau_decay of pure GABA_AR-mediated mIPSCs and pure GlyR-mediated mIPSCs and that both types of mIPSCs exhibit a longer relaxation. Interestingly, GlyRs switch from immature homomeric α2 GlyRs with slow decay kinetics of glycinergic mIPSCs to heteromeric GlyRs that include α1, α3 and β subunits with fast kinetics (Legendre, 2001; Raltschev et al., 2016). E17.5 SOD1 MNs may therefore exhibit a delayed development with a preponderance of homomeric α2 GlyRs. However, this is unlikely to be the case, since most electrical properties measured from birth to postnatal day 12 in SOD1^G93A MNs instead show an accelerated rate of maturation (Quinlan et al., 2011). During perinatal development of rat spinal MNs, GlyR-mediated mIPSCs become dominating over GABA_AR-mediated mIPSCs (Gao et al., 2001). We also found a majority of pure GlyR-mediated mIPSCs and found the same ratio of pure GABA_AR-mediated mIPSCs and pure GlyR-mediated mIPSCs in SOD and WT MNs, indicating similar prenatal developmental stage for both genotypes.

Considering that SOD SCs do not express a development delay compared to WT SCs from the same littermate, we questioned the origin of the prolonged tau_decay in GABA_AR- and GlyR-mediated mIPSCs, sIPSCs and eIPSCs. It has been demonstrated that high [Cl^-]_i slows down the decay of glycine- and GABA-mediated inhibitory synaptic events (Pitt et al., 2008; Houston et al., 2009), reducing the firing probability of Purkinje neurons (Houston et al., 2009). Interestingly, the structural basis of this effect was described as a direct effect of chloride ions acting in the pore of glycine and GABA channels (Moroni et al., 2011). Therefore the elevated [Cl^-]_i likely accounts for the prolonged relaxation of GABA/Gly IPSCs in SOD MNs. The increase in [Cl^-]_i affect GABA_AR and GlyR and thus IPSCs duration (Pitt et al., 2008; Houston et al., 2009; Moroni et al., 2011). In P10 rat MNs a change from 10 mM [Cl^-]_i to 131 mM led to an increase in tau_decay from 9.2 ms to 19.8 ms (Pitt et al., 2008). In P12 Purkinje cells a change from 10 mM [Cl^-]_i to 150 mM led to an increase in tau_decay from 14 ms to 19.8 ms (Houston et al., 2009). Finally, in HEK-293 cells, a change from 10 mM [Cl^-]_i to 30 mM and then 131 mM led to an increase in tau_decay from 9.6 ms to 12 ms and then 22 ms (Pitt et al., 2008). Even though our data highlight a more prolonged tau_decay in SOD GABA_AR/Gly IPSCs, we cannot directly link tau_decay values to physiological [Cl^-]_i values, because tau_decay values have been collected from CsCl recordings in which [Cl^-]_i was set as being elevated.

Impaired KCC2 expression or function is involved in a number of neurodevelopmental and neurological disorders (Doyon et al., 2016). We provide evidence that altered E_GABA in E17.5 SOD1^G93A mouse embryo likely arises from down-regulation of KCC2 in the lumbar cord and lumbar MNs. Again this down-regulation of KCC2 is unlikely linked to the decrease in the size of the SOD MNs, that is smaller neurons have less volume of the cytosol and less surface of the membrane to host KCC2, because soma perimeters and surface of E17.5 WT MNs and SOD MNs were found as similar (Martin et al., 2013). KCC2 protein has been quantified at the soma level and proximal dendrites that are not affected in SOD1 MNs. Also KCC2 efficacy and E_GABAR have been assessed at the soma level. SOD MNs do not have less volume to adjust and the lower efficacy of KCC2 in SOD MNs is not related to a change in MN size.

In hippocampal pyramidal neurons, NKCC1 up-regulation has been the proposed mechanism that drives transient perinatal GABA switch in rodent models of autism (Tyzio et al., 2014). However, our data show that NKCC1 is unaltered in the E17.5 lumbar SCs. KCC2 down-regulation in the hippocampus delays postnatal GABA shift in oxytocin receptor knockout mouse model of autism (Leonzino et al., 2016). More recent evidence shows that KCC2 down-regulation explains long-lasting effects of adolescent nicotine exposure (Thomas et al., 2018). In ALS-vulnerable motoneurons of adult SOD1^G93A mouse lumbar cord, a strong decrease of mRNA and protein expression levels was reported (Fuchs et al., 2010). Thus, KCC2 is a likely molecular substrate underlying perinatal alteration of chloride homeostasis in the lumbar spinal cord.

It may be surprising to observe a tau_decay more prolonged in SOD MNs when [Cl^-]_i is imposed (0 mV or −45 mV). Indeed, when we imposed similar [Cl^-]_i in SOD and WT MNs, we expected a similar tau_decay in SOD and WT. However, since our data clearly indicate a deficit in KCC2 efficacy in SOD MNs, the actual [Cl^-]_i may have been counteracted in WT MNs by the KCC2 protein more effectively than in SOD MNs. Therefore, we observed a longer relaxation of GABA_AR-mediated/GlyR mediated mIPSCs, sIPSCs and VLF-evoked IPSCs in SOD MNs compared to WT.

Our first series of computer simulations demonstrated that increasing tau_decay from 20 ms to 25 ms clearly potentiated the efficacy of GABA/glycine inhibition. With a tau_decay of 20 ms, a 20 Hz barrage of inhibitory inputs totally blocks WT-like MN firing activity (12 Hz, i.e. locomotor firing frequency, with E_Cl = -60mV). In contrast, SOD-like MNs (with E_Cl = -50mV) required a ~ 90 Hz inhibitory barrage to suppress their firing. Increasing tau_decay to 25 ms significantly reduced the threshold cutting frequency to ~70 Hz in SOD-like MNs. Those blocking frequencies are in agreement with GABA/glycinergic event frequencies encountered in lumbar spinal MNs during fictive locomotion (>100 Hz) (Figure 6—figure supplement 2C, D). Increasing tau_decay from 20 ms to 25 ms also leads to a higher capacity of shunting effect summation (Branchereau et al., 2016). This is clearly visible in Figure 8B in which the increased shunting effect tends to maintain E_m towards E_GABAAR and prevents spike occurrence (compare green and blue traces).

Our second series of computer simulations demonstrate that increasing tau_decay slowed-down the locomotor rhythm (Figure 7). This is in agreement with our findings that the pharmacologically-evoked locomotor rhythm in SOD SCs was slower than in WT SCs (Figure 3B). The effect of IPSCs tau_decay on locomotor rhythm was only observed when E_GABAAR was set to −60 mV in the interneurons of a central-pattern generator (CPG, half-centers) (Figure 7). To our knowledge, however, no E_GABAAR and g_GABA/Gly measurements have been obtained in the CPG interneurons of ALS mouse models. In their study of 2–3 week in vitro organotypic slice cultures of the spinal cord (from E12-E13), Medelin et al. (2016) suggested that the Cl^- reversal potential is similar in SOD1^G93A and WT ventral interneurons, around −60 mV. However, neither the excitatory versus inhibitory nature of the recorded interneurons, nor their relationship with CPG circuitry were reported in their study. Our computer model of locomotor rhythm was based on half-center interneurons without considering the output MNs. Therefore it may be argued that changes in IPSCs tau_decay observed in spinal MNs has nothing to do with the spinal locomotor rhythm generator. However, a recent study clearly demonstrated that MNs participate to the rhythm generation in neonatal mouse (Falgairolle et al., 2017). Therefore the effect of tau_decay increase observed in SOD MNs could therefore impinge the locomotor rhythm frequency.

All procedures were carried out in accordance with the local ethics committee of the University of Bordeaux and European Committee Council directives. All efforts were made to minimize animal suffering and reduce the number of animals used. B6SJLTgN(SOD1-G93A)/1Gur/J mice expressing the human G93A Cu/Zn superoxide dismutase (SOD1) mutation (Gly93→ Ala substitution) were obtained from the Jackson Laboratory (https://www.jax.org/strain/002726). Heterozygous B6SJL-TgN(SOD1-G93A)/1 Gur/J (named SOD in this report) were maintained by crossing heterozygous transgene-positive male mice with B6SJL F1 hybrid females (Janvier labs, France). Gestation in SOD lasted for ~18.5 days, embryonic day 0.5 (E0.5) being defined as the day after the mating night. Experiments were performed on E17.5 fetuses, that is collected one day before their birth.

Pregnant mice were sacrificed by cervical dislocation. A laparotomy was performed and the fetuses were removed after cutting the uterine muscle. Fetuses were removed from their individual embryonic sacs and transferred into cooled artificial cerebrospinal fluid (aCSF) oxygenated with a 95% O₂ and 5% CO₂ mixture. The composition of the latter was in mM: 114.5 NaCl, 3 KCl, 2 CaCl₂-2H₂O, 1 MgCl₂-6H₂O, 25 NaHCO₃, 1 NaH₂PO₄-H₂O, 25 D-Glucose, pH 7.4 and osmolarity 307 mosmol/kg H₂O. Only fetuses that displayed active movements were chosen for experiments. The fetuses selected were then decapitated and the SC preparation was dissected out. Their tails were preserved for subsequent genotyping. An incision was performed on the ventral side of the lumbar cord (between the midline and ventral roots) at the level of lumbar 4–5 (L4-L5) ventral roots, which innervate the extensor muscles, in order to remove the meninges. This exposes the MNs and makes them accessible for the patch-clamp electrode (generally 1–2 MNs recorded in each SC). The SC preparation was placed in a recording chamber and continuously superfused (~1.5 mL·min⁻¹) with oxygenated aCSF. All experiments were carried out at constant temperature (30°C). Experiments were performed blindly without knowing the genotype of the animals. Fetuses were genotyped at the Genotyping Platform at the Magendie Neurocentre (Bordeaux). The genotyping was performed by standard PCR from mice tail samples using established primers and a protocol as stated by the Jackson Laboratory.

WB analysis was performed on whole E17.5 lumbar spinal cords. For protein extraction, 15 WT and 15 SOD mice, from four different litters, were used. Each of the 15 lumbar spinal cords were divided into three groups of five lumbar SCs, crushed (micro-potter, PP750ACD), and homogenized with mammalian lysis buffer (Qproteome MammalianProtein Prep Kit, Qiagen) with a phosphatase inhibitor cocktail (Millipore Sigma). Homogenate was incubated (5 min at 4°C), centrifuged (10 min at 4°C to 14,000 RCF) to recover the supernatant from debris and stored 48 hr at −80°C. Total protein concentration in the supernatant solution was determined by the DC protein assay (Bio-Rad) using an iMark microplate reader (Bio-Rad). Briefly, colorimetric technique was used to measure color change proportional to total protein concentration. Based on a determined concentration of total protein, volume of a supernatant solution that contains a desired amount of total protein could be calculated. Then, samples were deposited at −80°C for future use. WB was performed by denaturing the sample at 100°C for 5 min and loading 20 μg of protein of each sample (3 wells of WT and 3 wells of SOD samples) in Mini-PROTEAN TGX Stain-Free Gels (Bio-Rad) with migration buffer (2.5 mM Tris, 19.2 mM Glycine, 0.01% SDS prepared from 10X Tris/Glycine/SDS (Bio-Rad). Molecular weight markers (Precision Plus Protein All Blue Standards, Bio-Rad) were used in each individual gel. Electrophoresis of the samples and MW markers was powered by electrophoresis power supply EPS 600 (Pharmacia Biothe, Sweden) device at 250V. In order to be able to visualize the total proteins (stain free), the gel was activated in ChemiDoc MP imaging system (Bio-Rad). The transfer from gel to mini format 0.2 μm nitrocellulose membrane pack (Bio-Rad) was made using Trans-Blot Turbo Transfer System (Bio-Rad). Once the transfer was confirmed with ChemiDoc MP imaging system, membrane was blocked with 5% milk in tris-buffered saline (Millipore Sigma) containing 2% Tween-20 (Millipore Sigma) (TBST) buffer for 1 hr on agitator (Heidolph, UNIMAX 1010, Germany), and then incubated with primary antibody at 4°C overnight. The primary antibodies used were rabbit polyclonal anti-KCC2 (1:1000, reference Millipore 07–432, Millipore Sigma) or mouse monoclonal anti-NKCC1(1:400, reference T4 from Developmental Studies Hybridoma Bank, The University of Iowa, USA). The next day, membrane was washed 3–5 times using TBST and incubated with goat anti-rabbit or anti-mouse Horseradish Peroxidase (HRP) conjugated secondary antibody diluted to 1:20000 (Euromedex or Bio-Rad) for 1.5 hr at room temperature. After 3–5 rinses in TBST, total proteins on the membrane were visualized using a ChemiDoc MP imaging system (Bio-Rad). Membrane was then incubated 5 min in Clarity western ECL substrate (Bio-Rad) and the KCC2 or NKCC1 protein was visualized using the using the ChemiDoc. Four rounds of WB were run from the same deposited WT and SOD spinal cord samples. The ~140 kDa KCC2 band and ~150 kDa NKCC1 were analyzed.

The stain-free staining of total proteins loaded was used as the normalization control to quantify the KCC2 or NKCC1 band. Quantification was performed using Image Lab (Bio-Rad). Data presented are normalized to mean values from WT samples.

Immunohistochemistry was performed on frontal sections from lumbar SCs prepared as follows. The mice used were offspring of female Hb9-eGFP mice cross bred with SOD male mice. These mice express GFP in the dendrites and the soma of spinal MNs. The lumbar SC samples of SOD and WT embryos at E17.5 were fixed in 4% paraformaldehyde (PFA) for 2 hr at room temperature. They were rinsed three times with 0.1 M Phosphate Buffer Saline (PBS) and then cryoprotected in 15% sucrose for 24 hr, followed by 30% sucrose for another 24 hr. After placing them in Tissue-Tek (O.C.T. Compound, Sakura Finetek) and freezing, the samples were sliced using a Leica 3050 s Cryostat. Sections (20 µm thickness) were affixed on gelatinized slides and preserved at −25°C until their use. Each slide was rinsed three times with 0.1 M PBS, blocked with a medium containing 2% bovine serum albumin (BSA), then incubated for 48 hr with primary antibodies prepared in PBST (1% triton, BSA 0.2%). We processed the sections with an anti-synaptophysin antibody (1:500, mouse monoclonal, Clone SVP38, Millipore Sigma) coupled either with a rabbit polyclonal antibody directed against the vesicular inhibitory amino acid transporter (1:1000, VIAAT, antibody Provided by B. Gasnier, Paris Descartes University). VIAAT reflects the synaptic release of the GABA and glycine neurotransmitters (Dumoulin et al., 1999). The rabbit polyclonal anti-FoxP1 antibody (1:500, AB2277, Millipore) was also used to assess the LMC identity of recorded MNs (Figure 1—figure supplement 1) (Dasen et al., 2008). For KCC2 staining, we used the rabbit polyclonal anti-KCC2 antibody (1:400, reference Millipore 07–432, Millipore Sigma). After three rinses, slides were incubated for 2 hr at room temperature with a goat anti-rabbit secondary antibody Alexa Fluor 546 (A-11035) and/or goat anti-mouse secondary antibody Alexa Fluor 647 (A-21235) (1:500, Invitrogen, France) and then rinsed with 0.1 M PBS. After rinsing, slides mounted with an anti-fade reagent (Fluoromount, Electron Microscopy Sciences) and stored at 4°C in obscurity until confocal observation.

Samples were visualized either in the laboratory with a BX51 Olympus Fluoview 500 confocal microscope or in the Bordeaux Imaging Center (BIC) with a SP5 Leica. Serial optical sections (thickness 0.2 μm) were obtained using a x60 oil-immersion objective. Lasers were selected according to the wavelength required for visualization. The different transporters and proteins were visualized as spot aggregates. Spots were detected using the spot detector plugin in Icy version 1.8.1.0, a quantitative image analysis program (Institut Pasteur - CNRS UMR 3691). Spots were then quantified and the co-localization of synaptophysin with VIAAT was assessed in the marginal zone edging the MN soma location. The percentage of co-localization was calculated according to the surface of the synaptophysin positive area. The global and membrane KCC2 staining density was assessed using Image J. For the KCC2 membrane staining a specific macro, allowing to delineate the periphery of MNs and quantify the KCC2 staining density, was developed by Sébastien Marais from the BIC. Briefly, the contour of Hb9-eGFP MNs was manually outlined in order to build an area (five pixels on each side of the outline), in which KCC2 punctiform profiles were automatically detected. Density of KCC2 puncta was then calculated as the number of puncta relative to the outline area. Values are expressed as arbitrary unit (AU).

Patch-clamp electrodes were constructed from thin-walled single filamented borosilicate glass (1.5 mm outer diameter, Harvard Apparatus, Les Ulis, France) using a two-stage vertical microelectrode puller (PP-830, Narishige, Tokyo, Japan). Patch electrode resistances ranged from 3 to 5 MΩ. All recordings were made with an Axon Multiclamp 700B amplifier (Molecular Devices, Sunnyvale, CA, USA). Data were low-pass filtered (2 kHz) and acquired at 20 kHz on a computer via an analog-to-digital converter (Digidata 1322A, Molecular Devices) and a data acquisition software (Clampex 10.3, Molecular Devices).

Motorized micromanipulators (Luigs and Neumann, Ratingen, Germany) were used to position the patch-clamp electrode on a visually identified MN using a CCD video camera (Zeiss Axiocam MR). Recorded MNs were located in the lateral column (Figure 1—figure supplement 1) and were identified by their pear-shaped cell bodies. Values of Rin and Cm also further confirmed the motoneuron identity of recorded neurons (Martin et al., 2013).

For the KCC2 efficacy assessment, the aCSF contained the following in mM: 127 NaCl, 6 KCl, 2 CaCl₂ 2H₂O, 1 MgCl₂ 6H₂O, 20 HEPES, 11 D-glucose, osmolarity 306 mosmol/kg H₂O, oxygenated with 100% O₂, pH adjusted to 7.4 with NaOH. The patch-clamp recording pipette was filled with the following in mM: 120 K-gluconate, 13 KCl, 1 CaCl₂ 2H₂O, 10 mM HEPES, 5 CsCl, 1 TEACl, 10 µM Verapamil, 2 ATP Mg²⁺, 10 EGTA, pH = 7.4 adjusted with KOH. This led to a theoretical E_Cl of −49 mV. In order to challenge the KCC2 efficacy, MNs were voltage-clamped at −20 mV (above E_Cl) while isoguvacine was applied during 40 s, inducing a massive influx of chloride ions. Actual E_Cl was measured by holding the voltage from −100 mV to 10 mV using a 1 s ramp protocol (Figure 2C1). Subtracting the ramp current obtained in the presence of isoguvacine to the control ramp current allowed to determine E_Cl (Figure 2C1).

For recordings of IPSCs, patch pipettes were filled with cesium chloride (CsCl) intracellular medium, the composition of which being (in mM): 130 CsCl, 4 MgCl₂-6H₂O, 10 HEPES, 10 EGTA, 4 ATP-2Na, 302 mosmol/kg H₂O. The pH was adjusted to 7.4 with the addition of CsOH. The intracellular CsCl medium led to an E_GABAAR that approached 0 (2.89 mV), allowing a clear visualization of Cl^--dependent IPSCs. All synaptic events were recorded while holding the membrane potential of MNs at −70 mV.

In order to assess both Glu and GABA/Gly synaptic events in individual neurons (Figure 6—figure supplement 2), whole-cell patch-clamp recordings were conducted in voltage-clamp mode (holding membrane potential −45 mV). The intracellular medium was composed of (in mM): 130 KGluconate, 5 NaCl, 1 CaCl2, 2H2O, 10 HEPES, 10 EGTA, and 2 MgATP, (284 mosmol/kg H2O) adjusted to pH 7.4 using 1M KOH.

For E_GABAAR assessment, gramicidin perforated patch-clamp recordings were conducted. For perforation, a gramicidin (Millipore Sigma) stock solution was dissolved at 10 μg ml⁻¹ in DMSO (Millipore Sigma) and diluted to a final concentration of 10–20 μgml⁻¹ in the intracellular medium composed of (in mM): 130 KCl, 10 HEPES, 10 EGTA, and 2 MgATP, (284 mosmol/kg H₂O) adjusted to pH 7.4 using 1M KOH. Gramicidin stock and diluted solutions were prepared <1 hr before each experiment. Pipette tips were filled with a filtered ∼3 μL intracellular medium and subsequently back-filled with gramicidin solution. The GABA_AR specific agonist isoguvacine (50 µM, Bio-Techne, France) was pressure ejected (∼ 3 psi; 50 ms) via a puff pipette placed in the vicinity of motoneuron somata with a PicoSpritzer II (Parker Hannifin Corporation, Fairfield, NJ, USA) driven by a programmable Master 8 Stimulator/Pulse Generator (Master-8, A.M.P.I. Jerusalem, Israel). Isoguvacine applications were repeated at different membrane voltages, allowing to assessment of the reversal potential of evoked GABA_AR-related currents. Measurements were corrected for liquid junction potentials (3.3 mV) calculated with the Clampex junction potential calculator. Using the Nernst equation, E_GABAAR was calculated to be 1.5 mV. Thus, to confirm that the perforated-patch configuration had not ruptured during the experiment, repetitive E_GABAAR tests were performed. Measurements leading to an E_GABAAR close to 0 mV were considered as whole-cell recordings and cells were discarded. The Clampex membrane test was used to monitor the input resistance (Rin) and membrane capacitance (Cm): a −60 mV holding membrane potential and 5 mV steps (negative and positive, 40 ms duration) were chosen. The reversal potential for GABA_AR (E_GABAAR) was calculated by a linear fit (Prism seven from GraphPad Software Inc, USA). The tau_rise (ms), and tau_decay (ms) of IPSCs were determined using Spike 2 software version 7.15 (Cambridge Electronic Design, Cambridge, England) and by fitting a single exponential.

In order to elicit evoked IPSCs (eIPSCs) from MNs, a concentric bipolar wire stimulating electrode (FHC, USA) was placed on the ventro-lateral funiculus (VLF) in order to activate local inhibitory fibers. Single stimulations delivered to the VLF (duration 1 ms, intensity ranging 10–20 µA) were driven by a programmable Master 8 Stimulator/Pulse generator (Master-8, A.M.P.I. Jerusalem, Israel).

For extracellular recordings of locomotor-like activity, left and right lumbar ventral roots (at the level of L3 to L5) were recorded. Raw signals were collected with a high-gain AC amplifier (ISO-DAM8A-4 Bio-amplifier System, World Precision Instruments Ltd, Stevenage, UK). Filtered (cutoff frequency: 0.3–3 kHz) raw signals were integrated off-line and analyzed using Spike 2 software. Locomotor-like activity was elicited by applying a cocktail of 5-HT 10 µM, NMDA 10 µM and DA (100 µM) (5-HT/NMDA/DA). This cocktail has been previously established (Han et al., 2007; Milan et al., 2014) to evoke stable locomotor-like activity. Two 50 s representative episodes of strongly alternating locomotor-like activity (assessed by the Rayleigh's test) were analyzed in each WT and SOD experiment.

In gramicidin perforated experiments and in experiments performed for assessing the KCC2 efficacy, GABA_AR responses were isolated by using a cocktail of drugs containing 0.2 μM tetrodotoxin (TTX, Latoxan Laboratory, France), 4 mM kynurenic acid (Millipore Sigma), 10 μM (+)-tubocurarine (Millipore Sigma), 5 μM Dihydro-β-erythroidine hydrobromide (DHβE, Bio-techne, France), and 3 μm strychnine (Millipore Sigma) that respectively blocked voltage-dependent Na⁺ action potentials, and glutamate, cholinergic, and glycinergic input to MNs. In CsCl experiments, IPSCs were isolated pharmacologically using DL-AP5 40 μM ((2R)-amino-5-phosphonovaleric acid, Bio-techne, France) and CNQX 20 μM (6-cyano-7-nitroquinoxaline-2,3-dione, Bio-techne, France). mIPSCs were isolated in the presence of 0.2 μM TTX (Latoxan, France). GABA and glycine mIPSCs were isolated by adding 3 μM strychnine or 3 μM GABAzine (SR 95531 hydrobromide, Bio-techne, France), respectively. These blockers were added to the cocktail containing 0.2 µM TTX, 4 mM kynurenic acid, 10 μM (+)-tubocurarine and 5 μM DHβE. In experiments assessing the KCC2 efficacy, 10 µM bumetanide (Millipore Sigma) was applied to block NKCC1 and 10 µM VU0240551 (Bio-techne, France) (10 µM) to block KCC2. Serotonin (5-HT, 10 µM), dopamine (DA, 100 µM) and N-Methyl-D-aspartic acid (NMDA, 10 µM) were from Millipore Sigma.

Data analysis was performed using Clampfit 10.6 (Axon Instruments), MiniAnalysis 6.0. or Spike 2. For synaptic event analysis, 100–200 s recording samples were selected from each MN. All selected synaptic events were concatenated for SOD versus WT MNs. After analysis, the information obtained included mean values for event amplitude (pA), tau_rise (ms), tau_decay (ms) as well as inter-event interval (IEI) (ms). The MN capacitance (Cm), membrane input resistance (Rin) and access resistance (Ra) were recorded immediately after establishing whole-cell patch-clamp. The membrane voltage was held at −70 mV as this corresponds to the resting membrane potential of mice MNs at E17.5 (Delpy et al., 2008). As a result, all events appeared as downward events.

GABA/glycine synaptic events in E17.5 MNs were simulated using a multi-compartment neuron model that was elaborated with the NEURON 7.3 program (Hines and Carnevale, 1997). Two simulated neurons were constructed: an E17.5 WT-like MN and an E17.5 SOD-like MN (Figure 6—figure supplement 1). These canonical MNs, designed from the average topology of real E17.5 MNs, were built on models used in a previous study (Martin et al., 2013). Both MNs were virtually identical, with similar channels and morphologies, except for the terminal dendritic segments of the SOD-like MN that were 40% less in extent than the WT terminal segments (Martin et al., 2013). In each section (dendrites and axon), the number of segments was an odd number calculated according to the d-lambda rule (Hines and Carnevale, 2001; Carnevale and Hines, 2006). The following conductances were used: a passive leakage current (Ileak), a transient K channel (I_A), a voltage-dependent calcium-activated potassium channel (I_C) also called I_K(Ca) (McLarnon et al., 1995; Gao and Ziskind-Conhaim, 1998) and a high-threshold calcium current (I_L) (Walton and Fulton, 1986). Ileak was simulated in each MN section (Ileak = (Eleak-E) • Gleak, with Eleak = −73 mV and Gleak = 1/Rm). Rm, the specific membrane resistance was set to 21200 Ω.cm², in order to obtain an input resistance of 120 MΩ in the WT MN. I_A was present in the axon initial segment (AIS), with G_IA = 0.0033 S.cm⁻²; I_C was present in soma, with G_IC = 0.0025 S.cm⁻². I_L was present in the soma, with G_IL = 8.10^{- 5} S.cm⁻². Each of the axon segments (n = 750) was equipped with Na and K Hodgkin Huxley (HH) channels (GNa = 0.012 S.cm⁻² and GK = 0.0036 S.cm⁻², respectively) used to generate spikes. The density of Na and K channels in the initial segment (GNa = 0.5 S.cm⁻² and GK = 0.15 S.cm⁻²) were adjusted in order to obtain a spike threshold of −48 mV for the WT MN (for more details see Appendix 1).

In addition, calcium dynamics (Blaustein, 1988) were added in the soma to reproduce calcium accumulation, diffusion and pumping (for more details see [Destexhe et al., 1993]). The parameters used in the intracellular calcium dynamics were: depth = 0.17 μm, tau_r = 1e¹⁰ ms, Ca_inf = 0.0002 mM, Kt = 0.00025 mM.ms-1, Kd = 0.0001 mM, Ca_i = 2.4e⁻⁴ mM and Ca_o = 3 mM.

Inhibitory and excitatory synaptic inputs were inserted on the somatic MN compartment using two exponentials equations (one for rising phase and the other for decay phase). Depolarizing GABAergic/glycinergic post-synaptic current kinetics was set with tau_rise = 0.3 ms and tau_decay = 15/20 ms (for WT/SOD, respectively). Excitatory synaptic current kinetics was set with tau_rise = 0.1 ms and tau_decay = 10 ms. Equations concerning channel properties and GABA_AR synaptic activation are summarized in the Appendix 1.

GraphPad Prism 7 software was used to analyze all the data. The results are presented as means ± the standard error of the mean (SEM) unless otherwise specified. n is the number of MNs used in the analysis and N the number of fetuses. Significance was determined as p<0.05 (*), p<0.01 (**), p<0.001 (***) or p<0.001 (***). The difference between the cumulative frequencies was analyzed using the Kolmogorov-Smirnov (K-S) test. The statistical differences between two data sets were assessed with the Mann Whitney test for non-parametric data.

Simulations were carried out with NEURON 7.3 (Carnevale and Hines, 2006). A WT- and a SOD1^G93A–like MN were used (Martin et al., 2013). Both MNs were identical, with similar channel properties and morphologies, except for the terminal dendritic segments of the SOD1^G93A–like MN that were 40% less extensive than those of the WT. The WT-like canonical E17.5 MN was composed of a cell body (11 µm in diameter), 15 main dendrites, and an initial segment and axon. The initial segment (length = 30 µm) was separated from the soma by a passive compartment (length = 10 µm). Since we sought to study fine consequences of IPSc shape on MN excitability, the axon length was increased to 2000 µm in order to avoid seal-end effects. In each section (dendrite and axon), the number of segments was an odd number calculated according to the d-lambda rule (Hines and Carnevale, 2001; Carnevale and Hines, 2006). The properties of each compartment could be defined independently.

In each compartment, the capacitance c_m (µF) was calculated in accordance with the equation:

(area is the membrane surface of the compartment in cm², and C_m is the specific membrane capacitance, set to 1 µF.cm⁻²).

In addition, a passive leak current was simulated in each compartment by the equation:

(E_leak and G_leak are the leak equilibrium potential and leak conductance, respectively. In the present simulations, E_leak = −73 mV, and G_Leak = 1/R_m; with R_m, the specific membrane resistance was set to 21200 Ω.cm², in order to obtain an input resistance of 120 MΩ in the WT-like MN (Martin et al., 2013). E is the membrane potential).

All computations were carried out assuming a specific axoplasmic resistance, R_a, of 100 Ω.cm.

In addition to passive properties, each of the axon compartments possessed active properties simulated by Hodgkin and Huxley (HH) Na and K channels. Their densities, adjusted in order to obtain a spike threshold of −48 mV for the WT-like MN, were respectively:

gNa_hhMax = 0.50 S.cm⁻² and gK_hhMax = 0.15 S.cm⁻² in the initial segment

gNa_hhMax = 0.012 S.cm⁻² and gK_hhMax = 0.0036 S.cm⁻² in the axon. The formalism of HH channels were described by standard HH Na and K channels kinetic equations:

In order to mimic the adaptation of firing frequency observed in real WT MNs, Ca-dependent K channels (K_Ca), L-type calcium channels and intracellular calcium dynamics were added in the soma.

The calcium dynamics was used to set the decay of the intracellular concentration of calcium based on a calcium pump (for more details see [Destexhe et al., 1993]) and first-order decay buffering:

where Ca_inf is the equilibrium intracellular calcium value (usually in the range of 200–300 nM) and tau_r is the time constant of calcium removal. The dynamics of submembrane calcium is usually thought to be relatively fast, in the 1–10 millisecond range (Blaustein, 1988).

I_A is present in the axon initial segment (AIS), with G_IA = 0.0033 S.cm⁻²; I_C is present in soma, with G_IC = 0.0025 S.cm⁻². I_L is present in the soma, with G_IL = 8.10^{- 5} S.cm⁻².

The parameters used for the intracellular calcium dynamics were:

depth = 0.17 μm, tau_r = 1e10 ms, Ca_inf = 0.0002 mM, Kt = 0.00025 mM.ms-1, Kd = 0.0001 mM, Ca_i = 2.4e⁻⁴ mM and Ca_o = 3 mM.

Simulations of CPG activity were achieved with NEURON 7.3 using two pacemaker interneurons coupled via reciprocal inhibition. The interneurons were composed of a cell body (diam. = 10 µm), a main dendrite (length = 200 µm, diam. = 5 µm), an initial segment and an axon. The initial segment (length = 20 µm) and the axon (length = 1000 µm) had the same diameter (2 µm). The number of segments was an odd number calculated according to the d-lambda rule.

Based on the same formalism as in MN, parameters values were adjusted as follow for the two pacemaker interneurons. In each compartment, the specific capacitance C_m was set to (1 µF.cm⁻²), R_m, the specific membrane resistance was set to 80000 Ω.cm², and R_a, the specific axoplasmic resistance, was set to 100 Ω.cm. Resting membrane potential was set to −75 mV by adjusting E_Leak.

In addition to passive properties, the soma and each of the axon compartments possessed active properties simulated by Hodgkin and Huxley (HH) Na and K channels. The formalism of HH channels were identical to that used for MNs (see above). Their densities were adjusted to fit a somatic spike amplitude of 105 mV, and general properties of pacemaker interneurones described in Tazerart et al. (2008). They were respectively:

gNa_hhMax = 0.020 S.cm⁻² and gK_hhMax = 0.005 S.cm⁻² in the soma

gNa_hhMax = 0.400 S.cm⁻² and gK_hhMax = 0.075 S.cm⁻² in the initial segment

gNa_hhMax = 0.024 S.cm⁻² and gK_hhMax = 0.0036 S.cm⁻² in the axon.

Small densities of HH K channels were also inserted into the dendritic compartment (gK_hhMax = 0.0008 S.cm⁻²) to prevent inactivation of HH Na channels present in the soma.

Pacemaker activities of the two interneurons were obtained using a persistent sodium channel (NaP) and a calcium-dependent potassium channel (K_Ca), which were inserted into the soma and dendrite.

gNaPMax = 0.02 S.cm⁻² in soma and gNaPMax = 0.06 S.cm⁻² in the dendrite.

gKCaMax = 0.2 S.cm⁻² in soma and gKCaMax = 0 S.cm⁻² in the dendrite.

KCa kinetics was modeled according to Stacey and Durand (2000).

To ensure calcium entry to activate KCa, I_L was present in the soma, with G_IL = 0.001 S.cm⁻². Calcium dynamics was also used as in MNs, with the following settings:

depth = 0.1 μm, tau_r = 5e⁵ ms, Ca_inf = 1e⁻⁶ mM, Kt = 1e⁻⁶mM.ms-1, Kd = 1e⁻⁷mM, Ca_i = 1e⁻⁵mM and Ca_o = 0.06 mM.
