An efficient CRISPR-based strategy to insert small and large fragments of DNA using short homology arms

  1. Oguz Kanca
  2. Jonathan Zirin
  3. Jorge Garcia-Marques
  4. Shannon Marie Knight
  5. Donghui Yang-Zhou
  6. Gabriel Amador
  7. Hyunglok Chung
  8. Zhongyuan Zuo
  9. Liwen Ma
  10. Yuchun He
  11. Wen-Wen Lin
  12. Ying Fang
  13. Ming Ge
  14. Shinya Yamamoto
  15. Karen L Schulze
  16. Yanhui Hu
  17. Allan C Spradling
  18. Stephanie E Mohr
  19. Norbert Perrimon
  20. Hugo J Bellen  Is a corresponding author
  1. Baylor College of Medicine, United States
  2. Jan and Dan Duncan Neurological Research Institute, Texas Children’s Hospital, United States
  3. Howard Hughes Medical Institute, Harvard Medical School, United States
  4. Harvard Medical School, United States
  5. Howard Hughes Medical Institute, United States
  6. Howard Hughes Medical Institute, Baylor College of Medicine, United States
  7. Howard Hughes Medical Institute, Carnegie Institution for Science, United States
Research Advance
Cite this article as: eLife 2019;8:e51539 doi: 10.7554/eLife.51539
6 figures, 1 video, 1 table, 1 data set and 4 additional files

Figures

ssDNA pipeline is faster than cloning CRIMIC constructs.

(A) Schematic of PCR-based generation of drop-in ssDNA constructs. Gray boxes, UTRs; orange boxes, coding exons; yellow line, coding introns; black line, outside coding introns and exons. (B) Comparison of donor generation pipelines for CRIMIC and PCR-based drop-in ssDNA homology donors. Making ssDNA donors is about 5X faster than making CRIMIC donors.

https://doi.org/10.7554/eLife.51539.002
Figure 2 with 3 supplements
ssDNA homology donors are effective in S2 cells to tag organelles.

(A) Schematic of drop-in cassette encoding for sfGFP artificial exon. Size of the construct including the homology arms is indicated on the right. sfGFP: superfolderGFP; SA: Splice Acceptor of mhc; SD: Splice Donor of mhc; L: flexible linker that consists of four copies of Gly-Gly-Ser. (B) Diagram of steps to isolate cell clones resulting from successful homologous recombination events. (C) Examples of S2R+ cells with organelles marked with GFP. Left panel, antibody staining; middle panel, GFP signal; right panel, the merge.

https://doi.org/10.7554/eLife.51539.003
Figure 2—figure supplement 1
FACS data of control cells (left) and ssDNA knock-in cells (right).

All cell lines express mCherry::Clic, which is present in the parental cell line and thus in these derivatives. Single cell clones with GFP expression levels greater than 2 × 102 were retained.

https://doi.org/10.7554/eLife.51539.004
Figure 2—figure supplement 2
Detection of subcellular localization of GFP tagged proteins in S2 cells.

Left panels, confocal fluorescence detection of GFP fusion proteins in single-cell isolated clones. The specific proteins tagged by GFP knock-in are indicated. Center panels, confocal fluorescence detection of mCherry::Clic, which is present in the parental cell line and thus in these derivatives. Right panels, merged image.

https://doi.org/10.7554/eLife.51539.005
Figure 2—figure supplement 3

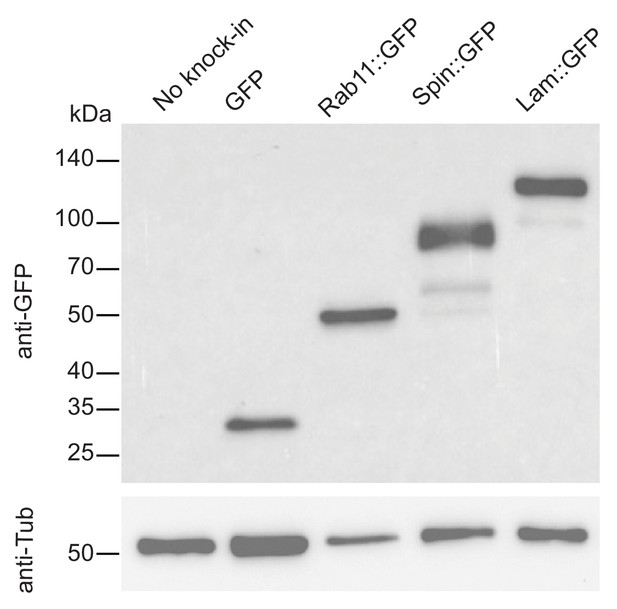

Western blot analysis of tagged proteins observed in S2R+ cells.

Western blot analysis of selected clones using anti-GFP antibody shows expected protein sizes.

https://doi.org/10.7554/eLife.51539.006
ssDNA constructs are not as efficient as double stranded CRIMIC constructs for fly transformation.

(A) Schematic of drop-in cassette used for fly transformation. Size of the construct including homology arms is indicated on the right. (B) Injection results for the 10 genes selected for comparison of transformation efficacy. Numbers indicate positive events/fertile G0 single fly crosses. Red, no positive events; light green, positive non-confirmed events; dark green, genes with PCR-confirmed events.

https://doi.org/10.7554/eLife.51539.009
Figure 4 with 1 supplement
Double stranded DNA synthetic constructs are efficient for fly transformation.

(A) Schematic of synthesized plasmid drop-in donors. mPA indicates minipolyA. (B) Schematic of the donor plasmid followed by linearization by Cas9 in germ cells and integration of donors in vivo. gRNAtarget is gene specific gRNA. (C) Injection results for the 10 genes selected for comparison of transformation efficacy. Numbers indicate positive events/fertile G0 single fly crosses. Red, no positive events; light green, positive non-confirmed events; and dark green, genes with PCR-confirmed events.

https://doi.org/10.7554/eLife.51539.010
Figure 4—figure supplement 1

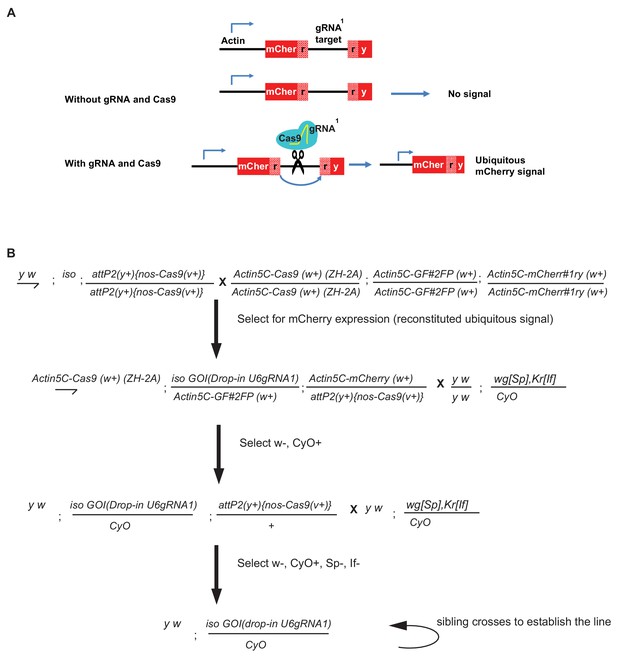

Schematic and crossing scheme for CRISPR gRNA-based dominant marker strategy.

(A) Schematics of the action of gRNA1-based detection of dominant marker. (B) Crossing scheme for screening the transgenics using U6gRNA1 as dominant marker. The crosses for a second chromosome insertion are shown; for insertions on other chromosomes, an appropriate balancer stock would be used in the second and third crosses.

https://doi.org/10.7554/eLife.51539.011
T2A-miniGAL4 gene trap cassette is mutagenic and expresses an active GAL4.

(A) Western blot and quantification of the level of ACOX1 protein in flies homozygous for SA-T2A-miniGAL4-minipolyA, SA-3XSTOP-minipolyA or CRIMIC construct for CG5009. ****p<0.0001, *p<0.01. mPA1 and mPA2 indicate two independent lines of CG5009-SA-3XSTOP-minipolyA. (B) Western blot of β-galactosidase and quantification of heterozygous flies carrying a copy of the miniGAL4 construct compared to heterozygous flies carrying a CRIMIC.

https://doi.org/10.7554/eLife.51539.012
Figure 6 with 1 supplement
Single step cloning method allows efficient insertion of the CRIMIC cassette in coding introns.

(A) Schematic of a single step cloning vector pUC57. LHA Left Homology Arm, RE1 Restriction Enzyme 1, RE2 restriction Enzyme 2, RHA Right Homology Arm. (B) Injection results for the seven genes selected to estimate transformation efficacy. Numbers indicate positive events/G0 single fly crosses. (C) Third instar larval brain expression domain of CG5009 as determined by crossing conventional CRIMIC or drop-in int100-CRIMIC flies to UAS-NLS-mCherry reporter lines. Scale bar is 100 µm.

https://doi.org/10.7554/eLife.51539.013
Figure 6—figure supplement 1

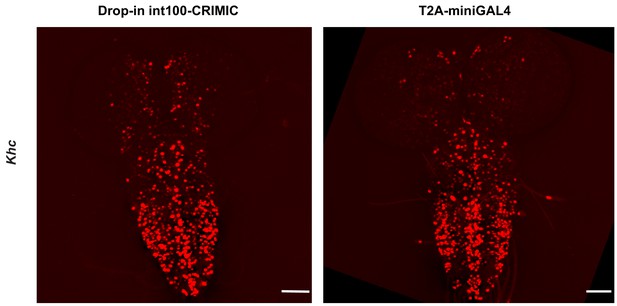

Comparison of expression domain obtained by T2A-miniGAL4 and drop-in int100-CRIMIC.

Third instar larval brain expression domain of Khc as determined by crossing conventional T2A-miniGAL4 or drop-in int100-CRIMIC flies to UAS-NLS-mCherry reporter lines. Scale bars are 100 µm.

https://doi.org/10.7554/eLife.51539.014

Videos

Video 1
Polo-sfGFP knock-in in S2R+ cells through ssDNA drop-in faithfully reports dynamic localization of Polo throughout the cell cycle.
https://doi.org/10.7554/eLife.51539.008

Tables

Table 1
Summary of ssDNA drop-in mediated homologous recombination in S2R+ cells
https://doi.org/10.7554/eLife.51539.007
OrganelleFly proteinclones obtainedpopulation imagedclones imagedinsertion sequence verifiedImmunostainedCorrect GFP localizationDGRC stock#S2R+ expression (modENCODE RPKM)
AutophagosomesAtg8a14NNNN153
Autophagosomes/aggregatesRef(2)P9Ya-Ref2P, a-FK2NN138
Endoplasmic reticulum (ER)Calnexin99A16Ya-Cnx99aY273235
Endoplasmic reticulum (ER), transitionalSec2330YN*294101
Endosomes, earlyRab59NNNN98
Endosomes, recyclingRab1123YN*274302
G-Bodies (cytoplasmic puncta)Pfk14NNNN23
Golgi (cis-Golgi)Gmap10Ya-GMAPY276, 27715
Golgi (trans-Golgi)Sec7110NNNN8
Golgi (trans-Golgi)Golgin2451Ya-Golgin245Y28027
KinetochorePolo2YNY27550
Lipid dropletsSeipin12NNNN9
Lysosomesspin2Ya-Arl8Y293112
LysosomesArl89Ya-Arl8Y29178
MitochondriaTim17b3Na-ATP5ANN266
MitochondriaTom2017Ya-ATP5AY302117
Nuclear membrane, innerdLBR0NNNNN42
Nuclear membrane, innerLamin53Ya-LaminY292249
NucleolusFibrillarin14Ya-FibY278, 27953
PeroxisomesPmp706NNNN26
  1. * = distribution was as expected, but no antibody available to test by co-stain

Data availability

All the fly lines and cell lines generated in this manuscript will be made available through Bloomington Drosophila Stock center and Drosophila Genomics Resource Center.

The following previously published data sets were used
  1. 1
    Zenodo
    1. D Li-Kroeger
    2. O Kanca
    3. PT Lee
    4. S Cowan
    5. MT Lee
    6. M Jaiswal
    7. JL Salazar
    8. Y He
    9. Z Zuo
    10. HJ Bellen
    (2018)
    An expanded toolkit for gene tagging based on MiMIC and scarless CRISPR tagging in Drosophila - sequence files.
