Structural color in Junonia butterflies evolves by tuning scale lamina thickness

  1. Rachel C Thayer  Is a corresponding author
  2. Frances I Allen
  3. Nipam H Patel
  1. Department of Integrative Biology, University of California, Berkeley, United States
  2. Department of Materials Science and Engineering, University of California, Berkeley, United States
  3. California Institute for Quantitative Biosciences, University of California, Berkeley, United States
  4. Marine Biological Laboratory, United States
Research Article
  • Cited 1
  • Views 3,027
  • Annotations
Cite this article as: eLife 2020;9:e52187 doi: 10.7554/eLife.52187

Abstract

In diverse organisms, nanostructures that coherently scatter light create structural color, but how such structures are built remains mysterious. We investigate the evolution and genetic regulation of butterfly scale laminae, which are simple photonic nanostructures. In a lineage of buckeye butterflies artificially selected for blue wing color, we found that thickened laminae caused a color shift from brown to blue. Deletion of the optix patterning gene also altered color via lamina thickening, revealing shared regulation of pigments and lamina thickness. Finally, we show how lamina thickness variation contributes to the color diversity that distinguishes sexes and species throughout the genus Junonia. Thus, quantitatively tuning one dimension of scale architecture facilitates both the microevolution and macroevolution of a broad spectrum of hues. Because the lamina is an intrinsic component of typical butterfly scales, our findings suggest that tuning lamina thickness is an available mechanism to create structural color across the Lepidoptera.

eLife digest

From iridescent blues to vibrant purples, many butterflies display dazzling ‘structural colors’ created not by pigments but by microscopic structures that interfere with light. For instance, the scales that coat their wings can contain thin films of chitin, the substance that normally makes the external skeleton of insects. In slim layers, however, chitin can also scatter light to produce color, the way that oil can create iridescence at the surface of water.

The thickness of the film, which is encoded by the genes of the butterfly, determines what color will be produced. Yet, little is known about how common thin films are in butterflies, exactly how genetic information codes for them, and how their thickness and the colors they produce can evolve.

To investigate, Thayer et al. used a technique called Helium Ion Microscopy and examined the wings of ten related species of butterflies, showing that thin film structures were present across this sample. However, the different species have evolved many different structural colors over the past millions of years by changing the thickness of the films.

Next, Thayer et al. showed that this evolution could be reproduced at a faster pace in the laboratory using common buckeye butterflies. These insects mostly have brown wings, but they can have specks of blue created by thin film structures. Individuals with more blue on their wings were mated and over the course of a year, the thickness of the film structures increased by 74%, leading to shiny blue butterflies. Deleting a gene called optix from the insects also led to blue wings. Optix was already known to control the patterns of pigments in butterflies, but it now appears that it controls structural colors as well.

From solar panels to new fabrics, microscopic structures that can scatter light are useful in a variety of industries. Understanding how these elements exist and evolve in organisms may help to better design them for human purposes.

Introduction

Structural colors are both visually delightful and abundant in nature. Organisms deploy structural colors to display hues for which they lack pigments (frequently blues and greens), to create specific optical effects such as iridescence or light polarization, and to mediate ecological interactions, including intraspecific signaling and camouflage. Unlike pigmentary color, which is caused by molecules that selectively absorb certain wavelengths of light, structural colors result from the constructive and destructive interference of light as it interacts with nanoscale, precisely-shaped physical structures that are made of a high refractive index material (e.g. keratin, chitin, or cellulose).

Despite the clear importance of structural color for living systems, the biological production of structural colors has long eluded characterization (Cuthill et al., 2017). Many experimental techniques depend on harnessing variation to dissect biological processes, but photonic structures are so small that quantitatively measuring variation in their dimensions is technically demanding, especially for high-throughput sampling, detecting subtle variation that may segregate within populations, or analyzing over developmental time in vivo. The color itself is easier to quantify, but has limited utility as a proxy for nanostructural dimensions, since structural colors and pigments often co-occur and covary. While recent studies (Parnell et al., 2018; Matsuoka and Monteiro, 2018; Brien et al., 2018) have made early headway toward describing genetic regulation of structural colors, much work remains to decipher the evolutionary, developmental, and genetic bases of structural coloration, and lab-tractable systems with intraspecific variation in structural coloration are needed. We present a promising system, the butterfly genus Junonia, with extensive variation in a simple structural color, and show how structural simplicity is a tactical advantage when seeking to unravel mechanisms for the biological production of nanostructures.

In butterflies, photonic nanostructures occur within the architecture of scales. Scales are the fundamental coloration unit on butterfly wings and have a Bauplan consisting of a grid of ridges and crossribs, supported by a lower lamina that is a simple plane (Figure 1A). Scales are composed of chitin and may also have embedded pigments. Intricate architecture and a high refractive index make scales a pliable substrate for photonic innovations, and indeed scales have been evolutionarily elaborated in many ways for impressive optical effects (Ghiradella, 1985). Even the simplest butterfly scales can produce structural color, via the lower lamina acting as a thin film reflector. Thin films are the simplest photonic structure and consist of a layer of high refractive index material, on the order of hundreds of nanometers thick, surrounded by a material with a contrasting refractive index, such as air (Figure 1B). Light is reflected from each surface of the film, and these two reflections interfere with each other. If the two reflections remain in phase, which depends on the extra distance traveled through the film and the wavelength, then they interfere constructively to produce observable color (Mason, 1927; Yeh et al., 1978). Conversely, wavelengths (colors) that undergo destructive interference have decreased brightness.

Figure 1 with 1 supplement see all

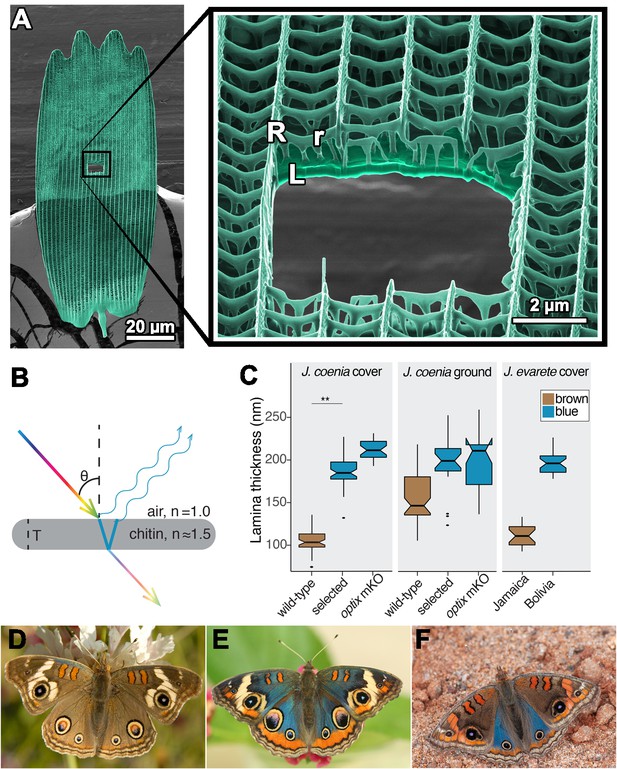

The lamina of a typical butterfly scale functions as a thin film reflector.

(A) Colorized helium ion micrograph of a nymphaline scale, with a window milled using a gallium focused ion beam. Inset at higher magnification, with labels for general architectural components of a scale (R = ridges, r = crossribs, L = lamina). (B) Diagram of reflection and refraction in a chitin thin film. White light enters, reflections are produced at each surface of the film, and reflections of select wavelengths remain in phase as a function of film thickness (T). (C) Experimental disruptions of wing color are associated with altered lamina thickness. In J. coenia, artificial selection for blue color increased lamina thickness in cover scales. In an optix mosaic knockout mutant, certain wing regions have similar thickness increases. This trend recapitulates natural variation in J. evarete, where blue butterfly scales have thick laminae relative to scales from a brown individual. Boxplots show median and inner quartiles, whiskers extend to 1.5 times the interquartile range, outliers are shown as points, and notches show 95% confidence interval of the median. For wild-type and selected J. coenia cover and ground scales, N = 3 individuals and 20–60 measures from different lateral and distal positions within 4–11 scales. J. evarete and optix mutant data are from single individuals, with minimum N = 21 measures from three scales. (** nested ANOVA p=0.00157) (D) Wild-type J. coenia. (E) Blue artificially selected J. coenia. (F) J. evarete.

Image E provided by Edith Smith

While it is known that the thickness of the lower lamina is one parameter that controls structural color wavelength (Stavenga et al., 2014) and that thickness can respond to artificial selection in the laboratory (Wasik et al., 2014), it is not known how general this mechanism is in natural evolution. It is also unknown how lamina structural colors are genetically regulated and whether any recognized butterfly wing patterning genes regulate lamina thickness. Here, we use mutants with deletion of the optix wing patterning gene, artificial selection on wing color, and genus-wide wing color variation to test the role of lamina thickness in generating butterfly color. We show that butterflies in the genus Junonia thoroughly exploit the relationship between film thickness and color, using the thin films necessarily present in their scales to produce a broad spectrum of hues by tuning lamina thickness. These lamina colors work in tandem with pigments to define the wing pattern elements that distinguish populations, sexes, and species, indicating that the ability to vary lamina thickness has been an important microevolutionary and macroevolutionary tool in this group, and likely in butterflies more broadly.

Results

Artificial selection for blue wing color increases lamina thickness

Here we describe a novel instance of rapid, artificially selected color shift from brown to blue wing color in J. coenia buckeye butterflies (Figure 1D–E) and identify the structural changes that enabled the color shift. Edith Smith, a private butterfly breeder, began selectively mating buckeyes with a few blue scales on the costal margin of the dorsal forewing (E. Smith, personal communication, Sep. 2014). After five months of selective breeding, blue spread to the dorsal hindwing of some individuals. By eight months, there was a noticeable increase in blue surface area, and within roughly 12 months (on the order of 12 generations), most butterflies in the breeding colony were visibly blue over the majority of their dorsal wing surface. On the forewing, areas proximal to M1 were visibly blue, except the discal bars (Figure 1—figure supplement 1). On the hindwing, blue shift did not include the distal-most wing pattern elements, namely EI-EIII and eyespots. At its strongest, the phenotype may include blue scales cupping the posterior forewing eyespot and/or a blue sheen in all distal elements of the forewing. Smith maintained the blue colony for several years, introgressing a few progeny from crosses to wild-caught buckeyes about once per year to maintain genetic diversity. Over time, she noted the emergence of a variety of short-wavelength colors, ranging from purple to green. Two years after focused selection, she estimated that the population was 85% blue, 8% green, 2% purple, and 5% brown. Like many familiar examples of human selection (e.g. domesticated animals, crop plants), outcomes are informative even without complete experimental documentation of the selective process (Akey et al., 2010; Wright et al., 2005). These selected blue buckeyes provide a previously unexploited opportunity to study structural color. They demonstrate rapid and extensive evolutionary color change, and make a stark contrast to wild-type brown populations with which they are still interfertile. Conveniently, the artificially selected taxon, J. coenia, is a recognized model species for butterfly developmental genetics (Carroll et al., 1994; Nijhout, 1980b). The selected blue individuals resemble naturally evolved color variants in the sister species, J. evarete (Figure 1F), and offer a useful comparison to a previously reported artificial selection experiment in butterflies (Wasik et al., 2014).

To pinpoint the cause of blueness in artificially selected butterfly scales, we characterized cover scales from the dorsal hindwing (Figure 2A–D). Butterfly wings have two classes of scales arranged in alternating rows that form two layers: superficial cover scales and underlying ground scales. Cover and ground scales frequently have contrasting size, shape, and color, and their juxtaposition can be important for wing color (Stavenga et al., 2014). When isolated and laid in the abwing orientation they occupy on the wing (i.e. ridges facing up), cover scales were blue (Figure 2B). However, when flipped over and viewed in adwing orientation, which exposes only the lower lamina, scales appeared more brightly blue and iridescence was more apparent (Figure 2B’ and D). We tested whether the blue was structural rather than pigment-based by immersing the full scale in oil with a refractive index matched to that of chitin (Figure 2B’’’). Index-matching eliminates the possibility of reflection and structural color, leaving only pigment-based coloration. We measured the scale’s absorption spectrum under these conditions (Figure 3A), which revealed that blue scales did have some pigment, presumably a brown ommochrome (Nijhout and Koch, 1991), but this pigment cannot account for blueness. The pigment was located in the scale ridges (Figure 2—figure supplement 1B). Lepidopteran structural colors may occur in the lamina, lumen, ridges, or crossribs. To isolate which of these features had the nanostructure responsible for blue structural color, we dissected the scales (Figure 2B”, Figure 2—figure supplement 1A). After removing all other scale components, we found that the bare lower lamina was sufficient for blue structural color (Figure 2B”). We also examined regions with all scale components except the lamina and found that these pieces of lamina-less scale were not blue (Figure 2—figure supplement 1C). We thus focused on investigating nanostructure in the lamina. To discern between a single or multilayer lamina and take precise measurements, we cross-sectioned the lamina and viewed it with Helium Ion Microscopy (HIM) (Figure 2C). HIM imaging indicated the lower lamina was a simple monolayer of chitin with a thickness of 187 ± 18 nm (SD, Figure 1C), which is a reasonable thickness to reflect blue as a dielectric thin film (Stavenga et al., 2014).

Figure 2 with 1 supplement see all
Structure and color of Junonia cover scales.

(A–D) Artificially selected blue J. coenia. (E–H) Wild-type J. coenia. (I–L) J. evarete, blue male from Bolivia. (M–P) J. evarete, brown male from Jamaica. (Q–T) optix mosaic knockout mutant (mKO) in J. coenia. (A,E,I,M,Q) Dorsal hindwing, red arrowhead indicates the characterized scale’s location. (B,F,J,N,R) Scale in the orientation it would occupy on the wing, showing the abwing surface of the cover scale. Black scale bars are 25 µm. (B’,F’,J’,N’,R’) Adwing surface of cover scale, showing the underside of the lamina. (B”,F”,J”,N”,R”) Dissected scale with arrow showing regions where all ridges and crossribs are removed to expose the bare lamina. The lamina is sufficient to create iridescent blue and gold structural colors. (B”’,F”’,J”,N”’,R”’) Scale immersed in fluid with a refractive index matched to chitin, thus eliminating reflection to show only pigmentary color. Blue and brown scales have comparable amounts of a brown pigment. (C,G,K,O,S) Helium ion micrograph of cross-sectioned scale. Each lamina is colorized, with approximate thickness indicated by an adjacent red bar (precise measurements were taken at sites chosen as in Materials and methods). White scale bar is 500 nm and applies to all HIM images. (D,H,L,P,T) Reflection spectra for the adwing surface of disarticulated scales. Solid line is the mean spectrum, and blue envelope is one standard deviation; minimum N = 3 scales per graph.

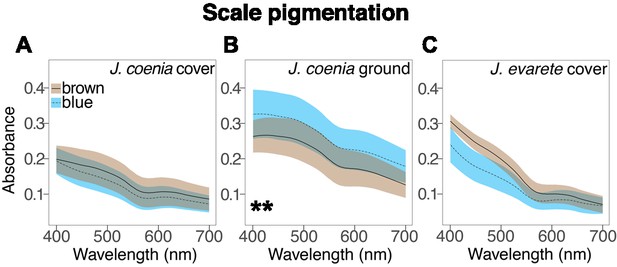

Absorbance spectra show the effect of artificial selection on scale pigmentation.

(A) Absorbance measures in J. coenia wild-type (brown), and artificially selected (blue) cover scales show that both have comparable pigmentation (nested ANOVA, Figure 3—source data 1). (B) Absorbance of selected J. coenia ground scales is increased relative to brown wild-type scales (nested ANOVA, Figure 3—source data 1). (C) Absorbance of both blue and brown J. evarete cover scales is similar to pigmentation in J. coenia cover scales. Plots show mean spectra with envelope of one standard deviation, minimum N = 3 individuals and 15 scales for J. coenia, and N = 1 individual and six scales per J. evarete sample. **p<0.01 at wavelengths tested in Figure 3—source data 1.

We next investigated whether ground scales also contributed to blueness after artificial selection. The ground scales generally had similar architecture to the cover scales, but with less uniform lamina color: ground scales exhibited a color gradient from the stalk outward (Figure 4A–B’). Correspondingly, ground scales had a similar mean thickness but more variability than cover scales (197 ± 31 nm). Ground scales were much more heavily pigmented than cover scales (Figure 3B, Figure 4B”), such that the abwing surface was black (Figure 4B). The extra pigmentation in ground scales enhances spectral purity by absorbing light transmitted through the cover scales, thus reducing backscatter and making the observed blue color more saturated, (similar to Siddique et al., 2016). We conclude that cover scale laminae are the major source of blueness in artificially selected buckeye butterfly scales, while melanic ground scales secondarily enhance spectral purity.

Structure and color of J.coenia ground scales.

(A,C,E) Wings with red arrowhead indicating the region from which scales were sampled. (B,D,F) Scale in abwing orientation, that is ridges facing up. (B’,D’,F’) Scale in adwing orientation, that is lamina facing up. (B”,D”,F”) Scale immersed in fluid with a refractive index matched to chitin, thus eliminating reflection to show only pigmentary color. (A–B”) J. coenia artificially selected ground scales. (C–D”) J. coenia wild-type ground scales. (E–F”) optix mKO mutant ground scales. Scale bars are 25 µm.

For comparison, we tested the source of color in wild-type brown scales and found that they also had structural color (Figure 2E–H). Brown cover scales had the same general architecture and no significant difference in the amount of brown pigment compared to blue cover scales (Figure 3A, Type III nested Analysis of Variance (nested ANOVA), Figure 3—source data 1). The salient difference was lamina thickness: brown scales were markedly thinner, measuring only 107 ± 14 nm (nested ANOVA, p=0.00157, Figure 1C, Figure 2G). A 107 nm chitin thin film reflects a desaturated golden color due to reflectance of many long wavelengths. This golden structural color was confirmed by the adwing scale color, the color of the bare lamina in dissected scales, and the adwing reflectance spectra of brown scales (Figure 2F’–F”, H). Therefore, though brown coloration is often attributed to pigmentation, wild-type brown cover scales also had a structural color, one simply tuned to enhance different wavelengths.

Artificial selection also altered the ground scales relative to wild type (Figure 4A–D). Selected ground scales were significantly more absorbing than wild-type (brown) ground scales (Figure 3B, nested ANOVA, Figure 3—source data 1), which is consistent with increased pigmentation that decreases backscatter in blue wing regions. The wild-type ground scales were thinner on average than the blue ground scales, although the difference was not statistically significant (wild type 156 ± 33 nm; selected 197 ± 31 nm, nested ANOVA, p=0.37, Figure 1C). This comparison was complicated by the fact that although rainbow lamina colors in optical images suggest that each ground scale likely had highly variable thickness (Figure 4B’, D’), we were only able to take measurements from a single cross-section position along any given scale’s proximodistal axis. Consequently, our dataset seriously underestimates the within-scale variation and overestimates the between-scale variation, making this model poorly equipped to detect any differences between groups due to potential masking of the effect. A more conclusive test would require a way to thoroughly sample thickness variation within each ground scale and larger sample sizes. Our results qualitatively suggest that if artificial selection increased lamina thickness in ground scales, the effect was likely less extreme than in cover scales: blue cover scales were on average 80 nm thicker than wild-type, while the observed mean thicknesses of selected and wild-type ground scale laminae differed by only 41 nm.

We conclude that the artificially selected buckeye butterflies rapidly evolved blue wing color via a 74% mean increase in lamina thickness in cover scales and, possibly, a modest increase in ground scales. The effect was further amplified by increased pigmentation in ground scales, but without removing brown pigment from cover scales. Our results show that structural color can evolve quickly by modifying one dimension of an existing structure, and the process is facilitated by the initial presence of previously unrecognized structural color in wild-type brown J. coenia.

Since the artificially selected J. coenia wing pattern resembles natural iridescent variants in the sister species, J. evarete (Figure 1F), we obtained hindwings from brown and blue J. evarete individuals from different geographic locations and tested whether blue cover scales in this species were also associated with increased lamina thickness (Figure 2I–P). We found that the same mechanism explained color differences between geographic color variants: lamina thickness distributions from brown and blue scales were non-overlapping, with blue scales having 78% thicker scale laminae on average (blue 199 ± 14 nm; brown 112 ± 13 nm; Figure 1C). Brown and blue scales had generally similar pigmentation, although brown scales were somewhat more absorbing at short wavelengths (Figure 3C, Figure 3—source data 1). Furthermore, in blue J. evarete, the ground scales were darkly pigmented. Thus, the artificially selected blue buckeyes recapitulate natural variation at the level of scale coloration between sister species.

Color phenotypes in optix mutants include altered lamina thickness

Recently, Zhang et al. used CRISPR/Cas9 to generate mosaic knockout mutants of optix (Zhang et al., 2017), a gene previously associated with pigment variation in butterfly wings (Reed et al., 2011). Surprisingly, in addition to pigmentation phenotypes, optix mutants in J. coenia gained blue iridescence in wing scales. We tested phenotypically mutant blue scales from mosaic butterflies generated by Zhang et al. to determine what structural or pigmentary changes created the color change (Figure 2Q–T). Where blue scales occured in the background region of the dorsal wing, blueness was due to similar factors as identified in artificially selected buckeye scales. Blue scales had markedly thicker laminae than wild-type brown scales (212 ± 11 nm, Figure 1C). The concentration of brown pigment in the cover scales was significantly reduced relative to wild-type scales within the same mosaic wing (Figure 5A, Mann-Whitney U, Figure 5—source data 1) but comparable to pigmentation in artificially selected butterfly scales (Figure 3A, Figure 3—source data 1). Ground scales (Figure 4E–F”) were likewise similar to selected blue ground scales, having thick and variable laminae (199 ± 31 nm, Figure 1C) and significantly increased pigmentation (Figure 5B, Mann-Whitney U, Figure 5—source data 1). Overall, blue scale identity in optix mutants was caused by similar mechanisms as artificially selected blue.

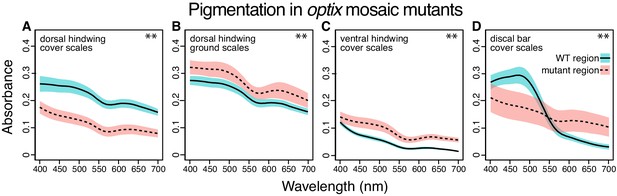

Absorbance spectra show the effect of optix knockout on scale pigmentation across wing pattern elements.

All comparisons are between wild-type and mutant regions in the same mosaic wing. (A) optix mutation decreases absorption in cover scales from the main background region of the dorsal hindwing (Figure 2Q). (B) Absorbance of ground scales from the dorsal hindwing (Figure 4E) is increased in mutant scales. (C) Absorbance increases with optix mutation in ventral hindwing cover scales (Figure 6A,C). (D) In the dorsal discal bars, (Figure 6E,G) optix regulates a switch between orange and brown pigment. Plots show mean spectra with envelope of one standard deviation, N = 6 scales per sample. Differences for all comparisons are statistically significant (Mann-Whitney U, **p<0.01 at wavelengths tested in Figure 5—source data 1).

optix mutant phenotypes also affected structural colors and pigments differently across wing pattern elements. As originally postulated (Zhang et al., 2017), excess melanin was produced in some ventral wing regions (Figure 6A–D, Figure 5C). We also observed regions where both pigment and structure were dramatically changed. For example, discal bars on the dorsal forewing, which are normally orange, gained blue scales through both converting lamina structural color to blue and replacing orange with brown pigment (Figure 6E–H, Figure 5D). The kinds of pigmentation effects were diverse: optix mutation increased the quantity (Figure 5B,C), decreased the quantity (Figure 5A), or switched the identity (Figure 5D) of the pigment in different scales (Mann-Whitney U, Figure 5—source data 1). Because the butterflies were mosaic mutants, some of this phenotypic variability could be due to genotypic differences between clones (i.e. mono- versus biallelic gene deletion, as well as the exact size of the deletion) (Zhang et al., 2017). However, much of the variation in outcome could also be observed within single clones that spanned multiple wing pattern elements (defined by the Nymphalid ground plan [Nijhout, 1991], Figure 1—figure supplement 1), suggesting that the patterning roles of optix are quite context specific.

Effects of optix mutation on structure and color of J.coenia cover scales vary by wing region.

(A,C,E,G) Wings with red arrowhead indicating the region from which scales were sampled. (B,D,F,H) Scale in abwing orientation. (B’,D’,F’,H’) Scale in adwing orientation. (B”,D”,F”,H”) Scale immersed in fluid with a refractive index matched to chitin to show only pigmentary color. (A–B”) Mutant cover scales from an optix mKO ventral hindwing have increased melanin. (C–D”) Wild-type cover scales from an optix mKO ventral hindwing. (E–F”) Mutant cover scales from an optix mKO forewing discal bar have lost orange pigment, gained brown pigment, and increased lamina thickness, resulting in a shift to blue. (G–H”) Wild-type cover scales from the optix mKO forewing discal bar have both orange pigment and an orange lamina structural color. Scale bars are 25 µm.

In summary, optix knockout can have varied effects in a single scale by altering pigmentation, nanostructures, or both. These findings are consistent with optix’s described role as a developmental patterning gene that determines gross switches between discrete scale fates, and which, directly or indirectly, can regulate diverse downstream factors (Martin et al., 2014). Since appropriate coloration critically depends on the proper combination of pigment and structural colors in both cover and ground scales (e.g. Wilts et al., 2011; Wilts et al., 2017), it is of particular interest that optix can regulate all of these components simultaneously. optix mosaic knockout mutants demonstrate that lamina thickness can be experimentally perturbed and highlight a multifunctional candidate genetic pathway for coordinated color evolution.

Lamina thickness consistently predicts structural color wavelength

Relatives of J. coenia exhibit extensive color and pattern diversity, and blue structural colors in particular show patterns of variation that hint at ecological relevance (e.g. sexual dichromatism, seasonal polyphenism) (Figure 7A). To assess the importance of lamina thickness variation in macroevolutionary color diversity, we sampled cover scales from nine species in the genus Junonia and a tenth species, Precis octavia, which belongs to the tribe Junoniini and exhibits seasonally polyphenic wing coloration. We prioritized large pattern elements that distinguish color forms within species. We compared scales using optical imaging, immersion index-matching, spectrophotometry, and Helium Ion Microscopy. All scales sampled had typical Nymphalid scale structure with a single plane of chitin forming the lower lamina.

Lamina structural colors are an important component of overall wing color throughout Junonia.

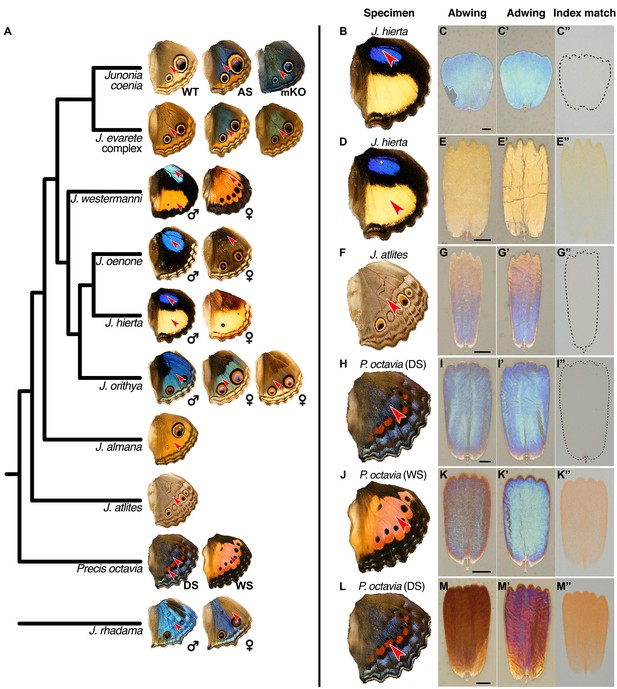

(A) Phylogeny of color variation in Junonia (based on Kodandaramaiah, 2009). Arrowheads indicate the color regions sampled for scale characterization. WT = wild type. AS = artificial selection. mKO = optix mosaic knockout mutant. DS = winter/dry season form. WS = summer/wet season form. J. evarete variants are from different locations. The female J. hierta wing image is reproduced with permission from Krushnamegh Kunte, NCBS. (B,D,F,H,J,L) Dorsal hindwing, arrow indicates the characterized scales’ location. (C,E,G,I,K,M) Abwing surface of cover scale. (C’,E’,G’,I’,K’,M’) Adwing surface of cover scale, showing lamina color. (C”,E”,G”,I”,K”,M”) Scale immersed in fluid with refractive index matched to chitin, thus showing only pigmentary color. (B–C”) J. hierta basal aura scales are unpigmented and appear blue due to lamina structural color. (D–E”) J. hierta has coordinated yellow pigment with a structurally yellow lamina. (F–G”) Neutral light gray of J. atlites is exclusively structural, due to additive color mixing of the multicolored lamina. (H–I”) Blue scales of dry season P. octavia are structurally colored since no pigment is present. (J–K”) Wet season P. octavia has discordant red pigment and blue lamina colors. The red pigment is localized in the ridges and crossribs on the abwing surface of the scale, while blue light from the lower lamina spills through the windows between them. (L–M”) The red band in dry season P. octavia is a more saturated red than in (J), due to the combination of both more red pigment and a structurally reddish lamina.

© 2020 Krushnamegh Kunte, All rights reserved. The female J. hierta wing in panel A is reproduced with permission from Krushnamegh Kunte. This illustration is not covered by the CC-BY 4.0 licence and further reproduction of it would need permission from the copyright holder.

We tested whether the relationship between lamina thickness and color that we observed in experimental contexts applies more broadly. We sought to address two questions: First, does lamina thickness reliably predict lamina color, as measured from the adwing surface? While it is known that the thickness of a dielectric film controls the film’s reflectance, other variables such as refractive index, surface roughness, and pigmentation within the film also factor into reflectance, and these could plausibly vary among taxa. Second, how variable is lamina thickness? What range of thicknesses occur, and is there evidence for either quantized or continuous thickness variation? To address these questions, we measured reflectance spectra from the adwing surface of disarticulated cover scales from the 23 wing regions indicated in Figure 7A. We then cross-sectioned scales, imaged with HIM, and measured thickness.

We found that lamina thickness varied continuously between 90–260 nm, indicating that all thicknesses over a more than 2.5-fold range are accessible (Figure 8A). To better visualize the relationship between thickness and lamina color, we clustered similar samples into five color groups (Materials and methods). Lamina colors in these groups could be described as gold, indigo, blue, and green, with a fifth variable group that included magenta, copper, and reddish colored scales (labeled as ‘red’ in Figure 8). Thickness differed significantly between all color group pairwise comparisons (Figure 8A, nested ANOVA: p<2×10−16, with post hoc Tukey’s Honestly Significant Difference test: p<3×10−8 for all pairwise comparisons). The color groups were also associated with different reflectance profiles (Figure 8B). In some cases, we obtained variable measures within individual specimens, which reflects biological color variation between adjacent scales, as well as varying color within individual scale laminae along their proximal-distal and lateral axes. A particularly striking example of the latter came from J. atlites. While the wing appeared light gray, at higher magnification individual scales could be seen to be multicolored (Figure 7G’), and thickness measures from J. atlites overlapped the ranges of all color groups (Figure 8A, see further analysis below).

Figure 8 with 1 supplement see all

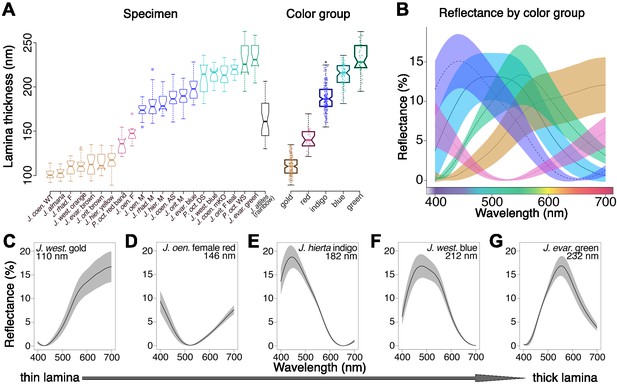

Lamina thickness predicts lamina color across the Junonia phylogeny.

(A) Thickness measures for the regions indicated in Figure 7A vary continuously over a 170 nm range (minimum N = 3 scales and 12 measures per specimen). To visualize the relationship between thickness and color, we clustered similar specimens into five color groups described as gold, red, indigo, blue, and green. Thickness is significantly different between groups (nested ANOVA and Tukey’s HSD, p<3×10−8). J. atlites, which has rainbow color gradients in each individual scale, has especially variable thickness, with measures overlapping the ranges of all color groups. Boxplots show median and inner quartiles, whiskers extend to 1.5 times the interquartile range, outliers are shown as points, and notches show 95% confidence interval of the median. (B) Color groups are associated with different reflectance profiles. Lines are mean spectra and envelopes show one standard deviation. Minimum N = 3 scales per specimen from panel A; clusters follow panel A. (C–G) Adwing reflectance spectra for representative individual specimens with increasing lamina thicknesses. The color sequence follows Newton’s series. Solid line is the mean spectrum and the envelope is one standard deviation; N = 3 scales and six spectra per graph.

Lamina thickness had a consistent relationship with adwing scale reflectance for the taxa and color range we sampled. The order of color shift as lamina thickness increased followed Newton’s series, which is the characteristic color sequence for thin films (Mason, 1927; Shevtsova et al., 2011). This sequence can be understood in terms of an oscillating thin film reflectance function, which shifts toward longer wavelengths as film thickness increases (Figure 8C–G). The thinnest films appeared gold due to reflectance of all the longer wavelengths (Figure 8C). In mid-thickness laminae, a mix of two oscillations determined color: reflectance of the first oscillation was shifted toward far red wavelengths, while a second reflectance peak rose in the ultraviolet (Figure 8D). Visible reflectance of thicker laminae was dominated by the peak of the second oscillation as it moved from indigo to green (Figure 8E–G). That the trend between thickness and reflectance holds broadly suggests that color changes in Junonia butterfly scales have recurrently evolved via lamina thickness adjustments. Moreover, the consistency of the relationship between thickness and reflectance is useful. For example, structural variation could be rapidly surveyed by extracting fitted thickness estimates from reflectance measurements, a much less laborious process than sectioning for electron microscopy.

Lamina structural color influences wing color throughout the genus Junonia

We next tested whether the extensive variation in lamina structural color among Junonia butterflies, explained by lamina thickness, also drives variation in overall wing color. An alternative hypothesis would be that composite wing color is usually dominated by pigmentation, particularly by pigments distributed on the outward-facing abwing surfaces of cover scales, above the lamina thin film. We measured pigmentation in cover scales from the same regions (Figure 7A) to test the relative importance of pigments and lamina structural colors for wing color. (Structural colors and pigments are listed per each specimen in Supplementary file 1 and representative examples are shown in Figure 7B–M”.)

Pigmentation was highly variable among Junonia species (Figure 7B–M”, Figure 9, Supplementary file 1). This included marked differences in pigmentation between regions of a single wing (e.g. yellow and blue regions in J. hierta, Figure 7B–E” and 9A) and also variation between color forms and species throughout the genus (e.g. between sexes in J. orithya, Figure 9C, and seasonal forms in P. octavia Figure 7H–M” and 9B). Absorbance spectra varied in both shape and magnitude. Variation in magnitude, such as between the red band and the wet season morph of P. octavia (Figure 9B), represents differences in pigment abundance. We also observed distinct absorbance spectral shapes, which can indicate the identity of the pigment (for example, contrast the spectral shape of the yellow pigment in J. hierta, Figure 9A, versus red pigment in P. octavia, Figure 9B, versus brown pigment in J. orithya, Figure 9C).

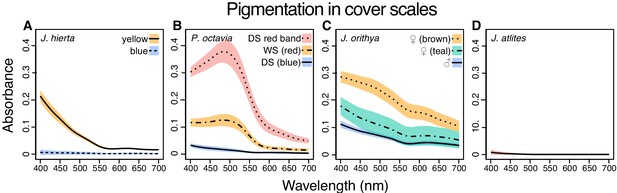

Absorbance spectra show variable pigment concentrations and identities among representative Junonia butterflies.

Spectra were taken from cover scales from the regions shown in Figure 7A. (A) J. hierta pigmentation varies by wing region (Figure 7B–E”). (B) Intensity of red pigmentation is the most important driver of color difference between seasonal morphs of P. octavia (Figure 7H–M”). (C) Pigment absorbance differs by sex in J. orithya. (D) J. atlites scales lack pigmentation (Figure 7F–G”). Plots show mean spectra with envelope of one standard deviation, minimum N = 6 scales per sample.

Notwithstanding the clear importance of pigmentation among Junonia butterflies, pigment variation was insufficient to explain the breadth of wing color diversity, and lamina structural colors made up the shortfall. The importance of lamina structural color was most obvious in scales that entirely lacked pigments. For example, the blue basal aura regions of male J. westermanni, J. hierta, and J. oenone wings had unpigmented cover scales with structurally blue laminae (Figure 7B–C”, Figure 9A). Most of the pigmentless scales we sampled were blue, with the notable exception of J. atlites scales (Figure 7F–G”, Figure 9D). These scales had rainbow gradient laminae, which presumably create the overall light gray by additive color mixing (Vukusic et al., 2009). J. atlites demonstrates that lamina structural color can fundamentally drive wing color even in neutrally colored wing regions that are not obviously iridescent, and also that thickness can be patterned at fine spatial resolution within a single lamina.

In most wing regions, color was determined by the interaction of both lamina structure and pigments. For example, in the cover scales of J. hierta (Figure 7D–E”, Figure 9A), the yellow lamina structural color and yellow pigment were mutually reinforcing, with the lamina sensibly reflecting wavelengths that the pigment does not absorb. Other examples help delineate how much pigment is required to overpower the lamina color. In blue J. evarete, pigments in the cover scale ridges absorbed approximately 0.2 AU (Absorbance Units, that is 37% of light not transmitted, Figure 3C) of the blue wavelengths that the lamina reflected most brightly (Figure 2L). With this ratio, wing hue was still driven by the lamina structural color. The cover scales of J. orithya were similar (Figure 9C), having a neutral dark pigment (i.e. a pigment that absorbs all visible wavelengths) in the scale ridges. Perhaps dark pigment in the ridges functions like a Venetian blind to limit iridescence, so that at high viewing angles, where iridescence would be most pronounced, light from the lamina is quenched.

Because of their range of pigment concentrations, P. octavia specimens were also useful to test the tradeoff between pigment abundance and lamina color influence. When viewed at high resolution, scales from the wet season morph of P. octavia contained red pigment in the ridges and crossribs (max absorbance 0.12 ± 0.02, Figure 7K,K’, Figure 9B), while reflected light from the blue lamina spilled through the windows between ridges. Viewed macroscopically, this combination made a lightly saturated red. To display a richly saturated red, much more pigment was required, as seen in the red band of the dry season morph (max absorbance 0.38 ± 0.04, Figure 9B, Figure 7L–M”). These reddest scales also had thinner, structurally magenta and copper colored laminae that may further reinforce redness (Figure 8A, Figure 7M’). The concentration of red pigment was the most important driver of the color difference between P. octavia seasonal morphs. The blue and red morphs had only a subtle difference in lamina thickness (Figure 8A), and the laminae of both were blue (Figure 7I’, K’), but the blue morph lacked any red pigment (Figure 9B).

Overall, Junonia wing color was determined by complex mix-and-matching of different lamina thicknesses and pigments. A thin film lower lamina was present in all scales, but its influence on wing color was adjusted by the amount and placement of pigment, especially in the upper surface of the scale. Pigments can mask lamina structural color at high enough density, depending on the placement and color of the pigment as well as the color of the lamina. In our tests, when pigmentation absorbed ≤0.2 AU of the relevant wavelengths, it did not cancel out lamina structural color.

Comparison to thin film equation

We compared our empirical data to Fresnel’s classical thin film equations, which model the reflectance of an idealized dielectric thin film (Yeh et al., 1978; Fresnel, 1834). This model has previously been used to estimate the thickness of butterfly scale laminae based on their adwing reflectance spectra (Stavenga et al., 2014; Wilts et al., 2017). For each sample, we modeled the expected reflectance using our thickness measurements, and then compared to the measured reflectance spectra. We used 1.56 for the refractive index of chitin (Vukusic et al., 1999) and a maximal angle of illumination of 30° following Stavenga (2014) (because spectra were measured through an objective lens with a numerical aperture of 0.5). To account for measurement error, we modeled films over all thicknesses within one standard deviation of the measured mean per sample (red envelopes, Figure 8—figure supplement 1A). We also modeled films with Gaussian thickness distributions for each sample, following Siddique et al. (2016). This model is analogous to a single uneven film with mean thickness and surface roughness defined by the measured thickness and sample standard deviation (solid red lines, Figure 8—figure supplement 1A).

We found that qualitatively the model describes the main behaviors of our data: reflectance oscillates with a given frequency and brightness, and the function shifts toward longer wavelengths as thickness increases, causing perceived color to cycle through Newton’s series. Quantitatively, mean maxima and minima in the reflectance function were offset laterally for every specimen, by about 40–80 nm, with the modeled curves blue-shifted relative to the observed. A similar blue shift has been reported in butterfly scale laminae before (Wasik et al., 2014). The comparison improves if we assume a higher refractive index or thickness. However, to align modeled and measured spectra would require either an impossibly high refractive index (around 1.75) or increased thickness outside the error range of our measures (20–25 nm thicker than mean measurements). Possibly the lateral offset is due to a combination of the former. Alternatively, these results could indicate that scales have additional properties not fully described by the model. There are a number of differences between the idealized film and real scales, including curvature of the film and possible birefringence of the ridges. The lamina itself may not necessarily have a uniform material composition or refractive index. For example, contrasting sublayers within the lamina (as in Trzeciak et al., 2012) could create extra reflective interfaces. Thus, our data are compatible with the expected behaviors of thin films, but modeling the specific case of butterfly scale laminae with quantitative precision may require additional parameters or calibration to an empirical dataset.

Modeled spectra also revealed that lamina thin films are likely UV reflective. Our spectral measurements were restricted to 400–700 nm, which roughly corresponds to the human-visible range and is adequate for demonstrating the relationship between morphology and reflectance. However, the modeled spectra show sub-400 nm reflectance of varying brightness for many lamina thicknesses that occur in Junonia (Figure 8—figure supplement 1A). Ultraviolet spectral bands are biologically relevant, since butterflies are known to have UV-sensitive photoreceptors (Briscoe, 2008), and this UV reflectance should be kept in mind when considering the possible ecological implications of lamina structural colors.

Discussion

This study leverages the simplest photonic nanostructures, thin films, to interrogate the evolution and genetic regulation of structural color in Junonia butterfly scales. While there is a large body of literature attributing optical properties to various biological nanostructures, such claims commonly rest on correlation between mathematical models and spectral measurements. Here, we use three different experimental manipulations of the structure (dissection, artificial selection on wing color, and knockout of the optix gene) in addition to broad interspecies comparisons to establish that lower lamina thickness quantitatively controls structural color wavelength in Junonia butterfly scales. The relationship between lamina thickness and wavelength holds over a wide range of thicknesses (90–260 nm) that generate Newton’s color series for dielectric thin films. Moreover, lamina structural color is one important determinant of overall wing color, including in wing regions that also contain pigments. Lamina structural colors contribute to the color differences that distinguish sexes, species, seasonal variants, and selectively-bred lineages of Junonia butterflies, highlighting that quantitatively tuning lamina thickness is a vehicle for color evolution in both micro and macroevolutionary contexts.

Because the lower lamina is part of the typical architecture of butterfly scales, our findings have broad implications for future research on adult color in numerous butterfly taxa. Foundational literature drew a distinction between highly derived scales with vivid structural colors and ‘standard, undifferentiated scales,’ which conform to the butterfly scale Bauplan, have a simple monolayer lower lamina, and ‘are not truly iridescent, that is they do not produce brilliant structural colors’ (Ghiradella, 1991). However, within the past ten years, individual examples of thin film interference from the lower lamina have emerged in diverse Lepidoptera, including in simple scales (Stavenga et al., 2014; Wasik et al., 2014; Siddique et al., 2016; Wilts et al., 2017; Trzeciak et al., 2012; Stavenga et al., 2018; Giraldo and Stavenga, 2016). These newer descriptions and our thorough examination of many scales indicate two points: first, although thin films are indeed less brilliant than some other classes of Lepidopteran photonic structures (thin films only reflect around 20% of incident light), they are a consequential source of structural color. Second, thin films occur in many butterfly and moth lineages and likely arose early in Lepidopteran evolution. The lower lamina has a thin film morphology in all scales that resemble the scale Bauplan, meaning that reflectance from the lamina is the shared condition except where it is masked by either heavy pigmentation or a derived structure with higher optical contrast. Because butterflies commonly produce multiple lamina colors across wing pattern elements and scale types, it is probable that the developmental genetic networks for quantitatively varying lamina thickness are deeply conserved as well. Hence, it will be useful to report which lamina colors are present, in addition to identifying pigments, when describing butterfly colors.

Physical constraints inherent to thin film colors may help explain the division of color space between pigments and photonic structures. It is not well understood why certain hues seem to be more often produced by pigments while others are more often produced by structural colors (e.g. the abundance of blue structural colors but lack of blue pigments in birds [Stoddard and Prum, 2011] and the rarity of one class of red structural color in birds and beetles [Magkiriadou et al., 2014]). In Junonia, we show that by tuning thickness, thin film laminae can produce nearly all the spectral colors (i.e. yellow, green, blue, indigo, UV), and even light achromatic colors (e.g. light gray in J. atlites) via color mixing across a gradient. Yet thin films are fundamentally incapable of producing certain colors, notably dark brown, black, and pure red. The medium thickness films that most nearly approach red have inherently poor color properties due to the oscillating nature of the thin film reflectance function. Since the colors of mid-thickness films are a mix of two reflectance peaks (Figure 8C), they are reddish but not pure or well-saturated, and are better described as copper, magenta, and purple. Further, mid-thickness films are not bright: they reflect less total visible light than other thicknesses we observed (compare Figure 8D–8C,E–G). By contrast, red, black, and brown are prevalent pigment colors in Junonia, making pigments and thin film structural colors complementary color palettes with little overlap. The optical limitations of thin films may have partially determined how pigment families and scale architecture evolved in early butterfly lineages, which in turn initialized whether pigments or structures provide the most accessible route to evolve specific hues during subsequent diversification.

Our findings uncover a link between artificially selectable responses in lamina thickness and natural butterfly color variation, and expand on a previous artificial selection study on butterfly wing color (Wasik et al., 2014) which selected for violet structural color in Bicyclus anynana. In both J. coenia and B. anynana, color shift was accomplished by modifying the dimension of an existing structure, the lower lamina, with pigmentation being less important. Since the selected taxa diverged 78 million years ago (Wahlberg et al., 2009) this similarity may be informative about evolvability in nymphalid butterflies generally. However, artificial selection in B. anynana primarily increased thickness in the obscured layer of ground scales, which can only weakly influence color, whereas Bicyclus species with naturally evolved violet wing color have violet thin films in their cover scales. In our study, artificial selection continued longer (12 vs. 6 generations) and elicited a more extreme response (74% vs. 46% increase in lamina thickness). Moreover, in J. coenia, we show that lamina thickness increased in the cover scales and fully recapitulated the naturally evolved mechanism of structural color in the sister species J. evarete. The thickness increases caused a stark wing color change plainly visible by eye, with appropriate wing patterning that also resembled J. evarete (thickened blue scales filled the background dorsal wing, while eyespots, distal pattern elements, and the ventral wing were unaffected). Our results robustly connect a rapid microevolutionary process to macroevolutionary diversity.

By using butterflies with CRISPR/Cas9-generated knockout of the optix gene, we are able to provide insight into the genetic regulation of lamina thin films. It was previously known that the optix wing patterning gene can regulate a switch between wild-type brown and blue iridescent wing color in J. coenia (Zhang et al., 2017), but the mechanistic basis for the color switch remained unknown. Specifically, it was unclear whether optix regulated scale structure itself, or whether optix deletion merely caused the loss of brown pigment, thus unveiling a pre-existing iridescent structure. Here, we show explicitly that in certain wing regions and scale types, optix deletion substantially increases lamina thickness. Our findings also amend the earlier conclusion that optix represses structural coloration in J. coenia (Zhang et al., 2017). Rather, by regulating lamina thickness, optix regulates the wavelength of a photonic structure that exists in both wild types and mutants. This distinction has implications for the likely identities and behavior of downstream genetic factors, as well as the developmental basis of mutant blue coloration. For example, rather than preventing a cascade of downstream genes from acting to erect a photonic structure de novo, optix may subtly regulate the expression of a gene or genes that directly regulate lamina thickness, such as chitin synthase. Additionally, we uncover disparate effects of optix deletion on pigmentation, including promoting, suppressing, and switching the identity of pigments in different scale types. In aggregate, these results show that optix’s functions in J. coenia are highly context specific, depending on both wing region and scale type (i.e. ground or cover scale). Moreover, because optix can regulate both pigmentary and structural color, the optix pathway is an especially interesting candidate for coordinated color evolution, and further work on the detailed regulation of optix and its downstream targets is called for. The possibility that optix plays a role in patterning blue wing regions in the artificially selected J. coenia is especially intriguing, and motivates future investigation into whether the optix locus, or other loci in the optix pathway, were the targets of artificial selection in that population.

In summary, thin film reflectors, a morphologically simple class of photonic structures, are experimentally manipulable and broadly employed in the lower lamina of Junonia butterfly wing scales. Lamina thickness explains variation in structural color wavelength, responds to selection on wing color, and is regulated by the optix wing patterning gene. Tuning lamina thickness facilitates both microevolutionary and macroevolutionary shifts in wing color patterning throughout the genus Junonia, making the buckeye butterflies a promising study system with which to decipher the genetic and developmental origins of structural color.

Materials and methods

Butterfly specimens

Request a detailed protocol

Reared J. coenia were fed fresh Plantago lanceolata or artificial diet (Southland Products, Lake Village, AK) as larvae and kept at 27–30°C on a 16/8 hour day/night cycle. Artificially selected blue J. coenia were purchased as larvae from Shady Oak Butterfly Farm in 2014 (Brooker, FL). Wild-type J. coenia were from an established laboratory colony, originally derived from females collected in Durham, North Carolina (Nijhout, 1980a) or were collected in California. We acquired preserved specimens from various vendors and collaborators (Supplementary file 1), including optix mutant butterflies from Zhang et al. (2017). Species-level identification was generally unambiguous. However, relationships among Neotropical Junonia are not well-resolved and the limited molecular data available do not cleanly support current designations (Neild and D'Abrera, 2008; Pfeiler et al., 2012; Gemmell et al., 2014). Two recognized species, J. evarete and J. genoveva, have large ranges with extensive overlap and many variable color forms, including both brown and blue. We therefore described three Neotropical specimens as belonging to the J. evarete species complex to avoid accidental misidentification. Available diagnostic details, including ventral antenna club color and full collection details, are in Supplementary file 1.

Optical imaging

Request a detailed protocol

Scales were laid on glass slides. Optical images of scales were taken with a Keyence VHX-5000 digital microscope (500-5000x lens). For refractive index matching, we used immersion oil (nD = 1.56) from Cargille Laboratories (Cedar Grove, New Jersey), and imaged with transmitted light. Scales were dissected by hand using a capillary microinjection needle. Whole wings were also imaged on the Keyence VHX-5000, using the 20-200x lens.

Microspectrophotometry

Request a detailed protocol

For reflectance spectra, individual scales were laid flat on a glass slide, with the adwing surface facing up. We collected spectra of the adwing surface with an Ocean Optics Flame-S-UV-Vis-Es spectrophotometer mounted on a Zeiss AxioPhot reflected light microscope with a 20x/0.5 objective and a halogen light source. We took two technical replicates of each scale, with a minimum sample size of 3 scales per specimen. Measurements were normalized to the reflectance of a diffuse white reference (BaSO4). Data were recorded with SpectraSuite 1.0 software with three scans to average and a boxcar width of 7 pixels. The software wizard determined optimal integration time from the reference sample; time was generally about 0.007 seconds. Spot size was roughly circular, 310 μm in diameter, and centered on the scale. We processed spectra in RStudio 1.0.153 with the package ‘pavo,’ version 0.5–4 (Maia et al., 2013). We first smoothed the data using the procspec function with fixneg set to zero and span set to 0.3. We then normalized the data using the ‘minimum’ option of the procspec function, which subtracts the minimum from each sample. Because we use a diffuse standard and scales are specular, raw spectra overestimate reflectance. We therefore followed Stavenga (2014) in dividing spectra by a correction factor. We used a smaller correction factor of only 2.5, because in our setup the scale does not fill the full field of view. Absorption spectra from scales submerged in index-matched oil were collected and processed similarly, but under transmitted light with an integration time of 0.01 seconds, and without the ‘minimum’ option.

Helium Ion Microscopy

Request a detailed protocol

Surface imaging by HIM provides increased depth of field and enhanced topographic contrast compared to Scanning Electron Microscopy for a range of biological and other materials (Joens et al., 2013), including butterfly wing scales (Boden et al., 2012). Samples were prepared for HIM by laying the wing on a glass slide with the region of interest facing down, wetting with ethanol, and freezing with liquid nitrogen. We then promptly cross-sectioned the wing through the region of interest with a new razor blade. After the sample warmed and dried, we used a capillary microinjection needle to transfer individual cut scales onto carbon tape. Scales were placed overhanging the edge of a strip of carbon tape, with one end pressed into the tape. We optically imaged the tape strip as a color reference and then transferred the tape to the vertical edge of a 90° stepped pin stub (Ted Pella #16177). While non-conductive samples can be imaged by HIM using low energy electrons for charge neutralization, we found that the unsupported overhanging edges of our scales tended to bend due to local charging (Allen et al., 2019). We thus sputter coated with 4.5–13 nm of Au-Pd using a Cressington 108auto or Pelco SC5. Images (secondary electron) of the sectioned scales were acquired with a Zeiss ORION NanoFab Helium Ion Microscope using a beam energy of 25 keV and beam current of 0.8–1.8 pA (10 μm aperture, spot size 4). We then used the line measurement tool in ImageJ software to measure lamina thickness from the micrographs. We corrected measurements for slight variations in working distance not accounted for by the software scale bar, using Tcorrect = (Traw)/9058 μm x d μm, where d is the measured working distance and 9058 μm is the reference working distance. Because these are point measures, and thickness and color vary extensively along the proximal-distal and lateral axes of individual laminae, we took measurements from multiple different positions along each cut scale. All thickness data were based on a minimum of 12 measures drawn from a minimum of 3 scales per specimen/treatment. Thickness of female J. westermanni scales was not measured because specimens were unavailable.

Even with vertical mounting, the sectioned surface of the scale was not always perfectly perpendicular to the direction of the imaging beam, largely due to the scales’ tendency to curve. Viewing angle is critical, since measurements taken from a projected image viewed under erroneous tilt could cause systematic underestimation of thickness. We therefore tilted the microscope stage until the scale lamina was perpendicular at the measurement site, as diagnosed by observing an inflection point in lamina curvature (i.e. a switch between the upper and lower surfaces being visible). Thickness was only measured at visible inflection points (Figure 8—figure supplement 1B–D). We performed a tilt calibration to test the precision of our inflection point criterion and determined that an inflection point was only visible if the sample was within 4–5° of perpendicular. Since erroneous tilt is limited to 5°, thickness underestimation is limited to 1 nm. Slight overestimations are likely, due to the sputter coating. However, since sputtering was done from a direction perpendicular to the direction of measurement, sputtering primarily increased the length dimension of the scales, rather than their thicknesses. We did not adjust thickness measurements to attempt to remove slight increases due to sputtering. Note that if we had subtracted a few nanometers from each thickness measurement, then modeled and measured spectra would be offset from each other to a greater degree.

The sectioned scale shown in Figure 1A was milled using the gallium ion beam of the Zeiss ORION NanoFab (beam energy 30 keV, beam current 300 pA).

Analyses

Request a detailed protocol

Statistical analyses were conducted in R 3.2.2. For Figure 8A–B, specimens were grouped following the largest natural breaks in the data for two metrics, mean thickness and weighted average reflected wavelength, which were in good agreement. For statistical tests involving lamina thickness, we used a Type III ANOVA with either treatment (Figure 1C) or color group (Figure 8A) as the fixed effect, and with the individual and scale identity corresponding to each measurement as nested random effects. We used this nested ANOVA model to account for the nonindependence among multiple thickness measurements per scale and multiple scales per individual butterfly. ANOVA was implemented with the default settings of the R package ‘lme4’, including its application of Satterthwaite’s approximation for uneven sample sizes. For statistical tests on absorbance in Figure 3A–B, we used the same method except with only a single nested random effect for individual identity, since there were not multiple absorbance measurements per scale.

Modeling film thickness

Request a detailed protocol

We modeled the reflectance from chitin thin films as previously described by Stavenga (2014), including integrating reflectance for values of θ from zero to the maximal angle of illumination (i.e. averaging reflectances to simulate the inverted cone of light collected by the objective lens used in microspectrophotometry, given its numerical aperture). Specifically, since our objective had NA = 0.5, we calculated reflectance over values of θ from 0 to 30°, multiplied by 2πθ, and then averaged over the cumulative circular surface area. For the model with Gaussian thickness distributions, we followed (Siddique et al., 2016) using n = 400 observations from the simulated thickness distribution.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
    Mémoire Sur La Loi Des Modifications Que La Réflexion Imprime a La Lumière Polarisée
    1. AJ Fresnel
    (1834)
    Paris : De l'Imprimerie De Firmin Didot Fréres.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
    Structural colors in insects. II
    1. CW Mason
    (1927)
    The Journal of Physical Chemistry 31:321–354.
    https://doi.org/10.1021/j150273a001
  19. 19
  20. 20
    The Butterflies of Venezuela Meridian
    1. AF Neild
    2. B D'Abrera
    (2008)
    Meridian Pub, Greenwich.
  21. 21
  22. 22
  23. 23
    The Development and Evolution of Butterfly Wing Patterns
    1. HF Nijhout
    (1991)
    USA: Smithsonian Institution Scholarly Press.
  24. 24
    The distribution of radiolabeled pigment precursors in the wing patterns of nymphalid butterflies
    1. HF Nijhout
    2. PB Koch
    (1991)
    Journal of Research on the Lepidoptera 2:1–13.
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43

Decision letter

  1. Diethard Tautz
    Senior Editor; Max-Planck Institute for Evolutionary Biology, Germany
  2. Claude Desplan
    Reviewing Editor; New York University, United States
  3. Chris Jiggins
    Reviewer; University of Cambridge, United Kingdom

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This paper examines the evolution of structural color in butterflies. Through various approaches such as selection, CRISPR gene knockouts, and imaging, the authors were able to find that variations in lamina thickness are the primary mechanism used to produce structural color and to tune the wavelengths that are reflected from different scale types and in different species. The authors' identification of optix as a gene that controls both the production of pigment and structural color is of great interest and should be further explored in future studies.

Decision letter after peer review:

Thank you for submitting your article "Structural color in Junonia butterflies evolves by tuning scale lamina thickness" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Diethard Tautz as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Chris Jiggins (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The three reviewers were enthusiastic about the analysis of structural colors and the role of optix in this process, and in particular the role of the latter in pigmentation. They also thought that the paper was well written and clear. However, they identified several aspects of the manuscript that should be improved before publication.

Reviewer #1 would have liked to see more species tested/crossed to better show that optix is really the major gene involved in the process. However, after discussion with the other reviewers, it was felt that this would take too much time for a 2-month revision. I would therefore like you to simply discuss this issue in the paper.

Reviewer #2 had some difficulty with your presentation of the relationship between color and thickness, which you must clarify as to avoid any confusion.

You should also discuss the fact that structural color is likely important in the UV since most butterflies see well in these shorter wavelengths.

Finally, and although the writing of the paper is very clear, the reviewers had problems with the presentation of the figures. I suggest that you add labels to the panels and make sure that they are all present (see comment about Supplementary Figure 3).

Reviewer #1:

In this manuscript Thayer, Allen, and Patel examine the production and evolution of structural color in Junonia butterflies using directional selection, analysis of CRISPR gene knockouts, and advanced imaging methods. They find that variations in lamina thickness are the primary mechanism used to produce structural color and to tune the wavelengths that are reflected from different scale types and in different species. Interestingly they find that a single gene, optix, can control both the production of pigment and structural color (via modification of lamellar thickness). This work provides an in-depth look at structural color production in an easily lab-reared species using genetic tools such as directional selection and gene knockout using CRISPR, and makes comparisons across an interesting group of butterflies. This study will likely set the standard for future studies of structural color evolution and development.

The finding that optix is so highly context dependent is interesting. It provides a hint at underlying developmental mechanism; while it can act as a switch of relatively large effect, these results suggest that the scale-building cells still rely on combinatorial inputs from positional information to produce different scale types in the absence of optix expression. It would be great to know more about what those inputs are and the types of genetic or developmental changes that modify the broader patterns but this is perhaps beyond the scope of the current study.

I have one main critique: it would be fantastic to directly connect the gene that potentially controls structural color (optix) with the evolutionary changes observed. This might mean simply staining the wings in a species that has an expansion of blue scales to see if optix expression is correlated, or better yet, using crosses and genetics to determine whether the optix locus segregates with the presence/absence of blue scales in the artificial selection line vs. wild type. Direct experimental tests that link this particular developmental gene to the actual evolution of wing pattern would add significance and impact. It would support the link the authors draw between optix and wing pattern evolution by testing it directly. Any number of downstream genes might also influence lamina thickness and therefore color, and while I think it likely that optix is indeed responsible this should be demonstrated/tested more directly.

Reviewer #2:

This paper documents variation in structural colour across the genus Junonia. The mechanism of colour is by use of a single lamina which is therefore rather easy to characterise. The paper convincingly documents variation in lamina thickness which is correlated with structural colour. There is an impressive body of comparative data from across the genus, which is combined with CRISPR knockouts and a selection experiment. I also appreciated the emphasis on the interaction between structural and pigment colours which is not emphasised often enough. I think this comprehensive and significant body of evidence justifies publication in eLife. Overall the paper is clearly written.

There is a pseudo replication issue with the statistics presented in Figure 1. Individual butterflies and within an individual each individual scale is not independent. These are therefore pseudo replicated by making multiple measurements from a single scale and sampling multiple scales from an individual (subsection "Helium Ion Microscopy", first paragraph). It is not described in the Materials and methods whether there is any accounting for this in the statistics presented. If I understand correctly, each treatment is represented by a single individual in which case it is not really valid to carry out a statistical test on these data as there is no replication.

The comparison with the thin film equation is an important part of the story, supporting the hypothesis that lamina thickness is causal for colour variation. However this section is not clearly presented and I was unsure which is Supplementary Figure 3A which is the only result presented in this section (the only supplement to Figure 3 is a table). Also greater thickness is associated with a shift from brown to blue, but it is stated that 'function shifts towards longer wavelengths as thickness increases' perhaps I have misunderstood but this seems in the wrong direction.

Reviewer #3:

The manuscript by Thayer, Allen and Patel identifies the simplest case of structural coloration, reflection on a thin film, as an effective means of evolutionary tuning of butterfly wing coloration. Variations in scale lamina thickness lead to the creation of colorful reflections with spectral peaks and shapes that faithfully follow the underlying physical principle and are therefore relatively easy to trace, measure, model and verify. The authors convincingly show that lamina thickness is subject to artificial selection and natural evolution and may be controlled by a single gene optix that has also pleiotropic effects on the pigmentation in the scales. The study has been carefully designed, conducted on a very broad and sensible selection of specimens from the different taxa, is methodologically correct and leads to plausible conclusions. The graphical presentation is very good, the text has been a pleasure to read. The study itself largely builds on the existing work by Wasik et al., 2014, and Zhang et al., 2017, (both appropriately credited and cited) and as such does not present a ground-breaking novelty, but rather an incremental advance demonstrated on a very nicely chosen set of taxa, all presented in a very convincing and comprehensive way. I therefore support the publication following a couple of minor interventions.

1) I think that it is a great pity that the reflectance and absorbance data are only presented in the spectral range 400-700 nm. I understand that this is a consequence of the unlucky choice of illumination source (halogen instead of Xe arc or similar) and maybe the associated optics. However, the thinnest laminae create strong reflections in the range 300-400 nm (also shown in the model, Figure 8—figure supplement 1), which is a biologically relevant spectral band, as all studied Lepidoptera have at least one, if not multiple UV (and sometimes also violet) receptors. The absence of UV band in Figure 2H, P leads to a slightly misleading presentation which gives an impression to the reader who mentally extrapolates the spectra <400 nm that reflectance below 400 nm drops to 0, which is most likely not true. However, this is my nitpicking and does not call for additional measurements, as the authors' case is easily proven without the measurements in the UV. Anyway, I'd prefer to see my remarks implemented in the manuscript, just to remind the reader about the integral framework of the biological signaling.

2) I have been missing a technical detail in the description of the measurements of the lamina thickness: have (and how) the authors subtracted the metallic coating from the measured thickness? This may seem to be a marginal source of errors, but could also play a part in the observed systematic deviation of spectral maxima from the modeled peaks by 40-80 nm. Could the specimens also have experienced shrinking due to dehydration in the vacuum?

Please add to the Materials and methods and maybe to the Discussion.

https://doi.org/10.7554/eLife.52187.sa1

Author response

Reviewer #1: I have one main critique: it would be fantastic to directly connect the gene that potentially controls structural color (optix) with the evolutionary changes observed. This might mean simply staining the wings in a species that has an expansion of blue scales to see if optix expression is correlated, or better yet, using crosses and genetics to determine whether the optix locus segregates with the presence/absence of blue scales in the artificial selection line vs. wild type. Direct experimental tests that link this particular developmental gene to the actual evolution of wing pattern would add significance and impact. It would support the link the authors draw between optix and wing pattern evolution by testing it directly. Any number of downstream genes might also influence lamina thickness and therefore color, and while I think it likely that optix is indeed responsible this should be demonstrated/tested more directly.

Yes, we agree that the possibility that the optix locus (or other genes downstream of optix) was the target of artificial selection is intriguing, and thoroughly testing this possibility is an important future direction. We have added this subject into the Discussion section, which should also further clarify that our results so far motivate future investigation into a possible role for optix in patterning iridescent blue in the selected blue buckeye population, but do not demonstrate such a role.

Reviewer #2: There is a pseudo replication issue with the statistics presented in Figure 1. Individual butterflies and within an individual each individual scale is not independent. These are therefore pseudo replicated by making multiple measurements from a single scale and sampling multiple scales from an individual (subsection "Helium Ion Microscopy", first paragraph). It is not described in the Materials and methods whether there is any accounting for this in the statistics presented. If I understand correctly, each treatment is represented by a single individual in which case it is not really valid to carry out a statistical test on these data as there is no replication.

Thank you for catching this oversight. We have taken the following steps to address the pseudoreplication problems with Figure 1:

First, we have taken new thickness measurements from more wild-type and artificially selected individuals and included them in the analysis. We then used a nested ANOVA which modeled individual ID and scale ID as random effects. We also switched Figure 1C from a bar graph to box plots to better convey the data. The data for Junonia evarete and optix mKO in Figure 1 still represent single individuals, owing to unavailability of specimens which can be destructively sampled and/or which have a large enough target wing area with the mutant phenotype for our cross-sectioning protocol. We have kept these data plotted in Figure 1, but have removed the statistical test. Note that the evarete and optix mKO thickness data are also included in the genus-wide test in Figure 8, where they are consistent with our general finding of a significant association between lamina thickness and lamina color.

Since the same issue—multiple measurements per individual—is also relevant to Figure 3 and Figure 8, we have made corrections there as well. For Figure 3, we similarly measured more wild-type and selected coenia individuals and then included individual ID as a random effect in the ANOVA model. (Unlike thickness measurements, absorbance is measured from the whole scale, so there was no nested random effect for multiple measurements per scale). For Figure 8, we re-analyzed the data using a nested ANOVA with both individual and scale ID as random effects.

We have updated the manuscript to reflect these changes in the main text as well as in figure legends, source data, the Materials and methods section, and in Supplementary file 1 of specimens used.

The comparison with the thin film equation is an important part of the story, supporting the hypothesis that lamina thickness is causal for colour variation. However this section is not clearly presented and I was unsure which is Supplementary Figure 3A which is the only result presented in this section (the only supplement to Figure 3 is a table). Also greater thickness is associated with a shift from brown to blue, but it is stated that 'function shifts towards longer wavelengths as thickness increases' perhaps I have misunderstood but this seems in the wrong direction.

The text should have directed to Figure 8—figure supplement 1A, rather than Supplementary Figure 3A. It's fixed now, thanks.

The reflectance function does shift toward longer wavelengths, but it is also a wave function, so it repeats cyclically. (One can compare with the behavior of a sine function, although the reflectance function is technically only sinusoidal when plotted against frequency.) The reflectance peak that is in the visible range in our gold samples shifts toward longer wavelengths and completely into the infrared in our thicker (e.g. blue, green) samples, while the next maximum of the function shifts from sub-visual into the blue range. Thus the function does always shift toward longer wavelengths as thickness increases, even though the human-perceived color order repeatedly cycles through Newton's color series. It is a bit confusing, since the range of thicknesses that occurred in this study span part of two cycles in Newton's series, rather than multiple full cycles. We adjusted the second paragraph of the subsection "Comparison to thin film equation" to try to explain it better.

Reviewer #3: 1) I think that it is a great pity that the reflectance and absorbance data are only presented in the spectral range 400-700 nm. I understand that this is a consequence of the unlucky choice of illumination source (halogen instead of Xe arc or similar) and maybe the associated optics. However, the thinnest laminae create strong reflections in the range 300-400 nm (also shown in the model, Figure 8—figure supplement 1), which is a biologically relevant spectral band, as all studied Lepidoptera have at least one, if not multiple UV (and sometimes also violet) receptors. The absence of UV band in Figure 2H, P leads to a slightly misleading presentation which gives an impression to the reader who mentally extrapolates the spectra <400 nm that reflectance below 400 nm drops to 0, which is most likely not true. However, this is my nitpicking and does not call for additional measurements, as the authors' case is easily proven without the measurements in the UV. Anyway, I'd prefer to see my remarks implemented in the manuscript, just to remind the reader about the integral framework of the biological signaling.

Great point, we do expect that lamina thin films produce UV reflectance as well, which may well be functionally significant for the butterflies. We have added these points into the modeling Results section.

We did try to screen for UV reflectance by imaging some of the wings with a macro camera with a UV filter. This setup worked well to detect bright UV patches on various Colias butterflies, but did not show UV patterns on Junonia wings. We do not think this rules out UV reflectance in Junonia, but it may not be bright enough to detect without a broad spectrum spectrophotometer and light source.

2) I have been missing a technical detail in the description of the measurements of the lamina thickness: have (and how) the authors subtracted the metallic coating from the measured thickness? This may seem to be a marginal source of errors, but could also play a part in the observed systematic deviation of spectral maxima from the modeled peaks by 40-80 nm. Could the specimens also have experienced shrinking due to dehydration in the vacuum? Please add to the Materials and methods and maybe to the Discussion.

We did not subtract any value from our thickness measurements to account for the sputter coating, for two main reasons. First, the samples were sputtered from a direction perpendicular to the direction we measured (i.e. perpendicular to the cut edge, with the scale sitting vertically in the sputter coater). Consequently, if 5 nm of Au-Pd were deposited, that primarily increased the length dimension of the scale by ~5 nm, rather than its thickness. There is presumably some small "muffin top" spillover increase to thickness from the sputtering, but we do not have a good way to estimate that increase, which would be smaller than the total depth deposited and variable between scales, depending on slight variation in the mounting angle of each scale. This possible overestimation could not account for more than a couple nanometers out of ~200 nm thickness, so it is a very small error. Second, any possible overestimation of thickness due to the sputter coating cannot explain the deviation from modeled spectra, because the error is in the wrong direction. If we subtracted a few nanometers from each thickness measurement, then modeled and measured spectra would be offset from each other to a greater degree.

Since butterfly scales are already dry, they do not require any vacuum or dehydration steps to prepare for HIM (or regular electron microscopy), so we can rule out shrinking as a source of error.

We added further details about the sputtering into the Materials and methods.

https://doi.org/10.7554/eLife.52187.sa2

Article and author information

Author details

  1. Rachel C Thayer

    Department of Integrative Biology, University of California, Berkeley, Berkeley, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Funding acquisition, Investigation, Visualization, Methodology
    For correspondence
    thayerr@berkeley.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5856-7614
  2. Frances I Allen

    1. Department of Materials Science and Engineering, University of California, Berkeley, Berkeley, United States
    2. California Institute for Quantitative Biosciences, University of California, Berkeley, Berkeley, United States
    Contribution
    Resources, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0311-8624
  3. Nipam H Patel

    1. Department of Integrative Biology, University of California, Berkeley, Berkeley, United States
    2. Marine Biological Laboratory, Woods Hole, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4328-654X

Funding

National Science Foundation (DEB-1601815)

  • Rachel C Thayer
  • Nipam H Patel

National Science Foundation (DGE-1106400)

  • Rachel C Thayer

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Linlin Zhang and Robert Reed for optix mutant wings; Karin van der Burg for J. coenia eggs; Masaki Iwata and Joji Otaki for J. orithya wings; and Krushnamegh Kunte for the image of the female J. hierta. We thank Edith Smith for fantastic blue buckeyes, information about their origin, and the image in Figure 1E. We are indebted to Ryan Null, Bodo Wilts, and Samuel Thayer for insightful discussions. Erika Anderson, Craig Miller, Michael Nachman, Chris Jiggins, and anonymous reviewers gave helpful feedback on the manuscript. Helium Ion Microscopy was performed at the Biomolecular Nanotechnology Center, a core facility of the California Institute for Quantitative Biosciences, University of California, Berkeley. Funding was provided by a National Science Foundation Doctoral Dissertation Improvement Grant DEB-1601815 (to RCT and NHP) and a National Science Foundation Graduate Research Fellowship DGE-1106400 (to RCT).

Senior Editor

  1. Diethard Tautz, Max-Planck Institute for Evolutionary Biology, Germany

Reviewing Editor

  1. Claude Desplan, New York University, United States

Reviewer

  1. Chris Jiggins, University of Cambridge, United Kingdom

Publication history

  1. Received: September 25, 2019
  2. Accepted: February 24, 2020
  3. Version of Record published: April 7, 2020 (version 1)

Copyright

© 2020, Thayer et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,027
    Page views
  • 289
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Evolutionary Biology
    2. Genetics and Genomics
    María Angélica Bravo Núñez et al.
    Research Article

    Killer meiotic drivers are genetic parasites that destroy ‘sibling’ gametes lacking the driver allele. The fitness costs of drive can lead to selection of unlinked suppressors. This suppression could involve evolutionary tradeoffs that compromise gametogenesis and contribute to infertility. Schizosaccharomyces pombe, an organism containing numerous gamete (spore)-killing wtf drivers, offers a tractable system to test this hypothesis. Here, we demonstrate that in scenarios analogous to outcrossing, wtf drivers generate a fitness landscape in which atypical spores, such as aneuploids and diploids, are advantageous. In this context, wtf drivers can decrease the fitness costs of mutations that disrupt meiotic fidelity and, in some circumstances, can even make such mutations beneficial. Moreover, we find that S. pombe isolates vary greatly in their ability to make haploid spores, with some isolates generating up to 46% aneuploid or diploid spores. This work empirically demonstrates the potential for meiotic drivers to shape the evolution of gametogenesis.

    1. Ecology
    2. Evolutionary Biology
    Xiaoyun Hu et al.
    Research Article

    Plants typically release large quantities of volatiles in response to herbivory by insects. This benefits the plants by, for instance, attracting the natural enemies of the herbivores. We show that the brown planthopper (BPH) has cleverly turned this around by exploiting herbivore-induced plant volatiles (HIPVs) that provide safe havens for its offspring. BPH females preferentially oviposit on rice plants already infested by the rice striped stem borer (SSB), which are avoided by the egg parasitoid Anagrus nilaparvatae, the most important natural enemy of BPH. Using synthetic versions of volatiles identified from plants infested by BPH and/or SSB, we demonstrate the role of HIPVs in these interactions. Moreover, greenhouse and field cage experiments confirm the adaptiveness of the BPH oviposition strategy, resulting in 80% lower parasitism rates of its eggs. Besides revealing a novel exploitation of HIPVs, these findings may lead to novel control strategies against an exceedingly important rice pest.
