A neuropeptide regulates fighting behavior in Drosophila melanogaster

  1. Fengming Wu
  2. Bowen Deng
  3. Na Xiao
  4. Tao Wang
  5. Yining Li
  6. Rencong Wang
  7. Kai Shi
  8. Dong-Gen Luo
  9. Yi Rao
  10. Chuan Zhou  Is a corresponding author
  1. State Key Laboratory of Integrated Management of Pest Insects and Rodents, Institute of Zoology, Chinese Academy of Sciences, China
  2. University of Chinese Academy of Sciences, China
  3. Chinese Institute for Brain Research, Peking-Tsinghua Center for Life Sciences, Zhongguangchun Life Sciences Park, China
  4. Shenzhen Bay Laboratory, China
  5. State Key Laboratory of Membrane Biology, College of Life Sciences, IDG/McGovern Institute for Brain Research, Peking-Tsinghua Center for Life Sciences, Academy for Advanced Interdisciplinary Studies, Center for Quantitative Biology, Academy for Advanced Interdisciplinary Studies, Peking University, China
  6. School of Life Sciences, University of Science and Technology of China, China
  7. Peking-Tsinghua Center for Life Sciences, PKU-IDG/McGovern Institute for Brain Research, Advanced Innovation Center for Genomics, Peking University School of Life Sciences, China
https://doi.org/10.7554/eLife.54229
Share this article
Cite this article
  1. Fengming Wu
  2. Bowen Deng
  3. Na Xiao
  4. Tao Wang
  5. Yining Li
  6. Rencong Wang
  7. Kai Shi
  8. Dong-Gen Luo
  9. Yi Rao
  10. Chuan Zhou
(2020)
A neuropeptide regulates fighting behavior in Drosophila melanogaster
eLife 9:e54229.
https://doi.org/10.7554/eLife.54229
  2. Download BibTeX
  3. Download .RIS

Abstract

Aggressive behavior is regulated by various neuromodulators such as neuropeptides and biogenic amines. Here we found that the neuropeptide Drosulfakinin (Dsk) modulates aggression in Drosophila melanogaster. Knock-out of Dsk or Dsk receptor CCKLR-17D1 reduced aggression. Activation and inactivation of Dsk-expressing neurons increased and decreased male aggressive behavior, respectively. Moreover, data from transsynaptic tracing, electrophysiology and behavioral epistasis reveal that Dsk-expressing neurons function downstream of a subset of P1 neurons (P1a-splitGAL4) to control fighting behavior. In addition, winners show increased calcium activity in Dsk-expressing neurons. Conditional overexpression of Dsk promotes social dominance, suggesting a positive correlation between Dsk signaling and winning effects. The mammalian ortholog CCK has been implicated in mammal aggression, thus our work suggests a conserved neuromodulatory system for the modulation of aggressive behavior.

Introduction

Aggression is a common innate behavior in most vertebrate and invertebrate species and a major driving force for natural and sexual selections (Darwin, 1859; Lorenz, 1963). It is a critical behavior for defense against conspecifics to obtain food resources and mating partners (Beye et al., 1998; Kravitz and Huber, 2003; Siegel et al., 1997).

Aggressive behavior of fruit flies was first reported by Alfred Sturtevant (Sturtevant, 1915). Since then, a number of ethological and behavioral studies in flies pave the way for using Drosophila as a genetic system to study aggression (Chen et al., 2002; Hoffmann, 1987; Hoffmann and Cacoyianni, 1989; Hoffmann and Cacoyianni, 1990. Drosophila provides an excellent system to manipulate genes and genetically defined populations of neurons, leading to the identification of multiple genes and neural circuits that control aggression. The neural circuits of aggression involve the peripheral sensory systems that detect male-specific pheromones and auditory cues necessary for aggression (Liu et al., 2011; Versteven et al., 2017; Wang and Anderson, 2010; Wang et al., 2011), a subset of P1 neurons (Hoopfer et al., 2015), pCd (Jung et al., 2020) in the central brain controlling aggressive arousal, and AIP neurons controlling threat displays (Duistermars et al., 2018). Aggression is modulated by various monoamines and neuropeptides. Octopamine, serotonin and dopamine are important neuromodulators for fly aggression and the specific aminergic neurons that control aggression have been identified (Alekseyenko et al., 2014; Alekseyenko et al., 2013; Certel et al., 2007; Hoyer et al., 2008; Watanabe et al., 2017; Zhou et al., 2008). Neuropeptides such as tachykinin and neuropeptide F are required for normal male aggression (Asahina et al., 2014; Dierick and Greenspan, 2007). Cholecystokinin (CCK) is a neuropeptide that is linked to a number of psychiatric disorders and involved in various emotional behaviors in humans and other mammals (Arey et al., 2014; Sears et al., 2013; Shen et al., 2019; Tõru et al., 2010). Infusion of CCK induces panic attack in humans (Bradwejn et al., 1990). Enhanced CCK level is detected in a rat model of social defeat (Becker et al., 2001; Becker et al., 2008). CCK is implicated to act in the periaqueductal gray to potentiate defensive rage behavior in cats (Luo et al., 1998). In addition, CCK is a satiety signal in a number of species. Silencing CCK-like peptide Drosulfakinin could decrease satiety signaling and increase intake of food in flies. (Nässel and Williams, 2014; Williams et al., 2014). Co-injection of nesfatin-1 and CCK8 decreased food intake in Siberian sturgeon (Acipenser baerii) (Zhang et al., 2018).

Here we investigate the roles of cholecysokinin-like peptide Drosulfakinin (Dsk) in Drosophila aggression. We generated knock-outs and GAL4 knock-ins for Dsk and candidate Dsk receptors. Loss-of-function in either Dsk or Dsk receptor CCKLR-17D1 reduces aggression. Thermogenetic activation of DskGAL4 neurons promotes aggression, while silencing these neurons suppresses aggression. We performed transsynaptic tracing, electrophysiology and behavioral epistasis experiments to illustrate that Dsk-expressing neurons are functionally connected with a subset of P1 neurons (P1a-splitGAL4, 8 ~ 10 pairs of P1 Neurons) and act downstream of a subset of P1 neurons to control fighting behavior. Furthermore, we found that winners show increased calcium activity in Dsk-expressing neurons and that conditional overexpression of Dsk promotes winning effects, implicating an important role of the Dsk system in the establishment of social hierarchy during fly fighting. Previously the mamalian ortholog CCK has been implicated in aggression (Li et al., 2007; Luo et al., 1998), thus our work suggests a potentially conserved neural pathway for the modulation of aggressive behavior.

Results

Reduced aggression in Loss-of-function Dsk mutants

We used genome editing by the CRISPR-Cas9 system to target the Dsk locus and generate knock-out and knock-in lines (Deng et al., 2019). The 5’ UTR and coding region of Dsk were replaced by a 3P3-RFP cassette through homologous recombination to obtain the knock-out line, which we refer to as ΔDsk (Figure 1A, Figure 1—figure supplement 1). Immunohistochemical analysis confirmed that Dsk immunoreactivity is detected in the brains of wildtype and ΔDsk/+ but not detected at all in the brain of ΔDsk/ΔDsk (Figure 1B). Interestingly, homozygous ΔDsk male mutants showed reduced frequency of lunge (Figure 1H) and wing threat (Figure 1—figure supplement 2) and prolonged latency to initiate fighting (Figure 1I), while conditional overexpression of Dsk promoted aggressive behavior (Figure 1—figure supplement 3). Furthermore, female aggression is also suppressed in homozygous ΔDsk mutants (Figure 1—figure supplement 4, Video 1), suggesting that Dsk is required for aggressive behavior in both sexes. Note that the ΔDsk mutants do not show defects in courtship behavior or locomotion activity, but show increased food intake (Figure 1—figure supplement 5).

Figure 1 with 6 supplements see all
Download asset Open asset

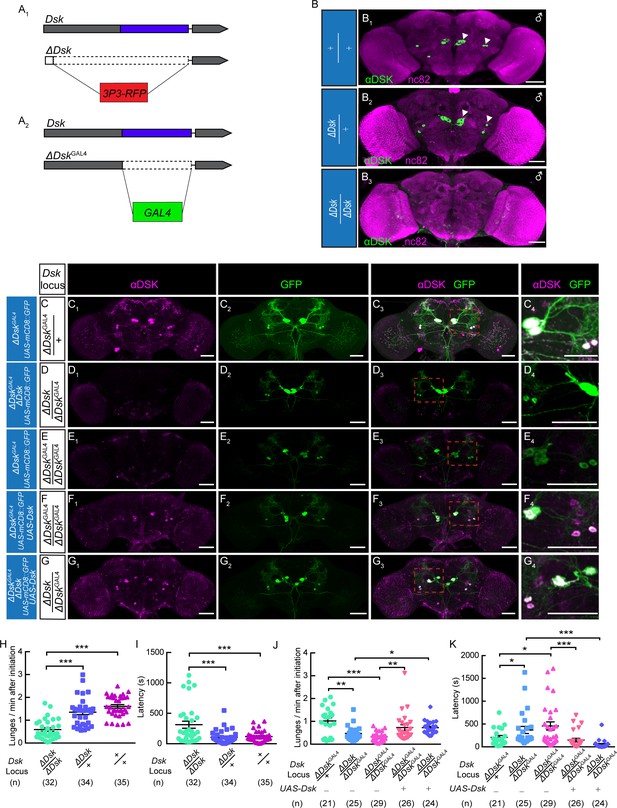

The Dsk Gene Is Essential for Modulating Male-Male Aggression.

(A) Generation of ΔDsk (A1) and ΔDskGAL4 (A2). Dashed boxes indicate the region replaced by 3P3-RFP (A1) or GAL4 (A2) cassette. (B) Male adult brains of the indicated genotypes were stained with anti-DSK antibody (green) and counter-stained with nc82 antibody (magenta) to label neuropil. Arrowheads: Dsk-expressing neurons. (C–G) ΔDskGAL4 driven UAS-mCD8:GFP expression in +/ΔDskGAL4 (C), ΔDsk/ΔDskGAL4 (D), ΔDskGAL4/ΔDskGAL4 (E), ΔDskGAL4/ΔDskGAL4 rescued by UAS-Dsk (F), ΔDsk/ΔDskGAL4 rescued by UAS-Dsk (G). Male brains were stained with anti-DSK antibody (magenta; C1–G1) and anti-GFP antibody (green; C2–G2). the anti-DSK antibody signal was undetected in Dsk mutant background (D1 and E1), but recovered when the Dsk mutant was rescued by ΔDskGAL4 driven UAS-Dsk expression (F1 and G1). C4-G4: regions in the red dashed boxes of C3-G3. Scale bars represent 50 μm. (H–I) Dsk mutants show reduced number of lunges (H) and prolonged fighting latency (I) compared with wildtype and heterozygous controls. (J–K) Number of lunges per minute after initiation (J) and fighting latency (K) for indicated genotype. Reduced aggression phenotypes of Dsk mutants were rescued by ΔDskGAL4 driven UAS-Dsk expression. *p<0.05, **p<0.01, ***p<0.001, n.s. indicates no significant difference (Kruskal-Wallis and post-hoc Mann-Whitney U tests).

Video 1
Download asset
Left, female aggression of ΔDsk mutants.

Right, female aggression of wildtypes. Female ΔDsk mutants show fewer aggressive encounters than wildtypes.

We next performed genetic rescue experiments to examine whether expression of Dsk in DSK neurons is sufficient to restore the aggressiveness in Dsk mutants. To this end, we replaced the coding region of Dsk with a GAL4 cassette to generate the ΔDskGAL4 knock-in line, in which GAL4 transcripts instead of Dsk transcripts are produced from Dsk promoter (Figure 1A). ΔDskGAL4 identifies precisely the DSK neurons in the male brain (Figure 1C). ΔDskGAL4 is a null mutation for Dsk, as Dsk immunoreactivity is absent in both ΔDskGAL4/ΔDsk hetero-allelic (Figure 1D) and ΔDskGAL4/ΔDskGAL4 homozygotes (Figure 1E). ΔDskGAL4 driven UAS-Dsk expression was capable of restoring the Dsk immunoreactivity in both ΔDskGAL4/ΔDskGAL4 homozygous mutant background (Figure 1F) and ΔDskGAL4/ΔDsk hetero-allelic mutant background (Figure 1G). Next we used these genetic reagents to perform behavioral analysis. As expected, Dsk expression in ΔDskGAL4 neurons restores the aggression levels of ΔDskGAL4/ΔDskGAL4 and ΔDskGAL4/ΔDsk mutants to comparable levels observed in heterozygous controls (Figure 1J and K).

Anatomical and behavioral dissection of DskGAL4 Neurons

To precisely mark DSK neurons without affecting Dsk expression, a knock-in DskGAL4 was generated by fusing the GAL4 cassette to the end of the Dsk open reading frame with a T2A peptide linker (Donnelly et al., 2001; Figure 2A). Eight neurons, with four neurons in the lateral region (DSK-L) and four neurons in the middle region (DSK-M) were labeled by DskGAL4 driving the expression of UAS-mCD8:GFP in the brain, which fully recapitulated the endogenous expression pattern of Dsk in both female and male brains by co-staining experiments (Figure 2B and C).

Figure 2 with 4 supplements see all
Download asset Open asset

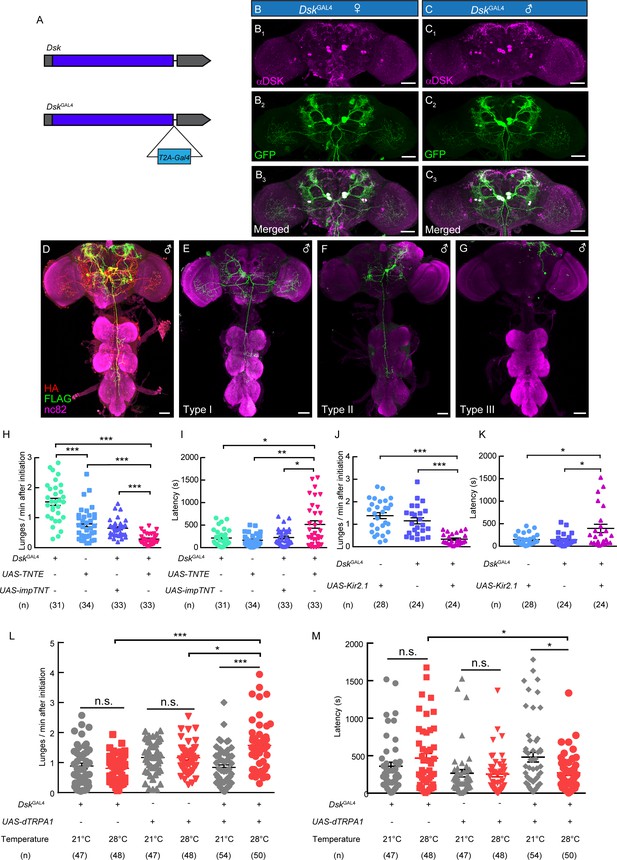

DskGAL4 Neurons Modulate Male-Male Aggressive Behavior.

(A) Generation of DskGAL4 Knock-in line. GAL4 was fused to the end of open reading frame (ORF) of Dsk with a T2A peptide linker. (B–C) Anatomical features of DSK neurons revealed by DskGAL4 driven UAS-mCD8:GFP expression. Adult female brains stained with anti-DSK antibody (magenta; B1) and anti-GFP antibody (green; B2); adult male brains stained with anti-DSK antibody (magenta; C1) and anti-GFP antibody (green; C2). Scale bars represent 50 μm. (D–G) Characterization of individual DskGAL4 neurons using MultiColor FlpOut (MCFO) method in males. Eight DSK-expressing neurons were classified into three neuronal cell types (D–G). Scale bars represent 50 μm. (H–I) TNTE inactivation of DskGAL4 neurons in males reduced lunge frequency (H) and prolonged fighting latency (I). (J–K) Kir2.1 inactivation of DskGAL4 neurons in males decreased lunge frequency (J) and prolonged fighting latency (K). (L–M) Number of lunges per minute after initiation (L) and fighting latency (M) for males during thermogenetic activation of DskGAL4 neurons. *p<0.05, **p<0.01, ***p<0.001, n.s. indicates no significant difference (Kruskal-Wallis and post-hoc Mann-Whitney U tests).

We further analyzed the projection patterns of individual DskGAL4 neurons using the MultiColor Flip-Out (MCFO) method (Figure 2D; Nern et al., 2015). Morphologically, these DskGAL4 neurons could be classified into three neuronal types. The type I neurons project to the lobula and ventrolateral neuropils, and extend descending fibers to innervate the Accessory Mesothoracic Neuropil (AMNp) in the VNC (Figure 2E, Figure 2—figure supplement 1). The type II neurons arborize in the ventrolateral neuropils and superior lateral protocerebrum (Figure 2F, Figure 2—figure supplement 1). The arborizations of type III neurons project ipsilaterally to the superior lateral protocerebrum (Figure 2G, Figure 2—figure supplement 1).

To assess the function of DskGAL4 neurons in aggression, we silenced DskGAL4 neurons by expressing tetanus toxin light chain (TNT) which can completely block chemical synapses (Keller et al., 2002; Sweeney et al., 1995; Watkins et al., 1996), or an inwardly rectifying K+ channel (Kir2.1) which can hyperpolarize neurons (Thum et al., 2006). Compared to control males, male flies with DskGAL4 neurons inhibited by either TNT or Kir2.1 showed reduced lunge frequency and prolonged fighting latency (Figure 2H–K). Conversely, we activated the DskGAL4 neurons by using the temperature sensitive cation channel Drosophila TRPA1 (dTRPA1) (Hamada et al., 2008). Males carrying DskGAL4 and UAS-dTRPA1 displayed higher aggression level at 28°C than at 21°C, and the temperature-dependent changes of aggression levels were not observed in males carrying DskGAL4 or UAS-dTRPA1 alone (Figure 2L–M; Video 2). In addition, no significant changes of locomotion activity were observed after the inactivation or activation of DskGAL4 neurons (Figure 2—figure supplement 2). Thus, these results support a role of Dsk-expressing neurons in modulating intermale aggression.

Video 2
Download asset
Thermogenetic activation of DskGAL4 neurons with UAS-dTRPA1 promotes inter-male aggression.

To characterize the subset of Dsk-expressing neurons involved in aggression, we generated 93 mosaic flies in which subset of DskGAL4 neurons were inactivated by the expression of Kir2.1::eGFP and paired each mosaic fly with a ΔDsk mutant fly to quantify the lunge frequency. We then determined which DskGAL4 neurons are labeled in all 93 mosaic flies (Supplementary file 2). We found there is a negative correlation between the number of type I plus type II neurons inhibited and the lunge numbers of individual flies (Figure 2—figure supplement 3A).The analyzing of type I or type II neurons separately also showed very similar results (Figure 2—figure supplement 3B–C). And these results should not be attributing to the inactivation of type III neurons, since no significant changes of lunge frequency have been observed after analyzing type III neurons. (Figure 2—figure supplement 3D). In addition, our electrophysiology experiments have shown that the activation of R71G01-LexA labeled P1 neurons (Pan et al., 2012) could strongly activates type I and type II neurons but only elicited weak responses from type III neurons. Those results demonstrated the necessity type I and type II neuron in aggression. But we still do not have enough evidences to show whether type III neurons are also involved in aggression.

The Dsk receptor CCKLR-17D1 regulates aggression

Two putative Dsk receptors have been identified in Drosophila: CCKLR-17D1 and CCKLR-17D3 (Kubiak et al., 2002; Nässel and Williams, 2014; Nichols et al., 1988). Loss-of-function mutants for CCKLR-17D1 and CCKLR-17D3 were generated by replacing the last two exons with 3P3-RFP cassette via homologous recombination (Figure 3A). Knock-in GAL4s for these two receptors were generated by fusing GAL4 to the C terminus of the receptors with a T2A linker to visualize the expression patterns of Dsk receptors (Figure 3B). We confirmed the targeted insertion with DNA sequencing. The knock-out lines were also validated with quantitative PCR (Figure 3—figure supplement 1). UAS-mCD8-GFP reporter driven by CCKLR-17D1GAL4 marked neuronal clusters in the central complex, lateral horn, optical lobe, suboesophageal ganglion and ventral nerve cord (Figure 3B), while CCKLR-17D3GAL4 predominantly labels neuronal clusters in the central complex, suboesophageal ganglion and ventral nerve cord (Figure 3—figure supplement 2).

Figure 3 with 5 supplements see all
Download asset Open asset

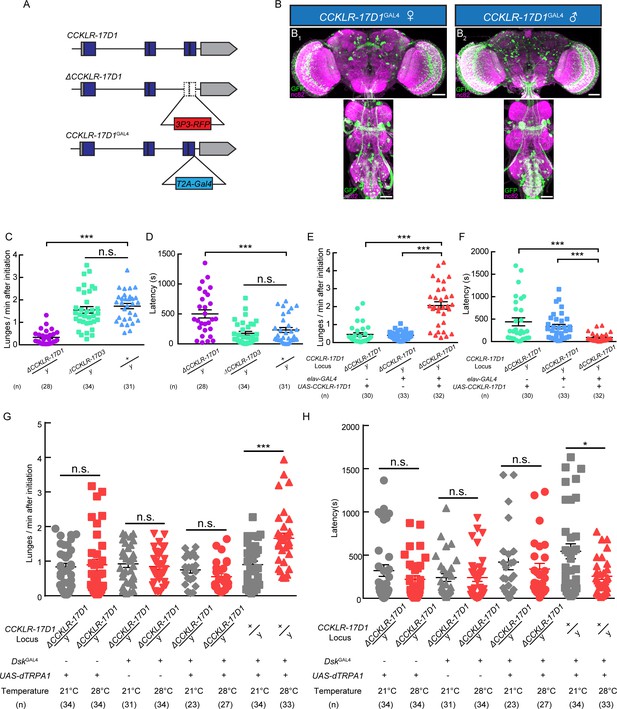

Dsk Receptor CCKLR-17D1 Is Necessary for Male-Male Aggression.

(A) Schematic view of CCKLR-17D1 gene locus and generation of ΔCCKLR-17D1 and CCKLR-17D1GAL4 Knock-in lines. The last two exons of CCKLR-17D1 gene were replaced by 3P3-RFP to generate ΔCCKLR-17D1. To generate CCKLR-17D1GAL4 Knock-in, T2A-GAL4 was fused to the end of ORF. (B) Anatomical analysis of CCKLR-17D1 expressing neurons revealed by CCKLR-17D1GAL4 driven UAS-mCD8:GFP expression. (B1) Adult female CNS stained with anti-GFP antibody (green) and nc82 antibody (magenta). (B2) Adult male CNS stained with anti-GFP antibody (green) and nc82 antibody (magenta). Scale bars represent 50 μm. (C) Number of lunges per minute after initiation of the indicated genotypes. (D) Fighting latency of the indicated genotypes. (E and F) Number of lunges per minute after initiation (E) and fighting latency (F) in ΔCCKLR-17D1 mutants rescued by elav-GAL4 driven UAS-CCKLR-17D1 expression. (G and H) Number of lunges per minute after initiation (G) and fighting latency (H) during thermogenetic activation of DskGAL4 neurons in the ΔCCKLR-17D1 mutant background. Thermogenetic activation of DskGAL4 neurons could not enhance aggression level in the ΔCCKLR-17D1 mutant background. *p<0.05, **p<0.01, ***p<0.001, n.s. indicates no significant difference (Kruskal-Wallis and post-hoc Mann-Whitney U tests).

Aggressive behavior was largely abolished in ΔCCKLR-17D1 mutants compared with wildtype controls, while ΔCCKLR-17D3 mutants preserved normal level of aggression (Figure 3C and D), and no significant locomotion defects were observed for ΔCCKLR-17D1 and ΔCCKLR-17D3 mutants (Figure 3—figure supplement 3). The reduced aggression phenotype could be rescued by pan-neuronal expression of UAS-CCKLR-17D1 driven by elav-GAL4 (Figure 3E and F). Moreover, RNAi silencing of CCKLR-17D1 using elav-GAL4 or CCKLR-17D1GAL4 also significantly suppressed aggression (Figure 3—figure supplement 4). Taken together, these results suggest that Dsk act upon the CCKLR-17D1 receptor to modulate aggression.

To evaluate whether the aggression-promoting effect of activating DskGAL4 neuron requires CCKLR-17D1, we used UAS-dTRPA1 to activate DskGAL4 neuron in the ΔCCKLR-17D1 mutant background. In this case, dTRPA1 activation of DskGAL4 neuron no longer enhanced aggression level in the absence of CCKLR-17D1 (Figure 3G and H). We conclude that CCKLR-17D1 is necessary for Dsk-mediated neuromodulation of aggressive behavior.

Dsk-expressing neurons function downstream of a subset of P1 neurons (P1a-splitGAL4) to Control Fighting Behavior

Previous works revealed that several group of neurons including a subset of P1 neurons (Hoopfer et al., 2015), Fru– population of pC1 neurons (Koganezawa et al., 2016), pCd neurons (Jung et al., 2020), a small subset of aSP2 neurons (Watanabe et al., 2017), and a group of Fru+ Tk neurosn (Asahina et al., 2014) in the central brain can promote aggression when activated. Our anterograde trans-synaptic tracing experiments using trans-Tango method (Talay et al., 2017) revealed that there might be direct connections between a subset of P1 neurons and Dsk-expressing neurons. A split-GAL4 labeling a subset of P1 neurons was used to drive the expression of trans-Tango ligand and myrGFP, and the post-synaptic neurons were identified by immunostaining with anti-HA antibody (Figure 4A). Interestingly, a few post-synaptic neurons showed immunoreactivity to Dsk, suggesting that these Dsk-expressing neurons are post-synaptic to a subset of P1 neurons (Figure 4A, Figure 4—figure supplement 1). Furthermore, we confirmed the connection between a subset of P1 neurons and Dsk-expressing neurons using the GFP Reconstitution Across Synaptic Partners (GRASP) method (Alekseyenko et al., 2014; Feinberg et al., 2008). Significant GRASP signals were observed between R71G01-LexA labeled P1 neurons and DSK neurons (Figure 4B, Figure 4—figure supplement 1; Pan et al., 2012). Moreover, Anatomical registration of a subset of P1 neurons and DSK neurons suggests that a subset of P1 neurons axons overlap with DSK dendrites (Figure 4C).

Figure 4 with 3 supplements see all
Download asset Open asset

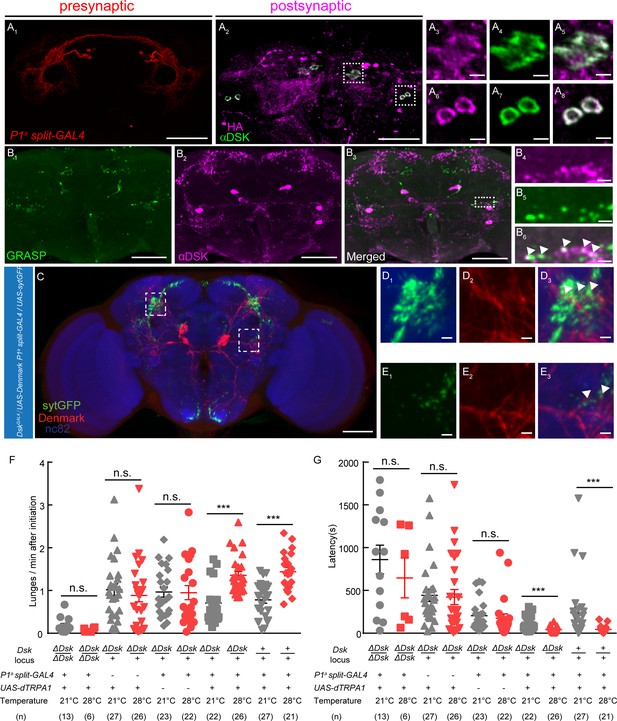

DSK Functions Downstream of a subset of P1 Neurons to Modulate Fighting Behavior.

(A) Transsynaptic labeling by trans-Tango method identifies DSK neurons as postsynaptic partners of a subset of P1 neurons. Expression of the trans-Tango ligand in a subset of P1 neurons (red) (A1) induces postsynaptic signals (anti-HA, magenta) (A2) in the central brain. Green, anti-DSK antibody staining (A2). (A3–A5) and (A6–A8) are enlargements of dashed boxes in (A2). Genotypes of a subset of P1 neurons (P1a split-GAL4): +/y; R15A01.AD/R15A01.AD; R71G01-GAL4.DBD/R71G01-GAL4.DBD. (B) GRASP signals (B1) reveal synaptic connections between R71G01-LexA labeled P1 Neurons and DSK neurons. spGFP1–10 is expressed by DskGal4 drivers; spGFP11 is driven by the R71G01-LexA. Magenta, anti-DSK antibody. (B4–B6) are enlargements of the dashed box in (B3). White arrowheads point to areas in which GRASP signal co-localized with synaptic boutons revealed by anti-DSK antibody staining (B6). Scale bars represent 50 μm in (A1–A2, B1–B3). Scale bars represent 5 μm (A3–A8, B4–B6). (C) Dendrites of DSK neurons revealed by DskGAL4 driven UAS-Denmark expression (red). Axons of a subset of P1 neurons revealed by P1a split-GAL4 driven UAS-sytGFP expression (green). nc82 antibody (blue) was used to label neuropils. Scale bars represent 50 μm. (D–E) Enlargements of dashed boxes in (C). White arrowheads point to areas in which a subset of P1 axons and DSK dendrites overlap. Scale bars represent 5 μm. (F and G) Number of lunges per minute after initiation (F) and fighting latency (G) during thermogenetic activation of a subset of P1 neurons in the ΔDsk mutant background. The aggression-promoting effect of activating a subset of P1 neurons is suppressed by the ΔDsk mutants. ***p<0.001, n.s. indicates no significant difference (Kruskal-Wallis and post-hoc Mann-Whitney U tests).

Is Dsk necessary for the aggression promoting effects of a subset of P1 neurons? To address this question, a subset of P1 neurons were activated by P1a split-GAL4 driving UAS-dTRPA1 in the homozygous ΔDsk mutant background. We observed that the aggression-promoting effect but not the courtship-promoting effect of a subset of P1 neurons activation is dramatically suppressed by the loss of the Dsk gene (Figure 4F and G, Figure 4—figure supplement 2). Taken together, these anatomical and behavioral analysis suggest that the Dsk system functions downstream of a subset of P1 neurons to modulate aggression.

The functional connectivity between Dsk-expressing neurons and R71G01-LexA labeled P1 neurons

To investigate the functional connectivity between Dsk-expressing neurons and P1 neurons were labeled by R71G01-LexA (Pan et al., 2012), we examined whether and how Dsk-expressing neurons respond to the activation of P1 neurons by patch-clamp recordings and calcium imaging.

ATP is an extracellular messenger in organisms that can activate several cell-surface receptors, such as P2X2. The ATP-gated ionotropic purinoceptor P2X2 channel was expressed in P1 neurons for chemogenetic activation of P1 neurons by ATP (Brake et al., 1994). We performed patch-clamp recordings from DSK-L neurons (with cell bodies located laterally, type III) and DSK-M neurons (with cell bodies located in the medial region, type I and type II) (Figure 5A). In perforate patch recordings, ATP activation of P1 neurons elicited robust electrical responses from DSK-M neurons and relatively weak responses from DSK-L neurons (Figure 5B). Meanwhile, we also performed calcium imaging on DSK-M and DSK-L neurons expressing the calcium sensor GCaMP6m (Figure 5C). Consistently, ATP stimulation elicited a strong calcium response in DSK-M neurons and a smaller calcium response in DSK-L neurons (Figure 5D and Video 3). In contrast, ATP activation of DSK neurons did not induce calcium responses in P1 neurons (Figure 5—figure supplement 1). These data further confirmed the functional connections between Dsk-expressing neurons and P1 neurons, suggesting that Dsk-expressing neurons receive inputs from P1 neurons.

Figure 5 with 1 supplement see all
Download asset Open asset

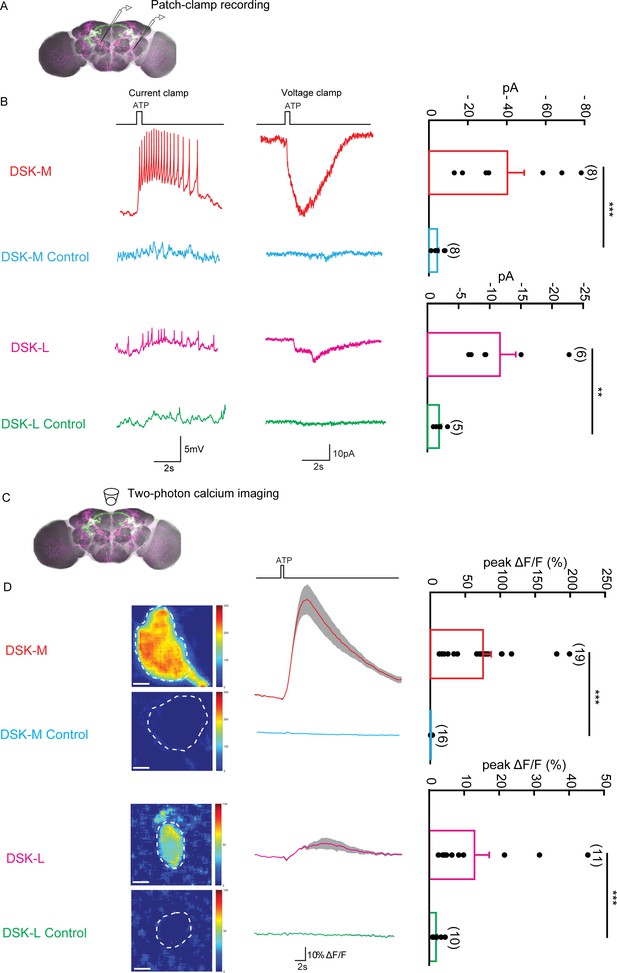

The Functional Connectivity Between DSK Neurons and R71G01-LexA labeled P1 Neurons.

(A) Illustration of patch-clamp recording on DSK neurons (magenta). ATP-gated ion channel P2X2 was expressed in R71G01-LexA labeled P1 neurons for chemogenetic activation of P1 neurons. Genotype: +/y; R71G01-LexA/+; DskGAL4/LexAop-P2 × 2,UAS-GCaMP6m. (B) The electrical responses of medial DSK neurons (DSK-M) and lateral DSK neurons (DSK-L) to ATP activation of R71G01-LexA labeled P1 neurons. ATP: 2.5 mM. Left: spikes firing (current clamp). Middle: current responses (voltage clamp). Right: quantification of absolute current responses. n = 8 from six flies for DSK-M, 8 from five flies for DSK-L, 6 from four flies for DSK-M control, 4 from four flies for DSK-L control. The electrical responses of medial DSK-M and DSK-L control to ATP activation. The Genotype of the control: +/y; +/+; DskGAL4/LexAop-P2 × 2,UAS-GCaMP6m. (C) Illustration of two-photon calcium imaging in DSK neurons. (D) Left: Calcium imaging of GCaMP6m in the cell bodies of medial DSK neurons (DSK-M) and lateral DSK neurons (DSK-L) with P2X2-expressing R71G01-LexA labeled P1 neurons activated by ATP. ATP: 2.5 mM. Middle: calcium responses of DSK neurons to ATP stimulation. Gray envelopes represent SEM. Right: quantification of peak ΔF/F in the DSK-M and DSK-L neurons. Scale bars represent 5 μm. n = 19 from four flies for DSK-M, 16 from four flies for DSK-L, 11 from four flies for DSK-M control, 10 from four flies for DSK-L control. Genotypes: +/y; R71G01-LexA/+; DskGAL4/LexAop-P2 × 2, UAS-GCaMP6m for DSK-M and DSK-L; +/y; +/+; DskGAL4/LexAop-P2 × 2, UAS-GCaMP6m for DSK-M control and DSK-L control. ***p<0.001 (Mann-Whitney U tests).

Video 3
Download asset
Chemogenetic activation of P1 neurons by ATP elicits calcium responses from DskGAL4 neurons.

Dsk signaling is upregulated in winner flies

It was well-known that hierarchical relationships could be established during fly fighting: the winners dominate the food patch and maintain high levels of aggressiveness, while the losers retreat and exhibit reduced aggression (Yurkovic et al., 2006). To explore the involvement of Dsk in the establishment of dominance, we used elav-GS to drive UAS-Dsk to induce conditional overexpression of Dsk. A pair of flies were introduced into one chamber, one of which overexpressed DSK induced by RU486 while the other did not. The one with Dsk overexpression tends to show increased aggression and establish social dominance over the opponent. It suggests that conditional overexpression of Dsk can promote social dominance (Figure 6A–D).

Figure 6 with 1 supplement see all
Download asset Open asset

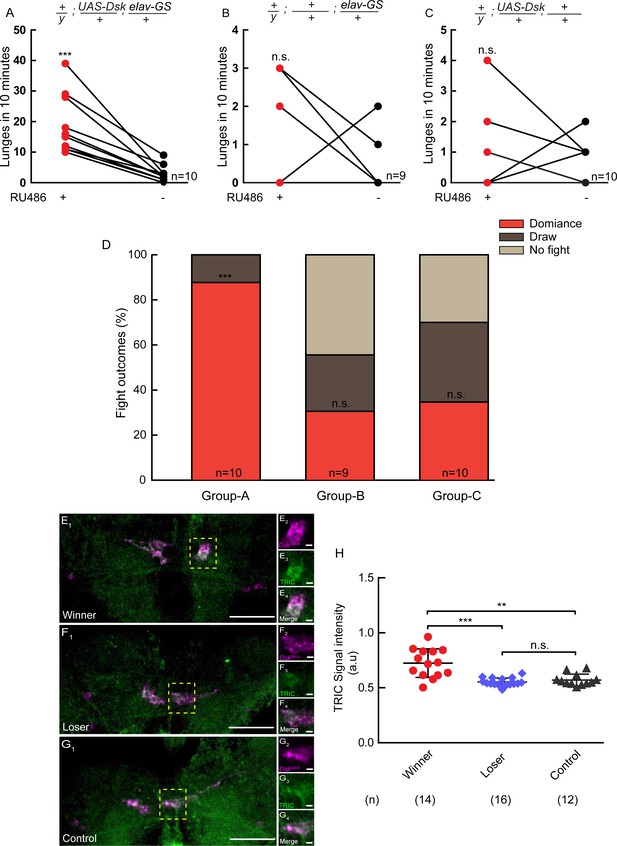

Conditional overexpression of DSK promotes winner effect and Winner Show Increased Calcium Activity of DSK-M Neurons.

(A–C) Conditionally overexpression of Dsk increases number of lunges compared to controls. Pairs of flies of the indicated genotypes were introduced into one chamber, one of which overexpressed DSK induced by RU486 while the other did not. (D) Conditionally overexpression of Dsk promotes social dominance. Fight outcomes of the RU486-induced flies of the indicated genotypes in (A–C) were classified into ‘dominance’, ‘draw’ and ‘no fight’. (E–G) Calcium activity of DSK-M neurons in winner (E), loser (F) and control (G) brains detected by the TRIC method. TRIC signal (green) in DSK-M neurons is increased in the winner brain (E3). (E2–E4), (F2–F4), (G2–G4) are within the dashed boxes in (E1), (F1) and (G1). Scale bars represent 50 μm. Genotype: UAS-IVS-mCD8::RFP, LexAop2-mCD8::GFP/y; nSyb-MKII::nlsLexADBDo/+; DskGAL4/UAS-p65AD::CaM. (H) Quantification of TRIC signals in the DSK-M neurons of winner, loser and control brains. **p<0.01, ***p<0.001, n.s. indicates no significant difference (Kruskal-Wallis and post-hoc Mann-Whitney U tests).

To assess the relationship between the activity of Dsk-expressing neurons and winner effect, we used the transcriptional reporter of intracellular Ca2+ (TRIC) technique to monitor the neuronal activity (Gao et al., 2015). We found that the TRIC signals in the DSK-M neurons are significantly higher in the winner brains than in the loser and control brains (Figure 6E–H). Thus DSK-M neurons appear to be hyperactive in winners. It should be noted that TRIC signals are not detectable in the DSK-L neurons, possibly due to low levels of baseline activity in the DSK-L neurons.

Discussion

In this study, we systematically dissected the neuromodulatory roles of the Dsk system in fly aggression. At the molecular level, Dsk neuropeptide and its receptor CCKLR-17D1 are important for fly aggression. At the circuit level, Dsk-expressing neurons function downstream of a subset of P1 neurons (P1a-splitGAL4, 8 ~ 10 pairs of P1 Neurons) to control aggression. Furthermore, winners show increased calcium activity of Dsk-expressing neurons. Conditional overexpression of Dsk promotes winner effects, suggesting that Dsk is closely linked to the establishment of dominance. Taken together, our results elucidate the molecular and circuit mechanism underlying male aggression and suggest that cholecystokinin-like neuropeptide is likely to be evolutionarily conserved for the neuromodulation of aggression.

Neural circuitry that controls male aggression

A neural circuitry controlling aggression should be composed of multiple modules that extend from sensory inputs to motor outputs. A variety of peptidergic and aminergic neurons are implicated in fly aggression (Asahina, 2017), but it is not clear how these modulatory neurons integrate input signals from other neural circuits to signal specific physiological states. Our data from circuit tracing, functional connectivity and behavioral epistasis suggest that Dsk-expressing neurons function downstream of a subset of P1 neurons and likely summate inputs from a subset of P1 neurons to signal an internal state of aggression (Figures 4 and 5, Figure 5—figure supplement 1). Activation of a subset of P1 neurons triggers both aggression and courtship (Hoopfer et al., 2015). Interestingly, while the aggression-promoting effect of activating a subset of P1 neurons is dramatically suppressed by the loss of the Dsk gene, the courtship-promoting effect remains intact in the ΔDsk mutant background. On the other hand, recent study suggested that Dsk neurons might function to antagonize P1 neurons on regulating male courtship (Sf et al., 2019). This dissociation suggests that while a subset of P1 neurons signal an arousal state facilitating both aggression and courtship, the Dsk system acts downstream of a subset of P1 neurons specifically required for aggression. It worth nothing to mention that the P1a-splitGAL4 used in those studies not only labeled a small subset of Fru+ neurons but also several Fru- neurons, and previous study on pC1 neurons suggested that Fru+ pC1 neurons promote courtship and Fru- pC1 neurons promote aggression (Koganezawa et al., 2016), so further studies are needed to characterize whether different subset of P1a-splitGAL4 labeled neurons are function differently on aggression and how Dsk system are involved. In addition, it remains unknown whether the Dsk system is responsible for integrating the sensory inputs and arousal state related to aggression, and how it connects to other components of the aggression circuitry, such as Tk neurons and AIP neurons.

As a caveat, it has been reported that Dsk is involved in feeding behavior (Nässel and Williams, 2014; Williams et al., 2014). Our experiment also reproduced the result that ΔDsk mutants show increased food consumption in the CAFE essay (Diegelmann et al., 2017). Previous studies reported a positive correlation between the body size of flies and the aggression level, suggesting that the modulational effects of DSK neurons on aggression and feeding can be separated (Hoffmann, 1987; Hoffmann, 1990). Further research is required to disentangle the relationship between DSK neurons modulating aggression and those regulating feeding.

In this study, we classified the eight DSK neurons into three subtypes (Type I, II and III) based on the morphology of the neurites or two subtypes (DSK-M and DSK-L) based on the location of the cell bodies. Interestingly, these subtypes also show functional difference in modulating aggression and differential connectivity with the a subset of P1 neurons. Note that Type I and II neurons correspond to DSK-M and Type III neurons correspond to DSK-L. Our finding that DSK-M neurons showed stronger responses to a subset of P1 neurons activation is consistent with the behavioral results of the flip-out experiment, in which Type I and II neurons, but not Type III, are critical to aggression. In future research, it would be interesting to use intersect method to more specifically label and manipulate the DSK neuron subtypes.

Cholecystokinin-Like peptide is a potentially conserved mechanism underlying aggression

Previous study implicated that the cholecystokinin system is closely linked with various human psychiatric disorders, such as bipolar disorder (Sears et al., 2013) and panic attacks (Bradwejn et al., 1990). Interestingly, verbal aggression is promoted by the administration of cholecystokinin tetrapeptide in human subjects (Tõru et al., 2010). In cats, cholecystokinin agonists potentiate the defensive rage behavior while the cholecystokinin antagonists suppress it (Luo et al., 1998). Our results reveal that cholecystokinin-like peptide Dsk and Dsk receptor CCKLR-17D1 are important forDrosophilaaggression (Figures 1 and 3). In addition, increased calcium activity in Dsk-expressing neurons coincides with winner states (Figure 6). Thus, the cholecystokinin system is linked to aggressive behavior in a variety of species and is likely to be an evolutionarily conserved pathway for modulating aggressiveness.

Social hierarchy during fly fights

It has long been noticed that hierarchical relationships could be established during fly fights, with winners remaining highly aggressive and winning the subsequent encounters, and losers retreating and losing second fights (Chen et al., 2002; Yurkovic et al., 2006). The winner state is perceived as a reward signal while losing experience is aversive (Kim et al., 2018). The establishment of social hierarchy is only observed in males (Nilsen et al., 2004), and this male-specific feature of fly aggression is specified by fruitless (Vrontou et al., 2006). However, neural correlates of dominance have not been reported. In this study, Using a transcriptional reporter of intracellular calcium (TRIC), we found that winners display increased calcium activity in the median Dsk-expressing neurons. Moreover, conditional overexpression of Dsk specifically in the adult stage increases the flies' aggressiveness and makes them more likely to win against opponents without Dsk overexpression. Thus, both the enhanced Dsk signaling in the brain and the winning-promoting effect of conditional overexpression supported that the Dsk system may be involved in the establishment of social hierarchy during fly aggression.

Materials and methods

Fly stocks

Request a detailed protocol

Flies were maintained on standard cornmeal medium at 25°C, 60% humidity in a 12 hr:12 hr Light:Dark cycle. For the thermogenetic activation experiments with UAS-dTrpA1, all the flies were reared at 21°C. The lines were backcrossed to isogenized Canton S flies for at least five generations prior to behavior studies. Trans-Tango lines were gifts from Dr. Yi Zhong (Tsinghua University). +; sp/CyO; LexAop-P2 × 2, UAS-GCamP/Tm2 was from Dr. Donggen Luo (Peking University). UAS-TNTE and UAS-impTNT were gifts from Dr. Cahir O'Kane (University of Cambridge). UAS-dTRPA1 was a gift from Dr. Paul Garrity (Brandeis University). R15A01-p65.AD (BL#68837), R71G01-GAL4.DBD (BL#69507), R71G01-LexA (BL#54733), TRIC line (BL#61679), MCFO line (BL#64089), UAS-Kir2.1 (BL#6595 and BL#6596), UAS-mCD8::GFP (BL#5137) and LexAop2-mCD8::GFP (BL#32203) were obtained from the BloomingtonDrosophilaStock Center. Lexo-CD4-spGFP11/CyO; UAS-CD4-spGFP1-10/Tb was previously described (Gordon and Scott, 2009). Please refer to Supplementary file 1 for the complete genotypes of fly stocks used in this study.

Method details

Calcium imaging and electrophysiological recordings

Request a detailed protocol

Young adult flies (1–2 days after eclosion) were used for calcium imaging. Fly brain was dissected out with fine forceps in saline solution. The saline is composed of (in mM): 103 NaCl, 3 KCl, 4 MgCl2, 1.5 CaCl2, 26 NaHCO3, 1 NaH2PO4, 5 N-tri-(hydroxymethyl)-methyl-2-aminoethane-sulfonic acid (TES), 20 D-glucose, 17 sucrose, and five trehalose. The brain was continuously perfused with saline saturated with 95% O2/5% CO2 (~pH 7.3) at 21°C during imaging.

Time series of images were acquired on a Nikon A1R+ confocal microscope with a 60 × water immersion objective. A 512 × 128 pixel imaging region was captured at a frame rate of 7 fps. The images were analyzed with a graphical user interface (GUI) written in Matlab (Zhou et al., 2015). Regions of interest (ROIs) were selected manually, and the mean baseline fluorescence values (F0) were calculated from 30 frames before ATP stimulation. The fluorescence change was calculated as: ΔF/F = (Ft − F0)/F0 ×100%. Peak ΔF/F is defined as the maximum ΔF/F value after the onset of ATP stimulus.

Electrophysiological recordings were conducted on the same microscope with infrared-differential interference contrast (IR-DIC) optics and IR-CCD (DAGE-MTI) for visualizing the target neurons. The recording pipette (~10–15 MΩ) was filled with internal solution containing 150 μg/ml amphotericin B. The internal solution consists of (in mM): 140 K-gluconate, 6 NaCl, 2 MgCl2, 0.1 CaCl2, 1 EGTA, 10 HEPES (pH 7.3). Signals were amplified with MultiClamp 700B, digitized with Digidata 1440A, recorded with Clampex 10.6 (all from Molecular Devices), filtered at 2 kHz, and sampled at 5 kHz. The recorded neuron was voltage clamped at −70 mV. Measured voltages were corrected for a liquid junction potential.

Chemogenetic stimulation

Request a detailed protocol

ATP-gated ion channel P2X2 was expressed in P1 neurons. 2.5 mM ATP-Na (Sigma-Aldrich) was delivered through a three-barrel tube, controlled by SF77B stepper (Warner Instruments) driven by Axon Digidata 1440A analog voltage output. These devices achieved fast switch between perfusion saline and ATP stimulation.

Immunohistochemistry

Request a detailed protocol

The adult flies were cold anesthetized and the CNSs were dissected in 1X PBS (Corning, 21–040-CVR). The samples were fixed in 2% paraformaldehyde for 55 min at room temperature, washed three times for 20 min in PBT (1X PBS containing 0.3% Triton-X100) at room temperature, blocked in PBT containing 5% goat serum for 1 hr at room temperature. Brains were then incubated with primary antibody (diluted in blocking solution) for 18 ~ 24 hr at 4°C, washed three times in 0.3% PBT for 20 min before incubated in the secondary antibody (diluted with 5% goat serum in 0.3%PBT) for 18 ~ 24 hr at 4°C. Brain samples were then washed three times for 20 min in PBT at room temperature, fixed in 4% paraformaldehyde for 4 hr at room temperature, and washed in PBT three times for 20 min at room temperature. Lastly, brains were mounted onto poly-L-lysine (PLL)-coated coverslip in 1X PBS. The coverslip with mounted brains was then soaked for 5 min each in a gradient of ethanol baths: 30%, 50%, 75%, 95%, 100%, and then soaked three times for 5 min in xylene. DPX was applied to the samples on the coverslip and the coverslip was placed on the slide and dried for 2 days before imaging. Images were taken with Carl Zeiss (LSM710) confocal microscopy and then processed with Fiji software. The following primary antibodies were used: mouse anti-nc82 (1:50; DSHB), chicken anti-GFP (1:1000; life technologies), rabbit anti-DSK antibody (1:1000), rabbit anti-GFP (1:1000; Invitrogen), rabbit anti-HA (1:300; Cell Signaling Technologies), rat anti-FLAG (1:200; Novus Biologicals), Rat anti-HA (1:100; Roche), mouse anti-GFP-20 (1:100; sigma), rabbit anti-RFP (1:1000; Invitrogen). The following secondary antibodies were used: Alexa Fluor goat anti-chicken 488 (1:500; life technologies), Alexa Fluor goat anti-rabbit 488 (1:500; life technologies), Alexa Fluor goat anti-mouse 546 (1:500; life technologies), Alexa Fluor goat anti-rat 546 (1:500; Invitrogen), Alexa Fluor goat anti-rabbit 546 (1:500; Invitrogen), Alexa Fluor goat anti-rat 633 (1:500; Invitrogen), and Alexa Fluor goat anti-rat 647 (1:500; Invitrogen), (1:500; life technologies).

Brain registration

Request a detailed protocol

CMTK software was used to generate a standard brain by averaging six male brains and six female brains stained with nc82 antibody (Rohlfing and Maurer, 2003). Confocal stacks were then registered into the common standard brain by linear registration and non-rigid warping methods based on the nc82 channel (Jefferis et al., 2007).

Generation of anti-DSK antibody

Request a detailed protocol

The antisera used to recognize Dsk peptide were raised in New Zealand white rabbits using the synthetic peptide N’-GGDDQFDDYGHMRFG-C’. Because Dsk and FMRFamide peptides share the same C-terminal sequence, antibody against Dsk may also recognize FMRFamide peptides. To resolve this problem, we negatively purified the antiserum by binding the antiserum to a FMRFamide peptide affinity column after positive purification. The synthesis of antigen peptide and FMRF peptide, the production and purification of antiserum were performed by Beijing Genomics Institute (BGI).

Generation of Knock-Out and Knock-In lines

We generated mutants of Dsk, CCKLR17D1 and CCKLR17D3 through homologous recombination in Drosophila embryos with the CRISPR/Cas9 system.

When generating the knock-out mutants, we introduced an attP site into the noncoding region of each gene. Based on the knock-out lines, knock-in Gal4s for each gene were generated through phiC31 mediated transgenesis as described in Deng et al. (2019).

To construct targeting vectors for knock-out generation, the homologous arms were subcloned into pBSK-attP-3P3-RFP-loxP vector through Gibson assembly using the following primers:

Dsk (CG18090)

Request a detailed protocol

  • 5’ arm-F ctatagggcgaattgggtacTAGCTTGAGCTGCGTTTATG

  • 5’ arm-R cgccaactcgtagtatgcggccgcTGTATATGGGCATGAGGTTG

  • 3’arm-F ccgcatactacgagttggcgcgccCGATAAACACTTGCCATCAG

  • 3’ arm-R aaaagctggagctccaccgcAGTTCGTTAGAGCAACGCCT

CCKLR17D1 (CG42301)

Request a detailed protocol

  • 5’ arm-F ctatagggcgaattgggtacCCAACCGCAAACGGCAATAA

  • 5’ arm-R cgccaactcgtagtatgcggccgcGTCTCGAATCTTGCGTGATT

  • 3’ arm-F ccgcatactacgagttggcgcgccGTCACTTTAGGTTAGCAATG

  • 3’ arm-R aaaagctggagctccaccgcgagaagggagcgtcgtagtc

CCKLR17D3 (CG32540)

Request a detailed protocol

  • 5’ arm-F ctatagggcgaattgggtacCAAGTTCCTCGAAGAGCGAC

  • 5’ arm-R cgccaactcgtagtatgcggccgcTGTACCCACACCCTGCCCAT

  • 3’ arm-F ccgcatactacgagttggcgcgccCTCTAAGCTGTAGAGGATTC

  • 3’ arm-R aaaagctggagctccaccgcCGAGTAGTTTGTCCTGTCAT

To generate knock-in Gal4 constructs, the deleted regions of each gene’s knock-out mutant were subcloned into the pBSK-attB-2xMyc-T2A-Gal4 (Deng et al., 2019) through Gibson assembly using the following primers.

Dsk

Request a detailed protocol

  • F: cccgggcgcgtactccacgcATGGTTCACAGCTCAGTTTA

  • R: ccacctccaccacccgcggccgcTCGGCCGAAACGCATGTGAC

CCKLR17D1

Request a detailed protocol

  • F: cccgggcgcgtactccacgcAGCTAGCATTGGGCTTTGAA

  • R: ccacctccaccacccgcggccgcGAGTCGCGGACTCTCGAGGA

CCKLR17D3

Request a detailed protocol

  • F: cccgggcgcgtactccacgcAATTGCTTTACAATGGGAAA

  • R: ccacctccaccacccgcggccgcGAGCTGAGGACTGTTGACGG

To generate ΔDskGAL4, the coding region of Dsk was deleted and replaced by GAL4 cassette. First, the 551 bp before the coding region and coding region of Dsk was replaced by an attP-3P3-RFP cassette through homologous recombination to obtain the ΔDsk knock-out line. ΔDskGAL4 flies were then generated through phiC31 mediated attB/attP recombination in the knock-out line such that the deleted 551 bp of non-coding sequence followed by GAL4 cassette was integrated into the Dsk locus. Primers for amplifying the 551 bp before the coding region of Dsk:

ΔDskGAL4-F

Request a detailed protocol

  • GTACGCTAGCATGGTTCACAGCTCAGTTTAAC

ΔDskGAL4-R

Request a detailed protocol

  • GTACGCGGCCGCACAGCTTCTAGGTCCCATG

The embryo injection and fly screen processes were the same as described in Deng et al. (2019). We verified all the knock-out and knock-in lines through PCR amplification followed by DNA sequencing.

Generation of UAS-Dsk and UAS-CCKLR-17D1

The pJFRC28-UAS-Dsk (‘UAS-Dsk’) and pJFRC28-UAS-CCKLR-17D1 (‘UAS-CCKLR-17D1’) constructs were generated using pJFRC28-10XUAS-IVS-GFP-p10 (Addgene # 36431). The plasmid of pJFRC28-10XUAS-IVS-GFP-p10 was digested with NotI and XbaI to remove the GFP coding sequence, and then the cDNA of Dsk and CCKLR-17D1 were cloned into this plasmid by Gibson Assembly. The Kozak sequence was added right upstream of the ATG. Next, UAS-Dsk and UAS-CCKLR-17D1 constructs were injected and integrated into the attP40 and attP2 sites on the second and third chromosome through phiC31 integrase mediated transgenesis, respectively. All the transgenes were verified by PCR and DNA sequencing. The primer sets for cloning the cDNA of Dsk and CCKLR-17D1:

UAS-Dsk-F

Request a detailed protocol

  • TCTTATCCTTTACTTCAGGCGGCCGCCACCATGGGACCTAGAAGCTGTACGCA

UAS-Dsk-R

Request a detailed protocol

  • GTTATTTTAAAAACGATTCATTCTAGATTATCGGCCGAAACGCATGTGA

UAS-CCKLR-17D1-F

Request a detailed protocol

  • TCTTATCCTTTACTTCAGGCGGCCGCCACCATGTTGCCGCGCCTGTGCGCCGACGCTT

UAS-CCKLR-17D1-R

Request a detailed protocol

  • GTTATTTTAAAAACGATTCATTCTAGATCAGAGTCGCGGACTCTCGAGGATCGTGT

Quantitative PCR

Request a detailed protocol

Whole head RNA was extracted from 50 fly heads using TRIzol (Ambion #15596018). The cDNA of whole fly heads was synthesized using Prime Script reagent kit (Takara).

Quantitative PCR was performed on Thermo Piko Real 96 (Thermo) using SYBR Green PCR Master Mix (Takara #RR820A). The primer sets used in this study are:

  • Dsk: 5’- GAACGCTAAGGATGATCGGC −3’ and 5’- ATTACGCCTGTCCCCGAATAG −3’

  • CCKLR-17D1: 5’- TGAGCGACAATGAATCCC −3’ and 5’- CTTGACCACACGCTTCTTG −3

  • CCKLR-17D3: 5’- GCCCATAGCGGTCTTTAGTC-3’ and 5’- GTGATGAGGATGTAGGCCAC −3

  • Actin 5C-PB: 5’- CCAACCGTGAGAAGATGACC −3’ and 5’- GCCGGAGTCCAGAACGATAC −3’

Behavior assay

Aggressive behavior

View detailed protocol

The flies were raised at 25°C and 60% humidity under a 12 hr:12 h L:D cycle. Male or female flies were collected immediately after eclosion and isolated for 5–7 days in food tubes prior to behavioral assays. All behavioral assays were carried out at 25°C and 60% humidity between 11AM-16PM, except the thermogenetic experiments.

In most experiments, aggression assays were done in the aggression chamber (Figure 1—figure supplement 6, Figure 2—figure supplement 4, Figure 3—figure supplement 5, Figure 4—figure supplement 3, Figure 6—figure supplement 1). The aggression chamber is made up of four acrylic plates. The bottom plate has 12 wells for containing food substrates (diameter: 8 mm; depth: 3 mm). The lower and upper plates have 12 cylindrical arenas (diameter: 15 mm; height of each plates: 3 mm). Two males were briefly cold anesthetized and introduced into the lower and upper plates separated by a transparent film. The flies were allowed to recover for 60 min at 25°C. Once the recording began, the transparent film was removed to allow aggressive encounters between the two flies. The aggressive encounters were videotaped for 30 min by cameras (Canon VIXIA HF R500) at 30 fps for further analysis. The number of lunges within 30 min and the latency of initiating fighting after removing the separation are counted. All behavioral assays were analyzed manually and assigned to three experimenters randomly for independent scoring. The scorers were blind to the genotypes and conditions of the experiment.

In dTRPA1 experiments, flies were reared at 21°C and isolated for 6–7 days. Aggressive assay was carried out at 21°C (control) or 28°C (activation) and 60% humidity. For the activation group, the aggression chambers containing flies will be pre-warmed at 28°C for 20 min prior to removing the separation and videotaping.

To generate mosaic flies and enable stochastic inactivation of DSK neurons, the flies of hs-FLP; UAS > stop > Kir2.1eGFP/DskGAL4 were heat-shocked for 90 min at 37°C during the mid- to late-larval stage. Male flies were collected immediately after eclosion, marked on the thorax with yellow acrylic paint on the second day of eclosion, and isolated for 5–7 days in food tubes prior to behavioral assays. Each male mosaic fly was paired with a ΔDsk mutant which served as a hypo-aggressive opponent. The homozygous ΔDsk male mutants showed a significantly reduced lunge frequency. The mosaic flies could attack homozygous ΔDsk mutants, and then we could obtain larger aggression scores from mosaic flies, so we choose ΔDsk mutants as an attack target for mosaic flies. After testing individual male mosaics for aggression, we dissected and stained their brains using anti-GFP to identify the cell types labeled.

Courtship behavior

Request a detailed protocol

The virgin of Females and males were anesthetized on ice and introduced into the lower and upper courtship chamber separated by a transparent film. The courtship chamber is cylindrical and consists of two layers (diameter: 10 mm; height of each layer: 3 mm). Flies were allowed to recover for 1 hr at 25°C. After 1 hr, the transparent film was removed and courtship video was videotaped for 30 min by cameras (Canon VIXIA HF R500) at 30 fps for further analysis.

Experiments of social hierarchy

Request a detailed protocol

The virgin male flies were collected and isolated upon eclosion. On the second day of eclosion, flies were anesthetized under light CO2 and marked on the thorax with yellow and red acrylic paint, respectively, and then singly housed in food tubes. On the sixth day after eclosion, a pair of flies with two different colors were introduced into one aggressive chamber and a transparent film was used to separate the two males. Meanwhile, we introduced a single painted fly into another chamber as the control group without fighting experience. Flies were allowed to recover for 60 min at 25°C before removing the separation to allow aggressive encounters for a period of 4 hr (eight 30 min sessions). Usually at the end of the first session social dominances were stably established with winners occupying the food patch and lunging toward losers. We chose pairs of winners/losers that maintain stable dominance relationships in all the eight sessions for further TRIC analysis.

In TRIC experiments, the brains of these three groups were dissected and fixed with 8% paraformaldehyde for 2 hr, and then mounted with DPX. All the brains were imaged on Carl Zeiss (LSM710) confocal microscopy with the same settings.

We used Fiji to quantify the fluorescence intensity by first generating a Z stack of the sum of fluorescence signals, and then quantifying the total intensity of manually selected ROIs. The signal intensity was normalized to that of the control group.

Statistical analysis

Request a detailed protocol

All statistical analyses were conducted using the Prism7 (GraphPad software) or MATLAB (MathWorks) software. Kruskal-Wallis ANOVA test followed by post-hoc Mann-Whitney U test, was used to identify significant differences between multiple groups. The Mann-Whitney U test was used for analyzing the data of two columns. The sample sizes are indicated in the figures.

Data availability

All data generated or analysed during this study are included in the manuscript and supplementary files. Source data files have been provided for main figures and supplementary figures.

The following previously published data sets were used
    1. Nichols R
    2. Schneuwly SA
    3. Dixon JE
    (1988) flybase
    Identification and Characterization of a Drosophila Homologue to the Vertebrate Neuropeptide Cholecystokinin.
    http://flybase.org/reports/FBgn0000500

References

    1. Bradwejn J
    2. Koszycki D
    3. Meterissian G
    (1990)
    Tetrapeptide induces panic attack stetrapeptide induces panic attacks in patients with panic disorder
    The Canadian Journal of Psychiatry 35:83–85.
  13. Book
    1. Darwin C
    (1859)
    On the Origin of Species by Means of Natural Selection
    London, England: John Murray.
  38. Book
    1. Lorenz KZ
    (1963)
    On aggression
    New York: Harcourt, Brace and world.
    1. Nichols R
    2. Schneuwly SA
    3. Dixon JE
    (1988)
    Identification and characterization of a Drosophila homologue to the vertebrate neuropeptide cholecystokinin
    The Journal of Biological Chemistry 263:12167–12170.

Article and author information

Author details

  1. Fengming Wu

    1. State Key Laboratory of Integrated Management of Pest Insects and Rodents, Institute of Zoology, Chinese Academy of Sciences, Beijing, China
    2. University of Chinese Academy of Sciences, Beijing, China
    Contribution
    Resources, Data curation, Writing - original draft
    Contributed equally with
    Bowen Deng and Na Xiao
    Competing interests
    No competing interests declared

  2. Bowen Deng

    1. Chinese Institute for Brain Research, Peking-Tsinghua Center for Life Sciences, Zhongguangchun Life Sciences Park, Beijing, China
    2. Institute of Molecular Physiology, Shenzhen Bay Laboratory, Shenzhen, China
    Contribution
    Methodology
    Contributed equally with
    Fengming Wu and Na Xiao
    Competing interests
    No competing interests declared

  3. Na Xiao

    State Key Laboratory of Membrane Biology, College of Life Sciences, IDG/McGovern Institute for Brain Research, Peking-Tsinghua Center for Life Sciences, Academy for Advanced Interdisciplinary Studies, Center for Quantitative Biology, Academy for Advanced Interdisciplinary Studies, Peking University, Beijing, China
    Contribution
    Software
    Contributed equally with
    Fengming Wu and Bowen Deng
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7732-9117

  4. Tao Wang

    1. State Key Laboratory of Integrated Management of Pest Insects and Rodents, Institute of Zoology, Chinese Academy of Sciences, Beijing, China
    2. School of Life Sciences, University of Science and Technology of China, Hefei, China
    Contribution
    Resources
    Competing interests
    No competing interests declared

  5. Yining Li

    1. Chinese Institute for Brain Research, Peking-Tsinghua Center for Life Sciences, Zhongguangchun Life Sciences Park, Beijing, China
    2. Peking-Tsinghua Center for Life Sciences, PKU-IDG/McGovern Institute for Brain Research, Advanced Innovation Center for Genomics, Peking University School of Life Sciences, Beijing, China
    Contribution
    Methodology
    Competing interests
    No competing interests declared

  6. Rencong Wang

    1. State Key Laboratory of Integrated Management of Pest Insects and Rodents, Institute of Zoology, Chinese Academy of Sciences, Beijing, China
    2. University of Chinese Academy of Sciences, Beijing, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared

  7. Kai Shi

    1. State Key Laboratory of Integrated Management of Pest Insects and Rodents, Institute of Zoology, Chinese Academy of Sciences, Beijing, China
    2. University of Chinese Academy of Sciences, Beijing, China
    Contribution
    Software
    Competing interests
    No competing interests declared

  8. Dong-Gen Luo

    1. Institute of Molecular Physiology, Shenzhen Bay Laboratory, Shenzhen, China
    2. State Key Laboratory of Membrane Biology, College of Life Sciences, IDG/McGovern Institute for Brain Research, Peking-Tsinghua Center for Life Sciences, Academy for Advanced Interdisciplinary Studies, Center for Quantitative Biology, Academy for Advanced Interdisciplinary Studies, Peking University, Beijing, China
    Contribution
    Supervision
    Competing interests
    No competing interests declared

  9. Yi Rao

    1. Chinese Institute for Brain Research, Peking-Tsinghua Center for Life Sciences, Zhongguangchun Life Sciences Park, Beijing, China
    2. Institute of Molecular Physiology, Shenzhen Bay Laboratory, Shenzhen, China
    3. Peking-Tsinghua Center for Life Sciences, PKU-IDG/McGovern Institute for Brain Research, Advanced Innovation Center for Genomics, Peking University School of Life Sciences, Beijing, China
    Contribution
    Supervision
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0405-5426

  10. Chuan Zhou

    1. State Key Laboratory of Integrated Management of Pest Insects and Rodents, Institute of Zoology, Chinese Academy of Sciences, Beijing, China
    2. University of Chinese Academy of Sciences, Beijing, China
    3. Institute of Molecular Physiology, Shenzhen Bay Laboratory, Shenzhen, China
    Contribution
    Conceptualization, Funding acquisition, Writing - review and editing
    For correspondence
    zhouchuan@ioz.ac.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7952-7048

Funding

National Natural Science Foundation of China (31872280)

  • Chuan Zhou

National Natural Science Foundation of China (31622054)

  • Chuan Zhou

National Natural Science Foundation of China (31671096)

  • Chuan Zhou

Chinese Academy of Sciences (XDB11010800)

  • Chuan Zhou

The funders had role in study design, data collection and interpretation, and the decision to submit the work for publication.

Acknowledgements

We thank Yi Zhong (Tsinghua University), Cahir O'Kane (University of Cambridge), Paul Garrity (Brandeis University) for sharing fly strains; Chenzhu Wang (Chinese Academy of Science), Yufeng Pan (Southeast University) and Jue Xie for their comments; Jing Li and Suyue Zhou for assistance with behavior assays; Yihui Chen for the maintenance of fly stocks; other members of the Zhou laboratory for helpful discussions. This work is supported by the Strategic Priority Research Program of the Chinese Academy of Science (No. XDB11010800), National Natural Science Foundation of China (No. 31872280, 31622054, 31671096).

Copyright

© 2020, Wu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 4,699
    views
  • 556
    downloads
  • 55
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Fengming Wu
  2. Bowen Deng
  3. Na Xiao
  4. Tao Wang
  5. Yining Li
  6. Rencong Wang
  7. Kai Shi
  8. Dong-Gen Luo
  9. Yi Rao
  10. Chuan Zhou
(2020)
A neuropeptide regulates fighting behavior in Drosophila melanogaster
eLife 9:e54229.
https://doi.org/10.7554/eLife.54229

Share this article

https://doi.org/10.7554/eLife.54229

Categories and tags

Research organism

Further reading

    1. Neuroscience

    Stable sequential dynamics in prefrontal cortex represents subjective estimation of time

    Yiting Li, Wenqu Yin ... Baoming Li
    Research Article

    Time estimation is an essential prerequisite underlying various cognitive functions. Previous studies identified ‘sequential firing’ and ‘activity ramps’ as the primary neuron activity patterns in the medial frontal cortex (mPFC) that could convey information regarding time. However, the relationship between these patterns and the timing behavior has not been fully understood. In this study, we utilized in vivo calcium imaging of mPFC in rats performing a timing task. We observed cells that showed selective activation at trial start, end, or during the timing interval. By aligning long-term time-lapse datasets, we discovered that sequential patterns of time coding were stable over weeks, while cells coding for trial start or end showed constant dynamism. Furthermore, with a novel behavior design that allowed the animal to determine individual trial interval, we were able to demonstrate that real-time adjustment in the sequence procession speed closely tracked the trial-to-trial interval variations. And errors in the rats’ timing behavior can be primarily attributed to the premature ending of the time sequence. Together, our data suggest that sequential activity maybe a stable neural substrate that represents time under physiological conditions. Furthermore, our results imply the existence of a unique cell type in the mPFC that participates in the time-related sequences. Future characterization of this cell type could provide important insights in the neural mechanism of timing and related cognitive functions.

    1. Neuroscience

    Associative plasticity of granule cell inputs to cerebellar Purkinje cells

    Rossella Conti, Céline Auger
    Research Article

    Granule cells of the cerebellum make up to 175,000 excitatory synapses on a single Purkinje cell, encoding the wide variety of information from the mossy fibre inputs into the cerebellar cortex. The granule cell axon is made of an ascending portion and a long parallel fibre extending at right angles, an architecture suggesting that synapses formed by the two segments of the axon could encode different information. There are controversial indications that ascending axon (AA) and parallel fibre (PF) synapse properties and modalities of plasticity are different. We tested the hypothesis that AA and PF synapses encode different information, and that the association of these distinct inputs to Purkinje cells might be relevant to the circuit and trigger plasticity, similar to the coincident activation of PF and climbing fibre inputs. Here, by recording synaptic currents in Purkinje cells from either proximal or distal granule cells (mostly AA and PF synapses, respectively), we describe a new form of associative plasticity between these two distinct granule cell inputs. We show for the first time that synchronous AA and PF repetitive train stimulation, with inhibition intact, triggers long-term potentiation (LTP) at AA synapses specifically. Furthermore, the timing of the presentation of the two inputs controls the outcome of plasticity and induction requires NMDAR and mGluR1 activation. The long length of the PFs allows us to preferentially activate the two inputs independently, and despite a lack of morphological reconstruction of the connections, these observations reinforce the suggestion that AA and PF synapses have different coding capabilities and plasticity that is associative, enabling effective association of information transmitted via granule cells.

    1. Neuroscience

    Pharyngeal neuronal mechanisms governing sour taste perception in Drosophila melanogaster

    Bhanu Shrestha, Jiun Sang ... Youngseok Lee
    Research Article

    Sour taste, which is elicited by low pH, may serve to help animals distinguish appetitive from potentially harmful food sources. In all species studied to date, the attractiveness of oral acids is contingent on concentration. Many carboxylic acids are attractive at ecologically relevant concentrations but become aversive beyond some maximal concentration. Recent work found that Drosophila ionotropic receptors IR25a and IR76b expressed by sweet-responsive gustatory receptor neurons (GRNs) in the labellum, a peripheral gustatory organ, mediate appetitive feeding behaviors toward dilute carboxylic acids. Here, we disclose the existence of pharyngeal sensors in Drosophila melanogaster that detect ingested carboxylic acids and are also involved in the appetitive responses to carboxylic acids. These pharyngeal sensors rely on IR51b, IR94a, and IR94h, together with IR25a and IR76b, to drive responses to carboxylic acids. We then demonstrate that optogenetic activation of either Ir94a+ or Ir94h+ GRNs promotes an appetitive feeding response, confirming their contributions to appetitive feeding behavior. Our discovery of internal pharyngeal sour taste receptors opens up new avenues for investigating the internal sensation of tastants in insects.
