Caterpillar-induced rice volatiles provide enemy-free space for the offspring of the brown planthopper

  1. Xiaoyun Hu
  2. Shuangli Su
  3. Qingsong Liu
  4. Yaoyu Jiao
  5. Yufa Peng
  6. Yunhe Li  Is a corresponding author
  7. Ted CJ Turlings
  1. State Key Laboratory for Biology of Plant Diseases and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, China
  2. College of Life Sciences, Xinyang Normal University, China
  3. Laboratory of Fundamental and Applied Research in Chemical Ecology, University of Neuchâtel, Switzerland
Research Article
  • Cited 1
  • Views 832
  • Annotations
Cite this article as: eLife 2020;9:e55421 doi: 10.7554/eLife.55421

Abstract

Plants typically release large quantities of volatiles in response to herbivory by insects. This benefits the plants by, for instance, attracting the natural enemies of the herbivores. We show that the brown planthopper (BPH) has cleverly turned this around by exploiting herbivore-induced plant volatiles (HIPVs) that provide safe havens for its offspring. BPH females preferentially oviposit on rice plants already infested by the rice striped stem borer (SSB), which are avoided by the egg parasitoid Anagrus nilaparvatae, the most important natural enemy of BPH. Using synthetic versions of volatiles identified from plants infested by BPH and/or SSB, we demonstrate the role of HIPVs in these interactions. Moreover, greenhouse and field cage experiments confirm the adaptiveness of the BPH oviposition strategy, resulting in 80% lower parasitism rates of its eggs. Besides revealing a novel exploitation of HIPVs, these findings may lead to novel control strategies against an exceedingly important rice pest.

Introduction

In their natural environment, plants interact with complex insect communities consisting of numerous species and different trophic levels (Stam et al., 2014; Poelman and Dicke, 2014; Poelman, 2015). Herbivore-induced plant volatiles (HIPVs) play key roles in these complex interactions (Dicke and Baldwin, 2010; Schuman and Baldwin, 2018; Turlings and Erb, 2018; He et al., 2019). For instance, HIPVs serve as cues for natural enemies, such as predators and parasitoids, to locate their prey or hosts (Dicke et al., 2009; Allison and Daniel Hare, 2009; Allmann and Baldwin, 2010; Halitschke et al., 2008; Turlings and Erb, 2018; Schuman and Baldwin, 2018; Joo et al., 2018). They also play a role in repelling herbivores that avoid inducible plant defenses and conspecific or heterospecific competition (De Moraes et al., 2001; Knolhoff and Heckel, 2014; Anderson et al., 2011; Jiao et al., 2018) or they can attract specialist herbivores that aggregate to collectively overcome the defense of their hosts (Loughrin et al., 1995; Weed, 2010; Robert et al., 2012). HIPVs can also be detected by neighboring plants and help them to anticipate an incoming attack (Arimura et al., 2000; Heil and Ton, 2008; Engelberth et al., 2004; Karban et al., 2014; Sugimoto et al., 2014; Nagashima et al., 2018). Hence, HIPVs provide information to all players in a plant’s ecological network and through these various effects, HIPVs play a major role in determining the composition of insect communities in the field (Xiao et al., 2012; Zhu et al., 2015; Poelman and Dicke, 2014; Blubaugh et al., 2018; Schuman and Baldwin, 2018).

Here, we address the possibility that HIPVs induced by one species can be exploited by other herbivorous species to escape the attention of its natural enemies. Although there is evidence for this from studies on invasive insects (Shiojiri et al., 2002; Chabaane et al., 2015; Desurmont et al., 2018), in all cases it remains unclear which and how volatile signals are involved in the interactions and if the observed behaviors enhance the herbivores’ fitness. Here we studied this for the brown planthopper (BPH) Nilaparvata lugens (Stål). We had found that BPH exhibits a strong preference for rice plants (Oryza sativa) that are already infested by the rice striped stem borer (SSB), Chilo suppressalis (Walker) (Wang et al., 2018). BPH feeds on surface of rice plant stems, whereas SSB feeds inside the stems of rice plants (Figure 1). Based on the preference-performance relationship that is often observed for phytophagous insects (Gripenberg et al., 2010), we would expect that BPH perform better on SSB-infested plants than on uninfested plants. However, we only found a minor direct effect on BPH development if they feed on SSB-infested rice plants relative to uninfested plants (Wang et al., 2018). Therefore, we postulate that other ecological mechanisms provide a benefit that explains the observed preference of BPH for SSB-infested plants, one of which could be a reduced exposure to natural enemies.

The study organisms on a rice plant, the brown planthopper Nilaparvata lugens, the rice-striped stem borer Chilo suppressalis, and the egg parasitoid Anagrus nilaparvatae.

Risk of predation or parasitism is an important factor influencing host selection behaviour of herbivores (Denno et al., 1990; Holt and Lawton, 1993), and we speculate that the BPH preference to share host plants with SSB may be linked to a reduced exposure to their natural enemies. The natural enemies of BPH are known to be attracted to BPH-induced rice volatiles (Xiao et al., 2012; Lou et al., 2014). We therefore hypothesize that the additional infestation by SSB affects the emission of HIPVs in a way that interferes with the attraction of natural enemies. Here we test this hypothesis for the most important natural enemy of BPH, the egg parasitoid Anagrus nilaparvatae (Pang et Wang) (Figure 1; Lou et al., 2014). We first conducted a series of oviposition preference tests to confirm that BPH females prefer SSB-infested to uninfested rice plants including wild rice. Next, we tested the parasitoid’s behavioral responses to the odors of rice plants infested only by SSB, only by BPH, or by both species. The role of specific HIPVs was then confirmed by first collecting, analyzing and identifying the volatiles released by SSB-infested, BPH infested and both species-infested rice plants and then measuring the behavioral responses of the parasitoid to synthetic blends of these volatiles. Finally, the actual fitness consequences of the BPH oviposition strategy were tested in greenhouse assays as well as field cages by determining the parasitization rates of BPH eggs by A. nilaparvatae on plants in the presence and absence of SSB larvae. The combined results provide conclusive evidence that the oviposition strategy of BPH females is adaptive and that heterospecific induction of plant volatiles provides enemy-free space for their progeny.

Results

Preferential settlement and oviposition of BPH on SSB-infested rice plants

When given a choice between uninfested rice and SSB-infested rice plants, the BPH females strongly preferred to settle on caterpillar-infested plants. This was the case for cultivated and for wild rice (Wilcoxon signed-rank test; all p<0.05) (Figure 2A and B). In concordance, BPH adult females laid significantly more eggs on caterpillar-infested rice plants than on uninfested plants (RT-test applied to a GLM, Piosson distribution error; all p<0.001) (Figure 2A and B).

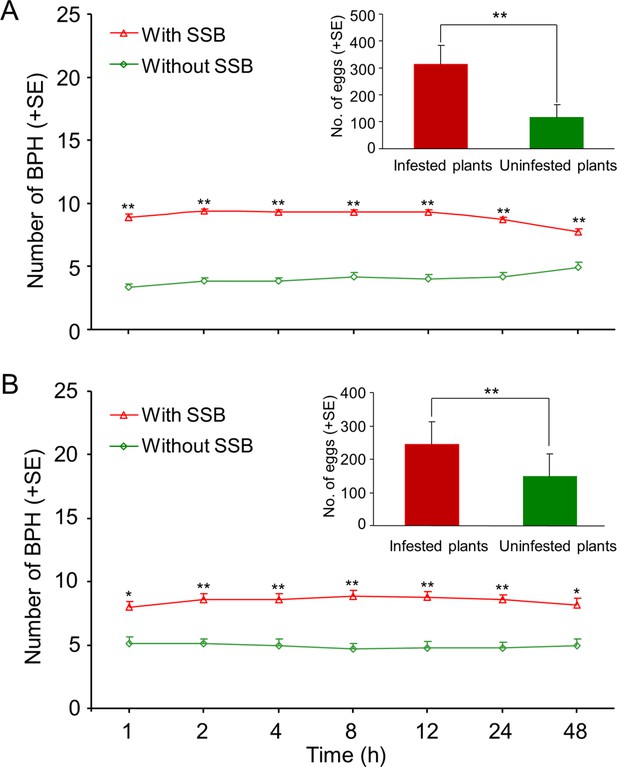

Planthoppers prefer to settle and lay eggs on caterpillar-infested rice plants.

Preferences of BPH when given a choice between uninfested or SSB caterpillar-infested cultivated rice (A) and wild rice (B) plants were evaluated. Wild or cultivated rice plants were individually infested with two 3rd instar SSB caterpillars, and plants without caterpillar damage (uninfested plants) served as control. One day after the caterpillars had been placed on the plants, fifteen mated BPH females were released in the center of the cylindrical tube at equal distance from the two plants, and the number of BPH per plant was recorded for two consecutive days at different time points (1 hr, 2 hr, 4 hr, 8 hr, 12 hr, 24 hr and 48 hr) and the number of BPH eggs on the infested and healthy plants were counted at the end of the experiment. A Wilcoxon’s signed-rank test for mean number of planthoppers and a likelihood ratio test (LR test) applied to a Generalized Linea Model (GLM, Poisson distribution error) for the mean number eggs. Asterisks indicate a significant difference within a choice test (*p<0.05, **p<0.01; N = 18–21).

Odor preferences of Anagrus nilaparvatae wasps

We first examined the preferences of female A. nilaparvatae wasps when given a choice between the odor of infested plants (BPH alone, SSB alone, or both BPH and SSB) and the odor of uninfested plants (control). Whether caterpillars were present or not, increasing the BPH density positively correlated with the attraction of the wasps to infested plants (Figure 3A). In the absence of SSB, the parasitoid exhibited a preference for BPH-infested plants compared to insect free plants, although this was not significant at the lowest density of 2 BPH per plant (p=0.36, 0.002 and 0.001 at the density of 2, 5 and 10 per plant, respectively) (Figure 3A). When 1 SSB caterpillar was present, the parasitoids showed a strong preference for uninfested plants over infested plants either with 0 or 2 BPH per plant (p<0.001, in both cases), no significant preference with 5 BPH per plant (p=0.087), and significant preference for plants infested with 10 BPH over uninfested plants (p=0.001) (Figure 3A). With two caterpillars present, the parasitoids showed a strong preference for uninfested plants at densities of 0, 2 and 5 BPH per plant (p<0.01 in all three cases), and no preference at the density of 10 BPH per plant (p=0.46) (Figure 3A).

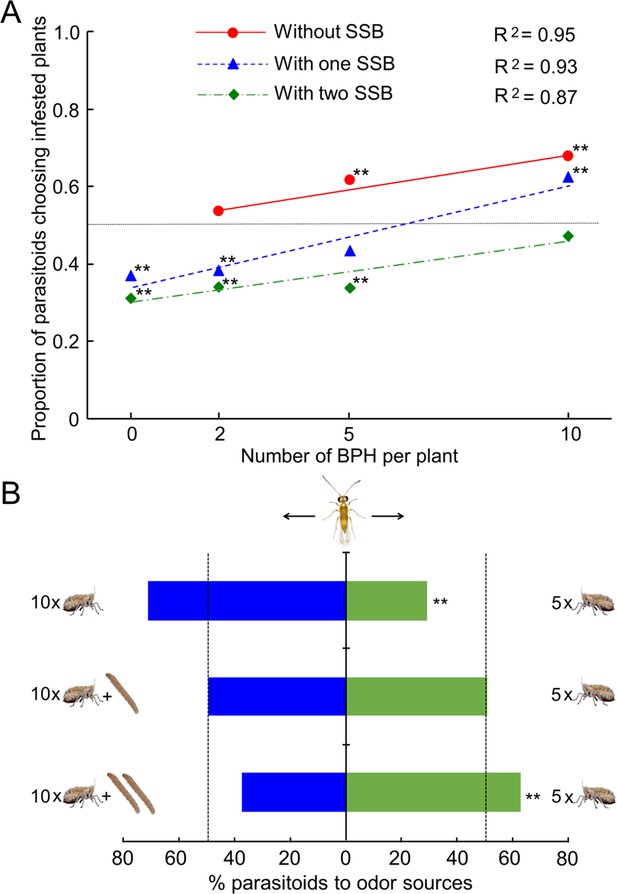

Choices of female A. nilaparvatae wasps in a Y-tube olfactometer.

(A) Proportion of females choosing for the odor of BPH-infested plants without or with (one or two) SSB larvae, when offered next to the odor of control (insect-free) plants. (B) Percentage of females choosing for rice plants infested by 10 BPH without or with SSB caterpillars when offered next to the odor of rice plants only infested by 5 BPH. A LR test applied to a GLM (binomial distribution error) was used for the data, and the asterisks with the data points (A) or columns (B) indicate significant deviation from a 50:50 ratio (*p<0.05; **p<0.01; N = 89–102).

As expected, the parasitoids showed a strong preference for plants infested with 10 BPH over plants infested by 5 BPH (p=0.001) (Figure 3B). However, this preference was no longer observed when there was an SSB caterpillar present with the 10 BPH (p=0.87). Moreover, the parasitoids exhibited a significant preference for plants infested by 5 BPH vs. plants infested by 10 BPH together with two caterpillars (p<0.001) (Figure 3B).

Rice volatile compounds affecting parasitoid behavior

A total of 41 compounds were detected in the headspace of uninfested rice plants, whereas 49 compounds were detected for rice plants damaged by BPH. The number of detected volatile compounds increased to 55 when the rice plants were infested by SSB only, or by both SSB and BPH. The relative quantities of specific compounds were significantly different among different plant treatments (Figure 4—source data 1). A projection to partial least squares-discriminant analysis (PLS-DA) using the contents of all detected volatiles showed a clear separation between herbivore-infested treatments and uninfested control plants, as well as between herbivore-treatments with or without SSB (Figure 4). The first two significant PLS components explained 30.8% and 10.3% of the total variance, respectively. The first component showed a clear separation between volatile profiles of plants with SSB infestation versus the other two treatments, while the second component separated volatile profiles released by plants infested by BPH only versus the other four treatments (Figure 4). However, the first two components could not separate the plants infested by SSB only or by SSB plus BPH. The volatile blends emitted by the plants of the three SSB treatments contained the same number and type of volatile compounds, and only a few of them showed significant difference in relative amount (Figure 4—source data 1).

Partial least squares discriminant analysis (PLS-DA) of rice plant volatile compounds.

The rice plants were either uninfested (Control), infested with 10 gravid BPH females for 12 hr (10 BPH), with two 3rd-instar SSB larvae for 12 hr then with 10 gravod BPH females for another 12 hr (2 SSB+10 BPH), with two SSB for 12 hr then with 5 BPH for another 12 hr (2 SSB+5 BPH), or with two SSB for 24 hr (2 SSB). The score plot display the grouping pattern according to the first two components and the ellipse defines the Hotelling’s T2 confidence interval (95%) for the observations.

Based on the GC-MS results, we conducted Y-tube assays to assess the response of female A. nilaparvatae wasps to each of 20 volatile compounds that showed significant differences among treatments (Figure 4—source data 1). They were tested at a low and a high dose (Figure 5). Seven compounds, 2-nonanone, 2-tridecanone, (E)−2-heptany1 acetate, 2-heptanol, D-limonene, α-pinene and isopropyl myristate, had a significant repellent effect on the wasps compared to the control (hexane) at either low or high dose or both doses. In contrast, five compounds, DMNT, (E)-β-caryophyllene, linalool, methyl salicylate and (E)−2-hexenal, significantly attracted the wasps at both low and high doses. Interestingly, A. nilaparvatae females were attracted to TMTT at a low dose, but were repelled at a high dose (Figure 5). The remaining seven compounds had no effect on the wasps’ behavior, even at a high dose; they were not included in the following experiments.

Figure 5 with 1 supplement see all

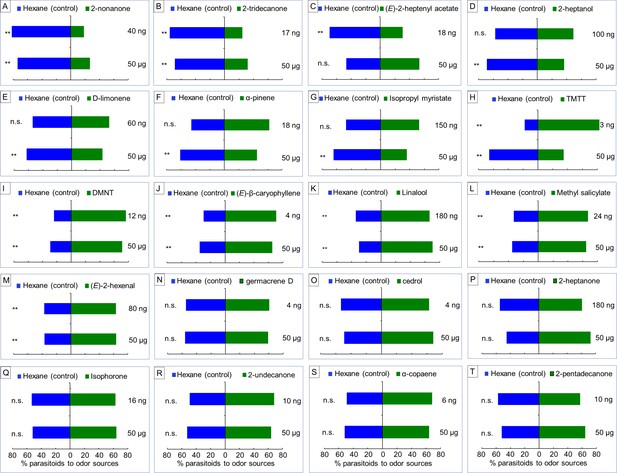

Parasitoid responses to individual herbivore-induced volatile compounds at low (3–180 ng) or high (50 µg) doses.

Response of A. nilaparvatae (Y-tube assay) to selected key rice volatile compounds that were induced by damage of SSB, BPH or both herbivores. The compounds A-G exhibited were repellent at either a low or high dose or both doses, compound H was attractive at a low dose, but repellent at a high dose, whereas compounds I-M were attractive at both dosages. The remaining compounds (N-T) had no effect on the behavior of the parasitoid females at either dose. Columns with asterisks indicated the test volatiles significantly attract or repel the parasitoid (LR test applied to a GLM, binomial distribution error; *p<0.05, **p<0.01) (N = 50–122).

Response of female A. nilaparvatae wasps to mixtures of volatiles

Next, we tested the response of female A. nilaparvatae to synthetic blends containing the 13 compounds that were found to affect the behavior of the parasitoid. There was a significantly higher percentage (73.1%) of A. nilaparvatae females that chose the synthetic blend that mimicked the volatiles emitted by plants infested by 10 BPH females compared to the control (only hexane) (p<0.001). By contrast, significantly fewer parasitoids chose the synthetic blends that mimicked the volatiles emitted by plants infested by 2 SSB caterpillars (30.4%; p<0.001) or two caterpillars plus 5 BPH females (37.3%; p=0.016). No significant effect on parasitoid preference was detected for the synthetic blend that mimicked the volatiles emitted by plants infested by 2 caterpillars plus 10 BPH females (p=0.33) (Figure 6).

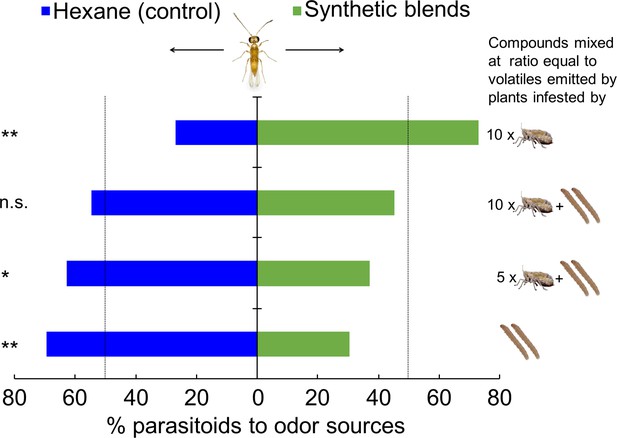

Response of A. nilaparvatae wasps to synthetic volatile blends.

The synthetic blends contained volatile compounds at ratios equal to those detected in volatile blends emitted by rice plants that had been infested with 10 BPH only, 10 BPH plus 2 SSB larvae, 5 BPH plus 2 BPH larvae, or 2 SSB larvae only. Pure hexane was used as a control. Columns marked with asterisks indicate significant differences (LR test applied to a GLM, binomial distribution error; **p<0.01), and n.s. indicated a non-significant difference (p>0.05) (N = 60).

Parasitism rates of N. lugens eggs by A. nilaparvatae wasps

In the greenhouse experiment, gravid females of BPH were placed on rice plants contained in a plastic sleeve and therefore could not choose among plant treatments. In this no-choice situation, the mean numbers of BPH eggs laid on rice plants were not significantly different between plant treatments (10 BPH vs. 10 BPH + 1 SSB, p=0.68; 10 BPH vs. 10 BPH + 2 SSB, p=0.69) (Figure 7A). Still, the rate of parasitism of BPH eggs was considerably lower on plants infested with 10 BPH plus 1 SSB or 2 SSB than on plants infested with BPH only (both p<0.01) (Figure 7B).

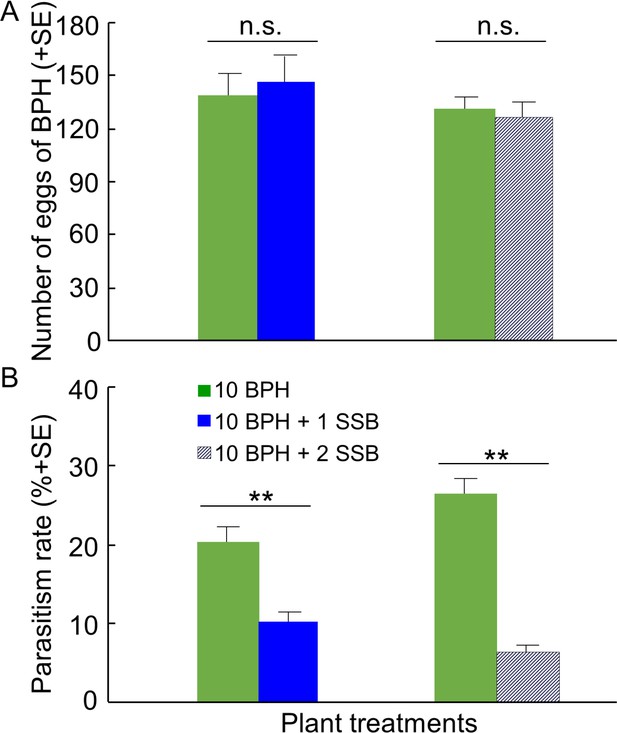

Parasitization rates of planthopper eggs by A. nilaparvatae in the greenhouse experiments.

(A) Mean numbers of eggs deposited by BPH females on rice plants infested with BPH only or with both BPH and SSB, and (B) rates of parasitization of BPH eggs by A. nilaparvatae on the differently infested plants. LR tests applied to a GLM were conducted for the number of eggs (Poisson distribution error) and for the percentage of parasitized eggs (binomial distribution error). Columns marked with asterisks indicate significant differences (**p<0.01) and n.s. indicated a non-significant difference (p>0.05) (N = 14–15).

In the field cage experiment, gravid BPH females had a choice to select between differently treated rice plants for oviposition. As expected from the earlier results (Figure 2), they exhibited a significant oviposition preference for rice plants infested with both herbivores as compared to plants infested with only BPH, with three times as many eggs on the doubly infested plants (p=0.004) (Figure 8A). Also, under these conditions, the BPH eggs were parasitized far less (over 5-fold reduction) on plants infested with both herbivore species than on plants infested with BPH only (p=0.005) (Figure 8B).

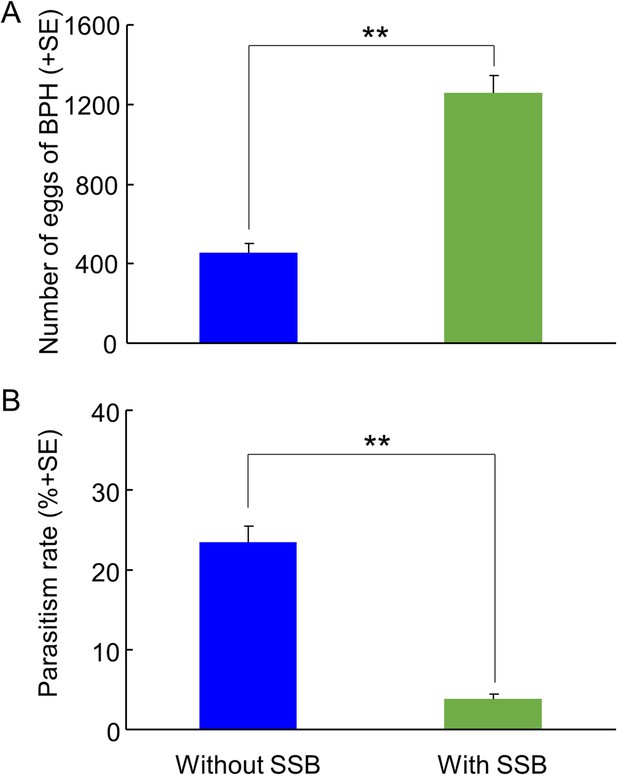

Parasitism rates of planthopper eggs by A. nilaparvatae in the field cage experiments.

(A) Mean numbers of eggs deposited by BPH on rice plants that were infested with BPH only or with both BPH and SSB, and (B) rates of parasitism of BPH eggs by A. nilaparvatae on the differently infested plants. LR tests applied to a GLM were conducted for the number of eggs (Poisson distribution error) and for the percentage of parasitized eggs (binomial distribution error). Data columns marked with asterisks indicate significant differences (**p<0.01) (N = 5).

Discussion

Many female insects have the formidable task to find suitable resources for their offspring. In the case of herbivores this involves localizing suitable host plants. These are not only plants that provide nutrition for optimal development, but also those with least risk that the offspring will be exposed to natural enemies (Denno et al., 1990; Holt and Lawton, 1993; Feder et al., 1995; Shiojiri et al., 2001; Shiojiri et al., 2002; Ode, 2006; Joo et al., 2018; Brütting et al., 2018). Here we reveal a clever strategy used by the BPH whereby it exploits the HIPVs induced by the SSB to find highly suitable, enemy-free rice plants.

Our first experiments confirm that the planthoppers exhibit a strong preference for SSB-infested plants whether it concerns cultivated or wild rice (Figure 2). This prompted the subsequent experiments to test the plant-mediated tritrophic interactions among SSB caterpillars, BPH planthoppers and its parasitoid A. nilaparvatae. The olfactometer assays showed the expected attraction of female A. nilaparvatae wasps to BPH-infested plants and that the attractiveness increased with an increase in the number of BPH per plant. However, when BPH-infested plants were co-infested by SSB caterpillars, wasp attraction to A. nilaparvatae was significantly reduced or even turned into repellency, depending on the densities of the respective insects on a rice plant (Figure 3). We tested the hypothesis that the distinct behavioral responses of the parasitoids to differentially treated rice plants are mediated by inducible volatiles, as it is known that HIPVs play a key role in the host-searching behavior of parasitoids (Turlings and Wäckers, 2004; McCormick et al., 2012; Turlings and Erb, 2018; Joo et al., 2018) and changes in the volatile blends may significantly reduce their attractiveness (Chabaane et al., 2015; Desurmont et al., 2014; Desurmont et al., 2018; Blubaugh et al., 2018).

Chemical analyses of the HIPVs emitted by rice plants in response to different herbivory showed considerable differences between treatments. PLS-DA of the volatiles revealed a clear separation between volatile profiles of plants with SSB infestation versus plants infested by BPH alone, but found no separation between plants infested by SSB only or by SSB plus BPH (Figure 4). This implies that SSB-induced volatiles dominate the plants’ headspace and may thereby mask the BPH-induced volatiles. Based on the PLS-DA analyses, we expected that SSB caterpillars induce different volatiles than BPH and that this difference is responsible for the repellent effect on the parasitoid. Indeed, we identified (E)−2-heptenyl acetate as a compound that was only emitted by rice plants with SSB infestation, and it exhibited significant repellence to A. nilaparvatae (Figure 5). The parasitoid was also repelled by other volatiles, such as 2-nonanone, 2-tridecanone, 2-heptanol, D-limonene and α-pinene that were found to be characteristic for SSB infestation. These compounds were also emitted by uninfested plants or plants infested by BPH only, but their concentrations were significantly increased upon SSB infestation (Figure 5—figure supplement 1). The results imply that, in combination with (E)−2-heptenyl acetate, these compounds are responsible for deterring A. nilaparvatae females when confronted with SSB-infested plants. It is expected that for a highly specialized parasitoid like A. nilaparvatae these responses are innate and not easily changed through experience (Steidle and van Loon, 2003; Guo and Wang, 2019), unlike in generalist parasitoids, which are notoriously good learners and adapt their responses to odor cues depending on positive or negative host location experiences (Vet et al., 1995).

We also considered the possibility that SSB infestation suppresses volatile compounds that are normally induced by BPH feeding. In other systems such suppression is known to reduce natural enemy attraction. For example, adding whiteflies to spider mite infested lima bean plants results in a reduction in the emission of (E)-β-ocimene, thereby reducing the plants’ attractiveness to predatory mites (Zhang et al., 2009). Similarly, adding slugs to wild Brassica rapa that are infested by Pieris brassicae caterpillars results in an overall reduction in volatile emissions, leading to a reduced attraction of Cotesia glomerata (Desurmont et al., 2016). Yet, in the current study we did not find any evidence that the emission of parasitoid-attractive compounds was suppressed by SSB infestation. In fact, SSB infestation increased most of these attractants, just like the parasitoid-repellent compounds (Figure 5). This implies that changes in the overall composition and relative ratios of the volatile blend make plants that are co-infested by BPH and SSB unattractive to the parasitoid.

Although examples are still rare, the interference of one herbivore with the plant-mediated recruitment of natural enemies of another herbivore has been shown before, and new examples will certainly follow, especially in the context of climate change and the invasion of novel herbivores that come with it (Desurmont et al., 2014; Desurmont et al., 2018). For instance, when the exotic noctuid Spodoptera littoralis co-infests Brassica rapa plants that are under attack by native Pieris brassicae caterpillars, the dually-infested plants are considerably less attractive to the braconid wasp Cotesia glomerata, the main parasitoid of P. brassicae (Chabaane et al., 2015; Desurmont et al., 2016). Similarly, Zhang et al., 2009 reported that when spider mite-infested lima bean plants are also infested by whitefly nymphs this results in a reduced attraction of predatory mites. As in our study, Shiojiri et al., 2002 found that females of the moth P. xylostella preferentially oviposit on P. rapae -infested cabbage plants on which the parasitism rates of P. xylostella larvae by C. plutellae wasps are significantly reduced. Here we show that such an oviposition strategy can lead to tremendous fitness benefits.

Under greenhouse and semi-field condition, parasitism by A. nilaparvatae of planthopper eggs was considerably reduced on rice plants that were also infested with SSB larvae. In the greenhouse trial all plants carried equal numbers of BPH eggs (Figure 7A), In the field cage experiment, due to the strong preference of planthoppers for caterpillar-infested rice plants, more than twice as many eggs were laid on plants infested with both herbivores as compared to plants infested with planthoppers only. Nevertheless, the parasitism rate was more than 80% lower on plants infested with both herbivores. These results were well in accordance with the preferences that the parasitoid showed in the olfactometer experiments, implying that the lower parasitism rates on rice plants infested by both herbivores are caused by reduced attractiveness or even repellence by HIPVs released by SSB-infested rice plants. Our results imply that the presence of SSB larvae provides excellent protection for the offspring of planthoppers against parasitism by A. nilaparvatae and that the planthopper has evolved a highly adaptive oviposition strategy. Hence, rice plants with SSB infestation can be regarded as ‘enemy-free/reduced space’ for planthoppers (sensu Denno et al., 1990; Holt and Lawton, 1993; Feder et al., 1995; Shiojiri et al., 2001, Shiojiri et al., 2002; Ode, 2006).

Stamp, 2001 and Ode, 2006 postulate that herbivores can use plant secondary chemicals in defense against their own natural enemies, thereby creating enemy-free/reduced space. They mainly refer to insects that sequester plant defense compounds that provide resistance against the insects’ natural enemies. In the known cases, the herbivores sacrifice their superior performance on optimal plants in order to obtain enemy-free/reduced space on less suitable plants (Stamp, 2001; Ode, 2006). For example, woolly bear caterpillars, Grammia geneura, not only feed on highly suitable and palatable Malva parviflora plants, but also on relatively toxic host plants, Senecio longilobus and Ambrosia confertiflora, containing pyrrolizidine alkaloids (Singer et al., 2004). Consumption of the toxic plants decreases the performance of the caterpillar, but provides defense against parasitism by a common tachinid fly, Exorista mella (Singer et al., 2004). Such trade-offs result in dilemmas that many herbivorous species have to face (Ode, 2006). In sharp contrast, the oviposition strategy by planthoppers revealed in the current study does not involve any such trade-off. The ‘enemy-free space’ relies on plant volatiles induced by heterospecific species that have no apparent negative effect on the planthoppers. In fact, BPH performance may even be higher on SSB-infested rice plants, independent of parasitism risk. We know that SSB-infested rice plants contain higher amounts of nutritious amino acids, but the fitness of BPH on SSB-infested plants is only slightly higher than on uninfested plants (Wang et al., 2018). Hence, volatile-mediated ‘enemy-free space’ represents an ‘optimized adaptive strategy’ for herbivorous species (Denno et al., 1990; Shiojiri et al., 2002; Knolhoff and Heckel, 2014). Further insight into the exact chemistry responsible for attraction and repellency of BPH and its parasitoids may lead to the development of novel control strategies to mitigate the often devastating effects of BPH on rice yields (Xiao et al., 2012; Lou et al., 2014).

In brief, the current study demonstrates that HIPVs emitted by plants in response to feeding by a particular herbivore can be proactively utilized by another herbivore species to reduce the chances that their progeny fall victim to natural enemies. The oviposition strategy employed by the BPH is shown to be indeed adaptive, as it drastically reduces offspring mortality caused by an important egg parasitoid.

Materials and methods

Plants and insects

Request a detailed protocol

Seeds of cultivated rice (O. sativa), Minghui63 (MH63), and wild rice (O. rufipogon; erect type) were provided by Prof. Hongxia Hua (Huazhong Agricultural University, Wuhan, China), and Prof. Xinwu Pei (Institute of Biotechnology, Chinese Academy of Agricultural Sciences), respectively. Pre-germinated seeds were sown in the greenhouse at 27 ± 3°C with 75 ± 10% RH and a photoperiod of 16:8 hr (light: dark). After 15 days, the seedlings were individually transplanted into bottom-pierced plastic pots (diameter 20 cm, height 18 cm) containing a 3:1 mixture of peat and vermiculite (Meihekou Factory, Meihekou, China). Potted plants were placed in a cement pool filled with 2 cm of water. The water was replaced weekly, and nitrogenous fertilizer was applied once per week before tillering and once every 2 weeks after tillering. Plants were used in the experiments 5 weeks after transplanting when they were at the tillering stage with 10–12 leaves on the main stem.

All three insect species, C. suppressalis (SSB), N. lugens (BPH) and A. nilaparvatae (Figure 1) were obtained from laboratory colonies. The colonies have been maintained in climatic chambers at 27 ± 3°C, 75 ± 5% RH, and 16: 8 h L:D for many generations with annual introductions of field-collected individuals. C. suppressalis larvae were reared on an artificial diet (Han et al., 2012) and 3rd instar larvae were used in the experiments. N. lugens were maintained on conventional rice plants, Taichung Native 1 (TN1) (Wang et al., 2018), and gravid females were used in the experiments. The parasitoid A. nilaparvatae was reared on N. lugens eggs. Adult wasps were fed 10% honey solution and maintained in glass tubes (diameter 3.5 cm, height 20 cm) for at least 6 hr to ensure mating, before females were used for the following experiments.

Oviposition preference of BPH for uninfested and SSB-infested rice plants

Request a detailed protocol

To infest plants with SSB caterpillars, two 3rd instar caterpillars were starved for at least 3 hr and then placed on a wild or cultivated rice plant. The rice stems infested with caterpillars were covered with plastic sleeves to prevent insects from escaping (Jiao et al., 2018). Within 24 hr, the caterpillars drilled into the stems and caused visible damage to the plants. The caterpillars remained in the plants for the duration of the experiments. Uninfested plants were used as control.

For choice tests, intact whole rice plants were used. One day after the caterpillars had been placed on the plants, each plant was paired with an uninfested plant in H-tube olfactometers as described by Wang et al., 2018. Each olfactometer consists of a horizontally placed cylindrical plastic tube (diameter 8.0 cm, length 19.0 cm) with holes below and above on each side through which rice plants can be introduced. After gently inserting the main stems of the pair of plants on each end of the olfactometer, fifteen gravid BPH females were released in the center of the horizontal tube, and the holes were plugged with sponges. After that, the numbers of BPHs that settled on each plant (SSB-infested or uninfested) were recorded for two consecutive days at different time points (1 hr, 2 hr, 4 hr, 8 hr, 12 hr, 24 hr, 48 hr). After the last time point, the BPH individuals were removed and the number of eggs laid on each rice plant was counted. This choice test was replicated 18–21 times.

Response of A. nilaparvatae wasps to insect-infested rice plants

Request a detailed protocol

Multiple types of infested rice plants were prepared: SSB-infested, BPH-infested, and plants infested with both species.

  1. SSB-infested plants. Each potted rice plant was artificially infested with 1 or two third-instar SSB larvae that had been starved for >3 hr using the method as described above. After 24 hr feeding, rice plants were used for experiments, during which the caterpillars remained in the plants for the duration of all experiments, since they had bored into rice stems and it was not possible to get them off without artificial damage on plants. The wormholes were sealed using parafilm to avoid any volatiles released from insects.

  2. BPH-infested plants. Each potted rice plant was infested with 2, 5 or 10 individuals of gravid BPH females. The planthoppers were removed from rice plants after 12 hr of feeding before the plants were used.

  3. Plant infested with both SSB and BPH. Rice plants were infested with 1 or two third-instar SSB larvae only as described above for the first 12 hr, then 2, 5 or 10 individuals of gravid BPH were additionally introduced on to each plant. After 12 hr of feeding, all planthoppers were removed and the caterpillars were kept in the plants, but the wormholes were sealed using parafilm before the plants were used in the olfactory behavior bioassays.

Dual-choice (Y-tube) olfactometers (10 cm stem; 10 cm arms at 75° angle; 1.5 cm internal diameter) were used to investigate the behavioral responses of gravid A. nilaparvatae females to rice plants that had never been infested by any insects (control plants) and each type of insect-infested rice plants as described above (treated plants). In addition, we further compared the preference of A. nilaparvatae females to rice plants that had been infested with 10 planthoppers plus 0, 1 or two caterpillars, and rice plants infested with five planthoppers only. Ten rice plants were enclosed in a glass bottle used as one odor source. Eight-twelve parasitic wasps were tested for each pair of plants (odor sources), and ten pairs of plants were used in each choice test (treatment), resulting in a total of 80–120 females tested for each treatment. The olfactory behavior assays were conducted using the method as described by Liu et al. (2015). Individuals that made no choice within 5 min were excluded from the analyses. All tests were conducted between 10:00 and 16:00 in a climate-controlled laboratory room (27 ± 3°C, 40% RH).

Collection and analysis of rice plant volatiles

Request a detailed protocol

Five types of rice plants were prepared: (a) plants that remained uninfested; (b) plants infested with 10 gravid BPH females for 12 hr; (c) plants infested with two 3rd-instar SSB larvae for 12 hr before additional introduction of 10 gravid BPH females for extended feeding of 12 hr; (d) plants infested with two 3rd-instar SSB larvae for 12 hr before additional introduction of 5 gravid BPH females for extended feeding of 12 hr; (e) plants infested with two 3rd- instar larvae of SSB for 24 hr. Before the plants were used for volatile collections, planthoppers were removed, and the caterpillars remained in the rice stems, but the wormholes were sealed using parafilm to avoid any volatiles released from the caterpillar themselves.

Volatiles emitted by rice plants were collected using a dynamic headspace collection system as described by Jiao et al., 2018. Ten plants were transferred into a glass bottle (3142 ml). Air was filtered through activated charcoal, molecular sieves (5 Å, beads, 8–12 mesh, Sigma-Aldrich), and silica gel Rubin (cobalt-free drying agent, Sigma-Aldrich) before entering the glass bottles. The system was purged for 30 min at 400 ml/min with purified air before attaching a tube filled with 30 mg Super Q traps (80/100 mesh, ANPEL Laboratory Technologies (Shanghai) lnc, China) to the air outlet in the lid to trap the headspace volatiles (Jiao et al., 2018). Volatile collection lasted for 4 hr (11:00-15:00) in a climate chamber at 27 ± 3°C, 75 ± 10% RH.

Volatiles were analyzed by gas chromatography coupled with a mass spectrometry system (Shimadzu GCMS-QP 2010SE using an RTX-5 MS fused silica capillary column). Samples were injected in a 1 µl volume with a splitless injector held at 230°C. The GC-MS was operated in the scan mode with a mass range of 33–300 amu and was in an electron-impact ionization (EI) mode at 70 eV. The oven temperature was maintained at 40°C for 2 min, and was then increased to 250°C at 6 °C min−1, where it was held for 2 min. Volatile compounds were identified by mass spectral matches to library spectra as well as by matching observed retention time with that of available authentic standards. If standards were unavailable, tentative identifications were made based on referenced mass-spectra available from NIST (Scientific Instrument Services, Inc, Ringoes, NJ, USA) or based on a previous study (Xiao et al., 2012; Jiao et al., 2018). Relative quantifications of compounds were first based on their integrated areas related to the internal standard (De Lange et al., 2020). This does not allow for very precise quantification, but provides accurate information for comparisons among volatile collections. We also use these values as rough estimates of quantity to select the dosages of chemical standards that we used in the first olfactometer assay.

Identification of key rice volatiles that attract or repel A. nilaparvatae

Request a detailed protocol

Based on the GC-MS results, twenty volatile compounds including α-pinene, D-limonene, linalool, 2-heptanone, 2-heptanol, cedrol, (E)-β-caryophyllene, (E)−2-hexenal, 2-nonanone, isophorone, methyl salicylate, 2-tridecanone, isopropyl myristate, (E)−2-heptanyl acetate, α-copaene, TMTT, DMNT, germacrene D, 2-pentadecanone, and 2-undecanone were selected for further experiments to determine their effects on A. nilaparvatae behavior. The compounds were selected following the criteria: i) significantly increased or newly produced in response to damage by SSB or BPH or both and ii) having been reported to attract or repel A. nilaparvatae females in previous studies (Xiao et al., 2012; Wang and Lou, 2013). The compounds were purchased from different companies with analytical grade purity: 2-nonanone from Shanghai Aladdin Bio-Chem Technology Co., Ltd (Shanghai, China); DMNT from Enamine Ltd (Kiev, Ukraine); 2-tridecanone from Dr. Ehrenstorfer GmbH (Augsburg, Germany); TMTT, α-copaene and germacrene D from Toronto Research Chemicals Inc (Ontario, Canada); isophorone, (E)−2-heptanyl acetate, 2-pentadecanone, 2-undecanone, isopropyl myristate and (E)−2-hexenal from Tokyo Chemical Industry Co., Ltd (Shanghai, China), and the others from Sigma-Aldrich (St Louis, MO, USA).

Dual-choice (Y-tube) olfactometers (10 cm stem; 10 cm arms at 75° angle; 1.5 cm internal diameter) were used to investigate the behavioral responses of gravid A. nilaparvatae females to the selected compounds. The synthetic volatile compounds were individually dissolved in pure hexane, and each compound was tested at a high dose of 50 μg per 10 μl pure hexane and a low dose that was equal to its share in the volatile blend emitted by rice plant infested by SSB only (Figure 5). Filter papers (1 × 2 cm) were loaded with either 10 μl of the volatile solution or 10 μl pure hexane (control) and were, respectively, put into two glass jars (diameter 10.5 cm; height 10 cm) as a pair of odor sources. The procedure for the Y-tube assays was the same as described above. Fifty to 122 insects were tested for each compound.

Response of female A. nilaparvatae wasps to mixtures of volatiles

Request a detailed protocol

The results from Y-tube assays revealed that 13 volatile compounds exhibited attraction or repellence to A. nilaparvatae females, either at high or low concentrations (Figure 5). To test representative blends of these compounds required absolute quantifications of these 13 compounds. For that, using synthetic samples, the response factor (R) of each individual compound relative to the internal standard was calculated using the equation: R = (AX/AIS)/(CX/CIS). Here AX is the chromatography peak area and CX is the concentration of the analyte, whereas AIS is the chromatography peak area and CIS is concentration of the internal standard. With the equation, the response factor can be calculated from a calibration plot of AX/AIS vs CX/CIS, whereby the response factor is the slope and the y-intercept is assumed to be 0 (Figure 5—figure supplement 1—source data 1). Thus, with the response factor, the absolute concentration of each tested volatile compound was calculated based on the ratio of a compound’s peak area to the internal standard’s peak area in each sample (Kalambet and Kozmin, 2018; JoVE Science Education Database, 2020). Using these values, synthetic blends containing the 13 compounds (11 compounds in the blend for the treatment ‘BPH only’) were prepared in concentrations that corresponded to the ratios of compounds detected in the collection of volatiles from rice plants infested with BPH only, SSB only or both (Figure 6—source data 1). Y-tube assays, as described above, were conducted in order to verify whether the combinations of these volatiles were indeed responsible for the parasitoid’s responses to the differently treated rice plants.

Parasitism rates of N. lugens eggs by A. nilaparvatae wasps

Green house experiment

Request a detailed protocol

Parasitism rates by A. nilaparvatae of BPH eggs were determined for plants infested with BPH only or plants infested with both BPH and SSB; three types of rice plants were prepared: i) rice plants were infested with 10 gravid females of BPH for 12 hr; ii) rice plants were infested with 1 SSB caterpillar for 12 hr before 10 gravid females of BPH were subsequently introduced to the plants for an additional 12 hr; iii) rice plants were infested with 2 SSB caterpillars for 12 hr before 10 gravid females of BPH were subsequently introduced to the plants for an additional 12 hr. Afterwards, all the planthoppers were removed from the rice plants and the caterpillars were left in the plants as described above. Subsequently the main stems with BPH eggs of a pair of rice plants were contained in a cylindrical plastic tube (Wang et al., 2018) and 5 pairs of newly emerged parasitic wasps (<1 day old) were released into each tube. After 72 hr, the rice plants with planthopper eggs were collected, and the total number of BPH eggs on each plant was counted and their parasitization status was determined under a microscope two days later. Each choice test was replicated 14 to 15 times. The experiment was performed in a greenhouse at 27 ± 3°C and with 75 ± 10% RH and a photoperiod of 16 L: 8 D.

Field cage experiment

Request a detailed protocol

To further investigate the parasitism rate by A. nilaparvatae of BPH eggs on plants with or without SSB under a more realistic condition, a cage experiment was carried out in a field near Langfang City (39.5°N, 116.4°E), China. Rice seedlings (MH63) were obtained as described above, and three plants were transplanted into each clay pot, stimulating the common rice-cropping practice of three plants per hill in the fields. When the potted plants were at the end of the tillering stage with 14–16 leaves on the main stem, four pots were randomly selected and positioned in the four corners of a cage (42 cm length ×42 cm width ×70 cm height) made of 80-mesh nylon nets. In each cage, plants in two pots on a diagonal line were infested with 3rd instar SSB larvae (one insect per tiller); the other two plants remained intact. After 24 hr, fifty gravid BPH females were additionally released into each cage by placing an open plastic box containing the insects in the center of the cage. Next, after 12 h of BPH ovipostion, 20 pairs of freshly emerged parasitoids were released into each cage. After an additinal 72 hr, the rice plants with planthopper eggs were collected, and the total number of BPH eggs on each plant was counted and their parasitization status was determined under a microscope two days later. The experiment was repeated five times.

Statistical analyses

Request a detailed protocol

All data were checked for normality and equality of variances prior to statistical analysis. Wilcoxon’s signed-ranks tests were used to compare mean number of planthoppers settled on rice plants, while a likelihood ratio test (LR test) applied to a Generalized Linea Model (GLM) were conducted to compare the mean number of planthopper eggs on rice plants (Poisson distribution error) and parasitism rates of BPH eggs by A. nilaparvatae (binomial distribution error). Behavioral responses of A. nilaparvatae in Y-tube assays were analyzed with a LR test applied to a GLM (binomial distribution error), with an expected response of 50% for either olfactometer arm. For analyses of volatiles collected from differently treated rice plants, one-way ANOVAs were conducted after the data were fourth-root transformed. Differences for specific compound between treatments were determined using the Tukey HSD test. The data on volatile emissions were further investigated by discriminant analysis. The data were normalized by medians, then auto-scaled (mean centered and divided by the standard deviation of each variable) before being analyzed using partial least squares-discriminant analysis (PLS-DA). All statistical analyses were conducted with SPSS 22.0 (IBM SPSS, Somers, NY, USA), except for the PLS-DA were performed using SIMCA 14.1 software (Umetrics, Umeå, Sweden).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
    Plant-mediated interactions among insects within a community ecological perspective
    1. EH Poelman
    2. M Dicke
    (2014)
    In: C Voelckel, G Jander, editors. Annual Plant Reviews, Insect‐Plant InteractionsSection III. Ecology and Evolution of Insect‐Plant Interactions, 47. Wiley-Blackwell Chichester. pp. 309–338.
    https://doi.org/10.1002/9781118472507.ch9
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
    Recruitment of predators and parasitoids by herbivore-damaged plants
    1. TCJ Turlings
    2. FL Wäckers
    (2004)
    In: R. T Cardé, J Millar, editors. Advances in Insect Chemical Ecology. Cambridge University Press. pp. 21–75.
    https://doi.org/10.1017/CBO9780511542664.003
  50. 50
    Parasitoid foraging and learning
    1. LEM Vet
    2. WJ Lewis
    3. RT Cardé
    (1995)
    In: R. T Card´e, W. J Bell, editors. Chemical Ecology of Insects, 2. Springer. pp. 65–101.
    https://doi.org/10.1007/978-1-4615-1765-8_3
  51. 51
  52. 52
    Screening and field evaluation of synthetic plant volatiles as attractants for Anagrus nilaparvatae, an egg parasitoid of rice planthoppers
    1. P Wang
    2. YG Lou
    (2013)
    Chinese Journal of Applied Entomology  50:431–440.
  53. 53
  54. 54
  55. 55
  56. 56

Decision letter

  1. Meredith C Schuman
    Reviewing Editor; University of Zurich, Switzerland
  2. Detlef Weigel
    Senior Editor; Max Planck Institute for Developmental Biology, Germany
  3. Meredith C Schuman
    Reviewer; University of Zurich, Switzerland

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

We find the study to be elegantly performed and well written. It tests an interesting and relatively new ecological hypothesis and investigates both function and mechanism, in both controlled and realistic environments. This is unusually comprehensive. The study system (rice, pests, biocontrol agents) is of broad general interest.

Decision letter after peer review:

Thank you for submitting your article "Caterpillar-induced rice volatiles provide enemy-free space for the offspring of the brown planthopper" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Meredith C Schuman as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Ian Baldwin as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

We find this study to be elegantly performed and well written. It tests an interesting and relatively new hypothesis regarding insect oviposition choices, biocontrol by parasitoids, and enemy-free space for herbivores in an economically important system. The authors include data from an important agricultural plant and a wild relative, and investigates both function and mechanism, in both controlled and realistic environments.

However, we have several concerns regarding missing information, and methods, which must be resolved before we can determine whether the study is appropriate for publication in eLife.

Therefore we invite the authors to submit a revised version of their manuscript which should fully address the following concerns.

Essential revisions:

1) The relative quantification of at least those volatiles used for bioassays needs to be done rigorously, e.g. using response factors, and the amounts of pure compounds tested in bioassays need to be compared to amounts calculated to be present in plant blends, at least based on response factors. All three reviewers agree that this is a critical point which must be resolved. Relative quantification in terms of percentage internal standard only does not support any conclusions about absolute amounts of volatiles (ng-ug emitted per plant per time) or their ratio, and thus cannot be used as a basis to select concentrations for bioassays or to interpret bioassay results.

In particular,

– The conclusions drawn by the authors depend on the relative and perhaps absolute concentration of each compound tested in their blend, and they do not have any data to indicate whether these amounts are realistic. The description of peak area as a percentage of internal standard peak area cannot provide this information without additionally calculating response factors of individual volatiles to the internal standard. (i.e., What is the ratio between [peak area internal standard/absolute amount internal standard in sample], and [peak area of volatile/absolute amount of volatile in sample], and over what range is this relationship linear; once this is established using standard curves of the volatiles of interest versus the internal standard, an equation can then be used to estimate absolute amount of volatile in sample based on the ratio of volatile peak area to internal standard peak area in each sample).

– To address this does not require absolute quantification of 50 analytes. It would be sufficient to calculate response factors for the 13 focal volatiles, for which pure standards are available. These response factors can be used to estimate amounts measured from plants and compare those to amounts tested in assays.

– It would be much easier to interpret the results of the 20 bioassays in Figure 4 if the same "low" and "high" doses had been used (not the case -- these differ by orders of magnitude), or else if these can be related to the abundance of different compounds in the measured blends, using response factors as suggested above.

2) All reviewers agree that the statistical analyses require more complete description. A statistical analysis section is missing from the methods, and tests used and replicate number n are not stated in all figure legends.

The reviewers also agree that, in several cases, the statistical analyses require revision (inappropriate tests are currently used).

Reviewer 3 provides detailed instructions. Reviewer 3 also recommends a good standard reference: Bolker et al., Trends in Ecology and Evolution, 2008.

– Figure 1: A Wilcoxon signed rank test to compare BPH settled on the two different plants is ok although more interesting approaches exist. However, Student's t-tests are not appropriate to compare number of eggs since (i) this test assumes that the dependent variable is continuous and (ii) it does not take into account the paired structure of the data. Rather use a likelihood ratio test (LR Test) or a Wald test applied on a Generalized Linear Mixed Model (GLMM, Poisson distribution error) where the tube is treated as a random factor.

– Figure 2: A chi² test is not appropriate to analyze results of olfactometer experiments (here and elsewhere). Rather use a LR Test or a Wald test applied on a GLMM (binomial distribution error) where the odor source is treated as a random factor since multiple parasitoid females were tested with the same odor source. In more detail: (subsection “Response of A. nilaparvatae wasps to insect-infested rice plants”): 'control plants' are compared to 'treated plants'. These are the two treatment groups. But for each group, 10 individual odor sources are used with 8-12 parasitoids tested for each odor source (= 80-120 parasitoids per experiment). The, data are structured by the treatment, but also by the individual odor source nested within the treatment. Both structure levels must be integrated in the analyses. Chi square tests compare the two treatment groups but do not account for the structuring by odor source. Not taking this into account results in pseudo-replication. The most proper way to deal with that is to include the individual odor source as a random factor in the analysis, i.e. using a mixed model. Since the outcome of the experiment is a binary response (i.e. choice for control or treated plants), a GLMM is appropriate. It should include the treatment group as a fixed factor, the odor source as a random factor, and a binomial distribution error. By the way, please clarify the protocol of the olfactometer experiment that lacks clarity (subsection “Response of A. nilaparvatae wasps to insect-infested rice plants).

– Figure 3: You should never conclude anything from the score plot of a PLS-DA alone, due to the fact that this analysis is prone to overfitting of the data. Any conclusion should be drawn from a dedicated significance test followed with pairwise comparisons (see e.g. Hervé, Nicolè and Lê Cao, J. Chem. Ecol. 2018). Additionally, avoid log(x+1) transformations as the constant value introduces a bias that depends on the value to which it is added (more bias for smaller values). Since zeroes occur in the data, prefer the fourth-root transformation that is not biased.

– Figures 4 and 5: Same reasoning as for Figure 2, but with filter papers rather than individual plants as odor sources.

- Figure 6: The statistical analysis is not described in the Materials and methods. It seems from the figure that Student's t-tests were used, but this is inappropriate (cf. Figure 1). Use a LR Test or Wald test applied on a GLM (Poisson distribution error) for the number of eggs, and a LR Test or Wald test applied on a GLMM (binomial distribution error) for the % of parasitized eggs (with the tube treated as a random factor).

– Figure 7: Same comment as for Figure 6, except that a GLMM should be used for both numbers of eggs and % of parasitized eggs (each time with the cage treated as a random factor).

– Figure 3—table supplement 1: Since you perform multiple testing, it is mandatory that p-values of ANOVAs are corrected (see e.g. Saccenti et al., Metabolomics 2014). I would recommend the False Discovery Rate correction.

– Figure 4—figure supplement 1: The statistical methods are not described.

In addition:

3) Please explain the addition of Shuangli Su to the author list and the re-ordering of the author list between the initial and full submission. This is fine but should be explained.

4) The field experiment was a caged choice assay using a laboratory population of parasitoids under realistic field conditions. The authors should at least comment, and if possible provide evidence or observations, regarding whether the phenomenon that SSB infestation reduces the attractiveness of rice plants to the parasitoid can be observed in the open field, given the strong learning capacity of parasitoids.

5) Reviewer 2 expressed the concern that it takes at least 5 days until the parasitized BPH eggs become red at the condition the authors set up and thus it is not clear if the parasitization rates can be reliably quantified after only 3 days. The authors should respond to this concern, if necessary with a comparison of parasitization rates calculated at 3 versus 5 days under comparable conditions.

If these five issues are addressed and the updated results can still support the authors' central claims, then we would recommend the study for publication in eLife. However, it is possible that addressing concerns 1 and 5 in particular will reveal that the authors' bioassays are inconclusive, and that must be determined before we can assess whether this study is suitable for publication in eLife.

We expect that the work required to address all five concerns can easily be completed within two months, especially if data or observations to address concern 5 are already on hand or can be cited.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Caterpillar-induced rice volatiles provide enemy-free space for the offspring of the brown planthopper" for consideration by eLife. Your article has been assessed by a Reviewing Editor and Ian Baldwin as the Senior Editor.

After reviewing your response to the previous round of review, the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation.

The authors have fully addressed the points raised by the prior round of peer review, but their response omits some essential information which must be provided so that the submission can be accepted for publication.

Specifically, in response to the major reviewer concern regarding their calculations, the authors state that they repeated the calculations as requested, which substantially changed their data and required new behavioral assays, but did not change their conclusions. This is fine, and the results (new values, new bioassay results) are clearly presented. However the method used to perform these new calculations is not adequately described. The authors refer to an appropriate reference (Kalambet and Kozmin, 2019; note: please correct year for this citation) which describes several acceptable methods, and do not state which of these they used, nor include their calculations in supplementary material or source data. It also cannot be determined from the new dataset how the calculations were done. This information is important both for replicability, and for understanding of interested readers regarding associated uncertainties.

The authors are thus asked to complete to their methods section and to include the new calculations, including standard curves as appropriate, as supplementary material or in the source data.

https://doi.org/10.7554/eLife.55421.sa1

Author response

Essential revisions:

1) The relative quantification of at least those volatiles used for bioassays needs to be done rigorously, e.g. using response factors, and the amounts of pure compounds tested in bioassays need to be compared to amounts calculated to be present in plant blends, at least based on response factors. All three reviewers agree that this is a critical point which must be resolved. Relative quantification in terms of percentage internal standard only does not support any conclusions about absolute amounts of volatiles (ng-ug emitted per plant per time) or their ratio, and thus cannot be used as a basis to select concentrations for bioassays or to interpret bioassay results.

In particular,

– The conclusions drawn by the authors depend on the relative and perhaps absolute concentration of each compound tested in their blend, and they do not have any data to indicate whether these amounts are realistic. The description of peak area as a percentage of internal standard peak area cannot provide this information without additionally calculating response factors of individual volatiles to the internal standard. (i.e., What is the ratio between [peak area internal standard/absolute amount internal standard in sample], and [peak area of volatile/absolute amount of volatile in sample], and over what range is this relationship linear; once this is established using standard curves of the volatiles of interest versus the internal standard, an equation can then be used to estimate absolute amount of volatile in sample based on the ratio of volatile peak area to internal standard peak area in each sample).

– To address this does not require absolute quantification of 50 analytes. It would be sufficient to calculate response factors for the 13 focal volatiles, for which pure standards are available. These response factors can be used to estimate amounts measured from plants and compare those to amounts tested in assays.

– It would be much easier to interpret the results of the 20 bioassays in Figure 4 if the same "low" and "high" doses had been used (not the case -- these differ by orders of magnitude), or else if these can be related to the abundance of different compounds in the measured blends, using response factors as suggested above.

This is a valid concern. In order to deal with this issue, additional experiments were conducted, in which the response factors of the 13 focal volatiles were measured. Based on the response factors, we then accurately calculated the concentrations of the 13 volatiles emitted by the plants. We indeed found that the absolute concentrations of 13 compounds calculated based on their response factors were considerably different from those detected solely based on the internal standard. The data were shown in “Figure 4—figure supplement 1”.

Based on the newly calculated concentrations of the 13 compounds, we prepared new synthetic blends for Y-tube assays with female A. nilaparvatae wasps. Although the concentrations of these compounds in the synthetic blends were different from the synthetic blends used previously (Figure 5—table supplement 1), the behavioral responses of the parasitoids from the new experiment (Figure 5) were quite similar to the earlier results, and the new data still fully support our conclusions.

2) All reviewers agree that the statistical analyses require more complete description. A statistical analysis section is missing from the methods, and tests used and replicate number n are not stated in all figure legends.

As explained below, most data were re-analyzed following the suggestions by reviewers. We reorganized the section “Statistical analyses”. In the revised version, all analyses are now fully described. Moreover, the tests that were used and number of replicates “n” are all mentioned in each figure legend. This should make it easier for readers to find this information.

The reviewers also agree that, in several cases, the statistical analyses require revision (inappropriate tests are currently used).

Reviewer 3 provides detailed instructions. Reviewer 3 also recommends a good standard reference: Bolker et al., Trends in Ecology and Evolution, 2008.

– Figure 1: A Wilcoxon signed rank test to compare BPH settled on the two different plants is ok although more interesting approaches exist. However, Student's t-tests are not appropriate to compare number of eggs since (i) this test assumes that the dependent variable is continuous and (ii) it does not take into account the paired structure of the data. Rather use a likelihood ratio test (LR Test) or a Wald test applied on a Generalized Linear Mixed Model (GLMM, Poisson distribution error) where the tube is treated as a random factor.

We agree that the LR test is more appropriate for the comparisons between number of eggs laid by BPH and the parasitism rates in our experiment. We have reanalyzed the data using LR test applied to a Generalized Linear Model (GLM, Poisson distribution error) in the current version. The outcome of these analyses provides even stronger support for our conclusions. Thank you for the suggestions.

– Figure 2: A chi² test is not appropriate to analyze results of olfactometer experiments (here and elsewhere). Rather use a LR Test or a Wald test applied on a GLMM (binomial distribution error) where the odor source is treated as a random factor since multiple parasitoid females were tested with the same odor source. In more detail: (subsection “Response of A. nilaparvatae wasps to insect-infested rice plants”): 'control plants' are compared to 'treated plants'. These are the two treatment groups. But for each group, 10 individual odor sources are used with 8-12 parasitoids tested for each odor source (= 80-120 parasitoids per experiment). The, data are structured by the treatment, but also by the individual odor source nested within the treatment. Both structure levels must be integrated in the analyses. Chi square tests compare the two treatment groups but do not account for the structuring by odor source. Not taking this into account results in pseudo-replication. The most proper way to deal with that is to include the individual odor source as a random factor in the analysis, i.e. using a mixed model. Since the outcome of the experiment is a binary response (i.e. choice for control or treated plants), a GLMM is appropriate. It should include the treatment group as a fixed factor, the odor source as a random factor, and a binomial distribution error. By the way, please clarify the protocol of the olfactometer experiment that lacks clarity (subsection “Response of A. nilaparvatae wasps to insect-infested rice plants).

We agree with the reviewer. The data were reanalyzed by a LR test applied to a GLM in the current version. As suggested, the “protocol of the olfactometer experiment” was further clarified (subsection “Response of A. nilaparvatae wasps to insect-infested rice plants”).

– Figure 3: You should never conclude anything from the score plot of a PLS-DA alone, due to the fact that this analysis is prone to overfitting of the data. Any conclusion should be drawn from a dedicated significance test followed with pairwise comparisons (see e.g. Hervé, Nicolè and Lê Cao, J. Chem. Ecol. 2018). Additionally, avoid log(x+1) transformations as the constant value introduces a bias that depends on the value to which it is added (more bias for smaller values). Since zeroes occur in the data, prefer the fourth-root transformation that is not biased.

We agree that we cannot draw conclusions based on the score plot of a PLS-DA alone. In fact, with the PLS-DA analysis, our objective is simply to provide an overview of the differences in the volatile compounds among the treatments. Figure 3 shows that the PLS-DA model can indeed separate the volatile profiles released by differently treated plants.

Further details regarding volatile profiles are shown in Figure 3—table supplement 1, in which the significance tests (one-way ANOVA) were conducted followed with pairwise comparisons as suggested by the reviewer for the data of relative volatile quantities. We also agree with the reviewer to use fourth-root transformation instead of log(x+1) before analysis by one-way ANOVA. And the results of this are updated in the supplementary table.

In addition, according to eLife policy, any supplementary table or figure has to be linked to a table or figure in main text. Since we do not think it is good to include the table regarding volatile contents in the main text, we decided to leave the PLS-DA figure in the main text and the table is linked to the figure as a supplementary table.

– Figures 4 and 5: Same reasoning as for Figure 2, but with filter papers rather than individual plants as odor sources.

The data were reanalyzed using LR tests applied to a GLM as suggested. Thanks for the suggestion.

- Figure 6: The statistical analysis is not described in the Materials and methods. It seems from the figure that Student's t-tests were used, but this is inappropriate (cf. Figure 1). Use a LR Test or Wald test applied on a GLM (Poisson distribution error) for the number of eggs, and a LR Test or Wald test applied on a GLMM (binomial distribution error) for the % of parasitized eggs (with the tube treated as a random factor).

We agree and LR tests applied to a GLM were used to compare the number of eggs and the percentage of parasitized eggs.

– Figure 7: Same comment as for Figure 6, except that a GLMM should be used for both numbers of eggs and % of parasitized eggs (each time with the cage treated as a random factor).

GLMs were used to compare the number of eggs and the percentage of parasitized eggs as suggested.

– Figure 3—table supplement 1: Since you perform multiple testing, it is mandatory that p-values of ANOVAs are corrected (see e.g. Saccenti et al., Metabolomics 2014). I would recommend the False Discovery Rate correction.

The data were re-analyzed using one-way ANOVA followed by Tukey HSD test, and, as suggested, the p-values were corrected according to the False Discovery Rate correction.

– Figure 4—figure supplement 1: The statistical methods are not described.

The statistical method has been added.

In addition:

3) Please explain the addition of Shuangli Su to the author list and the re-ordering of the author list between the initial and full submission. This is fine but should be explained.

The experiments were mainly conducted by the first author Xiaoyun Hu. While Shuangli Su (a master student) helped Xiaoyun Hu to do some experiments regarding parasitoid responses to plant volatile compounds (Figure 4). In the initial submission, she was left out by mistake. She was therefore added in the full submission as the second co-author.

4) The field experiment was a caged choice assay using a laboratory population of parasitoids under realistic field conditions. The authors should at least comment, and if possible provide evidence or observations, regarding whether the phenomenon that SSB infestation reduces the attractiveness of rice plants to the parasitoid can be observed in the open field, given the strong learning capacity of parasitoids.

Good point.

As for the parasitoids, although they were from a laboratory colony, field collected individuals are introduced yearly. We therefore believe that they still exhibit their natural responses. Also, although we did not investigate parasitoid responses in the fields in the current study, we can indirectly deduce from previous papers that SSB infestation reduces the attractiveness of rice plants to the parasitoid also under field condition. Recent studies on risk assessment of GM rice show higher densities of planthoppers on non-Bt rice plants due to higher SSB damage (Wang et al., 2018). Based on these results, it could be expected that the planthopper parasitoid A. nilaparvatae will be more abundant on non-Bt rice with higher densities of SSB and planthoppers. Yet, field studies show that parasitoids densities are similar for Bt and non-Bt rice fields (Tian et al., 2008. J Environ Entomol). We can speculate that this is due to the reduced attractiveness of rice plants when SSB is present.

Moreover, specialist parasitoids have much poorer learning capacities and a shorter-lived memory compared to generalist parasitoids, and rely mostly on fixed responses to host associated cues (Vet and Dicke, 1992; Annu Rev Entomol; Guo and Wang, 2019). We can therefore expect that the specialist parasitoid A. nilaparvatae is also not very flexible in its responses. We now address this in the Discussion (third paragraph).

5) Reviewer 2 expressed the concern that it takes at least 5 days until the parasitized BPH eggs become red at the condition the authors set up and thus it is not clear if the parasitization rates can be reliably quantified after only 3 days. The authors should respond to this concern, if necessary with a comparison of parasitization rates calculated at 3 versus 5 days under comparable conditions.

This is a valid concern. This misunderstanding is due an unclear description of the experiment, which is entirely our fault. In fact, the rice plants with planthopper eggs were exposed to the parasitoids for 72h and two days later, the total number of BPH eggs on each plant was counted and their parasitization status was determined under a microscope. In the revised text, the relevant sentences have been revised (subsection “Parasitism rates of N. lugens eggs by A. nilaparvatae wasps”).

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The authors have fully addressed the points raised by the prior round of peer review, but their response omits some essential information which must be provided so that the submission can be accepted for publication.

Specifically, in response to the major reviewer concern regarding their calculations, the authors state that they repeated the calculations as requested, which substantially changed their data and required new behavioral assays, but did not change their conclusions. This is fine, and the results (new values, new bioassay results) are clearly presented. However the method used to perform these new calculations is not adequately described. The authors refer to an appropriate reference (Kalambet and Kozmin, 2019; note: please correct year for this citation) which describes several acceptable methods, and do not state which of these they used, nor include their calculations in supplementary material or source data. It also cannot be determined from the new dataset how the calculations were done. This information is important both for replicability, and for understanding of interested readers regarding associated uncertainties.

The authors are thus asked to complete to their Materials and methods section and to include the new calculations, including standard curves as appropriate, as supplementary material or in the source data.

We agree that we were not very precise in describing the calculations of volatile concentrations. We tried to keep text short and therefore just cited the paper of Kalambet and Kozmin, 2018. Although the paper does describe the method that we used, we agree that it is not sufficiently clear for readers to know which method we exactly used. In the new version of our paper, we provided the requested details in the Materials and methods section and we added a new reference that very clearly describes the method that we used. In addition, we added the data and standard curves (plots) that were used to determine the “response factors” of the 13 relevant compounds (see file Figure 5—figure supplement 1—source data 1). We believe that this additional information will guarantee the replicability and the understanding of the methodology by the readers.

As for the year of the cited paper Kalambet and Kozmin, 2018, we rechecked the paper and found the paper was indeed published in 2018, and it was correctly cited.

https://doi.org/10.7554/eLife.55421.sa2

Article and author information

Author details

  1. Xiaoyun Hu

    State Key Laboratory for Biology of Plant Diseases and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing, China
    Contribution
    Formal analysis, Investigation, Writing - review and editing, Study design
    Competing interests
    No competing interests declared
  2. Shuangli Su

    State Key Laboratory for Biology of Plant Diseases and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  3. Qingsong Liu

    1. State Key Laboratory for Biology of Plant Diseases and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing, China
    2. College of Life Sciences, Xinyang Normal University, Xinyang, China
    Contribution
    Formal analysis, Writing - review and editing, study design
    Competing interests
    No competing interests declared
  4. Yaoyu Jiao

    State Key Laboratory for Biology of Plant Diseases and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing, China
    Present address
    Department of Entomology, University of Kentucky, Lexington, United States
    Contribution
    Writing - review and editing
    Competing interests
    No competing interests declared
  5. Yufa Peng

    State Key Laboratory for Biology of Plant Diseases and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing, China
    Contribution
    Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Yunhe Li

    State Key Laboratory for Biology of Plant Diseases and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing, China
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Methodology, Writing - original draft, Writing - review and editing, study design
    For correspondence
    liyunhe@caas.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0780-3327
  7. Ted CJ Turlings

    Laboratory of Fundamental and Applied Research in Chemical Ecology, University of Neuchâtel, Neuchâtel, Switzerland
    Contribution
    Formal analysis, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8315-785X

Funding

National Natural Science Foundation of China (31972984)

  • Yunhe Li

National GMO New Variety Breeding Program of PRC (2016ZX08011-001)

  • Yufa Peng

H2020 European Research Council (Advanced Grant 788949)

  • Ted CJ Turlings

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Prof. Hongxia Hua (Huazhong Agricultural University, Wuhan, China) and Prof. Xinwu Pei (Institute of Biotechnology, Chinese Academy of Agricultural Sciences) for kind provision of rice seeds. We also thank Dr. Changlong Shu (Institute of Plant Protection, CAAS, Beijing, China) for his advice on graphic production. The study was supported by the National Natural Science Foundation of China (31972984) and the National GMO New Variety Breeding Program of PRC (2016Z × 08011–001). The contribution by TCJT was supported by European Research Council Advanced Grant 788949.

Senior Editor

  1. Detlef Weigel, Max Planck Institute for Developmental Biology, Germany

Reviewing Editor

  1. Meredith C Schuman, University of Zurich, Switzerland

Reviewer

  1. Meredith C Schuman, University of Zurich, Switzerland

Publication history

  1. Received: January 23, 2020
  2. Accepted: July 5, 2020
  3. Version of Record published: August 11, 2020 (version 1)

Copyright

© 2020, Hu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 832
    Page views
  • 213
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Ecology
    2. Epidemiology and Global Health
    Marta S Shocket et al.
    Research Article

    The temperature-dependence of many important mosquito-borne diseases has never been quantified. These relationships are critical for understanding current distributions and predicting future shifts from climate change. We used trait-based models to characterize temperature-dependent transmission of 10 vector–pathogen pairs of mosquitoes (Culex pipiens, Cx. quinquefascsiatus, Cx. tarsalis, and others) and viruses (West Nile, Eastern and Western Equine Encephalitis, St. Louis Encephalitis, Sindbis, and Rift Valley Fever viruses), most with substantial transmission in temperate regions. Transmission is optimized at intermediate temperatures (23–26°C) and often has wider thermal breadths (due to cooler lower thermal limits) compared to pathogens with predominately tropical distributions (in previous studies). The incidence of human West Nile virus cases across US counties responded unimodally to average summer temperature and peaked at 24°C, matching model-predicted optima (24–25°C). Climate warming will likely shift transmission of these diseases, increasing it in cooler locations while decreasing it in warmer locations.

    1. Ecology
    2. Microbiology and Infectious Disease
    Daniel Dar et al.
    Research Article

    Phenazines are natural bacterial antibiotics that can protect crops from disease. However, for most crops it is unknown which producers and specific phenazines are ecologically relevant, and whether phenazine biodegradation can counter their effects. To better understand their ecology, we developed and environmentally-validated a quantitative metagenomic approach to mine for phenazine biosynthesis and biodegradation genes, applying it to >800 soil and plant-associated shotgun-metagenomes. We discover novel producer-crop associations and demonstrate that phenazine biosynthesis is prevalent across habitats and preferentially enriched in rhizospheres, whereas biodegrading bacteria are rare. We validate an association between maize and Dyella japonica, a putative producer abundant in crop microbiomes. D. japonica upregulates phenazine biosynthesis during phosphate limitation and robustly colonizes maize seedling roots. This work provides a global picture of phenazines in natural environments and highlights plant-microbe associations of agricultural potential. Our metagenomic approach may be extended to other metabolites and functional traits in diverse ecosystems.
