Abstract

Lineage specification is governed by gene regulatory networks (GRNs) that integrate the activity of signaling effectors and transcription factors (TFs) on enhancers. Sox17 is a key transcriptional regulator of definitive endoderm development, and yet, its genomic targets remain largely uncharacterized. Here, using genomic approaches and epistasis experiments, we define the Sox17-governed endoderm GRN in Xenopus gastrulae. We show that Sox17 functionally interacts with the canonical Wnt pathway to specify and pattern the endoderm while repressing alternative mesectoderm fates. Sox17 and β-catenin co-occupy hundreds of key enhancers. In some cases, Sox17 and β-catenin synergistically activate transcription apparently independent of Tcfs, whereas on other enhancers, Sox17 represses β-catenin/Tcf-mediated transcription to spatially restrict gene expression domains. Our findings establish Sox17 as a tissue-specific modifier of Wnt responses and point to a novel paradigm where genomic specificity of Wnt/β-catenin transcription is determined through functional interactions between lineage-specific Sox TFs and β-catenin/Tcf transcriptional complexes. Given the ubiquitous nature of Sox TFs and Wnt signaling, this mechanism has important implications across a diverse range of developmental and disease contexts.

Introduction

During embryogenesis, the pluripotent zygote progressively gives rise to specialized cell types expressing distinct sets of genes that, in turn, define the cell’s identity and encode proteins necessary for its function. Lineage-specific gene expression is controlled by the genomic integration of signaling pathways and transcription factors (TFs) on DNA cis-regulatory modules (CRMs), such as enhancers, that control transcription (Heinz et al., 2015; Stevens et al., 2017). An important goal of developmental biology is to elucidate how signaling effectors and TFs interact on distinct sets of CRMs within the chromatin landscape to form gene regulatory networks (GRNs) that activate lineage-specific transcriptional programs whilst repressing expression of alternative fates (Charney et al., 2017b). This will provide a deeper understanding of how transcriptional networks are established, dysregulated in disease, and how GRNs might be manipulated for therapeutic purposes.

We have addressed this in the context of endoderm germ layer specification: one of the earliest cell fate decisions in vertebrate development that provides a relatively simple model to elucidate how GRNs control lineage-specific transcriptional programs (Charney et al., 2017b). In embryos and pluripotent stem cells (PSCs), Nodal/Smad2 and Wnt/ß-catenin (Ctnnb1; hereafter Bcat) signaling cooperate to initiate the mesendoderm program and subsequent development of definitive endoderm progenitors, which gives rise to the epithelia of the digestive and respiratory systems (Sumi et al., 2008; Zorn and Wells, 2009). Downstream of Nodal and Wnt, a core set of endoderm TFs: Sox17, Gata4-6, Eomes, Foxa1/2 and Mix family of homeodomain TFs execute the endoderm GRN (Arnold et al., 2008; Charney et al., 2017b; Engert et al., 2013; Sinner et al., 2006). In Xenopus where endoderm specification is well studied, the Nodal and Wnt pathways interact at several levels. First, maternal (m) Wnt/Bcat, active on the dorsal side of the blastula, is required for high levels of nodal expression at the onset of zygotic transcription (Hyde and Old, 2000). Then Nodal and mWnt cooperate to promote the expression of endoderm TFs Sox17, Foxa2 and many dorsal mesendoderm organizer genes (Xanthos et al., 2002). A few hours later, zygotic (z) wnt8 (a Nodal target) is expressed on the ventral side of the gastrula where, together with Nodal signaling, it promotes ventral and posterior mesendoderm identities (Charney et al., 2017b; Stevens et al., 2017). In mammals, early Wnt/Bcat similarly activates expression of Nodal and core endoderm TFs, with prolonged Wnt promoting posterior hindgut fate (Engert et al., 2013; Zorn and Wells, 2009).

Functional interactions between the core endoderm TFs and the Wnt pathway are thought to (1) segregate the transient mesendoderm into endoderm and mesoderm, (2) pattern the nascent endoderm into spatially distinct subtypes and (3) execute the downstream differentiation program to give rise to endoderm-derived lineages. But mechanistically how the Wnt signaling machinery interacts with core endoderm TFs to execute this differentiation cascade is unresolved. The transcriptional targets of the endoderm TFs are largely unknown, and it is unclear exactly how Wnt/Bcat regulates distinct spatiotemporal transcription programs in the embryo. Indeed, how the canonical Wnt pathway elicits context-specific transcriptional responses in its multitude of different biological roles in development, homeostasis and cancer is still poorly understood. According to the dogma of canonical Wnt signaling, Wnt-activated Fzd-Lrp5/6 receptor complexes sequester the Bcat degradation complex, resulting in the stabilization and translocation of Bcat to the nucleus. There, it interacts with one of four HMG-box Tcf TFs (Tcf7, Tcf7L1, Tcf7L2 and Lef1) at Wnt-responsive CRMs (Cadigan and Waterman, 2012; Schuijers et al., 2014), ultimately activating a multiprotein ‘Wnt-enhanceosome’ with the scaffold proteins Bcl9, Pygopus and the ChiLS complex (Gammons and Bienz, 2018). In the absence of Bcat, Tcfs are coupled with corepressor proteins Tle/Groucho and histone deacetylase Hdac to inhibit transcription of Wnt target genes. Bcat displaces Tle and recruits a co-activator complex including histone acetyltransferases Ep300 or CBP to stimulate transcription (Cadigan and Waterman, 2012). How distinct context-specific Wnt target genes are selected is unclear since all Tcfs have nearly identical DNA-binding specificities (Badis et al., 2009; Ramakrishnan and Cadigan, 2017) and for the most part they are ubiquitously expressed. An emerging idea is that the Wnt-enhanceosome also interacts with other lineage-specific TFs to integrate lineage-specific inputs (Gammons and Bienz, 2018; Trompouki et al., 2011); yet, how these impact genomic specificity in vivo is largely untested and the idea of Tcf-independent Wnt-mediated transcription remains controversial.

In this study, we investigated the possibility that Sox17 functionally interacts with Wnt/Bcat to regulate transcription in the Xenopus endodermal GRN. In all vertebrate embryos, Sox17 is specifically expressed in the gastrula endoderm where it is required for early gut development (Clements et al., 2003; Hudson et al., 1997; Kanai-Azuma et al., 2002; Viotti et al., 2014). Despite the critical role of Sox17 in endoderm development, only few of its direct transcriptional targets have been identified (e.g.: hnf1b, foxa1 and dhh) (Ahmed et al., 2004; Sinner et al., 2004; Yagi et al., 2008). In Xenopus, ectopic Sox17 is sufficient to initiate endoderm development in pluripotent blastula animal cap cells (Clements et al., 2003; Hudson et al., 1997), and co-injection of stabilized Bcat can enhance this activity (Sinner et al., 2004). Sox17 can physically interact with Bcat in vitro and suppress the transcriptional activity of generic Tcf/Bcat reporter constructs (TOPflash) in tissue culture experiments (Sinner et al., 2007; Zorn et al., 1999). However, the biological relevance of these interactions and whether Sox17 and Bcat functionally interact on chromatin to regulate the endoderm GRN remains unknown.

Here, we define the genomic targets of Sox17 in the Xenopus gastrula. In addition to promoting expression of endoderm genes, Sox17 also represses ectoderm and mesoderm gene transcription, and acts in a negative feedback loop to restrain Nodal signaling. We demonstrate that functional interactions with canonical Wnt signaling is a key feature of the Sox17-regulated GRN. Over a third of all Bcat and Sox17 genomic binding in the gastrula occur at the same CRMs. In some instances, Sox17 suppresses Bcat-Tcf mediated transcription, while in other cases, Sox17 and Bcat synergistically activates enhancers apparently independently of Tcfs, indicating a novel mode of regulation. These results provide new insight into the GRN controlling endoderm development and have implications for how Sox TFs and Bcat might interact in diverse biological contexts from development to cancer.

Results

Sox17 regulates a genomic program controlling germ layer segregation and endoderm development

To identify the transcriptional program regulated by Sox17, we performed RNA-sequencing (RNA-Seq) on control and Sox17-depleted Xenopus tropicalis embryos at multiple time points during blastula and gastrula stages (NF9-12) when the endoderm germ layer is being specified. In Xenopus tropicalis, there are three redundant genes: sox17a, sox17b.1 and sox17b.2 (collectively sox17) with indistinguishable activities and identical expression in presumptive vegetal endoderm cells of gastrula embryos (Figure 1A and Figure 1—figure supplement 1A; D'Souza et al., 2003; Hellsten et al., 2010). Microinjection of a combination of antisense morpholino oligos (sox17aMO and sox17bMO) targeting all three paralogs resulted in a robust knockdown of Sox17 protein as confirmed by immunostaining (Figure 1B and Figure 1—figure supplement 1B). The Sox17-MO phenotype was consistent with previous reports (Clements et al., 2003; Sinner et al., 2006) and phenocopied mouse mutants with defective gut development (Kanai-Azuma et al., 2002). Injection of mRNA encoding mouse Sox17 rescued both the anatomical and gene expression phenotypes confirming the efficacy and specificity of the MOs (Figure 1F and Figure 1—figure supplement 1C,D).

Figure 1 with 1 supplement see all

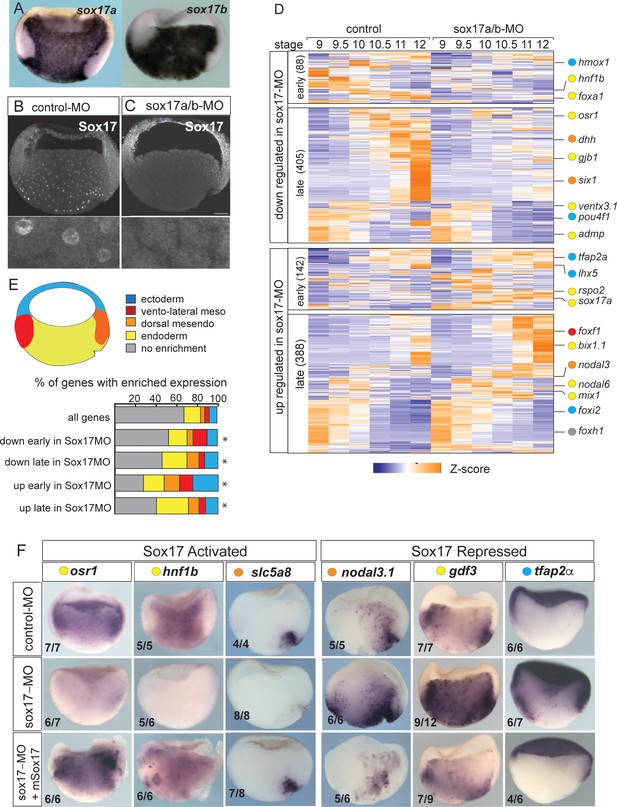

Sox17-regulated endoderm transcriptome.

(A) Endoderm expression of sox17a and sox17b in NF10.5 Xenopus tropicalis gastrula. (B–C) Sox17 immunostaining in control-MO (B) and sox17a/b-MO (C) injected gastrula with an antibody that recognizes both Sox17a and Sox17b shows MO effective knockdown. (D) Time course heatmap of Sox17-regulated transcripts. Differentially expressed genes from a pairwise comparison of control-MO and sox17-MO (>2 fold change, FDR < 5%) at each stage showing transcripts that are downregulated or upregulated early (NF9-10) or late (NF10.5–12). Key genes are color coded based on regional expression from fate map in (E). (E) Enriched expression of Sox17-regulated transcripts. Gastrula fate map (dorsal right) colored by different tissues. Stacked bar graphs showing different patterns of enriched spatial expression based on RNA-seq of dissected gastrula tissues (Blitz et al., 2017). Distribution of expression patterns statistically different from all genes in the genome was determined by two-sided Kolmogorov-Smirnov tests *p<0.01. (F) In situ validation of Sox17-regulated transcripts. Disrupted expression in sox17-MOs is rescued by co-injection of mouse (m) Sox17 RNA.

Differential expression analysis of control-MO and Sox17-MO embryos identified 1023 Sox17-regulated genes (>2 fold change, FDR< 5%) (Figure 1D and Supplementary file 1). Gene Ontology (GO) enrichment was consistent with the Sox17-regulated transcriptome being involved in ‘endoderm formation’, ‘epithelial differentiation’ and ‘digestive track morphogenesis’ (Figure 1—figure supplement 1E). In total, 493 transcripts were downregulated in Sox17-depleted embryos and 530 transcript were upregulated. The time course data revealed that >75% of the differentially expressed genes were changed by Sox17 depletion (either directly or indirectly) during the mid-late gastrula (NF10.5–12), consistent with a role in maintaining endodermal fate after initial induction by Nodal signaling in the blastula (NF9) (Figure 1D and Figure 1—figure supplement 1A). Differentially expressed genes include 73 TFs, including known Sox17 targets foxa2 and hnf1b (Sinner et al., 2004; Sinner et al., 2006), and paracrine signaling components (Supplementary file 1) such as the Hedgehog pathway (dhh, hhip, gli1); a key epithelial signal in gut organogenesis. This confirms that Sox17 sits atop of the regulatory hierarchy regulating endoderm differentiation.

We next investigated how Sox17-regulated genes were spatially expressed, leveraging a previously published RNA-seq of different tissues dissected from gastrula embryos (Blitz et al., 2017). As predicted, a majority of Sox17-dependent genes were enriched in the vegetal endoderm and dorsal mesendoderm (organizer) (Figure 1E) including osr1, hnf1b, dhh and slc5a8 (Figure 1F and Figure 1—figure supplement 1D). Interestingly, over 30% of the genes upregulated early (NF9-10) in the Sox17-depleted embryos were normally enriched in the ectoderm or mesoderm tissue; examples include ectoderm-promoting TFs tfap2a and lhx5 (Houston and Wylie, 2003; Figure 1D–F) as well as the mesoderm TFs foxf1, tbx20 and hlx. This suggests that Sox17 plays an important role in repressing ectoderm and mesoderm fate in vegetal endoderm cells. Unexpectedly Sox17 also negatively regulated ~150 genes that are normally enriched in the vegetal endoderm and dorsal mesendoderm. Some of these vegetally enriched genes encoded components of the endoderm promoting Nodal pathway including nodal1, nodal6, gdf3, gdf6, foxh1, mix1 and bix1.1, all of which were upregulated in Sox17-depleted embryos (Figure 1D–F and Figure 1—figure supplement 1). Indeed, even sox17 transcripts were modestly increased in Sox17-MO embryos even though previous work has demonstrated that Sox17 directly maintains its own transcription (Howard et al., 2007) after initial induction by Nodal/Smad2. These data indicate that Sox17 acts as a negative feedback inhibitor that restricts excessive endoderm development by restraining Nodal activity after initial induction.

The observation that over 10% of Sox17-regulated genes are enriched in the organizer mesendoderm while Sox17 is present throughout the endoderm, suggests that Sox17 might also functionally interact with the Wnt and/or Bmp dorso-ventral patterning pathways to control spatial expression. Intriguingly, we found that Sox17 regulates the expression of several Wnt/Bcat pathway components and targets including: dkk1, dkk2, fzd5, nodal3.1, pygo1, sia1, ror1, rsop2 and wnt11 (Figure 1D,F and Supplementary file 1). Together these data suggest that Sox17 regulates both endoderm specification and patterning while suppressing mesectoderm fate and that Sox17 participates in feedback loops with the Wnt and Nodal pathways.

Sox17 ChIP-Seq reveals direct endodermal targets and a Nodal and Wnt feedback

To identify direct Sox17 targets we generated and validated anti-Sox17 antibodies (Figure 2—figure supplement 1A–C) and performed Sox17 ChIP-seq in gastrula (NF10.5) embryos, identifying 8436 statistically significant Sox17-bound putative CRMs (IDR; p<0.05) (Supplementary file 2). These were associated with 4801 genes (Figure 2A), based on annotation to the nearest transcription start-site (TSS) by HOMER (Heinz et al., 2010). 88% of Sox17-bound loci were in introns or intergenic regions more than 1 kb away from the TSS, consistent with Sox17 binding at distal CRMs (Figure 2—figure supplement 2). A comparison to published ChIP-seq data of Xenopus embryos at the same stage (Hontelez et al., 2015) showed that most of the Sox17-bound genomic loci were also bound by Ep300, (Figure 2B,E) indicative of active enhancers. Motif analysis of the ChIP-seq peaks confirmed that Sox17 motifs were the most enriched, as expected (Figure 2D and Figure 2—figure supplement 2). Control ChIP-qPCR experiments of Sox17-MO embryos showed binding reduced to near background levels at 9 of 10 loci tested confirming a robust knockdown and the specificity of the Sox17 antibody (Figure 2—figure supplement 1D).

Figure 2 with 2 supplements see all
ChIP-seq identifies Sox17-bound enhancers and direct transcriptional targets.

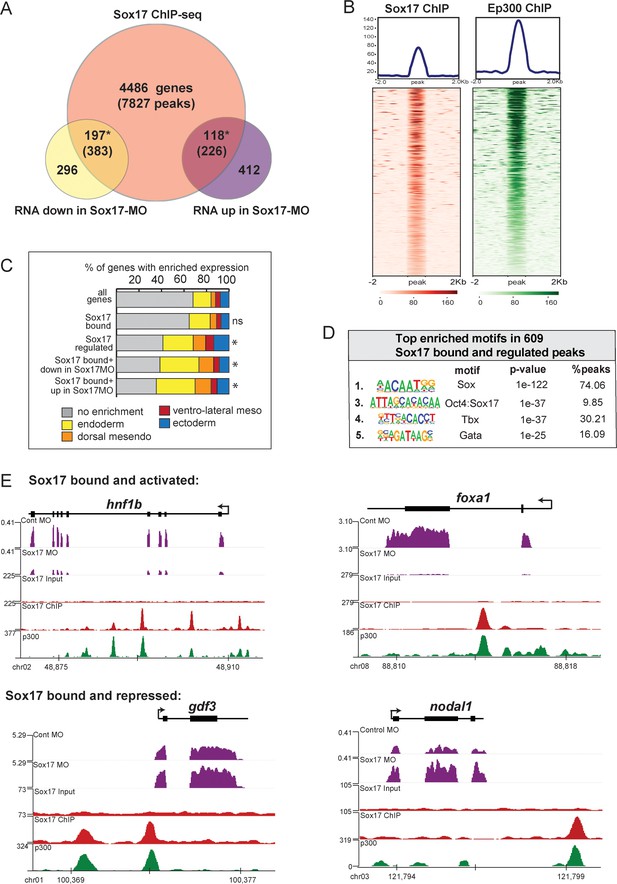

Sox17 ChIP-seq of gastrula embryos. (A) Venn diagram of Sox17-bound genes (and associated peaks) from ChIP-seq intersected with Sox17-regulated genes. Gene intersections are statistically significant based on hypergeometric tests* p<0.001. (B) Peak density plots showing that the Sox17-bound loci are cobound by the histone acetyltransferase Ep300, a marker of active enhancers. Average density of all peaks in top panel. (C) Sox17-bound genes are enriched in the endoderm. Stacked bar graphs showing different patterns of enriched spatial expression based on RNA-seq of dissected gastrula tissues (Blitz et al., 2017). Distribution of expression patterns statistically different from all genes in the genome was determined by two-sided KolmogorovSmirnov tests *p<0.01. (D) Top enriched DNA-binding motifs in Sox17 peaks, based on HOMER hypergeometric test. (E) Genome browser views of representative genes showing RNA-seq expression in control-MO and sox17-MO embryos and ChIPseq tracks of Sox17 and Ep300 binding.

A comparison to published human ChIP-Seq data revealed that 20% of the Xenopus Sox17-bound genes were also SOX17-bound in hPSC-induced definitive endoderm (Figure 2—figure supplement 2D; Tsankov et al., 2015). GO analysis of the conserved SOX17-bound genes show an enrichment for ‘Tgfb receptor activity’ and ‘Bcat binding’ (Figure 2—figure supplement 2E), reinforcing the notion that functional interaction with the Nodal and Wnt pathways is a conserved feature of the Sox17-regulated endoderm GRN.

Intersecting the RNA-seq and ChIP-seq data identified 315 genes associated with 609 Sox17-bound enhancers, which are likely to be direct transcriptional targets (Figure 2A). These putative direct targets had significantly enriched expression in the endoderm or dorsal mesendoderm (44%, 139/315 transcripts) (Figure 2C). Of the Sox17-bound and regulated genes, 197 genes (383 peaks) were positively regulated by Sox17 (down in Sox17MOs) including slc5a8, hnf1b, foxa1 and dhh (Figure 2E), all of which were previously suggested to be direct Sox17-targets. Sox17 negatively regulated 118 putative direct targets (up in Sox17MOs) including ectodermal genes (lhx5, foxi2 and tfap2a), endoderm-enriched Nodal pathway genes (nodal1, gdf3, gdf6 and mix1) and Wnt-regulated organizer genes (dkk and fst), suggesting direct transcriptional repression (Figure 2E). Interestingly, ~45% of peaks associated with Sox17-activated genes were also enriched for LIM-homeodomain binding sites, in contrast to peaks from Sox17-repressed genes which were enriched for Tbx or Pou motifs (Figure 2—figure supplement 2B). This suggests that Sox17 may coordinately engage enhancers with other core endoderm GRN TFs and mediate activation or repression of target genes depending on the interacting TFs.

These analyses provide new insight into the endoderm GRN and reveal previously unappreciated roles for Sox17 in germ layer segregation and endoderm patterning involving functional interactions with the Nodal and Wnt pathways. These findings, together with our previous work demonstrating that Sox17-Bcat can physically interact in vitro (Sinner et al., 2007; Zorn et al., 1999) prompted us to their genomic interactions.

β-catenin directly regulates the endodermal transcriptome

To test the hypothesis that Sox17 and Bcat functionally interact in vivo, we set out to identify Bcat-regulated genes and compare these to the Sox17-regulated transcriptome. Injection of a well-characterized Bcat-MO (Heasman et al., 2000) resulted in (a) depletion of nuclear Bcat, (b) reduced expression of a transgenic Wnt-responsive reporter (Tran et al., 2010) and (c) the expected ventralized phenotype, which was rescued by co-injection of stabilized human Bcat mRNA (Figure 3—figure supplement 1). Together, this confirms the efficacy and specificity of the Bcat knockdown. RNA-seq of control-MO and Bcat-MO depleted embryos at eight time points from blastula and gastrula stages (NF7-12) identified a total of 2568 Bcat-regulated genes (>2 fold change, FDR < 5%), 1321 of which were downregulated and 1247 upregulated in the Bcat-MO embryos (Figure 3A and Supplementary file 3). Remarkably, the Bcat-dependent genes encoded 251 TFs, (~20% of all the TFs in the genome), reinforcing the notion that Wnt/Bcat initiates a transcriptional cascade in the early embryo.

Figure 3 with 2 supplements see all

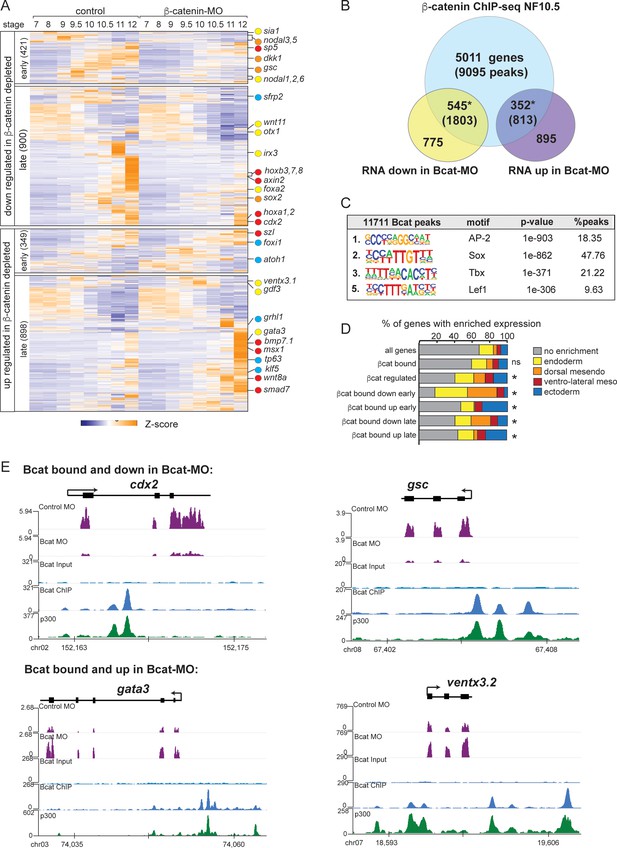

The Bcat-regulated genomic program.

(A) Time course heatmap of Bcat-regulated transcripts. Differential expressed genes from a pairwise comparison of control-MO and Bcat-MO embryos (>2 FC, FDR < 5%) at each stage identified 2568 Bcat-regulated transcripts; 1321 downregulated and 1247 upregulated in Bcat-MO embryos. Key genes are color coded based on regional expression from (D). (B) Venn diagram intersecting Bcat-regulated genes with Bcat-bound genes (and associated peaks) from published X. tropicalis gastrula Bcat ChIP-seq data (Nakamura et al., 2016) identified 898 putative direct targets associated with 2616 peaks. Statistically significant intersections based on hypergeometric tests* p<0.001.* (C) Motif enrichment analysis of Bcat peaks by HOMER hypergeometric test. (D) Stacked bar graphs showing different patterns of enriched spatial expression based on RNA-seq of dissected gastrula tissues (Blitz et al., 2017). Distribution of expression patterns statistically different from all genes in the genome was determined by twosided Kolmogorov-Smirnov tests *p<0.01. (E) Genome browser views of representative genes showing the RNA-seq expression in control-MO and Bcat-MO embryos and Bcat and Ep300 ChIPseq tracks.

Intersecting the Bcat-MO RNA-seq data with previously published Bcat ChIP-seq data from Xenopus tropicalis gastrula (Nakamura et al., 2016) identified 898 putative direct target genes associated with 2616 Bcat-bound CRMs (Supplementary file 4). In the Bcat-MO, 546 genes were downregulated , and 352 genes had increased expression in Bcat-MO embryos (Figure 3B). These included almost all the previously known Bcat targets in early Xenopus embryos and had extensive overlap with other recent genomic analysis of Wnt targets in the Xenopus gastrula (Ding et al., 2017; Kjolby and Harland, 2017; Nakamura et al., 2016; Figure 3—figure supplement 2D). Control Bcat ChIP-qPCR of Bcat-MO embryos showed reduced binding to near background levels confirming a robust knockdown (Figure 2—figure supplement 1E).

As expected, many of the positively regulated Bcat targets had enriched expression in the dorsal mesoderm (Figure 3D) including most known organizer genes such as cer1, chrd, dkk1, frzb, fst and gsc. In contrast, ~30% of Bcat-bound genes with increased expression in the early BcatMO embryos (NF7-9) were enriched for ectoderm-specific transcripts, consistent with the expansion of ectoderm and loss of neural tissue in ventralized embryos (Figure 3D). We also identified many direct Bcat targets that are likely to be regulated by zygotic Wnt8, (Kjolby and Harland, 2017; Nakamura et al., 2016) including sp5, axin2, cdx1/2, fzd10, msgrn1 and eight hox genes, all of which were downregulated in Bcat-MOs (Figure 3A,E). A number of zygotic Wnt-targets with enriched expression in the ventral mesoderm were components of BMP pathway including; bambi, bmp7, id2, msx1, smad7, szl, ventx1, and ventx3 (collectively known as the BMP synexpression group) (von Bubnoff et al., 2005). Most of these genes are known to be directly activated by both Bmp4/Smad1 and zWnt8/Bcat (Itasaki and Hoppler, 2010; Stevens et al., 2017) but were upregulated, rather than downregulated, in Bcat-depleted embryos, likely due to the increase in BMP/zWnt8 signaling in ventralized embryos.

Most importantly, almost 200 Bcat-bound and -regulated genes had endoderm enriched expression including most of the core endoderm TFs; sox17, foxa, eomes, gata4, mix1 and mixer (Figure 3D and Supplementary file 3). Thus, contrary to the prevailing view that Bcat promotes endoderm fate primarily by activating Nodal ligand expression (Blythe et al., 2010; Hyde and Old, 2000), we find that Wnt/Bcat also directly regulates the transcription of many endodermal genes. Surprisingly, de novo motif analysis showed that the Bcat-bound peaks were more enriched for Sox than canonical Tcf motifs, 2nd versus 5th ranked, respectively (Figure 3C; Nakamura et al., 2016). Consistent with this, analysis of other previously published Bcat ChIP-Seq datsets in X. tropicalis gastrula embryos (Gentsch et al., 2019) and Flag-tagged Bcat ChIP-Seq in X. laevis gastrula (Kjolby and Harland, 2017) also report a high enrichment for Sox and Tcf motifs (Figure 3—figure supplement 2A–D). Together these data support the hypothesis that Sox17 and Bcat coregulate endodermal transcription.

Sox17 and β-catenin co-occupy endoderm enhancers

Intersection of the ChIP-seq datasets identified 3956 genomic loci co-occupied by both Sox17 and Bcat, and these had epigenetic signatures of active enhancers (Figure 4A,B). This represents a third of all Sox17 genomic binding in the gastrula. Comparison of the Sox17-MO and Bcat-MO RNA-seq datasets identified 415 transcripts that were regulated by both Sox17 and Bcat; comprising of ~40% of the Sox17-regulated and ~15% of the Bcat-regulated transcriptome (Figure 4A). A similar high overlap between Sox17 and Bcat genomic binding was also observed in another independent Bcat ChIP-seq dataset (Figure 4—figure supplement 1B; Gentsch et al., 2019). This suggests that co-regulation with Wnt/Bcat is a major feature of the Sox17-regulated endoderm GRN. Analysis of publicly available ChIP-seq revealed that Sox17 and Bcat-bound loci are also enriched for other endodermal TFs including VegT, Foxa4, Smad1 and Smad2 (Figure 4—figure supplement 1C; Charney et al., 2017a; Gentsch et al., 2019), consistent with recent reports that the combinatorial activity of multiple TFs at endodermal super-enhancers (Paraiso et al., 2019) coordinate endoderm specification.

Figure 4 with 2 supplements see all

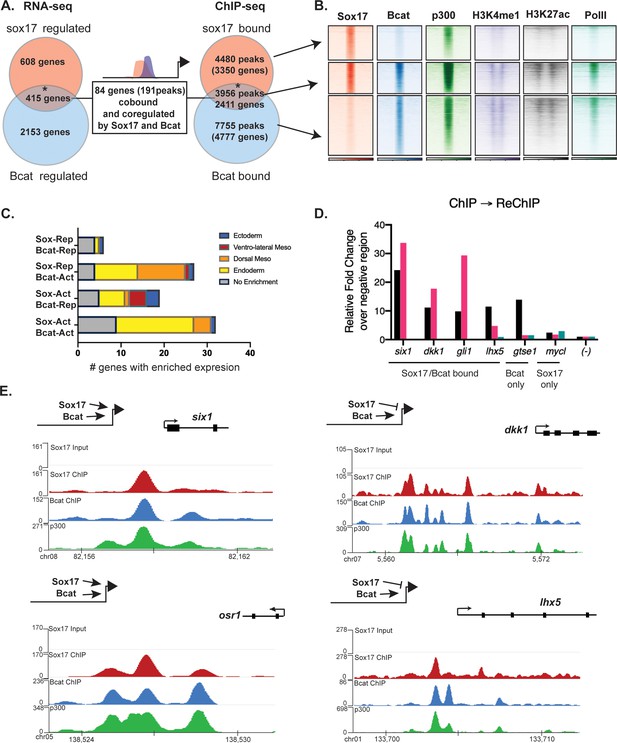

Sox17 and Bcat co-occupy enhancers to regulate the endoderm GRN.

(A) Eighty-four genes (191 Peaks) are cobound and coregulated by Sox17 and Bcat. Venn diagram show that 415 genes are regulated by both Sox17 and Bcat (left), whereas 2411 genes (3956 peaks) are bound by both Sox17 and Bcat. Gene intersections are significant based on hypergeometric tests, *p<0.001. (B) Density plots show that Sox17 and Bcat cobound peaks are enriched for enhancer associated epigenetic marks: Ep300, H3K4me1 and H3K27Ac and RNA pol II. (C) Regional enrichment of all subsets of enhancers cobound and coregulated by Sox17 and Bcat. (D) A representative ChIP-reChIP experiment showing that Sox17 and Bcat coocupy all the test CRMs (six1, dkk1, gli1 and lhx5) in the same cells, in contrast to the gtse1 locus, which is bound only by Bcat. (E) Genome browser views of representative genes showing peak overlap of Sox17, Bcat and Ep300 ChIP-Seq tracks.

In total, 84 genes (191 Peaks) were bound and regulated by both Sox17 and Bcat (Figure 4A,B). This is likely to be an underestimation of the number of direct coregulated genes, as these had to pass a stringent thresholding of four independent statistical tests to be included in this list. A comprehensive motif analysis of the 191 co-bound and coregulated peaks using the CIS-BP database (Lambert et al., 2019) revealed that 53% (101/191) of the peaks contained both Sox17 and Tcf DNA-binding motifs (e.g. dkk1, lhx5 and osr1) compared to 31% in background genomic sequences (Figure 4—figure supplement 2E and Supplementary file 5). In contrast 24% (46/191) of the peaks had Sox motifs but no Tcf sites (e.g. six1), suggesting that Bcat might be recruited to these loci independent of Tcfs. Only 3/191 peaks had Tcf but no Sox motifs. Moreover, co-occupied enhancers often contained multiple Sox17 motifs (>5), which was also significantly enriched over random (Figure 4—figure supplement 2). In addition, most individual genes were associated with multiple Sox17 and Bcat co-occupied enhancers, suggesting that combinatorial binding and integration of several CRMs is crucial to control lineage-specific transcription.

Since the ChIP-seq experiments were performed on whole embryos, it was possible that Sox17 and Bcat chromatin binding might occur in different cell populations. To test whether Sox17 and Bcat bound the same enhancers in the same cells we performed ChIP-reChIP experiments. First anti-Bcat ChIP was performed on 500 gastrulae. DNA eluted from the first ChIP was then re-precipitated with either anti-Sox17 or a negative control IgG antibody. All four loci tested by ChIP-reChIP qPCR (six1, dkk1, lhx5 and gli1) showed enrichment compared to IgG demonstrating that these genomic loci (~150 bp in length) were simultaneously bound by Sox17 and Bcat in endodermal cells. In contrast, a negative control locus gtse1 which is bound by Bcat but not Sox17 was not enriched in the ChIP-reChIP experiment (Figure 4D).

The 84 co-bound and coregulated genes fell into four regulatory categories (Figure 4C,E); 32/84 were activated by both Sox17 and Bcat (e.g. six1 and osr1) and tended to have endoderm enriched expression, 27/84 were activated by Bcat but repressed by Sox17 (e.g. dkk1) and these tended to be enriched in the organizer mesendoderm, 19/84 were positively regulated by Sox17 and negatively regulated by Bcat (up in the Bcat MO) and finally 6/84 were negatively regulated by both Sox17 and Bcat. The observation that Bcat positively regulated most of these genes (59/84, 70%) was consistent with its known role in transcriptional activation. Sox17 positively regulated 60% of targets and repressed 40% of targets, suggesting context-dependent activity. For further analysis, we focused on the two major regulatory groups; genes/enhancers activated by both Sox17/Bcat and those activated by Bcat but repressed by Sox17 (Figure 4E).

Sox17 and β-catenin coordinate spatial expression domains in the embryo

It was possible that the overlap in Sox17- and Bcat-regulated genes was largely due to the Sox17-Wnt feedback loop where Bcat is required for robust sox17 expression and Sox17, in turn, regulates the expression of Wnt-pathway components. While this is likely to be part of the mechanism, we directly tested the functional necessity for both Sox17 and Bcat in epistasis experiments, asking whether injection of sox17 mRNA could rescue coregulated genes in Bcat-depleted embryos and vice versa. Co-injection of mSox17 mRNA could not rescue the normal expression patterns of six1, osr1, lhx5 or dkk1 in Bcat-MO embryos, but it did rescue foxa1 expression (Figure 5). This demonstrates that reduced Sox17 in Bcat-depleted embryos cannot account for the disrupted six1, osr1, lhx5 or dkk1 expression, but it can account for the reduced foxa1 expression. Similarly, co-injection of stabilized (ca)Bcat mRNA rescued the normal expression of foxa1 but not six1, osr1, lhx5 or dkk1 in Sox17-morphants indicating that the defects in their expression were not simply due to reduced Wnt signaling (Figure 5).

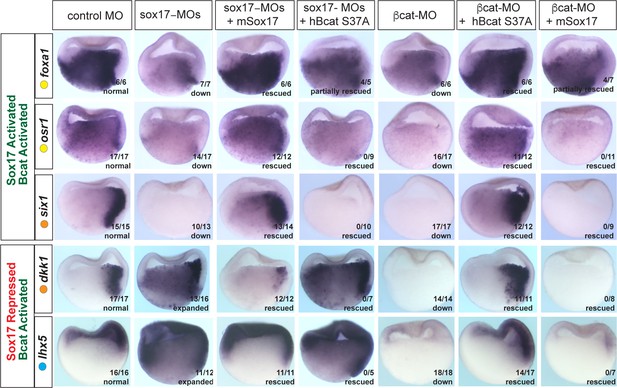

Sox17 and Bcat epistasis.

In situ hybridization of gastrula embryos (dorsal right) injected with sox17-MO or bcat-MO, some of which were co-injected with RNA encoding either mSox17 or a human S37A stabilized Bcat. The genes osr1, six1 and foxa1 are activated by both Sox17 and Bcat, whereas dkk1 and lhx5 are activated by Bcat but repressed by Sox17. Co-injection of mSox17 cannot rescue normal expression in Bcat-MOs, nor can hBcat S37A RNA rescue Sox17-MOs indicating that both Sox17 and Bcat required for normal expression.

These experiments also show that Sox17 and Bcat coordinate spatial gene expression in the embryo in a complex gene-specific manner. Wnt/Bcat stimulates expression of lhx5 in the ectoderm, but Sox17 represses this activity in the presumptive endoderm. Sox17 and Bcat are both required for robust expression of osr1 and six1 in the endoderm and dorsal mesendoderm respectively. In contrast, Sox17 normally suppresses Bcat-activated expression of dkk1 in the deep endoderm. Together, with their co-occupancy at CRMs, these data show that Sox17 and Bcat are both required to directly regulate transcription in discrete spatial domains.

Sox17 and Bcat synergistically regulate transcription of endodermal enhancers

To examine how Sox17 and Bcat directly regulate endodermal transcription, we first selected four exemplar co-occupied enhancers: (a) a proximal six1 enhancer located −1 kb from the TSS, (b) a proximal dkk1 enhancer located −1.6 kb from its TSS, (c) a distal −7.5 kb dkk1 enhancer and (d) a −1 kb lhx5 enhancer (Supplementary file 6). We focused most of our analysis on six1 and dkk1 which are both expressed in the dorsal mesendoderm but have opposite regulation. Sox17-Bcat promotes six1, whilst Sox17 represses Bcat activation of dkk1.

The −1 kb six1 enhancer is evolutionarily conserved from Xenopus to human containing three Sox-binding sites but no predicted Tcf-binding sites (Figure 6B). In mouse, this enhancer can drive transgenic expression in the embryonic gut tube, although the TFs that modulate it were previously unknown (Sato et al., 2012). Analysis of published ChIP-seq data indicate that, like in Xenopus, the human SIX1 CRM is also bound by SOX17 in human PSC-derived endoderm (Figure 6—figure supplement 1A; Tsankov et al., 2015). Mammalian Dkk1 is also known to be a direct Bcat-Tcf target (Niida et al., 2004), but the enhancers that regulate its expression in the gastrula had been previously uncharacterized. Unlike the −1 kb six1 enhancer, the −1.6 kb and −7.5 dkk1 enhancers as well as the −1 kb lhx5 enhancer are predicted to harbor both Tcf and Sox DNA-binding sites (Figure 6B, Figure 6—figure supplement 2 and Supplementary file 6).

Figure 6 with 2 supplements see all

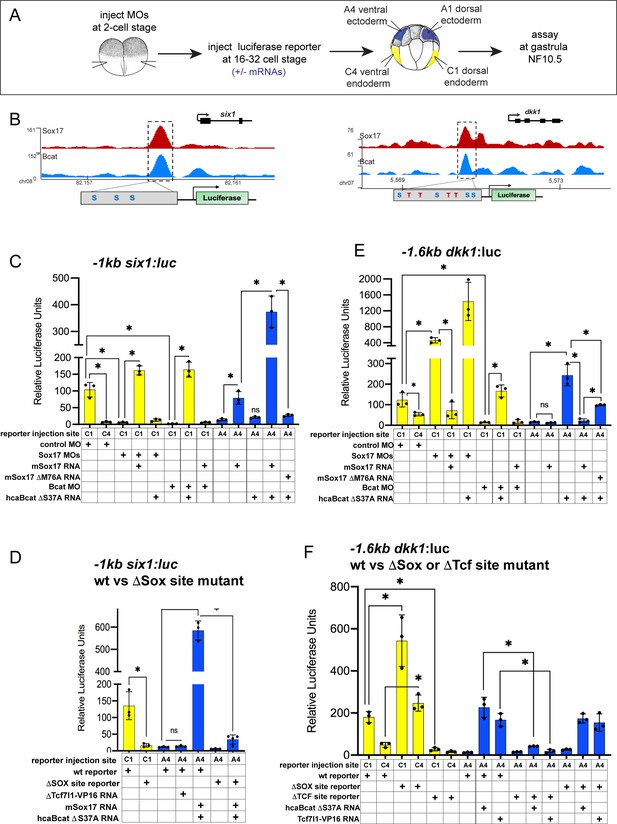

Sox17 and Bcat coordinately regulate endoderm enhancers.

(A) Experimental design. (B) IGV genome browser tracks showing Sox17 and Bcat chromatin binding and schematic of reporter constructs showing the predicted Sox17 and Tcf DNA-binding sites in the −1 kb six1 and −1.6 kb dkk1 enhancers (C–F) Luciferase assay of (C) wildtype (wt) −1 kb six1:luc, (D) wt versus DSox-site mutant 1 kb six1:luc, (E) wt −1.6 kb dkk1:luc and (F) wt versus DSox-site and DTcf-site mutant −1.6 kb dkk1:luc reporters injected in different tissue with the indicated MOs and/or mRNAs. Histograms show mean luciferase activity ± standard deviation, *p<0.05 in pairwise Student T-tests.

We cloned each of these CRMs into luciferase (luc) reporter constructs and tested whether they require Sox17 and Bcat for enhancer activity in Xenopus embryos (Figure 6A). Targeted microinjection into different cells of 32-cell-stage Xenopus embryos showed that all the reporters recapitulated the endogenous spatial expression indicating that they are bona fide enhancers. The six1 and dkk1 reporters were both active in the dorsal-anterior endoderm, but not the ventral endoderm or ectoderm, whereas the lhx5 reporter was only active in the dorsal ectoderm (Figure 6C,E and Figure 6—figure supplement 2). Depletion of endogenous Sox17 or Bcat abolished expression of the −1six1:luc reporter and this was rescued by adding back mSox17 to Sox17-MO or by adding back caBcat mRNA to Bcat-MO embryos (Figure 6C). However, co-injection of mSox17 could not rescue expression in Bcat-MO embryos and nor could caBcat RNA rescue expression in Sox17-MOs (Figure 6C). These epistasis experiments indicate that both Sox17 and Bcat are required for activation of the −1 kb six1 enhancer. The human SIX1:luc construct exhibited identical activity to the Xenopus six1:luc enhancer (Figure 6—figure supplement 1D). In contrast, in the case of the −1.6 kb dkk1, −7.5 kb dkk1 and the −1 kb lhx5:luc constructs, depletion of Bcat abrogated reporter activity, whereas Sox17 depletion resulted in significantly elevated reporter activity, indicating that Sox17 restricts Bcat-mediated transactivation at the dkk1 and lhx5 enhancers (Figure 6E, and Figure 6—figure supplement 2C,D).

To test whether Sox17 and Bcat were sufficient to regulate the enhancers, we assayed their activity in ventral ectoderm tissue which does not express endogenous Sox17 and has low Wnt/Bcat activity. Injection of mSox17 but not caBcat mRNA was sufficient to stimulate the −1 kb six1:luc and human SIX1:luc reporters in the ectoderm, but co-injection of caBcat along with mSox17 synergistically activated the reporters (Figure 6C and Figure 6—figure supplement 1D). On the other hand, caBcat but not mSox17 was able to activate the dkk1 and lhx5 reporters in ventral ectoderm, and co-injection of mSox17 suppressed the ability of caBcat to stimulate these reporters (Figure 6E and Figure 6—figure supplement 2C,D), consistent with the endogenous regulation (Figure 5). The ability of Sox17 to activate the six1 reporter or suppress Bcat-induced activation of the dkk1 and lhx5 reporters required the DNA-binding function of Sox17. A M76A point mutation in mSox17, known to disrupt the DNA-binding HMG domain (Sinner et al., 2007) significantly reduced Sox17’s ability to activate the six1 or repress the dkk1 reporter activity, respectively (Figure 6C,E and Figure 6—figure supplement 2C,D).

Sox17 and Bcat appear to stimulate some enhancers independent of Tcfs

The six1 enhancer is predicted to have only Sox sites with no evidence of Tcf-binding sites, whereas the dkk1 and lhx5 enhancers have both Sox17 and Tcf sites. To test whether or not Tcfs regulate these enhancers, we injected a Tcf7l1-VP16 fusion construct which constitutively activates Tcf-target gene transcription (Darken and Wilson, 2001). This had little to no impact on the six1 reporter, but robustly activated the dkk1 and lhx5 reporters in ventral ectoderm (Figure 6D,F and Figure 6—figure supplement 2D,E). We next mutated the Sox17 and Tcf-binding sites in the six1 and dkk1 enhancers and examined the impact on Sox17, Bcat and Tcf regulation. Loss of the Sox17 sites abolished normal and Sox17/Bcat-induced expression of the six1:luc reporter (Figure 6D). In contrast, mutation of the Sox sites in the dkk1 enhancers resulted in elevated reporter activity consistent with Sox17-mediated repression (Figure 6F and Figure 6—figure supplement 2E). Deletion of the Tcf sites in the dkk1 enhancers abolished expression in the dorsal mesendoderm as well as Bcat or Tcf7l1-VP16-induced activation in the ventral ectoderm, consistent with Bcat-Tcf complexes activating these enhancers (Figure 6F and Figure 6—figure supplement 2E).

To examine the generality of the apparent Tcf-independent regulation of six1, we identified two additional enhancers with similar characteristics: an osr1 enhancer +7 kb downstream of its TSS (Figure 6—figure supplement 1B) and a +3 kb igf3 enhancer (Figure 6—figure supplement 1B,C and Supplementary file 6). Both these enhancers have no evidence of Tcf binding sites and they were both synergistically activated by Sox17 and Bcat, whereas co-injection of Tcf7l1-VP16 failed to activate either reporter (Figure 6—figure supplement 1E,F). From these collective data, we conclude that Sox17 and Bcat synergistically can activate the six, osr1 and igf3 enhancers, likely independent of Tcfs. In contrast, the dkk1 and lhx5 enhancers are activated through a Bcat/Tcf transcription mechanism, with Sox17 spatially restricting Bcat/Tcf activity to maintain cell-type-specific gene expression (Figure 7).

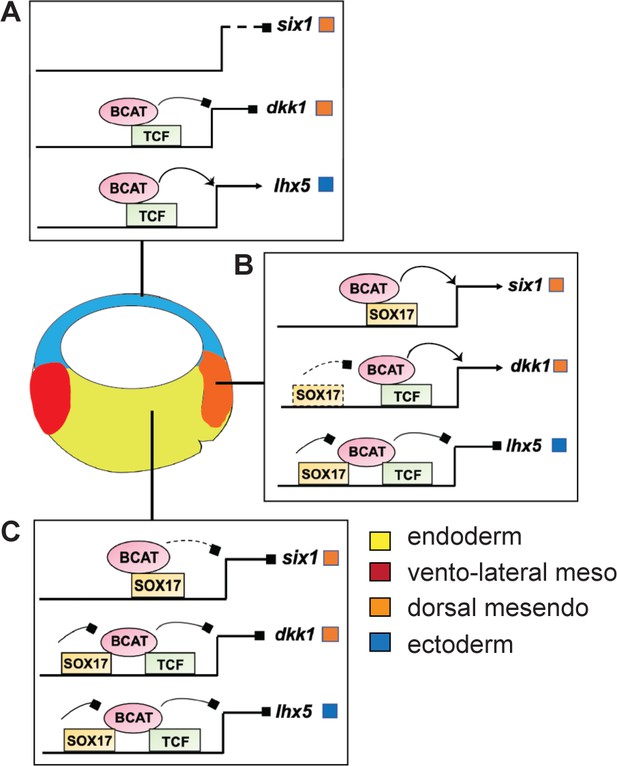

Model of Sox17 and Bcat coregulation spatial transcription.

Differential engagement of Sox17, Bcat and Tcfs on enhancers in different cells modulates spatial expression domains. (A) In ectoderm cells lacking Sox17 (and Nodal signaling), ectoderm-specific gene lhx5 is activated through a Bcat/Tcf dependent mechanism while six1 and dkk1 are not transcribed. (B-C) Sox17 is expressed throughout the endoderm and dorsal mesendoderm, while Bcat activity is the higher in dorsal mesendoderm than deep endoderm. (B) In the dorsal region, Sox17 and Bcat synergistically coactivate six1 in the absence of Tcf, whereas Sox17 exerts a repressive influence on Bcat/Tcf-activation of lhx5 and dkk1. We postulate, however, that in the dorsal region Sox17-mediated repression is insufficient to overcome Bcat/Tcf activation of dkk1. (C) In deep endoderm cells where Bcat activity is lower, Sox17-mediated repression of Bcat/Tcf is sufficient to repress dkk1 and lhx5 transcription, but Bcat activity is not high enough to activate six1.

Discussion

Overview of findings

Sox17 is a key regulator of vertebrate endoderm development and morphogenesis, yet surprisingly, the transcriptional program that it controls has been poorly characterized until now. Here, we defined the Sox17-regulated GRN in Xenopus gastrulae, which includes many conserved SOX17 genomic targets in PSC-derived human definitive endoderm. We show that in addition to acting atop a transcriptional hierarchy promoting endoderm differentiation, Sox17 has previously unappreciated roles in endoderm patterning and germ layer segregation. We demonstrate that functional interactions with the canonical Wnt signaling pathway is a major feature of the Sox17-regulated GRN. Over a third of all Bcat and Sox17 genomic binding events in the gastrula occur at the same enhancers, where they coordinately regulate spatial gene expression in the embryo. Our data suggest that Sox17 and Bcat synergistically activate a subset of endodermal enhancers apparently independent of Tcfs, whereas at other enhancers Sox17-regulated Bcat-Tcf mediated transcriptional activation (either activating or inhibiting). Together these results provide novel insights into the establishment of the endoderm GRN and suggest a new paradigm where Sox17 acts as a tissue-specific modifier of Wnt-signaling responses.

The Sox17-Bcat-regulated endodermal GRN

Our genomic study revealed an extensive overlap between Sox17- and Bcat-regulated genes. Together with previous work (Charney et al., 2017b; Zorn and Wells, 2009), this suggests that Sox17 and the other core endoderm TFs interact with Wnt and Nodal in a series of positive and negative feedback loops to control germ layer segregation and modulate spatial gene expression. Temporally mesendoderm development is initiated by maternal VegT and Bcat, which together initiate Nodal signaling. We showed that in addition to its known role in activating transcription of endoderm-inducing nodal ligands (Blythe et al., 2010; Hyde and Old, 2000), Bcat directly promotes the expression of many endodermal genes including most of the core endoderm TFs; sox17, eomes, foxa, gata4/5, mix1 and mixer. Sox17 appears to function after initial Nodal signaling in the mid-gastrula stage by promoting expression of endoderm GRN components such as foxa1 and gata4, whilst negatively regulating the expression of some nodal and mix/bix genes. Thus on one hand, Sox17 promotes endodermal fate, and on the other, it restrains excessive Nodal activity. There is precedence for Sox factors influencing nodal ligand transcription. Maternal Sox3, localized in the blastula ectoderm, directly binds the nodal5/6 enhancers to repress Bcat-stimulated transcription, whereas vegetally localized maternal Sox7 enhances nodal5/6 expression in the vegetal cells (Zhang and Klymkowsky, 2007). This suggests a potential of a dynamic handoff model where different Sox TFs might co-occupy the same enhancers with Bcat in different cells to activate or repress transcription in a context-dependent manner. In this model, we predict that in the early blastula Bcat-bound enhancers might be co-occupied by Sox3, Sox7 and/or Tcfs and it is not until the mid-gastrula that co-occupancy of Sox17 and Bcat would be observed.

Our data demonstrate that Sox17-Bcat interactions regulate spatial gene expression in the embryo (Figure 7). Sox17-Bcat interact at some enhancers like six1 and igf3 to promote endoderm transcription. In addition, Sox17 also has a key role in repressing alternative lineages in the vegetal cells, similar to the maternal TFs Foxh1, Vegt and Otx1 (Chiu et al., 2014; Paraiso et al., 2019). For example, Sox17 represses Bcat/Tcf-stimulated expression of the ectoderm specifying TF lhx5 (Houston and Wylie, 2003). Sox17-Bcat interactions also impact spatial expression within the endoderm. Sox17 inhibits the Bcat-Tcf stimulation of the dkk1 enhancer in the deep endoderm, but in the dorsal mesendoderm where Bcat activity is higher, Sox17 appears insufficient to suppress dkk1. The finding that six1 and dkk1 are under opposite regulation by Sox17 and Bcat despite having very similar expression patterns warrants future analysis of the temporal-spatial dynamics in Bcat, Tcf and Sox17 genomic occupancy in dorsal vs ventral cells over time.

DNA binding specificity of SOX TFs

An important consideration is how Sox17 selects specific target enhancers. In DNA-binding experiments, all Sox TFs bind to variants of the DNA sequence 5’-(A/T)(A/T)CAA(A/T)3’, which is similar but distinct from Tcf DNA-binding sites 5’-T(A/T)(A/T)CAAG 3’ (Hou et al., 2017; She and Yang, 2015). SOX TFs can act either as monomers or heterodimers with different cell-type specific cofactors, which in turn impact their DNA-binding affinity and ability to activate or repress transcription (Bernard and Harley, 2010; Hou et al., 2017). For example, in PSCs, Oct4-Sox2 heterodimers promote pluripotency and bind to distinct sites than those bound by Oct4-Sox17 complexes that initiate mesendoderm development (Aksoy et al., 2013). It is, therefore, likely, that Sox17 and Bcat cooperate with other TFs to provide lineage specificity to Wnt-responsive transcription during germ layer segregation. Indeed, motif analysis and comparison to other ChIP-seq datasets revealed that Sox17-bound loci were also enriched for Tbx, Gata, Fox and homeodomain motifs suggesting that in addition to regulating each other’s expression, the core endoderm TFs act together in combinatorial manner, perhaps to establish endodermal super enhancers crucial for downstream lineage specification (Paraiso et al., 2019). Interestingly, enhancers that were negatively regulated by Sox17 were enriched for Tbx and Oct motifs whereas enhancers activated by Sox17 were enriched for homeodomain motifs. This suggests that Sox17 interactions with distinct lineage-specific TFs might modulate context-specific transcriptional responses. This is a particularly attractive hypothesis since as monomers Sox TFs bind DNA with low affinity and they are thought to gain DNA-binding specificity by interacting with other TFs (Hou et al., 2017). In the future, it will be important to identify and integrate the genomic targets of all the core endoderm-specifying TFs and examine how combinatorial enhancer binding is integrated into a unified endodermal GRN.

Sox-Bcat-Tcf interactions on chromatin

Many Sox proteins, including Sox17, can bind to recombinant Bcat and Tcfs in vitro and modulate Wnt/Bcat-stimulated transcription of synthetic reporters assays with multimerized Tcf-sites (pTOPFlash) (Sinner et al., 2007; Zorn et al., 1999). While a number of models have been proposed to explain how Sox factors might impact Bcat activity, (Kormish et al., 2010; She and Yang, 2015; Tan et al., 2019), in most cases the in vivo biological relevance of these interactions was unclear. Although the resolution of ChIP-reChIP assays only allow us to demonstrate that Sox17 and Bcat bind chromatin within 150 bp of each other, taken together with published in vitro data, our results suggest that Sox-Bcat or Sox-Bcat-Tcf transcriptional complexes can be assembled on enhancers in vivo.

At enhancers like six1, igf3 and +7 kb osr1, where Sox17 and Bcat synergistically stimulate transcription, we postulate that Sox17 and Bcat recruit Ep300/Cbp to chromatin, analogous to Tcf-Bcat in canonical Wnt-signaling. Consistent with this, structure-function studies have found that a conserved 10 amino-acid domain (VDXXEFEQYL) in the Sox17 C-terminus is required for both Bcat-binding and transcriptional transactivation (Sinner et al., 2004). On the other hand, most Bcat and Sox17 co-occupied enhancers contain multiple Sox and Tcf sites clustered within 50 bp, suggesting that Sox17 and Tcf, together with Bcat and scaffolding proteins like Bcl9, (Gammons and Bienz, 2018; Masuda and Ishitani, 2017) might assemble higher-order multiprotein complexes facilitating Wnt-mediated transcription. Both Soxs and Tcfs are HMG-domain containing TFs, capable of binding to the minor groove of DNA and inducing DNA bending. This could further indicate that they are brought into close spatial proximity to establish the assembly of functional enhanceosomes, despite the distance between their binding sites on linear DNA (Bernard and Harley, 2010; Hou et al., 2017).

The possibility of Sox-Bcat-Tcf ternary complexes raises the question of competitive vs cooperative DNA binding that, in turn, could influence transcriptional repression versus activation. For example, Sox17 might stabilize the formation of Bcat-Tcf-Ep300 complexes or destabilize the binding of co-repressors such as Tle and Hdac to promote transcription (e.g. osr1). To negatively regulate Bcat-Tcf activity (e.g. dkk1) Sox17 might destabilize Bcat-Tcf-Ep300-DNA or stabilize Tcf-Tle complexes. This idea is supported by work in mouse cortical neuron progenitors where Sox2 binds within 4–10 bp of Tcf/Lef sites and recruits Tle/Gro corepressors to repress Tcf/Bcatmediated Ccnd1 expression (Hagey and Muhr, 2014). Future biochemical studies will need to determine if and how Sox-Bcat-Tcf complexes assemble on DNA.

Broader implications

Although a growing number of non-Tcf Bcat-binding TFs have been reported, (Gammons and Bienz, 2018; Notani et al., 2010; Trompouki et al., 2011), how these impact the genomic specificity of Wnt-responsive transcription has not been well characterized and the idea of Tcf-independent Wnt transcription remains controversial (Doumpas et al., 2019; Schuijers et al., 2014). Our data suggest that in the gastrula endoderm, Sox17 might influence Bcat recruitment to chromatin to control cell-type-specific Wnt-responsive transcription, and that in some cases, this occurs independent of Tcfs. Given that there are 20 Sox TFs encoded in the vertebrate genome with most cell types expressing at least one, it is possible that Sox factors are widespread and previously unappreciated accessory effectors of Bcat that finetune Wnt-regulated transcription across many biological contexts.

Materials and methods

Xenopus embryo manipulations

Request a detailed protocol

Xenopus laevis and Xenopus tropicalis were purchased from Nasco or the National Xenopus Resource (RRID:SCR_013731) and experiments were performed according to CCHMC IACUC approved protocols. Embryos were staged according to Nieuwkoop and Faber, 1967. Microinjection and embryo culture were performed as previously described (Stevens et al., 2017). Antisense morpholino oligos (MO; GeneTools, LLC) were as follows:

  • Standard control MO: 5’CCTCTTACCTCAGTTACAATTTATA-3’;

  • Xenopus tropicalis ß-catenin MO: 5’ TTTCAACAGTTTCCAAAGAACCAGG 3’;

  • Xenopus tropicalis sox17a MO: 5’-AGCCACCATCAGGGCTGCTCATGGT-3’

  • Xenopus tropicalis sox17b.1/2 MO: 5’-AGCCACCATCTGGGCTGCTCATGGT-3’

  • Xenopus laevis ß-catenin MO: 5’TTTCAACCGTTTCCAAAGAACCAGG-3’ (Heasman et al., 2000);

  • Xenopus laevis sox17a MO: 5’-ATGATGAGGAGGGTTGGACAGGAGA-3’ (Clements et al., 2003);

  • Xenopus laevis sox17b1/2 MO: 5’-TGATTCGGAGTGCTGTGGTGATTAG-3’ (Clements et al., 2003);

Total amounts of MO injected into X. tropicalis embryos were as follows: 2 ng Bcat MO, 8 ng sox17 MO (4 ng each a+b1/2 MO), 8 ng standard control MO.

Synthetic mRNA for injections was generated using the Message Machine SP6 transcription kit (Thermo Fisher AM1340) using the following plasmids: pCS2+ human B-catenin S37A caBCAT (Zorn et al., 1999); pcDNA6-V5-mouse Sox17 (mSox17) and pcDNA6-V5-Sox17 M76A (Sinner et al., 2007); pCS2+ Tcf7l1:VP16 (formerly XTcf3:VP16) (Darken and Wilson, 2001).

In situ hybridization

Request a detailed protocol

In situ hybridization of Xenopus tropicalis embryos was performed as described (Sive, 2000) with the following minor modifications. After overnight fixation at 4°C in MEMFA, embryos were washed (2 × 10 min) in MEMFA buffer without the formaldehyde and stored in 100% ethanol at −20°C. Embryos were serially rehydrated to PBS+0.01% Tween-20 and bisected through the dorsal-ventral axis in on 2% agarose-coated dishes using a fine razor blade (Electron Microscopy Services 72003–01), followed by Proteinase K (ThermoFisher AM2548) treatment at 1 µg/mL for 10 min. TEA/acetic anhydride steps were skipped on day 1. The RNAse A step was 0.25 µg/mL for 5 min on day 2; and finally the anti-DIG-alkaline phosphatase antibody (Sigma 11093274910) was used at a 1:6000 dilution in MAB buffer + 20% heat-inactivated lamb serum + 2% blocking reagent (Sigma 11096176001) on day2/3. Anti-sense DIG labeled in situ probes were generated using linearized cDNA templates with the 10X DIG RNA labeling mix (Sigma 11277073910) according to manufacturer’s instructions. Details on plasmids used for probe synthesis are listed in Supplementary file 7.

Antibodies and immunostaining

Request a detailed protocol

Affinity purified anti-Xenopus Sox17 rabbit polyclonal antibodies were generated by Bethyl labs to the Sox17a/b N-terminal, Sox17b C-terminal and Sox17a C-terminal with the peptides illustrated in Figure 2—figure supplement 1. Antibodies were validated by immunostaining, western blot, immunoprecipitation and ChIP. Immunoreactivity was not detected in Sox17-deficient tissue and specifically competed by addition of the target peptide to reactions. In preliminary ChIP-qPCR experiments, the pan-Sox17 and Sox17bC-terminal antibodies bound to the same loci, but the Sox17bC-terminal was more efficient and was used for ChIP-seq.

For Xenopus immunofluorescence, embryos were fixed in ice-cold 100 mM NaCl, 100 mM HEPES (pH7.5), 3.7% methanol-free paraformaldehyde for 1.5 hr at 4°C and then dehydrated directly into ice-cold Dent’s post-fixative (80%Methanol/20% DMSO) and stored at −20°C. Embryos were serially rehydrated on ice into PBS+0.1% TritonX-100 (PBSTr) and bisected through the dorsal-ventral axis with a fine razor blade. Embryo halves were subjected to antigen retrieval in 1x R-Universal epitope recovery buffer (Electron Microscopy Services #62719–10) for 30 min at 55–60°C, washed 2 × 10 min in PBSTr, blocked for 2 hr in PBSTr + 10% normal donkey serum (Jackson Immunoresearch 017-000-001) + 0.2% DMSO at room temperature, and then incubated overnight at 4°C in this blocking solution + the following primary antibodies: chicken anti-GFP (Aves GPF-1020; diluted 1:1000), rabbit anti-Sox17a/b N-terminal (1:350), rabbit anti-B-catenin (Santa Cruz Biotechnology sc-7199; 1:500). After extensive washing in PBSTr, samples were incubated overnight at 4°C in PBSTr + secondary antibodies: donkey antiChicken 488, donkey anti-rabbit Cy3 (Jackson ImmunoResearch # 703-546-155, #711-166-152, both used at 1:1000 dilution).TO-PRO3 nuclear stain (ThermoFisher #T3605) was included in one 30 min PBSTr wash after secondary antibody incubation. Samples were extensively washed in PBSTr, dehydrated into 100% methanol, cleared and imaged in Murray’s Clear (two parts benzyl benzoate, one part benzyl alcohol).

Luciferase assays

Request a detailed protocol

Putative enhancers (wildtype as well as Sox and Tcf DNA-binding site mutants) were synthesized (supplementary sequence file S1) and cloned into the pGL4.23 luc2/miniP vector. (Promega E8411). Xenopus laevis embryos were used for luciferase assays because of the larger size embryos and slower developmental rate. Enhancer activity was assayed by co-injecting embryos with 5 pg of pRL-TKrenilla luciferase vector (Promega E2241), 50 pg of the pGL4.23 luc2/miniPenhancer:luciferase and combinations of the following MOS or mRNAs: ca-Bcat; 5 pg, mSox17; 25 pg, mSox17 M76A; 25 pg, Tcf3-VP16; 10 pg, Xl sox17a+b1/2 MO; 10 ng each, Xl bcat MO; 10 ng. For each condition three tubes of 5 NF10.5 embryos were collected. Embryos were lysed in 100 µL of 100 mM TRIS-Cl pH7.5, centrifuged for 10 min at ~13,000 x g and then 25 µL of the clear supernatant lysate was used separately in Firefly (Biotium #30085–1) and Renilla (Biotium 300821) luciferase assays according to the manufacturer’s instructions. The average relative Luciferase activity was normalized Renilla levels for each sample and statistical significance was determined by pairwise Student T-test. Each luciferase experiment was repeated two to four times with similar results and a representative is shown.

RNA-sequencing

Request a detailed protocol

RNA isolation and library preparation

Request a detailed protocol

Approximately 200 X. tropicalis embryos were injected with 8 ng of either control-MO or Sox17-MO, or 2 ng of control-MO and Bcat-MO and 10 sibling embryos were collected at every time point from blastula to late gastrula in biological duplicate. Total RNA was extracted with the Nucleo-spin RNA kit (Machery-Nagel). RNA-seq libraries were generated using Smart-seq2 cDNA synthesis followed by tagmentation, quality-tested using an Agilent Bioanalyzer 2100, quantified using KAPA qPCR and sequenced using Illumina sequencers at the UC Irvine Genomics High Throughput Facility.

RNA-Seq analysis

Request a detailed protocol

Raw reads were quality checked using FastQC and adapters/low-quality reads were removed with Trimmomatic (Bolger et al., 2014). Reads were mapped to the Xenopus tropicalis genome version 9.0 (Hellsten et al., 2010) with bowtie2, quantified using RSEM (Li and Dewey, 2011) and reported in transcripts per million (TPM). X. tropicalis v9.0 gene name annotations were obtained from www.Xenbase.org; RRID:SCR_003280 (Karimi et al., 2018). To visualize the data, aligned bam files generated as above were converted to bigwig format using deeptools v3.4.1 and visualized on IGV v2.4.1.3 (Thorvaldsdóttir et al., 2013). Differentially expressed genes (>2 fold change and FDR < 5%) were identified by a pairwise comparison between control-MO versus Sox17-MO and control-MO versus Bcat-MO sibling embryos at each stage using RUVSeq (R package) (Risso et al., 2014). Gene ontology enrichment analysis was performed using the Gene Ontology Consortium Online Resource (http://geneontology.org) and default parameters.

To assess the spatial expression of transcripts, we examined the RNA-seq TPM expression values of dissected stage 10.5 embryo published in GEO GSE81458 (Blitz et al., 2017). Enriched expression in a specific tissue was defined as the normalized expression being >1.5 x of the mean expression across dissected tissues. Statistical significance of enriched expression pattern in groups of genes was determined by chi-square test performed in R package MASS.

Chromatin immunoprecipitation

Request a detailed protocol

ChIP-Seq

Request a detailed protocol

Large-scale Sox17 ChIP was carried out as previously described (Charney et al., 2017a) using 2000 NF10.5 X. tropicalis embryos and 30 µg rabbit anti-Sox17b-Cterminal antibody. ChIP-seq libraries were generated using Nextflex ChIP-seq kit (Bio Scientific), analyzed using an Agilent Bioanalyzer 2100, quantified using KAPA qPCR and sequenced using Illumina instruments at the UC Irvine Genomics High Throughput Facility.

ChIP-qPCR

Request a detailed protocol

was carried out largely as described in Charney et al., 2017a; Hontelez et al., 2015 with minor modifications. Briefly, 50–200 NF 10.5 Xenopus tropicalis embryos were fixed in 1% formaldehyde in 0.1x MBS at room temperature for 30 min. Sonication was carried out in a Diagenode Bioruptor Pico for 30 cycles of 30 s ON, 30 s OFF. Chromatin extracts were incubated with 10 µg rabbit anti-Sox17-Cterminal antibody (affinity purified by Bethyl labs, Figure 2—figure supplement 1) or 2.5 µg rabbit anti-β-catenin (Life Technologies, 712700) overnight at 4°C. After washes and elution, DNA was then purified using a MinElute PCR Purification kit and QIAQuick purification columns and eluted in 20 µl TE.

ChIP-reChIP

Request a detailed protocol

Before the first ChIP, the anti-β-catenin antibody was crosslinked to Protein G Dynabeads. ChIP assay was then carried out on extracts from 500 embryos as described above. At the end of the first ChIP, DNA was eluted with elution buffer supplemented with 10 mM DTT. The eluate was then diluted in 10 volumes of wash buffer (50 mM Tris-HCl pH 8.0, 100 mM NaCl, 2 mM EDTA, 1% NP-40) supplemented with 1x Protease Inhibitor Cocktail and 1 mM DTT. The 2nd ChIP was then carried out as described above.

ChIP-Seq analysis

Request a detailed protocol

Raw reads were assessed by FastQC and trimmed with Trimmomatic and aligned to Xenopus tropicalis genome (Hellsten et al., 2010) version 9.0 using bowtie2 v2.3.4.7 (Langmead and Salzberg, 2012). Duplicate and multi-mapped reads were removed by Picard (http://broadinstitute.github.io/picard/) and samtools (Li et al., 2009). Peaks were called with MACS2 (Zhang et al., 2008) against NF10.5 input DNA with default options. HOMER v4.1.0 (Heinz et al., 2010) was used to annotate ChIP-seq peaks (intron, intergenic, exon and promoter) and to associate peaks with genes using the nearest TSS function. To identify statistically significant ChIP-seq peaks, we performed Irreproducible discovery rate (IDR) analysis per ENCODE Best Practices guidelines (Landt et al., 2012) on pseudoreplicate from pooled Sox17 ChIP-seq biological replicates and pseudoreplicate of the single Bcat ChIP-seq dataset from GEO GSE72657 (Nakamura et al., 2016) with an IDR threshold of 0.01. To visualize the data, aligned bam files generated as above were converted to bigwig format using deeptools v3.4.1 and visualized on IGV v2.4.1.3 (Thorvaldsdóttir et al., 2013). Significance of intersected ChIP-seq and RNA-seq datasets was assessed using hyper geometric test (HGT).

Motif analysis

Request a detailed protocol

De-novo motif analysis was performed with HOMER v4.1.0 (Heinz et al., 2010). For a comprehensive Sox and Tcf motif analysis, we divided our datasets into three groups: (a) Peaks bound and regulated by Sox17 only, (b) Peaks bound and regulated by Bcat Only and (c) Peaks that were cobound and coregulated by Sox17 and Bcat. DNA sequences of 150 bp centered on the peaks summits were extracted and motif analysis was carried out as follows: (1) To find which peaks have instances of Sox17 and Tcf motifs, HOMER function annotatePeaks.pl was used with the parameters: -size 150 m motif sox17.motif tcf7.motif lef1.motif tcf3.motif tcf7l2.motif. (2) To perform a more exhaustive motif search the enhancers were also scanned with a library of position weight matrices (PWMs) containing all experimentally defined Sox17, Tcf7, Tcf7l1 and Lef1 motifs > 70% threshold from the CIS-BP database (Lambert et al., 2019). The HOMER and CIS-BP results were merged to generate BED files and Bedtools v2.27.1 (Quinlan and Hall, 2010) intersect function was then used to extract coordinates of ‘Sox only’ ‘Tcf only’ and ‘Sox and Tcf overlapping’ categories. Fisher’s exact tests were used to determine the statistical significance of Sox17 or Tcf motif frequency in each set of peaks compared to random background DNA generated by randomly scrambling each wild-type test sequence (maintaining dinucleotide composition) ten times to generate randomly shuffled sequences that had the same GC content.

Peak density heatmaps

Request a detailed protocol

From the Sox17 and Bcat peaks called by MACS2, Bedtools intersect function was used to stratify the peaks into ‘Sox bound only’, ‘Bcat bound only’ and ‘Sox and Bcat overlapping peaks’. For each category of peaks, the peak summit was extracted from the TF summit file generated by MACS2 and 2000 bp were added to both sides of the summit using awk. Bedtools computematrix was used to generate per genome regions. The generated matrix was then used with bedtools plotHeatmap to generate heatmaps and signal density plots.

Analysis of public datasets

Request a detailed protocol

The following datasets were downloaded from GEO: Embryo dissection RNA-seq; GSE81458 (Blitz et al., 2017), embryonic stage series RNA-seq; GSE65785; (Owens et al., 2016), Bcat ChIP-seq; GSE72657 (Nakamura et al., 2016), RNA pol II and Foxa ChIP-seq; GSE85273 (Charney et al., 2017a), H3K27Ac ChIP-seq; GSE56000 (Gupta et al., 2014), H3K4me1 and Ep300 ChIP-seq; GSE67974 (Hontelez et al., 2015), Smad1, Smad2, Sox3 and VegT ChIP-seq; GSE113186 (Gentsch et al., 2019). Raw data was downloaded from GEO and aligned to the Xenopus tropicalis genome version 9.0, and processed to generate bigwig files and heatmaps as described above.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
    Regulation of the early expression of the xenopus nodalrelated 1 gene, Xnr1
    1. CE Hyde
    2. RW Old
    (2000)
    Development 127:1221–1229.
  33. 33
  34. 34
    Depletion of definitive gut endoderm in Sox17-null mutant mice
    1. M Kanai-Azuma
    2. Y Kanai
    3. JM Gad
    4. Y Tajima
    5. C Taya
    6. M Kurohmaru
    7. Y Sanai
    8. H Yonekawa
    9. K Yazaki
    10. PP Tam
    11. Y Hayashi
    (2002)
    Development 129:2367–2379.
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
    Normal Table of Xenopus Laevis (Daudin): A Systematical and Chronological Survey of the Development From the Fertilized Egg to the End of Metamorphosis
    1. PD Nieuwkoop
    2. J Faber
    (1967)
    New York: Garland Publishing.
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
    Early Development of Xenopus Laevis: A Laboratory Manual
    1. HL Sive
    (2000)
    Cold Spring Harbor, NY: Cold Spring Harbor Laboratory Press.
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
    The roles of three signaling pathways in the formation and function of the spemann organizer
    1. JB Xanthos
    2. M Kofron
    3. Q Tao
    4. K Schaible
    5. C Wylie
    6. J Heasman
    (2002)
    Development 129:4027–4043.
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74

Decision letter

  1. Carole LaBonne
    Reviewing Editor; Northwestern University, United States
  2. Edward E Morrisey
    Senior Editor; University of Pennsylvania, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This is an interesting and important contribution that addresses the control of endodermal gene expression through Sox17 and Wnt β-catenin. The experiments demonstrate that Sox17 acts as an endoderm-specific modifiers of Wnt-signaling responses. The study also fills an important gap in our understanding of early cell fate specification in the embryo by identifying the direct targets of Sox17 in the endoderm.

Decision letter after peer review:

Thank you for submitting your article "Sox17 and β-catenin co-occupy Wnt-responsive enhancers to govern the endodermal gene regulatory network" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Edward Morrisey as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below, that additional experiments may be required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

This paper by Mukherjee et al. addresses functional interactions of Sox17 and Wnt signaling in endodermal gene regulation. The results reveal that Sox17 factors act as endoderm-specific modifiers of Wnt-signaling responses, providing strong evidence for a TCF independent role for β-catenin/Sox17 in promoting endodermal and suppressing mesodermal/ectodermal gene expression. The reviewers felt that this interesting study addresses important questions and is well-executed, but that there are instances where the conclusions seem overgeneralized, and that some additional analysis is needed before the article would be appropriate for publication in eLife.

Essential revisions:

1) Interpreting the Sox17 and β-catenin knock down results requires assessment of the efficiency knock downs – is occupancy at high affinity sites being decreased or only low affinity? Ideally this would be shown by ChIP following knockdown.

2) The generalized finding that "Sox17 and β-catenin co-occupy a subset of enhancers to synergistically stimulate transcription in the absence of Tcfs" is not fully supported by the data presented. Although a subset of enhancers lack predicted Tcf binding motifs, functional data is shown only for six1, and only by gain-of function experiments. Data showing that other enhancers behave like six1, and possibly also using a Tcf7l1-EnR fusion, are needed to support this conclusion. Absent such data, conclusions should relate only to Six1 regulation.

3) Please add discussion of the dynamics of Sox17 binding/function. Could this explain differences with reported enrichment in other studies such as Nakamura et al. and Kjolby et al.? Those differences should be discussed.

4) It might be useful to extend the analysis to look at collaborating transcription factors (e.g. Tbx, Pou, etc) by cross-referencing with published data sets (for example such as Gentsch et al.).

5) In the first section of the Results, the text should reflect the possibility that some of the observed transcriptional effects after Sox17 knockdown are caused by indirect mechanisms. Also, please avoid using the non-specific term "regulates", and instead use "inhibits/increases".

6) Motif frequencies in peaks cannot be compared directly between motifs or different versions of the motifs, as seems to have been done in Figure 4—figure supplement 2A because the baseline for motif occurrence (in random genomic sequences) is highly motif-specific.

7) Please indicate the application of multiple testing correction (adjusted p-value, or FDR) where applicable (Materials and methods, Results; GO analysis). Also indicate p-values for all enrichments and intersections (Figures 2D, Figure 2—figure supplement 2D, Figure 3—figure supplement 2B, Figure 4A).

8) Including a summary of the temporal role of Sox17 in context of other signals and transcription factors, including Nodal/Smad2, BMP, VegT would be useful.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Sox17 and β-catenin co-occupy Wnt-responsive enhancers to govern the endoderm gene regulatory network" for further consideration by eLife. Your revised article has been evaluated by Edward Morrisey (Senior Editor) and a Reviewing Editor.

The manuscript has been greatly improved but there is one remaining issue that should be addressed before acceptance. This concerns the motif analysis in Figure 4—figure supplement 2. Examining background frequencies via scrambling of peak sequences while maintaining di-nucleotide frequencies has strengthened this analysis. However, ranking the motifs by hypergeometric p-value (provided by HOMER) is perhaps not most informative way to represent these data. We suggest instead plotting the 2log fold enrichment over background, in combination with a statistical test (effect size and statistical rigor). Also, it is felt that a discussion of background frequencies is needed where the co-occurring motifs are discussed and Figure 4—figure supplement 2D should be revised by calculating for background sequences.

https://doi.org/10.7554/eLife.58029.sa1

Author response

Essential revisions:

1) Interpreting the Sox17 and β-catenin knock down results requires assessment of the efficiency knock downs – is occupancy at high affinity sites being decreased or only low affinity? Ideally this would be shown by ChIP following knockdown.

We agree that this is an important point. We have now performed ChIP-qPCR experiments on control, Sox17-MO and β-catenin-MO embryos as requested. The new data added to Figure 2—figure supplement 1D-E shows a dramatic loss of ChIP-qPCR signal at all loci tested, down to negative control background levels in most cases. This data supports our immunostaining (Figure 1A-C, and Figure 3—figure supplement 1A) showing a complete loss of nuclear Sox17 and β-catenin in knockdown embryos. Together from all the data we estimate that the knockdown efficiency is greater than 90%.

The issue of high-affinity versus low-affinity site is very interesting and we understand the reviewers point that, with a partial knockdown, high-affinity enhancers might still be active. Since our knockdown is very efficient, we don't expect this will play much of a role, but we cannot totally rule it out. This is difficult to test since in vivo high-affinity and low-affinity sites for Sox17 (or Tcfs) have not yet been characterized in gastrula embryos. In an attempt to identify high-affinity vs. low-affinity Sox17 binding sites, we analyzed published protein binding microarray data from the CIS-BP database where recombinant DNA-binding domains of hundreds of TFs were challenged to all possible combinations of DNA 8-mers (Badis et al., 2009; Lambert et al., 2019). Per the original criteria set out by Badis et al., we classified 8-mer sequences that had an enrichment (E)-score > 0.45 for Sox17 binding as “high affinity” sequences and those with an E-score < 0.2 as “low affinity” sequences. To assess if any of these sequences were present in our in vivo ChIP-seq data, we scanned Sox17 bound peaks for the presence of potential Sox binding sites. We then selected candidate enhancers for ChIP-qPCR in Figure 2—figure supplement 1D to include some that were predicted to contain only high-affinity Sox-sites (foxi2 and snai2) or low-affinity Sox17 sites (nrp1 and lmbx1). ChIP-qPCR shows that Sox17 occupancy dramatically decreased by several orders of magnitude at all four enhancers, after Sox17-MO knockdown. However, there was still some signal above background at foxi2. We prefer to not make any conclusions about this result, because these experiments lack the rigorous quantitative measurement of DNA-binding affinity needed for such claims, and this is not really the point of the current study. In the future we plan to systematically examine the impact of DNA-affinity which is complicated because Sox monomers bind to DNA with low sequence specificity and low affinity and are thought to gain specificity by other interaction with co-occupying transcription factors (Lefebvre et al., 2007; Hou et al., 2017). We have added this point to the Discussion.

2) The generalized finding that "Sox17 and β-catenin co-occupy a subset of enhancers to synergistically stimulate transcription in the absence of Tcfs" is not fully supported by the data presented. Although a subset of enhancers lack predicted Tcf binding motifs, functional data is shown only for six1, and only by gain-of function experiments. Data showing that other enhancers behave like six1, and possibly also using a Tcf7l1-EnR fusion, are needed to support this conclusion. Absent such data, conclusions should relate only to Six1 regulation.

We have now extended our analysis to include two additional enhancers: 1) a +7kb osr1 and 2) +3kb igf3 enhancer that shared similar characteristics to six1; (they’re expressed in the endoderm, activated by Sox17 and β-catenin and have no evidence of TCF binding sites). The new Figure 6—figure supplement 1 shows that Sox17 and β-catenin cooperatively activate both enhancers, but neither was activated by Tcf7l1-VP16 (similar to six1 but unlike the dkk1 and lhx5 enhancers which contain Tcf-sites and are activated by Tcf7l1-VP16). These new data further support our conclusion that “Sox17 and b-catenin co-occupy a subset of enhancers to synergistically stimulate transcription independently of Tcfs”. We have not tried the Tcf7l1-EnR fusion. This reagent is problematic as it is well known to dominantly block all maternal Wnt/β-catenin-targets including nodal. Thus the embryos arrest without ever initiating endoderm fate or sox17 expression, precluding the analysis. Acknowledging that we don’t have a Tcf loss of function, we have now tempered our conclusions to say “apparently independent of Tcfs” in the Abstract and throughout the paper. We also point out in the paper that the majority of Sox17-β-catenin cobound enhancers do have Tcf sites (even those that are activated). In the future we plan to fully characterize the role of Tcfs at these enhancers. We emphasize the enhancers without detectable Tcf-regulation since this is the most novel aspect of the work.

3) Please add discussion of the dynamics of Sox17 binding/function. Could this explain differences with reported enrichment in other studies such as Nakamura et al. and Kjolby et al.? Those differences should be discussed.

As requested, we have added a section in the Discussion on the temporal dynamics of Sox17 binding/function. Moreover, we have added a new panel to Figure 3—figure supplement 2 comparing our motif enrichment analysis to that of Kjolby et al., 2017 and Gentsch et al., 2019. We should point out that we use the published β-catenin ChIP-seq data reported in Nakamura et al., 2016 (stage 10.5 Xenopustropicalis ChIP-seq of endogenous β-catenin). Although our processing pipeline is a little bit different than theirs, like them we find >11,000 IDR peaks and our motif analysis shows Sox (2nd ranked) being more enriched than Tcfs (5th ranked). This is almost exactly what Nakamura et. al reported. Using the same pipeline and motif analysis of β-catenin bound peaks of the Gentsch et al., 2019 dataset (β-catenin ChIP-seq at stage 10+), we find a similar ranking of Sox (3rd ranked) and Tcf (6th ranked) motifs. In the case of Kjolby et al., they performed ChIP-seq on slightly later stage NF11.5 Xenopus laevis using an overexpressed 3xFlag-tagged β-catenin reporting only 855 reproducible peaks. HOMER de novo motif analysis of the Kjolby data shows Lef1 as the 1st top motif and Sox as the 3rd ranked (Figure 3—figure supplement 2C). So essentially there is not much difference in the motif analysis reported in these different studies. In both cases, Sox and Tcf motifs are among the top 5 enriched in β-catenin bound peaks, these other studies just did not follow up on the high rank of Sox motifs. The minor differences in motif calling between papers could be due to many things: the number of peaks in the analysis; >10,000 peaks vs. 855 peaks, developmental timing; 10 vs. 11.5, species; X. tropicalis vs. X. laevis, overexpression vs. endogenous, antibody; β-catenin vs. Flag or different lab ChIP protocols. Since we have no way of knowing the source of variation, we prefer not to speculate in the discussion.

4) It might be useful to extend the analysis to look at collaborating transcription factors (e.g. Tbx, Pou, etc) by cross-referencing with published data sets (for example such as Gentsch et al.).

Per the reviewers’ suggestion, we extended our analysis to all other publicly available datasets of endodermal TFs (Charney et. al, 2017, Paraiso et al., 2019, Gentsch et. al, 2019). This new analysis presented in Figure 4—figure supplement 1, shows that Sox17 and β-catenin co-occupied peaks were indeed enriched for binding of other endodermal TFs including Foxa4, Smad1, Smad2, Sox3 and VegT. We have described this in the Results and Discussion sections explaining how it is likely that combinatorial activity of multiple lineage-specific TFs may cooperate with Sox17/β-catenin on super enhancers to regulate the endoderm GRN.

5) In the first section of the Results, the text should reflect the possibility that some of the observed transcriptional effects after Sox17 knockdown are caused by indirect mechanisms. Also, please avoid using the non-specific term "regulates", and instead use "inhibits/increases"

We have now updated the text as requested and explicitly indicated that changes in transcript level after Sox17-depletion could be indirect.

6) Motif frequencies in peaks cannot be compared directly between motifs or different versions of the motifs, as seems to have been done in Figure 4—figure supplement 2A because the baseline for motif occurrence (in random genomic sequences) is highly motif-specific.

We thank the reviewers for bringing this to our attention. We agree that since the occurrence of different motifs or version of motifs in random genomic sequences is variable, making comparisons not really possible. In the revisions, we have modified our analysis to not directly compare between Sox and Tcf motif frequencies, but to ask whether the frequency of Sox or Tcf motifs in a given group or peaks is significant over random. In addition we used a library of all predicted Sox or Tcf motifs rather than a specific motif.

To assesses motif frequency in different categories of peaks we used a library of all known Sox and Tcf motifs combining HOMER and an exhaustive search of the CIS-BP database containing all experimentally defined sites from protein-DNA binding microarrays (Badis et al., 2009; Lambert et al., 2019). Combining these (all HOMER instance were also in CIS-BP) we generated a library of position weight matrices (PWMs) of all potential Sox17, Tcf7l1, Tcf7l2, Tcf7, Lef1 motifs and scanned peak scoring the number of PWMs present above a 70% threshold. A list of all the motifs from the CIS-BP database that we’ve included in our analysis is show in Author response table 1. We had not explained this properly in the original version of the paper and have now updated the Materials and methods.

Author response table 1

Then for each wild-type test peak we generated a random “shuffled” version where the wild-type peak sequences were randomly scrambled ten times maintaining dinucleotide frequencies. These represented random genomic sequences with the same GC content as the test case. For each iteration, we determine the frequency of the Sox and Tcf motifs in the “wild-type” and “shuffled” peaks. We then perform enrichment analysis using Fisher’s exact test to determine whether the frequency of Sox or Tcf motifs in a given group of “wild-type” peaks was enriched over the random “shuffled” sequences. Our results reveal Sox17 motifs are more frequently enriched in Sox17 bound and Sox17/β-catenin bound peaks over random, while Tcf motifs are not enriched over random in any of the categories of sequences. We now incorporate this new analysis in the revised results and new Figure 4—figure supplement 2. In the future we will explore the biological impact of number and frequency of motifs in enhancers, but for the current paper this is a very minor observation, from which we do not make any major conclusions.

7) Please indicate the application of multiple testing correction (adjusted p-value, or FDR) where applicable (Materials and methods, Results; GO analysis). Also indicate p-values for all enrichments and intersections (Figures 2D, Figure 2—figure supplement 2D, Figure 5—figure supplement 2B, Figure 4A).

We have now updated the figures, legends and Materials and methods to indicate the statistical tests used and p-values for all enrichments and intersections.

8) Including a summary of the temporal role of Sox17 in context of other signals and transcription factors, including Nodal/Smad2, BMP, VegT would be useful.

We have now incorporated the requested summary in the Discussion.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been greatly improved but there is one remaining issue that should be addressed before acceptance. This concerns the motif analysis in Figure 4—figure supplement 2. Examining background frequencies via scrambling of peak sequences while maintaining di-nucleotide frequencies has strengthened this analysis. However, ranking the motifs by hypergeometric p-value (provided by HOMER) is perhaps not most informative way to represent these data. We suggest instead plotting the 2log fold enrichment over background, in combination with a statistical test (effect size and statistical rigor).

As requested, we added a new panel Figure 4—figure supplement 2D plotting the log2 fold enrichment of Sox and Tcf site frequency for each class of peak compared to random shuffled sequence with a Fisher Exact test to show the enrichment and statistical significance. We agree that some readers may find this way of viewing the data easier. Other naïve test readers preferred the original display and so we kept that too.

Also, it is felt that a discussion of background frequencies is needed where the co-occurring motifs are discussed and Figure 4—figure supplement 2D should be revised by calculating for background sequences.

As requested, we modified this panel (now Figure 4—figure supplement 2E) to also show random genomic background sequence. A Kolmogorov-Smirnov test comparing the motif distribution of each group to background, showed that the “Sox17 and β-catenin” and “Sox17 Only” motif distribution was significantly different to random background. We made minor modifications to the text to reflect this.

We want to stress that the motif frequency and co-occurrence is very minor part of the paper. The only points we want to make are (1) that most peaks contain both Sox and Tcf sites while some have just Sox sites and (2) that when Sox motifs are present there are usually multiple sites. We did not make any assertions based on the statistics. In many respects we could remove Figure 4—figure supplement 2 completely and it would not change any of our conclusions. We just included these observations as the reader might be interested.
