Cancer immunotherapy by NC410, a LAIR-2 Fc protein blocking human LAIR-collagen interaction

  1. M Ines Pascoal Ramos
  2. Linjie Tian
  3. Emma J de Ruiter
  4. Chang Song
  5. Ana Paucarmayta
  6. Akashdip Singh
  7. Eline Elshof
  8. Saskia V Vijver
  9. Jahangheer Shaik
  10. Jason Bosiacki
  11. Zachary Cusumano
  12. Christina Jensen
  13. Nicholas Willumsen
  14. Morten A Karsdal
  15. Linda Liu
  16. Sol Langermann
  17. Stefan Willems
  18. Dallas Flies  Is a corresponding author
  19. Linde Meyaard  Is a corresponding author
  1. Center for Translational Immunology, University Medical Center Utrecht, Utrecht University, Netherlands
  2. Oncode Institute, Netherlands
  3. NextCure, United States
  4. Nordic Bioscience, Denmark
  5. Department of Pathology, University Medical Center Utrecht, Utrecht University, Netherlands
Research Article
  • Cited 3
  • Views 1,631
  • Annotations
Cite this article as: eLife 2021;10:e62927 doi: 10.7554/eLife.62927

Abstract

Collagens are a primary component of the extracellular matrix and are functional ligands for the inhibitory immune receptor leukocyte-associated immunoglobulin-like receptor (LAIR)-1. LAIR-2 is a secreted protein that can act as a decoy receptor by binding collagen with higher affinity than LAIR-1. We propose that collagens promote immune evasion by interacting with LAIR-1 expressed on immune cells, and that LAIR-2 releases LAIR-1-mediated immune suppression. Analysis of public human datasets shows that collagens, LAIR-1 and LAIR-2 have unique and overlapping associations with survival in certain tumors. We designed a dimeric LAIR-2 with a functional IgG1 Fc tail, NC410, and showed that NC410 increases human T cell expansion and effector function in vivo in a mouse xenogeneic-graft versus-host disease model. In humanized mouse tumor models, NC410 reduces tumor growth that is dependent on T cells. Immunohistochemical analysis of human tumors shows that NC410 binds to collagen-rich areas where LAIR-1+ immune cells are localized. Our findings show that NC410 might be a novel strategy for cancer immunotherapy for immune-excluded tumors.

Introduction

The introduction of immune checkpoint blockade therapies in the clinic has increased cancer treatment options for a wide range of tumors, leading to unprecedented and long-lasting clinical responses. However, not all patients show the same degree of response and not all tumors respond to these therapies (Gibney et al., 2016; Darvin et al., 2018). Thus, identifying novel checkpoints and developing ideal combinations of immunotherapies is essential to optimize and enhance the efficacy of treatment for these tumors, achieving durable anti-tumor effects with reduced side effects.

The extracellular matrix (ECM) is a major structural component in all tissues. It comprises a non-cellular meshwork of proteins, glycoproteins, proteoglycans and polysaccharides with collagens as the most abundant proteins. Ongoing ECM remodeling ensures tissue integrity and function, with specific collagens being synthesized and degraded in a highly regulated manner (Bonnans et al., 2014). At least 28 different collagens comprising at least 43 genes have been identified (Myllyharju and Kivirikko, 2004). The ECM functions not only as a scaffold for tissue organization but also provides critical biochemical and biomechanical cues that instruct cell growth, survival, differentiation and migration and regulate vascular development and immune function (Hynes, 2009).

Several epithelial tumors including breast, pancreatic, colorectal, ovarian and lung cancer are characterized by a dense ECM where high collagen content correlates with poor prognosis (Fang et al., 2014). Indeed, ECM or ‘Matrisome’ signatures associated with tumor type and stage of disease have been described (Levental et al., 2009; Lu et al., 2012; Naba et al., 2012; Naba et al., 2014a). Cancer-associated fibroblasts (CAFs) (Kalluri, 2016), macrophages and tumor cells themselves (Naba et al., 2012; Januchowski et al., 2014; Naba et al., 2014a) all contribute to increased collagen production and remodeling during cancer progression.

Most tumors overexpress a diverse set of collagens in an abnormal fashion (Nissen et al., 2019; Xu et al., 2019). Overexpression of collagens has been associated with poor overall survival in several tumor types, such as lung (Iizasa et al., 2004; Ke et al., 2014), colorectal (Naba et al., 2014b; Huang et al., 2018) and ovarian cancer (Cheon et al., 2014; Wu et al., 2014). The capacity of tumors to induce remodeling of collagens in the tumor microenvironment (TME) was primarily thought to create a suitable microenvironment for tumor cell growth. We now consider abnormal collagen production, composition and organization in the TME as a cause of immune dysfunction, conveying a chronic-active wound-healing response instead of anti-tumor immune responses necessary for immune surveillance and the eradication of the tumor (Antonio et al., 2015; Rosowski and Huttenlocher, 2015). The abnormal ECM also builds physical fibrotic barriers to exclude immune cells and therapeutic agents from access to tumor cells (Henke et al., 2019).

TME-expressed collagen can interact directly with the inhibitory collagen receptor leukocyte-associated immunoglobulin-like receptor 1 (LAIR-1) (Rygiel et al., 2011). LAIR-1 is an immune checkpoint broadly expressed on the cell surface of immune cells (Meyaard et al., 1997) that binds to collagen (Lebbink et al., 2006) and molecules with collagen-like domains (Son et al., 2012; Olde Nordkamp et al., 2014b). LAIR-1+ cells strongly adhere to collagen (Lebbink et al., 2006). Upon triggering, LAIR-1 inhibits NK cell (Meyaard et al., 1997), T cell (Maasho et al., 2005; Zhang et al., 2014; Park et al., 2020), B cell (van der Vuurst de Vries et al., 1999; Merlo et al., 2005), monocyte (Son and Diamond, 2015) and DC function (Poggi et al., 1998; Son et al., 2012). Thus, besides formation of an ECM-rich and fibrotic tumor niche, TME-expressed collagens can function to promote immune evasion through their direct interaction with LAIR-1.

LAIR-2 is a natural soluble homolog of LAIR-1 that is present in humans and non-human primates, but not other animals. LAIR-2 shares 83% identity with the LAIR-1 extracellular region, binds to collagens with higher affinity than LAIR-1 and functions as a natural antagonist to block cell membrane LAIR-1 inhibitory signaling (Lebbink, Lebbink et al., 2008; Olde Nordkamp et al., 2011). We developed a dimeric LAIR-2 Fc fusion protein, NC410, as a novel immunomedicine to both target tumor ECM and promote T cell function through blockade of LAIR-1-mediated inhibition. Hereby, we sought to restore anti-tumor immunity.

Results

The collagen:LAIR-1 axis is an immune regulatory pathway to target for cancer immunotherapy

First, we performed a TCGA meta-analysis combining all 28 collagens as a group across 21 TCGA tumor subtypes. When we examined the mRNA expression of all 43 collagen genes combined, 10 out of 21 tumors had reduced overall survival with high (quantile) overall levels of collagens (Figure 1A, Source code 1). Likewise, the LAIR-1 expression was significantly upregulated in 11 of 21 tumors when evaluated by TCGA data (Figure 1—figure supplement 1, Source code 2 and 3). LAIR-1 expression is observed in all tumor types and largely restricted to immune cells. By stratifying patients for high- and low-quantile LAIR-1 mRNA expression, we observed that patients with high LAIR-1 mRNA expression had lower survival probability in four tumor types (Figure 1B, Source code 4). We further stratified the patients in the TCGA database to include high or low expression of all collagens combined with high or low LAIR-1 for overall survival analysis (Figure 1C, Source code 5). A unique set of tumor types emerged that overlapped with those with significant increased LAIR-1 expression, but only partially with the tumor types in that of the total collagen overall survival analysis. These analyses highlighted the complexity of the TME and also supported targeting the collagen:LAIR-1 axis for cancer immunotherapy.

Figure 1 with 1 supplement see all

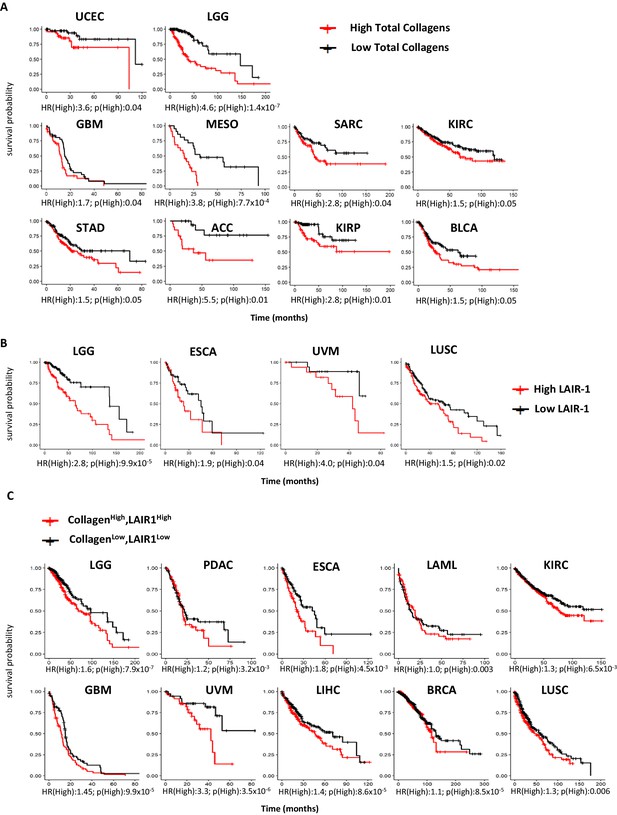

High expression of total collagens and LAIR-1 is associated with reduced overall survival.

The expression of 43 collagen genes, LAIR-1 and LAIR-2 in normal (gray) and tumor tissue (red) were queried using TCGA database. (A) The expression of 43 different collagen genes was assessed together for association with overall survival. The log2 transformed average collagen expression was divided into four quantiles individually for each tumor type. The patients in lower quantile (black) were considered as individuals with low expression and those in the upper quantile (red) were considered as those with high expression, respectively. Tumor types in which poor overall survival associated with collagen overexpression are shown: uterine corpus endometrial carcinoma (UCEC), brain lower grade glioma (LGG), glioblastoma multiforme (GBM), mesothelioma (MESO), sarcoma (SARC), kidney renal clear cell carcinoma (KIRC), stomach adenocarcinoma (STAD), adrenocortical carcinoma (ACC), kidney renal papillary cell carcinoma (KIRP) and bladder urothelial carcinoma (BLCA). (B) Patients were grouped into four quantiles with low 25% quantile (black) and high 25% quantile (red) of LAIR-1 mRNA expression compared for overall survival analysis. Esophageal carcinoma (ESCA), uveal melanoma (UVM) and lung squamous cell carcinoma (LUSC). (C) Collagen expression and LAIR-1 expression were assessed together for association with overall survival. Patients in the lower 25% quantile for both average collagen and LAIR-1 were grouped in the collagenlowLAIR-1low (black), and as collagenhighLAIR-1high if they were in the high 25% quantile (red) for both collagen and LAIR-1. Pancreatic adenocarcinoma (PDAC), acute myeloid leukemia (LAML), liver hepatocellular carcinoma (LIHC) and breast invasive carcinoma (BRCA). Hazards ratio indicating if high expression is associated with poor survival (HR(High)), and p-value (p(High)) indicating the significance of association was determined using Wald test as indicated on the x-axis.

Development of NC410, a dimeric LAIR-2 Fc fusion protein that blocks collagen interaction with LAIR-1

Soluble LAIR-2 can block immune cell expressed LAIR-1 binding to its ligands (Lebbink et al., 2008). We posited that LAIR-2 may correlate with increased overall survival in some tumors. TCGA evaluation demonstrated that six tumor types had improved overall survival with high (quantile) expression of LAIR-2 (Figure 2A). This was despite relatively low expression levels of LAIR-2 in most tumors in comparison to LAIR-1 (Figure 1—figure supplement 1, Source code 3). These data supported supplemental LAIR-2 as a therapeutic intervention that might inhibit LAIR-1 inhibitory interaction with collagen in the TME of solid tumors. Taking advantage of LAIR-2 as a natural decoy system that would both target tumors and reverse immune inhibition, we generated a LAIR-2 human IgG1 Fc fusion protein for therapeutic use named NC410 (Figure 2B). This fusion protein exists as a dimeric protein due to the cysteine bonding in the Fc portion of the protein. NC410 bound to human collagen I and III with high avidity (Figure 2C). While LAIR-2 is not present in rodents, it is cross-reactive to rat and mouse collagens due to the highly conserved nature of collagens across species (Figure 2C). NC410 completely blocked human LAIR-1 binding to collagen I since LAIR-2 binds with higher affinity to collagens than human LAIR-1, as reported previously (Lebbink et al., 2008; Olde Nordkamp et al., 2011), supporting its potential role as a LAIR-1 antagonist therapeutic (Figure 2D). To determine if NC410 prevents LAIR-1-mediated signaling, we used a reporter cell line that expresses the human LAIR-1 extracellular domain (ECD) fused to CD3ζ, thus conferring positive signaling capacity to LAIR-1 upon interaction with collagen ligands, and an NFAT-GFP reporter to visualize LAIR-1-mediated signal induction (Lebbink et al., 2006). Using flow cytometry (Figure 2E) and Incucyte microscope imaging (Figure 2F, Figure 2—figure supplement 1), we observed a dose-dependent inhibition of LAIR-1 NFAT-GFP reporter activity by NC410, indicating that NC410 inhibited collagen-mediated LAIR-1 signaling in a dose-dependent fashion.

Figure 2 with 1 supplement see all

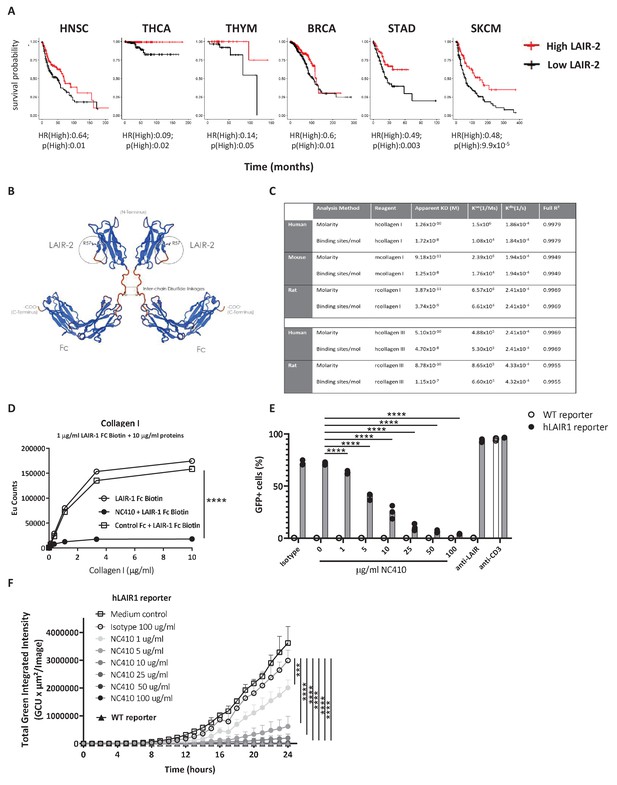

Development of NC410, a LAIR-2 Fc protein that blocks LAIR-1-collagen interaction.

(A) LAIR-2 overexpression is associated with improved overall survival in some tumors: head and neck squamous cell carcinoma (HNSC), thyroid carcinoma (THCA), thymoma (THYM) and skin cutaneous melanoma (SKCM). Patients were grouped in low 25% quantile (black) and high 25% quantile (red) of LAIR-2 mRNA expression for overall survival analysis. Hazards ratio indicating if high expression is associated with poor survival (HR(High)), and p-value (p(High)) indicating the significance of association was determined using Wald test as indicated. (B) NC410 is a biologic fusing LAIR-2 with a functional IgG1 to generate a dimeric fusion protein. (C) Avidity characterization of NC410 to human, mouse and rat collagen I and III as measured by Octet analysis. (D) Indicated amounts of collagen I were plate coated, and the binding of soluble LAIR-1 was inhibited by NC410. Asterisks indicate statistical significance (****p<0.0001, two-way ANOVA). (E, F) The human LAIR-1 (hLAIR-1) extracellular domain was fused with CD3z and stably expressed in a cell line containing an NFAT-GFP pathway reporter. LAIR-1 ligation and CD3 ligation induce NFAT-GFP signaling. A parental cell line containing the CD3 NFAT-GFP reporter without LAIR-1 was used as control (WT). NC410 protein was added at increasing concentrations and inhibited human collagen I (5 µg/mL)-mediated NFAT-GFP signaling through LAIR-1 binding by (E) FACS analysis and (F) Incucyte microscopy. Total green integrated intensity of WT and hLAIR-1 reporter cells is shown over time. Points represent the median of n = 3 (with experimental triplicates in each independently performed experiment), and the whiskers indicate the 95% confidence interval (CI). Isotype control was used at the highest concentration (100 µg/mL) and showed no inhibition of NFAT-GFP signaling. Anti-human LAIR (8A8 clone) and anti-mouse CD3 were used as positive controls. Closed circles in (F) indicate NC410 treatment, and open circles indicate control treatment. Significant differences between different treatment groups of hLAIR-1 reporter cells are indicated (and tested using a two-way ANOVA with Dunnett’s correction). In all plots: *p≤0.05, **p≤0.01, ***p≤0.001, ****p≤0.0001.

NC410 increases human effector T cell numbers in vivo and controls tumor growth

To study the effect of NC410 on T cell function in a non-tumor model in vivo, we adoptively transferred human peripheral blood mononuclear cells (PBMCs) into NOD scid gamma (NSG) mice. In this model, human xeno-reactive T cells against mouse antigens expand and cause xenogeneic-graft versus-host disease (xeno-GVHD). GVHD models are often used to assess if targeting T cell stimulatory or inhibitory pathways alter T cell activity in vivo with the majority of expanding xeno-reactive T cells acquiring effector or memory phenotypes (Ehx et al., 2018). Figure 3A, B shows that the majority of human T cells in the spleen on day 6 post transfer acquired an effector memory (EM, CD45RA-CCR7-) phenotype as a percentage of total T cells irrespective of treatment (see Figure 3—figure supplement 1 for gating strategy). However, it was noted that with increasing doses of NC410, there was a trend of effector T cell (CD45RA+CCR7-) expansion as a percentage of total T cells (Figure 3B). In the spleen, it was found that NC410 significantly increased the number of human CD4+EM T cells and human CD8+ effector T cells in a dose-dependent fashion (Figure 3C–E).

Figure 3 with 4 supplements see all

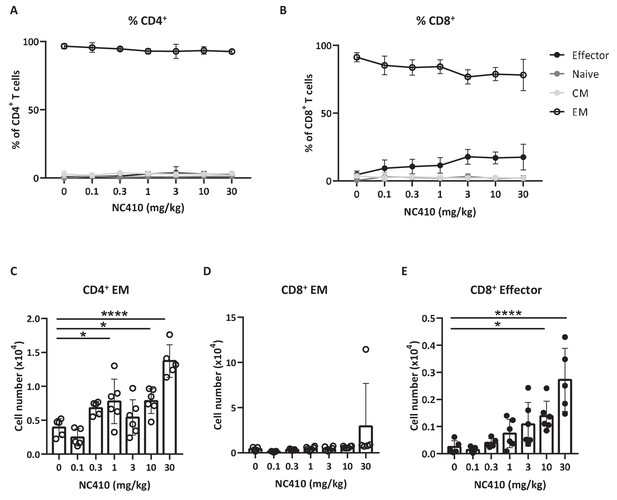

NC410 therapy promotes human T cell expansion in a xenogeneic-graft versus-host disease model.

In a non-tumor model, 1 × 107 total human peripheral blood mononuclear cells were adoptively transferred intravenously to NSG mice (N = 6/group) on day 0. Mice were treated with indicated doses of NC410 by intravenous injection on days 0 and 2. On day 6, mice were euthanized and spleens were analyzed for naïve (CD45RA+CCR7+), central memory (CM, CD45RA-CCR7+), effector memory (EM, CD45RA-CCR7-) and effector (CD45RA+CCR7-) CD4+ (A) and CD8+ (B) T cell populations. The graph shows the percentage of T cell subpopulations as a percentage of total human T cells. (C–E) Cell counts of (C) CD4+EM, (D) CD8+EM and (E) CD8+ effector T cells in the spleen. The graphs show the means ± SD (error bars). Asterisks indicate statistical significance: *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001, one-way ANOVA followed by Tukey’s multiple comparisons.

To evaluate if the increase in xeno-reactive human effector T cell numbers induced by NC410 was associated with increased T cell effector activity, we tested whether NC410 treatment resulted in reduced growth of P815, a mouse (xeno) tumor cell line that does not express collagens to avoid antibody-dependent cellular cytotoxicity (ADCC)-mediated tumor clearance (Figure 4A, B). In this model, human PBMCs were injected intravenously on day 0, and P815 cells suspended in Matrigel to provide an ECM-like environment were injected subcutaneously a day later. NC410 or control Fc protein was administered on days 1 and 3 at 1, 3 and 10 mg/kg for comparison to control Fc at 10 mg/kg and a PBS control. Treatment resulted in significantly reduced tumor growth of P815 in the 1 mg/kg treatment group, but not the 3 and 10 mg/kg treatment groups (Figure 4C).

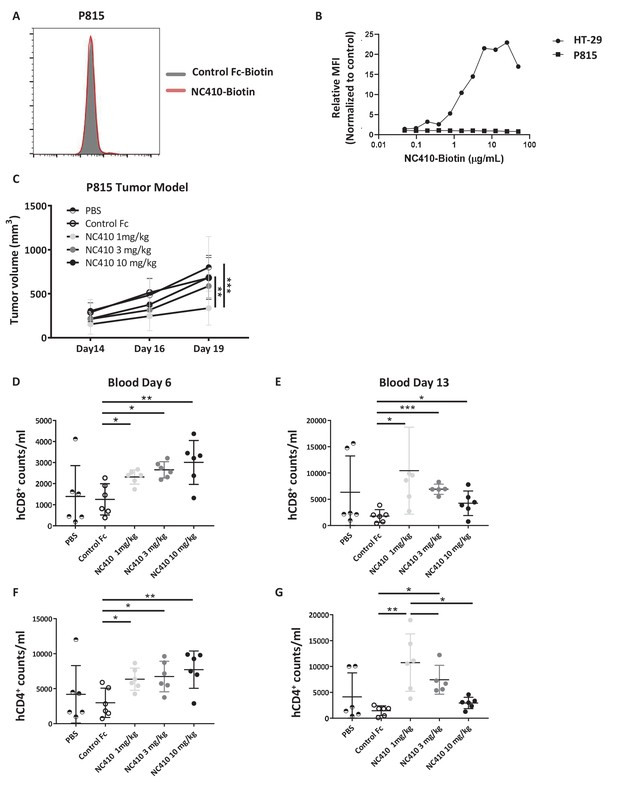

NC410 therapy controls in vivo tumor growth of tumor cells that do not express collagen.

(A) Histogram plot showing mouse P815 tumor cells stained with NC410-biotin or control Fc-biotin. (B) Mouse P815 cells and human HT-29 cells were stained with titrated concentrations of NC410-biotin. (C) 1.5 × 107 total human peripheral blood mononuclear cells were adoptively transferred by intravenous injection to NSG mouse on day 0, and 2 × 105 P815 tumor cells in Matrigel were injected subcutaneously on day 1. Mice were treated on days 1 and 3 with indicated dose of NC410 or control IgG1 (10 mg/kg) by intraperitoneal injection (N = 6/group). P815 tumor was measured every 2–3 days with a caliper, and tumor volume was calculated. Asterisks indicate statistical significance: **p<0.01, ***p<0.001, two-way ANOVA with Sidak multiple comparisons correction. (D–G) CD8+ (D, E) and CD4+ (F, G) T cell analysis of cell numbers in blood on days 6 (D, F) and 13 (E, G). The graphs show the means ± SD (error bars). Asterisks indicate statistical significance: *p<0.05 **p<0.01 ***p<0.001, two-way ANOVA with Sidak multiple comparisons correction.

To assess the unexpected finding that a lower dose of NC410 was more effective than higher doses, the human T cell response was assessed in this model. Blood was analyzed on days 6 and 13 for changes in CD8+ and CD4+ T cell counts per mL blood (Figure 4D–G). NC410 promoted the expansion of both human CD8+ and CD4+ T cells on days 6 and 13. Interestingly, the kinetics of T cell expansion and/or retention changed with dose level. NC410 at 10 mg/kg resulted in a greater increase in T cell numbers on day 6 (Figure 4D, F), while 1 mg/kg resulted in the highest T cell numbers on day 13 (Figure 4E, G). Together, these results suggested that the sustained expansion of human T cells with a lower dose of NC410 correlated with control of tumor growth.

NC410 promotes T cell-mediated anti-tumor immunity in a humanized tumor model

To determine if the T cell-promoting and anti-tumor effects observed in the xenogeneic model correlated with the capacity of NC410 to elicit T cell anti-tumor activity against a human tumor, we developed a humanized subcutaneous tumor model using the human HT-29 colorectal tumor cell line. NSG mice were intravenously injected (i.v.) with human PBMCs, and 1 day later were subcutaneously injected (s.c.) with HT-29 cells in Matrigel (Figure 5A). NC410 or control treatments began on the same day as tumor implantation. NC410 treatment at 10 mg/kg significantly reduced tumor growth compared to isotype control (Figure 5A). In a follow-up dose-titration experiment, it was found that NC410 at 10 mg/kg appeared optimal in the HT-29 model (Figure 5B).

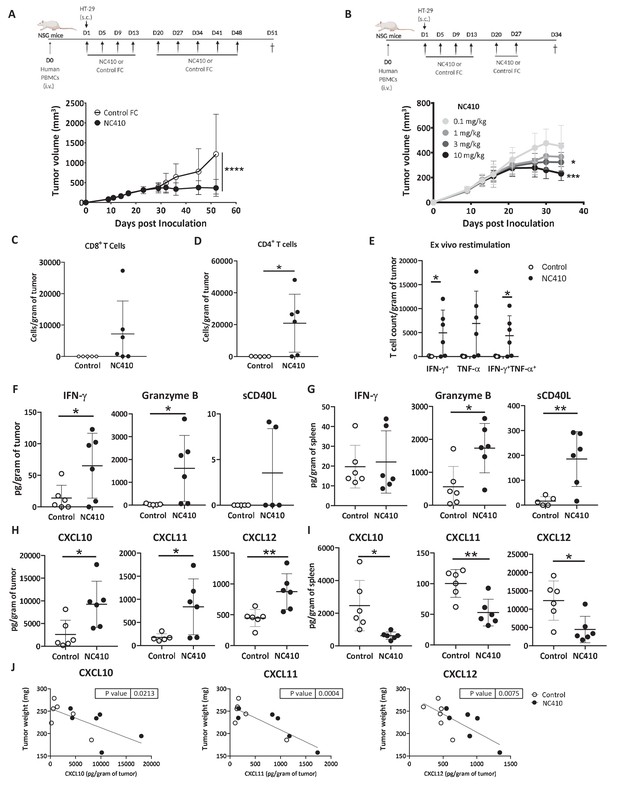

NC410 promotes T cell anti-tumor immunity in an HT-29 humanized tumor model.

(A) Humanized tumor model of HT-29 tumor cells injected subcutaneously in the presence of human peripheral blood mononuclear cells (PBMCs). 2 × 107 total human PBMCs were adoptively transferred intravenously to NSG mice (N = 6/group) on day 0. 1 × 106 HT-29 tumor cells were injected subcutaneously with Matrigel on day 1. Mice were treated with 10 mg/kg NC410 or control by intraperitoneal injection, Q4D × 4 doses followed by Q7D until endpoint. Tumor growth was monitored 1–3 times a week. Asterisks indicate statistical significance: ****p<0.0001, two-way ANOVA with Sidak multiple comparisons correction. (B) Dose-dependent effect of NC410 (N = 6/group). Experimental conditions are the same as (A), with different doses of NC410. Asterisks indicate statistical significance: *p<0.05, ***p<0.001, two-way ANOVA with Tukey's multiple comparisons correction. (C–G) On day 27 after treatment with 10 mg/mL NC410, tumor and spleen tissues were isolated for tumor-infiltrating T cells (TILs) and cytokine analysis. (C) CD4+ and (D) CD8+ TIL cell numbers in the tumor. The cell number was counted by flow cytometry and normalized to weight (gram) of tumor tissue. Asterisks indicate statistical significance: *p<0.05, two-tailed t-test. (E) Cytokine production by TILs following ex vivo restimulation with phorbol 12-myristate 13-acetate (PMA) and ionomycin for 5 hr. Cells were intracellularly stained for IFN-γ and TNF-α, and the indicated cell populations were counted by flow cytometry and normalized to weight (gram) of tumor tissue. Asterisks indicate statistical significance: *p<0.05, two-tailed t-test. (F–I) Tissue lysate protein was extracted from tumor and spleen tissues. Analysis of tumor (F, H) and spleen (G, I) for cytokines (F, G) and chemokines (H, I) for analysis of local and systemic effects, respectively. Cytokines and chemokines were analyzed by Luminex and presented as the relative levels normalized to weight (gram) of tissue. (J) CXCL10, CXCL11 and CXCL12 correlation with tumor weight. The graphs show the means ± SD (error bars). Asterisks indicate statistical significance: *p<0.05, **p<0.01, two-tailed t-test.

Because HT-29 cells also express collagens (Figure 3—figure supplements 2 and 3), we investigated whether binding of NC410 to HT-29 cells elicits ADCC. We performed in vitro cytotoxicity assays with HT-29 cells using human PBMC as a source of effector cells (Figure 3—figure supplement 4). In an in vitro chromium release cytotoxicity assay, no differences in HT-29 killing by PBMC were observed between NC410, isotype and medium-treated samples (Figure 3—figure supplement 3F), suggesting that the anti-tumor effect of NC410 is not mediated by ADCC. In agreement, the therapeutic effect of NC410 was abrogated when we transferred T cell-depleted PBMC into NSG mice (Figure 3—figure supplement 4). Thus, T cells are required for the anti-tumor effect mediated by NC410, arguing against ADCC as the main effector mechanism in vivo.

In the same experimental setup, we also compared NC410 to a LAIR-2 fusion protein with a mutated (FES) IgG1 Fc with little or no binding to human and mouse Fc receptors (LAIR-2-FES), which resulted in a loss of therapeutic effect (Figure 3—figure supplement 4). Thus, both T cells and a functional Fc were required for NC410 anti-tumor activity and decreased tumor growth.

NC410 promotes infiltration and localized activity of T cells in the TME

Cytokines and chemokines mediate the host response to tumors by activating and directing the trafficking of immune cells into the TME (Strieter, 2001; Waldmann, 2018). To determine if NC410 promoted infiltration and localized activity of T cells in the TME, immune profiling of HT-29 tumors and spleen tissues was performed on day 27 after treatment (10 mg/kg dose). HT-29 tumors were removed from euthanized mice, weighed and dissociated for analysis of T cells and soluble factors. For equal comparison of systemic response, the spleen was harvested by identical means for analysis. Analysis of T cell numbers within the tumor showed a significant increase in the number of human CD4+ and a trend towards increased CD8+ T cell numbers in tumors treated with NC410 compared to control (Figure 5C, D). To determine the effector capacity of tumor-infiltrating T cells (TILs) from NC410-treated mice, we re-stimulated TILs from digested tumors with anti-CD3 plus anti-CD28 for 5 hr and performed intracellular staining to examine IFN-γ and TNF-α production (Figure 5E). After re-stimulation, a significant increase in IFN-γ+ and IFN-γ+TNF-α+ double-positive cells was observed in the NC410 treatment group compared to control. Based on this observation, we further assessed cytokines and chemokines in the local TME and peripheral spleen (Figure 5F–I). Analysis of cytokines indicated that IFN-γ and granzyme B were significantly increased in the TME, but not soluble CD40L (Figure 5F). Increased expression of CD40L and granzyme B was observed in the spleen (Figure 5G). Chemokine analysis indicated that CXCL10, CXCL11 and CXCL12 were all significantly increased in the TME (Figure 5H), and significantly decreased in the spleen (Figure 5I). Importantly, the concentration of all three chemokines correlated with tumor reduction (Figure 5J). These results support a role for NC410 in enhancing the recruitment of T cells and liberating their effector function in the TME. Thus, we established that NC410 has the capacity to induce T cell expansion, T cell tumor infiltration and reduction of tumor growth in vivo.

NC410 induces specific collagen degradation products

Recently, it has been proposed that specific collagen degradation products (CDPs) reflecting the turnover of specific collagens may be used as biomarkers to non-invasively (in serum) interrogate cell reactivity in the TME and predict response to treatment (Jensen et al., 2018; Jensen et al., 2020; Wang et al., 2021). Because NC410 both engages collagens and promotes local T cell responses, it was surmised that NC410 treatment may result in changes in specific CDP levels, which potentially be indicative of tumor collagen remodeling. Therefore, we investigated whether NC410 treatment would modulate specific CDP levels in the serum of HT-29 tumor-bearing mice transplanted with human PBMC over the course of tumor growth and rejection mediated by NC410 (Figure 6A, B). Nine CDPs were analyzed prior to experiment initiation and during 4 weeks of treatment (Figure 6C). Two of the CDPs, namely C6M (a collagen VI MMP-2 CDP) and C4G (a collagen IV granzyme B CDP), were significantly increased at week 4 in the NC410-treated group in comparison to the control group (Figure 6C). Interestingly, this increase in serum CDPs was observed at the time of NC410-mediated tumor eradication, suggesting that the CDPs were derived from the tumor as a result of T cell activation and effector function.

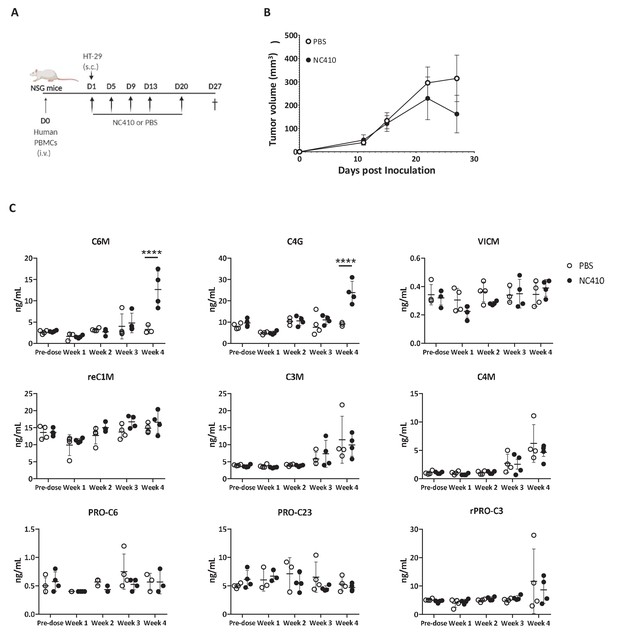

NC410 increases collagen degradation products that correlate with tumor regression.

(A) Schematic representation of the humanized murine tumor model used. HT-29 tumor was injected subcutaneously in the presence of human peripheral blood mononuclear cells. Mice were treated with NC410 or control by intraperitoneal injection, Q4D × 4 doses followed by Q7D until endpoint. Mice were bled prior to start of experiment and weekly for 4 weeks. (B) Tumor growth kinetics with NC410. Asterisks indicate statistical significance: *p<0.05, ****p<0.0001, two-way ANOVA with Sidak multiple comparisons. (C) Analysis of collagen degradation products in serum at baseline, at weeks 1, 2, 3 and 4. reC1M: neo-epitope of MMP-2,9,13-mediated degradation of type I collagen; C3M: type III collagen degradation by MMP; C4M: type IV collagen degradation by MMP; C6M: neo-epitope of MMP-2-mediated degradation of type VI collagen; PRO-C3: pro-peptide of type III collagen/ECM formation/fibroblast activity; PRO-C6: pro-peptide of type VI collagen; VICM: neo-epitope of MMP-2,8, trypsin-mediated degradation of citrullinated vimentin; C4G: type IV collagen degraded by granzyme B (T cell activity/infiltration); closed circles indicate NC410 treatment, and open circles indicate control treatment. The graphs show the means ± SD (error bars). Asterisks indicate statistical significance: ****p<0.0001, two-way ANOVA followed with Sidak multiple comparisons.

NC410 binds collagen-rich tumors with an immune-excluded phenotype

Immunohistochemical (IHC) analysis of serial tissue sections was performed on several different tumor types (Figure 7A). A cross section of tumor types was selected from the TCGA analyses of collagen, LAIR-1 and LAIR-2 mRNA expression and/or survival analyses (Figures 1 and 2A and Figure 1—figure supplement 1). Sections from 10 patients per tumor type of head and neck squamous cell carcinoma (HNSC), glioblastoma (GBM), melanoma (SKCM), non-small-cell lung carcinoma (NSCLC), high-grade serous ovarian carcinoma (HGSC), pancreatic ductal adenocarcinoma (PDAC) and stomach adenocarcinoma (STAD) were stained for hematoxylin and eosin, Masson’s Trichrome, anti-LAIR-1, NC410 and the immune cell markers, CD45, CD3, CD68 and CD163 (Figure 7B, Figure 7—figure supplement 1). Glioblastoma tumors displayed a very distinct collagen staining compared to the other tumors (Figure 7—figure supplement 2) and therefore were excluded from the statistical analysis. NC410 binding co-localized with Masson's Trichrome-positive collagen areas within the TME and LAIR-1+ immune cells was present in all tumors (Figure 7C, Figure 7—figure supplement 2, healthy tissue Figure 7—figure supplement 3). Both myeloid and lymphoid cells within the TME expressed LAIR-1 (Figure 7—figure supplement 2). NC410 binding was highest in PDAC in agreement with a collagen-rich TME (Figure 7C), and HNSC had the highest number of LAIR-1+ cells (Figure 7D). Importantly, LAIR-1+ cells were enriched in NC410-positive areas (Figure 7E), suggesting that LAIR-1+ cells were entrapped in the collagen matrix. Most human solid tumors exhibit distinct immunological phenotypes being divided into immune-inflamed, immune-excluded and immune-desert tumors on the basis of immune cell infiltrate and localization (Chen and Mellman, 2013; Binnewies et al., 2018). By characterizing our cohort according to these immunological phenotypes, we observed that NC410 binding was particularly increased in immune-excluded tumors (Figure 7—figure supplement 4). Thus, in immune-excluded tumors, LAIR-1+ cells may be sequestered in collagen-rich areas where NC410 can bind and disrupt LAIR-1-mediated inhibition and adhesion.

Figure 7 with 4 supplements see all

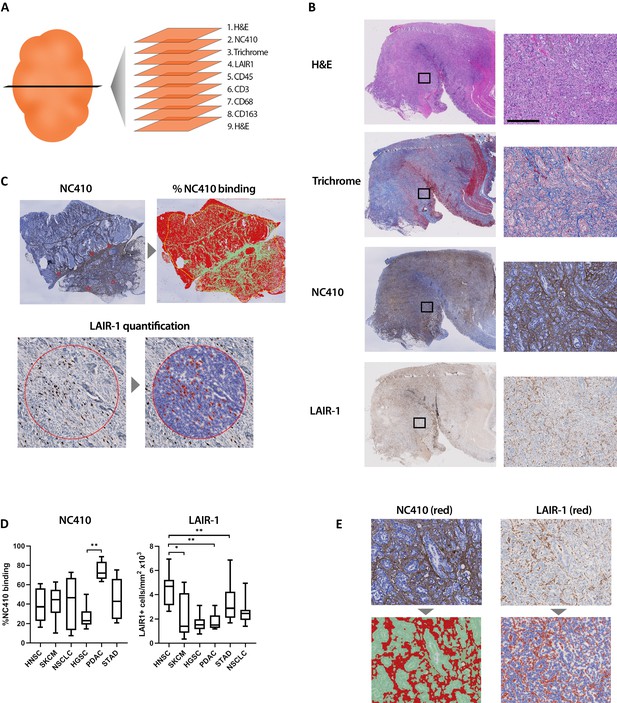

Immunohistochemical characterization of LAIR-1+ cells and LAIR-2 Fc binding in primary human tumors.

(A) Schematic representation of the immunohistochemical stainings performed. (B) Representative hematoxylin and eosin (H&E), Masson Trichrome, NC410 and LAIR-1 staining in a stomach tumor specimen. (C) Representative NC410 and LAIR-1 analysis. The percentage of NC410 binding to tissue within a tumor was calculated by dividing the NC410+ stained area by the total tumor area. The number of LAIR-1+ cells was calculated by dividing the total number of positive cells within five regions of interest (ROIs) by the total surface in mm2 of these ROIs. (D) Quantification of LAIR-1 and NC410 staining of 9–10 patients per tumor type across six different tumor types (head and neck squamous cell carcinoma [HNSC], skin cutaneous melanoma [SKCM], non-small cell lung carcinoma [NSCLC], high-grade serous ovarian carcinoma [HGSC], pancreatic adenocarcinoma [PDAC] and stomach adenocarcinoma [STAD]). (E) Higher magnification pictures of stomach cancer specimens show LAIR-1+ cells (depicted in red, right side) co-localizing with NC410-positive areas (depicted in red, left side).

In summary, this study provides support for utilizing NC410, a novel LAIR-2 Fc fusion protein that promotes T cell activity, as a supplemental therapy to induce anti-tumor immunity in collagen-rich, immune-excluded tumors in which excluded immune cells express high levels of LAIR-1. A first-in-human phase I clinical trial is currently ongoing to test the safety and tolerability of NC410.

Discussion

Tumor escape from immune surveillance is a well-established principle (Beatty and Gladney, 2015). Tumor progression is accompanied by extensive remodeling of the ECM, leading to the formation of a tumor-specific ECM, which is often more collagen-rich and of increased stiffness (Cox and Erler, 2014; Pickup et al., 2014). Collagen expression and density have been shown to be associated with a worse prognosis either by directly promoting tumor growth or by preventing immune cell infiltration (Lu et al., 2012). Therefore, developing therapeutics that have the capability of targeting collagen-rich tumors is an attractive concept.

It has been demonstrated that collagens can directly modulate T cell function (Salmon et al., 2012; Hartmann et al., 2014; Kuczek et al., 2019), for instance, through the inhibitory collagen receptor LAIR-1 (Rygiel et al., 2011; Park et al., 2020). We hypothesized that alterations in expression and remodeling of collagen in the TME regulate the threshold of T cell activation through LAIR-1 and are employed by tumor cells to escape immune surveillance. We showed by RNA analysis that high expression of total collagens, LAIR-1, and combined high total collagen and high LAIR-1 are associated with a worse prognosis in multiple tumor types, supporting the notion of disrupting LAIR-1-collagen interactions as a novel immunotherapeutic strategy.

We then hypothesized that LAIR-2 could be utilized as a therapeutic in humans to dually target tumoral collagens and reverse immune suppression. LAIR-2 can be found in vivo in the urine from pregnant women and in fluids such as synovial fluid of rheumatoid arthritis (RA) and osteoarthritis (OA) patients and the circulation of patients with autoimmune thyroid disease ( Lebbink et al., 2008; Olde Nordkamp et al., 2011; Simone et al., 2013). The amount of LAIR-2 protein seems to be related to inflammation (Olde Nordkamp et al., 2011). In vitro stimulation of sorted peripheral blood cells revealed that CD4+ T cells are the main producers of LAIR-2 (Olde Nordkamp et al., 2011). However, this does not exclude that other cell types might produce LAIR-2 in vivo. Additional studies are required to identify which cells are the main LAIR-2 producers in vivo and the factors that drive its production and secretion. In this study, we showed that targeting and disrupting collagen interactions with LAIR-1 by means of a dimeric LAIR-2 hIgG1 Fc fusion protein, NC410, promoted in vivo T cell activity and had a therapeutic effect in tumor models, which was dependent on T cells. It is interesting to note that we observed peak activity of NC410 at different doses in the P815 (1 mg/kg) vs. HT-29 (10 mg/kg) tumor model. This may be due to the use of different donor PBMCs in these models, use of murine (P815) vs. human (HT-29) tumor cell lines in NSG mice or different mechanisms of action in the two models.

Because many tumors can produce collagens, it is possible that NC410 with an IgG1 Fc could induce ADCC. This was examined in the HT-29 model, which expresses abundant collagens. We did not see enhanced NC410-mediated ADCC in vitro. We also demonstrated the requirement of T cells for anti-tumor activity in our HT-29 model. However, to further address the question of what the Fc portion of NC410 does, we show that LAIR-2 IgG1 protein with a ‘silenced’ Fc (FES mutation) (Oganesyan et al., 2008) loses anti-tumor activity. A recent independently published study (Xu et al., 2020) also demonstrates anti-tumor activity with an engineered LAIR-2 Fc protein. In this study, the authors engineered an IgG1 with an N297A to prevent binding to Fc receptors, but further mutated it to include T250Q/M428L mutations to increase binding to neonatal FcR (FcRn), which enhances in vivo bioavailability of the protein. It is possible that the lack of activity from LAIR-2-FES in our study is due to decreased in vivo bioavailability. However, we cannot exclude the possibility that ADCC plays a role in NC410-mediated anti-tumor immunity in some tumor models.

NC410 may also have additional LAIR-1-independent mechanisms of action since we have previously shown that LAIR-2 Fc can efficiently inhibit complement activation via classical and lectin pathways (Olde Nordkamp et al., 2014a). Therefore, we cannot exclude that NC410 blocks other receptors or impacts other cells than T cells (Sivori et al., 2020) or has additional functions besides outcompeting LAIR-1. These functions of NC410 will be examined as part of ongoing clinical trials, as well as with additional preclinical models.

Humanized mice (Hu-PBMC-NSG) provide an important platform for investigating the modulation of the human immune-mediated anti-tumor responses. While our study demonstrated that the anti-tumor effect promoted by NC410 required T cells, a limitation of the humanized model with adoptive transfer of PBMCs is the absence of human myeloid cells (Ali et al., 2012). Therefore, it remains possible that NC410 impacts LAIR-1+ myeloid function.

Another limitation of our studies is the use of subcutaneous tumor models. Orthotopic models would provide a better comprehensive understanding of how organ-specific ECM, architecture and immune composition would impact response to treatment. Since humanized orthotopic models were not available for this study, we utilized Matrigel as a mimic for ECM.

During ECM turnover, proteolytically cleaved matrix degradation fragments are released into the systemic circulation (Bonnans et al., 2014). Serum levels of collagen degradation fragments are elevated in cancer patients compared to healthy controls, and checkpoint blockade alters serum CDP levels (Jensen et al., 2018; Jensen et al., 2020; Wang et al., 2021). NC410 treatment increased specific fragments generated by degradation of collagen VI by MMP-2 (C6M) and collagen IV by granzyme B (C4G). This coincided with a reduction of tumor volume, suggesting that these fragments might be generated by increased infiltration and/or activation of T cells in the TME. Indeed, granzyme B promotes cytotoxic lymphocyte transmigration via basement membrane remodeling of type IV collagen (Prakash et al., 2014). We therefore hypothesize that specific granzyme B degraded type IV collagen fragments and other fragments are released to the circulation when T cells infiltrate tumors and may have potential as a clinical pharmacodynamic biomarker. Interestingly, granzyme B-degraded type IV collagen fragments (C4G) associate with favorable anti-CTLA-4 treatment response in metastatic melanoma patients (Jensen et al., 2018; Jensen et al., 2020; St-Pierre and Potworowski, 2000). The potential of C6M and C4G collagen fragments as biomarkers of clinical response will be further investigated in a recently initiated NC410 first-in-human clinical trial (NCT04408599).

NC410 showed decreased tumor growth as a monotherapy, but it might even show better clinical efficacy when used in combination with currently used checkpoint receptor inhibitors such as CTLA4 and/or PD-1. In accordance, it was recently shown that abrogating LAIR-1 immunosuppression through LAIR-2 overexpression or SHP-1 inhibition sensitizes resistant lung tumors to anti-PD-1 therapy (Peng et al., 2020).

Circulating LAIR-2 protein concentration is low or undetectable in healthy individuals (Lebbink et al., 2008; Olde Nordkamp et al., 2011). In the presence of limited endogenous LAIR-2, LAIR-1 can bind collagens, thereby allowing the inhibitory receptor to signal and prevent or reduce T cell activity and/or retain LAIR-1+ cells in collagen-rich areas. In the TME, increased levels of collagens will therefore promote tumor immune escape in the absence of increased LAIR-2. Our analysis of TCGA data indeed revealed that enhanced expression of endogenous LAIR-2 in some tumors associated with better prognosis, suggesting that further increasing LAIR-2 in vivo could have a therapeutic advantage. NC410 has a higher avidity to collagen than endogenous LAIR-2 due to its dimeric structure since in vivo LAIR-2 is expressed as a monomer, enhancing its potential to block the inhibitory capacity of membrane-bound LAIR-1. NC410 binds both healthy and tumoral collagen and theoretically could be sequestered before reaching the tumor site. We hypothesize that the avidity of NC410 towards tumoral collagen is higher than to healthy collagen, therefore resulting in a therapeutic effect, but this needs additional study. Other LAIR-1 ligands, such as C1q, have been shown to be increased in tumors (Bulla et al., 2016) and may also provide a local inhibitory effect that could be potentially reversed by NC410.

Understanding LAIR-1 and collagen expression in the context of tumor structure and co-localization could help to identify indications that may best benefit from targeting this axis. Our IHC analyses demonstrated that LAIR-1+ cells were present within NC410-binding collagen-rich areas. This indicated that an abundance of collagen may trap immune cells in the tumor stroma, possibly by binding to LAIR-1. This was most notable in immune-excluded tumors. The immune-excluded phenotype is characterized by the presence of immune cells that cannot penetrate the parenchyma of the tumors but instead are located in the stroma that surrounds the tumor cells (Chen and Mellman, 2017). These are indications that currently fare poorly with PD-1/PD-L1 immunotherapy (Jiang et al., 2018), and thus NC410 could benefit an entirely new class of cancer patients when used as either a monotherapy or in combination with checkpoint inhibitors. Our data support NC410 as a novel immunomedicine for targeting immune-excluded collagen-rich tumors and enabling normalization of the tumor-immune microenvironment.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Genetic reagent
(Mus musculus)
NOD-SCID IL2RγnullJackson LabsStock #: 005557, RRID:IMSR_JAX:005557Female mice
Biological sample (Homo sapiens)Human PBMCsIn vitro studies – healthy donors in agreement with ethical committee of the University Medical Center Utrecht
In vivo studies –
Leukopaks (StemCell)
Cell line
(M. musculus)
hLAIR-1 reporter cell lineMeyaard Lab2B4 T cell hybridoma cells transduced with a NFAT-GFP reporter and hLAIR-1-CD3ζ
Cell line
(M. musculus)
WT reporter cell lineMeyaard Lab2B4 T cell hybridoma cells transduced with a NFAT-GFP reporter
Cell line
(Homo sapiens)
HT-29ATCCATCC HTB-38 (RRID:CVCL_0320)
Cell line
(M. musculus)
P815ATCCATCC TIB-64 (RRID:CVCL_2154)
Cell line
(Cricetulus griseus)
CHO cellsLonzaCHOK1SV, RRID:CVCL_DR97CHOK1-SV-GS (glutamine synthase)-KO cells
AntibodyAnti-human CD45-BV421
(mouse monoclonal)
ThermoFisher ScientificCat number: 50-166-070(Flow cytometry: 1:40)
AntibodyAnti-mouse CD45-APC
(rat monoclonal)
ThermoFisher ScientificCat number: 17-0451-82(Flow cytometry: 1:200)
AntibodyAnti-human CD3-PerCP.Cy5.5
(mouse monoclonal)
ThermoFisher ScientificCat number: 45-0037-42(Flow cytometry: 1:40)
AntibodyAnti-human CD8-AF488
(rat monoclonal)
ThermoFisher ScientificCat number: 53-0081-82(Flow cytometry: 1:40)
AntibodyAnti-human CD4-BV711
(mouse monoclonal)
BiolegendCat number: 300558(Flow cytometry: 1:40)
AntibodyAnti-Human CD45RA- eF450
(mouse monoclonal)
ThermoFisherCat number: 48-0458-42(Flow cytometry: 1:40)
AntibodyAnti-human CCR7-PE
(mouse monoclonal)
BiolegendCat number: 353204(Flow cytometry: 1:40)
AntibodyAnti-human TNF-α-PE
(mouse monoclonal)
ThermoFisher ScientificCat number: 12-7349-41(Flow cytometry: 1:40)
AntibodyAnti-human IFN-ɣ-PECy7
(rat monoclonal)
ThermoFisher ScientificCat number: 25-7311-41(Flow cytometry: 1:40)
AntibodyAnti-human LAIR-1
(rabbit polyclonal)
ATLAS antibodiesCat number: HPA011155(Immunohistochemistry: 1:500)
AntibodyAnti-human LAIR-1
(mouse monoclonal)
BD PharmingenCat number: 550810(Immunohistochemistry: 1:100)
AntibodyNC410-biotinThis paper/NextCureSee Materials and methods (Immunohistochemistry: 1:500)
AntibodyAnti-human CD45
(mouse monoclonal)
DAKOCat number: GA751(Immunohistochemistry: 1:25)
AntibodyAnti-human CD3
(rabbit polyclonal)
DAKOCat number: GA503(Immunohistochemistry: 1:100)
AntibodyAnti-human CD68
(mouse monoclonal)
NovocastraCat number: NCL-L-CD68(Immunohistochemistry: 1:1600)
AntibodyAnti-human CD163
(mouse monoclonal)
NovocastraCat number: NCL-L-CD163(Immunohistochemistry: 1:800)
AntibodyPan-collagen antibody
(rabbit polyclonal)
ThermoFisher ScientificCat number: PA1-85324(Immunofluorescence: 1:200)
AntibodyStreptavidin APCeBioscienceCat number: 17-4317-82(Flow cytometry: 1:200)
AntibodyIgG1-AlexaFluor 594ThermoFisher
Scientific
Cat number: A-21125(Immunofluorescence: 1:200)
AntibodyStreptavidin AlexaFluor 594ThermoFisher
Scientific
Cat number: S11227(Immunofluorescence: 1:2000)
Peptide, recombinant proteinLAIR-1 FCThis paper/NextCureSee Materials and methods LAIR-1- Fc, LAIR-2-Fc (NC410) and LAIR-2-Fc (NC410) FES generation
Peptide, recombinant proteinLAIR-2 FCThis paper/NextCureSee Materials and methods LAIR-1- Fc, LAIR-2-Fc (NC410) and LAIR-2-Fc (NC410) FES generation
Peptide, recombinant proteinLAIR-2 FESThis paper/NextCureSee Materials and methods LAIR-1- Fc, LAIR-2-Fc (NC410) and LAIR-2-Fc (NC410) FES generation
Peptide, recombinant proteinHuman collagen IR&D Systems; Stem CellCat number: 6220 CL-020 (R&D); 07005 (StemCell)
Peptide, recombinant proteinMouse collagen IRay BiotechCat number: DF-01-0058
Peptide, recombinant proteinRat collagen IYo ProteinCat number: ABIN628947
Peptide, recombinant proteinHuman collagen IIIR&D SystemsCat number: 7294 CL-020
Peptide, recombinant proteinRat collagen IIIYo ProteinCat number: ABIN377054
Commercial assay/kitmouse tumor dissociation kitMiltenyiCat number: 130-096-730, RRID:SCR_020285
Commercial assay/kitCell Stimulation Cocktail plus protein transport inhibitorsThermoFisher ScientificCat number: 00-4970-93
Commercial assay/kitCytofix/CytoPerm Plus Fixation/Permeabilization KitBDCat number: 555028
Commercial assay/kitSingleplex Luminex Protein Assay KitThermoFisher ScientificCat number: EPX010-10420-901
Commercial assay/kitHuman T cell positive selection kitStemCellCat number: 17851
Commercial assay/kitOptiview DAB IHC detection kitVentana kitCat number: 760–700
OtherZombie NIR viability dyeBiolegendCat number: 423105
OtherACK lysis bufferKD medicalCat number: 50-101-9080
OtherRIPA Lysis bufferThermoFisher ScientificCat number: 89900
Otherproteinase inhibitorRocheCat number: 4693116001
OtherDNaseMilliporeCat number: 69182–3
OtherCollagenase (from Clostridium histolyticum)SigmaCat number: C0130
OtherTriton X-100RocheCat number: 10789704001
OtherEZ-Link NHS-PEG4-BiotinThermoFisherCat number: 21329
OtherZebaSpin Desalting ColumnsThermoFisherCat number: 87770
OtherDELFIA wash bufferPerkinElmerCat number: 1244-114
OtherDELFIA enhancement solutionPerkinElmerCat number: 4001-0010
OtherEuropium-labeled StreptavidinPerkinElmerCat number: 1244-360
OtherMasson’s TrichromeAbcamCat number: Ab150686
OtherHematoxylinSigma-Aldrich chemieCat number: 51275-1L
OtherDAPI VectaShield hardsetVector LabCat number: H-1500-10, RRID:AB_2336788
Software, algorithmQuPath version 0.2.0QuPathRRID:SCR_018257
Software, algorithmGraphPad Prism 8.0GraphPad PrismRRID:SCR_002798
Software, algorithmTCGA database (https://cancergenome.nih.gov/)RRID:SCR_003193R codes for TCGA analysis
Files can be found in the supplied Source code files

Mice

NSG (NOD-SCID IL2Rγnull) female mice were purchased at the age of 6–8 weeks old from Jackson Labs. Upon arrival at NextCure, mice were divided into 5–6 mice per cage and kept in the quarantine room for at least 6 days to acclimate to the environment. All mouse studies were performed at NextCure based on Institutional Animal Care and Use Committee standards according to the protocols of NextCure Animal (NCA) Study 164 (NCA#164 for Figure 3), NCA#122 (for Figure 4), NCA#209 (for Figure 5), NCA#217 (for Figure 6) and NCA#270 (for Figure 3—figure supplement 4).

Bioinformatics

Request a detailed protocol

For collagen expression, the mRNA expression of 44 collagen genes in normal and tumor tissue for each tumor type was queried using TCGA database (https://cancergenome.nih.gov/). Only those cancers that contained both normal and tumor data were considered for further analyses. mRNA collagen data was available in TCGA for 43/44 collagen genes except for COL6A5. The transcript per million (TPM) values were log2 transformed and averaged per individual across all collagen genes. The distribution of average expression across individuals was plotted using ggplot utility version 2.3.3.2 in R version 4.0.2. The distribution of expression in normal tissues was compared against those in tumor tissue using a non-parametric Wilcoxon test in R.

For overall survival analysis, the log2 transformed collagen expression across 43 collagen genes was averaged in each cancer. The average values were divided into four quantiles, and the patients in lower quantile were considered as individuals with low expression and those in the upper quantile were considered as those with high expression. The estimate of survival based on collagen expression was determined using the Kaplan–Meier method. The survival curves were drawn using ggsurvplot function in the survminer R package. The survival curves for the protein-tumor combination where the p-value was less than 0.05 were considered significant. The expression and overall survival analyses for LAIR-1 and LAIR-2 were performed in the same manner. R codes can be found in the Source code files.

For collagen gene expression analysis of HT-29 cells, data was acquired from the public dataset GSE41586 (Xu et al., 2013). Raw count data of untreated HT-29 cells was retrieved and normalized using the DESeq2 package (v1.28.1) in R (v4.0.2). Data was then log2 transformed and plotted using the ggplot2 package (v3.3.2).

Cells and antibodies

Request a detailed protocol

2B4 T cell hybridoma cells transduced with a NFAT-GFP reporter and hLAIR-1-CD3ζ, the hLAIR-1 reporter cells, or transduced with a NFAT-GFP reporter, the WT reporter cells, were cultured in RPMI 1640 (Life Technologies) supplemented with 10% fetal bovine serum (FBS) (Sigma-Aldrich) and 1% penicillin/streptomycin (Gibco). P815 cells (ATCC) were cultured in DMEM, 2 mM L-glutamine, 25 mM HEPES, 10% FBS and Penicillin-Streptomycin (100 U/mL to 100 μg/mL). HT-29 cells (ATCC) were cultured in IMDM, 2 mM L-glutamine, 25 mM HEPES, 10% FBS and Penicillin-Streptomycin (100 U/mL to 100 μg/mL). CHO cells (Lonza) were cultured in CD CHO medium (ThermoFisher Scientific). All cell lines were mycoplasma negative. Anti-human CD45 (hCD45)-BV421, anti-mouse CD45(mCD45)-APC, anti-human CD3(hCD3)-PerCP.Cy5.5, anti-human CD8(hCD8)-AF488, anti-human CD45RA (hCD45RA)-eF450, anti-human TNF-α (hTNF-α)-PE and anti-human IFN-ɣ (hIFN-ɣ)-PECy7 were from ThermoFisher Scientific. Anti-human CD4 (hCD4)-BV711 and anti-human CCR7 (hCCR7)-PE was from Biolegend.

LAIR-1 Fc, LAIR-2 Fc (NC410) and LAIR-2 FES generation

Request a detailed protocol

The human LAIR-1 and LAIR-2 genes were synthesized by GeneArt and genetically fused with the N terminus of IgG1 Fc domain. Stable CHO cell lines expressing recombinant human LAIR-1 Fc, LAIR-2 Fc or LAIR-2 FES (hIgG1 FES mutation silenced Fc receptor binding) fusion protein were developed using the Lonza GS system. Briefly, 5 × 107 CHO cells were transfected by electroporation using 80 μg of linearized plasmid DNA in a 0.4 cm cuvette. Following electroporation (300 V, 900 μF), cells were resuspended in 100 mL glutamine-free CD CHO medium (ThermoFisher Scientific). The following day, MSX (Millipore) was added to a final concentration of 50 μM, and cells were monitored for the next two weeks as prototrophic cells began to grow. Single clone of stably transfected cells was cultured, and supernatant was harvested and purified by affinity chromatography. The protein purity was determined by HPLC and sodium dodecyl sulfate-polyacrylamide gel electrophoresis. For the LAIR-1-collagen binding assay and NC410 flow cytometry, LAIR-1 Fc and NC410 were biotinylated with EZ-Link NHS-PEG4-Biotin (ThermoFisher Scientific) and free biotin was removed by ZebaSpin Desalting Columns (ThermoFisher Scientific) following manufacturer’s instructions.

Human PBMC preparation for in vitro experiments

Request a detailed protocol

PBMCs were isolated from blood of healthy donors (in agreement with ethical committee of the University Medical Center Utrecht [UMCU] and after written informed consent from the subjects in accordance with the Declaration of Helsinki) using standard Ficoll density gradient centrifugation. Briefly, blood was diluted 1:1 with PBS and layered on top of 15 mL of Ficoll-Paque (GE healthcare) in 50 mL conical tube. Suspension was centrifuged at 400 × g for 20 min at 20°C in a swinging bucket rotor without brake. The mononuclear cell layer at the interphase was carefully collected and transferred to a new 50 mL conical tube. The cells were washed with PBS and centrifuged at 300 × g for 10 min at 20°C. The supernatant was discarded, and the cell pellet was washed twice with 50 mL PBS. The isolated PBMCs were immediately used for in vitro studies.

Binding and blocking studies

Octet avidity analysis

Request a detailed protocol

A ForteBio Octet RED96 instrument was used for avidity assessments. The anti-human Fc antibody capture sensors (ForteBio) were first loaded with LAIR-2-Fc followed by an association step where the loaded sensor was dipped into wells containing human, mouse or rat collagen I (human, R&D Systems; mouse, Ray Biotech; rat, Yo Protein) or collagen III (human, R&D Systems; rat, Yo Protein). NC410 protein was diluted in assay buffer (ForteBio) at 20 µg/mL, and the collagen concentration ranged from 1.56 µg/mL to 100 µg/mL for collagen I and from 0.78 µg/mL to 50 µg/mL for collagen III. Data processing was conducted using the Octet’s Data Analysis 9.0 software.

Time-resolved fluorometry (TRF) immunoassay

Request a detailed protocol

Enzyme Immuno Assay (EIA) plates were coated with human collagen I (StemCell) in 0.01 N HCL (100 μL/well) overnight at 4°C. The following day, plates were equilibrated to ambient temperature and washed three times (300 μL/well) with DELFIA Wash buffer (PerkinElmer). The plates were blocked for non-specific binding with 3% BSA (200 μL/well, Millipore) for 1 hr. Plates were washed three times (300 μL/well) with DELFIA wash buffer, and an NC410-biotin and human LAIR-1 Fc mixture (50 μL/well) was added to plates and incubated for 2 hr at ambient temperature. The plates were washed three times (300 μL/well) with DELFIA wash buffer. Europium-labeled Streptavidin (Eu-SA) (100 μL/well, PerkinElmer) was diluted 1:1000 in DELFIA assay buffer and was added to plates and incubated for 1 hr at ambient temperature. Following the incubation, the plates were washed with 300 μL/well of DELFIA wash buffer. DELFIA enhancement solution was equilibrated to ambient solution during detection antibody incubation. Following the last wash, 100 μL of DELFIA enhancement solution (PerkinElmer) was added to each well and incubated on a plate shaker for 5 min prior to reading on an EnVision plate reader with excitation at 340 nm, and fluorescence reading at 615 nm (PerkinElmer).

Flow cytometry blocking studies

Request a detailed protocol

To assess the blocking capacity of NC410, a titration assay with LAIR-1 reporter cells was performed as previously described (Lebbink et al., 2006). Black Falcon clear flat bottom 96-well plates were coated with 5 μg/mL human collagen I (Sigma-Aldrich) in 2 mM acetic acid (Merck), anti-mouse-CD3 (BD), anti-human-LAIR-1 antibody (clone 8A8) in PBS (Sigma-Aldrich) or isotype control (eBioscience) in PBS by spinning down for 3 min at 1700 rpm and incubating overnight at 4°C. The next day, plates were washed with PBS and pre-incubated with the indicated concentrations of NC410 or isotype control (NextCure) in culture medium by spinning down for 5 min at 1500 rpm at room temperature (RT) and incubating for 2 hr at 37°C.

WT and hLAIR-1 reporter cells were harvested and seeded at 1 × 106 cells/mL in 50 μL/well on top of the collagen and fusion protein-treated wells and spun down for 3 min at 1700 rpm at RT. Plates were incubated overnight, approximately 16 hr, at 37°C, and GFP expression was measured on a LSRFortessa (BD Biosciences).

Incucyte assay

Request a detailed protocol

Plates were prepared similarly to the flow cytometric analysis. After adding reporter cells to collagen and fusion protein-treated wells, plates were placed in the Incucyte S3 (Sartorius) and green fluorescence of the GFP expressed by the reporter cells was imaged every hour for 24 hr.

Analysis of Incucyte images was performed using the Incucyte 2020A analysis program (Sartorius), where green fluorescence was evaluated using Top-Hat segmentation (radius 100 μm and threshold 2 GCU), edge split turned on, minimum mean intensity of 3 GCU and an area filter of 600 μm2 to calculate the total green integrated intensity (GCU × µm²/image) per well.

In vivo experiments

Request a detailed protocol

Leukopaks (StemCell) were diluted with PBS and layered with 35 mL of diluted cell suspension over 15 mL of Ficoll-Paque (GE healthcare) in 50 mL conical tube. Suspension was centrifuged at 400 × g for 30 min at 20°C in a swinging bucket rotor without brake. The mononuclear cell layer at the interphase was carefully collected and transferred to a new 50 mL conical tube. The cells were washed with PBS and centrifuged at 300 × g for 10 min at 20°C. The supernatant was discarded, and the cell pellet was washed twice with 50 mL PBS. The isolated PBMCs were frozen and stored in liquid nitrogen.

Prior to in vivo studies, PBMCs were rested overnight in RPMI 1640, 2 mM L-glutamine, 10 mM HEPES, 10% FBS, Penicillin-Streptomycin (100 U/mL to 100 μg/mL) and 250 U/mL DNase (Millipore). Female NSG mice were injected intravenously (i.v.) with 1–2 × 107 PBMC or T cell-depleted (StemCell human T cell-positive selection kit) PBMCs in 100 µL of 1× PBS. The next day, 2 × 105 P815 cells in PBS, or 0.1–1 × 106 HT-29 cells in PBS with 50% Matrigel (Corning) were injected subcutaneously on the right flank. Mice were randomly assigned into treatment or control groups (six mice per group). The sample size per group was determined with resource equation approach n = DF/k + 1, where n = number of samples per group, k = number of groups and DF = degrees of freedom with acceptable range between 10 and 20 in ANOVA and t-test (Charan and Kantharia, 2013; Arifin and Zahiruddin, 2017). Beginning on day 1, LAIR-2 Fc and control protein were injected intraperitoneally (i.p.) Q4D × 4 doses followed by Q7D until the endpoint. Tumor size was monitored 2–3 times a week. Tumor volumes were determined according to the formula tumor volume = 0.5 × (shorter diameter)2× longer diameter. At endpoint, tumor and spleen tissues were collected for T cell population and/or cytokine analysis. In some studies, blood was collected weekly for T cell population and collagen degradation analysis. Mice were randomized in all tumor models prior to treatment. Tumor measurements were performed in a blinded manner.

For ex vivo analysis, cells were stained with Zombie NIR viability dye (Biolegend) in PBS at RT for 10 min. After washing with FACS buffer (2% FBS in PBS), cells were stained with antibodies against cell surface antigens at 4°C for 30 min. For the intracellular staining, cells were stimulated with Cell Stimulation Cocktail plus protein transport inhibitors (ThermoFisher Scientific) at 37°C for 5 hr followed by Zombie NIR and cell surface antigen staining. After cell fixation and permeabilization, the intracellular TNF-α and IFN-γ were stained following the instructions of BD Cytofix/CytoPerm Plus Fixation/Permeabilization Kit. All antibodies were used at the concentrations recommended by manufacturers. Stained cells were washed and resuspended in 150 μL FACS buffer, and 80 μL of samples were acquired on an Attune flow cytometer (ThermoFisher Scientific). Human CD4+ and CD8+ T cells were gated based on live/hCD45+mCD45-hCD3+hCD4+hCD8- and live/hCD45+mCD45-hCD3+hCD4-hCD8+, respectively.

To prepare mouse blood T cells for staining, 80–200 μL blood was treated with 3 mL ACK lysis buffer (KD medical) to lyse the red blood cells for 5 min at RT followed by washing with PBS. The initial volume of blood was recorded for calculation of cell counts per mL of blood according to the formula: Cell counts per mL of blood = [acquired counts × 150 × 1000] ÷ [initial blood volume (μL) × 80].

To prepare the single-cell population from tumors for staining, tumor tissues were weighed, cut into small pieces and digested with mouse tumor dissociation kit (Miltenyi) and dissociated with gentleMACS Dissociator (Miltenyi). The tumor weight was recorded for the normalization of cell counts.

To assess cytokines from tissues, tumor and spleen tissues were weighed and cut into small pieces in 1.5 mL Eppendorf tube on ice. 200 μL of RIPA Lysis buffer (ThermoFisher Scientific) was added with proteinase inhibitor (Roche) and 250 U/mL of DNase (Millipore), and the tissues were dissociated with pellet pestles (Sigma) on ice. The samples were kept on ice for 30 min, vortexing occasionally. Centrifuge at 10,000 × g for 20 min at 4°C to pellet cell debris and then transfer the supernatant to a fresh Eppendorf tube without disturbing the pellet. The tissue weight was recorded for the normalization analysis of cytokines.

Luminex cytokine assay

Request a detailed protocol

Tissue lysate was used for analysis of the cytokine profile (SDF-1α, IL-2, IL-4, IP-10, IL-10, IL-17A, IFN-γ, TNF-α, I-TAC, granzyme B, sCD40L) using a Luminex assay. The Singleplex Luminex Protein Assay Kit for each cytokine was from ThermoFisher Scientific. Antibody-specific capture magnetic beads were added to wells of a 96-well plate. Samples and protein standards were then placed into the microplate wells. After incubation, the beads were washed using a handheld magnet and were resuspended in secondary detection antibody solution followed by washing and addition of streptavidin-RPE. The beads were then washed again for analysis on a FlexMAP 3D (ThermoFisher Scientific).

EDTA treatment of HT-29 cells

Request a detailed protocol

HT-29 cells were collected from T75 flasks (Thermo Scientific) using different concentrations of EDTA (0.1; 0.2; 0.5; 1 and 2 mM) for 10 min at 37°C. Cells were blocked with 10% BSA/10% normal mouse serum (NMS)/10% FCS for 15 min at 4°C. Cells were then incubated with biotin-labeled NC410 (10 µg/mL; NextCure) in PBS + 1% BSA buffer for 30 min RT. After washing with PBS + 1% BSA, by spinning down for 5 min at 1500 rpm at RT, cells were incubated with streptavidin APC (eBioscience) diluted in PBS + 1% BSA buffer for 20 min at 4°C. Cells were washed again and measured on a FACSCanto (BD Biosciences).

Collagenase treatment of HT-29 cells

Request a detailed protocol

HT-29 cells were collected from T75 flasks (Thermo Scientific) using 0.1 mM EDTA for 10 min at 37°C. Cells were washed and treated with 40 U Collagenase (from Clostridium histolyticum; Sigma) for different time points (5, 10, 15, 20 and 30 min) at 37°C. Cells were washed by spinning down for 5 min at 1500 rpm at RT and blocked with 10% BSA/10% NMS/10% FCS for 15 min at 4°C. Cells were washed and incubated with biotin-labeled NC410 (10 µg/mL; NextCure) in PBS + 1% BSA buffer for 30 min RT. After washing with PBS + 1% BSA, by spinning down for 5 min at 1500 rpm at RT, cells were incubated with streptavidin APC (eBioscience) diluted in PBS + 1% BSA buffer for 20 min at 4°C. Cells were washed again and measured on a FACSCanto (BD Biosciences).

ADCC assay

Request a detailed protocol

ADCC with 51Cr-labeled target cells was described previously. Briefly, HT-29 target cells were labeled with 100 μCi (3.7 MBq) 51Cr for 3 hr in complete medium. After extensive washing, cells were adjusted to 105/mL. HT-29 cells were then incubated with NC410 or isotype control for 30 min. Different effector to target ratios (E:T) were made by adding increasing amounts of PBMCs to NC410 or isotype-treated HT-29 cells per well (a fixed amount of 10.000 tumor cells was used) in round-bottom microtiter plates (Corning). After 24 hr of incubation at 37°C, 51Cr release was measured in counts per minute (cpm). The percentage of specific lysis was calculated using the following formula: % lysis = [(counts of sample–minimum release)/(maximum release–minimum release)] × 100. Target cells with PBMCs in complete medium or supplemented with 5% Triton X-100 (Roche Diagnostics) were used to determine minimum and maximum release, respectively.

Immunofluorescence staining

Request a detailed protocol

5000 HT-29 cells were seeded in black Falcon clear flat-bottom 96-well plates and cultured for 3 days. Cells were fixed with 4% paraformaldehyde for 15 min at RT and blocked with 5% BSA in PBS for 1 hr at RT. Cells were then incubated with isotype control (NextCure), biotin-labeled NC410 (10 µg/mL, NextCure) or pan-collagen antibody (ThermoFisher Scientific) diluted in PBS + 1% BSA buffer for 1 hr at RT. After thoroughly washing with PBS, the slides were incubated with anti-human IgG1-AlexaFluor 594 or streptavidin AlexaFluor 594 (ThermoFisher Scientific) diluted in PBS + 1% BSA buffer for 30 min at RT. Slides were finally washed and mounted with DAPI VectaShield hardset (Vector Lab) and allowed to settle before image acquisition on a Zeiss fluorescence microscopy (Zeiss) using Zen software and ImageJ.

Collagen degradation peptide analysis

Request a detailed protocol

The mouse serum samples were assessed for collagen-degraded peptides (PRO-C3, C3M, C4M, C4G, PRO-C6, C6M, VICM, reC1M, PRO-C23) by immunoassays by Nordic Bioscience as previously described (Jensen et al., 2018; Rønnow et al., 2020).

Tumor specimens for immunohistochemistry

Request a detailed protocol

Specimens of seven selected tumor types were included for analysis: HNSC, GBM, SKCM, NSCLC, HGSC, PDAC and STAD. Of each tumor type, in agreement with the ethical committee of the UMCU, formalin-fixed paraffin-embedded (FFPE) material of 9–10 tumor specimens and 5 healthy specimens was collected from the tissue biobank (research protocol 17-786). The cohort of HNSC tumors comprised tongue tumors with a diameter of 10 mm or larger. Only melanomas with a Breslow thickness of 0.5 mm or higher were included. Tissue was obtained from primary tumors. Patients did not receive any systemic treatment or radiotherapy before the tumor specimens were obtained. Healthy specimens were preferably separate tissue blocks obtained from the same patients the tumor specimens were obtained from. In case of glioblastoma, healthy specimens were collected postmortem.

Immunohistochemistry

Request a detailed protocol

The following stainings were performed on consecutive slides of all tumor specimens: H&E, Masson’s Trichrome, LAIR-1, NC410, CD45, CD3, CD68 and CD163. The LAIR-1, CD45, CD3, CD68 and CD163 stainings were performed using a Ventana Bench Mark XT Autostainer (Ventana Medical Systems, Tucson, AZ, USA). Stainings were performed on 4 µm sections of each tissue block. NC410 was biotinylated and used for manual, IHC staining. Antigen retrieval was performed by incubating the slides at 100°C for 24 or 64 min in either EDTA or Citrate buffer, as indicated in the table below. For all assays, the sections were incubated with the primary antibody for 1 hr at RT. Subsequently, the sections were incubated with HRP-labeled secondary antibody, developed using H2O2 and DAB and counterstained with hematoxylin.

AntibodySupplierCloneLot noPretreatmentDilution
LAIR-1 (polyclonal)ATLAS antibodies-A10383424′ Citrate pH 6.01:500
LAIR-1 (monoclonal)BD PharmingenDX2655081064′ EDTA pH 9.01:100
NC410NextCure--24′ Citrate pH 6.01:500
CD45DAKOPD7/26 + 2B1111024′ EDTA pH 9.01:25
CD3DAKO-2004262524′ EDTA pH 9.01:100
CD68NovocastraKP1600920324′ EDTA pH 9.01:1600
CD163Novocastra10D6606461624′ EDTA pH 9.01:800

Immunohistochemistry analysis

Request a detailed protocol

All slides were digitalized using the Aperio Scanscope XT slide scanner. Evaluation of stained tissue slides was performed using QuPath (version 0.2.0) software. The percentage of tumor tissue binding NC410 was calculated by annotation of the tumor in the tissue slide and quantifying the percentage of DAB-stained tissue by using the Pixel Classifier.

Scoring of the immune phenotype was based on the presence and distribution of CD3-positive lymphocytes (Chen and Mellman, 2017). Tumors with CD3+ cells in the tumor fields were scored ‘inflamed’; tumors with CD3+ cells in their stroma but without or with a relatively low amount of CD3+ in the tumor fields were scored ‘immune-excluded’; tumors with a lack of CD3+ cells in their stroma as well as in their tumor fields were scored ‘immune-desert’.

For quantification of the immune cell counts, regions of interest (ROIs) were annotated on the tissue slides by drawing circles with a diameter of 600 µm at five random spots within the NC410 binding part of the tumor. Positive cells were quantified using the Positive Cell Detection tool. For each staining, stain vectors and DAB cutoffs were determined based on a representative slide; the settings were kept the same for all slides. Tumor area within the circles that was lost during staining procedure or that was negative for NC410 binding was excluded from the analysis.

The percentage of NC410 binding to tissue within a tumor was calculated by dividing the stained area by the total tumor area. The immune cell counts for each tumor were calculated by dividing the total number of positive cells within the five ROIs by the total surface in mm2 of these ROIs.

Statistics

Data were graphed and analyzed using GraphPad Prism 8.0 (GraphPad software). Data are presented as the mean ± standard deviation (SD). The significance was analyzed with unpaired, two-tailed Student’s t-tests and two-way ANOVA followed by multiple comparison.

Appendix 1

Bioinformatics (extended)

For collagen gene expression analysis of HT-29 cells, data was acquired from the public dataset GSE41586 (https://pubmed.ncbi.nlm.nih.gov/23902433/). Raw count data of untreated HT-29 cells was retrieved and normalized using the DESeq2 package (v1.28.1) in R (v4.0.2). Data was then log2 transformed and plotted using the ggplot package (v3.3.2).

Immunofluorescence staining

5000 HT-29 cells were seeded in black Falcon clear flat-bottom 96-well plates and cultured for 3 days. Cells were fixed with 4% paraformaldehyde for 15 min at RT and blocked with 5% BSA in PBS for 1 hr at RT. Cells were then incubated with isotype control (NextCure), biotin-labeled NC410 (10 µg/mL, NextCure) or pan-collagen antibody (ThermoFisher) diluted in PBS + 1% BSA buffer for 1 hr at RT. After thoroughly washing with PBS, the slides were incubated with anti-human IgG1-AlexaFluor 594 or streptavidin AlexaFluor 594 (Life Technologies–ThermoFisher Scientific) diluted in PBS + 1% BSA buffer for 30 min at RT. Slides were finally washed and mounted with DAPI VectaShield hardset (Vector Lab) and allowed to settle before image acquisition on a Zeiss fluorescence microscopy (Zeiss) using the Axiovision software (Zeiss).

EDTA treatment of HT-29 cells

HT-29 cells were collected from T75 flasks (Thermo Scientific) using different concentrations of EDTA (0.1; 0.2; 0.5; 1 and 2 mM) for 10 min at 37C. Cells were blocked with 10% BSA/10% NMS/10% FCS for 15 min at 4°C. Cells were then incubated with biotin-labeled NC410 (10 µg/mL; NextCure) in PBS + 1% BSA buffer for 30 min RT. After washing with PBS + 1% BSA, by spinning down for 5 min at 1500 rpm at RT, cells were incubated with streptavidin APC (eBioscience) diluted in PBS + 1% BSA buffer for 20 min at 4°C. Cells were washed again and measured on a FACSCanto (BD Biosciences).

Collagenase treatment of HT-29 cells

HT-29 cells were collected from T75 flasks (Thermo Scientific) using 0.1 mM EDTA for 10 min at 37°C. Cells were washed and treated with 40 U Collagenase (from Clostridium histolyticum; Sigma) for different time points (5, 10, 15, 20 and 30 min) at 37°C. Cells were washed by spinning down for 5 min at 1500 rpm at RT and blocked with 10% BSA/10% NMS/10% FCS for 15 min at 4°C. Cells were washed and incubated with biotin-labeled NC410 (10 µg/mL; NextCure) in PBS + 1% BSA buffer for 30 min RT. After washing with PBS + 1% BSA, by spinning down for 5 min at 1500 rpm at RT, cells were incubated with streptavidin APC (eBioscience) diluted in PBS + 1% BSA buffer for 20 min at 4°C. Cells were washed again and measured on a FACSCanto (BD Biosciences).

Data availability

Source codes were provided for Figure 1, Figure 2 and Figure supplement 1.

The following previously published data sets were used
    1. Xu X
    2. Zhang Y
    3. Williams J
    4. Antoniou E
    5. McCombie WR
    6. Wu S
    7. Zhu W
    8. Davidson NO
    9. Denoya P
    10. Li E
    (2013) NCBI Gene Expression Omnibus
    ID GSE41586. Parallel comparison of Illumina RNA-Seq and Affymetrix microarray platforms on transcriptomic profiles generated from 5-aza-deoxy-cytidine treated HT-29 colon cancer cells and simulated datasets.

References

    1. Fang M
    2. Yuan J
    3. Peng C
    4. Li Y
    (2014) Collagen as a double-edged sword in tumor progression
    Tumour Biology : The Journal of the International Society for Oncodevelopmental Biology and Medicine 35:2871–2882.
    https://doi.org/10.1007/s13277-013-1511-7

Decision letter

  1. Yuting Ma
    Reviewing Editor; Suzhou Institute of Systems Medicine, China
  2. Carla V Rothlin
    Senior Editor; Yale School of Medicine, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Collagen is a major component of extracellular matrix. The authors have identified a high-affinity inhibitory collagen receptor LAIR-1 and a soluble decoy receptor LAIR-2 (with even higher binding affinity to collagen), which can be therapeutically targeted to block tumor progression. Dr Meyaard and colleagues have also generated a dimeric LAIR-2 human IgG1 Fc fusion protein NC410 for therapeutic use. With humanized mouse models engrafted with functional human immune systems (PBMC), they have explored the anti-cancer efficacy of NC410 and revealed its impact on modulating immune responses. Furthermore, they extended this study to identify biomarkers of predictive value for NC410-based anti-cancer therapy.

Decision letter after peer review:

Thank you for submitting your article "Cancer immunotherapy by NC410, a LAIR-2 Fc protein blocking LAIR-collagen interaction" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Carla Rothlin as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

Collagen is a major component of extracellular matrix. The authors have identified a high-affinity inhibitory collagen receptor LAIR-1 and a soluble decoy receptor LAIR-2 (with even higher binding affinity to collagen), which can be therapeutically targeted to block tumor progression. They have generated a dimeric LAIR-2 human IgG1 Fc fusion protein NC410 for therapeutic use. With humanized mouse models engrafted with functional human immune systems (PBMC), they have explored the anti-cancer efficacy of NC410 and revealed its impact on modulating immune responses. Furthermore, they extended this study to identify biomarkers of predictive value for NC410-based anti-cancer therapy. This study is interesting, but mechanistic exploration and in-depth immune characterization should be largely improved to support their conclusions.

Essential revisions:

1. Figure 1 is quite confusing for readers. These correlative analyses don't seem to support the major conclusions of this study. Although the expression level of collagen, LAIR1 and LAIR2 in multiple cancer tissues significantly differ from that in matched normal tissues (Figure 1A), these parameters didn't exhibit consistent prognostic values for the same type of cancer (Figure 1B). High expression of LAIR-1 is associated with lower survival, but this only holds true in 4 of 21 cancers. Conversely, high LAIR-2 mRNA expression was correlated with increased survival in 6 of 30 cancers. There was no overlap in these cancer types. It would be much more helpful if the authors can show that in the same cohorts of cancer patients, high expression of Collagen, high expression of LAIR1, and/or low expression of LAIR2 correlate with poor outcomes. If analyses of this potential biomarker panel in Figure 1 can be linked with the pathologic analyses performed in Figure 6, it will largely strengthen the importance of this study.

2. Similarly, for the TCGA analyses in Figure 1, it will be very helpful to explore the correlations of the collagens, LAIR-1 and LAIR-2 with immune phenotypes as defined by mRNA signatures. This would better define if the collagen/LAIR-1 pathway is more important in inflamed, but immunosuppressed tumors, or in cold tumors.

3. NC410 exhibited anti-tumor effects in two humanized mouse model. A more robust immune profiling of the tumor microenvironment would be necessary, particularly for the myeloid compartment (such as MDSCs, tumor-associated macrophages and their effector molecules) and T cells in depth (memory, effector, exhaustion markers). It remains unknown whether elevated frequency of CD4+T and CD8+T cells, increased secretion of IFN-g and TNF-a by T cells, augmented expression of cytokines, chemokines did account for delayed tumor progression. Functional validation of these altered immune cell subsets and corresponding effector molecules will substantially improve the quality of this study.

4. The authors claimed that LAIR2 is responsible for collagen-induced immunosuppression. Which immunosuppressive cell populations can be induced/activated/expanded by collagen? Does NC410 reverse these changes?

5. There are multiple receptors for collagens. Is LAIR1 the dominant immunosuppressive receptor for collagen? Does NC410 specifically block LAIR1-mediated immunosuppression?

6. Does NC410 influence the synthesis of collagen? Is dimeric LAIR-2 more stable than the monomer form? What is the function of IgG1 Fc tail? It is possible that Fc containing NC410 cause the ADCC effect on collagen-producing cells (including tumor cells) in vivo. HT29 cell and PBMC coculture experiments didn't rule out the possibility of NC410-induced ADCC in vivo.

7. Does repeated use of NC410 cause detrimental side-effects on healthy collagen-enriched tissues? Do the authors have any toxicity data on the in vivo use of this new Fc-fusion protein? It would be very helpful at their first description for potential clinical development.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Cancer immunotherapy by NC410, a LAIR-2 Fc protein blocking human LAIR-collagen interaction" for further consideration by eLife. Your revised article has been evaluated by Carla Rothlin as the Senior Editor, and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

1. Gating strategies should be shown for the analyses of naive and memory T cell subsets in Figure 3.

2. Figure 6c is not necessary. The implication of these parameters can be described in the main text.

3. Due to low-quality images in Figure 7 and related supplemental data, it is difficult to judge the specificity of IHC staining. Please provide images with higher magnifications and resolution. Also, please avoid using the same image in different figures.

https://doi.org/10.7554/eLife.62927.sa1

Author response

Essential revisions:

1. Figure 1 is quite confusing for readers. These correlative analyses don't seem to support the major conclusions of this study. Although the expression level of collagen, LAIR1 and LAIR2 in multiple cancer tissues significantly differ from that in matched normal tissues (Figure 1A), these parameters didn't exhibit consistent prognostic values for the same type of cancer (Figure 1B). High expression of LAIR-1 is associated with lower survival, but this only holds true in 4 of 21 cancers. Conversely, high LAIR-2 mRNA expression was correlated with increased survival in 6 of 30 cancers. There was no overlap in these cancer types. It would be much more helpful if the authors can show that in the same cohorts of cancer patients, high expression of Collagen, high expression of LAIR1, and/or low expression of LAIR2 correlate with poor outcomes. If analyses of this potential biomarker panel in Figure 1 can be linked with the pathologic analyses performed in Figure 6, it will largely strengthen the importance of this study.

We have restructured figure 1 for clarity (see new figure 1 and Figure 1-Sup. Figure 1). To support targeting the collagen:LAIR-1 pathway in cancer, we looked at the overall survival of total collagens (Figure 1A) and LAIR-1 individually (Figure 1B). We also analyzed total collagens combined with LAIR-1 for overall survival (Figure 1C). The expression of collagens, LAIR-1 and LAIR-2 in healthy and tumor tissue was moved to Figure 1-Sup figure 1. Overall survival analysis of LAIR-2 high expression associated with improved overall survival was moved to Figure 2 for organizational clarity.

These analyses have the restriction that it is limited to mRNA expression and not protein. However, we utilized these data to support targeting the LAIR-collagen axis for cancer. Whereas most other studies evaluate specific collagens, we uniquely evaluated all 43 collagen chains together for overall survival to assess the “net effect” of collagens in relation to overall survival.

The overall survival analysis based on LAIR-1 RNA expression does not overlap with total collagens, other than low grade glioma, but led to a worse prognosis in 4 of 21 cancers. This may suggest additional factors influence outcome. Therefore, we combined total collagens and LAIR-1 for analysis of overall survival. We found that 10 of 21 cancers had decreased survival when both collagen and LAIR-1 were highly expressed (upper quantile). Interestingly, cancer types in the LAIR-1 only analysis, but not collagen only analysis, overlapped with the combined collagen+ LAIR-1 analysis. A few new tumor types also emerged that were not present when evaluated individually. Again, this analysis was performed in order to support targeting the LAIR-1 pathway in cancer, not necessarily to select specific cancer indications for clinical trials.

Next, our hypothesis is that LAIR-2, a natural soluble decoy capable of blocking membrane LAIR-1 mediated immune inhibition could be used as a “supplemental” checkpoint blockade therapy. Therefore, we analysed if increased LAIR-2 was associated with improved survival in any cancer. Despite the generally low expression of LAIR-2 in comparison to LAIR-1 in cancer, we did observe improved survival in 6 of 21 cancer types. Once again there was relatively little overlap with total collagen. However, this finding did support our hypothesis.

Together, while overall survival analyses based on RNA expression did not overlap to a large extent, the purpose was to support targetability of the collagen:LAIR pathway, and potentially serve as a guide in selection of cancer types for further evaluation by IHC. To this end, emphasis was placed on cancer types in which high LAIR-2 expression associated with improved survival (HNSCC, STAD and SKCM). In addition, we selected LUSC, PDAC and HGSC to be evaluated by IHC. In figure 6, we show that LAIR-1+ cells are located in collagen-rich areas where NC410 can bind suggesting that the location of these molecules and cells, rather than overall RNA levels, may be more important for patient selection.

Text was added to the manuscript to address this point.

2. Similarly, for the TCGA analyses in Figure 1, it will be very helpful to explore the correlations of the collagens, LAIR-1 and LAIR-2 with immune phenotypes as defined by mRNA signatures. This would better define if the collagen/LAIR-1 pathway is more important in inflamed, but immunosuppressed tumors, or in cold tumors.

As discussed in the question 1 response, we analyzed total collagens combined with LAIR-1 for overall survival to determine if there is overlap or unique indications in comparison to collagens or LAIR-1 alone. We found that high expression of total collagens with LAIR-1 resulted in poor reduced overall survival that overlapped with LAIR-1 analysis, but also that additional indications were identified by collagens alone or LAIR-1 alone.

The reviewers’ question on immune phenotypes we address in Figure 6, where we concluded that patients presenting immune excluded tumors would benefit the most from LAIR targeting since LAIR-1+ cells seem to be enriched in collagen dense areas surrounding the tumor islets where NC410 binds. By analysing mRNA signatures rather that spatial context we would not be able to show this.

Text was added to the Discussion section to address this point.

3. NC410 exhibited anti-tumor effects in two humanized mouse model. A more robust immune profiling of the tumor microenvironment would be necessary, particularly for the myeloid compartment (such as MDSCs, tumor-associated macrophages and their effector molecules) and T cells in depth (memory, effector, exhaustion markers). It remains unknown whether elevated frequency of CD4+T and CD8+T cells, increased secretion of IFN-g and TNF-a by T cells, augmented expression of cytokines, chemokines did account for delayed tumor progression. Functional validation of these altered immune cell subsets and corresponding effector molecules will substantially improve the quality of this study.

We have performed extra studies and added additional data to address these points.

This manuscript focuses on the role of NC410 in the context of T cells. Therefore, peripheral blood mononuclear cell (PBMC) humanized mice (Hu-PBMC-NSG) provide a useful platform for investigating the modulation of the human T cell responses and antitumor responses. As previously reported (Ali et al., PLoS ONE, 2012), human T cells but not myeloid cells expand in this model and almost all the human CD45+ cells engrafted are T cells. Nevertheless, the role of NC410 on myeloid and other TME associated immune cell subsets is of great interest to us and will be the focus of a follow-up study.

We revised figure 3 to address the role of NC410 on CD8+ and CD4+ T cells in both non-tumor (xeno-GVHD) and tumor models in hu-PBMC-NSG mice. In figure 3A and B, we show that most T cells (80-100%) in the hu-PBMC-NSG model acquire effector memory phenotype in the spleen as early as 6 days after PBMC injection in NSG mice. This is similar to previous reports (Ali et al., PLoS ONE, 2012). The percentage of effector memory CD4+ or CD8+ T cells does not change between doses of NC410 vs vehicle control. However, as shown in Figure 3C and E, NC410 dose-dependently increase the absolute cell counts of CD4+ Effector memory (EM) and CD8+ effector T cells in the spleen on day 6. Unfortunately, we did not assess cytokine levels in this experiment, but this was evaluated in Figure 5.

We also added additional data in a new Figure 4 for the P815 tumor model in which the mouse tumor cell line P815 (xeno tumor) is subcutaneously injected into the flank of NSG mice with adoptive transfer of human PBMCs. A titration of NC410 shows that NC410 promotes the expansion of both CD4+ and CD8+ T cells, but that the expansion follows different kinetics dependent on the dose: 10 mg/kg induces more rapid expansion, while 1 mg/kg induces sustained expansion. Interestingly, the anti-tumor activity observed in this model corresponds to the 1 mg/kg dose in which sustained T cell expansion is observed. This supports the role of T cells in mediating anti-tumor immunity.

Importantly, to address the requirement of T cells for the anti-tumor effect observed in the presence of NC410, we performed an additional HT-29 tumor model in NSG mice similar to the experiments shown in Figure 5 (Figure 3-Sup. Figure 3). However, in this experiment, we adoptively transferred total PBMCs or T cell depleted PBMCs. In this experiment we show that NC410 required T cells for anti-tumor activity, as shown by tumor growth measurements and pictures of tumors at endpoint (day 53). This experiment demonstrates that NC410 anti-tumor immunity in the HT-29 tumor model is mediated through T cell enhancement.

4. The authors claimed that LAIR2 is responsible for collagen-induced immunosuppression. Which immunosuppressive cell populations can be induced/activated/expanded by collagen? Does NC410 reverse these changes?

The authors believe there may be a typo on this question. LAIR-2 is not responsible for collagen-induced immunosuppression. Rather, LAIR-2 is the basis of our immunotherapy strategy to block and reverse LAIR-1 mediated immunosuppression by tumor collagens.

We propose that LAIR-1 induced immune suppression is due to decrease of T cell activity and/or migration. Collagen has been previously shown to have a direct impact on T cell activation via LAIR-1 by inhibiting T-cell receptor (TCR) signaling (Meyers L, et al; JBC, 2020) and collagen has been shown to inhibit T cell migration (Kuczek et al., J Immunother Cancer, 2019), however this has not been specifically attributed to LAIR-1 signaling. Our in vitro studies (Figure 2) demonstrate that collagen binding to LAIR-1 induced LAIR-1 signaling in a reporter cell line can be blocked by NC410. Our in vivo studies demonstrate increased T cell expansion and effector activity in the presence of NC410. However, at this time we cannot prove that the NC410 mediated effect is dependent solely on blockade of LAIR-1:Collagen interactions. Interestingly, a similar molecule to NC410 (Xu L, et al; OncoImmunology, 2020) has been shown to revert collagen induced LAIR-1 suppression of IFN-γ and TNF-α cytokine production in an in vitro system.

5. There are multiple receptors for collagens. Is LAIR1 the dominant immunosuppressive receptor for collagen? Does NC410 specifically block LAIR1-mediated immunosuppression?

Diverse families of receptors, including integrins, receptor tyrosine kinases, and immunoglobulin-like receptors have been shown to bind collagens as their cognate ligands. We cannot exclude that NC410 blocks other receptors or has additional functions besides outcompeting LAIR-1. In fact, our group has previously shown that LAIR-2 Fc can efficiently inhibit complement activation via classical and lectin pathways (Olde Nordkamp, et al; J Innate Immun. 2014). Therefore, it is likely that NC410 has additional mechanisms of action that may be LAIR-1 independent. This is a major topic of ongoing research for future studies due to the importance of mechanistic understanding and biomarker identification as part of NextCure’s ongoing clinical trial.

We addressed this point in the discussion of the manuscript.

6. Does NC410 influence the synthesis of collagen? Is dimeric LAIR-2 more stable than the monomer form? What is the function of IgG1 Fc tail? It is possible that Fc containing NC410 cause the ADCC effect on collagen-producing cells (including tumor cells) in vivo. HT29 cell and PBMC coculture experiments didn't rule out the possibility of NC410-induced ADCC in vivo.

Our current study results have identified an effect of NC410 leading to changes in specific collagen degradative products, which may be an important pharmacodynamic (PD) biomarker for clinical trials. We are currently studying the biological relevance of NC410 on collagen production, degradation and organization with collaborators. This data will be part of a follow up study.

NC410 is very stable based on production and manufacturing of material for the ongoing clinical trial with NC410 (Phase 1 clinical trial was initiated with NC410 on June 10, 2020; ClinicalTrials.gov Identifier: NCT04408599). Pharmacokinetics will be assessed as part of Ph1 trial. Stability of NC410 has not been compared to monomeric LAIR-2. We previously reported that dimeric LAIR-2 is a better competitor for LAIR-1-collagen interaction than monomeric LAIR-2 (Olde Nordkamp et al., Arthritis Rheum, 2011)

We agree with the reviewer that HT-29 cell and PBMC co-culture experiments do not completely rule out the possibility of NC410-induced ADCC in vivo. However, several additional lines of evidence support the function of NC410 to be independent of ADCC, but dependent on an active, functional Fc (human IgG1).

First, P815 tumor cells for not express transmembrane collagen and thus in the P815 tumor model (Figure 4), NC410 does not bind to this tumor by flow cytometry analysis (Figure 4A and B), and therefore ADCC is unlikely to be a mechanism of action.

Secondly, in Figure 3-Sup figure 3, we tested NC410 in the absence of T cells and found that T cells are required for anti-tumor effect mediated by NC410, as discussed above, which indicated that ADCC is not a primary mechanism of action in vivo.

Therefore, we conclude that ADCC is not a primary mechanism of action of NC410, although we cannot rule out that ADCC may play a role in in vivo tumor killing for collagen expressing tumors.

We added this discussion to the revised manuscript.

To further address the question of what the Fc portion of NC410 does, we show in a new Figure 3- Sup. Figure 3 that LAIR-2 IgG1 protein with a “silenced” Fc (FES mutation) (Oganesyan et al., Biol Crystallogr. 2008) loses anti-tumor activity. This is in apparent contrast with a recently published study (Xu et al., Oncoimmunology, 2020) in which an engineered LAIR-2 Fc protein with an N297A to prevent binding to Fc receptors does have anti-tumor efficacy, However, this protein was further mutated to include T250Q/M428L mutations to increase binding to neonatal FcR (FcRn), which enhances in vivo availability of the protein. We cannot exclude that the lack of efficiency of the LAIR-2-FES we used is due to decreased in vivo availability of the protein.

7. Does repeated use of NC410 cause detrimental side-effects on healthy collagen-enriched tissues? Do the authors have any toxicity data on the in vivo use of this new Fc-fusion protein? It would be very helpful at their first description for potential clinical development.

No detrimental effects have been observed in mice, rats or cynomolgus macaques. Safety/toxicity studies in cynomolgus macaques were completed for IND filing and was found to be safe for a First-In-Human Ph1 clinical trial for NC410, which is currently ongoing. Safety and tolerability will continue to be monitored during dose escalation of NC410.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

1. Gating strategies should be shown for the analyses of naive and memory T cell subsets in Figure 3.

A new Figure 3 supplemental figure 1 was added where the gating strategy is shown.

2. Figure 6c is not necessary. The implication of these parameters can be described in the main text.

Figure 6c was removed and information regarding collagen degradation products was added to the respective figure legend.

3. Due to low-quality images in Figure 7 and related supplemental data, it is difficult to judge the specificity of IHC staining. Please provide images with higher magnifications and resolution. Also, please avoid using the same image in different figures.

Images in Figure 7 and related supplemental data were replaced by higher resolution images (good resolution up to 800% of magnification) and duplicate images were replaced.

https://doi.org/10.7554/eLife.62927.sa2

Article and author information

Author details

  1. M Ines Pascoal Ramos

    1. Center for Translational Immunology, University Medical Center Utrecht, Utrecht University, Utrecht, Netherlands
    2. Oncode Institute, Utrecht, Netherlands
    Contribution
    Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Linjie Tian
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3644-6517
  2. Linjie Tian

    NextCure, Beltsville, United States
    Contribution
    Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    M Ines Pascoal Ramos
    Competing interests
    LT, CS, AP, JS, JB, ZC, LL, SL and DF are employees from Nextcure. Nextcure holds a patent on NC410. (PCT/US20 17/0453 10).
  3. Emma J de Ruiter

    Nordic Bioscience, Herlev, Denmark
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Chang Song

    NextCure, Beltsville, United States
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Ana Paucarmayta

    NextCure, Beltsville, United States
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Akashdip Singh

    1. Center for Translational Immunology, University Medical Center Utrecht, Utrecht University, Utrecht, Netherlands
    2. Oncode Institute, Utrecht, Netherlands
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5326-8826
  7. Eline Elshof

    1. Center for Translational Immunology, University Medical Center Utrecht, Utrecht University, Utrecht, Netherlands
    2. Oncode Institute, Utrecht, Netherlands
    Contribution
    Formal analysis, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  8. Saskia V Vijver

    1. Center for Translational Immunology, University Medical Center Utrecht, Utrecht University, Utrecht, Netherlands
    2. Oncode Institute, Utrecht, Netherlands
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  9. Jahangheer Shaik

    NextCure, Beltsville, United States
    Contribution
    Data curation, Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  10. Jason Bosiacki

    NextCure, Beltsville, United States
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  11. Zachary Cusumano

    NextCure, Beltsville, United States
    Contribution
    Conceptualization, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  12. Christina Jensen

    Nordic Bioscience, Herlev, Denmark
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  13. Nicholas Willumsen

    Nordic Bioscience, Herlev, Denmark
    Contribution
    Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
  14. Morten A Karsdal

    Nordic Bioscience, Herlev, Denmark
    Contribution
    Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
  15. Linda Liu

    NextCure, Beltsville, United States
    Contribution
    Conceptualization, Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
  16. Sol Langermann

    NextCure, Beltsville, United States
    Contribution
    Conceptualization, Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
  17. Stefan Willems

    Department of Pathology, University Medical Center Utrecht, Utrecht University, Utrecht, Netherlands
    Present address
    Department of Pathology and Medical Biology, University Medical Center Groningen, Groningen, The Netherlands
    Contribution
    Conceptualization, Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
  18. Dallas Flies

    NextCure, Beltsville, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Writing - review and editing
    Contributed equally with
    Linde Meyaard
    For correspondence
    fliesd@nextcure.com
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9280-2080
  19. Linde Meyaard

    1. Center for Translational Immunology, University Medical Center Utrecht, Utrecht University, Utrecht, Netherlands
    2. Oncode Institute, Utrecht, Netherlands
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Writing - review and editing
    Contributed equally with
    Dallas Flies
    For correspondence
    L.Meyaard@umcutrecht.nl
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0707-4793

Funding

Dutch Research Council (NWO) (Vici 918.15.608)

  • Linde Meyaard

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Michiel van der Vlist for his critical comments on the manuscript.

Ethics

Human subjects: Peripheral Blood Mononuclear Cells (PBMCs) were isolated from blood of healthy donors in agreement with ethical committee of the University Medical Center Utrecht (UMCU) and after written informed consent from the subjects in accordance with the Declaration of Helsinki. Specimens of seven selected tumor types were included for analysis: head and neck squamous cell carcinoma (HNSC), glioblastoma (GBM), melanoma, non-small-cell lung carcinoma (NSCLC), high-grade serous carcinoma (HGSC), pancreatic ductal adenocarcinoma (PDAC), and stomach adenocarcinoma (STAD). Of each tumor type, in agreement with the ethical committee of the UMCU, formalin fixed, paraffin embedded (FFPE) material of 9-10 tumor specimens and five healthy specimens was collected from the tissue biobank (research protocol 17-786).

Animal experimentation: All mouse studies were performed at NextCure based on Institutional Animal Care and Use Committee standards according to the protocols of NextCure Animal (NCA) Study 164 (NCA#164 for Figure 3), NCA#122 (for Figure 4), NCA#209 (for Figure 5), NCA#217 (for Figure 6) and NCA#270 (for Figure supplement 3).

Senior Editor

  1. Carla V Rothlin, Yale School of Medicine, United States

Reviewing Editor

  1. Yuting Ma, Suzhou Institute of Systems Medicine, China

Publication history

  1. Received: September 9, 2020
  2. Accepted: June 11, 2021
  3. Accepted Manuscript published: June 14, 2021 (version 1)
  4. Version of Record published: June 24, 2021 (version 2)
  5. Version of Record updated: July 8, 2021 (version 3)

Copyright

© 2021, Ramos et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,631
    Page views
  • 233
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    Sydney Campbell et al.
    Research Article

    Tumors frequently exhibit aberrant glycosylation, which can impact cancer progression and therapeutic responses. The hexosamine biosynthesis pathway (HBP) produces uridine diphosphate N-acetylglucosamine (UDP-GlcNAc), a major substrate for glycosylation in the cell. Prior studies have identified the HBP as a promising therapeutic target in pancreatic ductal adenocarcinoma (PDA). The HBP requires both glucose and glutamine for its initiation. The PDA tumor microenvironment is nutrient poor, however, prompting us to investigate how nutrient limitation impacts hexosamine synthesis. Here, we identify that glutamine limitation in PDA cells suppresses de novo hexosamine synthesis but results in increased free GlcNAc abundance. GlcNAc salvage via N-acetylglucosamine kinase (NAGK) is engaged to feed UDP-GlcNAc pools. NAGK expression is elevated in human PDA, and NAGK deletion from PDA cells impairs tumor growth in mice. Together, these data identify an important role for NAGK-dependent hexosamine salvage in supporting PDA tumor growth.

    1. Cancer Biology
    2. Computational and Systems Biology
    Alexander P Browning et al.
    Research Article

    Tumour spheroids are common in vitro experimental models of avascular tumour growth. Compared with traditional two-dimensional culture, tumour spheroids more closely mimic the avascular tumour microenvironment where spatial differences in nutrient availability strongly influence growth. We show that spheroids initiated using significantly different numbers of cells grow to similar limiting sizes, suggesting that avascular tumours have a limiting structure; in agreement with untested predictions of classical mathematical models of tumour spheroids. We develop a novel mathematical and statistical framework to study the structure of tumour spheroids seeded from cells transduced with fluorescent cell cycle indicators, enabling us to discriminate between arrested and cycling cells and identify an arrested region. Our analysis shows that transient spheroid structure is independent of initial spheroid size, and the limiting structure can be independent of seeding density. Standard experimental protocols compare spheroid size as a function of time; however, our analysis suggests that comparing spheroid structure as a function of overall size produces results that are relatively insensitive to variability in spheroid size. Our experimental observations are made using two melanoma cell lines, but our modelling framework applies across a wide range of spheroid culture conditions and cell lines.
