Vascular endothelial cells (vECs) in the brain exhibit structural and functional heterogeneity. Fenestrated, permeable brain vasculature mediates neuroendocrine function, body-fluid regulation, and neural immune responses; however, its vascular formation remains poorly understood. Here, we show that specific combinations of vascular endothelial growth factors (Vegfs) are required to selectively drive fenestrated vessel formation in the zebrafish myelencephalic choroid plexus (mCP). We found that the combined, but not individual, loss of Vegfab, Vegfc, and Vegfd causes severely impaired mCP vascularization with little effect on neighboring non-fenestrated brain vessel formation, demonstrating fenestrated-vEC-specific angiogenic requirements. This Vegfs-mediated vessel-selective patterning also involves Ccbe1. Expression analyses, cell-type-specific ablation, and paracrine activity-deficient vegfc mutant characterization suggest that vEC-autonomous Vegfc and meningeal fibroblast-derived Vegfab and Vegfd are critical for mCP vascularization. These results define molecular cues and cell types critical for directing fenestrated CP vascularization and indicate that vECs’ distinct molecular requirements for angiogenesis underlie brain vessel heterogeneity.
Cerebrovascular diseases remain a leading cause of long-term disability worldwide (Tong et al., 2019). Many of these diseases originate, at least in part, from genetic defects that impact the development and maturation of blood vessels in the brain and meninges. Understanding the molecular basis of brain and meningeal vascularization during development will help identify therapeutic targets for preventing or treating vascular abnormalities associated with these diseases. Current evidence shows that vascular endothelial cells (vECs) in the central nervous system (CNS) display heterogeneous structural and functional properties (Augustin and Koh, 2017; Mastorakos and McGavern, 2019; O'Brown et al., 2018). Two striking examples of this heterogeneity are the vECs that form the semipermeable blood-brain barrier (BBB) and those that develop highly permeable fenestrae. Despite substantial progress in our understanding of CNS angiogenesis and BBB formation/maintenance (Andreone et al., 2017; Ben-Zvi et al., 2014; Daneman et al., 2009; Haigh et al., 2003; Junge et al., 2009; Kuhnert et al., 2010; Liebner et al., 2008; Raab et al., 2004; Segarra et al., 2018; Stenman et al., 2008; Vanhollebeke et al., 2015; Wang et al., 2018; Ye et al., 2009), little is known about the molecular mechanisms directing fenestrated vessel formation in the choroid plexus (CP) and circumventricular organs. Identification of molecular cues that govern the vascularization of these organs will accelerate our understanding of cerebrovascular development and heterogeneity, providing critical insights into their pathological processes.
The CPs consist of epithelial tissue masses located within the brain ventricles and are vascularized with fenestrated capillaries that lack the BBB (Bill and Korzh, 2014; Cserr, 1971; Damkier et al., 2013; Liddelow, 2015). The CPs serve to produce cerebrospinal fluid (CSF) and remove metabolic wastes from the CNS (Bill and Korzh, 2014; Cserr, 1971; Damkier et al., 2013; Liddelow, 2015), thereby regulating the CNS microenvironment. They also serve as an important source of the biologically active molecules involved in brain development and repair (Ghersi-Egea et al., 2018), form the blood-CSF barrier (Bill and Korzh, 2014; Cserr, 1971; Damkier et al., 2013; Liddelow, 2015), provide immune surveillance, and regulate immune cell trafficking into the CSF in response to neuroinflammation and brain injury/disease (Lopes Pinheiro et al., 2015; Wilson et al., 2010). These CP’s crucial roles in brain development, homeostasis, and immunity are thought to require the establishment of fenestrated vasculature (Ghersi-Egea et al., 2018; Liddelow, 2015; Lopes Pinheiro et al., 2015). Although the morphogen Sonic hedgehog is indicated to be involved in vascular outgrowth during CP development (Nielsen and Dymecki, 2010), no molecular cue that drives fenestrated CP vascular development has been reported in any vertebrate species.
In mammals, CPs are located in the lateral, 3rd, and 4th ventricular brain surfaces (Liddelow, 2015). This limits tissue accessibility for 3D imaging, making it difficult to analyze the blood vessel(s) that gives rise to the CP vasculature in these animal models. Here, we employed the zebrafish model to overcome this technical limitation and investigate the molecular genetic mechanisms governing fenestrated CP vascular development.
In zebrafish, the CPs form in two distinct anatomical locations close to the dorsal surfaces of the brain meninges and are termed as the diencephalic and myelencephalic CP (dCP and mCP) (Figure 1A). The mCP is larger in size and thought to be equivalent to the 4th ventricle CP in mammals due to its anatomical location being in close proximity to the 4th ventricle and cerebellum in zebrafish (Bill and Korzh, 2014; García-Lecea et al., 2008; Henson et al., 2014). As previously reported (Henson et al., 2014), we validated that the Et(cp:EGFP) enhancer trap line marks only epithelial cells in the dCP and mCP at 5 days post fertilization (dpf) (Figure 1B) since the EGFP+ cells in the mCP were outlined by Claudin-5 tight junction protein expression, a marker for CP epithelial cells (Figure 1C). Moreover, mCP vasculature in zebrafish exhibits the following molecular signatures of fenestrated vessels (Umans et al., 2017; van Leeuwen et al., 2018): (1) high expression of the structural protein PLVAP, an endothelial marker for the high permeability state and (2) low expression of GLUT1 and Claudin5, endothelial markers for the BBB state (Figure 1D and Figure 1—figure supplement 1A). These observations suggest that the molecular signatures of CP epithelial and endothelial cells are well conserved between zebrafish and mammals. Importantly, our transmission electron microscopy analyses further revealed that CP epithelial cells of 10 dpf zebrafish larvae displayed anatomical features of their mammalian counterparts at the ultrastructural level, including tight junctions, microvilli, cilia, and desmosomes (Figure 1E–H’), providing additional evidences to support the notion of interspecies conservation and thus making the zebrafish model suitable for molecular genetics studies.

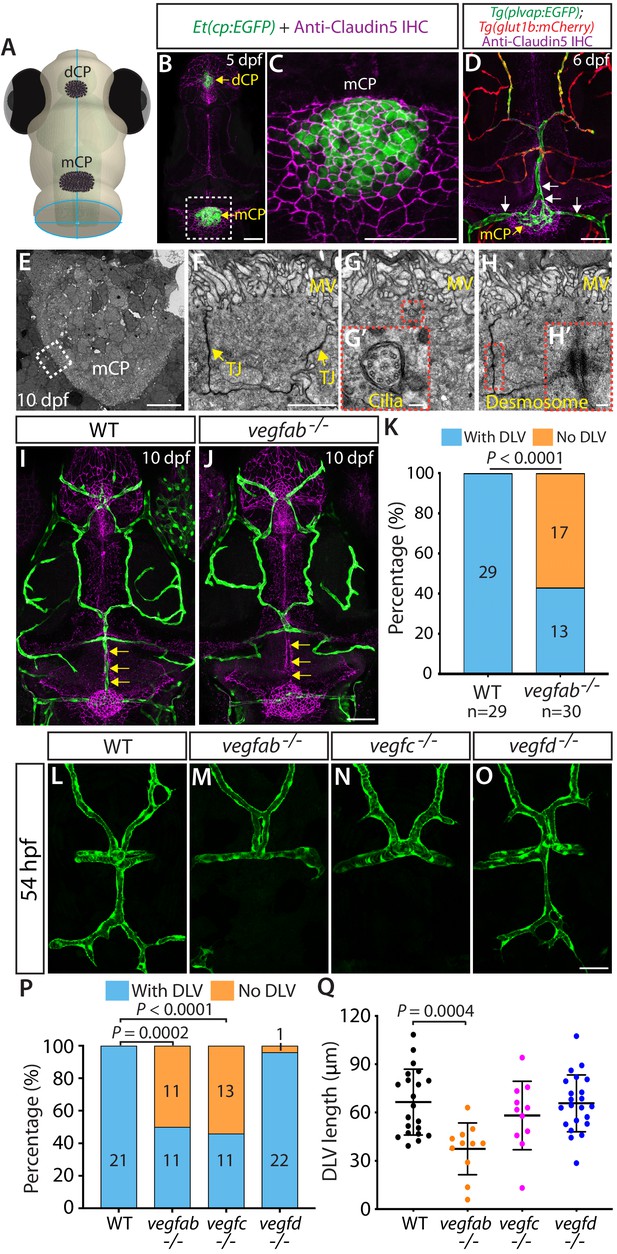

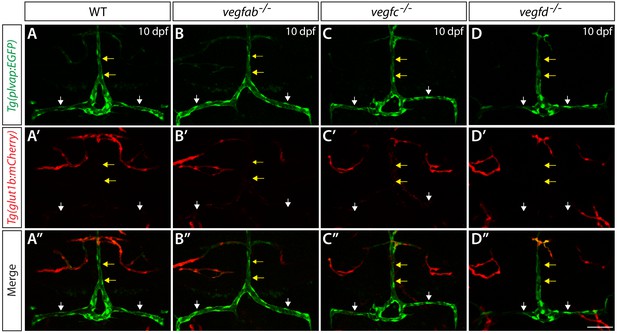

Close examination of 6 and 10 dpf Tg(plvap:EGFP);Tg(glut1b:mCherry) double transgenic (Tg) reporter fish allowed us to observe a molecularly heterogeneous network of brain and meningeal vasculature; (1) blood vessels exhibiting high levels of Tg(plvap:EGFP), but low levels of Tg(glut1b:mCherry), expression; (2) those exhibiting low levels of Tg(plvap:EGFP), but high levels of Tg(glut1b:mCherry), expression; and (3) those with medium levels of both Tg(plvap:EGFP) and Tg(glut1b:mCherry) expression (Figure 1D and Figure 1—figure supplement 1A). In addition to their heterogeneous expression at the transcriptional level, we also observed the heterogeneous Claudin-5 protein expression in these brain and meningeal vessels (Figure 1—figure supplement 1B–D’’). Intriguingly, these networks of brain vasculature are all interconnected, raising the question of how molecularly heterogeneous networks of brain vasculature arise during development.
In order to explore molecular cues that direct CP vascularization, we screened the loss-of-function mutant zebrafish lacking Vegf activity because VEGF signaling has been indicated to be crucial for the maintenance of CP vascular perfusion and fenestrae in adult mice (Kamba et al., 2006; Maharaj et al., 2008). Since vegfaabns1 mutants died at approximately 5 dpf due to severe early vascular formation defects (Rossi et al., 2016), we focused our analysis on the vegfabbns92, vegfchu6410, and vegfdbns257 mutants carrying a Tg(kdrl:EGFP) endothelial cell-specific reporter at 10 dpf – a developmental stage when most of the major blood vessels are formed (Isogai et al., 2001). Intriguingly, we found that nearly 57% of 10 dpf vegfab mutants lacked the dorsal longitudinal vein (DLV), a main blood vessel that supplies blood to the mCP (Bill and Korzh, 2014; Figure 1J and K), while all of the wild-type (WT) larvae, as well as a vast majority of the vegfc and vegfd mutants, examined at 10 dpf formed this vessel (Figure 1I and K; data not shown). Notably, while not fully penetrant in 10 dpf vegfab mutants, this vascular phenotype is prominent and specific to this vessel since most other brain and meningeal vessels formed (Figure 1I and J).
To determine whether this DLV defect in vegfab mutants is a developmental or maintenance deficit, we conducted their phenotypic analyses at various developmental stages. As previously indicated (Bill and Korzh, 2014), we observed that (1) initial DLV sprouting occurs around 45 hours post fertilization (hpf); (2) the sprouting DLV extends toward the mCP and branches to begin joining the bilateral posterior cerebral vein (PCeV) around 54 hpf; and (3) the DLV and bilateral PCeV converge to form the mCP vasculature, which is nearly complete by 72 hpf (Figure 1—figure supplement 1E–I). To assess DLV formation in mutants, we used two different measurements. The first quantified the percentage of fish that lacked the DLV. The second measured the length of the DLV in all remaining fish that formed the DLV. At 54 hpf, while all the WT embryos formed the DLV (Figure 1L), we found that approximately 50% of vegfab and vegfc mutants lacked the DLV (Figure 1M,N,P). Most vegfd mutants formed the DLV (Figure 1O,P), and only 4% showed the ‘No DLV’ phenotype. We also found that DLV lengths were significantly shorter in vegfab mutants than in WT (Figure 1Q). While vegfc mutants displayed a lower percentage of the ‘No DLV’ phenotype as development proceeded at 102 and 154 hpf (41% and 12%), we observed that nearly 50–60% of vegfab mutants continue to exhibit this phenotype (Figure 1—figure supplement 2A–F). Microangiography analysis of the circulatory system by injecting Qdot 655 streptavidin conjugated nanocrystals into the common cardinal vein of vegfab mutants revealed the absence of a perfused, functional DLV in the mutants that lack the Tg(kdrl:EGFP) endothelial reporter expression in this vessel (Figure 1—figure supplement 2G–H’’). Moreover, under transmitted differential interference contrast imaging, these vegfab mutants displayed no blood flow or circulating blood cells in the region where the DLV normally forms (data not shown). These results showed that the ‘No DLV’ phenotype is a developmental defect leading to the complete absence of a perfused DLV and that Vegfab and Vegfc are crucial for DLV formation.
Consistent with these mutant results, we found that the heat-shock induced overexpression of a soluble form of Flt1 and Flt4 (sFlt1 and sFlt4), decoy receptors for Vegfa and Vegfc, respectively, partially recapitulated the DLV formation defects observed in vegfab and vegfc mutants (Figure 1—figure supplement 3). In this experiment, we utilized the Tg(hsp70l:sflt1) and Tg(hsp70l:sflt4) lines which, upon a heat-shock treatment, over-express sFlt1 and sFlt4 respectively, allowing for the inhibition of Vegfa- or Vegfc-induced signaling within limited timeframes (Matsuoka et al., 2016; Matsuoka et al., 2017). To ensure that overexpression of sFlt1 or sFlt4 begins prior to the onset of DLV sprouting and is maintained afterwards until imaging analysis, we gave fish multiple heat-shocks every 8 hr starting at 41 hpf. We found that while the heat-shocked Tg(hsp70l:sflt1) larvae did not display significantly higher penetrance of the ‘No DLV’ phenotype (21%) than that of non-heat-shocked (0%) and heat-shocked (10%) control fish (Figure 1—figure supplement 3H), DLV lengths were significantly shorter in the rest of the Tg(hsp70l:sflt1) larvae that formed the DLV (Figure 1—figure supplement 3J), partially phenocopying vegfab mutant DLV phenotypes (Figure 1P,Q). In addition, we also observed a significantly higher percentage of the ‘No DLV’ phenotype (33%) in Tg(hsp70l:sflt4) larvae after the same heat-shock treatments (Figure 1—figure supplement 3I), although the rest of the Tg(hsp70l:sflt4) larvae formed a DLV of comparable lengths to those observed in control animals (Figure 1—figure supplement 3K), which is consistent with vegfc mutant DLV phenotypes (Figure 1P,Q). These results suggest that temporally restricted inhibition of Vegfab- or Vegfc-dependent signaling during DLV formation is sufficient to abrogate this process.
The partially penetrant ‘No DLV’ phenotype observed in vegfab and vegfc mutants led us to hypothesize that Vegfab and Vegfc are functionally redundant in regulating this vascular process. To test this hypothesis, we set up incrosses of vegfab;vegfc double heterozygous adults and analyzed DLV formation in all progeny generated from these crosses (Figure 2A). We chose to analyze larvae at 96 hpf to minimize the effects of potential developmental delays in vegfab;vegfc double mutants. These analyses revealed that vegfab;vegfc double homozygous mutants displayed markedly enhanced penetrance and expressivity of mCP vascularization defects. Nearly 81% of vegfab-/-;vegfc-/- larvae exhibited the ‘No DLV’ phenotype at 96 hpf (Figure 2D–F). This penetrance is significantly higher than their vegfab-/- (38%) and vegfc-/- (16%) siblings (Figure 2F). Moreover, we found that vegfab+/-;vegfc+/- larvae exhibited approximately threefold higher penetrance of this phenotype (22%) than their sibling vegfab+/- (7%) and vegfc+/- (8%) fish (Figure 2F). These results showed that vegfab and vegfc genetically interact in DLV formation.
It is possible that impaired DLV formation is caused by the defective formation of the neighboring blood vessels that give rise to the DLV. To address this possibility, we analyzed three of the DLV’s neighboring blood vessels (Figure 2B), including the PCeV, middle cerebral veins (MCeV), and mesencephalic veins (MsV). Importantly, the MCeV and MsV exhibit molecular signatures shared by non-fenestrated vasculature (Figures 1D and 2C, Figure 1—figure supplement 1A–C’’), while the PCeV displays those of fenestrated vessels (Figures 1D and 2C’ and Figure 1—figure supplement 1A–D’’; Umans et al., 2017; van Leeuwen et al., 2018). Intriguingly, we found that PCeV formation defects were markedly enhanced in vegfab;vegfc double mutants when compared to their respective single mutants, while this was not the case with the formation of the MCeV and MsV (Figure 2G). These results indicate that the redundant actions of Vegfab/Vegfc differentially regulate the formation of the brain blood vessels that exhibit distinct molecular signatures.

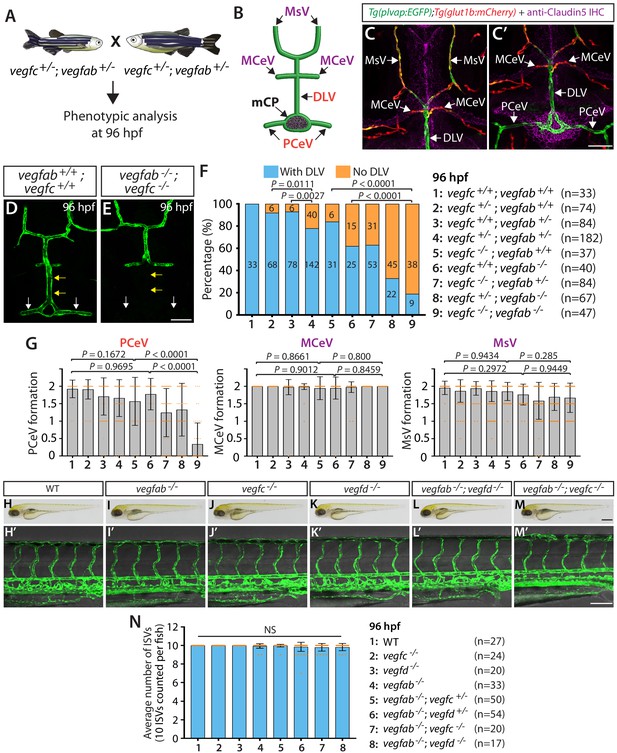

To investigate whether Vegfab/Vegfc-dependent angiogenesis is central to DLV and PCeV formation, we examined vegfab;vegfd double homozygous mutants at 96 hpf for comparison (Figure 2—figure supplement 1). Surprisingly, despite the fact that vegfd mutants alone did not exhibit a significant increase in the ‘No DLV’ phenotype (12.5%) compared to the WT larvae of the same age (0%) (Figure 2F and Figure 2—figure supplement 1B), genetic deletion of one or both copies of vegfd in the vegfab mutant background dramatically increased the penetrance of this phenotype (88% for vegfab-/-;vegfd+/- larvae; 97% for vegfab-/-;vegfd-/- larvae) compared to that observed in their vegfab-/- siblings (69%) (Figure 2—figure supplement 1B). We found that vegfab-/-;vegfd-/- larvae also exhibited a pronounced defect in PCeV formation at 96 hpf, while only a mild defect in MsV, but not MCeV, formation was observed at this age (Figure 2—figure supplement 1C). It is important to note that vegfab-/-;vegfd-/- and vegfab-/-;vegfc-/- larvae did not exhibit apparent differences in body size and/or gross morphology (Figure 2H–M).
Remarkably, the severe DLV and PCeV formation defects in vegfab-/-;vegfc-/- and vegfab-/-;vegfd-/- larvae were observed even at 10 dpf (Figure 3C,D). The results showed a tendency toward slightly lower penetrance of the ‘No DLV’ phenotype across genotypes at 10 dpf (Figure 3F) as compared to those at 96 hpf (Figure 2F and Figure 2—figure supplement 1B). This tendency may indicate that some of the larvae can recover from the lack of the DLV between 4 and 10 dpf. Nonetheless, 10 dpf vegfab-/-;vegfc-/- and vegfab-/-;vegfd-/- larvae showed markedly higher penetrance of this phenotype (65% and 76%, respectively) relative to their vegfab-/- siblings (38%) (Figure 3F). Similarly, we observed severe defects in PCeV formation in vegfab-/-;vegfc-/- and vegfab-/-;vegfd-/- larvae, although none of the vegfab, vegfc, and vegfd single mutant fish examined at this stage showed this defect when compared to WT fish (Figure 3G). vegfab-/-;vegfc-/- and vegfab-/-;vegfd-/- larvae displayed mild defects in MsV formation when compared to WT fish; however, no significant differences in MCeV and MsV formation were observed in these double mutants compared to vegfab-/- fish (Figure 3G). These results demonstrate that vegfab genetically interacts with vegfc and vegfd specifically in DLV and PCeV formation around this area of the brain.
To test whether vegfc and vegfd genetically interact in mCP vascularization, we examined vegfc-/-;vegfd-/- larvae at 10 dpf for comparison. These double mutants exhibited slightly increased ‘No DLV’ phenotype (16%) when compared to WT fish (0%), but did not show significantly enhanced penetrance when compared to vegfd-/- larvae (9%) (Figure 3F). Moreover, most of the vegfc-/-;vegfd-/- larvae examined formed the mCP and neighboring vasculature and did not display a significant difference in PCeV formation when compared to WT fish (Figure 3B,F,G). These results demonstrate that the genetic elimination of only the specific pairs of vegf genes has a profound impact on mCP vascularization and indicate that Vegfc and Vegfd play modulatory roles in regulating this process.
Since vegfab-/-;vegfc-/- and vegfab-/-;vegfd-/- larvae did not display a fully penetrant ‘No DLV’ phenotype, we next analyzed vegfab;vegfc;vegfd triple mutants at 10 dpf. We found that all the triple mutants examined (n = 16) lacked the DLV as well as the PCeV, except for one larva (Figure 3E–G), demonstrating significantly enhanced penetrance of these phenotypes when compared to vegfab-/- fish. However, this was not the case with MCeV and MsV formation. These extensive genetic analyses provide evidence that the functional redundancy among these three Vegf ligands selectively directs fenestrated DLV and PCeV formation leading to mCP vascularization (Figure 3H).
Prior studies have shown that Ccbe1, Adamts3, and Adamts14 serve to proteolytically cleave and convert the pro-active form of Vegfc into its mature form during lymphangiogenesis in zebrafish (Hogan et al., 2009; Le Guen et al., 2014; Wang et al., 2020). Among these three proteins, ccbe1 appears to be highly expressed in the developing brain and meningeal compartments based on its BAC transgenic reporter expression at 48 hpf (Wang et al., 2020), while adamts3 BAC transgenic reporter expression appear to be very low at the same stage. Since 48 hpf is a developmental time point when the DLV is extending toward the mCP, ccbe1 could be a strong candidate that acts to activate Vegfc in this area of the brain.

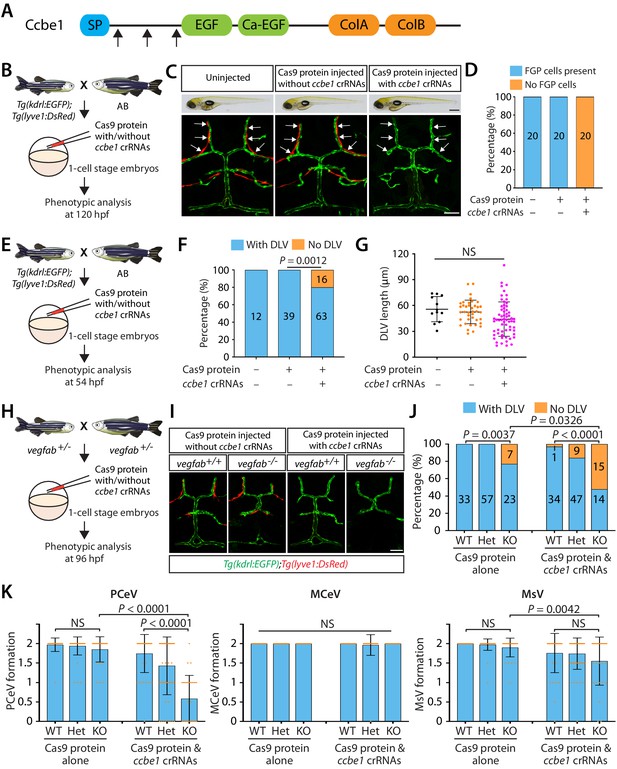

To investigate a role for Ccbe1 in mCP vascularization, we took the approach of injecting ribonucleoprotein (RNP) complexes that are composed of ccbe1-specific CRISPR RNA (crRNA), trans-activating crRNA (tracrRNA), and Cas9 protein. This approach using crRNA:tracrRNA:Cas9 protein RNP complexes was previously shown to be a highly efficient method to achieve bi-allelic inactivation of target genes when injected at the one-cell stage, which allows for the generation of F0 embryos that recapitulate homozygous mutant phenotypes (Hoshijima et al., 2019). We tested this method and observed that simultaneous injection of three different crRNA RNP complexes targeted to a single gene works in a much more efficient manner to generate F0 embryos that lack target gene function and recapitulate homozygous mutant phenotypes (data not shown). Since it has been indicated that Ccbe1’s full lymphangiogenic activity in vivo requires its EGF and collagen domains (Roukens et al., 2015), we designed three different crRNAs, all of which targeted the exons that encode the N-terminal domain of the Ccbe1 protein-coding sequences prior to the EGF domain (Figure 4A). Each of the designed crRNAs is thus expected to disrupt the function of Ccbe1 that is exerted through its EGF and collagen domains.
We first validated the efficacy of this triple crRNA RNP complex injection by examining the formation of fluorescent granular perithelial cells (FGPs) – also called Mato cells (Venero Galanternik et al., 2017), meningeal mural Lymphatic Endothelial Cells (muLECs) (Bower et al., 2017), or Brain Lymphatic Endothelial cells (BLECs) (van Lessen et al., 2017) – in the dorsal surfaces of the brain meninges (Figure 4B–D). We refer to this cell type as FGPs hereafter. We chose to analyze FGP formation because ccbe1 mutants exhibit a severe defect in this process as shown in vegfc null mutants (van Lessen et al., 2017). To visualize FGPs, we used a Tg(lyve1:DsRed) reporter transgenic line. We observed that while all the uninjected and control Cas9 protein-injected Tg(kdrl:EGFP);Tg(lyve1:DsRed) larvae formed a bilateral loop of Tg(lyve1:DsRed)+ FGPs in the dorsal surfaces of the brain meninges at 120 hpf, all the triple crRNA-injected larvae we examined completely lacked these FGP cells (Figure 4C,D). These control and crRNA-injected larvae did not display apparent differences in their gross morphology (Figure 4C, brightfield panels). Given the fact that a vast majority of 5 dpf ccbe1 heterozygous larvae form meningeal FGPs similar to WT fish (van Lessen et al., 2017), we validated that this approach efficiently achieves bi-allelic genetic inactivation of ccbe1.
We hypothesized that if Vegfc requires Ccbe1-mediated proteolytic activation, these triple crRNA injected embryos will lack Vegfc activation, thus recapitulating vegfc null mutant phenotypes. To test this hypothesis, we first analyzed DLV formation in the triple crRNA injected embryos at 54 hpf (Figure 4E), a developmental time point at which nearly 54% of vegfc mutants exhibited the ‘No DLV’ phenotype (Figure 1P). We found that approximately 20% of the triple crRNA-injected embryos displayed the ‘No DLV’ phenotype, while uninjected and control Cas9 protein-injected siblings all formed the DLV (Figure 4F). Similar to vegfc mutants examined at this developmental stage, the rest of the crRNA-injected embryos that formed the DLV did not exhibit DLV lengths shorter than those of the controls (Figure 4G).
Since vegfab and vegfc genetically interact in mCP vascular development, we next asked whether vegfab and ccbe1 also genetically interact in this process. To achieve combined genetic inactivation of vegfab and ccbe1, we injected the triple crRNA RNPs into one-cell stage embryos generated from vegfab+/- incrosses (Figure 4H). We injected a solution containing Cas9 protein without the crRNA into their sibling embryos for comparison. We analyzed these injected larvae at 96 hpf to compare with the data of the larvae generated from vegfab;vegfc double heterozygous fish incrosses (Figure 2A–G). We simultaneously visualized Tg(kdrl:EGFP) and Tg(lyve1:DsRed) expression to analyze the formation of blood vessels and FGPs in every injected embryo. At 96 hpf, Tg(lyve1:DsRed)+ FGPs were present in the control solution injected larvae regardless of their vegfab genotypes, while those injected with the ccbe1 RNPs completely lacked these cells (Figure 4I), showing that the ccbe1 RNPs-injected larvae subjected to this analysis also received effective gene inactivation of ccbe1. Intriguingly, similar to what we observed in vegfab-/-;vegfc-/- larvae, we found that vegfab-/- larvae injected with the ccbe1 RNPs exhibit a markedly increased penetrance of the ‘No DLV’ phenotype (52%) as compared to their vegfab-/- siblings injected with the control solution (23%) or the ccbe1 RNPs-injected vegfab+/+ siblings (3%) (Figure 4J). Strikingly enhanced defects were also observed in PCeV formation in the ccbe1 RNPs-injected vegfab-/- larvae, while this was not the case for MCeV and MsV formation (Figure 4K). These results show genetic interactions between vegfab and ccbe1 in DLV and PCeV formation, identifying Ccbe1 as an important molecular player involved in the Vegfab/Vegfc/Vegfd-dependent angiogenesis leading to mCP vascularization.
A previous study indicates that zebrafish FGPs regulate angiogenesis in the brain meningeal compartment (Bower et al., 2017). Since the DLV and PCeV develop in close proximity to the dorsal surfaces of the brain meninges, we examined developmental relationships between FGPs and mCP vasculature (Figure 3—figure supplement 1). To assess a role for FGPs in mCP vascular development, we analyzed vegfc-/-;vegfd-/- larvae at 120 hpf since FGPs require Vegfc/Vegfd signaling to migrate to the optic tectum by this stage (Bower et al., 2017; van Lessen et al., 2017; Venero Galanternik et al., 2017). To assess a role for mCP vasculature in FGP development, we analyzed 120 hpf vegfab-/- larvae which lacked the DLV. We found that the vegfab-/- fish lacking the DLV all formed FGPs similarly to their WT sibling controls, while vegfc-/-;vegfd-/- larvae, which lacked FGPs, formed the DLV and PCeV (Figure 3—figure supplement 1). Consistent with these vegfc-/-;vegfd-/- results, the ccbe1 RNPs-injected larvae completely lacked FGPs, but formed the DLV and PCeV, at 120 hpf (Figure 4C,D). These observations demonstrate that the formation of FGPs and mCP vasculature is an independent developmental process. The recently discovered intracranial lymphatic vessels in zebrafish begin to form at much later stages of development (9–10 dpf) (Castranova et al., 2021), thus mCP vascularization processes should not be affected by these intracranial lymphatics.
To address the specificity and requirements for Vegfab/Vegfc- and Vegfab/Vegfd-dependent angiogenic signaling in the formation of other vascular beds, we examined intersegmental vessel (ISV) formation in the trunk of these double mutants at 96 hpf (Figure 2H’–M’). We chose 96 hpf for this analysis because ISV formation is complete before 72 hpf (Isogai et al., 2001), and this was the developmental stage at which we noted severe defects in DLV and PCeV formation in these mutants (Figure 2F,G). We observed no significant differences in the number of ISVs between WT and any of the single or double mutant groups (Figure 2N). These data provide further evidence that Vegfab/Vegfc- and Vegfab/Vegfd-dependent angiogenic signaling is specifically required to drive mCP vascularization.

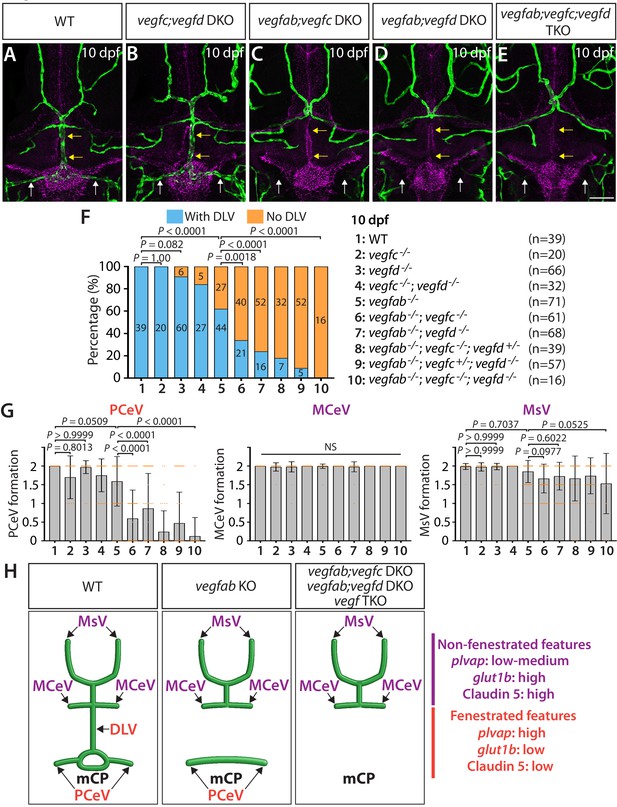

We next asked how genetic elimination of these Vegf ligands affects the fenestrated state of the mCP vasculature. To this end, we analyzed Tg(plvap:EGFP) and Tg(glut1b:mCherry) reporter expression in vegfab, vegfc, and vegfd single mutants (Figure 5). At 10 dpf, WT fish exhibited strong Tg(plvap:EGFP) and faint Tg(glut1b:mCherry) reporter expression in the mCP vasculature, including in the DLV and PCeV (Figure 5A–A”). We observed that none of these single mutants displayed an obvious difference in the expression patterns of Tg(plvap:EGFP) and Tg(glut1b:mCherry) reporters in these vessels (Figure 5B–D”) as compared to WT fish, suggesting that the single mutants that formed the DLV and PCeV retain the fenestrated state of mCP vasculature.
Next, we examined Claudin-5 BBB marker expression in vegfab, vegfc, and vegfd single mutants and in combined mutants. We expected that if a loss of either of these Vegf ligands leads to a conversion of the mCP vasculature from the fenestrated to the BBB state, increased Claudin-5 expression should be observed in these vessels. In 10 dpf WT fish, Claudin-5 immunoreactivity is prominent in mCP epithelial cells and weakly present in the tissues located ventrally to the DLV and PCeV but is barely detectable in the DLV and PCeV (Figure 5—figure supplement 1A–A’’). However, this low level of Claudin-5 expression in these vessels was not changed in the 10 dpf vegfab-/-, vegfab-/-;vegfc-/-, vegfab-/-;vegfd-/- and vegfc-/-;vegfd-/- larvae that formed these vessels (Figure 5—figure supplement 1B–D’’; data not shown). These results imply that the fenestrated endothelial state of the mCP vasculature is not altered in the absence of these Vegf ligands.
To determine cellular mechanisms governing mCP vascularization, we examined the expression patterns of vegfab, vegfc and vegfd. To achieve this aim at the single-cell resolution, we generated new BAC transgenic reporter lines, each of which drives the expression of Gal4FF under the control of a vegfab, vegfc, or vegfd promoter in a BAC. We crossed each of these lines with Tg(UAS:EGFP) fish, which carry an EGFP gene downstream of the upstream activating sequence (UAS). We validated these BAC transgenic lines by observing their EGFP expression domains, which closely matched respective mRNA expression patterns (Figure 6—figure supplement 1A–F’). Thus, these BAC transgenic tools reliably reflect the endogenous expression patterns of vegfab, vegfc, and vegfd.

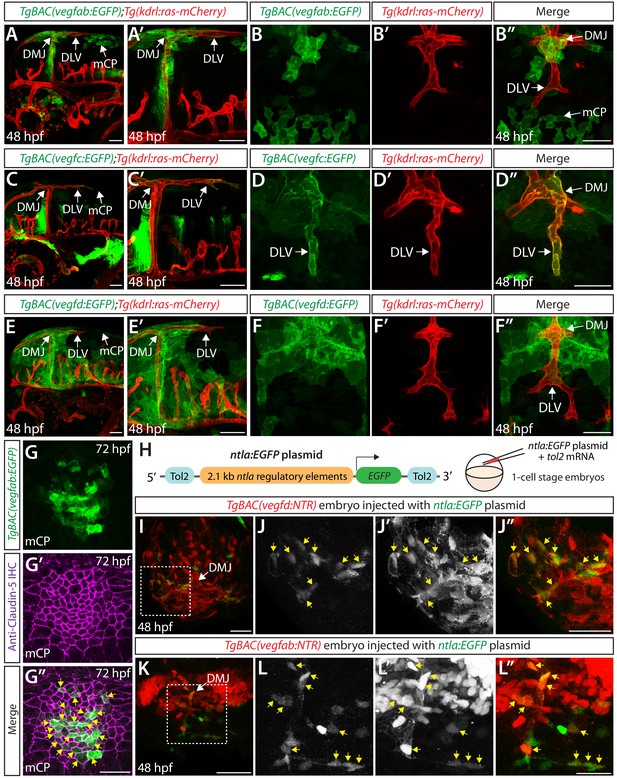

To analyze the morphology of individual cells labeled by these BAC lines, we crossed each of them with Tg(UAS:EGFP-CAAX) fish, which carry a membrane-bound EGFP gene downstream of UAS. These generated double Tg fish are abbreviated TgBAC(vegfab:EGFP), TgBAC(vegfc:EGFP), and TgBAC(vegfd:EGFP) and were crossed with the endothelial cell-specific Tg(kdrl:ras-mCherry) line for expression analyses.
During the developmental stages at which the DLV extends toward the mCP and branches to join the PCeV (48–72 hpf), we observed that vegfab and vegfc are expressed in multiple cell types along the DLV migratory route (Figure 6A–D” and Figure 6—figure supplement 1G–I, K, L). We identified two prominent regions of vegfab expression: (1) meningeal fibroblast-like cells near the dorsal midline junction (DMJ) where DLV sprouting initiates and (2) mCP cells where the DLV and PCeV join to form the mCP vasculature (Figure 6A–B” and Figure 6—figure supplement 1H,K,L). The latter’s reporter expression marked Claudin-5+ mCP epithelial cells at 72 hpf (Figure 6G–G”). We observed vegfc expression in (1) meningeal fibroblast-like cells near the DMJ and (2) in the migrating vECs, including the growing tip and trailing cells, which comprise the DLV (Figure 6C–D” and Figure 6—figure supplement 1I). We also observed strong vegfd expression restricted to meningeal fibroblast-like cells at the DMJ and other regions, most of which are located anterior to growing DLV tip cells (Figure 6E–F” and Figure 6—figure supplement 1J). These observations suggest that Vegfab and Vegfd control mCP vascular formation via paracrine mechanisms, while Vegfc acts as a paracrine and/or autocrine factor to regulate this process.
Since our vegfab, vegfc, and vegfd expression analyses revealed their distinct and partially overlapping expression patterns, we investigated whether the deleterious mutations leading to a loss of Vegfab, Vegfc, or Vegfd functional proteins trigger transcriptional adaptation responses, a mechanism of genetic compensation that leads to the transcriptional modulation of related genes (El-Brolosy et al., 2019; Sztal and Stainier, 2020). For this purpose, we utilized the TgBAC(vegfc:EGFP) and TgBAC(vegfd:EGFP) lines to compare their expression patterns between vegfab+/+ and vegfab-/- embryos generated from vegfab+/- incrosses (Figure 6—figure supplement 2). We analyzed these embryos at 48 or 54 hpf – the developmental stages at which the DLV and PCeV are forming. We also compared the expression patterns of vegfab-/- embryos that exhibited the presence, or absence, of the DLV. However, we did not find any obvious difference in TgBAC(vegfc:EGFP) and TgBAC(vegfd:EGFP) expression patterns between any of the vegfab genotypes and also between the vegfab-/- embryos that displayed the presence, or absence, of the DLV (Figure 6—figure supplement 2). These observations indicate that although Vegfab, Vegfc, and Vegfd are functionally redundant in driving mCP vascularization, transcriptional adaptation may not be involved in this redundancy or mutations in only one of these vegf genes may not be sufficient to trigger transcriptional adaptation responses at the stages of mCP vessel development.
To determine the role of Vegfc as a paracrine and/or autocrine factor, we analyzed the separate vegfc mutation, vegfcum18, which was previously isolated from a forward genetic screen (Villefranc et al., 2013). This particular mutation was shown to generate a prematurely truncated Vegfc protein that lacks efficient secretory and paracrine activity but retains the ability to activate its Flt4 receptor (in another words, cell-autonomous activity of Vegfc is retained) (Villefranc et al., 2013). Interestingly, we found that the homozygous embryos harboring this particular mutation did not exhibit a defect in DLV formation at 54 hpf (Figure 7A–D). This result is in contrast with that observed in the homozygous embryos of the same age that carry the vegfchu6410 mutation which causes the early truncation of the Vegfc protein and leads to a deficiency in both paracrine and autocrine activities, resulting in the ‘No DLV’ phenotype (Figure 1N,P). These findings suggest that vEC-autonomous Vegfc function is important for DLV formation.
Since we found that vegfab, vegfc, and vegfd are all expressed in meningeal fibroblast-like cells, we next sought to address the contribution of this cell type to mCP vascularization. Meningeal fibroblasts were previously shown to derive from both neural crest cells and the mesoderm (Siegenthaler and Pleasure, 2011). To determine the identity of the meningeal fibroblast-like cells, we used the Tg(sox10:EGFP) line, which labels the cells derived from the neural crest. For this purpose, we crossed each of the BAC Tg lines with Tg(UAS:NTR-mCherry) fish, which carry a Nitroreductase-mCherry (NTR-mCherry) fusion gene downstream of UAS. These resulting double Tg fish are abbreviated TgBAC(vegfab:NTR), TgBAC(vegfc:NTR), and TgBAC(vegfd:NTR). We found that a vast majority (over 96%) of the NTR-mCherry expression driven by each of the BAC lines did not co-localize with the Tg(sox10:EGFP) expression in the dorsal surfaces of the meninges, including at the DMJ at 48 hpf (Figure 6—figure supplement 3). However, we noted that the Tg(sox10:EGFP)+ cells and NTR-mCherry+ fibroblast-like cells marked by each of these BAC lines were present in the meninges in an intermingled manner as observed in mesoderm-specific Tg(ntla:Gal4);Tg(Kaede) embryos crossed with the Tg(sox10:mRFP) neural crest line (Figure 6—figure supplement 3A–A’’), suggesting that the meningeal fibroblast-like cells are likely meningeal fibroblasts of mesodermal origin.
Immune cells, including macrophages and neutrophils, are also known to reside in brain meningeal compartments; however, we observed that meningeal Tg(mpeg1.1:Dendra2)+ macrophages were not co-localized with the NTR-mCherry+ cells marked by each of the BAC lines (Figure 6—figure supplement 4) and that Tg(lyz:EGFP)+ neutrophils do not reside in the dorsal surfaces of the brain meninges at 48 hpf, including in the regions near the DMJ and mCP (data not shown).
To investigate whether mesoderm-derived meningeal fibroblasts are a Vegfs-expressing cell type, we engineered a plasmid in which EGFP expression is driven under the control of the putative zebrafish ntla promoter, the 2.1 kb regulatory elements used previously to generate the Tg(ntla:Gal4) line (Figure 6H; Harvey et al., 2010; Lee et al., 2013). When we injected this plasmid at the one-cell stage, we observed sparsely labeled EGFP+ cells in the dorsal brain meninges that were mostly co-localized (over 82%) with the NTR-mCherry+ cells in Tg(ntla:Gal4);Tg(UAS:NTR-mCherry) embryos (Figure 6—figure supplement 5B–C’’). Thus, this plasmid injection can reliably label mesoderm-derived cell lineages, including meningeal fibroblasts and vECs, in a mosaic fashion. Next, we injected the same plasmid into TgBAC(vegfab:NTR), TgBAC(vegfc:NTR), or TgBAC(vegfd:NTR) one-cell stage embryos. We observed that the NTR-mCherry+ cells marked by each of the BAC lines were also co-localized with the EGFP+ cells in the meninges, including in the region near the DMJ (Figure 6I–L” and Figure 6—figure supplement 5D–E’’). Moreover, we observed close similarities in cell morphology between the meningeal cells marked by TgBAC(vegfd:EGFP), TgBAC(vegfab:EGFP), and the Tg(ntla:Gal4) embryos carrying the Tg(UAS:EGFP-CAAX) transgene (Figure 6—figure supplement 5F–H). These results provide evidence that mesoderm-derived meningeal fibroblasts are a source of these Vegf ligands in the dorsal meningeal compartments of the brain.

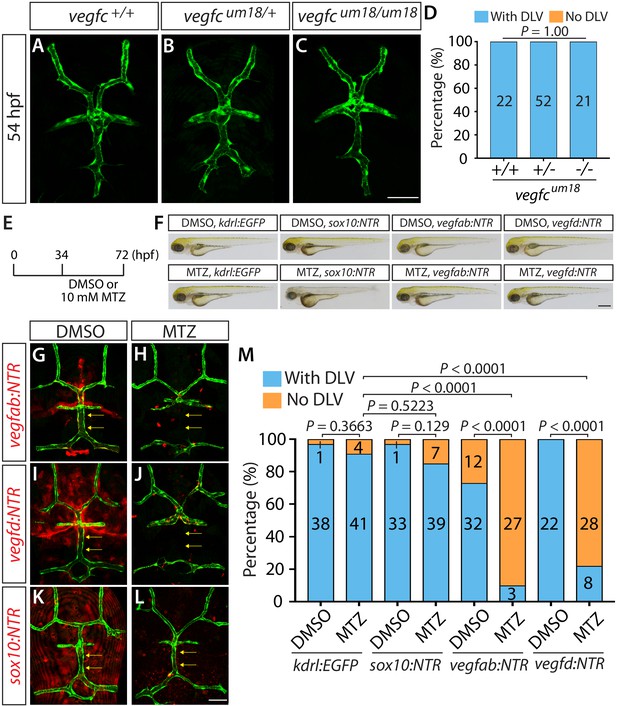

To determine the function of the meningeal fibroblasts labeled by vegfab and vegfd BAC reporter expression, we eliminated these cell types using an established chemogenetic ablation approach in zebrafish that utilizes the bacterial enzyme Nitroreductase (NTR) to induce apoptotic cell death upon administration of its substrate prodrug metronidazole (MTZ) (Curado et al., 2007). This approach allows target cell ablation in a spatiotemporally controlled manner. Since a vast majority of the meningeal fibroblast-like cells labeled by these BAC Tg lines were negative for Tg(sox10:EGFP) expression, we generated Tg(sox10:gal4VP-16);Tg(UAS:NTR-mCherry), abbreviated Tg(sox10:NTR), animals to ablate neural crest-derived meningeal fibroblasts for comparison. To minimize toxic effects of cell ablation during early embryogenesis, we began treating TgBAC(vegfab:NTR), TgBAC(vegfd:NTR), and Tg(sox10:NTR) embryos with 10 mM MTZ starting at 34 hpf and analyzed them at 72 hpf (Figure 7E, F). We also treated Tg(kdrl:EGFP) embryos with 10 mM MTZ or DMSO as controls to assess the effect of MTZ treatment itself on DLV formation. We validated that these NTR lines and the time course we employed induced the efficient ablation of target cells upon MTZ administration (Figure 7G–L). We observed that the MTZ-treated Tg(kdrl:EGFP) and Tg(sox10:NTR) larvae did not show any significant difference in the percentage of the ‘No DLV’ phenotype (9% and 15%, respectively) when compared to their respective DMSO-treated groups (3% and 3%, respectively) (Figure 7M). However, we found that the MTZ-treated TgBAC(vegfab:NTR) and TgBAC(vegfd:NTR) larvae exhibited a pronounced increase in this phenotype (90% and 78%, respectively) when compared to their corresponding DMSO-treated groups (27% and 0%, respectively) as well as the MTZ-treated Tg(kdrl:EGFP) group (9%) (Figure 7M). Given our observations that vegfab BAC reporter expression marked mesoderm-derived meningeal fibroblasts and mCP epithelial cells while vegfd BAC reporter expression marked only mesoderm-derived meningeal fibroblasts around the DMJ and mCP regions (Figure 6A, B”, E and F”), these findings suggest that mesoderm-derived meningeal fibroblasts are an important source of these Vegf ligands necessary for DLV formation. Notably, these results also suggest that neural crest-derived meningeal fibroblasts are not crucial for this process, indicating that meningeal fibroblasts of distinct origins differentially contribute to mCP vascularization.

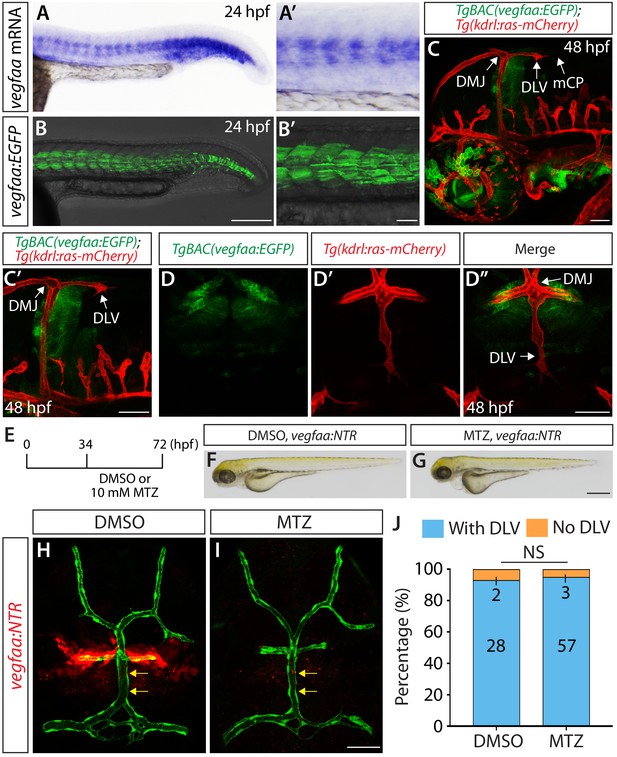

Since Vegfaa plays a key role in angiogenesis during early embryogenesis in zebrafish (Rossi et al., 2016), we next asked what role Vegfaa plays in mCP vascular development. vegfaa mutants are known to exhibit severe early vascular defects (Rossi et al., 2016), which makes it difficult to precisely assess a role for Vegfaa in angiogenesis at later developmental stages. To overcome this technical limitation, we generated a new BAC transgenic reporter line, TgBAC(vegfaa:gal4ff), which drives the expression of Gal4FF under the control of a vegfaa promoter in a BAC. By crossing this line with Tg(UAS:EGFP) fish, we were able to observe that the EGFP expression domains driven by this BAC transgenic line closely matched the endogenous mRNA expression patterns of vegfaa (Figure 8A–B’). Thus, this BAC transgenic tool reliably reflects the endogenous expression patterns of vegfaa.
We next generated TgBAC(vegfaa:gal4ff);Tg(UAS:EGFP-CAAX) fish, abbreviated TgBAC(vegfaa:EGFP), to examine vegfaa expression patterns at the single-cell resolution as we identified the cell types that express vegfab, vegfc, and vegfd using their BAC lines. Intriguingly, in contrast to the vegfab, vegfc, and vegfd BAC reporter expression, we did not observe EGFP+ meningeal fibroblast-like cells near the DMJ at 48 hpf in TgBAC(vegfaa:EGFP) embryos (Figure 8C–D”). TgBAC(vegfaa:EGFP)+ cells were present in the brain parenchyma ventral to the DMJ, but not in the dorsal meningeal compartments of the brain (Figure 8C–D”).
Next, we generated TgBAC(vegfaa:gal4ff);Tg(UAS:NTR-mCherry) fish, abbreviated TgBAC(vegfaa:NTR), to ablate Vegfaa-expressing cells in a temporally controlled manner, which allowed us to analyze potential Vegfaa function by minimizing early vascular defects caused by lack of Vegfaa function. To this end, we treated TgBAC(vegfaa:NTR) with 10 mM MTZ or DMSO from 34 to 72 hpf (Figure 8E) – exactly the same experimental time course we used to conduct the cell ablation shown in Figure 7E–M. Under this cell ablation condition, MTZ-treated TgBAC(vegfaa:NTR) fish developed a slight edema (Figure 8F,G); however, a vast majority of them (95%) formed the DLV and PCeV (Figure 8I,J) similarly to the DMSO-treated control siblings (93%) (Figure 8H,J). These expression and cell ablation results suggest that Vegfaa and Vegfaa-expressing cells are not involved in DLV and PCeV formation, supporting a model in which Vegfab/Vegfc/Vegfd redundant actions are central to this process.
Here, we provide the first evidence for molecular cues and cell types responsible for driving the development of fenestrated CP vasculature in vertebrates. The present study also provides the first ultrastructural information about a zebrafish larval CP and its epithelial cells, which illustrates the conservation of the CPs across vertebrate species at the ultrastructural level. By conducting thorough phenotypic characterization of single, double, and triple loss-of-function zebrafish vegf mutants, we demonstrate that the functional redundancy among Vegfab, Vegfc, and Vegfd is key to driving fenestrated mCP vessel development since the individual mutants exhibited only mild or no defects in mCP vascular development. Additionally, we provide evidence that ccbe1 and vegfab genetically interacts in mCP vascularization, identifying a novel role for Ccbe1 in cerebrovascular development, specifically in fenestrated CP vessel formation. Moreover, we identify cell types (vECs, mesoderm-derived meningeal fibroblasts, and mCP epithelial cells) that express vegfab, vegfc, and vegfd during mCP vascularization. These expression data combined with paracrine activity-deficient vegfcum18 mutant analysis and cell-type-specific chemogenetic cell ablation support a model in which endothelial-autonomous Vegfc and paracrine actions of Vegfab/Vegfd from mesoderm-derived meningeal fibroblasts are critical for DLV formation. Altogether, these findings define a developmental mechanism critical for the generation of brain vascular heterogeneity, specifically fenestrated blood vessels.
Previous studies have shown that Wnt ligands (Wnt7a, Wnt7b, Norrin) and their receptors act in a partially redundant manner to direct the patterning and maintenance of BBB vascular beds in distinct regions of the CNS (Cho et al., 2017; Wang et al., 2018; Zhou and Nathans, 2014; Zhou et al., 2014). Combined losses of the Norrin and Wnt7a/Wnt7b signaling components were shown to result in far more severe defects in BBB-forming vessel patterning and maintenance in specific areas of the brain than the defects caused by the individual loss of these components (Wang et al., 2018; Zhou and Nathans, 2014). These results suggest a model in which combinations of canonical Wnt ligands and receptors direct BBB-forming vascular bed development in a CNS region-specific manner. This model is further supported by the recent reports showing that β-catenin activation downstream of the canonical Wnt signaling is maintained at strikingly lower levels in the fenestrated vascular beds of the CPs and circumventricular organs than in BBB-forming vascular beds (Benz et al., 2019; Wang et al., 2019). However, these prior studies have raised an important question as to what molecular cues direct the development of the fenestrated vascular beds in the CPs and circumventricular organs.
Our findings here identify a mechanism whereby redundant Vegf ligands selectively drive fenestrated CP vascular formation in the zebrafish brain, filling this gap in our scientific knowledge and raising new questions: (1) Do these Vegfs control vessel fenestration similarly to the canonical Wnt/β-catenin signaling that regulates both vessel formation and specializations in BBB-forming vascular beds?; (2) Does fenestrated vascular bed formation in the dCP or circumventricular organs require the same or different combinations of Vegf ligands compared to those critical for fenestrated mCP vessel development?; (3) How are these multiple Vegf ligand-induced signals transmitted by their receptors and downstream signaling pathways?; (4) How do these Vegfs achieve fenestrated mCP vessel-selective patterning with little effect on neighboring non-fenestrated vasculature?; and (5) What are upstream developmental events that determine the spatiotemporally restricted Vegf expression patterns? Addressing these questions will help to further understand similarities and differences in vEC’s molecular requirements for angiogenesis leading to fenestrated and non-fenestrated brain vascular beds.
How do multiple Vegfs functionally interact in directing mCP vascularization? Our expression analyses showed that mesoderm-derived meningeal fibroblasts are a common cell type that expresses vegfab, vegfc, and vegfd during mCP vascularization. In particular, vegfd expression is predominantly restricted to this cell type during this process, and ablation of Vegfd-expressing cells led to severely compromised DLV formation. Intriguingly, ablation of neural crest-derived meningeal fibroblasts did not result in impaired DLV formation. This result is consistent with our observations of these vegfs’ expression restricted to mesoderm-derived, but not neural crest-derived, meningeal fibroblasts. We further found that vegfaa is not expressed in meningeal fibroblasts and that ablation of Vegfaa-expressing cells did not abrogate DLV formation. Collectively, these observations suggest that meningeal fibroblasts, specifically those derived from the mesoderm, are a key cell type which drives DLV formation and that the multiple Vegfs’ functional redundancy likely occurs at the cell-type level.
Transcriptional adaptation is a recently described phenomenon involved in genetic compensation by which a mutation in one gene leads to the transcriptional modulation of related genes (El-Brolosy et al., 2019; Sztal and Stainier, 2020). To ask whether transcriptional adaptation explains the Vegfs’ functional redundancy in this context, we examined vegfc and vegfd expression in vegfab mutants using their respective BAC transgenic lines. However, we did not find evidence of obvious changes in their expression patterns/levels in the dorsal surfaces of the brain meninges or in the regions near the DMJ and mCP, regardless of whether the vegfab mutants formed or failed to form the DLV. This result implies that functional redundancy among these Vegfs may not involve local transcriptional adaptation responses in these areas of the brain at the stage of DLV extension toward the mCP (48–54 hpf), although further investigations will be needed.
Ccbe1 is a highly conserved, secreted protein essential for proteolytic activation of Vegfc and lymphangiogenesis (Bos et al., 2011; Hogan et al., 2009; Le Guen et al., 2014). Intriguingly, combined genetic inactivation of vegfab and vegfc or vegfab and ccbe1 displayed similarly increased penetrance and expressivity of DLV and PCeV defects, indicating that Ccbe1 is involved in mCP vascular development possibly through proteolytic activation of Vegfc. It will be important to further define Ccbe1-expressing cell type(s) and Ccbe1-mediated angiogenic regulation during mCP vascularization. Addressing these issues may explain how local, proteolytic activation of Vegf ligands mediated by molecules such as Ccbe1 contributes to the Vegfs-directed mCP vessel-selective patterning.
Do mCP vessel formation and fenestration rely on the same molecular cues? The mCP vasculature develops via the convergence of the DLV and PCeV. These converged vessels all exhibit the shared molecular signatures of the fenestrated state and become a functionally integrated vascular network. Almost all the vegfab;vegfc;vegfd triple mutants we examined lacked this entire network of the fenestrated vasculature. Although there is a possibility that the primary deficits in these mutants are the DLV/PCeV formation defects and that the lack of mCP vascularization is secondary to them, it is evident that mCP vessel formation requires the Vegfs-dependent angiogenesis.
In contrast, our expression analyses of several BBB and fenestration molecular markers in the vegf single or double mutants did not reveal obvious changes in Claudin-5 protein expression or Tg(plvap:EGFP);Tg(glut1b:mCherry) reporter expression in these vessels. Given the fact that these analyses were feasible only for the mutants that formed the DLV and PCeV, it is possible that compensatory mechanisms which allow the development of these vessels in the vegf mutants also restore fenestration marker expression in these vessels. Alternatively, these results may indicate that the formation and fenestration of the mCP vasculature are governed by separate mechanisms. In light of the recent reports in the field (Anbalagan et al., 2018; Wang et al., 2019), we speculate that vessel fenestration in the CP may require combined actions of (1) endogenous inhibitor(s) of canonical Wnt/β-catenin signaling; (2) vascular permeability/inflammatory protein(s); and/or (3) signaling molecules inhibiting endothelial tight junction formation. These combined actions may allow vECs in the CP to (1) maintain low levels of Wnt/β-catenin signaling, (2) exhibit increased vascular permeability, and (3) form loose endothelial connections. Further investigations into these or alternative possibilities will address how mCP vessel fenestration is developed and maintained at the molecular levels.
In summary, defining the unique sets of angiogenic factors and their receptors required for the development and maintenance of each vascular bed within the CNS is fundamental in order to understand the pathophysiology, malformations, and diseases of the CNS vasculature. Given the broad range of pathophysiological processes regulated by Vegf signaling, our findings may provide insights into the underlying mechanisms involved in pathophysiological angiogenesis, vEC heterogeneity in other organs and tumors, as well as the clinical applications of angiogenic and anti-angiogenic therapy. Therefore, our elucidation of cellular and molecular events critical for fenestrated CP vascular development has general implications for understanding the establishment of organ-specific vascular beds and endothelial heterogeneity, in particular how fenestrated endothelial fate and its vessel formation are directed during development.
All zebrafish husbandry was performed under standard conditions in accordance with institutional and national ethical and animal welfare guidelines. All zebrafish work was approved by the Cleveland Clinic’s Institutional Animal Care and Use Committee under the protocol number 2018–1970. The following lines were used in this study: Tg(kdrl:EGFP)s843 (Jin et al., 2005); Tg(kdrl:Has.HRAS-mcherry)s896 (Chi et al., 2008), abbreviated Tg(kdrl:ras-mCherry); Tg(UAS:EGFP)nkuasgfp1a (Asakawa et al., 2008); Tg(UAS:EGFP-CAAX)m1230 (Fernandes et al., 2012); Tg(UAS-E1b:NfsB-mCherry)c264 (Davison et al., 2007), abbreviated Tg(UAS:NTR-mCherry); Tg(UAS:Kaede)rk8 (Hatta et al., 2006); Tg(hsp70l:sflt1, cryaa-cerulean)bns80 (Matsuoka et al., 2016), abbreviated Tg(hsp70l:sflt1); Tg(hsp70l:sflt4, cryaa-cerulean)bns82 (Matsuoka et al., 2016), abbreviated Tg(hsp70l:sflt4); Tg(−4.9sox10:EGFP)ba2 (Carney et al., 2006), abbreviated Tg(sox10:EGFP); Tg(sox10:mRFP)vu234 (Kucenas et al., 2008); Tg(sox10:Gal4-VP16)sq9 (Lee et al., 2013); Tg(ntla:Gal4-VP16)sq12 (Lee et al., 2013); TgBAC(vegfab:gal4ff)bns273 (Mullapudi et al., 2019); Tg(glut1b:mCherry)sj1 (Umans et al., 2017); Tg(plvapb:EGFP)sj3 (Umans et al., 2017), abbreviated Tg(plvap:EGFP); Et(cp:EGFP)sj2 (Henson et al., 2014); Tg(mpeg1.1:Dendra2)uwm12 (Harvie et al., 2013); Tg(lyz:EGFP)nz117 (Hall et al., 2007); Tg(lyve1:DsRed)nz101 (Okuda et al., 2012); vegfaabns1 (Rossi et al., 2016); vegfabbns92 (Rossi et al., 2016); vegfchu6410 (Helker et al., 2013); vegfcum18 (Villefranc et al., 2013); and vegfdbns257 (Gancz et al., 2019). Adult fish were maintained on a standard 14 hr light/10 hr dark daily cycle. Fish embryos/larvae were raised at 28.5°C. To prevent skin pigmentation, 0.003% phenylthiourea (PTU) was used beginning at 10–12 hpf for imaging. Fish larvae analyzed at 10 dpf were transferred to a tank containing approximately 250 mL water supplemented with 0.003% PTU (up to 25 larvae/tank) and fed with Larval AP100 (<50 microns dry diet, Zeigler) starting at 5 dpf.
The TgBAC(vegfc:gal4ff)bns270, TgBAC(vegfd:gal4ff)lri95, and TgBAC(vegfaa:gal4ff)lri96 fish lines were generated by following the standard BAC recombineering protocol described previously (Bussmann and Schulte-Merker, 2011). Briefly, BAC clones CH211-83E15, CH211-79O8, and CH211-37K5 (BACPAC Resource Center) were engineered to replace the vegfc, vegfd, and vegfaa start codon with gal4ff, respectively. The engineered constructs were injected into one-cell stage eggs together with transposase mRNA transcribed in vitro.
Genotyping of vegfdbns257 mutant fish was performed as previously described (Gancz et al., 2019). Genotyping of vegfaabns1 and vegfabbns92 mutant fish was performed by high-resolution melt analysis of PCR products using the following primers:
vegfaa bns1 forward: 5’- CGAGAGCTGCTGGTAGACATC −3’
vegfaa bns1 reverse: 5’- GGATGTACGTGTGCTCGATCT −3’
vegfab bns92 forward: 5’- GTGCTGGGTGCTGCAATG −3’
vegfab bns92 reverse: 5’- CCAAGGTAATGTTGTATGTGACG −3’
Genotyping of vegfchu6410 and vegfcum18 mutant fish was performed by standard PCR using the following primers:
vegfc hu6410 WT allele forward: 5’- CTTTCATCAATCTTGAACTTTT −3’
vegfc hu6410 WT allele reverse: 5’- AAACTCTTTCCCCACATCTA −3’
vegfc hu6410 mutant allele forward: 5’- GATGAACTCATGAGGATAGTTT −3’
vegfc hu6410 mutant allele reverse: 5’- TAAATTAATAGTCACTCACTTTACT −3’
vegfc um18 WT allele-specific forward: 5’- CTTCCTGCAGCTGTTTGTCAATAC −3’
vegfc um18 mutant allele-specific forward: 5’- CTTCCTGCAGCTGTTTGTCAATAT −3’
vegfc um18 common reverse: 5’- GCAACAATAAGGTGTTCCATTCGTG −3’.
A CFX96 Touch Real-Time PCR Detection System (Bio-Rad) was used for the PCR reactions and high-resolution melt analysis. Precision Melt Supermix for high-resolution melt analysis (Bio-Rad) was used in these experiments. PCR reaction protocols were: 95°C for 2 min, 46 cycles of 95°C for 10 s, and 60°C for 30 s. Following the PCR, a high-resolution melt curve was generated by collecting EvaGreen fluorescence data in the 65–95°C range. The analyses were performed on normalized derivative plots.
For the cell ablation experiments in this study, MTZ substrate (Sigma, M3761) was used at 10 mM concentration dissolved in egg water containing 1% DMSO. Prior to treatment with 10 mM MTZ or 1% DMSO, embryos were manually dechorionated with forceps and incubated with freshly prepared 10 mM MTZ or 1% DMSO in egg water. Embryos were treated with 10 mM MTZ or 1% DMSO for indicated periods of time until imaging analyses without replacing solutions.
Fish embryos/larvae raised at 28.5°C were subjected to a heat shock at 37°C for 1 hr by replacing egg water with pre-warmed (37°C) egg water. After each heat shock, the fish embryos/larvae were kept at room temperature for 10 min to cool down and then incubated at 28.5°C. Heat-shock experiments were performed as follows: Tg(kdrl:EGFP)s843, Tg(kdrl:EGFP)s843;Tg(hsp70l:sflt1, cryaa-cerulean)bns80, and Tg(kdrl:EGFP)s843;Tg(hsp70l:sflt4, cryaa-cerulean)bns82 animals were subject to multiple heat shocks every 8 hr from 41 to 72 hpf.
Immunohistochemistry was performed by following standard immunostaining procedures. Fish embryos/larvae were fixed in pH adjusted (pH 7.0) 4% paraformaldehyde (PFA)/phosphate buffered saline (PBS) overnight at 4°C and dehydrated through immersion in methanol serial dilutions (50%, 75%, then 100% methanol three times, 10 min each) at room temperature (RT). The dehydrated samples were stored in 100% methanol at −20°C at least for 2 hr before use. The samples were rehydrated through immersion in methanol serial dilutions (75%, 50% then 25% methanol, 10 min each) at RT and washed in 1% PBST (1% Triton X-100 in 0.1M PBS) followed by permeabilization in 10 µg/ml Proteinase K in 1% PBST at RT for 15 min. Samples were blocked at RT for 2–4 hr in the blocking solution containing 0.5% bovine serum albumin in 1% PBST and incubated with primary antibodies diluted in the blocking solution at 4°C overnight. The following primary antibodies were used: chicken anti-GFP (Aves Labs at 1:1000), rabbit anti-DsRed (Clontech Labs at 1:300), and mouse anti-Claudin 5 (4C3C2, Thermo Fisher Scientific at 1:500). The next day, the samples were washed six times in 1% PBST at RT for 10 min each and incubated with Alexa Fluor dyes conjugated secondary antibodies (Invitrogen at 1:500) diluted in the blocking solution at 4°C overnight. The samples were washed six times in 1% PBST at RT for 10 min each and then imaged.
Whole-mount in situ hybridization was performed as previously described (Thisse and Thisse, 2008). Digoxigenin (DIG)-labeled cRNA antisense probes for vegfaa, vegfab, vegfc, and vegfd were transcribed in vitro using a DIG RNA labeling kit (SP6/T7, Sigma). Targeted DNA sequences of each gene were amplified using the following gene-specific primers containing the T7 (5’- taatacgactcactatagg −3’) or SP6 (5’- atttaggtgacactata −3’) promoter sequence (underlined):
Vegfaa forward: 5’- GGCAGAACTCTGCATGAAGGAAGG −3’
Vegfaa reverse: 5’- gtaatacgactcactatagggCGTCAGTATAATACACTTTACCAC −3’
Vegfab forward: 5’- ATGTCTAACTTGCTTTCTGAGACC −3’
Vegfab reverse: 5’- gatttaggtgacactatagTCACCTCCTTGGTTTGTCACATCTG −3’
Vegfc forward: 5’- ATGCACTTATTTGGATTTTCTGTC −3’
Vegfc reverse: 5’- gatttaggtgacactatagTTAGTCCAGTCTTCCCCAGTATGTG −3’
Vegfd forward: 5’- ATGAAGAAACAGAAATGTGCTGGAC −3’
Vegfd reverse: 5’- gatttaggtgacactatagTCACGTATAGTGTAGTCTGTGTGTC −3’
For ntla:EGFP plasmid injection, the plasmid was generated by cloning the EGFP coding sequence downstream of approximately 2.1 kb ntla regulatory elements (Harvey et al., 2010; Lee et al., 2013) flanked by Tol2 sites. The 2.1 kb ntla regulatory elements were amplified by PCR from genomic DNA of zebrafish embryos using the following primers: ntla promoter forward: 5’- attaatcgatATACAATTCCTTTGTGCTGTTGCAACAC −3’ ntla promoter reverse: 5’- attagaattcATTTCCGATCAAATAAAGCTTGAGAT −3’.
Cla I and EcoR I restriction enzyme sites (underlined) were incorporated into the primers to allow cloning. The engineered construct (12 pg per embryo) was injected together with transposase mRNA (tol2 mRNA, 25 pg per embryo) into Tg(UAS-E1b:NfsB-mCherry)c264 one-cell stage embryos that carry the Tg(ntla:Gal4-VP16)sq12, TgBAC(vegfab:gal4ff)bns273, TgBAC(vegfc:gal4ff)bns270, or TgBAC(vegfd:gal4ff)lri95 transgene. The injected embryos were fixed in 4% PFA/PBS (pH 7.0) overnight at 4°C and subjected to immunohistochemistry by following the immunostaining procedures as described without dehydrating fixed embryos through immersion in methanol serial dilutions. Anti-GFP and anti-DsRed antibodies were used to immunostain these embryo samples.
For ccbe1 crRNA injection, crRNA:tracrRNA:Cas9 ribonucleoprotein (RNP) complexes were prepared as previously described (Hoshijima et al., 2019). Briefly, duplex buffer (Integrated DNA Technologies, IDT) was used to make 100 μM stock solution of individual crRNA and tracrRNA. Each of crRNA stock solution (100 μM) was mixed with an equal volume of tracrRNA (100 μM) and annealed in a PCR machine as previously described (Hoshijima et al., 2019) to generate crRNA:tracrRNA duplex complexes (50 μM). 50 μM crRNA:tracrRNA duplex solution was diluted in duplex buffer to generate 25 μM stock solution, which was stored at −20°C. The following sequences of ccbe1 crRNAs were used: ccbe1 crRNA1: TTCTCCTCTCGGAAAGTCCA; ccbe1 crRNA2: TACCCGTGCGTAAAGTCCAC; ccbe1 crRNA3: CTTCTGGAATACACTGACCC.
25 μM stock solution of Cas9 protein (S.p. Cas9 nuclease, V3, IDT) was prepared as previously described (Hoshijima et al., 2019). Injection cocktails (4 μL) that contained the crRNA:tracrRNA:Cas9 RNP complexes were prepared as follows: 0.4 μL 25 μM crRNA1:tracrRNA, 0.4 μL 25 μM crRNA2:tracrRNA, 0.4 μL 25 μM crRNA3:tracrRNA, 1.2 μL 25 μM Cas9 protein stock, 1.2 μL H2O, and 0.4 μL 0.5% phenol red solution (Sigma). Control injection cocktails (4 μL) without cRNAs were prepared as follows: 1.2 μL 25 μM Cas9 protein stock, 2.4 μL H2O, and 0.4 μL 0.5% phenol red solution. Both injection cocktails were freshly prepared on the day of injection. Prior to microinjection, both injection cocktails were incubated at 37°C for 5 min and then kept at room temperature. Approximately 2 nL of injection cocktails was injected into the cytoplasm of one-cell stage embryos.
A Leica TCS SP8 confocal laser scanning microscope (Leica) was used for live, immunofluorescence, and transmitted differential interference contrast imaging. Fish embryos and larvae were anaesthetized with a low dose of tricaine, embedded in a layer of 1% low-melt agarose in a glass-bottom Petri dish (MatTek), and imaged using a 10X dry or 25X water immersion objective lens. For microangiography, Qdot 655 streptavidin-conjugated nanocrystals (Thermo Fisher Scientific) were injected into the common cardinal vein and imaged after 30 min. An SMZ-18 stereomicroscope (Nikon) was used for brightfield images of anaesthetized fish.
10 dpf wild-type larvae were anesthetized with tricaine and fixed by immersion in 2.5% glutaraldehyde/4% PFA/0.2 M sodium cacodylate (pH 7.4) for 2 days at 4°C. Samples were post-fixed in 1% osmium tetroxide for 1 hr and incubated in 1% uranyl acetate in Maleate buffer for 1 hr. Samples were dehydrated through immersion in methanol serial dilutions and embedded in epoxy resin. Ultrathin sections of 85 nm were cut with a diamond knife, collected on copper grids, and stained with uranyl acetate and lead citrate. Images were captured using a transmission electron microscope (FEI Tecnai G2 Spirit BioTWIN).
Fish carrying the Tg(kdrl:EGFP)s843 reporter were used for this quantification. Fish embryos/larvae at all indicated developmental stages were analyzed for the presence or absence of the DLV. DLV lengths were measured in 2 and 3 dpf DLV-forming embryos/larvae by defining the region of interest (ROI) using the polyline tool in Leica Application Suite X (LAS X) software. To quantify and compare bilaterally formed PCeV, MCeV, and MsV, the following criteria were used to score the extent of each vessel’s formation: (1) Score 2 - when the bilateral vessels are both fully formed; (2) Score 1.5 - when the vessel on one side is fully formed, but that on the other side is partially formed; (3) Score 1 - when the vessel on one side is fully formed, but that on the other side is absent; (4) Score 0.5 - when the vessel on one side is partially formed, but that on the other side is absent; and (5) Score 0 - when the bilateral vessels are both absent.
Claudin-5 is strongly expressed in non-fenestrated brain vascular endothelium, while only weakly, or nearly undetectable, expression was observed in fenestrated mCP vascular endothelium (van Leeuwen et al., 2018). To analyze Claudin-5 protein expression levels in fenestrated mCP vECs in WT, vegfabbns92, vegfchu6410, vegfdbns257 mutants alone, and in combinations, 10 dpf mutant larvae carrying the Tg(kdrl:EGFP)s843 reporter were immunostained for GFP and Claudin-5. Images were taken under the same microscopy settings across genotypes for comparison. The Claudin-5 immunostaining signals in the DLV and PCeV were qualitatively analyzed after imaging.
The Tg(glut1b:mCherry) reporter gene is strongly expressed in the vECs that comprise non-fenestrated brain blood vessels, while only weakly, or nearly undetectable, expression was observed in fenestrated CP vascular endothelium (Umans et al., 2017). In contrast, the Tg(plvap:EGFP) reporter gene is strongly expressed in fenestrated CP vascular endothelium (Umans et al., 2017). To analyze Tg(glut1b:mCherry) and Tg(plvap:EGFP) reporter expression patterns in the cranial vasculature of vegfabbns92, vegfchu6410, and vegfdbns257 mutants, each heterozygous mutant fish carrying both of the Tg(glut1b:mCherry)sj1 and Tg(plvapb:EGFP)sj3 transgenes were outcrossed with the corresponding heterozygous counterparts. The double transgenic progeny carrying Tg(glut1b:mCherry)sj1;Tg(plvapb:EGFP)sj3 reporters were fixed at 10 dpf and immunostained with anti-GFP and anti-DsRed antibodies. Images were taken under the same microscopy settings across genotypes for comparison. The Tg(glut1b:mCherry) and Tg(plvap:EGFP) reporter expression in the DLV and PCeV was qualitatively analyzed after imaging.
Tg(kdrl:EGFP)s843 reporter fish were used to quantify ISV formation in WT, single mutants of vegfabbns92, vegfchu6410, and vegfdbns257, and double mutant animals of vegfabbns92;vegfchu6410 and vegfabbns92;vegfdbns257 at 96 hpf. For each fish, 10 ISVs in the trunk region of 2 somites directly anterior, and two somites directly posterior, to the anal opening were analyzed. The number of ISVs, including truncated ones, was quantified.
To analyze TgBAC(vegfab:gal4ff)bns273-, TgBAC(vegfc:gal4ff)bns270- or TgBAC(vegfd:gal4ff)lri95-positive meningeal cells, TgBAC(vegfab:gal4ff)bns273, TgBAC(vegfc:gal4ff)bns270 and TgBAC(vegfd:gal4ff)lri95 fish carrying Tg(UAS-E1b:NfsB-mCherry)c264 and Tg(−4.9sox10:EGFP)ba2 or Tg(UAS-E1b:NfsB-mCherry)c264 and Tg(mpeg1.1:Dendra2)uwm12 transgenes were imaged at 48 hpf. High-magnification z-plane confocal images were collected at every 1 µm interval using a 25X water immersion objective lens to visualize NTR-mCherry+ cells present in the dorsal surfaces of the brain meninges, particularly near the DMJ. These images were analyzed for the co-localization of NTR-mCherry+ cells and Tg(sox10:EGFP)+ neural crest-derived meningeal cells or Tg(mpeg1.1:Dendra2)+ macrophages at every single z-plane.
Tg(kdrl:EGFP)s843;Tg(lyve1:DsRed)nz101 double Tg reporter fish were used to visualize blood vessels and FGPs simultaneously in the dorsal surfaces of the brain meninges. To determine the developmental relationships between FGPs and mCP vasculature, vegfab+/-, as well as vegfc+/-;vegfd-/-, adult fish that carried these Tg reporters were incrossed. The double transgenic progeny from these incrosses was imaged at 120 hpf and genotyped afterwards. For validation of ccbe1 crRNA injection experiments, Tg(kdrl:EGFP);Tg(lyve1:DsRed) double Tg fish were outcrossed with wild-type zebrafish AB strains. The progeny were injected at the one-cell stage, and the double transgenic progeny were imaged at 120 hpf. For experiments involving combined gene inactivation of ccbe1 and vegfab, vegfab+/- adult fish that carried the Tg(kdrl:EGFP);Tg(lyve1:DsRed) reporters were incrossed, and progeny were injected at the one-cell stage. The double transgenic progeny were imaged at 96 hpf and genotyped afterwards. For all the experiments, a Tg(lyve1:DsRed)+ bilateral loop of FGPs that formed in the dorsal meningeal surfaces of the optic tectum were analyzed for presence or complete absence.
Statistical differences for mean values among multiple groups were determined using a one-way analysis of variance (ANOVA) followed by Tukey's or Dunnett’s multiple comparison test. Fisher's exact test was used to determine significance when comparing the degree of penetrance of observed phenotypes. The criterion for statistical significance was set at P<0.05. Error bars are SD.
All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 1 and 4.
Choroid plexus in developmental and evolutionary perspectiveFrontiers in Neuroscience 8:363.https://doi.org/10.3389/fnins.2014.00363
Mural lymphatic endothelial cells regulate meningeal angiogenesis in the zebrafishNature Neuroscience 20:774–783.https://doi.org/10.1038/nn.4558
Rapid BAC selection for tol2-mediated transgenesis in zebrafishDevelopment 138:4327–4332.https://doi.org/10.1242/dev.068080
Live imaging of intracranial lymphatics in the zebrafishCirculation Research 128:42–58.https://doi.org/10.1161/CIRCRESAHA.120.317372
Foxn4 directly regulates tbx2b expression and atrioventricular canal formationGenes & Development 22:734–739.https://doi.org/10.1101/gad.1629408
Conditional targeted cell ablation in zebrafish: a new tool for regeneration studiesDevelopmental Dynamics 236:1025–1035.https://doi.org/10.1002/dvdy.21100
Cerebrospinal fluid secretion by the choroid plexusPhysiological Reviews 93:1847–1892.https://doi.org/10.1152/physrev.00004.2013
No tail integrates two modes of mesoderm inductionDevelopment 137:1127–1135.https://doi.org/10.1242/dev.046318
Innate immune response to Streptococcus iniae infection in zebrafish larvaeInfection and Immunity 81:110–121.https://doi.org/10.1128/IAI.00642-12
Cell tracking using a photoconvertible fluorescent proteinNature Protocols 1:960–967.https://doi.org/10.1038/nprot.2006.96
Functional and genetic analysis of choroid plexus development in zebrafishFrontiers in Neuroscience 8:364.https://doi.org/10.3389/fnins.2014.00364
Ccbe1 is required for embryonic lymphangiogenesis and venous sproutingNature Genetics 41:396–398.https://doi.org/10.1038/ng.321
VEGF-dependent plasticity of fenestrated capillaries in the normal adult microvasculatureAmerican Journal of Physiology-Heart and Circulatory Physiology 290:H560–H576.https://doi.org/10.1152/ajpheart.00133.2005
CNS-derived Glia ensheath peripheral nerves and mediate motor root developmentNature Neuroscience 11:143–151.https://doi.org/10.1038/nn2025
Development of the choroid plexus and blood-CSF barrierFrontiers in Neuroscience 9:32.https://doi.org/10.3389/fnins.2015.00032
Wnt/β-catenin signaling controls development of the blood–brain barrierJournal of Cell Biology 183:409–417.https://doi.org/10.1083/jcb.200806024
Immune cell trafficking across the barriers of the central nervous system in multiple sclerosis and strokeBiochimica Et Biophysica Acta 1862:461–471.https://doi.org/10.1016/j.bbadis.2015.10.018
VEGF and TGF-β are required for the maintenance of the choroid plexus and ependymaJournal of Experimental Medicine 205:491–501.https://doi.org/10.1084/jem.20072041
The anatomy and immunology of vasculature in the central nervous systemScience Immunology 4:eaav0492.https://doi.org/10.1126/sciimmunol.aav0492
Sonic hedgehog is required for vascular outgrowth in the hindbrain choroid plexusDevelopmental Biology 340:430–437.https://doi.org/10.1016/j.ydbio.2010.01.032
Bridging barriers: a comparative look at the blood-brain barrier across organismsGenes & Development 32:466–478.https://doi.org/10.1101/gad.309823.117
We have got you 'covered': how the meninges control brain developmentCurrent Opinion in Genetics & Development 21:249–255.https://doi.org/10.1016/j.gde.2010.12.005
The burden of cerebrovascular disease in the united statesPreventing Chronic Disease 16:E52.https://doi.org/10.5888/pcd16.180411
CNS angiogenesis and barriergenesis occur simultaneouslyDevelopmental Biology 425:101–108.https://doi.org/10.1016/j.ydbio.2017.03.017
Trafficking of immune cells in the central nervous systemJournal of Clinical Investigation 120:1368–1379.https://doi.org/10.1172/JCI41911
Canonical WNT signaling components in vascular development and barrier formationJournal of Clinical Investigation 124:3825–3846.https://doi.org/10.1172/JCI76431

Edward E MorriseySenior and Reviewing Editor; University of Pennsylvania, United States
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
[Editors' note: this paper was reviewed by Review Commons.]
Your study makes an important contribution to the understanding of blood vessel formation and in particular, the role this plays in the developing CNS.https://doi.org/10.7554/eLife.64295.sa1
We would like to thank all of the reviewers for their thoughtful, critical, and constructive feedback on our manuscript. These comments greatly helped us to improve our current study.
In this manuscript Parab et al. investigate the molecular mechanisms governing the formation of fenestrated blood vessels in the myelencephalic choroid plexus. The authors use state of the art zebrafish transgenic lines and genetic tools. In general the manuscript is well written, data is nicely presented and controls are properly used an shown. The study is interesting as it shows the heterogeneity in the regulation of blood vessel formation. Based on the expression pattern of the different Vegf family ligands, this study also indicates the effect of local cues on blood vessel formation. However, mechanistics insight of how fenestration of those vessels is regulated are missing.
We appreciate this reviewer for her/his constructive comments and suggestions to improve this study. We address each of the points raised by the reviewer below.
The analysis of markers for fenestrated vessels is not clear. The authors show that vegfab-/-, vegfab-/vegfc-/- and vegfab-/-vegfd-/- show "no DLV" phenotypes. However, in Figure S3C they then go and study Claudin5 expression in DLV of those mutants. If at 10dpf around 30% of vegfab-/-, 65-70% of the vegfab-/-vegfc-/-, and aprox 80% of the vegfab-/-vegfd-/-, do not have DLV, what ZF mutants do the authors use to analyze claudin5 expression in the DLV? do they analyze the remaining percentage of the ones where the DLV is formed? and if so, what is the significance of this analysis? Could it be that in those mutants there are compensatory mechanisms occurring that assure DLV formation and expression of BBB markers? Could the authors clarify this? if so, a more appropriate analysis would be to analyze BBB markers in mutants with partial DLV.
We appreciate this comment and agree with the reviewer that our Claudin-5 expression analyses of only the mutants that formed the DLV could misrepresent the results due to the compensatory mechanisms among the Vegf ligands and possibly other unidentified factors. To address this concern, we have now clarified in both the Results and Materials and methods sections of the revised manuscript that this analysis was feasible only for the mutants that formed the DLV. Secondly, we performed additional experiments to examine additional fenestration and BBB endothelial markers by crossing each of the vegf mutants with the Tg(plvap:EGFP);Tg(glut1b:mCherry) double transgenic line. We have now added these completed analyses of the additional endothelial markers conducted in 10 dpf WT, vegfab-/-, vegfc-/-, and vegfd-/- larvae to the revised manuscript (Figure 5). Lastly, we have described the limitations of these experimental analyses in the Discussion section by incorporating the possibility of compensatory actions that were brought to our attention by the reviewer.
While the rest of the conclusions are convincing, it still remains to be understood what regulates fenestration of those vessels compared to non-fenestrated ones. It would be interesting to further investigate and this still unknown question.
We fully agree with the reviewer that further investigation into regulators of mCP vascular fenestration will be a crucial next step and remains an important question to further address. Our perspectives with regards to this question are described in greater detail below in the response to this reviewer’s last comment.
Reviewer #1 (Significance (Required)):
Nature and significance of the advance: the study shows significant advance in understanding the molecular mechanisms of brain vascularization
We appreciate this positive comment highlighting the significance of our study in the field.
Work in context of existing literature: based on the previous published literature, this study provides mechanistic insights into regulation of blood vessel formation in the choroid plexus. It would be more relevant if the authors would provide more data on why those vessels are fenestrated and the other not. What controls this fenestration?
To gain more insight into a potential role for Vegfs in the development of vessel fenestration in the mCP vasculature, we conducted expression analyses of additional fenestration and BBB endothelial markers in 10 dpf WT, vegfab-/-, vegfc-/-, and vegfd-/- larvae as described above. However, no obvious differences were observed between WT and each of these mutants in the expression patterns of the Tg(plvap:EGFP);Tg(glut1b:mCherry) reporters which we utilized for this analysis. These observations combined with our analysis of Claudin-5 protein expression in these single and double mutants indicate that the lack of these Vegf ligands does not lead to an absence, or a conversion, of the mCP endothelial fenestrated state, although our analyses were conducted only for the mutants that formed the DLV and PCeV.
Considering these observations and the recent reports in the field, we have now formulated several hypotheses aimed at uncovering the molecular mechanisms underlying the fenestration of mCP vasculature. In light of recent studies (Wang et al., 2019; Anbalagan et al., 2018), we speculate that vessel fenestration in the CP may require combined actions of 1) endogenous inhibitor(s) of canonical Wnt/b-catenin signaling, 2) vascular permeability/inflammatory protein(s), and/or 3) signaling molecules inhibiting endothelial tight junction formation. These combined actions allow vascular endothelial cells in the CP to 1) maintain low levels of Wnt/b-catenin signaling, 2) exhibit increased vascular permeability, and 3) form loose endothelial connections, as compared to those forming the BBB in the other areas of the brain. Our future research efforts will test these hypotheses in order to define molecular players involved in CP vessel fenestration in the most comprehensive manner possible.
Parab et al. use the zebrafish model to study the requirement of angiogenic factor VEGFs in choroid plexus (CP) vascularization. Using a series of elegant genetic experiments and anatomical imaging, the authors clearly demonstrate that the combinations of vegfab, vegfc, and vegfd deficiency cause defective CP vascularization, as well as dorsal longitudinal vein (DLV) and posterior cerebral veins (PCeV) which are functionally integrated in the CP vasculature.
The question of what controls the CP vascularization with highly permeable fenestrate is clearly an important one, and this paper is impressive in terms of the thoroughness of genetic approaches brought to bear on it. The experiments are nicely carried out with quantitative measurements. However, it is not clear that the data presented are enough to explain the involvement of VEGFs in the CP vascularization. The important question is whether lack of the CP vasculature in the vegf mutants may be secondary to the DLV and PCeV phenotypes. It is not clear what directs the recruitment of these vessels into the CP.
We appreciate this reviewer for her/his positive and encouraging comments highlighting both the quality and significance of our study. We also appreciate the reviewer’s thoughtful comments on the requirements for Vegfs in CP vascularization. As the reviewer pointed out, there is a possibility that the DLV/PCeV development and mCP vascularization could have separate molecular requirements for angiogenesis and that the lack of mCP vascularization in the vegf mutants could be secondary to the DLV/PCeV defects. Although only small segments of the DLV and PCeV are present in close proximity to the mCP, these two vessels exhibit molecular signatures of fenestrated endothelial cells along the entire vessel – even in the brain/meningeal regions outside of the mCP. In mice, fenestrated endothelial cells are observed in the CPs, but do not appear to be present in their directly adjacent tissues (Wang et al., 2019), although it is possible that a blood vessel(s) giving rise to these CP fenestrated vasculature is present on the meningeal compartments and displays molecular signatures of fenestrated endothelial cells as observed similarly in zebrafish.
As previously reported (Bill B.R. et al., PLOS ONE 3:e3114, 2008), the DLV is clearly the only blood vessel that supplies blood to the mCP (at least up to 10 dpf) based on the blood flow observed under transmitted differential interference contrast (DIC) imaging microscopy, and this blood flow leaves the mCP through bilateral PCeVs. These closely connected endothelial cells comprising the functionally integrated mCP vasculature acquire similar endothelial features such as fenestration for the purpose of achieving a shared goal as the functional mCP vasculature in zebrafish. As the reviewer nicely summarized, our findings demonstrate that specific combinations of Vegfab, Vegfc, and Vegfd deficiency result in defective mCP vascularization and the lack of the DLV and PCeV. The DLV and PCeV converge to form the mCP vasculature, and all of these vessels exhibit the shared fenestrated endothelial state. Thus, we expect that the mCP vasculature is an integral constituent of the connected DLV and PCeV. Further dissections of these Vegf ligands’ functions in mCP vascularization versus DLV/PCeV formation would require more sophisticated strategies, experimental tools and approaches, even if feasible. However, since the reviewer’s point leaves an important question open and suggests another possible interpretation of the results, we have now added the relevant discussions to the revised manuscript.
With regard to the question of what directs the recruitment of these vessels into the CP, we speculate that vegfab expressed in the mCP epithelial cells plays an instructive role. However, there are currently no CP-specific promoter or zebrafish tools available in the community that allow us to perform genetic manipulation in the CP specifically. The most specific and powerful tool available in the community is the enhancer trapped Et(cp:EGFP)sj2 line. Although we have been trying to convert this pre-existing EGFP enhancer trap line into a Gal4 (KalTA4) line by following the recently published method (Auer T.O. et al., Genome Res. 24:142-153, 2014; Auer T.O. et al., Nat Protoc 9:2823-2840, 2014), the establishment of this new line would require substantial time, even if successful.
Alternatively, we attempted two-photon laser-mediated cell ablation that specifically targeted the vegfab-expressing mCP epithelial cells directed by the TgBAC(vegfab:gal4ff);Tg(UAS:EGFP-CAAX) line in order to investigate a role for these cells in DLV and PCeV formation. However, cell ablation of these cells prior to DLV sprouting (~42 hpf) was limited by the fact that only the visible EGFP-expressing cells can be targeted at that stage and that vegfab-expressing mCP epithelial cells continue to emerge while the DLV is extending toward the mCP. Given the concurrent and rapid development of the DLV and mCP, a two-photon laser-mediated cell ablation approach does not seem to be the best option.
Considering these current technical limitations, we now believe that establishing a CP-specific zebrafish tool by converting the existing Et(cp:EGFP)sj2 line into a Gal4 line will overcome some of these technical limitations and thus be an important next step. Successful generation of this new Gal4 line will allow ones to utilize the Gal4/UAS system to overexpress genes of interest in any form (eg. full-length, dominant-negative, constitutive-active, or truncated forms of genes) specifically in CP epithelial cells, thereby allowing for CP tissue-specific gene inactivation, overexpression, and rescue of mutants. Thus, the establishment of this sort of new CP-specific transgenic Gal4 line will be needed for us to further delve into the mechanisms of mCP vascular development.
1) Based on the observation that vegf mutants with DLV retain high expression of the permeability marker PLVP and low expression of BBB markers such as GLUT1 and Claudin-5, how the authors conclude that VEGFs do not influence DLV fenestration remains unclear. The authors cannot rule out the possibility that due to an incomplete penetrance these mutants may not have both DLV formation and fenestration phenotypes. The authors need to carry out in situ hybridization to examine the expression of vegfs in the vegf mutants with DLV.
We appreciate this comment and agree with the reviewer that our analyses of only the mutants that formed the DLV can misrepresent the results due to the incomplete penetrance and compensatory mechanisms that can occur in the vegf mutants we examined. Related to reviewer #1’s first major comments above, we have now clarified that this analysis was feasible only for the mutants that formed the DLV in both the Results and Materials and methods sections of the revised manuscript. We have also described the technical limitations and possible interpretations of these experimental analyses in the Discussion section by including the possibility of compensatory actions that were brought to our attention by this reviewer and reviewer #1.
With regards to vegf expression analyses in the vegf mutants that form the DLV, we conducted this analysis using our vegf BAC lines instead of performing in situ hybridization. We expect that this approach provides much more sensitive and higher resolution analyses than using in situ hybridization, which generally provides lower contrast and resolution due to higher background staining in the head of embryos/larvae at the relevant developmental stages of this analysis (eg. 48-72 hpf). We analyzed vegfc expression in vegfab mutants by examining the TgBAC(vegfc:gal4ff);Tg(UAS:EGFP-CAAX) reporter expression, which did not show any obvious differences in expression patterns and/or fluorescence signal intensity when compared to vegfab WT and Het sibling controls. Similarly, we observed no obvious difference in TgBAC(vegfd:gal4ff);Tg(UAS:EGFP-CAAX) reporter expression in vegfab mutants compared to their sibling controls. Lastly, our analysis of TgBAC(vegfab:gal4ff);Tg(UAS:EGFP-CAAX) reporter expression in vegfc mutants and their control siblings did not reveal any obvious difference between the mutants and controls. We have now added these results to the revised manuscript (Figure 6—figure supplement 2).
2) In Figure 1I and 1J, the authors need to clarify what expresses Claudin-5 in the absence of DLV in vegfab mutants. Is it possible that the vegfab mutants may fail to maintain VEGFR2 expression (kdrl:EGFP) but the mutants may still have DLV? It would be helpful if the authors could examine functional and morphological properties of DLV in the vegfab mutants using a fluorescent dye injection.
We appreciate this comment and have now clarified that there are Claudin-5-expressing cells which reside ventrally to the DLV and that they are visible in the presence or absence of the DLV. We also agree with the reviewer that examining whether a perfused, functional DLV is present or absent in vegfab mutants by fluorescent dye injections will clarify the concern regarding Tg(kdrl:EGFP) transgene downregulation/silencing in this mutant. To address this concern, we injected Qdot 655 streptavidin-conjugated nanocrystals through the common cardinal vein into 96 hpf WT and vegfab-/- larvae that carry the Tg(kdrl:EGFP) reporter. This injection experiment allowed us to visualize endothelial cell-specific Tg(kdrl:EGFP) reporter expression and perfused, functional blood vessels labeled by blood-circulating Qdot 655 nanocrystals. We observed that in all vegfab-/- mutants we examined (n=8) that lack the Tg(kdrl:EGFP)-positive DLV, Qdot 655 nanocrystals failed to label this vessel, illustrating the lack of a perfused, functional DLV. In addition, we examined blood flow and circulating blood cells in these WT and vegfab-/- larvae under transmitted differential interference contrast (DIC) imaging microscopy and observed no blood flow in the area where the DLV normally forms. We have now added these experimental results to the revised manuscript (Figure 1—figure supplement 2G–H”).
3) In Figure S2G-P, the authors need to clarify the descriptions of sflt1 and sflt4 mutant phenotypes. Do the sflt1 mutants have no significant penetrance (21%) of the "No DLV" phenotype but some mutants (79%) form relatively short DLV? Do the sflt4 mutants have a significant penetrance (33%) of the "No DLV" phenotype but some mutants (67%) form normal DLV?
We appreciate this suggestion. The reviewer’s interpretation is correct. We have now clarified the descriptions of these results in the revised manuscript as suggested by the reviewer.
4) In Figure 2G, the authors need to define "score."
We have now corrected this term into more defined titles in this and all the relevant graphs.
5) In Figure S5, the data are not enough to conclude that the mesoderm-derived meningeal fibroblasts express vegfs. The authors need to examine whether meningeal macrophages and/or glial cells express vegfs.
We appreciate this comment and agree with the reviewer that there are some other cell types that reside in meningeal compartments and that our current analysis cannot rule out the possibility that vegfab-, vegfc-, and/or vegfd-expressing cells are not mesoderm-derived meningeal fibroblasts. We have now examined the co-localization of meningeal macrophages and these vegf-expressing cells by crossing each of TgBAC(vegfab:NTR-mCherry), TgBAC(vegfc:NTR-mCherry), and TgBAC(vegfd:NTR-mCherry) fish with the Tg(mpeg1.1:Dendra2)uwm12 transgenic reporter line that was previously shown to label macrophages in the brain and meninges (Ellett F. et al., Blood 117:e49-56, 2010). We have added these results to the revised manuscript (Figure 6—figure supplement 4).
In addition, to examine whether these vegf-expressing cells are mesoderm-derived meningeal fibroblasts, we injected a plasmid in which the promoter of the early mesoderm-specific gene, ntla, drives the expression of EGFP into 1-cell stage TgBAC(vegfab:NTR-mCherry), TgBAC(vegfc:NTR-mCherry), and TgBAC(vegfd:NTR-mCherry) embryos. To validate this approach, we injected this plasmid into 1-cell stage Tg(ntla:gal4);Tg(UAS:NTR-mCherry) embryos and observed that the EGFP and NTR-mCherry signals directed by the ntla promoter were mostly co-localized in the dorsal surfaces of the brain meninges. Using this ntla:EGFP plasmid injection approach, we found that NTR-mCherry+ meningeal cells marked by each of the vegf BAC lines were co-localized with EGFP+ mesoderm-derived meningeal cells. In addition, we took magnified confocal images of the meningeal cells labeled by Tg(ntla:gal4), TgBAC(vegfab:gal4ff), and TgBAC(vegfd:gal4ff) Gal4 drivers to show close similarity in their cell morphology. These results provide evidence that mesoderm-derived meningeal fibroblasts are a cell type that expresses these vegf genes. We have now added these results to the revised manuscript (Figure 6H– L” and Figure 6—figure supplement 5).
6) Combined with Figure S5 and Figure 5, these data suggest that ablation of vegfd- or vegfab-expressing cells leads to the failure of the DLV formation.
We appreciate this comment and agree with the reviewer that our data presented in the original manuscript are not sufficient to suggest that vegfd- or vegfab-expressing cells are mesoderm-derived meningeal fibroblasts and that these fibroblasts regulate DLV formation. Related to our responses to this reviewer’s comments above, we performed additional co-localization experiments as described and provide evidence that mesoderm-derived meningeal fibroblasts are a source of these Vegf ligands.
Reviewer #2 (Significance (Required)):
As mentioned above, the authors' question of what controls the CP vascularization with highly permeable fenestrate is clearly an important one. The author's genetic approaches and anatomical imaging are significant.
We appreciate this reviewer for highlighting the significance of our study in the field.
Reviewer #3 (Evidence, reproducibility and clarity (Required)):
I think this is a beautifully illustrated and solid piece of work and the combinatorial logic of the vegfs is shown meticulously, using several methods and numerous genetic models. In particular, I liked the validation of the autocrine function of vegfc, whereas I am not so familiar with potential pitfalls with the metronidazole-based deletion of putative producer cells. The authors have really achieved a very complete analysis of the redundancy of vegfs in mCP formation. I agree with most of their conclusions and the manuscript has excellent clarity.
We appreciate this reviewer for her/his favorable and encouraging comments highlighting both the quality and impact of our study.
I recommend publication after the issues below have been addressed.
A major concern is the limited focus of the manuscript, and whether the blood vasculature outside of the area of interest is normal or if its defects are behind the findings. As mainly meningeal fibroblasts produce the vegf ligands, the authors should include a paragraph describing the lymphatic vascular phenotypes as these can affect the blood vascular defects. And what happens to the FGP/Mato cells after the gene deletions.
We appreciate this suggestion and agree with the reviewer that examining FGP/Mato cells (also called as muLECs or BLECs) in these vegf mutants will provide insight into the correlation between the mCP vascular defects and the formation of FGP/Mato cells. We have now examined the formation of FGP/Mato cells in the dorsal surfaces of the brain meninges using the Tg(lyve1:DsRed)nz101 transgenic reporter line. The bottom line is that we did not find any correlation between mCP vascular defects and FGP/Mato formation defects since all of vegfc;vegfd double mutants (n=9), which completely lacked the FGP/Mato cells, formed the mCP vasculature, while all vegfab mutants that lacked the DLV (n=7) formed FGP/Mato cells similarly to their sibling WT controls (n=13). Intracranial lymphatic formation in zebrafish appears to begin at much later stages of development (9-10 dpf) (Castranova D. et al., Circ Res, doi: 10.1161/CIRCRESAHA.120.317372), thus mCP vascularization processes should not be affected by these intracranial lymphatics.
We have now added these experimental results and relevant discussions to our revised manuscript (Figure 3—figure supplement 1).
Furthermore, I am not entirely happy about the equation of Claudin-5 lacking vessels as fenestrated (also, the epithelium is highly Claudin-5 ositive, thus it is more difficult to be specific). There is no analysis of the fenestrae as such. The authors should use more than one marker, for example in the chapter on "Analysis of BBB state…". To my knowledge, plvap would be a good marker for the fenestrae.
We appreciate this suggestion and fully agree with the reviewer that further analyses using additional endothelial cell markers for the fenestrated and BBB state will improve this part of the manuscript. Related to reviewer #1’s comments, we analyzed vegfab, vegfc, and vegfd mutants using the Tg(plvap:EGFP);Tg(glut1b:mCherry) double transgenic reporter line and have now added these results to our revised manuscript (Figure 5).
Vegfc and vegfd are made as precursor proteins that require proteolytic activation, which in turn regulates receptor binding specificity. Do the authors know if for example vegfd needs to be processed to ameliorate the vegfa deletion phenotype?
We appreciate this comment and agree with the reviewer that understanding whether or not proteolytic activation of Vegfc and Vegfd contributes to the regulation of mCP vascularization, and how this is achieved at the cellular and molecular levels, will be an important and interesting question to address next. To gain insights into this process, we focused on investigating the requirements for the proteolytic processing of Vegfc since its proteolytic enzymes have been better characterized than those for Vegfd. Prior studies suggest that Ccbe1, Adamts3, and Adamts14 serve to proteolytically cleave and convert the pro-active form of Vegfc into its mature form during lymphangiogenesis in zebrafish (Hogan et al., 2009; Le Guen et al., 2014; Wang et al., 2020). Among these three proteins, ccbe1 appears to be highly expressed in the developing brain and meningeal compartments based on its BAC transgenic reporter expression at 48 hpf (Wang et al., 2020), while adamts3 BAC transgenic reporter expression appear to be very low at the same stage. Since 48 hpf is a developmental time point when the DLV is extending toward the mCP, ccbe1 could be a strong candidate that serves to activate Vegfc in this area of the brain based on these published data.
To investigate a role for Ccbe1 in mCP vascularization, we took the approach of injecting
ribonucleoprotein (RNP) complexes that were composed of ccbe1-specific CRISPR RNA (crRNA):transactivating crRNA (tracrRNA):Cas9 protein at the 1-cell stage. This approach using crRNA:tracrRNA:Cas9 protein RNP complexes was previously shown to be a highly efficient method to achieve bi-allelic inactivation of target genes, which allows for the generation of F0 embryos that recapitulate homozygous mutant phenotypes (Hoshijima K. et al., Dev Cell 51:645-657). We recently tested this method and observed that injection of three different crRNA RNP complexes targeted to a single gene works in a much more efficient manner to generate F0 embryos that lack target gene function and recapitulate homozygous mutant phenotypes. Thus, we co-injected three different ccbe1 crRNA RNP complexes in order to investigate its role in mCP vascularization. We validated this approach by examining the formation of FGP/Mato cells in the dorsal surfaces of the brain meninges since ccbe1 mutants exhibit severe defects in this process as shown in vegfc null mutants (van Lessen et al., 2017).
We hypothesized that if Vegfc requires Ccbe1-mediated proteolytic activation, these triple ccbe1 crRNA injected embryos will lack Vegfc activation, thus recapitulating vegfc null mutant phenotypes. Since we have shown that 54% of the vegfc null mutants we analyzed at 54 hpf failed to form the DLV, we examined ccbe1 crRNA-injected embryos at 54 hpf and observed that a significant fraction (20%) of the ccbe1 crRNA-injected embryos, but not Cas9 protein-injected control embryos, lacked the DLV.
In addition, to examine whether combined genetic inactivation of ccbe1 and vegfab enhances DLV and PCeV formation defects as observed in vegfab;vegfc double mutants, we injected ccbe1 triple crRNA RNP complexes into 1-cell stage progeny derived from vegfab heterozygous incrosses and analyzed them at 96 hpf – the same developmental stage at which we analyzed progeny derived from vegfab;vegfc double heterozygous fish incrosses (Figure 2A–G). Intriguingly, similar to what we observed in vegfab;vegfc double mutants, we found that vegfab-/- larvae injected with the ccbe1 RNPs exhibit a markedly increased penetrance of the “No DLV” phenotype (52%) as compared to their vegfab-/- siblings injected with the control solution (23%) or the ccbe1 RNPs-injected vegfab+/+ sibling larvae (3%). Strikingly enhanced defects were also observed in PCeV formation in the ccbe1 RNPs-injected vegfab-/- larvae. These results indicate that Ccbe1 and Ccbe1-mediated proteolytic activation of Vegfc are critical for DLV and PCeV formation.
We have now added all of these results to our revised manuscript (Figure 4).
The discussion is quite short and draws a few general conclusions that are important for our understanding. However, it leaves open the question of why vagfaa is not important for the formation of a fenestrated mCP, if in adult zebrafish it is necessary for the maintenance of mCP fenestrae. This is an issue that should be at least discussed.
We appreciate this comment. There is currently no direct evidence of Vegfaa’s function in maintaining mCP fenestrae or in the formation of fenestrated mCP vasculature in zebrafish. However, we agree with the reviewer that our findings leave these questions open, which will be important to address next. Since vegfaa mutants are known to exhibit severe early vascular defects that prevent us from understanding its precise role in mCP vascularization, we generated a new BAC transgenic line, TgBAC(vegfaa:gal4ff), and performed expression analyses and chemogenetic cell ablation using this line, as conducted for the other vegf BAC lines (Figures 6 and 5E–M). We found that ablation of Vegfaa-expressing cells does not lead to compromised formation of the DLV and PCeV. We have now added all of these results to our revised manuscript (Figure 8).
In addition, as suggested by the reviewer, we have now expanded our discussions in the revised manuscript by including the discussions of these and another open questions that we deem important and also those of new experimental results obtained during manuscript revision.
Please do not use abbreviations, such as CP or vEC in the Highlights, as they are not explained yet in this part.
We appreciate this suggestion and have removed the Highlights.
Reviewer #3 (Significance (Required)):
This manuscript provides an important addition to our understanding of how the vegf family of growth factors works, and it is especially interesting for developmental and vascular biologists.
We appreciate the reviewer for highlighting the significance of this study in the fields of developmental and vascular biology.https://doi.org/10.7554/eLife.64295.sa2
