Single-cell analysis of mosquito hemocytes identifies signatures of immune cell subtypes and cell differentiation

  1. Hyeogsun Kwon
  2. Mubasher Mohammed
  3. Oscar Franzén
  4. Johan Ankarklev
  5. Ryan C Smith  Is a corresponding author
  1. Department of Entomology, Iowa State University, United States
  2. Department of Molecular Biosciences, The Wenner-Gren Institute, Stockholm University, Sweden
  3. Integrated Cardio Metabolic Centre, Department of Medicine, Karolinska Institutet, Novum, Sweden
  4. Microbial Single Cell Genomics facility, SciLifeLab, Biomedical Center (BMC) Uppsala University, Sweden
Research Article
  • Cited 1
  • Views 1,108
  • Annotations
Cite this article as: eLife 2021;10:e66192 doi: 10.7554/eLife.66192

Abstract

Mosquito immune cells, known as hemocytes, are integral to cellular and humoral responses that limit pathogen survival and mediate immune priming. However, without reliable cell markers and genetic tools, studies of mosquito immune cells have been limited to morphological observations, leaving several aspects of their biology uncharacterized. Here, we use single-cell RNA sequencing (scRNA-seq) to characterize mosquito immune cells, demonstrating an increased complexity to previously defined prohemocyte, oenocytoid, and granulocyte subtypes. Through functional assays relying on phagocytosis, phagocyte depletion, and RNA-FISH experiments, we define markers to accurately distinguish immune cell subtypes and provide evidence for immune cell maturation and differentiation. In addition, gene-silencing experiments demonstrate the importance of lozenge in defining the mosquito oenocytoid cell fate. Together, our scRNA-seq analysis provides an important foundation for future studies of mosquito immune cell biology and a valuable resource for comparative invertebrate immunology.

Introduction

Across Metazoa, immune cells are vital to promoting wound healing, maintaining homeostasis, and providing anti-pathogen defenses (Chaplin, 2010). With immune cells mediating both innate and adaptive immune function in vertebrates, immune cell subtypes display highly specialized roles that have continually been resolved by technological advancements that enable their study (Papalexi and Satija, 2018; Proserpio and Mahata, 2016). Recently, the advent of single-cell sequencing (scRNA-seq) has continued to delineate and provide further resolution into new cell types and immune cell functions in mammals (Szabo et al., 2019; Villani et al., 2017). In lesser studied invertebrates lacking adaptive immunity, single-cell technologies have enhanced descriptions of previously described cell types and have redefined cell complexity (Cattenoz et al., 2020; Cho et al., 2020; Raddi et al., 2020; Severo et al., 2018; Tattikota et al., 2020).

In insects, hematopoiesis and immune cell function have predominantly been examined in Lepidoptera and Drosophila (Banerjee et al., 2019; Lavine and Strand, 2002), with the mosquito, Anopheles gambiae, recently serving as an emerging study system (Kwon and Smith, 2019). Mosquito immune cells (hemocytes) have proven integral to the cellular and humoral responses that limit invading pathogens in the mosquito host (Baton et al., 2009; Castillo et al., 2017; Hillyer et al., 2003a; Kwon and Smith, 2019; Smith et al., 2016) and the establishment of immune memory (Ramirez et al., 2015; Rodrigues et al., 2010). Transcriptional (Baton et al., 2009; Pinto et al., 2009) and proteomic (Smith et al., 2016) analysis of mosquito hemocyte populations have yielded important information into the regulation of hemocyte function in response to blood-feeding and infection. However, the study of mosquito immune cells has been complicated by discrepancies in cell classification (Ribeiro and Brehélin, 2006), cell numbers (Hillyer and Strand, 2014), and methodologies to examine their function (Kwon and Smith, 2019). These constraints are magnified by the lack of genetic tools and markers that have limited studies of immune cells outside of Drosophila strictly to morphological properties of size and shape (Hillyer and Strand, 2014; Kwon and Smith, 2019).

Traditional classifications of mosquito hemocytes describe three cell types: prohemocyte precursors, phagocytic granulocytes, and oenocytoids that have primary roles in melanization (Castillo et al., 2006). However, recent studies have begun to challenge these traditional immune cell classifications, demonstrating the existence of multiple types of phagocytic cells (Kwon and Smith, 2019; Severo et al., 2018) and that both granulocytes and oenocytoids contribute to prophenoloxidase expression (Bryant and Michel, 2016; Kwon et al., 2020; Kwon and Smith, 2019; Severo et al., 2018; Smith et al., 2016). Together, this suggests that there is additional complexity to mosquito immune cells that are not accurately represented by the traditional classification of mosquito hemocytes into three cell types.

For this reason, here we employ the use of scRNA-seq using a Smart-seq2 methodology to generate full-length sequence coverage to better characterize mosquito immune cell populations. Using a conservative approach, we identify seven hemocyte subtypes with distinct molecular signatures and validate these characterizations using a variety of bioinformatic and experimental molecular techniques. We define new markers that can accurately distinguish immune cell subtypes, improving upon the ambiguity of existing methodologies. Moreover, our data support a new model of immune cell differentiation and maturation that leads to a dynamic population of circulating immune cells in the adult female mosquito. In summary, these data represent a valuable resource to advance the study of mosquito immune cells, offering a robust data set for comparative immunology with other insect systems.

Results

Isolation of mosquito immune cells and scRNA-seq analysis

To examine mosquito immune cells by scRNA-seq, adult female An. gambiae were perfused as previously (Kwon et al., 2017; Kwon and Smith, 2019; Reynolds et al., 2020; Smith et al., 2016; Smith et al., 2015) from either naive or blood-fed (24 hr post-feeding) conditions to assess the physiological impacts of blood-feeding on hemocyte populations as previously suggested (Bryant and Michel, 2016; Bryant and Michel, 2014; Castillo et al., 2011; Reynolds et al., 2020). Following perfusion, cells were stained with a live-dead viability stain to select for live cells, with mosquito immune cells distinguished by labeling with FITC-conjugated wheat germ agglutinin (WGA) as a general hemocyte marker and the far-red stain DRAQ5 to label DNA content as previously (Kwon and Smith, 2019). Based on consistent patterns of WGA/DRAQ5 signal intensity that were suggestive that these labeling properties could distinguish distinct groups of immune cells (Figure 1A, Figure 1—figure supplement 1), we isolated individual cells by fluorescence-activated cell sorting (FACS) using three ‘gates’ to enrich for defined cell populations using these WGA/DRAQ5 properties (Figure 1A, Figure 1—figure supplement 1). An additional, non-selective fourth gate isolated cells at random to achieve an unbiased cell population that would be influenced by overall cell abundance (Figure 1A). Based on these parameters, individual cells were isolated by FACS into a 384-well plate for further processing for scRNA-seq using the SMART-seq2 methodology (Picelli et al., 2014; Picelli et al., 2013). A total of 262 cells passed the quality filtering threshold of 10,000 reads per cell (Figure 1—figure supplement 2), yielding 194 and 68 cells, respectively from naive and blood-fed conditions (Supplementary file 1). Overall, we detected expression (>0.1 RPKM) from ~46% (6352/13,764) of the An. gambiae genome, with a median of 1646 genes expressed per cell (range 45–5215), comparable to Severo et al., 2018. However, our data display a higher number of genes per cell and larger variance in genes between cell types, patterns suggestive of a broader range of cell populations represented in our dataset. All immune cell data can be visualized and searched using the following database: https://alona.panglaodb.se/results.html?job=2c2r1NM5Zl2qcW44RSrjkHf3Oyv51y_5f09d74b770c9.

Figure 1 with 4 supplements see all
scRNA-seq of An. gambiae immune cells.

(A) Graphical overview of the isolation of mosquito immune cells from naive and blood-fed mosquitoes. Following perfusion, cells were stained to enable processing by fluorescent activated cell sorting (FACS) and isolation for scRNA-seq. Resulting immune cells data were separated into eight-cell clusters based on hierarchical clustering analysis (B) and visualized using a t-Distributed Stochastic Neighbor Embedding (t-SNE) plot (C). The number of expressed genes per cluster are displayed as a boxplot (D).

Using hierarchical clustering, we conservatively define eight distinct cell clusters or immune cell-subtypes (Figure 1B). These clusters are supported by the unique molecular profiles of each cell cluster when analyzed by tSNE (Figure 1C), as well as variability in the number of expressed genes (Figure 1D) that infers functional heterogeneity in these cell populations. When referenced to our FACS gating methodology based on WGA/DRAQ5 staining (Figure 1A, Figure 1—figure supplement 1), each cell cluster is represented in our targeted, yet all-inclusive gating conditions (Gate 4), although these gating conditions (Gate 4) were only performed under naïve conditions (Figure 1—figure supplement 1). Moreover, each of the specific gating conditions (Gates 1–3) provides enrichment for distinct cell types under both naïve and blood-fed conditions (Figure 1—figure supplement 1). Clusters 1, 7, and 8 are enriched in Gate 1, Clusters 5 and 6 in Gate 2, and Clusters 2–4 in Gate 3 (Figure 1—figure supplement 1), arguing that these cells have similar physical properties in WGA staining and DNA content. While at present, it is unclear what defines these properties on the molecular level, the enrichment achieved through our gating strategy provides further support for our FACS methodology. The differences in DNA content amongst the FACS gating conditions are suggestive of potential variations in ploidy (the number of sets of chromosomes) in hemocyte populations as previously suggested (Bryant and Michel, 2016; Bryant and Michel, 2014), although ploidy levels for individual hemocyte subtypes have not previously been described. As a result, our data suggest that differences in DNA content can be further utilized to distinguish immune cell subtypes (Figure 1—figure supplement 1).

With the exception of Cluster 3, which was only identified in naïve mosquitoes, each of the respective cell clusters were found under both naïve and blood-fed conditions (Figure 1—figure supplement 3). When paired with differential gene expression between naive and blood-fed cells of each cluster, only Clusters 2 and 4 displayed significant changes in gene expression (Supplementary file 2). Interestingly, this includes the down-regulation of several immune genes (TEP1, SCRASP1, and LYSC1) following blood-feeding in Cluster 2 that have previously defined roles in pathogen defense (Blandin et al., 2004; Kajla et al., 2011; Levashina et al., 2001; Smith et al., 2016), while genes involved in vesicle trafficking (Rab6A) and redox metabolism display increased expression (Figure 1—figure supplement 4, Supplementary file 2). Cluster 4 displayed an increase in gene expression for a serrate RNA effector molecule (Ars2), an integrin (AGAP006826), and a Sp2 transcription factor (AGAP004438) following blood-feeding, while an enzyme involved in the processing of glycoproteins (AGAP000249) was significantly reduced (Figure 1—figure supplement 4, Supplementary file 2). Together, these data suggest that blood-feeding may primarily influence the activation state and gene expression of specific immune cell subtypes as previously suggested (Bryant and Michel, 2016; Bryant and Michel, 2014; Reynolds et al., 2020; Smith et al., 2016).

Characterization of An. gambiae immune cell clusters

To further characterize the cell clusters resulting from our scRNA-seq analysis, we used the Seurat package (Butler et al., 2018) to identify transcriptional markers significantly enriched for each cell cluster (Figure 2A, Supplementary file 3). When the expression of mitotic markers (Raddi et al., 2020) was examined under naive (sugar-fed) and blood-fed conditions, no discernable differences were detected between physiological conditions (Figure 2B). The expression of mitotic markers was also compared across individual cell clusters, enabling comparisons between naive and blood-fed conditions (Figure 2C). Clusters 2 and 4 displayed the highest expression of mitotic markers (Figure 2C), supporting that these cells may have some capacity for proliferation. Blood-feeding impacted these populations inversely, with increased marker expression in Cluster 2 and a decrease in Cluster 4; however, these results were not significant (Figure 2C). To more closely evaluate the molecular profiles of each cell cluster, transcripts identified in more than 80% of cells in each cluster (Supplementary file 4) were used to perform gene ontology (GO) analysis (Figure 2D). Comparisons across cell clusters provide further support that Clusters 2–4 are highly analogous in their core machinery, with Cluster 6 displaying a related, yet divergent cellular composition represented by an increased representation of transcripts involved in translation (Figure 2D). Correlations with a previous proteomics study of phagocytic granulocytes in An. gambiae (Smith et al., 2016) demonstrate that transcripts of Clusters 2–4 have the strongest associations with phagocytic immune cells (Figure 2—figure supplement 1), providing support that these clusters represent populations of phagocytic granulocytes. Cells in Cluster 5 display a unique profile predominantly comprised of genes implicated in redox metabolism/stress responses (Figure 2D), while Clusters 7 and 8 display marked differences in composition (Figure 2D), despite sharing similar markers to delineate these cell types (Figure 2A).

Figure 2 with 8 supplements see all

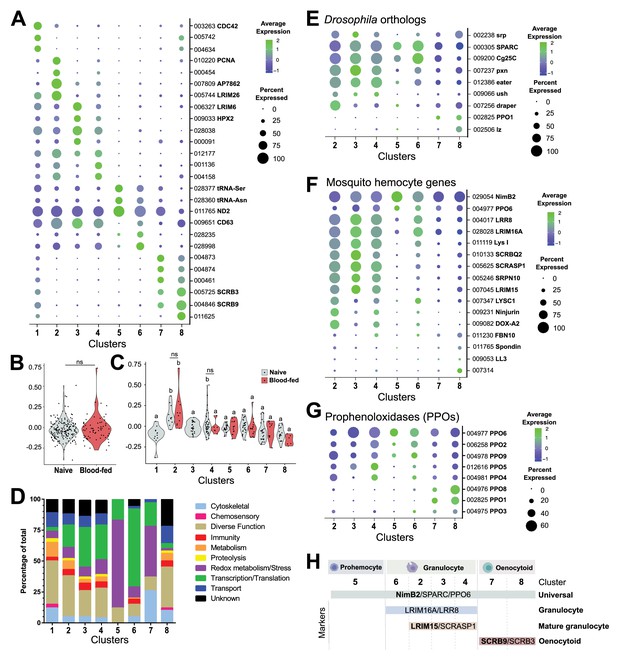

Comparative analysis of mosquito immune cells.

(A) Marker gene expression displayed by dot plot across cell clusters. Dot color shows levels of average expression, while dot size represents the percentage of cells expressing the corresponding genes in each cell cluster. (B) Violin plot of cell cycle genes (GO::0007049) displayed as the difference in average gene expression levels between the cell cycle gene set in cells under naïve and blood-fed conditions. (C) Similar comparisons of cell cycle genes were examined in individual cell clusters and under naïve and blood-fed conditions where possible. For B and C, positive numbers indicate higher levels of cell cycle gene expression compared to the random set for that physiological condition or cell cluster. (D) Gene ontology (GO) analysis of genes expressed in >80% cells within each respective cluster. Heat maps of candidate genes to Drosophila hemocyte orthologs (E), described mosquito hemocyte genes (F), or An. gambiae prophenoloxidases (PPOs) (G) to enable the characterization of immune cells form each cell cluster. (H) From these analysis, immune cells cluster were assigned to tentative cell types (prohemocytes, granulocytes, oenocytoids) based on the expression subtype-specific marker expression. Genes in bold are featured prominently in our downstream analysis.

Cells in Cluster 1 display an increased representation of genes involved in metabolic function and a decrease in genes involved in transcription and translation (Figure 2D), that when paired with the generalized expression of otherwise cluster-specific markers (Figure 2A, Figure 2—figure supplement 2) suggest that the cells within this cluster are distinct from other cell types in our analysis. Since hemolymph perfusion (to isolate circulating hemocytes) can often be contaminated by fat body cells or other cellular debris (Figure 2—figure supplement 2; Castillo et al., 2006; Smith et al., 2016), and have been identified as contaminants in other hemocyte single-cell studies (Raddi et al., 2020; Tattikota et al., 2020), we examined the possibility that Cluster 1 may represent non-hemocyte contaminating cells. Using the ‘fat body’ and ‘muscle’ enriched gene sets for An. gambiae defined by Raddi et al., 2020 and the ‘non-hemocyte’ gene set in Drosophila from Tattikota et al., 2020 for comparison to our cell clusters, we demonstrate that genes expressed in Cluster 1 closely resemble the profiles of non-hemocyte cell types and likely represents cellular debris (such as fat body or oenocytes) associated with perfusion techniques (Figure 2—figure supplement 2). This is further supported by the high DNA content of Cluster 1 cells identified by our FACS methodology (Figure 1—figure supplement 1), where previous studies in mosquitoes (Dittmann et al., 1989) and other insect species (Ren et al., 2020) have demonstrated that fat body cells display increased levels of cell ploidy. Alternatively, Cluster 1 may also represent cell doublets of mixed cell origins (fat body, granulocytes, or oenocytoids) resulting from errors in our FACS isolation methodology. This is supported by the expression of several markers (such as LRIM26 and SCRB9) at high levels that otherwise define specific cell clusters (Figure 2A) and the expression of known Drosophila and mosquito hemocyte genes (Figure 2—figure supplement 3). While Cluster 1 may also represent cell types undergoing transdifferentiation as has been suggested in Drosophila (Leitão and Sucena, 2015), the absence of increased levels of cell cycle genes (Figure 2C) previously implicated in dividing hemocytes (Raddi et al., 2020), argues that this is a less likely scenario. Additional considerations that these cells are pluripotent precursors or represent recently described megacyte populations (Raddi et al., 2020) also seem unlikely given that pluripotent precursors have not been described in other insect single-cell studies (Cattenoz et al., 2020; Cho et al., 2020; Raddi et al., 2020; Severo et al., 2018; Tattikota et al., 2020) and that Cluster 1 cells do not display enriched expression of TM7318 and LL3 (Supplementary file 5) that are indicative of megacytes (Raddi et al., 2020). Taken together, without a well-defined expression pattern and the potential that these cells may be experimental artifacts, cells of Cluster 1 were not included in the further downstream analysis of our immune cell populations.

In order to further determine the immune cell classifications of our remaining clusters, we examined the expression of well-characterized Drosophila hemocyte gene orthologs (Dudzic et al., 2015; Evans et al., 2014; Fossett et al., 2003; Franc et al., 1996; Kocks et al., 2005; Manaka et al., 2004; Martinek et al., 2011; Stofanko et al., 2008; Waltzer et al., 2003) in our dataset (Figure 2E). SPARC and Cg25C were expressed at high levels across cell clusters, suggesting that these could be universally expressed markers of mosquito immune cells (Figure 2E). Clusters 2–4 and 6 express the Drosophila plasmatocyte markers (equivalent to mosquito granulocytes) peroxidasin (pxn) and eater (Figure 2E) suggestive of phagocytic cell function. In contrast, the expression of lozenge (lz) and PPO1 indicative of Drosophila crystal cells (Cattenoz et al., 2020; Dudzic et al., 2015; Evans et al., 2014; Fossett et al., 2003; Tattikota et al., 2020) were most prevalent in Clusters 7 and 8 (Figure 2E), suggesting that these cell clusters are representative of mosquito oenocytoid populations (equivalent to crystal cells). However, little resolution into the role of Cluster 5 was provided through these comparisons to known Drosophila markers (Figure 2E).

Similar classifications were performed for described mosquito hemocyte genes (Bryant and Michel, 2016; Castillo et al., 2006; Danielli et al., 2000; Estévez-Lao and Hillyer, 2014; Kwon and Smith, 2019; Midega et al., 2013; Pinto et al., 2009; Raddi et al., 2020; Severo et al., 2018; Smith et al., 2015; Smith et al., 2016) to provide additional resolution into our mosquito immune cell clusters (Figure 2F). As previously suggested (Kwon and Smith, 2019), the expression of NimB2 and PPO6 support their use as universal markers of mosquito immune cells (Figure 2F). Through the use of described granulocyte markers (Danielli et al., 2003; Raddi et al., 2020; Smith et al., 2016), we are able to describe two discrete phagocytic cell types (Figure 2F). The expression of LRIM16A, LRR8, and LYS I in cells of Clusters 2–4 and 6 suggest that these cells are granulocytes in origin (Raddi et al., 2020; Severo et al., 2018; Smith et al., 2016), while the expression of SCRASP1, SRPN10, and LRIM15 (Danielli et al., 2003; Smith et al., 2016) in Clusters 2–4 suggest that these are more specialized granulocyte populations (Figure 2F). Other markers such as Ninjurin (Pinto et al., 2009) and DOX-A2 (Castillo et al., 2006) expressed in Clusters 2 and 4 further delineate these presumed phagocytic cell types (Figure 2F). In addition, AGAP007314 grouped strongly with the presumed oenocytoid cell population of Cluster 8, supporting its previously described roles in melanization (Pinto et al., 2009).

When we examine the transcriptional profiles of prophenoloxidases (PPOs), a family of enzymes that catalyze the production of melanin in response to infection (Dudzic et al., 2015), we demonstrate that the eight PPOs detected in our analysis are expressed in each of the major immune cell subtypes (Figure 2G). As previously suggested (Kwon and Smith, 2019; Severo et al., 2018), PPO6 is universally expressed in all hemocytes (Figure 2F and G). PPO2, PPO4, PPO5, and PPO9 are most abundant in putative granulocyte populations, while PPO1, PPO3, and PPO8 are enriched in putative oenocytoids (Figure 2G). This directly contrasts previous suggestions that mosquito PPOs are only constitutively expressed in oenocytoid populations (Castillo et al., 2006; Hillyer and Strand, 2014; Strand, 2008), yet is supported by recent evidence that phagocytic granulocyte populations in mosquitoes significantly contribute to PPO production (Kwon and Smith, 2019; Smith et al., 2016). Furthermore, the enriched expression of PPO1, PPO8, and (to a lesser extent) PPO3 in oenocytoids is supported by recent studies examining prostaglandin signaling on PPO expression in mosquito oenocytoid populations (Kwon et al., 2020).

Additional characterizations of immune signaling pathways (Figure 2—figure supplement 4), SRPNs and CLIPs (Figure 2—figure supplement 5), chemosensory receptors/proteins (Figure 2—figure supplement 6), and tRNA expression (Figure 2—figure supplement 7) across cell clusters provide further detail into the functions of our tentative immune cell clusters. We demonstrate that known anti-microbial genes and signaling components of the Toll, IMD, and JAK-STAT pathways (Cirimotich et al., 2010) display the highest expression in Clusters 2 and 8 (Figure 2—figure supplement 4), similar to the expression patterns of SRPNs and CLIPs (Figure 2—figure supplement 5) that mediate immune activation (Gulley et al., 2013; Kanost and Jiang, 2015). This suggests that mosquito granulocyte and oenocytoid populations each contribute to the expression of a distinct subset of immune signaling processes. However, at present, it is unclear if this corresponds to pathogen-specific defenses or immune responses unique to each particular cell type. Interestingly, receptors involved in chemosensory recognition (ionotropic, gustatory, and odorant receptors; odorant binding proteins) are highly expressed in Clusters 7 and 8 (Figure 2—figure supplement 6). Although their function has not been described in mosquitoes, the role of odorant binding proteins on immune system development has been described previously in other insect systems (Benoit et al., 2017). Moreover, the differential expression of transfer RNA (tRNA) genes across cell populations provided useful measures to tease apart Clusters 5–8 from other cell clusters (Figure 2—figure supplement 7), potentially representing different activation states or stages of immune cell development as previously defined in mammalian systems (Krishna et al., 2019; Rak et al., 2020; Torrent et al., 2018).

Based on these characterizations, our data support the identification of NimB2, SPARC, and PPO6 as universal markers of mosquito immune cell populations that can be found in each of our cell clusters (Figure 2H, Figure 2—figure supplement 8). Given the low number of expressed genes (Figure 1), the lack of discernable markers (Figure 2, Figure 2—figure supplement 8), and low levels of cyclin G2 (Supplementary file 5) that define differentiated cell populations (Horne et al., 1997; Martínez-Gac et al., 2004), we believe that Cluster 5 represents a progenitor population of prohemocytes (Figure 2H). Moreover, the high expression of NimB2 and SPARC (Figure 2E and F) in Cluster 5 cells are comparable to the less differentiated prohemocyte populations described by Raddi et al., 2020. Clusters 2–4 and 6 can be described as granulocytes, distinguished by LRIM16A and LRR8 (Raddi et al., 2020; Smith et al., 2016), and further delineated as ‘mature’ granulocyte populations in Clusters 2–4 marked by the expression of LRIM15 and SCRASP1 (Figure 2H, Figure 2—figure supplement 8). In the absence of these additional phagocytic markers, we believe that the less defined populations of Cluster 6 likely represent immature granulocytes. Clusters 7 and 8 represent populations of oenocytoids that can easily be denoted by the expression of two scavenger receptors, SCRB9 and SCRB3 (Figure 2H, Figure 2—figure supplement 8).

Confirmation of mosquito immune cell subtypes

To confirm the identification of our immune cell clusters and to establish a reliable set of markers to distinguish immune cell subtypes, we performed RNA-FISH on fixed immune cell populations and paired these observations with the phagocytic properties of each of the respective cell populations (Figure 3). Supported by our expression data, the ‘universal’ marker Nimrod B2 (NimB2) labeled all hemocytes (Figure 3A). Serving as a marker for phagocytic cells, we demonstrate that LRIM15 effectively labels phagocytic cell populations (Figure 3B), while the labeling of SCRB9 (Figure 3C, Figure 3—figure supplement 1) and SCRB3 denote mosquito oenocytoid populations (Figure 3—figure supplement 2). As further validation, RNA-FISH experiments performed with both LRIM15 and SCRB9 probes identify distinct populations of LRIM15+ or SCRB9+ cells, confirming that these markers label unique cell populations (Figure 3—figure supplement 3).

Figure 3 with 8 supplements see all

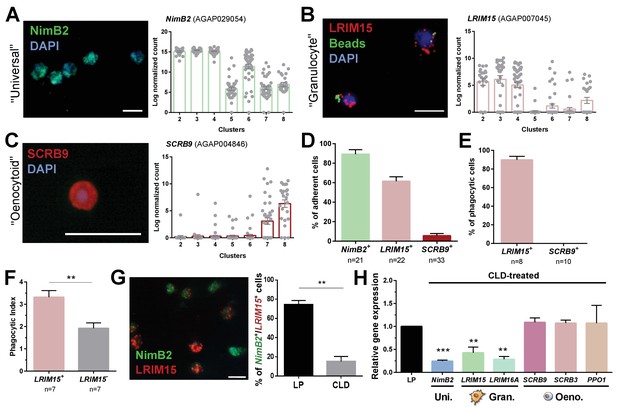

Definition of mosquito immune cell subtypes.

RNA-FISH and gene expression profiles across cell clusters for the ‘universal’ marker, NimB2 (A), the ‘granulocyte’ marker, LRIM15 (B), and ‘oenocytoid’ marker, SCRB9 (C). The percentage of adherent cells following fixation was evaluated for each of the respective NimB2, LRIM15, and SCRB9 markers in four or more independent replicates (D). To determine the phagocytic ability of granulocytes and oenocytoids, the uptake of fluorescent beads was evaluated in either LRIM15+ or SCRB9+ cells in two independent replicates (E). LRIM15+ cells display a higher phagocytic index (# beads engulfed per cell) than LRIM15- cell populations (F). Data were analyzed using a Mann–Whitney test, with bars representing mean ± SE of two independent replicates. The phagocytic ability of LRIM15+ cells was further validated by examining the abundance of NimB2+/LRIM15+ cells by RNA-FISH following perfusion after treatment with control (LP)- or clodronate (CLD) liposomes that deplete phagocytic cells (G). Data were analyzed using a Mann–Whitney test. Bars represent mean ± SE of two independent replicates. Additional validation of clodronate (CLD) depletion of phagocytic cells was performed by qRT-PCR using primers for universal (uni.), granulocyte (gran.), and oenocytoid (oeno.) cell markers. Data were analyzed using an unpaired t test to determine differences in relative gene expression between LP and CLD treatments. Bars represent mean ± SE of three independent replications (H). Asterisks denote significance (**p < 0.01, ***p < 0.001). Scale bar, 10 µm.

When these respective RNA-FISH markers are used to examine cell abundance, >90% of fixed cells are NimB2+ (Figure 3D), further demonstrating its role as a reliable general cell marker. LRIM15+ phagocytic granulocyte populations represent ~60% of fixed cells, while only ~5% of cells are SCRB9+ (Figure 3D). As expected, LRIM15+ cells are phagocytic, while SCRB9+ cells do not display phagocytic activity (Figure 3E), agreeing with the respective phagocytic and non-phagocytic roles of mosquito granulocytes and oenocytoids. Moreover, when phagocytic activity was compared between LRIM15+ and LRIM15- phagocytes, LRIM15+ cells displayed significantly higher phagocytic activity (Figure 3F). These data also indirectly support that the LRIM15- phagocytic cells are likely those of the ‘immature’ granulocytes of Cluster 6. Additional experiments using clodronate liposomes to deplete phagocytic cell populations (Kwon and Smith, 2019) demonstrate that NimB2+/LRIM15+ cells are highly susceptible to clodronate treatment (Figure 3G), providing further confirmation of their phagocytic cell function. The specificity of clodronate treatment was further validated by qRT-PCR, demonstrating that the expression of ‘universal’ or ‘granulocyte’ transcripts were reduced following phagocyte depletion, while ‘oenocytoid’ markers remain unaffected (Figure 3H). Together, these data confirm the identification of our mosquito immune cell clusters and define the use of specific cell markers to delineate granulocyte and oenocytoid populations in An. gambiae.

However, ~30% of cells (most are NimB2+) cannot be fully resolved by the expression of LRIM15 and SCRB9 alone (Figure 3B and C). This is evidenced by the NimB2+/LRIM15- cells displayed in Figure 3F, which may represent other adherent cell populations with ‘granulocyte-like’ morphology, potentially belonging to cells of Clusters 5 or 6 that are LRIM15- (Figure 3B).

Further defining mosquito granulocyte and oenocytoid sub-populations

Based on the initial comparisons of known phagocytic cell markers (Figure 2) and the confirmation of phagocytic activity in LRIM15+ cells (Figure 3), our data conservatively support the presence of four granulocyte subtypes (Clusters 2, 3, 4, and 6; Figure 2, Figure 2—figure supplement 7). To better define these subtypes, we more closely investigated the putative functional roles of each of these cell populations. Cells of Cluster two display high levels of immune gene expression of anti-microbial peptides (AMPs), components of the Toll pathway, TEP1, MMP1, and LRIM26 (Figure 3—figure supplement 4) that likely represent a class of specialized immune cells similar to other recent studies (Cattenoz et al., 2020; Raddi et al., 2020; Tattikota et al., 2020). However, tentative cell functions for the other cell clusters are less transparent. Cells of Cluster three have little immune gene expression and are distinguished by the increased production of LRIM6, cathepsin L, and cathepsin F, while cells in Cluster four display high levels of FBN 8, FBN 10, and multiple PPO genes (Figure 3—figure supplement 4). By contrast, cells in Cluster 6 display reduced expression of several phagocytic markers (Figure 3—figure supplement 4), suggesting that cells of this subtype lack the specialized phagocytic function of fully differentiated granulocytes. The reduced expression of Cyclin G2 (Figure 3—figure supplement 4), a marker of differentiated cells (Horne et al., 1997; Martínez-Gac et al., 2004), supports this hypothesis. Together, these data support that Cluster 6 likely represents a granulocyte precursor, whereas Clusters 2–4 are differentiated subtypes with unique cell functions.

Similarly, differences in gene expression were also used to distinguish between the two oenocytoid subtypes. While both cell clusters express a subset of genes unique to the oenocytoid lineage (Figure 2), expression of most oenocytoid markers, such as PPO1, SCRB3 and SCRB9, are higher in Cluster 8 than in Cluster 7 (Figure 3—figure supplement 4). Moreover, Cluster 8 also expresses high levels of hnt/peb, DnaJ-1, Mlf, klu, and lozenge (Figure 3—figure supplement 4) that are indicative of mature Drosophila crystal cells (Koranteng et al., 2020; Miller et al., 2017; Tattikota et al., 2020; Terriente-Felix et al., 2013), suggesting that Clusters 7 and 8 respectively represent populations of immature and mature oenocytoids similar to comparable populations of crystal cells in Drosophila (Cho et al., 2020; Tattikota et al., 2020). Interestingly, the isolation of these oenocytoid populations predominantly in Gate 1 (Figure 1—figure supplement 1) of our FACS methodology suggest that these cells may be polyploid, which may enhance their ability to rapidly undergo protein synthesis in response to immune challenge as previously proposed (Ren et al., 2020).

Comparative analysis to other hemocyte single-cell studies in flies and mosquitoes

When we compare these cell identifications to other hemocyte single-cell studies in Drosophila (Tattikota et al., 2020) and An. gambiae (Raddi et al., 2020), we see both similarities and differences between these studies and our own. Using markers conserved across insect systems, we demonstrate that NimB2 and SPARC represent excellent universal hemocyte markers (Figure 3—figure supplement 5) in both flies and mosquitoes. Similarly, Cg25C, HPX4/pxn, and SCRBQ2/crq are well-defined markers for granulocyte/plasmatocyte populations across species (Figure 3—figure supplement 5). However, while PPO1 and lozenge are enriched in oenocytoid/crystal cell populations in our study and in Drosophila (Tattikota et al., 2020), these transcripts were respectively either in low abundance or were not detected in (Figure 3—figure supplement 5; Raddi et al., 2020).

Additional mosquito-specific immune cell markers identified in our study corresponding to prohemocyte (ND2) or granulocyte (LRIM16A, SCRASP1, LRIM15, and LRR8) populations displayed strong similarities to (Figure 3—figure supplement 6; Raddi et al., 2020). This is further supported by correlations of our prohemocyte and granulocyte cell clusters to comparable hemocyte subtypes defined in previous mosquito single-cell studies (Figure 3—figure supplement 7; Raddi et al., 2020). However, there are important distinctions in the markers used to denote oenocytoids between studies, where PPO4 and PPO9 used to delineate oenocytoids in previous studies (Raddi et al., 2020) contrast our results where PPO4 and PPO9 are expressed in both oenocytoid and granulocyte populations (Figure 2G, Figure 3—figure supplement 6) and have previously been implicated in phagocytic granulocytes (Kwon and Smith, 2019; Smith et al., 2016). Furthermore, the expression of PPO8, SCRB3, and SCRB9 in oenocytoids that feature prominently in our analysis herein, are either found in low abundance or were not detected by (Figure 3—figure supplement 6; Raddi et al., 2020). There is also little similarity when our oenocytoid clusters (Clusters 7 and 8) and Drosophila crystal cell populations (Figure 3—figure supplement 5; Cattenoz et al., 2020; Cho et al., 2020; Tattikota et al., 2020) are compared to previously defined ‘oenocytoid’ cells (Raddi et al., 2020), which according to our analysis and others (Hu et al., 2021) more closely resemble granulocyte populations (Figure 3—figure supplement 7).

The patterns of LysI (AGAP011119) and FBN10 (AGAP011230) used to respectively define PPO6low and PPO6high immune cell populations in previous mosquito scRNA-seq studies (Severo et al., 2018) also provide significant comparative insight into the immune cell populations defined in our study. We demonstrate that LysI is predominantly expressed in the phagocytic granulocyte populations of Clusters 2–4, while FBN10 can be found in both granulocyte and oenocytoid populations (Figure 2F, Figure 3—figure supplement 8). There is a significant correlation of LysI and FBN10 with PPO6 expression (Figure 3—figure supplement 8), mirroring the PPO6low and PPO6high phenotypes as previously described (Severo et al., 2018), yet our data argue that these cell markers do not accurately account for the added complexity of mosquito immune cell populations identified in our study.

Together, these analyses highlight the similarities and differences between previous studies of insect hemocytes. Based on the homology of our cell clusters to Drosophila hemocytes (Figure 2 and Figure 3—figure supplement 5), previous proteomic analysis of phagocytic hemocytes (Figure 2—figure supplement 1; Smith et al., 2016), and the functional assays that serve as confirmation of our cell types (Figure 3), we believe that these comparative analysis strengthens and further validates the identification of our cell clusters as prohemocytes, granulocytes, or oenocytoids.

Differentiation of mosquito immune cell populations using lineage analysis

Previous studies in mosquitoes have suggested that prohemocyte precursors give rise to differentiated granulocyte and oenocytoid populations (Ramirez et al., 2014; Rodrigues et al., 2010; Smith et al., 2015). Additional evidence supports that granulocytes undergo mitosis to proliferate in response to infection (King and Hillyer, 2013). However, these observations have been based on morphological characterization, providing only speculation to the source of these immune cell populations. To better understand the origins of our identified immune cell clusters, we performed lineage analysis to determine relationships between the transcriptional profiles of individual cells to construct cell lineages in pseudotime using Monocle3 (Cao et al., 2019; Packer et al., 2019; Trapnell et al., 2014). Pseudotime analysis from naïve (Figure 4A), blood-fed (Figure 4B), or combined (naive and blood-fed) cell samples (Figure 4C) each reveal two distinct lineages from a shared precursor population (Figure 4). When visualized by cell cluster, these patterns support that the presumed prohemocyte precursors of Cluster 5 serve as the initial branching point for our cell lineages delineate into either granulocyte (Clusters 2, 3, 4, 6) or oenocytoid lineages (Clusters 7, 8; Figure 4). For the granulocyte lineage, precursor cells progress into immature granulocytes of Cluster 6 before maturation into the more specialized granulocyte populations of Cluster 2–4 (Figure 4). Pseudotime analysis suggests that Cluster 3 may represent an additional intermediate or transient cell-state in naive mosquitoes (Figure 4A), that is absent in cell populations from blood-fed conditions or may alternatively reflect changes in cytoadherence with different physiological conditions (Figure 4B, Figure 1—figure supplement 3). However, at present, we are unable to provide further resolution into the differentiation of these granulocyte populations without further detailed experiments.

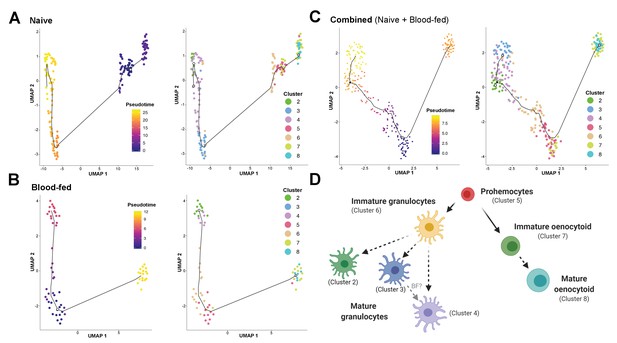

Lineage analysis of mosquito immune cells.

Using Monocle3, mosquito immune cells were visualized by UMAP to reveal two distinct lineages in pseudotime under naive (A), blood-fed (B), or combined (naïve and blood-fed) samples (C) with the corresponding immune cell clusters for each condition. Based on the lineage analysis, gene expression, and other functional assays, our data support the following model of immune cell development and differentiation where prohemocytes serve as precursors for the granulocyte and oenocytoid lineages (D). Each cell type is labeled with the corresponding cell cluster described in our analysis. Figure was created with BioRender.com.

For the oenocytoid lineage, Monocle3 analysis supports that precursor cells (Cluster 5) first differentiate into an intermediate, immature oenocytoid stage (Cluster 7) before maturation into the mature oenocytoid cells of Cluster 8 (Figure 4). Based on these cell trajectories (Figure 4A–C), as well as the transcriptional differences that likely define immature cell types (Figure 3—figure supplement 4), our results support a model for immune cell differentiation and the progression of cells within each lineage (Figure 4D). These data corroborate the differentiation of cells from a prohemocyte precursor as previously proposed (Ramirez et al., 2014; Rodrigues et al., 2010; Smith et al., 2015), while providing insight into the potential role of cell intermediates undergoing maturation before terminal differentiation of mosquito immune cell subtypes (Figure 4D) similar to those recently described in Drosophila (Tattikota et al., 2020).

Lozenge promotes differentiation of the oenocytoid lineage

While several genes have been described that promote Drosophila immune cell lineages (Evans et al., 2014), the factors that define mosquito immune cell lineages have not been described beyond the role of multiple immune signaling pathways that influence hemocyte differentiation in response to malaria parasite infection (Ramirez et al., 2014; Smith et al., 2015). To further explore the factors that determine mosquito immune cell lineages, we focused on oenocytoid differentiation and the role of lozenge. In Drosophila, lozenge (lz) expression is integral to defining crystal cell fate (Fossett et al., 2003; Waltzer et al., 2003), the equivalent of mosquito oenocytoids. To similarly examine the role of lozenge in mosquito oenocytoid development, we used RNA-FISH to demonstrate and confirm the expression of lozenge in mosquito immune cells (Figure 5A). Lozenge was detected in ~15% of fixed cells (Figure 5B), a much higher percentage than that of SCRB9+ cells demarcating An. gambiae oenocytoids (Figure 3). When we more closely examined the expression of lozenge and SCRB9, we see that co-localization of both markers only occurs in a subset of lozenge+ cells (Figure 5C), suggesting that lozenge is expressed in other immune cell subtypes in addition to mosquito oenocytoid populations. This is supported by the expression of lozenge in other immune cell clusters (Figure 5A), the ability of a subset of lozenge+ cells to undergo phagocytosis, as well as the depletion of lozenge+ cells and lozenge expression following depletion of phagocytic cell populations (Figure 5—figure supplement 1). To evaluate the influence of lozenge on oenocytoid cell fate, we silenced lozenge expression by RNAi (Figure 5—figure supplement 2) and examined the co-localization of LRIM15/SCRB9 by RNA-FISH. In lozenge-silenced mosquitoes, we see a significant decrease in LRIM15-/SCRB9+ cells (Figure 5D), suggesting that lozenge is integral to defining the oenocytoid lineage. This is further supported by the specific reduction of PPO1/3/8 expression (Figure 5E), PPOs that are enriched in Clusters 7 and 8 corresponding to the oenocytoid cell fate (Figure 2F). Together, these data support that lozenge expression is an important driver of the oenocytoid lineage in An. gambiae (Figure 5F). Based on our cell trajectories proposed in Figure 4, it suggests lozenge+ prohemocytes promote the differentiation into an oenocytoid. However, the presence of lozenge in a subset of phagocytic granulocyte populations (Figure 5, Figure 5—figure supplement 1) may alternatively support a model of transdifferentiation in which oenocytoids can be derived from phagocytic granulocytes as previously proposed in Drosophila (Leitão and Sucena, 2015).

Figure 5 with 2 supplements see all

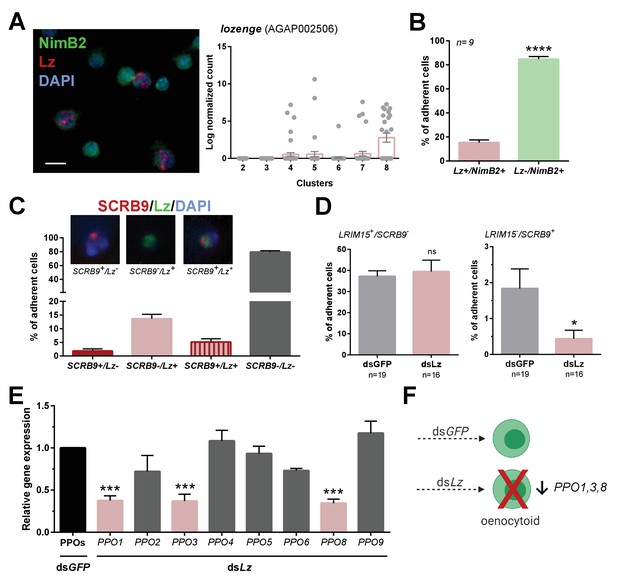

Lozenge promotes oenocytoid differentiation.

RNA-FISH and gene expression profiles across cell clusters for lozenge (Lz) (A). Scale bar, 10 µm. The percentage of adherent Lz+/NimB2+ or Lz-/NimB2+ cells were examined in naïve adult female mosquitoes to estimate cell abundance (B). Data were collected from two independent experiments. Asterisks denote significance (****p< 0.0001). To more closely examine the population of Lz+ cells, RNA-FISH experiments were performed double staining for Lz and the oenocytoid marker, SCRB9 (C). The percentage of fixed cells positive for one, both, or neither marker is displayed with representative images. Data are summarized from two independent experiments. To determine the effects of Lz on immune cell populations, the abundance of LRIM15+/SCRB9- (granulocyte) and LRIM15-/SCRB9+ (oenocytoid) cells were evaluated by RNA-FISH after GFP (control)- or Lz-silencing (D). Data represent the mean ± SE of three independent replicates. Significance was determined using Mann-Whitney analysis and is denoted by an asterisk (*p < 0.05); ns, not significant. Since Lz expression has previously been associated with prophenoloxidase (PPO) expression, the expression of all eight genes identified in our scRNA-seq analysis were examined by qRT-PCR in GFP (control) - Lz-silenced mosquitoes (E). Data represent the mean ± SE of three or more independent replicates and were analyzed by a one-way ANOVA and Holm-Sidak’s multiple comparison test using GraphPad Prism 6.0. Asterisks denote significance (***p < 0.001). (F) Summary of Lz-silencing experiments which display a reduction in oenocytoid numbers and a specific sub-set of PPO gene expression which support that Lz is integral to the differentiation of the mosquito oenocytoid lineage.

Discussion

Our understanding of mosquito immune cells has largely been shaped by studies in other insects (Banerjee et al., 2019; Lavine and Strand, 2002). From morphological observations of size and shape, three cell types have been described in mosquitoes: prohemocytes, oenocytoids, and granulocytes (Castillo et al., 2006). However, with the advent of additional molecular tools to study mosquito immune cell function, several studies have supported an increased complexity of hemocyte populations beyond these generalized cell subtype classifications (Bryant and Michel, 2016; Kwon and Smith, 2019; Pondeville et al., 2020; Raddi et al., 2020; Severo et al., 2018; Smith et al., 2016). Herein, we demonstrate through scRNA-seq experiments and additional molecular characterization that there are at least seven conservatively defined immune cell populations in An. gambiae.

Similar to previous characterizations (Castillo et al., 2006), we identify prohemocyte, oenocytoid, and granulocyte populations in our RNA-seq analysis. Based on the lineage analysis, it would appear as though circulating prohemocytes can serve as progenitor populations that give rise to either the granulocyte or oenocytoid trajectories as previously proposed (Castillo et al., 2006; Ramirez et al., 2014; Rodrigues et al., 2010; Smith et al., 2015). However, in both the oenocytoid and granulocyte classifications, we identify multiple, distinct immune cell populations defined by developmental progression, activation state, or specialized immune function similar to those recently described in Drosophila (Cattenoz et al., 2020; Tattikota et al., 2020). As a result, the roles of oenocytoids and granulocytes may extend well beyond the respective oversimplified roles in melanization and phagocytosis that they have previously been ascribed (Hillyer and Strand, 2014; Lavine and Strand, 2002). Importantly, our experiments now provide a reliable set of markers to accurately distinguish between mosquito immune cell populations using RNA-FISH and validate these identifications through co-localization experiments, phagocytosis experiments, and phagocyte depletion assays. Therefore, our experiments provide an important foundation and much-needed cell markers to reliably distinguish oenocytoid and granulocyte populations that will advance the study of mosquito immune cells.

Through our scRNA-seq analysis, we identify at least four granulocyte subtypes in An. gambiae based on gene expression, previous proteomics studies (Smith et al., 2016), and phagocytic properties. This expansion of the general ‘granulocyte’ classification is supported by previous morphological observations of granulocytes in mosquitoes (Kwon and Smith, 2019; Pondeville et al., 2020), and more recently by parallel scRNA-seq experiments in Drosophila (Cattenoz et al., 2020; Tattikota et al., 2020) and An. gambiae (Raddi et al., 2020). Of these four granulocyte subtypes, our data support that cells of Cluster six are intermediate or immature granulocyte forms that display distinct expression patterns from prohemocyte precursors, yet do not have the same properties of other granulocyte subtypes (Cluster 2–4). This is supported by our pseudotime lineage analysis, where these immature cells of Cluster 6 give rise to more specialized granulocyte populations, similar to that described for comparable immature plasmatocytes in Drosophila (Tattikota et al., 2020). This maturation in Clusters 2–4 includes the increased expression of the phagocytic cell markers LRIM15 and SCRASP1 (Smith et al., 2016) as well as Cyclin G2 as a marker of differentiated cells (Horne et al., 1997; Martínez-Gac et al., 2004) that result in more specialized granulocyte subtypes.

Of these ‘mature’ granulocytes, Cluster two displays increased immune properties comparable to other recently described granulocyte or plasmatocyte populations in An. gambiae (Raddi et al., 2020) and Drosophila (Cattenoz et al., 2020; Tattikota et al., 2020). Based on their increased expression of antimicrobial peptides (AMPs) and other immune components such as TEP1, these cell populations may have a primary role in the hemocyte-mediated immune responses that limit bacteria (Hillyer et al., 2003a; Reynolds et al., 2020) or the recognition and killing of malaria parasites (Castillo et al., 2017; Kwon and Smith, 2019). In addition, the increased expression of mitotic markers in Cluster 2 cells suggests that these granulocyte populations may contribute to hemocyte replication as previously suggested (King and Hillyer, 2013). Granulocytes of Cluster 3 can be delineated by the expression of LRIM6, as well as cathepsin L and cathepsin F. In other invertebrate systems, cathepsin L has been implicated in hemocyte lysosomes, serving important roles in the degradation of phagocytosed materials by phagocytic immune cells (Jiang et al., 2018; Tryselius and Hultmark, 1997). Both cathepsin L and cathepsin F have been associated with anti-microbial activity (Guo et al., 2018; Jiang et al., 2018), which together infer that these cells likely play an important role in immunity and immune homeostasis. However, it is at present unclear why these cells are only detected under naïve conditions. Lineage analysis of naïve cell populations suggests that Cluster 3 cells may represent a ‘transition state’ intermediates that gives rise to other granulocyte populations following blood-feeding or infection. Alternatively, the loss of Cluster 3 upon blood-feeding may also indicate changes in cytoadherence within these populations. Cells within Cluster 4 display high levels of FBN10, which resemble previously described PPO6high phagocytic cell populations (Kwon and Smith, 2019; Severo et al., 2018). However, additional studies are required to more closely resolve the impacts that feeding status (naive, blood-fed, Plasmodium infection) may have on these granulocyte subtypes as transient cell states or as differentiated cell types.

In addition to identifying multiple granulocyte subtypes, we also define two populations of mosquito oenocytoids (clusters 7 and 8) that likely reflect immature and mature cell populations analogous to those recently described for Drosophila crystal cell populations (Cho et al., 2020; Koranteng et al., 2020; Tattikota et al., 2020). Mature oenocytoids (Cluster 8) are denoted in part by the increased expression of lozenge, PPO1, pebbled, DNA J, MLF, Notch, and klumpfuss as previously described (Cho et al., 2020; Koranteng et al., 2020; Tattikota et al., 2020), as well as the increase in SCRB3 and SCRB9 which serve as a new marker of mosquito oenocytoids in our analysis. The mosquito oenocytoid lineage is distinct from that of granulocytes, relying on the expression of lozenge to promote oenocytoid differentiation similar to Drosophila crystal cells (Fossett et al., 2003; Waltzer et al., 2003). In Drosophila, lozenge is a transcription factor that interacts with the GATA factor serpent to promote the crystal cell lineage from embryonic or larval lymph gland prohemocytes (Fossett et al., 2003; Waltzer et al., 2003), a process that is tightly regulated by u-shaped expression (Fossett et al., 2003). In our analysis, u-shaped is expressed in mature granulocytes (Cluster 2–4), implying that its expression can be a marker of differentiated granulocytes that are no longer able to adopt an oenocytoid cell fate. This is supported by our on lineage analysis, where differentiation likely occurs from circulating prohemocyte precursor populations (Cluster 5), yet we cannot rule out the potential that immature granulocyte populations are able to undergo transdifferentiation as previously described in Drosophila (Leitão and Sucena, 2015). Together with our lozenge gene-silencing data, this suggests that the regulation of oenocytoid differentiation may be highly conserved between Drosophila and Anopheles.

Our study also breaks down existing paradigms that insect oenocytoids/crystal cells are primarily associated with prophenoloxidase (PPO) production and melanization (Hillyer and Strand, 2014; Lavine and Strand, 2002; Lu et al., 2014). This largely stems from work in Drosophila, where two of the three PPOs (PPO1 and PPO2) are expressed in crystal cells (Dudzic et al., 2015), and in Bombyx mori where PPOs are exclusively synthesized by oenocytoids (Iwama and Ashida, 1986). However, our scRNA-seq results suggest that both granulocytes and oenocytoids are involved in PPO production, and that distinct subsets of PPOs are differentially regulated in the granulocyte and oenocytoid lineages. Following lozenge-silencing, we see significant decreases in PPO1, PPO3, and PPO8 expression, transcripts that were highly enriched in oenocytoids in our study, while the remaining PPO genes were unaffected. This is supported by similar RNAi experiments in Aedes aegypti, where lozenge and Toll activation influence orthologous PPO gene expression (Zou et al., 2008). Recent studies of prostaglandin signaling in An. gambiae have also implicated the regulation of PPO1, PPO3, and PPO8 in oenocytoid populations (Kwon et al., 2020), providing further support that a subset of PPOs are specifically regulated in oenocytoids. In addition, several lines of evidence support that granulocyte populations also contribute to PPO expression in An. gambiae, including PPO6 transgene expression and staining in mosquito granulocytes (Bryant and Michel, 2016; Bryant and Michel, 2014; Castillo et al., 2006; Kwon and Smith, 2019; Severo et al., 2018), the effects of phagocyte depletion on PPO expression (Kwon and Smith, 2019), and the identification of multiple PPOs in the mosquito phagocyte proteome (Smith et al., 2016). This is a departure from other insect systems and is most likely a reflection of the expansion of the PPO gene family in mosquito species, where a total of nine An. gambiae PPOs have been annotated with yet undescribed function. Together, these results suggest new possible roles for PPOs in mosquito immune cells and their respective roles in the innate immune response.

Initial comparisons to recently published Drosophila immune cell scRNA-seq experiments (Cattenoz et al., 2020; Tattikota et al., 2020) reveal both similarities and differences in immune cell populations between dipteran species. Similar to Drosophila, our data in mosquitoes support the developmental progression and specialization of immune cells from precursor populations, the presence of multiple phagocytic cell populations, and multiple shared markers that delineate the oenocytoid/crystal cell lineage (Cattenoz et al., 2020; Tattikota et al., 2020). However, several differences are also noted in mosquitoes, including the absence of well-characterized Drosophila immune cell markers such as hemolectin (Goto et al., 2003; Pondeville et al., 2020) and hemese (Kurucz et al., 2003), as well as the lack of lamellocyte cell populations. We also identify several mosquito immune cell markers (such as LRIM15 and SCRB9) and the expansion of PPO genes in mosquito hemocytes that are unique to mosquito immune cell populations. Other respective differences in the isolation of cells from larvae or adults in Drosophila and mosquitoes, may further explain other disparities in cell types or steady states of activation. Ultimately, these questions require a more in-depth comparison of immune cells between these two organisms in the future.

When placed in the context of previously published scRNA-seq studies in mosquitoes (Raddi et al., 2020; Severo et al., 2018), our results provide additional resolution and perspective to the burgeoning study of mosquito immune cells. We expand upon the initial classification of PPO6high and PPO6low immune cell subtypes by Severo et al., 2018, providing an increased number of described hemocyte subtypes. Furthermore, our experiments support that the previously defined PPO6high and PPO6low populations (Severo et al., 2018) likely represent granulocyte subtypes based on their phagocytic ability and similarity to granulocyte gene expression profiles identified in our analysis. Similar to Raddi et al., 2020, we define prohemocytes, multiple granulocyte populations (including an immune-enriched subtype), and oenocytoids. While we identify comparable prohemocyte and granulocyte populations in our study, our studies significantly differ in the description of oenocytoid cell types. Based on our analysis, the oenocytoids defined by Raddi et al., 2020 more closely resemble granulocytes, which lack conserved PPO1 and lozenge markers of oenocytoid/crystal cell populations (Benoit et al., 2017; Cattenoz et al., 2020; Cho et al., 2020; Tattikota et al., 2020), as well as SCRB3/SCRB9 markers that feature prominently in our analysis. Moreover, the oenocytoids described by Raddi et al. display limited expression of PPO8 and lack PGE2R (Raddi et al., 2020), which have integral functional roles in oenocytoid immune cell function (Kwon et al., 2020). In addition, we do not detect signatures of megacytes, rare immune cell populations denoted by TM7318 and LL3 expression (Raddi et al., 2020). However, megacytes are enriched in blood- or Plasmodium-infected samples from 2 to 7 days post-feeding (Raddi et al., 2020), of which one caveat of our analysis is that we only examine immune cell population in naïve or blood-fed samples 24 hr post-feeding. While our analysis of Cluster 2 in our study suggests that these cells may have some proliferative properties, we do not detect the previously described proliferating granulocyte populations defined by cyclin B and aurora kinase expression (Raddi et al., 2020). However, these cells are enriched at later time points following blood-feeding or infection (Raddi et al., 2020), timepoints which are not included in our own study, similar to megacytes as described above. It is also unclear how technical differences in the experimental approach between studies (10x Genomics vs. FACS isolation followed by Smart-seq2 in our study) may have influenced these differences.

In contrast to the random isolation and cell sequencing of 10x Genomics methods employed by Raddi et al., 2020, the FACS-based methodology used in our study has enabled a more focused enrichment of immune cell populations based on DNA content and lectin staining. This has likely contributed to the resolution of the resulting hemocyte subtypes in our analysis despite sequencing a fraction of cells (262 versus 5383) when compared to previous studies (Raddi et al., 2020). Due to the increased scope of the study by Raddi et al. that examine multiple physiological conditions (naïve, blood-fed, P. berghei-infected) and experimental timepoints (days 0, 1, 2, 3, and 7) only 1127 (1049 naive and 78 one-day post-blood fed) of the 5383 total cells examined pair with the physiological conditions in our analysis, and may account for some differences between studies including the absence of comparable megacyte and dividing granulocyte populations (Raddi et al., 2020) in our study.

A primary goal of our study has also been to integrate our dataset with previous descriptions of Anopheles hemocytes, thereby enhancing its role as a community resource by placing our analysis in the larger context of previously published work. As a result, we incorporate several markers detailed in previous immunofluorescence assays (Bryant and Michel, 2016; Bryant and Michel, 2014; Castillo et al., 2006; Pinto et al., 2009), transcriptional studies (Pinto et al., 2009), and proteomic analysis (Smith et al., 2016) that have proven instrumental to the characterization of our immune cell clusters. Strengthened by homology to studies of Drosophila hemocytes (Cattenoz et al., 2020; Cho et al., 2020; Tattikota et al., 2020), we provide a reliable set of lineage-specific markers that accurately define the granulocyte and oenocytoid lineages. When paired with phagocytosis assays and methods of phagocyte depletion (Kwon and Smith, 2019), we provide an enhanced set of tools to define mosquito immune cell populations. Through these new resources, our RNA-FISH data support that mosquito oenocytoid populations do not undergo phagocytosis, contrasting previous reports of rare phagocytic events by oenocytoids when relying on cellular morphology alone (Hillyer et al., 2003b). Therefore, our results improve upon existing knowledge and offer further advances to increase the consistency and resolution in the study of mosquito immune cells.

In addition, our study also provides several new insights into mosquito immune cell biology that warrant further study. This includes the role of ploidy in insect immune cell populations, the expression of CLIP-domain serine proteases (CLIPs) and serine protease inhibitors (SRPNs) in distinct oenocytoid and granulocyte populations, the enrichment of chemosensory genes in oenocytoids, and the variable expression of tRNAs across immune cell clusters. Together, these are suggestive of distinct transcriptional repertoires within immune cell subtypes that may impart as of yet unknown biological functions specialized for each cell type. Our data also provide additional detail into the regulation of immune cell differentiation, demonstrating the integral role of lozenge in driving the oenocytoid cell lineage. Other transcription factors such as LL3 (Raddi et al., 2020; Smith et al., 2015) and STAT-A (Smith et al., 2015) have been implicated in the differentiation of the granulocyte and oenocytoid lineages in Anopheles, yet at present, we have very little understanding of the signals that promote mosquito hematopoiesis and hemocyte differentiation. It is also of interest to examine how immune cell populations differ between life stages (larvae and adult), to determine how immune cells are influenced by the microbiota, how different physiological conditions mediate sessile hemocyte populations, and how different pathogen signatures can influence immune cell development and differentiation. As a result, we believe that the candidate markers and cell lineage progressions proposed by our study provide an essential first step to approach this multitude of questions in Anopheles hemocyte biology through future work.

To address many of these experimental questions, there is an inherent need to develop additional genetic tools and resources for the study of mosquito immune populations. This includes the development of transgenic lines expressing subtype-specific markers and binary expression systems similar to those developed for Drosophila (Evans et al., 2014), for which the results of our single cell transcriptomes and functional analysis will serve as an important foundation for future genetic studies to examine mosquito immune cell function.

In summary, our characterization of mosquito hemocytes by scRNA-seq and accompanying functional validation experiments provide an important advancement in our understanding of An. gambiae immune cell populations. Through the molecular characterization of at least seven immune cell subtypes and the development of dependable molecular markers to distinguish between cell lineages, we have presented new molecular targets where genetic resources were previously lacking. Through functional data and efforts to incorporate existing knowledge of mosquito hemocytes, we believe that our data will serve as an important resource for the vector community, which togethers offer new insights into the complexity of mosquito immune cells and provide a strong foundation for comparative functional analyses of insect immune cells.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Strain, strain background (An. gambiae)KeeleHurd et al., 2005;
Ranford-Cartwright et al., 2016
NA
Biological sample (An. gambiae)adult female hemolymphNANAPerfused hemocytes from naïve (sugar-fed) or blood-fed (24 hr post-feeding) mosquitoes
Sequence-based reagentLRIM15 (qRT-PCR primers)Smith et al., 2016AGAP007045F:CGATCCTGATCCTGAACGTGGGCTTC
R:GCAAGCAAGCCACTCACAAATCCTCG
Sequence-based reagentLRIM16A (qRT-PCR primers)Smith et al., 2016AGAP028028F:ATCAGAGTGCAGCACAAGTTGAAGGT
R:TCTCTGTTAGCATAGCGCCTTCGTTC
Sequence-based reagentLz (qRT-PCR primers)This studyAGAP002506F:GCACCGTCAATCAGAACCAA
R:TGCCACTGATCGAATGCTTG
Sequence-based reagentNimB2 (qRT-PCR primers)Kwon and Smith, 2019AGAP029054F:CAATCTGCTCAAATGGCTGCTTCCACG
R:GCTGCAAACATTCGGTCCAGTGCATTC
Sequence-based reagentPPO1 (qRT-PCR primers)Kwon and Smith, 2019AGAP002825F:GACTCTACCCGGATCGGAAG
R:ACTACCGTGATCGACTGGAC
Sequence-based reagentPPO2 (qRT-PCR primers)Kwon and Smith, 2019AGAP006258F:TTGCGATGGTGACCGATTTC
R:CGACGGTCCGGATACTTCTT
Sequence-based reagentPPO3 (qRT-PCR primers)Kwon and Smith, 2019AGAP004975F:CTATTCGCCATGATCTCCAACTACG
R:ATGACAGTGTTGGTGAAACGGATCT
Sequence-based reagentPPO4 (qRT-PCR primers)Kwon and Smith, 2019AGAP004981F:GCTACATACACGATCCGGACAACTC
R:CCACATCGTTAAATGCTAGCTCCTG
Sequence-based reagentPPO5 (qRT-PCR primers)Kwon and Smith, 2019AGAP012616F:GTTCTCCTGTCGCTATCCGA
R:CATTCGTCGCTTGAGCGTAT
Sequence-based reagentPPO6 (qRT-PCR primers)Kwon and Smith, 2019AGAP004977F:GCAGCGGTCACAGATTGATT
R:GCTCCGGTAGTGTTGTTCAC
Sequence-based reagentPPO8 (qRT-PCR primers)Kwon and Smith, 2019AGAP004976F:CCTTTGGTAACGTGGAGCAG
R:CTTCAAACCGCGAGACCATT
Sequence-based reagentPPO9 (qRT-PCR primers)Kwon and Smith, 2019AGAP004978F:TGTATCCATCTCGGACGCAA
R:AAGGTTGCCAACACGTTACC
Sequence-based reagentrpS7 (qRT-PCR primers)Kwon and Smith, 2019AGAP010592F:ACCCCATCGAACACAAAGTTGACACT
R:CTCCGATCTTTCACATTCCAGTAGCAC
Sequence-based reagentSCRB3 (qRT-PCR primers)This studyAGAP005725F:CATCGGGACAGCTACATCCT
R:TTATTGCTGCTACCGTTGCC
Sequence-based reagentSCRB9 (qRT-PCR primers)This studyAGAP004846F:CGATATTCGGCGATGCAACT
R:CACGCATGACACGATTCAGT
Sequence-based reagentGFP (T7 RNAi primers)Kwon and Smith, 2019NAF:TAATACGACTCACTATAGGGAGAATGGTGAGCAAGGGCGAGGAGCTGT
R:CACGCATGACACGATTCAGT
Sequence-based reagentLz (T7 RNAi primers)This studyAGAP002506F:TAATACGACTCACTATAGGGCTGCAACCGTCCCAGAACAACGGC
R:TAATACGACTCACTATAGGGACAAACCGGAGATCGTTGAATTTGG
Sequence-based reagentNimrod B2 (RNA-FISH probe)Advanced Cell DiagnosticsAGAP029054Severo et al., 2018
Sequence-based reagentLRIM15 (RNA-FISH probe)Advanced Cell DiagnosticsAGAP007045regions 2–874 of XM_308718.4
Sequence-based reagentLz (RNA-FISH probe)Advanced Cell DiagnosticsAGAP002506regions 168–1372 of XM_312433.5
Sequence-based reagentSCRB3 (RNA-FISH probe)Advanced Cell DiagnosticsAGAP005725regions 337–1276 of XM_315741.5
Sequence-based reagentSCRB9(RNA-FISH probe)Advanced Cell DiagnosticsAGAP004846regions 402–1306 of XM_001688510.1
Commercial assay or kitStandard macrophage depletion kitEncapsula NanoSciences LLCCLD-8901Control liposomes or clodronate liposomes were used in a 1:5 dilution in 1x PBS
Commercial assay or kitDNA Clean and Concentration kitZymo ResearchD4013
Commercial assay or kitMEGAscript RNAi kitLife TechnologiesAM1626
Commercial assay or kitRevertAid First Strand cDNA Synthesis kitLife TechnologiesK1622
Commercial assay or kitRNAscope Multiplex Fluorescent Detection Reagents
V2
Advanced Cell Diagnostics323110
Software, algorithmSeuratButler et al., 2018
Software, algorithmMonocle3Cao et al., 2019
Software, algorithmalonaFranzén and Björkegren, 2020https://alona.panglaodb.se/
https://github.com/oscar-franzen/alona/
Software, algorithmGraph Pad PrismGraph Pad Software, LLC
OtherFITC-conjugatedWheat Germ Agglutinin (WGA)SigmaL49851:5000
OtherDRAQ5Thermo Fisher Scientific622511:1000
OtherLive/Dead Fixable Dead Cell StainThermo Fisher ScientificL349651:1000
OtherFluoSpheres Fluorescent MicrospheresMolecular ProbesF8821, F8823Red or Green fluorescent fluorospheres for phagocytosis assays
OtherOpal Fluorophore reagentAkoya BiosciencesOpal520 (FP1487001KT), Opal570 (FP1488001KT)1:1000
OtherProLongDiamond Antifade Mountant with DAPILife TechnologiesP36966
OtherPowerUp SYBR Green Master MixApplied BiosystemsA25742
OtherE-RNAihttp://www.dkfz.de/signaling/e-rnai3/idseq.php
OtherDRSC RNA Seq ExplorerTattikota et al., 2020https://www.flyrnai.org/scRNA/blood/
OtherRaddi et al., 2020https://hemocytes.cellgeni.sanger.ac.uk/
OtherThis studyhttps://alona.panglaodb.se/results.html?job=2c2r1NM5Zl2qcW44RSrjkHf3Oyv51y_5f09d74b770c9

Mosquito rearing

Request a detailed protocol

Adult An. gambiae mosquitoes of the Keele strain (Hurd et al., 2005; Ranford-Cartwright et al., 2016) were reared at 27°C with 80% relative humidity and a 14/10 hr light/dark cycle. Larvae were reared on a diet of fish flakes (Tetramin, Tetra), while adult mosquitoes were maintained on 10% sucrose solution and commercial sheep blood for egg production.

Isolation and sorting of mosquito immune cells for single-cell RNA sequencing

Request a detailed protocol

Hemolymph was perfused from female mosquitoes (n=40) under naïve (3- to 5 day old) or blood-fed (~24 hr post-feeding) conditions using an anticoagulant solution as previously described (Kwon and Smith, 2019; Smith et al., 2016). Perfused hemolymph was diluted with 1X PBS to a total volume of 1 mL, then centrifuged for 5 min at 2000×g to pellet cells. After the supernatant was discarded, cells were washed two times in 1X PBS with an additional centrifugation step of 5 min at 2000×g between washing steps. Cells were incubated with WGA (1:5000, Sigma), DRAQ5 (1:1000, Thermo Fisher Scientific) and Live/Dead Fixable Dead Cell Stain (1:1000 Thermo Fisher Scientific) for 90 min at room temperature. Following incubation, cells were washed twice in 1X PBS to remove excess stain with a centrifugation step of 5 min at 2000 ×g and run on a BD FACSCanto cytometer (BD Biosciences). Based on the previous flow cytometry data for establishment of threshold values for gating (Kwon and Smith, 2019), cells smaller or larger than single cells were excluded. Cell viability was determined by the intensity of the blue fluorescent signal from the Live/Dead Fixable Dead Cell Stain, where dead cells display higher fluorescent signal. Following gating for cell viability, cell populations were distinguished by WGA and DRAQ5 signals and with individual cells sorted into each well of a 384-well plate (twintec PCR plates, Eppendorf, Germany) containing 2.3 µl lysis buffer (Picelli et al., 2013).

cDNA libraries were generated using a slightly modified version of Smart-seq2 as previously described (Picelli et al., 2013), where 23 cycles for cDNA amplification were used. Single-cell libraries were sequenced on the HiSeq2500 platform (Illumina) using 56 base pair single-end sequencing. Library preparation and sequencing was performed at ESCG and NGI, SciLifeLab, Sweden.

Computational analysis

Request a detailed protocol

Sequencing reads were mapped to the Anopheles gambiae AgamP4 reference genome (Ensembl release 40) and ERCC sequences with the HISAT2 aligner version 2.1.0 (Kim et al., 2015). Only alignments with mapping quality 60 were retained. Quantification of gene expression was performed on the gene level. Overlapping exons of the same gene were merged based on their annotation coordinates. Counting of alignments on genome annotations was performed with the program subread version 1.6.2 (Liao et al., 2014) with the ‘-s’ flag set to 0. Quality control of the data was performed by examining the fraction of sequencing output from ERCC templates versus the genome. Moreover, we applied a threshold of a minimum of 10,000 uniquely mapped reads per cell, only considering reads mapped in exons, that is intronic and intergenic reads are not counted toward the 10,000-minimum threshold; cells with fewer reads were not included in downstream analyses. Raw read counts were normalized to RPKM to adjust for gene length (Mortazavi et al., 2008). RPKM values were transformed with the function log2(x+1), where x is a vector of expression values. The complete quality-filtered gene expression data (as RPKM values) for all 262 cells is found in Supplementary file 1. Statistical analyses and data visualization were performed with the R software (http://www.r-project.org) version 3.5.3. Hierarchical clustering with Euclidean distance was used to define cell clusters; the ward.D2 agglomeration method was used for linkage. The final clusters were defined using a combination of manual examination of the tree structure and the cutreeDynamic function of the R package dynamicTreeCut (with method set to hybrid and deepSplit set to 4) (Langfelder et al., 2008).

Clustering and functional analysis of single-cell data

Request a detailed protocol

Raw reads count for single cells data were normalized and scaled using scale factor function (log10) for genes of interest. The percentage and the average expression of the selected genes were calculated in a scaled normalized expression along a continuous color scale. Seurat Dotplot version (3.1.5) was used for visualization in R (version 3.5.3) software. The color intensity is proportional to a scaled average gene expression level for the selected genes across all clusters and the size of the circle is correspondence to the percentage of cells within each cluster expressing a gene (Stuart and Satija, 2019).

Heatmaps were produced using the pheatmap package (version 1.0.12), where the average expression of the selected genes was calculated from the normalized scaled RPKM values from clustering data. The working data frame matrix was prepared using tidy-verse package version (1.3.0) for heatmap construction on selected gene sets corresponding (hemocyte gene orthologs, immune genes, etc.) to visualize expression across clusters. The clustering distance applied to the heatmaps was based on spearman.complete.obs with the scale set to be the selected genes as a comparison for visualization. Color intensity corresponds to the normalized and raw scaled average gene expression encoded with gray, white, red and firebrick 3, with the latter indicating an increase in the average expression level of a given gene within a cell cluster.

Cell cycle gene analysis was performed using the Seurat function ‘AddModuleScore’ to calculate the average expression levels of transcripts annotated to be involved in the cell cycle (GO:0007049) 191 transcripts similar to Raddi et al., 2020. After filtering out cells expressing less than 1% of the transcripts, 172 remaining transcripts were used in a combined expression score to calculate the enrichment of cell cycle genes among clusters. Positive scores indicate higher expression of genes involved in cell cycle regulation suggestive of cell proliferation.

To perform gene ontology (GO) analysis on each of the defined cell clusters, transcripts expressed in >80% of each respective cell cluster (Supplementary file 4) were examined to characterize the molecular composition of each cell type. Gene IDs (AGAP accession numbers) were classified based on gene ontology as previously (Mendes et al., 2011; Smith et al., 2016) to identify the functional categories of proteins within each cell cluster and to enable comparisons between cell clusters.

Differential expression analysis was performed using linear models as implemented in the alona software (https://github.com/oscar-franzen/alona/) (Franzén and Björkegren, 2020). Genes with false discovery rate (FDR; Benjamini-Hochberg’s procedure) <5% and the absolute value of the log fold change>1.5 were considered significantly differentially expressed. All data can be visualized using the alona server (Franzén and Björkegren, 2020) at the following project link: https://alona.panglaodb.se/results.html?job=2c2r1NM5Zl2qcW44RSrjkHf3Oyv51y_5f09d74b770c9.

Comparative analysis to other single-cell studies

Request a detailed protocol

Enriched gene sets corresponding to unique immune cell or non-hemocyte populations defined in previous single-cell studies for An. gambiae (Raddi et al., 2020) or Drosophila (Tattikota et al., 2020) were compared to each of the individual cell clusters defined in our analysis. Comparisons were based on presence/absence to genes with an averaged gene expression of >1 FKPM (Supplementary file 5) in our analysis, with the percentage of genes within the enriched gene sets used as a readout for comparison.

Additional comparisons of candidate genes across single-cell studies was performed by visualizing individual gene expression across tSNE maps as described above for our study, and compared to gene expression profiles produced using existing online resources for previous single-cell studies in An. gambiae (Raddi et al., 2020; https://hemocytes.cellgeni.sanger.ac.uk/) and Drosophila (Tattikota et al., 2020; https://www.flyrnai.org/scRNA/blood/).

Cell trajectory and pseudotime analysis

Request a detailed protocol

Cells were assigned to cell groups using Monocle3 with UMAP clustering (Cao et al., 2019; Packer et al., 2019; Qiu et al., 2017; Trapnell et al., 2014). Data was normalized to remove batch effects using PCA clustering to 100 dimensions (Haghverdi et al., 2018). Pseudotime was calculated in Monocle3, with colors representing pseudotime changes among the cell clusters (Cao et al., 2019; Packer et al., 2019; Qiu et al., 2017; Trapnell et al., 2014). Bioinformatic methods for Monocle analyses can be found at: https://github.com/ISUgenomics/SingleCellRNAseq_RyanSmith, (Smith, 2021, copy archived at swh:1:rev:4b4b48d062ce112b9f53b5bbf43502d6cfae91a0).

RNA-FISH

Request a detailed protocol

In order to classify hemocyte populations by detecting specific RNA expression, we used RNAscopeMultiplex Fluorescent Reagent Kit v2 Assay (Advanced Cell Diagnostics), and in situ hybridization was performed using the manufacturer’s instruction. Using anticoagulant solution, hemolymph was perfused from non-blood fed mosquitoes (3–5 days old) and placed on a superfrost microscopic slide (Fisher Scientific) to adhere at RT for 20 min. Cells were fixed with 4% paraformaldehyde for 15 min at 4°C, then washed three times with 1X PBS. Hydrogen peroxide was applied to the cells, and slides were incubated for 10 min at room temperature (RT). After washing three times in sterile distilled water, cells were treated Protease IV and incubated for 30 min at RT. To delineate hemocyte populations, a Nimrod B2 (AGAP029054) RNA probe conjugated with C1 (Severo et al., 2018) was used as a universal maker and was mixed with a specific RNA probe conjugated with C2, either leucine rich-repeat immune protein 15 (LRIM15: AGAP007045; regions 2–874 of XM_308718.4), or lozenge (Lz: AGAP002506; regions 168–1372 of XM_312433.5). For the identification of oenocytoid populations, SCRB3 (AGAP005725; regions 337–1276 of XM_315741.5) or SCRB9 (AGAP004846; regions 402–1306 of XM_001688510.1) RNA probes conjugated with C1 were co-incubated with either LRIM15 or Lz probes. All RNAscope probes are commercially available through Advanced Cell Diagnostics. Fixed hemocyte slides were hybridized with the respective mixtures of RNA probes in a HybEZOven for 2 hr at 40°C. After washed two times with wash buffer for 2 min, hybridized probes were incubated with respective AMP reagents (AMP1 and AMP2) for 30 min at 40°C and with AMP3 for 15 min at 40°C. Cells were washed two times with wash buffer between AMP incubations. Cells were incubated with RNAscopeMultiplex FLv2 HRP-C1 for 15 min at 40°C, labeled with selected Opal Fluorophore reagent (Akoya Bioscience) at dilution facto (1:1000) for 30 min at 40°C and treated with RNAscopeMultiplex FLv2 HRP blocker for 15 min at 40°C. Cells were washed two times with wash buffer for 2 min between incubations. Following C1 labeling, cells were incubated with a specific RNAscopeMultiplex FLv2 HRP-C2 conjugated solution, desired Opal Fluorophore reagent (1:1000; Opal520 or Opal570) and HRP blocker. Slides were initially treated DAPI (Advanced Cell Diagnostics) for 30 s at RT and mounted with ProLongDiamond Antifade Mountant with DAPI (Life Technologies). Cells displaying a positive signal were quantified as the percentage of positive cells of the total number of cells examined. Counts were performed from >50 adherent cells per mosquito from randomly chosen fields using fluorescence microscopy (Nikon Eclipse 50i, Nikon).

Phagocytosis assays

Request a detailed protocol

Phagocytosis assays were performed by injecting 69 nl of 2% green fluorescent FluoSpheres (vol/vol) in 1X PBS to naïve female mosquitoes (3- to 5-day old) using a Nanoject II injector (Drummond Scientific). After injection, mosquitoes were kept at 27°C for 2 hr before hemolymph was perfused on a superfrost slide. To define phagocytic cell populations, phagocytosis assays were paired with RNA-FISH experiments as described above using LRIM15, SCRB9, and Lz RNA probes. The proportion of phagocytic cells was quantified as the number of cells that had phagocytosed one or more beads of the total number of cells examined that displayed a positive signal for each of the respective RNA-FISH probes. Counts were performed from >50 adherent cells per mosquito from randomly chosen fields using fluorescence microscopy (Nikon Eclipse 50i, Nikon).

Phagocyte depletion using clodronate liposomes

Request a detailed protocol

To confirm the identification of phagocytic cells from our defined immune cell clusters, validation experiments were performed using clodronate liposomes (CLD) to deplete phagocytic hemocytes (Kwon and Smith, 2019). Na-ve female mosquitoes (3- to 5-day old) were injected with either 69 nl of control liposomes (LP) or CLD (Standard macrophage depletion kit, Encapsula NanoSciences LLC) at 1:5 dilution in 1X PBS. At 24 hr post-injection, hemolymph was perfused, and RNA-FISH was performed to differentiate affected cell populations using RNA probes for NimB2 (C1), LRIM15 (C2), and Lz (C2) as described above. Hemocytes displaying a positive signal were quantified from 50 or more cells per mosquito.

qRT-PCR

Request a detailed protocol

Gene expression analysis using qRT-PCR was performed to validate the influence of phagocyte depletion on non-phagocytic and phagocytic cells. cDNA was prepared from the previous studies (Kwon and Smith, 2019) corresponding to naïve adult female An. gambiae treated with either control liposomes (LP) or clodronate liposomes (CLD) 24 hr post-treatment. Hemocyte cDNA was prepared as previously described (Kwon and Smith, 2019) to analyze relative gene expression of lozenge between LP and CLD treatments. Specific transcripts representative of non-phagocytic and phagocytic cell populations were examined by qRT-PCR using primers listed in Supplementary file 6.

Gene silencing by RNAi

Request a detailed protocol

RNAi experiments were performed as previously described (Kwon et al., 2017; Kwon and Smith, 2019; Reynolds et al., 2020; Smith et al., 2016; Smith et al., 2015). T7 primers for lozenge (Lz; AGAP002506) were designed using the E-RNAi web application (http://www.dkfz.de/signaling/e-rnai3/idseq.php) and listed in Supplementary file 7. T7 templates for dsRNA synthesis were prepared from amplified cDNA from 4 day old whole naïve mosquitoes. PCR amplicons were purified using the DNA Clean and Concentration kit (Zymo Research), and dsRNAs were synthesized using the MEGAscript RNAi kit (Life Technologies). Subsequent dsRNA targeting GFP (control) or Lz was resuspended in nuclease-free water to 3 µg/µl after ethanol precipitation. Injections were performed in 3- to 4-day-old cold anesthetized mosquitoes by intrathoracic injection with 69 nl (~200 ng) of dsRNA per mosquito using a Nanoject III. The effects of gene silencing were measured at 3 days post-injection in whole mosquitoes (n=15) by qRT-PCR as previously described (Kwon and Smith, 2019).

Data availability

Data generated and analysed in this study are included in the manuscript and supporting files. In addition, data can be visualized and downloaded using the following server: https://alona.panglaodb.se/results.html?job=2c2r1NM5Zl2qcW44RSrjkHf3Oyv51y_5f09d74b770c9.

The following data sets were generated
    1. Smith RC
    (2021) alona
    ID 5dcbe6ad781464be604a43505a2fef18. JA_SCrna_mosq_hemocytes.

References

    1. Chaplin DD
    (2010) Overview of the immune response
    Journal of Allergy and Clinical Immunology 125:S3–S23.
    https://doi.org/10.1016/j.jaci.2009.12.980

Decision letter

  1. Bruno Lemaître
    Reviewing Editor; École Polytechnique Fédérale de Lausanne, Switzerland
  2. Utpal Banerjee
    Senior Editor; University of California, Los Angeles, United States
  3. Angela Giangrande
    Reviewer; Institut de Génétique et de Biologie Moléculaire et Cellulaire, France
  4. Stéphanie Blandin
    Reviewer; French Institute of Health and Medical Research (Inserm), France

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

In this manuscript, Kwon et al., describe a single cell sequencing analysis of hemocytes of the malaria mosquito Anopheles gambiae. Their data support the old classification of hemocytes in the three main categories previously defined according to the morphology and phenotype of these cells, but they further reveal subpopulations in the granulocyte and oenocytoid groups. The authors also provide several new markers to define these different populations and subpopulations.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "Single-cell analysis of mosquito hemocytes identifies signatures of immune cell sub-types and cell differentiation" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor.

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered at this stage for publication in eLife. Nevertheless, the reviewers agree that they could consider a revised version of the manuscript that addresses all their points. So you have the opportunity to submit a revised version of this paper to eLife but this revised version will be considered as a new submission (but likely handle by the same reviewers). The editor and reviewers find many merits to your article but one first point is to know what it specifically brings compared to other RNA seq done with hemocytes of mosquitoes. A second point is that your study is rather descriptive. This not a problem by itself if you can provide a solid dataset that can serves of reference for the whole community (see criticisms of reviewer 2 on this point).

Essential revisions:

Reviewer #1:

Mosquito hemocyte biology and function remains poorly understood. However these cells have critical functions for example in immunity and there is a knowledge gap that needs filled. Several subtypes -three in total have been defined in the past but this study goes deeper into the functional characteriusa characterisation based on phagocytic properties, FISH and importantly single cell RNA sequencing. Moreover the importance of Lozenge in differentiation of oenocytoid hemocytes is shown. This is an elegant study relevant to the field. It will certainly impact studies on hemocytes on other mosquitoes and beyond. The introduction is clear and explains the necessity if this study. Methods are described well enough to follow what was done. Data can be accessed in a single cell analysis pipeline which is very useful to end users. I also like that blood fed and non blood fed mosquitoes were used, broadening impact and interest. Overall the manuscript does an excellent job of illustrating expression patters and differences between cells, including lineage analysis and conclude that 7 different types of immune cells, including 4 types of granulocytes. The definition of markers will make it easy for others interested in this topic to translate these findings into different questions, and signficantly expands our understanding of hemocytes in an important disease vector.

The following should be clarified or expanded on:

1) Are the three cell types 1 figure 1A meant to represent the three subtypes or these just three distinct gated populations as separated by FACS- I appreciate that the authors state that the subgroups/clusters realate to these populations but is there a selection into the three main known types? What are the cell types that were not split into these three groups- is there any indication of their identity?

2) Could the authors add information on lozange functions and how it may promoter oenocytoid differentiation? Even expanding on this in the Discussion would be useful for the reader who is not familiar with the topic.

3) Could the sequences of probes for RNA fish be indicated?

4) Line 554: could the authors expand on the question of "suitability" of methods used? This might save others in the field time when analysing similar data.

5) Line 531: "." instead of ".." after Sweden.

6) Line 922: An. Gambiae

7) Immune gene activation is seen in a subset of cells, could the authors speculate on where these may be part of an ongoing immune response to infection; and whether they would expect these genes to be expressed in mosquitoes kept in presence of antibiotics?

Reviewer #2:

Kwon et al. analyse the immune cell diversity of the adult mosquito Anopheles gambiae using single cell sequencing. They bled naïve and blood-fed adult females and sorted the hemocytes using WGA and DRAQ5 as hemocyte markers. Cells were selected from three independent gates defined by the intensity of DRAQ5, and sequenced using SMART-seq2 methodology. 262 cells were sequenced and included in the downstream analysis. The authors found 8 clusters of hemocytes using hierarchical clustering. Cluster 3 seems specific to naïve hemocytes, whereas all other clusters are found in both naïve and blood fed conditions. They dismissed the cluster 1 based on high gene expression, which may be indicative of FACS doublet. Next, the authors described the markers common to all hemocytes and the ones distinguishing the clusters. They identify clusters 2, 3 and 4 as granulocytes, 7 and 8 as oenocytoids and 5 as prohemocyte. Then, they use Monocle 3 to predict the filiation between the clusters based on a limited number of cluster markers.

This work represents a c database of hemocyte subtypes in mosquitoes and has the potential to highlight strong markers for each subpopulation. However, the experimental design is not explained properly and the authors mostly described their data without deep interpretation. Moreover, the definition of each subtype is not convincing. For these reasons, I believe that the work does not warrant publication in eLife in principle.

1) The number of sequenced cells seems rather low, which may bias the overall interpretation of the data.

2) The authors should provide the rational to look at naïve versus blood fed hemocytes. In addition, merging the two sets of data may again bias their interpretation. Typically, cluster 3 is only present in naïve hemocytes and cluster 2 is overrepresented in blood-fed hemocytes.

3) The biological meaning of the gating strategy for the FACS is not interpreted nor justified. What is the meaning of Clusters 3, 4 and 6 being excluded from gate 1?

4) What is DRAQ5? There is no description nor reference to the use of DRAQ5 to label hemocytes.

5) The justification for removing Cluster 1 from the analysis is not convincing: "we dismissed this cell cluster from further analysis as likely cell doublets of mixed cell origins as the result of FACS cell isolation or as dividing cells". If these cells were indeed doublets of mixed cells, they should not cluster together and if they were dividing cells, markers of division should be present. The authors should provide more evidence to remove cluster 1 or include it in the downstream analysis. As a matter of fact, the transcriptional profile suggests that these cells may represent pluripotent precursors for granulocytes and oenocytoid cells.

6) Cluster 5 is defined as prohemocyte based on the absence of Cyclin G2. Most hemocyte markers are also absent from this cluster (Figure 2C,D). What are the evidence that this cluster is indeed populated by hemocytes? Did the authors search for mitotic markers?

7) Most markers presented across the different figures are expressed in several clusters. The author should provide a figure or table displaying the markers expressed in a single cluster. Such table can be generated using the Seurat toolkit with the FindAllMarkers program (https://satijalab.org/seurat/). Figure 2A shows the level of expression of different genes and the percentage of cells expressing them. This is a more correct representation of the sc RNA data compared to that in the following panels (2 C-E), where there is no information as to the number of cells within the cluster expressing a given gene. Based on Figure 2A, the identification of different clusters does not seem to rely on robust criteria. For example, Cluster 2 to 4 seem very similar. Altogether, very few markers are taken into consideration.

8) Lines 190-200: the authors state that "PPO1, PPO3, and PPO8 are enriched in putative oenocytoids, while PPO2, PPO4, PPO5, PPO6, and PPO9 are most abundant in putative granulocyte populations (Figure 2E)", in contrast to previous suggestions that PPOs are expressed in a subset of hemocytes. This sentence is not in agreement with the data, Figure 2E highlights three main clusters expressing distinct pattern of PPOs, suggesting that indeed, distinct subsets of hemocytes express specific PPOs. But again, this panel does not show the percentage of cells expressing the different genes. We only get this information for PPO1, which is by the way only expressed in 25% of the cluster 8 cells.

9) The data shown in several supplementary figures do not seem to add much information, as such.

10) What is the evidence for cluster 4 producing cluster 2 and 3 (which is also specifically present in one condition)?

11) Figure 2A,C and 5A: lozenge ID is changing from 002506 in A to 002825 in C. In addition, the expression profiles are not concordant between the two graphs. In A, we observe a strong expression in clusters 5, 7 and 8, while in C we only see expression in cluster 8. Additionally, the expression of Lz shown in Figure 5A (histogram on log normalized count) suggest more cells strongly expressing Lz in cluster 8 and 4 compared to cluster 5, which is again different from the observation in Figure 2A.

12) Monocle 3 analysis. On which basis was done the selection of the genes for the Monocle 3 analysis (Figure S14)? The Dot plot indicates that most genes are strongly expressed across several clusters. How is it possible to infer filiation based on ubiquitously expressed genes? In addition, the number of genes seems extremely low. Can the analysis be done on the whole expression matrix?

13) Monocle 3 interpretation. In Figure 4B, cluster 7 is split into two cell groups, one joined with the prohemocyte cluster 5 and the other with cluster 8. Thus, the group joined with cluster 5 could constitute the progenitors of cluster 8 independently from cluster 5. What are the evidence of the link between cluster 5 and cluster 7?

Reviewer #3:

In this manuscript, Kwon et al. describe a single cell sequencing analysis of hemocytes of the malaria mosquito Anopheles gambiae. Their data support the old classification of hemocytes in the three main categories previously defined according to the morphology and phenotype of these cells, but they further reveal subpopulations in the granulocyte and oenocyte groups. The authors also provide several new markers to define these different populations and subpopulations. Of note, two additional scRNAseq studies on A. gambiae/coluzzii hemocytes are available: Severo et al., PNAS 2018, and Raddi et al., BioRxiv 2020. Still, while overlapping to some extend (especially Kwon and Raddi), I believe that the three papers reinforce each other, each of them bringing a different perspective.

Compared to Severo 2018, Kwon et al. selected a larger diversity of hemocytes as they did not restrict themselves to PPO6 expressing hemocytes, and thus, they were able to get more diverse transcriptomic clusters covering most hemocyte types. Of note, they sequenced ~10x more cells than Severo et al., however the coverage was much lower with a smaller reads (56 vs 100 bases) and a relatively low cutoff for minimal read number (10 000 reads per cell while Severo et al. had several millions reads per cell). Still, this lower coverage did not affect their cell classification, but likely restricted it to highly expressed genes.

Raddi et al. sequenced an even larger number of cells (~20x more compared to Kwon et al), which allowed them to identify some additional subpopulations, and especially one, the megacytes that was not at all described in Kwon et al. While Raddi et al. focused on hemocyte changes after Plasmodium infection, Kwon et al. characterised the phagocytic properties of their different subpopulations.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Single-cell analysis of mosquito hemocytes identifies signatures of immune cell sub-types and cell differentiation" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Utpal Banerjee as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Angela Giangrande (Reviewer #1); Stéphanie Blandin (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission. The reviewers have the feeling that you can addressed the revisions without further experiments. Thus the revisions requested below only address clarity and presentation.

Summary:

In this manuscript, Kwon et al., describe a single cell sequencing analysis of hemocytes of the malaria mosquito Anopheles gambiae. Their data support the old classification of hemocytes in the three main categories previously defined according to the morphology and phenotype of these cells, but they further reveal subpopulations in the granulocyte and oenocytoid groups. The authors also provide several new markers to define these different populations and subpopulations.

Essential revisions:

1) The reasons given for removing cluster 1 from subsequent analyses are not acceptable.

The authors bring the following arguments: (i) "Cluster 1 does not express specific marker and express markers also present in other clusters." From the presented figure, it appears that Cluster 1 expresses at least three specific markers (CDC42, 005742 and 004634 in Figure 2A) that are completely absent from the other clusters. (ii) "Cluster 1 is an outlier in the t-SNE analysis." The distance between dots in the t-SNE analysis depends on the projection that was done and is merely indicative of the distance between the clusters. The hierarchical clustering provided by the authors in Figure 1B is more quantitative in terms of homology between clusters and clearly shows the proximity of Cluster 1 with Clusters 2 to 4. Moreover, the distance between Cluster 1 and 2-4 is shorter than the distance between 7 and 8 that are both oenocytoids. (iii) "Cluster 1 presents a high median of gene number." Figure 1D shows that the number of genes is in the same range than Cluster 8. (iv) Based on the above statements, the authors believe that Cluster 1 represents cell doublets. However, an efficient gating strategy on the FACS should remove doublets. In addition, we would expect at least a higher DRAQ5 signal for doublets (higher DNA content), but Cluster 1 is also found among cells gated with gate 2 and gate 3. At last, if these cells were doublets, their specific markers should be present in other clusters as well (e.g. CDC42, 005742 and 004634). (v) The authors exclude the possibility that these cells are transdifferentiating by the lack of mitotic markers. However, transdifferentiation does not necessarily involve cell division and the two processes are independent in Drosophila for both crystal cells and lamellocytes. (vi) The authors exclude the possibility that these cells represent megacytes based on the expression of two markers. Raddi et al., (2020) provide a list of 102 markers for megacytes. The authors should at least provide the data for all the markers (in the form of a Dotplot for example).

Cluster 1 should be included in all graphical representation of Figure 2 as well as in the lineage analysis of Figure 4. Browsing through the web application of the authors, one can notice notably that Cluster 1 is enriched for LRIM15 and thus could be considered as another cluster of phagocytes?

2) The definition of Cluster 5 as prohemocytes still relies exclusively on the absence of markers (Figure S10).

Raddi et al., (2020) defined two populations of prohemocytes. The authors should at least show the comparison of the markers for cluster and the prohemocytes markers indicated in Raddi et al., report. Also, the presence of Clusters 5 and 7 could reflect the presence of two prohemocyte populations, resembling the situation observed in Drosophila (see the work of L Waltzer). At this, point, the interpretation of the data should be more cautious.

3) Blood-fed vs. naïve conditions.

It would help to analyze the data in either naïve or in blood-fed conditions, rather than merging the data from the two conditions. As shown in Figure S3, the eight clusters are represented in very different manner in the two conditions, from 0% Cluster 3 to almost 50% Cluster 2 in blood-fed animals.

The interpretation of the impact of blood feeding on the hemocytes (cluster 2 and 4) should be described in the result section, possibly with a figure displaying the differentially expressed genes (present in Table S2).

Of note, only Cluster 2 hemocytes are enriched in cell cycle gene: how many genes, in how many cells of the cluster? Can they be preferentially ascribed to a food regimen? Is it possible to compare Cluster 2 to the proliferative cluster observed in Raddi et al.?

4) A resource manuscript should provide useful information to the community. This manuscript would gain from a more systematic comparison with the data already available in the literature. For example, Raddi et al., define PPO 4 and 9 as being characteristic of oenocytoids.

5) Could the authors explain why there are no cells from the blood-fed condition in Gate 4?

6) On DRAQ5 labelling used for the FACS sorting step, in Figure 1A, several levels of DRAQ5 are observed in the dot plots. Other publications mention the use of DRAQ5 to estimate the ploidy of the cells. Is this what we observe on the dotplots in Figure 1A, the first three gates separating cells based their ploidy? Is this known for mosquitoes' hemocytes? How do the authors interpret this, since cluster 8 is exclusively found in gate 1?

7) line 1048: "higher levels".

8) Figure 2E: "Ninjurin" is Ninjirin in the text.

9) Figure S14: Are the data normalised by column or are these expression levels? The unit of the colour gradient should be mentioned (z-score, expression levels?).

10) I would appreciate a somehow more detailed comparison of their hemocyte categories (including cluster 1) with those from Raddi et al., This could be proposed as a supplementary figure for instance. Is there a 1 to 1 correlation between the categories? Also, please indicate discrepancies when relevant, e.g. PPO4 is used as a marker for oenocytoids in Raddi et al. while this gene seems to be expressed in all hemocyte subgroups, and especially in granulocytes, in Kwon et al.

11) The discussion paragraph where the authors compare their work with the two other scRNAseq reports (l519-544) is somehow awkward. While I do understand the need to provide an overview of the three studies, I would rather insist there (1) on the reason why they managed to recover as many clusters as Raddi et al., despite sequencing fewer cells (strategies not compared in the text), (2) on a more precise comparison of the hemocyte clusters from the 3 studies (see previous point), and (3) summarising current knowledge on the functional characterisation of the different hemocyte categories.

12) Changes in cluster populations upon blood feeding (e.g. disappearance of all hemocytes from cluster 3): this could be due to rewiring/changes in gene expression in some specific cells as suggested by the authors. Another explanation could be a change in adherence: if certain cells become sessile after blood feeding, they will not be recovered during mosquito perfusion. Of note, it is unclear why there are no hemocytes identified in gate 4 after blood feeding. As this gating is not selective, one would have expected to recover cells there in both sugar fed and blood fed conditions.

13) Figure S1: the cluster color code is different from that of Figure 1. Please use the same for all figures.

https://doi.org/10.7554/eLife.66192.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

Essential revisions:

Reviewer #1:

Mosquito hemocyte biology and function remains poorly understood. However these cells have critical functions for example in immunity and there is a knowledge gap that needs filled. Several subtypes -three in total have been defined in the past but this study goes deeper into the functional characteriusa characterisation based on phagocytic properties, FISH and importantly single cell RNA sequencing. Moreover the importance of Lozenge in differentiation of oenocytoid hemocytes is shown. This is an elegant study relevant to the field. It will certainly impact studies on hemocytes on other mosquitoes and beyond. The introduction is clear and explains the necessity if this study. Methods are described well enough to follow what was done. Data can be accessed in a single cell analysis pipeline which is very useful to end users. I also like that blood fed and non blood fed mosquitoes were used, broadening impact and interest. Overall the manuscript does an excellent job of illustrating expression patters and differences between cells, including lineage analysis and conclude that 7 different types of immune cells, including 4 types of granulocytes. The definition of markers will make it easy for others interested in this topic to translate these findings into different questions, and signficantly expands our understanding of hemocytes in an important disease vector.

The following should be clarified or expanded on:

1) Are the three cell types 1 figure 1A meant to represent the three subtypes or these just three distinct gated populations as separated by FACS- I appreciate that the authors state that the subgroups/clusters realate to these populations but is there a selection into the three main known types? What are the cell types that were not split into these three groups- is there any indication of their identity?

We would like to thank the reviewer for this comment. In our experience using flow cytometry on mosquito hemocyte populations, we have consistently noticed distinct “groups” of hemocytes based on their cellular properties defined by the intensity of wheat germ agglutinin (WGA, a general marker of hemocytes) and DNA signal (DRAQ5). Since WGA and DRAQ5 are both non-specific markers, we have been unable to further define these hemocyte populations without additional markers that could delineate prohemocyte, granulocyte, and oenocytoid cell types.

As a result, we decided to use these previous flow cytometry observations to add an additional component of “selection/enrichment” in our cell isolations using FACS. Therefore, we selected for “gates” to target each of the three major groups (Gates 1-3) identified from flow cytometry, as well as an additional non-selective (Gate 4) gate (outlined in Figure 1A and Figure S2). Although we did not know which hemocyte sub-types were reflected in our arbitrary FACS gating’s, we thought that the scRNA-seq information gathered from these populations could be informative. As shown in Figure S2, Gate 1 predominantly enriched our oenocytoid populations (Clusters 7 and 8), while Gate 3 enriched for our mature granulocyte populations (Cluster 2-4). Cells of Clusters 5 and 6, defined as prohemocytes and immature granulocytes in our study, were found most abundant in Gate 2 and the non-selected Gate 4 (Figure 2). Of note, cells collected with Gate 4 (non-selective) captured cells from each of our hemocyte clusters.

Therefore, the result of our FACS gating experiments demonstrate the power and promise to define mosquito immune cell populations in the absence of cell-type specific markers. This strategy has enabled us to sample and profile the extent of mosquito immune cells, enriching for cells based on cell properties rather than by random abundance as in Drop-seq methods. This has greatly facilitated our study to accurately profile individual immune cell subtypes with a lower number of individual cells. We believe that this ability to crudely distinguish cell types by FC can similarly inform studies in other species in the absence of cell markers.

As the reviewer has noted, we do apply some minimal bias in our selection, in which immune cells were selected for by their WGA+ signal, a general marker indicative of mosquito hemocytes (Castillo et al. 2006). As a result, we did not examine the identity of the WGA- cells since they likely represent the presence of bacteria or other contaminants commonly associated with hemolymph perfusion techniques. We also do not find evidence of the megacyte defined by Raddi et al. 2020. At present it is unclear if our FACS strategy may have selected against this rare cell type.

We have amended our manuscript to incorporate many of the ideas described above in the Results section to better address our methodology (Lines 85-93 and 111-118).

2) Could the authors add information on lozange functions and how it may promoter oenocytoid differentiation? Even expanding on this in the Discussion would be useful for the reader who is not familiar with the topic.

We would like to thank the reviewer for the excellent suggestion, and apologize for the omission of a discussion of lozenge in the discussion of our original manuscript.

Outside of studies in Drosophila, very little has been done to examine lozenge function in other insects. Only a single paper has implicated lozenge in the regulation of PPO gene expression and influence on malaria parasite infection in mosquitoes (Zou et al. 2008), therefore making our findings with lozenge the first to implicate its role in mosquito oenocytoid differentiation. While further work is needed to examine lozenge function in mosquitoes, our findings are heavily supported by previous studies in Drosophila demonstrating an integral role of lozenge in promoting crystal cell differentiation (Fossett et al. 2003, Waltzer et al. 2003), the equivalent of oenocytoids in mosquitoes.

In our revised manuscript, we have added a paragraph placing our findings regarding lozenge in the larger context of studies that have delineated its important role in hemocyte differentiation. This can be found on Lines 455-460.

3) Could the sequences of probes for RNA fish be indicated?

We would like to thank the reviewer for this suggestion. Due to the propriety nature of the RNA-FISH probes provided by Advanced Cell Diagnostics the exact sequences of the probes are unknown, however in the revised manuscript we have included the regions for the probe design from our manuscript in Lines 690-695. In addition, the probes used in our analysis are commercially available.

4) Line 554: could the authors expand on the question of "suitability" of methods used? This might save others in the field time when analysing similar data.

It is unclear what was originally intended in this description of the methodology used in our study. We have removed this sentence from the revised manuscript.

5) Line 531: "." instead of ".." after Sweden.

Thank you for catching this oversight. This has been corrected in the revised manuscript.

6) Line 922: An. Gambiae

Thank you for catching this oversight. This has been corrected in the revised manuscript.

7) Immune gene activation is seen in a subset of cells, could the authors speculate on where these may be part of an ongoing immune response to infection; and whether they would expect these genes to be expressed in mosquitoes kept in presence of antibiotics?

Thank you for the suggestion. We believe that the dataset generated by our scRNA-seq study provides a strong foundation for a wealth of questions regarding mosquito immune cell function. This includes addressing the very questions that the reviewer mentions regarding the immune response to infection and the influence of the microbiota on immune cell development, of which we are very interested in pursuing in future experiments.

At present, the model is that a subset of immune cells are “activated” to promote basal levels of immune expression and serve as immune sentinels for pathogen defense. There is evidence that mosquito immune cell activation is transient (Bryant et al., 2014, 2016) and responds to physiological changes that coincide with blood-feeding (Reynolds et al. 2020). However, it is unclear how the mosquito microbiota influence hemocyte expression. We hope to explore these questions through experiments using a combination of antibiotics (as suggested) and/or the production of axenic mosquitoes that have undergone development in the absence of bacteria. While the potential outcomes are unclear for mosquitoes, the presence of symbiotic bacteria in Tsetse flies has proven essential for immune cell development (Benoit et al. 2017).

As requested by the reviewer, we have amended the discussion in our revised manuscript to add speculation regarding these topics of interest (lines 560-566).

Reviewer #2:

Kwon et al. analyse the immune cell diversity of the adult mosquito Anopheles gambiae using single cell sequencing. They bled naïve and blood-fed adult females and sorted the hemocytes using WGA and DRAQ5 as hemocyte markers. Cells were selected from three independent gates defined by the intensity of DRAQ5, and sequenced using SMART-seq2 methodology. 262 cells were sequenced and included in the downstream analysis. The authors found 8 clusters of hemocytes using hierarchical clustering. Cluster 3 seems specific to naïve hemocytes, whereas all other clusters are found in both naïve and blood fed conditions. They dismissed the cluster 1 based on high gene expression, which may be indicative of FACS doublet. Next, the authors described the markers common to all hemocytes and the ones distinguishing the clusters. They identify clusters 2, 3 and 4 as granulocytes, 7 and 8 as oenocytoids and 5 as prohemocyte. Then, they use Monocle 3 to predict the filiation between the clusters based on a limited number of cluster markers.

This work represents a c database of hemocyte subtypes in mosquitoes and has the potential to highlight strong markers for each subpopulation. However, the experimental design is not explained properly and the authors mostly described their data without deep interpretation. Moreover, the definition of each subtype is not convincing. For these reasons, I believe that the work does not warrant publication in eLife in principle.

We would like to thank the reviewer for their thoughtful review. We have made significant efforts to address the comments and suggestions that were raised in the original review of our manuscript, and believe that the changes in our revised manuscript should now satisfy your criticisms regarding our experimental design, methods, and data visualization.

1) The number of sequenced cells seems rather low, which may bias the overall interpretation of the data.

We respectfully disagree with the reviewer’s assessment. While we understand that the 262 cells examined in our study are not an exhaustive analysis of mosquito immune cell populations, this is a significant improvement over the 24 cells previously examined by Severo et al. (2018) that was published after the onset of our own experiments.

While it is true that the number of cells examined is an important variable for any single cell study to achieve proper depth, there are also large differences in the number of cells examined depending on methodology. Drop-seq methodologies are less sensitive in their analysis, resulting in the identification of fewer genes detected per cell (Ziegenhain et al. 2017), which requires larger cell numbers to increase coverage. This contrasts the Smart-seq2 methods used in our analysis, which comparative analysis supports that Smart-seq2 is the most sensitive methodology for scRNA-seq, resulting in the detection of the highest number of genes per cell and the most even coverage across transcripts (Ziegenhain et al. 2017). As a result, far fewer cells are required using Smart-seq2 methods when compared to Drop-seq to achieve comparable resolution and insight into single-cell populations.

Moreover, our FACS gating strategy enabled the enrichment of more rare cell types based on characteristics for lectin staining (WGA) and DNA content (DRAQ5) that may have otherwise been masked by more abundant cell types using drop-seq methods. Therefore, we believe that our resulting analysis is a robust profile of mosquito immune cell sub-types.

This is evident when comparing our study to a recently published study by Raddi et al. (2020) that similarly examines mosquito immune cells. Using Drop-seq methods, they define ~5300 immune cells from multiple time points and physiological conditions. While our study lacks similar breadth, our study does provide comparable resolution into immune cell sub-types in An. gambiae, that when paired with the additional functional characterization in our study, we believe provides a superior community resource.

2) The authors should provide the rational to look at naïve versus blood fed hemocytes. In addition, merging the two sets of data may again bias their interpretation. Typically, cluster 3 is only present in naïve hemocytes and cluster 2 is overrepresented in blood-fed hemocytes.

We would like to thank the reviewer for their comment. Since blood-feeding represents a major physiological event for mosquitoes and with existing evidence supporting that blood-feeing promotes changes to mosquito hemocyte populations (Bryant et al., 2014, 2016; Castillo et al. 2011; Reynolds et al. 2020), we felt it was important to assess hemocytes under both naïve and blood-fed conditions to perform comparative analyses of cell activation and cell fate activated due to blood-feeding. We have added text to the Results section in our revised manuscript to provide additional rational for our experimental methodology (lines 82-83).

In regard to our analysis of the merged naive and blood-fed data, we respectfully disagree that it may bias the interpretation of our data. Admittedly, the mosquito hemocyte field is still in its infancy, where the lack of genetic tools/resources and cell markers have limited our understanding of mosquito immune cells. As a result, the premise of our scRNA study is more discovery based, which has the promise to serve as the foundation for future studies. For this reason, we believe it is important to examine all cells together, independent of their physiological context. As the reviewer mentions, we believe it is of interest that cells of Cluster 3 are only present under naïve conditions. However, at present, we are unable to determine if this is a transient cell state or a terminally differentiated cell type. We hope to further investigate this possibility, but believe that is well beyond the scope of this study.

Cluster 2 is found in both naïve and blood-fed conditions but does not seem to be significantly overrepresented in blood-fed conditions. Future work is required to more closely quantify how these “immune-activated” cell types respond to different physiological conditions and infection states.

We have also amended our discussion to enhance our discussion of these two cell clusters in the context of mosquito physiology (lines 420-443).

3) The biological meaning of the gating strategy for the FACS is not interpreted nor justified. What is the meaning of Clusters 3, 4 and 6 being excluded from gate 1?

We would like to thank the reviewer for their comment. Similar to the comments raised by R1, it has become apparent that we did not adequately explain the rationale behind our gating strategy used in our experiments and apologize for the omission.

Our gating strategy was based on published (Kwon and Smith, 2019) and unpublished observations using flow cytometry with a general lectin stain (WGA) and DNA stain (DRAQ5), in which we have consistently observed sub-populations with different cell properties. As a result, we selected for cells that correspond to each of the observed sub-types (ultimately gates 1-3) and used these for our gating experiments. Our hope was that through the scRNA-seq analysis we could define the cells responsible for these observable flow cytometry phenotypes.

Therefore, in response to the reviewer’s question, we did not knowingly exclude cells belonging to any of the 8 identified cell clusters in our analysis. In fact, the selection of cells in our gating strategy likely enhanced our ability to detect less abundant cells. This is evident by Gate 1, which represent less abundant cell types (based on intensity of counts by flow cytometry), and enriches for Clusters 1, 7, and 8. These properties are primarily based on DRAQ5 signal, which serves as a measurement of DNA content in our analysis. We have amended the Results section in our revised manuscript (Lines 85-93 and 111-118) to better convey these findings.

4) What is DRAQ5? There is no description nor reference to the use of DRAQ5 to label hemocytes.

DRAQ5 is a commonly used flow cytometry/FACS far-red stain to measure DNA content. This cell-permeable dye can be used to stain live or fixed cells and is not specific for mosquito hemocyte populations. We have added text to make this more transparent in our revised manuscript (Lines 86-87).

5) The justification for removing Cluster 1 from the analysis is not convincing: "we dismissed this cell cluster from further analysis as likely cell doublets of mixed cell origins as the result of FACS cell isolation or as dividing cells". If these cells were indeed doublets of mixed cells, they should not cluster together and if they were dividing cells, markers of division should be present. The authors should provide more evidence to remove cluster 1 or include it in the downstream analysis. As a matter of fact, the transcriptional profile suggests that these cells may represent pluripotent precursors for granulocytes and oenocytoid cells.

We would like to thank the reviewer for their comment and have taken steps in our revised manuscript to hopefully better convince the reviewer and future readers of these aberrant cell populations. As demonstrated in the revised Figure 2A, the inclusion of “cluster-specific” markers identified with the Seurat FindAllMarkers program argue that Cluster 1 strongly expresses all genes examined at relatively high levels. This includes otherwise strong identifiers of granulocyte or oenocytoid cell lineages. In our revised manuscript we provide additional text to support that these could be cells undergoing trans-differentiation of a granulocyte into an oenocytoid as previously described in Drosophila (Leitao et al. 2015), yet also provide support that the lack of increased cell division markers makes this far less likely. Other scRNA-seq studies of insect immune cells have yet to identify a pluripotent precursor population, nor do they seem to be the recently discovered populations of megacytes (Raddi et al. 2020), such that the more likely and more conservative approach is to assume that these are doublets containing both granulocyte and oenocytoid cell types. In the revised manuscript we have included additional text to better support our justification to exclude this cell population from further analysis (lines 129-147).

6) Cluster 5 is defined as prohemocyte based on the absence of Cyclin G2. Most hemocyte markers are also absent from this cluster (Figure 2C,D). What are the evidence that this cluster is indeed populated by hemocytes? Did the authors search for mitotic markers?

In our revised manuscript, we have taken additional steps to better convey to the reader the set of markers that define the prohemocytes of Cluster 5, as well as other immune cell clusters, in our analysis. We believe that the changes to our revised Figure 2 and the inclusion of a new supplemental figure (Figure S10) better highlight candidate marker genes for each of our defined cell populations.

While the reviewer is correct in that cells of Cluster 5 are absent for many of our described hemocyte markers, they are WGA+ (a general lectin stain indicative of mosquito hemocytes; Kwon and Smith, 2019) used in our FACs isolation and also express universal hemocyte markers such as NimB2, PPO6, SPARC, and Cg25C. The absence of well-defined granulocyte and oenocytoid markers as well as cyclin G2 expression is indicative that these cell population are likely undifferentiated cells. A cursory analysis of genes associated with the cell cycle in Anopheles (GO:0007049) as performed in Raddi et al. (2020) do not display significant differences across our immune cell clusters.

7) Most markers presented across the different figures are expressed in several clusters. The author should provide a figure or table displaying the markers expressed in a single cluster. Such table can be generated using the Seurat toolkit with the FindAllMarkers program (https://satijalab.org/seurat/). Figure 2A shows the level of expression of different genes and the percentage of cells expressing them. This is a more correct representation of the sc RNA data compared to that in the following panels (2 C-E), where there is no information as to the number of cells within the cluster expressing a given gene. Based on Figure 2A, the identification of different clusters does not seem to rely on robust criteria. For example, Cluster 2 to 4 seem very similar. Altogether, very few markers are taken into consideration.

We would like to thank the reviewer for the suggestion. In our revised manuscript, we have used the FindAllMarkers program in Seurat to identify a set of markers that more accurately define each our cell clusters in Figure 2A. This encompasses a total of 26 genes, with between 2-4 “markers” per cluster. As a result, we believe that the revised Figure 2A better encapsulates the similarities and differences between our defined immune cell clusters. We have also incorporated similar “bubble” plots as in Figure 2A for the remaining panels of Figure 2 in our revised manuscript.

8) Lines 190-200: the authors state that "PPO1, PPO3, and PPO8 are enriched in putative oenocytoids, while PPO2, PPO4, PPO5, PPO6, and PPO9 are most abundant in putative granulocyte populations (Figure 2E)", in contrast to previous suggestions that PPOs are expressed in a subset of hemocytes. This sentence is not in agreement with the data, Figure 2E highlights three main clusters expressing distinct pattern of PPOs, suggesting that indeed, distinct subsets of hemocytes express specific PPOs. But again, this panel does not show the percentage of cells expressing the different genes. We only get this information for PPO1, which is by the way only expressed in 25% of the cluster 8 cells.

We would like to thank the reviewer for this comment. After reviewing this section of text, it is obvious that we did not clearly articulate our intended message. Based predominantly from work in Drosophila, the mosquito community has long adopted the belief that PPOs were only produced in oenocytoids, the equivalent of Drosophila crystal cells. We have amended this section of text to better reflect our original intentions that mosquito PPOs are expressed in each of the major immune cell sub- types, with specific PPOs expressed in each of the respective prohemocyte, granulocyte, and oenocytoid cell types (Lines 205-219). We have also addressed the reviewers comment regarding the display of the gene expression data by modifying Figure 2F (and the rest of Figure 2) to reflect gene expression and the percentage of cells expressing each respective PPO as a “bubble” graph.

9) The data shown in several supplementary figures do not seem to add much information, as such.

While we appreciate the critique, without additional information regarding the specific figures in question it is difficult to make changes to our revised manuscript. We do however make changes to the supplemental information to more streamline the presentation of data. In some cases, this means the addition of new figures to better represent candidate marker genes identified in our analysis, as well as the consolidation/deletion of previous supplemental figures. While some of the current files may be descriptive or simplistic in the data that they convey, we believe that they are essential to our characterization of mosquito immune cells. In addition, we have added text to the discussion of our revised manuscript to better integrate these descriptive results into the experimental outcomes for these mosquito immune cell populations (lines 548-554).

10) What is the evidence for cluster 4 producing cluster 2 and 3 (which is also specifically present in one condition)?

We would like to thank the reviewer for the comment. At present, we have little biological evidence aside from the Monocle 3 lineage analysis predictions to prove that cells defined in C4 appear to be an intermediate state to those represented in C2 and C3, or perhaps cells transitioning between C2 and C3. While we have amended Figure 4 and the discussion of our revised manuscript (lines 335-337), we believe that further validation of these immune cell validations is beyond the initial characterizations of these immune cell clusters by scRNA-seq provided in our analysis. With potential years of future study to precisely delineate these questions, we have chosen our language very carefully to avoid absolute terms in describing these predicted analyses.

11) Figure 2A,C and 5A: lozenge ID is changing from 002506 in A to 002825 in C. In addition, the expression profiles are not concordant between the two graphs. In A, we observe a strong expression in clusters 5, 7 and 8, while in C we only see expression in cluster 8. Additionally, the expression of Lz shown in Figure 5A (histogram on log normalized count) suggest more cells strongly expressing Lz in cluster 8 and 4 compared to cluster 5, which is again different from the observation in Figure 2A.

We would like to apologize for this labeling error for the lozenge gene accession number. This has been corrected in the revised manuscript. Moreover, these discrepancies can be explained by differences in the display of the data, moving between bubble graphs and heat maps in our analysis. However, with modifications to Figure 2 in our revised manuscript, we believe that we have addressed these differences in display to offer a more congruent visualization of data across figures.

12) Monocle 3 analysis. On which basis was done the selection of the genes for the Monocle 3 analysis (Figure S14)? The Dot plot indicates that most genes are strongly expressed across several clusters. How is it possible to infer filiation based on ubiquitously expressed genes? In addition, the number of genes seems extremely low. Can the analysis be done on the whole expression matrix?

We would like to thank the reviewer for the comment. Our Monocle 3 analysis was performed as suggested on the whole expression matrix and have removed the data initially shown in Figure S14 in our original submission to remove any confusion in our revised manuscript.

13) Monocle 3 interpretation. In Figure 4B, cluster 7 is split into two cell groups, one joined with the prohemocyte cluster 5 and the other with cluster 8. Thus, the group joined with cluster 5 could constitute the progenitors of cluster 8 independently from cluster 5. What are the evidence of the link between cluster 5 and cluster 7?

We would like to thank the reviewer for their comments and for their observation. Based on our clustering analysis, t-SNE results, and candidate marker expression indicating that these clusters comprise independent cell populations, we believe that this split of Cluster 7 cells in the Monocle 3 pseudotime projections supports that these cells have recently begun the process of oenocytoid differentiation from prohemocyte precursors (Cluster 5). Our expression analysis suggest that Cluster 7 represents immature oenocytoids that are intermediates to the fully mature oenocytoids of Cluster 8, following similar immune progressions to orthologous crystal cells in Drosophila (Tattikota et al. 2020). We do provide experimental data that lozenge-silencing reduces the percentage of oenocytoids, but these data only indirectly demonstrate this association. With the markers identified in our study, we hope to directly approach this question in the future to gain a more definitive understanding of hematopoiesis and immune cell differentiation in Anopheles. However, with potentially years of work required to fully address this question, we believe that it is beyond the scope of our current study.

Reviewer #3:

In this manuscript, Kwon et al. describe a single cell sequencing analysis of hemocytes of the malaria mosquito Anopheles gambiae. Their data support the old classification of hemocytes in the three main categories previously defined according to the morphology and phenotype of these cells, but they further reveal subpopulations in the granulocyte and oenocyte groups. The authors also provide several new markers to define these different populations and subpopulations. Of note, two additional scRNAseq studies on A. gambiae/coluzzii hemocytes are available: Severo et al., PNAS 2018, and Raddi et al., BioRxiv 2020. Still, while overlapping to some extend (especially Kwon and Raddi), I believe that the three papers reinforce each other, each of them bringing a different perspective.

Compared to Severo 2018, Kwon et al. selected a larger diversity of hemocytes as they did not restrict themselves to PPO6 expressing hemocytes, and thus, they were able to get more diverse transcriptomic clusters covering most hemocyte types. Of note, they sequenced ~10x more cells than Severo et al., however the coverage was much lower with a smaller reads (56 vs 100 bases) and a relatively low cutoff for minimal read number (10 000 reads per cell while Severo et al. had several millions reads per cell). Still, this lower coverage did not affect their cell classification, but likely restricted it to highly expressed genes.

Raddi et al. sequenced an even larger number of cells (~20x more compared to Kwon et al), which allowed them to identify some additional subpopulations, and especially one, the megacytes that was not at all described in Kwon et al. While Raddi et al. focused on hemocyte changes after Plasmodium infection, Kwon et al. characterised the phagocytic properties of their different subpopulations.

We would like to thank the reviewer for the kind words. We strongly agree with the reviewer’s assessment that our study complements those of other studies, each building off of each other and providing a unique perspective to enhance our understanding of mosquito hemocytes. We also believe that the functional validation of our cell types and descriptive nature of our study provide a more valuable and accessible resource than the previous studies.

[Editors’ note: what follows is the authors’ response to the second round of review.]

Essential revisions:

1) The reasons given for removing cluster 1 from subsequent analyses are not acceptable.

The authors bring the following arguments: (i) "Cluster 1 does not express specific marker and express markers also present in other clusters." From the presented figure, it appears that Cluster 1 expresses at least three specific markers (CDC42, 005742 and 004634 in Figure 2A) that are completely absent from the other clusters. (ii) "Cluster 1 is an outlier in the t-SNE analysis." The distance between dots in the t-SNE analysis depends on the projection that was done and is merely indicative of the distance between the clusters. The hierarchical clustering provided by the authors in Figure 1B is more quantitative in terms of homology between clusters and clearly shows the proximity of Cluster 1 with Clusters 2 to 4. Moreover, the distance between Cluster 1 and 2-4 is shorter than the distance between 7 and 8 that are both oenocytoids. (iii) "Cluster 1 presents a high median of gene number." Figure 1D shows that the number of genes is in the same range than Cluster 8. (iv) Based on the above statements, the authors believe that Cluster 1 represents cell doublets. However, an efficient gating strategy on the FACS should remove doublets. In addition, we would expect at least a higher DRAQ5 signal for doublets (higher DNA content), but Cluster 1 is also found among cells gated with gate 2 and gate 3. At last, if these cells were doublets, their specific markers should be present in other clusters as well (e.g. CDC42, 005742 and 004634). (v) The authors exclude the possibility that these cells are transdifferentiating by the lack of mitotic markers. However, transdifferentiation does not necessarily involve cell division and the two processes are independent in Drosophila for both crystal cells and lamellocytes. (vi) The authors exclude the possibility that these cells represent megacytes based on the expression of two markers. Raddi et al., (2020) provide a list of 102 markers for megacytes. The authors should at least provide the data for all the markers (in the form of a Dotplot for example).

Cluster 1 should be included in all graphical representation of Figure 2 as well as in the lineage analysis of Figure 4. Browsing through the web application of the authors, one can notice notably that Cluster 1 is enriched for LRIM15 and thus could be considered as another cluster of phagocytes?

We would like to thank the reviewers for their comments. This section of text has been deleted in our revised manuscript and have taken a more “data-driven” approach to examine Cluster 1. In our revised manuscript, we now include additional analysis that suggest that cells in Cluster 1 are contaminants (fat body, etc.) that are common in perfused hemolymph samples (Castillo et al. 2006, Smith et al., 2016). Similar non-hemocyte cell types have been identified in other hemocyte single cell studies (Raddi et al., 2020, Tattikota et al., 2020), and have performed comparative analysis that argue that our Cluster 1 cells most likely represent these non-hemocyte contaminants. These comparative analyses have been included in Figure 2—figure supplement 2 and have been addressed in lines 177 to 197 of our revised manuscript.

Due to the high probability that these cells are non-hemocyte in origin, we do not believe that Cluster 1 should be included in the further representation of hemocyte markers in Figure 2 or the lineage analysis presented in Figure 4. We believe that the inclusion of Cluster 1 in Figure 2 would likely misconstrue the analysis and interpretation of valid immune cell subtypes. Furthermore, with the sequencing data suggesting that cells in Cluster 1 are likely fat body contaminants, there is no reason to include Cluster 1 cells in our hemocyte lineage analysis presented in Figure 4.

2) The definition of Cluster 5 as prohemocytes still relies exclusively on the absence of markers (Figure S10).

Raddi et al., (2020) defined two populations of prohemocytes. The authors should at least show the comparison of the markers for cluster and the prohemocytes markers indicated in Raddi et al. report. Also, the presence of Clusters 5 and 7 could reflect the presence of two prohemocyte populations, resembling the situation observed in Drosophila (see the work of L Waltzer). At this, point, the interpretation of the data should be more cautious.

We would like to thank the reviewers for this comment. While Raddi et al., (2020) displays two prohemocyte populations in Figure 2C and 2D, there are no further descriptions of these PHem1 and PHem2 populations. In this study, prohemocyte markers are only defined by the HC2 cluster (that includes PHem 1 and PHem 2) in Figure 1, as well as in the supplemental data that define enriched cell markers of each cluster. Frankly, there is no evidence as to how they came to this conclusion, thus limiting any further comparative analysis. However, in our revised manuscript we use these defined markers for HC2 and compare them across our immune cell clusters. Through these comparisons we demonstrate that Cluster 5 (described in our study) most closely resemble the HC2 prohemocyte populations described by Raddi. These comparisons and other markers use to define these populations in Raddi et al., are present in Figure 3—figure supplement 7 of our revised manuscript (lines 275-277 and 374-382).

It should also be noted that like the prohemocyte populations described by Raddi, we see strong expression of NimB2, SPARC, and AGAP004936 in our Cluster 5 cells (Figure 2, Figure 3—figure supplement 7). In both studies, these prohemocyte populations are described as less differentiated cell types and have addressed these similarities between studies at multiple locations of our revised manuscript (lines 275-277, 362-367, and 628-629).

Regarding the potential that there may be further complexity within prohemocyte populations, we would agree. The hierarchical clustering of Cluster 5 cells in Figure 1 supports this possibility, but we have been conservative in the classification of our immune cell identifications without further experimental data. We would also argue that the immature cell populations of Clusters 6 and 7 could also have progenitor functions, yet the expression of several differentiated cell markers of respective granulocyte or oenocytoid populations make them distinct from those of Cluster 5. Hopefully, through the data generated in this manuscript we can develop genetic resources to better study these mosquito immune cell populations to better examine the development, differentiation, and activation of these hemocyte populations in the future. We have summarized this discussion in our revised manuscript (lines 492-495 and 699-705), yet at present resist further speculation without experimental data.

3) Blood-fed vs. naïve conditions.

It would help to analyze the data in either naïve or in blood-fed conditions, rather than merging the data from the two conditions. As shown in Figure S3, the eight clusters are represented in very different manner in the two conditions, from 0% Cluster 3 to almost 50% Cluster 2 in blood-fed animals.

The interpretation of the impact of blood feeding on the hemocytes (cluster 2 and 4) should be described in the result section, possibly with a figure displaying the differentially expressed genes (present in Table S2).

Of note, only Cluster 2 hemocytes are enriched in cell cycle gene: how many genes, in how many cells of the cluster? Can they be preferentially ascribed to a food regimen? Is it possible to compare Cluster 2 to the proliferative cluster observed in Raddi et al.?

We would like to thank the reviewers for this suggestion and have addressed each of the reviewer’s comments in our revised manuscript.

We have added a new figure, Figure 1—figure supplement 4, to highlight some of the genes that show differential gene expression in response to blood-feeding in Clusters 2 and 4, and have added new text in the Results section to address these results (lines 138-147).

In addition, we have also amended the cell cycle analysis now to display the effects of blood-feeding on the entire naïve and blood-fed cell population (Figure 2B), as well as to display the cell cycle analysis within each cluster under both naïve and blood-fed conditions (Figure 2C). The results have also been amended to reflect these changes in the results text in lines 155-163.

We also have added comparisons of our immune cell clusters to those described in Raddi et al. in Figure 2—figure supplement 2 and Figure 3—figure supplement 7, as well as additional text in the discussion of our revised manuscript (lines 533-535 and 628-660).

Moreover, we have also performed our Monocle3 trajectory analysis on naïve, blood-fed, and combined cell populations (Figure 4) to also address potential differences in physiological conditions on cell trajectories and have updated the revised text to reflect these changes (lines 419-422, 427-431, and 543-547).

4) A resource manuscript should provide useful information to the community. This manuscript would gain from a more systematic comparison with the data already available in the literature. For example, Raddi et al., define PPO 4 and 9 as being characteristic of oenocytoids.

We would like to thank the reviewers for this suggestion. In our revised manuscript, we have added several new supplemental figures (Figure 3- supplemental figures 5, 6, and 7) to address these comparisons of our study to previous hemocyte single cell studies in both Drosophila and Anopheles. We believe that this has been an important exercise, highlighting the similarities and differences of our study with previous published work. This has also forced us to take a highly in-depth look at the studies of Tattikota et al., (Drosophila) and Raddi et al., (Anopheles), which has significantly improved our manuscript.

Importantly, this comparative analysis demonstrates a severe fault of the Raddi et al., study, in which we question their characterization of oenocytoid populations and have significant doubts that they have actually described populations of oenocytoids. The PPO4 and PPO9 markers used to define “oenocytoid” populations in Raddi et al., while expressed in our oenocytoid cells, are actually enriched in granulocyte populations. These observations are supported by functional data that demonstrates a reduction of PPO4 and PPO9 following phagocyte depletion (Kwon and Smith, 2019- PNAS), and the integral roles of other PPOs in oenocytoid immune function (Kwon et al., 2020-bioRxiv). This is further supported by comparisons to Drosophila single cell studies (Tattitkota et al., 2020- eLife) which highlight the shared role of PPO1 and lozenge in oenocytoid/crystal cell populations described in our study that are notably absent in the study by Raddi et al. (Figure 3—figure supplement 5). In our revised manuscript, we take a strong, yet tactful response to these discrepancies in the results (lines 358-390) and discussion text (lines 628-636).

5) Could the authors explain why there are no cells from the blood-fed condition in Gate 4?

We would like to thank the reviewers for this comment. This is unfortunately the result of not having enough space on the sample plate to include samples from naïve and blood-fed condition under all of the gating conditions. Blood-fed cells collected under the Gate 4 conditions were originally isolated on another plate, but were never processed. Additional text has been added to the result section (lines 119-120) and within the Figure 1—figure supplement 3 (formerly Figure S3) legend to address this comment in the revised manuscript.

6) On DRAQ5 labelling used for the FACS sorting step, in Figure 1A, several levels of DRAQ5 are observed in the dot plots. Other publications mention the use of DRAQ5 to estimate the ploidy of the cells. Is this what we observe on the dotplots in Figure 1A, the first three gates separating cells based their ploidy? Is this known for mosquitoes' hemocytes? How do the authors interpret this, since cluster 8 is exclusively found in gate 1?

We would like to thank the reviewers for this suggestion. It was an omission in our previous draft not to mention the role of DNA content or ploidy in our FACS gating strategy. There is evidence that mosquito hemocyte populations differ in their ploidy levels (Bryant and Michel, 2014, 2016), although these have not been previously attributed to individual hemocyte subtypes. In our revised manuscript, we have addressed the role of ploidy in our FACS hemocyte collection strategy (lines 127-133).

We have also incorporated a discussion of cell ploidy levels to provide further support that our Cluster 1 cell are likely fat body contaminants, since fat body cells have exhibited polyploidy in mosquitoes and other insects (lines 192-197).

Regarding the isolation of our oenocytoid populations (Clusters 7 and 8) predominantly in Gate 1, the FACS gating would suggest that these cells also have a higher ploidy. At present it is unclear what role this may have. Ploidy levels in immune cell populations haven’t been directly examined before, but it has been suggested that polyploidy may enable cells to quickly respond to physiological stimuli. Given the role of oenocytoids to lyse rapidly upon immune challenge, we believe this is a valid hypothesis that requires further study. We have addressed this in the revised manuscript on lines 127-133, 353-357, and 679-680.

7) line 1048: "higher levels".

We would like to thank the reviewers for catching this typo. This has been corrected in the revised manuscript.

8) Figure 2E: "Ninjurin" is Ninjirin in the text.

We would like to thank the reviewers for catching this typo. This has been corrected in the revised manuscript.

9) Figure S14: Are the data normalised by column or are these expression levels? The unit of the colour gradient should be mentioned (z-score, expression levels?).

We would like to thank the reviewers for this comment. We have added additional details to our experimental methodology (lines 785-787) as well as the individual figure legends for Figure 3—figure supplement 3 (previously Figure S14) as well as the figure legends of other supplemental figures that display similar heat maps (Figure 2—figure supplements 3-6).

10) I would appreciate a somehow more detailed comparison of their hemocyte categories (including cluster 1) with those from Raddi et al. This could be proposed as a supplementary figure for instance. Is there a 1 to 1 correlation between the categories? Also, please indicate discrepancies when relevant, e.g. PPO4 is used as a marker for oenocytoids in Raddi et al. while this gene seems to be expressed in all hemocyte subgroups, and especially in granulocytes, in Kwon et al.

We would like to thank the reviewers for this comment. As in our responses to previous comments (Reviewer comment #4), we have taken extensive efforts in our revised manuscript to make comparisons to Raddi et al. This includes the comparison of Cluster 1 to the fat body and muscle cell contaminants in Figure 2—figure supplement 2, as well as the correlations of Clusters 2-8 to those of Raddi et al., in Figure 3—figure supplement 7. From this analysis, there are not perfect 1:1 correlations between Raddi et al., and that of our own study. While we see homology within prohemocyte and granulocyte populations, there is a stark contrast between oenocytoid populations described between these studies (Figure 3—figure supplements 5 and 6), and we do not believe that the LRR8low/PPO4high oenocytoid populations described by Raddi et al., are in fact oenocytoids. Raddi et al., did not perform any functional assays (such as phagocytosis assays) and rely only on cellular morphology for these identifications. Based on the expression profiles of these LRR8low/PPO4high cells, they more closely resemble granulocytes (likely Cluster 4) in our study. In addition to the information provided in our revised manuscript, complementary studies (Kwon and Smith, 2019- PNAS; Kwon et al., 2020-bioRxiv) further support these conclusions. In addition to the new supplementary figures, we also address this more in-depth comparative analysis at several locations in the revised manuscript (lines 349-377, 389-395, and 608-617).

11) The discussion paragraph where the authors compare their work with the two other scRNAseq reports (l519-544) is somehow awkward. While I do understand the need to provide an overview of the three studies, I would rather insist there (1) on the reason why they managed to recover as many clusters as Raddi et al., despite sequencing fewer cells (strategies not compared in the text), (2) on a more precise comparison of the hemocyte clusters from the 3 studies (see previous point), and (3) summarising current knowledge on the functional characterisation of the different hemocyte categories.

We would like to thank the reviewers for these suggestions. We have extensively rewritten the paragraph in question to reflect many of the changes to the reviewers’ comments above.

In our revised manuscript, we have added a new paragraph (to address point 1 above) to the discussion to describe methodological differences between our study and that of Raddi et al. (lines 627-641).

We have also added new supplementary figures (Figure 2—figure supplement 2, Figure 3—figure supplements 5,6, and 7) and text (lines 608-629) to provide a more in-depth comparative analysis of the different hemocyte subtypes (to address point 2 above) that have described in mosquito hemocyte single-cell studies (Severo et al., 2018; Raddi et al., 2020). However, since Severo et al. only examined 24 cells and described only two hemocyte subtypes, we are limited by the type of comparisons that can be made to this study.

Regarding the reviewers’ final point to summarize current knowledge of the different hemocytes, we have added additional text to the results (lines 358-408) and discussion (lines 492-495, 499-503 and 628-648) to enhance our description of the previous characterization of hemocyte categories. However, we have tried to maintain the balance of our manuscript as being a primary research article. There is obvious need to review the recent advances in hemocyte biology as a result of the recent hemocyte single-cell studies and other recent research advances, but we feel that these are better suited for an independent review article that we hope to address once this study has been published.

12) Changes in cluster populations upon blood feeding (e.g. disappearance of all hemocytes from cluster 3): this could be due to rewiring/changes in gene expression in some specific cells as suggested by the authors. Another explanation could be a change in adherence: if certain cells become sessile after blood feeding, they will not be recovered during mosquito perfusion. Of note, it is unclear why there are no hemocytes identified in gate 4 after blood feeding. As this gating is not selective, one would have expected to recover cells there in both sugar fed and blood fed conditions.

We would like to thank the reviewers for their comments. We have added additional text to both the results (lines 427-431) and discussion (lines 542-547) sections to address the suggestion that changes to cell adherence may also influence our cell populations under different physiological conditions.

As previously mentioned (Reviewer comment #5), the absence of hemocytes in the Gate 4 is an unfortunate artifact of our cell isolations and sample processing. We did not have enough wells on our sample plates to include all of the FACS-gated samples from naïve and blood-fed conditions samples on the same plate. As a result, blood-fed cells collected under the Gate 4 conditions were originally isolated on another plate, but were regrettably never processed. Additional text has been added to the result section (lines 119-120) and within the Figure 1—figure supplement 3 legend to address this comment in the revised manuscript.

13) Figure S1: the cluster color code is different from that of Figure 1. Please use the same for all figures.

We would like to thank the reviewers for this suggestion. We have made these corrections in our revised manuscript.

https://doi.org/10.7554/eLife.66192.sa2

Article and author information

Author details

  1. Hyeogsun Kwon

    Department of Entomology, Iowa State University, Ames, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Mubasher Mohammed
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4141-4061
  2. Mubasher Mohammed

    Department of Molecular Biosciences, The Wenner-Gren Institute, Stockholm University, Stockholm, Sweden
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - review and editing
    Contributed equally with
    Hyeogsun Kwon
    Competing interests
    No competing interests declared
  3. Oscar Franzén

    Integrated Cardio Metabolic Centre, Department of Medicine, Karolinska Institutet, Novum, Huddinge, Sweden
    Contribution
    Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7573-0812
  4. Johan Ankarklev

    1. Department of Molecular Biosciences, The Wenner-Gren Institute, Stockholm University, Stockholm, Sweden
    2. Microbial Single Cell Genomics facility, SciLifeLab, Biomedical Center (BMC) Uppsala University, Uppsala, Sweden
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Ryan C Smith

    Department of Entomology, Iowa State University, Ames, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    smithr@iastate.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0245-2265

Funding

Swedish Society for Medical Research

  • Johan Ankarklev

Swedish Research Council

  • Johan Ankarklev

National Institute of Allergy and Infectious Diseases (R21AI144705)

  • Ryan C Smith

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Shawn Rigby of the Iowa State Flow Cytometry Facility for his assistance with FACS as well as Anna-Maria Divne at the Microbial Single Cell Genomics (MSCG) facility, SciLifeLab, for consultation regarding the sorting of individual hemocytes, the Eukaryotic Single Cell Genomics (ESCG) facility, SciLifeLab, for assistance with single-cell library preparation and The National Genomics Infrastructure, SciLifeLab, Sweden for assistance with Illumina sequencing. We also want to thank Maiara Severo-Witte and Elena Levashina for initial assistance with the RNA-FISH methods, Rick Masonbrink and Andrew Severin of the Iowa State Genome Informatics Facility for assistance with the single-cell RNA-seq analysis. Lastly, we would like to acknowledge the Swedish National Infrastructure for Computing (SNIC) for data handling and preprocessing of the scRNA-seq raw data for this study, which is partially funded by the Swedish Research council through grants agreement 2018–05973 to JA. This work was supported by the Swedish Society for Medical Research (SSMF) and the Swedish Research Council (VR-NT) to JA, the Agricultural Experiment Station at Iowa State University and the National Institutes of Health, National Institute of Allergy and Infectious Diseases (R21 AI44705) to RCS.

Ethics

Animal experimentation: The protocols and procedures used in this study were approved by the Animal Care and Use Committee at Iowa State University (IACUC-18-228).

Senior Editor

  1. Utpal Banerjee, University of California, Los Angeles, United States

Reviewing Editor

  1. Bruno Lemaître, École Polytechnique Fédérale de Lausanne, Switzerland

Reviewers

  1. Angela Giangrande, Institut de Génétique et de Biologie Moléculaire et Cellulaire, France
  2. Stéphanie Blandin, French Institute of Health and Medical Research (Inserm), France

Publication history

  1. Received: January 2, 2021
  2. Accepted: July 27, 2021
  3. Accepted Manuscript published: July 28, 2021 (version 1)
  4. Version of Record published: August 19, 2021 (version 2)

Copyright

© 2021, Kwon et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,108
    Page views
  • 168
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Genetics and Genomics
    2. Neuroscience
    Zachary Werkhoven et al.
    Research Article

    Individual animals vary in their behaviors. This is true even when they share the same genotype and were reared in the same environment. Clusters of covarying behaviors constitute behavioral syndromes, and an individual’s position along such axes of covariation is a representation of their personality. Despite these conceptual frameworks, the structure of behavioral covariation within a genotype is essentially uncharacterized and its mechanistic origins unknown. Passing hundreds of inbred Drosophila individuals through an experimental pipeline that captured hundreds of behavioral measures, we found sparse but significant correlations among small sets of behaviors. Thus, the space of behavioral variation has many independent dimensions. Manipulating the physiology of the brain, and specific neural populations, altered specific correlations. We also observed that variation in gene expression can predict an individual’s position on some behavioral axes. This work represents the first steps in understanding the biological mechanisms determining the structure of behavioral variation within a genotype.

    1. Genetics and Genomics
    Tingting Zhao et al.
    Research Article

    In Saccharomyces cerevisiae, RNA Polymerase II (Pol II) selects transcription start sites (TSS) by a unidirectional scanning process. During scanning, a preinitiation complex (PIC) assembled at an upstream core promoter initiates at select positions within a window ~40-120 basepairs downstream. Several lines of evidence indicate that Ssl2, the yeast homolog of XPB and an essential and conserved subunit of the general transcription factor (GTF) TFIIH, drives scanning through its DNA-dependent ATPase activity, therefore potentially controlling both scanning rate and scanning extent (processivity). To address questions of how Ssl2 functions in promoter scanning and interacts with other initiation activities, we leveraged distinct initiation-sensitive reporters to identify novel ssl2 alleles. These ssl2 alleles, many of which alter residues conserved from yeast to human, confer either upstream or downstream TSS shifts at the model promoter ADH1 and genome-wide. Specifically, tested ssl2 alleles alter TSS selection by increasing or narrowing the distribution of TSSs used at individual promoters. Genetic interactions of ssl2 alleles with other initiation factors are consistent with ssl2 allele classes functioning through increasing or decreasing scanning processivity but not necessarily scanning rate. These alleles underpin a residue interaction network that likely modulates Ssl2 activity and TFIIH function in promoter scanning. We propose that the outcome of promoter scanning is determined by two functional networks, the first being Pol II activity and factors that modulate it to determine initiation efficiency within a scanning window, and the second being Ssl2/TFIIH and factors that modulate scanning processivity to determine the width of the scanning widow.
