1. Structural Biology and Molecular Biophysics
Download icon

Structure and analysis of nanobody binding to the human ASIC1a ion channel

  1. Yangyu Wu
  2. Zhuyuan Chen
  3. Fred J Sigworth
  4. Cecilia M Canessa  Is a corresponding author
  1. Basic Sciences Department, Tsinghua University School of Medicine, China
  2. Cellular and Molecular Physiology, Yale University School of Medicine, United States
Research Article
  • Cited 0
  • Views 529
  • Annotations
Cite this article as: eLife 2021;10:e67115 doi: 10.7554/eLife.67115

Abstract

ASIC1a is a proton-gated sodium channel involved in modulation of pain, fear, addiction, and ischemia-induced neuronal injury. We report isolation and characterization of alpaca-derived nanobodies (Nbs) that specifically target human ASIC1a. Cryo-electron microscopy of the human ASIC1a channel at pH 7.4 in complex with one of these, Nb.C1, yielded a structure at 2.9 Å resolution. It is revealed that Nb.C1 binds to a site overlapping with that of the Texas coral snake toxin (MitTx1) and the black mamba venom Mambalgin-1; however, the Nb.C1-binding site does not overlap with that of the inhibitory tarantula toxin psalmotoxin-1 (PcTx1). Fusion of Nb.C1 with PcTx1 in a single polypeptide markedly enhances the potency of PcTx1, whereas competition of Nb.C1 and MitTx1 for binding reduces channel activation by the toxin. Thus, Nb.C1 is a molecular tool for biochemical and structural studies of hASIC1a; a potential antidote to the pain-inducing component of coral snake bite; and a candidate to potentiate PcTx1-mediated inhibition of hASIC1a in vivo for therapeutic applications.

Introduction

ASICs are proton-activated sodium channels present in most neurons of the central and peripheral nervous systems (Krishtal and Pidoplichko, 1981; Waldmann et al., 1997). There are four ASIC genes (ASIC1-4) and six isoforms in the human genome (Kellenberger and Schild, 2002). The most abundant and broadly expressed subunit is ASIC1a; its deletion in the mouse genome eliminates most of the proton-induced currents mediated by ASICs (Wemmie et al., 2002). Association of three pore-forming subunits, either as homotrimers or heterotrimers, forms functional channels. All ASIC isoforms share a common structure consisting of two transmembrane domains (TMDs) (TM1 and TM2), cytosolic amino- and carboxy-termini with the amino-terminus forming a reentrant loop into the lower pore (Yoder and Gouaux, 2020), and a large extracellular domain (ECD) that adopts a fist-like conformation with distinct subdomains. These structural features were unveiled by the first crystal structure (Jasti et al., 2007), which was obtained from chicken ASIC (cASIC1) in the desensitized conformation at low pH. Subsequently, structures of cASIC1 in the open (Baconguis et al., 2014), closed (Yoder et al., 2018), desensitized at high and low pH (Gonzales et al., 2009; Yoder and Gouaux, 2020), and in complex with various toxins have been resolved (Dawson et al., 2012; Baconguis and Gouaux, 2012; Baconguis et al., 2014). Recently, structures of a human ASIC subunit, hASIC1a, have been obtained alone and in complex with Mambalgin-1 toxin (Sun et al., 2020).

ASICs are the target of many polypeptide toxins that induce significant functional changes (Cristofori-Armstrong and Rash, 2017). Of the three most studied, two are antagonists and one is an activator of ASIC channels. PcTx1 is a 40-residue peptide from the venom of the tarantula Psalmopoeus cambridgei (Escoubas et al., 2000) that inhibits hASIC1a (IC50 ~3 nM when conditioned at pH 7.2). It has been investigated as an analgesic and neuroprotective agent from ischemic injury of the brain (Mazzuca et al., 2007; Xiong et al., 2004). Mambalgin-1 is a 78-residue three-finger toxin from the venom of the black mamba snake Dendroaspis polypepsis that rapidly and reversibly inhibits ASIC1a in neurons (Diochot et al., 2012). Because Mambalgin-1 exhibits strong analgesic effects, it has raised interest as a potential treatment for chronic pain and as an alternative to opioids (Diochot et al., 2016). Third, the toxin MitTx, found in the venom of the Texas coral snake Micrurus tener tener, functions as a potent, persistent, and selective agonist for ASICs (Bohlen et al., 2011). It is a heterodimer of an α-subunit (60 a.a.) and β-subunit (119 a.a.).

These toxins bind primarily to the thumb domain of the ECD of ASICs. Structures of each of these toxins in complex with cASIC1 have been solved, and in the recent study of hASIC1a by Sun et al., 2020 a cryo-electron microscopy (cryo-EM) structure of hASIC1a bound to Mambalgin-1 at pH 7.4 was solved at 3.9 Å resolution.

To address present challenges in analysis of hASIC1a, we have developed nanobodies (Nbs) with high specificity and affinity to human ASIC1a. These versatile molecules are derived from the variable domain (VHH) of single-domain antibodies produced in camelids (Hamers-Casterman et al., 1993) and in cartilaginous fishes (Stanfield et al., 2004). We present a set of Nbs for uses in novel applications that extend to the possibility of examining structure and function of hASIC1a in vivo and in vitro and as potential therapies of pathologic conditions involving hASIC1a.

Results

Generation of Nbs specific to human ASIC1a

An alpaca was immunized through the injection of 293 T cells expressing full-length hASIC1a on a 9-week immunization schedule (Figure 1—figure supplement 1A). Sera collected post-immunization contained conventional IgG1 and single-domain IgG2/3 antibodies that bind to hASIC1a, as analyzed by ELISA (Figure 1A–B). A phage display library was constructed from mRNA isolated from peripheral lymphocytes (titer of approximately 109 independent clones) (Pardon et al., 2014; Figure 1—figure supplement 1B–E). To select Nbs that recognize hASIC1a in native conformation and to minimize isolation of nonspecific binders, three successive panning protocols were used: the first panning was conducted on Xenopus oocytes injected with hASIC1a cRNA while the second and third used recombinant hASIC1a protein bound to agarose and magnetic beads, respectively (Figure 1C). Phagemids recovered from the third panning were used for expression and isolation of Nbs: 600 were tested by ELISA. We considered a clone to be positive if the ELISA intensity was above a threshold that eliminated about two-thirds of the clones. Representative ELISA results are shown in Source data 1. Approximately 200 clones were selected for sequencing of DNA. The sequencing result indicated that many of ELISA positive clones were identical or had one or two amino acid differences, which is consistent with efficient enrichment for high affinity clones obtained by our screening strategy. DNA sequences of final candidates separated into three main groups, as shown in a phylogeny tree (Figure 1E) and in the protein alignment of Figure 1—figure supplement 2. All these clones were further examined by immunofluorescence of cells transfected with hASIC1a. From all the Nbs tested, the group consisting of C1-4-5, D10, and H10 produced strong signals and low background. A different group (1A-B1, 2B-D4, and 2B-E60) required permeabilization of cells for labeling, suggesting that the recognized epitopes are intracellular; this was confirmed in immunocytochemistry of permeabilized cells.

Figure 1 with 2 supplements see all

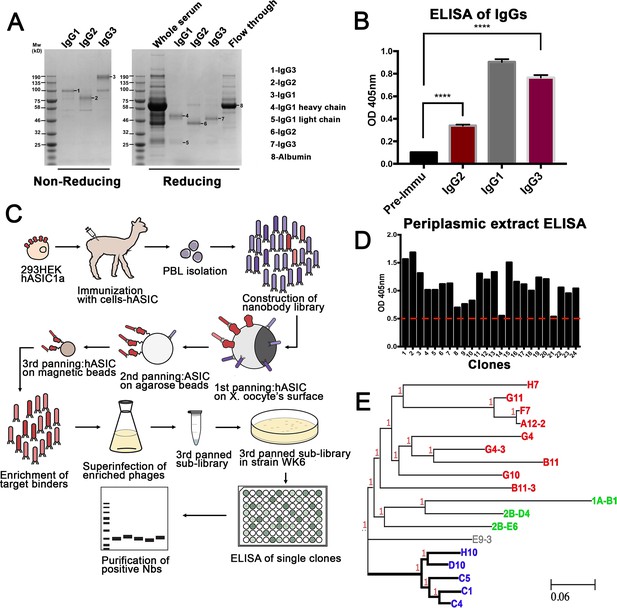

Generation of nanobodies (Nbs) specific to hASIC1a.

(A) Fractionation of IgG (immunoglobulin G) classes from serum after completion of immunization schedule of alpaca. (B) Each fraction was tested for antibodies against hASIC1a by ELISA. All three immunoglobulin fractions, including single-domain antibodies Ig2 and IgG3 shown in red columns, are significantly higher than the pre-immune serum, t-test p-value < 0.001. (C) Overall method for generation of a phage display library, panning strategy for selection of highly reactive phages, and final purification of Nbs. (D) Example of ELISA results from 24 out of 600 selected clones. Only clones with signal above the red-dashed line were selected for further characterization. (E) The DNA of those clones was sequenced and analyzed by similarity. A phylogenetic tree made with those clones shows that they distribute into three groups. Thick lines mark the branch encoding Nbs with high reactivity and specificity. Nb C1 was chosen for further studies.

Nb.C1 stabilizes and prevents aggregation of hASIC1a

With the exception of the one recent cryo-EM study of hASIC1a (Sun et al., 2020), all structural information about ASIC channels has been obtained from the chicken isoform. Although it shares approximately 89% sequence identity with hASIC1a, the chicken isoform differs in functional properties and response to toxins and other compounds (Saez et al., 2011; Alijevic and Kellenberger, 2012; Smith and Gonzales, 2014). Thus, when considering the development of therapeutics, the structure of the human channel is preferred. In the past, challenges working with hASIC1a arose from the tendency of hASIC1a to give low yields and to aggregate, making it difficult to obtain high-quality protein preparations suitable for structural analysis.

One of the goals of this work was to explore whether an Nb with high affinity to hASIC1a would overcome these problems. Among the best binders initially screened, Nb.C1was selected on the basis of high-affinity, low background, and absence of modification of channel function. Subsequently, Nb.C1 was added to large-scale preparations of crude membranes from 293 F cells expressing an affinity-tagged construct (functional hASIC1a comprising amino acids 12–478 with a Strep Tag II in the N-terminus) prior to solubilization with DDM detergent. After affinity purification, the hASIC1a-Nb.C1 complex was pure and monodispersed (Figure 2A). This contrasts with the protein aggregates observed in size exclusion chromatography (SEC) of solubilized hASIC1a alone (Figure 2—figure supplement 1). In the complex, proteins from the peak of the SEC separated by gel electrophoresis showed bands for hASIC1a and Nb.C1 consistent with a stoichiometric ratio of 1:1 (Figure 2B). The solubilized hASIC1a-Nb.C1 complex at 3.8 mg/mL was used to make cryo-EM samples. Images were obtained on a Krios microscope (Thermo Fisher Scientific) using an energy filter and electron-counting camera. Some 2D classes of picked particles are shown in Figure 2C, and further processing described in Figure 2—figure supplement 2 and Table 1 led to a map of hASIC1a-Nb.C1 complex (Figure 2D).

Figure 2 with 2 supplements see all

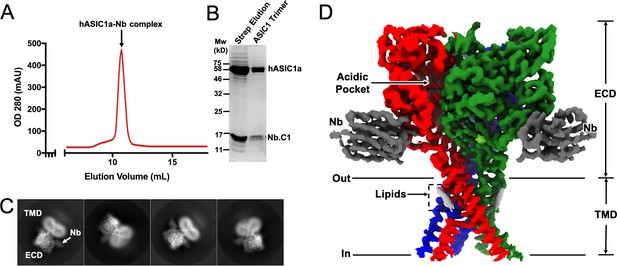

Structural determination of human ASIC1a in complex with Nb.C1.

(A) Size exclusion chromatography (SEC) purification of the hASIC1a-Nb.C1 complex elutes as a single monodispersed peak. (B) Coomassie blue-stained SDS-PAGE shows two bands corresponding to the molecular weights of hASIC1a and Nb.C1, indicating stable association of the complex that persists after SEC. (C) Representative 2D classes of hASIC1a-Nb.C1 complex particles show distribution in various orientations. The extracellular domain (ECD) and transmembrane domain (TMD) can be readily distinguished as well as Nb.C1 attached to the ECD. (D) Representative view of the 3D density map shows the Nb.C1 in complex with hASIC1a. The three hASIC1a subunits are shown in green, red, and blue; Nb.C1s are shown in dark gray. Lipids are seen attached to the TMD (light gray).

Table 1
Cryo-electron microscopy (cryo-EM) data collection, refinement, and validation statistics.
Data collection and processinghASIC1a-Nb
Magnification105,000
Voltage (kV)300
Electron exposure (e/Å2)45.3
Defocus range (μm)−1.0 to −2.0
Pixel size (Å)0.83
Symmetry imposedC3
Initial particle images (no.)1,287,029
Final particle images (no.)84,500
Map resolution (Å)2.86
FSC threshold0.143
Refinement
Initial model used (PDB code)6VTL
Model resolution (Å)3.7
FSC threshold0.5
Map sharpening B factor (Å)−15
Model composition
Non-hydrogen atoms4000
Protein residues540
Ligands2
Bonds (RMSD)
Length (Å) (# > 4σ)0.012
Angles (°) (# > 4σ)0.93
MolProbity score1.69
Clash score6.87
Ramachandran plot (%)Ramachandran plot (%)
Outliers0.00
Allowed3.17
Favored96.83
Rama-Z (Ramachandran plot Z-score, RMSD)Rama-Z (Ramachandran plot Z-score, RMSD)
Whole (N = 536)1.31 (0.36)
Helix (N = 136)0.35 (0.44)
Sheet (N = 103)1.59 (0.45)
Loop (N = 297)0.77 (0.37)
Rotamer outliers (%)0.00
Cβ outliers (%)0.00

We determined the cryo-EM structure of hASIC1a-Nb.C1 complex at pH 7.4 with estimated resolution of 2.9 Å (Figure 3; Figure 3—figure supplement 1; Table 1). In agreement with other ASIC structures, hASIC1a is a trimer with each subunit ECD resembling the architecture of a hand. At pH 7.4 the thumb domain is away from the finger producing an expanded acidic pocket as observed previously in cASIC1 (Yoder et al., 2018) and hASIC1a (Sun et al., 2020). The TMD shows a closed pore and the domain-swapped TM2 helixes that define the GAS belt of the pore. We also observed protein densities in the EM map inside the lower pore that were weak, presumably from disorder. When the map was filtered to 7 Å resolution (Figure 3—figure supplement 2) density for a reentrant loop with two short helices was observed, consistent with the loop described by Yoder and Gouaux, 2020. In cASIC1 the reentrant loops, one from each subunit, form the lower ion permeation pathway. In each loop, the short linker between the helices Re-1 and Re-2 contains the highly conserved HG motif (His28, Gly29) that, in combination with the GAS belt, is involved in channel gating and selectivity.

Figure 3 with 5 supplements see all

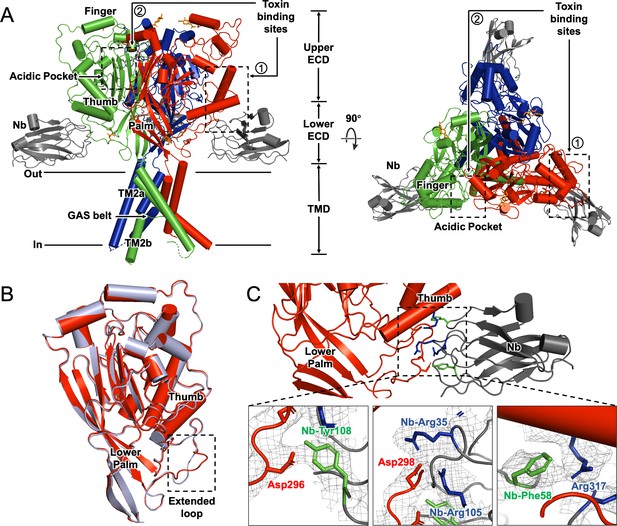

Cryo-electron microscopy (cryo-EM) structure of hASIC1a-Nb.C1 complex in the closed conformation.

(A) Overall structure of hASIC1a-Nb complex in side and top views. Trimeric hASIC1a subunits are shown in red, green, and blue. Nanobodies Nb.C1 attached to the thumb domain of each hASIC1a subunit are shown in dark gray. General location of the overlapping binding sites of MitTx and Mambalgin-1 is indicated by the dashed rectangle (1) while the binding site of PcTx-1 is indicated by dashed rectangle (2). (B) Superposition of hASIC1a secondary structure (red) with cASIC1 (6vtl) (light blue) shows substantial differences only in the extended loop of thumb domain. (C) Detailed interactions between hASIC1a and Nb.C1 are Asp296-Tyr108 (lower left panel), Asp298-Arg35 and Arg105 (lower middle panel), Arg317-Phe58 (lower right panel). Map densities shown as a mesh. The negatively charged residues are in red, positively charged residues in blue, and aromatic residues are in green.

Three Nbs are observed bound to the trimeric channel, each in contact with a subunit at the end of the α4-helix and the extended loop of the thumb domain (Figure 3A). The most noticeable structural difference between hASIC1a and cASIC1 is in this long loop that extends down from the α4-helix to the tip of the thumb (Figure 3B). The loop is longer and more twisted in hASIC1a because it has two extra amino acids D298 and L299 (DL) that are absent in cASIC1 and in all other known ASIC isoforms. These two amino acids are essential for binding of Nb.C1 as their deletion from hASIC1a eliminates the signal in immunofluorescence microscopy. Channels that do not encode those two residues such as cASIC1, mASIC1a, mASIC2a, and mASIC3 are also not recognized by Nb.C1 in IF experiments (Figure 3—figure supplement 3). The residues involved in interactions with Nb.C1 are shown in Figure 3C. Two Asp residues in the extended loop of the thumb are involved: D296 interacts with Nb-Y108, and D298 with Nb-R35 and Nb R105. In addition, R317 at the end of α4 interacts with Nb-F58. None of these interactions would be possible in cASIC1. The loop in the hASIC1a structure of Sun et al., 2020 is poorly resolved, but in the current structure is well defined likely because of stabilization provided by Nb.C1, as shown in Figure 3—figure supplement 4.

Of note, extensive functional analysis of hASIC1a bound to Nb.C1 showed that Nb binding did not change the channel’s properties. The average magnitude of current, rate of desensitization, midpoint pH of activation (pH50a), and of steady-state desensitization (pH50ssd) were all unchanged (Figure 3—figure supplement 5A–B). The presence of the DL motif itself, however, affects the pH dependence of activation and desensitization. DL lies within a five-amino-acid stretch of hASIC1a which, when mutated, confers the altered pH sensitivity of the mouse isoform on hASIC1a (Sherwood and Askwith, 2008). Further, we compared the effects of the DL motif on hASIC1a and cASIC1. Deletion of DL in hASIC1a produces a small but significant left shift of the pH50ssd (from 7.11±0.02 to 7.18±0.02), while insertion of DL into cASIC1 produces the opposite effect (from 7.45±0.01 to 7.38±0.01) (Figure 3—figure supplement 5C–D).

To visualize the binding sites of MitTx, PcTx1, and Mambalgin-1 and compare them to the binding site of Nb.C1, our structure of the hASIC1a-Nb.C1 complex was superimposed on chicken or human subunits bound to each of the three toxins, and shown in orthogonal views (Figure 4). The superimposition of cASIC1-MitTx1 in the open conformation shows the α-subunit of the toxin interacting with the tip of the thumb close to the membrane bilayer, and with the extended chain that connects α5 to the β10 strand. Meanwhile, the β-subunit forms contacts with α4 and α5 of the thumb, extensively overlapping with the binding site of PcTx1 but not with that of Nb.C1. Though the binding sites of Nb.C1 and MitTx subunits are different, the bulky scaffold of the Nb produces steric hindrance to binding of the α-subunit, marked in the figure by a dashed square. In contrast, Nb.C1 and PcTx1 bind at distinct and well-separated sites, preventing mutual interference when both peptides bind simultaneously to the surface of the channel (Figure 4B).

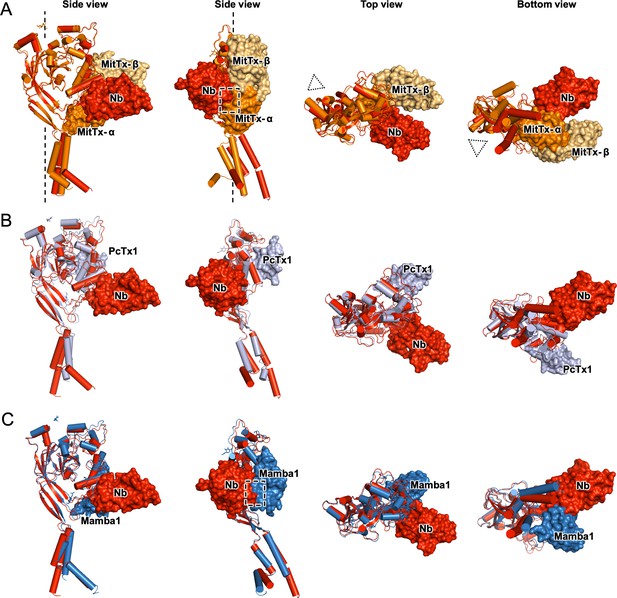

Structural comparison of hASIC1a-Nb.C1 complex to toxin-bound ASICs.

Two side, top and bottom views of superimposed structures of hASIC1a-NbC1 complex (red) with (A) MitTx-bound to chicken ASIC1 (4ntw) in open conformation (orange). In side views, the threefold axis of the channel is indicated by a dashed vertical line; in top and bottom views it is indicated by dotted triangles. (B) PcTx1-bound chicken ASIC1 (3s3x) (gray). (C) Mambalgin-1-bound human ASIC1 (7ctf) (blue). Only one subunit is shown for simplicity. Surface clashes are indicated by dashed rectangles. Nb.C1, MitTx- α, MitTx- β, PcTx1, Mambalgin-1 are shown as red, orange, light-orange, light-purple, marine respectively.

Mambalgin-1 and Nb.C1 share common interactions: residue D298 of hASIC1 interacts with K8 in Mambalgin-1, and hASIC1 residues at the end of α4 interact with both polypeptides. The dashed square indicates the area of clashes between Nb.C1 and toxin (Figure 4C). Although we did not test here the effect of Nb.C1 on Malganbin-1 binding, the results predict a decrease in the functional effects mediated by Malganbin-1.

Nb.C1 antagonizes binding of MitTx to hASIC1a

The predicted overlap of Nb.C1 with the MitTx α-subunit binding site raises the possibility that Nb.C1 could interfere with the action of MitTx on hASIC1a. To that end, oocytes expressing hASIC1a were incubated with 50 nM of Nb.C1 for 15 min; they were then exposed to 50 nM of MitTx at pH 7.4 while measuring currents with two-electrode voltage clamp. MitTx-induced currents were decreased in oocytes pretreated with the Nb (Figure 5A–D), consistent with the Nb.C1 interfering with toxin binding to hASIC1a.

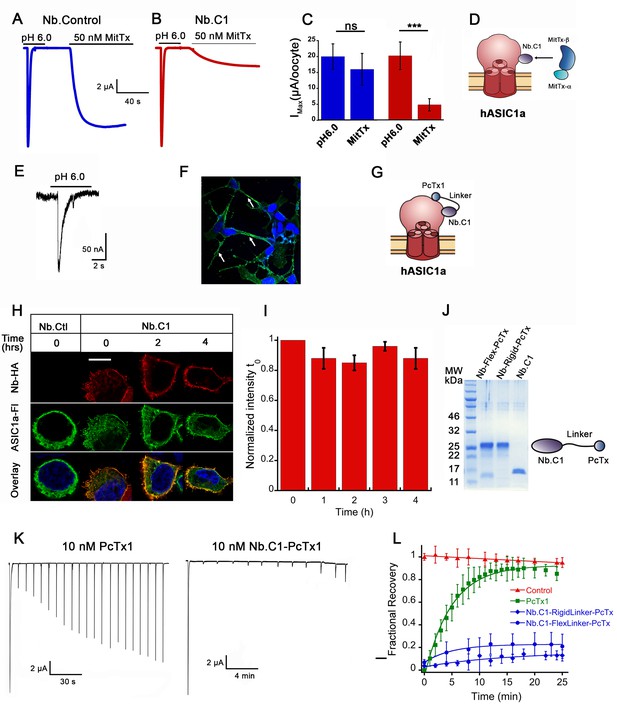

Effects of Nb.C1 on MitTx and PcTx1 binding to hASIC1a.

(A) Representative currents of an oocyte expressing hASIC1a activated with pH 6.0 followed by a second activation with 50 nM MitTx at pH 7.4. (B) Same experiment after pre-incubation of the oocyte with 50 nM Nb.C1 for 15 min. (C) Summary of the peak currents from pH 6.0 and MitTx activations. In this and all traces, the conditioning pH is 7.4. The bars represent the mean±SD of currents, n=8 Nb control and n=6 Nb.C1. Asterisks indicate statistical significance in t-test, p<0.001. (D) Cartoon of the proposed mechanism of how Nb.C1 associated with hASIC1a may interfere with MitTx binding. (E) Whole-cell patch clamp of SH-SY5Y cells activated with pH 6.0 generates typical hASIC1a currents. Proton-induced currents are inhibited by PcTx and amiloride. (F) Immunofluorescence confocal image of SH-SY5Y cells incubated with Nb.C1-PcTx1-HA fusion and anti-HA antibody (green) shows cells decorated on the periphery. Nuclei were stained with DAPI (blue). Scale bar, 5 µm. (G) Cartoon representation showing the Nb.C1-PcTx1 polypeptide binding to two distinct sites on the surface of hASIC1a, accounting for a possible mechanism of toxin potentiation. (H) Confocal images of live HEK-293 cells transfected with hASCIC1a-Flag on coverslips incubated with Nb.C1-HA for 30 min and followed for 0, 1, 2, 3, and 4 hr at 18°C in DMEM containing HEPES. Three of the five time points are shown. At each 1 hr interval, all cells were washed except for the one dish of cells removed for fixation. All cells were processed for immunofluorescence with HA and Flag monoclonals to visualize Nb.C1-HA and hASIC1a-Flag, respectively. Nb.C1-HA labels only the cell surface whereas hASIC1a distributes in the plasma membrane and intracellular endoplasmic reticulum and perinuclear membrane. Scale bar, 5 µm. (I) Quantification of fluorescence intensity of Nb.C1 (red channel) normalized to time 0 hr (t0). For each time point 300 cells were analyzed. Columns are the mean ± SEM. (J) Coomassie blue SDS-PAGE of purified fusion proteins (Nb.C1-FlexLinker-PcTx and Nb.C1-RigidLinker-PcTx) and Nb.C1 alone. On the right a cartoon representation of the fusion proteins. (K) Representative examples of oocytes expressing hASIC1a exposed to 10 nM of PcTx1 or 10 mM of Nb.C1-Rigid-PcTx1 fusion for 60 s prior to serial activations with a change of pH from 7.35 to 6.0. Cells remained in the perfusion chamber throughout the experiment. (L) Time course of recovery of acid-induced currents in control (no pretreatment), and pretreatment with PcTx1, Nb.C1-Flex-PcTx, or Nb.C1-Rigid-PcTx1. Preconditioning pH 7.35, activation pH 6.0. Data were fit with a single exponential a(1et/τ) where τ is 220 s for PcTx, 350 and 880 s for Nb.C1-Flex-PcTx and Nb.C1-Rigid-PcTx; a = 0.90 for PcTx, and 0.16 and 0.14 for the fusions, respectively. Data points represent the mean ± SD of 7–12 cells. Values of currents from each cell are shown in Source data 3.

Increased potency of PcTx1 by tethering to Nb.C1

PcTx1 functions as an inhibitor of ASIC1a by shifting the steady-state desensitization toward more alkaline pH (Chen et al., 2005; Saez et al., 2011). Two crystal structures of cASIC1 with PcTx1 show that the toxin binds to the α5-helix of the thumb, at the interface with the palm domain of the adjacent subunit (Dawson et al., 2012; Baconguis and Gouaux, 2012). The apparent EC50 of PcTx1 for hASIC1a has been reported in the range 0.9–3.7 nM and the time constant of recovery from inhibition is reported as 125 s (Chen et al., 2021) or 87 s (Chassagnon et al., 2017). We hypothesized that slowing the recovery from inhibition would be advantageous for in vivo applications of PcTx1 either as a potential pain suppressor or for protecting neurons from ischemia of the brain. That aim could be achieved by fusing Nb.C1 to PcTx1 in a single polypeptide provided that the Nb exhibits slower dissociation than the toxin and that the fusion does not interfere with binding to hASIC1a. To verify binding we first used SH-SY5Y cells, which are derived from a human neuroblastoma and express endogenous hASIC1a (Xiong et al., 2012). An Nb.C1-PcTx1 fusion construct produced a fluorescence signal that decorated the plasma membrane of SH-SY5Y (Figure 5E–G).

The time course of dissociation of Nb.C1 from hASIC1a was followed in transfected HEK293 cells using the following protocol. Live cells were incubated with 10 nM Nb.C1 for 30 min at 18°C. After several washes to remove the unbound Nb.C1, cells were followed for four intervals of 1 hr duration. At each of the four time points, a group of cells was fixed and processed for IF or washed again until the next time point. Confocal images showed no decay of the Nb.C1 signal during the course of the experiment indicating that the Nb.C1 remains bound to the channel with no significant decay through the 4 hr observation period (Figure 5H–I).

To estimate the Nb binding affinity, we first measured binding of Nb.1C to immobilized, detergent-solubilized hASIC1a protein using surface plasmon resonance. From experiments with two different Nb and hASIC1a protein preparations, global fits to association time courses with Nb concentrations from 0.4 to 100 nM yielded association rate constants kon ranging from 6.8×104 to 2.2×105 M−1 s−1. Unfortunately, the dissociation time courses (measured for up to 1 hr) from these experiments were too brief to observe the full dissociation time course, but a rate constant koff ≲ 1.4×10−5 s−1 (0.05 hr−1) can be estimated from the live-cell binding data of Figure 5I. Taking the smallest kon value as a lower bound on association rate yields the equilibrium constant kd ≲ 0.2 nM.

Next, three constructs were made in which PcTx1 was tethered to the carboxyl-terminus of Nb.C1 with either a flexible or rigid 30 a.a. linker, and another with PcTx1 tethered to a control anti-GFP Nb (Nb.Control). His6 and HA tags were added to the C-termini of the three constructs for affinity purification and detection by IF. The proteins were expressed in bacteria, isolated from the periplasm and further purified as indicated in methods (Figure 5J).

To determine the effect of the Nb.C1-PcTx1 on the kinetics of PcTx1 inhibition, proton-induced currents in oocytes expressing hASIC1a were examined by TEVC according to the protocol shown in Figure 5K–L. After a first activation with pH 6.0, a 60 s incubation with 10 nM PcTx, Nb.C1-Flex-PcTx1, or Nb.C1-Rigid-PcTx was followed by subsequent activations for a total period of 25 min. Oocytes not exposed to any peptide served as control for spontaneous decay of the currents after multiple consecutive stimuli. Cells pre-incubated with PcTx1 recovered current faster (τoff220 s) and more completely (90 ± 16%) than those pre-incubated with the fusion proteins (Figure 5I–J). Cells exposed to Nb.C1-Flex-PcTx recovered only a small fraction of the initial current after 25 min (0.16) even though the calculated τoff (355 s) was not much slower than that of toxin alone whereas Nb.C1-Rigid-PcTx reached a lower plateau level (0.14) and slower rate of recovery (τoff = 882 s) compared to the flexible linker (Source data 3). The partial recovery may be attributed to the presence of some free toxin from cleavage of the fusion proteins and was observed most prominently with the flexible linker (Figure 5J). Together these experiments indicate that PcTx1 tethered to Nb.C1 significantly potentiates the action of the toxin.

Discussion

Notwithstanding the extensive progress achieved in the elucidation of the structure and functions of ASICs in recent years, important challenges still remain, underscoring the need to develop new tools to further our understanding of these channels. To that end, we sought to develop Nbs specific to hASIC1a. This strategy exploits the capacity of the immune system to produce a large variety of small polypeptides against a single target, each with unique properties that can be selected for specific applications.

Here, we show that one Nb (Nb.C1) isolated from a phage display library prevents aggregation and stabilizes hASIC1a, markedly improving the quality of the sample preparation for cryo-EM studies. We obtained the structure of hASIC1-Nb.C1 complex in the closed conformation at 2.9 Å resolution, indicating that the Nb has potential toward attaining high-resolution structural information of hASIC1a in additional conformations. The growing use of Nbs in structural biology stems from the fact that they can stabilize native conformations of proteins, in particular membrane proteins, facilitating structural analysis by crystallization or cryo-EM.

The Nb also constitutes a new tool to accelerate the development of therapeutic agents targeted to hASIC1a. The cryo-EM structure of the hASIC1a-Nb.C1 complex reveals that Nb.C1 binds to the thumb domain of hASIC1a to an epitope in the extended loop of the thumb that contains two extra amino acids (D298 and L299) unique to hASIC1a. These residues determine the high specificity toward hASIC1a and their absence explains the lack of reactivity with other species or isoforms (cASIC1, mASIC1, ASIC2, or ASIC3). Nb.C1 binding also spans to the end of the α4-helix. This is a region on the surface of the ECD that is also recognized by various toxin polypeptides with functional activity toward many ASIC isoforms. Specifically, it overlaps with the binding site of Mambalgin-1 (Sun et al., 2020) and the binding site of the α-subunit of MitTx. This last toxin is the component of the Texas coral snake venom that produces severe pain (Greene et al., 2020) by activating hASIC1a in peripheral neurons (Bohlen et al., 2011). In these two instances, most of the binding interference with the Nb is due to steric hindrance produced by the scaffold of the Nb, which is large (16.28 kDa) compared to the size of Mambalgin-1 (6.55 kDa) and MitTx α-subunit (7 kDa). Therefore, Nb.C1 could serve as a competitive antagonist to MitTx and as a potential antidote for the pain-producing component of the snake bite. Nbs offer practical advantages over currently available antivenoms usually raised in sheep or horses (Yang et al., 2017) because Nbs can be produced in bacteria in large amounts and at low cost.

The Nb.C1-binding site is distinct from that of the inhibitory toxin PcTx. The lack of competition for binding sites and steric interference but yet close proximity of the two binding sites offers the possibility of using Nb.C1 as a carrier for PcTx1 to increase potency and decrease off-target effects of the toxin. While the effect of PcTx1 alone is rapidly reversible, a fusion protein incorporating Nb.C1 achieves inhibition of ~84–87% that persists for more than 30 min in functional studies and remains bound for more than 4 hr on the surface of live cells according to IF assays. The changes in toxin kinetics are consistent with the Nb having a much slower koff rate than that of the toxin. Further optimization of the sequence of the linker, mainly to minimize or eliminate cleavage, could increase even more the fractional current inhibited by the Nb.C1-PctX fusion peptide. Tethering of PcTx to the Nb also would direct the toxin to bind preferentially to the subunit ASIC1a increasing specificity, which is beneficial for in vivo applications such as the amelioration of ischemic damage to the brain (McCarthy et al., 2015; Yang et al., 2011; Xiong et al., 2004).

Why does Nb.C1 bind to sites overlapping with those of toxins (Figure 4) but itself does not alter channel function? We note that Nb.C1 does not interact with the α5-helix of the thumb, while the three toxins in consideration all bind to α5 and these interactions change the conformation of α5 in a toxin-specific manner. Many lines of evidence support the notion that displacement of α5 is an essential component of channel gating. Mutations in α5 (Jasti et al., 2007; Vullo et al., 2017), formation of cysteine bonds that restrain movement of helix (Yoder et al., 2018; Chen et al., 2021), and binding of polypeptides that produce small but significant displacements are maneuvers that alter gating by lowering pH50a, abolishing currents, inducing desensitization or causing channel opening. We posit that the absence of Nb.C1 contacts with α5 is the most likely explanation of why Nb.C1 does not change function of hASIC1a. Interactions of Nb.C1 are limited to a short segment of the extended loop of the thumb that projects down to TM1 and a segment of the α4-helix of the thumb. Comparison of our structure with the hASIC1a structure of Sun et al., 2020 shows that Nb.C1 binding produces a very small movement of α4 and negligible perturbation of α5 (Figure 3—figure supplement 4).

In summary, we show examples of uses of Nb.C1 isolated from an hASIC1a-specific phage display library to advance structural and functional studies of the human channel, and as means to increase or attenuate effects of ASIC-specific toxins with potential therapeutic applications.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional information
Gene (Homo sapiens)ASIC1aGenBankNCBI Ref Seq: NP_001086.2
Strain, strain background (Escherichia coli)TG1LucigenCat#: 60502Electrocompetent cells
Strain, strain background (Escherichia coli)WK6ATCC 47078Thermo Fisher ScientificExpression of nanobody proteins
Strain, strain background (Escherichia coli)DH5αMax efficiency DH5αCat#: 18258012Electrocompetent cells
Cell line (Homo sapiens)HEK293TATCC 47078ATCC 47078
Cell line (Homo sapiens)FreeStyle 293 F cellsThermo Fisher ScientificCat#: R79007
Cell line (Homo sapiens)SH-SY5YATTCATTC CRL-2266
Recombinant DNA reagentpADL-22cAntibody Design LabsCat#: PD0110Phagemid for construction of nanobody library
Recombinant DNA reagentCM13 Helper phageAntibody Design LabsCat#: PH020LRescue phagemid library
Recombinant DNA reagentpcDNA3.1InvitrogenCat#: V790-20Vector
AntibodyGoat anti-llama polyclonal antibody HRPNOVUSCat#: NB7242Detection of anti-ASIC1a antibodies in alpaca serum (1/1000)
AntibodyAnti-HA rabbit monoclonalCell Signaling C29F4Cat#: 3724TIF (1/1000)
AntibodyAnti-Flag mouse monoclonal M2Sigma-AldrichCat#: F1804IF (1/1000)
AntibodyAnti-M13 g8p antibody HRP mouse monoclonalAntibody Design LabsCat#: AS003-100For phage ELISA
(1/5000)
Peptide, recombinant proteinPcTx1AlomeCat#: STP-200
Peptide, recombinant proteinAlpha/beta MitTxAlomeCat#: M-100
Polypeptide, recombinant proteinsAlpaca nanobodiesThis studyIsolated from phage display library of immunized alpaca with hASIC1a
Commercial assay or kitQuickChange mutagenesisAgilent TechnologiesCat#: 200521Mutagenesis of DNA
Commercial assay or kitProtoScrript II First strand cDNANew England BiolabsCat#: E6560LSynthesis of single strand DNA
Chemical compound, drugPierce anti-HA magnetic beadsThermo Fisher ScientificCat#: 88837Affinity purification of HA-tag proteins
Chemical compound, drugMonoclonal Anti-HA agaroseSigma-AldrichCat#: A2095Affinity purification of HA-tag proteins
Chemical compound, drugStrep Tactin ResinIBACat#: 2-1201-002Affinity purification of Strep-tag proteins
Chemical compound, drugNi-NTA AgaroseQiagenCat#: 30210Affinity purification of nanobodies from periplasm
Chemical compound, drugCholesterol Hemisuccinate trisAnatraceCat#: CH210
Software, algorithmMotionCor2DOI: 10.1038/ nmeth.4193RRID:SCR_016499http://msg.ucsf.edu/em/software/motioncor2.html
Software, algorithmGctfDOI: 10.1016/j. jsb.2015.11.003RRID:SCR_016500https://www.mrc-lmb.cam.ac.uk/kzhang/Gctf/
Software, algorithmRELION 3.1DOI: 10.7554/eLife.42166RRID:SCR_016274http://www2.mrclmb.cam.ac.uk/relion;
Software, algorithmPHENIXRRID:SCR_014224https://www.phenixonline.org;
Software, algorithmCootDOI: 10.1107/S0907444910007493
DOI: 10.1107/S0907444910007493
RRID:SCR_014222https://www2.mrc-lmb.cam.ac.uk/personal/pemsley/coot/
Software, algorithmMolProbityDOI: 10.1107/S0907444909042073RRID:SCR_014226RRID:SCR_014226
Software, algorithmPymolPyMOL Molecular Graphics System, Schrodinger, LLCRRID:SCR_000305RRID:SCR_000305
Software, algorithmUCSF ChimeraDOI: 10.1002/ jcc.20084RRID:SCR_004097http://plato.cgl.ucsf.edu/chimera/
Software, algorithmUCSF ChimeraXDOI: 10.1002/ pro.3235RRID:SCR_015872http://cgl.ucsf.edu/chimerax/
Software, algorithmCCP-EMDOI: 10.1002/ pro.3235https://www.ccpem.ac.uk/
Software, algorithmDemoPIckerThis studyhttps://github.com/fsigworth/aEMCodeRepository/tree/master/Teaching/PartPickingDemo, (Sigworth, 2021; copy archived at swh:1:dir:2cdf6a8a6b19d8be1408954f51bf9d81e44edb11)
OtherSeries S Sensor Chip CM5CytivaCat#: 29104988For Biacore (GE) instrument

Alpaca immunization

Request a detailed protocol

A male alpaca was immunized with intact HEK293T cells (ATCC CRL-11268) transfected with hASIC1a according to the schedule shown in Figure 1—figure supplement 1. Antigen expressing cells and adjuvant were injected subcutaneously in adjacent sites to preserve the native conformation of hASIC1a. Blood was obtained before the first injection, and 1 week after the third and fifth injections. Figure 1 depicts the subsequent steps of construction and screening of the phage display library. Immunization and bleeding of alpaca were conducted with the assistance of a veterinarian, and protocols were approved by IACUC of Tsinghua University (protocol number 07749). The Association for Assessment and Accreditation of Laboratory Animal Care International (AALAC) has accredited Tsinghua University veterinarians and facilities.

Isolation of alpaca IgGs

Request a detailed protocol

One-hundred microliter of protein G agarose beads (Sigma) were added to 0.5 mL of alpaca serum and incubated for 1 hr followed by three washes with phosphate buffer saline (PBS). The IgG3 fraction bound to the beads was eluted with 0.5 mL of 150 mM NaCl, 0.58% acetic acid, pH 3.5, and immediately neutralized with 1 M Tris-HCl pH 8.0. Beads were washed and the IgG1 fraction still bound to the G agarose was eluted with lower pH: 0.5 mL of 100 mM glycine-HCl pH 2.7 followed by neutralization. The initial flow through from protein G beads was incubated with 50 μL protein A beads for 1 hr. After washes with PBS, the IgG2 fraction was eluted with 0.5 mL of 150 mM NaCl, 0.58% acetic acid pH 4.5 and neutralized to pH 8.0. Alpaca IgG2/3 represent the single-domain antibodies (Maass et al., 2007).

Construction of phage displayed Nb library

Request a detailed protocol

Five days after the final immunization, peripheral blood lymphocytes were isolated from 100 mL of whole blood using Accuspin-Histopaque System (Sigma). Total RNA was extracted with Trizol (Invitrogen); 30 μg of total RNA were used for synthesis of single strand DNA primed with oligo-dT and using Superscript III kit (Life Technologies). The variable region of the heavy chain from IgG2/IgG3 (VHH) domains was amplified by nested PCR. The first PCR was conducted with a pair of primers specific for alpaca annealing to the leader sequence and to IgG CH2 domain. The amplified IgG2/3 dsDNA was gel extracted from the first PCR product by cutting the 700 bp band. The second PCR (18 cycles) was conducted with a pair of primers specific to alpaca IgG FR1 region and IgG2/3 hinge region (Figure 1—figure supplement 1B). SfiI restriction sites, generating different sticky ends, were introduced by PCR for cloning into a pADL-22c phagemid vector (Antibody Design Labs). A total of 30 ligation reactions were pooled and electroporated into TG1 competent Escherichia coli (Lucigen); 18 clones were randomly picked to examine the efficacy of dsDNA insertion (Figure 1—figure supplement 1D). A library of 1×109 individual transformants was superinfected with CM13 helper phage (Antibody Design Labs) after TG1 F-pilus induction. VHH-domain-displaying bacteriophages were produced overnight by shaking the bacterial culture at 37°C supplemented with IPTG to induce expression of Nb fragments. Phages were isolated from the medium of an overnight culture by two successive precipitation steps with 4% PEG-8000 in 500 mM NaCl. Phages displaying Nb were dissolved in 1 mL PBS followed by selection for binding to hASIC1a.

Library screening with a customized panning protocol

Request a detailed protocol

Panning was conducted using a modified multi-antigen presenting system that maximizes capturing high-affinity native epitope binders. For the first round of panning, Xenopus oocytes expressing high levels of hASIC1a at the plasma membrane were used for selection. Cells were pre-incubated with blocking solution (100 mM NaCl, 3 mM KCl, 2 mM CaCl2, 10 mM HEPES pH 7.5, and 2% skimmed milk) and incubated with phage in the same solution without milk. For the second and third round of panning, affinity-purified hASIC1a bound to either Strep Tactin XT Agarose beads or magnetic beads (IBA) were used for selection. Incubation and washing buffer (150 mM NaCl, 2 mL CaCl2, 10 mM HEPES pH 7.4, 0.04% DDM ± 2% milk). After three rounds of panning, binding phages were pooled and a sub-library from the third panning was transformed into WK6 –a strain of E. coli for Nb expression. A sample of single clones was examined by extraction of crude periplasm proteins and tested by ELISA. Positive clones were sequenced followed by Nb purification.

ELISA

Request a detailed protocol

Affinity-purified hASIC1a protein (5 μg/mL) was coated onto 96-well microtiter plates overnight at 4°C and blocked with 5% skimmed milk. For alpaca IgGs ELISA, different concentrations of IgG1, IgG2, and IgG3 were added and incubated at room temperature (RT) for 2 hr. After three washes, goat anti-llama IgG conjugated with HRP (NOVUS) was added and enzyme reaction was detected with peroxidase substrate ABTS and quantified at 405 nm in a microplate reader. Non-coated or bovine serum albumin-coated wells served as controls. For phage ELISA, hASIC1a-coated plates were incubated with the generated phage library as well as the panned phage sub-libraries in various phage particle concentrations. Goat anti-M13 monoclonal antibody HRP-conjugated (GE Healthcare) was used for detecting Nb enrichment after consecutive rounds of panning. For periplasmic extract ELISA, single-clone periplasmic extracts from the third panned sub-library were prepared. In brief, individual bacterial clones were cultured in deep-square-96-well plates (Corning) and grown to exponential phase. Nb production was induced by IPTG and the incubation continued overnight at 28°C. Plates were centrifuged and bacterial pellets were resuspended in 100 μL of TES buffer (in mM): 200 Tris-HCl pH 8.0, 0.5 EDTA, 500 sucrose on a vibrating platform at 2000 rpm for 1 hr; 100 μL of ddH2O was added to each well and returned to vibrating platform for 1 hr. Plates were centrifuged and the supernatants – containing Nbs – were recovered and examined by ELISA. Single-clone periplasmic extracts were added to coated ELISA plates. Mouse anti-HA monoclonal antibody (Santa Cruz) and goat anti-mouse-HRP were added to recognize and detect the bound Nbs. Non-coated wells or an irrelevant Nb were used as controls.

Nb purification

Request a detailed protocol

The phagemid vector pADL-22c encoding a bacterial periplasmic secretion leader sequence and amber stop codon was used for Nb purification. A 30 mL LB overnight culture was diluted 1:1000 into 800 mL fresh Terrific Broth in the presence of 100 μg/mL ampicillin. When the culture reached an OD600 of 0.8, Nb expression was induced by 1 mM IPTG and the temperature was decreased to 28°C for 16 hr. Bacteria were harvested by centrifugation and the pellet was resuspended in 20 mL of TES buffer. Periplasmic protein extraction was conducted by osmotic shock as indicated above. After centrifugation, the Nbs were affinity-purified with Ni-NTA agarose beads (Qiagen) and eluted with imidazole (Pardon et al., 2014).

hASIC1a expression and purification

Request a detailed protocol

Fully functional hASIC1a comprising amino acids 12–478 was tagged in the N-terminus with StrepII tag. The construct was expressed in HEK293F cells (Invitrogen) cultured in suspension. Expression level of hASIC1a was estimated 48–72 hr post-transfection by immunofluorescence using StrepII tag monoclonal (Abcam). One liter of cell culture was routinely used for isolation of hASIC1a. Crude membrane pellets were resuspended in lysis buffer (50 mM HEPES pH 7.4, 150 mM NaCl, 5 mM CaCl2). For hASIC1a-Nb complex purification, crude membranes were first incubated with 3–4 mg of purified Nbs, protease inhibitor cocktail (Roche) under slow agitation at 4°C for 3 hr to allow binding of the Nb. The suspension was then treated with 1% DDM (Anatrace). After clarifying the homogenate by ultracentrifugation, hASIC1a was affinity-purified with Strep Tactin XT agarose beads (IBA) to achieve high degree of purity and to remove free Nbs. Elution was conducted with the addition of 50 mM D-biotin, samples were concentrated to a volume of 0.8 mL using a 50 kDa cutoff Centricon (Millipore). Samples were injected to a size exclusion column (Superdex 200 Increase 10/200 GL, GE Healthcare). Fractions containing the hASIC1a-Nb.C1 micelle complex were pooled and concentrated to 3.8 mg/mL.

Cryo-EM specimen preparation, data acquisition, and processing of hASIC1a-Nb complex

Request a detailed protocol

Quantifoil holey carbon grids (R1.2/1.3 300 mesh Au) were glow-discharged with carbon side facing up for 1 min at 15 mA. Human ASIC1a-Nb affinity-purified protein at pH 7.4 was subjected to SEC (running buffer 20 mM HEPES pH 7.4, 150 mM NaCl, 5 mM CaCl2) and immediately concentrated to 3.8 mg/mL for grid preparation. A 3 μL droplet of sample was applied to the carbon side of each grid. Grids were blotted and plunge-frozen using a Vitrobot apparatus (Thermo Fisher Scientific) with the chamber at 18°C and 100% humidity. In total, 9039 micrographs were collected on Titan Krios microscopes (Thermo Fisher Scientific) operated at 300 keV. Images were collected using SerialEM (Schorb et al., 2019) with an image shift pattern of 3× three holes, with one shot per hole. The detector was a Gatan K3 camera positioned after an energy filter (20 eV slit width). Recording was in super-resolution mode with a binned pixel size (equal to the physical pixel size) of 0.83 Å and dose-fractionated to 28 frames for a total exposure time of 1.4 s and a total dose of 45.3 e/Å2. Raw cryo-EM movies were motion-corrected using UCSF MotionCor2 (Zheng et al., 2017) and CTF estimation was performed using Gctf (Zhang, 2016). Particle picking utilized a simple adversarial-template-based program DemoPicker written by FJS. Extracted particles were subjected to reference-free 2D classification in RELION 3.1 and non-particles were removed. Rounds of 3D classification and refinement (C3 symmetry) were processed in RELION 3.1, using a cASIC1 cryo-EM map (emd_7009) as reference (Yoder and Gouaux, 2020). CTF refinement and Bayesian polishing were applied to further improve the resolution.

Model building and refinement of hASIC1-Nb

Request a detailed protocol

Using a rigid-body fitting program, Molrep, the cryo-EM structure of the resting channel (PDB 6VTL) (Yoder and Gouaux, 2020) was docked into the cryo-EM density map. Docked models were used as templates for iterative rounds of manual model building in Coot (Emsley et al., 2010). For the Nb structure, a crystal structure of Nb (PDB 5IVO) was docked into the cryo-EM map by UCSF Chimera (Goddard et al., 2007) and was built in Coot. Additional real space refinement was performed using Refmac 5 (Murshudov et al., 2011) and Phenix (Liebschner et al., 2019).

Immunofluorescence microscopy

Request a detailed protocol

HEK293T (ATCC CRL-11268) or SH-SY5Y (ATTC CRL-2266) were authenticated by the presence of low-pH induced currents sensitive to 50µM amiloride using patch clamp. Mycoplasma infection was ruled out by a commercial PCR assay (EZ-PCR Mycoplasma detection kit from Biological Industries, #20-700-20). Cells seeded onto glass coverslips treated with poly-L-lysine were either non-transfected or transfected with hASIC1a in pCDNA3.1 vector with Lipofectamine. For surface labeling of hASIC1a, 18–20 hr post-transfection, anti-hASIC1a Nbs were added to the culture medium in a concentration of 1 nM and cells were placed on ice to inhibit endocytosis. After 1 hr of incubation, cells were rinsed three times with PBS and fixed with 4% paraformaldehyde prepared in PBS for 30 min at 37°C. Cells were further permeabilized with buffer containing 1%Triton-X100 for 30 min. Mouse anti-Flag (Sigma) primary antibodies were added for 1 hr at RT. After three washes, Alexa Flour goat 594 and/or Alexa Flour 488 (Invitrogen) were added for 1 hr. Both primary and secondary antibody incubations were conducted in the presence of 5% normal goat serum to decrease background. DAPI was added to visualize nuclei. In chase experiments, Nb.C1 (1 nM) was incubated for 30 min, washed three times with PBS followed by a chase of 0, 1, 2, 3, and 4 hr at RT. At each time point, cells were fixed and processed for immunofluorescence. Coverslips were laid on glass slides with mounting solution (VECTASHIELD, Vector Laboratories H-1000). Images were captured with a Nikon confocal fluorescence microscope A1RMP LSM and analyzed using NIS Viewer 3.2. For visualizing intracellular hASIC1, cells were first fixed and permeabilized with 1% Triton-X100 before adding Nbs. The rest of the protocol was the same as described above. The human neuronal cell line SH-SY5Y (ATCC CRL-2266) was seeded on coverslips and treated with 10 nM staurosporin for 48 hr to induce cell differentiation. Cells were fixed, permeabilized prior to conducting immunofluorescence with Nb.C1-PcTx1 fusion as the primary antibody; the rest of the procedure was the same as above.

Production of recombinant Nb.C1-PcTx1 polypeptides

Request a detailed protocol

The cDNA of Nb.C1 was modified first by introducing the DNA sequence of PcTx1 in the carboxyl-terminus of the Nb prior to the 6 His and HA epitopes using the unique restriction sites XhoI and XbaI. In a second step, a predicted flexible (KLGGGSGGSAGSAAGGSGSGGEFGGGGSLE) or more rigid (GGGSGAEAAAKAEAEAKAEAAAKGGGGSG) linker was introduced using another pair of unique restriction sites: HindIII-XhoI, located upstream the PcTx1 cloning site. Plasmid was transformed into BL21(DE3) competent E. coli by heat shock. The previous protocol for purification of Nbs was followed with the following modifications. Cells were kept at 18°C during induction. Protease inhibitors and 1 mM β-mercaptoethanol were added to solutions of periplasmic protein purification. After affinity purification with Ni-NTA resin, proteins were concentrated using a Millipore concentrator and then added x2 Redox buffer (5 mL: 1.8 mg reduced glutathione added to 2.4 mg of oxidized glutathione resuspended in TN buffer without imidazole). His and HA tags were not removed. Peptides were further purified according to the protocol by Saez et al., 2017. Protein quantification was by absorbance at 280 nm using NanoDrop.

Two-electrode voltage clamp of Xenopus laevis oocytes

Request a detailed protocol

Oocytes were injected with 5 ng of in vitro synthesized hASIC1a cRNA using the kit (mMESSAGEmMACHINE T7, Thermo Fisher Scientific). Whole-cell currents were measured using a two-electrode voltage clamp (Oocyte-Clamp OC-725C, Warner Instrument Corp.) with PowerLab 8/35 (ADInstruments) running LabChart Prosoftware. Electrode resistance was 0.5–1 MΩ when filled with 3 M KCl. Cells were placed in a fast-exchange perfusion chamber, <1 s, with high flow delivered by gravity. Perfusion solutions had the following composition (in mM): 100 NaCl, 4 KCl, 2 CaCl2, 5 HEPES, 5 MES, pH was adjusted to desired values with N-methyl-D-glucamine. PcTx1 was used at 10 nM and MitTx at 50 nM, both were purchased from Alomone Labs. Oocytes were pre-incubated with purified Nb or Nb-linker-PcTx1 (10 nM) for 20 min at RT before recording. Oocytes were voltage-clamped at −60 mV and ASIC currents were elicited by fast change of the perfusion solution from pH 7.4 to 6.0 or as indicated in the experiments.

Patch clamp of SH-SY5Y cells

Request a detailed protocol

Endogenous hASIC1 currents from human neuroblastoma cell line SH-SY5Y (ATCC CRL2266) were recorded in the whole-cell configuration using a HEKA patch clamp EPC10 amplifier and PATCHMASTER acquisition software v2x90.2 (HEKA Electronic). Pipette solution contained in mM: 120 KCl, 20 HEPES pH 7.4. Bath solution contained 140 NaCl, 4 KCl, 2 CaCl2, 20 HEPES adjusted to pH 7.4 or 6.0. Membrane potential was held at −60 mV. Cells were perfused with a solution of pH 7.4 to establish the baseline current, followed by activation with a solution of pH 6.0 using a fast-exchange perfusion system (SF-77B perfusion-step, Warner Instruments). Experiments were conducted at RT.

Measurement of Nb.C1 affinity using a Biacore-S200 instrument

Request a detailed protocol

Purified hASIC1a was diluted in sodium acetate pH 5.0, 0.05% DDM to a concentration of 10 µg/mL. A chip (Series sensor Cytiva CM5) was activated by EDH/NHS (1-ethyl-3-[3-dimethylaminopropyl]carbodiimide)/(N-hydroxysuccinimide). Purified protein was injected, immobilized, and blocked by ethanolamine. In two experiments using different protein preps, the association time courses were recorded for 100 or 300 s, and dissociation for 300 or 3600 s, respectively. Flow rate=30µL/min. Nb.C1 was removed from the chip after testing each concentration using glycine pH 2.0 for 30 s, flow rate 30 µL/min. Binding data were generated by injecting the Nb.C1 at six concentrations (in nM: 0, 0.41, 1.23, 3.7, 11.1, 33.3, 100).

Data availability

All data generated in this study are included in the MN and supporting files.

References

    1. Emsley P
    2. Lohkamp B
    3. Scott WG
    4. Cowtan K
    (2010) Features and development of coot
    Acta Crystallographica. Section D, Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493

Decision letter

  1. Randy B Stockbridge
    Reviewing Editor; University of Michigan, United States
  2. Richard W Aldrich
    Senior Editor; The University of Texas at Austin, United States
  3. Randy B Stockbridge
    Reviewer; University of Michigan, United States
  4. David M Maclean
    Reviewer; University of Rochester, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The work tackles a critical technical gap in the field of Acid-sensing ion channels: a specific antibody that marks human ASIC1a. The authors generate a nanobody specific to the extracellular part of human ASIC1a, which they use to obtain a high-resolution structure of the channel and modulate the binding of toxins to nearby sites on the channel. The nanobody will be a valuable tool for the structural, functional, and physiological characterization of ASIC1a, and is a launch point for the development of therapeutics that target pathologies of ASIC1a, including pain.

Decision letter after peer review:

Thank you for submitting your article "Structure and analysis of nanobody binding to the human ASIC1a ion channel" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Randy B Stockbridge as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Richard Aldrich as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: David M Maclean (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) Authors should evaluate the current quality of the model (bonds, angles, C-β deviations, etc), perhaps use web servers like MolProbity for inspection. It is important to carry out these analyses until satisfactory model statistics are obtained. In addition, the authors should provide a detailed table of statistics of data collection and model refinement, as it provides one simple reference that readers can easily access. The table also serves as a guide for readers to assess the limitations of the presented data.

2) The current coordinate file is of one protomer with no symmetry operators to generate the other two protomers around the three-fold axis of symmetry. The authors described that RELION was used for 3D classification and refinement (C3 symmetry). Please provide symmetry operators.

3) For the parts of the manuscript where molecular interactions at the nanobody/channel interface are described, the authors should show maps, at least as a figure supplement.

4) For the data described in Table 1: some example raw traces and pH-response curves should be shown. In addition, some description should be provided of for variance in replicate measurements of pH dependence or the Hill coefficient.

5) All reviewers agreed that it would be helpful to the narrative of the manuscript to compare and contrast the binding sites for Nb.C1, MitTX, and PcTx1, perhaps by adding an additional figure. It would be helpful to add some discussion providing a structural rationalization of why Nb.C1 can bind hASIC1a in an overlapping binding site, but not alter function.

6) Data is not shown for certain assertions, such as that the signal for the hASIC1 with a deletion is decreased in ELISA assays (this was shown in immunofluorescence microscopy), or that the mouse ASIC1a shows weak interactions with the nanobody. Lines 139 and 189 refers to rat and mouse ASIC1a but that data is not shown.

7) Although recovery from the PcTx1 toxin is described as being more rapid than recovery from the fusion protein, the time constants of these processes are within 2-fold of each other (Figure 4K). The main difference between the recoveries is the plateau. One possible interpretation of this is that some of the fusion protein has been proteolyzed so that the recovery represents the behavior of two sub-populations: one of toxin without fused nanobody, and one with the fusion protein. Perhaps in agreement with this, the gel from the purification has lower molecular weight bands that may correspond to nanobody or toxin alone. The authors should discuss this possibility, and comment on whether any experiments were done to control for this.

8) The authors do not indicate whether the PcTx1-nanobody fusion is from multiple biochemical preparations or just a single protein prep. It is important to reproduce these results for toxin-fusions from multiple biochemical preps in order to understand the prep-to-prep reproducibility for measurements like the recovery plateau.

9) The authors focus on the C1 nanobody, but also mention results obtained with other nanobodies (the ones in the tree in Figure 1E). The authors state "Nb.C1 was selected on the basis of high-affinity, absence of modification of channel function and a profile of monodisperse hASIC1a protein in size exclusion…. (lines 106-108)". This suggests other nanobodies were screened for affinity, channel modification and peak dispersion. Also, lines 91-93, the authors mention other nanobodies which required permeabilization to bind. The data relating to affinity, channel modulation, SEC and immuno from other nanobodies should be included, not simply mentioned but never shown.

10) The authors should describe what criteria they use to identify nanobody Nb.C1 as "high affinity." Reporting a Kd value would be useful.

11) Lines 102-104, the authors mention hASIC1a tends to give low yields and aggregates, thus making cryo em sample prep difficult. The C1 nanobody is presented as a solution to this. The authors should include some data of hASIC1a alone (gels, chromatographs, etc.) to illustrate that this was a problem. As it stands, the nanobody is a solution to a problem we never actually see. Also, it is unclear how the Sun 2020 hASIC1a structure paper was able to overcome this without the benefit of nanobodies. Do the authors have thoughts on this?

12) The authors noted that SH-SY5Y was used for imaging as it contains endogenous hASIC1a. A figure is shown (Figure 4G) to demonstrate an inward current is elicited upon application of pH 6.0. Is this current amiloride-sensitive?

Reviewer #1:

The strengths of the manuscript are: This is the highest-resolution structure of human ASIC1 described to date. Often, nanobodies are selected and used for structural characterization without additional functional analysis; the focus on the functional consequences of this nanobody is refreshing, and the proposed applications of this nanobody are intriguing.

The weaknesses of the manuscript are:

Some data might require additional Table 1 does not indicate the variance in replicate measurements of pH dependence or the Hill coefficient for the channel. Data is not shown for certain assertions, such as that the signal for the hASIC1 with a deletion is decreased in ELISA assays (although this was shown in immunofluorescence miscroscopy), or that the mouse ASIC1a shows weak interactions with the nanobody. Although the nanobody is described as high-affinity, the authors do not report a Kd value. Given that the foundation of this manuscript is characterization of nanobody-channel interactions, this seems like an important piece of information.

Although recovery from the PcTx1 toxin is describes as being more rapid than recovery from the fusion protein, the time constants of these processes are within 2-fold of each other (Figure 4K). The main difference between the recoveries is the plateau. The authors do not speculate about what this might mean, mechanistically. One possibility is that some of the fusion protein has been proteolyzed so that the recovery represents the behavior of two sub-populations: one of toxin without fused nanobody, and one with the fusion protein. Perhaps in agreement with this, the gel from the purification has lower molecular weight bands that may correspond to nanobody or toxin alone. Related to this, the authors do not indicate whether the PcTx1-nanobody fusion is from multiple biochemical preparations or just a single protein prep. It is important to reproduce these results for toxin-fusions from multiple biochemical preps in order to understand the prep-to-prep reproducibility for measurements like the recovery plateau.

Reviewer #2:

This manuscript describes the creation and characterization of a nanobody directed at the human ASIC1a extracellular domain. A nanobody library was generated by injecting an alpaca with cells expressing human ASIC1a (hASIC1a) then extracting mRNA from peripheral lymphocytes and using this to create a phage display library. The phage display library went through three different rounds of screening to arrive at a pool of about 20 promising clones. One of these was selected for further detailed characterization. This particular nanobody (C1) was able to stabilize trimeric hASIC1a in size exclusion, enabling the authors to obtain high resolution cryo-EM structures of nanobody-bound hASIC1a. This structure indicates the nanobody binds to an extracellular loop which in hASIC1a contains an added two amino acids compared to other ASIC1 variants, providing a mechanism for specificity. The evidence for specificity is largely provided by immunofluorescence data with either a control nanobody or modified ASIC subunits as controls. Interestingly, the C1 nanobody does not appear to alter hASIC1a function but does compete with the peptide MitTx, which binds nearby. Conjugating the nanobody to an ASIC-selective toxin can considerably prolong the toxins dissociation. The properties of this specific nanobody hold promise as a useful tool in the field.

The major advance is isolating this hASIC1a specific nanobody. Based on the authors data, this nanobody is specific due to two amino acids added to an extracellular loop in hASIC1a which are not present in chicken ASIC1 or other ASICs. As stated by the authors, this nanobody could then be used to help structural and biochemical investigation of hASIC1a, or potentially for therapeutic purposes in the future. A limitation or weakness of this nanobody is it only seems to work for hASIC1a, not mouse or rat ASIC1a. Nonetheless, the approach is strong, the data appear clear and support the major claims of the paper. There are a number of occasions where more detail is warranted, or where additional controls would increase overall quality but nothing that threatens the core findings of the manuscript.

Reviewer #3:

Wu et al. identify a novel alpaca-derived nanobody (Nb.C1) that binds specifically and with high affinity for human acid-sensing ion channel 1a (hASIC1a) and does not alter the functional properties of the channel. The authors use a combination of cryo-EM, electrophysiology, and fluorescence-based imaging to probe the hASIC1a-Nb.C1 complex. The authors demonstrate that by using Nb.C1, they were able to overcome biochemical challenges related to isolation of hASIC1a and were able to obtain a 3D map at 3.15 Å, a marked improvement from a previous cryo-EM structure of hASIC1a resolved at 3.9 Å by Sun et al. (2020). The resulting map shows hASIC1a in complex with three Nb.C1 in the closed, resting state. Interestingly, Nb.C1 binding site overlaps with that of MitTx and Mambalgin-1, toxins that stabilized the open and closed states of ASIC1a, respectively, but not that of PcTx1. The authors probe the interactions of Nb.C1 with hASIC1a using MitTx as a functional marker as it activates ASIC1a at physiological pH by electrophysiology, and the functional results support the structure. Application of both Nb.C1 and MitTx reduces the effects of the toxin. Wu et al. also investigated the effects of the Nb.C1 fused with PcTx1 and found that the fusion resulted prolonged effects of PcTx1-mediated inhibition. Altogether, the authors conclude that Nb.C1 is a powerful tool with multiple applications serving both structural-based and therapeutic-based studies. Indeed, the conclusion of the work described are largely supported by the data presented, but there are multiple sections in the manuscript that authors can expand on, clarify, and thoroughly inspected for consistency to strengthen the work.

1) A table of statistics relating to data collection and model refinement would be greatly appreciated as it provides one simple reference that readers can easily access. The table also serves as guidance for readers in order to assess the limitations of the presented data.

2) It is striking that the Nb.C1 binding site overlaps those of MitTx and Mambalgin-1 but the nanobody does not demonstrate either activating or inhibiting effects on the functional properties of hASIC1a. Authors should expand on the similarities and differences between the binding sites of Nb.C1 and toxins as this highlights the utility of Nb.C1 for different applications, as the authors suggest. Furthermore, the binding site differences might shed light into how Nb.C1 can specifically bind to hASIC1a without altering its function, unlike the binding of toxins.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Structure and analysis of nanobody binding to the human ASIC1a ion channel" for further consideration by eLife. Your revised article has been evaluated by Richard Aldrich as the Senior Editor, and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

1. In Figure 5K, the datapoints obtained from the two constructs (rigid and flexible linker) should not be combined, since the reader cannot evaluate whether the constructs behave similarly. These should be shown as separate datasets in Figure 5K.

2. Performing a second biochemical purification of the nanobody/toxin fusion is important to evaluate the prep-to-prep reproducibility of the quantitative values reported for Figure 5J and 5K (point #8 in the original review). It needs to be established whether the fraction of current that is recovered is something that is consistent (and may be a property of the chimeric molecule being tested), or variable from prep-to-prep (and may be due to contaminating toxin not covalently linked to monobody). Related to point #1, separating the data obtained from the rigid and flexible linker could help address whether similar time constants and plateaus are observed for toxin-nanobody chimeras that have been prepared in independent batches (with the caveat that the constructs are not exactly the same). As an alternative, these data could be removed from the manuscript.

3. The newly presented Biacore data for the binding of the nanobody to the channels (shown in Figure 5-S1) is not well fit by the two-site binding model that is used. This fit leads to an exceptionally low 1 pM binding affinity, which is likely an overestimate of the binding affinity. (As a frame of reference, "tight" antibody-antigen complexes are usually closer to 1 nM binding affinity, with some as low as 100 pM). These data should not be used to estimate a Kd value if issues with protein quality make these curves unfittable by plausible binding models.

https://doi.org/10.7554/eLife.67115.sa1

Author response

Essential revisions:

1) Authors should evaluate the current quality of the model (bonds, angles, C-β deviations, etc), perhaps use web servers like MolProbity for inspection. It is important to carry out these analyses until satisfactory model statistics are obtained. In addition, the authors should provide a detailed table of statistics of data collection and model refinement, as it provides one simple reference that readers can easily access. The table also serves as a guide for readers to assess the limitations of the presented data.

Thank you for the suggestions, we have carried out the improved refinement and evaluation. We have added the table as a Figure 2-Table supplement 2.

2) The current coordinate file is of one protomer with no symmetry operators to generate the other two protomers around the three-fold axis of symmetry. The authors described that RELION was used for 3D classification and refinement (C3 symmetry). Please provide symmetry operators.

The symmetry operators are listed below.

Author response table 1
Symmetry typeSymmetry foldX-axis elementY-axis elementZ-axis elementAngle (degrees)Peak height
Symmetry axis #1C3-0.01424-0.022160.99971200.7364

3) For the parts of the manuscript where molecular interactions at the nanobody/channel interface are described, the authors should show maps, at least as a figure supplement.

We have added to Figure 3C the map density of the interface between Nb.C1 and hASIC1a. See Figure 3-C.

4) For the data described in Table 1: some example raw traces and pH-response curves should be shown. In addition, some description should be provided of for variance in replicate measurements of pH dependence or the Hill coefficient.

i) We have added representative examples of hASIC1a with Nb-GFP (control Nb directed against GFP) and hASIC1a with 10 nM Nb-C1 showing response to proton activation and steady state desensitization: Figure 3—figure supplement 5.

ii) Table I shows mean± SD values for all measurements. The original data is included in an Excel file as Source Data 2.

iii) Also added are representative traces and results of pH50a and pH50ssd of hASIC1a wildtype and hASIC1a-DDL and cASIC wildtype and cASIC+DL. The purpose of these experiments was to test whether residues DL have any functional effect on ASICs. The results show that deletion of DL in hASIC1a produces a shift of 0.08 pH units of the pH50ssd to more alkaline value (t-test p=0.008) whereas adding DL to cASIC shifts the pH50ssd by 0.07 pH units (p=0.005) to more acid value (Sherwood and Askwith, 2008). The raw data has been included in Source Data 2.

5) All reviewers agreed that it would be helpful to the narrative of the manuscript to compare and contrast the binding sites for Nb.C1, MitTX, and PcTx1, perhaps by adding an additional figure. It would be helpful to add some discussion providing a structural rationalization of why Nb.C1 can bind hASIC1a in an overlapping binding site, but not alter function.

i) We have added new paragraphs to the text (Lines 162-178) comparing the binding sites.

ii) We have added a new paragraph discussing the lack of functional changes (lines 293-296).

6) Data is not shown for certain assertions, such as that the signal for the hASIC1 with a deletion is decreased in ELISA assays (this was shown in immunofluorescence microscopy), or that the mouse ASIC1a shows weak interactions with the nanobody. Lines 139 and 189 refers to rat and mouse ASIC1a but that data is not shown.

In the first submission we showed IF with strong signal for hASIC1a wildtype but no signal when residues DL are deleted, and no signal with cASIC1. We have added to Figure 3—figure supplement 3 new IF confocal images of mASIC1a, mASIC2a and mASIC3 with Nb.C1. The new images show no reactivity with any of those channels, indicating high specificity of Nb.C1 to hASIC1a.

The sentence mentioning ELISA has been removed because we didn’t conduct purification of cASIC, mASIC1a, ASIC2a or mASIC3 proteins that are necessary for the respective ELISA assays. Instead, we used IF to demonstrate specificity of the Nbs.

We include results of ELISA in Source Data 1: raw data from 96-well plate readings that include Nbs C1 to H10.

7) Although recovery from the PcTx1 toxin is described as being more rapid than recovery from the fusion protein, the time constants of these processes are within 2-fold of each other (Figure 4K). The main difference between the recoveries is the plateau. One possible interpretation of this is that some of the fusion protein has been proteolyzed so that the recovery represents the behavior of two sub-populations: one of toxin without fused nanobody, and one with the fusion protein. Perhaps in agreement with this, the gel from the purification has lower molecular weight bands that may correspond to nanobody or toxin alone. The authors should discuss this possibility, and comment on whether any experiments were done to control for this.

The interpretation provided by the reviewers is very likely. In addition, it is possible that a fraction of PcTx is not well folded i.e., pairing of the six cysteines is incorrect diminishing toxin binding affinity of the fusion protein. We have added an explanation to the text starting at line 224.

8) The authors do not indicate whether the PcTx1-nanobody fusion is from multiple biochemical preparations or just a single protein prep. It is important to reproduce these results for toxin-fusions from multiple biochemical preps in order to understand the prep-to-prep reproducibility for measurements like the recovery plateau.

We were aware of this problem. Because our limited resources, the purification of each fusion protein was conducted only once. The amount of purified fusion proteins was sufficient for the functional experiments. This caveat is mentioned in the legend of Figure 5.

9) The authors focus on the C1 nanobody, but also mention results obtained with other nanobodies (the ones in the tree in Figure 1E). The authors state "Nb.C1 was selected on the basis of high-affinity, absence of modification of channel function and a profile of monodisperse hASIC1a protein in size exclusion…. (lines 106-108)". This suggests other nanobodies were screened for affinity, channel modification and peak dispersion. Also, lines 91-93, the authors mention other nanobodies which required permeabilization to bind. The data relating to affinity, channel modulation, SEC and immuno from other nanobodies should be included, not simply mentioned but never shown.

Actually, we did not screen all isolated clones by all the criteria listed above, that approach would have taken a lot of time and resources.

After the third panning, we used ELISA to identify the strongest positive phages. As indicated in Figure 1D, an arbitrary threshold was set to examine only phages with high intensity signal, others were not considered for the next step. Several dozens of clones highly positive in ELISA were selected for DNA sequencing. Most of the sequenced clones were repeats or they had very similar sequences; i.e., there were not dozens of different clones rather a few clones repeated many times. This result is expected and represents a successful selection by our panning strategy of high affinity clones versus weak binders. Some of the sequenced clones were eliminated because they did not produce high amount of protein. The finalist clones are shown in Figure 1E. We next used IF to select clones with reactivity to hASIC1a and low background. The group in blue gave the cleanest signal. The group in green was also very clean but because the epitope(s) is intracellular we did not pursue further characterization in this study. If one looks at the sequences of the blue group (Figure 1 supp 2), they are almost identical, they differ by only one or two residues. Members of this group were tested on channels expressed in cells by TEVC. We used first C1 and later D10 in hASIC1a purification. Both Nbs were very good for this task, so we settled for C1 for the rest of the study.

The original sentence has been modified to convey a correct summary of the criteria that finally selected Nb.C1 though is not an exact sequence of events in the selection process:

“Among the best binders initially screened, Nb.C1 was selected on the basis of high-affinity, low background, and absence of modification of channel function. Subsequently, Nb.C1 was added to large scale preparations of crude membranes…”

It is entirely possible, indeed very likely, that the library contains more ‘good nanobodies’ for other purposes; they could be isolated by modifying the panning strategy.

Regarding Nbs in the green group, we are pursuing other applications, but for this publication is irrelevant. For the moment the library remains in the freezer until we obtain funds to continue the work.

10) The authors should describe what criteria they use to identify nanobody Nb.C1 as "high affinity." Reporting a Kd value would be useful.

As explained in the answer to the previous question, a good strategy for screening the phage library is the best way to isolate high affinity and specific binders. We have conducted measurements of binding kinetics of Nb.C1 using SPR with a Biacore instrument (Figure 5-supplement 1)

11) Lines 102-104, the authors mention hASIC1a tends to give low yields and aggregates, thus making cryo em sample prep difficult. The C1 nanobody is presented as a solution to this. The authors should include some data of hASIC1a alone (gels, chromatographs, etc.) to illustrate that this was a problem. As it stands, the nanobody is a solution to a problem we never actually see. Also, it is unclear how the Sun 2020 hASIC1a structure paper was able to overcome this without the benefit of nanobodies. Do the authors have thoughts on this?

In our hands, purification of high quality hASIC1a expressed in HEK293F cells was challenging owing to aggregation, and when placed on grids, displayed strong orientation bias. Nb.C1 solve both problems. Representative examples of SEC profiles using 1% DDM or 1% Fos-choline14 are shown, along with a Western blot of hASIC1a protein from the three peaks as Figure 2—figure supplement 1. In the figure legend we note the differences between a well-behaved protein of Sun et al. and our protein.

12) The authors noted that SH-SY5Y was used for imaging as it contains endogenous hASIC1a. A figure is shown (Figure 4G) to demonstrate an inward current is elicited upon application of pH 6.0. Is this current amiloride-sensitive?

Yes. Noted in the figure legend.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

1. In Figure 5K, the datapoints obtained from the two constructs (rigid and flexible linker) should not be combined, since the reader cannot evaluate whether the constructs behave similarly. These should be shown as separate datasets in Figure 5K.

2. Performing a second biochemical purification of the nanobody/toxin fusion is important to evaluate the prep-to-prep reproducibility of the quantitative values reported for Figure 5J and 5K (point #8 in the original review). It needs to be established whether the fraction of current that is recovered is something that is consistent (and may be a property of the chimeric molecule being tested), or variable from prep-to-prep (and may be due to contaminating toxin not covalently linked to monobody). Related to point #1, separating the data obtained from the rigid and flexible linker could help address whether similar time constants and plateaus are observed for toxin-nanobody chimeras that have been prepared in independent batches (with the caveat that the constructs are not exactly the same). As an alternative, these data could be removed from the manuscript.

Answer to the above two comments. We made new preparations of fusion proteins (Nb.C1-FlexLinker-PcTx and Nb.C1-RigidLinker-PcTx) and repeated the koff measurements in oocytes with TEVC. The new data are presented in Figure 5K-L. There is a difference in the maximal inhibition (16% and 14%) between the two constructs. The Coomassie blue SDS-PAGE shows (Figure 5J) a small fraction of cleaved protein -more prominent in the flexible linker fusion- that we believe may account for the more rapid than expected koff, as it generates free toxin. Though we optimized the purification protocol for these preps (lower temperature during induction, shorter incubation, addition of protease inhibitors and small concentration of reducing agents, indicated in methods), the cleavage was not completely eliminated. This issue could be solved by trying different sequences of linkers resistant to proteolysis, though at the expense of significant additional time. We provide here stronger evidence that the fusions potentiate the effect of PcTx1 by producing a large non-recovering fraction.

3. The newly presented Biacore data for the binding of the nanobody to the channels (shown in Figure 5-S1) is not well fit by the two-site binding model that is used. This fit leads to an exceptionally low 1 pM binding affinity, which is likely an overestimate of the binding affinity. (As a frame of reference, "tight" antibody-antigen complexes are usually closer to 1 nM binding affinity, with some as low as 100 pM). These data should not be used to estimate a Kd value if issues with protein quality make these curves unfittable by plausible binding models.

We have removed the figure of the Biacore binding kinetics of Nb.C1, as we agree that the fit to the unbinding time-course is very unreliable. The following paragraph has been added describing how we derived a rough estimate of the KD value of Nb.C1 (lines 214-222):

“To estimate the nanobody binding affinity, we first measured binding of Nb.1C to immobilized, detergent-solubilized hASIC1a protein using surface plasmon resonance. From experiments with two different Nb and hASIC1a protein preparations, global fits to association time courses with nanobody concentrations from 0.4 to 100nM yielded association rate constants kon ranging from 6.8x104 to 2.2x105 M-1 s-1. […] Taking the smallest kon value as a lower bound on association rate yields the equilibrium constant Kd ≲ 0.2 nM.”

This value is in the range of llama monomeric nanobodies (doi.org/10.1038/s42586-021-03676-z).

https://doi.org/10.7554/eLife.67115.sa2

Article and author information

Author details

  1. Yangyu Wu

    Basic Sciences Department, Tsinghua University School of Medicine, Beijing, China
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8064-6132
  2. Zhuyuan Chen

    Basic Sciences Department, Tsinghua University School of Medicine, Beijing, China
    Contribution
    Formal analysis, Investigation, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
  3. Fred J Sigworth

    Cellular and Molecular Physiology, Yale University School of Medicine, New Haven, United States
    Contribution
    Software, Formal analysis, Supervision, Validation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7178-8494
  4. Cecilia M Canessa

    1. Basic Sciences Department, Tsinghua University School of Medicine, Beijing, China
    2. Cellular and Molecular Physiology, Yale University School of Medicine, New Haven, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    cecilia.canessa@yale.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7316-5082

Funding

Beijing Advanced Innovation Center for Structural Biology, Tsinghua University

  • Cecilia M Canessa

NIH (R21 MH10107466402)

  • Cecilia M Canessa

NIH (RO1 NS021501)

  • Fred Sigworth

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Chenghui Li for assistance with illustrations; Kaiyuan Ji for helping in the immunization and bleeding of the alpaca; Marc Llaguno for cryo-EM grid screening on the Glacios in the Yale Cryo-EM Core Facility; Shenping Wu and Kangkang Song, of the Yale Cryo-EM Core Facility and the University of Massachusetts Cryo-EM Core Facility, for Titan Krios data collection; and Prof. Wei Mi from the Department of Pharmacology at Yale University School of Medicine for advice on building the structural model.

Ethics

Animal experimentation: The study was carried out in accordance with the recommendations of the Institutional Animal Care Committee of Shanxi Agricultural University, China, where the alpaca was kept through the immunization protocol (protocol # 07990) The use of Xenopus laevis oocytes was approved by the Institutional Animal Care Committee of Tsinghua University, China (protocol #125154). Our group did not conduct frog surgeries, we received fragments of ovaries from the amphibian facility. The Association for Assessment and Accreditation of Laboratory Animal Care International (AALAC) has accredited Tsinghua amphibian animal facility.

Senior Editor

  1. Richard W Aldrich, The University of Texas at Austin, United States

Reviewing Editor

  1. Randy B Stockbridge, University of Michigan, United States

Reviewers

  1. Randy B Stockbridge, University of Michigan, United States
  2. David M Maclean, University of Rochester, United States

Publication history

  1. Received: February 1, 2021
  2. Accepted: July 13, 2021
  3. Version of Record published: July 28, 2021 (version 1)

Copyright

© 2021, Wu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 529
    Page views
  • 76
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Microbiology and Infectious Disease
    2. Structural Biology and Molecular Biophysics
    Gukui Chen et al.
    Research Article Updated

    Cyclic-di-guanosine monophosphate (c-di-GMP) is an important effector associated with acute-chronic infection transition in Pseudomonas aeruginosa. Previously, we reported a signaling network SiaABCD, which regulates biofilm formation by modulating c-di-GMP level. However, the mechanism for SiaD activation by SiaC remains elusive. Here we determine the crystal structure of SiaC-SiaD-GpCpp complex and revealed a unique mirror symmetric conformation: two SiaD form a dimer with long stalk domains, while four SiaC bind to the conserved motifs on the stalks of SiaD and stabilize the conformation for further enzymatic catalysis. Furthermore, SiaD alone exhibits an inactive pentamer conformation in solution, demonstrating that SiaC activates SiaD through a dynamic mechanism of promoting the formation of active SiaD dimers. Mutagenesis assay confirmed that the stalks of SiaD are necessary for its activation. Together, we reveal a novel mechanism for DGC activation, which clarifies the regulatory networks of c-di-GMP signaling.

    1. Structural Biology and Molecular Biophysics
    Fang Tian et al.
    Research Article Updated

    SARS-CoV-2 has been spreading around the world for the past year. Recently, several variants such as B.1.1.7 (alpha), B.1.351 (beta), and P.1 (gamma), which share a key mutation N501Y on the receptor-binding domain (RBD), appear to be more infectious to humans. To understand the underlying mechanism, we used a cell surface-binding assay, a kinetics study, a single-molecule technique, and a computational method to investigate the interaction between these RBD (mutations) and ACE2. Remarkably, RBD with the N501Y mutation exhibited a considerably stronger interaction, with a faster association rate and a slower dissociation rate. Atomic force microscopy (AFM)-based single-molecule force microscopy (SMFS) consistently quantified the interaction strength of RBD with the mutation as having increased binding probability and requiring increased unbinding force. Molecular dynamics simulations of RBD–ACE2 complexes indicated that the N501Y mutation introduced additional π-π and π-cation interactions that could explain the changes observed by force microscopy. Taken together, these results suggest that the reinforced RBD–ACE2 interaction that results from the N501Y mutation in the RBD should play an essential role in the higher rate of transmission of SARS-CoV-2 variants, and that future mutations in the RBD of the virus should be under surveillance.
