A novel and accurate full-length HTT mouse model for Huntington’s disease

  1. Sushila A Shenoy
  2. Sushuang Zheng  Is a corresponding author
  3. Wencheng Liu
  4. Yuanyi Dai
  5. Yuanxiu Liu
  6. Zhipeng Hou
  7. Susumu Mori
  8. Yi Tang
  9. Jerry Cheng
  10. Wenzhen Duan
  11. Chenjian Li  Is a corresponding author
  1. Department of Neuroscience, Weill Cornell Graduate School of Medical Sciences, United States
  2. The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, China
  3. The Russell H. Morgan Department of Radiology and Radiological Sciences, Johns Hopkins University School of Medicine, United States
  4. Innovation Center for Neurological Disorders, Department of Neurology, Xuanwu Hospital Capital Medical University, National Center for Neurological Disorders, China
  5. Department of Computer Science, New York Institute of Technology, United States
  6. Division of Neurobiology, Department of Psychiatry and Behavioral Sciences; Solomon H.Snyder Department of Neuroscience, Johns Hopkins University School of medicine, United States
Research Article
  • Cited 0
  • Views 110
  • Annotations
Cite this article as: eLife 2022;11:e70217 doi: 10.7554/eLife.70217

Abstract

Here, we report the generation and characterization of a novel Huntington’s disease (HD) mouse model BAC226Q by using a bacterial artificial chromosome (BAC) system, expressing full-length human HTT with ~226 CAG-CAA repeats and containing endogenous human HTT promoter and regulatory elements. BAC226Q recapitulated a full-spectrum of age-dependent and progressive HD-like phenotypes without unwanted and erroneous phenotypes. BAC226Q mice developed normally, and gradually exhibited HD-like psychiatric and cognitive phenotypes at 2 months. From 3 to 4 months, BAC226Q mice showed robust progressive motor deficits. At 11 months, BAC226Q mice showed significant reduced life span, gradual weight loss and exhibited neuropathology including significant brain atrophy specific to striatum and cortex, striatal neuronal death, widespread huntingtin inclusions, and reactive pathology. Therefore, the novel BAC226Q mouse accurately recapitulating robust, age-dependent, progressive HD-like phenotypes will be a valuable tool for studying disease mechanisms, identifying biomarkers, and testing gene-targeting therapeutic approaches for HD.

Editor's evaluation

This work describes creation of a novel Huntington disease (HD) mouse model that has potential value to the HD field. This model demonstrates disease features that have previously been difficult to capture and opens new avenues of examination.

https://doi.org/10.7554/eLife.70217.sa0

Introduction

Huntington’s disease (HD) is an autosomal-dominant hereditary neurodegenerative disorder caused by a pathogenic expansion of the CAG trinucleotide repeats in exon 1 of the huntingtin (HTT) gene (A novel gene containing a trinucleotide repeat that is expanded and unstable on Huntington’s disease chromosomes. The Huntington’s Disease Collaborative Research Group, 1993). The clinical features of HD include motor deficit, psychiatric disturbance, cognitive impairment, and peripheral signs such as weight loss and sleep disturbance (Ghosh and Tabrizi, 2015). Disease onset, which is dependent on the CAG repeat length, is usually defined by the onset of motor symptoms, although non-motor symptoms are often present many years in advance. The striking neuropathological characteristic of HD, induced by the mutant Htt protein (mHtt), is the progressive brain atrophy mainly in the striatum and cerebral cortex (Walker, 2007). Despite ubiquitously expressed mHtt protein in HD brain, the primary vulnerable neuronal types are medium spiny neurons (MSNs) in the striatum and pyramidal neurons in the cortex (Vonsattel and DiFiglia, 1998). Widespread mHtt protein aggregation in HD brain tissue is another hallmark of HD pathology (Davies and Scherzinger, 1997). While the causative gene for HD was identified 28 years ago (Macdonald, 1993), there are still no effective disease-modifying therapies available to prevent or delay the progression of this disorder.

Since the identification of causative gene for HD, a large number of animal models have been generated in a variety of animal species including Caenorhabditis elegans, Drosophila melanogaster, zebrafish, mouse, rat, sheep, pig, and non-human primates to better elucidate the complex pathogenic mechanisms in HD, and to develop potential therapeutic strategies for HD (Farshim and Bates, 2018). Although large animal models, such as pig and non-human primates, are very useful to study HD (Niu et al., 2010; Sasaki et al., 2009; Yan et al., 2018; Yang et al., 2008), mouse models still dominate the research field and provide us with valuable tools to investigate the pathogenesis of HD and therapeutic targets.

To date, there are more than 20 different HD mouse models available (Brooks and Dunnett, 2015; Crook and Housman, 2011; Farshim and Bates, 2018; Pouladi et al., 2013). In general, those genetic mouse models can be classified into three groups based on distinct strategies: the transgenic models carrying human HTT N-terminal fragments with CAG expansions such as R6/1, R6/2, and N171-82Q (Carter et al., 1999; Mangiarini et al., 1996; Schilling et al., 1999), the transgenic full-length mutant HTT models such as YAC128, BACHD, BAC-225Q (Gray et al., 2008; Slow et al., 2003; Wegrzynowicz et al., 2015), humanized HD mice (Hu97/18 and Hu128/21) (Southwell et al., 2017; Southwell et al., 2013), and knock-in models with expanded CAG repeats inserted into a mouse Htt exon 1 such as HdhQ72 and HdhQ150 or into a humanized exon 1 sequence such as HdhQ111, HdhQ140, N160Q, zQ175, and Q175FDN (Heng et al., 2007; Hickey et al., 2008; Levine et al., 1999; Lin et al., 2001; Liu et al., 2016; Menalled et al., 2012; Menalled et al., 2003; Shelbourne et al., 1999; Southwell et al., 2016; Wheeler et al., 1999). The existing mouse models mimic some aspects of HD including behavioral disturbances and neuropathological changes of the disease. However, none of them can fully recapitulate human disease, and many of them have spurious phenotypes that are irrelevant or opposite to human conditions. The N-terminal fragment transgenic mice such as R6/2 show a robust phenotype and severely reduced life span, but they demonstrated severe developmental deficits and nonspecific neurodegeneration throughout the central nervous system (Carter et al., 1999; Crook and Housman, 2011; Heng et al., 2007; Mangiarini et al., 1996; Southwell et al., 2016) as well as diabetes, which are not correlated with HD patients. In comparison, full-length transgenic HD mice and Hdh knock-in mice replicate relatively better the neuropathology of HD; however, they display much milder phenotypes and slower progression (Brooks et al., 2012; Farshim and Bates, 2018; Pouladi et al., 2013). Moreover, YAC128, BACHD, and humanized HD strains (Hu97/18 and Hu128/21) exhibit significant weight gain, opposite to what is seen in HD patients (Gray et al., 2008; Slow et al., 2003; Southwell et al., 2017; Southwell et al., 2013). Another commonly used mouse model zQ175 KI has robust phenotypes (Lin et al., 2001); however, it has mouse HTT gene and therefore not suitable for testing the approach of genetically deleting human mutant HTT gene via methods such as CRISPR-Cas9.

Therefore, despite all the achievements, we are still in search for a new full-length model that not only accurately recapitulates all HD phenotypes, but also without spurious characteristics.

In light of the clear relationship between PolyQ repeat length and disease onset and severity in both humans and mice, in this study, we engineered a bacterial artificial chromosome (BAC) transgenic mouse model of HD-BAC226Q which expresses full-length human HTT with 226Q encoded by a mixture of CAG-CAA repeat. This 226Q repeat length is smaller than the maximum 250 polyQ in HD patient cases (Nance et al., 1999). The CAG-CAA mix will stabilize the polyQ length. Our novel BAC226Q mouse recapitulates a full spectrum of cardinal HD symptoms and pathologies: reduced life span, weight loss, motor and non-motor neurologic phenotypes, selective brain atrophy, striatal neuronal death, mHtt aggregation, and gliosis. It is also important to note that there are no spurious abnormalities identified to date. Therefore, the new HD mouse model will be valuable for studying pathogenic mechanisms and developing therapeutics.

Results

Generation of BAC226Q transgenic mice

Transgenic BAC226Q mice were generated and contain the full-length human HTT with 226 CAG-CAA repeats under the control of the endogenous human HTT promoter and regulatory elements. Similar to the BACHD mouse, a mixed CAG-CAA repeat is used to create a stable length of polyglutamine (PolyQ) that is not susceptible to expansion or retraction (Gray et al., 2008). To determine the copy number and insertion sites in FVB mouse genome of full-length human HTT, whole-genome sequencing was applied and indicated two copies of the human HTT were inserted in the chromosome 8 in FVB mouse genome at Chr8:46084002 (Figure 1A). The protein expression level of HTT was determined by Western blots with whole-brain lysates from 2- to 11-month-old animals probed with anti-polyQ MAB1574 (1C2 clone) and S830 antibody against mutant huntingtin protein (Figure 1B and C). Age-matched 11-month BACHD and wild-type mice were used for comparison. As expected, the band for 226Q mutant huntingtin in BAC226Q mouse is at a higher molecular weight than that for 97Q huntingtin in the BACHD mouse. There are no Htt protein fragments detected in 2- or 11-month BAC226Q mouse in Western blots (Figure 1B).

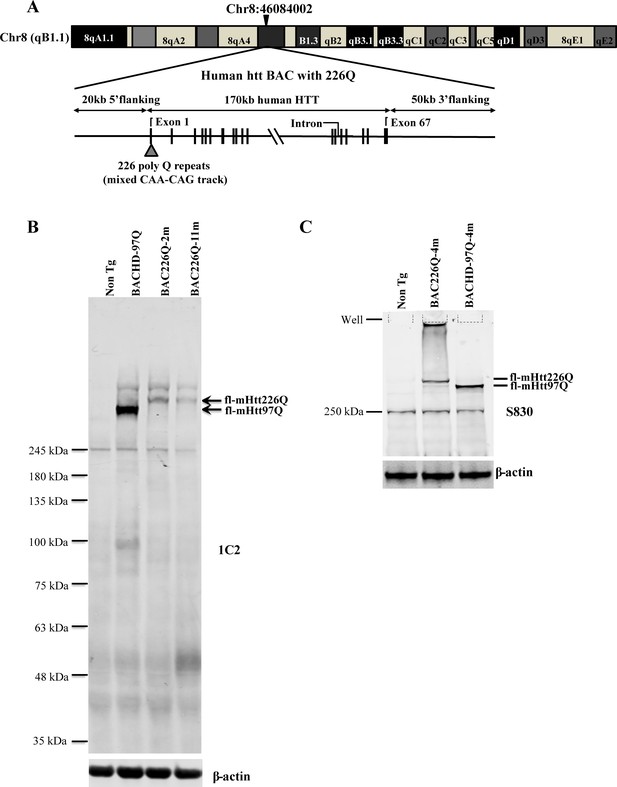

Generation of BAC226Q transgenic mice.

(A) Schematic diagram of the insertion of the full-length human mutant HTT BAC into mouse genome. The human HTT BAC contains 170 kb genomic DNA of complete HTT genomic locus plus approximately 20 kb 5′ and 50 kb 3′ flanking region with endogenous regulatory elements. A mixed CAA-CAG repeat encoding 226 polyQ was engineered in exon 1. By whole-genome sequencing, two copies of the human mHTT BAC had been detected and inserted into the mouse genome at Chr8:46084002. (B) Western blot analysis of Htt protein expression levels in BAC226Q, non-transgenic littermate and BACHD (97Q) mice with antibody 1C2. The whole-brain lysates are from 2- to 11-month BAC226Q, 11-month non-transgenic littermate and BACHD mice. Western blots were repeated in three independent cohorts of mice. The upper panel: arrows indicate that 1C2, an antibody specific for mutant Htt, detects mHtt in BAC226Q and BACHD (97Q) mice but not non-transgenic littermate. In the second lane from the left, mHtt-97Q from BACHD (97Q) mouse appeared at the expected molecular weight. In the right two lanes, mHtt-226Q from 2- to 11-month BAC226Q mice are detected at a molecular weight higher than that of mHtt-97Q. Lower panel: the same blot was probed with anti-β-actin antibody for the loading control. (C) Reconfirmation by Western blot with the S830 antibody specific for mHtt in 4-month non-transgenic control, BAC226Q and BACHD (97Q) mice. S830 antibody detected mHtt-97Q in BACHD (97Q) mouse (right lane) and mHtt-226Q (middle lane) at expected molecular weights but not in non-transgenic control (left lane).

Progressive weight loss and shortened life span in BAC226Q mice

As a first step in characterizing these mice, their growth and reproduction were examined. Both male and female transgenic mice were born in the expected Mendelian ratios with no obvious abnormalities. Both males and females were fertile, but males were preferred for breeding because female animals had a short window of time during which they were able to adequately care for pups. Transgenic BAC226Q mice had significantly reduced lifespan (Figure 2A). In both sexes, only 50% of transgenic animals survive past 1 year. The longest surviving transgenic mice were 15 months old when they had to be euthanized due to the end-point condition according to animal welfare requirements. In comparison, non-transgenic littermate controls appeared healthy at 15 months of age. Animal weights were recorded weekly and the results show that HD mice were born normal and gained weight at the same rate as their non-transgenic littermates in the developmental stage (Figure 2B). In both male and female WT littermates, body weight continuously increased until the 11 months of age; however, BAC226Q exhibited slower weight gain followed by progressive and significant weight loss which resulted in about 40% loss at 11 months (Figure 2C and D). Weight loss is a common and serious complication in HD patients, who fail to maintain weight even when caloric intake is increased (Aziz et al., 2008). BAC226Q mice recapitulated this aspect accurately. These initial results suggest that BAC226Q mice have progressive weight loss and shortened lifespan, both of which correlate well with the human disease condition.

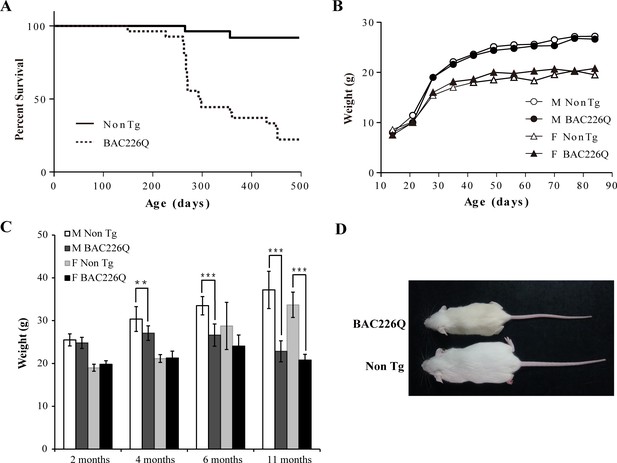

Shortened life span and weight loss in BAC226Q mice.

(A) Kaplan-Meier survival curves indicate a median life span of less than 1 year for BAC226Q mice (male BAC226Q n=16; female BAC226Q n=11; male Non Tg n=19; female Non Tg n=19). (B) In the developmental stage, male and female BAC226Q mice gained weights at the same rate as their non-transgenic littermates (male BAC226Q n=8; male Non Tg n=10; female BAC226Q n=8; female Non Tg n=7). Fit a growth curve model to the mice, BAC226Q and non-transgenic littermates gained weights at the same rate (male 0.381±0.060 g/day, p=0.7123; female 0.156±0.035 g/day, p=0.09). (C) Progressive and age-dependent weight loss in BAC226Q mice. After normal development, BAC226Q mice had progressive weight loss compared to non-transgenic littermate controls: at 2 months (male BAC226Q n=8; male Non Tg n=10; p=0.3910; female BAC226Q n=8; female Non Tg n=7, p=0.1930); at 4 months (male BAC226Q n=10; male Non Tg n=13; p=0.0046; female BAC226Q n=8; female Non Tg n=6, p=0.8988); at 6 months (male BAC226Q n=22; male Non Tg n=20; p=1.6061e−11; female BAC226Q n=10; female Non Tg n=11, p=0.0884); at 11 months (male BAC226Q n=22; male Non Tg n=22; p=1.4608e−17; female BAC226Q n=6; female Non Tg n=8, p=1.9311e−06). Student’s t-test was applied in all analyses. (D) Representative body sizes of 11-month-old male BAC226Q mouse and non-transgenic littermate. Significance is indicated by *=p<0.05, **=p<0.01, ***=p<0.001.

Age-dependent and progressive motor impairments in BAC226Q mice

The earliest, most visible motor phenotype in the BAC226Q mice was the chorea-like movement which first manifested between 12 and 14 weeks. The motor phenotypes include abrupt unnatural jerking and twisting of the head and body (Video 1), resembling the chorea movement in HD patients. It should be noted that every transgenic BAC226Q mouse exhibits this HD-like movement. Between 14 and 16 weeks, rapid circling behavior appeared, and was especially prominent when animals were disturbed in their cages (Video 2).

Video 1
Chorea-like movement in BAC226Q mice at 14 weeks.
Video 2
Rapid circling behavior in BAC226Q mice at 16 weeks.

To characterize the progressive nature of motor deficits in our model, we measured motor function at serial time points by several behavioral tests. First, overall activity was measured in the open field task (Figure 3A and B). Open field activity is divided into horizontal and vertical components. Horizontal activity is measured by lateral movement around the open field, and vertical activity is measured by rearing movements. At 2 months, HD mice are indistinguishable from non-transgenic littermate controls in both horizontal and vertical activity measures. Horizontal activity is dramatically increased at 4 months (Figure 3A), but returns to wild-type levels at 10 and 15 months. In contrast, vertical activity of 4-month HD mice has declined to about 20% of the controls (Figure 3B). This suggests that in addition to their hyperkinesia, the mice cannot rear normally, indicating a loss of motor control. While reduced vertical activity at 4 months may be caused by the increase in horizontal movement, at 10 and 15 months, horizontal activity is reduced to wild-type levels but vertical activity does not recover and becomes even more impaired. These results parallel the biphasic motor symptom progression in HD patients in which early stage involuntary movements become more dystonic in late stages of disease.

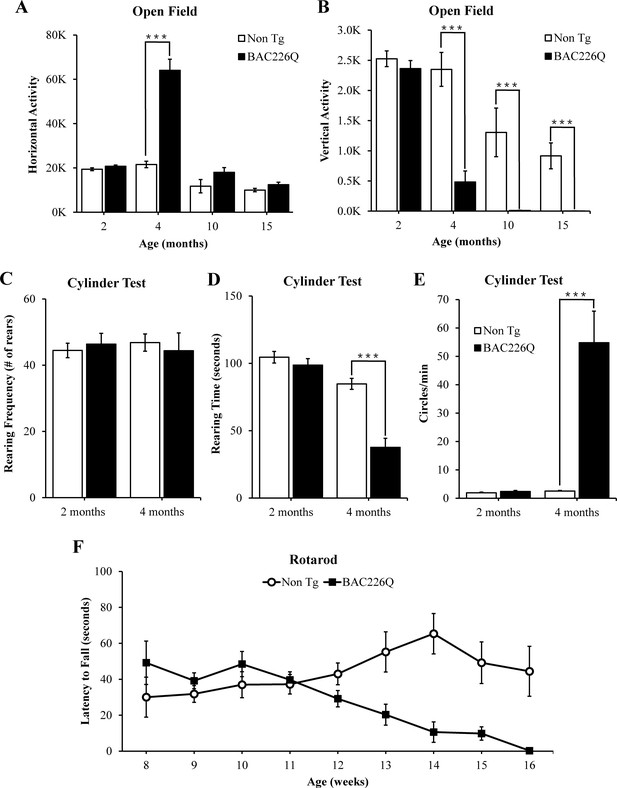

Robust, early onset, and progressive motor deficits in BAC226Q mice.

(A, B) Horizontal and vertical activities are measured by total beam breaks in 1 hr in the open field. In horizontal movement, 4-month BAC226Q mice developed robust hyperactivity (p=3.7366e−06) (A). In vertical movement, BAC226Q mice had progressively diminished activity (2 months p=0.39450; 4 months p=0.00007; 10 months p=0.0015; 15 months p=0.00072) (B). (C–E) Results of the cylinder task at 2 and 4 months. Rearing frequency, the total number of rears observed during the 5-min task, is unchanged in BAC226Q mice (2 months p=0.3889; 4 months p=0.7016) (C). Rearing time, the total time of mice in an upright rearing position, is greatly reduced in BAC226Q mice at 4 months (p=0.00002) (D). Circling frequency, the total number of clockwise and counterclockwise rotations, is obviously increased in BAC226Q mice at 4 months (p=0.0013) (E). Student’s t-test was applied in (A–E), and significance is indicated by ∗=p<0.05, ∗∗=p<0.01 and ∗∗∗=p<0.001. (F) Rotarod performance was averaged over three trials, performed once a week. BAC226Q mice showed progressive and significant deficits (13 weeks p=0.0004; 14 weeks p=0.0004; 15 weeks p<0.0001; 16 weeks p<0.0001); Two-way ANOVA with post hoc Sidak’s multiple comparisons test, with a significant genotype and age interaction (F (8, 180)=5.805, p<0.0001). All tests used 11 pairs of BAC226Q mice and non-transgenic littermates.

The cylinder test was performed to provide another sensitive analysis of motor phenotypes. Similar to the open field test, BAC226Q mice are normal at 2 months and defective at 4 months in the cylinder test (Video 3). At 4 months, rearing frequency was unchanged, but rearing time was significantly reduced (Figure 3C and D). These results suggest that the transgenic mice retained their instinct to rear to explore the environment, but were unable to sustain upright posture due to motor impairment. The circling phenotype in BAC226Q mice (Figure 3E) was reminiscent of that seen in unilateral lesion models, but with important differences. In lesion models, stereotyped turning occurs in a single direction determined by which hemisphere is lesioned. While BAC226Q mice spent time turning in both directions, and the frequency of turning was significantly increased over controls. Circling in BAC226Q mice may be explained by a reduced capacity to inhibit or terminate movements such as turns.

Video 3
Cylinder test in BAC226Q mice at 16 weeks.

To demonstrate deficits in balance and coordination and to track the progressive decline of motor function from normal at 2 months to severe at 4 months, an accelerating rotarod test was used. The accelerating rotarod requires mice to walk forward on a rotating rod to maintain balance and is a sensitive measurement of motor coordination. Consistent with the open field and cylinder results, no differences between BAC226Q and controls could be detected until 12 weeks (Figure 3F). At 13 weeks, BAC226Q mice performed significantly worse compared to non-transgenic controls. At 16 weeks, BAC226Q mice were unable to balance on the rotarod for any duration of time. These results demonstrated a rapidly progressing, debilitating motor dysfunction with a clearly defined time course.

Cognitive and psychiatric-relevant deficits in BAC226Q mice prior to motor abnormalities

In HD patients, cognitive and psychiatric symptoms are common and as detrimental to quality of life as motor disorders. To characterize the non-motor phenotypes in the BAC226Q mice, we subjected 2-month-old BAC226Q mice to several tasks. Testing was performed at 2 months for two reasons: first, these tests depend to some degree on the ability of the animal to move around, thus we need to test at 2 months when there is no measurable motor impairment. Second, psychiatric and cognitive symptoms frequently occur years before the onset of motor symptoms in HD patients. The tests were performed in an ascending order of stress level, from object-in-place memory test, sucrose preference to the most stressful forced swim task. Because there is an evidence of impaired hippocampal function in pre-symptomatic HD patients, we chose a challenging cognitive task with a hippocampus-dependent spatial component (Phillips et al., 2008; Ransome et al., 2012). In this task, mice were exposed to four unique objects during a training session, and then exposed to the same four objects but with the positions of two objects switched (Figure 4A). Mice with normal cognitive function will recognize and spend more time exploring the switched objects. BAC226Q mice, on the other hand, showed no discrimination of the moved objects (Figure 4A) despite spent an equal total amount of time exploring the objects in both training and testing sessions. These results suggest that the BAC226Q mice have impairments in hippocampal-dependent cognitive function at 2 months.

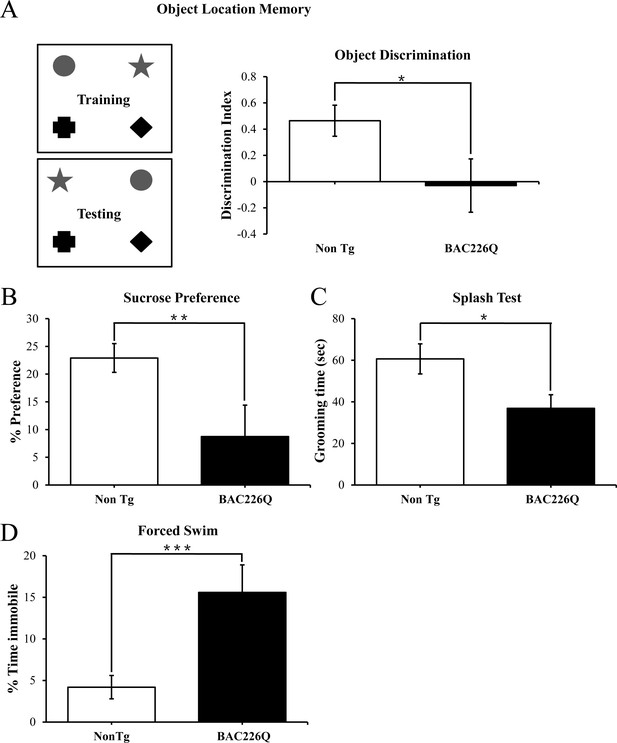

Cognitive and psychiatric disorder-like behavior in BAC226Q mice.

All tests used 12 pairs of 2-month-old male BAC226Q mice and non-transgenic littermates. BAC226Q mice showed significant deficits in (A) significant decrease in discrimination of moved objects (p=0.0485), (B) significant decrease in sucrose preference (p=0.0031), (C) significant decrease in grooming time in the splash test (p=0.035), (D) significant increase in the immobile time in the forced swim test (p=0.0007). Student’s t-test was applied in all analyses. Significance is indicated by *=p<0.05, **=p<0.01, ***=p<0.001.

Depression and anhedonia are also common in HD patients. To test if our mice displayed similar mood phenotypes, we applied three well-characterized behavioral assays. In the sucrose preference task, 2-month-old animals were given a choice of regular drinking water or 1% sucrose solution, and consumption of both was measured over 48 hr. While non-transgenic littermates preferred the sucrose solution, BAC226Q mice showed significantly reduced preference (Figure 4B), indicating an anhedonia-like phenotype typical of depression. The splash test is another test of depression-like mood dysfunction in mice. When sprayed with a sticky sucrose solution, BAC226Q mice spent significantly less time grooming compared to non-transgenic littermate (Figure 4C), demonstrating further a depression-like behavior. In the third experiment to explore depression-like phenotypes, we evaluated immobility in the forced swim task. The results were highly significant that BAC226Q mice had three times higher immobility time than non-transgenic littermate controls (Figure 4D). Combined, these three tests indicated a range of depression-like phenotypes including disinterest in rewarding stimuli, apathy, and hopelessness in a stressful situation.

Age-dependent and progressive striatal atrophy and neuronal loss in BAC226Q mice

Post-mortem brains of HD patients have a significant reduction in brain volume, especially in the striatum and deep layer cortex. Age-dependent and progressive striatal atrophy and neuronal loss are cardinal neuropathology of HD patients that are well recapitulated in BAC226Q mice (Figure 5A). At 2 months, BAC226Q mice had similar brain weights compared to non-transgenic littermates, and went through a progressive decrease. At 15 months, whole brains from surviving BAC226Q mice weighed 31% less than brains from non-transgenic littermate (Figure 5B). To further evaluate HD-like neuropathology in BAC226Q mice, we used the Cavalieri stereologic estimator to compare striatal volume in 11-month BAC226Q and non-transgenic littermates. The results showed that BAC226Q striatal volume was significantly decreased by 34% compared to controls (Figure 5C). Additionally, similar to the enlarged brain ventricles in HD patients due to brain atrophy, the volume of the ventricles in BAC226Q mice was greatly enlarged by 3.8-fold compared to that of the non-transgenic littermates (Figure 5D). These changes in striatal and ventricular volumes closely mirrored the cardinal pathology in HD patient brains.

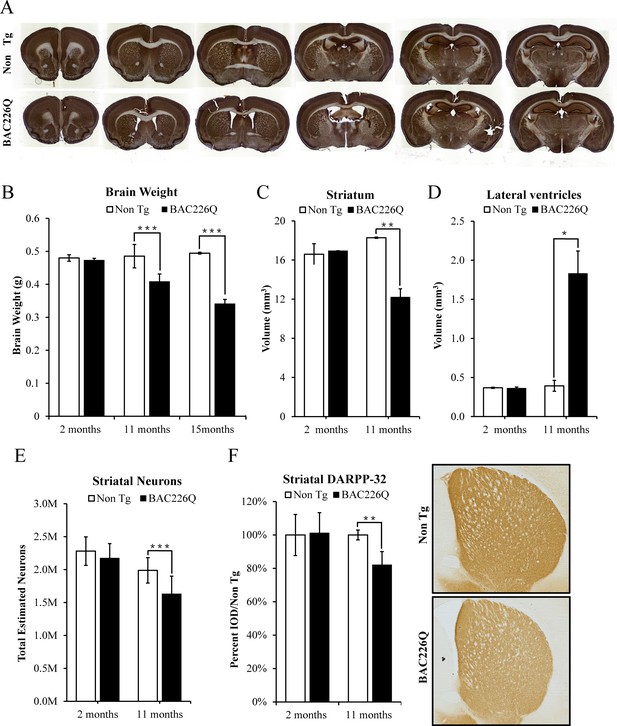

Histopathology of striatal atrophy and neuronal loss in BAC226Q mice.

(A) Representative micrographs of NeuN stained serial brain sections for 11-month BAC226Q and non-transgenic littermates. (B) Progressive and age-dependent brain weight loss in BAC226Q mice. With the normal development, brain weights of BAC226Q mice is similar to non-transgenic littermates at 2 months (BAC226Q 0.473±0.005 g; Non Tg 0.480±0.010 g, n=3 pairs; p=0.373901). Brain weights of BAC226Q mice were significantly reduced at 11 months (BAC226Q 0.408±0.023 g, Non Tg 0.485±0.035 g, reduced by 15.9%; BAC226Q n=9, Non Tg n=15; p=0.00026), and more severe at 15 months (BAC226Q 0.495±0.013 g, Non Tg 0.341±0.007 g, reduced by 31.0%; n=4 pairs; p=0.00019). (C, D) Striatal atrophy was measured by the Cavalieri stereological estimator. Compared to the non-transgenic littermates, BAC226Q at 2 months had no defects in striatal (BAC226Q 16.556±0.007 mm3, Non Tg 16.167±1.091 mm3; n=3 pairs; p=0.84283) and ventricle volume (BAC226Q 0.345±0.014 mm3, Non Tg 0.351±0.007 mm3; n=3 pairs; p=0.81590). At 11 months, BAC226Q striatal volume was significantly decreased by 34% (BAC226Q 11.789±0.829 mm3, Non Tg 17.765±0.130 mm3; n=4 pairs; p=0.00544) (C), and lateral ventricle volume was increased by 379% (BAC226Q 1.765±0.281 mm3, Non Tg 0.369±0.067 mm3; n=4 pairs; p=0.01270) (D). (E) Total striatal neuron count was estimated by an optical dissector stereological estimator. No significant difference was detected at 2 months (BAC226Q 2,280,000±125,000, Non Tg 2,174,000±127,000; n=3 pairs), but a significant 18% decrease was detected in 11-month BAC226Q (BAC226Q 1,631,000±269,000,, Non Tg 1,988,000±193,000; BAC226Q n=6, Non Tg n=5, p=0.0002). In every subject counted, the estimated coefficient of error was less than 0.1. (F) In 11-month BAC226Q mice striatum, DARPP-32 staining of MSNs was reduced by 18.1% (n=4 pairs, p=0.0012) but no change in 2-month BAC226Q mice striatum. In all panels, Student’s t-test was applied in all analyses. Significance is indicated by ∗=p<0.05, ∗∗=p<0.01 and ∗∗∗=p<0.001.

In human HD patients, striatal volume loss is attributed largely to the death of MSNs, which comprise 95% of neurons in the striatum (Oorschot, 1996). To determine whether the striatal volume reduction in BAC226Q mice was caused by neuronal death, we used an unbiased optical fractionator method to count the total striatal neurons in brain tissues from 2- to 11-month animals. At 2 months, no significant differences were detected between genotypes with an average striatal neuron population of 2,280,000±125,000 for non-transgenic and 2,174,000±127,000 for HD mice (Figure 5E). However, at 11 months, non-transgenic littermate control mice had an average of 1,988,000±193,000 striatal neurons, while BAC226Q mice had only 1,631,000±269,000, a difference of 18.0% (Figure 5E). To further evaluate MSN health in striatum, DARPP-32 immunostaining was quantified by integrated optical density (IOD) in BAC226Q and non-transgenic littermate controls. DARPP-32 IOD was significantly reduced by 18.1% in BAC226Q striatum at 11 months of age (Figure 5F).

Specific pattern of regional brain atrophy in BAC226Q mice by MRI study

To further characterize the degeneration in the HD mouse brain and to evaluate the feasibility of performing in vivo imaging to track disease progression, we imaged 12-month-old mice with high-resolution structural MRI and used automated deformation-based morphometry to determine regional brain volumes (Figure 6A). In 12-month transgenic BAC226Q mice, whole brain volume was 373.8±2.95 mm3, compared to 522.3±21.7 mm3 in non-transgenic controls, a decrease of 28.5% (Figure 6B). In order to make a fair comparison of regional differences between genotypes, we normalized all volumes by whole brain volume to obtain a percent volume for each region before performing statistical tests. We found statistically significant volume changes in several regions of the brain, including the cortex (24.8%, p=0.0113, Figure 6C) and striatum (19.4%, p=0.0453, Figure 6D). There was a significant increase in the ventricle volume in the BAC226Q mice compared to non-transgenic littermate controls (206.8%, p<0.0001, Figure 6E), which was consistent with the Cavalieri stereologic estimator data (Figure 5D). In contrast, there was no significant difference in cerebellar and amygdala volumes between genotypes (Figure 6F and G). This is consistent with the observation that the cerebellum and amygdala are largely unaffected in HD patients. Other regions affected at 12 months included cingulum, stria medullaris, anterior commissure, and corpus callosum/external capsule, suggesting a pronounced effect on white matter tracts (Figure 6H). It is important to note that the detection of robust and progressive structural deficits as a biomarker by MRI provides a non-invasive and sensitive method for future therapeutic testing.

MRI study of regional specific brain atrophy in BAC226Q mice.

(A) MRI images of 12-month female BAC226Q and non-transgenic littermates. (B–G) Overall brain volumes were segmented automatically into regional brain volumes by MRI volumetric analysis in BAC226Q mice (n=9) and non-transgenic littermates (n=6). The volumes are presented as the percentage of whole brain volume. BAC226Q mice have significant decreases in (B) whole brain volumes (28.5%, p=0.00022), (C) relative cortex volume (24.8%, p=0.0113) and (D) striatum (19.4%, p=0.0453), and significant increase in ventricle volume (E) (206.8%, p=0.0001). There is no significant difference between genotypes in (F) cerebellar (p=0.0618) and (G) amygdala volume (p=0.8229). (H) Total 28 brain regions were measured by MRI volumetric analysis. The changes of specific brain region volume in BAC226Q mice are presented as the percentage of the same brain area in non-transgenic littermates. In BAC226Q mice, 16 brain regions had significant volume changes (p<0.05). Student’s t-test was applied in all analyses. Significance is indicated by ∗=p<0.05, ∗∗=p<0.01 and ∗∗∗=p<0.001.

Aggregate pathology and reactive gliosis in the BAC226Q brain

In post-mortem HD brains, mHtt aggregations are found throughout the central nervous system as an important hallmark (Mangiarini et al., 1996). To characterize the distribution patterns of huntingtin aggregations in the specific brain regions of BAC226Q mice, we stained brain tissues from 2-, 4-, and 11-month-old BAC226Q and non-transgenic littermate control mice with the S830 antibody raised against N-terminal huntingtin, which specifically detects soluble and aggregated mutant Htt (Figure 7). In agreement with previous findings (Gray et al., 2008; Kazantsev et al., 1999; Li et al., 2001), two types of huntingtin aggregates were observed in BAC226Q mice, nuclear inclusions (NIs) and neuropil aggregates (NAs).

Widespread and progressive mHtt aggregate pathology in BAC226Q brain.

Huntingtin aggregates were stained by the S830 antibody. In BAC226Q, mHtt aggregates were undetectable at 2 months (A–F), detected as small aggregates (arrows) and nuclear inclusions (arrowheads) at 4 months (G–L), finally developed to large and numerous cytosolic aggregates and nuclear inclusions at 11 months (M–R). In contrast, no aggregates were detected in non-transgenic littermates (S–X). Regions shown are striatum (A, G, M, S), primary motor cortex (B, H, N, T), cingulate cortex (C, I, O, U), CA1 of hippocampus (D, J, P, V), dentate gyrus (E, K, Q, W), and amygdala (F, L, R, X). Scale bar, 100 µm.

At 2 months, neuron cell bodies were diffusely stained by the S830 antibody throughout the brain in BAC226Q mice (Figure 7A–F), but no immunoreactivity detected in non-transgenic littermates (Figure 7S-X). This suggests that at 2 months only soluble mHtt protein is present. In contrast, punctate staining of mHtt protein by S830 became evident in several regions of the brain at 4 months, including striatum (Figure 7G), motor (Figure 7H) and cingulate cortex (Figure 7I), hippocampus (Figure 7J and K) and amygdala (Figure 7L) in BAC226Q mice, but not control mice. At 11 months, aggregate pathology was much more severe in BAC226Q mice (Figure 7M–R).

Reactive gliosis is another cardinal pathology of HD in addition to selective neuronal loss. We analyzed reactive gliosis by immunohistochemical detection of GFAP, the astrocyte-specific marker, in BAC226Q mice and non-transgenic littermate. An 80% increase in reactive gliosis was found in deep layer cortex and striatum at 11-month BAC226Q mouse brain (Figure 8).

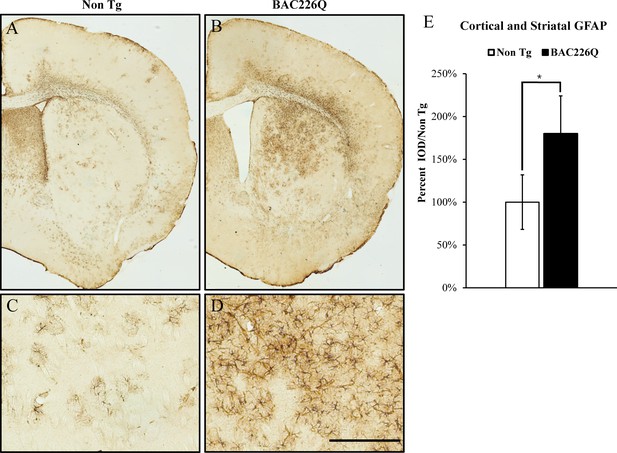

Gliosis in striatum and deep cortical layers of BAC226Q brain.

Reactive astrogliosis is analyzed by immunohistochemical staining with GFAP antibody in 11-month BAC226Q and non-transgenic littermate brains. Gliosis is prominent in BAC226Q (B, D), but not in control littermate brains (A, C) (n=4, p=0.032, Student’s t-test). Scale bar, 100 µm.

Discussion

Many mouse models have been developed for investigating the underlying pathogenic mechanisms and testing therapeutic methods. Categorically, a mouse model will be compelling if it meets two criteria simultaneously: accurate recapitulation of cardinal HD phenotypes in one mouse model rather than separately in several models, and absence of erroneous and unwanted false phenotypes that do not correlate with human HD. It should be emphasized that the novel BAC226Q reported here is such an example.

Robust and faithful recapitulation of HD

As presented in the Results section and Table 1, the BAC226Q mouse model has validity and fidelity in a full spectrum from genomic DNA, protein, subcellular/cellular pathology, histopathology, specific brain area atrophy, cognitive and psychiatric disorder-like phenotypes, motor behavioral deficits, weight loss, and shortened life spans.

Table 1
Recapitulation of cardinal HD phenotypes in BAC226Q mice.
HD patientsBAC226Q mice
NeuropathologyBrain atrophyYes
Neuron lossYes
mHTT aggregationsYes
Reactive gliosisYes
Progressivemotor deflcltsChoreaYes
IncoordinationYes
DystoniaYes
BradykinesiaYes
Non-motorsymptomsPsychiatric symptomsYes
Cognitive deficitsYes
Reduced life spanYes
Weight lossYes

At the genomic level, the human BAC clone contains the complete human HTT gene with its endogenous intron-exon structures and 5′, 3′ regulatory regions. This is important for testing future gene editing approach such as CRISPR/Cas9-mediated targeting. BAC226Q transgenic mice express full-length human HTT with 226 CAG-CAA repeats, which yielded robust and early onset HD phenotypes. It should be noted that 226Q is within the range of mutations identified in human patients (Nance et al., 1999). In additional consideration for practical usage, it is worth noting that the CAG-CAA mixture gives BAC226Q mice an important advantage of complete polyQ length stability between generations and individuals.

Importantly, BAC226Q mice do not have spurious phenotypes that sometimes exist in other models. For example, unlike other models with severe developmental problems, BAC226Q mice develop normally and subsequently have age-dependent and progressive neurodegeneration. Also, unlike other models that showed significant body weight gain which is opposite to human HD, BAC226Q mice have progressive weight loss and reduced lifespan, consistent with human HD weight loss as a hallmark (Gaba et al., 2005; Stoy and McKay, 2000). Interestingly, since weight loss is also observed in BAC-225Q model with full-length mouse mutant HTT (Van Raamsdonk et al., 2006; Wegrzynowicz et al., 2015), it seems that weight loss phenotype is polyQ-length dependent rather than human or mouse HTT species dependent.

Compared to other human full-length HTT models, a significant advantage of BAC226Q mice is its much earlier onset, much more robust, and faster progressing phenotypes including early hyperkinetic/late hypokinetic biphasic motor dysfunction. HD patients develop hyperkinetic chorea first and as the disease progresses, hypokinesia and dystonia subsequently. Parallel to the patient’s motor symptom progression, BAC226Q mice have severe hyperkinesia including involuntary choreiform movement by 12–16 weeks and show reduced mobility after 10 months.

An important but less well-studied aspect of HD is psychiatric and cognitive impairments, which often occur decades before the onset of motor symptoms in HD mutation carriers. In addition to motor dysfunctions, BAC226Q mice show non-motor phenotypes at 2 months, before the onset of motor deficit and neuropathology, which is the same temporal sequence as in patients. Thus BAC226Q is an appropriate and powerful tool to study the mechanisms underlying psychiatric and cognitive deficits.

A model well suited for preclinical investigations

Several features make BAC226Q well suited for preclinical studies. First, BAC226Q accurately recapitulates HD phenotypes. Therefore, candidate drugs or approaches for disease modification can be tested for their abilities to rescue these highly relevant phenotypes at multiple levels. Second, BAC226Q has normal development and very early onset of phenotypes that are progressive and robust. This provides a long window of observation for testing the efficacy of therapeutic candidates. Third, the remarkable region-specific brain atrophy revealed by high-resolution structural MRI can be used as a biomarker and readout in preclinical studies longitudinally without sacrificing the animals. Fourth, the CAG-CAA mix makes the polyQ length stable between generations and among individuals, which is a critical advantage of consistency for research and especially for drug development, although this model is limited for research in somatic instability and RAN translation, two of the actively studied mechanisms that are suggested to be important for HD pathogenesis (Bañez-Coronel et al., 2015; Grima et al., 2017; Kacher et al., 2021; Swami et al., 2009; Tabrizi et al., 2020). Last but not least, BAC226Q has human genomic DNA as the transgene, which is very appropriate for testing gene-editing such as CRISPR/Cas9 strategy in preclinical studies.

Insights of mHtt toxicity in BAC226Q

Although we only conducted an initial analysis of BAC226Q mice, we have already generated data that can be used to clarify some of the questions in the field.

Huntingtin aggregates were first identified in R6 mice expressing exon 1 of mutant huntingtin and subsequently identified in human tissue (Mangiarini et al., 1996). Since N-terminal huntingtin is much more susceptible to aggregation compared to the full-length protein (Ratovitski et al., 2009), and causes a more severe disease phenotype in mice, there has been a hypothesis that full-length mHtt need to be cleaved into fragments to exert toxicity. Although further investigation is needed to detect various fragments, our repeated Western blots of full-size gels for different ages of BAC226Q, exemplified by Figure 1B, have not shown appreciable 226 PolyQ-containing N-terminal fragments nor their accumulation as a function of time and disease stages in BAC226Q mice. It will be interesting to explore in the future whether the low abundance N-terminal fragments below detection on Western blots are the main cause of toxicity, or the full-length mHtt with 226Q played the main role in pathogenesis in this mouse model.

Another important question is whether mHtt has a dominant gain-of-toxic function, or a combination of loss-of-function of the wild-type allele. In human patients, rare cases of disrupting one Htt allele did not develop abnormality (Ambrose et al., 1994), patients with homozygous mutant Htt alleles develop HD similar to heterozygous carriers (Dürr et al., 1999; Kremer et al., 1994; Squitieri et al., 2003; Wexler et al., 1987). In BAC226Q, mHTT was not overexpressed, and the two alleles of the wild-type HTT exist. The fact that BAC226Q mice developed such robust HD-like phenotype and that wild-type Htt knockout in adult mice did not induce HD-like phenotypes (Leavitt et al., 2020; Wang et al., 2016), seem to give more support to the ‘gain-of-function’ hypothesis. An interesting future experiment will be to put BAC226Q in Htt+/− and Htt−/− background, and examine whether the current HD-like phenotypes in BAC226Q are enhanced. The implication of the above discussion is whether deleting mutant HTT allele will be sufficient to benefit patients in gene-targeting as a therapeutic method.

Conclusions

In this study, we report the generation and analyses of a novel BAC226Q mouse, which accurately recapitulates the cardinal HD phenotypes including body weight loss, HD-like characteristic motor behavioral impairment, cognitive and psychiatric symptoms, and classic HD neuropathology changes such as significant neuronal death in striatum and cortex, widespread mHtt aggregation pathology, and reactive gliosis. Therefore, this model will be valuable for mechanistic studies and therapeutic development of HD, especially for the preclinical genetic therapies targeting human mHTT.

Materials and methods

BAC engineering and generation of transgenic mice

Request a detailed protocol

A BAC containing the full-length wild-type human HTT gene was modified to express a full-length HTT with a stable, expanded polyglutamine tract. A plasmid containing exon 1 of HTT with 226 mixed CAG-CAA repeats was a gift from Dr. Alex Kazantsev (MIT). The sequence corresponding to 226Q was inserted into the HTT gene by homologous recombination using our standard protocols (Gong et al., 2002). Fingerprinting analysis by genomic Southern blots detected no unwanted rearrangements or deletions in the modified Htt-226Q BAC. The modified BAC was sequenced to confirm that there were no unwanted mutations other than the intended 226Q insertion. Finally, the full-length human Htt-226Q BAC copy number and the insertion site in mouse genome were determined by whole-genome sequencing and bioinformatics analysis, performed by Novogene Corporation.

Animal husbandry

Request a detailed protocol

Mice were housed in a temperature and humidity controlled specific pathogen-free (SPF) facility under a 12-hr light/dark cycle schedule with food and water available ad libitum. Transgenic mice were bred with wild-type FVB/N mice (Taconic). It is important to note that BAC226Q in the Taconic FVB/N mouse background exhibited the most robust and consistent phenotypes. Genotyping was determined by PCR of genomic DNA isolated from tail snips. Genotyping primers are located in intron 2 and are specific to human huntingtin (forward primer: 5′-GTA TAT GCT GCT GCC TGC AA-3′; reverse primer: 5′-AGG GGA CAG TGT TGG TCA AG-3′), producing a 403-bp PCR fragment. Non-transgenic littermates were used as controls. All experimental protocols were approved by the Weill Cornell Medicine and Peking University animal care and use committee.

Motor behavioral study

All motor behavioral tests were performed during the dark phase of the light-dark cycle for male and female mice. Data were counted by investigators who were blind to the genotypes of mice.

Open field test

Request a detailed protocol

Mice were monitored individually with the VersaMax Animal Activity Monitoring System (Accuscan Instruments). The activity monitor consists of a 16× 16 grid of infra-red beams at floor level to track horizontal position with 16 additional beams at a height of 3 in. to detect vertical activity. Male and female animals were used in test at the ages of 2, 4, 10, and 15 months. Horizontal and vertical activities were measured by beam breaks recorded over a period of 1 hr by the VersaMax software in the dark cycle. The open field chambers were thoroughly cleaned between animals to ensure removal of odors from previous animals. Data were recorded and analyzed by the VersaMax software (Accuscan Instruments). There was no significant influence of sex, thus male and female data were pooled for analysis.

Cylinder test

Request a detailed protocol

Male and female animals were used in test at the ages of 2 and 4 months. Each animal was placed in a clear acrylic cylinder and recorded on video for 5 min. A mirror was placed below the cylinder to provide a view of the animal from below. For rearing frequency, rearing duration, and circling behavior, video recordings were analyzed using ImageJ. Digital videos of the mice were converted to gray-scale and cropped to a view of the animal’s silhouette. With VirtualDub software, a Gaussian blur filter was applied and followed by thresholding to obtain a clear outline of the animal’s body. The videos were subsequently analyzed with the ‘Analyze Particles’ tool in ImageJ to obtain pixel area and orientation angle for each frame (5 min at 30 frames per second). Animal rotation was determined by measuring changes in orientations, that is, the angle of the major axis of the best-fit ellipse between frames in either clockwise or counterclockwise direction. The degree of continuous rotations above 180o in either direction were summed and divided by 360o to obtain the number of circling. All three sets of data were calculated for each individual animal by ImageJ, and confirmed by manual counts. There was no significant influence of sex, thus male and female data were pooled for analysis.

Rotarod

Request a detailed protocol

Mice were trained to run on the rotarod apparatus (IITC Life Science) at 8 weeks of age in three daily trials at a fixed speed (10 rpm) for 60 s. The training lasted for 3 days. Only during this training period, mice who fell were placed back on the rod until the end of the 60 s. In subsequent experiments, mice were tested once a week in a session of three consecutive trials on an accelerating rotarod (4–45 rpm over 5 min). The interval between trials is 15 min. Latency to fall was recorded for each animal and averaged over the three trials. The same cohort of wild-type and BAC226Q mice were used for this experiment.

Cognitive and psychiatric behavioral study

The same cohort of male mice for cognitive and psychiatric abnormalities were singled housed for 3 days prior to and during object location memory, sucrose preference, splash, and forced swimming tests. These mice were not re-used for motor behavioral tests.

Object location memory

Request a detailed protocol

Mice were introduced to an open field chamber for 5 min for 3 days. On day 4, four unique objects were placed to the open field chamber. On day 5, mice were presented with the same four objects but the position of two objects was switched. Discrimination Index (DI) was calculated using the formula DI=TmTuTm+Tu where Tm and Tu are time spent exploring the moved and unmoved objects, respectively.

Sucrose preference test

Request a detailed protocol

Individually housed mice were trained to drink from two identical water bottles on day 0. On day 1, one water bottle was replaced with a 1% sucrose solution and on day 2, the positions of bottles were switched. The volumes of plain water and sucrose solution before and after experiments were recorded. Preference Index was calculated by the following formula, where CS and CW are sucrose consumed and water consumed, respectively:

%preference=CSCWCS+CW×100%

Splash test

Request a detailed protocol

Mice were sprayed on their dorsal coat with a 10% sucrose solution, placed in an empty cage, and recorded for 5 min. Duration of grooming activity was scored by a person blind to genotype.

Forced swim task

Request a detailed protocol

Mice were placed individually into a cylinder of room temperature water (25±1°C) and recorded for 5 min. Immobility (time spent floating and not swimming) was scored manually by a person blind to genotype.

Western blot

Request a detailed protocol

Freshly dissected mouse brains were homogenized by a Precellys tissue homogenizer in ice-cold RIPA buffer (150 mM NaCl, 0.1% sodium dodecyl sulfate (SDS), 1% Sodium deoxycholate, 50 mM Triethanolamine, 1% NP-40, and pH 7.4) supplemented with Complete Protease Inhibitor Cocktail tables (Roche). The supernatant was collected after centrifugation in a refrigerated centrifuge (4°C) at 16,000×g for 20 min. Protein concentration was determined by a BCA Assay (Pierce). An equal amount of protein (120 µg/sample) were denatured in 4× LDS sample buffer (141 mM Tris base, 106 mM Tris HCl, 2% LDS, 0.51 mM EDTA, 10% glycerol, 0.22 mM SERVA Blue G-250, 0.175 mM phenol red, and pH 8.5) with 10× reducing buffer or 4× SDS sample buffer (0.2 mol/L Tris-HCl pH 6.8, 0.4 mol/L DTT, 8% SDS, 0.4% bromophenol blue, and 40% glycerol) and incubated at 95°C for 10 min. Protein samples were loaded in each well of NuPAGE 4–15% Tris-Acetate pre-cast gradient gels (Invitrogen) or 15×22 cm2, 8% polyacrylamide gels for SDS-PAGE. Proteins were transferred to a PVDF membrane (Immobilon-FL) and blocked with LI-COR Odyssey blocking buffer, then probed with an expanded polyQ specific antibody 1C2 (MAB1574, Millipore, 1:5000) or sheep antibody S830 against N-terminal mHtt (a gift from Dr. Gillian Bates, 1:20,000) or rabbit anti-tubulin (Chemicon, 1:1000). Blots were incubated with IRDye conjugated secondary antibodies (1:10,000) then visualized by an Odyssey Infra-red Imaging System (LI-COR Biosciences).

Neuropathology

Tissue preparation

Request a detailed protocol

Mice were anesthetized with a ketamine/xylazine cocktail and transcardially perfused with PBS followed by 4% freshly prepared, ice-cold paraformaldehyde (PFA). Brains were removed and post fixed for 24 hr in PFA, then transferred into PBS for storage. Brains were mounted in 4% agarose and coronal sections were obtained with a vibratome (40 µm and 60 µm thickness). Serial sections were collected into 10 wells so that each well contained every 10th section. Floating sections were stored in anti-freeze buffer (30% glycerol and 30% ethylene glycol in PBS) at –20°C.

Immunostaining

Request a detailed protocol

Floating sections were stained with the NeuN antibody (Millipore, 1:1000), the S830 anti-Htt antibody (a gift from Dr. Gillian Bates, 1:25,000), the anti-GFAP antibody (Abcam, 1:2000), and the DARPP-32 antibody (Abcam, 1:7500) for overnight at 4°C. Subsequent incubations in secondary antibody, ABC solution, and color development were performed according to instructions provided with the ABC and DAB substrate kits (Vector Labs). Brain sections stained by NeuN antibody and S830 anti-Htt antibody were counter-stained with cresyl violet.

Stereology

Request a detailed protocol

Stereologic measurements were obtained by Stereo Investigator (MBF Biosciences) with a Zeiss Axiophot2 microscope. The optical fractionator probe was used to estimate total striatal neuron number in every 10th section. The counting frame was 30× 30 s in the NeuN antibody stained brain sections with an optical dissector depth of 8 or 18 µm for 40 and 60 µm cut sections, respectively with 2 µm guard zones. At least 300 neurons were counted for each animal, and the estimated coefficient of error in each case was less than 0.1. Striatal and ventricle volumes were determined using the Cavalieri estimator on the same slides with a grid size of 100×100 µm2 oriented at a random angle.

MRI volummetry study

Request a detailed protocol

MRI scanning and computational analysis were performed as previously described (Cheng et al., 2011). Female BAC226Q and wild-type FVB mice aged 12 months were scanned by a 9.4 T MR scanner with a triple-axis gradient and animal imaging probe. The scanning was performed in vivo under isoflurane anesthesia. The resulting images were aligned to a template by automatic registration software and signal values were normalized to ensure consistent intensity histograms. A computer cluster running Large Deformation Diffeomorphic Metric Mapping (LDDMM) was used to automatically construct non-linear transformations to match anatomical features and perform automatic segmentation of specific brain regions. The volume of each segmented structure was normalized by total brain volume and analyzed for each genotype.

Statistics

Data were shown as mean ± SEM (standard error of the mean) unless otherwise noted. Student’s t-test (unpaired) or two-way ANOVA with post hoc Sidak’s multiple comparisons test was used to compare transgenic and control groups in each experiment with significance level indicated by p-values. The means, SEM and p-values were calculated by Microsoft Excel 2010 and GraphPad Prism 8 software. Survival curves were compared with the log-rank (Mantel-Cox) test. Fit a growth curve model was applied in Figure 2B.

Data availability

Source data has been deposited to Dryad (doi:https://doi.org/10.5061/dryad.qrfj6q5g0).

The following data sets were generated
    1. Li C
    (2021) Dryad Digital Repository
    Data from: A novel and accurate full-length HTT mouse model for Huntington's disease.
    https://doi.org/10.5061/dryad.qrfj6q5g0

References

    1. Dürr A
    2. Hahn-Barma V
    3. Brice A
    4. Pêcheux C
    5. Dodé C
    6. Feingold J
    (1999)
    Homozygosity in Huntington’s disease
    Journal of Medical Genetics 36:172–173.
    1. Vonsattel JP
    2. DiFiglia M
    (1998) Huntington disease
    Journal of Neuropathology and Experimental Neurology 57:369–384.
    https://doi.org/10.1097/00005072-199805000-00001

Decision letter

  1. Harry T Orr
    Reviewing Editor; University of Minnesota, United States
  2. Jeannie Chin
    Senior Editor; Baylor College of Medicine, United States
  3. Harry T Orr
    Reviewer; University of Minnesota, United States
  4. Amber L Southwell
    Reviewer; University of Central Florida, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "A novel and accurate full-length HTT mouse model for Huntington's disease" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Harry T Orr as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Matt Kaeberlein as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Amber L Southwell (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1. Given the potential importance of somatic instability in the HD pathogenesis as well as ongoing therapeutic strategies it is critical that authors discuss the absence of somatic instability in this model as a weakness.

2. If the authors are going to conclude that HTT fragments are not generated and thus do not contribute to pathogenesis in this model, it is critical that whether fragments are in fact generated be determined a method designed specifically to detect small proteins/peptides.

3. Statistical analysis is insufficient and not detailed. The statistical analysis section says that analyses were performed using the students t test or one way ANOVA, though which test was used for each piece of data is not detailed anywhere, and what tests were used for post hoc correction of multiple comparisons is not mentioned at all. In either the Results section or the figure legends, please indicate what test is used for each piece of data and give the exact p values for comparisons that are significant and those that are close to allow the reader to make their own assessments. Perhaps a statistical table could be included with the test, the n and the p for ANOVA as well as each pairwise comparison.

Additionally, in many cases, one way ANOVA is not appropriate. In cases where mice are assessed at multiple ages, 2WAY ANOVA for age and genotype must be employed. In cases where the same mice are used at multiple time points, this must be repeated measures ANOVA. Also, assessments at multiple ages performed using the same mice should be presented as line graphs, such as panel 2B, while those with different mice should be presented as bar graphs, such as 2C. If the bodyweight data in 2C was actually performed using the same mice at each age, it should not be presented as a bar graph.

Additional Points:

1. The assessment of HTT level and species should include WT Htt. Even though this is the mouse Htt protein, if it is not included, then an assessment of transgene expression level in comparison to endogenous expression cannot be made. From the Westerns that compare mHTt to BACHD mice, it appears that expression is lower. This is great since the BACHD is an overexpression model and a model with expression closer to endogenous levels would be a good thing. However, without the wtHtt, this assessment can't be made. Re-probing with MAB2166 would show both proteins, and considering the large size of the tg mHTT, separation of the proteins should not be a problem. It also looks from the S830 blot that there is a portion of the tg mHTT that remained insoluble. The authors may want to consider a more robust detergent in lysis in order to more accurately quantify tg mHTT.

2. Methods are insufficiently detailed. Were the same mice used for every study? If so, they would have been moved to single housing early on for the sucrose preference test. Since single housing affects other behavioral outcomes, and could do so in a disease-dependent manner, it would be important to understand this. An overview paragraph or diagram describing the cohorts is needed, and the potential effects of single housing on subsequent assessments should be addressed.

– Sex of the mice is only mentioned for body weight and for MRI. Were equal numbers of male and female mice used for other assessments? Was data analyzed separately for males and females and only combined if they were not different? Why were only female mice used for MRI?

– The authors observed and quantified circling. They correctly make the important distinction that the circling phenotype of mice with unilateral motor damage is unidirectional and state that the circling in these mice is bidirectional. However, in the videos, the mice seems to only circle in one direction. To make the statement that these mice circle bidirectionally, this analysis would need to be done separately for each direction.

– Neuropathology was assessed at 2 and 11 months of age, but data is only shown for the stereology at 2 months of age. The authors state in results that forebrain weight was similar at 2 months of age, but the data is not shown. In fact, the figure only shows whole brain weight at 11 months, not forebrain weight. Please describe how the forebrain was divided and add the data. Was the DARPP-32 assessment performed at 2 months? If not, why? If so, where is the data?

– The methods state that behavioral videos were analyzed with ImageJ, but no other information is given. Most labs use expensive animal tracking software to analyze behavior videos. This statement requires either a full description or a citation of another paper with a full description of exactly house mouse behavior was analyzed by ImageJ.

– Most of the behavior data has insufficient detail. How many training trials were done over how many days for rotarod? The performance of the WT mice seems awfully poor, but the accelerating program described is pretty standard except for a shorter than usual inter trial interval. My WT mice can stay on this program for basically the full 300s, yet the mean reported here is ~30s for young WT mice. Were they only trained 1 day? Considering that all of the FL tg HD mice have reported motor learning deficits in rotarod as early as 2months of age where it takes 3 days for them to catch up to WT mouse performance, but they can then perform just as well as the WT mice, this is really insufficient. Obviously it can't be repeated, but it needs to be clarified. The difference in performance between what is reported here and what is typically reported for FVB mice needs to be addressed. This 10 fold difference in performance is huge.

– Dilutions of antibodies should be given, and secondary antibodies should be named.

– Amount of protein separated on APGE should be given (only says 'an equal amount of protein').

3. Other conclusions are not supported by the data. The authors describe S830 as aggregate-specific in 1 sentence and say that it is picking up only soluble mHTT in the next paragraph. These are contradictory statements. S830 does, in fact, detect soluble mHTT, so should not be used as a basis for making statements about the role of aggregates in HD pathogenesis. The authors state that it is widely postulated that Htt aggregates are the source of HD toxicity. However, it has been well described that neurons with aggregates live longer than neurons without aggregates, suggesting a protective role of aggregation. Additionally, multiple mouse models with robust brain aggregation, shuch as the YAC128 C6R and short stop models, have transgene alterations that make them non-pathogenic i.e. no neurodegeneration, not HD-like behavior phenotype, but still result in robust brain HTT aggregates. So, it's been well established in the field for a long time that aggregation is not the driver of disease in HD.

– The authors state that because they observe robust disease in their model and the full complement of mouse Htt is still present, this demonstrates that HD is a GOF disease, not LOF. First, this is not a novel finding. Like several of the things in the Discussion section, it is common to other FL mouse models of HD, thus, not novel. This includes things like onset of cognitive and psychiatric behavioral abnormalities prior to motor abnormalities (Seen in YAC128, BACHD, Humanized mice, Q175), or robust disease without overt dependence on cleavage (hard to tell without fragment analysis, but presumably not different from BACHD). Furthermore, mHTT is known to sequester wtHTT or do its job poorly and potentially competitively, so just because the wtHTT is still there, doesn't' meant that the mHTT can't have some dominant negative effect and result in LOF toxicities. Thus, this study clarifies GOF vs LOF.

4. Often the figure call outs are out of order in the text. For instance, in figure 2, survival data is presented first followed by body weight data, whereas in the text, body weight data is presented prior to survival data. Please re-order either the text or the figure. This also occurs with panel 5A coming after 5B, and 6E coming after 6G in the text.

5. The introduction states that the causative gene for HD was identified 2 decades ago. This was actually 28 years; closer to 3 decades.

6. In the description of existing mouse model of HD, no distinction is made between KI models where only additional CAG is knocked in to the mouse Htt gene and models where the entirety of human HTT exon 1 is knocked in to the mouse gene. This is an important distinction for assessment of therapies that target exon 1 outside of the CAG tract.

7. Please include N in figure legends 3 and 4 as are done in 2 and 5.

8. One ref in the introduction is denoted as 4 author last names et al., while all others are only 1 name et al., or 2 names with and please change for consistency.

9. Weight loss Results section says that the tg mice gained weight the same as their littermates for the first 8 weeks, but the graph in 2B shows total overlap for 13 weeks (90 days).

10. DARPP-32 staining is not a way to quantify MSNs. Please rephrase this in results. It is a marker of healthy MSNs. Expressions can be reduced and lost prior to death of cells. Even if this wasn't the case, using IOD of staining throughout the striatum doesn't quantify cells.

https://doi.org/10.7554/eLife.70217.sa1

Author response

Essential revisions:

1. Given the potential importance of somatic instability in the HD pathogenesis as well as ongoing therapeutic strategies it is critical that authors discuss the absence of somatic instability in this model as a weakness.

The reviewer’s point is well taken. We acknowledge this limitation and revised in the Discussion:

“… Fourth, the CAG-CAA mix makes the polyQ length stable between generations and among individuals, which is a critical advantage of consistency for research and especially for drug development, although this model is limited for research in somatic instability and RAN translation, two of the actively studied mechanisms that are suggested to be important for HD pathogenesis (Bañez-Coronel et al., 2015; Grima et al., 2017; Kacher et al., 2021; Swami et al., 2009; Tabrizi et al., 2020)…”

2. If the authors are going to conclude that HTT fragments are not generated and thus do not contribute to pathogenesis in this model, it is critical that whether fragments are in fact generated be determined a method designed specifically to detect small proteins/peptides.

We thank the reviewer for this comment. We are fully aware of the body of publications on various mouse models, pro-and-con on this issue, including the significant ones of which the reviewer was a co-author. For example, some of the publications proposing the “fragment pathology” are (Graham et al., 2006; Slow et al., 2005). And the publications inconsistent with the above are (Gafni et al., 2012). In our case, we have done a large number of Western blots for brain samples at different ages in BAC226Q, and obtained consistent results that BAC226Q mice didn’t show detectable mHtt fragmentation. Being aware that more detailed investigation will be needed, we have softened our language in this revised version, making it a “tentative discussion” rather than a “conclusion”.

Our previous manuscript reads:

“Our data do not support this hypothesis, because in the life span of BAC226Q mice, fragmented mHtt is hardly detectable. It seems that in BAC226Q, full length mHtt is toxic and sufficient to drive pathogenesis.”

Now we change the paragraph to:

“Although further investigation is needed to detect various fragments, our repeated Western blots of full-size gels for different ages of BAC226Q, exemplified by Figure 1B, have not shown appreciable 226 PolyQ-containing N-terminal fragments nor their accumulation as a function of time and disease stages in BAC226Q mice. It will be interesting to explore in the future whether the low abundance N-terminal fragments below detection on Western blots are the main cause of toxicity, or the full length mHtt with 226Q played the main role in pathogenesis in this mouse model.”

1. Gafni, J., Papanikolaou, T., Degiacomo, F., Holcomb, J., Chen, S., Menalled, L., Kudwa, A., Fitzpatrick, J., Miller, S., Ramboz, S., et al. (2012). Caspase-6 activity in a BACHD mouse modulates steady-state levels of mutant huntingtin protein but is not necessary for production of a 586 amino acid proteolytic fragment. J Neurosci 32, 7454-7465. 10.1523/jneurosci.6379-11.2012.

2. Graham, R.K., Deng, Y., Slow, E.J., Haigh, B., Bissada, N., Lu, G., Pearson, J., Shehadeh, J., Bertram, L., Murphy, Z., et al. (2006). Cleavage at the caspase-6 site is required for neuronal dysfunction and degeneration due to mutant huntingtin. Cell 125, 1179-1191. 10.1016/j.cell.2006.04.026.

3. Slow, E.J., Graham, R.K., Osmand, A.P., Devon, R.S., Lu, G., Deng, Y., Pearson, J., Vaid, K., Bissada, N., Wetzel, R., et al. (2005). Absence of behavioral abnormalities and neurodegeneration in vivo despite widespread neuronal huntingtin inclusions. Proc Natl Acad Sci U S A 102, 11402-11407. 10.1073/pnas.0503634102.

3. Statistical analysis is insufficient and not detailed. The statistical analysis section says that analyses were performed using the students t test or one way ANOVA, though which test was used for each piece of data is not detailed anywhere, and what tests were used for post hoc correction of multiple comparisons is not mentioned at all. In either the Results section or the figure legends, please indicate what test is used for each piece of data and give the exact p values for comparisons that are significant and those that are close to allow the reader to make their own assessments. Perhaps a statistical table could be included with the test, the n and the p for ANOVA as well as each pairwise comparison.

Additionally, in many cases, one way ANOVA is not appropriate. In cases where mice are assessed at multiple ages, 2WAY ANOVA for age and genotype must be employed. In cases where the same mice are used at multiple time points, this must be repeated measures ANOVA. Also, assessments at multiple ages performed using the same mice should be presented as line graphs, such as panel 2B, while those with different mice should be presented as bar graphs, such as 2C. If the bodyweight data in 2C was actually performed using the same mice at each age, it should not be presented as a bar graph.

We thank the reviewers for this critique. We first invited Prof. Jerry Cheng, a professional Bio-statistician to join our team as a co-author. Prof. Cheng worked with us in actually re-analyzing all data sets. As a result, we revised many places in Figures (substantial revision in Figure 2 and Figure 5), Figure legends (substantial revision in Figure 2 and Figure 5) and Methods. We have given more detailed explanations of exact P values, numbers of animals in each experiment, and the types of statistical analyses. It is worth noting that regarding some of the repeated measurements, e.g., Figure 2C, we made serious efforts to use exactly the same cohort of mice in longitudinal studies. However, a complication is that as the mice aged, many of them, especially BAC226Q mice, died in the process. Therefore, we were forced to add additional mice from the same breeding batch but not in the original experimental cohort to reach sufficient numbers of animals. Thus, these experiments were not strict repeated measures. We explained each individual case in the revised Figure Legends and Methods.

Additional Points:

1. The assessment of HTT level and species should include WT Htt. Even though this is the mouse Htt protein, if it is not included, then an assessment of transgene expression level in comparison to endogenous expression cannot be made. From the Westerns that compare mHTt to BACHD mice, it appears that expression is lower. This is great since the BACHD is an overexpression model and a model with expression closer to endogenous levels would be a good thing. However, without the wtHtt, this assessment can't be made. Re-probing with MAB2166 would show both proteins, and considering the large size of the tg mHTT, separation of the proteins should not be a problem. It also looks from the S830 blot that there is a portion of the tg mHTT that remained insoluble. The authors may want to consider a more robust detergent in lysis in order to more accurately quantify tg mHTT.

We thank the reviewer for pointing this out. In fact, in the past 5 months, this is the experiment in which we spent most of our effort and struggled with severe obstacles including obtaining antibodies from international shipping to China. We tried multiple antibodies, many conditions of lysis buffers, and different types of gels. The 1C2 antibody doesn’t recognize the wild type Htt. We tried MAB2166 in 10 gels and Western blots, just to confirm a problem well known in the field that MAB2166 has much reduced affinity to mHtt in the reverse relationship to the length of expanded PolyQ. BACHD97 was poorly recognized by MAB2166, and BAC-225Q was almost not recognized (Wegrzynowicz et al., 2015). BAC226Q is similar to BAC-225Q. Therefore, our tentative estimate of BAC226Q expression level comes from the 1C2 and S830 detection of relative abundance of mHtt226Q and mHtt97Q which is known to be 2-3 folds of the wild type Htt.

We will pursue another approach that can potentially address this question with Evotec SE Company by the MSD method (Reindl et al., 2019), and will eventually give a more definitive answer. At this moment, however, we would like to ask your permission to publish with our current data. We revised the text to:

“Without definitive quantification, the mHtt226Q expression level was estimated by its relative signal to that of mHtt97Q detected by 1C2 and S830 antibodies. More accurate quantification will be performed with MSD method (Evotec SE Company).”

For your reference but not for addition in the manuscript, Author response images 1; 1 is to demonstrate our effort in clarifying this issue, by examples of two sets Western blot analyses of Htt protein expression levels in BAC226Q, non-transgenic littermate and BACHD (97Q) mice with antibody MAB2166.

Author response image 1

1. Wegrzynowicz, M., Bichell, T.J., Soares, B.D., Loth, M.K., McGlothan, J.S., Mori, S., Alikhan, F.S., Hua, K., Coughlin, J.M., Holt, H.K., et al. (2015). Novel BAC Mouse Model of Huntington's Disease with 225 CAG Repeats Exhibits an Early Widespread and Stable Degenerative Phenotype. J Huntingtons Dis 4, 17-36.

2. Reindl, W., Baldo, B., Schulz, J., Janack, I., Lindner, I., Kleinschmidt, M., Sedaghat, Y., Thiede, C., Tillack, K., Schmidt, C., et al. (2019). Meso scale discovery-based assays for the detection of aggregated huntingtin. PLoS One 14, e0213521. 10.1371/journal.pone.0213521.

Results:Western blot indicates that MAB2166 detects very well endogenous wildtype mouse Htt in BAC226Q, BACHD (97Q) mice and non-transgenic littermates, with reduced affinity to mHtt in BACHD (97Q), and not in BAC226Q (226Q).

A) The whole-brain lysates are from 2- and 11-month BAC226Q, 11-month non-transgenic littermate and BACHD mice. Protein samples are mixed with 4xLDS sample buffer and loaded with NuPAGE 4-12% Bis-Tris gel. The upper arrow indicates that MAB2166 only can detect mHtt in BACHD (97Q) mice at the expected molecular weight, but neither in BAC226Q mice nor in non-transgenic littermate. The lower arrow indicates that MAB2166 detects endogenous mouse Htt in BAC226Q and BACHD (97Q) mice as well as in non-transgenic littermate.

B) The whole-brain lysates are from 2- and 11- month BAC226Q, 11-month non-transgenic littermate and BACHD mice and loaded with 15 x 22 cm, 8% polyacrylamide gels. Similarly with panel A), MAB2166 detects endogenous wildtype mouse Htt in BAC226Q, BACHD (97Q) and non-transgenic littermate as indicated in the lower arrow, and only detects mHtt in BACHD (97Q) mice indicated in the upper arrow in the second lane but not in BAC226Q mice.

Methods:

Freshly dissected mouse brains were homogenized by a Precellys tissue homogenizer on ice-cold RIPA buffer (150mM NaCl, 0.1% sodium dodecylsulfate (SDS), 1% Sodium deoxycholate, 50mM Triethanolamine, 1% NP-40, pH 7.4) supplemented with Complete Protease Inhibitor Cocktail tables (Roche). The lysates were incubated at 4°C for 1 h and the supernatants were collected after centrifugation in a refrigerated centrifuge at 16,000 xg for 20 minutes. Protein concentration was determined by a BCA Assay (Pierce), and protein samples were denatured in 4xSDS sample buffer (0.2 mol/L Tris-HCl pH 6.8, 0.4 mol/L DTT, 8% SDS, 0.4% bromophenol blue, 40% glycerol) or 4xLDS sample buffer (141 mM Tris base, 106 mM Tris HCl, 2% LDS, 0.51 mM EDTA, 10% glycerol, 0.22 mM SERVA Blue G-250, 0.175 mM phenol red, pH 8.5) with 10x reducing buffer and incubated at 95°C for 10 minutes. An equal amount of protein (120µg) was loaded in each well of NuPAGE 4-12% Bis-Tris gel (Invitrogen), or 15 x 22 cm 8% polyacrylamide gel for SDS-PAGE. Proteins were transferred to a PVDF membrane (Immobilon-FL) and probed with MAB2166 (Millipore, 1:1000) in Odyssey Blocking Buffer. IRDye 680RD Goat anti-Mouse IgG was used as secondary antibody (Li-COR, 1:10000). An odyssey infra-red imager was used to visualize the blots (Li-COR biosciences).

2. Methods are insufficiently detailed. Were the same mice used for every study? If so, they would have been moved to single housing early on for the sucrose preference test. Since single housing affects other behavioral outcomes, and could do so in a disease-dependent manner, it would be important to understand this. An overview paragraph or diagram describing the cohorts is needed, and the potential effects of single housing on subsequent assessments should be addressed.

– Sex of the mice is only mentioned for body weight and for MRI. Were equal numbers of male and female mice used for other assessments? Was data analyzed separately for males and females and only combined if they were not different? Why were only female mice used for MRI?

We added the following explanation in Figure Legends and Methods:

We tried to keep consistency within an experiment with regard to using males or females. For all cognitive and psychiatric behavioral tasks, we used males only to avoid estrus cycle complication. The same cohort of male mice for cognitive and psychiatric abnormalities were singled housed for 3 days prior to and during object placement, sucrose preference, splash and forced swimming tests. These mice were not re-used for motor behavioral tests.

In studies of motor deficits, we compared males and females and didn’t find a significant difference in open field and cylinder tests. In rotarod test, we fit a regression model with the average latency-to-fall as the outcome and age-in-weeks as the covariate. Male and female BAC226Q mice showed progressive and strong deficits (males from 12 weeks, p < 0.001; female mice from 10 weeks, p <0.001). Furthermore, we combined males and females in two-way ANOVA analysis with Sidak post hoc test, and found a dominant and significant genotype and age interaction (F (8, 180) =5.805,p<0.0001).

In preliminary studies of pathology, we didn’t find a sex specific difference. Subsequently, histopathology was performed with mixed sexes and MRI study with female mice.

– The authors observed and quantified circling. They correctly make the important distinction that the circling phenotype of mice with unilateral motor damage is unidirectional and state that the circling in these mice is bidirectional. However, in the videos, the mice seems to only circle in one direction. To make the statement that these mice circle bidirectionally, this analysis would need to be done separately for each direction.

All mice have bi-directional circling. Interestingly, in one session a mouse tends to circle mainly to one direction, and when it is picked up and put back to the cage, the mouse usually circles in random choice of either direction.

– Neuropathology was assessed at 2 and 11 months of age, but data is only shown for the stereology at 2 months of age. The authors state in results that forebrain weight was similar at 2 months of age, but the data is not shown. In fact, the figure only shows whole brain weight at 11 months, not forebrain weight. Please describe how the forebrain was divided and add the data. Was the DARPP-32 assessment performed at 2 months? If not, why? If so, where is the data?

We thank the reviewer for the suggestions. Now in Figure 5B, we revised to include data for 2, 11, and 15 months; in Figure 5F, we now include data for 2 and 11 months.

– The methods state that behavioral videos were analyzed with ImageJ, but no other information is given. Most labs use expensive animal tracking software to analyze behavior videos. This statement requires either a full description or a citation of another paper with a full description of exactly house mouse behavior was analyzed by ImageJ.

We added the following details in the Method section:

In the Open field Test, mice were monitored individually for 10 minutes in the VersaMax Animal Activity Monitoring System and video recordings were analyzed by the VersaMax software (Accuscan Instruments). Horizontal movements and vertical rearing were counted by investigators who were blind to the genotypes of the mice.

The cylinder test was performed during the dark phase of the light-dark cycle. Each animal was placed in a clear acrylic cylinder and recorded on video for 5 minutes. A mirror was placed below the cylinder to provide a view of the animal from below. Rearing frequency and time were counted from the video recording by investigators who were blind to the genotypes of the mice. For circling behavior, video recordings were analyzed using ImageJ. Digital videos of the mice in cylinder task were converted to gray-scale and cropped to a view of the animal’s silhouette. With VirtualDub software, a Gaussian blur filter was applied and followed by thresholding to obtain a clear outline of the animal’s body. The videos were subsequently analyzed with the “Analyze Particles” tool in ImageJ to obtain pixel area and orientation angle for each frame (5 minutes at 30 frames per second). Frequency and duration of rearing were calculated for each individual animal, and confirmed by manual counts by investigators who were blind to the genotypes of the mice. Animal rotation was determined by measuring changes in orientations, i.e., the angle of the major axis of the best-fit ellipse between frames in either clockwise or counter-clockwise direction. The degree of continuous rotations above 180 o in either direction were summed and divided by 360 to obtain the number of circling.

– Most of the behavior data has insufficient detail. How many training trials were done over how many days for rotarod? The performance of the WT mice seems awfully poor, but the accelerating program described is pretty standard except for a shorter than usual inter trial interval. My WT mice can stay on this program for basically the full 300s, yet the mean reported here is ~30s for young WT mice. Were they only trained 1 day? Considering that all of the FL tg HD mice have reported motor learning deficits in rotarod as early as 2months of age where it takes 3 days for them to catch up to WT mouse performance, but they can then perform just as well as the WT mice, this is really insufficient. Obviously it can't be repeated, but it needs to be clarified. The difference in performance between what is reported here and what is typically reported for FVB mice needs to be addressed. This 10 fold difference in performance is huge.

We have revised the Method for rotarod test as follows:

“Mice were trained to run on the rotarod apparatus (IITC Life Science) at 8 weeks of age in three daily trials at a fixed speed (10 rpm) for 60 seconds. The training lasted for three days. Only during this training period, mice that fell were placed back on the rod until the end of the 60 seconds. In subsequent experiments, mice were tested once a week in a session of three consecutive trials on an accelerating rotarod (4-45 rpm over 5 minutes). The interval between trials is 15 minutes. Latency to fall was recorded for each animal and averaged over the three trials. The same cohort of wild type and BAC226Q mice were used for this experiment.”

With regard to the reviewer’s question about the shorter than usual latency before falling for young wild type and BAC226Q mice, we think that the main factor is the difference in the equipment per se. When we performed the task of Figure 3F in New York, we used IITC Life Science rotarod, which perhaps was much more slippery than usual, and caused all animals to stay much shorter time on the rotating rod. Subsequently, Li Lab moved to Peking University and has been using Rota-Rod MED ENV510 (MED Associates, Inc), and discovered that wild type mice consistently stayed on the rod with duration comparable to 300s.

– Dilutions of antibodies should be given, and secondary antibodies should be named.

We have revised and indicated all the detailed information in Methods:

“probed with an expanded polyQ specific antibody 1C2 (MAB1574, Millipore, 1:5000) or sheep antibody S830 against N-terminal mHtt (a gift from Dr. Gillian Bates, 1:20000) or rabbit anti-tubulin (Chemicon, 1:1000). Blots were incubated with IRDye conjugated secondary antibodies (1:10000)”

– Amount of protein separated on APGE should be given (only says 'an equal amount of protein').

We have added this information (120 µg per protein sample) in the Western Blot section of Methods.

3. Other conclusions are not supported by the data. The authors describe S830 as aggregate-specific in 1 sentence and say that it is picking up only soluble mHTT in the next paragraph. These are contradictory statements. S830 does, in fact, detect soluble mHTT, so should not be used as a basis for making statements about the role of aggregates in HD pathogenesis. The authors state that it is widely postulated that Htt aggregates are the source of HD toxicity. However, it has been well described that neurons with aggregates live longer than neurons without aggregates, suggesting a protective role of aggregation. Additionally, multiple mouse models with robust brain aggregation, shuch as the YAC128 C6R and short stop models, have transgene alterations that make them non-pathogenic i.e. no neurodegeneration, not HD-like behavior phenotype, but still result in robust brain HTT aggregates. So, it's been well established in the field for a long time that aggregation is not the driver of disease in HD.

We thank the reviewer for pointing out this oversight. We now revise to

“S830 …which specifically detects soluble and aggregated mutant Htt”.

This is consistent with our experiments that S830 detects soluble mHtt at 2 months, and aggregated mHtt starting at 4 months.

With regard to the mHtt aggregation being pathogenic, innocuous or beneficial, our manuscript does not have experiments for investigating this question. The only relevant sentence in this manuscript “…It is widely postulated that mHtt aggregates are the source of HD toxicity…” is now eliminated. We claim no further than the fact that BAC226Q mice exhibit age-dependent and progressive development of cytosolic and neuritic mHtt aggregations as well as nuclear inclusions, which are hallmarks of human HD patients.

– The authors state that because they observe robust disease in their model and the full complement of mouse Htt is still present, this demonstrates that HD is a GOF disease, not LOF. First, this is not a novel finding. Like several of the things in the Discussion section, it is common to other FL mouse models of HD, thus, not novel. This includes things like onset of cognitive and psychiatric behavioral abnormalities prior to motor abnormalities (Seen in YAC128, BACHD, Humanized mice, Q175), or robust disease without overt dependence on cleavage (hard to tell without fragment analysis, but presumably not different from BACHD). Furthermore, mHTT is known to sequester wtHTT or do its job poorly and potentially competitively, so just because the wtHTT is still there, doesn't' meant that the mHTT can't have some dominant negative effect and result in LOF toxicities. Thus, this study clarifies GOF vs LOF.

Indeed, the question of gain-of-function vs. loss-of-function, dominant negative effect of mHtt is not new and has been explored by colleagues in the field. However, it is still important and especially relevant to gene editing as a therapeutic method. This is the reason we discuss it here. After considering several lines of evidence, we therefore revise the manuscript as follows:

“Another important question is whether mHtt has a dominant gain-of-toxic function, or a combination of loss of function of the wild type allele. In human patients, rare cases of disrupting one Htt allele didn’t develop abnormality (Ambrose et al., 1994), patients with homozygous mutant Htt alleles develop HD similar to heterozygous carriers (Dürr et al., 1999; Kremer et al., 1994; Squitieri et al., 2003; Wexler et al., 1987). In BAC226Q, mHTT was not overexpressed, and the two alleles of the wild type HTT exist. The fact that BAC226Q mice developed such robust HD-like phenotype, and that wild type Htt knockout in adult mice didn’t induce HD-like phenotypes (Leavitt et al., 2020; Wang et al., 2016), seem to give more support to the “gain-of-function” hypothesis. An interesting future experiment will be to put BAC226Q in Htt+/- and Htt-/- background, and examine whether the current HD-like phenotypes in BAC226Q are enhanced. The implication of the above discussion is whether deleting mutant HTT allele will be sufficient to benefit patients in gene-targeting as a therapeutic method.”

4. Often the figure call outs are out of order in the text. For instance, in figure 2, survival data is presented first followed by body weight data, whereas in the text, body weight data is presented prior to survival data. Please re-order either the text or the figure. This also occurs with panel 5A coming after 5B, and 6E coming after 6G in the text.

We have revised to keep consistent orders between figures and the text.

5. The introduction states that the causative gene for HD was identified 2 decades ago. This was actually 28 years; closer to 3 decades.

We have revised to spell out 28 years.

6. In the description of existing mouse model of HD, no distinction is made between KI models where only additional CAG is knocked in to the mouse Htt gene and models where the entirety of human HTT exon 1 is knocked in to the mouse gene. This is an important distinction for assessment of therapies that target exon 1 outside of the CAG tract.

We have revised to distinguish the two types of KI:

“knock-in models with expanded CAG repeats inserted into a mouse Htt exon 1 such as HdhQ72 and HdhQ150 or into a humanized exon 1 sequence such as HdhQ111, HdhQ140, N160Q, zQ175 and Q175FDN (Heng et al., 2007; Hickey et al., 2008; Levine et al., 1999; Lin et al., 2001; Liu et al., 2016; Menalled et al., 2012; Menalled et al., 2003; Shelbourne et al., 1999; Southwell et al., 2016; Wheeler et al., 1999)”

7. Please include N in figure legends 3 and 4 as are done in 2 and 5.

We have revised to include the number of animals.

8. One ref in the introduction is denoted as 4 author last names et al., while all others are only 1 name et al., or 2 names with and please change for consistency.

We have revised to the Endnote filter for Cell.

9. Weight loss Results section says that the tg mice gained weight the same as their littermates for the first 8 weeks, but the graph in 2B shows total overlap for 13 weeks (90 days).

We have revised to:

“In the developmental stage, male and female BAC226Q mice gained weights at the same rate as their non-transgenic littermates (male BAC226Q n=8; male Non Tg n=10; female BAC226Q n=8; female Non Tg n=7). Fit a growth curve model to the mice, BAC226Q and non-transgenic littermates gained weights at the same rate (male 0.381±0.060 g/day, p=0.7123; female 0.156±0.035 g/day, p=0.09).”

10. DARPP-32 staining is not a way to quantify MSNs. Please rephrase this in results. It is a marker of healthy MSNs. Expressions can be reduced and lost prior to death of cells. Even if this wasn't the case, using IOD of staining throughout the striatum doesn't quantify cells.

We have revised to “… evaluate MSNs health in BAC226Q striatum…”.

https://doi.org/10.7554/eLife.70217.sa2

Article and author information

Author details

  1. Sushila A Shenoy

    Department of Neuroscience, Weill Cornell Graduate School of Medical Sciences, New York, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Visualization, Writing – original draft, Writing – review and editing
    Contributed equally with
    Sushuang Zheng
    Competing interests
    No competing interests declared
  2. Sushuang Zheng

    The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, Beijing, China
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Validation, Visualization, Writing – original draft, Writing – review and editing
    Contributed equally with
    Sushila A Shenoy
    For correspondence
    zheng_sushuang@pku.edu.cn
    Competing interests
    No competing interests declared
  3. Wencheng Liu

    Department of Neuroscience, Weill Cornell Graduate School of Medical Sciences, New York, United States
    Contribution
    Data curation, Investigation, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  4. Yuanyi Dai

    The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, Beijing, China
    Contribution
    Data curation, Formal analysis, Writing – review and editing
    Competing interests
    No competing interests declared
  5. Yuanxiu Liu

    The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, Beijing, China
    Contribution
    Data curation, Formal analysis, Writing – review and editing
    Competing interests
    No competing interests declared
  6. Zhipeng Hou

    The Russell H. Morgan Department of Radiology and Radiological Sciences, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
  7. Susumu Mori

    The Russell H. Morgan Department of Radiology and Radiological Sciences, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
  8. Yi Tang

    Innovation Center for Neurological Disorders, Department of Neurology, Xuanwu Hospital Capital Medical University, National Center for Neurological Disorders, Beijing, China
    Contribution
    Data curation, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  9. Jerry Cheng

    Department of Computer Science, New York Institute of Technology, New York, United States
    Contribution
    Data curation, Methodology, Software, Validation, Writing – review and editing
    Competing interests
    No competing interests declared
  10. Wenzhen Duan

    Division of Neurobiology, Department of Psychiatry and Behavioral Sciences; Solomon H.Snyder Department of Neuroscience, Johns Hopkins University School of medicine, Baltimore, United States
    Contribution
    Data curation, Formal analysis, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  11. Chenjian Li

    The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, Beijing, China
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Supervision, Validation, Writing – original draft, Writing – review and editing
    For correspondence
    li_chenjian@pku.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7905-6434

Funding

Hereditary Disease Foundation

  • Chenjian Li

Weill Cornell Graduate School of Medical Sciences

  • Chenjian Li

Peking University

  • Chenjian Li

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This project was partially supported by Hereditary Disease Foundation, Weill Cornell Medical College, and Peking University School of Life Sciences. The authors wish to thank the National Center for Protein Sciences at Peking University for technical assistance. The authors declare no competing financial interests.

Ethics

This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of Weill Cornell Medicine and Peking University. All animal studies were conducted in accordance with the Guide for the Care and Use of Laboratory Animals (8th edition) and approved by the Institutional Animal Care and Use Committee of Peking University. The laboratory approval number from the Association for Assessment and Accreditation of Laboratory Animal Care (AAALAC)-approved Animal Facility at Peking University Laboratory Animal Center (LAC-PKU) IACUC (#CFLS-LiCJ-1). All surgery was performed under sodium pentobarbital anesthesia, and every effort was made to minimize suffering.

Senior Editor

  1. Jeannie Chin, Baylor College of Medicine, United States

Reviewing Editor

  1. Harry T Orr, University of Minnesota, United States

Reviewers

  1. Harry T Orr, University of Minnesota, United States
  2. Amber L Southwell, University of Central Florida, United States

Publication history

  1. Received: May 10, 2021
  2. Preprint posted: June 14, 2021 (view preprint)
  3. Accepted: December 31, 2021
  4. Version of Record published: January 13, 2022 (version 1)

Copyright

© 2022, Shenoy et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 110
    Page views
  • 16
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Neuroscience
    Lorenz Deserno et al.
    Research Article Updated

    Dopamine is implicated in representing model-free (MF) reward prediction errors a as well as influencing model-based (MB) credit assignment and choice. Putative cooperative interactions between MB and MF systems include a guidance of MF credit assignment by MB inference. Here, we used a double-blind, placebo-controlled, within-subjects design to test an hypothesis that enhancing dopamine levels boosts the guidance of MF credit assignment by MB inference. In line with this, we found that levodopa enhanced guidance of MF credit assignment by MB inference, without impacting MF and MB influences directly. This drug effect correlated negatively with a dopamine-dependent change in purely MB credit assignment, possibly reflecting a trade-off between these two MB components of behavioural control. Our findings of a dopamine boost in MB inference guidance of MF learning highlight a novel DA influence on MB-MF cooperative interactions.

    1. Developmental Biology
    2. Neuroscience
    Qiuling Li et al.
    Research Article Updated

    Although many genes are known to influence sleep, when and how they impact sleep-regulatory circuits remain ill-defined. Here, we show that insomniac (inc), a conserved adaptor for the autism-associated Cul3 ubiquitin ligase, acts in a restricted period of neuronal development to impact sleep in adult Drosophila. The loss of inc causes structural and functional alterations within the mushroom body (MB), a center for sensory integration, associative learning, and sleep regulation. In inc mutants, MB neurons are produced in excess, develop anatomical defects that impede circuit assembly, and are unable to promote sleep when activated in adulthood. Our findings link neurogenesis and postmitotic development of sleep-regulatory neurons to their adult function and suggest that developmental perturbations of circuits that couple sensory inputs and sleep may underlie sleep dysfunction in neurodevelopmental disorders.
