Endoplasmic reticulum tubules limit the size of misfolded protein condensates

  1. Smriti Parashar
  2. Ravi Chidambaram
  3. Shuliang Chen
  4. Christina R Liem
  5. Eric Griffis
  6. Gerard G Lambert
  7. Nathan C Shaner
  8. Matthew Wortham
  9. Jesse C Hay
  10. Susan Ferro-Novick  Is a corresponding author
  1. Department of Cellular and Molecular Medicine, University of California at San Diego, United States
  2. Division of Biological Sciences, University of California at San Diego, United States
  3. Nikon Imaging Center, University of California at San Diego, United States
  4. Department of Neurosciences, University of California at San Diego, United States
  5. Department of Pediatrics, Pediatric Diabetes Research Center, University of California at San Diego, United States
  6. Division of Biological Sciences and Center for Structural & Functional Neuroscience, University of Montana, United States

Abstract

The endoplasmic reticulum (ER) is composed of sheets and tubules. Here we report that the COPII coat subunit, SEC24C, works with the long form of the tubular ER-phagy receptor, RTN3, to target dominant-interfering mutant proinsulin Akita puncta to lysosomes. When the delivery of Akita puncta to lysosomes was disrupted, large puncta accumulated in the ER. Unexpectedly, photobleach analysis indicated that Akita puncta behaved as condensates and not aggregates, as previously suggested. Akita puncta enlarged when either RTN3 or SEC24C were depleted, or when ER sheets were proliferated by either knocking out Lunapark or overexpressing CLIMP63. Other ER-phagy substrates that are segregated into tubules behaved like Akita, while a substrate (type I procollagen) that is degraded by the ER-phagy sheets receptor, FAM134B, did not. Conversely, when ER tubules were augmented in Lunapark knock-out cells by overexpressing reticulons, ER-phagy increased and the number of large Akita puncta was reduced. Our findings imply that segregating cargoes into tubules has two beneficial roles. First, it localizes mutant misfolded proteins, the receptor, and SEC24C to the same ER domain. Second, physically restraining condensates within tubules, before they undergo ER-phagy, prevents them from enlarging and impacting cell health.

Introduction

The endoplasmic reticulum (ER) forms a continuous polygonal network of interconnected sheets and tubules that extends from the nucleus to the cell periphery (Chen et al., 2013). This unique, evolutionarily conserved, architecture has been extensively studied at a morphological and biochemical level, yet the functional advantage conferred by these distinct domains remains unclear (Shibata et al., 2006). ER shape is dependent on the reticulons (RTN), atlastin (ATL), and lunapark (LNPK) proteins (Voeltz et al., 2006; De Craene et al., 2006; Hu et al., 2009; Orso et al., 2009; Chen et al., 2012; Chen et al., 2015). The reticulons are required to stabilize tubules, while the atlastins mediate tubule-tubule fusion (Voeltz et al., 2006; De Craene et al., 2006; Hu et al., 2009; Orso et al., 2009). LNPK, which resides at the junctions formed when two tubules fuse, regulates ER architecture by stabilizing nascent tubule junctions (Chen et al., 2015). In the absence of LNPK, ER junctions are destabilized, and as a consequence, the tubular network collapses (Chen et al., 2015). ER network organization may be important for cell health as mutations in ER-shaping proteins have been associated with neurodegenerative disorders, such as hereditary sensory autonomic neuropathy and hereditary spastic paraplegias (Zhang and Hu, 2016).

A major function of the ER is protein biogenesis. When errors in protein processing, protein folding, and protein complex assembly occur, ER proteostasis is disrupted and aberrant proteins accumulate in the ER (Sun and Brodsky, 2019). Cells use two major degradative mechanisms to restore homeostasis, the proteasome and autophagy (Sun and Brodsky, 2019). Misfolded ER proteins can be retrotranslocated across the membrane into the cytosol by the ER-associated degradation (ERAD) machinery where they are degraded by the proteasome (Sun and Brodsky, 2019). Some misfolded proteins, however, are resistant to ERAD and must use other disposal pathways (Sun and Brodsky, 2019). Autophagy is an alternate pathway that degrades organelles, pathogens, protein aggregates, and liquid protein condensates (Mizushima et al., 2011; Yamasaki et al., 2020). ER autophagy (termed ER-phagy) is a type of selective autophagy that targets a domain of the ER to the lysosome for degradation (Fregno and Molinari, 2019; Wilkinson, 2020; Chino and Mizushima, 2020; Hübner and Dikic, 2020; Ferro-Novick et al., 2021). ER to lysosome degradation occurs via a double membrane vesicle called the autophagosome (macro-ER-phagy) or can be non-autophagosome mediated (Fregno and Molinari, 2019; Wilkinson, 2020; Chino and Mizushima, 2020; Hübner and Dikic, 2020; Ferro-Novick et al., 2021). ER-phagy uses receptors that connect the ER to the autophagy machinery via their ability to bind Atg8 in yeast or LC3 or GABARAP in mammals (Fregno and Molinari, 2019; Wilkinson, 2020; Chino and Mizushima, 2020; Hübner and Dikic, 2020; Ferro-Novick et al., 2021). To date, two ER-phagy membrane receptors have been identified in yeast and six in mammals. Additionally, several soluble receptors have recently been reported (Ferro-Novick et al., 2021). Different membrane ER-phagy receptors mark the distinct morphological domains of the ER. For example, in mammals, the autophagy receptor FAM134B resides in the curved edges of ER sheets, while the long form of the ER-phagy receptor RTN3 (herein called RTN3) localizes to the tubular ER (Khaminets et al., 2015; Grumati et al., 2017). Recent studies have revealed that FAM134B and RTN3 are required for ER proteostasis (Forrester et al., 2019; Schultz et al., 2018; Fregno et al., 2018; Cunningham et al., 2019). These receptors contain reticulon homology domains that generate regions of high membrane curvature and have ER fragmenting activity (Khaminets et al., 2015; Grumati et al., 2017).

The delivery of ER tubules to lysosomes during ER-phagy also requires SEC24C in mammals and Lst1 in yeast (Cui et al., 2019). SEC24C, and its homologue Lst1, are COPII coat cargo adaptors that sort proteins into ER-derived transport carriers that traffic to the Golgi (Zanetti et al., 2011; Gomez-Navarro and Miller, 2016). Here we have asked if SEC24C is also required for the targeting of mutant misfolded cargoes to lysosomes during ER-phagy. For our studies, we analyzed mutant proinsulin Akita, as well as misfolded prohormone pro-opiomelanocortin (C28F POMC) and the mutant neuropeptide pro-arginine-vasopressin (G57S Pro-AVP). All three cargoes are dominant-interfering disease-causing proteins that are segregated into tubules before undergoing ER-phagy. In addition, we have used different methods to shift the distribution of ER between sheets and tubules and asked if restricting cargoes to tubules plays a role in ER proteostasis.

Results

SEC24C colocalizes with LC3B and RTN3 in Torin-treated cells

We previously showed that when autophagy is induced in Saccharomyces cerevisiae with the TORC1 kinase inhibitor, rapamycin, Lst1 associates with Atg8 and Atg40 to facilitate the packaging of ER into autophagosomes (Cui et al., 2019). We named the sites on the ER where Lst1 colocalizes with the autophagy machinery ER-phagy sites (ERPHS) (Cui et al., 2019). To begin to address if ERPHS form on the mammalian ER, we asked if SEC24C colocalizes with LC3B in U2OS cells treated with the TORC1 inhibitor, Torin 2. As shown in Figure 1A and B, a significant increase in the colocalization of SEC24C with LC3B was observed when ER-phagy was induced with Torin 2. SEC24C was also delivered to lysosomes during Torin treatment (Figure 1—figure supplement 1A and B), and transport was blocked with MRT68921, an inhibitor of the ULK1/2 kinase that disrupts autophagosome formation (Petherick et al., 2015).

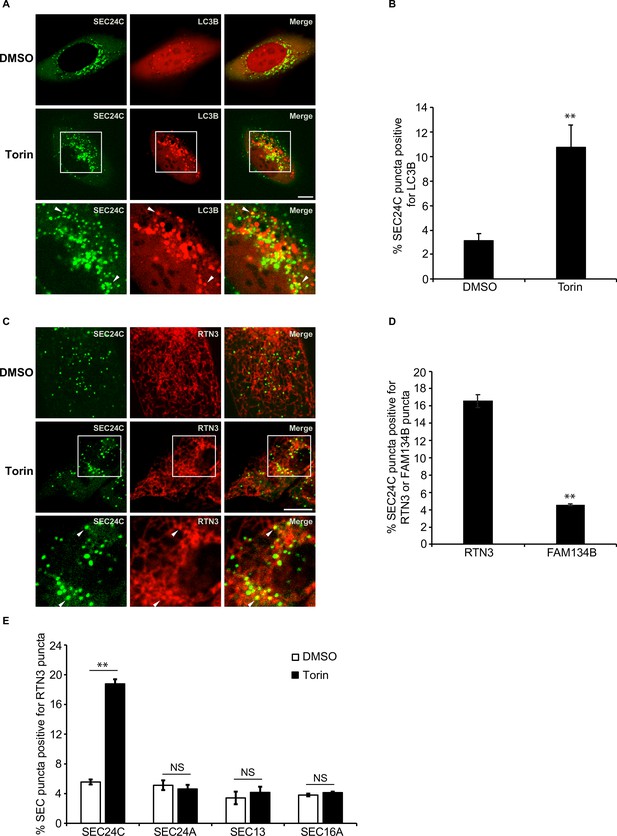

Figure 1 with 1 supplement see all
Torin induces the colocalization of SEC24C with LC3B and RTN3, but not FAM134B.

(A) U2OS cells expressing EYFP-SEC24C and mCherry-LC3B were treated with Torin 2 for 3.5 hr and examined by confocal microscopy. Arrowheads in the inset indicate SEC24C puncta colocalizing with LC3B. (B) Bar graph showing the % of EYFP-SEC24C puncta colocalizing with mCherry-LC3B puncta for the data shown in (A). (C) Cells expressing mCherry-RTN3 and EYFP-SEC24C were treated with Torin 2 for 3.5 hr. Representative confocal images are shown. Arrowheads in the inset indicate EYFP-SEC24C puncta colocalizing with mCherry-RTN3. (D) Bar graph showing the % of EYFP-SEC24C puncta colocalizing with mCherry-RTN3 or FAM134B-mTurquoise puncta in transiently transfected cells. (E) Cells stably expressing mCherry-RTN3 were transfected with EYFP-SEC24C, mAaus0.5-SEC24A, SEC13-GFP, or EGFP-SEC16A and treated with Torin 2 for 3.5 hr. The % of SEC puncta that colocalized with mCherry-RTN3 puncta was quantified. Scale bars in (A) and (C), 10 µm. Error bars in (B), (D), and (E) represent SEM; n = 3 independent experiments. Approximately 20–30 cells/experiment were analyzed. NS: not significant (p≥0.05); **p<0.01, Student’s unpaired t-test.

Next, we wanted to identify the ER-phagy receptor that acts with SEC24C. FAM134B and RTN3 were the most obvious candidates as yeast Atg40 is related to both receptors (Cui et al., 2019; Mochida et al., 2015). The Atg40 domain structure is similar to FAM134B, yet Atg40 and RTN3 both localize to ER tubules (Grumati et al., 2017; Mochida et al., 2015). FAM134B, RTN3, and COPII coat subunits all reside on curved membranes (Okamoto et al., 2012). We found that SEC24C colocalized with RTN3, but not FAM134B, in Torin 2-treated cells (Figure 1C and D, Figure 1—figure supplement 1C). This finding is consistent with published mass spectrometry data and immunoprecipitation studies showing that RTN3, but not FAM134B, co-precipitates with SEC24C (Grumati et al., 2017). Furthermore, the long form of RTN3, but not the short form, specifically co-precipitates with the endogenous copy of SEC24C during starvation induced ER-phagy, and only the long form acts in ER-phagy (Grumati et al., 2017).

In addition to SEC24C, mammalian cells have three other SEC24 paralogs (Zanetti et al., 2011). SEC24A and SEC24B are 50% identical to each other and closely related to the major yeast secretory cargo adaptor, Sec24 (Zanetti et al., 2011; Gomez-Navarro and Miller, 2016). SEC24C and SEC24D are 50% identical to each other, but only weakly homologous to SEC24A and SEC24B (Zanetti et al., 2011). In yeast, Lst1, but not its paralog Sec24, colocalizes with Atg40 in the presence of rapamycin (Cui et al., 2019). The coat outer shell, Sec13-Sec31, also does not colocalize with Atg40 (Cui et al., 2019). Similar to what was observed in yeast, SEC24C, but not SEC24A or SEC13, colocalized with RTN3 in a Torin 2-dependent manner (Figure 1E, Figure 1—figure supplement 1D). These localization studies are also consistent with mass spectrometry data showing that only SEC24C, and not SEC24A, interacts with RTN3 (Grumati et al., 2017). Torin 2 also did not induce the colocalization of RTN3 with SEC16 (Figure 1E, Figure 1—figure supplement 1D), a marker for the ER exit sites (ERES) where secretory cargo leaves the ER (Barlowe and Helenius, 2016; Maeda et al., 2019). These findings show that the RTN3-SEC24C colocalizing sites, induced by Torin 2, are distinct from ERES and appear to be equivalent to yeast ERPHS (Cui et al., 2019). Thus, SEC24C-RTN3-mediated ER-phagy is evolutionarily conserved from yeast to man.

Akita, but not hCOL1A1, puncta accumulate in SEC24C depleted cells

To identify and analyze cargo that utilizes SEC24C-mediated ER-phagy for clearance from the ER, we began with mutant proinsulin Akita, a substrate known to be degraded by RTN3-dependent ER-phagy (Cunningham et al., 2019). Akita causes an autosomal-dominant form of diabetes, mutant INS- gene-induced diabetes of youth (MIDY) (Cunningham et al., 2019). High-molecular-weight mutant oligomeric forms of Akita that cannot be cleared by ERAD are disposed of by RTN3, and not FAM134B (Cunningham et al., 2019). In the absence of RTN3, Akita fails to be delivered to lysosomes and large Akita puncta, which are thought to be aggregates, accumulate intracellularly (Cunningham et al., 2019; Chen et al., 2020). We found that the delivery of Akita-sfGFP to lysosomes was also dependent on SEC24C, but not SEC24A (Figure 2A and B, Figure 2—figure supplement 1A). Furthermore, large Akita puncta (≥0.5 µm2) accumulated in cells depleted of SEC24C, but not SEC24A, SEC24B or SEC24D (Figure 2C and D, Figure 2—figure supplement 1B). The puncta that accumulated in the siSEC24C cells were similar in size to the large Akita puncta that accumulated in the siRTN3-depleted cells (Figure 2—figure supplement 1C). Additionally, the simultaneous knockdown of SEC24C and RTN3 did not enhance the accumulation of large Akita puncta, implying that SEC24C and RTN3 act on the same pathway (Figure 2—figure supplement 1C and D).

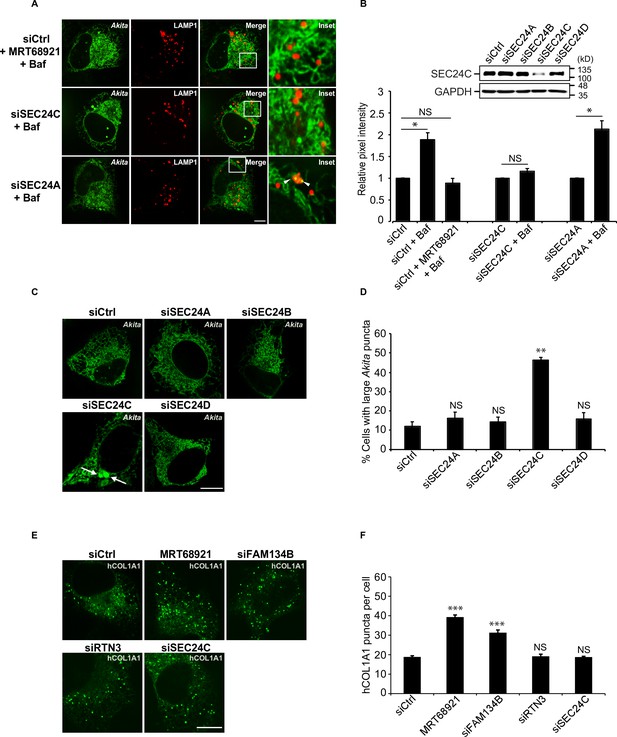

Figure 2 with 1 supplement see all
Akita, but not hCOL1A1, accumulates in the endoplasmic reticulum (ER) as large puncta in SEC24C-depleted cells.

A) U2OS cells expressing Akita-sfGFP and LAMP1-mCherry were depleted of SEC24C or SEC24A by siRNA, and treated with bafilomycin A1 (Baf) before imaging. Arrowheads in the inset indicate Akita in the LAMP1 structures. (B) Quantitation of Akita-sfGFP in LAMP1-mCherry structures for the data shown in (A). The DMSO control for each condition was set to 1.0. The relative pixel intensity for each condition is the mean intensity of Akita-sfGFP in the pixels that overlap with LAMP1. In the top-right corner, the specificity of the SEC24C knockdown is shown. Cells were depleted of the different SEC24 isoforms by siRNA and immunoblotted for SEC24C. (C) Cells were depleted of the different SEC24 isoforms and analyzed for the accumulation of large Akita puncta (≥0.5 µm2). Arrows point to large Akita puncta. (D) Bar graph showing the % of cells with large Akita puncta for the data shown in (C). Large Akita puncta only accumulated in siSEC24C cells; however, the % siSEC24C cells with puncta of all sizes (51.7 ± 3.3%) appeared to be roughly the same as the siCtrl (55.3 ± 1.1%). (E) Cells expressing EGFP-hCOL1A1 were treated for 3.5 hr with MRT68921 or depleted of FAM134B, RTN3, or SEC24C by siRNA and analyzed for the accumulation of EGFP-hCOL1A1 puncta. (F) Bar graph showing EGFP-hCOL1A1 puncta per cell for the data shown in (E). Puncta of all sizes were quantitated. Scale bars in (A), (C), and (E), 10 µm. Error bars in (B), (D), and (F) represent SEM; n = 3–4 independent experiments, n = 20–40 cells/experiment. NS: not significant (p≥0.05); *p<0.05, **p<0.01; ***p<0.001, Student’s unpaired t-test.

To compare these findings with a known FAM134B-mediated ER-phagy substrate, we examined type I procollagen (hCOL1A1). Previous studies have shown that FAM134B targets misfolded procollagens to lysosomes during ER-phagy (Forrester et al., 2019). Approximately 20% of newly synthesized type I procollagen is misfolded (Bienkowski et al., 1986). Although control cells contained some large puncta (≥0.5 µm2) (Figure 2—figure supplement 1E), numerous small hCOL1A1 puncta (generally <0.12 µm2) were found in the majority of cells (Figure 2E). The smaller puncta (<0.5 µm2) accumulated in the FAM134B-depleted and MRT68921-treated cells (Figure 2E and F), while cells with large puncta (≥0.5 µm2) did not increase in number when FAM134B-mediated ER-phagy was disrupted (Figure 2—figure supplement 1F). Consistent with the proposal that SEC24C works with RTN3, and not FAM134B, hCOL1A1 puncta did not accumulate in the RTN3- or SEC24C-depleted cells (Figure 2E–F).

SEC24C colocalizes with small, highly mobile Akita puncta

To ask if SEC24C associates with large Akita puncta (≥0.5 µm2), colocalization studies were performed with cells treated from 0 to 6 hr with MRT68921 (Figure 3A and B). In addition to large puncta, small Akita puncta were also observed in treated as well as untreated cells (see size range in Figure 3C and D). Unexpectedly, we found that the small (<0.12 µm2), but not the larger (>0.12 µm2), puncta colocalized with SEC24C (Figure 3C and D). The small puncta were also associated with tubules and were frequently seen at tubule junctions, as well as the tips of tubules (Video 1). These puncta moved with the tubules as they branched and fused, and some puncta appeared to change in size and shape as they traveled through the network (Video 1). In contrast, the larger puncta were mostly seen in sheet-like dense regions of the ER and moved more slowly (Video 2, Figure 3E). While puncta movement inversely correlated with size (Figure 3E), no difference in puncta movement was observed in the absence or presence of MRT68921 (Figure 3—figure supplement 1A). Fluorescence recovery after photobleaching (FRAP) of the large Akita puncta revealed a fast recovery time (T1/2 = ~13 s, Figure 3F; Figure 3—figure supplement 1B–D). The recovery of the large puncta was indistinguishable from the recovery of diffuse Akita-sfGFP in the ER network, indicating that the Akita-sfGFP in the puncta rapidly exchanged with the diffuse pool in the ER. In contrast, a substrate of FAM134B-mediated ER-phagy, EGFP-hCOL1A1, behaved differently. The fluorescence recovery of EGFP-hCOL1A1 puncta in siFAM134B cells was decreased (~60%) relative to diffuse EGFP-hCOL1A1 in the network (~90%) (Figure 3—figure supplement 2A–D). These findings are consistent with previous studies demonstrating that procollagen type 1 aggregates in the ER and show decreased fluorescence recovery after photobleaching (Ishida et al., 2009). In total, the ability of Akita to concentrate into mobile structures that rapidly exchanged their contents with the ER implies that Akita puncta are not aggregates, as previously suggested (Cunningham et al., 2019). Instead, these puncta behaved as liquid condensates (see criteria established in Banani et al., 2017). When ER-phagy was disrupted, the Akita puncta accumulated and enlarged in what appeared to be sheet-like regions of the ER.

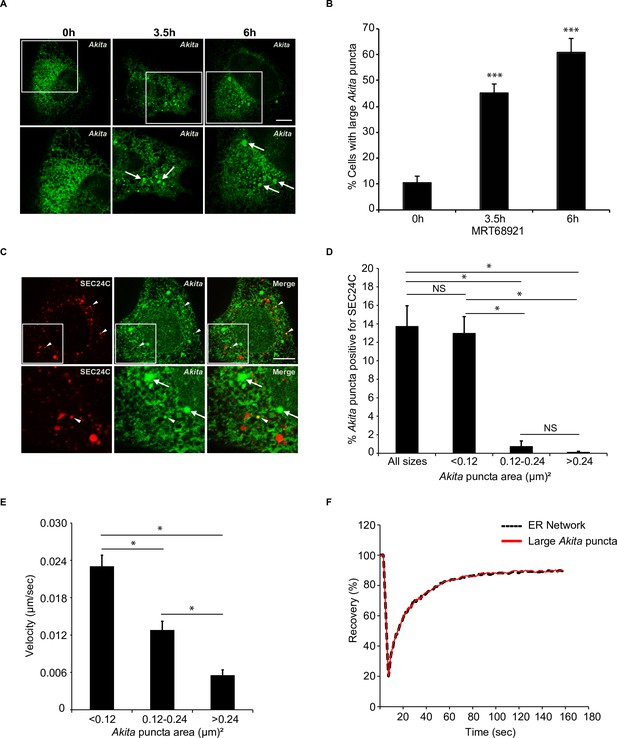

Figure 3 with 2 supplements see all
Highly mobile small Akita puncta colocalize with SEC24C.

A) U2OS cells expressing Akita-sfGFP were treated with MRT68921 for the indicated times and examined for the accumulation of large puncta (≥0.5 µm2). Arrows mark large Akita puncta. (B) Bar graph showing the % of cells with large Akita puncta for the data shown in (A). (C) Cells expressing Akita-sfGFP and mCherry-SEC24C were treated with MRT68921 for 3.5 hr and imaged. Arrowheads show Akita puncta colocalizing with SEC24C, arrows indicate Akita puncta that do not colocalize with SEC24C. (D) Bar graph for the data shown in (C) of % Akita-sfGFP puncta of different sizes that colocalize with mCherry-SEC24C puncta. (E) Cells expressing Akita-sfGFP were treated with MRT68921 for 3.5 hr, and the velocity of differently sized puncta was determined. (F) Cells expressing Akita-sfGFP were treated with MRT68921 for 3.5 hr followed by fluorescence recovery after photobleaching (FRAP) analysis of Akita puncta (average size; ≥ 0.32 µm2) and the endoplasmic reticulum network. Scale bars in (A) and (C), 10 µm. Error bars in (B), (D), and (E) represent SEM; n = 3 independent experiments. Approximately 30–40 cells were examined/experiment (B), 20–30 cells/experiment (D), 35–40 puncta/experiment (E), and 20 puncta/experiment (F). NS: not significant (p≥0.05); *p<0.05, ***p<0.001, Student’s unpaired t-test.

Video 1
Small Akita puncta rapidly move in the tubular endoplasmic reticulum (ER) network.

Time-lapse images of a small Akita-sfGFP punctum (0.07 µm2) as it moves in the tubular network of U2OS cells. The punctum appears to change size and shape as it moves.

Video 2
Large Akita puncta accumulate in the dense endoplasmic reticulum (ER) and exhibit low mobility.

Time-lapse images of a large Akita-sfGFP punctum (1.249 µm2) in a dense ER region of a cell that was treated with MRT68921 for 3.5 hr.

Akita colocalizes with SEC24C-SEC23A and LC3B

As no one has shown that misfolded cargo localizes to the ERPHS, we wanted to ask if the Akita-SEC24C colocalizing puncta are sites of ER-phagy. We found that the small Akita puncta preferentially colocalized with SEC24C, and not SEC24A (Figure 4—figure supplement 1A and B). The binding partner for all SEC24 isoforms, SEC23A, also colocalized with Akita (Figure 4—figure supplement 1C and D). To compare Akita with a cargo that leaves the ER from ERES, we examined proinsulin, the wild-type form of Akita. Consistent with published localization studies, we observed a juxtanuclear pool of proinsulin (Figure 4—figure supplement 2A; Haataja et al., 2013). The juxtanuclear steady-state pool was previously shown to colocalize with the early Golgi marker p115 in U2OS cells (Haataja et al., 2013). Additionally, we also observed proinsulin on ER tubules and on puncta that colocalize with the ERES marker, SEC24A (Figure 4—figure supplement 2A and B). In contrast to what we observed for Akita, proinsulin puncta colocalized equally as well with SEC24A and SEC24C (Figure 4—figure supplement 2A and B ). Interestingly, the proinsulin puncta that colocalized with SEC24A appeared to be similar in size to the Akita puncta that colocalized with SEC24C (Figure 4—figure supplement 2C).

If the Akita puncta that colocalized with SEC24C represent sites on the ER where ER-phagy is initiated, these puncta should increase in number when autophagosome formation is blocked. To ask if this occurs, we treated cells for 3.5 hr with MRT68921 and quantitated the Akita puncta that colocalize with SEC24C in the presence and absence of inhibitor. A dramatic increase in the percent of cells with multiple Akita puncta that colocalized with SEC24C was observed in the presence of inhibitor, while no significant increase was found for SEC24A (Figure 4A and B). These localization studies are in accord with the finding that SEC24A is not needed for the delivery of Akita to lysosomes (Figure 2A and B), and the observation that large Akita puncta do not accumulate in siSEC24A cells (Figure 2C and D).

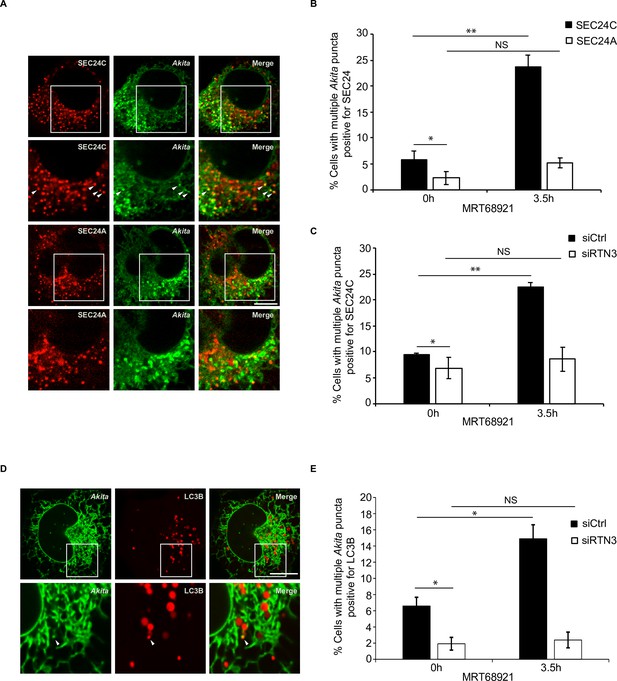

Figure 4 with 3 supplements see all
Disrupting autophagy leads to the accumulation of Akita puncta that colocalize with SEC24C, and LC3B, but not SEC24A.

(A) U2OS cells expressing Akita-sfGFP and mCherry-SEC24C or mCherry-SEC24A were treated with MRT68921 for 3.5 hr. Arrowheads in the inset indicate Akita puncta colocalizing with SEC24C. (B) Bar graph showing the % of cells with multiple Akita-sfGFP puncta colocalizing with mCherry-SEC24C or mCherry-SEC24A puncta 0 or 3.5 hr after treatment with MRT68921. (C) Cells expressing Akita-sfGFP and mCherry-SEC24C were depleted of RTN3 by RNAi and treated with MRT68921 for 0 or 3.5 hr. The % of cells showing multiple Akita-sfGFP puncta colocalizing with mCherry-SEC24C puncta was quantified at the indicated time points. (D) Cells expressing Akita-sfGFP and mCherry-LC3B were depleted of RTN3 and treated with MRT68921 for 0 or 3.5 hr. A representative image for control cells (3.5 hr) is shown. Arrowhead in the inset shows an Akita puncta colocalizing with LC3B. (E) Bar graph showing the % of cells with multiple Akita-sfGFP puncta colocalizing with mCherry-LC3B puncta for the data shown in (D). Scale bars in (A) and (D), 10 µm. Error bars in (B), (C), and (E) represent SEM; n = 3 independent experiments. Approximately 20–30 cells/experiment were examined. NS: not significant (p≥0.05); *p<0.05, **p<0.01, Student’s unpaired t-test.

The increased colocalization of Akita with SEC24C, observed during treatment with MRT68921, was dependent on RTN3 (Figure 4C, Figure 4—figure supplement 3A). When we analyzed the localization of LC3B, a known binding partner for RTN3 (Grumati et al., 2017), the number of cells with multiple Akita puncta colocalizing with LC3B also increased in the presence of MRT68921 (Figure 4D and E). Additionally, this increase was dependent on RTN3 (Figure 4E, Figure 4—figure supplement 3B). Akita puncta still colocalized with LC3B in the absence of SEC24C (Figure 4—figure supplement 3C and D), indicating that the association of RTN3 with LC3B does not depend on SEC24C. In total, these studies imply that small Akita puncta that associate with RTN3, LC3B, and SEC24C form ERPHS on ER tubules.

Akita puncta enlarge in sheet-like ER

The studies discussed above suggest that small Akita puncta reside in tubules, while the larger puncta appear to be in sheet-like ER. To determine the effect on Akita of shifting the distribution of ER from tubules to sheets, we analyzed puncta in LNPK KO cells (Wang et al., 2016). In the absence of LNPK, fewer junctions are observed and the tubular network collapses (Chen et al., 2012; Chen et al., 2015). The loss of tubules in the knock-out (KO) cells shifts the morphology of the ER to a more sheet-like network (Chen et al., 2015). We found that ~76% of the LNPK KO cells contained large puncta (Figure 5A), while ~15% of the control cells and ~45% of the siRTN3 and siSEC24C-depleted cells contained large puncta (Figure 2D, Figure 2—figure supplement 1C). A large fraction (~35%) of the LNPK KO cells (Figure 5A) also contained multiple large puncta. To examine the Akita puncta in more detail, we analyzed 3D reconstructions of deconvolved Z stacks of control and LNPK KO cells (see representative Videos 3 and 4, and frames in Figure 5B and C). This analysis verified that the small puncta reside in tubules, while the large puncta are in ER sheets. To show by a second method that Akita puncta enlarge in ER sheets, we proliferated sheets by overexpressing the sheet producing protein, CLIMP63 (Shibata et al., 2010). ER sheet proliferation, which was induced by CLIMP63 overexpression, increased the percentage of cells with large Akita puncta (Figure 5—figure supplement 1A–D, Video 5), as well as the mean size of Akita puncta per cell (Figure 5—figure supplement 1E). A similar increase in the mean size of Akita puncta per cell was also observed in LNPK KO cells (Figure 5—figure supplement 1F). The co-overexpression of CLIMP63 with RTN4, an ER protein that drives ER tubulation (Wang et al., 2016), decreased the percentage of cells with sheets as well as the number of large puncta (Figure 5—figure supplement 1C–E, Video 6). RTN4 overexpression also decreased the mean size of Akita puncta per cell in LNPK KO cells (Figure 5—figure supplement 1F). Consistent with the accumulation of large Akita puncta in the ER, a decrease in the delivery of Akita to lysosomes was observed in LNPK KO and CLIMP63 overexpressing cells (Figure 5—figure supplement 2A and B). Together these findings indicate that Akita puncta enlarge when ER sheets proliferate.

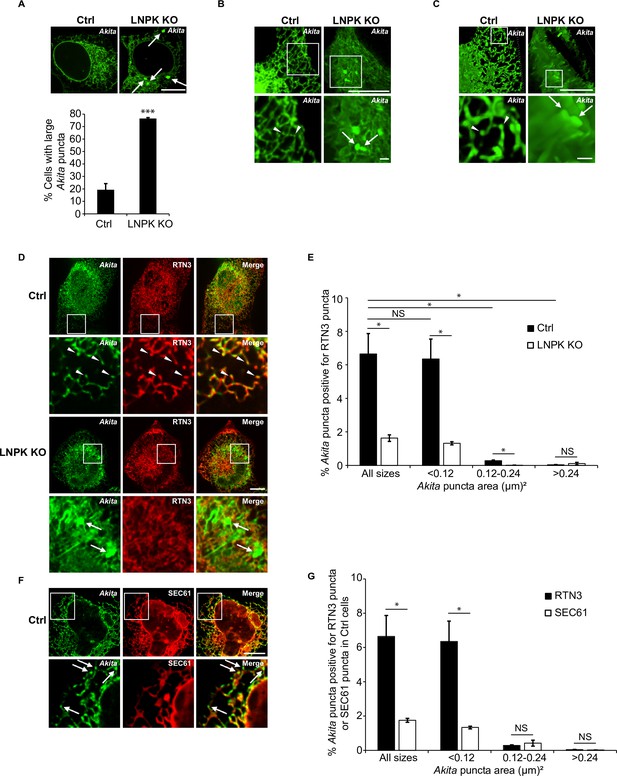

Figure 5 with 9 supplements see all
Large Akita puncta accumulate in LNPK KO cells.

(A) Control (Ctrl) and LNPK KO cells were analyzed for the accumulation of large Akita puncta (≥0.5 µm2) by confocal microscopy (top). Arrows point to large puncta. Bar graph shows the % of cells with large Akita-sfGFP puncta (bottom). (B) Maximum intensity projections showing Akita puncta in Ctrl and LNPK KO cells used for the 3D reconstructions shown in Videos 3 and 4. (C) Frames from representative 3D reconstructions of Z stacks of a Ctrl cell (left, 27.5 s in Video 3) and an LNPK KO cell (right, 39 s in Video 4) are shown. Arrowheads mark small Akita puncta, while arrows mark the large puncta. Scale bar for top images in (B) and (C), 10 µm. The insets that are enlarged at the bottom, 1 µm. (D) Ctrl or LNPK KO cells stably expressing mCherry-RTN3 were examined for colocalizing Akita-sfGFP puncta. Arrowheads in the inset indicate Akita puncta colocalizing with RTN3 puncta (top). Arrows show large Akita puncta (≥0.5 µm2) in LNPK KO cells that do not colocalize with RTN3 (bottom). (E) Bar graph for the data shown in (D) of % Akita-sfGFP puncta of different sizes that colocalize with mCherry-RTN3 puncta. (F) Control cells expressing Akita-sfGFP and mCherry-SEC61β were analyzed by confocal microscopy. Arrows mark Akita puncta. (G) Bar graph for the Ctrl data shown in (D) and (F) of % Akita-sfGFP puncta of different sizes that colocalize with either mCherry-RTN3 puncta or mCherry-SEC61β puncta. To identify Akita, RTN3, or SEC61 puncta, the Yen threshold algorithm, which identifies punctate accentuations on the network, was used. We then identified colocalized puncta (Akita-RTN3, Akita-SEC61) using the Boolean image calculator in ImageJ. Colocalizing puncta were calculated as follows: Akita puncta colocalized with RTN3 puncta/total Akita puncta × 100% or Akita puncta colocalized with SEC61 puncta/total Akita puncta × 100%. Scale bars in (A), (D), and (F), 10 µm. Error bars in (A), (E), and (G) represent SEM; n = 3 independent experiments. Approximately 30–40 cells were examined/experiment for (A), and 15–30 cells/experiment for (E) and (G). NS: not significant (p≥0.05); *p<0.05, ***p<0.001, Student’s unpaired t-test.

Video 3
Small Akita puncta are found in endoplasmic reticulum (ER) tubules.

The movie shows a 3D reconstruction of 29 Z-slices, taken with 0.15 µm steps, of a single control cell with small Akita-sfGFP puncta. Images were deconvolved using Richardson–Lucy algorithm with automatic parameter setting in NIS Elements.

Video 4
Large Akita puncta accumulate in endoplasmic reticulum (ER) sheets in LNPK KO cells.

The movie shows a 3D reconstruction of a Z stack of a single LNPK KO cell with large Akita-sfGFP puncta.

Video 5
Large Akita puncta accumulate in CLIMP63 overexpressing cells.

The movie shows a 3D reconstruction of a Z stack of a control cell expressing Akita-sfGFP and mCherry-CLIMP63. Large Akita puncta can be seen in the endoplasmic reticulum (ER) sheets.

Video 6
Large Akita puncta decrease in number when CLIMP63 is cotransfected with RTN4.

The movie shows a 3D reconstruction of a Z stack of a control cell expressing Akita-sfGFP, mCherry-CLIMP63, and mTurquiose2-RTN4. Small Akita puncta can be seen in endoplasmic reticulum (ER) tubules.

Next, we examined LNPK KO cells expressing hCOL1A1, a cargo that is targeted to ER-phagy by the ER sheets receptor, FAM134B (Forrester et al., 2019). In contrast to what was observed for Akita, we did not see an increased accumulation of hCOL1A1 puncta in LNPK KO cells (Figure 5—figure supplement 3A and B). This was true for the small (Figure 5—figure supplement 3A) as well as the large hCOL1A1 puncta (Figure 5—figure supplement 3B). Because hCOL1A1 behaved differently than Akita in LNPK KO cells, we also analyzed two other cargoes whose degradation is known to be dependent on RTN3; G57S mutation of pro-arginine-vasopressin (G57S Pro-AVP), and the C28F mutation in pro-opiomelanocortin (C28F POMC). G57S Pro-AVP is a mutant neuropeptide whose expression leads to an autosomal-dominant neurodegenerative disorder called neurohypophyseal diabetes insipidus (DI) (Spiess et al., 2020). C28F POMC is a mutant prohormone that causes early onset obesity (Kim et al., 2018; Creemers et al., 2008). Like Akita, large puncta of G57S Pro-AVP accumulated in the siSEC24C, but not siSEC24A, depleted cells (Figure 5—figure supplement 3C). Furthermore, large puncta accumulation was more pronounced in LNPKO cells (Figure 5—figure supplement 3D). Similar results were obtained with C28F POMC (Figure 5—figure supplement 3E and F). In addition, a significant fraction (>30%) of the LNPK KO cells that contained G57S Pro-AVP (Figure 5—figure supplement 3D) or C28F POMC (Figure 5—figure supplement 3F) contained multiple large puncta. Together these studies have revealed that cargoes that are targeted for ER-phagy by the ER tubule receptor RTN3 form puncta that enlarge in sheet-like ER. A cargo that is targeted for ER-phagy by the ER sheets receptor, FAM134B, did not display this behavior.

Akita is known to be cytotoxic in insulin-secreting β cells (Liu et al., 2007). It exerts a dominant-negative phenotype by trapping wild-type proinsulin in high-molecular-weight oligomeric complexes that are retained in the ER, thereby disrupting insulin secretion (Liu et al., 2007; Izumi et al., 2003). If Akita behaves in a similar manner in U2OS cells, it should trap proinsulin in large puncta when both proteins are coexpressed. Interestingly, when Akita-sfGFP and proinsulin-FLAG were co-transfected in control and LNPK KO cells, 100% of the large Akita puncta also contained proinsulin (Figure 5—figure supplement 4A and B). The same was also observed when G57S Pro-AVP-FLAG and Pro-AVP-HA (Figure 5—figure supplement 4C and D), or C28F POMC and POMC-Myc (Figure 5—figure supplement 4E and F) were co-transfected. Like Akita, G57S Pro-AVP-FLAG and C28F POMC exert dominant-negative phenotypes (Kim et al., 2018; Shi et al., 2017). Together these findings suggest that Akita, G57S Pro-AVP, and C28F POMC behave similarly to the way they would in insulin-secreting or neuronal cells. As further evidence that our findings are physiologically relevant, we proliferated ER sheets by overexpressing CLIMP63 in insulin-secreting INS-1 832/13 rat β-cells (INS1 hereafter). Although ER tubules and sheets are difficult to visualize in INS1 cells (Video 7), the overexpression of CLIMP63 led to a significant increase in large Akita puncta (Figure 5—figure supplement 5A–D). Images of 3D reconstructions of Z stacks suggested that the large Akita puncta reside in sheet-like ER (see representative images in Figure 5—figure supplement 5B, Video 8).

Video 7
A representative INS1 cell expressing Akita-sfGFP.

The movie shows a 3D reconstruction of a Z stack of a single INS1 cell expressing Akita-sfGFP.

Video 8
The overexpression of CLIMP63 increases large Akita puncta in INS1 cells.

The movie shows a 3D reconstruction of a Z stack of a single INS1 cell coexpressing Akita-sfGFP and mCherry-CLIMP63. Large Akita puncta can be seen in sheet-like endoplasmic reticulum (ER).

The association of Akita with RTN3 is required for the formation of ERPHS

To begin to understand why Akita puncta enlarge in LNPK KO cells, we analyzed the formation of ERPHS in the KO cells. Although the LNPK KO cells contained the same number of SEC24C puncta as control cells (Figure 5—figure supplement 6A and B), less Akita puncta colocalized with SEC24C (Figure 5—figure supplement 6A and C), and fewer cells contained Akita puncta that colocalized with LC3B (Figure 5—figure supplement 6D and E). The reduction in ERPHS is consistent with the decreased delivery of Akita to lysosomes in mutant cells (Figure 5—figure supplement 2A and B).

We reasoned that the decreased colocalization of Akita with SEC24C in LNPK KO cells might result from a failure of Akita to associate with RTN3. When we performed colocalization studies of Akita puncta with RTN3 puncta in control cells, only the small Akita puncta (<0.12 µm2) associated with RTN3 puncta (Figure 5D, top, and Figure 5E). Colocalizing puncta were mostly detected at the tips and junctions of ER tubules (arrowheads, Figure 5D, top), and also observed when autophagosome formation was blocked (Figure 5—figure supplement 7A). Although the diffuse pool of Akita in the ER network colocalized with the pan ER marker SEC61 in the network, the SEC61 puncta that formed on the ER did not colocalize with Akita puncta (Figure 5F and G). Thus, the colocalization of small Akita puncta with RTN3 puncta was specific. In contrast to control cells, Akita puncta did not colocalize with RTN3 puncta in LNPK KO cells (Figure 5D and E, bottom). Large Akita puncta (arrows) were largely seen in sheet-like dense regions of the ER, while RTN3 was frequently seen at the cell periphery in the KO cells (Figure 5D, bottom). The inability of small Akita puncta to colocalize with RTN3 puncta in LNPK KO cells was not a consequence of decreased puncta movement in the network as the velocity of the small puncta was not significantly altered in mutant cells (Figure 5—figure supplement 7B). The large Akita puncta in LNPK KO cells also did not colocalize with SEC61 puncta, but were frequently seen in the ER lumen (Figure 5—figure supplement 7C and D). FRAP analysis of the large puncta revealed that Akita-sfGFP in the puncta rapidly exchanged with the Akita-sfGFP in the network of mutant cells (Figure 5—figure supplement 8A–D). The Akita-sfGFP in the large puncta also rapidly exchanged with the ER network pool in siRTN3-depleted cells (Figure 5—figure supplement 9A–D), indicating that Akita did not aggregate in the absence of RTN3. Together these findings imply that the failure of Akita to access RTN3 in LNPK KO cells is a consequence of its exclusion from tubules.

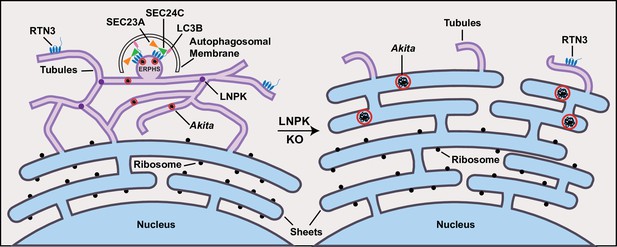

Segregating Akita puncta into ER tubules prevents them from enlarging

Thus far our findings imply that Akita puncta that fail to access RTN3 puncta in tubules cannot undergo ER-phagy and instead enlarge in the sheets. If the decrease in three-way junctions and the consequential collapse of the tubular polygonal network in LNPK KO cells is what leads to the increase in large Akita puncta, restoration of the network should decrease the number of puncta. To address this possibility, we partially restored the network in LNPK KO cells by overexpressing the reticulon proteins, RTN3 or RTN4, and then quantified the accumulation of large Akita puncta. Overexpressed RTN3 increases the density of three-way ER junctions, while RTN4 drives ER tubulation (Wang et al., 2016; Wu and Voeltz, 2021). Unlike RTN3, RTN4 does not associate with LC3B or other Atg8 family members (Grumati et al., 2017). Consistent with previous studies showing that the loss of LNPK does not reduce the level of RTN4 (Wang et al., 2016), we found that RTN3 levels were also unaltered in the KO cells (Figure 6A). The sheet-like ER was partially converted to ER tubules in LNPK KO cells transfected with either RTN3 or RTN4 (Figure 6B,C). As the number of cells with sheet-like ER decreased, the percentage of cells with large Akita puncta decreased (Figure 6C,D), and small Akita puncta became more visible in the ER tubules (Figure 6B). The overexpression of RTN3 or RTN4 reduced the number of large Akita puncta equally as well, indicating that the reduction in large puncta was driven by the formation of tubules.

Figure 6 with 1 supplement see all

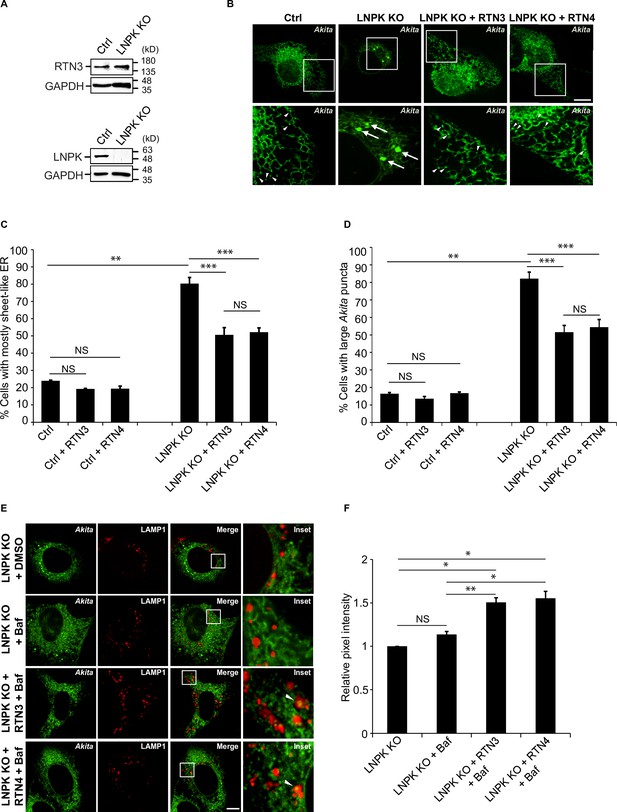

Restoration of the tubular endoplasmic reticulum (ER) network in LNPK KO cells reduces the accumulation of large Akita puncta.

(A) Ctrl and LNPK KO cells were analyzed for the expression of endogenous RTN3 (top) or LNPK (bottom) by immunoblotting. Glyceraldehyde 3-phosphate dehydrogenase (GAPDH) was used as a loading control. (B) mCherry-RTN3 or mCherry-RTN4 was transfected in control and LNPK KO cells expressing Akita-sfGFP and analyzed by confocal microscopy. Arrowheads mark representative small Akita puncta present in the ER tubules. Arrows mark large Akita puncta (≥0.5 µm2). (C) Bar graph showing the % of cells with mostly sheet-like ER for the data shown in (B). (D) Bar graph showing the % of cells with large Akita-sfGFP puncta for the data shown in (B). (E) mTurquoise2-RTN3 or mTurquoise2-RTN4 was transfected in control and LNPK KO cells expressing Akita-sfGFP and LAMP1-mCherry, and treated with Baf. (F) Quantitation of Akita-sfGFP in LAMP1-mCherry structures for the data shown in (E). The DMSO control for each condition was set to 1.0. Scale bar in (B) and (E), 10 µm. Error bars in (C), (D), and (F) represent SEM; n = 3 independent experiments. Approximately 30–40 cells were quantified in each experiment. NS: not significant (p≥0.05); *p<0.05, **p<0.01, ***p<0.001, Student’s unpaired t-test.

If the overexpression of RTN3 or RTN4 suppresses the accumulation of large Akita puncta in LNPK KO cells by driving ER-phagy in tubules, there should be an increase in the delivery of Akita to lysosomes in RTN3 or RTN4-overexpressing cells. When we transfected KO cells with Akita-sfGFP and either mTurquoise2-RTN3 or mTurquoise2-RTN4, we found that more Akita was delivered to lysosomes when sheet-like ER was converted to tubules (Figure 6E and F, Figure 6—figure supplement 1). Together these findings indicate that Akita can only be targeted to ER-phagy in tubules. In the absence of tubules, Akita puncta enlarge in sheets.

Discussion

Here we analyzed three different dominant-interfering prohormones (Akita, G57S Pro-AVP, and C28F POMC) that are targeted to ER-phagy in ER tubules. In studying mutant proinsulin Akita, we found that small highly mobile puncta (<0.12 µm2 in size) associated with RTN3, LC3B, and SEC24C-SEC23A in the ER (Figure 7). We named these colocalizing puncta ER-phagy sites (ERPHS; Figure 7) as they accumulated when autophagosome formation was blocked. Although proinsulin colocalized with the ERES marker SEC24A, Akita did not. We conclude that ERPHS, which contain Akita, are distinct from the ERES that target proinsulin to the secretory pathway. When ER-phagy was blocked, the Akita puncta enlarged (≥0.5 µm2). The large puncta resided in sheet-like ER that did not colocalize with RTN3 or SEC24C, implying that SEC24C only sequesters Akita into autophagosomes on tubules (Figure 7). This observation is consistent with studies showing that COPII coat subunits reside on tubules in mammals and on highly curved membranes in yeast (Okamoto et al., 2012; Hammond and Glick, 2000). As the association of SEC24C with RTN3 is needed to target Akita to lysosomes, we conclude that SEC24C is an essential component of the RTN3-mediated ER-phagy pathway.

Akita puncta do not enlarge in the tubules.

ER-phagy sites (ERPHS) are formed when Akita puncta associate with RTN3 puncta, LC3B, and SEC24C on the tubules. The association of RTN3 with LC3B occurs in the absence of SEC24C. In LNPK KO cells, the tubular polygonal network collapses and large Akita puncta accumulate in sheet-like endoplasmic reticulum (ER). Large Akita puncta also accumulate in siSEC24C and siRTN3 cells.

Previous studies have shown that ERAD-resistant high-molecular-weight oligomeric forms of Akita are cleared from the ER by RTN3 (Cunningham et al., 2019). Because these oligomers pelleted on sucrose density gradients, they were suggested to be aggregates (Cunningham et al., 2019). Our photobleach analysis of Akita puncta, showing that these structures behaved like liquid condensates and not aggregates, was surprising as condensates have not been observed within the ER before. This observation led us to discover that ER tubules play a critical role in restricting the size of condensates in the ER. Specifically, we found that the loss of ER tubules in LNPK KO cells resulted in a dramatic accumulation of large Akita puncta (≥0.5 µm2; Figure 7). The puncta not only failed to be degraded in the absence of tubules, they continued to enlarge (Figure 7). The overexpression of RTN4, a protein that promotes tubule formation, partially restored the tubular network in LNPK KO cells and reduced the number of large puncta. RTN4 overexpression also increased the delivery of Akita to lysosomes. Because the loss of LNPK could indirectly affect ER shape in a number of ways, we used a second method to proliferate ER sheets. Consistent with the proposal that the Akita puncta enlarged in sheet-like ER, and not tubules, the proliferation of ER sheets by CLIMP63 overexpression increased the number of large Akita puncta and reduced the delivery of Akita to lysosomes. The co-transfection of CLIMP63 with RTN4 restored the tubular network in the CLIMP63-overexpressing cells and reduced the number of large Akita puncta. In total, these findings indicate that ER tubules, which have a small outer radius of only ~44 nm (Georgiades et al., 2017), restrict the size of condensates. In a sheet, an Akita condensate can access the soluble milieu around its entire surface, while in a tubule, accessibility is limited to the ends facing the lumen. An Akita condensate is inaccessible to soluble oligomers in the area that is adjacent to the tubule wall. Therefore, although Akita condensates could expand along the length of tubules, their growth rate is limited by their reduced accessibility. Interestingly, other RTN3-SEC24C substrates (G57S Pro-AVP and C28F POMC) behaved like Akita, while a cargo that is targeted for lysosomal degradation in the sheets (hCOL1A1) did not. Together these findings imply that misfolded proteins, which form fluid condensates, are largely disposed of by ER-phagy in tubules.

Unlike aggregates, which are biologically inert, condensates have the ability to rapidly exchange their contents with the surrounding environment (Banani et al., 2017; Noda et al., 2020). Our FRAP studies showing that Akita in puncta rapidly exchanged with Akita in the ER provide a possible explanation for how Akita can trap secretory cargo and disrupt the local environment of the ER. Consistent with our findings, a comparison of the toxicity of liquid and aggregated states of α-synuclein has suggested that soluble oligomers of mutant α-synuclein, and not aggregated forms, are the toxic species in Parkinson disease (Winner et al., 2011). Similarly, in Alzheimer’s disease, soluble Aβ oligomers and not amyloid fibrils have been shown to be neurotoxic (Walsh et al., 2002). As ER-phagy is induced slowly (Cui et al., 2019), misfolded cargoes can accumulate in the ER before they are removed. The ability of tubules to restrict condensate size averts potentially toxic condensates from expanding in the ER while they are waiting to undergo ER-phagy. In total, our findings suggest that drugs that reduce the size of Akita puncta in the ER could be of therapeutic value in the intervention of MIDY. We also speculate that the observations we have made here can be extended to a variety of other disorders that are associated with the accumulation of dominant-interfering, ERAD-resistant proteins in the ER.

Materials and methods

Plasmids and antibodies

Request a detailed protocol

Plasmids used in this study are listed in Table 1. Akita-sfGFP (Akita fused to superfolder GFP) was a gift from Peter Arvan (University of Michigan Medical School). mAaus0.5-SEC24A, mCherry-SEC24A, and mCherry-SEC24C were generated by PCR amplification using pCS-6x-Myc-SEC24A or pC1-EYFP-SEC24C, respectively, as a template and then the PCR fragment was cloned into pC1 mammalian expression vector (Promega, Madison, WI) with a N-terminal mAaus0.5 tag or an N-terminal mCherry tag. The FP tag mAaus0.5 is a monomeric variant of the ultra-bright FP AausFP1 (Lambert et al., 2020) (generated by structure-guided directed evolution). All clones were generated using the Gibson assembly method (Gibson et al., 2009). Antibodies used in this study are listed in Table 2.

Table 1
List of plasmids used in this study.
IdentifierPlasmidSourceCatalog no.
SFNB 2454mCherry-hLC3B-pcDNA3.1Addgene#40827
SFNB 2453pC1-EYFP-SEC24CAddgene#66608
SFNB 2501pCDNA3.1-LAMP1-mCherryAddgene#45147
SFNB 2498pLVX-Puro-mRuby-SEC23AAddgene#36158
SFNB 2497pHAGE2-mCherry-RTN4aAddgene#86683
SFNB 2502pC1-mCherry-SEC61betaAddgene#49155
SFNB 2508pcDNA 3.1- EGFP-hCOL1A1Addgene#140110
SFNB 2535pmCherry-N1-CLIMP63Addgene#136293
SFNB 2462Proinsulin-sfGFP (also called pTarget-hProCpep SfGFP)Haataja et al., 2013N/A
SFNB 2468Akita-sfGFP (also called pTarget- hProC(A7)Y-Cpep SfGFP)Haataja et al., 2013N/A
SFNB 2455pHAGE-mCherry-RTN3LAn et al., 2019N/A
SFNB 2456pHAGE-FAM134B-mTurquoiseAn et al., 2019N/A
SFNB 2467pC1-mAaus0.5-SEC24AThis studyN/A
SFNB 2477pC1-mCherry-SEC24AThis studyN/A
SFNB 2471pC1-mCherry-SEC24CThis studyN/A
SFNB 2457SEC13-GFPHammond and Glick, 2000N/A
SFNB 2458EGFP-SEC16AWatson et al., 2006N/A
SFNB 2489pRc/RSV-G57S Pro-AVP-FLAGShi et al., 2017N/A
SFNB 2491pcDNA3.1-C28F POMC-FLAGKim et al., 2018N/A
SFNB 2513pC1-mTurquoise2-RTN3This studyN/A
SFNB 2514pC1-mTurquoise2-RTN4This studyN/A
SFNB 2536pC1-mTurquoise2-CLIMP63This studyN/A
SFNB 2523pC1-Proinsulin-FLAGThis studyN/A
SFNB 2517pcDNA3.1-POMC-WT-mycKim et al., 2018N/A
SFNB 2518pRc/RSV- Pro-AVP-WT-HAShi et al., 2017N/A
Table 2
List of antibodies used in this study.
NameSourceCatalog no.Dilution used
Rabbit anti-SEC24AGift from Randy SchekmanN/A1:1000
Rabbit anti-SEC24BGift from Randy SchekmanN/A1:400
Rabbit anti-SEC24CGift from Randy SchekmanN/A1:1000
Rabbit anti-SEC24DGift from Randy SchekmanN/A1:1000
Mouse anti RTN3 (F-6)Santacruz Biotechnologysc-3745991:1000
Rabbit anti-LNPKChen et al., 2015N/A1:1000
Rabbit anti FAM134BProteintech Group, Rosemont, IL21537-1-AP; 000144081:1000
Mouse GAPDH loading control monoclonal antibody (GA1R)Thermo Fisher Scientific, Waltham, MAMA5-157381:5000
Anti-mouse IgG (H + L), HRP conjugatePromegaW4021; 00004216031:10,000
Rabbit IgG HRP linked whole AbMillipore SigmaGENA9341:10,000
Mouse monoclonal anti-FLAG M2 antibodyMillipore SigmaF3165; SLB451421:1000
HA-Tag (C29F4) rabbit mAbCell Signaling3724T1:1000
Myc-Tag (71D10) rabbit mAbCell Signaling2278T1:1000
Anti-GFP mouse IgG1κ (clones 7.1 and 13.1)Roche118144600011:3000
Rabbit anti-SEC24C (for immunofluorescence and western blots)BethylA304-759A1:1000
Rabbit anti-Nogo (RTN4) A + B antibodyAbcamab470851:1000
Rabbit anti-LC3 pAbMBLPM0361:1000
Goat anti-mouse IgG (H + L) cross-adsorbed secondary antibody, Alexa Fluor 488 or 594Thermo Fisher ScientificA-11001A-110051:1000
Goat anti-rabbit IgG (H + L) highly cross-adsorbed secondary antibody, Alexa Fluor 488 or 594Thermo Fisher ScientificA-11008A-110371:1000

Cell culture

Request a detailed protocol

U20S cells were purchased from the American Type Culture Collection (Manassas, VA) and authenticated by STR analysis. The cells were tested for the absence of mycoplasma using the PlasmoTest -Mycoplasma detection kit (InvivoGen; rep-pt1; San Diego, CA).

The LNPK KO cells were obtained from Dr. Tom Rapoport’s lab, and the INS-1 832/13 cells were obtained from Dr. Maike Sander. The U2OS cells were grown at 37°C with 5% CO2 in DMEM medium (Gibco; 11965-092; Paisley, UK) supplemented with 10% fetal bovine serum (Gibco; 16000044) and 100 U/ml Penicillin-Streptomycin-Glutamine (Gibco; 10378016). INS-1 832/13 cells were cultured at 37°C with 5% CO2 in RPMI-1640 medium containing 11.1 mM glucose (Gibco; 11875093) and supplemented with 10% fetal bovine serum, 10 mM HEPES pH 7.4 (Gibco; 15630080), 1 mM sodium pyruvate (Gibco; 11360070), 50 µM β-mercaptoethanol (Gibco; 31350010) and 100 U/ml Penicillin-Streptomycin-Glutamine. The extracellular medium was collected 48 hr after transfection, and insulin secretion was monitored as described in the legend to Figure 5—figure supplement 5D.

Generation of stable cell lines

Request a detailed protocol

To prepare lentivirus used for the generation of stable cell lines, HEK293T cells were transiently transfected with lentiviral packaging vectors and pHAGE-mCherry-RTN3L using TransIT-LT1 (Mirus; MIR2306; Madison, WI). The cells were harvested 2 days post-transfection and the supernatant was passed through a 0.45 µm syringe filter unit (Millipore; HAWP04700; Burlington, MA) and frozen at –80°C. Subsequently, control and LNPK KO U2OS cells were transduced with lentivirus and selected with 1.5–2 µg/ml of puromycin (Gibco; A1113803).

Transfection

Request a detailed protocol

For transient expression, U2OS cells were transfected with plasmid DNA using TransIT-LT1 (Mirus; MIR2306) or TransFast (Promega; E2431) transfection reagent according to the manufacturer’s instructions and imaged 24–48 hr after transfection. For INS-1 832/13 cells, Lipofectamine-2000 (Thermo Fisher; 11668019) transfection reagent was used, and the cells were imaged 48 hr after transfection.

Small interfering RNA knockdowns

Request a detailed protocol

The RNAi oligonucleotides listed in Table 3 were transfected into cells using HiPerFect transfection reagent (Qiagen; 301707; Germantown, MD) according to the manufacturer’s instructions. For the knockdown of SEC24 isoforms, 10 nM siRNAs were mixed with 6 µl of HiPerFect transfection reagent in 100 µl of serum-free DMEM and added to freshly plated cells. The cells were then analyzed 72 hr after siRNA transfection. The isoform specificity of the SEC24 siRNAs is shown in Figure 2B and Figure 2—figure supplement 1B. For RTN3 knock downs, 10–20 nM siRNA was mixed with 6–12 µl of HiPerFect transfection reagent in 100 µl of serum-free DMEM and cells were transfected as described above. For the siFAM134B knock downs, 80 nM siRNA was used. The siRTN3 and FAM134B oligos used in this study were previously tested for off-target effects (Cunningham et al., 2019).

Table 3
List of siRNAs used in this study.
NameTarget geneSourceCatalog no.Target sequence
siCtrlControlDharmacon(siGenomeNon-Targeting siRNA Pool)D-001206-13-05
siSEC24ASEC24ADharmacon(siGenome-SMARTpool)M-024405-01-0005CCAAGAAGGUAUUACAUCACAAAUGCACGUCUAGAUGAGGAAACUUCUUUGUUAGGUGGUUGUAUUUCUCGGUAUU
siSEC24BSEC24BDharmacon(siGenome-SMARTpool)M-008299-01-0006GGGAAAGGCUGUGACAAUAGACCAGAAGUUCAGAAUUCCAGGGUGCAUCUAUUAUUACCAGAUUCAUUUCGGUGUA
siSEC24CSEC24CDharmacon(siGenome-SMARTpool)M-008467-01-0007GCAAACGUGUGGAUGCUUACAGGGAAGCUCUUUCUAUUUGGCUGAUCUAUAUCGAAACUGUAUAUGAUUCGGUAUU
siSEC24DSEC24DDharmacon(siGenome-SMARTpool)M-008493-01-0008GAGGAACCCUUUACAAAUAGACCAGAGAUCUCAACUGAGUACAUGAAUUGCUUGUUGGGUAAAUCACGGCGAGAGU
siRTN3RTN3Sigma-AldrichN/AUCAGUGUCAUCAGUGUGGUUUCUUAdTdT
siFAM134BFAM134BSigma-AldrichN/ACAAAGATGACAGTGAATTAdTdT

Western blotting

Request a detailed protocol

To prepare cell lysates, harvested cells were resuspended in RIPA buffer (Cell Signaling Technology; 9806) containing 1× protease inhibitor (Roche; 11697498001; Basel, Switzerland) and incubated on ice for 30 min with intermittent vortexing. Afterwards, the lysate was heated at 65°C for 10 min in Laemmli buffer on a Thermal mixer-shaker with continuous shaking and then fractionated on an 8% SDS polyacrylamide gel for immunoblotting. To measure the endogenous level of RTN3 in control and LNPK KO cells, cells were harvested at 80%confluency, lysed as described above, and immunoblotted with anti-RTN3 antibody. To confirm the absence of LNPK in the LNPK mutant, the cells were harvested at 80%confluency, lysed as described above, and immunoblotted using anti-LNPK antibody. To normalize the total protein levels in lysates, the samples were immunoblotted with anti-GAPDH antibody.

Fluorescence microscopy

Request a detailed protocol

For the live-cell imaging experiments, the cells were cultured on glass-bottom dishes (Cellvis; D35-20-1.5-N; Mountain View, CA) and imaged on two different spinning disk confocal microscopes. Either a Yokogawa spinning disk confocal microscope (Observer Z1; Carl Zeiss, Oberkochen, Germany), equipped with an electron-multiplying CCD camera (QuantEM 512SC; Photometrics), or a Nikon Ti2-E microscope was used. The Nikon microscope employed a Yokogawa X1 spinning disk confocal system with a 100× Apo TIRF 1.49 NA objective, MLC400B 4-line (405 nm, 488 nm, 561 nm, and 647 nm) dual-fiber laser combiner (Agilent), Prime 95B back-thinned sCMOS camera (Teledyne Photometrics), piezo Z-stage (Mad City Labs), and running NIS Elements software. Cells were imaged while in a stage top environmental chamber (Tokai Hit). To separate the emission of individual fluors, band-pass emission filters were used for each channel (450/50, 525/36, 605/52, and 705/72). To optimally acquire 3D images, Z-planes were collected with 150 nm Z-steps. The resulting images were then deconvolved using the Richardson–Lucy algorithm with automatic detection and setting of the SNR and optimal iteration number.

For the experiments where ER-phagy was induced with Torin, cells were treated for 3.5 hr with 250 nM Torin 2 (Sigma-Aldrich; SML1224; St. Louis, MO) that was solubilized in DMSO. DMSO-treated cells were used as a control. To inhibit autophagy, cells were treated with 2 µM of MRT68921 (Tocris; 5780; Bristol, UK) for 3.5 hr or 6 hr before imaging.

For immunofluorescence experiments, the cells were cultured on glass-bottom dishes and fixed in 4% paraformaldehyde (PFA) for 15 min at room temperature (RT). The fixed cells were washed with phosphate buffered saline (PBS, pH 7.4), incubated in 50 mM NH4Cl for 15 min at RT, and then washed again with PBS. Subsequently, cells that were imaged for Akita, Pro-AVP, or POMC were incubated in permeabilization buffer (0.1% Triton-X-100 in PBS) for 10 min at RT, washed with PBS, and incubated in blocking buffer (1% BSA, 0.05% Tween-20 in PBS) for 1 hr at RT before they were washed with PBS. Samples were then incubated with primary antibody for 12–16 hr at 4°C, washed with washing buffer (PBS containing 0.05% Tween-20), and incubated for 1 hr with Alexa Fluor 488/594 labeled secondary antibody at RT. Before imaging, the samples were washed in washing buffer and rinsed with PBS.

Measurement of Akita delivery to lysosomes

Request a detailed protocol

For analyzing Akita inside LAMP1 structures, cells expressing Akita-sfGFP and LAMP1-mCherry were treated with 100 nM bafilomycin A1 (Sigma-Aldrich; B1793) for 1.5–4 hr before they were imaged. To inhibit autophagy, the cells were treated with MRT68921 for 6 hr and bafilomycin A1 was added during the last 90 min of the incubation. Samples were fixed with 4% PFA for 6 min at RT, washed with PBS, incubated in 50 mM NH4Cl for 8 min at RT, washed with PBS, and imaged as described in the previous section. Relative pixel intensity was plotted. The relative pixel intensity for each condition is the mean intensity of Akita-sfGFP in the pixels that overlap with LAMP1. The data was normalized to the mean intensity obtained in the siCtrl condition. Approximately 1–2% of the total Akita in the cell is delivered to the lysosome via ER-phagy. This number was estimated by dividing the area of Akita that overlaps with LAMP1 by the total Akita in the cell.

Image analysis

Request a detailed protocol

To quantitate the colocalization of two proteins, we employed an object overlap method in ImageJ v2.0. Briefly, an individual cell was cropped using an enclosing rectangular region of interest (ROI), and the resulting two-channel image was split into two images, one for each color channel. Each image was then subjected to uniform and unbiased auto-thresholding using the Yen algorithm to produce binary black-and-white images with black objects displaying the labeling pattern for each protein. This particular thresholding algorithm captured isolated spots as well as punctate accentuations on larger objects such as tubules, making it ideal for quantitation of ERPHS proteins. The Image Calculator was then used to create an intersection image of the two binary images using the Boolean AND operator. This binary image represents all labeled objects that are common to both proteins. The Analyze Particles command was then used to determine the total object count of all three binary images individually. The object count of the intersection image was then divided by the object count of one of the source images to generate percent colocalization. For example, for two proteins (A and B), the percent colocalization of A with B = [count of A AND B]/[count of A] × 100%.

To measure the intensity of a protein localized to specific sites, individual channel component images were created from a two-color image as described above. One of the component images was used as the site of interest, for example, in Figure 2A, LAMP1 was used to mark lysosomes and autolysosomes. The site image was then subjected to auto-thresholding to produce a binary image as described above. The Analyze Particles command was then used to obtain a mask of the objects, and the Create Selection command was used to capture all the objects as a single ROI, which was then moved into the ROI Manager. A rectangular background ROI was drawn by hand in a dark extracellular region and moved into the ROI Manager. The two ROIs were then applied consecutively to the non-binary component image (e.g., Akita in Figure 2A) and the Measure command was used to obtain mean intensities. The pixel intensity (in arbitrary units) of the measured protein at the sites of interest = [mean intensity of sites ROI] – [mean intensity of background ROI]. This value collected from each condition was then divided by the mean pixel intensity from the control condition to produce relative pixel intensity for each condition.

For determination of the size of puncta, the binary black-and-white image was generated as described above and the Analyze Particles command was used to create a mask of the images (size criteria of <0.12, 0.12–0.24, >0.24, or ≥0.5 µ2 and circularity criteria of 0.5–1). The cells with puncta of size ≥0.5 µm2 were quantified as the cells with large puncta. To determine the size-based colocalization of Akita with different proteins, the masks of Akita puncta of indicated size ranges were generated as described above and Image Calculator was then used to create an intersection image of the two proteins using the Boolean AND operator. Colocalization was then determined as described above.

To calculate the mean size of Akita puncta per cell, the Yen thresholding algorithm was first used to identify puncta of all sizes. Then, the number and area of Akita puncta were calculated using the Analyze Particles command in ImageJ. An average Akita puncta size for each cell was calculated as follows: total area of all Akita puncta/total number of Akita puncta in the cell.

To quantify the percent of cells with multiple Akita puncta colocalizing with either SEC24C, SEC24A, or LC3B, the images were analyzed for colocalization as described above using ImageJ, and the cells showing two or more colocalizing puncta were divided by the total number of cells analyzed and then multiplied by 100%.

To calculate the percentage of cells with mostly sheet-like ER, cells that largely contained sheets were blindly scored as positive for the appearance of sheets by two independent observers and divided by the total number of cells scored. The data from the two independent observers was then averaged for each experiment.

Immunofluorescence was also performed to measure the transient and stable expression levels of fluorescently tagged SEC24C, RTN3, LC3B, and RTN4, relative to the endogenous levels of these proteins. For these experiments, fixed cells were permeabilized with 0.1% saponin in PBS for 10 min at RT and then incubated in blocking buffer (1% BSA, 0.1% saponin in PBS) for 1 hr. Subsequently, the samples were incubated for 12–16 hr at 4°C with either anti-SEC24C, RTN3, LC3B, or RTN4 antibody prepared in blocking buffer, and then treated with secondary antibody. The expression of each fluorescently tagged protein was estimated in the following way. Transfected versus non-transfected cells were identified in the color channel of the fluorescently tagged protein. Then, using the immunofluorescence image channel, an ROI was drawn around the entire cytoplasmic area of each cell to be analyzed, and the ROI was used to obtain the mean intensity. Approximately 10–15 transfected and non-transfected cells were examined for each marker protein in three separate experiments. The mean intensity of each transfected cell was divided by the mean of all non-transfected cells for each marker to obtain the fold overexpression for each transfected cell. Please note that highly overexpressing transient or stably expressing fluorescent cells were excluded in our colocalization studies and therefore also excluded from these estimates. For the markers that were introduced into cells by transient transfection (see list above), no more than twofold average overexpression was observed. For the mCherry-RTN3 stable cell lines, approximately 4–5.5-fold overexpression was observed. With the exception of Figure 1C and D, all experiments shown in the article with mCherry-RTN3 were performed with stable cell lines. In addition, all colocalization experiments with the mCherry-RTN3 stable cell lines were confirmed with transiently transfected mCherry-RTN3 cells. Identical results were obtained with stable versus transfected cells.

Time-lapse imaging and analysis of the velocity of Akita puncta

Request a detailed protocol

U2OS cells were transfected with Akita-sfGFP and seeded on a glass-bottom culture dish 24 hr after transfection. Before the cells were imaged, the culture medium was changed to OPTI-MEM medium. Time-course images were captured without a delay using a Nikon spinning disc confocal microscope described above. The motility and velocity of the Akita puncta were tracked and measured using MTrackJ software. The velocity of the puncta was calculated as calibrated total (not net) linear distance of travel per unit time of the recording. The movies were generated using ImageJ software.

Fluorescence recovery after photobleaching (FRAP) assay

Request a detailed protocol

U2OS cells transfected with Akita-sfGFP were imaged using a Nikon C2 confocal microscope attached to a Ti2-E with a Plan Apo 100× 1.45 NA objective. The C2 used a four-line (405 nm, 488 nm, 561 nm, and 640 nm) LUN-4 laser engine and a DUV-B tunable emission dual-GaAsP detector. To increase imaging speed to two frames per second, images were taken at 256 × 256 pixels with a zoom set to create 0.15 m pixels. The pinhole was fully opened to allow for optimal detection of emitted photons. For scanning, the 488 nm laser was set to 1%, and for bleaching the laser intensity was set to 100%. Six prebleached images were acquired without a delay; postbleaching images were taken continuously for 30 s and with 2 s intervals for the subsequent 2 min. The Time Measurement tool within NIS Elements was used to quantify the intensity of the bleached ROIs as well as the entire cell after the background intensity was subtracted from the images. FRAP quantitation was performed according to the method of Pfair and Misteli (Phair and Misteli, 2000).

Statistical analysis

Request a detailed protocol

p-Values were calculated using the Student’s t-test. Three or more independent experiments were used to report the statistical significance, which is presented as a mean value. The error bars in the figures represent SEM unless otherwise indicated in the legends.

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files.

References

Decision letter

  1. Randy Schekman
    Reviewing Editor; Howard Hughes Medical Institute, University of California, Berkeley, United States
  2. David Ron
    Senior Editor; University of Cambridge, United Kingdom

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "Endoplasmic reticulum tubules limit the size of misfolded protein condensates" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Senior Editor. The reviewers have opted to remain anonymous.

We are sorry to say that, after consultation with the reviewers, we have decided that your work will not be considered further for publication by eLife. Although we judge the work to be of considerable merit, each of the three reviewers had comments that we believe would require more than 2 months to address. The detailed comments of the reviewers follow this comment but in summary: Reviewer #1 had a significant concern (No.3); reviewer #2 had a significant concern (No.1 and 2); reviewer #3 had general concerns how the ectopic overexpression of several key proteins and the use of cell lines that do not necessarily relate to the physiological context of the Akita mutant and the normal process of insulin secretion. Should you be in a position to address these concerns, we would welcome a new submission of this work which we will endeavor to have reviewed by the same referees.

Reviewer #1:

Parashar et al. present interesting results on the organization of a specialized zone of the endoplasmic reticulum, ER tubules, that appear to organize the autophagic engulfment and diversion to the lysosome of a mutant, misfolded form of proinsulin, the Akita mutant protein. This specialized zone correlates to the localization of an ER membrane protein, RTN3, known to promote membrane tubulation and also to cytoplasmic subunits, SEC24C and SEC23A, of a coat protein complex that participates in sorting of membrane proteins destined to traffic the ER. In contrast to what had been assumed of aggregated forms of the Akita mutant proinsulin, the authors find that puncta of the accumulated protein remain in a fluid state, characteristic of protein condensates rather than of a more rigid protein aggregate.

Parashar et al. have investigated the localization and fluid properties of mutant Akita that accumulates in the ER and is subject to a process of turnover in the lysosome termed ER-phagy. The work relies on live cell imaging of transfected forms of fluorescnety tagged forms of Akita, of wild type prolinsulin, collagen, RTN3, Sec24C and mutant forms of other prohormones. The broad conclusions are consistent with and extend previous observations on the role of RTN3 in formation of ER tubules in relation to the ER-phagy of other misfolded proteins subject to lysosomal degradation.

The novel conclusions the authors make are that the Akita mutant protein is in a fluid protein condensate state rather than as an aggregate and that ER-phagy operates selectively on tubular membrane marked by their content of RTN3 in the membrane and SEC24C on the cytoplasmic face of the tubular membrane.

I have several concerns that could be addressed by additional experimental work and a few small issues with the text.

1. All of the conclusions of this work rely on visual inspection of fluorescently-tagged over-expressed proteins. At the very least, this should be expressed as a limitation of the analysis but it would help support the strength of the conclusions if at least some of the work was repeated by another approach. One such additional approach would be to use immunoprecipitation of RTN3 to detect a a possibly selective association with SEC24C under conditions that promote ER-phagy in non-transfected cells. If the endogenous level of these two proteins is too low, the authors might consider a proximity labeling approach with APEX-tagged Akita, RTN3 or SEC24C.

2. How is the Akita protein retained in proximity to RTN3 in the membrane? Is there a direct interaction or is the Akita condensate anchored by some other means to the putative tubular regions of the ER?

3. The claim of tubular ER vs. sheets of ER is not supported in a convincing manner.

Previous work certainly has established that RTN3 functions in membrane tubulation and the role of lunapark in the organization of tubular membranes has also been made in other work. However, the confocal images in this manuscript do not clearly and independently justify the conclusions of tubular vs. sheet ER membrane localization. These claims should be justified by serial confocal or super resolution microscopy reconstruction of images to more clearly document the claim of tubular vs ER sheet localization.

Reviewer #2 :

Previous work from this group showed that some ER-phagy requires SEC24C and RTN3 (PMID: 31273116). The present study reveals these proteins are necessary for degradation of regions of the ER containing accumulations of Akita, a dominant interfering mutant of proinsulin. It also shows that the puncta are probably protein condensates rather than aggregates as had been thought. The condensates become enlarged when SEC24C and RTN3 are depleted, consistent with the idea that Akita condensates are degraded by ER-phagy. This part of the study is well done and convincing. The study goes on to argue that ER structure plays an important role in targeting Akita condensates for degradation by ER-phagy; decreasing the abundance of tubular ER reduces Akita condensate degradation, while restoring ER tubules promotes degradation. The authors suggest ER tubulation promotes Akita condensate degradation by facilitating their interaction with SEC24C and by physically limiting condensate growth, preventing them from becoming too large for degradation by ER-phagy. If true, this is an important conceptual advance in our understanding of how ER shape promotes protein segregation, affects condensate formation, and plays a role in quality control of ER proteins. However, additional work is necessary to make a stronger case for the model.

Overall, this is a well-done, largely convincing study. It demonstrates that ER-phagy requiring SEC24C and RTN3 degrades Akita condensates in the ER. However, the idea that the extent of ER tubulation is a major determinant of condensate size or targeting to sites of ER-phagy requires additional evidence.

1. The only way ER structure is altered is knockout of Lunapark, which could affect ER function in ways beyond altering structure. The study would be stronger if it were shown that increasing ER sheets by another method affected Akita degradation similarly to knockout of Lunapark. For example, ER sheets could be induced by overexpression of Climp63 [PMID: 21111237]. It is not necessary to repeat all the work with the Lunapark knockout, but it should be shown that increasing ER sheets by another mechanism causes an increase the percent of cells with large Akita puncta (as in Figure 4A) and reduces Akita degradation in LAMP1-positive structures (as in Figure 5—figure supplement 3A,B)

2. Deletion of Lunapark could affect Akita condensates in ways unrelated to changes in ER tubulation. Condensate formation is probably largely determined by the concentration of Akita in the ER, which could increase if the volume of the ER is reduced in cells lacking Lunapark or if Akita abundance increases in these cells. ER shape might also affect condensate mobility in the ER, which could alter the rate of coalescence of small condensates into larger ones. It also possible that the number or distribution of SEC24C puncta is altered in cells lacking Lunapark, which could reduce degradation of akita condensates. In short, there are a number of ways deletion of Lunapark could affect condensate size that are unrelated to the amount of tubulation of the ER. The study would be stronger if these other possibilities were ruled out but, at a minimum, they should be acknowledged and discussed.

3. The idea that ER tubules restrict the size of condensates seems implausible. What would stop condensates from expanding along the length of the tubule?

4. I do not understand the claim only a small fraction of Akita puncta are positive for RTN3 or Sec61 (Figure 6D-G; Figure 5 supplement 3,F). In the images provided all Akita puncta look positive for both proteins. Shouldn't Sec61-β, which is widely used as a general ER marker, be present in all ER domains together with Akita puncta?Reviewer #3:

The manuscript by Parashar et al., builds on previous work from the same group demonstrating the involvement of COPII coat proteins in selective routing of unfolded proteins in the ER for autophagic degradation by ER-phagy (Cui et al., 2019). While previous work has primarily been done in yeast, Parashar et al., now extends to mammalian cells (human) and focuses on mutated prohormones, especially Akita insulin, as cargo. Using human osteosarcoma U-2 OS cells for ectopic expression of an array of fluorescently tagged proteins, the authors demonstrate that manipulation of autophagy flux increases delivery of Akita insulin to LAMP1 lysosomes and this is dependent on cooperative interactions between SEC24C and the tubular ER-phagy receptor RTN3. Distinct pools of small and large Akita puncta are identified with the former associated with the tubular ER-network and the latter linked to sheet-like ER. Disruption of the tubular network in LNPK KO cells leads to larger puncta formation and this is partially rescued with RTN3 overexpression. A similar proposition is made for AVP and POMC prohormones carrying misfolding mutations.

The manuscript is well written and easy to follow, albeit could use improvement in reporting which expression system is used for each experiment (transient vs stable) and data quantification. Specific comments follow below.

– The use of fluorescently tagged proteins to avoid staining artifacts while easily allowing spatiotemporal tracking are seen as a strength of the study. This point would have been strengthened even further if authors provide a quantitation of the expressed proteins (SEC24C, RTN3, etc) relative to endogenous levels and avoid uncertainty due to exceedingly high ectopic expression. Using COL1A1 as an alternative cargo channeled through FAM134B helps increasing confidence about the selectivity of the SEC24C-RTN3 system.

– While it is acceptable to work out some of the mechanistic details in the chosen cellular system (U-2 OS), the physiological relevance of the study is clouded by not including cell lines that naturally process the studied cargos in their native state. The lack of a reference point (endogenous insulin) makes it very hard to interpret if some of the alterations in Akita puncta dynamics occur due to exceedingly high ectopic expression. In this sense, using murine MIN6 or human EndoC-βH1 to demonstrate SEC24C-RTN3-dependent Akita insulin ER-phagy degradation, while WT proinsulin is also present at comparable levels, would be a great addition to the study. This is also important since, as stated in the discussion (Page 14, lines 21-23), Akita forms oligomeric complexes with WT insulin. Along the same line, neuronal cell lines should be considered for POMC/AVP studies.

– Still on the physiological relevance, the Akita mouse is a model of progressive β-cell loss due to increased ER-stress causing overt diabetes (PMID: 11854325). Is the transcriptional ER-stress response further exacerbated by preventing ER-phagy degradation?

– Torin2 as a model of mTORC-regulated autophagy (Figure 1). In addition to inhibition of both mTORC1 and mTORC2, torin2 also exerts potent inhibitory effects against other kinases including ATR, ATM and DNA-PK (PMID: 2343680). While mTORC1/2 act as nutrient sensors, these other kinases are activated in response to DNA-damage and also regulate autophagy (PMID: 31983282; PMID: 31911943).

– Is there a context selectivity (e.g. nutrient starvation, DNA-damage) that governs SEC24C-linked ER-phagy?

– Can SEC24C-linked ER-phagy be demonstrated in more physiologic models (e.g. serum withdrawal)?

– Seems like Torin2-induced autophagy is only used to demonstrate SEC24C colocalization with RTN3 and LC3B (Figure1) and only blockade of autophagic flux with BafA and inhibition of ULK activity with MRT68921 is used onwards. Is there a specific reason for that? Does Akita trafficking to LAMP1 lysosomes also increase in Torin2-treated cells or some of the conditions suggested above?

– Only a fraction of Akita insulin seems to undergo lysosomal degradation (Figure 2A). What is the fractional Akita content that is transported to LAMP1 lysosomes? It is not clear what "relative pixel intensity" means (Figure 2B). It would also be important that authors demonstrate the distribution of Akita molecules across other cell compartments (e.g. ER, Golgi) using specific markers.

– Page 8, Lines 11-12. "Akita puncta are not aggregates as previously suggested, but instead behave as liquid condensates". This is a strong proposition that should be consolidated with additional experiments. Proteins that form phase separated condensates show dose-dependency and are sensitive to increases in NaCl concentration in vitro (PMID: 32895492). Can this be demonstrated for the Akita insulin? Is this modified by the presence of WT proinsulin? If not further developed, authors should reconsider the use of "condensates" term in the title of the article. In addition, it is unclear why the photobleaching experiments in Figure 3F are done only MRT68921-treated cells and untreated controls are not included.

– The experiments in Figure 6 are difficult to interpret since the overexpression levels achieved for RTN3 and RTN4 are not reported.

– Introduction. Page 3, line 12. Please define HSAN.

– Results. Page 6, line 22-23. "Furthermore, large Akita puncta accumulated in cells depleted of SEC24C". Was this due to enlargement of small Akita puncta or did the total number of Akita puncta also increased by SEC24C depletion?

– Results. Page 8, line 21. "Proinsulin localizes to the ER, ERS and Golgi". Not clear what criteria are used to reach this conclusion since figure only shows proinsulin and SEC24 colocalization.

– Results. Page 9, line 14. Quantitation of transfection controls (siCTL) is reported for experiments on Figure 4, but no representative images are provided in the main Figure or associated supplement.

– Results. Page 9, line 19-20. "…indicating that the association of RTN3 with LC3B does not depend on SEC24C". Could this be a compensatory effect of SEC23A? Is the Akita-LC3B colocalization preserved in double SEC24C/23A knockdown cells?

– Results. Page 10, line 18. "POMC-C28F is a mutant prohormone that causes early onset diabetes". In humans, the POMC-C28F variant has been linked to early onset obesity and not diabetes (PMID: 18697863).

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Endoplasmic reticulum tubules limit the size of misfolded protein condensates" for further consideration by eLife. Your revised article has been evaluated by David Ron (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

You will see that reviewers #1 and 3 are fully supportive of this work but #2 has some remaining concerns which we feel may be addressed by additional measurements with data you should have in hand. Please address the concern in point 1 of reviewer #2. After further discussion, #2 offers the following comments on point 2:

The issue is that the images in 5D don't seem consistent with the quantification shown in 5G or I don't understand how the quantification was done. If they explain the quantification in more detail, it could be fine. Confirming the result by co-IP is not necessary if they quantification of the images is clear and the Dikic paper is cited.

Please address these concerns and we will make a final decision without the need to consult the reviewers again.

Reviewer #1:

I have reviewed the new version of the submission by Parashar et al. focusing on the comments I made in my review of the previous submission of this work. The authors have satisfied all my concerns. They have highlighted the results of the previously published work by Grumati et al. on the molecular association of RTN3 with SEC24C but not with the other paralogs of SEC24. Although they referenced this work in their previous submission, the inclusion of an explicit summary of those results helps to support the conclusion they wish to draw.

Two new results address my other concerns. They have now used reconstruction of serial Z-sections to document the association of large Akita puncta with sheets of ER in Lunapark KO cells and in cells over-expressing Climp63, but not when the over-expressed Climp63 is compensated by over-expression of RTN4. They have also demonstrated that the accumulation of COLA1 causes the accumulation of at least partially no-fluid domains of aggregate protein in contract the more fluid nature of Akita accumulated in ER tubules.

I see no other concerns and believe this interesting work merits publication in eLife.

Reviewer #2:

The revised version of this study is improved, but some issues remain. It now uses a second method to increase ER sheets (Climp63 overexpression) and finds this leads to the accumulation of large Akita puncta and decreases deliver of Akita to lysosomes. These changes are reversed by also overexpressing RTN4, which increases ER tubulation. Together, these results strengthen support for a correlation between the extent of ER tubulation and Akita condensate degradation rate. However, there are still concerns about how the microscopy results are quantified.

1. ER shape and condensate formation are quantified as "% cells with sheet-like ER" and "% cells with large Akita puncta" (Figure 5D, Figure 5 Sup1 CD). This makes it hard to see how well condensate abundance and size correlate with ER sheet volume. It would be better if the mean % of ER in sheets and the mean size of Akita condensates per cell were determined. This will help make it clearer that there is a good correlation between ER sheet abundance and condensate size and number.

2. The claim that Akita condensates are specifically enriched near RTN3 but not SEC61 is still not convincing. Rev 1 had related concerns (point 1). In response to my comments about how Akita colocalized with RTN3 is assessed, the rebuttal letter states "only RTN3 [and not SEC61] concentrated in puncta colocalize with the small Akita puncta in tubules" (Figure 6D), but Akita seems to be all over the ER, together with RTN3 and SEC61. This issue can be addressed in two ways. First, clearly define what counts as an Akita punctum (condensate) and what distinguishes them from the rest of the Akita signal. Second, use an objective measure of colocalization or association. Also, as Rev 1 suggests, it also would be good if condensate association with RTN3 were confirmed by a second method (e.g., by IPs as in ref 32).

Reviewer #3:

In their response letter and revised version of the manuscript "Endoplasmic reticulum tubules limit the size of misfolded protein condensates" by Parashar et al., the authors have responded to all points raised and have made modifications to improve data reporting and interpretation, especially regarding the expression levels of the cellular models used. More importantly, the authors now include new data on Akita puncta formation in insulin-secreting cell lines (INS1) and linked it to altered ER structure, which increases confidence about the physiological relevance of their findings making the manuscript suitable for publication.

https://doi.org/10.7554/eLife.71642.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

Reviewer #1:

Parashar et al. present interesting results on the organization of a specialized zone of the endoplasmic reticulum, ER tubules, that appear to organize the autophagic engulfment and diversion to the lysosome of a mutant, misfolded form of proinsulin, the Akita mutant protein. This specialized zone correlates to the localization of an ER membrane protein, RTN3, known to promote membrane tubulation and also to cytoplasmic subunits, SEC24C and SEC23A, of a coat protein complex that participates in sorting of membrane proteins destined to traffic the ER. In contrast to what had been assumed of aggregated forms of the Akita mutant proinsulin, the authors find that puncta of the accumulated protein remain in a fluid state, characteristic of protein condensates rather than of a more rigid protein aggregate.

Parashar et al. have investigated the localization and fluid properties of mutant Akita that accumulates in the ER and is subject to a process of turnover in the lysosome termed ER-phagy. The work relies on live cell imaging of transfected forms of fluorescnety tagged forms of Akita, of wild type prolinsulin, collagen, RTN3, Sec24C and mutant forms of other prohormones. The broad conclusions are consistent with and extend previous observations on the role of RTN3 in formation of ER tubules in relation to the ER-phagy of other misfolded proteins subject to lysosomal degradation.

The novel conclusions the authors make are that the Akita mutant protein is in a fluid protein condensate state rather than as an aggregate and that ER-phagy operates selectively on tubular membrane marked by their content of RTN3 in the membrane and SEC24C on the cytoplasmic face of the tubular membrane.

I have several concerns that could be addressed by additional experimental work and a few small issues with the text.

1. All of the conclusions of this work rely on visual inspection of fluorescently-tagged over-expressed proteins. At the very least, this should be expressed as a limitation of the analysis but it would help support the strength of the conclusions if at least some of the work was repeated by another approach. One such additional approach would be to use immunoprecipitation of RTN3 to detect a a possibly selective association with SEC24C under conditions that promote ER-phagy in non-transfected cells. If the endogenous level of these two proteins is too low, the authors might consider a proximity labeling approach with APEX-tagged Akita, RTN3 or SEC24C.

In support of our localization studies is an earlier study from Ivan Dikic’s lab that reported the interactome for RTN3L and RTN3S during starvation induced ER-phagy (Grumati et al. eLife 2017). The long form of RTN3 (RTN3L) is required for ER-phagy, while the short form (RTN3S) is not. RTN3L, but not RTN3S, specifically co-precipitated with the endogenous copy of SEC24C during starvation. Additionally, endogenous SEC24C, and not other SEC24 isoforms, co-precipitated with RTN3L. While the IP experiments with RTN3L and RTN3S were performed with stably-transfected cells, and the expression levels of ectopic RTN3L and RTN3S in these cell lines was not reported, the specificity of these IPs indicates that they are physiologically relevant. Additionally, all the co-precipitating proteins in the interactome were endogenously expressed proteins. These findings are now described in the text (see Results section entitled “SEC24C colocalizes with LC3B and RTN3 in Torin-treated cells”). Please note that our localization studies with RTN3 and SEC24C are totally consistent with what we observed in yeast when we analyzed the endogenous copy of these homologues (see Cui et al. Science 2019). This is also mentioned in the text. In addition, see our response to Reviewer #3 (first and second response) about the expression levels of the proteins we used in our studies, and the physiological relevance of our studies.

2. How is the Akita protein retained in proximity to RTN3 in the membrane? Is there a direct interaction or is the Akita condensate anchored by some other means to the putative tubular regions of the ER?

This is an interesting question. RTN3 does not have a luminal domain, therefore, it is unlikely that it binds directly to Akita. A possible scenario is that RTN3 interacts with Akita via a transmembrane chaperone that has a luminal domain. We plan to use a variety of approaches to address this point, but currently, a molecular answer to this question is beyond the scope of this manuscript.

3. The claim of tubular ER vs. sheets of ER is not supported in a convincing manner.

Previous work certainly has established that RTN3 functions in membrane tubulation and the role of lunapark in the organization of tubular membranes has also been made in other work. However, the confocal images in this manuscript do not clearly and independently justify the conclusions of tubular vs. sheet ER membrane localization. These claims should be justified by serial confocal or super resolution microscopy reconstruction of images to more clearly document the claim of tubular vs ER sheet localization.

To show that the large Akita puncta accumulate in ER sheets, while the small puncta are present in tubules, we captured Z-slices and performed a 3D reconstruction of the Akita puncta from control and LNPK KO cells, as well as control cells transfected with Climp63 or Climp63 and RTN4 (see Figure 5B-C and movies S3 and S4; Figure 5—figure supplement 1 and movies S5 and S6). These data demonstrate that the large Akita puncta are present in the sheets, while the small puncta are in tubules. Representative images are shown in Figure 5B-C and Figure 5—figure supplement 1.

Reviewer #2:

Previous work from this group showed that some ER-phagy requires SEC24C and RTN3 (PMID: 31273116). The present study reveals these proteins are necessary for degradation of regions of the ER containing accumulations of Akita, a dominant interfering mutant of proinsulin. It also shows that the puncta are probably protein condensates rather than aggregates as had been thought. The condensates become enlarged when SEC24C and RTN3 are depleted, consistent with the idea that Akita condensates are degraded by ER-phagy. This part of the study is well done and convincing. The study goes on to argue that ER structure plays an important role in targeting Akita condensates for degradation by ER-phagy; decreasing the abundance of tubular ER reduces Akita condensate degradation, while restoring ER tubules promotes degradation. The authors suggest ER tubulation promotes Akita condensate degradation by facilitating their interaction with SEC24C and by physically limiting condensate growth, preventing them from becoming too large for degradation by ER-phagy. If true, this is an important conceptual advance in our understanding of how ER shape promotes protein segregation, affects condensate formation, and plays a role in quality control of ER proteins. However, additional work is necessary to make a stronger case for the model.

Overall, this is a well-done, largely convincing study. It demonstrates that ER-phagy requiring SEC24C and RTN3 degrades Akita condensates in the ER. However, the idea that the extent of ER tubulation is a major determinant of condensate size or targeting to sites of ER-phagy requires additional evidence.

1. The only way ER structure is altered is knockout of Lunapark, which could affect ER function in ways beyond altering structure. The study would be stronger if it were shown that increasing ER sheets by another method affected Akita degradation similarly to knockout of Lunapark. For example, ER sheets could be induced by overexpression of Climp63 [PMID: 21111237]. It is not necessary to repeat all the work with the Lunapark knockout, but it should be shown that increasing ER sheets by another mechanism causes an increase the percent of cells with large Akita puncta (as in Figure 4A) and reduces Akita degradation in LAMP1-positive structures (as in Figure 5—figure supplement 3A,B)

We have now proliferated ER sheets by overexpressing Climp63 and shown that this leads to the accumulation of large Akita puncta in the ER (see Figure 5—figure supplement 1), and a decrease in the delivery of Akita to lysosomes (Figure 5—figure supplement 2A-B). Furthermore, we showed that the co-overexpression of Climp63 with RTN4, a protein that drives ER tubulation, decreased the number of large Akita puncta (Figure 5—figure supplement 1). Thus, by using two different methods to proliferate ER sheets, LNPK KO cells and Climp63 overexpression, we obtained the same outcome.

2. Deletion of Lunapark could affect Akita condensates in ways unrelated to changes in ER tubulation. Condensate formation is probably largely determined by the concentration of Akita in the ER, which could increase if the volume of the ER is reduced in cells lacking Lunapark or if Akita abundance increases in these cells. ER shape might also affect condensate mobility in the ER, which could alter the rate of coalescence of small condensates into larger ones. It also possible that the number or distribution of SEC24C puncta is altered in cells lacking Lunapark, which could reduce degradation of akita condensates. In short, there are a number of ways deletion of Lunapark could affect condensate size that are unrelated to the amount of tubulation of the ER. The study would be stronger if these other possibilities were ruled out but, at a minimum, they should be acknowledged and discussed.

While it is very difficult to address if the loss of LNPK reduces the volume of the ER, or changes the ER in ways that are unrelated to tubulation, we have performed several experiments to address the concerns stated above. First, we proliferated ER sheets by a second method, the overexpression of Climp63 (see new data added in Figure 5—figure supplement 1 to the Results section entitled “Akita puncta enlarge in sheet-like ER” and the discussion). Large Akita puncta accumulated in Climp63 overexpressing cells when ER sheets increased. The observation that two different methods, used to proliferate ER sheets, has the same outcome on Akita puncta size strengthens our proposal that Akita puncta enlarge in ER sheets. Second, we have shown that the number of SEC24C puncta is not reduced in LNPK KO cells (see Figure 5-supplement 6B and Results section entitled “The association of Akita with RTN3 is required for the formation of ERPHS”). Finally, we also measured the velocity of the Akita puncta in LNPK KO cells and found that the velocity of the small puncta was unaltered compared to control cells (Figure 5—figure supplement 7B and Results section “The association of Akita with RTN3 is required for the formation of ERPHS”). The velocity of larger Akita puncta is slightly increased in LNPK KO cells, but this was also observed for large puncta in cells when autophagosome formation was blocked with the ULK1/2 inhibitor, MRT68921 (Figure 3—figure supplement 1A). In total, our findings indicate that ER shape plays an important role in ER quality control.

3. The idea that ER tubules restrict the size of condensates seems implausible. What would stop condensates from expanding along the length of the tubule?

The rate of condensate expansion is proportional to the surface area that is accessible to the high MWT Akita oligomers in solution. In a sheet, a condensate would be accessible along its entire equatorial circumference. In a tubule, accessibility of the condensate would be limited to the ends facing the tubule lumen. A condensate in the tubule is inaccessible to the soluble Akita oligomers in the area adjacent to the wall. Thus, a condensate could expand along the length of a tubule, but its growth rate would be limited by its reduced accessibility. This is now explained in the discussion.

4. I do not understand the claim only a small fraction of Akita puncta are positive for RTN3 or Sec61 (Figure 6D-G; Figure 5 supplement 3,F). In the images provided all Akita puncta look positive for both proteins. Shouldn't Sec61-β, which is widely used as a general ER marker, be present in all ER domains together with Akita puncta?

The diffuse pool of Akita throughout the network colocalizes with RTN3 and SEC61 in the network, but only RTN3 concentrated in puncta colocalize with the small Akita puncta in tubules. SEC61 does not concentrate in puncta that colocalize with Akita puncta. This is now stated more clearly in the text.

Reviewer #3:

The manuscript by Parashar et al., builds on previous work from the same group demonstrating the involvement of COPII coat proteins in selective routing of unfolded proteins in the ER for autophagic degradation by ER-phagy (Cui et al., 2019). While previous work has primarily been done in yeast, Parashar et al., now extends to mammalian cells (human) and focuses on mutated prohormones, especially Akita insulin, as cargo. Using human osteosarcoma U-2 OS cells for ectopic expression of an array of fluorescently tagged proteins, the authors demonstrate that manipulation of autophagy flux increases delivery of Akita insulin to LAMP1 lysosomes and this is dependent on cooperative interactions between SEC24C and the tubular ER-phagy receptor RTN3. Distinct pools of small and large Akita puncta are identified with the former associated with the tubular ER-network and the latter linked to sheet-like ER. Disruption of the tubular network in LNPK KO cells leads to larger puncta formation and this is partially rescued with RTN3 overexpression. A similar proposition is made for AVP and POMC prohormones carrying misfolding mutations.

The manuscript is well written and easy to follow, albeit could use improvement in reporting which expression system is used for each experiment (transient vs stable) and data quantification. Specific comments follow below.

We now state in the Materials and methods (see section entitled “Image Analysis”) and/or in the legends when we used transient transfection or stable cell lines. Additional data quantification is also reported (see response below).

– The use of fluorescently tagged proteins to avoid staining artifacts while easily allowing spatiotemporal tracking are seen as a strength of the study. This point would have been strengthened even further if authors provide a quantitation of the expressed proteins (SEC24C, RTN3, etc) relative to endogenous levels and avoid uncertainty due to exceedingly high ectopic expression. Using COL1A1 as an alternative cargo channeled through FAM134B helps increasing confidence about the selectivity of the SEC24C-RTN3 system.

We agree that the use of fluorescently tagged proteins in live cells was the best method for the analysis of ERPHS in our studies. We have now quantitated expression levels for fluorescently tagged SEC24C, RTN3, LC3B and RTN4 in the Materials and methods (see section entitled “Image Analysis”). For markers that were introduced by transient transfection, there was no more than 2 fold average overexpression. For the mCherryRTN3 stable cell line there was approximately 4-5.5 fold overexpression. All localization experiments in the manuscript were performed by transient transfection, except for the experiments with RTN3, which were performed with stable cell lines as well as transient transfection. The results we obtained for RTN3 by both methods were the same, and except for Figure 1C-D, only the results with the stable cell line are shown in the manuscript (see legends for more info). Despite the ˜5 fold overexpression, the results we obtained with the stable RTN3 cell lines are physiologically relevant as we observed an increased colocalization of RTN3 with SEC24C in response to ER-phagy induction by Torin. This increased colocalization was specific for SEC24C, and was not seen with SEC24A, SEC13 and SEC16. Furthermore, it is of note that the RTN3-coat colocalization results that we report in this manuscript mimic what we observed in yeast with fluorescently tagged proteins expressed at the endogenous level (see Cui et al. Science 2019).

– While it is acceptable to work out some of the mechanistic details in the chosen cellular system (U-2 OS), the physiological relevance of the study is clouded by not including cell lines that naturally process the studied cargos in their native state. The lack of a reference point (endogenous insulin) makes it very hard to interpret if some of the alterations in Akita puncta dynamics occur due to exceedingly high ectopic expression. In this sense, using murine MIN6 or human EndoC-βH1 to demonstrate SEC24C-RTN3-dependent Akita insulin ER-phagy degradation, while WT proinsulin is also present at comparable levels, would be a great addition to the study. This is also important since, as stated in the discussion (Page 14, lines 21-23), Akita forms oligomeric complexes with WT insulin. Along the same line, neuronal cell lines should be considered for POMC/AVP studies.

We have performed several experiments to show that the cargos we analyzed in this study behave similarly to the way they would in insulin secreting cells or neuronal cell lines. First, we showed that when Akita-sfGFP and Proinsulin-FLAG are co-expressed in U2OS cells, they colocalize to the large Akita puncta (Figure 5—figure supplement 4). This observation is consistent with published studies showing that Akita (Akita-sfGFP) traps wild-type proinsulin in the ER in insulin secreting INS1 b cells (Haataja et al. J Biol Chem 2013 vol 288 p1896). Similar results were also obtained when G57S Pro-AVP-FLAG was co-expressed with Pro- Pro-AVP-HA, or C28F POMC-FLAG was co-expressed with POMCMyc (Figure 5—figure supplement 4).

We also performed experiments with insulin secreting cells. We decided not to use human EndoC-bH1 cells as it is difficult to obtain this cell line. Instead, we used INS1 cells which are regularly used by others to study Akita. While the compact nature of the INS1 cells made it difficult to resolve tubules vs sheets, we were able to test the most important conclusion in the manuscript (i. e. that Akita condensates enlarge in ER sheets). We proliferated sheets by overexpressing Climp63, in growth medium that stimulates insulin secretion, and showed this leads to a significant accumulation of large Akita puncta (Figure 5—figure supplement 5). Furthermore, 3D reconstructions of the ER suggested that the large puncta are in sheet-like ER. Please also see comment #1 of Reviewer #2 and my response.

– Still on the physiological relevance, the Akita mouse is a model of progressive β-cell loss due to increased ER-stress causing overt diabetes (PMID: 11854325). Is the transcriptional ER-stress response further exacerbated by preventing ER-phagy degradation?

An earlier study showed that Akita-myc expression, in HEK293T cells, increased XPB1 spicing, which was further increased by knocking down RTN3 (see Cunningham et al. Mol Cell vol 75, 2019). Given that Akita puncta enlarge in INS1 cells when ER sheets are proliferated by Climp63 overexpression, we anticipate that similar results would be obtained in an Akita mouse model.

– Torin2 as a model of mTORC-regulated autophagy (Figure 1). In addition to inhibition of both mTORC1 and mTORC2, torin2 also exerts potent inhibitory effects against other kinases including ATR, ATM and DNA-PK (PMID: 2343680). While mTORC1/2 act as nutrient sensors, these other kinases are activated in response to DNA-damage and also regulate autophagy (PMID: 31983282; PMID: 31911943).

– Is there a context selectivity (e.g. nutrient starvation, DNA-damage) that governs SEC24C-linked ER-phagy?

– Can SEC24C-linked ER-phagy be demonstrated in more physiologic models (e.g. serum withdrawal)?

We do not know if Torin is inhibiting other kinases, besides mTORC, but we used Torin in Figure 1 and Figure 1-supplement 1 (instead of starvation) for a reason. The goal was to compare the localization of SEC24C, during ER-phagy induction, to its yeast homologue Lst1. For the Lst1 localization studies (Cui et al. 2019 Science), ER-phagy was induced with a Tor inhibitor, and not starvation.

In this manuscript, we also induced SEC24C-mediated ER-phagy in ways that do not depend on Torin. Specifically, we used several misfolded proteins, Akita, G57S Pro-AVP and C28F POMC to induce ER-phagy. Additionally, it should be noted that RTN3mediated ER-phagy was previously shown to be induced by starvation (Grumati et al. eLife 2017).

– Seems like Torin2-induced autophagy is only used to demonstrate SEC24C colocalization with RTN3 and LC3B (Figure1) and only blockade of autophagic flux with BafA and inhibition of ULK activity with MRT68921 is used onwards. Is there a specific reason for that? Does Akita trafficking to LAMP1 lysosomes also increase in Torin2-treated cells or some of the conditions suggested above?

As mentioned above, we only used Torin in U2OS cells to compare our localization studies with yeast. The focus of this manuscript is not how SEC24C-mediated ER-phagy behaves in response to Torin or starvation. Rather, the focus is how RTN3-SEC24C mediated ERphagy and ER tubules contribute to ER quality control.

– Only a fraction of Akita insulin seems to undergo lysosomal degradation (Figure 2A). What is the fractional Akita content that is transported to LAMP1 lysosomes? It is not clear what "relative pixel intensity" means (Figure 2B). It would also be important that authors demonstrate the distribution of Akita molecules across other cell compartments (e.g. ER, Golgi) using specific markers.

Approximately 1-2% of the total Akita is delivered to the lysosome during ER-phagy. To estimate the fraction of Akita that is transported to lysosomes during ER-phagy, we divided the Akita-positive area that overlaps with LAMP1 by the total Akita area in the cell on a per-cell basis. The calculation for the total Akita in the cell included the Akita present in the network as well as the puncta. This information has now been added to the Materials and methods (see section entitled “Measurement of Akita delivery to lysosomes”).

As described in the Materials and methods (see section entitled “Measurement of Akita delivery to lysosomes”), and now the legend of Figure 2 (to make it more evident), the relative pixel intensity for each condition is the mean intensity of Akita-sfGFP in the pixels that overlap with LAMP1. The data was normalized to the mean intensity obtained in the DMSO control.

Peter Arvan’s lab has extensively studied the localization of Proinsulin and Akita in insulin secreting rat cells and other cell lines, including U2OS cells. He has shown that Proinsulin has a juxtanuclear localization that colocalizes with the early Golgi marker, p115, in U2OS cells (see Haataja et al. J Biol Chem 2013). We have also observed Proinsulin near the nucleus (see the first paragraph of the Results section entitled “Akita colocalizes with SEC24C-SEC23A and RTN3-LC3B”). In addition, previous studies have shown that Akita is retained in the ER in insulin and non-insulin secreting cells and is not in a juxtanuclear pool (Haataja et al. J Biol Chem 2013). We have observed a similar localization of Akita in U2OS cells and shown that the diffuse pool of Akita in the ER network colocalizes with ER markers (see Figure 5). We also report small Akita puncta in the ER tubules that colocalize with RTN3 puncta (see Figure 5D-E). The puncta that contain Akita and RTN3 are putative sites of ER-phagy. SEC61 does not concentrate in puncta that colocalize with Akita puncta.

– Page 8, Lines 11-12. "Akita puncta are not aggregates as previously suggested, but instead behave as liquid condensates". This is a strong proposition that should be consolidated with additional experiments. Proteins that form phase separated condensates show dose-dependency and are sensitive to increases in NaCl concentration in vitro (PMID: 32895492). Can this be demonstrated for the Akita insulin? Is this modified by the presence of WT proinsulin? If not further developed, authors should reconsider the use of "condensates" term in the title of the article. In addition, it is unclear why the photobleaching experiments in Figure 3F are done only MRT68921-treated cells and untreated controls are not included.

The criteria we have used to conclude Akita puncta are condensates are those established in Banani et al. 2017 Nat Rev Mol Cell Biol 18, 285-298. This is now explained more clearly in the text (see last paragraph of Results section entitled “SEC24C colocalizes with small, highly mobile Akita puncta”). We also consulted with experts in the condensate field (Michael Rosen, UT Southwestern; James Shorter, U of Penn) to ensure we were interpreting the literature correctly. For these reasons, we feel it is appropriate to use the term “condensates” in the title.

We performed photobleach experiments using a variety of conditions. For example, MRT68921-treated cells, LNPK KO cells and siRTN3 depleted cells (Figure 3-supplement 1, Figure 5-supplements 8 and 9) were used for the FRAP experiments. We used MRT68921-treated cells for the FRAP studies because it increased the number of large Akita puncta, which facilitated the FRAP analysis of these puncta. The large puncta that form in MRT68921-treated cells do not appear to behave differently from the large puncta in control cells (i. e. puncta movement was the same in the absence and presence of MRT68921-see Figure 3-supplement 1A). Furthermore, the FRAP data of the large puncta in LNPK KO cells and siRTN3 cells was the same as with MRT68921-treated cells.

– The experiments in Figure 6 are difficult to interpret since the overexpression levels achieved for RTN3 and RTN4 are not reported.

The level of RTN3 and RTN4 overexpression are now reported in the Materials and methods (see section entitled “Image Analysis”). But, please note that we are intentionally overexpressing these proteins to change ER shape. The data in Figure 6C confirms that overexpressing RTN3 and RTN4 in LNPK KO cells changed the shape of the ER. The overexpression of the tubule forming protein, RTN4, is commonly used to convert ER sheets to tubules. The consequence of RTN3 overexpression was also examined in our studies as a control. As RTN3 is an ER-phagy receptor, that is needed to clear Akita from the ER, the overexpression of RTN3 should decrease the number of large Akita puncta. Although RTN3 is not a tubule forming protein, RTN3 overexpression increases the density of three-way conjunctions in the ER (see Wu and Voeltz Dev Cell 2021 vol 56, 52-66). In LNPK KO cells, where fewer junctions are present, RTN3 overexpression also drives the conversion of sheets to tubules.

– Introduction. Page 3, line 12. Please define HSAN.

This has been defined.

– Results. Page 6, line 22-23. "Furthermore, large Akita puncta accumulated in cells depleted of SEC24C". Was this due to enlargement of small Akita puncta or did the total number of Akita puncta also increased by SEC24C depletion?

This was due to the enlargement of the Akita puncta in the siSEC24C cells as the %cells with puncta, of all sizes, did not change when puncta were compared in siSEC24C vs siCtrl cells. These numbers are now stated in the legend to Figure 2.

– Results. Page 8, line 21. "Proinsulin localizes to the ER, ERS and Golgi". Not clear what criteria are used to reach this conclusion since figure only shows proinsulin and SEC24 colocalization.

This sentence has been changed. Please see the first paragraph in the Results section entitled “Akita colocalizes with SEC24C-SEC23A and RTN3-LC3B” for more information.

– Results. Page 9, line 14. Quantitation of transfection controls (siCTL) is reported for experiments on Figure 4, but no representative images are provided in the main Figure or associated supplement.

We have now provided a representative image of the colocalization of Akita with SEC24C and SEC24A at 0h of treatment with MRT68921 (see Figure 4-supplement 1A). Images for the 0h time point were not provided in the previous submission. We also provided an image for the colocalization of Akita with SEC24C in siRTN3 cells that were treated with MRT68921 for 3.5 h (Figure 4-supplement 3A). Images for the siCtl at 0h and 3.5h were not provided as they are completely redundant with the images in Figure 4-supplement 1A (0h MRT68921) and Figure 4A (3.5h MRT68921). We also did not provide an image for the colocalization of Akita with SEC24C in siRTN3 cells at 0h MRT68921 as it is redundant with Figure 4-supplement 3A.

Please note that we added a Ctrl image for Akita-LC3B colocalization to Figure 5—figure supplement 6D.

– Results. Page 9, line 19-20. "…indicating that the association of RTN3 with LC3B does not depend on SEC24C". Could this be a compensatory effect of SEC23A? Is the Akita-LC3B colocalization preserved in double SEC24C/23A knockdown cells?

We do not think there are compensatory effects of SEC23A. All SEC24 isoforms are found in a complex with SEC23. A key function of SEC23 in the COPII coat is to recruit the COPII coat outer shell, SEC31-SEC13, which does not appear to be required for ER-phagy in mammalian cells or yeast (see Cui et al. Science 2019). This observation implies that SEC23 associates with ERPHS, due to its stoichiometric association with SEC24C, and does not directly contribute to ER-phagy.

– Results. Page 10, line 18. "POMC-C28F is a mutant prohormone that causes early onset diabetes". In humans, the POMC-C28F variant has been linked to early onset obesity and not diabetes (PMID: 18697863).

This has been corrected.

[Editors’ note: what follows is the authors’ response to the second round of review.]

Reviewer #2:

The revised version of this study is improved, but some issues remain. It now uses a second method to increase ER sheets (Climp63 overexpression) and finds this leads to the accumulation of large Akita puncta and decreases deliver of Akita to lysosomes. These changes are reversed by also overexpressing RTN4, which increases ER tubulation. Together, these results strengthen support for a correlation between the extent of ER tubulation and Akita condensate degradation rate. However, there are still concerns about how the microscopy results are quantified.

1. ER shape and condensate formation are quantified as "% cells with sheet-like ER" and "% cells with large Akita puncta" (Figure 5D, Figure 5 Sup1 CD). This makes it hard to see how well condensate abundance and size correlate with ER sheet volume. It would be better if the mean % of ER in sheets and the mean size of Akita condensates per cell were determined. This will help make it clearer that there is a good correlation between ER sheet abundance and condensate size and number.

Please see Figure 5—figure supplement 1E and F for the new presentation of the data as the mean size of Akita puncta per cell that this reviewer requested. The following samples were analyzed: Control, CLIMP63 and CLIMP63 +RTN4 overexpressing cells (Figure 5—figure supplement 1E); Control, LNPK KO and LNPK KO+RTN4 overexpressing cells (Figure 5—figure supplement 1F). The explanation for how this data was calculated can be found in the Materials and methods in the section entitled “Image Analysis”.

We do not feel we can objectively calculate the mean % of ER in sheets per cell using the current images, as suggested in the decision letter. An objective calculation would likely require serial thin section electron microscopy or tomography. In brief, since we could not find examples in the literature on how to calculate the numbers the reviewer requested, we tried different thresholding methods to capture tubules and sheets. We then deleted by hand individual tubular objects, leaving only what we considered sheets. This process involved making many arbitrary decisions for each cell we quantitated. In the end, we found this method to be far less objective than the method that is currently reported in the manuscript. To do the analysis that is reported in the manuscript (% cells with mostly sheet-like ER), we used visual pattern recognition to bin cells as either mostly sheet-like or mostly tubular. This methodology is standard in the field, and routinely used in the laboratories of Tom Rapoport and Gia Voeltz (for an example see Figure 8B and legend in Wang et al. 2016 eLife 5:e18605).

2. The claim that Akita condensates are specifically enriched near RTN3 but not SEC61 is still not convincing. Rev 1 had related concerns (point 1). In response to my comments about how Akita colocalized with RTN3 is assessed, the rebuttal letter states "only RTN3 [and not SEC61] concentrated in puncta colocalize with the small Akita puncta in tubules" (Figure 6D), but Akita seems to be all over the ER, together with RTN3 and SEC61. This issue can be addressed in two ways. First, clearly define what counts as an Akita punctum (condensate) and what distinguishes them from the rest of the Akita signal. Second, use an objective measure of colocalization or association. Also, as Rev 1 suggests, it also would be good if condensate association with RTN3 were confirmed by a second method (e.g., by IPs as in ref 32).

In a cell, Akita is uniformly distributed throughout the ER tubules and sheets, as well as concentrated in puncta. To specifically quantify the Akita puncta in the network, we applied a threshold algorithm (YEN, in ImageJ) that identifies punctate accentuations in the network. We then asked if the identified Akita puncta colocalized with RTN3 or SEC61 puncta. To identify RTN3 or SEC61 puncta in the network, we used the same thresholding algorithm. We then identified colocalized puncta (Akita-RTN3, Akita-SEC61) using the Boolean image calculator in ImageJ. The data in Figure 5G was then calculated as follows: Akita puncta colocalized with RTN3 puncta / total Akita puncta X 100% or Akita puncta colocalized with SEC61 puncta / total Akita puncta X 100%. This information is now provided in the legend to Figure 5. Also see our comment about the Dikic paper in point #1 to Reviewer #1 in the last rebuttal letter.

Please note, in addition to referencing the revised Figures in the text, we also made a few small changes. Some of these changes include 1) revising the abstract, 2) The y-axis in Figure 5—figure supplement 1C, Figure 6C, and Figure 6—figure supplement 1 was changed to % Cells with mostly sheet-like ER, 3) The legend to Figure 5-source data 1 was revised, 4) A typo was corrected in the Materials and methods in the section entitled “Small interfering RNA knockdowns”.

https://doi.org/10.7554/eLife.71642.sa2

Article and author information

Author details

  1. Smriti Parashar

    Department of Cellular and Molecular Medicine, University of California at San Diego, La Jolla, California, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Project administration, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
  2. Ravi Chidambaram

    Department of Cellular and Molecular Medicine, University of California at San Diego, La Jolla, California, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Shuliang Chen

    Department of Cellular and Molecular Medicine, University of California at San Diego, La Jolla, California, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Christina R Liem

    Division of Biological Sciences, University of California at San Diego, La Jolla, California, United States
    Contribution
    Methodology, Resources
    Competing interests
    No competing interests declared
  5. Eric Griffis

    Nikon Imaging Center, University of California at San Diego, La Jolla, California, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Resources
    Competing interests
    No competing interests declared
  6. Gerard G Lambert

    Department of Neurosciences, University of California at San Diego, La Jolla, California, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Nathan C Shaner

    Department of Neurosciences, University of California at San Diego, La Jolla, California, United States
    Contribution
    Data curation, Formal analysis, Funding acquisition
    Competing interests
    No competing interests declared
  8. Matthew Wortham

    Department of Pediatrics, Pediatric Diabetes Research Center, University of California at San Diego, La Jolla, California, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  9. Jesse C Hay

    Division of Biological Sciences and Center for Structural & Functional Neuroscience, University of Montana, Missoula, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Supervision, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
  10. Susan Ferro-Novick

    Department of Cellular and Molecular Medicine, University of California at San Diego, La Jolla, California, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Supervision, Writing – original draft, Writing – review and editing
    For correspondence
    sfnovick@ucsd.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8714-7352

Funding

National Institute of General Medical Sciences (5R35GM131681)

  • Susan Ferro-Novick

National Institute of Neurological Disorders and Stroke (RO1NS117440)

  • Susan Ferro-Novick

National Institute of Diabetes and Digestive and Kidney Diseases (R01DK068471)

  • Matthew Wortham

National Institute of General Medical Sciences (2R15GM106323)

  • Jesse C Hay

National Institute of General Medical Sciences (R01GM109984)

  • Nathan C Shaner

National Institute of General Medical Sciences (R01GM121944)

  • Nathan C Shaner

National Institute of Neurological Disorders and Stroke (U01NS099709)

  • Nathan C Shaner

National Eye Institute (R21EY030716)

  • Nathan C Shaner

National Institute of Neurological Disorders and Stroke (U01NS113294)

  • Nathan C Shaner

National Science Foundation (1707352)

  • Nathan C Shaner

The Pathways in Biological Science Graduate Training Program

  • Christina R Liem

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Drs. Peter Arvan, Wade Harper, Ling Qi, Tom Rapoport, and Randy Schekman for plasmids, cells, antibodies, and Drs. Maike Sander and Han Zhu for advice and the INS1 cells used in this study. We also thank Dr. Fulvio Reggiori for a critical reading of the manuscript, and Drs. James Shorter and Michael Rosen for advice during the preparation of this manuscript. We acknowledge Andrea Lougheed for preparing the model in Figure 7 and the Nikon Imaging Center at UC San Diego for help with imaging.

Senior Editor

  1. David Ron, University of Cambridge, United Kingdom

Reviewing Editor

  1. Randy Schekman, Howard Hughes Medical Institute, University of California, Berkeley, United States

Publication history

  1. Received: June 25, 2021
  2. Accepted: August 31, 2021
  3. Accepted Manuscript published: September 1, 2021 (version 1)
  4. Version of Record published: October 1, 2021 (version 2)

Copyright

© 2021, Parashar et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,624
    Page views
  • 583
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Smriti Parashar
  2. Ravi Chidambaram
  3. Shuliang Chen
  4. Christina R Liem
  5. Eric Griffis
  6. Gerard G Lambert
  7. Nathan C Shaner
  8. Matthew Wortham
  9. Jesse C Hay
  10. Susan Ferro-Novick
(2021)
Endoplasmic reticulum tubules limit the size of misfolded protein condensates
eLife 10:e71642.
https://doi.org/10.7554/eLife.71642
  1. Further reading

Further reading

    1. Cell Biology
    2. Neuroscience
    Damien Jullié, Camila Benitez ... Mark von Zastrow
    Research Article Updated

    Opioid tolerance is well-described physiologically but its mechanistic basis remains incompletely understood. An important site of opioid action in vivo is the presynaptic terminal, where opioids inhibit transmitter release. This response characteristically resists desensitization over minutes yet becomes gradually tolerant over hours, and how this is possible remains unknown. Here, we delineate a cellular mechanism underlying this longer-term form of opioid tolerance in cultured rat medium spiny neurons. Our results support a model in which presynaptic tolerance is mediated by a gradual depletion of cognate receptors from the axon surface through iterative rounds of receptor endocytosis and recycling. For the μ-opioid receptor (MOR), we show that the agonist-induced endocytic process which initiates iterative receptor cycling requires GRK2/3-mediated phosphorylation of the receptor’s cytoplasmic tail, and that partial or biased agonist drugs with reduced ability to drive phosphorylation-dependent endocytosis in terminals produce correspondingly less presynaptic tolerance. We then show that the δ-opioid receptor (DOR) conforms to the same general paradigm except that presynaptic endocytosis of DOR, in contrast to MOR, does not require phosphorylation of the receptor’s cytoplasmic tail. Further, we show that DOR recycles less efficiently than MOR in axons and, consistent with this, that DOR tolerance develops more strongly. Together, these results delineate a cellular basis for the development of presynaptic tolerance to opioids and describe a methodology useful for investigating presynaptic neuromodulation more broadly.

    1. Cell Biology
    Shunsuke Saito, Tokiro Ishikawa ... Kazutoshi Mori
    Research Article

    A causal relationship between endoplasmic reticulum (ER) stress and the development of neurodegenerative diseases remains controversial. Here, we focused on Seipinopathy, a dominant motor neuron disease, based on the finding that its causal gene product, Seipin, is a protein that spans the ER membrane twice. Gain-of-function mutations of Seipin produce non-glycosylated Seipin (ngSeipin), which was previously shown to induce ER stress and apoptosis at both cell and mouse levels albeit with no clarified mechanism. We found that aggregation-prone ngSeipin dominantly inactivated SERCA2b, the major calcium pump in the ER, and decreased the calcium concentration in the ER, leading to ER stress and apoptosis in human colorectal carcinoma-derived cells (HCT116). This inactivation required oligomerization of ngSeipin and direct interaction of the C-terminus of ngSeipin with SERCA2b, and was observed in Seipin-deficient neuroblastoma (SH-SY5Y) cells expressing ngSeipin at an endogenous protein level. Our results thus provide a new direction to the controversy noted above.
