VGLL2 and TEAD1 fusion proteins identified in human sarcoma drive YAP/TAZ-independent tumorigenesis by engaging EP300
Figures

VGLL2-NCOA2 and TEAD1-NCOA2 Induce TEAD-mediated transcriptional activation.
(A) Schematic representation of protein structure of VGLL2, TEAD1, NCOA2, VGLL2-NCOA2, and TEAD1-NCOA2. Tondu motif (TDU), TEA DNA binding domain (TEA), YAP binding domain (YBD), basic Helix-Loop-Helix (bHLH), Per-Arnt-Sim domain (PAS), nuclear receptor interaction domain (NID), and transcriptional activation domain (TAD). Arrows point to the break points. (B) Immunoblot analysis of YAP5SA, VGLL2-NCOA2, TEAD1-NCOA2, TAZ4SA, TEAD1, VGLL2, and NCOA2 in HEK293T cells transfected with the expression constructs carrying the HA tag. The figure shows the representative results of three biological replicates. (C) YAP5SA, VGLL2-NCOA2, TEAD1-NCOA2, TAZ4SA, TEAD1, VGLL2, and NCOA2 induce transcriptional activation of TBS (TEAD-binding site)-luciferase reporter (TBS-Luc) in HEK293T cells. Data were expressed as mean ± SD. n=3. ****p<0.0001. (D) Heatmap showing expression levels of the core genes including CCN2, CCN1, ANKRD1, and AMOTL2 significantly regulated in HEK293T cells expressing YAP5SA, VGLL2-NCOA2, and TEAD1-NCOA2. N=3. (E) mRNA expression levels of CCN2, ANKRD1, and CCN1 in HEK293T cells expressing YAP5SA, VGLL2-NCOA2, TEAD1-NCOA2, TEAD1, VGLL2, or NCOA2. Data were expressed as mean ± SD. n=3; ****p<0.0001. NS, no significance.
-
Figure 1—source data 1
Original western blot membranes corresponding to Figure 1B indicating the relevant bands.
The molecular weight markers are indicated.
- https://cdn.elifesciences.org/articles/98386/elife-98386-fig1-data1-v1.zip
-
Figure 1—source data 2
Original western blot membranes corresponding to Figure 1B indicating the relevant bands.
- https://cdn.elifesciences.org/articles/98386/elife-98386-fig1-data2-v1.zip

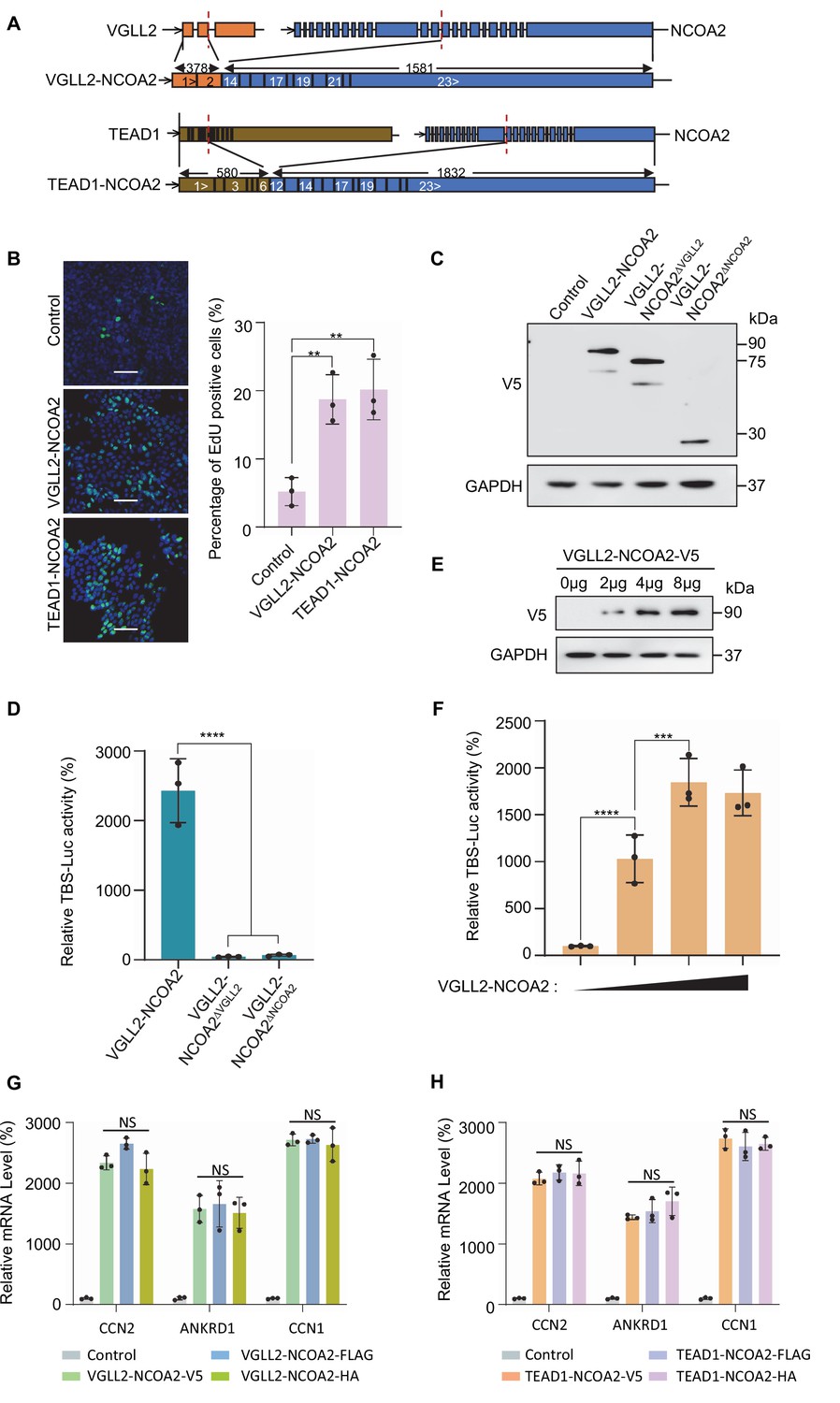

VGLL2-NCOA2 regulates TEAD-dependent reporter activity.
(A) Schematic representation of the exons and breaking points of the VGLL2, TEAD1, and NCOA2 genes involved in generating VGLL2-NCOA2 and TEAD1-NCOA2 gene arrangement. (B) EdU staining showing cell proliferation of HEK293T cells transfected with VGLL2-NCOA2 or TEAD1-NCOA2. Bar chart showing the percentage of EdU-positive cells. Scale bars, 200 μm. Data were expressed as mean ± SD. n=3; **p<0.01. (C) Immunoblot analysis of VGLL2-NCOA2, VGLL2-NCOA2∆VGLL2, and VGLL2-NCOA2∆NCOA2 in HEK293T cells transfected with the expression constructs carrying the V5 tag. (D) TBS-Luc reporter activity in HEK293T cells expressing VGLL2-NCOA2, VGLL2-NCOA2∆VGLL2, and VGLL2-NCOA2∆NCOA2. Data were expressed as mean ± SD. n=3. ****p<0.0001. (E) Immunoblot analysis of VGLL2-NCOA2-V5 in HEK293T cells transfected with different amount of expression constructs. (F) VGLL2-NCOA2 promotes the activation of TBS-Luc reporter in dose-dependent manner. Data were expressed as mean ± SD. n=3. ***p<0.001; ****p<0.0001. (G–H) Relative mRNA levels of CCN2, ANKRD1, and CCN1 in HEK293T cells expressing VGLL2-NCOA2 (G) or TEAD1-NCOA2 (H) with HA (5′ end), FLAG (3′ end), or V5 (3′ end) tag. Data were expressed as mean ± SD. n=3; NS, no significance.
-
Figure 1—figure supplement 1—source data 1
Original western blot membranes corresponding to Figure 1—figure supplement 1C and E indicating the relevant bands.
The molecular weight markers are indicated.
- https://cdn.elifesciences.org/articles/98386/elife-98386-fig1-figsupp1-data1-v1.zip
-
Figure 1—figure supplement 1—source data 2
Original western blot membranes corresponding to Figure 1—figure supplement 1C and E indicating the relevant bands.
- https://cdn.elifesciences.org/articles/98386/elife-98386-fig1-figsupp1-data2-v1.zip

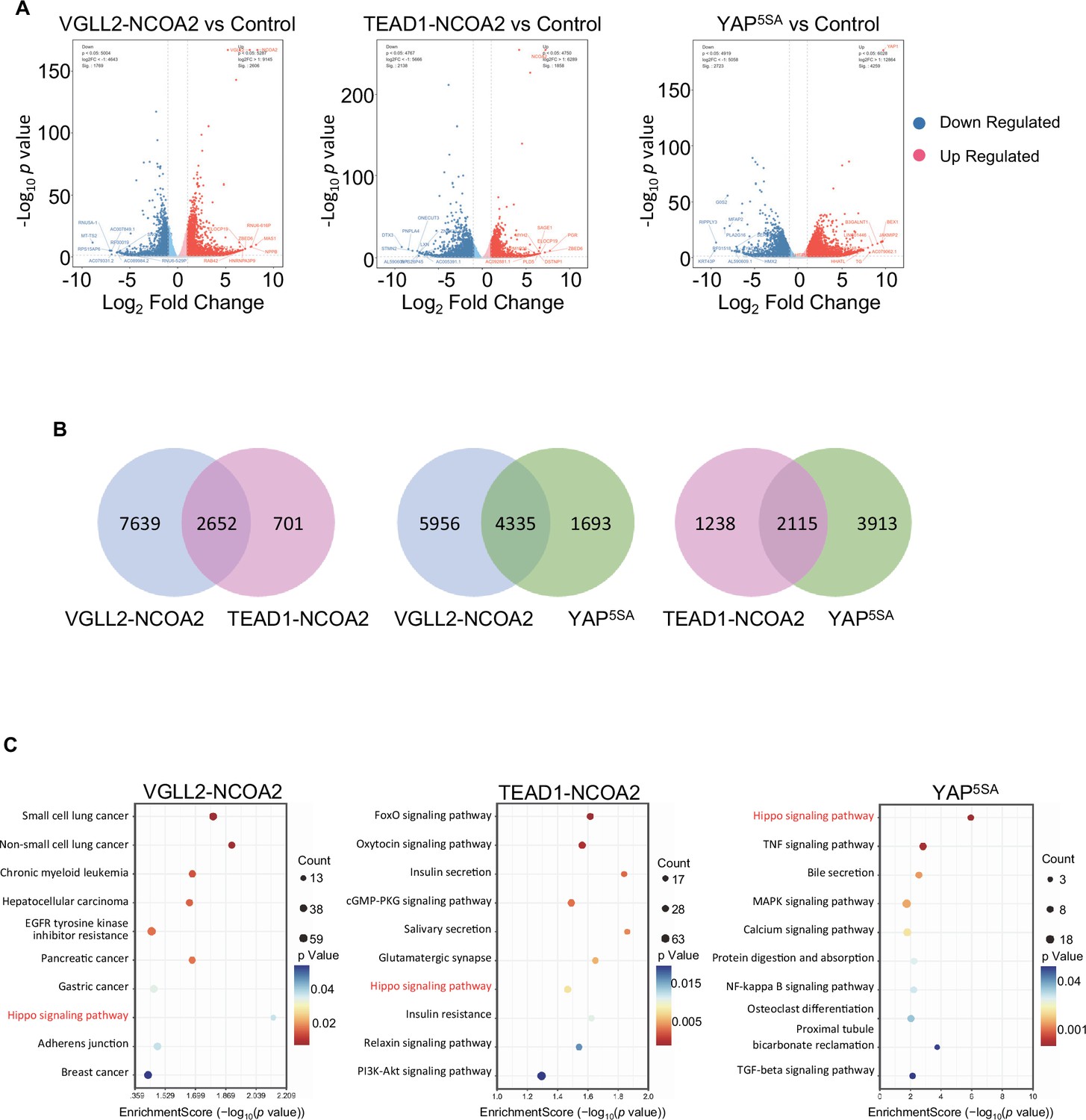

Analysis of VGLL2-NCOA2, TEAD1-NCOA2, and YAP5SA -induced transcriptomes.
(A) Volcano maps of RNA-seq data sets of HEK293T cells expressing VGLL2-NCOA2, TEAD1-NCOA2, or YAP5SA. Red dots represent upregulated mRNAs. Blue dots represent downregulated mRNAs. p<0.05, Log2FoldChange >1 or < –1. (B) Venn diagram showing the overlaps of differentially regulated genes identified by RNA-seq in HEK293T cells expressing VGLL2-NCOA2, TEAD1-NCOA2, or YAP5SA. (C) KEGG pathway enrichment analysis of differentially regulated genes identified by RNA-seq in HEK293T cells expressing VGLL2-NCOA2, TEAD1-NCOA2 or YAP5SA. ‘Hippo signaling pathway’ is highlighted in red.

VGLL2-NCOA2 and TEAD1-NCOA2-induced transcription does not require YAP and TAZ.
(A) Co-IP assays showing VGLL2-NCOA2 binding to TEAD1 but not YAP5SA. YAP5SA-Flag or TEAD1-Flag was co-expressed with VGLL2-NCOA2-HA in HEK293T cells and immunoprecipitated with an anti-HA antibody. (B) VGLL2-NCOA2 binds to endogenous TEAD but not YAP/TAZ. Endogenous YAP/TAZ and TEAD proteins in HEK293T cells were detected by anti-YAP/TAZ and panTEAD antibodies, respectively. (C) Co-IP assays showing endogenous YAP/TAZ binding to TEAD1 but not TEAD1-NCOA2. TEAD1-Flag or TEAD1-NCOA2-Flag was expressed in HEK293T cells and immunoprecipitated with an anti-Flag antibody. Endogenous YAP/TAZ proteins were detected by anti-YAP/TAZ antibodies. (D) The activity of TBS-Luc reporter in HEK293T cells expressing YAP5SA, VGLL2-NCOA2, or TEAD1-NCOA2, with TEAD inhibitor CP1 (5 μM) treatment or co-expression of TEAD-ENR repressor construct. Data were expressed as mean ± SD. n=3; ****p<0.0001. NS, no significance. (E) Schematic representation of TEAD-ENR. TEA DNA-binding domain (TEA) and Engrailed repressor domain (ENR). (F) Immunoblot analysis of TEAD-ENR expression in HEK293T cells. (G) Co-IP assays showing YAP/TAZ were not essential for VGLL2-NCOA2 binding to endogenous TEADs. VGLL2-NCOA2-HA was expressed in HEK293T cells with or without YAP/TAZ knockdown and immunoprecipitated with an anti-HA antibody. (H) Relative mRNA levels of CCN2, ANKRD1, and CCN1 in HEK293T cells with YAP/TAZ knockdown and expressing VGLL2-NCOA2 or TEAD1-NCOA2. Data were expressed as mean ± SD. n=3; ****p<0.0001.
-
Figure 2—source data 1
Original western blot membranes corresponding to Figure 2A, B, C, F and G indicating the relevant bands.
The molecular weight markers are indicated.
- https://cdn.elifesciences.org/articles/98386/elife-98386-fig2-data1-v1.zip
-
Figure 2—source data 2
Original western blot membranes corresponding to Figure 2A, B, C, F and G.
- https://cdn.elifesciences.org/articles/98386/elife-98386-fig2-data2-v1.zip

Characterization of VGLL2-NCOA2- and YAP-controlled transcriptional and chromatin landscapes.
(A) Intersection of ATAC-seq (n=2), RNA-seq (n=3), and CUT&RUN (n=2) datasets in HEK293T cells expressing VGLL2-NCOA2 or YAP5SA. (B) Venn diagrams showing the overlaps of ATAC-seq peaks, CUT&RUN peaks, and differentially regulated genes from RNA-seq in HEK293T cells expressing VGLL2-NCOA2 or YAP5SA. (C) KEGG pathway enrichment analysis of ATAC-seq peaks identified in HEK293T cells expressing VGLL2-NCOA2 or YAP5SA. The ‘Hippo signaling pathway’ is highlighted in red. (D) Distribution of CUT&RUN binding sites for VGLL2-NCOA2 and YAP5SA. (E) Motif enrichment analysis of VGLL2-NCOA2 and YAP5SA CUT&RUN Peaks. (F) Genomic tracks showing VGLL2-NCOA2 and YAP5SA occupancy at the CCN2, ANKRD1, and CCN1 loci.

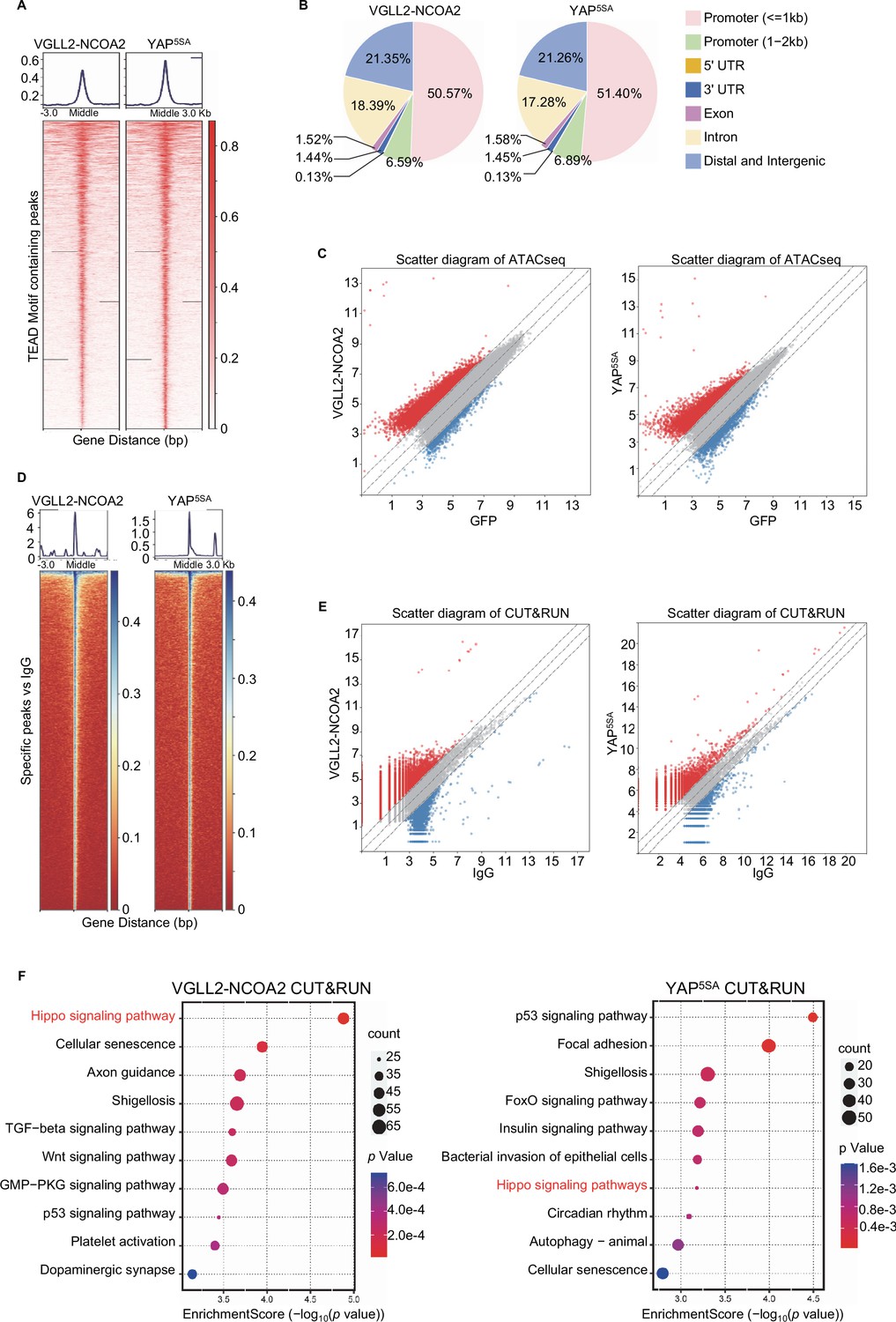

ATAC-seq and CUT&RUN data characterization in VGLL2-NCOA2 and YAP5SA-expressing cells.
(A) Heatmaps of TEAD-motif containing ATAC-seq peaks in HEK293T cells expressing VGLL2-NCOA2 or YAP5SA. (B) Distribution of ATAC-seq peaks in HEK293T cells expressing VGLL2-NCOA2 or YAP5SA. For VGLL2-NCOA2 ATAC-seq peaks, Promoter (≤ 1 kb) 50.57%, promoter (1–2 kb) 6.59%, 5′ UTR 0.13%, 3' UTR 1.44%, exon 1.52%, intron 18.39%, and distal and Intergenic 21.35%. For YAP5SA ATAC-seq peaks, promoter (≤ 1 kb) 51.4%, promoter (1–2 kb) 6.89%, 5′ UTR 0.13%, 3′ UTR 1.45%, exon 1.58%, intron 17.28%, and distal and intergenic 21.26%. n=2. (C) VGLL2-NCOA2 promotes chromatin accessibility. Scatter diagrams of ATAC-seq peaks show more upregulated (red) than downregulated (blue) in HEK293T cells transfected with VGLL2-NCOA2 or YAP5SA. (D) Heatmaps of VGLL2-NCOA2 and YAP5SA CUT&RUN peaks. (E) VGLL2-NCOA2 and YAP genomic occupancy. Scatter diagrams showing more upregulated CUT&RUN peaks (red) than downregulated CUT&RUN peaks (blue) of VGLL2-NCOA2 and YAP5SA. (F) KEGG pathway enrichment analysis of VGLL2-NCOA2 and YAP5SA CUT&RUN peaks. ‘Hippo signaling pathway’ is highlighted in red.

VGLL2-NCOA2 and TEAD1-NCOA2 engage EP300 epigenetic regulators.
(A) Diagram showing the BioID proteomic analyses of BirA*-VGLL2-NCOA2, BirA*-TEAD1-NCOA2, BirA*-YAP5SA, and BirA*-TAZ4SA. (B) Co-IP assays showing endogenous EP300 binding to VGLL2-NCOA2 and TEAD1-NCOA2 but not YAP5SA. (C) KEGG enrichment analysis of EP300 CUT&RUN peaks in control HEK293T cells and HEK293T cells expressing VGLL2-NCOA2 or TEAD1-NCOA2. The ‘Hippo signaling pathway’ is highlighted in red. (D) Motif enrichment analysis of EP300 CUT&RUN peaks in control HEK293T cells and HEK293T cells expressing VGLL2-NCOA2 or TEAD1-NCOA2. (E) Genomic tracks showing EP300 occupancy at the CCN1, ANKRD1, CCN2, and CREB3 loci in control HEK293T cells and HEK293T cells expressing VGLL2-NCOA2 or TEAD1-NCOA2.
-
Figure 4—source data 1
Original western blot membranes corresponding to Figure 4B indicating the relevant bands.
The molecular weight markers are indicated.
- https://cdn.elifesciences.org/articles/98386/elife-98386-fig4-data1-v1.zip
-
Figure 4—source data 2
Original western blot membranes corresponding to Figure 4B indicating the relevant bands.
The molecular weight markers are indicated.
- https://cdn.elifesciences.org/articles/98386/elife-98386-fig4-data2-v1.zip

EP300 is required for VGLL2-NCOA2- and TEAD1-NCOA2-induced tumorigenesis in vitro.
(A) Co-IP assays showing the NCOA2 fusion part of VGLL2-NCOA2 was essential for EP300 binding. VGLL2-NCOA2-V5, VGLL2-NCOA2∆NCOA2-V5, and VGLL2-NCOA2∆VGLL2-V5 were expressed in HEK293T cells and immunoprecipitated using an anti-V5 antibody. Endogenous EP300 proteins were detected by anti-EP300 antibody. (B–D) mRNA levels of Ccn2, Ankrd1, and Ccn1 in C2C12 cells expressing YAP5SA, VGLL2-NCOA2, or TEAD1-NCOA2 with or without treatment of A485 (5 μM). Data were expressed as mean ± SD. n=3; ****p<0.0001. NS, no significance. (E) Representative image of colony formation of C2C12 cells expressing YAP5SA, VGLL2-NCOA2, or TEAD1-NCOA2 with or without treatment of A485 (5 μM) for 2 weeks. Scale bars, 100 μm. (F, G) Colony size (F) and number of colonies (G) formed by C2C12 cells expressing YAP5SA, VGLL2-NCOA2, or TEAD1-NCOA2 with or without treatment of A485 (5 μM). Data were expressed as mean ± SD. **p<0.01; ****p<0.0001. NS, no significance.
-
Figure 5—source data 1
Original western blot membranes corresponding to Figure 5A indicating the relevant bands.
The molecular weight markers are indicated.
- https://cdn.elifesciences.org/articles/98386/elife-98386-fig5-data1-v1.zip
-
Figure 5—source data 2
Original western blot membranes corresponding to Figure 5A indicating the relevant bands.
The molecular weight markers are indicated.
- https://cdn.elifesciences.org/articles/98386/elife-98386-fig5-data2-v1.zip

EP300 is essential for VGLL2-NCOA2- and TEAD1-NCOA2-induced tumorigenesis in vivo.
(A) Representative H&E and IHC staining of Desmin and Ki67 in C2C12-control allograft, C2C12-VGLL2-NCOA2 tumor allograft, and C2C12-TEAD1-NCOA2 tumor allograft. Scale bars, 200 μm. (B) Immunoblot analysis of VGLL2-NCOA2-FLAG and TEAD1-NCOA2-FLAG expression in C2C12 cells, detected by an anti-FLAG antibody. (C, D) Allograft leg volume of C2C12-VGLL2-NCOA2 (C) and C2C12-TEAD1-NCOA2 (D) after intramuscular injection into the leg of Nude mice with or without intraperitoneal injection of A485 (100 mg/kg). The error bars represent the mean leg volume ± SEM. n=6. ****p<0.0001. (E) Representative H&E and IHC staining of Ki67 in C2C12-VGLL2-NCOA2 and C2C12-TEAD1-NCOA2 tumor allografts with or without A485 (100 mg/kg) treatment. Scale bars, 200 μm. (F) Percentage of Ki67-positive cells in (E). Data were expressed as mean ± SD. n=6; ***p<0.001. (G, H) mRNA levels of Ccn2, Ankrd1, and Ccn1 in C2C12-VGLL2-NCOA2 and C2C12-TEAD1-NCOA2 tumor allografts with or without A485 (100 mg/kg) treatment. Data were expressed as mean ± SD. **p<0.01; ***p<0.001; ****p<0.0001.
-
Figure 6—source data 1
Original western blot membranes corresponding to Figure 6B indicating the relevant bands.
The molecular weight markers are indicated.
- https://cdn.elifesciences.org/articles/98386/elife-98386-fig6-data1-v1.zip
-
Figure 6—source data 2
Original western blot membranes corresponding to Figure 6B indicating the relevant bands.
The molecular weight markers are indicated.
- https://cdn.elifesciences.org/articles/98386/elife-98386-fig6-data2-v1.zip
Tables
Reagent type (species) or resource | Designation | Source or reference | Identifiers | Additional information |
---|---|---|---|---|
Antibody | Anti-Flag (mouse monoclonal) | Invitrogen | MA1-91878 | CUT&RUN (0.5 μg) |
Antibody | Anti-GAPDH (rabbit monoclonal) | Cell Signaling Technology | 2118 | WB (1:10,000) |
Antibody | Anti-YAP/TAZ (rabbit monoclonal) | Cell Signaling Technology | 8418 | WB (1:1000) |
Antibody | Anti-panTEAD (rabbit monoclonal) | Cell Signaling Technology | 13295 | WB (1:1000) |
Antibody | Anti-V5 (rabbit monoclonal) | Cell Signaling Technology | 13202 | WB (1:1000) |
Antibody | Anti-EP300 (rabbit monoclonal) | Cell Signaling Technology | 86377 | WB (1:1000); CUT&RUN (0.5 μg) |
Antibody | Anti-Flag (rabbit monoclonal) | Cell Signaling Technology | 2368 | WB (1:1000); IP (1:50) |
Antibody | Anti-Flag (mouse monoclonal) | Cell Signaling Technology | F9291 | WB (1:1000); IP (1:50) |
Antibody | Anti-HA (rabbit monoclonal) | Cell Signaling Technology | 3724 | WB (1:1000); IP (1:50) |
Antibody | Anti-HA (mouse monoclonal) | Cell Signaling Technology | 2367 | WB (1:1000); IP (1:50) |
Antibody | HRP-conjugated secondary antibodies | Jackson Laboratories | WB (1:2000) | |
Antibody | Anti-Ki67 (rabbit monoclonal) | Cell Signaling Technology | 12202 | IHC (1:500) |
Antibody | Anti-Desmin (rabbit monoclonal) | Cell Signaling Technology | 5332 | IHC (1:100) |
Strain, strain background (NU/J nude mice) | NU/J nude mice | The Jackson Laboratory | 002019 | |
Cell line (Homo sapiens) | HEK293T | ATCC | CRL-3216 | |
Cell line (mouse-sapiens) | C2C12 | ATCC | CRL-1772 | |
Chemical compound, drug | A485 | SelleckChem | S8740 | |
Chemical compound, drug | Streptavidin Sepharose beads | GE Healthcare | 17511301 | |
Chemical compound, drug | SignalStain Antibody Diluent | Cell Signaling Technology | 8112 | |
Chemical compound, drug | Lipofectamine 2000 | Invitrogen | 11668019 | |
Chemical compound, drug | CP1 | MCE | HY-139330 | |
Commercial assay or kit | CUTANA ChIC/CUT&RUN Kit | EpiCypher | 14-1048 | |
Commercial assay or kit | CUT&RUN Library Prep Kit | EpiCypher | 14-1001 | |
Commercial assay or kit | RNeasy Mini Kit | QIAGEN | 74104 | |
Commercial assay or kit | Vectastain Elite ABC kit | Vector Laboratories | PK-6105 | |
Commercial assay or kit | In-Fusion HD Cloning | Clontech | Clontech: 639647 | |
commercial assay or kit | Dual-luciferase reporter kit | Promega | E1910 | |
Commercial assay or kit | iTaq Universal One-Step RT-qPCR Kit | Bio-Rad | 1725150 | |
Commercial assay or kit | BeyoClick EdU Cell Proliferation Kit with Alexa Fluor 488 | Beyotime | C0071 | |
Commercial assay or kit | iTaq Universal One-Step RT-qPCR Kit | Bio-Rad | 1725150 | |
Recombinant DNA reagent | GAPDH-F' | This paper | PCR primers | GGAGCGAGATCCCTCCAAAAT |
Recombinant DNA reagent | GAPDH-R' | This paper | PCR primers | GGCTGTTGTCATACTTCTCATGG |
Recombinant DNA reagent | CCN2-F' | This paper | PCR primers | CAGCATGGACGTTCGTCTG |
Recombinant DNA reagent | CCN2-R' | This paper | PCR primers | AACCACGGTTTGGTCCTTGG |
Recombinant DNA reagent | ANKRD1-F' | This paper | PCR primers | GCCTACGTTTCTGAAGGCTG |
Recombinant DNA reagent | ANKRD1-R' | This paper | PCR primers | GTGGATTCAAGCATATCACGGAA |
Recombinant DNA reagent | CCN1-F' | This paper | PCR primers | CAGGACTGTGAAGATGCGGT |
Recombinant DNA reagent | CCN1-R' | This paper | PCR primers | GCCTGTAGAAGGGAAACGCT |
Recombinant DNA reagent | Actb-F' | This paper | PCR primers | GTGACGTTGACATCCGTAAAGA |
Recombinant DNA reagent | Actb-R' | This paper | PCR primers | GCCGGACTCATCGTACTCC |
Recombinant DNA reagent | Ccn2-F' | This paper | PCR primers | GACCCAACTATGATGCGAGCC |
Recombinant DNA reagent | Ccn2-R' | This paper | PCR primers | CCCATCCCACAGGTCTTAGAAC |
Recombinant DNA reagent | Ankrd1-F' | This paper | PCR primers | GGATGTGCCGAGGTTTCTGAA |
Recombinant DNA reagent | Ankrd1-R' | This paper | PCR primers | GTCCGTTTATACTCATCGCAGAC |
Recombinant DNA reagent | Ccn1-F' | This paper | PCR primers | TAAGGTCTGCGCTAAACAACTC |
Recombinant DNA reagent | Ccn1-R' | This paper | PCR primers | CAGATCCCTTTCAGAGCGGT |
Additional files
-
Supplementary file 1
RNA-seq analysis showing the genes whose expression was significantly changed in HEK293T cells expressing VGLL2-NCOA2, p-value <0.05, Log2 Fold Change >1 or Log2 Fold Change < –1.
- https://cdn.elifesciences.org/articles/98386/elife-98386-supp1-v1.xlsx
-
Supplementary file 2
RNA-seq analysis showing the genes whose expression was significantly changed in HEK293T cells expressing TEAD1-NCOA2, p-value <0.05, Log2 Fold Change >1 or Log2 Fold Change < –1.
- https://cdn.elifesciences.org/articles/98386/elife-98386-supp2-v1.xlsx
-
Supplementary file 3
RNA-seq analysis showing the genes whose expression was significantly changed in HEK293T cells expressing YAP5SA, p-value <0.05, Log2 Fold Change >1 or Log2 Fold Change < –1.
- https://cdn.elifesciences.org/articles/98386/elife-98386-supp3-v1.xlsx
-
Supplementary file 4
List of specific BioID hits obtained with BirA*-YAP5SA, BirA*-TAZ4SA, BirA*-VGLL2-NCOA2, and BirA*-TEAD1-NCOA2.
- https://cdn.elifesciences.org/articles/98386/elife-98386-supp4-v1.xls
-
MDAR checklist
- https://cdn.elifesciences.org/articles/98386/elife-98386-mdarchecklist1-v1.docx
