Kinesin-1 regulates dendrite microtubule polarity in Caenorhabditis elegans

  1. Jing Yan
  2. Dan L Chao
  3. Shiori Toba
  4. Kotaro Koyasako
  5. Takuo Yasunaga
  6. Shinji Hirotsune
  7. Kang Shen  Is a corresponding author
  1. Howard Hughes Medical Institute, Stanford University, United States
  2. Graduate School of Medicine, Osaka City University, Japan
  3. Kyushu Institute of Technology, Japan
  4. Japan Science and Technology Agency, Japan
Research Article
  • Cited 72
  • Views 2,763
  • Annotations
Cite this article as: eLife 2013;2:e00133 doi: 10.7554/eLife.00133


In neurons, microtubules (MTs) span the length of both axons and dendrites, and the molecular motors use these intracellular ‘highways' to transport diverse cargo to the appropriate subcellular locations. Whereas axonal MTs are organized such that the plus-end is oriented out from the cell body, dendrites exhibit a mixed MTs polarity containing both minus-end-out and plus-end-out MTs. The molecular mechanisms underlying this differential organization, as well as its functional significance, are unknown. Here, we show that kinesin-1 is critical in establishing the characteristic minus-end-out MT organization of the dendrite in vivo. In unc-116 (kinesin-1/kinesin heavy chain) mutants, the dendritic MTs adopt an axonal-like plus-end-out organization. Kinesin-1 protein is able to cross-link anti-paralleled MTs in vitro. We propose that kinesin-1 regulates the dendrite MT polarity through directly gliding the plus-end-out MTs out of the dendrite using both the motor domain and the C-terminal MT-binding domain.


eLife digest

Neurons, or nerve cells, are excitable cells that transmit information using electrical and chemical signals. Nerve cells are generally composed of a cell body, multiple dendrites, and a single axon. The dendrites are responsible for receiving inputs and for transferring these signals to the cell body, whereas the axon carries signals away from the cell body and relays them to other cells.

Like all cells, nerve cells have a cytoskeleton made up of microtubules, which help to determine cellular shape and which act as ‘highways' for intracellular transport. Microtubules are long hollow fibers composed of alternating α- and β-tubulin proteins: each microtubule has a ‘plus'-end, where the β subunits are exposed, and a ‘minus'-end, where the α subunits are exposed. Nerve cells are highly polarized: within the axon, the microtubules are uniformly oriented with their plus-ends pointing outward, whereas in dendrites, there are many microtubules with their minus-ends pointing outward. This arrangement is conserved across the animal kingdom, but the mechanisms that establish it are largely unknown.

Yan et al. use the model organism Caenorhabditis elegans (the nematode worm) to conduct a detailed in vivo analysis of dendritic microtubule organization. They find that a motor protein called kinesin-1 is critical for generating the characteristic minus-end-out pattern in dendrites: when the gene that codes for this protein is knocked out, the dendrites in microtubules undergo a dramatic polarity shift and adopt the plus-end-out organization that is typical of axons. The mutant dendrites also show other axon-like features: for example, they lack many of the proteins that are usually found in dendrites. Based on these and other data, Yan et al. propose that kinesin-1 determines microtubule polarity in dendrites by moving plus-end-out microtubules out of dendrites.

These first attempts to explain, at the molecular level, how dendritic microtubule polarity is achieved in vivo could lead to new insights into the structure and function of the neuronal cytoskeleton.



Neurons are highly polarized cells that usually elaborate two sets of morphologically and functionally distinct processes: a single long axon that sends out information to its targets, and multiple shorter dendrites that receive synaptic input from the environment or other neurons. Among the many differences between axons and dendrites, one distinct feature is that they have different microtubule (MT) organization. MTs, composed of strands of tubulin polymers, are dynamic structures with two molecularly and functionally distinct ends: a plus-end that favors polymerization and supports net growth and a minus-end that favors depolymerization (Howard and Hyman, 2003). Since MTs in neurites provide the platform for intracellular transport, and molecular motors such as kinesins and dyneins migrate toward either the plus- or minus-ends, MT polarity might play an important role in determining the directionality of transport events. One way to measure MT polarity in vivo is to perform time-lapse imaging studies using the EB family members of the TIPs (Tip Interacting Proteins), which bind transiently to the growing plus-ends of MTs (Baas and Lin, 2011). Based on the behavior of EB1 in neurites, it was cohesively concluded that MTs are uniformly polarized with their plus-ends oriented toward the distal tip in axons from worm to rodents. In the dendrites, MTs are mixed in the proximal region and uniformly plus-end-out in distal parts in cultured vertebrate neurons, whereas MTs exhibit a mixed orientation with minus-ends predominantly facing the distal dendrite in worm and fly (Baas et al., 1987; Baas et al., 1988; Stepanova et al., 2003; Rolls et al., 2007; Stone et al., 2008; Kollins et al., 2009; Kapitein and Hoogenraad, 2011; Maniar et al., 2012).

Unlike in nonneuronal cells, where most MTs extend out from the microtubule organization center (MTOC) that harbors the minus-ends, the majority of neuronal MTs have ‘free-floating' ends, raising the question of whether these microtubules are locally polymerized or transported from the cell body (Baas and Lin, 2011). Based on direct observation of short MT strand movement in cultured neurons, Baas and colleagues proposed a model in which the MT-based motors dynein and several mitotic kinesins directly slide MT strands into the axon and dendrite (Baas, 1999). More recently, Jan and colleagues showed that dynein was required for the uniform plus-end-out MT organization in Drosophila sensory neuron axons (Zheng et al., 2008). In dynein mutants, about 30% of the axonal MTs exhibit a minus-end-out orientation, whereas the dendritic MT polarity remains intact. Another recent study showed that the axon-localized MT-binding protein UNC-33/CRMP plays an important role in orienting dynamic MTs in both axons and dendrites in Caenorhabditis elegans neurons (Maniar et al., 2012). In unc-33 mutants, both the axon and dendrite exhibit polarity defects. However, how predominant minus-end-out MT polarity is established in the dendrite remains largely unknown.

The signature pattern of MT polarity provides structural characteristics for axons and dendrites. In addition, the polarity pattern of MTs likely instructs the transport of motor-based polarized cargo and distribution of asymmetrical cellular material in the neuron. Thus, MT polarity might play an instrumental role in the establishment of neuronal polarity (Baas, 2002; Hoogenraad and Bradke, 2009). Here, we show that kinesin-1 is critical in generating the characteristic minus-end-out MT organization of the dendrite in vivo. Kinesin-1 (previously called kinesin heavy chain or KHC) is a plus-end-directed motor and has been reported to transport various cargoes including mitochondria, synaptic vesicles, and mRNAs (Vale, 2003; Hirokawa and Takemura, 2005). Like other kinesin family members, kinesin-1 contains an N-terminal motor domain, a coiled-coil region for dimerization, and a C-terminal tail domain for cargo binding and regulation (Vale, 2003; Adio et al., 2006). It has been showed that the kinesin-1 tail domain directly binds to MTs and mediates MT sliding in vitro (Navone et al., 1992; Andrews et al., 1993; Jolly et al., 2010; Seeger and Rice, 2010). In unc-116 (kinesin-1/kinesin heavy chain) mutants, we find that dendritic MT polarity is completely reversed and adopts an axonal-like plus-end-out organization. The consequences of this polarity reversal in the dendrite include ectopic accumulation of synaptic vesicles (SVs) and active zone proteins, and loss of dendritic enrichment of dendritic proteins. These results demonstrate that the proper polarized MT organization is essential for conferring neurite identity because it specifies the compartmental distribution of vital axonal and dendritic constituents such as SVs and neurotransmitter receptors in vivo. We also provide evidence that kinesin-1 is able to cross-link anti-parallel MTs in vitro. Combined with the structure–function analyses, we propose that kinesin-1 regulates the dendrite MT polarity through directly gliding the plus-end-out MTs out of the dendrite using both the motor domain and the C-terminal MT-binding domain.


MT polarity in C. elegans neurons

In order to understand the molecular mechanisms and physiological importance of differential neuronal MT organization, we studied MT organization in two bipolar neurons in C. elegans. The ventrally localized DA9 cell body elaborates two functionally distinct processes. An axon migrates to the dorsal nerve cord, where it extends anteriorly and forms presynaptic specializations, and a dendrite extends anteriorly along the ventral nerve cord (Figure 1A; White et al., 1976; Sym et al., 1999; Klassen and Shen, 2007). MT motors fused to a fluorescence tag have previously been used as indicators for MT polarity (Clark et al., 1997; Stone et al., 2008). To examine MT polarity in the DA9 neuron, we expressed fluorescent proteins fused with retrograde and anterograde motors, which should accumulate at the minus- and plus-ends of MTs, respectively. We found that YFP-tagged UNC-104/Kinesin3 exhibits dim diffuse fluorescence along the axon with dramatic accumulation at the distal tip, but is completely absent from the dendrite (Figure 1B). Conversely, DHC-1/dynein heavy chain fused with GFP shows weak staining along the dendrite with accumulation at the distal tip of the dendrite (Figure 1C). In addition, GFP fused to the slow Ncd family minus-end kinesin, KLP-16, exhibits a graded fluorescence signal from proximal to distal dendrite with accumulation at the distal tip of the dendrite (Figure 1D). The specific localization of the tagged KLP-16 motor is dependent on its motor activity, as motor-dead versions are largely diffuse through the DA9 processes (Figure 1—figure supplement 1). These localization data are consistent with previous observations made in mammalian and Drosophila neurons, which suggest that MTs are uniformly plus-end-out in the axon and predominantly minus-end-out in the dendrite.

Figure 1 with 3 supplements see all

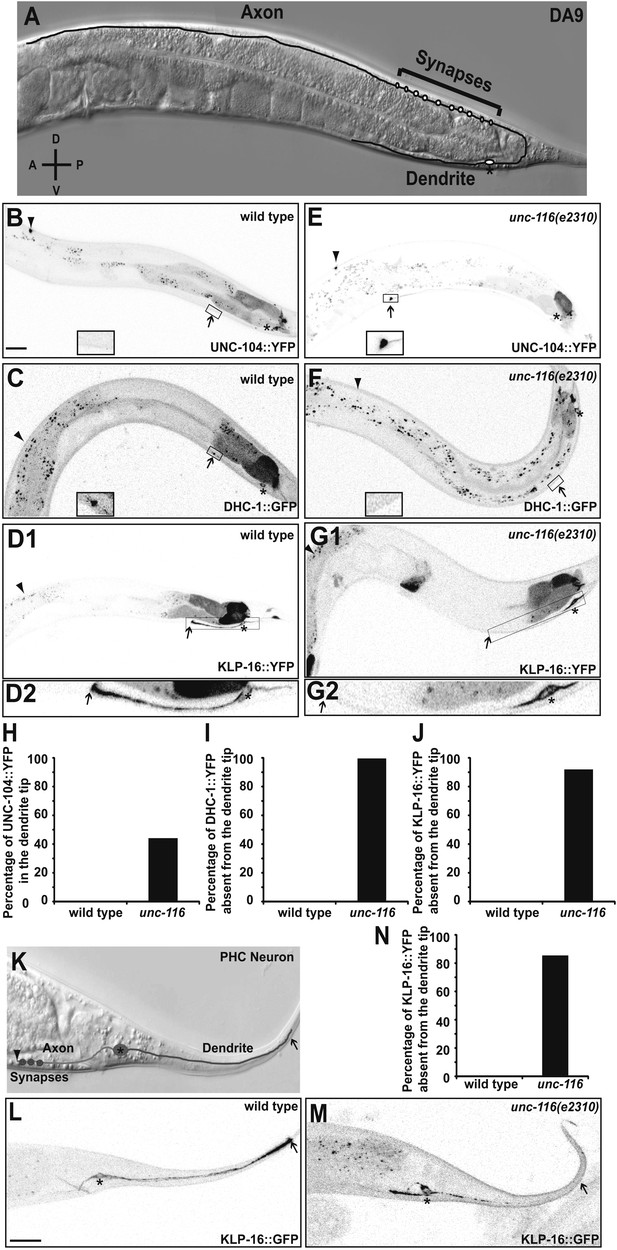

UNC-116 (kinesin-1) is required for the minus-end-out MT polarity in the DA9 dendrite.

(A) Schematic diagram of the morphology of the DA9 neuron. Asterisk denotes DA9 or PHC cell body (throughout all images); D: dorsal; V: ventral; A: anterior; P: posterior. (B) and (E) Localization of UNC-104::YFP in a representative wild-type (B) or unc-116 worm (E). Note that UNC-104::YFP is enriched in the axonal tip (denoted by an arrowhead throughout) in wild-type, while it is enriched at the tips of both the axon and dendrite (dendritic tip is marked by an arrow, dashed black box and shown in higher magnification micrographs throughout) in unc-116 animals. (C) and (F) Localization of DHC-1::GFP in a representative wild-type (C) or unc-116 worm (F). (D) and (G) Localization of KLP-16::YFP in a representative wild-type (D1) or unc-116 worm (G1). The dendrite is shown in higher magnification for a wild-type (D2) or unc-116 animals (G2). (H)–(J) Quantification of fractions of worms with qualitative defects in UNC-104::YFP (H), DHC-1::GFP (I), and KLP-16::YFP(J) localization in DA9 dendrite (n > 50 for each genotype). (K) Schematic diagram of the morphology of the PHC neuron. (L) and (M) Localization of KLP-16::YFP in a representative wild-type (L) or unc-116 worm (M). (N) Quantification of fractions of worms with qualitative defects in KLP-16::YFPlocalization in the PHC dendrite (n > 50 for each genotype). The scale bar represents 10 μm.


To extend these findings to other neurons, we used similar markers to examine MT polarity in the PHC sensory neurons. The two PHC neurons are bipolar with posteriorly oriented dendrites and anteriorly guided axons (Figure 1K). Consistent with the expression pattern in DA9, the plus-end kinesin UNC-104::YFP is enriched at the axonal tip of PHC, whereas the minus-end kinesin KLP-16::YFP decorates the dendrite and shows accumulation in the tip of dendrite (Figure 1L and data not shown).

The above data provide information regarding the overall steady-state polarity of MTs in neurites. To examine the polarity of dynamic MTs in the DA9 and PHC neurons, we fluorescently tagged the microtubule plus-end-tracking protein EBP-2/EB1. We observed characteristic ‘comet' like movements of EBP-2::GFP in the dendrite and axon of both cell types by time-lapse analysis . The majority of the EBP-2::GFP comets in the axon move away from soma, whereas the majority of comets in the dendrite move toward the soma (Figure 2A–D and Videos 1–3). Consistent with published results (Maniar et al., 2012), these data show that axonal MTs are predominantly plus-end-out and dendritic MTs are largely minus-end-out in wild-type C. elegans neurons.

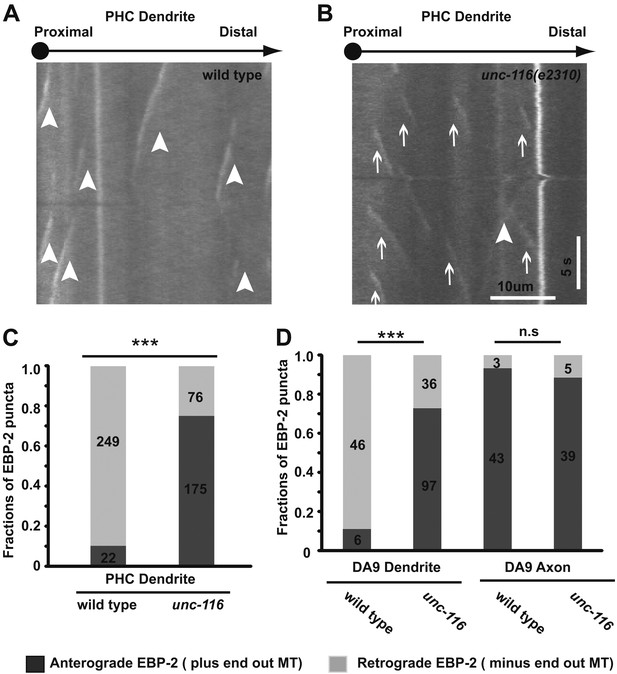

Dendrite MTs are plus-end out in the unc-116(e2310) mutant.

(A) and (B) Representative kymographs of moving EBP-2::GFP puncta in the PHC neuron dendrite of wild-type (A) and unc-116 animals (B). The cell body is to the left in both panels. Time runs top to bottom; arrowheads mark retrogradely moving puncta; arrows mark anterogradely moving puncta. (C) and (D) Bar graphs of the fraction of anterograde and retrograde movements in PHC (C) and DA9 neurons (D). MT, microtubule; numbers within each column denote the number of puncta counted in the corresponding categories; ***p<0.001, χ2 test.

Video 1

Movement of EBP-2::GFP puncta in the ventral axon of wild-type DA9 neuron. Cell body is to the left. Displayed 10× speed.

Video 2

Movement of EBP-2::GFP puncta in the dendite of wild-type DA9 neuron. Cell body is to the left. Displayed 10× speed.

Video 3

Movement of EBP-2::GFP puncta in the dendrite of wild-type PHC neuron. Cell body is to the left. Displayed 10× speed.


UNC-116/kinesin-1 is required for minus-end-out MT organization in the dendrite

To understand how the minus-end-out MTs are assembled and maintained in the dendrite, we examined the localization of our MT markers in the mitotic kinesin mutant zen-4/kinesin-6, which is required for mobilizing MTs in neuronal processes in vitro (Baas et al., 2006). To our surprise, we found no obvious changes in the distribution of MT polarity markers in these mutants. Instead, we found that the DA9 dendritic MT organization is altered in mutants of a related kinesin, unc-116/kinesin-1. In unc-116(e2310) mutants, UNC-104::YFP also accumulates in the tip of dendrite in addition to its normal localization at the axonal tip (Figure 1E). Furthermore, the fluorescence signals of DHC-1::GFP and KLP-16::YFP no longer accumulate at the dendrite tip; instead, fluorescence is visible only at the dendritic segment nearest the cell body (Figure 1F,G,M). These changes in the distribution of MT polarity markers suggest that dendritic MT organization has changed to an axon-like plus-end-out pattern in the unc-116 mutants. Consistently, in the same mutant dynamic MTs in the dendrites of both DA9 and PHC neurons almost completely change their behaviors, adopting a predominantly plus-end-out movement (Figure 2A–C and Videos 4 and 5). These data further indicate that the unc-116/kinesin-1 mutation causes MT polarity in dendrites to become axon-like, but with no effect on MT orientation in the axon.

Video 4

Movement of EBP-2::GFP puncta in the ventral axon of unc-116 (e2310) DA9 neuron. Cell body is to the left. Displayed 10× speed.

Video 5

Movement of EBP-2::GFP puncta in the dendrite of unc-116 (e2310) DA9 neuron. Cell body is to the left. Displayed 10× speed.


UNC-116 encodes the sole C. elegans ortholog of kinesin-1 (previously called kinesin heavy chain or KHC) (Siddiqui, 2002). Since complete loss of unc-116 leads to embryonic lethality and unc-116(e2310) is viable, the e2310 allele likely represents a partial loss-of-function mutant. Two additional partial loss-of-function alleles of unc-116, wy270 and rh24sb79, show similar mislocalization of MT motors in the DA9 dendrite, suggesting that this phenotype is indeed due to loss of the protein activity (Figure 1—figure supplement 2). Consistent with this notion, cell autonomous expression of wild-type UNC-116 in unc-116(e2310) mutants rescued the dendritic distribution phenotype of KLP-16, indicating that UNC-116 functions in the DA9 neuron (Figure 1—figure supplement 3). Taken together, these data support the idea that UNC-116's function is required for establishing the minus-end-out MT organization in the dendrite.

Synaptic vesicle and active zone proteins localize to dendrites in unc-116 mutants

What are the consequences of MT polarity reversal in the DA9 dendrite? We first compared the development of the DA9 dendrite in wild-type and unc-116 animals. In wild-type animals, DA9 axonal outgrowth and neuromuscular junction formation occur embryonically, whereas most dendrite outgrowth takes place postembryonically starting from the L1 stage (Teichmann and Shen, 2011). Upon reaching adulthood, the DA9 axon and dendrite achieve stereotyped lengths. In the unc-116(e2310) mutants, the sequence and directionality of axonal and dendrite outgrowth as well as the length of the axon are indistinguishable from that of the wild-type strain. The length of the DA9 dendrite, however, is dramatically longer compared with wild-type animals at every stage of development (Figure 3—figure supplement 1). To determine whether MT-dependent vesicle transport is affected by unc-116(e2310), we examined localization of synaptic vesicle (SV) markers. The UNC-104/Imac/kinesin3 motor traffics SVs to presynaptic specializations (Hall and Hedgecock, 1991), and synaptic vesicle proteins like RAB-3 exclusively accumulate in the axon of wild-type animals (Figure 3A). In unc-104(e1265) mutants, SV markers are completely absent from the axon, accumulating instead in the cell body and dendrite due to the activity of dynein (Figure 3C; Ou et al., 2010). Interestingly, we found that in unc-116(e2310) mutants, both the axon and dendrite contain a similar number of vesicle clusters (Figure 3E and Figure 3—figure supplement 2). If this ectopic accumulation of SVs in the dendrite is due to the switch of MT polarity to axon-like plus-end-out arrangement (rather than to the activity of dynein), then the accumulation of SVs in the DA9 dendrite should depend on the UNC-104 kinesin motor. Indeed, in unc-104(e1265);unc-116(e2310) double mutants, SVs are largely absent from both processes and trapped in the cell body. These results argue that UNC-116 is not directly involved in SV transport in the DA9 neuron; rather, it creates the minus-end-out MT polarity of the dendrite. As a result of this aberrant MT polarity, the plus-end motor UNC-104 promotes locomotion of cargoes into the dendrite. If our model is correct, the unc-116 mutations should not only affect RAB-3 but also other synaptic vesicle proteins and active zone proteins. Indeed, the active zone protein SYD-2/liprin and other SV markers like SNG-1/synaptogyrin show similar ectopic localization to DA9 dendrites in the unc-116(e2310) mutants, suggesting that the changes in MT polarity affect the entire presynaptic structure (Figure 3—figure supplement 2).

Figure 3 with 2 supplements see all

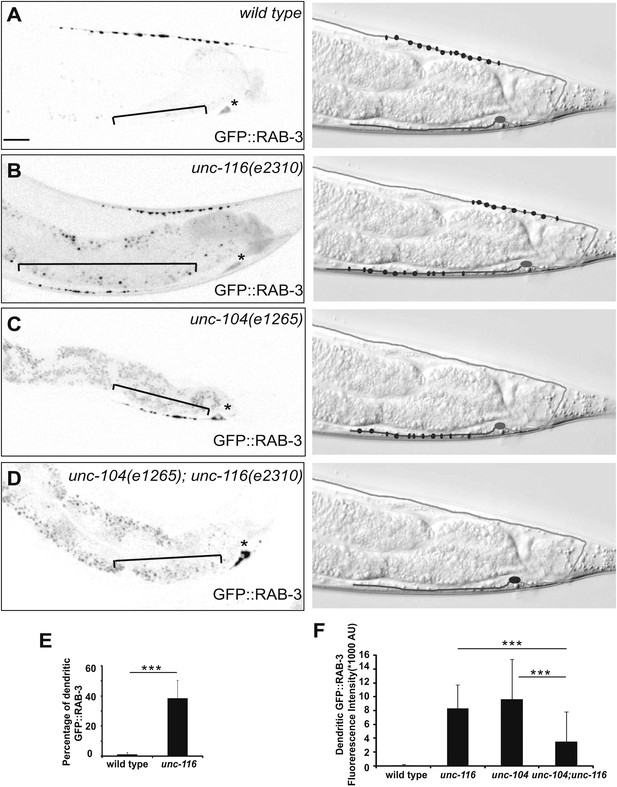

Dendrite exhibits axonal-like properties in unc-116 mutants.

(A)–(D) Distribution of GFP::RAB-3 puncta (left panels) and represented schematic diagrams (right panels) in wild-type (A), unc-116 (B), unc-104 (C), and unc-116;unc-104 mutant animals (D). (E) Average percentage of GFP::RAB-3 fluorescence intensity in the dendrite (n = 20). (F) Quantification of GFP::RAB-1 fluorescence intensity in the dendrite (n = 20). ***p<0.0001. Student's t-test. The scale bar represents 10 μm. Asterisk denotes DA9 cell body.

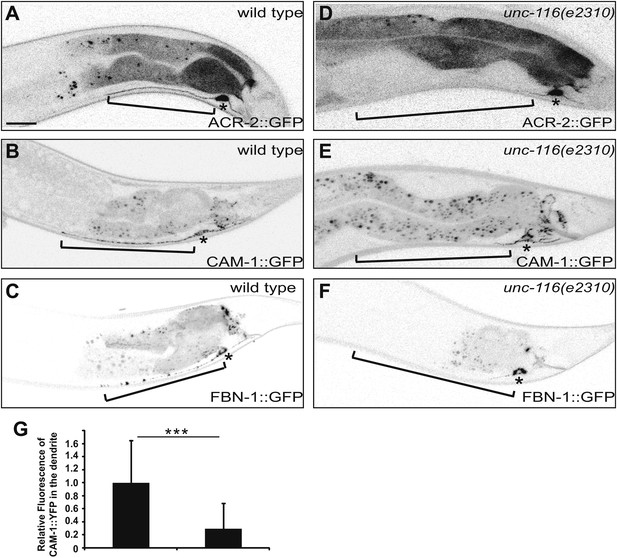

The dendrite fails to accumulate dendritic proteins in unc-116 mutants

To determine whether unc-116 and dendritic MT polarity are critical for localization of dendritic proteins, we analyzed the distribution of several dendritically targeted proteins. An acetylcholine receptor (ACR-2), a receptor tyrosine kinase (CAM-1), and a gap junction protein (FBN-1) are all reported to be dendritically enriched in DA9 (Sieburth et al., 2005; Barbagallo et al., 2010). In wild-type DA9 neurons, fluorescently tagged ACR-2, CAM-1, and FBN-1 all localize to the dendrite, cell body, and the initial part of the ventral axon. In unc-116(e2310) animals, however, these dendritic proteins accumulate within the cell body and largely disappear from the dendrite, suggesting that unc-116 is required for dendritic localization of postsynaptic proteins (Figure 4). Taken together, these data suggest that the minus-end-out MT organization in the dendrite is instructive for dendritic cargo transport by molecular motors. It discourages the plus-end motor, UNC-104, and encourage the minus-end motor, dynein, from entering and accumulating in the dendrite. This polarity mechanism is thus essential for setting up the polarized distribution of vital axonal and dendritic constituents such as SVs and neurotransmitter receptors.

DA9 dendrite fails to accumulate dendritic proteins in unc-116 mutants. (A) and (D) Distribution of the postsynaptic neurotransmitter receptor ACR-2::GFP in wild-type (A) and unc-116 (D) animals. Bracket indicates dendrite region. (B) and (E) Localization of CAM-1::YFP in a representative wild-type (B) or unc-116 worm (E). (C) and (F) Localization of FBN-1::YFP in a representative wild-type (C) or unc-116 worm (F). (G) Quantification of CAM-1::YFP fluorescence intensity in the dendrite (n = 20). ***p<0.0001. Student's t-test. The scale bar represents 10 μm. Bracket indicates dendrite. Asterisk denotes DA9 cell body.


Kinesin-1 cross-links anti-parallel MTs in vitro

The canonical function of kinesin-1 is to transport certain cargos, such as mitochondria, along neuronal MTs. Like kinesin-1, UNC-116 is composed of an N-terminal motor domain, a putative coiled-coil dimerization stalk region, and a C-terminal tail domain that binds to kinesin light chains (KLCs), adaptors, and cargos (Vale, 2003). Interestingly, several recent biochemical and cell biology experiments have shown that part of the C-terminal tail domain of kinesin-1 binds directly to MTs (Navone et al., 1992; Dietrich et al., 2008; Seeger and Rice, 2010). It was also demonstrated that kinesin-1 could cross-link and glide MTs using in vitro assays (Andrews et al., 1993; Palacios and St Johnston, 2002; Yamada et al., 2010). To understand how UNC-116 regulates dendrite MT polarity, we considered two possible models in which UNC-116/kinesin-1 directly transport the minus-end-out MTs into dendrites or transport the plus-end-out MTs out of dendrites via interaction of its C-terminal MT-binding domain with the cargo MTs. In either scenario, it requires kinesin-1 selectively cross-link anti-parallel MTs. We first tested it using in vitro MTs bundling assay. When purified tubulins were polymerized into MTs, the MTs were found as isolated microtubules with the appearance of smooth surface under the electron microscope (Figure 5A). Addition of purified kinesin-1 complex from bovine brain to the MTs causes the dispersed MTs to adopt a more ‘rough' surface due to the binding of kinesin-1 to MTs (Figure 5B). When both of kinesin-1 and mNUDC were added to the MTs, we found that MTs were bundled (Figure 5C). The MT bundles are superficially similar to those reconstructed from flagellar axonemal dyneins and MTs (Ueno et al., 2008). No such bundles were observed in control samples containing just taxol-stabilized MTs or in mixtures of MTs with kinesin-1 only (Figure 5B). Neighboring MTs in the bundles has an interval of ∼80 nm. Considering kinesin-1 has a long flexible stalk (maximum ∼80 nm; Hirokawa et al., 1989) and mNUDC is an adapter protein, it is conceivable that the cross-bridges represent a complex of kinesin-1 and mNUDC. Furthermore, we determined the polarity of the cross-linked MTs from their Moiré patterns of protofilaments (Chretien et al., 1996), and determined orientation of 13 pairs of MTs cross-linked by kinesin-1. Nine pairs (69%) of microtubule bundles were anti-parallel with a 95% confidence interval (CI) of 39% and 91% by F-test for binominal distribution (Figure 5D-D2). The lower limit of CI exceeds 50% when a significant level is 13.4% using one-tailed F-tests. Therefore, kinesin-1-mNUDC complex tends to cross-link anti-parallel microtubule bundles.

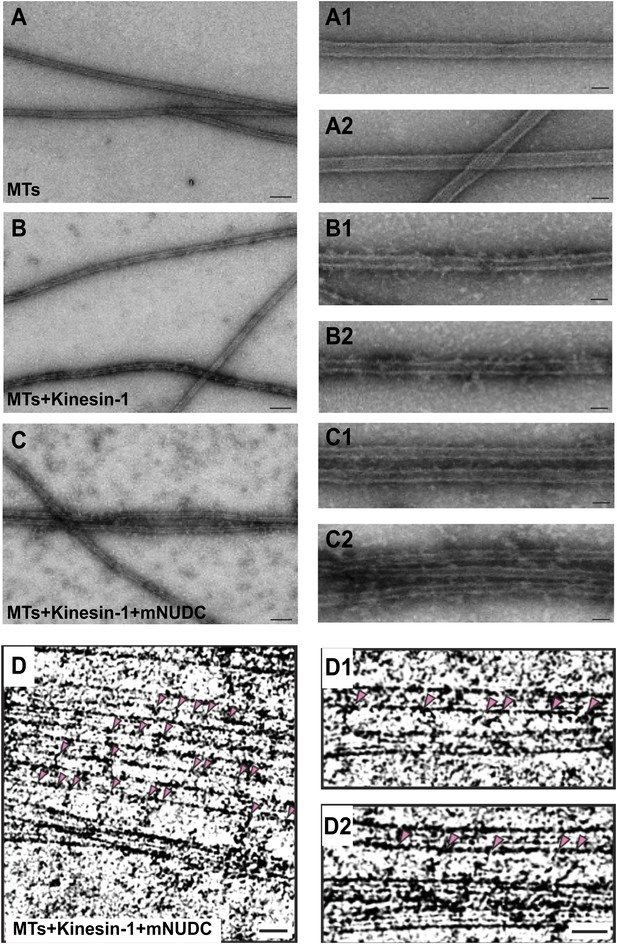

Purified kinesin-1 complex bundles anti-parallel MTs in vitro.

(A)–(C) Negatively stained EM images of (A) MTs alone, (B) kinesin-1-MTs, and (C) kinesin-1-NudC-MTs. Two enlarged images are in right row. Scar bar is 100 nm from (AC), and 30 nm in the enlarged images. Note that long spanned MT bundles were observed only in (C) when the samples mixed with both Kinesin-1 and NudC. Deeply stained cross-bridging molecules are seen between adjacent MTs.Cryo-EM images of microtubules of (D) kinesin-NudC microtubles, (D1) microtubules alone and (D2) kinesin-microtubules.


UNC-116/kinesin-1 slides plus-end-out MTs out of the dendrite through its C-terminal MT-binding site

The ability of UNC-116 to slide anti-parallel MTs requires that the motor have two distinct binding sites for MTs. Indeed, the C-terminal domain of kinesin-1 has been shown to bind to MTs in addition to the N-terminal motor domain (Navone et al., 1992; Seeger and Rice, 2010). To further investigate whether the C-terminal domain of UNC-116 can bind to MTs and whether this binding is required for its function in establishing dendritic MTs, we first examined the amino acid sequence of the C-terminal region of UNC-116. Sequence alignment of UNC-116 with its corresponding fly, rat, and human homologs showed that the MT-binding site is highly conserved (Figure 6A). The positively charged residues (labeled in red) in this region have been shown to be required for MT-binding in vitro (Seeger and Rice, 2010). Given the high degree of sequence conservation of the MT-binding site, it is likely that its function in binding MTs is also conserved in worms. Furthermore, GFP-tagged C-terminal domain of UNC-116 (521–863) showed colocalization with MTs when expressed in HEK293 cells, suggesting that the C-terminal domain of UNC-116 can indeed bind to MTs (data not shown).

Figure 6 with 1 supplement see all

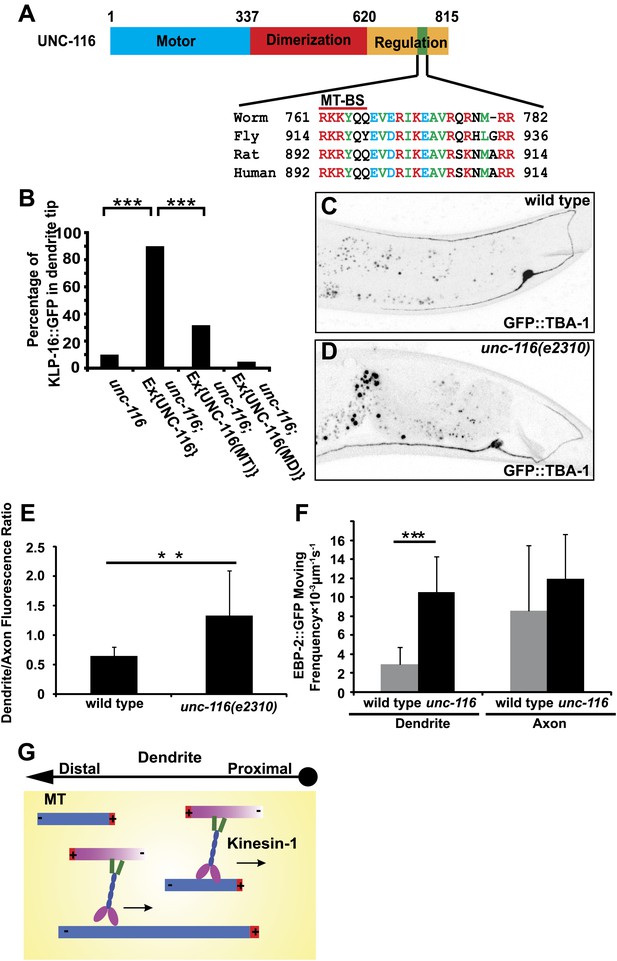

UNC-116/kinesin-1 orients dendritic MTs.

(A) Domain structure of UNC-116 protein with motor domain in blue, dimerization region in red, and C-terminal regulation domain in orange, length of amino acid is shown. (B) Cell-autonomous rescue of KLP-16::YFP localization. MD, mutant swapping the amino acids ‘KTH' in P-loop of UNC-116 motor domain with ‘AAA'; MT, mutant swapping the MT-BS in UNC-116 tail region with ‘AAAYAA'. n > 50 per group. Error bar indicates standard deviation; ***p<0.0001, χ2 test. (C) and (D) MTs structure highlighted by GFP::TBA-1 in a representative wild-type (C) or unc-116 worm (D). Quantification of GFP::TBA-1 fluorescence density ratio between the dendrite and the ventral axon in wild-type and the unc-116(e2310) animals. (E) Quantification of EBP-2::GFP puncta moving frequency in the dendrite of wild type and the unc-116(e2310) animals. n > 20 per group. Error bar indicates standard deviation; **p<0.001, ***p<0.0001, Student's t-test. (F) A schematic model showing kinesin-1 cross-linking and sliding MTs out of the dendrite.


Second, we examined the molecular lesions in three unc-116 mutants, all of which show MT polarity defects (Figure 1—figure supplement 3). The molecular lesion of e2310 is a TC5 transposon insertion. The transposon was inserted after residue 692, which truncates the C-terminal MT-binding domain (Patel et al., 1993). Point mutations are found in the motor domain in wy270 and rh24sb79 alleles, which likely result in partial loss of motor function (Yang et al., 2005 and unpublished data). These results suggest that both motor activity and C-terminal MT-binding might be required for this newly defined function of UNC-116/kinesin-1. To definitively test this, we created a mutant form of UNC-116 in which three point mutations were introduced in the C-terminal MT-binding motif. The same mutations diminish the binding of kinesin-1 C-terminal domain to MTs (Seeger and Rice, 2010). Therefore, this mutant form (UNC-116MT) might specifically lack its ability to bind to MTs with the C-terminal motif. We tested whether this form can still rescue the dendrite polarity phenotypes as well as phenotypes related to the canonical transport function of UNC-116. To assess the canonical organelle transport function of UNC-116, we examined localization of mitochondria in DA9. In wild-type animals, a mitochondrial marker TOM-20::YFP localizes to discrete puncta in both the axon and dendrite of DA9 (Figure 6—figure supplement 1). In unc-116(e2310) mutants, the TOM-20 signal is completely absent from both processes and only found in the cell body (Figure 6—figure supplement 1), suggesting that UNC-116 is required for transporting mitochondria to both axon and dendrite. DA9 expression of UNC-116MT efficiently rescues the TOM-20 localization defect in the axon, suggesting that this mutant form of UNC-116 can support the organelle transporting function. Interestingly, but the same transgene showed much less rescue of the MT polarity defects in the dendrite, as assayed by KLP-16 localization (Figure 6B). This result is consistent with the notion that the C-terminal MT-binding motif of UNC-116 is specifically required for the establishing dendritic MT polarity. In addition, UNC-116MT efficiently rescues the abnormally long dendrites in the unc-116(e2310) mutant, suggesting that this length phenotype is independent of the MT polarity.

To further explore the difference between the MT-polarity-related function of UNC-116 and its canonical vesicular and organelle transport function, we studied the kinesin light chains, KLC-1 and KLC-2. Consistent with previous reports, KLC-2 is required for axonal localization of TOM-20, suggesting that the KLCs are required for the organelle transport function of UNC-116 (Figure 6—figure supplement 1). Interestingly, neither klc-1 or klc-2 single mutants nor klc-1; klc-2 double mutants showed any defects in MT polarity markers (Figure 6—figure supplement 1), suggesting that they are dispensable for the MT polarity function of UNC-116. Indeed, the MT-gliding activity of kinesin-1 in nonpolarized Drosophila S2 cells is also independent of KLCs, suggestive of a similar mode of action in nonneuronal cells (Jolly et al., 2010). Taken together, our structure–function analyses have revealed a novel function of UNC-116 in regulating dendritic MT polarity. This function requires both motor activity and C-terminal MT binding, and can be separated from the canonical vesicular and organelle trafficking function of UNC-116 both at the level of cargo-binding domains as well as the dependency on kinesin light chains.

How does UNC-116/kinesin-1 promote minus-end-out MTs configuration in the dendrite? Our genetic data so far are consistent with two models. In the first model, UNC-116/kinesin-1 directly slides minus-end-out MTs into dendrites. Alternatively, UNC-116 might slide plus-end-out MTs out of dendrite and consequently increase the percentage of the minus-end-out MTs in dendrites. In order to differentiate these two models, we analyzed the MTs concentration in the dendrite and axon. We reasoned that if UNC-116/kinesin-1 slides minus-end-out MTs into dendrite, there would be less MTs in the dendrite of mutant animals. If UNC-116/kinesin-1 slides plus-end-out MTs out of dendrite, there would be more MTs in the dendrite of mutant. We visualized the MTs structure by expressing GFP::TBA-1/ α-tubulin in the DA9 neuron. In wild-type animals, axon has higher expression of GFP::TBA-1, with a dendrite/ventral axon intensity ratio around 0.6. In unc-116(e2310) animals, axon expression of GFP::TBA-1 remains largely unchanged, whereas expression in the dendrite increases, with a dendrite/axon intensity ratio around 1.2, suggestive of excessive MTs in the unc-116 mutant dendrites (Figure 6C–E). Another measure of the number of MTs is the frequency of EBP-2::GFP comets, which directly reflects the number of dynamic plus-ends. We found that EBP-2::GFP comets in the unc-116 mutant DA9 dendrite is three times more frequent comparing to wild type, further indicating there are more MTs in unc-116(e2310) dendrite (Figures 2C, 6F). Collectively, these data favor the model that UNC-116/kinesin-1 maintains minus-end-out MT polarity in dendrite through selectively sliding plus-end-out MTs out of dendrite (Figure 6G).


We report a new function of kinesin-1 to promote the minus-end-out MT organization in the dendrite. Previous studies in neuronal cell cultures showed that intracellular transport of short MTs occurs robustly in neurites and can be driven by mitotic kinesins (Baas et al., 2006). While we did not find evidence that mitotic kinesins are required for DA9 MT organization, our data provide in vivo evidence that transport of MTs by another kinesin, kinesin-1, in the dendrite is critical for establishing or maintaining MT polarity. An interesting study in Drosophila sensory neurons showed that the minus-end motor dynein is required for the uniform plus-end-out MT organization in the axon but dispensable for dendritic MT organization (Zheng et al., 2008). A recent study in Drosophila neuron showed that another motor kinesin-2 complex is required to steer MTs growth in the dendrite branch point to maintain the uniform minus-end-out MT polarity in the dendrite (Mattie et al., 2010). Since kinesin-1 is highly conserved throughout evolution, we anticipate our findings to be a starting point for more sophisticated in vitro or in vivo analyses of MT polarity in neurons. If UNC-116/kinesin-1 slides plus-end-out MTs out of dendrites, one immediate question is how this process is restricted to dendrites. Maniar et al. (2012) recently showed that the MT-associated axon initial segment (AIS)-enriched protein UNC-33/CRMP is important for MT organization in both the axon and dendrite in worm sensory neurons. The AIS has been reported to play important roles in neuronal polarity (Hedstrom et al., 2008; Sobotzik et al., 2009). It is conceivable that AIS proteins provide critical regulatory roles for motor-based MT sliding by restricting the direction of MT transport. Interestingly, the AIS in vertebrate neurons is known to serve as a diffusion barrier for both transmembrane and cytosolic proteins. How it regulates MT transport will be an interesting question for future studies.

The compartmentalization of neurons is achieved by several cell biological mechanisms including directed intracellular trafficking, local sequestration, diffusion barriers, and transcytosis (Kennedy and Ehlers, 2006). Previous studies have also reported the existence of ‘smart motors' that are capable of distinguishing axonal and dendritic MTs (Saito et al., 1997; Marszalek et al., 1999; Guillaud et al., 2003; Kapitein et al., 2010). The existing literature raises the question of what functional role is played by MT polarity, an important question that cannot be answered without a polarity-altering tool. The unc-116 mutants specifically affect MT polarity in dendrites, and therefore serve as useful reagents to dissect the importance of dendritic MT polarity. Our data strongly support the notion that the minus-end-out MTs in dendrites not only allow for the accumulation of dendritic proteins but are also critical for the exclusion of axonal components such as synaptic vesicles and active zone proteins. Furthermore, MT polarity appears to affect the length of the dendrite, suggesting that both the structural and transport functions of MTs depend on their polarity. Interestingly, the direction and timing of dendrite outgrowth are not affected in unc-116 mutants, suggesting that MT polarity does not play a critical role in dendrite outgrowth, a process in which the actin cytoskeleton is known to play an important role (Gao et al., 1999). Together, these data argue that polarized MT tracks play instructive roles in formation of axonal and dendritic identities, as well as in the compartmentalization of axonal and dendritic constituents such as SVs, active zone proteins, and neurotransmitter receptors.

Materials and methods

Strains and genetics

Request a detailed protocol

Worms were raised on NGM plates at 20°C using OP50 Escherichia coli as a food source. N2 Bristol was utilized as the wild-type reference strain. The following mutant strains were obtained through the Caenorhabditics Genetics Center: FF41 unc-116(e2310) III, RB1975 klc-1(OK2609) IV, and CB1265 unc-104(e1265) II. TV6687 unc-116(rh24 sb79) III was a kind gift from Dr. McNally at University of California at Davis, TV3706 unc-116 (wy270) III, carrying a single L129 to F mutation in motor domain, (EL, unpublished data) was previously isolated from our laboratory.

Molecular biology and transgenic lines

Request a detailed protocol

Expression clones were made in the pSM vector, a derivative of pPD49.26 (A Fire, unpublished data) with extra cloning sites (S McCarroll and CI Bargmann, unpublished data). The plasmids and transgenic strains (1–50 ng/μl) were generated using standard techniques and coinjected with markers Podr1::RFP or GFP (40 ng/μl): wyEx3892 [Pitr1::dhc-1::GFP], wyEx 2559 [Pitr1:: unc-104::YFP], wyEx3128 [Pitr1::klp-16::YFP], wyIs674 (Pitr1::klp-16::YFP), wyIs309 (Pmig13::klp-16::GFP), wyEx4974 [Pida-1::unc-104::GFP], wyEx4980 [Pida-1::klp-16::GFP], wyEx4978 [Pida-1::GFP::rab-3], wyEx4828 [Pdes-2::ebp-2::GFP], wyIs349 (Pmig13::loxP-ebp-2::GFP), wyIs85 (Pitr1::GFP::rab-3), wyEx2505 [Pitr1::syd-2::GFP, Pitr1::mCherry::rab-3], wyIs386 (Pitr1::acr-2::GFP), wyEx1902 [Pitr1::mCherry], wyEx403 [Pitr1::cam-1::YFP], wyEx2396 [Pitr1::fbn-1;;YFP], and wyEx2709 [Pitr1::tom-20::YFP]. Detailed subcloning information will be provided on request.

Fluorescence microscopy and confocal imaging

Request a detailed protocol

Images of fluorescently tagged fusion proteins were captured in live C. elegans using a Plan-Apochromat 63×/1.4 objective on a Zeiss LSM510 confocal microscope system. Visual inspections and some quantification were done using a Zeiss Axioplan 2 microscope with Chroma HQ filter sets for GFP, YFP, and RFP (63×/1.4NA objective). Worms were immobilized using 10 mM levamisole (Sigma, St Louis, MO) and oriented anterior to the left and dorsal up.

Dynamic imaging

Request a detailed protocol

Dynamic imaging was performed on an inverted Zeiss Axio Observer Z1 microscope equipped with the highly sensitive QuantEM:512SC camera. A Plan-Apochromat 63×/1.4 objective was used for acquisition. L4 worms were cultured at 22°C for imaging. They were mounted onto 2% agarose pads and anesthetized with 6 mM levamisol (Sigma) for no longer than 20min. All videos were acquired over 25 s with 8 frames per second. Videos were then analyzed using the ImageJ software.

Protein purification

Request a detailed protocol

Tubulin was purified from porcine brain and polymerized to microtubules by a previously described method, then stabilized by taxol (Sloboda and Rosenbaum, 1982). Conventional kinesin (kinesin-1) was also purified from porcine brain as described before (Wagner et al., 1991). Recombinant protein for mNUDC was generated using pGEX-4T expression vector (GE Healthcare Bio-sciences). Protein purification was performed using Glutathione Sepharose 4B (GE Healthcare Bio-sciences) based on the manufacturer's recommendation. To remove GST-tag, we treated recombinant protein with Thrombin (Merck), followed by absorption of thrombin by Benzamidine Sepharose 6B (GE Healthcare Bio-sciences).

Negatively stained electron microscopy

Request a detailed protocol

Taxol-stabilized MTs (25 μg/ml) with/without kinesin-1 (85 μg/ml), NudC (50 μg/ml), and 2 mM AMP-PNP were mixed in a test tube according to the condition then sit for 10 min. The kinesin-1 and NudC were mixed at a molar ratio of 1:5. The mixed solution of 5 μl was loaded on a hydrophilized carbon grid (75/300 mesh; VECO, Cu) to sit for 60 s in a humid chamber. Unabsorbed protein was rinsed by BRB80 buffer (80 mM Pipes-KOH, 2 mM MgSO4, 1 mM EGTA, pH 6.8) containing with 10 μM taxol. After the excess solution was blotted with a filter paper, the specimen was stained with an equal volume of 2% uranyl acetate for 40 s. The specimens were observed with a transmission electron microscope, Tecnai Spirit (FEI Co.). The microscope was operated at 120 kV. The magnification for overviewed images was ×21,000 and the nominal magnification was ×67,000. The defocusing values were usually −1 to −1.5 μm. The images were recorded using CCD (2k × 2k, Eagle1k CCD; FEI) at 30 μm/pixel corresponding to 0.47 nm. The electron dose per single image was estimated as 10 e/Å2.

Cryo-electron microscopy

Request a detailed protocol

To define the polarity of the MTs, electron cryo-microscopy was used. First frozen-hydrated specimens were prepared as follows: a 10-μl drop of purified MT/kinesin-1/NudC complex with 2 mM AMP-PNP was mounted on a holey carbon grid (Quantifoil: Mo R2/2, Germany) and blotted with filter paper to remove excess solution and make a thin aqueous layer. The grid was then plunged into ethane slush at −185°C to create a thin layer of vitreous ice. The frozen-hydrated specimens were examined at liquid nitrogen temperature using a cryo-holder (CT3500; Oxford Instruments, United Kingdom) with an EF-2000 microscope (Hitachi High-Technologies, Japan) operated at 200 kV. The electron micrographs were recorded using a 2 k × 2 k CCD camera developed by TVIPS (Yasunaga and Wakabayashi, 2008) with an defocusing value of −3 to −4 μm. The electron dose per single image was estimated as approximately ∼1400 e/Å2.

Image analysis

Request a detailed protocol

The defocusing values of all obtained images were estimated by ‘ctfDisplay'. The images were then corrected by phase flipping after the phase contrast transfer functions (CTF) were determined from the defocusing values. Corrected images were processed by the band-pass filter (1/100 nm to 1/10 nm), and so their background noise was reduced. The polarity of microtubules was determined by checking their Moiré patterns. Most of the image processing was performed by Eos (Yasunaga and Wakabayashi, 1996).


    1. Clark IE
    2. Jan LY
    3. Jan YN
    Reciprocal localization of Nod and kinesin fusion proteins indicates microtubule polarity in the Drosophila oocyte, epithelium, neuron and muscle
    Development 124:461–470.
    1. Guillaud L
    2. Setou M
    3. Hirokawa N
    KIF17 dynamics and regulation of NR2B trafficking in hippocampal neurons
    J Neurosci 23:131–140.
    1. Sloboda RD
    2. Rosenbaum JL
    Purification and assay of microtubule-associated proteins (MAPs)
    Methods Enzymol 85:409–416.
    1. Stepanova T
    2. Slemmer J
    3. Hoogenraad CC
    4. Lansbergen G
    5. Dortland B
    6. De Zeeuw CI
    et al. (2003)
    Visualization of microtubule growth in cultured neurons via the use of EB3-GFP (end-binding protein 3-green fluorescent protein)
    J Neurosci 23:2655–2664.

Decision letter

  1. Franck Polleux
    Reviewing Editor; Scripps Research Institute, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for choosing to send your work entitled “Kinesin-1 regulates Microtubule Polarity in the Dendrite” for consideration at eLife. Your article has been evaluated by a Senior editor and 3 reviewers, one of whom is a member of eLife's Board of Reviewing Editors.

The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments based on the reviewers' reports.

Overall, the reviewers found the study of potentially high significance since it tackles an important and unresolved problem in neurobiology, namely the molecular mechanisms polarizing neurons and, in particular, the role of microtubules and molecular motors in axon/dendrite specification. The discovery that kinesin-driven microtubule transport might participate to the unique microtubule orientation characterizing the dendrite in C. elegans neurons is potentially interesting and novel.

However, at this point, the reviewers raised a number of concerns regarding the interpretation of some of the results, the validity of some the quantitative analysis, and some general aspects of the data presentation. If you can address the following major comments with new experiments, improved quantitative analysis, and revised text, we would like to consider a revised version.

1. Interpretation of the data: the authors claim that the conversion of microtubule orientation (minus end distal into plus end distal) in the kinesin-1 mutant is due to the microtubule transport function of kinesin-1, which might selectively transport minus-end microtubules to the distal end of the dendrite. The reviewers propose that, based on the plus-end direction of kinesin-1 transport, an equally likely interpretation of the authors' data is that kinesin-1 may function to promote transport of plus-end microtubules out of the dendrite into the cell body. The authors conclude the reverse (that ‘…dynein moves minus-end out MT out of the axon, while kinesin-1 moves minus-end out MT into dendrites'). The authors should consider this alternative interpretation of their results that kinesin-1 moves plus-end distal MTs out of the dendrites by using their plus-end directed motor activity to transport plus-end MT towards the cell body, that is out of the dendrite In the same vein, their conclusion schema (Figure 6G) is a bit confusing in this regard: in most of the paper, the authors represent minus-end microtubules distal in dendrites and the circle represents the cell body. In Figure 6G the circle indicates the distal end of the dendrite. The authors should make sure this is not a mistake. They should try to make clearer the difference between ‘long minus end out' MTs and the fragment/transported plus-end out MTs (maybe using a different color). The authors must discuss how they envision that kinesin-1 can establish minus end-out microtubules. If this motor were to slide microtubules along each other in dendrites, all of the microtubules would eventually collapse into the cell body. Finally, can the authors comment on the localization pattern of kinesin-1 in DA9? Is it found in the dendrite as the model in Figure 6G predicts?

2. More experiments on Unc-116: the authors should be more accurate when they describe the e2310 allele of Unc-116 (kinesin-1). For example, they mention that this allele ‘…likely represents a partial loss of kinesin activity'. But then they mention the study from Patel and colleagues, suggesting that e2310 mutation affects a residue at the ‘…C-terminal end of kinesin-1 adjacent to the MT binding motif'. This is unlikely to affect kinesin-1 motor activity as suggested earlier. The authors argue that the C-terminal domain of unc-116 is likely to bind microtubules based on sequence similarity (but not identity) of the MT binding domain to homologs, but whether the C. elegans sequence binds to MTs is not known. The major model presented by the authors will be strengthened by these data if the resources are available to perform this work. Finally, does unc-116-MT rescue the dendrite elongation defect of unc-116 mutants? This experiment is relevant as the authors indicate in the Discussion that MT polarity appears to affect the length of the dendrite, when this could in principle be due to organelle trafficking roles.

3. More quantification: while the data are generally high quality, certain arguments would be strengthened by additional quantification, for example quantification is lacking from main Figures 1, 4, and 5.

4. One reviewer felt the authors were potentially misleading in the title and abstract by not indicating that they have investigated this in worms, rather than in mammals. The authors should improve their Introduction and how they formulate the question tackled. At the end of the first paragraph of the introduction, the authors state “dendritic MTs exhibit a mixed orientation with minus-ends predominantly facing the distal dendrite…”. This is not correct: it has been established that in mammalian systems, microtubules are of mixed polarity in the proximal region of the dendrite but are predominantly plus end-out in the distal dendrite (Baas 1988; Stepanova 2003; Kollins 2009; etc.). This has been very nicely reviewed in Kapitein and Hoogenraad, Mol Cell Neurosci 2011. The authors should improve their Discussion and quoting of the literature. For example, there are several more recent reviews with more relevant information than the ones cited (Hirokarwa 1998; Vale 2003). More significantly, kinesin-2 has been shown to be required for minus end-out microtubule orientation in flies (Mattie et al Curr Biol 2010). The authors should cite this paper and discuss the relevance of their work to this paper.

5. It seems that dendritic outgrowth of the DA9 neuron occurs during post-embryonic development, suggesting that microtubule polarity of the dendrite is set up at L1. One reviewer feels it would be appropriate to demonstrate microtubule polarity via (+) and (-) end markers and the establishment of longer dendrites at L1 through adult stages to further support their hypothesis that in unc-116 animals the dendrite takes on a longer, more axonal like configuration with reversed MT polarity.

[Editors'note: during revisions the editors made the following suggestion.]

The reviewers agreed that it would be beneficial to re-include the data regarding the dendrite elongation phenotype that you removed during the first revisions:

“[We] raised the issue of the basis for the dendrite elongation phenotype, which the authors have sorted out, but [we] felt that entirely removing the dendrite phenotype is not the best solution in the revision since the paper now refers to a lack of all other morphological defects (dendrite axon directionality and axon growth), but awkwardly omits dendrite length. The basis of this phenotype appears complex, yet [we] feel the authors should find a way to include at least the basic observation.”


Author response

We have followed the suggestions of the reviewers and performed additional experiments. The most constructive suggestion from the review was that our genetic data could be interpreted by two different models. One model is the one that we had originally presented: Kinesin-1 shuffles minus-end-out MTs into the dendrite. The alternative model is that Kinesin-1 shuffles plus-end-out MTs out of dendrite into the soma. We have performed two experiments to distinguish these two models. The new results favor the alternative model proposed by the reviewers. Accordingly, we have changed the manuscript to reflect these results. We have also included new in vitro data that directly support our model.

Since the in vitro experiments we added were not requested by the reviewers, we will describe them first before providing a direct reply to all the questions.

The genetic results we showed were consistent with the model that UNC-116/Kinesin-1 establishes the minus-end-out MT polarity in dendrites. Through structure-function analysis, we propose that kinesin-1 potentially binds to MTs with its C-terminal tail domain and slides anti-parallel MTs against each other. To directly test if Kinesin-1 can crosslink anti-parallel MTs, we collaborated with Dr. Hirotsune's laboratory, who performed in vitro MT cross-linking assays with the kinesin-1 complex. Consistent with previous literature, they found that kinesin-1 could cross-link MTs. They further used cryo-EM to determine the polarity of the cross-linked MTs. They found that the majority of MTs are of anti-parallel polarity (Figure 5). While these experiments were performed with vertebrate proteins, we feel that it provided valuable support for our model. We therefore included the data in the revised manuscript.

We want to be upfront about the low case number for the EM reconstruction of the MTs in this analysis. Since the assay is incredibly time consuming, we could only complete the reconstruction of 13 pairs of MTs, out of which 9 pairs are anti-parallel and 4 pairs are parallel. While the anti-parallel MTs accounts for the majority of the cases, it does not reach statistical significance based on these numbers. We are open to not including these data if the reviewers and editors advise us to do so.

Below is the point-by-pointreply to the questions raised by the reviewers.

1) Interpretation of the data.

We would like to thank the reviewers for coming up with this alternative model. Our original model is that “Kinesin-1 slides minus-end-out microtubules (MTs) into dendrites”. The alternative model states that “Kinesin-1 slides plus-end-out microtubules out of dendrites”.

The results we presented in the original manuscript are consistent with both models. Therefore, we performed two experiments to distinguish the two models. We reasoned that if the original model is correct, in unc-116 mutants, the net number of MTs should decrease compared to the wild-type animals. On the contrary, the alternative model would predict that in unc-116 mutants, the net number of MTs should increase. We used two methods to measure the relative concentration of MTs in dendrites.

First, we used a GFP::tubulin (GFP::TBA-1) transgene to assess the overall level of MTs. Since the absolute fluorescence intensity is affected by the expression level of the transgenes, we used the ratio between the dendrite and axon fluorescence as a measure for the relative enrichment of MTs in the dendrite vs. axon. We found that unc-116 mutants show significantly higher MT abundance compared to the wild type (Figure 6E, error bars represent standard deviation).

Second, we analyzed the frequency of the EBP-2::GFP comets as a measure of the number of dynamic MTs in DA9 dendrites. Interestingly, we again found that unc-116 mutant dendrites have three times higher frequency of EBP-2::GFP comets compared to the wild-type controls. No difference was found in the axons between mutant and wild type.

Together, both experiments support the alternative model and suggest that Kinesin-1 regulates the minus-end-out MT polarity in the dendrite by specifically transporting plus-end-out MTs out of the dendrite. In the unc-116 mutants, plus-end-out MTs accumulate in the dendrite and lead to the erosion of polarity.

Regarding the conclusion schema (Figure 6G), the symbol was indeed a mistake. We apologize for that and we have corrected it. We have also distinguished the longer MTs and shorter transporting MTs with two different colors as the reviewers suggested. We envision that the kinesin-1 slides plus-end-out MTs out of the dendrite to create the dominant polarity of minus-end-out MTs in the DA9 dendrite. We envision that this function must be regulated. From the EBP-2::GFP experiments, it is clear that a small percentage of MTs are plus-end-out even in the wild type dendrites.

We have also created UNC-116::GFP to examine the localization of this motor in DA9. Similar to the UNC-104::GFP construct, we found that the vast majority of fluorescence is found at the tip of the axon, again supporting the plus-end-out MT polarity in the axon. We do not find a high level of UNC-116::GFP in the dendrite as expected. However, these experiments are not perfect since they detect transgenically expressed UNC-116. In this case, even antibody staining will likely not be useful, as it will lose the cellular specificity attained by the DA9 dendrite being tightly associated with the ventral nerve cord. It is therefore impossible to differentiate the potential signal from DA9 and those from the many other neurites. One related note is that kinesin-1 was found in the vertebrate dendrites (Nakata and Hirokawa, 2003).

2) More experiments on Unc-116.

We have sequenced the e2310 allele and confirmed the previously reported TC5 transposon insertion. The transposon was inserted into the C-terminal coding region of unc-116, which results in a premature stop codon after residue 692, which truncates the potential MT-binding domain and the very C-terminal IAK motif of kinesin-1/UNC-116. The IAK motif was shown to be important for regulating the motor activity of kinesin-1 (Wong et al., 2009). So we anticipate that e2310 allele will cause impaired motor activity.

In order to test whether the putative MT-binding domain of UNC-116 is able to bind MTs, we expressed GFP-tagged UNC-116(aa521-863) in the HEK 293T cells and co-stained with MTs. As shown in the following figures, GFP-UNC-116(aa 521-863) co-localized with MTs (Author response image 1). Similar experiments were used to demonstrate that the vertebrate kinesin-1 counterpart can directly interact with MTs (Navone et al., 1992). Importantly, a mutant form of this domain that includes three R to A mutations showed no colocalization with MT markers. The same mutations when introduced in the vertebrate Kinesin-1 domains also diminish the interaction between MT and the C-terminal MT binding motif (Seeger and Rice, 2010). Together, these results further support our model.

Author response image 1

We want to thank the reviewers for raising questions about the dendrite length phenotype in unc-116. In our original submission, we showed that in unc-116 mutants, the DA9 dendrite exhibits axon-like MT polarity and is also significantly longer than the wild type dendrite. The reviewers asked us to test whether the increased length is caused by the change of MT polarity. Through structure-function dissection of UNC-116, we identified a mutant form of UNC-116 which is defective in the putative novel MT sliding function, yet appears to maintain other vesicular trafficking functions as measured by the localization of mitochondria (Figure 6B and Figure 6—figure supplement 1). When expressed in DA9, this mutant UNC-116 (UNC-116 MT) failed to rescue the MT polarity phenotype, but fully rescued the dendrite length phenotype, indicating the longer dendrite is not a consequence of MT polarity change. Consistent with this notion, we examined the dendrite length of another mutant wy774, which we have isolated from our forward genetic screen. This mutant exhibits similar MT polarity phenotype as the unc-116 mutants but is mapped to a different genomic locus (hence not another allele of unc-116). Interestingly, this mutant shows normal dendrite length, further suggesting that longer dendrite in the unc-116 mutant is not a consequence of MT polarity change but likely due to other functions of UNC-116/kinesin-1. In the light of these new results, we have removed the data and discussion on dendrite length in the revised manuscript.

3) More quantification.

We have included quantifications in Figures 1, 4 (now Figure 3) and 5 (now Figure 4).

4) One reviewer felt the authors were potentially misleading in the title and abstract by not indicating that they have investigated this in worms, rather than in mammals […].

We have clarified the organism in the title and abstract. We have modified our introduction on the dendrite MT polarity, cited a number of recent reviews, and included discussion on kinesin-2.

5) [It] would be appropriate to demonstrate microtubule polarity via (+) and (-) end markers and the establishment of longer dendrites at L1 through adult stages […].

We agree with the reviewers that this is an important issue. Using +end and –end markers as suggested by the reviewers, we examined the DA9 dendrite polarity at different developing stages in both wild type and unc-116 mutants. The results are summarized below and shown in Author response image 2.

Author response image 2

1) In wild type L1s (10 hour after hatching) animals, (-) end marker KLP-16::GFP is localized to the dendrite, but does not show the dramatic enrichment at the tip of the dendrite found in adults. At the same stage, (+) end marker UNC-104::GFP avoids the dendrite and is dramatically enriched at the tip of the DA9 axon. These results suggest that in wild type young animals, the dendrite likely already contains mix-polarized MTs but the minus-end-out MTs are not as dominant as in adult dendrites. We looked hard for any evidence that would suggest that very young dendrites bear axonal-like polarity, a phenotype that was observed in the stage 2 neurons in dissociated vertebrate cultures. However, we did not see any UNC-104::GFP fluorescence in the dendrites of wild-type animals at any developmental stages. We therefore conclude that as soon as the dendrite grows out, it has adopted a mixed MT polarity.

2) at 20 hours after hatching, wild type DA9 dendrite showed dramatic enrichment of (-) end marker KLP-16::GFP at the tip of the dendrite, suggesting that the minus-end-out MTs have become dominating species by this time point.

3) at 10 hour after hatching, unc-116 mutant dendrites showed the same distribution of (-) end marker and (+) end marker as in the wild type. In other words, unc-116 mutant did not show a phenotype at this very early stage of dendrite development.

4) at 20 hours after hatching, the unc-116 mutant dendrite completely fails to enrich the (-) end marker KLP-16::GFP at its tip; instead, it enriches the (+) end marker UNC-104::GFP at its tip, suggesting a polarity reversal starting at this stage.

Taken together, these results suggest that the dendrite starts out as a process with a mixed MT polarity (certainly not an axon-like uniformly plus-end-out, but also not as minus-end-out as the mature dendrite). With time, MTs becomes more dramatically polarized with minus-end-out being the dominating species.UNC-116/Kinesin-1 likely functions in the maturation stage to establish and maintain the polarity. These data are consistent with our MT gliding model.

[Editors' note: during revisions the editors made the following suggestion: The reviewers agreed that it would be beneficial to re-include the data regarding the dendrite elongation phenotype that you removed during the first revisions.]

We have followed your suggestions and put back the DA9 dendrite length elongation phenotype of unc-116 animals in the manuscript as a supplement to Figure 3.


Nakata, T, & Hirokawa, N. (2003). Microtubules provide directional cues for polarized axonal transport through interaction with kinesin motor head. J Cell Biol, 162, 1045–55. doi: 10.1083/jcb.200302175

Navone, F, Niclas, J, Hom-Booher, N, Sparks, L, Bernstein, HD, McCaffrey, G, et al. (1992). Cloning and expression of a human kinesin heavy chain gene: interaction of the COOH-terminal domain with cytoplasmic microtubules in transfected CV-1 cells. J Cell Biol, 117, 1263–75. doi: 10.1083/jcb.117.6.1263.

Seeger, MA, & Rice, SE. (2010). Microtubule-associated protein-like binding of the kinesin-1 tail to microtubules. J Biol Chem, 285, 8155–62. doi: 10.1074/jbc.M109.068247

Wong, YL, Dietrich, KA, Naber, N, Cooke, R, & Rice, SE. (2009). The Kinesin-1 tail conformationally restricts the nucleotide pocket. Biophys J, 96, 2799–807. doi: 10.1016/j.bpj.2008.11.069.
