Despite their simplicity, longitudinal studies of invertebrate models are rare. We thus sought to characterize behavioral trends of Caenorhabditis elegans, from the mid fourth larval stage through the mid young adult stage. We found that, outside of lethargus, animals exhibited abrupt switching between two distinct behavioral states: active wakefulness and quiet wakefulness. The durations of epochs of active wakefulness exhibited non-Poisson statistics. Increased Gαs signaling stabilized the active wakefulness state before, during and after lethargus. In contrast, decreased Gαs signaling, decreased neuropeptide release, or decreased CREB activity destabilized active wakefulness outside of, but not during, lethargus. Taken together, our findings support a model in which protein kinase A (PKA) stabilizes active wakefulness, at least in part through two of its downstream targets: neuropeptide release and CREB. However, during lethargus, when active wakefulness is strongly suppressed, the native role of PKA signaling in modulating locomotion and quiescence may be minor.https://doi.org/10.7554/eLife.00782.001
The roundworm C. elegans is a key model organism in neuroscience. It has a simple nervous system, made up of just 302 neurons, and was the first multicellular organism to have its genome fully sequenced. The lifecycle of C. elegans begins with an embryonic stage, followed by four larval stages and then adulthood, and worms can progress through this cycle in only three days. However, relatively little is known about how the behaviour of the worms varies across these distinct developmental phases.
The body wall of C. elegans contains pairs of muscles that extend along its length, and when waves of muscle contraction travel along its body, the worm undergoes a sinusoidal pattern of movement. A signalling cascade involving a molecule called protein kinase A is thought to help control these movements, and upregulation of this cascade has been shown to increase locomotion.
Now, Nagy et al. have analysed the movement of C. elegans during these different stages of development. This involved developing an image processing tool that can analyze the position and posture of a worm’s body in each of three million (or more) images per day. Using this tool, which is called PyCelegans, Nagy et al. identified two behavioral macro-states in one of the larval forms of C. elegans: these states, which can persist for hours, are referred to as active wakefulness and quiet wakefulness. During periods of active wakefulness, the worms spent most (but not all) of their time moving forwards; during quiet wakefulness, they remained largely still.
The worms switched abruptly between these two states, and the transition seemed to be regulated by PKA signaling. By using PyCelegans to compare locomotion in worms with mutations in genes encoding various components of this pathway, Nagy et al. showed that mutants with increased PKA activity spent more time in a state of active wakefulness, while the opposite was true for worms with mutations that reduced PKA activity.
In addition to providing new insights into the control of locomotion in C. elegans, this study has provided a new open-source PyCelegans suite of tools, which are available to be extended and adapted by other researchers for new uses.https://doi.org/10.7554/eLife.00782.002
The life cycle of the nematode Caenorhabditis elegans is comprised of the embryonic stage, four larval stages termed L1–L4, and adulthood. Each larval stage lasts 8–12 hr at 20°C, and under standard conditions, and ends with a molt, when epidermal cells synthesize a new cuticle and the old one is shed. Although C. elegans larvae are mostly continuously motile, each molt is accompanied by a 2–3 hr period of behavioral quiescence (Singh and Sulston, 1978), referred to as ‘lethargus’. Thus, the larval stages can be divided into motile intermolt sub-stages (L1int–L4int) and their corresponding lethargus sub-stages (L1leth-L4leth). However, behavior during distinct developmental sub-stages (Singh and Sulston, 1978) has not previously been examined in detail. Specifically, both the modulation of body posture and locomotion on developmental timescales remain largely unexplored.
C. elegans move directionally by propagating dorsoventral undulations along their body. Upon receiving input from interneurons, motoneurons provide output to an array of longitudinal body-wall muscles in order to propagate body bends (White et al., 1986; Stetina et al., 2006; Karbowski et al., 2006; Stephens et al., 2008). Head/neck motoneurons and muscles independently control head movements, such as exploratory head swings (White et al., 1986; Stetina et al., 2006; Pirri et al., 2009; Maguire et al., 2011). The gsa-1 gene encodes a Gαs subunit, which activates the adenylyl cyclase ACY-1, and the GSA-1(Gαs) pathway has been previously shown to affect locomotion. Activation ACY-1 by GSA-1 leads to the production of cyclic adenosine monophosphate (cAMP). The binding of cAMP to the protein kinase A (PKA) regulatory subunit KIN-2 dissociates it from the inactive holoenzyme, releasing the PKA catalytic subunit, KIN-1. Increased PKA activity enhances signaling at the neuromuscular junction, as well as increases cAMP response element (CRE) mediated transcription in C. elegans neurons (Kimura et al., 2002). Thus, upregulating this signaling pathway has been reported to result in hyperkinetic phenotypes, typically described as a nonspecific increase in the rate of locomotion (Schade et al., 2005; Reynolds et al., 2005; Raizen et al., 2008; Perez-Mansilla and Nurrish, 2009), as well as in reduced quiescence during lethargus (Raizen et al., 2008; Belfer and Raizen, 2013).
Here we present the first detailed analysis of locomotion patterns during developmentally relevant timescales, that is, periods in which significant developmental changes occur. We have analyzed the initiation, propagation and eventual demise of individual dorsoventral body bends over a 14-hr period, from the mid-L4int stage to the mid-young-adult stage. We found that some locomotion patterns undergo a gradual modulation, while others display abrupt switching. In particular, two behavioral states, active wakefulness and quiet wakefulness, were observed during the mid- to late- L4int stage. Active wakefulness was dominated by forward locomotion (propagation of body-bends from the anterior to the posterior), but included intervals of backward locomotion and ‘dwelling’ (non-directional dynamics of body bends). In contrast, quiet wakefulness was dominated by dwelling behavior, although it included intervals of directed locomotion. In individual animals, active wakefulness was observed to persist for epochs of 1–100 min. Moreover, the switching between active and quiet wakefulness was abrupt, suggesting that they are distinct behavioral states. The process underlying these states exhibited the signature of ergodicity breaking, characteristic of a scale-free switch, as opposed to having a simple rate constant that governs the dynamics of switching. We further show that the transitions between behavioral states were regulated by the GSA-1(Gαs) pathway: increased Gαs signaling stabilized the active wakefulness state both within and outside of lethargus, while decreased Gαs signaling destabilized this state, but only outside of lethargus.
To assay the modulation of behavior during development, we developed PyCelegans: a high-speed, modular image-processing tool for analyzing posture and locomotion of C. elegans on high performance computing resources. The function we used for processing a single frame was limited to tracking a single animal. However, the modular design of PyCelegans can accommodate multi-animal tracking once an appropriate substitute for this function is implemented, without further changes. The rate of data capture for recording throughout a larval developmental stage at a sufficiently high temporal resolution can exceed 3,000,000 images per day. For a dataset of this magnitude, the required post-processing is the rate-limiting step of the experiment. Using PyCelegans, the rate-limiting component of the analysis scaled linearly with the number of available processing-cores. By using 256 cores we achieved a speed-up of two orders of magnitude relative to previous implementations. For proof of principle, analyses have been run on up to 1024 processors. The number of processors that could be utilized, for example, from publically available clusters, is in the tens of thousands for a single dataset.
The objective of the image-processing portion of PyCelegans is to identify the head, tail, and body of the animal and to compute secondary properties based on this identification (e.g., the body midline, perimeter, and orientation). Tertiary properties can then be computed from the resulting raw data. Our analysis of posture and locomotion was based on dividing the midline of the body of each animal into 20 segments and measuring the local angles between them (Figure 1A–B). This method extended previous analyses based on body curvature as a function of time and body coordinate (Fang-Yen et al., 2010; Vidal-Gadea et al., 2011): we tagged individual body-bends, followed them from initiation to eventual demise, and recorded their origin, velocity, amplitude, and life-time. The identification of the midlines and individual body-bends enabled measurements of local properties as a function of the body-coordinate (e.g., quiescence of individual body-segments, Figure 1C), as well as global behavioral patterns such as mean curvature and growth rate (Figure 1D) or modes of locomotion (Figure 2). For instance, a 2% growth of body-length per hour was observed outside of lethargus, but during lethargus a 5% shortening of the body-length was observed (Figure 2D). This shortening may be due to continuous growth in body-volume at a period where adding surface area to the (old) cuticle was restricted. PyCelegans enabled us to conduct such high-resolution measurements over extended periods for the first time.
Although the term lethargus, describing reduced activity associated with molting in a variety of nematode species, was already in use about a century ago (Veglia, 1915; Sommerville, 1960; Singh and Sulston, 1978), the detailed dynamics of this behavior have only recently been studied (Raizen et al., 2008; Iwanir et al., 2013; Belfer and Raizen, 2013). In C. elegans, head/neck and body motor circuits govern the generation and propagation of body-bends (White et al., 1976, 1986; McIntire et al., 1993; Stetina et al., 2006; Chen et al., 2007; Wen et al., 2012), and the body motoneuron network exhibits an iterative pattern of six interconnected modules along the anterior-posterior axis (Haspel and O’Donovan, 2011). It was thus possible that different body regions would exhibit distinct temporal dynamics of quiescence. To identify such patterns, we divided the midline of the animal to 20 equi-length segments, and quantified the fraction of time spent in quiescence by the individual angles between pairs of segments, during the period from mid L4int to the mid young adult stage (Figure 1C). While an abrupt increase in the fraction of quiescence at the onset of lethargus occurred in all of the individual body-regions, most of them exhibited elevated quiescence during the preceding 2-hr period. Interestingly, the most anterior region was the least quiescent throughout the measurement. Subsequent regions exhibited successively increasing quiescence, with the mid-body being the most quiescent. As a result of this ordering, the temporal dynamics of quiescence of the entire animal mirrored that of the head/neck region. We thus concluded that the activity of the head/neck motoneuron circuits determined the outcome of previously reported measurements of whole-animal quiescence (Raizen et al., 2008; Singh et al., 2011; Bringmann, 2011; Iwanir et al., 2013; Belfer and Raizen, 2013).
Although behavioral quiescence provides the most prominent example of modulation of posture and locomotion during development (Raizen et al., 2008; Singh et al., 2011; Iwanir et al. 2013; Ghosh and Emmons 2008; Schwarz et al., 2012), additional instances of modulation could occur outside of lethargus. To identify such phenomena, we focused on four categories of locomotion behavior: forward and backward locomotion were defined by the appropriate directional propagation of body-bends along the anterior-posterior axis, dwelling was defined as non-directional propagation of body-bends, and quiescence was defined as sub-threshold changes in body angles (see ‘Materials and methods’). Aligning behavioral data by the onset of lethargus for each 10 hr measurement and averaging between animals, we observed a decrease in the percentage of time spent in forward locomotion during the 4 hr preceding L4leth and a corresponding increase in the percentage of time spent in dwelling (Figure 2A). During the first 1–2 hr following L4leth termination, wild-type behavior was characterized by a high, decreasing fraction of dwelling, and a low, increasing fraction of forward locomotion. Backward locomotion was modulated more weakly during the period of the measurement.
In agreement with our previous findings using complementary methods (Iwanir et al., 2013) we found that the overall curvature, quantified as the mean absolute angle, was modulated during lethargus, and that the overall growth rate of the body length outside of lethargus was 2% per hour (Figure 1D). In addition, the propagation velocity of anterior-to-posterior body-bends and the frequency of generation of bends were gradually downregulated during late L4int, and upregulated during the early young adult stage (Figure 2B). Although the frequency of bend generation was naturally limited by how quickly bends propagated away from their point of origin, there was no a priori restriction on how low this frequency could be. The similarity between the dynamics of bend generation frequency and of bend velocity suggested that the former could serve as an adequate proxy for the latter throughout the measurement period.

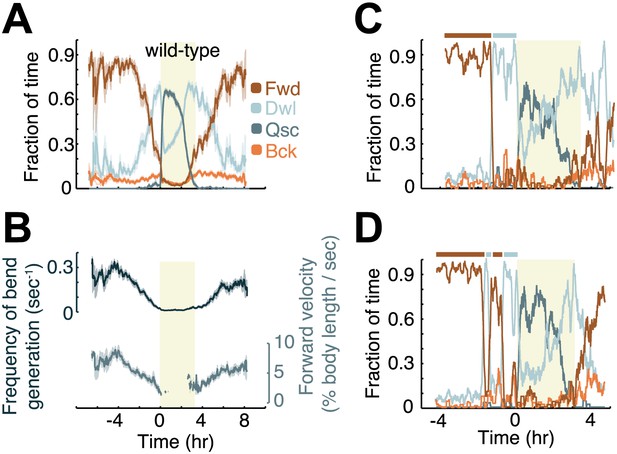

The gradual modulation of the average behavioral dynamics shown in Figure 2A could result from a progressive modulation in individual animals or from abrupt but asynchronous events. To distinguish between these possibilities, we examined the behavior of the individual animals in our dataset. We found that the forward velocities of individual animals decreased gradually (data not shown). In contrast, the fraction of time spent in forward locomotion and dwelling alternated between high and low values, giving rise to the definition of two behavioral states: active wakefulness, characterized by a high proportion of forward locomotion, and quiet wakefulness, characterized by a high proportion of dwelling (Figure 2C–D). Transitions between active and quiet wakefulness were in the form of rapid behavioral switches, suggesting that they represented two distinct behavioral states.

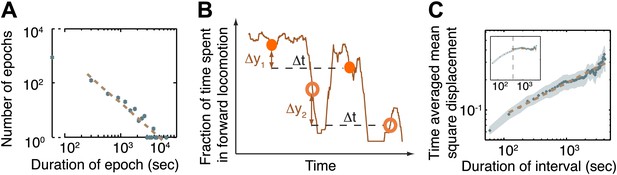

In order to further characterize the observed behavioral dynamics we measured the durations of the epochs of active wakefulness prior to the onset of L4leth. The simplest model, a two-state Markov chain with constant rates of transitions into and out of the active wakefulness state, would yield Poisson statistics, that is, an exponential distribution of epoch durations. The histogram of epochs longer than 3 min was thus fit to exponential (N(t) ∼ e−t/τ) and power-law (N(t) ∼ t−(1+α)) distributions, and the Akaike information criteria (AIC) were calculated in order to compare the two models (Burnham and Anderson, 2002; Burnham and Anderson, 2004). Interestingly, the power law fit (Figure 3A, AIC = −3.1) was strongly favored over the exponential fit (AIC = 13.1): the Akaike weight was 0.9997, indicating that the probability that the power-law model better described the data was 99.97%. The exponent obtained from the power law fit was −(1+α) = −1.83 ± 0.31 (95% confidence intervals, R = 0.95). These results indicated that a simple, Poissonian, model would not adequately describe the observed transitions between active and quiet wakefulness. Rather, the long tail of the power-law distribution suggested that the active wakefulness state was stabilized during L4int.
An additional quantity that can be used to detect the signature of an underlying non-Poissonian process is the time-averaged mean squared displacement (TMSD): the mean squared difference between the values of the process at two time-points that are Δt apart, as illustrated in Figure 3B. In simple cases such as a two-state Markov chain, when the TMSD is plotted as a function of Δt it saturates at a constant value at long measurement times (Figure 3C, inset). In contrast, in processes with no underlying timescale, that is, where the duration of the intervals follow a power-law distribution, the TMSD increases as the time interval increases, exhibiting its own, related, power-law long-term behavior (S(Δt) ∼ Δt(1−α)) with an exponent 1−α, where α is determined by the durations of the epochs (Stefani et al., 2009; Burov et al., 2010). We thus measured the TMSD for the fraction of time spent in active wakefulness during the 3 hr prior to L4leth. As shown in Figure 3C, the resulting long-term behavior was characterized by the exponent 1−α = 0.32 ± 0.03 (95% confidence intervals, R = 0.96), consistent with a value of α ≈ 0.7. These findings support the hypothesis of a mechanism for stabilizing the active wakefulness state during L4int, resulting in the observed distribution of epoch durations.

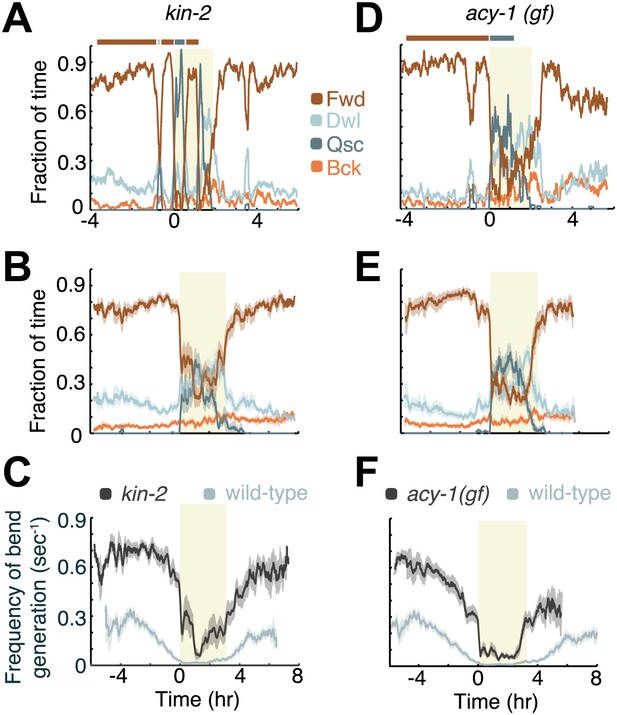

Both the loss of function mutation of the kin-2 gene—encoding a negative regulatory subunit of the cAMP-dependent protein kinase (PKA) KIN-1—and the gain of function mutation of the adenylyl cyclase gene acy-1 were inferred to result in increased activity of the holoenzyme (Schade et al., 2005; Reynolds et al., 2005; Charlie et al., 2006). Correspondingly, both mutations result in hyperkinetic behavior outside of lethargus and reduced quiescence during lethargus (Schade et al., 2005; Reynolds et al., 2005; Charlie et al., 2006; Perez-Mansilla and Nurrish, 2009; Belfer and Raizen, 2013). We thus assayed the dynamics of locomotion of these mutants from mid L4int to the mid young adult stage. In particular, we asked whether both their velocity and the overall structure of the active and quiet wakefulness states were different from wild-type and from each other. We found that in both cases active wakefulness persisted from mid L4int until the onset of L4leth, and resumed at the end of L4leth (Figure 4A–B,D–E). Correspondingly, as compared to wild-type, these mutants spent a significantly reduced amount of time in quiet wakefulness before and after lethargus (Figures 4 and 7), and exhibited an approximately two-fold increase in peak velocity during L4int and milder downregulation of velocity in anticipation of L4leth (Figure 4C,F). In addition, consistent with previous reports (Belfer and Raizen, 2013), during bouts of non-quiescent behavior in lethargus (‘motion bouts’) we observed a large increase in the prevalence of forward locomotion in kin-2 and acy-1(gf) mutants. Taken together, these results suggest that increased PKA activity stabilizes active wakefulness.

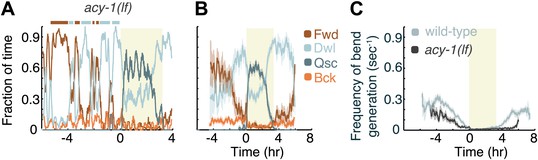

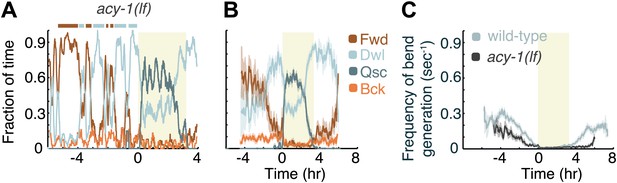

Animals carrying a null mutation of kin-1 or acy-1 die as embryos or first stage larvae respectively. However, animals carrying a partial loss of function allele of the acy-1 gene appear superficially wild-type. We assayed these mutants to determine whether the partial loss of function of the cyclase would confer the opposite phenotype from that of the gain of function, and found this to be the case outside of lethargus but not during lethargus. During the last 4 hr of L4int quiet wakefulness was significantly exaggerated and the active wakefulness state was fragmented—animals displayed a larger number of switches out of brief epochs of active wakefulness (Figure 5). Similarly, after the termination of L4leth, quiet wakefulness was exaggerated and active wakefulness was reduced. However, during L4leth the dynamics of quiescence and locomotion of the mutants were similar to wild-type (Figures 7 and 8). These results are consistent with the idea that PKA activity stabilizes the active wakefulness state. They further suggest that during lethargus, when active wakefulness is strongly suppressed, the native role of PKA signaling in modulating locomotion and quiescence may be minor.

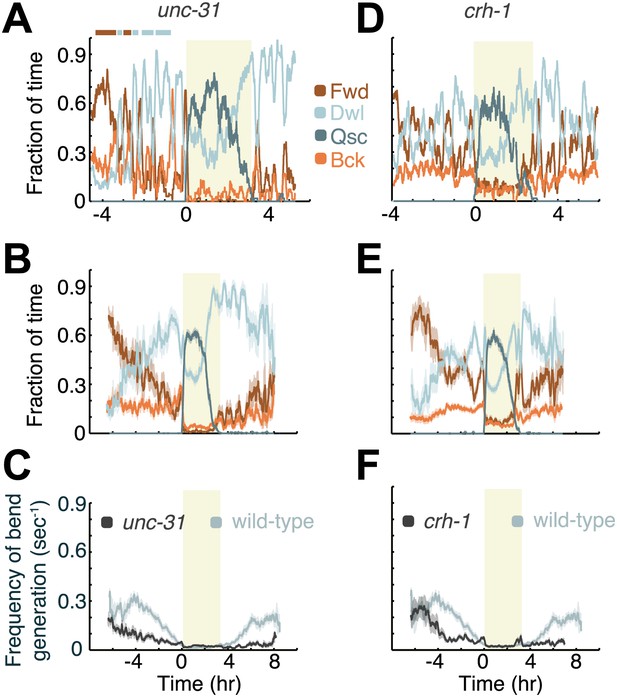

Tomosyn, a target of PKA (Baba et al., 2005), was shown to negatively regulate both unc-13-dependent synaptic transmitter release and unc-31-dependent neuropeptide release in C. elegans (Gracheva et al., 2006; Gracheva et al., 2007a, 2007b). Since hyper-activation of PKA could bypass the requirement for UNC-31 in the docking of dense core vesicles (DCVs), the GSA-1(Gαs) and the UNC-31/CAPS pathways were suggested to converge to control DCV release (Schade et al., 2005; Reynolds et al., 2005; Charlie et al., 2006; Zhou et al., 2007; Perez-Mansilla and Nurrish, 2009). We could not analyze the behavior of unc-13 mutants due to their severe locomotion defects, but in order to assess whether the modulation of locomotion during L4int depended on the release of DCVs, we assayed unc-31 mutants (Figure 6). The resulting phenotype was similar to that of acy-1(lf) mutants. As compared to wild-type animals, outside of lethargus unc-31 mutants exhibited increased occupation of the quiet wakefulness state, a fragmented active wakefulness state, and overall lower velocities. In contrast, during L4leth, the dynamics of quiescence and locomotion of unc-31 mutants were similar to wild-type. Unlike acy-1(lf) mutants, the mutation in the unc-31 gene resulted in elevated levels of backward locomotion outside of lethargus and a decrease in directed locomotion during motion bouts in lethargus (Figures 7 and 8). Taken together with the acy-1(lf) phenotype, these results support a model in which PKA activity stabilizes active wakefulness during L4int (at least in part) by regulating DCV exocytosis, but only plays a minor role in regulating locomotion during lethargus.
Another major target of PKA is the cAMP response element-binding protein (CREB), a transcription factor that, after phosphorylation by PKA, induces gene expression through promoters containing the cAMP-response element (CRE) enhancer (Mayr and Montminy, 2001). Although the C. elegans ortholog of CREB, CRH-1, was primarily implicated in long-term habituation and memory (Kimura et al., 2002; Kauffman et al., 2010; Nishida et al., 2011; Timbers and Rankin, 2011) it was possible that it could also have a role in regulating larval locomotion. To address this question, we assayed crh-1 mutants (Figure 6). Outside of lethargus, crh-1 mutants exhibited more poorly-defined global locomotion states, although a clear active wakefulness state was observed in 4 out of 16 animals 5–6 hr prior to L4leth. Gradual transitions between directed locomotion and dwelling were commonly observed during this period, in contrast to the abrupt wild-type switching. In addition, the mutants exhibited lower overall velocities and increased backward locomotion. During L4leth, the dynamics of quiescence of crh-1 mutants were similar to wild-type (Figures 6 and 7). However, the mutants did show significantly increased levels of directed (forward and backward) locomotion during motion bouts as compared to wild-type (Figures 6 and 8B). The levels of directed motion during lethargus of crh-1 mutants were similar to those of kin-2 and acy-1(gf) mutants, possibly indicating a disruption to lethargus behavior. We concluded that two of the downstream targets of PKA, namely neuropeptide release and CREB, acted coherently to stabilize active wakefulness during L4int, while playing a minor role in regulating quiescence and locomotion during lethargus.
Changes to neural circuits induced by experience or development can occur on timescales of hours to months. Neuromodulators such as biogenic amines or neuropeptides often act on such long timescales, modifying the output of neural circuits by altering the activity of neurons and affecting synaptic connections (Bargmann, 2012; Marder, 2012). Yet there are few techniques for tracking long-term physiological and behavioral dynamics and mostly offer limited resolution (Clark et al., 2010; Fonio et al., 2012; Hart, 2006). Counter-intuitively, despite the simplicity of invertebrate models, detailed longitudinal studies designed to follow their behavioral trends across development are rare as well.
In order to study these processes, we have established a novel high-throughput assay, and obtained the first analysis of C. elegans locomotion on developmental timescales. Since data analysis is the bottleneck of prolonged, detailed studies of behavior, we developed PyCelegans, a suite of tools that leverages high performance parallel computing to speed up the computational analysis in our workflow. Accordingly, bottlenecks were shifted back to experimental elements, permitting increased throughput. PyCelegans leverages only open source, freely available tools and libraries. These utilities (Python, NumPy, SciPy, mpi4py) are top tier open source scientific computing tools, among the most widely used by researchers developing their own analyses. As such, it is virtually guaranteed that they will be available at any dedicated research computing facility. Moreover, the suite is easily extendable—additional analyses and features are simple to incorporate within the existing framework.
Quiet wakefulness was previously reported in diverse species such as various mammals, birds and reptiles, and can comprise a large percentage of the waking state (Ruckebusch, 1972; Flanigan, 1973; Campbell and Tobler, 1984). However, to the best of our knowledge, quiet wakefulness was not previously reported in nematodes. During its larval development the nematode C. elegans is required to integrate newly differentiated neurons into its neural circuits (Sulston, 1976; Sulston and Horvitz, 1977; White et al., 1986) and to reshape the connections of existing cells (White et al., 1978; Thomas et al., 1990). At the same time, the animal grows, develops new organs, and undergoes four molts. Maintaining the functionality of essential motor programs such as feeding, locomotion and defecation concurrently with these anatomical and physiological changes imposes constraints on the developing animal; modulation of behavioral patterns may contribute towards satisfying these constraints. In particular, 2–4 hr prior to lethargus, the seam cells exhibit increased synthetic activity and begin to deposit the new cuticle (Singh and Sulston, 1978; Monsalve et al., 2011). The timing of quiet wakefulness that we observed coincided with the timing of this activity. Thus, it is possible that this state may assist with maintaining an appropriate energy balance.
Our analysis revealed a novel behavioral switch that toggled between the active and quiet wakefulness states prior to L4leth. The distribution of durations of the epochs of active wakefulness supported a model in which this state was actively stabilized and ergodicity was weakly broken (Stefani et al., 2009; Burov et al., 2010). We note that the global locomotion states that we report are distinct from the cGMP-dependent short intervals of continuous roaming or dwelling behavior, previously described in adults (Fujiwara et al., 2002). We have shown that upregulating or downregulating Gαs signaling stabilized or destabilized active wakefulness respectively. Downregulated neuropeptide release in unc-31 mutants, a gene encoding the calcium-dependent activator protein for secretion (CAPS) required for the priming and docking of DCVs (Speese et al., 2007; Lin et al., 2010), affected behavior similarly to downregulated Gαs signaling. These findings extend the previously reported effects of PKA signaling on locomotion and quiescence (Schade et al., 2005; Reynolds et al., 2005; Charlie et al., 2006; Raizen et al., 2008; Perez-Mansilla and Nurrish, 2009; Belfer and Raizen, 2013). Moreover, PKA was shown to catalyze the phosphorylation of tomosyn, a highly-conserved syntaxin-binding protein. Phosphorylation of tomosyn by PKA reduced its interaction with syntaxin and enhanced the formation of the SNARE complex (Baba et al., 2005). In C. elegans, tomosyn (TOM-1) was shown to negatively regulate synaptic transmitter release and UNC-31/CAPS-dependent neuropeptide release (Gracheva et al., 2007a), and KIN-1 alleviated the suppression of both processes by phosphorylating TOM-1 (J Richmond, personal communications, February 2013). Interestingly, a mutation in the tom-1 gene suppressed behavioral deficits and DCV accumulation in unc-31 mutants (Gracheva et al., 2007a). Similarly, enhanced PKA activity was shown to be sufficient for bypassing the requirement for UNC-31 for the release of DCVs (Zhou et al., 2007; Perez-Mansilla and Nurrish, 2009). Taken together, these findings support a model in which KIN-1 and TOM-1 regulate locomotion.
Upregulating Gαs signaling resulted in enhanced active wakefulness outside of lethargus and enhanced directed locomotion during L4leth, mirroring previous findings in Drosophila melanogaster and in C. elegans (Joiner et al., 2006; Belfer and Raizen, 2013). These results were also consistent with a previous observation that acute activation of the photoactivated adenylyl cyclase PACα in cholinergic neurons evoked an enhanced activity response (Weissenberger et al., 2011). Downregulating Gαs signaling resulted in a clear locomotion phenotype outside of but not during L4leth. However, loss of CREB function resulted in an enhancement of directed locomotion, as well as changes in the dynamics of bouts of motion and quiescence (Figure 8C,D), during lethargus. In addition, crh-1 mutants exhibited strong locomotion defects outside of lethargus. Studies of the effects of cAMP signaling on sleep in D. melanogaster and in mice have demonstrated that CREB, when activated by PKA, promotes the duration of wakefulness (Hendricks et al., 2001; Graves et al., 2003; Shaw and Franken, 2003). The mild loss of function phenotypes of acy-1(lf) and unc-31 during lethargus may be explained by a floor effect, while the implications of the crh-1 phenotype remain to be understood. Interestingly, a recent study reported that adenylyl cyclase activity increases the intensity of nighttime sleep in Drosophila (van Alphen et al., 2013). Taken together, our analyses indicated that both PKA-dependent pathways acted in concert to regulate active wakefulness during L4int and the early young adult stages.
Finally, the approach to quantifying locomotion presented here provides several distinct advantages. Visible phenotypes were invaluable for uncovering molecular pathways that regulated behavior, but were largely based on crude classifications such as hypo- or hyper-kinesis or a focus on arbitrarily defined features. It was recently shown that the space of shapes adopted by the nematode C. elegans is low dimensional, and that these dimensions (‘eigenworms’) can provide a quantitative description of behavior (Stephens et al., 2008). This exquisitely sensitive analysis revealed the underlying simplicity of complex locomotion dynamics as well as subtle behavioral phenotypes that had been previously undetectable (Stephens et al., 2010, 2011; Brown et al., 2013). However, this analysis does not provide an intuitive interpretation of the detected phenotypes that may directly relate to the underlying neuronal activity. Tracking of individual body-bends opens the door to a heuristic description of C. elegans locomotion, composed of intuitive building blocks. As in the case of the eigenworms, one underlying assumption of this analysis is that C. elegans does not maintain a ‘mental map’ of its environment, nor does it keep track of its own acceleration in the laboratory frame of reference. Rather, it responds to external and internal cues solely by altering its own body-posture. Specifically, the primary task of the motor neurons during directional motion is to generate body-bends and propagate them along the body in the appropriate direction (Gray et al., 2005; Stetina et al., 2006; Stephens et al., 2008; Haspel and O’Donovan, 2011; Boyle et al., 2011; Wen et al., 2012). It follows that a natural, heuristic model for describing directional locomotion can be constructed using the rates of generation, propagation, and decay of body-bends. Tracking each body-bend from initiation to eventual demise thus provides direct experimental measurements of the basic building blocks of nematode locomotion.
C. elegans strains were maintained and grown according to standard protocols (Brenner, 1974). The wild-type strain used was C. elegans variety Bristol, strain N2. The following mutant strains were obtained from the Caenorhabditis Genetics Center: KG518 acy-1 (ce2) III (gf), KG532 kin- 2(ce179) X, CB169 unc-31(e169) IV, KP1182 acy- 1(nu329) III (lf) and YT17 crh-1(tz2) III.
Animals were synchronized by restricting the duration of egg-laying (placing gravid adults on plates for 6 hr, removing the parents, and selecting L4s 3 days later), grown at 20°C on standard NGM plates, and fed OP50 bacteria until their mid L4int larva stage. They were then transferred to individual 0.8 × 3.7 mm ‘artificial dirt’ chambers (Lockery et al., 2008). The chambers, containing an overnight OP50 Escherichia coli culture that was concentrated 10-fold and suspended in NGM liquid (Singh et al., 2011; Iwanir et al., 2013), were sealed with a coverslip held in place with VALAP (a mix of equal parts of vaseline, lanolin and paraffin wax) at the corners and submerged, facedown, in NGM buffer inside a petri dish to prevent drying. Each observation chamber contained a single animal. Behavior was recorded for 10 hr at a rate of 10 frames per second using a 5 megapixels CCD camera (Prosilica GC2450, 2448 × 2050 pixels, Allied Vision Technologies, Stadtroda, Germany). We recorded at a magnification of 4.2X, resulting in a resolution of 1.54 × 1.54 μm2/pixel; the body length of a typical L4leth larva was approximately 500 pixels (750 μm). The contrast at the edges of the animals was maximized, typically by setting background levels to 230–250 on a greyscale of 0–255, and by focusing slightly away from the middle plane of the pharynx.
We developed a suite of tools, called PyCelegans, for image analysis on high performance parallel computing resources. Similar to previously described methods (Husson et al., 2013), PyCelegans identifies the body of the animal in each frame and calculates the coordinates of 100 points along its midline, ordered from head to tail. The rate of segmentation failure, where the animals could not be properly identified, was typically 5% of all frames. Frames in which the animal was not identified were not included in the dataset, but their timing was accounted for when time-stamping subsequent frames. Each midline was divided into 20 equal segments and the local angle at each of the inner 18 segments was calculated as shown in Figure 1A. The raw angle dynamics data was smoothed with a Gaussian filter with a width of 5 frames (0.5 s).

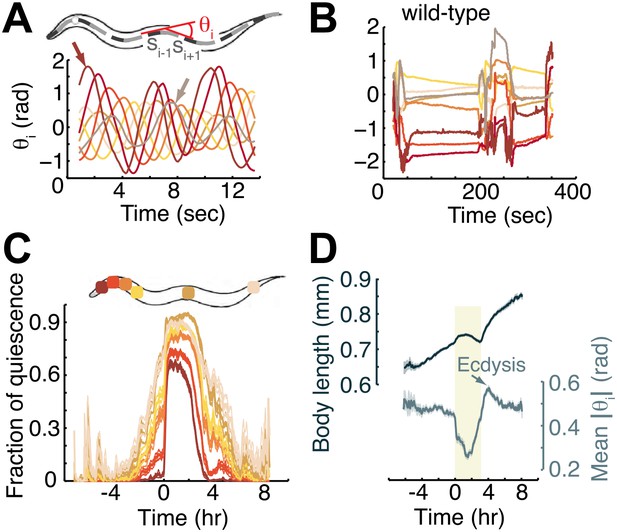

Body-bends were defined as positions of local spatial maxima or minima of the angles (Figure 1A). The position of each bend was tracked from the time of its initiation until it decayed (typically at the head or the tail) or was interrupted by 10 consecutive missing frames. Forward locomotion was defined by the propagation of bends in the anterior-posterior direction that persisted for at least three consecutive midline segments. Backward locomotion was defined analogously. Quiescence of an individual segment was defined as an interval in which the rate of change of the corresponding angle did not exceed a threshold of 0.01 radians/sec. Neither missing frames in which the inferred change in angle was below a threshold of 0.3 radians, nor motion occurring in isolated single frames, were considered to interrupt a bout of quiescence.
At each time point, the whole-animal behavior was classified as forward, backward or dwelling by applying a majority rule to the dynamics of the individual body-bends. Dwelling occurred when the number of bends propagating in both directions was equal (typically zero). Whole-animal quiescence was defined as the state where the most anterior angle (between the head and neck segments) and at least 16 of the remaining 17 angles were quiescent. The fraction of time spent in each behavior was calculated with a running-average window of 10 min for Figures 1 and 2 and 4–6 min for Figure 3. The onset/termination of lethargus was defined as the first/last point of increasing/decreasing whole-animal quiescence fraction that was followed by 20 consecutive minutes of the quiescence fraction remaining above/below a threshold of 5%. Source code, documentation, and a sample dataset are available to download from GitHub (https://github.com/labello/pycelegans).

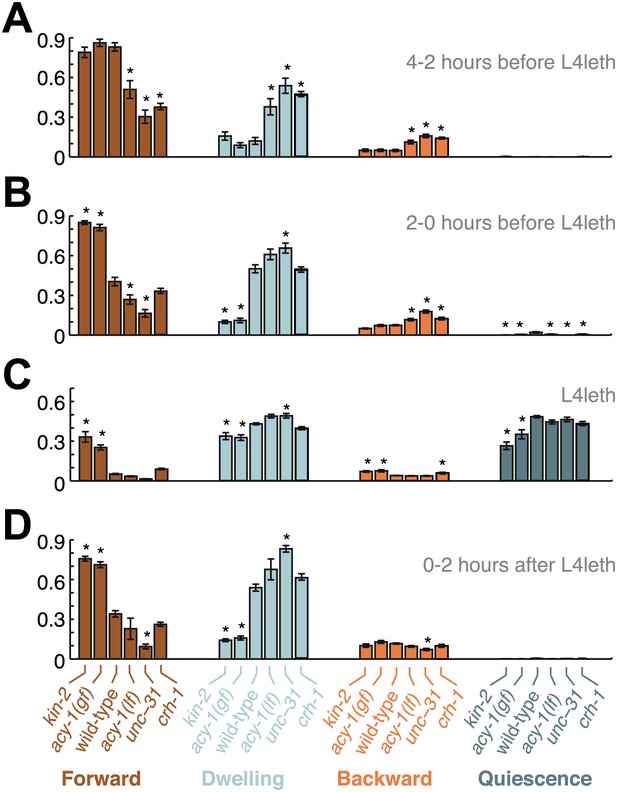

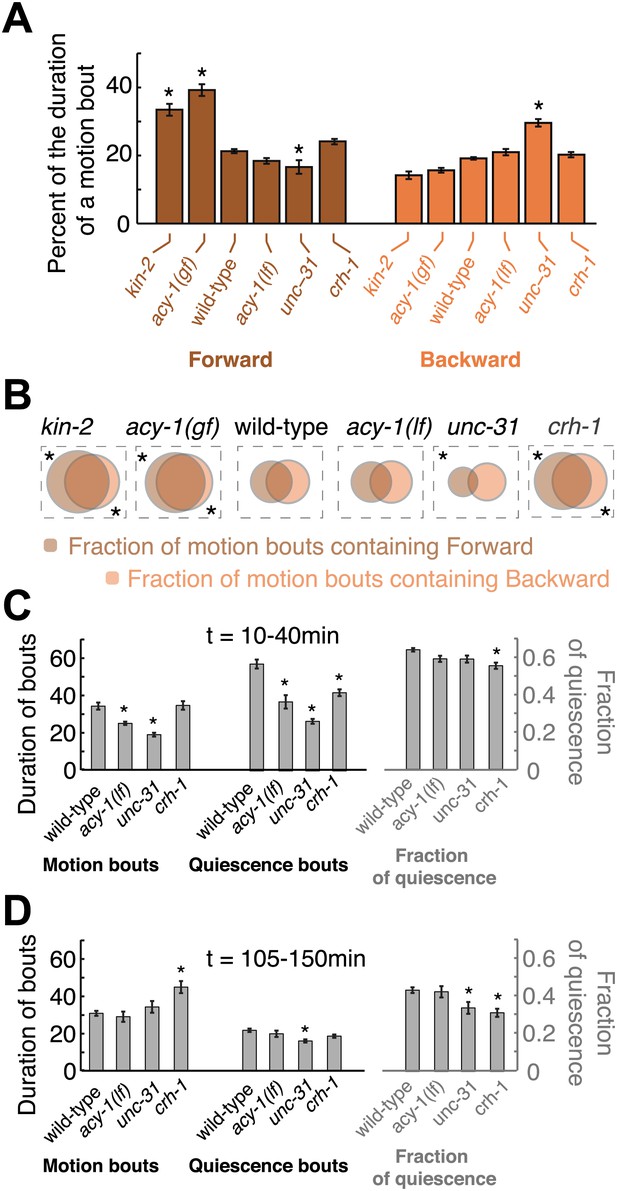

Mutant behavior was compared to wild-type in Figures 7 and 8 using a one-way analysis of variance (ANOVA) with Bonferroni adjustments to compensate for multiple comparisons. Exponential and power-law models for the data presented in Figure 3 were compared by calculating Akaike information criteria (AIC) (Burnham and Anderson, 2002; Burnham and Anderson, 2004).
Model selection and multi-model inference: a practical information-theoretic approachNew York: Springer.
Aging and Nonergodicity beyond the Khinchin TheoremProc Natl Acad Sci USA 107:13228–13233.https://doi.org/10.1073/pnas.1003693107
Animal sleep: a review of sleep duration across phylogenyNeurosci Biobehav Rev 8:269–300.https://doi.org/10.1016/0149-7634(84)90054-X
Biomechanical analysis of gait adaptation in the nematode Caenorhabditis elegansProc Natl Acad Sci USA 107:20323–20328.https://doi.org/10.1073/pnas.1003016107
Measuring behavior of animal models: faults and remediesNat Methods 9:1167–1170.https://doi.org/10.1038/nmeth.2252
Episodic Swimming behavior in the nematode C. elegansJ Exp Biol 211:3703–3711.https://doi.org/10.1242/jeb.023606
Genetic evidence for a role of CREB in sustained cortical arousalJ Neurophysiol 90:1152–1159.https://doi.org/10.1152/jn.00882.2002
A circuit for navigation in Caenorhabditis elegansProc Natl Acad Sci USA 102:3184–3191.https://doi.org/10.1073/pnas.0409009101
UNC-31/CAPS docks and primes dense core vesicles in C. elegans neuronsBiochem Biophys Res Commun 397:526–531.https://doi.org/10.1016/j.bbrc.2010.05.148
Transcriptional regulation by the phosphorylation-dependent factor CREBNat Rev Mol Cell Biol 2:599–609.https://doi.org/10.1038/35085068
Beyond quantum jumps: blinking nanoscale light emittersPhys Today.
Dimensionality and dynamics in the behavior of C. elegansPLOS Comput Biol 4:e1000028.https://doi.org/10.1371/journal.pcbi.1000028
Emergence of long timescales and stereotyped behaviors in Caenorhabditis elegansProc Natl Acad Sci USA 108:7286–7289.https://doi.org/10.1073/pnas.1007868108
Post-embryonic development in the ventral cord of Caenorhabditis elegansPhilos Trans R Soc Lond B Biol Sci 275:287–297.https://doi.org/10.1098/rstb.1976.0084
The anatomy and life-history of Haemonchus contortus (Rud.)347–500, The anatomy and life-history of Haemonchus contortus (Rud.), Rep Dir Vet Res Union S Afr 3rd and 4th.
Caenorhabditis elegans selects distinct crawling and swimming gaits via dopamine and serotoninProc Natl Acad Sci USA 108:17504–17509.https://doi.org/10.1073/pnas.1108673108
The structure of the ventral nerve cord of Caenorhabditis elegansPhilos Trans R Soc Lond B Biol Sci 275:327–348.https://doi.org/10.1098/rstb.1976.0086
The structure of the nervous system of the nematode Caenorhabditis elegansPhilos Trans R Soc Lond B Biol Sci 314:1–340.https://doi.org/10.1098/rstb.1986.0056
Ronald L CalabreseReviewing Editor; Emory University, United States
eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.
Thank you for sending your work entitled “A longitudinal study of C. elegans larvae reveals a novel locomotion switch, regulated by Gαs signaling” for consideration at eLife. Your article has been favorably evaluated by a Senior editor and 3 reviewers, one of whom is a member of our Board of Reviewing Editors.
The following individual responsible for the peer review of your submission wants to reveal his identity: Ronald Calabrese (Reviewing editor).
The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.
From a technical point of view there are some significant advances here: an unprecedented content-rich longitudinal study of development/behavior and novel parallel processing tools for analyzing large-scale image data. On the other hand, there are some significant concerns because the reviewers were not convinced of the importance of the biological questions posed or what we have learned from the analysis at this stage. We strongly suggest publication as a methods paper plus proof-of-principle biology. In that case, the methods need to be described in much more detail than is done currently (perhaps to the point of releasing the software) and better placed in the context of other previously reported methods.
1) The description of the behaviors themselves and the “switches between them” lacks conceptual clarity. The reviewers circled around this difficult issue in different ways but arrived at the same point that a more intuitive description is necessary. One wrote: “Dwelling and forward locomotion as defined are mutually exclusive behaviors. Is it then useful to discuss them as different behavioral states that have state durations independent of one another? I think it would be helpful if the authors rationalized their view more, or perhaps considered simplifying the whole approach and speaking of the animals spending more or less time performing mutually exclusive behavior, and that the advent of and return from lethargus simply promotes one behavior over the other, perhaps for simple mechanical reasons having to do with the cuticle. The mutations then simply promote one behavior over the other. I also have a difficult time imagining what the animal is “trying” to accomplish by dwelling behavior, and so I am not sure it represents a behavior and not a dis-coordination of locomotion brought on by developmental changes in underlying neuronal networks and hormonal signaling. Perhaps we are saying the same thing, but the authors should consider that their framework could be confusing.
At a minimum the authors must explain in simple language what the data of Figure 3 means; not all neuroscientists interested in this work will have a background in physics and computer science.”
Another wrote: “The conclusions regarding whether or not behavior is actively or stochastically controlled during this period are based on statistical analysis, as the data do not allow an intuitive understanding. This is a bit dissatisfying, as one relies on the “black box” of statistical analysis and modeling.” Another wrote: “The authors seem to use “stabilizing the forward state” in two distinct ways. First, it is used to describe an unknown mechanism by which the statistics of forward movement become non-Poissonian (though I know of no good a priori reason to expect the statistics to be Poissonian). Later, in the context of results from mutant animals, “stabilizing the forward state” simply denotes an increase in rates of forward movement, which could occur independently of the distribution of forward movement times. The terminology should be clarified.”
2) At present no detailed molecular details or neuronal control circuits can be deduced from the work notwithstanding that the authors show an influence of PKA signaling on the behavioral changes surrounding/during lethargus. PKA signaling is such a general determinant of cellular activity that it almost would have been surprising if it had no effect on these longitudinal behavioral changes. This consideration and the strength of the method and the depth of the quantitative analyses led the reviewers to push this manuscript towards a methods paper plus proof-of-principle biology. We do not suggest that the authors remove any of the biological data but rather present it as an application of the method, and make sure conclusions drawn from the results are well-supported.
3) The authors observe a gradient of activity level during lethargus, with the anterior regions the most active and posterior the least. This description is followed by several poorly supported claims: “As a result of this hierarchy, the dynamics of quiescence of the angle between the head and the neck segments was almost indistinguishable from the dynamics of whole- worm quiescence.” First, the term “hierarchy” implies that anterior segments exert control over posterior segments. This cannot be concluded from the mere observation that the anterior segments are more active. Second, what constitutes “almost indistinguishable” when comparing “dynamics”? Both concepts seem vague. “We thus concluded that the head/neck motoneuron circuits governed the dynamics of the previously measured whole-animal quiescence.” This conclusion again seems to rest on the assumption that if the head moves more than the rest of the body, its neural circuits must be governing the system.
4) The authors must provide much more detail about the methods and consider making the software available. They must discuss the advantages and disadvantages of their system in the context of other systems that are available.
The authors should also consider providing a comparative analysis for at least one parameter they analyzed here, with another less high-content worm tracking system, e.g., the parallel worm tracker by the Goodman lab, to see if the conclusions they made would have required the massive data acquisition and analysis they performed. The parallel worm tracker is geared towards analyzing many worms in parallel, and while it does not analyze worm posture, but rather movement of the center-of-mass, it can still be used to define forward and backward locomotion (or turns), as well as quiescence. It can be used to analyze single animals, or probably also a reasonable number of worms in parallel (to speed up the process). The system is using freely available Matlab code and requires only a comparatively simple video camera. Alternatively, if the authors have access to such a system, the tracking system used by Stirman et al (Nature Methods, 2011), can analyze behavior including body posture and forward as well as backward locomotion.https://doi.org/10.7554/eLife.00782.011
