Calcium specificity signaling mechanisms in abscisic acid signal transduction in Arabidopsis guard cells

Research Article
  • Cited 48
  • Views 3,289
  • Annotations
Cite as: eLife 2015;4:e03599 doi: 10.7554/eLife.03599

Abstract

A central question is how specificity in cellular responses to the eukaryotic second messenger Ca2+ is achieved. Plant guard cells, that form stomatal pores for gas exchange, provide a powerful system for in depth investigation of Ca2+-signaling specificity in plants. In intact guard cells, abscisic acid (ABA) enhances (primes) the Ca2+-sensitivity of downstream signaling events that result in activation of S-type anion channels during stomatal closure, providing a specificity mechanism in Ca2+-signaling. However, the underlying genetic and biochemical mechanisms remain unknown. Here we show impairment of ABA signal transduction in stomata of calcium-dependent protein kinase quadruple mutant plants. Interestingly, protein phosphatase 2Cs prevent non-specific Ca2+-signaling. Moreover, we demonstrate an unexpected interdependence of the Ca2+-dependent and Ca2+-independent ABA-signaling branches and the in planta requirement of simultaneous phosphorylation at two key phosphorylation sites in SLAC1. We identify novel mechanisms ensuring specificity and robustness within stomatal Ca2+-signaling on a cellular, genetic, and biochemical level.

https://doi.org/10.7554/eLife.03599.001

eLife digest

Plant leaves have tiny openings or pores called stomata, which allow carbon dioxide, water vapor and other gases to diffuse in and out of the plant. Two cells called guard cells surround each stoma and control the opening and closing of the pore. If a plant is losing excessive amounts of water, for example during a drought, the plant produces a hormone called abscisic acid that promotes the closure of its stomata.

When abscisic acid is present, the guard cells are sensitive to changes in their internal concentration of calcium ions so that calcium ions can activate a protein called SLAC1. This leads to responses in the guard cells that close the stoma. The calcium ions activate SLAC1 by stimulating enzymes called calcium-dependent protein kinases (CPKs). However, abscisic acid can also trigger other enzymes that can activate SLAC1 independently of the calcium ions.

Calcium ions are also reported to be involved in the opening of stomata, when abscisic acid is not present. Therefore, it is not clear how abscisic acid works to specifically ‘prime’ guard cells to close the stomata in response to increases in calcium ions during drought. Brandt, Munemasa et al. studied stomata in a plant called Arabidopsis thaliana. The experiments show that, in the presence of abscisic acid, mutant plants that lack four different CPK enzymes are impaired in the activation of SLAC1 and the closing of stomata in response to increases in calcium ions.

Further experiments found that other enzymes called the PP2Cs—which are switched off by abscisic acid—are responsible for regulating the Ca2+ sensitivity of guard cells. Switching off PP2Cs enables closing of the stomata in response to calcium ions. It has been suggested previously that the CPKs and the calcium-independent enzymes are involved in two separate pathways that promote the closure of stomata. However, Brandt, Munemasa et al. found that the calcium-independent enzymes are required for calcium ions to activate SLAC1 in guard cells, revealing that these two pathways are linked.

Brandt, Munemasa et al.'s findings reveal how abscisic acid is able to specifically prime guard cells to close stomata in response to calcium ions. The next challenge is to understand how the CPKs and calcium-independent enzymes work together during the closure of stomata.

https://doi.org/10.7554/eLife.03599.002

Introduction

Cytosolic calcium ([Ca2+]cyt) functions as key cellular second messenger in a plethora of crucial processes in plants and other eukaryotes (Hetherington and Woodward, 2003; Clapham, 2007; McAinsh and Pittman, 2009; Berridge, 2012; Charpentier and Oldroyd, 2013; Webb, 2013). Elucidation of the mechanisms mediating specificity in Ca2+ signaling is fundamental to understanding signal transduction (Berridge et al., 2003; Hetherington and Woodward, 2003; Clapham, 2007; Webb, 2013). In a few cases, the biochemical and cellular mechanisms mediating Ca2+ signaling specificity have been revealed (e.g. De Koninck and Schulman, 1998; Dolmetsch et al., 1998; Oancea and Meyer, 1998; Dolmetsch et al., 2001; Bradshaw et al., 2003; Rellos et al., 2010; Chao et al., 2011). More than one (non-exclusive) mechanism is likely to contribute to specificity in Ca2+ signal transduction (Berridge et al., 2003; Dodd et al., 2010). However, characterization of the combined cellular, biochemical, and genetic mechanisms underlying Ca2+ specificity in a single cell type has not been achieved to our knowledge.

The genome of the plant Arabidopsis thaliana encodes over 200 EF-hand Ca2+-binding proteins (Day et al., 2002), with many of these genes co-expressed in the same cell types (Harmon et al., 2000; McCormack et al., 2005; Schmid et al., 2005; Winter et al., 2007), illustrating the need for Ca2+ specificity signaling mechanisms in plants. Two guard cells form a stomatal pore representing the gateway for CO2 influx, which is inevitably accompanied by plant water loss. The aperture of stomatal pores is consequently tightly regulated by the guard cells. Intracellular Ca2+ represents a key second messenger in stomatal closing (McAinsh et al., 1990; MacRobbie, 2000; Hetherington, 2001; Hetherington and Woodward, 2003; Hubbard et al., 2012), but intracellular Ca2+ also functions in stomatal opening (Irving et al., 1992; Shimazaki et al., 1992; Curvetto et al., 1994; Shimazaki et al., 1997; Cousson and Vavasseur, 1998; Young et al., 2006), raising the question how cytosolic free Ca2+ concentration ([Ca2+]cyt) elevations trigger a specific cellular response. The underlying mechanisms mediating specificity in guard cell Ca2+ signaling are not well understood. The development of genetic, electrophysiological, and cell signaling tools for the dissection of Ca2+ signaling within this model cell type renders guard cells a powerful system for the investigation of specificity mechanisms within Ca2+ signal transduction. Recent studies including analyses in intact Arabidopsis (Young et al., 2006) and Vicia faba (Chen et al., 2010) guard cells, have shown that stomatal closing stimuli including abscisic acid (ABA) and CO2 enhance the [Ca2+]cyt sensitivity of downstream signaling mechanisms, switching them from an inactivated state to an enhanced Ca2+-responsive ‘primed’ state, thus tightly controlling specificity in Ca2+ responsiveness (Young et al., 2006; Munemasa et al., 2007; Siegel et al., 2009; Chen et al., 2010; Xue et al., 2011). A rise of [Ca2+]cyt from resting to elevated levels alone does not trigger the full ion channel regulation and stomatal response (Young et al., 2006; Munemasa et al., 2007; Siegel et al., 2009; Chen et al., 2010; Xue et al., 2011). Similarly, a recent study of pathogen-associated molecular pattern (PAMP) signaling suggests that prior PAMP signaling enhances the sensitivity to intracellular Ca2+ during signal transduction (Kadota et al., 2014), indicating that this principle for Ca2+ specificity priming may be more widely used in plants. The biological closing stimulus has to be present for the guard cell to react to physiological Ca2+ elevation. However, the biochemical and genetic mechanisms mediating Ca2+ sensitivity priming remain unknown.

SLAC1 represents the major anion channel mediating S-type anion currents in guard cells (Negi et al., 2008; Vahisalu et al., 2008) and Ca2+ activation of S-type anion currents is an early and crucial step in stomatal closure (Schroeder and Hagiwara, 1989; McAinsh et al., 1990; Siegel et al., 2009; Chen et al., 2010). Ca2+-independent SnRK2 protein kinases (Li et al., 2000; Mustilli et al., 2002; Yoshida et al., 2002), most importantly OST1, have been shown to activate SLAC1 in Xenopus leavis oocytes (Geiger et al., 2009; Lee et al., 2009; Brandt et al., 2012). The full length Ca2+-dependent protein kinases 6, 21, and 23 (CPK6, CPK21, and CPK23) also activate SLAC1 in oocytes (Geiger et al., 2010; Brandt et al., 2012). Presently, the Ca2+-dependent and Ca2+–independent branches are considered to function independently (e.g. Li et al., 2006; Kim and et al., 2010; Roelfsema et al., 2012). The activation of SLAC1 by OST1 or CPK6 is inhibited by the clade A protein phosphatase 2Cs (PP2Cs) ABI1, ABI2, or PP2CA in oocytes (Geiger et al., 2009; Lee et al., 2009; Brandt et al., 2012). The cytosolic ABA-receptors pyrabactin resistance (PYR)/PYR-like (PYL)/regulatory component of ABA receptor (RCAR) (Ma et al., 2009; Park and et al., 2009) have been shown to inhibit PP2C activity in the presence of ABA (Ma et al., 2009; Park and et al., 2009; Santiago et al., 2009; Nishimura et al., 2010; Szostkiewicz et al., 2010). Reconstitution of ABA activation of SLAC1 in Xenopus oocytes has been shown by co-expression of the ABA-receptor PYR1 together with SLAC1, PP2Cs, and either Ca2+-independent OST1 or Ca2+-dependent CPK6 protein kinases (Brandt et al., 2012). However, whether the Ca2+-dependent and–independent branches in ABA signal transduction are functionally linked and depend on one-another in planta remains to be investigated using higher order genetic mutants. Here we present biochemical, genetic and cellular signaling findings that describe mechanisms underlying specificity and robustness in Ca2+ signaling within a single cell type and demonstrate an unexpected strong dependence of the Ca2+-dependent signal transduction branch on the Ca2+-independent pathway in guard cells. Moreover our results suggest that in contrast to OST1 (Umezawa et al., 2009; Vlad et al., 2009), calcium-dependent protein kinases (CPKs) are not directly deactivated by PP2Cs, but these PP2Cs rapidly deactivate both of the Ca2+-dependent and Ca2+–independent branches by directly dephosphorylating the protein kinase target SLAC1.

Results

CPK requirement for ABA activation of anion channels

Previous studies have shown that A. thaliana single or double mutants in CPKs cause partial ABA-insensitivities in guard cell signaling (Mori et al., 2006; Zhu et al., 2007; Hubbard et al., 2012). We addressed the question whether higher order CPK gene disruption mutant plants display more strongly impaired ABA responses. CPK6 and CPK23 were shown to activate SLAC1 in Xenopus oocytes and disruption of the corresponding genes in plants leads to a partial reduction of S-type anion current activation in guard cells (Mori et al., 2006; Geiger et al., 2010; Brandt et al., 2012). The closest homolog to CPK6, CPK5, is associated with reactive oxygen species signaling (Boudsocq et al., 2010; Dubiella et al., 2013). CPK5 also activates SLAC1 in oocytes (Figure 1—figure supplement 1A,B). Whole-cell patch-clamp analysis showed that mutation of CPK5 alone does not substantially disrupt ABA-activation of S-type anion channels (Figure 1—figure supplement 1C,D), consistent with findings of over-lapping gene functions in this response (Mori et al., 2006; Hubbard et al., 2012). CPK11 is highly expressed in guard cells and involved in ABA responses (Zhu et al., 2007; Geiger et al., 2009). We isolated cpk5/6/11/23 quadruple T-DNA insertion mutant plants and investigated ABA-induced S-type anion channel current regulation. Either ABA treatment (Siegel et al., 2009) or by-passing ABA signaling by exposure of guard cells to a high external Ca2+ shock (Allen et al., 2002) renders wildtype (Col0) guard cells sensitive to physiological [Ca2+]cyt increases. Notably, even when previously exposed to ABA or a high external Ca2+ shock, 2 μM [Ca2+]cyt did not result in S-type anion current activation in cpk5/6/11/23 quadruple mutant guard cells in contrast to WT plants (Figure 1A–D). These results show an important role of these calcium sensing protein kinases in ABA-dependent S-type anion channel activation in guard cells. We further investigated ABA-induced stomatal movement responses. Application of 5 μM ABA to WT leaves significantly decreased stomatal apertures compared to mock-treated control stomatal apertures (Figure 1E; p < 0.05). In the cpk5/6/11/23 mutant, however, 5 μM ABA-induced stomatal closing was not significant (Figure 1E; p = 0.51). When the ABA concentration was increased to 10 μM, ABA-induced stomatal closure was weakened in cpk5/6/11/23 mutant leaves (Figure 1F; p = 0.07; 0 min ABA-exposed cpk5/6/11/23 mutant leaves compared to 60 min ABA-exposed cpk5/6/11/23 mutant leaves). The partial ABA response at the higher ABA concentration may be linked to parallel activation of R-type anion channels (see ‘Discussion’).

Figure 1 with 1 supplement see all

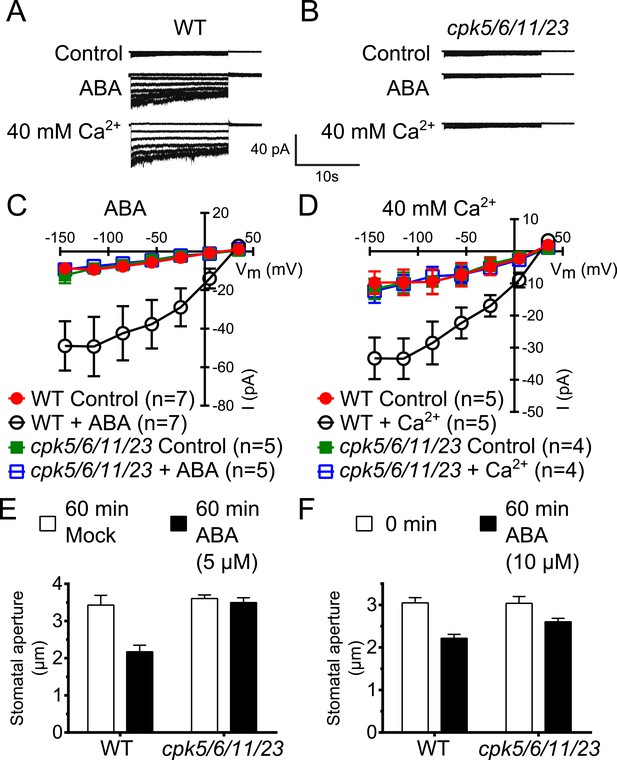

Calcium-dependent protein kinase (CPK) quadruple loss of function mutants show abscisic acid (ABA) and Ca2+ insensitive S-type anion current activation and are impaired in stomatal closing.

(AD) Intracellular Ca2+-activation of S-type anion channels enabled by pre-exposure to ABA (A and C) or high external Ca2+ pre-shock (Allen et al., 2002) (B and D) is strongly impaired in cpk5/6/11/23 guard cells at 2 μM [Ca2+]cyt. (E and F) 5 μM ABA-application to intact leaves shows impaired ABA-induced stomatal closing in cpk5/6/11/23 mutant plants (E; p = 0.51 Mock-treated cpk quadruple mutant vs ABA-treated cpk quadruple mutant stomata; unpaired t-test; n = 6 experiments and >51 total stomata per group). Application of 10 μM ABA results in a partially reduced average stomatal response (F, p = 0.07; 0 min ABA-exposed cpk5/6/11/23 mutant leaves compared to 60 min ABA-exposed cpk5/6/11/23 mutant leaves; Student's t-test; n = 3 experiments and >59 total stomata per group). Representative whole cell currents (A and B), average steady-state current–voltage relationships ±SEM (C and D), average guard cell apertures ±SEM (E and F) are shown. Measurements shown in Figure 1C and Figure 1—figure supplement 1D were acquired under the same experimental condition. Therefore, WT Control and WT + ABA control data are the same in both figures. Several error bars are not visible, as these were smaller than the illustrated symbols.

https://doi.org/10.7554/eLife.03599.003

Constitutive [Ca2+]cyt activation of S-type anion channels and primed Ca2+-dependent stomatal closure in pp2c quadruple mutant guard cells

Members of the clade A of the PP2C class play important roles as negative regulators of ABA signaling (Cutler et al., 2010) and were shown to inhibit CPK-activation of SLAC1 in oocytes (Geiger et al., 2010; Brandt et al., 2012). To determine whether these PP2Cs function in the ABA-triggered enhancement of the [Ca2+]cyt-sensitivity in guard cells, we performed whole-cell patch-clamp analysis using a plant line carrying T-DNA insertion mutations in the key ABA signaling PP2Cs ABI1, ABI2, HAB1, and PP2CA (abi1-2/abi2-2/hab1-1/pp2ca-1). Surprisingly, in abi1-2/abi2-2/hab1-1/pp2ca-1 quadruple mutant guard cells, strong Ca2+-activated S-type anion currents were observed even without pre-exposure to ABA (Figure 2A–D). At low 0.1 μM [Ca2+]cyt S-type anion channels did not show significant activation in the pp2c quadruple mutant compared to WT (Figure 2—figure supplement 1A,B; p = 0.294 at −145 mV). These findings provide genetic evidence for first genes that are essential for the ABA-triggered Ca2+ sensitivity priming in guard cells and show that these PP2Cs provide a mechanism ensuring specificity in Ca2+ signal transduction.

Figure 2 with 1 supplement see all

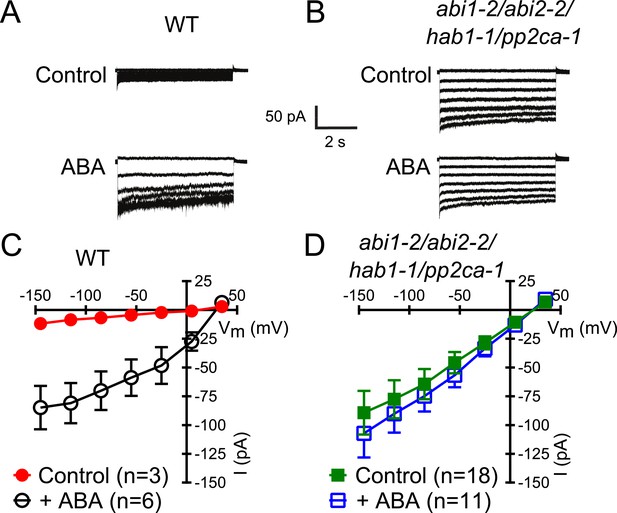

In protein phosphatase 2C (PP2C) quadruple mutant plants, Ca2+ activation of S-type anion currents is constitutively primed.

(A and C) 2 μM [Ca2+]cyt activates S-type anion currents in WT if the guard cells were pre-exposed to ABA. (B and D) In PP2C quadruple mutant guard cells ABA pre-exposure is not required for 2 μM [Ca2+]cyt-activation of S-type anion currents. Average steady-state current–voltage relationships ±SEM, guard cell numbers (C and D), and representative whole cell currents (A and B) are presented. Several error bars are not visible, as these were smaller than the illustrated symbols.

https://doi.org/10.7554/eLife.03599.005

CPK activities are not directly ABA-regulated and disruption of PP2Cs does not cause constitutive activation of OST1

Based on the above results we sought to determine the biochemical mechanisms by which PP2Cs down-regulate Ca2+ sensitivity in the absence of ABA. The main SLAC1-activating protein kinase in the Ca2+-independent branch, OST1 (Mustilli et al., 2002; Yoshida et al., 2002), is directly inactivated by PP2Cs through de-phosphorylation of the activation loop (Umezawa et al., 2009; Vlad et al., 2009). We tested whether CPKs might be down-regulated by PP2Cs in a similar manner and whether pp2c quadruple mutant plants may also exhibit a constitutive OST1 activity. Our first approach to test whether CPK activity is regulated by ABA through PP2Cs was an in-gel protein kinase assay using protein extracts of Arabidopsis seedlings, which is routinely used to test OST1 activation by ABA (Mustilli et al., 2002) and also CPK activation by flg22 (Boudsocq et al., 2010). Guard cell [Ca2+]cyt ranges from resting levels of ≈0.15 μM to stimulus induced elevated levels of above 1 μM (McAinsh et al., 1990). Similar to studies reporting the ABA-activation of SnRK2.2, SnRK2.3, and SnRK2.6/OST1 (Mustilli et al., 2002; Yoshida et al., 2002; Fujii et al., 2007), we compared the phosphorylation pattern of a reaction carried out at 0.15 μM free Ca2+ with the phosphorylation pattern at 3 μM free Ca2+ (Figure 3A,B; for intermediate free Ca2+ concentration of 0.4 μM Ca2+ see Figure 3—figure supplement 2). Incubating the gels in a reaction buffer with 3 μM free Ca2+ led to strong Ca2+-activated phosphorylation signals compared to resting Ca2+ at 0.15 μM (Figure 3A,B). To determine whether these Ca2+-activated signals are CPK-derived we included two distinct quadruple mutants, cpk5/6/11/23 and cpk1/2/5/6, in the in-gel kinase assays. Several Ca2+-activated bands disappeared or became notably weaker when extracts were tested from cpk5/6/11/23 and cpk1/2/5/6 (Boudsocq et al., 2010) plants (Figure 3B and for improved visibility Figure 3—figure supplement 1).

Figure 3 with 5 supplements see all

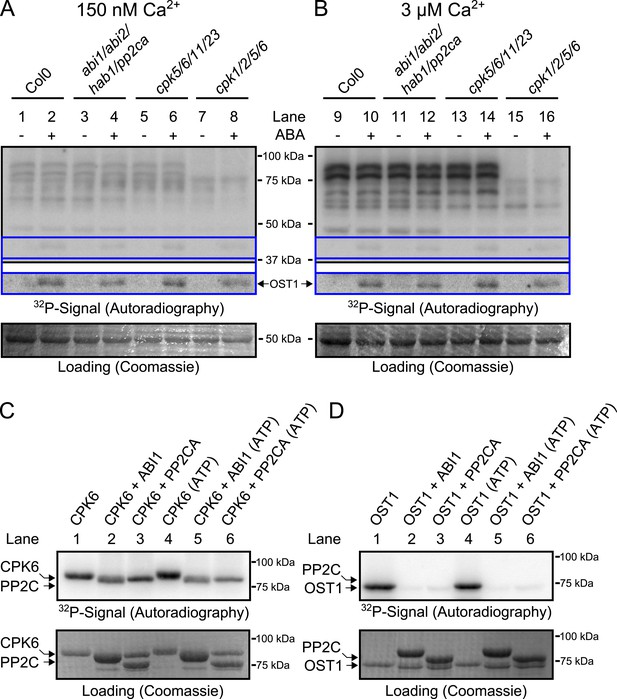

CPK activity is not changed by ABA or hyper-activated in pp2c quadruple mutants at defined Ca2+ concentrations.

(A and B) In-gel kinase assays with Histone-III as substrate for whole plant protein extracts show (B) 3 μM Ca2+-activated trans-phosphorylation kinase activities independent of application of 50 μM ABA (lanes 9 and 10). In contrast, ABA activation of OST1 is clearly visible (lanes 1–2 and 9–10 at ∼41 kDa; lower ‘OST1’ inset shows the same signal optimized autoradiography at the ∼41 kDa region and the corresponding gel regions are indicated by blue lines; see ‘Materials and methods’). Disruption of four PP2C genes (ABI1, ABI2, HAB1, and PP2CA) does not result in constitutive Ca2+-activated and OST1 kinase activities (lanes 3–4 and 11–12). In-gel kinase activities of two independent CPK quadruple mutant lines indicate that the Ca2+-activated kinase signals are CPK-derived (compare lanes 9–10 with 13–16 in B and see Figure 3—figure supplement 1); predicted MWs for CPK1, CPK2, CPK5, CPK6, CPK11, and CPK23 are 68.3 kDa, 72.3 kDa, 62.1 kDa, 61.1 kDa, 55.9 kDa, 58.7 kDa, respectively. (C and D) In-gel protein kinase assays with recombinant proteins show that incubation of the protein kinases with the PP2Cs ABI1 and PP2CA does (C) not change CPK6 activity while (D) OST1 activity is strongly down-regulated by PP2Cs. Each experiment has been repeated at least three times with similar results.

https://doi.org/10.7554/eLife.03599.007

Exposure of Arabidopsis seedlings to ABA led to OST1 protein kinase activation, confirming functional ABA responses (Figure 3A,B, lanes 1–2 and 9–10; ‘OST1’ inset). However, CPK-derived band intensities did not change in the presence of ABA, indicating that CPK activities may not be directly ABA-regulated, in contrast to OST1 (Figure 3B). These findings were also obtained at an intermediate free Ca2+ concentration of 0.4 μM (Figure 3—figure supplement 2A,B). Moreover, in-gel CPK protein kinase activities were not altered with or without ABA in seedling extracts of abi1-2/abi2-2/hab1-1/pp2ca-1 quadruple mutant plants (Figure 3A,B, lanes 3–4 and 11–12; Figure 3—figure supplement 1A,B). Interestingly, the pp2c quadruple mutants did not enable constitutive OST1 activation in vivo, differing from (Fujii et al., 2009), but consistent with (Vlad et al., 2009) (Figure 3A,B, lanes 3–4 and 11–12 and Figure 3—figure supplement 2A,B; see ‘OST1’ inset). Furthermore, OST1-derived band intensities were not changed in the cpk5/6/11/23 and cpk1/2/5/6 mutant plants showing that these cpk quadruple mutants retain ABA-activation of OST1 (Figure 3A,B, lanes 5–8 and 13–16; see ‘OST1’ inset).

PP2Cs do not down-regulate CPK6 kinase activity directly

Initially, we tested whether the signals found in in-gel protein kinase assays are derived from kinase auto-phosphorylation or due to trans-phosphorylation activities of the protein kinases. To distinguish between auto- and trans-phosphorylation activities of recombinant CPK6 and OST1 we compared in-gel band intensities of gels with or without the substrate Histone-III (Figure 3—figure supplement 3A,B). The strong reduction of band intensities for recombinant CPK6 and OST1 when no Histone-III is present (Figure 3—figure supplement 3A,B) indicates that the signals observed in in-gel protein kinase assays are largely derived from CPK6 and OST1 kinase trans-phosphorylation activities of Histone-III consistent with previous reports for CPKs involved in pathogen signaling (Boudsocq et al., 2010).

To determine whether PP2Cs can directly down-regulate CPKs we next investigated whether the SLAC1-activating CPK6 (Mori et al., 2006; Brandt et al., 2012), is negatively regulated by the PP2Cs ABI1 and PP2CA. In-gel protein kinase assays using recombinant proteins were pursued in which kinases and phosphatases are separated by size prior to substrate phosphorylation. CPK6, and as positive control OST1, were pre-incubated either alone or with ABI1 or PP2CA with and without ATP before being subjected to in-gel protein kinase assays. Pre-incubation with either ABI1 or PP2CA did not inhibit CPK6 trans-phosphorylation activity (Figure 3C, lanes 2–3 and 5–6). In contrast, control OST1-derived substrate phosphorylation band intensities strongly decreased when ABI1 or PP2CA proteins were present during the pre-incubation period (Figure 3D, lanes 2–3 and 5–6). These results indicate that OST1, but not CPK6 activity, is directly down-regulated by ABI1 and PP2CA. CPKs have been previously reported to interact with ABI1 (Geiger et al., 2010). An electro-mobility shift can be observed for OST1 as well as for CPK6 (Figure 3C,D). These shifts could be due to dephosphorylation of CPK6 (Figure 3—figure supplement 4) and OST1 (Umezawa et al., 2009; Vlad et al., 2009) by PP2Cs. However, dephosphorylation by PP2Cs did not inhibit CPK6 activity (Figure 3C). An additional independent biochemical assay measuring ATP consumption also did not show down-regulation of CPK6 activity in the presence of ABI1 and PP2CA (Figure 3—figure supplement 5), further underlining no direct down-regulation of CPK6 activity by these three PP2Cs, in contrast to OST1 controls.

PP2Cs interact with and rapidly dephosphorylate SLAC1

Our results suggest that PP2Cs neither down-regulate CPK6 activity directly in vitro (Figure 3C,D and Figure 3—figure supplement 5) nor that CPK activities are strongly ABA-regulated independent of [Ca2+] changes in native plant protein extracts (Figure 3A,B). We next investigated the kinetics and specificity of PP2C down-regulation of SLAC1 activation by CPKs through dephosphorylation of the SLAC1 channel, a mechanism reported for CPK-dependent transcription factor regulation (Lynch et al., 2012) and consistent with previous findings (Brandt et al., 2012). First, we determined whether SLAC1 interacts with the PP2C ABI1 in planta using bimolecular fluorescence complementation (BiFC). We observed clear BiFC signals for full length SLAC1 co-expressed with CPK6 and ABI1 (Figure 4A,B) while signal intensities of SLAC1 co-expressed with a control protein phosphatase 2A catalytic subunit 5 (PP2AC5) were very low (Figure 4B). Protein–protein interaction of SLAC1 with PP2CA in BiFC experiments was reported earlier (Lee et al., 2009). As shown in Figure 4C,D, the ABI1-mediated dephosphorylation of the N-terminus of SLAC1 (SLAC1-NT) previously phosphorylated by CPK6 (Brandt et al., 2012) occurs very rapidly. Already 1 min after the addition of ABI1 a strong decrease of the phosphorylation signal was observed (Figure 4D, lane 4). This de-phosphorylation was also found when the PP2C phosphatase PP2CA was added instead of ABI1 (Figure 4C,E, lane 4). To test whether this is a general phenomenon, we phosphorylated the SLAC1-NT with the SLAC1-activating and -phosphorylating kinases CPK21, CPK23, and OST1 (Geiger et al., 2009, 2010; Lee et al., 2009) and analyzed whether ABI1 and PP2CA are able to remove phospho-groups added by these kinases (Figure 4F–H and Figure 4—figure supplement 1). After inhibiting the kinase with staurosporine, band intensities decreased only after addition of the PP2C protein phosphatases for all combinations, showing that this rapid SLAC1 de-phosphorylation is mediated by PP2Cs (Figure 4F–H and Figure 4—figure supplement 1, lanes 5–6).

Figure 4 with 1 supplement see all

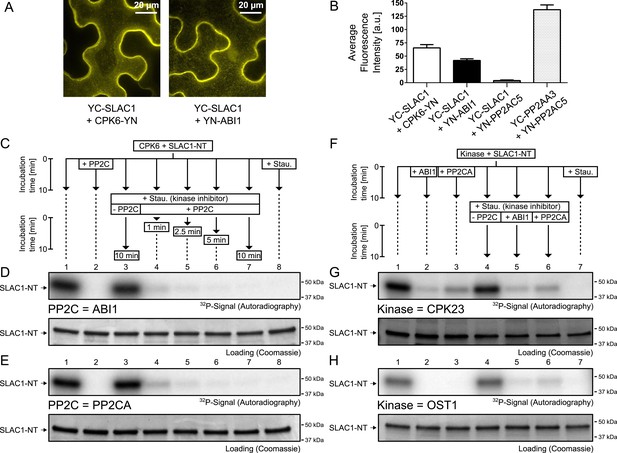

PP2Cs interact with and directly and rapidly dephosphorylate the N-terminus of SLAC1 (SLAC1-NT) when previously phosphorylated by several SLAC1-activating CPK and OST1 protein kinases.

(A) Bimolecular fluorescence complementation (BiFC) experiments in Nicotiana benthamiana leaves show YFP-derived fluorescence signals of YC-SLAC1 co-expressed with CPK6-YN and YN-ABI1. (B) Quantification of BiFC-mediated YFP-fluorescence shows that SLAC1 interacts with CPK6 and ABI1 but not with the control catalytic protein phosphatase 2A subunit C5 (PP2AC5). YFP signals of positive control YN-PP2AC5 with protein phosphatase 2A regulatory subunit A3 fused to YC (YC-PP2AA3) confirm expression of PP2AC5. Data shown in (B) represent the average fluorescence intensity of randomly picked leaf areas (n = 40; ±SEM) and these data are also included in Figure 6—figure supplement 5. (CE) CPK6-phosphorylated SLAC1-NT is rapidly de-phosphorylated by ABI1 and PP2CA. SLAC1-NT phosphorylation by CPK6 (D and E, lane 1) is strongly inhibited if the PP2C protein phosphatase was added before starting the reaction (D and E, lane 2), but remains stable after addition of elution buffer (Elu.) and kinase inhibitor staurosporine (Stau.) with subsequent 10 min incubation (D and E, lane 3). If (D) ABI1 or (E) PP2CA together with staurosporine are added after the initial 10 min CPK6 mediated phosphorylation period, the SLAC1-NT phosphorylation signal rapidly decreases within 1 min (D and E, lanes 4–7). Staurosporine pre-exposure control inhibits SLAC1-NT phosphorylation by CPK6 (D and E, lane 8). (FH) PP2Cs de-phosphorylate the SLAC1-NT which was phosphorylated by major SLAC1-activating kinases CPK23 and OST1. The SLAC1-NT is phosphorylated by CPK23 (G, lane 1) and OST1 (H, lane 1) which is inhibited when the PP2Cs ABI1 and PP2CA are added before starting the reactions (G and H, lanes 2–3). When adding staurosporine and elution buffer after the initial phosphorylation period and incubating for 10 min the signal does not change (G and H, lane 4). Addition of ABI1 or PP2CA after supplementing the reaction with staurosporine leads to rapid (10 min) dephosphorylation of the SLAC1-NT previously phosphorylated by the OST1 and CPK23 protein kinases (G and H, lanes 5–6).

https://doi.org/10.7554/eLife.03599.013

Disruption of Ca2+-independent SnRK kinases impairs Ca2+-dependent S-type anion channel regulation

The Ca2+-independent and Ca2+-dependent branches of ABA signal transduction are presently considered to be independent (e.g., Li et al., 2006; Kim and et al., 2010; Roelfsema et al., 2012), but this model has not been genetically investigated in Arabidopsis. In the cpk5/6/11/23 quadruple mutant, ABA-activation of S-type anion currents and stomatal closure were impaired (Figure 1A–E), providing evidence for a possible interdependence of these signaling branches. The ost1 single gene disruption mutant in the Col ecotype shows intermediate S-type anion current activation by ABA (Geiger et al., 2009). Three Ca2+-independent SnRK kinases, SnRK2.2, SnRK2.3, and OST1 can activate SLAC1 in oocytes (Geiger et al., 2009) and redundantly function in controlling leaf water loss (Fujii and Zhu, 2009). Interestingly, snrk2.2/snrk2.3/ost1 triple mutants were strongly impaired in ABA activation and notably also external Ca2+ shock-induced activation of S-type anion channels at 2 μM [Ca2+]cyt (Figure 5A–D). Imposing repetitive cytosolic Ca2+ transients by alternating guard cell incubation buffers induces a fast Ca2+-reactive stomatal closure response (Allen et al., 2001). We further analyzed imposed Ca2+ oscillation-induced stomatal closure in snrk2.2/snrk2.3/ost1 triple mutants. Ca2+ reactive stomatal closure of the snrk triple mutant was impaired compared to wildtype plants (Figure 5E, p < 0.02 for wildtype vs snrk2.2/snrk2.3/ost1 at 120 min). These data show that disruption of Ca2+-independent signaling in snrk2 triple mutants also impairs Ca2+-dependent stomatal responses. Thus these findings investigating S-type anion channel regulation and stomatal movements both provide genetic evidence for an unexpected interdependence of the Ca2+-dependent and -independent branches of the guard cell signaling network.

Figure 5 with 1 supplement see all

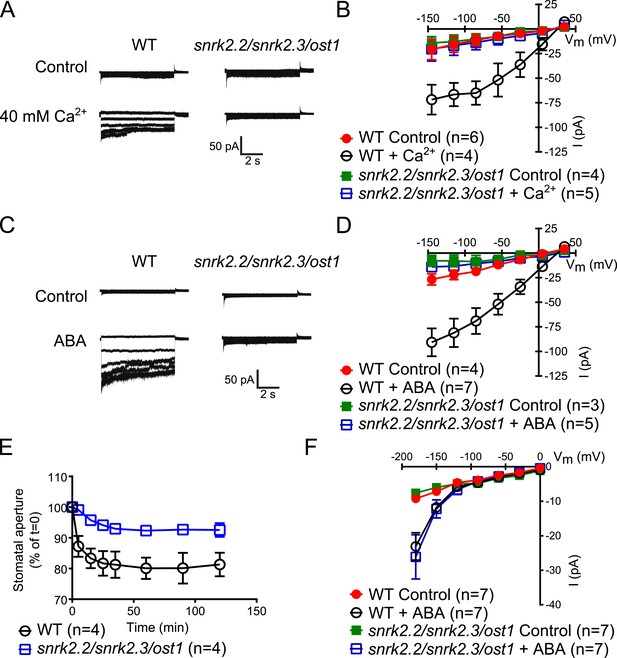

Both, ABA- and high external Ca2+-activation of S-type anion currents at elevated [Ca2+]cyt and imposed Ca2+-oscillation-triggered stomatal closure are impaired in snrk2.2/2.3/ost1 triple mutant guard cells while the ABA-activation of ICa currents is intact.

(AD) Whole-cell patch-clamp experiments reveal that [Ca2+]cyt-activation of S-type anion currents is disrupted in snrk2.2/2.3/ost1 triple mutant guard cells even if pre-incubated with high external Ca2+ shock (A and B) or ABA (C and D). Note that pre-incubation with high external Ca2+ shock by passes early ABA signaling (Allen et al., 1999a; Allen et al., 2002). Typical current responses (A and C), average steady-state current–voltage relationships ±SEM, and the number of measured cells are presented (B and D). In (B) data for snrk2.2/2.3/ost1 triple mutants with and without ABA overlap with WT controls. (E) Imposed Ca2+ oscillation-induced stomatal closure is impaired in Ca2+-independent protein kinase snrk2.2/2.3/ost1 triple mutant leaves, providing further evidence for an interdependence of these responses. Four 5-min extracellular Ca2+-pulses were applied in 10-min intervals from time = 0 to 35 min. Average individually tracked stomatal apertures were normalized to the stomatal apertures at time zero. The averages of the normalized apertures ±SEM and the number of independent genotype-blind experiments (n = 4) are shown (>40 total stomata per group). Average stomatal apertures at time zero were 4.61 ± 0.44 μm in WT (n = 4) and 5.51 ± 0.87 μm in the snrk2.2/2.3/ost1 triple mutant (n = 4). (F) Patch clamp experiments reveal that ABA activation of ICa currents is not impaired in snrk2.2/2.3/ost1 triple mutant guard cells. Average steady-state current–voltage relationships ±SEM, and the number of measured cells are presented in (F). Representative whole cell current traces for (F) are presented in Figure 5—figure supplement 1. Several error bars are not visible, as these were smaller than the illustrated symbols.

https://doi.org/10.7554/eLife.03599.015

The Ca2+-independent OST1 protein kinase affects Ca2+ signaling in Landsberg erecta guard cells via regulation of plasma membrane-localized Ca2+-permeable channels (ICa) (Acharya et al., 2013). To test whether the functional linkage of the Ca2+-dependent and Ca2+-independent branch is due to the regulation of the ICa channels by SnRK2 protein kinases in the Columbia ecotype, we performed patch clamp analyses measuring plasma membrane ICa channel currents in snrk2.2/snrk2.3/ost1 triple mutant guard cells. However, ABA activation of ICa channels remained intact in snrk2.2/snrk2.3/ost1 triple mutant guard cells (Figure 5F and Figure 5—figure supplement 1). In positive control experiments, ABA receptor pyr1/pyl1/2/4 quadruple mutant guard cells showed clear impairment of ABA activation of ICa channels (Data not shown, n = 5; control vs ABA, p = 0.96; Student's t-test), consistent with previous findings (Wang et al., 2013).

ABA-dependent stomatal responses are impaired in non-phosphorylatable SLAC1 serine 59 and serine 120 double mutant plants

In addition to possible direct cross-regulation of CPKs and SnRK2s, another non-mutually exclusive potential mechanism for the requirement of both SnRK and CPK kinases for ABA activation of S-type anion channels could be that SLAC1 serves as coincidence detector through differential phosphorylation by protein kinases of the Ca2+-dependent and -independent branches. The amino acid residue serine 120 of SLAC1 has been shown to be required for OST1, but not for CPK23 activation of SLAC1 in Xenopus oocytes (Geiger et al., 2009, 2010). A different site, serine 59, has been shown to be required for SLAC1 activation by CPK6 (Brandt et al., 2012). Thus we investigated whether several CPKs can activate the SLAC1 S120A mutant in oocytes and whether the SLAC1 S59A mutant is activated by OST1 and other CPKs in oocytes. CPK5, CPK6, and CPK23 activation of SLAC1 S120A was similar to WT SLAC1 activation (Figure 6A–C and Figure 6—figure supplement 1A,B). In contrast, SLAC1 S59A activation by these CPKs was strongly impaired (Figure 6A–C and Figure 6—figure supplement 1A,B). Interestingly however, OST1 was able to activate SLAC1 S59A (Figure 6D–F), which was confirmed in multiple independent experimental sets under the imposed conditions. These results suggest that S59 is required for strong activation by protein kinases of the Ca2+-dependent CPK branch, while S120 represents a crucial amino acid for strong activation by the Ca2+-independent branch of the ABA signaling core. To avoid spurious phosphorylation by high protein kinase concentrations in oocytes, effects of co-expression of CPK6 and OST1 at low levels that do not fully activate SLAC1 were investigated. These experiments show a clear enhanced SLAC1 activation in oocytes when both kinases are co-expressed (Figure 6—figure supplement 2A–D). This enhancement of SLAC1 activation by OST1 became less clear when an inactive OST1 protein kinase (OST1 D140A) was analyzed (Figure 6—figure supplement 2E).

Figure 6 with 5 supplements see all
Ca2+-dependent protein kinase and OST1 protein kinase activation of SLAC1 in oocytes requires serine 59 or serine 120, respectively while in planta ABA-dependent S-type anion current activation and stomatal closing are only impaired in SLAC1 S59A/S120A double amino acid mutants.

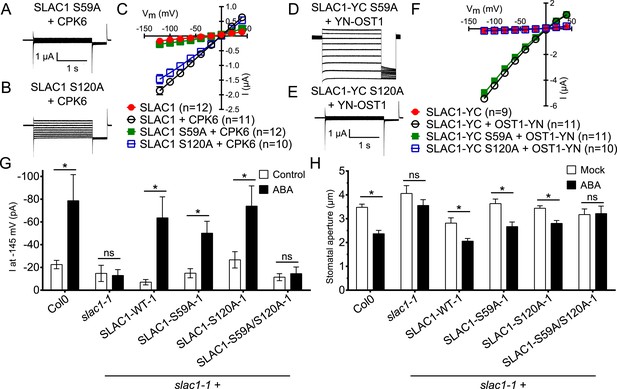

(AC) SLAC1 activation by CPK6 in Xenopus oocytes was abolished when serine 59 is mutated to alanine (S59A) (A and C) (Brandt et al., 2012) but was comparable to wild type SLAC1 activation for the SLAC1 S120A mutated version (B and C). (DF) OST1 activation of SLAC1 was abolished in the SLAC1 S120A mutant (E and F) (Geiger et al., 2009), while OST1 robustly activated SLAC1 S59A (D and F). (G) In whole-cell patch-clamp experiments, slac1-1 guard cells show impaired ABA-activation of S-type anion currents. Expression of SLAC1 WT, S59A, and S120A in slac1-1 plants restores ABA activation of S-type anion currents in guard cells, but expression of SLAC1 S59A/S120A does not. (H) The ABA-insensitive phenotype of slac1-1 stomata was recovered by expression of SLAC1 WT, S59A, and S120A, but not by expression of S59A/S120A. Note that SLAC1 WT, S59A, S120A, and S59A/S120A are expressed as C-terminal mVenus fusion proteins under native SLAC1 promoter (see ‘Materials and methods’). Representative current traces are depicted in (A, B, D and E) and average current voltage relationships are shown (C and F; ±SEM). Average steady-state current responses ±SEM at −145 mV are plotted in (G) and average stomatal apertures ±SEM in (H). * indicates p < 0.05; unpaired Student's t-test. Exact p-values and number of individual experiments for (G and H) can be found in Figure 6—figure supplement 4. Note that WT (Col0) and slac1-1 control measurements shown in (G and H) are the same control data as those shown in Figure 6—figure supplement 3A,B as all lines were investigated under the same conditions. Several error bars are not visible, as these were smaller than the illustrated symbols.

https://doi.org/10.7554/eLife.03599.017

To more directly investigate S-type anion channel regulation in planta, we established slac1-1 plant lines which express SLAC1 WT, S59A, S120A, and S59A/S120A fused to mVenus under the native SLAC1 promoter and carried out patch clamp analyses. Expression of wildtype SLAC1-mVenus in slac1-1 guard cells resulted in recovery of S-type anion channels (Figure 6G and Figure 6—figure supplement 3A). Unexpectedly, expression of the single site SLAC1 mutants, SLAC1 S59A or SLAC1 S120A in slac1-1 guard cells restored ABA regulation of S-type anion currents (Figure 6G and Figure 6—figure supplement 3A). However, expression of the double phosphorylation site SLAC1 mutant, SLAC1 S59A/S120A did not restore ABA activation of S-type anion channels (Figure 6G and Figure 6—figure supplement 3A). Furthermore, ABA-induced stomatal closing responses in these complementation lines confirmed the need to mutate both the S59 and S120 sites to alanine to significantly impair ABA-induced stomatal closing in planta (Figure 6H and Figure 6—figure supplement 3B). The above described patch clamp and stomatal movement experiments were conducted with two independent complementation lines (Figure 6G,H and Figure 6—figure supplement 3A,B). To ensure that the impaired ABA-activation of S-type anion currents and stomatal closure in the SLAC1 S59A/S120A mutant was not due to non-expressed protein we investigated the mVenus-derived fluorescence in all complementation lines. All SLAC1 complementation lines expressed SLAC1-mVenus driven by the native SLAC1 promoter to a similar degree (Figure 6—figure supplement 4).

We examined putative roles of the two phosphorylation sites in SLAC1 for interaction of SLAC1 with CPK6 and ABI1 by BiFC analysis. Reconstituted YFP fluorescence intensity of CPK6-YN co-expressed with YC-SLAC1-S59A, YC-SLAC1-S120A, or YC-SLAC1-S59A/S120A was significantly lower than that of CPK6-YN co-expressed with YC-SLAC1-WT (Figure 6—figure supplement 5). YN-ABI1 co-expression with the YC-SLAC1-S59A mutant did not significantly change the YFP fluorescence intensity while YN-ABI1 co-expression with YC-SLAC1-S120A or YC-SLAC1-S59A/S120A resulted in lower YFP fluorescence intensity when compared to YN-ABI1 co-expression with YC-SLAC1-WT (p < 0.005; unpaired t-test; Figure 6—figure supplement 5). These results point to the need for future research to determine whether these phosphorylation sites in SLAC1 might contribute to promotion of CPK6 kinase and ABI1 phosphatase interaction strength with the SLAC1 channel (Figure 6—figure supplement 5).

Discussion

Dissection of Ca2+ signaling specificity mechanisms can be advanced through characterization of the combined cellular, genetic, and biochemical mechanisms in a single cell type. Biochemical and cellular mechanisms that function in Ca2+ specificity, notably those mediated by the mammalian Ca2+/calmodulin-dependent kinase II, have been characterized (De Koninck and Schulman, 1998; Bradshaw et al., 2003; Rellos et al., 2010; Chao et al., 2011). Genome analyses in plants have revealed the existence of more than 200 genes encoding for proteins containing Ca2+-binding EF-hands in the Arabidopsis genome alone (Day et al., 2002) with overlapping expression of many genes in the same cell type, including guard cells (Harmon et al., 2000; McCormack et al., 2005; Schmid et al., 2005; Winter et al., 2007). This plethora of Ca2+ signaling proteins and the many responses in plants mediated by Ca2+ (Dodd et al., 2010) calls for robust mechanisms mediating specificity in Ca2+ signaling.

Ca2+ is a major hub within the signaling network of plant guard cells (MacRobbie, 2000; Hetherington, 2001; Hetherington and Woodward, 2003), but the biochemical mechanisms mediating Ca2+ specificity have remained unknown. In guard cells, stomatal closing stimuli, including ABA and CO2, enhance (prime) [Ca2+]cyt-sensitivity, as also shown in intact Arabidopsis and V. faba guard cells (Young et al., 2006; Munemasa et al., 2007; Siegel et al., 2009; Chen et al., 2010; Xue et al., 2011). Calcium sensitivity priming could provide a key mechanism contributing to specificity in Ca2+ signaling, as this response switches between a state of reduced Ca2+ sensitivity to a Ca2+-responsive ‘primed’ state, thus tightly controlling Ca2+ responsiveness (Allen et al., 2002; Young et al., 2006; Munemasa et al., 2007; Siegel et al., 2009; Chen et al., 2010; Xue et al., 2011). However, the genetic and biochemical mechanisms mediating Ca2+ sensitivity priming have remained unknown.

Here we report genetic, biochemical and signaling network mechanisms that underpin this cellular response. In the absence of ABA, Ca2+ responsiveness is inhibited by PP2Cs, thereby preventing responses to unrelated stomatal opening-mediating stimuli (Irving et al., 1992; Shimazaki et al., 1992; Curvetto et al., 1994; Shimazaki et al., 1997; Cousson and Vavasseur, 1998; Young et al., 2006) and also spontaneous Ca2+ elevations (Young et al., 2006; Siegel et al., 2009). As PP2Cs inhibit OST1 and also down-regulate SLAC1 directly, this network not only enables stimulus specific activation of SLAC1, but also provides a tight off switch via PP2C-catalyzed dephosphorylation of SLAC1 (Figure 7). This mechanism could also prevent SLAC1 activation by CPK23 which exhibits a moderate Ca2+ sensitivity (Geiger et al., 2010). Moreover, as PP2Cs control Ca2+ signaling specificity downstream of the CPK Ca2+ sensors (Figure 7), the same CPK isoforms remain capable of fulfilling other signaling roles, consistent with several studies (Boudsocq et al., 2010; Munemasa et al., 2011; Dubiella et al., 2013; Gao et al., 2013). Similarly, the same MAP kinase genes have been shown to function in multiple plant signaling pathways and unknown mechanisms mediating specificity are required (Rodriguez et al., 2010; Xu and Zhang, 2015). It was reported that ABI1 is not able to remove phosphate groups from SLAC1 after OST1 phosphorylation (Geiger et al., 2009; Scherzer et al., 2012). In contrast, the present study and other recent research shows a clear dephosphorylation of SLAC1 by PP2Cs (Brandt et al., 2012; Maierhofer et al., 2014). Here we demonstrate that ABI1 and PP2CA not only dephosphorylate the SLAC1 N-terminus, but these PP2Cs are able to very rapidly remove the OST1- and CPK-mediated phosphorylation of SLAC1 (Figure 4C–H and Figure 4—figure supplement 1).

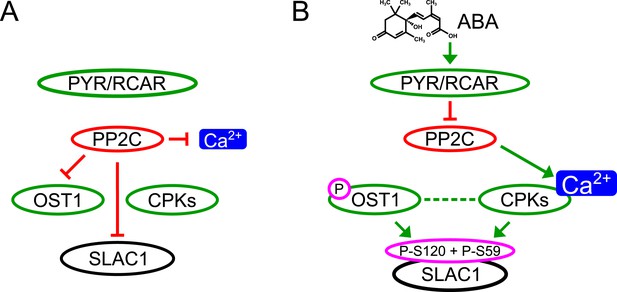

Simplified schematic model for Ca2+-specificity mechanism within ABA-dependent SLAC1 activation in guard cells.

(A) Without ABA, Ca2+ elevations that can also function in stomatal opening responses (Irving et al., 1992; Shimazaki et al., 1992; Curvetto et al., 1994; Shimazaki et al., 1997; Cousson and Vavasseur, 1998; Young et al., 2006) and spontaneous or un-specifically induced Ca2+ transients (Allen et al., 1999b; Klüsener et al., 2002; Young et al., 2006; Yang et al., 2008; Siegel et al., 2009) do not lead to S-type anion channel (SLAC1) activation as PP2C protein phosphatases directly negatively regulate SLAC1 activation. (B) In the presence of ABA this SLAC1 inhibition is released, OST1 and CPKs phosphorylate, and thereby activate the channel. ABA also causes [Ca2+]cyt elevation via PP2C inhibition (Allen et al., 1999a; Murata et al., 2001). Data indicate cross-talk between Ca2+-dependent and -independent ABA-activation of SLAC1 which may be mediated through a combination of protein kinase cross regulation and additive activation via differential affinities for SLAC1 phosphorylation sites by OST1 and CPKs.

https://doi.org/10.7554/eLife.03599.024

The Ca2+-dependent and Ca2+-independent ABA-signaling branches are presently considered to function independent of one another (e.g., Li et al., 2006; Kim et al., 2010; Roelfsema et al., 2012). However, this model has not yet been investigated using higher order genetic mutants. In the present study we unexpectedly have found that snrk2.2/snrk2.3/ost1 triple mutant plants in the Ca2+-independent ABA signal transduction pathway, also abrogate the ‘by pass’ (Allen et al., 1999a) Ca2+-induced [Ca2+]cyt activation of S-type anion channels and Ca2+ oscillation-induced stomatal closing in planta (Figure 5A,B,E). These data show an unexpected dependence of Ca2+-dependent stomatal closing on the Ca2+-independent SnRK2 protein kinase signaling branch. Moreover, we have identified the cpk5/6/11/23 quadruple mutations to impair ABA activation of S-type anion channels and stomatal closure (Figure 1). Notably, this impairment occurs despite an intact SnRK2 signaling branch. Note that a weakened ABA-induced stomatal closing response in cpk mutant plants, as found here when applying 10 μM ABA (Figure 1F), is likely the result of parallel ABA activation of R-type anion channels (Meyer et al., 2010; Sasaki et al., 2010; Imes et al., 2013) and a possible less-stringent CPK regulation of the SnRK2 signaling branch. In cpk5/6/11/23 quadruple mutant plants signal transduction via the Ca2+-independent SnRK2 pathway appears to partially prevail at higher ABA concentrations. Together these data indicate an unexpected dependence of the Ca2+-dependent signal transduction pathway on the Ca2+-independent SnRK2 protein kinase-mediated pathway (Figure 5). Furthermore, the present results together indicate that the output of the Ca2+-dependent signaling pathway may affect the output of the SnRK2 signaling branch.

The presented combined genetic, cell signaling and physiological response analyses provide strong evidence for a concomitant requirement of both the Ca2+-dependent and Ca2+-independent branches to trigger a robust (Hetherington, 2001) downstream stomatal closing response (Figure 7). One model for cross talk of SnRK2-induced signaling with Ca2+ signaling could be that OST1 causes the activation of the Ca2+-permeable plasma membrane ICa channels (Hamilton et al., 2000; Pei et al., 2000). However, our data clearly show that triple knock out of the Ca2+-independent SnRK2 kinases, OST1, SnRK2.2, and SnRK2.3 in the Columbia accession, does not impair ABA activation of ICa channels (Figure 5F and Figure 5—figure supplement 1). Interestingly however, cpk mutants show impairment in ABA activation of ICa channels in guard cells (Mori et al., 2006).

The present study suggests that the integration of signals via differential phosphorylation of SLAC1 by the kinases of the Ca2+-dependent and Ca2+-independent branches could contribute to the interdependence of both signaling branches. In Xenopus oocytes, SLAC1 S59 is required for the activation by CPKs while SLAC1 S120 is required for the activation by the Ca2+-independent kinase OST1 in oocytes (Figure 6A–F and Figure 6—figure supplement 1). Additionally, SLAC1 activation is enhanced by co-expression of (non-split YFP moieties) non-saturating OST1 and CPK6 activities (Figure 6—figure supplement 2). However, in planta analyses of slac1-1 plants expressing single SLAC1 S59A or SLAC1 S120A mutants under the control of the SLAC1 promoter unexpectedly display intact ABA-responses indicating that the phosphorylation of either amino acid residue, together with phosphorylation of other amino acids, is sufficient for ABA-induced stomatal closing in intact stomata and ABA activation of S-type anion channels (Figure 6G,H and Figure 6—figure supplement 3). Furthermore, simultaneous mutation of both residues in SLAC1 (S59A and S120A) caused a strong impairment in ABA activation of S-type anion channels and stomatal closing in planta, illustrating the combined key functions of these residues in the intact guard cell system.

It should be noted that although SLAC1 S120, but not S59, is crucial for the activation by OST1 in Xenopus oocytes (Figure 6E,F) (Geiger et al., 2009), phosphorylation of SLAC1 S59 by OST1 is also found in vitro (Vahisalu et al., 2010). In addition, although the S120A mutation does not affect CPK6 activation of SLAC1 in Xenopus oocyte system (Figure 6B,C), our LC-MS/MS analyses reveal that the S120 can be also phosphorylated by CPK6 in vitro (data not shown). Combined with these in vitro data, our present in planta findings suggest that the SnRK2 and CPK protein kinases may have distinct affinities for the S59 and S120 phospho-sites of SLAC1, which could contribute to the interdependence of the Ca2+-dependent and -independent branches of the ABA signaling network. In addition, crosstalk regulation mechanisms of these protein kinase responses may exist in planta and will require further investigation (Figure 7).

Note that, similar to the slac1-1 mutation, mutation of SLAC1 S120 to phenylalanine (slac1-7) can impair ozone-induced stomatal closing (Vahisalu et al., 2010). It is plausible that a phenylalanine residue at this position causes more significant structural changes that impair SLAC1 function compared to alanine. When both S59 and S120 are mutated to alanine simultaneously however, ABA-triggered S-type anion current activation and stomatal closure were abrogated, highlighting the importance of these two residues for ABA-signaling in planta. The results gained in planta also highlight that data gained in oocytes, though helpful, are simplified and, not surprisingly, do not necessarily represent the situation in the complex plant system. Over-expression of the components, including activating protein kinases, to a high abundance in oocytes is well-suited to test several possible mechanisms in ion channel regulation, and can guide follow up investigation in the native environment in plant cells.

Conclusions

In summary, the present study reveals a first genetic mechanism that mediates Ca2+ sensitivity priming. Ca2+ sensitivity is demonstrated here to be constitutively primed in pp2c quadruple mutant guard cells, showing that PP2Cs ensure Ca2+ signaling specificity. Interestingly, PP2Cs do not directly down-regulate CPK activity, in contrast to direct PP2C down-regulation of the SnRK2 protein kinases. Rather PP2Cs very rapidly down-regulate signaling targets downstream of CPKs, which could enable the same CPKs to function in more than one pathway. We have further identified a cpk quadruple mutant here that for the first time strongly abrogates ABA activation of S-type anion channels. This abrogation occurs despite an intact Ca2+-independent SnRK2 signaling branch. Furthermore, disruption of the Ca2+-independent signaling branch in snrk2 protein kinase triple mutant plants abrogates Ca2+ signaling. Thus, unexpectedly genetic analyses reveal a dependence of the Ca2+-sensitive ABA signaling branch on the Ca2+-insensitive branch in planta. The control of ABA-triggered stomatal closure by parallel interdependent Ca2+-dependent and–independent mechanisms could contribute to the robustness of the stomatal ABA signaling network (Hetherington, 2001). Unexpectedly, in planta studies show that the S59 and S120 phosphorylation sites in SLAC1 are together required for intact ABA-induced stomatal closing in vivo. The Ca2+ sensitivity priming mechanism described here could represent a more general principle present in plants contributing to Ca2+ specificity within cellular signal transduction pathways, while also maintaining the availability of Ca2+ sensors for distinct Ca2+-dependent signaling outputs.

Materials and methods

Mutant plant lines

All A. thaliana plants used in this study are in the Col0 ecotype. cpk5/6/11/23 quadruple T-DNA insertion mutant plants were established by crossing cpk5/6/11 (sail_657C06/salk_025460/salk_054495) kindly provided by Dr Jen Sheen (Harvard Medical School) (Boudsocq et al., 2010) with cpk23-1 (salk_007958) obtained from ABRC (Ma and Wu, 2007; Geiger et al., 2010). Dr Ping He (Texas A&M University) shared cpk1/2/5/6 (salk_096452/salk_059237/sail_657C06/salk_025460) mutant seeds (Gao et al., 2013). The PP2C quadruple knock-out plants (abi1-2/abi2-2/hab1-1/pp2ca-1; salk_072009/salk_015166/salk_002104/salk_028132) and snrk2.2/2.3/ost1 (GABI-Kat_807G04/salk_107315/salk_008068) were kindly provided by Dr Pedro L Rodriguez (University of Valencia) (Antoni et al., 2013). A second independent snrk2.2/2.3/ost1 (GABI-Kat_807G04/salk_107315/salk_008068) line was established by crossing snrk2.2/2.3 supplied by Dr Jian-Kang Zhu (Shanghai Center for Plant Stress Biology) with ost1-3. To establish SLAC1 complementation lines a 4.4 kb fragment including 1.63 kb of the 5′-UTR, the genomic SLAC1 gene region and 0.9 kb of the 3′-UTR (Negi et al., 2008) was amplified using the PfuX7 polymerase (Norholm, 2010). The fragment was cloned into a modified pGreenII (Hellens et al., 2000) vector lacking a promoter and being compatible with USER-cloning. Employing USER cloning (Nour-Eldin et al., 2006; Bitinaite et al., 2007; Geu-Flores et al., 2007) the point mutations were introduced and SLAC1 was fused with mVenus (C-terminally) (Nagai et al., 2004). These pGreenII constructs were transformed into Agrobacterium tumefaciens GV3101(pMP90) RG (Koncz and Schell, 1986). slac1-1 mutant plants were then transformed by the floral dipping method (Clough and Bent, 1998) and propagated until the T-DNA insertion was confirmed to be homozygous.

Patch clamp analyses

Arabidopsis plants were grown on soil in the growth chamber at 21°C under a 16-hr-light/8-hr-dark photoperiod with a photon flux density of 80 μmol/(m2 × s). The plants were watered from bottom trays with deionized water once or twice per week and sprayed with deionized water every day. The growth chamber humidity was 50–70%.

Arabidopsis guard cell protoplasts were isolated enzymatically as previously described (Pei et al., 1997). One or two rosette leaves of 4- to 5-week-old plants were blended in a blender with deionized water at room temperature (RT) for approximately 30 s. For isolation of guard cell protoplasts from snrk2.2/snrk2.3/ost1 triple mutants, four or five rosette leaves were used. Epidermal tissues were collected using a 100-μm nylon mesh and rinsed well with deionized water. The epidermal tissues were then incubated in 10 ml of enzyme solution containing 1% (wt/vol) Cellulase R-10 (Yakult, Japan), 0.5% (wt/vol) Macerozyme R-10 (Yakult, Japan), 0.1 mM KCl, 0.1 mM CaCl2, 500 mM D-mannitol, 0.5% (wt/vol) BSA, 0.1% (wt/vol) kanamycin sulfate, and 10 mM ascorbic acid for 16 hr at 25°C on a circular shaker at 40 rpm. Guard cell protoplasts were then collected by filtering through a 20-μm nylon mesh. Subsequently, the protoplasts were washed twice with washing solution containing 0.1 mM KCl, 0.1 mM CaCl2, and 500 mM D-sorbitol (pH 5.6 with KOH) by centrifugation for 10 min at 200×g. The guard cell protoplast suspension was kept on ice before use.

To investigate ABA activation of S-type anion channels, the guard cell protoplast suspension was pre-incubated with 10 μM (Figure 1A,C, Figure 1—figure supplement 1C,D, Figure 6G, and Figure 6—figure supplement 3A) or 50 μM (Figure 2A–D and Figure 2—figure supplement 1A,B as well as Figure 5C,D) ± ABA (Sigma, St. Louis, MO) for 30 min. S-type anion channel currents in guard cell protoplasts were recorded by the whole-cell patch-clamp technique as previously described (Pei et al., 1997; Vahisalu et al., 2008; Siegel et al., 2009). The pipette solution contained 150 mM CsCl, 2 mM MgCl2, 5 mM Mg-ATP, 6.7 mM EGTA, and 10 mM Hepes-Tris (pH 7.1). To obtain a free [Ca2+]cyt of 2 μM and 110 nM, 5.86 mM and 1.79 mM of CaCl2 were added to the pipette solution, respectively. Osmolality of the pipette solution was adjusted to 500 mmol/l using D-sorbitol. The bath solution contained 30 mM CsCl, 2 mM MgCl2, 1 mM CaCl2, and 10 mM MES-Tris (pH 5.6). Osmolality of the bath solution was adjusted to 485 mmol/l using D-sorbitol. To investigate external Ca2+ activation of S-type anion channels, guard cell protoplasts were pre-incubated with the bath solution containing 40 mM CaCl2, instead of 1 mM CaCl2 for 30 min. Whole-cell currents were recorded 3–5 min after achieving the whole-cell configuration. The seal resistance was no less than 10 GΩ. The voltage was decreased from +35 mV to −145 mV with 30 mV decrements and the holding potential was +30 mV.

To investigate ABA activation of Ca2+-permeable ICa channels, the pipette solution contained 10 mM BaCl2, 4 mM EGTA, and 10 mM HEPES-Tris (pH 7.1). 5 mM NADPH was freshly added to the pipette solution before experiments. The bath solution contained 100 mM BaCl2, and 10 mM MES-Tris (pH 5.6). 0.1 mM DTT was freshly added to the bath solution before experiments. Osmolarity was adjusted to 500 mmol/l for the pipette solution and 485 mmol/l for the bath solution with D-sorbitol. A ramp voltage protocol from +20 to −180 mV (holding potential, 0 mV; ramp speed, 200 mV/s) was used for ICa recordings (Pei et al., 2000). The seal resistance was no less than 10 GΩ. Data were filtered at 3 kHz. Initial control whole-cell currents were recorded 10 times with a 1 min interval between each recording 1–3 min after achieving whole-cell configurations. The average current obtained from the 10 current traces per cell at 0, −30, −60, −90, −120, −150, and −180 mV was determined for IV curves. After control current recordings, ABA was added to the bath solution by perfusion, and guard cell protoplasts were incubated with ABA in the bath solution for 3 min. Then, ABA-activated ICa currents were recorded 10 times for another 10 min and the average current obtained from the 10 traces was determined for IV curves.

Stomatal aperture analyses

2-week-old plate-grown plants were transferred to soil and grown in >70% relative humidity under 16 hr light/8 hr dark. Rosette leaves from 4- to 5-week-old plants were detached and incubated in stomatal opening buffer (5 mM KCl, 50 μM CaCl2, 10 mM MES and pH 5.6 with Tris base) for 2.5 hr, in 150–180 μmol/(m2 × s) light. Next, leaves were treated with either 5 μM ABA or 0.05% ethanol for an additional 1 hr incubation. After the incubation period, leaves were blended and fragments were collected with a 100 μm nylon mesh (Figure 1E, Figure 6H and Figure 6—figure supplement 3B) except for Figure 1F. In Figure 1F, epidermal peels were prepared using a perforated-tape epidermal detachment method (Ibata et al., 2013). Images of stomata from the abaxial side of the leaves were collected by microscopy. Stomatal aperture analyses were conducted as single-blind experiments in which the experimenter did not know the plant genotypes during measurements (Figure 1E,F) or as double-blind experiments in which the experimenter did not know both the ABA concentration and the plant genotypes (Figure 6H and Figure 6—figure supplement 3B).

Imposed Ca2+ pulse-regulated stomatal apertures of individually mapped stomata

Stomatal aperture analyses for imposed Ca2+ pulses were performed as previously described (Allen et al., 2001; Mori et al., 2006; Siegel et al., 2009). Stomatal apertures of individually mapped stomata were measured at the indicated time points after the start of imposed Ca2+ pulses. The lower epidermis of rosette leaves from 4- to 5-week-old plants was attached onto a coverslip using medical adhesive (Hollister). Then mesophyll layers of the leaf were carefully removed using a razor blade until only the epidermal layer remained. The lower epidermis was incubated in depolarizing buffer (50 mM KCl and 10 mM MES-Tris [pH 5.6]) for 3 hr under white light (150–180 μmol/(m2 × s)) to open stomata. Depolarizing buffer was changed to hyperpolarizing buffer (1 mM KCl, 1 mM CaCl2, and 10 mM MES-Tris at pH 5.6). Four 5-min extracellular Ca2+ pulses were applied in 5-min intervals in the first 35 min. Stomatal aperture analyses were conducted as blind experiments in which the experimenter did not know the plant genotypes during measurements (Figure 5E).

Recombinant protein isolation

Over-expression and purification of recombinant proteins were performed as described in Brandt et al. (2012) with minor adjustments: For the isolation of the PP2C proteins ABI1, ABI2, and PP2C additionally 5 mM MgCl2 and 5% Glycerol were added to the buffer in which the bacterial pellet were re-suspended (buffer W in IBA manual). Also, all proteins except SLAC1-NT were eluted in elution buffer supplemented with 20% Glycerol instead of 10% and stored at −80°C instead of −20°C. To assess protein concentrations, several volumes of the eluates were loaded on a gel together with several defined bovine serum albumin (BSA) protein amounts. After separating the proteins by SDS-PAGE (Laemmli, 1970), the proteins were stained with coomassie brilliant blue R-250, dried between two sheets of cellophane, and then scanned. BSA and recombinant protein band intensities were measured using Fiji (Schindelin et al., 2012). After subtracting the background signal, BSA band signal intensities were used to plot a standard curve. Concentrations of isolated recombinant proteins were then calculated based on the equation resulting from the linear regression of the BSA standard curve.

Whole plant protein extraction

Seeds were sterilized by incubation in sterilization medium (70% ethanol and 0.04% (wt/vol) SDS) for 15 min followed by three washes in 100% ethanol. After drying, the seeds for all genotypes were plated on one plate with ½ Murashige and Skoog Basal Medium (MS; Sigma–Aldrich, St. Louis, MO) and 0.8% phyto-agar. The plate was then stored at 4°C for >3 days and subsequently transferred to a growth cabinet (16/8 light/dark and 22°C). After a growth phase of 10–14 days >10 seedlings per genotype were floated on liquid ½ MS and equilibrated for 60–90 min in the growth cabinet. Either ±ABA (Sigma) to a final concentration of 50 μM (indicated by + in the figure) or the same volume of solvent control (ethanol; indicated by—in the figure) was added to the floating seedlings. After 30 min the seedlings were removed from the ½ MS and flash frozen in liquid nitrogen. Plant tissue was disrupted by shaking the frozen seedlings together with steel balls in a shaker (Retsch) for three times 30 s at 30 Hz in pre-cooled mountings. Subsequently, extraction buffer: 100 mM HEPES-NaOH pH 7.5, 5 mM EDTA, 5 mM EGTA, 0.5% (vol/vol) Triton X-100, 150 mM NaCl, 0.5 mM DTT, 10 mM NaF, 0.5% (vol/vol) protease inhibitor (Sigma–Aldrich), 0.5% (vol/vol) phosphatase inhibitor 2 (Sigma–Aldrich), 0.5% (vol/vol) phosphatase inhibitor 3 (Sigma–Aldrich), 5 mM Na3VO4, and 5 mM β-Glycerophosphate disodium salt hydrate was added. The samples were then treated in a sonication water bath (Fisher Scientific) with ice added to the water for 30 s. Cell debris was removed via centrifugation at 20,000×g and 4°C for 40 min. Protein concentrations of the supernatants were measured using the BCA Protein Assay Kit (Pierce). 20 μg of total protein for each genotype and treatment were subjected to SDS-PAGE (Laemmli, 1970) under denaturing conditions (see in-gel kinase assay).

In vitro protein kinase activity analyses

The reaction buffer consisted of 100 mM HEPES-NaOH pH 7.5, 10 mM MgCl2, 2 mM DTT, 1 mM EGTA, and CaCl2 was added to get a final concentration of 2.5 μM free Ca2+ for all assays except the assay depicted in Figure 3—figure supplement 4 for which free Ca2+ was adjusted to 5 μM (calculated with http://www.stanford.edu/∼cpatton/webmaxc/webmaxcE.htm). Note that the pH of the reaction buffer dropped to pH 7.3 after adding all components and free Ca2+ calculations were performed accordingly. The flow charts in the respective figures indicate the components which were added subsequently in sequence (from top to bottom) and the respective incubation times. For the reactions shown in Figure 3—figure supplement 4 0.5 μg of CPK6 and 1 μg of the PP2Cs ABI1, ABI2, and PP2CA were used. The addition of EGTA for reactions shown in Figure 3—figure supplement 4 lanes 2–4 resulted in a free Ca2+ concentration <10 nM (calculated with http://www.stanford.edu/∼cpatton/webmaxc/webmaxcE.htm). For the experiments shown in Figure 4D–H and Figure 4—figure supplement 1, SLAC1-NT (1.5 μg) was mixed together with 200 nM of the protein kinases CPK6, CPK23, OST1, and CPK21 in reaction buffer. Staurosporine was added to a final concentration of 100 μM and the final concentration of the PP2Cs ABI1 and PP2CA was 600 nM. To start all in vitro kinase reactions, 5 μCi of [γ-32P]-ATP (Perkin–Elmer) was added and the reactions were incubated at RT for 10 min. The final volumes were 20 μl and the reactions were stopped by the addition of 4 μl of 6× loading dye with subsequent incubation at 95°C for 5 min. The proteins were then separated by SDS polyacrylamide gel electrophoresis (SDS-PAGE, Laemmli, 1970) in 4–20% acryl amide gradient gels (Biorad). After, the proteins were stained with coomassie brilliant blue R-250 (Sigma). To visualize incorporated 32P-derived radioactive signals, gels were exposed to a storage phosphor screen (Molecular Dynamics; Figure 4D–H and Figure 4—figure supplement 1) or HyBlot CL autoradiography films (Denville Scientific; Figure 3—figure supplement 4). The phosphor storage screen was read out using a Typhoon scanner (Amersham Bioscience).

To compare CPK6 activities by measuring ATP consumption (Figure 3—figure supplement 5) with or without the PP2Cs ABI1 and PP2CA, 0.5 μM of the protein kinase was incubated at RT for 7.5 min either alone or with 1 μM of PP2C protein in the above mentioned reaction buffer supplemented with 10 μM ATP and ∼150 μM Histone III-S (Sigma). The reactions were stopped by the addition of staurosporine. Residual ATP levels were quantified using the Kinase-Glo kit (Promega) according to the manufacturer's instructions resulting in luminescence signals measured in a plate reader (Berthold Mithras LB 940) (Latz et al., 2012). ATP consumption was calculated by first assessing the maximum range (∆Rmax) of luminescence by subtracting the signal intensity of the background (no ATP added; RB) from the maximum signal (no kinase added; Rmax). To calculate the ATP consumption, signal intensities derived from the residual ATP in the reactions (Rx) were subtracted from the maximum signal (Rmax) and then related to the maximum range (∆Rmax) and plotted in per cent ([(Rmax − Rx)/∆Rmax] × 100).

In-gel kinase assays

For in-gel protein kinase assays using recombinant proteins shown in Figure 3C,D, 500 ng of OST1 and CPK6 kinase and the PP2Cs ABI1 and PP2CA in a 1:3 molar ration were mixed in reaction buffer with 2.5 μM free Ca2+ (for buffer composition see in vitro kinase assay section). The reactions labelled with ‘(ATP)’ were additionally supplemented with 100 μM ATP. All samples were incubated at RT for 20 min and stopped by adding SDS loading dye and heating at 95°C for 5 min. For the assay depicted in Figure 3—figure supplement 3, 1250 ng of OST1 and 500 ng of CPK6 were used.

These samples as well as the samples described in the ‘whole plant protein extraction’ section were subjected to SDS-PAGE (Laemmli, 1970). The 10% SDS acryl amide resolving gels were supplemented with 0.25–0.5 mg/ml Histone III-S (Sigma–Aldrich) (Figure 3, Figure 3—figure supplement 2 and Figure 3—figure supplement 3) or without Histone III-S (Figure 3—figure supplement 3). After electrophoresis, the gel was washed three times with washing buffer (25 mM Tris–HCl pH 8.0, 0.5 mM DTT, 0.1 mM Na3VO4, 5 mM NaF, 0.5 mg/ml BSA, and 0.1% (vol/vol) Triton X-100) for 30 min each at RT, followed by two washes with renaturation buffer (25 mM Tris–HCl pH 8.0, 1 mM DTT, 0.1 mM Na3VO4, and 5 mM NaF) for 30 min each at RT and one wash at 4°C overnight. Then, the gels were equilibrated with reaction buffer (see in vitro kinase assay) for 30–45 min at RT and incubated in 20 ml of reaction buffer supplemented with 50 μCi [γ-32P]-ATP (Perkin–Elmer). The reaction times were: Figure 3A,B, Figure 3—figure supplement 2, and Figure 3—figure supplement 3: 90 min; Figure 3C: 60 min; Figure 3D: 120 min. To stop the reactions and to remove background signals the gels were subsequently extensively washed with a solution containing 5% (vol/vol) trichloroacetic acid and 1% (vol/vol) phosphoric acid for at least six times for 15 min each. The gels were then stained with coomassie brilliant blue R-250, dried on Whatman 3MM paper, and exposed to a storage phosphor screen (Molecular Dynamics). The storage phosphor screen was scanned with a Typhoon reader (Amersham Bioscience).

For the in-gel kinase assays shown in Figure 3A,B and Figure 3—figure supplement 2 all steps except the equilibration in reaction buffer and the reactions were carried out together and exactly the same way which allows the autoradiographs to be compared. The image files given by the Typhoon reader software are automatically adjusted to best display the bands with the highest intensity. Ca2+-activated kinase signals are stronger than OST1-derived bands which renders OST1 bands hardly visible by the Typhoon reader software. To better visualize OST1 activity, the signal intensity of the ∼41 kDa regions (blue box) in Figure 3A,B and Figure 3—figure supplement 1 were adjusted as described in the following: The output files (.gel) of the Typhoon scanner software was opened using Fiji (Schindelin et al., 2012) and in order to enhance the visibility of OST1-derived bands the maximum signal was adjusted for the entire image including controls and the two gels which are compared in accordance with publication policies (http://jcb.rupress.org/content/166/1/11.full). Subsequently, the regions around 41 kDa were saved as .jpg file which was used for the preparation of the figures. The parallel adjustment of the whole image showing both gels which are depicted in either Figure 3A,B or Figure 3—figure supplement 1 allows the comparisons of band intensities within each figure. Additionally, in Figure 3—figure supplement 1 several lanes of the same gel have been cut out indicated by the black line as explained in http://jcb.rupress.org/content/166/1/11.full.

Quantitative bimolecular fluorescence complementation

Quantitative BiFC experiments were carried out as described in (Waadt et al., 2008) with changes explained in the following: BIFC vectors were altered to be USER cloning (Nour-Eldin et al., 2006) compatible (indicated by the ‘u’ addition to the vector name) as described in Nour-Eldin et al. (2010). SLAC1-WT, SLAC1 S59A, SLAC1 S120A, SLAC1 S59A/S120A, CPK6, and ABI1 coding sequences were amplified using the PfuX7 polymerase (Norholm, 2010). SLAC1-WT, SLAC1 S59A, SLAC1 S120A, and SLAC1 S59A/S120A, were USER-cloned into pSPYCE(MR)u while CPK6 and ABI1 were inserted into pSPYNE173u, and pSPYNE(R)173u, respectively. Coding sequences of PP2AA3 (AT1G13320) and PP2AC5 (AT1G69960) were PCR-amplified using Phusion DNA polymerase (Invitrogen) and inserted SpeI/XmaI into a modified pUC19 vector including the pUBQ10 promoter (pUC-pUBQ10; [Waadt et al., 2014]). PP2AA3 was subcloned into the BiFC vectors pSPYCE(MR) and PP2AC5 into pSPYNE(R)173. Spinning disc confocal microscopy was performed using the following setup: Nikon Eclipse TE2000-U microscope with Nikon Plan 20×/0.40 ∞/0.17 WD; 1.3 and Plan Apo 60×/1.20 WI ∞/0.15–0.18 WD; 0.22 objectives. Attached were a CL-2000 diode pumped crystal laser (LaserPhysics Inc.), and a LS 300 Kr/Ar laser (Dynamic Laser), a Photometrics CascadeII 512 camera, a QLC-100 spinning disc (VisiTech international), and a MFC2000 z-motor (Applied Scientific Instruments). The software used to acquire the images was Metamorph (version 7.7.7.0; Molecular Devices). Figure 4A images depict maximum projections of z-stacks.

Electrophysiological measurements in Xenopus laevis oocytes

Two electrode voltage clamp measurements in X. leavis oocytes were carried out as described previously (Brandt et al., 2012) with adjustments listed in the following. The recording solution contained 10 mM MES/Tris (pH 5.6), 1 mM CaCl2, 1 mM MgCl2, 2 mM KCl, 24 mM NaCl, and 70 mM Na-gluconate. Osmolality was adjusted to 220 mM using D-sorbitol. Oocytes were held at a holding potential of 0 mV, and subjected to voltage pulse from +40 mV to −120 mV, −140 mV, or −160 mV in −20 mV decrements. The amounts of injected cRNA were 10 ng except for Figure 6—figure supplement 2A,E. For the experiments shown in Figure 6—figure supplement 2A,E the amounts of injected cRNA were 5 ng of SLAC1, 0.5 ng of CPK6, and 7.5 ng of OST1.

References

  1. 1
  2. 2
  3. 3
    Arabidopsis abi1-1 and abi2-1 phosphatase mutations reduce abscisic acid–induced cytoplasmic calcium rises in guard cells
    1. GJ Allen
    2. K Kuchitsu
    3. SP Chu
    4. Y Murata
    5. JI Schroeder
    (1999a)
    The Plant Cell 11:1785–1798.
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
    Effect of 2 cAMP analogs on stomatal opening in Vicia faba. Possible relationship with cytosolic calcium-concentration
    1. N Curvetto
    2. L Darjania
    3. S Delmastro
    (1994)
    Plant Physiology and Biochemistry 32:365–372.
  20. 20
  21. 21
    Analysis of EF-hand-containing proteins in Arabidopsis
    1. IS Day
    2. VS Reddy
    3. G Shad Ali
    4. AS Reddy
    (2002)
    Genome Biology 3:RESEARCH0056.
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
    Site- and kinase-specific phosphorylation-mediated activation of SLAC1, a guard cell anion channel stimulated by abscisic acid
    1. T Maierhofer
    2. M Diekmann
    3. JN Offenborn
    4. C Lind
    5. H Bauer
    6. K Hashimoto
    7. K S Al-Rasheid
    8. S ALuan
    9. J Kudla
    10. D Geiger
    11. R Hedrich
    (2014)
    Science Signaling, 7, 10.1126/scisignal.2005703.
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
    Abscisic acid activation of plasma membrane Ca2+ channels in guard cells requires cytosolic NAD(P)H and is differentially disrupted upstream and downstream of reactive oxygen species production in abi1-1 and abi2-1 protein phosphatase 2C mutants
    1. Y Murata
    2. ZM Pei
    3. IC Mori
    4. J Schroeder
    (2001)
    The Plant Cell 13:2513–2523.
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
    Plant secondary metabolism engineering: methods and applications
    1. HH Nour-Eldin
    2. F Geu-Flores
    3. BA Halkier
    (2010)
    185–200, Plant secondary metabolism engineering: methods and applications.
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
    FRET-based reporters for the direct visualization of abscisic acid concentration changes and distribution in Arabidopsis
    1. R Waadt
    2. K Hitomi
    3. N Nishimura
    4. C Hitomi
    5. SR Adams
    6. ED Getzoff
    7. JI Schroeder
    (2014)
    eLife, 3, 10.7554/eLife.01739.
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99
  100. 100
  101. 101
  102. 102
  103. 103

Decision letter

  1. Detlef Weigel
    Reviewing Editor; Max Planck Institute for Developmental Biology, Germany

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

[Editors’ note: this article was originally rejected after discussions between the reviewers, but the authors were invited to resubmit after an appeal against the decision.]

Thank you for choosing to send your work entitled “Calcium Specificity Mechanism in Abscisic Acid Signal Transduction in Arabidopsis Guard Cells” for consideration at eLife. Your full submission has been evaluated by Detlef Weigel (Senior editor) and three peer reviewers, and the decision was reached after discussions between the reviewers. We regret to inform you that your work will not be considered further for publication.

The comments below are a synopsis of the major comments of the reviewers.

The overall concern is that this paper only incrementally changes the existing model for ABA dependent regulation of Slac1. A 2012 PNAS paper from many of the same authors concluded with a very similar model for ABA dependent regulation of Slac1, and other papers that are cited, such as Geiger et al. 2009 and 2010, also support key aspects of the current model.

The main new finding is that PP2C phosphatases inhibit SLAC1 activation by directly dephosphorylating two different sites in the N terminus of SLAC1: S120, which is phosphorylated by non-Ca dependent SnRK kinases including Ost1, and S59, which is phosphorylated by Ca dependent kinases, CPKs. This adds to an earlier model where PP2C action reversed CPK dependent phosphorylation of SLAC1 and also dephosphorylated OST1, directly inactivating the kinase. The essential new idea then is that the N terminus of Slac1 serves as a coincidence detector, which is a nice addition to the current knowledge, but the reviewers considered this a ‘refinement’ of the current model rather than a significant conceptual advancement. Furthermore, the coincidence detection idea is not tested directly, for example with SLAC1 S59A, S120A single and double mutants introduced into the background of a SLAC1 loss-of-function mutant. The model predicts that such mutants would not be activated by ABA, and would not show constitutive activation in the PP2C quadruple mutant. Similarly, phospho-mimic single and double mutants in oocyte expression and in planta experiments would further enhance the understanding of ABA-signaling in guard cells.

Together with the limits of the artificial patch clamp experiments, the oocyte data do not entirely support the presented model. You concluded that both S120 and S59 have to be phosphorylated by OST1 and CPK6 synergistically to render SLAC1 active. Consequently disruption of one of the phospho-sites should result in an infunctional SLAC1 channel. However, this was not what was observed.

Due to the above mentioned limitations and the lack of certain controls and of in planta confirmation, the reviewers agreed that the manuscript is more suitable for a specialized journal. Specific comments from the three reviewers follow.

Reviewer #1:

1) The data in Figure 1 deal with calcium-dependent kinases cpk5/6/11/23 in the ABA responsive regulation of calcium channels in guard cells. The focus of the text is on the role of CPK5 yet all of the studies are performed with a quadruple T-DNA insertion mutant that ablates all of these enzymes. Would it be possible to conduct a parallel analysis in mutant plant cells that lack single CPK enzymes, in particular CPK5?

2) The experiments in Figure 2 nicely complement data in the opening figure, but suffer from the same lack of specificity. Is it possible to measure the impact on calcium ion conductance in plant cells that lack individual ABL, HAB1 or PP2CA genes?

3) The data in Figures 3A and 3B are interesting, but as presented are less than convincing. The statement in the Results section “Several calcium activated bands disappeared… consistent with CPK activities associated with these molecular weights” is important to the overall hypothesis tested in this article. However, the quality of the data in Figures 3A and 3B is not sufficient to convince this reviewer of the validity of this statement.

4) The BiFC data presented in Figure 4 are interesting and well controlled. These findings suggest that SLAC1 and PP2CA directly interact, or do so in a proximity that permits formation of the fluorescent adduct. Given that the authors acknowledge that this protein-protein interaction has previously been reported there would be some merit in further emphasizing the new aspects of the binding event that are demonstrated in this new data. This pertains to the phosphorylation dependent regulation of the binding event. Can the phosphorylation sites be identified? Do phosphor-site mutants prevent protein association?

5) The data in the final figure are more mechanistic and deal with some of the concepts that I have raised above. My reading of this section suggests that most of the electrophysiological measurements were performed in Xenopus oocytes. Can any of these studies be conducted in mutant plants? Performing this work in a more physiologically relevant cell type would be an important addendum to this interesting study.

6) The Abstract and opening sections of the Introduction are not well articulated. Major editing would be necessary to improve the clarity of these important sections.

7) The details of the drug regimen presented in panel 4D are convoluted and hard to follow.

Reviewer #2:

A minor concern is that no negative control is shown for the BiFC experiments shown in Figure 4C.

Reviewer #3:

Interpretations concerning the ABA primed Ca2+ sensitivity of SLAC1 phosphorylation are based on guard cell protoplast data. The consensus in the field is that protoplasts are impaired in many normal cellular functions. The cytosol of cells is strongly diluted and evidence for degradation of major guard cell functions has been published. The experiments here are carried out following a preincubation of protoplasts with ABA. The authors can therefore not exclude that the ABA-signaling complex is established and solidified by ABA incubation and therefore the dilution prior to patch clamp measurements is weaker than in the absence of ABA. This scenario would lead to similar results, but would have nothing to do with ABA-priming.

Wang et al., (2013, Plant Physiol.) showed that the ABA-insensitive ABA receptor quadruple mutant (pyr1/pyl1/pyl2/pyl4) displayed wild type like s-type anion current responses upon elevation of cytosolic calcium levels, contradicting the authors' hypothesis of ABA priming. Thus, calcium is sufficient for anion channel activation (without ABA priming). Moreover, reports from Chen et al., (2010, Plant J), Marten et al., (2007, Plant Physiol.), Stange et al., (2010, Plant J) and Levchenko et al., (2005, PNAS) illustrated that the ABA-signaling pathway is bifurcated: On one branch, ABA activates S-type anion channels without the need of cytosolic calcium elevations and on the other, ABA activates anion channels in a Ca2+ dependent manner. These findings contradict the interdependence of both pathways and the priming of the guard cell calcium sensitivity by ABA as reported by the authors here. Even more importantly, the experiments by Marten et al., (2007, Plant Physiol.), Stange et al., (2010, Plant J) and Levchenko et al., (2005, PNAS) were conducted with intact plants and a minimal invasive guard cell impalement technique, simultaneously recording the rise in cytosolic calcium and S-type anion currents. Thus in intact plants the situation seems to be different from the protoplast system.

Physiological tests, such as gas-exchange or stomatal aperture measurements are lacking completely.

The authors used CPK or PP2C quadruple mutants as well as a snrk triple mutant in their patch clamp and biochemical studies to show their impact in ABA-dependent stomatal closure (SLAC1 activation). Since all of these ABA signaling components not only regulate the activity of SLAC1 but also are involved in other aspects of gene regulation, it would be important to show that the equilibrium/stoichiometry between phosphatases and kinases are not disturbed in the mutants. This could be circumvented with the SLAC1 phospho-site mutants S59, S120 and a double mutant thereof, introduced into SLAC1 loss-of-function mutants.

Why did the authors include CPK11 in their studies?

In vitro kinase assays were performed to show that ABI1 and PP2CA do not inhibit CPK6 activity (although autophosphorylation was decreased). The authors should consider the activity of the recombinant proteins under the respective conditions. Why did the authors not see a reduction of CPK autophosphorylation when using the whole seedling proteins (Figure 3, wild type vs. PP2C quadruple KO)?

The authors used whole seedling protein preparations for comparisons between wild type and multiple mutants to show that PP2Cs control the activity of OST1 but not of CPKs and the interdependence of the Ca2+ dependent and independent pathway. The major quantity of whole seedling protoplasts consists of mesophyll cells that act differently than guard cells when exposed to ABA. Moreover, SLAC1 and OST1 represent guard cell specific proteins and are underrepresented in whole seedling preparation. This is also true for other tissue- and stimulus-specific ABA-signaling components. Thus, the authors should be very careful in drawing conclusions from experiments with samples guard cells represent the minority.

Heterologous expression in Xenopus oocytes was performed to finally show that OST1 and CPKs synergistically activate SLAC1 by phosphorylation. The authors claim that the phospho-site S120 is addressed by OST1 but not by CPK6/5/23 (already shown by Geiger et al. 2009) and that S59 is specific for CPKs (shown by Brandt et al. 2012) but is not a site for OST1.

For the reader it is difficult to understand how the author can conclude that both residues have to be phosphorylated by OST1 and CPK6 synergistically to render SLAC1 active when after disruption of one of the sites SLAC1 can still be activated. It would appear that phosphorylation of one site is sufficient (perhaps in combination with other phosphorylation sites) to render SLAC1 active (S59 for CPKs and S120 for OST1). Moreover, the fact that CPK6 alone and OST1 alone, coexpressed as BiFC constructs, are able to activate wild type SLAC1 also would seem to contradict the authors' conclusion that SLAC1 phosphorylation by OST1 primes SLAC1 and that additional phosphorylation of SLAC1 by CPK6 (upon Ca2+ increase) activates the anion channel.

When coexpressing wild type SLAC1 with both kinases the authors used very small quantities of CPK6 cRNA but 15x more OST1 cRNA. Only when suboptimal CPK6 concentrations were used, OST1 could enhance SLAC1 activation. This does not seem to prove kinase synergistic activation of SLAC1.

Why did the authors use 400 nM Ca2+ in the experiments shown in Figure 3–figure supplement 1, while for all other studies they used micromolar Ca2+ containing buffers?

BIFC experiments are lacking proper controls (there is no negative control, e.g. CPK6/OST1 coexpression should result in a negative BiFC).

Y2H experiments were performed to show that OST1 and CPK6 do not interact with each other. This negative result should be confirmed by alternative approaches.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for sending your work entitled “Calcium Specificity Signaling Mechanisms in Abscisic Acid Signal Transduction in Arabidopsis Guard Cells” for consideration at eLife. Your article has been favorably evaluated by Detlef Weigel (Senior editor) and two outside reviewers.

Both reviewers agreed that you have addressed their major concerns, except for identification of the phosphorylation sites (see original point 4 of this reviewer below). Would it be possible to identify these and test the corresponding mutants?

“4) The BiFC data presented in Figure 4 is interesting and well controlled. These findings suggest that SLAC1 and PP2CA directly interact, or do so in a proximity that permits formation of the fluorescent adduct. Given that the authors acknowledge that this protein-protein interaction has previously been reported there would be some merit in further emphasizing the new aspects of the binding event that are demonstrated in this new data. This pertains to the phosphorylation dependent regulation of the binding event. Can the phosphorylation sites be identified? Do phosphor-site mutants prevent protein association?”

Reviewer #1:

I have read with interest the revised manuscript . The authors have done a creditable job in responding to the previous reviewers’ comments and have clearly articulated their concern with the actions of a specialized reviewer during the previous rounds of evaluation.

In general I am satisfied with the new data that has been added to the amended manuscript. I only have one suggestion.

1) I think that there would be some merit in the inclusion of aspects of the BiFC phosporylation studies that are discussed in point 4 of my original critique.

Reviewer #2:

I feel that the authors have responded to all the major issues we raised in the earlier review, and that the current version is acceptable for publication.

In particular addition of the in planta data on the slac1 mutants lacking either one or both phosphorylation sites (S59A and S120A) (Figure 6G and H) is interesting and novel and adds significantly to the model presented in Figure 7.

https://doi.org/10.7554/eLife.03599.025

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

We have revised the manuscript according to the reviewers' comments and questions and have made additional advances in our in planta analyses, that further underline the major relevance of our findings. The revised manuscript provides strong in vivo evidence using genetic, biochemical and dynamic cell

signaling analyses for molecular mechanisms mediating abscisic acid-induced Ca2+ sensitivity priming. Our manuscript also addresses the question of how stimulus-specific Ca2+ signaling can be achieved in a plant cell, using abscisic acid-induced stomatal closing of plant guard cells. These findings could represent a general Ca2+-specificity mechanism and can advance the understanding of similar questions in plants and potentially other eukaryotic systems. In addition, our in planta data show the unexpected interdependence of the Ca2+-independent and Ca2+-dependent signaling pathway, contrary to present less-directly derived models, which will be of interest to a broad readership.

The overall concern is that this paper only incrementally changes the existing model for ABA dependent regulation of Slac1. A 2012 PNAS paper from many of the same authors concluded with a very similar model for ABA dependent regulation of Slac1, and other papers that are cited, such as Geiger et al. 2009 and 2010, also support key aspects of the current model.

We list here in brief form some of the major new findings in our manuscript. Please note that the 2009, 2010, and 2012 papers referenced above focus mainly on analyzing reconstituted signaling proteins in Xenopus oocytes and in vitro, but our present study reveals several new and relevant findings in planta by analyzing higher order Arabidopsis mutants. The above reconstitution studies do not answer the question of how Ca2+-dependent and Ca2+-independent ABA signaling pathways are coordinated in guard cells and how Ca2+-signaling specificity is achieved in guard cell ABA-signaling.

The major findings in our manuscript are, in brief:

a) We have found a strong disruption in ABA-triggered guard cell S-type anion channel activation in cpk quadruple mutants and now also demonstrate that higher order knock out CPK mutants are strongly impaired in in vivo stomatal responses to 5 µM ABA underlining our findings as suggested by reviewers. We further provide evidence for redundancy in the pathway at high ABA concentrations.

b) We have found the quadruple knock out of PP2C protein phosphatases leads to constitutive Ca2+-signaling and ion channel regulation in planta, a major finding that provides a first mutant that removes the requirement for ABA-induced Ca2+ sensitivity priming.

c) Using slac1 complementation lines (slac1 mutants expressing WT SLAC1, SLAC1 S59A, S120A, or S59A/S120A under the native SLAC1 promoter), now we provide interesting and unexpected in vivo evidence that both of the phospho-sites are required for guard cell ABA responses in planta. These findings will be of great interest to plant scientists.

d) Present models assume that the Ca2+-independent and Ca2+-dependent ABA signal transduction branches are independent from one another. Using higher order Ca2+-independent (snrk2) and Ca2+-dependent (cpk) protein kinase mutants we demonstrate genetically and in cell signaling analyses in Arabidopsis guard cells that these two pathways are interdependent, a question that has not been addressed directly in planta to our knowledge. We found that disruption of three Ca2+-independent SnRK2 protein kinase genes unexpectedly disrupts guard cell Ca2+ signaling, providing genetic evidence for interdependence of Ca2+-dependent and Ca2+-independent ABA signaling pathways. This in vivo evidence will have major impact on the field, where presently mainly two independent pathways are considered.

The main new finding is that PP2C phosphatases inhibit SLAC1 activation by directly dephosphorylating two different sites in the N terminus of SLAC1: S120, which is phosphorylated by non-Ca dependent SnRK kinases including Ost1, and S59, which is phosphorylated by Ca dependent kinases, CPKs. This adds to an earlier model where PP2C action reversed CPK dependent phosphorylation of SLAC1 and also dephosphorylated OST1, directly inactivating the kinase. The essential new idea then is that the N terminus of Slac1 serves as a coincidence detector, which is a nice addition to the current knowledge, but the reviewers considered this a ‘refinement’ of the current model rather than a significant conceptual advancement. Furthermore, the coincidence detection idea is not tested directly, for example with SLAC1 S59A, S120A single and double mutants introduced into the background of a SLAC1 loss-of-function mutant. The model predicts that such mutants would not be activated by ABA, and would not show constitutive activation in the PP2C quadruple mutant. Similarly, phospho-mimic single and double mutants in oocyte expression and in planta experiments would further enhance the understanding of ABA-signaling in guard cells.

To address this comment, we have generated and investigated SLAC1 mutants using the phospho-mimic approach and found that substituting S59 and/or S120 with Aspartate did not lead to constitutive active SLAC1 channel (Brandt et al., 2012 and unpublished results). To address the role of phosphorylated sites more directly in planta, we generated and analyzed slac1 complementation lines (slac1 mutants expressing WT SLAC1, SLAC1 S59A, S120A, or S59A/S120A under the native SLAC1 promoter). In the revised manuscript we provide evidence that both of the phospho-sites are required for the full ABA response in vivo. These new findings also point to limitations of the Xenopus oocyte system (every system has its limits) and the relevance of our new in planta findings.

Together with the limits of the artificial patch clamp experiments, the oocyte data do not entirely support the presented model. You concluded that both S120 and S59 have to be phosphorylated by OST1 and CPK6 synergistically to render SLAC1 active. Consequently disruption of one of the phospho-sites should result in an infunctional SLAC1 channel. However, this was not what was observed.

Using slac1 complementation lines (slac1 mutants expressing WT SLAC1, SLAC1 S59A, S120A, or S59A/S120A under the native promoter), now we provide unexpected and exciting in planta evidence that both phospho-sites are required for the full ABA response in vivo. Independent patch clamp and stomatal movement experiments show consistent results in the revised manuscript. These new findings also point to limitations of the Xenopus oocyte system (rather than the in planta data) and point to the relevance of our new in planta findings.

We also address the reviewers’ comment regarding patch clamp techniques further below.

In brief, patch clamping has led to the development of many aspects of present guard cell-signaling models that have been verified using many independent approaches and patch clamp techniques are not known to generate “artificial” models (not-with-standing that every technique has some limitation), in contrast to one of the reviewer comments. This specific comment is directly addressed further below in more detail.

Reviewer #1:

1) The data in Figure 1 deal with calcium-dependent kinases cpk5/6/11/23 in the ABA responsive regulation of calcium channels in guard cells. The focus of the text is on the role of CPK5 yet all of the studies are performed with a quadruple T-DNA insertion mutant that ablates all of these enzymes. Would it be possible to conduct a parallel analysis in mutant plant cells that lack single CPK enzymes, in particular CPK5?

We agree that the proposed experiments add to our study. The data in Figure 1 (A to D in the revised manuscript) focus on ABA and Ca2+ regulation of S-type anion channels in guard cells. As requested by the reviewer, we have analyzed ABA-regulation of S-type anion channels in cpk5-1 mutant guard cells (Figure 1–figure supplement 1C-D). The single cpk5-1 mutation does not disrupt ABA activation of S-type anion channels, supporting the functional redundancy model of CPKs. We have also added new experiments investigating ABA activation of calcium channels, as requested (Figure 5F and Figure 5–figure supplement 1). These ion channels were not studied in our initial submission. These are described in more detail further below, and they further narrow the possible models for the ABA signaling cascade and thus add new relevant information that will be of interest to the reviewers. We note that we have done these Ca2+ channel regulation experiments in two laboratories and both show the same results.

2) The experiments in Figure 2 nicely complement data in the opening figure, but suffer from the same lack of specificity. Is it possible to measure the impact on calcium ion conductance in plant cells that lack individual ABL, HAB1 or PP2CA genes?

Previous research has shown that the dominant active pp2c point mutations in abi1-1 and abi2-1 disrupt ABA regulation of ion channels (Pei et al., 1997; Murata et al., 2001). However, since then no phenotypes in ion channel regulation have been reported for recessive single pp2c insertion mutants, likely due to redundancy in these PP2Cs. In addition, except for the dominant active abi1-1, abi2-1, and hab1G246D mutants (Pei et al., 1997; Allen et al., 1999; Merlot et al., 2001; Murata et al., 2001; Yoshida et al., 2006), no strong stomatal phenotypes of single recessive pp2c knock out plants have been reported. These results further support the hypothesis that PP2Cs have overlapping functions in guard cells. Furthermore, reports showing that SLAC1 activation by OST1 and CPKs in Xenopus oocytes is inhibited by the ABI1, ABI2, and PP2CA PP2C protein phosphatases support functional overlapping roles of these PP2Cs in ion channel regulation in guard cells.

Our study reveals that quadruple knockout of the 4 major PP2Cs in guard cell ABA signaling results in constitutive Ca2+ activation of S-type anion channels in guard cells. This finding shows that PP2Cs are an important mechanism that controls Ca2+ sensitivity priming in guard cells and identifies a first mutant that causes constitutively primed Ca2+ sensitivity in guard cells. These results also correlate with in planta stomatal responses and whole plant phenotypes of higher order pp2c mutants that show constitutive stomatal closing. We note that whether there are specific roles of PP2Cs in particular sub-branches within guard cell ABA-signaling remains to be determined and should be the subject of future research, given previous studies showing no strong phenotypes of single recessive mutations in these PP2Cs.

3) The data in Figures 3A and 3B are interesting, but as presented are less than convincing. The statement in the Results section “Several calcium activated bands disappeared… consistent with CPK activities associated with these molecular weights” is important to the overall hypothesis tested in this article. However, the quality of the data in Figures 3A and 3B is not sufficient to convince this reviewer of the validity of this statement.

We agree with the reviewer that, given that there are 34 CPK genes in the Arabidopsis genome and these CPKs are widely expressed, visibility of these activities has limitations. To improve the visibility of these in-gel kinase activities from plant extracts, we now present a new figure showing a close up view of the bands corresponding to CPKs (MW 50-90 kDa) (Figure 3–figure supplement 1). Reduced Ca2+-activated protein kinase activities are visible. Additionally, we edited and added text in the manuscript to describe these findings more cautiously. To test stimulus-triggered activation of SnRK2 and CPK kinases, in-gel kinase assays from plant tissues are commonly employed. To test the ABA-activation of CPKs we pursued a similar approach as done for the ABA-activation of SnRK2 protein kinase activity as described in previous studies (Mustilli et al., 2002; Fujii et al., 2007; Yoshida et al., 2002). Another line of evidence, that the bands observed in the in-gel kinase assays are indeed CPK derived, is the activation of protein kinases in in-gel kinase assays by elevating the free Ca2+-concentration in the reaction buffer which was performed in a comparable manner in Boudoscq et al., 2010 when analyzing pathogen responses of CPKs (Figure 1A, Boudoscq et al., 2010 Nature).

4) The BiFC data presented in Figure 4 are interesting and well controlled. These findings suggest that SLAC1 and PP2CA directly interact, or do so in a proximity that permits formation of the fluorescent adduct. Given that the authors acknowledge that this protein-protein interaction has previously been reported there would be some merit in further emphasizing the new aspects of the binding event that are demonstrated in this new data. This pertains to the phosphorylation dependent regulation of the binding event. Can the phosphorylation sites be identified? Do phosphor-site mutants prevent protein association?

The experiments suggested by the reviewer are interesting. We show in our manuscript that the PP2C ABI1 physically interacts with SLAC1 in plant cells (not previously reported), similar to PP2CA-SLAC1 BiFC interaction (which was previously reported by Lee et al.). ABI1 and PP2CA rapidly de-phosphorylate the N-terminus of SLAC1 when previously phosphorylated by SLAC1-activating kinases (which also requires a physical interaction). We note that these PP2Cs dephosphorylate multiple residues in the SLAC1 protein and we feel that the reviewer’s hypothesis that the PP2C-SLAC1 interaction may depend on the phosphorylation status of these two key sites (see reviewer comments further below), goes beyond the scope and findings of our manuscript. In the revised manuscript we have repeated BiFC experiments and now show negative and positive controls as requested in other reviewer comments. Furthermore, we have conducted initial analyses using BiFC with site-directed mutations at these sites, as proposed and hypothesized by the reviewer, and have not found a complete disruption of the interaction. As mentioned above, we feel that the proposed model of the reviewer goes beyond the scope of our study and it would be preferable to investigate such a hypothesis using several independent techniques in the future and by investigating additional phosphorylation sites and additional PP2Cs. If deemed important, we could add the new experimental results to the supplemental data.

Furthermore, we have now generated in planta complementation analysis lines and completed in vivo patch clamp and stomatal response analyses. Interestingly, these data show that only when both serine 59 and serine 120 are simultaneously substituted with a non-phosphorylatable alanine (SLAC1 S59A S120A), no ABA-activation of S-type anion currents and ABA-dependent stomatal closure can be detected (Figure 6G-H and Figure 6–figure supplement 3). This indicates that these 2 amino acids together are essential for the activation in planta. These new and relevant data are also discussed below in response to comment (5).

5) The data in the final figure are more mechanistic and deal with some of the concepts that I have raised above. My reading of this section suggests that most of the electrophysiological measurements were performed in Xenopus oocytes. Can any of these studies be conducted in mutant plants? Performing this work in a more physiologically relevant cell type would be an important addendum to this interesting study.

We thank the reviewer for suggesting these interesting experiments. As requested, we have now completed generation of SLAC1 phosphorylation site mutant lines in the slac1 background in planta and conducted patch clamp and stomatal movement analyses using slac1-1 complementation lines expressing SLAC1 WT, S59A, S120A or S59AS120A under the native promoter (new Figures 6G-H and Figure 6–figure supplement 3). These experiments have taken time to complete, but the results are unexpected and of major importance for understanding in planta functions. The data unexpectedly demonstrate that phosphorylation of either S59 or S120 (together with other phosphorylated amino acids) is sufficient for ABA activation of S-type anion channels and stomatal closing in planta. However, if both S59 and S120 are non-phosphorylatable, no ABA-activation of S-type anion currents can be observed. Furthermore, we have conducted stomatal response analyses and have obtained results that also independently show these interesting findings. Together these data provide in planta evidence that Serine 59 and Serine 120 together are key amino acids during ABA-dependent S-type anion current activation and stomatal closing in planta. We have revised the manuscript to report these interesting findings. Moreover, as discussed later these findings show that models derived mainly from Xenopus oocytes are simplified compared to the in planta signaling network.

6) The Abstract and opening sections of the Introduction are not well articulated. Major editing would be necessary to improve the clarity of these important sections.

We appreciate the reviewer’s comment. We have edited the Abstract and Introduction to improve clarity.

7) The details of the drug regimen presented in panel 4D are convoluted and hard to follow.

To improve, we revised the figure showing the sequence of recombinant proteins and additions to the reaction.

Reviewer #2:

A minor concern is that no negative control is shown for the BiFC experiments shown in Figure 4C.

We have repeated the BiFC experiments and included a negative control (Figure 4B). As we report the interaction of the phosphatase ABI1 with SLAC1, we chose a PP2AC5 protein phosphatase catalytic subunit as negative control. We also include a positive control verifying that the PP2AC5 is expressed and shows a strong interaction with its regulatory PP2AA subunit binding partner.

Reviewer #3:

Interpretations concerning the ABA primed Ca2+ sensitivity of SLAC1 phosphorylation are based on guard cell protoplast data. The consensus in the field is that protoplasts are impaired in many normal cellular functions. The cytosol of cells is strongly diluted and evidence for degradation of major guard cell functions has been published. The experiments here are carried out following a preincubation of protoplasts with ABA. The authors can therefore not exclude that the ABA-signaling complex is established and solidified by ABA incubation and therefore the dilution prior to patch clamp measurements is weaker than in the absence of ABA. This scenario would lead to similar results, but would have nothing to do with ABA-priming.

Ca2+ sensitivity priming of S-type anion channel activation has also been found in native guard cells as was cited in our manuscript (Chen et al., 2010). Please also note that the original observations that led to the Ca2+ sensitivity priming hypothesis that stomatal closing stimuli enhance (prime) the Ca2+ sensitivity of downstream stomatal closing mechanisms were obtained in intact plant leaf epidermes from time-resolved Ca2+ imaging studies and stomatal response analyses with parallel intact leaf gas exchange analyses, a study in which no protoplast experiments were included (Young et al., 2006; Yang et al., 2008). Thus experiments in intact plants led to the original hypothesis and strongly support stimulus-induced Ca2+ sensitivity priming guard cells.

Patch clamp studies using protoplasts might affect some guard cell functions (as for all techniques), but this approach has led to the present models of guard cell ion channel signaling and stomatal regulation without major inaccuracies, which have been supported and confirmed through interdisciplinary studies using several independent approaches. Thus we respectfully disagree with this comment regarding the “consensus in the field”, and have not been able to find such a “consensus” in the literature. Patch clamp studies in the present study allow us to evaluate in planta channel regulation under more well-controlled and well-defined conditions than reconstitution in Xenopus oocytes. Moreover, all patch clamp experiments directly compare mutant responses (cpk, snrk2 and pp2c mutants) with wild type responses and show strong and clear differences to the wildtype response that correlate with genotype-blinded stomatal movement analyses that do not use protoplasts here. Combined with biochemical and genetic evidence, our electrophysiological data provide strong evidence for newly recognized molecular mechanisms and a first genetic mutant that causes constitutive Ca2+ sensitivity priming in a plant cell.

Wang et al., (2013, Plant Physiol.) showed that the ABA-insensitive ABA receptor quadruple mutant (pyr1/pyl1/pyl2/pyl4) displayed wild type like s-type anion current responses upon elevation of cytosolic calcium levels, contradicting the authors' hypothesis of ABA priming. Thus, calcium is sufficient for anion channel activation (without ABA priming). Moreover, reports from Chen et al., (2010, Plant J), Marten et al., (2007, Plant Physiol.), Stange et al., (2010, Plant J) and Levchenko et al., (2005, PNAS) illustrated that the ABA-signaling pathway is bifurcated: On one branch, ABA activates S-type anion channels without the need of cytosolic calcium elevations and on the other, ABA activates anion channels in a Ca2+ dependent manner. These findings contradict the interdependence of both pathways and the priming of the guard cell calcium sensitivity by ABA as reported by the authors here. Even more importantly, the experiments by Marten et al., (2007, Plant Physiol.), Stange et al., (2010, Plant J) and Levchenko et al., (2005, PNAS) were conducted with intact plants and a minimal invasive guard cell impalement technique, simultaneously recording the rise in cytosolic calcium and S-type anion currents. Thus in intact plants the situation seems to be different from the protoplast system.

First Wang et al. (2013) do not contradict our hypothesis. External Ca2+ shock evokes S-type anion channel activation and stomatal closure via a different mechanism from that of ABA as has been clearly reported in a number of studies. For example, a thylakoid membrane Ca2+ sensing protein, CAS (Nomura et al., 2008 Plant J; Weinl et al., 2008 New Phytol; Han et al., 2003 Nature) and Ca2+-regulated vacuolar cation channel TPC1 (Peiter et al., 2005 Nature) are involved in external Ca2+ shock-induced stomatal closure, but not ABA-induced stomatal closure. Ca2+ has long been reported to be able to by-pass ABA signaling. The other publications described above by the review (Marten et al., 2007; Stange et al., 2010; Levchenko et al., 2005) were not conducted on defined genetic mutants but rather wild-type guard cells in Vicia faba and tobacco and thus did not genetically dissect the Ca2+-dependent and Ca2+-independent pathways. The reviewer also points out a bifurcated ABA signaling model. By isolation and analyses of higher order mutants in both of these pathways, we now demonstrate here for the first time that these two previously considered independent pathways are intimately dependent on one another and cannot be explained by the present simple bifurcated model. This is one of several major advances reported in our manuscript. Thus we respectfully and strongly disagree with the above comments of the reviewer.

Physiological tests, such as gas-exchange or stomatal aperture measurements are lacking completely.

To address this comment and a comment of reviewer 1, we have completed stomatal movement analyses and added figure panels showing ABA-dependent stomatal aperture measurements using the cpk quadruple mutants (Figure 1E and F) and impaired Ca2+-induced stomatal closing in snrk2.2/snrk2.3/ost1 triple mutant epidermis (Figure 5E). The obtained results from genotype-blinded experiments provide in vivo evidence of the importance of CPKs in ABA signaling in intact guard cells. Furthermore, we have also completed stomatal movement response analyses with slac1 complementation lines expressing SLAC1 phosphorylation site mutants. These studies reveal that both the S59 and S120 phosphorylation sites need to be mutated to disrupt ABA signaling in planta (Figure 6H and Figure 6–figure supplement 3B).

The authors used CPK or PP2C quadruple mutants as well as a snrk triple mutant in their patch clamp and biochemical studies to show their impact in ABA-dependent stomatal closure (SLAC1 activation). Since all of these ABA signaling components not only regulate the activity of SLAC1 but also are involved in other aspects of gene regulation, it would be important to show that the equilibrium/stoichiometry between phosphatases and kinases are not disturbed in the mutants. This could be circumvented with the SLAC1 phospho-site mutants S59, S120 and a double mutant thereof, introduced into SLAC1 loss-of-function mutants.

As described in response to Reviewer 1 (see above), we have performed patch clamp analyses and stomatal movement analyses using slac1 loss-of-function mutants expressing SLAC1 phospho-site mutants. The new in vivo evidence expands our findings and shows that both phosphorylation sites (S59 and S120) need to be mutated in order to disrupt ABA signaling in planta. These interesting findings will influence and revise the present model derived in large part from oocyte studies.

Why did the authors include CPK11 in their studies?

We included CPK11 due to the high transcript abundance in guard cells and a reported ABA phenotype (Zhu et al. 2007; Geiger et al. 2010).

In vitro kinase assays were performed to show that ABI1 and PP2CA do not inhibit CPK6 activity (although autophosphorylation was decreased). The authors should consider the activity of the recombinant proteins under the respective conditions. Why did the authors not see a reduction of CPK autophosphorylation when using the whole seedling proteins (Figure 3, wild type vs. PP2C quadruple KO)?

Here, we would like to further explain the experiments performed to avoid possible misinterpretation of the results. To test whether CPK activity is regulated, four independent experimental approaches were conducted and are reported in the manuscript:

1) In order to test whether CPK auto-phosphorylation can be removed by PP2Cs, an in vitro kinase assays were used (Figure 3–figure supplement 4). Here, the kinase was incubated in the presence of radioactive ATP to allow for auto-phosphorylation and subsequently the kinase was inhibited using an effective protein kinase inhibitor followed by the addition of the phosphatase. After that the proteins were separated by size and the radioactivity was monitored clearly showing that the phosphatases were able to remove CPK auto-phosphorylations in vitro.

2) The above experiment does not allow concluding whether removal of the auto-phosphorylated sites in the CPK regulates the protein kinase activity. To address this question we used a second approach: An in-gel protein kinase assay with recombinant proteins. Here, kinases were either incubated with or without recombinant PP2Cs (+/- non-radioactive ATP). After stopping the reactions the proteins were separated by size, re-natured and subsequently incubated in a reaction buffer containing radioactive ATP (Figure 3 C-D). At this point, when the reaction takes place, the phosphatases and the kinases are immobilized, separated by size and cannot directly interact anymore which makes a direct de-phosphorylation impossible. The same applies to experiment 3.

3) Here, whole plant extracts were first separated by size and afterwards the reactions were carried out. Hence, the phosphatases were not able to directly interact with the kinases and not able to de-phosphorylate the kinases anymore (Figure 3 A-B). We show in Figure 3–figure supplement 3 that in-gel CPK6 phosphorylation signals strongly decreased in a gel without the substrate Histone-III compared to gel in which the substrate is present can be seen (Figure 3–figure supplement 3). Similar results were obtained in Boudosq et al., 2010 studying the role of CPKs in pathogen responses. Therefore the in-gel kinase assays shown in this manuscript represent mainly CPK trans-phosphorylation activities and not auto-phosphorylation activities. That ABA-application to seedlings did not lead to electro-mobility shifts of CPK-derived bands indicates that in planta, the ABA-regulated phosphatases do not de-phosphorylate the CPKs in an ABA-dependent manner. To further determine whether indeed the de-phosphorylation of CPK auto-phosphorylations seen in experiment 1 (Figure 3–figure supplement 4) are not inhibiting CPK kinase activities we performed experiment 4.

4) Here, the ATP-consumption as measurement of kinase activity was measured, with the result that CPK6 ATP-consumption is not inhibited in the presence of PP2Cs (Figure 3–figure supplement 5).

We hope that the above mentioned explanations help to clarify our design of the experiments. Our biochemical findings reported in the manuscript are important for models of ABA signaling. Presently the simplest model that PP2Cs can directly down-regulate CPK activities is considered in the field, similar to SnRK2 regulation. However, this simple model had not yet been investigated directly until the above experiments. Here we show using multiple independent biochemical approaches that this simple model is not supported as the mechanism mediating ABA signaling. Moreover, our positive controls with the OST1 protein kinase show that the methods used are reliable. In the Discussion we also discuss why the more elaborate model that we uncover here may be very important for plant Ca2+ signaling.

The authors used whole seedling protein preparations for comparisons between wild type and multiple mutants to show that PP2Cs control the activity of OST1 but not of CPKs and the interdependence of the Ca2+ dependent and independent pathway. The major quantity of whole seedling protoplasts consists of mesophyll cells that act differently than guard cells when exposed to ABA. Moreover, SLAC1 and OST1 represent guard cell specific proteins and are underrepresented in whole seedling preparation. This is also true for other tissue- and stimulus-specific ABA-signaling components. Thus, the authors should be very careful in drawing conclusions from experiments with samples guard cells represent the minority.

Except for SLAC1 the ABA signal transduction module PYR/PP2C/SnRK2s as well as CPKs are not only found in guard cells (Arabidopsis eFP Browser, http://bar.utoronto.ca/efp/cgi-bin/efpWeb.cgi). There is ample literature that PYR/PYL, PP2Cs, OST1 and CPKs are involved several ABA-dependent plant responses outside of the guard cell such as seed germination and root growth. The seedling in gel kinase assays were designed and aimed to determine whether ABA-dependent PP2C regulation of CPKs is a general regulatory mechanism as it is shown for OST1.

Heterologous expression in Xenopus oocytes was performed to finally show that OST1 and CPKs synergistically activate SLAC1 by phosphorylation. The authors claim that the phospho-site S120 is addressed by OST1 but not by CPK6/5/23 (already shown by Geiger et al. 2009) and that S59 is specific for CPKs (shown by Brandt et al. 2012) but is not a site for OST1.

For the reader it is difficult to understand how the author can conclude that both residues have to be phosphorylated by OST1 and CPK6 synergistically to render SLAC1 active when after disruption of one of the sites SLAC1 can still be activated. It would appear that phosphorylation of one site is sufficient (perhaps in combination with other phosphorylation sites) to render SLAC1 active (S59 for CPKs and S120 for OST1). Moreover, the fact that CPK6 alone and OST1 alone, coexpressed as BiFC constructs, are able to activate wild type SLAC1 also would seem to contradict the authors' conclusion that SLAC1 phosphorylation by OST1 primes SLAC1 and that additional phosphorylation of SLAC1 by CPK6 (upon Ca2+ increase) activates the anion channel.

We agree with points in this comment. As described earlier we have now generated and characterized in planta point-mutated SLAC1 complementation lines (Figure 6G-H and Figure 6–figure supplement 3) by performing patch clamp experiments and stomatal movement experiments. We have found that both S59A and S120A mutations together are required to disrupt ABA activation of S-type anion channels and stomatal closing in guard cells. These data also show the value of such experiments in guard cells compared to Xenopus oocytes. We revised the text of the manuscript. In addition to these guard cell and stomatal movement data, we have pursued further Xenopus oocyte data that show that the additive effect is dependent on protein kinase activity of intact OST1 (non-split-YFP tagged) (Figure 6–figure supplement 2E). Our new in planta data also show some limitations of interpreting only oocyte data, even though oocytes allow important testing of models, as done in previous studies. We suspect that expressing high concentrations of protein kinases in oocytes may play a role (rather than too low protein kinase activities in oocytes as proposed by the reviewer). Meaning that expression of a high concentration of a protein kinase may well be able to activate the heterologous target protein via mechanisms that are not active in planta. This may not be surprising to some readers, but this limitation of oocyte experiments has not previously been demonstrated for the ABA signaling pathway and will add additional helpful information for the community. Thus in the present manuscript almost all electrophysiological studies are performed in guard cells and with direct comparisons of WT and higher order cpk , snrk2 and pp2c mutants and parallel stomatal movement response analyses. In response to the reviewer comment and based on our new data we have re-worded the interpretation of the results in the manuscript and avoid over-interpreting data from oocyte experiments.

When coexpressing wild type SLAC1 with both kinases the authors used very small quantities of CPK6 cRNA but 15x more OST1 cRNA. Only when suboptimal CPK6 concentrations were used, OST1 could enhance SLAC1 activation. This does not seem to prove kinase synergistic activation of SLAC1.

We carefully reworded the manuscript and took the latest results into consideration and have removed the term “synergistic” in this context to address this comment. We believe that expressing high concentrations of active protein kinases in oocytes may be more subject to possible problems rather than the low kinase concentrations used in these experiments. Note also that recombinant CPK6 protein kinase activity is known to be approximately 100-fold higher than recombinant OST1 protein kinase activity (Brandt et al., 2012) and therefore higher OST1 mRNA levels than CPK6 levels were used). In either case, oocytes are a simplification of the in vivo system, as our manuscript demonstrates. Our manuscript investigates only specific linked aspects in oocytes, with all other electrophysiological experiments focusing on guard cells. Including such experiments has value for readers, given the relevance of oocyte studies to date. Our new experiments in guard cells also provide genetic evidence that oocyte-derived models, though powerful, have limits.

Why did the authors use 400 nM Ca2+ in the experiments shown in Figure 3–figure supplement 1, while for all other studies they used micromolar Ca2+ containing buffers?

We used this intermediate free Ca2+ concentration (Figure 3–figure supplement 2), in addition to 0.15 and 3 uM free Ca2+(Figure 3), as it has been reported that 400 nM of Ca2+ is enough to activate the CPKs in in vitro kinase reactions (Boudsocq et al., 2012; Laanemets et al., 2013). We thus report in-gel protein kinase data from plant extracts at three free Ca2+ concentrations.

BIFC experiments are lacking proper controls (there is no negative control, e.g. CPK6/OST1 coexpression should result in a negative BiFC).

We repeated the BiFC experiments and included a negative control (Figure 4B). As we show here the interaction of the phosphatase ABI1 with SLAC1 we chose a PP2A protein phosphatase catalytic subunit as negative control. We have also added a positive control for PP2A subunit interactions.

[Editors’ note: the author responses to the re-review follow.]

Both reviewers agreed that you have addressed their major concerns, except for identification of the phosphorylation sites (see original point 4 of this reviewer below). Would it be possible to identify these and test the corresponding mutants?

“4) The BiFC data presented in Figure 4 is interesting and well controlled. These findings suggest that SLAC1 and PP2CA directly interact, or do so in a proximity that permits formation of the fluorescent adduct. Given that the authors acknowledge that this protein-protein interaction has previously been reported there would be some merit in further emphasizing the new aspects of the binding event that are demonstrated in this new data. This pertains to the phosphorylation dependent regulation of the binding event. Can the phosphorylation sites be identified? Do phosphor-site mutants prevent protein association?

Reviewer #1:

I have read with interest the revised manuscript. The authors have done a creditable job in responding to the previous reviewers’ comments and have clearly articulated their concern with the actions of a specialized reviewer during the previous rounds of evaluation.

In general I am satisfied with the new data that has been added to the amended manuscript. I only have one suggestion.

1) I think that there would be some merit in the inclusion of aspects of the BiFC phosporylation studies that are discussed in point 4 of my original critique.

Several phosphorylation sites in the SLAC1 N-terminus have been identified to be phosphorylated by SLAC1 activating protein kinases in vitro. Among them, SLAC1 Serine 59 and Serine 120 have been identified to be important for kinase dependent activation in Xenopus oocytes to date. However, to our knowledge, significance of the other SLAC1 phosphorylation sites has not been analyzed in vivo. In this manuscript we demonstrate that in planta both Serine 59 and Serine 120 of SLAC1 are simultaneously required for intact ABA-dependent stomatal responses. We have acquired and added additional data as requested, that probe the interaction of CPK6 and ABI1 with the SLAC1 S59A, S120A, or S59A/S120A point mutants in BiFC interaction assays (Figure 6–figure supplement 5). Also, the data in Figure 4B were also updated based on the addition of new experiments (but do not affect the interpretation of Figure 4B). We added text to discuss the new results.

https://doi.org/10.7554/eLife.03599.026

Article and author information

Author details

  1. Benjamin Brandt

    Division of Biological Sciences, Cell and Developmental Biology Section, University of California, San Diego, San Diego, United States
    Present address
    Structural Plant Biology Laboratory, Department for Botany and Plant Biology, University of Geneva, Geneva, Switzerland
    Contribution
    BB, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Contributed equally with
    Shintaro Munemasa
    Competing interests
    The authors declare that no competing interests exist.
  2. Shintaro Munemasa

    Division of Biological Sciences, Cell and Developmental Biology Section, University of California, San Diego, San Diego, United States
    Present address
    Graduate School of Environmental and Life Science, Okayama University, Okayama, Japan
    Contribution
    SM, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Contributed equally with
    Benjamin Brandt
    Competing interests
    The authors declare that no competing interests exist.
  3. Cun Wang

    Division of Biological Sciences, Cell and Developmental Biology Section, University of California, San Diego, San Diego, United States
    Contribution
    CW, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Desiree Nguyen

    Division of Biological Sciences, Cell and Developmental Biology Section, University of California, San Diego, San Diego, United States
    Contribution
    DN, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. Taiming Yong

    Division of Biological Sciences, Cell and Developmental Biology Section, University of California, San Diego, San Diego, United States
    Contribution
    TY, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  6. Paul G Yang

    Division of Biological Sciences, Cell and Developmental Biology Section, University of California, San Diego, San Diego, United States
    Contribution
    PGY, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  7. Elly Poretsky

    Division of Biological Sciences, Cell and Developmental Biology Section, University of California, San Diego, San Diego, United States
    Contribution
    EP, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  8. Thomas F Belknap

    Division of Biological Sciences, Cell and Developmental Biology Section, University of California, San Diego, San Diego, United States
    Contribution
    TFB, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  9. Rainer Waadt

    Division of Biological Sciences, Cell and Developmental Biology Section, University of California, San Diego, San Diego, United States
    Contribution
    RW, Conception and design, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  10. Fernando Alemán

    Division of Biological Sciences, Cell and Developmental Biology Section, University of California, San Diego, San Diego, United States
    Contribution
    FA, Conception and design, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  11. Julian I Schroeder

    Division of Biological Sciences, Cell and Developmental Biology Section, University of California, San Diego, San Diego, United States
    Contribution
    JIS, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    jischroeder@ucsd.edu
    Competing interests
    The authors declare that no competing interests exist.

Funding

National Institutes of Health (NIH) (GM060396-ES010337)

  • Julian I Schroeder

National Science Foundation (NSF) (MCB1414339)

  • Julian I Schroeder

German Academic Exchange Service (PhD Fellowship)

  • Benjamin Brandt

Japan Society for the Promotion of Science (JSPS) (Postdoctoral fellowship)

  • Shintaro Munemasa

U.S. Department of Energy (DE-FG02-03ER15449)

  • Julian I Schroeder

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Drs Jen Sheen (cpk5/6/11), Pedro L Rodriguez (abi1-2/abi2-2/hab1-1/pp2ca-1 and snrk2.2/2.3/ost1), and Ping He (cpk1/2/5/6) for supplying mutant seeds, Dr Stephan Clemens for BiFC vector construction, Dr David G Mendoza-Cózatl for pGreenII_u vector construction and members of the Schroeder laboratory, in particular Dr Felix Hauser, for comments and discussions. This work was supported by the National Institute of Health (GM060396-ES010337), National Science Foundation (MCB1414339), and protein–protein interaction studies were supported by the Division of Chemical, Geo, and Biosciences, Office of Basic Energy Sciences, US Department of Energy (DE-FG02-03ER15449) to JIS. BB received initial support from a German academic exchange service PhD fellowship, and SM received support in part from a Japan Society for the Promotion of Science (JSPS) Postdoctoral Fellowship for Research Abroad.
