Fast retrieval and autonomous regulation of single spontaneously recycling synaptic vesicles

  1. Jeremy Leitz
  2. Ege T Kavalali  Is a corresponding author
  1. University of Texas Southwestern Medical Center, United States
Research Article
  • Cited 20
  • Views 1,603
  • Annotations
Cite this article as: eLife 2014;3:e03658 doi: 10.7554/eLife.03658

Abstract

Presynaptic terminals release neurotransmitters spontaneously in a manner that can be regulated by Ca2+. However, the mechanisms underlying this regulation are poorly understood because the inherent stochasticity and low probability of spontaneous fusion events has curtailed their visualization at individual release sites. Here, using pH-sensitive optical probes targeted to synaptic vesicles, we visualized single spontaneous fusion events and found that they are retrieved extremely rapidly with faster re-acidification kinetics than their action potential-evoked counterparts. These fusion events were coupled to postsynaptic NMDA receptor-driven Ca2+ signals, and at elevated Ca2+ concentrations there was an increase in the number of vesicles that would undergo fusion. Furthermore, spontaneous vesicle fusion propensity in a synapse was Ca2+-dependent but regulated autonomously: independent of evoked fusion probability at the same synapse. Taken together, these results expand classical quantal analysis to incorporate endocytic and exocytic phases of single fusion events and uncover autonomous regulation of spontaneous fusion.

https://doi.org/10.7554/eLife.03658.001

eLife digest

Neurons communicate with one another at junctions called synapses. When an electrical signal known as an action potential arrives at a synapse, it causes packages called vesicles to fuse with the membrane that surrounds the neuron. The vesicles contain molecules called neurotransmitters, which are then released into the gap between the neurons. When these molecules bind to receptors on the surface of the second neuron, a copy of the action potential is generated and travels along the second neuron. The empty vesicles are then reabsorbed back into the first cell to be refilled with neurotransmitters so that the whole process can be repeated.

In addition to releasing neurotransmitters in response to the arrival of an action potential, neurons sometimes release vesicles spontaneously. Such events are relatively rare and occur seemingly at random, making them difficult to study. However, by labeling a synaptic vesicle protein with a fluorescent protein, Leitz and Kavalali have constructed a system in which they can observe spontaneous vesicle fusions in single synapses in cell cultures, and follow the fate of the vesicles as they are reabsorbed back into the cell.

The results reveal a number of key differences between the spontaneous events and those triggered by action potentials. Vesicles released spontaneously are retrieved and recycled much more rapidly than those that are released following the arrival of an action potential. Moreover, increases in calcium levels increase the frequency of both types of events. However, it is also clear that the calcium ions influence the two types of events independently of one another.

Recent research on flies has suggested that some regions of synapses only ever release vesicles spontaneously, whereas others only ever release vesicles in response to the arrival of an action potential. The work of Leitz and Kavalali now adds to increasing evidence that the spontaneous release of neurotransmitters may have its own role in neuronal signaling that is distinct from the role played by neurotransmitters that are released in response to action potentials.

https://doi.org/10.7554/eLife.03658.002

Introduction

Synaptic terminals release neurotransmitters either spontaneously or in response to presynaptic action potentials (APs) (Fatt and Katz, 1952). In addition to the well-established role of AP-evoked neurotransmitter release in information transfer and processing, a growing number of studies assign a key role for spontaneous release in synaptic homeostasis and plasticity (Sutton and Schuman, 2005; Kavalali et al., 2011; Hawkins, 2013). Recent work indicates that these two modes of neurotransmission are largely independent in terms of their presynaptic regulation as well as postsynaptic signaling consequences (Sara et al., 2005; Sutton et al., 2006, 2007; Atasoy et al., 2008; Melom et al., 2013; Nosyreva et al., 2013; Wierda and Sorensen, 2014). However, the molecular mechanisms that underlie the segregation of the two forms of release are only beginning to be elucidated (Hua et al., 2011; Pang et al., 2011; Ramirez et al., 2012; Bal et al., 2013; Zhou et al., 2013; Wang et al., 2014). There is strong evidence that synaptic vesicles recycle at rest in the absence of presynaptic APs and take up exogenous probes such as FM dyes, antibodies or horseradish peroxidase (Ryan et al., 1997; Murthy and Stevens, 1998; Sara et al., 2005; Peng et al., 2012; Kavalali and Jorgensen, 2014). Studies also suggest that endocytic mechanisms mediating synaptic vesicle retrieval after spontaneous fusion diverge from those that trigger endocytosis after AP-evoked exocytosis (Chung et al., 2010; Peng et al., 2012; Meng et al., 2013). However, visualizing single spontaneous vesicle fusion and retrieval events has been technically difficult as the stochastic nature and low probability of spontaneous fusion requires long-term imaging with high temporal resolution, which typically gives rise to significant photobleaching and potential photodamage. Earlier attempts at detecting spontaneous synaptic vesicle exo-endocytosis using capacitance measurements heavily relied on signal averaging and was confounded by susceptibility to contamination by capacitance changes unrelated to synaptic vesicle exocytosis (Sun et al., 2002; Yamashita et al., 2005).

The current lack of insight into single synaptic vesicle retrieval leaves open the question of whether spontaneous synaptic vesicle exocytosis is tightly and temporally coupled to vesicle retrieval. In this study, we used the vesicular glutamate transporter or the vesicle protein synaptophysin as carriers for luminal pH-sensitive fluorescent probes and optimized imaging conditions to minimize photobleaching without compromising our ability to detect a majority of spontaneous synaptic vesicle fusion events. Our optical recording conditions were similar to our earlier work where we characterized single AP-evoked fusion events with a median probability of 0.2 (Leitz and Kavalali, 2011) indicating that these settings enable visualization of release from single boutons (Murthy et al., 1997). Under these conditions, we found that single synaptic vesicles are retrieved extremely rapidly (<370 ms) after spontaneous fusion indicating the fluorescence decay of individual events was dominated by vesicle re-acidification. These spontaneous fusion events were coupled to postsynaptic N-methyl-D-aspartate (NMDA) receptor-driven Ca2+ signals as supported by their temporal and spatial juxtaposition to D(−)-2-Amino-5-phosphonopentanoic acid (AP-5)-sensitive fluorescence signals originating from a Ca2+ indicator targeted to postsynaptic densities. Surprisingly, we uncovered a significant fraction of putative multiquantal events that increased in prevalence at elevated Ca2+ concentrations. Furthermore, we could not detect appreciable correlation between the propensities of evoked and spontaneous fusion events at increasing Ca2+ concentrations. These experiments demonstrated that spontaneous fusion propensity in a given synapse is regulated autonomously and independently of evoked release probability. Taken together, these results expand classical quantal analysis (Del Castillo and Katz, 1954; Boyd and Martin, 1956) to incorporate exocytic and endocytic phases of single fusion events and provide insight into the properties and regulation of single spontaneous fusion events in relation to their AP-evoked counterparts that originate from the same synaptic bouton.

Results

Synaptic vesicles that fuse spontaneously recycle rapidly

To identify spontaneous fusion events, we first imaged synapses expressing vGlut-pHluorin at 8 Hz to minimize photobleaching and identified small, rapid increases in fluorescence (Figure 1A–D) in the presence of the voltage-gated Na+ channel blocker, tetrodotoxin (TTX). These increases in fluorescence were distinguishable from noise and could be fit with a single Gaussian curve of mean amplitude of 623 ± 122 a.u (Figure 1B,C) and average ΔF/F of 3.8 ± 0.93%. These events decayed rapidly with a weighted average decay time constant (heretofore referred to as ‘decay time’) of 0.29 ± 0.017 s. However, the decay times of these events were distributed according to a non-geometric β-function with a non-geometric average fluorescence decay time of 0.37 s and median decay time of 0.28 s (Figure 1D). Moreover, in contrast to our earlier observations (Leitz and Kavalali, 2011), the fluorescence decay of these spontaneous events proceeded immediately following fluorescence increase without any observable dwell time. To confirm that these rapidly decaying increases in fluorescence were due to genuine spontaneous vesicle fusion, we sought to manipulate the rate of decay by addition of 50 mM Tris–HCl in the extracellular solution. Indeed, equiosmolar substitution of extracellular NaCl with 50 mM Tris–HCl slowed vesicle reacidification to an average decay time of 0.55 s with median decay time 0.32 s (Figure 1E,F) indicating that the decay phase of these events was dominated by vesicle re-acidification. We then compared these spontaneous fluorescence increases to those evoked by single action potential stimulation in the absence of TTX (Figure 1G–I). We found that fusion events evoked by stimulation had a mean fluorescence amplitude of 641 ± 171 a.u. (Figure 1H), similar to spontaneous fluorescence increases. However, these events decayed more slowly with average decay time of 0.83 s and median decay time of 0.83 s (Figure 1I). Finally, to evaluate whether we were able to visualize the entirety of the fluorescent signal originating from spontaneous vesicle fusion events, we incubated neurons with the vacuolar ATPase inhibitor, folimycin (80 nM), and measured spontaneous increases in fluorescence (Figure 1J,K). In the presence of folimycin, increases in fluorescence take on a staircase-like waveform with mean amplitude of 609 ± 195 a.u. (Figure 1K), similar to that of spontaneous fusion events observed in the absence of folimycin. There were no significant differences in the mean amplitude between spontaneous increases in fluorescence with or without folimycin and those that were evoked by stimulation (ANOVA p value >0.5). However, when comparing amplitude distributions there was a significant difference between spontaneous events in the absence of folimycin and both spontaneous events in the presence of folimycin and action-potential evoked single vesicle fusion events (KStest < 0.05 Dmax = 0.08 at bin 450 a.u.) (Figure 1L). This result suggests that while we were able to acquire the entire fluorescence waveform of the majority of spontaneous fusion events, there remains a small population of low amplitude events that we were unable to detect due to the rapid decay of fluorescence signals. Regardless, our results still indicate a clear divergence in the reacidification rate between vesicles that recycle at rest and those that fuse in response to action potentials.

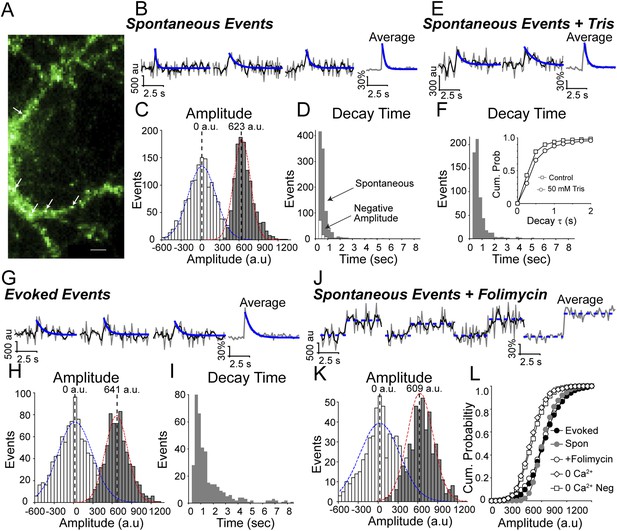

Spontaneous increases in vGlut1-pHluorin fluorescence decay rapidly.

vGlut1-pHluorin was expressed via lentiviral infection in dissociated hippocampal cultures and neurons were imaged at 16–19 days in vitro. (A) Example image of vGlut1-pHluorin expression in NH4Cl (20 mM). Arrows indicate putative synapses. Scale bar is 5 μm. (B) Images were recorded in the presence of TTX, AP-5 and CNQX and spontaneous increases in fluorescence were observed. Example traces of spontaneous increases in fluorescence (3 left traces) and the average of all events in this experiment (right trace) are shown. Raw data is in grey, black trace is the moving average of three points, and the blue trace is a fit to a first order decay. (C) The amplitudes of spontaneous increases in fluorescence are distinguishable from noise. White bars are the amplitude change of a random section of the fluorescence recording, while successful events are in grey (for detection criteria see ‘Materials and methods’). Blue dashed line is a Gaussian fit centered at 0 a.u. and standard deviation of 212 a.u. (χ2 = 0.9). Red dashed line is a Gaussian distribution fit to the data with mean of 623 ± 122 a.u. and CV = 0.17 (n = 1178 events from four coverslips prepared from two cultures). (D) Distribution of decay times of spontaneous increases in fluorescence (grey) have a non-geometric (Beta-function) average of 0.37 s with upper bound = 7 and lower bound = 2 (n = 1178 events from four coverslips prepared from two cultures). Negative amplitude events from the same puncta (white) have a non-geometric (Beta-function) average of 0.20 s (n = 98 events from the same four coverslips). (E) Example traces of spontaneous increases in fluorescence in the presence of high (50 mM) Tris-buffered extracellular solution. (F) The resulting spontaneous increases in fluorescence were slower to decay with average decay time of 0.55 s with upper bound = 3.8 and lower bound = 2.1 (n = 1212 events from three coverslips generated from two cultures.) Inset shows cumulative probability distribution of decay time in cells with extracellular solution containing HEPES (Control; squares) and 50 mM Tris (circles) (KStest p < 0.001 with Dmax = 0.13 at 0.5 s). (G) Example traces of increases in fluorescence in response to single action-potential stimulation delivered at 0.05 Hz. (H) Amplitudes of stimulated increases in fluorescence are distinguishable from noise (white bars and blue Gaussian distribution) and could be fit with a Gaussian distribution centered at 641 ± 117 a.u. and CV = 0.26 (red dashed line; χ2 = 0.94). (I) Increases in fluorescence due to single-action potential stimulation delivered at 0.05 Hz were slower to decay with a non-geometric average of 0.83 s with upper bound = 4.4 and lower bound 3.6 and median decay time of 0.83 s (n = 694 events from four coverslips generated from two cultures). (J) Example traces of spontaneous increases in fluorescence in the presence of folimycin (80 nM). With inhibition of the vATPase, vesicles cannot be reacidified and therefore increases in fluorescence do not decay (n = 445 events from four coverslips generated from two cultures). (K) Amplitude distribution of spontaneous increases in fluorescence in the presence of folimycin are also distinguishable from noise and can be fit with a Gaussian curve with mean amplitude of 609 ± 195 a.u. and CV = 0.32 (χ2 = 0.87). (L) Cumulative probability histogram of amplitudes of spontaneous increases in fluorescence in 2 mM extracellular Ca2+ in the absence (open square) and presence of folimycin (grey square), and amplitudes of fluorescence increases evoked by stimulation (black square). The amplitude distributions of false positive events in 0 mM extracellular Ca2+ and folimycin (open diamond) and negative amplitude distributions of 0 mM extracellular Ca2+ false positive events (open triangle) were significantly smaller than amplitudes of putative spontaneous events with or without folimycin (KStest p < 0.05 for both false positive and negative amplitude) or stimulation-evoked fusion events (KStest p < 0.05 again for both conditions), but were not significantly different from one another (KStest p > 0.25 between false positives and negative amplitude distributions). The only significant difference between all distributions was between spontaneous increases in fluorescence with and without folimycin (KStest p < 0.05 Dmax = 0.08 at bin 450 a.u.).

https://doi.org/10.7554/eLife.03658.003

Finally, to assess the contribution of false positives to our analysis, we employed two approaches. First, we used the same detection criteria to identify potential ‘hits’ with a negative amplitude (white bars in Figure 1D), that is, ‘events’ that were less than −2 times the standard deviation of the points prior in 2 mM Ca2+. Setting our detection criteria for negative amplitudes revealed a false ‘hit’ rate of 0.065 per bouton per minute, suggesting that false hits contribute a negligible component to our measurements. Second, we analyzed the positive and negative amplitudes of transient fluorescence fluctuations seen in 0 mM Ca2+ where genuine event frequency as verified by the presence of folimycin (leading to staircase increases in fluorescence) is extremely low (29 events in 10 min from 200 puncta from four coverslips, that is ∼0.01 events/bouton/min compared to ∼0.5 events/bouton/min in 2 mM Ca2+). Despite the presence of folimycin these false positive events decayed back to baseline and had a significantly lower fluorescence amplitude distribution (KStest < 0.05; Figure 1L). When these 0 mM Ca2+ experiments were analyzed for a negative amplitude, the absolute value of these negative false events were not significantly different from the positive amplitude false events (KStest > 0.3; Figure 1L). Taken together these data suggest that our detection criteria reliably identify events due to genuine spontaneous vesicle fusion with a low level of false positive hits (∼10% per recording).

Dual color imaging shows that spontaneously fusing vesicles elicit postsynaptic Ca2+ signals

To investigate the relationship between these fast spontaneous increases in presynaptic fluorescence to postsynaptic receptor activation, we moved to a dual-color system utilizing the red-shifted pHluorin variant, pHTomato, fused to the presynaptic vesicle protein synaptophysin (SypHTomato) (Li and Tsien, 2012) and the green fluorescent Ca2+ indicator, GCaMP5K, fused to the post-synaptic density protein 95 (PSD-95-GCaMP5K) (Akerboom et al., 2012). Additionally, we excluded extracellular Mg2+ to allow Ca2+ influx through postsynaptic NMDA receptors. In this setting we can verify presynaptic vesicle fusion events in the red channel using the resulting Ca2+ influx in the green channel as a coincidence detector of a successful presynaptic fusion event (Figure 2). However, this system is not without caveats: first, because we are now monitoring two wavelengths our temporal resolution decreased from >8 Hz to ∼4 Hz; second, SypHTomato results in an elevated surface expression level compared to vGlut-pHluorin that required a post-hoc decay correction to compensate for photobleaching (See ‘Materials and methods’). Despite these issues, spontaneous increases in SypHTomato fluorescence were still detected and were distinguishable from noise with mean amplitude of 303 ± 92 a.u. (Figure 2C) and ΔF/F of 1.9 ± 0.67%. In 2 mM extracellular Ca2+ approximately 69% of spontaneous increases in SypHTomato elicited a PSD-95-GCaMP5K signal within ±1 frame, increasing to 83% between −1 to +5 frames. We include this −1 group because in our system we obtain only one time point for each cycle of imaging (i.e. one frame of red channel and one frame of green channel are both assigned the same time point). Therefore, fusion events that may occur halfway through an imaging cycle would appear shifted by −1 frame. Spontaneous increases in fluorescence that were correlated (within ±1 frame) with Ca2+ signals were distinguishable from noise with mean amplitude of 170 ± 50 a.u. (Figure 2D) and ΔF/F of 2.2 ± 1.3%. We next compared the amplitudes of these spontaneous fusion events with increases in fluorescence elicited by single action potential stimulation (Figure 2E,F). Stimulation resulted in events that were distinguishable from noise with mean amplitude of 345 ± 95 a.u. (Figure 2F). Although both spontaneous and AP-evoked fluorescence increases were distinguishable from noise, the small amplitude of these events combined with the rapid decay times made precise measurements of individual decay times difficult. Therefore we averaged all events within an experiment to estimate the overall average decay times (Figure 2G). We found that, as with vGlut-pHluorin, spontaneous fluorescence increases in SypHTomato decayed faster than those evoked by stimulation with average decay times of 0.5 ± 0.2 s and 1.0 ± 1.5 s, respectively. To confirm that we were able to observe the full fluorescence increase of spontaneous fusion events with our reduced temporal resolution, we incubated neurons in folimycin and observed stepwise increases in SypHTomato fluorescence. In the same experiments to verify that the increases in the GCaMP5K fluorescence were due to Ca2+ influx through NMDA receptors, we perfused an extracellular solution containing the NMDA receptor blocker AP-5 (Figure 2H–S). We were able to identify spontaneous fusion events according to stepwise increases in SypHTomato fluorescence alone without relying on the coincidence with GCaMP5K mediated Ca2+ signals (Figure 2H–S). Under these conditions, we observed spontaneous fusion events with mean amplitude of 316 ± 64.9 a.u (Figure 2L) similar to both those in the absence of folimycin and those due to stimulation. Events in the same synapses in the presence of AP-5 were also similar with mean amplitude of 270 ± 65 a.u. (Figure 2M). The GCaMP5K signal in the absence of AP-5 had mean amplitude of 153 ± 57.6 a.u. (Figure 2R), similar to without folimycin, but in the presence of AP-5, the GCaMP signal amplitude decreased to the baseline noise, 13.2 ± 56.0 a.u. (Figure 2S). Together these data complement our observations using vGlut1-pHluorin and show that spontaneous vesicle fusion events are coupled to postsynaptic NMDA receptor-driven Ca2+ signals and, following exocytosis, these vesicles are retrieved and re-acidified on a much faster time course than their AP-evoked counterparts.

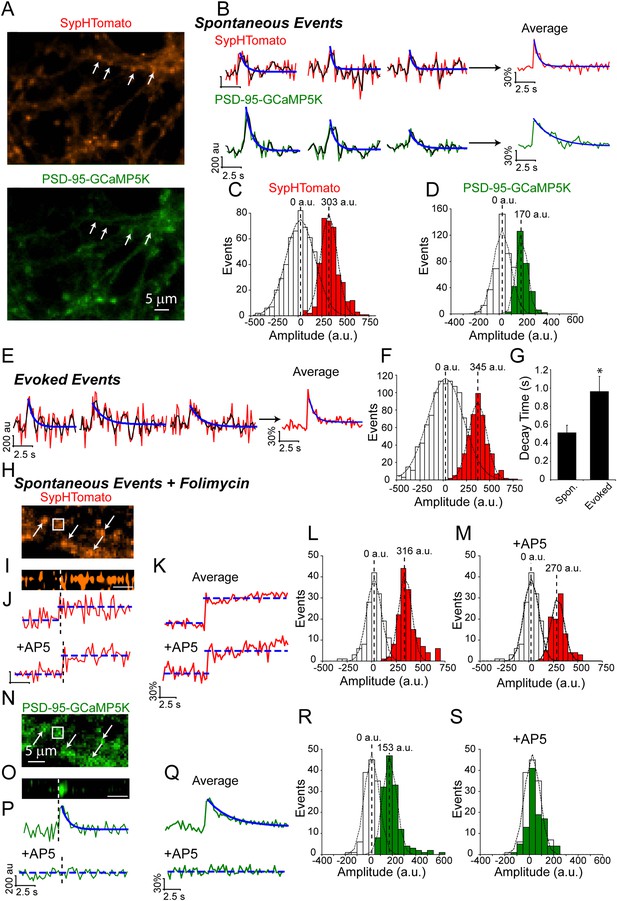

Dual color imaging shows that spontaneous fusion events are coupled to postsynaptic NMDA receptor-driven Ca2+ signals.

(A) Example images of SypHTomato and PSD-95-GCaMP5K expression. Arrows indicate putative synapses. Scale bar is 5 μm. (B) Example traces of SypHTomato (raw data in red, a moving average of three points in black and a fit of the decay time t in blue) and PSD-95-GCaMP5K (raw data in green, a moving average of three points in black and a fit of the decay time in blue). Because spontaneous increases in fluorescence were very small, we averaged events for each experiment representative average traces are shown at right. (C) The amplitude distribution of SypHTomato could be well fit with a Gaussian curve centered at 303 ± 92 a.u. (χ2 = 0.86) (n = 361 events from four coverslips generated from two cultures). (D) Amplitudes of PSD-95-GCaMP were distinguishable from noise and could be fit with a Gaussian curve with mean amplitude of 170 ± 50 (χ2 = 0.98) (n = 361 events from four coverslips generated from two cultures). (E) Example traces of SypHTomato fluorescence in response to single action potentials delivered at 0.05 Hz. Again, raw data is in red, a moving average of 3 points is in black and the decay time fit is in blue (n = 443 events from four coverslips generated from two cultures). (F) Amplitudes of fluorescence increases evoked by action-potential stimulation could be well fit by a Gaussian curve with mean of 345 ± 95 a.u (χ2 = 0.99). (G) Averaged traces of spontaneous increases in fluorescence decayed back to baseline with decay time = 0.51 ± 0.08 s (n = 4), while events that responded to stimulation (n = 3) decayed much slower t = 0.96 ± 0.06 (Student's t-test p value <0.05). (H) Example image of SypHTomato expression in the presence of folimycin. Arrows indicate putative synapses. The box is the region from which a line scan was taken (shown in panel I). (I) Line scan of SypHTomato fluorescence. White dashed line indicates where on the corresponding trace the fluorescence step occurred, scale bar = 2.6 s. (J) Example traces of events in the presence and absence of AP-5 from the same synapses. (K) Average of traces from the experiment of step-wise increase in fluorescence in the presence and absence of AP-5. (L) Increases in fluorescence in the presence of folimycin were separable from noise and could be fit with a Gaussian with mean amplitude of 316 ± 65 a.u. (χ2 = 0.49) (n = 154 events from four coverslips generated from two cultures). (M) The same synapses in the presence of AP-5 showed spontaneous increases in fluorescence that were still distinguishable from noise albeit with a slightly smaller amplitude distribution 270 ± 65 a.u. (χ2 = 0.48) that was not significantly different from amplitudes in the presence of folimcyin (not shown; KStest p < 0.01) (n = 103 events from four coverslips generated from two cultures). (N) Example image of corresponding PSD-95-GCaMP5K fluorescence. White arrows indicate putative synapses. The box is the region from which a line scan was taken. (O) Line scan of PSD-95-GCaMP5K fluorescence signal that occurred at the same time as the above SypHTomato signal. (P) Example traces of events in the presence and absence of AP-5. (Q) Average of traces in the presence and absence of AP-5. In the presence of AP-5, entry of Ca2+ into the postsynaptic terminal is prevented and thus there is no GCaMP5K signal. (R) PSD-95-GCaMP5K signals were separable from noise and could be fit with a Gaussian curve with mean amplitude of 153 ± 58 a.u. (χ2 = 0.80) (n = 154 events from four coverslips generated from two cultures). (S) In the presence of AP-5, Ca2+ is prevented from entering the postsynaptic terminal and results in no detectable GCaMP5K events (n = 103 events from four coverslips generated from two cultures.).

https://doi.org/10.7554/eLife.03658.004

Increasing extracellular Ca2+ triggers multiple successive spontaneous fusion events

Using presynaptic imaging similar to that used in this study, we have previously shown that increasing extracellular Ca2+ increased synaptic vesicle fusion probability and increased the likelihood of multivesicular fusion events, which is observed as an increase in fluorescence amplitude (Leitz and Kavalali, 2011). To assess if this scenario also applied to vesicles that fuse spontaneously, we measured the amplitude of spontaneous increases in vGlut-pHluorin fluorescence in 2, 4 and 8 mM extracellular Ca2+ (Figure 3A–C). Surprisingly, we found that fluorescence amplitude distributions even in 2 mM extracellular Ca2+ did not fit well to a single Gaussian curve (D'Agostino-Pearson omnibus K2 normality test p < 0.02), nor could the sum of two Gaussian curves with means at integer multiples (i.e. a quantal distribution of amplitudes indicative of two or more vesicles undergoing fusion simultaneously) account for the distribution of amplitudes (Figure 1B red lines). Instead, amplitude distributions in 2 and 4 mM extracellular Ca2+ (Figure 3D,E, respectively) were best fit by the sum of two Gaussian curves at 1 quantal mean (1q = 623 ± 91 a.u., a slightly smaller standard deviation than in Figure 1) and 1.3 times the first mean (1.3q = 834 ± 111 a.u.) (Figure 3D,E black lines). Fluorescence amplitudes in 8 mM Ca2+ were best fit by the sum of three Gaussian curves distributed at 1 quantal mean (1q = 623 ± 91 a.u.), 1.3 times the first quantal mean (1.3q = 834 ± 111 a.u.) and 2 times the first quantal mean (1246 ± 182 a.u.) (Figure 3F). This shift in fluorescence may arise from the limitations of our sampling rate and the rapid fluorescence decay time of these spontaneous events, therefore the 1.3q events may reflect two spontaneous events occurring close together in time but with a slight delay such that at our acquisition rate of >8 Hz, they appear to be a single event with a normalized amplitude of 1.3q (Figure 3G). To estimate the delay between two events that would be required for such a fluorescence signal, we modeled the fluorescence decay of two hypothetical spontaneous fusion events with randomly generated amplitudes within the observed first Gaussian distribution (1q) and fixed decay times of 371 ms (the average decay time of spontaneous events in 2 mM Ca2+). We used this model to generate 2000 hypothetical decay times and found that a fusion delay of 118 ms would result in an amplitude ∼1.3 times greater than the single quantal amplitude. We then estimated the percent of fusion events that were multivesicular (Figure 3H) and found that at 2 mM Ca2+ 17% of events were multivesicular, increasing to ∼30% in 4 mM Ca2+ and up to 70% of events were multivesicular in 8 mM Ca2+. While this analysis favors preponderance of multivesicular spontaneous release at elevated Ca2+ concentrations, this shift in fluorescence amplitudes could be also due to unequal distribution of pHluorin molecules within the population of spontaneously recycling synaptic vesicles selectively mobilized at higher Ca2+ concentrations. In addition, this fluorescence shift could arise from the preferential fusion, at elevated Ca2+ conditions, of larger synaptic vesicles that contain more fluorophores. Given their cell biological complexity (i.e. non-homogenous impact of elevated Ca2+ concentrations on vesicle populations with systematic differences) we consider these two alternative scenarios unlikely. Finally, it is important to note that although this observed increase in event amplitude could be due to vesicle fusion from multiple synapses within our region of interest. This is more likely at elevated Ca2+ concentrations as the release probability estimates we present here at 2 mM Ca2+ are consistent with release from a single release site (Murthy et al., 1997).

Figure 3 with 1 supplement see all

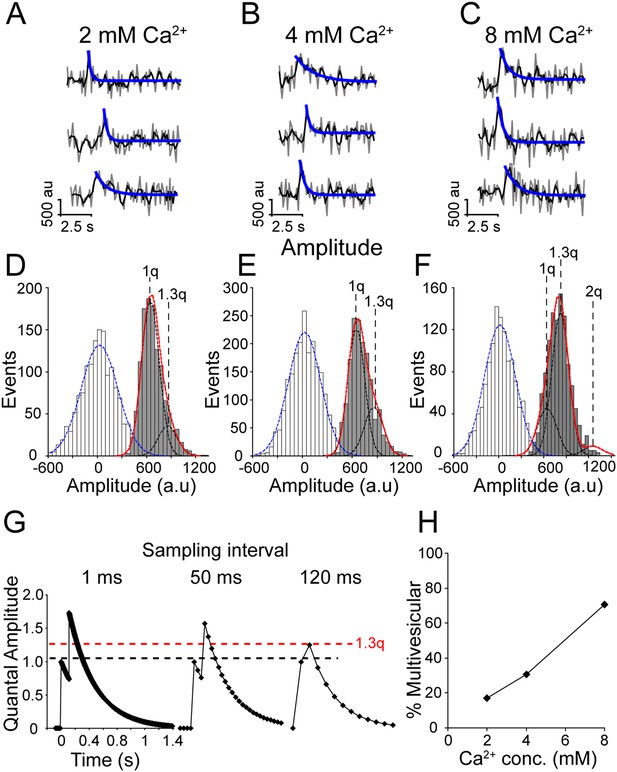

Increasing extracellular Ca2+ increases multivesicular release.

(AC) Example traces of events in 2 mM (A), 4 mM (B) and 8 mM (C) extracellular Ca2+. Raw data are shown in grey, a moving average of 3 points is shown in black and the blue line indicates a fit of the decay. (DF) Fluorescence amplitude distributions. White bars are noise fit by blue Gaussian distribution centered at 0 a.u., grey bars are successful fusion events fit by multiple Gaussian curves (black lines) and a sum of Gaussian curves (in red). (D) Fluorescence amplitudes in 2 mM extracellular Ca2+ were best fit by the sum of two Gaussian curves with mean amplitudes 623 ± 122 a.u. (1q) and 834 ± 111 a.u. (1.3q) (χ2 = 0.88). (n = 1178 events from four coverslips generated from two cultures). (E) Fluorescence amplitudes in 4 mM extracellular Ca2+ were well fit with two similar Gaussian curves 623 ± 98 a.u. (1q) and 834 ± 111 a.u. (1.3q) (χ2 = 0.70) (n = 1593 events from six coverslips generated from two cultures). (F) Fluorescence amplitudes of 8 mM Ca2+ were best fit with the sum of three Gaussian curves with mean amplitudes 623 ± 91 a.u. (1q), 834 ± 111 a.u. (1.3q) and 1246 ± 182 a.u. (2q) (χ2 = 1) (n = 1110 events from three coverslips generated from two cultures). (G) Model of two hypothetical events with normalized amplitudes of 1, decay times of 371 ms, and delay of onset of 118 ms, the same two events sampled at 120 ms results in fluorescence amplitude of 1.3 times a single event (1.3q). (H) The percent of events in 2, 4 and 8 mM extracellular Ca2+ that have amplitudes greater than a single Gaussian distribution were defined as multivesicular. This suggests that there are more multivesicular events at increasing extracellular Ca2+ concentrations.

https://doi.org/10.7554/eLife.03658.005

We also detected a similar Ca2+-dependent increase in the amplitude of spontaneous events identified in SypHTomato/PSD-95-GCaMP5K expressing neurons (Figure 3—figure supplement 1A–F). In these neurons, there was an increase in GCaMP5K event amplitudes as a function of increasing extracellular Ca2+ indicative of the increased driving force of Ca2+ influx. Taken together, these data suggest that increasing extracellular Ca2+ increases the probability of two spontaneous fusion events occurring in close temporal proximity within a single synapse (or possibly in adjacent release sites).

Ca2+ does not alter the kinetics of fluorescence transients originating from spontaneous fusion events

We have previously shown that increasing extracellular Ca2+ increases the fluorescence decay times of vGlut1-pHluorin containing vesicles that fuse in response to stimulation (Leitz and Kavalali, 2011). Here, we wanted to determine if this property was applicable to vesicles that undergo fusion in the absence of stimulation. We increased extracellular Ca2+ to 4 mM and found that fluorescence signals decay with an average decay time of 0.44 s (with upper bound = 4.8 and lower bound = 2.1) and median decay time of 0.29 s (Figure 4A). In 8 mM extracellular Ca2+, the average decay time was identical (0.44 s with upper bound = 4.8 and lower bound = 2.1), and the median decay time did not appreciably change from 0.29 s to 0.28 s (Figure 4B). When compared to 2 mM extracellular Ca2+ there was no significant difference in either 4 or 8 mM extracellular Ca2+. Compared to the decay times of evoked-fusion events, decay times of spontaneous fusion events—regardless of extracellular Ca2+ concentration—were much faster (Figure 4C). These data suggest that there is a fundamental difference in the kinetics of endocytosis and reacidification between vesicles that fuse spontaneously and those that fuse in response to stimulation.

Figure 4 with 1 supplement see all

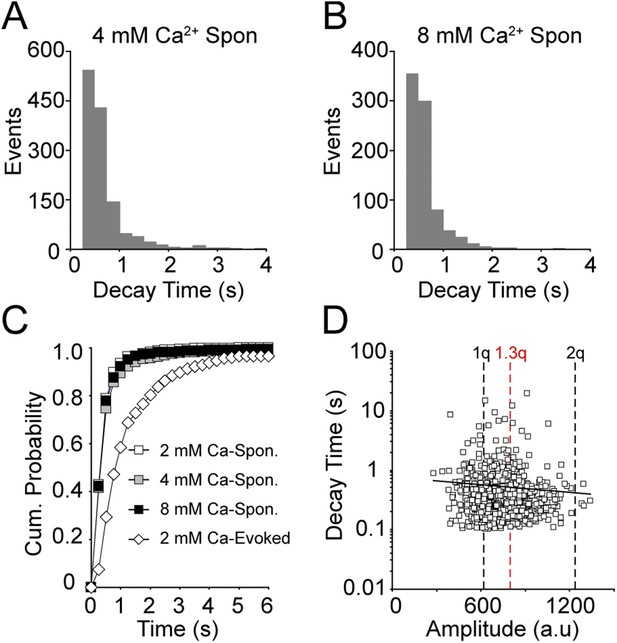

Increasing extracellular Ca2+ does not alter fluorescence decay time.

(A) Distribution of fluorescence decay times in 4 mM extracellular Ca2+ can be fit with a beta-distribution with mean of 0.44 s with upper bound = 4.8 and lower bound = 2.1 (χ2 = 0.9; n = 1308 events from six coverslips over three cultures). (B) Distribution of fluorescence decay times in 8 mM extracellular Ca2+ were fit with a beta-distribution with mean of 0.44 s with upper bound = 4.8 and lower bound = 2.1 (χ2 = 1; n = 844 events from three coverslips from two cultures). (C) Cumulative probability histogram of decay times of spontaneous fluorescence events in 2, 4, and 8 mM extracellular Ca2+ showed no significant difference in decay time distributions (e.g. KStest 2 mM Ca2+ vs 8 mM Ca2+: p > 0.3 with Dmax = 0.04 at 0.5 s). However, the decay times of all spontaneous events were significantly different from the decay times of evoked-fusion events (for all comparisons KStest p < 0.01 with Dmax = 0.5 s). (D) Decay time did not correlate with amplitude of spontaneous events in 8 mM Ca2+ (R2 = 0.0014). 1q is the Gaussian mean of one event while 2q is the Gaussian mean of two simultaneous events, 1.3q is the amplitude calculated in Figure 3.

https://doi.org/10.7554/eLife.03658.007

Our earlier work showed that an increase in the number of vesicles that fuse slows the fluorescence decay time of fusion events (Leitz and Kavalali, 2011). Therefore, here, we analyzed the decay times of events in 8 mM Ca2+ as a function of amplitude and found that there was no correlation in event size and fluorescence decay times (Figure 4D). Furthermore, we also found a similar trend of Ca2+-independence in neurons expressing SypHTomato/PSD-95-GCaMP5K (Figure 4—figure supplement 1A and B). All of these decay times, regardless of extracellular Ca2+ levels, were faster than those observed during stimulation-evoked fusion (Figure 4—figure supplement 1C). It is important to note that the rate of decay is approaching the limit of our temporal resolution, which is lowered in an attempt to reduce photobleaching during long imaging episodes required to identify spontaneous fusion events. Thus, it is possible that we either cannot detect a significant change in decay times, or we are missing a subset of ultra fast decay times. Regardless, these data not only suggest that the mechanisms controlling the rate of synaptic vesicle reacidification are not the same for spontaneous and stimulation-evoked vesicle fusion but that endocytosis of synaptic vesicles released at rest is rapid even during multivesicular fusion events, unlike retrieval of vesicles released in response to stimulation.

Increasing extracellular Ca2+ concentration increases the frequency of fast spontaneous vesicle fusion and retrieval

It is well established that increasing the concentration of extracellular Ca2+ increases spontaneous vesicle fusion rate at rest (Lou et al., 2005; Sun et al., 2007; Xu et al., 2009). Next, we wanted to know if we see the same increase in our system. Surprisingly, we found no significant change in vesicle fusion frequency between 2 mM and 8 mM extracellular Ca2+ (with 0.56 ± 0.02 fusion events per min in 2 mM extracellular Ca2+ and 0.49 ± 0.02 fusion events per min in 8 mM extracellular Ca2+; p value >0.1) beyond the increase in multivesicular events we reported earlier (Leitz and Kavalali, 2011) (Figure 5A). We then counted all events with amplitudes within the first quantal mean as a single event, and events with larger amplitudes as two events (Figure 5B). Even with this criterion we did not detect a significant difference between 2 mM extracellular Ca2+ and 8 mM extracellular Ca2+ (with 0.70 ± 0.02 and 0.76 ± 0.03 fusion events per min in 2 and 8 mM extracellular Ca2+, respectively; p value >0.1). However, when vesicle reacidification was buffered using 50 mM Tris–HCl (Figure 5C) we were able to detect a slight shift in vesicle fusion rate in 8 mM extracellular Ca2+ compared to 2 mM Ca2+ (0.42 ± 0.02 fusion events per min in 2 mM Ca2+ and 0.53 ± 0.02 events per min in 8 mM extracellular Ca2+; p value <0.05). Addition of folimycin further exacerbated this effect and clearly showed a ∼2.7-fold increase in spontaneous fusion rate as a function of extracellular Ca2+ (Figure 5D; 0.41 ± 0.02 events per min in 2 mM extracellular Ca2+ and 1.1 ± 0.02 events per min in 8 mM extracellular Ca2+; p value <0.05). This increase in spontaneous fusion rate comes close to the threefold to fourfold increase we detect using postsynaptic electrophysiological recordings under the same conditions (data not shown). Note that in both the Tris-buffered and folimycin-containing experiments, events were analyzed irrespective of amplitude. Taken together, these data indicate that increasing extracellular Ca2+ increases the vesicle fusion rate in our system in a manner that is detectable in the presence of folimycin. However, this increase in spontaneous fusion rate cannot be detected without increasing extracellular pH buffering or inhibiting vesicle re-acidification, indicating that elevated extracellular Ca2+ specifically increases fusion of synaptic vesicles that are retrieved and re-acidified rapidly, below the temporal resolution of our imaging protocol. This finding suggests that although elevated Ca2+ levels do not alter the kinetics of slower events detectable without the aid of altered re-acidification, Ca2+ elevation generates a new population of events that are faster in their kinetics. This observation is consistent with earlier work, which demonstrated that increasing extracellular Ca2+ facilitates the propensity of vesicle retrieval events with fast kinetics (Ales et al., 1999; Wu et al., 2009).

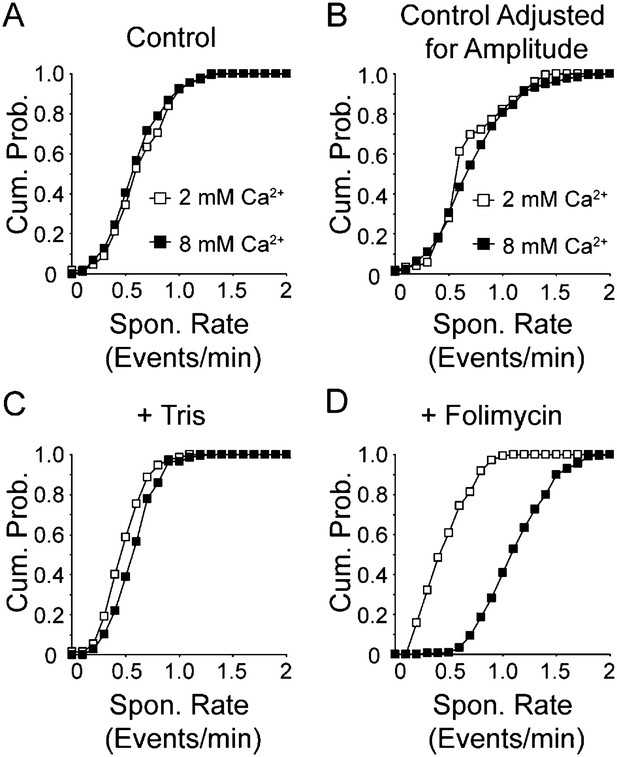

Increasing extracellular Ca2+ increases spontaneous fusion rate.

(A) Cumulative probability histogram of spontaneous event rate per synapse per minute in 2 mM and 8 mM extracellular Ca2+ (n = 175 synapses from four coverslips for both conditions, KStest p = 0.55 with Dmax = 0.8 fusion events per minute per synapse, with averages of 0.56 ± 0.02 and 0.49 ± 0.02 (Student's t-test p value = 0.2) events per minute per synapse for 2 and 8 mM Ca2+, respectively). (B) Cumulative probability histogram of spontaneous event rate per synapse per minute in 2 mM and 8 mM extracellular Ca2+ adjusted to count large amplitude events as two vesicle fusion events (n = 175 synapses from four coverslips for both conditions, KStest p < 0.05 with Dmax = 0.6 fusion events per minute per synapse, with averages of 0.70 ± 0.02 and 0.76 ± 0.03 (t-test p value = 0.1) events per minute per synapse for 2 and 8 mM Ca2+, respectively. (C) Cumulative probability histogram of spontaneous event rate per synapse per minute in Tris-buffered (50 mM) 2 mM and 8 mM extracellular Ca2+ solutions (n = 150 synapses from three coverslips for both conditions, KStest p < 0.05 with Dmax = 0.5 fusion events per minute per synapse, with average 0.4 ± 0.02 and 0.5 ± 0.02 (t-test p value <0.05) fusion events per minute per synapse for 2 and 8 mM Ca2+, respectively. (D) Cumulative probability histogram of spontaneous event rate per synapse per minute in 2 and 8 mM extracellular Ca2+ solution containing folimycin (n = 175 synapses from four coverslips for 2 mM Ca2+ and 216 synapses from four coverslips for 8 mM Ca2+; KStest p < 0.05 Dmax = 0.8 fusion events per synapse per minute, with average rates of 0.4 ± 0.02 and 1.1 ± 0.02 (p value <0.05) fusion events per minute per synapse for 2 and 8 mM Ca2+, respectively).

https://doi.org/10.7554/eLife.03658.009

The rate of spontaneous synaptic vesicle fusion and the probability of stimulation-evoked fusion do not correlate within a given synapse

Next, to evaluate the relationship between the rate of spontaneous synaptic vesicle fusion and the probability of evoked vesicle fusion in a synapse, we incubated neurons in folimycin in order to visualize all events and delivered single action potential stimulations with long inter-stimulus intervals (15–30 s). Increases in fluorescence that occurred within 1 s of a stimulation were considered to be due to evoked release (note that we cannot then differentiate between synchronous vesicle fusion and fast asynchronous fusion) while increases in fluorescence that did not match with a stimulation time were labeled as spontaneous vesicle fusion events (Figure 6A). We found that while increasing extracellular Ca2+ concentrations increased both the overall rate of spontaneous fusion (from 0.52 ± 0.028 events per min at 2 mM Ca2+ to 0.76 ± 0.049 events per min in 8 mM extracellular Ca2+) as well as the overall mean evoked fusion probability (from 0.15 ± 0.008 in 2 mM Ca2+ to 0.44 ± 0.016 in 8 mM extracellular Ca2+), at increasing Ca2+ concentrations the spontaneous vesicle fusion rate and evoked fusion probability estimates obtained from individual release sites did not show appreciable correlation (at 2 mM Ca2+: slope = 1.0, R2 = 0.08; at 4 mM Ca2+: slope = −0.14, R2 = 0.006; at 8 mM Ca2+: slope = 0.47, R2 = 0.02) (Figure 6B–D). Although, a large fraction of the nerve terminals (>70%) were capable of maintaining both evoked and spontaneous neurotransmission across all Ca2+ concentrations, the rate of spontaneous transmission and the probability of successful AP-stimulated transmission are not correlated within a given release site. Furthermore, these data imply that the processes that control the kinetics of trafficking vesicles released at rest and those released in response to stimulation are distinct not only between synaptic terminals, but within a single synaptic terminal.

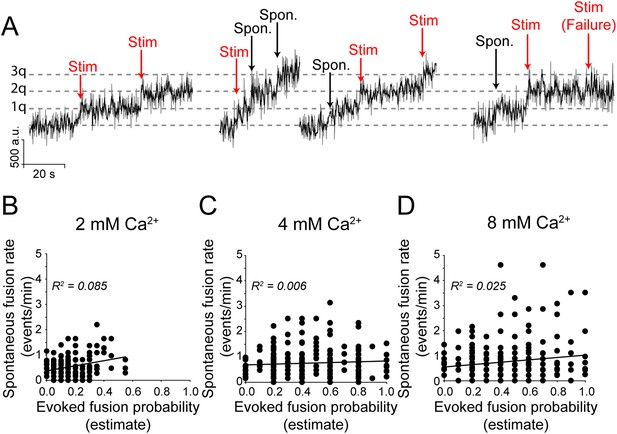

Spontaneous vesicle fusion rate and stimulation-evoked fusion probability do not correlate at a given synapse.

(A) Example traces of fusion events in the presence of folimycin. Neurons in 2 mM Ca2+ extracellular solution were stimulated with 1 AP delivered at 0.1 Hz while neurons in 4 and 8 mM Ca2+ were stimulated with 1 AP delivered at 0.033 (30 s inter-stimulus interval) due to the higher probability of release. Fusion events were categorized as spontaneous or evoked by their temporal distance from the stimulation time, with events within ±1 s of stimulation selected as evoked fusion events. Note that spontaneous and evoked events are both quantal, indicated by the dashed grey line. (B) There is limited correlation between spontaneous fusion rate and evoked fusion probability in 2 mM Ca2+. Distributions were best fit with a linear trend line with slope = 1.0 (Pearson's correlation coefficient R2 = 0.08, p value <0.01 and Spearman r = 0.16, p value = 0.02; n = 200 synapses from four coverslips). (C) The correlation between spontaneous and evoked transmission decreases further as extracellular Ca2+ increases to 4 mM best fit line with slope = 0.1 (Pearson's R2 = 0.01, p value = 0.17 and Spearman r = 0.032, p value = 0.58; n = 311 synapses from six coverslips). (D) The correlation remains low between spontaneous and evoked transmission in 8 mM extracellular Ca2+ with best fit line with slope = 0.5 (Pearson's R2 = 0.02, p value = 0.045 and Spearman r = 0.066, p value = 0.35; n = 240 synapses from four coverslips).

https://doi.org/10.7554/eLife.03658.010

Discussion

To visualize spontaneous exocytosis and endocytosis of single synaptic vesicles, we used a lentiviral system to express the pH-sensitive GFP (pHluorin) fused to the luminal domain of the vesicular glutamate transporter (vGlut1) in hippocampal neurons. In an earlier study, we employed the same approach to investigate trafficking of single synaptic vesicles that fuse in response to AP stimulation where the time of stimulation can be used to identify a successful fusion event (Leitz and Kavalali, 2011). For spontaneous vesicle fusion, however, such a time stamp does not exist; therefore, to confirm our findings using vGlut1-pHluorin, we also used dual color imaging with a red-shifted pHluorin variant (pHTomato) fused to the luminal domain of the synaptic vesicle protein synaptophysin (SypHTomato) and a green Ca2+-sensitive probe (GCaMP5K) fused to the post-synaptic density protein 95 (PSD-95-GCaMP5K). In this setting, we could monitor presynaptic vesicle fusion and postsynaptic Ca2+ entry upon NMDA receptor activation. We found that in both systems, synaptic vesicles that fuse spontaneously are retrieved and re-acidified much faster than their counterparts that fuse in response to stimulation. The rapid decay was not due to lateral diffusion of the probe because in the presence of folimycin, these events remained stable without decay and fluorescence accumulated in a stepwise fashion. It is also important to note that as these experiments were performed at room temperature, we expect that at higher, more physiological temperatures the rates of endocytosis and reacidification may be much faster than are reported here (Renden and von Gersdorff, 2007). Additionally, we emphasize that the data presented here does not imply that the postsynaptic responses arising from spontaneous and evoked vesicle fusion are necessarily different. However, earlier work from our group (Atasoy et al., 2008; Sara et al., 2011) does suggest there is a physical segregation of postsynaptic receptor activation patterns in response to evoked and spontaneous fusion events. Unfortunately, here we cannot measure evoked quantal postsynaptic Ca2+ signals during stimulation, as in our preparation, field stimulation itself causes direct postsynaptic effects. Therefore, in this study we did not examine the kinetic properties of evoked postsynaptic quantal events. Instead, we emphasize that the retrieval and reacidification of spontaneously fusing vesicles are distinct from vesicles that fuse in response to stimulation.

Unlike stimulation-evoked responses, these spontaneous increases in fluorescence decayed immediately without a detectable pause after the initial increase in fluorescence (dwell time), suggesting a minimal surface residency time of the pHluorin or pHTomato probes. Taken together, these results indicate that spontaneous synaptic vesicle exocytosis and endocytosis are tightly coupled processes and that the decay phase of these transients was mainly due to vesicle re-acidification upon endocytosis (Alabi and Tsien, 2012). Although we see extremely fast endocytosis of spontaneous recycling vesicles, large probes such as antibodies against the luminal domain of synaptotagmin1 or horseradish peroxidase are known to label spontaneously endocytosing vesicles (Sara et al., 2005; Fredj and Burrone, 2009). Therefore, spontaneously endocytosing vesicles may still form a fairly large fusion pore or may even fully collapse onto the plasma membrane—albeit without lateral dispersion of their protein components—despite being retrieved quickly. However, we cannot fully exclude the possibility that some spontaneous fusion events may form narrow fusion pores where uptake of large probes can be curtailed as seen after spontaneous fusion of peptidergic vesicles (Vardjan et al., 2007).

The rate of endocytosis and vesicle reacidification found here is considerably faster than some of the previous reports that describe endocytosis with a time constant of ∼14 s (Granseth et al., 2006; Balaji and Ryan, 2007) and vesicle reacidification rate of ∼4 s (Atluri and Ryan, 2006). The discrepancy between our work and these earlier studies may be attributed several differences. First, our previous work has indicated that in response to increasing Ca2+ concentrations as well as in boutons with higher release probability the dwell time and the decay time of single vesicle fusion events increase (Leitz and Kavalali, 2011). Therefore, we believe it is critical to select boutons with a wide range of release probabilities for single vesicle analysis. Our current work extrapolates this observation to spontaneous release events where we detect events with even faster kinetics. The vesicle re-acidification rates we estimate, on the other hand, are in agreement with studies using synaptobrevin-pHluorin (Gandhi and Stevens, 2003) as well as synaptophysin-pHluorin based measurements (Zhang et al., 2009b). Furthermore, it is important to note that some of these earlier studies were performed in extracellular solution containing 25 mM HEPES while here, and in our previous work (Leitz and Kavalali, 2011), we chose a lower HEPES concentration of 10 mM as HEPES is known to have phototoxic effects at higher concentrations (Zigler et al., 1985).

Why is synaptic vesicle re-acidification after spontaneous fusion faster than vesicle re-acidification after evoked fusion? We propose three non-mutually exclusive scenarios that can explain this difference. First, the pH buffering capacity of vesicles that endocytose after AP stimulation could be higher. Second, the function of the v-ATPase on vesicles that endocytose after AP stimulation may be slowed down since this complex is known to incorporate Ca2+ sensor proteins (Zhang et al., 2008) and was recently shown to be differentially regulated during evoked vs spontaneous fusion (Wang et al., 2014). Finally, vesicles endocytosed during activity may rapidly trigger formation of larger vesicular structures that are expected to be slower to re-acidify due to their larger volume, consistent with findings from capacitance measurements in salamander photoreceptors (Van Hook and Thoreson, 2012) as well as recent electronmicrographic analysis of endocytosis in hippocampal synapses after rapid high-pressure freeze fixation (Watanabe et al., 2014).

In this study, we also investigated the Ca2+-dependent regulation of spontaneous synaptic vesicle fusion events. At elevated Ca2+ concentrations we detected an increase in the amplitudes of fusion events consistent with exocytosis of multiple synaptic vesicles. As noted above, at our resolution we cannot exclude the possibility that the observed increase in amplitude could be due to vesicle fusion from multiple release sites within a region of interest, especially if elevated Ca2+ concentrations can activate adjacent release sites resulting in apparent multivesicular release albeit originating from two neighboring release sites. The discrepancy between the increases in mEPSC frequency we detect in electrophysiological recordings vs optical recordings of spontaneous events could indicate that some of the multivesicular events are occurring at neighboring synapses activated at elevated Ca2+. However, our measurements of stimulation-evoked vesicle fusion probability at 2 mM Ca2+ are consistent with the dominance of single release sites in our analysis. Additionally, it is possible that increasing extracellular Ca2+ specifically promotes the spontaneous fusion of synaptic vesicles containing elevated copy number of vGlut-pHluorin endowed by either a larger physical size of the vesicle or an elevated intrinsic copy number of vGlut-pHluorin. However, in part due to the similarity between our results and the bursting activity observed previously using single-synapse recordings in hippocampal neurons (Abenavoli et al., 2002); we consider the increase in fluorescence amplitude as arising from the rapid successive fusion of multiple vesicles as the most cell biologically parsimonious. If this interpretation is correct, we also found that fluorescence signals originating from these multivesicular events were not slower in their rate of decay, which contrasts our earlier observations on evoked multivesicular fusion events (Leitz and Kavalali, 2011), indicating that spontaneous exocytic load (i.e. the number of spontaneously fused vesicles on the plasma membrane) does not significantly impact retrieval kinetics. Alternatively, even if the larger amplitude spontaneous events were due to the fusion of enlarged synaptic vesicles or synaptic vesicles containing more fluorophore, this interpretation would still imply that the size of synaptic vesicles or the number of vGlut-pHluorin molecules within a synaptic vesicle (more membrane or more cargo, that is the exocytic load) do not impact their retrieval kinetics at rest.

In contrast to our earlier findings with vesicles that fuse in response to APs (Leitz and Kavalali, 2011), we found that the kinetics of endocytosis of spontaneous fusion events were not slowed in response to elevated extracellular Ca2+ concentrations. In all likelihood, at 8 mM Ca2+ the average kinetics of fluorescence decay became faster due to emergence of events that could only be detected following inhibition of re-acidification. Therefore, with increasing extracellular Ca2+ there was a clear increase in the rate of spontaneous fusion and the number of vesicles that undergo fusion. The relative insensitivity of vesicle retrieval kinetics to Ca2+ suggests that synaptic vesicle retrieval after spontaneous and evoked fusion is regulated via diverse mechanisms consistent with differential dependence of the two forms of endocytosis on distinct dynamin isoforms (Chung et al., 2010; Raimondi et al., 2011; Meng et al., 2013) and distinct postendocytic transport machineries (Peng et al., 2012).

Finally, in our system we were able to directly compare the rate of spontaneous fusion and evoked-fusion probability within a single synapse. This analysis did not reveal a significant correlation between spontaneous fusion rate and evoked fusion probability estimates from individual release sites, further supporting the notion that these two modes of neurotransmission are controlled and maintained independently (Sara et al., 2005; Atasoy et al., 2008; Fredj and Burrone, 2009; Melom et al., 2013; Peled et al., 2014; Wang et al., 2014 but see Groemer and Klingauf, 2007; Wilhelm et al., 2010). Importantly, at elevated Ca2+ concentrations the propensity to fuse of each of the two forms of vesicle fusion was increased (Figure 6). However, consistent with their less steep dependence on Ca2+, spontaneous fusion events showed a milder 1.5–2-fold increase compared to the threefold increase detected in the propensity of evoked fusion events. Nevertheless, their lack of correlation persisted suggesting a divergence in the mechanisms that regulate Ca2+ sensitivity of evoked and spontaneous fusion events (Xu et al., 2009; Groffen et al., 2010; Pang et al., 2011; Vyleta and Smith, 2011; Ermolyuk et al., 2013). This difference in Ca2+ regulation of spontaneous and evoked fusion probability may underlie differential sensitivity of the two forms of neurotransmission of certain neuromodulators and Ca2+ signaling pathways (Peters et al., 2010; Ramirez and Kavalali, 2011; Bal et al., 2013). Recent studies in the Drosophila neuromuscular junction have shown that a substantial fraction of release sites carry out exclusively spontaneous or evoked neurotransmitter release (Peled et al., 2014; Walter et al., 2014 also see ; Melom et al., 2013). In our measurements, we detected a substantial overlap of release sites that are capable of both forms of neurotransmission, in agreement with our earlier estimates from lower temporal resolution experiments (Atasoy et al., 2008). This discrepancy may be consistent with the premise that in immature presynaptic release sites, spontaneous neurotransmission dominates and release gradually shifts towards evoked transmission during synapse maturation (Polo-Parada et al., 2001; Mozhayeva et al., 2002; Andreae et al., 2012 also Walter et al., 2014). Taken together, the findings we present here provide insight into the segregation of spontaneous and evoked neurotransmitter release mechanisms at the level of single synaptic vesicle fusion events. The differential regulation of spontaneous vesicle fusion suggests it has a role in neuronal signaling distinct from information transfer patterns mediated by evoked release, even within a single synapse.

Materials and methods

Cell culture

Dissociated hippocampal neurons were cultured from postnatal day 0–3 Sprague Dawley rats of either sex as described previously (Kavalali et al., 1999). At 4 days in vitro (DIV), cultures were infected with lentivirus expressing vGlut-pHluorin or with SypHtomato and PSD-95-GCaMP, and experiments were conducted between 15–20 DIV when synapses reach maturity (Mozhayeva et al., 2002). All experiments were performed at room temperature.

Lentiviral preparations

In these experiments we relied on a lentiviral expression system. The vGlut-pHluorin construct was a generous gift from Drs Robert Edwards and Susan Voglmaier (University of California, San Francisco). A modified, synaptophysin pHTomato was a generous gift from Dr Richard Tsien (New York University Medical Center and Stanford University). The primers:

ATATggatccggtggttctggtgtgagcaagggcgaggagaataacatggccatcatcaaggagttcatgcgcttcaag (pHTomato.FIX.F) and atataccggtaccagaaccacccttgtacagctcgtccatgccgccggtggagtggcggccc (pHTomato.FIX.R) were used to return pHTomato to the published version and attach small flexible linkers. All lentiviruses were prepared by transfection of human embryonic kidney (HEK) 293-T cells with the plasmid of intrest together with viral coat and packaging protein constructs (pVSVG, pRsv-Rev, and pPRE) using FuGENE 6 (Promega, Madison, WI). 3 days after transfection, virus was harvested from HEK 293-T cell-conditioned media and added to neuronal media at 4 DIV.

vGlut1-pHluorin imaging and analysis

Single-wavelength experiments were performed using an Andor iXon Ultra 897 back-illuminated EMCCD camera (Model no. DU-897U-CSO-#BV) collected on a Nikon Eclipse TE2000-U microscope with a 100X Plan Fluor objective (Nikon). For illumination we used a Lambda-DG4 (Sutter instruments, Novato, CA) with FITC filter. Images were acquired at ∼8 Hz with an exposure time of 100 ms and binning 4 (Using Nikon Elements Ar software). For analysis, square regions of interest (ROIs) with length and width of 2.5 μm were generated and the resulting fluorescence values were exported to Microsoft Excel for analysis. Successful fusion events were those where the average of 3 points was greater than twice the standard deviation of 17 points (∼2.1 s) prior provided the recordings were stable for at least 78 frames (∼10 s) preceding the increase in fluorescence. Additionally, at least one additional point after the initial fluorescence increase had to be greater than twice the standard deviation of the 17 points prior; this excluded large single point increases in fluorescence from which decay times could not be determined. Noise measurements were obtained in an analogous fashion: by subtracting the average of 3 points from the mean of 17 points prior during a random period during sampling. Decay times were analyzed in Clampfit (Molecular Devices, Sunnyvale, CA) by fitting raw data with a single exponential decay using Levenberg–Marquardt least sum of squares minimizations. For all control experiments, the extracellular solution was a modified Tyrode's solution containing (in mM): 150 NaCl, 4 KCl, 10 glucose, 10 HEPES, 2 MgCl and varying concentrations of CaCl2 (2, 4, and 8 mM), pH 7.4 (310 Osm). In experiments with folimycin (Concanamycin A, Sigma, St. Louis, MO), a final concentration of 80 nM was used. For Tris-buffered experiments, solutions contained (in mM): 108 NaCl, 4 KCl, 2 MgCl2, 10 glucose and 50 Tris–HCl and 2 or 8 CaCl2. For all Tris buffering experiments, neurons were allowed to equilibrate in extracellular solution for at least 10 min prior to imaging. We elected to use a Tris-buffered extracellular solution because it does not require continuous bubbling during perfusion; a prerequisite of bicarbonate based buffers. Moreover, it has been shown that incubation in Tris can buffer, and thus slow, vesicle reacidification (Gandhi and Stevens, 2003; Zhang et al., 2009a). All solutions were adjusted to pH 7.4 with NaOH and 310 Osm prior to use. To prevent network activity, postsynaptic ionotropic glutamate receptor antagonists 6-cyano-7-nitroquinoxaline-2,3-dione (CNQX 10 μM; Sigma) and D(−)-2-Amino-5-phosphonopentanoic acid (AP-5 50 μM; Sigma) were added to the experimental solutions. To prevent spontaneous action potential generation, we incubated neurons in 1 µM tetrodotoxin (TTX). For simultaneous spontaneous activity and evoked stimulation experiments, TTX was omitted from the extracellular solution and neurons were stimulated using parallel bipolar electrodes (FHC) delivering 15–20 mA pulses with pulse width of 1 ms. At the end of each experiment, Tyrode containing 20 mM NH4Cl was added to help identify putative synaptic boutons. Due to the lower intrinsic release probability in 2 mM extracellular Ca2+, we gave twice as many stimulations (20 APs delivered 15 s apart) as in 4 and 8 mM extracellular Ca2+ (10 APs delivered 30 s apart), thus evoked fusion probability estimates in 2 mM Ca2+ are in multiples of 0.05 and not 0.1.

SypHTomato/PSD-95-GCaMP imaging and analysis

For dual color experiments, FITC and TRITC filters (Chroma Technology, Bellows Falls, VT) were inserted into the Lamda-DG. Images were collected on the same hardware as above but with increased acquisition interval of 180 ms (using 40 ms FITC and 140 ms TRITC excitation intervals). The extracellular solution was the same as above, however 2,3-dihydroxy-6-nitro-7-sulfamoyl-benzo[f]quinoxaline-2,3-dione (NBQX 10 μM; Tocris, UK) was used instead of CNQX as it is a more specific AMPAR antagonist. AP-5 and Mg2+ were omitted from all experiments to allow Ca2+ entry through NMDARs. Full waveforms of sypHTomato and GCaMP5K fluorescence were fit with a double exponential decay time and linearized to correct for photobleaching. Corrected fluorescence waveforms were analyzed as above for fluorescence increases. Once fusion events were identified, the raw data at that time was linearly corrected according to the baseline slope from 15 s before the event. This method proved successful as in the absence of folimycin events would decay back to baseline but in the presence of folimcyin the events had a staircase fluorescence waveform. All sypHTomato and GCaMP5K events were then aligned and averaged for each experiment.

Multivesicular delay analysis

Hypothetical single-vesicle fusion events were generated in Microsoft Excel with amplitudes of 623 ± 122 a.u and decaying as a single exponential with decay time of 371 ms (as determined by the non-geometric average decay time of events in 2 mM Ca2+ fit using a Beta-function). 4,000 hypothetical fusion events were then generated with varying amplitudes using the random number generator in Microsoft Excel with constraints of a Gaussian distribution according the first Gaussian curve (1q = 623 ± 122 a.u) in 2 mM Ca2+. Random pairs of these amplitudes were then summed together with varying temporal offsets (delays between the first and second hypothetical events) to generate 2000 hypothetical 2-vesicle fusion events. The amplitudes of the three point moving averages were then calculated—analogous to the amplitude calculations of raw data—and the distribution of these hypothetical multivesicular events was compared to the multivesicular only component of the amplitude distribution in 8 mM extracellular Ca2+. The most similar distribution had a temporal offset of 118 ms, which we interpret as an approximate interval between two vesicles fusing spontaneously during multivesicular fusion.

Statistics

Statistics were performed using Microsoft Excel or GraphPad Prism 6. For statistical comparisons between experiments that were performed on the same population of boutons, Student's t-test was used (2-tailed, paired). In imaging experiments, n refers to the number of multiple experiments performed, with each experiment containing up to 100 regions of interest. Student's t-test (2-tailed, unpaired) was used to analyze all pair wise data sets obtained from boutons under distinct conditions. The Kolmogorov–Smirnov test was used to determine differences in cumulative probability distributions. The chi-square test was used to evaluate the goodness fit of Gaussian distributions to amplitude histrograms. For analysis of multiple comparisons among synaptophysin-pHtomato experiments one-way ANOVA with Bonferroni post hoc analysis was used. For the correlation analysis, both parametric and non-parametric correlation coefficients were determined using GraphPad Prism 6. Linear regression analysis included a test for the hypothesis that the slope = 0, again using GraphPad Prism 6. Finally, the D'Agostino-Pearson omnibus K2 normality test was performed in GraphPad Prism 6.

References

  1. 1
    Multimodal quantal release at individual hippocampal synapses: evidence for no lateral inhibition
    1. A Abenavoli
    2. L Forti
    3. M Bossi
    4. A Bergamaschi
    5. A Villa
    6. A Malgaroli
    (2002)
    The Journal of Neuroscience 22:6336–6346.
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
    The end-plate potential in mammalian muscle
    1. IA Boyd
    2. AR Martin
    (1956)
    The Journal of Physiology 132:74–91.
  11. 11
  12. 12
    Quantal components of the end-plate potential
    1. J Del Castillo
    2. B Katz
    (1954)
    The Journal of Physiology 124:560–573.
  13. 13
  14. 14
    Spontaneous subthreshold activity at motor nerve endings
    1. P Fatt
    2. B Katz
    (1952)
    The Journal of Physiology 117:109–128.
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
    Development of vesicle pools during maturation of hippocampal synapses
    1. MG Mozhayeva
    2. Y Sara
    3. X Liu
    4. ET Kavalali
    (2002)
    The Journal of Neuroscience 22:654–665.
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66

Decision letter

  1. Christian Rosenmund
    Reviewing Editor; Charité-Universitätsmedizin Berlin, Germany

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Fast retrieval and autonomous regulation of single spontaneously recycling synaptic vesicles” for consideration at eLife. Your article has been favorably evaluated by Eve Marder (Senior editor) and 3 reviewers, one of whom is a member of our Board of Reviewing Editors.

The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and all felt that this work is interesting, providing novel approaches and insights in vesicle exocytosis.

The reviewers felt that the following major points of analysis and interpretation are however needed to be adequately addressed to publish at eLife.

1) Quantification. How tightly linked are simultaneously occurring pre- (single vesicle release) and post-synaptic (Ca imaging) spontaneous events? Only postsynaptic events that follow immediately after presynaptic events are of relevance.

2) How well can different release sites (or nearby boutons) be separated? Are multiple vesicles being released from one bouton within 120 ms (if so, please do not call this multiquantal release, which is more in the time scale of one's and tens of millisec: that is confusing)?

3) Are events from spontaneous and evoked release really different? One potential test: Do the evoked release events also correlate with a Ca signal that is driven by NMDARs?

4) There were also significant concerns about the histogram analysis and multiquantal release conclusion. It was unclear why a fixed delay between two sequential release events was used while alternative hypothesis (that these events are just a bit larger and the distribution is not exactly normal) was not considered simpler? At least the alternative interpretation should be discussed. Also, it is essential that the fusion frequencies (Figure 5) are recalculated using the actual number of detected events (regardless of amplitude), so that the frequencies are not dependent on a specific interpretation such as multivesicular release.

Please find below the initial reviewer comments that led to the consensus view above. There are additional issues in these reviews that should also be addressed.

Reviewer #1:

This is an excellent and very interesting paper that reveals several striking differences between spontaneous and evoked vesicle retrieval and reacidification rates. The data analysis is convincing and carefully performed. A surprisingly fast rate of vesicle endocytosis and reacidification is shown after spontaneous fusion events. The results are of fundamental importance for an understanding of CNS synaptic transmission. Together, these results present a strong case for major differences between spontaneous and evoked vesicle recycling and acidification rates.

Major:

1) Results section: For the average decay time constant (e.g. 3.7s) and median decay time (e.g. 0.28) please add an error bar to these numbers as you have done elsewhere in the Results section.

2) Results section: For how long are the neurons bathed in the 50 mM TRIS solution before experiments are performed?

3) In Figure 5C what was the average frequency of the spontaneous fusion events in 2 mM Ca and in 8 mM Ca? Please give the average number with error bar. It seems like a 3-fold increase in frequency. Also, what is the average increase in spontaneous mEPSC frequency from 2 mM external Ca to 8 mM external Ca? This seems like an easy experiment for the authors to conduct and it would be very interesting to compare the numbers of this change to the numbers from the imaging data.

4) Change the first paragraph of the Discussion into three paragraphs.

5) Why not try the experiment in Figure 1 with an external solution that is based on 25 mM bicarbonate (a more physiological pH buffer)? Is there a problem with exchanging the HEPES-based solution of the cultures with a bicarbonate-based solution and then performing the experiment of Figure 1? A vesicle that recycles with 10 mM HEPES in its lumen may have a different pH buffering than one with 25 mM bicarbonate. If an experiment cannot be performed with bicarbonate then some discussion of this issue should be given in the text.

6) What is the CV of the distributions in Figures 1C, 1H and 1K? Seems like a CV of about 0.4-0.5, which is close to that of mEPSCs. It would be interesting to know how well these match each other.

Reviewer #2:

The authors use Phluorin imaging to detect spontaneously fusing vesicles and determine their reacidification kinetics, as well as their calcium-dependence. The study is well performed, the detection of spontaneous release using pHluorin constructs is impressive and overall believable, and the authors reach conclusions, which are important and interesting for the field. However, there are some points that require clarification, which will include more analysis, and the interpretation regarding multivesicular release appears not sufficiently supported (details below).

Major points:

1) A major point is that it is not clear that the optically detected 'spontaneous events' really represent fusion of synaptic vesicles, and not for instance fusion of endosomes. The authors in principle address this point elegantly by co-expressing a fluorescence calcium-indicator (GCaMP5K) fused to PSD-95 and doing dual-color imaging. This is a nice approach, but from the text and analysis presented it does not become clear whether there was a tight correlation between pre- and post-synaptic events, and therefore there is not enough evidence for the conclusion: “...spontaneous fusing vesicles elicit postsynaptic Ca2+ signals”. For instance in Figure 2B: are those events (red and green channel) detected simultaneously? How often did spontaneous increases in the red channel correlate with increases in the green channel? How many events in the red channel did not coincide with events in the green channel? The authors could calculate and plot the waiting times between sequential red and green events at identified synapses. If the authors are right, such a plot should have a peak at very short intervals. Finally, the authors write “Spontaneous increases in fluorescence that were correlated (within {plus minus} 1 s) with Ca2+ signals..” I do not understand the {plus minus} here: presumably the relevant events would be those were the red event would precede (or coincide with) the green event, not the other way around. Overall, the authors need to present additional analysis of these data.

2) I am skeptical about the conclusion that the larger amplitudes of events at higher calcium concentrations are due to multivesicular release (Figure 3, text in the Results section). The larger events in the presence of higher calcium concentration could be because of the preferential fusion of slightly larger vesicles under these circumstances (or even due to a change in the photophysical properties of pHluorin). The author's argument doesn't make sense to me: “It is unlikely that this increase in fluorescence is due to variation in the number of pHluorin molecules, as the increase in amplitude is observed when extracellular Ca2+ concentrations are increased.” Why not? The histogram of event sizes could not be fitted with a single Gaussian, but who is to say whether spontaneously fusing vesicles exactly follow a Gaussian distribution? The three distributions at 1q, 1.3q and 2q are not visible as peaks in the histogram at all; especially the fit of a distribution at 2q appears unreasonable. Finally, the suggestion that events with normalized amplitude at 1.3 q would result from multivesicular release of two vesicles with a fixed delay (118 ms) appears unreasonable; what mechanism would ensure that multivesicular release would happen always with this delay, especially as this is spontaneous release? I think the authors should remove this interpretation, which has consequences also for the interpretation of Figure 4 and for the rates reported in Figure 5 and possibly in Figure 6.

3) The authors use the lack of a correlation between decay time and amplitude as an argument that “there is a fundamental difference in the kinetics of endocytosis and reacidification between vesicles that fuse spontaneously and those that fuse in response to stimulation.” But I would argue that this finding, together with the previous work of the authors, Leitz and Kavalali, 2001 is an argument against the interpretation of multivesicular release.

4) To follow up on the last statement above in point 2, to estimate the fusion frequencies (reported in Figure 5) the authors “counted all events with amplitudes within the first quantal mean as a single event, and events with larger amplitudes as two events”. This is not appropriate, first because it is not clear whether larger events represent multiple events, and second because the distributions at 1q and 1.3q overlap. The authors should only use the number of events that they can detect as such, independently of amplitude. The same goes for Figure 6, if the rates were calculated in the same way.

5) The correlation analysis in Figure 6B-D has not been described in the statistics section of the Materials and Methods. Was this Pearson's correlation coefficient? The R^2 is quite small, but nevertheless the slope is positive under all circumstances. The authors should add a statistical test of the hypothesis R=0, and report whether there is a significant (but small) correlation. Finally, the authors should explain why all evoked fusion probabilities are integer multiples of 0.1 (panel C, D), or 0.05 (panel B). Why this difference between the conditions? Finally, given that fusion probabilities can be measured in only 10 (C, D), or 20 (B) discrete categories, would non-parametric correlation analysis be more appropriate?

Reviewer #3:

In the current manuscript, “Fast retrieval and autonomous regulation of single spontaneously recycling synaptic vesicles,” Leitz and Kavalali investigate the retrieval and re-acidification of vesicles spontaneously released, and find that these events have a faster decay than single vesicles released with AP stimulation. Using dual color imaging, they also show that spontaneous events can elicit NMDAR-mediated calcium responses. Additionally, they show that multiple vesicles can be release spontaneously at a single release site, and that this occurs more frequently with increasing calcium concentrations, without showing a change in the pHluorin decay kinetics. They argue that the different release modes, spontaneous and evoked, may use distinct methods of endocytosis. Furthermore, as they show there is no correlation between the release probability of evoked events and the frequency of spontaneously released events at single release sites, they conclude that these are two functionally distinct vesicle pools.

Overall, this is a well-written and clear paper with many appropriate controls. The dual color imaging of the spontaneous release events and postsynaptic response are important and interesting, while some concerns exist and are discussed below.

1) Detection of single, spontaneous release events is a crucial technique for this paper. Though the amplitude distribution of the detected events looks convincing, it would also be useful to show how the distribution shifts when spontaneous release is blocked (i.e. with tetanus toxin incubation). Additionally, it is not clear how the noise events were detected. It would also be necessary to show how what the detection criteria discover when run with a negative amplitude (i.e. -2X the SD of the 17 points prior to the event).

2) For Figure 2, the correlation between the spontaneous pHluorin events and spontaneous Ca2+ events was stated to be {plus minus} 1 s. While the limitations for time resolution in the dual color imaging are expected, since the vesicle release should directly cause the Ca2+ influx, these events should really only be considered if the Ca2+ influx occurs in a time range after the detected pHluorin event.

3) Figure 2. What do the corresponding Ca2+ signals look like for the evoked SypHTomato events? Can they be more closely time-locked?

4) Figure 3. Multivesicular release events recorded by electrophysiology are thought to occur essentially simultaneously. The 1.3q events seem likely to be events happening with a 118 ms delay. Also to this point, how well resolved are the single release sites? Could the multiple vesicle release events be closely neighboring synapses, which happen to release vesicles in close temporal proximity? Also, are the multivesicular spontaneous events Ca2+ dependent? How do they look in the presence of Cd2+?

5) Figure 5. The frequency of spontaneous release events clearly increases in 8 mM Ca2+ in the presence of folimycin. The authors explain this as recruitment of very rapidly retrieved vesicles. However, does the frequency of spontaneous events also increase in folimycin with 2 mM Ca2+? From the Figure, it doesn't appear to, but it would be interesting to see.

6) Figure 6. This is an important figure for the authors' interpretation of the separate pools of vesicles (spontaneous and evoked) released with distinct properties at single synapses. However, a few issues could cloud the interpretation from the lack of correlation between evoked fusion probability and spontaneous release frequency. First, for an event to be considered evoked with a 1 s lag time from the stimulus seems too long even for asynchronous release with a single action potential. Second, there is again the issue of spatial resolution. Are these actually single release sites? Finally, the release probability (the calculation of which should be clearly stated in the text) seems very high for these synapses in 4 mM Ca2+. This could argue for the multiple release site measurement.

7) Figure S1. The increase in signal for the PSD-95-GCaMP5K is difficult to interpret, because it could be due to either the increased extracellular Ca2+ or due to the increased multivesicular release events. This could also be interesting to see in the presence of Cd2+.

[Editors’ note: further revisions were requested before acceptance, as shown below.]

Thank you for resubmitting your work entitled “Fast retrieval and autonomous regulation of single spontaneously recycling synaptic vesicles” for further consideration at eLife. Your revised article has been favorably evaluated by Eve Marder (Senior editor) and the original three reviewers. The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

All three reviewers would like to see that all (new) analysis is properly implemented in the manuscript. Specifically, there are arguments that you made in your rebuttal letter that do not appear in the manuscript, but should. Moreover the reviewers generally all agree that support for multivesicular release is not that strong, and feel that this claim should be better balanced by dealing with caveats and alternative explanations.

Additional comments that surfaced in response to your revision are provided below:

1) Regarding detection of events, the authors added improved analysis. One reviewer would like to see addition of “false positive” events either from negative implement the detection (inversed) or from 0 Ca2+ to the histograms for amplitude and decay times. In addition, it would be helpful to subtract weighted average decay of false positives from weighted average decay of spontaneous events to obtain “net events”.

2) Coincidence of pre- and postsynaptic events: The detection of postsynaptic responses at the -1 frame will still be confusing to the reader, and additional clarification in the text is required. Given that the distribution of events puts most of them between 0 to 5 frames after stimulation, this is the time window that the authors should use for analysis. They will lose very few events and it will be more straightforward as it makes little sense that the postsynaptic signal should occur prior to the presynaptic signal. If the -1 frame events are to be included, the explanation for why these events would appear to occur before the stimulation, as included in the rebuttal letter must also be in the text.

Unfortunately, the postsynaptic signals coupled to the evoked Syp-Tomato signals are missing, and this is still an obvious gap in the paper. As the authors explain in the rebuttal letter, this is due to an understandable technical issues with field stimulation and network activity, although that the field stimulation itself causes a signal is strange when NMDARs are not blocked by Mg2+. Again, the authors should address this issue in the text. Pointing out to the reader that the recording the postsynaptic events with stimulation is technically difficult does not take anything away from the findings, and will also preempt questions from a reader who sees the comparison of the postsynaptic signals generated by evoked or spontaneous release as the obvious next step.

3) Release probability vs spontaneous release: There is only a 50% increase in the average spontaneous fusion rate with Ca2+ increase to 8 mM, while average release probability increases 3-fold. This figure could simply suggest that the release frequency of minis is much, much less sensitive to calcium than evoked release probability. This should be discussed by the authors.

4) Sensitivity to detect individual events/multiquantal release: Overall, the single site, multiquantal spontaneous release claim is still not convincing (or at least multiple release site cannot be ruled out convincingly). I do not understand how the Murthy et al., 1997 citation excludes the possibility that the authors are not detecting coincident release from neighboring synapses and not the multi-quantal events they report-particularly as the release probability they claim will result in individual sites in 2mM Ca2+ and this will be less likely occur as Ca2+ increases. Additionally, aside from the increase in release probability with increased calcium, other factors that contribute to ability to differentiate individual synapses include the density of synapse and the amount of binning.

The discrepancy between mEPSC frequency increase in electrophysiological recordings and optical recordings of spontaneous events (though small) could suggest the events reported as multiquantal are, in fact, neighboring synapses. It would be worth testing when the portion of the population of events with 1.3 q and 2 q amplitudes are treated as individual events from neighboring synapses, does the frequency increase of the optical recordings better match the electrophysiological ones.

https://doi.org/10.7554/eLife.03658.011

Author response

We would like to thank the reviewers for their insightful and constructive evaluation of our manuscript. In the revised paper, we have included new data and analysis. We now report the false positive detection rate and show the amplitude distributions of false positive events detected during minimal spontaneous vesicle fusion in nominal calcium concentrations (Modified Figure 1L). Additionally, we now report the temporal correlation of postsynaptic Ca2+ entry reported by PSD-95-GCaMP5K and the presynaptic vesicle fusion reported by SypHTomato. We now include multiple interpretations for the observed Ca2+ increase in fluorescence amplitude and we now show the frequency of spontaneous fusion with and without interpreting increased fluorescence amplitude as multivesicular fusion (New Figure 5). The new experiments and analysis are briefly outlined below.

A) To estimate our false positive event detection rate, we re-analyzed our data using the inverse of the same detection criteria (-2X the standard deviation of the mean) we used previously to identify positive spontaneous vesicle fusion events. In this setting, we detected an average of 0.065 “negative” events per bouton per minute (compared to “positive” 0.5 events/bouton/min., see Figure 5). This measurement indicates that false positive hits impart a negligible contribution to our data set as a whole.

Additionally, we performed experiments in extracellular solution lacking Ca2+ to minimize the rate of vesicle fusion but including folimycin (to increase our confidence in putative positive events) to further validate our criteria to identify spontaneous fusion events. Here, we used our earlier detection criteria to identify increases in fluorescence that may reflect vesicle fusion. In nominal Ca2+, positive bona fide fusion events (detected in folimycin) were decreased to 0.01 events/bouton/min (compared to 0.5 events/bouton/min in 2 mM Ca2+).

We found that in this setting, transient increases in fluorescence (indicating possible false positives) had a reduced amplitude compared to bona fide spontaneous fusion events in 2 mM extracellular Ca2+ (New Figure 1L). Moreover, when our detection criteria were set to identify negative increases in fluorescence amplitude, the absolute value of these -2X events were not different from the false positive events. Together these data validate our earlier detection criteria and indicate that our false positive detection rate is ∼ 10% per recording.

B) We compared the frame number difference between spontaneous increases in SypHTomato and PSD-95-GCaMP5K increases we found that 69% of spontaneous increases in SypHTomato elicited a PSD-95-GCaMP5K signal within ± 1 frame (±200 ms). This percentage increased to 83% between -1 frame to +5 frames. We have added these findings in the text.

C) We have analyzed the spontaneous vGlut-pHluorin fusion frequency data in two ways; independent of fluorescence amplitude, and dependent of fluorescence amplitude (new Figure 5). We have now included alternate hypotheses (preferential fusion of larger vesicles or non-normal distribution of event amplitudes possibly due to uneven distribution of fluorophores) in the text to better address the observed Ca2+-dependent increase in fluorescence amplitude.

D) Finally we have added additional non-parametric statistical analyses (e.g. Spearman’s Correlation) to the spontaneous fusion rate and evoked fusion probability correlation plots. This further analysis showed that there is only extremely modest correlation between the two rates at 2 and 8 mM Ca2+ concentrations whereas no detectable correlation at 4 mM Ca2+.

1) Quantification. How tightly linked are simultaneously occurring pre- (single vesicle release) and post-synaptic (Ca imaging) spontaneous events? Only postsynaptic events that follow immediately after presynaptic events are of relevance.

Below, we include a temporal correlation histogram of GCaMP5K event time (in frames) relative to SypHTo fusion (0 on the x axis). 67% of GCaMP events are within plus or minus 1 frame of the SypHTo event, increasing to 84% of events that occur from -1 to + 5 frames (∼1 sec). We include this -1 group because in our system we obtain only one time point for each cycle of imaging (thus one frame of both red channel and green channel constitute one time point). Therefore, fusion events that may occur halfway through an imaging cycle would appear shifted by -1 frame. Reanalysis of our data taking into consideration only these events that occur between -1 and +5 frames did not alter our previously reported data. We now also refer to these data in the text.

Author response image 1

2) How well can different release sites (or nearby boutons) be separated? Are multiple vesicles being released from one bouton within 120 ms (if so, please do not call this multiquantal release, which is more in the time scale of one's and tens of millisec: that is confusing)?

We cannot discriminate between multiquantal fusion and near-simultaneous fusion from nearby release sites. However, our evoked fusion probability estimates are consistent with earlier measurements of vesicle fusion probability using FM1-43 uptake into individual release sites under similar conditions (e.g. Murthy et al., 1997). We now added this point to the text in the Results and in the Discussion.

3) Are events from spontaneous and evoked release really different? One potential test: Do the evoked release events also correlate with a Ca signal that is driven by NMDARs?

We do not mean to imply that the postsynaptic responses arising from spontaneous and evoked vesicle fusion are necessarily different. Earlier work from our group (Atasoy et al., 2008; Sara et al., 2011) suggested a physical segregation between postsynaptic receptor activation patterns in response to evoked and spontaneous fusion events. However, so far, we did not detect any difference between the kinetic properties of evoked and spontaneous postsynaptic quantal events. Instead, in this study, we emphasize that retrieval and reacidification of spontaneously fusing vesicles are distinct from those of stimulation-evoked fusion vesicles. Unfortunately, we cannot measure quantal postsynaptic Ca2+ signals during stimulation, as in our preparation field stimulation itself causes direct postsynaptic effects. However, we are working to improve these recording conditions in our studies for the near future.

4) There were also significant concerns about the histogram analysis and multiquantal release conclusion. It was unclear why a fixed delay between two sequential release events was used while alternative hypothesis (that these events are just a bit larger and the distribution is not exactly normal) was not considered simpler? At least the alternative interpretation should be discussed. Also, it is essential that the fusion frequencies (Figure 5) are recalculated using the actual number of detected events (regardless of amplitude), so that the frequencies are not dependent on a specific interpretation such as multivesicular release.

We agree with the reviewers that our multiquantal release conclusion is one of many interpretations to our data. In our estimations we used a fixed delay to provide a proof of principle argument that multiquantal release could account for these observations. Although, we could test additional delays and kinetic parameters, given our limited resolution of these events, we prefer to refrain from over interpreting of our data. We now include a discussion of these alternative interpretations of the data in the text. We now report spontaneous fusion frequency estimates with and without taking into account the potential multiquantal nature of the events (see revised Figure 5).

Reviewer #1:

1) Results section: For the average decay time constant (e.g. 3.7s) and median decay time (e.g. 0.28) please add an error bar to these numbers as you have done elsewhere in the Results section.

We have now added error bars for these averages. Originally, we did not include error bars to these numbers because individual event parameters were not normally distributed. The non-geometric mean decay time constants were derived from fitting with β-distributions and instead we reported the upper and lower bounds of the distribution in the figure legends. Therefore, we have now included both geometric and non-geometric means in the text.

2) Results section: For how long are the neurons bathed in the 50 mM TRIS solution before experiments are performed?

We have added the duration of pre-incubation (10 min) to the Methods section.

3) In Figure 5C what was the average frequency of the spontaneous fusion events in 2 mM Ca and in 8 mM Ca? Please give the average number with error bar. It seems like a 3-fold increase in frequency. Also, what is the average increase in spontaneous mEPSC frequency from 2 mM external Ca to 8 mM external Ca? This seems like an easy experiment for the authors to conduct and it would be very interesting to compare the numbers of this change to the numbers from the imaging data.

We have added the average frequency of spontaneous fusion events into the text. When we compare mEPSC rates at 2 mM Ca2+ and 8 mM Ca2+ we detect a ∼3.7-fold increase. In our optical experiments, we detect a ∼2.7-fold increase. Although the increase in spontaneous fusion rate detected by these two methods are in broad agreement (as we now indicated in the text), we would like to refrain from a detailed comparison at this time in the current manuscript to avoid over-interpreting our results. A reliable comparison of optical/electrophysiological data is constrained by the fact that the two measures are not obtained simultaneously and electrophysiological readout of distal synapses may be altered electrotonically.

4) Change the first paragraph of the Discussion into three paragraphs.

We agree and we have made this change.

5) Why not try the experiment in Figure 1 with an external solution that is based on 25 mM bicarbonate (a more physiological pH buffer)? Is there a problem with exchanging the HEPES-based solution of the cultures with a bicarbonate-based solution and then performing the experiment of Figure 1? A vesicle that recycles with 10 mM HEPES in its lumen may have a different pH buffering than one with 25 mM bicarbonate. If an experiment cannot be performed with bicarbonate then some discussion of this issue should be given in the text.

For practical reasons we chose to use Tris as a buffer. Bicarbonate buffers require constant carbogen bubbling during perfusion, which we currently could not implement on our imaging set up. We opted to use Tris as it has been previously used effectively to buffer synaptic vesicle pH (Gandhi and Stevens 2003, Zhang et al., 2009).

6) What is the CV of the distributions in Figures 1C, 1H and 1K? Seems like a CV of about 0.4-0.5, which is close to that of mEPSCs. It would be interesting to know how well these match each other.

We have added the CV of our amplitude distributions (Figure 1 legend). However we caution comparing the two as the CV for the optical experiments is dependent on the number of pHluorins per vesicle (in addition to the number of vesicles) while the CV for mEPSCs depends on the number of postsynaptic receptors present and electrotonic filtering (besides the number of vesicles), and thus may be susceptible to different degrees of variance.

Reviewer #2:

1) A major point is that it is not clear that the optically detected 'spontaneous events' really represent fusion of synaptic vesicles, and not for instance fusion of endosomes. The authors in principle address this point elegantly by co-expressing a fluorescence calcium-indicator (GCaMP5K) fused to PSD-95 and doing dual-color imaging. This is a nice approach, but from the text and analysis presented it does not become clear whether there was a tight correlation between pre- and post-synaptic events, and therefore there is not enough evidence for the conclusion: “...spontaneous fusing vesicles elicit postsynaptic Ca2+ signals”. For instance in Figure 2B: are those events (red and green channel) detected simultaneously? How often did spontaneous increases in the red channel correlate with increases in the green channel? How many events in the red channel did not coincide with events in the green channel? The authors could calculate and plot the waiting times between sequential red and green events at identified synapses. If the authors are right, such a plot should have a peak at very short intervals. Finally, the authors write “Spontaneous increases in fluorescence that were correlated (within {plus minus} 1 s) with Ca2+ signals..” I do not understand the {plus minus} here: presumably the relevant events would be those were the red event would precede (or coincide with) the green event, not the other way around. Overall, the authors need to present additional analysis of these data.

We have corrected the text to state that we are looking at events that occur within -1 to +5 frames of the SypHTo signals. We found that the majority (84%) of events occurred within this time. Please refer to the answer we provided above for further details.

2) I am skeptical about the conclusion that the larger amplitudes of events at higher calcium concentrations are due to multivesicular release (Figure 3, text in the Results section). The larger events in the presence of higher calcium concentration could be because of the preferential fusion of slightly larger vesicles under these circumstances (or even due to a change in the photophysical properties of pHluorin). The author's argument doesn't make sense to me: ”It is unlikely that this increase in fluorescence is due to variation in the number of pHluorin molecules, as the increase in amplitude is observed when extracellular Ca2+ concentrations are increased.“ Why not? The histogram of event sizes could not be fitted with a single Gaussian, but who is to say whether spontaneously fusing vesicles exactly follow a Gaussian distribution? The three distributions at 1q, 1.3q and 2q are not visible as peaks in the histogram at all; especially the fit of a distribution at 2q appears unreasonable. Finally, the suggestion that events with normalized amplitude at 1.3 q would result from multivesicular release of two vesicles with a fixed delay (118 ms) appears unreasonable; what mechanism would ensure that multivesicular release would happen always with this delay, especially as this is spontaneous release? I think the authors should remove this interpretation, which has consequences also for the interpretation of Figure 4 and for the rates reported in Figure 5 and possibly in Figure 6.

We have included alternative interpretations of our data in the text. Briefly, we cannot exclude that the larger events are the preferential fusion of slightly larger vesicles. However, we believe it is unlikely that the larger events are due to a change in the photophysical properties of pHluorin as earlier studies including our own did not detect significant difference in unitary fluorescence amplitudes as a function of extracellular Ca2+ (Balaji and Ryan 2007, Leitz and Kavalali 2011).

3) The authors use the lack of a correlation between decay time and amplitude as an argument that “there is a fundamental difference in the kinetics of endocytosis and reacidification between vesicles that fuse spontaneously and those that fuse in response to stimulation.” But I would argue that this finding, together with the previous work of the authors, Leitz and Kavalali, 2001 is an argument against the interpretation of multivesicular release.

We have added a note discussing this possibility in addition to our interpretation to the text.

4) To follow up on the last statement above in point 2, to estimate the fusion frequencies (reported in Figure 5) the authors “counted all events with amplitudes within the first quantal mean as a single event, and events with larger amplitudes as two events”. This is not appropriate, first because it is not clear whether larger events represent multiple events, and second because the distributions at 1q and 1.3q overlap. The authors should only use the number of events that they can detect as such, independently of amplitude. The same goes for Figure 6, if the rates were calculated in the same way.

We have clarified how we selected events in the text and have added both possible interpretations to the Figure (Figure 5).

5) The correlation analysis in Figure 6B-D has not been described in the statistics section of the Materials and Methods. Was this Pearson's correlation coefficient? The R^2 is quite small, but nevertheless the slope is positive under all circumstances. The authors should add a statistical test of the hypothesis R=0, and report whether there is a significant (but small) correlation. Finally, the authors should explain why all evoked fusion probabilities are integer multiples of 0.1 (panel C, D), or 0.05 (panel B). Why this difference between the conditions? Finally, given that fusion probabilities can be measured in only 10 (C, D), or 20 (B) discrete categories, would non-parametric correlation analysis be more appropriate?

We agree, we have detailed the statistics used in the Materials and methods. Additionally we have used both a Pearson’s correlation coefficient as well as Spearman’s correlation coefficient. We now also report the p value of the R2 and r values for the Pearson’s and Spearman’s correlation values, respectively.

We now added the statistical test to compare the data to a hypothetical slope of zero. We found the slope of the regression line in 2 mM Ca2+ is significantly non-zero however because the R2 value is extremely low, it is difficult to interpret this finding as a strong correlation.

We have also explained the difference between fusion probabilities in the Materials and methods. Briefly, due to the low release probability in 2 mM extracellular Ca2+, we stimulated neurons twice as much with half the inter-stimulation interval to increase the number of events we detect.

Reviewer #3:

1) Detection of single, spontaneous release events is a crucial technique for this paper. Though the amplitude distribution of the detected events looks convincing, it would also be useful to show how the distribution shifts when spontaneous release is blocked (i.e. with tetanus toxin incubation). Additionally, it is not clear how the noise events were detected. It would also be necessary to show how what the detection criteria discover when run with a negative amplitude (i.e. -2X the SD of the 17 points prior to the event).

We agree, however we opted to use extracellular medium with nominal Ca2+ to attenuate the rate of spontaneous release rather than attempt to abolish release using tetanus toxin. We chose this approach because previous work implicates the vesicular SNARE machinery may itself participate in and control the kinetics of endocytosis (Deak et al., 2004, Zhang et al., 2013) thus adding a layer of complexity to the experiments. In 0 mM extracellular Ca2+ and in the presence of folimycin, we only detected 29 genuine events (staircase patterns as in Figure 1 and 6) from 200 synapses over 10 minutes pooled from 4 coverslips. We found the amplitudes of false positive events, events that were detected using our criteria but where the amplitude returned to baseline despite folimycin presence, were smaller than what we detect in the case of events we identify as genuine spontaneous fusion. These small amplitudes of false positive events were similar to the amplitudes of the false negative events we identified when the detection criteria were run with a negative amplitude (i.e. -2X the SD of the 17 points prior to the event). This data are now shown in revised Figure 1L. Furthermore, in 2 mM Ca2+ we found when we ran our detection criteria with a negative amplitude we had a hit rate of 0.065 events per minute.

2) For Figure 2, the correlation between the spontaneous pHluorin events and spontaneous Ca2+ events was stated to be {plus minus} 1 s. While the limitations for time resolution in the dual color imaging are expected, since the vesicle release should directly cause the Ca2+ influx, these events should really only be considered if the Ca2+ influx occurs in a time range after the detected pHluorin event.

We agree, however, in our imaging system we only acquire one time stamp for one frame of both green and red channel. Therefore, if a fusion event occurred during the acquisition of the red channel it is possible for the subsequent Ca2+ signal in the green channel to be detected first and thus be reported one “frame” earlier and thus >200 ms earlier. When we plot the temporal distribution of our events, we found that despite the ±1 s criterion, the majority of events occurred within ±1 frame (± 200 ms) of the red channel (please see the plot we present above). We have clarified this in the text.

3) Figure 2. What do the corresponding Ca2+ signals look like for the evoked SypHTomato events? Can they be more closely time-locked?

Unfortunately we cannot image the corresponding Ca2+ signal for the evoked fusion events as leaving NMDARs unblocked will generate recurrent activity in our culture system since we must also exclude TTX from the bath solution (please see our response to summary comment #3 above).

4) Figure 3. Multivesicular release events recorded by electrophysiology are thought to occur essentially simultaneously. The 1.3q events seem likely to be events happening with a 118 ms delay. Also to this point, how well resolved are the single release sites? Could the multiple vesicle release events be closely neighboring synapses, which happen to release vesicles in close temporal proximity? Also, are the multivesicular spontaneous events Ca2+ dependent? How do they look in the presence of Cd2+?

Our estimates of evoked and spontaneous fusion rates suggest that in the majority of boutons we detect release from a single release site. We agree that the role of voltage-gated Ca+ channels in driving these putative multivesicular events could be interesting to examine. However, we would like to perform these experiments using specific toxins rather than Cd2+. Ongoing work in our laboratory suggests that these events are unaltered in Cd2+, however, our data on this topic is too preliminary to report at this time.

5) Figure 5. The frequency of spontaneous release events clearly increases in 8 mM Ca2+ in the presence of folimycin. The authors explain this as recruitment of very rapidly retrieved vesicles. However, does the frequency of spontaneous events also increase in folimycin with 2 mM Ca2+? From the Figure, it doesn't appear to, but it would be interesting to see.

The frequency of events in 2 mM Ca2+, if any, show a slight decrease in folimycin.

6) Figure 6. This is an important figure for the authors' interpretation of the separate pools of vesicles (spontaneous and evoked) released with distinct properties at single synapses. However, a few issues could cloud the interpretation from the lack of correlation between evoked fusion probability and spontaneous release frequency. First, for an event to be considered evoked with a 1 s lag time from the stimulus seems too long even for asynchronous release with a single action potential. Second, there is again the issue of spatial resolution. Are these actually single release sites? Finally, the release probability (the calculation of which should be clearly stated in the text) seems very high for these synapses in 4 mM Ca2+. This could argue for the multiple release site measurement.

Our evoked release probability estimates at 2 mM Ca2+ (∼ 0.15) are in line with earlier measurements in hippocampal synapses. Therefore, we believe in a majority of cases we detect release from single release sites. It is important to note that hippocampal synapses do not show significant asynchronous release under physiological circumstances.

7) Figure S1. The increase in signal for the PSD-95-GCaMP5K is difficult to interpret, because it could be due to either the increased extracellular Ca2+ or due to the increased multivesicular release events. This could also be interesting to see in the presence of Cd2+.

We agree there could be multiple reasons for the increase in the Ca2+ signal. At this time, we prefer not to expand on this observation in depth particularly due to the fact that these signals are recorded in the absence of extracellular Mg2+. We are currently working on another study to examine the properties of postsynaptic Ca2+ signals triggered by spontaneous fusion events under more physiological circumstances.

[Editors’ note: further revisions were requested before acceptance, as shown below.]

1) Regarding detection of events, the authors added improved analysis. One reviewer would like to see addition of “false positive” events either from negative implement the detection (inversed) or from 0 Ca2+ to the histograms for amplitude and decay times. In addition, it would be helpful to subtract weighted average decay of false positives from weighted average decay of spontaneous events to obtain “net events”

We have included the false positive events in the decay times histogram (new Figure 1 panel D). Because we have already included the amplitudes in the cumulative probability histogram (Figure 1 panel L) we did not include the bars to the histograms. We have calculated a weighted average for the decay times and there was no change in decay time due to the relatively small contribution of false positive hits. We now refer to this data in the Results section (as well as in the revised Figure Legend for Figure 1).

2) Coincidence of pre- and postsynaptic events: The detection of postsynaptic responses at the -1 frame will still be confusing to the reader, and additional clarification in the text is required. Given that the distribution of events puts most of them between 0 to 5 frames after stimulation, this is the time window that the authors should use for analysis. They will lose very few events and it will be more straightforward as it makes little sense that the postsynaptic signal should occur prior to the presynaptic signal. If the -1 frame events are to be included, the explanation for why these events would appear to occur before the stimulation, as included in the rebuttal letter must also be in the text.

Unfortunately, the postsynaptic signals coupled to the evoked Syp-Tomato signals are missing, and this is still an obvious gap in the paper. As the authors explain in the rebuttal letter, this is due to an understandable technical issues with field stimulation and network activity, although that the field stimulation itself causes a signal is strange when NMDARs are not blocked by Mg2+. Again, the authors should address this issue in the text. Pointing out to the reader that the recording the postsynaptic events with stimulation is technically difficult does not take anything away from the findings, and will also preempt questions from a reader who sees the comparison of the postsynaptic signals generated by evoked or spontaneous release as the obvious next step.

We agree and we have included these arguments in the text.

3) Release probability vs spontaneous release: There is only a 50% increase in the average spontaneous fusion rate with Ca2+ increase to 8 mM, while average release probability increases 3-fold. This figure could simply suggest that the release frequency of minis is much, much less sensitive to calcium than evoked release probability. This should be discussed by the authors.

We agree. We now refer to this observation in the Discussion section.

4) Sensitivity to detect individual events/multiquantal release: Overall, the single site, multiquantal spontaneous release claim is still not convincing (or at least multiple release site cannot be ruled out convincingly). I do not understand how the Murthy et al., 1997 citation excludes the possibility that the authors are not detecting coincident release from neighboring synapses and not the multi-quantal events they report-particularly as the release probability they claim will result in individual sites in 2mM Ca2+ and this will be less likely occur as Ca2+ increases. Additionally, aside from the increase in release probability with increased calcium, other factors that contribute to ability to differentiate individual synapses include the density of synapse and the amount of binning.

The discrepancy between mEPSC frequency increase in electrophysiological recordings and optical recordings of spontaneous events (though small) could suggest the events reported as multiquantal are, in fact, neighboring synapses. It would be worth testing when the portion of the population of events with 1.3 q and 2 q amplitudes are treated as individual events from neighboring synapses, does the frequency increase of the optical recordings better match the electrophysiological ones.

We now refer to this issue more specifically with the following section inserted into the Discussion section.

“As noted above, at our resolution we cannot exclude the possibility that the observed increase in amplitude could be due to vesicle fusion from multiple release sites within a region of interest, especially if elevated Ca2+ concentrations can activate adjacent release sites resulting in apparent multivesicular release albeit originating from two neighboring release sites. The discrepancy between the increases in mEPSC frequency we detect in electrophysiological recordings versus optical recordings of spontaneous events could indicate that some of the multivesicular events are occurring at neighboring synapses activated at elevated Ca2+.”

https://doi.org/10.7554/eLife.03658.012

Article and author information

Author details

  1. Jeremy Leitz

    Department of Neuroscience, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    JL, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Ege T Kavalali

    1. Department of Neuroscience, University of Texas Southwestern Medical Center, Dallas, United States
    2. Department of Physiology, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    ETK, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    ege.kavalali@utsouthwestern.edu
    Competing interests
    The authors declare that no competing interests exist.

Funding

National Institute of Mental Health (R01 MH066198)

  • Ege T Kavalali

National Institute of Neurological Disorders and Stroke (NINDS) (T32 NS069562)

  • Ege T Kavalali

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank members of the Kavalali and Monteggia laboratories, in particular Drs. Lisa Monteggia, Elena Nosyreva, Denise Ramirez and Devon Crawford, as well as Drs. Robin Hiesinger, Helmut Kramer and Donald Hilgemann for insightful discussions and comments on the manuscript. This work was supported by NIH grants MH066198 (E.T.K) and the Cellular Biophysics of the Neuron Training Program T32 NS069562 (J.L.).

Ethics

Animal experimentation: All animal protocols were approved by the Institutional Care and Use Committee at UT Southwestern Medical Center. The work presented in this study is covered by the Animal Protocol Numbers APN 0866-06-05-1 and APN 0866-06-03-1

Reviewing Editor

  1. Christian Rosenmund, Charité-Universitätsmedizin Berlin, Germany

Publication history

  1. Received: June 11, 2014
  2. Accepted: November 21, 2014
  3. Accepted Manuscript published: November 21, 2014 (version 1)
  4. Version of Record published: December 15, 2014 (version 2)

Copyright

© 2014, Leitz and Kavalali

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,603
    Page views
  • 296
    Downloads
  • 20
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Physics of Living Systems
    Sundar Ram Naganathan et al.
    Research Article
    1. Cell Biology
    2. Stem Cells and Regenerative Medicine
    Aurore L'honoré et al.
    Research Article Updated
