Abstract

Embryonic polarity of invertebrates, amphibians and fish is specified largely by maternal determinants, which fixes cell fates early in development. In contrast, amniote embryos remain plastic and can form multiple individuals until gastrulation. How is their polarity determined? In the chick embryo, the earliest known factor is cVg1 (homologous to mammalian growth differentiation factor 1, GDF1), a transforming growth factor beta (TGFβ) signal expressed posteriorly before gastrulation. A molecular screen to find upstream regulators of cVg1 in normal embryos and in embryos manipulated to form twins now uncovers the transcription factor Pitx2 as a candidate. We show that Pitx2 is essential for axis formation, and that it acts as a direct regulator of cVg1 expression by binding to enhancers within neighbouring genes. Pitx2, Vg1/GDF1 and Nodal are also key actors in left–right asymmetry, suggesting that the same ancient polarity determination mechanism has been co-opted to different functions during evolution.

https://doi.org/10.7554/eLife.03743.001

eLife digest

In warm-blooded animals, including chickens and humans, a single embryo can give rise to several separate individuals (identical twins). Some species of armadillos routinely give birth to quadruplets in this way—and in experiments, up to eight identical chick embryos can be produced by cutting one embryo into smaller pieces (a type of ‘experimental twinning’). This ability of a developing embryo to subdivide into separate individuals ends when the embryo starts to form its first midline structure, called the ‘primitive streak’. This is the first line of symmetry and defines where the head–tail axis will later develop.

The steps that establish the axes of the embryo in birds and mammals, and the factors that prevent further splitting of the embryo to form twins after this point, are only just beginning to be understood. In chick embryos, the production of a protein called cVg1 is the first known step and precedes the development of a line of symmetry. A similar protein is produced in mammalian embryos and both proteins are members of an important family of signalling proteins.

Now, Torlopp, Khan et al. have used a combination of techniques to search for other proteins that that control the production of the cVg1 protein. Genes that are active in the region of the embryo that will express cVg1 later in development were identified, both in normal embryos and during the process of experimental twinning. This search revealed Pitx2 as a protein that acts to switch on the expression of the gene that encodes cVg1. When the Pitx2 protein is removed, the embryonic axis forms from the opposite side.

Next, Torlopp, Khan et al. searched the chicken genome to identify stretches of DNA around the cVg1 gene where proteins that regulate gene expression might bind. Six potential sites were found, including four to which Pitx2 can bind. Further experiments confirmed that two of these regulatory sequences encourage the expression of the cVg1 gene at its correct position in the embryo.

Pitx2 and related proteins were known to be involved with the development of left–right symmetry later in development; the findings of Torlopp, Khan et al. reveal, unexpectedly, that these proteins are also involved in first establishing the position at which the midline of the embryo will arise. It remains unclear what prevents most embryos from forming twins. But Torlopp, Khan et al.'s findings could help to explain some strange observations, made long ago, about left–right asymmetry in identical twins. For example, they could help explain why one of the twins in an identical twin pair is more likely to be left-handed than an individual in the general population, and why the direction of whorls of hair on the back of the head is often mirrored between identical twins.

https://doi.org/10.7554/eLife.03743.002

Introduction

In most invertebrates and anamniote vertebrates (fishes and amphibians), embryonic polarity is first established by localisation of maternal determinants in the cytoplasm and/or cortex of the fertilised egg. This generates differences between the blastomeres that will form by cell division from the egg, and which will culminate in specifying the orientation of the embryonic axes (Wilson, 1898). Separation of the first two blastomeres can lead to twinning: the formation of genetically identical, complete individuals (Driesch, 1892). Separation of blastomeres after the four-cell stage, however, does not generate twins; in most cases it interferes with development of even a single embryo owing to the removal of important determinants that have by then segregated to different cells. This is known as the mosaic mode of development. Among the vertebrates, amniotes (birds and many mammals, and possibly also reptiles) have a remarkably extended capacity to give rise to twins. Some species of the armadillo genus Dasypus generate quadruplets or octuplets from a single fertilisation event, as a result of two or more sequential ‘splitting’ events of the embryo at a stage when it is already highly multicellular (Newman and Patterson, 1910; Loughry et al., 1998; Enders, 2002; Eakin and Behringer, 2004). Conjoined (‘Siamese’) twins occur in mammals including humans (Chai and Crary, 1971; Vanderzon et al., 1998; Kaufman, 2004) and are also seen in reptiles (Cunningham, 1937) and birds (Ulshafer and Clavert, 1979); most of these are thought to arise from splitting of the embryo relatively late in development (Kaufman, 2004). Perhaps the most dramatic example is seen in the chick, where cutting an embryo into fragments at the blastoderm stage (when the embryo contains as many as 20,000–50,000 cells) can lead to each fragment generating a complete embryo; up to eight embryos have been generated from a single blastoderm by experimental splitting, right up to the time of appearance of the primitive streak (Lutz, 1949; Spratt and Haas, 1960). The ability of higher vertebrate embryos to retain a regulative model of development until such a late stage strongly suggests that localisation of maternally inherited determinants is not an essential component of the mechanisms specifying embryo polarity (Stern and Downs, 2012). Moreover, since a single blastoderm can generate multiple embryos, mechanisms must exist that suppress this ability in regions of the embryo that do not normally initiate axis formation (Bertocchini and Stern, 2002; Bertocchini et al., 2004).

In chick embryos, the earliest symmetry breaking event known is the localised expression of cVg1, the chick orthologue of mammalian growth differentiation factor 1 (GDF1)—a member of the transforming growth factor beta (TGFβ) superfamily of secreted proteins—encoding a Nodal/Activin-type molecule that signals through Smad2/3 (Weeks and Melton, 1987; Thomsen and Melton, 1993; Kessler and Melton, 1995; Seleiro et al., 1996; Shah et al., 1997; Kessler, 2004; Birsoy et al., 2006; Chen et al., 2006; Andersson et al., 2007). Before primitive streak stages, cVg1 is expressed in the posterior marginal zone (PMZ), an extraembryonic region adjacent to where the primitive streak will form; misexpression of cVg1 in other (anterior or lateral) parts of the marginal zone is sufficient to induce a complete axis from adjacent embryonic cells (Seleiro et al., 1996; Shah et al., 1997; Skromne and Stern, 2001, 2002). The mechanisms that position cVg1 in the PMZ are unknown. Moreover, when a blastoderm is cut in half at right angles to the future primitive streak axis, cVg1 expression spontaneously initiates in the marginal zone adjacent to the cut edge, in either the right or left side at equal frequency, foreshadowing the appearance of the primitive streak a few hours later (Bertocchini et al., 2004). This observation shows that the mechanisms that position cVg1 are active in the blastoderm stage embryo. Here we take advantage of these observations to design a molecular screen for new genes involved in the earliest stages of specifying embryo polarity; together with bioinformatic analysis and embryological experiments we identify the transcription factor Pitx2 as a direct and essential regulator of cVg1 expression both during normal development and in embryonic regulation (induced twinning).

Results

A molecular screen to identify upstream regulators of cVg1 uncovers Pitx2

To search for putative upstream regulators of cVg1, we took advantage of two of its properties: that it is expressed in the PMZ at early stages of development and that when a blastoderm is cut in half at right angles to the axis of the future primitive streak, cVg1 expression is initiated stochastically on either the left or the right corner (adjacent to the cut edge) of the isolated anterior half (Bertocchini et al., 2004). We therefore performed two screens. First, we dissected the PMZ and an equivalent anterior explant (anterior marginal zone, AMZ) from 40 embryos (in triplicate) and analysed their transcriptomes using Affymetrix microarrays (Figure 1A–B, Figure 1—figure supplement 1). At this stage of development, it is not possible to predict the polarity of the embryo with complete certainty. To prevent contamination of the samples, we designed a verification strategy by which the predicted posterior and anterior explants were collected, the rest of the embryo immediately fixed and then processed for in situ hybridisation for cVg1, developing the colour reaction for long enough to detect residual cVg1 expression around the posterior explant site. From each set of 40 embryos, approximately 36 had been dissected correctly; the explants from the remainder (3 × 4) were discarded (Figure 1—figure supplement 1). Each set of verified PMZs and AMZs (3 × 36 of each) was then pooled and run on Affymetrix 30K chicken microarrays.

Figure 1 with 3 supplements see all
Download asset Open asset

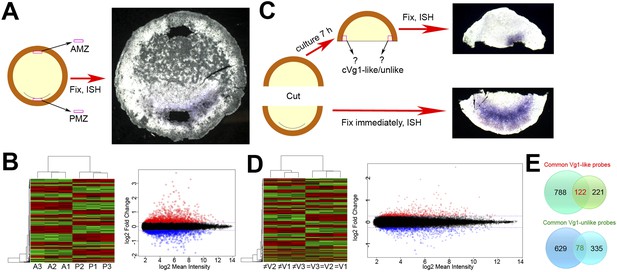

Microarray screens for upstream regulators of cVg1.

(A) Diagram of the first screen: the posterior marginal zone (PMZ) and anterior marginal zone (AMZ) were dissected from embryos at stage XI–XII; the remaining embryo was then fixed and stained for cVg1 by in situ hybridisation (ISH) to confirm that the explants had been obtained from the correct regions. This was done from 40 embryos for each of three biological replicates, which were then run on microarrays. The diagram is accompanied by an example of an embryo after ISH. All 120 embryos are shown in Figure 1—figure supplement 1. (B) Hierarchical clustering of differentially expressed genes for this experiment, and a plot of where cVg1-like probes (enriched in PMZ) are displayed in red and cVg1-unlike (‘downregulated’) probes shown in green across triplicate samples (A1–A3 for AMZ, P1–P3 for PMZ). The scatter plot relates normalised log2 mean signal intensities and log2 fold changes of probes from both samples (AMZ and PMZ). Probes identified as upregulated in the PMZ with a log2 fold change cut-off of 0.263 (linear fold change 1.2) are displayed in red and those identified as downregulated in the PMZ with the same cut-off are displayed in blue. (C) Diagram of the second screen. An embryo at stage XI–XII was cut in half at a right angle to the future midline; the posterior half was fixed for ISH with cVg1 to confirm the orientation (an example is shown), and the isolated anterior half cultured for 7 hr. At this point, a small explant was dissected from the marginal zone adjacent to the left and right side of the cut, and the remaining anterior half-embryo fixed for ISH with cVg1 (an example is shown). This allowed identification of the ‘cVg1-like’ and ‘cVg1-unlike’ explants, which were then pooled appropriately. This was done for 70 embryos for each of three biological replicates; all 210 posterior and anterior fragments are shown in Figure 1—figure supplement 2 after ISH for cVg1. (D) Hierarchical clustering of the probes expressed differentially in this assay, and corresponding scatter plot; details similar to (B) ≠V1, ≠V2, and ≠V3 correspond to each of the triplicate samples that do not express cVg1 and = V1, =V2, and = V3 correspond to explants that express cVg1. (E) Venn diagrams showing the intersection of upregulated and downregulated probes common to both the PMZ and isolated anterior cut halves. A total of 122 upregulated probes and 78 downregulated probes were found to be common in both experiments using both p value and fold change as the criteria. The complete dataset has been submitted to ArrayExpress where it has been assigned the Accession number E-MTAB-3116.

https://doi.org/10.7554/eLife.03743.003

Next, we used a similar strategy for isolated anterior halves of embryos. It was previously reported that cVg1 starts to be expressed in either the left or right corner of the cut anterior half around 6 hr after bisection (Bertocchini et al., 2004). We chose to collect the left and right corners of the marginal zone adjacent to the cut edge 7 hr following bisection to ensure that surrounding cVg1 expression could be detected after excision of the fragment. To confirm that all embryos had been cut at exactly right angles to the future axis, the posterior half of each embryo was fixed immediately after cutting and subjected to in situ hybridisation for cVg1. The anterior half was cultured for 7 hr, the left and right corners of the margin were dissected, and the remainder was fixed and processed for cVg1 expression (with extended reaction time to detect weak expression). We estimated that 70 explants would be needed for microarray analysis of each sample; this was done in triplicate (Figure 1C–D; Figure 1—figure supplement 2). Samples were designated ‘cVg1-like’ or ‘cVg1-unlike’ based on this and pooled accordingly. This strategy randomised any left–right asymmetric genes unrelated to axial polarity and regulation, and enriched those for the cells in which cVg1 was just starting to be expressed de novo in one sample, and their contralateral equivalents (not expressing cVg1) in the other. RNA from the pooled explants (approximately 3 × 63 of each type) was analysed using Affymetrix chicken microarrays.

The intersection between the two datasets from the above screens was used to identify genes co-regulated with cVg1, as well as those that are enriched in equivalent regions not expressing cVg1, both in normal embryos and during regulation (Figure 1B,D,E and Figure 1—figure supplement 3). Using a threshold of just 1.2-fold change and p < 0.05, this strategy identified 122 sequences (corresponding to 85 genes) with putative ‘cVg1-like’ expression (a cVg1-synexpression group) and 78 sequences (52 genes) expressed more highly in the ‘Vg1-unlike’ explants (cVg1 negative) . A list of the top common genes ranked by fold change is shown in Table 1. Comparison of the top ‘Vg1-like’ candidates from whole embryos (PMZ vs AMZ) with their counterparts from half-embryos shows highly significant correlation (Spearman's rank Rho = 0.73; p = 0.00036). Confirming that the screen was performed appropriately, cVg1 (incorrectly annotated as GDF3 instead of GDF1 in the current version of the chicken genome, Galgal4) itself appears among the top genes: it is upregulated 4.3 fold, with a p value of 0.00006 (rank 11) in whole embryos, and 1.71, p = 0.0062 in the isolated anterior half (rank 21). Among all genes, Pitx2 immediately stands out as the best candidate, being very strongly co-regulated with cVg1 and the top transcription factor on the list. In the PMZ of whole embryos Pitx2 is upregulated almost 10-fold compared to the AMZ explants (three different probes, ranking two, three and eight on the list; p = 0.0001, 0.00019 and 0.003 respectively), whereas in the cut halves it is upregulated by about 2.4 fold (three probes ranking four, six and eight on the list; p between 0.002–0.008).

Table 1

Genes identified from the screens, sorted according to their ranking in PMZ>AMZ in whole embryos

https://doi.org/10.7554/eLife.03743.007
Posterior vs anteriorAnterior half, Vg1-like
Gene symbolProbe IDFold changep ValueRankFold changep ValueRank
ADMPGga.354.1.S1_at13.0950.008013.7710.06862
PITX2Gga.3398.2.S1_a_at9.5860.000122.1620.00698
PITX2Gga.3398.1.S1_a_at8.5280.000132.4290.00874
THPOGgaAffx.21801.1.S1_at7.3980.000942.2720.02677
ST6-GAL2Gga.14379.1.S1_at6.8960.074452.5060.00033
TGga.3772.1.S1_a_at6.3880.086765.5440.02511
PKDCCGga.12157.1.S1_at5.6180.000671.5720.204833
PITX2Gga.3398.1.S1_at5.2630.003082.3200.00266
MIXL1Gga.426.1.S1_s_at5.1970.016092.3780.01855
n/aGga.2705.1.S1_at5.0190.00002101.4150.023763
GDF3Gga.4324.2.S1_a_at4.3090.00006111.7100.006221
PMEPA1Gga.6268.1.S1_at4.1410.0805122.0320.010312
PMEPA1GgaAffx.12721.1.S1_at3.7770.0007131.7450.000319
TBX6Gga.466.1.S1_at3.6940.0004142.0300.021013
FGF8Gga.661.1.S1_at3.2770.0052151.6900.085922
OvoinhibitorGga.6976.1.S1_at3.2130.0015161.4670.063350
ELK3Gga.4498.1.S1_s_at3.0940.0096171.5030.001043
LITAFGga.3383.1.S2_at3.0660.0031181.6700.011025
LITAFGga.3383.1.S1_at2.8950.0019191.8220.002717
n/aGga.13092.1.S1_at2.8230.0025201.4060.028466

  1. List of the top 20 common upregulated probes expressed in both the PMZ of whole embryo and isolated anterior cut halves. Entries in red are probes that pass a fold change cut-off of 1.2 as well as a p value cut-off of 0.05; those in blue pass the fold change cut off of 1.2 but not the p value cut-off of 0.05; and those in black pass the p value cut-off but not the fold change. Common genes are ranked according to the fold change of genes expressed in the PMZ (Spearman's rank Rho = 0.72, p = 0.00048).

To confirm the microarray results, we examined 53 of the differentially expressed genes by whole-mount in situ hybridisation at pre-primitive streak stages X-XIII (Eyal-Giladi and Kochav, 1976) (23 of these are shown in Figure 2). Apart from Pitx2 three other genes show a similar expression to cVg1 at stage XII: Elk3 (an Ets-domain protein also known as SRF accessory protein-2), PKDCC (protein kinase domain containing cytoplasmic protein) and LITAF (lipopolysaccharide-induced tumor necrosis factor-alpha). Others are expressed in cells adjacent to the PMZ (and are therefore likely to represent early axial cells), such as ADMP, Brachyury (T), Mixl1, Tbx6, FGF8, and CHRD, or are expressed much later (stage XIV), such as DENND5B. A final group is virtually undetectable, such as Thrombopoietin, Ovoinhibitor and PMEPA. All of these rank lower than Pitx2 (see above and Table 1, Table2, Table3, Table 4): Elk3 ranks 17th in whole embryos and 43rd in cut halves, PKDCC ranks 7th in whole embryos and 33rd in the anterior half, and LITAF ranks 18–19th in whole embryos and 17th and 25th in anterior halves. Pitx2 is therefore the strongest candidate as a putative regulator of cVg1. The ‘cVg1-unlike’ genes (Figure 2P–W) give less obvious information. Comparison of the top genes identified from differential expression in whole embryos (stronger in AMZ than in PMZ) with their counterparts in the corners of anterior halves reveals weak correlation (Spearman's rank Rho between −0.02 and 0.17; p = 0.44–0.93). These genes include those encoding extracellular matrix proteins as well as glucose-, glutamate-, glycine-, GABA- and LDL transporters and receptors, the transcriptional repressor ID3, and BASP1, which has been reported to act as a transcriptional co-suppressor for WT1 (Carpenter et al., 2004), among others. In situ hybridisation for these genes does not show enrichment in the AMZ or any other obvious pattern consistent with a putative role as an inhibitor of cVg1 expression in the PMZ at the appropriate stages of development (Figure 2P–W). Pitx2 therefore remains as the most likely candidate.

Figure 2
Download asset Open asset

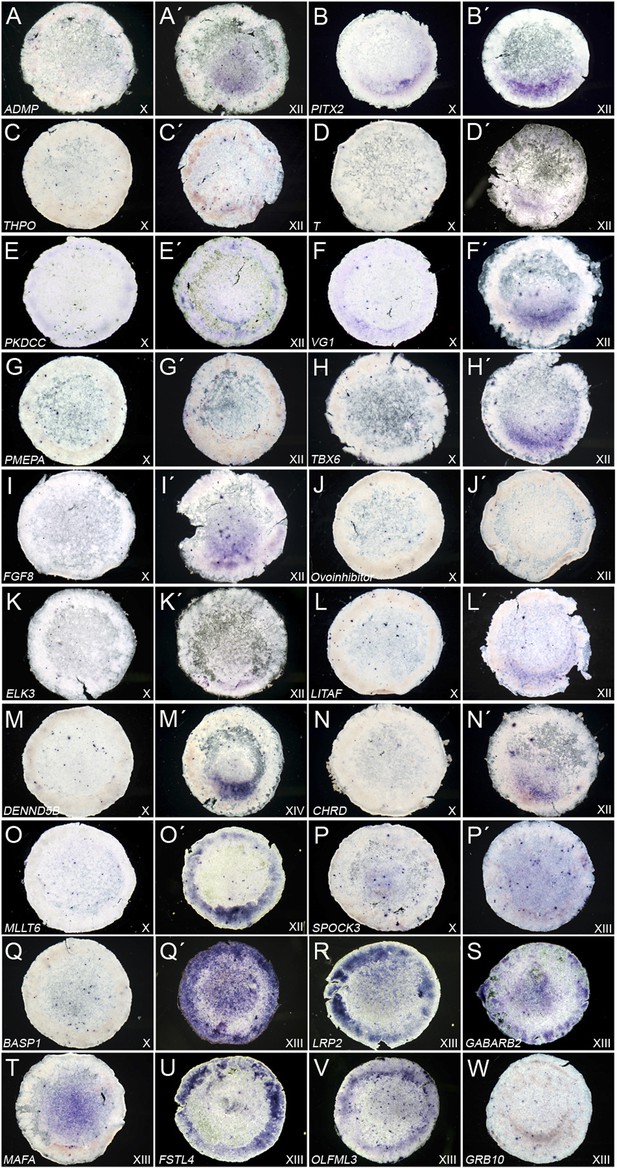

Expression of ‘cVg1-like’ and ‘cVg1-unlike’ genes, verified by in situ hybridisation.

Embryos at stage X–XIII (the earliest stage at which differential expression was detected is shown) were processed using in situ hybridisation for genes co-regulated with cVg1 (‘cVg1-like’, Table 1A–B (A–O) and genes expressed at lower level in the cVg1-positive region than in its counterpart (‘cVg1-unlike’, Table 1C–D) (P–W), from the two microarray screens (see Table 1C–D). The expression of 23 genes (15 ‘cVg1-like’ and 8 ‘cVg1-unlike’) is shown here.

https://doi.org/10.7554/eLife.03743.008
Table 2

Genes identified from the screens, sorted according to their ranking in cVg1-like > -unlike in isolated anterior halves

https://doi.org/10.7554/eLife.03743.009
Anterior half, Vg1-likePosterior vs anterior
Gene symbolProbe IDFold changep ValueRankFold changep ValueRank
TGga.3772.1.S1_a_at5.5440.025116.3880.08676
ADMPGga.354.1.S1_at3.7710.0686213.0950.00801
ST6GAL2Gga.14379.1.S1_at2.5060.000336.8960.07445
PITX2Gga.3398.1.S1_a_at2.4290.008748.5280.00013
MIXL1Gga.426.1.S1_s_at2.3780.018555.1970.01609
PITX2Gga.3398.1.S1_at2.3200.002665.2630.00308
THPOGgaAffx.21801.1.S1_at2.2720.026777.3980.00094
PITX2Gga.3398.2.S1_a_at2.1620.006989.5860.00012
DENND5BGga.16679.1.S1_at2.1510.002692.3410.195227
WNT8AGga.886.1.S1_at2.0780.0042101.9310.025953
CHRDGga.490.1.S1_at2.0640.0739112.2670.095930
PMEPA1Gga.6268.1.S1_at2.0320.0103124.1410.080512
TBX6Gga.466.1.S1_at2.0300.0218133.6940.000414
HOXB1Gga.18352.1.S1_at2.0150.0298141.7490.002973
AREGBGgaAffx.6867.1.S1_at1.8910.0526151.6400.119585
SOHO-1Gga.770.1.S1_at1.8840.0256161.4170.1282106
LITAFGga.3383.1.S1_at1.8220.0027172.8950.001919
MLLT6Gga.11449.1.S1_at1.7620.0194182.2180.009132
PMEPA1GgaAffx.12721.1.S1_at1.7450.0003193.7770.000713
FAM19A1Gga.11944.2.S1_a_at1.7370.0948202.1020.095641

  1. List of the top 20 common upregulated probes expressed in both the PMZ of whole embryo and isolated anterior cut halves. Entries in red are probes that pass a fold change cut-off of 1.2 as well as a p value cut-off of 0.05; those in blue pass the fold change cut off of 1.2 but not the p value cut-off of 0.05; and those in black pass the p value cut-off but not the fold change. Common genes are ranked according to the fold change of genes in the anterior cut halves (Spearman's rank Rho = 0.73, p = 0.00036).

Table 3

Genes identified from the screens, sorted according to their ranking in AMZ > PMZ in whole embryos

https://doi.org/10.7554/eLife.03743.010
Posterior vs anteriorAnterior half, Vg1-like
Gene symbolProbe IDFold changep ValueRankFold changep ValueRank
LPLGga.4248.1.S1_at−3.5780.03501−1.2170.019169
UPK1BGga.17532.1.S1_at−2.5730.06622−1.5190.004615
UPK1BGga.17532.1.S1_s_at−2.5500.03833−2.1330.00032
SPOCK3GgaAffx.6009.1.S1_at−2.5310.02844−1.4610.017424
SLC1A3GgaAffx.25896.1.S1_at−2.3330.21685−1.3380.027247
SLC5A1Gga.8594.1.S1_at−2.2840.28146−2.2530.08571
BASP1Gga.3179.1.S1_at−2.2760.09167−1.1700.007975
ID3Gga.4048.1.S1_at−2.2430.00048−1.4220.046334
ATP13A4GgaAffx.12270.1.S1_at−2.1720.04869−1.2020.014871
DIO3Gga.552.1.S1_at−2.1490.005110−1.6560.037612
UPK1BGga.12930.1.S1_at−2.1340.064011−2.1230.00143
COL4A2Gga.3104.1.S1_at−2.1150.102412−1.2860.005958
SLC1A3GgaAffx.25896.1.S1_s_at−2.0890.319213−1.2410.036360
LRP2GgaAffx.23355.1.S1_at−2.0520.063714−1.3060.014455
EFNB2Gga.13001.1.S1_s_at−2.0492.652715−1.3600.022042
---Gga.15960.1.S1_at−2.0050.000716−1.4370.020329
---Gga.18649.1.A1_at−1.9910.009217−1.3580.006843
GABRA1Gga.17167.1.S1_at−1.9550.106018−1.4870.097820
GLRA3GgaAffx.6806.1.S1_at−1.9510.000119−1.6720.020910
DIO2Gga.1819.1.S1_at−1.9080.121720−1.4570.002525

  1. List of the top 20 downregulated probes common to both the PMZ of whole embryo and isolated anterior cut halves. Entries in red are probes that pass a fold change cut-off of −1.2 as well as a p value cut-off of 0.05; those in blue pass the fold change cut off of −1.2 but not the p value cut-off of 0.05; and those in black pass the p value cut-off but not the fold change cut-off. Common genes are ranked according to the fold change of genes in the PMZ (Spearman's rank Rho = −0.02, p = 0.93).

Table 4

Genes identified from the screens, sorted according to their ranking in Vg1-unlike > Vg1-like in isolated anterior halves

https://doi.org/10.7554/eLife.03743.011
Anterior half, Vg1-likePosterior vs anterior
Gene symbolProbe IDFold changep ValueRankFold changep ValueRank
SLC5A1Gga.8594.1.S1_at−2.2530.08571−2.2840.28146
UPK1BGga.17532.1.S1_s_at−2.1330.00032−2.5540.03833
UPK1BGga.12930.1.S1_at−2.1230.00143−2.1340.064211
EDNRBGga.3306.1.S1_s_at−1.9350.14914−1.7730.234832
FSTL4Gga.13574.1.S1_at−1.8780.01525−1.4960.001451
GABARB2Gga.17131.1.S1_at−1.8140.04916−1.5860.064745
KCNAB1Gga.4971.1.S1_at−1.7630.01857−1.3020.023872
MYLKGga.6776.1.S1_at−1.7580.01268−1.8220.177730
CBLN4GgaAffx.4848.1.S1_s_at−1.7020.04249−1.6410.056440
GLRA3GgaAffx.6806.1.S1_at−1.6720.020910−1.9510.000119
SLC14A2Gga.7955.1.S1_at−1.6630.009411−1.8970.056122
DIO3Gga.552.1.S1_at−1.6560.037612−2.1490.005110
KCNMA1Gga.19342.1.S1_at−1.5990.206813−1.3840.009763
GRB10GgaAffx.8324.2.S1_at−1.5340.056914−1.2130.023676
UPK1BGga.17532.1.S1_at−1.5190.004615−2.5730.06622
CALD1GgaAffx.21386.1.S1_s_at−1.5180.005416−1.7270.110633
MAFAGga.974.1.S1_at−1.5180.259717−1.8550.014429
OLFML3Gga.1150.2.S1_a_at−1.5090.003518−1.3820.014962
---Gga.18986.1.S1_at−1.4870.010919−1.5220.031248
GABRA1Gga.17167.1.S1_at−1.4870.097820−1.9550.106718

  1. List of the top 20 downregulated probes common to both the PMZ of whole embryo and isolated anterior cut halves. Entries in red are probes that pass a fold change cut-off of −1.2 as well as a p value cut-off of 0.05; those in blue pass the fold change cut off of −1.2 but not the p value cut-off of 0.05; and those in black pass the p value cut-off but not the fold change cut-off. Common genes are ranked according to the fold change of genes in the anterior cut halves (Spearman's rank Rho = 0.17, p = 0.44).

To determine the temporal relationship between Pitx2 and cVg1 in whole embryos and during embryonic regulation, we compared their expression in time-course. In normal embryos cVg1 is first detected at around stage XI (Bertocchini and Stern, 2012). We detected Pitx2 in the PMZ by the time of laying, stage X (Figure 3A), where it remains until early streak stages (Figure 3B–F). In isolated anterior halves, we increased the sensitivity of the assay by developing the NBT/BCIP colour reaction for several days to ensure that even weak expression could be detected. With this strategy we detected cVg1 expression 4–5 hr after cutting (Figure 3L–P), 1–2 hr earlier than in previous reports (Bertocchini et al., 2004), while Pitx2 appeared even earlier, just 3 hr after embryo bisection (Figure 3G–K). Taken together, these results implicate Pitx2 as a good candidate for an upstream regulator of cVg1 expression: it is a transcription factor, it is expressed in the same domain as cVg1 in whole embryos and in bisected embryo marginal zone, and it is expressed before cVg1.

Figure 3
Download asset Open asset

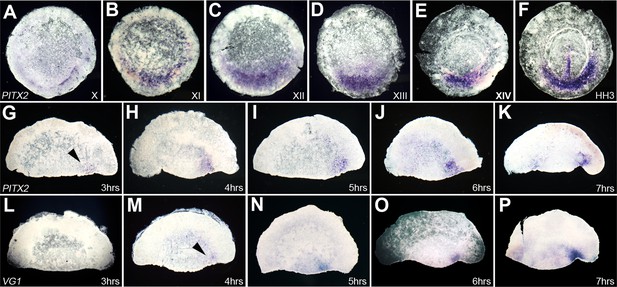

Time-course of expression of Pitx2 in whole embryos and in isolated anterior halves, and comparison with cVg1.

(A–F) Time-course of Pitx2 expression in whole embryos. Expression is restricted to the posterior marginal zone (PMZ) already at the time of laying (stage X); this intensifies over the subsequent stages. At primitive streak stages (HH2–3), expression is seen in the primitive streak itself as well as in the PMZ (F). (G–P) Comparison of the time-course of Pitx2 (G–K) and cVg1 (L–P) upregulation in isolated anterior halves. cVg1 is first detectable 4–5 hr after cutting (M), whereas Pitx2 can be detected an hour earlier (G). Both Pitx2 and cVg1 expression appears randomly on the left or the right corner of the marginal zone adjacent to the cut edge. The series chosen for this figure shows upregulation on the right side of all embryo fragments.

https://doi.org/10.7554/eLife.03743.012

Pitx2 is required for axis development and embryonic regulation

To determine whether Pitx2 is important for embryonic regulation and for controlling cVg1 expression, we used targeted electroporation of morpholino oligonucleotides (MOs). When a translation-blocking Pitx2-MO was targeted to the right edge of an isolated anterior half embryo, the frequency of axis formation shifted to the opposite side (Figure 4A–D; Figure 4—source data 1A,B): embryos electroporated with control-MO at the right edge had random cVg1 expression on the right, left or neither edges in equal proportion. In contrast, Pitx2-MO on the right generated a majority (9/10, p = 0.05) of embryos with no expression and the remaining embryo with expression on the opposite side 7 hr post-electroporation (Figure 4B, Figure 4—source data1B). After 16 hr (Figure 4—source data1B) embryos electroporated with control-MO at the right edge formed a primitive streak expressing Brachyury randomly; with Pitx2-MO on the right (Figures 4B), 8/10 embryos formed a streak on the left side and 2 had two streaks (one from each corner), but no embryo formed a single streak arising from the MO-transfected side (hypergeometric exact test with 2 × 3 contingency table, p = 0.026). Equivalent results were observed with MO electroporations on the left (Figure 4C–D; Figure 4—source data1A,B): control-MO embryos transfected on the left and examined for cVg1 expression had random expression on the right, whereas for Pitx2-MO cVg1 expression was biased towards the left. After 16 hr, control embryos transfected on the left formed a Bra-expressing streak on the right, again randomly, while Pitx2-MO embryos formed a streak on the right in 2/8 cases, none on the left, 1/8 on both sides and 5/8 with no streak (p = 0.003) (Figure 4D, Figure 4—source data1B).

Figure 4 with 1 supplement see all
Download asset Open asset

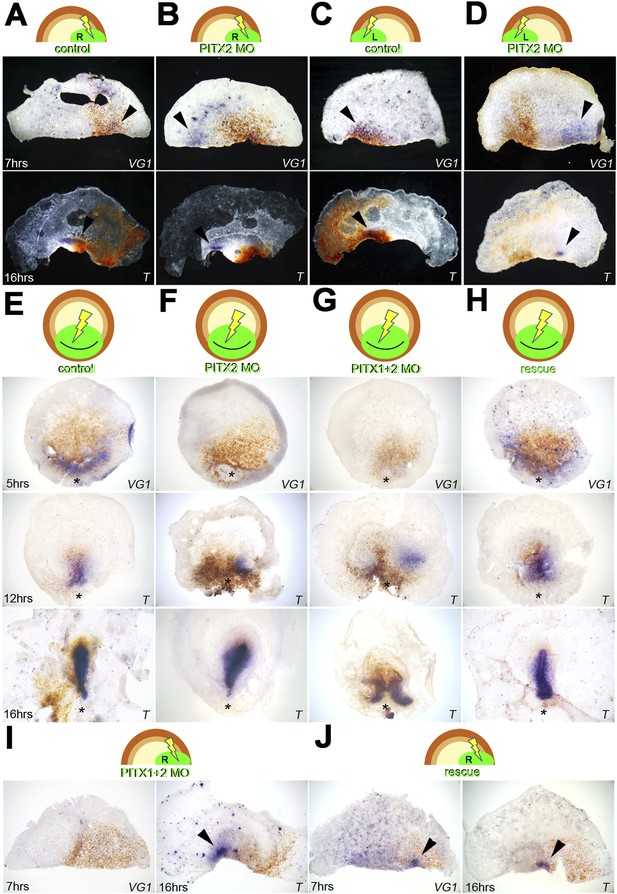

Pitx2 is required for cVg1 expression and for axis formation.

(A–D) A morpholino (MO) targeting Pitx2 applied to one side of the marginal zone of an isolated anterior half shifts axis formation to the opposite marginal zone. (A–B) The experiment done on the right side (A = control-MO, B=Pitx2-MO), (C–D) the equivalent done on the left marginal zone. The top row shows diagrams of the experiment, the middle row shows embryo fragments 7 hr after electroporation/cutting, hybridised for cVg1 (purple) and stained with anti-fluorescein (in the MO, brown), and the lower row shows fragments processed for Brachyury (T) in purple and fluorescein in brown. (E–F) In whole embryos, Pitx2-MO has a transient effect. At 5 hr, cVg1 expression is lost, at 12 hr a primitive streak (T-expressing) is sometimes seen especially at the edge of the electroporated domain, but by 16 hr embryos appear essentially normal. (E) Shows embryos electroporated with control-MO, F are embryos transfected with Pitx2-MO. (G–H). Embryos electroporated with MOs targeting both Pitx2 and Pitx1 do not recover: at 5 hr, no cVg1 is seen; at 12–16 hr there is a high proportion of embryos with either no streak or two T-expressing streaks arising from outside the MO-electroporated domain (as shown in G). This effect can be rescued by co-electroporation of Pitx2 with the mixture of Pitx1-MO/Pitx2-MO (H). (I–J) Likewise, in isolated anterior half-embryos, the effects of electroporation of the Pitx1-MO/Pitx2-MO combination (I) can be rescued by co-electroporation with Pitx2 alone (J): cVg1 expression is now seen on the electroporated side. Arrowheads point to sites of expression.

https://doi.org/10.7554/eLife.03743.013
Figure 4—source data 1

Numbers of embryos displaying different types of results in the Pitx loss-of-function experiments illustrated in the main Figure.

Each type of experiment is summarised in a separate sub-table, where each row refers to a particular column (A–J) and row (first, second, and third) of panels in Figure 4. The table columns show each type of result obtained: ‘Vg1 R’ refers to embryos showing cVg1 expression on the right side, ‘streak L’ when there is a Brachyury-expressing primitive streak on the left, ‘streak L/R’ when there are two streaks (one arising from each side), etc.

https://doi.org/10.7554/eLife.03743.014

In intact embryos electroporated at stage X, Pitx2-MO affected cVg1 expression and streak formation (Figure 4E–F; Figure 4—source data 1C–D). Control-MO targeted to the PMZ did not alter cVg1 expression after 5 hr or streak formation after 12–16 hr (Figure 4E; Figure 4—source data1C,D). With Pitx2-MO, cVg1 expression was affected after 5 hr (0/6 embryos expressing; p < 0.001). Embryos started to recover, however, at later time points: at 12 hr, 3/12 had a normal streak, 3/12 had a displaced streak, 3/12 had two streaks, and the remaining 3/12 had no streaks (p = 0.1—not significantly different). By 16 hr, the majority of the embryos were normal (7/8; the remaining embryo had a displaced streak) (Figure 4F; Figure 4—source data 1D). These results suggest that while knockdown of Pitx2 affects cVg1 expression, embryos tend to recover by 12–16 hr. We reasoned that functional redundancy with another Pitx gene, or compensatory upregulation of such a gene in response to Pitx2 knockdown, could account for this recovery. To test this, we examined Pitx1 expression in normal embryos at stages X–XII and in embryos electroporated with Pitx2-MO. Pitx1 is barely detectable in the PMZ at stage X–XII (Figure 4—source data 1). After Pitx2-MO electroporation, expression increased considerably (6/6 embryos; Figure 4—source data 1). We therefore repeated the targeting experiments in whole embryos using a mixture of two MOs targeting the translation start site of Pitx2 and an internal splice junction of Pitx1, respectively. Pitx1+2-MOs caused loss of cVg1 at 5 hr in 6/6 cases (p = 0.005). By 12 hr 1/9 embryos had a normal streak, 3/9 had a displaced streak, 3/9 had two streaks and 2/9 had none (p = 0.043). By 16 hr no recovery was observed: 4/4 embryos had double streaks, neither arising from the targeted site (p = 0.029; Figure 4G; Figure 4—source data 1E,F). This effect could be rescued by supplying Pitx2 alone: co-electroporation of Pitx1+2-MO together with a Pitx2 expression construct lacking the MO target sequence led to normal axis formation: in 5/6 cases cVg1 expression was restored after 5 hr incubation and by 16 hr 12/16 embryos displayed a normal streak (Figure 4H; Figure 4—source data 1G–H). Likewise in isolated anterior halves, the effects of Pitx1+2-MO (Figure 4I; Figure 4—source data 1I,J) could be rescued by Pitx2. After electroporation on the right, cVg1 expression was seen on the right in 4/10, on the left in 3/10, and in neither in 3/10 cases (Figure 4J; Figure 4—source data 1K). After 16 hr a primitive streak developed on the right in 3/8 cases, on the left in 2/8 and no streak in 3/8 cases (Figure 4—source data l).

In conclusion, Pitx2 is required for expression of cVg1 in the PMZ as well as for formation of the normal primitive streak. In isolated anterior halves, Pitx2 is required both for cVg1 expression and for the later formation of a primitive streak. Knockdown of Pitx2 is followed by upregulation of the related transcription factor Pitx1, which can partly compensate for the loss of Pitx2.

A bioinformatics approach to uncover candidate regulatory regions for cVg1

The cVg1 gene (erroneously annotated as GDF3 in the chick genome; its orthologue is human GDF1, as confirmed by synteny; see Figure 5) is located on chicken chromosome 28. As a parallel approach to the above to identify putative upstream regulators, we applied a recently described pipeline (Khan et al., 2013), starting with prediction of conserved, constitutive CTCF-binding sites (CTCF is an 11 zinc-finger transcriptional repressor protein that co-localizes with cohesin and acts to delimit chromatin loops) (Holwerda and de Laat, 2013; Merkenschlager and Odom, 2013) around this locus which could act as insulators. This was followed by algorithms to identify conserved motifs in non-coding regions that are order independent, modified from the Enhancer Discovery using only Genomic Information (EDGI) tool described for Drosophila (Sosinsky et al., 2007).

Figure 5 with 1 supplement see all
Download asset Open asset

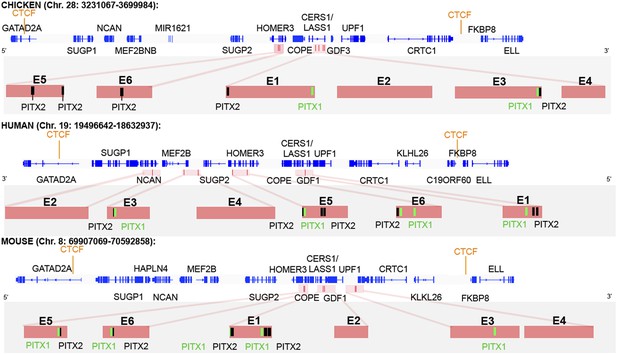

CTCF insulator analysis, enhancer identification and synteny of the cVg1 locus.

The chicken cVg1 locus with computationally predicted conserved CTCF-binding sites in chick, human, and mouse is shown (genes represented in blue). This putative insulator region lies ∼200 kB upstream and ∼100 kB downstream of cVg1/GDF3 and harbours other genes such as CERS1/Lass1, COPE, DDX49 and HOMER3 upstream and UPF1 downstream of cVg1. Six putative enhancer regions (E1–E6), predicted using DREiVe, are displayed in pink. In chick, E1 (galGal4 genomic coordinates: chr28:3502783-3504834) and E2 (chr28:3504993-3508041) lie in the first intron of the bicistronic CERS1/Lass1 gene. E3 (chr28:3510154-3511032) and E4 (chr28:3,511,413-3,511,725) lie in intron 4 of CERS1/Lass1 and E5 (chr28:3471200-3471520) and E6 (chr28:3,471,946-3,472,230) respectively lie in introns 1 and 2 of HOMER3. E1 and E3 each contain conserved Pitx1 (black) and Pitx2 (green) binding sites. E2 and E4 do not contain any Pitx sites and E5 and E6 contain Pitx2-binding sites but no Pitx1-binding sites. The orthologous regions of human (chromosome 19) and mouse (chromosome 8) genomes are also shown. Note that the corresponding human region has been inverted, and that although all six elements are found within it, these appear in different order and are associated with different introns and intergenic regions than in chick and mouse.

https://doi.org/10.7554/eLife.03743.016

The insulator-predicting software identifies strongly conserved CTCF-binding sites about 200 kB upstream and about 100 kB downstream of cVg1/GDF3 (Figure 5). The cVg1/GDF3 gene itself is bicistronic, the upstream exons encoding Lass1/CERS1 and the last two exons containing the cVg1 sequence (Wang et al., 2007). Several other genes lie in this region, including COPE, DDX49 and HOMER3 upstream and UPF1 downstream. If the predicted CTCF-binding sites are indeed insulators, we would expect these genes to be co-regulated with cVg1. To test this, we examined their expression. Strikingly, all genes examined (CERS1/LASS1, COPE, HOMER3, and UPF1) are expressed in a similar domain of the PMZ as cVg1 (Figure 5—figure supplement 1).

We then applied the DREiVe tool (Discovery of Regulatory Elements in Vertebrates, the vertebrate version of EDGI) (Sosinsky et al., 2007; Khan et al., 2013), to identify de novo conserved sequence motifs around this region. This identifies six domains (designated E1–E6), ranging in size from 600–3000 bases, located within the introns of CERS1/LASS1 and of the neighbouring Homer3 in chick (Figure 5). Analysis of these regions using Position Frequency Matrices from JASPAR and TRANSFAC databases together with the algorithms Matrix-Scan (from RSAT) and Clover predicts four of these regions (E1, E3, E5, and E6) to contain one or more putative binding sites for Pitx2 and/or the related factor Pitx1 (Figure 5). The power of DREiVe as a tool for discovering regulatory elements is highlighted by the observation that it is able to identify homologous non-coding regions in the human genome, where the syntenic region (on chromosome 19) is not only inverted but also the orthologous elements are found in a different order, within introns of different neighbouring genes (Figure 5). In mouse (chromosome 8) the arrangement is similar to chick (Figure 5).

Testing candidate regulatory regions

To determine whether any of the predicted regions bind Pitx2 in the PMZ of normal embryos, we conducted chromatin-immunoprecipitation experiments (ChIP), assessing precipitation by real-time quantitative polymerase chain reaction (qPCR) analysis using primers targeting the predicted regions. We compared chromatin from the AMZ and PMZ (Figure 6). A monoclonal antibody against Pitx2 precipitated chromatin from the PMZ more effectively than from the AMZ for all predicted enhancers that contained consensus Pitx1/2-binding sites (especially E3, E5, and E6) but not those that do not (E2 and E4). These findings suggest that Pitx2 is differentially bound to putative enhancer sites E3, E5, and E6 in the PMZ of normal embryos. We also tested each of the six putative enhancer regions for acetylation of Lys-27 of Histone-3 (H3K27ac), which is associated with active enhancers (Creyghton et al., 2010). Enhancers E5 and E6 showed the greatest differential activity in the PMZ relative to the AMZ. Together, these results suggest that E3, E5, and E6 are the most likely enhancers driving expression in the PMZ.

Figure 6
Download asset Open asset

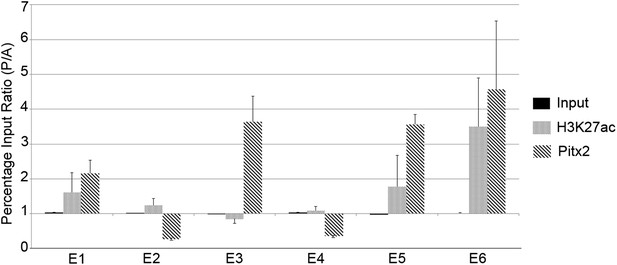

Chromatin immunoprecipitation to test for active histone marks and Pitx2 binding to predicted enhancers.

Relative immunoprecipitation around each of the putative six enhancers by an antibody to Pitx2 (diagonal hatching) or an antibody to acetyl-lysine-27 of Histone-H3 (grey shading), expressed as a ratio of the amount precipitated from posterior and anterior marginal zone (PMZ and AMZ) chromatin. Primers were used to target each of the putative enhancers and precipitated chromatin measured by the quantitative polymerase chain reaction (qPCR). Each data bar represents the average of at least three true biological replicates and the error bars indicate standard error of the mean. Amplification from input DNA from each of the same samples is also shown (solid black shading). Note that enhancers that contain Pitx2-binding sites (E1, E3, E5, and E6) are precipitated much more strongly from the PMZ than the AMZ.

https://doi.org/10.7554/eLife.03743.018

To test whether these putative enhancers do indeed direct transcription in the correct endogenous domain, we generated reporter constructs based on a vector designed by the group of Kondoh (Uchikawa et al., 2003). Each construct contained one candidate enhancer (E1–E6), a minimal promoter (TK), and a reporter fluorescent protein (EGFP or RFP) and was electroporated either in a very broad domain including the PMZ and lateral marginal zones of normal embryos, or encompassing the entire cut edge (including both corners) of bisected embryos and the anterior half subsequently cultured. A ubiquitous reporter (pCAβ with either EGFP or RFP) was co-electroporated with each construct to reveal the extent of the electroporated domain (Figures 7 and 8). Embryos were then photographed live to reveal the electroporated and expressing domains, then fixed and processed for in situ hybridisation for cVg1 to determine whether the side with reporter activity corresponds to the cVg1 expressing region. In whole embryos, E3 and E5 are most efficient in driving expression of the reporter in the PMZ (Figure 7). The same two enhancers also drive expression in the cVg1-expressing side in isolated anterior halves (Figure 8).

Figure 7 with 1 supplement see all
Download asset Open asset
Enhancers E3 and E5 drive expression in the posterior marginal zone of whole embryos.

Embryos were electroporated with a construct containing a candidate enhancer (E1–E6), a minimal promoter (TK) and a fluorescent reporter (GFP or RFP), together with a ubiquitous marker (pCAβ-EGFP or DS-RedExpress) to reveal the electroporated area. After 5–9 hr culture the embryos were observed by fluorescence (first 4 columns) and then fixed and processed to reveal cVg1 expression by in situ hybridisation (last column). The position of Koller's sickle is marked with a curved white line. Enhancers E3 and E5 faithfully recapitulate cVg1 expression in the posterior marginal zone (PMZ), whereas E1 drives expression inside the embryo (but not in the PMZ) and the remaining enhancers show little or no detectable activity. In all cases, the electroporated area appears red and the activity of the specific enhancer construct in green.

https://doi.org/10.7554/eLife.03743.019
Figure 8 with 1 supplement see all
Download asset Open asset

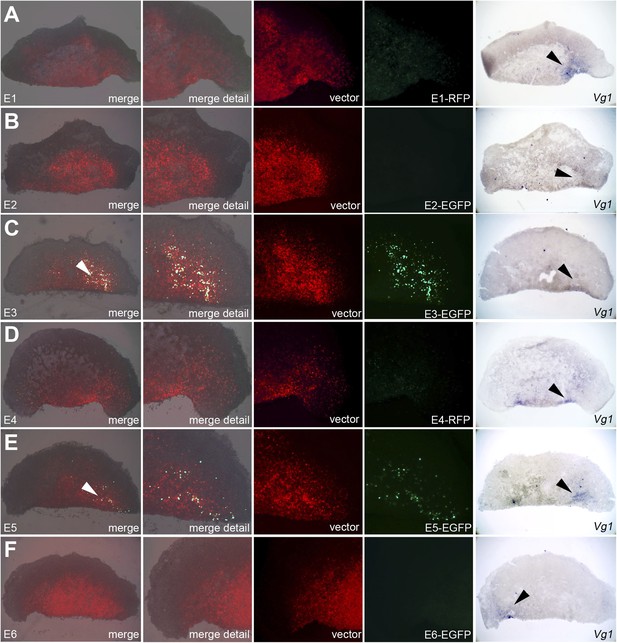

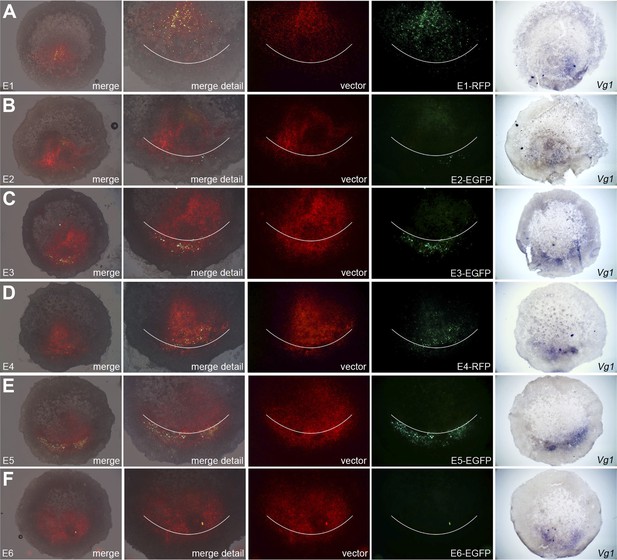

Enhancers E3 and E5 drive expression in the cVg1-expressing corner of the marginal zone at the cut edge of isolated anterior half-embryos.

Embryos were electroporated with the same vectors as described in Figure 7, then bisected. The anterior half was then cultured for 5–7 hr and viewed under fluorescence (first 4 columns), then fixed and processed for cVg1 expression (last column). Enhancers E3 and E5 drive expression of the reporter at the cVg1-expressing edge of isolated anterior half-embryos. Note that unlike what is found in whole embryos, Enhancer E1 does not appear to drive expression in the area pellucida of the isolated anterior half.

https://doi.org/10.7554/eLife.03743.021

To test whether the Pitx-binding sites are required within these enhancers to direct expression to the appropriate domain, we generated reporter constructs for enhancers E1, E3, E5, and E6 containing mutations in each Pitx1- or Pitx2-binding site as well as constructs where all Pitx-binding sites were mutated. In whole embryos, mutations in either of the Pitx-binding sites (Figure 7—figure supplement 1A–B) or in both binding sites (Figure 7—figure supplement 1C) of E1 still showed GFP expression without selectivity, in the middle of the embryo. For E3 and E5, however, mutations in either a single or both binding sites of each reporter completely abolished expression in the PMZ (Figure 7—figure supplement 1D–G). Un-mutated reporter E6, which did not show any activity (see above), was not altered by a mutation of its Pitx2-binding site (Figure 7—figure supplement 1H). Similar results were found in isolated anterior half-embryos: mutations of any of the Pitx-binding sites in E3 or E5 completely eliminated expression in the cVg1-expressing corner of the isolated half (Figure 8—figure supplement 1).

Taken together, these results suggest that cVg1 expression is regulated directly by Pitx2/Pitx1 binding to an enhancer (E5) within an intron of the HOMER3 gene, adjacent to cVg1/GDF3, and to an intronic enhancer (E3) within the Lass1/CERS1 locus. The ChIP experiments suggest that Pitx2 binding to an additional intronic enhancer in HOMER3 (E6) may also be functional in the PMZ, although this was not seen when a reporter construct containing this element was electroporated into the PMZ. The same enhancers (E3 and E5) are involved in controlling cVg1 expression in the normal PMZ as in the portion of the lateral marginal zone where cVg1 is upregulated a few hours after isolation of a portion of embryo. These results implicate the transcription factor Pitx2 as the earliest gene described to date that regulates the position of the embryonic axis as well as embryonic regulation/regeneration and twinning.

Discussion

The PMZ of the chick embryo is the equivalent of the Nieuwkoop centre of amphibians: it can induce a complete axis including the organiser from neighbouring cells, without making a cellular contribution to the axis (Azar and Eyal-Giladi, 1979; Khaner and Eyal-Giladi, 1989; Bachvarova et al., 1998). The Nodal/Activin-related TGFβ superfamily member cVg1 (homologous to mammalian GDF1) is expressed in the PMZ. When ectopically applied to another region of the marginal zone, cVg1 is sufficient to initiate formation of a complete embryonic axis from adjacent embryonic (area pellucida) cells (Seleiro et al., 1996; Shah et al., 1997). To act, cVg1 requires canonical Wnt, which seems to be provided mainly by cWnt8C, expressed all around the marginal zone (Skromne and Stern, 2001). A target of cVg1 and Wnt is Nodal, transcribed in area pellucida cells next to the cVg1+Wnt expression domain (Skromne and Stern, 2002). The anterior end of the embryo also has an early identity, defined by the expression of GATA binding protein 2 (GATA2) (Sheng and Stern, 1999; Bertocchini and Stern, 2012). However, unlike cVg1, GATA2 is not a sufficient determinant of polarity and at best only acts as a bias (Bertocchini and Stern, 2012).

While amphibian and teleost embryos lose their ability to generate complete, independent embryos if fragmented after the first few cell divisions, amniotes have huge regulative capacity. Dividing a chick blastoderm even just before primitive streak formation (when the embryo may have as many as 50,000 cells) into up to eight fragments can lead to formation of as many complete embryos (Lutz, 1949; Spratt and Haas, 1960). In an isolated anterior half, a visible primitive streak (and expression of Brachyury and Snail2) can be detected about 12 hr after cutting. This appears randomly from either the left or right area pellucida adjacent to the cut edge of the marginal zone (Spratt and Haas, 1960), preceded at least 6 hr earlier by expression of cVg1 in the right or left marginal zone (Bertocchini et al., 2004). Blocking cVg1 on one side of the marginal zone of an isolated anterior half will cause the axis to arise from the opposite side. A similar manipulation in the PMZ will cause a streak to arise from outside the MO-electroporated domain (Bertocchini et al., 2004; Bertocchini and Stern, 2012). Thus, cVg1 expression in the marginal zone is both necessary and sufficient to initiate formation of a primitive streak.

There was no information, however, about what positions cVg1 expression in the PMZ of normal embryos or in isolated fragments. This led us to undertake a screen for upstream regulators. We took two complementary approaches: a molecular screen, designed to identify genes co-expressed with cVg1 both in the normal PMZ and in the cVg1-expressing edge of the marginal zone in isolated anterior halves at the time when cVg1 first becomes detectable, and a bioinformatics-based approach, predicting and analysing putative enhancers of cVg1 situated on chromosome 28. A particular difficulty of the molecular screen was that it is impossible to know, in a single embryo, which of the two edges of the isolated anterior half will express cVg1. This required analysis of each individual fragment just after excising left and right edge explants, then pooling them appropriately according to whether they derived from the cVg1-expressing side or the opposite edge. This has the additional advantage of removing any intrinsic left–right differences that may exist in the embryo at this stage. Selecting genes that are co-expressed with cVg1 when this is first upregulated at one edge of an isolated fragment, and also co-expressed with cVg1 in the normal PMZ, turned out to be a powerful strategy to reduce the number of relevant genes, thereby avoiding the ‘cherry-picking’ approaches often associated with molecular screens. This combination of molecular screens and bioinformatic analysis converged towards a single strong candidate: the transcription factor Pitx2. The regulatory role of Pitx2 on cVg1 expression was then confirmed by loss-of-function experiments showing that Pitx2 is required for cVg1 activation and axis formation both in normal development and during embryonic regulation, and that it binds directly to four non-coding regions around the cVg1 locus (E1, E3, E5, and E6), two of which (E3 and E5) are sufficient to direct expression specifically to the PMZ and cVg1-expressing edge of an isolated anterior fragment. Moreover, mutation of any of the Pitx-binding sites in enhancers E3 and E5 abolishes the activity of these enhancers in the PMZ. These findings strongly implicate Pitx2 as a direct and essential regulator of cVg1 expression.

Pitx transcription factors are characterised by possessing a Lysine residue at position 50 of the homeodomain, an unusual property shared with the vertebrate genes Goosecoid and OTX-1/2 and with the founder gene of the family, Drosophila Bicoid. In Drosophila, Bicoid is a critical specifier of ‘anterior’ identity and essential for setting up head–tail polarity of the early embryo. Although it is tempting to speculate that a Bicoid/Pitx system may have an ancient function in the specification of head–tail polarity, the Bicoid gene does not appear to have direct orthologues in species other than schizophoran flies (closely related to Drosophila), so this may be either a coincidence or convergent evolution.

The four key components that form part of this gene regulatory network initiating axis formation, Pitx2, cVg1/GDF1, Tbx6, and Nodal, are also involved a little later in development (from the late primitive streak stage) in specifying left–right asymmetry in different vertebrate classes (Levin et al., 1995; Hyatt et al., 1996; Hyatt and Yost, 1998; Logan et al., 1998; Meno et al., 1998; Piedra et al., 1998; Ryan et al., 1998; St Amand et al., 1998; Yoshioka et al., 1998; Zhu et al., 1999; Rankin et al., 2000; Wall et al., 2000; Levin, 2005; Raya and Izpisua Belmonte, 2006; Tanaka et al., 2007; Hadjantonakis et al., 2008). Indeed, these are the main conserved components of the left–right pathway among different vertebrates. These observations raise the possibility that the left–right pathway may have evolved by co-opting a more ancient mechanism for initiating formation of the gastrular axis. This is supported by the finding that a Nodal/Pitx2 loop is involved in specifying both left–right asymmetry and mesendoderm formation (oral-aboral polarity) in the sea urchin, a non-vertebrate deuterostome (Duboc et al., 2004; Hibino et al., 2006; Warner et al., 2012). Pitx2, Vg1, Nodal, and Tbx6 are also involved in early mesendoderm development in anamniotes, although Vg1 is maternal (Thomsen and Melton, 1993; Kessler and Melton, 1995; Faucourt et al., 2001).

In the mouse, double mutants for Pitx1 and Pitx2 lead to early lethality (at pre- or peri-implantation stages) of the embryo (Marcil et al., 2003). Only a single embryo was ever recovered that had survived to E10–E12 (Drouin, personal communication). Expression of these transcription factors has to date only been studied in detail at later stages of mouse development (L'Honore et al., 2007; Lanctot et al., 1997) and it will therefore be interesting to see if they are indeed expressed as in the chick at pre-primitive streak stages. Certainly, the strong conservation of the active enhancers (E3 and E5, including the Pitx-binding sites contained therein) near mouse and human GDF1 suggests that this is likely to be a conserved feature of birds and mammals, and despite the fact that the peculiar geometry of rodent embryos at these early stages has led to some differences in the processes leading to axis development (Stern and Downs, 2012). Monozygotic twins do not seem to occur commonly in the mouse and it is possible that these very small, cup-shaped embryos do not survive to term if more than one primitive streak appears within a single blastocyst. Together, these findings suggest that the retention of a regulative mode of development at late stages by amniote embryos (that allows the formation of the types of monozygotic twins that arise relatively late in development, including Siamese twins) evolved through novel uses of an ancient pathway, involved in both mesendoderm development and left–right asymmetry, but in slightly different ways.

Our study also brings forward the time at which the earliest responses to cutting an embryo can be detected. First, we can now detect cVg1 expression at one edge of a cut anterior fragment 4–5 hr after cutting, about 2 hr earlier than the 6 hr reported previously (Bertocchini et al., 2004); Pitx2 appears even earlier, 3 hr after cutting. But this also begs the question of what lies upstream of Pitx2. At some early point in the cascade, the regulators will no longer be controlled at the transcriptional level and it will be considerably more difficult to identify them. The present finding that Pitx2 is upregulated locally just 3 hr after cutting an embryo suggests that its regulators may not be differentially expressed mRNAs, but other asymmetries. Our studies allow us to predict the Pitx2/cVg1(GDF1)/Nodal pathway as a possible candidate to explain the obligate quadruplets of armadillos (Newman and Patterson, 1910; Loughry et al., 1998; Enders, 2002; Eakin and Behringer, 2004) and/or the high incidence of monozygotic and conjoined twins in certain human populations (Cox, 1963; Hamamy et al., 2004; Forsberg et al., 2010). Answering these questions represent interesting future challenges.

Materials and methods

Embryos, manipulation and RNA in situ hybridisation

Request a detailed protocol

Fertile Brown Bovan Gold hens' eggs (Henry Stewart, UK) were incubated for 1–16 hr to obtain stages X–XIII (Eyal-Giladi and Kochav, 1976) and stage 4 (Hamburger and Hamilton, 1951) (HH). Embryo manipulation was performed in Tyrode's solution. Anterior halves were obtained by cutting embryos with a hair loop. Unlike previous studies (Bertocchini et al., 2004), here we did not use a strip of anterior area opaca to seal the cut edge. Embryos and fragments were set up in modified New culture (New, 1955; Stern and Ireland, 1981) and incubated at 38°C as required. Whole mount in situ hybridisation was performed as described previously (Stern, 1998; Streit and Stern, 2001). The probes used were: chick cVg1 (Shah et al., 1997), Brachyury (Kispert et al., 1995a; Kispert et al., 1995b; Knezevic et al., 1997), and Pitx2 (Logan et al., 1998; Zhu et al., 1999).

Microarray screens, analysis and verification of candidate genes

Request a detailed protocol

Two microarray screens were performed with tissues collected from stages X–XII (Eyal-Giladi and Kochav, 1976). A first screen was performed with triplicates of 40 pieces of PMZ and AMZ, dissected and individually frozen from whole embryos (Figure 1A, Figure 1—figure supplement 1). A second screen was done with triplicates of 70 pieces of the left and right corners of the marginal zone, dissected and frozen individually from anterior embryo halves that had been cultured for 7 hr (Figure 1C, Figure 1—figure supplement 2). After dissection, whole embryos and anterior halves were fixed in 4% PFA for in situ hybridisation with cVg1. In both screens, in situ hybridisation was carried out for an extended period to detect low cVg1 expression adjacent to the excised pieces and confirm the orientation of the embryo (see Results); the orientation was ambiguous or incorrect in about 10% of the embryos, and explants obtained from them were therefore not included. The remaining validated PMZ and AMZ samples, cVg1-like and non-cVg1-like samples were pooled in TRIzol reagent (Ambion, Invitrogen, UK). RNA was prepared and run for a complete Affymetrix analysis by ARK-Genomics. 500 ng of total RNA was required for the standard 3' IVT-Express protocol. Each label was quality checked through all stages of amplification and preparation for hybridisation on Affymetrix 30K chicken microarrays. Microarray raw data were analysed using Bioconductor in R (Gentleman et al., 2004). Raw datasets were normalised using the Robust Multi-array Average (RMA) method (Irizarry et al., 2003). Differentially expressed genes were then identified using the Limma package in R (Smyth, 2005) with a fold change threshold of 1.2 and p < 0.05. This strategy identified 122 sequences (corresponding to 85 genes) with putative cVg1-like expression (‘cVg1-like’) and 78 sequences (52 genes) expressed in the cVg1-negative explants (‘cVg1-unlike’). The complete dataset was deposited with ArrayExpress where it can be accessed under Accession number E-MTAB-3116.

A selection of genes from the top up- and downregulated genes was verified by in situ hybridisation: ADMP, PITX2, THPO, PKDCC, PMEPA, TBX6, FGF8, Ovoinhibitor, ELK3, LITAF, PITX1, CAMK1G, DENND5B, MLLT6, Homer3, SEMA5B, PIK3R1, GALNTL1, SH2D4A, GLI3, PDLIM5, VANGL1, LEF1, FGF18, LOC768709, CXCL14, PLCB1, ZBTB1, MED15, SPOCK3, BASP1, LRP2, GABRB2, PDGFA, Autotaxin, SALL1, MAFA, ESRRG, FOXD2, FSTL4, MALT1, OLFM3, GNAZ and GRB10; when not already available, probes were generated from the chick EST collection (Boardman et al., 2002).

Insulator analysis

Request a detailed protocol

Computational prediction of CTCF insulator elements was performed as previously described (Khan et al., 2013). A PERL script (http://www.ncbi.nlm.nih.gov/pmc/articles/PMC3664090/#SD1) was used to scan chromosome 28 (location of GDF3/cVg1) from the galGal4 build of the chicken genome for occurrences of CTCF-binding sites with stringent parameters (False Discovery Rate, FDR 0%). Equivalent regions of human chromosome 19 (hg19 genome build, location of homologous GDF1) and mouse chromosome 8 (mm10 genome build, location of homologous GDF1) were also scanned for CTCF-binding sites with the same FDR parameter. The nearest conserved CTCF-binding sites harbouring the same set of genes both upstream and downstream of GDF3/GDF1 in all three species were then identified and these domains were defined as regions bounded by putative insulators.

Enhancer prediction

Request a detailed protocol

Enhancer prediction was carried out using the software package Discovery of Regulatory Elements in Vertebrates (DREiVe) (Khan et al., 2013), the vertebrate version of EDGI (Sosinsky et al., 2007). Genomic coordinates for the predicted insulator region in human were used as the reference to predict order-independent conserved patterns of DNA sequences shared between human and any seven of the following species: horse (Equcab2), cow (Bostau4), rabbit (Orycun2), guinea pig (Cavpor3), mouse (mm9), opossum (Mondom5), platypus (Taegut1), chicken (Galgal3), and lizard (Anocar1). Parameters used included motif density of 6 matching nucleotides within a window length of 8 bp, where the minimum number of matching nucleotides in the motifs was set at 12 bp. The maximal cluster length (maximum length of predicted enhancers) was set at 3000 bp with a sequence conservation score cut-off of 2. This set of parameters successfully predicted a series of conserved blocks, designated E1–E4 (see Figure 5), in human, chicken, mouse, and other species. Transcription factor binding site analysis of these predicted enhancers was carried out using the matrix-scan algorithm from the RSAT workbench (http://rsat.ulb.ac.be/rsat/) (Thomas-Chollier et al., 2011). Position frequency matrices from both Jaspar (http://jaspar.cgb.ki.se/) and Transfac (http://www.gene-regulation.com/pub/databases.html) libraries were used in matrix-scan where the background model estimation method was based on a Markov order of 0. Organism-specific ‘upstream no-orf’ background sequences were used (galGal4) with a pseudo-frequency of 0.01 and an upper p-value threshold of 1e−4. As a complementary approach, a modified methodology of Clover (http://cagt.bu.edu/page/Clover_about) was used to detect enhancers that shared order-independent transcription factor binding sites rather than DNA patterns. This approach uncovered two additional putative enhancers, E5 and E6.

Electroporation, morpholinos and DNA constructs

Request a detailed protocol

Fluorescein-labelled MOs against Pitx2, Pitx1 and a standard control-MO (Gene Tools, Philomath, Oregon, USA) were delivered to young embryos by electroporation as described (Voiculescu et al., 2007; Voiculescu et al., 2008). Pitx2-MO was designed to target the translational start site: (5′-CAAGTTTACGGCAGTTGGACTCCAT-3′). A splice blocking Pitx1-MO was designed to target the start of exon-2: (5′-CTCTCTTTTTCTACGGTGGGATGTT-3′). The coding sequence of chicken Pitx2 (Logan et al., 1998) was cloned into pCAβ-IRES-GFP to generate a Pitx2 expression construct. The expression of Pitx2 protein was confirmed by western blot with a Pitx2-antibody (Abcam, UK, ab55599). Candidate enhancers 1–6 (E1–E6) were amplified from chick genomic DNA using the following primer pairs: (E1)-forward (5′-CAGCCCCAGGCAGACAGGGCTGCAGGGAAGAAGGGG-3′), reverse (5′-ACGGGACCCCCAGCCCTGCAGGATGCTGCCCGGGGT-3′); (E2)-forward (5′-GGAGGTACCATAATTCATGCTTTCTGGGCTCGGGAC-3′), reverse (5′-GTACTCGAGCAAAGGTATCCCAGACCCTGCTGTC-3′); (E3)-forward (5′- GGAGGTACCACTCATTTGGTTTTAGCATTAATAAAC-3′), reverse (5′- GTACTCGAGCTGCCAGGGCAGAGGGAGCAGGGTG-3′); (E4)-forward (5′-CAGGGGATGAAGGGGGTGTTGGGGATCAAGCTCTTC-3′), reverse (5′-CAGTCTGCTACAATCCCTTCCCATGGATTCCTGGGG -3′); (E5)-forward (5′-GTGAGGTACCCTGTTCAGTC-3′), reverse (5′- AACTCGAGGTACAAGCTCTGC -3′); (E6)-forward (5′-GGTAGAGACCTGGTACCAGTAG-3′), reverse (5′-GAAGGGAGCTCGAGTGTCAC -3′). The amplified fragments were subcloned into pGEMT-easy (Promega, Madison, Wisconsin, USA), excised with inserted KpnI and XhoI sites and cloned into ptkEGFP (Uchikawa et al., 2003) or ptkRFP (kind gifts of H Kondoh). All constructs were checked by sequencing. 3 µg of each enhancer construct were co-electroporated with pCAβ-RFP, DS-RedExpress (Invitrogen, UK) or pCAβ-IRES-GFP as appropriate.

Mutations were introduced into each of the Pitx1- or Pitx2-binding sites of the four enhancers (E1, E3, E5, and E6) that contained such sites, with base changes highlighted in red (Table 5). The PCR primers used for site-directed mutagenesis are shown in Table 6. For Enh5, site 1 refers to the 5′ Pitx2, while site 2 is the 3′ Pitx2-binding site (see Figure 5). Site-directed mutagenesis was performed as described (Liu and Naismith, 2008). Briefly, 100 ng of template Enhancer DNA was PCR amplified with 2 µM of each mutant primer pair, 200 µM dNTPs, 2 µl Phusion high-fidelity polymerase, and 5 µl 10X buffer in a total volume of 50 µl. The PCR programme was as follows: 94°C 3 min, 94°C 1 min, 52°C 1 min, 68°C 8, 12, or 24 min (500 bp/min), final extension 68°C 1 hr, then 4°C. 1/25th of each reaction was run on an Agarose gel to verify amplification, after which the remainder of the reaction was digested with DpnI to remove the parent template for 1 hr at 37°C. Another 1/25th of the DpnI digest was transformed into DH5α cells and clones selected and amplified in culture for DNA extraction and sequence verification of the introduced mutations.

Table 5

Construction of mutations introduced to destroy Pitx-binding sites

https://doi.org/10.7554/eLife.03743.023
Enh PITX siteMutated bases
E1 PITX2GCTGGTCATGACTTCTT
E1 PITX1TGGTTTCGAGTTGAAAG
E3 PITX2GGGTGTCATGAATGGCC
E3 PITX1AGGGTTCGAGTAATGGC
E5 PITX2 1TAAAATCCTGAAACTGC
E5 PITX2 2AGAAATCATGAATAAAT
E6 PITX2TGTCTTCATGACTCCTC

  1. The mutations (highlighted in red) introduced into the sequences of Pitx-binding sites in enhancers E1, E3, E5 and E6.

Table 6

Primers used for construction of mutations in Pitx-binding sites

https://doi.org/10.7554/eLife.03743.024
Primer sequencePrimer name
aggggtttggttTCgaGttgaaagcgtgtacttctcacccattgaaactgccaggtctgtEnh1PitX1MutF
ctttcaaCtcGAaaccaaacccctcccatcacacacacaaactctactgcttcttcaaaccaEnh1PitX1MutR
agggggctggTCatGacttcttgcaggtgccccaaaggcagggccaEnh1PitX2MutF
aagaagtCatGAccagccccctacccgaccctgctgcacagggaatEnh1PitX2MutR
ggccattaCtcGAaccctgctccctctgccctggcagEnh3PitX2MutF
ctgccagggcagagggagcagggtTCgaGtaatggccEnh3PitX2MutR
agtgcagtttCagGAttttactttatagtttttttattcctacttgccatgaaagtggagaacatEnh5PitX2MutF
taaaaTCctGaaactgcacttaacatagcgattacaaaacactcttggttagagtagcaacacaaEnh5PitX2MutR
tgggctttcctatttattCatGAtttcttacagtagacaagaagattcacatttgtttgtgtttcatagctagagEnh5PitX22MutF
tgtaagaaaTCatGaataaataggaaagcccaaatgttacaagcttcattgggcctccattgctggaagaaaagaEnh5PitX22MutR
ataacaaaggggaggagtCatGAagacattgattctaatttgttctacatttcagtttattagcaaagtgacaEnh6PitX2MutF
aatcaatgtctTCatGactcctcccctttgttatttcattttatgtgctttctaattcatcttcaattaagaEnh6PitX2MutR

  1. This table shows the primer combinations used to generate the mutations indicated in Table 5.

ChIP and qPCR

Request a detailed protocol

Micro ChIP experiments were performed with pools of 25 pieces of PMZ and their anterior counterparts (AMZ) from whole pre-streak stage X–XI embryos. Chromatin was cross-linked, extracted and sonicated to obtain 200–1000 bp fragments. Immunoprecipitation was done with rabbit anti-H3K27ac (Abcam, UK), mouse anti-PITX2 (Abcam, ab55599), antibodies and rabbit IgG (Millipore, Merck Millipore UK) and mouse IgG (Millipore, Merck Millipore UK) bound to magnetic Dynabeads (Life Technologies, Carlsbad, California, USA). The purified DNA was used as template for qPCR analyses with a Bio-Rad iCycler and Sybr Fast Q-PCR mix (Kapa Biosystems, Wilmington, Massachusetts, USA). The following primer pairs were used: enhancer1—forward primer1 E1F1 (5′-gctctatcccgattccctgtgca-3′) reverse primer1 E1R1 (5′- ggtagggttcacttcattagggatg -3′, forward primer2 E1F5 (5′-cactctgtgtccggagaatgctac-3′) reverse primer2 E1R5 (5′- caatgggtgagaagtacacgctttc-3′ ; enhancer2—forward primer1 E2F1 (5′- atgaagagcgcaagagtggcaaag-3′) reverse primer1 E2R1 (5′-tgggaaattccgacctggaagcag-3′, forward primer2 E2F3 (5′- agctgagctgtttaacggtggatc-3′) reverse primer2 E2R3 (5′- agctgaccgctgctagttctct-3′); enhancer 3—forward primer E3F2 (5′- cctagctattacactctgctcttcc-3′) reverse primer E3R2 (5′- CAGTAGAGACGGAACCAGAACct-3′); enhancer 4—forward primer1 E4F1 (5′- gcttcttggtgctggaactgagaat-3′) reverse primer1 E4R1(5′- atggagagacacagtcagccacga-3′, forward primer2 E4F2 (5′- agctgcccaatgctctgaaagaag -3′) reverse primer2 E4R2 (5′- ggaatggaaaggtgaggattcatgg -3′); enhancer 5—forward primer E5F3 (5′- CGTGAGGCAGTCTGTTCAGT-3′) reverse primer E5R3 (5′- GCTATGAAACACAAACAAATGTGAA-3′); enhancer 6—forward primer E6F3 (5′- CACTGGGGTCCTGATGTAGTG-3′), reverse primer E6R3 (5′- AGAAGGGAGCACAAATGTCA-3′); Vg1 -0.5 ATG—forward primer Vg1F1 (5′-agtgggtgctgattgctgtctgtg-3′) reverse primer Vg1R1 (5′-ctcccatcccttctgcatctccata-3′). All qPCR reactions were run in triplicate and contained an input control for normalisation of chromatin concentration, and the appropriate IgG as control. The amplification products were quantified using the ΔΔCt method (Livak and Schmittgen, 2001).

Data availability

The following data sets were generated

References

    1. Azar Y
    2. Eyal-Giladi H
    (1979)
    Marginal zone cells–the primitive streak-inducing component of the primary hypoblast in the chick
    Journal of Embryology and Experimental Morphology 52:79–88.
    1. Bachvarova RF
    2. Skromne I
    3. Stern CD
    (1998)
    Induction of primitive streak and Hensen's node by the posterior marginal zone in the early chick embryo
    Development 125:3521–3534.
    1. Cox ML
    (1963) INCIDENCE AND AETIOLOGY OF MULTIPLE BIRTHS IN NIGERIA
    The Journal of Obstetrics and Gynaecology of the British Commonwealth 70:878–884.
    https://doi.org/10.1111/j.1471-0528.1963.tb04995.x
  14. Book
    1. Cunningham B
    (1937)
    Axial Bifurcation in Serpents, An Historical Survey of Serpent Monsters Having Part of the Axial Skeleton Duplicated
    Durham, N.C: Duke University Press.
    1. Driesch H
    (1892)
    Entwicklungsmechanische Studien. I. Der Werth der beiden ersten Furchungszellen in der Echinodermenentwicklung. Experimentelle Erzeugen von Theil- und Doppelbildung. Z. wissensch
    Zoology 53:160–184.
  17. Book
    1. Eakin GS
    2. Behringer RR
    (2004)
    Gastrulation in other mammals and humans
    In: Stern CD, editors. Gastrulation: from Cells to Embryo. New York: Cold Spring Harbor Press. pp. 275–287.
    1. Holwerda SJ
    2. de Laat W
    (2013) CTCF: the protein, the binding partners, the binding sites and their chromatin loops
    Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences 368:20120369.
    https://doi.org/10.1098/rstb.2012.0369
  32. Book
    1. Kessler DS
    (2004)
    Activin and Vg1 and the search for embryonic inducers
    In: Stern CD, editors. Gastrulation: from cells to embryo. New York: Cold Spring Harbor Press. pp. 505–520.
    1. Kessler DS
    2. Melton DA
    (1995)
    Induction of dorsal mesoderm by soluble, mature, Vg1 protein
    Development 121:2155–2164.
    1. Kispert A
    2. Koschorz B
    3. Herrmann BG
    (1995a)
    The T protein encoded by Brachyury is a tissue-specific transcription factor
    The EMBO Journal 14:4763–4772.
    1. Knezevic V
    2. De Santo R
    3. Mackem S
    (1997)
    Two novel chick T-box genes related to mouse Brachyury are expressed in different, non-overlapping mesodermal domains during gastrulation
    Development 124:411–419.
    1. Lanctôt C
    2. Lamolet B
    3. Drouin J
    (1997)
    The bicoid-related homeoprotein Ptx1 defines the most anterior domain of the embryo and differentiates posterior from anterior lateral mesoderm
    Development 124:2807–2817.
    1. Lutz H
    (1949)
    Sur la production expérimentale de la polyembryonie et de la monstruosité double chez les oiseaux
    Archives d'anatomie Microscopique Et De Morphologie Expérimentale 39:79–144.
    1. New DAT
    (1955)
    A new technique for the cultivation of the chick embryo in vitro
    Journal of Embryology and Experimental Morphology 3:326–331.
    1. Shah SB
    2. Skromne I
    3. Hume CR
    4. Kessler DS
    5. Lee KJ
    6. Stern CD
    7. Dodd J
    (1997)
    Misexpression of chick Vg1 in the marginal zone induces primitive streak formation
    Development 124:5127–5138.
    1. Skromne I
    2. Stern CD
    (2001)
    Interactions between Wnt and Vg1 signalling pathways initiate primitive streak formation in the chick embryo
    Development 128:2915–2927.
  62. Book
    1. Smyth GK
    (2005)
    Limma: linear models for microarray data
    In: Gentleman RC, Carey V, Dudoit S, Irizarry R, Huber W, editors. Bioinformatics and Computational Biology Solutions using R and Bioconductor. New York: Springer. pp. 397–420.
    1. Ulshafer RJ
    2. Clavert A
    (1979)
    The use of avian double monsters in studies on induction of the nervous system
    Journal of Embryology and Experimental Morphology 53:237–243.
    1. Wilson EB
    (1898)
    Considerations on cell-lineage and ancestral reminiscence, based on a reexamination of some points in the early development of Annelids and Polyclades
    21–42, Lectures Marine Biol. Lab. Woods Hole, MA, 1898.

Article and author information

Author details

  1. Angela Torlopp

    Department of Cell and Developmental Biology, University College London, London, United Kingdom
    Present address
    Cardiovascular Research Institute, University of California, San Francisco, San Francisco, United States
    Contribution
    AT, Acquisition of data, Analysis and interpretation of data
    Contributed equally with
    Mohsin A F Khan
    Competing interests
    The authors declare that no competing interests exist.

  2. Mohsin A F Khan

    Department of Cell and Developmental Biology, University College London, London, United Kingdom
    Present address
    Cardiology and Thorax Surgery, Faculty of Medical Sciences, University of Groningen, Groningen, Netherlands
    Contribution
    MAFK, Conception and design, Analysis and interpretation of data
    Contributed equally with
    Angela Torlopp
    Competing interests
    The authors declare that no competing interests exist.

  3. Nidia M M Oliveira

    Department of Cell and Developmental Biology, University College London, London, United Kingdom
    Contribution
    NMMO, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  4. Ingrid Lekk

    Department of Cell and Developmental Biology, University College London, London, United Kingdom
    Contribution
    IL, Perfected the method for ChIP, performed the initial experiments and analysed the results
    Competing interests
    The authors declare that no competing interests exist.

  5. Luz Mayela Soto-Jiménez

    1. Department of Cell and Developmental Biology, University College London, London, United Kingdom
    2. Programa de Ciencias Genómicas, Universidad Nacional Autónoma de México, Morelos, Mexico
    Present address
    Stark Lab, Research Institute of Molecular Pathology, Vienna, Austria
    Contribution
    LMS-J, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  6. Alona Sosinsky

    Institute of Structural and Molecular Biology, Birkbeck College, University of London, London, United Kingdom
    Present address
    Clinical Genome Informatics Facility, Imperial Centre for Translational and Experimental Medicine, Imperial College, London, United Kingdom
    Contribution
    AS, Conceived and designed the DREiVe analysis used to predict conserved enhancers across species, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.

  7. Claudio D Stern

    Department of Cell and Developmental Biology, University College London, London, United Kingdom
    Contribution
    CDS, Conceived and designed the project including experimental design of the screen, directed the team and wrote the paper, Analysis and interpretation of data
    For correspondence
    c.stern@ucl.ac.uk
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9907-889X

Funding

European Research Council (GEMELLI 249892)

  • Angela Torlopp
  • Mohsin A F Khan
  • Nidia M M Oliveira
  • Claudio D Stern

Wellcome Trust (WT083345MA)

  • Ingrid Lekk
  • Claudio D Stern

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This study was funded by an Advanced Investigator Grant from the European Research Council (ERC) to CDS (“GEMELLI”). LMS-J was a thesis student from the Genomic Science Program (UNAM, Campus Cuernavaca, Mexico). IL is a student on the Wellcome Trust-funded 4-year PhD Programme in Developmental and Stem Cell Biology at UCL. We are grateful to Jacques Drouin for a generous gift of PITX-antibodies, to Hisatoh Kondoh for the TK-GFP and TK-RFP reporter vectors, to Jacques Drouin and Aurore L’Honoré for sharing unpublished information and to Irene De Almeida, Rosemary Bachvarova, Patrick Lemaire, Bruno Reversade and Andrea Streit for helpful comments on the manuscript and advice.

Copyright

© 2014, Torlopp et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,567
    views
  • 374
    downloads
  • 33
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Angela Torlopp
  2. Mohsin A F Khan
  3. Nidia M M Oliveira
  4. Ingrid Lekk
  5. Luz Mayela Soto-Jiménez
  6. Alona Sosinsky
  7. Claudio D Stern
(2014)
The transcription factor Pitx2 positions the embryonic axis and regulates twinning
eLife 3:e03743.
https://doi.org/10.7554/eLife.03743

Share this article

https://doi.org/10.7554/eLife.03743

Categories and tags

Research organism

Further reading

    1. Cell Biology
    2. Developmental Biology

    The sperm hook as a functional adaptation for migration and self-organized behavior

    Heungjin Ryu, Kibum Nam ... Jung-Hoon Park
    Research Article

    In most murine species, spermatozoa exhibit a falciform apical hook at the head end. The function of the sperm hook is not yet clearly understood. In this study, we investigate the role of the sperm hook in the migration of spermatozoa through the female reproductive tract in Mus musculus (C57BL/6), using a deep tissue imaging custom-built two-photon microscope. Through live reproductive tract imaging, we found evidence indicating that the sperm hook aids in the attachment of spermatozoa to the epithelium and facilitates interactions between spermatozoa and the epithelium during migration in the uterus and oviduct. We also observed synchronized sperm beating, which resulted from the spontaneous unidirectional rearrangement of spermatozoa in the uterus. Based on live imaging of spermatozoa-epithelium interaction dynamics, we propose that the sperm hook plays a crucial role in successful migration through the female reproductive tract by providing anchor-like mechanical support and facilitating interactions between spermatozoa and the female reproductive tract in the house mouse.

    1. Developmental Biology

    FGF8-mediated gene regulation affects regional identity in human cerebral organoids

    Michele Bertacchi, Gwendoline Maharaux ... Michèle Studer
    Research Article Updated

    The morphogen FGF8 establishes graded positional cues imparting regional cellular responses via modulation of early target genes. The roles of FGF signaling and its effector genes remain poorly characterized in human experimental models mimicking early fetal telencephalic development. We used hiPSC-derived cerebral organoids as an in vitro platform to investigate the effect of FGF8 signaling on neural identity and differentiation. We found that FGF8 treatment increases cellular heterogeneity, leading to distinct telencephalic and mesencephalic-like domains that co-develop in multi-regional organoids. Within telencephalic regions, FGF8 affects the anteroposterior and dorsoventral identity of neural progenitors and the balance between GABAergic and glutamatergic neurons, thus impacting spontaneous neuronal network activity. Moreover, FGF8 efficiently modulates key regulators responsible for several human neurodevelopmental disorders. Overall, our results show that FGF8 signaling is directly involved in both regional patterning and cellular diversity in human cerebral organoids and in modulating genes associated with normal and pathological neural development.

    1. Developmental Biology

    Genetic requirement of dact1/2 to regulate noncanonical Wnt signaling and calpain 8 during embryonic convergent extension and craniofacial morphogenesis

    Shannon H Carroll, Sogand Schafer ... Eric C Liao
    Research Article

    Wnt signaling plays crucial roles in embryonic patterning including the regulation of convergent extension (CE) during gastrulation, the establishment of the dorsal axis, and later, craniofacial morphogenesis. Further, Wnt signaling is a crucial regulator of craniofacial morphogenesis. The adapter proteins Dact1 and Dact2 modulate the Wnt signaling pathway through binding to Disheveled. However, the distinct relative functions of Dact1 and Dact2 during embryogenesis remain unclear. We found that dact1 and dact2 genes have dynamic spatiotemporal expression domains that are reciprocal to one another suggesting distinct functions during zebrafish embryogenesis. Both dact1 and dact2 contribute to axis extension, with compound mutants exhibiting a similar CE defect and craniofacial phenotype to the wnt11f2 mutant. Utilizing single-cell RNAseq and an established noncanonical Wnt pathway mutant with a shortened axis (gpc4), we identified dact1/2-specific roles during early development. Comparative whole transcriptome analysis between wildtype and gpc4 and wildtype and dact1/2 compound mutants revealed a novel role for dact1/2 in regulating the mRNA expression of the classical calpain capn8. Overexpression of capn8 phenocopies dact1/2 craniofacial dysmorphology. These results identify a previously unappreciated role of capn8 and calcium-dependent proteolysis during embryogenesis. Taken together, our findings highlight the distinct and overlapping roles of dact1 and dact2 in embryonic craniofacial development, providing new insights into the multifaceted regulation of Wnt signaling.
