Evolution of alternative biosynthetic pathways for vitamin C following plastid acquisition in photosynthetic eukaryotes

  1. Glen Wheeler  Is a corresponding author
  2. Takahiro Ishikawa
  3. Varissa Pornsaksit
  4. Nicholas Smirnoff  Is a corresponding author
  1. Marine Biological Association, United Kingdom
  2. Shimane University, Japan
  3. University of Exeter, United Kingdom
Research Article
Cite this article as: eLife 2015;4:e06369 doi: 10.7554/eLife.06369
7 figures, 1 table, 1 data set and 5 additional files


Major ascorbate biosynthetic pathways in eukaryotes.

The scheme depicts the three major ascorbate biosynthetic pathways found in eukaryotes (Shigeoka et al., 1979; Wheeler et al., 1998; Linster and Van Schaftingen, 2007). The plant pathway (also known as the Smirnoff-Wheeler or D-mannose/l-galactose pathway) involves no inversion of the carbon chain (i.e., C1 of D-glucose becomes C1 of l-ascorbate), whereas the euglenid and animal pathways involve inversion of the carbon chain in the conversion from uronic acid to aldonolactone (i.e., C1 of D-glucose becomes C6 of l-ascorbate). Our analyses focus on enzymes with a dedicated role in ascorbate biosynthesis (shown in red): GULO—l-GulL oxidase; VTC2—GDP-l-galactose phosphorylase; VTC4—l-galactose-1-phosphate phosphatase; l-galDH—l-galactose dehydrogenase; GLDH—l-GalL dehydrogenase. The other enzymes are: PGM—phosphoglucomutase; UGP—UDP-D-glucose pyrophosphorylase; UGDH—UDP-D-glucose dehydrogenase; UGUR—UDP-glucuronidase; GlcUAR—D-glucuronate reductase; SMP30—regucalcin/lactonase; GAE—UDP-D-glucuronate-4-epimerase; GalUAR—D-galacturonate reductase. Enzyme names are not listed for steps where multiple enzymes may be involved or where specific enzymes have not been identified.

Figure 2 with 2 supplements

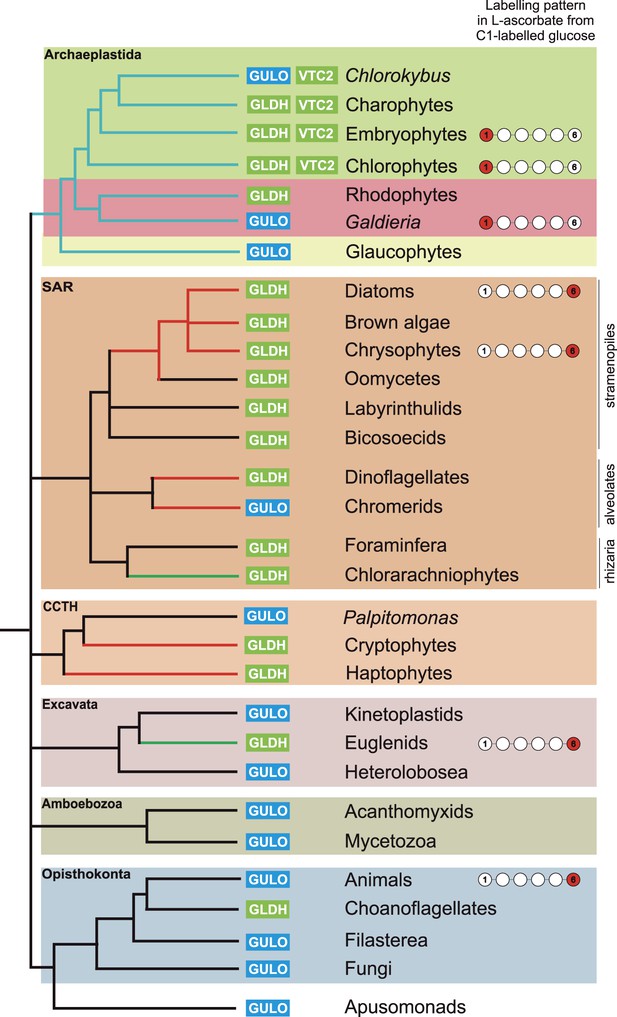

Coulson plot indicating the taxonomic distribution of the different ascorbate pathways.

40 eukaryote genomes were analysed for the presence of genes in the ascorbate biosynthetic pathways. The two potential terminal enzymes in the pathway are boxed. GLDH is common to both the ‘plant’ and ‘euglenid’ type pathways. A schematic tree depicts the currently accepted phylogenetic relationships between organisms. The predicted route of ascorbate biosynthesis in each organism is shown. Note that ‘euglenid’ and ‘rhodophyte’ type pathways cannot currently be distinguished from sequence analysis alone and the predictions are based on biochemical evidence. Asterisk denotes a genome assembly was not available for Euglena gracilis and its transcriptome was analysed (‘Materials and methods’). Grey circles in VTC4 represent the presence of a highly similar enzyme, myo-inositol-1-phosphate phosphatase that exhibits l-galactose-1-phosphatase activity. GULO in trypanosomes and yeasts acts to oxidise the alternative substrates l-galactonolactone or D-arabinonolactone respectively. VTC3 is not a biosynthetic enzyme, but represents a dual function Ser/Thr protein kinase/protein phosphatase 2C that may play a regulatory role in the plant pathway (Conklin et al., 2013). Black cross represents a pseudogene encoding a non-functional enzyme. Organisms with sequenced genomes that were found to lack both of the terminal enzymes in the known pathways (GULO and GLDH) are likely to be ascorbate auxotrophs and were not included in the plot. These include Giardia intestinalis, Trichomonas vaginalis, Entamoeba invadens, Plasmodium falciparum and Perkinsus marinus.

Figure 2—figure supplement 1

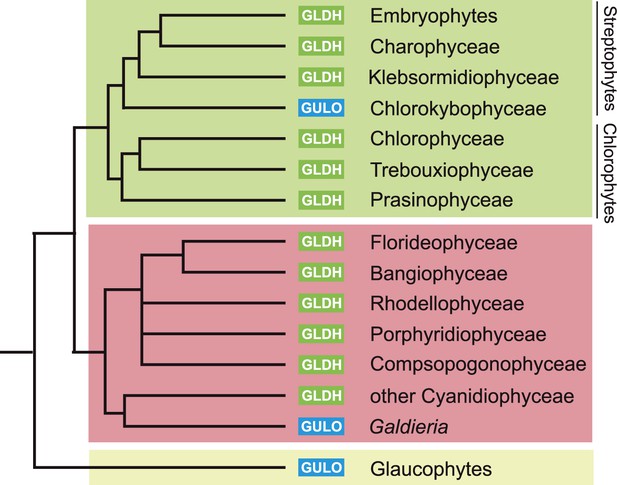

Distribution of GULO and GLDH in the Archaeplastida.

A schematic tree demonstrating the currently accepted phylogenetic positions of the major lineages in the Archaeplastida (Yoon et al., 2006; Leliaert et al., 2012). The presence of either GULO or GLDH in representatives of each lineage is shown. The boxes denote the Viridiplantae (green), Rhodophyta (red) and Glaucophyta.

Figure 2—figure supplement 2
Distribution of the different ascorbate pathways.

The schematic tree summarises the distribution of the two terminal enzymes in ascorbate biosynthesis, along with VTC2, the first committed enzyme in plant pathway. Blue lines indicate photosynthetic lineages derived by the primary endosymbiosis (of a cyanobacterium). Red or green lines indicate lineages that have become photosynthetic following a secondary endosymbiosis event with either a red or a green alga respectively. It should be noted that the timing and origin of many secondary endosymbioses remain unclear, particularly within the SAR supergroup where several non-photosynthetic lineages within the stramenopiles, alveolates and even rhizaria may potentially have lost an ancestral plastid. GULO is found in basally derived lineages of the Archaeplastida, Excavata, Opisthokonta, Amoebozoa and the CCTH group. In contrast, GLDH is found predominately in photosynthetic eukaryotes, although it is also found in non-photosynthetic stramenopiles and rhizaria and also in some choanoflagellates. Lineages where there is biochemical evidence determining inversion or non-inversion of the carbon chain in the conversion from D-glucose to ascorbate are shown.

Figure 3 with 1 supplement
Phylogenetic analysis of l-gulonolactone oxidase and l-galactonolactone dehydrogenase.

A maximum likelihood phylogenetic tree demonstrating the relationships between aldonolactone oxidoreductases involved in ascorbate biosynthesis. A multiple sequence alignment of 263 amino acid residues was used with alditol oxidases from the vanillyl alcohol oxidase (VAO) family acting as the outgroup. Photosynthetic organisms are shown in green. There is strong support for a monophyletic origin for GLDH in eukaryotes. Bootstrap values >80% are shown above nodes (100 bootstraps) and Bayesian posterior probabilities >0.95 are shown below (10000000 generations), except for selected key nodes (circled) where all values are displayed.

Figure 3—figure supplement 1

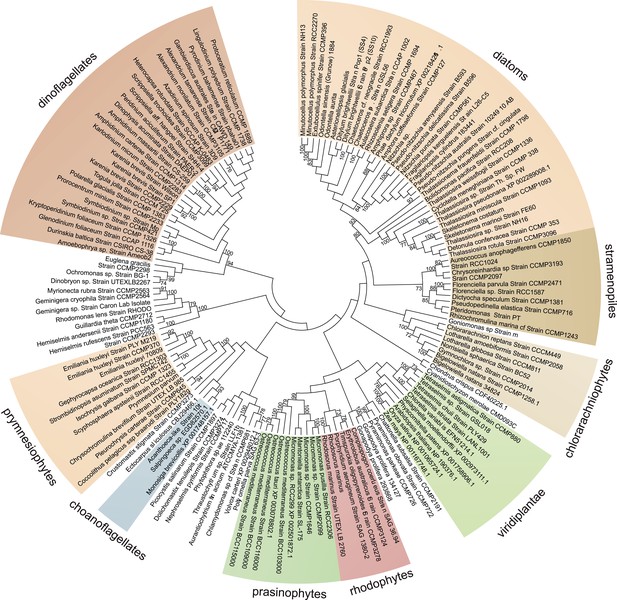

Phylogenetic analysis of l-galactonolactone dehydrogenase.

An unrooted maximum likelihood phylogenetic tree of GLDH. To improve resolution of GLDH phylogeny, an individual phylogenetic analysis was performed using a larger alignment (302 amino acids) with greater taxonomic sampling (151 sequences), although relationships between major taxonomic groups remain poorly resolved. Bootstrap values >70% are shown (100 bootstraps).

Figure 4 with 1 supplement
Biochemical evidence for a modified D-mannose/l-galactose pathway in rhodophytes.

(A) Crude extracts of Porphyra umbilicalis thallus demonstrate l-galactose dehydrogenase activity using 5 mM l-galactose (l-Gal) as a substrate. No activity was demonstrated with 5 mM l-fucose (6-deoxy-l-galactose) as a substrate. The result is representative of three different enzyme preparations. (B) Feeding 10 mM l-Gal to Porphyra thallus for 24 hr resulted in an accumulation of ascorbate (detected as dehydroascorbate—DHA). D-mannose (10 mM) did not cause an increase in ascorbate in Porphyra, but exogenous D-mannose does not elevate ascorbate in land plants even though it is an intermediate in ascorbate biosynthesis. The bar chart shows mean peak areas of selected fragments (±s.d.). n = 3. (C) Feeding ascorbate precursors (25 mM) to Galdieria sulphararia from both the plant and animal pathways results in increased cellular ascorbate (detected as dehydroascorbate using GC-MS) (±s.d.). The extent of the increase in cellular ascorbate is influenced by the rate of conversion of the intermediate and the rate of its uptake into the cell. n = 3. (D) Feeding D-[1-13C]-glucose (25 mM) to Galdieria sulphararia results in enrichment of 13C in the 316/317 m/z fragment of dehydroascorbate (which includes C1), but not in the 245/246 m/z or 157/158 m/z fragment (which exclude C1) (±s.d.). In contrast, feeding D-[6-13C]-glucose (25 mM) labels all fragments, suggesting that they all include C6. In combination, this labelling pattern indicates plant-like non-inversion of the carbon chain in the conversion of hexoses to ascorbate. n = 3.

Figure 4—figure supplement 1

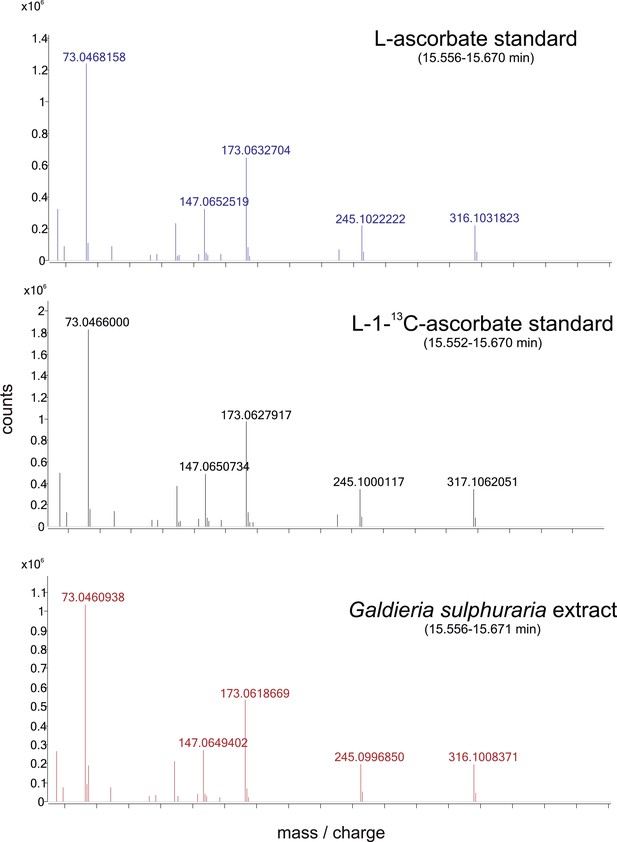

Positional isotopic labelling of ascorbate biosynthesis.

Analysis of ascorbate by GC-MS. Ascorbate is oxidised to dehydroascorbate during the derivatisation process and representative accurate mass spectra are shown. Analysis of a l-[1-13C]-ascorbate standard indicates that the m/z 316 fragment of dehydroascorbate contains C1 whilst other fragments (m/z 157 and 245) do not. Dehydroascorbate from G. sulphuraria extracts exhibits an identical retention time and mass spectra to that of the ascorbate standard.

Coulson plot showing the distribution of photoprotective ascorbate-dependent enzymes.

Eukaryote genomes were analysed for the presence of enzymes from the plant ascorbate-glutathione cycle, the xanthophyll cycle and other ascorbate-dependent enzymes. We found that eukaryotes possess two distinct isoforms of GSH reductase. PeroxiBase was used to distinguish between the different forms of ascorbate peroxidase (Fawal et al., 2013). Boxes highlight the terminal enzymes in the biosynthetic pathway and the ascorbate peroxidase family (APX, APX-R and APX-CCX). MDHAR—monodehydroascorbate reductase; DHAR—dehydroascorbate reductase; GR-I—glutathione reductase isoform I; GR-II—glutathione reductase isoform II; APX—ascorbate peroxidase; APX-R—ascorbate peroxidase-related; APX-CCX—hybrid ascorbate peroxidase/cytochrome c peroxidase; VDE—violaxanthin de-epoxidase; VDE-like—violaxanthin de-epoxidase like; AO—ascorbate oxidase.

Evolutionary scenarios for GULO and GLDH.

The scheme illustrates two most likely evolutionary scenarios responsible for the distribution of GULO and GLDH in eukaryotes. In the ancient paralogy scenario, an ancient gene duplication in the last common eukaryote ancestor results in the presence of two functionally similar genes, GULO and GLDH, followed by differential loss of either gene in each lineage. In the endosymbiotic gene transfer (EGT) scenario, GULO represents the ancestral gene and GLDH represents a novel gene that arose in a specific lineage. EGT of GLDH (red dashed arrow) to other photosynthetic lineages (green ovals) enables functional replacement of the ancestral gene. Note that GULO represents an ancestral gene in both of these evolutionary scenarios.

A proposed evolutionary model of ascorbate biosynthesis.

The scheme illustrates the proposed events in the EGT evolutionary model of eukaryote ascorbate biosynthesis. In this scenario, ancestral eukaryotes synthesised ascorbate via GULO. GLDH arose in the Archaeplastida following primary endosymbiosis of a cyanobacterium, after the divergence of the glaucophyte lineage. GLDH functionally replaced GULO in the red and green algal lineages, coinciding with the rise of the photoprotective role of ascorbate. Plastid acquisition via secondary endosymbiosis of either a green or red alga resulted in endosymbiotic gene transfer of GLDH and replacement of GULO. As these organisms became the dominant primary producers in many ecosystems, a series of trophic interactions (dotted lines) resulted in the loss of GULO in non-photosynthetic organisms, either by providing a ready supply of dietary ascorbate (resulting in ascorbate auxotrophy in heterotrophic organisms) or through putative horizontal gene transfer of GLDH (e.g., choanoflagellates). For clarity, not all potential trophic interactions are shown.



Table 1

Dietary sources of ascorbate in animal auxotrophs

Animal auxotrophPrimary dietary source of ascorbateUltimate dietary source of ascorbateEnzyme for ascorbate synthesisReferences
PrimatesLand plantsGLDH(Milton and Jenness, 1987)
Guinea pigLand plantsGLDH
BatsLand plantsGLDH(Birney et al., 1976; Milton and Jenness, 1987; Cui et al., 2011b)
InsectsLand plantsGLDH
Passerine birdsLand plantsGLDH(Drouin et al., 2011)
InsectsLand plantsGLDH
Small vertebratesGULO
Teleost fishZooplankton (crustacea)PhytoplanktonGLDH(Dabrowski, 1990)
CrustaceaPhytoplanktonGLDH(Desjardins et al., 1985; Hapette and Poulet, 1990)
Phytophagous insectsLand plantsGLDH(Pierre, 1962; Dadd, 1973)
  1. Major sources of dietary ascorbate were identified in known animal auxotrophs. This information allows us to assess which terminal enzyme contributed to the production of dietary ascorbate. In nearly all cases the major source of dietary ascorbate is most likely to have been derived from GLDH. Phylogenetic analyses suggest GULO has been lost on multiple independent occasions throughout the Chiroptera (bats). Although ancestral bats may have been primarily insectivores, various sources of dietary ascorbate may have contributed to GULO loss. The passerine birds that are unable to synthesise ascorbate are primarily herbivores or insectivores. However, some members of the Lanius genus (shrikes) feed also on small vertebrates, in addition to insects. Most teleost fish are believed to be ascorbate auxotrophs due to loss of GULO. As zooplankton (primarily crustacea) are also ascorbate auxtrophs, phytoplankton are likely to be the ultimate source of dietary ascorbate. Reports suggest the ability of crustacea to synthesise ascorbate is either absent or very weak, although the taxonomic sampling and currently available genomic resources are limited. Most, but not all, phytophagous insects have a dietary requirement for ascorbate, and we did not find GULO in any insect genomes. Note also that some species of insect (e.g., cockroaches) may obtain ascorbate from eukaryote endosymbionts, which may allow them to survive on ascorbate-poor diets.

Data availability

The following previously published data sets were used
  1. 1
    Marine Microbial Eukaryote Transcriptome Sequencing Project
    1. PJ Keeling
    Publicly available at the NCBI BioProject database (PRJNA231566).

Additional files

Supplementary file 1

Distribution of GULO and GLDH in opisthokont and apusomonad genomes. Genomes of the opisthokonts (including animals and fungi) were examined for the presence of GULO and GLDH. Strikethrough indicates non-functional pseudogenes. The absence of GULO is well documented in the known ascorbate auxotrophs such as haplorhine primates, guinea pigs, bats, teleost fish and passerine birds. Some fungi (e.g., ascomycetes) use D-arabinonolactone oxidase to produce five carbon ascorbate analogue, erythroascorbate. D-arabinonolactone oxidase has different substrate specificity to GULO, but exhibits a high degree of sequence similarity and has been classed as GULO in the table.

Supplementary file 2

Identification of GULO and GLDH in marine microbial eukaryote transcriptomes. Data from the Marine Microbial Eukaryote Transcriptome Sequencing Project (MMETSP, http://marinemicroeukaryotes.org/) were analysed for the terminal enzymes in ascorbate biosynthesis. This dataset contains 679 transcriptomes from 320 different species. Sequence similarity searches used a stringent length cut off to avoid ambiguous results from incompletely sequenced gene products (minimum length 300 amino acids). Using these criteria, we identified GULO or GLDH in 165 species. Although the absence of a gene in a transcriptome cannot be used to infer absence, we found no examples of organisms that possess both GULO and GLDH, even when a more relaxed length criterion was used (minimum length 100 amino acids). Note that the underlined GLDH sequences from the ciliates Myrionecta and Strombidinopsis are 100% identical to sequences recovered from their prey (respectively Geminigera cryophila and Isochrysis galbana). These sequences may therefore be due to contamination. Alternatively, as both these ciliates exhibit kleptoplasty, the presence of algal GLDH sequences in the ciliate transcriptome may also represent examples of plastid-related nuclear genes that are retained and transcribed to aid plastid function (Johnson et al., 2007). In the latter scenario, these ciliates could therefore use GLDH to temporarily synthesise ascorbate during plastid acquisition.

Supplementary file 3

Identification of VTC2 in marine microbial eukaryote transcriptomes. Data from the Marine Microbial Eukaryote Transcriptome Sequencing Project (MMETSP) was analysed for VTC2, encoding GDP-l-galactose phosphorylase, the first committed step in land plant ascorbate biosynthesis. Sequence similarity searches used a stringent cut off to avoid ambiguous results from incompletely sequenced gene products (minimum length 300 amino acids). VTC2 was identified in 37 species, all of which belong to the Chlorophyta. Genes exhibiting weak similarity to GDP-l-galactose phosphorylase, which may represent homologues of GDP-D-glucose phosphorylase (Adler et al., 2011), were not included in these results.

Supplementary file 4

Distribution of ascorbate biosynthetic genes in Archaeplastida transcriptomes. Rhodophyte transcriptomes from the Marine Microbial Eukaryote Transcriptome Sequencing Project (MMETSP) or Genbank (Chan et al., 2011, 2012) were examined for the presence of ascorbate biosynthesis genes. The rhodophytes transcriptomes all exhibit the pathway found in the genomes of Cyanidioschyzon merolae, Chondrus crispus and Porphyridium purpureum, possessing GLDH rather than GULO. C. atmophyticus is a green alga belonging to the Streptophyte lineage containing land plants and charophyte algae. The Chlorokybus transcriptome appears unique amongst the Viridiplantate in that it contains GULO rather than GLDH. All of the other enzymes of the plant pathway are present.

Supplementary file 5

Genome resources used in this study. A list of the eukaryote genomes used to study the distribution of genes relating to ascorbate biosynthesis and metabolism.
