The Arabidopsis receptor kinase FERONIA (FER) is a multifunctional regulator for plant growth and reproduction. Here we report that the female gametophyte-expressed glycosylphosphatidylinositol-anchored protein (GPI-AP) LORELEI and the seedling-expressed LRE-like GPI-AP1 (LLG1) bind to the extracellular juxtamembrane region of FER and show that this interaction is pivotal for FER function. LLG1 interacts with FER in the endoplasmic reticulum and on the cell surface, and loss of LLG1 function induces cytoplasmic retention of FER, consistent with transport of FER from the endoplasmic reticulum to the plasma membrane in a complex with LLG1. We further demonstrate that LLG1 is a component of the FER-regulated RHO GTPase signaling complex and that fer and llg1 mutants display indistinguishable growth, developmental and signaling phenotypes, analogous to how lre and fer share similar reproductive defects. Together our results support LLG1/LRE acting as a chaperone and co-receptor for FER and elucidate a mechanism by which GPI-APs enable the signaling capacity of a cell surface receptor.https://doi.org/10.7554/eLife.06587.001
Plants respond to changes in their environment by altering how they grow and when they reproduce. A protein called FERONIA is found in most types of cells and regulates many of the processes that drive these responses, such as cell growth and communication between male and female cells. FERONIA sits in the membrane that surrounds the cell, where it can detect molecules in the cell wall and from outside the cell, and send signals to locations within the cell. However, it is not clear how FERONIA is able to specifically regulate different processes to produce the right response in a particular cell at a particular time.
A family of proteins called glycosylphosphatidylinositol-anchored proteins (GPI-APs for short) play important roles in plants, animals, and other eukaryotic organisms. Li et al. studied FERONIA and two closely related GPI-APs called LLG1—which is produced in seedlings, and LORELEI, which is only found in female sex cells. The experiments show that plants missing either LLG1 or FERONIA had similar defects in growth and in how they respond to plant hormones. Plants missing LORELEI had similar defects in their ability to reproduce as the plants missing FERONIA. This suggests that FERONIA works with either LLG1 or LORELEI to regulate similar processes in different situations.
Li et al. found that FERONIA binds to LLG1 in a compartment within the cell called the endoplasmic reticulum—where proteins are assembled—before both proteins are moved together to the cell membrane. In the absence of LLG1, FERONIA fails to reach the cell membrane, and a large amount of FERONIA remains trapped in the endoplasmic reticulum. Therefore, LLG1 acts as a ‘chaperone’ that delivers FERONIA to the membrane where it is required to regulate plant growth. Li et al. found that LORELEI also interacts with FERONIA. Both LLG1 and LORELEI bind to the same region of FERONIA, which is on the outer surface of the cell membrane.
These findings show that FERONIA is able to perform different roles in cells by teaming up with different members of the GPI-AP family of proteins. The next challenges will be to find out if, and how, LLG1 and LORELEI affect the ability of FERONIA to respond to signals from the cell wall and outside the cell.https://doi.org/10.7554/eLife.06587.002
The Arabidopsis FERONIA (FER) receptor kinase critically controls growth and development, is indispensable for reproduction, and participates in defense-related responses (Wolf and Hofte, 2014). FER was initially identified as an essential regulator for female fertility (Huck et al., 2003; Rotman et al., 2003; Escobar-Restrepo et al., 2007; Kessler and Grossniklaus, 2011; Duan et al., 2014); its expression in the female gametophyte is responsible for inducing rupture of an invading pollen tube to release sperm for fertilization. It is also required to prevent supernumerary pollen tube entrance to individual ovules, precluding polyspermy and maximizing seed yield. Thus fer mutant plants are severely female-deficient, producing few seeds. FER is, however, broadly expressed and absent only in pollen (Zimmermann et al., 2004; Duan et al., 2010); its functions intersect several major plant hormone signaling pathways, including auxin (Duan et al., 2010), abscisic acid (ABA) (Yu et al., 2012), brassinosteroid, and ethylene (Guo et al., 2009; Deslauriers and Larsen, 2010). FER has also been shown to interact with the peptide hormone rapid alkalinization factor 1 (RALF1) (Haruta et al., 2014). Therefore fer knock-out mutants are pleiotropic, with vegetative phenotypes attributable to defects in growth processes regulated by these hormones. FER also mediates susceptibility to the fungal pathogen powdery mildew (Kessler et al., 2010) and has been implicated in mechano-sensing (Shih et al., 2014). Thus it is likely that FER mediates distinct signals under different cellular and developmental conditions and environmental challenges.
How FER achieves its multiple functionality remains unclear. We showed earlier that FER interacts with ROPGEFs (Duan et al., 2010), guanine nucleotide exchange factors that stimulate GDP/GTP exchange in RAC/ROPs, the RHO GTPases of plants, activating them (Berken et al., 2005). We demonstrated that FER acts as a cell surface regulator for RAC/ROP-mediated NADPH oxidase-dependent reactive oxygen species (ROS) production to support polarized root hair growth in seedlings (Duan et al., 2010), and induce Ca2+-dependent pollen tube rupture and sperm release in the female gametophyte (Duan et al., 2014). RAC/ROPs are known to mediate multiple signaling pathways that underlie normal plant growth and development, as well as stress-related responses (Nibau et al., 2006; Wu et al., 2011). ROS are ubiquitous and regulate a broad spectrum of cellular processes as diverse as cell growth and cell death (Carol and Dolan, 2006; Jaspers and Kangasjarvi, 2010; Swanson and Gilroy, 2010). Utilizing RAC/ROPs and ROS as signal mediators potentially provides almost limitless permutations of how FER-mediated signals might be propagated.
The diverse functionality of FER could also be provided by its potential ability to interact with multiple ligands. Its extracellular domain shows homology with malectin, a disaccharide-binding protein located in the endoplasmic reticulum (ER) of animal cells (Schallus et al., 2008, 2010). That FER might interact with carbohydrate moieties suggests the potential of mediating cell wall perturbations elicited by a battery of endogenous and environmental conditions (Hematy and Hofte, 2008; Boisson-Dernier et al., 2011; Cheung and Wu, 2011; Lindner et al., 2012) such as hormonal changes impacting cell growth and pathogen attacks eliciting cell wall restructuring. RALF1 is one of ∼40 related secreted peptides in Arabidopsis that collectively are ubiquitously present, albeit individually they are all expressed at low levels and their functional roles in plant growth and development remain largely unexplored (Morato do Canto et al., 2014; Srivastava et al., 2009). If, similar to RALF1 (Haruta et al., 2014), more of these peptide hormones interact with FER, using individual RALFs as signals might be another strategy to achieve its multi-functional roles.
Glycosylphosphatidylinositol-anchored proteins (GPI-APs) are cell surface-located proteins known to play important roles in regulating a broad range of biological processes including growth, morphogenesis, reproduction, and disease pathogenesis in eukaryotes (Lingwood and Simons, 2010; Fujita and Kinoshita, 2012; Yu et al., 2013). They localize to sphingolipid- and cholesterol-enriched domains in the cell membrane where they are believed to play key roles in regulating cell surface signaling dynamics, although much remains to be learned about their precise functional mechanisms. In plants, GPI-APs play indispensable roles throughout development, required for cell wall biosynthesis, embryo viability, organogenesis, reproductive development, and male–female interactive processes crucial for fertilization (Cheung et al., 2014). LORELEI (LRE) and LRE-like GPI-APs 1, 2, 3 (LLG1, 2, 3) are closely related but differentially expressed (Capron et al., 2008; Tsukamoto et al., 2010). LRE is expressed exclusively in the ovule and loss of LRE function suppresses female fertility. lre mutants display reproductive phenotypes almost identical to those in fer mutants: a majority of lre and fer female gametophytes fail to induce rupture of the invading pollen tubes and their ovules are penetrated by multiple pollen tubes, yet fail to be fertilized because of the lack of sperm release. Here we show that LRE and LLG1 interact physically with FER and that they are crucial for its cell surface signaling capacity. Our results show partnering with related but differentially expressed proteins as a strategy for FER to execute its diverse biological roles; they also elucidate a novel mechanism for how GPI-APs might control cell surface signaling.

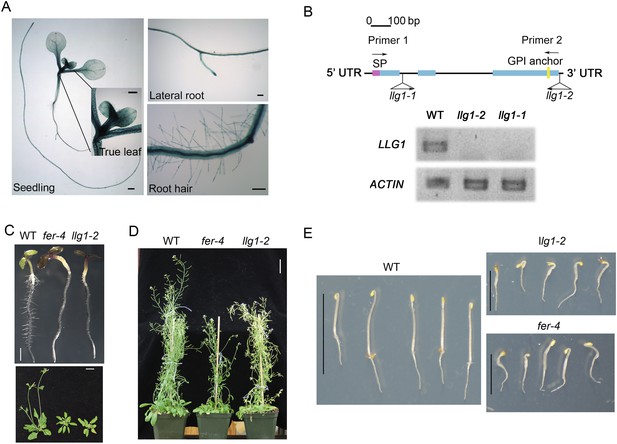

Gene expression and mutant analyses showed that LLG1 is important for vegetative growth and development. LLG1 is the most prominent LRE family protein expressed in vegetative tissues (Zimmermann et al., 2004), where FER expression is also prevalent (Duan et al., 2010). The LLG1 promoter::GUS (pLLG1::GUS) expression pattern (Figure 1A; Figure 1—figure supplement 1A) overlapped considerably with that of pFER::GUS (Duan et al., 2010) in Arabidopsis seedlings (see Supplementary file 1 for a list of constructs used). Two T-DNA-induced knock-out mutants, llg1-1 and llg1-2, were indistinguishable from each other and from fer-4, a previously characterized knock-out fer mutant (Duan et al., 2010, 2014) throughout vegetative development (Figure 1B–E; Figure 1—figure supplement 1B,C). Results described from here on are largely based on llg1-2, the mutant with which this work was initiated; observations made with llg1-1 provided confirmation.
Similar to fer-4, llg1 plants showed retarded growth starting from 4–5 days after germination and seedlings looked visibly stressed, accumulating higher levels of anthocyanin and appeared more purplish than wild type seedlings (Figure 1C, upper). Under dark-grown conditions, llg1 were also de-etiolated and showed reduced apical hook bending relative to wild type, similar to fer-4 (Deslauriers and Larsen, 2010) (Figure 1E; Figure 1—figure supplement 1C). Both llg1 and fer-4 remained smaller than wild type throughout growth and at maturity (Figure 1C lower; Figure 1D). Contrary to pronounced reproductive defects shared by fer-4 and lre mutants, llg1 plants had no reproductive phenotype and produced normal amounts of seeds, consistent with negligible LLG1 promoter activity in pollen and ovules (Figure 1—figure supplement 1A).

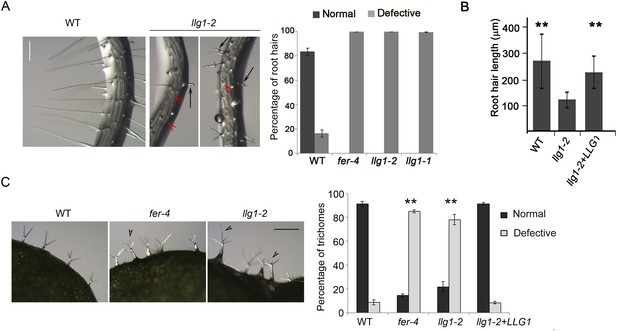

llg1 mutants also developed root hair and trichome defects, similar to fer mutants. A large majority of llg1 root hairs collapsed upon emergence and those that emerged remained significantly shorter than wild type root hairs (Figure 2A,B). Trichomes on llg1 leaf epidermis were mostly defective, with a significant number of them having curly and more than three branches relative to those on wild type leaves (Figure 2C). Expression from a genomic LLG1 fragment and from a LLG1 promoter-expressed HA-tagged LLG1 (pLLG1::HA-LLG1) in llg1-2 fully complemented its phenotypes (Figure 2B,C; Figure 2—figure supplement 1), confirming that loss of LLG1 function underlies the fer-like defects in llg1 mutants. Furthermore, fer-4 llg1-2 double mutant seedlings were indistinguishable from their single mutant parents (Figure 2—figure supplement 2). Together these results are consistent with FER and LLG1 functioning in the same pathways and that both proteins are required for these pathways, just as FER and LRE are both required to mediate reproductive success by controlling similar events in pollen tube–ovule interaction (Capron et al., 2008; Tsukamoto et al., 2010).

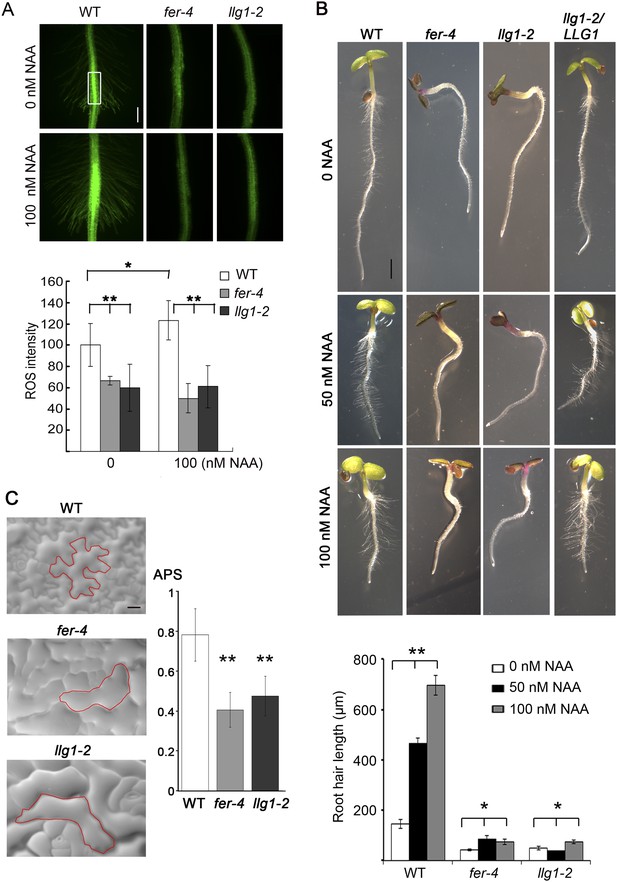

Given the role of FER in controlling RAC/ROP-regulated ROS production in seedling roots and that FER and LRE regulate ROS levels in the female gametophyte to mediate sperm release from the pollen tube (Duan et al., 2010), we examined whether loss of LLG1 conferred similar defects as those in fer-4 seedlings. llg1 root ROS levels were significantly reduced and did not respond to auxin-stimulated ROS accumulation as wild type did (Figure 3A). Furthermore, unlike wild type root hairs whose elongation was stimulated by auxin, llg1 root hair defects were not mitigated by auxin and emerged root hairs in llg1 remained shorter and substantially less sensitive to auxin stimulation (Figure 3B), similar to fer-4. Both fer-4 and llg1 seedlings were also defective in their epidermal cell pattern (Figure 3C), another auxin- and RAC/ROP-regulated property (Wu et al., 2011). Complementary lobes and indents along the surfaces of neighboring cells were considerably suppressed in llg1 and fer-4, giving rise to more box-shaped epidermal cells clearly distinguishable from those of a wild type seedling epidermis with interdigitated cells patterned like a jig-saw puzzle. Moreover, both FER (Yu et al., 2012) and RAC/ROPs (Lemichez et al., 2001; Zheng et al., 2002; Yu et al., 2012) down-regulate ABA signaling. Like fer-4, llg1-2 was similarly hypersensitive to ABA-inhibited seedling development (Figure 4A; Figure 4—figure supplement 1A,B).

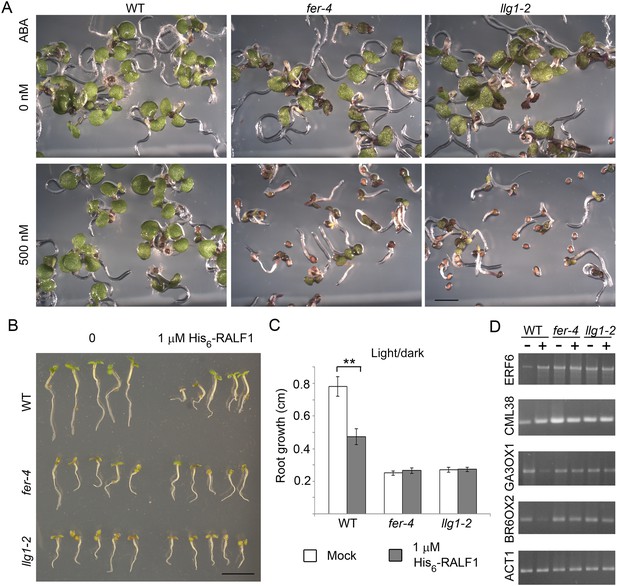

RALF1 treatment of llg1-2 and fer-4 seedlings showed that these mutants were comparably less sensitive than wild type plants to RALF1-mediated growth responses. At the end of a 2-day treatment period, wild type seedlings were evidently shorter than their mock-treated counterparts, while treated fer-4 (Haruta et al., 2014) and llg1-2 seedlings as a population remained comparable in their sizes to their untreated counterparts (Figure 4B; Figure 4—figure supplement 2A,B). Since growth was not uniformly suppressed among fer-4 and llg1 mutants (see Figure 2—figure supplement 2A–C; Figure 4—figure supplement 2), actual root growth during the 2 days of RALF1 treatment was therefore measured to better quantify the response to RALF1. While wild type seedling growth during RALF1 treatment was significantly retarded relative to the control seedlings, RALF1-treated fer-4 and llg1-2 seedlings grew comparably with their mock-treated counterparts (Figure 4C; Figure 4—figure supplement 2C). Sensitivity to RALF1-regulated gene expression was also examined. When two representative RALF1-stimulated and two RALF1-suppressed genes (Haruta et al., 2014) were examined, their expression levels in llg1-2 and fer-4 were also less sensitive to the impact of RALF1 than in wild type seedlings (Figure 4D).
These observations together indicate that FER and LLG1/LRE share the same function in several hormone- and RAC/ROP GTPase-mediated responses and they are both required for at least a subset of FER-mediated pathways.

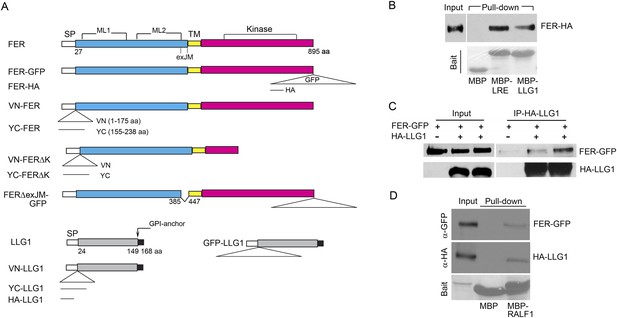

We demonstrated previously that FER interacts with RAC/ROPs in a multi-component signaling complex (Duan et al., 2010). Using the same protein pull-down strategy with ROP2, an Arabidopsis RAC/ROP, as bait, we observed that LLG1 was also pulled-down by ROP2 and in a guanine nucleotide-dependent manner, favored by GDP (Figure 5A), as was LRE (Figure 5; Figure 5—figure supplement 1). Distinct families of effectors are targeted by activated RAC/ROPs to mediate downstream pathways (Lavy et al., 2007; Wu et al., 2011). We observed that GTP-saturated ROP2 preferentially pulled-down the N-terminal fragment of the Arabidopsis RbohD-encoded NADPH oxidase (Figure 5B), indicating that it is also a RAC/ROP effector, as previously demonstrated for rice RAC1 and RbohB (Wong et al., 2007). FER was identified as a ROPGEF interacting protein (Duan et al., 2010) and GEF-RHO GTPase interaction is well established as has been demonstrated for ROPGEFs and RAC/ROPs in plants (Berken et al., 2005). Results reported here therefore imply a tetrameric FER-LLG1/LRE-ROPGEF-RAC/ROP signaling complex mediated by preferential ROPGEF binding to GDP-bound inactive RAC/ROPs (Duan et al., 2010), and once activated, the GTP-bound activated RAC/ROPs recruit NADPH oxidases to mediate downstream ROS-dependent processes. Emerging root hairs in fer-4 and llg1 seedlings began to extrude cytoplasm prior to their collapse (Figure 5C), consistent with a weakening cell wall as a result of reduced ROS production (Foreman et al., 2003; Carol and Dolan, 2006; Swanson and Gilroy, 2010) that ultimately led to their collapse.
Functional interactions between FER and LLG1 occur beyond acting as components of the RAC/ROP signaling apparatus. In wild type vegetative organs, FER promoter-expressed FER-GFP localized to the cell membrane and intracellular signal was negligible (Figure 6A; Escobar-Restrepo et al., 2007; Duan et al., 2010). On the other hand, the intracellular FER-GFP signal was considerably more pronounced in llg1 hypocotyl (Figure 6B) and roots (Figure 6; Figure 6—figure supplement 1) than in wild type tissues, often appearing in reticulate arrays and perinuclear regions, patterns reminiscent of the ER. Intracellular FER-GFP signal was prevalent in emerging root hairs prior to or during their rupture (Figure 6C), and colocalized with ER-Tracker-stained membrane patches (Figure 6—figure supplement 1C,D).

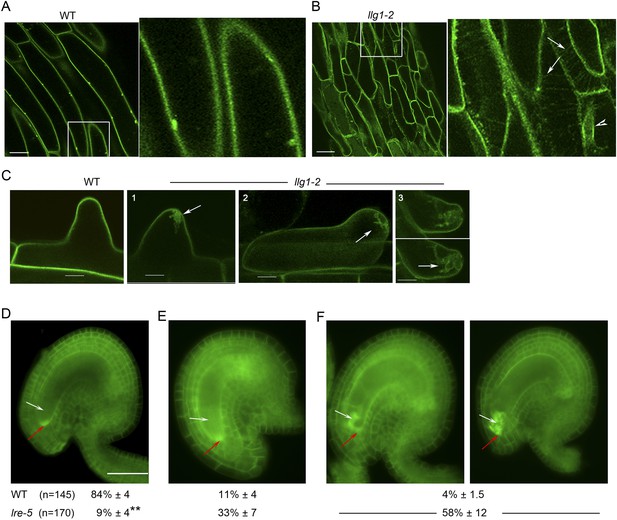

In the ovules, FER-GFP appears most prominently at the filiform apparatus (Figure 6D; Escobar-Restrepo et al., 2007; Duan et al., 2014), a synergid cell membrane-enriched cell wall region at the entrance to the female gametophyte (Kasahara et al., 2005). The concentrated localization of FER-GFP at the filiform apparatus was highly compromised in lre ovules. A significantly higher percentage of mutant ovules relative to wild type showed female gametophyte FER-GFP either totally retained in the synergid cell cytoplasm (Figure 6F) or distributed between the filiform apparatus and inside the synergids (Figure 6E; Figure 6—figure supplement 2B). FER-GFP retained inside the synergids sometimes appeared as cytoplasmic patches (Figure 6F; Figure 6—figure supplement 2A), reflecting a dense synergid cell endomembrane system (see, for example, Kasahara et al., 2005) that supports secretion of cell wall materials to construct the filiform apparatus.

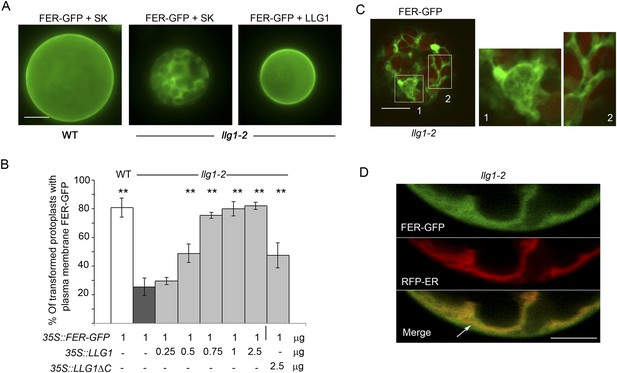

To further understand how loss of LLG1 affects FER-GFP localization, we transformed protoplasts derived from wild type and llg1 plants, where the localization of 35S promoter-expressed FER-GFP (35S::FER-GFP) could be clearly discerned and dose-dependence on the introduced transgenes could be quantitatively assessed. When transformed using the same amount of input FER-GFP DNA, llg1-2-derived protoplasts showed considerably stronger intracellular signals than their counterpart wild type cells (Figure 7; Figure 7—figure supplement 1 and Figure 7—figure supplement 2), consistent with intracellular FER-GFP signal being prominent in llg1 plants (Figure 6). The cytoplasmic FER-GFP signal in llg1 protoplasts often appeared in reticulate structures, reminiscent of the ER, and colocalized with a co-expressed ER marker (RFP-ER) (Figure 7C,D; Figure 7—figure supplement 2B,C). Cell surface localization of FER-GFP was not obliterated from llg1 protoplasts, but could clearly be resolved from its ER locations in cells where cortical ER was prominent (Figure 7D). Co-transfection of llg1 protoplasts by LLG1, epitope- or fluorescent protein-tagged LLG1 all restored cell membrane localization of FER-GFP (Figure 7A,B; Figure 7—figure supplement 2A,D). On the other hand, expression of LLG1ΔC, deleted of its C-terminal signature sequence for GPI-anchor modification (Kinoshita, 2014), was considerably less effective in restoring FER-GFP to the plasma membrane of llg1 cells (Figure 7B). Together with observations in llg1 seedlings (Figure 6), these results indicate that FER depends on GPI-anchored LRE and LLG1 for efficient cell membrane location.
Results thus far support the notion that LLG1 and LRE are critical for the biological functions of FER by facilitating localization of FER to the cell membrane (Figures 6, 7) where they also associate with the RAC/ROP complex (Figure 5) to mediate downstream processes (Figures 3, 4). To understand how LLG1 and LRE could attain these two properties, we explored whether they might interact directly with FER (Figures 8, 9). Protein–protein interaction assays showed that protoplast-expressed FER was pulled-down by LLG1 and LRE in vitro (Figure 8B) and FER co-immunoprecipitated with LLG1 that was co-expressed in protoplasts (Figure 8C), suggesting direct interactions between these proteins in plant cells. Moreover, protoplasts-coexpressed FER-GFP and LLG1-HA were co-pulled down by MBP-RALF1 (Figure 8D), indicative of RALF1 interaction with the FER-LLG1 complex.

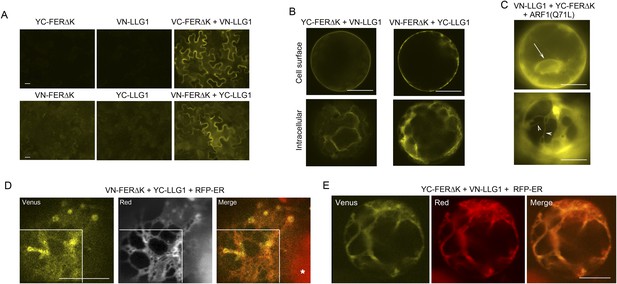

Bimolecular fluorescence complementation (BiFC) assays (Ohad and Yalovsky, 2010) were used to further examine FER-LLG1 interaction in plant cells (Figure 9; Figure 9—figure supplement 1). LLG1 and a truncated version of FER deleted of its kinase domain (FERΔK) (Figure 8A), which could be expressed at higher levels than full-length FER, were reciprocally fused to the N- and C-terminal halves (VN, YC, respectively) of Venus. These split Venus halves were also fused behind the FER signal peptide for targeting to the secretory pathway. Co-expression of cognate pairs of these split Venus in agroinfiltration transformed tobacco leaf epidermis reconstituted Venus yellow fluorescence along the cell surface (Figure 9A,B), reflecting FER-LLG1 interaction on the leaf cell membrane, and consistent with FER-GFP and GFP-LLG1 being predominantly located to the cell surface when expressed alone in similar assays (Figure 9—figure supplement 1A).
In transformed Arabidopsis protoplasts for BiFC analysis, typically about half of the BiFC positive cells displayed prominent cell membrane-localized signal with little notable intracellular signals (Figure 9B, upper panel). The other half harbored prominent Venus signal inside the cell, some appearing in reticulate structures, along with signal on the cell surface or cell cortex (Figure 9B, lower panel; Figure 9—figure supplement 1C). When the split Venus pairs were co-expressed with RFP-ER, reconstituted intracellular yellow fluorescence colocalized with the ER marker (Figure 9D,E), reflecting FER-LLG1 interaction in the ER. The notable BiFC signal within the ER most probably had resulted from retarded trafficking of the interacting proteins out of this compartment. An Arabidopsis ARF1 mutation, ARF1(Q71L), has been shown to block ER to Golgi trafficking and trap secretory proteins in the ER (Cai et al., 2011). When co-expressed with the split Venus pair of FERΔK and LLG1, ARF1(Q71L) dramatically increased the number of BiFC-positive cells (to >90%) showing intracellular yellow fluorescence. The reconstituted Venus signal often appeared perinuclear and in highly dynamic reticulate structures, typical of the ER (Figure 9C; Videos 1, 2). These observations further support FER-LLG1 interaction occurred already in the ER where these proteins would first encounter each other early in the secretory process.
Having determined that LLG1 is crucial for FER localization to the cell membrane and that FER and LLG1 interact physically (Figures 6–9), we sought further evidence for these interactions and their biological significance. We observed that FERΔexJM, FER deleted of the extracellular juxtamembrane region (exJM, amino acid residues 365–447) (Figure 8A) was less efficiently pulled-down by LLG1 (Figure 10A), while the 83 amino acid exJM fragment was adequate to pull-down LLG1 (Figure 10B). Yeast two-hybrid assays also indicated that exJM interacted with LLG1 and LRE (Figure 10C; Figure 10—figure supplement 1). Furthermore, when pFER::FERΔexJM-GFP was transformed into Arabidopsis, FERΔexJM-GFP showed prominent intracellular localization in structures reminiscent of the ER (Figure 10D,E; Figure 10—figure supplement 2A). These intracellular FERΔexJM-GFP signals also colocalized with the ER-tracker dye (Figure 10E) and with RFP-ER when co-expressed in protoplasts (Figure 10—figure supplement 2B). These observations together indicate that LLG1 and LRE target the exJM in FER for binding and that FER depends on these interactions for proper delivery to the cell membrane. They also imply that the phenotypes in llg1 and lre, together spanning the developmental spectrum of fer phenotypes, could have largely resulted from diminished FER localization to its proper functional location in the cell membrane, thus mimicking loss of FER.
Results reported here demonstrate that related GPI-APs LLG1 and LRE are functional counterparts that physically interact with FER and essential for its cell surface signaling capacity. Partnering with and relying on this differentially expressed protein pair clearly would provide versatility for the almost constitutively expressed FER to control when and where signaling can be deployed. Moreover, modulation of LLG1 and LRE expression and their post-translational modifications, which involve numerous GPI-anchor biosynthetic and restructuring steps (Fujita and Kinoshita, 2012; Kinoshita et al., 2013; Cheung et al., 2014), would provide many opportunities for FER signaling activity to be fine-tuned to meet a broad range of developmental needs and environmental challenges. Given the spectrum of phenomena already known to be regulated by FER (Wolf and Hofte, 2014), LLG1 and LRE could be of core importance to how FER treads among several signaling pathways to mediate growth and developmental processes regulated by multiple hormones, reproduction, and defense, each potentially controlled by distinct signals. FER is a member of a family of 17 related Arabidopsis receptor kinases, which are also conserved in other plant species (Hematy and Hofte, 2008); LRE-like proteins are also present in other plants (Tsukamoto et al., 2010). It is conceivable that pairing with their cognate LRE-like proteins also underlies the signaling functions of other FER-related receptor kinases. GPI-APs, including, for example, the COBRA family proteins (Schindelman et al., 2001; Li et al., 2013) and arabinogalactan proteins (Demesa-Arevalo and Vielle-Calzada, 2013), play crucial roles in plant growth and reproduction. Demonstrating that FER depends on LLG1 and LRE for efficient localization to the cell membrane (Figures 6, 7) elucidates not only a strategy whereby FER acquires its cell surface signaling capacity but also a mechanism with which GPI-APs might enable the signaling capacity of a broader set of cell surface receptors.
The FER-LLG1/LRE partnership also underscores the importance and the versatility of GPI-APs as regulators for cell signaling activities. GPI-APs are secreted to the outer leaflet of the cell membrane. LLG1 and LRE binding to the exJM domain of FER (Figure 9) is consistent with their being tethered to the cell membrane via the GPI anchor, thus facilitating interactions with FER immediately along the outer cell surface. GPI anchors are assembled and transferred to proteins destined for lipid modification in the ER. GPI-APs are known to undergo structural remodeling in the ER for efficient trafficking to the Golgi in vesicles that are distinct from those for other secretory proteins, already marking them for delivery to specialized sphingolipids- and cholesterols-enriched cell membrane microdomains (Fujita and Kinoshita, 2012; Kinoshita et al., 2013). With its signal peptide, FER could be secreted by default to the cell membrane. That FER and LLG1 already interact in the ER (Figure 9) and this interaction underlies efficient FER localization to the cell membrane (Figures 6, 7 and 10) are consistent with at least a fraction of FER exiting the ER as a FER-LLG1/LRE complex (Figure 11). That FER and LLG1/LRE remain associated with the RAC/ROP signaling complex along the cell membrane (Figures 5, 9) also provides additional support for FER-LLG1/LRE being transported from the ER to the cell membrane as a complex. In complexing with FER in the ER and ‘chaperoning’ its delivery to the cell membrane, LLG1 and LRE ensure delivery of FER to GPI-AP-destined micro membrane environments for its proper functional location and assembly of the RAC/ROP signaling apparatus (Figure 11). In the remaining part of the FER-ROPGEF-RAC/ROP signaling complex (Figure 5) and being required for several RAC/ROP regulated processes (Figure 4; Duan et al., 2014), LLG1 and LRE apparently also function as an integral component of the FER signal reception apparatus. They might directly participate in signal perception by FER and/or regulate how FER interacts with various possible binding targets, such as RALF1 or other hormones and cell wall carbohydrates. They also conceivably provide a landmark for the assembly of the FER signaling apparatus and regulation of its activity such as by maintaining its stability or inducing its recycling from the cell membrane, roles known to be played by GPI-APs (Lingwood and Simons, 2010; Fujita and Kinoshita, 2012; Yu et al., 2013). To what extent the LRE family protein controls the delivery of receptor kinases as a class or more specifically those closely related to FER remains to be determined.

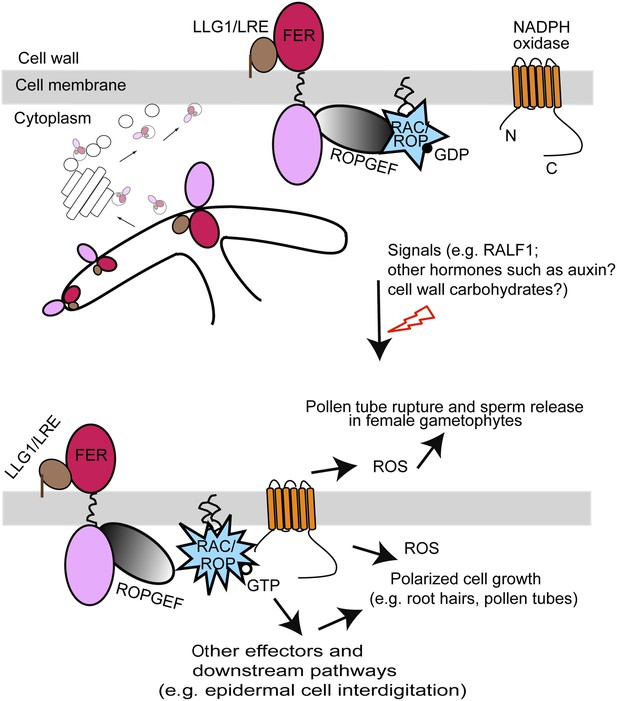

Results presented here also provide evidence for the notion that LLG1/LRE acts as a co-receptor to mediate at least those FER-regulated processes examined here. On the phenotypic level, growth and developmental defects in llg1 (Figures 1, 2) and reproductive defects in lre (Capron et al., 2008; Tsukamoto et al., 2010) together span the spectrum of vegetative and reproductive phenotypes in fer mutants. The non-additive phenotype of fer-4 llg1-2 double mutant relative to each of its parent single mutants (Figure 2—figure supplement 2) provides further support that FER and LLG1 function in and both are required for the same pathways. Biochemically, both LLG1 and LRE physically interact with FER on the cell membrane (Figure 9) and exist as components of the FER-ROPGEF-RAC/ROP-NADPH oxidase signaling pathway (Figure 5), consistent with their serving with FER as signal mediators on the cell surface to RAC/ROPs. This is further supported biologically by loss of LLG1 or LRE inducing the same signaling defects as in fer null mutants, including processes regulated by auxin, ABA, RALF1, and ROS (Figures 3, 4; Duan et al., 2014). Besides LLG1/LRE, RALF1 is thus far the only other molecule reported to interact with the FER extracellular domain, although the precise RALF1 target site on FER remains unknown (Haruta et al., 2014). That RALF1 interacts with co-expressed FER and LLG1 (Figure 8D) and that both FER and LLG1 are needed to mediate RALF1 signaled responses (Figure 4B–D) indicate that the FER-LLG1 complex indeed has the capacity to serve as a co-receptor for this first known ligand of FER. Given the already known participation of FER in multiple hormone and defense signaling pathways, the FER-LLG1/LRE complex could equally be a surface co-regulator for multiple signals. Moreover, FER is also broadly speculated to interact with cell wall carbohydrates by virtue of its extracellular homology with the disaccharide-binding malectin (Kessler et al., 2010; Cheung and Wu, 2011; Lindner et al., 2012; Wolf and Hofte, 2014). Therefore, the extracellular interactions engaged by FER are likely to be complex and influenced by multiple factors whose presence fluctuates depending on cellular and environmental conditions. The FER-LLG1/LRE partnership discovered here laid the ground work towards a more comprehensive understanding of how FER attains its multiple biological role; this will however require first deciphering other biochemical interactions maintained by FER.
Plant growth followed previously described conditions (Duan et al., 2010). Tissue culture-grown plants were maintained on B5 medium supplemented with 1% sucrose and solidified by 0.7% agar. Seeds were cold-treated at 4°C for 2 days before being transferred to 22°C for germination and growth under 16/8 hr light/dark cycles, or in total darkness for dark-grown seedlings. For growth to maturity, seeds were either sown directly on soil, or 10-day-old tissue culture-grown seedlings were transferred to soil, and maintained in a growth chamber at 20–22°C under 16/8 hr light/dark cycles. Arabidopsis thaliana Col-0 was used as control for llg1-2 (SALK_086036) and llg1-1 (SAIL_47_G04). Both llg1 mutants behaved similarly throughout growth and development and did not display discernable reproductive defects. Homozygous fer-4 (Duan et al., 2010, 2014) and lre-5 (Tsukamoto et al., 2010) were as previously described. Double fer-4 llg1-2 was generated by a genetic cross. RALF1-regulated growth used Escherichia coli-produced His6-RALF1 and followed previously described conditions (Bergonci et al., 2014; Haruta et al., 2014). Growth for RALF1 treatment for RT-PCR analysis followed Haruta et al. (2014).
Arabidopsis was transformed by floral dip (Clough and Bent, 1998). Transient transformation assays were carried out by agroinfiltration (Batoko et al., 2000) of Nicotiana tabacum var SR1 grown at ∼25°C in a growth room. A wound was made in the abaxial epidermis and about 1 ml of bacteria (at 0.1–0.4 OD600) was injected into these spots using a 1 ml syringe. Transient transfection of Arabidopsis protoplasts from 4-week-old soil-grown wild type and llg1-2 plants, and of tissue culture-grown wild type Arabidopsis protoplasts followed procedures in Yoo et al. (2007) and Duan et al. (2010), respectively. Unless otherwise indicated, DNA amounts used for protoplast transfection were: 1 μg of pFER::FER-GFP; varying amounts of 35S::LLG1 or 35S::LLG1 derivatives (indicated in figures); 1–2 μg of the ER marker 35S::RFP-ER (Sinclair et al., 2009); 4 μg of each split Venus half (Kodama and Hu, 2012) and 5 μg of 35S::ARF1(Q71L) (Cai et al., 2011). Empty vector (Bluescript vector SK) DNA was used to equalize the amount of DNA used in comparative assays.
All recombinant DNA procedures followed standard and PCR-based methodology. A list of constructs is shown in Supplementary file 1; domain maps for some are shown in Figure 8. Plant genomic DNA was used for PCR analysis of T-DNA inserts in transformed plants. RNA for expression analysis by RT-PCR was isolated from 10-day- old seedlings following the manufacture's protocol (PrepEase RNA isolation kit; USB/Affymetrix, Santa Clara, CA). Histochemical staining for GUS activity followed the standard procedure (Jefferson, 1987). Primers for RT-PCR of RALF1-regulated genes are: (1) BR6OX2: forward, GAG ACA TCA AGA TTG GCA ACG; reverse, GTA AGG TGA ACA CTT AAG ATGG; (2) GA3OX-1: forward, CAA GTA TTT CGC GAT GAT CTT GG; reverse, G ATA CTC TTT CCA TGT CAC CG; (3) CML38: forward, ATG AAG AAT AAT ACT CAA CCT C; reverse, GCG CAT CAT AAG AGC AAA CTC; (4) ERF6: forward, ATG GCT ACA CCA AAC GAA GTA TC; reverse, AAC AAC GGT CAA TTG TGG ATA ACC.
Plant phenotype and data analyses mostly followed Duan et al. (2010). Root hairs located between 1.5 and 3.5 mm from the primary root tip of 4-day-old seedlings were examined. For auxin treatments, 1-naphthaleneacetic acid (NAA) was added at concentrations indicated in the figures. ABA treatment followed that in Yu et al. (2012); hormone was added directly to seed germination plates. For RALF1 treatments, E. coli-produced His6-RALF1 was purified according to Morato do Canto et al. (2014). Two-day-old light-grown seedlings were treated with His6-RALF1 for 2 days according to Haruta et al. (2014) at concentrations indicated in the figures. Root lengths were measured at the beginning and end of treatments to obtain growth during treatment. Epidermal cell analysis was carried out as described (Le et al., 2006; Sorek et al., 2011). ROS in the primary roots and root hairs were detected by H2DCF–DA (2′, 7′-dichlorodihydro-fluorescein diacetate; Sigma/Aldrich, St. Louis, MO) and ROS fluorescence intensity within a fixed region of interest (ROI) was quantified using Image J.
FER-GFP localization in ovules was acquired as described in Duan et al. (2014). The synergid cells from one ovule to another are not identical in shape, size, or relative orientation with the rest of the ovule parts. For comparative quantitative analysis of data between wild type and mutant ovules, signals from the entire recognizable filiform apparatus and synergid cells were quantified and relative signal distribution between the filiform apparatus and the synergid cell cytoplasm was compared between wild type and mutant ovules.
For protein pull-downs, bait proteins (MBP-LLG1, MBP-LRE1, MBP-ROP2, MBP-exJM, His6-LLG1, MBP-RALF1) were produced in E. coli and bound to amylose or talon resins as previously described (Duan et al., 2010). Plant proteins (FER-HA, FER-GFP, FERΔexJM-GFP, HA-LLG1, RbohD(N)-HA) were expressed in protoplasts (<10 μg DNA per transfection) and extracted at ∼12 hr after transfection in pull-down buffer (binding buffer: 40 mM Tris–HCl, pH 7.5, 100 mM NaCl, 1 mM Na2-EDTA; plus 5% glycerol, 5 mM MgCl2, 1 mM PMSF, protease inhibitor mixture [Calbiochem, San Diego, CA] at 1:100 dilution, and 0.4% Triton X-100 to facilitate solubilization). Protoplast protein extracts or E. coli-produced target proteins were applied to bait protein-bound resins and incubated at 4°C for 2 hr with gentle mixing. The resin was washed three times in binding buffer. Proteins remained bound to the resin were eluted by mixing with SDS/PAGE loading buffer, boiled for 5 min, and applied to SDS/PAGE (7.5% for FER; 12.5–17.5% for LLG1 and LRE) for immunoblot analysis. Protein blots were stained by Ponçeau S Sigma-Aldrich for sample loading comparison, followed by immunostaining. Primary (anti-HA and anti-GFP) and secondary antibodies for chemiluminescence detection were from Santa Cruz. Signals were acquired by the PXi imaging system (Syngene, Cambridge, UK).
MBP-ROP2 pull-down of protoplasts-expressed HA-LLG1 and HA-LRE followed the previously described procedure (Duan et al., 2010). Pull-down of RbohD(N)-HA was carried out similarly with MBP-ROP2 resin pretreated by 10 mM GTP or GDP for 2 hr and pull-down carried out with 10 mM GTP or GDP in the buffer.
For co-immunoprecipitation, 35S::HA-LLG1 and 35S::FER-GFP were co-expressed in transfected protoplasts. Mock samples were transfected with 35S::FER-GFP and empty SK vector DNA. Proteins were extracted as described above. Anti-HA antibody was used at 1:100 dilution for each immunoprecipitation in 1 ml reactions, incubated at 4°C for 3 hr, followed by the addition of 50 μl of protein G resin suspension (Santa Cruz Technology, Dellas, TX.). After binding for 1 hr, the resin was washed five times in binding buffer. Proteins remained bound to the resin were eluted in SDS/PAGE loading buffer, boiled for 5 min, and applied to SDS/PAGE for immunoblot analysis as described above.
For yeast two-hybrid assays, products and procedures from Stratagene were used for vectors, yeast growth, selection, and β-galactosidase activity.
Seedling, inflorescence, and trichome images were acquired on an Olympus SZ61 microscope. Epifluorescence and DIC microscopy were carried out on a NIKON Eclipse E800 microscope equipped with a SPOT camera (Molecular Diagnostic). Filters from Chroma were used: green fluorescence, Ex460-500/DM505/BA510-560; red fluorescence, Ex546(10)/ DM565LP/EM590LP; yellow fluorescence, Ex490-510/DM515/BA520-550. Confocal imaging was carried out on a Zeiss Meta510 or a Nikon A1. Comparative studies were based on identical imaging conditions and followed procedures described in Duan et al. (2010). Use of ER-Tracker Red (BODIPY TR Glibenclamide; Life-Technologies) to stain ER followed Cui et al. (2012), Yang et al. (2013), and the manufacturer's protocol.
All data presented are representative of at least three independent experiments with comparable results. Quantitative data are presented as averages ± SEM of replicated experiments or samples, or as averages ± SD from a representative experiment as indicated in the figure legends. Sampling sizes are indicated in the figures or figure legends. Student's t-tests were used for p value calculations. p<0.05 is considered significant (indicated by * in figures); most experimental and control data were significantly different with p values ranging from 10−2 to 10−5 (indicated by ** in figures).
Arabidopsis thaliana RALF1 opposes brassinosteroid effects on root cell elongation and lateral root formationJournal of Experimental Botany 65:2219–2230.https://doi.org/10.1093/jxb/eru099
The walls have ears: the role of plant CrRLK1Ls in sensing and transducing extracellular signalsJournal of Experimental Botany 62:1581–1591.https://doi.org/10.1093/jxb/erq445
The role of reactive oxygen species in cell growth: lessons from root hairsJournal of Experimental Botany 57:1829–1834.https://doi.org/10.1093/jxb/erj201
Glycosylphosphatidylinositol anchoring: control through modificationPlant Physiology 166:748–750.https://doi.org/10.1104/pp.114.246926
THESEUS 1, FERONIA and relatives: a family of cell wall-sensing receptor kinases?Current Opinion in Plant Biology 14:632–641.https://doi.org/10.1016/j.pbi.2011.09.001
FERONIA receptor-like kinase regulates RHO GTPase signaling of root hair developmentProceedings of the National Academy of Sciences of USA 107:17821–17826.https://doi.org/10.1073/pnas.1005366107
GPI-anchor remodeling: potential functions of GPI-anchors in intracellular trafficking and membrane dynamicsBiochimica et Biophysica Acta 1821:1050–1058.https://doi.org/10.1016/j.bbalip.2012.01.004
Three related receptor-like kinases are required for optimal cell elongation in Arabidopsis thalianaProceedings of the National Academy of Sciences of USA 106:7648–7653.https://doi.org/10.1073/pnas.0812346106
Novel receptor kinases involved in growth regulationCurrent Opinion in Plant Biology 11:321–328.https://doi.org/10.1016/j.pbi.2008.02.008
Reactive oxygen species in abiotic stress signalingPhysiologia Plantarum 138:405–413.https://doi.org/10.1111/j.1399-3054.2009.01321.x
Assaying for chimeric genes in plants: the GUS fusion systemPlant Molecular Biology Reporter 5:387–405.https://doi.org/10.1007/BF02667740
She's the boss: signaling in pollen tube receptionCurrent Opinion in Plant Biology 14:622–627.https://doi.org/10.1016/j.pbi.2011.07.012
Enzymatic mechanism of GPI anchor attachment clarifiedCell Cycle 13:1838–1839.https://doi.org/10.4161/cc.29379
Transport of glycosylphosphatidylinositol-anchored proteins from the endoplasmic reticulumBiochimica et Biophysica Acta 1833:2473–2478.https://doi.org/10.1016/j.bbamcr.2013.01.027
Inactivation of AtRac1 by abscisic acid is essential for stomatal closureGenes & Development 15:1808–1816.https://doi.org/10.1101/gad.900401
CrRLK1L receptor-like kinases: not just another brick in the wallCurrent Opinion in Plant Biology 15:659–669.https://doi.org/10.1016/j.pbi.2012.07.003
Biological activity of nine recombinant AtRALF peptides: implications for their perception and function in ArabidopsisPlant Physiology and Biochemistry 75:45–54.https://doi.org/10.1016/j.plaphy.2013.12.005
RAC/ROP GTPases: ‘hubs’ for signal integration and diversification in plantsTrends in Plant Science 11:309–315.https://doi.org/10.1016/j.tplants.2006.04.003
Utilizing bimolecular fluorescence complementation (BiFC) to assay protein-protein interaction in plantsMethods in Molecular Biology 655:347–358.https://doi.org/10.1007/978-1-60761-765-5_23
Growth control: a saga of cell walls, ROS, and peptide receptorsThe Plant Cell 26:1848–1856.https://doi.org/10.1105/tpc.114.125518
FERONIA receptor kinase pathway suppresses abscisic acid signaling in Arabidopsis by activating ABI2 phosphataseProceedings of the National Academy of Sciences of USA 109:14693–14698.https://doi.org/10.1073/pnas.1212547109
Recent progress in synthetic and biological studies of GPI anchors and GPI-anchored proteinsCurrent Opinion in Chemical Biology 17:1006–1013.https://doi.org/10.1016/j.cbpa.2013.09.016
GENEVESTIGATOR. Arabidopsis microarray database and analysis toolboxPlant Physiology 136:2621–2632.https://doi.org/10.1104/pp.104.046367
Sheila McCormickReviewing Editor; University of California-Berkeley and USDA Agricultural Research Service, United States
eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.
Thank you for sending your work entitled “Glycosylphosphatidylinositol-anchored proteins as co-receptors for FERONIA receptor kinase signaling in Arabidopsis” for consideration at eLife. Your article has been favorably evaluated by Detlef Weigel (Senior editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors.
The following individuals responsible for the peer review of your submission have agreed to reveal their identity: Sheila McCormick (Reviewing editor and reviewer) and Venkatesan Sundaresan (reviewer). A further reviewer remains anonymous.
The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.
The FER kinase is involved in several signaling pathways that are important for plant development, so the problem investigated is of high interest. The findings provide new insights into the mechanism of signaling by FER, and into the molecular functions of the LRE-related GPI-anchored proteins, which are poorly understood in plants. Overall the study appears be well-executed and the data are solid. Evidence for LLG1 functioning as a chaperone for FER delivery to the cell membrane is robust, but evidence for it functioning as a co-receptor for signal perception is weaker. Additionally, we think the manuscript can be improved (e.g., sentence structure, better explanation of the logic behind each experiment), as in many places it was difficult to follow or information was missing.
1) Clarifications and additional experiments needed to support the model. The proposed model is that LRE/LLG1 forms a tetrameric signaling complex with FER and inactive RAC/ROP proteins. The FER- LRE/LLG interactions are supported by yeast 2-hybrid as well as BIFC studies and are convincing that LLG1 is a chaperone for localization of FER to the PM. However, several experiments are needed to strengthen the conclusion about LLG1's role as a co-receptor: (A) FER-mediated molecular responses to RALF1, such as gene expression, should be analyzed in fer and llg1 mutants (e.g. the TCH and BR6ox genes reported in Shih et al., and Haruta et al. 2014). (B) Does RALF1 alter FER-LLG1 interaction, e.g. in the co-IP assays shown in Figure 8? (C) Is RALF1 binding to FER affected in the llg1 mutant (as assayed in Haruta et al., 2014)? In other words, if LLG1 + FER bind RALF, but LRE + FER do not (based on the phenotypes of llg1 and lre), that would be strong support of the model that FER selectivity is due to association with LRE-like proteins. As we understand it, the ROP2 pulldown was performed with LLG1 and LRE expressed in protoplasts (not E. coli), which should have the endogenous FER. Therefore, the likely explanation is that FER mediated the pulldown. But then this should be tested using the fer mutant and FER co-overexpression, and also in the presence and absence of RALF1 peptide. That is, fer mutant protoplasts transformed with (1) LLG1-HA, (2) LLG1-HA + 35S-FER, and (3) LLG1-HA+35S-FER + RALF1 treatment. These three samples can potentially answer several key questions raised by their model. Furthermore, whether LLG1 function is required for the FER-ROP2 interaction can be tested by doing the ROP2-pulldown-FER assay in llg1 mutant protoplasts. Their model (Figure 11) proposes the “signal” (somehow) causes RACROP disassociation from the receptor complex and could be tested by including RALF1 in their ROP pulldown assays. These experiments can potentially add significant insights and clarify some important uncertainties of their model.
2) Clarifications re phenotypic characterization: Phenotypes were compared in detail between llg1 and fer, but double mutant and epistatic analyses were not performed. Although an additive effect can be caused by partial loss of function (with redundant genes present), absence of an additive effect between llg1 and fer would provide key support for their function in the same pathway. If there is a reason why double mutants were not analyzed, it should be explained. Haruta et al., 2014 and Shih et al., 2014 showed longer roots in fer than in wild type, opposite to the results shown in Figure 4B–C. This requires clarification! While the RALF1 insensitive root of llg1 supports the requirement of LLG1 for RALF1 signaling, the retarded root growth of untreated llg1 mutant, similar to RALF1-treated wild type, is consistent with constitutive RALF1/FER signaling.
3) Microscopic data need clarification. For example, the “well-defined cell membrane localization” and “mislocalized… in llg1 mutant” in Figure 6A is not obvious, because the signal intensity in WT is lower than that in llg1, and the cell membrane still shows a stronger signal than the ER in llg1. A similar amplified view should be provided for WT (there is empty space in the figure layout). In Figure 6C, is the effect specific to FER or would any cell surface receptor be affected by this root hair tip defect? What is the difference between WT and llg1 in Figure 6—figure supplement 1A? Figure 6—figure supplement 1B and C lack wild type and non-transgenic controls for the “auto-green fluorescent patches”. Figure 6—figure supplement 2: why is the signal intensity different between WT and lre and lre llg1? And why in the lre mutant gametophytes, is FER-GFP localization cytoplasmic? Wouldn't the FER-GFP signal be expected in the ER of the synergids, similar to the ER localization of FER-GFP in the hypocotyl cells of llg1 mutants? Furthermore, the ratios of FER in the FA vs. outside the FA in the synergids are estimated based on integrating the GFP signal over a ROI. It is not clear how the ROIs were selected, because the outline of the synergids is not clear. The ROIs for the mutants seem larger, especially in the case of the lre llg1 double mutant. This might result in an artificially high value for the signal outside the FA in the mutant gametophytes. A justification for the ROIs selected should be provided. Figure 7A,B: would be more convincing and clear if random views of multiple protoplasts were shown.
4) The lre mutants used in the study should be described in the Methods. In the case of lre, which is a female gametophyte mutant, the plants might be assumed to be heterozygous for the mutation. Based on the frequencies in Figure 6D, it would appear that the lre plants are in fact homozygous, but it is not obvious. In general, the Methods section should clarify the homozygosity of all the mutants used.https://doi.org/10.7554/eLife.06587.030
1) Clarifications and additional experiments needed to support the model. The proposed model is that LRE/LLG1 forms a tetrameric signaling complex with FER and inactive RAC/ROP proteins. The FER- LRE/LLG interactions are supported by yeast 2-hybrid as well as BIFC studies and are convincing that LLG1 is a chaperone for localization of FER to the PM. However, several experiments are needed to strengthen the conclusion about LLG1's role as a co-receptor: (A) FER-mediated molecular responses to RALF1, such as gene expression, should be analyzed in fer and llg1 mutants (e.g. the TCH and BR6ox genes reported in Shih et al.,2014 and Haruta et al. 2014).
We tested several RALF1-regulated genes and confirm that llg1-2 and fer-4 were similar in their reduced sensitivity relative to wild type (data added as Figure 4D, described in the subsection headed “llg1 and fer mutants have indistinguishable hormone- and RAC/ROP-regulated phenotypes”). Haruta et al. 2014 showed only that BR6OX2 expression in fer-4 was less sensitive to RALF1 suppression than WT. We extended the analysis to include four other RALF1 regulated genes, and showed that while RALF1 suppressed BR6OX2 and GA3OX3 and stimulated CML38 and ERF6, fer-4 and llg1-2 were both less sensitive to RALF1-induced fluctuations. We did not examine TCH, as we are aware of another lab's focus on this aspect in llg1, so do not wish to knowingly intrude on that.
(B) Does RALF1 alter FER-LLG1 interaction, e.g. in the co-IP assays shown in Figure 8? (C) Is RALF1 binding to FER affected in the llg1 mutant (as assayed in Haruta et al., 2014)? In other words, if LLG1 + FER bind RALF, but LRE + FER do not (based on the phenotypes of llg1 and lre), that would be strong support of the model that FER selectivity is due to association with LRE-like proteins. As we understand it, the ROP2 pulldown was performed with LLG1 and LRE expressed in protoplasts (not E. coli), which should have the endogenous FER. Therefore, the likely explanation is that FER mediated the pulldown. But then this should be tested using the fer mutant and FER co-overexpression, and also in the presence and absence of RALF1 peptide. That is, fer mutant protoplasts transformed with (1) LLG1-HA, (2) LLG1-HA + 35S-FER, and (3) LLG1-HA+35S-FER + RALF1 treatment. These three samples can potentially answer several key questions raised by their model. Furthermore, whether LLG1 function is required for the FER-ROP2 interaction can be tested by doing the ROP2-pulldown-FER assay in llg1 mutant protoplasts. Their model (Figure 11) proposes the “signal” (somehow) causes RACROP disassociation from the receptor complex and could be tested by including RALF1 in their ROP pulldown assays. These experiments can potentially add significant insights and clarify some important uncertainties of their model.
The list represents a comprehensive set of biochemical studies to unravel the FER-LLG1/LRE and RALF1 relationship which are in fact ongoing projects in our lab. Although we explained above that RALF1 is not the only concern in this study, we add to the revised manuscript a result showing that RALF1 pulled-down co-expressed FER and LLG1 (added as Figure 8D; please see the subsection headed “FER interacts with LLG1 on the cell membrane and in the ER”), supporting interaction between RALF1 and the FER-LLG1 complex. Together with the expanded results showing comparable reduction of sensitivity to RALF1-regulated gene expression (response above) and lack of additive effects of combining fer4 and llg1 (response below), we believe that the current version contains data that considerably strengthen the FER-LLG1 co-receptor concept.
As for the list of experiments suggested by the reviewers, investigations along similar lines were already ongoing (by F-L. Yeh, and J.M.) as we wrapped up the Li et al. study. Every question raised is important but answering each already involves relatively complex experimentation. We do not wish to treat any of these aspects without the thoroughness we like to maintain in our work or without being able to take into account the multiple facets of FER functions. Given the already very extensive study presented in Li et al., we feel that we cannot do justice to the depth that these studies requires or to the junior investigators who carry out these works by hastily putting results from ongoing work into this paper.
2) Clarifications re phenotypic characterization: Phenotypes were compared in detail between llg1 and fer, but double mutant and epistatic analyses were not performed. Although an additive effect can be caused by partial loss of function (with redundant genes present), absence of an additive effect between llg1 and fer would provide key support for their function in the same pathway. If there is a reason why double mutants were not analyzed, it should be explained.
Yes, double fer-4 llg1-2 seedling phenotype mimic those in individual parents (added as Figure 2–figure supplement 2; please also see the subsection “llg1 and fer mutants have indistinguishable growth and developmental phenotypes”), providing additional and key support for FER and LLG1 functioning in the same pathway.
Haruta et al. and Shih et al. showed longer roots in fer than in wild type, opposite to the results shown in Figure 4B-C. This requires clarification! While the RALF1 insensitive root of llg1 supports the requirement of LLG1 for RALF1 signaling, the retarded root growth of untreated llg1 mutant, similar to RALF1-treated wild type, is consistent with constitutive RALF1/FER signaling.
We explain the growth phenotype in more detail in the second and third paragraphs of this response and in the text (subsection entitled “llg1 and fer mutants have indistinguishable hormone- and RAC/ROP-regulated phenotypes”). We respond first on the comments on Haruta et al. and Shih et al.
Regarding Haruta et al. and Shih et al. results. We do not agree with the assessment that “Haruta et al. and Shih et al., 2014 showed longer roots in fer than in wild type”. If one examines Haruta et al. Figure 2B, mock-treated fer-4 roots were shorter than wild type ones (compare first and second data sets in the plot). The seedling image in Figure 2A, one of the fer-4 seedlings was longer, the other was shorter or at most comparable to wild type, suggesting that the illustrated images were likely among the longer population of fer-4, which are routinely the better survivors. As for the Shih et al. study, the main text and SI together showed two partial fer-4 root images (Figure 2E, and S2E). The more severely growth-retarded seedlings also have strong cell wall defects, including rips between cells (D. Kita, Ph.D. dissertation, and manuscript under preparation) and, in our opinion, would not have been good candidates for assessment of mechanical sensing. Judging from the notable root hairs still observable in fer-4 in Shih et al. Figure 2E, plants used in the mechanical sensing studies would indeed have been the larger-sized seedlings, possibly approximating wild type. However, the overall plant sizes in Shih et al. could not be evaluated from the results shown in the paper.
Detail description of fer-4 growth and to clarify the RALF regulated growth phenotype: The vegetative phenotypes of fer-4 and llg1 and the reproductive phenotypes (i.e. female gametophyte sterile) of fer-4 and lre-5 are not 100% penetrant. Seedlings vary in sizes (see added Figure 2–figure supplement 2) and only a majority of fer-4 and lre-5 female gametophytes are sterile but a percentage remains fertile, producing homozygous mutant progeny (Duan et al., 2010; 2014; Tsukamoto et al., 2010). All fer-4 phenotypes are complemented by FER-GFP (Duan et al., 2010; 2014). The most severe fer-4 seedlings do not survive, but the same range of phenotypes bled true in progeny from less severely defective mutant plants. We tested another allele, fer-2 (Deslauriers and Larsen, 2010), the non-penetrant phenotype is the same. llg1-1 and llg1-2 seedlings are also heterogeneous in sizes.
Larger and smaller fer and llg1 seedlings persisted in RALF treatment samples (added as Figure 4–figure supplement 2A, B), consistent with reduced sensitivity to RALF in the overall mutant seedling populations. The size (thus growth) heterogeneity led to our measuring “actual growth” during the two days of treatment and using the smaller seedlings (Figure 4B,C as in original manuscript) because they were more homogeneous. We believe the actual growth measurements adds strength to just comparing root lengths of wild type and mutant seedlings after treatments (as in Haruta et al., and as we also show in Figure 4B, Figure 4–figure supplement 2B and 2C, right).
3) Microscopic data need clarification. For example, the “well-defined cell membrane localization” and “mislocalized… in llg1 mutant” in Figure 6A is not obvious, because the signal intensity in WT is lower than that in llg1.
The signal intensity is actually not directly comparable in these images, because they were captured by “autoexposure” and the exposure time is determined by the highest signal intensity in the overall sample. In fact, FER-GFP signals were consistently not notably different between wild type and llg1-2; this is also evidenced here by the comparable signal to background contrast.
And the cell membrane still shows a stronger signal than the ER in llg1.
The point we wanted to convey is that there was considerably higher retention of FER-GFP in llg1 tissues but not that it was entirely removed from the cell periphery (where the cell membrane and cortical ER are often not easily resolved). We change the sentence that refers to this result to: “intracellular FER-GFP signal was considerably more pronounced in llg1 hypocotyl (Figure 6B) and roots (Figure 6; Figure 6–figure supplement 1) than in wild type tissues”.
A similar amplified view should be provided for WT (there is empty space in the figure layout).
Done (added to Figure 6A).
In Figure 6C, is the effect specific to FER or would any cell surface receptor be affected by this root hair tip defect?
We opt to leave this question open for this study, and added a sentence in the Discussion: “To what extent the LRE family protein controls the delivery of receptor kinases as a class or more specifically those closely related to FER remains to be determined”.
On a practical level, we cannot exhaustively examine all, or even a large number of cell surface receptors, so cannot generalize “specificity” for FER even if we report on a very small subset of them. On the other hand, fer mutants have multiple signaling phenotypes (e.g. auxin, ethylene, ABA, brassinosteroid, pathogen, mechanical sensing). Beyond the phenotype reported here, unpublished observations from our lab indicate that llg1 has similar brassinosteroid and ethylene-related phenotypes as fer-4. So, it is quite plausible that additional cell surface signaling molecules can be impacted by loss of LLG1. For these reasons, we would like to leave this question for later reporting.
What is the difference between WT and llg1 in Figure 6–figure supplement 1A?
We replace the original wide-field pictures with maximum projections from confocal stacks from similar plants. They are meant to show considerably higher intracellular FER-GFP signal in the llg1 root segment relative to in wild type roots as indicated in the text and figure legend.

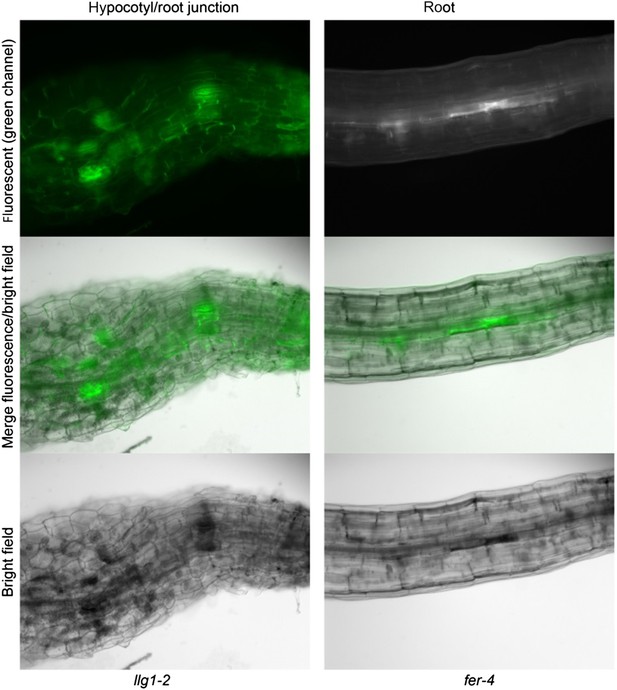

Figure 6–figure supplement 1B and C lack wild type and non-transgenic controls for the “auto-green fluorescent patches”.
We added a more relevant control, a comparable optical section of a FER-GFP in wild type (Figure 6–figure supplement 1B, right) where little extraneous fluorescence existed. Wild type and non-transgenic controls under similar image acquisition conditions would be just black.
The fact is both fer-4 and llg1 have severe cell surface defects, one of these being having random patches of darkened tissues that are also highly fluorescent (shown below), perhaps reflecting cell death.
Figure 6–figure supplement 2: why is the signal intensity different between WT and lre and lre llg1?
These images were acquired by autoexposure. In wild type ovules, FER-GFP is focused in the filiform apparatus (FA) (very densely packed with cell membrane); FER-GFP is also expressed in other ovular cells but under the exposure conditions the exposure time was short and the contrast between the peak signal at the FA and the rest was very high. In lre-5 and lre-5 llg1-2 ovules, FER-GFP is not focused in the cell membrane but distributed throughout the synergid cell (and so diluting the per pixel fluorescent signal), requiring longer exposure time, which then also revealed signal from other ovular cells.
And why in the lre mutant gametophytes, is FER-GFP localization cytoplasmic? Wouldn't the FER-GFP signal be expected in the ER of the synergids, similar to the ER localization of FER-GFP in the hypocotyl cells of llg1 mutants?
The synergid cells are highly secretory and the cytoplasm is packed with endomembrane but usually cannot be resolved into clear reticulate patterns under widefield imaging, though sometimes they did appear in patches (as seen in Figure 6F, right image; it is now also shown magnified in Figure 6–figure supplement 2A; please see subsection headed “Loss of LLG1 and LRE functions suppresses FER localization to the cell membrane”). The signal peptide targets FER-GFP into the ER as it is translated and should remain associated with the endomembrane system. Even with that expectation, we stated in the manuscript only that “a significantly higher percentage of (lre) mutant ovules relative to the wild type showed female gametophyte FER-GFP either totally retained in the synergid cell cytoplasm…”.
Furthermore, the ratios of FER in the FA vs. outside the FA in the synergids are estimated based on integrating the GFP signal over a ROI. It is not clear how the ROIs were selected, because the outline of the synergids is not clear. The ROIs for the mutants seem larger, especially in the case of the lre llg1 double mutant. This might result in an artificially high value for the signal outside the FA in the mutant gametophytes. A justification for the ROIs selected should be provided.
The synergid cell (pink) and the filiform apparatus (white) are more clearly drawn in the revised version (Figure 6–figure supplement 2B). The synergid cells from one ovule to another are not identical (not even similar) in shape, size and relative orientation with the rest of the ovule parts. The ROIs are therefore the entire areas recognizable as the FA and the synergid cells. These size and shape differences are another reason that relative average intensity/pixel in the FA: that in the synergid cell cytoplasmic signals were compared instead of total intensity. This description has been added to the Methods section (in the subsection headed “Ovule analysis”).
Figure 7A-B: would be more convincing and clear if random views of multiple protoplasts were shown.
To discern cellular location, we had to use 100x lens, which almost never had more than a single transformed cell in one frame (due to the relatively low % of cells showing FER-GFP signal at the amount of input transgenes used). We have some lower magnification images showing a few cells, which are suggestive of notable differences but not adequately clear as to the precise cellular location. We added these as Figure 7–figure supplement 1 (referred to in the subsection headed “Loss of LLG1 induces retention of FER in the ER”).
4) The lre mutants used in the study should be described in the Methods. In the case of lre, which is a female gametophyte mutant, the plants might be assumed to be heterozygous for the mutation. Based on the frequencies in Figure 6D, it would appear that the lre plants are in fact homozygous, but it is not obvious. In general, the Methods section should clarify the homozygosity of all the mutants used.
Done, we indicate in the first paragraph of the Methods section that fer-4 and lre-5 were homozygous. Although both fer and lre were described as female gametophytic mutants, both actually produce seeds and homozygous progeny exists (see Duan et al., 2010; 2014; Tsukamoto et al., 2010).https://doi.org/10.7554/eLife.06587.031
- Alice Y Cheung
- Hen-Ming Wu
- Hen-Ming Wu
The funder had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
We thank Ravi Palanivelu (University of Arizona, Tucson) for sharing lre-5 and llg1-1 mutants and for communications; Jaideep Mathur (Guelph University, Toronto) for 35S-RFP-ER construct. MCL was supported by a fellowship from the National Research Council of Taiwan. This work was supported by grants from the National Science Foundation (IOS-1127002 and IOS-1146941).
Author contributions. CL contributed to a majority of the experiments; others obtained and analyzed experimental data to complete the study. HMW and AYC led the overall research design; HMW made all molecular constructs. HMW, AYC, and CL wrote the manuscript; FLY, QD, DK, MCL, and BWW contributed to the process. All authors read and approved the manuscript.
- Sheila McCormick, University of California-Berkeley and USDA Agricultural Research Service, United States
- Received: January 20, 2015
- Accepted: May 13, 2015
- Version of Record published: June 8, 2015 (version 1)
© 2015, Li et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
