Mycobacterium ulcerans dynamics in aquatic ecosystems are driven by a complex interplay of abiotic and biotic factors

  1. Andrés Garchitorena Is a corresponding author
  2. Jean-François Guégan
  3. Lucas Léger
  4. Sara Eyangoh
  5. Laurent Marsollier
  6. Benjamin Roche
  1. Maladies Infectieuses et Vecteurs: Ecologie, Génétique, France
  2. Ecole des Hautes Etudes en Santé Publique, France
  3. ecoHEALTH Initiative, Canada
  4. Réseau International des Instituts Pasteur, Cameroon
  5. Institut National de la Recherche Médicale U892 (INSERM) et CNRS U6299, équipe 7, France
  6. International Center for Mathematical and Computational Modelling of Complex Systems (UMI IRD/UPMC UMMISCO), France
Research Article
Cited
9
Views
611
Comments
0
Cite as: eLife 2015;4:e07616 doi: 10.7554/eLife.07616

Abstract

Host–parasite interactions are often embedded within complex host communities and can be influenced by a variety of environmental factors, such as seasonal variations in climate or abiotic conditions in water and soil, which confounds our understanding of the main drivers of many multi-host pathogens. Here, we take advantage of a combination of large environmental data sets on Mycobacterium ulcerans (MU), an environmentally persistent microorganism associated to freshwater ecosystems and present in a large variety of aquatic hosts, to characterize abiotic and biotic factors driving the dynamics of this pathogen in two regions of Cameroon. We find that MU dynamics are largely driven by seasonal climatic factors and certain physico-chemical conditions in stagnant and slow-flowing ecosystems, with an important role of pH as limiting factor. Furthermore, water conditions can modify the effect of abundance and diversity of aquatic organisms on MU dynamics, which suggests a different contribution of two MU transmission routes for aquatic hosts (trophic vs environmental transmission) depending on local abiotic factors.

https://doi.org/10.7554/eLife.07616.001

eLife digest

Mycobacterium ulcerans is a slow-growing bacterium that causes a rare tropical disease in humans called Buruli ulcer. The infection affects the skin and underlying tissues, initially causing small painless lesions that can develop into large open sores or ulcers that are responsible for significant handicap in rural areas of sub-Saharan Africa.

Disease outbreaks generally occur in close association with stagnant and slow-flowing aquatic ecosystems, mostly after floods or other large environmental disturbances. It is believed that contact with water sources that contain the bacteria causes infection in humans, but the specific mode of transmission remains a mystery. By defining the factors that influence the bacteria's presence in the environment, public health officials could develop initiatives that would reduce an individual's risk of infection when conditions support a M. ulcerans outbreak.

To identify the environmental conditions that affect the prevalence of M. ulcerans in two regions of Cameroon where Buruli ulcer is present, Garchitorena et al. have now analyzed a large amount of ecological data about the bacteria using cutting-edge statistical techniques. This revealed that the amount of M. ulcerans varies following seasonal changes in climate, at least in the region dominated by tropical rainforest. In this region, the bacteria are also generally present in waters that are more alkaline and contain fewer animals, especially from certain species that could prevent the infection spreading to other aquatic hosts. In the other region, dominated by a savannah landscape, the bacteria are most abundant in stagnant or slowly moving waters that have optimal physical and chemical conditions and contain many diverse species of potential animal hosts. The discovery of contrasting results for the two regions suggests that there are at least two ways that M. ulcerans can persist in the environment and infect the aquatic animals. The prevailing method—through environmental transmission or through interactions between hosts—depends on the properties of the water.

Many other infectious diseases are caused by pathogens that, like M. ulcerans, infect many different hosts and persist in the environment for long periods. Future research following methods like those used by Garchitorena et al. would help to reveal whether these pathogens are affected by environmental factors in similar ways to M. ulcerans.

https://doi.org/10.7554/eLife.07616.002

Introduction

Despite increased understanding of infectious disease ecology and dynamics, recent decades have seen an upsurge in the emergence and re-emergence of multiple infectious diseases (Jones et al., 2008). Most emerging pathogens are zoonotic and have a very broad range of hosts (Woolhouse et al., 2001; Woolhouse and Gowtage-Sequeria, 2005), and as a result, host–parasite interactions are often embedded within complex host communities (Plowright et al., 2008; Roche et al., 2013b). Biotic interactions between hosts in the community may play an important role on disease transmission, either promoting or diluting the overall prevalence of the pathogen (LoGiudice et al., 2003; Keesing et al., 2010; Johnson et al., 2013; Roche et al., 2013a). In addition, the effect of seasonal variations in climate on abiotic conditions in water and soil can influence the composition of host communities and in turn have an impact on the ecological dynamics of the pathogens (Ostfeld et al., 2008). Because of the intertwined nature of biotic and abiotic drivers, disentangling their respective contribution to pathogen dynamics and transmission through complex and different-scale processes remains a challenge (Plowright et al., 2008). Nonetheless, identifying the underlying ecological mechanisms driving the emergence and persistence of diseases is essential to reduce disease risk in human populations (Roche and Guégan, 2011).

An illustrative example is the case of Mycobacterium ulcerans (MU), an environmentally persistent microorganism associated to freshwater ecosystems in tropical countries and present in a large variety of aquatic hosts (Benbow et al., 2008; Marion et al., 2010; Garchitorena et al., 2014). From a public health perspective, MU is the agent responsible for Buruli ulcer (BU), a devastating skin disease with great health and socio-economic consequences in tropical and subtropical countries (WHO, 2008). Emergence, distribution, and risk factors for BU in many parts of the world are associated with stagnant and slow-flowing ecosystems (Brou et al., 2008; Wagner et al., 2008; Jacobsen and Padgett, 2010; Marion et al., 2011). The environmental factors that favour MU persistence and transmission within these ecosystems are still poorly understood but the environmental and multi-host nature of the pathogen suggests that its environmental dynamics can be the result of a complex interplay between environmental factors and biotic interactions (Garchitorena et al., 2014; Morris et al., 2014).

MU is broadly present across taxa in aquatic communities over space and time (Benbow et al., 2008; Marion et al., 2010; Garchitorena et al., 2014), suggesting that a multiplicity of hosts can play a role in MU persistence in the environment. Biotic interactions between hosts are thought to be a pathogen transmission route between organisms (Merritt et al., 2010), with MU being integrated in the aquatic community from the environment thanks to filter feeder, herbivorous, and scavenger organisms and then transmitted across the community through predation (Marsollier et al., 2002, 2007a, 2007b; Mosi et al., 2008). As a result, community-level factors such as biodiversity or abundance of aquatic organisms could drive the environmental load of MU through amplification or dilution effects, as demonstrated for other pathogens (Ezenwa et al., 2006; Suzán et al., 2009; Keesing et al., 2010; Johnson et al., 2013). Furthermore, some keystone species could play an overwhelming role in the transmission and overall MU prevalence in host communities (Roche et al., 2013a).

Some specific water conditions, physical or chemical, could also favour MU environmental persistence and dynamics in aquatic ecosystems. MU seems to grow better under laboratory conditions with low oxygen, high temperature, and mildly acidic pH (Portaels and Pattyn, 1982; Palomino and Portaels, 1998; Palomino et al., 1998; Dega et al., 2000; Marsollier et al., 2004). Genomic studies show that MU is sensitive to UV light (Stinear et al., 2007; Doig et al., 2012) so turbid or protected environments could promote MU persistence. Many of these conditions are generally met in swamps and other stagnant and slow-flowing ecosystems, and therefore, if optimal abiotic conditions are met, MU could grow and persist in these ecosystems as free-living stages in the water and infect aquatic organisms directly, without the need for a trophic transmission to take place. Besides, numerous abiotic factors within aquatic ecosystems can influence host community structures and assemblages (Eric Benbow et al., 2013; Garchitorena et al., 2014), since aquatic invertebrate and vertebrate taxa have different ranges of optimal water conditions (Dickens and Graham, 2002). This could represent an indirect influence of abiotic conditions on MU transmission within aquatic communities.

A direct transmission of MU driven mostly by abiotic factors and a trophic transmission driven by biological interactions are not two mutually exclusive routes but rather could complement each other to allow persistence of MU under a wide range of environments. Identifying the contribution of such transmission routes requires a deep understanding of the dynamics of MU within aquatic communities through space and time. A recent characterization of MU dynamics with unprecedented detail in two BU endemic areas with very distinct environmental conditions (Garchitorena et al., 2014) offers the variability needed to address this question. Indeed, in Bankim, a region located in a transition zone between forest and savannah, swamps had remarkably higher MU positivity, as initially expected, whereas in Akonolinga, where rainforest is the prevailing landscape, all ecosystems had similar MU positivity. These regional differences suggested that savannah swamps had unique favourable conditions for MU that were not found elsewhere, but MU was still able to persist in unfavourable environments. Furthermore, temporal fluctuations in MU presence in Akonolinga suggested a potential role of seasonal climatic events as drivers of MU dynamics.

Relying on this work, the aim of this paper is to study for the first time the contribution of ecological factors, both biotic and abiotic, to the dynamics of MU in the aquatic environment. More specifically, we attempt to identify a set of abiotic conditions that could be optimal for MU growth and allow direct transmission to aquatic organisms, likely in stagnant waters and, in the absence of these, explore which biotic factors could still allow MU to persist, potentially through trophic transmission. Insights into the ecological mechanisms allowing for MU growth and persistence over space and time, while accounting for the potential impact of seasonal climatic events, may have profound implications for understanding BU risk to human populations.

To address these questions, we model MU positivity in 32 aquatic communities over time with generalized linear mixed models (GLMMs), including all relevant seasonal, abiotic, and biotic factors as fixed effects. We use cutting-edge multi-model selection procedures and information theory to identify and quantify the most important predictors of MU dynamics, using a genetic algorithm to screen multiple models from all potential combinations of explanatory variables and making inference from a set of weighted best-performing models. In addition, we back the results of this novel approach, which deals with the uncertainty associated with model selection, by comparing them to those obtained by classical model selection procedures. We then discuss the implications of disentangling biotic and abiotic factors for host/parasite interactions and the importance of rigorously analysing the underlying drivers of pathogen dynamics mediated through complex and different-scale processes.

Results

By simultaneously accounting for multiple seasonal, abiotic, and biotic factors, our results show the complex interplay that drives MU environmental dynamics. In a previous step to the statistical modelling of MU positivity, we performed principal component analysis (PCA) of the most relevant physico-chemical characteristics in the water, as a means to explore common patterns in the ecosystems and to include these PCs as alternative abiotic predictors in the model. The ecosystems sampled and followed up in both Akonolinga and Bankim regions consistently revealed common physico-chemical patterns depending on water flow (Table 1). The first PC, explaining about 50% of variation in aquatic ecosystems in both regions, showed a positive correlation between water flow, dissolved oxygen, and pH, while temperature was inversely correlated. Furthermore, the inverse correlation between temperature and water flow held in the second PC, and the positive correlation between water flow and oxygen was also present in the third PC. Using multi-model selection for our GLMMs, a combination of seasonal factors, water conditions (abiotic factors), and community-level characteristics (biotic factors) remained as important predictors of MU positivity in the final set of best models for Akonolinga (Table 2) and Bankim (Table 3). Among all possible models tested, 39 were selected for estimation of model average estimates in Akonolinga and 100 in Bankim, since these models were similarly performing according to their Akaike Information Criterion (AIC) scores (see the methodology section). Although all factors were included together as part of the full model, the results explained below are divided in groups of factors for clarity. Furthermore, comparison of multi-model inference results with those obtained by classical model selection procedures can be found in Appendix 1, section 1.

Table 1

Description of environments defined by principal components analysis (PCA) of physico-chemical parameters

https://doi.org/10.7554/eLife.07616.003
AkonolingaBankim
PC1PC2PC3PC4PC1PC2PC3PC4
Variance explained0.470.310.140.090.590.220.130.07
Loadings
pH−0.330.7−0.470.41−0.510.51−0.430.55
 Dissolved oxygen−0.60.310.31−0.67−0.570.330.11−0.75
 Water flow−0.59−0.320.460.59−0.51−0.290.720.36
 Temperature0.430.550.690.190.40.740.530.1
  1. Separate PCA was performed for Akonolinga and Bankim, and only the most potentially relevant parameters were included.

Table 2

Results from multi-model selection for Akonolinga (12 months of sampling)

https://doi.org/10.7554/eLife.07616.004
VariableAvg. effect (b)Uncond. SELower CLUpper CLRelative importance (wi)Nb. models
(Intercept)2.714.04−5.2110.631.0039
Seasonality
Sine (2pi*Month/12)0.360.160.040.671.0039
 Sine (2pi*Month/4)
 Cosine (2pi*Month/12)
 Cosine (2pi*Month/4)
Physico-chemical parameters
pH7.152.342.5611.730.4417
 Flow
 Temperature
 Dissolved oxygen
 Conductivity
 Iron
Physico-chemical parameters (PCA)
PC20.490.140.210.760.5622
 PC1
 PC3
Community
Abundance−0.710.18−1.07−0.351.0039
 Shannon
Aquatic taxa (%)
Gastropoda−0.580.17−0.92−0.241.0039
 Oligochaeta (Presence)0.400.28−0.140.950.9236
 Odonata0.080.15−0.210.370.8734
 Hydracarina0.190.29−0.390.760.8533
 Trichoptera−0.010.16−0.310.300.6726
Decapoda (Presence)−1.100.38−1.84−0.350.5923
 Hirudinea (Presence)0.480.26−0.020.990.5923
 Coleoptera0.240.20−0.150.630.5421
Hemiptera−0.540.21−0.94−0.130.5421
Anura−0.410.16−0.73−0.090.4116
 Ephemeroptera0.070.15−0.210.360.218
 Diptera−0.070.15−0.380.230.104
  1. Variables within each category are ordered by their relative importance. Variables with their 95% confidence interval (CI) with the same sign are represented in bold. Rare aquatic taxa are introduced in the model as Presence/Absence variables, while relative abundance is used for more abundant taxa.

Table 3

Results from multi-model selection for Bankim (4 months of sampling)

https://doi.org/10.7554/eLife.07616.005
VariableAvg. effect (b)Uncond. SELower CLUpper CLRelative importance (wi)Nb. Models
(Intercept)−13.984.13−22.07−5.891.00100
Seasonality
 Sine (2pi*Month/12)
 Sine (2pi*Month/4)
 Cosine (2pi*Month/12)
 Cosine (2pi*Month/4)
Physico-chemical parameters
Water flow (lentic)−1.800.63−3.04−0.561.00100
Water flow (lotic)−3.630.88−5.35−1.911.00100
pH
 Temperature
 Dissolved oxygen
 Conductivity
 Iron
Physico-chemical parameters (PCA)
 PC30.440.39−0.331.210.077
 PC20.340.41−0.471.150.033
PC10.670.330.031.320.011
Community
 Abundance0.860.47−0.061.791.00100
Shannon4.291.211.936.661.00100
Aquatic taxa (%)
 Gastropoda−0.390.30−0.970.180.9090
 Anura−0.540.37−1.260.190.8989
 Trichoptera−0.050.64−1.301.200.8989
 Odonata−0.050.30−0.630.530.8787
 Fish−0.890.56−1.980.200.8686
 Coleoptera−0.040.35−0.730.650.8484
 Diptera0.700.49−0.261.660.8484
 Hirudinea (Presence)−0.410.43−1.250.440.6969
Hydracarina−1.420.55−2.50−0.330.5858
 Decapoda (Presence)1.761.23−0.664.170.5353
 Hemiptera−0.070.33−0.720.570.2222
 Oligochaeta (Presence)−0.020.48−0.960.920.1414
Ephemeroptera−0.840.25−1.33−0.350.1313
  1. Variables within each category are ordered by their relative importance. Variables with their 95% CI with the same sign are represented in bold. Rare aquatic taxa are introduced in the model as Presence/Absence variables, while relative abundance is used for more abundant taxa. Results for lentic and lotic ecosystems represent the decrease in MU respective to stagnant ecosystems.

Effect of seasonality on M. ulcerans

Seasonality was investigated by including sine and cosine functions as independent predictors of MU positivity. The presence of MU in aquatic ecosystems in Akonolinga was associated to seasonal variations with a single annual cycle as revealed by the positive effect of the sine function on MU (b = 0.36; 95% confidence interval (CI) [0.04, 0.67], wi = 1) and the presence of this variable in all best models (Table 2). On the contrary, the seasonal effect in Bankim was not apparent, where only 4 months of collection were available, and none of the sine and cosine functions were important in the final models for this region (Table 3).

Effect of abiotic conditions on M. ulcerans

Among all abiotic conditions, included in the models both as individual physico-chemical variables or through their combined effect as PCs, pH had a significant positive effect in all best models in Akonolinga (Table 2), either through the effect of component 2 that is directly correlated with pH (b = 0.49; 95% CI [0.21, 0.76], wi = 0.56) or as individual variable in the remaining models (b = 7.15; 95% CI [2.56, 11.73], wi = 0.44). In Bankim, however, the most important abiotic factor was water flow (Table 3). Lentic water bodies (low water flow) had significantly lower MU positivity than stagnant waters (b = −1.80; 95%CI [−3.04, −0.56], wi = 1), and lotic water bodies (high water flow) had the lowest MU positivity (b = −3.63; 95% CI [−5.35, −1.91], wi = 1). It is important to note that water flow in most environments was directly correlated with pH, and thus each region provides contrasting results for this abiotic factor.

Effect of biotic interactions on M. ulcerans

The impact of aquatic communities on MU was studied through the effect of both individual aquatic taxa and community-level factors such as abundance and diversity. In Akonolinga, we found a negative association between total abundance and MU presence in all final models (b = −0.71; 95% CI [−1.07, −0.35], wi = 1) and individual effects of several taxa. Individual taxa inversely correlated with MU were Gastropoda in all models (b = −0.58; 95% CI [−0.92, −0.24], wi = 1) and Decapoda (b = −1.10; 95% CI [−1.84, −0.35], wi = 0.59), Hemiptera (b = −0.54; 95% CI [−0.94, −0.13], wi = 0.54), and Anura (b = −0.41, 95% CI [−0.73, −0.09], wi = 0.41), with lower importance in the final models (Table 2). Finally, the orders Oligochaeta, Odonata, and Hydracarina had a large importance in the final models (wi > 0.80), but their effect on MU presence was not significant. Results for Bankim revealed a significant positive effect in all models for Shannon's diversity index (b = 4.29; 95% CI [1.93, 6.66], wi = 1) and nearly significant for total abundance (b = 0.86; 95% CI [−0.06, 1.79], wi = 1). In addition, most taxonomic orders appeared in the final models for this region, but their effect was unclear (Table 3). The estimates for taxonomic groups with a relative importance over 0.8 (Gastropoda, Anura, Trichoptera, Odonata, Fish, Coleoptera, and Diptera) had considerable uncertainty, with upper and lower CIs of opposite sign. The only two orders with a significant CI were Hydracarina (b = −1.42, 95% CI [−2.50, −0.33]) and Ephemeroptera (−0.84; 95% CI [−1.33, −0.35]), but their relative importance was relatively low (wi = 0.58 and wi = 0.13, respectively).

Discussion

Understanding how environmental factors influence host–pathogen interactions in complex natural systems, where multiple feedbacks between biotic and abiotic factors take place, is especially important in the context of multi-host and environmentally persistent pathogens. In this study, we identify abiotic and biotic drivers that may promote or block MU transmission in aquatic communities in two climatically distinct regions of Cameroon through a comprehensive multi-model selection procedure. In Akonolinga, we show that MU follows seasonal dynamics and is mainly present in waters with higher pH and within low abundance communities, notably those with low abundance of Gastropoda and other orders such as Decapoda, Hemiptera, or Anura. In Bankim, we show that MU is most prevalent in stagnant ecosystems and those with low water flow, with highly diverse (and abundant) communities.

A seasonal effect for MU presence in Akonolinga remains in our final models after accounting for abiotic and biotic parameters in the water bodies, which also vary seasonally. This suggests that seasonal fluctuations in MU presence might be directly related to climatic pressures (Figure 1). Indeed, while the seasonal effect is not directly linked to rainfall dynamics (Pearson's correlation test, p = 0.45), it is highly correlated with the 3-month mean rainfall accumulation in the region (Current month, plus two previous months; Pearson's correlation test, p < 0.01). As a result, we propose that the cumulative effect of rainfall over several months, increasing water levels in the environment either boosts MU growth or washes it off from other environmental matrices (mud, soil, plants) to aquatic ecosystems, as previously suggested from epidemiological evidence (Morris et al., 2014). Furthermore, given the slow growth of MU (Palomino and Portaels, 1998; Stinear et al., 2007), the 2-month delay between the peaks in the dynamics of rainfall and those of the seasonal effect could represent the time that takes MU to grow and/or be transmitted through the aquatic community once the suitable habitats have been created. Unfortunately, the less frequent sampling in Bankim (only 4 months instead of 12) may have prevented to capture seasonal variations appropriately, explaining the lack of associations with MU in this region.

Figure 1 with 1 supplement see all

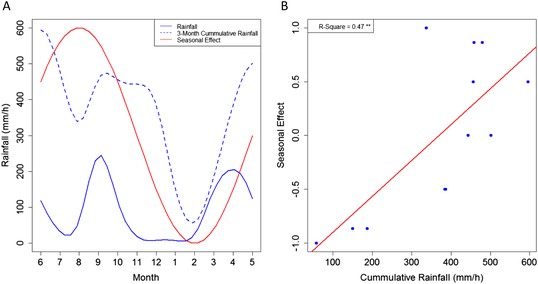

Link between the seasonal effect for M. ulcerans and the rainfall dynamics in Akonolinga.

(A) Represents the monthly values for the seasonal effect (red), the mean rainfall for the period under study and the 3-month cumulative rainfall (blue). (B) Shows a clear linear relationship between the values of the seasonal effect and the 3-month cumulative rainfall. A graphical representation of the different seasonal effects tested can be found in Figure 1—figure supplement 1.

https://doi.org/10.7554/eLife.07616.006

Our results for Bankim support the hypothesis that, under certain circumstances, conditions in stagnant and slow-flowing (lentic) bodies of water are favourable for MU presence. After controlling for all the other abiotic and biotic factors, sites with stagnant waters in this area have higher MU positivity than those with lentic waters (slow flow), and these have in turn higher positivity than sites with lotic waters (faster flow). PCA on physico-chemical parameters of these ecosystems provides some potential explanations (Figure 2). Sites with stagnant or lower water flows have higher temperatures (PC1 and PC2) and most have lower oxygen (PC1) and lower pH (PC1), all of which seem to promote MU growth in experimental studies (Portaels and Pattyn, 1982; Palomino and Portaels, 1998; Palomino et al., 1998; Dega et al., 2000; Marsollier et al., 2004). Indeed, a previous field study suggested that some water characteristics may be important for the presence of mycobacteria in water and biofilms throughout the year (Hennigan et al., 2013).

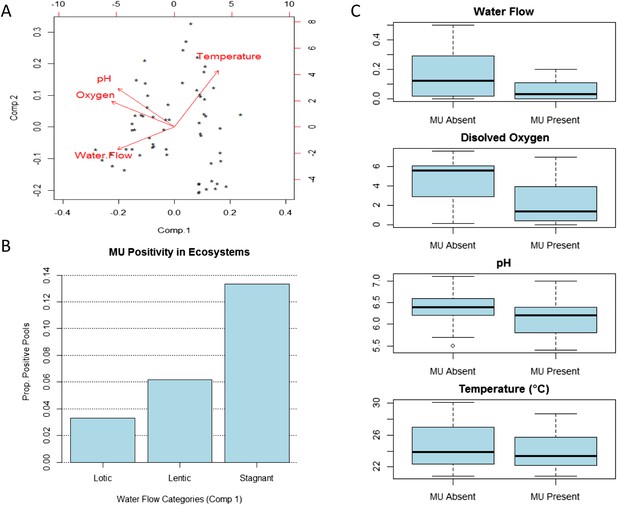

Impact of water flow on physico-chemical characteristics of the water and M. ulcerans prevalence in aquatic communities (Bankim).

(A) Links between water conditions in the first two principal components obtained through principal component analysis (PCA). Comp.1, explaining more than 50% of the variation in physico-chemical conditions in Bankim, reveals that ecosystems with lower water flows have less dissolved oxygen, more acidic pH, and higher temperature. (B) MU positivity in each type of ecosystem as described by the first component of the PCA, which takes into account variations in all physico-chemical characteristics (each category has equal number of points and increasing values of Comp.1). Stagnant ecosystems in Bankim have higher MU positivity than lentic, and these have in turn higher MU positivity than lotic ecosystems. (C) Difference in values for the various water conditions in MU positive and MU negative sites in Bankim. As a result of the association of water flow with the other physico-chemical conditions, similar patterns for MU positivity can be observed for most abiotic conditions.

https://doi.org/10.7554/eLife.07616.008

While stagnant waters with lower pH contribute significantly to MU presence in Bankim, the results for Akonolinga show a positive association between pH and MU in this region. Significantly lower pH values in Akonolinga than in Bankim (t-test, p < 0.001) may be behind the disparity between the model results for each region (Figure 3). Indeed, pH range for slow-growing mycobacteria has been estimated between 5.8 and 6.5 (Portaels and Pattyn, 1982), which corresponds to the lower range of pH in Bankim, associated with stagnant waters. Because in Akonolinga, this optimal range corresponds to the upper range of values, stagnant waters with intolerably low pH might not meet all the optimal conditions for MU growth, which would explain the lack of association with these ecosystems (Garchitorena et al., 2014). The role of pH on MU growth in combination with other abiotic conditions needs to be urgently assessed, since it might be an important limiting factor in the environment.

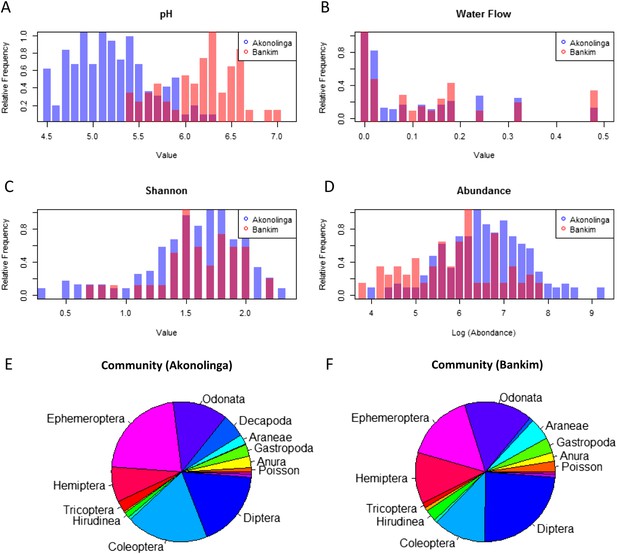

Distribution of relevant biotic and abiotic variables for Akonolinga and Bankim.

For the construction of histograms (AD), the relative frequency of the variable within each region is normalized by dividing each frequency by its maximum frequency. It can be noted that the distribution of pH is radically different for both regions, with much more acidic pH in aquatic environments from Akonolinga. For the community composition (E and F), the area an order has in the pie chart is proportional to the mean relative abundance of the order for all sites and months for each region. Only orders representing more than 1% of the overall community are labelled.

https://doi.org/10.7554/eLife.07616.009

Biotic interactions seem to have an important effect on MU positivity in the local aquatic communities, especially in Akonolinga. Less abundant communities are associated with a reduction of MU in this region, and individual taxa have an independent effect on MU. Higher relative abundance of aquatic snails (Gastropoda), shrimps (Decapoda), water bugs (Hemiptera), and tadpoles (Anura) is associated with reduced MU prevalence in the aquatic community. The protective role of aquatic snails is supported by experimental infections, where MU has been unable to grow within these organisms (Marsollier and Sévérin, 2004), but this is not the case for Hemipteran water bugs, where MU can grow and even colonize their salivary glands after they have fed on infected prey (Marsollier et al., 2002, 2005; Mosi et al., 2008). Even though water bugs can host MU and allow its growth, they are voracious predators of aquatic organisms, and therefore, an increase in water bugs in the community may result in a decrease of infected prey available to other predators such as Coleoptera or Odonata; this could result in an overall reduction in MU positivity. This is an example of how considering the full breadth of factors taking place in real ecological systems can provide unexpected insights on this type of host–pathogen interactions. Furthermore, differences in community composition may partly explain the different effects of biotic factors in the two regions (Figure 3C–F). Total abundance in aquatic communities was significantly higher in Akonolinga (Mann–Whitney test, p < 0.001), and the relative abundance of more than half of the taxa included in our model was significantly different between Akonolinga and Bankim (Appendix 1, section 2).

These different distributions of biotic and abiotic factors can nevertheless yield a hypothesis to explain the contrasting results between the two regions. Indeed, two transmission routes, not competitively exclusive, may coexist for MU colonization of aquatic organisms, through a trophic transmission (Roche et al., 2013a) and/or a pathogen transmission through infection with free-living stages present in favourable aquatic environments (Merritt et al., 2010). In our study, community abundance has opposite effects in Akonolinga and Bankim, while water flow and pH suggest contrasted influence of stagnant waters in these regions. These results could suggest that the prevailing transmission modes could be different within these two environmentally distinct regions. Transmission could be mainly environmentally mediated in Bankim, since stagnant waters, through weak water flows and optimal physico-chemical conditions, are strongly associated with MU presence. Furthermore, a lack of association of MU abundance with specific taxa in addition to strong positive associations with host diversity and abundance under these favourable conditions, suggests that infection probability in these environments is density dependent, a characteristic feature of this type of transmission (Codeço, 2001). Conversely, in Akonolinga, trophic transmission may be expected since optimal abiotic conditions are not met in stagnant ecosystems, and host abundance has a negative impact on MU presence, suggesting that presence of some taxa, at least Gastropoda and Hemiptera, can limit transmission in aquatic communities. These alternative transmission routes proposed for MU to persist and thrive in aquatic ecosystems could partly explain why BU distribution in humans is greatly associated with stagnant ecosystems but expands over larger geographical regions (Brou et al., 2008; Wagner et al., 2008; Jacobsen and Padgett, 2010; Marion et al., 2011).

Our results demonstrate the complex interplay between abiotic and biotic factors driving the dynamics of multi-host/multi-environment diseases. By studying and comparing savannah- and rainforest-like regions, we provide a comprehensive ecological picture of MU, that is, a unified framework that reconciles the many contrasting findings observed during the last decade that could apply to a broader geographical area in the tropics and could help us understand the risk of BU for human populations. This study provides a new illustration of emerging infectious diseases for which further investigations looking for a ‘bigger picture’ are clearly needed in order to cope with the complexity of local and regional environmental situations, and different-scale processes. Judging by the number and importance of multi-host and environmentally persistent pathogens in the total number of emerging infectious diseases appeared in the last four decades such hypotheses deserve to be rigorously tested across multiple epidemiological systems and diverse local conditions. More comprehensive environmental studies in other contexts are needed to assess the generalizability of our findings.

Materials and methods

Environmental data collection

Data were collected as described in Garchitorena et al. (2014). Briefly, between June 2012 and May 2013, periodic sampling in aquatic ecosystems was performed monthly in Akonolinga and every 3 months in Bankim, two regions in Cameroon where BU is endemic. Akonolinga health district is located in the Centre Province, where rainforest is predominant all across the region. Bankim, on the other hand, is a health district located in the Adamaoua Province, near the border with Nigeria, in a transition zone between forest and savannah. In all, 32 water sites were selected (16 in each region), including a large variety of streams, rivers, swamps, and flooded areas.

Aquatic macro-invertebrates and vertebrates

In each water body, four locations were chosen in areas of slow water flow and among the dominant aquatic vegetation. At each location, five sweeps were done with a metallic dip net (32 × 32 cm, 1 mm mesh size) within a surface of 1 m2 and at different depth levels. All aquatic organisms collected were identified, classified with the use of taxonomic keys and a binocular microscope, and put separately into tubes with 70% ethanol.

Physico-chemical characteristics of water bodies

Quantitative measures of the water included turbidity (Secchi disc), pH, dissolved oxygen, conductivity, and temperature (Multi 3430 with SenTix 940, TetraCon 925, and FDO 925 probes, WTW, Germany). Measures with the probes were taken at 0.5 m depth and only stable values were reported. Test strips for phosphates, iron, and sulfates (Merckoquant, Germany) were used to measure specific ion concentrations near the sediment–water interface. Water flow was assessed visually by measuring the speed of a floating object over the water surface.

M. ulcerans DNA extraction, purification, and detection

Aquatic organisms from the same site and month were pooled for qPCR analysis by groups belonging to the same taxonomic group. At least six sample pools containing the most abundant taxonomic orders were analysed per site and month. Pooled individuals were all ground together and homogenized. DNA from homogenized insect tissues was purified using QIAquick 96 PCR Purification Kit (Qiagen, France). Amplification and detection were performed by quantitative PCR of the gene sequence encoding the ketoreductase B domain (KR) of the mycolactone polyketide synthase (Rondini et al., 2003; Fyfe et al., 2007) and the GenBank IS2404 sequence (Rondini et al., 2003). At least 10% negative controls were included during the purification and amplification steps for each assay. Samples were considered positive only when both sequences were detected, with threshold cycle values strictly <35 cycles (see Garchitorena et al., 2014 for details on pooling strategies and PCR analysis).

Data analysis

Statistical model

The proportion of M. ulcerans positive sample pools at each sample collection (one site and month) was modelled using binomial regressions in GLMMs (Zuur et al., 2009). Since repeated samples were taken from the same sites at regular intervals during one year, we introduced the collection site as a random intercept to control for within-site correlations. In this model, we studied the effect of seasonality, physico-chemical characteristics of the water, and community composition (Table 4), all of which were introduced as fixed effects without interactions.

Table 4

Description of explanatory variables from our environmental data set and their usage in the statistical model

https://doi.org/10.7554/eLife.07616.010
VariableMinMaxMedianProp. zerosProp. NAsUsage
Physico-chemical parameters
 Temperature20.930.22300Raw
pH4.57.15.500Log
 Dissolved oxygen0.017.6200Log
 Conductivity10.2110.622.700Log
 Water flow00.50.030.340.01Categorical
 Turbidity2250500.190.19Removed
 Iron01000Categorical
 Phosphates02500.070.07Removed
 Sulphates06000.220.22Removed
Aquatic community
 Abondance4610,591686.500Log
 Shannon0.352.341.700Raw
Aquatic taxa (%)
 Fish00.3200.320AquaticLog
 Anura00.5400.330AquaticLog
 Gastropoda00.800.370AquaticLog
 Bivalvia00.1300.910AquaticRemoved
 Araneae00.30.010.010TerrestrialRemoved
 Decapoda00.5900.680AquaticDichotomous
 Odonata00.540.110.020AquaticLog
 Ephemeroptera00.780.160.030AquaticLog
 Hemiptera00.410.0800AquaticLog
 Trichoptera00.1900.350AquaticLog
 Lepidoptera00.1200.440TerrestrialRemoved
 Plecoptera00.0100.920AquaticRemoved
 Oligochaeta00.1800.690AquaticDichotomous
 Hirudinea00.4500.580AquaticDichotomous
 Coleoptera0.010.940.100AquaticLog
 Diptera00.790.1500AquaticLog
 Hydracarina00.1100.310AquaticLog
 Collembola00.0600.40TerrestrialRemoved
 Cladocera00.2400.470.63AquaticRemoved

Multi-model selection and inference

Multi-model inference is increasingly recognised as an alternative approach to the use of null hypothesis testing (Burnham and Anderson, 2002; Grueber et al., 2011). This approach allows exploring a comprehensive set of potential models obtained as a result of multiple combinations of the explanatory variables. Instead of considering a unique final model, as is the case in classical forward, backward, or stepwise model selection procedures, with multi-model selection, it is possible to identify a set of ‘top models’ that can be ranked and weighted according to information criteria such as AIC. Model averaging within this set of top models provides quantitative measures of each variable's relative importance (Akaike Weights, wi) and allows obtaining robust parameter estimates and addressing the uncertainty associated with them (Burnham and Anderson, 2002). This methodology can be particularly appropriate in the study of complex ecological systems, where multiple interactions take place, and the interest is in finding strong and consistent predictors of a particular outcome. In our study, variables with a relative importance (wi) larger than 0.8 in these sets of best models and with consistent sign (positive or negative) within the CI were considered to have strong support as predictors of MU positivity (Calcagno, 2013).

Multi-model selection of GLMMs generated with the package ‘lme4’ (Bates et al., 2013) was performed using the package ‘GLMulti’ (Calcagno, 2013) in R statistical software (R Development Core Team, 2011), which uses a genetic algorithm to improve the efficiency of model selection. Within the set of the 100 best models found, only those with an AIC within 2 units difference from the best model were considered (Bolker, 2008). The package ‘AICcmodavg’ (Mazerolle, 2013) was used to estimate model-averaged fixed effects, unconditional standard errors, and 95% CIs. In addition to the set of models obtained using multi-model selection procedures as described above, we used classical forward–backwards selection procedures to provide complementary information and to strengthen the results obtained in this section (Appendix 1, section 1).

Hypotheses and use of variables

Effect of seasonality on MU

Several studies have reported seasonal variations in MU positivity, which could reflect an indirect influence of climate mediated through temporal changes in abiotic conditions and abundance of aquatic organisms, or a direct influence, mediated through wash-off of MU to the aquatic environment or increased water availability. By including a seasonal effect in a model where temporal changes in abiotic and biotic factors are taken into account, a significant independent effect of seasonality would suggest a direct impact of climate on MU. Seasonality was included in the model by transforming the month of collection with sine and cosine functions with different frequencies (seasonality of 4 or 12 months), as previously described (Stolwijk et al., 1999; Christiansen et al., 2012). Furthermore, the association of these seasonal functions with observed patterns of monthly and cumulative rainfall in the region was investigated to provide a biological explanation to this potential seasonal effect.

Effect of abiotic conditions on MU

Abiotic water conditions could have a direct effect on MU, allowing it to grow or persist as free-living stages, or an indirect effect, through their influence on community composition. By including them in a model that takes into account the impact of aquatic taxa on MU, a significant independent effect of abiotic factors would suggest that these conditions are favourable to MU growth or persistence. Physico-chemical characteristics of water bodies were log transformed when necessary to approximate a Gaussian distribution (pH, dissolved oxygen, conductivity). We also transformed water flow into a categorical variable with three levels, stagnant (0 m/s), lentic (0–0.1 m/s), and lotic (>0.1 m/s). In addition to their individual effect, since several water characteristics correlate and define specific environments, we performed a PCA (using the correlation matrix) on the most relevant physico-chemical parameters (water flow, temperature, dissolved oxygen, and pH), and the loadings of the three PCs were included in the analysis as explanatory variables in order to remove the co-linearity between them. Finally, variables with more than 5% missing values (turbidity, phosphates, and sulphates) were discarded in the multivariate analysis to allow for comparable AICs during model selection.

Effect of biotic interactions on MU

The multi-host nature of MU implies that, through biotic interactions, individual taxa as well as community-level factors could influence MU prevalence. By studying these factors in combination with abiotic conditions, we can not only identify the most relevant ones but also gain insight into the contribution of the two MU transmission routes previously described. For instance, a positive MU association with community abundance or diversity in environments with favourable conditions would be suggestive of density dependent or direct transmission. On the contrary, if trophic transmission was the main transmission route, likely in environments with unfavourable conditions, MU could be positively or negatively associated with host taxa depending on their competency. To study community composition, we calculated total abundance and Shannon index (at the taxonomic order level) for each aquatic community. Relative abundance of each aquatic taxon (taxon abundance/total abundance) was also included. Since total and relative abundance of aquatic taxa were Poisson distributed, these were log transformed to avoid problems related to the skewness of variable distributions. Furthermore, the less abundant aquatic taxa (with more than 40% zero values) were introduced as dichotomous variables, and we removed the very rare taxa (with more than 90% zero values; essentially Plecoptera and Bivalvia). Semi-aquatic or terrestrial taxa collected during the aquatic sampling (Lepidoptera, Araneae, Collembola) were not included either, since they are not likely to play an important role in the aquatic community. Finally, the taxon Cladocera, with more than 5% missing values, was also discarded.

Appendix 1

Section 1: backwards–forward model selection

The multi-model selection approach was chosen for its improved capabilities when compared to standard selection approaches, since it allows accounting for and describing the uncertainty in the parameters due to model selection. As a result, this approach and its results for each region are described in the main text. In this section, we describe the methodology and results of additional analyses using a classical forward–backward selection approach. We demonstrate that this selection procedure gives comparable results to those from the multi-model selection described in the main text.

Methodology

A combination of backward and forward procedures based on Akaike's Information Criteria (AIC) and likelihood ratio tests was used to select the final multivariate model. Firstly, all variables were tested individually as fixed effects in univariate binomial regressions with the site of collection as random effect. Those variables showing a significant effect were retained for an initial multivariate model. A backward procedure was then applied on this initial model in order to select, one by one, the variables that did not significantly improve the model (based on likelihood ratio tests) and, among these, we dropped those variables that resulted in the model with the lowest AIC. Secondly, a forward procedure was carried out by adding to this reduced model, one by one, all variables that significantly improved the model (likelihood ratio test) and, among those, those that resulted in the model with the lowest AIC. At each step, we checked whether the addition of the new variable made others insignificant, in which case, we dropped those variables from the model. The final model was obtained when no significant improvement could be achieved with the addition of new variables. Violation of model assumptions was checked in the final models. Colinearity was assessed through graphical exploration of explanatory variables, correlation tests, and variance inflation factors (VIF) in the final model. Independence was assessed by studying the spatial (correlograms) and temporal correlation (cross-correlations) of the model residuals.

Multivariate results

Similarly to the results obtained with multi-model selection, a combination of seasonal factors, water conditions, and community composition remained in the final models for Akonolinga and Bankim (Appendix table 1). Firstly, the effect of seasonality remained for Akonolinga after accounting for water parameters and biological factors. Secondly, regarding water conditions, pH had a significant positive effect on MU presence in Akonolinga, whereas in Bankim the negative effect of water flow was evident, with lotic ecosystems being the least positive, followed by lentic ones, which had significantly lower positivity than stagnant ecosystems. Finally, the effect of aquatic communities through total abundance was significant and inversely correlated with MU in Akonolinga, while in Bankim Shannon's diversity showed a positive correlation with MU presence. Individual taxa that remained significant and inversely correlated with MU were Gastropoda, Decapoda, Hemiptera and Anura for Akonolinga; and Ephemeroptera, fish, Diptera and Anura for Bankim. The only taxon positively correlated with MU in the final model was Hirudinea in Akonolinga and Coleoptera for Bankim. In summary, the results obtained from multi-model selection and classical model selection procedures were qualitatively and quantitatively similar.

Appendix table 1

Results of multivariate analyses for Akonolinga (12 months of sampling) and Bankim (4 months of sampling)

https://doi.org/10.7554/eLife.07616.011
VariableAkonolinga (n = 183)Bankim (n = 61)
EffectStd. errorp-valueEffectStd. errorp-value
Model AIC400.7182.7
Variance of random effect0.201.77
(Intercept)−12.564.40<0.001−7.401.97<0.001
Seasonality
 Sine(2pi*Month/12)0.340.140.02
 Sine(2pi*Month/4)
 Cos(2pi*Month/12)
 Cos(2pi*Month/4)
Physico-chemical parameters
 Temperature
pH8.632.44<0.001
 Dissolved oxygen
 Conductivity
 Iron
 Water flow (Lentic)−2.100.47<0.001
 Water flow (Lotic)−3.180.69<0.001
Physico-chemical parameters (PCA)
 PC1
 PC2
 PC3
Community
 Abundance−0.640.17<0.001
 Shannon4.160.97<0.001
Orders (%)
 Fish−1.620.35<0.001
 Anura−0.340.140.02−0.840.320.01
 Gastropoda−0.640.16<0.001
 Decapoda (presence)−1.370.37<0.001
 Odonata
 Ephemeroptera−0.940.21<0.001
 Hemiptera−0.470.200.02
 Tricoptera
 Oligochaeta (presence)
 Hirudinea (presence)0.590.230.01
 Coleoptera
 Diptera1.080.36<0.001
 Hydracarine−1.580.49<0.001
  1. The models used are Binomial regressions with random effect site, selected with forward–backwards procedure (see section 1 for details).

Section 2: differences in communities in Akonolinga and Bankim

In the main text, we justify the different results obtained for Akonolinga and Bankim partly based on differences between the two regions, both in terms of physico-chemical parameters and community composition (Figure 3). In Appendix table 2, we show the relative abundance for each taxonomic group in each region and test for differences on the mean relative abundance between the regions by using Mann–Whitney tests (also known as Wilcoxon rank-sum tests).

Appendix table 2

Differences in community composition between Akonolinga and Bankim

https://doi.org/10.7554/eLife.07616.012
Taxonomic groupRelative abundance (%)Mann–Whitney test
AkonolingaBankim
MeanSDMeanSDp-value
Fish1.042.202.394.93<0.001
Anura2.566.622.086.730.009
Gastropoda2.707.763.419.330.449
Bivalvia0.191.080.000.030.016
Decapoda5.3612.370.902.780.010
Odonata12.729.9615.7915.030.616
Ephemeroptera21.7717.2215.5614.740.010
Hemiptera8.155.8511.848.55<0.001
Tricoptera2.624.201.232.230.011
Hirudinea1.294.762.637.310.005
Oligochaeta0.641.940.672.110.291
Coleoptera18.9820.5411.9911.370.023
Diptera17.5814.2323.6916.250.004
Hydracarine0.831.380.901.770.171
  1. For each taxon included in the statistical model, the mean and standard deviation (SD) of the relative abundance (%) for each region are given, along with the p-value of a Mann–Whitney test comparing the mean relative abundance in the two regions.

References

  1. 1
    lme4: Linear mixed-effects models using Eigen and S4
    1. D Bates
    2. M Maechler
    3. B Bolker
    4. S Walker
    (2013)
    lme4: Linear mixed-effects models using Eigen and S4, R package version 1.0-5, http://CRAN.R-project.org/package=lme4.
  2. 2
  3. 3
    Ecological models and data in R
    1. BM Bolker
    (2008)
    Princeton: Princeton University Press.
  4. 4
  5. 5
    Model selection and multi-model inference: a practical information-theoretic approach (2nd edition)
    1. KP Burnham
    2. DR Anderson
    (2002)
    New York: Springer.
  6. 6
    Glmulti: Model Selection and Multimodel Inference Made Easy. R Package
    1. V Calcagno
    (2013)
    Glmulti: Model Selection and Multimodel Inference Made Easy. R Package, R package version 1.0.7, http://cran.r-project.org/web/packages/glmulti/glmulti.pdf.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
    AICcmodavg: Model Selection and Multimodel Inference Based on (Q)AIC(c). R Package
    1. MJ Mazerolle
    (2013)
    AICcmodavg: Model Selection and Multimodel Inference Based on (Q)AIC(c). R Package, R package version 1.35, http://cran.r-project.org/web/packages/AICcmodavg/AICcmodavg.pdf.
  32. 32
  33. 33
  34. 34
  35. 35
    Infectious disease ecology: effects of ecosystems on disease and of disease on ecosystems
    1. RS Ostfeld
    2. F Keesing
    3. VT Eviner
    (2008)
    Princeton: Princeton University Press.
  36. 36
    Effect of oxygen on growth of Mycobacterium ulcerans in the BACTEC system
    1. JC Palomino
    2. AM Obiang
    3. L Realini
    4. WM Meyers
    5. F Portaels
    (1998)
    Journal of Clinical Microbiology 36:3420–3422.
  37. 37
    Effects of decontamination methods and culture conditions on viability of Mycobacterium ulcerans in the BACTEC system
    1. JC Palomino
    2. F Portaels
    (1998)
    Journal of Clinical Microbiology 36:402–408.
  38. 38
  39. 39
    Growth of mycobacteria in relation to the pH of the medium
    1. F Portaels
    2. SR Pattyn
    (1982)
    Annales de Microbiologie 133:213–221.
  40. 40
    R: A language and environment for statistical computing
    1. R Development Core Team
    (2011)
    Vienna, Austria: R Foundation for Statistical Computing.
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
    Buruli ulcer: progress report, 2004–2008. Weekly epidemiological record
    1. WHO
    (2008)
    Buruli ulcer: progress report, 2004–2008. Weekly epidemiological record, Volume 336, Geneva, Switzerland.
  50. 50
  51. 51
  52. 52
    Mixed effects models and extensions in ecology with R
    1. AF Zuur
    2. EN Ieno
    3. NJ Walker
    4. AA Saveliev
    5. GM Smith
    (2009)
    New York: Springer Science.

Decision letter

  1. Quarraisha Abdool Karim
    Reviewing Editor; University of KwaZulu Natal, South Africa

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for submitting your work entitled “Mycobacterium ulcerans dynamics in aquatic ecosystems are driven by a complex interplay of abiotic and biotic factors” for peer review at eLife. Your submission has been favorably evaluated by Ian Baldwin (Senior editor) and three reviewers, one of whom is a member of our Board of Reviewing editors. The following individuals responsible for the peer review of your submission have agreed to reveal their identity: Quarraisha Abdool Karim (Reviewing editor); Parviez Hosseini and Sourya Shresta (peer reviewers).

The reviewers have discussed the reviews with one another and the Reviewing editor has drafted this decision to help you prepare a revised submission.

Existing large environmental datasets on Mycobacterium ulcerans (MU) from two climatically distinct regions of Cameroon were analysed using a comprehensive multi-model selection procedure to characterize abiotic and biotic factors driving the dynamics of this pathogen. M. ulcerans is an environmentally persistent microorganism associated with freshwater ecosystems and present in a large variety of aquatic hosts. MU is the agent responsible for Buruli ulcer (BU), a devastating skin disease with great health and socio-economic consequences in tropical and subtropical countries. Regional differences in transmission dynamics is influenced by seasonality, pH, rate of water flow, density of biotic and abiotic systems and influence the emergence and persistence of M. ulcerans. Additional studies are needed to validate these findings. The approach of a mix of classical model selection procedures with cutting-edge new selection methods to identify and quantify the most important predictors of MU dynamics is novel and could be used to study other pathogen transmission dynamics.

Essential revisions:

1) As this is a complex manuscript with many outcomes kindly provide a key message(s) for the reader.

2) The manuscript tests multiple hypotheses – structure the Methods and Results section so that approach and results for each hypothesis being tested can be tracked easily by the reader.

3) The statistical approach is novel and an explanation or rationale for the choice of methods will be useful to help readers understand the decision making processes better.

Reviewer #1:

Host-pathogen interactions are typically complex and multifactorial. It is however important to unravel the multiple pathways and relative contributions of each to informing, customising and targeting interventions. The authors took advantage of a combination of large environmental datasets on Mycobacterium ulcerans (MU) to characterize abiotic and biotic factors driving the dynamics of this pathogen in two different regions of Cameroon. M. ulcerans is an environmentally persistent microorganism associated to freshwater ecosystems and present in a large variety of aquatic hosts and from a public health perspective, it is the agent responsible for Buruli ulcer (BU), a devastating skin disease with great health and socio-economic consequences in tropical and subtropical countries. They were able to identify abiotic and biotic drivers that may promote or block MU transmission in aquatic communities in two climatically distinct regions of Cameroon through a comprehensive multi-model selection procedure. They demonstrate regional differences in transmission dynamics that is influenced by seasonality, pH, rate of water flow, density of biotic and abiotic systems thereby advancing our understanding of underlying ecological mechanisms driving the emergence and persistence of M. ulcerans. These findings are by no means definitive and would require additional studies to validate these findings. Notwithstanding this limitation in the context of an upsurge in the emergence and re-emergence of multiple infectious diseases identifying main drivers of host–parasite interactions particularly those associated with pathology and have public health implications these types of endeavours are critically important. The findings are novel and the approach used is a mix of classical model selection procedures with cutting-edge new selection methods to identify and quantify the most important predictors of MU dynamics. The authors are very careful and considered in their discussion of the implications of separating out the contributions of biotic and abiotic factors for host/parasite interactions and the importance of rigorously analysing the underlying drivers of transmission dynamics mediated through complex and diverse processes.

Reviewer #2:

While in general I find this a very clear manuscript, with well-conceived and executed science, and very well described, clear, and reasonable statistical methods, I feel the paper does lack a strong take home message.

Something that could help here would be advancing the comparative rationale between the two major locations (Akonolinga and Bankim) and setting that up in the Introduction. The results seem quite different between the two sites, and there seem to be good biological reasons for this, but we don't really find that out until the Discussion.

Another question is how can these results from two specific sites be understood to generalize to a broader area, and help provide a broader understanding of MU risk and/or mitigation strategies. Again, I think if the comparison was more strongly setup in the Introduction, this might help.

Lastly, I think the authors really need to decide what the take home message is, and make sure they close the loop on this. Right now this is a bit of a muddled message about abiotic and biotic factors mattering depending on location, and while likely true, that message doesn't provide any insight or predictive value.

There seems to be a more specific conclusion that a certain pH range, which was important in the lab, is also found to be important in the field. Even in the specifics, the conclusions are a bit muddled with hydrologic regime and community being important, but not in a cross site way. Again some sort of comparative setup that helps create some generalizability would be useful here.

Additional data files and statistical comments:

I found the rigor and extent of the statistical information supplied to be commendably high.

Reviewer #3:

I find this to be an interesting and substantive work that attempts to better understand the roles of climatic factors as well as other biotic factors

in the persistence and transmission of Mycobacterium ulcerans (MU).

The paper uses extensive data collected in two endemic areas in Cameroon (Akonolinga and Bankim), and a series of statistical/data analysis tools to

explore these questions.

Although the data are described in their previous work, this paper focuses on using a suite of statistical tools to explore the role of environmental and biotic factors: a clear strength of the paper. Through the use of these methods in two different locations, the authors uncover interestingly different dynamics in the two sites:

In Akonolinga, TU persisted in less abundant aquatic communities, and showed seasonal pattern, whereas in Bankin, TU persisted in diverse and abundant communities, and showed no seasonal pattern. This has enabled the authors to propose several interesting hypotheses: The role of biotic interactions, pH level, and two-transmission routes.

My main comments concern making the paper more accessible and compelling.

1) The paper could be made more accessible by motivating the use of each of the statistical methods used in the paper. In particular, before carrying out a test, it would useful for the readers to have an expectation of what question a particular method is testing. The paper uses many of them, making it somewhat confusing to follow results from all of them. It would also be useful to have a better sense of what value a specific test is bringing in the context of the questions.

2) The authors propose several hypotheses that could explain the patterns observed in the data, particularly the difference seen in the two sites. These are all compelling, but somewhat difficult to follow in the Discussion. This is particularly true for the hypothesis with two transmission routes, and the hypothesis concerning the biotic interaction. I would urge the authors to organize this better, and discuss whether the hypotheses are mutually exclusive, or whether are inter-related.

Overall, I find the paper rich (in terms of the use of data and methods), rigorous (in terms of different use of statistical methods), and compelling/interesting (particularly, with regards to interesting hypotheses the authors were able to pose).

https://doi.org/10.7554/eLife.07616.013

Author response

1) As this is a complex manuscript with many outcomes kindly provide a key message(s) for the reader.

[…] There seems to be a more specific conclusion that a certain pH range, which was important in the lab, is also found to be important in the field. Even in the specifics, the conclusions are a bit muddled with hydrologic regime and community being important, but not in a cross site way. Again some sort of comparative setup that helps create some generalizability would be useful here. […]

The authors propose several hypotheses that could explain the patterns observed in the data, particularly the difference seen in the two sites. These are all compelling, but somewhat difficult to follow in the Discussion. This is particularly true for the hypothesis with two transmission routes, and the hypothesis concerning the biotic interaction. I would urge the authors to organize this better, and discuss whether the hypotheses are mutually exclusive, or whether are inter-related.

We agree with the referees that the message of the study was indeed buried in the very end of the Discussion in the previous version and we failed to provide a consistent message throughout the paper. Following the suggestion of the reviewer #2, we have better explained the rationale behind the potential transmission routes, and used the regional differences between the two regions from the Introduction section to illustrate the potential contributions of each transmission route in each region depending on abiotic conditions:

“A direct transmission of MU, driven mostly by abiotic factors […] may have profound implications for understanding BU risk to human populations.”

The manuscript has therefore been organized around the following take home message: we identify a set of abiotic conditions that could be optimal for MU growth and could imply a direct transmission to aquatic organisms in stagnant waters; and in the absence of these, notably because of too acidic pH in rainforest swamps, biotic interactions still allow MU to persist through trophic transmission.

The Discussion has also been modified accordingly, explaining better the implications of our results for these two transmission routes and better organizing the flow of the Discussion to separate the sections around abiotic and biotic factors, instead of discussing them together in the same paragraphs. We have also linked the key findings of the study to the potential implications in terms of risk for human populations and make an effort to improve generalizability of our results to similar geographical regions:

“Transmission could be mainly environmentally-mediated in Bankim […] and could help us understand the risk of BU for human populations.”

2) The manuscript tests multiple hypotheses – structure the Methods and Results section so that approach and results for each hypothesis being tested can be tracked easily by the reader. […]

The paper could be made more accessible by motivating the use of each of the statistical methods used in the paper. In particular, before carrying out a test, it would useful for the readers to have an expectation of what question a particular method is testing. The paper uses many of them, making it somewhat confusing to follow results from all of them. It would also be useful to have a better sense of what value a specific test is bringing in the context of the questions.

We apologize for the confusion in the organization of the previous version of the manuscript, which made it difficult to follow. We have restructured the Results section to explain separately the three groups of factors (seasonal, abiotic, and biotic), instead of separating them by region. We also provide a short background of what is being tested in each case before explaining the results obtained. In addition, we have expanded the Materials and methods section to explain the hypothesis being tested for each of these three groups of factors and the expected results before explaining how they were tested in the models. This can now be found as a separate part of the data analysis subsection called “Hypotheses and use of variables”.

Materials and methods, Results and Discussion sections now follow the same logical order (seasonality, then abiotic and then biotic factors), which we hope will improve the clarity for the reader and will make it easier to track hypotheses, tests, results and implications for each of these factors through the different sections of the manuscript.

3) The statistical approach is novel and an explanation or rationale for the choice of methods will be useful to help readers understand the decision making processes better.

We thank the referees for allowing us to better explain the novel methodological approach used and the rationale that brought us to use it. Indeed, we feel that multi-model inference could be an appropriate alternative to overcome some of the limitations of classical selection approaches, especially when studying complex ecological systems. We have expanded the explanation of this method and its advantages in the corresponding part of the Materials and methods section, multi-model selection and inference:

“Multi-model inference is increasingly recognised as an alternative approach […] the interest is in finding strong and consistent predictors of a particular outcome.”

In addition, we have added a short summary of the approach rationale in the last paragraph of the Introduction section in order to help the reader understand the decision for the choice of method from the beginning of the article:

“[…] We use cutting-edge multi-model selection procedures and information theory to identify and quantify the most important predictors of MU dynamics, using a genetic algorithm to screen multiple models from all potential combinations of explanatory variables and making inference from a set of weighted best performing models. In addition, we back the results of this novel approach, which deals with the uncertainty associated with model selection, by comparing them to those obtained by classical model selection procedures.”

https://doi.org/10.7554/eLife.07616.014

Article and author information

Author details

  1. Andrés Garchitorena

    1. Maladies Infectieuses et Vecteurs: Ecologie, Génétique, Montpellier, France
    2. Ecole des Hautes Etudes en Santé Publique, Rennes, France
    Contribution
    AG, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    andres.garchitorena@gmail.com
    Competing interests
    The authors declare that no competing interests exist.
  2. Jean-François Guégan

    1. Maladies Infectieuses et Vecteurs: Ecologie, Génétique, Montpellier, France
    2. Ecole des Hautes Etudes en Santé Publique, Rennes, France
    3. International programme Future Earth, ecoHEALTH Initiative, Ottawa, Canada
    Contribution
    J-FG, Conception and design, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  3. Lucas Léger

    Maladies Infectieuses et Vecteurs: Ecologie, Génétique, Montpellier, France
    Contribution
    LL, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  4. Sara Eyangoh

    Laboratoire de Mycobactériologie, Centre Pasteur du Cameroun, Réseau International des Instituts Pasteur, Yaoundé, Cameroon
    Contribution
    SE, Conception and design, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  5. Laurent Marsollier

    Institut National de la Recherche Médicale U892 (INSERM) et CNRS U6299, équipe 7, Angers, France
    Contribution
    LM, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  6. Benjamin Roche

    International Center for Mathematical and Computational Modelling of Complex Systems (UMI IRD/UPMC UMMISCO), Bondy Cedex, France
    Contribution
    BR, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.

Funding

Agence Nationale de la Recherche (ANR 11 CEPL 007 04 EXTRA-MU)

  • Andrés Garchitorena
  • Jean-François Guégan
  • Lucas Léger
  • Sara Eyangoh
  • Laurent Marsollier
  • Benjamin Roche

École des hautes études en santé publique

  • Andrés Garchitorena
  • Jean-François Guégan

Institut de recherche pour le développement (JEAI AtoMyc)

  • Andrés Garchitorena
  • Jean-François Guégan
  • Sara Eyangoh

Fondation Raoul Follereau

  • Laurent Marsollier

Institut national de la santé et de la recherche médicale (Programme Inserm Avenir, AtOMycA)

  • Laurent Marsollier

Region Pays de la Loire (ARMINA project)

  • Laurent Marsollier

Fondation pour la Recherche Médicale (FDT20130928241)

  • Laurent Marsollier

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to Roger Kamgang and Joachim Ossomba at Centre Pasteur du Cameroun for their contribution to the data collection and Jérémie Babonneau and Myriam Benhalima at INSERM for their contribution to the molecular analysis of samples. Thanks to all the members of the consortium ANR-EXTRA MU (Arnaud Fontanet, Jordi Landier, Gaëtan Texier, Philippe Le Gall, Estelle Marion, Danny Lo Seen) for their support and insightful discussions. We are thankful to Gabriel Garcia Peña and Kevin Carolan for advice during data analysis and comments on the first version of the manuscript.

Reviewing Editor

  1. Quarraisha Abdool Karim, Reviewing Editor, University of KwaZulu Natal, South Africa

Publication history

  1. Received: March 24, 2015
  2. Accepted: June 25, 2015
  3. Version of Record published: July 28, 2015 (version 1)

Copyright

© 2015, Garchitorena et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 611
    Page views
  • 126
    Downloads
  • 9
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
