Assembly and positioning of actomyosin rings by contractility and planar cell polarity

  1. Ivonne M Sehring
  2. Pierre Recho
  3. Elsa Denker
  4. Matthew Kourakis
  5. Birthe Mathiesen
  6. Edouard Hannezo Is a corresponding author
  7. Bo Dong Is a corresponding author
  8. Di Jiang Is a corresponding author
  1. University of Bergen, Norway
  2. Institut Curie, France
  3. University of Oxford, United Kingdom
  4. University of California, Santa Barbara, United States
  5. University of Cambridge, United Kingdom
  6. Ocean University of China, China
  7. Qingdao National Laboratory for Marine Science and Technology
Research Article
Cited
3
Views
1,807
Comments
0
Cite as: eLife 2015;4:e09206 doi: 10.7554/eLife.09206

Abstract

The actomyosin cytoskeleton is a primary force-generating mechanism in morphogenesis, thus a robust spatial control of cytoskeletal positioning is essential. In this report, we demonstrate that actomyosin contractility and planar cell polarity (PCP) interact in post-mitotic Ciona notochord cells to self-assemble and reposition actomyosin rings, which play an essential role for cell elongation. Intriguingly, rings always form at the cells′ anterior edge before migrating towards the center as contractility increases, reflecting a novel dynamical property of the cortex. Our drug and genetic manipulations uncover a tug-of-war between contractility, which localizes cortical flows toward the equator and PCP, which tries to reposition them. We develop a simple model of the physical forces underlying this tug-of-war, which quantitatively reproduces our results. We thus propose a quantitative framework for dissecting the relative contribution of contractility and PCP to the self-assembly and repositioning of cytoskeletal structures, which should be applicable to other morphogenetic events.

https://doi.org/10.7554/eLife.09206.001

eLife digest

Animal cells can move, and cell movements are particularly important during the early stages of development, when the developing embryo rapidly changes shape. These movements depend on a network of fibers made up of a protein called actin. Just like an animal's skeleton, this network provides an internal scaffold for the cell and supports the cell's movements. Another protein called myosin works closely with actin and acts as a motor that drives these movements.

To study how cellular movements contribute to development, scientists often turn to simple, tube-like sea animals called sea squirts. These strange-looking creatures are distant relatives of humans and other animals with a spinal cord. All of these related creatures develop a long, rod-shaped structure called the notochord during the earliest stages of their development that is critical for forming the nervous system. Studying the development of the notochord is easier in sea squirts than other animals because the sea squirt's notochord is made up of just 40 cells arranged in a single file.

Now, Sehring et al. provide new details about the forces that shape the notochord cells in sea squirts. The experiments used microscopes and fluorescent markers to see what happens as the cells elongate to form the rod-like notochord, which stretches from the front to the back of the animal. This revealed that a ring made of actin and myosin forms near the front end of each cell and then migrates to the middle of the cell, stretching it along the way.

Sehring et al. then treated the cells with a drug that blocks myosin's motor-like ability. In these cells, the actin–myosin ring remains stuck in the front of the cell. Treating the cells at a later stage, that is, when the rings had already arrived at the center, led to the central rings moving back to the front end of the cell. Furthermore, when a mutant sea squirt that had cells without a distinct front or back was treated with the myosin-blocking drug, the ring ended up at random places in the cells. Together, these results suggest that the placement of the actin–myosin ring is determined by a tug-of-war between the pull of the front end of the cell and the myosin-driven force of the ring itself.

These findings reveal a general rule that can determine the position of cell's inner skeleton. Future studies will ask how the front end of the cell attracts and pulls the ring, and what this means for tissue growth and organ formation.

https://doi.org/10.7554/eLife.09206.002

Introduction

In many developmental and cellular contexts, actin filaments construct complex and highly dynamic structures to accomplish cell shape changes such as in migration and cytokinesis (Munjal and Lecuit, 2014). Correct positioning of the actin filaments is essential. In polarized migrating cells, actin flows posteriorly and becomes associated with myosin II at the trailing edge to propel the cell forward (Cramer, 2010). In cytokinesis of vertebrate cells, the equatorial ring is established in many incidences by a cortical flow of actin filaments (Bray and White, 1988) driven by myosin contractility and is concentrated at the equator to ensure correct cell division (Cao and Wang, 1990; DeBiasio et al., 1996; Mayer et al., 2010). Despite the importance of the proper positioning of the actin cytoskeleton, our understanding of how cell polarity contributes to the organization of the cytoskeleton, and vice versa, is still incomplete. In Caenorhabditis elegans early embryogenesis, a flow of cortical myosin and F-actin towards the anterior pole carries PAR polarity proteins, which in turn modulate the actomyosin dynamics (Munro et al., 2004; Mayer et al., 2010). Emerging evidence also point to a role for the Wnt/planar cell polarity (PCP) pathway in modulating cytoskeleton dynamics through its key mediators, Rho GTPases, which exert effects on actin polymerization and myosin contractility (Schlessinger et al., 2009), although the mechanisms underlying this cross-talk remain obscure. On the other hand, in vitro experiments on reconstituted cytoskeletal structures (Surrey et al., 2001), as well as recent mathematical models (Kruse et al., 2005; Hannezo et al., 2015) suggest that actomyosin gels could have the properties to self-assemble, but the applicability of these findings to in vivo situations is not yet clear. Therefore, the interplay between self-assembly and polarity signals that organize the cytoskeleton remains largely unexplored.

The Ciona notochord is a transient embryonic structure, which is composed of 40 post-mitotic cells that are arranged in a single file after convergent/extension (C/E). Following C/E, the coin-shaped cells undergo continuous elongation along the anterior–posterior axis (Cloney, 1964; Miyamoto and Crowther, 1985; Jiang and Smith, 2007; Dong et al., 2009), acquiring a drum shape (Figure 1A). Our previous studies show that an actomyosin contractile ring is present in the basal equator (Dong et al., 2011) and produces a circumferential constriction. The force generated by the constriction is transmitted three dimensionally from the basal cortex towards anterior and posterior lateral domains through an incompressible cytoplasm, driving notochord cell elongation (Dong et al., 2011; Sehring et al., 2014) (Figure 1B,C). The actomyosin ring is maintained by a bi-directional cortical flow and is under constant turnover in a manner remarkably similar to that of the cytokinetic ring during cell division. The position of contractile rings influences notochord cell shape and elongation. For example, in α-actinin mutants, the ring cannot maintain its position at the equator, and consequently, the cells fail to elongate but acquire an asymmetric shape (Sehring et al., 2014). However, the mechanism of positioning the contractile ring in the equator of the notochord cells is unknown. This question is also of crucial relevance to our understanding of cytokinesis, where the position of the actomyosin ring is critical for the cells to divide properly (Sedzinski et al., 2011) and to direct the distribution of cell-fate determinants correctly (Clevers, 2005; Gómez-López et al., 2014).

Figure 1 with 1 supplement see all

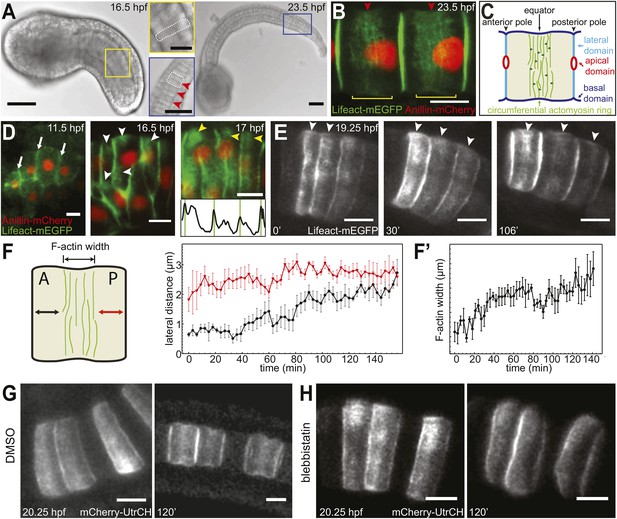

Establishment and relocation of anterior basal cortical actin filaments.

(A) Ciona embryos at 16.5 and 23.5 hr post fertilization (hpf). Following cell intercalation, notochord cells at 16.5 hpf are coin-shaped (one is highlighted in the insert). At 23.5 hpf, cells are cylindrically elongated, and a circumferential constriction is present midway between the two poles (red arrowheads in insert). (B) Notochord cells are labeled with Lifeact-mEGFP (green) for actin and Anillin-mCherry (red) for the nucleus. Red arrowheads indicate the equatorial constrictions; yellow brackets outline the circumferential actin rings at the equatorial region. (C) A diagram of an elongating notochord cell at the onset of lumen formation with the nomenclature used in this paper. Small dark green arrows indicate the bi-directional cortical flow of actin filaments contributing to the construction of the actin ring. (D) Notochord cells labeled with Lifeact-mEGFP (green) for actin and Anillin-mCherry (red) for the nucleus. At the start of intercalation (11.5 hpf), actin is evenly distributed in the cell boundaries (white arrows). During cell intercalation, basal cortical actin patches (white arrowheads) appear adjacent to the anterior lateral domain. The actin patches begin to fuse next to the anterior pole of the cells (yellow arrowheads). The intensity was measured at positions of arrowheads. Vertical green bars indicate lateral domains. (E) Notochord cells expressing Lifeact-mEGFP for actin. These images are from Video 1. After cell intercalation, basal cortical actin patches (arrowheads) continue to fuse, forming a circumferential ring next to the anterior lateral domain, which subsequently relocates to the equator, as cells elongate. (F) Mean distances between the anterior lateral domain and the cortical actin ring (black), and the posterior lateral domain and the cortical actin ring (red) during cell elongation (n = 7; error bars = SEM). (F′) Mean ring width over time (n = 7; error bars = SEM). (G, H) Blebbistatin inhibits relocation of anterior basal cortical actin filaments and cell elongation. Notochord cells are labeled with mCherry-UtrCH for actin. Embryos are either treated with DMSO (G) or incubated in blebbistatin (H) for 120 min. Anterior to the left in all images. Scale bars in A represent 50 μm; in inserts, 20 μm; in BE, G, H represent 10 μm.

https://doi.org/10.7554/eLife.09206.003

In addition, notochord cells acquire a subtle yet stable anterior/posterior (A/P) polarity: nuclei in all but the most posterior cell become localized at the posterior pole of the cell, while the classical PCP protein prickle is localized at the anterior pole of the cell during the notochord cell elongation (Jiang et al., 2005; Newman-Smith et al., 2015). Whether the PCP pathway contributes to the process of cell elongation and whether and how PCP components affect contractile ring formation and positioning remains mysterious. In this study, we investigated the processes of actin ring formation and found, through dynamic imaging, physical modeling, as well as comparative and genetic analyses that the actomyosin contractility and PCP pathway work antagonistically to achieve a robust localization of the cytoskeleton.

Results

Posterior relocation of basal cortical actin rings to the equator in notochord cells

To analyze the development of the equatorial actin ring, we followed the expression of actin markers Lifeact-mEGFP and mCherry-UtrCH in notochord cells from the onset of C/E. Both Lifeact-mEGFP and mCherry-UtrCH bind to endogenous actin without interfering with its dynamics (Burkel et al., 2007; Riedl et al., 2008) and were shown previously to have the same localization pattern as the endogenous protein in Ciona intestinalis (Sehring et al., 2014). Before C/E (11.5 hpf, hours post fertilization), actin was uniformly localized in the basal cortex, with high concentration at notochord cell–cell contacts (arrows in Figure 1D). During cell intercalation (16.5 hpf), when the cells start to align into a column, the low and evenly distributed actin in the basal cortex was replaced by patches of cortical actin accumulations close to the anterior pole (white arrowheads in Figure 1D). With the alignment of the cells into a column (17 hpf), these actin patches connected into an actin ring spanning the entire circumference of the basal domain next to the anterior pole of the coin-shaped cell (yellow arrowheads and intensity graph in Figure 1D).

Time-lapse recordings revealed that this early anterior ring observed in coin-shaped cells is the precursor of the equatorial ring (Video 1). While the cells elongated, the ring relocated from the anterior pole to the equator of the cells (white arrowheads in Figure 1E). To ascertain if the relocation of the cortical actin ring was a continuous movement, we measured the distance between the edges of the ring and the two cell poles over time. While the length between the ring and the posterior pole grew only minimally, the length between the anterior pole and the ring increased steadily, until the distance from the ring to both poles was similar (Figure 1F). Concomitantly with ring relocation and cell elongation, the ring width increased (Figure 1F′). Myosin filaments (labeled with myosin regulatory light chain fused to mCherry, mCherry-MRLC) also formed a circumferential ring in the anterior basal cortex at the end of C/E. Similarly to the actin ring, the myosin ring subsequently relocated to the equator (Figure 1—figure supplement 1), where it remained for the rest of the elongation process.

Video 1
Relocation of cortical actin during cell elongation.

Notochord cells expressing Lifeact-mEGFP were recorded every min. Frame rate, 13fps.

https://doi.org/10.7554/eLife.09206.005

Actomyosin contractility is essential for equatorial positioning of the ring

Treatment with myosin II ATPase inhibitor blebbistatin at the onset of cell elongation prevented both cell elongation and the posterior relocation of the actin ring; instead, the actin ring remained at the anterior end of the cells (Figure 1G,H). This dependence of actin ring migration on myosin II activity prompted us to ask if long-term maintenance of the ring at the equator is also dependent on myosin II activity. We thus analyzed the effect of blebbistatin on cells that had already elongated substantially, and whose circumferential actin ring had been positioned at the equator (Figure 2A). At this stage, notochord cells in drug-treated embryos ceased to elongate (Figure 2A,A′). Surprisingly, the equatorial actin ring present at the start of the treatment (white arrowheads in Figure 2A) was lost; instead, we observed an anterior accumulation of actin (yellow arrowheads in Figure 2A′), similar to the anterior concentration of actin in coin-shaped cells. The effect of blebbistatin is reversible (Figure 2B,B′): notochord cells were able to elongate significantly following a 60-min wash, and the cortical actin ring returned from the anterior edge of the cells to the equator.

Figure 2 with 2 supplements see all

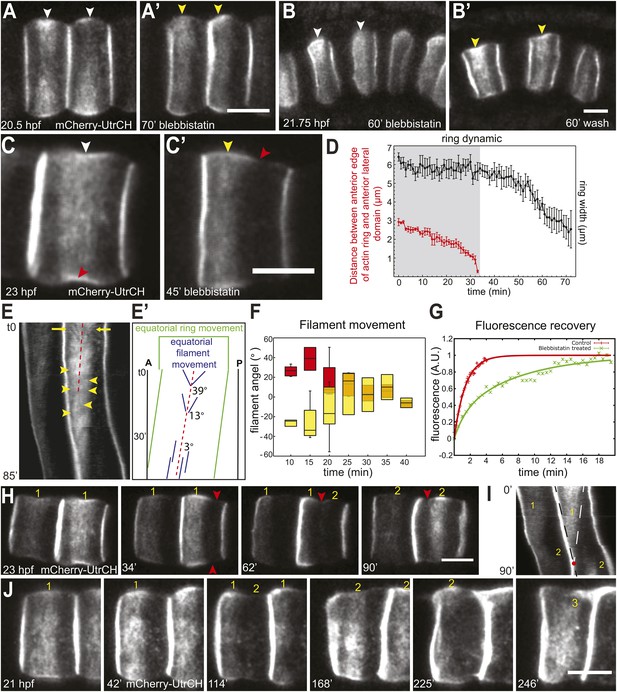

Shifting of equatorial actin filaments upon blebbistatin treatment. Notochord cells are labeled with mCherry-UtrCH or mCherry-hActin for actin.

(A, A') The equatorial actin ring (white arrowheads) in early elongating cells (A, 20.5 hpf) is relocated to the anterior pole (yellow arrowheads) after 70 min blebbistatin treatment (A'). (B, B') The anterior relocation of the actin ring and inhibition of cell elongation after 60-min blebbistatin treatment (B) is reversed by a 60 min wash (B'). (C) At 23 hpf, the elongated notochord cell has a broad equatorial actin ring (white arrowhead) that is associated with a prominent constriction (red arrowhead). After 45-min blebbistatin treatment, the ring is shifted to the anterior pole (yellow arrowhead), whereas the constriction is not. (D) Mean distance between the anterior lateral domain and the middle of the ring (red), and the mean ring width (black) over time. While the ring shifts toward the anterior pole, indicated by the decrease of the anterior basal domain, its width stays relatively constant (shaded in gray). After the ring reaches the anterior lateral domain, the width decreases. n = 5; error bars = SEM. (E, E') Kymograph of the shifting actin ring based on Video 2. Individual filaments (arrows) from the anterior and posterior edge move towards the center of the ring (the equator, indicated by the dashed line), which itself is shifting anteriorly. After a certain time, the equatorial bound movement of filaments becomes parallel to the movement of the ring (arrowheads). A diagram of the different movements is shown in E'. (F) Angles of single filament movement at specific times with respect to the center of the ring. Red (positive values), movement from posterior towards the center; yellow (negative values), movement from anterior towards the center. n = 2–7; error bars = SEM. (G) Fluorescence recovery after photobleaching in cells expressing mCherry-hActin. The entire actin ring region was bleached. Recovery is significantly slower in blebbistatin-treated cells. Control, n = 4; blebbistatin, n = 7; p = 0.012. Solid lines indicate a single exponential fit for the control (red curve) with a turnover time of 90 ± 3 s, and a double exponential fit for the blebbistatin treatment (green curve), with a fast fraction with the same turnover as the control, and a slow fraction (f = 70% ± 4%) with a turnover time of 7.8 ± 0.6 min. (H) Time-lapse frames of Video 3 showing the anterior movement of the equatorial ring (1), its disappearance, and the emergence of a second ring (2) at the equator. Red arrowheads indicate the circumferential constriction. (I) The kymograph illustrates the close succession of the second ring to the first ring. The red dot indicates the time when the first ring disappears at the anterior lateral domain, and the second ring begins to appear. (J) Time-lapse frames from Video 4 showing the emergence of a second (2) and third (3) ring with long-term blebbistatin treatment. Anterior to the left in all panels. Scale bars, 10 μm.

https://doi.org/10.7554/eLife.09206.006

To characterize the anterior shift of the equatorial actin ring triggered by blebbistatin treatment, we recorded the actin dynamics during drug treatment in elongated cells possessing an equatorial constriction and a broad actin ring. High-speed time-lapse recordings revealed a migration of the cortical actin ring from the equator to the anterior pole (Figure 2C,C′; Video 2), mirroring exactly the reverse sequence of migration of the ring towards the center in normal development. The front of the ring moved at a velocity of 91.8 ± 10.5 nm/min (n = 10). The speed of the shift was blebbistatin dose dependent; halving the blebbistatin concentration reduced the velocity significantly to 27 ± 0.5 nm/min (n = 10; p < 0.0001). The ring width stayed constant when it shifted anteriorly (Figure 2D). Remarkably, the encounter of the ring with the anterior lateral domain did not bring the movement to a halt. Instead, after the ring contacted the lateral domain (red line in Figure 2D), the posterior edge of the ring continued to move anteriorly at an increasing speed of 191.6 ± 21.4 nm/min (n = 10), so that the width of the ring narrowed (Figure 2D), until the entire ring disappeared at the position of the lateral domain (Video 2). The cell length did not significantly change during this process (Figure 2—figure supplement 1A; n = 10). We also examined the dynamic localization of talin, an actin-binding protein that bridges actin filaments and the adhesion apparatus at the cleavage furrow of dividing cells (Sanger et al., 1994; Critchley, 2009; Kanchanawong et al., 2010), and normally colocalized with the cortical actin ring at the equator in Ciona notochord (Sehring et al., 2014) (Figure 2—figure supplement 2B). Live imaging showed that talin concentrated at the cell equator slightly after the ring had been established centrally (data not shown), suggesting that talin actually responds to cortical repositioning rather than driving it. Upon blebbistatin treatment of already established central rings (Figure 2—figure supplement 2A), whereas the cortical actin was shifted to the anterior pole (Figure 2—figure supplement 2A′), talin lagged behind at the equatorial position (Figure 2—figure supplement 2B′). This result suggests not all components of the ring are shifted by blebbistatin.

Video 2
Shifting of equatorial actin filaments upon blebbistatin treatment.

Notochord cells expressing mCherry-UtrCH were recorded every 15 s. Frame rate, 13fps.

https://doi.org/10.7554/eLife.09206.009

The actin ring in elongating notochord cells is highly dynamic and consists of circumferential filaments that flow to the equator from both sides of the ring (Sehring et al., 2014). The kymograph unveiled a persistence of this dynamics within the ring in blebbistatin-treated embryos: circumferentially oriented actin filament bundles (arrows in Figure 2E; further examples are shown in Figure 2—figure supplement 1B) from the anterior and posterior edges of the ring continued to flow towards the equator, which itself was shifting anteriorly (dashed line in Figure 2E). In the first 15 min of blebbistatin treatment, the filament bundles moved at a velocity of 7.62 ± 0.78 nm/s (n = 18), which was significantly slower than the velocity in control cells (DMSO-treated cells) (29.92 nm/s, n = 10; p < 0.001), where the filaments moved towards a stationary equator. Continued exposure to blebbistatin further reduced filament movement. Within the next 15 min, the velocity decreased significantly to 3.92 ± 0.9 nm/s (n = 22; p = 0.004). The deceleration of the filament bundles resulted in a flattening of their trajectories in the kymograph. Measurement of the angles of filament bundles revealed a reduction from 39° to 3° within 30 min of blebbistatin treatment (Figure 2E′,F). After 31.1 ± 1.36 min (n = 20), directed movement of filament bundles towards the center of the ring (the moving equator) ceased, and only filament bundles moving nearly parallel to the direction of the shifting ring could be observed (yellow arrowheads, Figure 2E). After the ring had reached the anterior lateral domain, no pronounced filaments were detectable. There is no statistical difference in either velocities or angles between anterior- and posterior-directed filament bundles at any time. To analyze if there was still actin turnover within the ring at a time point when no prominent filament bundles were visible in a kymograph, or if it was a static ring shifting anteriorly, we performed fluorescence recovery after photobleaching (FRAP) experiments on notochord cells expressing mCherry-hActin. We bleached the entire equatorial ring in cells of control embryos, or the entire shifting ring in cells of embryos treated with blebbistatin for at least 30 min. For control embryos, the recovery curve was well fitted by a single exponential (Figure 2G), yielding a characteristic turnover rate of 90 s ± 3 s. In the shifting ring with blebbistatin treatment, fluorescence also recovered, indicating a persistent cortical flow of actin elements from outside the ring towards its center. Interestingly, the dynamics could no longer be fitted by a single exponential, as it contained two characteristic recovery times: a fast one, very similar to the control, and a much slower one of 7.8 ± 0.6 min (Figure 2G). A rough estimate of the flow-induced duration to close a bleached segment of 3 µm, assuming a mean velocity of 30 nm/s, is 100 s, which cannot be distinguished from the turnover time. However, after blebbistatin treatment, the mean velocity drops to roughly 6 nm/s (see Figure 6E), leading to a duration of 8 min, which is very similar to the measured slower recovery time. This further indicates a requirement of myosin motor activity for a strong cortical flow of actin elements, while local polymerization and depolymerization is still present and represents 30% of the recovery and appears to be very slightly affected by the blebbistatin treatment. These observations together reveal a persistence of fast inner-ring dynamics, albeit a bit slower because of decreased actin velocity, superimposed on a slow global shifting of the ring towards the anterior edge upon blebbistatin treatment.

Emergence of additional rings after prolonged blebbistatin treatment

Prolonged treatment with blebbistatin (>1 hr) led to the complete disappearance of the actin ring. Surprisingly, when the first ring was nearly gone, a new actin ring formed (Figure 2H, Video 3). A kymograph generated from the time-lapse reveals that the two rings overlapped in time only transiently: at the time point the first ring disappeared, the second ring emerged (Figure 2I). The position, shape, and size of the second rings were often less precise and less sharp than the first rings (Figure 2H,J). While the first ring disappeared after 106.67 ± 6.06 min of blebbistatin treatment (n = 6), the second ring had a significantly shorter dwelling time of only 61.33 ± 7.81 min (p = 0.001) before it disappeared at the anterior edge of the cells. Intriguingly, we consistently observed the dislodging of the actin rings from the morphological constriction (Figure 2H, arrowheads; Figure 2—figure supplement 1C), instead, the moving actin rings were associated with a morphological bulge at the basal domain (yellow arrowhead in Figure 2C′), and cells formed a new circumferential constriction (red arrowheads in Figure 2C′,H) in the wake of the shifting ring.

Video 3
Disappearance of the original actin ring and emergence of a new ring at the equator upon long-term blebbistatin treatment.

Notochord cells expressing mCherry-UtrCH were recorded every 15 s. Frame rate, 13fps.

https://doi.org/10.7554/eLife.09206.011

In cells that survived prolonged treatment of blebbistatin with relatively normal morphology, we observed the emergence of a third ring at the equator, after the disappearance of the second ring at the anterior lateral domain (Figure 2J; Video 4). In Video 4, the second and third ring appeared at 151 and 238 min of treatment, respectively.

Video 4
Emergence of a second and third actin ring at the equator upon long-term blebbistatin treatment.

Notochord cells expressing mCherry-UtrCH were recorded every 3 min. Frame rate, 13fps.

https://doi.org/10.7554/eLife.09206.012

Anterior migration of actin rings depends on PCP in notochord cells

As notochord cells are planarly polarized, and ring migration is always unidirectional in wild-type embryo, this prompted us to examine the effect of A/P polarity on actin ring migration. A conspicuous feature of the A/P polarity is the posterior localization of the nucleus, which is regulated by prickle, a core PCP component. The Ciona savignyi mutant aimless carries a deletion in prickle, resulting in a loss of A/P polarity manifested in the randomized localization of nucleus in addition to an earlier convergent extension defect (Jiang et al., 2005). We first explored the possibility that the posterior nucleus might influence the direction of ring movement mobilized by blebbistatin. To this end, we examined the notochord of the ascidian Halocynthia roretzi, which follows a remarkably similar early developmental process as in Ciona (Figure 3A,B), except at the cell elongation stage, the nuclei are positioned in the center of the cells (asterisks in Figure 3B). A conspicuous circumferential constriction is present at the equator, which is colocalized with a cortical ring of actin (Figure 3C) and activated myosin (Figure 3D), whose activity is essential for notochord cell elongation (Figure 3E,F). We next treated embryos with elongating notochord cells with blebbistatin for 3 hr. Similar to what was observed in Ciona, the actin ring was shifted invariably anteriorly (Figure 3G), indicating that the position of the nucleus does not influence the dynamic behavior of the ring. We thus used aimless embryos to explore the role of a compromised A/P polarity on the repositioning of the ring and its shifting upon blebbistatin treatment, independent from its influence on nuclear position. In wild-type C. savignyi embryos, elongated notochord cells possess a circumferential actin ring at the cell equator and a posterior nucleus (Figure 4A). Blebbistatin treatment shifts the ring towards the anterior pole (Figure 4B), mirroring exactly the events in C. intestinalis. In aimless embryos, the intercalation of notochord cells (outlined in Figure 4C) is impaired, except in the posterior region where the cells often align into a single file (Jiang et al., 2005). In these cells, the loss of A/P polarity is evident by the random position of the nuclei (Figure 4C insert). In 92% of mock-treated aimless cells in this region, the actin ring is positioned at the equator (Figure 4C insert), showing that equatorial ring positioning is independent from PCP. However, reducing contractility in polarity-deficient mutant cells led to a dramatically different phenotype: after 60-min blebbistatin treatment, no unidirectional migration towards the anterior was observed. The direction of the shift was randomized and independent of the localization of the nucleus: examples for anterior nucleus and ring, anterior nucleus and posterior ring, posterior nucleus and ring, and posterior nucleus and anterior ring could be found (Figure 4D,D'). In 56% of the cells, the ring was still positioned at the equator, and in the rest, the ring migrated either to the anterior or posterior side (18% and 26%) (n = 57) (Figure 4E). These results imply that A/P polarity by prickle is not necessary for the establishment of an equatorial actin ring; however, it is instrumental for the direction of movement of the ring upon blebbistatin treatment.

Circumferential actin rings are shifted anteriorly in Halocynthia roretzi notochord cells with centrally localized nuclei.

(A, B) Halocynthia notochord cells elongate from coin-shaped (A) to drum-shaped (B). A circumferential constriction appears at the equator of the cylindrical cell (arrowhead). The nucleus (asterisk) is localized in the center of each cell. (C, D) Cortical F-actin (arrow in C) and MRLC (arrow in D) accumulate at the equatorial region of the basal domain. (E, F) Notochord elongation (E, DMSO-treated) is abolished in Halocynthia embryos treated with 100 μM blebbistatin for 16 hr (F) starting at the onset of cell elongation (27 hpf). (G) Circumferential actin rings (white arrowheads) are shifted anteriorly after 3-hr blebbistatin treatment at 31 hpf (13°C). Similar to what is observed in Ciona notochord cells (Figure 2C', H), the shifted ring is associated with a circumferential bulge (white arrowheads), whereas the constriction is located posterior to the ring (red arrowheads). These results indicate (1) a conservation of the equatorial actomyosin contractile mechanism to drive notochord cell elongation in Halocynthia, (2) that the position of the ring does not influence the position of the nucleus, (3) the position of the nucleus does not influence the position of the ring, and (4) the nucleus position does not affect the direction of the ring shift. Anterior to the left in panels AB, G. Scale bars in E and F, 50 μm; in all others, 10 μm.

https://doi.org/10.7554/eLife.09206.013
Anterior shifting of the actin ring is disrupted in the prickle mutant aimless.

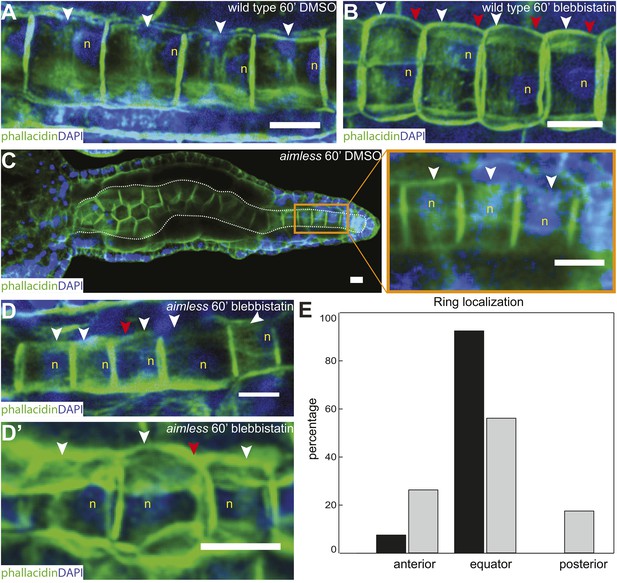

(AD′) Ciona savignyi embryos are stained with phallacidin for actin and DAPI for nuclei. The actin ring (white arrowheads) is positioned at the equator in control notochord cells (A) and is shifted anteriorly by 60 min blebbistatin treatment (B), whereas the posterior localization of nucleus (n) is not affected by blebbistatin. Red arrowhead indicates the constriction. (C) Notochord in an aimless embryo (outlined by dashed line) with impaired cell intercalation in the anterior region, and fully intercalated and significantly elongated cells in the posterior region. The actin ring in these cells is localized at the equator, but the nucleus is placed in a random position (insert). (D, D') 60-min blebbistatin treatment mislocalizes the actin ring in aimless embryos. (E) Distribution of actin rings in mock-treated (black; n = 53) and blebbistatin-treated (gray; n = 57) aimless cells. Anterior to the left in all panels. Scale bars, 10 μm.

https://doi.org/10.7554/eLife.09206.014

A simple biophysical model of the actomyosin cortex for the formation and maintenance of equatorial actomyosin rings

In order to probe quantitatively these findings, we follow the theory of active gels (Kruse et al., 2005; Prost et al., 2015) to develop a very simple biophysical model of the actomyosin cortex as a viscous contractile gel, undergoing steady turnover (see Appendix 1: Physical modeling of the Ciona cortical flows for details). Such models generically predict spontaneous accumulations of actomyosin. Indeed, if the actomyosin concentration is slightly higher in a given region, then the contractile stress is also locally higher compared to the surroundings. Because of this initially small imbalance, surrounding actomyosin fibers flow towards the accumulation, making it even denser and even more contractile (Recho et al., 2013). This self-reinforcing loop, which concentrates actomyosin in a single spot at the cortex with filaments flowing towards the ring, is resisted by their depolymerization and effective diffusion (Figure 5A), which favor a homogenous cortex.

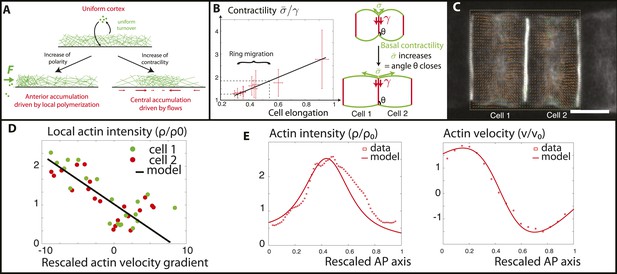

Verifications of the model assumptions and fitting of parameters.

(A) Sketch of our model. Contractility destabilizes an initially homogenous cortex into a central ring, whereas PCP-driven preferential anterior polymerization localizes the ring on the edge. (B) Measurement of the angle between lateral and basal membrane during the elongation (2.5 increase) and ring migration (1.5 increase) process, which indicates their relative tensions (n > 15 for each time point). Basal tension increases with time. σ¯ is the basal contractility, γ is the lateral contractility and θ is the angle between lateral and basal membranes. We have the geometric relation σ¯cosθ=γ. (C) PIV analysis of cortical flows in late stage embryos. (D) Linear negative correlation between local actin intensity and velocity gradients, as extracted from PIV. Actin intensity and velocities have been rescaled in the dimensionless units described in the main text and in Appendix 2: rescaling. (E) Comparison between intensity and velocity profiles and our theoretical predictions (data extracted from C). The velocity field is rescaled by the average velocity.

https://doi.org/10.7554/eLife.09206.015

The cell cortical layer of actomyosin is modeled as a thin axisymmetric layer of length L with principal axis z=L/2 (anterior side)…L/2 (posterior side). Because the thickness of the cortex is two orders of magnitude below cell size, we can use a thin film lubrication approximation and do not resolve the cortex radial direction. Therefore, all equations are invariant in the radial and orthoradial direction and the model is one dimensional. The simplified chemo-mechanical problem then consists of three equations equipped with appropriate boundary conditions:

• Conservation of the actomyosin density ρ through a classical reaction-drift-diffusion process reads:

(1) tρ+z(ρν)Dzzρ=ρ0ρτ,

where ν denotes the actomyosin velocity. We have denoted τ the turnover time, D an effective diffusion coefficient of actomyosin accounting for non local turnover and ρ0 the target density.

Boundary conditions prescribe the actin fluxes J=ρνDzρ at z=L/2 and L/2.

Force balance neglecting friction with the extracellular matrix reads

(2) zσ=0,

where σ is the mechanical stress in the actomyosin meshwork. The neighboring cells impose a given residual mechanical stress σ¯ on the cell boundaries. In the absence of friction, as indicated by Equation (2), the mechanical stress is homogeneous and σ(z)=σ¯.

• At last, we prescribe the constitutive behavior of the gel as

(3) σ=ηzν+χρ.

We have denoted χ the contractility arising from myosin motors, and η the viscosity of the gel. We set σ¯=χρ0, such that the value of the residual stress at low contractility, in the absence of boundary fluxes (J(±L2)=0), ensures a homogenous distribution of actin as observed experimentally before elongation (16.5 hpf, Figure 1A). Indeed, ρ=ρ0, ν=0, and σ=σ¯ is then a trivial solution of Equations (1–3).

For the problem to be fully specified, we still need to impose the values of the boundary fluxes of actin J(±L2). To begin, in order to expose the role of contractility only, we first assumed that they vanish. It should be noted that the actomyosin flux J encompasses both actin filament velocity, and an effective diffusive flux arising from actin polymerization (see Appendix 1: the model). Therefore, a vanishing total flux does not necessarily entail a vanishing velocity. Then, a linear stability analysis of Equations (1–3) predicts a threshold of actomyosin contractility (χρ0)c=η(1τ+4π2DL2) above which, the homogeneous cortex loses stability and a mechanically stable central ring forms even in the absence of external signaling cues (see Appendix 3: steady states, and Figure 1 in Appendix 1: the model for the stability diagram and details on the boundary conditions). We can then interpret that the driving force positioning the ring at the equator is the contractility increase during the process of ring migration. Before finalizing the model, we check two of its key assumptions that (1) contractility increases smoothly as ring migration proceeds, and (2) the velocity gradient of actin filaments towards the center should depend linearly on the local contractility, indicated by local actomyosin concentration (as seen in Equation 3). To address the first assumption, we measure the angle between the lateral and basal side, from embryos at various stages (n > 20 angles for each embryo) (Figure 5B). As shown recently (Maître et al., 2012), this angle θ=arccos(σ¯γ) reflects a force balance between the tensions of the basal (σ¯) and lateral (γ) surfaces, and therefore can be used as a proxy for tension changes. Interestingly, the angle decreased smoothly and continuously during elongation and ring migration, indicative of an increased basal tension relative to lateral tension (Figure 5B), by roughly a factor of 2.5 during the elongation process, and 1.5 during the ring migration process. We assume at first order approximation that lateral tension is constant and set in the model that (σ¯) increases by a factor 1.5. As we shall show later, such an increase enables a good fit to all of the available data (see Appendix 4: rough estimates of model parameters, and Appendix 5: model predictions for further details). To test the second assumption, we performed PIV analysis on high frequency movies of actin flows (Figure 5C), to measure local velocity gradients. When plotting these as a function of local actin concentration, we found a robust negative linear correlation (Figure 5D), which shows that flows are driven by differences in actomyosin concentration, validating quantitatively Equation 3 of our model. From the slope of the correlation, as well as from the characteristic of actin bundles measured above in the kymographs, we could extract the ratio (χ/η) of contractility and viscosity. Finally, we fixed the last parameters of our model through FRAP experiments (τ = 90 s) and through the width of the ring intensity profile (D = 2.10−12 m2/s) (see Appendix 4: rough estimates of model parameters for the details of parameter fitting). Under these assumptions and with these parameters, a central ring spontaneously forms at the center of the cell when contractility increases above the critical threshold (χρ0)c, and contractility is self-sufficient to maintain the ring structure through actomyosin flows. However, the experimental data show the existence of a stage where the ring is positioned at the anterior side and also underlines the importance of PCP in the repositioning of actin rings. Our final model therefore incorporates polarity in the model in the simplest way possible: by assuming that it creates a small preferential polymerization of actin at the anterior side, that is, there is a non-zero flux at the anterior side, different from the flux at the posterior side. We considered that the flux on the posterior side was still zero, that is, J(L/2)=F and J(L/2)=0. We showed in Figure 7 in Appendix 5: model prediction that lifting this constraint does not qualitatively change our results, as the key parameter is the difference between anterior and posterior flux, but not their respective magnitude and our system is locally robust with respect to this type of perturbation. Assuming the existence of a preferential polymerization at one boundary due to PCP was supported by the well-studied link between PCP and actin polymerization (Wallingford and Habas, 2005). In particular, Disheveled (Dsh), one of the core member of the PCP pathway has been shown to activate key actin regulators such as Rho and Rac (Tahinci and Symes, 2003; Wallingford and Habas, 2005), as well as Daam1, a member of the formin protein family (Kida et al., 2007; Gao and Chen, 2010). It should be noted that as we are treating the actomyosin gel as a single species (with the assumption that bipolar filaments performing the contractile power stroke co-localize with actin), assuming that PCP localizes myosin anteriorly, as reported in Newman-Smith et al., 2015, would yield the same qualitative results. With these final boundary conditions, the dynamical system Equations (1–3) predicts a transition (which is now smooth, see Figure 1 in Appendix 1: the model) between two mechanically stable states of the actin ring: a central position if the contractility χ is large enough, and an anterior position when χ is small enough and the polarity-induced actin flux F dominates. We set the value of F using the filament velocity order of magnitude as well as the experimental actin density profiles when the contractility is impaired (blebbistatin experiments, see Appendix 5: model predictions).

To verify the model, we then numerically integrated Equations (1–3) in order to calculate the steady state of a central actin ring, using the parameters deduced above. We found that our model can reproduce quantitatively very well both the velocity and intensity profiles in the entire actin cortex at the late stages of elongation (Figure 5E). Interestingly, we predicted, and observed in the PIV, a rather large, non-zero value for the actin filament velocity at the posterior edge of the cell, which is compensated in the model by actin polymerization on the side, since the total flux is zero. Moreover, we note a remaining, albeit small bias in ring position towards the anterior side, as in the data, showing that an anterior-imbalance remains at the later stages, both in simulations and in the data.

Next, we wished to compare the dynamics of ring migration predicted by the model to the experimental data, both in the case of normal ring migration towards the center, and blebbistatin-induced ring migration towards the anterior side. We simulated the effect of the linear increase in contractility, deduced from Figure 5B, and followed the appearance and migration towards the center of a ring. After 110 min, we then simulated a blebbistatin treatment as an exponential decrease in contractility, following previous experimental results on traction force decrease with blebbistatin (Lam et al., 2012; details in Appendix 5: model predictions), which predicted a rapid migration back towards the anterior pole. Figure 6A displays a kymograph of the numerical integration. Next, we compared model predictions and experimental data (average over 7 cells for normal ring migration, and 5 cells for blebbistatin treatment). It should be noted that in our model, the migration speed of the ring is controlled by the dynamics of contractility changes. This is in agreement with our experimental observation that the velocity is dependent on the dose of blebbistatin used, but also with the fact that the velocity of the ring migration is an order of magnitude smaller than the velocity of the actin filament bundles.

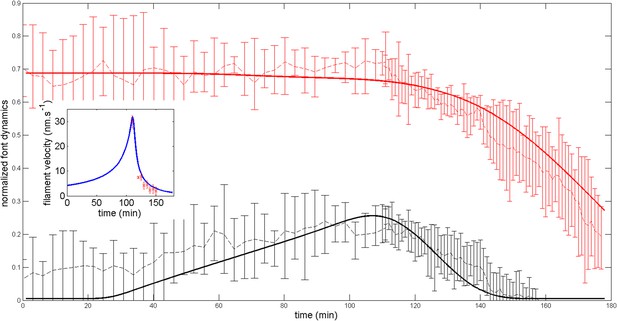

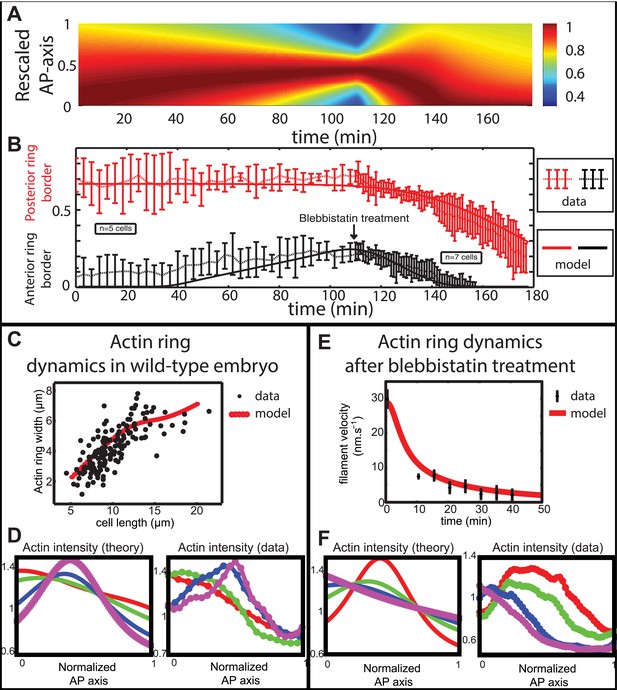

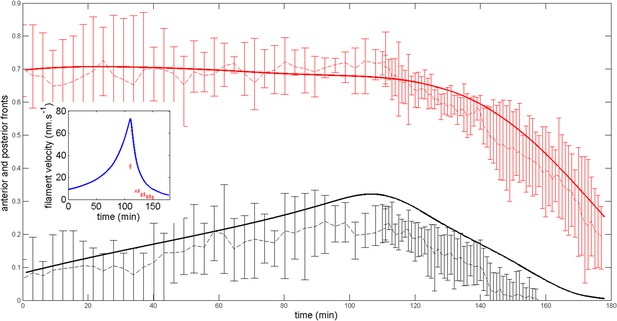

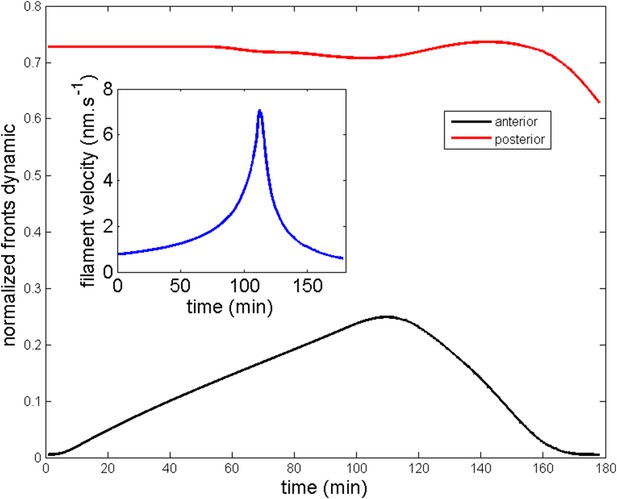

Comparison between theory and experiments on the dynamics of actin rings during migration and blebbistatin treatment.

All theoretical curves are extracted from the same parameter set (see Appendix 5: model predictions for details on non dimensional values and parameters). (A) Kymograph of actin intensity during central ring migration (left part) and during blebbistatin treatment starting at 110 min. The color code indicates local actin intensity. (B) Comparison of the model and experimental anterior and posterior lateral domains during normal development (data taken from the average of 5 cells) and blebbistatin treatment at 110 min (data taken from the average of 7 cells). The y-axis indicates the position of the anterior and posterior border (defined as 50% of the ring maximal intensity). (C) Actin ring width vs with cell length, throughout cell elongation. The thick line is our theoretical prediction. The black dots are the measured data (n = 7; error bars = SEM). (D) Theory-to-experiment comparison of actin intensity profiles during central ring migration: 0 min (red), 30 min (green), 60 min (blue), 80 min (purple). (E) Theory-to-experiment comparison of filament velocity following blebbistatin treatment. (F) Theory-to-experiment comparison of actin intensity profiles after blebbistatin treatment: 0 min (red), 15 min (green), 30 min (blue), 45 min (purple).

https://doi.org/10.7554/eLife.09206.010

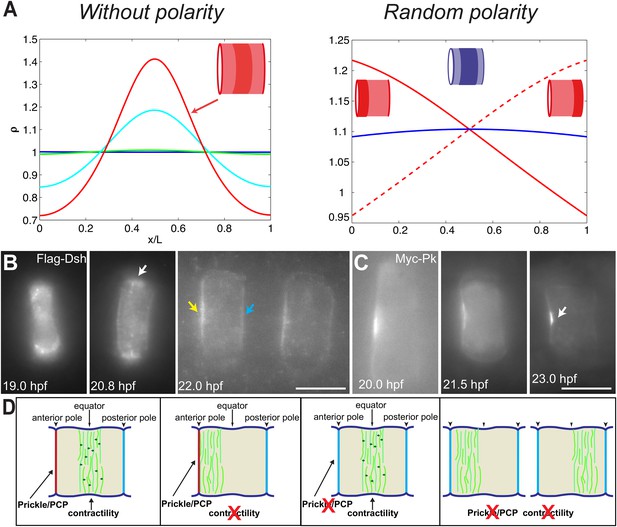

PCP participates in force balance to reposition actin rings.

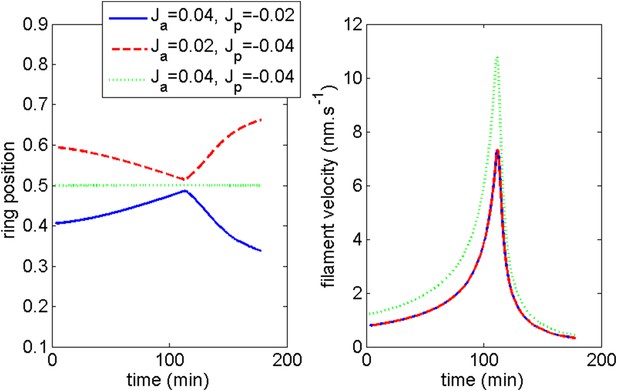

(A) Left: effect of a slow, 1.5-fold linear increase in contractility, for polarity-deficient mutants (no preferential flux on the edges). The ring forms directly at the center. Right: ring positioning for random uncoordinated polarity (preferential flux on the anterior, full red line, preferential flux on the posterior, dashed red line, and equal flux on anterior and posterior, full blue line). (B, C) Localization of Flag-Dsh (B), and Myc-Pk (C) in notochord cells. At early stages (19 and 20.8 hpf), Flag-Dsh localizes at the basal surface. At 20.8 hpf, it concentrates at the equator (white arrow). Subsequently, it shifts to both lateral surfaces, with a preference for anterior side of cells (yellow and blue arrows in B). Myc-Pk localizes at the anterior lateral surface of the cell at early stages and gradually concentrates to the center of anterior lateral surface (white arrow in C). (D) Myosin contractility antagonizes PCP to position a dynamic actin cytoskeleton. Anterior to the left. Scale bars, 10 μm.

https://doi.org/10.7554/eLife.09206.016

Moreover, a simple order of magnitude calculation shows that this decrease in the velocity of actomyosin explains the FRAP recovery curves (Figure 2G). Indeed, in control cells, a rough estimate of the time needed to close a bleached segment of 3 µm through flows, given a mean velocity of 30 nm/s, is 100 s, which cannot be distinguished from the turnover time. Therefore, we only see a single-exponential recovery. However, after blebbistatin treatment the mean velocity drops to roughly 6 nm/s (see Figure 6E), leading to a time of 8 min for flow-induced recovery, which is strikingly similar to the time extracted from the FRAP analysis of 7.8 min. There are then two time scales for recovery, one linked to turnover, unaffected by blebbistatin, and one linked to flows, which is dramatically compromised by blebbistatin.

We first examined the dynamics of normal ring migration to the center and verified that our dynamical prediction for the positions of the anterior and posterior sides of the ring matched very well the experimental data (Figure 6B). We also compared theoretical and experimental profiles of actin intensity during ring migration towards the center (Figure 6C), and observed again a good agreement between the two: first an exponential ring profile at the anterior pole, then detachment of a ring of broad thickness during migration, and then refinement of a thinner central actin ring.

Moreover, a rather intriguing feature of our model is that it predicts the size of the actin ring should first increase linearly with the length of the cell, before showing a plateau region for large cell sizes (Figure 6C). This is because ring formation is a spontaneous, self-organizing phenomenon that depends on boundary conditions, and therefore on the size of the cell. We measured experimentally actin ring width during cell elongation, and found it indeed increases linearly with the length of the cell, in very good quantitative agreement with our model, with all parameters having already been fixed above. In cytokinesis, it was proposed that such a scaling could allow cytokinetic time to be independent of cell size as observed in C. elegans embryos (Turlier et al., 2014). Our model provides a natural explanation to how this might be implemented in a simple manner in vivo.

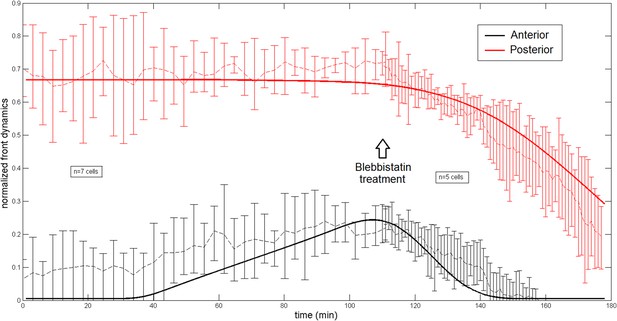

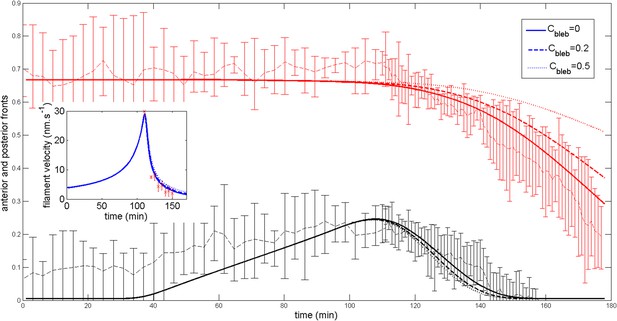

Next, we turned to the blebbistatin treatment. The only free parameter is the timescale of contractility decrease (over a time of 15 min), which we fitted through ring position shifting, keeping all other parameters constant. This yielded a good theory-experiment agreement for the shifts of both the anterior and posterior sides of the ring (Figure 6B). Having fixed the one parameter for the blebbistatin treatment, we sought to test our model further via second independent measurement. We plotted the predicted decay of actin velocity from our simulations and compared it to the experimental data measured above. Again, we found an excellent quantitative agreement between predictions and data (Figure 6E). Finally, we examined the spatial profiles of actin intensity during blebbistatin treatment and migration towards the anterior edge. This recapitulated in reverse the normal migration sequence and showed good qualitative agreement between theory and experiments.

To verify the role of PCP in the model, we performed the simulation under the conditions of no polarity and random polarity (Figure 7A): for low polarity and increased contractility (aimless mutant), the ring formed directly in the center of the cell; for low contractility and low, uncoordinated polarity between neighboring cells (aimless mutant with blebbistatin), the actin ring did not have any strong forces positioning it, and was therefore positioned randomly, depending on the strength of the respective anterior and posterior boundary fluxes (see Appendix 5: model predictions for further details).

We next turned back to our data to find experimental clues for this preferential polymerization of actin at the anterior side. As noted earlier, Dsh is a core member of the PCP pathway (Keys et al., 2002), and we found that it initially accumulated at the basal membrane, but was relocated to the lateral domains, with a preference for the anterior side (28% ± 9% enrichment compared to the posterior side, n = 11 cells) (Figure 7B), mirroring the localization of Prickle protein at this stage (Figure 7C) (Jiang, et al., 2005; Newman-Smith, et al., 2015). Interestingly, this relocation occurred roughly at the same time as the appearance of the anterior ring (between 19 and 20 hpf). This is fully in line with our prediction of a PCP-driven preferential polymerization at the anterior side, which could be mediated by Dsh.

Discussion

Ascidians have the simplest notochord in the Chordate phylum. It consists of merely 40 cells arranged in a single file at a transient stage of development. Yet, emerging evidence suggests that the Ciona notochord possesses an intriguing array of complexity, including differential gene expression, asymmetrical cell lineages, desynchronized morphogenetic behavior (Reeves et al., 2014), and an A/P polarity which manifests in the posterior localization of nuclei in the first 39 cells (Jiang et al., 2005). The current study reveals hitherto unknown aspects of A/P polarity in dynamical properties of actomyosin cortex. An actin ring forms at the anterior side of cells as core PCP proteins such as Disheveled relocate there, and then migrates to the equator as contractility increases, where it contributes to cell elongation. Interestingly, planar polarized contractile flows were reported during Drosophila germ-band extension (Rauzi et al., 2010). The ring movements that we observe are very robust, with surprisingly little fluctuation, given the highly dynamic nature of the ring. Here, we could disentangle the contributions of contractility and PCP to this robust positioning, by a combination of drug and genetic experiments. We show that decreasing contractility via blebbistatin reverses the normal developmental sequence, causing an anterior shift of the equatorial ring (Figure 2), which can be observed consistently throughout the elongation stage, but not in polarity mutants. This suggests a tug-of-war between contractility and cellular polarity: sufficiently large myosin contractility antagonizes the Prickle/Dishevelled-mediated anterior bias and can self-organize the actin ring in the center of the cell purely by physical forces, as shown by our theoretical analysis (Figure 7A). Indeed, the equatorial ring in the notochord cells, despite its resemblance to the equatorial ring in cytokinesis, is established in a spindle-independent manner. A similar phenomenon has been reported in the asymmetrical cell division of Drosophila neuroblasts (Cabernard et al., 2010), which also uses cortical polarity signals to regulate the furrow.

During longer blebbistatin treatments, we observe complex oscillations of the cortex, with a second ring usually emerging at the equator. This suggests the existence of additional signals for ring formation and from a theoretical perspective, underlines the need to go beyond our simple one-component model, for instance, in order to take into account the dynamics of adhesion complexes as well. Indeed, our model is the simplest one can write for active gels, and it assumes for instance that all the rheological coefficients are constant, while in principle some, for example, viscosity, could depend on the state of the gel, and on blebbistatin concentration in the drug treatment (Stirbat et al., 2013). Nevertheless, the fact that we can capture well the experimental data with such a simple model suggests that such coupling effects are probably of secondary importance for the observed phenomenon. It should be noted that, in this study, we have considered polarity as a constant, externally fixed parameter and examined its effect on actomyosin localization. In fact, a recent study in the same system (Newman-Smith et al., 2015) suggested an active feedback of myosin in core PCP protein localization. The next logical step would therefore be to incorporate this feedback loop to our formalism.

Earlier reports have noted movement of constrictions in isolated amphibian cells, especially the neural plate cells, which form local circumferential constriction rings traveling the length of the cells in successive waves (Holtfreter, 1946). Traveling constrictions have also been observed in leukocytes during cell shape changes and migration (Senda et al., 1975; Haston and Shields, 1984; Shields and Haston, 1985; Bornens et al., 1989).

Taken together, our data and theoretical analysis suggest a novel and generic framework through which PCP and contractility can interact to modify the forces acting on actomyosin rings and therefore their positioning (Figure 7D).

Materials and methods

Animals and fertilization

Adult C. intestinalis were obtained from Station Biologique de Roscoff, France and maintained in running filtered seawater. For fertilization, gametes from several individuals were surgically removed and mixed. Fertilized eggs were dechorionated with 1% sodium thioglycolate and 0.05% protease E as described by Mita-Miyazawa et al. (1985), followed by five washes with UV-treated seawater. Embryos were cultured at 13°C.

Adult C. savignyi were collected at the Santa Barbara harbor (Santa Barbara, CA) and maintained in running seawater. Fertilization and dechorionation were performed as described above for C. intestinalis. For the aimless mutant, spawning was controlled by light conditions. Embryos were cultured at 15°C.

Adult H. roretzi were collected near the Asamushi Research Center for Marine Biology (Aomori, Japan) and the Otsuchi International Coastal Research Center (Otsuchi, Japan), and kept in tanks. Spawning was controlled by temperature and light conditions. Spawned eggs were fertilized with a suspension of non-self sperm. Embryos were cultured in Millipore-filtered seawater containing 50 μg/ml of streptomycin and kanamycin at 11°C.

Plasmid constructs

Expression constructs in this study have been described previously: mCherry-UtrCH, lifeact-mEGFP, mCherry-MRLC and mCherry-hActin (Dong et al., 2011); mCherry-tropomyosin (Sehring et al., 2014); Flag-Dsh and Myc-Pk (Jiang et al., 2005).

DNA electroporation

Electroporation was modified after previously published protocol (Corbo et al., 1997). Plasmid DNA (80 μg in 80 μl) was mixed with 400 μl 0.95 M mannitol in 4-mm cuvettes. 320 μl dechorionated fertilized eggs were added and electroporated with a Gene Pulser Xcell System (BIO-RAD), using a square pulse protocol (50 V and 15 ms per pulse). After electroporation, embryos were cultured at 13°C.

Blebbistatin treatment

Blebbistatin dissolved in DMSO (Calbiochem, 203389) was used at a final concentration of 100 μM. Control embryos were treated with DMSO. For recovery experiments, embryos were washed 10× after blebbistatin treatment. All blebbistatin experiments were repeated at least three times.

Phallacidin staining and immunohistochemistry

C. savignyi and Halocynthia embryos were fixed with 4% formaldehyde in seawater for 1 hr at room temperature (RT), washed 3 times with PBS, and stained with 5 units/ml BODIPY-FL phallacidin (Invitrogen, B607, Carlsbad, CA) in PBS containing 0.2% Triton X-100 for 2 hr at RT. After 3 washes for 10 min each with PBS, C. savignyi embryos were counterstained with DAPI, and transitioned through an isopropanol series with 30 s steps: 70%, 85%, 95%, and two times 100% isopropanol. For myosin staining in Halocynthia, fixed embryos were blocked with 0.1% BSA in PBT overnight at 4°C, followed by incubation with Rabbit anti Ser19 myosin antibodies (Cell Signaling Technology, 3671) (1:50) overnight at RT. After 2 × 40 min washes with PBT, embryos were incubated with Alexa594 anti-rabbit secondary antibodies (Invitrogen, A11011) overnight at RT, washed 3 times in PBT and counterstained with 5 units/ml BODIPY-FL phallacidin in PBS. Localization of Dsh and Pk in C. savignyi followed previously published procedure (Jiang et al., 2005).

Microscopy and image analysis

C. intestinalis embryos were observed under a Leica TCS SP5 confocal laser-scanning microscope (CLSM) equipped with a 40X oil-immersion objective (NA 1.2). If necessary, embryos were sedated using 0.2% MS222 (Sigma, A5040). Halocynthia embryos were analyzed with a BX61 CLSM (Olympus). C. savignyi embryos were imaged on an Olympus Fluoview 1000 CLSM using a 40 × 1.3 NA objective. Images were processed and analyzed with ImageJ. All fluorescent images shown are maximum projections. The ring width was measured on projections by drawing a line at the right angle to the lateral domains and across the ring. Kymographs were compiled using the kymograph plug in in ImageJ.

Statistical analyses

Statistical parameters were determined using SigmaPlot software (Systat Software Inc.). Significance of differences was calculated using Student's t tests.

FRAP

FRAP experiments were performed with the Leica TCS SP5. The whole cortical actin ring of notochord cells was bleached by using maximum laser power at 561 nm for an empirically determined number of iterations to achieve bleaching throughout the full thickness of the cortical signals. After bleaching, images were taken at regular intervals (between 4.5 and 9 s) with the same laser at 30% laser intensity. The halftime of recovery was calculated by measuring the signal intensity in the region of interest (ROI) over time. The raw data were corrected for background noise and image acquisition bleaching. The intensity was plotted as a function of time and the half-time of recovery, t1/2, was extracted.

Appendix 1

Physical modeling of the Ciona cortical flows

This text contains technical derivations regarding the model of ring migration as well as quantitative connections with the experiments.

The model

We model the cell cortex as a thin cylindrical layer of an actomyosin gel of length L with principal axis z ∈ [−L/2,L/2]. In order to capture the most basic aspects of ring formation and positioning, we use a one-dimensional description and do not resolve the radial direction which has been studied in (Joanny et al., 2013). Therefore, all equations are invariant in the orthoradial direction. We will start by considering separately actin filaments and monomers and attached myosin motors, viewing the motors as being in solution in the actin solute.

We denote by a(z,t) the concentration of actin filaments, by m(z,t) the concentration of actin monomers and by c(z,t) the concentration of motors (or to be more accurate bipolar filaments including 20–30 motors) performing power stroke on the actin filaments. Following (Kruse et al., 2005), the conservation equations then read,

(1) ta+z(av)=kpmkdatmDmzzm=kpm+kdatc+z(cv)Dczzc=konkoffc.

The velocity of actin filaments is v(z,t). Actin polymerizes (resp. depolymerizes) with fixed rates kp (resp. kd), and monomers are free to diffuse in the cytoplasm with a coefficient Dm. We assume that motors are advected with actin but can also thermally diffuse with a diffusion coefficient Dc. Microscopic derivation from a two state motor (Julicher et al., 1997) of such type of macroscopic equation is given in Zeldovich et al. (2005). On top of this, motors can also attach and detach away from the actin filaments again following a first order kinetic which involves rates kon and koff. We also suppose that there is a large pool of free motors.

To begin with, we assume that the polymerization/depolymerization reaction is close to equilibrium such that can write:

(2) m=Ka,

where K is the reaction constant. Combining the first and second equation of (Equation 1), we obtain:

(3) (1+K)ta+z(av)KDmzza=0.

Supposing that K ≪ 1 while Da = KDm remains finite, we have ∂ta + ∂z(av) − Dazza = 0.

Thus, Da is an effective diffusion of actin filaments that accounts for actin filament production and degradation. We rewrite Equation (1) as a set a reaction-advection-diffusion equations.

(4) ta+z(av)Dazza=0tc+z(cv)Dczzc=konkoffc

Added to this, we assume that the friction forces stemming from the membrane and the permeation friction forces (Rubinstein et al., 2009; Joanny et al., 2013) with the cytosol are negligible. To check this hypothesis, we compared experimentally the anterior and posterior angles between lateral and basal sides (n = 10), around 19–20 hpf, during ring migration towards the center. If friction was significant, these angles would be expected to be different for an anterior-positioned ring, as basal tension would not be constant throughout the basal cortex (more precisely, the difference would be σ(L/2)σ(L/2)=ξL/2L/2v(z)dz where ξ is the friction coefficient of the cortex against the extra-cellular matrix, and σ is the internal stress in the actomyosin network). Nevertheless, we could not find a statistically significant difference between these two angles. Thus, force balance reads,

(5) zσ=0.

and σσ¯ is the homogeneous stress inside the acto-myosin cortex which is imposed by neighbouring cells.

Finally, the behaviour law for stress in the actomyosin network is given by Julicher et al. (2007),

(6) σ¯=ηzv+χ0a2mEa,

where η is the viscosity of actomyosin, and E is a compressibility modulus. We have assumed a simple model for the active stress, where one myosin motor needs to interact with two actin filaments to perform a power stroke, with a positive contractility coefficient χ0.

To further simplify our description, we effectively treat actin and myosin as a single species of density ρ of acto-myosin satisfying a reaction-drift-diffusion equation (Peskin et al., 1993; Mogilner and Oster, 1996; George et al., 2013; Dierkes et al., 2014):

(7) tρ+z(ρv)Dzzρ=ρ0ρτ,

where D is an effective diffusion coefficient of acto-myosin, ρ0 a target density, and τ a turnover time. To linear order, the behavior law simply becomes,

(8) σ¯=ηzv+χρ,

where χ is the effective contractility coefficient. In the main text, we show that ∂zv decays linearly with actin fluorescence intensity. This further indicates that σ¯ in Equation (8) can indeed be considered as constant and the friction coefficient with the extra-cellular matrix can indeed be considered negligible.

Notice that our Equations (7, 8) are generic in the sense they may be obtained with a slightly different interpretation. Starting from (4)2, we may directly write the contraction term in the behavior law (6) in a linear way χc as done in (Bois et al. (2011; Wolgemuth et al., 2011) and thus obtain the same set of equation where the concentration field is the one of motors instead of acto-myosin. The turnover time 1/koff thus represents the one of attachment–detachment of motors which is experimentally found to be close to the one of actin. Assuming infinite compressibility, the actin concentration uncouples from the rest of the problem and can be reconstructed post-factum from (4)1 as done in Recho et al. (2013, 2014) once the velocity field is known.

Finally, we turn to boundary conditions. Actomyosin can be produced locally at the anterior and posterior boundaries. Thus denoting the flux,

(9) J=ρvDzρ,

we have,

(10) J(L/2)=Jaand J(L/2)=Jp.

Notice that this flux contains the effective diffusion coefficient stemming from actin filaments turnover. Thus, PIV does measure the velocity of filaments v and not the flux J which is related to mass balance.

One mechanical condition is still missing because the system is friction free, so all rigid body motions are allowed. To eliminate these modes, we additionally set:

(11) L/2L/2v(z,t)dz=0.

It is in agreement with imposing that the stress is the same at both sides in the presence of friction (integration of ∂zσ = ξv).

Appendix 2

Rescaling

Non-dimensionalizing spacial variables by Dτ, time by τ, stress by η/τ and density by ρ0, denoting x = z/L ∈ [−1/2,1/2], we get from Equations (7, 8),

(12) L1xv=SCρL1t(Lρ)+L1xJ=1ρL1xρ=ρ(vxdLdt)J,

with boundary conditions,

(13) J(1/2)=Ja,J(1/2)=Jp and 1/21/2v(x)dx=0.

The five non-dimensional parameters entering the problem are, the contractility, C=χρ0τ/η, the residual stress S=σ¯τ/η, the normalized length of the cell, L=L/Dτ and the fluxes Ja,p=Ja,p/ρ0τ/D. After these five parameters and an initial data is provided, system (Equation 12) can be solved numerically using a finite volume discretization stencil (LeVeque, 2002).

Assumptions

We set the posterior actin flux to zero considering that the anterior flux is much larger at least in the control case. The robustness of such assumption will be numerically checked.

Added to this, as an homogeneous steady state ρ ≡ 1 is expected in the absence of anterior flux for low contractilities, we necessarily have to set S=C to ensure such steady state. Physically, this condition states that the external stress σ¯ applied by neighboring cells balances the active contractile stress χρ0 to maintain the shape.

Appendix 3

Steady states

At steady state, density does not vary in time (∂tρ ≡ 0) and length increase also vanishes (dL/dt=0). The flux of actomyosin then satisfies,

(14) L2xxJ=C(1L1xJ)(J1/21/2J(u)du)J

with J(1/2)=Ja, and J(1/2) = 0. Equation (14) has a long range interaction with a quadratic non linearity structure.

No flux case

When Ja=0, J ≡ 0 is a trivial solution of Equation (14). However, an increase of contractility can destabilize this homogeneous configuration which stops to be stable when the critical contractility threshold,

(15) Cc=1+4L2π2,

is reached. At Cc, the stable solution bifurcates from the homogeneous one in a pitchfork supercritical way (second order phase transition) and we have

(16) 1/21/2J(x)2dx~Cc±22(CCc)Cc2.

The bifurcation eigenmode is thus

(17) Jc(x)~Cc±22(CCc)Cc2 sin(2π(x+1/2)),

which concentrates actin either in the center or on the edges depending on the prefactor sign.

Notice that upon increase of C, there is a infinite number of bifurcation branches branching at points 1+4n2L2π2where n ≥ 2; however, all these branches were numerically found to be unstable. So the situation is that if C<Cc, the homogeneous solution is the global attractor while when C>Cc, the global attractor is the solution localizing (more and more with increase of C) to the center or the poles (see Appendix figure 1)

Appendix figure 1

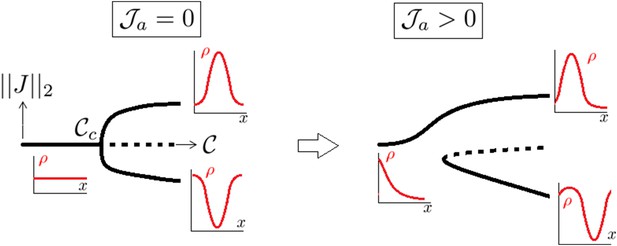

A supercritical pitchfork bifurcation is broken into a saddle one upon introduction of a non symmetrical perturbation.

Dotted lines indicate that the branch is linearly unstable.

https://doi.org/10.7554/eLife.09206.017

Influence of the anterior flux

Introducing the anterior mass flux brings a bias inside the problem and breaks the pitchfork bifurcation into a saddle node one as generically explained in Arnold et al. (1994) (Appendix figure 1).

The biasing favors the formation of an actin ring at the anterior pole. Indeed, one can solve Equation 14, when C=0, to find,

(18) JC0(x)=Jasinh(L(12x))sinh(L).

and thus,

(19) ρC0(x)=1+Jacosh(L(12x))sinh(L).

The density of actin clearly localizes to the anterior pole over a characteristic length L.

In the general case, upon increase of contractility, the distribution then switches from localization at the anterior pole when C=0 to a localization close to the center when Cis large.

Notice that the branch localizing the motors on both poles is still locally stable. However, it is disconnected from the other one where there is a switch from the side to the center. Also we numerically find that the basin of attraction of this branch is getting smaller as Jaincrease. As a result, it is probably difficult to observe experimentally even when polarity is impaired.

Appendix 4

Rough estimates of model parameters

To begin with, we estimated the typical scales of time and space.

  • FRAP experiments allow to estimate τ = 90 s.

  • An approximation of the effective diffusion of acto-myosin can be found from (Mogilner and Oster, 1996; Mogilner and Edelstein-Keshet, 2002). The diffusion coefficient of actin monomers in the cytoplasm is 20 μm2 s−1 and kd/kp ≈ 1/100. This leads to D ≈ 0.2 μm2 s−1. We then obtain,

Dτ3.16 μm.

We estimate below the non dimensional parameters of the model.

Parameter L

From experiments, averaging over a number of 7 cells, we estimate the length of cell to increase during the ring migration from L ≈ 7 μm to L ≈ 12 μm. This implies for the non dimensional length an increase from L=1.6 to L=2.8. As we show on Appendix figure 2, the trend of the stretch (defined as the current length over the final length) is roughly linear and for simplicity, we implement this trend in the numerical simulations of the theoretical model. After the migration, length can be considered to be roughly constant. We show of Appendix figure 3 the evolution of length after a blebbistatin treatment at time = 0 min.

Appendix figure 2

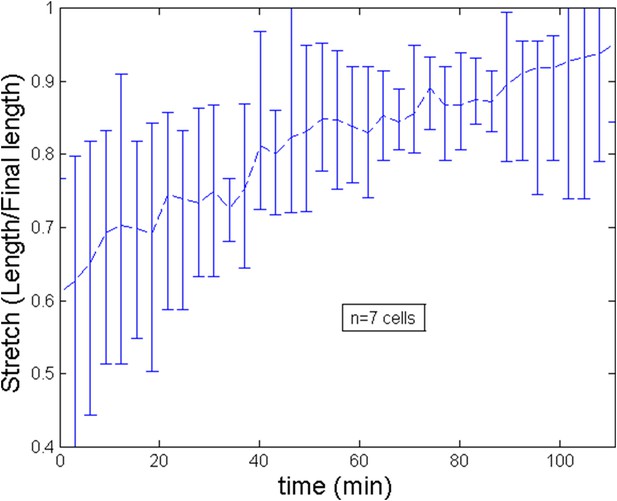

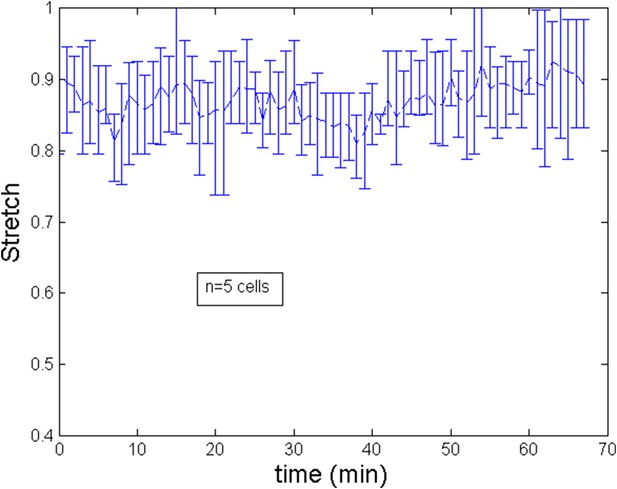

Stretch of the cell during the ring migration.
https://doi.org/10.7554/eLife.09206.018
Appendix figure 3
Stretch of the cell during after ring migration subsequent to a blebbistatin treatment.
https://doi.org/10.7554/eLife.09206.019

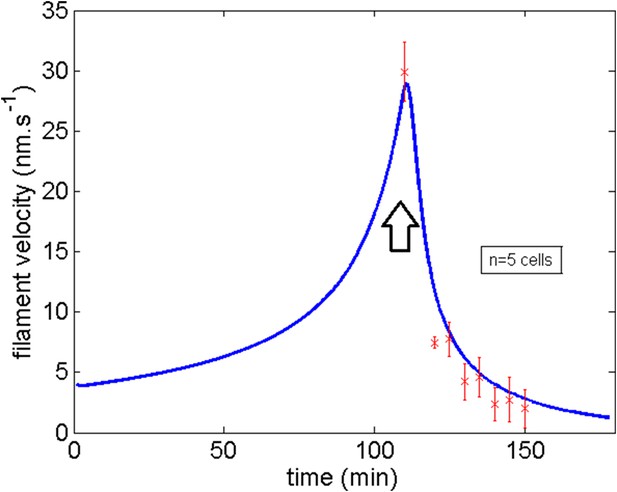

Parameter Ja

PIV as well as kymographs reveals that the average velocity of actin filaments is v ≈ 30 nm s−1. Ja/ρ0 should therefore have a comparable order of magnitude. Using estimates of τ and D, this leads to Ja0.6. To fit the data, we take a slightly smaller value Ja0.4 which is also confirmed by the intensity profiles after blebbistatin treatment which value at the anterior side is 1+Ja (see Equation 19).

Parameter C

We begin with a estimate of C when the ring is formed. From relation (Equation 8), we have that,

ηΔvΔLχ(ρρ0).

Maximal velocity estimated by PIV is of the order of v ≈ 50 nm s−1 and decays to zero over roughly a fourth of the cell length that is 3 μm. Over the same length, intensity of actin fluorescence can increase roughly of one half of its base value leading ρρ0 ∼ 0.5ρ0. We thus obtain (χρ0)/η ≈ 0.03 s−1. This ratio is in agreement with the estimates of (Julicher et al., 2007; Rubinstein et al., 2009), which suggest χρ0 ≈ 103 Pa, η ≈ 104–105 Pa · s. We then obtain C3. For the numerical model, to fit the experimental data, we postulated that C increases linearly in time from C=2.1 to C=3.3 thus assuming an increase of the (homogeneous) cortical tension of roughly 1.5 as measured experimentally during the course of development (see Appendix figure 5B of the main text where an elongation of 72% is related to an increase of the rescaled tension from 1.2 to 1.8, hence the assumed 1.5 increase). Notice that this is this increase that dictates the ring migration dynamic. Indeed, from the average filament velocity v ≈ 30 nm s−1, it would take ∼3 min for the ring to migrate from the side to center position (a ∼6 μm distance) if the internal flow were driving the ring positioning.

Appendix figure 4
Comparison of the model and experimental anterior and posterior lateral domains during normal development blebbistatin treatment.
https://doi.org/10.7554/eLife.09206.020

After blebbsitatin treatment, we assume that Cexponentially decreases to a value Cbleb=0 after a characteristic time τb = 15 min. The effect of the blebbistatin dose has not been quantified experimentally, and we shall present its effect by changing Cbleb in the robustness section.

Appendix 5

Model predictions

Having estimated the parameters of the model, we turn to its quantitative predictions and compare numerical results of the model simulation with experiments.

Development of normal embryos followed by blebbistatin treatment

For the control case, as mentioned in the previous section, we suppose that in the course of ring migration which average (over 7 cells) duration is ∼110 min, C increases linearly from 2.1 to 3.3 while L increases linearly from 1.6 to 2.8. After the ring forms, we apply a blebbistatin treatment and predict a migration back to the anterior pole. The average time of such migration (over 5 cells) is 67 min. During this repositioning process, we assume accordingly with experimental data that the cell length remains roughly constant (see Appendix figure 3) while C drops exponentially over 15 min. We start the simulation from an initial actin density distribution with no contractility (Equation 19) and iterate from few time steps keeping initial parameters constant to obtain the real starting profile for non zero C.

Dynamics of the anterior and posterior domains

We show on Appendix figure 4 the model and experimental anterior and posterior lateral domains dynamics which are in very good agreement. The theoretical lateral domains are defined by considering the domain where the actin intensity is superior to the minimal value plus 50% of difference between maximal and minimal intensity. Distances are normalized by the total cell length for a more convenient representation. Here, 0 corresponds to the cell anterior while 1 is the cell posterior. Both the anterior and posterior lateral domains are well captured by the model during the ring migration of normal embryos as well as after the ring repositioning subsequent to a blebbistatin treatment happening at the end of the migration at a time = 110 min. Notice that accordingly with experiments, the location of the ring at the end of the migration at time = 110 is systematically slightly shifted to the anterior side, revealing the essential asymmetry between the two sides which we interpret in the model in term of an anterior production flux. The ring shifts back to the anterior pole at a velocity much higher the original one as observed experimentally.

Appendix figure 5
Comparison of the model and experimental filament average velocity during development and blebbistatin repositioning.

Black arrow indicates the blebbistatin treatment.

https://doi.org/10.7554/eLife.09206.021

Average value of the actin filaments velocity

The average value of the actin filaments velocity is computed from experiments by summing absolute values of velocities at several locations of the ring during the ring relocation after blebbistatin treatment. The value,

V¯=1L0L|v(z,t)|dz,

obtained from the model is also monitored and compared against available experimental on Appendix figure 5.

The agreement is again quite remarkable for the velocity of the actin filaments at the end of migration (29 nm s−1) and the sharp decrease of the filament velocity upon blebbistatin treatment is nicely captured.

Scaling of the ring size

Another prediction of the model in agreement with experiments is the scaling of ring size with the cell size up to a threshold length. See Appendix figure 6C of the main text and Appendix figure 6.

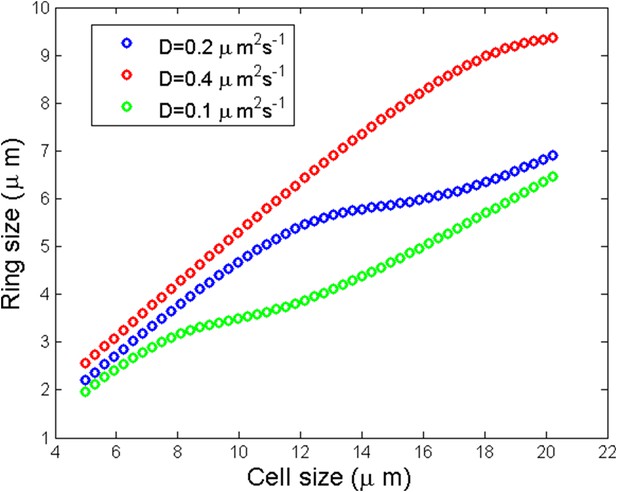

Appendix figure 6
Numerical simulation of ring size as a function of the cell size for three different diffusion coefficients.
https://doi.org/10.7554/eLife.09206.022

We observed a linear scaling of the ring size with respect to the cell size followed by a saturation and a linear increase again. The qualitative reason of the saturation can be understood for small enough Ja where one may speculate that the saturation size corresponds to the critical cell size:

Lc=2πDτC1.

Intensity and velocity profiles

We show on Appendix figure 6D and Appendix figure 6F of the main text, a comparison of the experimental and theoretical density of actin filaments for several time frames during the course of normal migration and blebbistatin treatment. The profiles of fluorescence obtained experimentally compare well to the theoretical one.

Added to this, we also show on Appendix figure 5 of the main text the velocity found by PIV analysis at the end of migration which shape is very similar to the one predicted by the model. The maximal velocity of actin filaments (50 nm s−1) found theoretically is also almost the same as the experimentally measured ones. This validates post factum the procedure we used to assign values to non dimensional parameters explained in the previous section.

Robustness analysis

We now check the robustness of our results with respect to few hypothesis.

Posterior flux

Firstly, we show that the anterior and posterior domains dynamic are not importantly altered (see Appendix figure 7) if we add a small posterior flux Jp=0.04 ten times lower than Ja=0.4. Generically, such a non-zero flux could be expected. In fact, the agreement with the experimental ring dynamic is even better in such case and we may speculate that such flux indeed exists.

Appendix figure 7
Robustness of the anterior and posterior fronts dynamics and average filament velocity during the ring migration in control case with Jp=0.04.
https://doi.org/10.7554/eLife.09206.023

Boundary tension

The neighboring cells may not always apply a tension such that S=C though this choice is the most natural one as it ensures a homogeneous cortex if the active processes of maintaining contraction and polarity are turned off.

If we suppose that S is less than C leading to the condition S=αC where α < 1, we show below the effect of a small deviation α = 0.95. See Appendix figure 8. While the anterior and posterior dynamics is still correctly captured, the agreement of the average filament velocity is not good any more even though the order of magnitude is still correct. The system is thus sensitive to this condition. However, if the condition is modified by assuming a certain value of α, by changing other parameters of the model, we can still obtain a good agreement with the experimental data. What this analysis suggests, if the model is correct, is that a change of externally applied tension would strongly affect the internal cortical flow, a fact which awaits experimental verification in the present setting.

Appendix figure 8
Robustness of the anterior and posterior fronts dynamics and average filament velocity during the ring migration in control case with S=0.95C.
https://doi.org/10.7554/eLife.09206.024

Blebbistatin dose dependence

To mimic the fact that the dynamic of the shift is blebbistatin dose dependent, we assume that after the ring has migrated, contractility C decreases to a value Cbleb>0. We show on Appendix figure 9 how the dynamic of the shift back to the anterior pole is affected. A more modest impairment of contractility slows down the ring migration velocity as observed experimentally.

Appendix figure 9
Effect of a blebbistatin treatment at time = 110 min on the ring dynamic with Cbleb=0,0.2,0.5.
https://doi.org/10.7554/eLife.09206.025

Development of aimless embryos followed by blebbistatin treatment

For aimless embryos, Ja is considerably lowered and has the same order of magnitude as Jb. If the two fluxes are exactly zero, when contractility increases above Cc6, starting from an almost homogeneous distribution of actin, the model predicts the formation of a central ring directly in the center. The configuration where actin is localized at the poles is most probably never observed because of the small remaining anterior and posterior actin fluxes. As a consequence of such fluxes, the threshold of appearance of the ring is also not exactly Cc.

To model the dynamic of this situation, we consider small stochastic actin fluxes of the order of JaJp0.04. The dynamic of length and contractility remains unchanged from the control case. We show on Appendix figure 10 the resulting anterior and posterior lateral domains positions and average filaments velocity. Observe that as JaJp are small, we now start from a nearly homogeneous density. When contractility increases, a ring forms in the middle of the cell as observed experimentally. The duration of the ring formation remains unchanged as it is driven by the contractility increase. However, the average filament velocity is considerably lowered. If Ja and Jp are strictly the same, the dynamic of the anterior and posterior fronts are symmetric but a small imbalance (either to the posterior or anterior side) is sufficient to trigger a side to middle migration as in Appendix figure 10 though the density of actin is much more homogeneous then in the control case.

Appendix figure 10
Ring migration in the aimless case.

Parameters are Ja=0.04 and Jp=0.02.

https://doi.org/10.7554/eLife.09206.026

After a time of 110 min, depending on the importance of the impairment of contractility or polarity, the ring may shift to the anterior or posterior pole depending on which (anterior or posterior) flux dominates the other. In most cases, both anterior and posterior fluxes will be of about the same magnitude and the ring central position (defined as the middle of the anterior and posterior lateral domains) will thus stay in the center. To illustrate this case, we show on Appendix figure 11, three typical cases with blebbistatin treatment (Cbleb=1) corresponding to Ja=0.04 and Jp=0.02, Ja=0.02 and Jp=0.04 and finally Ja=Jp=0.04.

Appendix figure 11
Ring middle position and average filament velocity during migration of the ring and after blebbistatin treatment at time = 110 min in the three cases mentioned in the text.
https://doi.org/10.7554/eLife.09206.027

In agreement with experiments, in all three cases, the ring migrates towards the middle of the cell during development. Then, after blebbistatin treatment, depending over which flux slightly dominates, the ring re-positions in the central region or at one of the sides randomly.

References

  1. 1
    Dynamical systems V. Bifurcation theory and catastrophe theory, encyclopædia of mathematical sciences
    1. V Arnold
    2. V Afrajmovich
    3. YS Il’yashenko
    4. L Shil'nikov
    (1994)
    Dynamical systems V. Bifurcation theory and catastrophe theory, encyclopædia of mathematical sciences, Volume 5.
  2. 2
    Pattern formation in active fluids
    1. JS Bois
    2. F Jülicher
    3. SW Grill
    (2011)
    Physical Review Letters 106:028103.
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
    Mechanism of the formation of contractile ring in dividing cultured animal cells. I. Recruitment of preexisting actin filaments into the cleavage furrow
    1. LG Cao
    2. YL Wang
    (1990)
    The Journal of Cell Biology 110:1089–1095.
  8. 8
  9. 9
    Development of the ascidian notochord
    1. RA Cloney
    (1964)
    Acta Embryologiae et Morphologiae Experimentalis 7:111–130.
  10. 10
    Characterization of a notochord-specific enhancer from the brachyury promoter region of the ascidian, ciona intestinalis
    1. JC Corbo
    2. M Levine
    3. R W Zeller
    (1997)
    Development 124:589–602.
  11. 11
  12. 12
  13. 13
    Myosin II transport, organization, and phosphorylation: evidence for cortical flow/solation-contraction coupling during cytokinesis and cell locomotion
    1. RL DeBiasio
    2. GM LaRocca
    3. PL Post
    4. DL Taylor
    (1996)
    Molecular Biology of the Cell 7:1259–1282.
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
    Contraction waves in lymphocyte locomotion
    1. WS Haston
    2. JM Shields
    (1984)
    Journal of Cell Science 68:227–241.
  22. 22
    Structure, motility and locomotion in isolated embryonic amphibian cells
    1. J Holtfreter
    (1946)
    Journal of Morphology 79:27–62.
  23. 23
    Ascidian prickle regulates both mediolateral and anterior-posterior cell polarity of notochord cells
    1. D Jiang
    2. EM Munro
    3. WC Smith
    (2005)
    Current Biology 15:79–85.
  24. 24
    Ascidian notochord morphogenesis
    1. D Jiang
    2. WC Smith
    (2007)
    Developmental Dynamics 236:1748–1757.
  25. 25
    The actin cortex as an active wetting layer
    1. JF Joanny
    2. K Kruse
    3. J Prost
    4. S Ramaswamy
    (2013)
    The European Physical Journal E, 36, 10.1140/epje/i2013-13052-9.
  26. 26
    Modeling molecular motors
    1. F Julicher
    2. A Ajdari
    3. J Prost
    (1997)
    Reviews of Modern Physics 69:1269–1281.
  27. 27
    Active behavior of the cytoskeleton
    1. F Julicher
    2. K Kruse
    3. J Prost
    4. JF Joanny
    (2007)
    Physics Reports-Review Section of Physics Letters 449:3–28.
  28. 28
  29. 29
    Control of intercalation is cell-autonomous in the notochord of Ciona intestinalis
    1. DN Keys
    2. M Levine
    3. RM Harland
    4. JB Wallingford
    (2002)
    Developmental biology 246:329–340.
  30. 30
  31. 31
  32. 32
  33. 33
    Finite volume methods for hyperbolic problems, volume 31
    1. R LeVeque
    (2002)
    Cambridge university press.
  34. 34
  35. 35
  36. 36
    Histospecific acetylcholinesterase development in the presumptive muscle cells isolated from 16-cell-stage ascidian embryos with respect to the number of DNA replications
    1. I Mita-Miyazawa
    2. S Ikegami
    3. N Satoh
    (1985)
    Journal of Embryology and Experimental Morphology 87:1–12.
  37. 37
  38. 38
  39. 39
    Formation of the notochord in living ascidian embryos
    1. DM Miyamoto
    2. RJ Crowther
    (1985)
    Journal of Embryology and Experimental Morphology 86:1–17.
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
    An equatorial contractile mechanism drives cell elongation but not cell division
    1. IM Sehring
    2. B Dong
    3. E Denker
    4. P Bhattachan
    5. W Deng
    6. BT Mathiesen
    7. D Jiang
    (2014)
    PLOS biology, 12, 10.1371/journal.pbio.1001781.
  55. 55
  56. 56
    Behaviour of neutrophil leucocytes in uniform concentrations of chemotactic factors: contraction waves, cell polarity and persistence
    1. JM Shields
    2. WS Haston
    (1985)
    Journal of Cell Science 74:75–93.
  57. 57
  58. 58
  59. 59
    Distinct functions of Rho and Rac are required for convergent extension during Xenopus gastrulation
    1. E Tahinci
    2. K Symes
    (2003)
    Developmental Biology 259:318–335.
  60. 60
  61. 61
  62. 62
  63. 63

Decision letter

  1. Mohan Balasubramanian
    Reviewing Editor; University of Warwick, United Kingdom

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The previous decision letter after peer review is shown below.]

Thank you for choosing to send your work entitled “Assembly and positioning of actomyosin rings by contractility and PCP” for consideration at eLife. Your full submission has been evaluated by Vivek Malhotra (Senior Editor), a Reviewing Editor and three peer reviewers, and the decision was reached after discussions between the reviewers. Based on our discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

Dr. William Bement (Reviewer 1) and Dr. Mohan Balasubramanian (Reviewing Editor) have agreed to reveal their identity.

All referees find your experimental observations exciting and the data of high quality. However, 2 of the 3 referees strongly feel that the modelling studies neither makes non-trivial predictions nor tests hypothesis generated (for the modeling to be useful). Given that the paper includes modeling and experiments, we are therefore compelled to look at both parts in totality. Therefore, we cannot offer to take this manuscript further in its current form.

Since the area of research and the observations are of interest to all referees (and potentially to the readership of eLife as well), we remain interested in this work and area. However, the revisions required are extensive and it is not clear what form the revised manuscript may take. If you can address the comments of the referees satisfactorily, we will be happy to consider this paper further (as a new submission that will be sent to the same referees). If you want to take this route, please be sure to address all points, but importantly strengthen the modeling part with validation if at all possible.

Reviewer #1:

It could be reasonably argued that in spite of all of the triumphs that have accrued to developmental biology as result of genetic and molecular analysis of morphogenesis, one major question remains unaddressed: how, exactly, molecules are tied to cell shape changes. On the one hand, an enormous body of information concerning developmentally important transcription factors and their target genes exists and on the other hand, cell biology has provided a wealth of information about the primary agent of cell shape change – the actomyosin cytoskeleton. And yet the connections between the two remain maddeningly elusive.

In the current study, the authors provide a fascinating look into one such connection – that responsible for driving elongation of notochord cells of an ascidian. In brief, the authors show that an equatorial ring of actin filaments and myosin-2, previously found to be responsible for powering elongation, assembles as a result of myosin-2 powered contraction and resultant cortical flow of F-actin. Initially, F-actin is concentrated in a ring at the anterior end of the cells, but it moves parallel to the plane of the cortex to the middle of the cell, where it is needed to do its job. Myosin-2 shows a similar behavior and disruption of its motor activity with blebbistatin (which blocks elongation) prevents repositioning of the actin ring. Moreover, blebbistatin causes repositioning (to the anterior) of the ring when applied after the achievement of its central location. The authors develop a simple model, which successfully captures some of the key features observed, but does one essential feature – the starting localization at the anterior of the cell. This prompted a series of experiments designed to test the possibility that the planar cell polarity (PCP) pathway is responsible for the starting localization. They found that it is, providing a link between a pathway implicated in several different morphogenetic events (PCP) and a cellular process that actually powers a morphogenetic event. The authors modified their model which was thereupon able to capture all of the relevant results.

This is a very nice piece of work, not only for the reasons presented above, but also for the quality of the data. The authors obviously appreciate the importance of high quality imaging and also obviously appreciate what to do with the results provided by it. I thus have just a couple of comments:

1) Based both on the movies and on the fact that many F-actin nucleators concentrate at cell-cell junctions, I was puzzled by the assumption that “actin fluxes vanish” at cell-cell junctions (Results) underlying the model. Am I just misunderstanding what is meant by flux in this context? Perhaps some clarification is in order, as it seems manifestly obvious that F-actin is being generated at the boundaries and flowing inward.

2) The point of the talin experiments eluded me. Is the point simply that not everything is going with the flow? If so, having double labels would be more convincing.

3) The Dsh labeling was far below the standard set by the authors in the other images.

Reviewer #2:

This manuscript examines the process of notochord formation in Ciona, focusing on the positioning of the actomyosin contractile ring. The imaging is fantastic and the long-term drug treatments are rather illuminating and show very non-trivial dynamics. This reviewer was quite satisfied with the quality of experimental data, but the model, while being perfectly sensible, did not seem to produce any non-trivial predictions enabling a serious test of understanding.

The first claimed prediction of the model (in the subsection “A simple biophysical model of the actomyosin cortex for the formation and maintenance of equatorial actomyosin ring”) is that “contractility increases smoothly as elongation and ring migration proceeds”. Since contractility “chi” is a parameter of the model, rather than a dynamical variable, this looks to me like an assumption rather than a prediction.

The second “prediction” of the model that “the velocity gradient of actin filaments towards the center should be proportional to the local contractility, indicated by local actin concentration.” This is such a trivial consequence of force balance (obtained by integration of Equation 2), that it is difficult to accept it as a “prediction”. Instead I would regard this fact, shown in Figure 3D, as the basic premise underlying the formulation of the model. A more convincing logical progression would be a) the data in Figure 3D supports the model, b) now calculate non-trivial consequences of the model based on these assumptions that explain a difficult to understand observation.

The fourth paragraph of subsection “A simple biophysical model of the actomyosin cortex for the formation of equatorial actomyosin ring” comes closer to stating model predictions. Figure 3E shows the simulated time evolution of actin intensity. What controls the width of the final steady state (in red)? If a certain set of parameters allows the final predicted profile to fit the observed actin intensity distribution (as shown in Figure 3G), does the same set of parameters predict the observed time-evolution of actin intensity before a steady state is achieved? Or, stated in a different way, do the blue, green, and cyan curves match up with the data? Same question can be asked of the actin velocity profiles. Does the predicted time evolution match up with the data?

In the same subsection, the authors state: “Moreover, a rather intriguing feature of our model is that it predicts the size of the actin ring should scale with the length of the cell. This is because ring formation is a spontaneous, self-organizing phenomenon that depends on boundary conditions. We therefore measured experimentally actin ring width during cell elongation, and found it indeed increases linearly with the length of the cell (Figure 3F).” Yet, Figure 3F quite clearly shows that the dependence is not linear. Furthermore, the model prediction itself is nonlinear, and this seems to contradict what is stated in the manuscript.

Again, in the same subsection, the authors state: “to probe how PCP can participate in the repositioning of actin rings, we incorporated polarity in the model in the simplest way possible”. The alteration or addition to the model is that PCP alters actin polymerization locally. Simulations of the model with this additional assumption show that the equatorial ring can transition smoothly to an anterior position. The observation that the transition is smooth is not a strong validation of the model; it would be consistent with a whole class of models. A more stringent test of the model is needed. Does the predicted time series of the transition match the data?

In conclusion, I do not see that the model has been tested rigorously. Support for model assumptions is confused with predictions. Centering by contractility seems to be the key insight of the model. It is not too surprising that inclusion of PCP-induced polarity would generate an asymmetry. I believe that the authors could strengthen model “validation” by comparing observed dynamics with model predictions.

Reviewer #3:

This study proposes a very interesting and rather novel mechanism for the positioning of a contractile actomyosin ring in Ciona notochord cells. However, besides this intriguing finding and the dissection of the individual contributions of contractility and PCP, there are some major issues (also concerning the model) as mentioned next.

1) In Figure 3B, the authors measured the contact angle between basal and lateral surfaces and incorporated an increase in contractility (by 2.5) into the model. It is not clear how the contractility has been calculated from the angle measurements. Furthermore, by measuring the contact angle between cells (which is not the same as angle θ between basal and lateral domain as indicated here) the relative cortical tensions can be obtained. Therefore, probably the correct term that should be used here is 'cortical tension' along the basal and lateral domains, which is different from 'contractility'. 'Contractility' arises from active tension generated by actomyosin and 'cortical tension' is the total mechanical tension within the cortex. The authors should clearly state what they measured and how they used the obtained values for the model fitting. The statement of 'Basal contractility increases = angle θ opens' does not make sense, since θ, as indicated in the schematic diagram 3B, is getting smaller in the case of higher 'contractility'. In addition to measuring the contact angles, cortical laser ablation could be used to measure the relative changes of cortical tension throughout time and elongation process.

2) To account for the contribution of PCP, a preferential actin polymerization at the anterior pole was incorporated into the model by changing one boundary condition at the anterior pole from no flux to flux>0 (J(0)=0 to J(0)=F). However, the authors also state that they observe large, non-zero values for the actin filament velocity at both edges of the cell via PIV. Please clarify why it is legitimate to use only anterior flux for model fitting then.

3) Besides affecting actin polymerization there is evidence, that the Wnt/PCP pathway also modulates myosin contractility via Rho GTPases. The authors should make clear why they only proposed polymerization changes in the model and provide more supporting data to show that the influence of PCP is happening indeed via actin polymerization only. The authors further state that Dsh relocated from basal to lateral domains with preference to the anterior side and 'this relocation occurred roughly at the same time as the appearance of the anterior ring (19-20h)'. Figures 1 and 6 show examples of ring appearance around 21hpf (Figure 1E) in wildtype case & Dsh lateral localization only at 22 hpf (Figure 6B). The authors should provide a better temporal analysis of the proposed components involved. When does the ring appear on average (statistics would be useful) and when is Dsh and Pk localized there? Without providing these data the statement about the actomyosin positioning via “Prickle/Dishevelled-mediated anterior bias” cannot be made.

4) In the model, blebbistatin treatment is considered as downregulation of contractility in notochord cells, which leads to an anterior shift of the ring by keeping the inner-ring dynamics persistent (Figure 2F-G). Since blebbistatin not only interferes with contractility but also with other properties such as viscosity, it is very likely that the ring dynamics are changed, which can also be seen by FRAP experiments (half time more >2.5 fold). Therefore, blebbistatin treatment should not only be considered as downregulation of contractility. In addition, blebbistatin treatment interferes with contractility in the whole organism and will change various parameters also in surrounding tissues. It is essential to show the same outcome of actomyosin repositioning with more localized methods, e.g. by using photoinducible aryl azide derivative of blebbistatin to stably inhibit myosin within notochord cells.

5) The model for aimless mutant with low polarity and high contractility predicts the ring to form directly in the center of the cell. No data on a time series is shown to support this statement. The model prediction of aimless embryos says that the anterior Flux Ja is considerably lowered. Can this be checked experimentally with PIV? It would be good to show what happens to Dsh localization in aimless mutants to support the proposed “Prickle/Dishevelled-mediated anterior bias”.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for submitting your work entitled “Assembly and positioning of actomyosin rings by contractility and PCP” for peer review at eLife. Your submission has been favourably evaluated by Vivek Malhotra (Senior Editor), Mohan Balasubramanian (Reviewing Editor) and two reviewers.

The reviewers have discussed the reviews with one another, and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The revised manuscript is improved in quality, however some issues remain unaddressed. The reviewers’ comments are attached for your reference. It appears that most of the issues can be addressed by rewriting and providing explanations. As a result, we have not prioritized the points raised by the referees as to ones that need addressing vs. those that do not. We hope you can address all the points and improve the text accordingly.

Reviewer #1:

The manuscript has been revised along the lines suggested by the different referees. This has considerably improved the study. However, there are still several points of criticism that need to be addressed before the manuscript is suitable for publication.

1) The initial value for contractility was a 2.5-fold increase, which is reflecting the change in contractility during the whole process of ring movement and cell elongation. Why did the authors decide to use the lower 1.5-fold change in contractility (during ring movement only) in the revised version of the manuscript? Please comment on the rationale behind changing this value, and would a 2.5-fold contractility increase instead change the model predictions significantly? (In the figure description of Figure 7A, the authors still mention a 2.5-fold linear increase in contractility; is this a typo?)

2) Why did the turnover time measured from FRAP experiments change significantly from 50sec to 90sec in the revised manuscript after re-analyzing data? Have new experimental measurements been done?

3) In Figure 5B, when calculating the basal tension from the contact angles, what justifies to neglect adhesion tension without measuring/calculating it for this specific tissue?

There are no measurements of lateral tension, so why is it valid to take lateral tension as constant? Especially in Figure 1E, the length of the lateral domain seems to decrease during cell elongation. (Change “basal contractility” to “basal tension” and “Contractility” in Figure 5B to “relative tensions”.)

4) When changing assumptions for boundary tension to S=0.95C (5.2.2) the average filament velocity is not in good agreement with the model prediction anymore. Since in this case the model prediction changes quantitatively, the assumption of S=C might be too much of a simplification?

5) Is polarity still intact in blebbistatin treated embryos? Since the paper by Newman-Smith et al. (2015) shows the incorrect localization of PCP components (Prickle) upon blebbistatin treatment. In case polarity is disrupted, would blebbistatin treatment then not reflect decrease in contractility in addition to loss in polarity, whereas in the model decrease in contractility will not at the same time lead to a change in polarity?

6) The question of why the authors focused on actin polymerization and did not consider modulations of myosin contractility was not addressed (point 3 in previous comments).

7) Suggestions for aimless mutant (point 5 in previous comments) have not been sufficiently addressed.

Reviewer #2:

The manuscript describes an experimental and mathematical modeling study of the assembly and migration of an actomyosin ring in Ciona notochord cells, and how these processes depend on planar cell polarity. Confocal fluorescence microscopy showed that after convergent extension basal cortical actin rings assembled close to the anterior pole of the cell. The rings then migrated to the equator. Using the myosin-II ATPase inhibitor blebbistatin and the deletion mutant (“aimless”) of a core planar cell polarity component named prickle, the authors studied the dependence of ring positioning and directional migration on myosin-II activity and on planar cell polarity. A mathematical model of the basal cortex, based on an active gel model, reproduced experimental ring formation and migration behavior.

Images of actin in Ciona notochord cells marked by Lifeact-mEGFP and mCherry-UtrCH showed an actin ring initiating near the anterior pole of the coin-shaped cell ∼17 hours post fertilization, which migrated to the equator as the cell elongated after convergent extension. The lateral distance from ring to anterior (posterior) pole increased (remained constant) as the ring migrated (Figure 1). In cells treated with blebbistatin before ring migration, the ring failed to migrate and remained close to the anterior pole (Figure 1). Blebbistatin treatment after the ring had migrated to the equator caused the ring to return to the anterior pole and eventually disappear. Prolonged blebbistatin treatment produced a second and a third ring (Figure 2).

Experiments with notochord cells of Ciona and the ascidian Halocynthia roretzi, whose nuclei are positioned on the posterior side and in the center, respectively, both showed ring migration towards the anterior pole after blebbistatin treatment. This suggested to the authors ring motion was likely unaffected by nucleus position.

For Ciona, in the aimless mutant (which lacks normal polarity) ring motion was random and uncorrelated with nucleus position after treatment with blebbistatin. This contrasts with the wild-type behavior where the ring returned to the anterior pole after blebbistatin treatment, suggesting to the authors that anterior ring migration depends on planar cell polarity (Figure 4).

A 1D mathematical model attributed the rate of change of actomyosin density in the cortex to turnover, gradient of actomyosin flux and a diffusion-like term representing nonlocal turnover (Equation 1). The cortical stress sums contributions from the velocity gradient and actomyosin contractility (Equation 3). Zero external forces on the cortex are assumed, implying constant cortical stress (Equation 2). With low actomyosin contractility and zero flux at the poles (mimicking the cortex before convergent extension) a constant actomyosin density was predicted as seen experimentally. With increased contractility, nonzero anterior flux and zero posterior flux, a “ring” formed (a high density band) near the anterior pole, which migrated slightly beyond the equator. On decreasing the contractility, the ring migrated back to the anterior pole. Both effects agree with experiment, provided one assumes that lowering the contractility correctly represents the effect of blebbistatin (Figures 5, 6). When the model was run with (1) zero flux at both poles (no polarity), or (2) flux at the posterior pole only, the ring located to (1) the equator or (2) close to the posterior pole (Figure 7).

Based on these results, the authors proposed a self-reinforcing ring formation mechanism driven by actomyosin contractility, and a ring-positioning mechanism depending on unbalanced anterior and posterior boundary actin fluxes (Figures 5, 7).

This is an interesting study of an actomyosin phenomenon that involves a ring in some respects reminiscent of the cytokinetic contractile ring. The development and migration of the ring is worthy of study, and this paper makes a serious attempt to establish the mechanism involved. The lessons are likely to be generally informative for actomyosin contractility phenomena in the cell cortex, and may lead to insights into cytokinesis.

Some of my major concerns are that insufficient evidence was presented for critical assumptions of the model, and presentation of both experiment and modeling is poor and difficult for a reader to follow. Specific points follow:

1) The paper lacks necessary background and motivation (this would mainly be in the Introduction, but could permeate the paper). The biological significance of the actomyosin phenomenon under study is not explained. The reader does not discover how the actomyosin ring under study is related to elongation. What is the mechanism? A reference to Sehring et al. (2014) is inadequate. Why should we be concerned about the migration of this ring?

2) In the figures, there is no sign of actin away from the ring and the poles. There is presumably an extended actomyosin cortex everywhere (assumed by the model) yet we don't see it in images. Why is it invisible?

3) In the model, a 3 dimensional stress σ is evolved in space and time. And yet variations of σ in the direction normal to the cell surface are not addressed. Presumably, there is an unstated assumption that variations of σ across the cortex are small and can be neglected? This (or whatever the assumption is) should be clearly stated and it should be explained how this leads to the model equations.

4) The model assumed a nonzero actomyosin flux at the anterior side. This boundary condition was the feature of the model that caused migration and positioning of the ring near the equator. The authors claim this assumption is “supported by the well-studied link between PCP and actin polymerization, notably via Disheveled, which regulates actin assembly”, citing the study of Kida et al. (in the subsection “A simple biophysical model of the actomyosin cortex for the formation and maintenance of equatorial actomyosin ring”). Given the critical role of this assumption, it requires a much more explicit justification that can be properly judged by a reviewer and readers of the journal. What does actin polymerization have to do with it, and how does actin polymerization lead to actomyosin flux, etc.? A detailed, self-contained explanation is needed. A reader should be able to discover why the flux boundary condition is the uniquely correct one, without studying Kida et al.

5) The assumption that basal stress σ¯ increases ∼ 1.5 fold during ring migration is apparently based on a force balance using the measured angle θ between the lateral and basal sides (in the subsection “A simple biophysical model of the actomyosin cortex for the formation and maintenance of equatorial actomyosin ring”, Appendix 4). No data is presented to justify this, neither is any actual force balance equation presented. The validity of the claim is impossible to judge as a result.

6) Related to (2), is it reasonable to assume that γ is constant in time? What is the justification? This was used to deduce the value of the stress σ¯.

7) The model presentation could be improved. The entire model (i.e. equations) plus boundary conditions (essential to all of the results) should be clearly laid out in sequence. At present, the initial conditions and boundary conditions are often not stated or buried in text. Examples:

a) In the fourth paragraph of subsection “A simple biophysical model of the actomyosin cortex for the formation and maintenance of equatorial actomyosin ring”, the initial condition is not stated although the boundary conditions are in the previous paragraph.

b) In the fifth paragraph of the aforementioned subsection, neither initial nor boundary conditions are stated. The key assumptions of their model (third paragraph) were presented after the model was applied to the homogeneous cortex case (second paragraph). Further, it is unclear if the length of the ring is fixed as an input of the model or evolves dynamically.

https://doi.org/10.7554/eLife.09206.028

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

An earlier version of this manuscript was reviewed at eLife and was rejected after external review. The decision letter expressed interest in our study but felt our paper suffered from weakness in the modeling part. We agree with the editorial opinion completely that our study should be seen as a work of experiments and modeling working in concert to reveal a novel mechanism in cytoskeleton biology. We also appreciate the constructive and detailed comments and criticisms from the reviewers, which have led to a major revision of our work.

In the new manuscript, we have followed the suggestions of the referees, and divided the physical model part into model assumptions and model predictions. We have expanded the modeling part of the manuscript to two theory figures, Figures 5 and 6, to more clearly articulate the logic progression in our modeling, and to include more analyses, some of which were inspired by referees’ criticisms. Specifically, in this new manuscript we added a much more precise description of the dynamical implications of the model in the main text. Figure 6 compares dynamic data and model at the anterior and posterior positions of the ring, and explores the detailed spatial profiles in intensity, both in normal and blebbistatin-induced migration. We also added another new dynamical check of the model, to show that the decrease in actin filament density subsequent to blebbistatin treatment matches very well quantitatively our predictions. The new analyses and thorough re-work of our model have strengthened our belief that the current work now makes non-trivial predictions, and hypotheses generated have been tested for the modeling to be useful.

We hope you find that our new paper has made substantial improvement, and that the conceptual novelty of our theoretical work, inspired and verified by our novel experimental findings, is now more clearly accentuated.

Reviewer #1:

1) Based both on the movies and on the fact that many F-actin nucleators concentrate at cell-cell junctions, I was puzzled by the assumption that “actin fluxes vanish” at cell-cell junctions (Results) underlying the model. Am I just misunderstanding what is meant by flux in this context? Perhaps some clarification is in order, as it seems manifestly obvious that F-actin is being generated at the boundaries and flowing inward.

Prompted by the question, as well as the one from Reviewer 3, we now explain more precisely the meaning of flux in the paper: it consists of both the actual actin flows (\rho v), as well as a non-local term due to actomyosin turnover and diffusion (D d\rho/dx). Therefore, even if we assume that the total flux F vanishes at the posterior boundary, there can still be a flow \rho v of actomyosin, which is counterbalanced by preferential polymerization at the boundary (which is the case in Figure 5 in the main text). We chose the assumption of total flux to vanish because it is the simplest one as a first approximation, and one does not need a non-zero total flux to explain the data. Though we consider the case where the total anterior flux vanishes to explain why contractility drives the formation of a central ring, our final model accounts for a non-zero anterior flux representing the cell polarization. Nevertheless, in order to show more clearly that our mechanism and results hold qualitatively in the presence of a non-zero posterior flux, we show the robustness of our numerical simulations in that case.

2) The point of the talin experiments eluded me. Is the point simply that not everything is going with the flow? If so, having double labels would be more convincing.

Indeed, we showed talin data in the manuscript simply to state that not everything is going with the flow. We have live-imaging data showing that talin concentrates at the cell equator slightly after the ring has been established centrally (data not shown), suggesting that talin actually responds to cortical repositioning rather than driving it. Moreover, this data also indicates that there is not a global effect in the embryo after the drug treatment that would shift everything around.

The figure does show a double labelling experiment, where we co-expressed mCherry-talin and Lifeact-emGFP, and present two channels in separate panels.

Nevertheless, we agree that the talin data presented in the main text does not connect well with other parts. To make our story concise and coherent, we now put it into the supplementary material (as Figure 2–figure supplement 2) and shortened the description in this part, while making above point more clear.

3) The Dsh labeling was far below the standard set by the authors in the other images.

We admit the quality of these pictures is not at a high level. This is because the images were made using fluorescence microscope that was available at the time. The construct used in this experiment is no longer available. Newer fluorescent protein-fusion constructs have proved to be highly toxic to Ciona notochord cells, and either wild type or mutant dsh renders notochord abnormal and embryo dead.

We went through all the data and found that these are the best we can offer. We think these images, together with the images in previous publication (Jiang, et al., 2005), and recently published data from Smith lab (Newman-Smith et al., 2015) are adequate in support of our claim in the text (we have cited these papers).

Reviewer #2:

The first claimed prediction of the model (in the subsection “A simple biophysical model of the actomyosin cortex for the formation and maintenance of equatorial actomyosin ring”) is that “contractility increases smoothly as elongation and ring migration proceeds”. Since contractility “chi” is a parameter of the model, rather than a dynamical variable, this looks to me like an assumption rather than a prediction.

The second “prediction” of the model that “the velocity gradient of actin filaments towards the center should be proportional to the local contractility, indicated by local actin concentration.” This is such a trivial consequence of force balance (obtained by integration of Equation 2), that it is difficult to accept it as a “prediction”. Instead I would regard this fact, shown in Figure 3D, as the basic premise underlying the formulation of the model. A more convincing logical progression would be a) the data in Figure 3D supports the model, b) now calculate non-trivial consequences of the model based on these assumptions that explain a difficult to understand observation.

We agree with the referee that these experiments are better characterized as validation of model assumptions. We re-organized the text in order to distinguish validations and predictions.

In the first case, we would like to argue that we do in fact measure the rescaled basal tension, related to “chi”, by our angle analysis, following the ideas of Maitre et al. (Science, 2012), so we do see dynamical variation of “chi”.

In the second case, it is worth mentioning that even though the proportionality is a direct consequence of force balance and a visco-contractile rheology, it hadn't been verified before, to the best of our knowledge.

The fourth paragraph of subsection “A simple biophysical model of the actomyosin cortex for the formation of equatorial actomyosin ring” comes closer to stating model predictions. Figure 3E shows the simulated time evolution of actin intensity. What controls the width of the final steady state (in red)? If a certain set of parameters allows the final predicted profile to fit the observed actin intensity distribution (as shown in Figure 3G), does the same set of parameters predict the observed time-evolution of actin intensity before a steady state is achieved? Or, stated in a different way, do the blue, green, and cyan curves match up with the data? Same question can be asked of the actin velocity profiles. Does the predicted time evolution match up with the data?

We thank the referee for this comment, which allowed us to substantially improve our manuscript.

First, to clarify our model, we now split the theory figures into two: one addressing model assumptions (Figure 5) and a second addressing model predictions (Figure 6).

The width of the ring is dictated by: 1) the cell length and 2) the length scale created by diffusion D and turnover τ, as we show in Appendix 5–figure 3, where we vary D to show the evolution in ring width.

In order to address the second part of the question, we measured dynamically the positions of the anterior and posterior boundaries of the ring and compared to the model, both in the normal migration from anterior to middle, and the reverse migration following blebbistatin treatment (Figure 6A and B), and we found a very good dynamical agreement as well. In order to provide a further test of the model, we compared the theoretical predictions for filament velocity during blebbistatin treatment, and saw an excellent quantitative agreement, although all parameters were already fixed from the profiles of overall ring migration. Finally, we measured, as the referee suggested, the intensity profiles dynamically during both ring migrations, and compared them to the model prediction; again we obtained a good agreement for the same set of parameters. The unique set of parameters taken to fit the data is given and explained in details in the appendices. We have now included a substantial amount of dynamical verification, all for a fixed parameter set. We thank the referee for advising us towards these new analyses.

In the same subsection, the authors state: “Moreover, a rather intriguing feature of our model is that it predicts the size of the actin ring should scale with the length of the cell. This is because ring formation is a spontaneous, self-organizing phenomenon that depends on boundary conditions. We therefore measured experimentally actin ring width during cell elongation, and found it indeed increases linearly with the length of the cell (Figure 3F).” Yet, Figure 3F quite clearly shows that the dependence is not linear. Furthermore, the model prediction itself is nonlinear, and this seems to contradict what is stated in the manuscript.

We apologize for the slight confusion introduced by the term “scaling”. For small and intermediate cell sizes, the ring width indeed scales with cell length, and the dependence is linear. For large cell size, the width increases less rapidly than the cell size indeed.

Nevertheless, this actually matches very well the biological data itself, which displays a plateau for large cell length. We therefore clarified this in the text.

Again, in the same subsection, the authors state: “to probe how PCP can participate in the repositioning of actin rings, we incorporated polarity in the model in the simplest way possible”. The alteration or addition to the model is that PCP alters actin polymerization locally. Simulations of the model with this additional assumption show that the equatorial ring can transition smoothly to an anterior position. The observation that the transition is smooth is not a strong validation of the model; it would be consistent with a whole class of models. A more stringent test of the model is needed. Does the predicted time series of the transition match the data?

As described above, we performed our analysis on the time series to show how the shape of the actin density profiles reproduce the experimental data, even though there is some biological variations on actin fluorescence levels. We agree that the smoothness of the transition itself is not the proof. Rather, we take a very simple model amenable to detailed mathematical analysis, and show that it can reproduce our data quite accurately. We clarified this in the revised manuscript.

In conclusion, I do not see that the model has been tested rigorously. Support for model assumptions is confused with predictions. Centering by contractility seems to be the key insight of the model. It is not too surprising that inclusion of PCP-induced polarity would generate an asymmetry. I believe that the authors could strengthen model “validation” by comparing observed dynamics with model predictions.

We would like to argue that a strength of our model is that we use one of the most simple model imaginable for actomyosin gels, yet this still reproduces very faithfully virtually all the features of our data. This therefore demonstrates the broad applicability of our approach, which should be relevant to the many other biological event involving actomyosin positioning and PCP.

Following the advice of the referee, we improved the manuscript further by comparing the dynamical evolution of the actin intensity between theory and experiments, both in the case of normal and blebbistatin-induced migration (Figure 5 and Figure 6). We've also shown new predictions such as actin velocity evolution, which fit very well quantitatively with our model (Figure 5).

Reviewer #3:

This study proposes a very interesting and rather novel mechanism for the positioning of a contractile actomyosin ring in Ciona notochord cells. However, besides this intriguing finding and the dissection of the individual contributions of contractility and PCP, there are quite some major issues (also concerning the model) as mentioned next.

1) In Figure 3B, the authors measured the contact angle between basal and lateral surfaces and incorporated an increase in contractility (by 2.5) into the model. It is not clear how the contractility has been calculated from the angle measurements. Furthermore, by measuring the contact angle between cells (which is not the same as angle θ between basal and lateral domain as indicated here) the relative cortical tensions can be obtained. Therefore, probably the correct term that should be used here is 'cortical tension' along the basal and lateral domains, which is different from 'contractility'. 'Contractility' arises from active tension generated by actomyosin and 'cortical tension' is the total mechanical tension within the cortex. The authors should clearly state what they measured and how they used the obtained values for the model fitting. The statement of 'Basal contractility increases = angle θ opens' does not make sense, since θ, as indicated in the schematic diagram 3B, is getting smaller in the case of higher 'contractility'. In addition to measuring the contact angles, cortical laser ablation could be used to measure the relative changes of cortical tension throughout time and elongation process.

The referee is perfectly right in pointing out that the figure should read “=angle θ closes”, we apologize for this typo due a change in angel definition.

We also clarified how we extract contractility, and the rationale behind it. The absence of a friction term in the force balance equation implies that the cortical tension in the z direction is homogeneous inside the cortex. From the measurement of contact angles, we obtain the increase of such tension as a function of time. A simplifying hypothesis of the model is that this tension (which being homogeneous is also the average tension in the z direction) is proportional to the average contractility (but not the local contractility which as the reviewer rightly underlines is very different, as the viscous part of the stress also enters there).

Within our model, this is a natural hypothesis to make since, in the absence of actin flux at the boundary and when contractility is weak as in stage prior to the ring migration, we expect to have a homogeneous concentration of actin inside the cell which can only be fulfilled if S = C. It is however true that we may have an average tension S slightly smaller than C. We examined the effect of such deviation in the appendices of the revised manuscript, redoing all the numerical integration, and show that our mechanism remains qualitatively unchanged.

Cortical laser ablation is indeed a good tool to measure the cortical tension. We actually tested this technique on Ciona notochord several times. However, it does not work well, because the notochord locates at the centre of the tail, surrounded by muscle and epithelial tissues. Increase of laser power will cause damage to the whole tissue/cell structure, making any analysis virtually impossible.

2) To account for the contribution of PCP, a preferential actin polymerization at the anterior pole was incorporated into the model by changing one boundary condition at the anterior pole from no flux to flux>0 (J(0)=0 to J(0)=F). However, the authors also state that they observe large, non-zero values for the actin filament velocity at both edges of the cell via PIV. Please clarify why it is legitimate to use only anterior flux for model fitting then.

In this model, we make a distinction between the actin flux and velocity. Indeed, the flux also contains a diffusive part, which effectively accounts for the actin production in the layer as we have now clarified in the main text, and explained in greater details in the appendices.

As a consequence, while the total flux may vanish at the boundary, (J(L) = 0), indicating that there is no local overall production at this side, the velocity is not necessarily zero, because of actin polymerization which can counterbalance the velocity of actin filaments going in.

Nevertheless, the referee is correct that the total flux could also be non-zero. Therefore, we also now show the robustness of our results in the presence of a small flux at the posterior side. We show that again our mechanism is qualitatively unchanged, as only the difference between anterior and posterior boundary fluxes matter. We clarified the text by adding a description as following:

“Interestingly, we predicted, and observed in the PIV, a rather large, non-zero value for the actin filament velocity at the posterior edge of the cell, which is compensated in the model by actin polymerization on the side, since the total flux is zero. Moreover, we note a remaining, albeit small bias in ring position towards the anterior side, as in the data, showing that an anterior-imbalance remains at the later stages, both in simulations and in the data.”

3) Besides affecting actin polymerization there is evidence, that the Wnt/PCP pathway also modulates myosin contractility via Rho GTPases. The authors should make clear why they only proposed polymerization changes in the model and provide more supporting data to show that the influence of PCP is happening indeed via actin polymerization only. The authors further state that Dsh relocated from basal to lateral domains with preference to the anterior side and 'this relocation occurred roughly at the same time as the appearance of the anterior ring (19-20h)'. Figures 1 and 6 show examples of ring appearance around 21hpf (Figure 1E) in wildtype case & Dsh lateral localization only at 22 hpf (Figure 6B). The authors should provide a better temporal analysis of the proposed components involved. When does the ring appear on average (statistics would be useful) and when is Dsh and Pk localized there? Without providing these data the statement about the actomyosin positioning via “Prickle/Dishevelled-mediated anterior bias” cannot be made.

We appreciate the reviewer's criticism. We have now made it clear in the text that two references, Jiang et al. (2005) and Newman-Smith et al. (2015), show the time course of Dsh and Pk. The data from these and our current manuscript provide a very detailed time course on the localization of these proteins. We feel these data together support our claim that the anterior relocation of dsh to the anterior edge, which begins to show an anterior bias already at 20.8 h (see Figure 2B middle picture), occurs very early during ring formation.

4) In the model, blebbistatin treatment is considered as downregulation of contractility in notochord cells, which leads to an anterior shift of the ring by keeping the inner-ring dynamics persistent (Figure 2F-G). Since blebbistatin not only interferes with contractility but also with other properties such as viscosity, it is very likely that the ring dynamics are changed, which can also be seen by FRAP experiments (half time more >2.5 fold). Therefore, blebbistatin treatment should not only be considered as downregulation of contractility.

The reviewer is correct in stating that blebbistatin surely influences more than contractility. Nevertheless, it is widely accepted that we now explicitly state in the manuscript's Discussion the following:

“Indeed, our model is the simplest one can write for active gels, and it assumes for instance that all the rheological coefficients are constant, while in principle some, for example viscosity, could depend on the state of the gel, and on blebbistatin concentration in the drug treatment (Stirbat et al. 2013). Nevertheless, the fact that we can capture well the experimental data with such a simple model suggests that such coupling effects are probably of secondary importance for the observed phenomenon.”

One should note, as we did in our revised manuscript, that a 2.5 fold increase in FRAP half-time does not mean a 2.5 increase in turnover time, as blebbistatin decreases the speed of turnover flows, and therefore one would expect, for constant turnover an increased time in ring recovery.

Therefore, to address the reviewer's remark, we re-analyzed quantitatively our FRAP data. Interestingly, we find that although the control data is well-fitted by a single exponential, the blebbistatin recovery is much better fitted by two-exponential (Figure 2G), where the fast timescale is very similar to control, and the second much longer. A simple calculation shows that given the measured velocity of flow, one expects quantitatively this behavior. This has been added to the new manuscript as following:

“Indeed, in control cells, a rough estimate of the flow induced time needed to close a bleached segment of 3µm, given a mean velocity of 30 nm/s, is 100s, which cannot be distinguished from the turnover time. Therefore, we only see a single-exponential recovery. […] There are then two time scales for recovery, one linked to turnover, unaffected by blebbistatin, and one linked to flows, which are dramatically compromised by blebbistatin.”

In addition, blebbistatin treatment interferes with contractility in the whole organism and will change various parameters also in surrounding tissues. It is essential to show the same outcome of actomyosin repositioning with more localized methods, e.g. by using photoinducible aryl azide derivative of blebbistatin to stably inhibit myosin within notochord cells.

We appreciate the reviewer's concern that the whole organism, including the tissues directly in contact with notochord cells, is also treated with the drug. We have indeed sought out methods to disrupt contractility locally and specifically in the notochord cells. As stated above, we have discovered that cortical laser ablation is technically impossible in Ciona notochord cells.

We have also looked into azidoblebbistatin and found that its applicability in live embryos is limited, and the drug is hard to obtain. Furthermore, we have found out other species of commercially available blebbistatin behaved erratically in cells and in embryos. For example, nitro-blebbistatin formed numerous, large, and highly fluorescent precipitants in the cytoplasm, probably due to certain reactions to the salinity or certain content of seawater.

Interestingly, in a separate line of experiments conducted aiming to search for an external cause of the ring shifting, i.e. the surrounding tissues are driving the ring to migrate to the anterior end of the notochord cells, we found the relative movement of notochord cells and its neighbouring tissues was not disrupted by blebbistatin. For example, the extension and posterior migration of muscle proceeded normally. Under the microscope the relatively sliding of muscle cells over notochord was undeterred. Most importantly, there was no correlation between the movement of the muscle and the anterior migration of the ring (unpublished observations). Based on these observations, we believe the ring behaves quite autonomously within the notochord cells. The relatively autonomy of notochord in the morphogenesis of Ciona embryonic development is supported by both genetics and embryology studies, and the higher sensitivity of notochord cells may be underscored by the highly abundant expression of myosin- and actin-regulatory proteins in notochord compared with other tissues.

5) The model for aimless mutant with low polarity and high contractility predicts the ring to form directly in the center of the cell. No data on a time series is shown to support this statement. The model prediction of aimless embryos says that the anterior Flux Ja is considerably lowered. Can this be checked experimentally with PIV? It would be good to show what happens to Dsh localization in aimless mutants to support the proposed “Prickle/Dishevelled-mediated anterior bias”.

We now added a much more precise description of the dynamical implications of the model in the main text. We have added a figure (Figure 6), where we compare dynamically data and model on the anterior and posterior positions of the ring, as well as on the detailed spatial profiles in intensity, both in normal and blebbistatin migration. We also added another new dynamical check of the model, to show that the decrease in actin filament density subsequent to blebbistatin treatment matches very well quantitatively our predictions.

The model for aimless mutant does not necessarily predict that the ring forms exactly at the center since there may be some imbalance between the small remaining posterior and anterior fluxes that make one side prevail. Nevertheless, the localization is expected theoretically to be much less precise, which is what we see experimentally.

[Editors' note: the author responses to the re-review follow.]

Reviewer #1:

1) The initial value for contractility was a 2.5-fold increase, which is reflecting the change in contractility during the whole process of ring movement and cell elongation. Why did the authors decide to use the lower 1.5-fold change in contractility (during ring movement only) in the revised version of the manuscript? Please comment on the rationale behind changing this value, and would a 2.5-fold contractility increase instead change the model predictions significantly? (In the figure description of Figure 7A, the authors still mention a 2.5-fold linear increase in contractility; is this a typo?)

We had shown that there was a total 2.5-fold and 1.5-fold increase in contractility during the process of notochord cell elongation and the early process of ring migration, respectively (in the subsection “A simple biophysical model of the actomyosin cortex for the formation and maintenance of equatorial actomyosin ring” and in Figure 5B). Nevertheless, in the simulation (Figure 6A), we concentrated on the early process of ring migration, which reaches the center before the end of elongation, corresponding to a 1.5-fold increase only, hence the change. We modified Figure 5B and figure legend to indicate clearly 1.5 and 2.5-fold increase on the relative contractility at 2 different stages.

Assuming a 2.5-fold increase would not change qualitatively the story, but assuming that other parameters remain unchanged, would make the migration faster, as well as the ring more peaked.

In Figure 7A legend, this is indeed a typo. It should be 1.5-fold linear increase in contractility.

2) Why did the turnover time measured from FRAP experiments change significantly from 50sec to 90sec in the revised manuscript after re-analyzing data? Have new experimental measurements been done?

The first version of the manuscript mentioned 50s as being the half-time of recovery. Nevertheless, we realized that the turnover involved in the model is the exponential recovery time (which is by definition 30% higher than the half time). We also re-analyzed the data as mentioned in the previous response letter to correct for some photo-bleaching and the presence of one recovery time for the control versus two recovery times for the blebbistatin treated cells. We explain this better and give the detailed results from the fits in the legend of Figure 2G.

3) In Figure 5B, when calculating the basal tension from the contact angles, what justifies to neglect adhesion tension without measuring/calculating it for this specific tissue?

There are no measurements of lateral tension, so why is it valid to take lateral tension as constant? Especially in Figure 1E, the length of the lateral domain seems to decrease during cell elongation. (Change “basal contractility” to “basal tension” and “Contractility” in Figure 5B to “relative tensions”.)

We made the modifications suggested by the referee on the terminology.

Adhesion is very hard to quantify in this system, although pipettes measurements on more easily accessible systems (Maitre et al, Science, 2012; Maitre et al, NCB, 2015) suggests it is negligible for force balance.

We also agree that constant lateral tension is an approximation and that during the ring migration the length (height) of lateral domain indeed decreases, suggesting the increase of lateral domain tension. Unfortunately, right now, it is not possible for us to directly measure the lateral tension in Ciona notochord cells. Our measurements provide the ratio of the basal tension over the lateral tension (it should be noted that absolute measurements are very hard to get, as even laser ablation does not measure tension, but tension over viscosity, which can also change). This ratio increases linearly in time and by supposing that the lateral tension is roughly constant, we might underestimate the basal tension increase. We may thus view it as giving a rough approximation of the contractility increase which precise value is adjusted in the theoretical model to fit the experiments. We added a statement to the subsection “A simple biophysical model of the actomyosin cortex for the formation and maintenance of equatorial actomyosin ring”.

We now make this clearer in the text and thank the reviewer for bringing this to our attention.

4) When changing assumptions for boundary tension to S=0.95C (5.2.2) the average filament velocity is not in good agreement with the model prediction anymore. Since in this case the model prediction changes quantitatively, the assumption of S=C might be too much of a simplification?

We first would like to emphasise that the choice S=C is not arbitrary, as it is the only one leading to a homogeneous actin distribution before elongation (low contractility and polarity) as observed experimentally. We discussed this in more detail in the model presentation.

In the supplementary material, we indeed show that if we perturb the constraint S=C, the actomyosin flow is strongly perturbed which suggests that the tension externally applied by the neighbouring cells strongly regulates the actomyosin flow. Notice however that this does not invalidate the model as, if we fix S≠C, we could still get a good agreement with experiments from adjusting the boundary flux parameter.

The main aim of the model is to expose the simplest mechanical agents driving the migration of the ring. For this, we focus on a single a cell and impose a simple force boundary condition consistent with a homogeneous cortex at low basal contractility and polarity. We thank again the reviewer for suggesting us to investigate if this condition evolves during the elongation process and it is our hope that future works analysing the whole 39 cells assembly will shed more light on this boundary condition.

5) Is polarity still intact in blebbistatin treated embryos? Since the paper by Newman-Smith et al. (2015) shows the incorrect localization of PCP components (Prickle) upon blebbistatin treatment. In case polarity is disrupted, would blebbistatin treatment then not reflect decrease in contractility in addition to loss in polarity, whereas in the model decrease in contractility will not at the same time lead to a change in polarity?

As migration in blebbistatin-treated embryos was always towards same (anterior) side, there is clearly still polarity in the system. Actually we show on Appendix 5–figure 3 that disrupting the polarity in a mild way by adding a small posterior flux does not affect our results on migration at all (in physical terms, an important theoretical result is that the system is locally robust with respect to this type of perturbation). We discussed this again in the presentation of the model.

6) The question of why the authors focused on actin polymerization and did not consider modulations of myosin contractility was not addressed (point 3 in previous comments).

We would like to point out that although our argument relies on actin polymerization, because of its known link to Dsh and PCP, our 1D model is an effective model of both actin and myosin as a gel treated as single specie with the assumption that bipolar filaments performing the contractile power stroke co-localize with actin. Therefore, our assumption that actin is brought preferentially at the anterior side resulting in an effective increased contractility there (because of increased density), which would be very similar qualitatively to considering preferential myosin activity. We made the connection more explicit in our revision and discussed Newman-Smith et al. (2015) in the Results section and in the Discussion.

7) Suggestions for aimless mutant (point 5 in previous comments) have not been sufficiently addressed.

The initial suggestion of the reviewer is interesting. However, live-imaging in these conditions is extremely challenging for several reasons. In pcp mutants, cell intercalation is disrupted in the notochord. Only few last cells present a normal elongated shape. In addition, until the later stage of embryonic development, we cannot distinguish which cells are PCP mutants (we have no early genetic marker in Ciona).

Reviewer #2:

1) The paper lacks necessary background and motivation (this would mainly be in the Introduction, but could permeate the paper). The biological significance of the actomyosin phenomenon under study is not explained. The reader does not discover how the actomyosin ring under study is related to elongation.

We have re-edited the text and added additional explanations in the Introduction. In particular, we have made explicit the connection between ring positioning and cell shape, but also the fact that in cytokinesis, precise ring positioning is crucial to ensure the proper segregation of fate determinants (Clevers et al., Nature Genetics, 2005; Sedzinski et al., Nature, 2011 for instance)

What is the mechanism? A reference to Sehring et al. (2014) is inadequate. Why should we be concerned about the migration of this ring?

In Sehring et al. (PLOS Biology, 2014), the scenario we present is that the force generated by actomyosin constriction transmits pinches from the basal cortex to the anterior and posterior lateral domains, and therefore elongates the cell because the cytoplasm is incompressible, thus driving notochord elongation.

Crucially, in our previous studies, we found that the position of contractile rings significantly influences notochord cell shape and elongation. For example, in α-actinin mutants, the ring cannot maintain at the equator and the cells hereby fail to elongate and become asymmetric shape (Sehring et al., 2014). This stimulated us to focus on the position of rings, which we clarify in our Introduction.

As the referee correctly points out, it will be intriguing in the future to study quantitatively in more details the interplay between ring positioning, that we elucidate here, and the detailed cell shape.

2) In the figures, there is no sign of actin away from the ring and the poles. There is presumably an extended actomyosin cortex everywhere (assumed by the model) yet we don't see it in images. Why is it invisible?

This is indeed an illusion: we corrected the background in all the figures showing intensity profiles, and the actin is never zero (typically 1/3 to 1/4 of the peak). We clarified that the cortex is continuous in the introduction to the modelling.

3) In the model, a 3 dimensional stress σ is evolved in space and time. And yet variations of σ in the direction normal to the cell surface are not addressed. Presumably, there is an unstated assumption that variations of σ across the cortex are small and can be neglected? This (or whatever the assumption is) should be clearly stated and it should be explained how this leads to the model equations.

We thank the referee for raising this point.

Indeed, we have used the lubrication approximation to integrate over variations in the perpendicular direction to the gel. This is a very common approximation in hydrodynamics, valid if the thickness of the cortex is small compared to the length of the cell. And indeed, typical cortex thickness is 100-200 nanometers, whereas the typical cell length is 10 microns, two orders of magnitude above.

We now made this more explicit in the model presentation.

4) The model assumed a nonzero actomyosin flux at the anterior side. This boundary condition was the feature of the model that caused migration and positioning of the ring near the equator.

We would like to point out that the actomyosin flux at the anterior side does not cause the migration per se. It allows the distribution of actin at low contractility to be polarized and not homogeneous. The positioning of the ring to the equator is due to the increased contractility, which shifts the ring to the center. We clarified this in the modelling part.

The authors claim this assumption is “supported by the well-studied link between PCP and actin polymerization, notably via Disheveled, which regulates actin assembly”, citing the study of Kida et al. (subsection “A simple biophysical model of the actomyosin cortex for the formation and maintenance of equatorial actomyosin ring”). Given the critical role of this assumption, it requires a much more explicit justification that can be properly judged by a reviewer and readers of the journal. What does actin polymerization have to do with it, and how does actin polymerization lead to actomyosin flux, etc.? Detailed, self-contained explanation is needed. A reader should be able to discover why the flux boundary condition is the uniquely correct one, without studying Kida et al.

We thank the referee for the suggestion and present the link between PCP and actin assembly much more explicitly in the main text. However, we would like to mention that the “positioning of the ring near the equator” mentioned by the referee is not due to boundary condition, but only due to acto-myosin contractility, which we also make more explicit in the new manuscript (and related to comment 7).

5) The assumption that basal stress σ¯ increases ∼ 1.5 fold during ring migration is apparently based on a force balance using the measured angle θ between the lateral and basal sides (subsection “A simple biophysical model of the actomyosin cortex for the formation and maintenance of equatorial actomyosin ring”, Appendix 4). No data is presented to justify this, neither is any actual force balance equation presented. The validity of the claim is impossible to judge as a result.

The data to justify this is Figure 5B, which displays changes in measured changes θ at different time points. We clarify this point, and write explicitly force balance at the lateral/basal interface in the main text, in order to make the reasoning clear.

6) Related to (2), is it reasonable to assume that γ is constant in time? What is the justification? This was used to deduce the value of the stress σ¯.

As we discussed for the comment of Reviewer 1, this is the simplest hypothesis one can make.

7) The model presentation could be improved. The entire model (i.e. equations) plus boundary conditions (essential to all of the results) should be clearly laid out in sequence. At present, the initial conditions and boundary conditions are often not stated or buried in text. Examples:

a) In the fourth paragraph of subsection “A simple biophysical model of the actomyosin cortex for the formation and maintenance of equatorial actomyosin ring”, the initial condition is not stated although the boundary conditions are in the previous paragraph.

b) In the fifth paragraph of the aforementioned subsection, neither initial nor boundary conditions are stated. The key assumptions of their model (third paragraph) were presented after the model was applied to the homogeneous cortex case (second paragraph). Further, it is unclear if the length of the ring is fixed as an input of the model or evolves dynamically.

We thank the referee for the suggestion, and followed his guidelines to expand the presentation of the theory section.

https://doi.org/10.7554/eLife.09206.029

Article and author information

Author details

  1. Ivonne M Sehring

    Sars International Centre for Marine Molecular Biology, University of Bergen, Bergen, Norway
    Contribution
    IMS, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Pierre Recho

    1. Department of Physico-Chemistry of Living Matter, Institut Curie, Paris, France
    2. Mathematical Institute, University of Oxford, Oxford, United Kingdom
    Contribution
    PR, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  3. Elsa Denker

    Sars International Centre for Marine Molecular Biology, University of Bergen, Bergen, Norway
    Contribution
    ED, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Matthew Kourakis

    Department of Molecular, Cellular and Developmental Biology, University of California, Santa Barbara, Santa Barbara, United States
    Contribution
    MK, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  5. Birthe Mathiesen

    Sars International Centre for Marine Molecular Biology, University of Bergen, Bergen, Norway
    Contribution
    BM, Acquisition of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  6. Edouard Hannezo

    1. Department of Physico-Chemistry of Living Matter, Institut Curie, Paris, France
    2. The Gurdon Institute, University of Cambridge, Cambridge, United Kingdom
    Contribution
    EH, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    eh508@cam.ac.uk
    Competing interests
    The authors declare that no competing interests exist.
  7. Bo Dong

    1. Ministry of Education Key Laboratory of Marine Genetics and Breeding, College of Marine Life Sciences, Ocean University of China, Qingdao, China
    2. Laboratory for Marine Biology and Biotechnology, Qingdao National Laboratory for Marine Science and Technology
    Contribution
    BD, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    bodong@ouc.edu.cn
    Competing interests
    The authors declare that no competing interests exist.
  8. Di Jiang

    Sars International Centre for Marine Molecular Biology, University of Bergen, Bergen, Norway
    Contribution
    DJ, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    di.jiang@sars.uib.no
    Competing interests
    The authors declare that no competing interests exist.

Funding

Norges Forskningsråd (133335/V40 and 183302/S10)

  • Di Jiang

National Institutes of Health (NIH) (GM088997)

  • Matthew Kourakis

National Science Foundation (NSF) of Shandong province and China (ZR2015DM003 and 31572352)

  • Bo Dong

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Drs Gaku Kumano and Hiroki Nishida for providing Halocynthia roretzi and laboratory spaces. This work was supported by grants 133335/V40 and 183302/S10 from the Norwegian Research Council to DJ and the NIH award GM088997 (MK). BD was supported by the projects ZR2015DM003 from NSF Shandong Province, 31572352 from NSFC, and Taishan Scholar Program of Shandong Province. EH was supported by a Young Investigator Award from the Bettencourt-Schueller fundation.

Reviewing Editor

  1. Mohan Balasubramanian, Reviewing Editor, University of Warwick, United Kingdom

Publication history

  1. Received: June 5, 2015
  2. Accepted: September 2, 2015
  3. Version of Record published: October 21, 2015 (version 1)

Copyright

© 2015, Sehring et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,807
    Page views
  • 371
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Genes and Chromosomes
    Wahid A Mulla et al.
    Research Article Updated
