Abstract

The chromatophore of purple bacteria is an intracellular spherical vesicle that exists in numerous copies in the cell and that efficiently converts sunlight into ATP synthesis, operating typically under low light conditions. Building on an atomic-level structural model of a low-light-adapted chromatophore vesicle from Rhodobacter sphaeroides, we investigate the cooperation between more than a hundred protein complexes in the vesicle. The steady-state ATP production rate as a function of incident light intensity is determined after identifying quinol turnover at the cytochrome $b c_{1}$ complex (cyt $b c_{1}$ ) as rate limiting and assuming that the quinone/quinol pool of about 900 molecules acts in a quasi-stationary state. For an illumination condition equivalent to 1% of full sunlight, the vesicle exhibits an ATP production rate of 82 ATP molecules/s. The energy conversion efficiency of ATP synthesis at illuminations corresponding to 1%–5% of full sunlight is calculated to be 0.12–0.04, respectively. The vesicle stoichiometry, evolutionarily adapted to the low light intensities in the habitat of purple bacteria, is suboptimal for steady-state ATP turnover for the benefit of protection against over-illumination.

https://doi.org/10.7554/eLife.09541.001

eLife digest

Photosynthesis, or the conversion of light energy into chemical energy, is a process that powers almost all life on Earth. Plants and certain bacteria share similar processes to perform photosynthesis, though the purple bacterium Rhodobacter sphaeroides uses a photosynthetic system that is much less complex than that in plants. Light harvesting inside the bacterium takes place in up to hundreds of compartments called chromatophores. Each chromatophore in turn contains hundreds of cooperating proteins that together absorb the energy of sunlight and convert and store it in molecules of ATP, the universal energy currency of all cells.

The chromatophore of primitive purple bacteria provides a model for more complex photosynthetic systems in plants. Though researchers had characterized its individual components over the years, less was known about the overall architecture of the chromatophore and how its many components work together to harvest light energy efficiently and robustly. This knowledge would provide insight into the evolutionary pressures that shaped the chromatophore and its ability to work efficiently at different light intensities.

Sener et al. now present a highly detailed structural model of the chromatophore of purple bacteria based on the findings of earlier studies. The model features the position of every atom of the constituent proteins and is used to examine how energy is transferred and converted. Sener et al. describe the sequence of energy conversion steps and calculate the overall energy conversion efficiency, namely how much of the light energy arriving at the microorganism is stored as ATP.

These calculations show that the chromatophore is optimized to produce chemical energy at low light levels typical of purple bacterial habitats, and dissipate excess energy to avoid being damaged under brighter light. The chromatophore’s architecture also displays robustness against perturbations of its components. In the future, the approach used by Sener et al. to describe light harvesting in this bacterial compartment can be applied to more complex systems, such as those in plants.

https://doi.org/10.7554/eLife.09541.002

Introduction

Energy for most life on Earth is provided by sunlight harvested by photosynthetic organisms, which have evolved a wide variety of mechanisms for utilizing light energy to drive cellular processes (Blankenship, 2014). These organisms absorb sunlight and subsequently utilize the Förster mechanism (Sener et al., 2011) and quantum coherence (Strümpfer et al., 2012; Panitchayangkoon et al., 2010; Scholes, 2010) for efficient excitation energy transfer, followed by conversion of light energy into chemical energy (Feniouk and Junge, 2009). The light harvesting system of purple bacteria (Hu et al., 2002; Cartron et al., 2014) is claimed to be the earliest of the current photosynthetic lineages (Xiong et al., 2000) and exhibits, at the supra-molecular level as well as at the level of individual proteins, less complexity than the thylakoid membranes of the more ubiquitous cyanobacteria and plants (Kirchhoff et al., 2002).

In the purple bacterium Rhodobacter (Rba.) sphaeroides the basic photosynthetic unit is the chromatophore (Cogdell et al., 2006; Strümpfer et al., 2011; Cartron et al., 2014), a 50–70 nm diameter vesicle, as shown in Figure 1, formed through invagination of the intracytoplasmic membrane (Tucker et al., 2010; Gubellini et al., 2007) and comprising over a hundred protein complexes (Jackson et al., 2012; Woronowicz and Niederman, 2010; Woronowicz et al., 2013). The proteins that constitute the chromatophore are primarily the light harvesting (LH) complexes, photosynthetic reaction centers (RCs), cyt $b c_{1}$ complexes, and ATP synthases, which cooperate to harvest light energy for photophosphorylation. The architecture of the chromatophore, reported in (Şener et al., 2007, 2010; Cartron et al., 2014), has been determined by combining atomic force microscopy (AFM) (Bahatyrova et al., 2004; Olsen et al., 2008), cryo-electron microscopy (cryo-EM) (Qian et al., 2005; Cartron et al., 2014), crystallography (Koepke et al., 1996; McDermott et al., 1995; Papiz et al., 2003; Jamieson et al., 2002), optical spectroscopy (Hunter et al., 1985; Sener et al., 2010), mass spectroscopy (Cartron et al., 2014), and proteomics (Jackson et al., 2012; Woronowicz and Niederman, 2010; Woronowicz et al., 2013) data. The composition of the chromatophore depends on growth conditions such as light intensity (Adams and Hunter, 2012; Woronowicz et al., 2011b, 2011a) and can also be influenced by mutations (Siebert et al., 2004; Hsin et al., 2010b).

Figure 1

Download asset Open asset

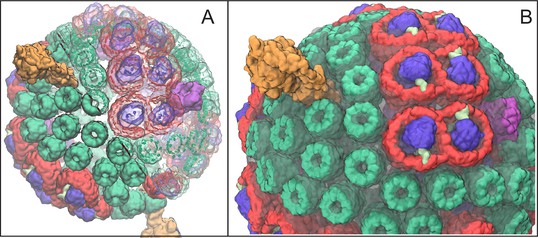

Atomic structural model of a low-light-adapted chromatophore vesicle from *Rba. sphaeroides*.

The model is based on AFM, EM, crystallography, mass spectroscopy, proteomics, and optical spectroscopy data (Cartron et al., 2014). The inner diameter of the vesicle is 50 nm. The model considered in this study is a variant of the one reported in (Cartron et al., 2014) , which features 63 LH2 complexes (green), 11 dimeric and 2 monomeric RC-LH1-PufX complexes (LH1:red; RC:blue; PufX:lime), 4 cyt $b c_{1}$ (magenta), and 2 ATP synthases (orange), as well as 2469 BChls and 1542 carotenoids. Proteins are shown in surface representation. (A) Proteins and BChls of the chromatophore. Some of the light harvesting proteins are rendered transparent to reveal their BChl pigments. BChls are represented by their porphyrin rings only. See Video 1 presenting the vesicle. (B) Close-up of chromatophore showing its lipid membrane (transparent) along with its proteins colored as in (A). The membrane of 16,000 lipids contains the quinone/quinol pool of about 900 molecules. Energy conversion in the chromatophore proceeds in three stages: (I) light harvesting and electron transfer reducing the quinone pool; (II) quinone/quinol diffusion and exchange of quinols for quinones at cyt $b c_{1}$ (thereby generating a proton gradient across the vesicle membrane) as well as diffusive motion of cytochrome $c_{2}$ inside the chromatophore shuttling single electrons from cyt $b c_{1}$ to RC; (III) utilization of the proton gradient for ATP synthesis.

https://doi.org/10.7554/eLife.09541.003

Video 1

Download asset

posterframe for video — Chromatophore structural model.

A movie that shows a detailed structural model for the low-light adapted chromatophore vesicle as displayed in Figure 1 (Cartron et al., 2014). Presented is a rotating view of the vesicle comprising LH2 complexes (green), dimeric RC-LH1-PufX complexes (red-blue-lime green), dimeric cyt $b c_{1}$ complexes (magenta), and ATP synthases (orange). For half of the model, proteins are shown in solid surface representation, and for the other half, proteins are shown as transparent surfaces with bacteriochlorophylls (BChls), represented by their porphyrin rings, shown as solid surfaces.

https://doi.org/10.7554/eLife.09541.004

The chromatophore displays organizational principles for the integration of multiple processes (Sener et al., 2010). Evolutionary competition at the organism level has driven photosynthetic subsystems toward optimal and robust function (Noy et al., 2006; Noy, 2008; Scholes et al., 2011) that can guide the design of artificial light harvesting devices such as biohybrid antennas (Harris et al., 2013) and nanopatterned light harvesting (LH) complex arrays (Reynolds et al., 2007; Vasilev et al., 2014; Patole et al., 2015). The development and improvement of such artificial, biological, or biohybrid light harvesting systems may alleviate mankind’s future energy demand (Blankenship et al., 2011).

The functional principles displayed by the chromatophore and prevalent also in other photosynthetic systems include efficient excitonic coupling between components (Hu et al., 1997, 1998; van Grondelle and Novoderezhkin, 2006b; Olaya-Castro et al., 2008; Sener et al., 2011), the utilization of quantum coherence (Ishizaki and Fleming, 2009a; Strümpfer et al., 2012), photoprotection by carotenoids (Damjanović et al., 1999), accommodation of thermal fluctuations, studied through experimental (Visscher et al., 1989; van Grondelle et al., 1994; Pullerits et al., 1994; Gobets et al., 2001; Janusonis et al., 2008; Freiberg et al., 2009) as well as theoretical (Damjanović et al., 2002; Şener and Schulten, 2002; Ishizaki and Fleming, 2009b; van Grondelle and Novoderezhkin, 2006b; Strümpfer and Schulten, 2011, 2012a) methods. The chromatophore exhibits also the features of modularity, repair, and assembly of components (Hsin et al., 2010a), high quantum yield of organelle-scale pigment networks (Şener et al., 2007, 2010; Cartron et al., 2014), isolation of the electron transfer chains (Şener and Schulten, 2008), co-accommodation of competing functions such as efficient energy transfer and diffusion in the quinone/quinol pool (Lavergne et al., 2009; Sener et al., 2010), as well as adaptation to changing external conditions (Adams and Hunter, 2012; Woronowicz et al., 2011a; Niederman, 2013; Woronowicz et al., 2013).

Energy conversion in the chromatophore proceeds in three stages as discussed below: (i) light harvesting and charge separation, converting quinone into quinol at a RC; (ii) diffusion of quinone/quinol in the chromatophore membrane and cytochrome $c_{2}$ diffusion inside the chromatophore vesicle, resulting, at cyt $b c_{1}$ , in the generation of a proton gradient as well as a transmembrane electrochemical gradient across the chromatophore membrane (henceforth referred to collectively as proton gradient); (iii) utilization of the proton gradient, culminating in ADP binding and ATP release at ATP synthase. The quinone/quinol as well as the generated proton-motive force function as energy buffers between light harvesting and ATP synthesis stages. The proton gradient along with the redox states of the quinone/quinol pool are influenced by the enzymes succinate dehydrogenase, NADH dehydrogenase, cytochrome $c$ oxidase, and ubiquinol oxidase (Bowyer et al., 1985; Klamt et al., 2008). A summary for the energy conversion processes in the chromatophore can be found in (Klamt et al., 2008; Sener et al., 2014).

In addition to ATP synthesis, the chromatophore utilizes the generated proton motive force also for NADH production via NADH dehydrogenase (Klamt et al., 2008) and, thereby, for control of the quinone/quinol pool redox state. Other channels for proton gradient depletion are flagellar motility (Kojadinovic et al., 2013) and proton leak across the vesicle membrane. In the present study, we focus on the overall energy conversion characteristics of the molecular components identified in the current structural model (Cartron et al., 2014), namely LH2, RC-LH1, cyt $b c_{1}$ , and ATP synthase, where NADH dehydrogenase plays an indirect role.

Efficient energy conversion requires some degree of robustness with respect to supramolecular organization, since no two chromatophores are likely to be identical. Though chromatophore vesicles share structural motifs (Bahatyrova et al., 2004; Cartron et al., 2014) that vary gradually with growth conditions, inevitable irregularities in the distribution of their constituent proteins and their quinone/quinol pools render chromatophores heterogeneous, requiring energy conversion processes to be insensitive to structural inhomogeneity. Robustness in photosynthetic systems had been demonstrated computationally for the excitation transfer step of light harvesting at the single protein level with respect to loss or rearrangement of pigments (Şener et al., 2002) as well as against fluctuations of pigment site-energies (Damjanovic et al., 2002) and at the vesicle level against deformations of the pigment network (Sener et al., 2010).

Efficiency of energy conversion in a photosynthetic system is not straightforward to define, since it involves multiple interrelated subprocesses spanning both quantum mechanical and classical domains over timescales ranging from picoseconds to milliseconds (Blankenship, 2014; van Amerongen et al., 2000). A simple measure of conversion efficiency at the light harvesting stage is provided by the quantum yield, q, defined as the probability, upon the absorption of a photon by any pigment of the chromatophore, of charge separation at any RC ready for excitation-induced electron transfer to quinone. The quantum yield is solely a function of pigment network geometry, is independent of incident light intensity, and is found to be close to unity (Strümpfer et al., 2012; Sener et al., 2011) for initial chlorophyll light absorption; in case of carotenoid light absorption the quantum yield can be lower due to so-called covalent electronic excitation as argued in (Ritz et al., 2000b). Since excitation transfer does not constitute a rate-limiting step of photosynthetic energy conversion, the quantum yield is not a major limiting factor for the overall efficiency of the chromatophore. A comprehensive measure of chromatophore efficiency that also permits a limited comparison with photovoltaic systems is the conversion efficiency of captured solar energy to the chemical energy of the final photoproduct, namely ATP.

Earlier studies of photosynthetic membrane systems include percolation theory-based models of quinone diffusion in Rhodospirillum (Rsp.) photometricum membranes (Scheuring et al., 2006), plastoquinone diffusion in thylakoid membranes (Kirchhoff et al., 2002), models of dissipative photoprotective behavior in Rsp. photometricum membranes (Caycedo-Soler et al., 2010), and stoichiometry-based rate kinetics (Geyer et al., 2007, 2010). In fact, long before any structural information of the light harvesting apparatus of purple bacteria was available, Vredenberg and Duysens (Vredenberg and Duysens, 1963) postulated that the total fluorescence yield can be expressed in terms of the ratio of closed and open RCs, after which random-walk models of excitation transfer were developed using a master equation formalism (Den Hollander et al., 1983). Prior to the availability of AFM imaging data (Bahatyrova et al., 2004), the supramolecular organization of chromatophores was suggested to feature RCs partially surrounded by LH-complexes facilitating efficient shuttling of quinones (Joliot et al., 1990, 1996; Jungas et al., 1999).

The aim of the present study is to determine, based on a supramolecular structural model (Cartron et al., 2014), for the chromatophore of Rba. sphaeroides the ATP production rate as a function of illumination and vesicle stoichiometry along with the corresponding energy conversion efficiency. A low-light adapted chromatophore vesicle model is considered (Cartron et al., 2014), since low-light illumination, namely $≲ 10$ % of full sunlight, is typical for the habitat of purple bacteria (Woronowicz and Niederman, 2010; Blankenship, 2014). The quantum yield of excitation transfer for the pigment network geometry shown in Figure 1 is determined in terms of an effective Hamiltonian formulation. The processes subsequent to charge separation and the corresponding rate kinetics of ATP production are described in terms of chromatophore vesicle stoichiometry, instead of at atomic detail, by identifying rate-limiting steps. The organizational optimization of the chromatophore is considered in terms of the dependence of energy conversion on vesicle composition and illumination conditions.

Results

Based on the theoretical framework discussed in the Materials and methods section below, one can quantify how well the chromatophore performs in converting light energy into ATP synthesis and compare its performance characteristics, such as energy conversion efficiency, to the characteristics of other biological and artificial energy conversion systems. In particular, we examine below ATP turnover of the chromatophore as a function of light intensity and vesicle composition. The reader is urged to read the Materials and methods (Section 4) before proceeding further with the present section.

ATP turnover rate as a function of illumination

Previous studies showed that the quantum yield of excitation transfer, $q$ , computed through Equation 8 below and discussed in greater detail in Supplementary Materials, is very high, namely, 85–94%, varying gradually with LH2:RC stoichiometry (Şener et al., 2007, 2010, 2011). For the vesicle presented in Figure 1 the quantum yield, $q$ , has a value of 0.91, consistent with earlier studies (Şener et al., 2007, 2010; Cartron et al., 2014). Such high value for the quantum yield, close to the ideal limit of 1, is achieved because loss due to internal conversion and fluorescence arises much more slowly (rates about (1 ns)⁻¹) than excitation transfer or charge separation at RC (rates about (10 ps)⁻¹). Clearly, the quantum yield does not constitute a limiting factor for the overall energy conversion efficiency in the chromatophore.

At very low light intensity, nearly all electronic excitation delivered to RCs contribute to the generation of a proton gradient across the membrane and to eventual ATP synthesis. With increasing light intensity, the cycling time of quinones at the RC, $τ_{R C} (I)$ as given by Equation 19, increases; fewer RCs are found in a state available to receive photoexcitation, described by the probability, $p_{RC} (I)$ , given by Equation 13, and resulting in a corresponding loss of electronic excitation. The time-scale with which the quinone/quinol pool redox state adapts to a change in light conditions is reported to be about 0.5 s (Woronowicz et al., 2011a).

The ATP turnover rate, $k_{ATP}$ , calculated according to Equation (20), and the energy conversion efficiency, $η_{ATP}$ , calculated according to Equation (21), for a low-light adapted chromatophore vesicle (Figure 1) under steady-state illumination are presented in Figure 2. At light intensities equivalent to 1% and 3% of full sunlight, the vesicle is found to produce ATP molecules at a rate of 82 s^₋₁ and 118 s^₋₁, respectively. At the high-light limit, the ATP synthesis rate approaches 158 molecules s^₋₁. These rates are consistent with experimental observations for continuous light-induced photophosphorylation, reported to be in the range of 0.017 molecules per BChl per second (Saphon et al., 1975) and 0.05 ATP molecules per BChl per second (Clark et al., 1983), corresponding to ~43 ATP molecules s^₋₁ and ~130 ATP molecules s⁻¹, respectively, for the vesicle shown in Figure 1. We note that the Clark estimate was reported for Rhodopseudomonas capsulata. The corresponding energy conversion efficiency, $η_{A T P}$ , at the stated low-light intensities of 1% and 3% of full sunlight, calculated in the present study, are 12% and 7%, respectively. Notably, an upper-limit of 30% was estimated in (Hellingwerf et al., 1993) for the conversion efficiency of photosynthesis in Rba. sphaeroides. In comparison, the efficiency value, $η_{A T P}$ , computed for the recently established model (Cartron et al., 2014) of the chromatophore (Figure 2) ranges between 0%–17%.

Figure 2

Download asset Open asset

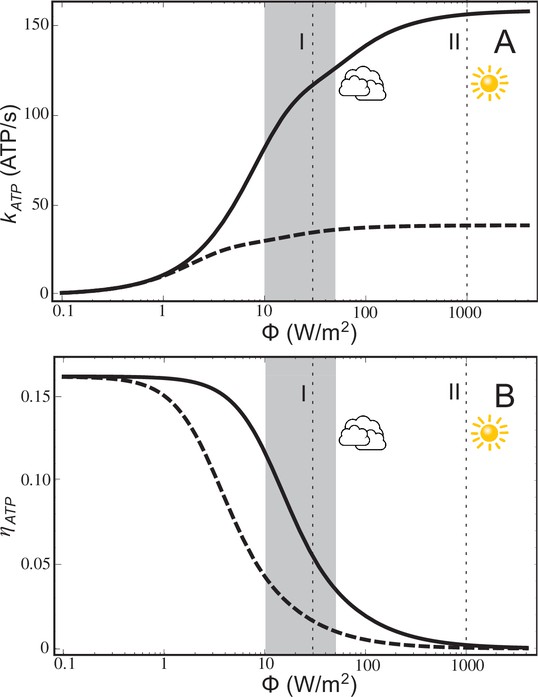

ATP production rate and energy conversion efficiency.

(A) Steady-state ATP production rate, $k_{ATP}$ , calculated according to Equation (20), and (B) energy conversion efficiency, $η_{ATP}$ , calculated according to Equation (21), of a chromatophore vesicle as a function of incident light intensity $Φ$ . Solid curves correspond to the vesicle shown in Figure 1; dashed curves represent a similar vesicle with only a single cyt $b c_{1}$ . The vertical lines denote the light intensities corresponding to (I) 3% of full sunlight (30 W/m²), a typical growth condition for purple bacteria, and (II) full sunlight (1 kW/m²), respectively. Thus, for light intensities typical for the habitat of purple bacteria (1–5% of full sunlight; shaded area) the energy conversion efficiency $η_{ATP}$ of a chromatophore vesicle is between 0.12–0.04.

https://doi.org/10.7554/eLife.09541.005

The lower efficiency values, $η_{A T P}$ , for the chromatophore at higher light intensities (Figure 2B) does not indicate a failing, since the chromatophore does actually produce slightly more ATP in high-light than in low-light illumination (Figure 2A), but rather reflects the optimization of purple bacteria for a low-light intensity habitat.

The saturation of ATP synthesis with increasing light intensity seen in Figure 2 arises because quinol turnover capacity at the cyt $b c_{1}$ complex becomes rate limiting at higher light intensities. The rate limiting property of cyt $b c_{1}$ complexes was suggested by earlier studies (Lavergne et al., 2009; Geyer et al., 2010) and is discussed below in connection with Equation (14) in Materials and methods. The maximal electron processing capacity of all cyt $b c_{1}$ complexes is estimated (see Equation (14) in Materials and methods) to be $2 \times n_{B} τ_{B}^{- 1} = 320 s^{- 1}$ , where $n_{B} = 4$ is the number of cyt $b c_{1}$ dimers and $τ_{B}$ = 25 ms is the quinol turnover time at cyt $b c_{1}$ (Crofts, 2004) and the prefactor 2 accounts for every quinol transferring two electrons. The electron processing capacity at cyt $b c_{1}$ becomes equal to the total RC electron turnover rate, $I q$ , at a light intensity of 9 W/m², i.e., at approximately 1% of full sunlight. As illumination exceeds this low-light value, RC electron turnover is limited by the electron processing capacity of cyt $b c_{1}$ , leading to a gradual saturation of proton gradient formation and ATP turnover, as seen in Figure 2A, thereby reducing the efficiency of ATP synthesis (Figure 2B).

Rate limitation of ATP synthesis by the cyt $b c_{1}$ turnover capacity can be related also to the availability of quinones at the RC. In the absence of bound quinone, excitations delivered to a RC are wasted, except if the excitation escapes from the RC and reaches another RC ready for quinone reduction, especially within the same RC-LH1 dimer. However, with increasing illumination the likelihood of nearby RCs having quinones available also diminishes, excitation energy is lost, and energy conversion efficiency is reduced. The probability of a RC being ready for quinone reduction, $p_{RC} (I)$ , is given by Equation (13) in the Materials and methods section. With increasing illumination, $p_{RC} (I)$ decreases, thereby reducing the overall conversion efficiency, $η_{ATP}$ . At 1% of full sunlight, $p_{RC} (I)$ assumess the value of 0.73, which, according to Equation (13), drops to 0.23 at 5% of full sunlight. Remarkably, the role of closed and open RCs in determining the overall efficiency of the photosynthesic apparatus had been already pointed out long before any structural details were known (Vredenberg and Duysens, 1963).

The rate limiting effect of cyt $b c_{1}$ can be further illustrated considering the efficiency of chromatophores with fewer cyt $b c_{1}$ complexes compared to the ones shown in Figure 1. As indicated by the dotted lines in Figure 2A,B, describing ATP synthesis in a chromatophore with a single cyt $b c_{1}$ dimer, a lower number of cyt $b c_{1}$ dimers results in a reduction of the ATP production rate, $k_{ATP}$ , and, accordingly, in a lower conversion efficiency, $η_{ATP}$ .

A comparison with plant light harvesting efficiencies is not straightforward: efficiency for biomass production is significantly lower than the aforementioned thermodynamic efficiency; in fact, only as little as 1% of total incident solar energy is stored by crop plants as biomass (Blankenship et al., 2011).

One might wonder how the chromatophore compares to engineered photovoltaic devices. At peak solar intensity photovoltaic-driven electrolysis is reported to have an energy conversion efficiency of 5–15% (Blankenship et al., 2011). However, comparison of efficiency alone overlooks issues such as stability and reclaimability of the energy stored in the final products. More refined measures of efficiency need to include total integrated cost of components, life expectancy, repair and maintenance.

Optimality of vesicle composition for ATP production

Evolutionary pressure toward greater fitness at the organism level results in the composition and architecture of photosynthetic systems to display adaptation toward optimal function (Xiong et al., 2000; Şener and Schulten, 2008; Blankenship, 2014). Such adaptation has been reported for the individual protein level; it is not as well understood at the system integration level. For instance, pigment networks of individual light harvesting proteins were reported to display optimality and robustness in their quantum yield with respect to the spatial organization of pigments and the site energy distribution (Şener et al., 2002; Noy et al., 2006; Damjanovic et al., 2002); a similar robustness was reported with respect to size-scaling deformations of an entire vesicle (Sener et al., 2010). Prior studies did not take into account optimization of the complete energy conversion process, including ATP synthesis, the effects of vesicle composition influenced by growth conditions such as light intensity (Niederman, 2013; Woronowicz et al., 2013), the regulation of the redox state of the quinone/quinol pool (Klamt et al., 2008), or the effects of cell-scale concentration and connectivity of chromatophores also influenced by light intensity at growth (Tucker et al., 2010).

In the following, the effect of vesicle composition on the ATP turnover rate is examined in order to determine the degree of optimality of the vesicle composition for ATP production. The vesicle shown in Figure 1 is used as a reference point for comparison with chromatophores of alternate composition, As composition variables, the number of dimeric cyt $b c_{1}$ complexes, $n_{B}$ , and the number of dimeric RC-LH1-PufX complexes, $n_{L}$ , are considered for a two-parameter $(n_{B}, n_{L})$ family of vesicles with the same surface area as the reference vesicle (Figure 1). The dependence of the steady-state ATP turnover rate, $k_{ATP} (n_{B}, n_{L}; I)$ , on $n_{B}$ and $n_{L}$ is determined according to Equations 17,19,20, where $n_{L} = 2 \times n_{RC}$ . In order to avoid massive computation, vesicles are not constructed explicitly. Instead, the corresponding quantum yield $q$ is estimated by a linear interpolation on the LH2:RC stoichiometry based on earlier reported values (Şener et al., 2007, 2010, 2011) as described in Materials and methods (Equation 10). Since $q$ varies very little with vesicle composition, the dependence of $k_{ATP}$ on composition is dominated primarily by the explicit $n_{B}$ and $n_{RC}$ dependence in Equations 19,20.

The rate $k_{ATP} (n_{B}, n_{L}; I)$ is shown in Figure 3 for light intensities equal to 1% and 3% of full sunlight. The respective ATP synthesis rates for the reference vesicle in Figure 1 under these two illumination conditions are 82 and 118 ATP molecules/s, respectively, (marked by circles in Figure 3) which corresponds to 79% and 50% of the maximum possible rate (marked by crosses in Figure 3) among all possible $(n_{B}, n_{L})$ values at that illumination. Clearly, steady state ATP synthesis is not optimized by the vesicle composition shown in Figure 1. The turnover rate, $k_{ATP}$ , would be improved by an $n_{B} : n_{L}$ ratio that is greater than the native value of $1 : 3$ (Crofts, 2004; Cartron et al., 2014), as suggested also by a comparison of the turnover times at cyt $b c_{1}$ and RC ( $τ_{B} / τ_{L} ≃ 8$ ).

Figure 3

Download asset Open asset

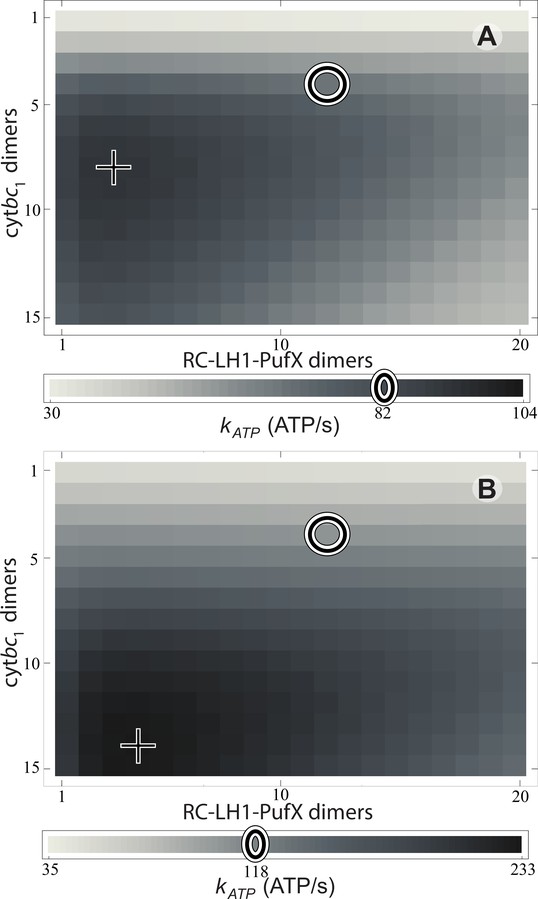

Effect of vesicle composition on steady-state ATP production at different light intensities.

Vesicle composition is given in terms of the number of cyt $b c_{1}$ dimers ( $n_{B}$ ) and of RC-LH1-PufX dimers ( $n_{L}$ ) for vesicles featuring identical surface area; LH2 composition of the vesicle is determined by considering the vesicle shown in Figure 1 as a reference point and adjusting the number of LH2 complexes to compensate for the changes in the number of cyt $b c_{1}$ and RC-LH1-PufX dimers to cover the vesicle surface. ATP production rate, $k_{ATP}$ , is shown for (A) 1% of full sunlight (10 W/m²) and (B) 3% of full sunlight (30 W/m²), determined according to Equation (20). The two RC-LH1-PufX monomers of the vesicle in Figure 1 were counted as a single dimer for the purposes of this plot. The reference vesicle (Figure 1) is represented by a circle, corresponding to an ATP production rate of 82 s⁻¹ (118 s⁻¹), i.e. 79% (51%) of the maximum possible rate among all stoichiometries, for 1% (3%) of full sun light. The optimal vesicle composition for each illumination is represented by a cross; the corresponding LH2 count for optimal composition is 93 (74) at 1% (3%) of full sunlight as compared with 63 for the reference vesicle (circle). The ATP production rate is marginally greater for vesicles that contain more cyt $b c_{1}$ and LH2 complexes at the expense of fewer RC-LH1-PufX complexes as compared with the reference vesicle. This increase in ATP production rate results from cyt $b c_{1}$ being the rate-limiting component in the energy conversion process.

https://doi.org/10.7554/eLife.09541.006

A reason for the aforementioned suboptimal $(n_{B}, n_{L})$ values in native low-light adapted vesicles might be protection against light-induced damage that can arise at high illumination via destruction of the vesicle membrane through overacidification. Though typical illumination levels in habitats of purple bacteria are low, occasional surges in light intensity are inevitable. During sustained (>1 s) high illumination intervals, a proton turnover unhindered by a low ( $n_{B} = 4$ ) cyt $b c_{1}$ stoichiometry can exceed the turnover capacity of the ATP synthases, resulting in overacidification of the vesicle interior, harming the integrity of the chromatophore membrane and its proteins. The observed $n_{B}$ value of 4, apparently suboptimal for most light intensities (Figure 3), ensures that during sustained over-illumination proton turnover is limited by cyt $b c_{1}$ to a rate below the synthesis capacity of ATP synthase (Lavergne et al., 2009; Geyer et al., 2010), thus preventing overacidification.

The $(n_{B}, n_{L})$ value also has an effect on the size of the quinone/quinol pool relevant for intermittent energy storage under fluctuating light conditions, since the number of quinones in the system correlates with the number of RCs (Comayras et al., 2005; Woronowicz et al., 2011a; Cartron et al., 2014). Energy conversion through the quinone/quinol pool also involves electron exchange processes from outside the chromatophore as furnished, for example, through the enzymes NADH dehydrogenase and succinate dehydrogenase (Klamt et al., 2008).

The turnover capacities of cyt $b c_{1}$ and ATP synthase are compared in Materials and methods in relation to the rate limitation of energy conversion by the cyt $b c_{1}$ . A single ATP synthase is sufficient to take advantage of proton turnover of an entire chromatophore (Etzold et al., 1997). Additional ATP synthases reported in chromatophore vesicles (Cartron et al., 2014) appear to provide necessary redundancy, since an isolated chromatophore without ATP synthase is non-functional. In this regard, it is of interest that vesicles have been found to occasionally fuse through formation of membrane tubes (Tucker et al., 2010) permitting passage of protons between neighboring chromatophore vesicles, thereby sharing their proton gradients with the ATP synthases of multiple vesicles, reducing the need for back-up ATP synthases and even permitting less than one ATP synthase per vesicle.

Robustness requirements for protecting the vesicle against damage under environmental strain apparently supersede optimality constraints for steady state conditions. A photosynthetic vesicle adapted for steady-state illumination at higher light intensities than considered in this study would require a larger number of cyt $b c_{1}$ to maximize ATP production, along with more than the 1–2 ATP synthases observed per vesicle (Cartron et al., 2014).

Discussion

The combined structural and functional model of a low-light adapted chromatophore (Cartron et al., 2014) permits a quantitative description of ATP synthesis at different light intensities. The energy conversion efficiency, $η_{ATP}$ , is determined to be ~12%–4% at the low-light conditions typical for purple bacterial habitats (1%–5% of full sunlight), dropping rapidly to $≲ 0.1$ % beyond full sunlight conditions. Moderate levels of illumination saturate the bacterial light harvesting apparatus lowering its efficiency, whereas plants and photovoltaic devices function efficiently at high light intensities. The efficiency curve determined in the present study for the purple bacterial chromatophore (Figure 2B) indicates specialization for low-light intensities.

The primary rate-limiting component among the energy conversion steps in the chromatophore appears to be quinol turnover at cyt $b c_{1}$ , as discussed in Section 4.2. The rate limitation at cyt $b c_{1}$ , as compared with the ATP synthase turnover capacity, prevents the generation of an overly strong proton gradient at sustained high-light conditions, thereby protecting the chromatophore against overacidification of its interior and assuring vesicle integrity. As the light intensity $I$ increases, photoexcitations are more likely to be dissipated as the probability for a RC to have a quinone or semiquinone ready to accept an electron, $p_{R C} (I)$ , decreases.

The chromatophore composition appears to be suboptimal for ATP production under steady-state illumination. The chromatophore is apparently a highly specialized device that performs its energy conversion function robustly for low average light intensity, while featuring protective measures that dissipate energy at higher light intensity. Robustness against damage, such as overacidification of the membrane due to sustained overillumination, appears to supersede optimality under idealized conditions, such as steady state illumination.

The present study focuses on steady state energy harvesting in the chromatophore without explicitly modeling the spatial dynamics of the charge carriers (quinone/quinol and cytochrome $c_{2}$ ), the redox states of the proteins (RC and cyt $b c_{1}$ ), proton leakage through the membrane, or the coupling of NADH dehydrogenase to the proton-motive force. A more complete description of chromatophore function requires placement of NADH dehydrogenase, along with possibly succinate dehydrogenase, cytochrome $c$ oxidase, and ubiquinol oxidase in the chromatophore membrane, the presence of which would also affect the energy conversion efficiency determined in this study. The added enzymes need to be described along with their reactions with redox partners located in the cell’s cytoplasm. In particular, a non-steady state formulation is necessary to account for spatial heterogeneity and light intensity dependence of the redox states of the proteins and the charge carriers in the chromatophore.

The present study differs from earlier studies in functional modeling of the chromatophore (Geyer et al., 2007, 2010) in several respects: first, it is based on an explicit atomic-detail structural model; second, instead of employing many (over 30) adjustable parameters, few experimentally determined rate constants are employed to describe the rate determining steps; third, a steady-state description is chosen such that energy conversion steps that are not rate-limiting can be left out of the kinetic model. Nonetheless, earlier and present studies give similar results for the overall ATP synthesis rate at saturation, since this rate is determined largely by the total turnover capacity of cyt $b c_{1}$ complexes as a rate-limiting component.

A key role in chromatophore energy conversion involves proton translocation, generating and using proton motive force. The present treatment does not resolve individual translocation steps, but rather assumes that the individual steps taking place at the overall RC, cyt $b c_{1}$ , and ATP synthase proton reactions can be treated as a single reaction event. Primary conclusions reached presently would not be affected by a more detailed description, i.e., the model is robust with respect to the neglect of explicit modeling of individual proton translocation steps and proton motive force conversion.

Integrative models of organelle function such as the one presented here provide a bridge between experimental methods that do not resolve temporal and spatial detail needed for establishing physical mechanisms and microscopic simulations that span the multiple length and time scales relevant for the function of living cells.

Materials and methods

In the following, structural organization and energy conversion in the chromatophore are described in terms of a kinetic model. It is highly recommended that the text below is read before Sections 2 and 3. First, the supramolecular organization of a low light-adapted chromatophore vesicle is introduced. Next, the energy conversion processes are characterized: excitation transfer, diffusion of quinones/quinol and of cytochrome $c_{2}$ , and ATP synthesis. The description is based on steady state kinetics. Inhomogeneities of the quinone/quinol and cytochrome $c_{2}$ pools and of the membrane proton gradient are not modeled; instead, the three attributes are assumed to function as homogeneous buffers of energy storage. The framework outlined is used to define three different measures of efficiency for the chromatophore: (i) quantum yield, $q$ , (ii) quinol conversion ( $Q \to Q H_{2}$ ) probability, $η_{Q}$ , i.e., the probability that an absorbed photon is successfully utilized for quinol formation at a RC, and (iii) energy conversion efficiency, $η_{ATP}$ , i.e., the ratio of the energy stored in the conversion ADP $\to$ ATP to incident solar energy absorbed.

Supramolecular organization of a chromatophore vesicle adapted to low-light illumination

Request a detailed protocol

As already stated, the structural model of the chromatophore considered in the present study is a variation of the model reported in (Cartron et al., 2014). The primary components of chromatophore vesicles in purple bacteria, as depicted in Figure 1, are, in order of energy utililization (Cogdell et al., 2006,Cartron et al., 2014): (i) light harvesting complex 2 (LH2) (Koepke et al., 1996; Papiz et al., 2003); (ii) light harvesting complex 1 (LH1 [Qian et al., 2008; Sener et al., 2009]); (iii) RC (Jamieson et al., 2002; Strümpfer and Schulten, 2012a); (iv) cyt $b c_{1}$ (Crofts, 2004; Crofts et al., 2006); and (v) ATP synthase (Feniouk and Junge, 2009; Hakobyan et al., 2012). RC-LH1 complexes typically form dimeric RC-LH1-PufX complexes facilitated by the polypeptide PufX (Qian et al., 2013; Sener et al., 2009), although monomeric complexes are also found in membranes from photosynthetically grown cells at a ratio of approximately 10% (Olsen et al., 2008). The chromatophore in Figure 1 exhibits for the LH2:RC complexes a stoichiometry of 2.6:1 and corresponds to a low-light-adapted vesicle as described in (Sener et al., 2010; Cartron et al., 2014). In a typical vesicle, about a hundred protein complexes, LH2 and RC-LH1-PufX, form an efficient light harvesting network (Şener et al., 2007, 2010) supplying electronic excitation energy for the conversion of quinones to quinols. The quinols produced at the RC are converted back to quinones by cyt $b c_{1}$ to generate a proton gradient across the chromatophore vesicle membrane, which, in turn, is consumed by the ATP synthase for the synthesis of ATP from ADP and phosphate. The electrons from quinol-to-quinone conversion are shuttled back to the RC by cytochrome $c_{2}$ acting inside the vesicle. These energy conversion processes are illustrated in Figure 4. We note that the experimental data (Saphon et al., 1975; Clark et al., 1983) used to test the present energy conversion model based on (Cartron et al., 2014) were not obtained with chromatophores in vivo, but for a suspension of chromatophores in a pH-buffer; the energy conversion processes as coupled to the entire bacterium are inevitably more complex than portrayed here.

Figure 4

Download asset Open asset

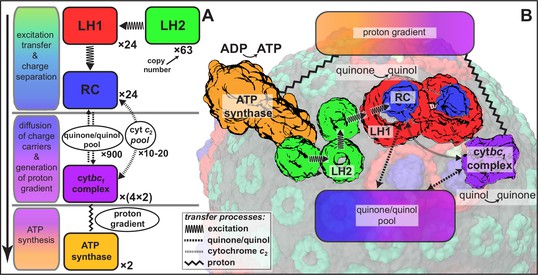

Processes involved in energy conversion in the photosynthetic chromatophore.

(A) Energy conversion processes starting after initial light absorption are divided into three stages: (1) quinol production at RC as a result of excitation transfer; (2) diffusion between RC and cyt $b c_{1}$ of quinone/quinol and cytochrome $c_{2}$ , together with quinol-to-quinone conversion resulting in a proton gradient across the vesicle membrane; (3) utilization of proton gradient for ATP synthesis. (B) Chromatophore components, in which stages (1–3) take place, include LH2 (green), LH1(red)-RC(blue), cyt $b c_{1}$ (purple), and ATP synthase (brown) complexes as well as the lipid phase (olive; see also Figure 1B).

https://doi.org/10.7554/eLife.09541.007

Atomic level structural models of chromatophores have been presented earlier (Şener et al., 2007, 2010; Hsin et al., 2010b; Sener et al., 2011; Chandler et al., 2014) for Rba. sphaeroides and Rsp. photometricum and their mutants. The supramolecular organization of the vesicles in Rba. sphaeroides was determined primarily by AFM and EM images of intact membrane domains (Bahatyrova et al., 2004; Frese et al., 2004; Scheuring et al., 2007; Olsen et al., 2008; Qian et al., 2008; Scheuring and Sturgis, 2009), whereas the stoichiometry of light harvesting proteins was determined by optical spectroscopy (Sener et al., 2010) and mass spectrometry (Cartron et al., 2014). Vesicle models were subsequently constructed by mapping planar membrane patches viewed through AFM imaging back onto the parent spherical domains (Şener et al., 2007), adjusting for the observed packing density (Olsen et al., 2008) and the spatial arrangement patterns (Hsin et al., 2009; Qian et al., 2008) of the constituting proteins.

The chromatophore model shown in Figure 1 comprises, in addition to the aforementioned constituent proteins, 16,000 lipids and 900 quinones, corresponding to a system containing 100 million atoms, including solvent. This system has been equilibrated through a 100 ns MD simulation to test the viability of the model employed. However, molecular dynamics simulations of the chromatophore describing energy conversion processes are not considered in the current study, because the large system size combined with timescales of energy conversion reaching milliseconds render a straightforward simulation prohibitive. Instead, the current study aims to describe key rate limiting components of energy conversion processes, such as quinone diffusion and turnover at cyt $b c_{1}$ as discussed below, to guide future simulation efforts. The atomic detail model is used below for the computation of the quantum yield, but rate kinetics subsequent to charge separation is described in terms vesicle stoichiometry only, with key rate constants taken from experimental studies.

Early chromatophore models prior to (Cartron et al., 2014) account only for LH proteins, whereas in proteomics studies, hundreds of different types of non-LH peptides are actually identified, including ATP synthase, cyt $b c_{1}$ , membrane assembly factors, as well as proteins of unknown function (Jackson et al., 2012; Woronowicz and Niederman, 2010). Most of these components are notably unresolved in AFM images. Assignment of cyt $b c_{1}$ was recently achieved through EM and AFM studies using gold nanoparticle labeling, revealing separated regions containing one or more cyt $b c_{1}$ , suggested to be located within lipid- and quinone-enriched membrane domains (Cartron et al., 2014). It is plausible that cyt $b c_{1}$ induces different curvature profiles in membrane domains compared to the LH-rich constant-curvature regions predominant in AFM images. Such a curvature-induced separation of protein domains is also supported by experimental (Frese et al., 2004; Sturgis and Niederman, 1996) and computational (Frese et al., 2008; Chandler et al., 2009; Hsin et al., 2009, 2010a) studies that established the role of LH2 and RC-LH1-PufX domains in determining membrane shape. Induced curvature profiles are known to exert a segregating force between different types of proteins in the membrane (Frese et al., 2008). Mass spectrometry showed that the RC:cyt $b c_{1}$ stoichiometry is 3:1 (Cartron et al., 2014), consistent with earlier observations (Crofts, 2004; Crofts et al., 2006), corresponding to approximately 4 cyt $b c_{1}$ dimeric complexes per vesicle.

Chromatophore vesicles typically contain 1–2 ATP synthases (Feniouk et al., 2002; Cartron et al., 2014). Proteomics studies suggest preferential co-location of ATP synthase with LH2 subunits (Woronowicz and Niederman, 2010). Consequently, ATP synthase locations were assigned to LH2-rich regions of the membrane (Cartron et al., 2014).

The low-light adapted vesicle studied here contains 63 LH2 complexes, 11 dimeric and 2 monomeric RC-LH1-PufX complexes, 4 dimeric cyt $b c_{1}$ complexes, and 2 ATP synthases, in a spherical vesicle of 50 nm inner diameter based on a variation of the model reported in (Cartron et al., 2014) and shown in Figure 1 (see also Video 1).

Transmembrane proteins beyond those of the light harvesting-cyt $b c_{1}$ -ATP synthase model shown in Figure 4, namely NADH dehydrogenase, succinate dehydrogenase, cytochrome $c$ oxidase, and ubiquinol oxidase, are associated with controlling the redox state of the quinone/quinol pool in the chromatophore (Klamt et al., 2008). These proteins, presented schematically in Figure 5, indirectly couple the chromatophore proton gradient to metabolic reactions in the cytoplasmic part of the bacterial cell. Indeed, the chromatophore structure shown in Figure 1 may accommodate, by removal of LH2 complexes near cyt $b c_{1}$ complexes (the latter referred to as complex III in the respirasome of mitochondria [Dudkina et al., 2011]), the placement of adjacent NADH dehydrogenase complexes (referred to as complex I) in an arrangement similar to that in respirasomes as reported in (Dudkina et al., 2011). First simulations, employing the complex I structure reported in (Baradaran et al., 2013), have demonstrated that the chromatophore can adapt to the necessary local shape change.

Figure 5

Download asset Open asset

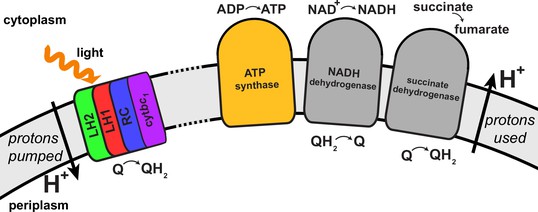

Regulation of the quinone/quinol-pool redox state in the chromatophore involves transmembrane proteins beyond those included in the light harvesting-RC-cyt $b c_{1}$ -ATP synthase system described in (Cartron et al., 2014) and shown in Figure 4.

Succinate dehydrogenase and NADH dehydrogenase regulate the quinone/quinol redox state in the chromatophore membrane. This regulation influences the light intensity dependence of the ATP production rate in the chromatophore by changing the likelihood of finding available quinones at the RC. Two further proteins involved in redox kinetics are cytochrome $c$ oxidase and ubiquinol oxidase, which are not shown.

https://doi.org/10.7554/eLife.09541.008

Description of energy conversion in the chromatophore

Request a detailed protocol

The overall aim of the present study is to determine the ATP synthesis rate as a function of chromatophore vesicle illumination and composition establishing, thereby, the energy conversion efficiency. The three stages of energy conversion in the chromatophore introduced above are summarized in Figure 4. These stages span time scales ranging from femto- and picoseconds (transfer of excitations) to milliseconds (diffusion of quinols, quinones, and cytochrome c₂; ATP synthesis), involving both classical and quantum dynamics.

The absorbed light power $I$ is given in units of photons absorbed per second for the entire vesicle, i.e., it holds approximately, $I = F σ_{t o t a l}$ where $F$ is the flux of useable photons and $σ_{t o t a l}$ is the total absorption cross-section of the chromatophore determined via the functional absorption cross-section reported in (Woronowicz et al., 2011a).

Key quantities describing energy conversion are the quinone-to-quinol formation rate $k_{Q \to {QH}_{2}} (I)$ , the quinol-to-quinone use rate $k_{{QH}_{2} \to Q} (I)$ and the ATP synthesis rate, $k_{ATP} (I)$ , all functions of the absorbed light power $I$ . For stationary illumination, assumed here, the chromatophore kinetics becomes stationary and, as a result, the rates $k_{Q \to {QH}_{2}} (I)$ , $k_{{QH}_{2} \to Q} (I)$ , and $k_{ATP} (I)$ must be identical,

k_{Q \to Q H_{2}} (I) = k_{Q H_{2} \to Q} (I) = k_{A T P} (I) .

We note here that every net quinol $\to$ quinone conversion event at cyt $b c_{1}$ , due to the so-called Q-cycle (Crofts, 2004), results in the release of four protons into the vesicle interior (two at cyt $b c_{1}$ and two at RC, for each quinol passage), which coincidentally happens to be, in the present system, the same number of protons as the ones that have to move back over the membrane to produce one ATP molecule at ATP synthase (based on the assuption of a 12-subunit c-ring of the ATP synthase). Under steady state conditions, the rate, $k_{ATP}$ ( $I$ ), is then equal to $k_{{QH}_{2} \to Q} (I)$ and $k_{Q \to {QH}_{2}} (I)$ .

The quinone/quinol pool in the lipid phase of the vesicle and the proton gradient across the vesicle membrane act as temporary energy buffers between light harvesting and ATP synthesis (Feniouk and Junge, 2009; Clark et al., 1983). Under the steady-state conditions assumed here, quinone-quinol pool and redox states of RC/cyt $b c_{1}$ are assumed to feature spatially homogeneous distributions. As a result, individual diffusive processes of quinone/quinol, cytochrome $c_{2}$ , and protons do not need to be modeled, and the aforementioned energy buffers are determined solely by incident light intensity and quinol $\to$ quinone turnover capacity of cyt $b c_{1}$ , the latter constituting the rate limiting conversion process as discussed below. Typical proton diffusion timescales are on the order of microseconds (Agmon, 1995), i.e., not rate limiting compared to turnover at cyt $b c_{1}$ and, therefore, do not affect significantly overall conversion rates.

In going beyond steady-state conditions, a simulation of quinone mobility in a lamellar chromatophore membrane has recently been achieved for a 20 million atom, 150 ns simulation (Chandler et al., 2014); however, the time scale covered is not long enough to observe long-range positional relaxation of the quinone/quinol pool. This non-stationary behavior needs to be addressed by a coarser description like the ones employed for cell-scale modeling (Roberts et al., 2013).

In purple bacteria there are proton gradient consumption channels other than ATP synthesis. These channels include: flagellar motility (Kojadinovic et al., 2013); NADH/NADPH synthesis (Klamt et al., 2008; Blankenship, 2014) involving respiratory protein complexes in the chromatophore vesicle; leakage across the membrane. These channels are not included in the chromatophore kinetics described below, though the influence of NADH dehydrogenase is implicitly accounted for as explained below.

Stage I: Light absorption, excitation energy transfer, and quinol formation

Request a detailed protocol

The first stage of energy conversion in the chromatophore begins with light absorption by carotenoid and BChl pigments in the light harvesting complexes LH1 and LH2 leading to electronic excitation of individual pigments. Carotenoids transfer excitation within less than a picosecond to a nearby BChl (Damjanović et al., 1999; Berera et al., 2009) and also play a role in quenching triplet states of BChls through reverse excitation transfer (Ritz et al., 2000a). The electronic excitations of BChls embedded in LH1 and LH2 are reviewed in (Hu et al., 1998, 2002; Cogdell et al., 2006; van Grondelle and Novoderezhkin, 2006b; Kosztin and Schulten, 2014). These excitations form so-called exciton states, excitations shared among LH1 or LH2 BChls (Ma et al., 1997; Bradforth et al., 1995) coherently (Strümpfer et al., 2012; Ishizaki and Fleming, 2009b; Rebentrost et al., 2009). Electronic excitation is transferred efficiently in the form of excitons between light harvesting complexes (Hu et al., 1997; Ritz et al., 1998; Janusonis et al., 2008; Ishizaki and Fleming, 2009b).

Exciton-based excitation transfer in the chromatophore proceeds within 10–100 ps (Sener et al., 2011), first among the LH2s, then from LH2 to LH1, and finally from LH1 to the four BChls of the RC (Visscher et al., 1989; Beekman et al., 1994; Strümpfer and Schulten, 2012a; Sener et al., 2009). In the RC, the excitation quickly settles onto the so-called special pair BChls (Small, 1995; Damjanović et al., 2000), where it induces the transfer of an electron (Pawlowicz et al., 2008; Jordanides et al., 2004). This transfer proceeds stepwise to reach a quinone molecule, $Q$ , attracted into the RC from the quinone/quinol pool of about 900 molecules (Cartron et al., 2014). The quinol and quinone molecules of the pool are inter-converted at RC and cyt $b c_{1}$ (Crofts, 2004) (see Figure 4). The electron transferred in the RC is joined on the quinone by a proton, turning $Q$ into semi-quinone, $Q H$ . Repeating the reaction turns $Q H$ into quinol, $Q H_{2}$ . In converting $Q$ to $Q H_{2}$ two electron charges move from near the inside of the chromatophore (where the special pair BChls are located and the electron potential is low) to near the cytoplasmic exterior of the chromatophore (where the quinone is bound and the electron potential is high), i.e., to the cytoplasmic side; the protons are attracted from the exterior of the chromatophore vesicle. Freshly formed quinol is released by the RC into the lipid phase of the chromatophore rejoining the quinone/quinol pool.

The efficiency of the 10–100 ps light harvesting step is measured by the so-called quantum yield, $q$ , namely the probability that light absorption leads to electron transfer in a RC with a $Q$ or $Q H$ bound to receive the electron. The quantum yield can be calculated as reported in (Sener et al., 2011, 2010). Electronic excitation energy absorbed directly or indirectly (through carotenoids) by a BChl is rapidly shared between BChls within individual LH1 and LH2 light harvesting complexes (Cory et al., 1998), forming, within about a ps, thermally equilibrated exciton states as established experimentally (Visser et al., 1996; Jimenez et al., 1997; Valkunas et al., 2007) as well as computationally (Strümpfer and Schulten, 2009; Strümpfer et al., 2012).

The exciton states of the BChls of each complex are determined as eigenstates of the effective Hamiltonian $H^{I}$ , accounting for the $Q_{y}$ excitations and their coupling inside LH1, LH2 and RC as described in (Strümpfer et al., 2012),

H^{I} = \sum_{i = 1}^{N_{I}} E_{i}^{I} ∣ i ⟩ ⟨ i ∣ + \sum_{i > j > 0}^{N_{1}} V_{i j}^{I} (∣ i ⟩ ⟨ j ∣ + ∣ j ⟩ ⟨ i ∣) .

Here, the index $I$ is employed to label one of the pigment-protein complexes, namely one of 63 LH2s, 24 LH1s, and 24 RC complexes for the vesicle shown in Figure 1, with $N_{I}$ BChls; $| i ⟩$ corresponds to the $Q_{y}$ excitation of BChl $i$ with excited state energy $E_{i}^{I}; V_{i j}^{I}$ accounts for the respective $Q_{y}$ - $Q_{y}$ coupling among BChls $i$ and $j$ . Tables S2 and S3 in Supplementary Materials list the BChl coordinates as well as the constants employed in this study and discuss the computation of the quantum yield in greater detail.

The coupling $V_{i j}^{I}$ in Equation (2) can be computed for well separated pigments ( $r_{i j} > 1$ nm) using the point-dipole approximation (Ritz et al., 2001; Sener et al., 2011), employing,

V_{i j} = C (\frac{{\hat{𝐝}}_{i} \cdot {\hat{𝐝}}_{j}}{r_{i j}^{3}} - 3 \frac{({\hat{𝐝}}_{i} \cdot 𝐫_{i j}) ({\hat{𝐝}}_{j} \cdot 𝐫_{i j})}{r_{i j}^{5}}),

where ${\hat{𝐝}}_{i}$ is the transition dipole moment unit vector of pigment $i$ , $𝐫_{i j}$ is the vector joining pigments $i$ and $j$ ; the coupling constant $C$ has the value $C = 348, 000 Å^{3}$ cm $^{- 1}$ (using wavenumbers as unit of energy) (Şener et al., 2007, 2010). Couplings between closely spaced pigments ( $r_{i j} < 1$ nm) require quantum chemical calculations as described in (Damjanović et al., 1999; Tretiak et al., 2000).

The exciton states $| α) = \sum_{i} c_{i α} | i ⟩$ and the associated energies $ϵ_{α}$ correspond to the eigenstates defined through $H^{ℐ} | α) = ϵ_{α} | α)$ . As electronic excitations settle within about 1 ps into the Boltzmann-populated excitons (Strümpfer et al., 2012; Strümpfer and Schulten, 2009), excitation transfer among LH2 and LH1 involves the excitons, not individual chlorophyll or carotenoid excitations. The rate of excitation transfer between a donor complex $I$ and an acceptor complex $J$ is given by (Ritz et al., 2001; Şener et al., 2007, 2011)

k_{I J} = \frac{2 π}{ℏ} \sum_{μ \in I} \sum_{ν \in J} p_{μ}^{I} {| (μ | H_{I J} | ν) |}^{2} J_{μ ν},

where $H_{I J}$ is the matrix of interactions between the excited states of pigments in complexes $I$ and $J$ , and

J_{μ ν} = \int d E S_{μ}^{D} (E) S_{ν}^{A} (E),

is the spectral overlap between donor exciton state $| μ)$ and acceptor exciton state $| ν)$ in units of (1/energy) (Sener et al., 2011); $S_{μ}^{I} (E)$ and $S_{ν}^{J} (E)$ are the normalized ( $\int d E S (E) = 1$ ) spectra for emission of the donor ( $D$ ) and absorption of the acceptor ( $A$ ), respectively; $p_{μ}^{I}$ in Equation (S6) are the populations of donor exciton states, which, as stated, become very rapidly (~1 ps) (Strümpfer and Schulten, 2009) Boltzmann-distributed such that $p_{μ}^{I}$ are given by

p_{μ}^{I} = \frac{e^{- β ϵ_{μ}}}{\sum_{γ \in I} e^{- β ϵ_{γ}}} .

The above description is known as the generalized Förster theory (Förster, 1948; Novoderezhkin and Razjivin, 1996; Hu et al., 1997; Sumi, 1999; Scholes et al., 2001). For reviews see (van Grondelle and Novoderezhkin, 2006a; Sener et al., 2011; Strümpfer et al., 2012). Excitation transfer kinetics in the chromatophore was reported experimentally in (Woodbury and Parson, 1984; Visscher et al., 1989; Crielaard et al., 1994; Hess et al., 1994, 1995).

Exciton migration across the network of light harvesting complexes in the chromatophore can be described by a rate matrix $𝒦$ which is constructed from inter-complex exciton transfer rates $k_{I J}$ , the latter given by Equation (S6), as follows (Sener et al., 2010, 2007)

{(𝒦)}_{I J} = k_{J I} - δ_{I J} (\sum_{M} k_{I M} + k_{diss} + k_{CS} δ_{I, RC}),

where $I, J$ are defined as in Equation (S6); $k_{diss} = 1 /$ ns is the rate of excitation loss due to internal conversion; $k_{C S} = 1 / (3 p s)$ is the rate of charge separation at the RC (Ritz et al., 2001); $δ_{I, RC}$ assumes the value 1 if complex $I$ is a RC and the value 0 otherwise.

The quantum yield, $q$ , is the probability for an absorbed photon to initiate charge transfer at a RC ready for electron transfer; $q$ is given for an initial state vector $𝐏 (0)$ by (Sener et al., 2011, 2007; Ritz et al., 2001)

q = - k_{CS} {(𝟏_{𝐑𝐂})}^{T} \cdot 𝒦^{- 1} \cdot 𝐏 (0)

where the components of the vector $(𝟏_{𝐑𝐂})$ are ${(𝟏_{𝐑𝐂})}_{I} = δ_{I, RC}$ ; the initial state, $𝐏 (0)$ , corresponds to every BChl in the system being equally likely to be excited by photon absorption and accordingly is given by

{(𝐏 (0))}_{I} = N_{I} / (\sum_{J} N_{J}),

where $N_{I}$ is the number of BChls in complex $I$ as indicated above. The effect of the initial state, $𝐏 (0)$ , on the quantum yield, $q$ , arising, for example, due to wavelength-dependent absorption, is considered in (Şener et al., 2007), with the result that $q$ is altered by less than 3%. Therefore, wavelength dependence of $q$ , through corresponding changes in $𝐏 (0)$ , is not considered further in the present study. The quantum yield given by Equation (8) for the vesicle shown in Figure 1 is 0.91.

For alternate vesicle compositions considered in Figure 3, the quantum yield $q$ is not computed by an explicit construction of vesicles to avoid massive computation; instead, $q$ is approximated as a linear interpolation between the values reported earlier for high LH2:RC and low LH2:RC chromatophore vesicles (Şener et al., 2007, 2010, 2011), namely between $q = 0.85$ and $q = 0.95$ . For a vesicle containing $n_{B}$ cyt $b c_{1}$ dimers and $n_{L}$ LH1-RC dimers, the corresponding number of LH2 complexes $n_{LH2} (n_{B}, n_{L})$ is estimated by the excluded surface resulting from changes in $n_{B}$ and $n_{L}$ with respect to the reference vesicle in Figure 1. The corresponding quantum yield is estimated according to

q = 0.91 + 0.0152 (s_{0} - s)

chosen to reproduce the correct value of $q$ for the reference vesicle (Figure 1) as well as for the low LH2 limit (Sener et al., 2011); here $s = n_{LH2} / (2 n_{L})$ is the LH2:RC stoichiometry, which for the reference vesicle equals $s_{0} = 2.625$ ; a lower limit of $q = 0.85$ is imposed to account for high LH2:RC vesicles (Şener et al., 2007), where the linear interpolation breaks down.

Validity of the generalized Förster formulation, thus outlined, has been demonstrated by excitation transfer calculations employing the so-called hierarchy equation of motion formalism of stochastic quantum mechanics (Ishizaki and Fleming, 2009b; Strümpfer and Schulten, 2012b); the calculations show that photoexcitation of chromatophore BChls relaxes into a Boltzmann occupancy of exciton states within approximately 1 ps, i.e., faster than inter-complex transfer that takes 3–5 ps (Hess et al., 1995; Strümpfer and Schulten, 2012b). Accordingly, the assumption underlying generalized Förster theory, namely that transfer occurs from a thermally relaxed distribution of exciton states, holds in good approximation.

The final step in stage I of energy conversion is the formation of quinol from quinone at the RC. The respective formation rate can be expressed

k_{Q \to {QH}_{2}} (I) = \frac{1}{2} I q p_{RC} (I),

where the prefactor $\frac{1}{2}$ accounts for every quinol requiring two electron transfer events at the RC. Here $q$ is the quantum yield given by Equation (8) and $p_{RC} (I)$ is the probability for the RC to hold a quinone Q or a semiquinone QH, in either case the RC being ready to accept and convert an electronic excitation. The probability $p_{RC} (I)$ decreases with increasing $I$ , since the quinone/quinol pool becomes quinol rich/quinone poor at increasing light intensities, due in part to coupling (Figure 5) to chromatophore redox factors, succinate dehydrogenase, NADPH dehydrogenase, and cytochrome $c$ oxidase (Klamt et al., 2008). As the quinone/quinol ratio decreases, it becomes less likely for RC to have a quinone/semiquinone available for electron transfer. The stated change in the quinone/quinol pool is crucial for energy conversion control of the chromatophore and comes about through the proton motive force, generated through light harvesting, inducing in the redox factors redox generation of products along with quinone/quinol conversion. The light-condition dependency of the quinone/quinol pool is described in the present model heuristically as explained below in Equation (15–19).

Under the assumed steady state conditions, the rate $k_{Q \to {QH}_{2}} (I)$ , i.e., the rate at which RCs release QH $_{2}$ as given by Equation (11), is equal to the rate at which RCs bind fresh quinones. Accordingly holds

\frac{1}{2} I q p_{R C} (I) = [n_{R C} (1 - p_{R C} (I))] / τ_{R C} (I),

where $n_{RC} = 2 n_{L}$ is the number of RCs in the chromatophore (24 for the vesicle shown in Figure 1), $1 - p_{RC} (I)$ is the fraction of RCs ready to bind a fresh Q, $τ_{RC} (I)$ is the mean time needed for a RC to become available for binding a new Q after it had just accepted a Q (Remy and Gerwert, 2003). Below, we refer to $τ_{RC} (I)$ as the cycling time.

The probability $p_{RC} (I)$ is assumed, for convenience, to be uniform across all RCs rather than to vary between RCs due to inhomogeneities in the redox state of the quinone/quinol pool. This assumption is strictly valid only when the mixing time of quinols and quinones in the vesicle lipid phase is shorter than the time scales associated with the rates in Equation (1). The spatial inhomogeneity of $p_{RC} (I)$ can be determined only through the simulation of the diffusive processes in the chromatophore, which is currently prohibitive.

It had been suggested in (Geyer and Helms, 2006) that the primary rate-limiting step in the chromatophore is quinol turnover at cyt $b c_{1}$ rather than cytochrome $c_{2}$ diffusion; in (Geyer and Helms, 2006) it had been estimated that each cytochrome $c_{2}$ is capable of approximately 80 electron transfers per second and that three cytochrome $c_{2}$ ’s per vesicle are sufficient to saturate the turnover capacity of an ATP synthase. A chromatophore vesicle is expected to feature 10–20 cytochrome $c_{2}$ molecules (Geyer and Helms, 2006; Cartron et al., 2014), safely exceeding the necessary number needed for saturation. Therefore, cytochrome $c_{2}$ kinetics should not be rate limiting for energy conversion in the chromatophore.

Using Equation (12), $p_{RC} (I)$ can be expressed in terms of $τ_{RC} (I)$ , namely,

p_{RC} (I) = {(1 + \frac{1}{2} I q τ_{RC} (I) \frac{1}{n_{RC}})}^{- 1} .

According to Equations (11) and (13), $τ_{RC} (I)$ needs to be determined in order to compute the rate $k_{Q \to {QH}_{2}} (I)$ or, equivalently, $k_{ATP} (I)$ .

Stage II: Diffusion of charge carriers and estimate of cycling time $τ_{RC} (I)$

The cycling time, $τ_{RC} (I)$ , arising in Equations (12,13), depends on light intensity. The cycling time is related to the quinone/quinol stoichiometry, i.e., the redox state of the quinone/quinol pool: the fewer quinones are present, the longer is the cycling time. The redox state is affected by not only RC and cyt $b c_{1}$ reactions, but also by transmembrane enzymes succinate dehydrogenase and NADH dehydrogenase (Figure 5). The low-light and high-light limits for the cycling time, $τ_{RC}$ , employed below are based on experimental observation (Woronowicz et al., 2011b, 2011a; Crofts, 2004) instead of direct computation; the reported values of $τ_{RC}$ implicitly combine the redox reactions of all enzymes interacting with the quinone/quinol pool, including NADH dehydrogenase.

In a stationary state, the rate $k_{ATP} (I)$ of ATP synthesis is equal to the rate $k_{Q \to {QH}_{2}} (I)$ as stated in Equation (1), which according to Equations (11) and (13) can be expressed through the cycling time, $τ_{RC} (I)$ . The condition of equilibrium assumed here might not be valid for rapidly fluctuating light intensities, where spatial inhomogeneities of the vesicle and the quinone/quinol pool are expected to play a nontrivial role on the cycling time.

The low-light limit, $τ_{L}$ , of the cycling time, $τ_{RC} (I)$ , is observed to range from 0.7 ms for the membrane of an LH2-minus mutant to about 3 ms for the LH2-rich chromatophores adapted to low-light growth conditions (Woronowicz et al., 2011b, 2011a). In the following, we assume $τ_{L} = 3 m s$ for the low-light growth vesicle shown in Figure 1.

At the high-light limit, the immediate vicinity of a RC contains mostly quinols and the replacement of the converted quinones at the RC becomes rate limited by the turnover at cyt $b c_{1}$ (Woronowicz et al., 2011b, 2011a). The high-light limit, $τ_{H}$ , of the cycling time, $τ_{R C} (I)$ , can be estimated by considering the total turn-over rate at all RCs, namely $n_{RC} τ_{H}^{- 1}$ . In the stationary high $I$ regime, this rate must be equal to the quinol turnover rate at all cyt $b c_{1}$ , namely $n_{B} τ_{B}^{- 1}$ , i.e., it holds

n_{B} τ_{B}^{- 1} = n_{RC} τ_{H}^{- 1},

where $n_{B}$ is the number of cyt $b c_{1}$ dimers (4 for the vesicle shown in Figure 1) and $τ_{B} = 25$ ms is the quinol turnover time at a cyt $b c_{1}$ (Crofts, 2004).

Rate limitation of energy conversion by cyt $b c_{1}$

Request a detailed protocol

The estimate of the cycling time, $τ_{R C} (I)$ , given below is based on the observation that energy conversion in the chromatophore is rate limited by quinol turnover at cyt $b c_{1}$ (Lavergne et al., 2009; Geyer et al., 2010). This rate limitation follows directly from a comparison of turnover capacities, i.e., maximal turnover rates, at each key protein. The turnover rates of proteins are, in general, a function of the chromatophore conditions such as light intensity and redox states. The rate limiting components of the chromatophore can be identified by comparing the maximal values of the turnover rates, i.e., the turnover capacities, at each key protein, namely the quinol turnover capacity at cyt $b c_{1}$ , the quinol generation capacity at RC and the proton utilization capacity at ATP synthase.

As an illustration of the cyt $b c_{1}$ -limited kinetics, we first compare quinol turnover capacities at the cyt $b c_{1}$ and the RC. At a light intensity equivalent to 5% of full sunlight, i.e., 50 W/m², a chromatophore vesicle absorbs $I$ =1860 photons/s (estimated from the functional absortion cross-section of a chromatophore given in [Woronowicz et al., 2011a]), corresponding to a quinol turnover capacity at the RCs of $\frac{1}{2} I q =$ 846 s $^{- 1}$ . In contrast, the quinol turnover capacity at all cyt $b c_{1}$ s, given by Equation (14), is equal to $n_{B} τ_{B}^{- 1} = 160 s^{- 1}$ . Hence, already at 5% of full sunlight the quinol production capacity at the RCs exceeds the total quinol turnover capacity at cyt $b c_{1}$ by more than five-fold. Consequently, under steady-state conditions the quinol production at the RCs at this illumination becomes limited by quinol turnover at cyt $b c_{1}$ . The onset of saturation of the energy conversion rate arising from rate limititation due to cyt $b c_{1}$ at low light intensities is evident in Figure 2A.

Next, we compare the proton turnover capacities at the cyt $b c_{1}$ and the ATP synthase. The maximal proton turnover capacity at cyt $b c_{1}$ for the vesicle shown in Figure 1 is $4 \times n_{B} τ_{B}^{- 1} = 640$ s $^{- 1}$ . In comparison, total proton utilization capacity of ATP synthases is $4 \times 2 \times 270 = 2160$ s $^{- 1}$ , estimated based on the reported ATP synthase turnover capacity of 270 ATP molecules/s (Etzold et al., 1997) with four protons utilized per ATP and 2 ATP synthases present in the vesicle shown in Figure 1. Thus, the proton utilization capacity at ATP synthases exceeds the proton turnover capacity at cyt $b c_{1}$ s by more than threefold. In summary, of the three potential kinetic bottlenecks in the chromatophore, cyt $b c_{1}$ , RC, and ATP synthase, the lowest total turnover capacity is displayed by cyt $b c_{1}$ .

Light intensity dependence of the cycling time at RC

Request a detailed protocol

The $I$ -dependence of the cycling time, $τ_{R C} (I)$ , needed to evaluate Equation (13), is approximated in terms of the relative populations of a two state system, the two states corresponding to the low-light and high-light limits

τ_{R C} (I) = c_{L} (I) τ_{L} + c_{H} (I) τ_{H},

where $c_{L} (I)$ and $c_{H} (I)$ are the probabilities that quinol turnover follows the low-light (limited to RC vicinity) or high-light (cyt $b c_{1}$ -limited) kinetics, respectively; it holds

c_{L} (I) + c_{H} (I) = 1.

The high-light limit of the cycling time, $τ_{H}$ , can be expressed using Equation (14),

τ_{H} = \frac{n_{RC}}{n_{B}} τ_{B} .

Since low-light and high-light limits are actually the extremes of a gradual behavior, the assumption of a two-state system appears rather drastic. However, at low light levels $τ_{L}$ is diffusion controlled and amounts to the first passage time of the quinone to the RC, while $τ_{H}$ is determined by cyt $b c_{1}$ turnover, not diffusion. As a result one expects a distinct transition between $τ_{L}$ and $τ_{H}$ at some light intensity $I$ corresponding to the saturation of the rate-limiting process in the chromatophore. From Equation (15,16) follows

τ_{R C} (I) = τ_{L} + (τ_{H} - τ_{L}) (1 - c_{L} (I)) .

The description of the cycling time according to Equation (18) is heuristic only. Future studies need to account for the time-dependent spatial inhomegeneity of the quinone/quinol pool by explicitly modeling the diffusion processes and redox states in the chromatophore.

The population of photosynthetic states with respect to light intensity is typically governed by a Poisson distribution in terms of the utilization rate of excitations (Mauzerall, 1986; Peterson et al., 1987). In order to express the relative population of the low-light state, $c_{L} (I)$ , we observe that charge separated states are created at the RCs with the rate $I q$ and that the characteristic time for electron turnover at all cyt $b c_{1}$ s is given by $1 / (2 \times n_{B} τ_{B}^{- 1})$ . The probability that no charge separation events occur during this time, i.e., the probability that the system remains in the low-light state, is given by the zero-event Poisson distribution, employed typically in describing the light intensity-dependence of photoproduct yield (Mauzerall, 1986; Peterson et al., 1987). According to this description holds, $c_{L} (I) = \exp (- \frac{1}{2} I q / B)$ , where $B = 2 \times n_{B} τ_{B}^{- 1}$ is the total turnover capacity of cyt $b c_{1}$ s, which along with Equation (18) permits an estimate of the cycling time $τ_{R C} (I)$ , namely,

τ_{R C} (I) = τ_{L} + (τ_{H} - τ_{L}) (1 - e^{\frac{1}{2} I q B^{- 1}}) .

Equation (19), when substituted into Equations (11) and (13), permits an estimate of the quinol turnover rate $k_{Q \to {QH}_{2}} (I)$ , employed below for the computation of the ATP synthesis rate.

Stage III: ATP synthesis

Request a detailed protocol

As the last step of energy conversion, the proton gradient, generated at cyt $b c_{1}$ through quinol $\to$ quinone conversion, is utilized by ATP synthase for the production of ATP. The ATP turnover rate of the vesicle, $k_{ATP} (I)$ , under stationary conditions is equal to $k_{Q \to {QH}_{2}} (I)$ given by Equation (11). This equality is based on the assumption that ATP synthase of Rba. sphaeroides has an F_o of 12 c-subunits such that four H $^{+}$ conducted through the F_o-ring of ATP synthase lead to a 120° rotation of the stalk in the F $_{1}$ part and, thereby, to synthesis of one ATP. Currently, the structure of the ATP synthase of Rba. sphaeroides and the corresponding number of c-subunits is not known experimentally. If the F $_{o}$ oligomer were to feature, e.g., 11 or 10 subunits instead, this structural detail would proportionally affect the number of protons required for the rotation of the stalk and subsequent synthesis of each ATP and, therefore, directly influence the estimated energy conversion efficiency of the chromatophore, by 11% or 20%, respectively.

Combining Equation (1),(11),(13), the ATP turnover rate can be expressed

k_{ATP} (I) = \frac{1}{2} I q {(1 + \frac{1}{2} I q τ_{RC} (I) \frac{1}{n_{RC}})}^{- 1},

where the cycling time at the RC, $τ_{RC} (I)$ , is given by Equation (19).

The overall energy conversion efficiency of the chromatophore, $η_{ATP} (I)$ , can be defined as the ratio of formation rate of energy in the form of ADP $\to$ ATP synthesis to the total absorption rate of photon energy

η_{ATP} (I) = \frac{E_{ATP} k_{ATP} (I)}{E_{γ} I},

where $E_{ATP} = 4197 {cm}^{- 1}$ is the ATP hydrolysis energy in the cell (Berg et al., 2011) and $E_{γ}$ is the average energy of an absorbed photon, taken to be the photon energy at 850 nm (11765 cm $^{- 1}$ ). Not all the energy of an absorbed photon, $E_{γ}$ , is available for energy harvesting. The fraction of $E_{γ}$ available for conversion into chemical energy is the so-called Carnot yield (Lavergne, 2009) described by comparing photochemical energy conversion to the function of a heat engine. This limitation in photochemical energy conversion establishes a theoretical upper limit for photosynthetic energy conversion at broad daylight of approximately 0.7 (Lavergne, 2009).

The determination of the energy conversion efficiency, $η_{ATP} (I)$ , computed through Equation (21), has the shortcoming that the ATP hydrolysis energy, $E_{ATP}$ , depends, in principle, on the ADP, ATP, and H $^{+}$ concentrations in the cytoplasm, which are not modeled explicitly. Nevertheless, Equation (21) permits a comparison with similar measures of efficiency reported for other photosynthetic or photovoltaic systems (Blankenship et al., 2011).

Supplementary material

Computation of quantum yield and table of BChl properties

Request a detailed protocol

In the following, we describe the computation of the quantum yield, $q$ , given by Equation (8), in section 2.2 of the main text. The quantum yield is central to the overall efficiency of the chromatophore as it accounts for the efficiency of the primary subsystem, the light harvesting apparatus. The constants employed in the computation of the quantum yield are listed below in Table 1. We adopt the same values as in similar computations reported by us in (Sener et al., 2010, 2007). For the sake of clarity, this section repeats some information in the main text, as indicated.

Table 1

Constants employed in the computation of the quantum yield.

https://doi.org/10.7554/eLife.09541.009

Symbol	Value*	Description
$ϵ_{1}^{L H 2}$ $ϵ_{2}^{L H 2}$	12,459 cm⁻¹ 12,625 cm⁻¹	BChl site energies for alternating LH2 B850 BChls, used in Equation (S2)
$ϵ^{L H 1}$	12,344 cm⁻¹	BChl site energies for LH1 B875 BChls, used in Equation (S2)
$ϵ_{1}^{R C}$ $ϵ_{2}^{R C}$	12,092 cm⁻¹ 12,581 cm⁻¹	BChl site energies for RC special pair and accessory BChls, used in Equation (S2)
$V_{1}^{L H 2}$	363 cm⁻¹	nearest neighbor BChl-BChl coupling for LH2 B850 BChls within the same $α β$ dimer, used for $V_{i j}^{I}$ values in Equation (S3)
$V_{2}^{L H 2}$	320 cm⁻¹	nearest neighbor BChl-BChl coupling for LH2 B850 BChls across neighboring $α β$ dimers, used for $V_{i j}^{I}$ values in Equation (S3)
$V_{1}^{L H 1}$	806 cm⁻¹	nearest neighbor BChl-BChl coupling for LH1 B875 BChls within the same $α β$ dimer, used for $V_{i j}^{I}$ values in Equation (S3)
$V_{2}^{L H 1}$	377 cm⁻¹	nearest neighbor BChl-BChl coupling for LH1 B875 BChls across neighboring $α β$ dimers, used for $V_{i j}^{I}$ values in Equation (S3)
$V^{R C}$	500 cm⁻¹	Coupling between RC special pair BChls, used in Equation (S3)
$C$	348,000 Å³ cm⁻¹	coupling constant for transition dipole interactions between non-nearest neighbor LH2 BChls, used in Equation (S4)
$σ^{L H 1}$	235 cm⁻¹	linewidth of LH1 exciton states, assumed uniform, used for $σ_{A}$ in Equation (S8)
$σ^{L H 2}$	188 cm⁻¹	linewidth of LH2 exciton states, assumed uniform, used for $σ_{A}$ in Equation (S8)
$k_{L H 1, R C}$	(35 ps)⁻¹	excitation transfer rate from LH1 B875 BChls to RC, used for corresponding $k_{I J}$ values in in Equation (S10)
$k_{R C, L H 1}$	(8 ps)⁻¹	excitation transfer rate from RC to LH1 B875 BChls, used for corresponding $k_{I J}$ values in in Equation (S10)
$k_{d i s s}$	(1 ns)⁻¹	excitation decay rate due to internal conversion, used in Equation (S10)
$k_{C S}$	(3 ps)⁻¹	charge separation rate at reaction center, used in Equation (S10)

*: energy units given in wavenumbers (1 eV = 8066 cm^₋₁).

In order to describe the electronic excitation transfer in the chromatophore and determine the quantum yield, $q$ , the matrix of transfer rates, $k_{I J}$ , between BChl clusters, $I, J$ , needs to be constructed, which in turn depends on the effective Hamiltonian, $H_{I}$ , for each BChl cluster, $I$ . In the following, the indices, $I, J$ , label the BChl clusters listed in the previous section: for the vesicle shown in Figure 1, based on (Cartron et al., 2014), there are 63 LH2 B850 BChl clusters, 24 LH1 B875 BChl clusters, and 24 RC BChl clusters. As mentioned in the previous section, LH2 B800 BChls do not form excitonically coupled states, transferring excitation energy, after light absorption, immediately to LH2 B850 BChls.

The effective Hamiltonian $H^{I}$ of each BChl cluster $I$ is given, according to (Strümpfer et al., 2012), by Equation (2) in the main text, namely

H^{I} = \sum_{i = 1}^{N_{I}} E_{i}^{I} | i ⟩ ⟨ i | + \sum_{i > j > 0}^{N_{I}} V_{i j}^{I} (| i ⟩ ⟨ j | + | j ⟩ ⟨ i |),

where $N_{I}$ is the number of BChls in cluster $I$ . The site energies $E_{i}^{I}$ in Equation (S1) are

E_{i}^{I} = {\begin{cases} ϵ_{1, 2}^{L H 2}, & I : L H 2 B 850, \\ ϵ^{L H 1}, & I : L H 1 B 875, \\ ϵ_{1, 2}^{R C}, & I : R C, \end{cases}

with energy constants as listed in Table 1 for corresponding BChl groups, chosen to reproduce corresponding absorption peaks. The couplings $V_{i j}^{I}$ in Equation (S1) are determined through the point-dipole approximation as described below with the exception of nearest neighbor couplings of the LH2 B850 and LH1 B875 BChl clusters and the RC special pair coupling,

V_{i}^{I} = {\begin{cases} V_{1, 2}^{L H 2}, & I : L H 2 B 850, n e a r e s t n e i g h b o r, \\ V_{1, 2}^{L H 1}, & I : L H 1 B 875, n e a r e s t n e i g h b o r, \\ V^{R C}, & I : R C, s p e c i a l p a i r, \end{cases}

which are instead taken from (Damjanović et al., 2000; Şener and Schulten, 2002) following quantum chemistry computations reported in (Tretiak et al., 2000) and listed in Table 1.

For non-nearest neighbor BChls, the coupling $V_{i j}^{I}$ in Equation (S1) is computed according to the point-dipole approximation (Ritz et al., 2001; Sener et al., 2011) (Equation (3) in the main text)

V_{i j} = C (\frac{{\hat{𝐝}}_{i} \cdot {\hat{𝐝}}_{j}}{r_{i j}^{3}} - 3 \frac{({\hat{𝐝}}_{i} \cdot 𝐫_{i j}) ({\hat{𝐝}}_{j} \cdot 𝐫_{i j})}{r_{i j}^{5}}),

where ${\hat{𝐝}}_{i}$ is the transition dipole moment unit vector of pigment $i$ , $𝐫_{i j}$ is the vector joining pigments $i$ and $j$ , in BChl cluster $I$ ; the coupling constant $C$ (Şener and Schulten, 2002) is listed in Table 1. The transition dipole moment unit vector ${\hat{𝐝}}_{k}$ for BChl $k$ is determined from the coordinates listed in the previous section according to

{\hat{𝐝}}_{k} = \frac{(𝐫_{k}^{D} - 𝐫_{k}^{B})}{| 𝐫_{k}^{D} - 𝐫_{k}^{B} |},

where $r_{k}^{B}$ and $r_{k}^{D}$ are the positions of atoms NB and ND of BChl $k$ ; the transition dipole moment is centered at the position, $r_{k}^{M}$ , of the MG atom of BChl $k$ , as labeled in the PDB files.

Based on the effective Hamiltonians, Equation (S1), thus constructed, the rate of excitation transfer between a donor complex $I$ and an acceptor complex $J$ , $k_{I J}$ , can be calculated according to the so-called modified Förster theory (Ritz et al., 2001; Şener et al., 2007, 2011) given by Equation (4) in the main text, namely through

k_{I J} = \frac{2 π}{ℏ} \sum_{μ \in I} \sum_{ν \in J} p_{μ}^{I} {| (μ | H_{I J} | ν) |}^{2} J_{μ ν},

where ${(H_{I J})}_{i j}$ is the matrix of interactions between the excited states of pigments $i$ and $j$ in complexes $I$ and $J$ , computed according to Equation (S4) and $(μ | H_{I J} | ν)$ are the couplings ( $H_{I J}$ ) $_{i j}$ in the basis of the eigenstates $| μ)$ and $| ν)$ of Hamiltonians $H_{I}$ and $H_{J}$ , respectively; $p_{μ}^{I} = e^{- β ϵ_{μ}} / \sum_{γ \in I} e^{- β ϵ_{γ}}$ are Boltzman weights for the eigenstates $H_{I} | μ) = ϵ_{μ} | μ)$ , where $ϵ_{μ}$ are the exciton energies defined as the eigenvalues of the Hamiltonian, $H_{I}$ , given in Equation (S1). The overlap integrals $J_{μ ν}$ are described according to Equation (5) in the main text)

J_{μ ν} = \int d E S_{μ}^{D} (E) S_{ν}^{A} (E) .

$J_{μ ν}$ is the spectral overlap between donor exciton state $| μ)$ and acceptor exciton state $| ν)$ . The donor and acceptor lineshapes, $S_{μ}^{D} (E)$ and $S_{ν}^{A} (E)$ , used in the calculation of $J_{μ ν}$ , are approximated by normalized Gaussians

S_{μ}^{A} (E) = \frac{1}{\sqrt{2 π} σ_{A}} \exp [- {(\frac{E - ϵ_{μ}}{σ_{A}})}^{2}],

S_{μ}^{D} (E) = S_{μ}^{A} (E - S),

$σ_{A}$ is the linewidth of excitons assumed to be uniform across all states (Jimenez et al., 1997) and is given in Table 1 as $σ^{L H 1}$ and $σ^{L H 2}$ ; $S$ denotes the spectral shift between donor and acceptor spectra (Small, 1995; Damjanović et al., 2000).

The transfer rates, $k_{I J}$ , in Equation (S6) are negligible for any non-neighboring BChl clusters, $I, J$ , and are taken to be zero in those cases. The transfer rates between the B875 and the RC BChls of a LH1-RC complex needs to be determined only once, since the relative pigment geometry is identical within each LH1-RC complex. Accordingly, for the LH1 $\to$ RC and RC $\to$ LH1 transfer rates, the values (35 ps) $^{- 1}$ and (8 ps) $^{- 1}$ are assumed, respectively (Sener et al., 2010, 2009), in Table 1; the LH1 $\to$ RC value was chosen in (Sener et al., 2010) to match the observed excitation lifetime in the RC-LH1 complex of 50 ps; the value of the LH1 $\to$ RC transition rate, computed according to Equation (S6), was reported to result in an overestimate of the excitation lifetime (Sener et al., 2009). The remaining transfer rates, $k_{I J}$ , namely between neighboring LH2 B850 and LH1 B875 BChl clusters are determined according to Equation (S6).

Exciton migration in the chromatophore is governed by the rate matrix for inter-complex exciton transfers, $𝒦_{I J}$ (Sener et al., 2010, 2007) Equation (7) in the main text)

{(𝒦)}_{I J} = k_{J I} - δ_{I J} (\sum_{M} k_{I M} + k_{d i s s} + k_{C S} δ_{I, R C}),

where the dissipation rate $k_{diss}$ and the charge separation rate $k_{CS}$ are listed in Table 1. The quantum yield, $q$ , is finally expressed in terms of $𝒦_{I J}$ (Şener et al., 2007, 2011) according to Equation (8) in the main text, namely through

q = - k_{C S} {(1_{R C})}^{T} \cdot 𝒦^{- 1} \cdot P (0),

where ${(𝐏 (0))}_{I} = N_{I} / (\sum_{J} N_{J})$ , corresponds to a uniform probablity for initial excitation. The quantum yield is not strongly dependent on the choice of the initial state $(𝐏 (0))$ (Şener et al., 2007).

The quantum yield, $q$ , is computed by substituting the BChl atom coordinates, as listed in the caption of Supplementary file 1, into Equations (S4 and S5) to determine the couplings, $V_{i j}$ , and subsequently the matrices $k_{I J}$ and $𝒦_{I J}$ according to Equations (S6 and S10), substituted finally into Equation (S11). The quantum yield of the chromatophore shown in Figure 1, thus computed, is 0.91.

References

1. Adams PG
2. Hunter CN
(2012) Adaptation of intracytoplasmic membranes to altered light intensity in Rhodobacter sphaeroides
Biochimica et Biophysica Acta 1817:1616–1627.
https://doi.org/10.1016/j.bbabio.2012.05.013
- Google Scholar
1. Agmon N
(1995) The Grotthuss mechanism
Chemical Physics Letters 244:456–462.
https://doi.org/10.1016/0009-2614(95)00905-J
- Google Scholar
(2004) The native architecture of a photosynthetic membrane
Nature 430:1058–1062.
https://doi.org/10.1038/nature02823
- Google Scholar
(2013) Crystal structure of the entire respiratory complex I
Nature 494:443–448.
https://doi.org/10.1038/nature11871
- Google Scholar
(1994) Trapping kinetics in mutants of the photosynthetic purple bacterium Rhodobacter sphaeroides: influence of the charge separation rate and consequences for the rate-limiting step in the light-harvesting process
Biochemistry 33:3143–3147.
https://doi.org/10.1021/bi00177a001
- Google Scholar
(2009) Ultrafast transient absorption spectroscopy: principles and application to photosynthetic systems
Photosynthesis Research 101:105–118.
https://doi.org/10.1007/s11120-009-9454-y
- Google Scholar
Book
(2011)
Biochemistry (7th edition)

Palgrave MacMillan.
- Google Scholar
1. Blankenship RE
2. Tiede DM
3. Barber J
4. Brudvig GW
5. Fleming G
6. Ghirardi M
7. Gunner MR
8. Junge W
9. Kramer DM
10. Melis A
11. Moore TA
12. Moser CC
13. Nocera DG
14. Nozik AJ
15. Ort DR
16. Parson WW
17. Prince RC
18. Sayre RT
(2011) Comparing photosynthetic and photovoltaic efficiencies and recognizing the potential for improvement
Science 332:805–809.
https://doi.org/10.1126/science.1200165
- Google Scholar
Book
1. Blankenship RE
(2014)
Molecular Mechanisms of Photosynthesis (2nd Ed)

Wiley Blackwell.
- Google Scholar
(1985)
Photosynthetic membrane development in Rhodopseudomonas sphaeroides. Spectral and kinetic characterization of redox components of light-driven electron flow in apparent photosynthetic membrane growth initiation sites

Journal of Biological Chemistry 260:3295–3304.
- Google Scholar
(1995) Excitation transfer in the core light-harvesting complex (LH-1) of Rhodobacter sphaeroides: An ultrafast fluorescence depolarization and annihilation study
Journal of Physical Chemistry 99:16179–16191.
https://doi.org/10.1021/j100043a071
- Google Scholar
1. Cartron ML
2. Olsen JD
3. Sener M
4. Jackson PJ
5. Brindley AA
6. Qian P
7. Dickman MJ
8. Leggett GJ
9. Schulten K
10. Hunter CN
(2014) Integration of energy and electron transfer processes in the photosynthetic membrane of Rhodobacter sphaeroides
Biochimica et Biophysica Acta 1837:1769–1780.
https://doi.org/10.1016/j.bbabio.2014.02.003
- Google Scholar
(2010) Interplay between excitation kinetics and reaction-center dynamics in purple bacteria
New Journal of Physics 12:095008.
https://doi.org/10.1088/1367-2630/12/9/095008
- Google Scholar
(2009) Membrane curvature induced by aggregates of LH2s and monomeric LH1s
Biophysical Journal 97:2978–2984.
https://doi.org/10.1016/j.bpj.2009.09.007
- Google Scholar
(2014) Light harvesting by lamellar chromatophores in Rhodospirillum photometricum
Biophysical Journal 106:2503–2510.
https://doi.org/10.1016/j.bpj.2014.04.030
- Google Scholar
(1983) The relation between membrane ionic current and ATP synthesis in chromatophores from Rhodopseudomonas capsulata
Biochimica et Biophysica Acta 723:440–453.
https://doi.org/10.1016/0005-2728(83)90051-8
- Google Scholar
(2006) The architecture and function of the light-harvesting apparatus of purple bacteria: from single molecules to in vivo membranes
Quarterly Reviews of Biophysics 39:227–324.
https://doi.org/10.1017/S0033583506004434
- Google Scholar
(2005) Functional consequences of the organization of the photosynthetic apparatus in Rhodobacter sphaeroides. I. Quinone domains and excitation transfer in chromatophores and reaction center.antenna complexes
Journal of Biological Chemistry 280:11203–11213.
https://doi.org/10.1074/jbc.M412088200
- Google Scholar
1. Cory MG
2. Zerner MC
3. Hu X
4. Schulten K
(1998) Electronic excitations in aggregates of bacteriochlorophylls
Journal of Physical Chemistry B 102:7640–7650.
https://doi.org/10.1021/jp980966l
- Google Scholar
(1994) Probing the B800 bacteriochlorophyll binding site of the accessory light-harvesting complex from Rhodobacter sphaeroides using site-directed mutants. I. Mutagenesis, effects on binding, function and electrochromic behaviour of its carotenoids
Biochimica et Biophysica Acta 1183:473–482.
https://doi.org/10.1016/0005-2728(94)90074-4
- Google Scholar
1. Crofts AR
2. Lhee S
3. Crofts SB
4. Cheng J
5. Rose S
(2006) Proton pumping in the bc1 complex: A new gating mechanism that prevents short circuits
Biochimica et Biophysica Acta 1757:1019–1034.
https://doi.org/10.1016/j.bbabio.2006.02.009
- Google Scholar
1. Crofts AR
(2004) The cytochrome bc1 complex: function in the context of structure
Annual Review of Physiology 66:689–733.
https://doi.org/10.1146/annurev.physiol.66.032102.150251
- Google Scholar
(2002) Excitons in a photosynthetic light-harvesting system: A combined molecular dynamics, quantum chemistry, and polaron model study
Physical Review E 65:031919.
https://doi.org/10.1103/PhysRevE.65.031919
- Google Scholar
(1999) Energy transfer between carotenoids and bacteriochlorophylls in light-harvesting complex II of purple bacteria
Physical Review E 59:3293–3311.
https://doi.org/10.1103/PhysRevE.59.3293
- Google Scholar
(2000) Excitation energy trapping by the reaction center of Rhodobacter Sphaeroides
International Journal of Quantum Chemistry 77:139–151.
https://doi.org/10.1002/(SICI)1097-461X(2000)77:1<139::AID-QUA13>3.0.CO;2-S
- Google Scholar
(2002) Chlorophyll Excitations in Photosystem I of Synechococcus elongatus
Journal of Physical Chemistry B 106:10251–10262.
https://doi.org/10.1021/jp020963f
- Google Scholar
(1983) Trapping, loss and annihilation of excitations in a photosynthetic system. I. Theoretical aspects
Biochimica et Biophysica Acta 725:492–507.
https://doi.org/10.1016/0005-2728(83)90190-1
- Google Scholar
(2011) Interaction of complexes I, III, and IV within the bovine respirasome by single particle cryoelectron tomography
PNAS 108:15196–15200.
https://doi.org/10.1073/pnas.1107819108
- Google Scholar
(1997) Turnover number of Escherichia coli F_OF₁ ATP synthase for ATP synthesis in membrane vesicles
European Journal of Biochemistry 243:336–343.
https://doi.org/10.1111/j.1432-1033.1997.0336a.x
- Google Scholar
(2002) Chromatophore vesicles of Rhodobacter capsulatus contain on average one F_OF₁-ATP synthase each
Biophysical Journal 82:1115–1122.
https://doi.org/10.1016/S0006-3495(02)75470-2
- Google Scholar
1. Feniouk BA
2. Junge W
(2009)
The Purple Phototropic Bacteria

475–493, Proton translocation and ATP synthesis by the FFATPase of purple bacteria, The Purple Phototropic Bacteria, 10.1007/978-1-4020-8815-5_24.
- Google Scholar
(2009) Excitonic polarons in quasi-one-dimensional LH1 and LH2 bacteriochlorophyll a antenna aggregates from photosynthetic bacteria: A wavelength-dependent selective spectroscopy study
Chemical Physics 357:102–112.
https://doi.org/10.1016/j.chemphys.2008.10.043
- Google Scholar
(2008) Protein shape and crowding drive domain formation and curvature in biological membranes
Biophysical Journal 94:640–647.
https://doi.org/10.1529/biophysj.107.116913
- Google Scholar
(2004) The long-range organization of a native photosynthetic membrane
PNAS 101:17994–17999.
https://doi.org/10.1073/pnas.0407295102
- Google Scholar
1. Förster T
(1948) Zwischenmolekulare energiewanderung und fluoreszenz
Annalen Der Physik 437:55–75.
https://doi.org/10.1002/andp.19484370105
- Google Scholar
1. Geyer T
2. Helms V
(2006) A spatial model of the chromatophore vesicles of Rhodobacter sphaeroides and the position of the Cytochrome bc1 complex
Biophysical Journal 91:921–926.
https://doi.org/10.1529/biophysj.105.078501
- Google Scholar
1. Geyer T
2. Lauck F
3. Helms V
(2007) Molecular stochastic simulations of chromatophore vesicles from Rhodobacter sphaeroides
Journal of Biotechnology 129:212–228.
https://doi.org/10.1016/j.jbiotec.2006.12.018
- Google Scholar
1. Geyer T
2. Mol X
3. Blass S
4. Helms V
(2010) Bridging the gap: linking molecular simulations and systemic descriptions of cellular compartments
PLoS One 5: e14070.
https://doi.org/10.1371/journal.pone.0014070
- Google Scholar
(2001) Excitation energy transfer in dimeric light harvesting complex I: A combined streak-camera/fluorescence upconversion study
Journal of Physical Chemistry B 105:10132–10139.
https://doi.org/10.1021/jp011901c
- Google Scholar
(2007) Heterogeneity of photosynthetic membranes from Rhodobacter capsulatus: size dispersion and ATP synthase distribution
Biochimica et Biophysica Acta 1767:1340–1352.
https://doi.org/10.1016/j.bbabio.2007.08.007
- Google Scholar
(2012) Relationship of proton motive force and the F(0)F (1)-ATPase with bio-hydrogen production activity of Rhodobacter sphaeroides: effects of diphenylene iodonium, hydrogenase inhibitor, and its solvent dimethylsulphoxide
Journal of Bioenergetics and Biomembranes 44:495–502.
https://doi.org/10.1007/s10863-012-9450-3
- Google Scholar
1. Harris MA
2. Parkes-Loach PS
3. Springer JW
4. Jiang J
5. Martin EC
6. Qian P
7. Jiao J
8. Niedzwiedzki DM
9. Kirmaier C
10. Olsen JD
11. Bocian DF
12. Holten D
13. Hunter CN
14. Lindsey JS
15. Loach PA
(2013) Integration of multiple chromophores with native photosynthetic antennas to enhance solar energy capture and delivery
Chemical Science 4:3924–3933.
https://doi.org/10.1039/c3sc51518d
- Google Scholar
Book
(1993) Comparison of retinal-based and chlorophyll-based photosynthesis: A Biothermokinetic Description of Photochemical Reaction Centers
In: Schuster S, Rigoulet M, Ouhabi R, Mazat JP, editors. Modern Trends in Biothermokinetics. Plenum Press. pp. 45–92.
https://doi.org/10.1007/978-1-4615-2962-0_9
- Google Scholar
1. Hess S
2. Chachisvilis M
3. Timpmann K
4. Jones MR
5. Fowler GJ
6. Hunter CN
7. Sundstrom V
(1995) Temporally and spectrally resolved subpicosecond energy transfer within the peripheral antenna complex (LH2) and from LH2 to the core antenna complex in photosynthetic purple bacteria
PNAS 92:12333–12337.
https://doi.org/10.1073/pnas.92.26.12333
- Google Scholar
(1994) Enhanced rates of subpicosecond energy transfer in blue-shifted light harvesting LH2 mutants of Rhodobacter sphaeroides
Biochemistry 33:8300–8305.
https://doi.org/10.1021/bi00193a017
- Google Scholar
1. Hsin J
2. Chandler DE
3. Gumbart J
4. Harrison CB
5. Sener M
6. Strumpfer J
7. Schulten K
(2010a) Self-Assembly of Photosynthetic Membranes
ChemPhysChem 11:1154–1159.
https://doi.org/10.1002/cphc.200900911
- Google Scholar
1. Hsin J
2. Gumbart J
3. Trabuco LG
4. Villa E
5. Qian P
6. Hunter CN
7. Schulten K
(2009) Protein-induced membrane curvature investigated through molecular dynamics flexible fitting
Biophysical Journal 97:321–329.
https://doi.org/10.1016/j.bpj.2009.04.031
- Google Scholar
1. Hsin J
2. Strümpfer J
3. Şener M
4. Qian P
5. Hunter CN
6. Schulten K
(2010b) Energy transfer dynamics in an RC–LH1–PufX tubular photosynthetic membrane
New Journal of Physics 12:085005.
https://doi.org/10.1088/1367-2630/12/8/085005
- Google Scholar
1. Hu X
2. Damjanovic A
3. Ritz T
4. Schulten K
(1998) Architecture and mechanism of the light-harvesting apparatus of purple bacteria
PNAS 95:5935–5941.
https://doi.org/10.1073/pnas.95.11.5935
- Google Scholar
1. Hu X
2. Ritz T
3. Damjanović A
4. Autenrieth F
5. Schulten K
6. Damjanovic A
7. Schulten K
(2002) Photosynthetic apparatus of purple bacteria
Quarterly Reviews of Biophysics 35:1–62.
https://doi.org/10.1017/S0033583501003754
- Google Scholar
1. Hu X
2. Ritz T
3. Damjanović A
4. Schulten K
(1997) Pigment organization and transfer of electronic excitation in the photosynthetic unit of purple bacteria
Journal of Physical Chemistry B 101:3854–3871.
https://doi.org/10.1021/jp963777g
- Google Scholar
(1996) VMD: Visual molecular dynamics
Journal of Molecular Graphics 14:33–38.
https://doi.org/10.1016/0263-7855(96)00018-5
- Google Scholar
(1985) Linear dichroism and fluorescence emission of antenna complexes during photosynthetic unit assembly in Rhodopseudomonas sphaeroides
Biochimica et Biophysica Acta 807:44–51.
https://doi.org/10.1016/0005-2728(85)90051-9
- Google Scholar
1. Ishizaki A
2. Fleming GR
(2009a) Theoretical examination of quantum coherence in a photosynthetic system at physiological temperature
PNAS 106:17255–17260.
https://doi.org/10.1073/pnas.0908989106
- Google Scholar
1. Ishizaki A
2. Fleming GR
(2009b) Unified treatment of quantum coherent and incoherent hopping dynamics in electronic energy transfer: reduced hierarchy equation approach
Journal of Chemical Physics 130:234111.
https://doi.org/10.1063/1.3155372
- Google Scholar
(2012) Quantitative proteomic analysis of intracytoplasmic membrane development in Rhodobacter sphaeroides
Molecular Microbiology 84:1062–1078.
https://doi.org/10.1111/j.1365-2958.2012.08074.x
- Google Scholar
1. Jamieson SJ
2. Wang P
3. Qian P
4. Kirkland JY
5. Conroy MJ
6. Hunter CN
7. Bullough PA
(2002) Projection structure of the photosynthetic reaction centre-antenna complex of Rhodospirillum rubrum at 8.5 Å resolution
EMBO Journal 21:3927–3935.
https://doi.org/10.1093/emboj/cdf410
- Google Scholar
(2008) Spectral dynamics of individual bacterial light-harvesting complexes: alternative disorder model
Biophysical Journal 94:1348–1358.
https://doi.org/10.1529/biophysj.107.108431
- Google Scholar
(1997) Three-pulse photon echo measurements on LH1 and LH2 complexes of Rhodobacter sphaeroides : A nonlinear spectroscopic probe of energy transfer
Journal of Physical Chemistry B 101:7350–7359.
https://doi.org/10.1021/jp970299g
- Google Scholar
(1990) Electron transfer between primary and secondary donors in Rhodospirillum rubrum: evidence for a dimeric association of reaction centers
Biochemistry 29:4355–4361.
https://doi.org/10.1021/bi00470a014
- Google Scholar
(1996) Supramolecular organization of the photosynthetic chain in chromatophores and cells of Rhodobacter sphaeroides
Photosynthesis Research 48:291–299.
https://doi.org/10.1007/BF00041020
- Google Scholar
(2004) Electronic Couplings and Energy Transfer Dynamics in the Oxidized Primary Electron Donor of the Bacterial Reaction Center
Journal of Physical Chemistry B 108:1753–1765.
https://doi.org/10.1021/jp036516x
- Google Scholar
1. Jungas C
2. Ranck JL
3. Rigaud JL
4. Joliot P
5. Verméglio A
(1999) Supramolecular organization of the photosynthetic apparatus of Rhodobacter sphaeroides
EMBO Journal 18:534–542.
https://doi.org/10.1093/emboj/18.3.534
- Google Scholar
(2002) Molecular architecture of the thylakoid membrane: lipid diffusion space for plastoquinone
Biochemistry 41:4872–4882.
https://doi.org/10.1021/bi011650y
- Google Scholar
1. Klamt S
2. Grammel H
3. Straube R
4. Ghosh R
5. Gilles ED
(2008) Modeling the electron transport chain of purple non-sulfur bacteria
Molecular Systems Biology 4:156.
https://doi.org/10.1038/msb4100191
- Google Scholar
1. Koepke J
2. Hu X
3. Muenke C
4. Schulten K
5. Michel H
6. Michel H
(1996) The crystal structure of the light-harvesting complex II (B800–850) from Rhodospirillum molischianum
Structure 4:581–597.
https://doi.org/10.1016/S0969-2126(96)00063-9
- Google Scholar
(2013) Response kinetics in the complex chemotaxis signalling pathway of Rhodobacter sphaeroides
Journal of the Royal Society Interface 10:e20121001.
https://doi.org/10.1098/rsif.2012.1001
- Google Scholar
1. Kosztin I
2. Schulten K
(2014)
Quantum Effects in Biology

123–143, Function, and quantum dynamics of pigment-protein complexes, Quantum Effects in Biology.
- Google Scholar
(2009)
The Purple Phototrophic Bacteria

509–536, Functional coupling between reaction centers and cytochrome bc1 complexes, The Purple Phototrophic Bacteria, 10.1007/978-1-4020-8815-5_26.
- Google Scholar
Book
1. Lavergne J
(2009) Clustering of electron transfer components: Kinetic and thermodynamic consequences
In: Laisk, A, Nedbal L, Govindjee, editors. Photosynthesis in silico: Understanding Complexity from Molecules to Ecosystems. Springer. pp. 177–205.
https://doi.org/10.1007/978-1-4020-9237-4_8
- Google Scholar
(1997) Energy transfer and exciton annihilation in the B800−850 antenna complex of the photosynthetic purple bacterium Rhodopseudomonas acidophila (Strain 10050). A femtosecond transient absorption study
Journal of Physical Chemistry B 101:1087–1095.
https://doi.org/10.1021/jp962470e
- Google Scholar
1. Mauzerall D
(1986) The optical cross section and absolute size of a photosynthetic unit
Photosynthesis Research 10:163–170.
https://doi.org/10.1007/BF00118279
- Google Scholar
(1995) Crystal structure of an integral membrane light-harvesting complex from photosynthetic bacteria
Nature 374:517–521.
https://doi.org/10.1038/374517a0
- Google Scholar
1. Niederman RA
(2013) Membrane development in purple photosynthetic bacteria in response to alterations in light intensity and oxygen tension
Photosynthesis Research 116:333–348.
https://doi.org/10.1007/s11120-013-9851-0
- Google Scholar
1. Novoderezhkin VI
2. Razjivin AP
(1996) The theory of Forster-type migration between clusters of strongly interacting molecules: application to light-harvesting complexes of purple bacteria
Chemical Physics 211:203–214.
https://doi.org/10.1016/0301-0104(96)00130-9
- Google Scholar
1. Noy D
2. Moser CC
3. Dutton PL
(2006) Design and engineering of photosynthetic light-harvesting and electron transfer using length, time, and energy scales
Biochimica et Biophysica Acta 1757:90–105.
https://doi.org/10.1016/j.bbabio.2005.11.010
- Google Scholar
1. Noy D
(2008) Natural photosystems from an engineer's perspective: length, time, and energy scales of charge and energy transfer
Photosynthesis Research 95:23–35.
https://doi.org/10.1007/s11120-007-9269-7
- Google Scholar
(2008) Efficiency of energy transfer in a light-harvesting system under quantum coherence
Physical Review B 78:085115.
https://doi.org/10.1103/PhysRevB.78.085115
- Google Scholar
1. Olsen JD
2. Tucker JD
3. Timney JA
4. Qian P
5. Vassilev C
6. Hunter CN
(2008) The organization of LH2 complexes in membranes from Rhodobacter sphaeroides
Journal of Biological Chemistry 283:30772–30779.
https://doi.org/10.1074/jbc.M804824200
- Google Scholar
1. Panitchayangkoon G
2. Hayes D
3. Fransted KA
4. Caram JR
5. Harel E
6. Wen J
7. Blankenship RE
8. Engel GS
(2010) Long-lived quantum coherence in photosynthetic complexes at physiological temperature
PNAS 107:12766–12770.
https://doi.org/10.1073/pnas.1005484107
- Google Scholar
1. Papiz MZ
2. Prince SM
3. Howard T
4. Cogdell RJ
5. Isaacs NW
(2003) The structure and thermal motion of the B800-850 LH2 complex from Rps.acidophila at 2.0A resolution and 100K: new structural features and functionally relevant motions
Journal of Molecular Biology 326:1523–1538.
https://doi.org/10.1016/S0022-2836(03)00024-X
- Google Scholar
1. Patole S
2. Vasilev C
3. El-Zubir O
4. Wang L
5. Johnson MP
6. Cadby AJ
7. Leggett GJ
8. Hunter CN
(2015) Interference lithographic nanopatterning of plant and bacterial light-harvesting complexes on gold substrates
Interface Focus 5:e20150005.
https://doi.org/10.1098/rsfs.2015.0005
- Google Scholar
(2008) Identification of the first steps in charge separation in bacterial photosynthetic reaction centers of Rhodobacter sphaeroides by ultrafast mid-infrared spectroscopy: electron transfer and protein dynamics
Biophysical Journal 95:1268–1284.
https://doi.org/10.1529/biophysj.108.130880
- Google Scholar
(1987) Phytoplankton productivity in relation to light intensity: A simple equation
Estuarine, Coastal and Shelf Science 24:813–832.
https://doi.org/10.1016/0272-7714(87)90154-5
- Google Scholar
(1994) Energy transfer in the inhomogeneously broadened core antenna of purple bacteria: a simultaneous fit of low-intensity picosecond absorption and fluorescence kinetics
Biophysical Journal 66:236–248.
https://doi.org/10.1016/S0006-3495(94)80770-2
- Google Scholar
(2008) Three-dimensional reconstruction of a membrane-bending complex: the RC-LH1-PufX core dimer of Rhodobacter sphaeroides
Journal of Biological Chemistry 283:14002–14011.
https://doi.org/10.1074/jbc.M800625200
- Google Scholar
(2005) The 8.5 Å projection structure of the core RC-LH1-PufX dimer of Rhodobacter sphaeroides
Journal of Molecular Biology 349:948–960.
https://doi.org/10.1016/j.jmb.2005.04.032
- Google Scholar
1. Qian P
2. Papiz MZ
3. Jackson PJ
4. Brindley AA
5. Ng IW
6. Olsen JD
7. Dickman MJ
8. Bullough PA
9. Hunter CN
(2013) Three-dimensional structure of the Rhodobacter sphaeroides RC-LH1-PufX complex: dimerization and quinone channels promoted by PufX
Biochemistry 52:7575–7585.
https://doi.org/10.1021/bi4011946
- Google Scholar
(2009) Role of quantum coherence and environmental fluctuations in chromophoric energy transport
Journal of Physical Chemistry B 113:9942–9947.
https://doi.org/10.1021/jp901724d
- Google Scholar
1. Remy A
2. Gerwert K
(2003) Coupling of light-induced electron transfer to proton uptake in photosynthesis
Nature Structural Biology 10:637–644.
https://doi.org/10.1038/nsb954
- Google Scholar
1. Reynolds NP
2. Janusz S
3. Escalante-Marun M
4. Timney J
5. Ducker RE
6. Olsen JD
7. Otto C
8. Subramaniam V
9. Leggett GJ
10. Hunter CN
(2007) Directed formation of micro- and nanoscale patterns of functional light-harvesting LH2 complexes
Journal of the American Chemical Society 129:14625–14631.
https://doi.org/10.1021/ja073658m
- Google Scholar
1. Ritz T
2. Adem S
3. Schulten K
(2000a) A model for photoreceptor-based magnetoreception in birds
Biophysical Journal 78:707–718.
https://doi.org/10.1016/S0006-3495(00)76629-X
- Google Scholar
1. Ritz T
2. Damjanović A
3. Zhang JP
4. Zhang JP
5. Koyama Y
(2000b) Efficient light harvesting through carotenoids
Photosynthesis Research 66:125–144.
https://doi.org/10.1023/A:1010750332320
- Google Scholar
1. Ritz T
2. Hu X
3. Damjanović A
4. Schulten K
(1998) Excitons and excitation transfer in the photosynthetic unit of purple bacteria
Journal of Luminescence 76-77:310–321.
https://doi.org/10.1016/S0022-2313(97)00286-X
- Google Scholar
1. Ritz T
2. Park S
3. Schulten K
(2001) Kinetics of excitation migration and trapping in the photosynthetic unit of purple bacteria
Journal of Physical Chemistry B 105:8259–8267.
https://doi.org/10.1021/jp011032r
- Google Scholar
(2013) DOT2: Macromolecular docking with improved biophysical models
Journal of Computational Chemistry 34:1743–1758.
https://doi.org/10.1002/jcc.23304
- Google Scholar
(1975) Electrical potential changes, H+ translocation and phosphorylation induced by short flash excitation in Rhodopseudomonas sphaeroides chromatophores
Biochimica et Biophysica Acta 408:67–82.
https://doi.org/10.1016/0005-2728(75)90159-0
- Google Scholar
(2007) From high-resolution AFM topographs to atomic models of supramolecular assemblies
Journal of Structural Biology 159:268–276.
https://doi.org/10.1016/j.jsb.2007.01.021
- Google Scholar
(2006) The photosynthetic apparatus of Rhodopseudomonas palustris: structures and organization
Journal of Molecular Biology 358:83–96.
https://doi.org/10.1016/j.jmb.2006.01.085
- Google Scholar
1. Scheuring S
2. Sturgis JN
(2009) Atomic force microscopy of the bacterial photosynthetic apparatus: plain pictures of an elaborate machinery
Photosynthesis Research 102:197–211.
https://doi.org/10.1007/s11120-009-9413-7
- Google Scholar
(2011) Lessons from nature about solar light harvesting
Nature Chemistry 3:763–774.
https://doi.org/10.1038/nchem.1145
- Google Scholar
(2001) Adapting the Förster theory of energy transfer for modeling dynamics in aggregated molecular assemblies
Journal of Physical Chemistry B 105:1640–1651.
https://doi.org/10.1021/jp003571m
- Google Scholar
1. Scholes GD
(2010) Quantum-coherent electronic energy transfer: Did nature think of it first?
Journal of Physical Chemistry Letters 1:2–8.
https://doi.org/10.1021/jz900062f
- Google Scholar
1. Sener M
2. Hsin J
3. Trabuco LG
4. Villa E
5. Qian P
6. Hunter CN
7. Schulten K
(2009) Structural model and excitonic properties of the dimeric RC-LH1-PufX complex from Rhodobacter sphaeroides
Chemical Physics 357:188–197.
https://doi.org/10.1016/j.chemphys.2009.01.003
- Google Scholar
Conference
1. Sener M
2. Stone JE
3. Barragan A
4. Singharoy A
5. Teo I
6. Vandivort KL
7. Isralewitz B
8. Liu B
9. Goh BC
10. Phillips JC
11. Kourkoutis LF
12. Hunter CN
13. Schulten K
(2014)
Visualization of energy conversion processes in a light harvesting organelle at atomic detail

Proceedings of the International Conference on High Performance Computing, Networking Storage and Analysis.
- Google Scholar
1. Sener M
2. Strümpfer J
3. Hsin J
4. Chandler D
5. Scheuring S
6. Hunter CN
7. Schulten K
(2011) Förster energy transfer theory as reflected in the structures of photosynthetic light-harvesting systems
ChemPhysChem 12:518–531.
https://doi.org/10.1002/cphc.201000944
- Google Scholar
(2010) Photosynthetic vesicle architecture and constraints on efficient energy harvesting
Biophysical Journal 99:67–75.
https://doi.org/10.1016/j.bpj.2010.04.013
- Google Scholar
1. Şener MK
2. Lu D
3. Ritz T
4. Park S
5. Fromme P
6. Schulten K
(2002) Robustness and optimality of light harvesting in cyanobacterial photosystem I
Journal of Physical Chemistry B 106:7948–7960.
https://doi.org/10.1021/jp020708v
- Google Scholar
(2007) Atomic-level structural and functional model of a bacterial photosynthetic membrane vesicle
PNAS 104:15723–15728.
https://doi.org/10.1073/pnas.0706861104
- Google Scholar
1. Şener MK
2. Schulten K
(2002) A general random matrix approach to account for the effect of static disorder on the spectral properties of light harvesting systems
Physical Review E 65:031916.
https://doi.org/10.1103/physreve.65.031916
- Google Scholar
Book
1. Şener MK
2. Schulten K
(2008) From atomic-level structure to supramolecular organization in the photosynthetic unit of purple bacteria
In: Daldal F, Thurnauer M. C, Beatty J. T, editors. The Purple Phototrophic Bacteria (28). Springer. pp. 275–294.
https://doi.org/10.1007/978-1-4020-8815-5_15
- Google Scholar
1. Siebert CA
2. Qian P
3. Fotiadis D
4. Engel A
5. Hunter CN
6. Bullough PA
(2004) Molecular architecture of photosynthetic membranes in Rhodobacter sphaeroides: the role of PufX
EMBO Journal 23:690–700.
https://doi.org/10.1038/sj.emboj.7600092
- Google Scholar
1. Small GJ
(1995) On the validity of the standard model for primary charge separation in the bacterial reaction center
Chemical Physics 197:239–257.
https://doi.org/10.1016/0301-0104(95)00089-7
- Google Scholar
1. Strümpfer J
2. Schulten K
(2012a) Excited state dynamics in photosynthetic reaction center and light harvesting complex 1
Journal of Chemical Physics 137:065101.
https://doi.org/10.1063/1.4738953
- Google Scholar
1. Strümpfer J
2. Hsin J
3. Sener M
4. Chandler D
5. Schulten K
(2011)
Molecular Machines

19–48, The light-harvesting apparatus in purple photosynthetic bacteria, introduction to a quantum biological device, Molecular Machines, 10.1142/9789814343466_0002.
- Google Scholar
1. Strümpfer J
2. Schulten K
(2009) Light harvesting complex II B850 excitation dynamics
The Journal of Chemical Physics 131:225101.
https://doi.org/10.1063/1.3271348
- Google Scholar
1. Strümpfer J
2. Schulten K
(2011) The effect of correlated bath fluctuations on exciton transfer
The Journal of Chemical Physics 134:095102.
https://doi.org/10.1063/1.3557042
- Google Scholar
1. Strümpfer J
2. Schulten K
(2012b) Open quantum dynamics calculations with the hierarchy equations of motion on parallel computers
Journal of Chemical Theory and Computation 8:2808–2816.
https://doi.org/10.1021/ct3003833
- Google Scholar
(2012) How quantum coherence assists photosynthetic light harvesting
Journal of Physical Chemistry Letters 3:536–542.
https://doi.org/10.1021/jz201459c
- Google Scholar
1. Sturgis JN
2. Niedermann RA
(1996) The effect of different levels of the B800-850 light-harvesting complex on intracytoplasmic membrane development in Rhodobacter sphaeroides
Archives of Microbiology 165:235–242.
https://doi.org/10.1007/s002030050321
- Google Scholar
1. Sumi H
(1999) Theory on rates of excitation-energy transfer between molecular aggregates through distributed transition dipoles with application to the antenna system in bacterial photosynthesis
Journal of Physical Chemistry B 103:252–260.
https://doi.org/10.1021/jp983477u
- Google Scholar
(2000) Bacteriochlorophyll and carotenoid excitonic couplings in the LH2 system of purple bacteria
Journal of Physical Chemistry B 104:9540–9553.
https://doi.org/10.1021/jp001585m
- Google Scholar
1. Tucker JD
2. Siebert CA
3. Escalante M
4. Adams PG
5. Olsen JD
6. Otto C
7. Stokes DL
8. Hunter CN
(2010) Membrane invagination in Rhodobacter sphaeroides is initiated at curved regions of the cytoplasmic membrane, then forms both budded and fully detached spherical vesicles
Molecular Microbiology 76:833–847.
https://doi.org/10.1111/j.1365-2958.2010.07153.x
- Google Scholar
(2007) Protein dynamics revealed in the excitonic spectra of single LH2 complexes
Journal of Luminescence 127:269–275.
https://doi.org/10.1016/j.jlumin.2007.02.032
- Google Scholar
Book
(2000)
Photosynthetic Excitons

Singapore: World Scientific.
- Google Scholar
(1994) Energy transfer and trapping in photosynthesis
Biochimica et Biophysica Acta 1187:1–65.
https://doi.org/10.1016/0005-2728(94)90166-X
- Google Scholar
1. van Grondelle R
2. Novoderezhkin VI
(2006a) Energy transfer in photosynthesis: experimental insights and quantitative models
Physical Chemistry Chemical Physics 8:793–807.
https://doi.org/10.1039/B514032C
- Google Scholar
1. van Grondelle R
2. Novoderezhkin VI
(2006b) Energy transfer in photosynthesis: experimental insights and quantitative models
Phys. Chem. Chem. Phys. 8:793–807.
https://doi.org/10.1039/B514032C
- Google Scholar
1. Vasilev C
2. Johnson MP
3. Gonzales E
4. Wang L
5. Ruban AV
6. Montano G
7. Cadby AJ
8. Hunter CN
(2014) Reversible switching between nonquenched and quenched states in nanoscale linear arrays of plant light-harvesting antenna complexes
Langmuir 30:8481–8490.
https://doi.org/10.1021/la501483s
- Google Scholar
(1989) Temperature dependence of energy transfer from the long wavelength antenna BChl-896 to the reaction center in Rhodospirillum rubrum, Rhodobacter sphaeroides (w.t. and M21 mutant) from 77 to 177K, studied by picosecond absorption spectroscopy
Photosynthesis Research 22:211–217.
https://doi.org/10.1007/BF00048300
- Google Scholar
(1996) Excited-state energy equilibration via subpicosecond energy transfer within the inhomogeneously broadened light-harvesting antenna of LH-1-only Rhodobacter sphaeroides mutant M2192 at room temperature and 4.2 K
Journal of Physical Chemistry 100:18859–18867.
https://doi.org/10.1021/jp960883+
- Google Scholar
1. Vredenberg WJ
2. Duysens LN
(1963) Transfer of energy from bacteriochlorophyll to a reaction centre during bacterial photosynthesis
Nature 197:355–357.
https://doi.org/10.1038/197355a0
- Google Scholar
1. Woodbury NW
2. Parson WW
(1984) Nanosecond fluorescence from isolated photosynthetic reaction centers of Rhodopseudomonas sphaeroides
Biochimica et Biophysica Acta 767:345–361.
https://doi.org/10.1016/0005-2728(84)90205-6
- Google Scholar
(2013) Structural and functional proteomics of intracytoplasmic membrane assembly in Rhodobacter sphaeroides
Journal of Molecular Microbiology and Biotechnology 23:48–62.
https://doi.org/10.1159/000346520
- Google Scholar
Book
1. Woronowicz K
2. Niederman RA
(2010) Proteomic Analysis of the Developing Intracytoplasmic Membrane in Rhodobacter sphaeroides During Adaptation to Low Light Intensity
New York.: Springer.
https://doi.org/10.1007/978-1-4419-1528-3_10
- Google Scholar
(2011a) The accumulation of the light-harvesting 2 complex during remodeling of the Rhodobacter sphaeroides intracytoplasmic membrane results in a slowing of the electron transfer turnover rate of photochemical reaction centers
Biochemistry 50:4819–4829.
https://doi.org/10.1021/bi101667e
- Google Scholar
1. Woronowicz K
2. Sha D
3. Frese RN
4. Sturgis JN
5. Nanda V
6. Niederman RA
(2011b) The effects of protein crowding in bacterial photosynthetic membranes on the flow of quinone redox species between the photochemical reaction center and the ubiquinol-cytochrome c2 oxidoreductase
Metallomics 3:765–774.
https://doi.org/10.1039/c1mt00034a
- Google Scholar
1. Xiong J
2. Fischer WM
3. Inoue K
4. Nakahara M
5. Bauer CE
(2000) Molecular evidence for the early evolution of photosynthesis
Science 289:1724–1730.
https://doi.org/10.1126/science.289.5485.1724
- Google Scholar

Decision letter

Gerhard Hummer

Reviewing Editor; The Max Planck Institute of Biophysics, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "Overall energy conversion efficiency of a photosynthetic vesicle" for peer review at eLife. Your submission has been favorably evaluated by Michael Marletta (Senior editor), a Reviewing editor, and three reviewers. We apologize for the delay in rendering a decision, but it was necessary to find multiple independent reviews on this manuscript.

The reviewers have discussed the reviews with one another and the Reviewing editor has drafted this decision to help you prepare a revised submission.

Summary:

The authors present a model of the Rhodobacter sphaeroides chromatophore. The model employs a detailed quantum mechanical description for the light harvesting and charge separation processes, and a kinetic description for the subsequent reactions. With this model, the solar energy capture efficiency is determined, as measured in terms of ATP production. Efficiencies are estimated to be on the order of 10%. The authors conclude that the vesicle stoichiometry is sub-optimal for steady-state ATP production and instead appears to be adapted to "robustness of function".

Essential revisions:

All three reviewers are overall positive, but raise a number of issues concerning the model, its limitations, and its interpretation. I find the issues raised by the referees to be relevant. Addressing them in a revision should result in a stronger paper. Following is a brief summary of their reports that emphasizes the main points as seen from my perspective.

Reviewer #1 challenges the conclusion that suboptimality of ATP production is associated with robustness of function. First, the reviewer points out that the build-up of a QH2 pool would only work if an equal amount of cytochrome c₂ were present (in essence because the electron cycle with the chromatophore is closed). Since the number of cyt c is much smaller, something seems to be amiss, either in the model or its interpretation. Second, the reviewer argues that evolution acts on the survival of the organism, not at the level of its chromatophores.

Reviewer #1 is also concerned about the absence of leak reactions in the model, in particular for electrons between quinol and the Rieske protein, and for protons through the chromatophore membrane.

Reviewer #2 is concerned that the model lacks physiological relevance, despite overall being positive and recognizing the value of a reduced model. In particular, the Reviewer notes that chromatophore operation is connected to NADH production. If this link were included, the reviewer argues that the buildup of the ubiquinol pool would not occur. At the least, the authors should discuss the more complex situation of chromatophore function in phototropic bacteria.

Concerning the model it is assumed that the F_o part of the ATP synthase has a c-ring with 12 subunits, but to the best of knowledge, this is only a guess. If so, it should be stated as such.

Additional major points are the precise definitions of efficiency metrics (Reviewer #1) and a discussion as to what the atomistic description of the chromatophore really adds. Moreover, all reviewers point to the need for a more thorough discussion of the relevant literature.

After the reviews were returned, the editors discussed your work in relation to the broader audience of eLife. We urge you to include language in the Discussion section that expands the scope of your presentation to include a description of how your finding may relate to other systems.

In light of the reviewers comments, changes will be necessary before the paper can be considered for publication. Following are their full reports. These should be consulted and addressed point by point.

Reviewer #1:

In this work the authors calculate the solar energy capture efficiency of a bacterial photosynthetic vesicle based on an explicit model for the structure of the photosynthetic apparatus. While a detailed quantum mechanical model is used for the light harvesting and charge separation process, for all the other subsequent reactions kinetic models are utilized. At solar intensities of 1-5% of full sunlight the energy conversion efficiency is calculated to range from 0.12 to 0.04. The vesicle stoichiometry appears to be sub-optimal for steady-state ATP production and appears to be adapted to "robustness of function".

In general this is a well-written paper, however there are some serious problems in the interpretation that the authors must account for.

1) The authors suggest that the suboptimality of the ATP-production of the Rba. Sphaeroides vesicle might play a role in the robustness of its function. According to their interpretation reduction of the Q-pool might play a role in storing the redox energy accumulated during short periods of exposure to high light. This would only work if there is an equal amount of cytochrome c present. However, there is one to two orders of magnitude more quinone than cytochrome c so where do the electrons come from that reduce the Q-pool?

2) Evolution did not act at the level of individual chromatophores but on the survival fitness of the intact organism.

3) The authors use efficiency values without specifying exactly what they mean. I presume that they have had a certain numerical value for "delta-Gp" in mind (i.e. the standard free energy of hydrolysis of ATP), and then calculate efficiency as the ratio of the caloric value of the photons over the free energy of the corresponding ATP hydrolysis. This should however be made explicit. Furthermore, they now and then shift back and forth from oxygenic to anoxygenic photosynthesis (e.g. Discussion, first paragraph), which is not proper because in oxygenic photosynthesis the majority of the energy conservation goes into redox energy (i.e. NADPH). Estimates that anoxygenic photosynthesis has a free-energy efficiency in the order of 10% have already been available for a long time (Hellingwerf, K. J., Crielaard, W., & Westerhoff, H. V. (1993). Comparison of retinal-based and chlorophyll-based photosynthesis: A biothermokinetic description of photochemical reaction centers. Modern trends in biothermokinetics (pp. 45-52) Springer).

4) Beyond the LH/RC itself, nowhere in the modelling has any leak-reaction taken into account. Two examples that would have been very relevant to take into account are: (a) the short-cut in electron transfer in the cytochrome bc₁ complex that may occur if the second electron of quinol is also directly transferred to the Rieske protein and (b) passive proton leakage through the chromatophore membrane (which may be very much dependent of the protein composition of the vesicles, due to curvature effects). Related to this is the fact that the authors seem to suggest that proton transport merely leads to a pH change (see discussion on acidification), whereas presumably the energetic coupling between the proton pumping system and the ATP synthase is through a transmembrane electrical potential gradient.

5) What precisely does the atomistic description of the light harvesting and trapping process contribute to the calculation of the efficiency? Could the energy transfer and trapping process not be captured by a single effective rate constant that is a function of the fraction of open and closed traps and the ratio of LH2 to RC-LH1. See many earlier papers on the subject: Vredenberg and Duysens, Duysens CIBA foundation, Den Hollander et al., Trissl et al., Joliot cs etc.

Reviewer #2:

The manuscript by Sener and co-workers presents a model of a Rhodobacter sphaeroides chromatophore. The model describes how the illumination of a chromatophore suspension results in ATP production. The ultimate goal of the modeling is to understand how the ATP yield is coupled with the intensity of light. The main virtue of the model is that it couples the quantum physics of light absorption/procession with the chemistry of ATP synthesis. The model gives reasonable values of ATP yield in response to low light, which is physiological for these bacteria. Development of such a global model, which covers events over a time span of 14 orders of magnitude, required certain simplifications, which is understandable. Unfortunately, from the opinion of this reviewer, the simplifications preclude from making physiologically relevant conclusions from the modeling, at least, at the given stage.

Still the model itself is a great achievement and the manuscript deserves publication albeit after certain amendments.

1) Since the physiological relevance of the results obtained is questionable, the main result of this study seems to be the model itself. Therefore, the description of the model should be moved from the Materials and methods into the Results. Otherwise the manuscript is incomprehensive, taking into account that the format of eLife implies Materials and methods after Results. The Materials and methods section should then contain only technical/purely methodical points; supplementary materials, at least partly, could be also moved into Materials and methods.

2) The current simplified model lacks two important modules, which, hopefully, would be added in the future. These are the protonmotive force and reversible NADH dehydrogenase. The authors admit the absence of these modules, but did not consider the consequences of their absence in full extent. This should be done in the Discussion.

3) In the absence of these two modules, the authors conclude that "energy conversion in the chromatophore appears to be rate-limited primarily by cytbc₁" and that "cytbc₁-limited kinetics prevents an overproduction of protons at sustained high-light conditions,…thereby protecting the chromatophore against overacidification of its interior and assuring vesicle integrity at high-light conditions".

In real phototropic bacteria, the situation is more complex. Obviously, the function of a photosynthetic apparatus, such as bacterial chromatophore or a chloroplast thylakoid, is to produce ATP and NAD(P)H. In thylakoids, NAD(P)H molecules are produced via direct reduction of NAD(P)+ by the Photosystem I. In Rb. sphaerides, the redox potential of the RC is too high for NAD(P)H generation. Therefore, NAD(P)H is produced via reversing the NAD(P)H dehydrogenase. The reversion requires (1) high protonmotive force and (2) reduced ubiquinol pool. Therefore, the overreduction of the ubiquinol pool in Rb. sphaeroides is a precondition for the NAD(P)H production; it should increase the overall efficiency of the system. Furthermore, the overacidification of the interior is prevented not by the overreduction of the ubiquinone pool, but by the high sensitivity of the cytbc₁ to the membrane potential. High voltage, needed to drive the NAD(P)+ reduction (see above), slows the turnover of the cytbc₁ dramatically, essentially blocking its turnover at voltages above 150 mV. Hence at high, physiological values of protonmotive force the turnover of the cytbc₁ is essentially limited by the proton discharge, specifically via the ATP synthase and the reverse NAD(P)H dehydrogenase. The operation of the cytbc₁ close to equilibrium additionally increases the efficiency of energy conversion.

The reviewer admits that the data on synthesis of NAD(P)H in Rb. sphaeroides are too scarce to be used for verification of the model. The authors, accordingly, have tested their model by using more abundant data that were obtained with chromatophore suspensions in the absence of NAD(P)+, in experiments where the function of the RC, cytbc₁ and/or ATP synthase were studied. And still, the discussion of physiological consequences from the given model should be truncated dramatically as misleading. The physiology could be discussed in further publications, after the membrane potential and NAD(P)H synthesis would be explicitly included in the model.

Instead, the Discussion section should include comparison of the given model with the earlier models of chromatophore systems (e.g. from the group of Helms) and the approaches used.

Reviewer #3:

The authors present an important theoretical investigation of the performance and limitations of the photosynthetic chromatophore complex of purple bacteria. This light-harvesting system is of great interest as a model system that contains numerous characteristic properties inherent to all natural light-harvesting systems. This work is a continuation of a long line of first-rate papers published by the authors on this topic, is extremely well written, and merits publication in its current form.

There appears to be a minor inconsistency in the units of intensity employed. In the second paragraph of section 4.2 the authors define light intensity, I, in units of [photons absorbed per second], whereas light intensity is often defined in units of [photons absorbed per meter squared per second]. As defined, this intensity is in fact a power, which is also called a 'radiant flux' in radiometry. This in contrast with the more conventional definition of intensity, in the caption of Figure 2, where units of [Watts per meter squared] are used. Clarification of these different definitions would be useful.

In the third paragraph of section 4.2, the authors switch to defining 'I' as 'illumination,' which may further confuse the reader. Ideally 'radiant flux' or 'absorbed light power' or similar terminology would be employed throughout, or alternatively 'illumination' would be defined.

The explanation provided in the fourth and fifth paragraphs of section 2.2 for the suboptimal (nB, nRC) values in low-light adapted vesicles is appealing, but it does not appear to be supported by calculations. Despite the fact that the model only applies in steady-state, is it possible to perform a simple simulation to support this interpretation, even qualitatively?

The choice of initial condition assumed in Equation 9 may possibly be over-simplifying because each complex (LH2, LH1 and RC) does not necessarily have the same absorption spectrum, since at a given wavelength, the probability of absorption of a photon is not the same for each complex. In this scenario, the initial condition should then be wavelength dependent. While the authors state that the quantum yield is not strongly dependent on the choice of P(0), a specific example to demonstrate this would be helpful.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Overall energy conversion efficiency of a photosynthetic vesicle" for further consideration at eLife. Your revised article has been favorably evaluated by Michael Marletta (Senior editor), a Reviewing editor, and two reviewers.

On the basis of the referee reports on the revised manuscript, only relatively minor additional changes are required. Reviewer #2 is concerned that some issues have not been fully addressed in the revision. In the following I list the main points.

1) The reviewer maintains that "the model does not consider the production of NADH at all." Therefore, "no statements on the energy conversion efficiency could be done with the current model." The reviewer is concerned that the issue of NADH production and its impact on the model and its assessment are not discussed adequately, and advises "to read the primary literature on the mechanism of NADH production and provide references to this literature (currently they refer only to the paper of Klamt et al. where bacterial photosynthesis was modeled by using several dozen parameters that were more or less freely variable). The primary literature describes how the NADH-dehydrogenase makes NADH by driving the reverse (uphill) electron transfer from the ubiquinone pool to NAD+ with the help of membrane potential. This mechanism differs from the NAD(P)H production in green plants where NAD(P)+ is directly reduced by photoexcitated electrons in a reaction that is independent of membrane potential. The dependence of the light-driven NADH production on membrane potential, specific for Rhodobacter and other purple phototrophic bacteria, should have shaped the properties of their energy-converting machinery."

Recommended action: Whereas I do not see the lack of NADH production as a fundamental flaw in the model (after all, all models are incomplete), this point should be made clearer to the reader. Conclusions drawn from the model should be qualified accordingly. In particular, in the discussion of the energy conversion efficiency, relevant limitations of the model should be stated.

2) The reviewer also asks to point out clearly that "the experimental data that were used for testing the model were not obtained with chromatophores in vivo," but for "an artificial system – a suspension of chromatophores in a pH-buffer, in the presence of electron donors and redox mediators, but in the absence of physiological compounds such as NAD+/NADH (a Dutton/Crofts system)."

Recommended action: Point out the distinction between the in-vitro experiments and the more complex in-vivo situation.

3) The reviewer also argues that the effect of a transmembrane proton gradient, which is not included explicitly in the model, should be discussed. The reviewer emphasizes that the issue is not "proton migration from the bc₁ complex to ATP synthase" but protonmotive force.

Recommended action: Discuss the issue of protonmotive force. Examine which conclusions would likely be impacted by the explicit treatment of PMF in the model, and qualify them accordingly. If none of the conclusions would be affected, state that the model is robust with respect to the neglect of explicit modeling of PMF.

4) The reviewer suggests adding a description of the model to the Results section.

https://doi.org/10.7554/eLife.09541.013

Author response

Reviewer #1:

In general this is a well-written paper, however there are some serious problems in the interpretation that the authors must account for.

1) The authors suggest that the suboptimality of the ATP-production of the Rba. Sphaeroides vesicle might play a role in the robustness of its function. According to their interpretation reduction of the Q-pool might play a role in storing the redox energy accumulated during short periods of exposure to high light. This would only work if there is an equal amount of cytochrome c present. However, there is one to two orders of magnitude more quinone than cytochrome c so where do the electrons come from that reduce the Q-pool?

The energy buffering capacity of the Q-pool, arising between light absorption and ATP synthesis, is limited, as the reviewer states, by the number of electrons available in the photosynthetic apparatus that can shift the quinone-quinol balance. However, the quinone-quinol balance can be shifted also through redox reactions coupling the chromatophore to the redox pools in the cell's cytoplasm by means of membrane-bound enzymes listed below and in the text. The current structural model (as presented in Figure 1) does not include such enzymes and, therefore, cannot account for sufficient buffering capacity of the Q-pool. As the storage of energy in case of light fluctuations is not an essential outcome of our study, we follow the reviewer's suggestion and removed from the manuscript the interpretation regarding the buffering effect (last sentence of the Abstract; Introduction; Results; Discussion; Materials and methods.

As the reviewer states, the redox buffering capacity of the Q-pool is dependent on the electrons available in the chromatophore for quinone-to-quinol reduction. When considering the chromatophore components shown in Figure 1, only a limited number of electrons are maximally available: 24 from RC, 20 from cyt. c₂, and from the bc₁ complex with already loaded quinols 16, altogether 60. These electrons can contribute to forming at most 30 quinols that become available at the bc₁ complex for formation of the proton gradient. As the reviewer points out, it is not possible to explain the free energy buffer capacity of the chromatophore relevant for changes in light intensity from the present model without additional quinols.

However, in an actual chromatophore, the mechanism with which the redox state of the Q-pool is regulated involves also exchange of electrons with the succinate/fumarate pool in the cell's cytoplasm via the enzyme succinate dehydrogenase; additionally NADH dehydrogenase and cytochrome c oxidase facilitate electron exchange reactions with the Q-pool. The contribution of these reactions to the redox regulation of the Q-pool is currently not well understood and the corresponding enzymes are not resolved in the current structural model of the chromatophore shown in Figure 1. Therefore, in the current description of chromatophore processes the redox state of the Q-pool is accounted for, according to Equations 14–18, in an heuristic way. For an explanation, an additional schematic figure (Figure 5) is added along with corresponding text (section 4.1, last paragraph) in the Materials and methods to introduce the missing enzymes. The role of these enzymes are discussed in: Introduction, fifth and sixth paragraphs; section 2.2, fifth paragraph; Discussion, fourth paragraph; section 4.1, last paragraph; Figure 5; subsection “Stage I: Light absorption, excitation energy transfer, and quinol formation”, eleventh paragraph; subsection “Stage II: Diffusion of charge carriers and estimate of cycling time τRC(I)”, fifth paragraph. This issue is further discussed in a note following response #1.4 below.

2) Evolution did not act at the level of individual chromatophores but on the survival fitness of the intact organism.

Of course, we agree with the reviewer and apologize for the “loose” language used in our original manuscript. As the reviewer states, evolution acts on the reproductive fitness of the entire organism. Yet, increased survival fitness for an organism frequently results from increased efficiency of individual cellular components (c.f. citations in Introduction, third paragraph; section 2.2, last paragraph), even though the direct relation between component efficiency and reproductive fitness is usually difficult to establish. This distinction is clarified in the text at the aforementioned paragraphs (Introduction, third paragraph; section 2.2, first paragraph).

The various definitions of energy conversion efficiency are compared and discussed now in: Materials and methods, first paragraph; subsection “Stage III: ATP synthesis”, second paragraph, particularly in the paragraph following the definition of overall conversion efficiency η _ATP in Equation (20).

In following the reviewer's suggestion, we have removed the misleading comparison to plant photosynthesis from Discussion.

We also cite now the work of (Hellingwerf, 1993) that has provided an early estimate for a maximal value for the conversion efficiency of photosynthesis in Rba. sphaeroides (section 2.1, third paragraph). The main point of our study is not only to establish the efficiency value, but (i) to demonstrate that the efficiency value can be achieved on account of the overall molecular structure of the chromatophore; (ii) to discuss the dependence of ATP production rate and efficiency on light conditions; (iii) to determine the degree of optimization for energy conversion as a function of stoichiometry.

4) Beyond the LH/RC itself, nowhere in the modelling has any leak-reaction taken into account. Two examples that would have been very relevant to take into account are: (a) the short-cut in electron transfer in the cytochrome b/c1 complex that may occur if the second electron of quinol is also directly transferred to the Rieske protein and (b) passive proton leakage through the chromatophore membrane (which may be very much dependent of the protein composition of the vesicles, due to curvature effects). Related to this is the fact that the authors seem to suggest that proton transport merely leads to a pH change (see discussion on acidification), whereas presumably the energetic coupling between the proton pumping system and the ATP synthase is through a transmembrane electrical potential gradient.

Leak reactions mentioned by the reviewer must inevitably exist, but in the absence of sufficient data we do not account for them in the current model. This omission does not alter the primary conclusions that deal with the structure-function relationship of the chromatophore vesicle given the structurally resolved components (LH2, LH1, RC, bc₁, ATP synthase) and cyt c₂. For the description of steady-state kinetics based on rate-limiting effects in the system, it is not necessarily beneficial or informative to try to account for every subprocess in the system. Nonetheless, we discuss now for the benefit of the reader the presence of leak reactions as the reviewer suggests (Introduction, sixth paragraph; Discussion, fifth paragraph).

Additionally, we also stress once more that a proton gradient involves an electrical potential difference. However, referring throughout the text to “proton gradient and electrical potential difference” or the like makes the reading of the text cumbersome; readers will grasp what is meant, if after a first more complete description we refer in the following part of the text solely to "proton gradient".

Rerouting of electrons in the bc₁ complex, mentioned by the referee as a leakage, is actually a more complex process leading to unwanted redox products, for example into the transformation of oxygen to superoxide, that needs to be controlled, e.g., through superoxide dismutase, and brings about more problems than just energy leakage (Rottenberg et al., J. Biol. Chem., 2009; 284: 19203-19210). Such rerouting is clearly beyond the scope of the present study that benefits from avoiding the discussion of numerous side reactions and keeping the focus on processes arising through the structurally resolved photosynthetic components of the chromatophore.

Since more than one reviewer brought up the possible inclusion of peripheral cellular processes in the present model of chromatophore energy conversion, we would like to note here that we consider the simplifications due to ignoring such processes a benefit of our model, rather than a detriment. The present focus on photosynthetic processes, grounded in known structural detail, leads to a clear interpretation. Nevertheless, the peripheral processes coupled to various trans-membrane enzymes are now listed for the reader in several portions of the text, including in a new figure (Figure 5). Specifically, the processes of flagellar motility, NAD(P)H synthesis, coupling to the succinate/fumarate pool, as well as leak-reactions are not considered. Of these processes, coupling to flagellar motility probably constitutes the largest consumption channel when active. Furthermore, a steady-state model is considered so as not to explicitly simulate the diffusion of quinone/quinol, cytochrome c₂, and protons, but rather representing the respective concentrations through their averages. Simulation efforts are beginning to address these diffusion processes, but the timescales currently reachable (~150 ns) are insufficient to account for the diffusive regime (Chandler, et al., 2014. Light harvesting by lamellar chromatophores in Rhodospirillum photometricum. Biophys. J., 106:2503). The steady-state approach permits us to successfully account for the primary function of the chromatophore, determining ATP synthesis rates, overall energy conversion efficiency, and saturation of light harvesting capacity, as depicted in Figures 2 and 3. To address reviewers' concerns for the benefit of the reader, we explicitly discuss, as mentioned already in response #1.1, the missing components of the chromatophore energy conversion absent from the current model in Introduction, fifth and sixth paragraphs; section 2.2, fifth paragraph; Discussion, fourth paragraph; section 4.1, sixth paragraph; subsection “Stage I: Light absorption, excitation energy transfer, and quinol formation”, eleventh paragraph; subsection “Stage II: Diffusion of charge carriers and estimate of cycling time τRC(I)”, fifth paragraph, as well as in an additional figure (Figure 5).

The referee brings up an important point: what value does structural cell biology bring to the understanding of cells; did past knowledge, like that achieved over five decades ago by Vredenberg and Duysens and mentioned by the referee (Nature 197: 355-357, 1963; doi:10.1038/197355a0) not suffice today? In general, it seems to be widely accepted that one re-interprets biological knowledge in terms of the more recently discovered atomic level structure of cellular components as they provide a further resolved and more fundamental understanding of cell biology. So, the authors feel well justified in describing photosynthesis, including light harvesting, in the present case on the basis of the atomic level structure of the apparatus established in recent work. They also are convinced that given the fundamental role of light harvesting, the great advances in structural biology and in finite temperature quantum physics of fluorescent systems, it seems a natural goal to develop from ground up the kinetics of the light harvesting apparatus, rather than employ heuristic descriptions from a period when structural details of light harvesting proteins and their arrangement were not known. Nevertheless, we gladly follow the reviewer's suggestion and cite some of the original discoveries now also directly (Introduction, ninth paragraph; section 2.1, sixth paragraph). The authors are grateful to the reviewer for the insight in linking the earlier work of the Dutch photosynthesis masters and the modern highly resolved picture of photosynthetic apparatus structure and function.

Reviewer #2:

The manuscript by Sener and co-workers presents a model of a Rhodobacter sphaeroides chromatophore. The model describes how the illumination of a chromatophore suspension results in ATP production. The ultimate goal of the modeling is to understand how the ATP yield is coupled with the intensity of light. The main virtue of the model is that it couples the quantum physics of light absorption/procession with the chemistry of ATP synthesis. The model gives reasonable values of ATP yield in response to low light, which is physiological for these bacteria. Development of such a global model, which covers events over a time span of 14 orders of magnitude, required certain simplifications, which is understandable. Unfortunately, from the opinion of this reviewer, the simplifications preclude from making physiologically relevant conclusions from the modeling, at least, at the given stage.

Still the model itself is a great achievement and the manuscript deserves publication albeit after certain amendments.

1) Since the physiological relevance of the results obtained is questionable, the main result of this study seems to be the model itself. Therefore, the description of the model should be moved from Materials and methods into the Results. Otherwise the manuscript is incomprehensive, taking into account that the format of eLife implies Materials and methods after Results. The Materials and methods section should then contain only technical/purely methodical points; supplementary materials, at least partly, could be also moved into Materials and methods.

We thank the reviewer for the suggestion to moving material of our text between Results, Materials and methods, and supplementary materials. Though this could make for better reading in case of readers following the text each time from the beginning to end, readers are familiar today with the Results/Materials and methods/supplementary materials division of articles in scientific journals like eLife and know to jump between these sections for information of methodological details. We decided for the present division since a reader can find the information of the actual conclusions of our study more easily in the present format. The reader is also asked now to read the Materials and methods section prior to proceeding with the Results section (Results, first paragraph; Materials and methods, first paragraph).

We also like to emphasize that the chromatophore structure, the ‘model’, is not the only result of our study; the other key result is the structure-function relationship of the whole chromatophore. This relationship links the overall structure of the chromatophore to ATP synthesis rate and energy conversion efficiency.

The particular short-comings of the current model, including, in particular, the missing NADH dehydrogenase component, are now discussed at greater length in the text, as mentioned above following comments by reviewer #1, in (Introduction, fifth and sixth paragraphs; section 2.2, fifth paragraph; Discussion, fourth paragraph; section 4.1, sixth paragraph; subsection “Stage I: Light absorption, excitation energy transfer, and quinol formation”, eleventh paragraph; subsection “Stage II: Diffusion of charge carriers and estimate of cycling time τRC(I)”, fifth paragraph) as well as in an additional figure (Figure 5).

The proton gradient is left out of the analysis as proton migration from the bc₁ complex to ATP synthase is not rate determining in chromatophore vesicles; we comment on the expected, fast proton migration rate in chromatophores in the text (section 4.2, fourth paragraph).

In real phototropic bacteria, the situation is more complex.

As mentioned for issue #2.2, we now discuss at length in the text the complexity of the coupling between the chromatophore energy conversion processes and cytoplasmic processes in the cell facilitated through NADH dehydrogenase, succinate dehydrogenase and other enzymes (Introduction, fifth and sixth paragraphs; section 2.2, fifth paragraph; Discussion, fourth paragraph; section 4.1, sixth paragraph; subsection “Stage I: Light absorption, excitation energy transfer, and quinol formation”, eleventh paragraph; subsection “Stage II: Diffusion of charge carriers and estimate of cycling time τRC(I)”, fifth paragraph; newly added figure, Figure 5). In particular, the rate-limiting role of bc₁ and its relation to missing modules of the chromatophore is emphasized in the Discussion section (fourth paragraph; section 4.1, last paragraph).

Obviously, the function of a photosynthetic apparatus, such as bacterial chromatophore or a chloroplast thylakoid, is to produce ATP and NAD(P)H. In thylakoids, NAD(P)H molecules are produced via direct reduction of NAD(P)+ by the Photosystem I. In Rb. sphaerides, the redox potential of the RC is too high for NAD(P)H generation. Therefore, NAD(P)H is produced via reversing the NAD(P)H dehydrogenase. The reversion requires (1) high protonmotive force and (2) reduced ubiquinol pool. Therefore, the overreduction of the ubiquinol pool in Rb. sphaeroides is a precondition for the NAD(P)H production; it should increase the overall efficiency of the system. Furthermore, the overacidification of the interior is prevented not by the overreduction of the ubiquinone pool, but by the high sensitivity of the cytbc₁ to the membrane potential. High voltage, needed to drive the NAD(P)+ reduction (see above), slows the turnover of the cytbc₁ dramatically, essentially blocking its turnover at voltages above 150 mV. Hence at high, physiological values of protonmotive force the turnover of the cytbc₁ is essentially limited by the proton discharge, specifically via the ATP synthase and the reverse NAD(P)H dehydrogenase. The operation of the cytbc₁ close to equilibrium additionally increases the efficiency of energy conversion.

The reviewer raises great points about NAD(P)H production. We have taken the liberty to incorporate this comment in the text (Introduction: sixth paragraph; Results: section 2.2, fifth and sixth paragraphs; Discussion: fourth paragraph) and have added a corresponding Acknowledgment. As pointed out already in comments to referee #1 above, we emphasize the role of cytoplasmic redox reactions in the new text in all sections of the text and point to the important function of these reactions in regulating the redox state of the chromatophore Q-pool.

The reviewer admits that the data on synthesis of NAD(P)H in Rb. sphaeroides are too scarce to be used for verification of the model. The authors, accordingly, have tested their model by using more abundant data that were obtained with chromatophore suspensions in the absence of NAD(P)+, in experiments where the function of the RC, cytbc₁ and/or ATP synthase were studied. And still, the discussion of physiological consequences from the given model should be truncated dramatically as misleading. The physiology could be discussed in further publications, after the membrane potential and NAD(P)H synthesis would be explicitly included in the model.

As pointed out above, we have added extensive discussions, based on reviewer comments, regarding the complexity of chromatophore energy conversion processes; the reader is made well aware of the presence of related cytoplasmic processes in the cell; and the interpretation about the buffering capacity in the system has been removed (see issue #1.1). Specifically, the following passages were modified: last sentence of the Abstract; Introduction, fifth paragraph; section 2.2, fourth and fifth paragraphs; Discussion, second and third paragraphs; section 4.2, fourth paragraph. We insist, however, that the consequences of the current structural-functional model be discussed in detail while informing the reader at length of the limitations of the current study.

Instead, the Discussion section should include comparison of the given model with the earlier models of chromatophore systems (e.g. from the group of Helms) and the approaches used.

The work of Geyer and Helms is already cited and discussed abundantly in the text, particularly, their conclusion that the primary rate-limiting step in the chromatophore stems from cytbc₁turnover. We add a further comparison in the Discussion section (fifth paragraph).

Reviewer #3:

There appears to be a minor inconsistency in the units of intensity employed. In the second paragraph of section 4.2 the authors define light intensity, I, in units of [photons absorbed per second], whereas light intensity is often defined in units of [photons absorbed per meter squared per second]. As defined, this intensity is in fact a power, which is also called a 'radiant flux' in radiometry. This in contrast with the more conventional definition of intensity in the caption of Figure 2, where units of [Watts per meter squared] are used. Clarification of these different definitions would be useful.

We thank the reviewer for pointing out a potential source of confusion (and also for the related next comment). The text has been altered to clarify the definition of I (photons/s absorbed by entire vesicle) as discussed in (section 4.2, second and third paragraphs).

Following the reviewer's suggestion, we refer to the quantity 'I' in the text as 'absorbed light power'.

We are grateful to the reviewer for pointing out this issue, also discussed in response to issue #1.1. We concede that our current steady-state model is not able to generate quantitative conclusions about the response of the system to fluctuating light conditions and the corresponding energy storage & buffering effect for intermittent dark periods. The related discussion (section 2.2, fourth and fifth paragraphs) is altered to reflect this point. Please see our extended response to reviewer 1, issue #1. However, a non-steady state simulation is currently prohibitive computationally, since explicit spatial dynamics of charge carriers and quinones/quinols in the chromatophore need to be modeled, which goes beyond the technically feasible limit.

A discussion is added after Equations (8) and (9), defining the quantum yield q in terms of the initial state P(0) and explaining that variations in P(0) affect q by only about 3%. The text states that this result was demonstrated in (Seneret al., 2007, PNAS, 104:15723) and, therefore, wavelength dependence of q is not further considered in the present study.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

1) The reviewer maintains that "the model does not consider the production of NADH at all." Therefore, "no statements on the energy conversion efficiency could be done with the current model." The reviewer is concerned that the issue of NADH production and its impact on the model and its assessment are not discussed adequately, and advises "to read the primary literature on the mechanism of NADH production and provide references to this literature (currently they refer only to the paper of Klamt et al. where bacterial photosynthesis was modeled by using several dozen parameters that were more or less freely variable). The primary literature describes how the NADH-dehydrogenase makes NADH by driving the reverse (uphill) electron transfer from the ubiquinone pool to NAD+ with the help of membrane potential. This mechanism differs from the NAD(P)H production in green plants where NAD(P)+ is directly reduced by photoexcitated electrons in a reaction that is independent of membrane potential. The dependence of the light-driven NADH production on membrane potential, specific for Rhodobacter and other purple phototrophic bacteria, should have shaped the properties of their energy-converting machinery."

We were surprised about the reviewer response, since the presence of NADH production as well as the need for modeling it in future studies was stated repeatedly in the revised manuscript, while also discussing why it cannot be accounted for in the current study due to the absence of the relevant proteins from current structural data. In particular, we stated that our model, through Equations (15–19), describes the light intensity dependence of the quinone/quinol pool redox state that comes about through quinone-quinol conversion involving action of NADH dehydrogenase alongside other redox factors; thus, the influence of the redox factors are currently accounted for heuristically in the absence of structural data. We have now further emphasized this issue and the resulting shortcomings of the model in the main text at the following locations: Introduction, sixth paragraph; Discussion, fourth paragraph; section 4.1 last paragraph; section 4.2, last paragraph; subsection “Stage I: Light absorption, excitation energy transfer, and quinol formation”, ninth paragraph; subsection “Stage II: Diffusion of charge carriers and estimate of cycling time τRC(I)”, first paragraph.

Recommended action: Point out the distinction between the in-vitro experiments and the more complex in-vivo situation.

This distinction and the increased complexity of the in vivo situation is now emphasized in the text at: section 4.1, end of first paragraph.

We have added additional text in Discussion (sixth paragraph) and Methods (subsection “Stage I: Light absorption, excitation energy transfer, and quinol formation”, eleventh paragraph) to emphasize that the energy conversion model does not require the explicit treatment of proton translocation steps and is robust with respect to the neglect of explicit modeling of PMF in its prediction of ATP turnover and efficiency.

4) The reviewer suggests adding a description of the model to the Results section.

As already argued in our last submission, regarding the fourth issue we would rather keep the division between Results, Methods, and supplementary information in the present form.

https://doi.org/10.7554/eLife.09541.014

Article and author information

Author details

Melih Sener
1. Beckman Institute for Advanced Science and Technology, University of Illinois at Urbana-Champaign, Urbana, United States
2. Department of Physics, University of Illinois at Urbana-Champaign, Urbana, United States
Contribution
MS, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article

For correspondence
melih@ks.uiuc.edu

Competing interests
The authors declare that no competing interests exist.
Johan Strumpfer
1. Beckman Institute for Advanced Science and Technology, University of Illinois at Urbana-Champaign, Urbana, United States
2. Center for Biophysics and Computational Biology, University of Illinois at Urbana-Champaign, Urbana, United States
Contribution
JS, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article

Competing interests
The authors declare that no competing interests exist.
Abhishek Singharoy

Beckman Institute for Advanced Science and Technology, University of Illinois at Urbana-Champaign, Urbana, United States

Contribution
AS, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article

Competing interests
The authors declare that no competing interests exist.
C Neil Hunter

Department of Molecular Biology and Biotechnology, University of Sheffield, Sheffield, United Kingdom

Contribution
CNH, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article

Competing interests
The authors declare that no competing interests exist.
Klaus Schulten
1. Beckman Institute for Advanced Science and Technology, University of Illinois at Urbana-Champaign, Urbana, United States
2. Department of Physics, University of Illinois at Urbana-Champaign, Urbana, United States
3. Center for Biophysics and Computational Biology, University of Illinois at Urbana-Champaign, Urbana, United States
Contribution
KS, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article

For correspondence
kschulte@ks.uiuc.edu

Competing interests
The authors declare that no competing interests exist.

"This ORCID iD identifies the author of this article:" 0000-0001-7192-9632

Funding

Biotechnology and Biological Sciences Research Council (BB/M000265/1)

C Neil Hunter

U.S. Department of Energy (DE-SC0001035)

C Neil Hunter
Klaus Schulten

European Research Council (338895)

C Neil Hunter

National Science Foundation (PHY0822613)

Klaus Schulten

National Institutes of Health (NIH 9P41GM104601)

Klaus Schulten

National Science Foundation (MCB1157615)

Klaus Schulten

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The reviewers are thanked for extensive suggestions to improve the manuscript, particularly regarding comments on processes in the chromatophore beyond the light harvesting-cyt $b c_{1}$ -ATP synthase components. The authors would like to also thank Antony Crofts, Robert Niederman, and Donald Bryant for insightful discussions on chromatophore function. This work was supported by the National Science Foundation (MCB1157615 and PHY0822613) (to KS), the National Institutes of Health (NIH 9P41GM104601) (to KS). CNH acknowledges research grant BB/M000265/1 from the Biotechnology and Biological Sciences Research Council (UK). CNH was also supported by an Advanced Award 338895 from the European Research Council. This research used resources of the Oak Ridge Leadership Computing Facility at the Oak Ridge National Laboratory, which is supported by the Office of Science of the U.S. Department of Energy under Contract No. DE-AC05-00OR22725. The study reported was funded also by the Photosynthetic Antenna Research Center (PARC), an Energy Frontier Research Center supported by the US Department of Energy, Office of Science, and Office of Basic Energy Sciences under Award Number DE-SC0001035 (to CNH and KS). The molecular image in Figure 1 was generated with VMD (Humphrey et al., 1996).

Reviewing Editor

Gerhard Hummer, The Max Planck Institute of Biophysics, Germany

Publication history

Received: June 19, 2015
Accepted: July 11, 2016
Version of Record published: August 26, 2016 (version 1)

Copyright

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
