Histone H2B ubiquitylation represses gametogenesis by opposing RSC-dependent chromatin remodeling at the ste11 master regulator locus

  1. Philippe Materne
  2. Enrique Vázquez
  3. Mar Sánchez
  4. Carlo Yague-Sanz
  5. Jayamani Anandhakumar
  6. Valerie Migeot
  7. Francisco Antequera
  8. Damien Hermand  Is a corresponding author
  1. University of Namur, Belgium
  2. Instituto de Biología Funcional y Genómica, Spain
Research Advance
  • Cited 8
  • Views 807
  • Annotations
Cite this article as: eLife 2016;5:e13500 doi: 10.7554/eLife.13500

Abstract

In fission yeast, the ste11 gene encodes the master regulator initiating the switch from vegetative growth to gametogenesis. In a previous paper, we showed that the methylation of H3K4 and consequent promoter nucleosome deacetylation repress ste11 induction and cell differentiation (Materne et al., 2015) but the regulatory steps remain poorly understood. Here we report a genetic screen that highlighted H2B deubiquitylation and the RSC remodeling complex as activators of ste11 expression. Mechanistic analyses revealed more complex, opposite roles of H2Bubi at the promoter where it represses expression, and over the transcribed region where it sustains it. By promoting H3K4 methylation at the promoter, H2Bubi initiates the deacetylation process, which decreases chromatin remodeling by RSC. Upon induction, this process is reversed and efficient NDR (nucleosome depleted region) formation leads to high expression. Therefore, H2Bubi represses gametogenesis by opposing the recruitment of RSC at the promoter of the master regulator ste11 gene.

https://doi.org/10.7554/eLife.13500.001

Introduction

The RNA polymerase II (PolII) subunit Rpb1 C-terminal Domain shows a stereotypical pattern of CTD phosphorylation with phospho-S5 (S5P) peaking near the transcription start site (TSS) and phospho-S2 (S2P) accumulating towards the 3’-end of the transcribed region (Buratowski, 2009; Cassart et al., 2012; Drogat and Hermand, 2012). The distribution of histone H3 lysine 4 methylation (H3K4me) mirrors S5P due to the direct recruitment of the H3 methyltransferase Set1-COMPASS by the S5P of PolII (Keogh et al., 2005; Ng et al., 2003). In budding yeast, Set1 is the only H3K4 methyltransferase and plays a repressive role on PHO5, PHO84 and GAL1 expression, suggesting that H3K4me creates a repressive chromatin configuration (Carvin and Kladde, 2004; Wang et al., 2011). Most genes are also upregulated in fission yeast when Set1 is absent (Lorenz et al., 2014). The PHD finger protein Set3, which is part of the SET3C HDAC complex, binds H3K4me2 to mediate deacetylation of histones in the 5’ regions (Kim and Buratowski, 2009; Kim et al., 2012). Similarly, the PHD domain of the HDAC-associated ING2 protein mediates its binding to the di- and trimethylated H3K4 at the promoters of proliferation genes (Pena et al., 2006; Shi et al., 2006).

Histone H2B is monoubiquitylated (H2Bubi) on the conserved lysine 119 in fission yeast. In yeast, Rad6 and Bre1 function as conjugating enzyme (E2) or ligase (E3) (Hwang et al., 2003; Robzyk et al., 2000; Wood et al., 2003). The pathway is conserved in fission yeast with the Rhp6 E2 and two Bre1 homologues, Brl1 and Brl2, a situation closer to higher eukaryotes (Tanny et al., 2007; Zofall and Grewal, 2007). The presence of the Ubp8 deubiquitylase, which is part of the SAGA co-activator complex, underlies the dynamic nature of H2Bubi (Daniel et al., 2004; Henry et al., 2003). A second deubiquitylase, Ubp10, modulates the pool of H2Bubi (Emre et al., 2005; Gardner et al., 2005). H2Bubi functions in a trans-tail regulation of H3K4 and H3K79 methylation (Briggs et al., 2002; Dover et al., 2002; Ng et al., 2002; Sun and Allis, 2002). The Set1-COMPASS subunit Swd2 is required for the crosstalk by mechanisms implying its direct ubiquitylation by Rad6-Bre1 (Vitaliano-Prunier et al., 2008) or its recruitment by H2B-ub1 (Lee et al., 2007). H2Bubi is spread uniformly across transcribed units and at promoters (Batta et al., 2011; Schulze et al., 2011; 2009). Ubp8 acts at the 5’ region where H3K4me3 is also high while Ubp10 targets the H3K79me3 decorated nucleosomes more typical of 3’ regions, which suggests different, maybe opposite, roles of H2Bubi over the length of genes and spatial regulation (Schulze et al., 2011). Nucleosome occupancy (Batta et al., 2011) in a strain lacking H2Bubi revealed a role in promoting nucleosome assembly leading to repression at promoters and a positive role during elongation by facilitating the eviction of the H2A-H2B dimer and nucleosome reassembly following the passage of the polymerase. However, how H2Bubi represses transcription at the promoter is not clear.

From the SWI/SNF-class remodeling complexes, RSC is ten-fold more abundant and is essential for viability, in contrast the SWI/SNF complex (Cairns et al., 1996). RSC is required for promoter nucleosome location (Hartley and Madhani, 2009), consistent with its ability to slide nucleosomes in vitro (Lorch et al., 2011) and its global requirement for RNA polymerase II transcription (Parnell et al., 2008). RSC recognizes acetylated nucleosomes through tandem bromodomains (Carey et al., 2006; Kasten et al., 2004), which links its recruitment to acetylation of histone H3 lysine 14.

Here we show that promoter H2B ubiquitylation represses the expression of the master regulator of gametogenesis Ste11 in fission yeast (Anandhakumar et al., 2013) by promoting Set1/H3K4me dependent deacetylation, which impedes the recruitment of the RSC complex. A H2B K119R mutant results in decreased nucleosome occupancy at the ste11 promoter and derepression of the gene, while the absence of RSC has the opposite effect. Therefore, the opposing role of promoter histone H2B ubiquitylation and RSC-dependent chromatin remodeling controls gametogenesis in fission yeast.

Results

The abolition of histone H2B ubiquitylation suppresses the lsk1 deletion mutant

In fission yeast, the CTD S2 kinase Lsk1 (latrunculin sensitive kinase - Cdk12 in higher eukaryotes) is required for the completion of cytokinesis in response to perturbation of the actomyosin ring by latrunculin A (LatA) (Karagiannis et al., 2005), and the deletion of lsk1 results in sensitivity to LatA. It is therefore likely that the efficient transcription of one or several genes controlling cytokinesis requires S2P. Testing the LatA sensitivity of the genes we have previously identified (Coudreuse et al., 2010) as downregulated in a S2A mutant identified the essential SIN (Septation Initiation Network) component encoding gene cdc14 (Fankhauser and Simanis, 1993) as a potential transcriptional target of Lsk1. The overexpression of cdc14 significantly suppresses the LatA sensitivity of a strain deleted for lsk1 (Figure 1—figure supplement 1A,B), supporting that the LatA sensitivity of the lsk1 mutant relates to the downregulation of cdc14.

We reasoned that the easily tested LatA sensitivity phenotype should allow us to identify additional gene products acting together with S2P to control gene expression. We therefore screened the entire S. pombe deletion library for sensitivity to the presence of 0.5 μM LatA. The screen is not expected to be very specific as many regulators of the actomyosin ring and cytokinesis were already shown to be sensitive to LatA but transcriptional regulators should easily be extracted from that group based on annotation. The sensitivity of the S2A mutation within the CTD is specific as an S7A mutant behaves as wild type (Figure 1—figure supplement 1C). The screening appeared to be consistent as the three kinases (Pmk1, Pek1 and Mkh1) forming the MAPK cell integrity transduction pathway were isolated. In addition, we identified the SAGA-associated Ubp8 H2B ubiquitin protease and several components of the RSC and SWI/SNF chromatin remodeling complexes. We next concentrated on the possible interplay of these transcriptional regulators with S2P.

In order to test a genetic link between S2P and the H2Bubi pathway, we generated double lsk1 ubp8 and lsk1 htb1 K119R (htb1 is the single fission yeast gene encoding histone H2B and K119 the target site for ubiquitylation) mutant strains. Surprisingly, the htb1 K119R mutant completely suppressed the lsk1 sensitivity to the drug (Figure 1A), contrary to the deletion of ubp8.

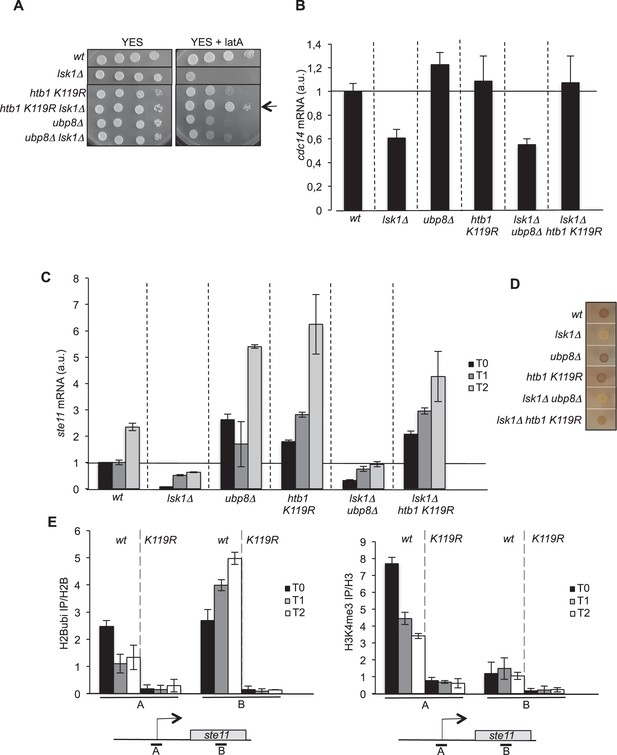

Figure 1 with 2 supplements see all
The abolition of histone H2B ubiquitylation suppresses the requirement of lsk1.

(A) Spot dilution assay of indicated strains grown 2 days at 32°C on rich medium in the presence or absence of LatA (0.5 μM). The arrow indicates the suppression of lsk1 growth defect by the htb1 KR mutant. (B) Relative quantification of the cdc14 mRNA determined by quantitative RT-Q-PCR in the indicated strains. a.u.: arbitrary units. Each column represents the averaged value ± SEM (n = 3). (C) Relative quantification of the ste11 mRNA determined by quantitative RT-Q-PCR in the indicated strains during vegetative growth (T0) and nitrogen starvation at the indicated time points (hours). a.u.: arbitrary units. Each column represents the averaged value ± SEM (n = 3). (D) The indicated strains were plated for 48 hr on mating medium (malt extract) before iodine staining to reveal sterility. (E) Left panel. The wt and htb1 K119R strains were starved for nitrogen at the indicated time points (hours). The occupancy of ubiquitylated H2B at the indicated locations (A, B) was determined by ChIP using the anti-H2Bubi normalized against unmodified H2B. Right panel. The wt and htb1 K119R strains were starved for nitrogen at the indicated time points (hours). The occupancy of ubiquitylated H2B at the indicated locations (A, B) was determined by ChIP using the anti-H3K4me3 normalized against unmodified H3. The same chromatin sample was used for the left and right panel. Each column represents the averaged value ± SEM (n = 3)

https://doi.org/10.7554/eLife.13500.002

We next tested if this strong genetic link identified between S2P and H2Bubi was effective at the cdc14 locus. The decrease in the level of the cdc14 mRNA observed in the lsk1 mutant was indeed suppressed when H2Bubi was abolished in the htb1 K119R mutant while the ubp8 mutant had no effect (Figure 1B).

The ste11 gene is another key target of S2P (Coudreuse et al., 2010; Materne et al., 2015; Schwer et al., 2012; Sukegawa et al., 2011), which is unrelated to LatA sensitivity. Lsk1 and S2P are critical regulators of the induction of gametogenesis by Ste11 by releasing Set1/H3K4me repression at the ste11 locus (Materne et al., 2015). Similarly to cdc14, we observed that the abolition of H2Bubi led to an increase of ste11, including at the basal, non-induced state, supporting that ubiquitylation of H2B represses ste11 expression (Figure 1C). This was clearly an effect of the absence of ubiquitin on H2B as an rhp6 deletion mutant (lacking the E2 ubiquitin conjugating enzyme) behaved similarly (Figure 1—figure supplement 1D). Paradoxically, the ubp8 deletion behaved similarly to the htb1 K119R mutant, also resulting in an increased level of ste11 (Figure 1C). Therefore, either the absence, or the constitutive presence of ubiquitin on H2B results in the derepression of ste11. However, only the htb1 K119R mutant suppressed the defect of expression manifested in the lsk1 deletion strain, in a way reminiscent of the cdc14 case (Figure 1C), which was confirmed by a phenotype assay (exposure to iodine that highlights gametogenesis by staining the gametes dark) (Figure 1D).

These genetic data suggest that the essential function of Lsk1 (namely S2P) for cdc14 or ste11 expression is not required when H2B cannot be ubiquitylated. Contrary, Lsk1 function is required for ubp8 to upregulate ste11 expression.

Histone H2B ubiquitylation is spatially modulated at the ste11 locus

H2B ubiquitylation was previously analysed in fission yeast using a flag-tagged version (Sanso et al., 2012; Zofall and Grewal, 2007). We tested the specificity of a new monoclonal antibody in fission yeast to avoid the caveats of using a tagged version. Despite two amino acid changes in the predicted epitope (Figure 1—figure supplement 2A), the antibody specifically recognized the ubiquitylated version of H2B as no signal was observed in a K119R mutant (Figure 1—figure supplement 2B). Humanizing the fission yeast gene (Figure 1—figure supplement 2C) in order to generate the exact epitope did not improve recognition, indicating that the antibody could be used on a wild type strain. The H2Bubi signal appeared increased in the ubp8 deletion strain but not in the absence of ubp16 that encodes the closest fission yeast orthologue to ScUBP10 (Kouranti et al., 2010; Sadeghi et al., 2014). The double ubp8 ubp16 mutant had similar level of H2Bubi to the single ubp8 mutant, suggesting that Ubp8 is the genuine H2B deubiquitylase in fission yeast as previously proposed (Sadeghi et al., 2014) (Figure 1—figure supplement 2B).

In order to decipher the complex genetic interactions between S2P and H2Bubi, we followed the spatial distribution of H2B ubiquitylation over the ste11 locus during induction. A reverse pattern was observed at the promoter and 3’-distal region with H2Bubi occupancy decreasing at the promoter and increasing along the transcribed unit during gene induction (Figure 1E, left panel). Considering the dependency of H3K4me to H2Bubi, we also followed the trimethyl mark (H3K4me3) that behaved similarly to H2Bubi at the promoter but was very low in the 3’ region of ste11 (Figure 1E, right panel). Therefore, the use of the htb1 K119R mutant confirmed that the deposition of H3K4me3 requires previous H2B ubiquitylation (Figure 1E, right panel). We reasoned that the opposite dynamic of H2Bubi at the promoter and 3’ region could reflect that the ubiquitylation represses transcription at the promoter while it promotes it during elongation, which could explain why both the htb1 K119R and the ubp8 deletion mutant lead to increased expression of ste11. In addition, our recent work indicated that H3K4me3 represses ste11 expression by recruiting the SET3C HDAC, which is counteracted by Lsk1-dependent S2P (Materne et al., 2015). Therefore, in the htb1 K119R strain where H3K4me3 is downregulated (Figure 1E, right panel), Lsk1 and S2P would not be required, which is what we observe both genetically (Figure 1D) and by RT-Q-PCR (Figure 1C). We further tested this model by measuring the level of H3 at the promoter of various strains. Confirming our previous data, the deletion of lsk1 or the mutation of H3 lysine 14 to arginine (Htt2 K14R) led to an elevated level of H3 onto the promoter region while the htb1 K119R mutant, or a strain lacking hos2 (encoding the catalytic subunit of the SET3C HDAC) had a reduction of histone occupancy at the ste11 promoter (Figure 2A). Importantly, the level of histone observed in the absence of ubp8 was very similar to the wild type, indicating that the upregulation of ste11 expression proceeds through a different mechanism, as already suggested above.

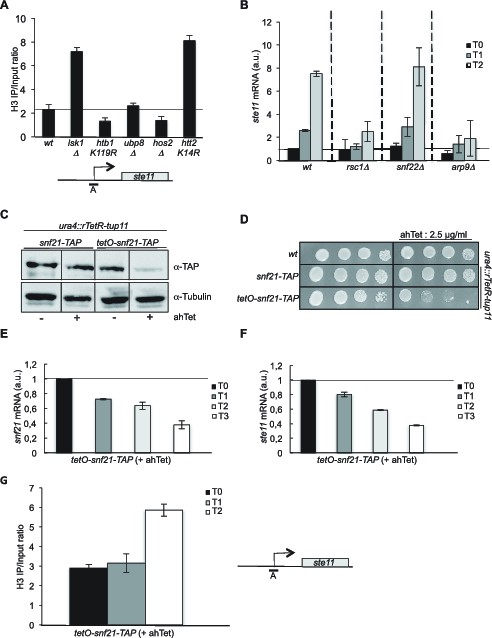

Figure 2 with 1 supplement see all
The RSC complex is required for the induction of ste11.

(A) The occupancy of histone H3 at the ste11 promoter was measured by ChIP using the indicated amplicon in the indicated strains. Each column represents the averaged value ± SEM (n = 3). (B) Relative quantification of the ste11 mRNA determined by quantitative RT-Q-PCR in the indicated strains during vegetative growth (T0) and nitrogen starvation at the indicated time points (hours). a.u.: arbitrary units. Each column represents the averaged value ± SEM (n = 3). (C) Western blot analysis (anti-TAP and anti-tubulin) of total protein extracts from the indicated strains grown 2 hr in the presence or absence of anhydrotetracycline (ahTet 2.5 μg/ml). (D) Spot dilution assay of indicated strains grown 2 days at 32°C on rich medium in the presence or absence of ahTet (2.5 μg/ml). (E) Relative quantification of the snf21 mRNA determined by quantitative RT-Q-PCR in the indicated strain grown in the presence of ahTet for three hours. Samples were taken at the indicated time (hours). a.u.: arbitrary units. Each column represents the averaged value ± SEM (n = 3). (F) Same as E, except that the ste11 mRNA was quantified. Each column represents the averaged value ± SEM (n = 3). (G) The occupancy of histone H3 at the ste11 promoter was measured by ChIP using the indicated amplicon in the tet0-snf21-TAP strain grown in the presence of ahTet for two hours. Each column represents the averaged value ± SEM (n = 3).

https://doi.org/10.7554/eLife.13500.005

We conclude that H2B ubiquitylation at the promoter of ste11 correlates with repressed transcription and high level of H3K4me3, which in turn may favour histone deactetylation by the SET3C complex. However, it is unclear how this pathway and the increased occupancy of deacetylated nucleosomes at the ste11 promoter are counteracted upon gene induction. We next tested the involvement of components of the RSC and SWI/SNF remodeling complexes identified in the LatA sensitivity screen (Figure 1—figure supplement 1C) in the expression of the ste11 and cdc14 genes.

The RSC remodeling complex is required to establish a large NDR at the ste11 promoter

The RSC and the SWI-SNF complexes share 6 subunits (Figure 2—figure supplement 1A). We first analyzed the effect of the deletion of rsc1 (RSC-specific subunit), snf22 (SWI/SNF-specific catalytic subunit, the orthologue of budding yeast Snf2) and arp9 (shared subunit) on the induction of ste11. The absence of either rsc1 or arp9 clearly affected the expression of ste11 while snf22 had no effect (Figure 2B), pointing to a more prominent role of RSC for ste11 expression, which was confirmed by a gametogenesis assay (Figure 2—figure supplement 1B). In the case of cdc14, gene expression was affected by both the RSC and the SWI/SNF complexes (Figure 2—figure supplement 1C) as already anticipated from the identification of both rsc1 and snf22 in the LatA screen (Figure 1—figure supplement 1C). The gene specificity in the requirement of either chromatin remodelers was supported by a ChIP experiment indicating that the SWI-SNF specific subunit Snf22 is present at the cdc14 promoter but not at the ste11 promoter (Figure 2—figure supplement 1D). In order to analyze the effect of the essential catalytic subunit of RSC, Snf21, on ste11, we generated a switch off system based on the rTetR-TetO system (Zilio et al., 2012) where the addition of anhydrotetracycline (ahTet) leads to the transcriptional repression of snf21 (Figure 2—figure supplement 1E). Figure 2C–D shows that the level of the Snf21 protein is strongly downregulated and cell viability drops in the presence of ahTet. Within 3 hr of growth in the presence of the drug, the level of both the snf21 and ste11 mRNAs was decreased by 60% (Figure 2E–F). Moreover, within the time scale of the depletion of snf21, the level of histone H3 increased at the ste11 promoter (Figure 2G).

These data indicate that the catalytic subunit of RSC, is required for ste11 expression, most likely through the displacement of nucleosomes. In order to confirm this possibility, we next analyzed the level of H3 at the promoter of ste11 in a strain lacking arp9 (Figure 3A), which revealed a marked increased of H3 occupancy, reminiscent of the effect of lsk1 deletion (Figure 2A). Nucleosome scanning in the arp9 deleted strain and the rpb1 S2A mutant confirmed these data and provided a moderate resolution analysis of the ste11 promoter, demonstrating that the absence of either S2P or RSC results in higher nucleosome occupancy within the NDR of ste11 (Figure 3B, Figure 3—figure supplement 1).

Figure 3 with 2 supplements see all
The RSC complex regulates nucleosomes occupancy at the ste11 promoter.

(A) The occupancy of histone H3 at the ste11 locus was measured by ChIP using the indicated amplicons (A–D) in the indicated strains. Each column represents the averaged value ± SEM (n = 3). (B) Nucleosome scanning analysis of the indicated strains. Nucleosomal DNA enrichment at the indicated positions of the ste11 locus was determined by ChIP experiment on MNase-digested chromatin. Data are presented as the average of three independent experiments along with the SEM. Inferred nucleosome locations are indicated. The bar indicates the position of amplicon A used in ChIP experiments. (C) The occupancy of Rsc1-TAP at the ste11 locus was measured by ChIP using the indicated amplicons (A–B) in the wt and htt2 K14R strains. Each column represents the averaged value ± SEM (n = 4). To determine whether the decreased Rsc1-TAP enrichment was statistically significant, the difference in the means of enrichment between the ChIP peak in the wild type and the tested strains was estimated using t-test, assuming unequal variances between samples (Welch's t- test). p-value < 0.05 indicated by *, n.s. : non significant. (D) The occupancy of Rsc1-TAP at the ste11 locus was measured by ChIP using the indicated amplicons (A–B) in the wt and lsk1 deleted strains. Each column represents the averaged value ± SEM (n = 4). To determine whether the decreased Rsc1-TAP enrichment was statistically significant, the difference in the means of enrichment between the ChIP peak in the wild type and the tested strains was estimated using t-test, assuming unequal variances between samples (Welch's t- test). p-value < 0.05 indicated by *, n.s. : non significant.

https://doi.org/10.7554/eLife.13500.007

Taken together with our previous work (Materne et al., 2015), these data suggest that the H3 acetylation promoted by S2P is required for the recruitment of RSC and subsequent nucleosome eviction at the promoter of ste11. Supportive of this possibility, the abolition of either H3K14 acetylation or Lsk1 halved the occupancy of Rsc1-TAP at the ste11 promoter (Figure 3C–D).

The NuA3 and NuA4 histone acetyltransferases are not required for ste11 transcription

Our current model of ste11 regulation implies that H3K4me3 is a repressive mark that recruits the SET3C HDAC via the PHD domain of Set3. However, available data from other systems support that H3K4me3 rather correlates with high turnover nucleosomes near the transcription initiation site and this mark is recognized by the histone acetyltransferase complexes NuA3 and NuA4 via the PHD domain of the ING proteins Yng1 and Yng2 (Png1 and Png2 in fission yeast). We therefore tested the effect of inactivating NuA3 and NuA4 by combining a deletion of mst2, encoding the catalytic subunit of NuA3 (Gomez et al., 2005), with a ts allele of mst1, encoding the catalytic subunit of NuA3 (Gomez et al., 2008). The induction of ste11 was barely affected in the absence of these two HATs (Figure 3—figure supplement 2A). This data render unlikely the possibility that NuA3 and NuA4 participate in ste11 expression through H3K4me3 and support previous data showing that Gcn5 is the primary HAT acting at the ste11 locus (Helmlinger et al., 2008). We also tested the effect of the H4K16R mutant (Wang et al., 2012), which behaved similarly to the wild type (Figure 3—figure supplement 2B).

H2B ubiquitylation represses gametogenesis by opposing RSC dependent chromatin remodeling at the ste11 promoter

Collectively, the previous experiments support that H2B ubiquitylation nearby the ste11 promoter impedes proper chromatin remodeling by RSC through promoter histone deacetylation by SET3C, which represses transcription. The deletion of rsc1 did not affect the level of H2B ubiquitylation nearby the ste11 promoter but led to a decrease of the level of this modification in the transcribed region, most likely as a consequence of decreased transcription when Rsc1 is absent (Figure 4A). In order to further test this model, we compared the level of Arp9-TAP in the htb1 K119R, hos2△ and lsk1△ strains to the wild type (Figure 4B–D). The Arp9 protein is a shared subunit of RSC and SWI/SNF but the latter is not present at the ste11 locus (Figure 2—figure supplement 1D) and does not affect ste11 expression (Figure 2B). The abolition of either H2B ubiquitylation or histone deacetylation both resulted in a marked increase of Arp9-TAP specifically at the promoter of ste11 while the absence of S2P had the opposite effect. Moreover, histone H3 acetylation was increased at the ste11 promoter when H2B ubiquitylation was abolished in either the htb1 K119R or the rhp6 mutants (Figure 4E). Therefore, H2Bubi represses gametogenesis by opposing recruitment of the RSC remodeler at the ste11 promoter.

Figure 4 with 2 supplements see all
H2B-ubi and HDAC oppose the recruitment of the RSC complex at the ste11 promoter.

(A) The occupancy of ubiquitylated H2B at the indicated locations (A, B) was determined by ChIP in the indicated strains using the anti-H2Bubi normalized against unmodified H2B. Each column represents the averaged value ± SEM (n = 3). (B) The occupancy of Arp9-TAP at the ste11 locus was measured by ChIP using the indicated amplicons (A-B) in the wt and htb1 K119R strains. Each column represents the averaged value ± SEM (n = 3). (C) The occupancy of Arp9-TAP at the ste11 locus was measured by ChIP using the indicated amplicons (A–B) in the wt and hos2△ strains. Each column represents the averaged value ± SEM (n = 3). (D) The occupancy of Arp9-TAP at the ste11 locus was measured by ChIP using the indicated amplicons (A–B) in the wt and lsk1△ strains. Each column represents the averaged value ± SEM (n = 3). (E) The occupancy of acetylated H3K14 at the ste11 promoter was determined by ChIP in the indicated strains using the anti-H3 K14ac normalized against unmodified H3. Each column represents the averaged value ± SEM (n = 3).

https://doi.org/10.7554/eLife.13500.010

A genome-wide connection between RSC and CTD S2P

In order to test if the proposed connection between the phosphorylation of serine 2 within the CTD and the RSC remodeling complex could be expanded to more genes, we performed genome-wide mapping of nucleosome position by MNase-Seq in the rsc1 deletion mutant. A meta-gene analysis of the nucleosome occupancy signal for all protein-coding genes revealed higher occupancy upstream of the TSS in the rsc1 mutant, and an average 13 bp shift of the −1 nucleosome toward the TSS was noted (Figure 4—figure supplement 1A–B) when selecting the 10% protein-coding genes whose promoter nucleosome-depleted region (NDR) shrinks the most in the absence of Rsc1 (Figure 4—figure supplement 1A, right panel). The ste11 gene belonged to that category (Figure 4—figure supplement 1C), confirming the previous single gene analyses performed above. We next analysed how of the previously established list of genes whose promoter nucleosome-depleted region (NDR) shrinks the most in the S2A mutant (Materne et al., 2015) behaved when rsc1 is deleted (Figure 4—figure supplement 1D). Remarkably, these genes also showed higher nucleosome occupancy close to their TSS in the absence of Rsc1, indicating a mechanistic connection between the abolition of CTD S2P and the absence of Rsc1. Comparing the subset of genes whose promoter nucleosome-depleted region (NDR) shrinks the most in the absence of either Rsc1 or in the absence of S2P revealed a significant overlap (p=3.416e-06). These data support a genome-wide mechanistic connection between CTD phosphorylation on serine 2 and remodeling by the RSC complex.

Discussion

Despite the fact that the phosphorylation of the CTD S2 is not essential in yeast, the master regulator of gametogenesis, ste11, requires an unusual requirement of S2P nearby its promoter for proper induction to counteract the repressed state imposed by the Set1-H3K4me3-HDAC pathway (Materne et al., 2015). A recent study proposed that Set1 represses the transcriptome independently of H3K4 methylation and is recruited by the Atf1 transcription factor (Lorenz et al., 2014). However, three previous studies have shown that Atf1 functions as an activator, rather than a repressor at the ste11 locus (Kanoh et al., 1996; Shiozaki and Russell, 1996; Takeda et al., 1995) and a H3K4R mutant also derepresses ste11 expression (Materne et al., 2015). Therefore, while we do not exclude that Set1 also represses ste11 independently of its H3K4 methylase activity, this pathway is not predominant.

Both the deletion of ubp8 (and therefore increased ubiquitylation) and the htb1 K119R mutant (and therefore absence of ubiquitylation) resulted in derepression of ste11. This is at first sight hard to explain as removal of histone modifications are expected to oppose the effect of their addition, such as in the acetylation/deacetylation process. However, a similar case was reported at the GAL1 locus (Henry et al., 2003), already underlying the complex dynamic of H2Bubi where the sequential addition and removal of the mark is required for proper induction. Although the ubp8 and htb1 K119R both result in elevated ste11 expression, only the htb1 K119R suppresses the requirement of the S2 kinase Lsk1, which indicates that the positive effects of the addition and removal of the mark may operate through unrelated mechanisms. This is backed up by the spatially opposite behaviour of the H2Bubi mark over the ste11 locus. The fact that the double lsk1 ubp8 mutant behaves as the single lsk1 mutant suggests that the function of lsk1 is required upstream of ubp8. Indeed if Ubp8 positively affects elongation by facilitating the eviction of the H2A-H2B dimer and nucleosome reassembly in the wake of the polymerase (Batta et al., 2011; Pavri et al., 2006), it is expected that this effect will be masked by the strong defect in polymerase occupancy at the promoter observed when lsk1 is absent. The positive effect of ubp8 on elongation is likely to occur independently of H3K4 methylation as previously reported (Tanny et al., 2007) and maybe related to the positive role of H2Bubi in non-coding transcription at heterochromatic loci (Sadeghi et al., 2014; Zofall and Grewal, 2007).

The emerging model, complementing the recently propose role of S2P in ste11 induction is that promoter nucleosome H2Bubi positively regulates the Set1 deposition of H3K4 methylation and therefore is the primary signal of HDAC-dependent repression of transcription (Figure 4—figure supplement 2). Upon transcriptional induction, the recruitment of SAGA-associated Ubp8 (Helmlinger et al., 2008) removes the ubiquitin mark, and concomitantly, the MAP kinase-dependent recruitment of Lsk1 deposits higher level of S2P. These two unrelated processes impede the Set1-dependent recruitment and/or activation of the SET3C HDAC, which provides access of the transcription machinery to the larger NDR that is formed. From the genetic analyses, as ste11 is highly transcribed in the ubp8 mutant, it appears that the S2P-dependent induction of transcription can bypass the requirement of de-ubiquitylation dependent on Ubp8.

Considering that H2B ubiquitylation was reported to act as a barrier to Ctk1 (the Lsk1 orthologue of budding yeast) (Wyce et al., 2007), we speculate that this additional layer of control (Figure 4—figure supplement 2A) may also participate in the negative role of H2B-ub1 on ste11 induction. Supporting this possibility, the level of Lsk1 was increased at the ste11 promoter when histone H2B ubiquitylation was abolished (Figure 4—figure supplement 2B).

The analysis of nucleosome occupancy indicates that RSC affects the NDR of ste11 very similarly to S2P and indeed both S2P and histone acetylation are required for high occupancy of RSC at this locus. Considering that RSC recognizes acetylated nucleosomes through its bromodomains-containing subunits (Carey et al., 2006; Kasten et al., 2004), we propose that RSC functions as the ultimate player required to induce ste11 transcription upon induction. Comparing the genome-wide nucleosome occupancy in the absence of either CTD S2P or rsc1 reveals a significant overlap in the subset of genes whose NDR shrinks most, which constitutes an evidence for a mechanistic link between the phosphorylation of CTD serine 2 and the RSC complex.

Our data provide a mechanism by which promoter H2Bubi represses gene expression by opposing the recruitment of RSC. More specifically at the ste11 locus, the balance between the negative effect of H2Bubi and the positive effect of RSC is critical for the timely induction of gametogenesis, which highlights the major role of chromatin regulation in cell fate. An important remaining issue is to understand why the H2Bubi-dependent H3K4 methylation only represses a subset of genes while this mark is a hallmark of most, if not all transcribed regions. Further work is in progress to address this point.

Materials and methods

Fission yeast growth, gene targeting and mating were performed as described (Bamps et al., 2004; Bauer and Hermand, 2012; Drogat et al., 2012; Fersht et al., 2007). The expression of ste11 was induced by nitrogen starvation. Western blot were performed with anti-H2B (Active Motif #39237), anti-H2Bubi (Active Motif #39623), PAP (Sigma #P1291) and anti-tubulin (Sigma #T5168) antibodies. Iodine staining was performed as described (Bauer et al., 2012). The pREP-cdc14 plasmid and the cdc14-118 ts mutant were gifts of Viesturs Simanis. Latrunculin A (LatA) was purchased from Enzo Life Sciences (#76343-93-6) and used at 0.5 μM. Anhydrotetracycline (AnTet) was purchased from Sigma (#37919) and used at 2.5 μg/ml. Plasmids used to generate the switch off snf21 strain (Zilio et al., 2012) were a gift of Nicola Zilio.

LatA sensitivity screen

Request a detailed protocol

The S. pombe deletion set was purchased from Bioneer. To screen for mutant phenotypes, the library was spotted onto YES and YES supplemented with 0.5 μM LatA. The 33 plates were manually scored for growth both 2 and 5 days after incubation. The screen was performed two times with the entire set, and potential hits were retested. The complete list of genes whose deletion results in LatA sensitivity will be published elsewhere.

ChIP and quantitative RT-PCR

Request a detailed protocol

Chromatin Immunoprecipitations were performed using a Bioruptor (Diagenode) and Dynabeads (Invitrogen). Precipitated DNA was purified on Qiagen. Quantitative RT-PCR was performed using the ABI high capacity RNA-to-cDNA (Devos et al., 2015). The untreated sample was used as a reference and the act1 mRNA was used for normalization. Antibodies used in ChIP were anti-H2B (Active Motif #39237), anti-H2Bubi (Active Motif #39623), anti-H3K4me3 (Millipore #07–473), anti-H3K14ac (Millipore #07–353) anti-H3 (Abcam #1791) and PAP (Sigma). For all ChIP experiments, each column represents the mean percentage immunoprecipitation value ± SEM (n = 2–4). Note that a 10 min crosslinking in formaldehyde was used as routine but was extended to 15 min in the case of Rsc1-TAP.

Nucleosome scanning

Request a detailed protocol

A culture of 500 ml of fission yeast cells was grown to OD 0.5 at 32°C and crosslinked with 7 ml of Formaldehyde 37% for 20 min at 25°C, 60 rpm. The crosslink was stopped by the addition of 27 ml of Glycine and cells were pelleted. The pellet was resuspended in preincubation solution (Citric acid 20 mM, Na2HPO4 20 mM, EDTA pH 8 40 mM) supplemented with 100 µl β mercaptoethanol/50ml and incubated 10 min at 30°C. The cells were centrifugated and resuspended in 10 ml of Sorbitol 1 M / Tris pH 7.4 50 mM buffer containing 200 µl Zymolase (0,01g/200 µl water) and incubated 20 min at 30°C (40 min when EMM medium was used). After centrifugation, the pellet was resuspended in 7.5 ml NP buffer (Sorbitol 1 M, NaCl 50 mM, Tris pH 7.4, 10 mM, MgCl2 5 mM, CaCl2 1 mM, NP-40 0.75%) supplemented with 7.6 ml NP buffer + 0,5 µl β mercaptoethanol + 400 µl spermidine 10 mM) and split into 2 Falcon tubes (Total and MNase treated). Add 50 µl MNase (32 units) to one tube and incubate 20 min at 37°C without agitation. Add 500 µl Stop buffer, 200 µl RNase A (0.4 mg/ml) and 225 µl proteinase K (20 mg/ml) and incubate at 65°C overnight. Potassium Acetate was added (1.25 ml of a 3M solution) and the mix was incubated 5 min on ice. After phenol extraction, 200 µl NaCl 5 M, 1.7 µl Glycogene (20 mg/ml), and 3.5 ml of isopropanol were added. After precipitation and ethanol wash, the pellet was resuspended in 200 µl of TE buffer. The samples were run on agarose gel (1.5%) and the bands corresponding to the mononucleosomes were cut and purify with Qiagen. Q-PCR with the primer pairs of the set of overlapping amplicons were performed. Nucleosomal DNA enrichment calculated as the ratio between the amounts of PCR product obtained from DNA samples generated from the mononucleosomal gel purification to that of the input (total) DNA.

RT-Q-PCR

Request a detailed protocol

Total RNA was prepared as described (Guiguen et al., 2007) and purified on Qiagen RNeasy. Q-RT-PCR was performed using the ABI high capacity RNA-to-cDNA following the instructions of the manufacturer. The untreated sample was used as a reference and the act1 mRNA was used for normalization. In all Q-RT-PCR experiments, each column represents the averaged value ± SEM (n = 2–3).

MNase-Seq

Request a detailed protocol

The preparation of mononucleosomal DNA and the sequencing of mononucleosomal DNA were previously described in details (Soriano et al., 2013). The nucleosome sequencing data have been deposited in the GEO database under the accession number GSE80524.

MNase-seq data was processed and dynamic changes were detected using DANPOS (Dynamic Analysis of Nucleosome Positioning and Occupancy by Sequencing - https://code.google.com/p/danpos/). Clonal reads (determined by their very high coverage compared to the mean coverage across the genome based on a Poisson P-value cutoff) were removed from the reads previously mapped on the S.pombe genome with BWA (bio-bwa.sourceforge.net). Variation in size resulting from MNase treatment were compensated by shifting each read toward the 3’ direction for half of the estimated fragment size. Nucleosome occupancy was then calculated as the quantile-normalized count of adjusted reads covering each base pair in the genome. Afer this processing, DANPOS calculates the differential signal at single nucleotide position based on a Poisson test. Dynamic nucleosomes are then identified by peak calling on these signals. TSS associated NDR lengths were quantified as the length of the longest DNA segment whose proximal border is located closer than 65 bp from the TSS with nucleosome occupancy levels lower than an arbitrary treshold (mean(occupancygenome) – standard_deviation(occupancygenome)) at any point.

The processed data can be visualized on the web browser http://genomics.usal.es/Materne2016.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    Distinct requirement of RNA polymerase II CTD phosphorylations in budding and fission yeast
    1. C Cassart
    2. J Drogat
    3. V Migeot
    4. D Hermand
    (2012)
    Transcription, 3, 10.4161/trns.21066.
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    A global census of fission yeast deubiquitinating enzyme localization and interaction networks reveals distinct compartmentalization profiles and overlapping functions in endocytosis and polarity
    1. I Kouranti
    2. JR McLean
    3. A Feoktistova
    4. P Liang
    5. AE Johnson
    6. RH Roberts-Galbraith
    7. KL Gould
    (2010)
    PLoS Biology, 8, 10.1371/journal.pbio.1000471.
  36. 36
  37. 37
  38. 38
    Heterochromatin assembly and transcriptome repression by Set1 in coordination with a class II histone deacetylase
    1. DR Lorenz
    2. LF Meyer
    3. PJR Grady
    4. MM Meyer
    5. HP Cam
    (2014)
    eLife, 3, 10.7554/eLife.04506.
  39. 39
    Promoter nucleosome dynamics regulated by signalling through the CTD code
    1. P Materne
    2. J Anandhakumar
    3. V Migeot
    4. I Soriano
    5. C Yague-Sanz
    6. E Hidalgo
    7. C Mignion
    8. L Quintales
    9. F Antequera
    10. D Hermand
    (2015)
    eLife, 4, 10.7554/eLife.09008.
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
    Punctuation and syntax of the RNA polymerase II CTD code in fission yeast
    1. B Schwer
    2. AM Sanchez
    3. S Shuman
    (2012)
    Proceedings of the National Academy of Sciences of the United States of America 109:18024–18029.
    https://doi.org/10.1073/pnas.1208995109
  52. 52
  53. 53
  54. 54
    Clustered regulatory elements at nucleosome-depleted regions punctuate a constant nucleosomal landscape in Schizosaccharomyces pombe
    1. I Soriano
    2. L Quintales
    3. F Antequera
    (2013)
    BMC Genomics, 14, 10.1186/1471-2164-14-813.
  55. 55
  56. 56
  57. 57
    Schizosaccharomyces pombe atf1+ encodes a transcription factor required for sexual development and entry into stationary phase
    1. T Takeda
    2. T Toda
    3. K Kominami
    4. A Kohnosu
    5. M Yanagida
    6. N Jones
    (1995)
    The EMBO Journal 14:6193–6208.
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65

Decision letter

  1. Detlef Weigel
    Reviewing Editor; Max Planck Institute for Developmental Biology, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "Histone H2B ubiquitylation represses gametogenesis by opposing RSC-dependent chromatin remodeling at the ste11 locus" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Detlef Weigel as the Senior Editor and Reviewing Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The reviewers liked that this work is beginning to answer some of the questions left open in your original eLife paper. However, they also felt that you needed to go beyond investigating ste11 as a model locus to broaden the general appeal of the work, by incorporating new MNase and ChIP-seq data sets. There are other examples where the H3K4me3 has been shown to be repressive because it recruits a complex containing HDAC activity and a PHD-containing subunit that reads the histone mark. For example, at PHO5, H3K4me3 is both positive during activation in S/G2/M and repressive during mitotic exit when the Rpd3L HDAC is recruited via two PHD-containing subunits. The step forward in your paper is the identification of RSC in the genetic screen and its placement at the end of the pathway identified in the previous eLife paper. It could be argued, though, that reduced acetylation would be expected to impair recruitment of RSC. Given that one could question how big a step the present manuscript is, I would also support requesting the genome-wide datasets to broaden general appeal beyond ste11.

Reviewer #1:

This paper by the Hermand lab uses LatA sensitivity screen to identify potential factors controlling gene expression together with RNAPol II Ser2 phosphorylation (S2P). H2B ubiquitin protease Ubp8 and some components of RSC and SWI/SNF complex were identified, which suggests potential link between H2B-ub1/chromatin remodeling and S2P pathway. In fission yeast gametogenesis, ste11 is a key transcriptional master regulator. The authors focus on ste11 transcription, as their previous recent paper showed that ste11 is regulated by S2P and by Set1 K4me-repression. Here they show that ste11 is repressed by H2Bub and activated by RSC. It is proposed that, via Set1-H3K4me3-HDAC pathway, H2Bub lowers RSC recruitment to ste11 promoter and regulates local nucleosomal occupancy and therefore transcription. These results may explain how H2B-ub at the promoter represses ste11 transcription.

The overall findings are interesting with respect to the master regulatory ste11 in fission yeast. Most interesting is that the typically activating chromatin modification, H3K4me3, is thought to be repressive via recruitment of HDAC complex and, in the new data here, resisting Rsc remodeling of promoter. In light of the previous paper, which made the basic observation of this pathway regulating ste11, there are two key questions for this to increase broad interest:

1) Are there general mechanisms to control gene expression in fission yeast, which can be addressed by genome wide studies in addition to specific analyses of ste11?

2) Is there an effect on gametogenesis itself, not only on expression of ste11?

Additional specific technical questions:

1) Since H2Bub and RSC are both regulating ste11 expression in fission yeast, do RSC mutants affect H2Bub levels at ste11 promoter?

2) KR mutagenesis is not perfect to mimic non-ubiquitylated lysine, which may cause side effects. Authors should test the rhp6 deletion strain in at least one key experiment, e.g. in Figure 1 and Figure 1—figure supplement 1D.

3) Results: 'We conclude that H2B ubiquitylation at the promoter of ste11 represses transcription by increasing H3K4-3me', There is no evidence to support "by increasing H3K4-3me".

4) Authors conclude that H2Bub opposes RSC to remodel chromatin at ste11 promoter via Set1-H3K4me3-SET3C HDAC pathway. So does KR mutant and rhp6 deletion affect H3K14ac at ste11 promoter.

5) Quantification: no p-values – need to be added. How many biological repeats were performed for each experiment? I could not find this in Figure Legends.

6) In Figure 1E and elsewhere, the ChIP signals should be normalized to histones, rather than input, since the authors are arguing that levels of histones are changing.

7) In Figure 1—figure supplement 1B: To make the statement that H2Bub is increased in ubp8 deleted strains, the blots should be quantified and the level of H2Bub needs to be normalized to H2B.

8) Figure 2: Since viability is low at 3 days (D), it is important to show viability test at timing of the transcription experiment in E.

9) Figure 3A, B: Since nucleosome occupancy is increasing everywhere in the promoter with the mutations in Rsc, the question is how specific is this? What about the gene body? What about other genes and promoters?

Reviewer #2:

This manuscript follows up on studies published earlier in eLife by the authors. In that study, they presented genome-wide nucleosome mapping data in fission yeast, S. pombe, showing that the absence of phosphorylation of the CTD of RNA polymerase II (RNAP II) on serine 2 (S2) led to increased nucleosome occupancy and repositioning in the promoters of a subset of yeast genes. The affected promoters generally had a larger nucleosome depleted region (NDR) than the majority of genes, and included the ste11 gene, which the authors previously found had a peak of S2 phosporylation (S2P) near the promoter during its activation. They showed that the peak of S2P at ste11 and a second promoter reduced nucleosome occupancy and increased histone acetylation during gene activation. The take home message from these and other studies in this first manuscript was that during activation S2P counteracts repressive histone deacetylation by SET3C, which is targeted to promoters via its interaction with RNAP II-S5P/Set1-mediated H3K4 methylated histones. The dual presence of S2P and S5P was also found to block Set1 interaction with the CTD.

In the present manuscript, the authors focused on the ste11 gene to investigate the role of other regulators in this pathway of promoter repression. Their examination was restricted to H2B monoubiquitylation (H2B-ub1) and the RSC nucleosome-remodeling complex, which were identified in a screen for mutants that relieved the drug sensitivity of lsk1, the fission yeast S2 CTD kinase. By analyzing loss of function mutations coupled with RNA analysis and ChIP, the authors report that an htb1KR mutation suppressed the transcription defect of a lsk1 deletion and that H2B-ub1 was localized to the ste11 promoter under basal (repressed) conditions. As expected, its promoter occupancy positively correlated with the occupancy of H3K4me3. Consistent with a role in promoter repression through its trans-regulation of H3K4me3, an htb1-KR mutant showed reduced nucleosome occupancy in the ste11 promoter. In contrast, mutations that decreased RSC expression had the opposite phenotype – ste11 transcription was reduced and nucleosome occupancy was increased in the promoter. The authors propose that H2B-ub1 represses transcription of ste11 by opposing RSC-dependent nucleosome remodeling.

The phenocopying of S2A and H3K4me3 mutants with rsc and htb-K119R mutants, respectively, supports the placement of Rsc and H2B-ub1 in the pathway leading to ste11 activation, thus extending the author's initial definition of this pathway and adding some interesting new information about the interplay between RNAP II phosphorylation and chromatin remodeling at promoters. However, gaps in the analysis remain and should be addressed, as outlined below.

1) It is unclear why RSC mutants were identified in the screen for suppression of drug sensitivity of Lsk1. The authors should examine the effects of a rsc1∆ lsk1∆ double mutation on ste11 transcription as they did for an htb-K119R lsk1∆ double mutation.

2) The authors used Arp9-TAP to perform ChIP experiments in Figure 4. Because Arp9 is present in both RSC and SWI/SNF complexes, they should confirm that the results were due only to the recruitment of RSC. Similarly, the authors should show the effect of rsc1∆ as well as arp9∆ on H3 levels in the ste11 promoter.

3) Nucleosome scanning should be included in the analysis of the phenotypes of the htb-K119R mutant.

4) An important missing gap in the pathway is the relationship of H2B-ub1 to S2-P; for example, does H2B-ub1 affect Lsk1 recruitment to the promoter and subsequent S2-P? Along the same lines, what is responsible for the deposition of H2B-ub1 at the ste11 promoter, for example what is the role of S5-P, and what is the status of Bre1 occupancy at the promoter?

5) Present evidence confirming that the htb1-KR mutant does not show HDAC recruitment to the ste11 promoter and that H3ac levels remain high, consistent with H2Bub1 being upstream of H3K4me3 in the pathway.

6) This study would be significantly enhanced if the authors extended their MNase mapping experiments genome wide in rsc∆ mutants, and then comparing the results to those reported for an S2A mutant. This would broaden the authors' conclusions and complement their in-depth analysis of a single gene.

Reviewer #3:

Previously, Materne et al. reported (eLife. 2015. 4:e09008) that phosphorylation of the RNA polymerase II CTD on Ser2 (S2P) controlled nucleosome dynamics in S. pombe at the promoters of 324 genes, including ste11 that encodes a regulator of mating and gametogenesis. The authors also found that MAP kinase activation of latrunculin-sensitive kinase 1 (Lsk1) mediated the S2P modification. Mechanistically, the authors established that CTD S2P by Lsk1 counters CTD S5P-dependent recruitment of Set1-mediated trimethylation of histone H3 lysine 4 (H3K4me3), which, in turn, recruits the SET3C histone deacetylase (HDAC) complex.

In the present submission, Materne et al. identified additional regulators of ste11 expression, and cdc14 to a lesser extent, using a genetic screen for genes required to complete cytokinesis in the presence of lantruculin A (LatA), a disruptor of the actinomyosin ring. The screen identified SAGA-associated Ubp8, a ubiquitin (ub) protease that removes monoubiquitin from H2B, as well as shared and non-shared subunits of the chromatin remodelers RSC and SWI/SNF (Figure 1—figure supplement 1C). The identification of Ubp8 is not unexpected as it is well documented that H2Bub is required for trans-modification of H3 and promoter accumulation of H3K4me3, which recruits SET3C HDAC activity to ste11. Nevertheless, using ChIP (using a newly available monoclonal antibody) the authors convincingly show that the level of H2Bub1 at the ste11 correlates with the presence of H3K4me3, and both histone marks decrease on activation (Figure 1E). Consistent with this, a H2BK119R mutation, which abolishes H2Bub1 and hence H3K4me3 at the ste11 promoter (Figure 1E), decreased H3 occupancy (Figure 2A) and increased both basal and induced levels of ste11 expression (Figure 1C). Loss of SWI/SNF and RSC subunits demonstrated that RSC, but not SWI/SNF, is required for nucleosome depletion of the ste11 promoter (Figure 3A-B) and its activation (Figure 2B-F). As shown by ChIP, RSC is recruited specifically to the ste11 promoter as opposed to the gene body, and this recruitment increases when H2Bub1 is abolished by H2BK119R (Figure 4A-B). Conversely, RSC recruitment is decreased in the absence of H3K14ac (H3K14R mutant) and lsk1∆ cells, which lack S2P that is needed to inhibit H2B ubiquitylation (Figure 3C-D). Genetic (Figure 1B) and RT-Q-PCR (Figure 2—figure supplement 1B, evidence is also presented indicating that Cdc14 is a downstream target of Lsk1 and thus requires S2P as well as the remodelers Rsc and SWI/SNF for activation.

The manuscript is written very well and understandably. In addition, all of the experiments are executed well and the data support the authors' conclusions and model (Figure 4D), whereby H2Bub1, by increasing H3K4me3, recruits the SET3C HDAC and thus antagonizes recruitment of RSC and activation of ste11. The manuscript clearly builds on their previous paper and is suitable for publication in as an eLife Research Advance.

Figure 3C-D: The conclusion that "high promoter occupancy of Rsc1-TAP required both H3 K14 acetylation and the S2 kinase Lsk1" is unsupported. ChIP only reports relative occupancy and there is a two-fold decrease in RSC occupancy in the H3K14R and isk1delta strains. The wording should be changed to something to the effect of the mutants halved the occupancy of RSC or significantly decreased occupancy. The latter raises the point of whether the reduction in occupancy in both panels is statistically significant.

Introduction, first paragraph: "However, in the absence of Set1, most genes are upregulated, suggesting a predominant role in repression." To the best of my knowledge, this is incorrect. In budding yeast, Boa et al. (Yeast. 2003. 20, 827) reported that transcript levels of most genes (80%) were downregulated in the absence of Set1 and H3K4 methylation. In contrast, Set1 and H3K4 methylation does silence the rDNA (Briggs et al. 2001 Gene Dev 15, 3286). The statement should be justified or corrected and referenced appropriately.

https://doi.org/10.7554/eLife.13500.017

Author response

Reviewer #1:

1) Are there general mechanisms to control gene expression in fission yeast, which can be addressed by genome wide studies in addition to specific analyses of ste11?

We have addressed the question by analysing the genome wide effect of the deletion of rsc1, a non-essential subunit of RSC, on nucleosome positioning, and by comparing it with the CTD S2A mutant. We decided to perform an MNase-Seq experiment, which is time consuming but provides a high resolution map of nucleosome. A new figure (Figure 4—figure supplement 1) with 5 panels is now presented and the corresponding text reads as follows:

“In order to test if the proposed connection between the phosphorylation of serine 2 within the CTD and the RSC remodeling complex could be expanded to more genes, we performed genome-wide mapping of nucleosome position by MNase-Seq in the rsc1 deletion mutant. […] These data support a genome-wide mechanistic connection between CTD phosphorylation on serine 2 and remodeling by the RSC complex.”

To answer the question of the referee, we can therefore conclude that the mechanism we describe in details in the case of ste11 can likely be extended to a subset of genes (82 when considering the most stringent analyses) in the conditions we have tested (growth in standard conditions).

2) Is there an effect on gametogenesis itself, not only on expression of ste11? The referee asks the important question of the biological relevance of our analyses. We have added a panel in Figure 2—figure supplement 1B showing that similarly to the CTD S2A mutant, an rsc1 mutant also displays a prominent defect during gametogenesis while a snf22 mutant (encoding a subunit of the SWI/SNF complex) does not. Considering that the deletion of rsc1 affects ste11 expression (Figure 2B) while the deletion of snf22 does not (Figure 2B), the molecular data are nicely supported by the physiological data. The text was modified as follows:

“The absence of either rsc1 or arp9 clearly affected the expression of ste11 while snf22 had no effect (Figure 2B), pointing to a more prominent role of RSC for ste11 expression, which was confirmed by a gametogenesis assay (Figure 2—figure supplement 1B).”

Additional specific technical questions:

1) Since H2Bub and RSC are both regulating ste11 expression in fission yeast, do RSC mutants affect H2Bub levels at ste11 promoter?

In order to answer that question, we have performed a ChIP experiment presented in Figure 4A. We have chipped H2Bubi (normalized on a H2B ChIP) in a wild type and a rsc1 deleted strain. The absence of rsc1 does not seem to affect the level of ubiquitylation at the promoter of ste11 but leads to a strong decrease of ubiquitylation in the 3’ region. This is not surprising considering that ste11 transcription is strongly impeded in the absence of Rsc1 as judged by Q-RT-PCR (Figure 2B). The text was modified as follows:

“The deletion of rsc1 did not affect the level of H2B ubiquitylation nearby the ste11 promoter but led to a decrease of the level of this modification in the transcribed region, most likely as a consequence of decreased transcription when Rsc1 is absent (Figure 4A).”

2) KR mutagenesis is not perfect to mimic non-ubiquitylated lysine, which may cause side effect. Authors should test the rhp6 deletion strain in at least one key experiment, e.g. in Figure 1 and Figure 1—figure supplement 1D.

We agree with the referee that the KR is not a perfect mimic of the non-ubiquitylated lysine. The referee may have missed that we had already performed the experiment he requested as shown in Figure 1—figure supplement 1D where the effect of the KR mutant was compared to a deletion of rhp6. We have also added a new experiment in Figure 4E where the level an acetylation on histone H3 lysine 14 is compared in a wild type strain, the KR mutant and the rhp6 deletion. In both experiments, the deletion of rhp6 and the KR mutant resulted in similar defects. We are therefore confident that in the case we are studying, the KR mutant behaves as a good mimic of the non-ubiquitylated state (see also point 4 below).

3) Results: 'We conclude that H2B ubiquitylation at the promoter of ste11 represses transcription by increasing H3K4-3me', There is no evidence to support "by increasing H3K4-3me".

The data presented in Figure 1E show a clear dependency of H3K4 methylation to H2B ubiquitylation, confirming the model generally admitted in the literature. However, we agree that the sentence stated by the referee is overstating the data. We have therefore changed it to:

“We conclude that H2B ubiquitylation at the promoter of ste11 correlates with repressed transcription and high level of H3K4me3, which in turn may favour histone deactetylation by the SET3C complex.”

4) Authors conclude that H2Bub opposes RSC to remodel chromatin at ste11 promoter via Set1-H3K4me3-SET3C HDAC pathway. So does KR mutant and rhp6 deletion affect H3K14ac at ste11 promoter.

As mentioned above (point 2), we have tested the issue raised by the referee by chipping the K14 acetylated histone H3 (normalized on total H3) in the strains lacking H2B ubiquitylation, which results an elevated acetylation at the ste11 promoter. The text was modified as follows:

“Moreover, histone H3 acetylation was increased at the ste11 promoter when H2B ubiquitylation was abolished in either the htb1-K119R or the rhp6 mutant (Figure 4E).”

5) Quantification: no p-values – need to be added. How many biological repeats were performed for each experiment? I could not find this in Figure Legends.

The number of replicates that was previously indicated in the Materials and methods is now mentioned for each experiment in the figures legend, as requested by the referee.

When a statistical analysis was performed as in Figure 3C and Figure 4—figure supplement 1D (right panel), the test used is indicated in the figure legend with the corresponding p-value.

6) In Figure 1E and elsewhere, the ChIP signals should be normalized to histones, rather than input, since the authors are arguing that levels of histones are changing.

In all experiments where the occupancy of modified histones was assessed, the signal was indeed normalized to the total corresponding histone. This is now more clearly indicated in the y-axis of the corresponding graphs.

7) In Figure 1—figure supplement 1B: to make the statement that H2Bub is increased in ubp8 deleted strains, the blots should be quantified and the level of H2Bub needs to be normalized to H2B.

We agree with the referee. The scanned blots were quantified in ImageJ and the level of H2Bubi was normalized to H2B with the wild type set as 1.

8) Figure 2: Since viability is low at 3 days (D), it is important to show viability test at timing of the transcription experiment in E.

The timing of these experiments is very different. As the snf21 gene is essential, it was important to show that the switch-off system we used is sufficiently efficient to ultimately mimic a deletion. Indeed, the strain does not sustain growth when the promoter is turned off (Figure 2D).

In the experiments presented in Figure 2E-F, the timing is very short (three hours) in order to avoid as much as possible secondary effects. Within this time scale, corresponding to roughly one cell cycle, we have not noticed any effect on cell number. To us, this is not surprising as the depletion of snf21 is not yet complete and effect of cellular growth likely take longer to be apparent. We decided to use this time scale to ensure that the effects we observed are likely not a secondary consequence of a global misregulation of nucleosome positioning.

9) Figure 3A, B: Since nucleosome occupancy is increasing everywhere in the promoter with the mutations in Rsc, the question is how specific is this? What about the gene body? What about other genes and promoters?

The nucleosome scanning experiment presented in Figure 3B indeed focuses on the promoter region of ste11. It is difficult to extend it further as the data presented already required more than 30 primers. However, the ChIP experiment presented in Figure 3A covers the entire locus (at a lower resolution) and clearly demonstrates that the occupancy effect occurs at the promoter and not on the gene body. Regarding other genes and promoters, we have now performed a genome-wide analysis of occupancy as presented in Figure 4—figure supplement 1.

We hope that these comments answer the issues raised by this referee and we thank him for his deep analysis of our work.

Reviewer #2:

1) It is unclear why RSC mutants were identified in the screen for suppression of drug sensitivity of Lsk1. The authors should examine the effects of a rsc1∆ lsk1∆ double mutation on ste11 transcription as they did for an htb-K119R lsk1∆ double mutation.

The referee is surprised that subunits of RSC were identified in the latA screen presented in Figure 1A and Figure 1—figure supplement 1C. We would like to highlight that, contrary to what the referee wrote, this is not a screen for suppression of drug sensitivity but rather a screen for sensitivity to latA. The logic of the screen is that the CTD S2 kinase Lsk1 (latrunculin sensitive kinase) was shown to be sensitive to latA, most likely because the expression of one or several genes required for survival in the presence of the drug are affected. Our data support that the cdc14 gene encodes such a target gene. If Lsk1 and RSC are required in the same pathway to enforce cdc14 expression, it is not surprising to us that subunits of RSC were identified in the screen, as their deletion results in lower gene transcription. In the case of cdc14, contrary to ste11, both RSC and SWI-SNF seem to be required for proper expression.

Regarding the experiment proposed by the referee, namely to examine the effect of a double rsc1 lsk1 mutant, the combined deletion of these two genes is synthetic lethal as reported in our previous work (Materne et al., eLife 2015). Therefore, the experiment cannot be performed.

2) The authors used Arp9-TAP to perform ChIP experiments in Figure 4. Because Arp9 is present in both RSC and SWI/SNF complexes, they should confirm that the results were due only to the recruitment of RSC. Similarly, the authors should show the effect of rsc1∆ as well as arp9∆ on H3 levels in the ste11 promoter.

While the work was in progress, we noticed that the Rsc1 protein was difficult to Chip, resulting in less reproducible results. We therefore had to increase the timing of crosslinking as indicated in the Materials and methods. The Arp9 protein was easier to work with. As pointed by the referee, this raised the question of the specificity. Below is a list of the evidences supporting a specific role of RSC at the ste11 promoter:

Figure 2B: the effect of the deletion mutants of rsc1, snf22 and arp9 on ste11 expression are presented, which points to a specificity of RSC

Figure 2C: the transcriptional repression of the expression which snf21, which encodes the catalytic subunit of RSC, is sufficient to decrease ste11 expression.

Figure 2—figure supplement 1B: the deletion of rsc1, but not snf22 leads to a gametogenesis defect. Figure 2—figure supplement 1D: the SWI-SNF specific subunit, Snf22, does not Chip at the ste11 promoter, while Rsc1 and Arp9 does (Figure 3C-D, Figure 4B-C-D).

Moreover, we have performed a new experiment (Figure 2G), showing that depletion of Snf21rapidly results in higher H3 level at the ste11 promoter.

We hope that, taken together, these data convince the referee of a specific role of RSC at the ste11 promoter.

3) Nucleosome scanning should be included in the analysis of the phenotypes of the htb-K119R mutant.

We have performed the requested experiment, which is difficult in this case due to the slow growth of the mutant. This has technical implications as the time required to digest the cell with zymolyase is critical and affected by many parameters, including the physiological state of the cell. The result is presented below and shows that the H2B K119R mutant behaves very similarly to a wild type, or could even have lower occupancy.

4) An important missing gap in the pathway is the relationship of H2B-ub1 to S2-P; for example, does H2B-ub1 affect Lsk1 recruitment to the promoter and subsequent S2-P? Along the same lines, what is responsible for the deposition of H2B-ub1 at the ste11 promoter, for example what is the role of S5-P, and what is the status of Bre1 occupancy at the promoter?

The referee points to an important issue, namely the relationship of H2Bubi to S2P. Indeed, previous work from the Berger lab has revealed that H2Bubi acts as a barrier to the S2 kinase nucleosomal recruitment, which we have mentioned in the Discussion. In order to test the effect of H2Bubi on Lsk1 recruitment, we have performed a ChIP experiment of Lsk1 in a wild type and a H2B K119R strains (Figure 4—figure supplement 2B). The result indicates that the absence of ubiquitylation on H2B correlates with higher level of Lsk1 at the ste11 promoter, which supports the model previously reported. The text was modified as follows:

“Considering that H2B ubiquitylation was reported to act as a barrier to Ctk1 (the Lsk1 orthologue of budding yeast) (Wyce et al., 2007), we speculate that this additional layer of control (Figure 4—figure supplement 2A) may also participate in the negative role of H2B-ub1 on ste11 induction.Supporting this possibility, the level of Lsk1 was increased at the ste11 promoter when histone H2B ubiquitylation was abolished (Figure 4—figure supplement 2B).”

The referee then asks additional questions regarding the regulation (deposition, status of Bre1) of H2Bubi. Some aspects have been largely covered over the years by previous studies from the Tanny, Gould, Ekwall, Grewal, Winston and Allis laboratories, leading to a pretty good description of the pathway leading the H2B ubiquitylation in fission yeast. In addition, we believe that these experiments are beyond the scope of the current work and message. Moreover, they would require several months of work. For example, we have no experience with Bre1 ChIP and preliminary set up for these type of experiments is always time consuming.

5) Present evidence confirming that the htb1-KR mutant does not show HDAC recruitment to the ste11 promoter and that H3ac levels remain high, consistent with H2Bub1 being upstream of H3K4me3 in the pathway.

We present a new experiment where we have tested the issue raised by the referee by chipping the acetylated K14 histone H3 (normalized on total H3) in the strains lacking H2B ubiquitylation, which results an elevated acetylation at the ste11 promoter. This constitutes an evidence that H2B-ubi is upstream of the repressive deacetylation occurring at the ste11 promoter. The text was modified as follows:

“Moreover, histone H3 acetylation was increased at the ste11 promoter when H2B ubiquitylation was abolished in either the htb1-K119R or the rhp6 mutant (Figure 4E).”

6) This study would be significantly enhanced if the authors extended their MNase mapping experiments genome wide in rsc∆ mutants, and then comparing the results to those reported for an S2A mutant. This would broaden the authors' conclusions and complement their in-depth analysis of a single gene. We have responded to this request by analysing the genome wide effect of the deletion of Rsc1, a non essential subunit of RSC, on nucleosome positioning, and by comparing it with the CTD S2A mutant. A new figure (Figure 4—figure supplement 1) with 5 panels is now presented and the corresponding text reads as follows:

“In order to test if the proposed connection between the phosphorylation of serine 2 within the CTD and the RSC remodeling complex could be expanded to more genes, we performed genome-wide mapping of nucleosome position by MNase-Seq in the rsc1 deletion mutant. […] These data support a genome-wide mechanistic connection between CTD phosphorylation on serine 2 and remodeling by the RSC complex.”

This new large-scale analysis constitutes an evidence that the mechanism we describe in details in the case of ste11 can be extended to a subset of genes.

Reviewer #3: Figure 3C-D: The conclusion that "high promoter occupancy of Rsc1-TAP required both H3 K14 acetylation and the S2 kinase Lsk1" is unsupported. ChIP only reports relative occupancy and there is a two-fold decrease in RSC occupancy in the H3K14R and isk1strains. The wording should be changed to something to the effect of the mutants halved the occupancy of RSC or significantly decreased occupancy. The latter raises the point of whether the reduction in occupancy in both panels is statistically significant.

The sentence has been changed to:

“Supportive of this possibility, the abolition of either H3K14 acetylation or Lsk1 halved the occupancy of Rsc1-TAP at the ste11 promoter.”

To determine whether the decreased Rsc1-TAP enrichment was statistically significant, the difference in the means of enrichment between the ChIP peak in the wild type and the tested strains was estimated using t-test, assuming unequal variances between samples (Welch's t- test). p-value < 0.05 indicated by *, n.s.: non-significant. This is added to the legend.

Introduction, first paragraph: "However, in the absence of Set1, most genes are upregulated, suggesting a predominant role in repression." To the best of my knowledge, this is incorrect. In budding yeast, Boa et al. (Yeast. 2003. 20, 827) reported that transcript levels of most genes (80%) were downregulated in the absence of Set1 and H3K4 methylation. In contrast, Set1 and H3K4 methylation does silence the rDNA (Briggs et al. 2001 Gene Dev 15, 3286). The statement should be justified or corrected and referenced appropriately.

The referee cites works done in budding yeast. In fission yeast, to our knowledge, two studies have analysed the effect of set1 deletion on gene expression genome-wide (Tanny et al. Genes Dev. 2007 Apr 1;21(7):835-47) and Lorenz et al. eLife. 2014 Dec 15;3:e04506). They both revealed a predominantly repressive role of Set1.

In order to avoid any ambiguity, we have added “in fission yeast” in the sentence and also added the proper reference.

In addition, we now mention two works done in budding yeast that supports a gene-specific repressive role of Set1.

In budding yeast, Set1 is the only H3K4 methyltransferase and plays a repressive role on PHO5, PHO84 and GAL1 expression, suggesting that H3K4me creates a repressive chromatin configuration (Carvin and Kladde, 2004; Wang et al., 2011)

https://doi.org/10.7554/eLife.13500.018

Article and author information

Author details

  1. Philippe Materne

    URPHYM-GEMO, Namur Research College, University of Namur, Namur, Belgium
    Contribution
    PM, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  2. Enrique Vázquez

    Instituto de Biología Funcional y Genómica, Salamanca, Spain
    Contribution
    EV, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  3. Mar Sánchez

    Instituto de Biología Funcional y Genómica, Salamanca, Spain
    Contribution
    MS, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Carlo Yague-Sanz

    URPHYM-GEMO, Namur Research College, University of Namur, Namur, Belgium
    Contribution
    CY-S, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  5. Jayamani Anandhakumar

    URPHYM-GEMO, Namur Research College, University of Namur, Namur, Belgium
    Present address
    Department of Biochemistry & Molecular Biology, LSU Health Sciences Center, Shreveport, United States
    Contribution
    JA, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  6. Valerie Migeot

    URPHYM-GEMO, Namur Research College, University of Namur, Namur, Belgium
    Contribution
    VM, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  7. Francisco Antequera

    Instituto de Biología Funcional y Genómica, Salamanca, Spain
    Contribution
    FA, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  8. Damien Hermand

    URPHYM-GEMO, Namur Research College, University of Namur, Namur, Belgium
    Contribution
    DH, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    Damien.Hermand@unamur.be
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1029-5848

Funding

The Spanish Ministerio de Economia y Competividad (BFU2014-52143-P)

  • Francisco Antequera

Fonds National de la Recherche Scientifique (PR T.0012.14)

  • Damien Hermand

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the GEMO laboratory for discussions. We thank Susan Forsburg, Jason Tanny, Nicola Zilio and Viesturs Simanis for strains. We thank Dominique Helmlinger and Jason Tanny for critical reading of the manuscript. This work was supported by grant BFU2014-52143-P from the Spanish Ministerio de Economía y Competitividad to FA and by grants PR T.0012.14, MIS F.4523.11, Ceruna and Marie Curie Action to DH. DH is a FNRS Senior Research Associate.

Reviewing Editor

  1. Detlef Weigel, Max Planck Institute for Developmental Biology, Germany

Publication history

  1. Received: December 4, 2015
  2. Accepted: April 30, 2016
  3. Version of Record published: May 12, 2016 (version 1)

Copyright

© 2016, Materne et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 807
    Page views
  • 184
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    2. Evolutionary Biology
    Ryan Bracewell et al.
    Research Article Updated
    1. Cell Biology
    2. Chromosomes and Gene Expression
    Andrey Poleshko et al.
    Research Article Updated
