Electrical and Ca2+ signaling in dendritic spines of substantia nigra dopaminergic neurons

  1. Travis A Hage
  2. Yujie Sun
  3. Zayd M Khaliq  Is a corresponding author
  1. National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States
Research Article
  • Cited 7
  • Views 1,863
  • Annotations
Cite this article as: eLife 2016;5:e13905 doi: 10.7554/eLife.13905

Abstract

Little is known about the density and function of dendritic spines on midbrain dopamine neurons, or the relative contribution of spine and shaft synapses to excitability. Using Ca2+ imaging, glutamate uncaging, fluorescence recovery after photobleaching and transgenic mice expressing labeled PSD-95, we comparatively analyzed electrical and Ca2+ signaling in spines and shaft synapses of dopamine neurons. Dendritic spines were present on dopaminergic neurons at low densities in live and fixed tissue. Uncaging-evoked potential amplitudes correlated inversely with spine length but positively with the presence of PSD-95. Spine Ca2+ signals were less sensitive to hyperpolarization than shaft synapses, suggesting amplification of spine head voltages. Lastly, activating spines during pacemaking, we observed an unexpected enhancement of spine Ca2+ midway throughout the spike cycle, likely involving recruitment of NMDA receptors and voltage-gated conductances. These results demonstrate functionality of spines in dopamine neurons and reveal a novel modulation of spine Ca2+ signaling during pacemaking.

https://doi.org/10.7554/eLife.13905.001

eLife digest

When a nerve cell is viewed under the microscope, its structure looks a little like that of a tree. Each nerve cell, or neuron, has an array of ‘branches’ known as dendrites, which receive chemical messages from other cells. These messages are converted into electrical signals in the cell body and then travel down the main nerve fiber, which is the output of the cell. At the end of the nerve fiber, the signals are converted into chemical messages again and passed on to the dendrites of the next neuron.

The dendrites of most neurons are covered with spines that resemble thorns on a stem. These are the sites that typically connect neurons with other cells. However, neurons that release a chemical messenger called dopamine have largely smooth dendrites. These neurons still belong to extensive neural circuits that are involved in movement and reward processing. As such, it is not clear whether dopamine neurons receive connections that form onto dendritic spines, or whether all of their connections are formed directly onto dendrites.

By studying slices of mouse brain, Hage et al. now show that inputs onto dopamine neurons in fact establish both types of connections. The connections formed directly onto dendrites usually have more influence on the neuron than those on spines. However, the size and shape of spines determines their properties. Most spines are attached to dendrites via a narrow neck, and spines with long necks have less influence on the electrical signaling of the cell than short-necked spines. This is because the neck limits the movement of electrical charges. Long-necked spines also possess fewer receptors for the chemical messenger glutamate, which reduces their ability to transmit signals arriving from other cells.

Dopamine neurons receive input from many different areas of the brain. A key next step is to determine whether neurons from specific brain regions are more likely to form connections with spines as opposed to directly on dendrites. Given that these inputs often arrive at the same time, another question is whether there is crosstalk between these two types of connections.

https://doi.org/10.7554/eLife.13905.002

Introduction

The function of dendritic spines, sites of synaptic input for neurons in the central nervous system, is linked intimately to their unique geometry. For example, the thin spine neck limits diffusion of signaling molecules from the spine head (Svoboda et al., 1996; Tonnesen et al., 2014), a feature critical for synapse specificity during plasticity (Harvey and Svoboda, 2007; Matsuzaki et al., 2004; Yuste and Denk, 1995). Furthermore, theoretical studies hypothesize that the resistance of the spine neck, if high relative to the impedance of the dendrite, may electrically compartmentalize synaptic potentials in the spine head (Jack et al., 1975). As a result, the high neck resistance of spines can lead to passive amplification the voltage in the spine head, but also attenuation of signals as they travel across the spine neck (Araya, 2014; Sala and Segal, 2014; Yuste, 2013). Accordingly, long-necked spines may be expected to have higher neck resistances, producing strong attenuation of synaptic potentials. However, experimental evidence for this hypothesis has been less conclusive. Studies of cortical pyramidal cells show a clear negative correlation between neck length and EPSP amplitude (Araya et al., 2006; 2014), while studies in hippocampal pyramidal cells (Takasaki and Sabatini, 2014) and olfactory granule neurons (Bywalez et al., 2015) observe either a weak relationship or none at all. Therefore, better knowledge of the relationship between spine geometry and synaptic function will forward our understanding of how synaptic input shapes neuronal excitability.

Dopaminergic neurons of the substantia nigra (SNc) are commonly categorized as aspiny neurons, however early anatomical studies are less definitive regarding this view. Spine-like appendages have been reported on dopamine neurons in a variety of species including humans (Grace and Onn, 1989; Kline and Felten, 1985; Phelps et al., 1983; Preston et al., 1981; Rinvik and Grofova, 1970; Sarti et al., 2007; Schwyn and Fox, 1974; Yung et al., 1991Cruz-Sanchez et al., 1995; Patt et al., 1991). In other studies, spines were encountered only rarely (Juraska et al., 1977; Tepper et al., 1987). While many of these studies provide important descriptions of spine density, quantitative analyses of the density of spines in SNc dopamine neurons have seldom been performed. Likewise, the function of spines on dopamine neurons is unclear. For example, high densities of vesicular monoamine transporters, dopamine transporters and dopamine D2-autoreceptors have been localized to spines (Gantz et al., 2015; Nirenberg et al., 1996a; 1996b), which are associated with the reuptake and storage of dopamine. However, these observations raise the question of whether spines on dopamine neurons also function as typical sites of excitatory synaptic input.

Using two-photon laser scanning microscopy, we examined the density and morphology of dendritic spines on dopamine neurons in live and fixed tissue preparations from juvenile (P6–P25) and adult mice (up to 7 months old). During preparation of this study, a separate study was published that reports a mixture of spine and shaft synapses on dopamine neurons and tests glutamate receptors on spines (Jang et al., 2015). Here, we perform a comprehensive analysis of the functionality, chemical and electrical compartmentalization as well as Ca2+ signaling in short spines (<2 µm), long spines (2–5 µm) and shaft synapses. In addition, we tested the influence of subthreshold voltage changes on spine Ca2+ during slow pacemaking, a characteristic firing pattern of dopamine neurons. We demonstrate the presence of functional dendritic spines on SNc dopaminergic neurons and provide evidence that activation of spines during pacemaking leads to novel enhancement of spine Ca2+ that occurs periodically in a window starting at the middle phase and lasts throughout remainder of the spike cycle.

Results

Density and morphology of dendritic spines in live and fixed SNc dopaminergic neurons

We analyzed the density and morphology of dendritic spines on dopaminergic neurons in live brain slices obtained from juvenile (P6–25) mice. Figure 1 shows a typical example of an Alexa-594-filled dopamine neuron. Dendritic spines were clearly visible on all dendrites that were imaged, including on proximal and distal dendrites (Figure 1A). However, the density of spines varied widely across the population of dendritic segments from 0.5 spines/10 µm up to 4.4 spines/10 µm, with the average density on segments at 2.08 ± 0.10 spines/10 µm (n = 76; Figure 1B). Plotting the spine density versus age (Figure 1B), we observed a weak but statistically significant correlation indicating a reduction in density with age (Pearson’s R = -0.23569, p=0.040, n = 76 dendritic segments).

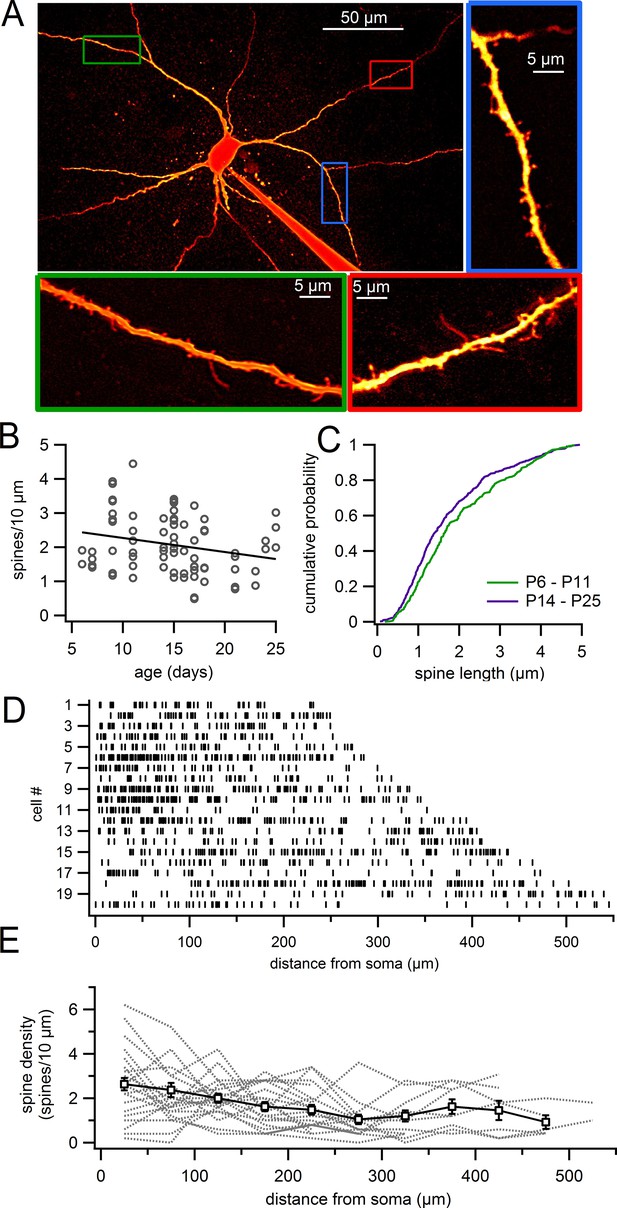

Dendritic spines on SNc dopamine neurons visualized in live slices.

(A) SNc dopamine neuron filled with Alexa-594 via patch pipette, visualized on a two-photon microscope. Higher magnification of selected dendritic segments are shown in green, blue and red boxes. (B) Plot of spine density versus age for dendritic segments visualized in live slices. (C) Cumulative histogram showing distribution of spine lengths for P6 – P11 (green) and P14 – P25 (purple) mice. (D) Distribution of spines (indicated by vertical lines) along continuous stretches of dendrite from 20 different cells. (E) Plot of spine density versus distance from the 20 dendrites in previous panel (gray dashed lines) and averages with s.e.m. (white boxes).

https://doi.org/10.7554/eLife.13905.003

Analysis of spine morphology showed many of the typical spine shapes (e.g. stubby and mushroom spines) similar to those reported on more traditional spiny neurons like pyramidal cells. In addition, we observed many spines that exhibited strikingly long necks, characteristic of dendritic filopodia (Figure 1C). In young mice (P6–P11), the average spine length was 1.97 ± 0.06 µm (range, 0.18–4.85 μm) with 142 of 355 spines (40%) measuring >2 µm in length (Figure 1C). In older juveniles (P14–P25), spines were somewhat shorter at an average length of 1.74 ± 0.05 µm (range, 0.06–4.95 µm) with 166 of 518 spines (32%) measuring >2 µm. Therefore, we observe a significant shift in the density of spines during development away from long spines toward shorter spines, consistent with the notion that longer, filopodial-like spines may be immature structures.

In separate experiments, we analyzed the density of spines across the entire visible dendritic tree in individual cells (age P14–P18). In the ‘whole cell’ images, the average spine density was 1.86 ± 0.02 spines/10 µm (n = 20; Figure 1D,E). Figure 1D shows the positions of individual spines within a continuous stretch of dendrite for 20 neurons. In some cells, spines were evenly distributed throughout the dendrites while in others, we observed stretches of dendrites that were only sparsely populated with spines. This fits with the large variability in spine density that we observe between individual dendritic segments (Figure 1B), as well as observations in primates that spines can occur in patches (Schwyn and Fox, 1974). On average, the density of spines decreased modestly with distance from 2.33 ± 0.30 spines/10 µm (n = 20) in the proximal dendrite (0–100 µm) to 1.52 ± 0.22 spines/10 µm (n = 12) in the most distal dendrites (300–545 µm) (p=0.037, student’s unpaired). This is also consistent with results in guinea pig (Yung et al., 1991) and humans (Cruz-Sanchez et al., 1995) that describe a higher density of spines in proximal versus distal dendrites.

To test the possibility that the dendritic spines identified in live SNc dopamine neurons may be an artifact of the slicing procedure (Kirov et al., 1999), we imaged dopamine neurons in both Golgi-stained tissue and fast-perfusion fixed tissue. In Golgi-stained tissue (Figure 2A), SNc dopamine neurons exhibited dendritic spines consistent with past experiments analyzing Golgi-stained SNc cells (Juraska et al., 1977; Phelps and Adinolfi, 1982; Rinvik and Grofova, 1970; Schwyn and Fox, 1974). To visualize dopamine neurons in tissue from fast transcardially-perfused mice, we used transgenic mice in which GFP is driven by the tyrosine hydroxylase promoter and visualized their morphology using juxtacellular labeling with Alexa-594. Spines in fixed tissue were observed along the dendrites of SNc dopamine neurons, though at somewhat lower densities than in live tissue (Figure 2B). This raises the possibility that some spine growth in dopamine neurons may result from acute slicing. Alternatively, it has been suggested that tissue fixation may limit diffusion of fluorescent dye and visualization of spines (Kim et al., 2007). Comparing cells from young (P15–P25) and mature (P75–P119) mice (Figure 2C), we found no significant difference in the density of spines (young, 0.90 ± 0.15 spines/10 µm, n = 16; mature, 0.75 ± 0.13 spines/10 µm, n = 13; p=0.47). Therefore, we demonstrate that dendritic spines are present in live and fixed tissue preparations from both juvenile and adult mice, suggesting that dendritic spines are a common feature of mammalian SNc dopamine neurons.

Dendritic spines on SNc dopamine neurons visualized in perfusion-fixed slices.

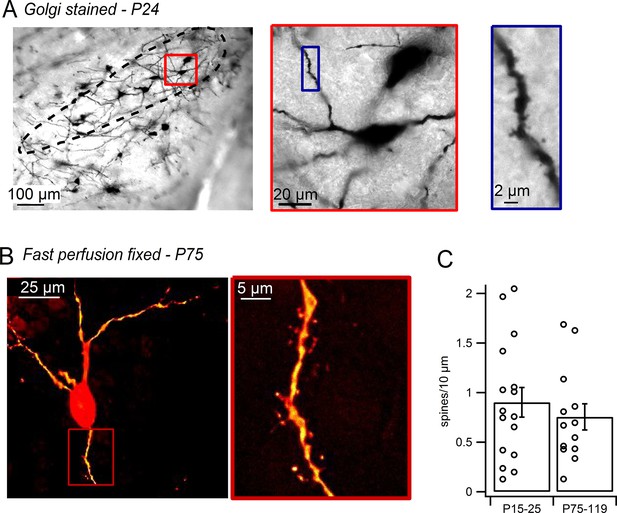

(A) Golgi stained sagittal slice from P24 mouse. SNc indicated by black outline. Red box shows a putative dopamine neuron at higher magnification. Blue box shows selected dendritic segment with dendritic spines. (B) SNc dopamine neuron from brain of transcardially-perfused, P75 mouse visualized by juxtacellular labeling with Alexa-594. Red box shows spiny dendritic segment at higher magnification. (C) Bar plot of average SNc dopamine neuron spine densities measured in perfusion-fixed brain slices.

https://doi.org/10.7554/eLife.13905.004

Ca2+ imaging reveals active sites of synaptic release at spines on SNc neurons

We next tested whether dendritic spines on SNc dopamine neurons are sites of glutamatergic synaptic input. Using locally-positioned theta-glass electrodes (diameter, 5–10 µm), we tested whether electrical stimulation would generate localized Ca2+ influx into the spine head indicating the presence of active presynaptic inputs (Figure 3A) (Chalifoux and Carter, 2010; Oertner et al., 2002; Sabatini et al., 2002). Dopamine neurons were filled via patch pipette with Alexa-594 and Fluo5F to visualize cell morphology and intracellular Ca2+. To eliminate spontaneous firing and Ca2+-dependent oscillations (Nedergaard et al., 1993; Puopolo et al., 2007; Wilson and Callaway, 2000), we added QX-314 (1 mM) to the pipette solution and nifedipine (10 µM) to bath solutions to block voltage-gated sodium and calcium channels.

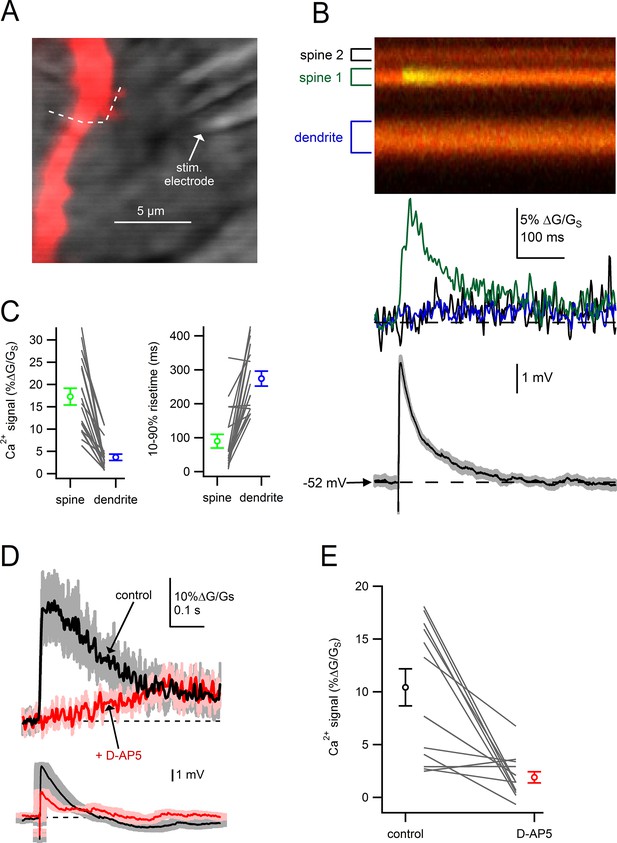

Dendritic spines on SNc dopamine neurons are sites of glutamatergic synaptic inputs.

(A) Dendritic segment visualized with Alexa-594 and Dodt contrast image to visualize the stimulation electrode. White dashed line indicates path of linescan. (B) Linescan images of Alexa-594 (red) and Fluo5F (green) and quantified Ca2+ signals in spine 1 (green), spine 2 (black) and the dendrite (blue). Simultaneously recorded somatic EPSP shown below. (C) Peak amplitudes and rise times of synaptically-evoked Ca2+ signals into a spine and parent dendrite for all spines tested (black lines). Average values and s.e.m. for spine (green) and dendrite (blue) shown in outer circles. (D) top: Ca2+ influx into the spine head in response to synaptic stimulation in control conditions (black) and after wash on of 50 µM D-AP5 (red). bottom: Corresponding somatically recorded EPSPs. (E) Peak amplitude of spine Ca2+ signal before and after application of D-AP5.

https://doi.org/10.7554/eLife.13905.005

Figure 3B provides an example of Ca2+ signals recorded in two adjacent spines and the neighboring dendrite in response to electrical stimulation. Following stimulation, we observed a large, rapid increase in the Ca2+ signal in spine 1 (green trace), but not in spine 2 (black trace) or the nearby dendrite (blue trace). Comparing the amplitude and rise times of Ca2+ signals in spines versus dendrites, Ca2+ signals in individual spine heads were larger (p=3.4e-7) and faster (p=6.3e-7, student’s paired t-test; n = 19) than in the nearby dendrite (Figure 3C). Finally, we tested the effect of NMDA receptor blockade on synaptically-evoked Ca2+ signals. Across all spines tested, application D(-)-2-amino-5-phosphonopentanoic acid (D-AP5; 50 µM) produced a dramatic reduction in Ca2+ influx into the spine (Figure 3D,E; control: 10.1 ± 1.9% ∆G/GS; D-AP5: 2.0 ± 0.6% ∆G/GS; p=0.9e-4, students paired t-test, n = 12), suggesting that NMDA receptors are the main source of Ca2+ entering spines. This observation is consistent with the spine as a site of glutamatergic synaptic input innervated by active presynaptic terminals.

Electrical and chemical compartmentalization in dendritic spines of SNc dopamine neurons

The presence of glutamatergic synapses on both dendritic shafts and spines in dopamine neurons raises the possibility that these two structural classes of synapses could differ in chemical and electrical signaling. Chemical compartmentalization by the spine, due to slower diffusion through the narrow spine neck, could result in greater spatial-specificity of cell signaling pathways in the spine head. Similarly, spine and shaft synapses could differ in synaptic strength due to attenuation of the EPSP by the resistance of the spine neck. Finally, the spine neck could produce local boosting of the EPSP within the spine head leading to activation of voltage-dependent ion channels that would not take place at shaft synapses.

Differences in the geometry between individual spines are thought to shape chemical and electrical signaling (Araya et al., 2006; Bloodgood and Sabatini, 2005; Noguchi et al., 2005; Takasaki and Sabatini, 2014). For example, work in cortical pyramidal neurons has shown a clear inverse correlation between synaptic potential and neck length (Araya et al., 2014) while similar work in hippocampal pyramidal neurons show only a weak relationship (Takasaki and Sabatini, 2014). Therefore, we tested electrical signaling in single spines of different lengths using glutamate uncaging. Much like the experiments examining synaptically-evoked responses, glutamate uncaging resulted in uncaging-evoked EPSPs (uEPSPs), clear Ca2+ influx into the spine head, and a smaller, slowly rising Ca2+ signal in the parent dendrite (Figure 4— figure supplement 1).

Figure 4A shows an example of two neighboring spines of different lengths and their uncaging-evoked responses. Using the same uncaging power to activate each spine, we found that the two spines display comparable uncaging-evoked Ca2+ signals (Figure 4B, top). However, we found clear differences in the amplitudes of uEPSPs. Glutamate uncaging generated a uEPSP of 0.91 mV in the shorter spine (1.55 µm) versus a uEPSP of 0.32 mV in the longer spine (4.15 µm). In collected experiments, we observed no correlation between the amplitude of the spine Ca2+ signal and spine length (Figure 4C; Pearson’s R = 0.074; p=0.54, n = 71). However, comparing uEPSP amplitudes for neighboring spines, uEPSPs from short spines (<2 µm) were significantly larger than uEPSPs generated in nearby longer spines (>2 µm) (short: 1.46 ± 0.16 mV versus long: 0.98 ± 0.19 mV; p=9.8e-3, paired, n = 14) (Figure 4D). Furthermore, plotting the amplitude of uEPSPs against spine length for all spines assayed (Figure 4E), we observed a strong correlation between the size of the somatically-recorded uEPSP and spine length (slope = -0.39 mV/µm; Pearson’s R = -0.50; p=1.5e-5, n = 71). In agreement with Araya et al. (2006), our data demonstrate that synapses formed onto long spines result in smaller amplitude uEPSPs, and likely exert a weaker influence on the membrane potential in SNc dopamine neurons.

Figure 4 with 1 supplement see all

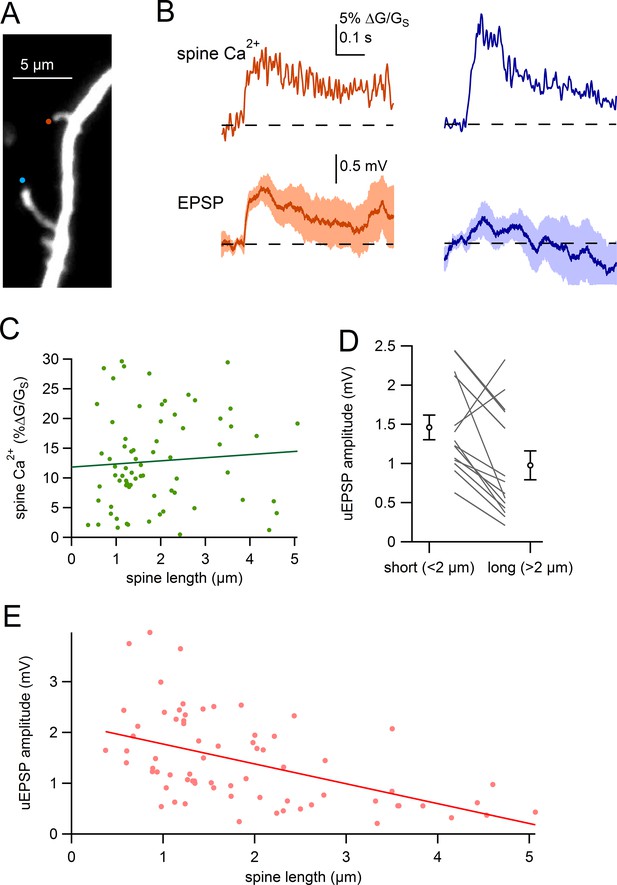

Comparison of uEPSPs for short and long spines.

(A) Dendritic segment with neighboring spines of different lengths visualized by Alexa-594 (bottom spine = 4.2 µm, top spine = 1.6 µm). Sites of glutamate uncaging are indicated by blue and orange circles. (B) Glutamate uncaging-evoked responses of spines in A. Blue traces correspond to the long spine, orange traces correspond to the short spine. Top: glutamate-evoked spine Ca2+ signals. Bottom: uEPSPs. (C) Amplitude of spine Ca2+ signal plotted against spine length for all spines tested (dots) and linear regression. (D) uEPSP amplitudes of neighboring short (<2 µm) and long (>2 µm) spines. Circles represent mean and s.e.m. (E) Amplitudes of uncaging-evoked EPSPs plotted against spine length for all spines tested (dots) and linear regression.

https://doi.org/10.7554/eLife.13905.006

Because spines can compartmentalize chemical signals due to their thin spine neck which acts as diffusion barrier, we next analyzed the influence of spine length on chemical compartmentalization. We measured the rate of fluorescence recovery after photobleaching (FRAP) in spines of varying lengths (0.88–4.54 µm). As seen in Figure 5A and B, fluorescence intensity of Alexa-594 in the spine head was measured by linescans across the spine, while a second two-photon laser was used to partially bleach the dye within the spine (0.5 ms pulse, 725 nm). Traces were corrected for a small amount of photobleaching (~3.5%) which occurred as a result of scanning by the imaging laser alone (see Materials and methods). We then fit the recovery of spine fluorescence intensity with a double-exponential function (Figure 5B, purple line, weighted tau = 66.5 ms) and plotted the weighted time constant of FRAP against spine length for 33 spines (Figure 5C). We observed a significant correlation in which the time course of FRAP slowed with increased spine lengths (slope = 46.1 ms/µm; Pearson’s R = 0.52; p=0.0020). The range of FRAP time courses observed (8.1–299 ms, mean = 115 ms, median = 103 ms) were similar to analogous experiments conducted in hippocampal pyramidal neurons (Grunditz et al., 2008; Takasaki and Sabatini, 2014; Tonnesen et al., 2014). These FRAP experiments demonstrate that spine length significantly influences the compartmentalization of chemical signals in SNc dopamine neurons.

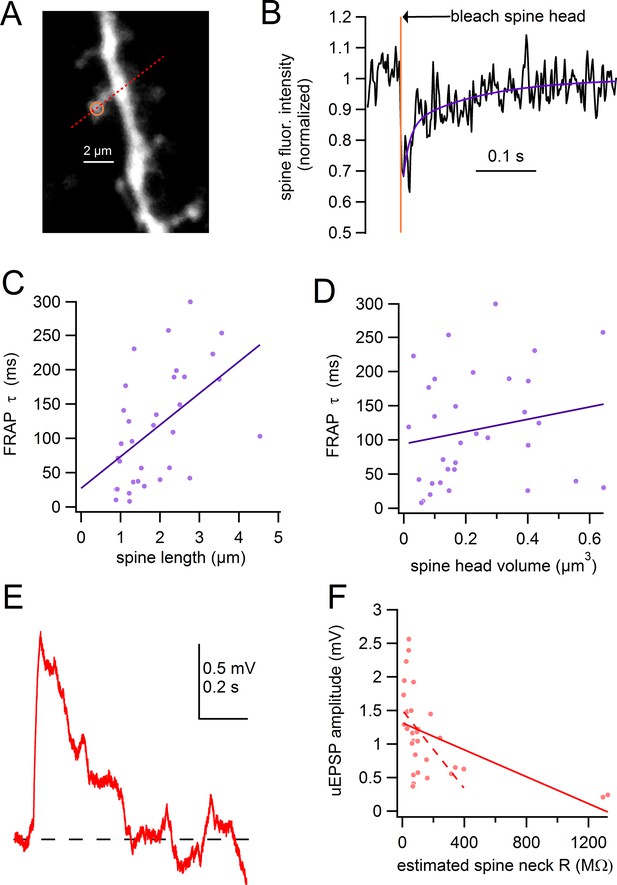

Spine length correlates with chemical compartmentalization.

(A) Frame scan of assayed spine, path of linescan (red line), and site of photobleaching (yellow). (B) Spine fluorescence intensity following selective photobleaching of spine head. Timing of photobleaching pulse indicated by vertical yellow line. Subsequent recovery of fluorescence was fit with a double-exponential function (purple). (C) Time constant of FRAP plotted against spine length with linear regression (purple line). (D) Time constant of FRAP plotted against spine head volume with linear regression (purple line). (E) uEPSP evoked from spine shown in A. (F) uEPSP amplitude plotted against estimated spine neck resistance with linear regression for all data (solid red line). Linear regression for all data except the 2 spines with the highest estimated neck resistance indicated by dashed line.

https://doi.org/10.7554/eLife.13905.008

Previous work has shown that the dimensions of the spine head can influence the time course of the FRAP measurements (Svoboda et al., 1996; Tonnesen et al., 2014). Therefore, we estimated the volume of the spine head based on the full width at half maximum (FWHM) of Alexa-594 signal intensity across the spine head. Assuming that the spine head is a sphere with the FWHM as the diameter, we estimated that spine head volumes cover a range from 0.016 to 0.64 μm3. We found no correlation between the FRAP time constants and spine head volume (Pearson’s R = 0.193, p=0.28). We next used estimates of the spine volume and FRAP measurements to calculate the resistance of the spine neck with Fick’s law: Rneck=tauFRAPDAlexaRaxial/Vhead. In this equation, Rneck is the neck resistance, tauFRAP is the time constant from FRAP measurements, DAlexa is the free diffusion time constant for Alexa-594 (120 μm2/s), Raxial is the axial resistance (150 Ω*cm), and Vhead is the volume of the spine head. Using these values, the estimated spine neck resistance ranged from 8.4 MΩ–1.3 GΩ, with a median of 72 MΩ. These estimates assume a spherical spine head as well as an intermediate value of cytoplasmic Raxial of 150 Ω*cm, while values can range from 50–250 Ω*cm. Despite the assumptions, however, our neck resistance values fall roughly in line with estimates from studies in other cell types (Tonnesen et al., 2014).

Given the estimates of Rneck that we obtained using the spine morphology and FRAP measurements, we compared these measurements with the size of evoked synaptic potentials. Therefore, we uncaged glutamate onto the same spines from which FRAP analysis was performed and measured the uEPSPs (Figure 5E). Plotting the uEPSP amplitude against the Rneck, we found a moderate inverse correlation between uEPSP amplitude and Rneck (Pearson’s R = -0.503, p=0.0046) (Figure 5F). Intriguingly, the 2 spines which produced the smallest amplitude uEPSPs also had estimated neck resistances that were dramatically greater than the other spines assayed. A significant correlation is still observed if these data points are excluded from analysis (Figure 5F dashed line; R = -0.488, p=0.0085). In summary, these findings are consistent with the idea that the higher resistance of longer spines may result in stronger attenuation of the EPSP across the spine neck (Araya et al., 2006; 2014).

NMDA and AMPA-receptor mediated conductances in dopamine neuron spines

In addition to spine geometry, synaptic receptor composition such as the density of spine AMPA receptors can be an effective determinant of synaptic strength (Matsuzaki et al., 2001). Comparisons of uEPSPs kinetics in long and short spines indirectly support this idea. We found significantly faster rise times in short spines than in longer spines (10–90% uEPSP rise time; short <2 µm spines: 42.8 ± 6.5 ms, long ≥ 2 µm spines: 71.9 ± 10.4 ms; n = 45 and 26; p=0.023 student’s unpaired t-test). Therefore, we hypothesized that the variability in the uEPSP amplitudes may result from distinct compositions of synaptic glutamate receptors in the short and long spines. To test this, we recorded glutamate uncaging-evoked AMPA or NMDA receptor-mediated currents from short and long-necked spines by voltage clamping neurons to either −70 mV or +40 mV (Figure 6A,B). To maximize space clamp, we analyzed spines located within 50 µm of the soma and recorded using Cs+ -based internal solutions and bath applied TTX (500 nM). NMDAR-mediated currents were quantified 100 ms following onset of the uncaging pulse when AMPA receptors were likely desensitized.

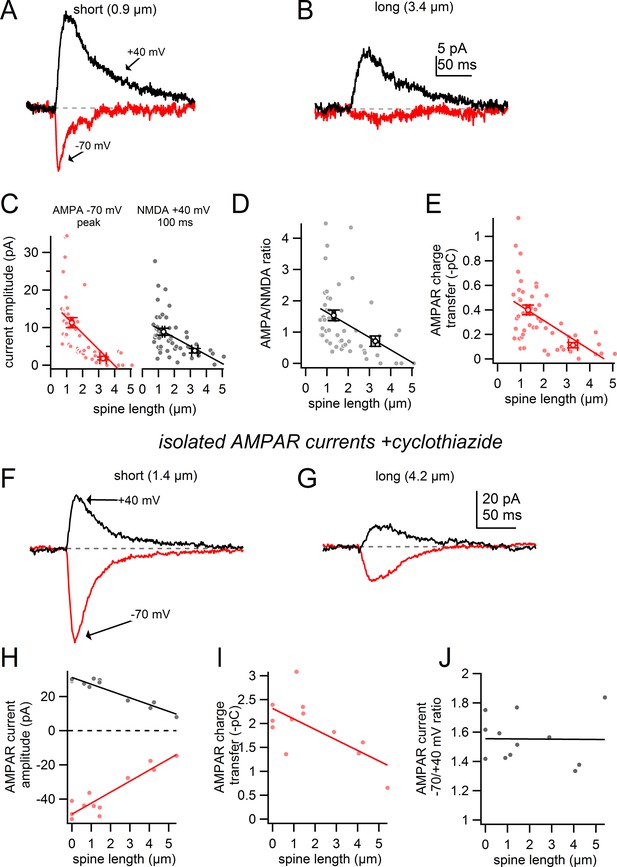

Comparison of AMPA/NMDA ratio for short and long spines.

(A) Uncaging-evoked currents recorded at -70 mV (red) and +40 mV (black) from targeting a short spine (0.9 µm). (B) Uncaging-evoked currents as in A from targeting a nearby long spine (3.4 µm). (C) Plot of AMPAR (red) and NMDAR (black) – mediated current amplitudes versus spine length for all spines tested and corresponding linear regressions. (D) Plot of AMPA/NMDA ratio versus spine length for all spines tested and linear regression. Circles indicate mean and s.e.m. for short and long spines. (E) Plot of AMPAR charge transfer versus spine length for all spines test and linear regression. (F) Uncaging-evoked currents as in A in the presence of CTZ and D-AP5 while targeting a short spine (1.4 µm). (G) Uncaging-evoked currents as in F from targeting a nearby long spine (4.2 µm). (H) Plot of AMPAR– mediated current amplitudes measured at −70 mV and +40 mV in the presence of CTZ and corresponding linear regressions. (I) Plot of AMPAR charge transfer versus spine length and linear regression. (J) Plot of the ratio of AMPAR current amplitudes measured at -70 and +40 mV versus spine length and linear regression.

https://doi.org/10.7554/eLife.13905.009

The uncaging-evoked AMPAR-mediated current measured at −70 mV was dramatically larger in short spines versus longer spines (slope = 4.24 pA/µm; Pearson’s R = -0.60, p=2.9e-6, n = 52 spines) (Figure 6C). Holding at +40 mV to measure NMDAR-mediated currents, again we found a significant, yet somewhat weaker negative relationship between the uncaging-evoked NMDAR current and spine length (slope = -2.3 pA/µm; Pearson’s R = -0.49; p=2.3e-4, n = 52 spines) (Figure 6C). Lastly, we found that the AMPA to NMDA ratio was significantly lower in long spines (>2 µm) as compared to short spines (spine length <2 µm, AMPA/NMDA ratio = 1.54 ± 0.17; spine length >2 µm, AMPA/NMDA ratio = 0.71 ± 0.17; p=0.0017, n = 52 spines) (Figure 6D). In addition to spine neck resistance, these findings suggest that the negative correlation between uEPSP amplitude and spine length (Figure 4E) also involves a differential glutamate receptor expression and composition, with a weaker AMPA-receptor component present in long-necked spines.

The spine neck imparts an electrical resistance, and therefore may attenuate synaptic current entering the dendrite. The extent of this attenuation will depend on the relative values of the synaptic conductance and spine neck resistance. Faster currents (such as those mediated by AMPARs) will likely display greater attenuation than slower NMDAR-mediated currents (Johnston and Wu, 1995). Therefore, it is possible that the observed difference in AMPA to NMDA ratio is due to greater filtering of AMPAR currents by the spine neck resistance of long spines. Measurements of synaptic charge transfer are less distorted by the cable properties of the neuron and spine neck than are measurements of current amplitude (Johnston and Wu, 1995).Therefore, we examined the relationship between the AMPAR-mediated charge transfer (measured as the integral of the uncaging-evoked current at −70 mV) and the length of the spines (Figure 6E). We observed a moderate and highly significant correlation between these values (R = −0.56, p=1.8e-5, n = 52 spines), further supporting the hypothesis that long spines are of weaker strength due in part to a smaller contribution of AMPARs.

To further disambiguate whether the relationship between AMPAR current amplitude and spine length was due to differences in receptor expression or differences in spine neck resistance, we examined the relationship between isolated AMPAR-currents (NMDARs were blocked with 50 µM D-AP5) and spine length in the presence of cyclothiazide (CTZ, 100 µM) to inhibit AMPAR desensitization. CTZ increased the maximum synaptic conductance and slowed the time course of the AMPAR-mediated conductance changes. Both effects will minimize the impact of the spine neck resistance on measurement of the synaptic current. Examples of uncaging-evoked AMPAR currents at positive and negative potentials in the presence of CTZ are shown in Figure 6F,G. We observed a significant correlation between AMPAR current amplitude and spine length in the presence of CTZ at both positive and negative voltages (at -70 mV R = 0.92, p=2.5e-5; at +40 mV R = 0.95, p<1e-5; n = 6 spines, 3 shafts) (Figure 6H). We also observed a significant correlation between AMPAR-mediated charge transfer and spine length in the presence of CTZ (R = 0.66, p=0.02, n = 6 spines, 3 shafts) (Figure 6I) further supporting the hypothesis that long spines display lower AMPAR density.

Finally, we confirmed that the spine neck acts as an ohmic resistor. If the spine neck was non-ohmic (i.e. voltage-dependent) it could differentially affect measurement of the AMPA/NMDA ratio in spines with different neck resistances. Measuring isolated AMPAR currents at different voltages allowed us to test the ohmic nature of the spine neck resistance because changes in synaptic conductance will be due the presence of the ligand alone. To measure the synaptic conductance in the absence of any spine neck resistance, we uncaged glutamate directly near the dendritic shaft. When holding the cell at −70 mV and targeting the dendritic shaft, uncaging-evoked synaptic currents were 1.60 ± 0.05 times larger than the current measured at +40 mV (Figure 6J). If the spine neck resistance changed with membrane potential, one would predict that the ratio between AMPAR currents measured at −70 mV and +40 mV would differ according to spine neck resistance. However, when uncaging onto spines the ratio of AMPAR current amplitudes measured at −70 and +40 mV was 1.56 ± 0.05 (Figure 6J) - similar to trials targeting dendritic shafts. Furthermore, we observe no correlation between spine length and the ratio of AMPAR currents measured at −70 and +40 mV (R = -0.010, p=0.97,n = 3 shafts, 6 spines) (Figure 6J). Therefore, it appears that the resistance of the spine neck does not change with membrane potential under our experimental conditions.

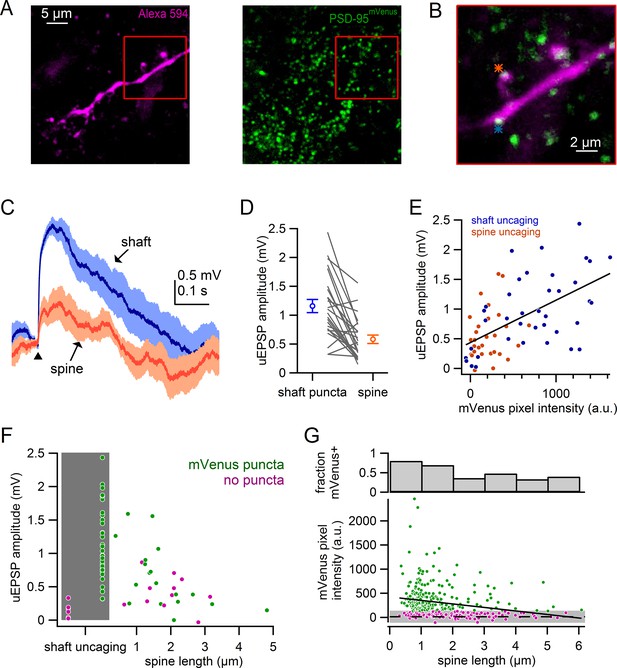

Comparison of uncaging responses in spines and PSD95-positive shaft synapses

Glutamatergic excitation of SNc dopamine neurons has long been recognized to occur via input to synapses located on the dendritic shaft (Chatha et al., 2000; Henny et al., 2012; Paquet et al., 1997; Rinvik and Grofova, 1970). However, it remains unclear how spine and shaft synapses compare in both density and function. The difficulty in identifying shaft synapses in live slices has limited functional investigation of shaft synapses. To address this limitation, we utilized a recently developed transgenic mouse in which postsynaptic protein PSD-95 is tagged with mVenus (ENABLED) to allow unambiguous identification of shaft synapses (Fortin et al., 2014). Crossing the ENABLED mouse with a dopamine transporter driven Cre mouse line (DAT-Cre), resulted in dopamine neuron-specific expression of the postsynaptic protein PSD-95 tagged with mVenus.

Figure 7A shows an example dendritic segment filled with Alexa-594, in which postsynaptic densities are identified as mVenus-positive puncta. We compared activation of spine synapses with puncta-labeled synapses on the neighboring dendritic shaft (Figure 7B). Uncaging onto shaft synapses resulted in uEPSPs that were 100% larger than uEPSPs from nearby spine synapses (shaft: 1.16 ± 0.11 mV; spine: 0.58 ± 0.07 mV; n = 24, p=2.7e-5, student’s paired t-test) (Figure 7C,D). By contrast, uncaging onto mVenus-negative dendritic regions resulted in uEPSPs that were minimal in amplitude (puncta: 1.40 ± 0.15 mV, no puncta: 0.14 ± 0.05 mV; n = 6, p=4.9e-4, student’s paired t-test). These results confirm that mVenus puncta clearly identify shaft synapses.

Figure 7 with 1 supplement see all
Comparison of spine and shaft synapses.

(A) Maximum intensity projections of two photon images from a recorded neuron in DAT-Cre x PSD-95-ENABLED mouse.Left: Alexa-594-filled dendrite. Right: PSD-95mVenus puncta. Red boxes indicate region shown in B. (B) Overlay of a single slice of the z-stack from images in A, asterisks indicate sites of glutamate uncaging targeting a spine (orange) and a shaft synapse (blue). (C) uEPSPs evoked in response to targeting of a shaft puncta (blue) and spine (orange) located on the same dendrite. (D) Comparison of uEPSP amplitudes when targeting shaft synapses or nearby spines. Circles represent averages and s.e.m. (E) Plot of uEPSP amplitude versus mVenus pixel intensity for shafts (blue) and spines (orange). (F) Plot of uEPSP amplitude versus spine length with shaft uncaging sites indicated by grey box. Green circles indicate that mVenus pixel intensity was >2 standard deviations above background green pixel intensity. Magenta circles indicate that the spine or shaft did not display significant mVenus signal. (G) Plot of mVenus pixel intensity and the fraction of mVenus-positive spines against spine length. Grey box indicates average background mVenus signal ± 2 standard deviations. Green and magenta circles indicate spines with or without significant mVenus signal.

https://doi.org/10.7554/eLife.13905.010

The presence of PSD-95 has been shown to stabilize AMPARs within the synapse (Béïque et al., 2006; El-HusseinI et al., 2000; Taft and Turrigiano, 2014), which is expected to correlate with stronger postsynaptic potentials. We next compared the pixel intensity of mVenus at the position of uncaging with uEPSP amplitudes (Figure 7E). We observed a significant correlation between uEPSP amplitude and mVenus pixel intensity (Pearson’s R = 0.57, n = 67, p=4.8e-7). Regions of the dendrites, including the dendritic shaft and spines, were considered mVenus-positive when the green pixel intensity exceeded 2 standard deviations of the average green background intensity measured in the dendrite shaft. It is possible that small mVenus puncta could escape our detection, biasing our results to synapses with large postsynaptic densities. Using this criteria, we compared spines of similar lengths (<2 μm) and found that uEPSPs were substantially larger for PSD-95 positive spines than for PSD-95 negative spines (Figure 7F) (PSD-95 positive uEPSP = 0.85 ± 0.13 mV, n = 12; PSD-95 negative uEPSP=0.42 ± 0.12 mV, n = 5; p=0.030). These results show that in both shaft and spine synapses, synaptic strength correlates with PSD-95 expression.

Given our observations that synaptic strength is correlated with both spine length and PSD-95 expression, we next asked whether PSD-95 expression differs in spines of various lengths. We measured mVenus pixel intensity in 327 spines from 11 dopamine neurons and plotted mVenus pixel intensity against spine length (Figure 7G). We observed a weak, but significant correlation between mVenus expression and spine length (R = −0.23, p=2.5e-5). We again categorized spines as mVenus positive if pixel intensity was more than 2 standard deviations greater than the background signal. 75% of spines with lengths <2 µm (179 of 240) were scored mVenus positive whereas only 40% of spines longer than 2 µm (33 of 83) displayed detectable mVenus expression. This observation is consistent with the conclusion from our voltage-clamp analyses, that longer spines display smaller AMPAR currents (Figure 6), likely contributing to the smaller uEPSPs observed in current clamp (Figure 4). In total, our data support the hypothesis that the long spines are immature synaptic structures that have few AMPARs.

Lastly, we compared the relative densities of spines and shaft synapses on individual dendritic segments (Figure 7—figure supplement 1). In most cases, mVenus-positive shaft synapses outnumbered spines (average density shaft synapses: 2.53 ± 0.14 puncta/10 µm; average density spine synapses: 2.01 ± 0.19 spines/10 µm). However, there were several instances (9/23 dendritic segments) in which shaft synapses and spines were observed in equal numbers, or spines outnumbered shaft synapses (data were measured from 23 dendritic segments consisting of total of 1525 µm of dendrite, 317 spines and 392 shaft synapses). Altogether, these data reveal that excitatory synaptic inputs of both structural classes, spines and shaft synapses, coexist and must act together in the integration of synaptic inputs on SNc dopamine neurons.

Comparison of voltage-dependence of spines and shaft synapses

Dopamine neurons are spontaneously active and therefore, synaptic inputs will be received on an ever changing membrane potential (Hage and Khaliq, 2015; Puopolo et al., 2007). Therefore, we first examined how steady-state changes in subthreshold potential (−75 to −45 mV) influence glutamate-evoked signals from spines as compared to shaft synapses (Figure 8). Recordings were made in bath applied TTX (500 nM) and nifedipine (10 µM) to limit spontaneous membrane oscillations at depolarized potentials. In Purkinje neurons, T-type Ca2+ channels display greater expression within the spines than the dendrites (Isope et al., 2012). While the sub-cellular distribution T-type channels has not been examined in dopamine neurons, differential expression in the spines and dendrites could influence the relationship between glutamate-evoked Ca2+ influx and membrane potential. Therefore, in a subset of experiments, T-type Ca2+ channels were blocked with TTA-P2 (1 µM). Results in the two conditions were similar, and therefore data was pooled (16 spines and 16 shaft synapses recorded with TTA-P2, 15 spines and 10 shaft synapses recorded without TTA-P2). Because of the large spine-to-spine variability in absolute Ca2+ signals observed (Figure 4C), we normalized the amplitude of glutamate-evoked Ca2+ signals to those recorded at −45 mV within the same spine or shaft. This normalization will also account for possible differences in receptor expression between shafts and spines.

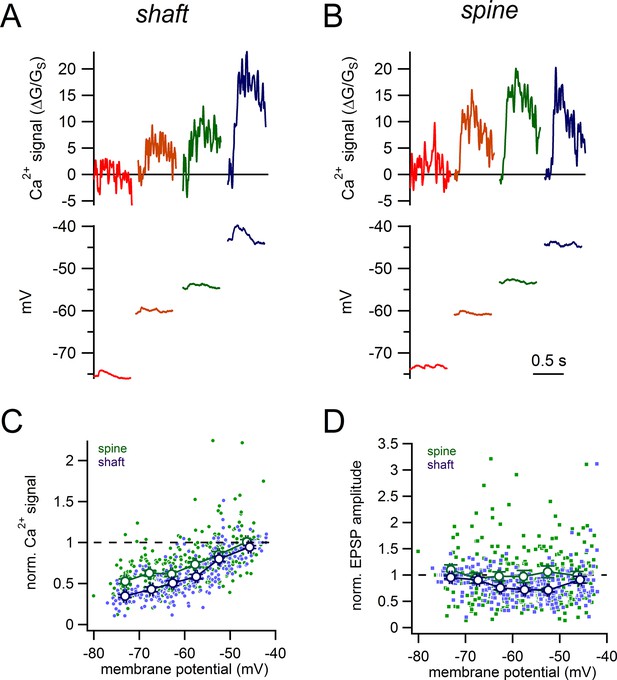

Voltage-dependence of shaft and spine synaptic responses.

(A) Examples of glutamate-evoked Ca2+ signals and uEPSPs evoked from 4 different stable membrane potentials for a single shaft synapse. (B) Examples of glutamate-evoked Ca2+ signals and uEPSPs evoked from 4 different stable membrane potentials for a single spine. (C) Plot of normalized Ca2+ signal amplitudes against starting membrane potential for spines (green dots and lines) and shaft synapses (purple dots and lines). (D) Plot of normalized uEPSP amplitudes against starting membrane potential for spines (green dots and lines) and shaft synapses (purple dots and lines).

https://doi.org/10.7554/eLife.13905.012

In both spines and shaft synapses, glutamate-evoked Ca2+ signals increased in amplitude with depolarization, likely due to Mg2+ unblock of NMDA receptors (Figure 8A,B). Interestingly at hyperpolarized potentials (−60 to −65 mV), the normalized Ca2+ signals in spines were significantly larger in amplitude than analogous shaft Ca2+ signals (normalized Ca2+ signals in spines vs shafts: 0.61 ± 0.03 vs 0.50 ± 0.03; spine, n = 52 measurements, 31 spines; shafts, n = 46 measurements, 21 shafts; p=3.3e-3) (Figure 8C). Therefore, spine Ca2+ signals were less sensitive to hyperpolarization than shafts signals. We also measured the impact of steady-state voltage changes on the amplitudes of uEPSPs for shaft versus spine synapses (Figure 8D). Here, we normalized the amplitudes of all uEPSPs to the amplitude measured at −75 mV, where the driving force of the synaptic current is largest. Between −55 to −50 mV, the average normalized amplitude of shaft uEPSPs was 0.71 ± 0.03 (n = 49 measurements from 26 shafts). By contrast, the average normalized amplitude of spine uEPSPs was 1.06 ± 0.11 (significantly larger than normalized shaft uEPSPs, p=0.004, n = 57 measurements from 31 spines), indicating that there was strikingly little effect of depolarization on the amplitude of spine uEPSPs. This suggests that at hyperpolarized membrane potentials, NMDA receptors are more effectively recruited in spines relative to shaft synapses which we reason may occur through boosting of the voltage in the spine head.

Glutamate-evoked Ca2+ signals in spines during slow tonic firing

Firing in dopamine neurons is shaped by an interaction between synaptic inputs and active subthreshold conductances that drive pacemaking. To better understand the functional contribution of spiny synapses to dopamine neuron excitability, we imaged glutamate-evoked Ca2+ responses in spines during slow tonic firing. Figure 9A shows AP-evoked Ca2+ signals measured during tonic firing for a spine and nearby dendrite. Figure 9B shows glutamate uncaging-evoked Ca2+ signals and the uEPSP measured while injecting constant negative current to hold the membrane potential near −63 mV. We then uncaged glutamate on a background of tonic firing. We found that when glutamate uncaging shortly preceded an action potential, Ca2+ influx into the spine was dramatically larger than the linear sum of the isolated AP- and glutamate-evoked signals (Figure 9C). In contrast, when glutamate uncaging occurred shortly after an AP (Figure 9D left), spine Ca2+ signals were smaller and resembled the predicted linear sum. We measured glutamate-evoked Ca2+ signals throughout the entire pacemaker cycle and found that there was a dramatic enhancement of the spine Ca2+ signal midway through the firing cycle, much earlier than we had expected (Figure 9D right). Notably, the Ca2+ signal was enhanced before the onset of the following AP (open triangle in Figure 9D), suggesting small changes in subthreshold voltage during tonic firing can dramatically influence synaptic Ca2+ influx.

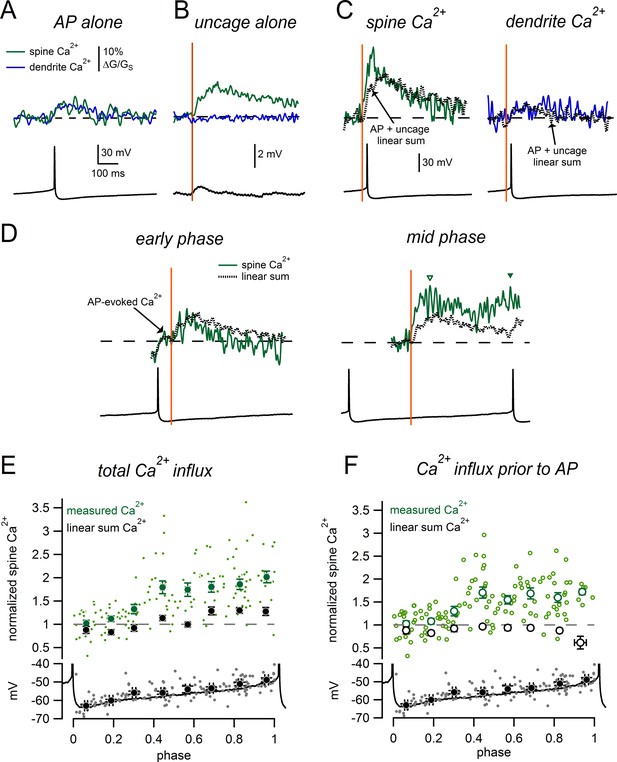

Phase-dependent enhancement of glutamate-evoked Ca2+ signals during tonic firing.

(A) AP-evoked Ca2+ signals measured in a spine (green) and nearby dendrite (blue) during tonic firing. Signals are averages of 3 individual AP-evoked Ca2+ transients. (B) Ca2+ signals as in A, for glutamate uncaging near the spine head while holding at −63 mV. Signals are averages of 6 uncaging trials. (C) Spine and dendrite Ca2+ signals evoked by uncaging glutamate during tonic firing. Dotted lines represent the ‘linear sum’, defined as ‘AP-alone’ plus ‘uncage- alone’ signals from panels A and B. (D) Comparison of spine Ca2+ signals and corresponding linear sums for trials in which glutamate uncaging occurred at either an early phase (left) or intermediate phase (right) of the firing cycle. Data are from the same spine as panels A–C. Dashed lines indicate baseline signals before the uncaging pulse. In the early phase example, the Ca2+ signal displayed an AP-evoked increase before the uncaging pulse that was not measured as part of the glutamate-evoked response (arrow). Inverted triangles in the mid-phase example indicate the peaks of the glutamate-evoked Ca2+ signal measured before (open symbol) and after the subsequent AP (closed symbol). (E) Top: Normalized spine Ca2+ amplitude plotted against the phase at which glutamate uncaging occurred for measured data (green) and linear sums (black). Bottom: Plot of membrane potential immediately prior to glutamate uncaging versus phase. The black trace shows a typical interspike interval. (F) As in E, except glutamate-evoked Ca2+ signals were only measured before the onset of the subsequent AP.

https://doi.org/10.7554/eLife.13905.013

To enable comparison of Ca2+ signals across multiple spines, we normalized all uncaging-evoked responses to those recorded from a steady holding potential of -63 mV (Figure 9E). Performing this analysis on the linear summations of the isolated AP- and uncaging-evoked Ca2+ signals predicts a small phase-dependence of spine Ca2+ influx due to additional AP-evoked Ca2+ in late phases of the firing cycle (Figure 9E). Values slightly <1 are observed early in the firing cycle due to the decay of the AP-evoked Ca2+ transient. We observe a much more dramatic influence of phase on glutamate-evoked spine Ca2+ signals within our measured data (Figure 9E). When glutamate uncaging occurred in the last third of the spike cycle, spine Ca2+ influx was 1.90 ± 0.07 fold larger than Ca2+ influx produced by uncaging alone. By contrast, linear summation of the AP-evoked and uncaging evoked signals during this same range of the spike cycle predicts signals just 1.28 ± 0.04 fold larger than uncaging alone (measured data was significantly greater than linear sums, p=1.4e-9, n = 58 measurements from 20 spines). Action potentials immediately following synaptic activation are known to enhance Ca2+ signals (Nevian and Sakmann, 2004). However, we wanted to determine if the subthreshold voltage alone was sufficient to enhance glutamate-evoked Ca2+ influx. To isolate the effect of subthreshold voltage on spine Ca2+ signals, we measured the peak Ca2+ signals before the onset of spikes and excluded Ca2+ signals if spikes occurred <100 ms after the uncaging pulse (Figure 9F). Using this alternative measure, we observed dramatic enhancement of spine Ca2+ influx in the middle and late phases of the spike cycle (middle phase: measured Ca2+ = 1.67 ± 0.07, linear sum = 0.95 ± 0.03, p=5.5e-12, n = 41 measurements from 20 spines; late phase: measured Ca2+ = 1.64 ± 0.07, linear sum = 0.85 ± 0.04, p=2.7e-13, n = 36 measurements from 20 spines).Therefore, we find that glutamate-evoked spine Ca2+ influx in dopamine neurons is enhanced in a time window that occurs periodically during the natural pacemaker cycle.

Voltage-gated sodium channels and NMDA receptors shape spine Ca2+ signals

Finally, if the spine neck resistance results in amplification of EPSPs within the spine head (Figure 8), then voltage-gated channels may be more likely to be activated and shape the synaptic response. To determine whether voltage-gated sodiumchannels contribute to synaptic responses of spines, we measured the effect of TTX (500 nM) on glutamate-evoked spine Ca2+ signals from a hyperpolarized membrane potential (-63 mV). In the example spine show in Figure 10A, application of TTX reduced the amplitude of the spine Ca2+ signal from 30% ∆G/GS to 17% ∆G/GS. On average, TTX reduced the spine Ca2+ signal by 25 ± 10.0% (p=0.039, student’s paired) (Figure 10B) but had little effect on dendritic Ca2+ signals (reduced by 9 ± 10%, p=0.45) (Figure 10C). Therefore, in addition to the known involvement of sodium channels in enabling robust backpropagation of action potentials in the dendrites of dopamine neurons (Gentet and Williams, 2007; Hausser et al., 1995), we find a likely role of sodium channels in boosting synaptic potentials in spines of substantia nigra dopamine neurons.

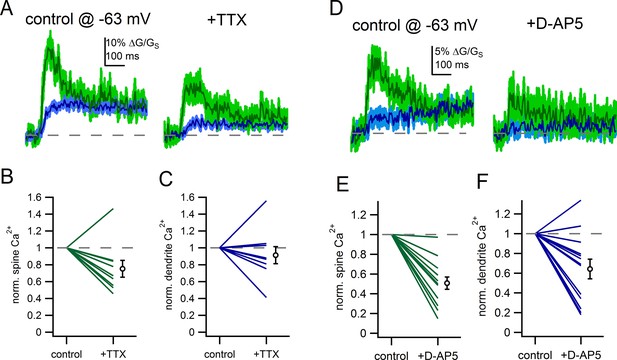

Voltage-gated sodium channels and NMDAR shape spine Ca2+ signals.

(A) Example of uncaging evoked Ca2+ signals in control conditions and following application of TTX (500 nM). (B) Plot of the effect of TTX on spine Ca2+ signals. (C) Plot of the effect of TTX on dendrite Ca2+ signals. (D) Example of uncaging evoked Ca2+ signals in control conditions and following application of D-AP5 (50 µM). (E) Plot of the effect of D-AP5 on spine Ca2+ signals. (F) Plot of the effect of D-AP5 on dendrite Ca2+ signals.

https://doi.org/10.7554/eLife.13905.014

In separate experiments, we tested the effect of blockade of NMDA receptors with D-AP5 (50 µM). In the example shown in Figure 10D, D-AP5 reduced the glutamate-evoked spine Ca2+ signal from 12% ∆G/GS to 6% ∆G/GS. On average, blockade of NMDA receptors reduced spine Ca2+ influx by 49 ± 6% (p=2.2e-3) (Figure 10E). The effect of D-AP5 on the dendrite Ca2+ signal was smaller, on average reduced by 36 ± 10% (p=0.02) (Figure 10F). The finding that TTX and D-AP5 produced greater attenuation of the spine Ca2+ signal than the dendritic Ca2+ signal suggests that there is greater activation of NMDA receptors and voltage-dependent channels in the spine head than the dendrite in response to glutamate uncaging. The contribution of voltage-gated channels to glutamate-evoked responses provides a mechanism by which subtle changes in the subthreshold voltage—like those observed during tonic firing—can shape the synaptic responses of dendritic spines.

Discussion

We show that dendritic spines are present on substantia nigra dopamine neurons both in live and in fast-perfusion fixed tissue. In PSD-95 mVenus mice, spines were present at densities only slightly lower than shaft synapses. Importantly, electrical stimulation of presynaptic inputs resulted in Ca2+ influx into the spine head demonstrating that spines are innervated by terminals and act as functional sites of synaptic transmission. Testing individual spines with glutamate uncaging, we show that activation of long-necked spines results in small amplitude uEPSPs due in part to a lower AMPA/NMDA ratio and higher spine neck resistance. We demonstrate that stronger electrical compartmentalization in spines results in boosting of the spine voltage. Lastly, activating spines during tonic firing, we found that spine Ca2+ signals are dramatically enhanced during the middle phase of the interspike interval, independent of action potentials. This enhancement of spine Ca2+ results from strong recruitment of NMDA receptors and voltage-gated channels, likely due to boosting of the spine voltage. Therefore, these results show that in addition to shaft synapses, a meaningful source of excitation of SNc arrives via synaptic inputs onto dendritic spines.

Density of dendritic spines on substantia nigra dopamine neurons

Our results are in accord with a number of past studies that have observed dendritic spines on midbrain dopamine neurons. To date, spines have been identified on dopamine neurons in rat (Grace and Onn, 1989; Nirenberg et al., 1996b; Phillipson, 1979; Sarti et al., 2007), guinea pig (Yung et al., 1991), cat (Phelps et al., 1983; Preston et al., 1981; Rinvik and Grofova, 1970), rabbit (Kline and Felten, 1985), primates (Schwyn and Fox, 1974) and humans (Cruz-Sanchez et al., 1995; Patt et al., 1991). We estimated spine densities from dendritic segments and whole-cell reconstructions and found that dendritic spines are present at an average density of 2.08 spines/10 μm. These values are also in close agreement with a recent study of dopamine neurons spines in juvenile mice (Jang et al., 2015). Along with past work, therefore, our data provide clear evidence that synaptic excitation of dopamine neurons likely involves shaft synapses as well as input onto dendritic spines.

We examined dopamine neurons in both live slices as well as fast-perfusion fixed tissue and found a modest but consistent reduction in spine density with age. This finding is consistent with developmental studies that report fewer spines on dopamine neurons in adult animals (Phelps and Adinolfi, 1982; Phelps et al., 1983). Humans, however, may be a notable exception to this rule according to two studies that characterized the morphology of dopamine neurons in substantia nigra from adult deceased patients (Cruz-Sanchez et al., 1995; Patt et al., 1991). Both studies report significant numbers of dendritic spines in normal, nondiseased adult patients (age range, 20–93 years old). Interestingly, one of these studies reported that the density of spines on putative SNc dopamine neurons in normal adults was 1–2 spines/10 μm (Cruz-Sanchez et al., 1995), in striking agreement with the values that we report here in mice. In another study, the authors observed prominent pathological changes to dopamine neurons in Parkinson’s patients including reduction in dendritic branching and a loss in the number of dendritic spines (Patt et al., 1991). In future work, it will be important to determine whether a causative relationship exists between the observed changes in dendritic morphology/spine density and selective death of substantia nigra dopamine neurons which occurs in Parkinson’s patients.

Comparing dopamine neurons to other well-studied spiny neurons reveals similarities but also important differences. For example, pyramidal neurons receive the vast majority (>85%) of excitatory inputs onto spines (Kasthuri et al., 2015) while dopamine neurons are unusual in that they receive inputs onto a mixture of shaft and spine synapses. The density of spines on dopamine neurons is considerably lower than pyramidal neurons (typically >10 spines/10 μm) but similar to some GABAergic interneurons neurons of the hippocampus and cortex that have spine densities of 2–4 spines/10 μm (Kawaguchi et al., 2006; Scheuss and Bonhoeffer, 2014). It also must be noted that unlike cortical and hippocampal neurons that receive mostly excitatory input, substantia nigra dopamine neurons function within a largely inhibitory network. Up to 70% of synaptic inputs that are received by the SNc dopamine neurons are inhibitory while a much smaller fraction of the synaptic inputs arrive from excitatory sources (Bolam and Smith, 1991; Henny et al., 2012; Smith et al., 1996). This raises the possibility that the low density of dendritic spines on SNc dopamine neurons may simply reflect the low density of excitatory inputs overall. Consistent with this idea, we find that the ratio of spines to PSD95-mVenus positive shaft puncta is 4 to 5. Therefore, despite a low absolute density of spines on dopamine neurons, the relative density of shaft and spine synapses is comparable.

Spine morphology and electrical compartmentalization

Whether long-necked spines more strongly attenuate synaptic potentials is a matter of current debate. Studies of cortical pyramidal cells show a negative correlation between neck length and EPSP amplitude (Araya et al., 2006; 2014), while studies in hippocampal pyramidal cells (Takasaki and Sabatini, 2014) show only a weak correlation. It is important to note that Takasaki and Sabatini tested spines that were below 1.2 μm in length whereas Araya et al. tested substantially longer spines (≥2 μm). In the dopamine neurons, we found a wide range of spine lengths up to 5 μm. However if we only consider spines shorter than 1.2 μm, we also observe no significant correlation between spine length and uEPSP amplitude (Pearson’s R = −0.054; n = 21 spines; p=0.81). In a different study, Bywalez et al. (2015) found no correlation between spine length and EPSP amplitude in olfactory bulb granule neurons, which have spines up to 15 µm in length. However, spines on the granule cells are excitable and possess voltage-gated sodium and calcium channels which shape the release of neurotransmitter from the spines (Egger et al., 2005). As Bywalez et al. proposed, the spine sodium channels may function to reduce variability in spine potentials, Ca2+ influx and subsequent neurotransmitter release from spines.

Tonic firing allows dopamine neurons to capitalize on spine neck amplification

The dendrites of many neurons are excitable and express a wide variety of voltage-gated ion channels that shape action potential backpropagation and synaptic integration (Stuart and Spruston, 2015). However, there is not a consensus regarding whether or not stimulation of a single spine leads to downstream activation of voltage-gated ion channels. Studies using voltage-sensitive fluorescent indicators to assay spine voltage report that the depolarization of the spine head following single spine stimulation is insufficient for activation of voltage-gated channels (Palmer and Stuart, 2009; Popovic et al., 2015). By contrast, Ca2+ imaging studies examining single spine responses have described a clear contribution of voltage-gated ion channels in the spine head with many observing activation of high-voltage activated calcium channels (Bloodgood et al., 2009; Bywalez et al., 2015; Carter and Sabatini, 2004; Grunditz et al., 2008; Harnett et al., 2012; Seong et al., 2014). These observations predict that the electrical resistance of the spine neck amplifies the EPSP in the spine head to potentials considerably greater than those recorded in the dendrite or soma.

We observed a significant contribution of voltage-gated sodium channels to the glutamate-evoked responses of individual spines (Figure 10), suggesting the depolarization of the spine head is sufficient for sodium channel activation in dopamine neurons. Most studies of spine function have examined pyramidal neurons that rest at hyperpolarized membrane potentials near -70 mV. However, during pacemaking in dopamine neurons, the interspike membrane potential covers a narrow but relatively depolarized subthreshold voltage range with an average non-spike voltage of ~-55 mV (Hage and Khaliq, 2015). At these depolarized voltages, the membrane potential is within the steepest region of the voltage-activation curve of sodium channels, where even a small amplification of the spine head EPSP may lead to significant sodium channel activation. In a clear demonstration of the relationship of EPSPs with voltage-gated sodium channels, Carter et al. (2012) showed that EPSPs of 5 mV can lead to activation of both persistent and transient sodium current. Therefore, even if the effects of the spine neck resistance on electrical signaling are small, the intrinsic properties of dopamine neurons may allow minor amplification to produce major effects on the synaptic voltage response.

Materials and methods

Slice preparation

Request a detailed protocol

For experiments utilizing wildtype animals, sagittal brain slices containing SNc were prepared from postnatal day 14–25 Swiss Webster mice of either sex according to the institutional guidelines at the National Institutes of Health. Experiments utilizing the PSD-95-ENABLED mouse line performed on juvenile mouse progeny generated by crossing heterozygous PSD-95-ENABLED mouse with a heterozygous DAT-Cre mouse. Mice were genotyped using previously published primers (Fortin et al., 2014). Animals were anesthetized with isoflurane and swiftly decapitated. Brains were quickly removed and placed in ice-cold slicing solution containing (in mM) 250 glycerol, 2.5 KCl, 2 MgCl2, 2 CaCl2, 1.2 NaH2PO4, 10 HEPES, 21 NaHCO3, 5 glucose, bubbled with 95/5% O2/CO2. Slices were cut at 300 µm thickness using a vibrotome (DTK-1000; DSK, Dosaka) and incubated for 30 min at 34° C in artificial cerebrospinal fluid (ACSF) containing (in mM) 125 NaCl, 25 NaHCO3, 1.25 NaH2PO4, 3.5 KCl, 1 MgCl2, 2 CaCl2, and 10 glucose, bubbled with 95/5% O2/CO2. Slices were then stored at room temperature until time of use.

Electrophysiological recording

Request a detailed protocol

Slices were placed into a recording chamber and perfused continuously with warm ACSF (32–34°C). Dopamine neurons were targeted primarily by their location within the SNc. Other criteria included the presence of slow pacemaking (<5 Hz) during cell-attached or whole-cell recordings, broad APs (halfwidth >1.35 ms) and prominent voltage sag in response to negative current injection—associated with hyperpolarization-activated cation current (IH). Current-clamp and voltage-clamp recordings were made with a Multiclamp 700B amplifier and digitized using a Digidata 1440A (Molecular Devices). Low-resistance patch electrodes (2–4 MΩ) were pulled from filamented borosilicate glass. In voltage-clamp recordings, pipette series resistance was compensated by 70–80% and was monitored carefully throughout the experiment. Recordings were terminated if series resistance changed by >20%. Current-clamp recordings were bridge balanced and monitored frequently throughout the experiment. For current-clamp recordings, internal recording solution contained (in mM) 122 K methanesulfonate, 9 NaCl, 1.8 MgCl2, 4 Mg-ATP, 0.3 Na-GTP, 14 phosphocreatine, 10 HEPES, 0.5 EGTA, 0.1 CaCl2 and 0.05 Alexa Fluor 594 hydrazide (Molecular Probes, Eugene, OR) adjusted to 7.35 with NaOH. For Ca2+ imaging experiments, EGTA and CaCl2 were excluded from the internal solution and 300 µM Fluo-5F (K= ~ 2.3 µM) was added. For voltage-clamp recordings internal solution contained (in mM) 135 CsCl, 10 NaCl, 10 HEPES, 2 MgCl2, 0.5 EGTA and 0.1 CaCl2, except where specifically indicated. In some cases, recordings were made using QX-314 (1 mM) added to the internal solution as well as bath applied nifedipine (10 μM) to reduce spontaneous membrane oscillations when holding at depolarized potentials (Puopolo et al., 2007).

Two-photon laser scanning microscopy and glutamate uncaging

Request a detailed protocol

Imaging experiments were performed using a custom two-photon microscope from Prairie Technologies Ultima (Middleton WI) along with a Mai Tai ultrafast Ti:Sapphire laser (Spectra-Physics, Mountain View CA) tuned to 810 nm for Ca2+ imaging. For experiments using the PSD-95-ENABLED mice the excitation laser was tuned to 960 nm to visualize the mVenus signal. Cells were imaged using a 40x, 0.8 NA objective (Olympus, Melville NY). Fluorescence was split into red and green channels using a 575 nm dichroic longpass mirror and passed through 607/45 nm and 525/70 nm barrier filters before being detected by multi-alkali photomultiplier tubes (Hamamatsu). Ca2+ imaging was initiated 15–20 min after whole-cell break in to allow diffusion of fluorescent indicators. Linescan imaging of dendritic Ca2+ was performed at 30 s intervals. Ca2+ imaging data are presented as ΔG/GS and were quantified as changes in green fluorescence divided by red fluorescence (ΔG/R), normalized to GS/R * 100%. GS/R was measured by imaging a pipette filled with internal recording solution plus saturating Ca2+ (2 mM CaCl2) placed directly above the slice at the end of experiment (Yasuda et al., 2004).

Simultaneous glutamate uncaging experiments were performed using a second Mai Tai laser tuned to 725 nm with an uncaging pulse width of 500 µs. Uncaging laser power measured at the back of the objective was between 35 and 45 mW. Synapses assayed by glutamate uncaging were 30–40 µm below the surface of the slice. The same parameters were used to bleach the spine head in FRAP recordings. The extent of bleaching by the uncaging laser was consistent from spine to spine (fluorescence reduced by 34 ± 2%), suggesting effective uncaging power was similar across experiments. External solutions for glutamate uncaging experiments contained 3 mM 4-Methoxy-7-nitroindolinyl-caged-L-glutamate (MNI-glutamate) (Tocris bioscience) and 10 µM D-serine to prevent NMDAR desensitization. Solutions were recirculated to conserve MNI-glutamate (volume = 10 mL).

Local extracellular stimulation

Request a detailed protocol

Local stimulation of dendritically-located synapses was performed using bipolar electrodes placed in theta glass pipettes filled with ACSF (tip diameter ~ 5 µm). Electrodes were placed within 10 µm of an Alexa-594 labeled dendrite. Stimulus intensity was set to 15–45 V with 0.5 ms pulse duration using an Iso-Flex stimulus isolator (A.M.P.I.). Picrotoxin (50 µM), CGP 55,845 hydrochloride (1 µM), sulpiride (1 µM), SCH 39,166 hydrobromide (1 µM) and LY 341495 (1 µM) were added to ACSF to block activity of GABAA, GABAB, D2 dopamine, D1 dopamine and group II metabotropic glutamate receptors.

Morphological examination and analyses

Request a detailed protocol

Golgi-Cox staining of Swiss Webster mouse brain tissue was performed using FD Rapid GolgiStain Kit (FD NeuroTechnologies, Inc., Columbia MD) according to manufacturer instructions. Juxtacellular labelling of SNc dopamine neurons was performed using Tg(TH-EGFP)1Gsat GENSAT line mice which express enhanced GFP under the control of the tyrosine hydroxylase promoter. Mice were transcardially perfused with cold 1.5% PFA in phosphate buffered saline (PBS) after which brains were dissected and postfixed for 1 hr in 1.5% PFA. Brains were sectioned at 300 µm. Fixed brain slices containing the SNc were transferred to a microscope stage and dopaminergic neurons were identified by green fluorescence. A high resistance sharp electrode containing 0.5 mM Alexa-594 was then placed against the soma of an identified dopamine neuron and large, brief (500 µs) current pulses were applied once every 30 s for 5–10 min until the soma was clearly filled with Alexa-594. Afterwards, the slice was mounted on a glass slide with VectaShield mounting medium (Vecta) and imaged on a two photon microscope (described above).

Images used for measurements of spine length and density along dendritic segments were performed using z-stacks of 64 nm2xy-resolution. Images used to measure spine distribution along entire dendrites had a resolution of 146 nm2. Planes of z-stacks were separated by either 0.8 or 1.0 µm. When dendritic regions examined extended beyond the borders of a single z-stack, images were integrated using the Volume Integration and Alignment System (VIAS) software package (Rodriguez et al., 2003). The combined data set was then loaded into Neuron Studio (Wearne et al., 2005) where dendrites were semi-automatically reconstructed and dendritic spines were manually identified.

Spine morphology was measured in ImageJ. The spine length was measured from the base of the dendrite to the tip of the spine head. Spine head diameter was estimated by measuring full-width at half maximum of the pixel intensity across a 3 pixel wide line drawn orthogonal to the spine neck. The spine head diameter was then used to estimate the spine head volume by Vhead = 4/3*π*r3, where r is the radius of the spine head.

The pixel intensity of mVenus signal in PSD-95-ENABLED mice was measured by drawing an ROI around the dendritic shaft or spine of interest and measuring the pixel intensity throughout the z-stack. After background subtraction, green and red pixel intensities were measured as the integral of 3 consecutive z-slices, with the middle slice corresponding to the highest red intensity. Bleedthrough of Alexa-594 signal into the green channel was measured in regions of the dendritic shaft with no apparent mVenus signal (average bleedthrough = 3.3%). mVenus pixel intensities for dendritic shafts and spines were therefore corrected by subtracting the product of the corresponding red pixel intensity and the bleedthrough measured for that dendrite.

Electrophysiological data were analyzed using custom routines written in Igor Pro (Wavemetrics). Ca2+ imaging and FRAP data were quantified using ImageJ to measure fluorescence intensities and further analyzed using Igor.

FRAP data were corrected for slight and gradual acquisition- related bleaching due to scanning by the imaging laser (Ishikawa-Ankerhold et al., 2012). To isolate the extent of acquisition-related bleaching, we measured the Alexa-594 fluorescence intensity during linescans in which the uncaging laser was not targeted to the spine head. On average, the baseline fluorescence was reduced by 3.5 ± 0.7% (n=33) over the course of imaging. These acquisition-only signals were fit with a straight line and FRAP traces were normalized to these functions. Corrected FRAP traces were then fit with a double-exponential function constrained to return to baseline fluorescence levels. The weighted time constant was calculated as:

Afast× τfast+ Aslow× τslowAfast +Aslow.

References

  1. 1
    The spine neck filters membrane potentials
    1. R Araya
    2. J Jiang
    3. KB Eisenthal
    4. R Yuste
    (2006)
    Proceedings of the National Academy of Sciences of the United States of America 103:17961–17966.
    https://doi.org/10.1073/pnas.0608755103
  2. 2
  3. 3
    Input transformation by dendritic spines of pyramidal neurons
    1. R Araya
    (2014)
    Frontiers in Neuroanatomy, 8, 10.3389/fnana.2014.00141.
  4. 4
    Synapse-specific regulation of AMPA receptor function by PSD-95
    1. JC Béïque
    2. DT Lin
    3. MG Kang
    4. H Aizawa
    5. K Takamiya
    6. RL Huganir
    (2006)
    Proceedings of the National Academy of Sciences of the United States of America 103:19535–19540.
    https://doi.org/10.1073/pnas.0608492103
  5. 5
  6. 6
  7. 7
  8. 8
    Local postsynaptic voltage-gated sodium channel activation in dendritic spines of olfactory bulb granule cells
    1. WG Bywalez
    2. D Patirniche
    3. V Rupprecht
    4. M Stemmler
    5. AV Herz
    6. D Pálfi
    7. B Rózsa
    8. V Egger
    (2015)
    Neuron, 85, 10.1016/j.neuron.2014.12.051.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
    Distinct regulation of dopamine D2S and D2L autoreceptor signaling by calcium
    1. SC Gantz
    2. BG Robinson
    3. DC Buck
    4. JR Bunzow
    5. RL Neve
    6. JT Williams
    7. KA Neve
    (2015)
    eLife, 4, 10.7554/eLife.09358.
  18. 18
  19. 19
    Morphology and electrophysiological properties of immunocytochemically identified rat dopamine neurons recorded in vitro
    1. AA Grace
    2. SP Onn
    (1989)
    Journal of Neuroscience 9:3463–3481.
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    Electric Current Flow in Excitable Cells
    1. JJB Jack
    2. D Noble
    3. RW Tsien
    (1975)
    Oxford: Clarendon Pres.
  29. 29
  30. 30
    Foundations of Cellular Neurophysiology
    1. D Johnston
    2. SM-s Wu
    (1995)
    Cambridge: MIT Press.
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    Slices have more synapses than perfusion-fixed hippocampus from both young and mature rats
    1. SA Kirov
    2. KE Sorra
    3. KM Harris
    (1999)
    Journal of Neuroscience 19:2876–2886.
  36. 36
  37. 37
  38. 38
  39. 39
    Nifedipine- and omega-conotoxin-sensitive Ca2+ conductances in guinea-pig substantia nigra pars compacta neurones
    1. S Nedergaard
    2. JA Flatman
    3. I Engberg
    (1993)
    The Journal of Physiology 466:727–747.
  40. 40
  41. 41
  42. 42
    The dopamine transporter is localized to dendritic and axonal plasma membranes of nigrostriatal dopaminergic neurons
    1. MJ Nirenberg
    2. RA Vaughan
    3. GR Uhl
    4. MJ Kuhar
    5. VM Pickel
    (1996b)
    Journal of Neuroscience 16:436–447.
  43. 43
  44. 44
  45. 45
  46. 46
    AMPA and NMDA glutamate receptor subunits in midbrain dopaminergic neurons in the squirrel monkey: an immunohistochemical and in situ hybridization study
    1. M Paquet
    2. M Tremblay
    3. JJ Soghomonian
    4. Y Smith
    (1997)
    Journal of Neuroscience 17:1377–1396.
  47. 47
    Pathological changes in dendrites of substantia nigra neurons in Parkinson's disease: a Golgi study
    1. S Patt
    2. HJ Gertz
    3. L Gerhard
    4. J Cervós-Navarro
    (1991)
    Histology and Histopathology 6:373–380.
  48. 48
  49. 49
  50. 50
  51. 51
    Electrical behaviour of dendritic spines as revealed by voltage imaging
    1. MA Popovic
    2. N Carnevale
    3. B Rozsa
    4. D Zecevic
    (2015)
    Nature Communications, 6, 10.1038/ncomms9436.
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
    The primate substantia nigra: A golgi and electron microscopic study
    1. RC Schwyn
    2. CA Fox
    (1974)
    Journal für Hirnforschung 15:95–126.
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
    PSD-95 promotes the stabilization of young synaptic contacts
    1. CE Taft
    2. GG Turrigiano
    (2014)
    Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences, 369, 10.1098/rstb.2013.0134.
  66. 66
    Super-resolution 2-photon microscopy reveals that the morphology of each dendritic spine correlates with diffusive but not synaptic properties
    1. K Takasaki
    2. BL Sabatini
    (2014)
    Frontiers in Neuroanatomy, 8, 10.3389/fnana.2014.00029.
  67. 67
    Electrophysiologically identified nigral dopaminergic neurons intracellularly labeled with HRP: Light-microscopic analysis
    1. JM Tepper
    2. SF Sawyer
    3. PM Groves
    (1987)
    Journal of Neuroscience  7:2794–2806.
  68. 68
  69. 69
  70. 70
    Coupled oscillator model of the dopaminergic neuron of the substantia nigra
    1. CJ Wilson
    2. JC Callaway
    (2000)
    Journal of Neurophysiology 83:3084–3100.
  71. 71
  72. 72
  73. 73
  74. 74

Decision letter

  1. Gary L Westbrook
    Reviewing Editor; Vollum Institute, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "Electrical and Ca2+ signaling in dendritic spines of substantia nigra dopaminergic neurons" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Gary Westbrook as the Senior Editor and Reviewing Editor. The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This manuscript examines an interesting and somewhat understudied topic – the role of dendritic spines on dopamine neurons, which are outnumbered by shaft synapses by about 4-fold. Both reviewers were supportive and ask for revisions that should be addressable primarily with analysis of existing data and a more thorough description of methods. The comments to be addressed are included below. Some of reviewer 2's comments may require some additional experiments (e.g. points 2,4,5,7) if the data are not available.

Reviewer #1:

1) This is a comprehensive examination of the sites involved in glutamate dependent transmission on dopamine neurons. Functional synapses on the spines dendritic shafts of dopamine neurons have not been compared. The differences between the two types of synapses is novel and important. The results of this study may explain multiple observations surrounding the expression of different forms of synaptic plasticity on dopamine neurons.

2) The section on electrical and chemical compartmentalization needs an explanation of the significance of these experiments linked to the functional difference between spine and shaft synapses. It seems obvious but without a better discussion of this issue it is just a lot of work to confirm what has been reported in other places.

3) Figure 9 is a bit confusing when considering the increase in calcium that results from the action potentials. It would be less confusing if the action potential dependent rise in calcium was also illustrated. Presumably that is the point of the open triangle in Part B? It would be helpful to see it in parts A and C. Previous work in this lab reported similar calcium boosting and an increase in transmission in dendrites during pacemaking. The significance of the present results is that the calcium boosting is statistically larger in the spines (compare F&G with I&J).

Reviewer #2:

Hage and colleagues use a combination of electrophysiology and 2photon glutamate uncaging/Ca imaging to study the role of spines on substantia nigra dopaminergic neurons. Evaluating the functional role of spines on various neuron subtypes, including sparsely spiny neurons, is of general importance, will deepen our understanding of spine biology and essential for understanding the specific synaptic computations performed by a given neuronal subtype. That said, there are a few significant issues with the execution of the experiments, the analysis, and interpretation of the results.

1) The authors standardize laser power at the back focal plane of the objective but laser power delivery to the spine/dendrite will decrease significantly with depth into the slice. Experiments should be done either within a relatively tight range of depths or effective laser power should be normalized at the depth of the spine. Overall the power delivery should be more clearly described with respect to the depth of the spine in the slice.

2) Spines with long necks are described as having immature (weak) synapses and high resistance necks that would filter EPSPs. It's not possible to attribute the small EPSPs recorded at the soma to spine neck resistance without knowing if there are AMPARs in the spine head and, if there are AMPARs, how the receptor number compares to that of shorter neck spines. Experiments should be conducted to measure/estimate AMPAR and NMDAR numbers for spines of varying lengths. Fluor intensity of PSD-95-venus puncta might be a suitable proxy.

3) FRAP analysis needs to be revisited with fits constrained to baseline fluorescence. The authors use FRAP measurements (proxy for chemical compartmentalization) to estimate spine neck resistance. In the FRAP example shown, 15-20% of the fluorescence signal does not recover, yet the authors fit this trace with a monoexponential function, that is not constrained to baseline fluorescence and report a tau of 30 ms. (This trace is better described with a double exponential, with the first time constant possibly reflecting diffusion of fluorophore within the spine and the second reflecting diffusion between the spine and dendrite.). If the fluorescence of an untethered molecule doesn't recover, there is a stronger barrier to diffusion than reported. How many of the data points are affected by this? Additionally, spine neck resistance is proportional to the length cross sectional area axial resistance. The spine neck diameter is going to have a much larger impact on resistance than length. Finally, the relationship that is most relevant, and least subject to assumptions based on unmeasurable physical features (at least with 2P) would be the FRAP versus uEPSP amplitude. A better experiment altogether would be to uncage (in a standardized way) on either side of the neck and measure a voltage dependent process in the spine head. This has been done by the Sabatini and Magee labs to good effect.

4) The authors report there is an increase AMPA to NMDA ratio in shorter spines. The data presented in 6C indicate that on average the ratio is ~ equivalent. Moreover, the authors need to distinguish between 1) differences in receptor number at synapses on long versus short spines, 2) differential filtering of fast AMPA versus slow NMDAR mediated potentials, and 3) over all compartmentalization of electrical and biochemical signals within the spine, via the spine neck. Specifically, are AMPA and NMDA electrical signals equally attenuated by the spine neck?

5) Experiments testing the ohmic nature of spine neck resistance should be shown as well as described in text.

6) If PSD-95-venus fluorescence correlates with uEPSP amplitude (and presumably AMPAR number) how does venus intensity correlate with spine length? This may provide a strong paradigm for disambiguating the issues in points (3) and (4) The authors might have these experiments done already but only need to analyze them. If the long spines have no PSD-95 puncta, they might not have AMPARs, so stating the spine neck filters these currents is inaccurate.

7) The authors uncage on the spine and dendrite while the cell is at different membrane potentials. They observe the spine Ca signal is larger at more negative membrane potentials and attribute this to increase relief of Mg block at spine synapses due to the larger depolarization of the spine head. Although this is a possible interpretation, it is also possible that there are T-type VGCCs in the spine head that are not present in the adjacent shaft. Experiments should be done to determine if the spine and dendrite have the same NMDAR and VGCC mediated Ca signals. If the Ca sources are different the measurements they've made might not be correctly interpreted.

8) What does the Ca signal in the spine and dendrite look like during tonic firing without uncaging? The authors should show Ca transients from spikes alone.

https://doi.org/10.7554/eLife.13905.015

Author response

Reviewer #1:

1) This is a comprehensive examination of the sites involved in glutamate dependent transmission on dopamine neurons. Functional synapses on the spines dendritic shafts of dopamine neurons have not been compared. The differences between the two types of synapses is novel and important. The results of this study may explain multiple observations surrounding the expression of different forms of synaptic plasticity on dopamine neurons.

We appreciate the positive comments provided by the reviewer.

2) The section on electrical and chemical compartmentalization needs an explanation of the significance of these experiments linked to the functional difference between spine and shaft synapses. It seems obvious but without a better discussion of this issue it is just a lot of work to confirm what has been reported in other places.

We have added a brief discussion to the relevant section of the Results (copied below).

“The presence of glutamatergic synapses on both dendritic shafts and spines in dopamine neurons raises the possibility that these two structural classes of synapses could differ in chemical and electrical signaling. […] Finally, the spine neck could produce local boosting of the EPSP within the spine head leading to activation of voltage-dependent ion channels that would not take place at shaft synapses.”

3) Figure 9 is a bit confusing when considering the increase in calcium that results from the action potentials. It would be less confusing if the action potential dependent rise in calcium was also illustrated. Presumably that is the point of the open triangle in Part B? It would be helpful to see it in parts A and C. Previous work in this lab reported similar calcium boosting and an increase in transmission in dendrites during pacemaking. The significance of the present results is that the calcium boosting is statistically (?) larger in the spines (compare F&G with I&J).

We agree with the viewpoint presented here and thank the reviewer for the opportunity to clarify this issue. We now illustrate isolated AP-evoked and uncaging-evoked Ca2+ signals measured in the spine and dendrites (Figure 9A,B). We have conducted further analyses in which we made linear predictions of spine Ca2+ signals during pacemaking by summing the two isolated signals according to the timing of glutamate uncaging and action potential firing. These “linear sums” are now shown with the recorded spine Ca2+ signals for measurements made during 3 different phases of pacemaking (Figure 9C,D). Examining the relationship between the expected linear sums and the phase of the spike cycle predicted a small enhancement of spine Ca2+ influx in late phases due to the additional AP-evoked Ca2+ influx (Figure 9E). The measured enhancement of Ca2+ influx was significantly larger (Figure 9F) and could be observed even if when we limited our analyses to Ca2+ influx occurring before the AP (Figure 9G). We indicated in the figure legend that the open and closed triangles are illustrating peak Ca2+ signals measured before and after the AP.

We have made Figures 9E-–J examining the effect of TTX and DAP5 on glutamate-evoked Ca2+ influx into the spine and dendrite a separate figure (Figure 10). These experiments were not performed in tonically active cells. We originally included these data with experiments examining pacemaking as we believe VGSCs and NMDARs contribute to the observed phase-dependence of spine Ca2+ influx as described in the Results and Discussion.

We agree that the findings shown here share some important similarities and differences to the findings reported in Hage and Khaliq, 2015. The previous study reported that increases in the rate of tonic firing could influence retrograde Ca2+ signaling and synaptically-evoked bursts. This was due to a fairly small, but fairly steady depolarization of the average interspike membrane potential. This depolarization promoted activation of L-type Ca2+ channels and NMDARs.

In this study, we examined the influence of tonic firing on synaptic Ca2+ signaling in individual spines and on a much finer time scale. Similar to the changes observed with long-lasting increases in tonic firing rate reported in Hage and Khaliq 2015, the enhancement of spine Ca2+ at late phases of the spike cycle that we observe here is due to a more depolarized membrane potential – promoting activation of NMDARs and voltage-gated channels. While our previous study predicted a possible phase dependent Ca2+ enhancement also through depolarization, we were surprised both by the magnitude and timing of the enhancement in the present experiments. In addition, we believe that a key contributor to the enhancement of spine Ca2+ in this study is passive amplification that occurs as a result of the spine neck resistance.

Reviewer #2:

1) The authors standardize laser power at the back focal plane of the objective but laser power delivery to the spine/dendrite will decrease significantly with depth into the slice. Experiments should be done either within a relatively tight range of depths or effective laser power should be normalized at the depth of the spine. Overall the power delivery should be more clearly described with respect to the depth of the spine in the slice.

The reviewer raises an important methodological point. Throughout this study, we targeted spines 30-40 µm below the surface of the slice and have now included this statement in the methods. Consistency in laser power delivered to the spine was confirmed in FRAP experiments. For these experiments, we used the same uncaging protocol that was used to measure the EPSP and spine Ca2+ influx. The extent of bleaching for a 0.5 ms pulse (35-45 mW at the back aperture) was largely consistent at 34 ± 2% (n=33 spines).

The issue raised by the reviewer also highlights the importance of our paired comparisons of short versus long spines, or spines versus shaft synapses. Neighboring postsynaptic structures at the same depth in slice and the same distance from the soma were assayed using identical uncaging pulses (summarized if Figures 4D and 7D). Furthermore, pooling data across all spines, we did not observe differences in spine length with respect to depth in the slice. Therefore, given precautions that we have taken as described above, we are confident that any systematic biases in the effective uncaging power are minimal under our experimental conditions.

2) Spines with long necks are described as having immature (weak) synapses and high resistance necks that would filter EPSPs. It's not possible to attribute the small EPSPs recorded at the soma to spine neck resistance without knowing if there are AMPARs in the spine head and, if there are AMPARs, how the receptor number compares to that of shorter neck spines. Experiments should be conducted to measure/estimate AMPAR and NMDAR numbers for spines of varying lengths. Fluor intensity of PSD-95-venus puncta might be a suitable proxy.

As the reviewer suggested, we measured PSD-95-venus fluorescence in spines of varying lengths. We reanalyzed the z-stacks we used to measure spine and shaft synapse densities. We observe a weak, though highly significant correlation between mVenus intensity and spine length. These new data have been added to the paper (Figure 7G). Notably, a significant number of long spines displayed mVenus fluorescence that was significantly higher than the average background mVenus intensities measured in the dendrite. Therefore, using PSD-95 fluorescence intensity as a proxy for AMPAR density, our new analysis of the mVenus fluorescence shown in Figure 7G support the idea that AMPAR are indeed present on longer spines albeit at lower densities than on shorter spines.

In addition, we have performed an analogous set of voltage-clamp experiments (described in our response to Point #5) in which we recorded AMPAR-mediated uEPSCs from long and short spines in the presence of cyclothiazide to limit AMPAR desensitization. Similarly, we find that longer spines exhibit smaller amplitude uEPSCs, suggesting that AMPARs are present on long spines but at lower densities relative to short spines.

3) FRAP analysis needs to be revisited with fits constrained to baseline fluorescence. The authors use FRAP measurements (proxy for chemical compartmentalization) to estimate spine neck resistance. In the FRAP example shown, 15-20% of the fluorescence signal does not recover, yet the authors fit this trace with a monoexponential function, that is not constrained to baseline fluorescence and report a tau of 30 ms. (This trace is better described with a double exponential, with the first time constant possibly reflecting diffusion of fluorophore within the spine and the second reflecting diffusion between the spine and dendrite.). If the fluorescence of an untethered molecule doesn't recover, there is a stronger barrier to diffusion than reported. How many of the data points are affected by this?

To address this point, we will first discuss data fits to single exponentials. Without constraining the exponential fits to baseline fluorescence values, we found that the average steady-state value approached by the exponential fit (y0)was ~95% of the baseline fluorescence signal. A histogram of the original values is provided below. In the example shown in the original manuscript (Figure 6B) the unconstrained y0 was 92% of the baseline signal.

After reexamining these data, it appears that some spine fluorescent signals do not make a complete return to baseline due to gradual bleaching of the Alexa-594 dye by the imaging laser. Acquisition-related bleaching and different means of correction have been described in a variety of FRAP experiments (Ishikawa-Ankerhold et al., 2012). We were able to estimate the extent of acquisition-related bleaching for each spine using scans in which we did not target the uncaging laser to the spine head. These data were routinely collected when we uncaged glutamate near the spines to measure uEPSP amplitude and Ca2+ influx. The extent of this acquisition-bleaching was roughly proportional to the incompleteness of recovery in FRAP experiments (on average 3.5 ± 0.7% over 33 spines). Alexa 594 signals from the “acquisition-only” scans were fit with a straight line. FRAP data were then normalized to these fits.

After performing this correction we reanalyzed our data by constraining double exponential fits to return to the baseline fluorescence as the reviewer suggested. Consistent with the reviewer’s expectation, constraining fits to baseline fluorescence generally increased the measured time constant, suggesting a higher barrier to diffusion than we previously reported. Correspondingly, the estimated spine neck resistances are larger.

We also considered the reviewer’s suggestion that the fast time constant of double-exponential fits could reflect diffusion of Alexa within the spine head. We found no correlation between spine head volume and the rate of the fast time constant (R=0.03) or the relative weight of the fast time constant to the overall fit (R=0.01). Therefore, we used a weighted time constant from the double-exponential fits to describe the diffusional coupling between the spine and dendrite. Similar to our original analysis with mono-exponential fits, we see a significant correlation between the time course of FRAP and spine length (R=0.52; p=0.002) as well as between the uEPSP amplitude and estimated spine neck resistance (R=-0.50, p=0.0046). A new example FRAP trace is provided. The trace was normalized to baseline fluorescence to aid readers in observing the extent of initial bleaching and recovery.

Additionally, spine neck resistance is proportional to the length cross sectional area axial resistance. The spine neck diameter is going to have a much larger impact on resistance than length. Finally, the relationship that is most relevant, and least subject to assumptions based on unmeasurable physical features (at least with 2P) would be the FRAP versus uEPSP amplitude. A better experiment altogether would be to uncage (in a standardized way) on either side of the neck and measure a voltage dependent process in the spine head. This has been done by the Sabatini and Magee labs to good effect.

We agree that the cross sectional area of the spine will largely determine chemical diffusion and the spine neck resistance, but is not adequately measurable with 2P imaging. As suggested by the reviewer, the FRAP vs. uEPSP amplitude is probably the most suitable for two-photon. When considering the FRAP data, however, it is important to note that the time course of FRAP will depend on both the morphology of the spine neck as well as the volume of the spine head. As described in the studies by Tonnenson et al., and Takasaki and Sabatini, τ = (head volume*neck length)/(diffusion constant*neck cross sectional area).

Based on the equations above, the FRAP time course is not only dependent on the spine neck resistance, but also on the spine head volume. Therefore, a measure that incorporates both the FRAP time course and the spine head volume (such as the estimates of Rneck) will be a better indicator of the electrical/diffusive barrier of the spine neck than FRAP alone. Consistent with this, measuring the relationship between uEPSP amplitude and FRAP time course indicates a weak correlation that nears statistical significance (R=-0.34, p=0.065). However, there is a moderate and highly significant correlation between uEPSP amplitude and the estimated neck resistance (R=-0.50, p=0.0046). These estimates of neck resistance are not based on morphological measurements of neck diameter or neck length, but only the spine head volume.

Estimating spine head volume with 2P has been used by multiple labs to measure relative differences between spines or changes in spine volume with time, though admittedly these estimates of are not as accurate as those made using super resolution light microscopy or EM. Despite these differences, we point out here, as we do in the manuscript, that the estimates of spine neck resistance from our data are similar to those utilizing higher resolution STED imaging to measure spine head volume (Tonnenson et al., 2014).

4) The authors report there is an increase AMPA to NMDA ratio in shorter spines. The data presented in 6C indicate that on average the ratio is ~ equivalent.

In the text of the original manuscript, we point out that the amplitude of both AMPAR and NMDAR mediated currents in longer spines. Importantly, however, we also find that the relative decrease in the AMPAR mediate current amplitude with spine length is more dramatic, resulting in the reduction in AMPA/NMDA ratio with increasing spine length reported in Figure 6D.

In the revised version of this manuscript, we provide a new pair of currents from example spines to better illustrate the summary data (Figure 6). In addition, Figure 6C has been redrawn with the AMPA and NMDA data plotted on neighboring plots to make the subtle differences in the relationship between current amplitude and spine length more clear.

Moreover, the authors need to distinguish between 1) differences in receptor number at synapses on long versus short spines, 2) differential filtering of fast AMPA versus slow NMDAR mediated potentials, and 3) over all compartmentalization of electrical and biochemical signals within the spine, via the spine neck. Specifically, are AMPA and NMDA electrical signals equally attenuated by the spine neck?

As the reviewer points out, the spine neck could perhaps more dramatically attenuate AMPA signals than NMDA signals due to differences in receptor kinetics. To address this concern, we performed additional analysis of existing data by measuring the relationship between spine length and the AMPAR-mediated charge transfer (the integral of the currents measured at -70 mV). The spine neck resistance is predicted to have a much smaller effect on total transfer of charge to the dendrite than on current amplitude. These data have been added to the manuscript (Figure 6E).

Furthermore, we conducted additional experiments (Figure 6F-–J) in which we isolated AMPAR currents and blocked desensitization of the AMPARs with cyclothiazide. This treatment has the effect of increasing the total synaptic conductance and slowing the kinetics of the AMPAR ~2.5 fold. By increasing the synaptic conductance, we minimize the effect of the neck resistance on the measurements of current and charge transfer. Furthermore, by slowing the kinetics of the receptor we can mitigate the low pass filtering that the spine neck may produce. In these conditions, we observe a significant correlation between spine length and AMPA current amplitude as well as spine length and charge transfer.

Combined with our additional analysis of the PSD-95 ENABLED mouse (described in Point #2) we have significant evidence to suggest that a lower AMPAR density contributes to the small uEPSPs produced by long spines.

5) Experiments testing the ohmic nature of spine neck resistance should be shown as well as described in text.

In the original manuscript, we stated that the spine neck resistance was predicted to be ohmic as we believe it to be primarily dependent on the morphology of the spine neck and the axial resistance of the cytoplasm (as described by the reviewer in point 3). We assumed that it was unlikely that these parameters would readily change with transmembrane voltage. To test this assumption, we measured isolated AMPAR currents in cyclothiazide (described above) at -70 mV and +40 mV (NMDA receptors were blocked in these experiments). If the spine neck resistance were non-ohmic, the relationship between neck length and the AMPAR-mediated current would differ between positive and negative voltages. To look at this, we plotted the ratio of AMPAR current amplitude at -70 and +40 mV against spine length (Figure 6J). We observe no correlation between this ratio and spine length, suggesting the spine neck resistance is indeed ohmic.

6) If PSD-95-venus fluorescence correlates with uEPSP amplitude (and presumably AMPAR number) how does venus intensity correlate with spine length? This may provide a strong paradigm for disambiguating the issues in points (3) and (4) The authors might have these experiments done already but only need to analyze them. If the long spines have no PSD-95 puncta, they might not have AMPARs, so stating the spine neck filters these currents is inaccurate.

See response provided in Point #2.

7) The authors uncage on the spine and dendrite while the cell is at different membrane potentials. They observe the spine Ca signal is larger at more negative membrane potentials and attribute this to increase relief of Mg block at spine synapses due to the larger depolarization of the spine head. Although this is a possible interpretation, it is also possible that there are T-type VGCCs in the spine head that are not present in the adjacent shaft. Experiments should be done to determine if the spine and dendrite have the same NMDAR and VGCC mediated Ca signals. If the Ca sources are different the measurements they've made might not be correctly interpreted.

To address the reviewer’s concern that T-type VGCCs are present in the spine head but not in the dendritic shaft, we repeated these experiments in the presence the specific T-type channel block TTA-P2 (n=16 spines and 16 shaft synapses) and obtained results similar to our original dataset (see comparison below). In the presence of TTA-P2 at voltages below -60 mV, normalized spine Ca2+ influx was significantly smaller than normalized shaft Ca2+ influx (p=0.004). Given the similarities of the data sets, they have been pooled in the resubmitted manuscript.

8) What does the Ca signal in the spine and dendrite look like during tonic firing without uncaging? The authors should show Ca transients from spikes alone.

We have performed additional experiments and analyses of these data as described in response to Reviewer 1. Figure 9 has been updated to reflect this.
