Murine Fam65b forms ring-like structures at the base of stereocilia critical for mechanosensory hair cell function

  1. Bo Zhao  Is a corresponding author
  2. Zizhen Wu
  3. Ulrich Müller  Is a corresponding author
  1. The Scripps Research Institute, United States
Research Article
  • Cited 14
  • Views 1,338
  • Annotations
Cite this article as: eLife 2016;5:e14222 doi: 10.7554/eLife.14222

Abstract

Cochlear hair cells convert sound-induced vibration into electrical signals. FAM65B mutations cause hearing loss by an unknown mechanism. Using biochemistry and stochastic optical reconstruction microscopy (STORM), we show here that Fam65b oligomers form a circumferential ring near the basal taper of the mechanically sensitive stereocilia of murine hair cells. Taperin, a second protein near the taper, forms a dense-core-like structure that is disrupted in the absence of Fam65b. Stereocilia of Fam65b-deficient murine hair cells start to develop, but mechanotransduction is affected and stereocilia deteriorate. Yeast-two-hybrid screens identify RhoC as a Fam65b binding partner. RhoC co-localizes with Fam65b in stereocilia and regulates Fam65b oligomerization. Binding to RhoC and oligomerization are critical for Fam65b function. Our findings thus reveal a highly organized compartment near the base of stereocilia that is critical for hair cell function and affected in disease.

https://doi.org/10.7554/eLife.14222.001

Introduction

Hair cells of the mammalian cochlea have a specialized morphology that is optimized for their role as mechanical sensors for sound. Each hair cell contains at the apical surface a bundle of stereocilia that are organized in rows of decreasing height (Petit and Richardson, 2009; Schwander et al., 2010). Stereocilia are cylindrical in shape but form at their base a taper (Figure 1) that is critical for their function because stereocilia pivot at their base during mechanical stimulation (Fettiplace and Kim, 2014; Müller and Barr-Gillespie, 2015; Zhao and Müller, 2015). Confocal imaging of isolated bullfrog hair cells has shown that the membrane of stereocilia is spatially segregated into at least three domains including a specialized basal taper domain (Zhao et al., 2012). Genetic studies combined with immunolocalization experiments have identified several proteins that are concentrated at or near the taper. Cell surface receptors such as PTPRQ, USH2A and VLGR1 form extracellular filaments near the taper and recruit several cytoplasmic proteins that might link the receptors to the cytoskeleton (Adato et al., 2005; McGee et al., 2006; Michalski et al., 2007; Salles et al., 2014). Myosin motor proteins such as Myo6 and Myo7A are also localized near the taper (Hasson et al., 1997) and may be important for protein transport or for adjusting tension between the cell membrane and the cytoskeleton. Proteins with potential roles in regulating F-actin dynamics and/or anchorage to the cell membrane such as radixin and taperin are concentrated at the taper region as well (Pataky et al., 2004; Rehman et al., 2010; Salles et al., 2014). In addition, TRIOBP forms rootlets that extend from stereocilia into the cuticular plate and traverse the taper region (Kitajiri et al. 2010). Importantly, mutations in the genes that encode proteins localized near the taper cause inherited forms of deafness (Ahmed et al., 2003; Khan et al., 2007; Liu et al., 1997; Rehman et al., 2010; Schraders et al., 2010; Weil et al., 1997), thus reinforcing the concept that the taper is a specialized and functionally important subdomain within stereocilia. However, the overall organization of proteins at the base of stereocilia and the mechanisms that regulate their assembly and function are not known.

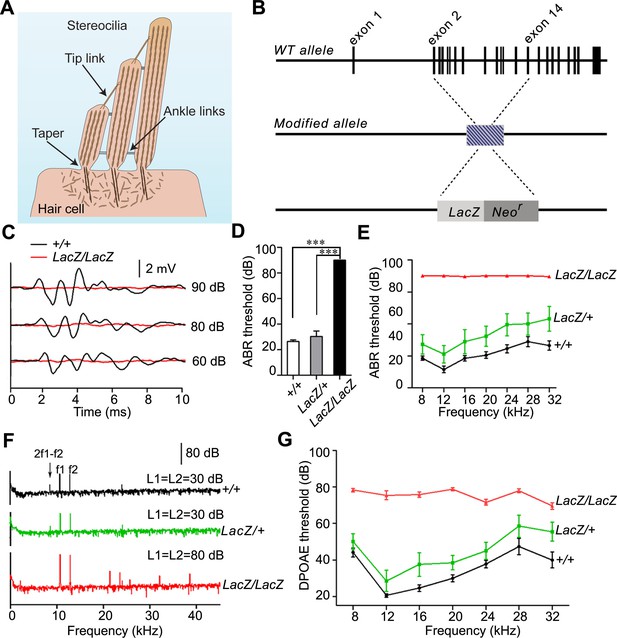

Analysis of hearing function in Fam65b-deficient mice.

(A) Diagram of cochlear hair cells showing the mechanically sensitive hair bundle. Stereocilia are arranged into three rows of decreasing heights. Stereocilia form a taper at their base near the insertion site into the apical hair cell surface. (B) Diagram of the strategy to generate Fam65b knock–out mice. Exons of Fam65b were substituted with a LacZ expression cassette. (C) Representative ABR traces to click stimuli in the indicated control and mutant mice at 4 weeks of age. (D) Statistic results of ABR thresholds to click stimuli at 4 weeks of age. Results are represented as mean ± SE (standard error of the mean). ***p<0.001, by Student’s t-test. (E) ABR thresholds to pure tones at 4 weeks of age. Results are represented as mean ± SE. ***p<0.001 (ANOVA) (F) Representative DPOAE response spectra from control and mutant mice at a single stimulus condition (median primary frequency = 12 kHz). Note the 2f1-f2 peak (black arrow), which is absent in mutant mice. (G) DPOAE thresholds at different frequencies in animals at 4 weeks of age. Results are represent as mean ± SE. ***p<0.001 (ANOVA). More than five animals in each group were tested.

https://doi.org/10.7554/eLife.14222.002

Recent studies have shown that a mutation in FAM65B causes hearing loss in humans (Diaz-Horta et al., 2014). Immunolocalization experiments have provided evidence that Fam65b is expressed in hair cells and knock-down of Fam65b in zebrafish leads to the loss of hair cells (Diaz-Horta et al., 2014). However, the mechanisms by which Fam65b affects hair cell function are unclear. In some cell types, Fam65b appears to be localized at the cell membrane (Diaz-Horta et al., 2014), but a direct link of Fam65b to the cytoskeleton has also been proposed (Yoon et al., 2007). Accordingly, overexpression of Fam65b in C2C12 myoblasts and in HEK293 kidney cells leads to the formation of filopodia (Yoon et al., 2007), while studies in neutrophils and T-lymphocytes suggest that Fam65b can regulate RhoA activity (Gao et al., 2015; Rougerie et al., 2013).

To further define the function of Fam65b in mechanosensory hair cells, we have studied its subcellular distribution in hair cells by stochastic optical reconstruction microscopy (STORM) and generated Fam65b-deficient mice. We show here that Fam65b is localized near the basal taper of hair-cell stereocilia where it forms oligomers by head-to-head and tail-to-tail interaction to form a circumferential ring that does not penetrate the stereociliary core. In contrast, taperin is localized throughout the stereociliary core. Biochemical data suggest that Fam65b does not bind to taperin or any of the proteins that are known to bind to taperin. Instead, using a yeast-two-hybrid screen, we have identified RhoC as a binding partner for Fam65b and show that RhoC regulates Fam65b oligomerization. Defects in Fam65b expression, oligomerization and binding to RhoC affect stereocilia development and function and cause deafness. Our findings thus reveal a striking spatial segregation of proteins within the basal domain of stereocilia, provide insights into the mechanisms that regulate protein assembly in this critical functional domain and reveal a role of Fam65b for normal stereocilia morphogenesis and function.

Results

Fam65b-deficient mice are deaf and show defects in hair cell function

In order to gain insights into the mechanisms by which mutations in Fam65b cause hearing impairment, we created a Fam65b-deficient mouse line. In the mutant mice, the coding region of the Fam65b gene was replaced with a LacZ transgene. We will refer to the modified allele as Fam65bLacZ (Figure 1B). Next we generated homozygous Fam65bLacZ/LacZmice. Measurements of the auditory brain stem response (ABR) to broadband click stimuli in 4-week old animals revealed that homozygous mutant mice were deaf (Figure 1C,D). Recordings of ABRs in response to pure tones revealed that Fam65bLacZ/LacZmice were deaf across the entire analyzed frequency spectrum (Figure 1E). Hearing function was minimally affected in heterozygous Fam65bLacZ/+mice (Figure 1E), consistent with a recessive mode of inheritance of the auditory phenotype.

We next recorded distortion product otoacoustic emissions (DPOAEs), which are mechanical distortions generated in the inner ear when two primary tones (f1 and f2) are presented. Outer hair cells (OHCs) amplify the distortions and they are propagated back through the middle ear and ear canal and can be measured in sound pressure waveforms (Kemp, 1978; Shaffer et al., 2003). DPOAEs were absent in Fam65bLacZ/LacZ mice at 4 weeks of age at all frequencies tested (Figure 1F,G). As these emissions depend on the mechanical activity of OHCs, we conclude that OHC function was affected in Fam65bLacZ/LacZ mice.

Fam65b expression in hair cells of the inner ear

To gain insights into the mechanism by which mutations in Fam65b affect hearing function, we next analyzed its expression pattern in the inner ear. Taking advantage of the LacZ insertion within the genomic locus of the Fam65b gene, we analyzed in heterozygous Fam65bLacZ/+mice the expression of the Fam65b gene by X-gal staining of cochlear whole mounts at postnatal day 4 (P4) (Figure 2A–C). The Fam65b gene was expressed along the entire length of the cochlear duct (Figure 2A) with strongest expression in inner hair cells (IHCs), OHCs and Hensen's cells (Figure 2B,C). During cloning of the full-length Fam65b cDNA from an inner ear cDNA library, we identified a new Fam65b splice isoform that lacks amino acids encoded by exon13. We detected by RT-PCR expression of the smaller Fam65b isoform in many tissues including the cochlea, while expression of the larger isoform was confined to the brain including the cerebellum, spinal cord and retina (Figure 2D).

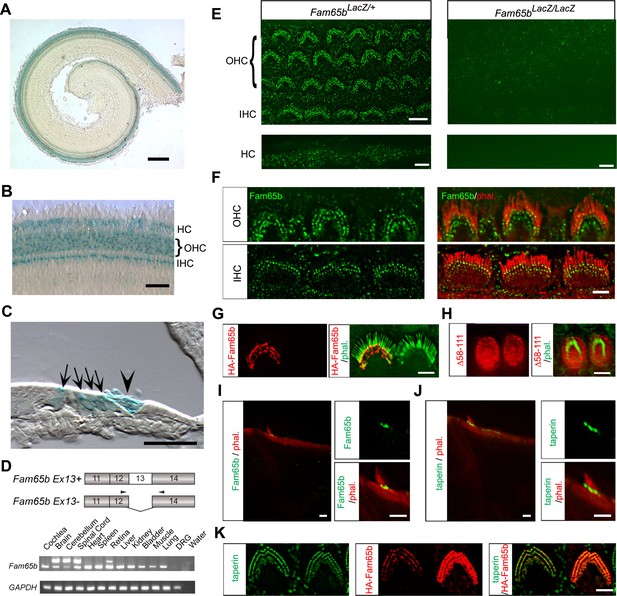

Expression of Fam65b in hair cells.

(A–C) Cochlear whole mounts from P4 Fam65bLacZ/+ mice were stained for LacZ. (A) Whole mount staining reveals expression of Fam65b along the length of the cochlear duct. (B) Higher magnification view of whole mount cochlea. OHCs, IHCs and Hensen’s cells (HCs) express LacZ. (C) Section through a whole mount revealing LacZ expression in OHCs, IHCs, and HCs. Arrows point to OHCs and, IHCs, arrowhead points to HCs. (D) PCR analysis of Fam65b isoform expression in different tissues. Upper panel shows the mouse Fam65b gene structure. Boxes with numbers represent exons. Arrowheads show positions of primers. Lower panel shows expression of Fam65b isoforms in different tissues. GAPDH served as a loading control. Water lane is the negative control. (E) Cochlear whole mounts from Fam65bLacZ/+ and Fam65bLacZ/LacZ mice at P5 were stained for a commercial antibody to Fam65b (Sigma, green) and imaged with fluorescent deconvolution microscopy. The lower panel shows Hensen's cells (HC). Note the absence of a signal in the mutant mice. (F) Co-staining of cochlear whole mounts with phalloidin-rhodamine to reveal stereocilia (red) and antibodies to Fam65b (green). Note the localization of Fam65b at the base of stereocilia. (G) Cochlear explants were prepared at P3 and injectoporated to express HA-Fam65b. Two days later, the cells were stained with HA-antibody. Note the expression of HA-Fam65b at the base of stereocilia. (H) Cochlear explants were prepared at P3 and injectoporated to express HA-Fam65b (∆58–111), corresponding to a mutation that causes deafness in humans (Diaz-Horta et al., 2014). Note the diffuse expression of the mutated protein within the cytoplasm of hair cells with no specific localization at basal regions of hair cells. (I, J) Inner ear sections (P5) were stained with Fam65b (I) and taperin (J) antibodies. Tissues were counterstained with phalloidin. Note expression of Fam65b and taperin at the base of stereocilia. (K) Cochlear explants were prepared at P3 and injectoporated to express HA-Fam65b. Two days later, the cells were stained with antibodies against HA (red) and taperin (green). Note colocalization of HA-Fam65b and taperin in injectoporated hair cells. Note that the cell to the right strongly expressed the transgene, while the cell to the left expressed it weakly. Scale bars: (A) 500 μm; (B, C) 50 μm; (E–K) 4 μm.

https://doi.org/10.7554/eLife.14222.003

Next we analyzed the expression pattern of Fam65b in hair cells by immuno-histochemistry using a commercially available antibody (Sigma). In whole mounts of the cochlea at P5, we observed expression in OHCs and IHCs where Fam65b immunoreactivity outlined the shape of the stereociliary bundle (Figure 2E). Additional staining was observed in the microvilli on the apical surface of Hensen's cells (Figure 2E), which was consistent with the X-gal staining results (Figure 2A–C). We also observed staining in the microvilli of other support cells that did not stain with X-gal. The cells were presumably X-gal negative because expression levels were low and thus difficult to detect with X-gal staining. Clearly, the antibody staining signals were specific because they were not observed in Fam65bLacZ/LacZ mice (Figure 2E). Higher resolution images showed that Fam65b was expressed in IHCs and OHCs at the basal end of stereocilia near the taper region (Figure 2F). To confirm this finding, we used injectoporation (Xiong et al., 2012) to express HA-tagged Fam65b in mechanosensory hair cells at P3. We fixed and stained the injectoporated hair cells two days later with phalloidin to reveal stereocilia and with an antibody to HA to detect HA-Fam65b. Consistent with the immunolocalization data using Fam65b antibodies, HA-Fam65b was concentrated near the base of stereocilia (Figure 2G). When we expressed by injectoporation a HA-Fam65b construct carrying a deletion linked to deafness in humans (Δ58–111), (Diaz-Horta et al., 2014), the protein was distributed diffusely throughout the cytoplasm and no longer targeted to the base of stereocilia (Figure 2H).

Previous studies have shown that taperin is localized near the basal taper of stereocilia (Rehman et al., 2010). To further define the localization of Fam65b, we compared in histological sections the expression pattern of Fam65b with the expression pattern of taperin. Both proteins showed a similar distribution near the basal taper of stereocilia (Figure 2I,J). Finally, to examine the colocalization of Fam65b and taperin, we again expressed by injectoporation HA-Fam65b in mechanosensory hair cells. Co-staining of the hair cells with an antibody to taperin and an antibody to HA confirmed that Fam65b and taperin were co-localized near the taper of stereocilia (Figure 2K).

Fam65b-deficiency affects hair bundle morphogenesis and stereociliary growth

The expression pattern of Fam65b suggested that it might regulate stereocilia development, function and/or maintenance. We therefore compared the development of the sensory epithelium in the cochlea of wild-type and Fam65bLacZ/LacZ mice in whole mount cochlea using phalloidin staining combined with fluorescence deconvolution microscopy. Whole mount staining at P2 revealed that the sensory epithelium in mutant mice was patterned properly into three rows of OHCs and one row of IHCs (Figure 3A). However, hair bundle morphology appeared abnormal in the mutants with aberrant bundle shape relative to controls (Figure 3A). Analysis by scanning electron microscopy (SEM) confirmed that hair bundles in the mutants contained a single kinocilium as well as a bundle of stereocilia but the bundles were abnormally shaped (Figure 3B). At P2 the bundles of most OHCs appeared similar in size to wild-type and formed a staircase pattern but some OHCs showed defects in hair bundle polarity (Figure 3A,B). In contrast, hair bundles of most IHCs were already severely disorganized (Figure 3A,B). To quantify polarity defects in OHCs, we determined the deviation of the position of the bundle center, which contains the longest stereocilia, from their normal position at the tip of the V-shaped bundle (Figure 3E). Unlike in control heterozygous Fam65bLacZ/+ mice, bundle orientation of OHCs was far more variable in Fam65bLacZ/LacZ mice (Figure 3F).

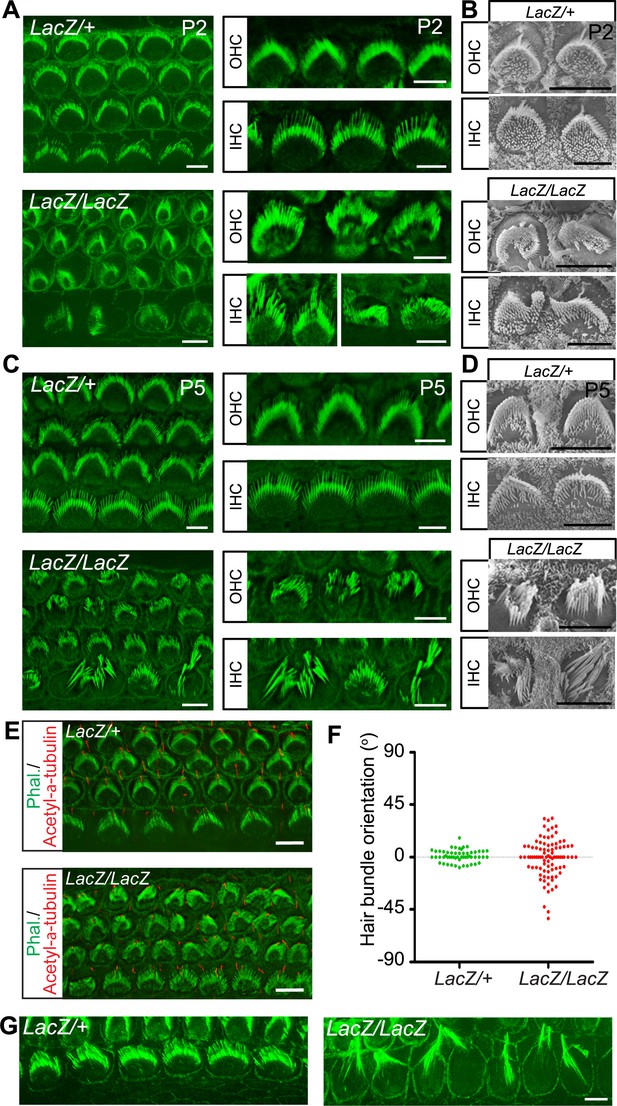

Hair cell morphology in Fam65b-deficient mice.

(A, C) Analysis of the cochlea in P2 (A) and P5 (C) control and mutant animals by whole mount staining with phalloidin (green). Note the morphological changes in hair bundles from mutant mice with defects in bundle polarity, cohesion and length of stereocilia. (B, D) Analysis of hair cells by SEM at P2 (B) and P5 (D). (E) Cochlear whole mounts at P2 were stained with phalloidin and with antibodies to acetylated–α–tubulin to reveal kinocilia. (F) Bundle orientation was determined by drawing a line through the axis of the bundle with 0o indicating the normal medio–lateral axis. Angular deviation from this axis was determined. Each dot represents one hair cell (n=55 for control; n=90 for mutants). (G) Cochlear explants from control and mutant animals were prepared at P2 and cultured for two days in vitro. Samples were stained by phalloidin. Note the hair bundles of most IHCs from mutants lacking Fam65b were disorganized and the stereocilia were extraordinarily long. Scale bars: 6 μm.

https://doi.org/10.7554/eLife.14222.004

By P5 the bundles of both OHCs and IHCs were severely disorganized and many stereocilia appeared abnormally thick and large indicating that their elongation was affected (Figure 3C,D). Interestingly, similar defects in sterreociliary growth were observed in vitro. When we prepared cochlear explants from Fam65bLacZ/+ and Fam65bLacZ/LacZ mice at P2 and cultured them for 2 days, most of the hair bundles of IHCs from mutant animals were disorganized and grew abnormally long (Figure 3G) indicating that bundle cohesion and growth were affected.

To analyze structural defects in hair bundles in more detail, we carried out additional SEM analysis with hair cells at P5. Low magnification views revealed that hair bundles were disorganized in the mutant animals (Figure 4A). Morphological defects were variable but we could group them into several classes (Figure 4B,C). For OHCs: (I) rounded bundle-shape that deviated from the classical V-shape; (II) elongated but coherent bundles; (III) rounded bundles with signs of degeneration; (IV) fragmented bundles with some thin and elongated stereocilia. For IHCs: (I) coherent bundles with slight abnormalities; (II) coherent bundles with degenerative changes; (IIIa) fragmented bundles with thin and elongated stereocilia; (IIIb) fragmented bundles with few remaining thin and elongated stereocilia. The differences in bundle morphology are indicative of various stages during a degenerative process that is initiated already at early postnatal ages when hair bundles have not reached their mature shape. Quantification revealed that for OHCs class II bundle-morphology was most prevalent at this age, while for IHCs class II and IIIa/b bundles were the most prominent (Figure 4C).

Figure 4 with 1 supplement see all
Analysis of hair bundle morphology by SEM.

Whole mounts from the middle part of the cochlea from Fam65bLacZ/+controls and Fam65bLacZ/LacZmutants at P5(A) where analyzed by SEM. (A) Low magnification view showing disorganization of hair bundles in the mutants. (B) Hair bundles were classified both for OHCs and IHCs according to morphological criteria. For OHCs: (I) rounded bundle–shape that deviated from the classical V–shape; (II) elongated but coherent bundles; (III) rounded bundles with signs of degeneration; (IV) fragmented bundles with some thin and elongated stereocilia. For IHCs: (I) coherent bundles with slight abnormalities; (II) coherent bundles with degenerative changes; (IIIa) fragmented bundles with thin and elongated stereocilia; (IIIb) fragmented bundles with few remaining thin and elongated stereocilia. (C) Quantification of the number of hair bundles in different morphological classes (mean ± SEM; n=503 for OHCs; n=191 for IHCs). (D–L) Higher magnification views of hair bundles. Arrows point to abnormally shaped basal domains of stereocilia (F–J) and to protrusions from the apical cell surface (K,L). (M) Transmission electron microscopy image. The arrow points to a protrusion from the apical cell surface. See also Figure 4—figure supplement 1 for further data on the study of hair cell survival. Scale bars: (A) 10 μm; (B) 1 μm; (D–L) 0.3 μm(M) 2 μm.

https://doi.org/10.7554/eLife.14222.005

The localization pattern of Fam65b in hair cells prompted us to investigate structural changes near the base of stereocilia in more detail. Unlike in the stereocilia in wild-type mice (Figure 4D,E), the basal region of stereocilia in mutants was narrow and elongated (Figure 4F–J). We also observed in the mutants protrusions from the apical surface of hair cells by SEM (Figure 4K,L) and transmission electron microscopy (TEM) (Figure 4M) indicative of structural changes in the apical hair cell surface. Despite these strucutal abnormalities, analysis of sensory epithelia in mice at P16 and P28 revealed that hair cells with abnormal hair bundles were maintained with little evidence for hair cell loss (Figure 4—figure supplement 1).

Taken together, these findings suggest that perturbations in the basal compartment of stereocilia are likely responsible for the defects in bundle cohesion and growth in Fam65bLacZ/LacZ mice. However, hair cells with abnormally shaped bundles are maintained for at least 4 weeks after birth.

Taperin localization and functional perturbation using shRNA

Our immunolocalization data showed that Fam65b and taperin were similarly expressed at the base of sterocilia. Interestingly, taperin was no longer localized to the base of stereocilia in IHCs from Fam65bLacZ/LacZ mice, while the normal distribution of espin near the tips of stereocilia (Zheng et al., 2014) was maintained (Figure 5A,B). These findings provide additional support for the conclusion that in Fam65bLacZ/LacZ mice the integrity and structural organization of the base of stereocilia is affected.

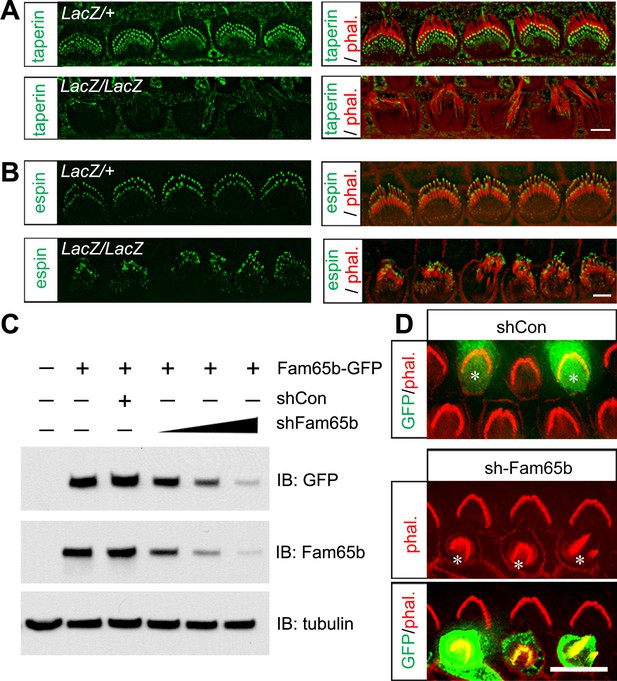

Taperin localization and shRNA perturbation of Fam65b.

(A, B) Taperin (green, A) and espin (green, B) staining in control and mutant IHCs analyzed by fluorescent deconvolution microscopy. Stereocilia were visualized by staining with phalloidin–rhodamine (red). The taperin signal is reduced and diffused in mutant hair cells, while the espin signal is similar. (C) shRNA targeting Fam65b efficiently knocks down Fam65b–GFP expression in transfected HEK293 cells. Different ratios (2:1; 1:1 and 1:2) of Fam65b–GFP and shRNA plasmids were used. Scrambled shRNA was used as knock-down control and tubulin was used as a loading control for western blotting. (D) Cochlear explants were prepared at P2 and injectoporated to express GFP and control shRNA, or GFP and shRNA targeting Fam65b. Three days later, tissues were fixed and stereocilia were visualized by phalloidin staining. Note disorganized hair bundles in shFam65b positive hair cells (asterisks in middle panel) but not in hair cells expressing control shRNA (asterisks upper panel). Scale bars: (A, B) 3 μm; (D) 6 .

https://doi.org/10.7554/eLife.14222.007

LacZ staining in Fam65bLacZ/+ mice detected Fam65b expression not only in hair cells but also in Hensen's cells. We did observe by SEM no structural defects at the apical surface of Hensen's cells (Figure 4A and data not shown). However, to further confirm that the morphological defects of hair cells were cell-autonomous, we generated an shRNA targeting Fam65b, which knocked down Fam65b expression in HEK293 cells in a dose-dependent manner (Figure 5C). Using injectoporation, we expressed GFP together with the shRNA targeting Fam65b in P2 OHCs. We identified the injectoporated cells three days later by GFP fluorescence and analyzed hair bundle morphology. Expression of the shRNA targeting Fam65b but not of a scrambled control shRNA severely affected hair bundle morphology (Figure 5D). We thus conclude that Fam65b acts at least in part cell autonomously in hair cells to regulate hair bundle morphogenesis.

Defects in mechanotransduction in Fam65b-deficient hair cells

Next we analyzed the extent to which mechanotransduction was affected in Fam65b-deficient hair cells. We stimulated hair bundles of OHCs at P5 with a stiff glass probe and recorded mechanotransduction currents in the whole-cell configuration. As previously reported, control OHCs from Fam65bLacZ/+ mice had rapidly activating transducer currents, which subsequently adapted (Gillespie and Müller, 2009) (Figure 6A). Mechanotransduction currents could also be evoked in OHCs from Fam65bLacZ/LacZ mice but peak currents were reduced (Figure 6A). The amplitude of saturated mechanotransduction currents at maximal deflection was at 417.16 ± 103.77 pA (mean ± SEM) for control OHCs and 232.60 ± 123.75 pA (mean ± SEM) for OHCs from mutant mice (Figure 6B). To normalize for variations in amplitude between control and mutant animals, we also plotted the open probability of the transduction channel (P0) against displacement. The resulting curve in the mutant animals was slightly shifted to the right and broadened (Figure 6C). The resting potential was comparable in OHCs from control and mutant animals (data not shown), suggesting that the change in transduction and in the displacement- P0 relationship was not a simple consequence of hair cell deterioration alone. However, given the structural defects in hair bundles of Fam65bLacZ/LacZ mice, it seems likely that effects on transduction were caused at least in part by the morphological defects in hair bundles.

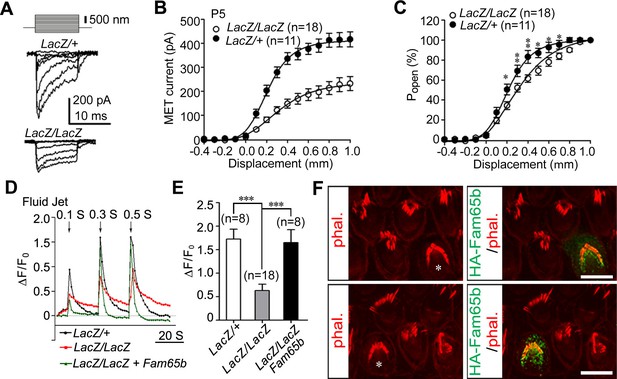

Analysis of mechanotransduction currents in Fam65b-deficient hair cells.

(A) Examples of transduction currents in OHCs from control and mutant mice at P5 in response to a set of 10 msec hair bundle deflections ranging from –400 nm to 1000 nm (100 nm steps). (B) Current displacement plots obtained from similar data as shown in (A). (C) The Po–displacement relationship plot obtained with peak currents following deflection reveals a significant rightward shift and broadening of the curve in mutant hair cells. (D) Representative example demonstrating fluid–jet induced Ca2+ response in G-CaMP3-expressing OHCs from controls, Fam65b mutants, and Fam65b mutants following re-expression of Fam65b. OHCs were transfected at P2 and cultured for 2 days in vitro. Sequential fluid-jet pulse durations were 0.1 s, 0.3 s and 0.5 s. For quantitative analysis (panel E), the amplitude of the 2nd Ca2+ response peak was measured. (E) Quantification of similar Ca2+ responses as shown in (E). The number of analyzed hair cells is indicated in brackets. (F) Fam65b-deficient cochlea explants were prepared at P2 and injectoporated with HA-Fam65b. After in vitro culture for 2 days, samples were fixed and stereociliary morphology was visualized by phalloidin staining. Note the morphological defects could be rescued. Scale bar: 6 μm. All values are mean ± SE ***p<0.001, by Student’s t-test.

https://doi.org/10.7554/eLife.14222.008

We have recently shown that injectoporation is useful to express the genetically encoded Ca2+ sensor G-CaMP3 in hair cells and to then analyze mechanotransduction by changes in the fluorescence intensity of G-CaMP3 (Xiong et al., 2012; Zhao et al., 2014). To determine the extent to which defects in mechanotransduction in Fam65b-deficient hair cells could be rescued by re-expression of Fam65b, we injectoporated control and Fam65b-deficient hair cells at P2 with an expression vector for G-CaMP3 and a Fam65b construct carrying an HA-tag. After two days in culture, we mechanically stimulated hair bundles with a fluid jet with three consecutive pulses increasing in duration from 0.1 s, to 0.3 s and 0.5 s. Hair cells from control mice responded with a robust increase in fluorescence, while the response in Fam65b-deficient hair cells was significantly decreased (Figure 6D,E). Expression of HA-Fam65b in Fam65b-deficient hair cells restored transduction to similar levels as in controls (Figure 6D,E). We also visualized injectoporated hair cells with an antibody to HA to detect HA-Fam65b and visualized hair bundles by staining with phalloidin. Expression of HA-Fam65b did not affect the morphology of control hair cells but it rescued the morphological defects in hair cells from Fam65b-deficient mice (Figure 6F). These findings provide further evidence that Fam65b is required cell autonomously in hair cells to regulate their morphology and function, and show that functional defects can be repaired even in hair cells at early postnatal ages.

Analysis of Fam65b and taperin distribution in hair cells

Super-resolution microscopy such as STORM has been successfully used to obtain higher spatial resolution of protein distribution in cellular compartments such as dendritic spines and immunological synapses than achievable with more conventional fluorescence microscopy techniques (Xu et al., 2012; 2013). We attempted to apply this technique to mechanosensory hair cells. To analyze whether Fam65b and taperin are organized in a particular pattern at the base of stereocilia, we labeled cochlear whole mounts at P7 with antibodies to Fam65b and taperin. Following incubation with secondary antibodies coupled to Alexa Flour 647 we visualized protein distribution using STORM microscopy. The images revealed the localization of Fam65b and taperin at the base of stereocilia, but remarkably in distinct distribution patterns. At lower magnifications both Fam65b and taperin outlined the general shape of the stereociliary bundle of OHCs and IHCs (Figure 7A,D), similar to deconvolution microscopy (Figure 2). At higher magnifications only accessible via STORM, Fam65b appeared as punctate dots that formed a circumferential ring outlining the edges of individual stereocilia (Figure 7B,C). In contrast, taperin appeared as dense puncta that extended into the core of stereocilia (Figure 7E,F). Fam65b ring-like structures were most clearly visible under the tallest row of stereocilia of IHCs. We therefore carried out measurements to determine the diameter of Fam65b ring-like structures and taperin circles in the tallest row of stereocilia of P7 inner hair cells using NIS-Elements AR analysis software.

Figure 7 with 1 supplement see all

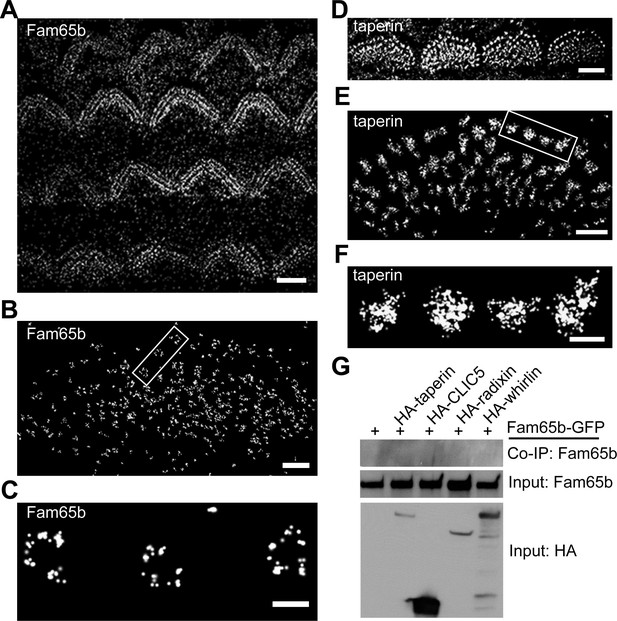

Distinct localization pattern of Fam65b and taperin resolved by STORM.

(A–F) STORM images of Fam65b (A–C) and taperin (D–F) localization in hair cells. A and D show magnification/resolution similar to fluorescent deconvolution microscopy or traditional confocal microscopy. (B, C, E, and F) are higher magnifications only accessible by STORM, demonstrating the distinct localizations of Fam65b and taperin. (C) and (F) are close-up of boxed region in (B) and (E). (G) Lack of interactions between Fam65b and taperin, CLIC5, radixin and whirlin. HEK293 cells were transfected with the constructs indicated on top of each panel. Immunoprecipitations were carried out with HA antibody followed by western blotting to detect Fam65b-GFP. The lowest rows show input protein, the upper row shows co-immunoprecipitation (CoIP) results. See also Figure 7—figure supplement 1 for further data on the analysis of interactions between Fam65b and taperin. Scale bars, (A, D) 3 µm; (B, E) 1 µm; (C, F) 200 nm.

https://doi.org/10.7554/eLife.14222.009

The ring-like Fam65b structure had a diameter of 229 ± 7 nm (mean ± SEM; n=41), while the taperin structure had a diameter of 228 ± 9 nm (mean ± SEM; n=56). Thus, the two structures appear to overlap, although this is difficult to ascertain because the dimension of the primary and secondary antibody affects the measured dimension. As with deconvolution microscopy, both proteins could no longer be detected in the taper region in Fam65bLacZ/LacZ mice (data not shown). These findings provide evidence that while both Fam65b and taperin are present near the taper of stereocilia, they show a distinct distribution pattern. Taperin is more widely expressed throughout the core of the stereocilium and Fam65b is present in a circumferential ring that might partially overlap with the distribution of taperin. Taperin is no longer concentrated near the taper region in Fam65b-deficient hair cells (Figure 5), which could be a direct consequence of effects of Fam65b on taperin or a secondary consequence caused by disruptions in the structure of the basal domain of stereocilia.

We next analyzed whether Fam65b might directly bind to taperin, or to CLIC5 and radixin, which are thought to form a protein complex with taperin (Salles et al., 2014). We also analyzed potential interactions with whirlin, a PDZ-domain protein that is localized near the base of stereocilia (Grati et al., 2012; Michalski et al., 2007), and with PTPRQ, which is also present in this domain of stereocilia (Goodyear et al., 2003). We cloned full-length cDNAs for taperin, CLIC5, radixin and whirlin, fused them to HA and co-expressed them with Fam65b-GFP in HEK293 cells. For PTPRQ, we expressed the cytoplasmic domain fused to HA. Immunoprecipitation experiments did not reveal any interactions between Fam65b-GFP with HA-taperin, HA-CLIC5, HA-radixin, HA-whirlin, and HA-PTPRQcyto (Figure 7G, and data not shown). To further confirm these findings, we also expressed HA-Fam65 and Myc-taperin in CL4 cells but did not observe an interaction between the two proteins (Figure 7—figure supplement 1). Similarly, we did not observe interaction between Fam65b and taperin in a two-hybrid assay where we used Fam65b as a bait and taperin as a prey (Figure 7—figure supplement 1). These results are consistent with the distinct localization pattern of Fam65b and taperin, and suggest a compartmentalized distribution of protein complexes within the basal compartment of stereocilia. They also suggest that the Fam65b regulates taperin localization via an alternative mechanism than direct binding. Unfortunately, we could not extend our analysis of protein distribution to CLIC5, radixin and whirlin because available antibodies were not of sufficient quality for STORM (data not shown).

Fam65b forms oligomeric structures

The ring-like distribution of Fam65b near the taper of stereocilia suggested that Fam65b might form oligomeric structures. To determine the extent to which Fam65b oligomerizes we cloned full-length Fam65b as well as N- and C-terminal fragments (Figure 8A). First, we generated full-length Fam65b constructs containing N-terminal HA and C-terminal GFP tags and expressed them alone or in combination in HEK293 cells. We then carried out immunoprecipitations using an antibody to HA. Fam65b-GFP efficiently co-immunoprecipitated with HA-Fam65b (Figure 8B), demonstrating that Fam65b has homophilic binding affinity. To map protein domains important for interactions, we next generated truncated Fam65b constructs fused to a Myc-tag. Sequence comparison of Fam65b across species revealed five highly conserved domains near the N-terminus, two highly conserved domains near the C-terminus and a less conserved central domain (Figure 8A). We therefore generated Fam65b constructs containing the N-terminal or C-terminal conserved domains alone (Myc-N1, Myc-C2) or in conjunction with the less conserved central domain (Myc-N2, Myc-C1) (Figure 8A). Myc-N1 and Myc-C1 both interacted with full-length Fam65b-GFP (Figure 8C), indicating that there are at least two binding sites in Fam65b that mediate homophilic interactions. Myc-N1 efficiently interacted with N1-GFP and N2-GFP but not with C1-GFP or C2-GFP (Figure 8D–G). Likewise Myc-C1 efficiently interacted with C1-GFP and C2-GFP but not with N1-GFP or N2-GFP (Figure 8D–G). We thus conclude that Fam65b molecules can interact with each other via their N-termini and via their C-termini, which could lead to the formation of concatemers.

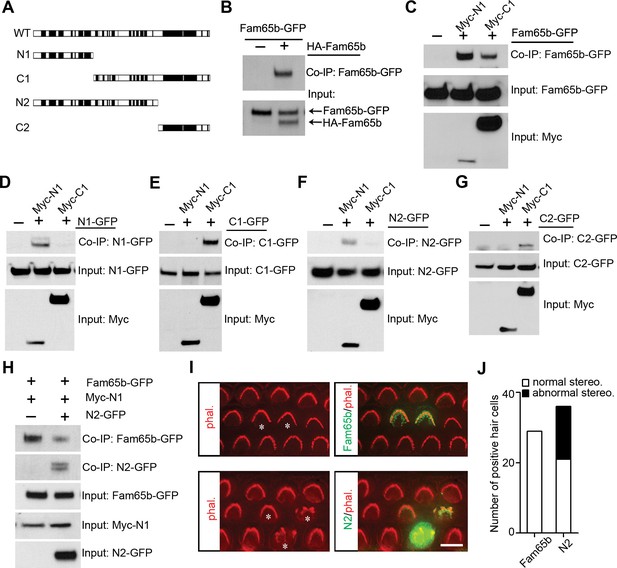

Fam65b forms oligomeric structures.

(A) Diagram of the constructs used for biochemical experiments. Evolutionarily conserved domains are indicated in black. (B–G) HEK293 cells were transfected with the constructs indicated on top of each panel. Immunoprecipitations were carried out with HA (B) or Myc (C–G) antibodies, followed by western blotting to detect co–expressed proteins. The upper rows show CoIP results and the lower rows show input protein. (H) N2-GFP perturbs interactions between Fam65b-GFP and N2-GFP. CoIP blot results above and input protein blot results below. (I) OHCs were injectoporated at P2 to express Fam65b-GFP or N2-GFP, expression of which was evaluated 2 days later by immunohistochemistry (green). Stereociliary morphology of OHCs was visualized by phalloidin staining (red). Note disorganization of stereociliary hair bundles in N2-GFP transfected cells that are marked with an asterisk. Note that one hair cell in the lower panel expressed barely detectable levels of the transgene and showed no structural defects. (J) Number of transfected hair cells and quantification of morphology from (I). Black column represents hair cells with morphological defects. Scale bar: 6 µm.

https://doi.org/10.7554/eLife.14222.011

Fam65b oligomerization is important for its function

To determine the extent to which oligomerization of Fam65b is important for its function, we wanted to disrupt interactions between Fam65b molecules in mechanosensory hair cells. We hypothesized that overexpression of a Fam65b fragment containing one Fam65b binding site might disrupt homophilic interactions between Fam65b molecules thus acting as a dominant negative construct. To test this model, we first determined the extent to which interactions between full-length Fam65b-GFP with Myc-N1 was disrupted by co-expression of N2-GFP in heterologous HEK293 cells. Co-immunoprecipitation experiments demonstrated that N2-GFP significantly reduced interactions between Fam65b-GFP and Myc-N1 (Figure 8H). Next we expressed by injectoporation full-length Fam65b-GFP or the dominant negative construct N2-GFP in hair cells at P2 and cultured the cells for 3 days. Cells expressing the heterologous constructs were identified by GFP fluorescence and hair bundles were visualized by staining with phalloidin-rhodamine. Significantly, while Fam65b-GFP did not affect the morphology of hair bundles (Figure 8I,J), bundle morphology was severely disrupted by overexpression of N2-GFP (Figure 8I,J). The data suggest that homophilic interactions between Fam65b molecules are required for Fam65b function in hair cells, although we cannot exclude that N2-GFP might have affected interactions with other proteins as well.

Fam65b binds to RhoC

Our co-immunoprecipitation data demonstrated that Fam65b does not interact with taperin or with other proteins that have been localized near the base of stereocilia such as CLIC5, radixin, and whirlin (Figure 7C). We therefore set out to identify binding partners for Fam65b that might regulate its function and oligomerization using an unbiased yeast-two-hybrid screen. We purified RNA from the organ of Corti and generated yeast-two-hybrid libraries suitable for the identification of soluble and transmembrane proteins. We then carried out yeast-two-hybrid screens with full-length Fam65b. We screened more than 2 million transformants and identified 50 positive clones. Sequencing of the clones revealed that we had recovered RhoC 28 times and RhoA 1 time (data not shown). In fact, RhoA has been previously shown to be a binding partner for Fam65b (Gao et al., 2015; Rougerie et al., 2013), but interactions with RhoC have not been evaluated so far. To confirm our yeast-two-hybrid data, we generated HA-tagged versions of RhoA, RhoC and the related Rac1 and Cdc42 molcules and tested for interactions with Fam65b following their expression in HEK293 cells. Fam65b bound highly efficiently to RhoC, weakly to RhoA, and not at all to Rac1 and Cdc42 (Figure 9A). Taken together, these data provide evidence that Fam65b binds strongly to RhoC but much weaker to RhoA.

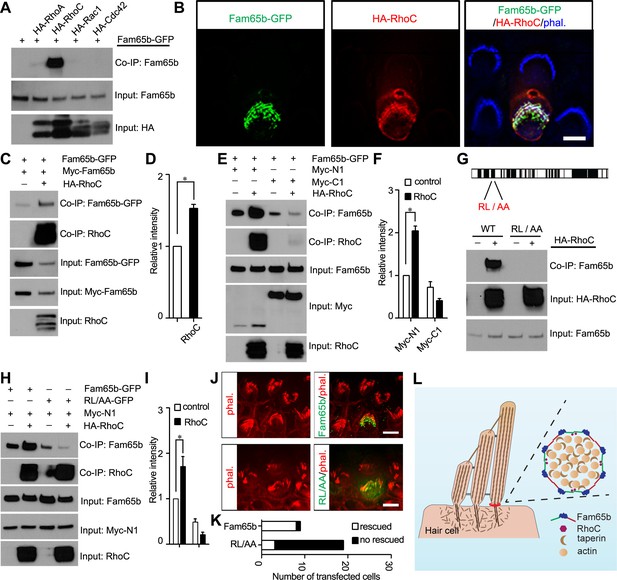

Effects of RhoC on Fam65b oligomerization.

(A) HEK293 cells were transfected with the constructs indicated on top of each panel. Immunoprecipitations were carried out with HA antibody, followed by western blotting to detect co–expressed proteins. The upper row shows CoIP result and the lower rows show input protein. Note strong binding activity was detected between Fam65b and RhoC, weak binding was detected with RhoA, while no binding was detected with Rac1 and Cdc42. (B) OHCs were injectoporated at P2 to express Fam65b–GFP and HA–RhoC. Expression of Fam65b-GFP (green) and HA-RhoC (red) was evaluated 2 days later by immunohistochemistry. Stereocilia were visualized by phalloidin staining (blue). Note colocalization of Fam65b-GFP and HA-RhoC at the base of stereocilia. Scale bar: 4 µm. (C, E, G, H) HEK293 cells were transfected with the constructs indicated on top of each panel. Immunoprecipitations were carried out with Myc antibody (C, E, H) or HA antibody (G), followed by western blotting to detect co-expressed proteins. The upper rows show CoIP results and the lower rows show input protein. Note co-expression of HA-RhoC enhances/stabilizes the oligomerization of Fam65b at N termini (C) but not C termini (E). RhoC did not promote oligomerization of a Fam65b mutant (RL changed to AA; diagram in G) devoid of RhoC binding activity (G, H). (D, F, I) Quantification of CoIP results by scanning of similar gels as shown in (C) (E) and (H). The values are derived by quantifying more than 3 independent experiments. (J) Fam65b-deficient OHCs were injectoporated at P2 to express Fam65b-GFP or mutant Fam65b protein without RhoC binding activity (Fam65bRL/AA-GFP). Expression of Fam65b was evaluated 2 days later by staining for GFP (green). Stereociliary morphology of OHCs was visualized by phalloidin staining (red). Note morphological defects of stereocilia were rescued by Fam65b-GFP but not by Fam65bRL/AA-GFP. Scale bar: 6 μm. (K) Quantification of transfected hair cells from (J). White column represents number of rescued OHCs. (L) Model of Fam65b localization pattern in hair cells. In our model, Fam65b forms a circumferential ring near the basal taper domain of stereocilia, while taperin forms a dense core structure. Fam65b forms oligomers via head-to-head and tail-to-tail interactions and RhoC binds to Fam65b and promotes oligomerization.

https://doi.org/10.7554/eLife.14222.012

To determine the extent to which RhoC and Fam65b might functionally interact in vivo, we wanted to determine the subcellular distribution of RhoC in mechanosensory hair cells. Unfortunately, available antibodies for RhoC were not of sufficient quality for immunolocalization studies. We therefore expressed by injectoporation HA-tagged RhoC and Fam65b-GFP in mechanosensory hair cells at P2 and evaluated their localization two days later. Stereocilia were visualized by staining with Alexa Fluor 647 phalloidin. Remarkably, RhoC was localized near the base of stereocilia and its distribution largely overlapped with the distribution of Fam65b (Figure 9B). We thus conclude that RhoC binds to Fam65b and shows a similar distribution in mechanosensory hair cells, at least at the level of resolution provided by deconvolution microscopy. Once suitable antibodies become available, it will be important to further refine the distribution of RhoC in hair cells using STORM microscopy.

RhoC regulates Fam65b oligomerization

Previous studies in immune cells have suggested that Fam65b might regulate RhoA activity (Gao et al., 2015; Rougerie et al., 2013). Fam65b might therefore act in hair cells upstream of RhoC to regulate its activity. Alternatively, RhoC might regulate Fam65b function. Rho-GTPases cycle between the active GTP bound state and inactive GDP bound state (Dvorsky and Ahmadian, 2004). Activated RhoC binds effector proteins such as Rhotekin. Following expression of Fam65b and RhoC in heterologous cells, we did not observe obvious inhibitory effect of Fam65b on interactions of RhoC with Rhotekin, suggesting that Fam65b does not regulate RhoC activity (data not shown). We therefore tested next whether RhoC might instead affect Fam65b function and determined the extent to which RhoC regulates Fam65b oligomerization. We expressed RhoC together with full-length Fam65b-GFP and Myc-Fam65b in HEK293 cells. Fam65b complexes were recovered by immunoprecipitation using a Myc antibody. Significantly, homophilic interactions between Fam65b molecules were strongly enhanced by RhoC (Figure 9C,D).

Next, we expressed full-length Fam65b-GFP with N-terminal (Myc-N1) and C-terminal (Myc-C1) fragments of Fam65b either alone or together with RhoC. Interactions between Fam65b-GFP and Myc-N1 but not Myc-C1 were strongly enhanced by RhoC (Figure 9E,F), suggesting that RhoC facilitates interactions between the N-terminal of Fam65b. These data suggest that Fam65b acts downstream of RhoC, where RhoC regulates Fam65b oligomerization by promoting interactions between the N-termini of Fam65b molecules.

RhoC binding to Fam65b is critical for Fam65b function in hair cells

To determine the extent to which binding of Fam65b to RhoC is critical for its function in hair cells, we generated a mutant Fam65b construct carrying two point mutations (Fam65bRL/AA) that are thought to be critical for Fam65b function (Figure 9G) (Gao et al., 2015). Notably, the RL/AA mutation significantly abolished binding of Fam65b to RhoC (Figure 9G). We next analyzed the extent to which the RL/AA mutation affected the ability of RhoC to regulate Fam65b homophilic interactions. We expressed RhoC together with full-length Fam65bRL/AA-GFP and the N-terminal Fam65b fragment Myc-N1 in HEK293 cells and carried out co-immunoprecipitation experiments using a Myc antibody. As predicted, while RhoC strongly enhanced homophilic interactions between wild-type Fam65b-GFP and Myc-N1, it no longer enhanced interactions between Fam65bRL/AA-GFP and Myc-N1 (Figure 9H,I). In fact, the mutation appeared to even reduce the basal homophilic binding activity of Fam65b that is observed without expression of RhoC (Figure 9H,I).

To evaluate the importance of interactions of RhoC with Fam65b for hair cell function, we compared the ability of wild-type Fam65b with Fam65bRL/AA to rescue the morphological hair bundle defect of Fam65b-deficient hair cells. We expressed Fam65b-GFP or Fam65bRL/AA-GFP by injectoporation in OHCs at P2 and analyzed hair bundle morphology 2 days later. The quantification of the data was facilitiated by the fact that morphological defects in hair bundles from mutant mice are exaggerated in vitro, presumably because the bundles are fragile and more easily disrupted during the culture period compared to wild-type. Thus most hair bundles in cultured OHCs are either round or fragmented, which is in stark contrast to the V-shape of the bundles of OHCs in wild-type. Following injectoporation, Fam65b-GFP was efficiently targeted to the basal region of hair cell stereocilia and rescued the morphological hair bundle defect of OHCs from Fam65b-deficient mice, which formed the typical V-shape (Figure 9J,K). In contrast, Fam65bRL/AA could not rescue the morphological hair bundle defect in hair cells from Fam65b-deficient mice (Figure 9J,K). We thus conclude that binding of Fam65b to RhoC is critical for its function in mechanosensory hair cells.

Discussion

The basal domain of stereocilia has been recognized as a specialized compartment with a distinct lipid and protein composition and a critical function in mechanotransduction because stereocilia form at their base a taper that allows them to pivot in response to mechanical stimulation (Fettiplace and Kim, 2014; Müller and Barr-Gillespie, 2015; Zhao and Müller, 2015). Using STORM microscopy we provide here insights into the spatial arrangement of cytosolic proteins within the basal domain of stereocilia at a resolution that had not been possible with other more common fluorescence microscopy techniques. These imaging experiments combined with biochemical and functional studies also provide insights into the function of Fam65b, a protein that has been previously linked to inherited forms of deafness but whose molecular and cellular function has remained unknown. Our findings provide evidence that Fam65b oligomers form a circumferential ring-like structure in the basal domain of each stereocilium and that this structure is critical for the maintenance of the morphology of the hair bundle. In the absence of the Fam65b the taper region appears abnormally shaped and hair bundles start to form but show degenerative changes before they reach maturity. Oligomerization of Fam65b depends on binding of Fam65b to RhoC, which co-localizes with Fam65b in the basal domain of stereocilia. In contrast, taperin binds to distinct proteins and is distributed within the basal domain through the core of each stereocilium. Taperin distribution is disrupted in the Fam65b-deficient hair cells suggesting a potential functional interaction between taperin and Fam65b, but our biochemical data suggest that Fam65b and taperin do not interact directly. We therefore conclude that Fam65b has a critical function in the maintenance of the basal domain of stereocilia, and that defects in this process likely are the underlying cause of deafness in humans and mice with mutations in the Fam65b gene.

Previous studies have demonstrated that a mutation in Fam65b can lead to non-syndromic, prelingual, profound hearing loss (Diaz-Horta et al., 2014). We show here that Fam65b-deficient mice similarly are deaf already at 4 weeks of age, the first time point analyzed. Studies with morpholinos directed against Fam65b in zebrafish suggest that Fam65b is required for normal hair cell survival. However, we did not observed defects in hair cell survival at 2 and 4 weeks after birth, suggesting that the death of hair cells is not the primary cause of the auditory phenotype in mice lacking Fam65b. The difference in cell survival observed in the previous and current study may be attributed to species-specific functions for Fam65b. In Fam65b-deficient mice, we observe defects in hair bundle morphology already in the first few days after birth suggesting that degenerative changes are manifest prior to the onset of hearing in mice. The structural defects are associated with defects in mechanotransduction, indicating functional defects in hair cells that likely cause the auditory phenotype of the mutant mice. However, it is unclear whether the defects are caused by direct effects of Fam65b that affect the transduction process, for example by affecting the stiffness of stereocilia, or if the defects are a secondary consequence of the morphological hair-bundle defects that might affect transduction secondarily, for example by affecting the integrity of tip links. Further studies with more subtle mutations in Fam65b that do not dramatically affect hair bundle morphology might be informative.

While our findings suggest that defects in hair cells are critical for the auditory phenotype caused by Fam65b mutations, we also observed Fam65b expression in the microvilli of supporting cells including Hensen’s cells and it cannot be excluded that defects in their development and function might contribute to the auditory phenotype. Regardless of the involvement of supporting cells, defects in hair bundles of hair cells are likely cell-autonomous because we can induce them by knock-down of Fam65b expression in hair cells (Figure 4) and rescue them by re-expression of Fam65b in Fam65b-deficient hair cells (Figure 5). The acute rescue of hair cell morphology by re-expression of Fam65b at postnatal ages also suggests that defects in hair bundle morphology are likely not a secondary consequence of perturbations in an overall developmental program but are more specifically linked to a role of Fam65b in stereocilia.

Previous studies have suggested that Fam65b might be a membrane-associated protein of stereocilia. Immunolocalization studies demonstrated that Fam65b was expressed along the entire length of stereocilia but additional staining was observed as punctate aggregates in the cell body (Diaz-Horta et al., 2014). In some of the hair cells analyzed by Diaz-Horta et al. (2014), labeling appeared more prominent near the base of stereocilia, which is consistent with the expression pattern that we describe here. One possible explanation for the discrepancy in the findings is that the antibodies used by Diaz-Horta were raised against the N-terminus of Fam65b, which shows 70% similarity with Fam65a and Fam65c. We used an antibody to the C-terminus of Fam65b, which has very low homology with Fam65a/c. Perhaps hair cells express Fam65a,b,c and Diaz-Horta et al. (2014) observed with their antibodies the expression of all three Fam65 proteins. Clearly, our antibody appeared to be specific for Fam65b because we observed no staining in Fam65b-deficient hair cells. It will be interesting to define in the future the extent to which Fam65a and Fam65c are expressed in hair cells.

Given the diameter of stereocilia, the resolution of the images presented previously (Diaz-Horta et al., 2014) was clearly also not sufficient to distinguish between a localization of Fam65b at the membrane of stereocilia, localized internally within their core, or both. Membrane-targeting was mainly inferred previously because sequence comparison indicated that Fam65b might have a PX-BAR domain that can associate with membranes (Diaz-Horta et al., 2014; Farooq and Tekin, 2014). However, this conclusion was subsequently contested (Teasdale and Collins, 2014). Using STORM microscopy, we have now refined the localization of Fam65b within stereocilia and demonstrate that it is concentrated at their basal domain and not localized uniformly along the entire length of stereocilia. In addition, we show that Fam65b is localized in a circumferential ring near the stereociliary base and does not penetrate the core of stereocilia. The distribution of Fam65b in hair cells would be consistent with localization at the membrane but it is currently not clear whether Fam65b directly binds to the membrane or is targeted to its location within stereocilia by interaction with other proteins. One intriguing possibility is that Fam65b might contain a modified PX-BAR domain that facilitates interactions with the specific lipids that have been shown to be concentrated at the stereociliary base (Zhao et al., 2012).

Our findings also provide insights into the mechanisms by which Fam65b acts in hair cells. Previous studies have shown that Fam65b can bind to RhoA and inhibit its function (Gao et al., 2015; Rougerie et al., 2013). We show here that Fam65b binds much more strongly to RhoC than to RhoA but we did not observe effects of Fam65b on RhoC activity. Instead, we show that RhoC co-localized with Fam65b in stereocilia and regulates Fam65b oligomerization. Oligomerization is driven by interactions between the N-termini of Fam65b, which are promoted by RhoC, and by interactions between the C-termini suggesting that Fam65b monomers can assemble into extended filaments. In fact, STORM imaging of Fam65b following its expression in heterologous cells (data not shown) suggests that oligomerization leads to linear filaments that can also bend into ring-like structures similar to those observed in hair cells. One interesting possibility would be that Fam65b oligomers form spring-like structures near the membrane at the base of stereocilia that affect the mechanical properties of the bundle. We are currently carrying out structural studies to address this possibility.

Intriguingly, we did not observe in our assays interactions of Fam65b with other cytoplasmic proteins that have been localized to the basal domain of stereocilia such as taperin, CLIC5, radixin and whirlin. While we cannot exclude that these proteins interact in some context, for example when they carry hair-cell specific posttranslational modifications, the findings nevertheless suggest the existence of functionally distinct protein complexes near the basal taper of stereocilia. Our STORM imaging data further provide evidence that taperin has a distribution in hair cells different from Fam65b. While both proteins are localized near the base of stereocilia, only taperin is localized within the core of stereocilia. Fam65b instead forms a circumferential ring. The diameter of the domain occupied by taperin and of the Fam65b ring are similar, raising the possibility that the two compartments show partially overlap. Unfortunately, antibodies to CLIC5 and radixin were not of sufficient quality to use them in STORM microscopy, but one might predict that CLIC5 and radixin, which are thought to form a protein complex with taperin (Salles et al., 2014), have a similar distribution at the base of stereocilia as taperin. Taperin localization is perturbed in the absence of Fam65b, suggesting that the distribution of protein complexes containing Fam65b and taperin is interdependent. Perhaps the two protein complexes are connected by a linker protein that still needs to be identified. Alternatively, the proteins might be components of distinct molecular complexes with separate function. Regardless, our data strongly suggest that Fam65b expression and oligomerization is critical for maintaining the structural organization of the basal domain of stereocilia and that mutations in Fam65b cause deafness at least in part by affecting stereocilia morphogenesis and function. Re-expression of Fam65b in Fam65b-deficient hair cells at postnatal ages rescued their morphological defects, suggesting that it might be possible to repair hair cell damage in human patients with mutations in the FAM65B gene.

In summary, our data highlight the power of STORM microscopy, combined with genetic and biochemical approaches, to provide insights into the mechanisms by which proteins regulate hair cell function. Notably, the stereocilia of hair cells contain hundreds of proteins many of which are affected in disease (Krey et al., 2015; Petit and Richardson, 2009; Shin et al., 2013; Wilmarth et al., 2015). However, stereocilia are small in size and it is challenging to define the function of individual proteins without precise spatial information. Our data show that STORM microscopy can be applied successfully to hair cells and will thus be a useful tool to investigate the spatial organization of proteins in stereocilia in normal and pathological conditions.

Materials and methods

Mouse strains, ABR and DPOAE measurement

Request a detailed protocol

ES cells carrying a Fam65b allele in which exons 2–14 of Fam65b were substituted by a LacZ expression cassette were obtained from Regeneron Pharmaceuticals, Inc. and used to generate Fam65bLacZ/+ mice by the KOMP Repository and the Mouse Biology Program at the University of California, Davis. Fam65bLaczZ/+ mice were maintained on a C57BL/6 background. ABR and DPOAE measurements were carried out as described (Schwander et al., 2007). All of the animal experiments were approved by the ethics committee of the institutional animal care and use committees of The Scripps Research Institute (Approval number 080088).

LacZ staining

Request a detailed protocol

LacZ staining was performed as described (Zhao et al., 2014). In brief, tissue was fixed for 1 hr in PFA and incubated for 2 days at 4°C in 20% sucrose/PBS. Cryosections or acutely dissected tissues were fixed for 15 min at room temperature in 1% PFA, 0.2% glutaraldehyde, 0.02% NP40 and 0.01% sodium deoxycholate, and washed 3 times in PBS containing 0.02% NP40 and 0.01% sodium deoxycholate. Sections were stained overnight in the 1 mg/ml X-Gal staining solution (25 mM potassium ferricyanide, 25 mM potassium ferrocyanide, 2 mM MgCl2, 1 mg/ml X-Gal diluted in PBS) at 37°C. Sections were washed 3 times for 20 min in PBS and post-fixed overnight at 4°C in 4% PFA. Sections were washed in distilled water, dehydrated and mounted.

Whole mount staining and super-resolution imaging

Request a detailed protocol

Cochlear whole mount staining was carried out as described (Zhao et al., 2014). Whole mount images were captured by fluorescent deconvolution microscopy (Deltavision). Measurements of hair-bundle polarity were carried out as described (Webb et al., 2011). Whole mount staining for super-resolution imaging was performed according to the literature (Xu et al., 2013; . In brief, samples were incubated with primary antibodies followed by incubation with Alexa 647-conjugated secondary antibodies. Samples were mounted in freshly prepared STORM buffer (50 mM Tris, pH8.0, 10 mM NaCl, 10% glucose, 0.1 M mercaptoethanolamine [cysteamine; Sigma], 56 U/ml glucose oxidase [Sigma] and 340 U/ml catalase [Sigma]) and imaged on a Nikon N-STORM on a Ti-E inverted microscope. Samples were imaged using a 100X/1.49 NA Apo TIRF objective. Images were collected on an Andor IXON3 Ultra DU897 electron-multiplying CCD camera using the multicolor continuous mode setting in the Nikon Elements software. Power on the 647-nm lasers was adjusted to enable collection of 20–300 molcules per 256 X 256 camera pixel frame at appropriate threshold setting. More than 10,000 frames were collected and reconstructed with Nikon STORM software.

Primary antibodies were as follows: α-Fam65b (rabbit, Sigma); α-HA (mouse, Cell signaling); α-Myc (rabbit, Cell signaling); α-taperin (rabbit, Sigma); α-espin (Mo, BD Transduction Laboratories); anti-acetylated-α-tubulin (mouse, Sigma, 6-11B-1). Additional reagents were: Alexa Fluor 488-phalloidin, Alexa Fluor 647-phalloidin (Invitrogen, Carlsbad, CA), Alexa Fluor 488 and Alexa Fluor 647 conjugated goat anti-rabbit secondary antibodies.

Scanning electron microscopy

Request a detailed protocol

The experiment was performed as described (Zhao et al., 2014). In brief, inner ears were dissected in fixative (2.5% glutaraldehyde; 4% formaldehyde; 0.05 mM Hepes Buffer pH 7.2; 10 mM CaCl2; 5 mM MgCl2; 0.9% NaCl). Sample was fixed for 2 hr at RT, and dissected in washing buffer (0.05 mM Hepes Buffer pH 7.2; 10 mM CaCl2; 5 mM MgCl2; 0.9% NaCl). The stria vascularis, Reissner’s membrane and tectorial membrane were removed. Samples were dehydrated and processed to critical drying point in an Autosamdri-815A (Tousimis). Cochlea were mounted with carbon tape and coated with iridium (sputter coater EMS150TS; Electron Microscopy Sciences). Samples were imaged with a Hitachi S-4800-ll Field Emission Scanning Electron.

DNA constructions, transfections, immunoprecipitations and western blots

Request a detailed protocol

DNA constructs are described in Supplementary Information. Expression of the constructs, immunoprecipitations, and western blots were carried out as described (Senften et al., 2006). Immunoprecipitation experiments were carried out at least 3 times to verify the reproducibility of the data. The following antibodies were used for the experiments: α- Fam65b (rabbit, Sigma); α-HA (mouse, Cell signaling); α-Myc (rabbit, Cell signaling); α-GFP (Xiong et al., 2012); α-GFP (mouse, Santa Cruz).

Injectoporation

Request a detailed protocol

The experiment was performed as described (Xiong et al., 2012; Zhao et al., 2014). In brief, the organ of Corti was isolated and placed in DMEM/F12 medium with 1.5 μg/ml ampicillin. For electroporation, glass electrodes (2 μm diameter) were used to deliver plasmid (500 ng/μl in 1x HBSS) to the sensory epithelium. A series of 3 pulses was applied at 1 s intervals with a magnitude of 60V and duration of 15 msec (ECM 830 square wave electroporator; BTX). For Ca2+ imaging, we used G-CaMP3 (Addgene 22692). Hair cells were imaged on an upright Olympus BX51WI microscope mounted with a 60x water-immersion objective and Qimaging ROLERA-QX camera, controlled by Micro-Manager 1.3 software (Edelstein et al., 2010). Hair bundles were stimulated with a fluid jet applied through a glass electrode (2 μm tip-diameter) filled with bath solution. Stimuli were applied using Patchmaster 2.35 software (HEKA) and 20 psi air pressure. Images were collected with a 2 s sampling rate. A series of fluid-jet stimulations (0.1, 0.3, 0.5 s) was applied (60 s intervals). Responses induced by 0.3 s fluid-jet stimulation were used for quantitative analysis.

Electrophysiology

Request a detailed protocol

The experiment was performed as described (Zhao et al., 2014). In brief, during recording, a Peri-Star peristaltic pump (WPI) was used to perfuse artificial perilymph (in mM): 144 NaCl, 0.7 NaH2PO4, 5.8 KCl, 1.3 CaCl2, 0.9 MgCl2, 5.6 glucose, and 10 H-HEPES, pH 7.4. In some recordings, Ca2+ concentration was reduced to 0.02 mM. To record reverse polarity currents in OHCs from wildtype animals, 5 mM BAPTA was added to the bath solution. Borosilicate glass with filament (Sutter) was pulled with a P-97 pipette puller (Sutter), and polished with MF-830 microforge (Narishige) to resistances of 3–5 MΩ. Hair bundles were deflected with a glass pipette mounted on a P-885 piezoelectric stack actuator (Physik Instrument). The tip of the pipette was fire-polished to ~4 μm diameter to fit the shape of OHC bundles. The actuator was driven with voltage steps that were low-pass filtered at 10 KHz with a 900CT eight-pole Bessel filter (Frequency Devices). The output driving voltage to the actuator stack was monitored by an oscilloscope to ensure a rise time <50 μs. The tip of the probe was cleaned in chromic acid to allow adherence to hair bundles. Whole cell recordings were carried out and currents were sampled at 100 KHz with an EPC 10 USB patch-clamp amplifier operated by Patchmaster 2.35 software (HEKA). To record macroscopic currents, the patch pipette was filled with intracellular solution (140 mM KCl, 1 mM MgCl2, 0.1 mM EGTA, 2 mM Mg-ATP, 0.3 mM Na-GTP and 10 mM H-HEPES, pH7.2). Cells were clamped at -70 mV.

Data analysis

Request a detailed protocol

Data analysis was performed using Excel (Microsoft) and Igor pro 6 (WaveMetrics, Lake Oswego, OR). Calcium signal (△F/F) was calculated with the equation: (F-F0)/F0, where F0 is the averaged fluorescence baseline at the beginning. Transduction current-displacement curves (I(X)) were fitted with a three-state Boltzmann model (Grillet et al., 2009). All data are mean ± SE. Student's two-tailed unpaired t test was used to determine statistical significance (*p<0.05, **p<0.01, ***p<0.001).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
    Computer control of microscopes using micromanager
    1. A Edelstein
    2. N Amodaj
    3. K Hoover
    4. R Vale
    5. N Stuurman
    (2010)
    Curr Protoc Mol Biol Chapter 14, Unit 14, 20, 10.1002/0471142727.mb1420s92.
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
    A receptor-like inositol lipid phosphatase is required for the maturation of developing cochlear hair bundles
    1. RJ Goodyear
    2. PK Legan
    3. MB Wright
    4. W Marcotti
    5. A Oganesian
    6. SA Coats
    7. CJ Booth
    8. CJ Kros
    9. RA Seifert
    10. DF Bowen-Pope
    11. GP Richardson
    (2003)
    The Journal of Neuroscience 23:9208–9219.
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
    Radixin is a constituent of stereocilia in hair cells
    1. F Pataky
    2. R Pironkova
    3. AJ Hudspeth
    (2004)
    Proceedings of the National Academy of Sciences of the United States of America 101:2601–2606.
    https://doi.org/10.1073/pnas.0308620100
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
    Hair-bundle proteomes of avian and mammalian inner-ear utricles
    1. PA Wilmarth
    2. JF Krey
    3. JB Shin
    4. D Choi
    5. LL David
    6. PG Barr-Gillespie
    (2015)
    Scientific Data, 2, 10.1038/sdata.2015.74.
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44

Decision letter

  1. Tanya T Whitfield
    Reviewing Editor; University of Sheffield, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "Super-resolution microscopy resolves protein organization in stereocilia critical for mechanosensory hair cell function" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by Tanya Whitfield (Reviewing Editor) and Gary Westbrook as the Senior Editor. The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This paper uses biochemical, imaging and genetic studies to characterise the protein FAM65B in sensory hair cells of the inner ear. Mutation in the FAM65B gene has previously been linked to deafness in humans. The current manuscript addresses the localisation and function of the FAM65B protein in sensory inner hair cells in the mouse. As you will see, all three reviewers have commended your work, but have also raised a number of concerns. These should be addressed as follows:

Essential revisions:

1) A thorough, objective and quantitative analysis of the STORM imaging data should be provided, together with appropriate statistical analysis where required, as requested by Reviewer 1. Inferences about direct interactions (between FAM65B and taperin, and FAM65B and RhoB) should be cautious unless further analysis can strengthen the evidence for these interactions.

2) Likewise, the interpretation of the co-IP results in HEK-293 cells should be discussed with appropriate caution, as requested by Reviewer 2. If additional co-IP results from a different cell line are available, these should be included.

3) A full structural analysis of the stereociliary bundle phenotype, including cohesion, growth, presence of tapers and stiffness should be provided, as requested by Reviewer 3.

A) It was agreed that further electrophysiological analyses of the transduction currents (calcium dependency, reverse polarity) would be beyond the scope of this manuscript, and so are not required. However, the authors should acknowledge and discuss any limitations of the methods they have used.

4) A comment on the presence or absence of the outer hair cells and of hair cell polarity defects in the mutant should be included.

5) Any discrepancies between the findings and those of Diaz-Horta et al. should be discussed, as requested by Reviewer 3.

6) The title should be revised, as requested by Reviewer 2, to reflect the findings of the manuscript more generally.

7) The name 'basilin' should be removed from the manuscript. There appears to be no strong reason to re-name the protein, and indeed, several arguments (as raised by Reviewer 3) the name 'basilin' is unsuitable. Retaining the name FAM65B will help with cross-reference to existing literature.

The full reviews are appended below for your information.

Reviewer #1:

This manuscript reveals the functional role of FAM65B, which is renamed as basilin, in structural integrity of stereocilia in hair cells. Most of the conclusions, based on genetic, biochemical and imaging data, are quite convincing. Nevertheless, the reviewer has several major concerns regarding the super-resolution data:

1) Figure 3H tries to show that HA-basilin in HEK cells forms string- or ring-like structures resembling those observed in stereocilia. However, the evidence was drawn from visual display of a small, selected region at the edge of one cell where the label density and the density of localization points is extremely low. In this case, the displayed ring-like structure in Figure 3H-iii, which contains only 9 localization points, could simply be random coincidence. The string-like structures could also be artifacts resulted from colocalization with other cellular structures. The distance between some localization points and their nearest neighbors exceed 200 nm, which is an indication that these structures, if real, are unlikely maintained by basilin oligomerization alone. The manuscript would have to show statistically significant, objective analysis as to convincingly demonstrate the existence of large-size, ordered basilin structures in HEK cells. Otherwise, the biochemistry data can support the oligomerization capability of basilin, but cannot support that basilin rings are formed by basilin oligomerization.

2) Figure 6 uses the distinct morphology of basilin and taperin in STORM images to support that they have no direct interaction. However, judging from the two sets of single-color images, the basilin rings may still have certain degree of overlap with taperin disks. Therefore, these images by themselves cannot rule out the possibility that basilin is interacting with some of the taperins at the periphery of the taperin disks (maybe some post-translational modification?). The reviewer suggests more quantitative analysis of the STORM images: measuring the diameter of the two structures, and compare them to the diameter of the stereocilia measured in EM images. This comparison will be important to support the structural model proposed in Figure 8L. (Optional request) If high quality two-color STORM imaging of basilin and taperin can be obtained, preferably in 3D, the conclusions can be further strengthened.

3) Figure 8B uses the colocalization of basilin-GFP and HA-RhoC in conventional fluorescence images to support their direct interaction. However, the basilin-taperin case in the same manuscript provides a perfect counter-example: colocalization in the conventional fluorescence images but no direct interaction and distinct morphology in STORM images. The reviewer thus suggests either showing STORM images of these two proteins, or changing the claims in the manuscript.

Reviewer #2:

The manuscript by Zhao et al. provides new insight into the role of Basilin in inner ear hair cell stereocilia morphogenesis and function While mutations in Fam65b (Basilin) had been shown to be responsible for deafness (Diaz-Horta et al., 2014), the role of this protein in hair cells has been unclear. Here the authors combine biochemical (mostly Co-IP), super-resolution microscopy and functional studies to provide insight into FAM65B (renamed "Basilin"), a protein previously shown to be linked to inherited forms of deafness but whose molecular and cellular function has remained unknown. The major findings are: 1) basilin is expressed at the taper end of the sensory inner hair cell stereocilia and hair bundles are disorganized in basilin deficient mice; 2) basilin forms head to head and tail to tail oligomers assembled in a ring like pattern at the base of each stereocilia; 3) oligomer formation depends on RhoC (a Rho kinase) binding which also regulates basilin activity. Interestingly, while basilin has been shown to interact with RhoA in neutrophils (Gao et al. 2015), the current work reveals only weak interaction between basilin and RhoA but highly efficient interaction with RhoC. Somewhat surprising, co-IP does not show any interaction between basilin and Cdc42 and Rac1, other Rho family members expressed in hair cells and demonstrated to play a role in cellular patterning, polarization and planar polarity (Grimsley-Myers et al., 2009; Kirjavainen et al. 2015). A major part of this report is based on Co-IPs (12 panels), which assess interaction between basilin and basilin constructs (to reveal interacting domains) with taperin, CLIC5, radixin, whirlin, RhoA, RhoC, Rac1 and Cdc42. Super-resolution microscopy demonstrates distinct localization between taperin and basilin (Figure 6) and linear or circular strings when overexpressed in HEK293 cells. The manuscript is well written and represents a compilation of a large amount of work including the generation of a basilin deficient mouse, immunolocalisation, judicious use of injectoporation with different constructs, co-Ip and Storm microscopy.

The title of the manuscript is not justified. While STORM microscopy resolves localization of basilin and taperin (Figure 6 and one panel in Figure 7) in stereocilia and HEK cells, this finding does not represent the entirety of the work. Rather a title that encompass the new findings i.e. the role of Basilin in hair cell stereocilia and its regulation by RhoC would be more appropriate.

Co-IP results in HEK-293 cells, in particular the lack of interactions between some of the players may not reflect the situation in native hair cells. Since a large portion of the work is based on co-IP, it is important to discuss these findings critically. Co-Ip using a different cell line such as PK1-CL4 cells or pull down assay might reveal different results. In particular, the lack of interaction with CLIC5, Radixin and whirlin is puzzling in part because Taperin has been shown to interact with CLIC5 (Salles et al. 2014). Have the authors also tested interactions with PTPRQ or Myosin VI also present in the tapering region of the stereocilia?

Since Rho family members have been shown to play a role in planar polarity, is there evidence of planar polarity defects (kinocilium position or bundle orientation) in the basilin deficient mouse?

Reviewer #3:

An interesting and exciting paper that utilizes an impressive suite of methodologies to provide evidence that FAM65B, thought by some to be a PX-BAR domain protein, (i) forms oligomeric ring-like structures in a Rho-C dependent at the base of hair-cell stereocilia and (ii) is required for the normal development and maintenance of hair-bundle structure in the mouse cochlea. The paper considerably extends upon the recent paper from Dias-Horta and colleagues showing that a deletion in FAM65B causes deafness in a human family and is required for the normal function and survival of hair cells in the zebrafish. Whilst the extent to which the paper reveals 'insights into the mechanisms by which proteins regulate hair cell function' remains debatable, this is an impressive body of work that certainly provides considerable insight into the ever increasing molecular complexity of the sensory hair bundle.

Additional comments:

Introduction: 'Mutation in nearly all of the genes…'. Are there mutations in genes that encode proteins that localise to the base of stereocilia that do not cause deafness?

The value of giving a protein yet another name is questionable. FAM65B appears to have quite a widespread distribution. It may be worth mentioning here that FAM65B may be a PX-BAR domain protein that could interact with lipids and regulate membrane curvature.

Aside from confusion causing by renaming, is basilin the best of names? It was originally used for a protein that was found in the basilar membrane but then dropped as the protein proved to be EMILIN-2. Many things are basally located in many structures, and then there are basal bodies, basal laminae…

Introduction: 'Basilin does not bind to taperin or any of its known binding partners'. Slightly ambiguous; rephrase.

Results first paragraph, first line: Is the ko mouse really a model for a human disease in which there is an in frame deletion in FAM65B?

Results, end of second paragraph: Are the OHCs even present, let alone functional? They disappear in the zebrafish MO knockdown so do they have hair bundles or survive to 4 weeks of age?

In the third paragraph of the subsection “Basilin expression in hair cells of the inner ear”: Is the commercially available antibody from Sigma any better than the two used by Dias -Horta et al.? Do the latter give staining in the Fam65b ko? Are these among the many antibodies that not of sufficient quality for immunolocalisation studies and/or STORM? Is there some explanation as to why Dias-Horta found localisation to the apical membrane and the membrane of stereocilia and this study does not? The 'validation' image in Figure 2E is remarkably black. Is the right panel gain and exposure matched to that on the left? There is considerable staining of the microvilli on the apical surface of all the supporting cells, and no images are shown of the apical surface of Hensens's cells. Do the microvilli on these cells have basal tapers, and are there any subtle defects in the structure or function of these microvilli? Is any lacz staining seen in Dieters' and pillar cells if the X-gal staining time is increased? Or is the microvillar staining seen on the surfaces of all supporting cells except Hensen's cells 'non-specific'?

In the first paragraph of the subsection “Basilin deficiency affects hair bundle morphogenesis and stereociliary growth”. Indicate in figure with arrows which stereocilia are abnormally thick and large. Are the stereocilia fusing?

In the second and third paragraphs of the subsection “Basilin deficiency affects hair bundle morphogenesis and stereociliary growth” and Figures 3 and 4: Why or how does FAM65B affect hair bundle cohesion and growth? The TEM is not of very good quality. At best one can see the base of the tapered region in one stereocilium in the ko. Does the taper not form in the ko? This really needs to be addressed. Is taperin displaced up the stereocilia in the Fam65b ko? The apical protrusions are interesting; is this due to a loss of membrane cytoskeletal interactions at the base of the stereocilium? Are the perturbations seen really due to 'defects in bundle cohesion and growth'?

In the subsection “Defects in mechanotransduction in basilin-deficient hair cells”, transduction defects: Were the stiff probes used for the mutant hair cells fire polished to fit the distorted shape of the mutant hair bundles? The fluid jet is likely to be more suitable for direct measurements of transduction currents in the mutants. The cells in the wild type seem to have a rather broad operating range. Is the adaptation seen of the 'non-calcium dependent variety' described by Ricci and colleagues? Does it occur at positive holding potentials? What happened in the recordings where Ca2+ was reduced to 0.02 mM? Also, were reverse polarity currents measured (as indicated in methods?). Considering the localisation data and the theoretical contribution of the ankle region to hair-bundle properties it is surprising that the authors have not addressed whether the stiffness or resilience of the hair bundle is altered in any way in the ko. Displacement (Figure 5B, C) is usually measured in micrometers not in micromoles.

In the last paragraph of the subsection “Defects in mechanotransduction in basilin-deficient hair cells” and Figure 5F: How many cells were rescued by HA-basilin overexpression, and how many were not? How is taperin localised in rescued cells?

In the first paragraph of the subsection “Analysis of basilin and taperin distribution in hair cells” and Figure 6: The area boxed in Figure 6B is not that shown in Figure 6C. It is surprising (in light of the aim of highlighting the power of STORM) that there is no dual labelling shown. The patterns of taperin and FAM65B are distinct but, judging from the images, most likely to overlap at some point. Whilst the antibodies to taperin and FAM65B would have to be directly conjugated to different fluorophores, a comparison with the distribution F-actin or a membrane marker should be possible; the latter might help confirm the membrane association of FAM65B that is depicted in the model shown in Figure 8L, but is never explicitly tested or shown. Do the authors have a reason for excluding TRIOBP from the rootlet? Is it actually absent from this narrow region?

In the subsection “Basilin oligomerization is important for its function” and Figure 7J: Two of the cells labelled with an asterisk are not obviously expressing N2-GFP, and one of these two has a disrupted hair bundle.

In the last paragraph of the subsection “RhoC binding to basilin is critical for basilin function in hair cells” and Figure 8J: What are the morphological criteria for rescued and non-rescued hair cells?

Discussion, fourth paragraph: Are the ring like structures seen when FAM65B is expressed in heterologous cells associated with any structures? Surely physiological studies will be also be required to reveal if FAM65B oligomers form spring-link structures at the base of the stereocilia?

Methods: Minimal details are provided for STORM analysis.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Fam65B forms ring-like structures at the base of stereocilia critical for mechanosensory hair cell function" for further consideration at eLife. Your revised article has been favorably evaluated by Gary Westbrook (Senior editor), Tanya Whitfield (Reviewing editor), and three reviewers. The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

1) There now appear to be three different versions of the revised title – one on the cover page, one on the first page of the manuscript and one in the rebuttal letter. Please clarify which of these you propose to use.

2) For the new measurements provided for the Fam65B rings, please state what the confidence bounds represent (SD, SEM or other).

3) Reviewer 1 recommends that the HEK images (Figure 8H) should be removed from the manuscript. This was discussed among the reviewers, and on balance, it was agreed that removing these images was the best option. The reviewers found these observations very interesting, but thought that it was better to save the data for future follow-up work. Please therefore remove panel H from Figure 8 and adjust the legend etc. accordingly.

4) There was no mention of TRIOBP in the text, as stated in the rebuttal.

Further detail is provided in the assessments from Reviewers 1 and 3 below, for your information. Reviewer 2 was satisfied with your response and did not have any further comments.

Reviewer #1:

The revised manuscript has satisfactorily addressed previous concerns regarding Figure 7 (previous Figure 6, Fam65b-taperin interaction) and Figure 9B (previous Figure 8B, basin-RhoC interaction). For Fam65b-taperin interaction, the measurement of their respective diameters supports the model that Fam65b may fill the entire space inside the taperin in. It is necessary, though, to describe in the methods section how the diameters are measured, and in the Results section whether the confidence bounds are standard deviations or S.E.M.

For the HEK cell STORM images in Figure 8H, the reviewer thinks it is better to remove them. These images along do not support the oligomerization of Fam65b. If these structures were indeed Fam65b oligomers formed through the direct interaction between monomers, the localization points in the STORM images would have been much closer to each other. Instead, these structures could result from the interaction of Fam65b with other membrane or cytoskeleton structures in HEK cells. Of course, the observed sparse labeling may also be a consequence of low antibody staining efficiency, which is quite common. In either case, these STORM images do not strengthen the conclusions already supported by the biochemical analysis. The reviewer agrees with the authors that removing them does not affect the central conclusion of the manuscript.

Reviewer #3:

The authors have addressed most of the points raised by the reviewers well. The additional SEM data is fascinating, although it is hard to immediately understand why the thin, tapered region of the stereocilium should get longer in the absence of FAM65B. Whilst the quantitation of the diameters of the FAM65b and taperin staining patterns provide support for the structural model, these numbers are presumably derived from a subset of the FAM65b clusters seen at the base of the stereocilia; the standard errors (?) are small and judging from Figure 8B ring-shaped structures are very much in the minority. Some indication of the criteria used to select the images measured would be useful.

https://doi.org/10.7554/eLife.14222.013

Author response

Essential revisions:

1) A thorough, objective and quantitative analysis of the STORM imaging data should be provided, together with appropriate statistical analysis where required, as requested by Reviewer 1. Inferences about direct interactions (between FAM65B and taperin, and FAM65B and RhoB) should be cautious unless further analysis can strengthen the evidence for these interactions.

We have quantified the diameter of the Fam65b circumferential ring and the taperin dense-core-like structure at the base of stereocilia. The diameter of Fam65b structure is 229 ± 7 nm (n=41) and taperin structure is 228 ± 9 nm (n=56). While the data indicate a potential overlap between the two structures (although this is difficult to say because labeling with the antibody adds to the dimension of the labeled structure), we provide substantial new data supporting the view that Fam65b and taperin do not interact directly. We performed Co-IP experiments in HEK293 cells (already shown in the original study) and in response to the reviewers' comments now also in CL4 cells, which have been used especially by the Bartles and Berryman laboratories to study interactions between proteins important for hair cell function. We provide positive controls demonstrating that we can reveal known interactions (e.g. taperin with CLIC5). In addition, we have carried out yeast-two-hybrid assays to evaluate interactions between Fam65b and taperin but cannot detect any interactions but we identify new interactions (e.g. Fam65b with RhoC). Taken together, the findings suggest that Fam65b does not bind directly to taperin. However, the two proteins might interact via an intermediate protein. We have revised the text to explain our data more clearly.

2) Likewise, the interpretation of the co-IP results in HEK-293 cells should be discussed with appropriate caution, as requested by Reviewer 2. If additional co-IP results from a different cell line are available, these should be included.

As outlined above, we have performed additional Co-IP experiments in CL4 cells and carried out additional yeast-two-hybrid experiments. We include appropriate positive controls. Our data confirm the published interaction of taperin with CLIC5 but do not reveal any interaction between taperin and Fam65b. The data are included in the revised manuscript.

3) A full structural analysis of the stereociliary bundle phenotype, including cohesion, growth, presence of tapers and stiffness should be provided, as requested by Reviewer 3.

We have substantially expanded our analysis of the morphological phenotype of hair cells using SEM and include an additional figure (Figure 4) as well as a supplementary figure (Figure 4—figure supplement 1). In addition, we have expanded Figure 3. We found that the morphological phenotype in hair cells is very heterogeneous with some cells showing defects in polarity, cohesion and/or growth already during early stages of hair cell development. In addition, the taper region of stereocilia appears abnormal and we observed unusual membranous protrusions from the apical cell surface. The defects at the taper are consistent with the localization of Fam65b to this region. We provide a quantitative analysis of the morphological phenotypes by grouping the hair cells according to different parameters into four morphological classes. We also provide a quantification of hair bundle polarity defects. Overall, the findings suggest that stereocilia grow and start to form a bundle with a staircase but tapers are abnormally shaped and bundles start to deteriorate before they reach maturity.

Given the strong structural defects and variability in morphology, we did not include measurements of hair bundle stiffness. Most biophysical measures on hair-bundle stiffness that have been published were collected from non-mammalian species that have substantially longer stereocilia than mice. These measurements are extremely difficult to quantify in murine hair cells and while we attempted measurements we could not determine reliable parameters that could be applied to the morphologically abnormal hair bundles in our mutant mice.

A) It was agreed that further electrophysiological analyses of the transduction currents (calcium dependency, reverse polarity) would be beyond the scope of this manuscript, and so are not required. However, the authors should acknowledge and discuss any limitations of the methods they have used.

We have revised the text to outline the limitations of our approach. The experiments are very interesting but we confront a similar problem as for stiffness measurements. It is very difficult to assign primary versus secondary effects due to heterogeneous degenerative changes in hair cells.

4) A comment on the presence or absence of the outer hair cells and of hair cell polarity defects in the mutant should be included.

We now include a quantification of hair cell survival at 2 and 4 weeks of age (Figure 7—figure supplement 1). There is minimal if any loss. We also have quantified hair bundle polarity at P2, when hair bundle morphology is sufficiently maintained to allow for a quantification using kinocilia as a landmark (Figure 3). We see a clear defect in polarity and include the data in the manuscript.

5) Any discrepancies between the findings and those of Diaz-Horta et al. should be discussed, as requested by Reviewer 3.

Unlike Diaz-Horta in studies with zebrafish, we did not observe significant hair cell loss at 2 and 4 weeks in mice, which suggests that the hearing phenotype in our rodent model is not caused by death of hair cells. There could be a species difference in Fam65b function and/or hair cells in zebrafish might die more readily when their hair bundles show morphological abnormalities. We discuss this in the revised manuscript.

Diaz-Horta et al. reported that Fam65b is localized in murine hair cells along the length of stereocilia. However, judging from the images in the manuscript, they show high expression at the base of stereocilia and less along their lengths. We purchased the two commercial antibodies used by Diaz-Horta and found that we could not detect convincing staining for Fam65b in hair cells. This might perhaps be explained by differences in antibody batches provided by the manufacturer at different times. We would also like to point out that the two commercial antibodies used by Diaz-Horta were raised against the N-terminus of Fam65b, which shows 70% similarity with Fam65a and Fam65c. We used an antibody to the C-terminus of Fam65b, which has very low homology with Fam65a/c. Perhaps hair cells express Fam65a, b, c and Diaz-Horta observed with their batch of antibody not only Fam65b. The antibody that we used is clearly specific as it does not stain hair cells from Fam65b mutant mice. We have revised the text to discuss the discrepancy between the studies and possible explanations for the difference.

6) The title should be revised, as requested by Reviewer 2, to reflect the findings of the manuscript more generally.

We have revised the title: "Fam65b and RhoC cooperate to form ring-like structures at the base of stereocilia critical for mechanosensory hair cell function"

7) The name 'basilin' should be removed from the manuscript. There appears to be no strong reason to re-name the protein, and indeed, several arguments (as raised by Reviewer 3) the name 'basilin' is unsuitable. Retaining the name FAM65B will help with cross-reference to existing literature.

We now refer throughout to Fam65b.

The full reviews are appended below for your information.

Reviewer #1:

This manuscript reveals the functional role of FAM65B, which is renamed as basilin, in structural integrity of stereocilia in hair cells. Most of the conclusions, based on genetic, biochemical and imaging data, are quite convincing. Nevertheless, the reviewer has several major concerns regarding the super-resolution data:

1) Figure 3H tries to show that HA-basilin in HEK cells forms string- or ring-like structures resembling those observed in stereocilia. However, the evidence was drawn from visual display of a small, selected region at the edge of one cell where the label density and the density of localization points is extremely low. In this case, the displayed ring-like structure in Figure 3H-iii, which contains only 9 localization points, could simply be random coincidence. The string-like structures could also be artifacts resulted from colocalization with other cellular structures. The distance between some localization points and their nearest neighbors exceed 200 nm, which is an indication that these structures, if real, are unlikely maintained by basilin oligomerization alone. The manuscript would have to show statistically significant, objective analysis as to convincingly demonstrate the existence of large-size, ordered basilin structures in HEK cells. Otherwise, the biochemistry data can support the oligomerization capability of basilin, but cannot support that basilin rings are formed by basilin oligomerization.

We have revised the manuscript to address this point. As the reviewer correctly points out, we had to image regions at the edge of cells where label-density is low. The choice was deliberate because it is impossible to reach conclusions from areas with very dense labeling because there are just too many clustered dots, which cannot be assigned to different substructures. Also, we did not mean to imply that the HEK images show that Fam65b forms ring-like structures, just beads-on-a-string like arrangements that would be consistent with oligomerization (as observed in our biochemical analysis). The arrangements of the dots is not random, reproducibly seen in many cells and does not resemble any cellular structure that we have seen for any protein in HEK cells. It is difficult to quantify the data in an unbiased manner because we cannot resolve the structures in more densely labeled areas of a cell and are thus selective in the images that we show.

We have left the images in the revised manuscript and describe them much more carefully, also pointing out the limitations associated with the figure and finding. If the reviewer considers it is the better option, we are happy to remove the image from the manuscript. Not showing the data does not affect the central conclusion of our manuscript.

2) Figure 6 uses the distinct morphology of basilin and taperin in STORM images to support that they have no direct interaction. However, judging from the two sets of single-color images, the basilin rings may still have certain degree of overlap with taperin disks. Therefore, these images by themselves cannot rule out the possibility that basilin is interacting with some of the taperins at the periphery of the taperin disks (maybe some post-translational modification?). The reviewer suggests more quantitative analysis of the STORM images: measuring the diameter of the two structures, and compare them to the diameter of the stereocilia measured in EM images. This comparison will be important to support the structural model proposed in Figure 8L. (Optional request) If high quality two-color STORM imaging of basilin and taperin can be obtained, preferably in 3D, the conclusions can be further strengthened.

We entirely agree with the reviewer that the STORM images cannot be used to rule in/out direct interactions between Fam65b and taperin. We formulated our text poorly. Our biochemical data (now extended), but not the imaging data, support that Fam65b and taperin do not interact directly.

Following the reviewer’s suggestion, we have now quantified the STORM images. The diameter of the Fam65b ring is 229 ± 7 nm (n=41) and of the taperin structure 228 ± 9 nm (n=56). While the data indicate a potential overlap between the two structures (although this is difficult to say because labeling with the antibody adds to the dimension of the labeled structure), we provide substantial new data supporting the view that Fam65b and taperin do not interact directly (new co-IPs from different cells; yeast-two-hybrid analysis). However, the similarity in diameter of the structures labeled by the two antibodies suggests that the two structures are potentially connected, perhaps by a linker protein. We discuss this now more carefully.

The antibodies we used for STORM were raised in rabbits. We tried several different antibodies and dyes, but we could not find a good combination that allowed us to carry out double-labeling for Fam65b and taperin. We are in the process of generating additional antibodies including monoclonals, but this will take substantial time.

3) Figure 8B uses the colocalization of basilin-GFP and HA-RhoC in conventional fluorescence images to support their direct interaction. However, the basilin-taperin case in the same manuscript provides a perfect counter-example: colocalization in the conventional fluorescence images but no direct interaction and distinct morphology in STORM images. The reviewer thus suggests either showing STORM images of these two proteins, or changing the claims in the manuscript.

We agree that co-localization does not mean that two proteins directly interact and we did not want to use the data as support for a direct interaction. To show that Fam65b and RhoC interact, we carried out yeast-two-hybrid analysis and Co-IP experiments. However, having identified an interaction between the two proteins in these heterologous systems, we wanted to confirm that they are present in hair cells in a similar distribution as a first step towards a validation that the biochemical data may be physiologically relevant. Clearly, the proteins are appropriately localized in hair cells to act in a common subcellular compartment. We attempted to further solidify the data and carry out STORM microscopy with RhoC antibodies but did not identify antibodies that worked with the technique. We have carefully modified the text to explain the localization data better. However, we still find that we provide significant evidence for a physical and functional interaction between Fam65b and RhoC: (i) Co-IP and yeast-two-hybrid to demonstrate direct interaction; (ii) demonstrating in cell lines that RhoC promotes Fam65b oligomerization; (iii) demonstrating in hair cells that Fam65b oligomerization and RhoC binding are critical for hair bundle morphogenesis.

Reviewer #2:

[…] The title of the manuscript is not justified. While STORM microscopy resolves localization of basilin and taperin (Figure 6 and one panel in Figure 7) in stereocilia and HEK cells, this finding does not represent the entirety of the work. Rather a title that encompass the new findings i.e. the role of Basilin in hair cell stereocilia and its regulation by RhoC would be more appropriate.

We have revised the title: "Fam65b and RhoC cooperate to form ring-like structures at the base of stereocilia critical for mechanosensory hair cell function".

Co-IP results in HEK-293 cells, in particular the lack of interactions between some of the players may not reflect the situation in native hair cells. Since a large portion of the work is based on co-IP, it is important to discuss these findings critically. Co-Ip using a different cell line such as PK1-CL4 cells or pull down assay might reveal different results. In particular, the lack of interaction with CLIC5, Radixin and whirlin is puzzling in part because Taperin has been shown to interact with CLIC5 (Salles et al. 2014). Have the authors also tested interactions with PTPRQ or Myosin VI also present in the tapering region of the stereocilia?

We have carried out additional experiments to strengthen the biochemical data. We have carried out immunoprecipitations in 293 and CL4 cells and we provide new yeast-two-hybrid data. The results from all experiments agree, revealing no interaction of Fam65b with taperin. As a positive control, we show that taperin interacts with CLIC5 as published. We also performed Co-IPs of the cytoplasmic domain of PTPRQ with Fam65b but did not observe an interaction. Finally, we carried out more yeast-two-hybrid screens but never identified interactions of Fam65b with proteins of the taperin/CLIC5/Whirlin complex, or with PTPRQ and MyoVI. We do not consider this a concern. The data suggest that there are several distinct protein complexes at the base, which is in agreement with the STORM images for Fam65b and taperin – clearly the proteins do not show the same distribution in hair cells. We anticipate that there might be a yet-to-be identified protein that links Fam65b to the taperin/CLIC5/Whirlin complex and we are trying to identify this protein. We also like to point out that there are other proteins such as TRIOBP that are abundant near the base of stereocilia and that form independent structures with no known biochemical link to the taperin/CLIC5/Whirlin complex.

We have revised the text and carefully address the limitations of our biochemical analysis.

Since Rho family members have been shown to play a role in planar polarity, is there evidence of planar polarity defects (kinocilium position or bundle orientation) in the basilin deficient mouse?

Yes, we have analyzed this. We now include data on hair-bundle polarity and observe clear polarity defects in hair cells at P2 (Figure 3).

Reviewer #3:

[…] Introduction: 'Mutation in nearly all of the genes…'. Are there mutations in genes that encode proteins that localise to the base of stereocilia that do not cause deafness?

We have corrected the text. So far all genes that have been localized to the base seem to be linked to deafness.

The value of giving a protein yet another name is questionable. FAM65B appears to have quite a widespread distribution. It may be worth mentioning here that FAM65B may be a PX-BAR domain protein that could interact with lipids and regulate membrane curvature.

We refer now to Fam65b throughout. We now discuss extensively that Fam65b might be a PX-BAR domain protein.

Aside from confusion causing by renaming, is basilin the best of names? It was originally used for a protein that was found in the basilar membrane but then dropped as the protein proved to be EMILIN-2. Many things are basally located in many structures, and then there are basal bodies, basal laminae… We refer throughout to Fam65b.

Introduction: 'Basilin does not bind to taperin or any of its known binding partners'. Slightly ambiguous; rephrase.

Sorry, that was not a good formulation. We have modified the text.

Results first paragraph, first line: Is the ko mouse really a model for a human disease in which there is an in frame deletion in FAM65B?

We have modified the text to be more accurate. We do not mimic the precise mutation linked to disease in humans and clearly describe this now in the text.

Results, end of second paragraph: Are the OHCs even present, let alone functional? They disappear in the zebrafish MO knockdown so do they have hair bundles or survive to 4 weeks of age?

We did not observe significant hair-cell loss at 2 and 4 weeks, which suggests that the hearing phenotype in our mice is not caused by death of hair cells. We have included the data in the revised manuscript. Diaz-Horta et al. studied zebrafish, and there could be a species difference in Fam65b function or hair cells; zebrafish hair cells might die more readily when their hair bundles show morphological abnormalities. We discuss the differences between the two studies in the revised manuscript. We also show data for mechanotransduction recordings, revealing functional defects in the hair cells.

In the third paragraph of the subsection “Basilin expression in hair cells of the inner ear”: Is the commercially available antibody from Sigma any better than the two used by Dias -Horta et al.? Do the latter give staining in the Fam65b ko? Are these among the many antibodies that not of sufficient quality for immunolocalisation studies and/or STORM? Is there some explanation as to why Dias-Horta found localisation to the apical membrane and the membrane of stereocilia and this study does not?

Diaz-Horta et al. reported that Fam65b is localized in murine hair cells along the length of stereocilia. However, judging from the images in the manuscript, they show very high expression at the base of stereocilia and less along their lengths. We purchased the two commercial antibodies used by Diaz-Horta and found that we could not detect convincing staining for Fam65b in hair cells. This might have to do with the fact that we likely obtained different batches of antibody from the manufacturer. We would also like to point out that the two commercial antibodies used by Diaz-Horta were raised against the N-terminus of Fam65b, which shows 70% similarity with Fam65a and Fam65c. We used an antibody to the C-terminus of Fam65b, which has very low homology with Fam65a/c. Perhaps hair cells express Fam65a, b, c and Diaz-Horta observed with their batch of antibody not only Fam65b. We have revised the text to discuss the discrepancy between the studies and possible explanations for the difference.

In our hands, the Sigma antibody works very well and does not stain hair cells from Fam65b mutant animals. We have purchased several batches and obtained reproducible results.

The 'validation' image in Figure 2E is remarkably black. Is the right panel gain and exposure matched to that on the left?

We apologize for confusing images. We now provide images with matched exposure.

There is considerable staining of the microvilli on the apical surface of all the supporting cells, and no images are shown of the apical surface of Hensens's cells. Do the microvilli on these cells have basal tapers, and are there any subtle defects in the structure or function of these microvilli? Is any lacz staining seen in Dieters' and pillar cells if the X-gal staining time is increased? Or is the microvillar staining seen on the surfaces of all supporting cells except Hensen's cells 'non-specific'?

Our analysis of hair bundle morphology suggests that Fam65b is not essential to form tapers but that stereocilia degenerate during their maturation. Thus, Fam65b could be present on other cell types even in microvilli without tapers.

Regarding the b-gal staining results and the immunohistochemistry, we have substantially revised the text and provide new data. The b-gal data show particular prominent expression in hair cells and Hensen's cell. However, b-gal is not a very sensitive read-out and we cannot exclude that there is weaker expression in other support cells. Using antibody staining, we see prominent labeling of hair cells but also clear signal in Hensen's cells and in some of the microvilli on the top of support cells. The staining is not seen in mutant mice, indicating that the signal is specific. We thus conclude that Fam65b is expressed in hair cells but also likely in support cells including Hensen's cells. New images for Hensen's cells are now included and we discuss the limitations of the b-gal staining data and our results more clearly.

By SEM, we have not been able to observe structural defect in microvilli of support cells and mention this now in the text.

In the first paragraph of the subsection “Basilin deficiency affects hair bundle morphogenesis and stereociliary growth”. Indicate in figure with arrows which stereocilia are abnormally thick and large. Are the stereocilia fusing?

We describe now in revised Figure 3 in detail structural defects in hair bundles. This is outlined in more detail below.

In the second and third paragraphs of the subsection “Basilin deficiency affects hair bundle morphogenesis and stereociliary growth” and Figures 3 and 4: Why or how does FAM65B affect hair bundle cohesion and growth? The TEM is not of very good quality. At best one can see the base of the tapered region in one stereocilium in the ko. Does the taper not form in the ko? This really needs to be addressed. Is taperin displaced up the stereocilia in the Fam65b ko? The apical protrusions are interesting; is this due to a loss of membrane cytoskeletal interactions at the base of the stereocilium? Are the perturbations seen really due to 'defects in bundle cohesion and growth'?

We have substantially expanded our analysis of the morphological phenotype of hair cells using SEM. We found that the morphological phenotype in hair cells is very heterogeneous with some cells showing defects in polarity, cohesion and/or growth already during early stages of hair cell development. In addition, the taper region of stereocilia appears abnormal and we observed unusual membranous protrusions from the apical cell surface. The defects at the taper are consistent with the localization of Fam65b to this region. We provide a quantitative analysis of the morphological phenotypes by grouping the hair cells according to different parameters into four morphological classes. We also provide a quantification of hair bundle polarity defects. Overall, the findings suggest that stereocilia grow and start to form a bundle with a staircase but tapers are abnormally shaped and bundles start to deteriorate before they reach maturity.

We acknowledge that we do not fully understand the cellular mechanisms by which mutation in Fam65b causes defects in hair bundles but our data suggest that it has a critical structural role at the base of stereocilia. We discuss this carefully in the revised manuscript and try to avoid over-interpretation. However, even without a detailed mechanism, we still find that our findings are a significant step forward in our understanding of Fam65b function outlining subcellular distribution, physical and functional interactions with RhoC and a clear link between Fam65b and the morphogenesis of hair bundles.

In the subsection “Defects in mechanotransduction in basilin-deficient hair cells”, transduction defects: Were the stiff probes used for the mutant hair cells fire polished to fit the distorted shape of the mutant hair bundles? The fluid jet is likely to be more suitable for direct measurements of transduction currents in the mutants. The cells in the wild type seem to have a rather broad operating range. Is the adaptation seen of the 'non-calcium dependent variety' described by Ricci and colleagues? Does it occur at positive holding potentials? What happened in the recordings where Ca2+ was reduced to 0.02 mM? Also, were reverse polarity currents measured (as indicated in methods?). Considering the localisation data and the theoretical contribution of the ankle region to hair-bundle properties it is surprising that the authors have not addressed whether the stiffness or resilience of the hair bundle is altered in any way in the ko. Displacement (Figure 5B, C) is usually measured in micrometers not in micromoles.

Given the strong structural defects and variability in morphology, we did not include measurements of hair bundle stiffness. Most biophysical measures on hair bundle stiffness that have been published were collected from non-mammalian species that have substantially longer stereocilia than mice. These measurements are extremely difficult to quantify in murine hair cells and while we attempted measurements we could not determine reliable parameters that could be applied to the morphologically abnormal hair bundles in our mutant mice.

Similarly, we are reluctant to characterize mechanotransduction currents in great detail in the genetically modified mice that we have available because of the severe defects in hair bundle morphology. Even if we can tease out some aspects relevant for adaptation or calcium dependence, we do not know the extent to which the results provide insights into Fam65b function or are a secondary consequence of the structural defects.

In the last paragraph of the subsection “Defects in mechanotransduction in basilin-deficient hair cells” and Figure 5F: How many cells were rescued by HA-basilin overexpression, and how many were not? How is taperin localised in rescued cells?

We now provide a quantitative analysis of all rescue experiments shown in the manuscript. For rescue by HA-basilin expression we quantified two aspects of the phenotype, rescue of morphology and rescue of transduction. In Figure 5E we show the quantitative data for rescue of transduction, in Figure 8K we show the quantitative data for rescue of morphology. We have not attempted to localize taperin in the rescued cells and instead focused on the experiments suggested by the editorial summary. Should the reviewer insist, we can carry out the experiment.

In the first paragraph of the subsection “Analysis of basilin and taperin distribution in hair cells” and Figure 6: The area boxed in Figure 6B is not that shown in Figure 6C. It is surprising (in light of the aim of highlighting the power of STORM) that there is no dual labelling shown. The patterns of taperin and FAM65B are distinct but, judging from the images, most likely to overlap at some point. Whilst the antibodies to taperin and FAM65B would have to be directly conjugated to different fluorophores, a comparison with the distribution F-actin or a membrane marker should be possible; the latter might help confirm the membrane association of FAM65B that is depicted in the model shown in Figure 8L, but is never explicitly tested or shown. Do the authors have a reason for excluding TRIOBP from the rootlet? Is it actually absent from this narrow region?

We have revised the figures and text and now show matched images. Following the suggestions of several reviewers, we have now quantified the STORM images. The diameter of the Fam65b ring is 229 ± 7 nm (n=41) and of the taperin structure 228 ± 9 nm (n=56). The data indicate a potential overlap between the two structures (although this is difficult to say because laveling with the antibody adds to the dimension of the labeled structure). We discuss this now more carefully.

We tried extensively to use in STORM microscopy several different labels together with antibodies to Fam65b and taperin. We attempted to label membranes (Vybrant Dil, CM-DiI, DiO, biotin) as well as F-actin. However, we were unable to visualize double labeling with our instrumentation. For membrane staining, Vybrant DiI, Vybrant DiO, and Vybrant CM-DiI were readily taken up by supporting cells in the cochlea, but not very efficiently by the hair cells themselves; not just the stereocilia bundles, but also the apical membranes in hair cells did not stain significantly. Background was too high with biotin-based membrane staining methods. We were also looking for a good fluorophores coupled to phalloidin that could bleach with our laser illumination set-up (bleaching is critical for STORM), but using commercially available fluorophore-conjugated phalloidin we could not achieve good F-actin staining using STORM. We have more recently approached researchers at other institutions for collaborations to explore other technologies (SIM, STET) but do not yet have access to these instruments. Even without these data, we find that our studies make a substantial contribution and reveal clear differences in the distribution of taperin and Fam65b at the base of stereocilia. The diameter of the structures that we image is in good agreement with the diameter of stereocilia, suggesting localization of Fam65b near the membrane, as depicted in the diagram. Please note that we do not claim that our data show affinity of Fam65b for membranes or lipids (others have done that in the published literature). We merely depict a plausible model and have revised the text carefully to point this out.

We only excluded TRIOBP because it is more widely localized along rootlets and the figure is already crowded. However, we now mention TRIOBP in the text. It would indeed be very interesting to explore a connection between TRIOBP and Fam65b but we have not carried out experiments along these lines.

In the subsection “Basilin oligomerization is important for its function” and Figure 7J: Two of the cells labelled with an asterisk are not obviously expressing N2-GFP, and one of these two has a disrupted hair bundle.

Expression in some of the displayed cells was low and did not display well in the provided image. We provide now a more suitable and representative images. We also show one cell that expresses very low levels of the protein and, as expected, no morphological disruption

In the last paragraph of the subsection “RhoC binding to basilin is critical for basilin function in hair cells” and Figure 8J: What are the morphological criteria for rescued and non-rescued hair cells?

We specify this now in the text. The morphological defects of cultured Fam65b hair cells are more severe than in vivo. Most of them assume a round-shape or have strong defects in cohesion. This indicates that the bundles are likely fragile and that morphological defects are exaggerated by the dissection procedure. Following rescue by gene expression, the hair bundles show a clear organized morphology with a characteristic V-shape.

Discussion, fourth paragraph: Are the ring like structures seen when FAM65B is expressed in heterologous cells associated with any structures? Surely physiological studies will be also be required to reveal if FAM65B oligomers form spring-link structures at the base of the stereocilia?

As pointed out in response to the comments of reviewer 2, we have modified our section on the structures in heterologous cells – the data are qualitative in nature and if the reviewers consider them inappropriate for inclusion we can remove them without affecting the conclusions of the manuscript.

Regarding the "spring-like structures", we entirely agree that we do not have data to claim that the molecules form springs. We wanted to bring this up as an interesting discussion point. We have now further modified the text to express this explicitly: "One interesting possibility would be that basilin oligomers form spring-like structures near the membrane at the base of stereocilia that affect the mechanical properties of the bundle. While there is currently no experimental evidence for this model, we are carrying out structural studies to address this possibility."

Methods: Minimal details are provided for STORM analysis.

We now provide a detailed description of the method:

“Whole mount staining and super-resolution imaging

Cochlear whole mount staining was carried out as described (Zhao et al., 2014). Whole mount images were captured by fluorescent deconvolution microscopy (Deltavision). […] Additional reagents were: Alexa Fluor 488-phalloidin, Alexa Fluor 647-phalloidin (Invitrogen, Carlsbad, CA), Alexa Fluor 488 and Alexa Fluor 647 conjugated goat anti-rabbit secondary antibodies.”

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Fam65B forms ring-like structures at the base of stereocilia critical for mechanosensory hair cell function" for further consideration at eLife. Your revised article has been favorably evaluated by Gary Westbrook (Senior editor), a Reviewing editor (Tanya Whitfield), and three reviewers. The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

1) There now appear to be three different versions of the revised title – one on the cover page, one on the first page of the manuscript and one in the rebuttal letter. Please clarify which of these you propose to use.

We apologize for the confusion. We propose the following title: “Murine Fam65B forms ring-like structures at the base of stereocilia critical for mechanosensory hair cell function.” We have modified the text of the manuscript accordingly.

2) For the new measurements provided for the Fam65B rings, please state what the confidence bounds represent (SD, SEM or other).

The result is represented as Mean ± SEM. This is now stated in the first paragraph of the subsection “Analysis of Fam65b and taperin distribution in hair cells” (see also comments to reviewers below).

3) Reviewer 1 recommends that the HEK images (Figure 8H) should be removed from the manuscript. This was discussed among the reviewers, and on balance, it was agreed that removing these images was the best option. The reviewers found these observations very interesting, but thought that it was better to save the data for future follow-up work. Please therefore remove panel H from Figure 8 and adjust the legend etc. accordingly.

The images have been removed and the text and figure legends have been adjusted.

4) There was no mention of TRIOBP in the text, as stated in the rebuttal.

We now cite TRIOBP: “In addition, TRIOPB forms rootlets that extend from stereocilia into the cuticular plate and traverse the taper region (Kitajiri et al. 2010).”

Further detail is provided in the assessments from Reviewers 1 and 3 below, for your information. Reviewer 2 was satisfied with your response and did not have any further comments.

Reviewer #1:

The revised manuscript has satisfactorily addressed previous concerns regarding Figure 7 (previous Figure 6, Fam65b-taperin interaction) and Figure 9B (previous Figure 8B, basin-RhoC interaction). For Fam65b-taperin interaction, the measurement of their respective diameters supports the model that Fam65b may fill the entire space inside the taperin in. It is necessary, though, to describe in the methods section how the diameters are measured, and in the Results section whether the confidence bounds are standard deviations or S.E.M.

We have now revised the text accordingly: “We therefore carried out measurements to determine the diameter of Fam65b ring-like structures and taperin circles under in the tallest row of stereocilia of P7 inner hair cells using NIS-Elements AR analysis software. The ring-like Fam65b structure had a diameter of 229 ± 7 nm (mean ± SEM; n=41), while the taperin structure had a diameter of 228 ± 9 nm (mean ± SEM; n=56).”

Reviewer #3:

The authors have addressed most of the points raised by the reviewers well. The additional SEM data is fascinating, although it is hard to immediately understand why the thin, tapered region of the stereocilium should get longer in the absence of FAM65B. Whilst the quantitation of the diameters of the FAM65b and taperin staining patterns provide support for the structural model, these numbers are presumably derived from a subset of the FAM65b clusters seen at the base of the stereocilia; the standard errors (?) are small and judging from Figure 8B ring-shaped structures are very much in the minority. Some indication of the criteria used to select the images measured would be useful.

We have now revised the text accordingly: “We therefore carried out measurements to determine the diameter of Fam65b ring-like structures and taperin circles under in the tallest row of stereocilia of P7 inner hair cells using NIS-Elements AR analysis software. The ring-like Fam65b structure had a diameter of 229 ± 7 nm (mean ± SEM; n=41), while the taperin structure had a diameter of 228 ± 9 nm (mean ± SEM; n=56).”

https://doi.org/10.7554/eLife.14222.014

Article and author information

Author details

  1. Bo Zhao

    1. Department of Molecular and Cellular Neuroscience, The Scripps Research Institute, La Jolla, United States
    2. Dorris Neuroscience Center, The Scripps Research Institute, La Jolla, United States
    Contribution
    BZ, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    zhaobo@scripps.edu
    Competing interests
    No competing interests declared.
  2. Zizhen Wu

    1. Department of Molecular and Cellular Neuroscience, The Scripps Research Institute, La Jolla, United States
    2. Dorris Neuroscience Center, The Scripps Research Institute, La Jolla, United States
    Contribution
    ZW, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  3. Ulrich Müller

    1. Department of Molecular and Cellular Neuroscience, The Scripps Research Institute, La Jolla, United States
    2. Dorris Neuroscience Center, The Scripps Research Institute, La Jolla, United States
    Contribution
    UM, Conception and design, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    For correspondence
    umueller@scripps.edu
    Competing interests
    UM: Founder of Decibel Therapeutics
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2736-6494

Funding

National Institute on Deafness and Other Communication Disorders (DC015294)

  • Bo Zhao

National Institute on Deafness and Other Communication Disorders (DC005965)

  • Ulrich Müller

National Institute on Deafness and Other Communication Disorders (DC007704)

  • Ulrich Müller

National Institute on Deafness and Other Communication Disorders (DC014713)

  • Ulrich Müller

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank members of the laboratory for comments and criticisms. This work was supported by the NIH (UM; DC005965, DC007704, DC014713; BZ; DC015294), the Skaggs Institute for Chemical Biology (UM) and the Dorris Neuroscience Center (UM).

Ethics

Animal experimentation: All of the animal experiments were approved by the ethics committee of the institutional animal care and use committees of The Scripps Research Institute (Approval number 080088).

Reviewing Editor

  1. Tanya T Whitfield, University of Sheffield, United Kingdom

Publication history

  1. Received: January 5, 2016
  2. Accepted: May 12, 2016
  3. Version of Record published: June 8, 2016 (version 1)

Copyright

© 2016, Zhao et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,338
    Page views
  • 299
    Downloads
  • 14
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
