Cite as: eLife 2016;5:e14552 doi: 10.7554/eLife.14552

Abstract

Canine transmissible venereal tumour (CTVT) is a clonally transmissible cancer that originated approximately 11,000 years ago and affects dogs worldwide. Despite the clonal origin of the CTVT nuclear genome, CTVT mitochondrial genomes (mtDNAs) have been acquired by periodic capture from transient hosts. We sequenced 449 complete mtDNAs from a global population of CTVTs, and show that mtDNA horizontal transfer has occurred at least five times, delineating five tumour clades whose distributions track two millennia of dog global migration. Negative selection has operated to prevent accumulation of deleterious mutations in captured mtDNA, and recombination has caused occasional mtDNA re-assortment. These findings implicate functional mtDNA as a driver of CTVT global metastatic spread, further highlighting the important role of mtDNA in cancer evolution.

https://doi.org/10.7554/eLife.14552.001

eLife digest

A unique cancer called canine transmissible venereal tumour (CTVT) causes ugly tumours to form on the genitals of dogs. Unlike most other cancers, CTVT is contagious: the cancer cells can be directly transferred from one dog to another when they mate. The disease originated from the cancer cells of one individual dog that lived approximately 11,000 years ago. CTVT now affects dogs all over the world, which makes it the oldest and most widespread cancer known in nature.

Like healthy cells, cancer cells contain compartments known as mitochondria that produce the chemical energy needed to power vital processes. Inside the mitochondria, there is some DNA that encodes the proteins that mitochondria need to perform this role. Changes (or mutations) to this mitochondrial DNA (mtDNA) may stop the mitochondria from working properly. CTVT cells have previously been found to occasionally capture mtDNA from normal dog cells, which suggests that replenishing their mtDNA may help promote CTVT cell growth. Furthermore, these captured mtDNAs act as genetic "flags" that can help trace the spread of the disease.

Here, Strakova, Ní Leathlobhair et al. analysed the mtDNA in CTVT tumours collected from over 400 dogs in 39 countries. The analysis shows that CTVT cells have captured mtDNA from normal dog cells on at least five occasions. Over the last 2,000 years, the disease appears to have spread rapidly around the world, perhaps transported by dogs travelling on ships along historic trade routes. CTVT may have only reached the Americas within the last 500 years, possibly carried there by dogs brought by Europeans. Likewise, CTVT probably only came to Australia after European contact.

The experiments also revealed that the most damaging types of mutations were absent from the mtDNA of CTVT, which suggests that fully functioning mitochondria play an important role in CTVT. Unexpectedly, Strakova, Ní Leathlobhair et al. found evidence that certain sections of mtDNA in some CTVT cells have been exchanged, or shuffled, with the mtDNA captured from normal dog cells. This type of “recombination” is not usually thought to occur in mtDNA, and has not previously been detected in cancer. Future studies will determine if this process is widespread in other types of cancer, including in humans.

https://doi.org/10.7554/eLife.14552.002

Introduction

The canine transmissible venereal tumour (CTVT) is a transmissible cancer that is contagious between dogs via the transfer of living cancer cells during coitus. The disease usually manifests as localised tumours involving the genital mucosa in both male and female domestic dogs. CTVT first arose from the somatic cells of an individual dog that lived approximately 11,000 years ago; it subsequently survived beyond the death of this original animal by metastasising to new hosts (Murgia et al., 2006; Rebbeck et al., 2009; Murchison et al., 2014; Decker et al., 2015). CTVT is found in dog populations worldwide, and is the oldest and most prolific cancer lineage known in nature (Murchison et al., 2014; Strakova and Murchison, 2014; Strakova and Murchison, 2015). The clonal evolution of CTVT renders this lineage a unique genetic tag with which to trace historical global dispersals of dogs together with their human companions. Furthermore, the extreme longevity of this lineage, its serial colonisation of genetically distinct allogeneic hosts and its occasional uptake of host mitochondrial DNA (mtDNA) by horizontal transfer (Rebbeck et al., 2011), provide opportunities to probe genetic vulnerabilities in cancer and to identify novel host-tumour interactions. We analysed 449 complete mtDNAs in CTVT and used these to investigate the frequency and timing of mtDNA horizontal transfer in this lineage; furthermore, we assessed the contribution of selection to CTVT mtDNA evolution and searched for evidence of mtDNA recombination.

Results and discussion

To investigate the global CTVT population structure and estimate the frequency and timing of mtDNA horizontal transfer, we performed low-coverage whole genome sequencing (~0.3X whole genome coverage) on 449 CTVT tumours and 338 matched hosts collected from 39 countries across six continents (Materials and methods) (Figure 1—figure supplement 1, Supplementary file 1). MtDNA was sequenced at ~70X coverage, indicating that each CTVT cell carries approximately 470 mtDNA copies (Figure 1—figure supplement 2, Supplementary file 2, Materials and methods). CTVT was confirmed by identification of a characteristic rearrangement involving a long interspersed nuclear element (LINE) near the MYC locus (Katzir et al., 1985; 1987) (Supplementary file 3).

We identified 1005 single point substitution variants and 27 short insertions and deletions (indels) in the CTVT mtDNA population (Supplementary files 4, 5, 6, 7, 12, 13). CTVT mtDNA somatic substitution mutations (see Materials and methods) had the characteristic profile that is observed in human cancers, dominated by C>T and T>C mutations showing a striking strand bias (Ju et al., 2014) (Figure 2—figure supplement 1). This mutational process is probably replication-coupled, and mutations associated with this process appear to accumulate at a roughly constant rate in human cancers (Ju et al., 2014). A maximum likelihood phylogenetic tree constructed with mtDNA sequences from CTVT, matched hosts and 252 additional dogs (see Supplementary file 8) revealed that CTVT mtDNAs cluster in five distinct groups within dog mtDNA haplogroup A1 (Figure 1A, Figure 1—figure supplement 3, Figure 1—source data 1). These data suggest that CTVT mtDNAs have at least five independent origins, demarcating five groups that we have named CTVT clades 1 to 5.

Figure 1 with 5 supplements see all

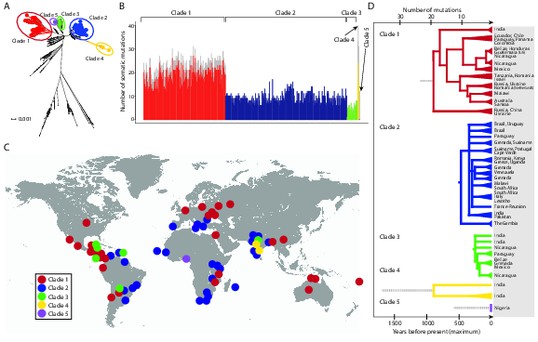

CTVT has acquired mtDNA by horizontal transfer at least five times.

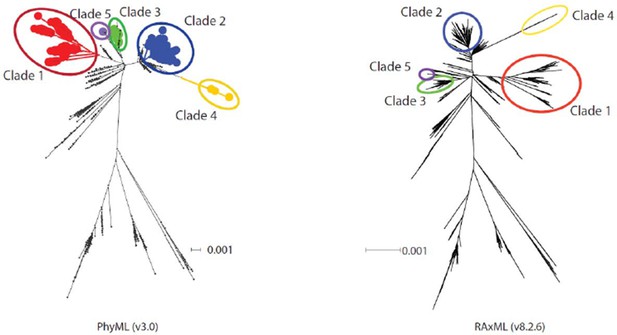

(A) Maximum likelihood phylogenetic tree constructed with complete mtDNA sequences from 449 CTVT tumours and 590 dogs. Coloured and black dots represent CTVT and dog mtDNA respectively. Scale bar indicates base substitutions per site. (B) Number of somatic substitution mutations per CTVT tumour. Coloured bars indicate somatic mutations acquired by each tumour since mtDNA capture. Grey bars indicate substitutions absent from normal dog mtDNA haplotypes but common to all tumours within a clade; thus the early somatic or rare germline status of these variants is unknown. (C) Geographical distribution of clades. Coloured dots represent locations from which one or more CTVT tumours were collected. (D) Simplified representation of maximum likelihood phylogenetic trees for each clade. Trees illustrate nodes with bootstrap support >60, and shaded triangles represent coalescence of individual branches within each group. Two tumours were collected in the United States and the Netherlands respectively from dogs imported from Guatemala and Romania. Discontinuous grey lines represent contributions of substitutions absent from normal dog mtDNA haplotypes but common to all tumours within a clade. Assuming a constant accumulation of mutations within and between clades, approximate number of somatic mutations and estimated timing is shown. Maximum likelihood trees upon which these representations are based are found in Figure 1—source data 2.

https://doi.org/10.7554/eLife.14552.003

Although CTVT originated about 11,000 years ago, whole genome sequences of two CTVT tumours derived from clades 1 and 2 indicated that these two clades shared a common ancestor approximately 460 years ago (Murchison et al., 2014). We investigated the relative time since each CTVT mtDNA horizontal transfer event by estimating the number of mtDNA somatic mutations acquired by each clade since mtDNA capture (Figure 1B). This analysis revealed that clade 1 mtDNA carry more than double the number of mtDNA somatic mutations (22.5 mutations average) compared with clade 2 mtDNA (9.4 mutations average). By inferring that the clade 2 mtDNA horizontal transfer event occurred no more than 460 years ago, this analysis suggests a maximum time since mtDNA uptake of 1097 years for clade 1, 244 years for clade 3, 1690 years for clade 4 and 585 years for clade 5, assuming a constant somatic accumulation of mutations in CTVT mtDNA (Materials and methods). Importantly, two additional mutation rate estimates, derived using human data (Ju et al., 2014), suggested similar timing for CTVT clade origins (Materials and methods, Supplementary file 9). Thus, this analysis suggests that the original mtDNA, that was present in the founder dog that first spawned CTVT, is not detectable in tumours that we have analysed, and indicates that CTVT cells have captured mtDNA from transient hosts at least five times within the last two thousand years.

The geographic distribution and phylogenies of the five CTVT clades reveal the dynamic recent history of the CTVT lineage (Figure 1C, Figure 1D, Figure 1—figure supplement 1 and Figure 1—source data 2). Clades 1 and 2, which occur most frequently in the CTVT population that we analysed, both have a global distribution. Tumours that diverged early in the clade 1 lineage occur in Russia, Ukraine, China and India, suggesting an Old World origin for this clade (Figure 1D). Clade 1 tumours in Central and South America share a single common ancestor that probably existed no more than 511 years ago, suggesting introduction of CTVT to the Americas with colonial contact; similarly, our data suggest a single introduction of CTVT to Australia after European arrival (maximum 116 years ago) (Figure 1D, Supplementary file 9, see Materials and methods). The distribution pattern and timing of clade 2 suggest that this clade may have been transported between continents via trans-Atlantic and Indian Ocean trade routes (Figure 1C and 1D). The more recent clade 3 lineage was found in Central and South America and India, and the less frequent clades 4 and 5 occurred only in India and Nigeria respectively (Figure 1C and 1D). The extensive and recent global expansion detected in the CTVT lineage is consistent with signals of widespread admixture observed in worldwide populations of domestic dogs (Shannon et al., 2015), highlighting the extent to which canine companions accompanied human travellers on their global explorations.

Most somatic mutations in cancer are believed to be selectively neutral, and there is little evidence in human cancers for negative selection operating to safeguard essential cellular processes (Stratton et al., 2009). We searched for evidence of mtDNA functionality in CTVT cells by examining CTVT mtDNA for signals of negative selection. If present, negative selection would be expected to operate on mtDNA to prevent homoplasmy of deleterious mutations. Consistent with this prediction, the variant allele fraction (VAF) of nonsense substitutions and frameshift indels was significantly lower than VAF for other substitutions and indels (Figure 2A and B, p=0.00019 and p=3.03x10-05 respectively, two-sample Kolmogorov-Smirnov test). Furthermore, dN/dS for somatic mtDNA mutations in CTVT showed significant deviation from neutrality both for nonsense (0.187, p=1.02x10-07) and missense (0.748, p=4.18x10-03) mutations (Figure 2C). Together with evidence of reduced VAF for truncating mtDNA mutations in human cancers (Ju et al., 2014; Stewart et al., 2015), these findings provide evidence for the activity of negative selection operating to preserve mtDNA function in CTVT and indicate that, at least in some cancers, functional mtDNA contributes to driving cancer.

Figure 2 with 1 supplement see all

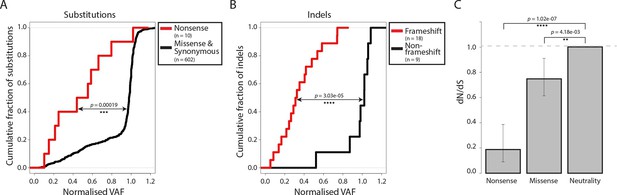

Negative selection operates to prevent the accumulation of gene-disrupting mutations in CTVT.

Cumulative distribution functions for variant allele fraction (VAF) for gene-disrupting (A) substitutions and (B) indels. P-values were calculated using two-sample Kolmogorov-Smirnov tests. (C) dN/dS for somatic nonsense and missense substitutions. P-values were calculated using a likelihood ratio test with parameters estimated using a Poisson model. Error bars indicate 95 percent confidence intervals.

https://doi.org/10.7554/eLife.14552.011

MtDNA is usually assumed to be clonally inherited and recombinationally inert. However, mtDNA recombination has been directly observed in various eukaryotes (Lunt and Hyman, 1997; Hoarau et al., 2002; Ladoukakis and Zouros, 2001; Gantenbein et al., 2005; Ujvari et al., 2007; Bergthorsson et al., 2003) and has been proposed as a mechanism for mtDNA repair (Thyagarajan et al., 1996). Recombination of maternal and paternal mtDNA haplotypes has been observed in rare cases of human biparental mtDNA inheritance (Kraytsberg et al., 2004; Zsurka et al., 2005), and mtDNA recombination activity is present in human cell extracts (Thyagarajan et al., 1996). However, mtDNA recombination has not, to our knowledge, been previously detected in cancer. Given the possibility for coexistence of two distinct mtDNA haplotypes in CTVT cells, we searched for evidence of mtDNA recombination in CTVT using recombination-detection algorithms 3seq and SiScan (Boni et al., 2007; Gibbs et al., 2000). Remarkably, these algorithms detected significant evidence for mtDNA recombination in CTVT clade 1, detecting recombination breakpoints at around MT:5430 and MT:16176. Maximum likelihood phylogenetic trees constructed using segments MT:1–5429 and MT:5430–16176 derived from clade 1 mtDNA produced distinct topologies (Figure 3A, Figure 3—source data 1). Further inspection of clade 1 mtDNA haplotypes suggested that recombination replaced MT:1–5429 in a clade 1 mtDNA haplotype that diverged from Central American clade 1 CTVTs and that subsequently colonised areas of South and Central America (Chile, Colombia, Ecuador, Panama, Paraguay) (Figure 3B).

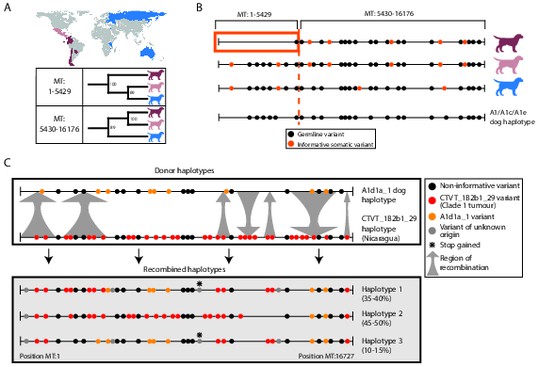

Ancient and modern mtDNA recombination in CTVT.

(A) Maximum likelihood phylogenetic trees constructed using segments MT:1–5429 and MT:5430–16176 from clade 1 CTVT mtDNAs. Three clade 1 mtDNA haplotype groups are represented by coloured dog silhouettes, and their geographical distributions are colour-coded on the map. Bootstrap values were calculated from 100 iterations. Maximum likelihood trees upon which these representations are based are found in Figure 3—source data 1. (B) Simplified haplotype diagrams for clade 1 CTVT mtDNAs derived from groups shown in (A). Germline variants were present in the donor mtDNA that founded clade 1, represented by the A1/A1c/A1e dog haplotype (see Figure 1—figure supplement 4). Region putatively replaced by recombination is outlined with orange box. (C) Recombination detected in tumour 559T (Nicaragua). The estimated per cent contribution of each recombined haplotype to the mtDNA population within 559T CTVT cells is shown, and grey arrows indicate likely sites of recombination.

https://doi.org/10.7554/eLife.14552.013

These data provide evidence of an mtDNA recombination event in an ancestral CTVT lineage. We searched for evidence of more recent mtDNA recombination by examining outliers on CTVT mtDNA phylogenetic trees (Figure 1—source data 2, Supplementary file 10). This analysis identified 559T, a CTVT tumour derived from a male dog in Nicaragua (Figure 3C). Further investigation of mtDNA in 559T revealed what appeared to be a CTVT clade 1 mtDNA haplotype (CTVT_1B2b1_29) superimposed upon a dog mtDNA haplotype (A1d1a_1), neither of which resembled the mtDNA haplotype found in normal tissues from this host dog, 559H (B1_1 haplotype). Phasing of mtDNA variants in 559T using long sequence reads indicated the presence of at least three distinct mtDNA haplotypes in this tumour, each representing a recombination product apparently derived from mtDNA haplotypes CTVT_1B2b1_29 and A1d1a_1 (Figure 3C). These data suggest that a tumour antecedent of 559T captured haplotype A1d1a_1 mtDNA from its host. Recombination was initiated between mtDNA haplotypes CTVT_1B2b1_29 and A1d1a_1, and cells containing these recombination products were passed to host 559H. Alternatively it is possible that 559H received a mixture of both normal and CTVT cells from its CTVT donor animal, and mtDNA capture and recombination occurred within 559H. It must also be mentioned that the A1d1a_1 haplotype resembles the CTVT clade 3 donor haplotype (Figure 1—figure supplement 4); thus we cannot exclude the possibility that the recombination that we observe in 559T involved horizontal transfer between clade 1 and clade 3 CTVT tumours that occurred within the same animal.

Our analysis provides evidence for occasional mtDNA recombination activity in CTVT cells. The mechanism whereby distinct mtDNA molecules are able to interact within the cell, and the nature of the signals that trigger onset of mtDNA recombination are not clear. Further analysis will determine if DNA damage signalling is involved, and it is interesting to observe that a truncating nonsense mutation in COX3 was found in some 559T haplotypes (Figure 3C). Although we could not find evidence of mtDNA recombination in CTVT beyond those described, we cannot exclude the possibility that recombination is more widespread in CTVT mtDNA than detected. It is possible, therefore, that our phylogenetic, mutation rate and selection analyses (Figure 1, 2) have been influenced by an undetected recombination signal. However, the presence in all (non-recombining) CTVT mtDNAs of a set of clade-specific markers (Figure 1—figure supplement 4), the absence (beyond 559T) of distinctive phylogenetic outliers (Figure 1—source data 2), the very low frequency of back-mutation (Supplementary file 10), the strong somatic signal identified in the CTVT mtDNA mutational spectrum (Figure 2—figure supplement 1), and the failure of recombination-detection algorithms to detect further recombination, suggest that, if such a signal is present, it is at a low level.

CTVT is the world’s oldest known cancer whose metastatic spread through its global host population provides unique insights into evolutionary processes operating in cancer. Our analysis of CTVT mtDNA has illuminated five mtDNA horizontal transfer events which trace two millennia of CTVT global spread. Negative selection has operated on CTVT to maintain mtDNA integrity at the level of nonsense and missense mutations, and occasional mtDNA recombination has occurred, possibly to repair damaged mtDNA. Evidence of negative selection demonstrates that maintenance of functional mtDNA is important for the biology of CTVT; and the observation of multiple mtDNA horizontal transfer events further supports the possibility that mtDNA capture from hosts is a positively selected adaptive mechanism (Rebbeck et al., 2011; Tan et al., 2015; Spees et al., 2006). This study highlights the important role of functional mtDNA in cancer and reveals unexpected biological mechanisms that have operated in an ancient mammalian somatic cell lineage.

Materials and methods

Sample collection and DNA extraction

This study was approved by the Department of Veterinary Medicine, University of Cambridge, Ethics and Welfare Committee (reference number CR174). Tumour and host (gonad, skin, blood or liver) tissue samples were collected into RNAlater solution and stored at 4°C until processing. Genomic DNA was extracted using the Qiagen DNeasy Blood and Tissue extraction kit. Sample information is presented in Supplementary file 1.

Confirmation of canine transmissible venereal tumour (CTVT) diagnosis

Quantitative PCR (qPCR) assays were performed to confirm CTVT diagnosis (Supplementary file 3) by detection of the CTVT-specific LINE-MYC genomic rearrangement (Murgia et al., 2006; Rebbeck et al., 2009; Murchison et al., 2014; Katzir et al., 1985; 1987). Each qPCR was performed in triplicate with SYBR Select Master Mix (Life Technologies, Carlsbad, CA) using an Applied Biosystems 7900HT Fast Real-Time PCR system instrument (Applied Biosystems, Foster City, CA) with conditions and primers specified below.

PrimerSequence
LINE-MYC
primers (obtained from [Rebbeck, 2007])
ForwardAGG GTT TCC CAT CCT TTA ACA TT
ReverseAGA TAA GAA GCT TTT GCA CAG CAA
ACTB primersForwardCTC CAT CAT GAA GTG TGA CGT TG
ReverseCGA TGA TCT TGA TCT TCA TTG TGC
qPCR master mix reagentsVolume per reaction (μl)
SYBR Green Mix10
Primers (5 μM/primer)2.4
DNA (20 ng/μl)0.5
Water7.1
Total volume20
Stage of qPCR amplificationTemperature (°C)Time (s)
Initial denaturation95600
40 cycles9515
6060
Final dissociation9515

Standard curves were constructed for each primer set using CTVT tumour 29T1 as reference. Relative DNA input was calculated using standard curves as follows: (Ct = m(log10(iA)) + b), with each of the parameters defined as follows: Ct = threshold cycle, m = slope of the standard curve, iA = input amount, b = y-intercept of the standard curve. Relative DNA input for LINE-MYC was then normalised to ACTB. LINE-MYC and ACTB are present in three and two copies respectively in 24T and 79T CTVT tumours (Murchison et al., 2014); however, it is possible that copy number at these loci differs between tumours in the current dataset.

DNA sequencing

Whole genome sequencing libraries with insert size 100 to 400 base pairs (bp) were constructed using standard methods according to manufacturer’s instructions and sequenced with 75bp paired end reads on an Illumina HiSeq2000 instrument (Illumina, San Diego, CA) to an average whole genome depth of 0.3X; average mitochondrial DNA (mtDNA) coverage was ~70X. Reads were aligned with the CanFam3.1 dog reference genome (Lindblad-Toh et al., 2005) (http://www.ensembl.org/Canis_familiaris/Info/Index) using the BWA alignment tool (Li and Durbin, 2009). To calculate the mitochondrial copy number, we used the following equation: (mtCOV/nuclCOV)*P, where mtCOV = average coverage across the mitochondria, nuclCOV = average coverage across the nuclear genome and P = ploidy. The ploidy used in our calculations was 2 for both CTVT tumours and CTVT hosts (Murchison et al., 2014). Host and tumour samples with average MT coverage >300X were excluded from the copy number calculations (see Supplementary file 2A).

Samples 1380T and 1381T were sequenced separately, based on the methods described in Pang et al (Pang et al., 2009). Complete mitochondrial genomes were amplified using the primers listed in Pang et al (Pang et al., 2009) with a number of additional primers listed below. The PCR conditions are specified below.

PCR master mix reagentsVolume per reaction (μl)
1 X PCR LATaq buffer2.5
Primer forward and reverse (10 μM)1.2 (each)
DNA (100-200 ng/μl)1.2
LATaq DNA polymerase0.25
1X dNTP (10 mM)4
Water14.65
Total volume25
Stage of PCR amplificationTemperature (°C)Time (s)
Initial denaturation94300
12 cycles (touchdown PCR program, reduce 1°C each cycle)9460
61–5060
7490
25 cycles9460
5260
7490
Final extension74420
Primer nameSequence (5’–3’)
D0132ACC GTA AGG GAA TGA TGA A
D0136TGT AAG TGG TCG TAG AGG TTC
D0141AGG CGG ACT AAA TCA AAC TCA
D0146GGG GTA TCT AAT CCC AGT TT
D0149AAG TTT GGT AGC ACG AAG AT

The PCR products were purified using a 1.0% agarose gel and sequenced on a 3730xl DNA analyser (Applied Biosystems) with a Big Dye Terminator v3.1 Sequencing Kit (Applied Biosystems). The sequenced fragments were assembled by Seqman (DNASTAR, Madison, WI) and the complete mitochondrial genomes were aligned with the CanFam3.1 dog mitochondrial reference genome (Lindblad-Toh et al., 2005).

Nuclear copies of mtDNA (NuMT) analysis

Nuclear copies of mtDNA (NuMTs) are mtDNA fragments that have been incorporated into the nuclear genome. Over 150 NuMTs have been identified in the canine genome (Verscheure et al., 2015). Somatically acquired NuMTs have also been described in human cancer (Ju et al., 2015).

Given that our study design did not involve purification of cytoplasmic mtDNA genomes, we assessed the possibility that our mtDNA variant analysis has been influenced by NuMTs.

NuMTs in CanFam3.1

We first assessed the potential contribution of NuMTs present within the CanFam3.1 assembly to our variant calling. We used wgsim (https://github.com/lh3/wgsim) to simulate sequence reads from CanFam3.1 (excluding the MT chromosome) to a coverage of 0.3X (i.e. the average nuclear genome coverage sequenced as part of this study). We then used BWA (Li and Durbin, 2009) to align the reads to the CanFam3.1 MT reference and used Samtools depth (Li et al., 2009; Li, 2011) to assess the MT genome coverage. Any MT genome coverage detected from this analysis would be expected to arise from NuMTs. The average MT genome coverage from this analysis was 0 (Figure 1—figure supplement 5), indicating that the NuMTs known to be present within CanFam3.1 are at insufficient copy number and/or are too divergent to map to the MT reference genome using the alignment parameters used in this study.

Somatically acquired NuMTs

The analysis described above confirms that NuMTs that form part of the CanFam3.1 assembly have not impacted on the variant analysis performed in this study. However, it is possible that somatically acquired NuMTs that are not captured in the CanFam3.1 assembly could confound our variant analysis.

The following observations argue against the possibility that NuMT-derived variants have had a significant impact on our tumour variant calling:

  • As CTVT is a clonal lineage, somatically acquired NuMT-derived variants would be expected to present as stable low-VAF variants across all tumours within a phylogenetic group. Variants with these features were not observed.

  • The mutation spectrum that we observed in CTVT mtDNA has the distinctive profile characteristic of the known somatic mtDNA mutational process (Figure 2—figure supplement 1 and Ju et al., 2014). As this mutational process is specific to cytoplasmic mtDNA, this observation suggests that the majority of variants within our set are of cytoplasmic origin.

Substitution calling

Extraction and filtering

Substitutions were called using CaVEMan (Cancer Variants through Expectation Maximisation), an in-house variant calling algorithm, as previously described (Nik-Zainal et al., 2012) (http://cancerit.github.io/CaVEMan/). As CaVEMan is designed for matched tumour-normal data, and CTVT tumours and normals are unmatched (i.e. they are different individuals), we used simulated reads derived from the reference genome as the 'normal', and called all substitution variants relative to this. A variant allele fraction (VAF value, i.e. number of reads supporting the substitution variant as a fraction of the total number of reads covering the substitution variant position) was reported for each substitution detected. The following list of in-built post-processing filters was used to improve the specificity and sensitivity of substitution calls:

  • At least one third of mutant alleles must have base quality >25.

  • Mean mapping quality of reads supporting a substitution variant call must be ≥21.

  • Substitution variant calls supported only by the first or last 15bp of reads were discarded.

  • Substitution variants were discarded if they occurred 10bp upstream or downstream of an unfiltered indel called in the same sample (as detected by the indel-detecting algorithm cgpPindel see 'Indel calling-Extraction and filtering'). The 10bp range was extended by the REP value for samples where an indel had been called with REP>0; REP represents the number of times the inserted/deleted base(s) occurs in the sequence directly 5’ or 3’ of the putative indel.

  • Substitution variant calls were discarded if they occurred within region MT:16129-16430 inclusive; this is a simple repeat region as defined by the UCSC (http://genome.ucsc.edu/) table browser (Dog, CanFam3.1).

  • If the reference allele was supported by at least one read on both strands (forward and reverse), then we required that the mutant allele should be supported by at least one read on both strands.

Substitutions in 1380T and 1381T were called using MEGA (Molecular Evolutionary Genetics Analysis) (Tamura et al., 2013).

Post processing

Somatic substitutions in tumours with matched hosts

To remove tumour substitutions caused by host contamination, substitutions that were called in both tumour and matched host, but had VAF<0.9 in the tumour, were discarded. Substitutions with VAF>0.9 in both tumour and matched host were considered to be likely germline substitutions shared between host and tumour, and were retained. Low coverage hosts (defined as average coverage <20X, Supplementary file 2A) were additionally checked for evidence of substitutions at positions where substitutions were called in the corresponding tumour, and the substitution was discarded in the tumour if at least one read supporting the substitution was found in the low coverage host. All tumour substitutions with VAF<0.5 were discarded if the matched host was of low coverage. Low-level tumour-contaminated hosts were additionally checked for the presence of substitutions identified in other tumours (see Supplementary file 4A) and any substitutions arising due to contamination were discarded.

Somatic substitutions in tumours without matched hosts

VAF value was used to identify substitutions likely arising due to host contamination in tumours for which matched hosts were not available (see Supplementary file 1 for tumours without matched hosts). We used VAF plots, which display VAF value versus genomic position, to identify the level of host contamination in each tumour. We then discarded any substitution below a VAF cutoff, specified uniquely for each tumour based on its estimated level of host contamination (for most tumours, the VAF cutoff was 0.5 or 0.6). If VAF plots did not show clear distinctions between tumour substitutions and host contamination (i.e. host contamination was greater than~40%; this category included 9 tumours), we identified likely tumour substitutions as those which were present in phylogenetically-related tumours. Remaining substitutions were removed if they were also found in normal dogs (see 'CTVT host and published dog genome germline substitutions list', Supplementary file 4F); those substitutions that were not found either in phylogenetically-related tumours or in normal dogs were kept as putative somatic substitutions (total of 11 substitutions).

Germline substitutions in hosts

Substitutions in hosts were filtered using filters described in 'Substitution calling-Extraction and filtering'. Low coverage hosts (defined as average coverage <20X, Supplementary file 2A) were further checked for evidence of substitutions at positions where a substitution was called in the corresponding tumour as described in 'Somatic substitutions in tumours with matched hosts'.

Caution should be taken when considering substitution lists for low coverage hosts and hosts with regions of low coverage (see Supplementary file 2A for average coverage per sample and Supplementary file 2B for list of samples with low coverage mtDNA regions), as these may contain false negatives due to low coverage.

Additional quality checks and validation

Additional quality filtering was performed in low coverage regions, regions with low-mapping quality, and regions containing variable-length polyC homopolymer tracts (Fregel et al., 2015). Substitutions that were subsequently completely excluded from the analysis as a part of this check are listed in the table below.

PositionBase changeJustification for excluding substitution
15493G>AInconsistently called due to low coverage and decreased mapping quality in this region
15505T>CInconsistently called due to low coverage and decreased mapping quality in this region
15632C>TFrequently miscalled due to decreased mapping quality in this region
15639T>AFrequently miscalled due to decreased mapping quality in this region
15639T>GFrequently miscalled due to decreased mapping quality in this region
15931A>GFrequently miscalled due to its presence in the same position as a frequently miscalled indel (middle of a homopolymer tract)
16672C>TFrequently miscalled due to its proximity to a frequently miscalled indel (associated with a very long homopolymer tract)
16705C>TFrequently miscalled due to low coverage in this region

Substitutions that were discarded due to proximity to an indel (see 'Substitution calling-Extraction and filtering' above) were visually inspected in Integrative Genomics Viewer (IGV) (Robinson et al., 2011; Thorvaldsdottir et al., 2013). A subset of these substitutions had substantial support and were rescued (listed below).

PositionBase change
381T>A
1481T>C
1683T>C
2682G>A
2683G>A
3028A>C
6629T>C
6882A>G
7014T>G
8281T>C
8368C>T
8703G>A
9825G>A
9896T>C
13708C>T
14977T>C
15524C>T
15526C>T
16660T>C
16663C>T
16671T>C

Host contamination

Host contamination levels in each tumour were estimated from VAF plots (see 'Somatic substitutions in tumours without matched hosts' above). Substitutions that were present in tumours but not in matched host were identified, and their average VAF used to estimate the proportion of tumour mtDNA (see Supplementary file 2C for estimated tumour cell fraction in each tumour). Substitution VAFs were normalised to take account of host contamination in Figure 2A and Supplementary files 4B,C. Tumour variants with normalised VAF<1 most likely represent heteroplasmic variants; however, we cannot exclude that these represent cellular subclones harbouring distinct homoplasmic mtDNA populations.

Recurrent mutations and back mutations

Back mutations and recurrent mutations occurring in tumours were identified by inspecting positions of tumours carrying each substitution on phylogenetic trees (Figure 1—source data 2).

Predicted functional consequences of substitutions

Variant effect predictor (VEP) (McLaren et al., 2010) was used to predict the functional consequences of single point substitutions, as annotated in Supplementary file 6.

Extracting substitution variants from publicly available dog sequences

In order to enrich our panel of germline substitutions created from 338 CTVT hosts, we included an additional set of 252 publicly available complete dog mtDNA genomes (see Supplementary file 8). To extract substitution variants from available fasta files, sequences were aligned with the CanFam3.1 dog mitochondrial reference genome using Clustal Omega (Sievers et al., 2011). Alignment errors in the multiple sequence alignment, usually due to miscalls caused by closely mapped indels, were inspected manually and corrected to minimise gaps. Substitutions were extracted using snp-sites (https://github.com/sanger-pathogens/snp_sites). For those samples missing data in regions MT: 15510–15532 and MT: 16040–16550 we substituted the most likely substitution at polymorphic sites based on phylogenetic position. Our filtering rules were applied to the substitution set where applicable (see 'Substitution calling-Extraction and filtering' and 'Additional quality checks and validation') and substitutions called before MT position 48 or after MT position 16671 were excluded due to low coverage in these regions in our sequencing data. Substitutions represented by International Union of Pure and Applied Chemistry (IUPAC) codes R, Y, S, W, K or M where one of the two possible calls was the same as the reference were changed to the base which was different to the reference. In cases where the IUPAC code represented >2 bases (B, D, H, V, or N), the reference base was substituted.

Indel calling

Extraction and filtering

Small insertions and deletions (indels) were extracted from the sequencing data using cgpPindel (https://github.com/cancerit/cgpPindel). The following list of in-built filters was used to improve the specificity and sensitivity of indel calls:

  • Indels were required to have ≥3 supporting reads on either the forward or reverse strands or ≥2 supporting reads on both the forward and reverse strands

  • Indel calls with at least 4 supporting pindel-mapped reads were required to have at least 1 supporting BWA-mapped read or, failing that, if REP= 0 (see 'Substitution calling-Extraction and filtering'), then at least one supporting pindel-mapped read on both strands.

  • Indels called within the simple repeat region MT:16129–16430 inclusive were excluded.

Samples with very high coverage of the mitochondrial genome (24T-Dog, 24H-Dog, 1T-Dog, 2T-Dog, 3T-Dog, 4T-Dog, 4H-Dog, 498H-Dog, 432T-Dog, 455T1-Dog, 231T-Dog, 79H-Dog, 79T-Dog), see Supplementary file 2A, were excluded from this analysis due to frequent false positives, together with samples 1380T-Dog and 1381T-Dog.

Post processing

Somatic indels

Indels called in tumours that were also called in at least one host were discarded as possibly arising due to host contamination. Indels that were uniquely called in tumours without matched hosts were discarded, as we could not rule out the possibility that they were caused by host contamination. All remaining indels were visually validated using IGV (Robinson et al., 2011; Thorvaldsdottir et al., 2013). The indels listed in the table below were discarded from the analysis as miscalls. In total 27 somatic indels were included in the analysis (see Supplementary file 5A).

PositionIndelSampleJustification for discarding indel
9891TGATTTATCTCATAATTATCA>
TATCTCATAATTATCATG
324T2-DogIndel miscalled due to close proximity of two other indels in the same sample
9910C>CAT401T-DogIndel miscalled due to presence of a substitution at the same position

Germline indels

The indels found on the host variant lists (Supplementary files 5B and 7B, Supplementary file 13) include only those which were considered homoplasmic (VAF≥0.9) and which passed a visual validation performed using IGV (Robinson et al., 2011; Thorvaldsdottir et al., 2013).

Recurrent indels

Recurrent indels occurring in tumours were identified by inspecting phylogenetic positions of tumours carrying each indel (Figure 1—source data 2).

Variant Allele Fraction calculation for indels

Although primary indel calling was carried out using cgpPindel, indel allele fraction for wild type and mutant indels was calculated using vcfCommons (unpublished in-house software developed at the Wellcome Trust Sanger Institute; for additional information please contact cgp@sanger.ac.uk). The algorithm takes all mapped and unmapped reads in the region of an indel and performs an alignment of the reference and the predicted mutated path using Exonerate (Slater and Birney, 2005). The predicted mutated path is the reference with the change predicted by cgpPindel applied to it. Based on this alignment, reads are classified into 3 categories:

  1. aligns to reference path

  2. aligns to mutated path

  3. ambiguous; a read sequence aligns to the reference and mutated path with identical scores which makes it impossible to determine the true path

Indel VAF values were normalised to take account of host contamination in Figure 2B.

Predicted functional consequences of indels

Variant effect predictor (VEP) (McLaren et al., 2010) was used to predict the functional effects of indels, as listed in Supplementary file 7.

Phylogenetic analyses

Phylogenetic trees

Phylogenetic trees were constructed using a maximum likelihood (ML) method implemented in PhyML 3.0 (Guindon et al., 2010) using the General Time Reversible (GTR) + G + I nucleotide substitution model with transition/transversion (ts/tv) ratio, gamma distribution shape parameter and proportion of invariant sites estimated in PhyML for each dataset. Phylogenetic trees constructed using RAxML 8.2.6 with a rapid climbing algorithm and identical model specification were consistent with the phylogenetic trees obtained using PhyML. Prior to tree construction jModelTest2 (Darriba et al., 2012) (https://code.google.com/p/jmodeltest2) was used to determine the best fitting substitution model for the alignment, inferred using the Akaike Information Criteria (AIC). The tree topology was estimated using a combination of Nearest Neighbor Interchange (NNI) and Subtree Pruning and Regrafting (SPR) (Hordijk and Gascuel, 2005) algorithms. Trees were visualised using Dendrocope (Huson and Scornavacca, 2012). Bootstrap support values were obtained from 100 bootstrap replicates. Nodes with ≥60% support are labelled in Figure 1—source data 2 and Figure 3—source data 1. The long branch-lengths in CTVT clade 4 were further investigated by visually validating sequence alignments involving these samples.

Confirmation of individual horizontal transfer events

Classification of tumour substitutions

CTVT tumour substitutions were classified as follows:

1) Tumour germline clade-defining substitutions (see Supplementary file 4D for the full list)

  • Inferred to be present on the donor mtDNA haplotype which founded each of the five horizontal transfer events

  • Present within the pool of substitutions in the current dog population (see Supplementary file 4F)

  • Shared by all tumours within each clade derived from the original CTVT cell which received the horizontally transferred donated mtDNA (see Figure 1—figure supplement 4)

2) Tumour somatic substitutions (see Supplementary file 4B for the full list)

  • Inferred to have arisen after the clade-defining horizontal transfer event

  • Variable and phylogenetically informative within the set of tumours in one clade

  • Any substitutions which were associated with inferred recombination event (present uniquely) in 559T were discarded (see 'Mitochondrial recombination analysis')

3) Tumour somatic substitutions - conservative list (see Supplementary file 4C for the full list)

  • Inferred to have arisen after the clade-defining horizontal transfer event

  • Variable and phylogenetically informative within the set of tumours in one clade

  • Any substitutions which were classed as somatic but had the potential to be germline were excluded from this list. Exclusions were based on:

    • Inferred recombination events

    • Occurrence in clade 3; clade 3 tumours carry very few somatic mutations, and so the possibility that clade 3 tumours arose from several independent mtDNA horizontal transfer events cannot be excluded

    • Occurrence on ancestral trunks; these include trunks defining CTVT_1A, CTVT_1B1, CTVT_2A haplogroups; due to their ancestral divergence, it cannot be excluded that these haplotypes are derived from independent mtDNA horizontal transfer events

    • Occurrence as a putative somatic mutation in tumours without hosts (see 'Somastic substitutions in tumours without matched hosts')

  • This list was used for the analysis in Figure 2A,C and Figure 2—figure supplement 1.

4) Tumour potential somatic substitutions (see Supplementary file 4E for the full list)

  • Substitutions present within all tumours within one clade but not represented in the set of 590 normal dogs analysed as part of this study (Supplementary file 4F)

  • It cannot be determined if these substitutions are germline substitutions which were present on the mtDNA genome that founded each clade, or if they are early somatic substitutions that occurred after the clade-defining horizontal transfer event, but prior to the divergence of tumours analysed in our study.

Definition of a CTVT clade

A CTVT clade is defined as a group of tumours arising from an individual horizontal transfer event. Each clade is defined with respect to the tumour substitution classification (see 'Classification of tumour substitutions') as follows:

  1. CTVT tumours from the same clade cluster together on phylogenetic tree represented in Figure 1A.

  2. CTVT tumours from the same clade arose from a single donor mtDNA haplotype and therefore share the same set of germline substitutions which was inferred to be originally present on the donor mtDNA haplotype (germline clade-defining substitutions, see Figure 1—figure supplement 4, 'Classification of tumour substitutions').

  3. The reconstructed donor mtDNA haplotype for each clade has a phylogenetically closely related/identical haplotype in the current dog population (see Figure 1—figure supplement 4).

Estimated timing of clade divergence

Average number of somatic mutations (i.e. mutations arising after the horizontal transfer event) within each clade was calculated for each of the five clades (see Supplementary file 9). For potential somatic mutations (shown in grey in Figure 1B and D), we were unable to determine whether they occurred before or after the horizontal transfer event, as they are present in all samples from the same clade, but not in the pool of germline substitutions (see Supplementary file 4F). As the number of somatic mutations influences the time of divergence, we included estimates both with and without potential somatic mutations in our analysis (see Supplementary file 9). Presence of mitochondrial recombination in haplogroup CTVT_1B2b2 (clade 1) was taken into account when calculating the average number of mutations per clade (see 'Mitochondrial recombination analysis'). The timing of clade divergence was estimated independently based on the following three methods, as explained below: timing based on nuclear DNA (Murchison et al., 2014; Alexandrov et al., 2013), timing based on number of cell divisions per homoplasmic mitochondrial mutation (Ju et al., 2014; Cohen and Steel, 1972), and timing based on number of mitochondrial mutations per year (Ju et al., 2014). All estimates of CTVT dates assume a constant rate of accumulation of somatic mtDNA mutations both within and between clades, including constant activity of selection (Figure 2).

Timing based on nuclear DNA

Based on the most recent common ancestor of samples 24T (CTVT clade 1) and 79T (CTVT clade 2) which is estimated to have existed approximately 460 years ago (Murchison et al., 2014), we can assume that the maximum age of clade 2 (i.e. the more recent clade) is 460 years. Calibrated according to this dating (Murchison et al., 2014; Alexandrov et al., 2013), and assuming a constant rate of accumulation of mutations with time, the maximum number of CTVT somatic mtDNA mutations per year is 0.0205 (calculated using average number of mutations in clade 2 = 9.437). The calculated maximum time since origin of clades 1, 3, 4 and 5, is shown in Figure 1D and Supplementary file 9.

Timing based on number of cell divisions

A study of mtDNA mutations in human cancers estimated that one homoplasmic somatic mtDNA mutation arises every ~1000 cell generations in human cancers (Ju et al., 2014). An experimental study estimated CTVT cell generation times to be 4 days for first stage tumours and >20 days for second stage tumours (Cohen and Steel, 1972). Using 4 days and 20 days as a minimum and maximum generation time, and assuming a constant mtDNA somatic mutation rate in CTVT, we estimated a minimum and maximum mutation rate of ~0.0183 and ~0.0913 mutations/year respectively. See Supplementary file 9 for corresponding calculations of minimum and maximum time since clade origins.

Timing based on number of mutations per year

A previous study correlated somatic mtDNA mutation accumulation in human cancers with patient age (Ju et al., 2014). This suggested an approximate rate of ~0.025 mutations per year. Assuming a similar rate in CTVT somatic mtDNA mutations and a constant CTVT somatic mtDNA mutation rate, we estimated time since mtDNA horizontal transfer events (Supplementary file 9).

Haplotype analysis

Haplotype nomenclature

Host haplotypes

The host haplotype naming system was adapted from the cladistic canine mitochondrial DNA phylogeny nomenclature proposed by Fregel et al (Fregel et al., 2015). See Supplementary files 1 and 11 for all host haplotype names. Corresponding CTVT normal dog host samples were assigned into one of the major clades (A, B, C, D, E and F). For subsequent levels, haplogroups were defined by specific diagnostic variants, as defined by Fregel et al (Fregel et al., 2015). A unique number, following an underscore after the haplogroup name, distinguished distinct haplotypes within each haplogroup. Haplogroup-defining variants 15632 C>T, 15639 T>A and 15639 T>G were excluded from our analysis ('Additional quality checks and validation') and therefore we were unable to distinguish between haplogroups A1c and A1e. Haplotypes which did not fit into any haplogroup were classified as 'unassigned'.

Tumour haplotypes

We devised a CTVT mtDNA haplotype naming system adapted from the cladistic canine mtDNA phylogeny nomenclature proposed by Fregel et al (Fregel et al., 2015). See Supplementary file 1 and 11 for all CTVT tumour haplotype names. Each CTVT haplotype has a prefix 'CTVT_', indicating a tumour haplotype. Distinct CTVT clades are numbered (CTVT_1, CTVT_2, CTVT_3, CTVT_4 and CTVT_5). For subsequent levels, hierarchical notation was used, where subsequent haplogroups were named by alternating letters and numbers and the maximum number of levels included in the hierarchical notation was five – i.e. 3 numbers and 2 letters (e.g. 1A1a1). The first letter is a Roman capital; subsequently-used letters are lower case Roman letters. Any haplogroups beyond the maximum number of levels were considered as a single subgroup, in which individual haplotypes were distinguished using a non-hierarchical numbering system - an underscore followed by a number (e.g. 1A1a1_1, 1A1a1_2, etc.). Underscores were only used to distinguish individual haplotypes after the haplotype has been assigned to all 5 hierarchical levels (e.g. 1A_1 does not exist, as this haplotype would be classified as 1A1 instead).

Reconstructed donor haplotypes

A 'donor haplotype' was reconstructed for each of the clades, representing the inferred donor mtDNA haplotype in each horizontal transfer event, and was used to root the trees for each clade in Figure 1—source data 2. Donor haplotypes were reconstructed from the clade-defining germline substitutions and the clade-defining potential somatic substitutions (see 'Classifications of tumour substitutions' above) and are shown in Figure 1—figure supplement 4. The phylogenetically closest haplotype present in the current dog population is shown in the same figure.

Mitochondrial recombination analysis

Automated recombination analysis

The RDP4 package (Martin et al., 2015) was used to detect recombination events within the complete sample set (i.e. 449 CTVT tumours, 338 CTVT hosts and 252 additional dogs) using a Bonferroni corrected p-value cutoff of 0.05. Default parameters were used for the following programs implemented within the RDP package: RDP (Martin and Rybicki, 2000), MaxChi (Smith, 1992), Chimaera (Posada and Crandall, 2001), 3Seq (Boni et al., 2007) and SiScan (Gibbs et al., 2000).

Long read sequencing

A genomic library was created directly using 5µg of genomic DNA from sample 559T, not utilizing shearing or amplification techniques, as previously described (Coupland et al., 2012). The library was sequenced using two PacBio SMRT cells using the Pacific Biosciences RS sequencer (Pacific Biosciences, Menlo Park, CA). Each SMRT cell yielded ~1Gb of sequence data with mean read length 11,421bp and N50 read length 19,382bp. Average sequence coverage across the mitochondrial genome was 111.3X.

PacBio data analysis

PacBio sequence reads aligning to mtDNA were viewed in SMRT view (Pacific Biosciences) as well as in Integrative Genomics Viewer (IGV) (Robinson et al., 2011; Thorvaldsdottir et al., 2013) and used to phase the mitochondrial substitutions previously called in 559T (Nicaragua). The three most common recombinant haplotypes were completely phased, as shown in Figure 3C. Additional haplotypes, which we were unable to phase completely and which were present at very low level (less than 5%), were also identified. Reads derived from 559H, the host of 559T (haplotype B1_1), were also identified. The reads used to phase the substitutions in the three most common haplotypes are shown in the table below:

PacBio sequencing reads used for phasing of individual haplotypes
559T haplotype 1559T haplotype 2559T haplotype 3
m150625_205815_00127_
c10080924255000000
1823177310081544_
s1_p0/80046
m150623_234631_00127_
c10078774255000000
1823173008251557_
s1_p0/328
m150625_205815_00127_
c10080924255000000
1823177310081544_
s1_p0/64645
m150625_205815_00127_
c10080924255000000
1823177310081544_
s1_p0/50141
m150623_234631_00127_
c10078774255000000
1823173008251557_
s1_p0/89158
m150625_205815_00127_
c10080924255000000
1823177310081544_
s1_p0/29160
m150623_234631_00127_
c10078774255000000
1823173008251557_
s1_p0/32367
m150625_205815_00127_
c10080924255000000
1823177310081544_
s1_p0/45213
Many reads in the region between 9790-16627
m150623_234631_00127_
c10078774255000000
1823173008251557_
s1_p0/145458

Mutation spectrum

The two strands of the mtDNA are known as the heavy and light strands, and the light strand is the reference strand in CanFam3.1. Each mutation on the conservative somatic list (n=835, 'Classification of tumour substitutions', Supplementary file 4C) was classified as one of six possible substitutions in the pyrimidine context (C>A, C>G, C>T, T>A, T>C, T>G) and assigned to a strand relative to the reference (i.e. pyrimidine mutations (i.e. C>, T>) with respect to the reference were defined as light strand mutations; purine mutations (i.e. A>, G>) with respect to the reference were defined as heavy strand mutations). The immediate 5’ and 3’ sequence contexts for each CTVT mutation was extracted from the dog mitochondrial reference genome for mutations on the heavy and light strands, yielding a maximum of 96 mutation types (6 possible substitutions x 4 possible 5’ bases x 4 possible 3’ bases).

The number of observations of each substitution type was normalised to the triplet frequency extracted from the canine mitochondrial genome. The following example illustrates how to calculate the observed/expected ratio for T[C>T]G occurring on the heavy strand. We observed a total of 835 substitutions occurring across the MT genome; given that the TCG triplet is observed 117 times in the dog mitochondrial reference genome heavy strand, the frequency of TCG triplets occurring in the dog mtDNA heavy strand is 117/16727 = 0.007, where 16,727 bp is the length of the dog mitochondrial genome. Using the frequency of TCG triplets in the reference genome, we can calculate the expected number of T[C>T]G substitution types on the heavy strand as (total number of mutations) x (TCG frequency on the heavy strand) / 3 (as there are 3 possible C>N substitutions) i.e. expected number of T[C>T]G substitutions on the heavy strand = 835 x 0.007/ 3 ≈ 1.95. As we observed 22 T[C>T]G mutations on the heavy strand, the observed/expected ratio for this mutation type was 22/1.95 = 11.28.

Triplets within region MT:16129–16430 inclusive ('Substitution calling-Extraction and filtering'), as well as a set of specific excluded sites ('Additional quality checks and validation') were excluded from our analysis. This was accounted for during the calculation of expected substitutions described above.

Selection analyses

VAF

Substitutions

Normalised VAF values for somatic substitutions were calculated as described in 'Host contamination'. Cumulative distribution functions for VAF scores (normalised to take into account host contamination, see 'Host contamination' above) were plotted for nonsense substitutions (n = 10) and missense and synonymous substitutions (n = 610), using the conservative somatic list (see 'Classification of tumour substitutions' above and Supplementary file 4C). Statistical significance was tested using the two-sample Kolmogorov-Smirnov test implemented in R (R Development Core Team, 2013).

Indels

Normalised VAF for somatic indels was calculated as described in 'Predicted functional consequences on indels'. Cumulative distribution functions of normalised variant allele fractions were plotted for frameshift (n = 18) and non-frameshift (n = 9) indels. Statistical significance was tested using the two-sample Kolmogorov-Smirnov test implemented in R (R Development Core Team, 2013).

dN/dS

dN/dS was estimated using a method adapted from Martincorena et al. (2015). Briefly, a context-dependent model with 192 substitution rates (12 possible substitution types C>A, C>G, C>T, T>A, T>C, T>G, A>C, A>G, A>T, G>A, G>C, G>T x 4 possible 5’ bases x 4 possible 3’ bases) was used, thus accounting for any confounding context-dependent effects. The substitution rate was modelled as a Poisson process where the product of the underlying mutation rate and the impact of selection give the rate. A likelihood ratio test was used to test the deviation from neutrality (wMIS=1 or wNON=1), giving a p-value for the evidence of selection. To avoid any confounding effects due to the highly strand-biased CTVT mtDNA mutation spectrum (Figure 2—figure supplement 1), we excluded ND6, the only mitochondrially-encoded gene transcribed from the light strand, from this analysis.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
    Dendroscope 3: An interactive tool for rooted phylogenetic trees and networks
    1. DH Huson
    2. C Scornavacca
    (2012)
    Systematic Biology, 61, 10.1093/sysbio/sys062.
  15. 15
  16. 16
  17. 17
  18. 18
    Common origin of transmissible venereal tumors (TVT) in dogs
    1. N Katzir
    2. E Arman
    3. D Cohen
    4. D Givol
    5. G Rechavi
    (1987)
    Oncogene 1:445–448.
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
    Genome sequence, comparative analysis and haplotype structure of the domestic dog
    1. K Lindblad-Toh
    2. CM Wade
    3. TS Mikkelsen
    4. EK Karlsson
    5. DB Jaffe
    6. M Kamal
    7. M Clamp
    8. JL Chang
    9. EJ Kulbokas
    10. MC Zody
    11. E Mauceli
    12. X Xie
    13. M Breen
    14. RK Wayne
    15. EA Ostrander
    16. CP Ponting
    17. F Galibert
    18. DR Smith
    19. PJ DeJong
    20. E Kirkness
    21. P Alvarez
    22. T Biagi
    23. W Brockman
    24. J Butler
    25. CW Chin
    26. A Cook
    27. J Cuff
    28. MJ Daly
    29. D DeCaprio
    30. S Gnerre
    31. M Grabherr
    32. M Kellis
    33. M Kleber
    34. C Bardeleben
    35. L Goodstadt
    36. A Heger
    37. C Hitte
    38. L Kim
    39. KP Koepfli
    40. HG Parker
    41. JP Pollinger
    42. SM Searle
    43. NB Sutter
    44. R Thomas
    45. C Webber
    46. J Baldwin
    47. A Abebe
    48. A Abouelleil
    49. L Aftuck
    50. M Ait-Zahra
    51. T Aldredge
    52. N Allen
    53. P An
    54. S Anderson
    55. C Antoine
    56. H Arachchi
    57. A Aslam
    58. L Ayotte
    59. P Bachantsang
    60. A Barry
    61. T Bayul
    62. M Benamara
    63. A Berlin
    64. D Bessette
    65. B Blitshteyn
    66. T Bloom
    67. J Blye
    68. L Boguslavskiy
    69. C Bonnet
    70. B Boukhgalter
    71. A Brown
    72. P Cahill
    73. N Calixte
    74. J Camarata
    75. Y Cheshatsang
    76. J Chu
    77. M Citroen
    78. A Collymore
    79. P Cooke
    80. T Dawoe
    81. R Daza
    82. K Decktor
    83. S DeGray
    84. N Dhargay
    85. K Dooley
    86. K Dooley
    87. P Dorje
    88. K Dorjee
    89. L Dorris
    90. N Duffey
    91. A Dupes
    92. O Egbiremolen
    93. R Elong
    94. J Falk
    95. A Farina
    96. S Faro
    97. D Ferguson
    98. P Ferreira
    99. S Fisher
    100. M FitzGerald
    101. K Foley
    102. C Foley
    103. A Franke
    104. D Friedrich
    105. D Gage
    106. M Garber
    107. G Gearin
    108. G Giannoukos
    109. T Goode
    110. A Goyette
    111. J Graham
    112. E Grandbois
    113. K Gyaltsen
    114. N Hafez
    115. D Hagopian
    116. B Hagos
    117. J Hall
    118. C Healy
    119. R Hegarty
    120. T Honan
    121. A Horn
    122. N Houde
    123. L Hughes
    124. L Hunnicutt
    125. M Husby
    126. B Jester
    127. C Jones
    128. A Kamat
    129. B Kanga
    130. C Kells
    131. D Khazanovich
    132. AC Kieu
    133. P Kisner
    134. M Kumar
    135. K Lance
    136. T Landers
    137. M Lara
    138. W Lee
    139. JP Leger
    140. N Lennon
    141. L Leuper
    142. S LeVine
    143. J Liu
    144. X Liu
    145. Y Lokyitsang
    146. T Lokyitsang
    147. A Lui
    148. J Macdonald
    149. J Major
    150. R Marabella
    151. K Maru
    152. C Matthews
    153. S McDonough
    154. T Mehta
    155. J Meldrim
    156. A Melnikov
    157. L Meneus
    158. A Mihalev
    159. T Mihova
    160. K Miller
    161. R Mittelman
    162. V Mlenga
    163. L Mulrain
    164. G Munson
    165. A Navidi
    166. J Naylor
    167. T Nguyen
    168. N Nguyen
    169. C Nguyen
    170. T Nguyen
    171. R Nicol
    172. N Norbu
    173. C Norbu
    174. N Novod
    175. T Nyima
    176. P Olandt
    177. B O'Neill
    178. K O'Neill
    179. S Osman
    180. L Oyono
    181. C Patti
    182. D Perrin
    183. P Phunkhang
    184. F Pierre
    185. M Priest
    186. A Rachupka
    187. S Raghuraman
    188. R Rameau
    189. V Ray
    190. C Raymond
    191. F Rege
    192. C Rise
    193. J Rogers
    194. P Rogov
    195. J Sahalie
    196. S Settipalli
    197. T Sharpe
    198. T Shea
    199. M Sheehan
    200. N Sherpa
    201. J Shi
    202. D Shih
    203. J Sloan
    204. C Smith
    205. T Sparrow
    206. J Stalker
    207. N Stange-Thomann
    208. S Stavropoulos
    209. C Stone
    210. S Stone
    211. S Sykes
    212. P Tchuinga
    213. P Tenzing
    214. S Tesfaye
    215. D Thoulutsang
    216. Y Thoulutsang
    217. K Topham
    218. I Topping
    219. T Tsamla
    220. H Vassiliev
    221. V Venkataraman
    222. A Vo
    223. T Wangchuk
    224. T Wangdi
    225. M Weiand
    226. J Wilkinson
    227. A Wilson
    228. S Yadav
    229. S Yang
    230. X Yang
    231. G Young
    232. Q Yu
    233. J Zainoun
    234. L Zembek
    235. A Zimmer
    236. ES Lander
    (2005)
    Nature 438:803–819.
    https://doi.org/10.1038/nature04338
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    Evaluation of methods for detecting recombination from DNA sequences: Computer simulations
    1. D Posada
    2. KA Crandall
    (2001)
    Proceedings of the National Academy of Sciences of the United States of America 98:13757–13762.
    https://doi.org/10.1073/pnas.241370698
  35. 35
    http://www.r-project.org/
    1. R Development Core Team
    (2013)
    R Foundation for Statistical Computing, Vienna, Austria.
  36. 36
    Canine Transmissible Cancer: Evolution of a Selfish Cell Lineage
    1. CA Rebbeck
    (2007)
    Doctoral thesis, Imperial College London.
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
    Mitochondrial transfer between cells can rescue aerobic respiration
    1. JL Spees
    2. SD Olson
    3. MJ Whitney
    4. DJ Prockop
    (2006)
    Proceedings of the National Academy of Sciences of the United States of America 103:1283–1288.
    https://doi.org/10.1073/pnas.0510511103
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57

Decision letter

  1. Elaine Ostrander
    Reviewing Editor; National Human Genome Research Institute, National Institutes of Health, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Mitochondrial genetic diversity, selection and recombination in a canine transmissible cancer" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Elaine Ostrander as the Reviewing Editor and Mark McCarthy as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This is a well-written and concise paper that addressed the next natural step in unraveling the mystery of CTVT in the dog. The figures are clear (and attractive). Overall the paper does an outstanding job documenting, through low-coverage sequencing and phylogenetic analysis, the frequent transfer of mitochondrial DNA from the affected host to the canine transmissible venereal tumor (CTVT). Sequencing reveals that acquisition of host mtDNA has occurred at least five times during the worldwide spread of the clonal tumor, and that these five clades acquired their mtDNAs around 1,000 years ago. The sequences further suggest that there has been retention of ORFs, suggesting selection for function in the acquired DNAs. The data for the five clade hypothesis and horizontal transfer is convincing. The paper can be strengthened however in a few ways.

Essential revisions:

The reviewers felt this was a strong and important contribution to an interesting field. They identified several issues, however, that need to be addressed. These include:

1) Two reviewers raised the issue of the Indian-CTVT clade (IV), which implies highly non-clock-like evolutionary rates within the ancestor of the lineage. It is found at the end of fairly long branches and it may not be accurately placed within the phylogeny. One possibility is that this observation may be the result of the ML search that was performed [(Phyml with rudimentary branch swapping – a "combination of NNI and SPR")]. This approach may be insufficient to search treespace with such a large number of OTUs. The reviewers ask that the analysis be repeated with the newest version of RAxML which has more thorough search options. Alternatively, the authors should closely check the sequences or alignment as this could be due to minor alignment errors.

2) Two reviewers also raised the issue of the full-length mitochondrial NUMT that is found in the dog genome. The reviewers state that NuMTs are a major confounder in many species, and it was well-served to be addressed. However, over 150 NuMTs have been discovered in the canine genome. It is unclear how the wgsim recreation of reduced CTVT reads aligned to the canine genome would demonstrate how NuMTs are unlikely to contribute significantly to mtDNA variant calling. During CTVT evolution, particularly in an organism purported to engage in mictochondrial capture, it is likely that novel NuMTs were introduced that diverge from the canine genome. While the authors are likely correct that current mtDNA assemblies have not been compromised by NuMTs, if the NuMT is tandemly arrayed (as they are in many mammalian genomes) it could be highly multicopy and approach the read depth of the true cytoplasmic copies. The authors should check this by estimating read depth of the dog NuMT insertion within the nuclear genome and see if is collapsed and determine the expected depth based on this measurement, rather than assuming one copy. This will certainly raise the caliber of the paper.

3) The time estimate of 11,000 years cited in this work was estimated using a subset of extant canine variation to isolate ~1.9 million somatic mutations, and perform a strict clock approach based on the mutation signature of human medulloblastoma. Subsequent work used a more comprehensive catalog of canine variation resulting in a 50% reduction in total somatic mutations. A reanalysis of the timing of CTVT origin may be warranted and particularly useful for the field.

4) The authors discuss the phenomenon of mitochondrial recombination, but do not discuss the likelihood of heteroplasmy. If mitocapture is a mechanism prevalent in CTVT, it is likely that these tumors are heteroplasmic. Are the authors indicating that mitochondria from the original CTVT founder, or a subsequent host prior to Clade A is no longer present, and has been supplanted completely by now homoplastic horizontal transfer? The issue of tumor clonality / subclonality is not addressed.

5) The authors use an in-house variant caller that is based on paired tumor-normal samples. Since CTVT by its nature does not have a normal sample, why was another caller that did not rely on tumor /simulated normal used? Please explain.

6) Why was ploidy estimated to be 1.5 for CTVT and 2.0 for host? The reference indicates that CTVT is diploid.

7) Importantly, there is no indication of where the mtDNA alignments or variants, and low coverage nuclear data is deposited for future replication. This must be done prior to acceptance of the paper for publication.

https://doi.org/10.7554/eLife.14552.033

Author response

Essential revisions:

The reviewers felt this was a strong and important contribution to an interesting field. They identified several issues, however, that need to be addressed. These include: 1) Two reviewers raised the issue of the Indian-CTVT clade (IV), which implies highly non-clock-like evolutionary rates within the ancestor of the lineage. It is found at the end of fairly long branches and it may not be accurately placed within the phylogeny. One possibility is that this observation may be the result of the ML search that was performed [(Phyml with rudimentary branch swapping – a "combination of NNI and SPR")]. This approach may be insufficient to search treespace with such a large number of OTUs. The reviewers ask that the analysis be repeated with the newest version of RAxML which has more thorough search options. Alternatively, the authors should closely check the sequences or alignment as this could be due to minor alignment errors.We thank the reviewers for their comments regarding the phylogenetic position of CTVT clade 4 tumours in Figure 1A, and for raising the concern that this group may be inaccurately positioned due to limitations in the phylogenetic analysis algorithm or errors in alignment.

We repeated the phylogenetic analysis shown in Figure 1A using RAxML 8.2.6 using the default rapid hill climbing algorithm. The phylogenetic position of the clade 4 tumours was consistent between the PhyML and RAxML trees (see Author response image 1). We have now included a statement in the Methods section: “Phylogenetic trees constructed using RAxML 8.2.6 with a rapid climbing algorithm and identical model specification were consistent with the phylogenetic trees obtained using PhyML.”

Author response image 1
Diagram showing phylogenetic trees constructed using PhyML and RAxML.
https://doi.org/10.7554/eLife.14552.028

In addition, we performed manual validation of each of the variants identified in CTVT clade 4 tumours, and visualised the alignment of clade 4 haplotypes to confirm the absence of alignment errors. We have added the following statement to the Methods section: “The long branch-lengths in CTVT clade 4 were further investigated by visually validating sequence alignments involving these samples.”

We would further like to clarify that we do not wish to imply that clade 4 mtDNA represents the “ancestor of the lineage”. Our interpretation of the data is that the clade 4 group is derived from one of the five distinct horizontal transfer events detected in our analysis; we do not believe that the clade 4 mtDNA was originally present within the founder CTVT dog.

2) Two reviewers also raised the issue of the full-length mitochondrial NUMT that is found in the dog genome. The reviewers state that NuMTs are a major confounder in many species, and it was well-served to be addressed. However, over 150 NuMTs have been discovered in the canine genome. It is unclear how the wgsim recreation of reduced CTVT reads aligned to the canine genome would demonstrate how NuMTs are unlikely to contribute significantly to mtDNA variant calling. During CTVT evolution, particularly in an organism purported to engage in mictochondrial capture, it is likely that novel NuMTs were introduced that diverge from the canine genome. While the authors are likely correct that current mtDNA assemblies have not been compromised by NuMTs, if the NuMT is tandemly arrayed (as they are in many mammalian genomes) it could be highly multicopy and approach the read depth of the true cytoplasmic copies. The authors should check this by estimating read depth of the dog NuMT insertion within the nuclear genome and see if is collapsed and determine the expected depth based on this measurement, rather than assuming one copy. This will certainly raise the caliber of the paper.

We appreciate the reviewers’ comment about nuclear copies of mitochondrial DNA (NuMTs). Further to the concern raised, we have expanded the Methods subsection entitled “Nuclear copies of mtDNA (NuMT) analysis” to clarify the rationale behind the NuMT analysis that we have performed and to provide further justification for our conclusion that NuMTs have not significantly impacted on our CTVT mtDNA variant catalogue.

3) The time estimate of 11,000 years cited in this work was estimated using a subset of extant canine variation to isolate ~1.9 million somatic mutations, and perform a strict clock approach based on the mutation signature of human medulloblastoma. Subsequent work used a more comprehensive catalog of canine variation resulting in a 50% reduction in total somatic mutations. A reanalysis of the timing of CTVT origin may be warranted and particularly useful for the field.

We thank the reviewers for raising this point regarding the timing of CTVT origin. We agree that future re-analysis of the timing of CTVT’s origin will be an important contribution to the field. However, we believe that re-analysis of the timing of CTVT origin is beyond the scope of this work, whose focus is on mtDNA evolution in CTVT (and as mtDNA in CTVT has been acquired by horizontal transfer, analysis of CTVT mtDNA cannot cast light on the timing of CTVT’s origin). Nevertheless, we are aware of the uncertainty in CTVT origin timing estimates, and have emphasised this uncertainty by stating “approximately” or “around” whenever 11,000 years is mentioned. Additionally, we have now cited the paper to which the reviewers refer (Decker et al., 2015) (see the Introduction).

4) The authors discuss the phenomenon of mitochondrial recombination, but do not discuss the likelihood of heteroplasmy. If mitocapture is a mechanism prevalent in CTVT, it is likely that these tumors are heteroplasmic. Are the authors indicating that mitochondria from the original CTVT founder, or a subsequent host prior to Clade A is no longer present, and has been supplanted completely by now homoplastic horizontal transfer? The issue of tumor clonality / subclonality is not addressed.We thank the reviewers for raising this interesting point. As the reviewers suggest, we do believe that the absence of haplotype-level heteroplasmy suggests that mtDNA horizontal transfer is either (i) not common or (ii) does not frequently reach levels that are detectable in our analysis. Following from this, we are indeed suggesting that the original CTVT mtDNA haplotype has been replaced and is no longer present, as stated in the third paragraph of the Results and Discussion section.

Following on from this, we would like to thank the reviewers for the very valid point regarding tumour subclonality. The variable VAFs reported in Figure 2 may well be due to both intracellular heteroplasmy as well as intercellular heterogeneity (subclonality). We have addressed this point by adding a sentence to the Methods section, reading “Tumour variants with normalised VAF<1 most likely represent heteroplasmic variants; however, we cannot exclude that these represent distinct cellular subclones harbouring distinct homoplasmic mtDNA populations”.

5) The authors use an in-house variant caller that is based on paired tumor-normal samples. Since CTVT by its nature does not have a normal sample, why was another caller that did not rely on tumor /simulated normal used? Please explain.We appreciate the reviewers’ concerns about the variant caller that we used in our analysis. The unavailability of matched normal DNA from the original founder dog that first gave rise to CTVT poses challenges for the computational analysis of CTVT. Somatic variant callers, which usually require paired tumour-normal samples, generally have greater sensitivity for variant detection and do not invoke underlying diploid segregation models. We selected CaVEMan as a variant caller, as this algorithm is widely used and validated as a somatic variant caller.

6) Why was ploidy estimated to be 1.5 for CTVT and 2.0 for host? The reference indicates that CTVT is diploid.We are very grateful to the reviewers for pointing out this error. The reference indeed indicates that CTVT is diploid and we have now corrected the calculations to reflect this (please see Results and discussion, first paragraph and subsection “DNA sequencing”, first paragraph).

7) Importantly, there is no indication of where the mtDNA alignments or variants, and low coverage nuclear data is deposited for future replication. This must be done prior to acceptance of the paper for publication.

Further information about deposition of the data associated with this study is detailed below:

a) The mtDNA data associated with this study are available in GenBank with accession numbers: KU290400 – KU291095.

b) All the variant lists are available as Supplementary datasets 1 and 2.

c) The low coverage sequence data associated with this study are available in the ENA with accession number ERP014691.

https://doi.org/10.7554/eLife.14552.034

Article and author information

Author details

  1. Andrea Strakova

    1. Department of Veterinary Medicine, University of Cambridge, Cambridge, United Kingdom
    Contribution
    ASt, Critical reading of the manuscript, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Contributed equally with
    Máire Ní Leathlobhair
    Competing interests
    The authors declare that no competing interests exist.
  2. Máire Ní Leathlobhair

    1. Department of Veterinary Medicine, University of Cambridge, Cambridge, United Kingdom
    Contribution
    MNL, Critical reading of the manuscript, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Andrea Strakova
    Competing interests
    The authors declare that no competing interests exist.
  3. Guo-Dong Wang

    1. State Key Laboratory of Genetic Resources and Evolution, Yunnan Laboratory of Molecular Biology of Domestic Animals, Kunming Institute of Zoology, Chinese Academy of Sciences, Kunming, China
    Contribution
    G-DW, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  4. Ting-Ting Yin

    1. State Key Laboratory of Genetic Resources and Evolution, Yunnan Laboratory of Molecular Biology of Domestic Animals, Kunming Institute of Zoology, Chinese Academy of Sciences, Kunming, China
    Contribution
    T-TY, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  5. Ilona Airikkala-Otter

    1. International Training Center, Worldwide Veterinary Service, Aruvankadu, India
    Contribution
    IA-O, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  6. Janice L Allen

    1. Animal Management in Rural and Remote Indigenous Communities, Darwin, Australia
    Contribution
    JLA, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  7. Karen M Allum

    1. World Vets, Fargo, United States
    Contribution
    KMA, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  8. Leontine Bansse-Issa

    1. Stichting Dierenbescherming Suriname, Paramaribo, Suriname
    Contribution
    LB-I, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  9. Jocelyn L Bisson

    1. Department of Veterinary Medicine, University of Cambridge, Cambridge, United Kingdom
    Contribution
    JLB, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  10. Artemio Castillo Domracheva

    1. Corozal Veterinary Hospital, University of Panama, Panama City, Panama
    Contribution
    ACD, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  11. Karina F de Castro

    1. Department of Clinical and Veterinary Surgery, São Paulo State University, São Paulo, Brazil
    Contribution
    KFdC, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  12. Anne M Corrigan

    1. St. George's University, True Blue, Grenada
    Contribution
    AMC, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  13. Hugh R Cran

    1. The Nakuru District Veterinary Scheme Ltd, Nakuru, Kenya
    Contribution
    HRC, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  14. Jane T Crawford

    1. Animal Medical Centre, Belize City, Belize
    Contribution
    JTC, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  15. Stephen M Cutter

    1. Animal Management in Rural and Remote Indigenous Communities, Darwin, Australia
    Contribution
    SMCu, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  16. Laura Delgadillo Keenan

    1. Veterinary clinic Sr. Dog's, Guadalajara, Mexico
    Contribution
    LDK, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  17. Edward M Donelan

    1. Animal Management in Rural and Remote Indigenous Communities, Darwin, Australia
    Contribution
    EMD, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  18. Ibikunle A Faramade

    1. National Veterinary Research Institute, Vom, Nigeria
    Contribution
    IAF, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  19. Erika Flores Reynoso

    1. International Fund for Animal Welfare, Quintana Roo, Mexico
    Contribution
    EFR, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  20. Eleni Fotopoulou

    1. Intermunicipal Stray Animals Care Centre, Perama, Greece
    Contribution
    EF, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  21. Skye N Fruean

    1. Animal Protection Society of Samoa, Apia, Samoa
    Contribution
    SNF, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  22. Fanny Gallardo-Arrieta

    1. Faculty of Veterinary Science, University of Zulia, Maracaibo, Venezuela
    Contribution
    FG-A, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  23. Olga Glebova

    1. Veterinary clinic BIOCONTROL, Moscow, Russia
    Contribution
    OG, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  24. Rodrigo F Häfelin Manrique

    1. Veterinary clinic El Roble, Santiago de Chile, Chile
    Contribution
    RFHM, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  25. Joaquim JGP Henriques

    1. OnevetGroup, Centro Veterinário Berna, Lisboa, Portugal
    Contribution
    JJGPH, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  26. Natalia Ignatenko

    1. Veterinary clinic Zoovetservis, Kiev, Ukraine
    Contribution
    NI, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  27. Debbie Koenig

    1. World Vets, Fargo, United States
    Contribution
    DK, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  28. Marta Lanza-Perea

    1. St. George's University, True Blue, Grenada
    Contribution
    ML-P, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  29. Remo Lobetti

    1. Bryanston Veterinary Hospital, Bryanston, South Africa
    Contribution
    RL, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  30. Adriana M Lopez Quintana

    1. Veterinary Clinic Lopez Quintana, Maldonado, Uruguay
    Contribution
    AMLQ, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  31. Thibault Losfelt

    1. Clinique Veterinaire de Grand Fond, Saint Gilles les Bains, France
    Contribution
    TL, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  32. Gabriele Marino

    1. Department of Veterinary Sciences, University of Messina, Messina, Italy
    Contribution
    GM, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  33. Inigo Martincorena

    1. Wellcome Trust Sanger Institute, Hinxton, United Kingdom
    Contribution
    IM, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  34. Simón Martínez Castañeda

    1. Facultad de Medicina Veterinaria y Zootecnia, Universidad Autónoma del Estado de México, Toluca, Mexico
    Contribution
    SMCa, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  35. Mayra F Martínez-López

    1. School of Veterinary Medicine, Universidad de las Américas, Quito, Ecuador
    Contribution
    MFM-L, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  36. Michael Meyer

    1. Touray & Meyer Vet Clinic, Serrekunda, Gambia
    Contribution
    MM, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  37. Berna Nakanwagi

    1. The Kampala Veterinary Surgery, Kampala, Uganda
    Contribution
    BN, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  38. Andrigo B De Nardi

    1. Department of Clinical and Veterinary Surgery, São Paulo State University, São Paulo, Brazil
    Contribution
    ABDN, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  39. Winifred Neunzig

    1. World Vets, Fargo, United States
    Contribution
    WN, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  40. Sally J Nixon

    1. Vets Beyond Borders, The Rocks, Australia
    Contribution
    SJN, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  41. Marsden M Onsare

    1. Aniworld veterinary clinic, Kisumu, Kenya
    Contribution
    MMO, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  42. Antonio Ortega-Pacheco

    1. Faculty of Veterinary Medicine, Autonomous University of Yucatan, Merida, Mexico
    Contribution
    AO-P, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  43. Maria C Peleteiro

    1. Interdisciplinary Centre of Research in Animal Health, Faculty of Veterinary Medicine, University of Lisbon, Lisboa, Portugal
    Contribution
    MCP, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  44. Ruth J Pye

    1. Vets Beyond Borders, The Rocks, Australia
    Contribution
    RJP, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  45. John F Reece

    1. Help in Suffering, Jaipur, India
    Contribution
    JFR, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  46. Jose Rojas Gutierrez

    1. Veterinary clinic Dr José Rojas, Los Andes, Chile
    Contribution
    JRG, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  47. Haleema Sadia

    1. University of Veterinary and Animal Sciences, Lahore, Pakistan
    Contribution
    HS, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  48. Sheila K Schmeling

    1. Corozal Veterinary Clinic, Corozal Town, Belize
    Contribution
    SKS, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  49. Olga Shamanova

    1. Veterinary clinic Vetmaster, Ramenskoye, Russia
    Contribution
    OS, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  50. Richard K Ssuna

    1. Lilongwe Society for Protection and Care of Animals, Lilongwe, Malawi
    Contribution
    RKS, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  51. Audrey E Steenland-Smit

    1. Stichting Dierenbescherming Suriname, Paramaribo, Suriname
    Contribution
    AES-S, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  52. Alla Svitich

    1. State Hospital of Veterinary Medicine, Dniprodzerzhynsk, Ukraine
    Contribution
    ASv, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  53. Ismail Thoya Ngoka

    1. Kenya Society for Protection and Care of Animals, Nairobi, Kenya
    Contribution
    ITN, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  54. Bogdan A Vițălaru

    1. Clinical Sciences Department, Faculty of Veterinary Medicine, Bucharest, Romania
    Contribution
    BAV, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  55. Anna P de Vos

    1. Ladybrand Animal Clinic, Ladybrand, South Africa
    Contribution
    APdV, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  56. Johan P de Vos

    1. Veterinary Oncology Referral Centre De Ottenhorst, Terneuzen, Netherlands
    Contribution
    JPdV, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  57. Oliver Walkinton

    1. Vets Beyond Borders, The Rocks, Australia
    Contribution
    OW, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  58. David C Wedge

    1. Wellcome Trust Sanger Institute, Hinxton, United Kingdom
    Contribution
    DCW, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  59. Alvaro S Wehrle-Martinez

    1. Faculty of Veterinary Sciences, National University of Asuncion, San Lorenzo, Paraguay
    Contribution
    ASW-M, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  60. Mirjam G van der Wel

    1. Animal Anti Cruelty League, Port Elizabeth, South Africa
    Contribution
    MGvdW, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  61. Sophie AE Widdowson

    1. Lilongwe Society for Protection and Care of Animals, Lilongwe, Malawi
    Contribution
    SAEW, Critical reading of the manuscript, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  62. Elizabeth P Murchison

    1. Department of Veterinary Medicine, University of Cambridge, Cambridge, United Kingdom
    Contribution
    EPM, Critical reading of the manuscript, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    For correspondence
    1. epm27@cam.ac.uk
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0001-7462-8907

Funding

Wellcome Trust (Investigator Award, 102942/Z/13/A)

  • Elizabeth P Murchison

Leverhulme Trust (Philip Leverhulme Prize)

  • Elizabeth P Murchison

Royal Society (Research Grant, RG130615)

  • Elizabeth P Murchison

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Simon Frost, Young Seok Ju and Ludmil Alexandrov for helpful discussions and advice. This work was supported by grants from the Wellcome Trust (102942/Z/13/A) and the Royal Society (RG130615), and a Philip Leverhulme Prize from the Leverhulme Trust. We are grateful to Michael Stratton for his support. We would like to acknowledge the Core Sequencing Facility, IT groups and members of the Cancer Genome Group of the Wellcome Trust Sanger Institute. We are very grateful to Cathy King and all World Vets staff and volunteers who contributed to sample collection. We would like to thank the following individuals for useful information and for their help with obtaining samples for this project: Adrián Báez-Ortega, Ekaterina Batrakova, Rafaela Bortolotti Viéra, Matthew Breen, Austin Burt, Fernando Constantino Casas, John Cooper, Amici Cannis Cotacachi, Lytvynenko Dmytro, Ariberto Fassati, Ricardo Gaitan, David Hanzlíček, Mike Hobart, Rafael Ricardo Huppes, Matilde Jimenez-Coello, Debra Kamstock, Patrick Kelly, Tatiana Korytina, Ada Krupa, Anna Kuznetsova, Olakunle AbdulRasaq Lawal, Thabo Lerotholi, Marco Lima-Maigua, Jimmy Loayza-Feijoo, Mayra López-Bucheli, Margarita Mancero-Albuja, Cynthia Marchiori Bueno, Talita Mariana Morata Raposo, Luis Martínez-López, Alfredo Martínez-Meza, Edward Migneco, Scott Moroff, Claudio Murgia, Alvira Murison Swartz, Fran Nargi, Edwin Ortiz-Rodríguez, Lisa Pellegrini, Gerry Polton, Freddy Proaño-Pérez, Clare Rebbeck, Šárka Rusá, Ceseltina Semedo, Ivan Stoikov, Lester Tapia, Mirela Tinucci Costa, David Walker, Robin Weiss, Kevin Xie, Yaping Zhang, veterinary workers of Pet Centre (UVAS, Lahore, Pakistan), staff at the WVS International Training Centre in Ooty (India), staff of Veterinary clinic “El Roble” and students from St. George's University (True Blue, Grenada, West Indies) who assisted with sample collection. We are grateful to the following organisations for helpful information: Associacao Bons Amigos de Cabo Verde, the Humane Society of Cozumel, ViDAS and Coco´s Animal Welfare, Veterinary Society of Surgical Oncology (VSSO), Veterinary Cancer Society, World Vets, Animal Balance, The Spanky Project, Humane Society Veterinary Medical Association-Rural Area Veterinary Services (HSVMA-RAVS), World Small Animal Veterinary Association (WSAVA), VWB/VSF Canada, Israel Veterinary Medical Association, Italian Veterinary Oncology Society, American College of Veterinary Internal Medicine (ACVIM), Rural Vets South Africa, Animal Care Association (The Gambia), МИР ВЕТЕРИНАРИИ (World Veterinary Medicine), and staff of VetPharma. We thank Ian Mickleburgh for his assistance with laboratory procedures. The map in Figures 1C, 3A and Figure 1—figure supplement 1 was used under the Royalty Free License from Free Vector Maps. Data associated with this study are available in GenBank with accession numbers: KU290400 - KU291095. Sequencing data associated with this study are available in the ENA with accession number ERP014691.

Reviewing Editor

  1. Elaine Ostrander, Reviewing Editor, National Human Genome Research Institute, National Institutes of Health, United States

Publication history

  1. Received: January 19, 2016
  2. Accepted: April 8, 2016
  3. Version of Record published: May 17, 2016 (version 1)

Copyright

© 2016, Strakova et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,562
    Page views
  • 566
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Computational and Systems Biology
    Patrick Grossmann et al.
    Research Article
    1. Developmental Biology and Stem Cells
    Cyrille Ramond et al.
    Research Article
