Regulation of starvation-induced hyperactivity by insulin and glucagon signaling in adult Drosophila

  1. Yue Yu
  2. Rui Huang Is a corresponding author
  3. Jie Ye
  4. Vivian Zhang
  5. Chao Wu
  6. Guo Cheng
  7. Junling Jia
  8. Liming Wang Is a corresponding author
  1. Zhejiang University, China
  2. University of California, Berkeley, United States
Research Article
Cited
5
Views
2,279
Comments
0
Cite as: eLife 2016;5:e15693 doi: 10.7554/eLife.15693

Abstract

Starvation induces sustained increase in locomotion, which facilitates food localization and acquisition and hence composes an important aspect of food-seeking behavior. We investigated how nutritional states modulated starvation-induced hyperactivity in adult Drosophila. The receptor of the adipokinetic hormone (AKHR), the insect analog of glucagon, was required for starvation-induced hyperactivity. AKHR was expressed in a small group of octopaminergic neurons in the brain. Silencing AKHR+ neurons and blocking octopamine signaling in these neurons eliminated starvation-induced hyperactivity, whereas activation of these neurons accelerated the onset of hyperactivity upon starvation. Neither AKHR nor AKHR+ neurons were involved in increased food consumption upon starvation, suggesting that starvation-induced hyperactivity and food consumption are independently regulated. Single cell analysis of AKHR+ neurons identified the co-expression of Drosophila insulin-like receptor (dInR), which imposed suppressive effect on starvation-induced hyperactivity. Therefore, insulin and glucagon signaling exert opposite effects on starvation-induced hyperactivity via a common neural target in Drosophila.

https://doi.org/10.7554/eLife.15693.001

eLife digest

Animals can be thought of as tightly controlled eating machines. An animal’s brain senses if it is hungry via signals from the nervous system or hormones, and then alters the animal’s behavior to obtain a supply of food. These behaviors include looking for food and eating it; and regulating both food seeking and food consumption behaviors is crucial for the animal’s chances of survival and reproduction.

Studies that used fruit flies as a model have previously shown that flies walk more when they are hungry. This activity helped the flies to locate and occupy food sources, but it was not clear how this food seeking behavior was regulated.

Now, Yu, Huang et al. find that a small group of neurons in the fly brain controls food seeking in starving flies. The neurons achieve this by sensing two groups of hormones with opposing activity. These hormones are the fly’s equivalents of glucagon and insulin, which are found in humans and other mammals. In humans, glucagon is released when blood sugar levels are low and stimulates hunger, while insulin is released when blood sugar is high and acts to suppress feelings of hunger. Therefore, food seeking in the flies is under the precise control of signals of hunger and satiety.

Further experiments show that these fly neurons use a chemical messenger called octopamine to convey the hormone-based signals to other circuits of neurons. Notably, these downstream neurons are not involved in regulating the consumption of food. Therefore, food seeking and eating appear to be independently regulated in fruit flies.

Further studies are now needed to dissect the downstream circuits of neurons that actually control the food seeking behavior. It will also be important to explore how this behavior is suppressed when a food source is detected.

https://doi.org/10.7554/eLife.15693.002

Introduction

Energy homeostasis is vital for survival, growth, and reproduction of animal species (Gautron et al., 2015). Energy deprivation drives a complex behavioral program to ensure adequate food intake (Sternson et al., 2013). As an adaptive response to starvation, food intake is modulated by nutrient and hormonal cues. In mammals, the hypothalamic arcuate nucleus, especially the neurons expressing agouti-related protein (AgRP)/neuropeptide Y (NPY), and those expressing pro-opiomelanocortin (POMC), sense and integrate numerous nutritional cues such as circulating glucose, insulin, leptin, and ghrelin and modulate food intake in response (Belgardt et al., 2009). In fruit flies, several hormonal signals modulate different aspects of food intake, these including Drosophila insulin-like peptides (DILPs), the two homologs of mammalian NPY, neuropeptide F (NPF) and short neuropeptide F (sNPF), and a handful of other neuropeptides such as allatostatin A (AstA), leucokinin, and hugin (Pool and Scott, 2014). It is generally accepted that these hormonal cues represent the nutritional status of animals and translate them into physiological and behavioral responses (Pool and Scott, 2014; Sternson et al., 2013).

The search of appropriate food sources (i.e. food seeking) is often the first step of food intake, followed by the actual ingestion of food (i.e. food consumption) (Stephens et al., 2007). Starvation enhances food-seeking behavior in two parallel ways. On the one hand, starvation modulates the perception of food associated sensory cues, increasing the likelihood to target desirable food sources. In fruit flies, starvation increases the sensitivity of Or42b+ olfactory receptor neurons (ORNs) that mediate odor attraction, and decreases the sensitivity of aversive Or85a+ ORNs, resulting in enhanced behavioral attraction to food odors (Ko et al., 2015; Root et al., 2011). Similarly, starvation also influences the sensitivity of sweet-sensing Gr5a+ gustatory receptor neurons (GRNs) and bitter-sensing Gr66a+ GRNs in opposite directions, resulting in enhanced attractiveness to food taste (Inagaki et al., 2012; Inagaki et al., 2014; Marella et al., 2012). A number of neurohormonal cues, including DILPs, NPF, sNPF, dopamine, and tachykinin (DTK), are involved in the sensory modulation by starvation (Inagaki et al., 2012; Inagaki et al., 2014; Ko et al., 2015; Marella et al., 2012; Root et al., 2011).

On the other hand, starvation also promotes locomotor activity in both rodents and fruit flies, which may facilitate the exploration of the environment and increase the possibility to locate potential food sources (Dietrich et al., 2015; Isabel et al., 2005; Lee and Park, 2004; Yang et al., 2015). In fruit flies, starvation-induced hyperactivity requires the neuroendocrine cells producing AKH, the insect analog of glucagon (Isabel et al., 2005; Lee and Park, 2004). However, AKH has a role in modulating lipid storage as well as starvation resistance and whether it imposes a direct effect on starvation-induced hyperactivity remains unclear (Bharucha et al., 2008; Grönke et al., 2007). We have also shown that octopamine, the insect analog of norepinephrine, is required for starvation induced hyperactivity (Yang et al., 2015). But given the diverse anatomical distribution and physiological function of octopaminergic neurons in the fly brain, the underlying neural circuitry of starvation-induced hyperactivity and how it is modulated by hormonal cues remain largely unknown (El-Kholy et al., 2015).

Starvation-induced hyperactivity and food consumption are reciprocally inhibitory and the transition of these two behaviors relies on the detection of food cues (Chen et al., 2015; Yang et al., 2015). It is of great interest to understand how these two behaviors are dynamically regulated by the nutritional states and the availability of food sources. In rodents, acute activation of hypothalamic AgRP/NPY neurons induces both hyperactivity and food consumption, suggesting that these two behaviors are regulated by a same group of neurons and hormonal cues (Aponte et al., 2011; Atasoy et al., 2012; Betley et al., 2015; Dietrich et al., 2015; Krashes et al., 2011). However, the detection of food sources rapidly suppresses starvation-induced hyperactivity along with the activity of AgRP/NPY neurons before actual food consumption, suggesting that these neurons may only be involved in the locomotor response upon starvation but not food consumption (Betley et al., 2015; Chen et al., 2015). Thus, it remains elusive whether starvation-induced hyperactivity and food consumption are modulated by the same set of hormones via a common neural target, or they are independently regulated (Seeley and Berridge, 2015).

In this present study, we aimed to better understand how starvation-induced hyperactivity is regulated by hormonal signals, and whether starvation-induced hyperactivity and food consumption are interdependently or independently regulated. Through a neuronal-specific RNAi screen, we find that a small group of octopaminergic neurons located in the subesophageal zone (SEZ) of the fly brain are both necessary and sufficient for starvation-induced hyperactivity. These neurons co-express AKHR and dInR, the receptor of hunger hormone AKH and the receptor of satiety hormone DILPs, respectively, which modulate starvation-induced hyperactivity in opposite directions. Thus, these AKHR+dInR+ octopaminergic neurons represent a common neural target for two sets of functionally antagonizing hormones to modulate starvation-induced hyperactivity. Notably, manipulating starvation-induced hyperactivity does not interfere with starvation-induced food consumption, suggesting that starvation-induced changes in different food intake behaviors are independently regulated by different hormonal cues and neural circuitry in fruit flies.

Results

A neuron-specific RNAi screen identified AKHR required for starvation-induced hyperactivity

We have previously shown that starvation induces sustained increase in locomotor activity of adult flies (Yang et al., 2015). To identify the hormonal cues that regulate this behavior, we performed a neuron-specific RNAi screen in adult flies and examined the influence on their locomotor activity, which was indirectly measured by their frequency to cross the midline of tubes in the Drosophila Activity Monitor System (DAMS, Trikinetics) (Figure 1a–b).

We crossed UAS-RNAi lines targeting 31 candidate neuropeptide receptors to a pan-neuronal GAL4 driver, elav-GAL4, and assayed their female progeny for baseline locomotion under fed conditions (Figure 1c). 16 out of the 31 lines exhibited significantly altered activity compared to the control, suggesting that the baseline locomotion may be a behavioral trait sensitive to multiple neuropeptidergic signaling systems (Supplementary file 1).

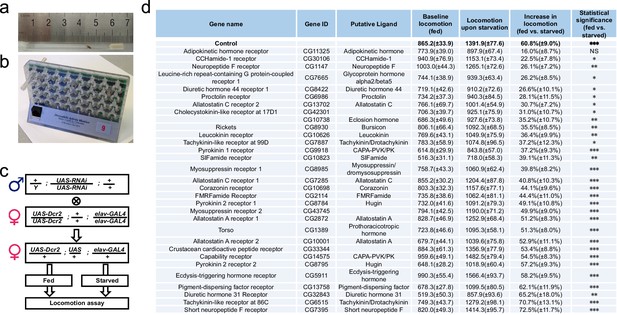

A neuron-specific RNAi screen for starvation-induced hyperactivity in adult Drosophila.

(a–b) The DAMS-based locomotion assay. (a) A single virgin female fly was hosted in a 5 × 65 mm polycarbonate tube, secured between 2% agar medium (with or without 5% sucrose) on one end and a piece of cotton on the other. The ruler was used for illustrating the size of the tube. (b) The tube was then inserted into the DAMS monitor (Trikinetics). One DAM2 monitor can hold 32 tubes at a time. The passage of flies through the middle of the tube was counted by an infrared beam. The frequency of midline crossings therefore indirectly measured flies’ locomotor activity. (c) The workflow of our RNAi screen. Note that UAS-RNAi transgenes were integrated into either the second or the third chromosome. (d) Summary of our RNAi screen (n = 29–48). For each line, their average daily midline crossing activity when fed ad libitum with 5% sucrose ('Baseline locomotion'), their activity upon starvation ('Locomotion upon starvation'), and the relative increase in locomotion ('Increase in locomotion') were listed. 'Control' is the progeny of GAL4 driver line crossed to a wild type strain. The statistical difference between fed vs. starved conditions were listed for each RNAi line. Data are shown as means ( ± SEM). NS, p>0.05; *p<0.05; **p<0.01; ***p<0.001.

https://doi.org/10.7554/eLife.15693.003

Besides the baseline activity, we also examined the changes in locomotor activity upon starvation (Figure 1c). Consistent with our previous report (Yang et al., 2015), control flies exhibited ~60% increase in their locomotor activity upon starvation (Figure 1d, 'Control'). Amongst 31 RNAi lines we examined, only the neuronal knock-down of AKHR eliminated starvation-induced hyperactivity (Figure 1d, 'AKHR'), whereas all other RNAi lines still exhibited significantly enhanced locomotion upon starvation (Figure 1d). Notably, neuronal knock-down of AKHR did not interfere with the baseline locomotion under fed conditions (Supplementary file 1), suggesting that AKHR is not involved in general motor control, but specifically in the regulation of locomotion by the internal nutritional states.

Consistent with the results from our RNAi screen, we found that AKHR-/- mutants exhibited no increase in locomotion upon starvation (Figure 2a–c). It is worth noting that a previous report did not observe the behavioral difference between AKHR-/- mutants vs. the control under starvation conditions, which was likely due to the short time window of the behavioral assay (Bharucha et al., 2008).

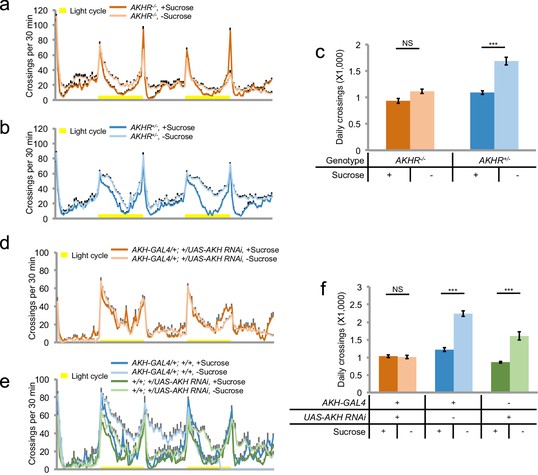

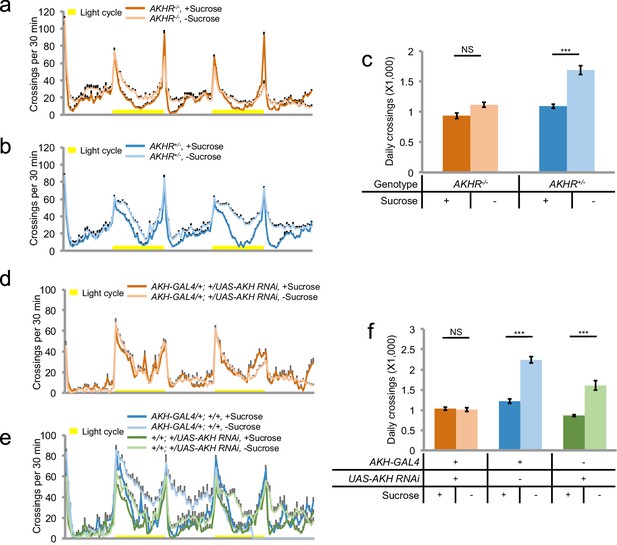

AKH-AKHR signaling is required for starvation-induced hyperactivity.

(a–b) Midline crossing activity of indicated genotypes assayed in the presence of 5% sucrose ('+Sucrose') or 2% agar ('+Sucrose') (n = 61–63). Yellow bars represent 12 hr light-on period in this and following figures. (c) Average daily midline crossing activity of flies assayed in ab. (de) Midline crossing activity of indicated genotypes assayed in the presence of 5% sucrose ('+Sucrose') or 2% agar ('-Sucrose') (n = 24–30). (f) Average daily midline crossing activity of flies assayed in de. Error bars represent SEM. NS, p>0.05; ***p<0.001.

https://doi.org/10.7554/eLife.15693.004

AKHR is the candidate receptor of AKH, the insect analog of mammalian glucagon. Similar to its mammalian counterpart, AKH secretion is induced by the reduction in circulating sugar levels, which in turn mobilizes lipid storage for energy supply (Kim and Rulifson, 2004). Previous reports have shown that genetic ablation of AKH-producing cells located in the corpora cardiaca led to increased fat storage and diminished starvation-induced hyperactivity (Isabel et al., 2005; Lee and Park, 2004). Consistently, we also found that eliminating AKH expression abolished starvation-induced hyperactivity (Figure 2d–f). Taken together, AKH-AKHR signaling is required for starvation-induced hyperactivity in adult flies.

Neuronal AKHR is required for starvation-induced hyperactivity but not food consumption

Previous reports have shown that AKHR is expressed in the fat body and regulates lipid storage (Bharucha et al., 2008; Grönke et al., 2007). We also confirmed that AKHR-/- mutant flies had excessive fat storage (Figure 3—figure supplement 1). Therefore, it was unclear whether AKHR signaling had a direct role in regulating starvation-induced hyperactivity in the nervous system, or merely delayed starvation-induced hyperactivity by enhancing lipid storage, or both. To further examine the function of neuronal AKHR, we used a different pan-neuronal driver neuronal synaptobrevin-GAL4 (nSyb-GAL4) to knock down AKHR in the nervous system. Consistent with the results from our RNAi screen, pan-neuronal elimination of AKHR showed comparable locomotor activity under fed and starved conditions, whereas the two genetic controls exhibited significant increase in locomotion upon starvation (Figure 3a–c). Notably, neuronal knock-down of AKHR did not affect lipid storage of flies (Figure 3—figure supplement 1), and fat body knock-down of AKHR did not eliminate starvation-induced hyperactivity (Figure 3—figure supplement 2), disassociating the behavioral and metabolic effects of AKHR signaling. These results confirm that only neuronal AKHR, but not fat body-expressed AKHR, is required for starvation-induced hyperactivity in flies.

To further evaluate the function of neuronal AKHR in starvation-induced hyperactivity, we used a behavioral assay that directly quantified the walking velocity as well as the position of individual flies in the presence or absence of food cues (Figure 3—figure supplement 3a). By using this behavioral assay, we confirmed that flies with neuronal knock-down of AKHR exhibited comparable walking velocity under fed vs. starved conditions, whereas the two control genotypes exhibited significantly increased walking velocity upon starvation (Figure 3—figure supplement 3e). Besides increased locomotion, starved flies also exhibited increased interest to food and could rapidly locate and occupy food sources (Ko et al., 2015; Root et al., 2011; Yang et al., 2015). Interestingly, starved flies from all three genotypes could locate and occupy food sources in the center of the behavioral chamber (Figure 3—figure supplement 3b–d). Taken together, these data confirm that neuronal AKHR is required for starvation-induced hyperactivity without interfering their ability to locate and occupy food sources.

Starvation promotes both locomotor activity and food consumption. But it remained unclear whether these two behaviors are regulated by the same set of hormonal cues or not. We thus asked whether neuronal AKHR was also required for starvation-induced increase in food consumption. We first examined food consumption during the course of a single meal, by using a capillary-based feeding assay named the MAFE (MAnual FEeding) assay (Qi et al., 2015) (Figure 3d). We found that starvation could significantly increase food consumption, and that neuronal knock-down of AKHR did not affect starvation-induced increase in meal size (Figure 3f).

Figure 3 with 3 supplements see all

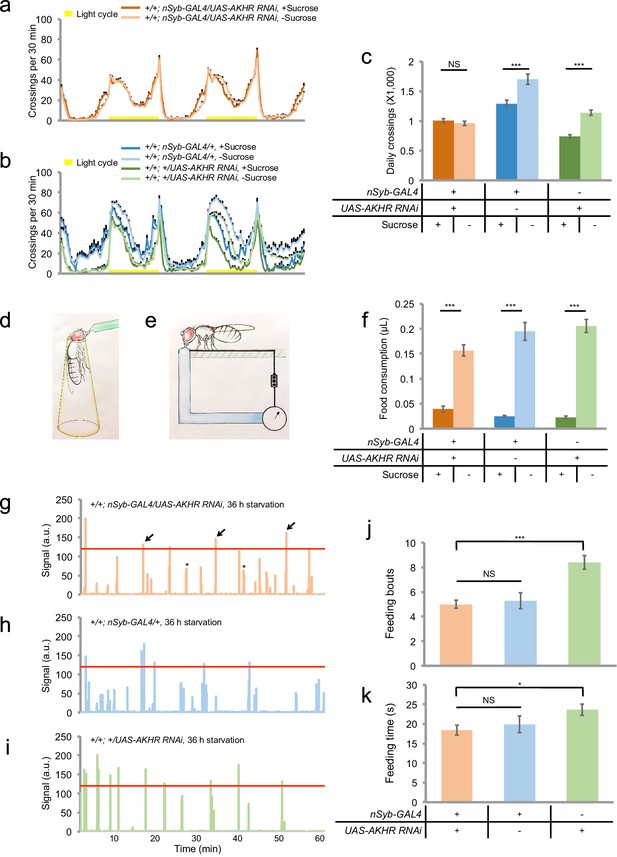

Neuronal AKHR is required for starvation-induced hyperactivity but not food consumption.

(a–b) Midline crossing activity of indicated genotypes assayed in the presence of 5% sucrose ('+Sucrose') or 2% agar ('-Sucrose') (n = 31–80). (c) Average daily midline crossing activity of flies assayed in a–b. (d–e) Schematic illustration of the MAFE assay (d) or the FLIC assay (e). (f) Volume of 800 mM sucrose consumed in a meal by indicated genotypes fed ad libitum with 5% sucrose, or starved for 36 hr using the MAFE assay. (n = 30–39). (gi) Representative feeding plots of individual flies in the FLIC assay. Flies of the indicated genotypes were starved for 36 hr before the assays. The plots show the electrical current signals that reflected the physical contact between flies and the liquid food (800 mM sucrose). The a.u. higher than 120 (red line) was considered as feeding events (arrows). Asterisks indicate possible 'tasting/licking' events. (j–k) Number of feeding bouts (j) and total duration of feeding time (k) during 1 hr recording in the FLIC assay (n = 50–72). Note that one control genotype (green) exhibited higher levels of feeding likely due to the genetic background of nSyb-GAL4 we used. Error bars represent SEM. NS, p>0.05; *p<0.05; ***p<0.001.

https://doi.org/10.7554/eLife.15693.005

We also assayed long-term food consumption using the FLIC (Fly Liquid-food Interaction Counter) assay that measured the frequency and duration of physical contacts between fly’s proboscis and the liquid food (Ro et al., 2014) (Figure 3e, also see Figure 3g–i). We found that eliminating AKHR in neurons did not interfere with long-term feeding, as measured by both the number of feeding bouts and the total duration of feeding (Figure 3j–k). Taken together, these data show that neuronal AKHR is specifically required for starvation-induced hyperactivity but not food consumption. It is likely that several other hormonal cues mediate the effect of starvation on food consumption (Figure 7i) (Pool and Scott, 2014).

AKHR+ neurons are required for starvation-induced hyperactivity

We next asked which AKHR+ neurons were required for starvation-induced hyperactivity. Previous reports have shown that besides the fat body, AKHR is also expressed in the sweet-sensing gustatory neurons (Bharucha et al., 2008). However, we found that knocking down AKHR in Gr5a+ sweet-sensing gustatory neurons did not interfere with starvation-induced hyperactivity (Figure 4—figure supplement 1). Moreover, we have previously shown that starvation-induced hyperactivity did not require gustatory input (Yang et al., 2015). These data suggest that AKHR is likely expressed in additional neurons other than those in the gustatory sensory organs, where it regulates starvation-induced hyperactivity.

To specifically examine the neuronal expression of AKHR, we utilized the split-GAL4 system and generated transgenic flies carrying the GAL4 Activation Domain under the control of nSyb promoter (nSyb:AD) and the GAL4 DNA-binding Domain under the control of AKHR promoter (AKHR:BD). Using the combinational nSyb:AD/AKHR:BD-GAL4 driver that induces gene expression only in AKHR+ neurons, we found that AKHR was expressed in a small group of neurons located in the SEZ (2–4 neurons per hemisphere) but not in the ventral nerve cord (data not shown) (Figure 4a–b). The cell bodies of these AKHR+ neurons were located in the ventrolateral region of the SEZ and sent Y-shaped neural projections into the SEZ (Figure 4b). As previously reported (Bharucha et al., 2008), we also found that AKHR was expressed in the sweet-sensing gustatory neurons and projected to the SEZ region of the brain (Figure 4c–d). As discussed above, however, these gustatory neurons are not involved in starvation-induced hyperactivity (Figure 4—figure supplement 1).

Figure 4 with 1 supplement see all

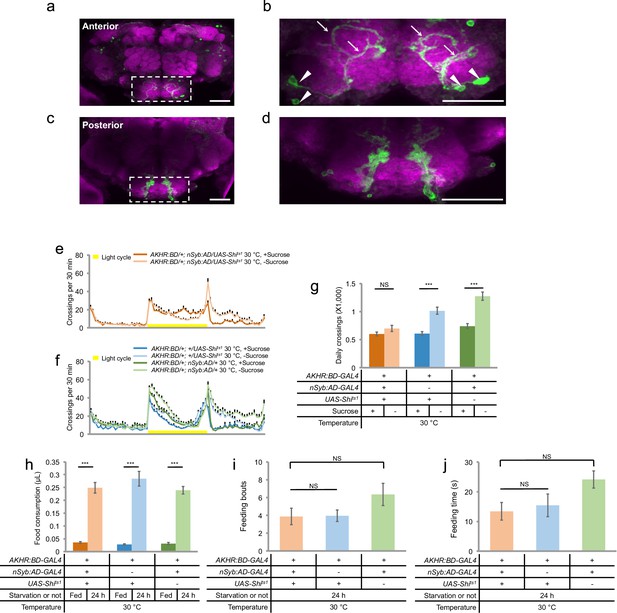

AKHR+ neurons are required for starvation-induced hyperactivity.

(a, c) The expression of membrane-bound GFP (mCD8GFP) in AKHR+neurons in the anterior (a) and the posterior (c) part of the fly brain. The dashed box outlines the region of SEZ. (b, d) An enlarged image of the SEZ region seen in a and c. Note the cell bodies located in the ventrolateral side of the SEZ (arrowheads) and their Y-shaped projections (arrows) in b. Green: GFP. Magenta: nc82. Scale bars represent 20 μm in a–d. (e–f) Midline crossing activity of indicated genotypes assayed in the presence of 5% sucrose ('+Sucrose') or 2% agar ('-Sucrose') (n = 60–75). (g) Average daily midline crossing activity of flies assayed in e–f. (h) Volume of 800 mM sucrose consumed in a meal by indicated genotypes fed ad libitum with 5% sucrose, or starved for 24 hr using the MAFE assay (n = 18–40). (i–j) Number of feeding bouts (i) and total duration of feeding time (j) during 1 hr recording in the FLIC assay (n = 20–24). Error bars represent SEM. NS, p>0.05; ***p<0.001.

https://doi.org/10.7554/eLife.15693.009

To test whether AKHR+ neurons in the SEZ were required for starvation-induced hyperactivity, we expressed Shibirets1, a temperature sensitive form of dynamin (Kitamoto, 2001), in AKHR+ neurons and acutely blocked neuronal transmission by transferring the flies to non-permissive temperature (30°C) before the behavioral assays. We found that acute silencing of AKHR+ neurons eliminated starvation-induced hyperactivity (Figure 4e–g). Therefore, AKHR+ neurons in the fly brain are required for increased locomotion upon starvation.

We also examined whether AKHR+ neurons were required for starvation-induced increase in food consumption. Acute silencing of AKHR+ neurons did not block the increase in food consumption by starvation, as assayed by the changes in meal size upon starvation (Figure 4h), and by the number of feeding bouts and total feeding duration (Figure 4i–j). Therefore, AKHR and AKHR+ neurons specifically regulate starvation-induced hyperactivity, but not food consumption.

Activation of AKHR+ neurons promotes starvation-induced hyperactivity

We then sought to investigate whether AKHR+ neurons played an instructive or merely permissive role in regulating starvation-induced hyperactivity. To do so, we expressed NaChBac (Nitabach et al., 2006), a bacterial sodium channel, in AKHR+ neurons. NaChBac expression increases the membrane excitability and facilitates the activation of these neurons (Nitabach et al., 2006). We found that NaChBac expression in AKHR+ neurons accelerated the onset of hyperactivity upon starvation. While the two control lines only exhibited a significant increase in locomotion during Day two of the assay, NaChBac expression in AKHR+ neurons led to increased locomotor activity from Day one of the assay (Figure 5a–d). Consistently, over-expression of AKHR in AKHR+ neurons also led to earlier onset of starvation-induced hyperactivity (Figure 5—figure supplement 1).

We also examined whether activation of AKHR+ neurons influenced starvation-induced increase in food consumption. As shown in Figure 5e, NaChBac expression in AKHR+ neurons did not change the meal size of both fed and starved flies. Activating AKHR+ neurons did not alter the duration and frequency of feeding behavior, either (Figure 5f–g). Taken together, the regulation of starvation-induced hyperactivity can therefore be disassociated from the regulation of starvation-induced food consumption, since the former is neither necessary nor sufficient for the latter (Figures 4 and 5).

Figure 5 with 1 supplement see all

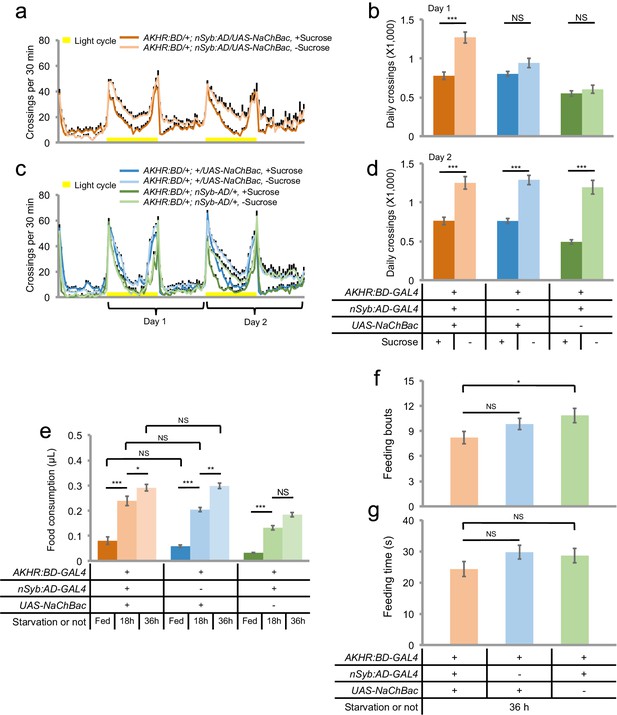

AKHR+ neurons promote starvation-induced hyperactivity.

(a, c) Midline crossing activity of indicated genotypes assayed in the presence of 5% sucrose ('+Sucrose') or 2% agar ('-Sucrose') (n = 48–80). (b, d) Average daily midline crossing activity during Day one (b) and Day two (d) of flies assayed in a, c. (e) Volume of 800 mM sucrose consumed in a meal by indicated genotypes fed ad libitum with 5% sucrose, or starved for 18 and 36 hr using the MAFE assay (n = 38–52). (f–g) Number of feeding bouts (f) and total duration of feeding time (g) during 1 hr recording in the FLIC assay (n = 54–60). Error bars represent SEM. NS, p>0.05; *p<0.05; **p<0.01; ***p<0.001.

https://doi.org/10.7554/eLife.15693.011

Insulin signaling suppresses starvation-induced hyperactivity via AKHR+ neurons

We next sought to further investigate the mechanism underlying the regulation of starvation-induced hyperactivity by AKHR+ neurons. We hypothesized that besides AKH, AKHR+ neurons might also sense other hormonal cues that exerted modulatory effects on the activity of AKHR+ neurons and hence starvation-induced hyperactivity. To examine this hypothesis, we labeled AKHR+ neurons with mCD8GFP, extracted individual GFP+ neurons (and randomly picked GFP- neurons as negative controls) from fly brains, and performed single-cell RT-PCR analysis. All GFP+ neurons we examined were AKHR positive, confirming that the nSyb:AD/AKHR:BD-GAL4 driver reliably recapitulates the endogenous expression pattern of AKHR (Figure 6a–b, 'GFP' and 'AKHR'). We also performed single-cell RNA-seq using the cells labeled by the nSyb:AD/AKHR:BD-GAL4 driver. Consistent with our single-cell RT-PCR experiments, all GFP+ cells we examined by RNA-seq showed considerable AKHR expression (Figure 6c, 'AKHR'). In contrast, these GFP+ cells showed no or very low expression for genes specifically expressed in the peripheral nervous system, muscle, and the fat body (Figure 6c, 'Or67d', 'Gr5a', 'MyoD', and 'Slimfast').

Figure 6 with 3 supplements see all

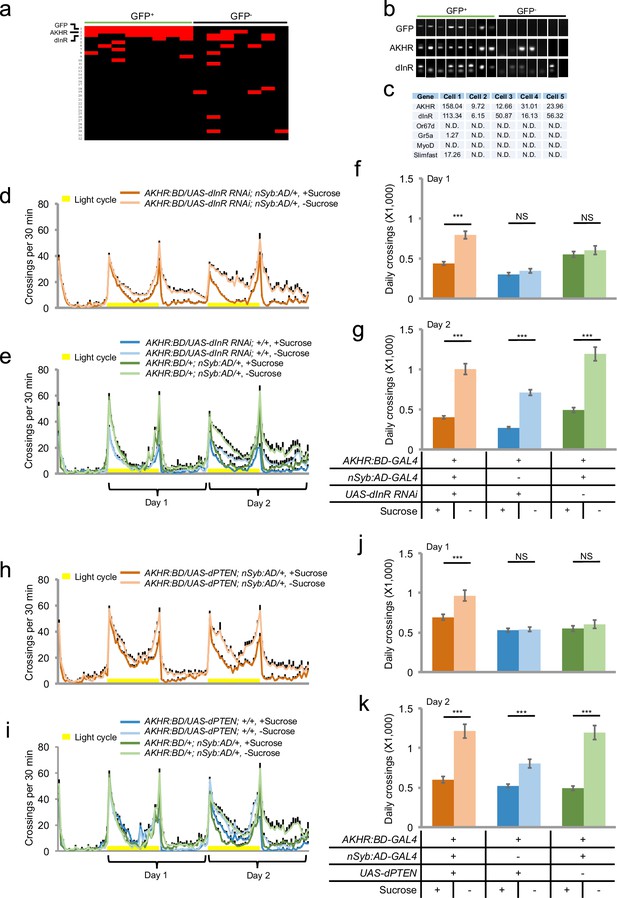

Insulin signaling suppresses starvation-induced hyperactivity via AKHR+ neurons.

(a) Heat map indicating the expression pattern of neuropeptide receptors we examined in individual AKHR+ (green) and AKHR- (black) neurons. Red and black blocks represent genes that could and could not be detected by RT-PCR, respectively. For a complete list of all 32 genes we examined see Supplementary file 1. The first three genes, GFP, AKHR, and dInR are indicated in bold. (b) Representative RT-PCR bands for indicated genes shown in a. Note that the lower bands in the 'dInR' row are primer dimers. (c) Gene expression in five GFP+ cells assayed by RNA-seq (shown in RPKM). Or67d and Gr5a are expressed in the primary sensory neurons; MyoD in muscle; and Slimfast in the fat body. (d–e) Midline crossing activity of indicated genotypes assayed in the presence of 5% sucrose ('+Sucrose') or 2% agar ('-Sucrose') (n = 48–80). (f–g) Average daily midline crossing activity during Day one and Day two of flies assayed in d–e. (h–i) Midline crossing activity of indicated genotypes assayed in the presence of 5% sucrose ('+Sucrose') or 2% agar ('-Sucrose') (n = 48–80). (j–k) Average daily midline crossing activity during Day one and Day two of flies assayed in h–i. Error bars represent SEM. NS, p>0.05; ***p<0.001.

https://doi.org/10.7554/eLife.15693.013

We then examined the expression of a collection of candidate neuropeptide receptors in AKHR+ neurons. Among all receptor genes we examined (Supplementary file 1), we found that the transcripts of dInR were steadily detected in GFP+ neurons by single-cell RT-PCR (Figure 6a–b, 'dInR'). The co-localization of dInR and AKHR was also confirmed by RNA-seq (Figure 6c, 'dInR') and antibody staining (Figure 6—figure supplement 1).

dInR is the receptor of DILPs, the insect analogs of mammalian insulin. Similar to insulin, DILPs function as satiety signals. Dietary sugars and proteins induce the release of DILPs into the hemolymph, which in turn promotes growth and nutrient storage (Buch et al., 2008; Rulifson et al., 2002). Therefore, the expression of dInR in AKHR+ neurons suggests that insulin signaling may counteract the effect of AKH-AKHR signaling and suppress the activity of AKHR+ neurons hence starvation-induced hyperactivity. To test this hypothesis, we knocked down the expression of dInR in AKHR+ neurons and examined its effect on flies’ locomotion. We found that similar to the effect of activating AKHR+ neurons (Figure 5a–d), eliminating dInR expression in AKHR+ neurons accelerated the onset of hyperactivity upon starvation (Figure 6d–g). Conversely, over-expression of dInR in AKHR+ neurons delayed the onset of starvation-induced hyperactivity (Figure 6—figure supplement 2). Collectively, these data suggest that insulin signaling in AKHR+ neurons suppress the activity of these neurons and hence starvation-induced hyperactivity. To confirm this finding, we over-expressed Drosophila PTEN (dPTEN), a negative regulator of insulin signaling pathway, in AKHR+ neurons (Gao et al., 2000). Over-expression of dPTEN led to an earlier onset of starvation-induced hyperactivity, phenocopying the effect of dInR knock-down in AKHR+ neurons (Figure 6h–k).

Taken together, these data suggest that the activity of AKHR+ neurons is modulated by two sets of functionally antagonizing hormones, AKH and DILPs. The hunger hormone AKH activates these neurons via AKHR and promotes locomotor activity upon starvation, whereas the satiety hormones DILPs exert a suppressive effect on starvation-induced hyperactivity via dInR signaling. The interplay between these two sets of hormonal cues therefore modulates locomotor activity upon changes in flies’ internal nutritional states. Besides dInR, Myosuppressin receptor 2 (DMS-R2) was also moderately enriched in AKHR+ neurons (Figure 6a, Line 4). Knocking down DMS-R2 in AKHR+ neurons, however, did not affect starvation-induced hyperactivity (Figure 6—figure supplement 3).

Octopamine signaling mediates the effect of AKHR+ neurons on starvation-induced hyperactivity

We next asked how AKHR+ neurons connected the upstream hormonal signals to downstream neural circuitry. To do so, we aimed to understand which neurotransmitter(s) AKHR+ neurons utilized to modulate starvation-induced hyperactivity. We performed single-cell RT-PCR on AKHR+ neurons for genes critical for the biosynthesis of several neurotransmitters including dopamine, serotonin, octopamine, tyramine, acetylcholine, glutamate, GABA, and histamine (Supplementary file 1). Single-cell RT-PCR showed that the transcripts of tyramine beta-hydroxylase (TβH) were detected in GFP+ neurons (Figure 7a–b). These results were also confirmed by single-cell RNA-seq (Figure 7c).

Figure 7 with 1 supplement see all

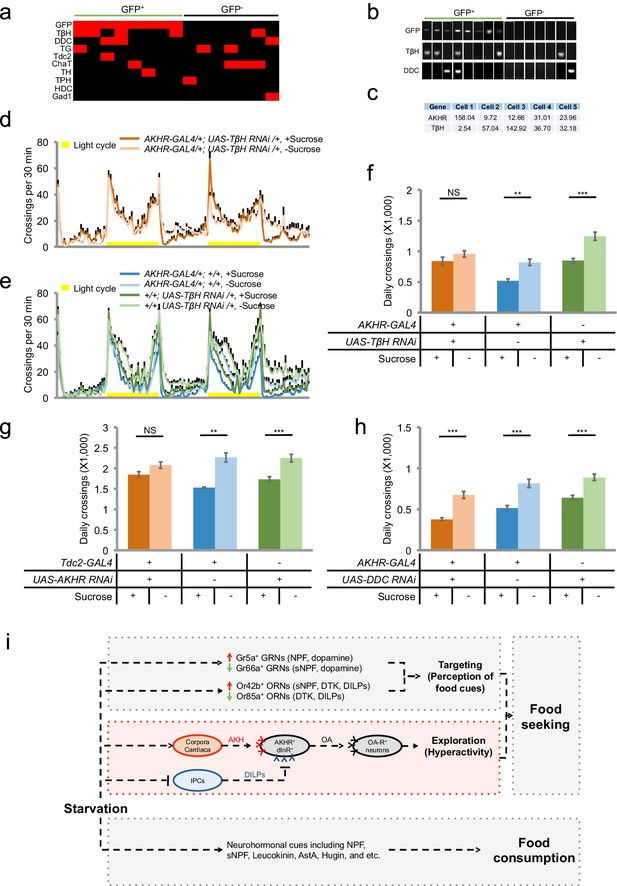

Octopamine mediates the effect of AKHR+ neurons on starvation-induced hyperactivity.

(a) Heat map indicating the expression of neurotransmitter related genes in individual AKHR+ and AKHR- neurons. Red and black blocks represent genes that could and could not be detected by RT-PCR, respectively. For a complete list of all 10 genes we examined see Supplementary file 1. (b) Representative RT-PCR bands for indicated genes shown in a. (c) Gene expression in five GFP+ cells assayed by RNA-seq (shown in RPKM). (de) Midline crossing activity of indicated genotypes assayed in the presence of 5% sucrose ('+Sucrose') or 2% agar ('-Sucrose') (n = 38–48). (f) Average daily midline crossing activity of indicated genotypes in de. (gh) Average daily midline crossing activity of indicated genotypes (n = 43–65). (i) A working model. Starvation promotes both food seeking and food consumption. Food seeking has two components: food targeting (i.e. perception of food cues) and environmental exploration (i.e. hyperactivity). In this present study (highlighted in red), we have shown that a small group of octopaminergic neurons located in the fly brain are both necessary and sufficient for starvation-induced hyperactivity, an important aspect of food seeking. These neurons express AKHR and dInR, the receptors of AKH and DILPs, respectively. These neurons are octopaminergic (OA), and likely exert their behavioral effect via downstream neurons expressing certain octopamine receptor(s) (OA-R). It is worth noting that the regulation of starvation-induced hyperactivity is independent from that of food consumption, and vice versa. NS, p>0.05; **p<0.01; ***p<0.001.

https://doi.org/10.7554/eLife.15693.017

TβH is critical for the biosynthesis of octopamine, the insect analog of vertebrate norepinephrine (Roeder, 2004). Octopamine is involved in the regulation of various behaviors, including sleep (Crocker and Sehgal, 2008), learning (Burke et al., 2012), and aggression (Hoyer et al., 2008). We have also shown previously that octopamine signaling was also required for starvation-induced hyperactivity (Yang et al., 2015). We therefore asked whether octopamine mediated the effect of AKHR+ neurons on this behavior. We first showed that similar to the phenotype of TβHM18 null mutants (Yang et al., 2015), pan-neuronal knock-down of TβH expression eliminated starvation-induced hyperactivity (Figure 7—figure supplement 1). Furthermore, knocking down the expression of TβH specificallyin AKHR+ neurons eliminated starvation-induced hyperactivity (Figure 7d–f). Consistently, knocking down the expression of AKHR in octopaminergic neurons also blocked the increase in locomotion by starvation (Figure 7g). Taken together, our data suggest that AKHR+ neurons in the fly brain are octopaminergic, and that octopamine signaling mediates the effect of these neurons on starvation-induced hyperactivity.

Single-cell RT-PCR also identified that the transcripts of Dopa decarboxylase (DDC), a key enzyme for the biosynthesis of both dopamine and serotonin (Lundell and Hirsh, 1994), was moderately enriched in AKHR+ neurons (Figure 7a–b). We thus examined the potential role of DDC in AKHR+ neurons. Nevertheless, eliminating DDC expression in AKHR+ neurons exerted no effect on the increased locomotion by starvation (Figure 7h).

Discussion

Food seeking and food consumption are essential for the acquisition of food sources, and hence survival, growth, and reproduction of animal species (Gao and Horvath, 2007). Starvation influences food-seeking behavior via both modulating the perception of food cues as well as enhancing flies’ locomotor activity (Figure 7i). Accumulated evidence has suggested that starvation modulates the activity of ORNs via multiple neural and hormonal cues (Beshel and Zhong, 2013; Ko et al., 2015), which in turn facilitates odor-driven food search (Root et al., 2011) and food consumption (Farhadian et al., 2012; Wang et al., 2013). Similarly, starvation also modulates the perception of food taste via the relative sensitivity of appetitive sweet-sensing and aversive bitter-sensing GRNs, which may in turn increase the attractiveness of food taste (Inagaki et al., 2012; Inagaki et al., 2014; Marella et al., 2012). However, how starvation increases the locomotor activity of flies remains largely uncharacterized.

Consistent with previous reports (Isabel et al., 2005; Lee and Park, 2004), we have shown that starved fruit flies exhibit sustained increase in their locomotor activity, which can be suppressed by food consumption induced by both nutritive and non-nutritive food cues (Yang et al., 2015). In the present study, we have shown that a small group of neurons located in the SEZ region of the fly brain are both necessary and sufficient for starvation-induced hyperactivity. These neurons sense the changes in flies’ internal nutritional states by directly responding to two sets of hormones, AKH and DILPs, and modulate locomotor activity in response. Single cell analysis has identified that these AKHR+dInR+ neurons are octopaminergic, which offers an entry point to trace the downstream neural circuitry that regulates starvation-induced hyperactivity. For example, there are 7 candidate octopamine receptors in fruit flies and it would be of interest to investigate whether any of these receptors and the receptor-expressing neurons are involved in locomotor regulation upon starvation (El-Kholy et al., 2015).

AKH and DILPs are two sets of functionally counteracting hormones in fruit flies. As its mammalian analog glucagon, the reduction in circulating sugars induces the release of AKH, which in turn mobilizes fat storage and provides energy supply for flies (Bharucha et al., 2008; Kim and Rulifson, 2004; Lee and Park, 2004). In contrast, DILPs, the insect analog of mammalian insulin, function as satiety hormones. Dietary nutrient induces the release of DILPs into the hemolymph, which in turn promotes protein synthesis, body growth, and other anabolic processes (Buch et al., 2008; Rulifson et al., 2002). We have shown that these two hormonal signaling systems exert opposite effects on starvation-induced hyperactivity via a small group of AKHR+InR+ octopaminergic neurons. These results suggest that these AKHR+dInR+ neurons can integrate the inputs from the two hormonal signaling systems representing hunger and satiety at the same time, and modulate flies’ locomotor activity (Figure 7i). This elegant yet concise design allows these neurons to be responsive to rapid changes in the internal nutritional states as well as food availability. Furthermore, it is possible that besides hunger and satiety, other physiological states such as wakefulness, stress, and emotions also influence flies’ locomotor activity. Notably, our single cell analysis has shown that these AKHR+dInR+ neurons also sparsely express other neuropeptide receptors, suggesting that at least small portions of these neurons may also receive input from other neuropeptidergic systems.

Starved animals exhibited increased locomotion and food consumption, the transition of which relies on the detection of food cues (Chen et al., 2015; Yang et al., 2015). But whether these two behaviors are interdependently or independently regulated remains unclear. In this present study, we have shown that these two behaviors are dissociable from each other in fruit flies (Figure 7i). On the one hand, although AKHR+ neurons exert a robust modulatory effect on starvation-induced hyperactivity, these neurons are neither necessary nor sufficient for starvation-induced food consumption (Figures 4 and 5). On the other hand, the regulation of food consumption is independent of starvation-induced hyperactivity as well. We have previously shown that a small subset of GABAergic neurons in the fly brain regulates food consumption but exerts no effect on starvation-induced hyperactivity (Pool et al., 2014). In addition, several neuropeptides are known to regulate food consumption, such as Hugin, NPF, sNPF, Leucokinin, and AstA (Al-Anzi et al., 2010; Hergarden et al., 2012; Lee et al., 2004; Melcher and Pankratz, 2005; Wu et al., 2005). However, we found in our RNAi screen that the receptors of these neuropeptides were not involved in the regulation of starvation-induced hyperactivity (Figure 1d). Taken together, it is likely that starvation-induced hyperactivity and food consumption are independently regulated by different sets of hormonal cues, and that AKHR+ neurons are only involved in the former but not the latter. Our results may shed light on the regulation of food intake in mammals, especially whether starvation-induced hyperactivity and food consumption are also independently regulated by different sets of hormones and distinct neural circuitry in mammals.

Materials and methods

Flies

Flies were kept on a standard fly medium made of yeast, corn, and agar at 25°C and 60% humidity on a 12 hr light: 12 hr dark cycle. Virgin female flies were collected shortly after eclosion and kept in groups (20 flies per vial) for 5–6 d before experiments. For experiments involving Shibirets1, flies were raised at 18°C for 8–9 d before transferring to 30°C right before the behavioral assays.

All UAS-RNAi lines used in the screen (#25832, #25858, #25925, #25935, #25936, #25939, #25940, #26017, #27275, #27280, #27494, #27669, #27506, #27507, #27509, #27513, #27529, #27539, #28580, #28780, #28781, #28783, #29414, #29577, #29624, #31490, #34947, #31884, #31958, #33627, #38347), UAS-TβH RNAi (#27667), UAS-AKH RNAi (#27031), AKH-GAL4 (#25683), UAS-mCD8GFP (#32186), Tdc2-GAL4 (#9313), fat body specific ppl-GAL4 (#58768), and gustatory neuron specific Gr5a-GAL4 (#57592) were obtained from the Bloomington Drosophila Stock Center at Indiana University. UAS-DDC RNAi (#2197.N) and UAS-dInR RNAi (#5713) were from the Tsinghua Fly Center. AKHR-/- and UAS-AKHR flies were from R. Kühnlein (Grönke et al., 2007).

Transgenic flies were generated using the methods described previously (Pfeiffer et al., 2010). Briefly, the nSyb promoter (−1826 to +78) and the AKHR promoter (−2804 to +55) were generated by PCR from genomic DNA and cloned into pDONR221 vector (Life Technologies), and subsequently cloned into pBPGUw (Addgene #17575), pBPp65ADZpUw (Addgene #26234), and pBPZpGAL4DBDUw (Addgene #26233) to generate nSyb-GAL4, AKHR-GAL4, nSyb:AD and AKHR:BD constructs. These cloned DNA fragments were then integrated into AttP40 (25C6), AttP2 (68A4), and VK00031 (62E1) landing sites, respectively.

Locomotion assay

DAMS-based locomotion assay

As described in our earlier report (Yang et al., 2015), the locomotor activity of individual flies was indirectly monitored using DAMS (Trikinetics). Briefly, individual virgin female flies were lightly anesthetized and introduced into 5 × 65 mm polycarbonate tubes (Trikinetics). One end of these tubes was filled with 2% (wt/vol) agar ± 5% (wt/vol) sucrose and the other end was blocked by cotton wool. These polycarbonate tubes were then inserted into DAMS monitors and kept in fly incubators during the course of the experiments.

Video-based locomotion assay

To prepare for the assay, a small drop of 2% (wt/vol) agar medium (sucrose might be added as indicated) was placed in the center of each recording chamber (10 mm (Diameter) × 4 mm (Height)). Individual flies fed ad libitum or starved for 36 hr were gently aspirated into each chamber, and their activity was then video recorded for 8 hr and analyzed by the CADABRA software (Dankert et al., 2009; Yang et al., 2015).

Food consumption assays

The MAFE assay

As described previously (Qi et al., 2015), individual flies were introduced into a 200 μL pipette tip by gentle aspiration. The pipette tip was carefully cut using a blade to expose the proboscis. Flies were first water satiated and then presented with 800 mM sucrose added with 2% green dye (McCormick, Sparks, MD) delivered in a fine graduated capillary (VWR, #53432–604). When the flies became unresponsive to a series of 10 food stimuli, the assay was terminated and the total volume of ingested food was calculated.

The FLIC assay

The FLIC assay was performed as described previously (Ro et al., 2014). Briefly, both feeding channels in the Drosophila Feeding Monitors (DFM) were filled with 800 mM sucrose added with 2% blue dye (McCormick). Individual starved flies were gently aspirated into each feeding arena and their feeding behavior was recorded for 1 hr. Physical contact between flies’ proboscis and the liquid food generated an electrical current that was recorded by the DFMs. According to the original report, electrical current greater than 120 a.u. was considered as actual feeding, and the total feeding bouts and the duration of feeding time were calculated accordingly.

Imaging

The brains of ice anesthetized flies were dissected in PBS and then fixed in 4% PFA on ice for at least 1 hr. Fixed brains were incubated in Penetration/Blocking Buffer (2% Triton X-100 and 10% Calf Serum in PBS) for 20–24 hr at 4°C and incubated in Dilution Buffer (0.25% Triton X-100 and 1% Calf Serum in PBS) with primary antibodies at 4°C for 20–24 hr. The samples were then washed in Washing Buffer (3% NaCl and 1% Triton X-100 in PBS) for 3 × 30 min at room temperature and subsequently incubated in secondary antibodies for 20–24 hr at 4°C. The brains were washed again in Washing Buffer before mounted in Fluoroshield with DAPI (Sigma-Aldrich) for confocal imaging (Nikon 60 × A/1.20 WI). Antibodies were used at the following dilutions: mouse anti-nc82 (1:200, DSHB), rabbit anti-GFP (1:500, Life Technologies), mouse anti-GFP (1:500, abcam), rabbit anti-dInR (1:100, Cell Signaling Technology), Alexa Fluor 546 goat anti mouse (1:300, Life Technologies), Alexa Fluor 488 goat anti rabbit (1:300, Life Technologies), Alexa Fluor 546 goat anti rabbit (1:300, Life Technologies), and Alexa Fluor 488 goat anti mouse (1:300, Life Technologies).

Single-cell RT-PCR

The method of single-cell cDNA preparation has been described previously (Tang et al., 2010). In brief, individual GFP+ cells were picked with a glass micropipette in situ (pipettes were pulled from thick-walled borosilicate capillaries (BF120-69-10, Sutter Instruments) for initial tip opening of 1–2 μm under a dissecting microscope and transferred into lysate buffer (0.9 × PCR Reaction Buffer II, 1.35 mM MgCl2, 0.45% NP40, 4.5 mM DTT, 0.18 U/µl SUPERase-In, 0.36 U/µl RNase inhibitor, 12.5 nM UP1 primer, 0.045 mM dNTP mix) immediately, followed by reverse transcription using oligo(dT) primers to generated first-strand cDNA. A poly(A) tail was then added to the 3′ end of the first-strand cDNA by terminal deoxynucleotidyl transferase. The cDNA was amplified by 29 cycles of PCR with universal oligo(dT) primers, and then tested by nested PCR with the primers listed in Supplementary file 1.

Single-cell RNA-seq

Individual GFP+ cells were harvested as described above, subjected to cDNA amplification (SMARTer Ultra Low RNA Kit for Sequencing, Clonetech), library preparation (NEBNext Ultra II DNA Library Prep Kit, NEB), and sequencing (Illumina Hiseq2500/4000 platform). Reads were subsequently mapped to Drosophila genome and only uniquely mapped reads were kept for further analysis. Gene expression levels were quantified and compared by RPKM (Reads Per Kilobase per Million mapped reads).

Statistical analysis

Data presented in this study were verified for normal distribution by D’Agostino-Pearson omnibus test. Student’s t-test, one-way ANOVA, and two-way ANOVA were applied for pair-wise comparisons, comparisons among 3 or more data sets, and comparisons with more than one variant, respectively. The post hoc test with Bonferroni correction was performed for multiple comparisons following ANOVA.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49

Decision letter

  1. Mani Ramaswami
    Reviewing Editor; Trinity College Dublin, Ireland

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Regulation of food-seeking behavior by insulin and glucagon signaling in adult Drosophila" for consideration by eLife. Your article has been favorably evaluated by K VijayRaghavan (Senior Editor) and three reviewers, one of whom, Mani Ramaswami (Reviewer #1), is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The authors use simple assays for starvation-induced food seeking and food consumption in Drosophila to understand how these behaviors are regulated. They use a quasi-unbiased transgenic RNAi screen to test which of some 31 neuropeptide receptors are required in the nervous system for starvation-induced hyperactivity. Of these they identify one AKHR that has the strongest effect on starvation-induced hyperactivity (though others appear to have significant effects as well). This is significant because AKHR is the receptor for insect glucagon, which is released under starvation conditions. The AKH receptor is expressed in a small number of identified central neurons as well as in sugar sensing labellar neurons: however, it does not appear to be required for starvation induced locomotion in peripheral receptors.

The authors show that:

A) Loss of AKHR or reduced activity of the AKHR positive neurons has the same effect on "food-seeking," without affect food consumption.

B) That the same neurons express Insulin receptors, which have an opposing role on food-seeking. Thus, knocking down insulin signaling in these cells enhances starvation induced food seeking.

C) The same neurons also express octopamine and that octopamine biosynthetic machinery is required in these cells for starvation-induced hyperactivity.

Although some elements of the story were already published (Yang et al., 2015), the current study is a comprehensive synthesis linking hormone modulation to octopamine release. Together, they identify key central sensors of starvation and satiety that control food seeking behaviors and show that these are different from those that control food consumption. It is notable that they engage deeply with mammalian literature, making parallels as appropriate across biological systems.

Major comments:

1) The manuscript should be more judicious in its use of the term "food-seeking." In previous publications, the behaviour is called starvation triggered hyperactivity or locomotion, which is appropriate. Hyperactivity could increase the chance of finding food, without being "food-seeking." The authors could certainly speculate, propose and discuss that this implies increased food-seeking, but without further evidence, the terminology used should not imply that the purpose of the behavior is known or that this is targeted in any way.

2) The authors should verify using either existing genetic mutants or antibody reagents that the central brain neurons identified are indeed AKHR+ as they claim. The RNAi experiments could and should be augmented by use of a genetic mutant and the RT PCR by use of an antibody. Two groups have generated AKHR mutants (Zipursky lab and Kuhnlein lab), UAS-AKHR transgenes, and AKHR antibodies. So there are a number of available reagents that can be used.

3) The work should be complemented by experimental activation (by Chrimson or TRPA1) of the AKHR neurons to determine a direct effect of these neurons on motor activity +/- starvation conditions. Time allowing the authors should also ask whether AKHR+ neurons activation in neurons depleted of octopamine (TBH RNAi or mutants) also causes the flies to increase their motility? The prediction would be that they would not, that the final read-out is octopamine release.

4) The work shows that AKHR is involved not AKH as stated in the last paragraph of the subsection “A neuron-specific RNAi screen identified AKHR required for starvation-induced hyperactivity”. What is the chance that there is a second ligand? However, a previous study by Lee and Park (2004) showed that starvation increases locomotion activity in Drosophila and this hyperactivity is absent in flies lacking AKH releasing cells. It should be acknowledged that the AKHR result is consistent with the previous AKH result.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for submitting your article "Regulation of starvation-induced hyperactivity by insulin and glucagon signaling in adult Drosophila" for consideration by eLife. Your article has been reviewed by one peer reviewer, and the evaluation has been overseen by Mani Ramaswami as Reviewing Editor and K VijayRaghavan as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The results from this study show that AKH and its receptor AKHR are required for starvation-induced hyperactivity. Thus, experimentally, the data are interesting and valuable. However, the main concern from the previous review, that the experimental results need to be interpreted more carefully and critically, has not yet been addressed satisfactorily.

Crucially, the authors overstate the findings as indication that AKH signaling is required for "food-seeking" in Drosophila. The language needs to be toned back consistently to better integrate the authors findings with previously published work, and to distinguish between what is actually "shown" by the work and what the authors speculate this may be informing us about Biology.

The authors should include a model summarized below, which all the reviewers agree to be the most parsimonious and probable interpretation of available data.

Upon starvation animals may exhibit two physiological/ behavioral changes, both of which contribute to food-seeking (or foraging or food finding) behavior. One is a change in sensory responses (for example, the change in gustatory neurons as shown by David Anderson and Kristin Scott, and the increased in the sensitivity of Or42b ORNs and the decrease in the sensitivity of Or85a ORNs shown by Jing Wang). Another of which is an increase in locomotion activity as shown in this study and the previous publications. Starvation-induced hyperactivity may simply facilitate food finding (by allowing a wider area to be scanned by the fly) while the targeting aspects are provided by a change in the chemosensory system.

There is no evidence from this study that AKH or its receptor is required for anything beyond the hyperactivity. The fact that starved flies tend to accumulate around food and display a reduced walking speed (shown in Figure 3) merely supports the notion that food (sugar in this experiment) consumption reduces the hyperactivity through the metabolic hormone insulin as shown in the current study that the AKHR-positive neurons also express InR. The findings of the current study are interesting, but they must be presented and discussed more conservatively and in context of what is already known in the field.

Before the paper can be accepted, the authors must do a better job of addressing the following non-exhaustive list of issues focused on this major concern, which was also "major comment #1" in the previous decision letter.

1) Abstract. First sentence "Starvation induces sustained increase in locomotion, which resembles food-seeking behavior and facilitates food localization and acquisition". This should be changed to "Starvation induces a sustained increase in locomotion, which acts to facilitate food localization and acquisition".

2) Introduction. "We have also shown that starvation induced hyperactivity facilitates food localization and acquisition, partly resembling food-seeking behavior in flies". This needs to be revised accordingly (the "partly resembling food-seeking behavior in flies" phrase should be removed).

3) In general, the Introduction should be revised to be more precise and scholarly. It should be framed around the concept that, food seeking behavior has sensory and locomotion aspects. For the sensory aspect, both olfactory and gustatory contributions must be included. The authors should also discuss the previous papers on AKH with the specific goal of discussing what is not known about the starvation-induced AKH-mediated hyperactivity.

4) Title of the section "Neuronal AKHR is required for starvation-induced food seeking" needs to be changed accordingly. The whole section must be edited to deliver a consistent accurate and balanced message.

5) The Discussion section should also be revised in the same manner.

6) Figure 8I shows that sNPF and NPF are only involved in food consumption. This is incorrect. Previous work has shown that both are involved in foraging behavior. The text should acknowledge that food seeking is separated into sensory and locomotion aspects.

https://doi.org/10.7554/eLife.15693.020

Author response

Major comments:

1) The manuscript should be more judicious in its use of the term "food-seeking." In previous publications, the behaviour is called starvation triggered hyperactivity or locomotion, which is appropriate. Hyperactivity could increase the chance of finding food, without being "food-seeking." The authors could certainly speculate, propose and discuss that this implies increased food-seeking, but without further evidence, the terminology used should not imply that the purpose of the behavior is known or that this is targeted in any way.

Following the suggestions from the reviewers, we have revised the manuscript and toned down our statement. We have now used “starvation-induced hyperactivity” to describe our behavioral assays throughout the main text. We have also changed the title too.

Meanwhile, as suggested by the reviewers, we have discussed the potential similarities between starvation-induced hyperactivity and food-seeking behavior in the manuscript. Briefly, our rationale is starvation-induced hyperactivity is a simple yet reliable measure of food seeking, because: a) upon starvation, hyperactive flies are directed towards food sources, suggesting their hyperactivity is to locate food (Figure 3); and b) starvation-induced hyperactivity can be suppressed by food cues (even non-nutritive, palatable food cues), suggesting that this behavior indeed has a clear goal for food search (Yang et al. PNAS 2015).

2) The authors should verify using either existing genetic mutants or antibody reagents that the central brain neurons identified are indeed AKHR+ as they claim. The RNAi experiments could and should be augmented by use of a genetic mutant and the RT PCR by use of an antibody. Two groups have generated AKHR mutants (Zipursky lab and Kuhnlein lab), UAS-AKHR transgenes, and AKHR antibodies. So there are a number of available reagents that can be used.

The reviewers asked us to a) confirm the phenotype of neuronal knock-down of AKHR by using AKHR-/- mutants; b) confirm the brain expression of AKHR gene by antibody staining.

a) We have obtained new data using AKHR-/-mutants. As shown in Figure 2A–C, AKHR-/- mutants exhibited no increase in locomotion upon starvation, further confirming that AKHR is required for starvation-induced hyperactivity.

Notably, besides the nervous system, AKHR is also expressed in the fat body of fruit flies. We thus also tested the effect of neuronal vs. fat body AKHR knock-down. Unlike neuronal knock-down (Figure 3A–C), fat body knock-down of AKHR did not block starvation-induced hyperactivity (Figure 3—figure supplement 2). These data provide an additional piece of evidence that neuronal AKHR but not fat body AKHR is required for this behavior.

b) We have also tried to get an AKHR antibody. As the reviewers correctly pointed out, Dr. Larry Zipursky’s lab has generated an AKHR antibody as shown in Bharucha and Zipursky J Exp Biol 2008. Unfortunately, this reagent is no longer available per feedback from the Zipursky lab. Generating and validating a new AKHR antibody will take a significant amount of time and will stop us from resubmitting the manuscript within a reasonable time frame.

As an alternative approach to verify AKHR expression in the brain, we isolated the GFP+ cells labeled by our AKHR-split-GAL4 from the fly brain, and developed a protocol to conduct single-cell RNA-seq. Consistent with our RT-PCR results, we found that these GFP+ brain cells showed high level AKHR expression (Figure 7C). As a control for specificity, we also showed that genes that are specifically expressed in tissues outside the central nervous system (such as Or67d and Gr5a in the peripheral nervous system, Slimfast in the fat body, and MyoD in muscle) are not expressed, or expressed at very low levels, in these GFP+ brain cells (Figure 7C).

Taken together, although we could not verify AKHR expression by antibody staining, we have three independent lines of evidence to support the brain expression of AKHR: GFP expression under the control of endogenous AKHR promoter (Figure 5A–D); single-cell RT-PCR (Figure 7A–B); and single-cell RNA-seq (Figure 7C).

Notably, both our single-cell RT-PCR and RNA-seq experiments identified dInR, the receptor of DILPs, in these GFP+ neurons (Figure 7A-C). The expression of dInR in AKHR+ neurons is verified by antibody staining (Figure 7—figure supplement 1). This provides an additional validation of our single-cell analysis.

3) The work should be complemented by experimental activation (by Chrimson or TRPA1) of the AKHR neurons to determine a direct effect of these neurons on motor activity +/- starvation conditions. Time allowing the authors should also ask whether AKHR+ neurons activation in neurons depleted of octopamine (TBH RNAi or mutants) also causes the flies to increase their motility? The prediction would be that they would not, that the final read-out is octopamine release.

We have added a new figure (Figure 6) to show the neuronal activation results. To summarize, we have found that a) artificial activation of AKHR+ neurons accelerated the onset of hyperactivity upon starvation; b) artificial activation of AKHR+ neurons did not affect the frequency and duration of feeding, as well as the meal size. Taken together, AKHR+ neurons are both necessary and sufficient for starvation-induced hyperactivity, and are not involved in the regulation of food consumption.

We have used the ectopic expression of NaChBac, a low-threshold sodium channel, to perform our neuronal activation experiments. NaChBac is a commonly used tool for neuronal activation in flies (for example, see Dus et al. Neuron 2014; Shang et al. PNAS 2008; Zhou et al. Nature Neuroscience 2008).

Besides NaChBac, we have also tried thermogenic neuronal activation by TRPA1. However we found that acute ambient temperature shift disrupted the locomotor pattern of these flies so that thermogenic control was not an appropriate way for neuronal activation in our assays. Chrimson likely has a similar problem since light stimulus can cause a startle response in free moving flies (Klapotke et al. Nature Methods 2014).

We have shown that eliminating octopamine signaling in AKHR+ neurons blocks starvation-induced hyperactivity (Figure 7D-F), so as eliminating AKHR in octopaminergic neurons (Figure 7G). These results confirm that octopamine release from AKHR+ neurons is indeed required for AKHR+ neurons to induce starvation-induced hyperactivity.

4) The work shows that AKHR is involved not AKH as stated in the last paragraph of the subsection “A neuron-specific RNAi screen identified AKHR required for starvation-induced hyperactivity”. What is the chance that there is a second ligand? However, a previous study by Lee and Park (2004) showed that starvation increases locomotion activity in Drosophila and this hyperactivity is absent in flies lacking AKH releasing cells. It should be acknowledged that the AKHR result is consistent with the previous AKH result.

We have acknowledged the paper by Lee and Park in the revised manuscript. As the reviewers pointed out, Lee and Park found that ablating AKH+ cells eliminated starvation-induced hyperactivity, which is consistent with our manipulations on AKHR and AKHR+ neurons.

Furthermore, we have conducted additional experiments to eliminate AKH gene expression. As shown in Figure 2D–F, knock-down of AKH also blocked starvation-induced hyperactivity, phenocopying the results of neuronal knock-down of AKHR and AKHR-/- mutants. These results further suggest that AKHR mediates the behavioral effect of AKH. Taken together, we have added both experimental evidence and previous literature to support the direct link between AKH and AKHR in starvation-induced hyperactivity.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

The results from this study show that AKH and its receptor AKHR are required for starvation-induced hyperactivity. Thus, experimentally, the data are interesting and valuable. However, the main concern from the previous review, that the experimental results need to be interpreted more carefully and critically, has not yet been addressed satisfactorily.

Crucially, the authors overstate the findings as indication that AKH signaling is required for "food-seeking" in Drosophila. The language needs to be toned back consistently to better integrate the authors findings with previously published work, and to distinguish between what is actually "shown" by the work and what the authors speculate this may be informing us about Biology.

The authors should include a model summarized below, which all the reviewers agree to be the most parsimonious and probable interpretation of available data.

Upon starvation animals may exhibit two physiological/ behavioral changes, both of which contribute to food-seeking (or foraging or food finding) behavior. One is a change in sensory responses (for example, the change in gustatory neurons as shown by David Anderson and Kristin Scott, and the increased in the sensitivity of Or42b ORNs and the decrease in the sensitivity of Or85a ORNs shown by Jing Wang). Another of which is an increase in locomotion activity as shown in this study and the previous publications. Starvation-induced hyperactivity may simply facilitate food finding (by allowing a wider area to be scanned by the fly) while the targeting aspects are provided by a change in the chemosensory system.

There is no evidence from this study that AKH or its receptor is required for anything beyond the hyperactivity. The fact that starved flies tend to accumulate around food and display a reduced walking speed (shown in Figure 3) merely supports the notion that food (sugar in this experiment) consumption reduces the hyperactivity through the metabolic hormone insulin as shown in the current study that the AKHR-positive neurons also express InR. The findings of the current study are interesting, but they must be presented and discussed more conservatively and in context of what is already known in the field.

As suggested by the reviewers, we have toned down our interpretation and discussions of the behavioral data throughout the manuscript. We have now made it clear that starvation modulates food-seeking behavior in two ways (modulation of food perception and starvation-induced hyperactivity), and that the main focus of the present study is only about starvation-induced hyperactivity. We have largely eliminated the use of “food seeking” in the manuscript. We have also acknowledged the recent findings on food-seeking behavior more thoroughly.

More specifically:

In the Introduction section, we have followed the logic flow suggested by the reviewers: the importance and the regulation of food intake (Paragraph 1); the concept of food seeking, and how it is modulated by starvation in two ways (modulation of the chemosensory systems as well as locomotion) (Paragraph 2-3); the relationship between starvation-induced hyperactivity and food consumption (Paragraph 4); as well as a summary of the motivation and key findings of this present study (Paragraph 5).

Specifically, as suggested by the reviewers, we have summarized the recent findings on the modulation of olfactory and gustatory sensory neurons by starvation from Jing Wang, David Anderson, and Kristin Scott’s labs (Paragraph 2). Meanwhile, we have also discussed the previous reports on AKH and octopamine signaling in starvation-induced hyperactivity (Paragraph 3).

In the Results section, we have revised the interpretation of video-recording assays (Figure 3—figure supplement 3, previously Figure 3D–H). We agree with the reviewers that these data did not really demonstrate that neuronal AKHR is required for food seeking, but rather provides an additional piece of evidence that neuronal AKHR is required for starvation-induced hyperactivity.

In the Discussion section, we have now clearly stated that starvation facilitates food seeking by modulating the perception of food cues and by enhancing the locomotion, and that the main focus of the present study is the latter (Paragraph 1).

Last but not least, we have revised our model to reflect all these changes mentioned above. As shown in Figure 7I, starvation induces two separate behavioral responses, food consumption and food seeking, the latter of which can be further divided into the targeting component (perception of food cues) as well as the exploration component (hyperactivity). The focus of this present study, as highlighted in red, is only one of the several behavioral responses to starvation.

Before the paper can be accepted, the authors must do a better job of addressing the following non-exhaustive list of issues focused on this major concern, which was also "major comment #1" in the previous decision letter.

1) Abstract. First sentence "Starvation induces sustained increase in locomotion, which resembles food-seeking behavior and facilitates food localization and acquisition". This should be changed to "Starvation induces a sustained increase in locomotion, which acts to facilitate food localization and acquisition".

2) Introduction. "We have also shown that starvation induced hyperactivity facilitates food localization and acquisition, partly resembling food-seeking behavior in flies". This needs to be revised accordingly (the "partly resembling food-seeking behavior in flies" phrase should be removed).

We have removed such statements throughout the manuscript. As suggested by the reviewers, we have now clearly stated that starvation induced two adaptive changes to facilitate food seeking: starvation-induced hyperactivity and starvation-induced changes in the perception of food cues. The focus of this current study is only around starvation-induced hyperactivity, while the progress on the modulation of chemosensory systems is also discussed in depth.

3) In general, the Introduction should be revised to be more precise and scholarly. It should be framed around the concept that, food seeking behavior has sensory and locomotion aspects. For the sensory aspect, both olfactory and gustatory contributions must be included. The authors should also discuss the previous papers on AKH with the specific goal of discussing what is not known about the starvation-induced AKH-mediated hyperactivity.

We have now discussed the previous literature on the regulation of olfactory and gustatory sensory systems by starvation. We have also discussed the previous findings on AKH-producing cells and octopamine in starvation-induced hyperactivity.

4) Title of the section "Neuronal AKHR is required for starvation-induced food seeking" needs to be changed accordingly. The whole section must be edited to deliver a consistent accurate and balanced message.

We have removed “starvation-induced food seeking” in that section. Along with the reviewers, we agree that the video-recording experiments (Figure 3—figure supplement 3) provide an additional piece of evidence for the role of neuronal AKHR in starvation-induced hyperactivity.

5) The Discussion section should also be revised in the same manner.

We have substantially revised the Discussion section, starting from describing the targeting (perception of food cues) and exploration (hyperactivity) components of food-seeking behavior, followed by the summary of our present study. We have also made it clear that our current study is only about the hyperactivity induced by starvation.

6) Figure 8I shows that sNPF and NPF are only involved in food consumption. This is incorrect. Previous work has shown that both are involved in foraging behavior. The text should acknowledge that food seeking is separated into sensory and locomotion aspects.

We have revised the model (now Figure 7I) to incorporate these valuable comments. Specifically, we have made it clear that starvation modulates food seeking in two ways: one for targeting (modulated perception of food cues) and the other for exploration (hyperactivity). We have also summarized recent findings on the targeting component of food-seeking behavior from Jing Wang, David Anderson, and Kristin Scott’s labs (including NPF and sNPF).

https://doi.org/10.7554/eLife.15693.021

Article and author information

Author details

  1. Yue Yu

    1. Life Sciences Institute, Zhejiang University, Hangzhou, China
    2. Innovation Center for Cell Signaling Network, Zhejiang University, Hangzhou, China
    Contribution
    YY, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Rui Huang
    Competing interests
    The authors declare that no competing interests exist.
  2. Rui Huang

    1. Life Sciences Institute, Zhejiang University, Hangzhou, China
    2. Innovation Center for Cell Signaling Network, Zhejiang University, Hangzhou, China
    Contribution
    RH, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Yue Yu
    For correspondence
    huangrui0716@sina.com
    Competing interests
    The authors declare that no competing interests exist.
  3. Jie Ye

    1. Life Sciences Institute, Zhejiang University, Hangzhou, China
    2. Innovation Center for Cell Signaling Network, Zhejiang University, Hangzhou, China
    Contribution
    JY, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  4. Vivian Zhang

    Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    Contribution
    VZ, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. Chao Wu

    1. Life Sciences Institute, Zhejiang University, Hangzhou, China
    2. Innovation Center for Cell Signaling Network, Zhejiang University, Hangzhou, China
    Contribution
    CW, Acquisition of data, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  6. Guo Cheng

    1. Life Sciences Institute, Zhejiang University, Hangzhou, China
    2. Innovation Center for Cell Signaling Network, Zhejiang University, Hangzhou, China
    Contribution
    GC, Acquisition of data, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  7. Junling Jia

    1. Life Sciences Institute, Zhejiang University, Hangzhou, China
    2. Innovation Center for Cell Signaling Network, Zhejiang University, Hangzhou, China
    Contribution
    JJ, Acquisition of data, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  8. Liming Wang

    1. Life Sciences Institute, Zhejiang University, Hangzhou, China
    2. Innovation Center for Cell Signaling Network, Zhejiang University, Hangzhou, China
    Contribution
    LW, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    lmwang83@zju.edu.cn
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0001-7758-1120

Funding

Zhejiang Natural Science Funds (LR15C060001)

  • Junling Jia

Thousand Young Talents Plan of China

  • Liming Wang

National Natural Science Foundation of China (31522026)

  • Liming Wang

Fundamental Research Funds for the Central Universities of China (2016QN81010)

  • Liming Wang

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank members of the Wang lab for helpful discussions and technical assistance. We thank David Anderson, Zhefeng Gong, Ronald Kühnlein, Zhiwei Liu, Kristin Scott, Yi Rao, Zhuohua Zhang, the Bloomington Drosophila stock center at Indiana University, and the Tsinghua Fly Center for fly stocks. We thank Ziao Lin, Scott Pletcher, and Jenny Ro for help with the FLIC assay. We thank Jie He and Zuoren Wang for help with the single cell analysis. Danping Chen provides scientific and administrative support in the laboratory. This study was funded by the Thousand Young Talents Plan, the National Natural Science Foundation of China (No. 31522026), and the Fundamental Research Funds for the Central Universities (No. 2016QN81010) and the Zhejiang Natural Science Funds (No. LR15C060001).

Reviewing Editor

  1. Mani Ramaswami, Reviewing Editor, Trinity College Dublin, Ireland

Publication history

  1. Received: March 1, 2016
  2. Accepted: September 8, 2016
  3. Accepted Manuscript published: September 9, 2016 (version 1)
  4. Version of Record published: September 29, 2016 (version 2)

Copyright

© 2016, Yu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,279
    Page views
  • 836
    Downloads
  • 5
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Genes and Chromosomes
    Wahid A Mulla et al.
    Research Article Updated
