A fitness trade-off between seasons causes multigenerational cycles in phenotype and population size

Version of Record

Accepted for publication after peer review and revision.

Download
Cite
Share
CommentOpen annotations (there are currently 0 annotations on this page).

Version of Record published: March 7, 2017 (This version)
Accepted Manuscript updated: February 7, 2017 (Go to version)
Accepted: February 6, 2017
Accepted Manuscript published: February 6, 2017 (Go to version)
Received: June 13, 2016

1. Of interest
Warming and altered precipitation independently and interactively suppress alpine soil microbial growth in a decadal-long experiment

Yang Ruan, Ning Ling ... Zhibiao Nan

Research Article Apr 22, 2024
Further reading

Abstract
eLife digest
Introduction
Results
Discussion
Materials and methods
Appendix 1
Appendix 2
Appendix 3
References
Article and author information
Metrics

Abstract

Although seasonality is widespread and can cause fluctuations in the intensity and direction of natural selection, we have little information about the consequences of seasonal fitness trade-offs for population dynamics. Here we exposed populations of Drosophila melanogaster to repeated seasonal changes in resources across 58 generations and used experimental and mathematical approaches to investigate how viability selection on body size in the non-breeding season could affect demography. We show that opposing seasonal episodes of natural selection on body size interacted with both direct and delayed density dependence to cause populations to undergo predictable multigenerational density cycles. Our results provide evidence that seasonality can set the conditions for life-history trade-offs and density dependence, which can, in turn, interact to cause multigenerational population cycles.

https://doi.org/10.7554/eLife.18770.001

eLife digest

Many wild populations go through long cycles in abundance that span several generations. The traditional explanation for such “multigenerational” cycles is that they are driven by predator/prey relationships, the classic example being oscillations between the numbers of lynx and snowshoe hares.

Population cycles could also be driven by seasonal changes. For example, traits that help animals to produce large numbers of offspring during the breeding season may reduce the ability of the animal to survive the non-breeding season. Body size is one such trait. Large individuals tend to produce more offspring, but their larger body size means that they find it harder to survive when food is scarce. As a consequence, large individuals should have an advantage and be more common when the population size is low and there are enough resources for all individuals. However, small individuals should be more abundant when population size is high. This trade-off caused by seasonality could set the population in motion towards predictable, multigenerational cycles.

To test this idea, Betini et al. established populations of fruit flies that went through ‘breeding’ and ‘non-breeding’ seasons. This was achieved by periodically altering the flies’ food to prevent the females from laying eggs (in the lab, fruit flies do not normally have non-breeding seasons). Over 58 generations, the number of flies in each population cycled between peaks of high and low numbers.

When the population contained relatively few flies, there was strong selection for large flies because they have high reproductive success. Hence, the population grew. When the population was large, meaning that the flies had to compete for a limited amount of food, there was strong selection for small flies because they are better able to survive on limited resources. However, small flies also produce fewer offspring on average, resulting in a decrease in population size. When the flies all had sufficient food during the non-breeding season, these regular cycles completely disappeared.

A major challenge will be to understand how common this phenomenon is in the wild. Virtually all organisms live in seasonal environments but whether they face strong trade-offs in the expression of traits is not well understood. This is primarily because of the difficulty in following individuals throughout the year.

https://doi.org/10.7554/eLife.18770.002

Introduction

In many organisms, reproduction is confined to seasonal fluctuation in periods of high resource, in which both fecundity (reproduction) and viability (survival) selection can occur, and periods of low resources, when reproduction stops and natural selection occurs only through viability selection. Consequently, sequential episodes of reproduction and survival caused by seasonality could be a major source of fluctuations in the strength and direction of natural selection (Darwin, 1859; Lack, 1954; Fretwell, 1972; Schluter et al., 1991; Bell, 2010; Bergland et al., 2014), giving rise to classic life-history trade-offs (Lack, 1947; Roff, 1992; Stearns, 1992; Garland, 2014). More specifically, traits that confer a fecundity advantage, but which are associated with a survival cost, will experience natural selection in one season that is opposed by selection in the subsequent season (Levins, 1968; Michod, 2006; Bell, 2010; Bergland et al., 2014). The sequential rather than simultaneous nature of trade-offs driven by seasonality could have important consequence for the trait distribution within and across generations (Levins, 1968; Grafen, 1988; Michod, 2006) and population dynamics (Ozgul et al., 2010).

One way by which life history trade-offs might arise from seasonal variation in resources is via body size (Ozgul et al., 2010, 2014). Large individuals usually have higher fecundity (Mueller and Joshi, 2000; Schulte-Hostedde and Millar, 2004), but they could also have lower survival during the non-breeding season when resources are scarce (Stockhoff, 1991; Reznick et al., 2000; Munch et al., 2003; Monaghan, 2008). In addition, large individuals might take more time to grow and require more resources for maintenance (Munch et al., 2003), which could negatively impact their survival probability (Kingsolver and Huey, 2008).

This association between fitness and body size in seasonal environments could have important consequences for population dynamics, particularly when selection on body size is density-dependent (Mueller, 1997; Sinervo et al., 2000; Travis et al., 2013). Differences in the selective advantage of body size across seasons could also shed light on the long-standing question about why population densities of many species fluctuate periodically over time (Elton and Nicholson, 1942; Kendall et al., 1999; McCauley et al., 2008; Yan et al., 2013). For example, when body size is positively related to fecundity, but small individuals survive better in the non-breeding season (Stockhoff, 1991; Munch et al., 2003; Monaghan, 2008; Betini et al., 2014), these opposing patterns of selection could cause population cycles if selection is density-dependent. Specifically, if smaller offspring have higher survival when density is high, then the population will be composed of smaller than average individuals with lower average fecundity in the following breeding season. This lower mean fecundity will reduce population growth rates even though larger individuals will be favoured through fecundity selection. As population size declines, the strength of density-dependent viability selection on body size will also decline, which could cause net selection to reverse and favour larger individuals due to the fecundity benefit of being larger. As large individuals increase in frequency, population size should also increase via an improvement of reproductive output, returning populations to high densities. Although changes in the intensity and direction of natural selection caused by environmental variation are widespread (Schluter et al., 1991; Bell, 2010; Thompson, 2013; Bergland et al., 2014), we have little information about whether opposing episodes of natural selection could arise from seasonality and indirectly affect population dynamics through the feedback loop between ecological (density dependence) and evolutionary (selection and evolution) processes (Chitty, 1960; Krebs, 1978; Hairston et al., 2005; Pelletier et al., 2009; Ozgul et al., 2010; Schoener, 2011).

Here, we investigated how a seasonal fitness trade-off related to body-size could affect changes in population size and body size over time using replicate populations of Drosophila melanogaster exposed to repeated changes in food resources. In addition to standard breeding conditions for Drosophila, we also created a ‘non-breeding season’ by manipulating the food medium to prevent females from laying eggs during this period. Thus, in this system, breeding and survival were restricted to two sequential and distinct seasons (hereafter 'breeding' and 'non-breeding'). The number of days and amount of food in each season was determined so that both fecundity and non-breeding survival were density-dependent (Betini et al., 2013a, 2014, 2015), which is an important feature of many populations. In Drosophila, as in many other species, the positive correlation between body size and fecundity is well known (Mueller and Joshi, 2000; Appendix 1) and we previously demonstrated that small individuals have higher survival during the non-breeding season when abundance is high (Betini et al. 2013a, 2014). In addition, populations of D. melanogaster do not show evidence of multigenerational cycles (Mueller and Joshi, 2000), even when kept under the same conditions as our breeding season (i.e. ‘aseasonal populations’; Appendix 2). We, therefore, hypothesized that density dependence and opposing episodes of fecundity and viability selection on body resulting from seasonality could cause predictable and repeatable fluctuations in both population and body size. Specifically, we predicted that seasonal fitness trade-offs would cause population size and body size to undergo multigenerational cycles between periods of high abundance, when small individuals predominate, and periods of low abundance, when large individuals are more frequent. Furthermore, we predicted that populations not exposed to viability selection in the non-breeding season would lack periodic fluctuations in population size and body size.

We tested whether seasonality could result in multigenerational cycles in population size and body size using three experiments (Figure 1). In the first experiment, we submitted 45 replicate populations to the seasonal treatment described above and tracked the total number of individuals and body size at the end of the breeding and non-breeding season for 58 generations (the ‘long-term control’ treatment; Figure 1). In the second experiment, we tested the role of viability selection during the non-breeding season by tracking 13 additional populations over 31 generations using a similar protocol to the ‘long-term control’, but in which we experimentally prevented viability selection in the ‘non-breeding’ season by providing high levels of food during this season (the ‘stop-selection’ treatment; Figure 1). This protocol also maintained direct density effects on fecundity and survival, similar to the ones observed in the ‘long-term control’. In order to address potential environmental changes in the lab, we conducted a third experiment using the same protocol as in the 'long-term control', but under the same initial conditions and at the same time as the 'stop selection' treatment. This 'short-term control' experiment also had 13 replicate populations tracked over 31 generations (Figure 1).

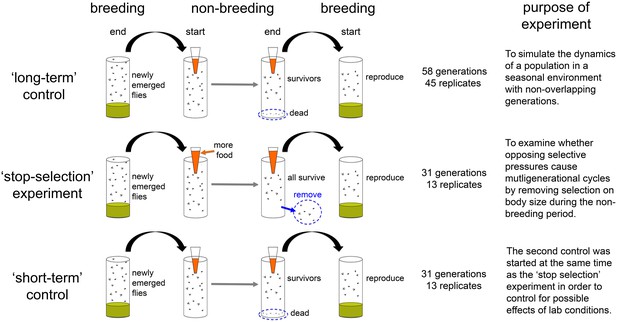

Figure 1

Download asset Open asset

A schematic of the three experiments conducted in this study with accompanying duration, number of replicates and brief summary of their purpose.
https://doi.org/10.7554/eLife.18770.003

In addition to these experiments, we also developed a mathematical model to investigate the contributions of both viability selection and delayed density dependence to population dynamics. The ‘stop-selection’ experiment was designed to eliminate viability selection, but might have also reduced potential effects of past densities on fecundity and survival. Such delayed density-dependent effects can also cause populations to cycle (Stenseth et al., 2003; Yan et al., 2013), or lead to more complex dynamics, such as chaos (May 1973). One potential mechanism for delayed density dependence are carry-over effects, which we have previously identified in this seasonal system (Betini et al., 2013a). Thus, we first investigated if lag effects were present in all three experiments, and then used the mathematical model to understand whether they played a role in the dynamics of their populations.

Results

Long-term control

Over 58 generations, the 45 replicated seasonal populations showed a predictable increase in abundance during the breeding season, where the food medium allowed females to lay eggs, and a decline in the subsequent non-breeding season (Figure 2a), as is typical of many natural seasonal systems. However, the autocorrelation functions (ACF) also revealed that these short, seasonal cycles were embedded within longer multigenerational cycles where average population size fluctuated 3-fold (insert in Figure 2a). In these populations, the ACF function was characterized by stationary periodic dynamics, which resulted in an oscillatory decay to zero (Figure 2a inset).

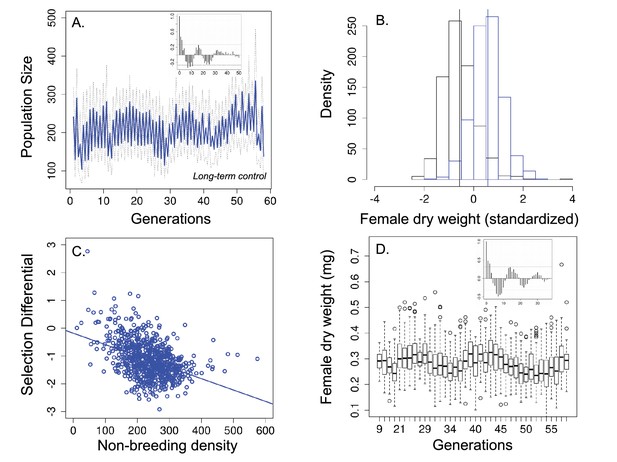

Figure 2

Download asset Open asset

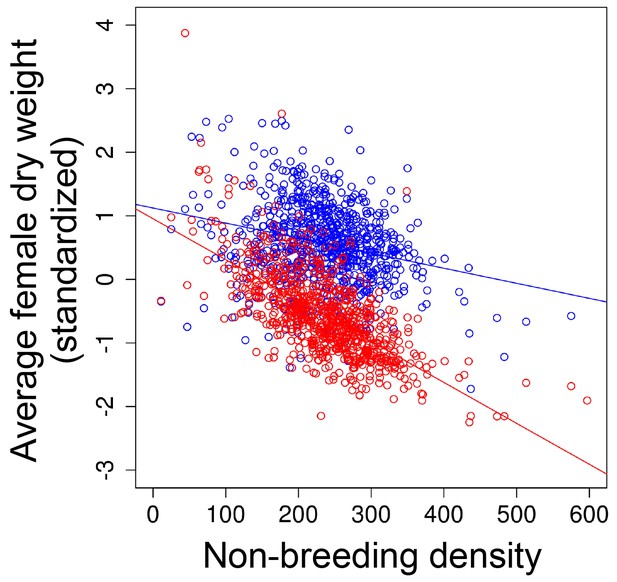

Population size, changes in body size and selection differentials for body size in the 'long-term control' experiment.

(a) Population size of seasonal flies cycled over 58 generations; (b) Female dry weight before (blue bars) and after (black bars) the non-breeding season. Vertical bars indicate the mean female dry weight before and after the non-breeding season; (c) Increased population size in the non-breeding season led to stronger directional selection for smaller flies. (d) Time series of female dry weight measured at the end of the non-breeding season over 38 generations. In (a and (d), the autocorrelograms (insets) showed evidence of cycles in both population size and body size. In (a solid blue line denotes mean population size for each generation from all replicates and dotted lines denote ±1 s.d. In (d, the horizontal line within each box represents the median value, the edges are 25th and 75th percentiles, the whiskers extend to the most extreme data points, and points are potential outliers.

https://doi.org/10.7554/eLife.18770.004

To investigate the presence of viability selection for small body size and whether this selection was density-dependent, we measured female dry weight in 38 generations from 25 different populations. As expected, there is a negative correlation between population size at the end of the non-breeding season and body size at the end of the non-breeding season (Pearson's product-moment correlation = −0.64; t = −4.48, p<0.001), suggesting that density negatively impact body size in the non-breeding season. Mean survival during the non-breeding season was 71% (±0.21 SD) and survival was density-dependent (β_survival = −0.001, t = −27.73, p<0.001). Mean female dry weight was significantly lower after the non-breeding season (0.279 mg, n = 3620 females) than before the non-breeding season (0.381 mg; n = 5258 females; standardized values = 0.577 before and −0.566 after the non-breeding season; Welch t-test: t = −35.90, df = 1,589.240.24, p<0.001; Figure 2b) and this viability selection was density-dependent (Figure 2c; Table 1, Appendix 3). That is, when population size was high at the start of the non-breeding season, there was stronger selection for smaller flies and this was driven by changes in mean dry weight after the non-breeding season rather than changes in the mean dry weight before the non-breeding season (Appendix 3). Average dry weight measured after the non-breeding season also showed multigenerational cycles (Figure 2d), as indicated by the autocorrelation function (Figure 2d, inset), varying between average peaks of 0.32 mg and lows of 0.23 mg.

Table 1

Parameter estimates obtained from linear mixed effect models to investigate viability selection on body size as a function of thenumber of individuals at the beginning of the non-breeding season. In the ‘long-term control’, R²_LMM(m)=0.18 and R²_LMM(c)=0.20; in the 'stop selection' treatment, R²_LMM(m)=0.006 and R²_LMM(c)=0.006; and in the 'short-term control', R²_LMM(m)=0.22 and R²_LMM(c)=0.22. R²_LMM(m) is the variance on the response variable that is explained only by the fixed effects and R²_LMM(c) is the variance that is explained by both fixed and random effects. In all models, the selection differential was the response variable, abundance at the beginning of the non-breeding season was the fixed effect and population (vial) was the random effect.

https://doi.org/10.7554/eLife.18770.005

Parameters	Fixed effects estimate	SE	Df	T	P
1. Long-term control
Intercept	−0.181	0.081	434.5	−2.22	0.027
Non-breeding abundance	−0.004	0.003	745.3	−12.67	<0.001
2. Stop selection
Intercept	−0.341	0.159	159	−2.15	0.033
Non-breeding abundance	0.001	0.001	159	1.06	0.291
3. Short-term control
Intercept	0.028	0.184	100	−0.15	0.880
Non-breeding abundance	−0.005	0.001	139	−6.44	<0.001

'Stop selection' experiment

In order to test the role of viability selection in these multigenerational cycles, we experimentally eliminated viability selection during the non-breeding season in 13 additional populations. Unlike the ‘long-term controls’ (Figure 2a), there was no evidence of multigenerational population cycles in these ‘stop selection’ populations (Figure 3a inset). In addition, body size did not significantly decline after the non-breeding season (Figure 3b; average body size was 0.337 mg before and 0.331 after the non-breeding season; n = 1290 and n = 689 females, respectively; standardized values: 0.028 before and −0.052, respectively; Welch t-test: t = −1.733, df = 1,479.400.40, p=0.081). There was also no evidence of density-dependent selection (Figure 3c; Table 1) and no evidence of cycles in body size (Figure 3d inset).

Figure 3

Download asset Open asset

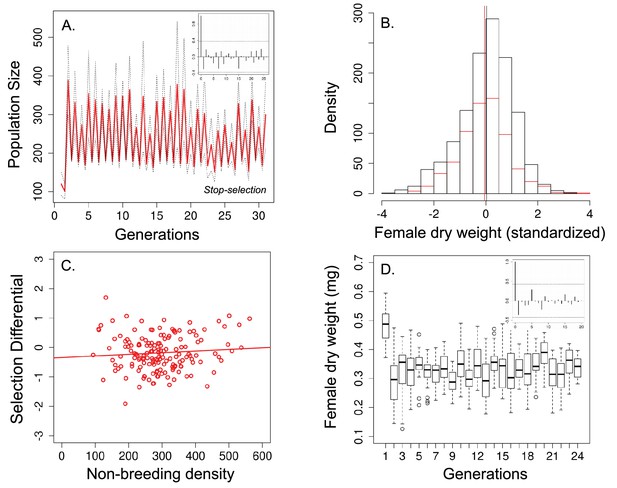

Population size, changes in body size and selection differential for body size in the 'stop-selection' experiment.

(a) Population size of seasonal flies cycled over 31 generations. Unlike the ‘long-term control, (b) there was no significant change in body size after the non-breeding season (female dry weight before - red bars - and after -black bars- the non-breeding season; vertical bars indicates the mean female dry weight before and after the non-breeding season) and (c) no evidence that selection for smaller flies was density dependence. (d) Time series of female dry weight measured at the end of the non-breeding season over 27 generations. In (a) and (d), the autocorrelograms (insets) showed no evidence of cycles in population or body size. In a solid red line denotes the mean population size for each generation from all replicates and dotted lines denote ±1 s.d. In (d), the horizontal line within each box represents the median value, the edges are 25th and 75th percentiles, the whiskers extend to the most extreme data points, and points are potential outliers.

https://doi.org/10.7554/eLife.18770.006

'Short-term control'

Over 31 generations, and similar to the ‘long-term control’ (Figure 2a), the ‘short-term control' exhibited evidence for multigenerational cycles (Figure 4a). These 'short-term control' populations also experienced viability selection that was density-dependent. Overall, female dry weight significantly decreased from an average of 0.371 mg before the non-breeding season (n = 968 females) to 0.276 mg after the non-breeding season (n = 623 females; standardized values = 0.487 before and −0.761 after the non-breeding season; Welch t-test: t = −30.601, p<0.001; Figure 4b), but the magnitude of this viability selection was stronger when densities were higher at the start of the non-breeding season (Table 1, Figure 4c).

Figure 4

Download asset Open asset

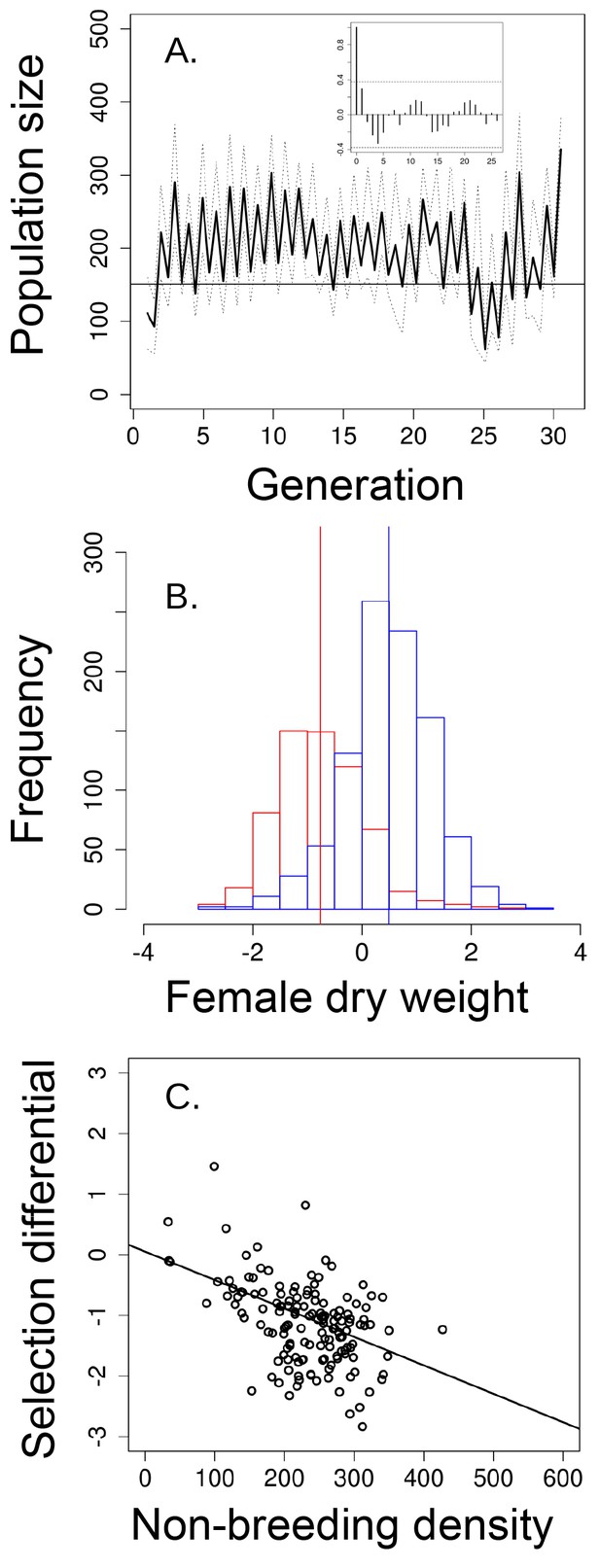

Population size, changes in body size and selection differentials for body size in the 'short-term control' experiment.

(a) Population size of seasonal flies cycled over 31 generations, as suggested by the autocorrelogram (insets), (b) female dry weight before the non-breeding season (blue bars) was higher than after the non-breeding season (red bars; vertical bars indicate the mean female dry weight before and after the non-breeding season). (c) increased population size in the non-breeding season led to stronger directional selection for smaller flies. In (a) solid black line denotes mean population size for each generation from all replicates and dotted lines denote ±1 s.d. In (d, the horizontal line within each box represents the median value, the edges are 25th and 75th percentiles, the whiskers extend to the most extreme data points, and points are potential outliers.

https://doi.org/10.7554/eLife.18770.007

Delayed density dependence

We statistically investigated whether fecundity and survival were influenced by density in past seasons (i.e. delayed density dependence) in all three experiments: ‘long-term control’, ‘short-term control’ and ‘stop-selection’. We used linear mixed effect models with vial (population) as a random effect and densities going back up to two generations as fixed effects. In the ‘long-term control’ and ‘short-term control’, fecundity and survival were influenced by density in the current and past season (Table 2 and Table 3). In contrast, the ‘stop-selection’ experiment showed evidence of the delayed effects on fecundity (Table 2), but not on survival (Table 3), meaning that the ‘stop-selection’ treatment eliminated both viability selection on body size as well as delayed effects of density on survival.

Table 2

Parameter estimates obtained from linear mixed effect models to investigate the effects of current and past density on fecundity in the ‘long-term control’, ‘stop-selection’ and ‘short-term control’ experiments. B refers to population size at the beginning of the breeding season in the current season and NB refers to population size at the beginning of the previous non-breeding season. In the ‘long-term control’, R²_LMM(m)=0.34 and R²_LMM(c)=0.37; in the 'stop selection' treatment, R²_LMM(m)=0.07 and R²_LMM(c)=0.07; and in the 'short-term control', R²_LMM(m)=0.30 and R²_LMM(c)=0.30.

https://doi.org/10.7554/eLife.18770.008

Parameters	Fixed effects estimate	SE	T	P
1. Long-term control
Intercept	0.450	0.012	37.445	<0.001
B	−0.212	0.008	−25.82	<0.001
NB	−0.008	0.008	−1.05	0.296
*B NB**	0.026	0.005	5.07	<0.001
2. Stop-selection
Intercept	0.551	0.024	22.91	<0.001
B	0.150	0.053	2.82	0.005
NB	−0.156	0.034	−4.53	<0.001
*B NB**	0.0613	0.03	2.31	0.021
2. Short-term control
Intercept	0.532	0.019	27.72	<0.001
B	−0.226	0.024	−9.34	<0.001
NB	−0.039	0.022	−1.74	0.083
*B NB**	0.046	0.017	2.65	0.008

Table 3

Parameter estimates obtained from linear mixed effect models to investigate the effects of current and past density on survival in the ‘long-term control’, ‘stop-selection’ and ‘short-term control’ experiments. NB refers to population size at the beginning of the non-breeding season in the current generation. B1, NB1, B2 and NB2, refers the population size at the beginning of each season going back 1 or two generations, respectively. In the ‘long-term control’, R²_LMM(m)=0.35 and R²_LMM(c)=0.36; in the 'stop selection' treatment, R²_LMM(m)=0.99 and R²_LMM(c)=0.99; and in the 'short-term control', R²_LMM(m)=0.43 and R²_LMM(c)=0.43.

https://doi.org/10.7554/eLife.18770.009

Parameters	Fixed effects estimate	SE	T	P
1. Long-term control
Intercept	−0.353	0.006	−54.74	<0.001
NB	−0.186	0.006	−31.19	<0.001
B1	0.106	0.008	13.76	<0.001
NB1	−0.056	0.007	−8.34	<0.001
B2	0.044	0.007	5.67	<0.001
NB2	−0.020	0.007	−2.89	0.004
2. Stop-selection
Intercept	−0.489	0.001	−1,068.62	<0.001
NB	−0.213	0.001	−412.71	<0.001
B1	0.001	0.001	1.325	0.186
NB1	−0.001	0.001	−1.235	0.217
B2	0.001	0.001	0.479	0.632
NB2	0.001	0.001	0.225	0.822
3. Short-term control
Intercept	−0.427	0.013	−33.36	<0.001
NB	−0.223	0.0142	−15.64	<0.001
B1	0.144	0.015	7.22	<0.001
NB1	−0.037	0.015	−2.40	0.017
B2	0.041	0.020	2.03	0.043
NB2	−0.015	0.016	−0.933	0.351

Mathematical model

A mathematical model including delayed density dependence as well as the effects of body size on survival (viability selection) and fecundity resulted in multigenerational cycles in population size (before red line in Figure 5a), similar to those observed in our ‘long-term control’ and ‘short-term control’ (Figure 2a and Figure 4a, respectively). The model without viability selection on body size and delayed density dependence (i.e. including only effects of current abundance on fecundity and survival), resulted in the elimination of multigenerational cycles (after red line in Figure 5a), as observed in our 'stop selection' populations (Figure 3a). The exclusion of only viability selection eliminated the fitness trade-off in body size and allowed larger flies to survive to breed. This led to unstable population dynamics (i.e. the population crashed after 10 generations; Figure 5b) because larger flies have greater fecundity and there was a negative interaction between body size and abundance. The exclusion of delayed density dependence alone eliminated the cycles (Figure 5c), suggesting that viability selection and delayed density dependence are necessary for these persistent multigenerational cycles to occur. The model with low heritability (h² = 10⁻⁵) also generated multigenerational population cycles (Figure 5d).

Figure 5

Download asset Open asset

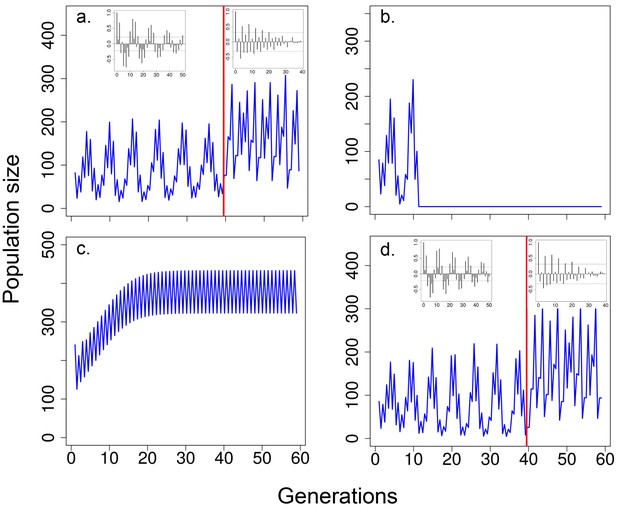

Predicted population size according to the integral projection model.

Time series generated with the model where, (a) for the first 40 generations (before vertical red line), when both viability selection and delayed density effects on survival during the non-breeding season and fecundity were operating and, for the last 20 generations, only the effects of current population size on fecundity and survival were modelled (i.e. no viability selection and no delayed density effects); (b) population size excluding the effects of viability selection (only the effects of delayed density dependence on fecundity and survival were operating) or (c) excluding the effects of delayed density dependence (only the effects of viability selection were operating). In (d), times series were generated as in (a) but with low heritability (see Results for details). In (b), population crashed (i.e. population size <1) at generation 10. In both (b) and (c), the model incorporated the effects of current abundance on fecundity and survival and heritability for body size. In (a) and (d) inset figures represent autocorrelograms for population size obtained from the mathematical model including delayed density dependence, viability and fecundity selection (before red line) or without both delayed density dependence and viability selection (after red line). See Material and methods for details and model parameters.

https://doi.org/10.7554/eLife.18770.010

Discussion

Our results provide empirical and mathematical evidence that the interplay between density-dependence and evolutionary trade-offs caused by seasonality can have important consequences for population dynamics. In our experimental system, seasonal variation in resources resulted in a fitness trade-off and multigenerational population cycles. These cycles were observed in the absence of predation, long-term fluctuations in resources, or any explicit negative-frequency dependence, all of which are known to cause regular fluctuations in population size (Lindström et al., 2001; Yan et al., 2013). Thus, the emergence of population cycles caused by three common characteristics of natural populations (seasonality, a life-history trade-off and density-dependence), suggests that these ecological and evolutionary processes could contribute to fluctuations in population size over a wider range of taxa and environments than has previously been considered. Our experimental elimination of viability selection and delayed density-dependence and our mathematical model confirmed the importance of both of these evolutionary and ecological processes in the persistence of multigenerational population cycles resulting from seasonal environments.

Recently, it has been proposed that eco-evolutionary dynamics are essential for understanding oscillations in population size (Hairston et al., 2005; Hiltunen et al., 2014), but evidence for evolutionary change (i.e. genetically based change in ecologically relevant traits) to feedback and influence demography and population dynamics is rare (Schoener, 2011; Hendry, 2013); but see (Cameron et al., 2013). Our results suggest that the evolutionary response to selection might not be required to observe feedback between ecological and evolutionary processes, as long as selection is strong. In flies, as in many other species, body size is highly heritable (Prout and Barker, 1989), and it is reasonable to suppose that, in our populations, offspring from smaller flies tend to be smaller. However, even when genetic variation is low, strong selection can still affect trait distributions within generations (Grafen, 1988), potentially affecting population size. In our experimental system, selection for body size during the non-breeding season was strong enough to drive observed cycles, potentially in the absence of any genetic change across generations. Simulations with our mathematical model with essentially zero heritability (h² = 10⁻⁵ as opposed to 0.3) also generated multigenerational population cycles because viability selection changed the distribution of body size, which subsequently affected fecundity. Thus, changes in the trait distribution within a generation caused by seasonal fitness trade-offs could generate feedback loops between ecological and evolutionary process in traits across generations.

We showed that variation in non-breeding abundance can cause density-dependent selection, but our mathematical model suggested that long-lasting effects of past density on survival were essential to generate the multigenerational cycles. These effects were strong in both the ‘long-term control’ and ‘short-term control’, but not in the ‘stop-selection’ treatment. One mechanism that can generate delayed effects is a density-mediated carry-over effect. We have shown how competition during the non-breeding season can negatively impact the physiological conditions of the survivors, reducing their breeding output in the following breeding season (Ratikainen et al., 2008; Betini et al., 2013a). This carry-over effect could also negatively impact survival if individuals during the non-breeding season were in lower body condition because of high abundance at the beginning of the season. Delayed density dependence can also arise from maternal effects, whereby offspring attributes are affected by parental abundance, which have previously been shown to generate population cycles (Plaistow and Benton, 2009). Both carry-over effects and maternal effects have the potential to interact with viability and fecundity selection because they can affect individual fecundity and survival via changes in body size and condition.

Our mathematical model also suggested that the delayed density dependence alone would cause short cycles and population crashes after only a few generations. It is clear from the model that the addition of viability selection allowed for sustained multigenerational cycles, as was observed in our empirical results. These results are in general agreement with previous studies. For example, in a predator-prey system, evolutionary changes in the prey population extended density cycles compared to the typical quarter-period phase lags between prey and predator densities (Yoshida et al., 2003). This evolutionary effect is now believed to be widespread in lab systems (Becks et al., 2012; Hiltunen et al., 2014). Thus, it is possible that evolutionary processes affecting trait distributions within and between generations can buffer strong negative feedback caused by ecological processes that are typical in many natural systems (e.g. overcompensation caused by density dependence), representing a different form of evolutionary rescue (Bell, 2013; Carlson et al., 2014).

Opposing viability and fecundity selection on body size was necessary for the persistence of multigenerational population cycles. Such fitness trade-offs between seasons are likely more common than currently appreciated (Schluter et al., 1991; Schmidt et al., 2005; Schmidt and Conde, 2006, Schmidt and Paaby 2008; Kingsolver and Diamond, 2011; Behrman et al., 2015), especially given that many organisms use vastly different habitats over the annual cycle. Although body size caused fitness trade-offs between seasons in our experimental system, many other traits might also exhibit seasonal trade-offs. For example, sexually selected traits enhance mating success, but might also reduce survival during the non-breeding season (Emlen, 2001). Alternatively, increased development rates can accelerate age of first reproduction, but are often associated with reduced survival during the adult stage (Stearns, 1992; Kingsolver and Huey, 2008).

Seasonal fitness trade-offs also represent a form of balancing selection, which can maintain increased levels of genetic variation at evolutionary equilibrium (Barton and Keightley, 2002). Seasonal fluctuations in selection might allow for the maintenance of increased adaptive potential in populations (Shaw and Shaw, 2014), facilitating more rapid responses to directional environmental change (Bradshaw and Holzapfel, 2006; Bell, 2010; Huang et al., 2016). This temporal variation in selective pressures might also help to explain why some species are more successful at colonizing new areas, as suggested by studies of seasonal changes in genetic variation in wild populations of D. melanogaster (Schmidt and Conde, 2006; Bergland et al., 2014; Behrman et al., 2015). Thus, the consequences of seasonal fluctuations in resources are, therefore, not restricted to purely ecological pathways. Seasonality can also alter the strength and direction of natural selection and might maintain a population’s adaptive potential over longer evolutionary timescales.

Examples of delayed density dependence causing cycles have been documented in natural populations subjected to strong seasonality (Merritt et al., 2001; Stenseth et al., 2003; Yan et al., 2013). We showed how opposing episodes of selection driven by a life-history trade-off arise in seasonal environments, which could interact with delayed effects to influence population size. Recently, it has been proposed that results from lab studies on consumer-resource dynamics were likely confounded by fast evolutionary changes (Hiltunen et al., 2014). The same could be true for lab and field studies on population cycles, if changes in trait distributions are linked to population size. To understand whether this is a common phenomenon in natural populations, one needs to tease apart the evolutionary from the ecological consequences of variation in density. As in our lab system, this is a constraint that needs to be overcome with either improved controlled experiments or mathematical approaches. Nevertheless, given that variation in density is common in many natural systems, measurements of selection and population density in both seasons will provide a better understanding of the dynamics of natural populations and how environmental change might alter such dynamics.

Materials and methods

‘Long-term control’ experiment

Request a detailed protocol

To simulate seasonality in populations with non-overlapping generations, we changed food composition to generate two distinct ‘seasons’ (n = 45 populations). During the breeding season, we placed adults in vials (28 × 95 mm) with a dead yeast-sugar medium to lay for 24 hr (day 0), after which adults were discarded and larvae were allowed to mature to adults (16 days). Individuals were then transferred (day 17) to a non-breeding environment for 4 days. The non-breeding season consisted of an empty vial of the same size as the breeding vials, but food was provided by a pipette tip filled with 0.200 ml of 5% water–sugar solution per day from the top of the vial. This solution was sufficient for many flies to survive (~95% survival at low population size) but did not allow females to lay eggs (Bownes and Blair, 1986; Betini et al., 2013a). In both seasonal treatments, a consistent amount of food was provided regardless of population size, which caused reproduction and survival to be density-dependent (Betini et al., 2013a). Each of 45 replicate populations was repeatedly transferred between breeding and non-breeding environments for 58 generations and together they are referred to as ‘long-term controls’. The quality and amount of the medium during the breeding season mimics the scenario well explored in other Drosophila systems (Mueller and Joshi, 2000), where the food is of lower quality and more limited for adults compared to larvae. Dynamics of populations experiencing only this medium (i.e. only the breeding season) do not show evidence of cycles (Mueller and Joshi, 2000); (Appendix 2—figure 1).

'Stop-selection' experiment

Request a detailed protocol

To investigate whether opposing selective pressures caused multigenerational cycles in seasonal populations, we experimentally stopped viability selection for a smaller body size in the non-breeding season while preserving density-dependent survival. To do this, we exposed 13 new replicate populations to the same seasonal change in food resources (described above) over 31 generations, but provided unlimited access to food during the non-breeding season (0.8 ml/day instead of 0.2 ml/day; initial population size was 5 males and 5 females). Average mortality was reduced from 28% (±0.4; mean ± s.e.) in the 'long-term control' populations to 0.5% (±1) in these new 'stop selection' treatments. After four days in the non-breeding season, we haphazardly selected the survivors that moved to the breeding season. To preserve the density-dependent survival process during the non-breeding period, the number of survivors for each population was calculated based on a logistic non-breeding survival function parameterized from our 'long-term control' populations (Wilson, 1994; Figure 6)

S u = \frac{1}{1 + {(\frac{N}{v})}^{w}}

Figure 6

Download asset Open asset

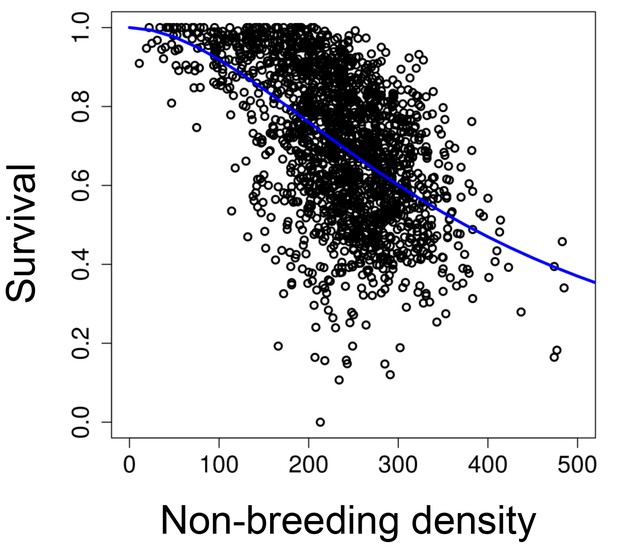

The relationship between survival and population size at the beginning of the non-breeding season.

The blue line represents a survival function parameterized with our 'long-term control' populations (v = 375.22, s.e.=7.60, t = 49.43, p<0.001; w = 1.83, s.e.=0.08, t = 22.50, p<0.001).

https://doi.org/10.7554/eLife.18770.011

where Su is survival (number of survivors at the end of the non-breeding season divided by the total number of individuals at the beginning of the non-breeding season), N is the population size at the beginning of the non-breeding season, and v and w are constant to be estimated from the data. The function was parameterized with our 'long-term control' populations (45 replicates over 43 generations) using the non-linear function nls in R (R Core Team, 2015). Individuals that moved to the following breeding season were haphazardly selected.

‘Short-term control’ experiment

Request a detailed protocol

Our ‘long-term control’ and ‘stop-selection’ populations were initiated at different periods and with different population sizes. Thus, differences in the lab environment and initial conditions could have influenced the dynamics of these populations. For these reasons, we also initiated an additional 13 replicate populations at the same time and same initial population size as the ‘stop-selection’ populations. In these populations, we used the same protocol as in the ‘long-term control’, but initial population size (5 males and 5 females) and number of generations (n = 31) was the same as in the ‘stop-selection’ experiment.

Measuring viability selection on body size

Request a detailed protocol

We measured linear selection differentials (S) for female body weight (i.e. population mean dry

weight after – population mean dry weight before the non-breeding season) in all three experiments (‘long-term control’, ‘stop-selection’ and ‘short-term control’). We used female dry body weight as a proxy for body size. We experimentally confirmed that the mean body size declined along with mean dry weight in surviving females after the non-breeding season by placing individuals from the stock population in the non-breeding season in either high (n = 300) or low (n = 20) abundance. We measured the thorax size in 10 individual females sampled before the non-breeding season and 10 females sampled from the population after the non-breeding season. Mean thorax size after the non-breeding season was significantly lower than mean thorax size prior to the non-breeding season (Welch t-test: t = −2.87, df = 37.66, p=0.006), whereas there was no significant differences in average thorax in the low abundance treatment (Welch t-test: t = −0.55, df = 36.96, p=0.586; average size before = 1.318 mm; average size after the non-breeding season for the high abundance treatment was 1.225 and 1.297 mm for the low abundance treatment).

We obtained female dry weight from 5% of total population size before and after the non-breeding season. We then sexed, dried and weighed individual females to the nearest 0.001 mg using a microbalance. To calculate the linear selection differentials (S) for female body weight, we standardized dry weight measures to a mean of zero and unit variance prior to calculating selection (Brodie et al., 1995). The significance of our estimates of viability selection during the non-breeding season was assessed using a Welch t-test that tested for differences between mean female dry body weight before and after the non-breeding season. We then used a linear mixed effect model (LMM) to investigate whether S was density-dependent. In the LMM, the selection differential calculated for each population in each generation was the response variable, number of individuals at the beginning of the non-breeding season was fitted as a fixed effect and population was fitted as a random effect.

In the ‘long-term control’, we measured female dry weight in 38 generations from an arbitrary number of replicate populations (16 to 25 population per generation) in generations 9, 10, 15, 16, 21, 22, 25, 26, 28–58. Total number of individuals measured was 5258 before and 3620 after the non-breeding season. In the ‘stop-selection’ and ‘short-term control’, we sampled females in seven populations in generations 1 to 25 (n = 1591 females and n = 1979 females in the 'short-term control' and 'stop selection' treatments, respectively), with the exception of generation 13 in the 'short term control'.

Documenting multigenerational cycles

Request a detailed protocol

To investigate whether population size cycled in our experimental populations, we used the autocorrelation function method (Turchin and Taylor, 1992; Box et al., 2013). Cycles can be inferred by investigating the shape of the estimated ACF: population cycles are characterized by stationary periodic dynamics, which result in an oscillatory decay to zero of the ACF estimates. We calculated the ACF for each treatment using the mean population size across all replicates at the start of the breeding and non-breeding season in each generation. For all-time series, we excluded the first three generations to avoid any transient effects caused by the initial population size. We also detrended the time series to eliminate any overall temporal trends in abundance by subtracting the fitted values from a linear regression of average population size on generation (‘long-term control’: β = 0.468, s.e.=0.177, t = −2.65, p=0.011; ‘short-term control’: β = −1.855, s.e.=0.686, t = −2.71, p=0.01).

To investigate temporal changes in body size in the 'long-term control' and ‘stop-selection’ populations (measured as female dry weight), we used the same autocorrelation function method described above for the population size, including detrending the data.

Documenting delayed density dependence

Request a detailed protocol

We investigated the effects of past abundance on fecundity and survival with LMM with vial (population) as a random effect in all three experiments: ‘long-term control’ and ‘short-term control’ and ‘stop-selection’ treatment. In previous work, we have shown that fecundity in this system is influenced by an interaction between current abundance at the beginning of the breeding season and at the beginning of the previous non-breeding season (Betini et al., 2013a, 2013b). Thus, in this study, we also investigated if this interaction significantly explained variation in fecundity in all three experiments. Fecundity was calculated as the number of individuals at the end of the breeding season (i.e. number of offspring) divided by the number of individuals at the beginning of the same breeding season (number of parents). Because we did not know how environmental effects (e.g. physiological condition) could influence survival in our system, we incorporated the breeding and non-breeding abundance going back two generations as explanatory variables in the model to explain survival. Lag effects have been documented in natural populations subjected to strong seasonality (Merritt et al., 2001, 2001; Stenseth et al., 2003). Survival was calculated as the number of individuals at the end of the non-breeding season divided by the number of individuals at the beginning of the non-breeding season. Explanatory variables were standardized before analysis by subtracting the sample mean from each observation and dividing each value by the sample standard deviation and response variables were log transformed.

Mathematical model

Request a detailed protocol

We developed a mathematical model to investigate the contributions of both viability selection and delayed density dependence to population dynamics. The model linked quantitative trait evolution with demography and was similar to integral projection modelling approaches that are commonly used to study ecological and evolutionary processes concurrently (Slatkin, 1979, 1980; Ellner and Rees, 2006). In particular, the number of individuals with body size y at the next time step t + 1, n (y, t + 1), was a function of a projection function k (y) and n (y, t), such that n (y, t + 1) = k(y) * n (y, t). The projection function k (y) accounted for the additive genetic and environmental contributions to body size, as well as both density-independent and density-dependent differences in fecundity or survivourship among body sizes, depending on season.

Model description

Request a detailed protocol

Two population sizes were modeled in discrete time: population size at the beginning of the breeding season, and population size at the beginning of the non-breeding season within each generation. For each season, the mean breeding value for body size and the mean phenotypic value for body size were modelled, where the phenotypic value of an individual was its breeding value plus a random environmental effect. We assumed that breeding and phenotypic values were normally distributed and that the variance in breeding values and the variance in environmental effects remained constant across generations. The assumption of a constant variance in breeding values assumed that mutational variance and changes in genetic architecture (including linkage and epistatic interactions) could restore variance that was initially depleted by selection. Slatkin’s model provides for changes in the variance of breeding values due to selection and considers the effect of genetic architecture, such as linkage (Slatkin, 1979, 1980). In our experiment, we do not have information on the genetic architecture for body size, nor mutational variance. We did not see a decline in the magnitudes of the rates of change in body size in the experiment, which is consistent with the maintenance of heritability.

The fecundity of an individual during the breeding season was a function of its body size and current and past effects of density. Past density influenced fecundity via changes in the physiological conditions of individuals that spent the previous non-breeding season at high densities but survived to breed at low densities (i.e. a carry-over effect that was modelled as the interaction between density at the end of the breeding season in the previous generation and current breeding density (Betini et al., 2013a, 2014). Current density could also negatively influence fecundity via density-dependent effects. There was a stronger negative effect of density on fecundity for large versus small individuals, although large individuals have higher intrinsic fecundity (Figure 3 in the main text). During the 'stop selection' phase of the simulations, we decreased carry-over effects (parameters $φ_{5}$ and $φ_{6}$ ) by 25% given that flies had unlimited amount of food in the 'stop selection' treatments and were likely to be in better physiological condition than those in the 'short-term control' treatments. Parameters used in the fecundity function were chosen such that fecundities as a function of body size and densities were within the normal range observed in D. melanogaster.

The survival of an individual during the non-breeding season was also a function of its body size (when viability selection occurs) and current and past effects of density. As indicated by our previous experiment, larger flies had lower survival and this effect was magnified by increase density (Betini et al., 2014). We included the effects of past density beyond the ones described above, going back two generations. During the 'stop selection' phase of the simulations, survival was not a function of body size nor past density, but was instead only affected by current density, following the logistic equation Su for survivorship and the experimental design. To accomplish this and to ensure proper scaling of survival, we assigned all individuals the same phenotype in the survivorship function. Parameters for the survival function were based on values obtained in the long-term control (Figure 2a in the main text).

In the context of an individual's breeding and phenotypic values, an individual with breeding value x had an environmental effect y added with a mean effect that was a negative linear function of density and was normally distributed with variance V[e]. Consequently, each breeding value expressed a distribution of phenotypes as a function of the current environment.

In the context of survivorship, since each breeding value expressed a distribution of phenotypes, each breeding value expressed a distribution of survivorship and the model integrated across environmental effects to get the mean survivorship associated with a breeding value. This integration of survivorship across environmental effects gave the value of the projection function for a given breeding value. The projection function in the context of fecundity was modelled similarly; breeding values were transformed into phenotypes via a distribution of environmental effects, which when integrated gave the mean fecundity of individuals with a particular breeding value for body size.

Population size across seasons was the product of the current population size times the average fecundity (breeding season) or average survivorship (non breeding season) at the phenotypic level. Below is a list of variables, parameters and functions used in the model.

Variables

Request a detailed protocol

$X_{i}$ - population size at the beginning of the breeding season i generations ago

$Y_{i}$ - population size at the beginning of the non-breeding season i generations ago

$\bar{b_{X}}$ - mean breeding value for body size at the beginning of the breeding season

$\bar{b_{Y}}$ - mean breeding value for body size at the beginning of the non-breeding season

$\bar{p_{X}}$ - mean phenotype for body size at the beginning of the breeding season

$\bar{p_{Y}}$ - mean phenotype for body size at the beginning of the non-breeding season

$z$ - body size

Note, a generation consists of a breeding season and then a non-breeding season. At the beginning of the breeding season the mean breeding value $(\bar{b_{X}})$ is a function of densities in previous generations, such that i > 0.

Parameters

$V_{A} = 0.003$ - additive genetic variance for body size

$V_{E} = 0.007$ - environmental variance for body size

such that $h^{2} = 0.30$ (Prout and Barker, 1989)

Fecundity function:

f (z, \vec{X}, \vec{Y}) = (φ_{1} + {(φ_{2} z)}^{4}) e x p (- (φ_{3} + φ_{4} z^{4}) (X_{0} + φ_{5} Y_{1} + φ_{6} X_{0} Y_{1}))

Survival function:

s (z, \vec{X}, \vec{Y}) = \frac{1 - z (υ_{1} (X_{1} + Y_{1}) + υ_{2} (X_{2} + Y_{2}))}{1 + {(\frac{z (Y_{0} + {(υ_{3} Y_{0} z)}^{exp {(z)}^{υ_{4}}})}{υ_{6}})}^{υ_{5}}}

Integral projection model:

{\bar{b}}_{x} = \frac{\int_{z_{m i n}}^{z_{m a x}} \int_{z_{m i n} - x}^{z_{m a x} - x} x s (x + y, \vec{X}, \vec{Y}) N (x, {\bar{b}}_{Y}, V_{B}) + N (y, e_{X} (X_{1}), V_{E}) d y d x}{\int_{z_{m i n}}^{z_{m a x}} \int_{z_{m i n} - x}^{z_{m a x} - x} s (x + y, \vec{X}, \vec{Y}) N (x, {\bar{b}}_{Y}, V_{B}) + N (y, e_{X} (X_{1}), V_{E}) d y d x}

X_{0} = \frac{Y_{1} \int_{z_{m i n}}^{z_{m a x}} s (y, \vec{X}, \vec{Y}) N (y, {\bar{p}}_{Y}, V_{B} + V_{E}) d y}{\int_{z_{m i n}}^{z_{m a x}} N (y, {\bar{p}}_{Y}, V_{B} + V_{E}) d y}

{\bar{p}}_{x} = \frac{\int_{z_{m i n}}^{z_{m a x}} \int_{z_{m i n} - x}^{z_{m a x} - x} (x + y) N (x, {\bar{b}}_{Y}, V_{B}) N (y, e_{Y} (Y_{1}), V_{E}) d y d x}{\int_{z_{m i n}}^{z_{m a x}} \int_{z_{m i n} - x}^{z_{m a x} - x} N (x, {\bar{b}}_{X}, V_{B}) N (y, e_{Y} (Y_{1}), V_{E}) d y d x}

{\bar{b}}_{y} = \frac{\int_{z_{m i n}}^{z_{m a x}} \int_{z_{m i n} - x}^{z_{m a x} - x} x f (x + y, \vec{X}, \vec{Y}) N (x, {\bar{b}}_{X}, V_{B}) N (y, e_{Y} (Y_{1}), V_{E}) d y d x}{\int_{z_{m i n}}^{z_{m a x}} \int_{z_{m i n} - x}^{z_{m a x} - x} f (x + y, \vec{X}, \vec{Y}) N (x, {\bar{b}}_{X}, V_{B}) N (y, e_{Y} (Y_{1}), V_{E}) d y d x}

Y_{0} = \frac{X_{0} \int_{z_{m i n}}^{z_{m a x}} f (y, \vec{X}, \vec{Y}) N (y, {\bar{p}}_{X}, V_{B} + V_{E}) d y}{\int_{z_{m i n}}^{z_{m a x}} N (y, {\bar{p}}_{X}, V_{B} + V_{E}) d y}

{\bar{p}}_{y} = \frac{\int_{z_{m i n}}^{z_{m a x}} \int_{z_{m i n} - x}^{z_{m a x} - x} (x + y) N (x, {\bar{b}}_{Y}, V_{B}) N (y, e_{X} (X_{1}), V_{E}) d y d x}{\int_{z_{m i n}}^{z_{m a x}} \int_{z_{m i n} - x}^{z_{m a x} - x} N (x, {\bar{b}}_{Y}, V_{B}) N (y, e_{X} (X_{1}), V_{E}) d y d x}

In the equations above $N (z, m, v)$ is the probability density of a normally distributed random variable with a mean of m and variance v. Functions $e_{X} (N) = - λ_{X} N$ and $e_{Y} (N) = - λ_{Y} N$ give the average environmental effect on the phenotype.

Other parameters and their values

Request a detailed protocol

$φ_{1} = 1.5$ (intrinsic fecundity for small flies)

$φ_{2} = 2.8$ (rate of increase in fecundity with body size)

$φ_{3} = 0.00007$ (baseline rate of decline in fecundity with density for small flies)

$φ_{4} = 0.04588$ (rate of increase in the magnitude of the decline in fecundity as body size increases)

$φ_{5} = 1$ (constant characterizing the effects of population size at the end of the breeding season one generation ago; i.e. carry-over effects)

$φ_{6} = 0.001$ (constant characterizing the interaction between current population size and population size at the end of the breeding season one generation ago)

$υ_{1} = 0.005$ (rate of decline in survivorship due to population sizes one generation ago)

$υ_{2} = 0.0026$ (rate of decline in survivorship due to population sizes two generations ago)

$υ_{3} = 0.7$ (constant governing negative effect of the interaction between the current population size and body size)

$υ_{4} = 0.7$ (constant governing the shape of the negative effect of the interaction between current population size and body size on survivorship)

$υ_{5} = 6$ (a second constant governing the shape of the negative effect of the interaction between current population size and body size on survivorship)

$υ_{6} = 350$ (a third constant governing the shape of the negative effect of the interaction between current population size and body size on survivorship)

$λ_{X} = 0.00001$ (rate of decline in body size [with density], i.e. the environmental effect of density on body size due to density at the beginning of the breeding season)

$λ_{Y} = 0.00025$ (rate of decline in body size [with density], i.e. the environmental effect of density

on body size due to density at the beginning of the non-breeding season)

All LMM were performed using the lmer function from the lme4 package (Bates, 2010) and p-values were obtained using the lmerTest package (Kuznetsova et al., 2014). All analyses were conducted in R (R Core Team, 2015). Marginal (R²_LMM(m)) and conditional (R²_L<MM(c)) variance for the LMMs were calculated with MuMIn package according to (Nakagawa and Schielzeth, 2013). R²_LMM(m) is the variance on the response variable that is explained only by the fixed effects and R²_LMM(c) is the variance that is explained by both fixed and random effects (Nakagawa and Schielzeth, 2013).

Appendix 1

Experimental system

We used Drosophila melanogaster from an outbred population collected in Dahomey (now Benin) in 1970, which has since been maintained in cage culture at 25°C. To simulate seasonality in populations with non-overlapping generations, we changed food composition to create two distinct ‘seasons’. During the ‘breeding season’, flies were allowed to lay eggs for 24 hr (day 0) in a dead yeast–sugar medium (1000 ml H2O, 100 g sucrose, 50 g Fleischmann’s yeast, 16 g agar, 8 g C4H4KNaO6, 1 g KH2PO4, 0.5 g NaCl, 0.5 g MgCl2, 0.5 g CaCl2, 0.5 g Fe2(SO4)3), after which adults were discarded and larvae were allowed to mature to adults. During the breeding season, emerging offspring were moved from old to new vials containing fresh food on days 10, 12 and 14 to avoid high offspring mortality (Dey and Joshi, 2006). During this period, densities of offspring were not manipulated, that is, their densities were a function of the number of flies that emerged during the breeding season. Flies were marked with a fluorescent dust (as part of the protocol of another experiment) and let rest overnight in larger bottles (177.4 ml) with 20 ml of food so that they could easily remove the excess of dust. On day 17, flies were lightly anesthetized with CO₂, counted and placed into the non-breeding vials. The non-breeding season consisted of an empty vial of the same size as the breeding vials (28 × 95 mm) and a pipette tip filled with 0.200 ml of 5% water–sugar solution per day. This medium prevented females from producing eggs (Terashima et al., 2005) but also resulted in density-dependent mortality, as would be expected from wild populations (Betini et al., 2013a). Oviposition resumed within <12 hr when flies were placed back on a protein-rich food (Terashima et al., 2005). After 4 days in the non-breeding season, surviving flies were counted and the cycle was repeated. Note that since adults were removed after laying at the start of the breeding season, there were non-overlapping generations and each generation experienced only a single breeding and non-breeding season. We also randomly removed 5% of each population each time they were moved between seasons to mimic migratory mortality and dispersal. This procedure was repeated for 58 generations in each of 45 replicate populations. During all experiments, flies were kept at 25°C, 12 hr light/dark cycles and humidity was between 30% to 50%.

As in many other animals, body size was positively related to fecundity in our experimental system according to a linear mixed effect model with per capita breeding output as the response variable, female dry weight as a explanatory variable (average for each replicate, over all 38 generations) and population as a random effects (Appendix 1—figure 1 and Appendix 1—table 1).

Appendix 1—figure 1

Download asset Open asset

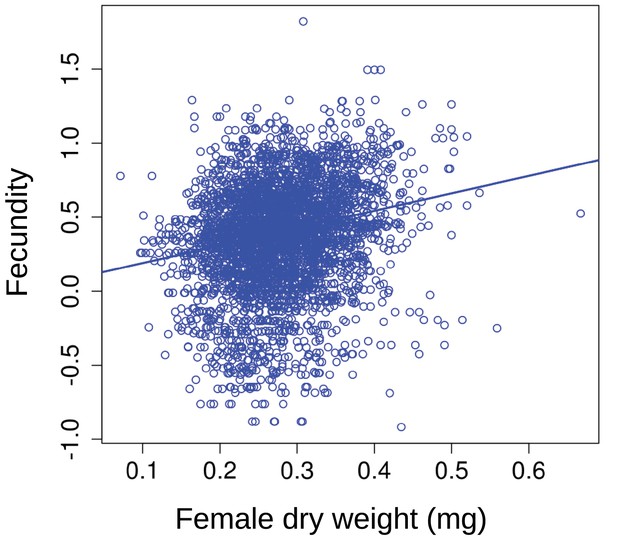

Fecundity as a function of average female dry weight at the beginning of the breeding season.

Larger individuals tend to have higher fecundity. The solid line represents the linear mixed effect model line for female dry weight (Appendix 1—table 1).

https://doi.org/10.7554/eLife.18770.012

Appendix 1—table 1

Parameter estimates obtained from a linear mixed effect model with fecundity as a response variable and average female dry weight at the beginning of the breeding season as explanatory variable. R²_LMM(m)=0.04 and R²_LMM(c)=0.14.

https://doi.org/10.7554/eLife.18770.013

Parameters		SE	df	t	p
	Fixed effects estimate
Intercept	0.072	0.043	260	1.69	0.101
Female dry weight	1.178	0.092	3601	12.82	<0.001
	Random effect variance
Population	0.015
Residual	0.125

Appendix 2

Multigenerational cycles

To understand the overall effect of seasonality on changes in population size over time, we compared the time series generated by our 'long-term control' with another treatment where 30 replicate populations of flies were maintained in breeding vials (28 × 95 mm) with standard medium across 30 generations. These populations lacked a non-breeding period, so we refer to these as the 'aseasonal' populations (Appendix 2—figure 1a,b). In these populations, all offspring were moved to a new fresh vials with breeding medium on day 16.

To investigate whether population size cycled in the ‘aseasonal’ treatment, we used the same autocorrelation function method described in the main text, after detrending the data ('aseasonal': β = 0.403, s.e.=0.579, t = 0.69, p=0.49; Appendix 2—figure 1).

Appendix 2—figure 1

Download asset Open asset

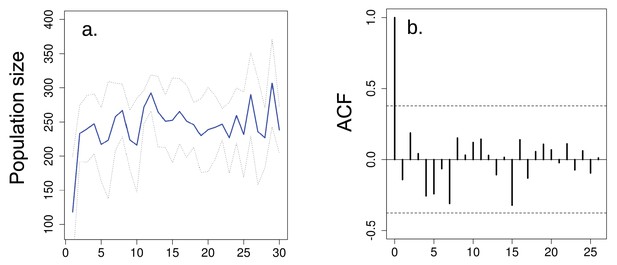

Overall effect of seasonality in multigenerational cycles.

(a) Population size of ‘aseasonal’ populations over 30 generations do not present evidence of multigenerational cycles according to the (b) autocorrelation plots. In a solid blue line denotes mean population size for each generation from all replicates and dotted lines denote ±1 s.d.

https://doi.org/10.7554/eLife.18770.014

Appendix 3

Viability selection

We found that viability selection on body size (S) became more negative (i.e. stronger selection for reduce size) with increasing non-breeding density (Figure 2c in the main text; Appendix 3—table 1) and this was driven by changes in mean dry weight after the non-breeding season rather than changes in the mean dry weight before the non-breeding season (Appendix 3—table 1; Appendix 3—figure 1).

Appendix 3—table 1

Parameter estimates obtained from a linear mixed effect models to investigate variation in female dry weight as a function of the interaction between density at the beginning of the non-breeding season and whether weight was measured before or after the non-breeding season. Status refers to a dummy variable indicating the time when body size was measured (before or after the non-breeding season). Reference value was after the non-breeding season. Marginal (only taking account the fixed effects) and conditional (taking into account both fixed and random effects) coefficient of determination were R²_LMM(m)=0.42 and R²_LMM(c)=0.50, respectively. In all models, population and generation were entered as random effects.

https://doi.org/10.7554/eLife.18770.015

Parameters		SE	dfDf	tT	pP
	Fixed effects estimate
Intercept	0.680	0.06	266	10.31	<0.001
Non-breeding density	0.005	0.0002	900	−29.38	<0.001
Status Before	0.430	0.009	896	7.55	<0.001
Non-breeding density:Status	0.003	0.0001	892	14.11	<0.001
	Random effect variance	SD
Generation	0.045	0.212
Population	0.037	0.193
Residual	0.474	0.688

Appendix 3—figure 1

Download asset Open asset

The strength of selection on body weight in seasonal environments.

As non-breeding density increased, the magnitude of directional selection for reduced dry weight also increased (Figure 2c in the main text). This relationship was driven by changes in the weight after (red points) rather than before (blue points) the non-breeding season. Solid lines indicate the linear mixed effect model line for non-breeding density before (blue line) and after (red line) the non-breeding season.

https://doi.org/10.7554/eLife.18770.016

References

1. Barton NH
2. Keightley PD
(2002) Understanding quantitative genetic variation
Nature Reviews Genetics 3:11–21.
https://doi.org/10.1038/nrg700
- PubMed
- Google Scholar
Book
1. Bates DM
(2010)
Lme4: Mixed-Effects Modeling with R

New York, USA: Springer.
- Google Scholar
(2012) The functional genomics of an eco-evolutionary feedback loop: linking gene expression, trait evolution, and community dynamics
Ecology Letters 15:492–501.
https://doi.org/10.1111/j.1461-0248.2012.01763.x
- PubMed
- Google Scholar
(2015) Seasonal variation in life history traits in two Drosophila species
Journal of Evolutionary Biology 28:1691–1704.
https://doi.org/10.1111/jeb.12690
- PubMed
- Google Scholar
1. Bell G
(2010) Fluctuating selection: the perpetual renewal of adaptation in variable environments
Philosophical Transactions of the Royal Society B: Biological Sciences 365:87–97.
https://doi.org/10.1098/rstb.2009.0150
- PubMed
- Google Scholar
1. Bell G
(2013) Evolutionary rescue and the limits of adaptation
Philosophical Transactions of the Royal Society B: Biological Sciences 368:20120080.
https://doi.org/10.1098/rstb.2012.0080
- Google Scholar
(2014) Genomic evidence of rapid and stable adaptive oscillations over seasonal time scales in Drosophila
PLoS Genetics 10:e1004775.
https://doi.org/10.1371/journal.pgen.1004775
- PubMed
- Google Scholar
(2015) Experimental evidence for the effect of habitat loss on the dynamics of migratory networks
Ecology Letters 18:526–534.
https://doi.org/10.1111/ele.12432
- PubMed
- Google Scholar
(2013a) Carry-over effects, sequential density dependence and the dynamics of populations in a seasonal environment
Proceedings of the Royal Society B: Biological Sciences 280:20130110.
https://doi.org/10.1098/rspb.2013.0110
- Google Scholar
(2013b) Density-mediated carry-over effects explain variation in breeding output across time in a seasonal population
Biology Letters 9:20130582.
https://doi.org/10.1098/rsbl.2013.0582
- PubMed
- Google Scholar
(2014) Body size, carry-over effects and survival in a seasonal environment: consequences for population dynamics
Journal of Animal Ecology 83:1313–1321.
https://doi.org/10.1111/1365-2656.12225
- PubMed
- Google Scholar
1. Bownes M
2. Blair M
(1986) The effects of a sugar diet and hormones on the expression of the Drosophila yolk-protein genes
Journal of Insect Physiology 32:493–501.
https://doi.org/10.1016/0022-1910(86)90011-9
- Google Scholar
Book
(2013)
Time Series Analysis: Forecasting and Control

John Wiley & Sons, Inc.
- Google Scholar
1. Bradshaw WE
2. Holzapfel CM
(2006) Evolutionary response to rapid climate change
Science 312:1477–1478.
https://doi.org/10.1126/science.1127000
- Google Scholar
(1995) Visualizing and quantifying natural selection
Trends in Ecology & Evolution 10:313–318.
https://doi.org/10.1016/S0169-5347(00)89117-X
- PubMed
- Google Scholar
(2013) Eco-evolutionary dynamics in response to selection on life-history
Ecology Letters 16:754–763.
https://doi.org/10.1111/ele.12107
- PubMed
- Google Scholar
(2014) Evolutionary rescue in a changing world
Trends in Ecology & Evolution 29:521–530.
https://doi.org/10.1016/j.tree.2014.06.005
- PubMed
- Google Scholar
1. Chitty D
(1960) Population processes in the vole and their relevance to general theory
Canadian Journal of Zoology 38:99–113.
https://doi.org/10.1139/z60-011
- Google Scholar
Book
1. Darwin C
(1859)
On the Origin of Species

London: Murray.
- Google Scholar
1. Dey S
2. Joshi A
(2006) Stability via asynchrony in Drosophila metapopulations with low migration rates
Science 312:434–436.
https://doi.org/10.1126/science.1125317
- PubMed
- Google Scholar
1. Ellner SP
2. Rees M
(2006) Integral projection models for species with complex demography
The American Naturalist 167:410–428.
https://doi.org/10.1086/499438
- PubMed
- Google Scholar
1. Elton C
2. Nicholson M
(1942) The Ten-Year cycle in numbers of the Lynx in Canada
The Journal of Animal Ecology 11:215–244.
https://doi.org/10.2307/1358
- Google Scholar
1. Emlen DJ
(2001) Costs and the diversification of exaggerated animal structures
Science 291:1534–1536.
https://doi.org/10.1126/science.1056607
- PubMed
- Google Scholar
Book
1. Fretwell SD
(1972)
Populations in a Seasonal Environment

Princeton: Princeton University Press.
- Google Scholar
1. Garland T
(2014) Trade-offs
Current Biology 24:R60–R61.
https://doi.org/10.1016/j.cub.2013.11.036
- PubMed
- Google Scholar
1. Grafen A
(1988)
Reproductive Success

454–471, On the uses of data on lifetime reproductive success, Reproductive Success, Chicago, University of Chicago Press.
- Google Scholar
1. Hairston NG
2. Ellner SP
3. Geber MA
4. Yoshida T
5. Fox JA
(2005) Rapid evolution and the convergence of ecological and evolutionary time
Ecology Letters 8:1114–1127.
https://doi.org/10.1111/j.1461-0248.2005.00812.x
- Google Scholar
1. Hendry AP
(2013) Key questions in the genetics and genomics of eco-evolutionary dynamics
Heredity 111:456–466.
https://doi.org/10.1038/hdy.2013.75
- PubMed
- Google Scholar
(2014) A newly discovered role of evolution in previously published consumer-resource dynamics
Ecology Letters 17:915–923.
https://doi.org/10.1111/ele.12291
- PubMed
- Google Scholar
(2016) Does genetic variation maintained by environmental heterogeneity facilitate adaptation to novel selection?
The American Naturalist 188:27–37.
https://doi.org/10.1086/686889
- PubMed
- Google Scholar
1. Kendall BE
2. Briggs CJ
3. Murdoch WW
4. Turchin P
5. Ellner SP
6. McCauley E
7. Nisbet RM
8. Wood SN
(1999) Why do populations cycle? a synthesis of statistical and mechanistic modeling approaches
Ecology 80:1789–1805.
https://doi.org/10.1890/0012-9658(1999)080[1789:WDPCAS]2.0.CO;2
- Google Scholar
1. Kingsolver JG
2. Diamond SE
(2011) Phenotypic selection in natural populations: what limits directional selection?
The American Naturalist 177:346–357.
https://doi.org/10.1086/658341
- PubMed
- Google Scholar
1. Kingsolver JG
2. Huey RB
(2008)
Size, temperature, and fitness: three rules

Evolutionary Ecology Research 10:251–268.
- Google Scholar
1. Krebs CJ
(1978) A review of the chitty hypothesis of population regulation
Canadian Journal of Zoology 56:2463–2480.
https://doi.org/10.1139/z78-335
- Google Scholar
(2014) lmerTest: Tests in Linear Mixed Effects Models
lmerTest: Tests in Linear Mixed Effects Models, R package version 2.0-20, http://CRAN.R-project.org/package=lmerTest.

http://CRAN.R-project.org/package=lmerTest
- Google Scholar
1. Lack D
(1947) The significance of Clutch-size
Ibis 89:302–352.
https://doi.org/10.1111/j.1474-919X.1947.tb04155.x
- Google Scholar
Book
1. Lack DL
(1954)
The Natural Regulation of Animal Numbers

London: Oxford University Press.
- Google Scholar
Book
1. Levins R
(1968)
Evolution in Changing Environments: Some Theoretical Explorations

Princeton: Princeton University Press.
- Google Scholar
1. Lindström J
2. Ranta E
3. Kokko H
4. Lundberg P
5. Kaitala V
(2001) From arctic lemmings to adaptive dynamics: charles Elton's legacy in population ecology
Biological Reviews of the Cambridge Philosophical Society 76:129–158.
https://doi.org/10.1017/S1464793100005637
- PubMed
- Google Scholar
(2008) Small-amplitude cycles emerge from stage-structured interactions in Daphnia-algal systems
Nature 455:1240–1243.
https://doi.org/10.1038/nature07220
- PubMed
- Google Scholar
(2001) Seasonal regulation in fluctuating small mammal populations: feedback structure and climate
Oikos 94:505–514.
https://doi.org/10.1034/j.1600-0706.2001.940312.x
- Google Scholar
1. Michod RE
(2006) The group covariance effect and fitness trade-offs during evolutionary transitions in individuality
PNAS 103:9113–9117.
https://doi.org/10.1073/pnas.0601080103
- PubMed
- Google Scholar
1. Monaghan P
(2008) Early growth conditions, phenotypic development and environmental change
Philosophical Transactions of the Royal Society B: Biological Sciences 363:1635–1645.
https://doi.org/10.1098/rstb.2007.0011
- Google Scholar
Book
1. Mueller LD
2. Joshi A
(2000)
Stability in Model Populations

Princeton, NJ, USA: Princeton University Press.
- Google Scholar
1. Mueller LD
(1997) Theoretical and empirical examination of density-dependent selection
Annual Review of Ecology and Systematics 28:269–288.
https://doi.org/10.1146/annurev.ecolsys.28.1.269
- Google Scholar
(2003) Quantifying natural selection on body size from field data: winter mortality in menidia menidia
Ecology 84:2168–2177.
https://doi.org/10.1890/02-0137
- Google Scholar
1. Nakagawa S
2. Schielzeth H
(2013) A general and simple method for obtaining R2 from generalized linear mixed-effects models
Methods in Ecology and Evolution 4:133–142.
https://doi.org/10.1111/j.2041-210x.2012.00261.x
- Google Scholar
(2014) Linking body mass and group dynamics in an obligate cooperative breeder
Journal of Animal Ecology 83:1357–1366.
https://doi.org/10.1111/1365-2656.12239
- PubMed
- Google Scholar
1. Ozgul A
2. Childs DZ
3. Oli MK
4. Armitage KB
5. Blumstein DT
6. Olson LE
7. Tuljapurkar S
8. Coulson T
(2010) Coupled dynamics of body mass and population growth in response to environmental change
Nature 466:482–485.
https://doi.org/10.1038/nature09210
- PubMed
- Google Scholar
(2009) Eco-evolutionary dynamics
Philosophical Transactions of the Royal Society B: Biological Sciences 364:1483–1489.
https://doi.org/10.1098/rstb.2009.0027
- Google Scholar
1. Plaistow SJ
2. Benton TG
(2009) The influence of context-dependent maternal effects on population dynamics: an experimental test
Philosophical Transactions of the Royal Society B: Biological Sciences 364:1049–1058.
https://doi.org/10.1098/rstb.2008.0251
- Google Scholar
1. Prout T
2. Barker JS
(1989)
Ecological aspects of the heritability of body size in Drosophila buzzatii

Genetics 123:803–813.
- PubMed
- Google Scholar
Software
1. R Core Team
(2015)
R: A Language and Environment for Statistical Computing

R Foundation for Statistical Computing, Vienna, Austria.
(2008) When density dependence is not instantaneous: theoretical developments and management implications
Ecology Letters 11:184–198.
https://doi.org/10.1111/j.1461-0248.2007.01122.x
- PubMed
- Google Scholar
(2000) Big houses, big cars, superfleas and the costs of reproduction
Trends in Ecology & Evolution 15:421–425.
https://doi.org/10.1016/S0169-5347(00)01941-8
- PubMed
- Google Scholar
Book
1. Roff DA
(1992)
Evolution of Life Histories: Theory and Analysis

Springer-Verlag, USA: Springer.
- Google Scholar
(1991) Conflicting selection pressures and life history Trade-Offs
Proceedings of the Royal Society B: Biological Sciences 246:11–17.
https://doi.org/10.1098/rspb.1991.0118
- Google Scholar
1. Schmidt PS
2. Conde DR
(2006) Environmental heterogeneity and the maintenance of genetic variation for reproductive diapause in Drosophila Melanogaster
Evolution 60:1602–1611.
https://doi.org/10.1554/05-430.1
- Google Scholar
(2005) Genetic variance for diapause expression and associated life histories in Drosophila Melanogaster
Evolution 59:2616–2625.
https://doi.org/10.1111/j.0014-3820.2005.tb00974.x
- Google Scholar
1. Schmidt PS
2. Paaby AB
(2008) Reproductive diapause and life-history clines in north american populations of Drosophila Melanogaster
Evolution 62:1204–1215.
https://doi.org/10.1111/j.1558-5646.2008.00351.x
- Google Scholar
1. Schoener TW
(2011) The newest synthesis: understanding the interplay of evolutionary and ecological dynamics
Science 331:426–429.
https://doi.org/10.1126/science.1193954
- PubMed
- Google Scholar
1. Schulte-Hostedde AI
2. Millar JS
(2004) Intraspecific variation of testis size and sperm length in the yellow-pine chipmunk (Tamias amoenus): implications for sperm competition and reproductive success
Behavioral Ecology and Sociobiology 55:272–277.
https://doi.org/10.1007/s00265-003-0707-z
- Google Scholar
1. Shaw RG
2. Shaw FH
(2014) Quantitative genetic study of the adaptive process
Heredity 112:13–20.
https://doi.org/10.1038/hdy.2013.42
- PubMed
- Google Scholar
(2000) Density cycles and an offspring quantity and quality game driven by natural selection
Nature 406:985–988.
https://doi.org/10.1038/35023149
- PubMed
- Google Scholar
1. Slatkin M
(1979) The evolutionary response to frequency- and density-dependent interactions
The American Naturalist 114:384–398.
https://doi.org/10.1086/283487
- Google Scholar
1. Slatkin M
(1980) Ecological character displacement
Ecology 61:163–177.
https://doi.org/10.2307/1937166
- Google Scholar
Book
1. Stearns SC
(1992)
The Evolution of Life Histories

Oxford: Oxford University Press.
- Google Scholar
(2003) Seasonality, density dependence, and population cycles in hokkaido voles
PNAS 100:11478–11483.
https://doi.org/10.1073/pnas.1935306100
- PubMed
- Google Scholar
1. Stockhoff BA
(1991) Starvation resistance of gypsy moth, Lymantria dispar (L.) (Lepidoptera: lymantriidae): tradeoffs among growth, body size, and survival
Oecologia 88:422–429.
https://doi.org/10.1007/BF00317588
- Google Scholar
(2005) Nutritional status affects 20-hydroxyecdysone concentration and progression of oogenesis in Drosophila Melanogaster
Journal of Endocrinology 187:69–79.
https://doi.org/10.1677/joe.1.06220
- PubMed
- Google Scholar
Book
1. Thompson JN
(2013)
Relentless Evolution

University of Chicago Press.
- Google Scholar
1. Travis J
2. Leips J
3. Rodd FH
(2013) Evolution in population parameters: density-dependent selection or density-dependent fitness?
The American Naturalist 181 Suppl 1:S9–S20.
https://doi.org/10.1086/669970
- PubMed
- Google Scholar
1. Turchin P
2. Taylor AD
(1992) Complex dynamics in ecological time series
Ecology 73:289–305.
https://doi.org/10.2307/1938740
- Google Scholar
1. Wilson DL
(1994) The analysis of survival (mortality) data: fitting gompertz, Weibull, and logistic functions
Mechanisms of Ageing and Development 74:15–33.
https://doi.org/10.1016/0047-6374(94)90095-7
- PubMed
- Google Scholar
1. Yan C
2. Stenseth NC
3. Krebs CJ
4. Zhang Z
(2013) Linking climate change to population cycles of hares and Lynx
Global Change Biology 19:3263–3271.
https://doi.org/10.1111/gcb.12321
- PubMed
- Google Scholar
(2003) Rapid evolution drives ecological dynamics in a predator-prey system
Nature 424:303–306.
https://doi.org/10.1038/nature01767
- PubMed
- Google Scholar

Article and author information

Author details

Gustavo S Betini

Department of Integrative Biology, University of Guelph, Guelph, Canada

Contribution
GSB, Conceptualization, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing

For correspondence
gsbetini@gmail.com

Competing interests
The authors declare that no competing interests exist.

"This ORCID iD identifies the author of this article:" 0000-0003-0707-4128
Andrew G McAdam

Department of Integrative Biology, University of Guelph, Guelph, Canada

Contribution
AGM, Conceptualization, Supervision, Funding acquisition, Writing—original draft, Writing—review and editing

Competing interests
The authors declare that no competing interests exist.

"This ORCID iD identifies the author of this article:" 0000-0001-7323-2572
Cortland K Griswold

Department of Integrative Biology, University of Guelph, Guelph, Canada

Contribution
CKG, Conceptualization, Formal analysis, Supervision, Funding acquisition, Writing—original draft, Writing—review and editing

Competing interests
The authors declare that no competing interests exist.
D Ryan Norris

Department of Integrative Biology, University of Guelph, Guelph, Canada

Contribution
DRN, Conceptualization, Resources, Supervision, Funding acquisition, Writing—original draft, Writing—review and editing

Competing interests
The authors declare that no competing interests exist.

"This ORCID iD identifies the author of this article:" 0000-0003-4874-1425

Funding

Ontario Graduate Scholarship

Gustavo S Betini

Natural Sciences and Engineering Research Council of Canada

Andrew G McAdam
Cortland K Griswold
D Ryan Norris

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank E Hentsch, RJ Kilgour, RS Cruz and AN Pessoa for assistance in the lab and three anonymous reviewers for helpful suggestions. The research was supported by NSERC Discovery grants to DRN, CKG, AGM, a University Research Chair from the University of Guelph and an Early Researcher Award to DRN and an Ontario Graduate Scholarship to GSB.

Version history

Received: June 13, 2016
Accepted: February 6, 2017
Accepted Manuscript published: February 6, 2017 (version 1)
Accepted Manuscript updated: February 7, 2017 (version 2)
Version of Record published: March 7, 2017 (version 3)

Copyright

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

1,316

views
265

downloads
7

citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Article PDF

Open citations (links to open the citations from this article in various online reference manager services)

Mendeley

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

Gustavo S Betini
Andrew G McAdam
Cortland K Griswold
D Ryan Norris

(2017)

A fitness trade-off between seasons causes multigenerational cycles in phenotype and population size

eLife 6:e18770.

https://doi.org/10.7554/eLife.18770

Categories and tags

Research organism

D. melanogaster

Share this article

Cite this article

A schematic of the three experiments conducted in this study with accompanying duration, number of replicates and brief summary of their purpose.

Population size, changes in body size and selection differentials for body size in the 'long-term control' experiment.

Population size, changes in body size and selection differential for body size in the 'stop-selection' experiment.

Population size, changes in body size and selection differentials for body size in the 'short-term control' experiment.

Predicted population size according to the integral projection model.

The relationship between survival and population size at the beginning of the non-breeding season.

Fecundity as a function of average female dry weight at the beginning of the breeding season.

Overall effect of seasonality in multigenerational cycles.

The strength of selection on body weight in seasonal environments.

Author details

Gustavo S Betini

Contribution

For correspondence

Competing interests

Andrew G McAdam

Contribution

Competing interests

Cortland K Griswold

Contribution

Competing interests

D Ryan Norris

Contribution

Competing interests

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

Categories and tags

Research organism

Further reading
